Low Fidelity Prototype

Low Fidelity Prototype

• 1.

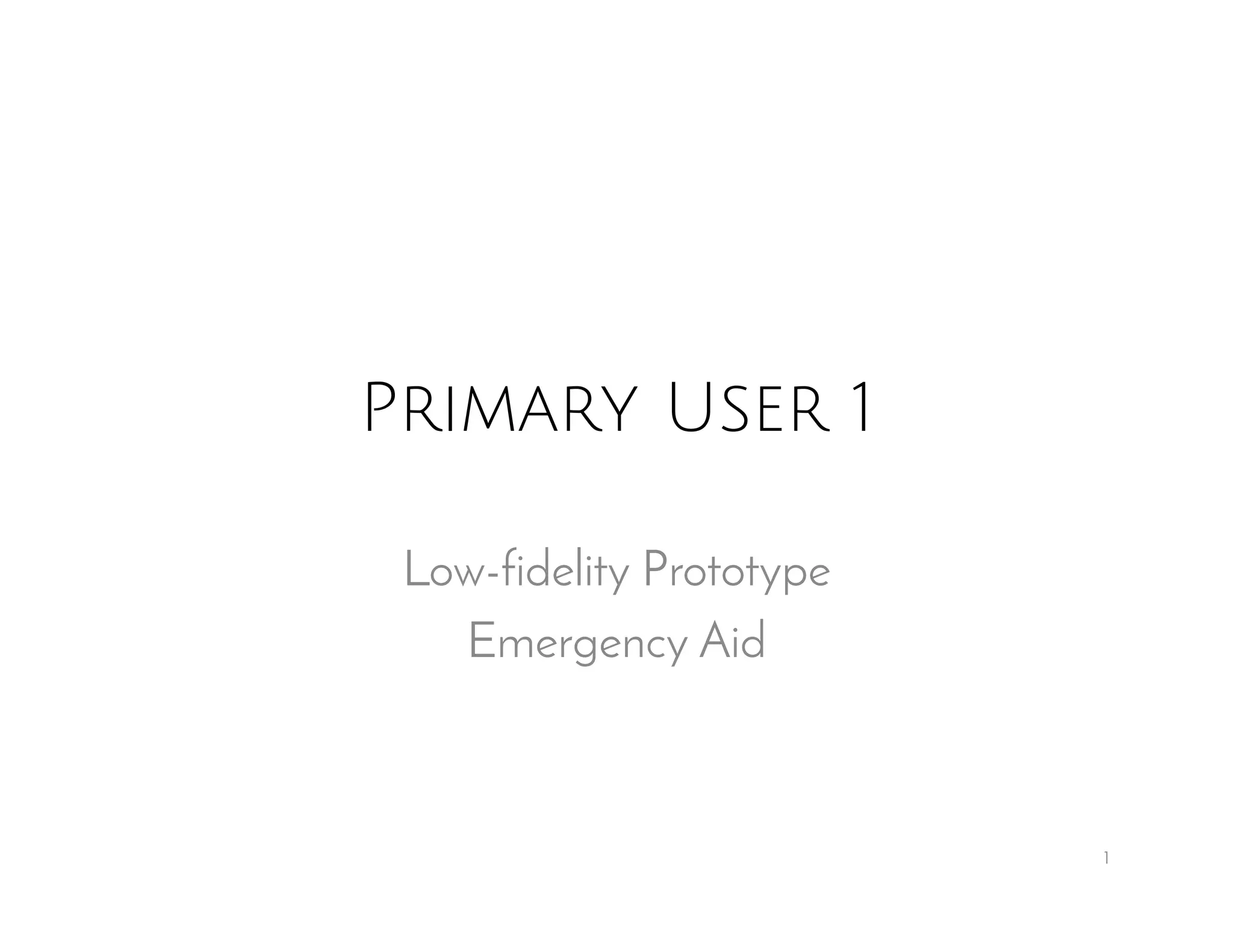

  Primary User 1 Low-fidelityPrototype Emergency Aid 1
• 2.

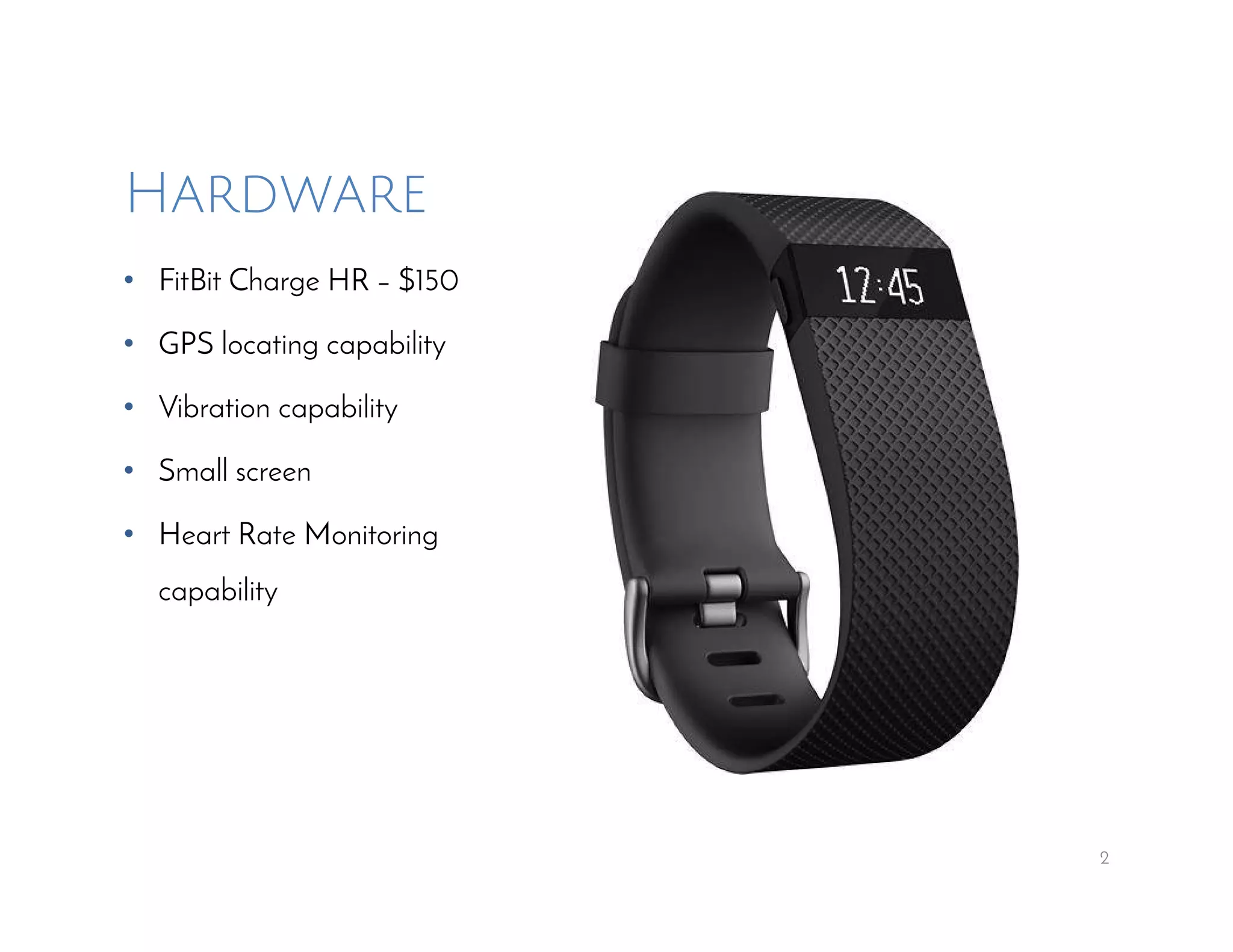

  Hardware • FitBit ChargeHR – $150 • GPS locating capability • Vibration capability • Small screen • Heart Rate Monitoring capability 2
• 3.

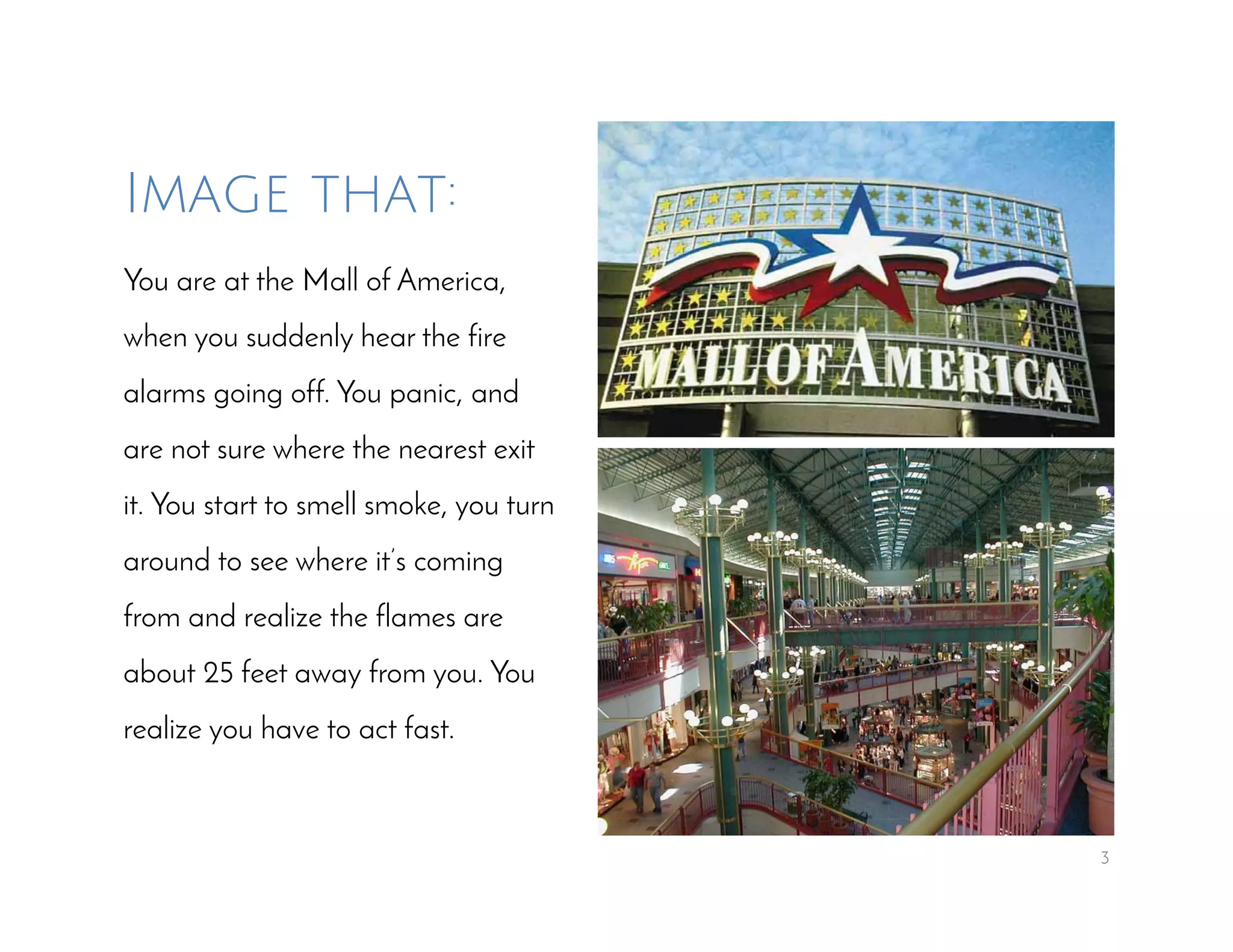

  3 Image that: You areat the Mall of America, when you suddenly hear the fire alarms going off. You panic, and are not sure where the nearest exit it. You start to smell smoke, you turn around to see where it’s coming from and realize the flames are about 25 feet away from you. You realize you have to act fast.
• 4.
  4 In a caselike this: Would you like to use a device that can determine your location within the mall and direct you to the nearest exit?
• 5.

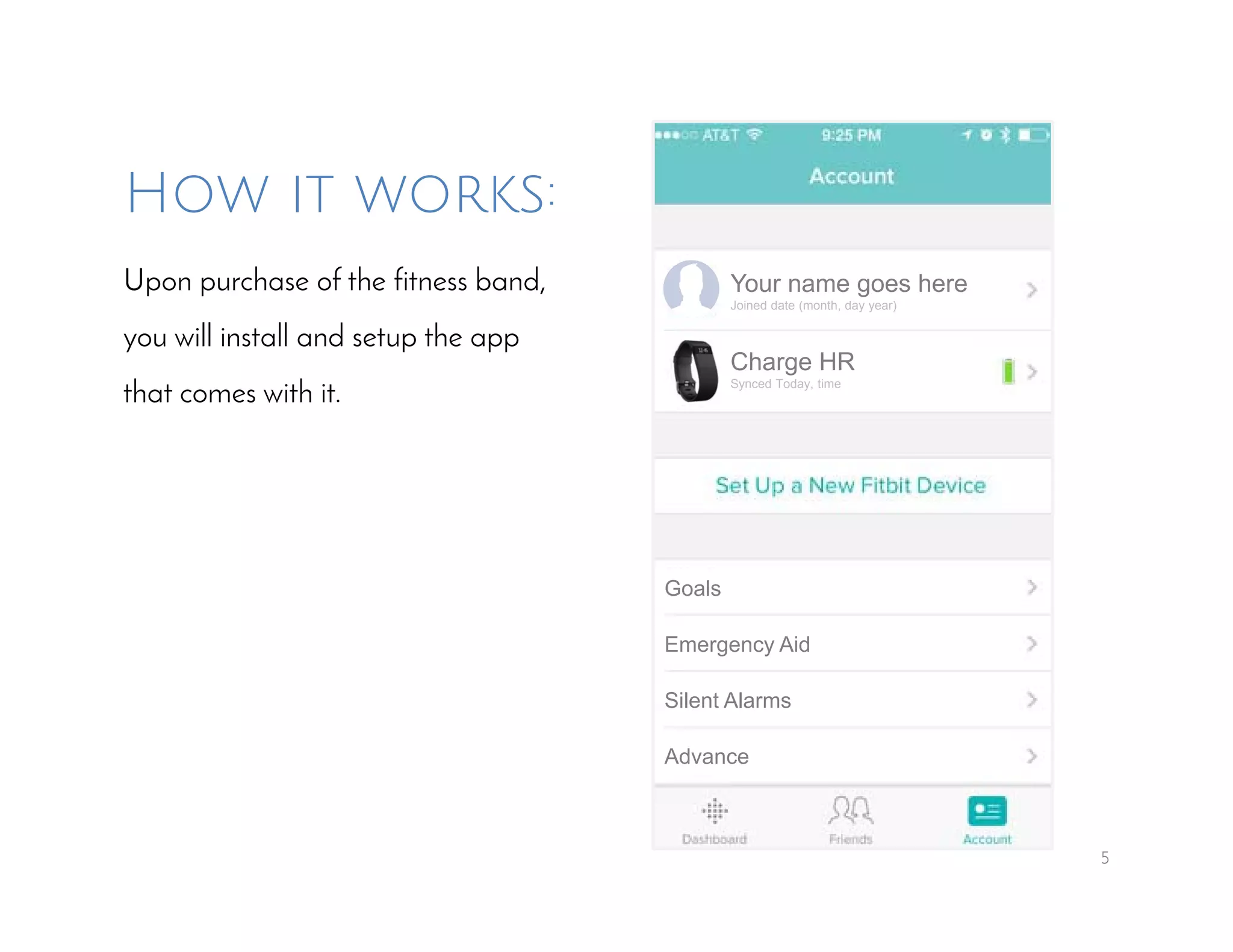

  5 How it works: Uponpurchase of the fitness band, you will install and setup the app that comes with it. Your name goes here Joined date (month, day year) Charge HR Synced Today, time Emergency Aid Goals Silent Alarms Advance
• 6.

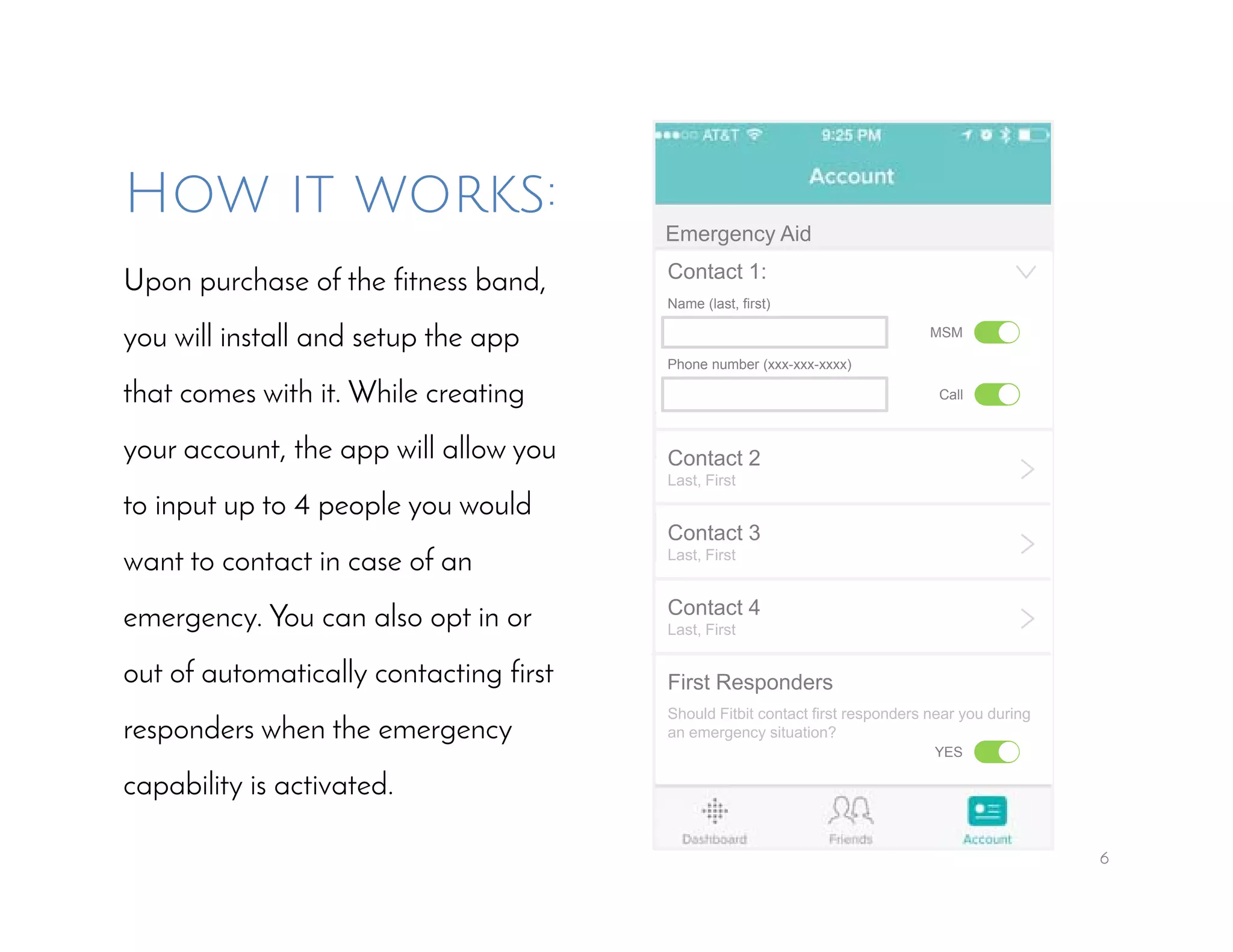

  6 How it works: Uponpurchase of the fitness band, you will install and setup the app that comes with it. While creating your account, the app will allow you to input up to 4 people you would want to contact in case of an emergency. You can also opt in or out of automatically contacting first responders when the emergency capability is activated. Emergency Aid Contact 1: Name (last, first) Phone number (xxx-xxx-xxxx) MSM Call Contact 2 Last, First Contact 3 Last, First > > Contact 4 Last, First > First Responders Should Fitbit contact first responders near you during an emergency situation? YES >
• 7.

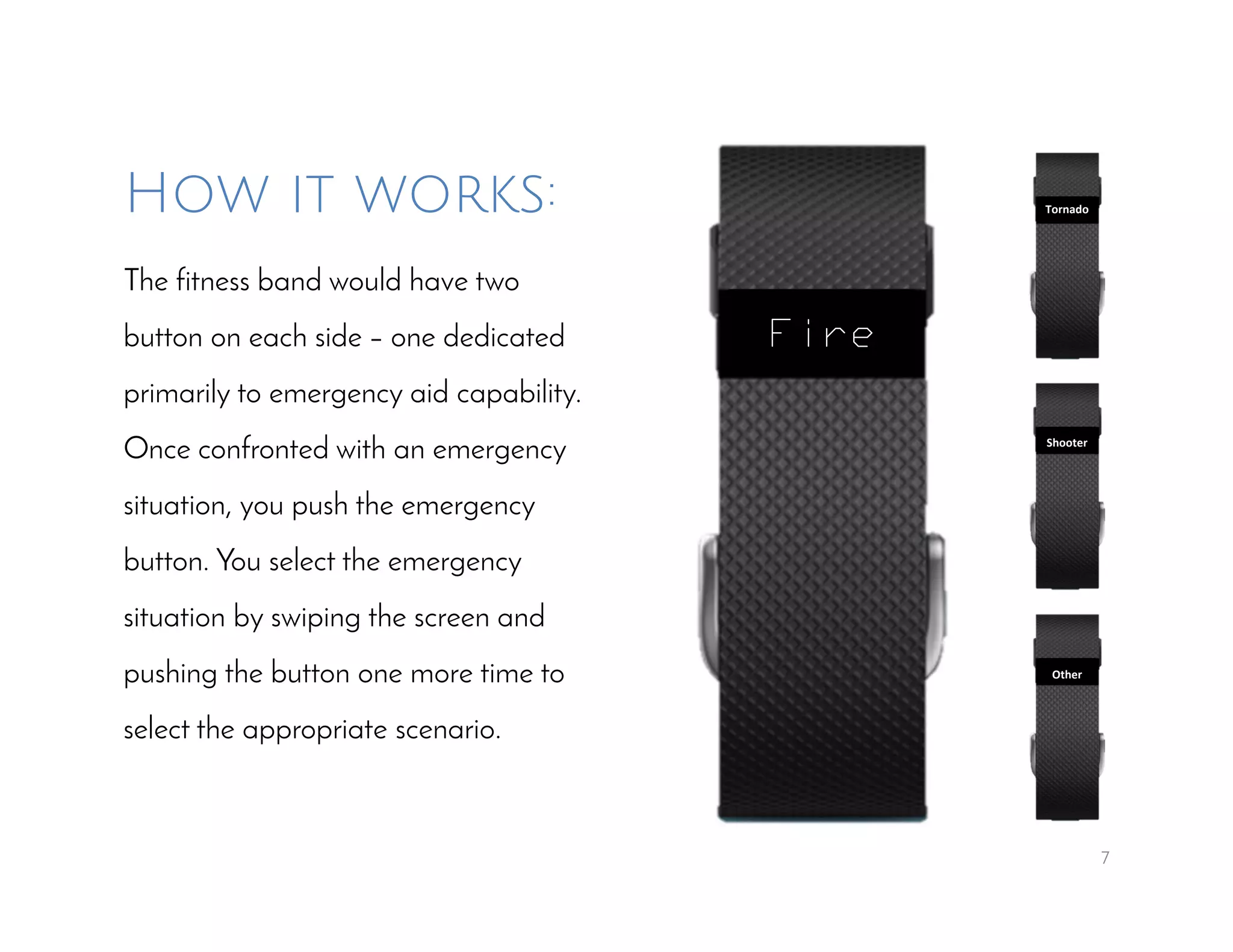

  7 How it works: Thefitness band would have two button on each side – one dedicated primarily to emergency aid capability. Once confronted with an emergency situation, you push the emergency button. You select the emergency situation by swiping the screen and pushing the button one more time to select the appropriate scenario. Fire Tornado Shooter Other
• 8.

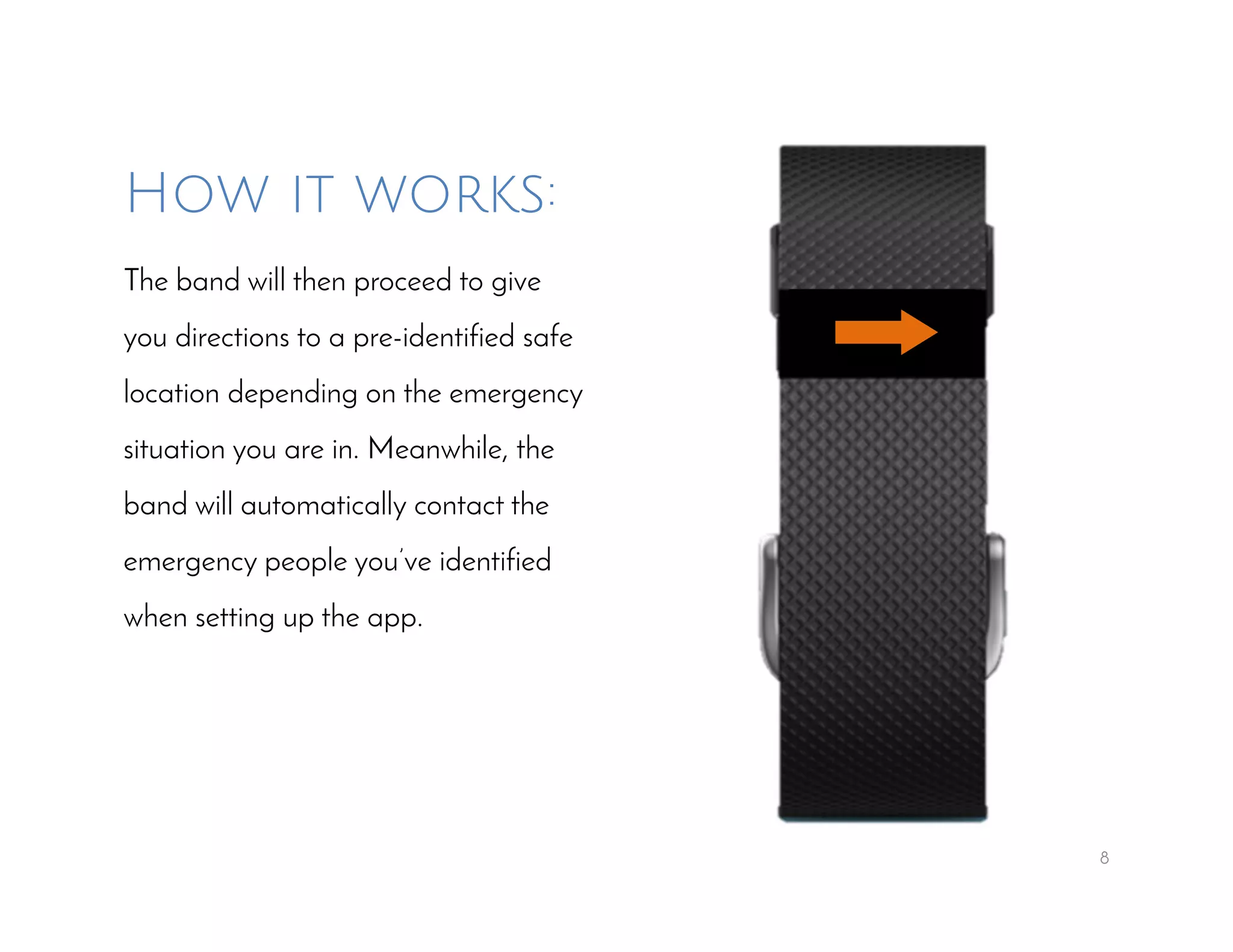

  8 How it works: Theband will then proceed to give you directions to a pre-identified safe location depending on the emergency situation you are in. Meanwhile, the band will automatically contact the emergency people you’ve identified when setting up the app.
• 9.

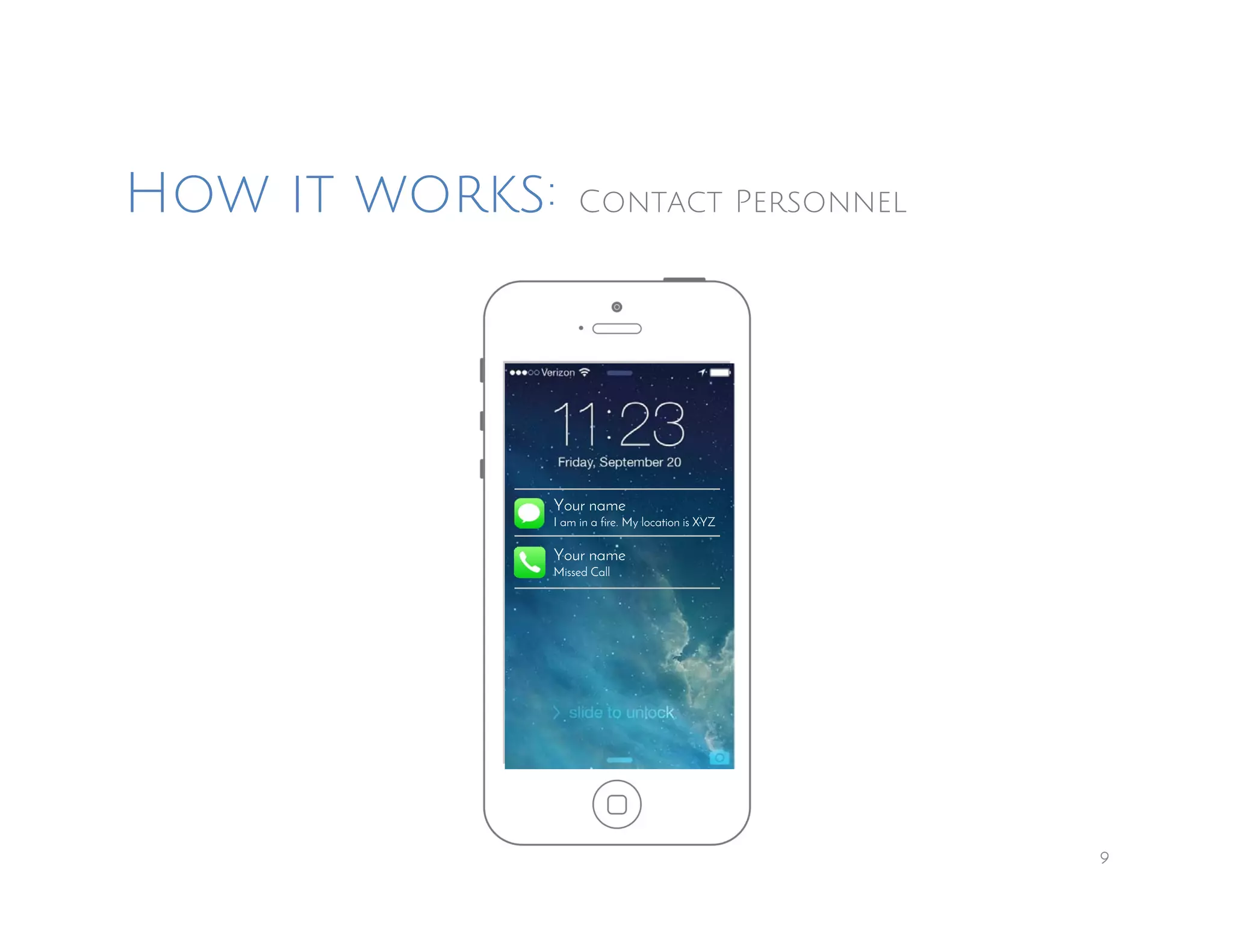

  9 How it works:Contact Personnel Your name I am in a fire. My location is XYZ Your name Missed Call
• 10.

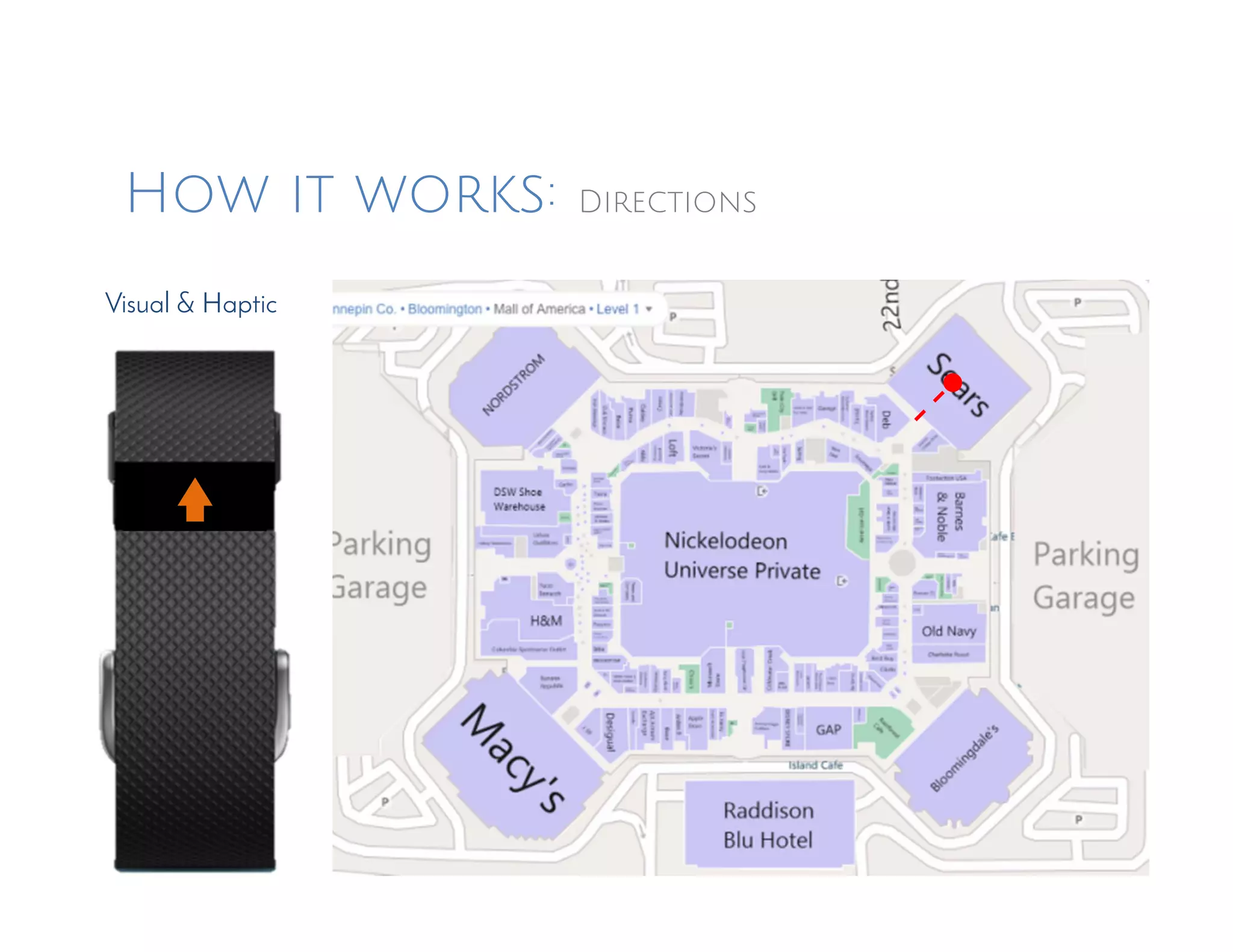

  How it works:Directions Visual & Haptic
• 11.
  How it works:Directions Visual & Haptic
• 12.

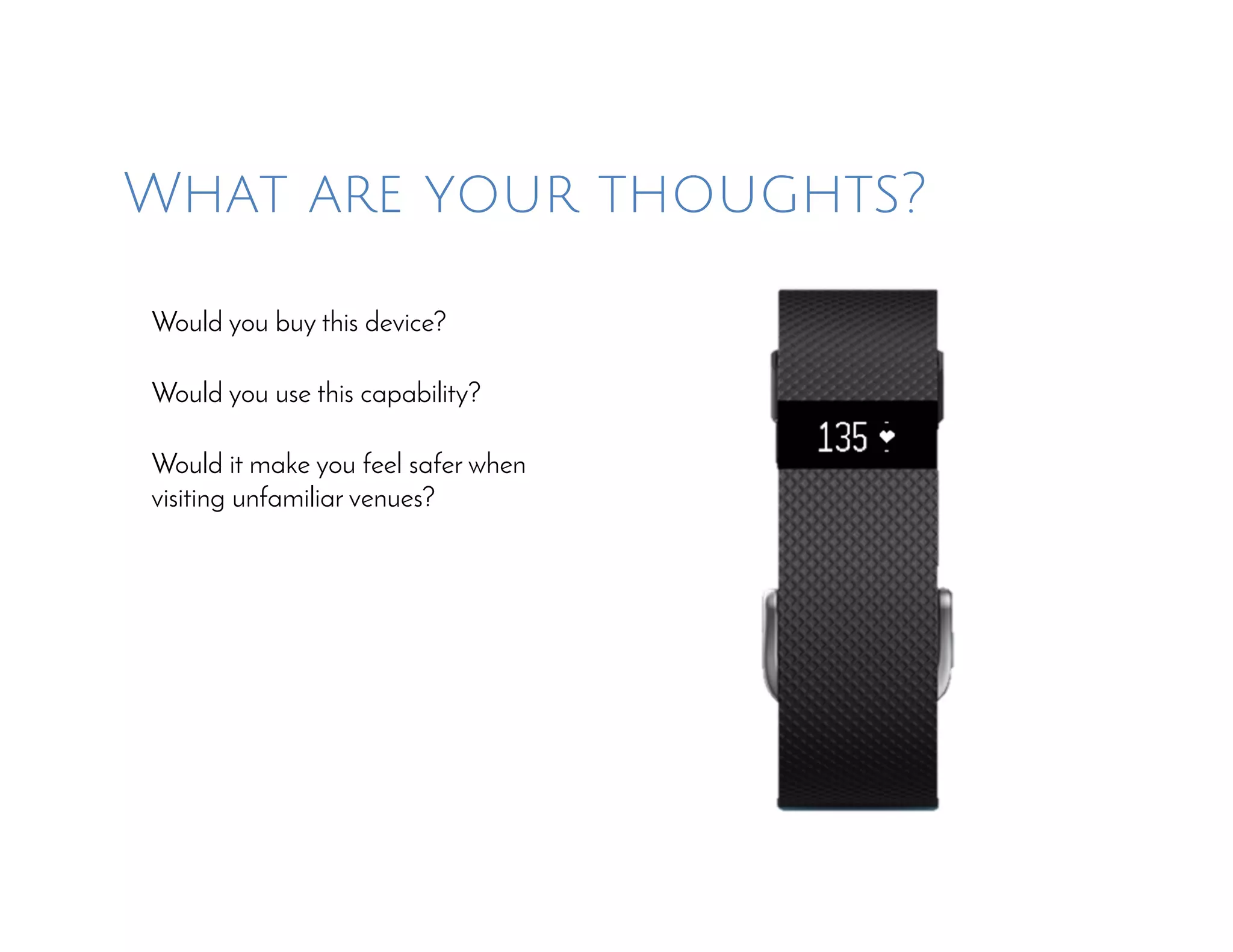

  What are yourthoughts? Would you buy this device? Would you use this capability? Would it make you feel safer when visiting unfamiliar venues?
