Perch, patterns, and old browsers.
Rachel Andrew @ Patterns Day

I am:
‣ co-founder of Perch CMS
‣ An invited Expert to the CSS Working Group
‣ A Google Developer Expert
‣ A wearer of too many hats
‣ Blogging at rachelandrew.co.uk, on Twitter as
@rachelandrew

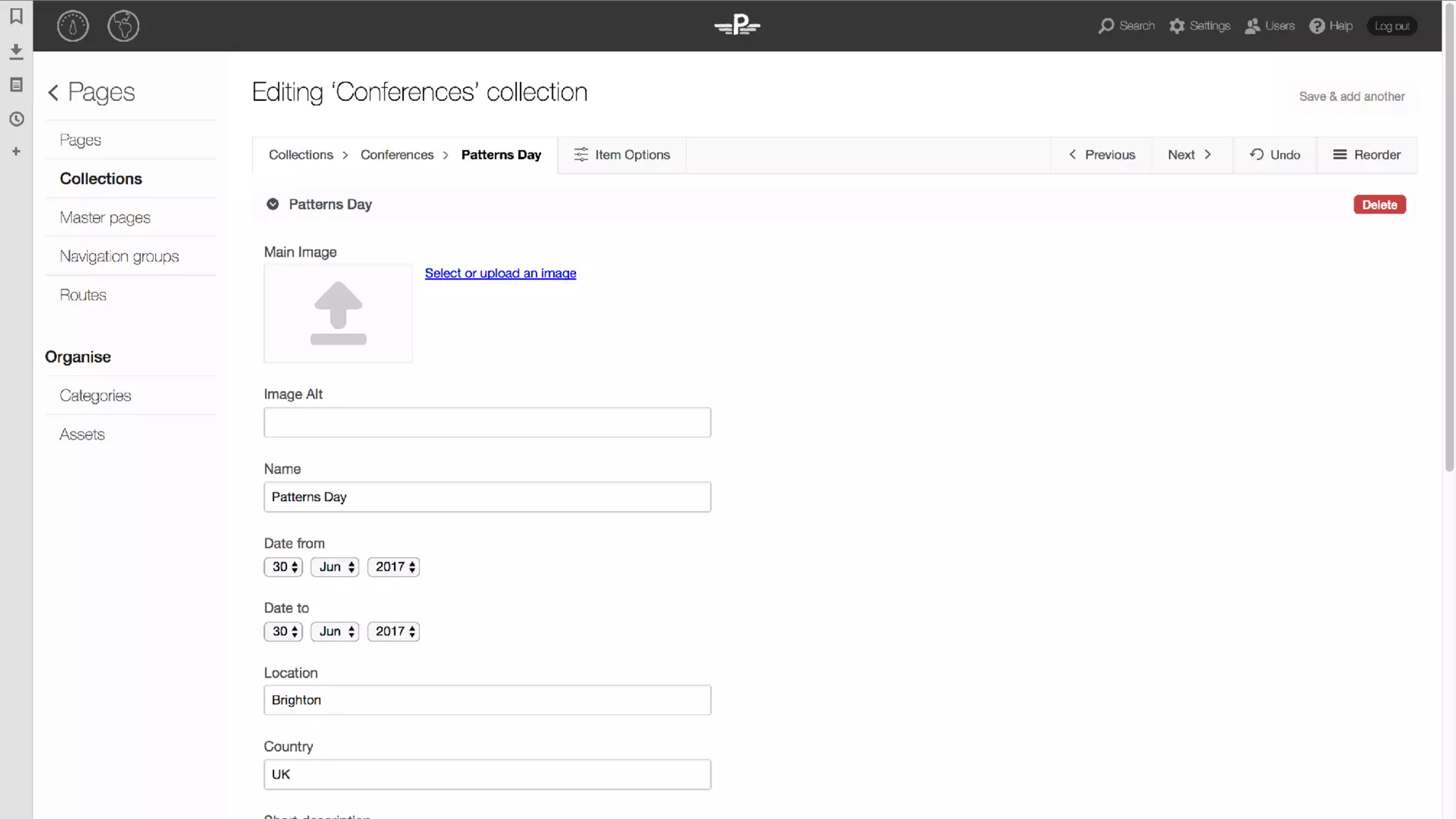

Redesigning the Perch Control Panel.

The Perch UI has to exist as a set of
independent components that can be
displayed in any order.

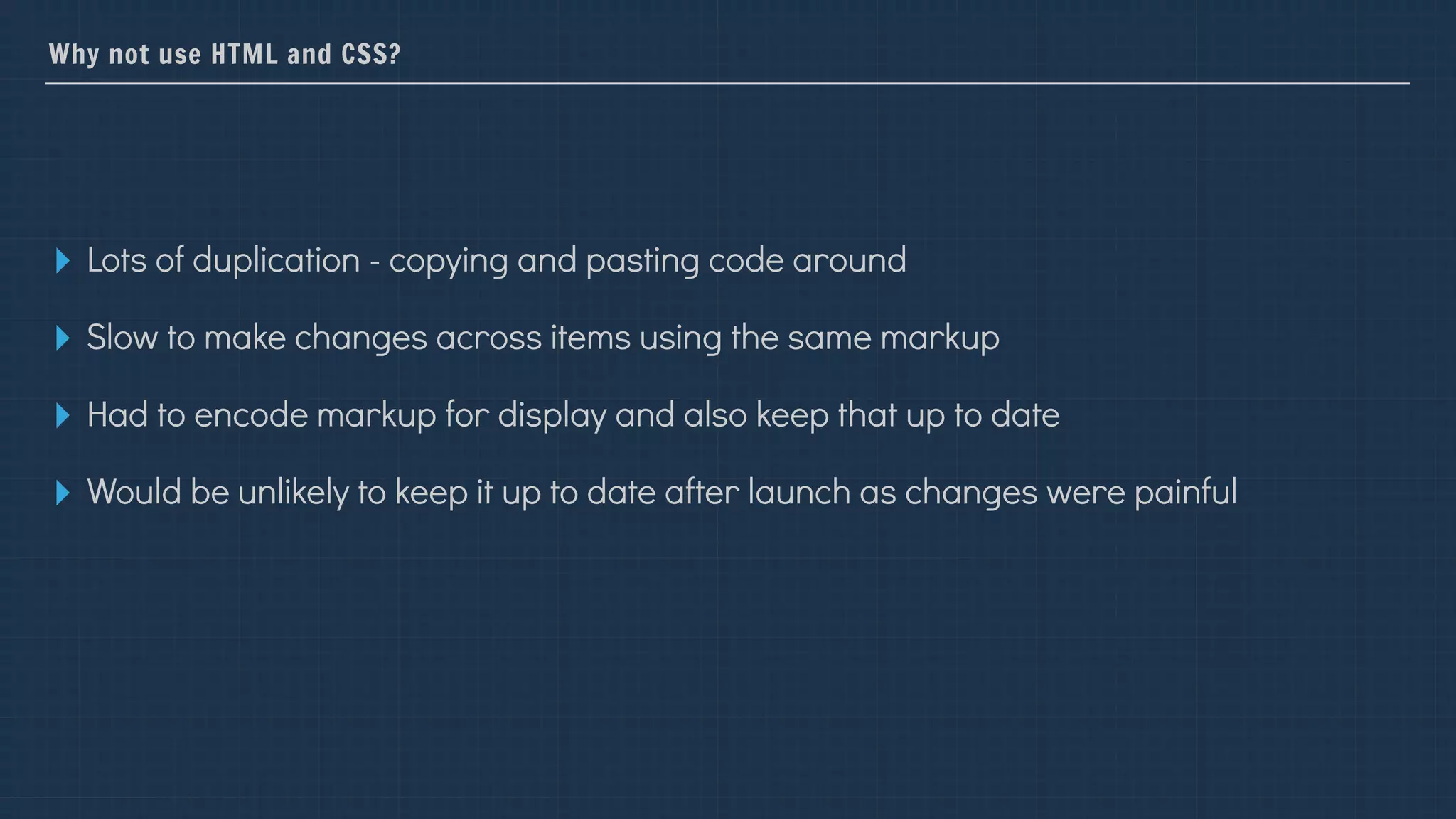

Why not use HTML and CSS?
▸ Lots of duplication - copying and pasting code around
▸ Slow to make changes across items using the same markup
▸ Had to encode markup for display and also keep that up to date
▸ Would be unlikely to keep it up to date after launch as changes were painful

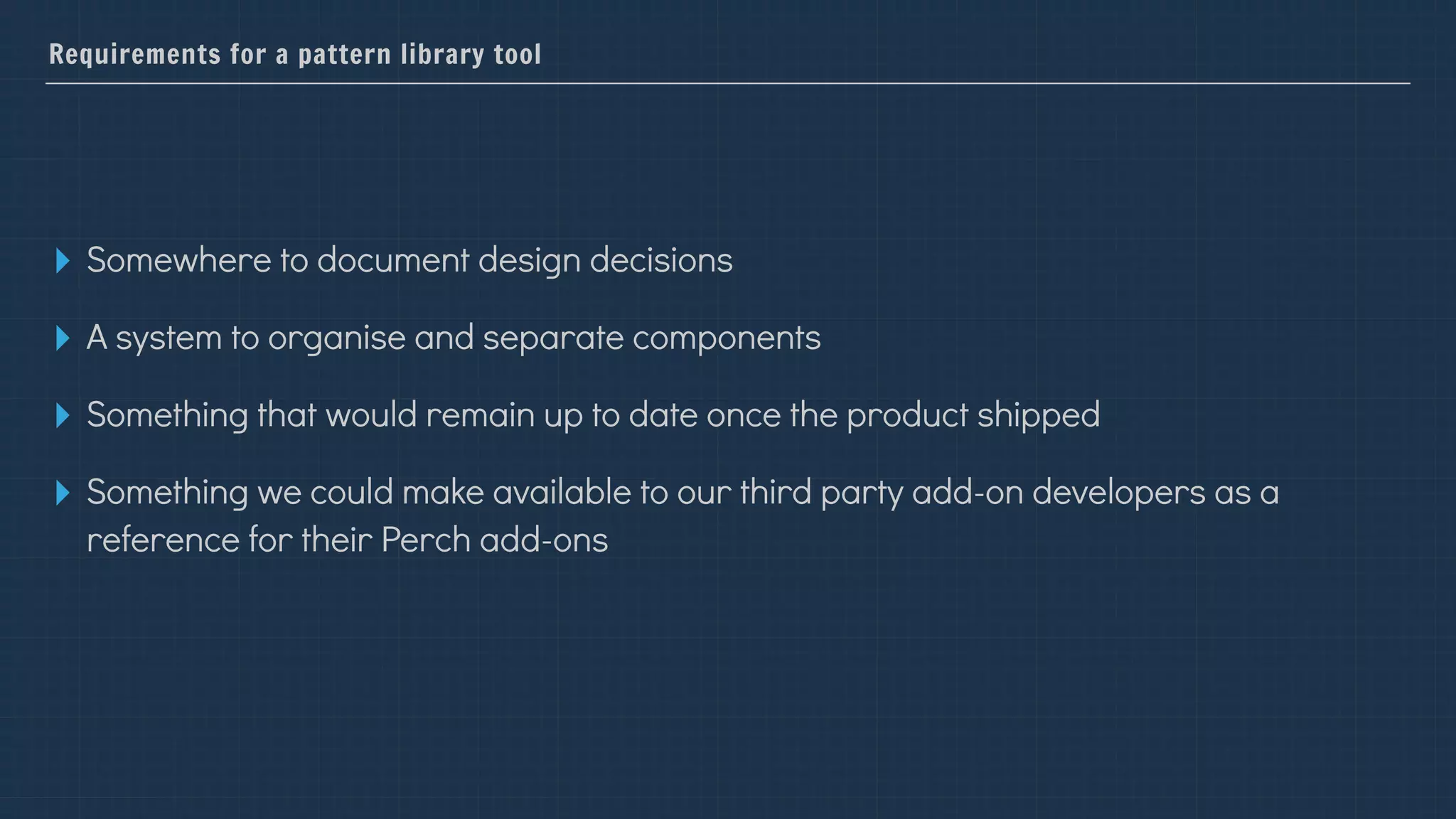

Requirements for a pattern library tool
▸ Somewhere to document design decisions
▸ A system to organise and separate components
▸ Something that would remain up to date once the product shipped

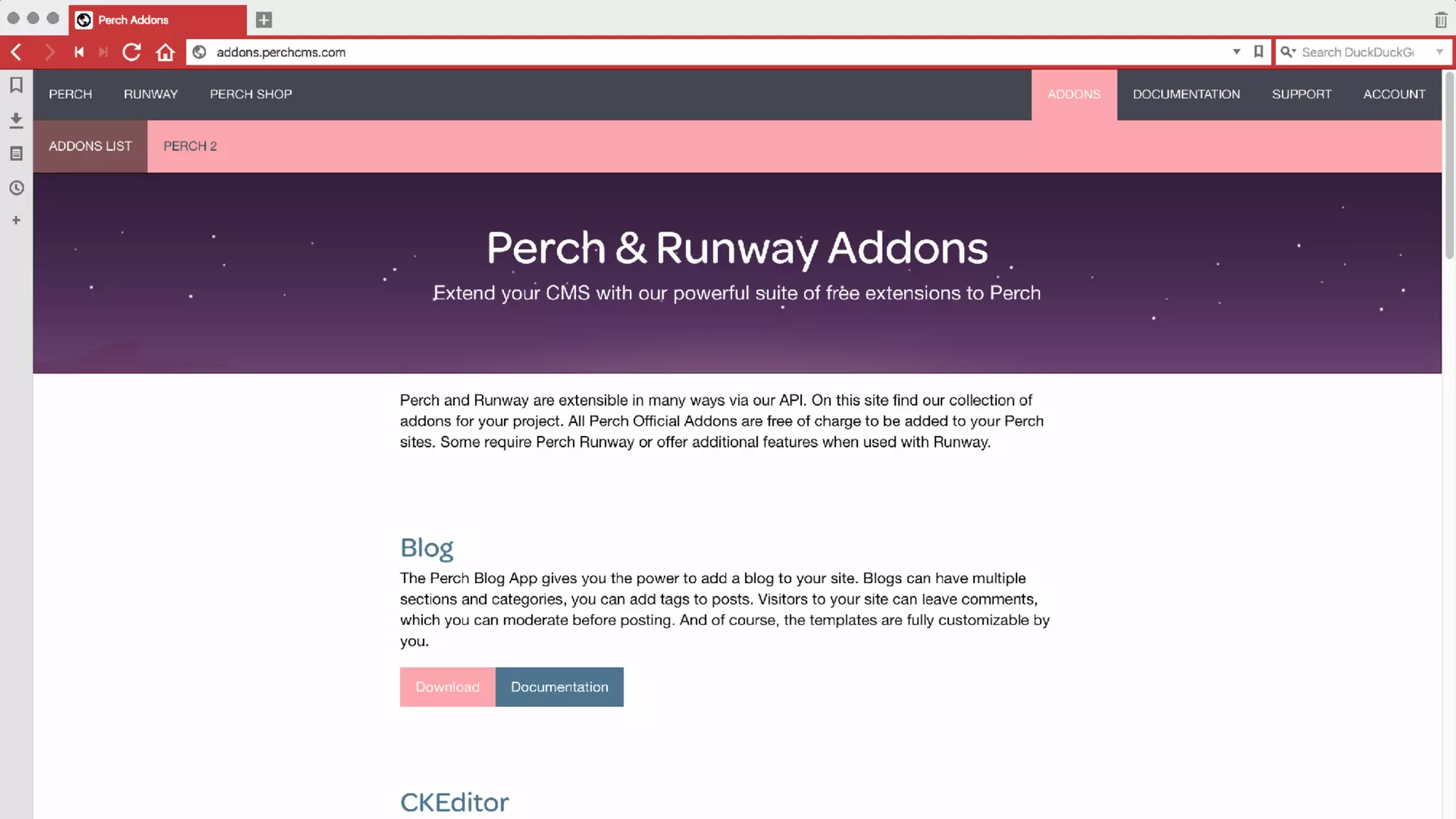

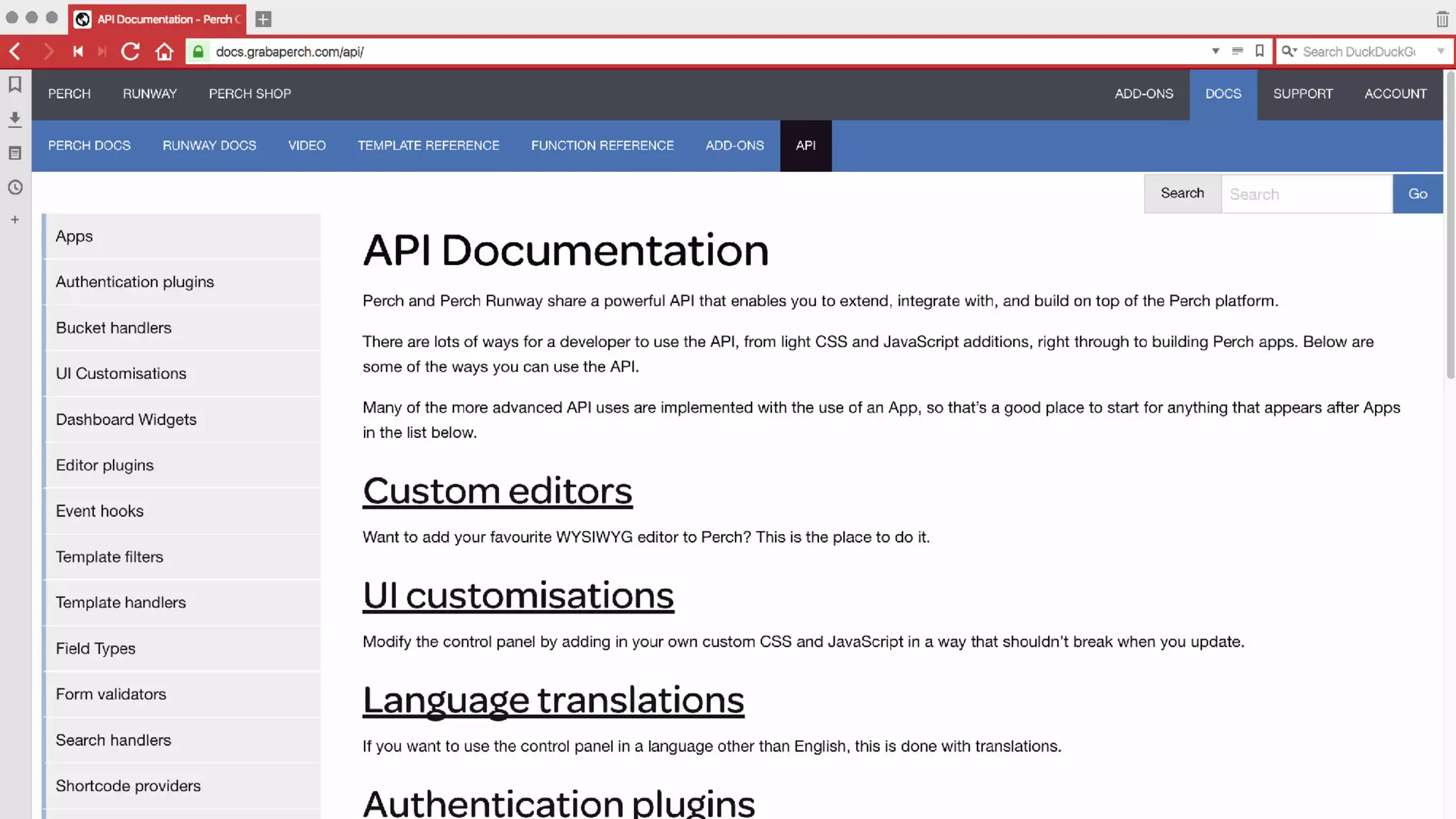

▸ Something we could make available to our third party add-on developers as a
reference for their Perch add-ons

Many systems at the time assumed we
were building a website.

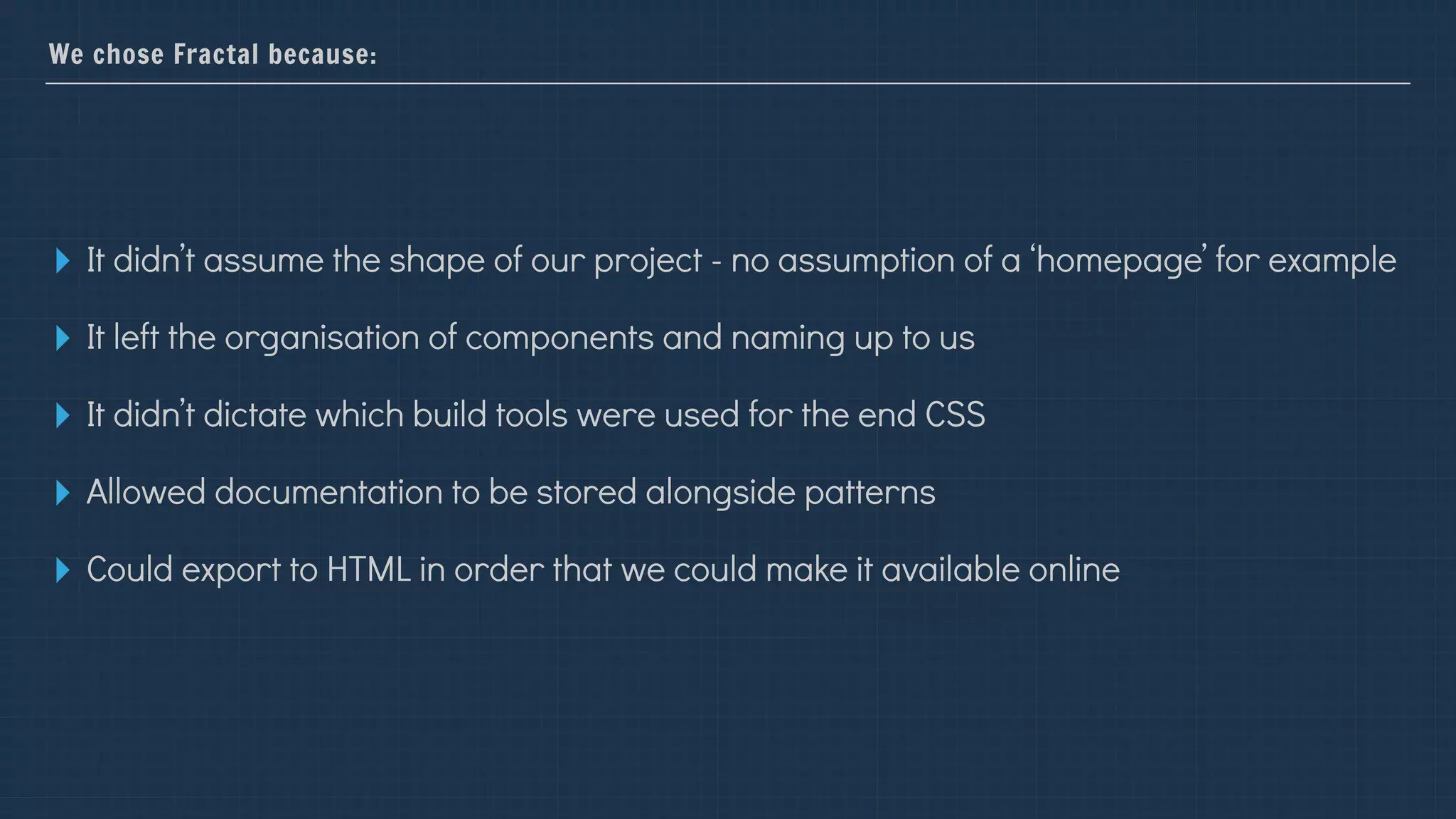

We chose Fractal because:
▸ It didn’t assume the shape of our project - no assumption of a ‘homepage’ for example
▸ It left the organisation of components and naming up to us
▸ It didn’t dictate which build tools were used for the end CSS
▸ Allowed documentation to be stored alongside patterns
▸ Could export to HTML in order that we could make it available online

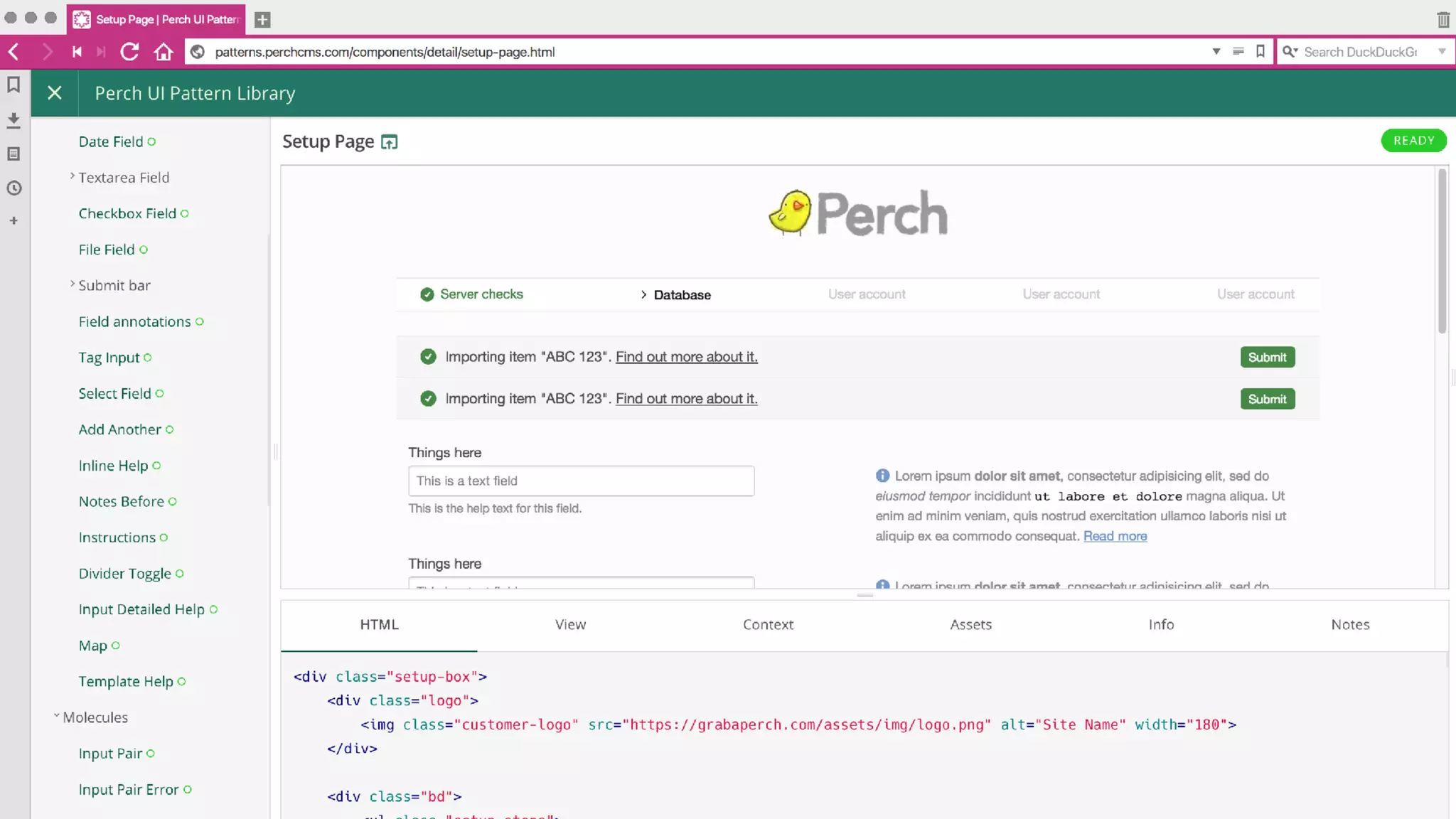

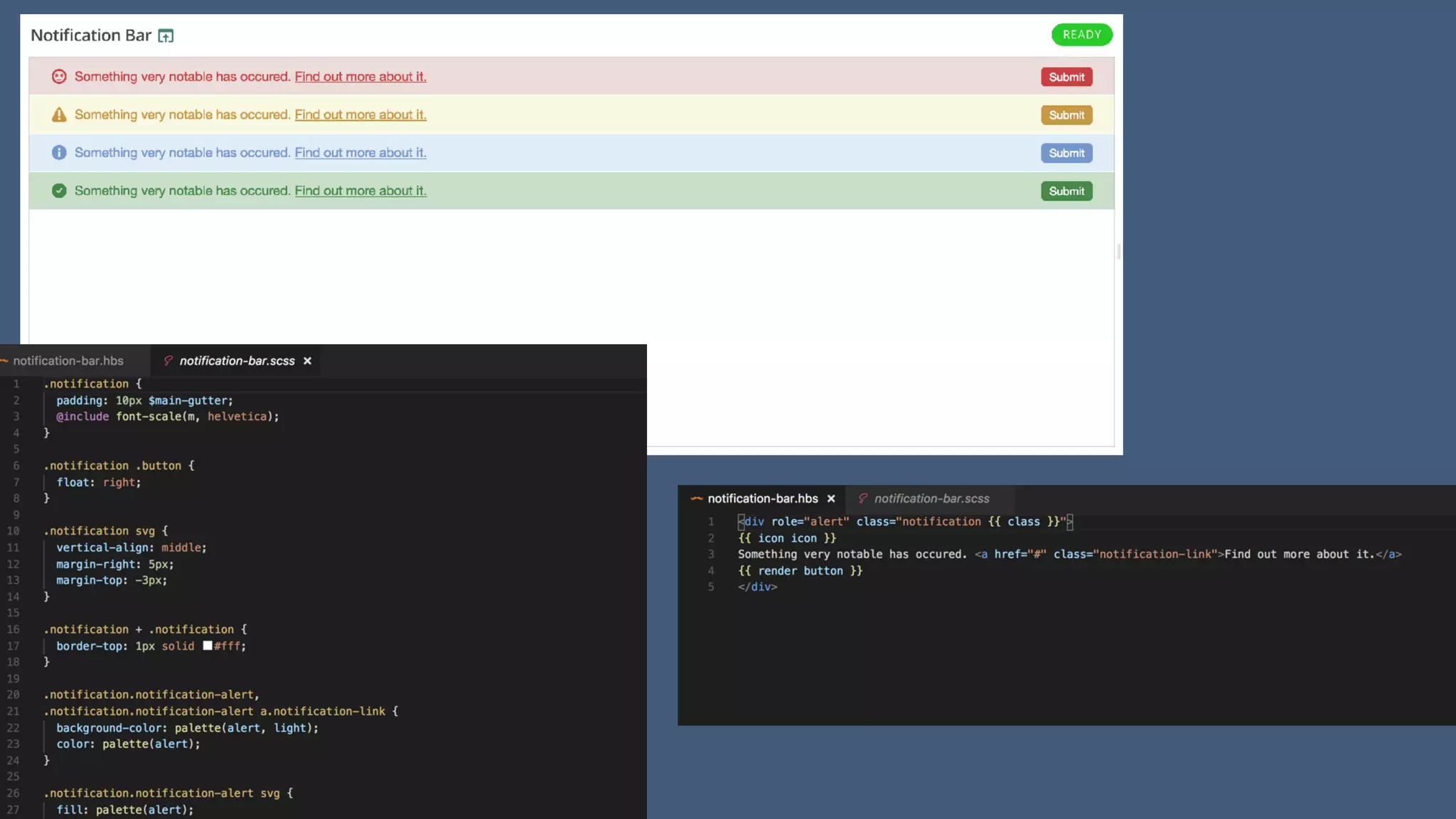

Pattern Library as Source of Truth.

Fractal is where the CSS for the Perch UI is
built.

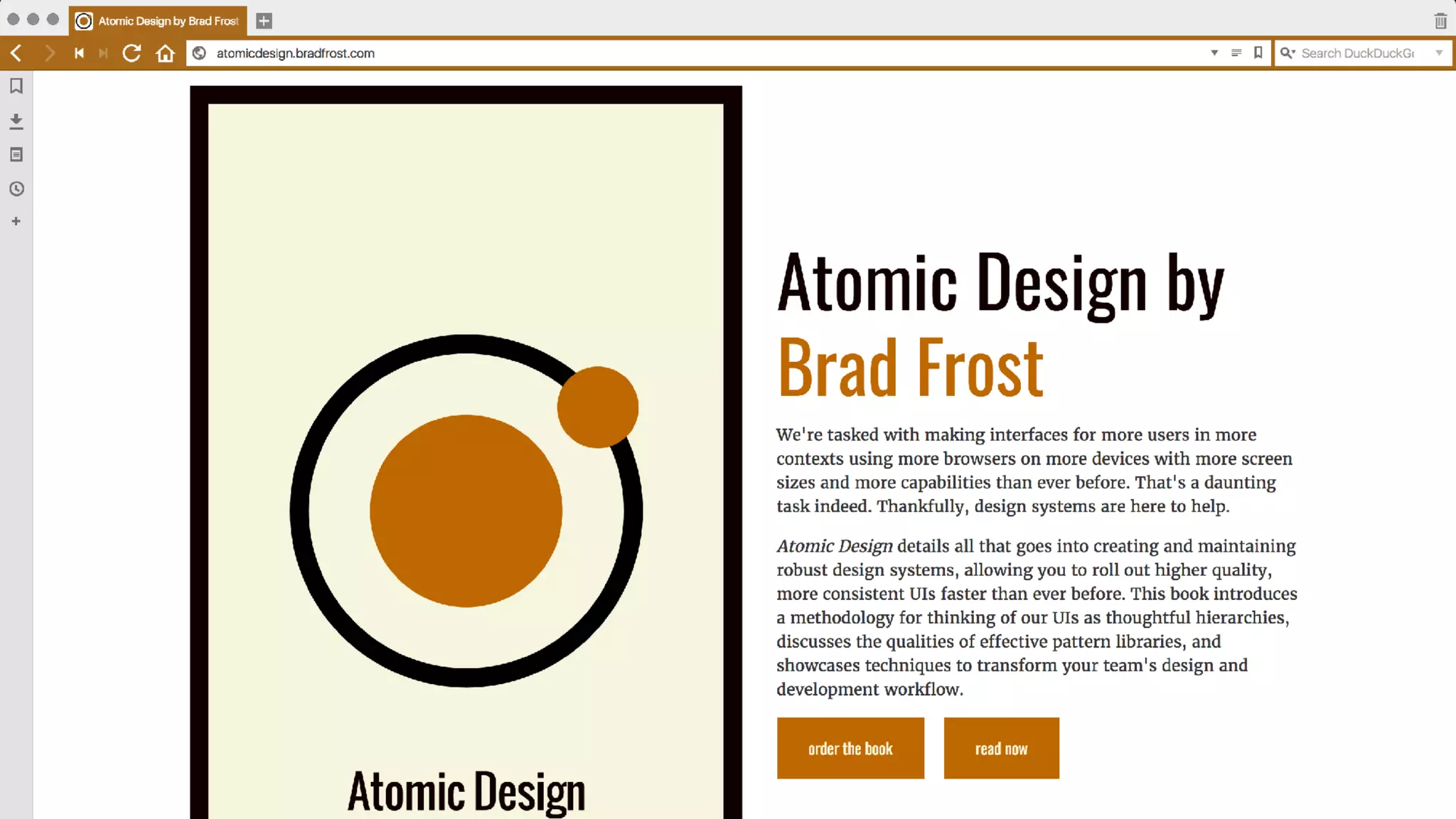

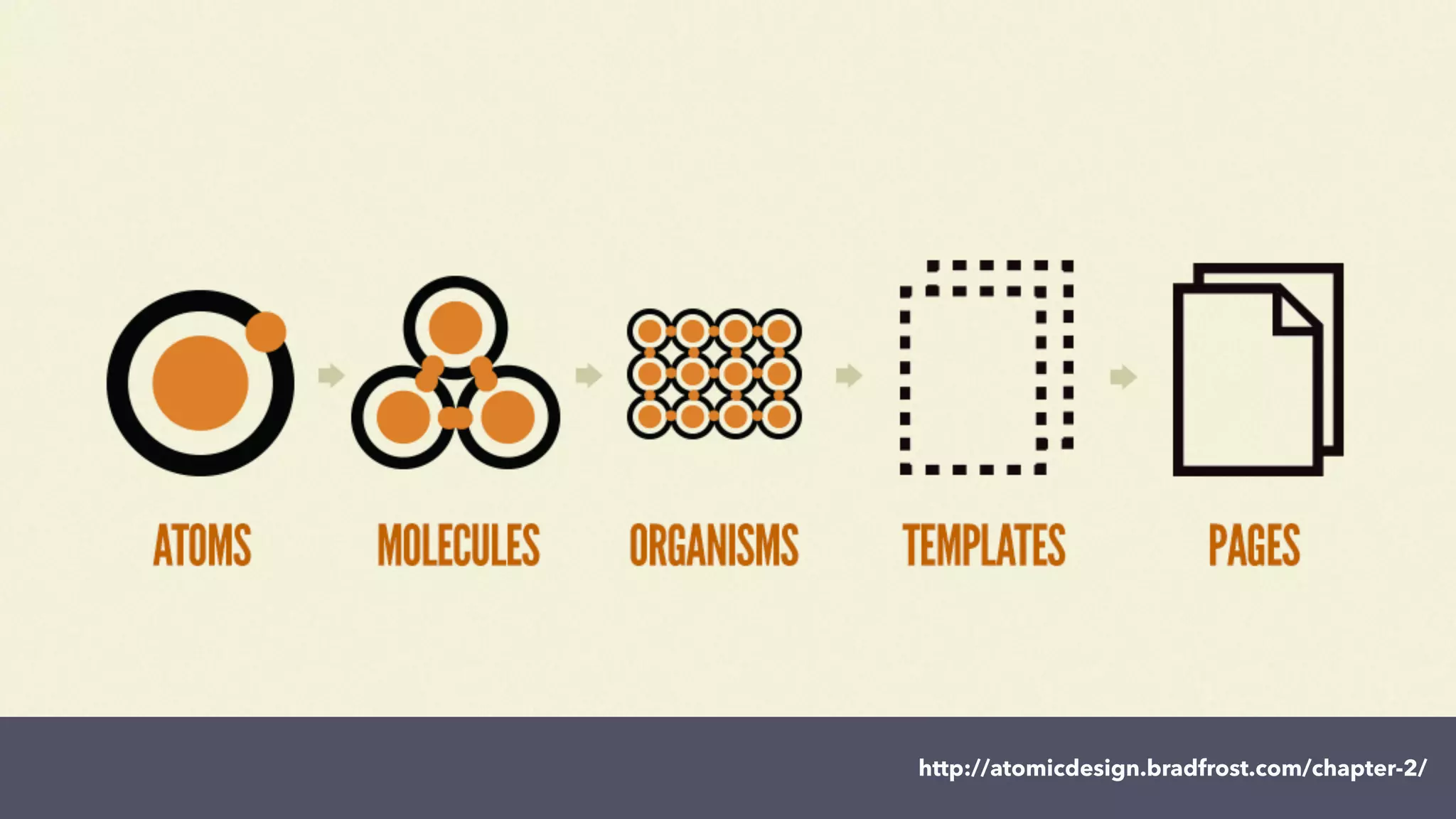

http://atomicdesign.bradfrost.com/chapter-2/

Don’t stress about naming. It will become
clearer as you build.

Don’t be afraid to refactor, and choose a
tool that enables this.

Reduced Test Case First development

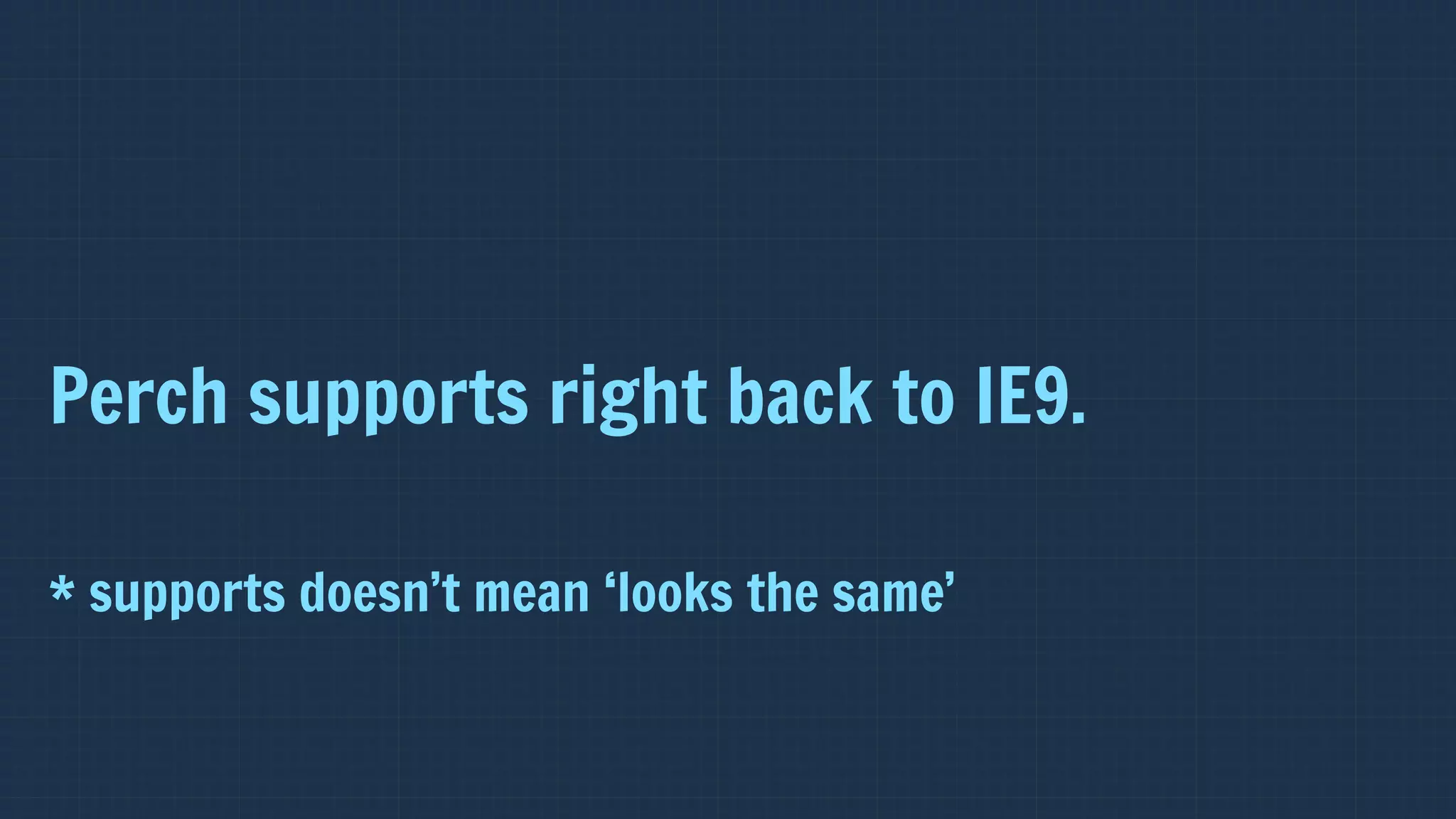

Perch supports right back to IE9.

* supports doesn’t mean ‘looks the same’

I didn’t worry about old browsers until
after we had built the UI.

Flexbox & Grid are so different. If you build
using old methods first you won’t take
advantage of their creative possibilities.

Build your up to date experience using up
to date methods.

Then look at the browsers that don’t
support these newer methods.

Time spent dealing with old browsers, back to
IE9 for the Perch UI?

About a day.

When faced with a confusing broken mess,
we strip it back to a reduced test case.

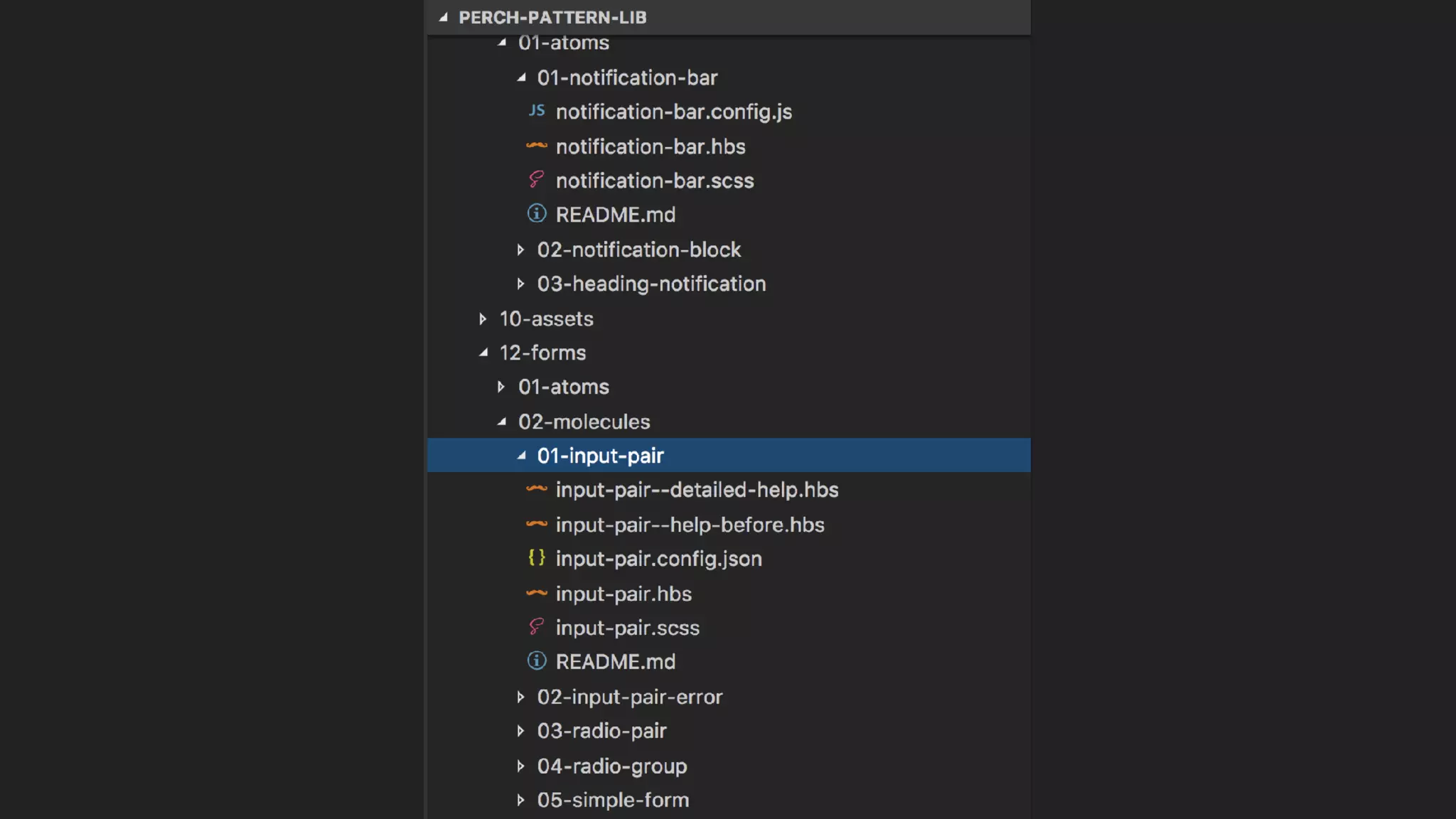

Components are already a  
reduced test case.

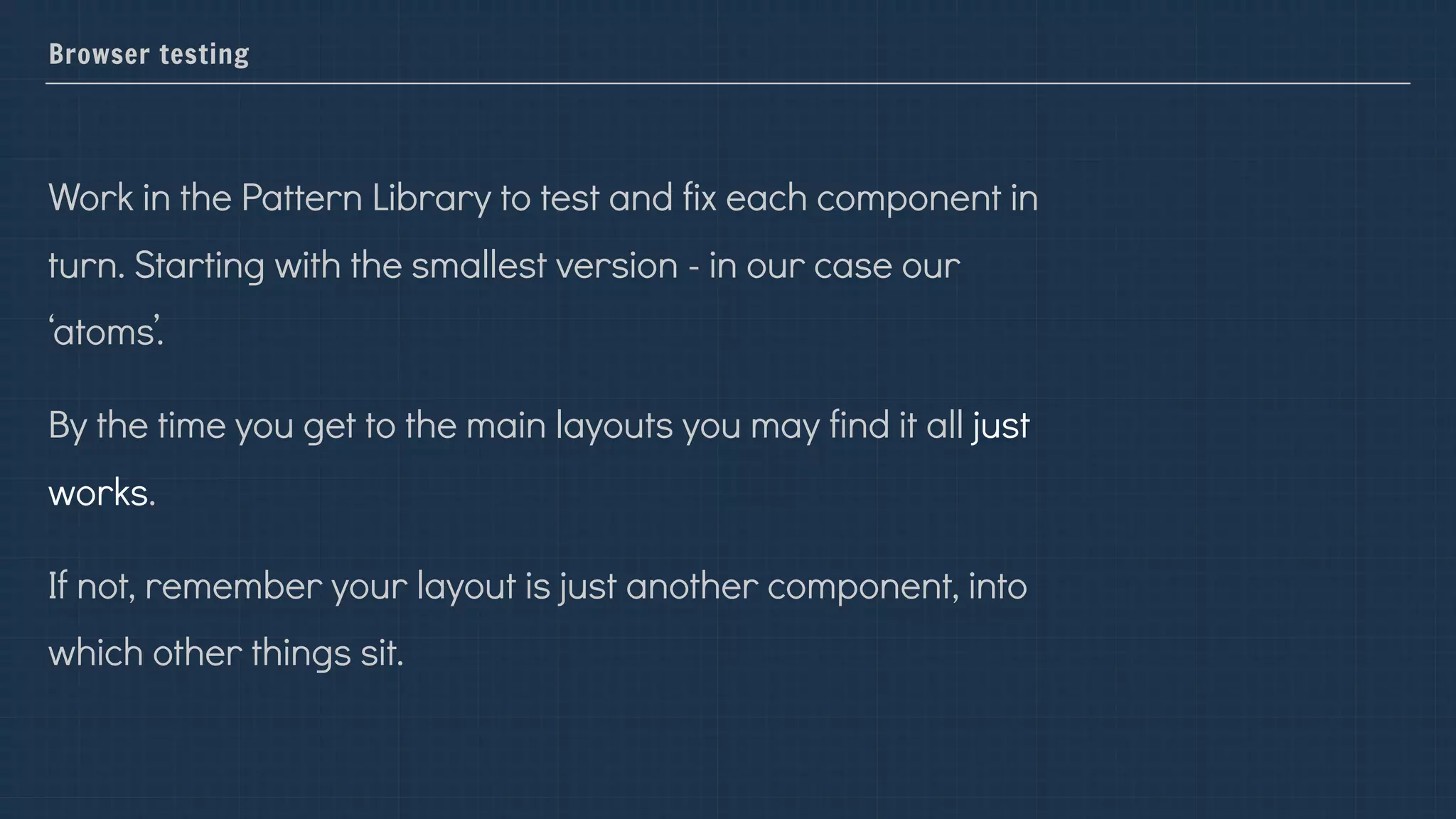

Browser testing
Work in the Pattern Library to test and fix each component in
turn. Starting with the smallest version - in our case our
‘atoms’.
By the time you get to the main layouts you may find it all just
works.
If not, remember your layout is just another component, into
which other things sit.

Working pattern library first is a very good
way to start using new CSS.

Use Grid on a small element of your design.

.wrapper {
display: grid;
grid-gap: 10px;
margin: 0 auto;
grid-template-columns:
repeat(auto-fill, minmax(200px, 1fr));
grid-auto-rows:
minmax(150px, auto);
}
.tall-panel {
grid-row-end: span 2;
}

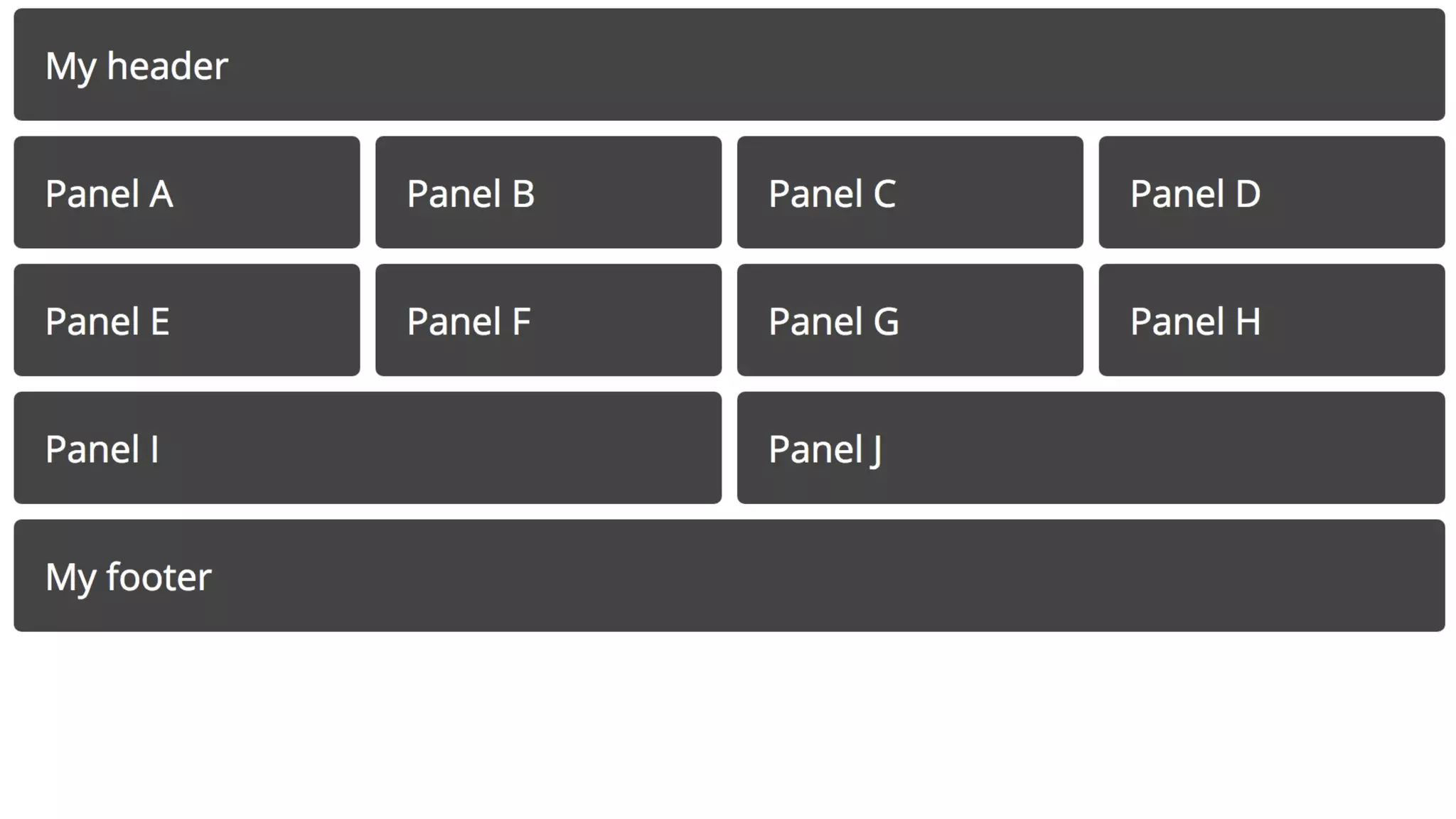

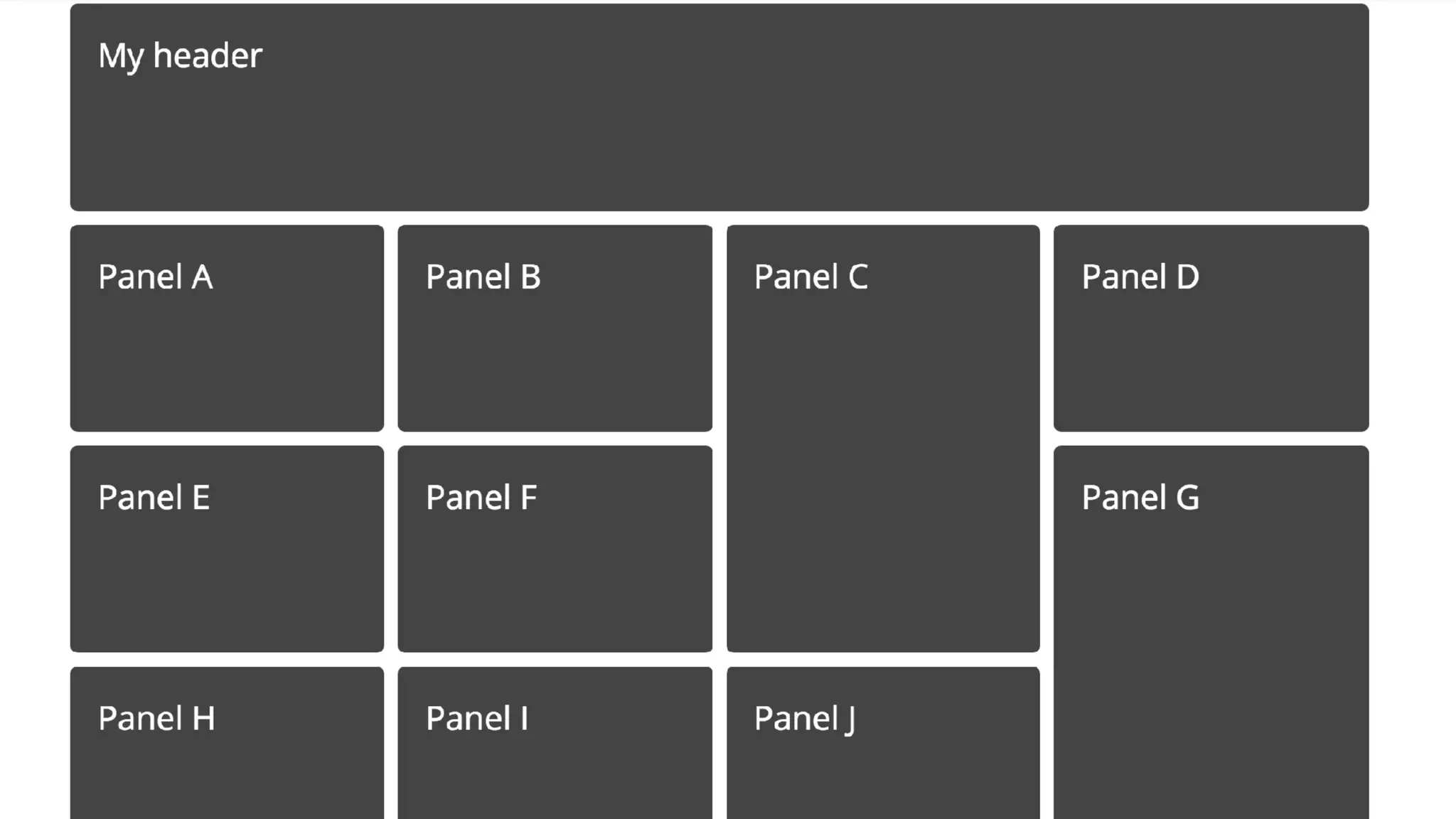

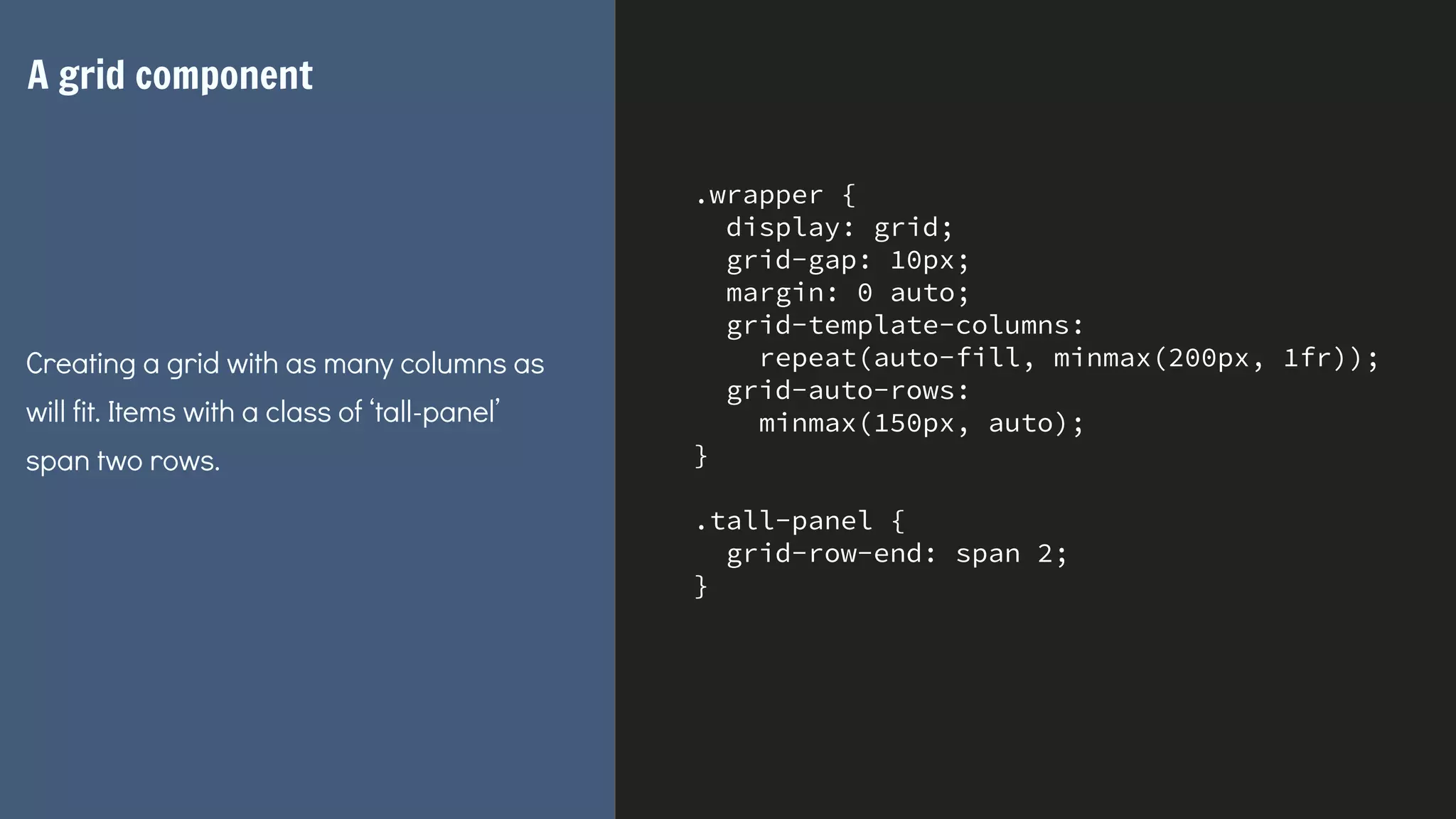

A grid component
Creating a grid with as many columns as
will fit. Items with a class of ‘tall-panel’
span two rows.

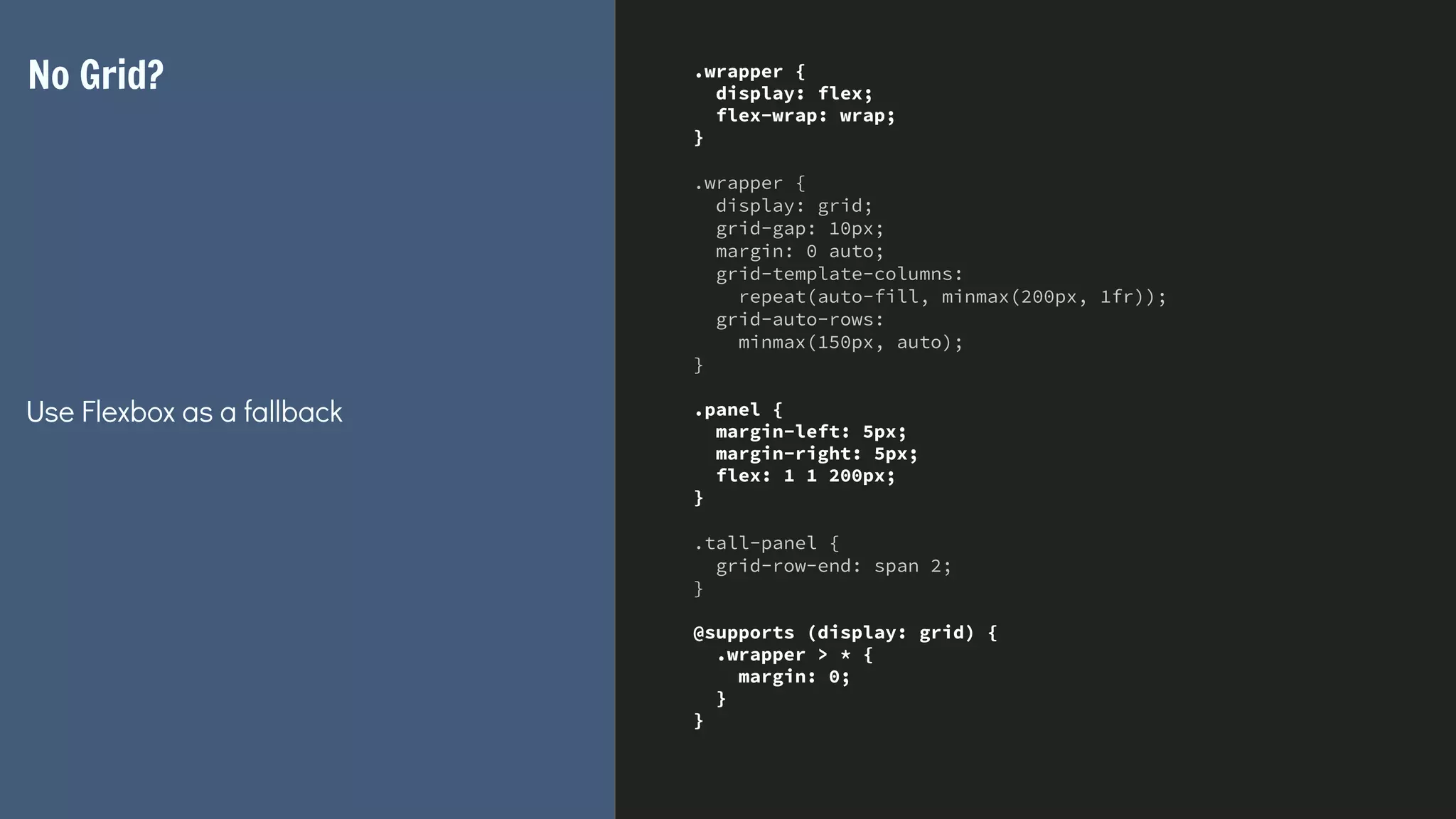

.wrapper {
display: flex;
flex-wrap: wrap;
}
.wrapper {
display: grid;
grid-gap: 10px;
margin: 0 auto;
grid-template-columns:
repeat(auto-fill, minmax(200px, 1fr));
grid-auto-rows:
minmax(150px, auto);
}
.panel {
margin-left: 5px;
margin-right: 5px;
flex: 1 1 200px;
}
.tall-panel {
grid-row-end: span 2;
}
@supports (display: grid) {
.wrapper > * {
margin: 0;
}
}

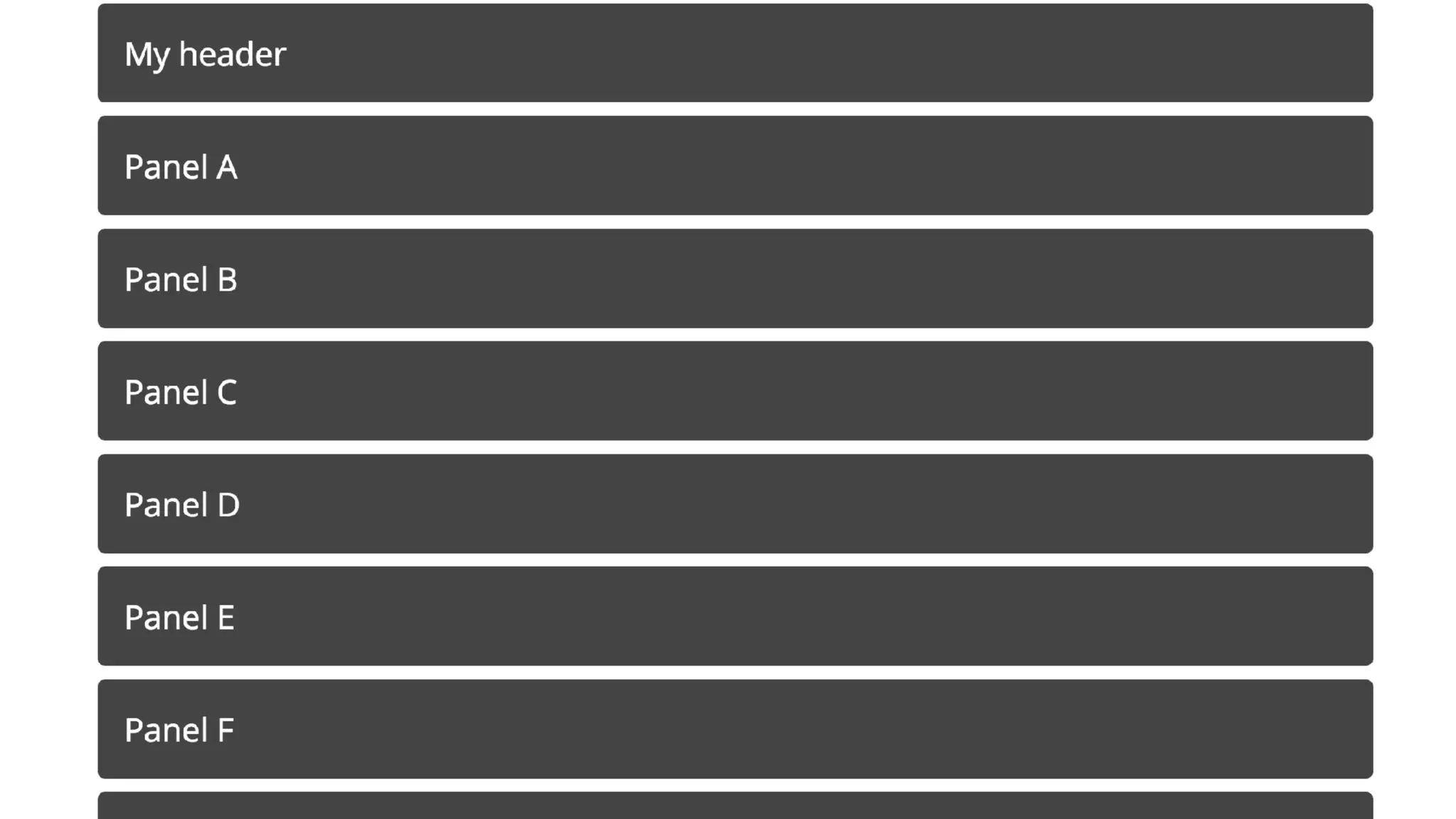

No Grid?
Use Flexbox as a fallback

Keep fallback code with the component in
the pattern library.

Designing a component seems less
overwhelming than designing a whole site.

Developing CSS in the Pattern Library
makes CSS more manageable.

Pattern library first keeps the build
process and the runtime process separate.

Components are reduced test cases.
Allowing you to more easily embrace new
techniques and deal with old browsers.

Choose tools that allow you to refactor the
pattern library as things change.

Make the pattern library the source of
truth and it can’t get out of date.

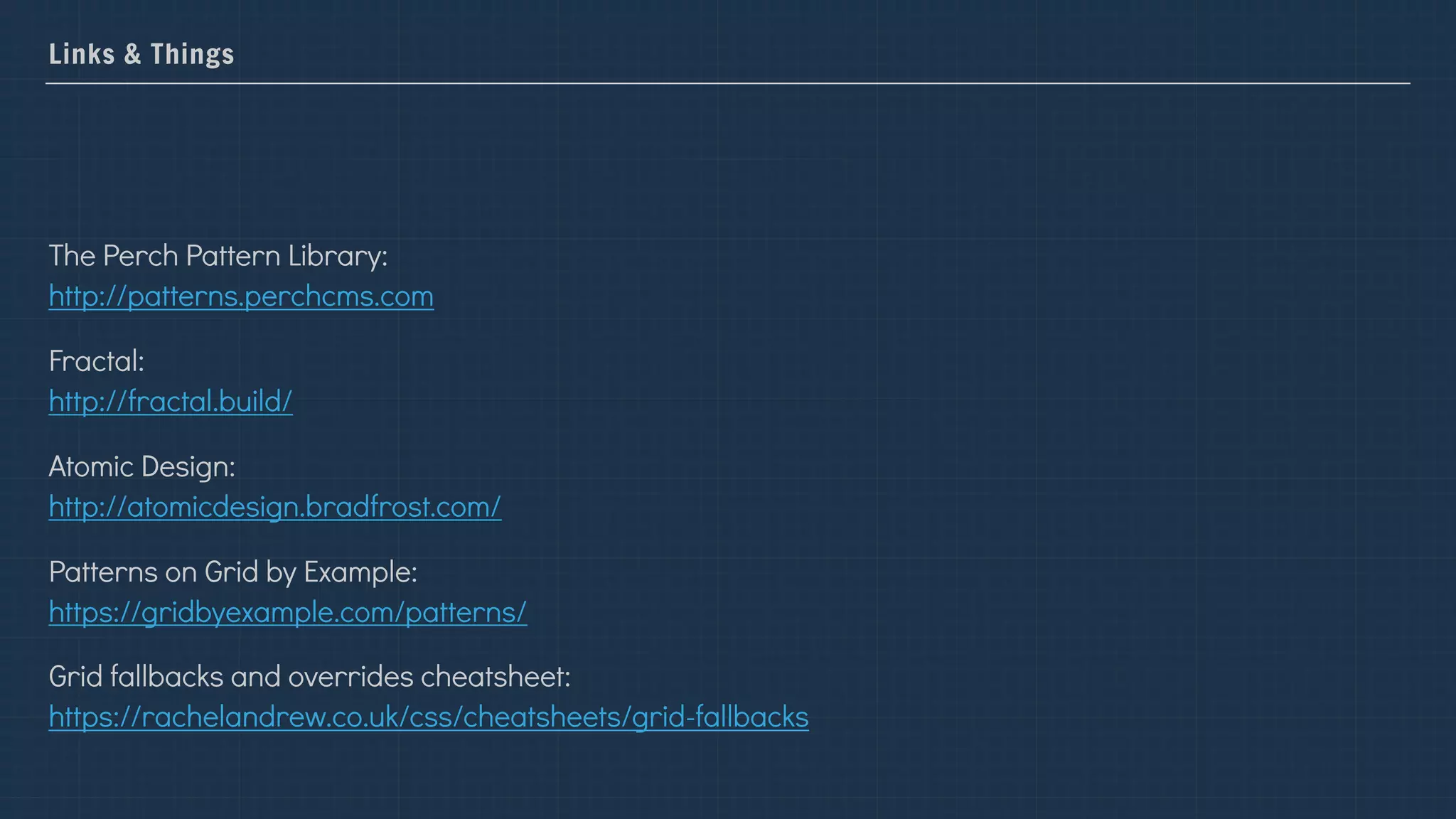

Links & Things

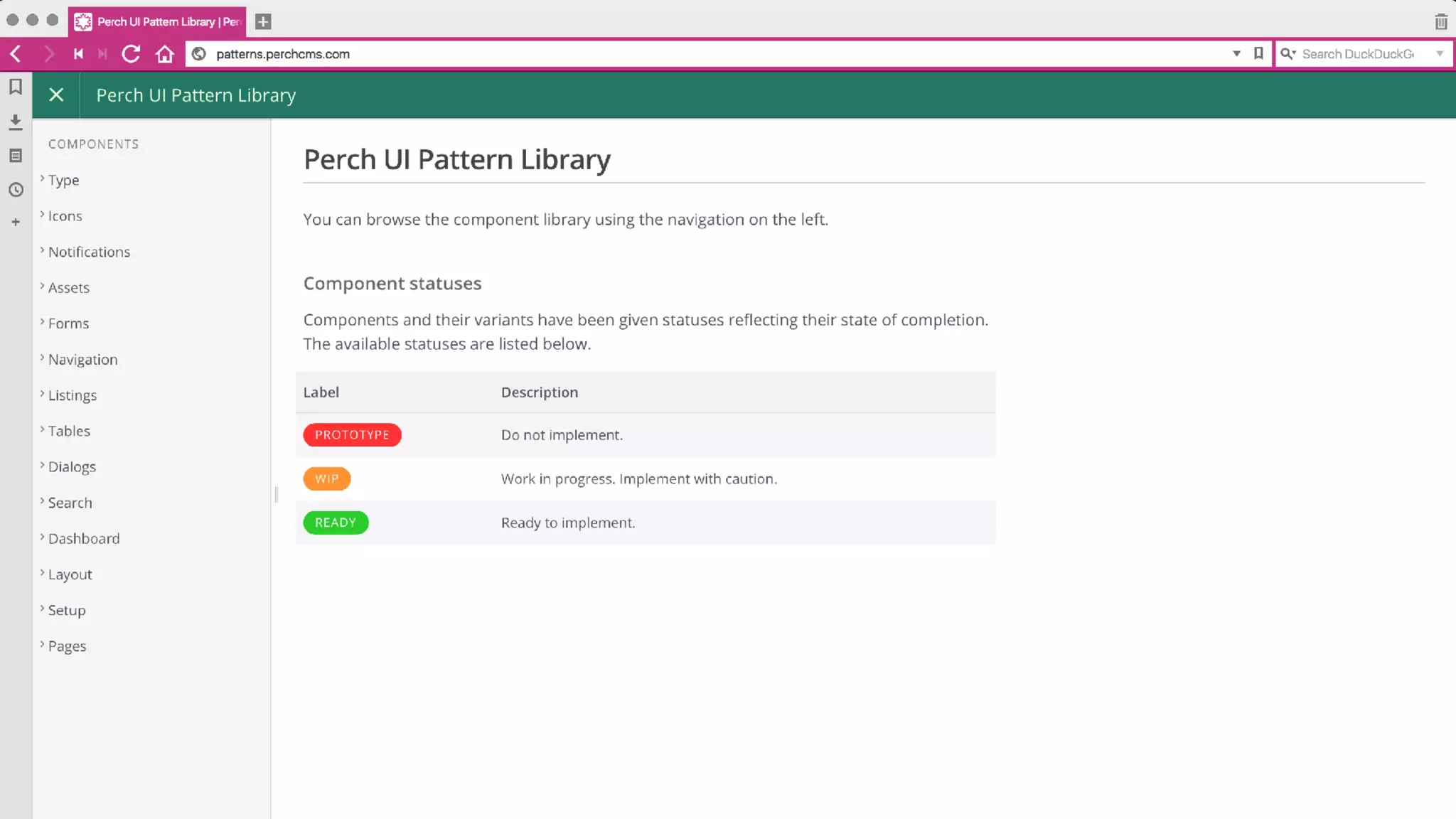

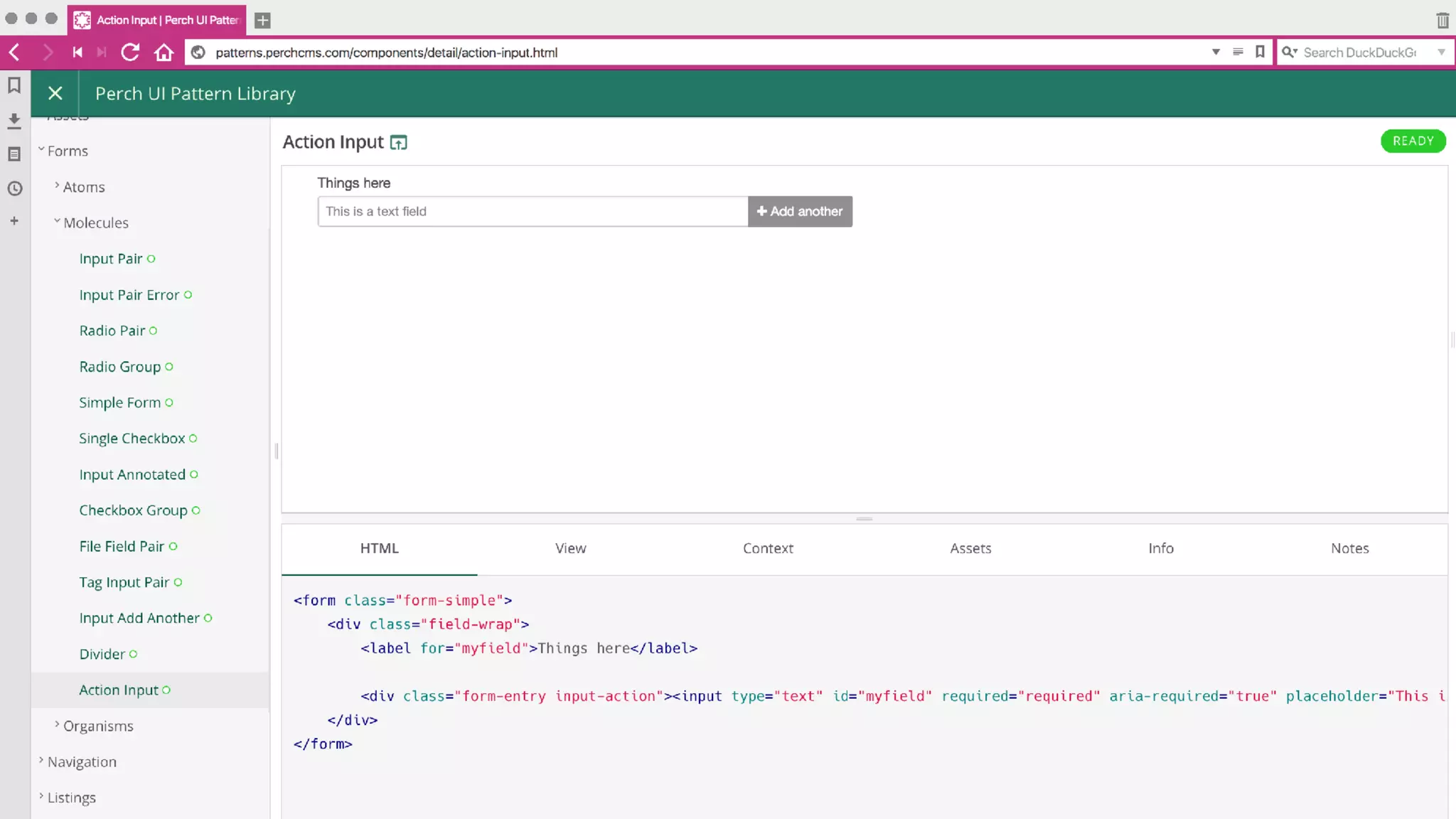

The Perch Pattern Library:  
http://patterns.perchcms.com

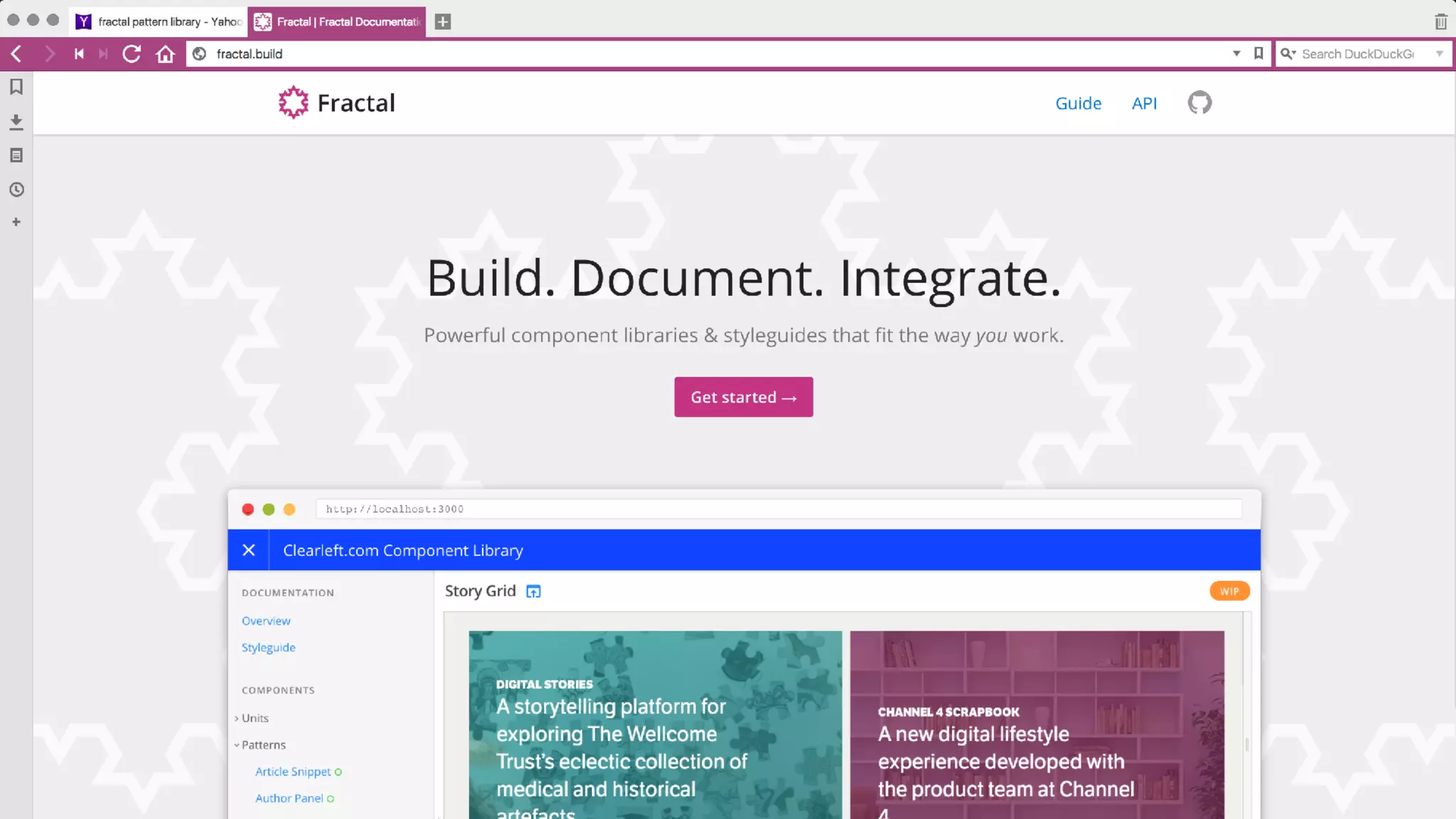

Fractal:  
http://fractal.build/
Atomic Design:  
http://atomicdesign.bradfrost.com/
Patterns on Grid by Example:  
https://gridbyexample.com/patterns/
Grid fallbacks and overrides cheatsheet:  
https://rachelandrew.co.uk/css/cheatsheets/grid-fallbacks

Thank you!
@rachelandrew 
 
Resources and slides: https://rachelandrew.co.uk/speaking/event/patterns-day
