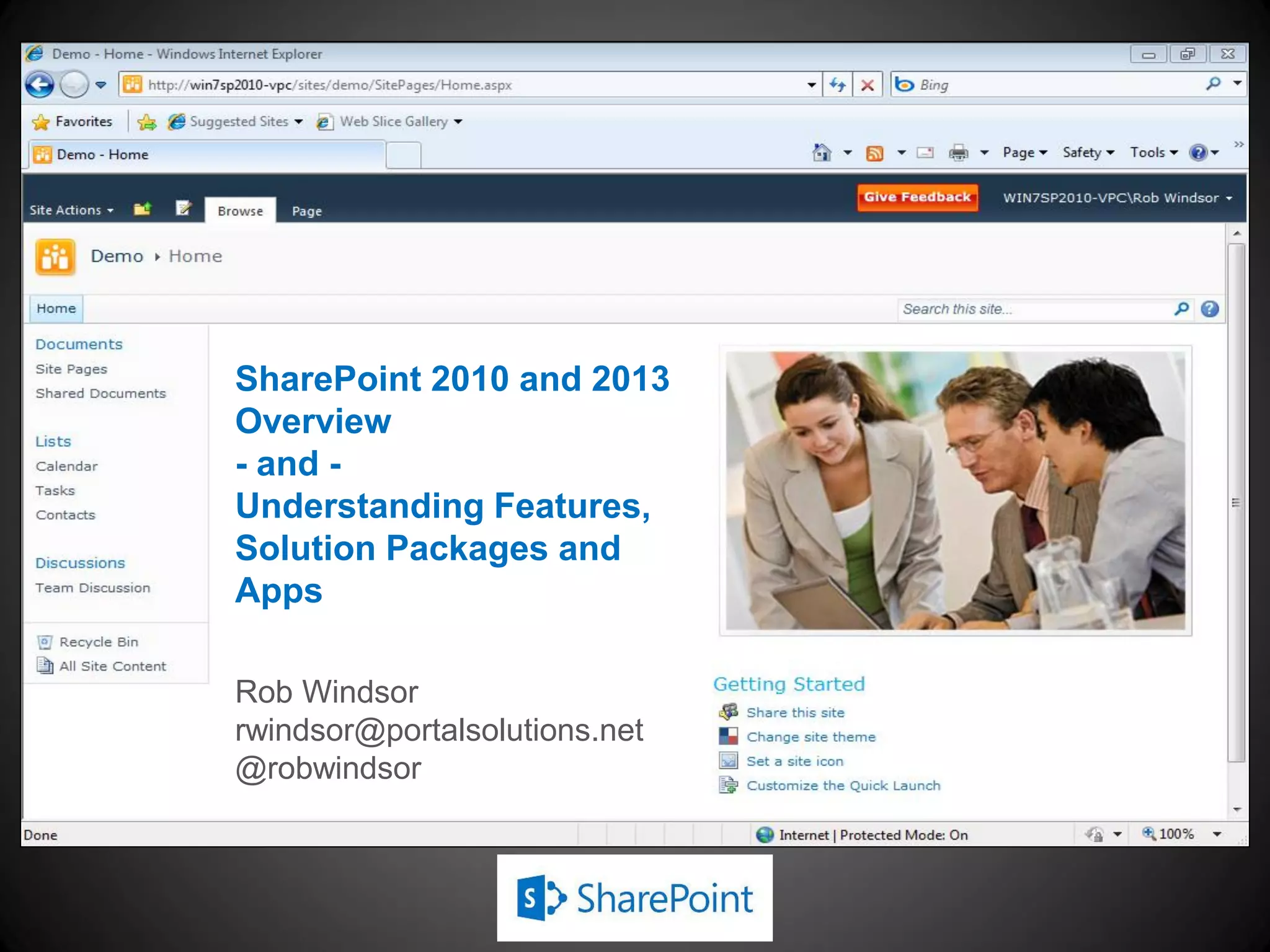

SharePoint 2010 and 2013
Overview
- and -
Understanding Features,
Solution Packages and
Apps

Rob Windsor
rwindsor@portalsolutions.net
@robwindsor

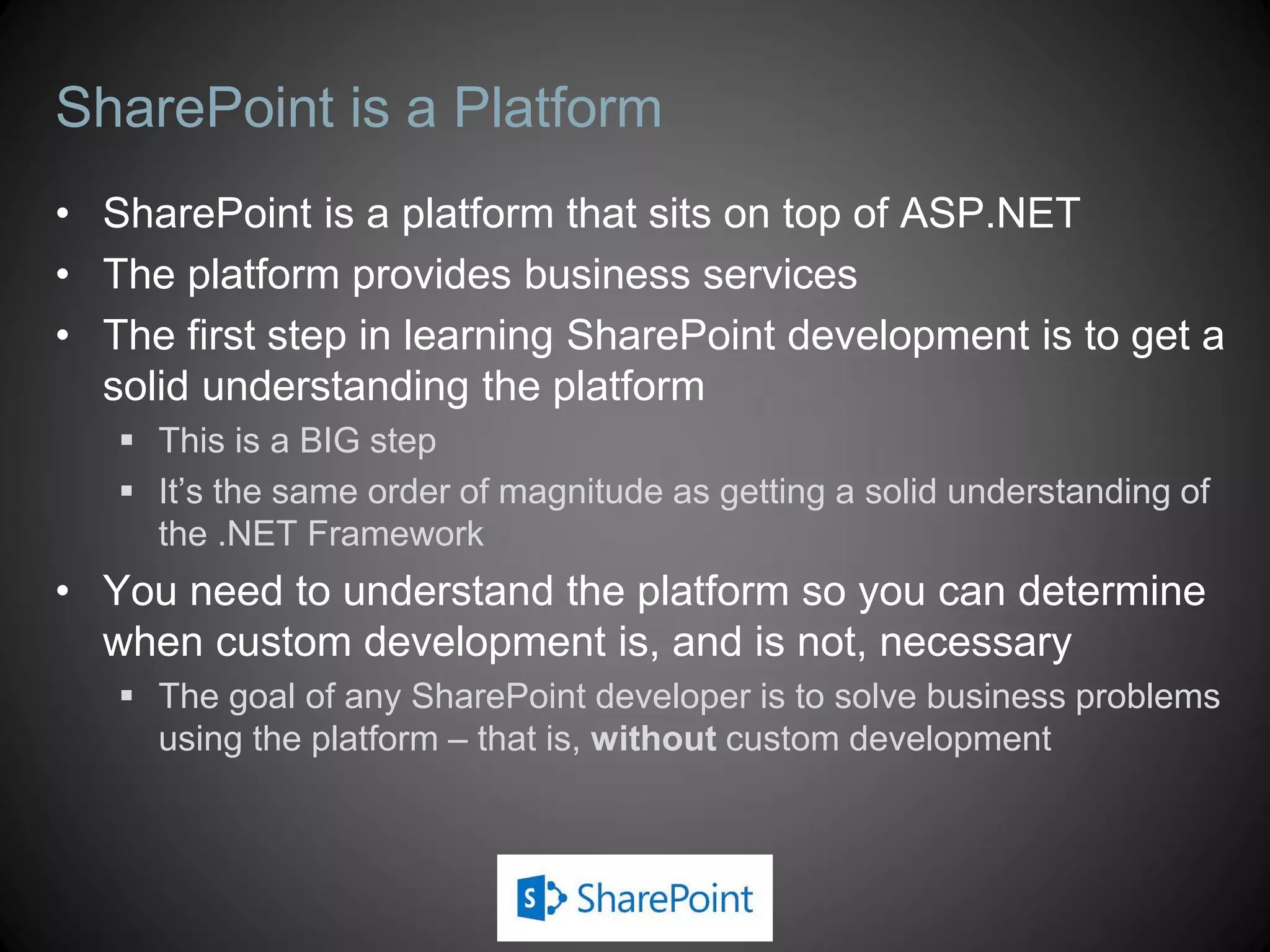

SharePoint is a Platform
• SharePoint is a platform that sits on top of ASP.NET
• The platform provides business services
• The first step in learning SharePoint development is to get a
solid understanding the platform
 This is a BIG step
 It’s the same order of magnitude as getting a solid understanding of
the .NET Framework
• You need to understand the platform so you can determine
when custom development is, and is not, necessary
 The goal of any SharePoint developer is to solve business problems
using the platform – that is, without custom development

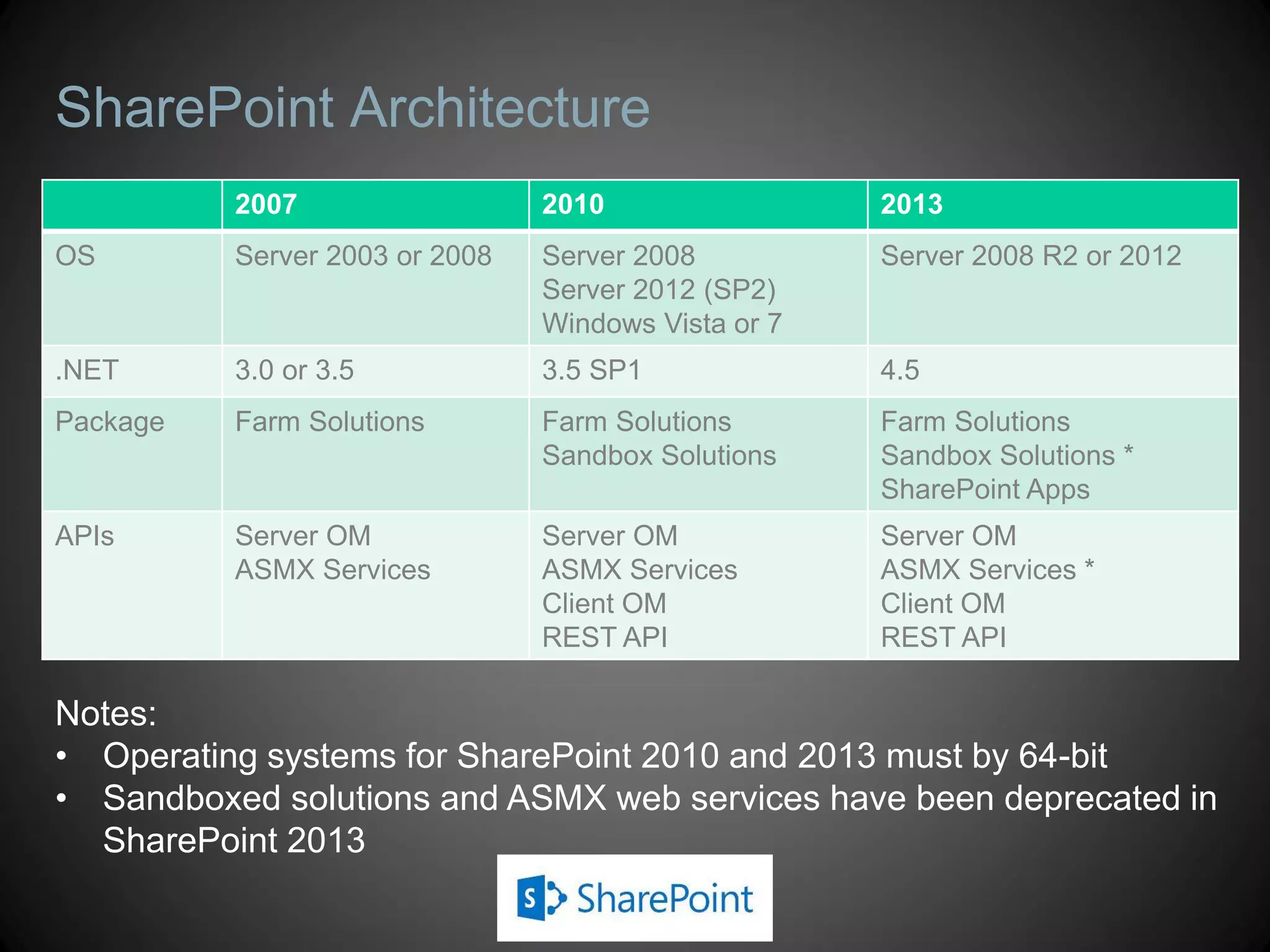

SharePoint Architecture
2007 2010 2013
OS Server 2003 or 2008 Server 2008 Server 2008 R2 or 2012
Server 2012 (SP2)
Windows Vista or 7
.NET 3.0 or 3.5 3.5 SP1 4.5
Package Farm Solutions Farm Solutions Farm Solutions
Sandbox Solutions Sandbox Solutions *
SharePoint Apps
APIs Server OM Server OM Server OM
ASMX Services ASMX Services ASMX Services *
Client OM Client OM
REST API REST API

Notes:
• Operating systems for SharePoint 2010 and 2013 must by 64-bit
• Sandboxed solutions and ASMX web services have been deprecated in
SharePoint 2013

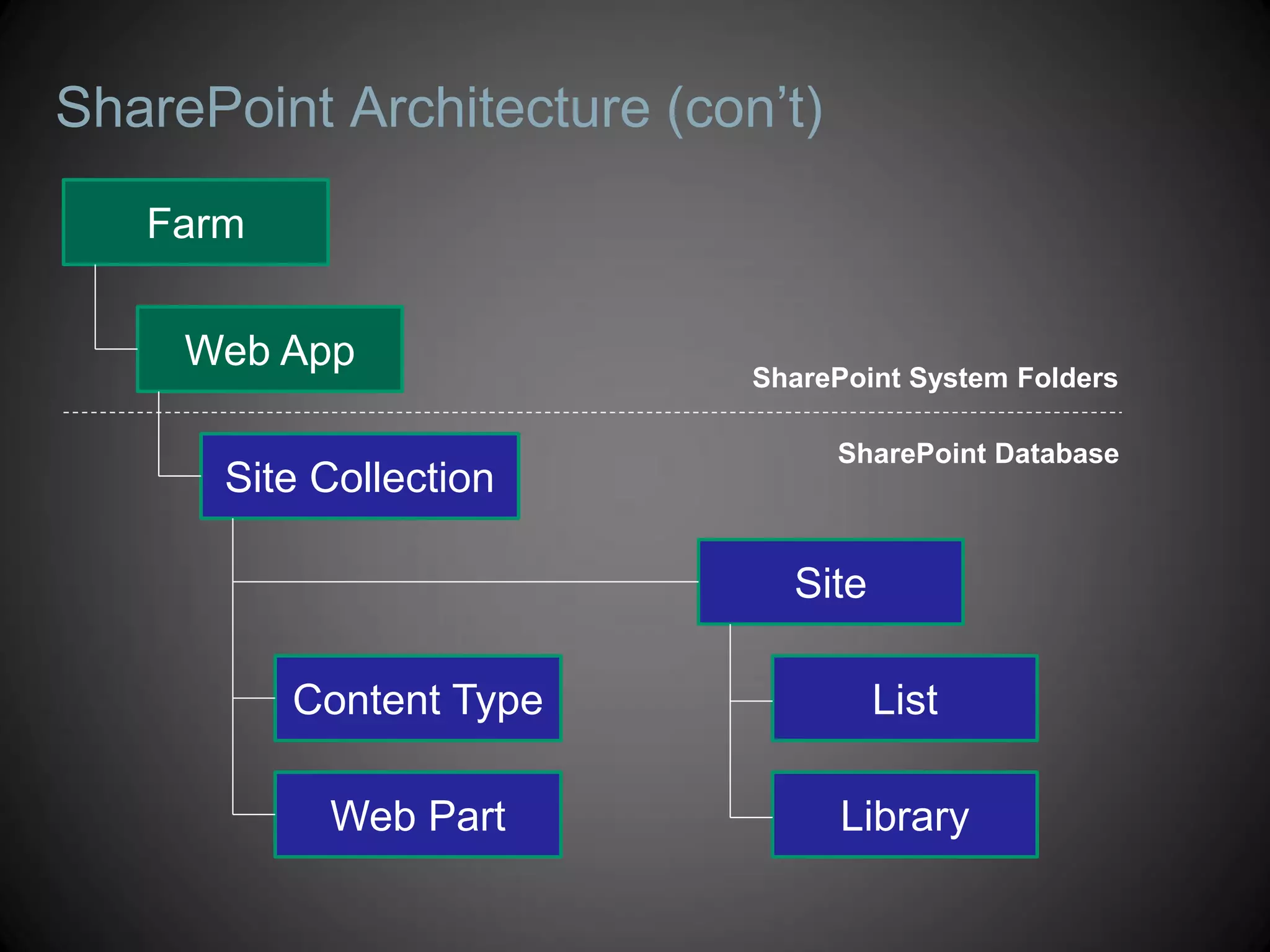

SharePoint Architecture (con’t)
Farm

Web App
SharePoint System Folders

SharePoint Database
Site Collection

Site

Content Type List

Web Part Library

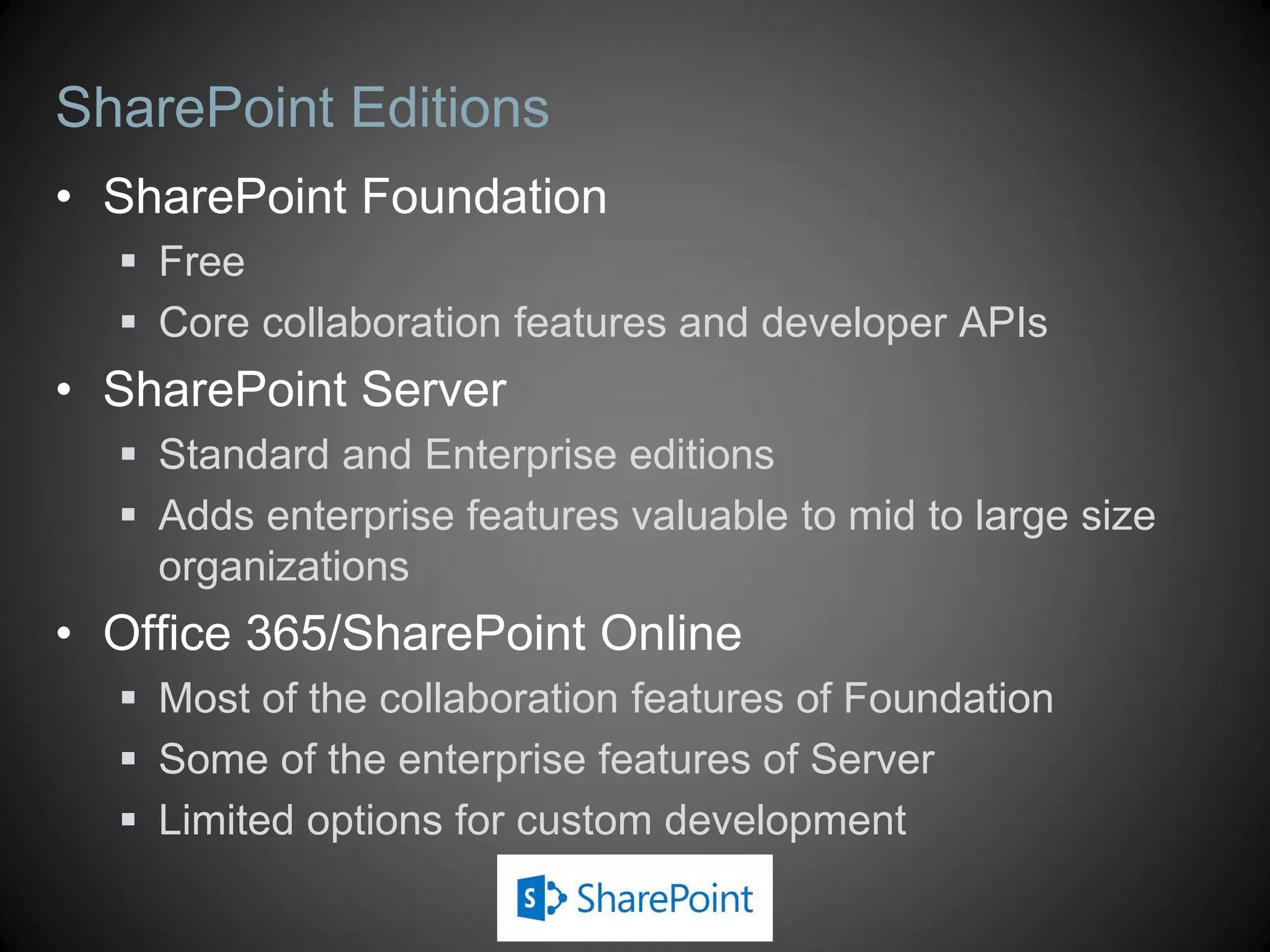

SharePoint Editions
• SharePoint Foundation
 Free
 Core collaboration features and developer APIs
• SharePoint Server
 Standard and Enterprise editions
 Adds enterprise features valuable to mid to large size
organizations
• Office 365/SharePoint Online
 Most of the collaboration features of Foundation
 Some of the enterprise features of Server
 Limited options for custom development

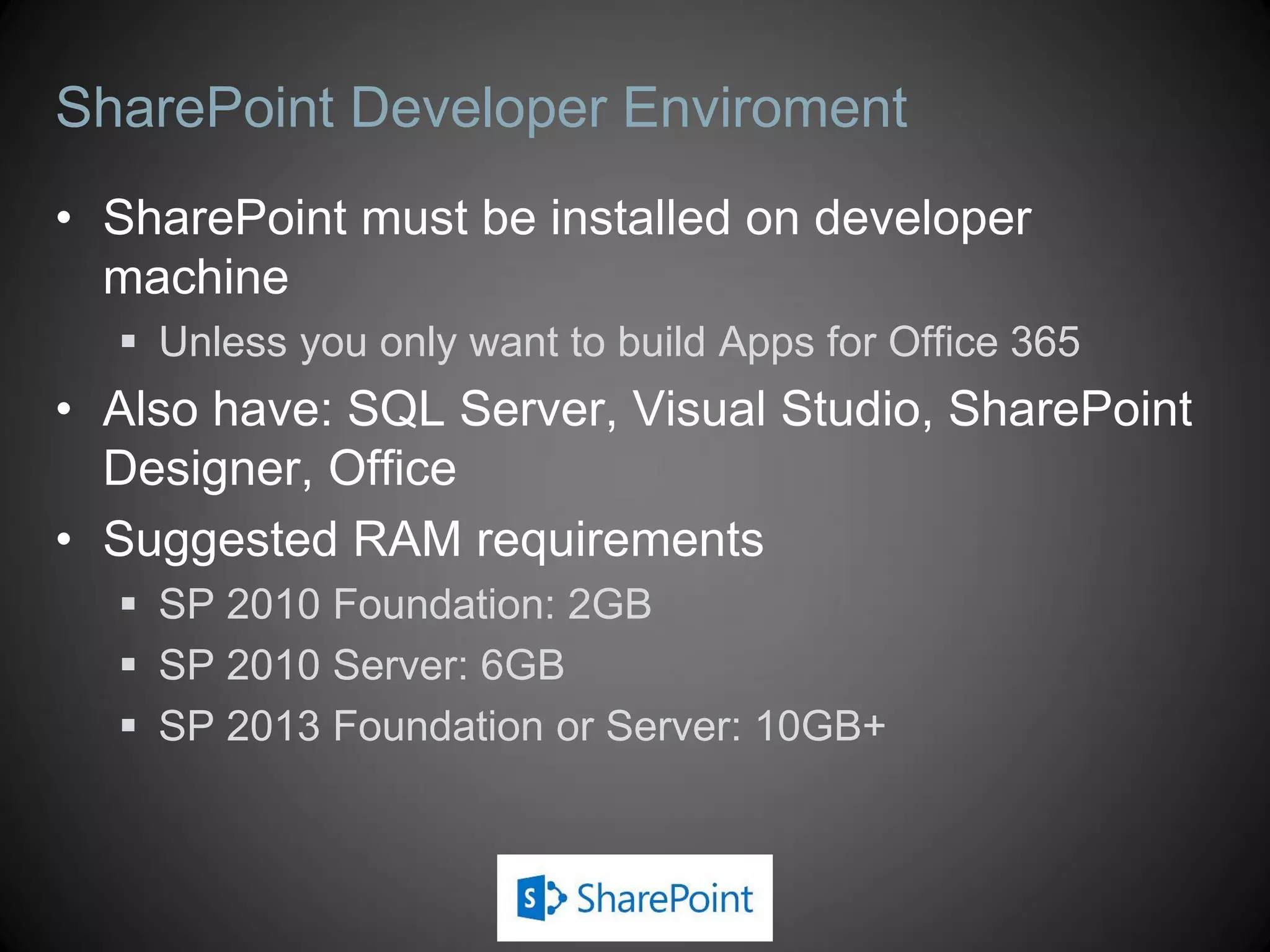

SharePoint Developer Enviroment
• SharePoint must be installed on developer
machine
 Unless you only want to build Apps for Office 365
• Also have: SQL Server, Visual Studio, SharePoint
Designer, Office
• Suggested RAM requirements
 SP 2010 Foundation: 2GB
 SP 2010 Server: 6GB
 SP 2013 Foundation or Server: 10GB+

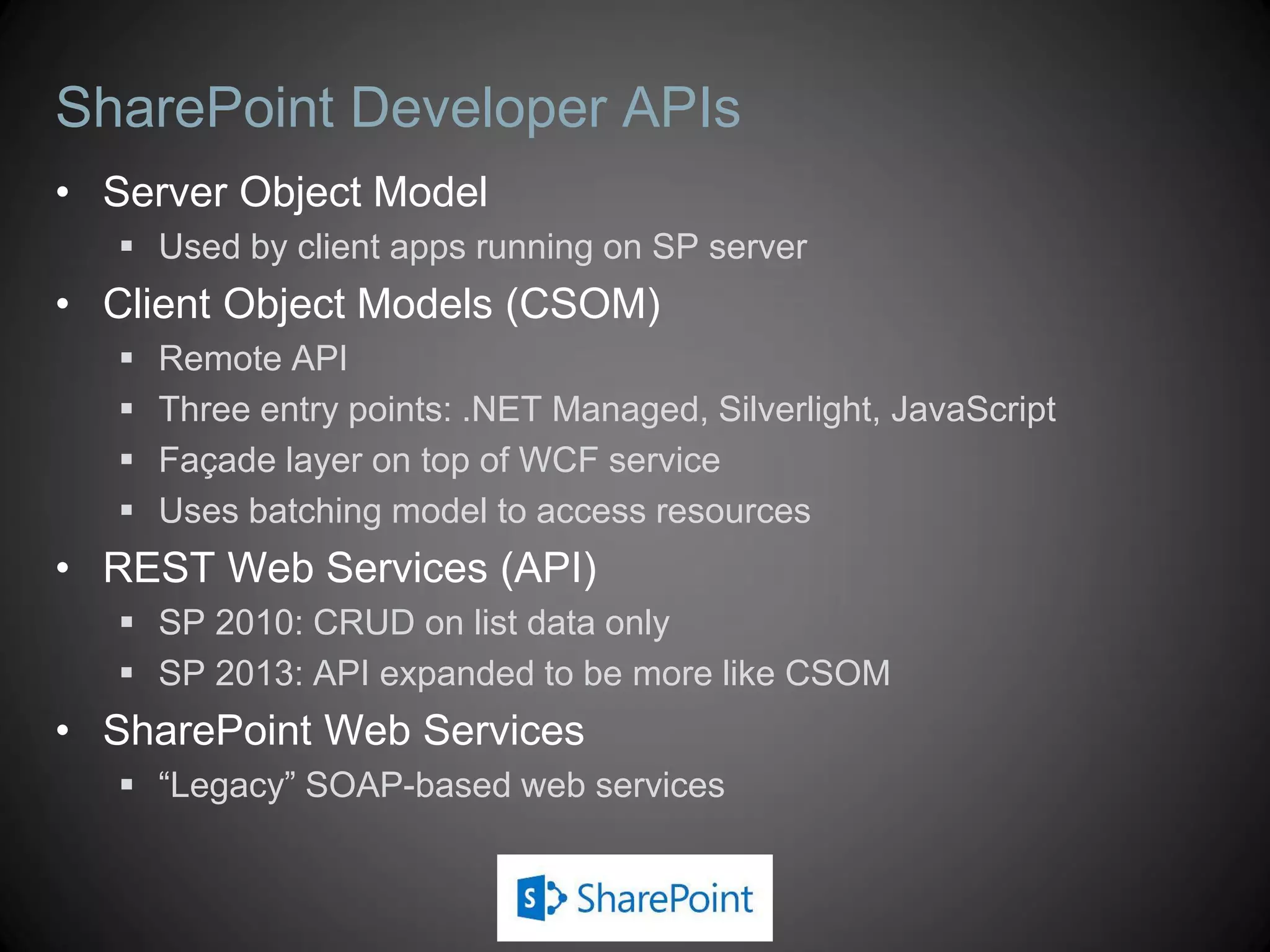

SharePoint Developer APIs
• Server Object Model
 Used by client apps running on SP server
• Client Object Models (CSOM)
 Remote API
 Three entry points: .NET Managed, Silverlight, JavaScript
 Façade layer on top of WCF service
 Uses batching model to access resources
• REST Web Services (API)
 SP 2010: CRUD on list data only
 SP 2013: API expanded to be more like CSOM
• SharePoint Web Services
 “Legacy” SOAP-based web services

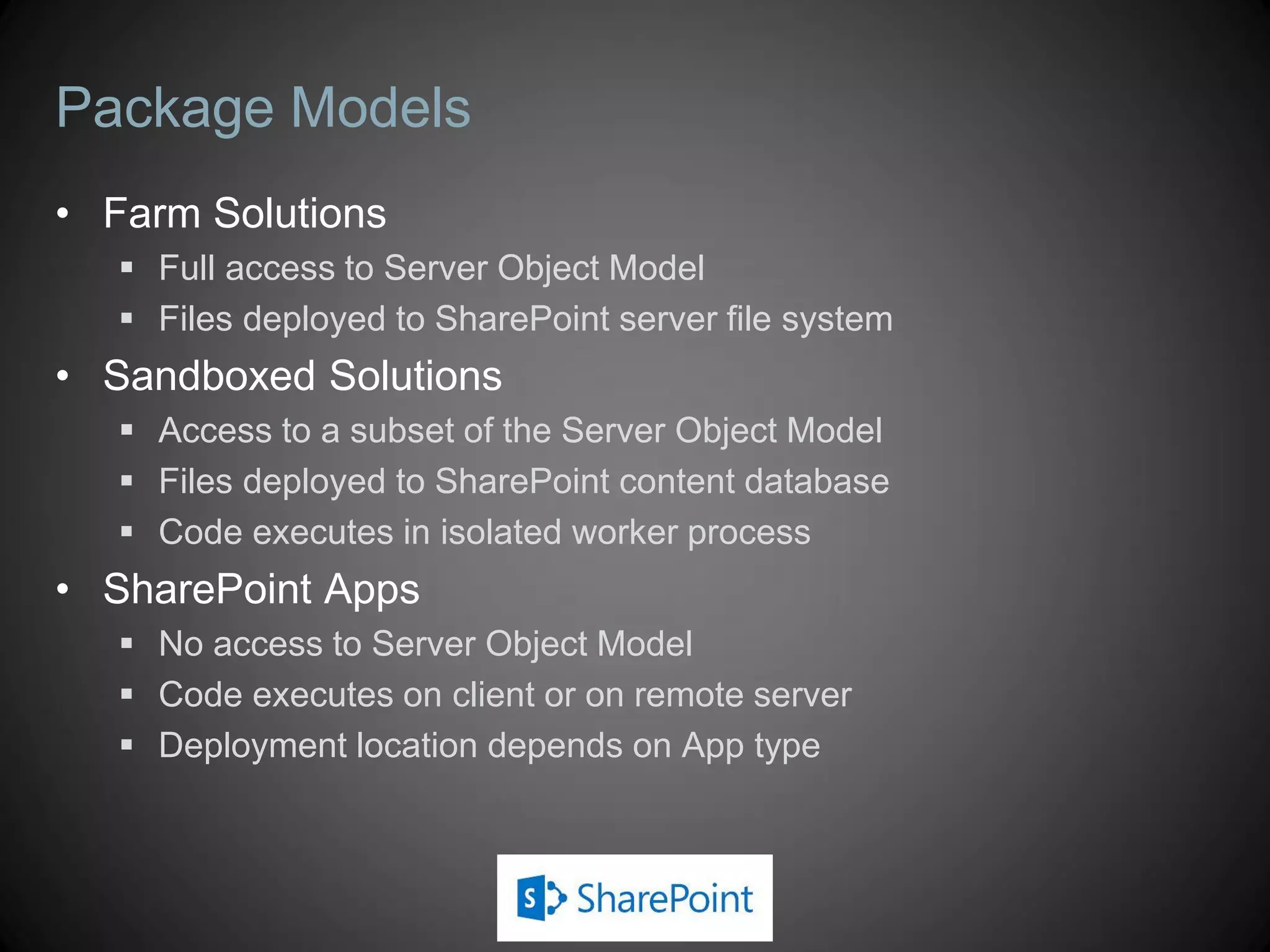

Package Models
• Farm Solutions
 Full access to Server Object Model
 Files deployed to SharePoint server file system
• Sandboxed Solutions
 Access to a subset of the Server Object Model
 Files deployed to SharePoint content database
 Code executes in isolated worker process
• SharePoint Apps
 No access to Server Object Model
 Code executes on client or on remote server
 Deployment location depends on App type

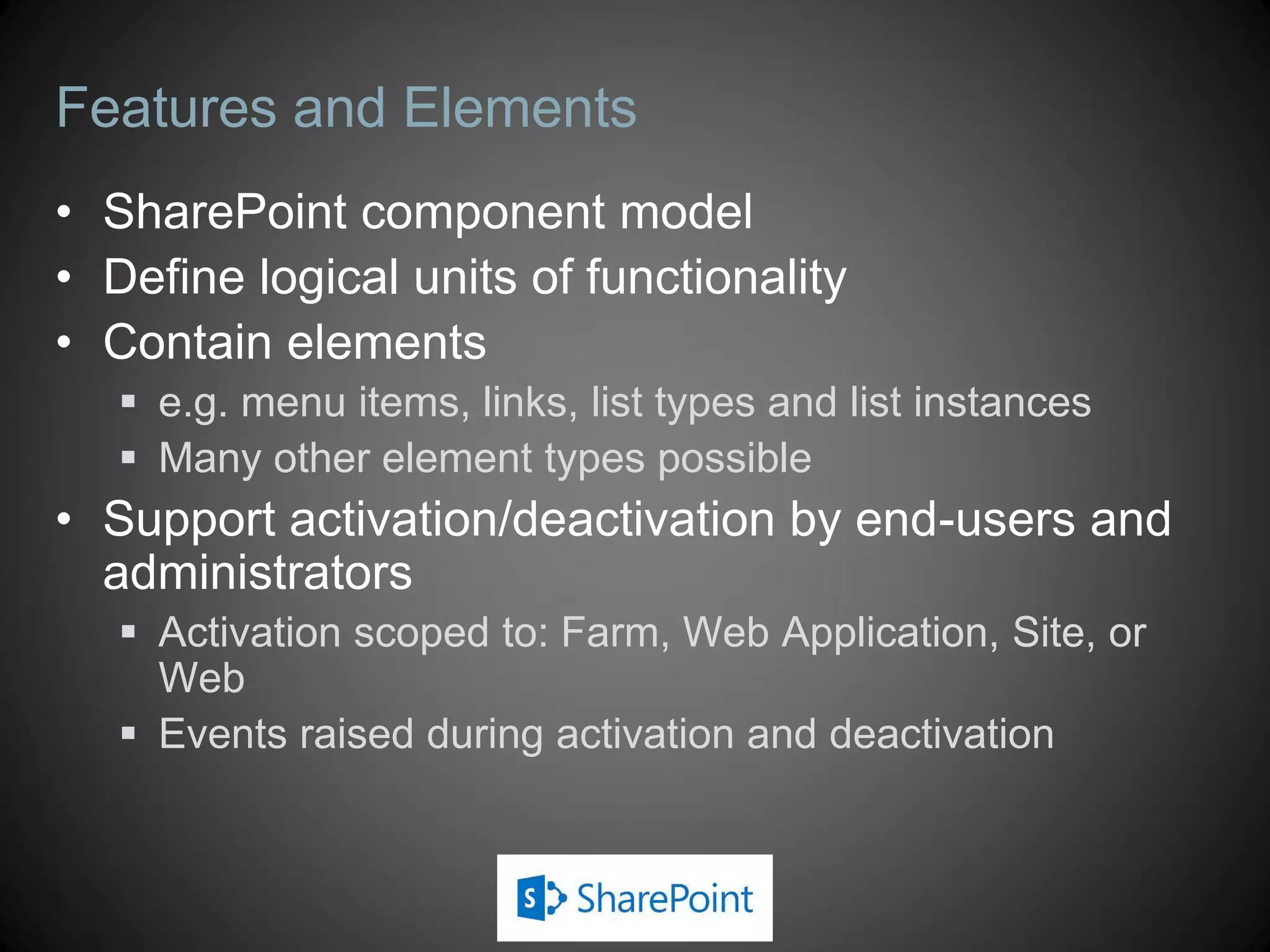

Features and Elements
• SharePoint component model
• Define logical units of functionality
• Contain elements
 e.g. menu items, links, list types and list instances
 Many other element types possible
• Support activation/deactivation by end-users and
administrators
 Activation scoped to: Farm, Web Application, Site, or
Web
 Events raised during activation and deactivation

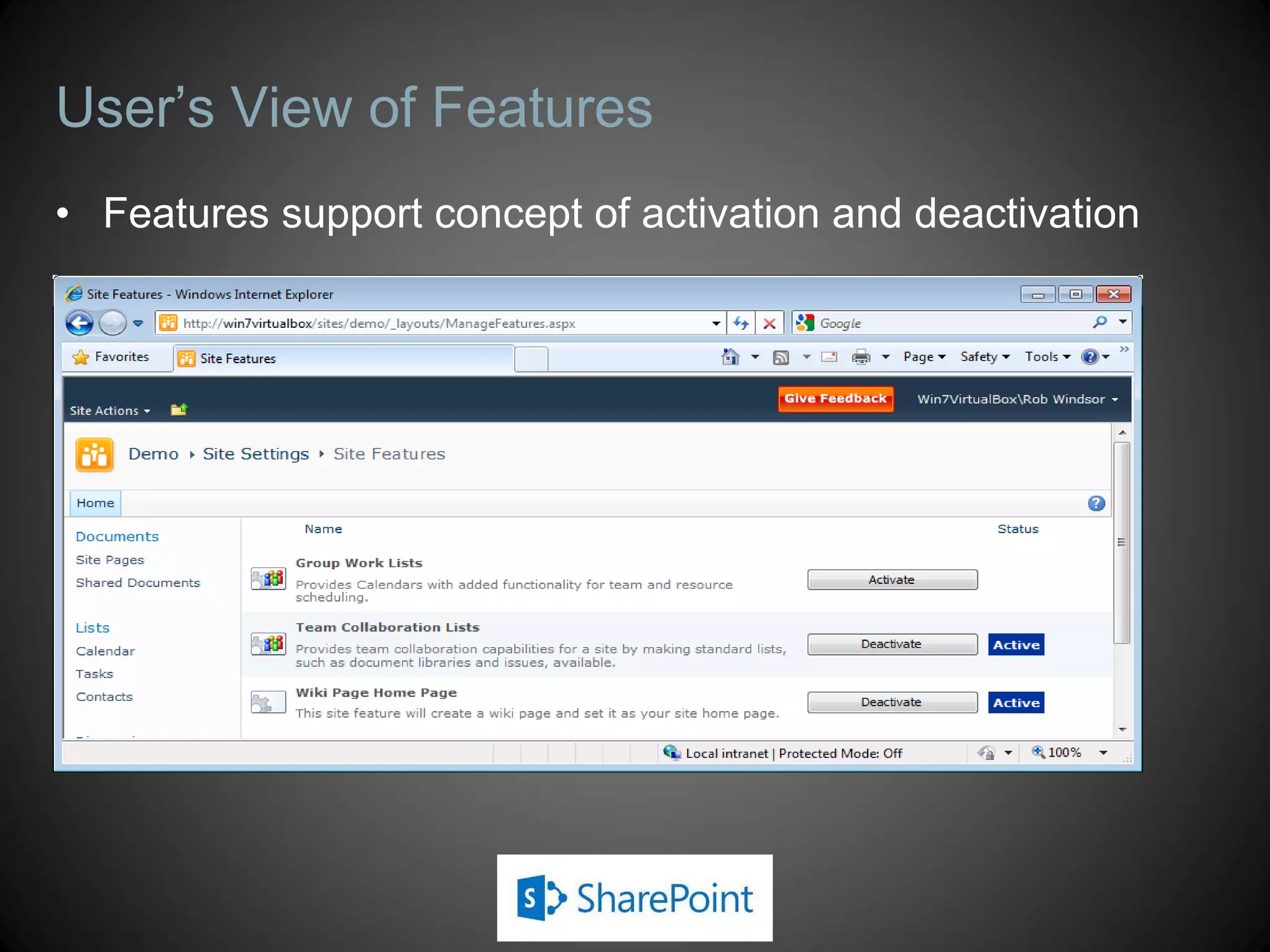

User’s View of Features
• Features support concept of activation and deactivation

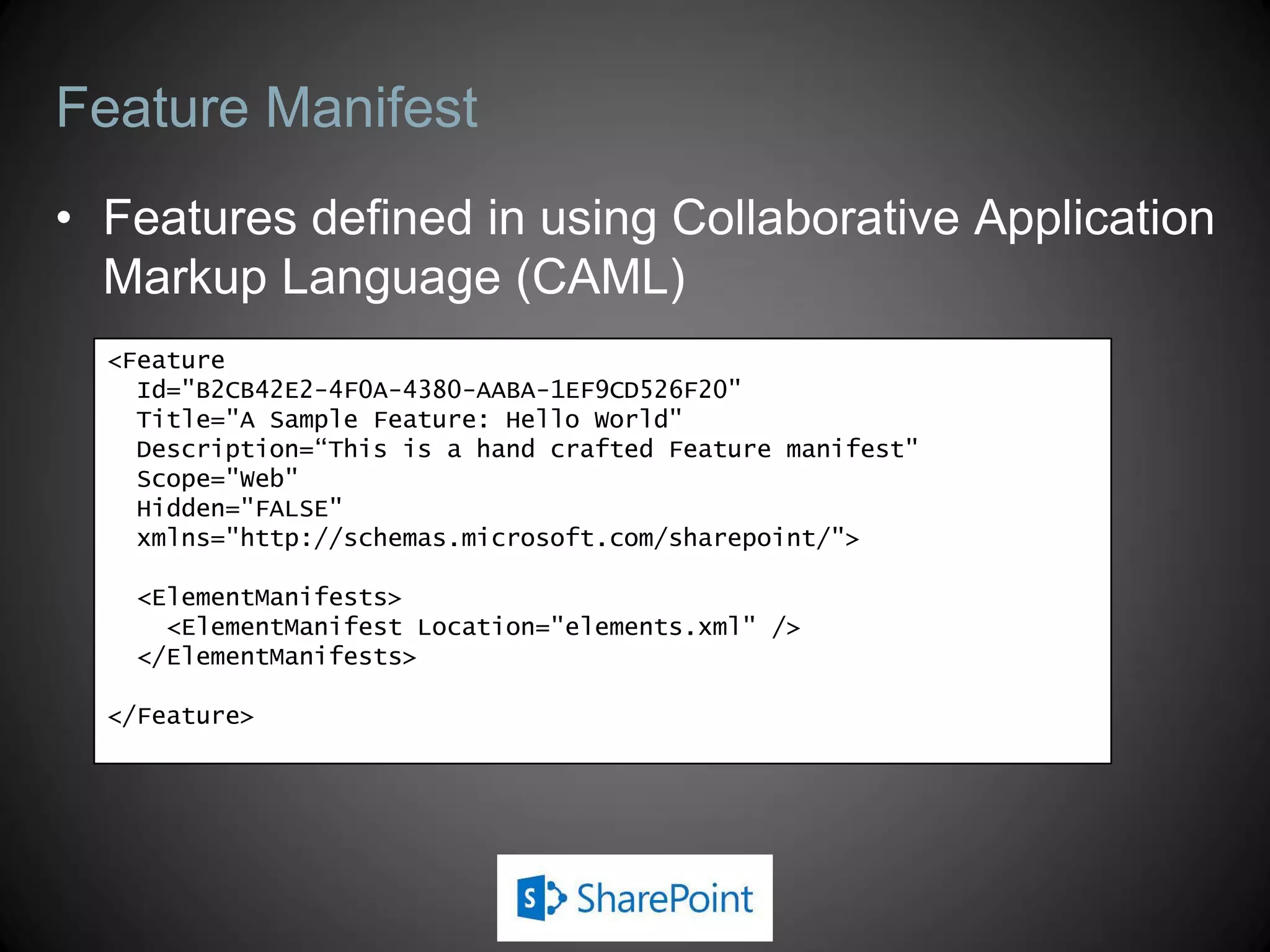

Feature Manifest
• Features defined in using Collaborative Application
Markup Language (CAML)
<Feature
Id="B2CB42E2-4F0A-4380-AABA-1EF9CD526F20"
Title="A Sample Feature: Hello World"
Description=“This is a hand crafted Feature manifest"
Scope="Web"
Hidden="FALSE"
xmlns="http://schemas.microsoft.com/sharepoint/">

<ElementManifests>
<ElementManifest Location="elements.xml" />
</ElementManifests>

</Feature>

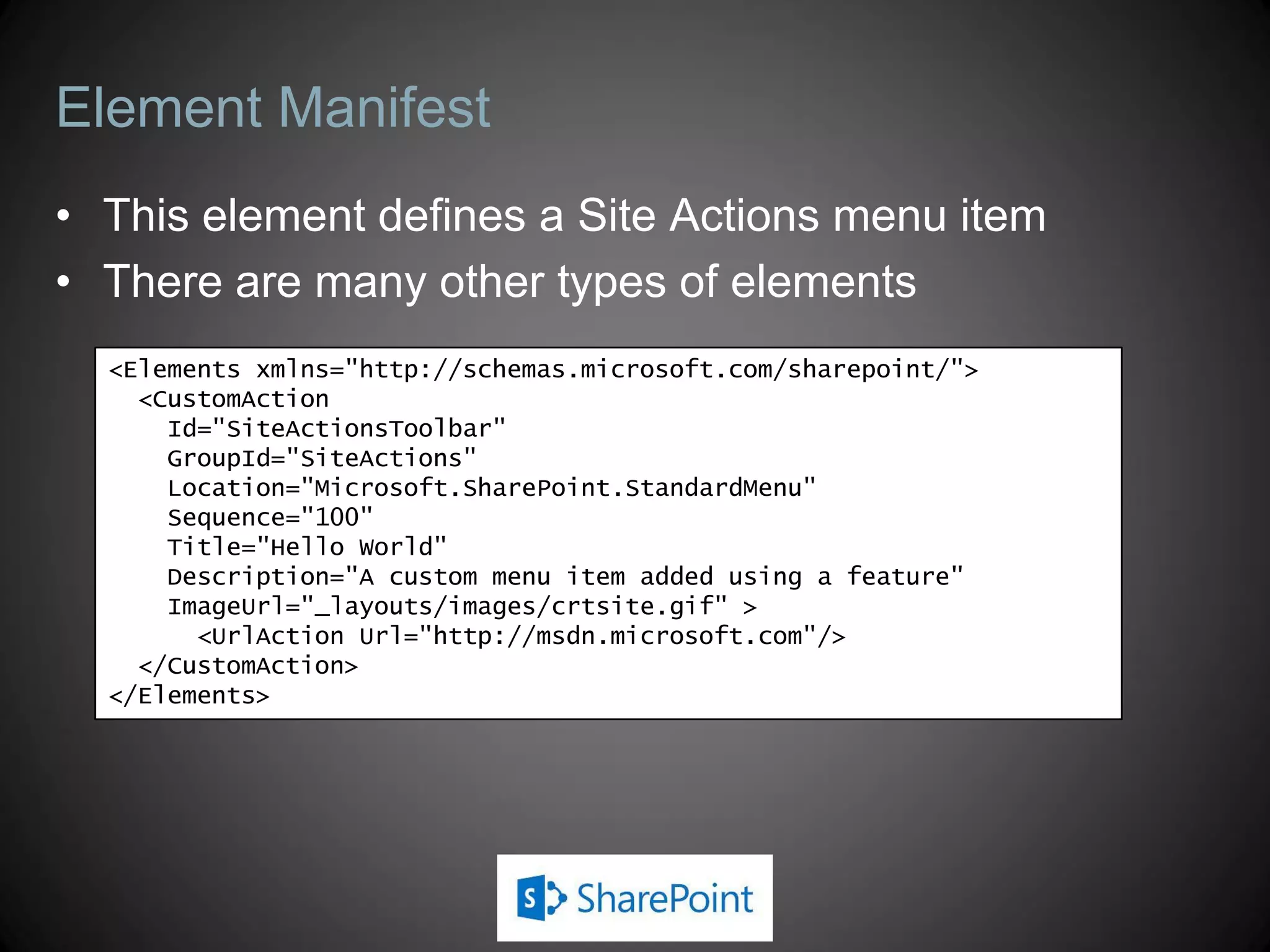

Element Manifest
• This element defines a Site Actions menu item
• There are many other types of elements
<Elements xmlns="http://schemas.microsoft.com/sharepoint/">
<CustomAction
Id="SiteActionsToolbar"
GroupId="SiteActions"
Location="Microsoft.SharePoint.StandardMenu"
Sequence="100"
Title="Hello World"
Description="A custom menu item added using a feature"
ImageUrl="_layouts/images/crtsite.gif" >
<UrlAction Url="http://msdn.microsoft.com"/>
</CustomAction>
</Elements>

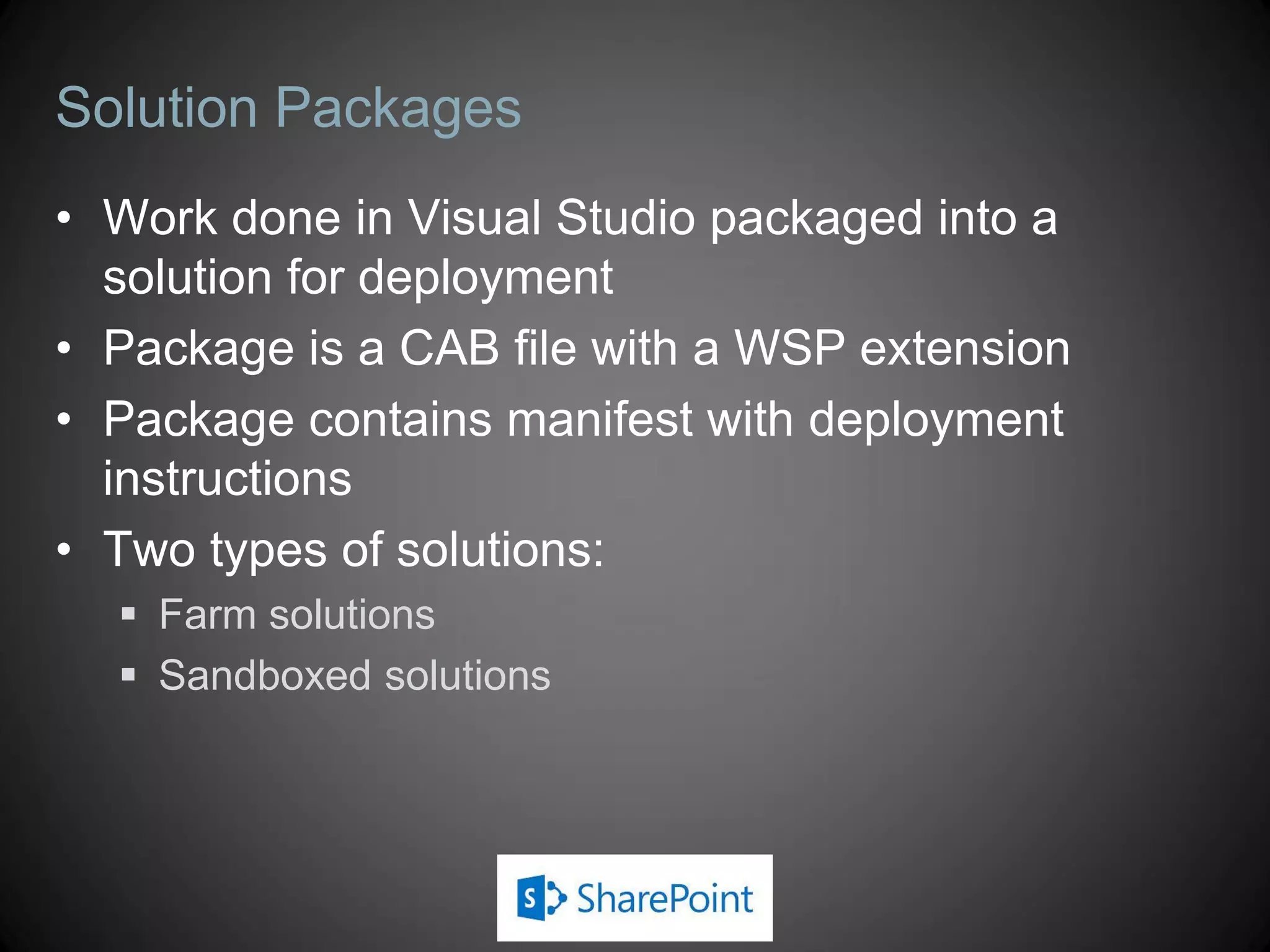

Solution Packages
• Work done in Visual Studio packaged into a
solution for deployment
• Package is a CAB file with a WSP extension
• Package contains manifest with deployment
instructions
• Two types of solutions:
 Farm solutions
 Sandboxed solutions

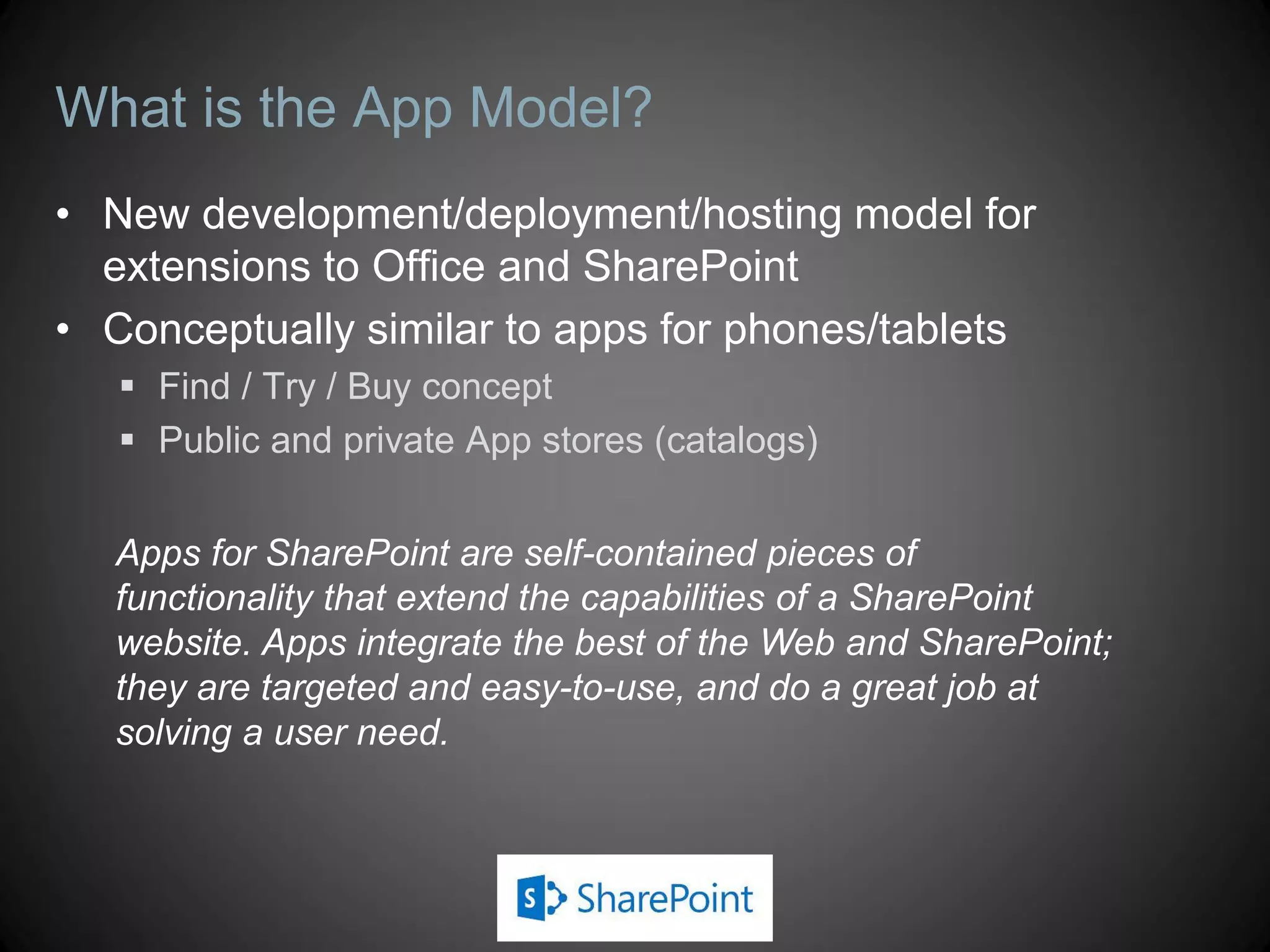

What is the App Model?
• New development/deployment/hosting model for
extensions to Office and SharePoint
• Conceptually similar to apps for phones/tablets
 Find / Try / Buy concept
 Public and private App stores (catalogs)

Apps for SharePoint are self-contained pieces of
functionality that extend the capabilities of a SharePoint
website. Apps integrate the best of the Web and SharePoint;
they are targeted and easy-to-use, and do a great job at
solving a user need.

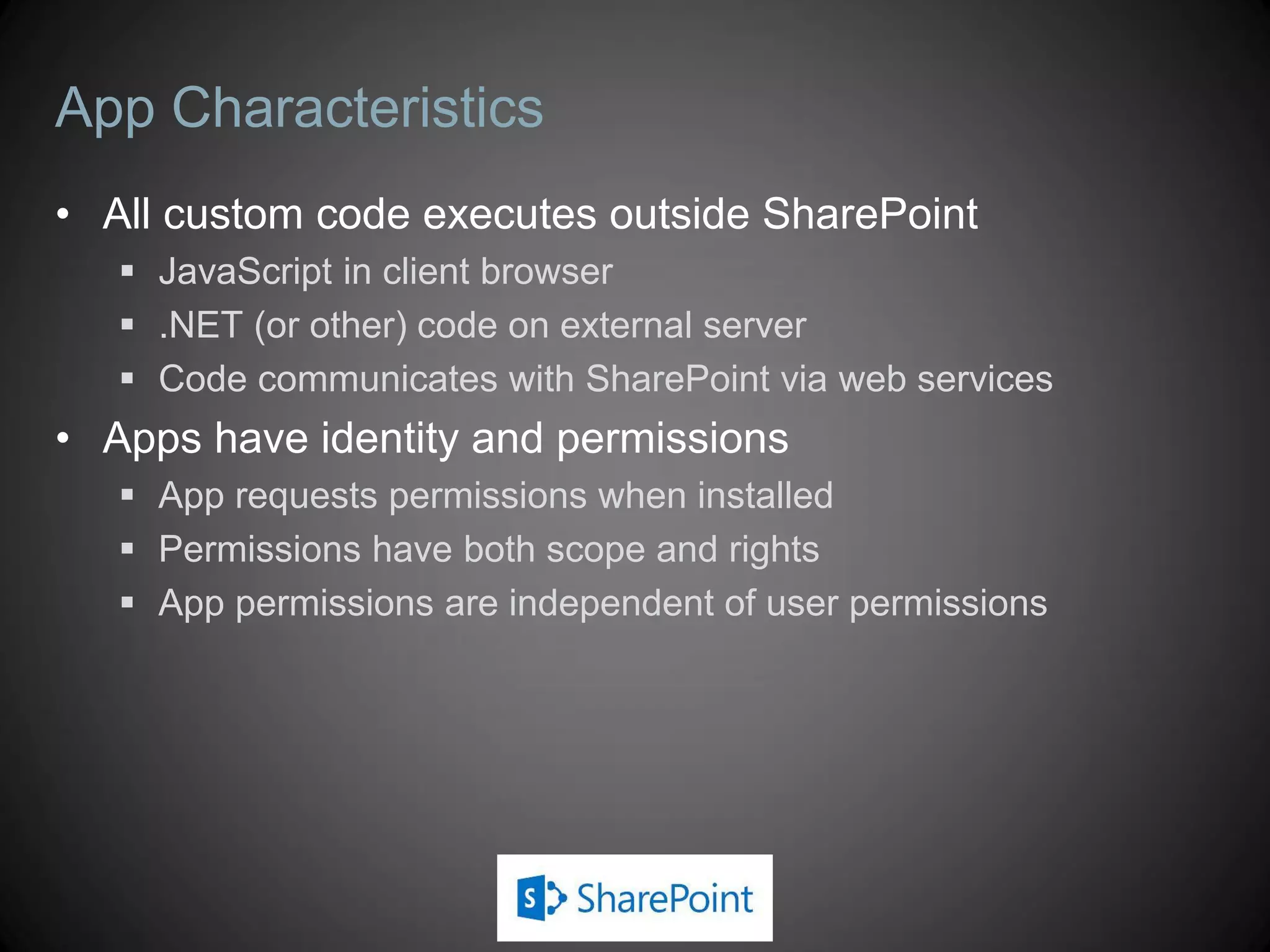

App Characteristics
• All custom code executes outside SharePoint
 JavaScript in client browser
 .NET (or other) code on external server
 Code communicates with SharePoint via web services
• Apps have identity and permissions
 App requests permissions when installed
 Permissions have both scope and rights
 App permissions are independent of user permissions

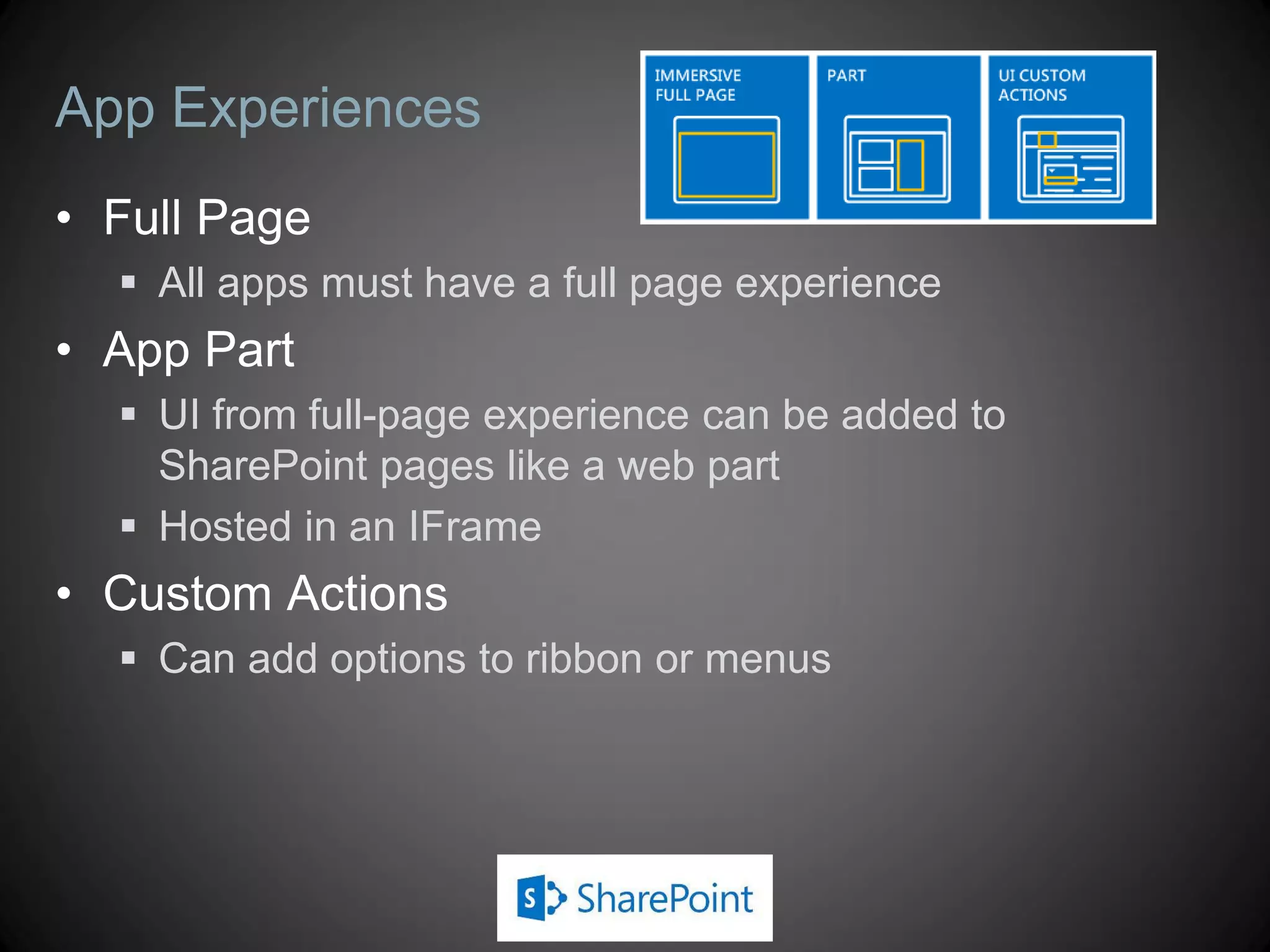

App Experiences
• Full Page
 All apps must have a full page experience
• App Part
 UI from full-page experience can be added to
SharePoint pages like a web part
 Hosted in an IFrame
• Custom Actions
 Can add options to ribbon or menus

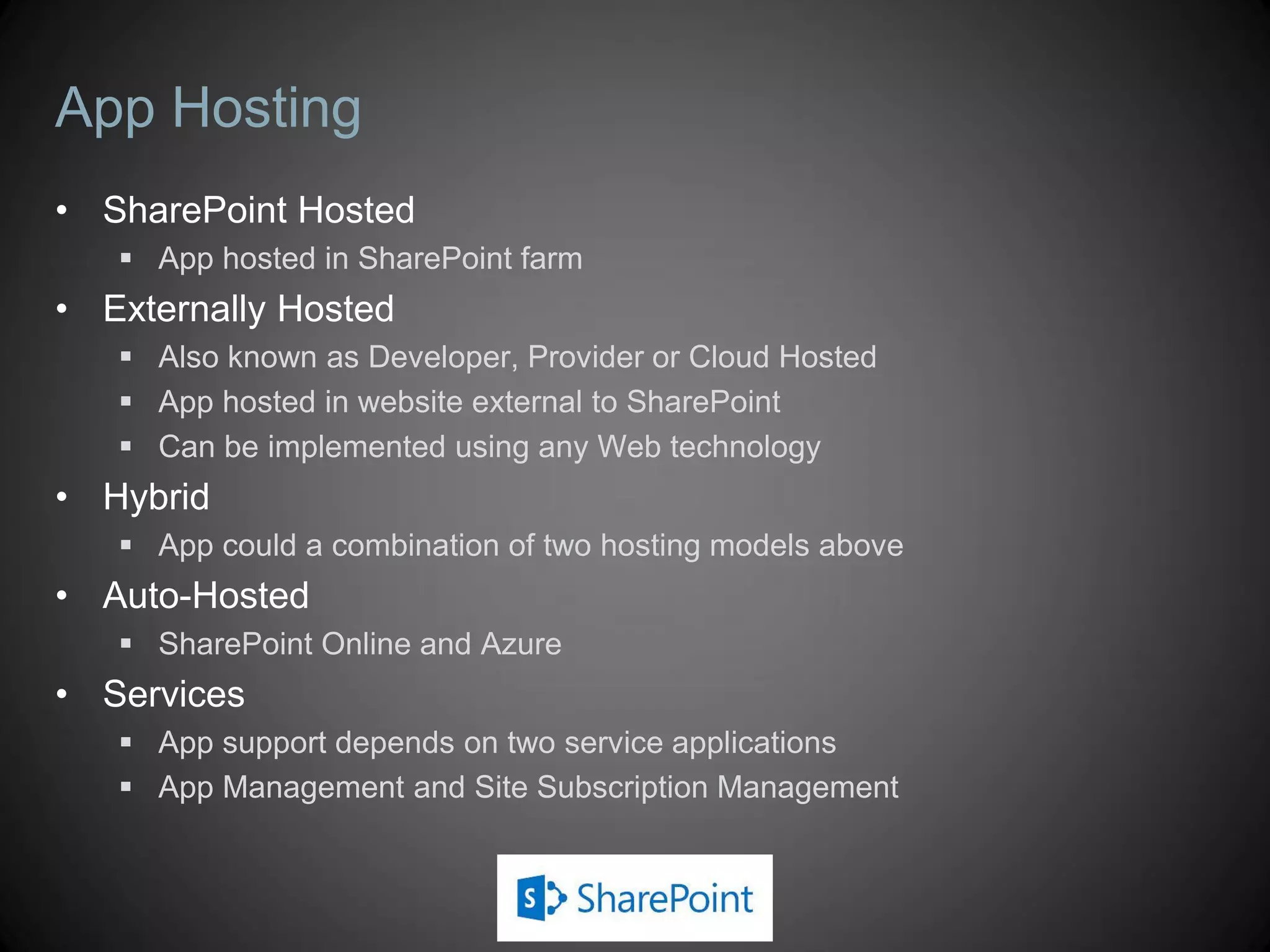

App Hosting
• SharePoint Hosted
 App hosted in SharePoint farm
• Externally Hosted
 Also known as Developer, Provider or Cloud Hosted
 App hosted in website external to SharePoint
 Can be implemented using any Web technology
• Hybrid
 App could a combination of two hosting models above
• Auto-Hosted
 SharePoint Online and Azure
• Services
 App support depends on two service applications
 App Management and Site Subscription Management

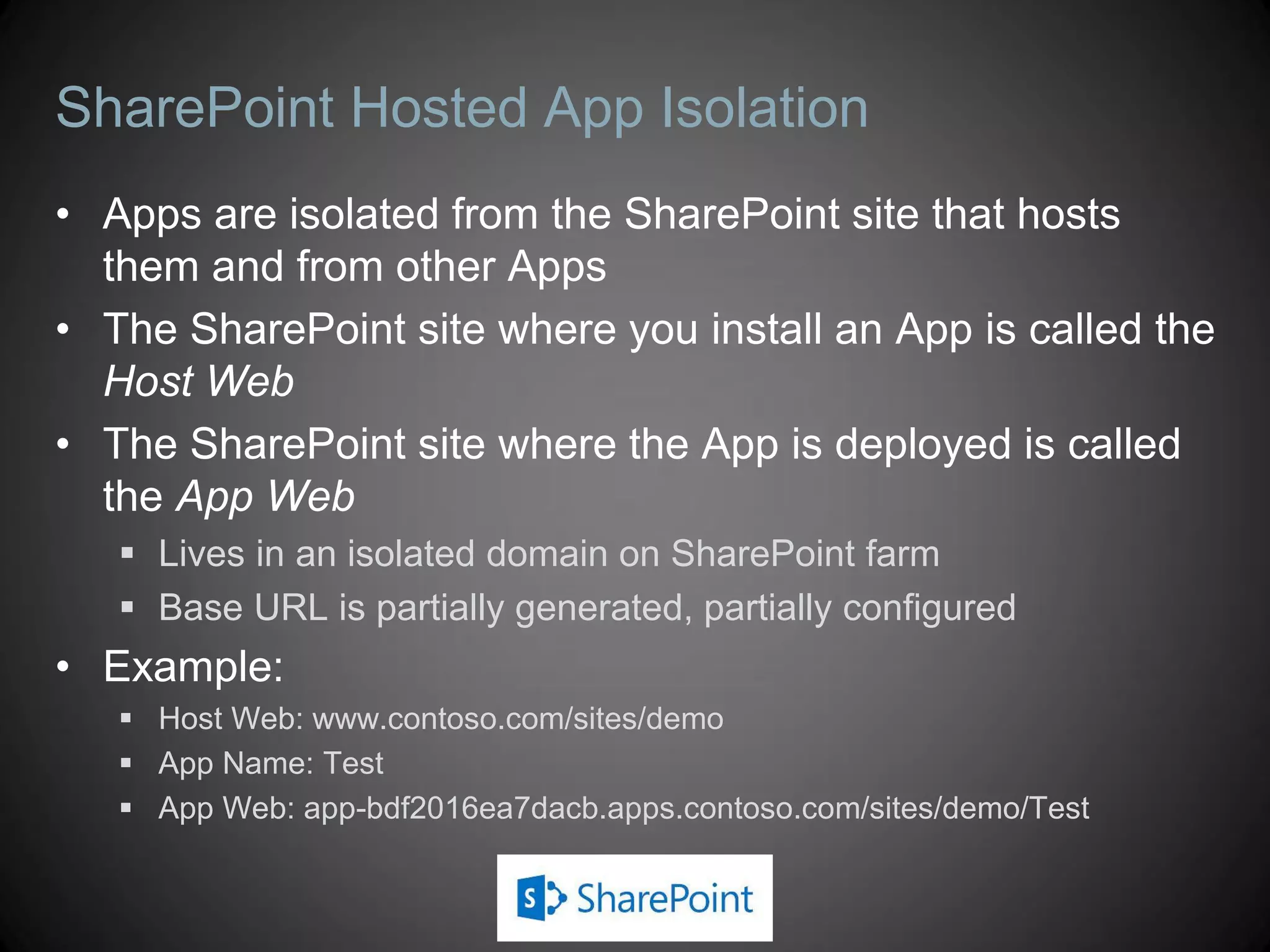

SharePoint Hosted App Isolation
• Apps are isolated from the SharePoint site that hosts
them and from other Apps
• The SharePoint site where you install an App is called the
Host Web
• The SharePoint site where the App is deployed is called
the App Web
 Lives in an isolated domain on SharePoint farm
 Base URL is partially generated, partially configured
• Example:
 Host Web: www.contoso.com/sites/demo
 App Name: Test
 App Web: app-bdf2016ea7dacb.apps.contoso.com/sites/demo/Test

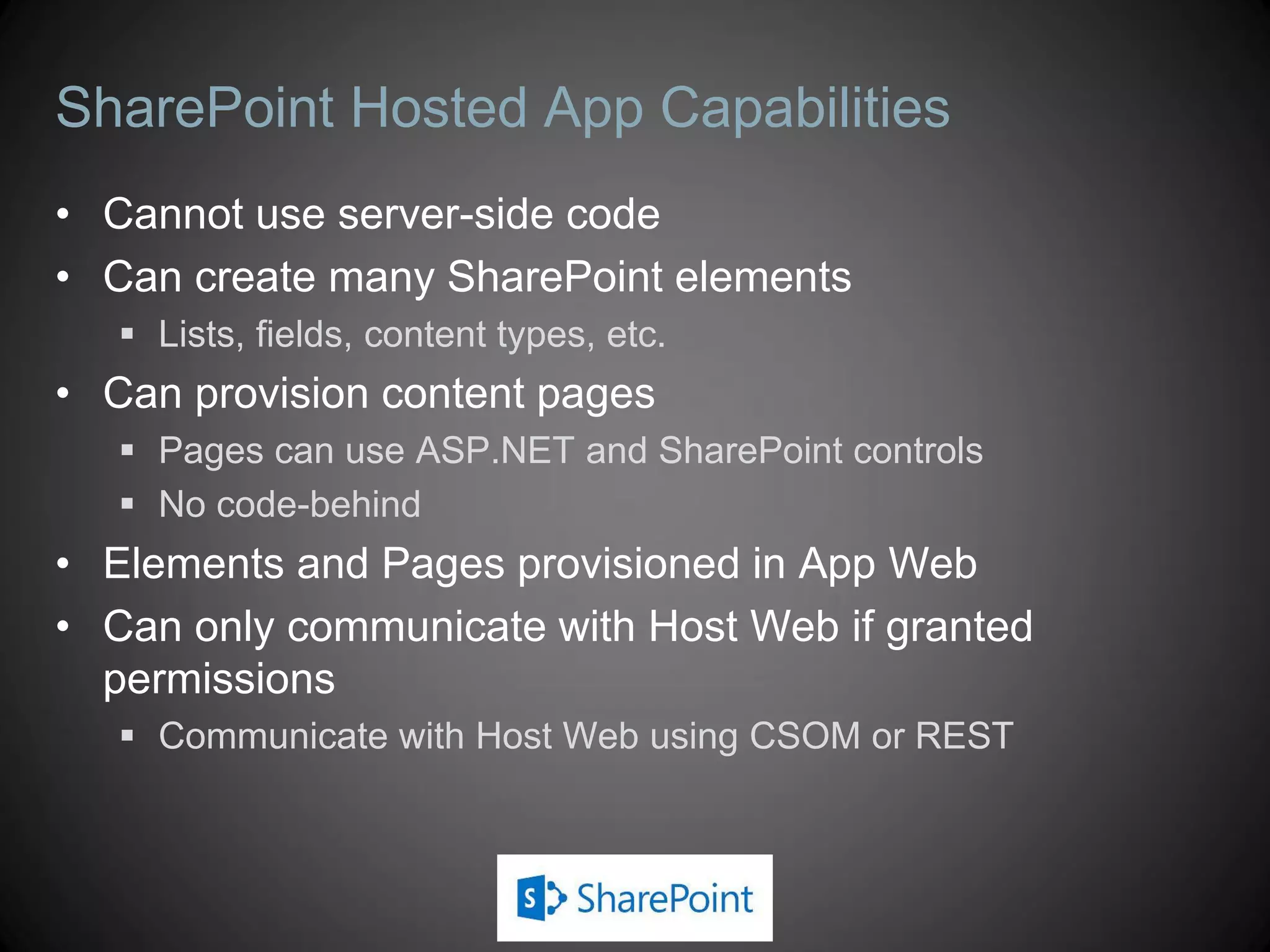

SharePoint Hosted App Capabilities
• Cannot use server-side code
• Can create many SharePoint elements
 Lists, fields, content types, etc.
• Can provision content pages
 Pages can use ASP.NET and SharePoint controls
 No code-behind
• Elements and Pages provisioned in App Web
• Can only communicate with Host Web if granted
permissions
 Communicate with Host Web using CSOM or REST

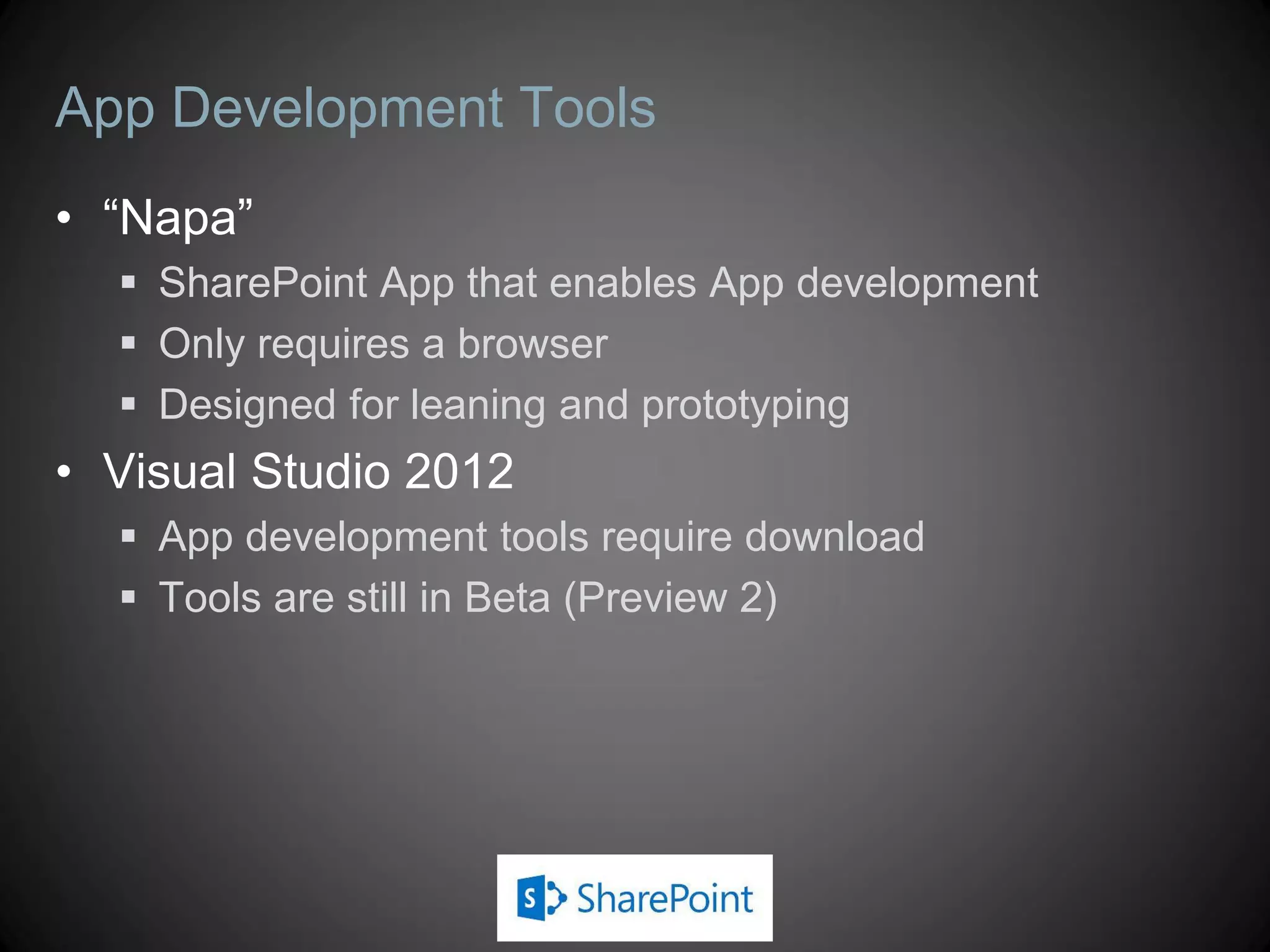

App Development Tools
• “Napa”
 SharePoint App that enables App development
 Only requires a browser
 Designed for leaning and prototyping
• Visual Studio 2012
 App development tools require download
 Tools are still in Beta (Preview 2)
