Oracle SQL Developer Tips & Tricks

Copyright © 2014 Oracle and/or its affiliates. All rights reserved. |
Oracle SQLcl & SQL Developer
Tips & Tricks!! (updated for v4.2)
Jeff Smith
Senior Principal Product Manager
Database Development Tools
Jeff.d.smith@oracle.com
@thatjeffsmith
http://www.thatjeffsmith.com

whoami
 a tools geek since 2001
 that guy that blogs at thatjeffsmith.com
 #SQLDev Product Manager

Improve
application
developers
experience
 SQL Developer, In a Nutshell
 The Show!!!
 Talk the Tip
 Show the Tip
 Questions As We Go!
 Take notes or borrow mine at the end…
How this session works…

 FREE Oracle Database IDE/GUI
 Windows, OS X, *NIX
 More than 4,500,000 users worldwide
 My Oracle Support available via your DB license

Oracle SQL Developer, Major Feature Areas
 PL/SQL IDE
 SQL editor
 GUI for browsing and managing database objects
 Ad Hoc reporting
 Database Design & Data Modeling
 Database Administration
 3rd Party RDBMS Migrations to Oracle
 Deploy and Administer Oracle REST Data Services
 REST Enablement of the Database
 Command Line Interface

Oracle SQL Developer
History
Project Raptor
 Early Adopter on OTN
2005
SQLDev 1.1
 File Based PL/SQL editing
 Reports
 Ships with 11gR1
SQLDev 1.5.x
 Localizations -
Japanese, Spanish,
Italian, German, French,
Portuguese, Chinese, &
Koreans
 Ships with 11gR2
SQLDev 1.0
 SQL Worksheet
 Procedure Editor
 The world takes notice!
SQLDev 1.5
 Schema Copy/Diff/Export
 Thick connections
 Versioning
 TimesTen
SQLDev 2.1
 Unit Testing
 Data Modeler Viewer
 Unshared SQL Worksheets
2007 201020092006
SQLDev 3.0
 Full Data Modeler
 View > DBA
 SQL Tuning Advisor
 Query Builder
2008 2011 2012
SQLDev 3.1
 New Database DIFF
 PDF Reports
 RMAN
 Data Pump
2013
SQLDev 3.2
 APEX Listener / ORDS
Support
 Database 12c Support
 Schema Service Support
SQLDev 4.0
 Java 7
 ASH/AWR/ADDM
 Color Coded Connections
 Command line Interface
SQLDev 4.0.3
 Optimized Code Insight
 Oracle Big Data Appliance
2014 2015 2016
SQLDev 4.1
 ORDS Included/Full GUI
 instance Viewer
 SQLcl
 Copy PDB to DBaaS
 Larry live demos PDB relocate @ OOW
SQLDev/SQLcl 4.2
 SQLcl PROD
 SQL Dev Early Adopter
 Real Time SQL Monitoring
 TOP Report
 Formatter & Other Edtior Enhancements

Split-Editors

Split Editors
 Multiple ‘views’ of
a single object/file
 Click-drag the
splitter ‘widget’ OR
 Right-click > Split
on the doc tab

Tab Groups
 Work with > 1
object at a time
 Right Click on
tab > New Doc
Tab Group
 Drag docs from
one group to
another

Manual versus Automatic…
…what’s better?

 Automatic = suggestions as
you type
 Manual = suggestions as you
ask for them (ctrl+space)

 Adjust delay
 Suppress automatic
suggestions
OR
 Turn off completely and
use keyboard, on demand
Completion Insight, I recommend The Stick!

Bonus: Get Help/Examples with Commands!
 peak into Docs for sample code
on your function/command
 click on ‘book’ to go straight
to the DOCS page for that
function/command

Also Available on the command-line: SQLcl & <TAB>
 Just hit <TAB> for help
 Autocompletes on Single Match
 Lists possible matches otherwise!

Your Best Queries? Originally
written by…
Aliens?

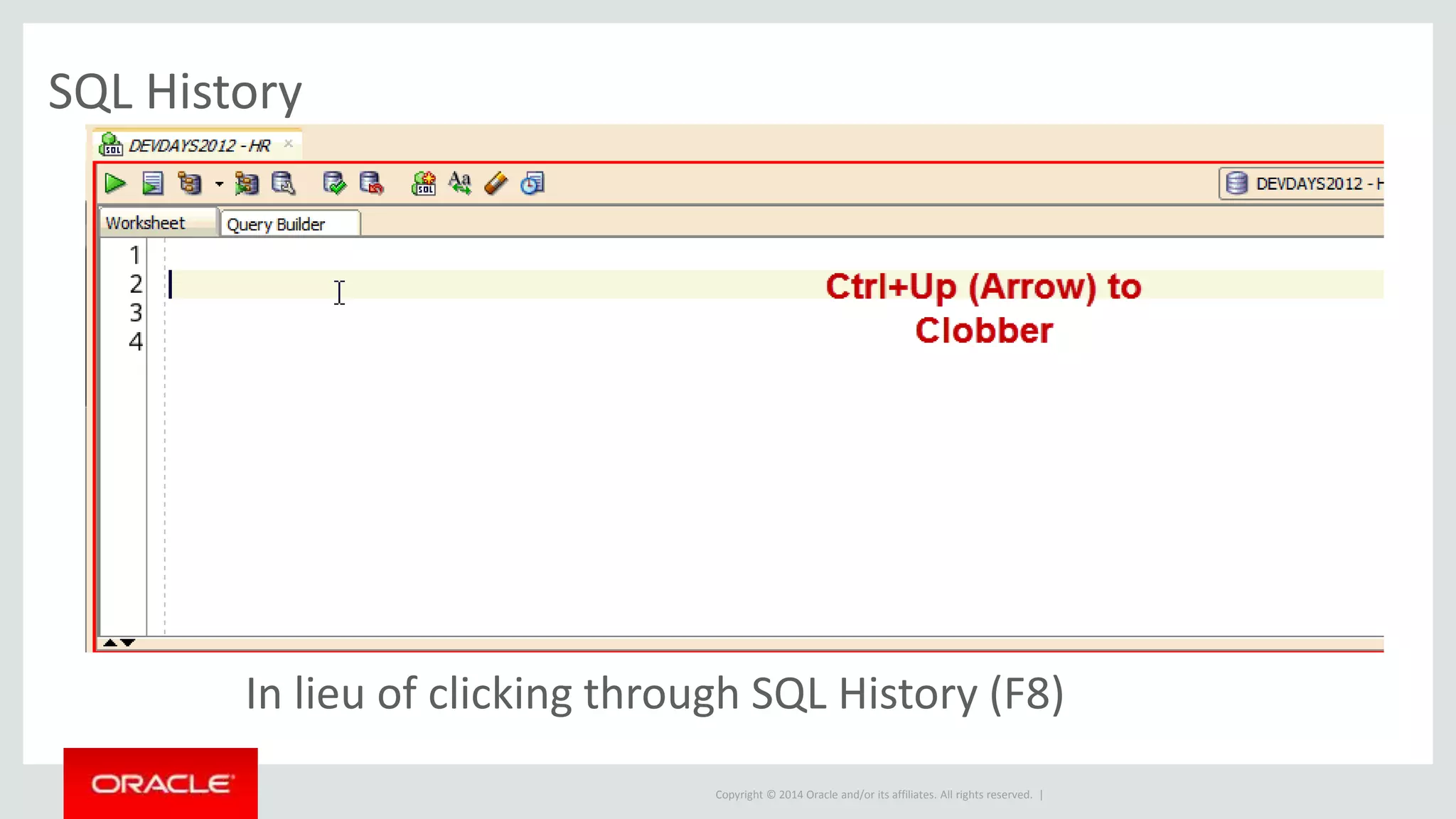

In lieu of clicking through SQL History (F8)
SQL History – Not aliens, just code from 6 days ago 

2. SQL History Logging: every SQL to DB captured
New for v4.1 – also captures BINDS

SQL Statement & Script History – access with Up/Down Key
 Sensitive commands,
connect black-listed
 Defaults to last 100
 Avail from session to
session per OS user

I love it when a plan comes
together!!

Plans/AutoTrace – generate & compare side by side!
Hit the drop-down control next to Plan Button to
access cached plans from v$sql_plan
Pin Plan, Gen Plan, Right-Click >
Compare for Side By Side View

CLI: Use an ALIAS to Make DBMS_XPLAN EASY

PUT
THE
MOUSE
DOWN

7 Clicks to go from Grid to Formatted Export to Output

 Add Comment
 Execute via F5 (Script)
 Comment labels match grid
export formatter labels
 ONLY works in SQLDev…
& SQLcl 
Format Query Results Directly to CSV, XML, etc

Format Query Results Directly to CSV, XML, etc
Version 4.1 Updates!
 SET SQLFORMAT
 JSON
 ANSICONSOLE

Get your files, whichever way you want them

Custom Formats, just add JavaScript

Have you tried Ctrl+Click?

 Right-Click on a Connection
 Drop Down Controls for
 Schema
 Object
 Same Functionality as Tree
Alternatives to the Tree for Nav #1: Schema Browser

1. Hold down Ctrl...
…Mouse over object
...CLICK to open object
2. SHIFT+F4 (DESC)
3. Find DB Object
Alt+G on object text
Three More Ways to Open/Browse Objects

Snippet, Snippet GOOD.
Code Templates…GOLD!

Auto-Replace Now Available (v4.2)
1. Program in Preferences
2. Type name
3. Ctrl+Spacebar OR enable
Auto-Replace

More Preferences To Consider
 Open Object on Single Click
 Code Editor Font
 Grid in checkerboard
 Display NULL As
 Shortcut Keys
 PL/SQL Syntax Colors

Auto-Replace/Spell Checking in SQLcl
 Uses SCRIPT/JS
 Looks for ‘bad’ text
 Replaces before
sending to JDBC
 Shows corrected SQL
with Output

I’ll Take Potpourri for $200, Jeff

Double the functionality in SQL Developer…
 View Menu
 ‘DBA’
 Adding new
things every
release
 Not JUST for
developers
anymore

Watch Database Activity
 agent-less
 ZERO DB objects
 a ‘fancy’ report
 no history
● no alerts
● drill-downs
We’re making more of
these 

OTN – SQL Developer
– Forums
– By Example Tutorials
– My Tips & Tricks Blog
Resources

Customize Preferences
Recall SQL History via keyboard
Script Output in CSV, HTML, …
Schema Browser
Ctrl+Click, Shift+F4, Object Search
XML Extensions
All of my #SQLDev Posts :)
The Tips in Blog Format
