O365con14 - powershell for exchange administrators
- 2. PowerShell for Exchange Administrators DejanForo CEO, Exchangemaster GmbH European Office 365 Connect Conference, Haarlem, Netherlands 2.4.2014
- 3. Speaker introduction • 21years in IT of which last 16 as an Exchange specialist • 6 Exchange generations (5.5, 2000, 2003, 2007, 2010, 2013) • 3,2 million mailboxes • Exchange User Group Europe - Founder • 9x Microsoft MVP for Exchange • Founder and CEO, Exchangemaster GmbH, Zurich, Switzerland

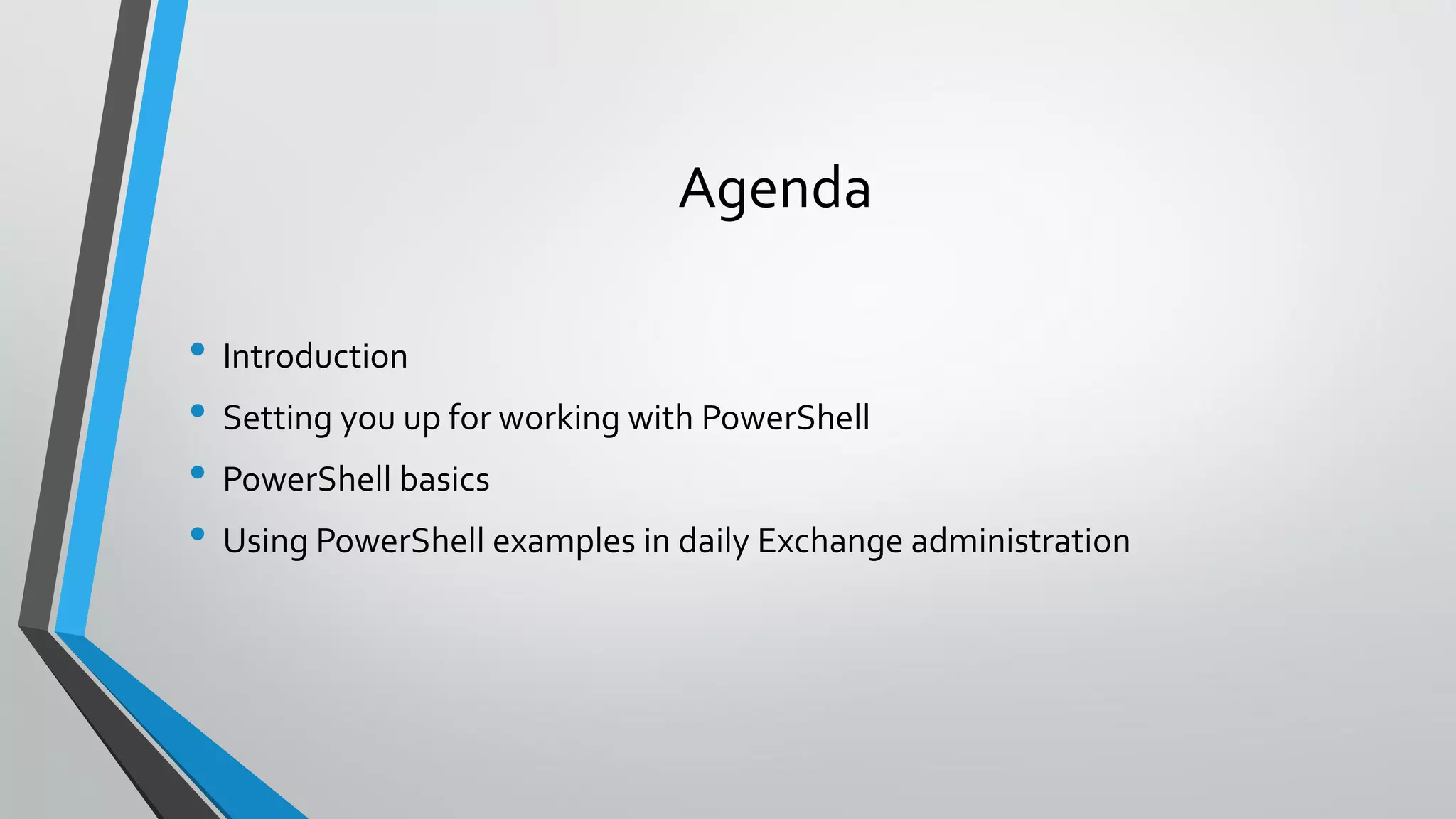

- 4. Agenda • Introduction • Settingyou up for working with PowerShell • PowerShell basics • Using PowerShell examples in daily Exchange administration

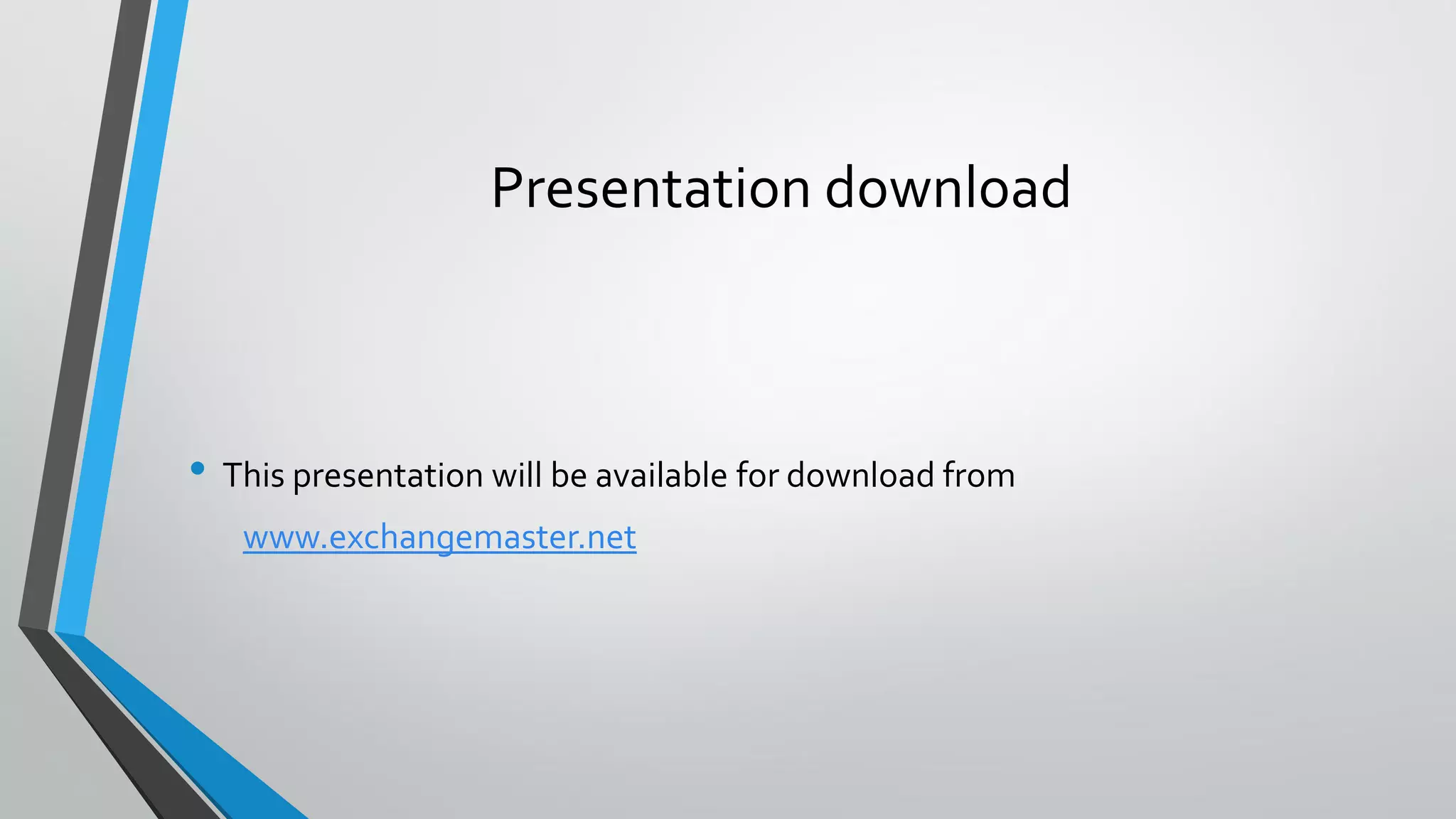

- 5. Presentation download • Thispresentation will be available for download from www.exchangemaster.net

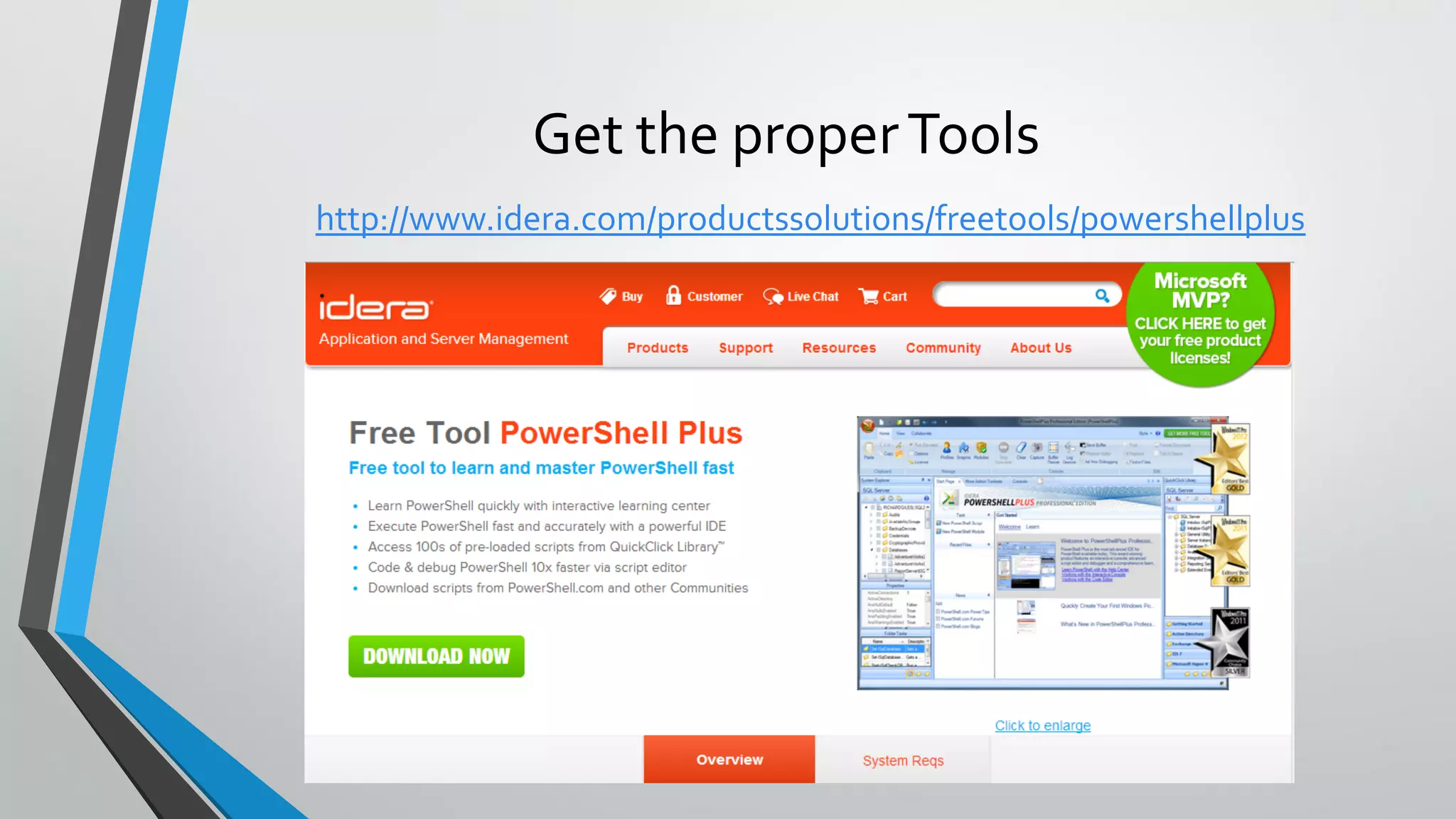

- 6. Setting you upfor work with PowerShell Tools, etc.
- 7.

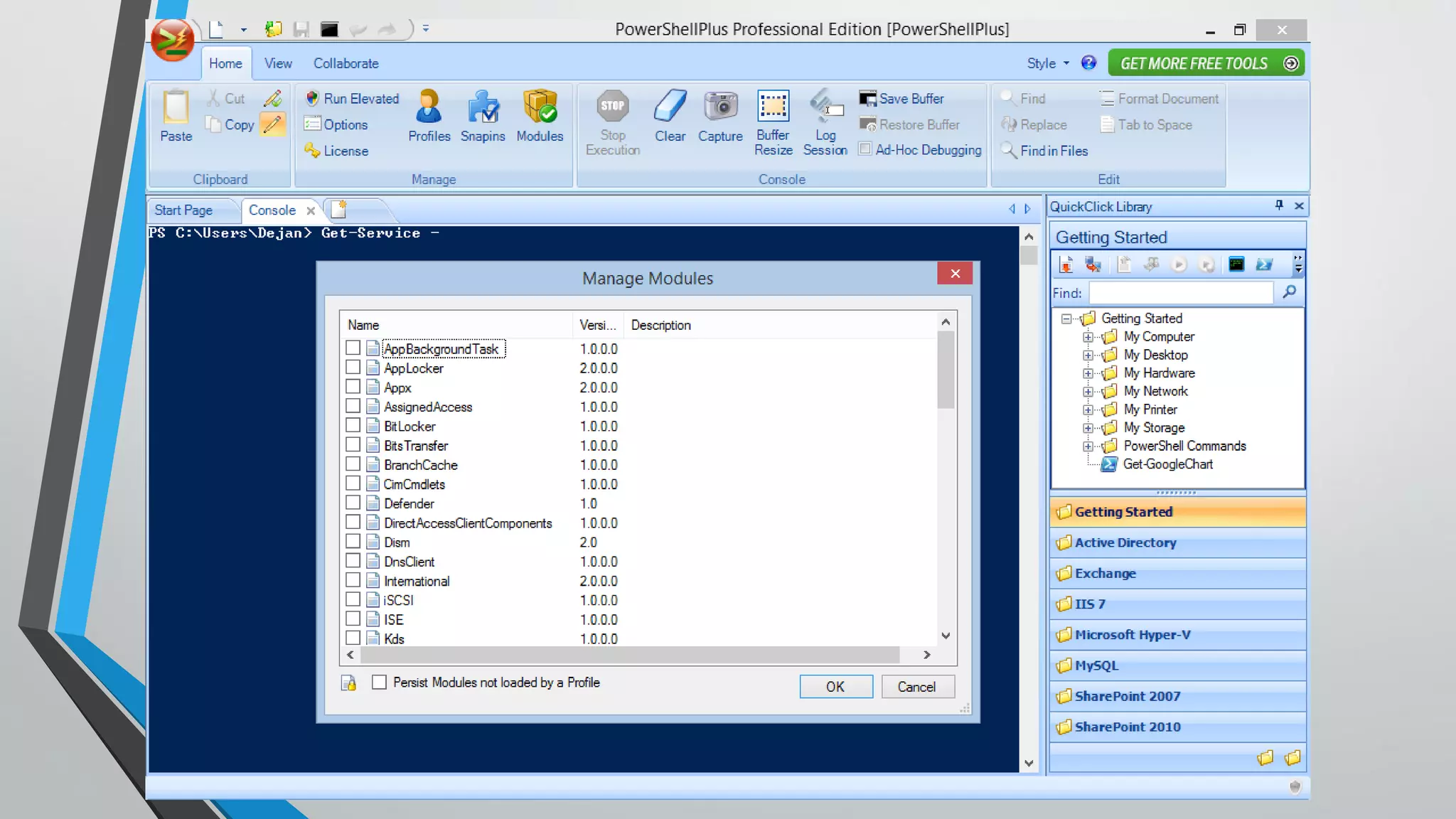

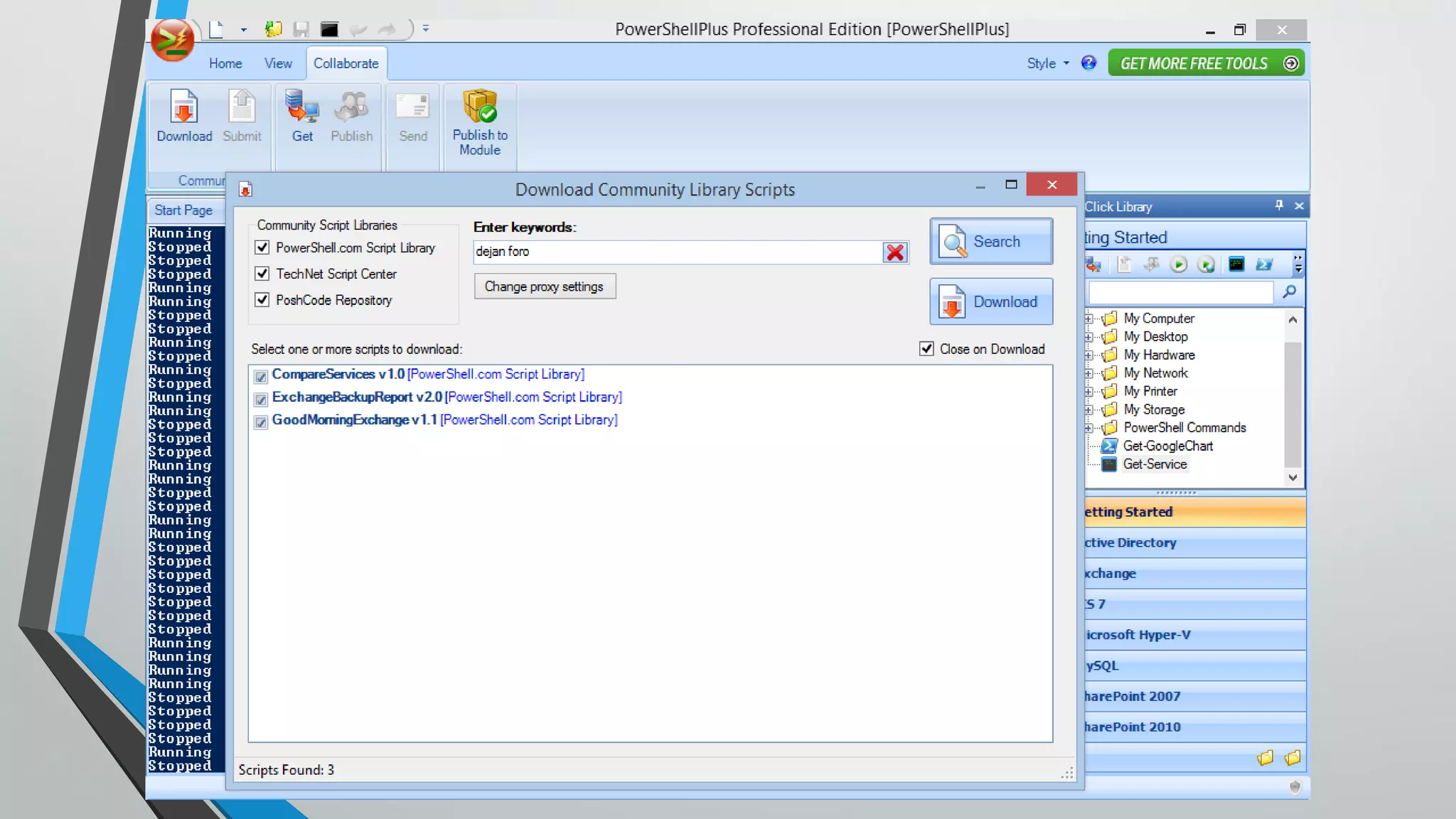

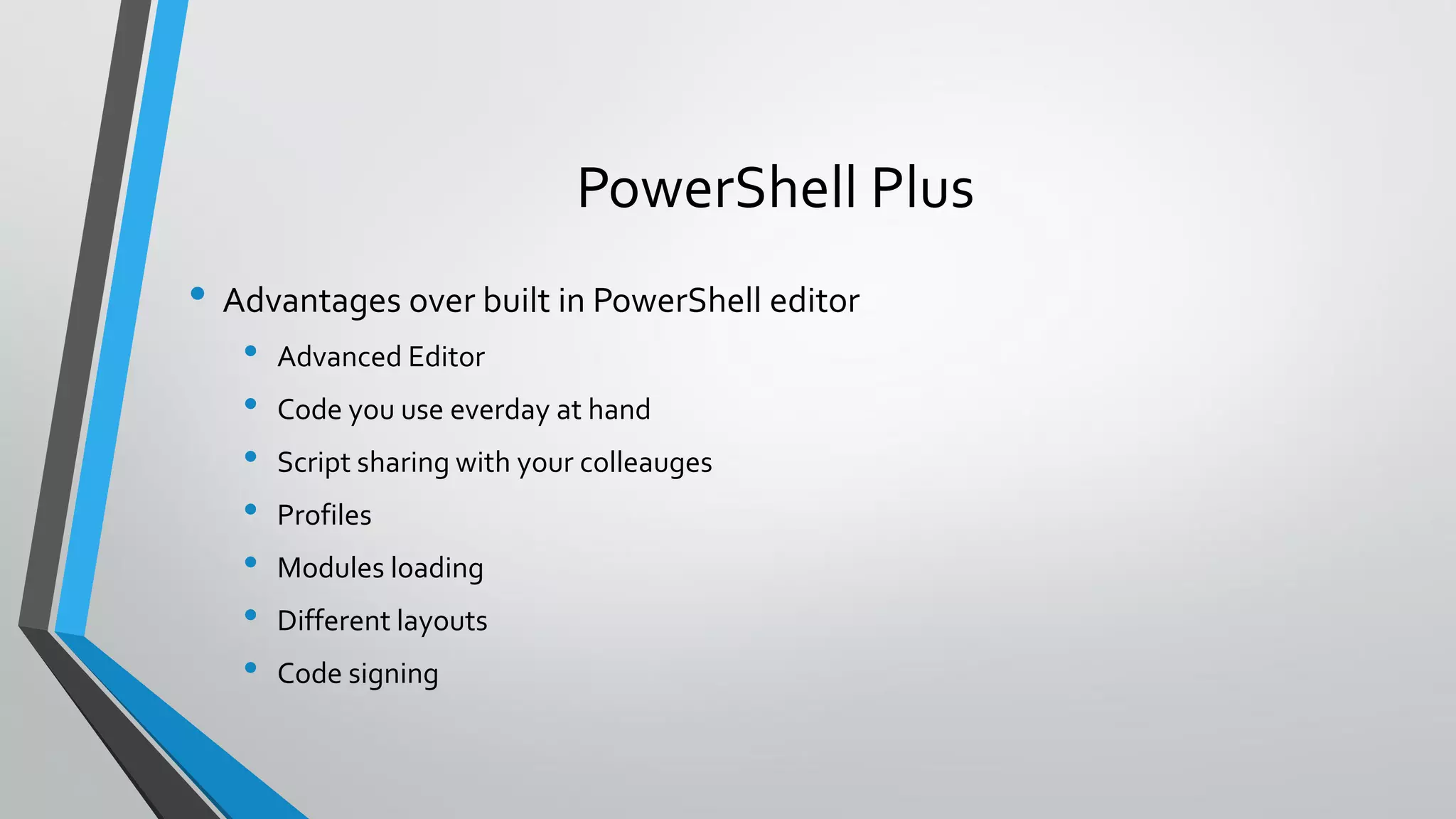

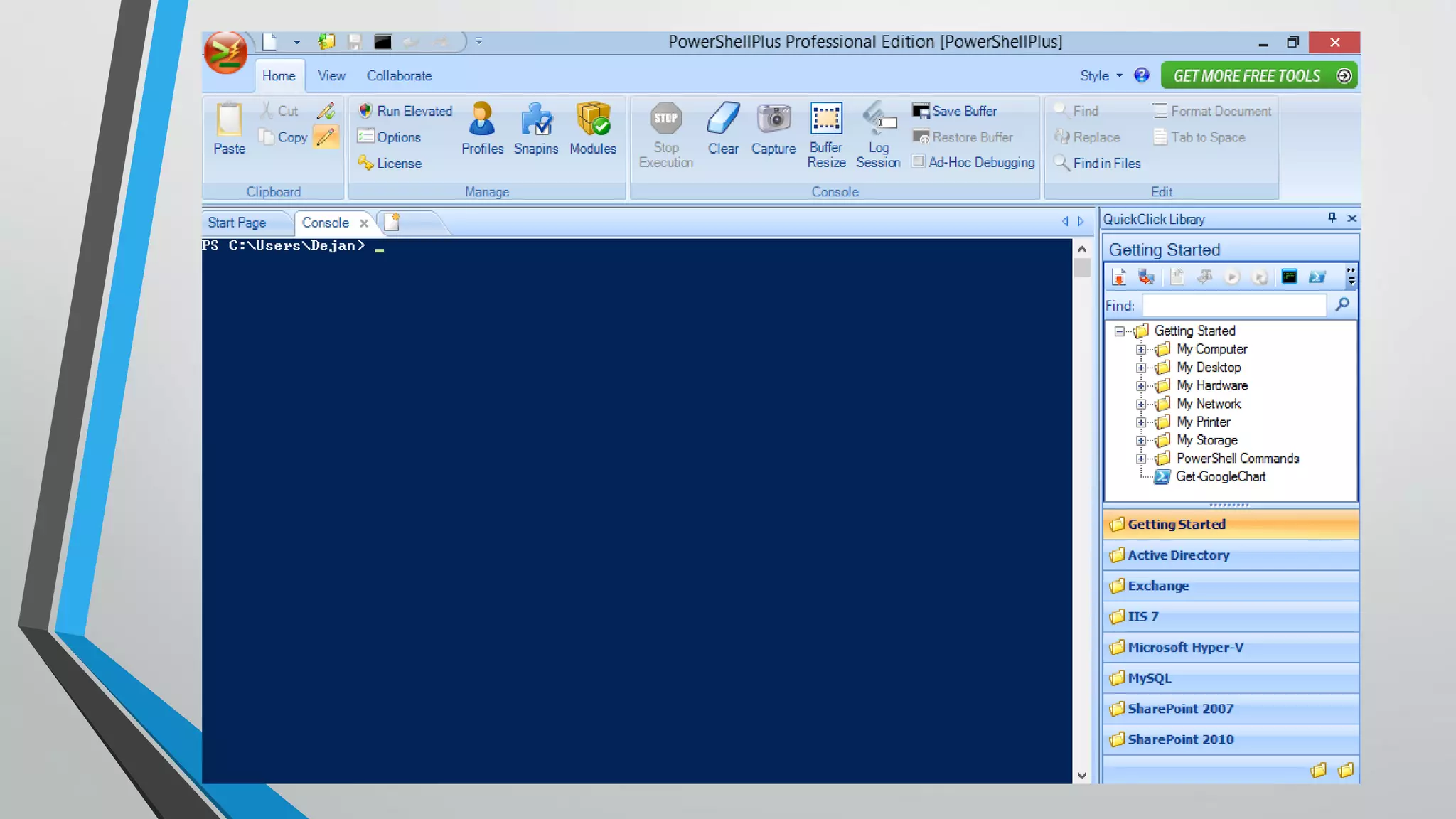

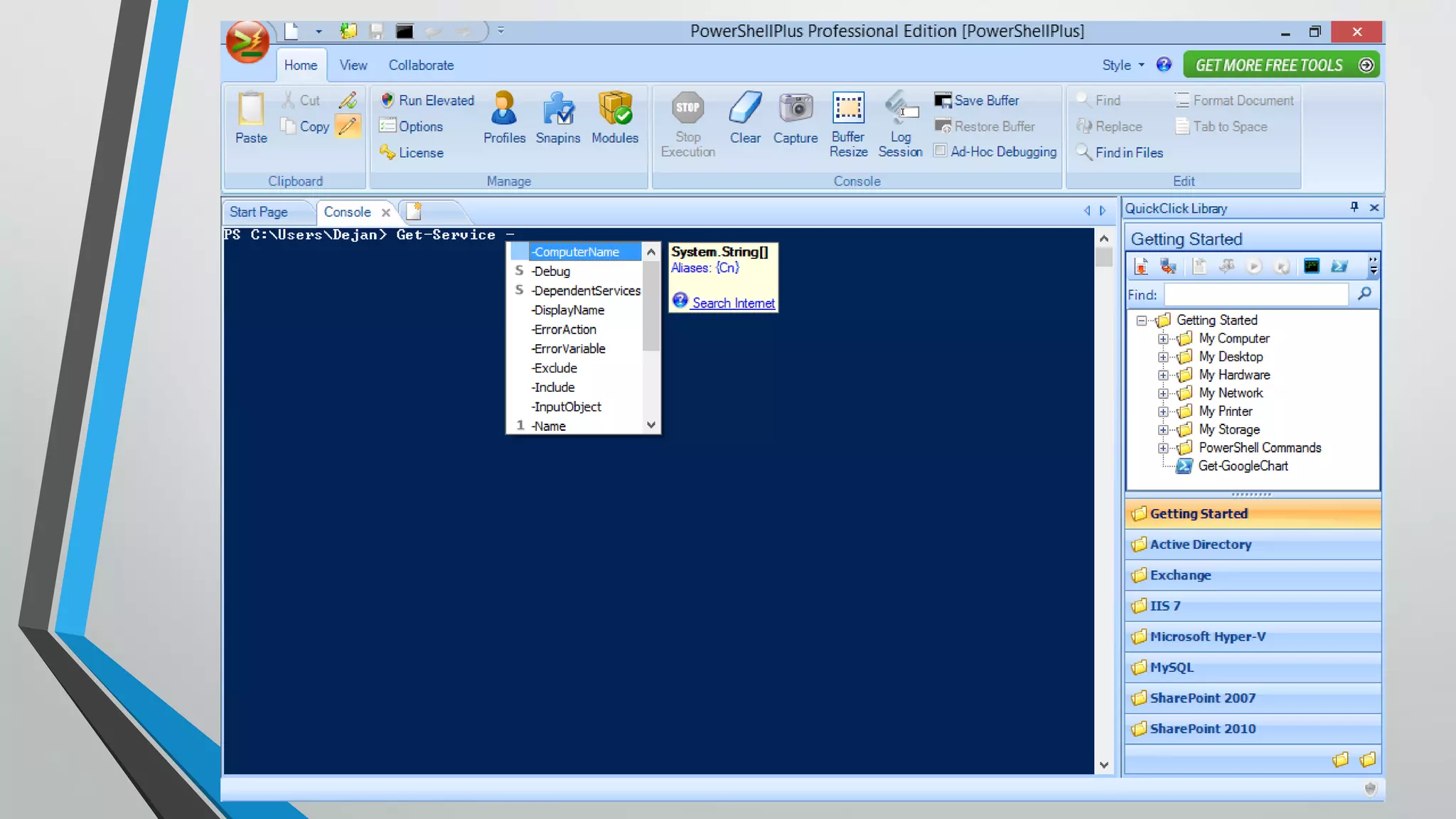

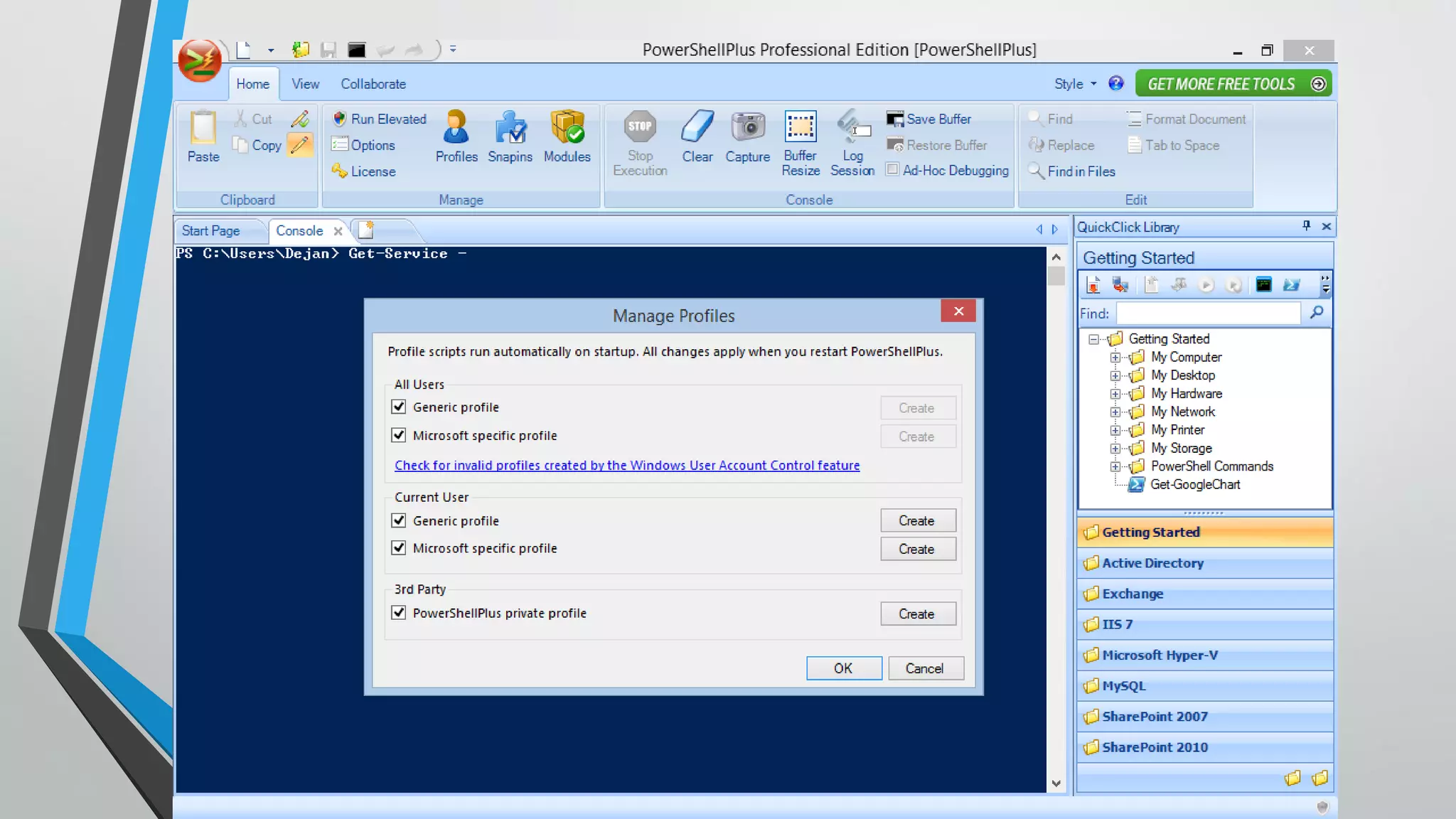

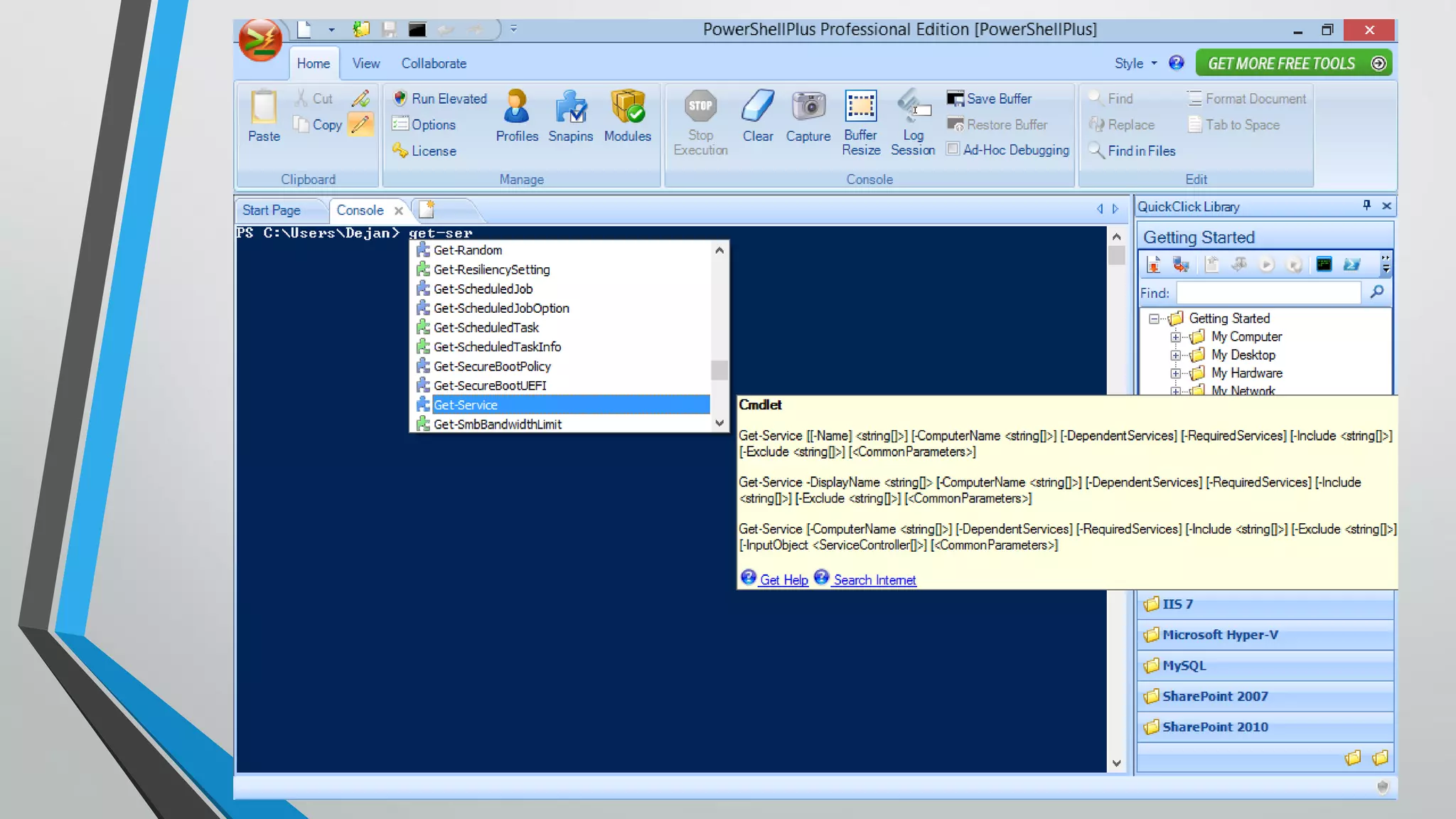

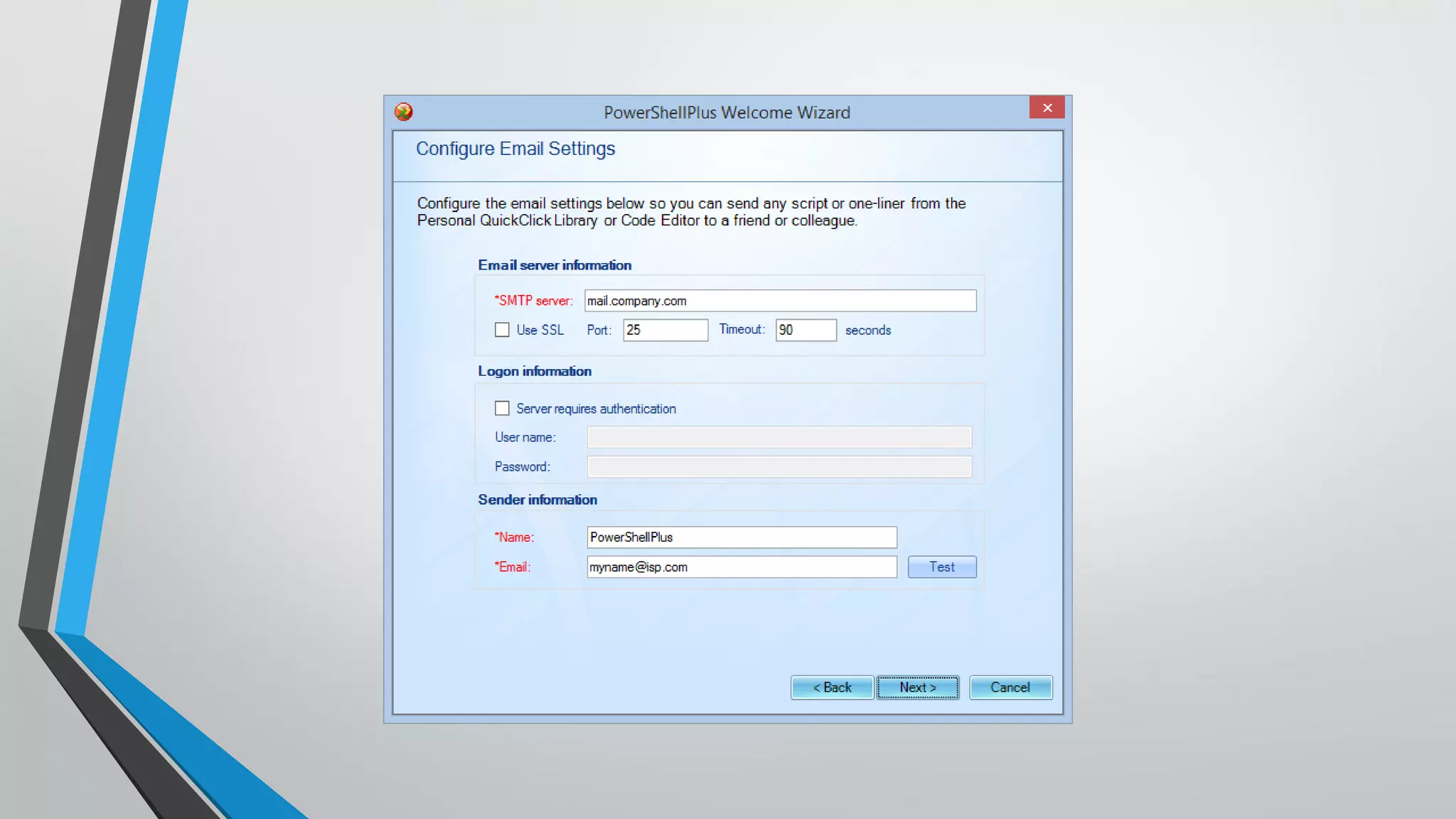

- 8. PowerShell Plus • Advantagesover built in PowerShell editor • Advanced Editor • Code you use everday at hand • Script sharing with your colleauges • Profiles • Modules loading • Different layouts • Code signing

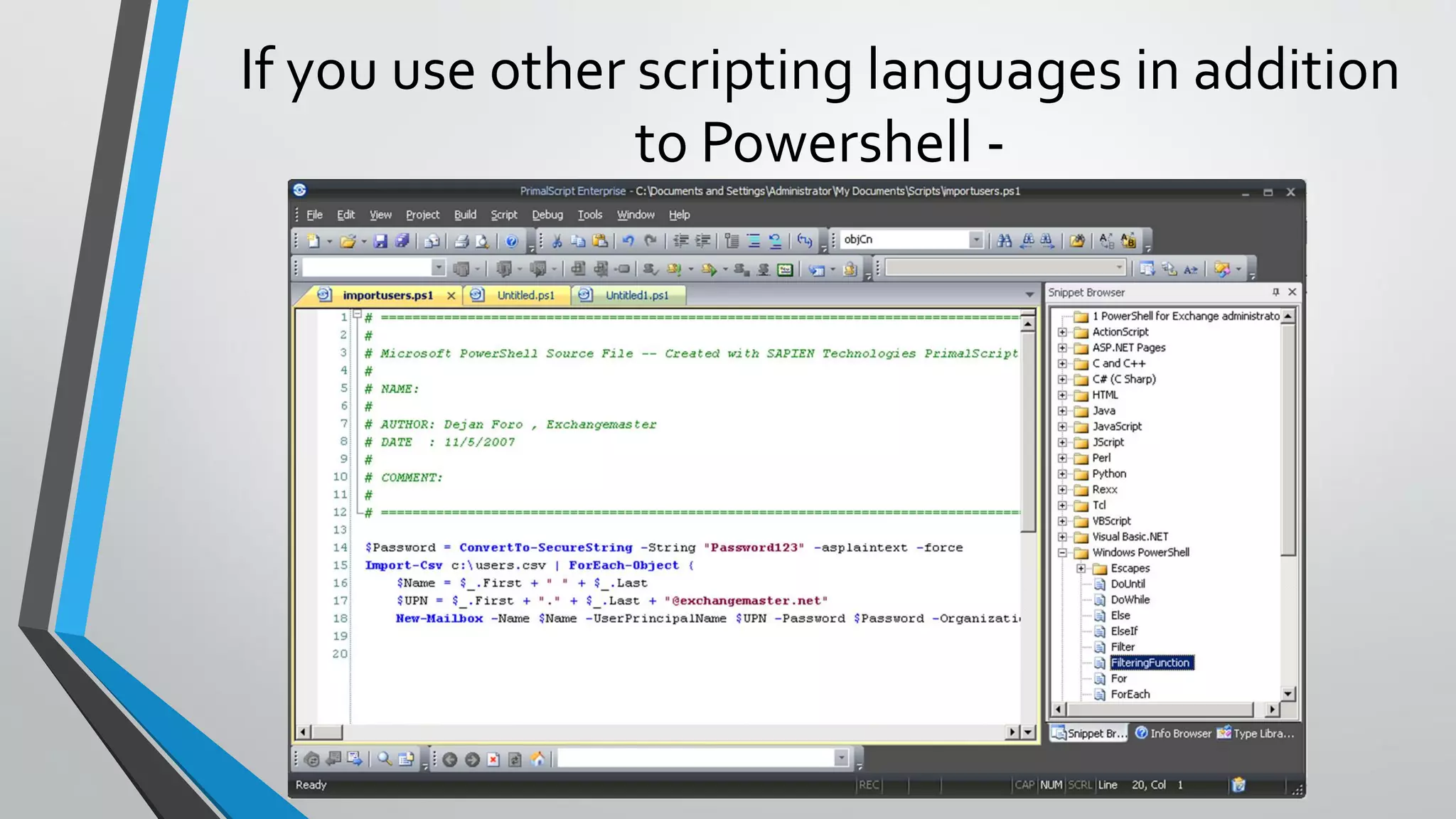

- 19. If you useother scripting languages in addition to Powershell -
- 20.
- 21.
- 22.
- 23.
- 24. Introduction to PowerShell ABCof ExchangeAdministration with PowerShell

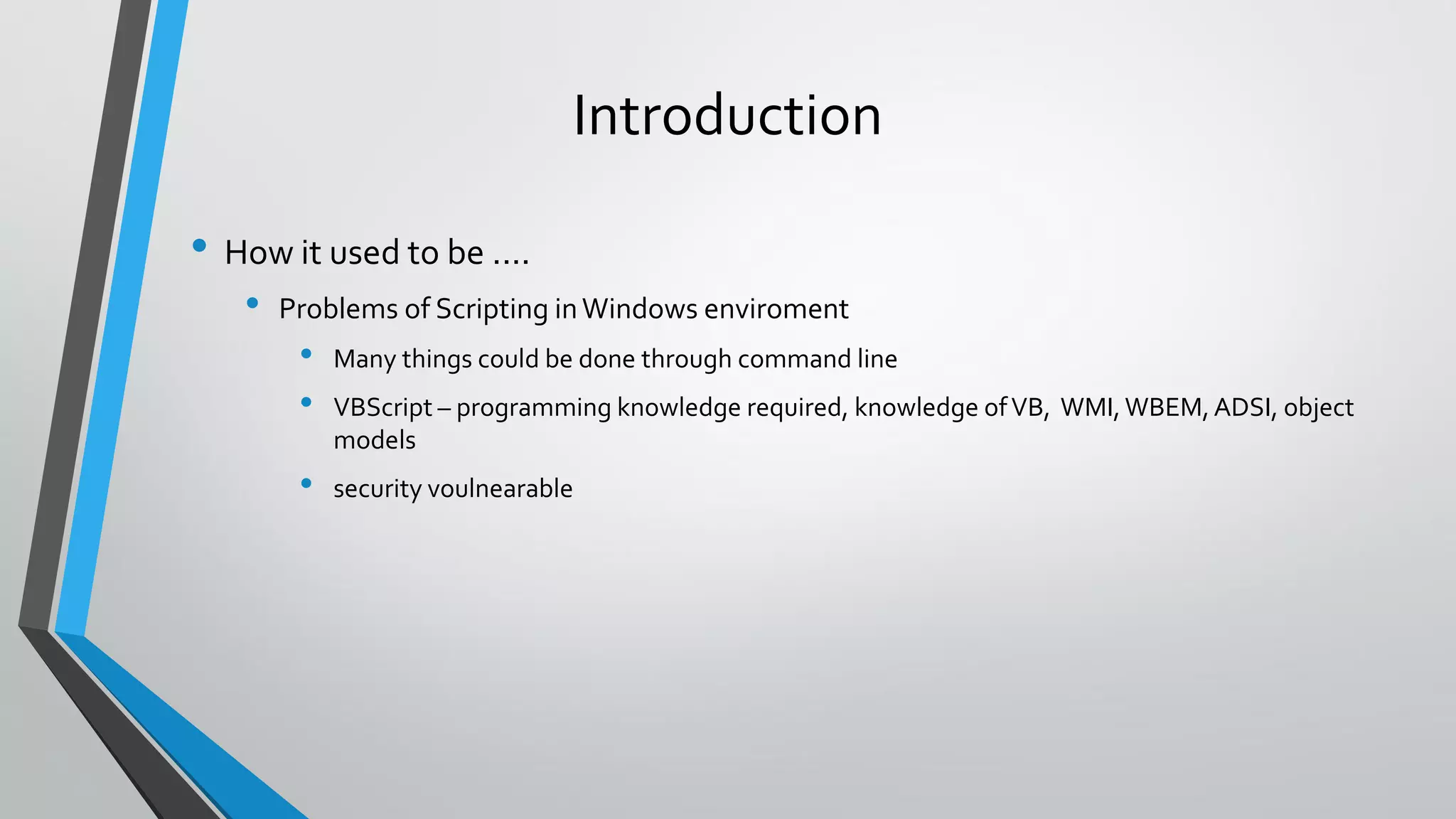

- 25. Introduction • How itused to be .... • Problems of Scripting inWindows enviroment • Many things could be done through command line • VBScript – programming knowledge required, knowledge ofVB, WMI,WBEM,ADSI, object models • security voulnearable

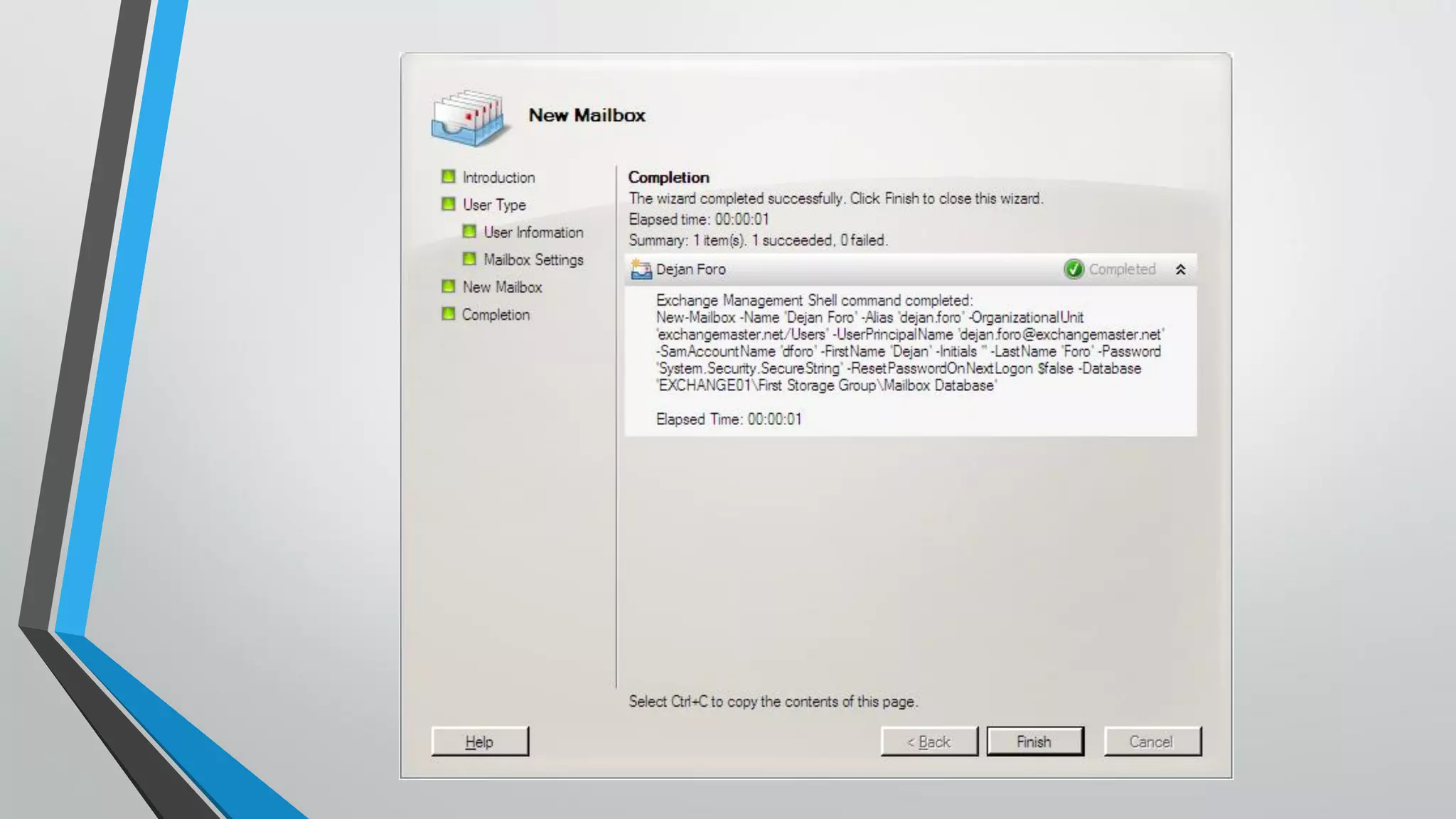

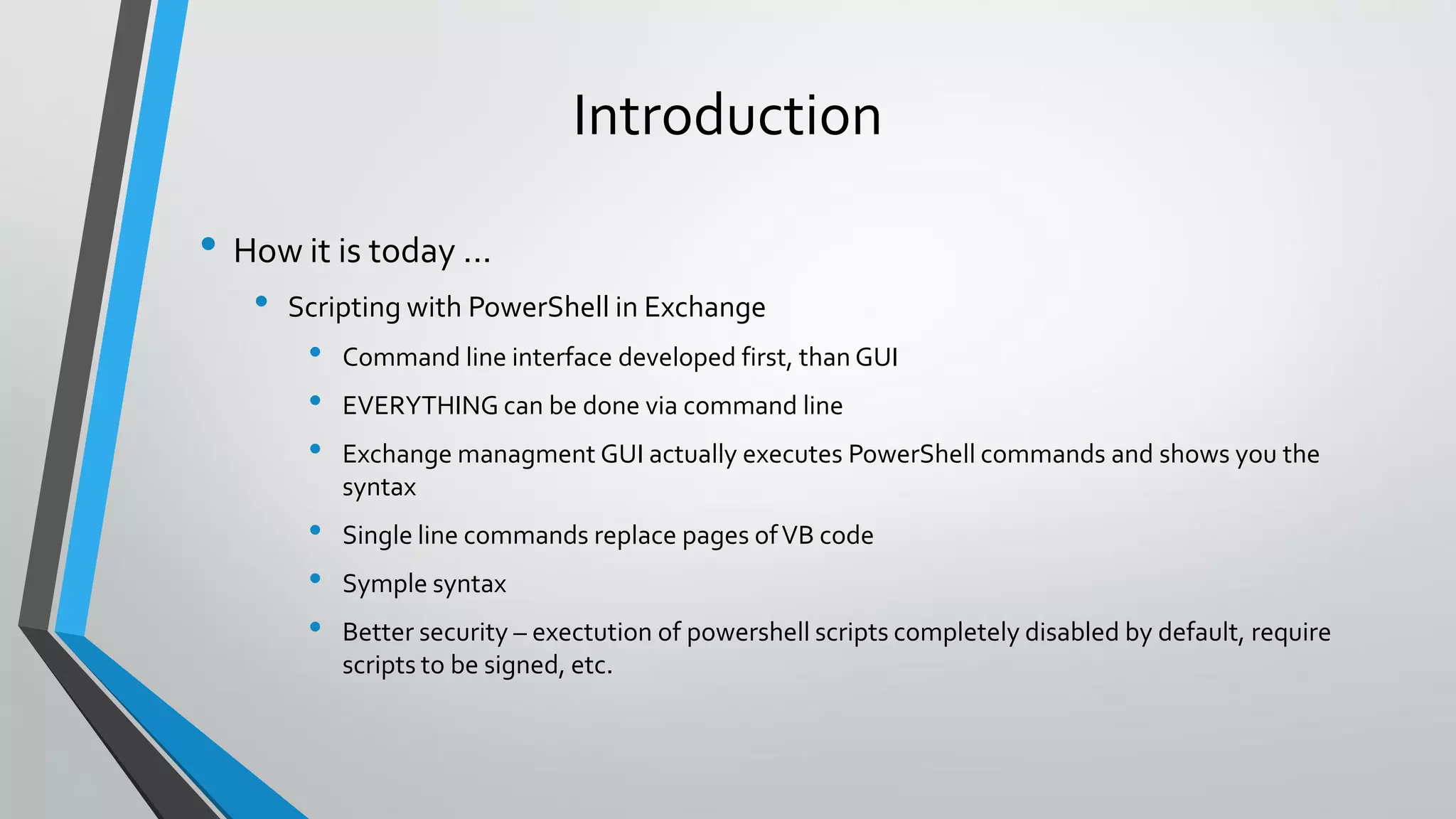

- 26. Introduction • How itis today ... • Scripting with PowerShell in Exchange • Command line interface developed first, than GUI • EVERYTHING can be done via command line • Exchange managment GUI actually executes PowerShell commands and shows you the syntax • Single line commands replace pages ofVB code • Symple syntax • Better security – exectution of powershell scripts completely disabled by default, require scripts to be signed, etc.

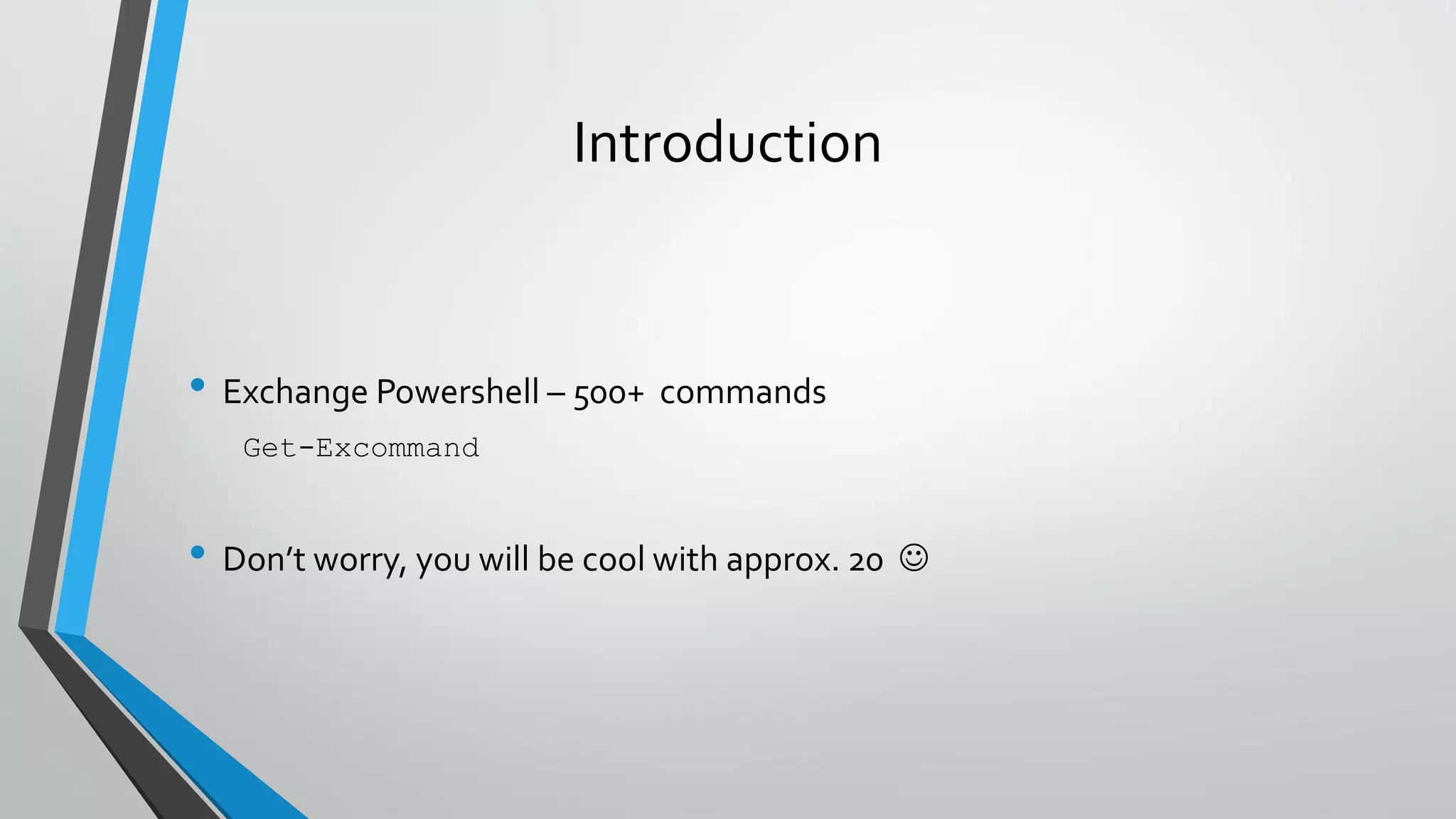

- 28. Introduction • Exchange Powershell– 500+ commands Get-Excommand • Don’t worry, you will be cool with approx. 20

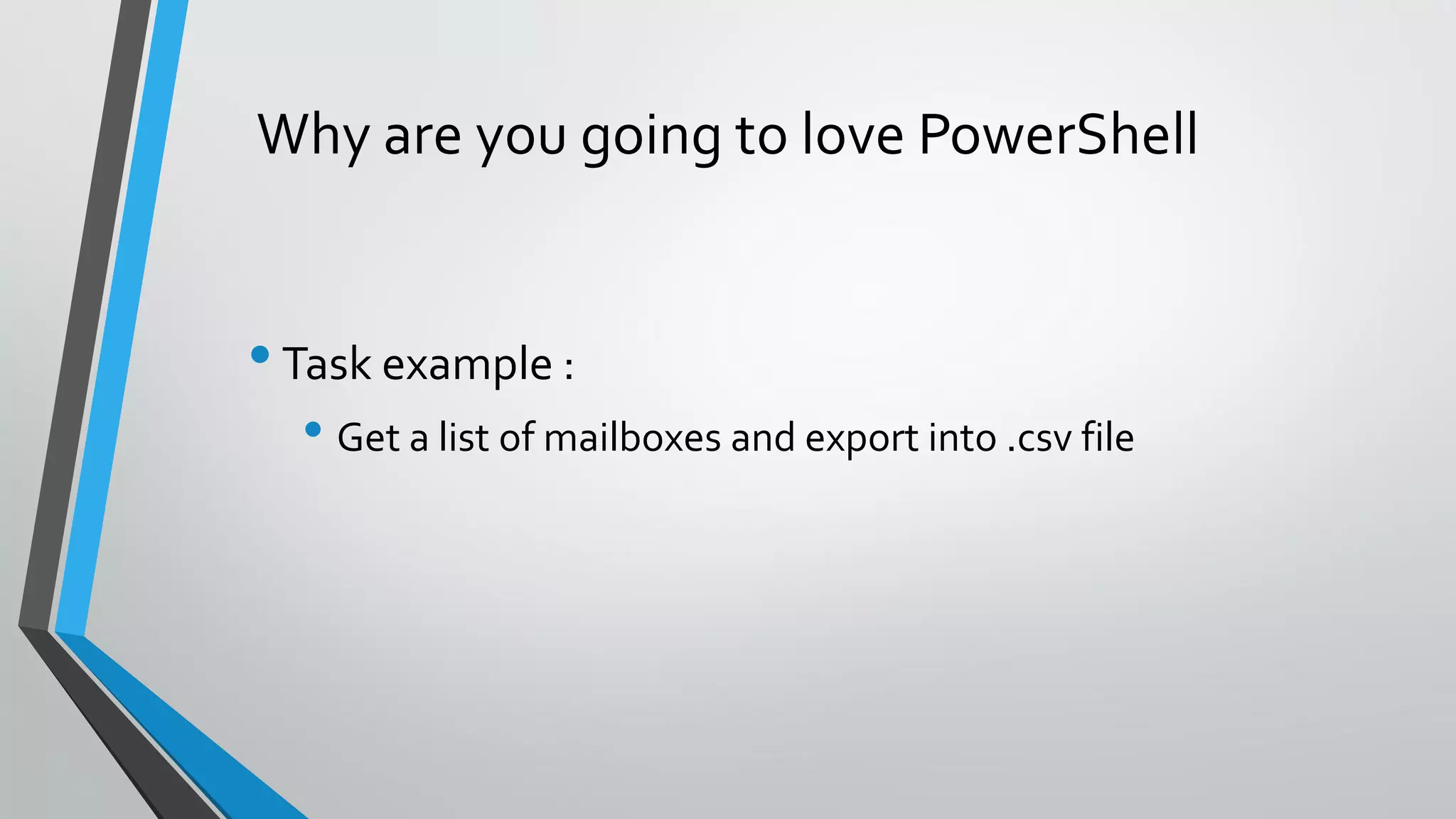

- 29. Why are yougoing to love PowerShell •Task example : • Get a list of mailboxes and export into .csv file

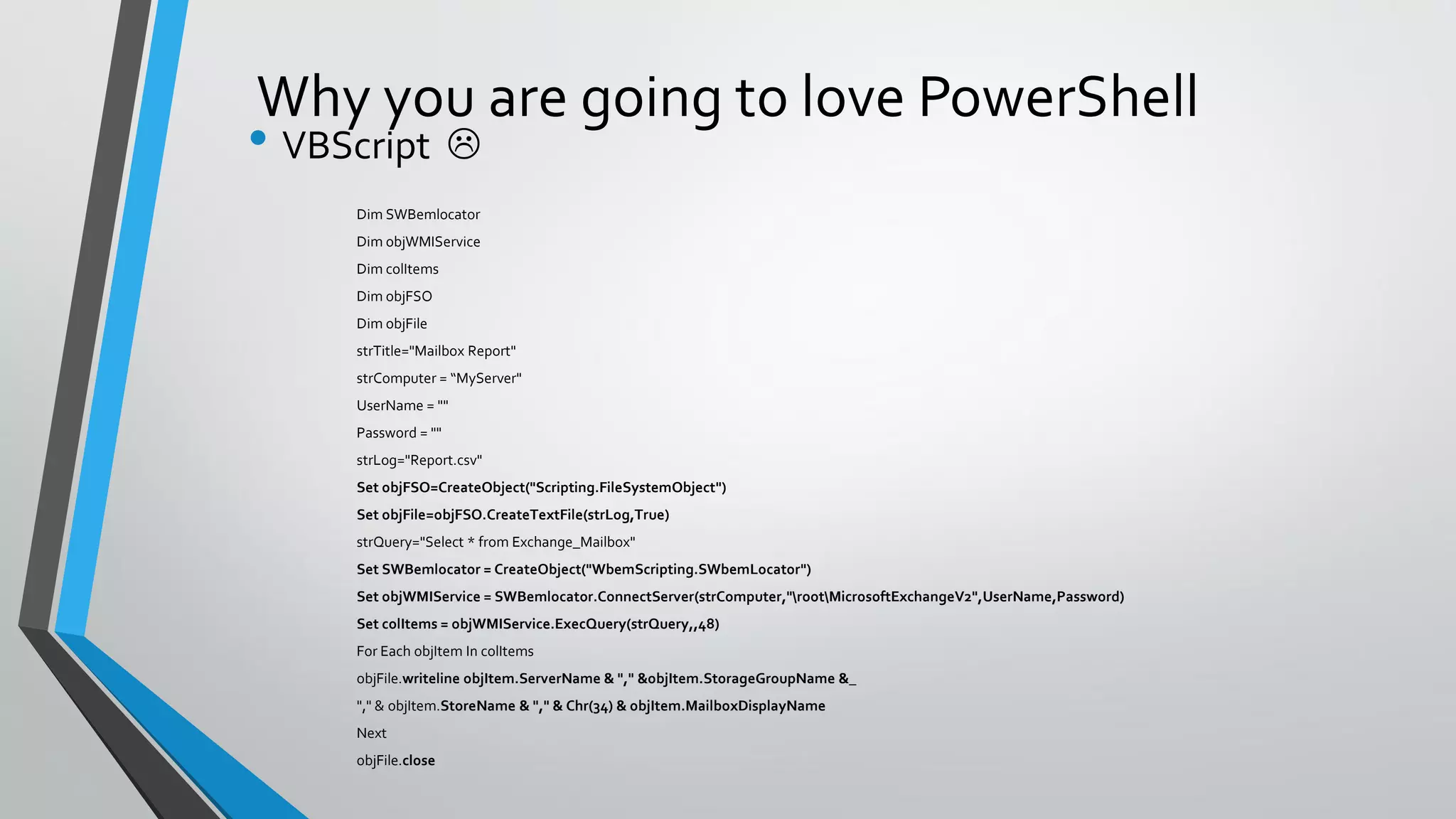

- 30. Why you aregoing to love PowerShell • VBScript Dim SWBemlocator Dim objWMIService Dim colItems Dim objFSO Dim objFile strTitle="Mailbox Report" strComputer = “MyServer" UserName = "" Password = "" strLog="Report.csv" Set objFSO=CreateObject("Scripting.FileSystemObject") Set objFile=objFSO.CreateTextFile(strLog,True) strQuery="Select * from Exchange_Mailbox" Set SWBemlocator = CreateObject("WbemScripting.SWbemLocator") Set objWMIService = SWBemlocator.ConnectServer(strComputer,"rootMicrosoftExchangeV2",UserName,Password) Set colItems = objWMIService.ExecQuery(strQuery,,48) For Each objItem In colItems objFile.writeline objItem.ServerName & "," &objItem.StorageGroupName &_ "," & objItem.StoreName & "," & Chr(34) & objItem.MailboxDisplayName Next objFile.close

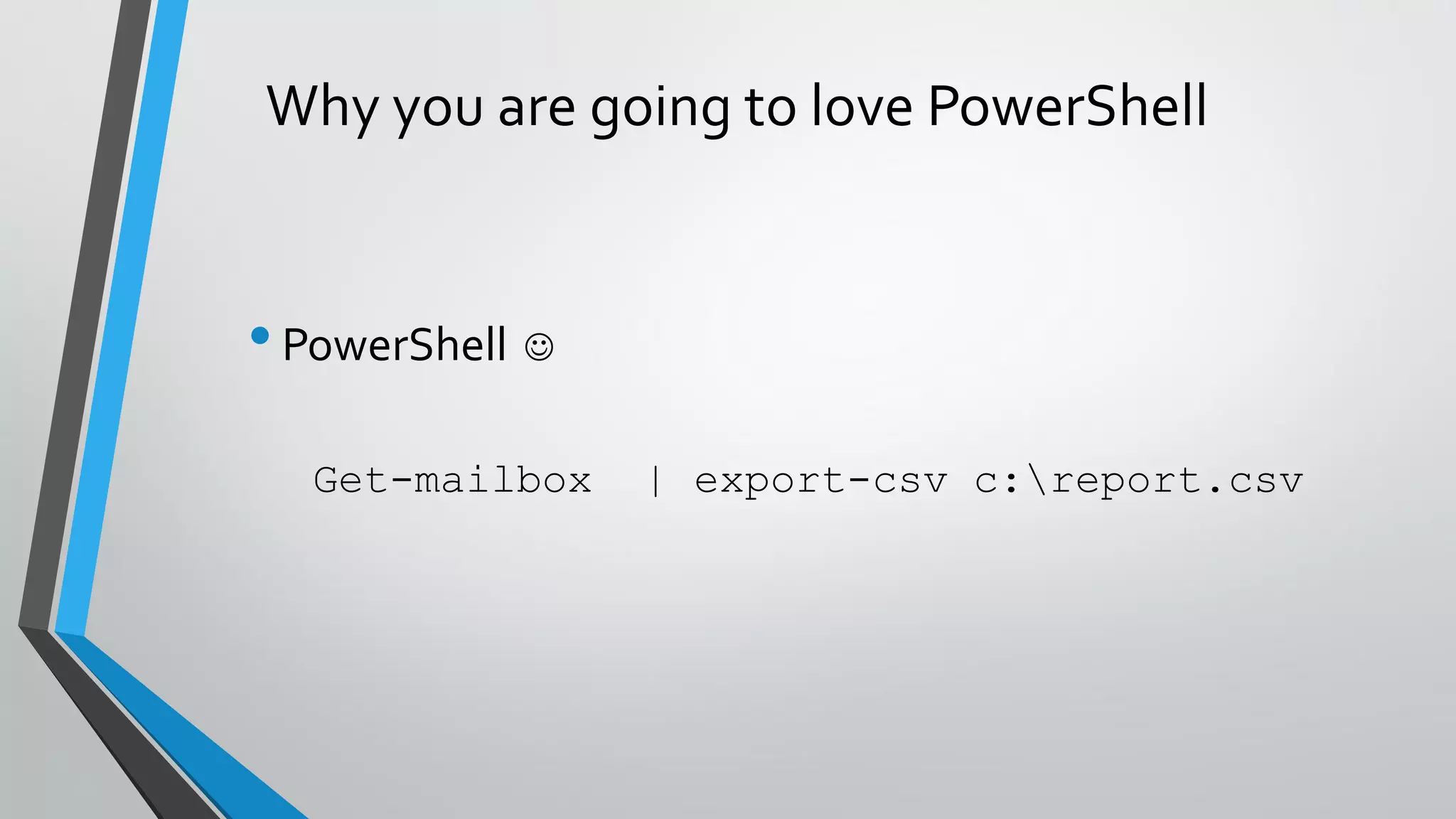

- 31. Why you aregoing to love PowerShell •PowerShell Get-mailbox | export-csv c:report.csv
- 32.

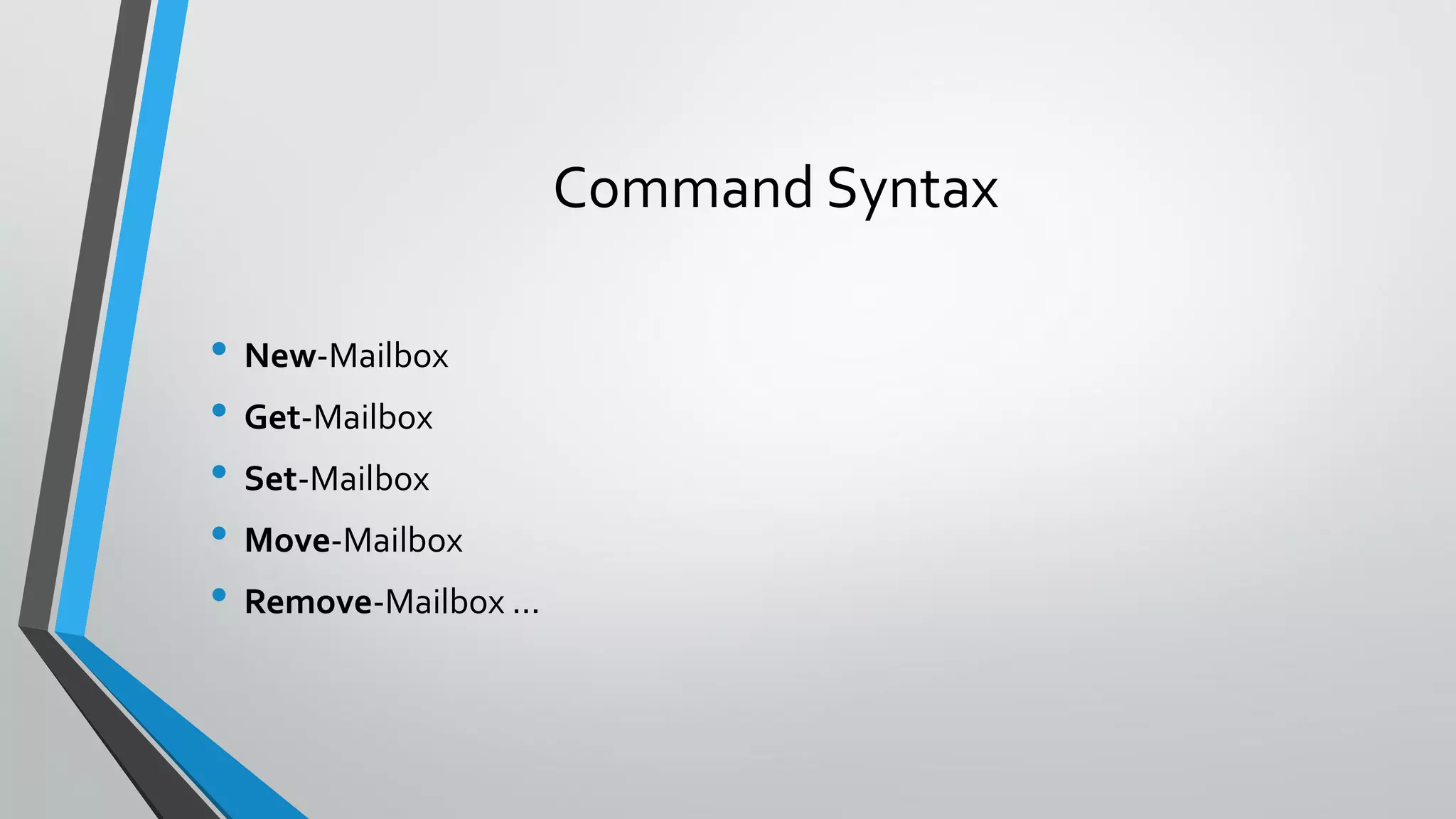

- 33. Command Syntax • New-Mailbox •Get-Mailbox • Set-Mailbox • Move-Mailbox • Remove-Mailbox ...

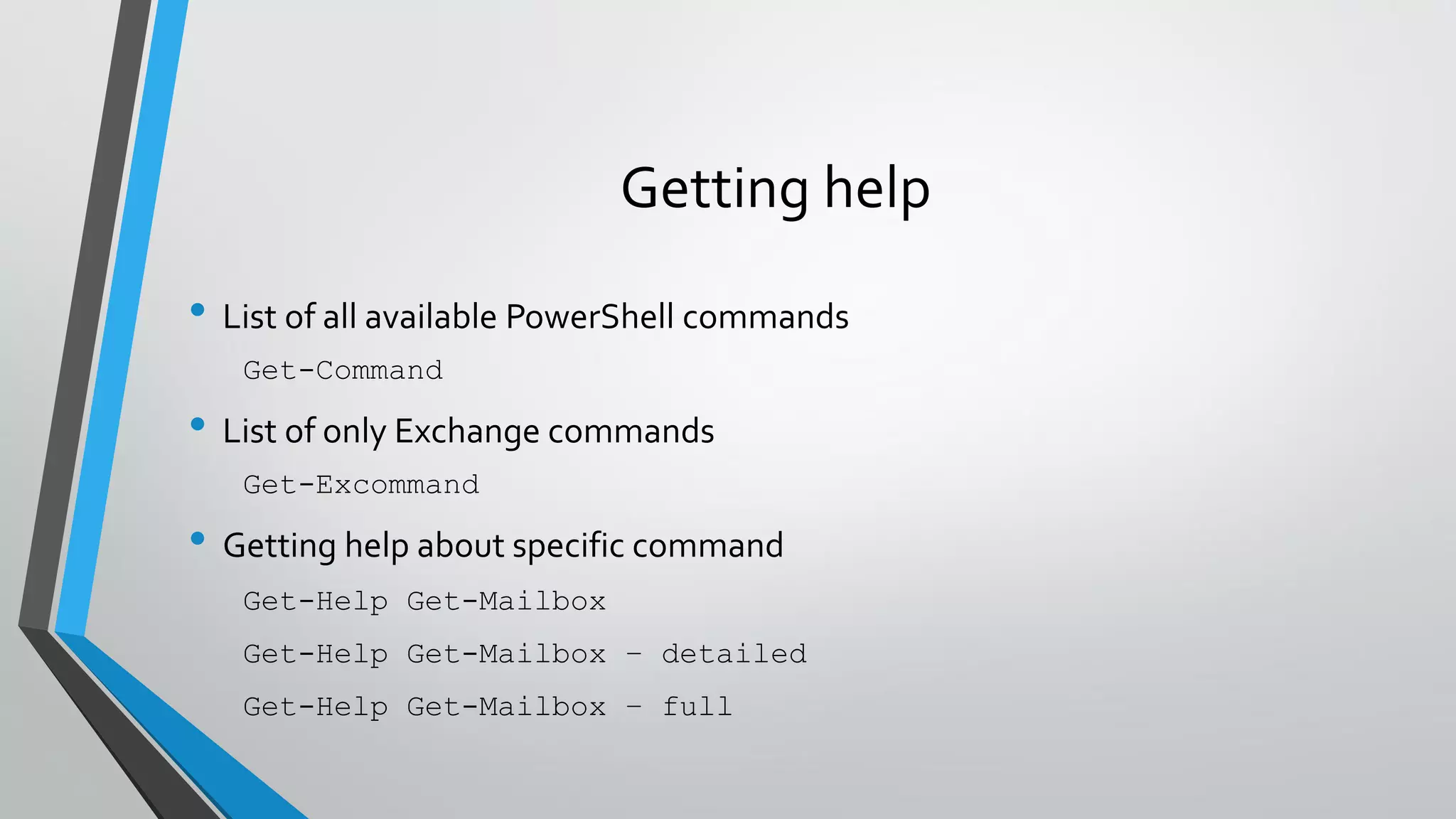

- 34. Getting help • Listof all available PowerShell commands Get-Command • List of only Exchange commands Get-Excommand • Getting help about specific command Get-Help Get-Mailbox Get-Help Get-Mailbox – detailed Get-Help Get-Mailbox – full

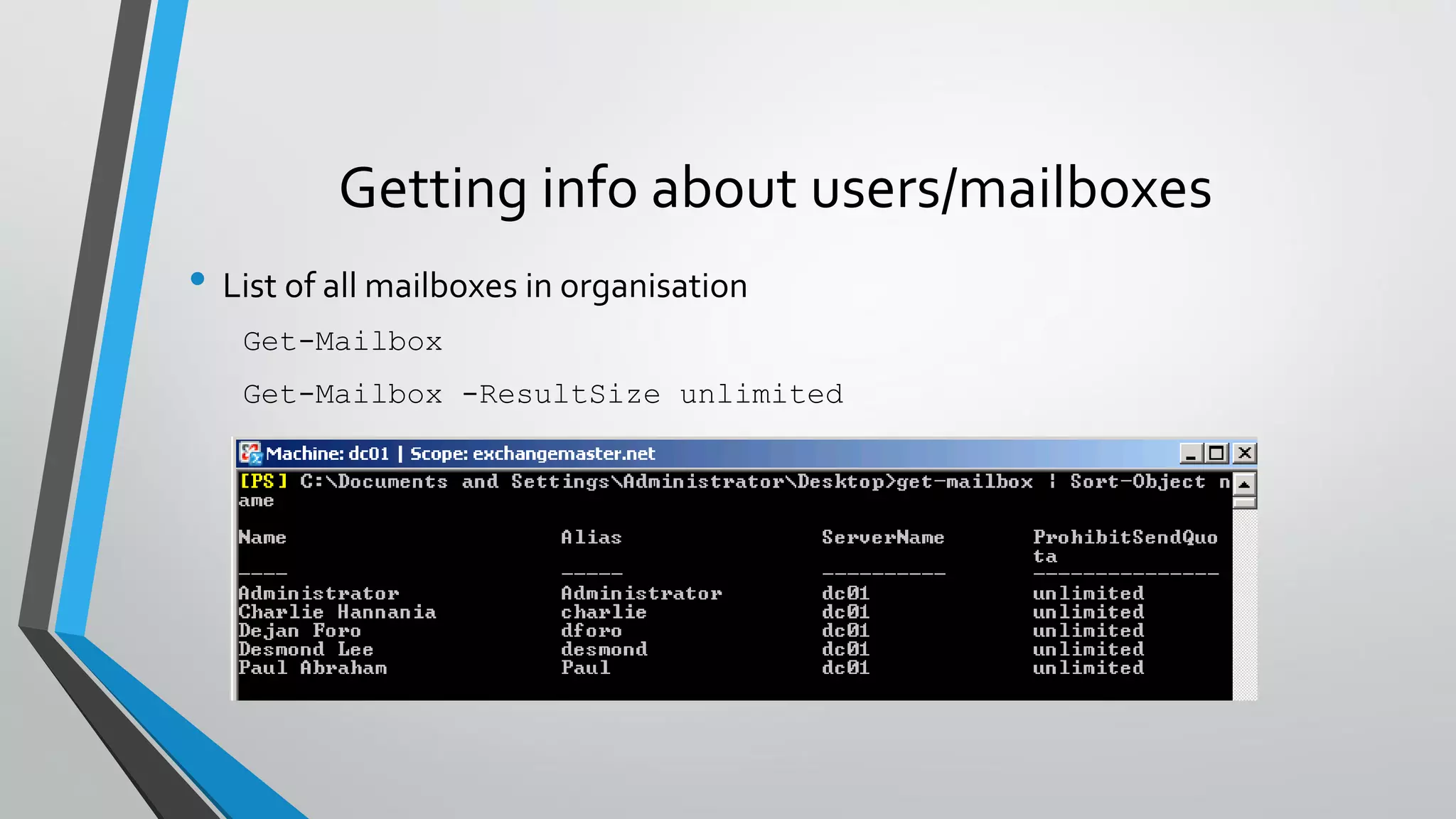

- 35. Getting info aboutusers/mailboxes • List of all mailboxes in organisation Get-Mailbox Get-Mailbox -ResultSize unlimited

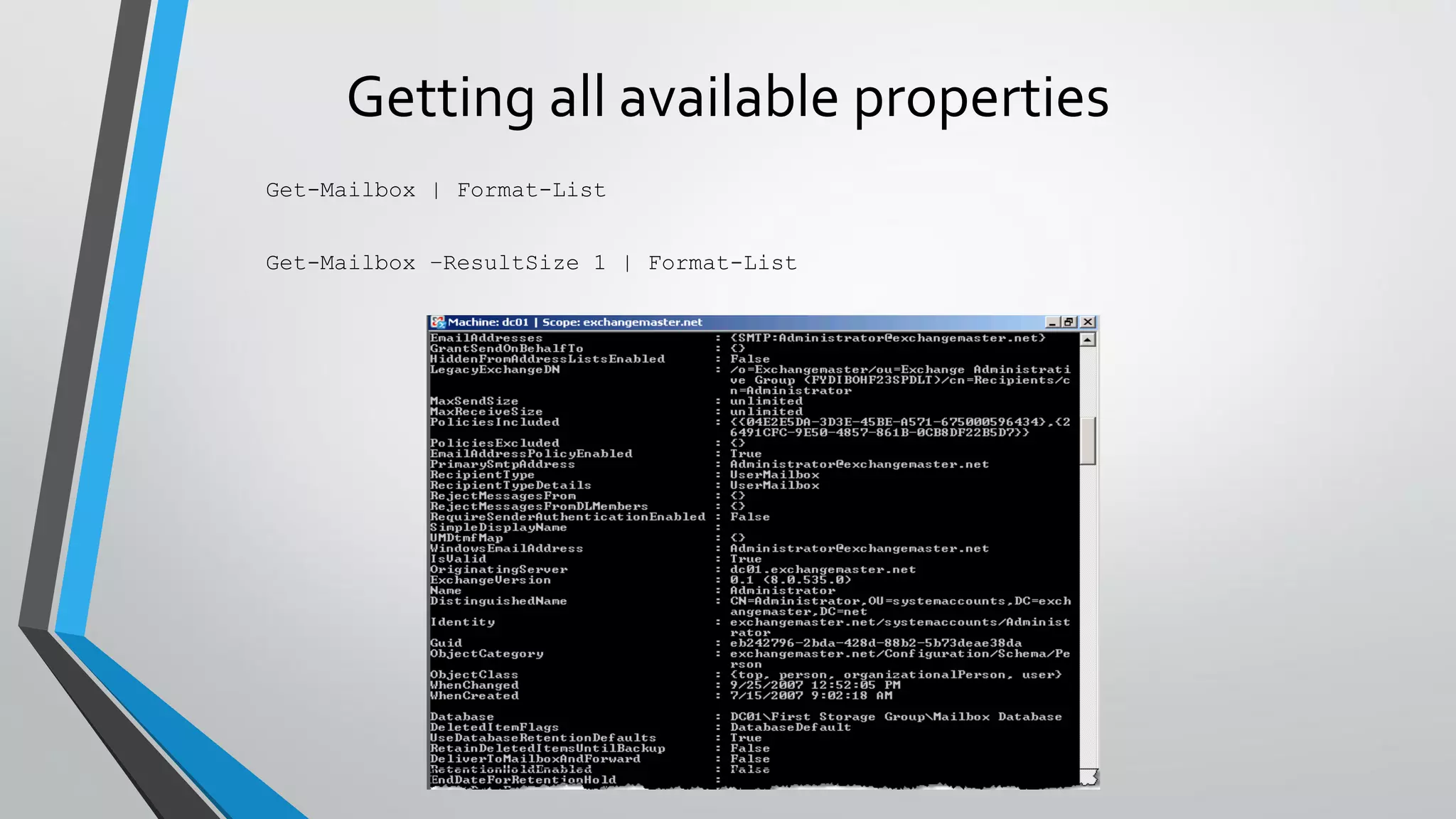

- 36. Getting all availableproperties Get-Mailbox | Format-List Get-Mailbox –ResultSize 1 | Format-List

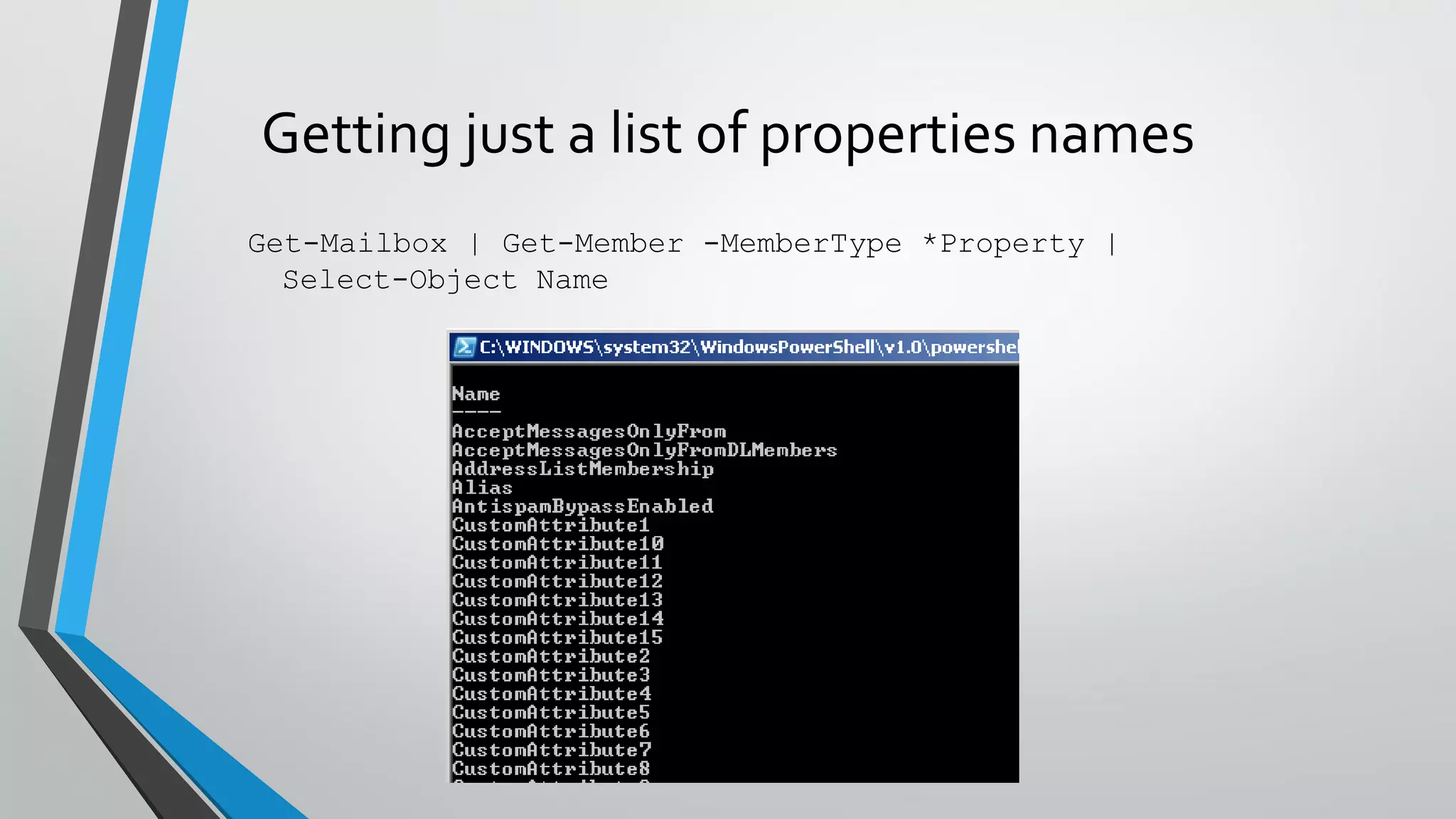

- 37. Getting just alist of properties names Get-Mailbox | Get-Member -MemberType *Property | Select-Object Name

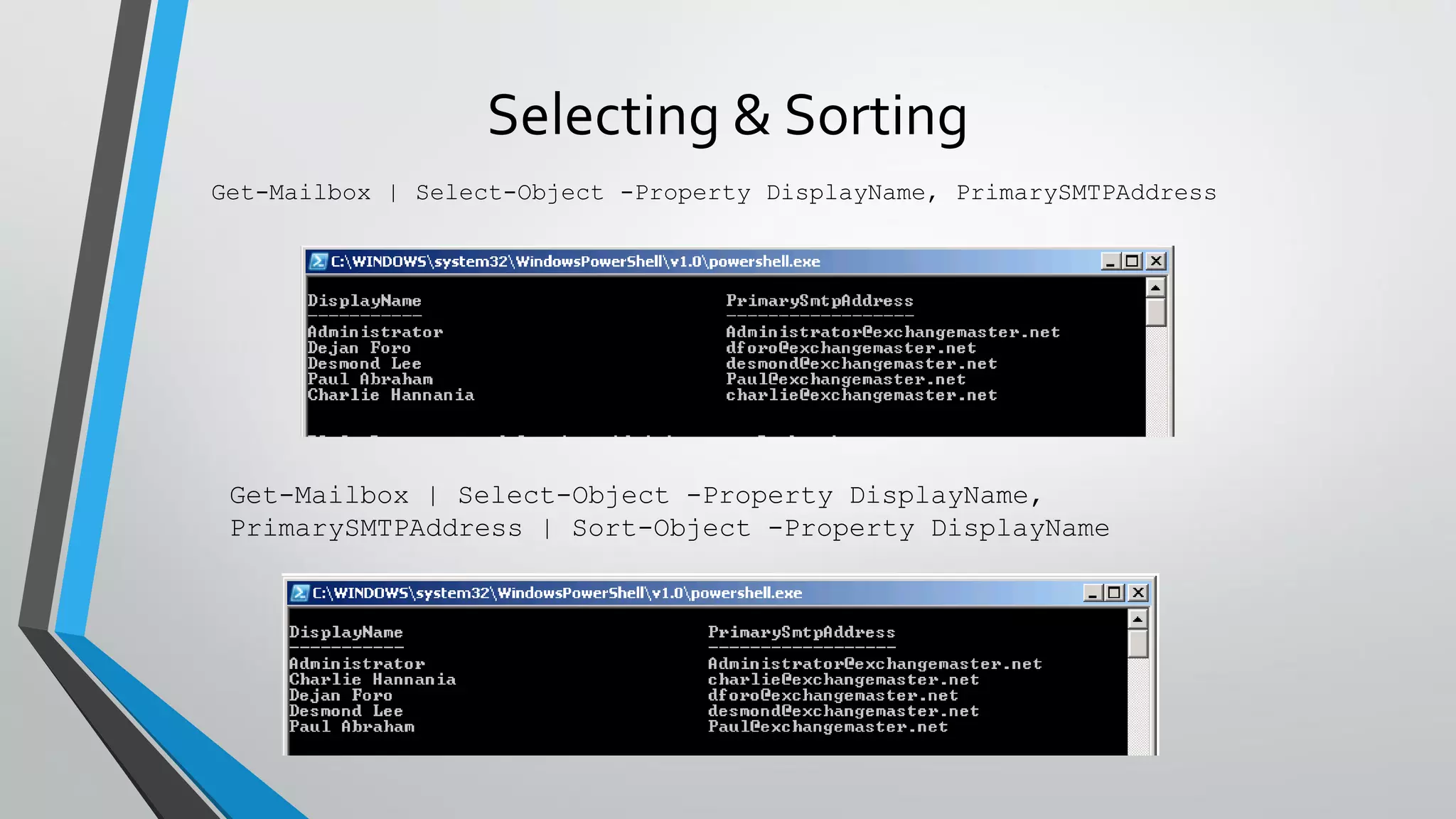

- 38. Selecting & Sorting Get-Mailbox| Select-Object -Property DisplayName, PrimarySMTPAddress Get-Mailbox | Select-Object -Property DisplayName, PrimarySMTPAddress | Sort-Object -Property DisplayName

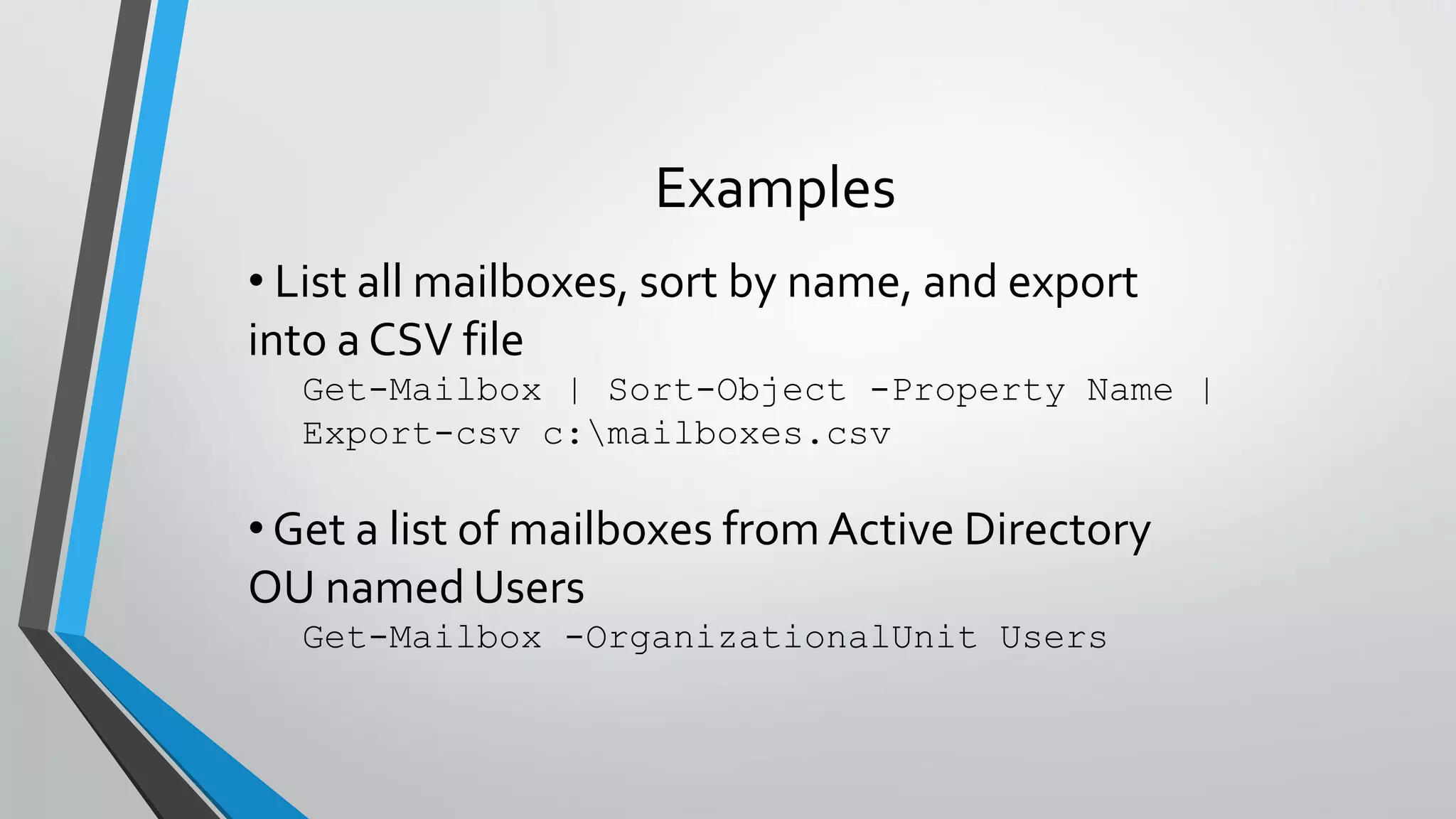

- 39. Examples • List allmailboxes, sort by name, and export into a CSV file Get-Mailbox | Sort-Object -Property Name | Export-csv c:mailboxes.csv • Get a list of mailboxes from Active Directory OU named Users Get-Mailbox -OrganizationalUnit Users

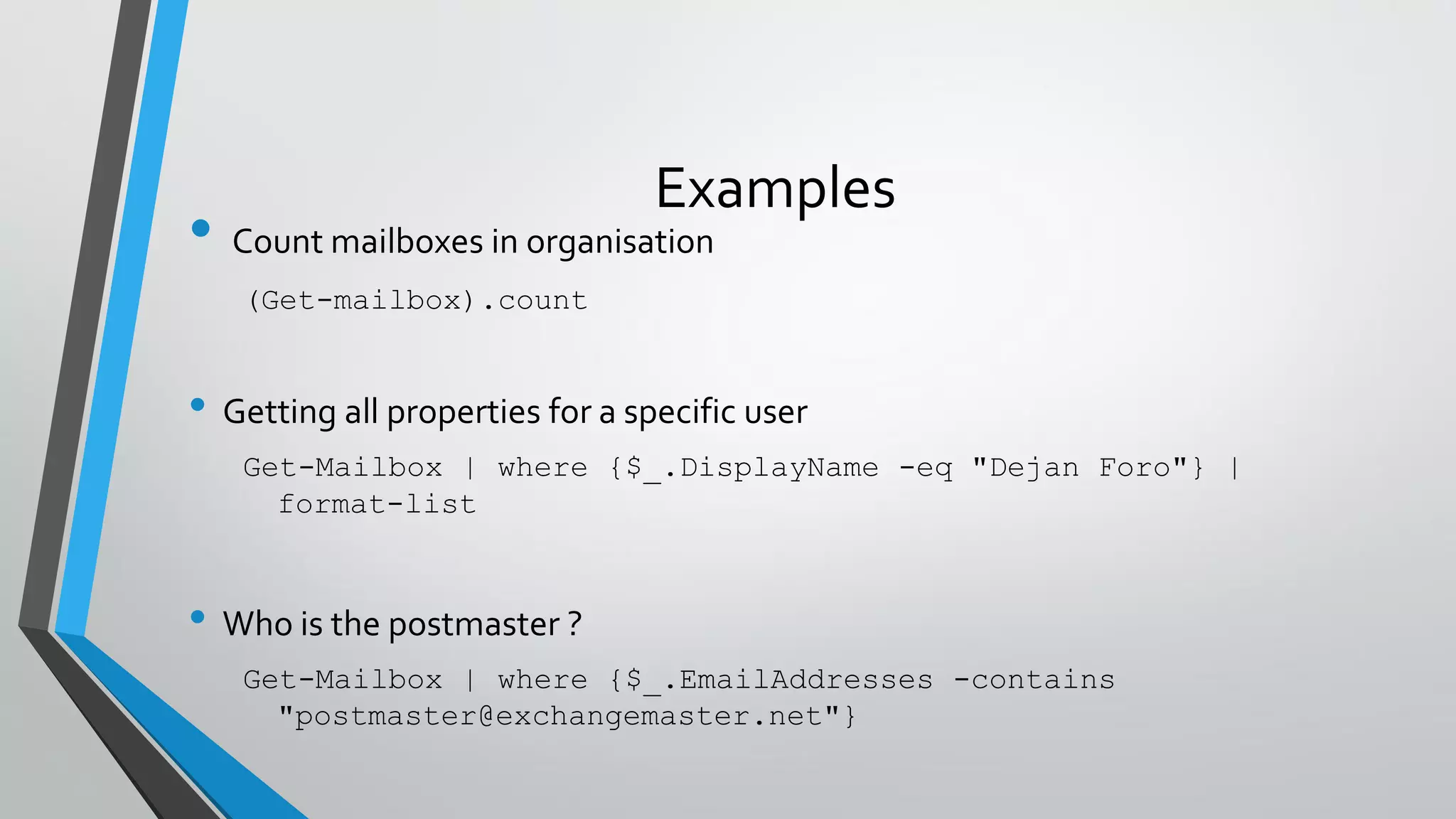

- 40. Examples • Count mailboxesin organisation (Get-mailbox).count • Getting all properties for a specific user Get-Mailbox | where {$_.DisplayName -eq "Dejan Foro"} | format-list • Who is the postmaster ? Get-Mailbox | where {$_.EmailAddresses -contains "postmaster@exchangemaster.net"}

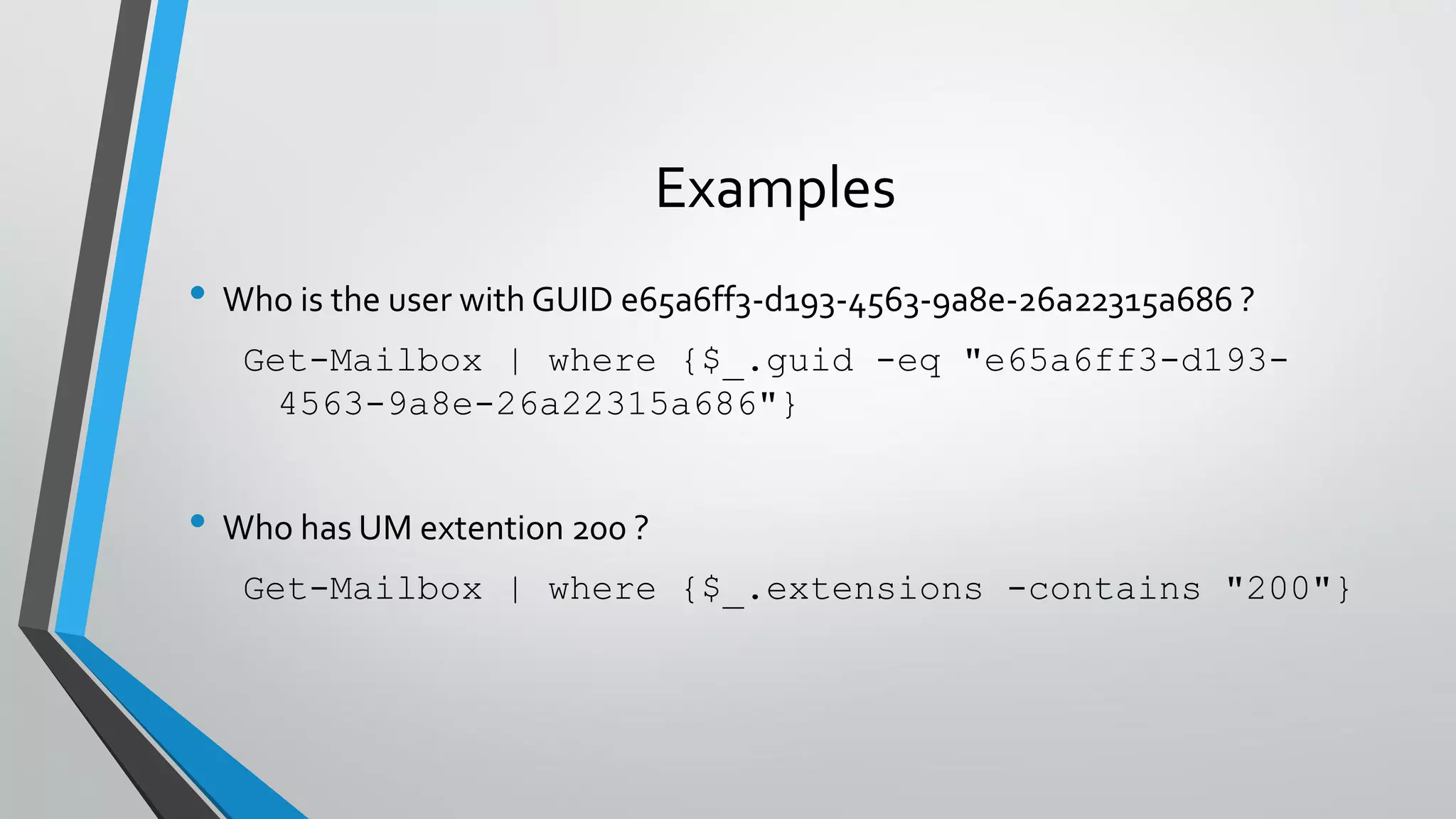

- 41. Examples • Who isthe user with GUID e65a6ff3-d193-4563-9a8e-26a22315a686 ? Get-Mailbox | where {$_.guid -eq "e65a6ff3-d193- 4563-9a8e-26a22315a686"} • Who has UM extention 200 ? Get-Mailbox | where {$_.extensions -contains "200"}

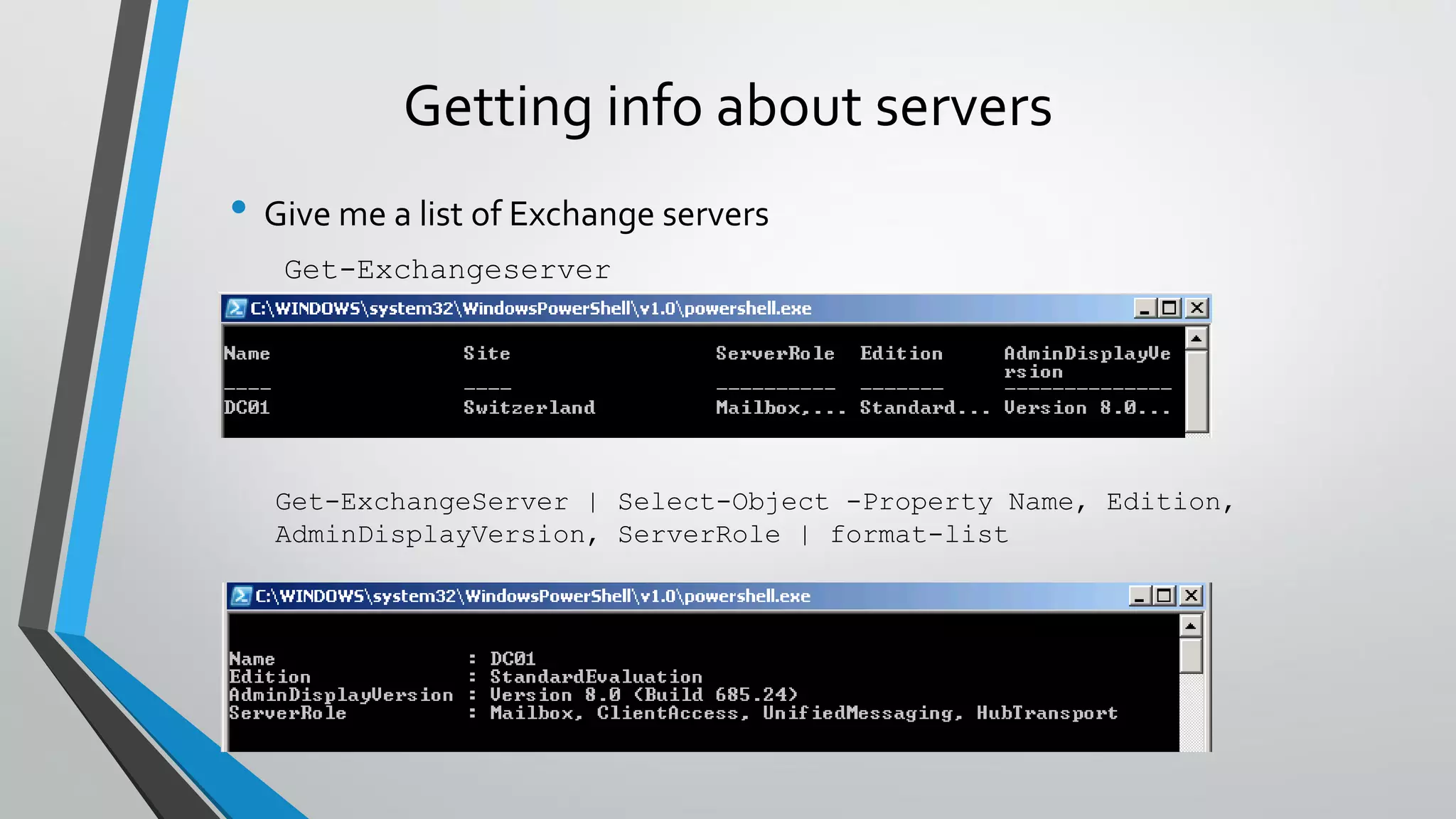

- 42. Getting info aboutservers • Give me a list of Exchange servers Get-Exchangeserver Get-ExchangeServer | Select-Object -Property Name, Edition, AdminDisplayVersion, ServerRole | format-list

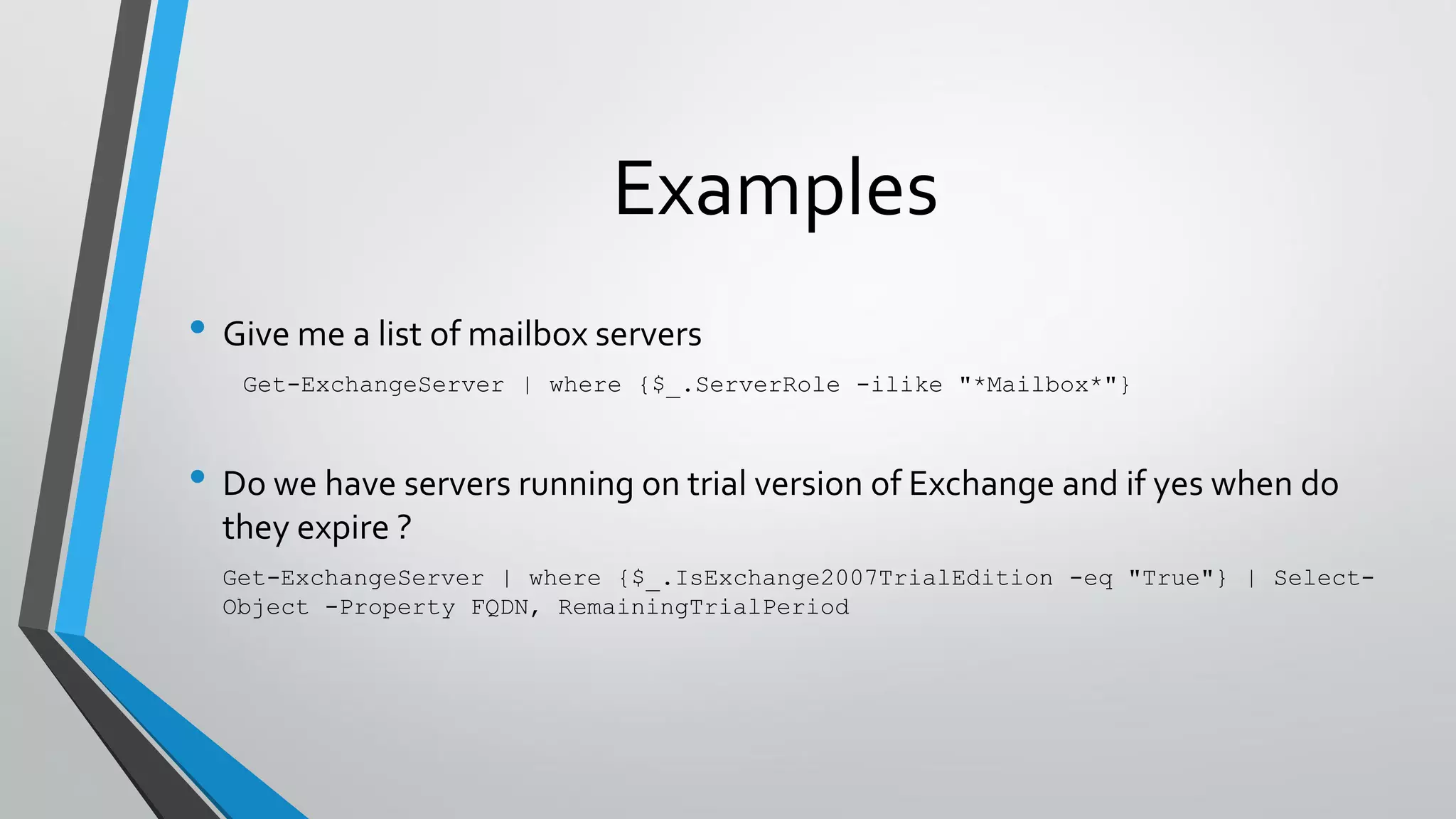

- 43. Examples • Give mea list of mailbox servers Get-ExchangeServer | where {$_.ServerRole -ilike "*Mailbox*"} • Do we have servers running on trial version of Exchange and if yes when do they expire ? Get-ExchangeServer | where {$_.IsExchange2007TrialEdition -eq "True"} | Select- Object -Property FQDN, RemainingTrialPeriod

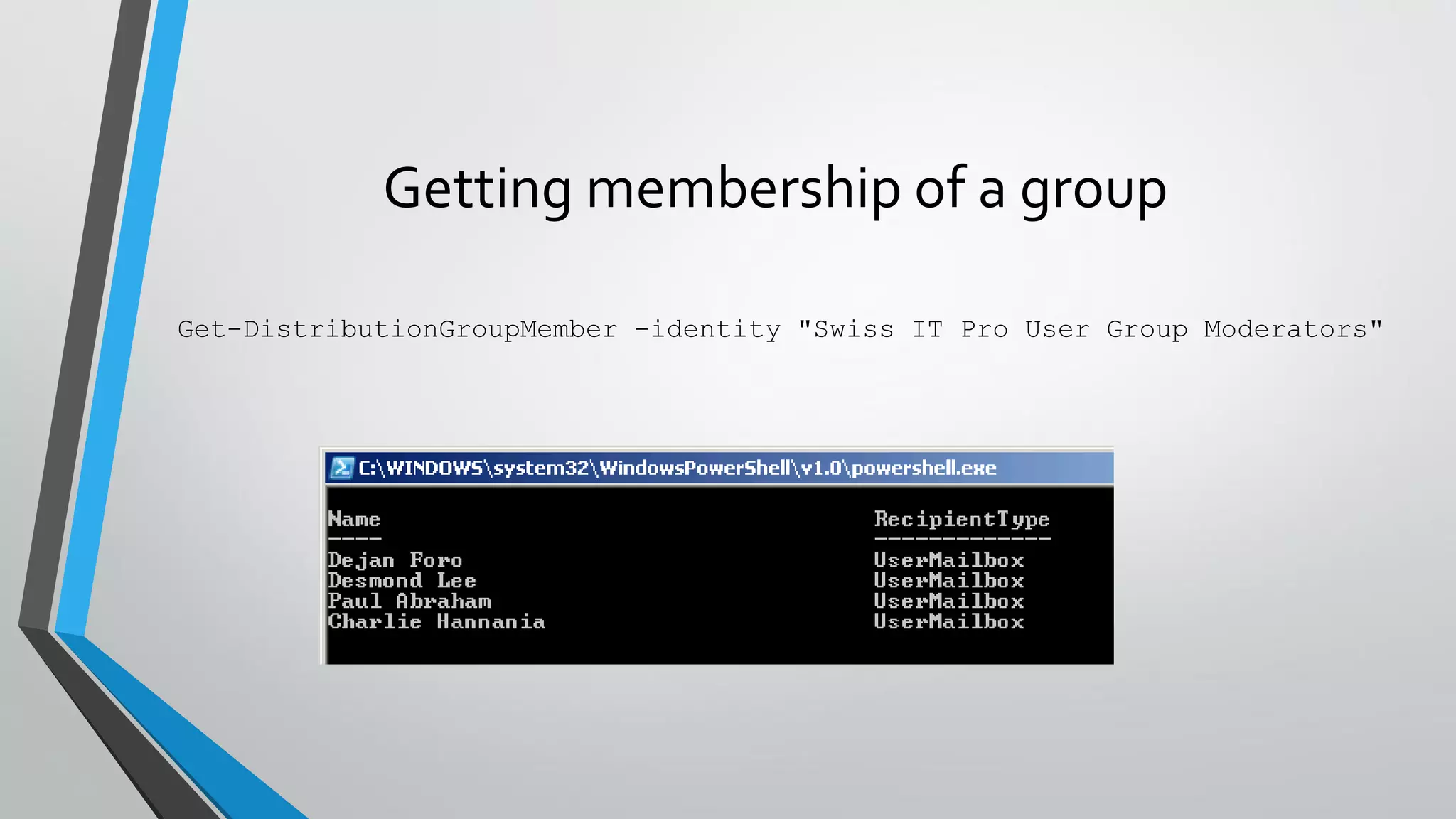

- 44. Getting membership ofa group Get-DistributionGroupMember -identity "Swiss IT Pro User Group Moderators"

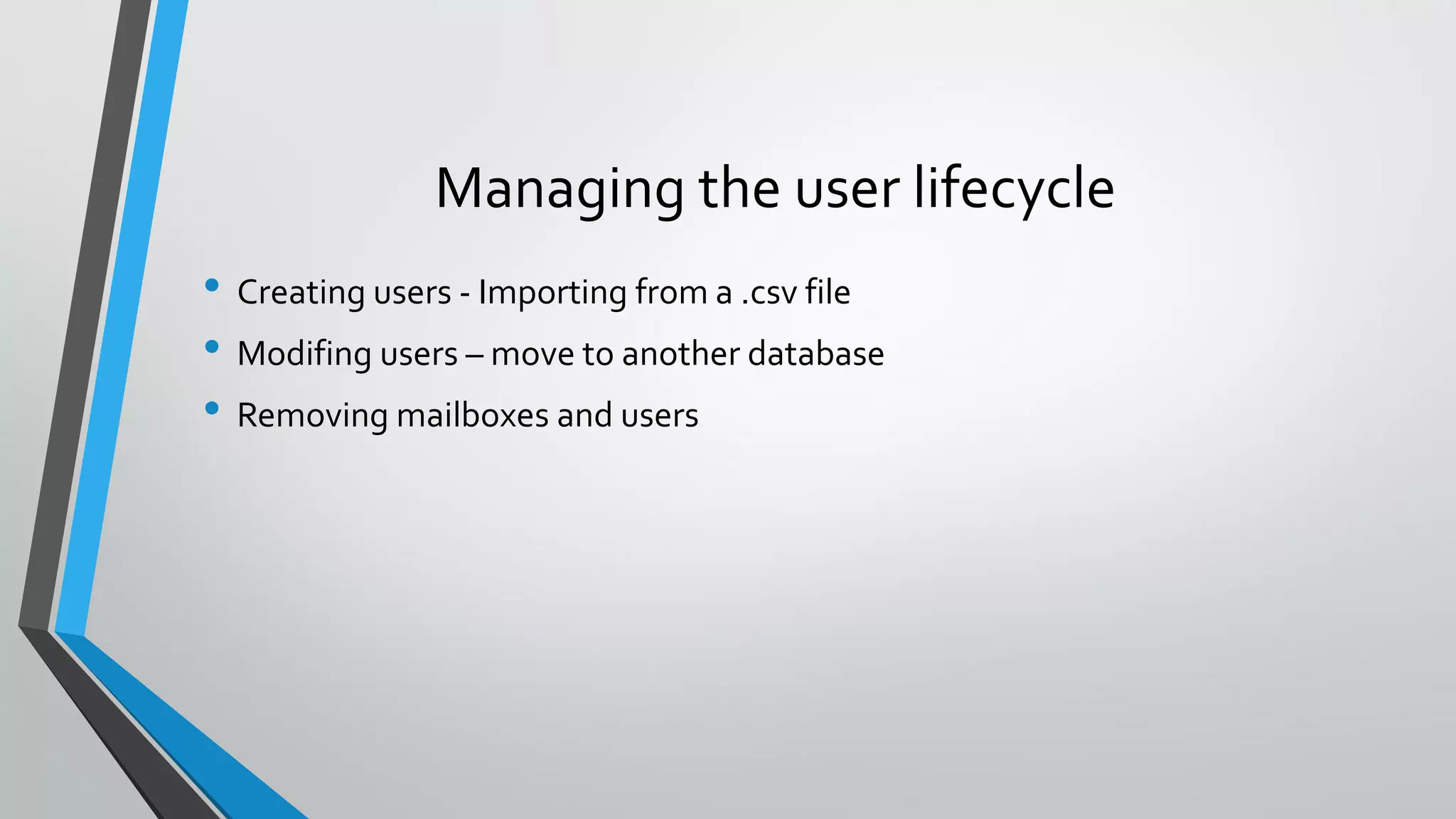

- 45. Managing the userlifecycle • Creating users - Importing from a .csv file • Modifing users – move to another database • Removing mailboxes and users

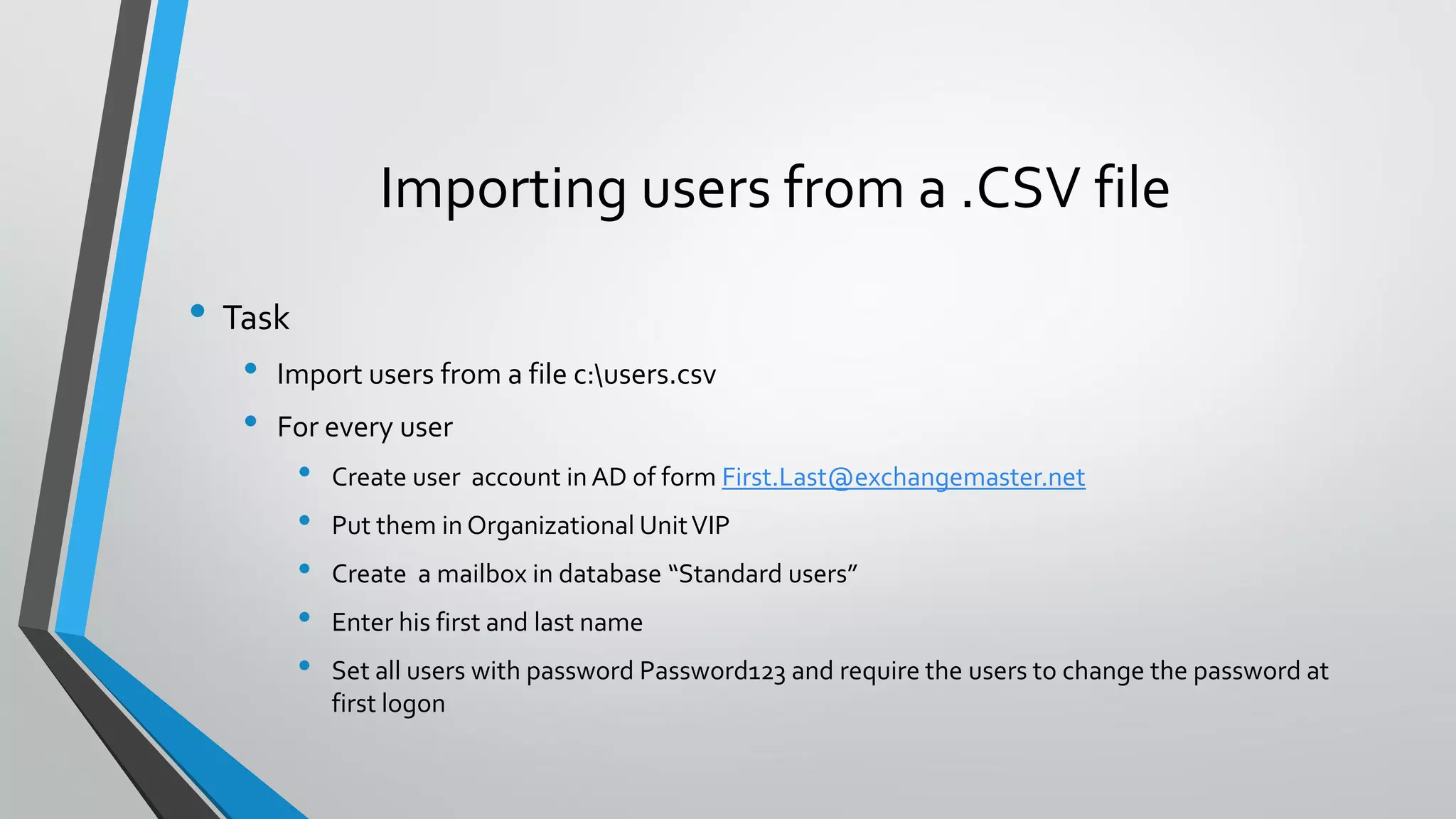

- 46. Importing users froma .CSV file • Task • Import users from a file c:users.csv • For every user • Create user account in AD of form First.Last@exchangemaster.net • Put them in Organizational UnitVIP • Create a mailbox in database “Standard users” • Enter his first and last name • Set all users with password Password123 and require the users to change the password at first logon

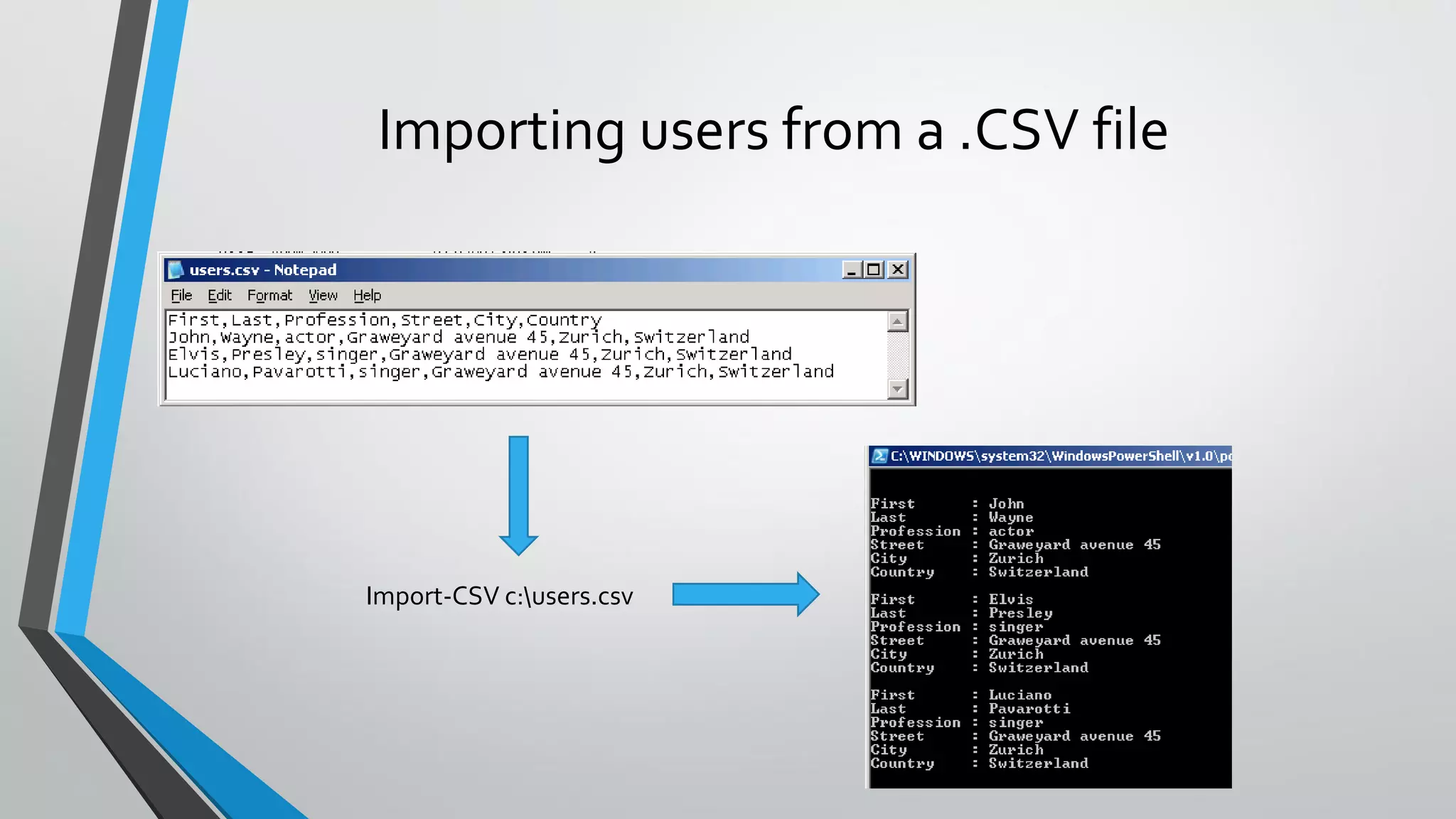

- 47. Importing users froma .CSV file Import-CSV c:users.csv

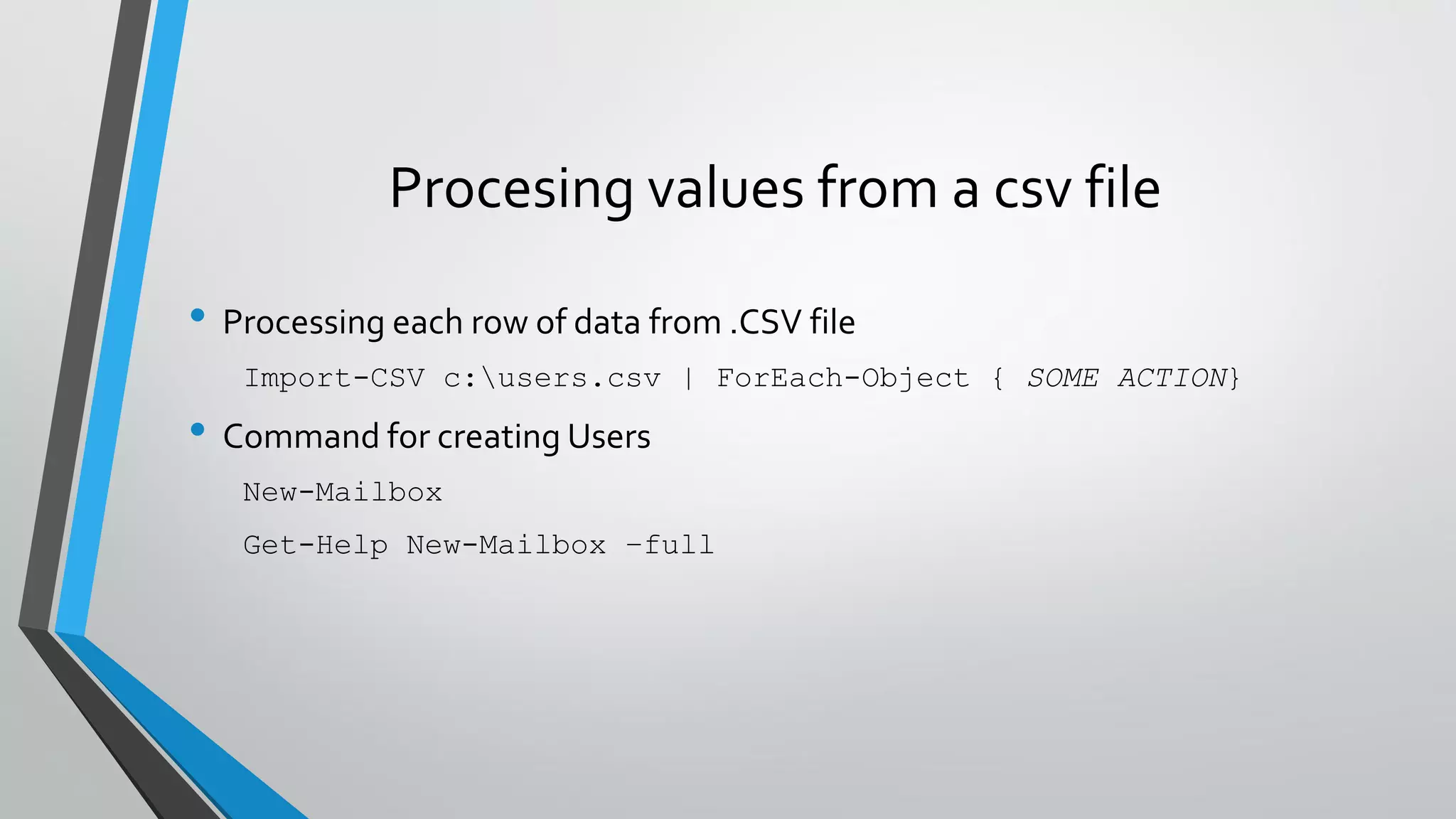

- 48. Procesing values froma csv file • Processing each row of data from .CSV file Import-CSV c:users.csv | ForEach-Object { SOME ACTION} • Command for creating Users New-Mailbox Get-Help New-Mailbox –full

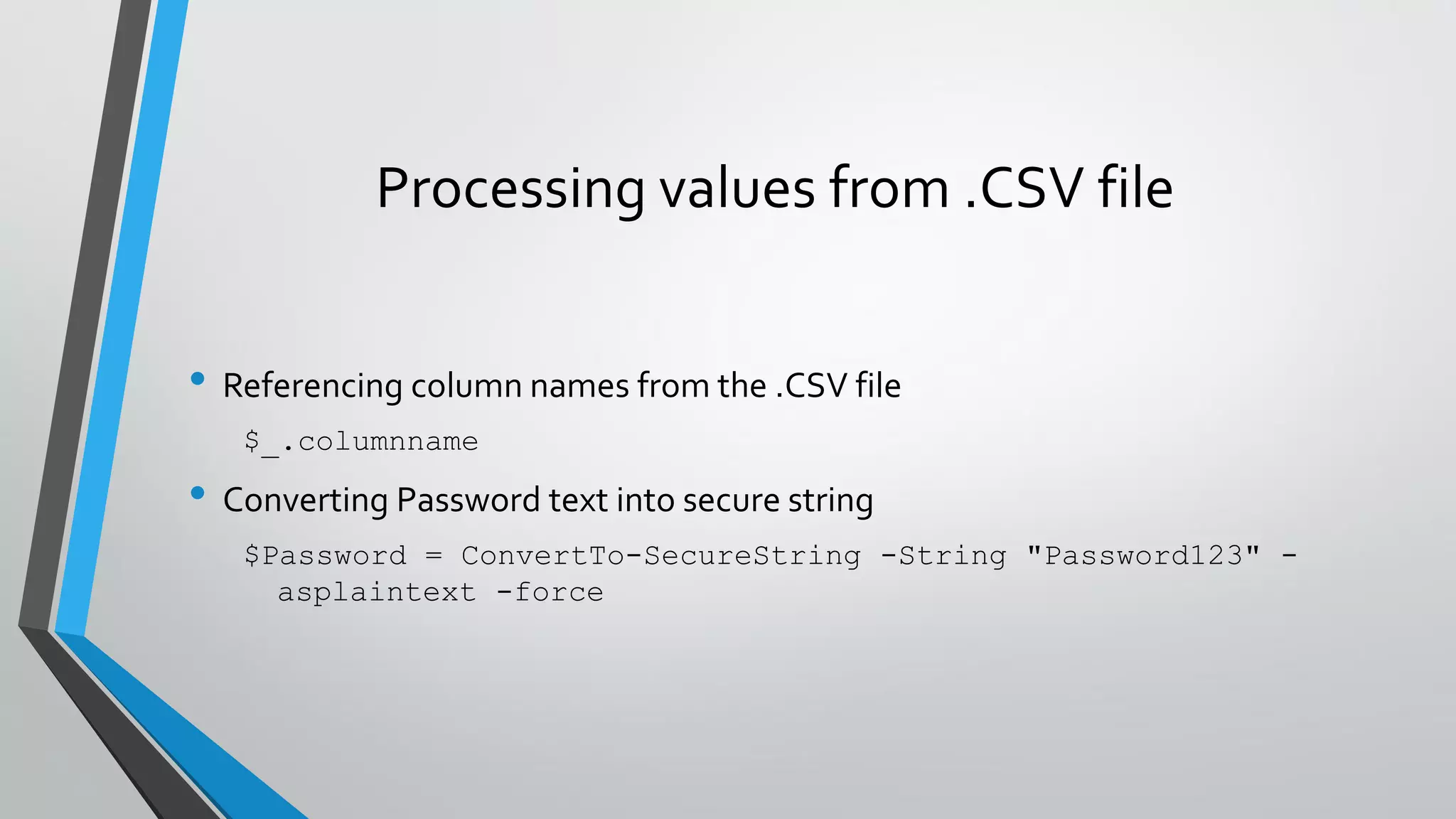

- 49. Processing values from.CSV file • Referencing column names from the .CSV file $_.columnname • Converting Password text into secure string $Password = ConvertTo-SecureString -String "Password123" - asplaintext -force

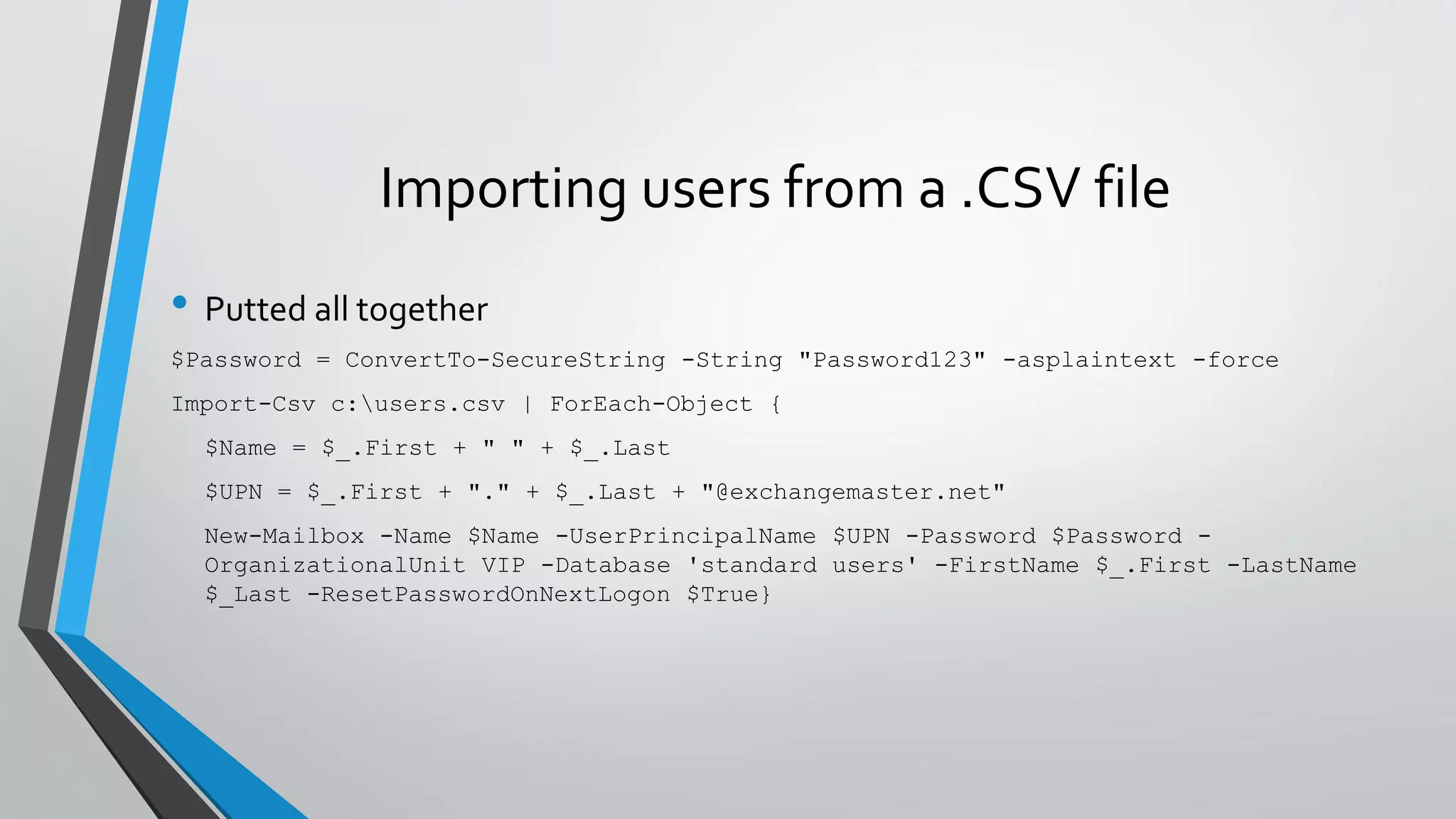

- 50. Importing users froma .CSV file • Putted all together $Password = ConvertTo-SecureString -String "Password123" -asplaintext -force Import-Csv c:users.csv | ForEach-Object { $Name = $_.First + " " + $_.Last $UPN = $_.First + "." + $_.Last + "@exchangemaster.net" New-Mailbox -Name $Name -UserPrincipalName $UPN -Password $Password - OrganizationalUnit VIP -Database 'standard users' -FirstName $_.First -LastName $_Last -ResetPasswordOnNextLogon $True}

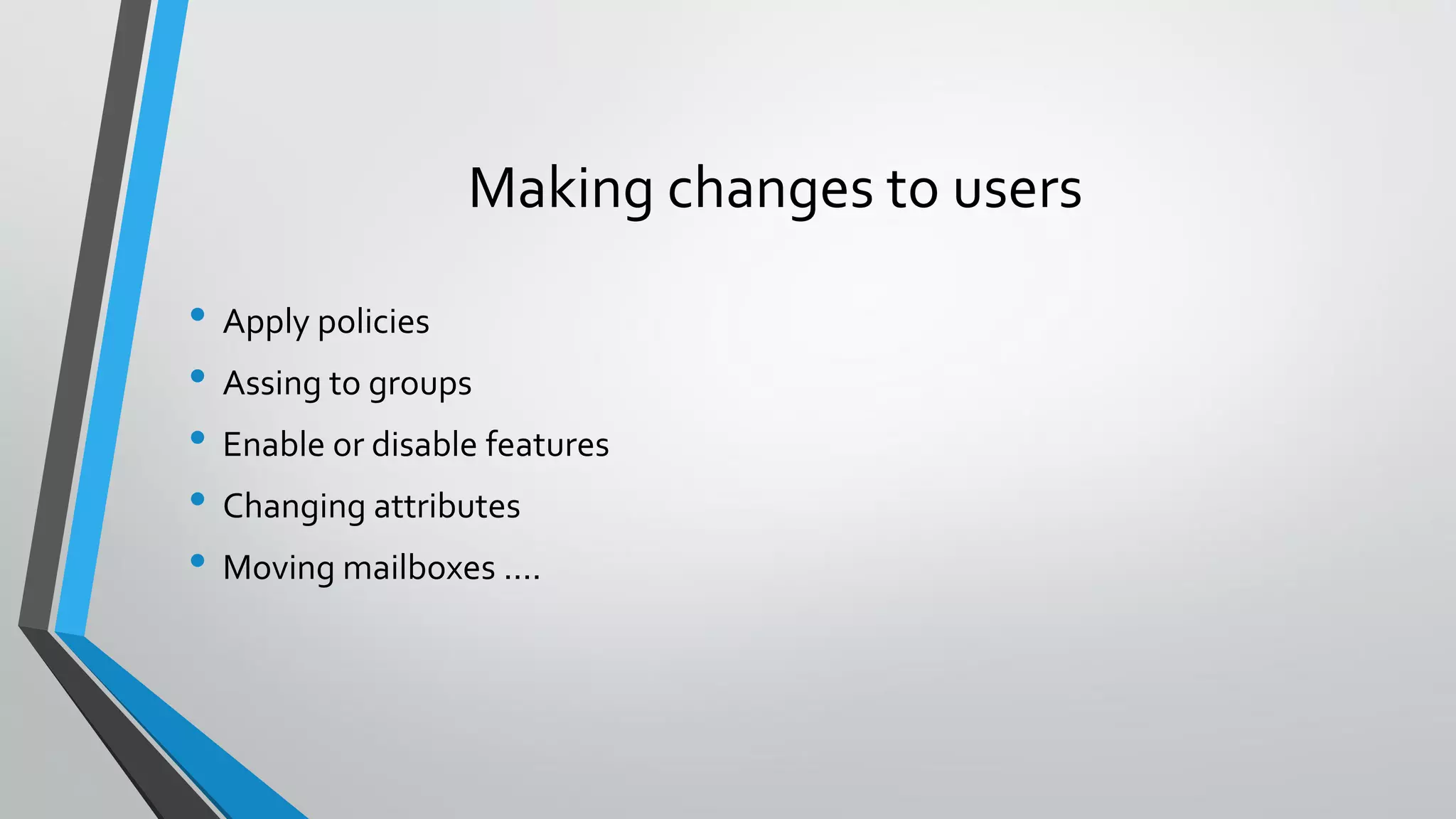

- 51. Making changes tousers • Apply policies • Assing to groups • Enable or disable features • Changing attributes • Moving mailboxes ....

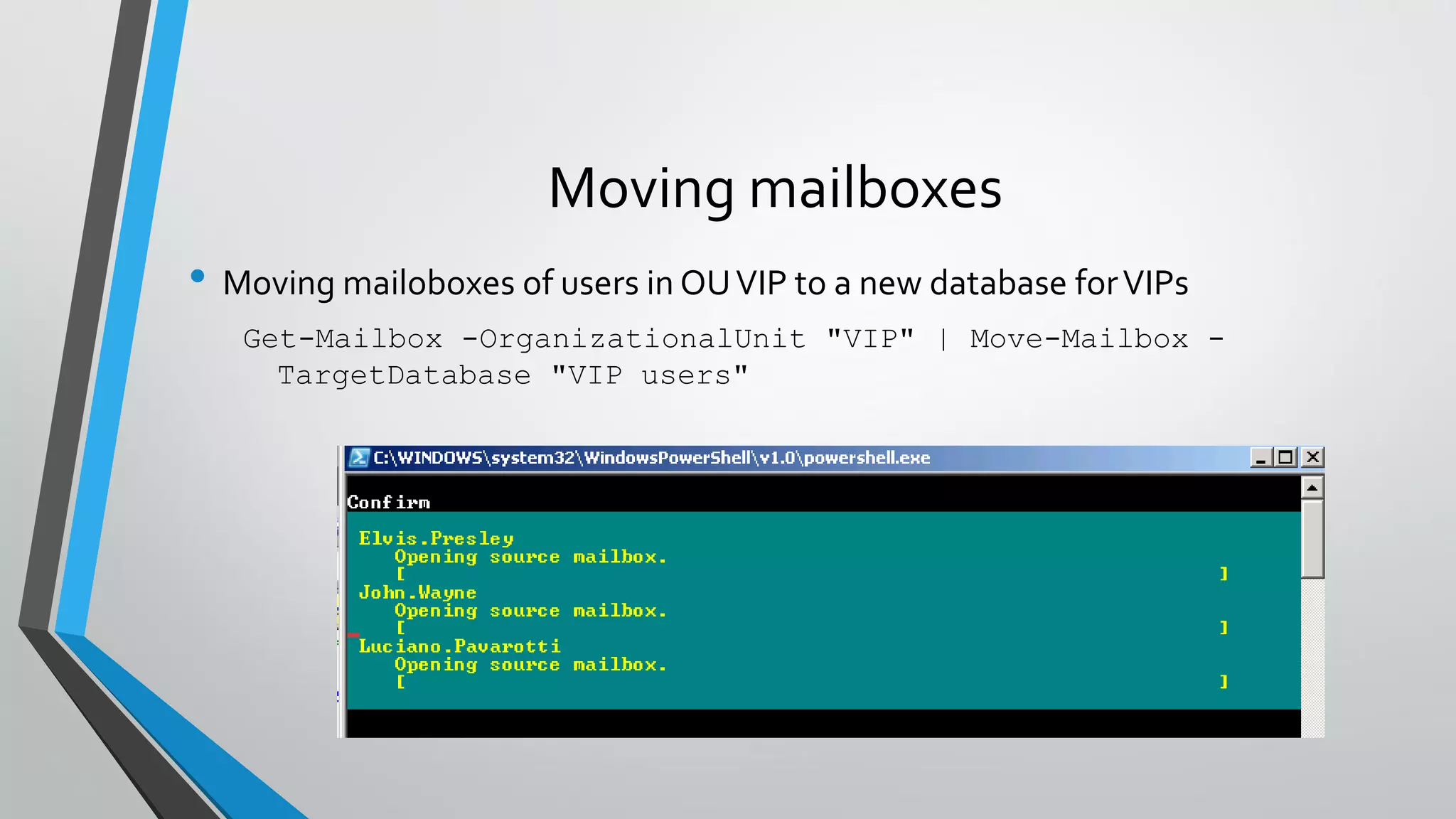

- 52. Moving mailboxes • Movingmailoboxes of users in OUVIP to a new database forVIPs Get-Mailbox -OrganizationalUnit "VIP" | Move-Mailbox - TargetDatabase "VIP users"

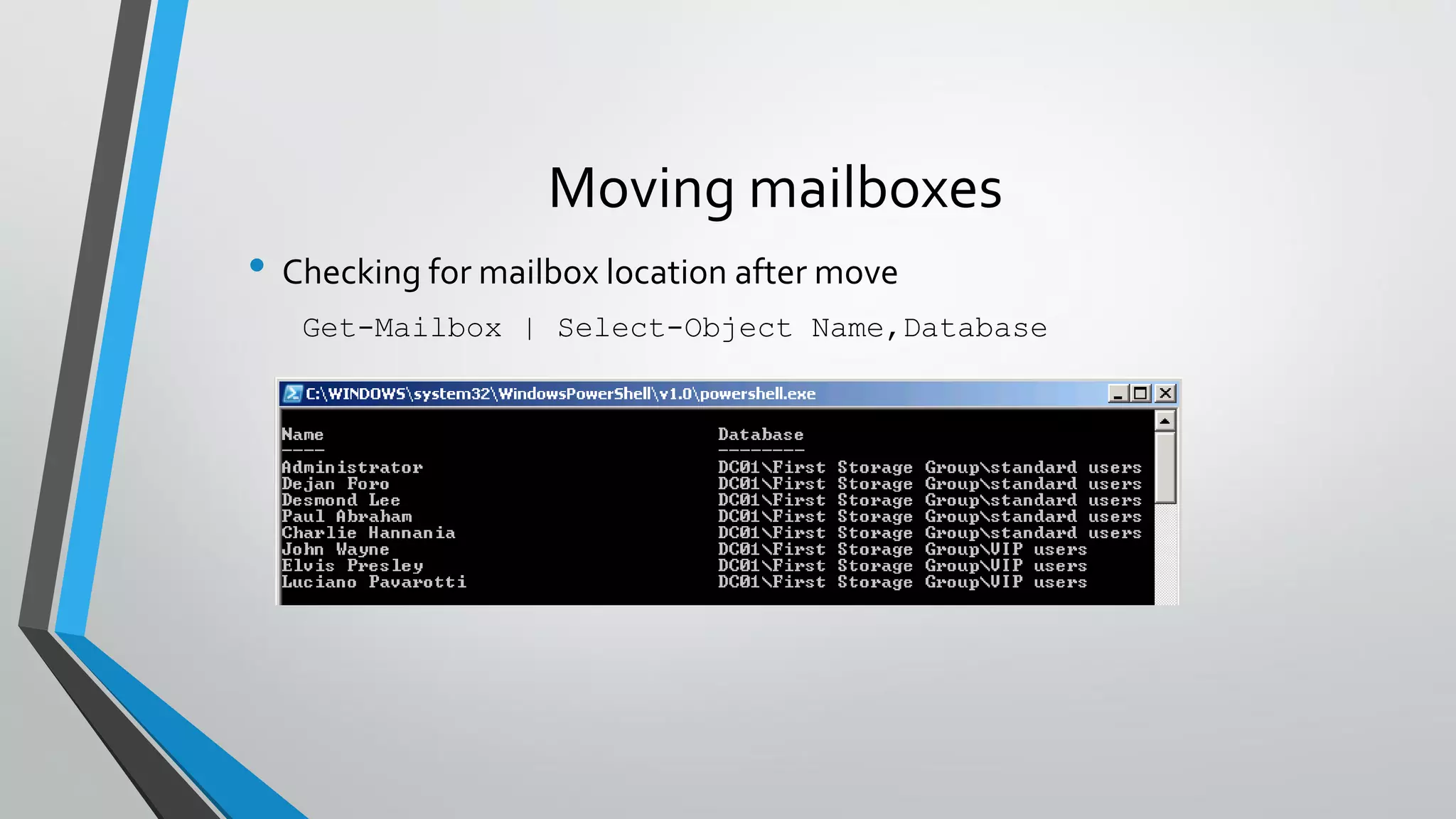

- 53. Moving mailboxes • Checkingfor mailbox location after move Get-Mailbox | Select-Object Name,Database

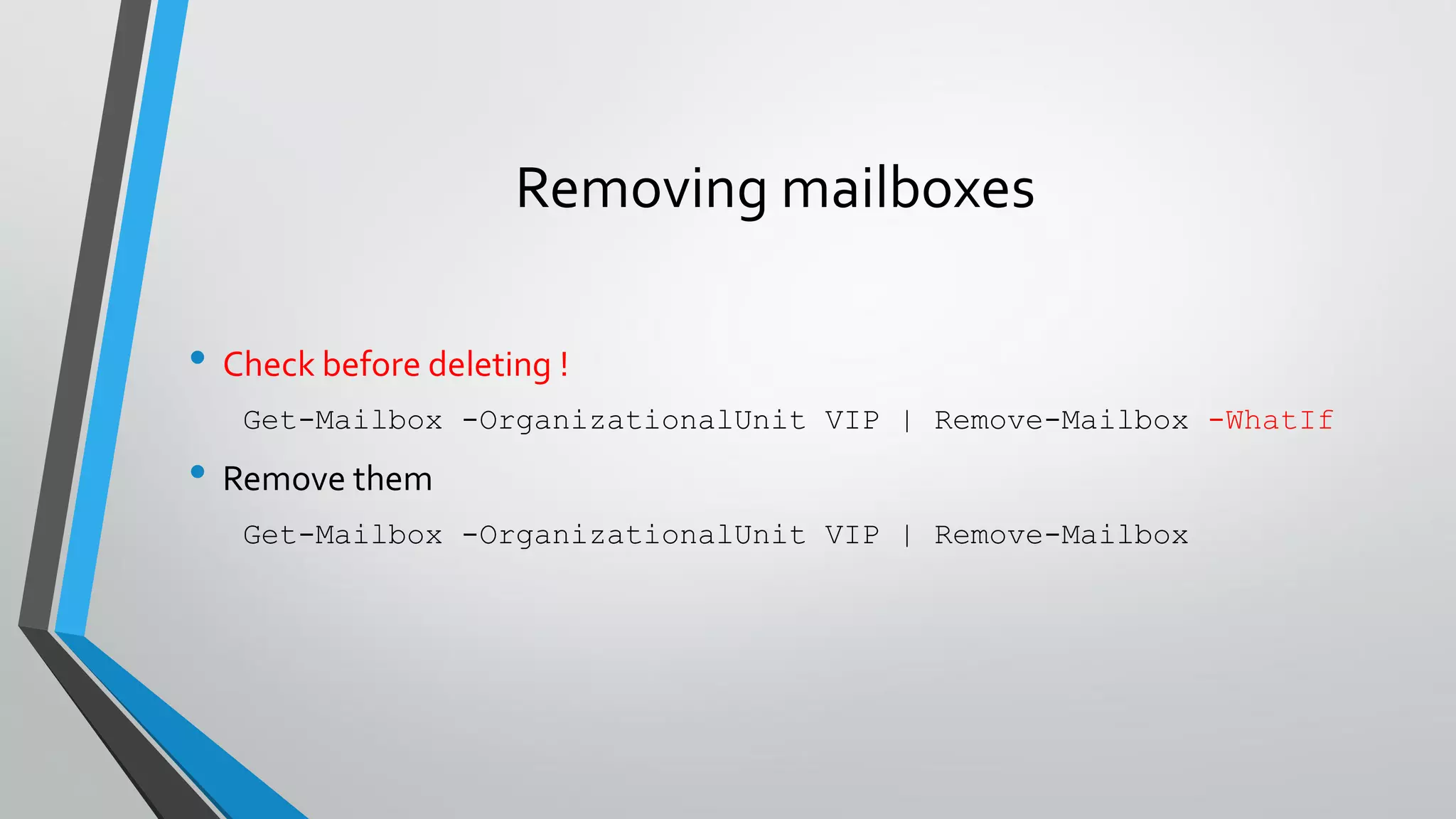

- 54. Removing mailboxes • Checkbefore deleting ! Get-Mailbox -OrganizationalUnit VIP | Remove-Mailbox -WhatIf • Remove them Get-Mailbox -OrganizationalUnit VIP | Remove-Mailbox

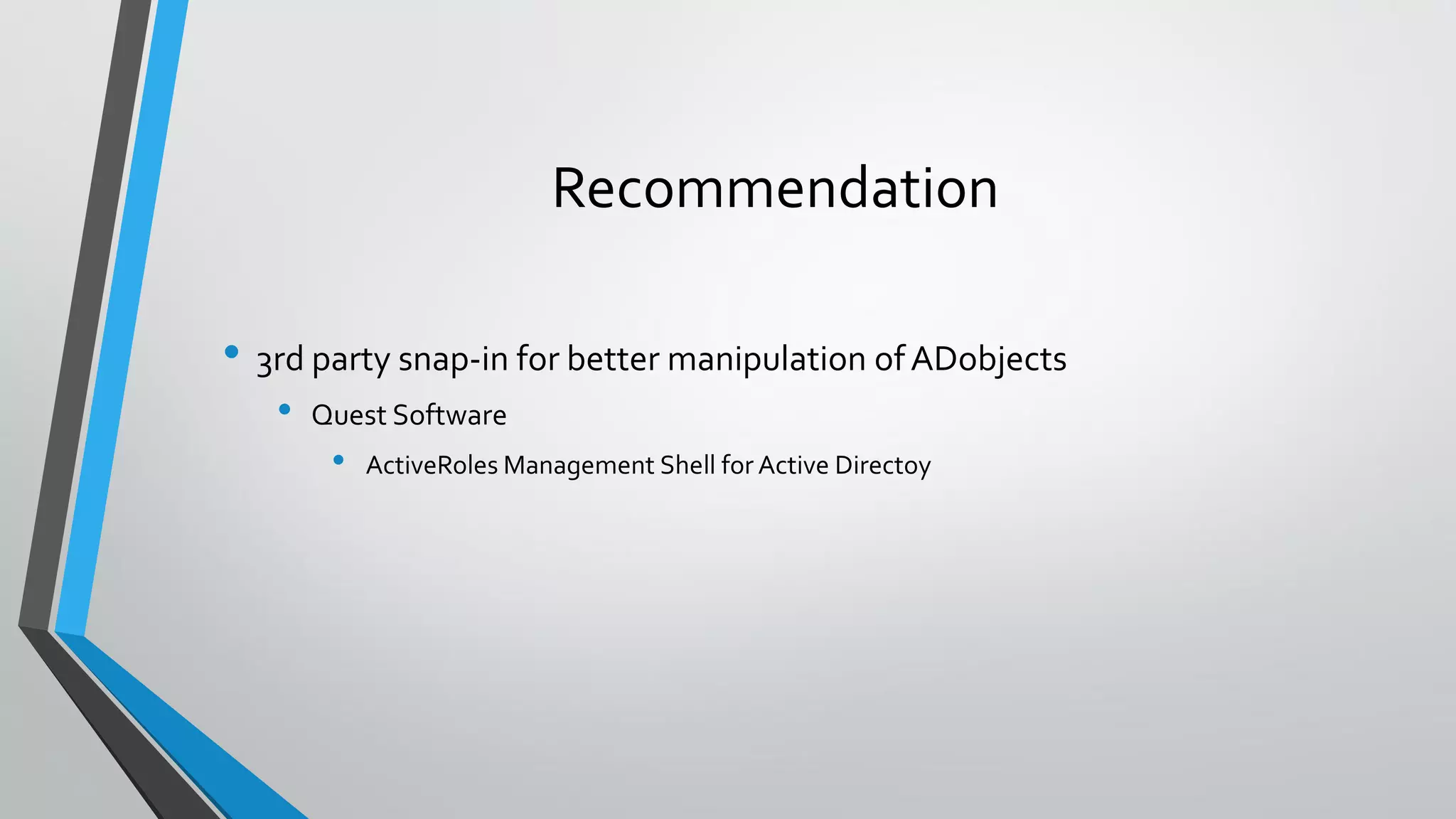

- 55. Recommendation • 3rd partysnap-in for better manipulation ofADobjects • Quest Software • ActiveRoles Management Shell for Active Directoy

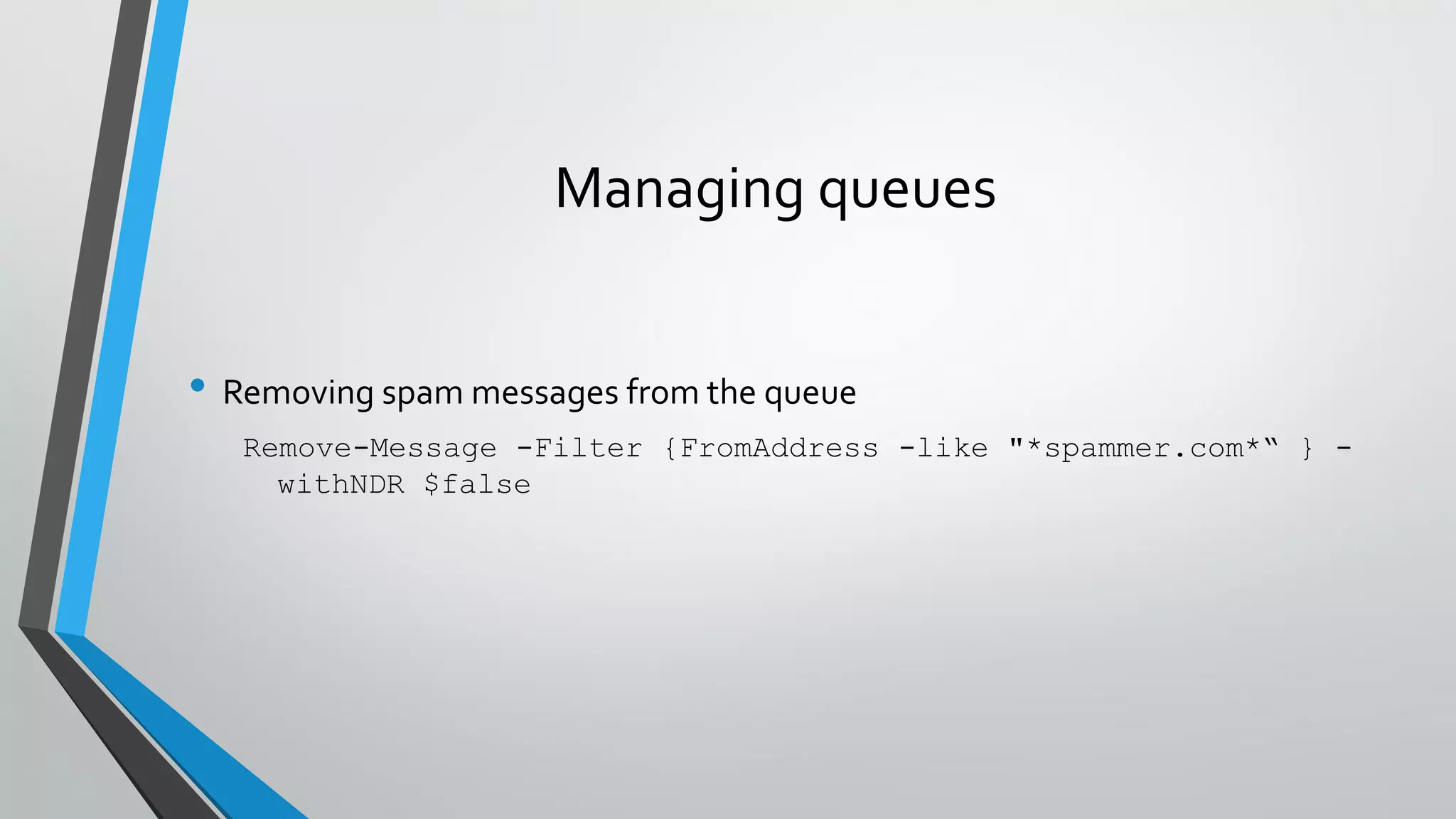

- 56. Managing queues • Removingspam messages from the queue Remove-Message -Filter {FromAddress -like "*spammer.com*“ } - withNDR $false

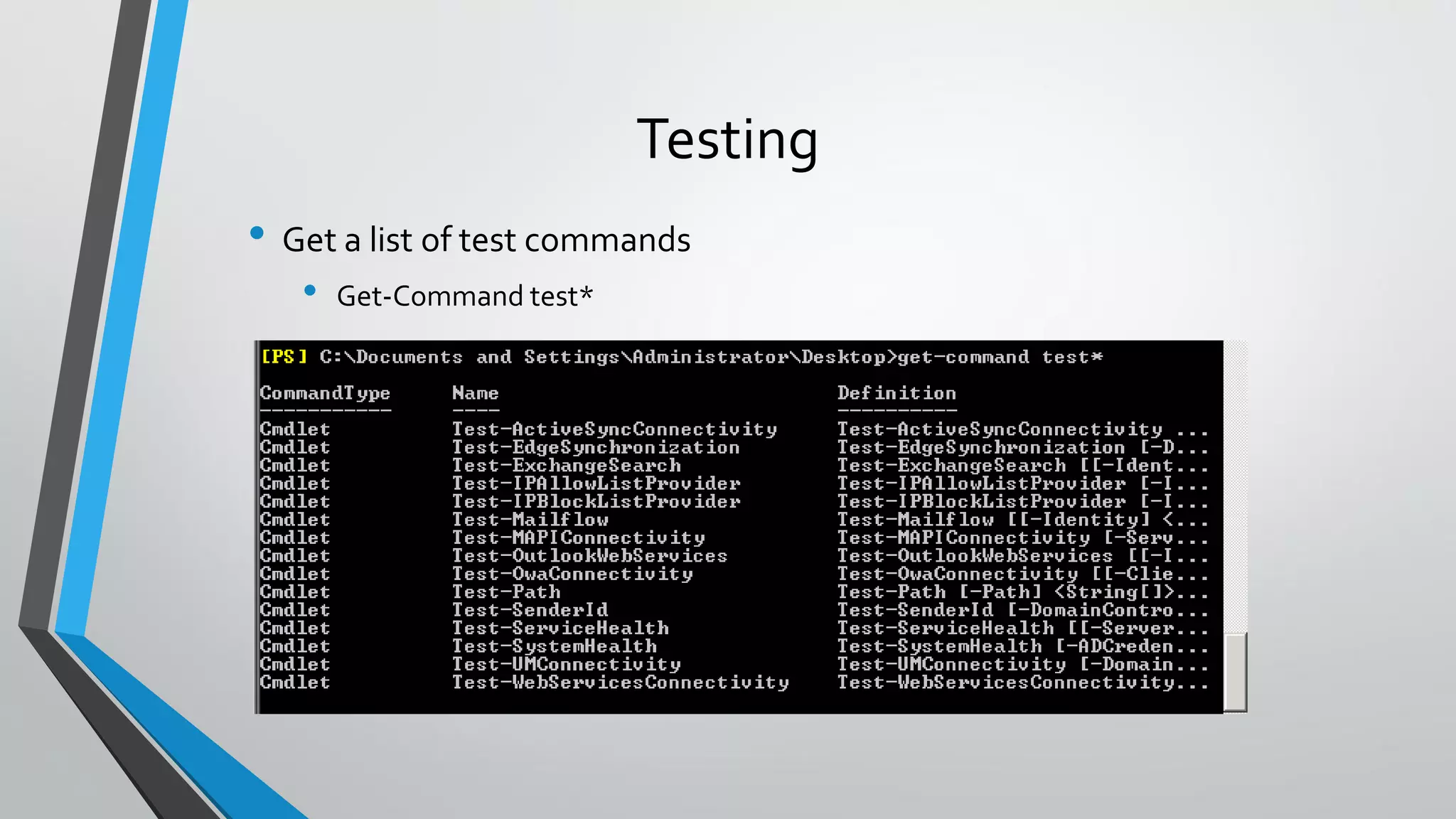

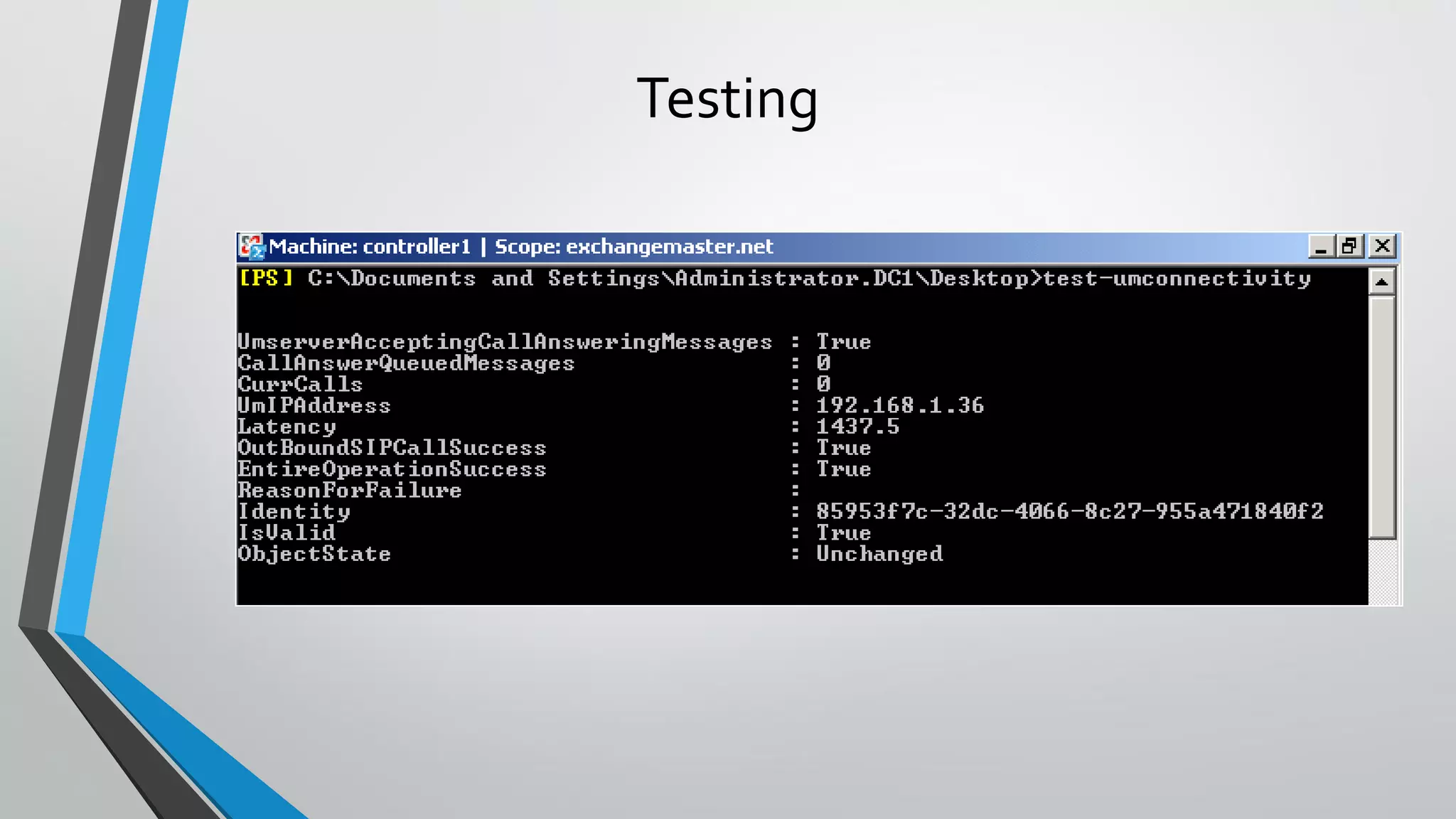

- 57. Testing • Get alist of test commands • Get-Command test*
- 58.

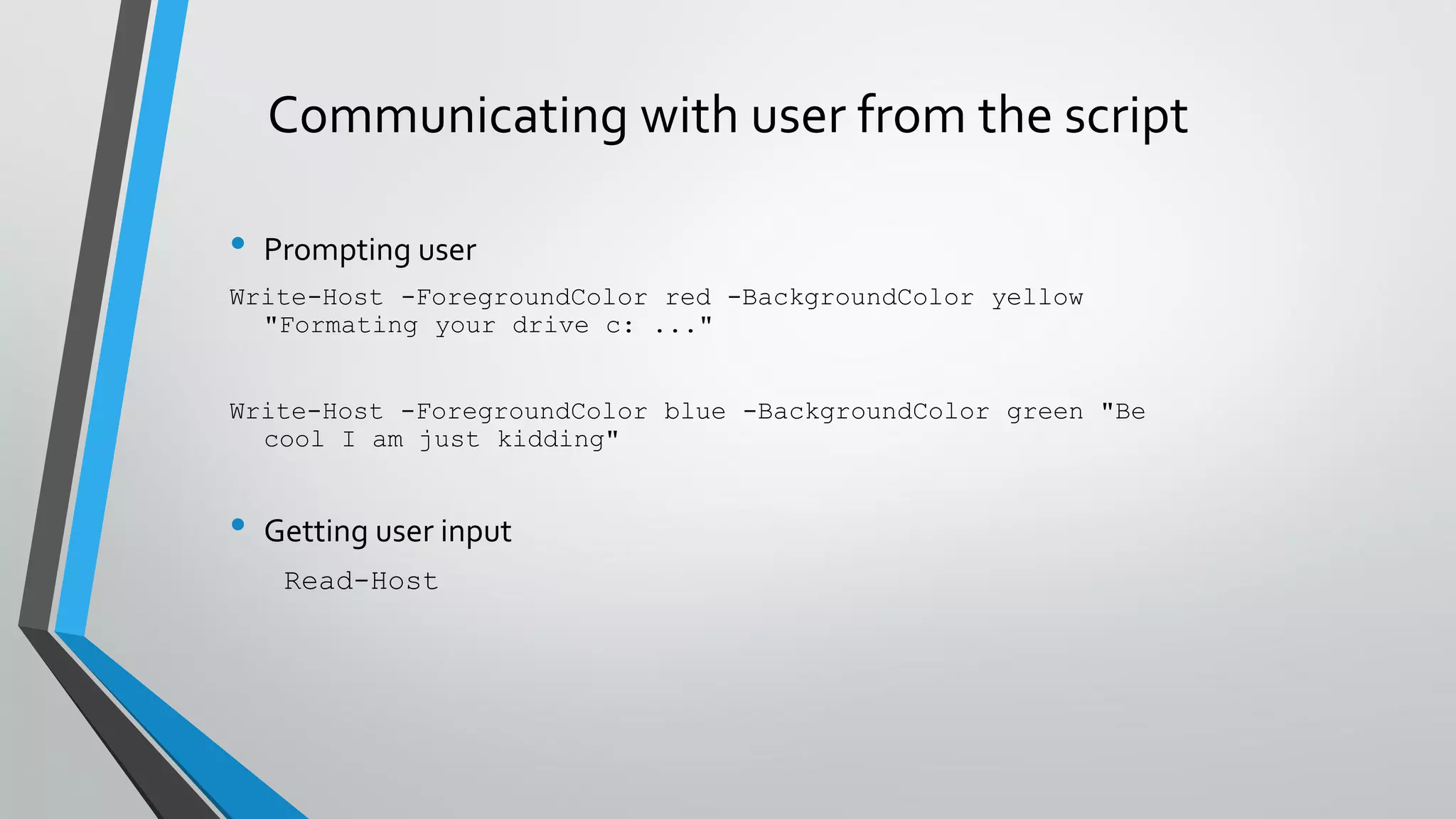

- 59. Communicating with userfrom the script • Prompting user Write-Host -ForegroundColor red -BackgroundColor yellow "Formating your drive c: ..." Write-Host -ForegroundColor blue -BackgroundColor green "Be cool I am just kidding" • Getting user input Read-Host
- 60. Script samples Using PowerShellin your daily Exchange admin routine

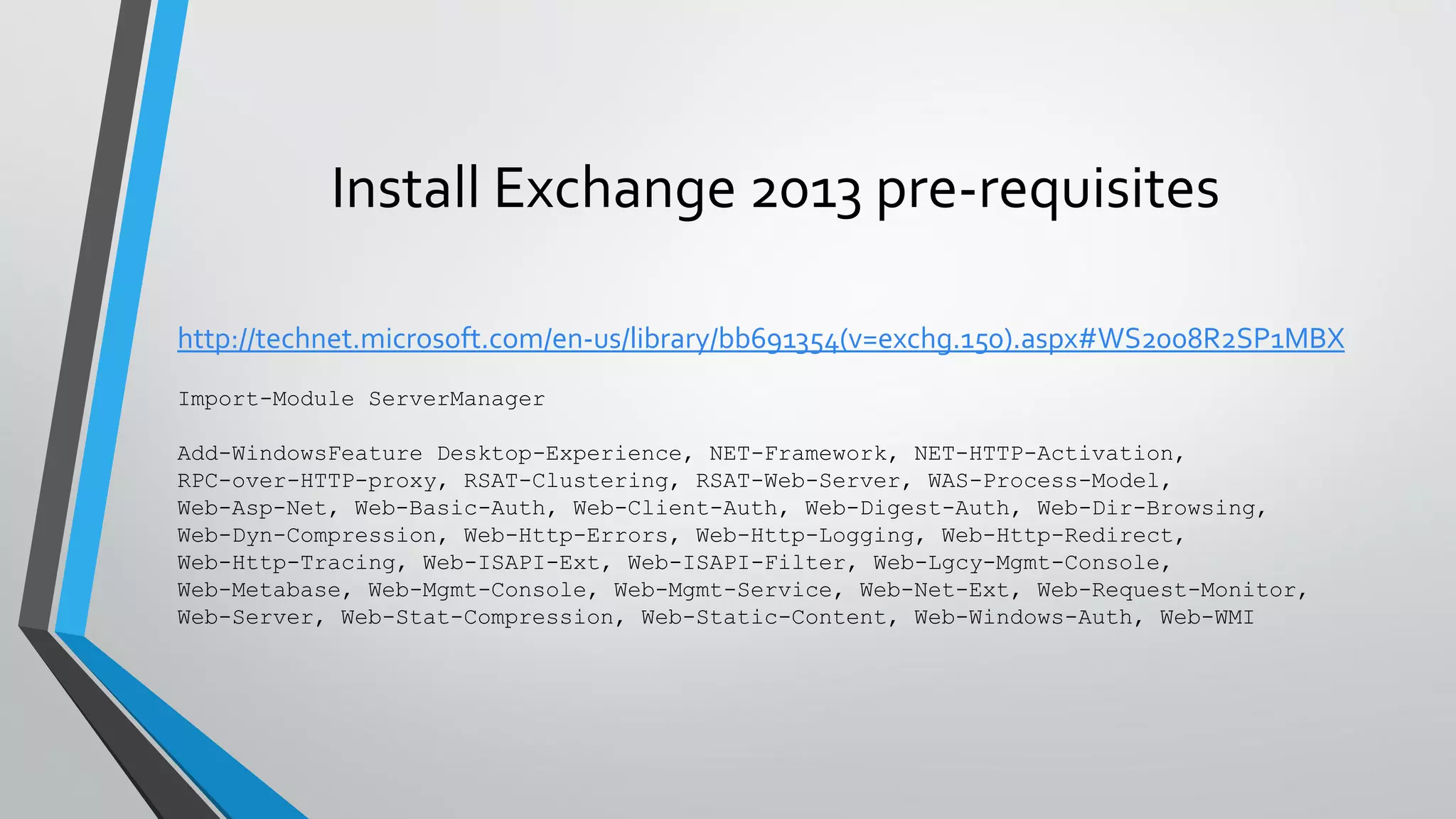

- 61. Install Exchange 2013pre-requisites http://technet.microsoft.com/en-us/library/bb691354(v=exchg.150).aspx#WS2008R2SP1MBX Import-Module ServerManager Add-WindowsFeature Desktop-Experience, NET-Framework, NET-HTTP-Activation, RPC-over-HTTP-proxy, RSAT-Clustering, RSAT-Web-Server, WAS-Process-Model, Web-Asp-Net, Web-Basic-Auth, Web-Client-Auth, Web-Digest-Auth, Web-Dir-Browsing, Web-Dyn-Compression, Web-Http-Errors, Web-Http-Logging, Web-Http-Redirect, Web-Http-Tracing, Web-ISAPI-Ext, Web-ISAPI-Filter, Web-Lgcy-Mgmt-Console, Web-Metabase, Web-Mgmt-Console, Web-Mgmt-Service, Web-Net-Ext, Web-Request-Monitor, Web-Server, Web-Stat-Compression, Web-Static-Content, Web-Windows-Auth, Web-WMI

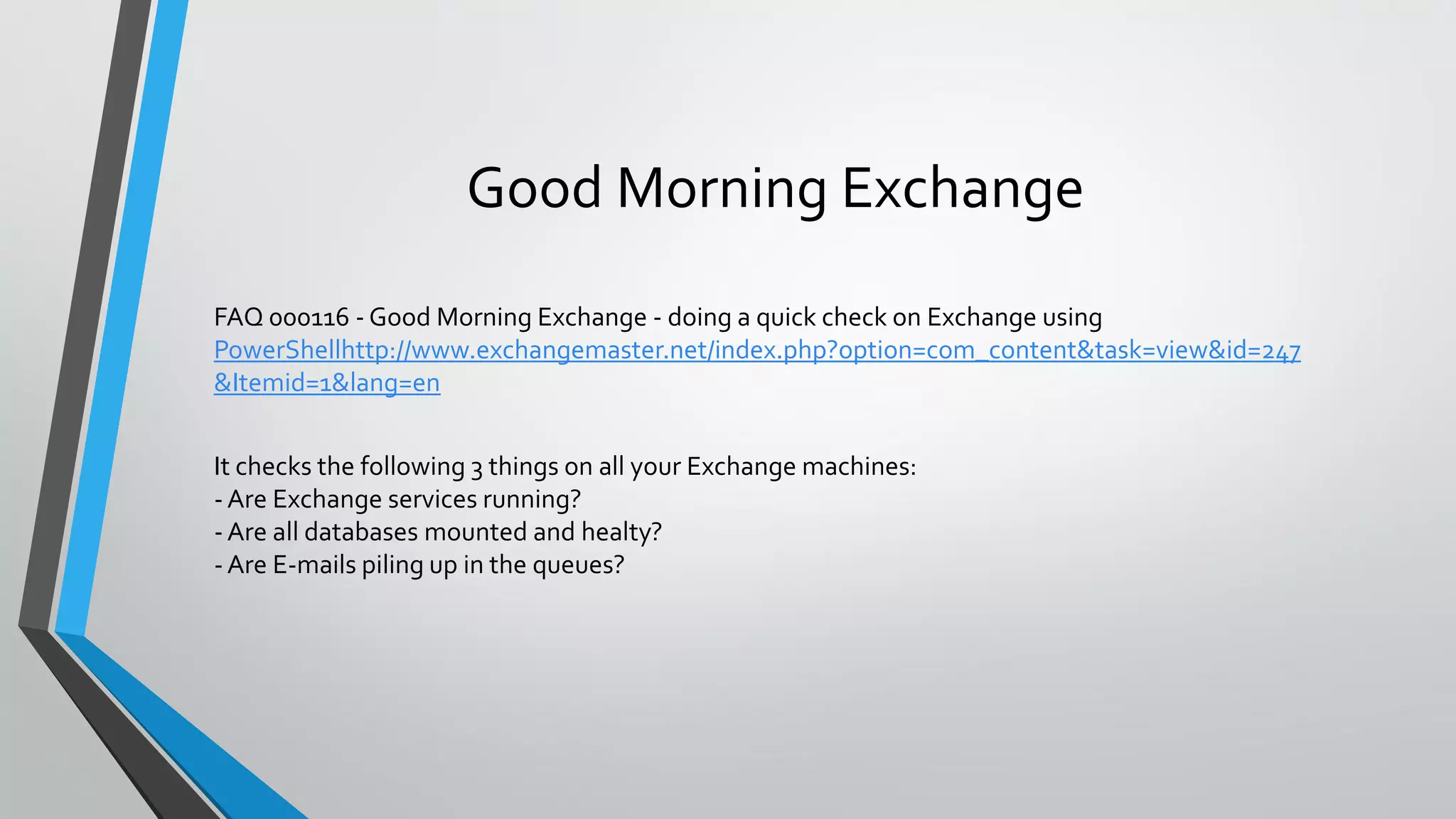

- 62. Good Morning Exchange FAQ000116 - Good Morning Exchange - doing a quick check on Exchange using PowerShellhttp://www.exchangemaster.net/index.php?option=com_content&task=view&id=247 &Itemid=1&lang=en It checks the following 3 things on all your Exchange machines: - Are Exchange services running? - Are all databases mounted and healty? - Are E-mails piling up in the queues?

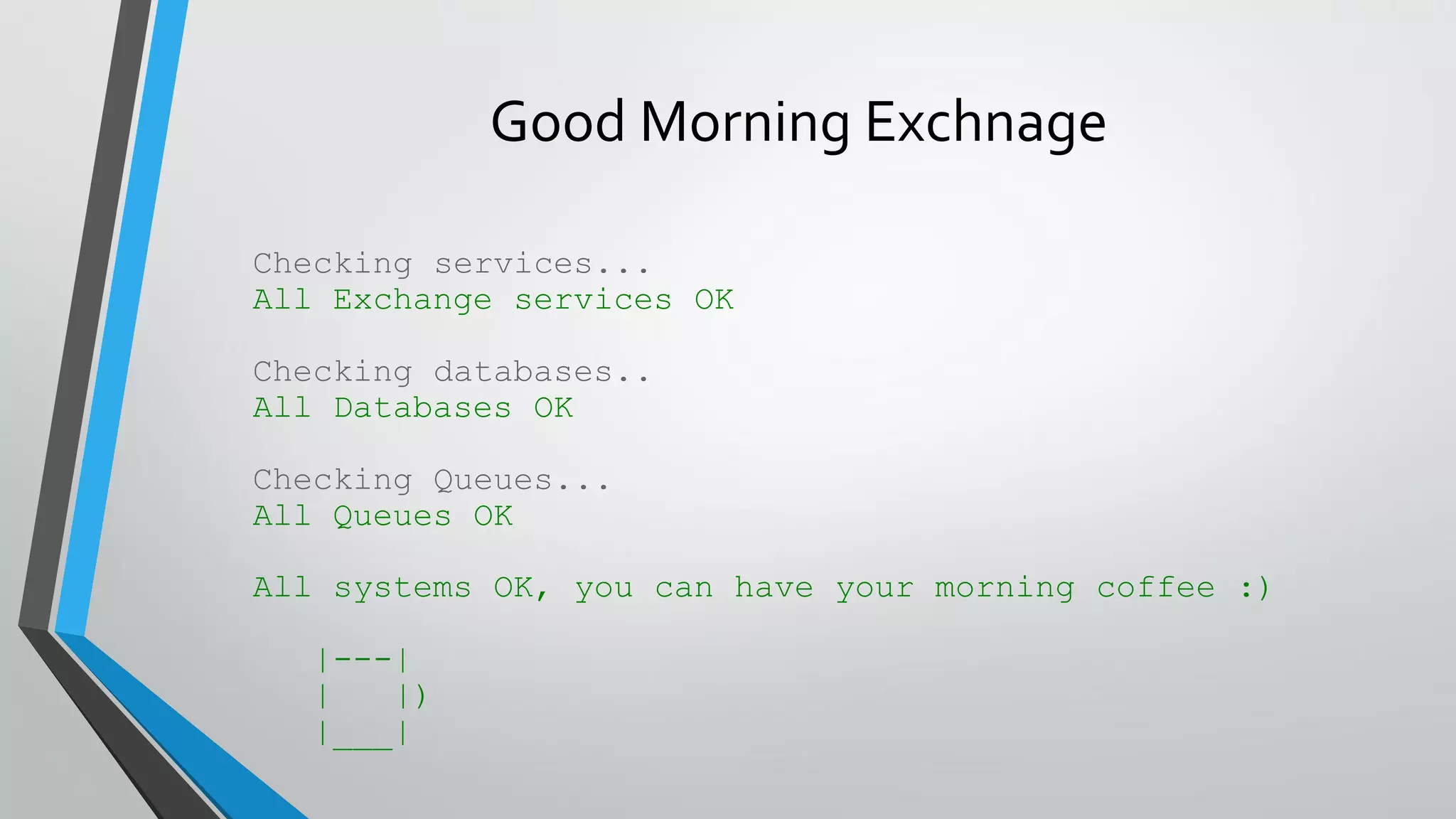

- 63. Good Morning Exchnage Checkingservices... All Exchange services OK Checking databases.. All Databases OK Checking Queues... All Queues OK All systems OK, you can have your morning coffee :) |---| | |) |___|

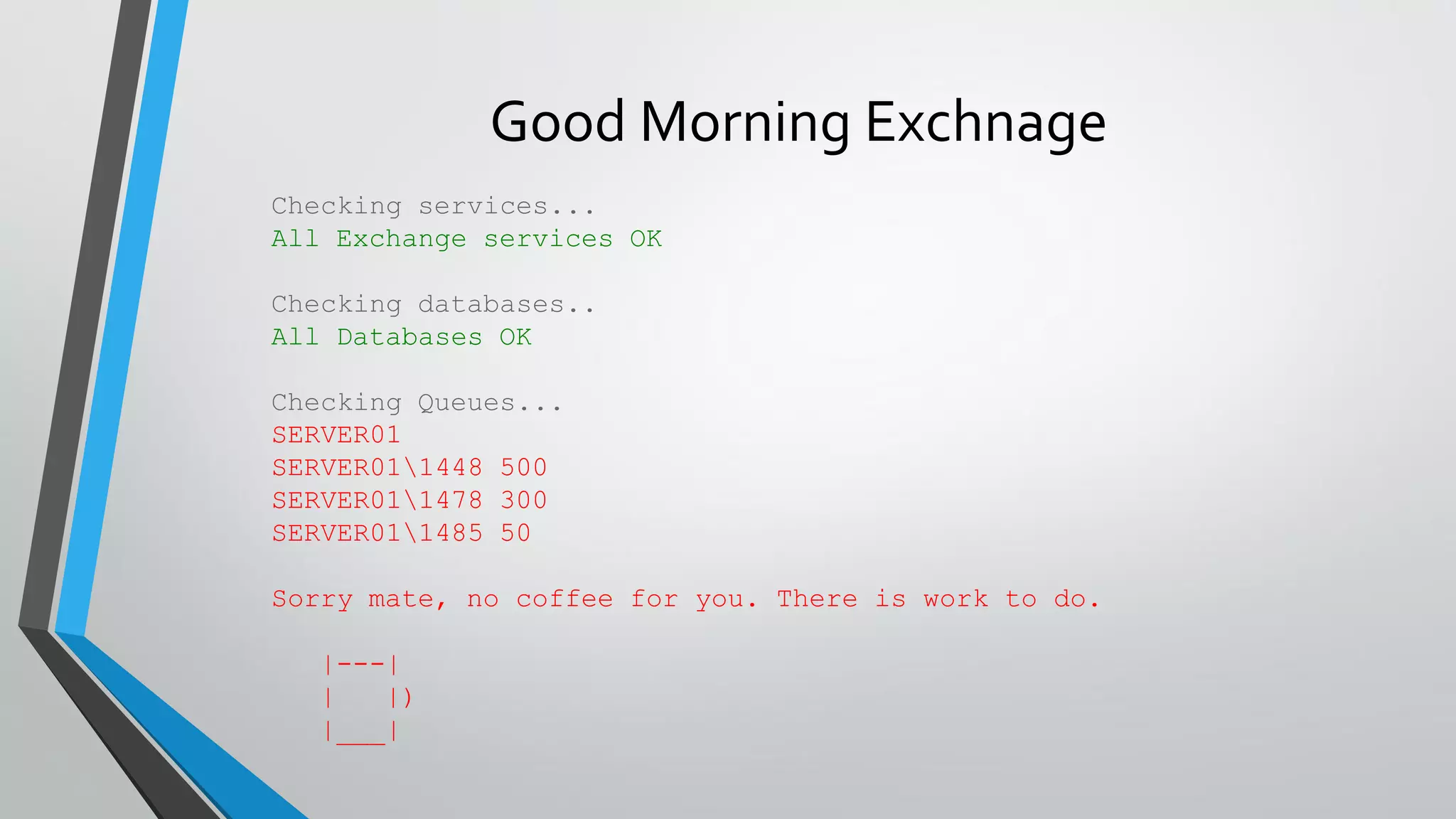

- 64. Checking services... All Exchangeservices OK Checking databases.. All Databases OK Checking Queues... SERVER01 SERVER011448 500 SERVER011478 300 SERVER011485 50 Sorry mate, no coffee for you. There is work to do. |---| | |) |___| Good Morning Exchnage

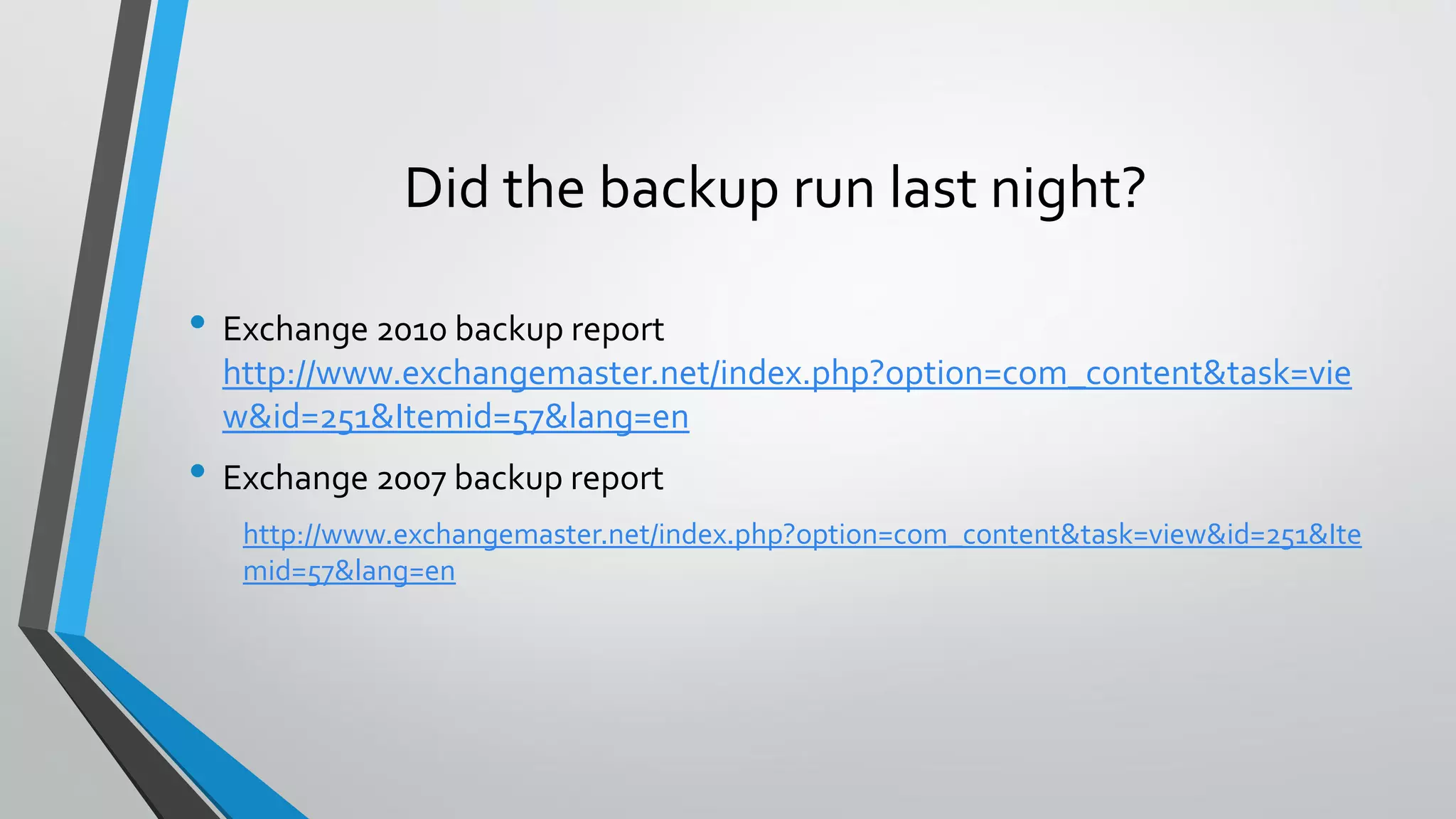

- 65. Did the backuprun last night? • Exchange 2010 backup report http://www.exchangemaster.net/index.php?option=com_content&task=vie w&id=251&Itemid=57&lang=en • Exchange 2007 backup report http://www.exchangemaster.net/index.php?option=com_content&task=view&id=251&Ite mid=57&lang=en

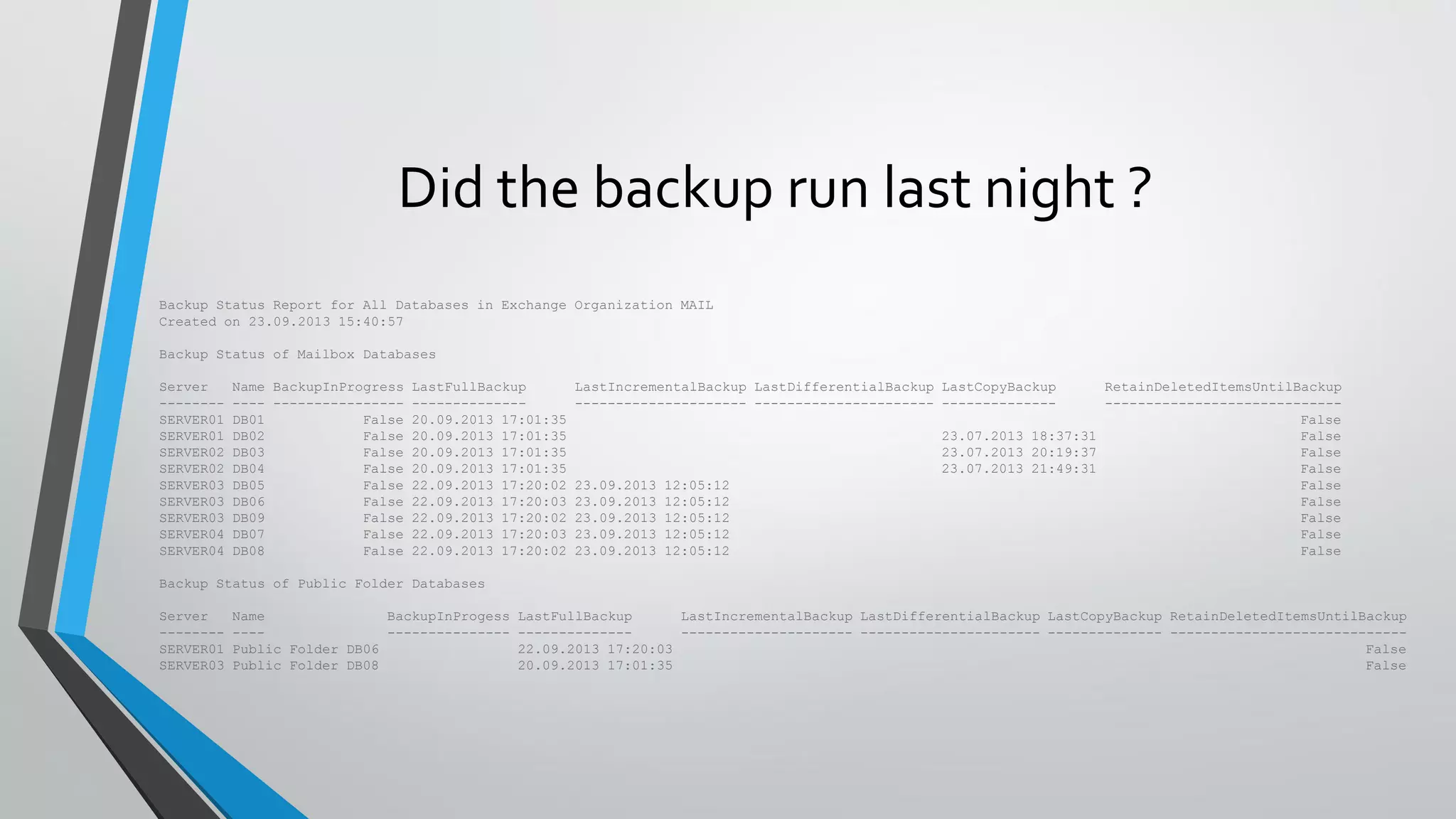

- 66. Did the backuprun last night ? Backup Status Report for All Databases in Exchange Organization MAIL Created on 23.09.2013 15:40:57 Backup Status of Mailbox Databases Server Name BackupInProgress LastFullBackup LastIncrementalBackup LastDifferentialBackup LastCopyBackup RetainDeletedItemsUntilBackup -------- ---- ---------------- -------------- --------------------- ---------------------- -------------- ----------------------------- SERVER01 DB01 False 20.09.2013 17:01:35 False SERVER01 DB02 False 20.09.2013 17:01:35 23.07.2013 18:37:31 False SERVER02 DB03 False 20.09.2013 17:01:35 23.07.2013 20:19:37 False SERVER02 DB04 False 20.09.2013 17:01:35 23.07.2013 21:49:31 False SERVER03 DB05 False 22.09.2013 17:20:02 23.09.2013 12:05:12 False SERVER03 DB06 False 22.09.2013 17:20:03 23.09.2013 12:05:12 False SERVER03 DB09 False 22.09.2013 17:20:02 23.09.2013 12:05:12 False SERVER04 DB07 False 22.09.2013 17:20:03 23.09.2013 12:05:12 False SERVER04 DB08 False 22.09.2013 17:20:02 23.09.2013 12:05:12 False Backup Status of Public Folder Databases Server Name BackupInProgess LastFullBackup LastIncrementalBackup LastDifferentialBackup LastCopyBackup RetainDeletedItemsUntilBackup -------- ---- --------------- -------------- --------------------- ---------------------- -------------- ----------------------------- SERVER01 Public Folder DB06 22.09.2013 17:20:03 False SERVER03 Public Folder DB08 20.09.2013 17:01:35 False

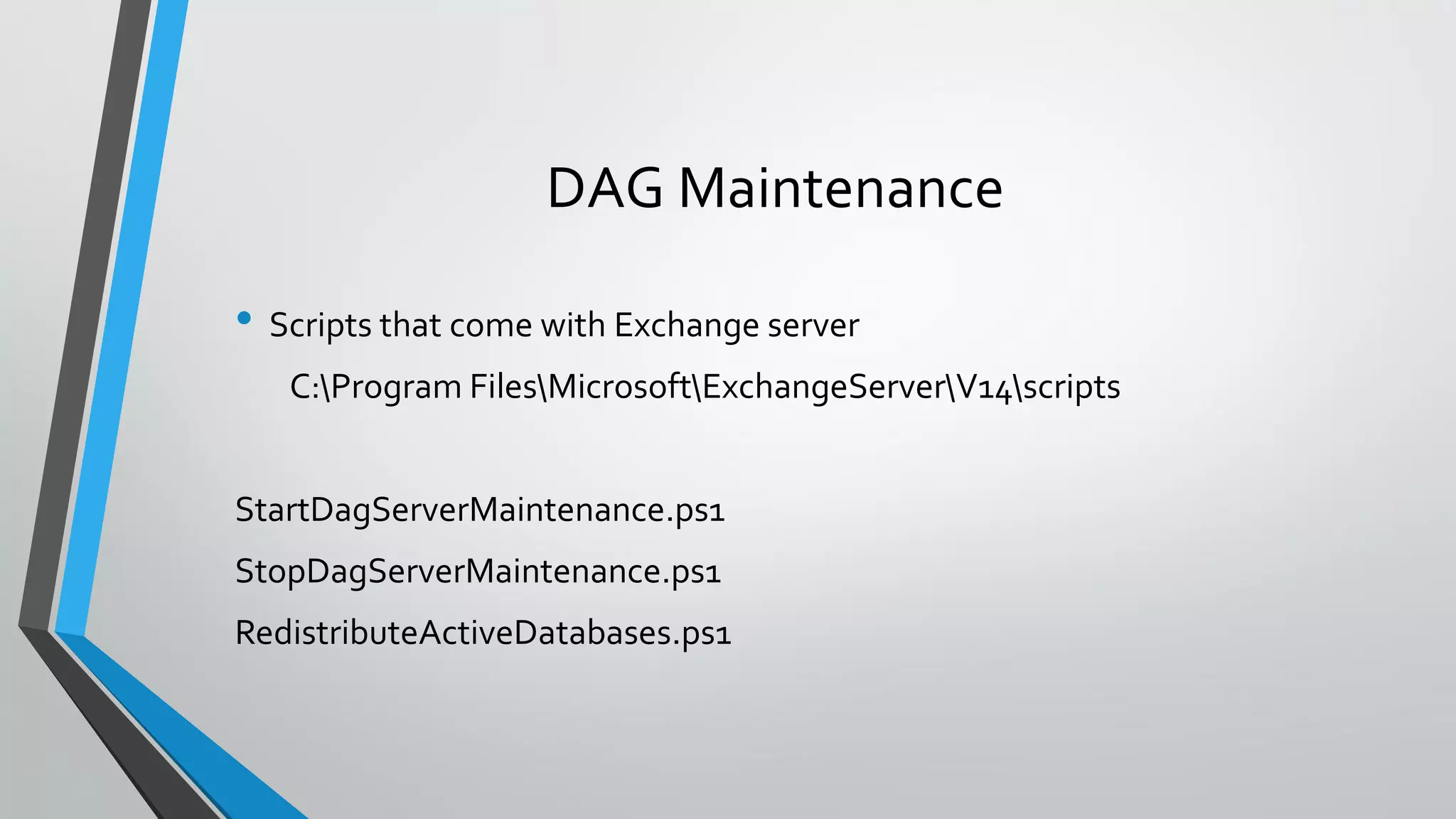

- 67. DAG Maintenance • Scriptsthat come with Exchange server C:Program FilesMicrosoftExchangeServerV14scripts StartDagServerMaintenance.ps1 StopDagServerMaintenance.ps1 RedistributeActiveDatabases.ps1

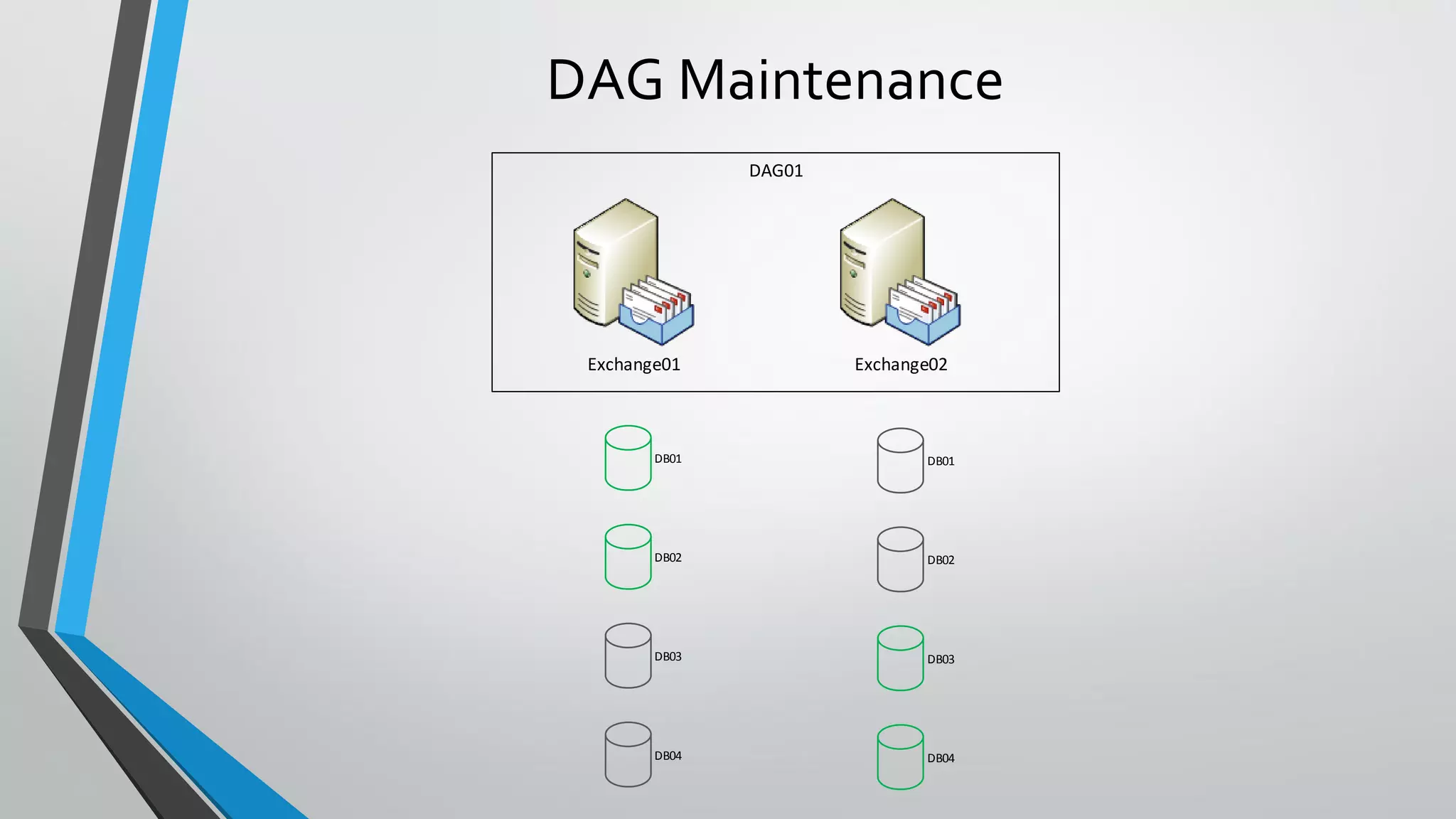

- 68.

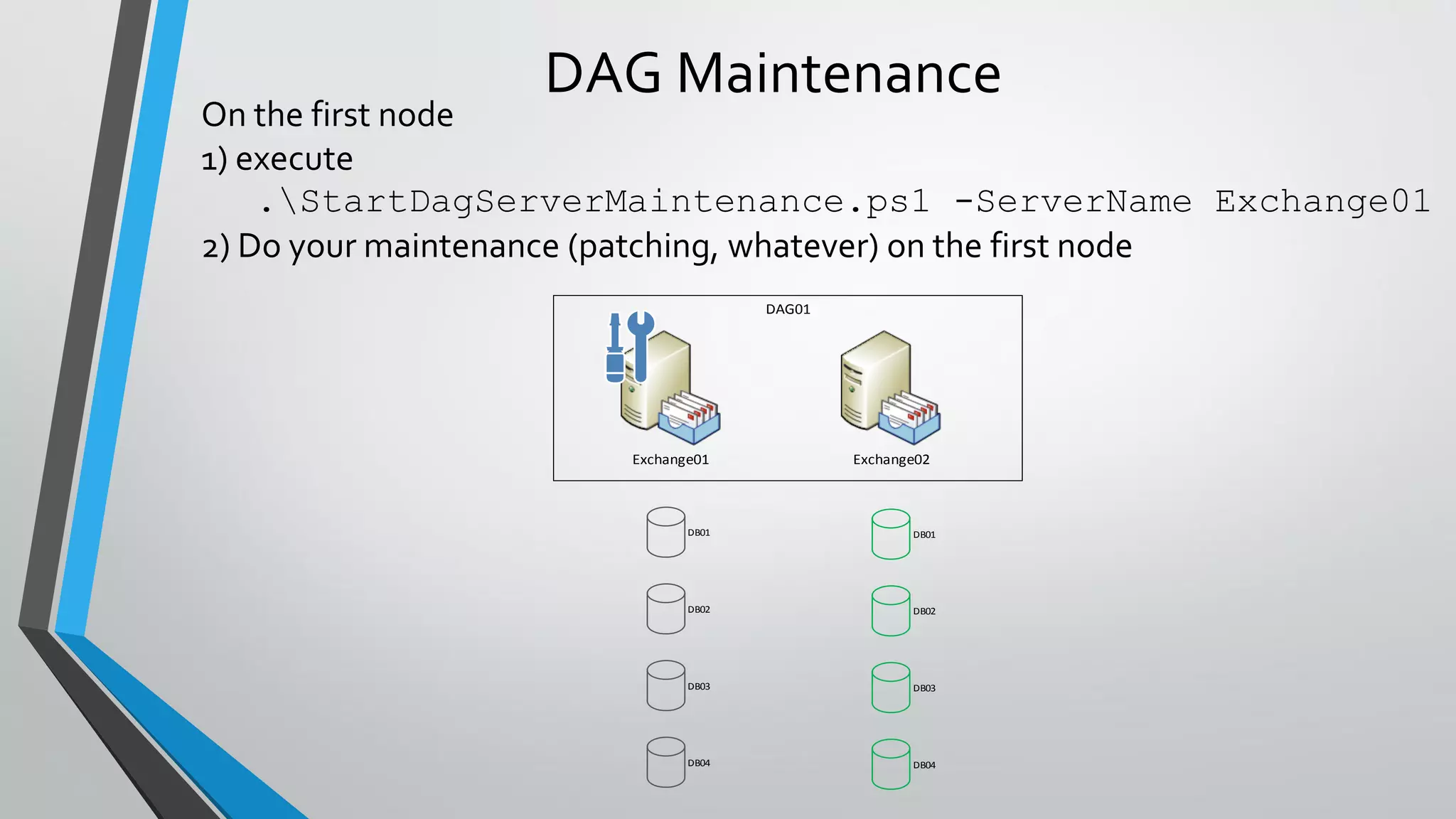

- 69. DAG Maintenance On thefirst node 1) execute .StartDagServerMaintenance.ps1 -ServerName Exchange01 2) Do your maintenance (patching, whatever) on the first node Exchange01 Exchange02 DAG01 DB01 DB02 DB03 DB04 DB01 DB02 DB03 DB04

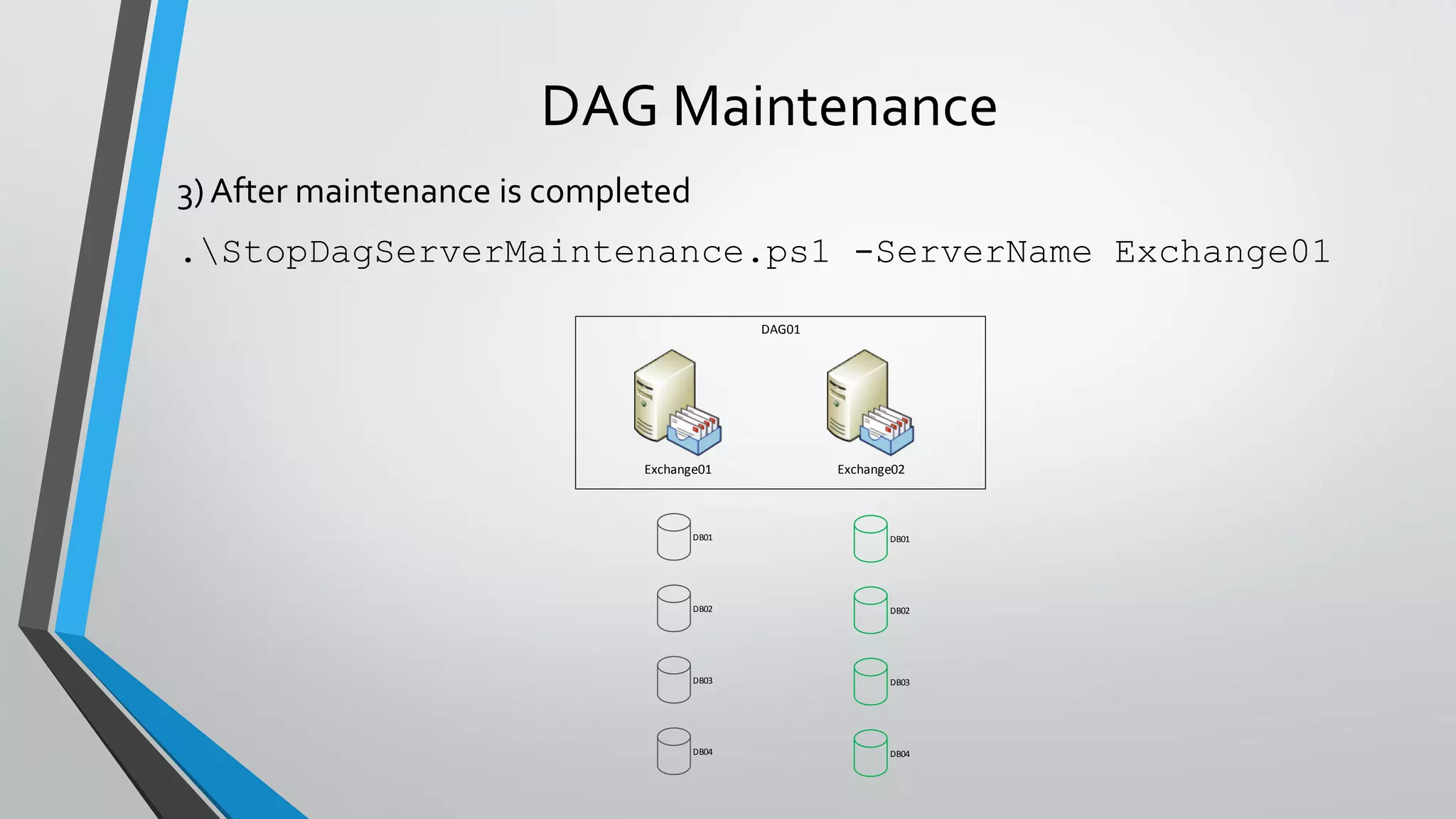

- 70. DAG Maintenance 3) Aftermaintenance is completed .StopDagServerMaintenance.ps1 -ServerName Exchange01 Exchange01 Exchange02 DAG01 DB01 DB02 DB03 DB04 DB01 DB02 DB03 DB04

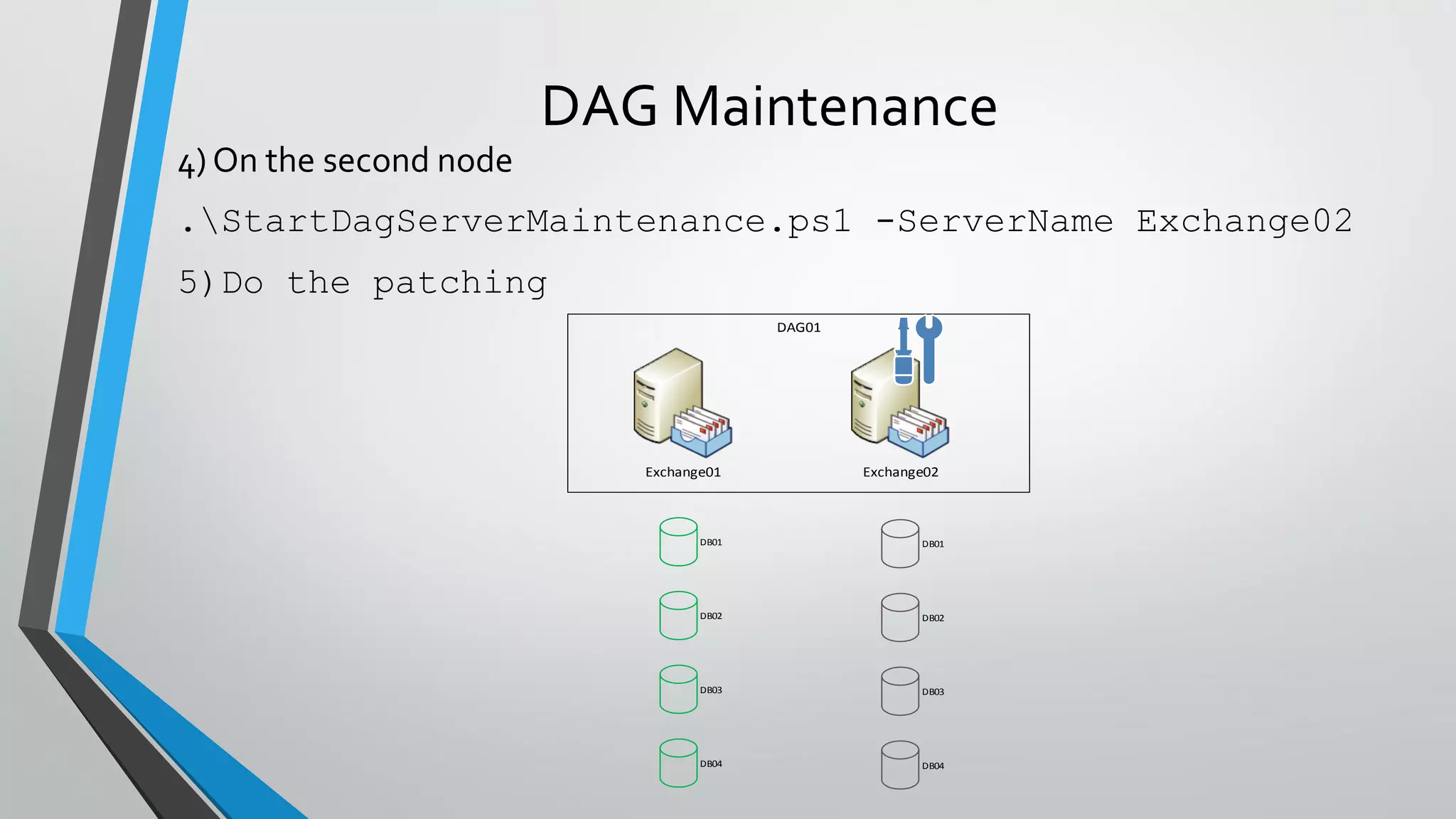

- 71. DAG Maintenance 4) Onthe second node .StartDagServerMaintenance.ps1 -ServerName Exchange02 5)Do the patching Exchange01 Exchange02 DAG01 DB01 DB02 DB03 DB04 DB01 DB02 DB03 DB04

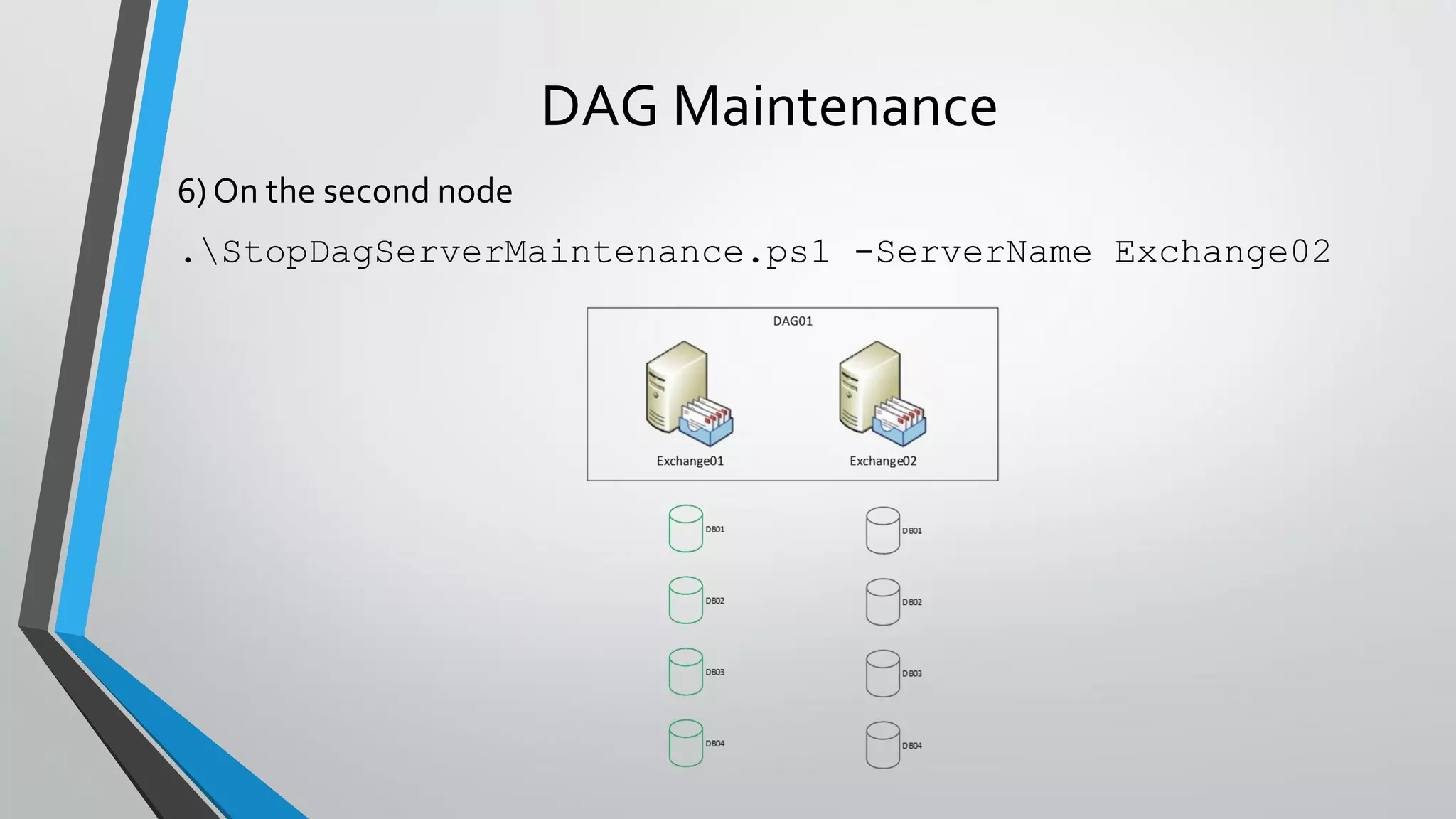

- 72. DAG Maintenance 6) Onthe second node .StopDagServerMaintenance.ps1 -ServerName Exchange02

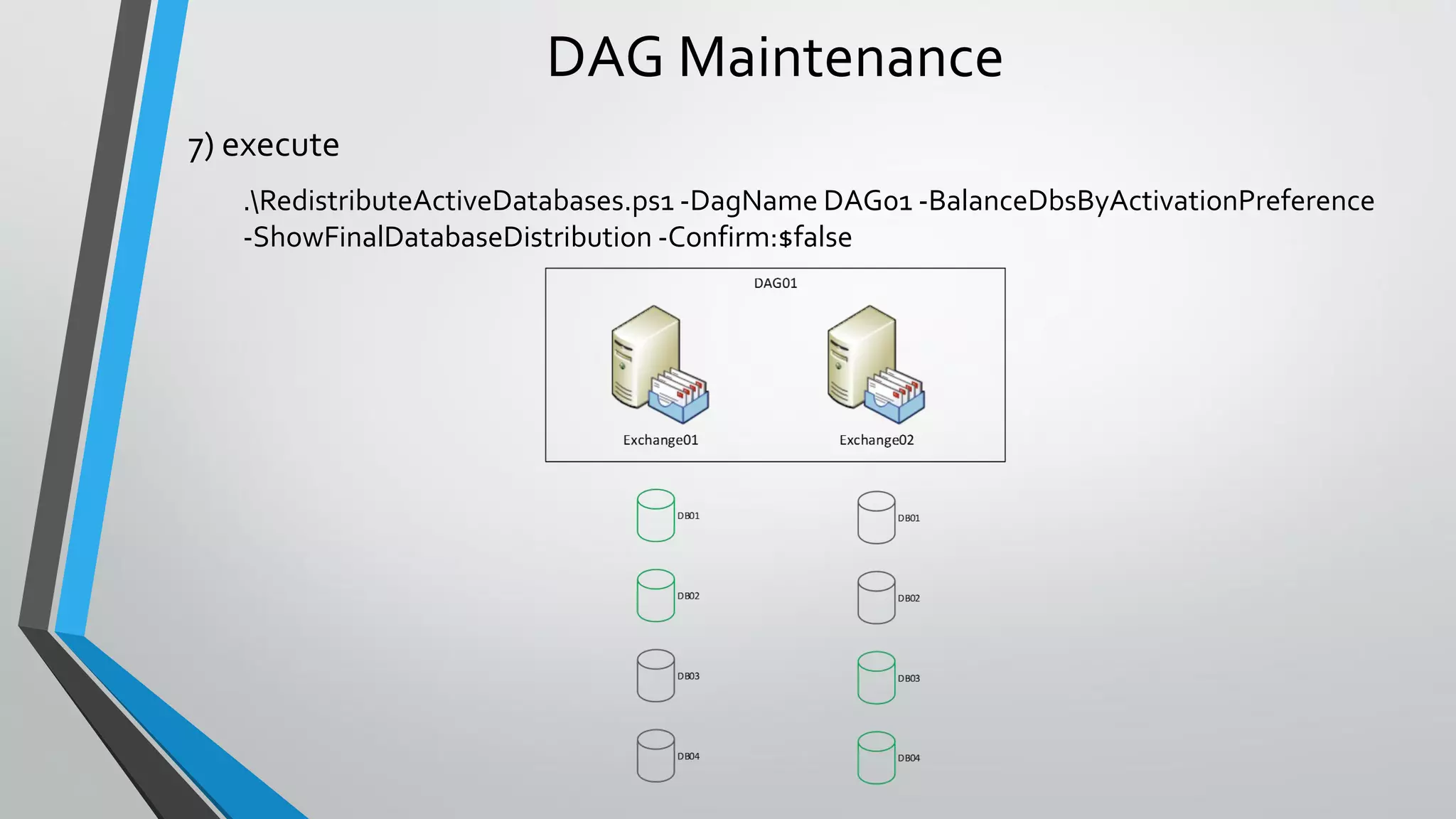

- 73. DAG Maintenance 7) execute .RedistributeActiveDatabases.ps1-DagName DAG01 -BalanceDbsByActivationPreference -ShowFinalDatabaseDistribution -Confirm:$false

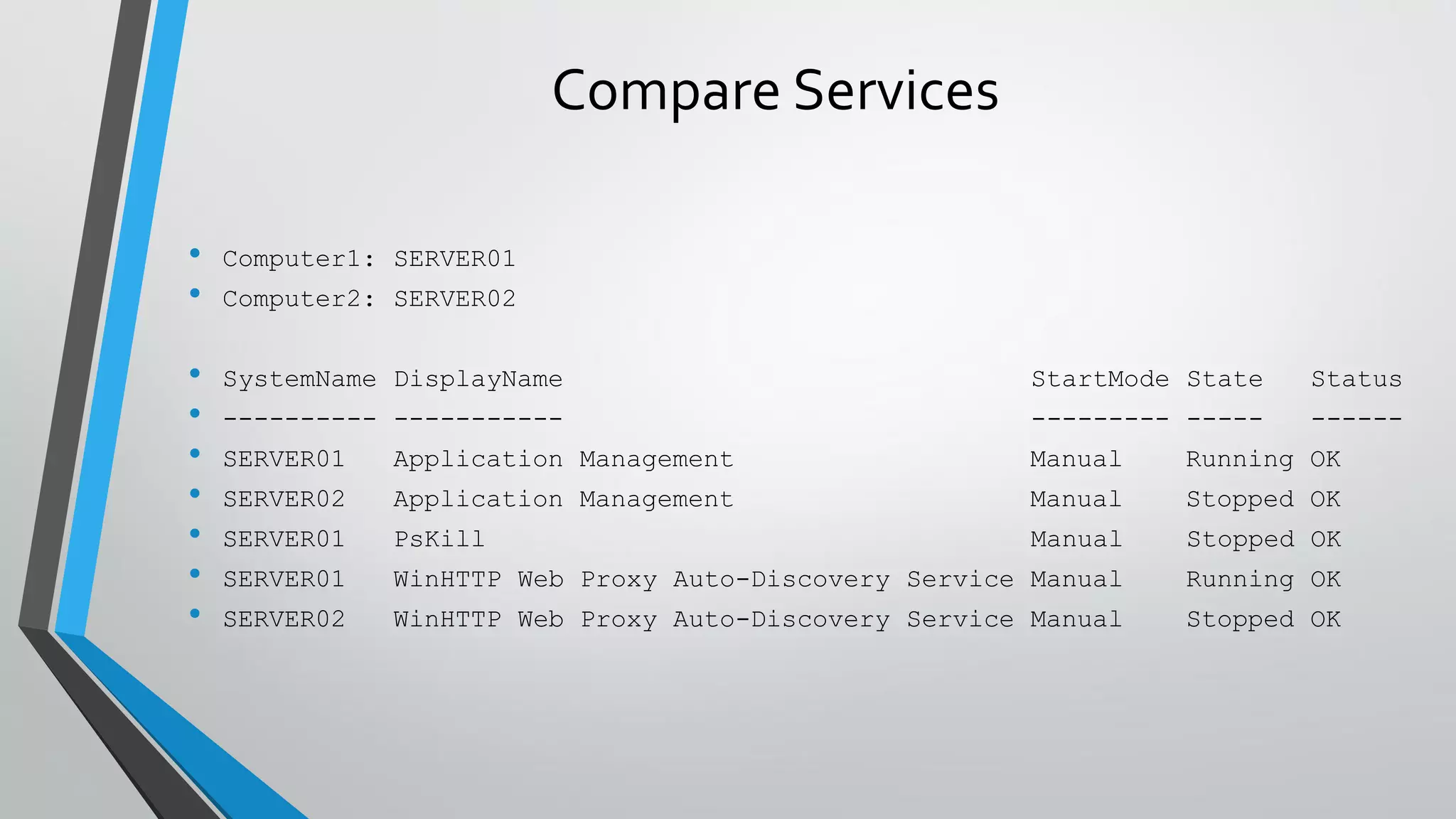

- 74. Compare Services • Computer1:SERVER01 • Computer2: SERVER02 • SystemName DisplayName StartMode State Status • ---------- ----------- --------- ----- ------ • SERVER01 Application Management Manual Running OK • SERVER02 Application Management Manual Stopped OK • SERVER01 PsKill Manual Stopped OK • SERVER01 WinHTTP Web Proxy Auto-Discovery Service Manual Running OK • SERVER02 WinHTTP Web Proxy Auto-Discovery Service Manual Stopped OK

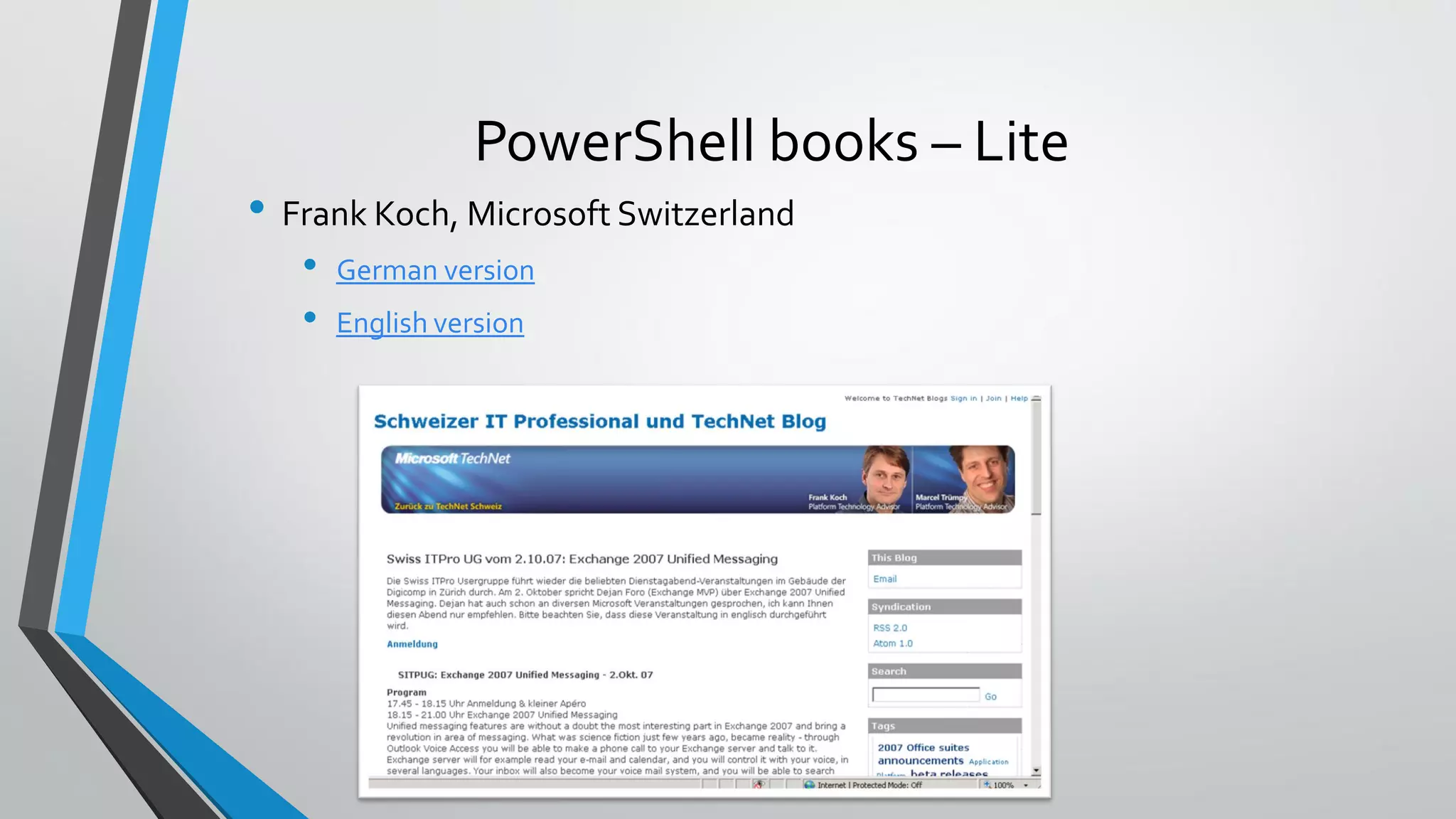

- 75. PowerShell books –Lite • Frank Koch, Microsoft Switzerland • German version • English version

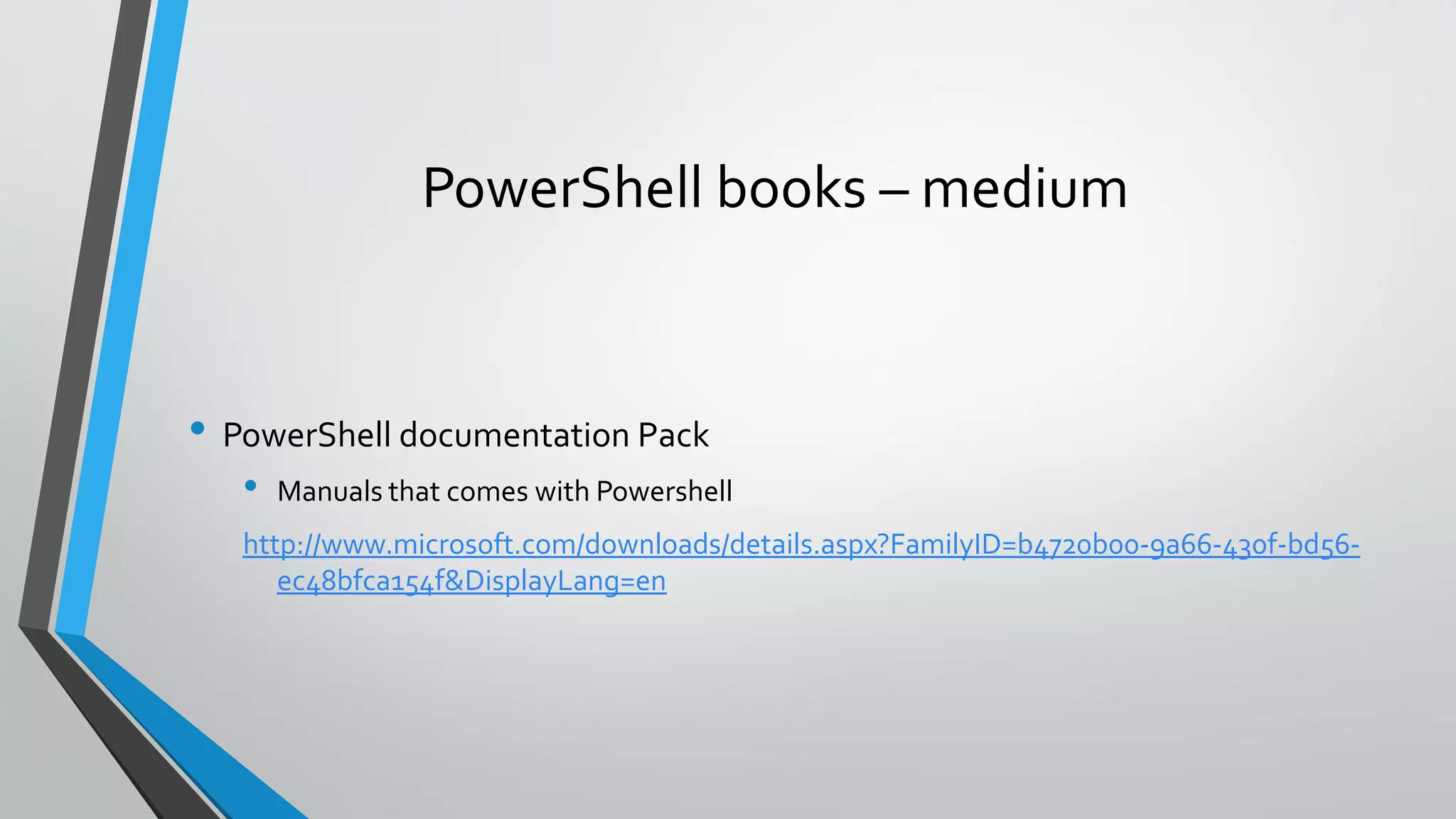

- 76. PowerShell books –medium • PowerShell documentation Pack • Manuals that comes with Powershell http://www.microsoft.com/downloads/details.aspx?FamilyID=b4720b00-9a66-430f-bd56- ec48bfca154f&DisplayLang=en

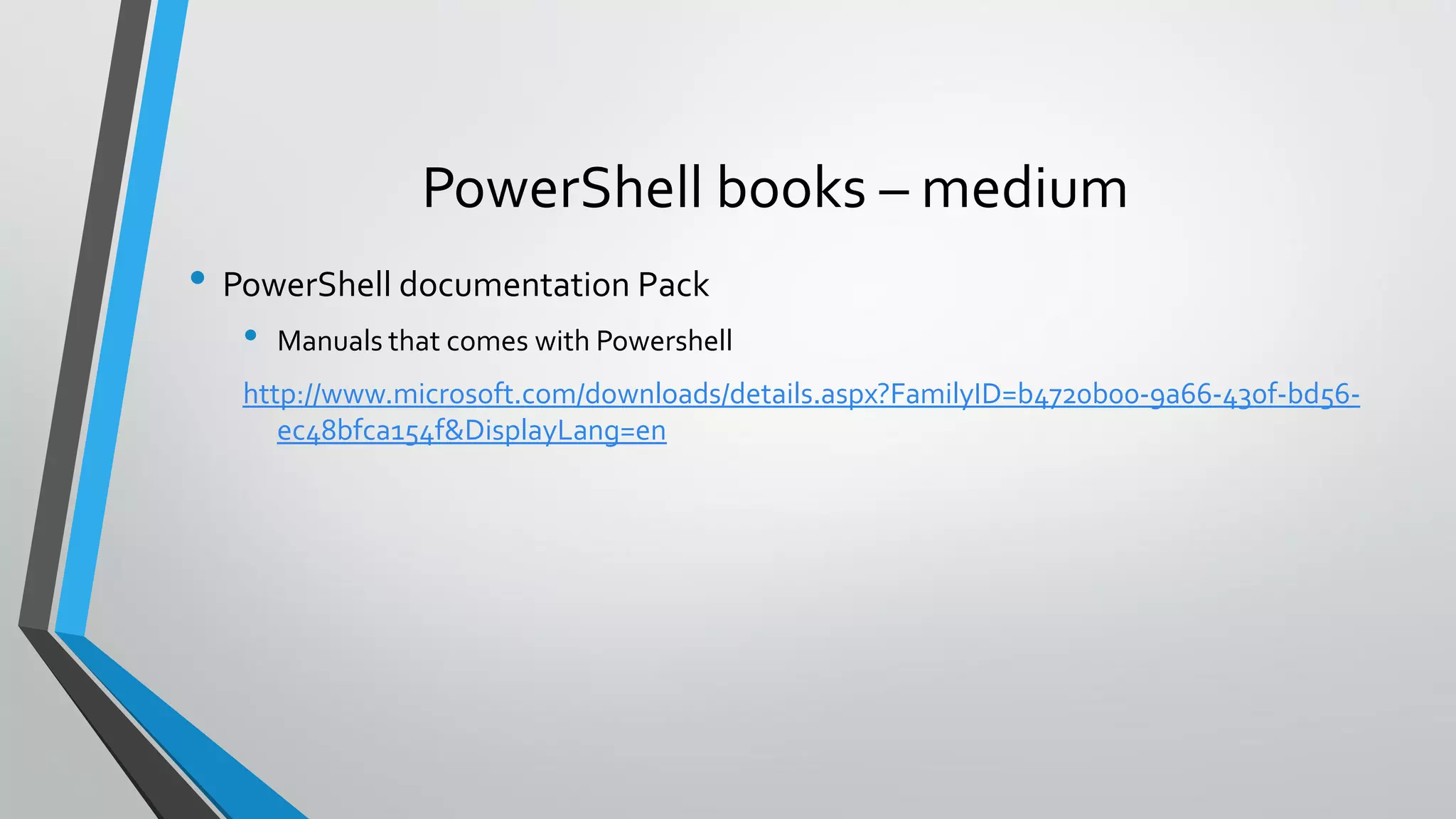

- 77. PowerShell books –medium • PowerShell documentation Pack • Manuals that comes with Powershell http://www.microsoft.com/downloads/details.aspx?FamilyID=b4720b00-9a66-430f-bd56- ec48bfca154f&DisplayLang=en
- 78. Powershell Books –Advanced
- 79. Q&A • Q&A session17:30 – 18:30 • You can send your questions in advance to • dejan.foro@exchangemaster.net
- 80. Contact Dejan Foro, CEO dejan.foro@exchangemaster.net ExchangemasterGmbH www.exchangemaster.net

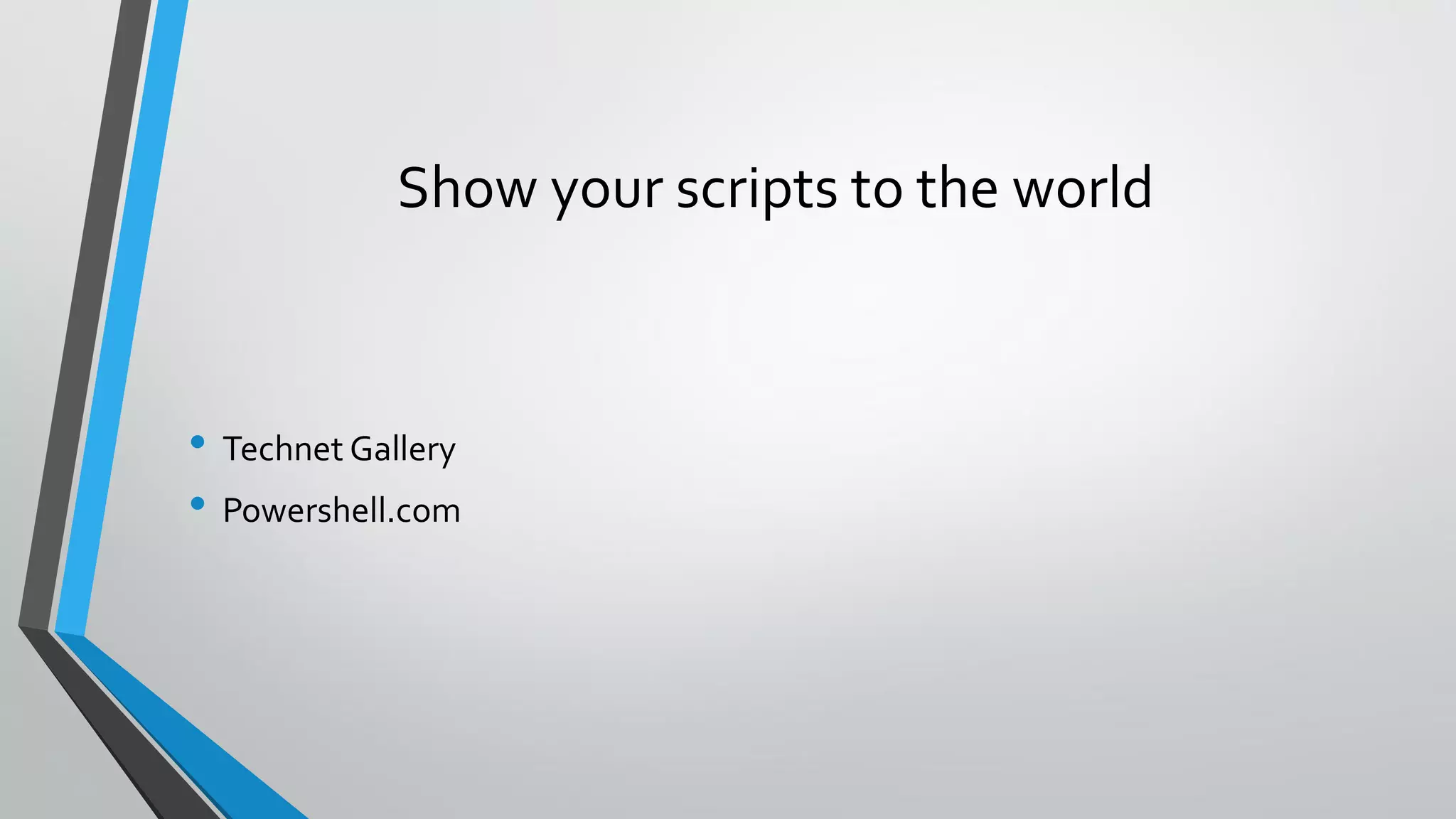

- 81. Show your scriptsto the world • Technet Gallery • Powershell.com
