NoSQL: An Architects Perspective
The document discusses different types of NoSQL databases including key-value stores, wide column stores, document stores, and graph databases. It provides examples of databases for each type and describes their common uses and benefits. Some benefits mentioned are lower costs due to horizontal scalability, flexibility in schema and data structure, and better support for unstructured and semi-structured data. The document advocates for an approach called "polyglot persistence" where different types of databases are used together based on the specific needs of different parts of an application.
More Related Content
Similar to NoSQL: An Architects Perspective
NoSQL: An Architects Perspective
- 1. NoSQL: An Architect‘sPerspective Eberhard Wolff Architecture and Technology Manager adesso AG 03.04.13

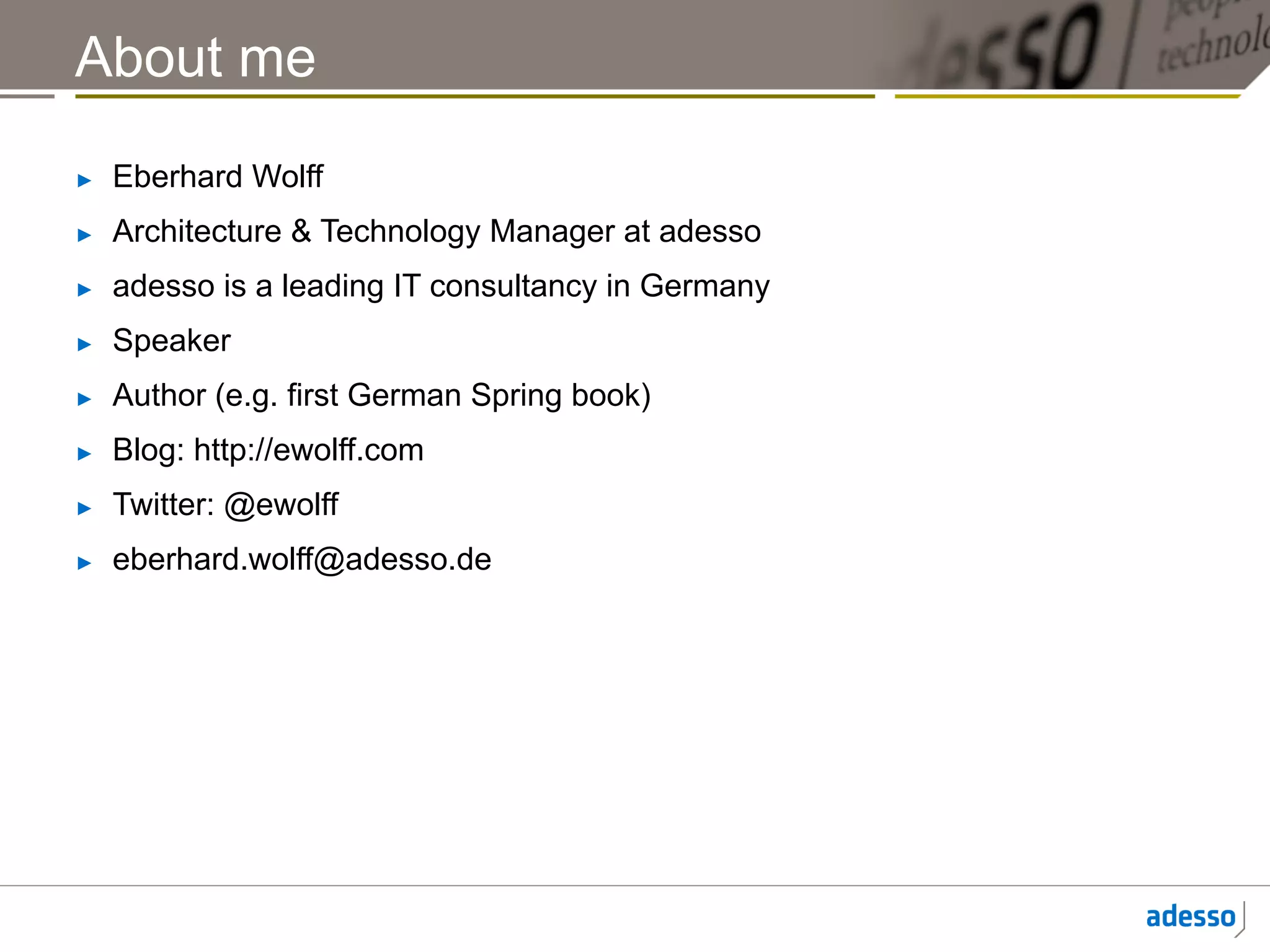

- 2. About me ► Eberhard Wolff ► Architecture & Technology Manager at adesso ► adesso is a leading IT consultancy in Germany ► Speaker ► Author (e.g. first German Spring book) ► Blog: http://ewolff.com ► Twitter: @ewolff ► eberhard.wolff@adesso.de
- 3. Back in theDays…. 03.04.13 NoSQL aus Sicht eines Architekten
- 4. NoSQL Is AllAbout the Persistence Question 03.04.13 NoSQL aus Sicht eines Architekten

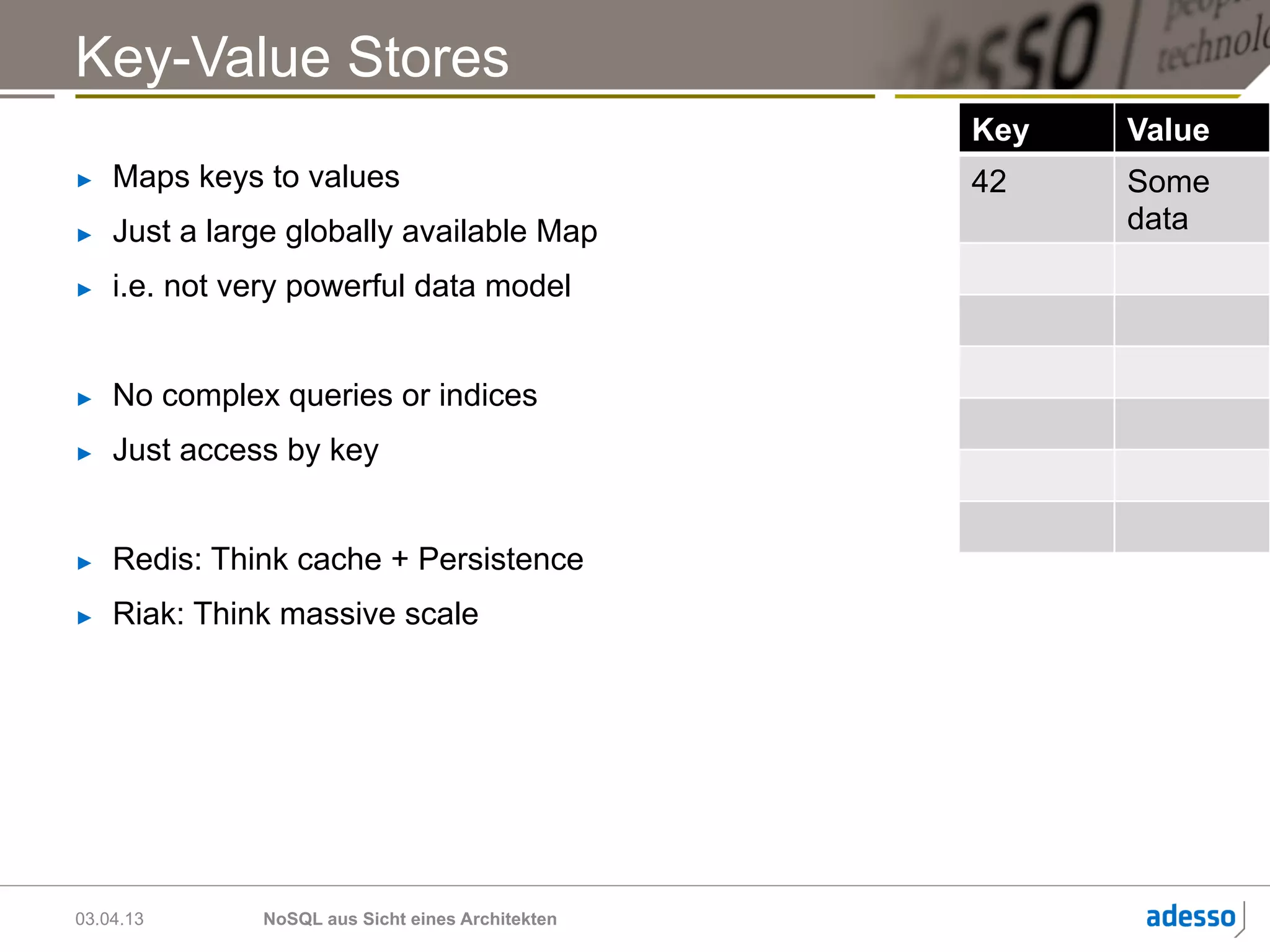

- 5. Key-Value Stores Key Value ► Maps keys to values 42 Some ► Just a large globally available Map data ► i.e. not very powerful data model ► No complex queries or indices ► Just access by key ► Redis: Think cache + Persistence ► Riak: Think massive scale 03.04.13 NoSQL aus Sicht eines Architekten

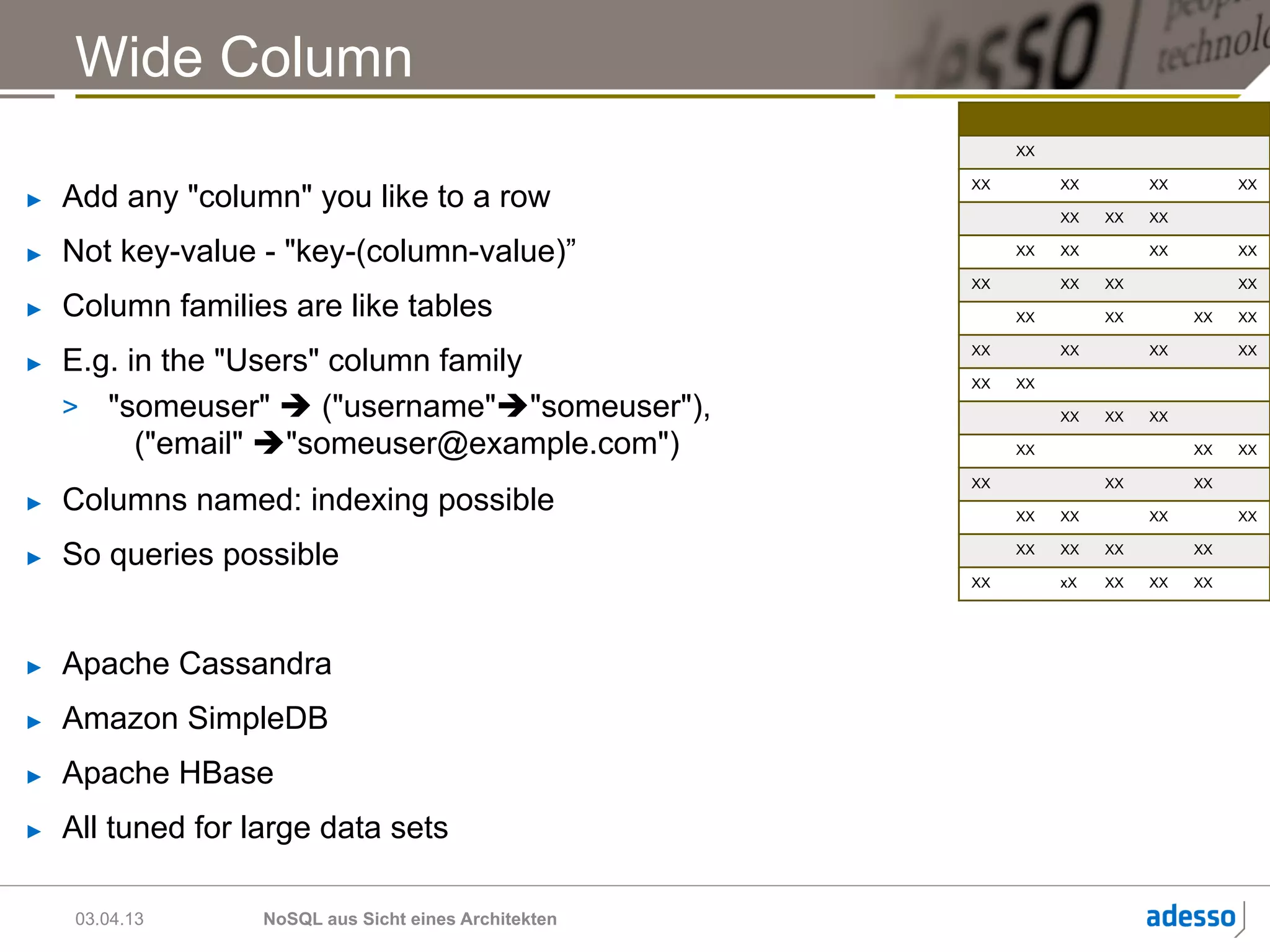

- 6. Wide Column XX XX XX XX XX ► Add any "column" you like to a row XX XX XX ► Not key-value - "key-(column-value)” XX XX XX XX XX XX XX XX ► Column families are like tables XX XX XX XX ► E.g. in the "Users" column family XX XX XX XX XX XX > "someuser" è ("username"è"someuser"), XX XX XX ("email" è"someuser@example.com") XX XX XX XX XX XX ► Columns named: indexing possible XX XX XX XX ► So queries possible XX XX XX XX XX xX XX XX XX ► Apache Cassandra ► Amazon SimpleDB ► Apache HBase ► All tuned for large data sets 03.04.13 NoSQL aus Sicht eines Architekten

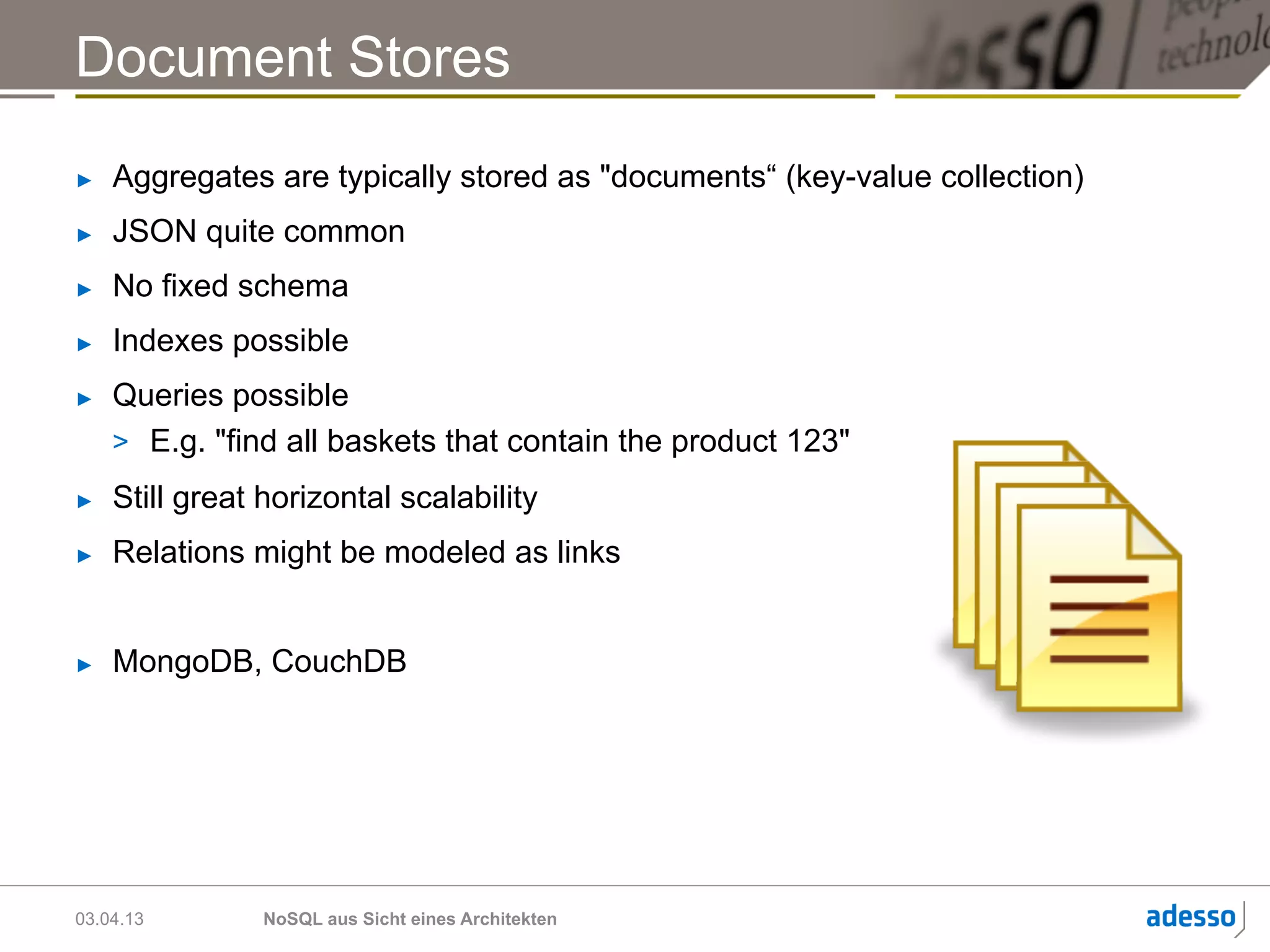

- 7. Document Stores ► Aggregates are typically stored as "documents“ (key-value collection) ► JSON quite common ► No fixed schema ► Indexes possible ► Queries possible > E.g. "find all baskets that contain the product 123" ► Still great horizontal scalability ► Relations might be modeled as links ► MongoDB, CouchDB 03.04.13 NoSQL aus Sicht eines Architekten

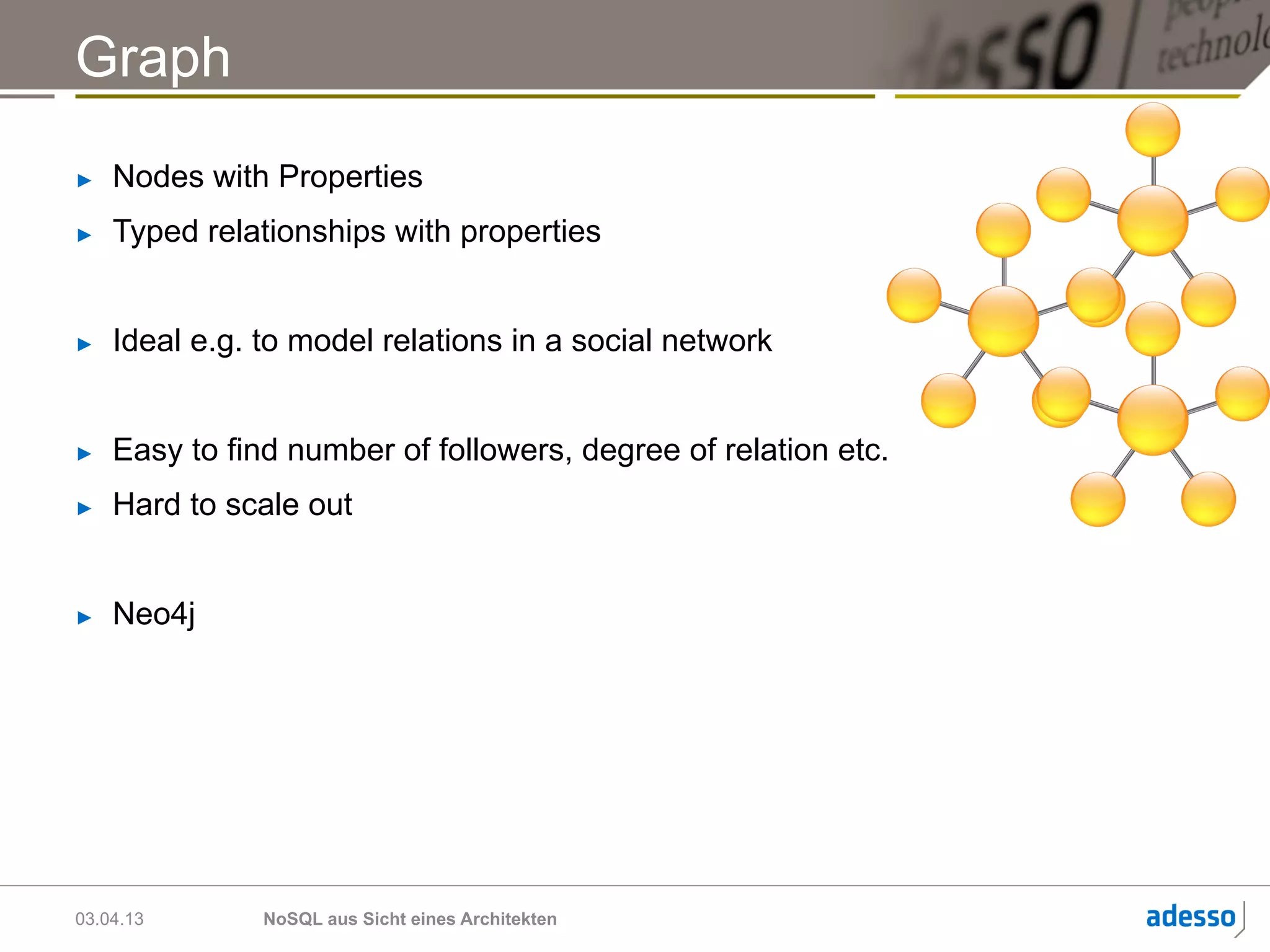

- 8. Graph ► Nodes with Properties ► Typed relationships with properties ► Ideal e.g. to model relations in a social network ► Easy to find number of followers, degree of relation etc. ► Hard to scale out ► Neo4j 03.04.13 NoSQL aus Sicht eines Architekten

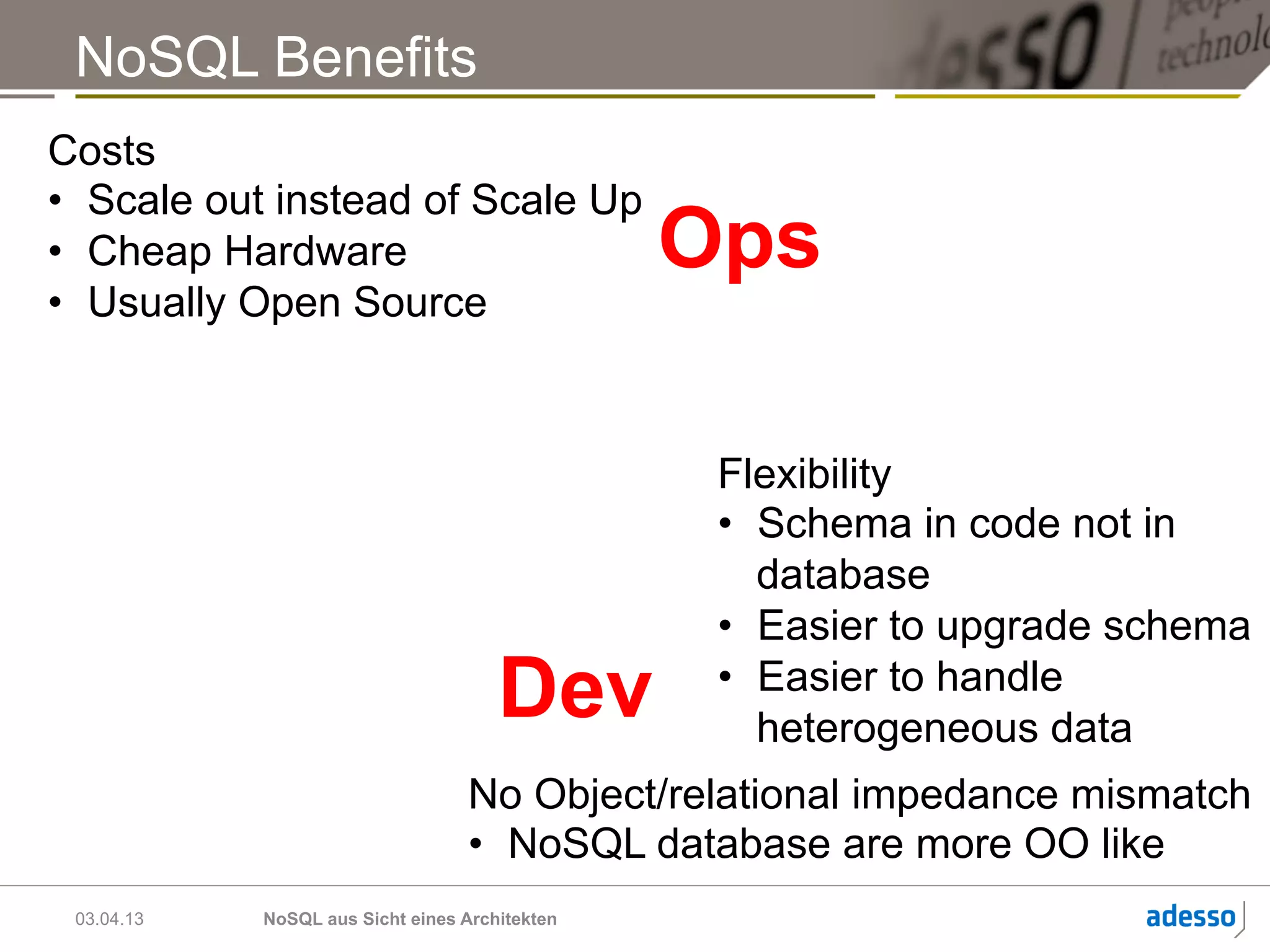

- 9. NoSQL Benefits Costs • Scaleout instead of Scale Up • Cheap Hardware Ops • Usually Open Source Flexibility • Schema in code not in database • Easier to upgrade schema Dev • Easier to handle heterogeneous data No Object/relational impedance mismatch • NoSQL database are more OO like 03.04.13 NoSQL aus Sicht eines Architekten

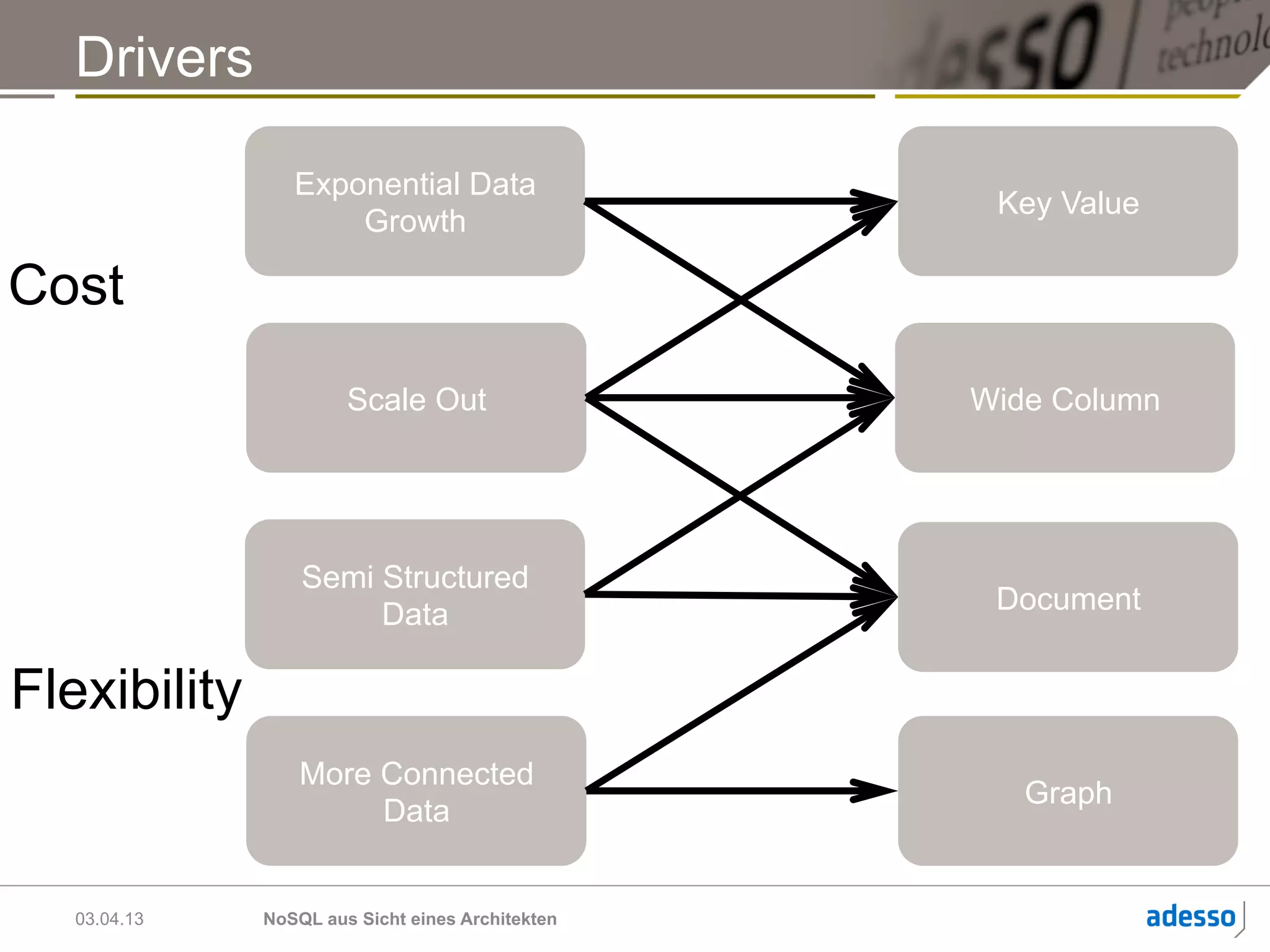

- 10. Drivers Exponential Data Key Value Growth Cost Scale Out Wide Column Semi Structured Data Document Flexibility More Connected Graph Data 03.04.13 NoSQL aus Sicht eines Architekten

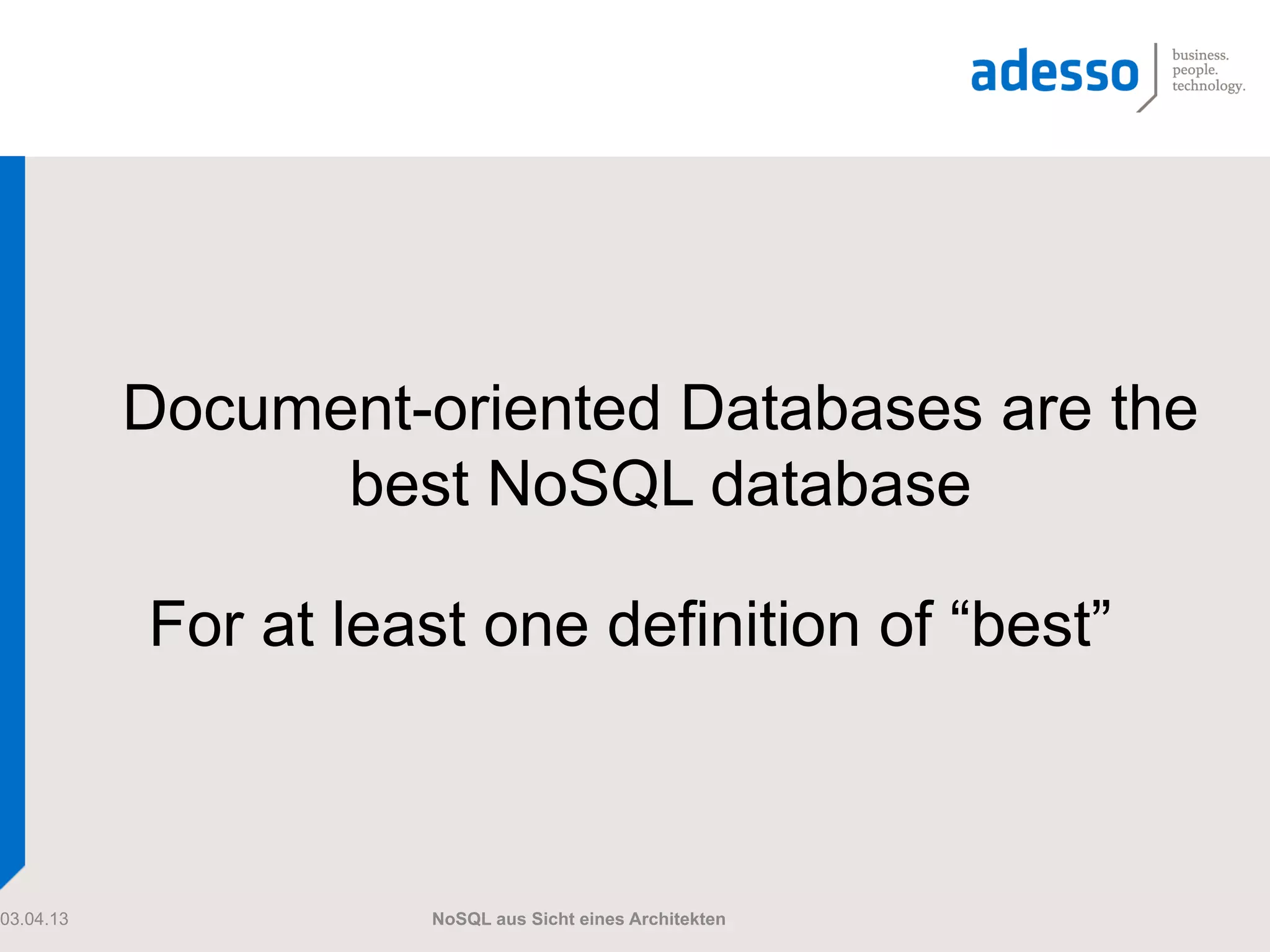

- 11. Document-oriented Databases arethe best NoSQL database For at least one definition of “best” 03.04.13 NoSQL aus Sicht eines Architekten

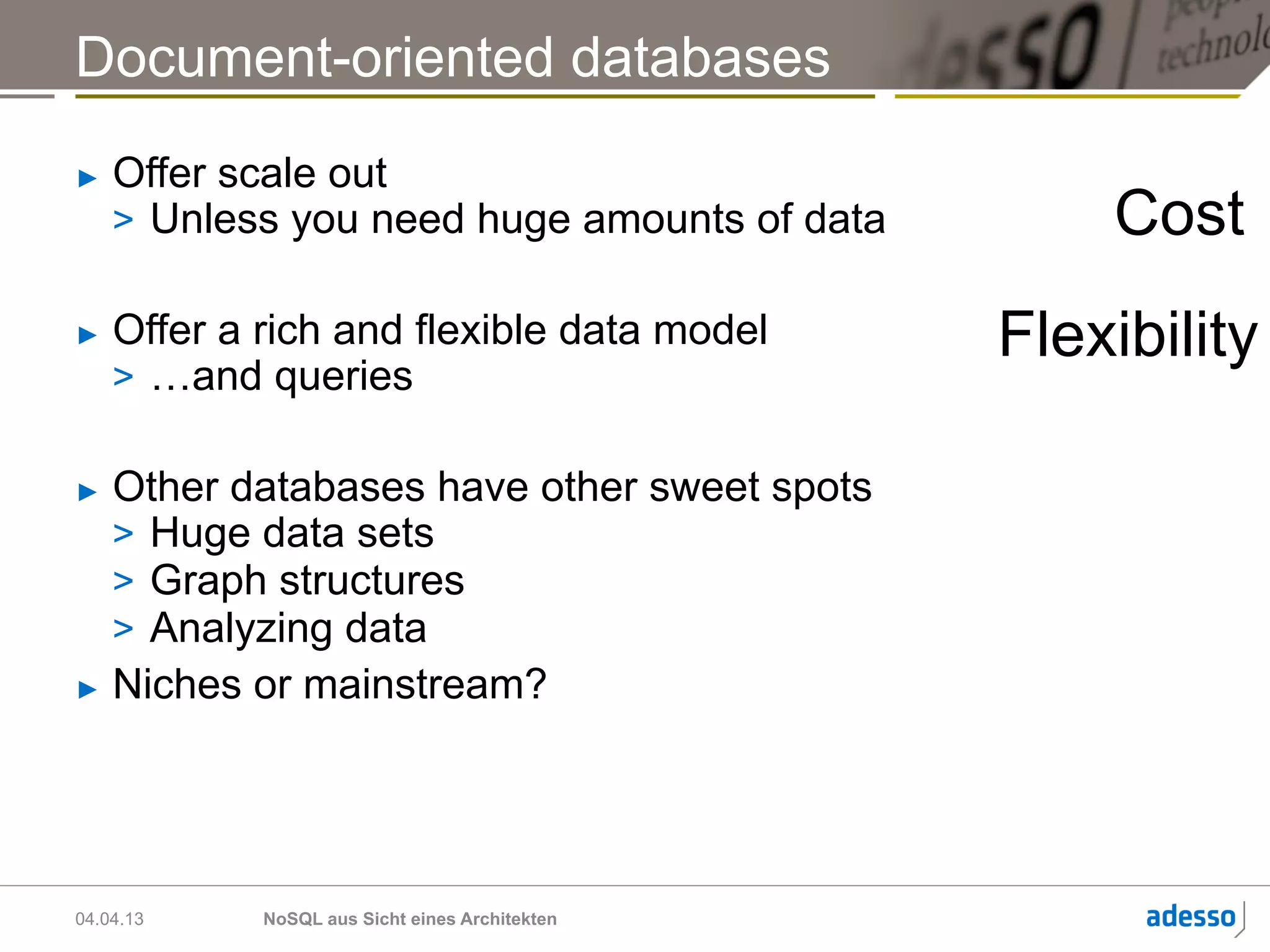

- 12. Document-oriented databases ► Offer scale out > Unless you need huge amounts of data Cost ► Offer a rich and flexible data model Flexibility > …and queries ► Other databases have other sweet spots > Huge data sets > Graph structures > Analyzing data ► Niches or mainstream? 04.04.13 NoSQL aus Sicht eines Architekten

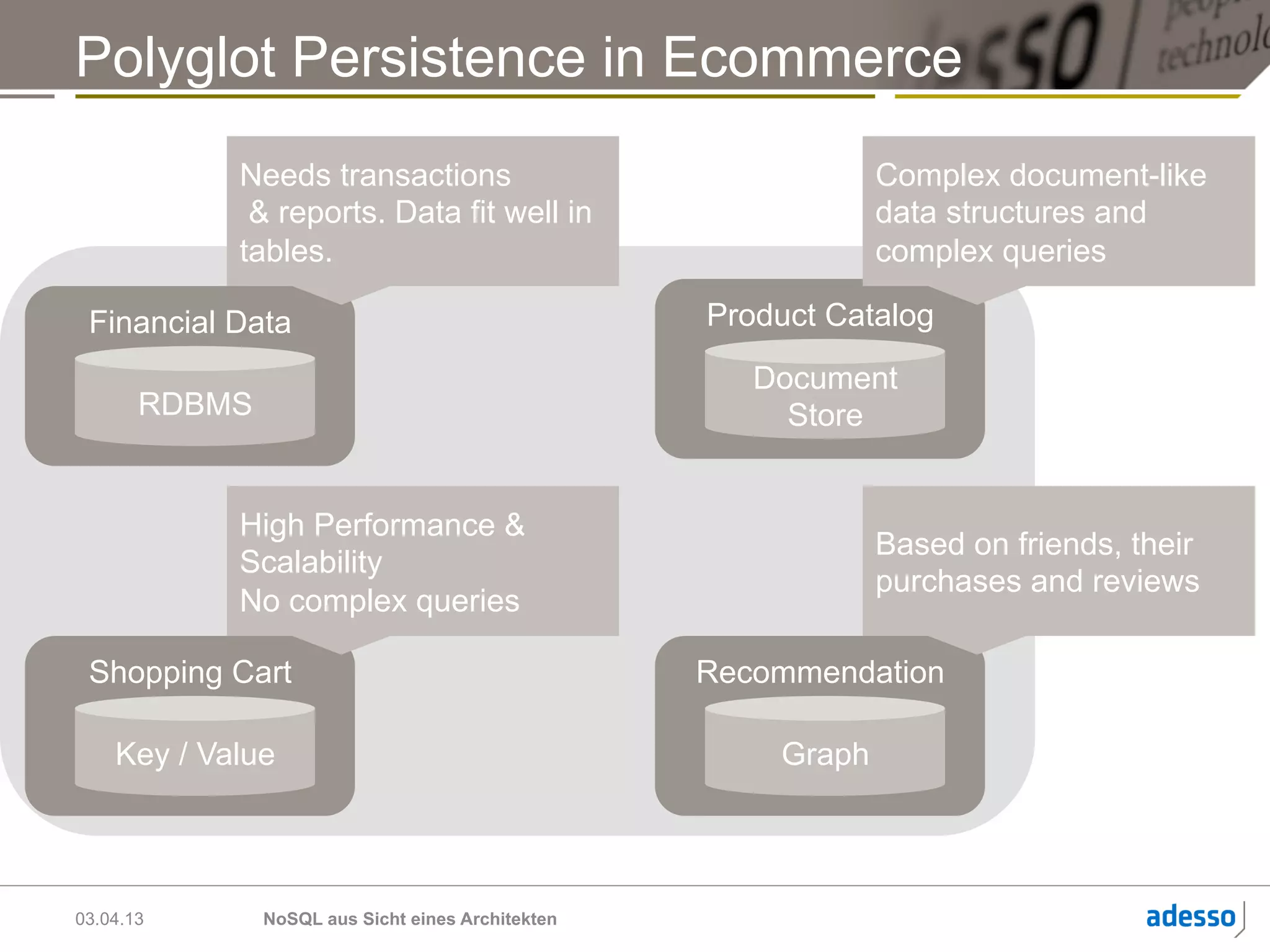

- 13. Polyglot Persistence inEcommerce Application Needs transactions Complex document-like & reports. Data fit well in data structures and tables. complex queries Financial Data Product Catalog Document RDBMS Store High Performance & Based on friends, their Scalability purchases and reviews No complex queries Shopping Cart Recommendation Key / Value Graph 03.04.13 NoSQL aus Sicht eines Architekten

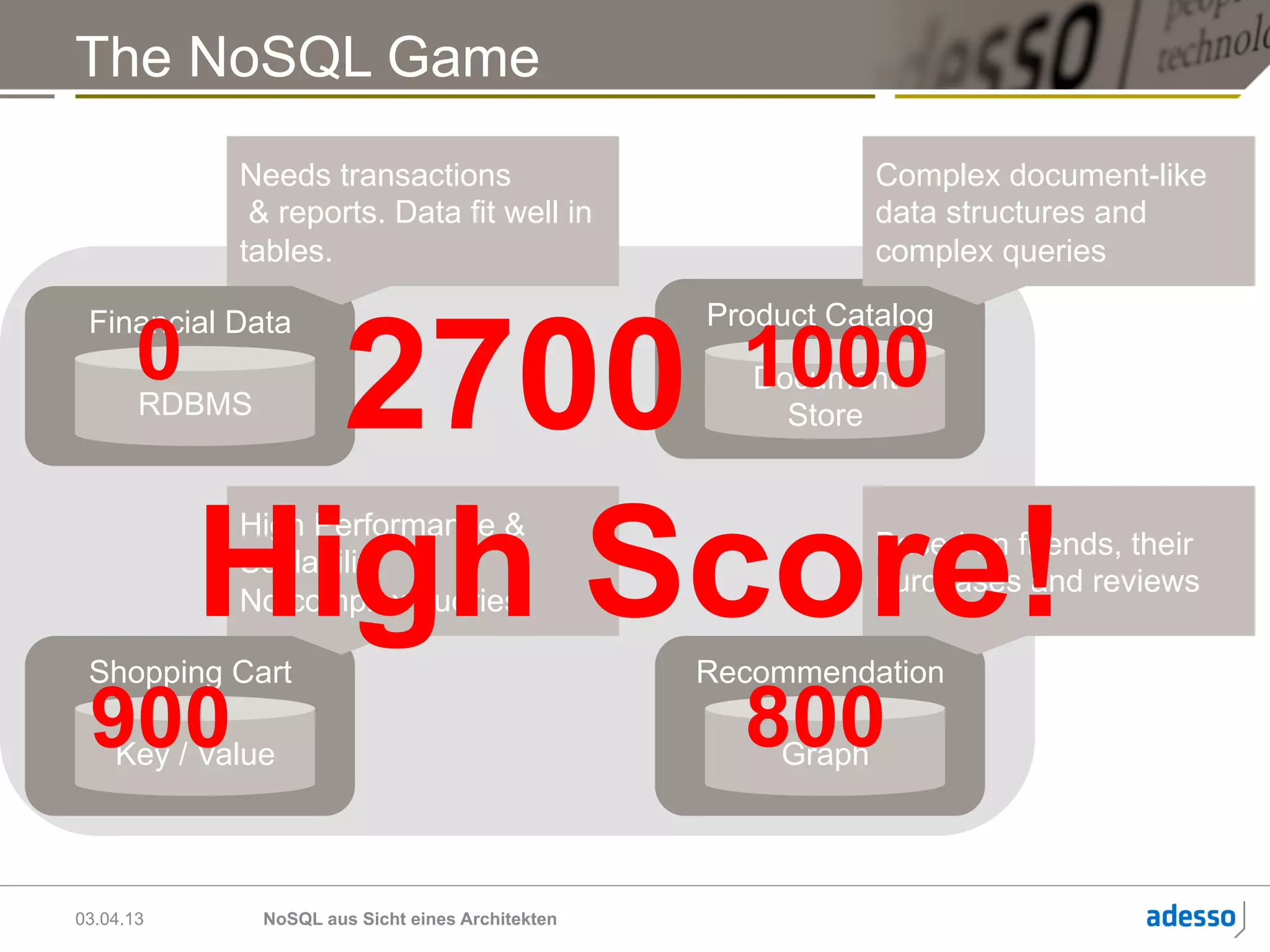

- 14. The NoSQL Game Needs transactions Complex document-like & reports. Data fit well in data structures and tables. complex queries 2700 Product Catalog 0 Financial Data RDBMS 1000 Document Store High Score! High Performance & Based on friends, their Scalability purchases and reviews No complex queries Shopping Cart Recommendation 900Key / Value 800 Graph 03.04.13 NoSQL aus Sicht eines Architekten

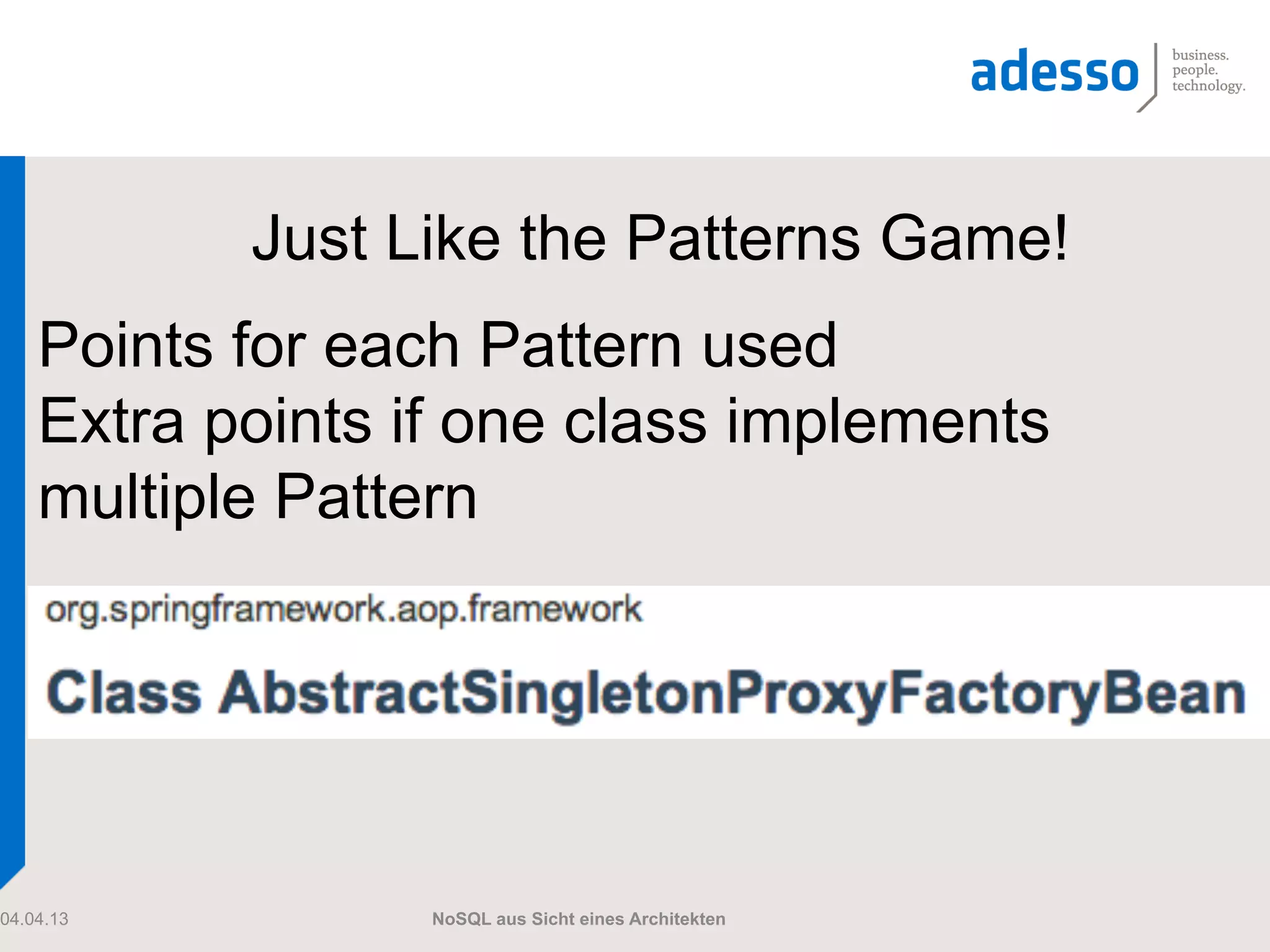

- 15. Just Like thePatterns Game! Points for each Pattern used Extra points if one class implements multiple Pattern 04.04.13 NoSQL aus Sicht eines Architekten

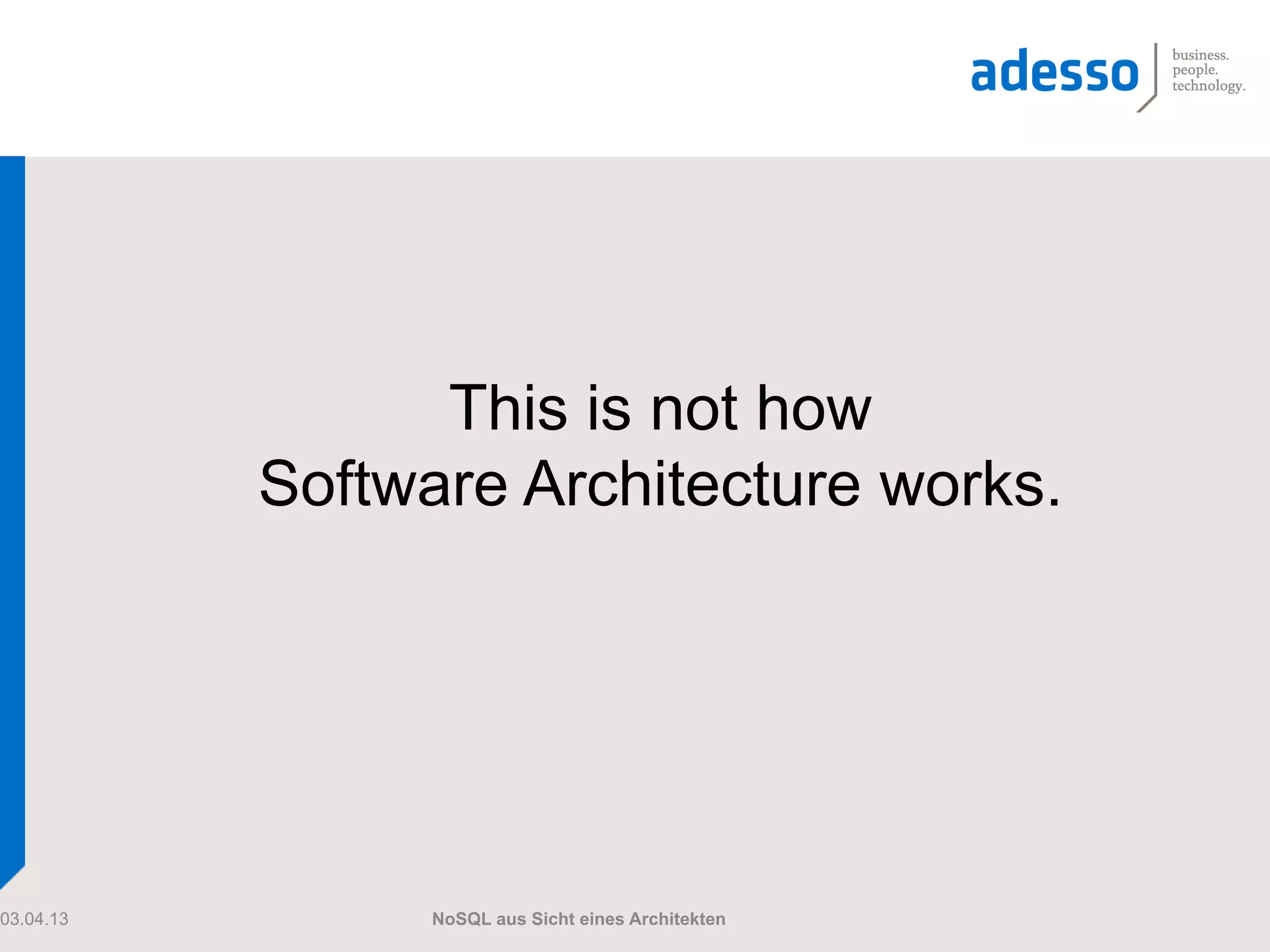

- 16. This is nothow Software Architecture works. 03.04.13 NoSQL aus Sicht eines Architekten

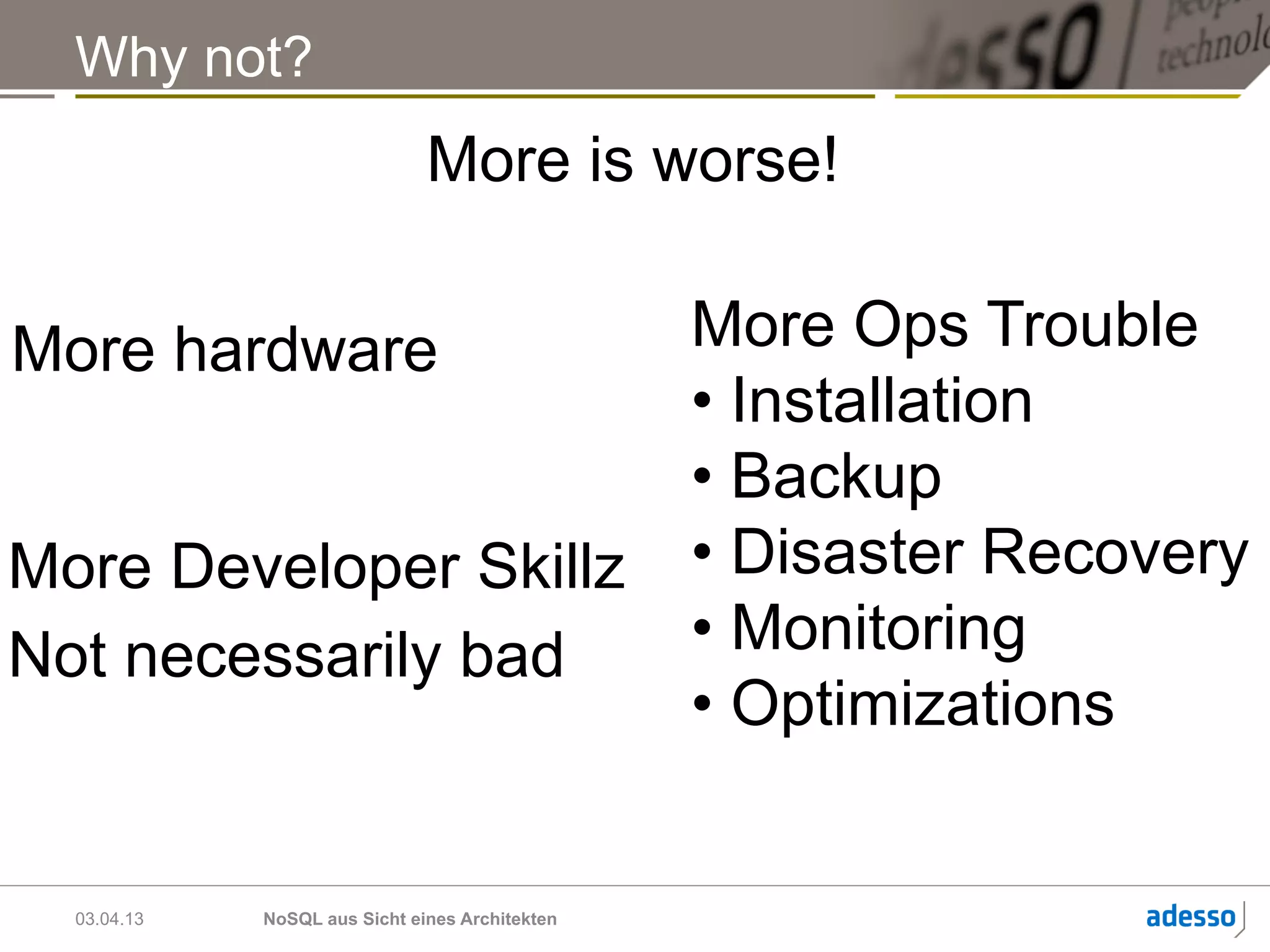

- 17. Why not? More is worse! More hardware More Ops Trouble • Installation • Backup More Developer Skillz • Disaster Recovery Not necessarily bad • Monitoring • Optimizations 03.04.13 NoSQL aus Sicht eines Architekten

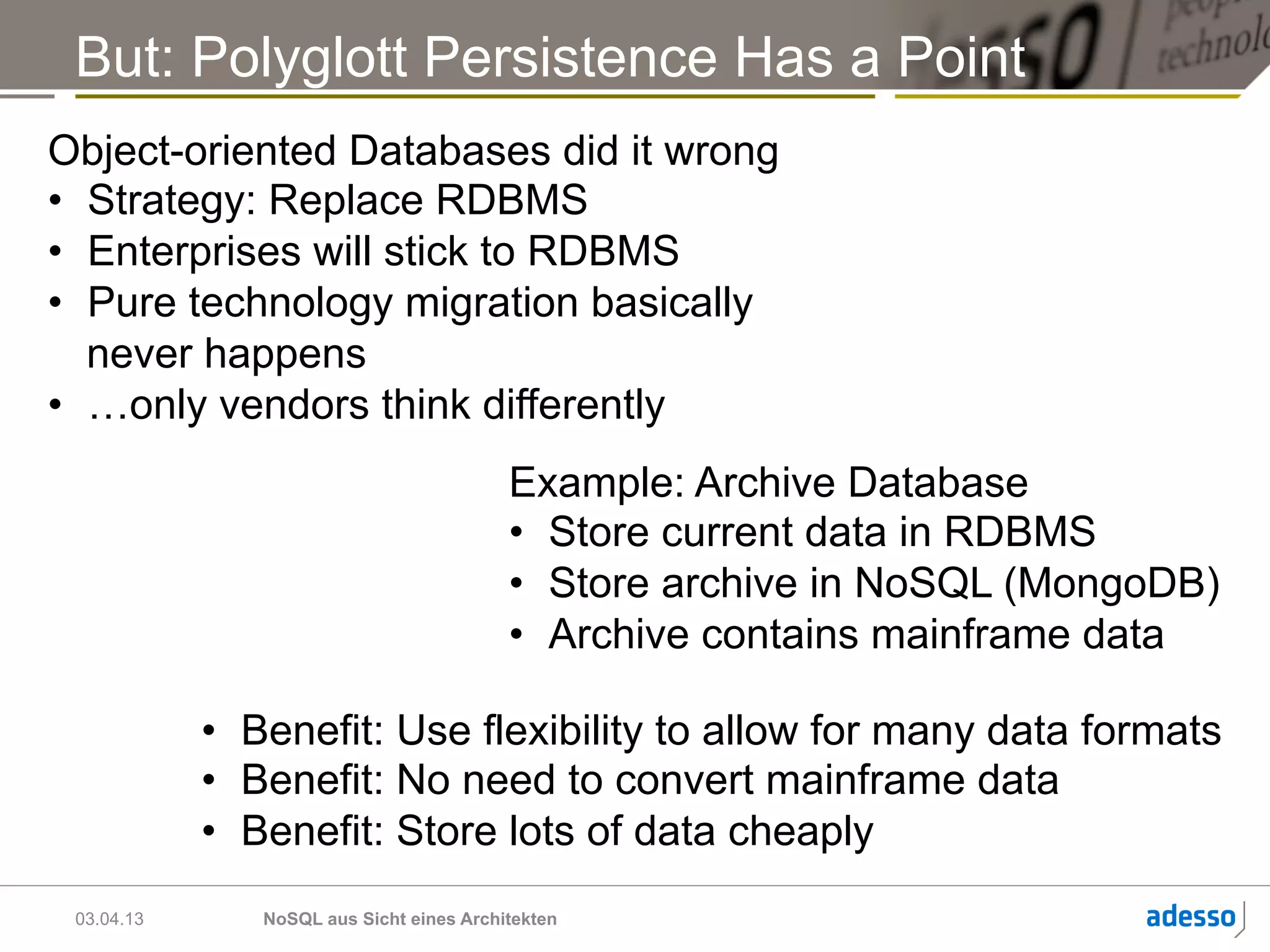

- 18. But: Polyglott PersistenceHas a Point Object-oriented Databases did it wrong • Strategy: Replace RDBMS • Enterprises will stick to RDBMS • Pure technology migration basically never happens • …only vendors think differently Example: Archive Database • Store current data in RDBMS • Store archive in NoSQL (MongoDB) • Archive contains mainframe data • Benefit: Use flexibility to allow for many data formats • Benefit: No need to convert mainframe data • Benefit: Store lots of data cheaply 03.04.13 NoSQL aus Sicht eines Architekten

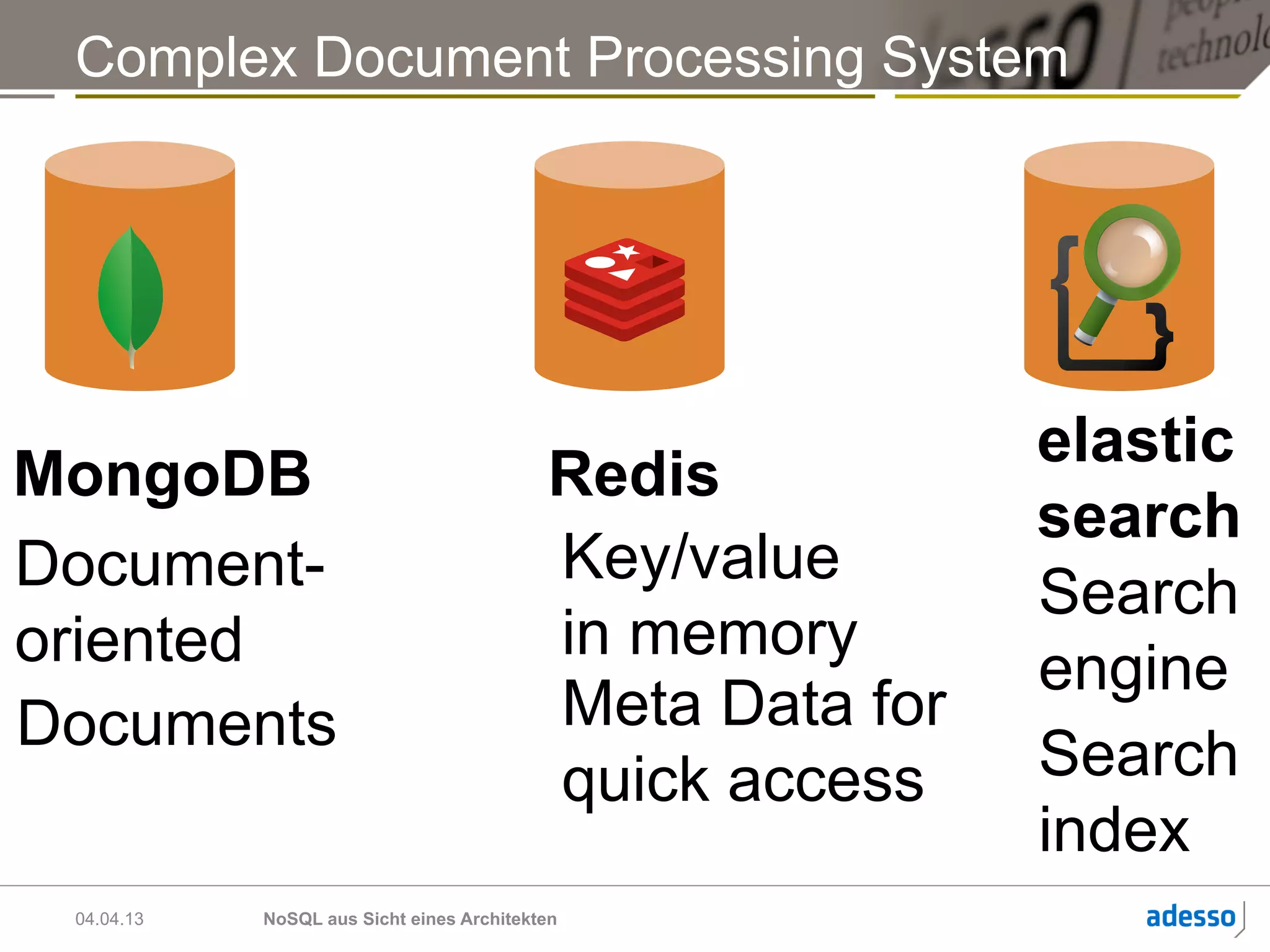

- 19. Complex Document ProcessingSystem elastic MongoDB Redis search Document- Key/value Search oriented in memory engine Documents Meta Data for quick access Search index 04.04.13 NoSQL aus Sicht eines Architekten

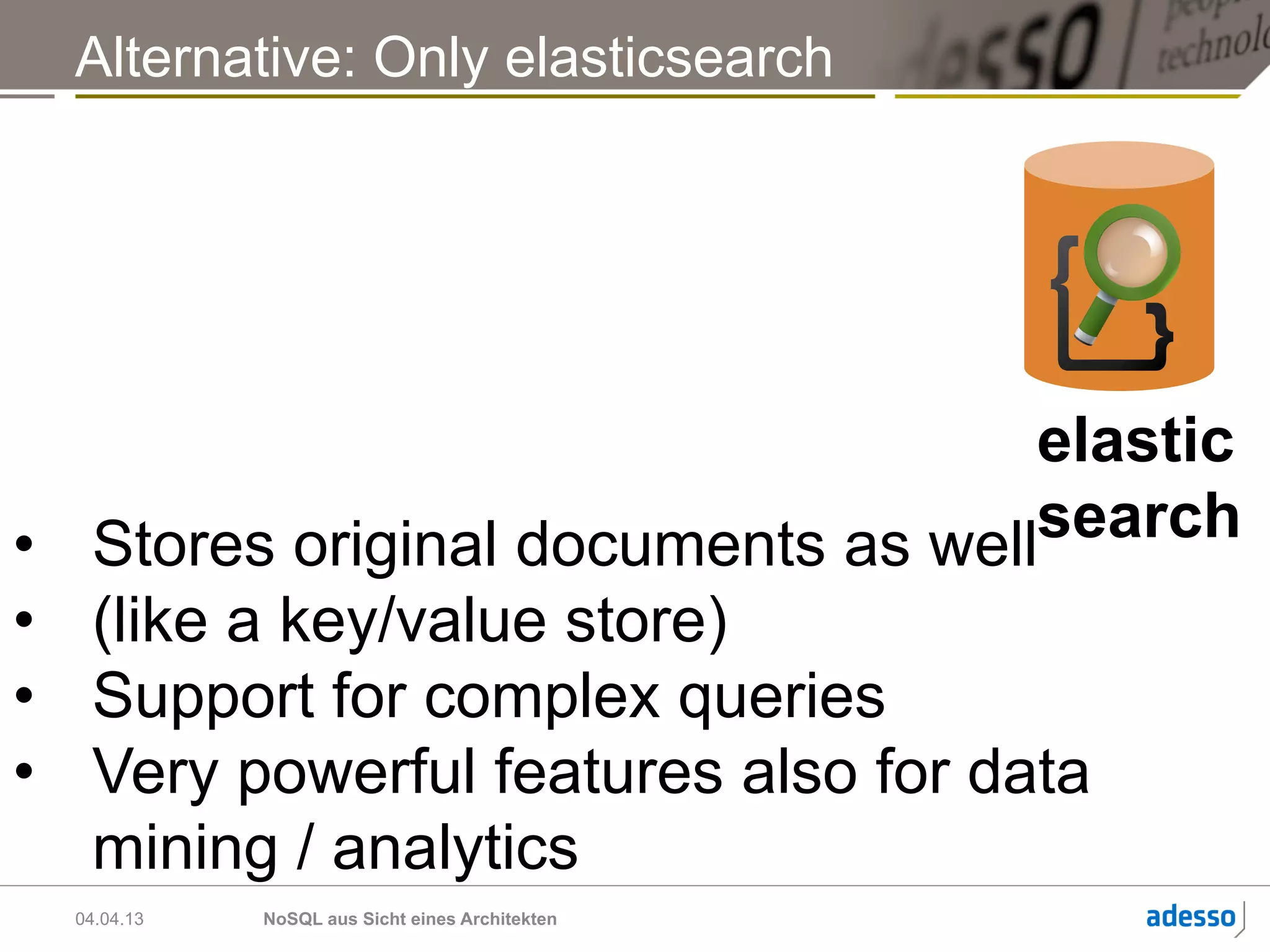

- 20. Alternative: Only elasticsearch elastic • Stores original documents as well search • (like a key/value store) • Support for complex queries • Very powerful features also for data mining / analytics 04.04.13 NoSQL aus Sicht eines Architekten

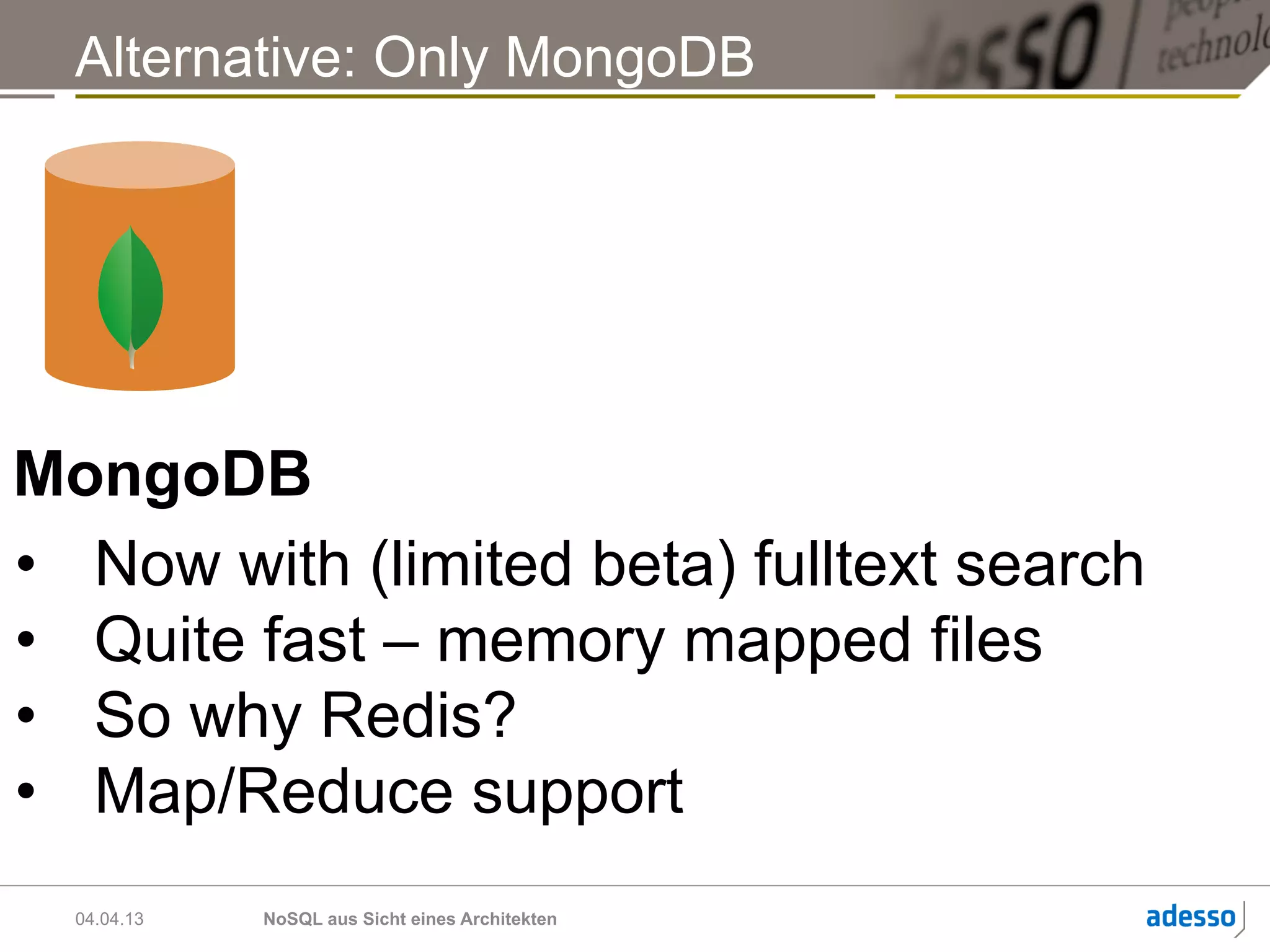

- 21. Alternative: Only MongoDB MongoDB • Now with (limited beta) fulltext search • Quite fast – memory mapped files • So why Redis? • Map/Reduce support 04.04.13 NoSQL aus Sicht eines Architekten

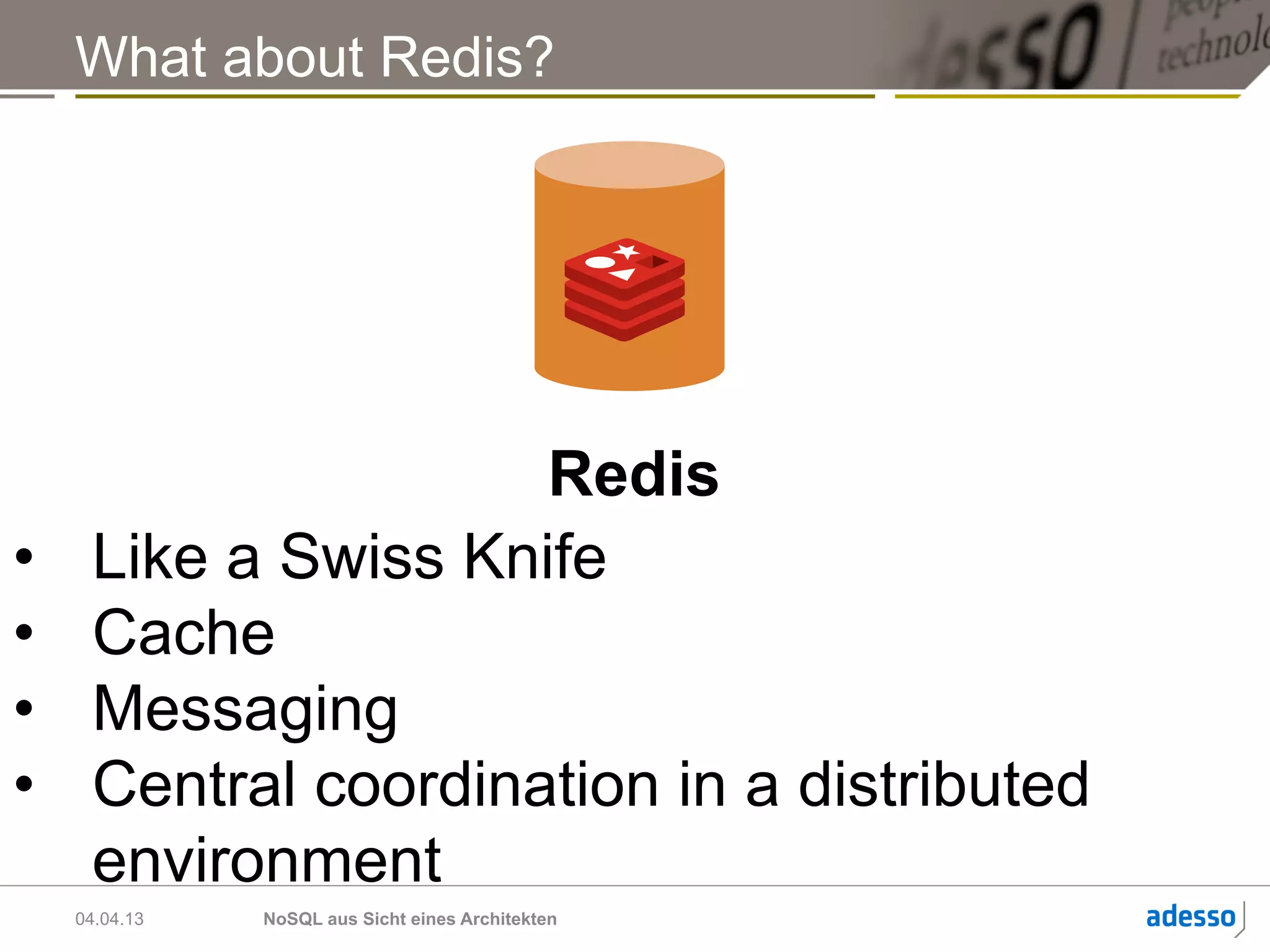

- 22. What about Redis? Redis • Like a Swiss Knife • Cache • Messaging • Central coordination in a distributed environment 04.04.13 NoSQL aus Sicht eines Architekten

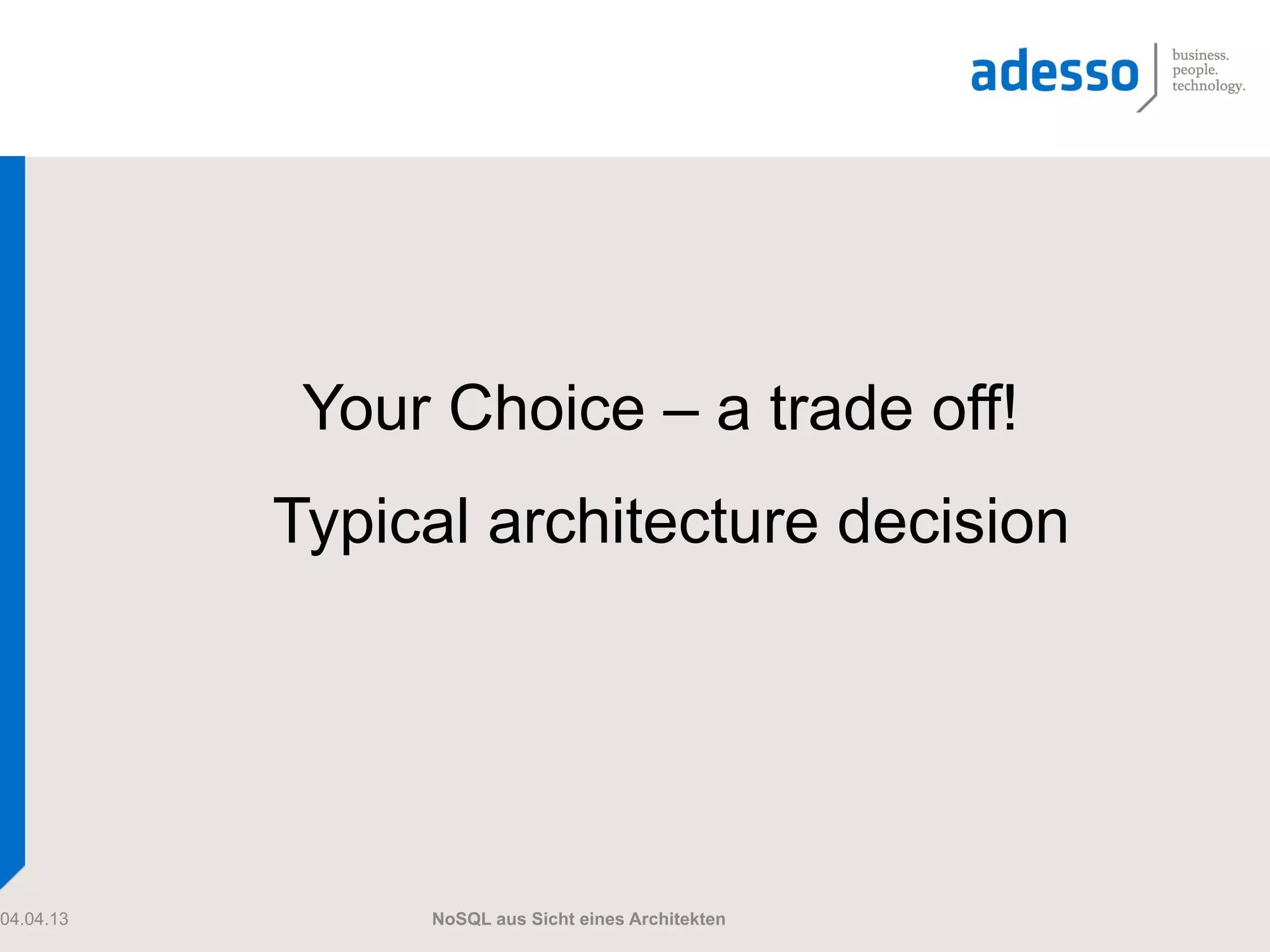

- 23. Your Choice –a trade off! Typical architecture decision 04.04.13 NoSQL aus Sicht eines Architekten

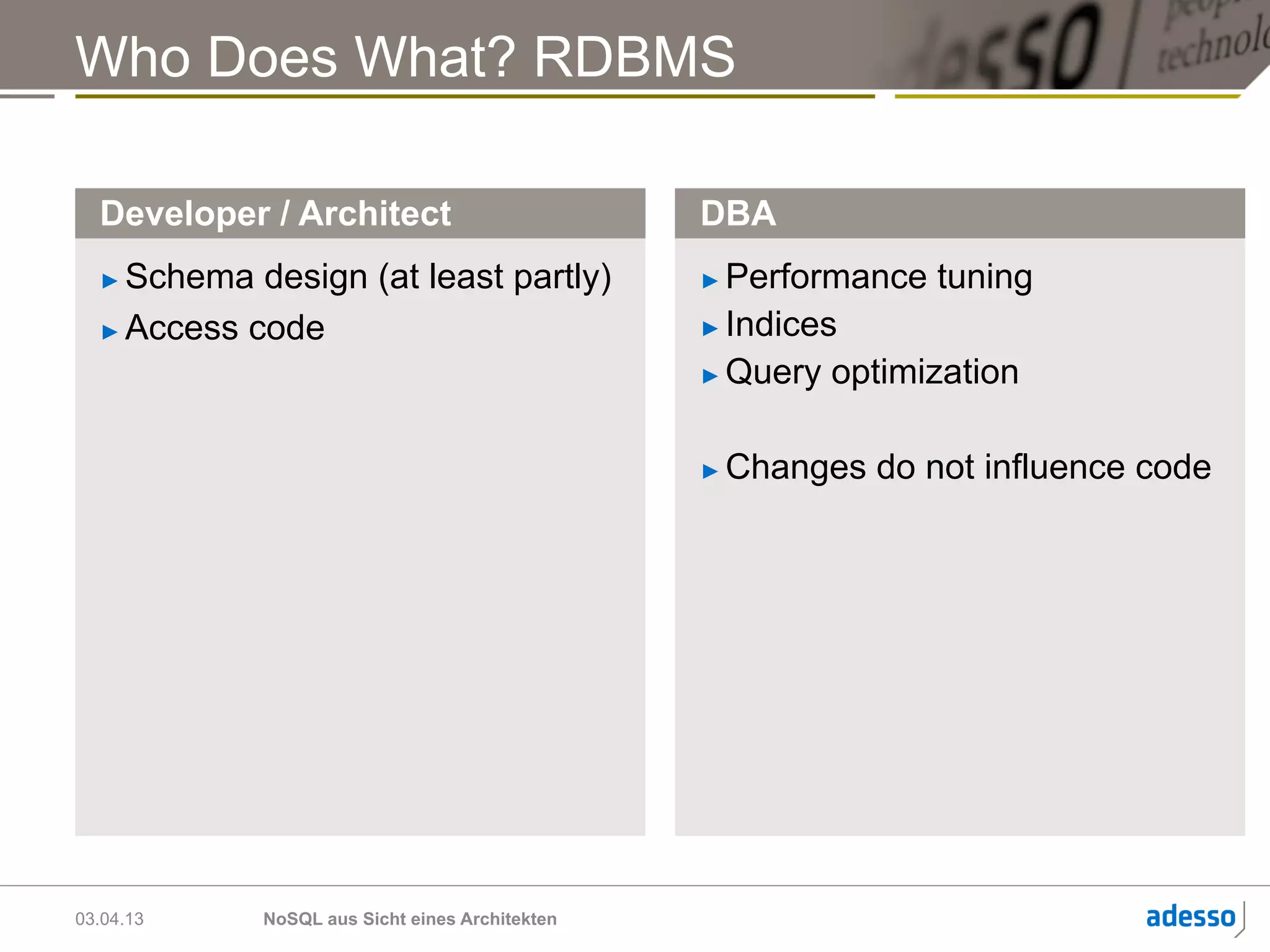

- 24. Who Does What?RDBMS Developer / Architect DBA ► Schema design (at least partly) ► Performance tuning ► Access code ► Indices ► Query optimization ► Changes do not influence code 03.04.13 NoSQL aus Sicht eines Architekten

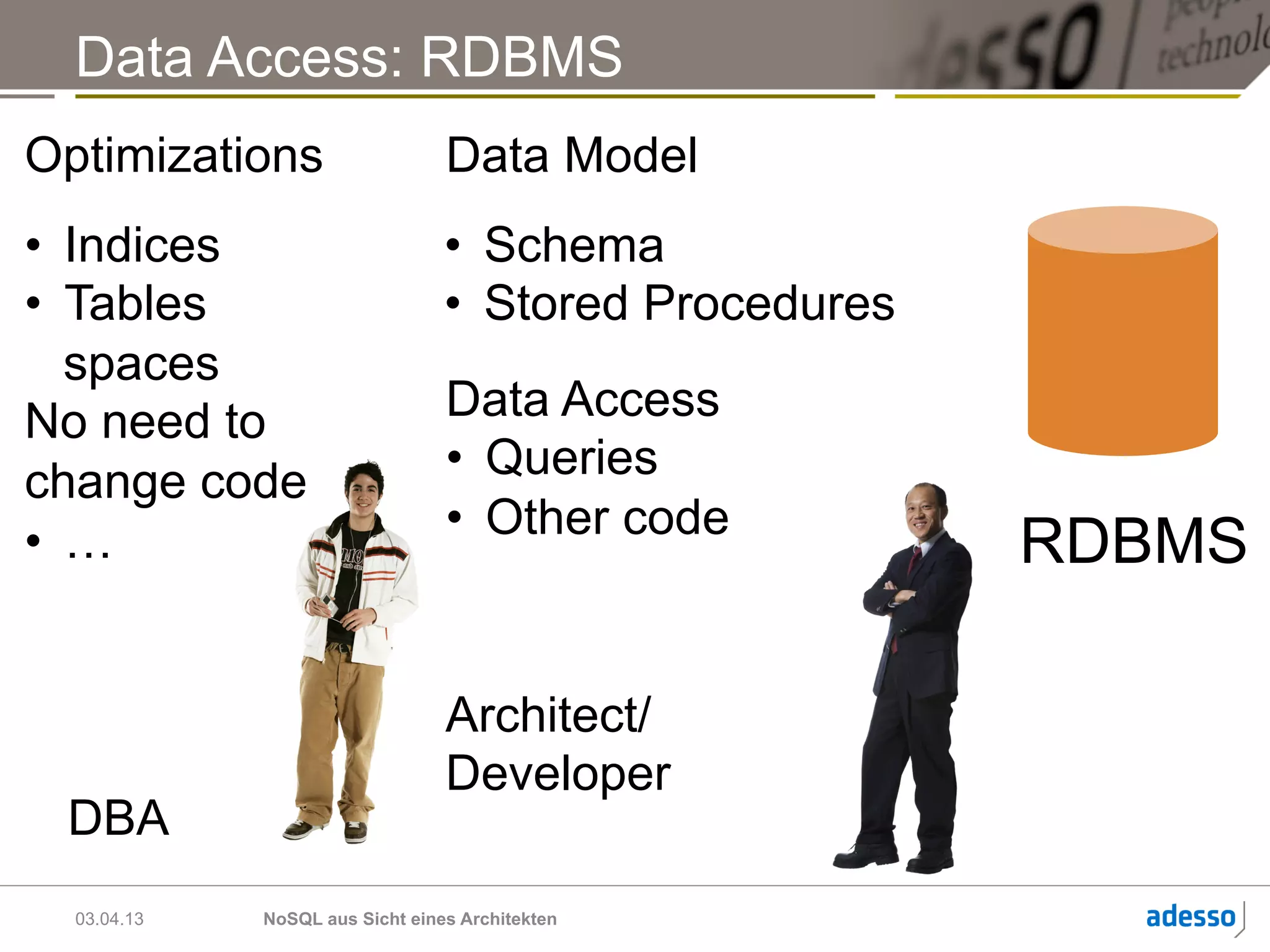

- 25. Data Access: RDBMS Optimizations Data Model • Indices • Schema • Tables • Stored Procedures spaces No need to Data Access change code • Queries • Other code • … RDBMS Architect/ Developer DBA 03.04.13 NoSQL aus Sicht eines Architekten

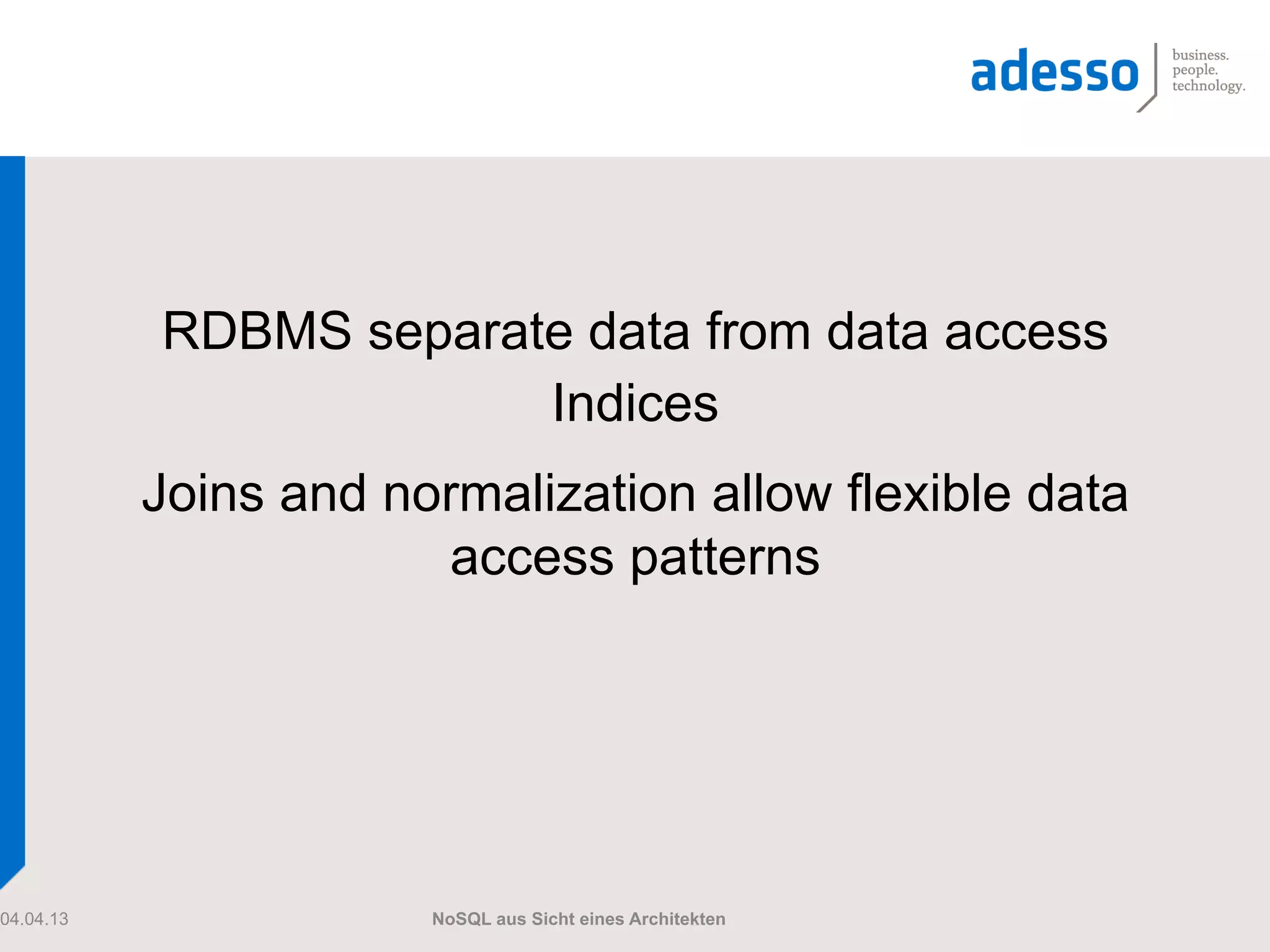

- 26. RDBMS separate datafrom data access Indices Joins and normalization allow flexible data access patterns 04.04.13 NoSQL aus Sicht eines Architekten

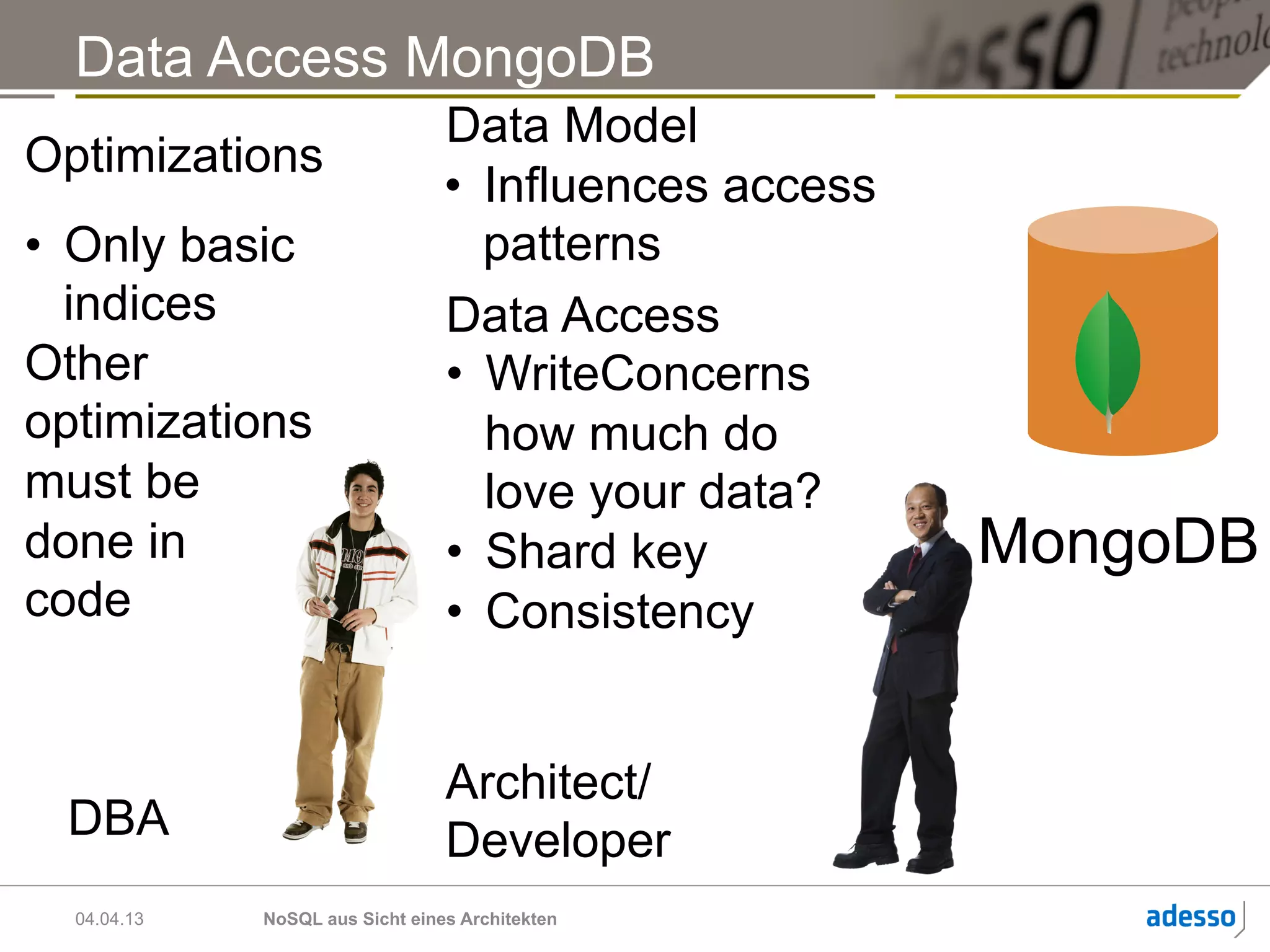

- 27. Data Access MongoDB Data Model Optimizations • Influences access • Only basic patterns indices Data Access Other • WriteConcerns optimizations how much do must be love your data? done in • Shard key MongoDB code • Consistency Architect/ DBA Developer 04.04.13 NoSQL aus Sicht eines Architekten
- 28. Cluster: RDBMS ► Works somehow ► A special setup of hardware and RDBMS software DBA 04.04.13 NoSQL aus Sicht eines Architekten

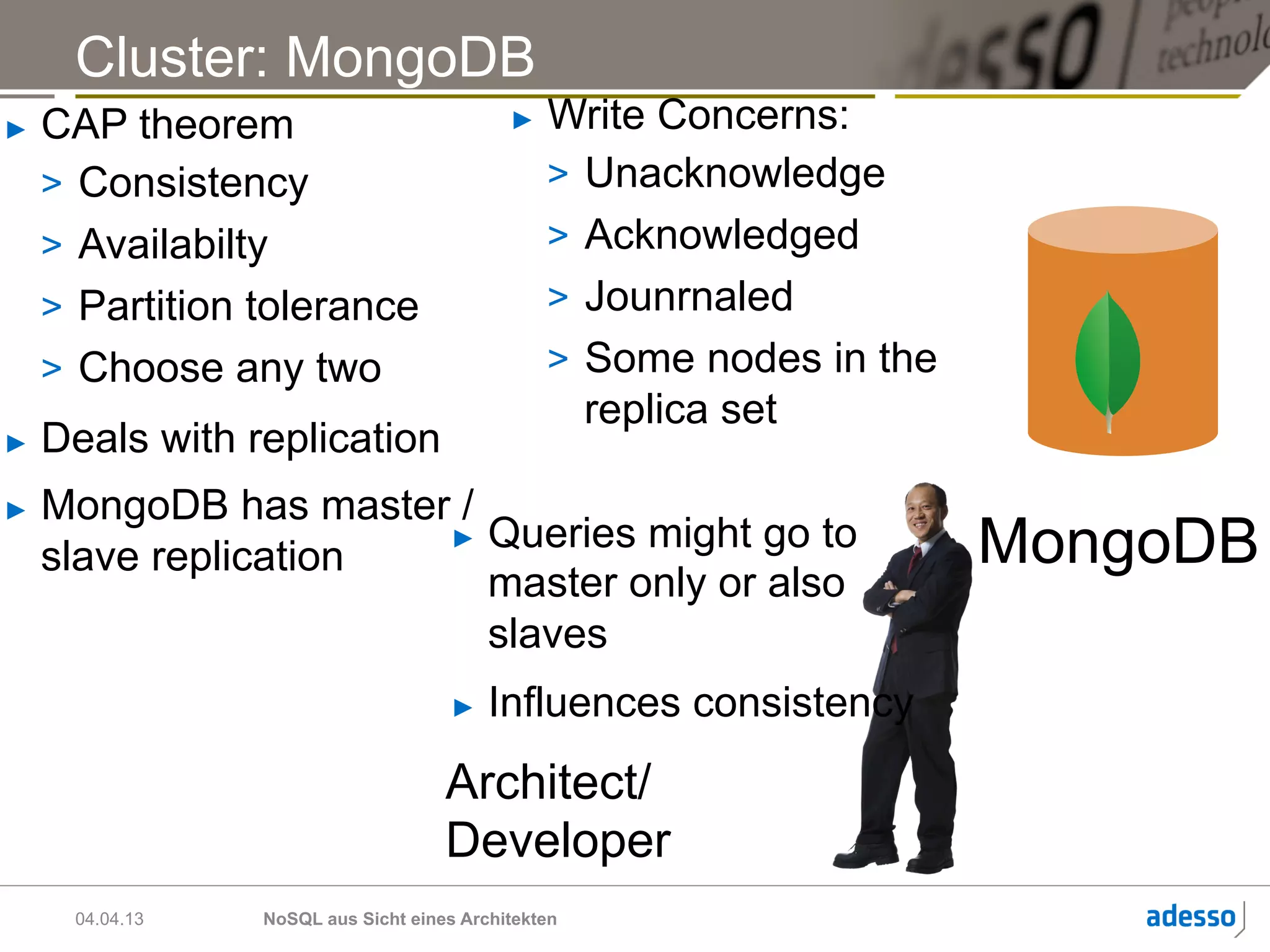

- 29. Cluster: MongoDB ► CAP theorem ► Write Concerns: > Consistency > Unacknowledge > Availabilty > Acknowledged > Partition tolerance > Jounrnaled > Choose any two > Some nodes in the replica set ► Deals with replication ► MongoDB has master / slave replication ► Queries might go to MongoDB master only or also slaves ► Influences consistency Architect/ Developer 04.04.13 NoSQL aus Sicht eines Architekten
- 30. More Power andmore Responsibility Architect DB Admin 03.04.13 NoSQL aus Sicht eines Architekten

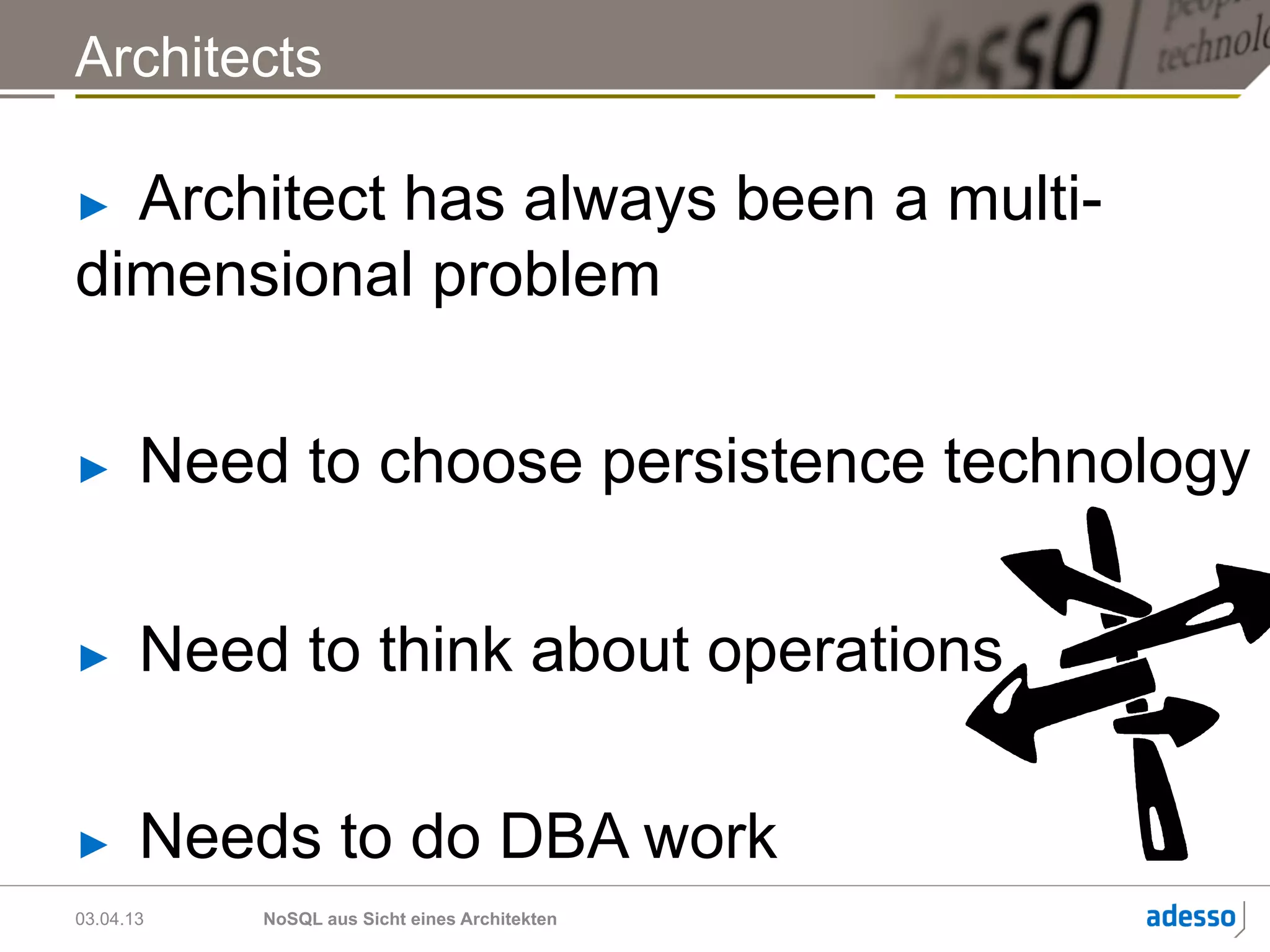

- 31. Architects ► Architect has alwaysbeen a multi- dimensional problem ► Need to choose persistence technology ► Need to think about operations ► Needs to do DBA work 03.04.13 NoSQL aus Sicht eines Architekten

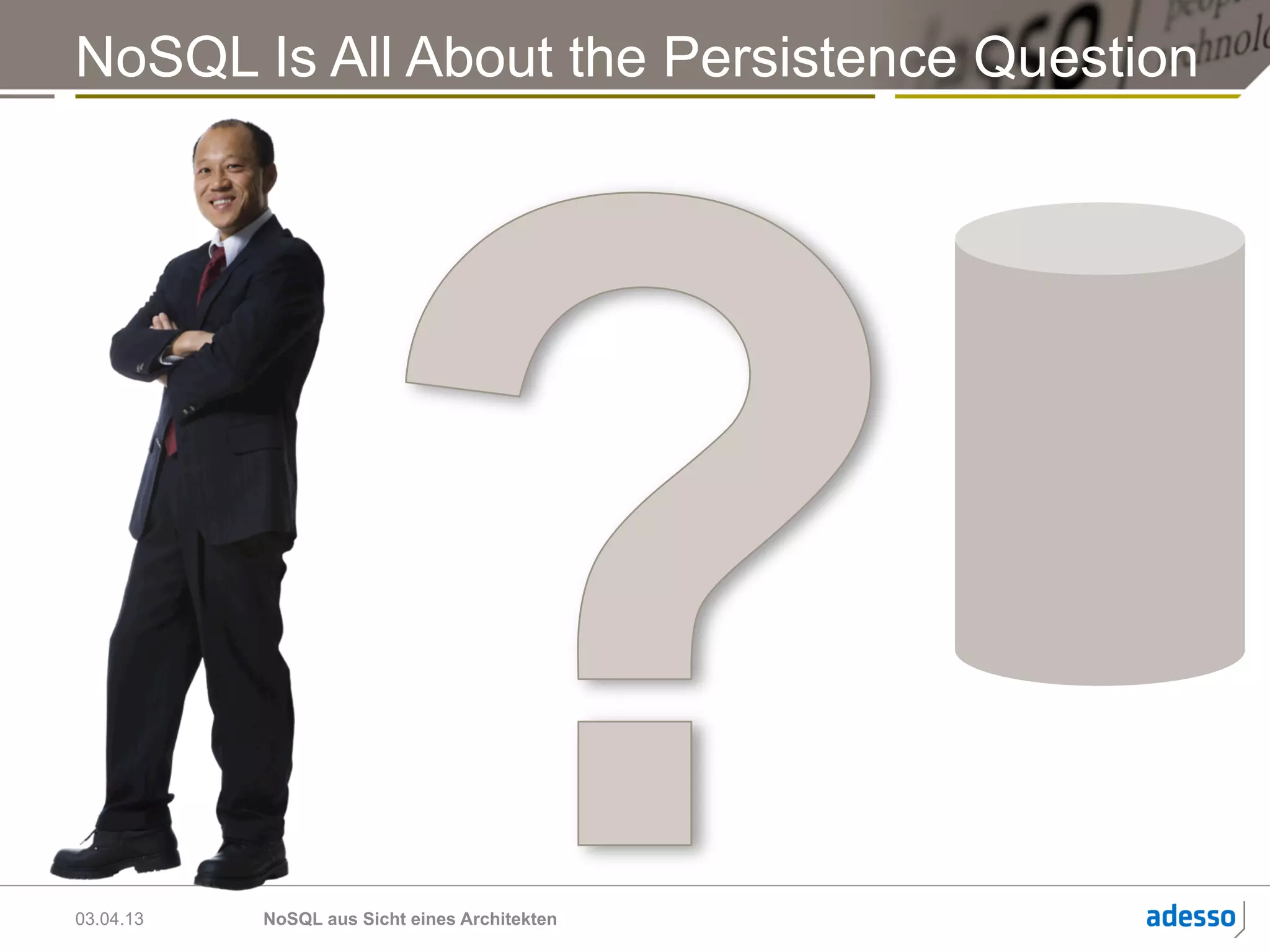

- 32. NoSQL Is AllAbout the Persistence Question 03.04.13 NoSQL aus Sicht eines Architekten
