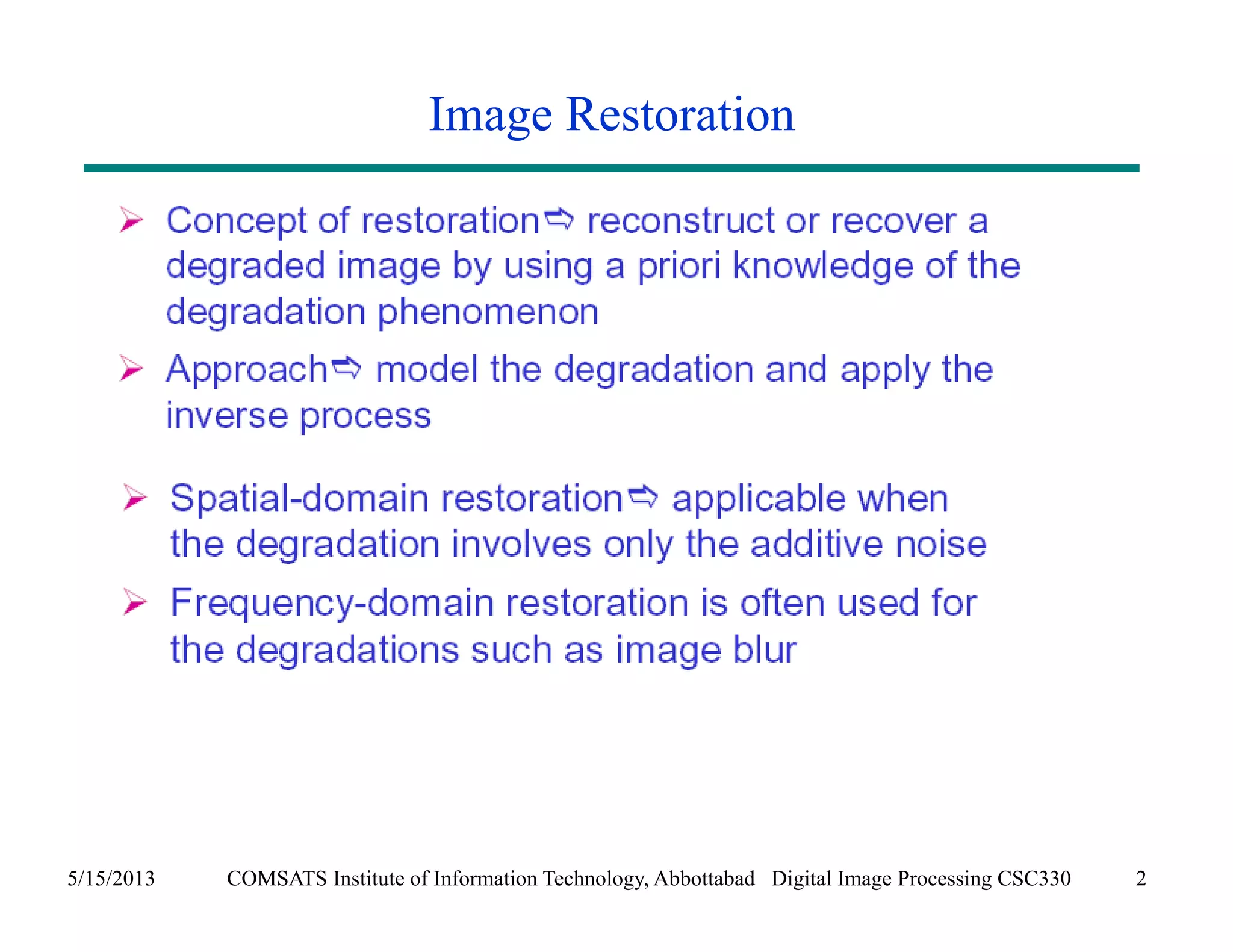

Image Restoration

Image Restoration

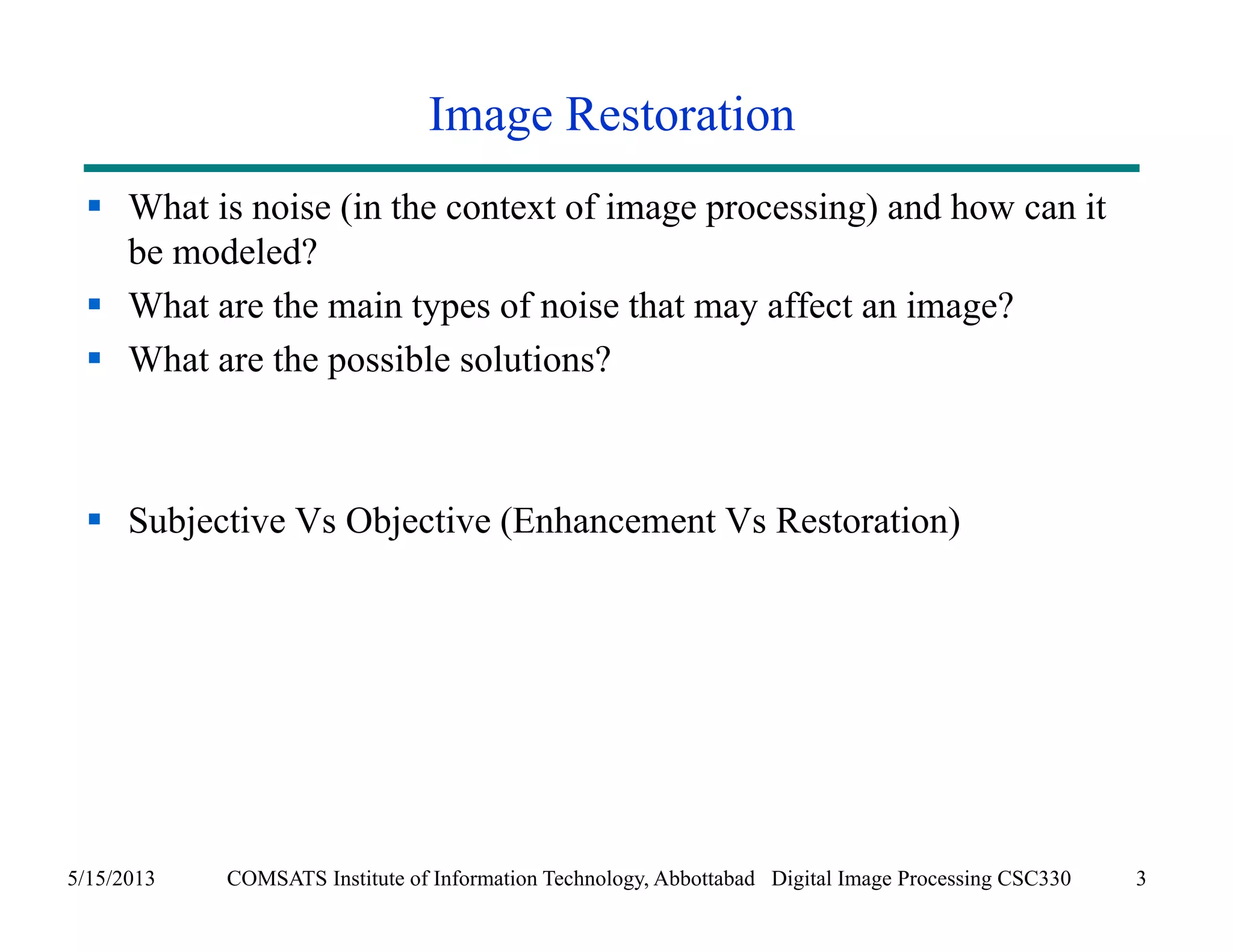

 What is noise (in the context of image processing) and how can it
be modeled?
 What are the main types of noise that may affect an image?
 What are the possible solutions?
 Subjective Vs Objective (Enhancement Vs Restoration)

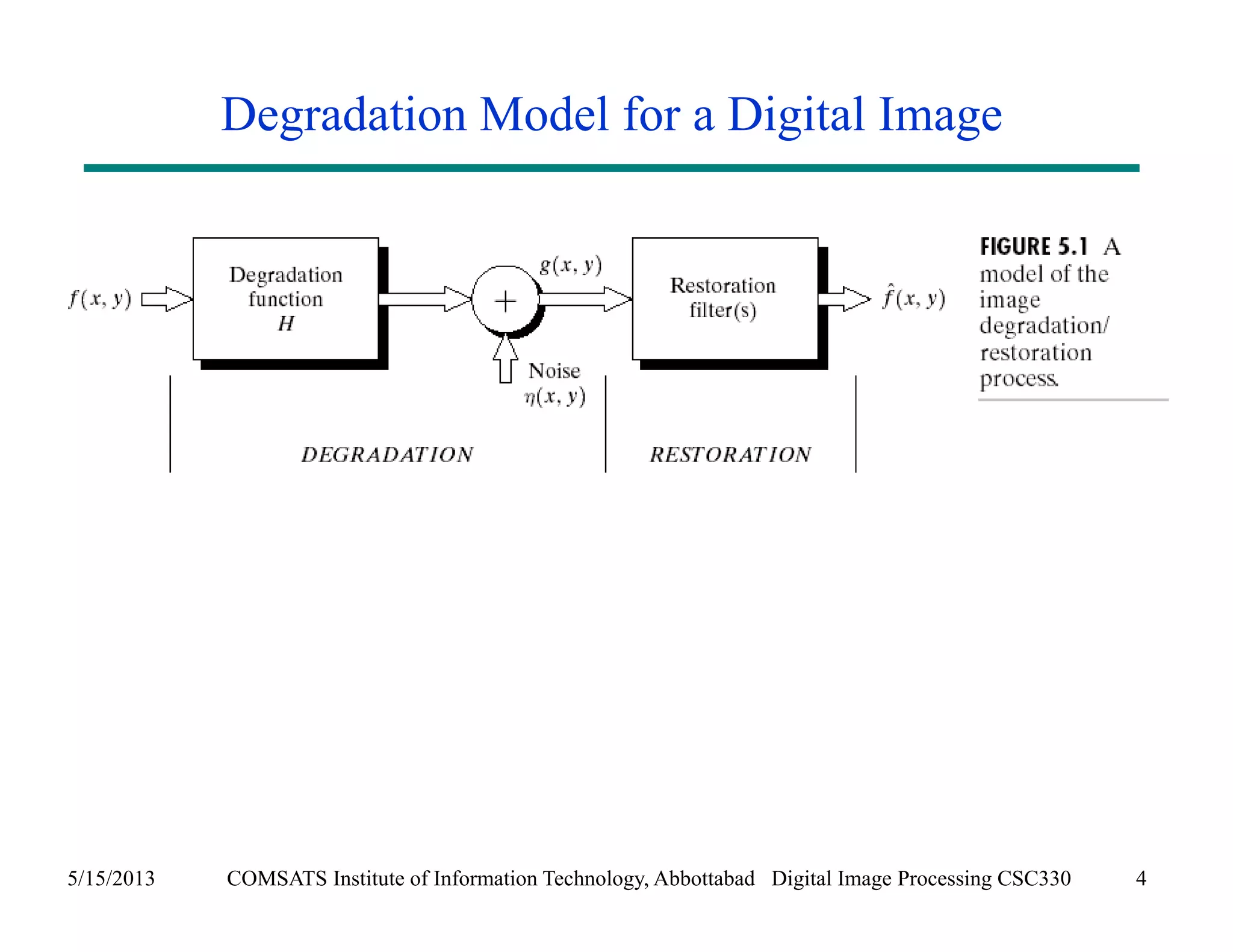

Degradation Model for a Digital Image

Noise Models

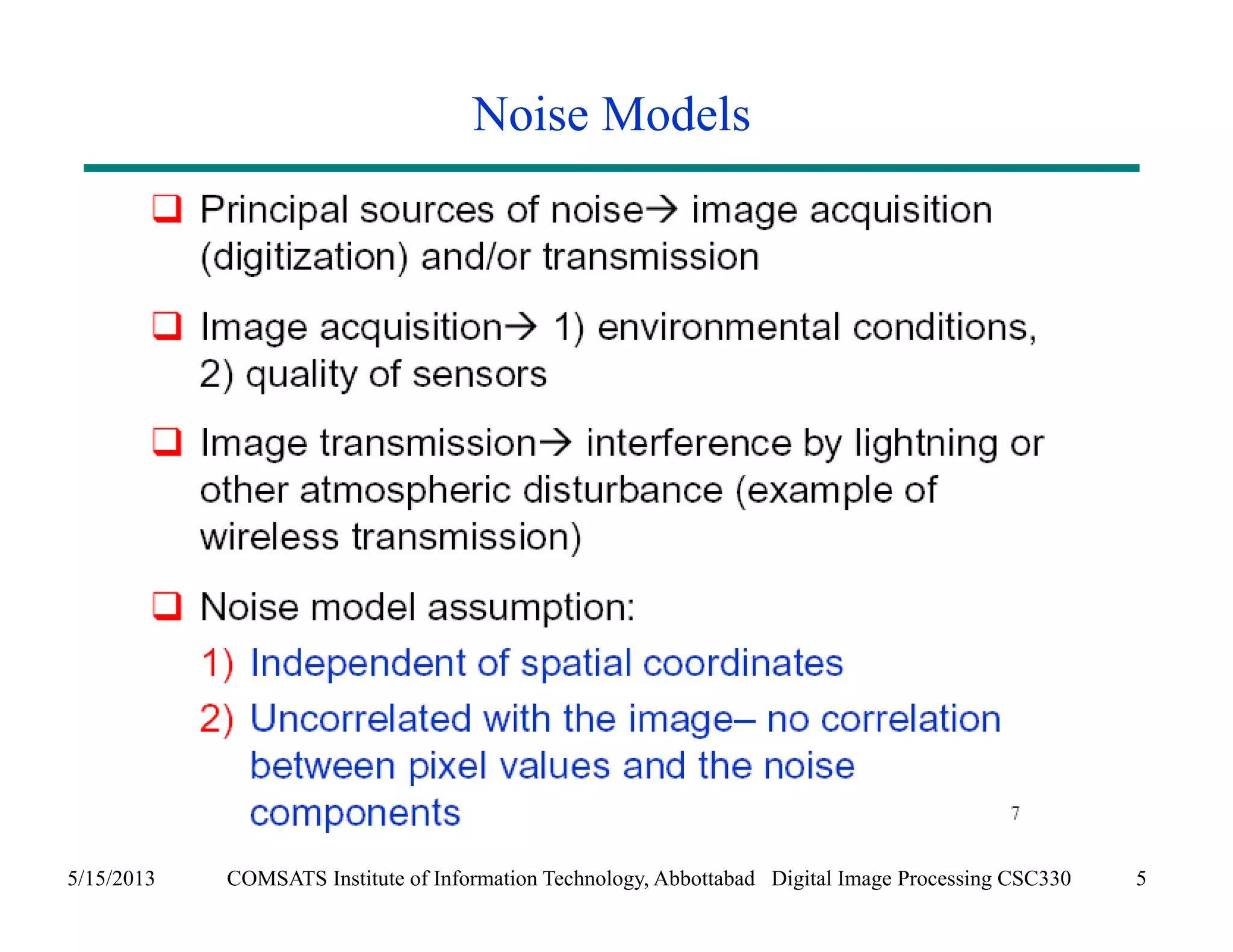

Noise and Noise Models
 Gaussian (normal)
 Impulse (salt-and-pepper)
 Uniform
 Rayleigh
 Gamma (Erlang)
 Exponential

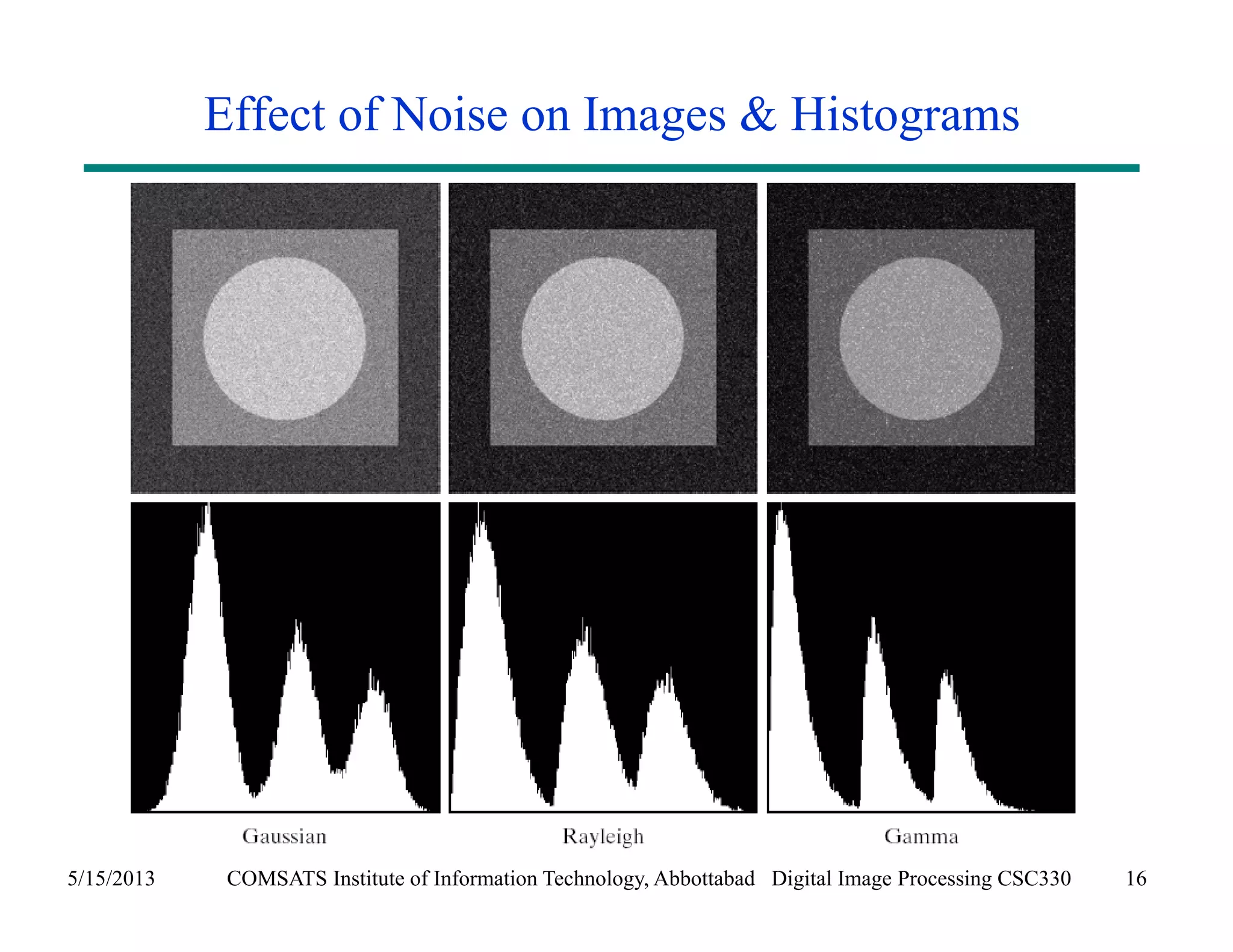

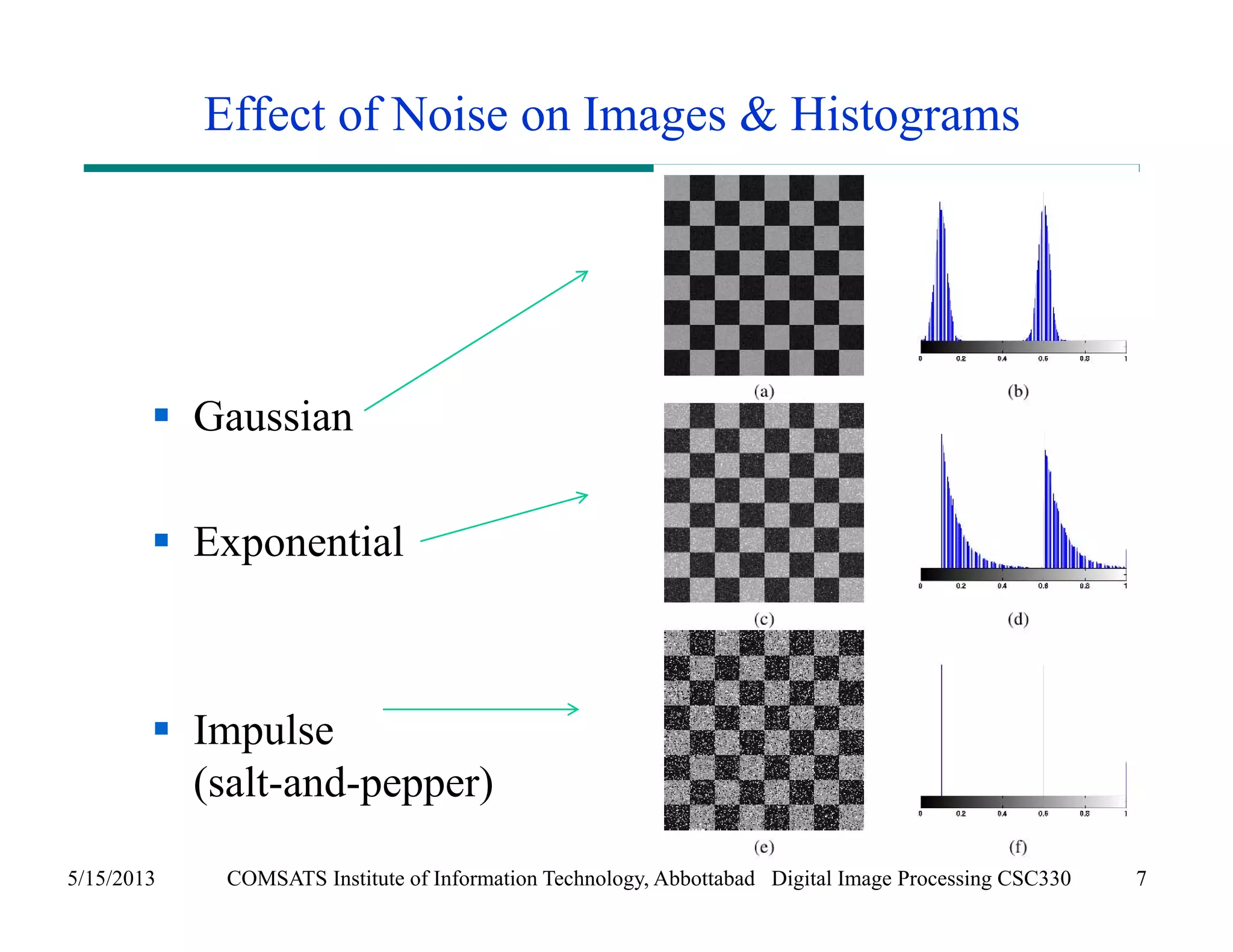

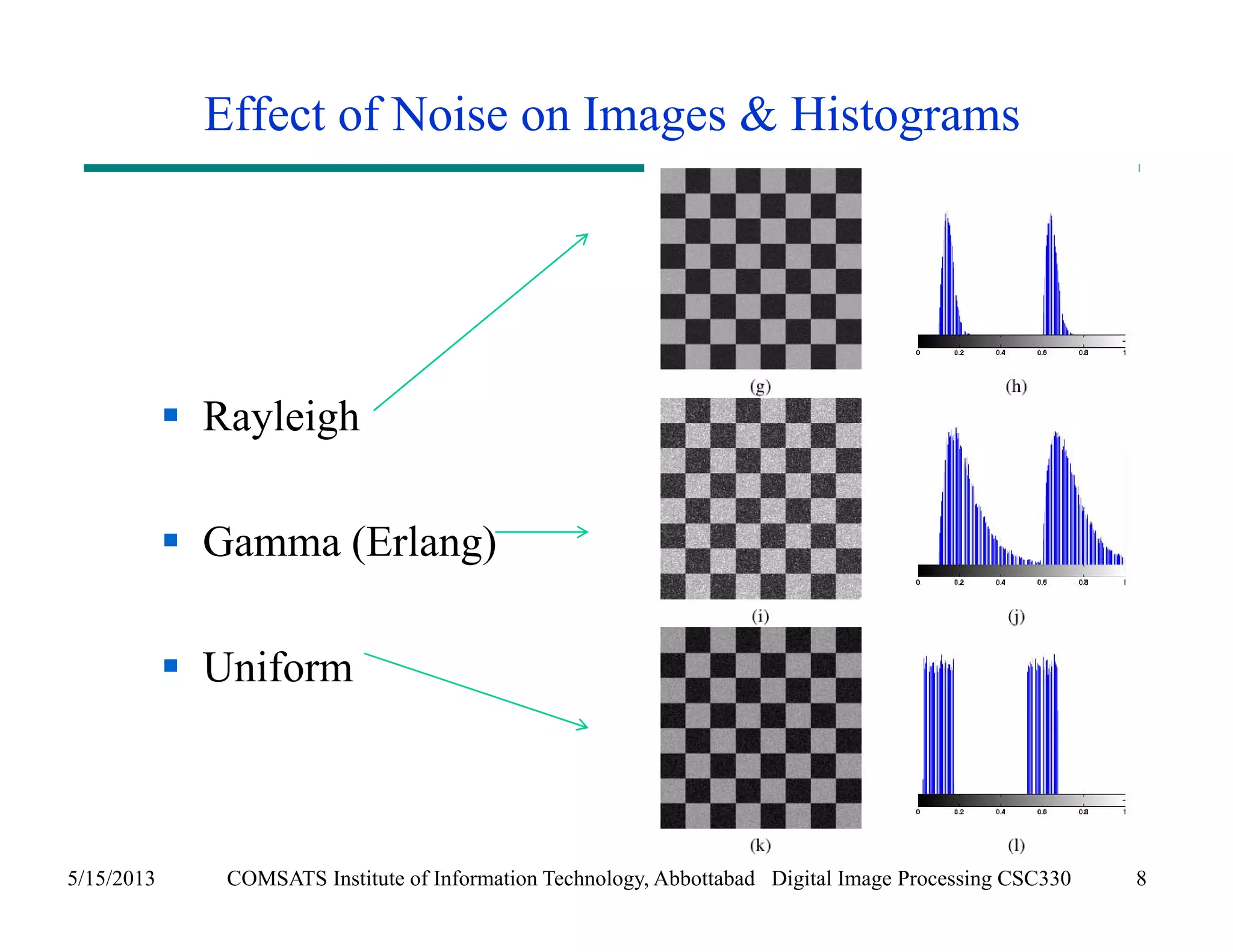

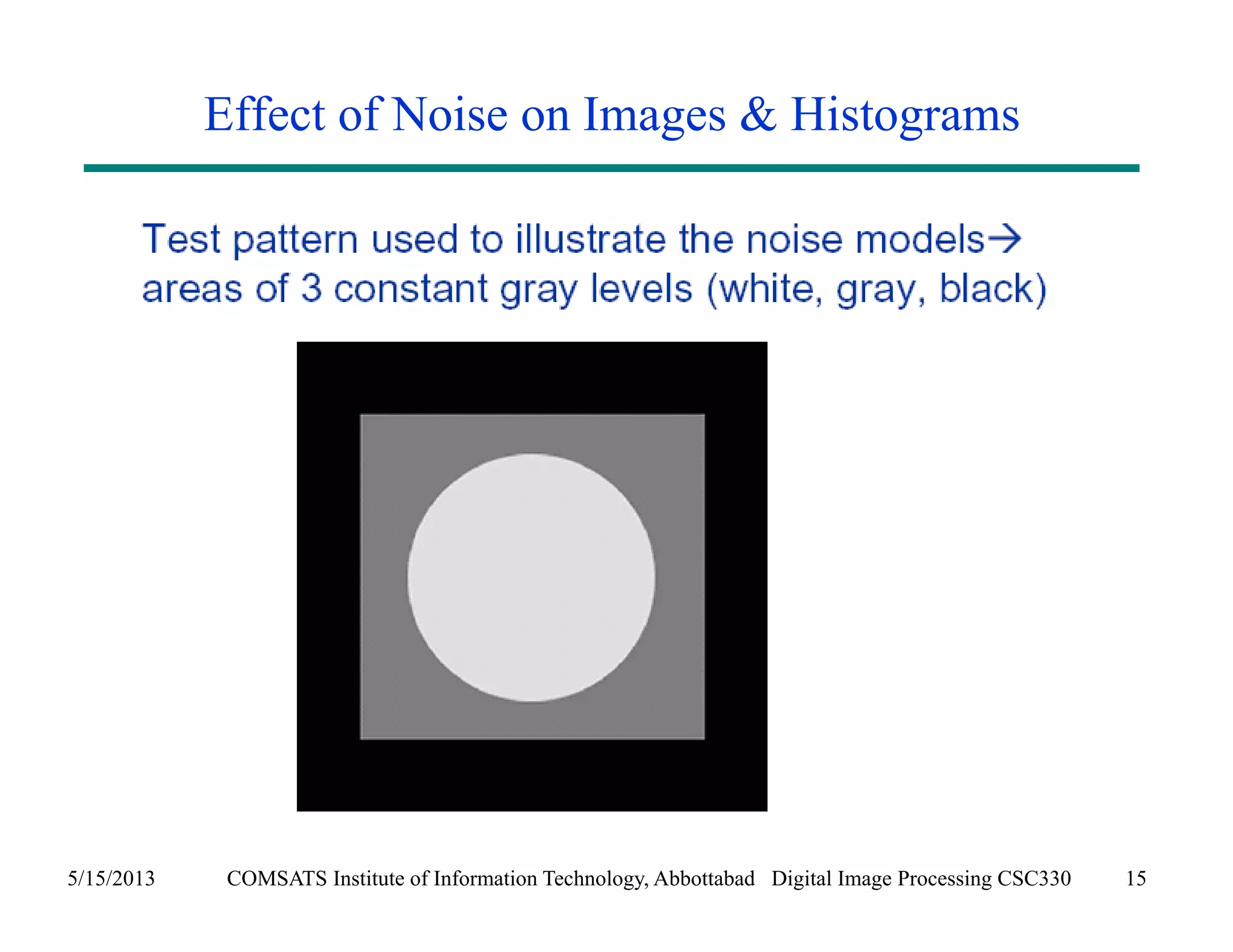

Effect of Noise on Images & Histograms
 Gaussian
 Exponential
 Impulse
(salt-and-pepper)

 Rayleigh
 Gamma (Erlang)
 Uniform

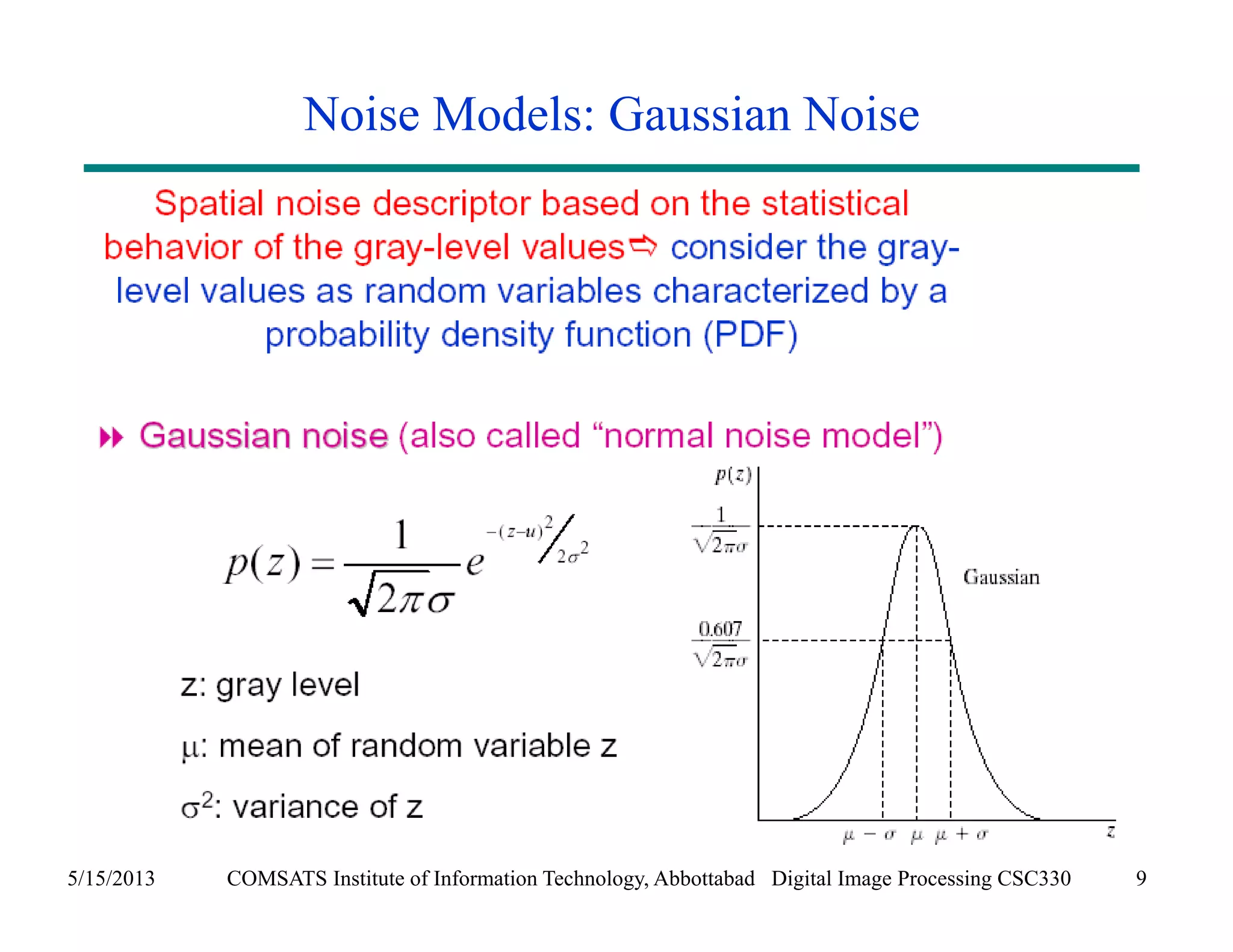

Noise Models: Gaussian Noise

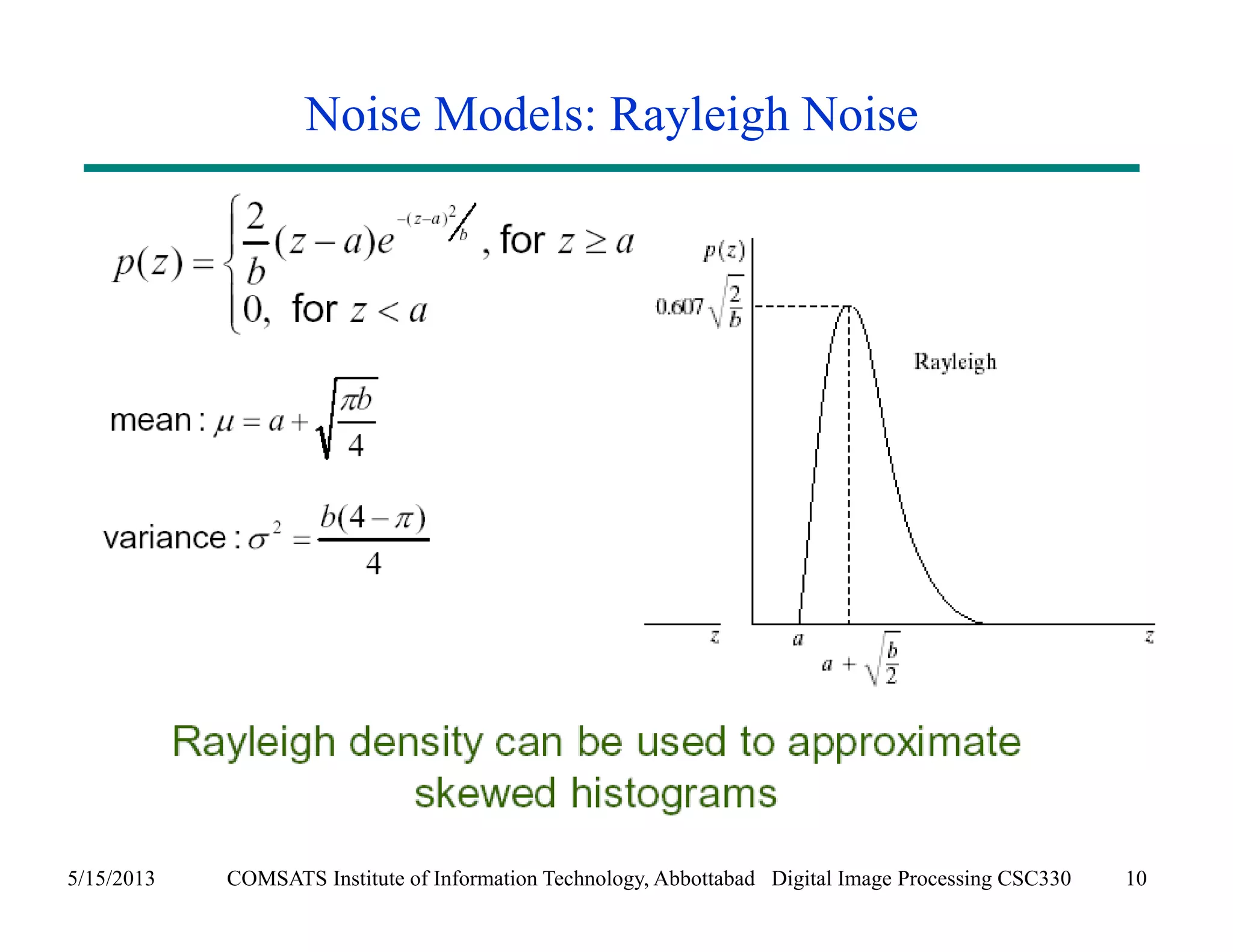

Noise Models: Rayleigh Noise

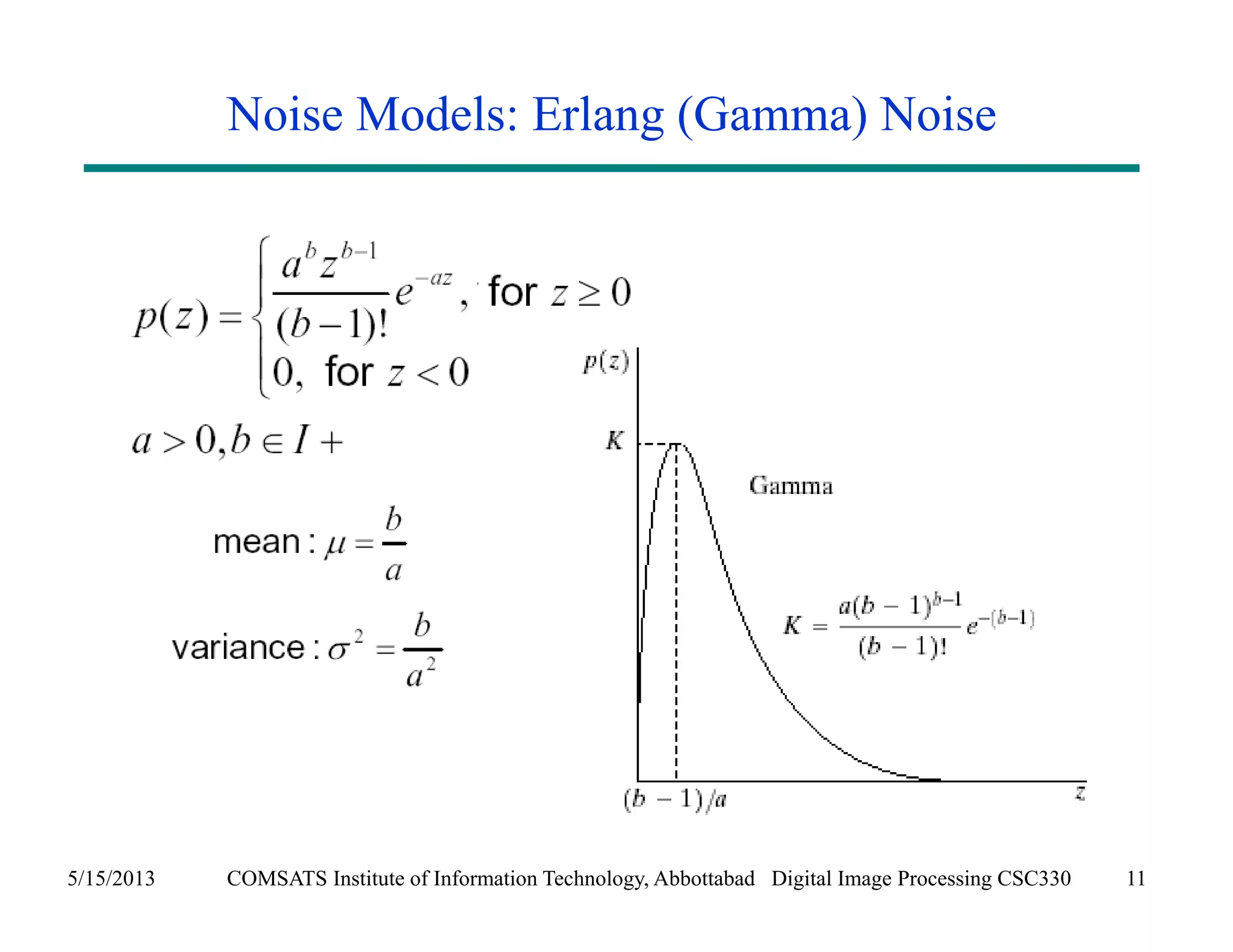

Noise Models: Erlang (Gamma) Noise

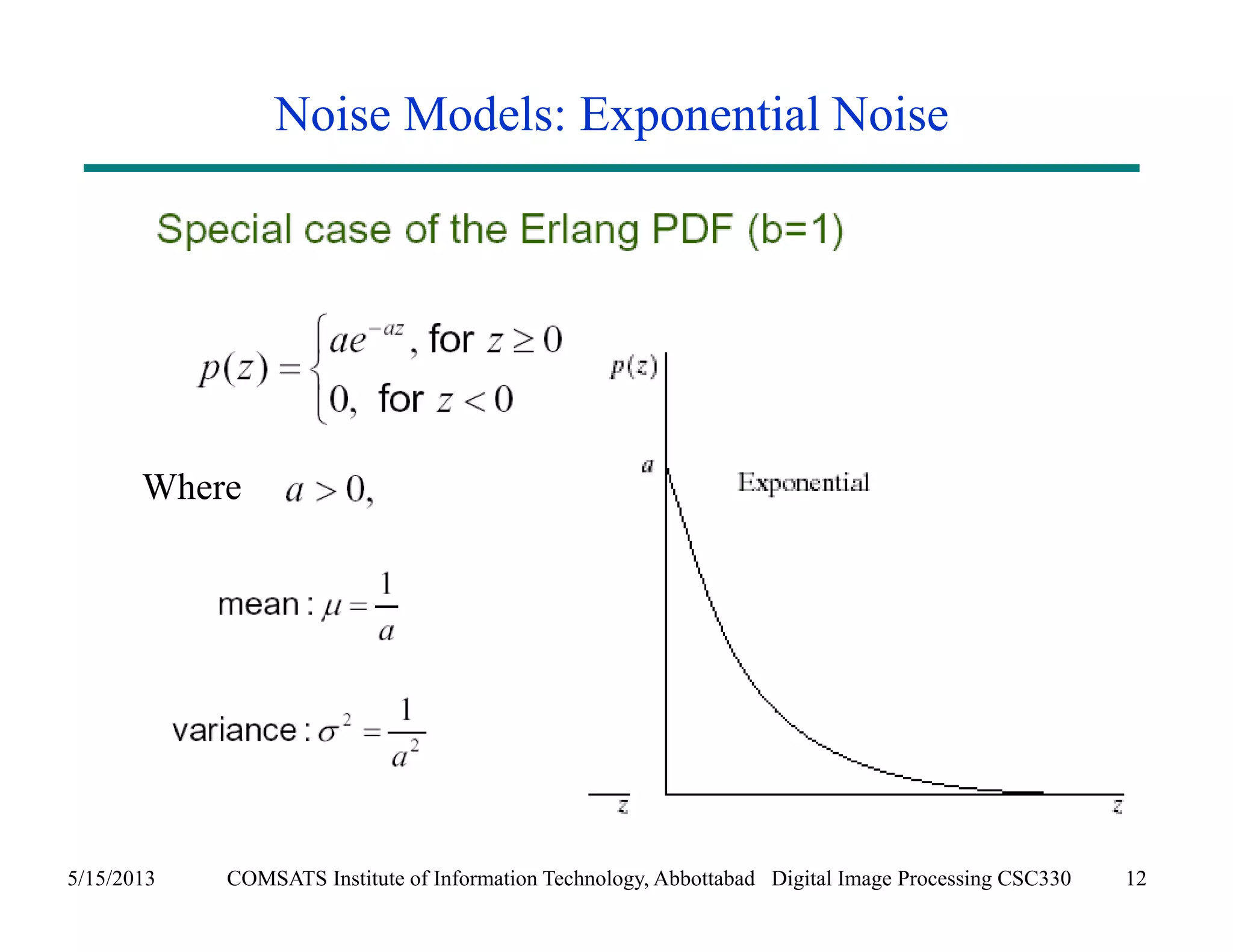

Noise Models: Exponential Noise
Where

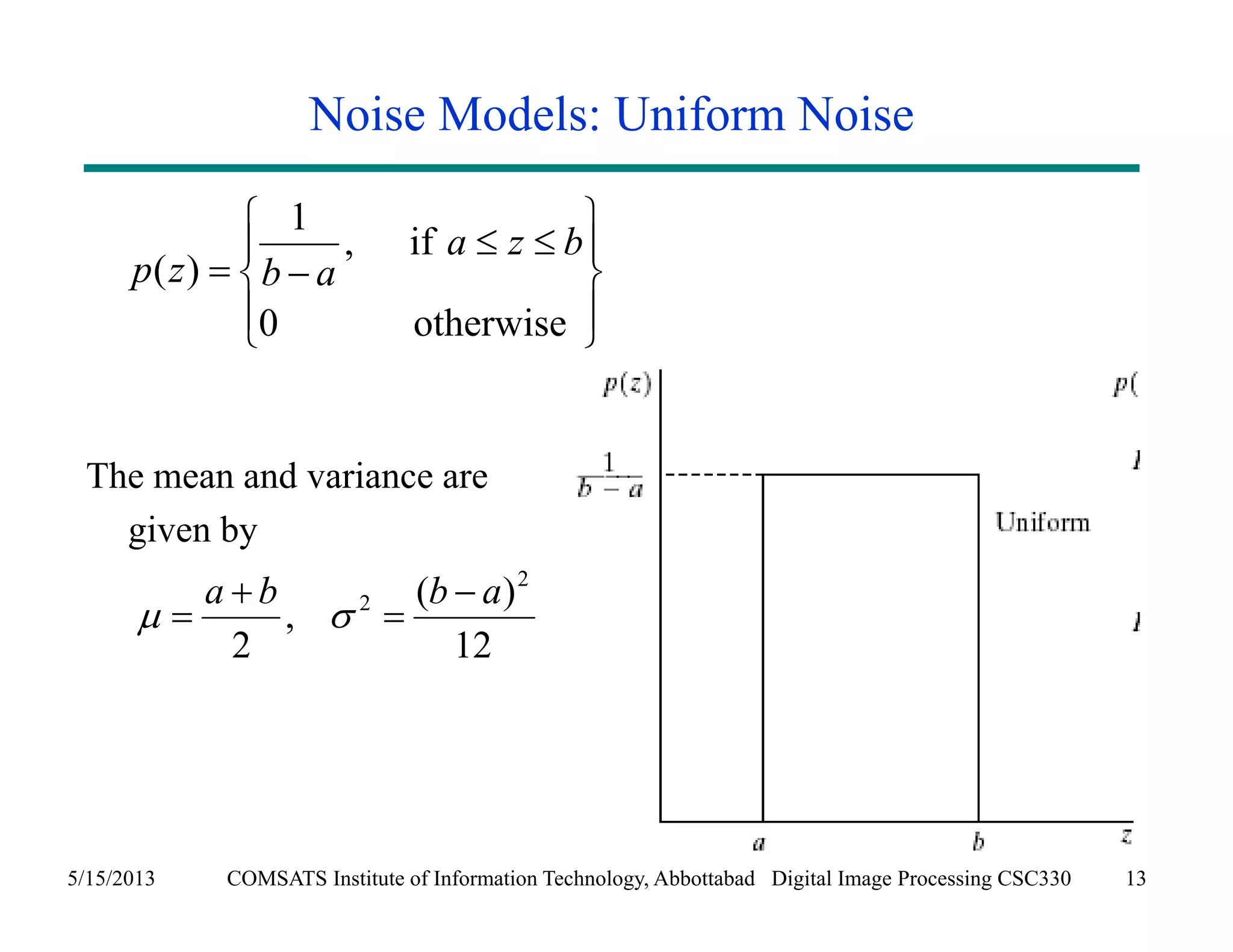

Noise Models: Uniform Noise
1 , if
  
 
0 otherwise
 
p ( z )
b a
a z b
The mean and variance are
given by



a b 2 b  a
, ( )
12

  
2
2


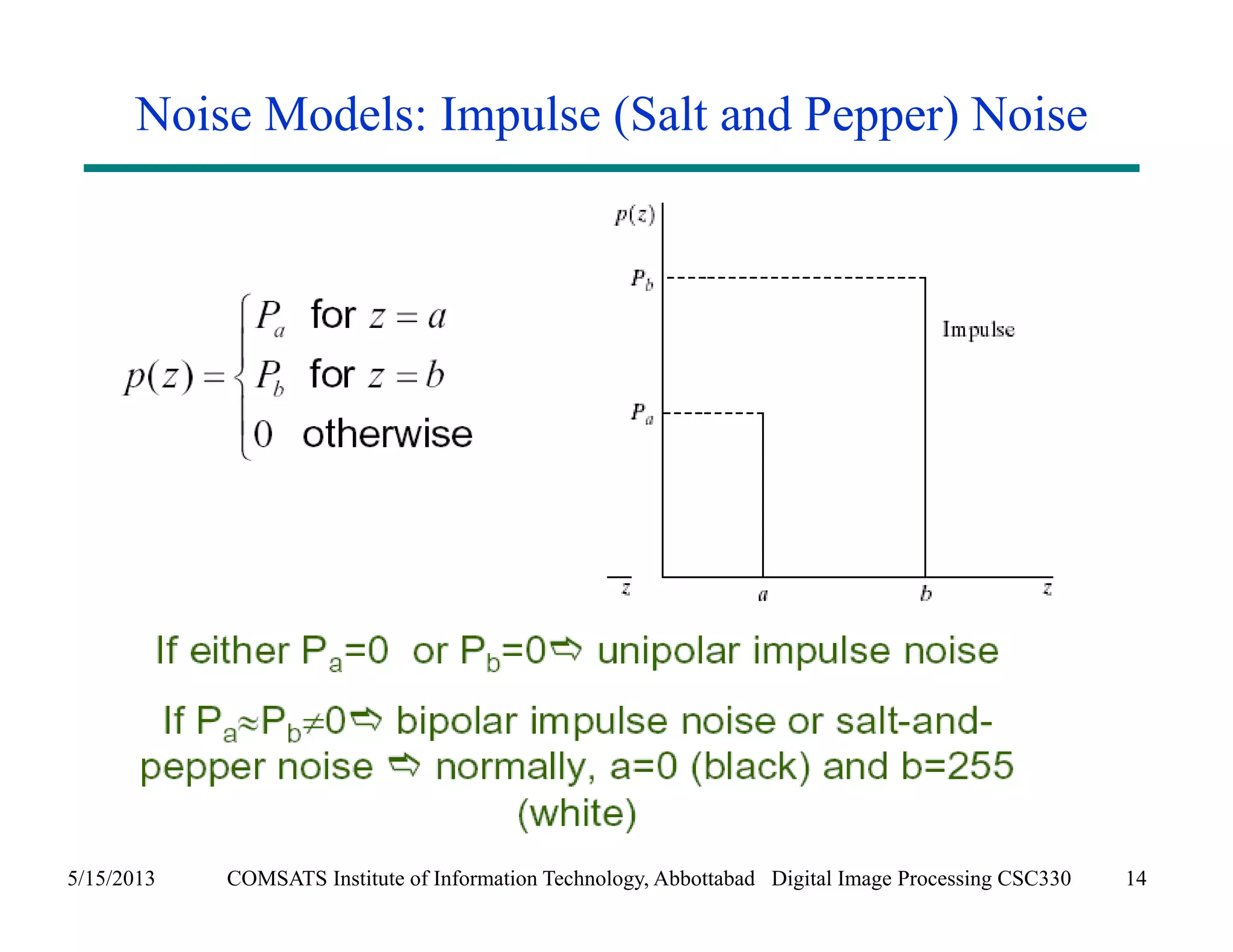

Noise Models: Impulse (Salt and Pepper) Noise

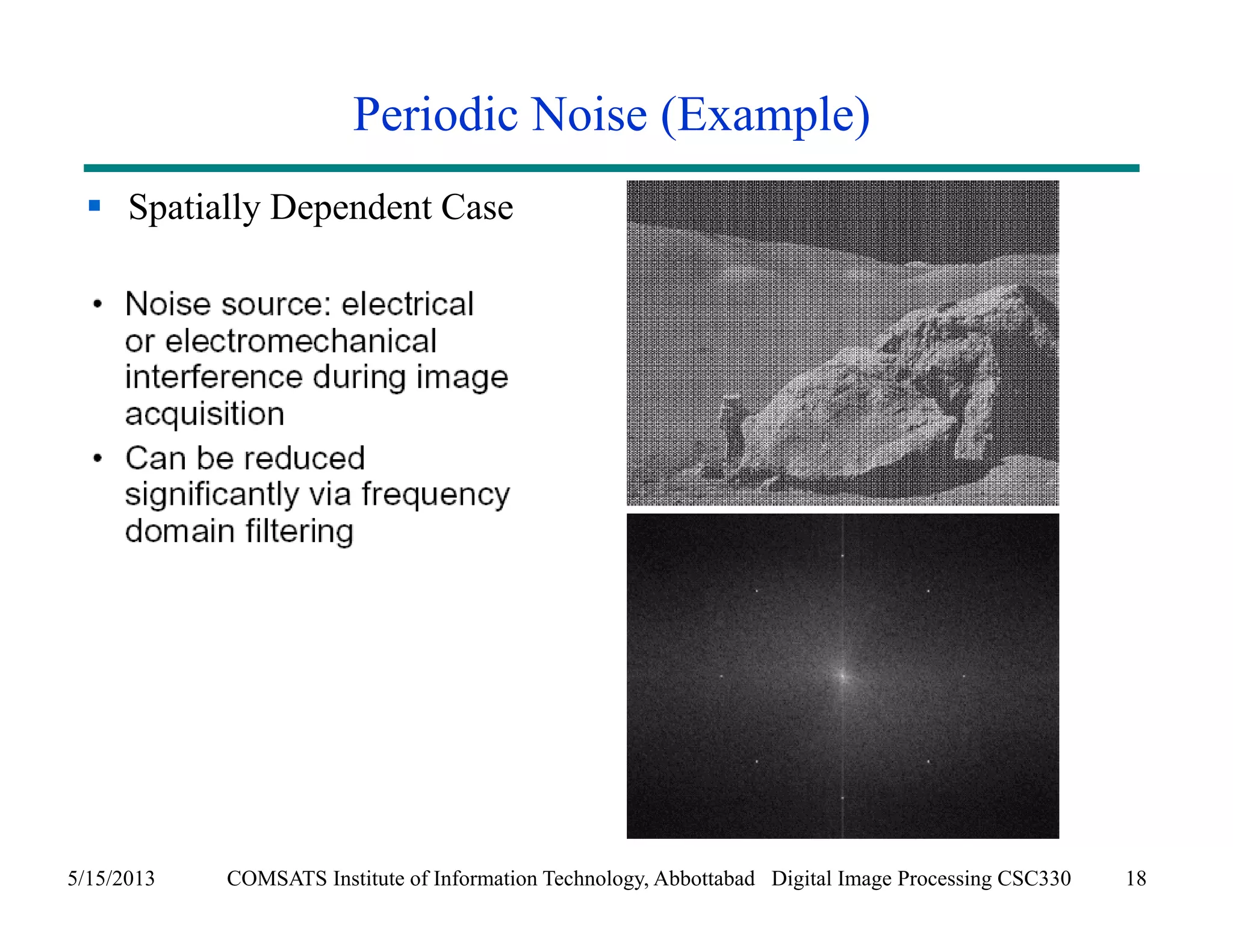

Periodic Noise (Example)
 Spatially Dependent Case

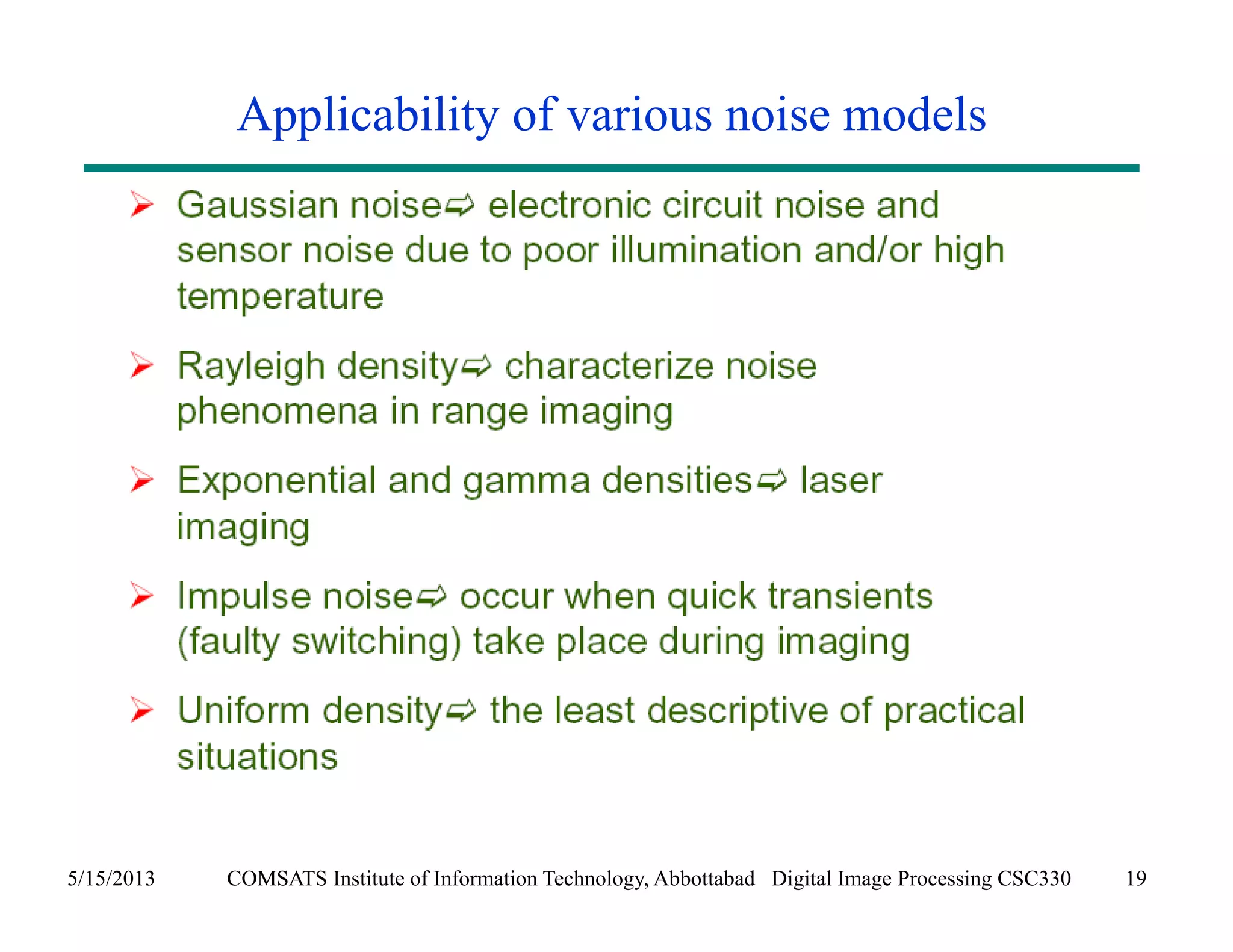

Applicability of various noise models

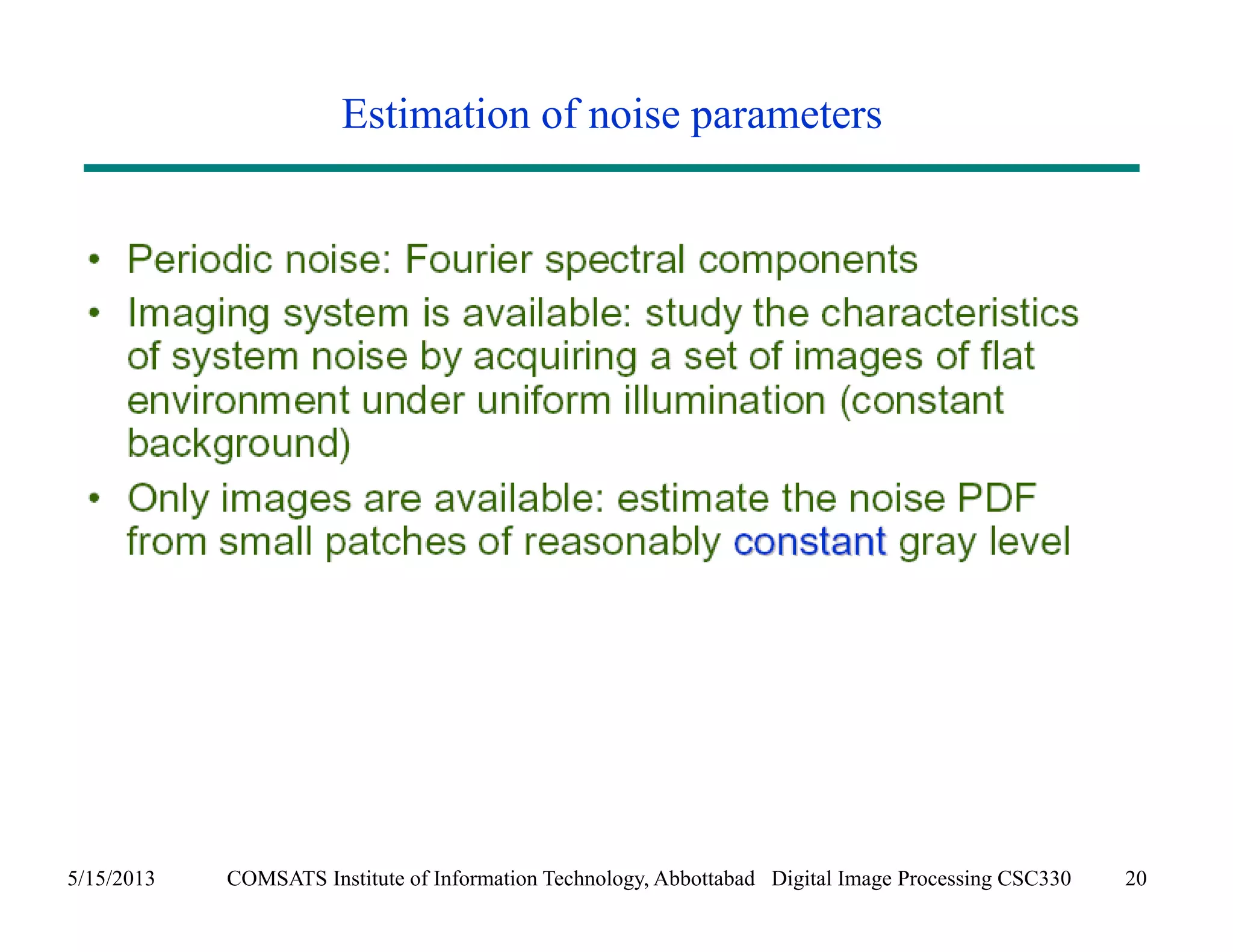

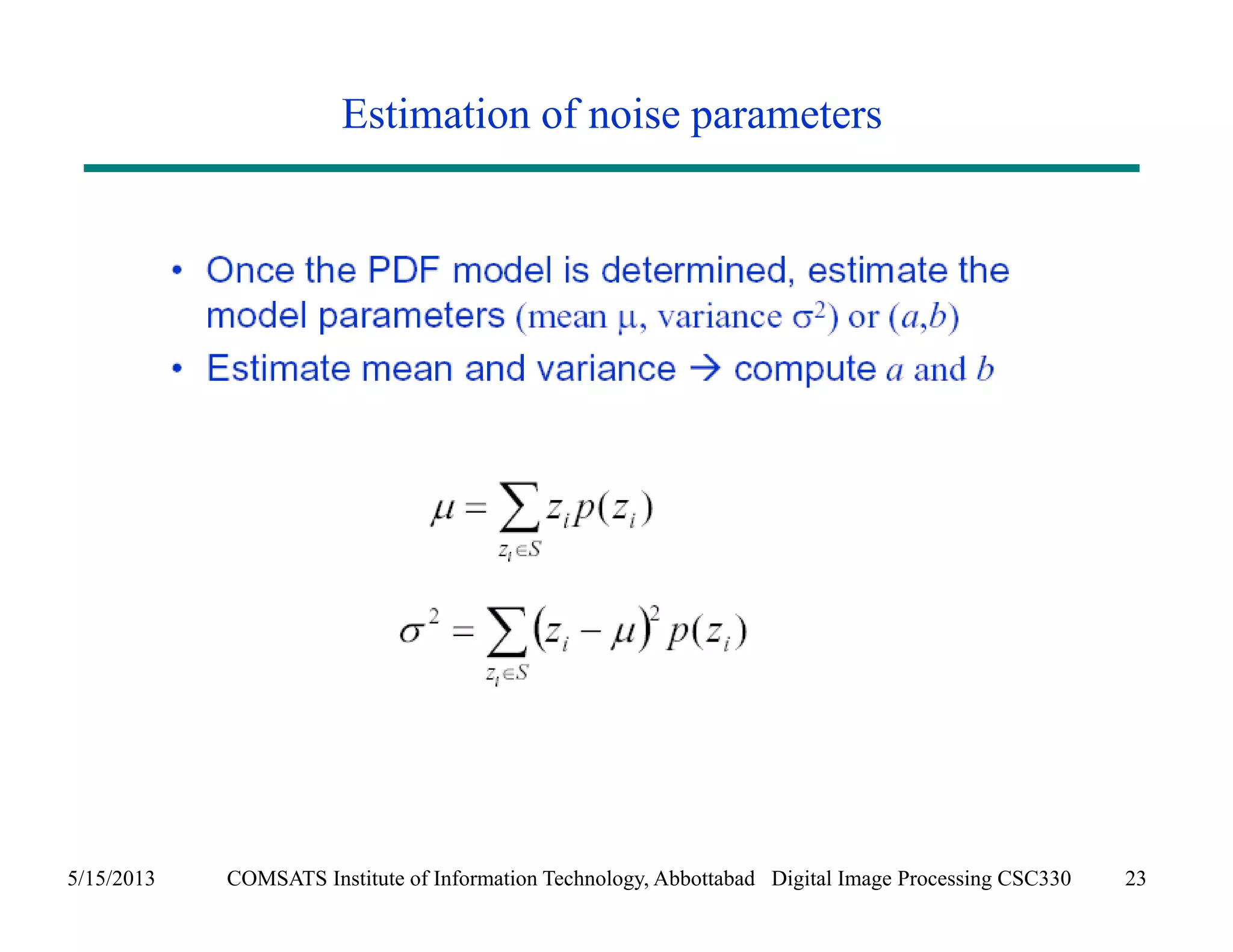

Estimation of noise parameters

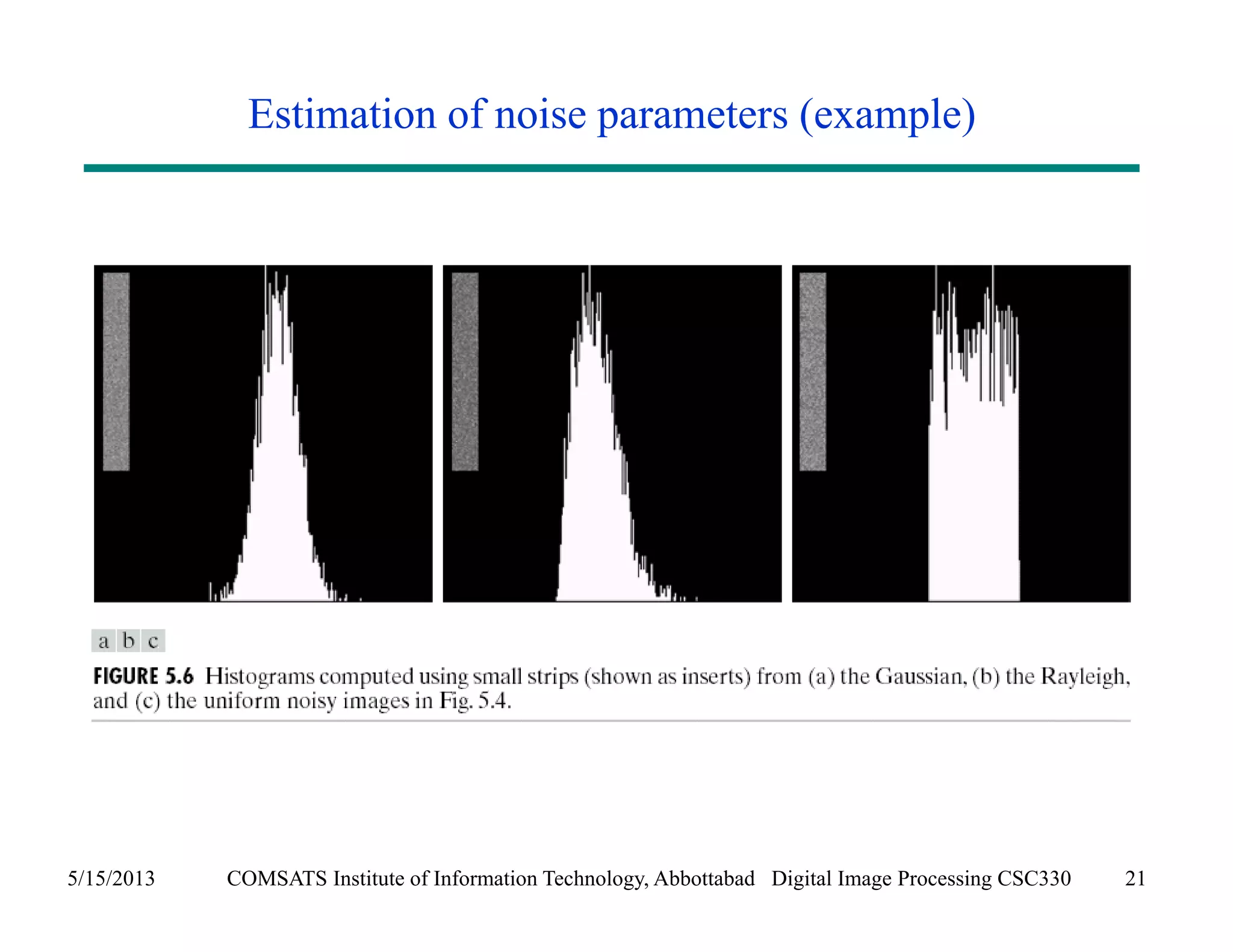

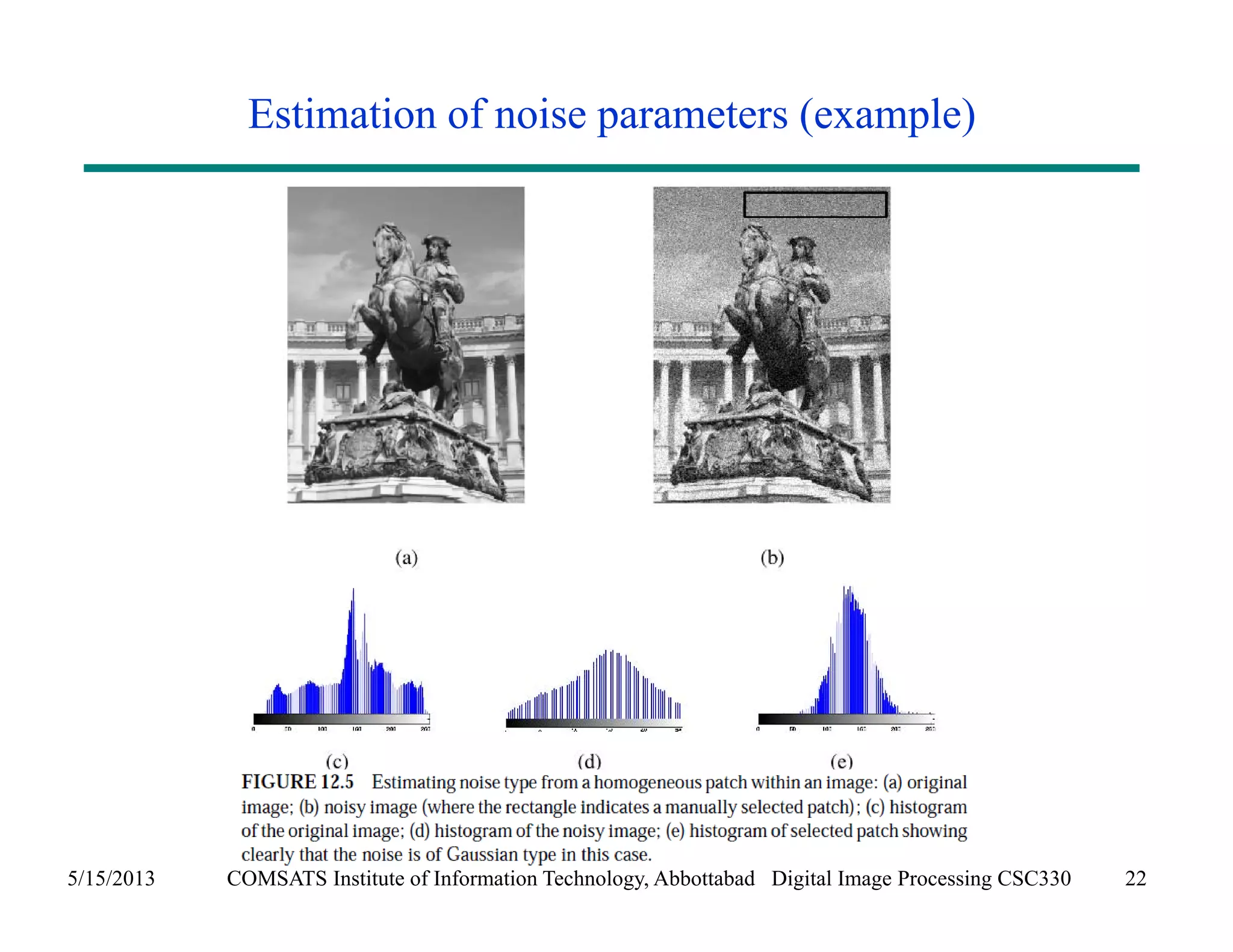

Estimation of noise parameters (example)

Estimation of noise parameters

Restoration of noise-only degradation

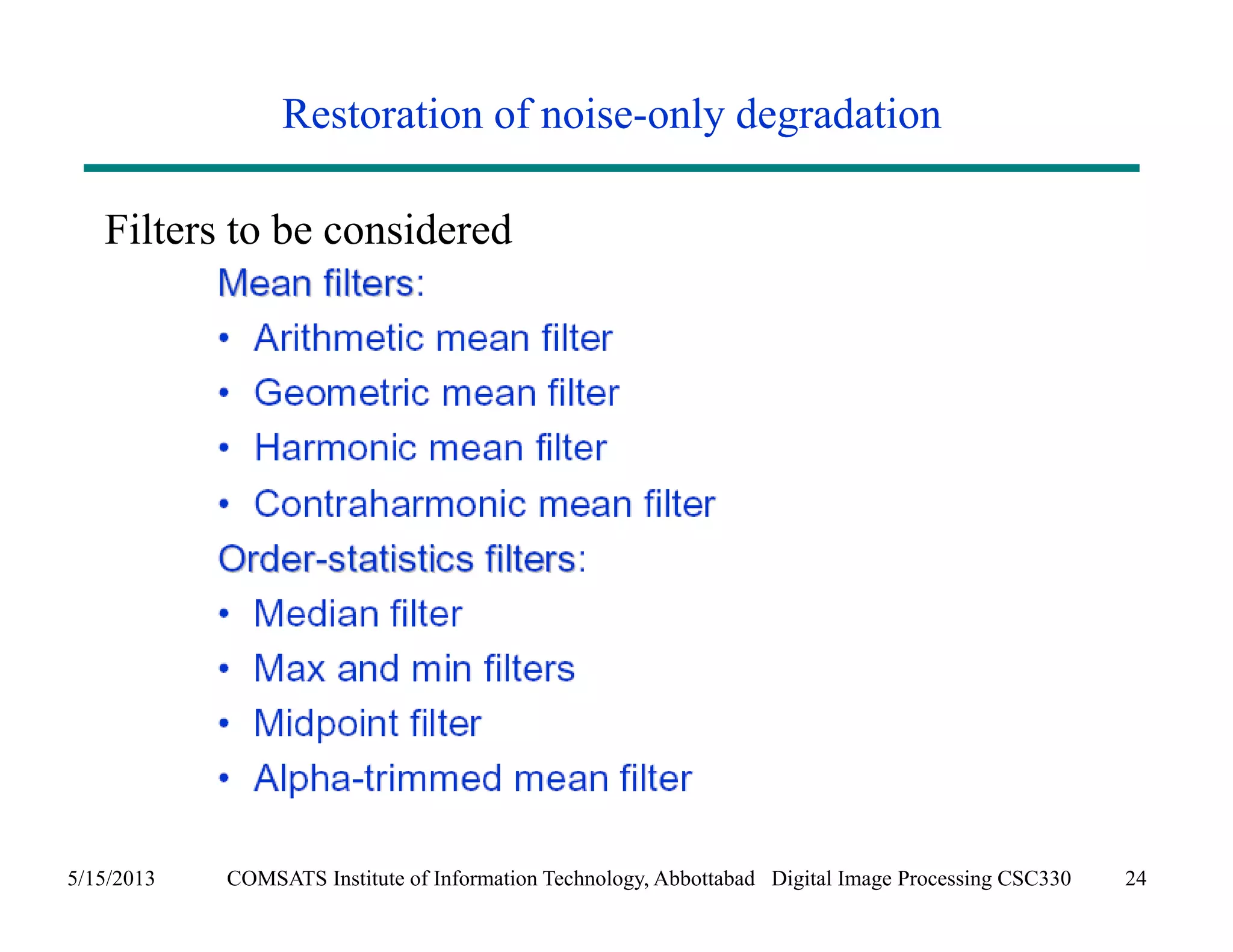

Filters to be considered

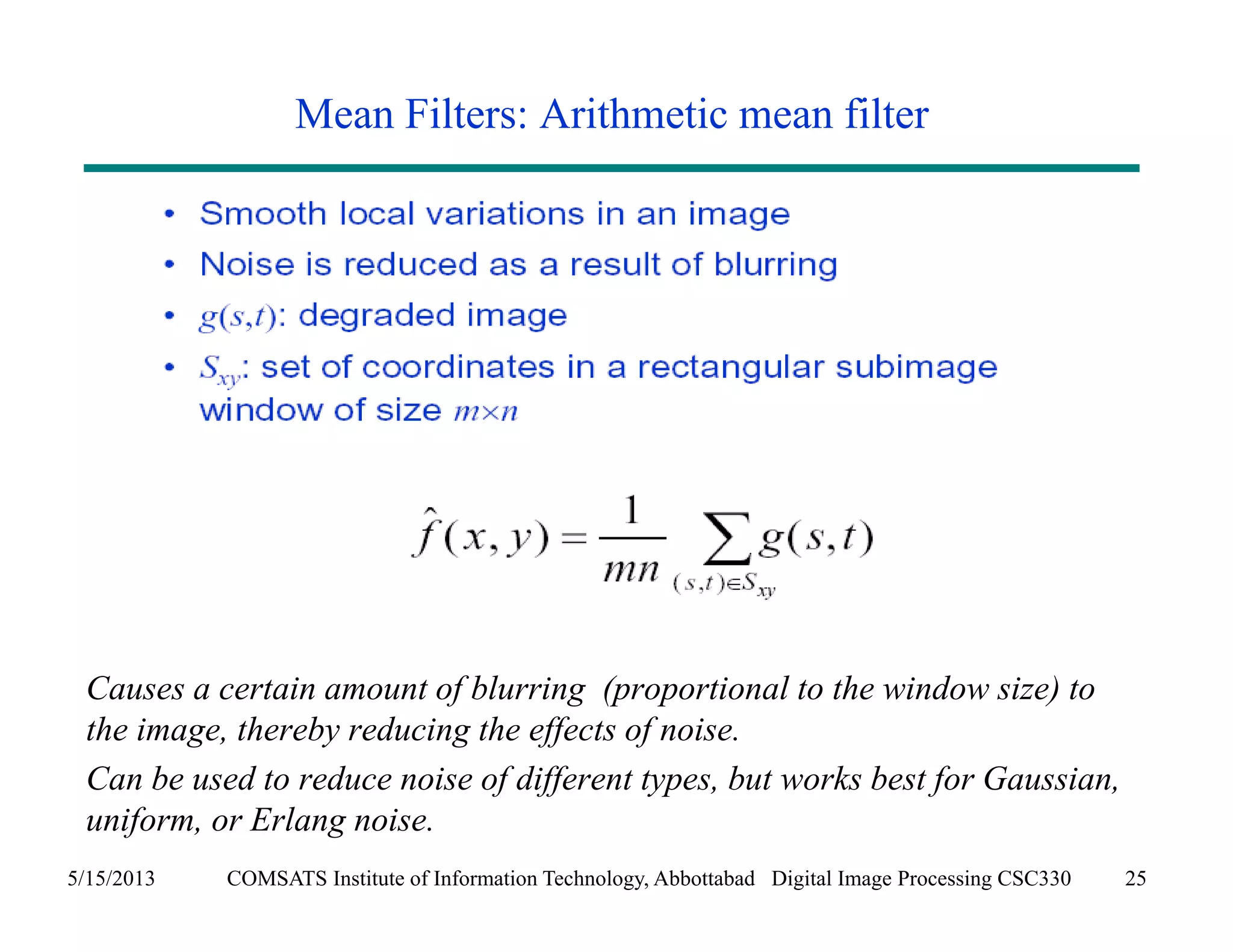

Mean Filters: Arithmetic mean filter
Causes a certain amount of blurring (proportional to the window size) to
the image, thereby reducing the effects of noise.
Can be used to reduce noise of different types, but works best for Gaussian,
uniform, or Erlang noise.

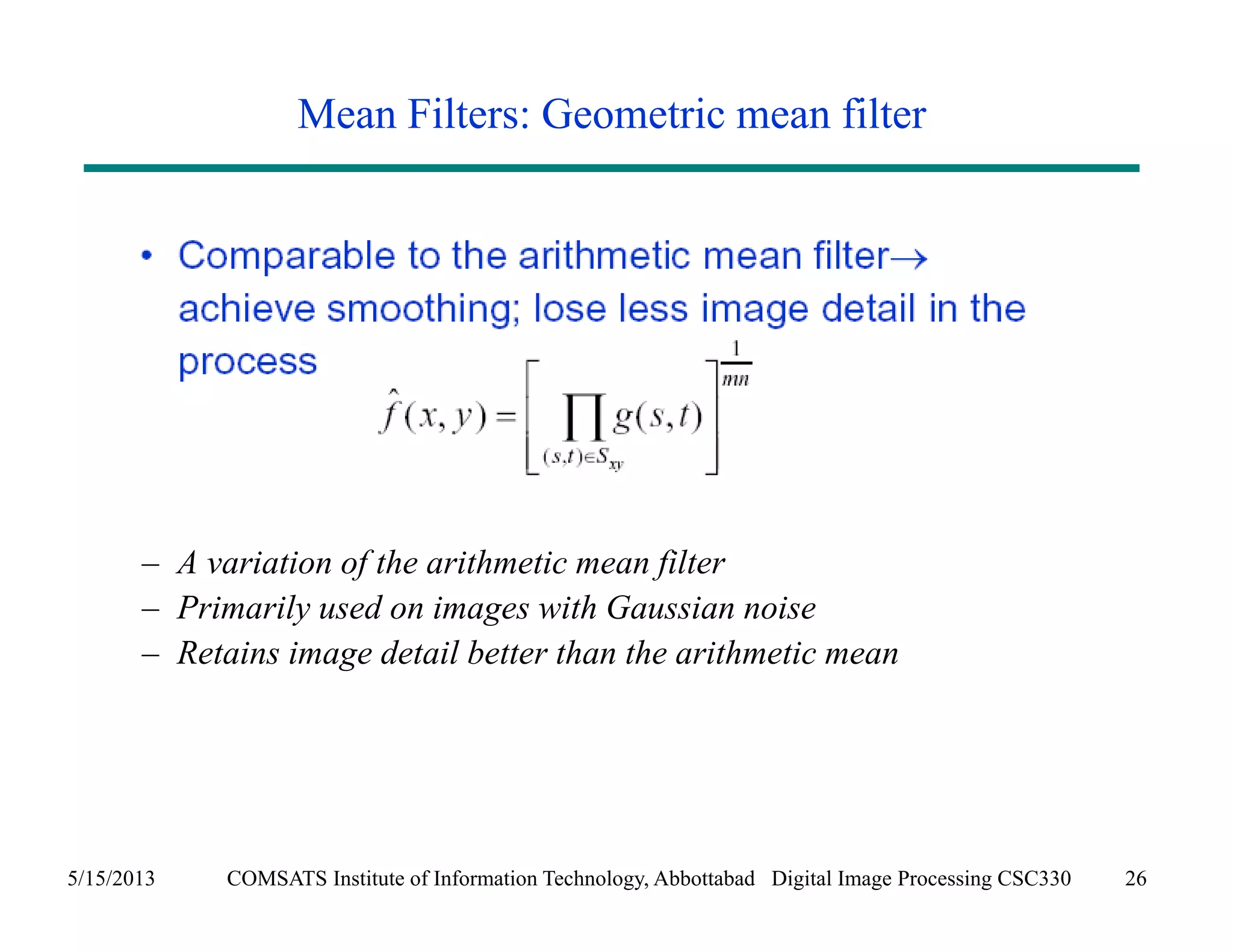

Mean Filters: Geometric mean filter
– A variation of the arithmetic mean filter
– Primarily used on images with Gaussian noise
– Retains image detail better than the arithmetic mean

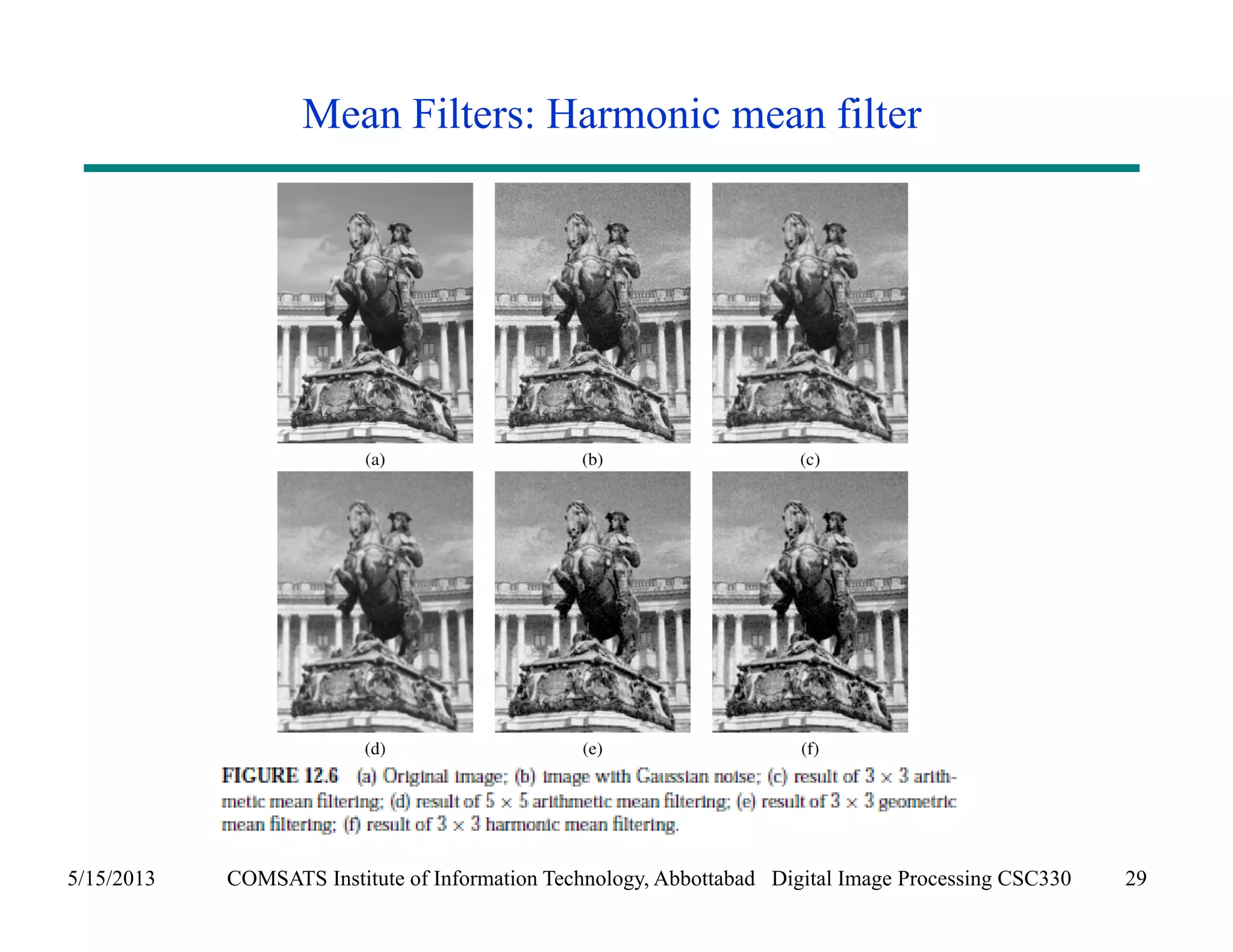

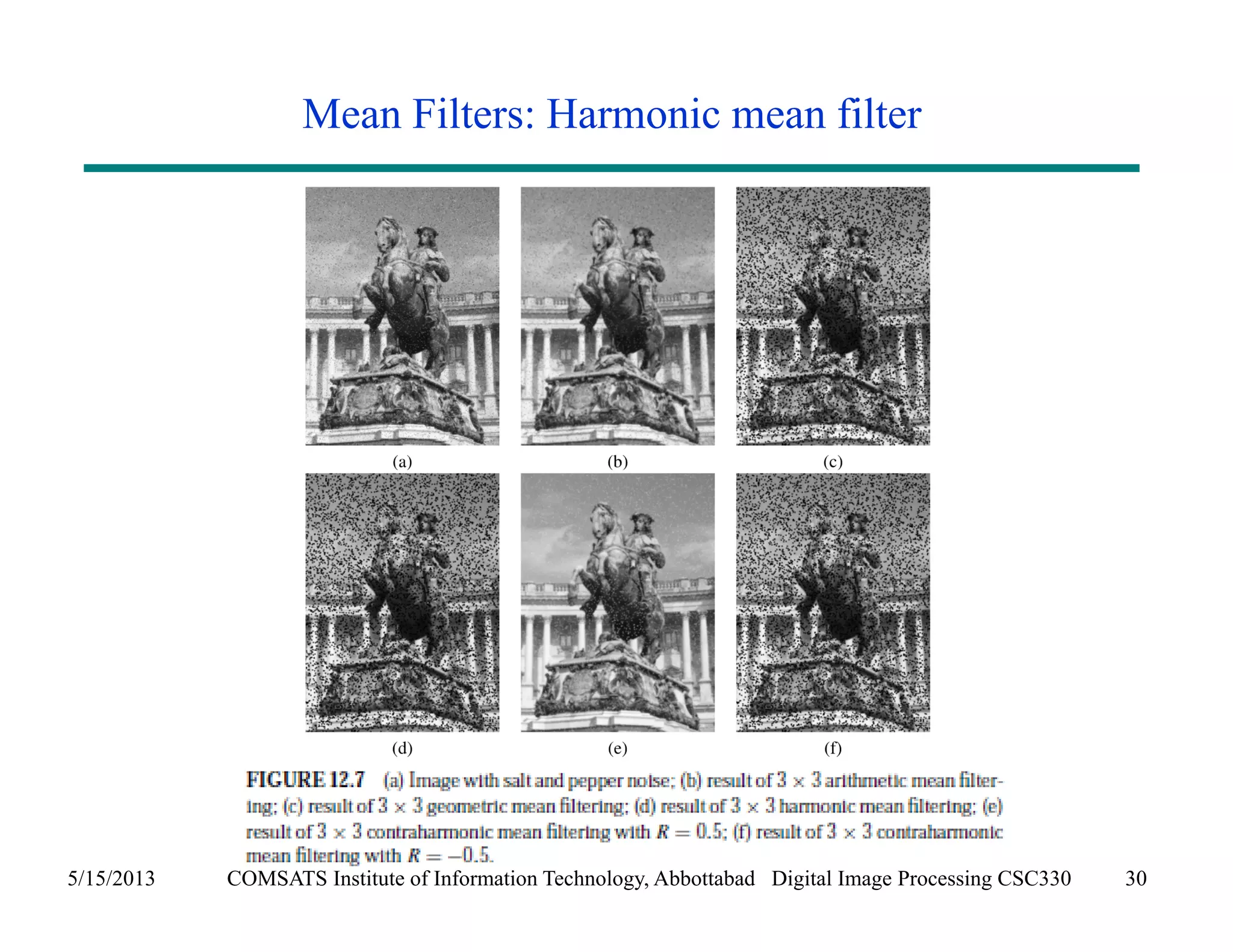

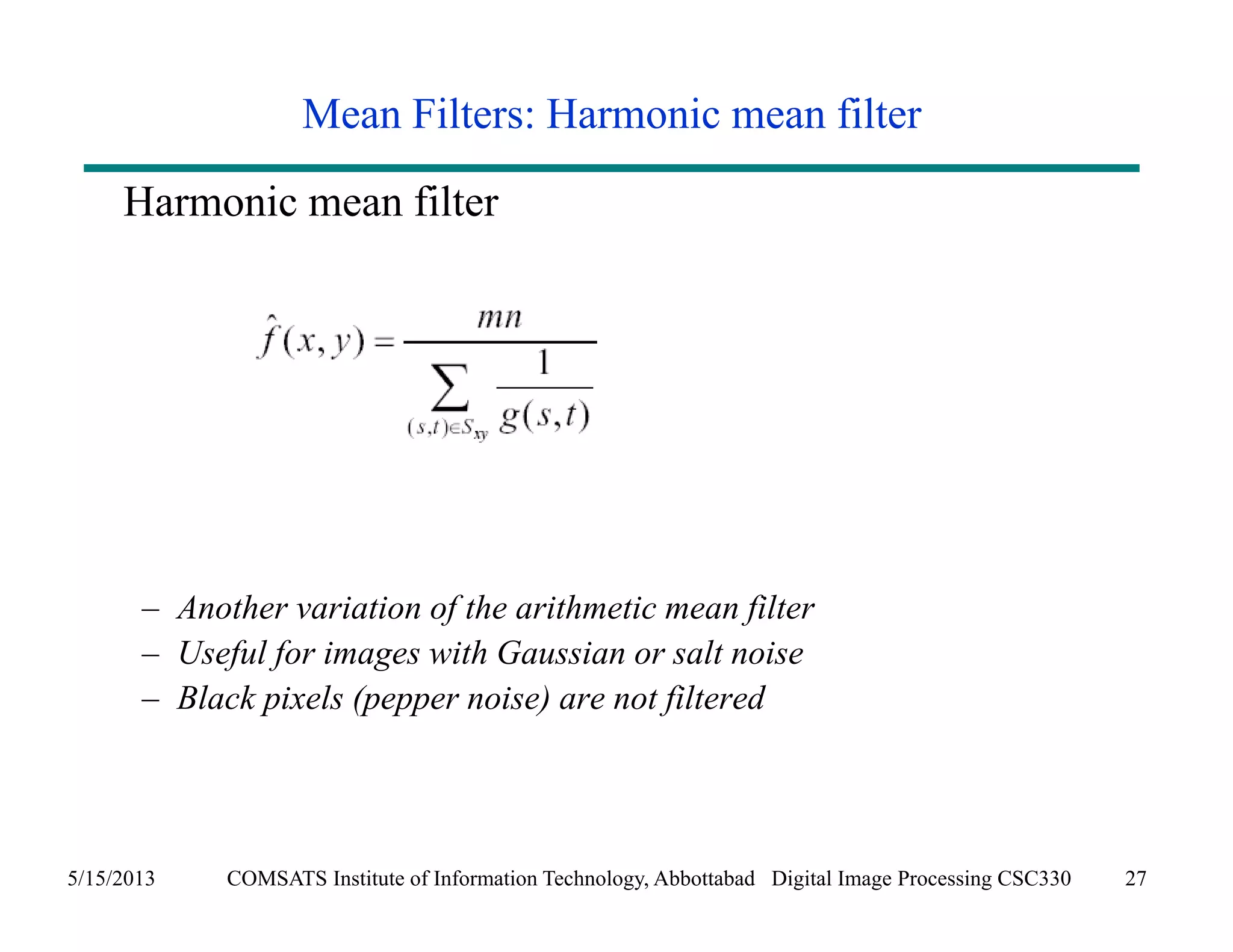

Mean Filters: Harmonic mean filter
Harmonic mean filter
– Another variation of the arithmetic mean filter
– Useful for images with Gaussian or salt noise
– Black pixels (pepper noise) are not filtered

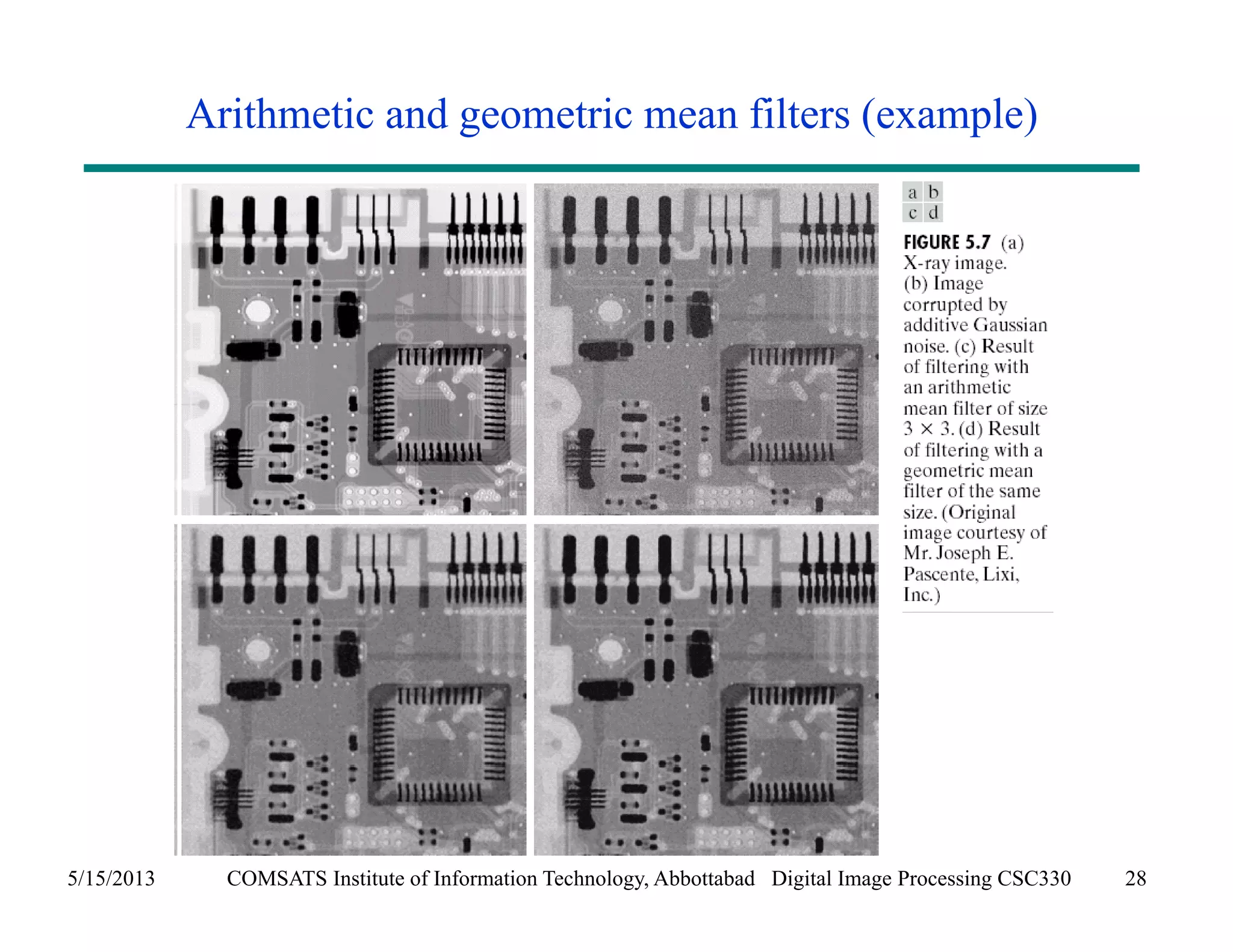

Arithmetic and geometric mean filters (example)

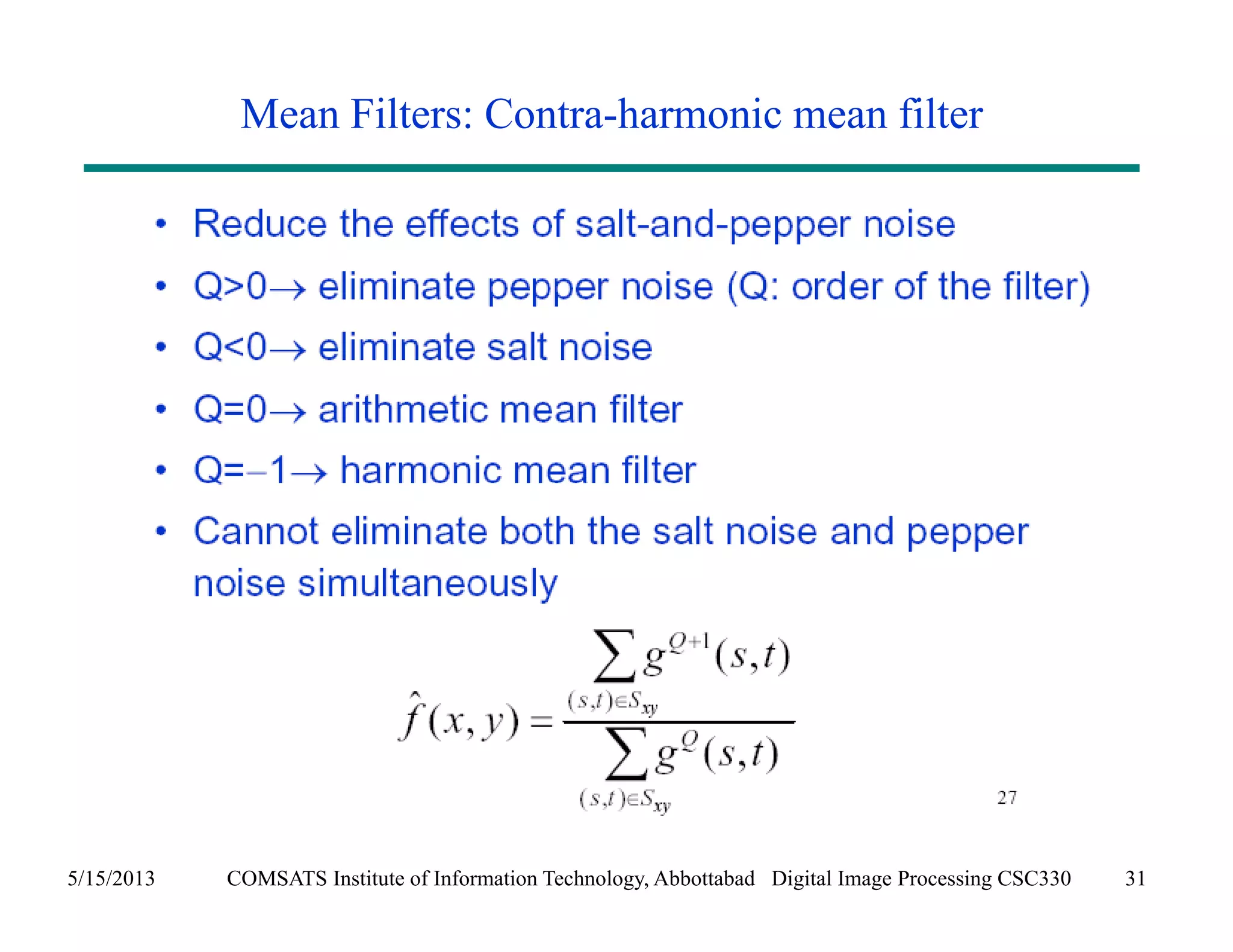

Mean Filters: Contra-harmonic mean filter

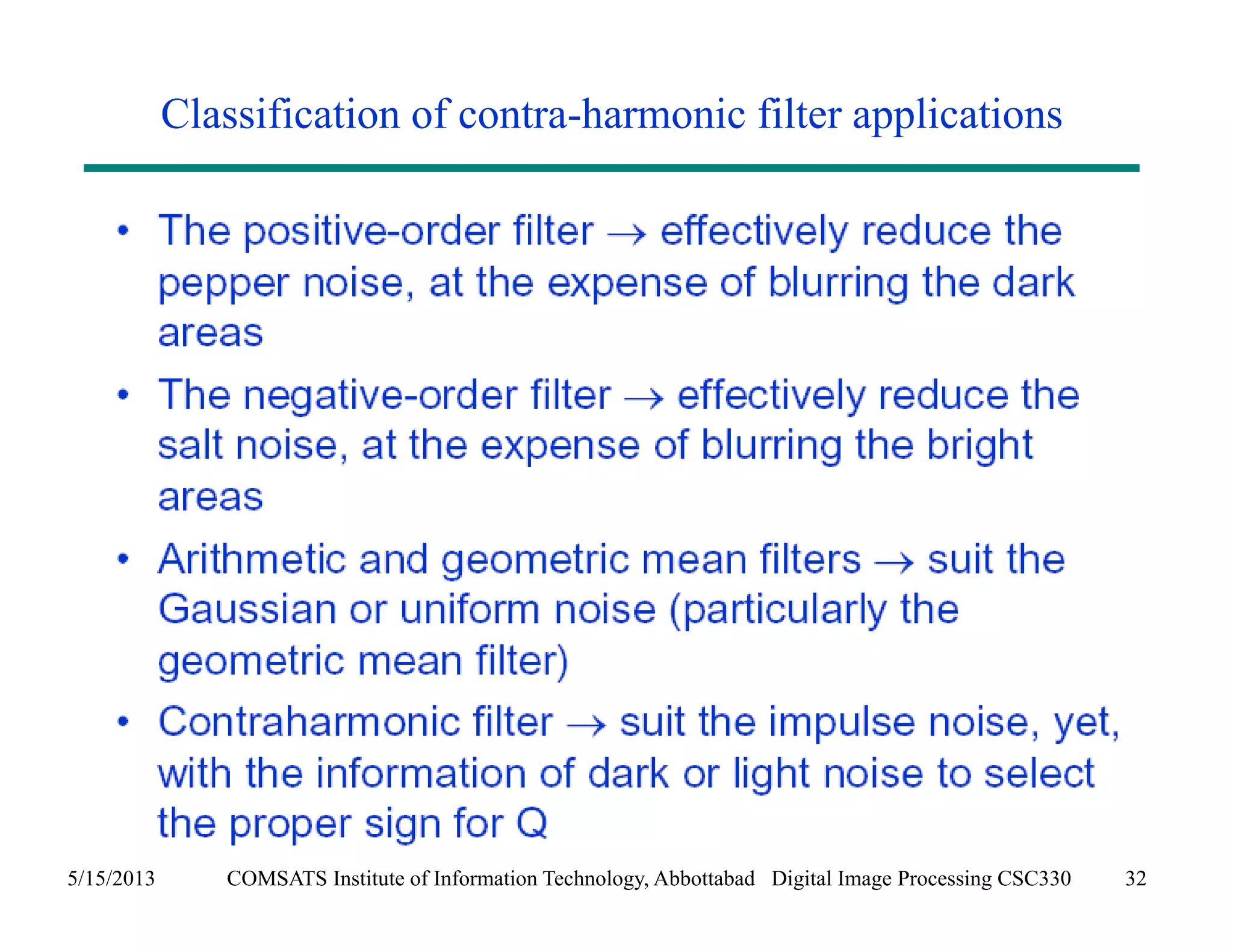

Classification of contra-harmonic filter applications

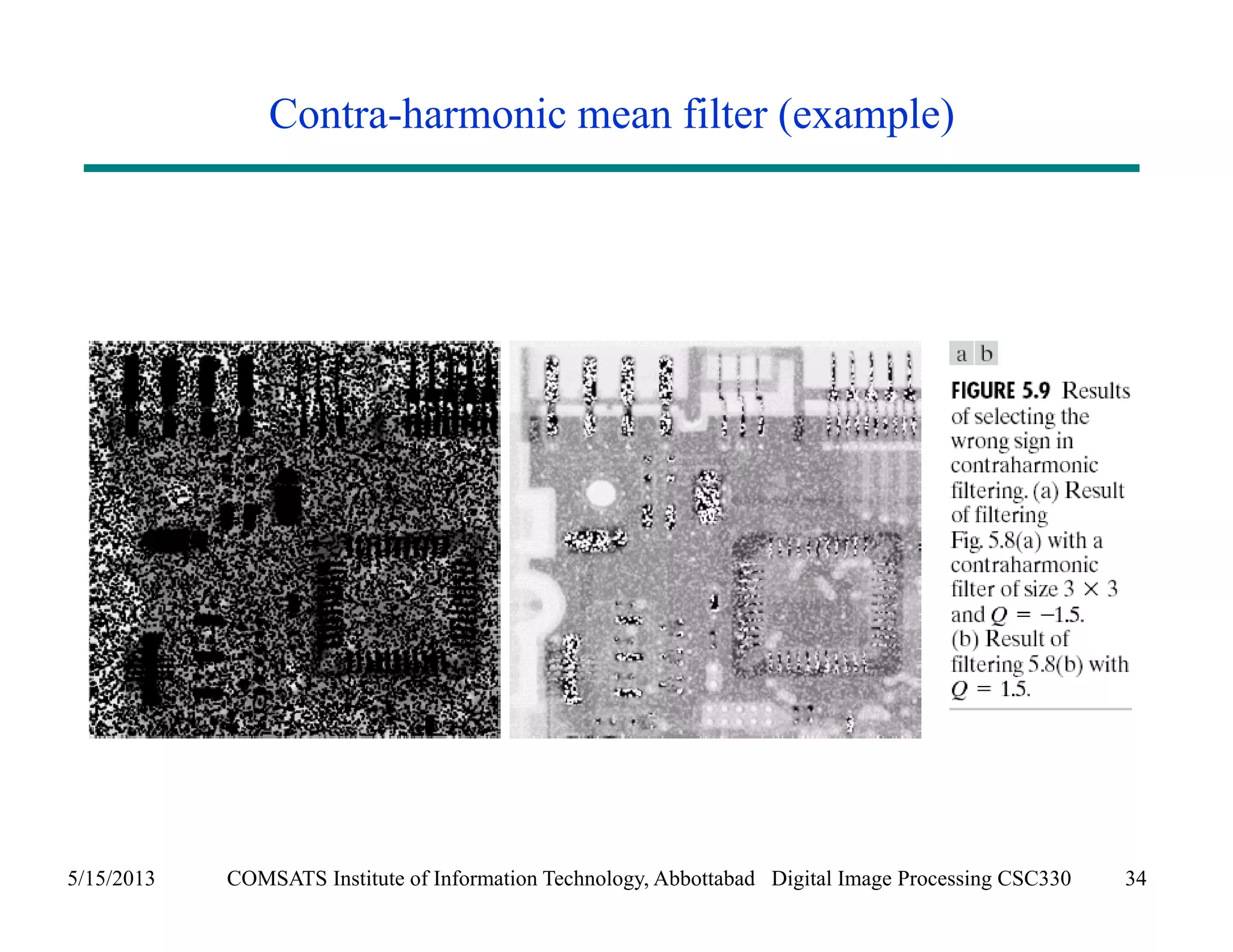

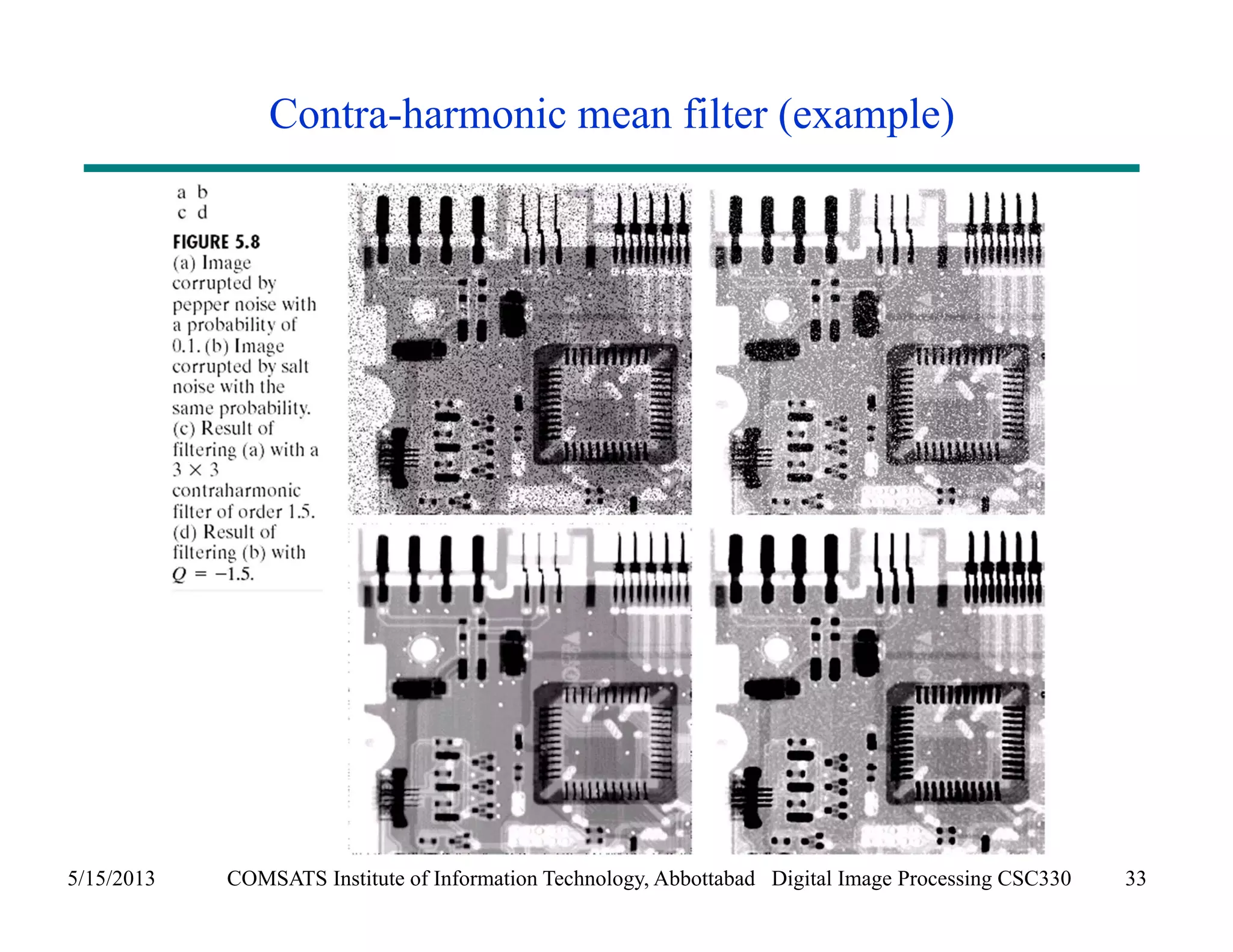

Contra-harmonic mean filter (example)

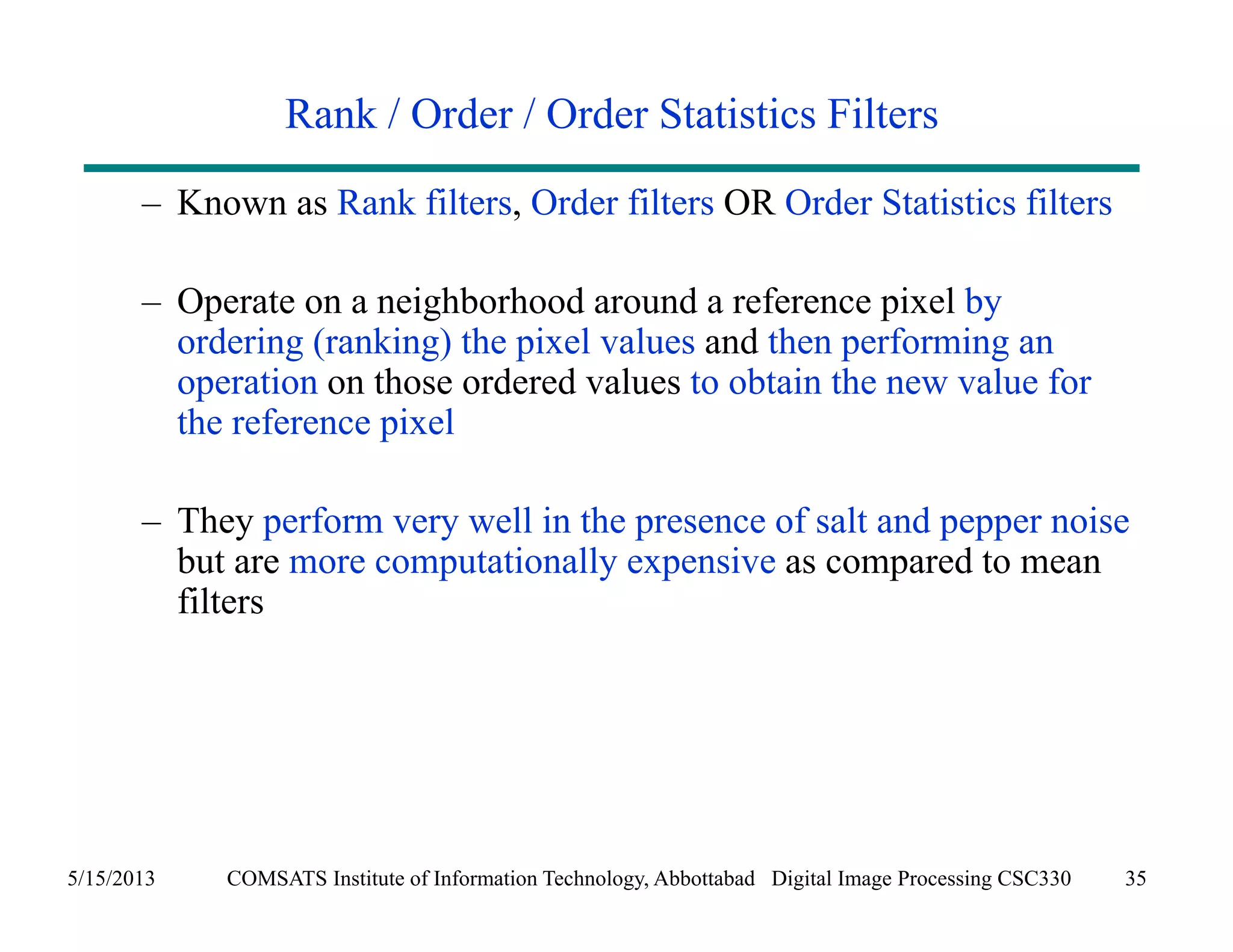

Rank / Order / Order Statistics Filters
– Known as Rank filters, Order filters OR Order Statistics filters
– Operate on a neighborhood around a reference pixel by
ordering (ranking) the pixel values and then performing an
operation on those ordered values to obtain the new value for
the reference pixel
– They perform very well in the presence of salt and pepper noise
but are more computationally expensive as compared to mean
filters

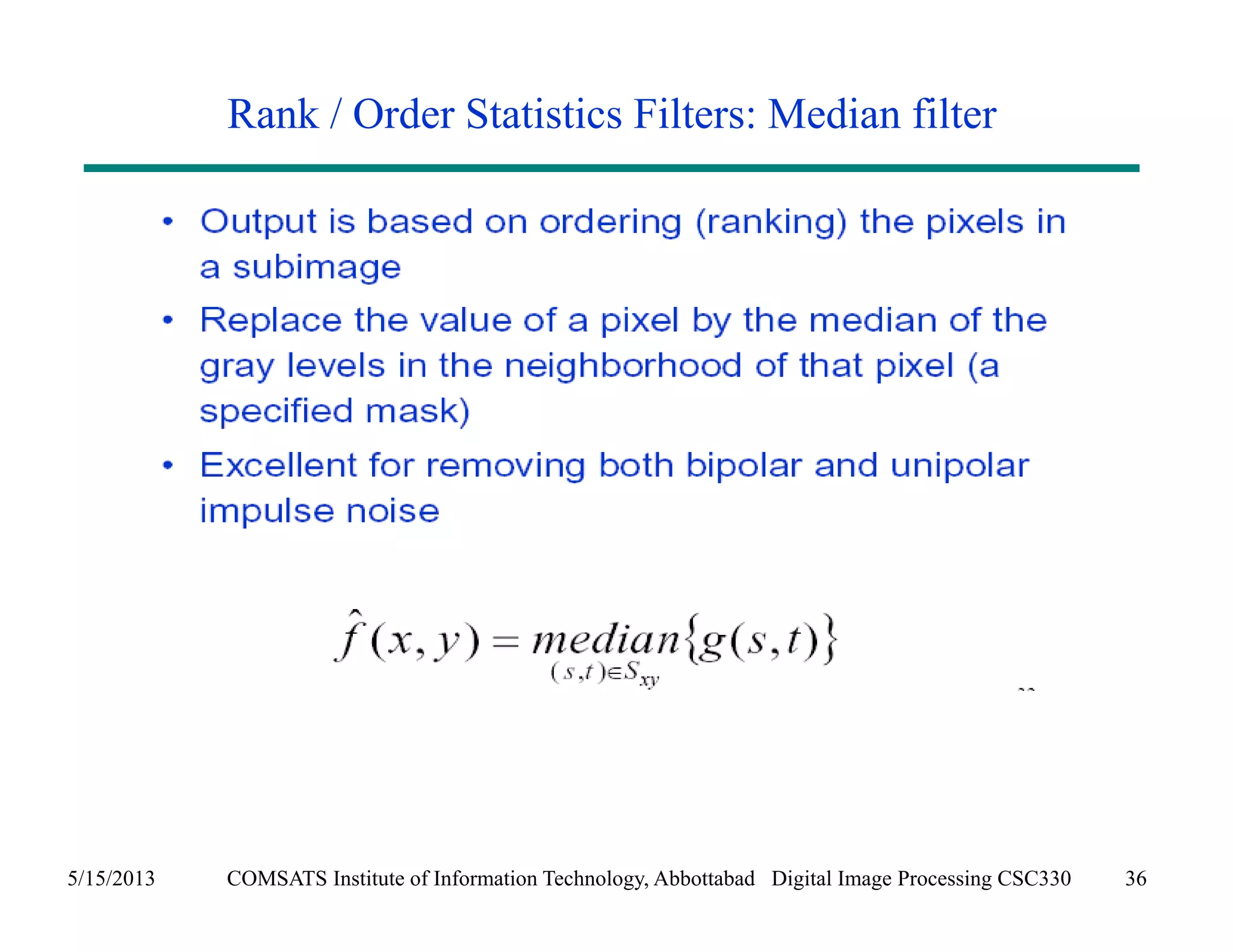

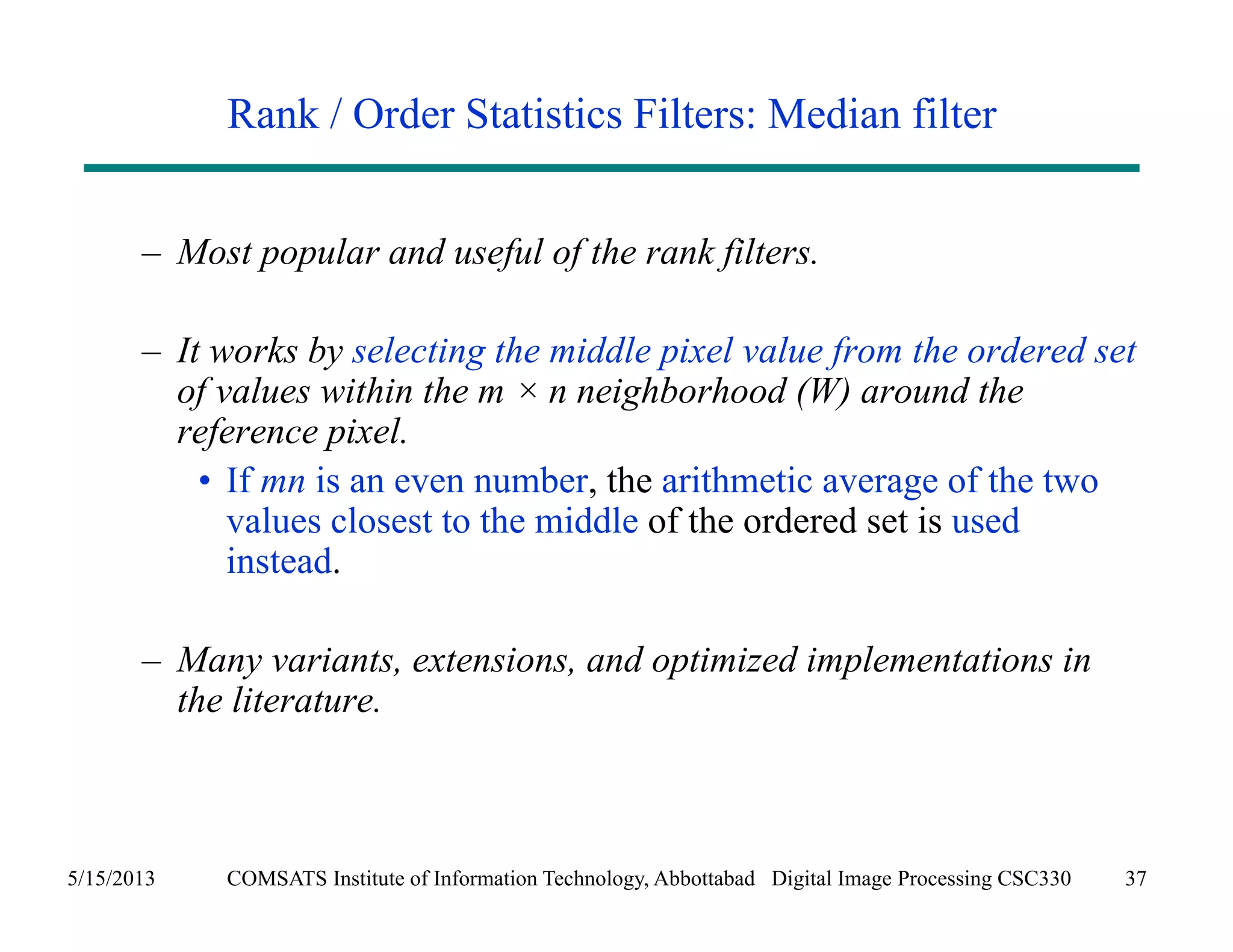

Rank / Order Statistics Filters: Median filter

Rank / Order Statistics Filters: Median filter
– Most popular and useful of the rank filters.
– It works by selecting the middle pixel value from the ordered set
of values within the m × n neighborhood (W) around the
reference pixel.
• If mn is an even number, the arithmetic average of the two
values closest to the middle of the ordered set is used
instead.
– Many variants, extensions, and optimized implementations in
the literature.

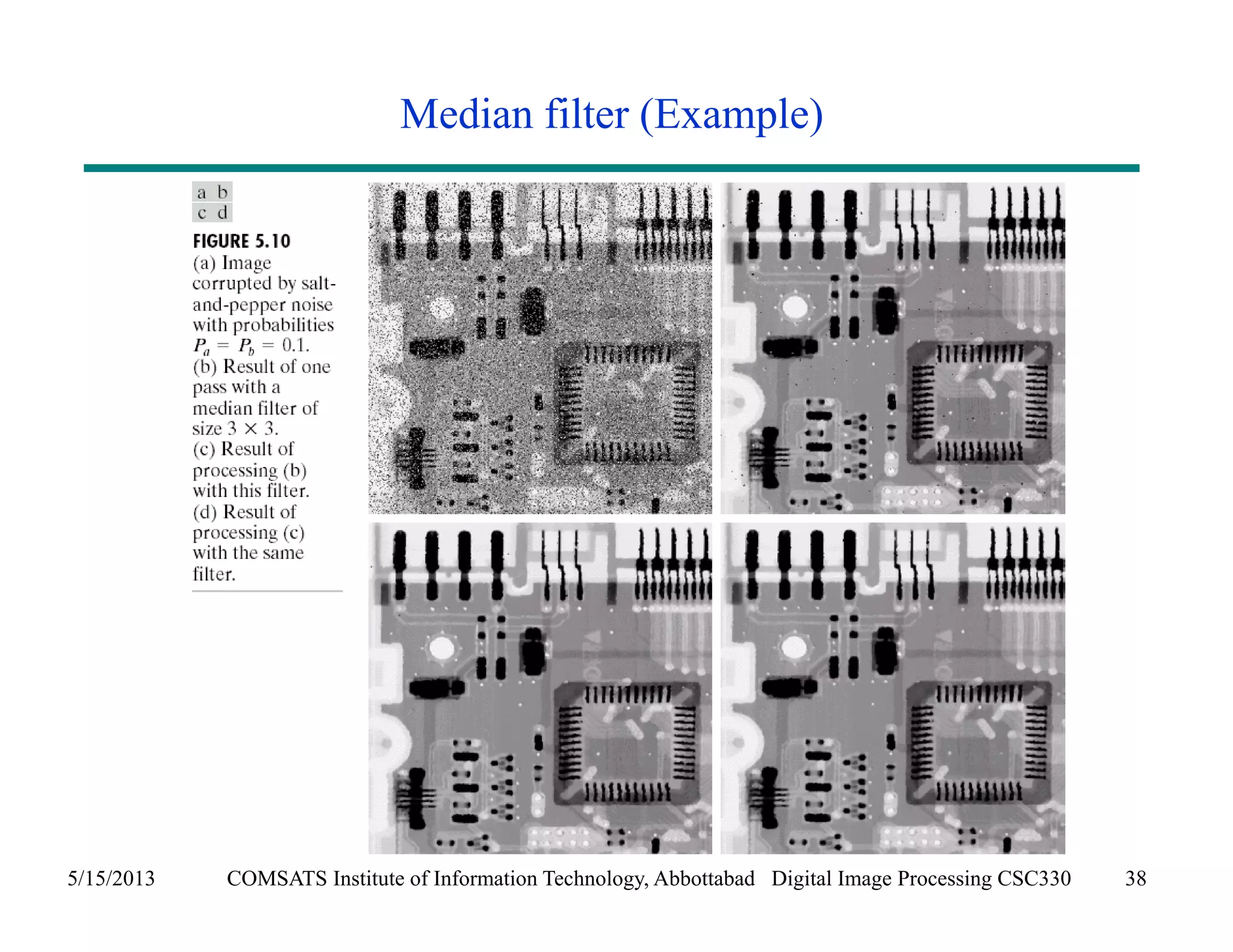

Median filter (Example)

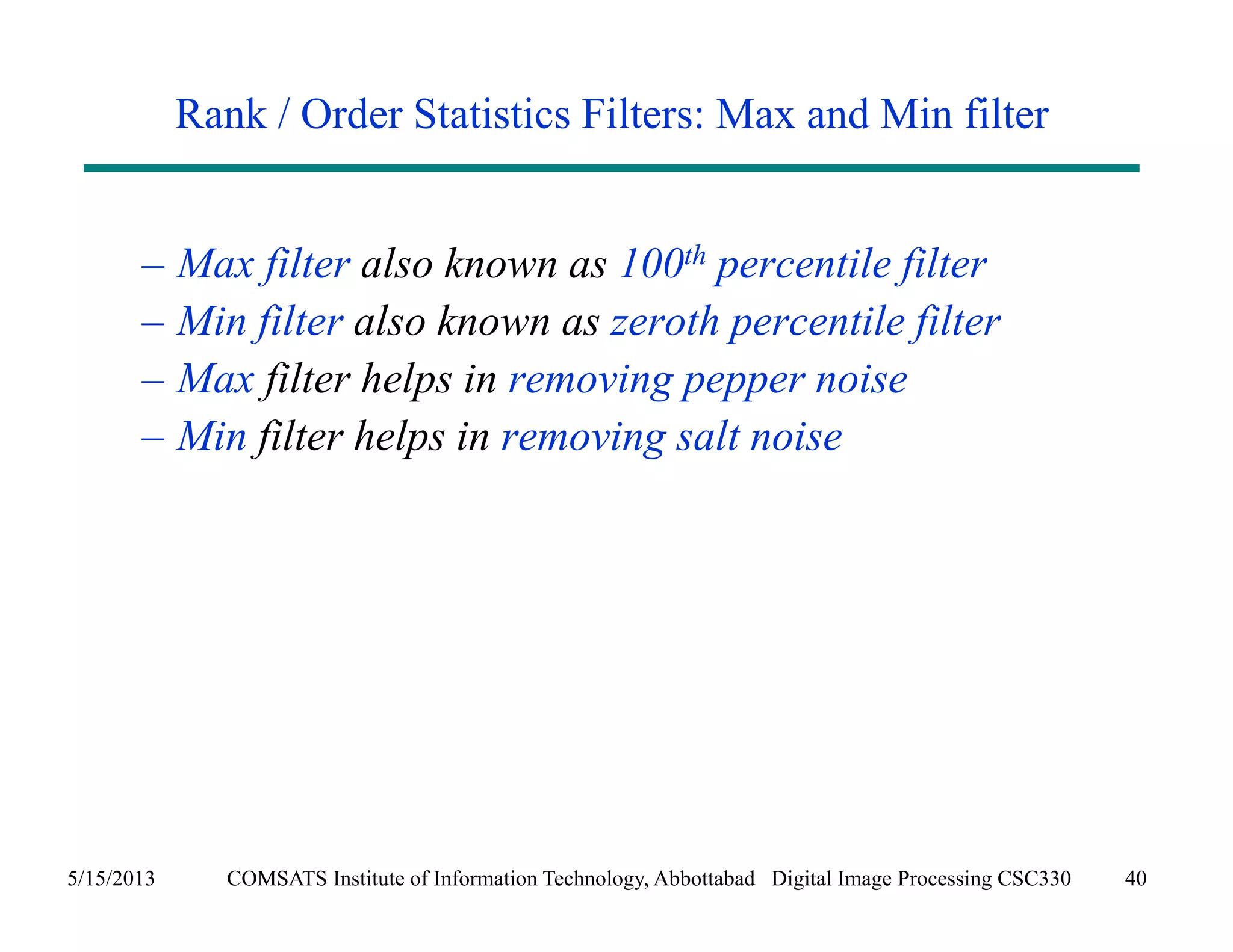

Rank / Order Statistics Filters: Max and Min filter

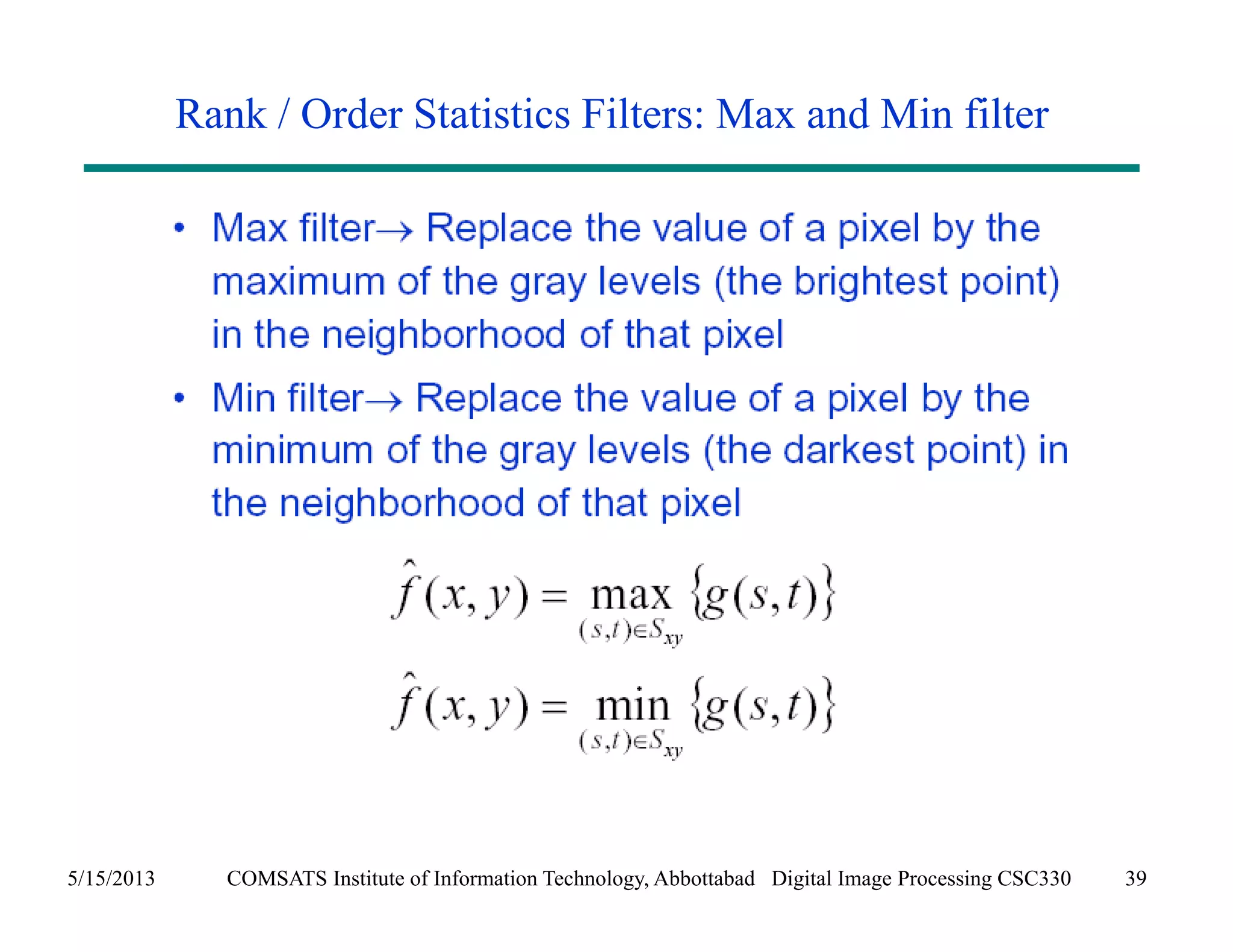

Rank / Order Statistics Filters: Max and Min filter
– Max filter also known as 100th percentile filter
– Min filter also known as zeroth percentile filter
– Max filter helps in removing pepper noise
– Min filter helps in removing salt noise

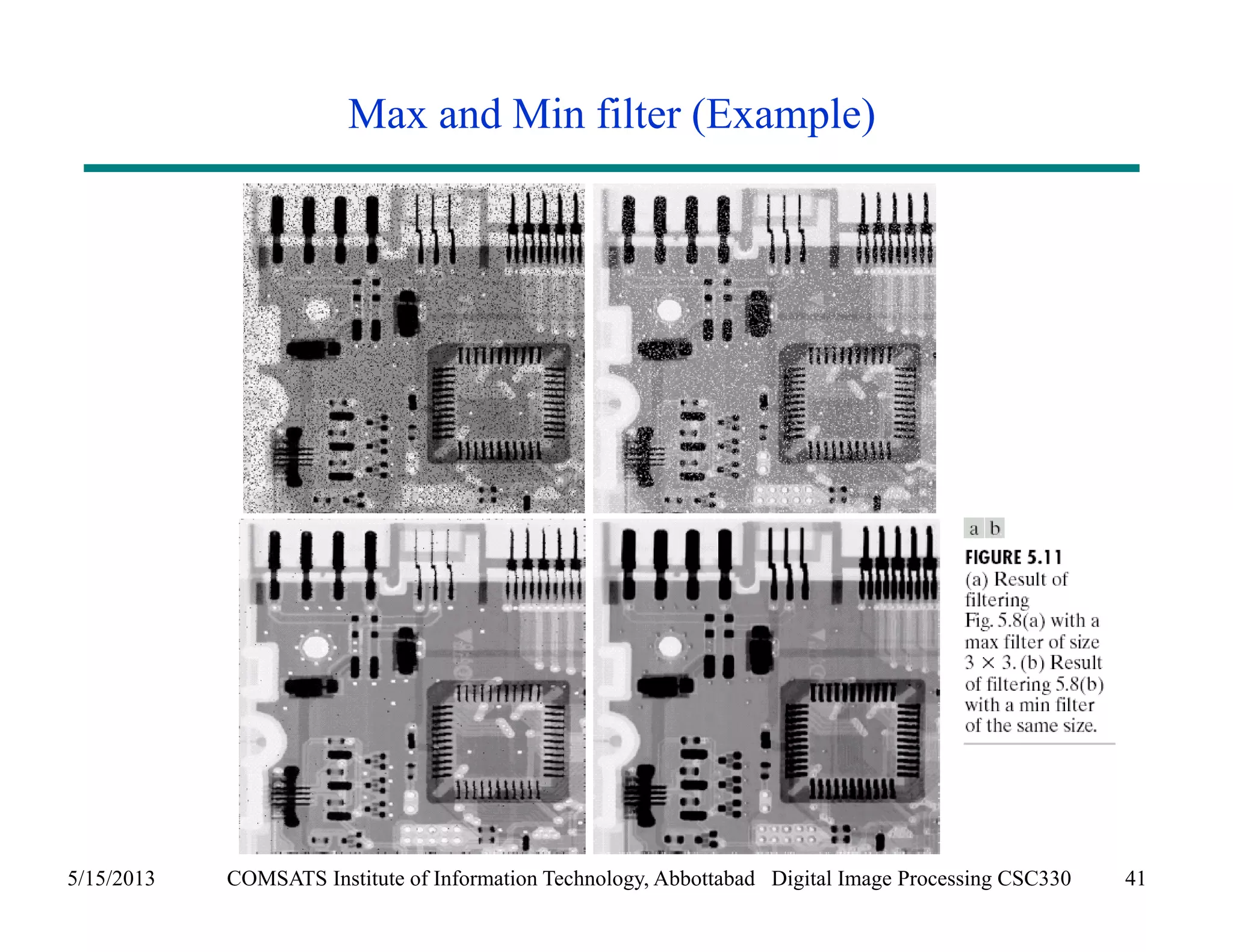

Max and Min filter (Example)

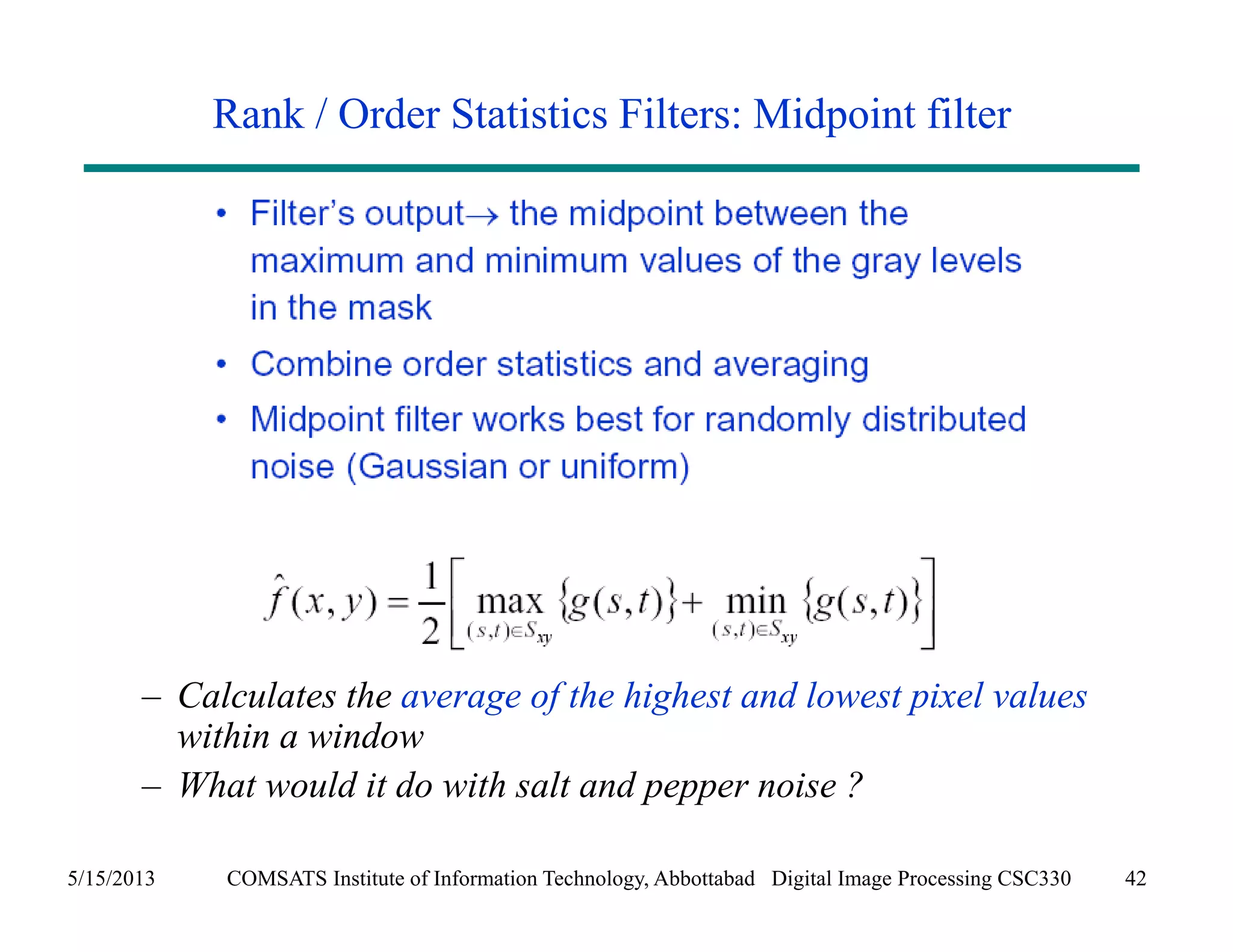

Rank / Order Statistics Filters: Midpoint filter
– Calculates the average of the highest and lowest pixel values
within a window
– What would it do with salt and pepper noise ?

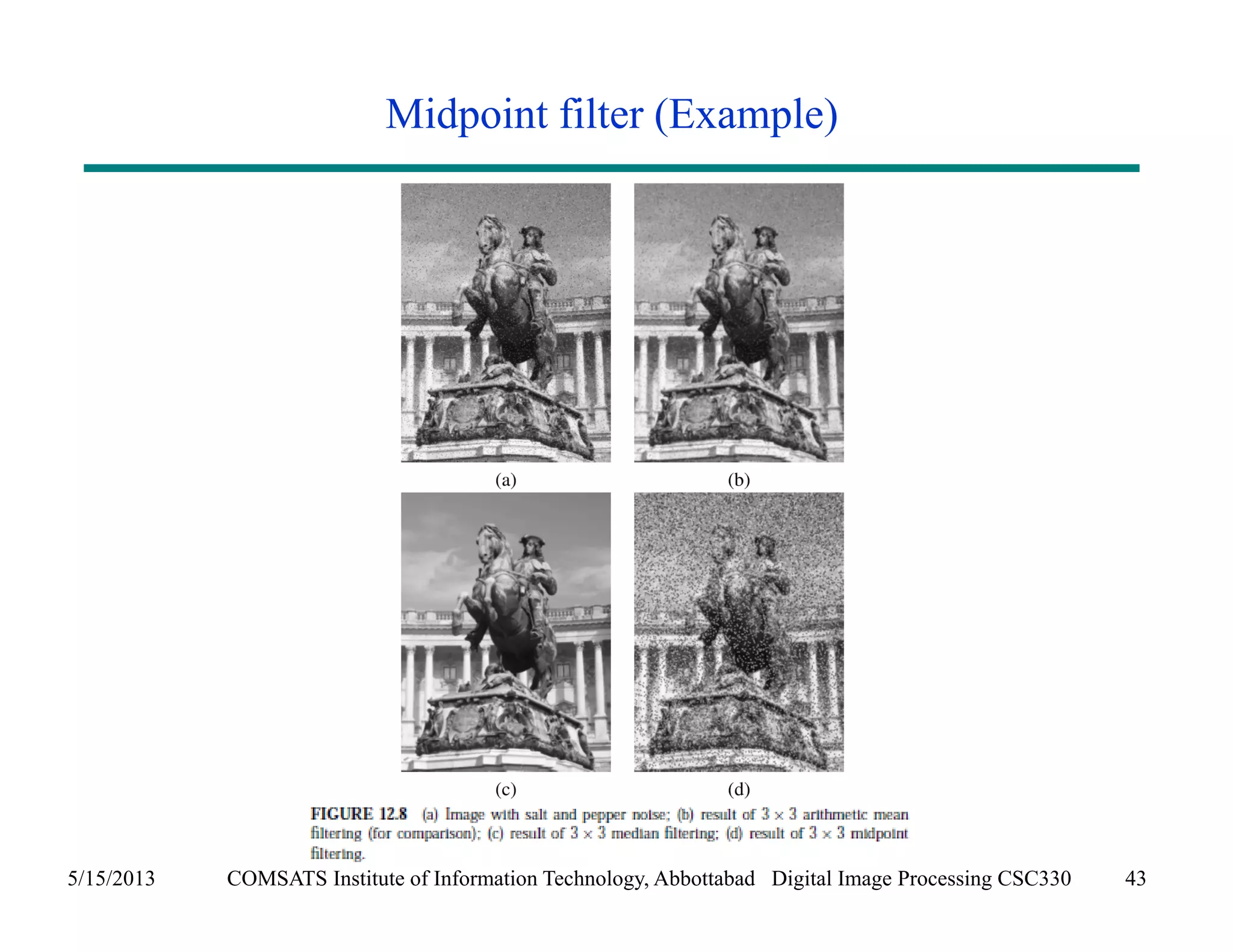

Midpoint filter (Example)
