Network Security and Visibility through NetFlow
- 1. Network Visibility through NetFlow RichardLaval Stealthwatch SEM, Europe rilaval@cisco.com 30-Mar-16
- 2. Changing Business Models Dynamic Threat Landscape Complexity andFragmentation New Networks Mean New Security Challenges Organizations lack visibility into which and how many devices are on their Network Services are moving to the Cloud at a faster rate than IT can keep up Over 50 billion connected “smart objects” by 2020. Acquisitions, joint ventures, and partnerships are increasing in regularity. ENTERPRISE MOBILITY ACQUISITIONS AND PARTNERSHIPS CLOUD INTERNET OF THINGS It’s Not “IF” You Will Be Breached…It’s “WHEN.” Expanded Enterprise Attack Surface
- 3. Partner Security Day@ Cisco Live Berlin Lawrence Orans, Gartner, Network and Gateway Security Primer for 2016 January 22, 2016 “Network security architects should accept the reality that, in 2016, it is unreasonable to expect that they can build perimeter defenses that will block every attack and prevent every security breach. Instead, they need to adopt new products and/or services that will enable the network to be an integral part of a strategy that focuses on detecting and responding to security incidents.”

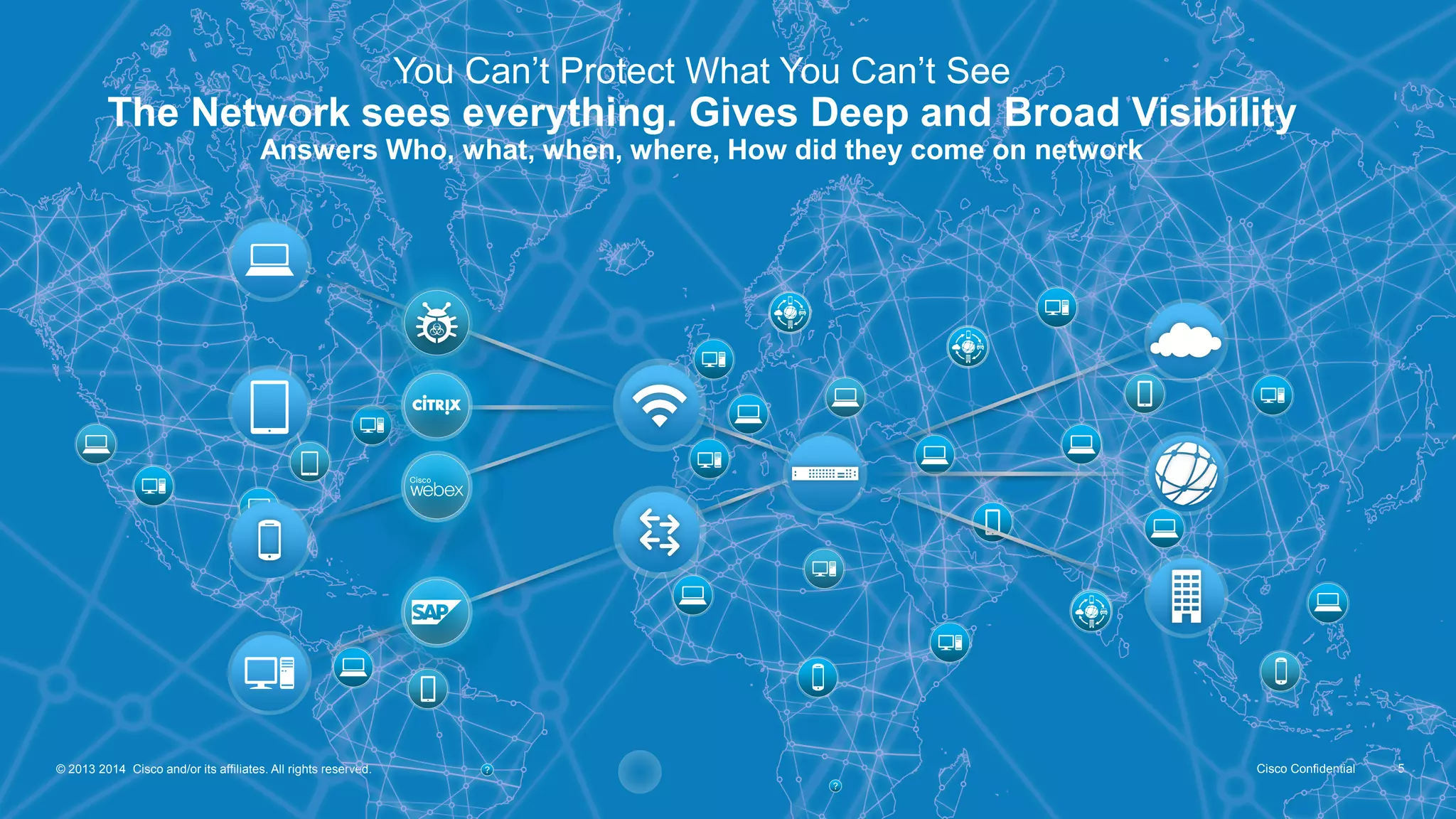

- 4. Cisco Confidential 5©2013 2014 Cisco and/or its affiliates. All rights reserved. You Can’t Protect What You Can’t See The Network sees everything. Gives Deep and Broad Visibility Answers Who, what, when, where, How did they come on network 0101 0100 1011 0101 0100 1011 0101 0100 1011 0101 0100 1011
- 5. The Insider Threat Aboutthis session
- 6. This session isabout using network analysis or the network (our obvious things) to mitigate an attack. “The world is full of obvious things which nobody by any chance observes.” Sherlock Holmes, The Hound of the Baskervilles
- 7. Managing the InsiderThreat Access Controls • Control who and what is on the network Segmentation • Define what they can do SGT You are who you say you are and these are the resources you are allowed access to based on your credentials.
- 8. Managing the InsiderThreat Control movement of malicious content through inspection points Content Controls • Deep contextual visibility at inspection points This is what you are allowed to bring into the secure zone/network.
- 9. Once the wallsare built monitor for security visibility 10 Now monitor the activity inside the secure controlled zone. Managing the Insider Threat

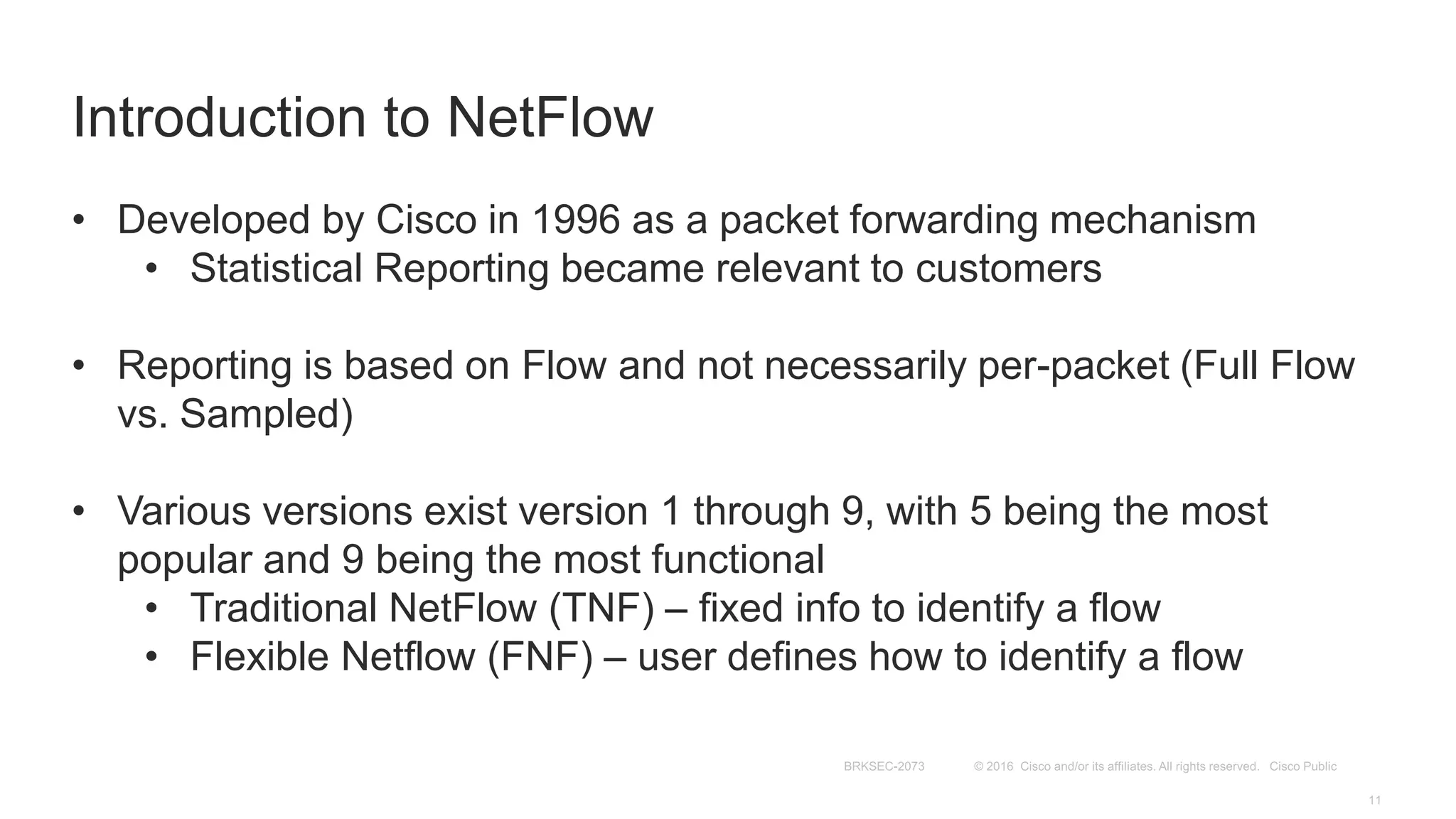

- 10. Introduction to NetFlow •Developed by Cisco in 1996 as a packet forwarding mechanism • Statistical Reporting became relevant to customers • Reporting is based on Flow and not necessarily per-packet (Full Flow vs. Sampled) • Various versions exist version 1 through 9, with 5 being the most popular and 9 being the most functional • Traditional NetFlow (TNF) – fixed info to identify a flow • Flexible Netflow (FNF) – user defines how to identify a flow

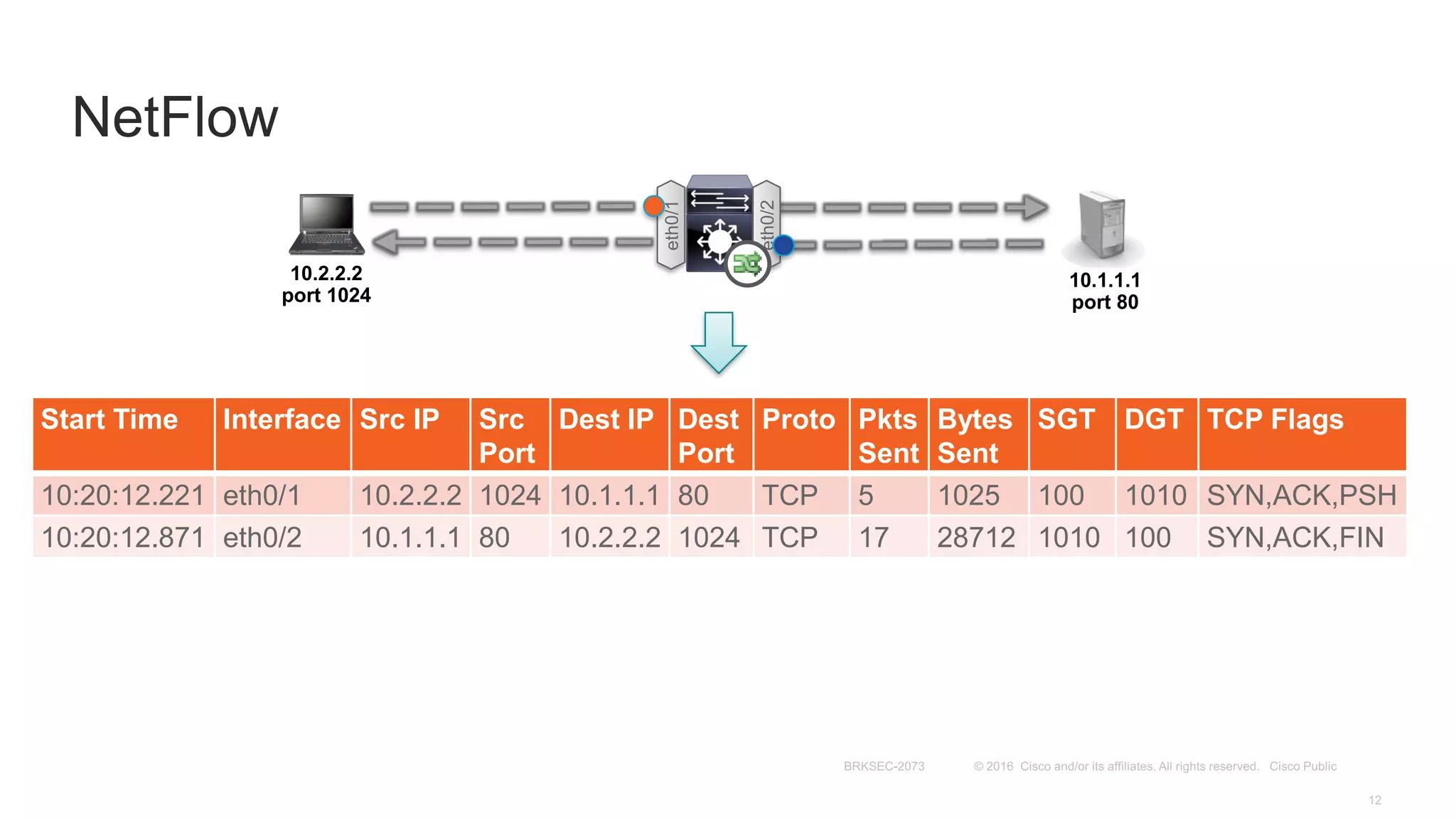

- 11. NetFlow 10.2.2.2 port 1024 10.1.1.1 port 80 eth0/1 eth0/2 StartTime Interface Src IP Src Port Dest IP Dest Port Proto Pkts Sent Bytes Sent SGT DGT TCP Flags 10:20:12.221 eth0/1 10.2.2.2 1024 10.1.1.1 80 TCP 5 1025 100 1010 SYN,ACK,PSH 10:20:12.871 eth0/2 10.1.1.1 80 10.2.2.2 1024 TCP 17 28712 1010 100 SYN,ACK,FIN Start Time Interface Src IP Src Port Dest IP Dest Port Proto Pkts Sent Bytes Sent SGT DGT TCP Flags 10:20:12.221 eth0/1 10.2.2.2 1024 10.1.1.1 80 TCP 5 1025 100 1010 SYN,ACK,PSH

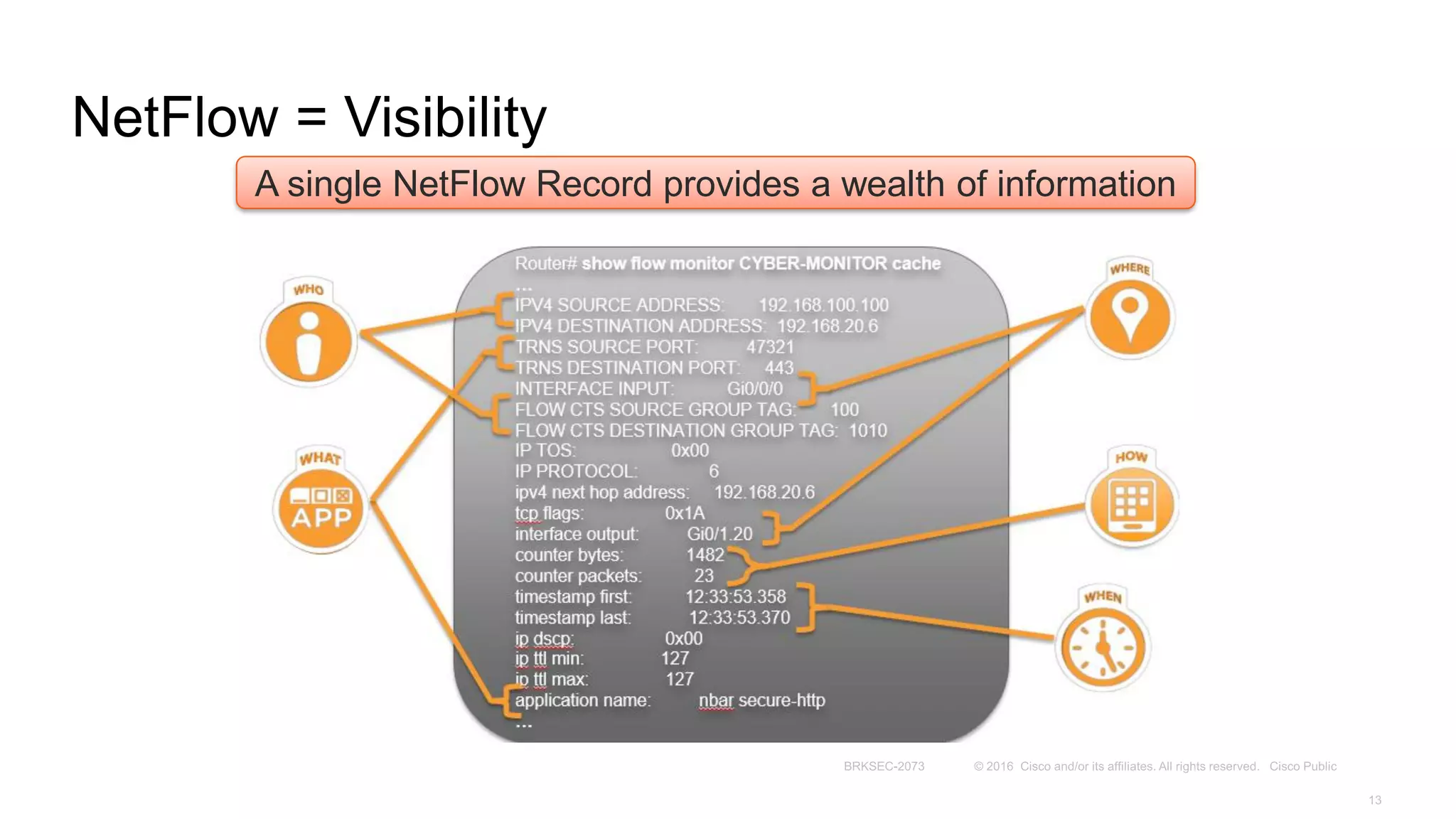

- 12. NetFlow = Visibility Asingle NetFlow Record provides a wealth of information

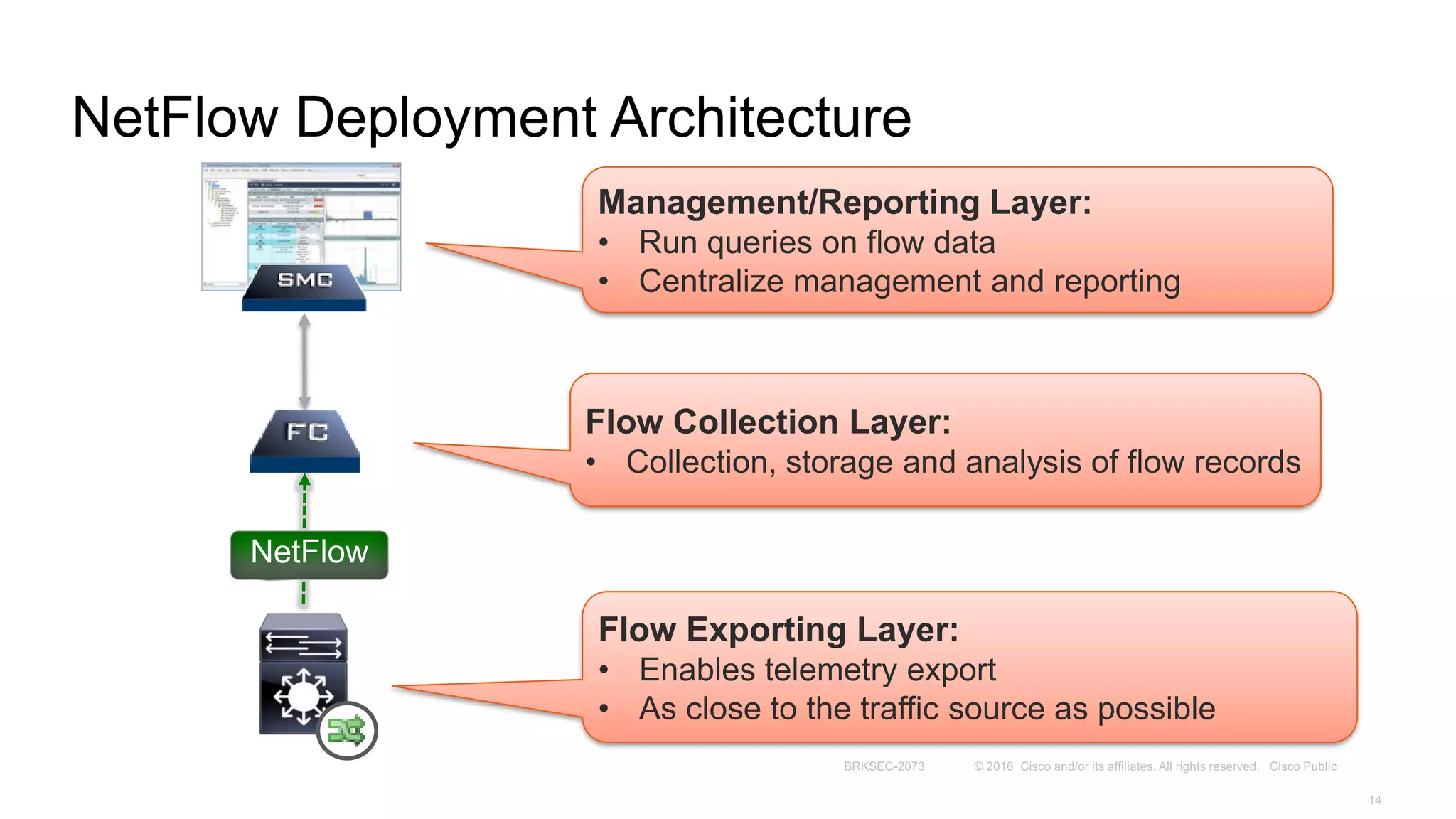

- 13. NetFlow Deployment Architecture Management/ReportingLayer: • Run queries on flow data • Centralize management and reporting Flow Collection Layer: • Collection, storage and analysis of flow records Flow Exporting Layer: • Enables telemetry export • As close to the traffic source as possible NetFlow

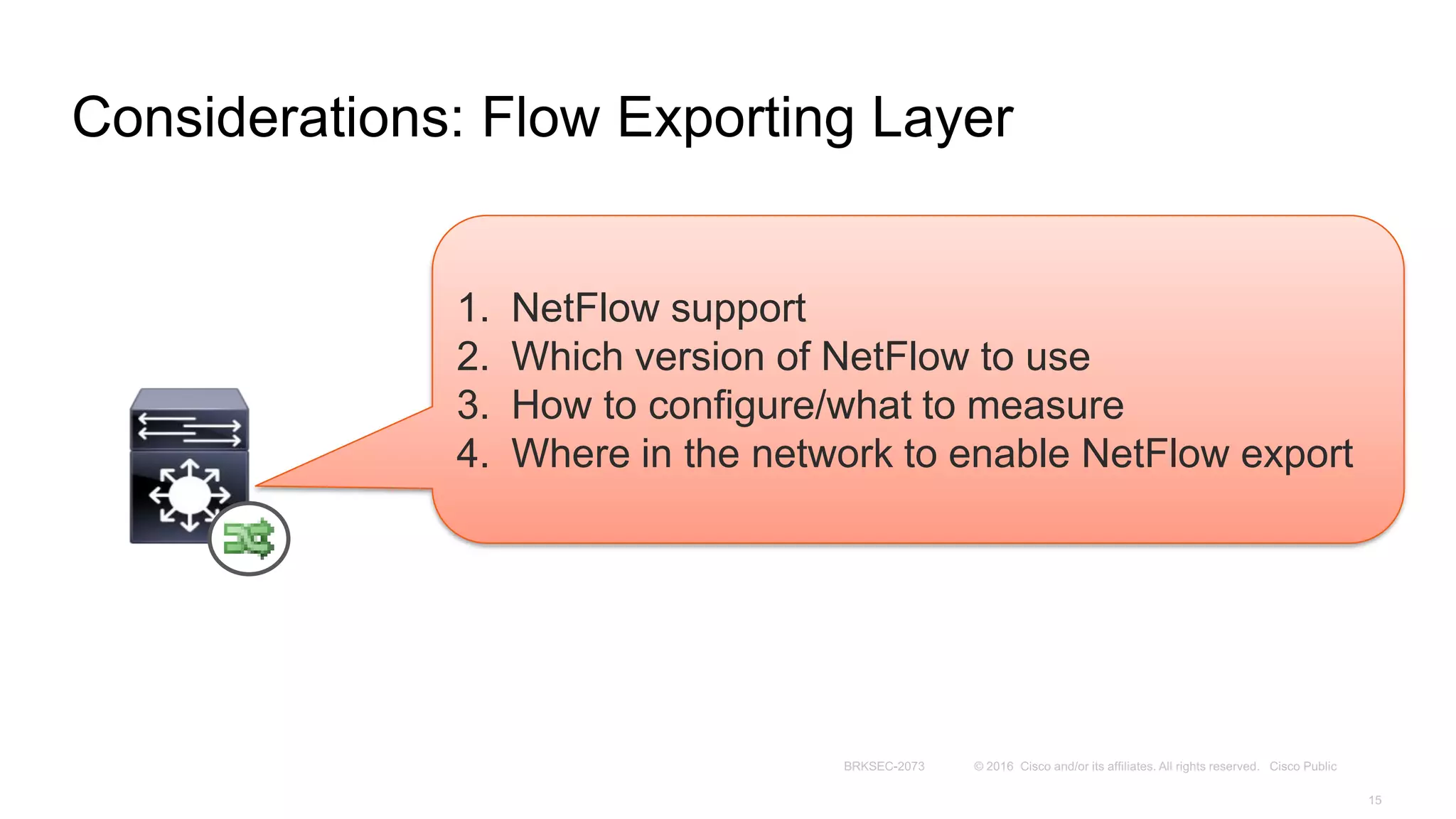

- 14. Considerations: Flow ExportingLayer 1. NetFlow support 2. Which version of NetFlow to use 3. How to configure/what to measure 4. Where in the network to enable NetFlow export

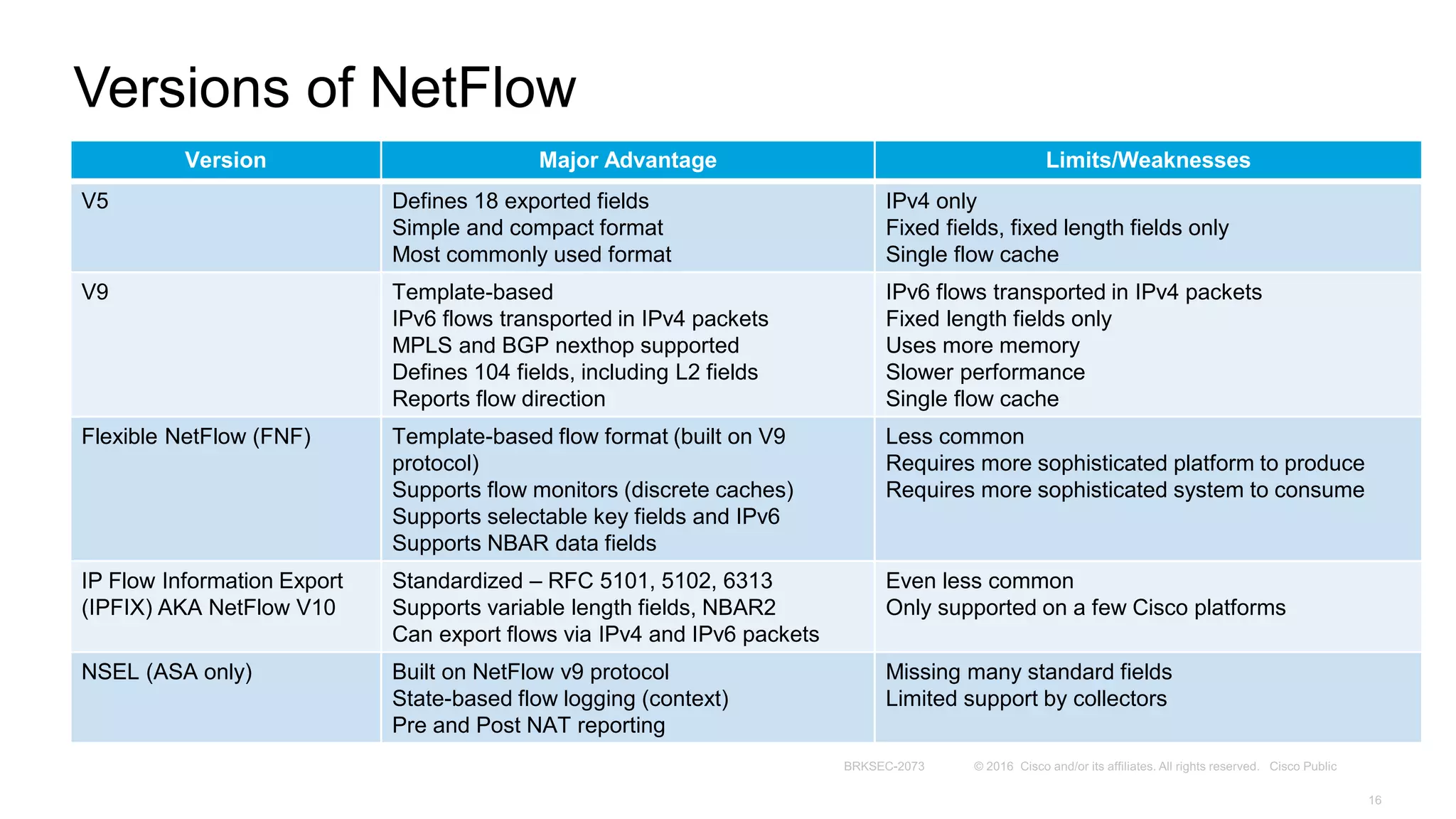

- 15. Versions of NetFlow VersionMajor Advantage Limits/Weaknesses V5 Defines 18 exported fields Simple and compact format Most commonly used format IPv4 only Fixed fields, fixed length fields only Single flow cache V9 Template-based IPv6 flows transported in IPv4 packets MPLS and BGP nexthop supported Defines 104 fields, including L2 fields Reports flow direction IPv6 flows transported in IPv4 packets Fixed length fields only Uses more memory Slower performance Single flow cache Flexible NetFlow (FNF) Template-based flow format (built on V9 protocol) Supports flow monitors (discrete caches) Supports selectable key fields and IPv6 Supports NBAR data fields Less common Requires more sophisticated platform to produce Requires more sophisticated system to consume IP Flow Information Export (IPFIX) AKA NetFlow V10 Standardized – RFC 5101, 5102, 6313 Supports variable length fields, NBAR2 Can export flows via IPv4 and IPv6 packets Even less common Only supported on a few Cisco platforms NSEL (ASA only) Built on NetFlow v9 protocol State-based flow logging (context) Pre and Post NAT reporting Missing many standard fields Limited support by collectors

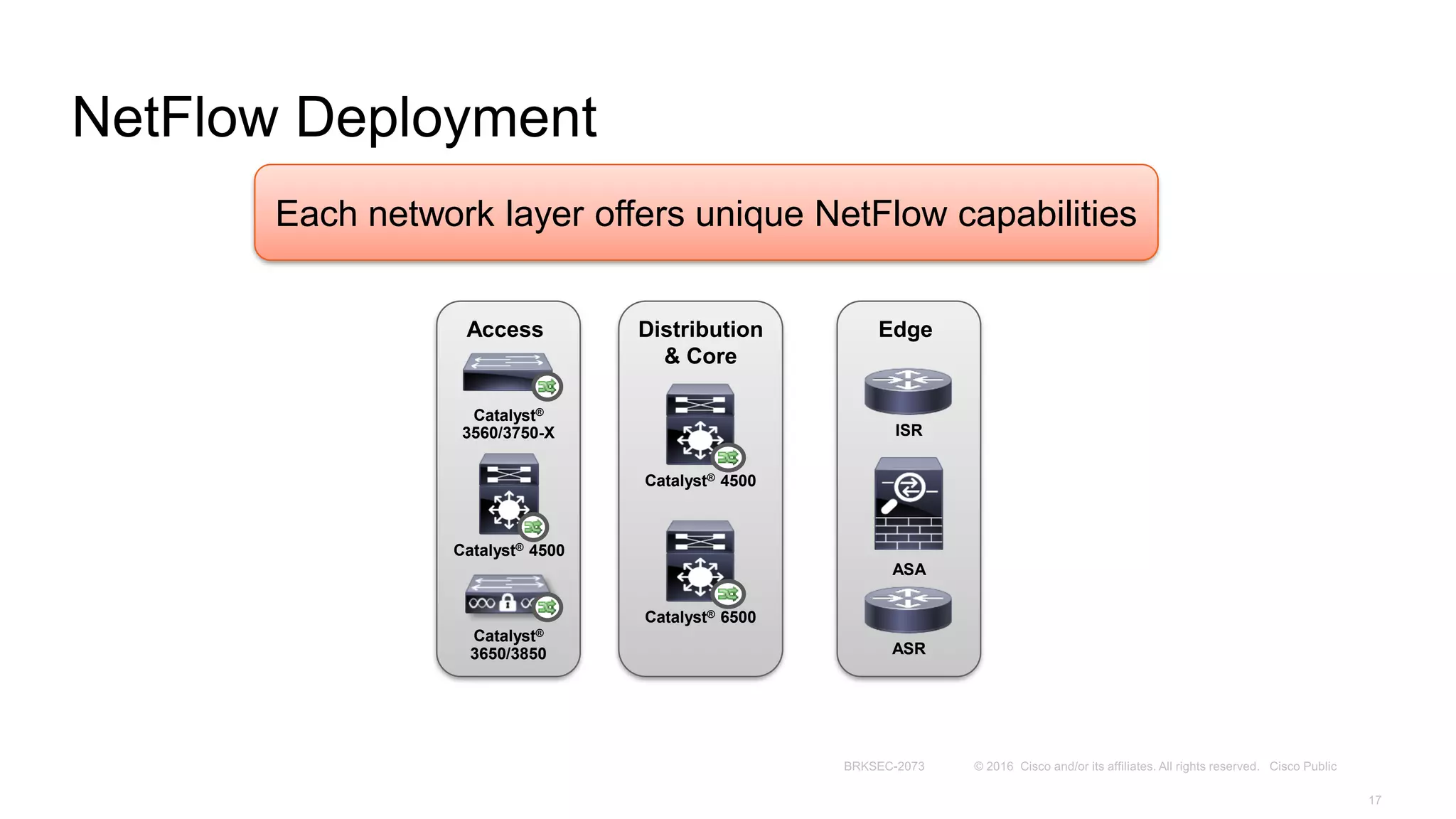

- 16. NetFlow Deployment Catalyst® 6500 Distribution &Core Catalyst® 4500 ASA ISR Edge ASR Each network layer offers unique NetFlow capabilities Access Catalyst® 3560/3750-X Catalyst® 4500 Catalyst® 3650/3850

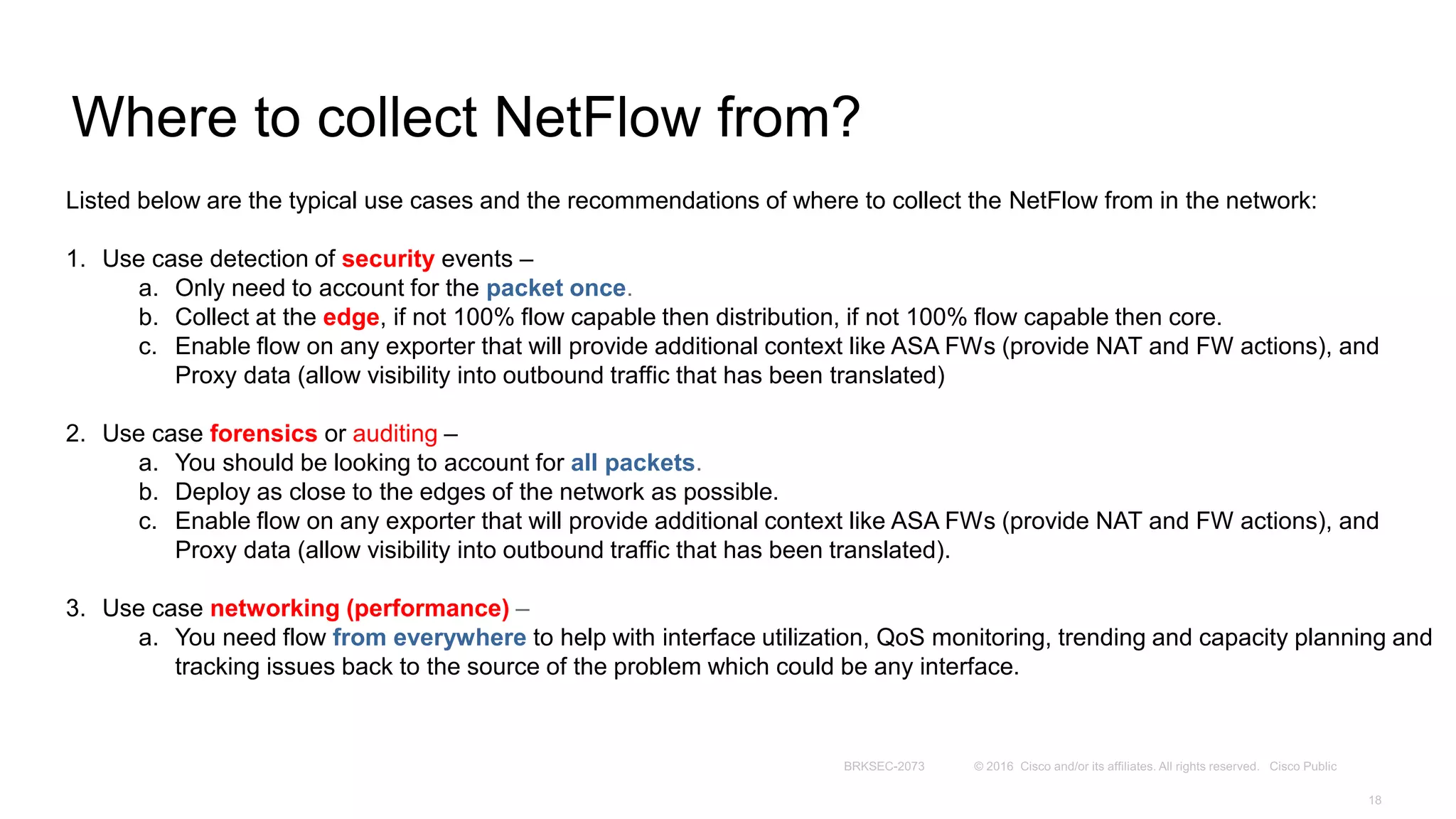

- 17. Where to collectNetFlow from? Listed below are the typical use cases and the recommendations of where to collect the NetFlow from in the network: 1. Use case detection of security events – a. Only need to account for the packet once. b. Collect at the edge, if not 100% flow capable then distribution, if not 100% flow capable then core. c. Enable flow on any exporter that will provide additional context like ASA FWs (provide NAT and FW actions), and Proxy data (allow visibility into outbound traffic that has been translated) 2. Use case forensics or auditing – a. You should be looking to account for all packets. b. Deploy as close to the edges of the network as possible. c. Enable flow on any exporter that will provide additional context like ASA FWs (provide NAT and FW actions), and Proxy data (allow visibility into outbound traffic that has been translated). 3. Use case networking (performance) – a. You need flow from everywhere to help with interface utilization, QoS monitoring, trending and capacity planning and tracking issues back to the source of the problem which could be any interface.

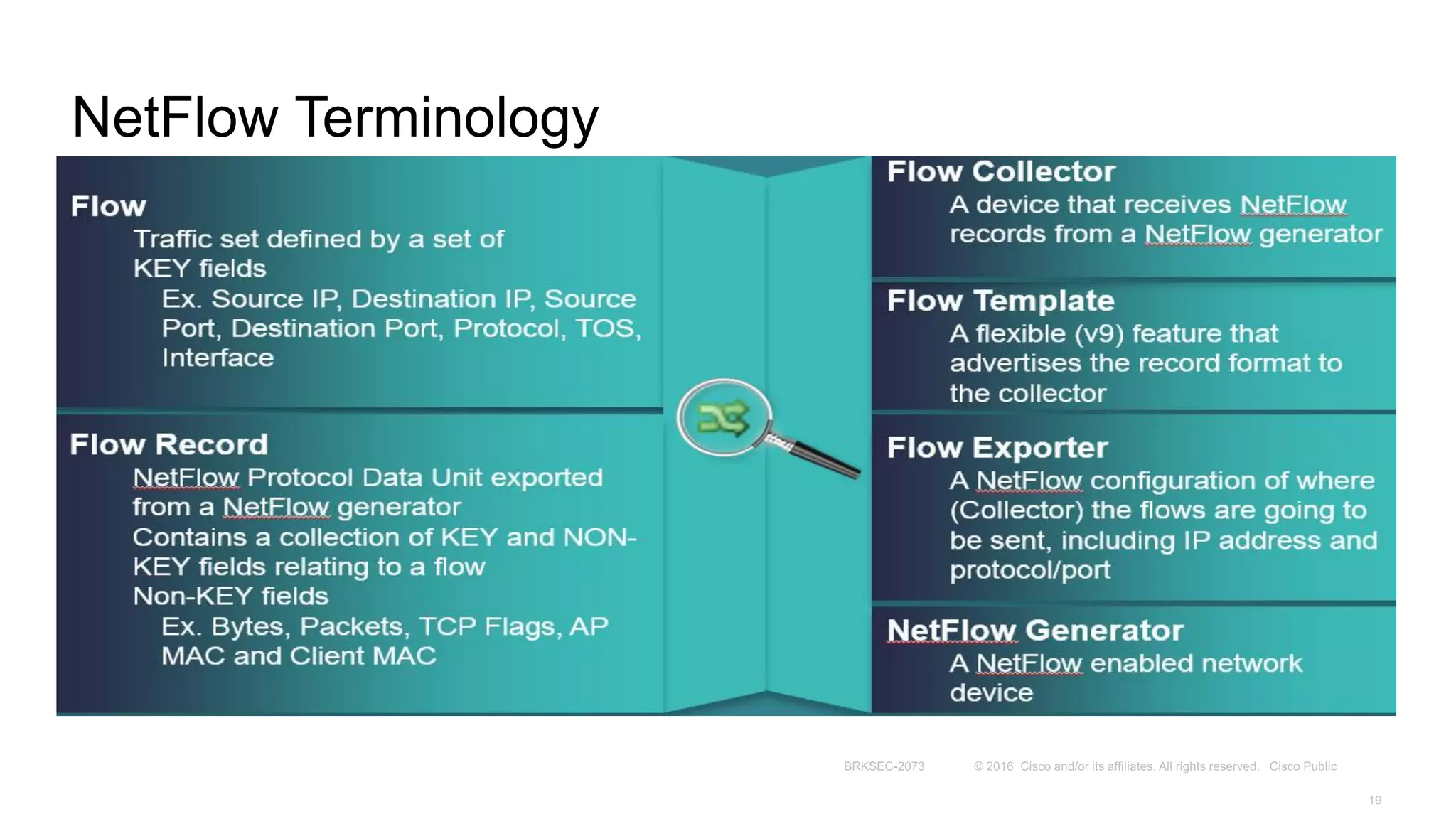

- 18.

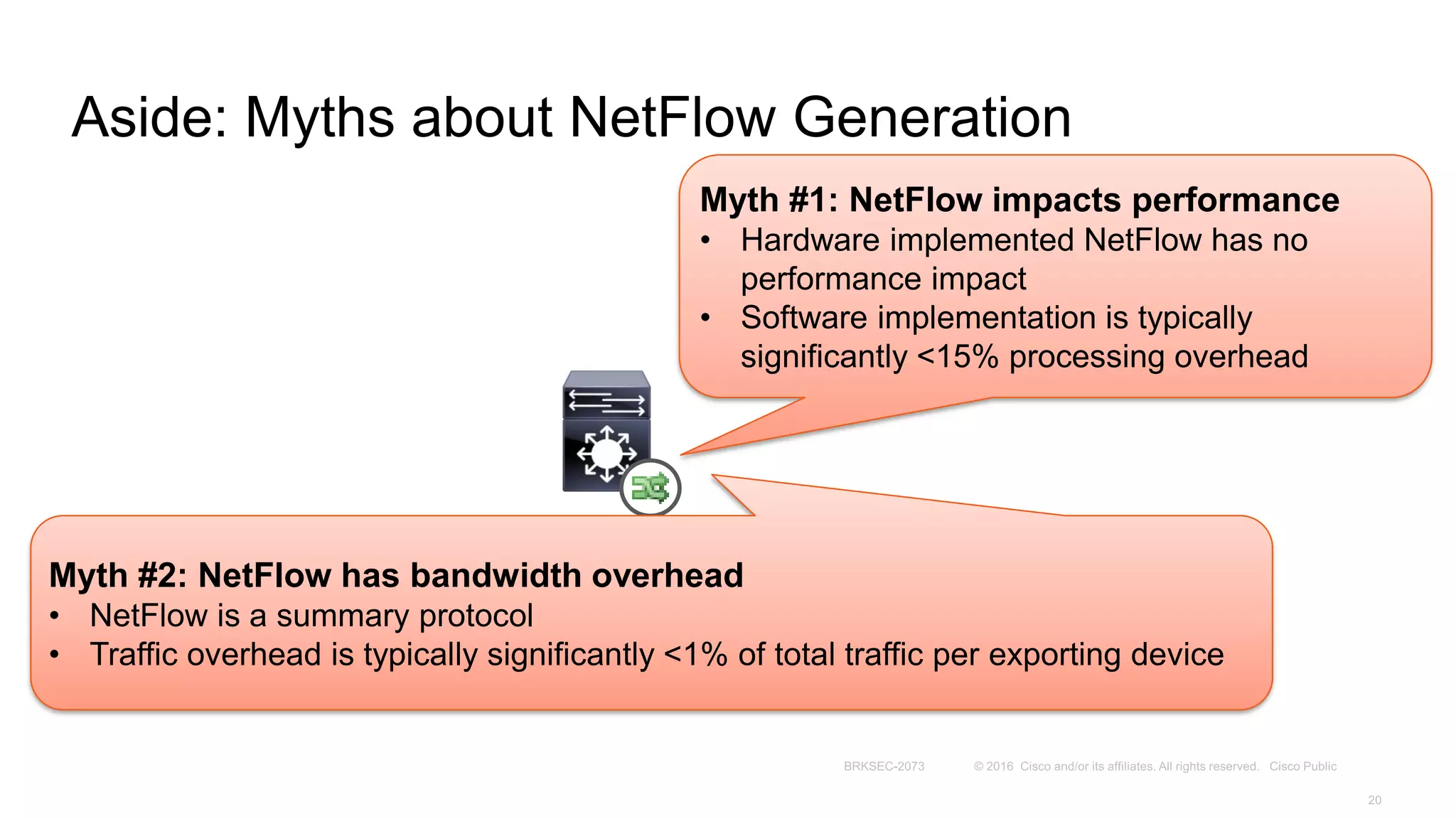

- 19. Aside: Myths aboutNetFlow Generation Myth #1: NetFlow impacts performance • Hardware implemented NetFlow has no performance impact • Software implementation is typically significantly <15% processing overhead Myth #2: NetFlow has bandwidth overhead • NetFlow is a summary protocol • Traffic overhead is typically significantly <1% of total traffic per exporting device

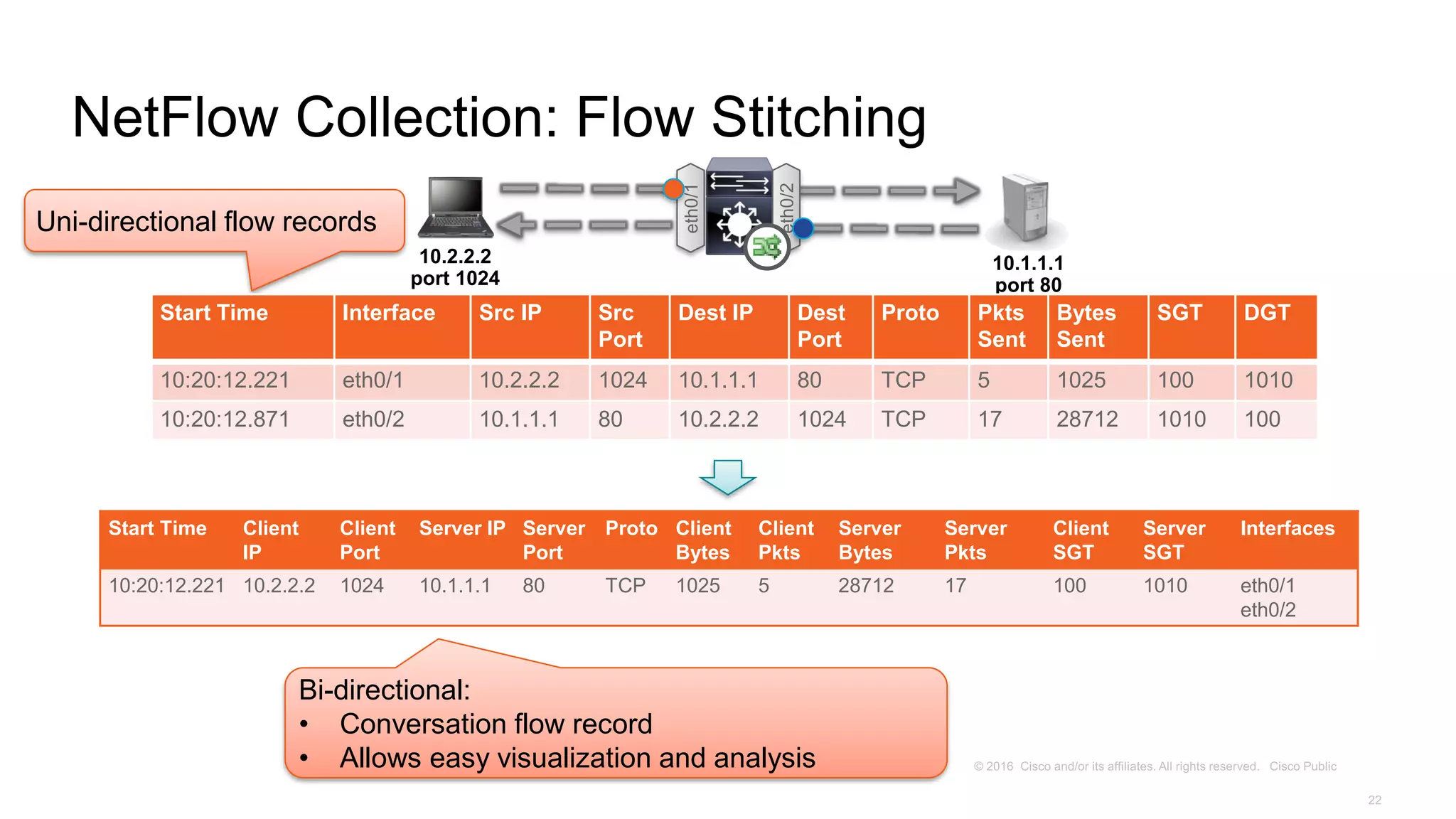

- 20. NetFlow Collection: FlowStitching 10.2.2.2 port 1024 10.1.1.1 port 80 eth0/1 eth0/2 Start Time Client IP Client Port Server IP Server Port Proto Client Bytes Client Pkts Server Bytes Server Pkts Client SGT Server SGT Interfaces 10:20:12.221 10.2.2.2 1024 10.1.1.1 80 TCP 1025 5 28712 17 100 1010 eth0/1 eth0/2 Uni-directional flow records Bi-directional: • Conversation flow record • Allows easy visualization and analysis Start Time Interface Src IP Src Port Dest IP Dest Port Proto Pkts Sent Bytes Sent SGT DGT 10:20:12.221 eth0/1 10.2.2.2 1024 10.1.1.1 80 TCP 5 1025 100 1010 10:20:12.871 eth0/2 10.1.1.1 80 10.2.2.2 1024 TCP 17 28712 1010 100

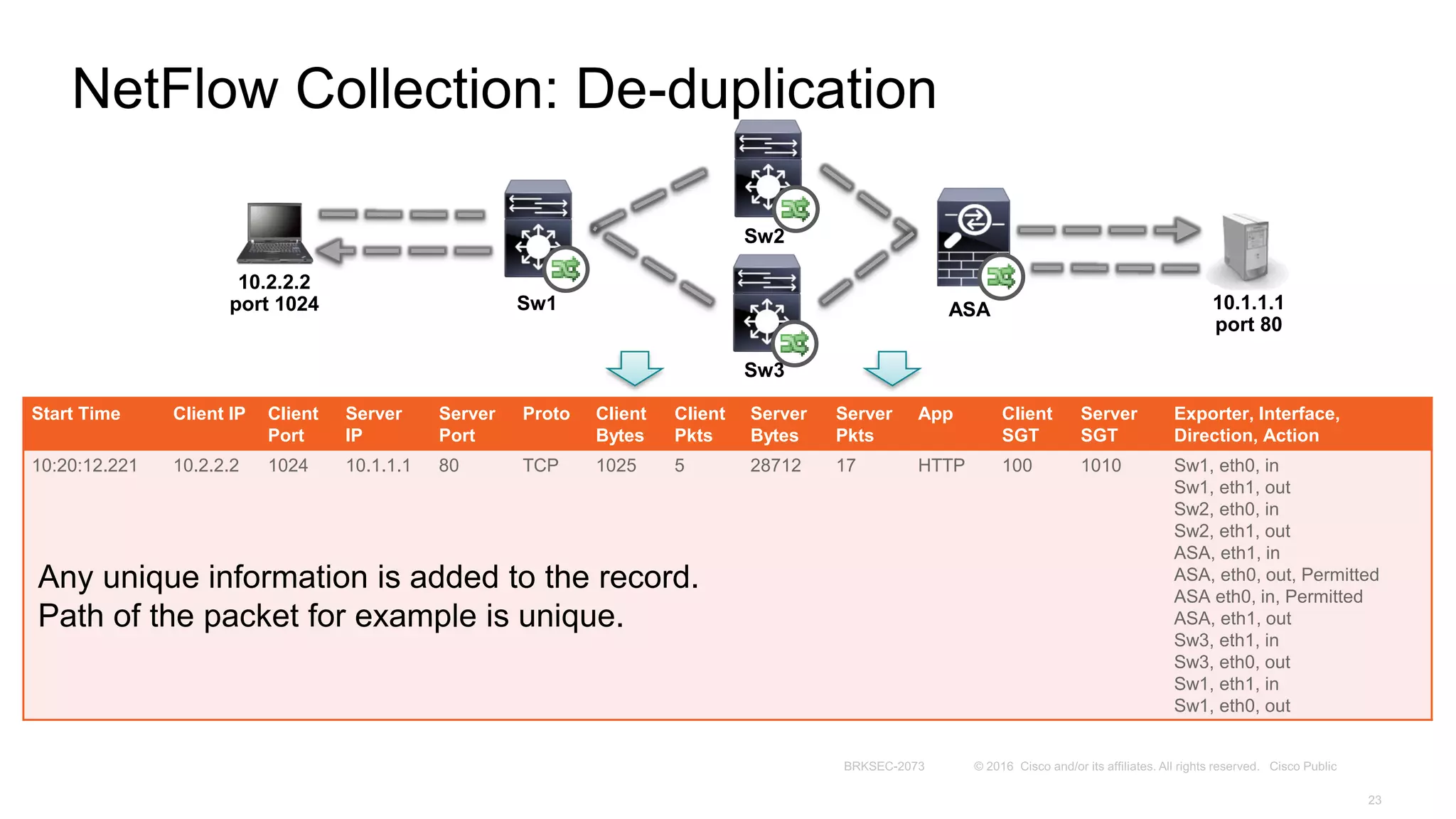

- 21. NetFlow Collection: De-duplication StartTime Client IP Client Port Server IP Server Port Proto Client Bytes Client Pkts Server Bytes Server Pkts App Client SGT Server SGT Exporter, Interface, Direction, Action 10:20:12.221 10.2.2.2 1024 10.1.1.1 80 TCP 1025 5 28712 17 HTTP 100 1010 Sw1, eth0, in Sw1, eth1, out Sw2, eth0, in Sw2, eth1, out ASA, eth1, in ASA, eth0, out, Permitted ASA eth0, in, Permitted ASA, eth1, out Sw3, eth1, in Sw3, eth0, out Sw1, eth1, in Sw1, eth0, out 10.2.2.2 port 1024 10.1.1.1 port 80 Sw1 Sw2 Sw3 ASA Any unique information is added to the record. Path of the packet for example is unique.

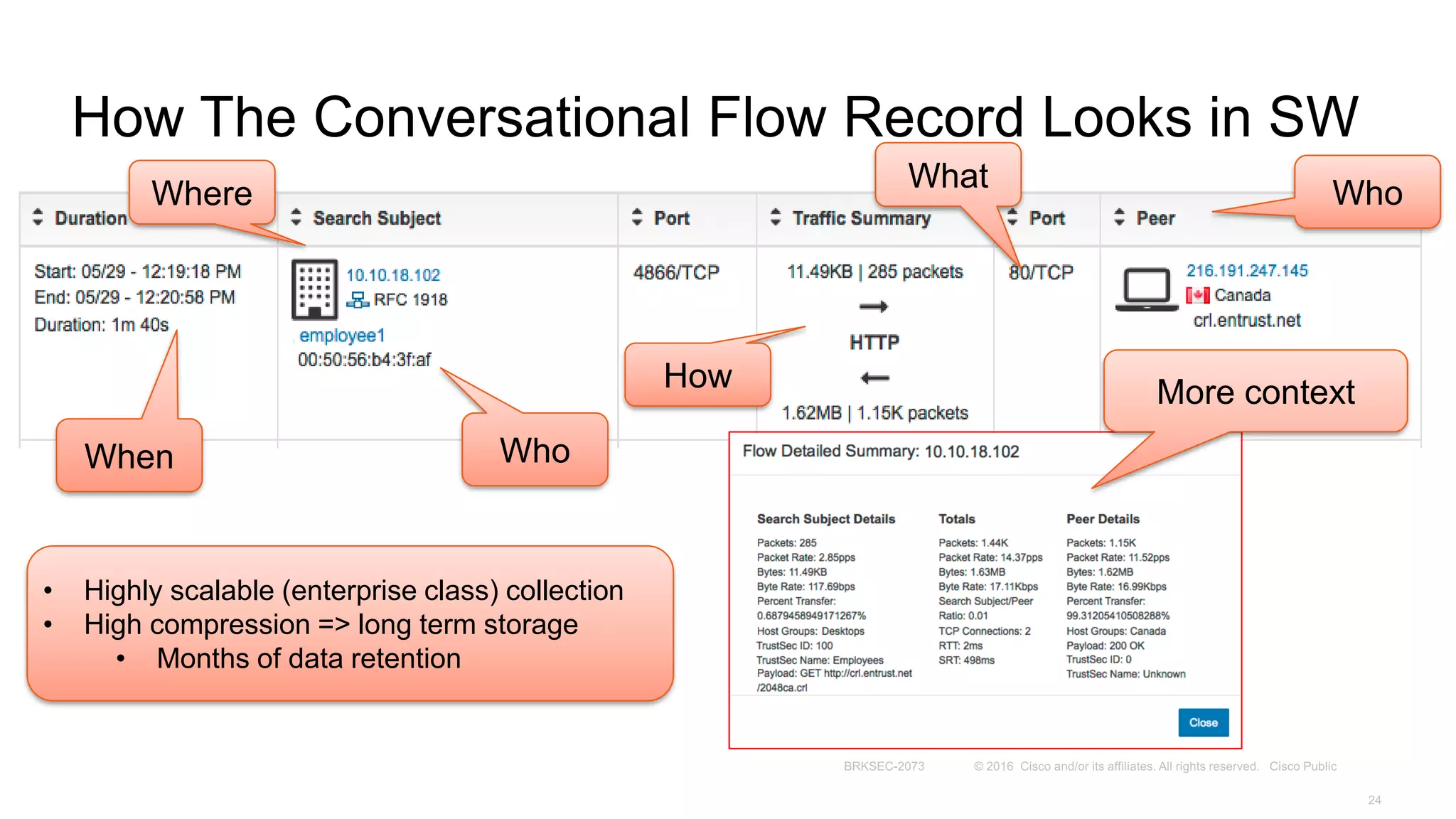

- 22. How The ConversationalFlow Record Looks in SW Where WhoWhat When How Who • Highly scalable (enterprise class) collection • High compression => long term storage • Months of data retention More context

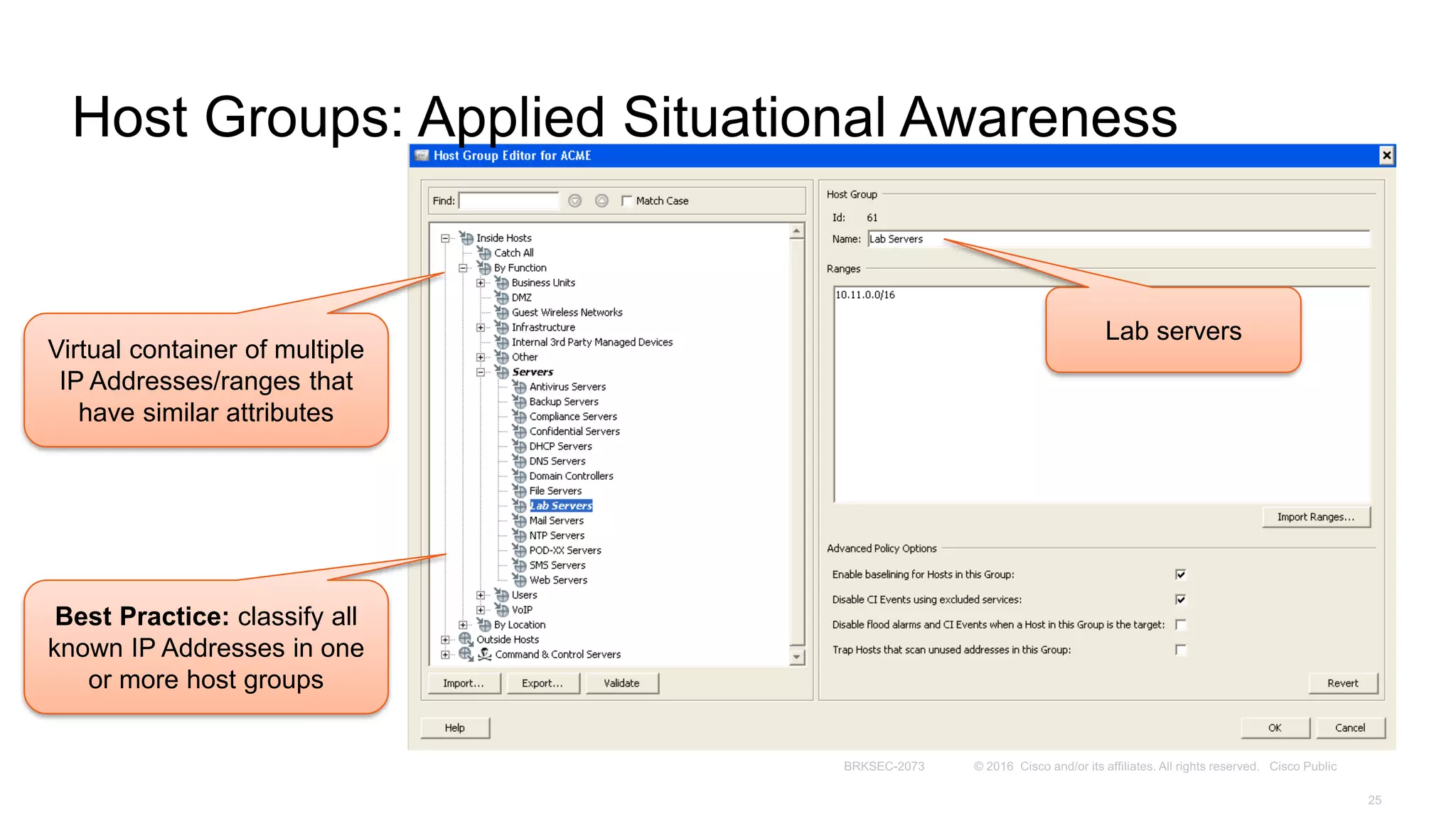

- 23. Host Groups: AppliedSituational Awareness Virtual container of multiple IP Addresses/ranges that have similar attributes Best Practice: classify all known IP Addresses in one or more host groups Lab servers

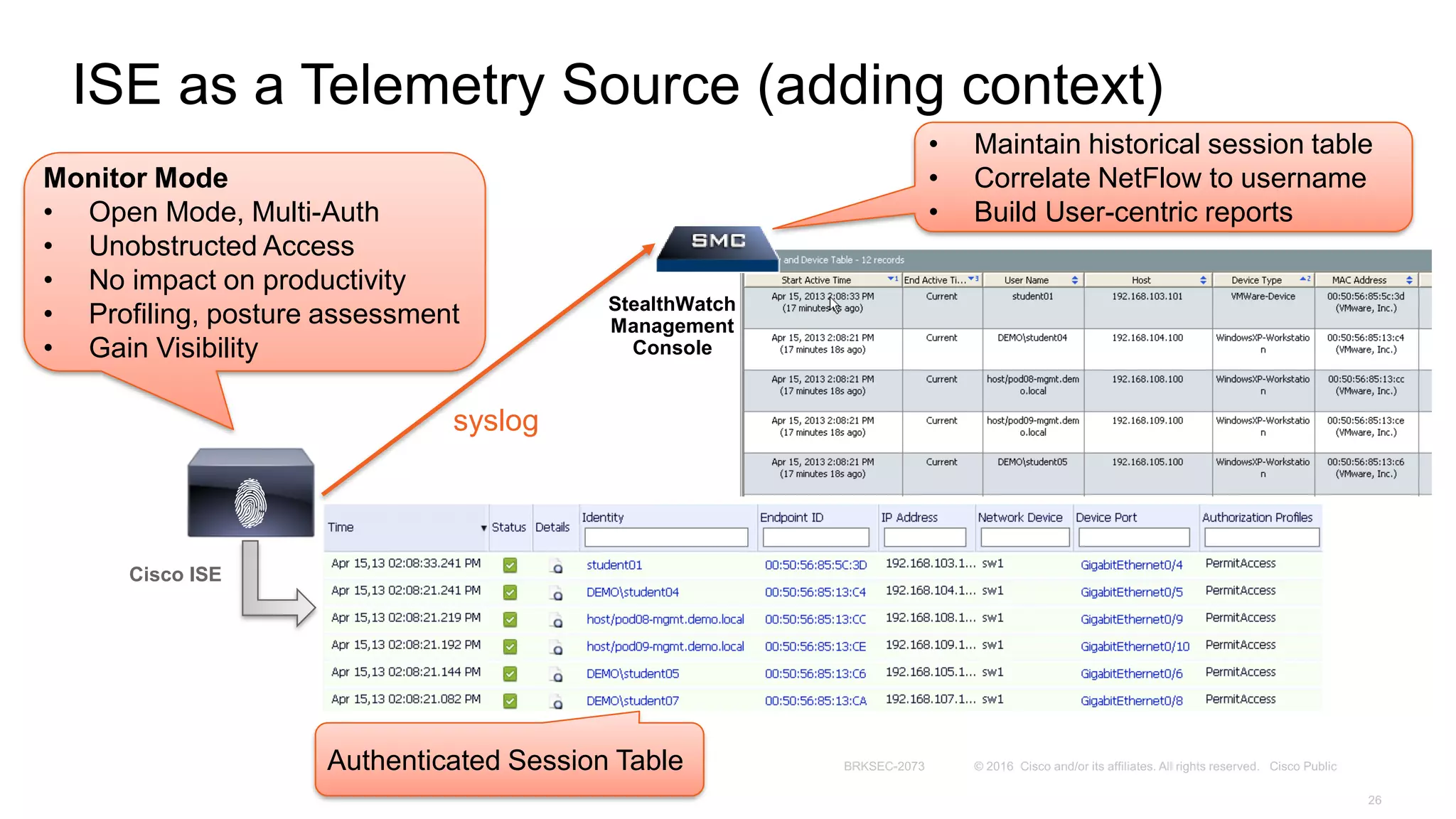

- 24. ISE as aTelemetry Source (adding context) Monitor Mode • Open Mode, Multi-Auth • Unobstructed Access • No impact on productivity • Profiling, posture assessment • Gain Visibility Authenticated Session Table Cisco ISE • Maintain historical session table • Correlate NetFlow to username • Build User-centric reports StealthWatch Management Console syslog

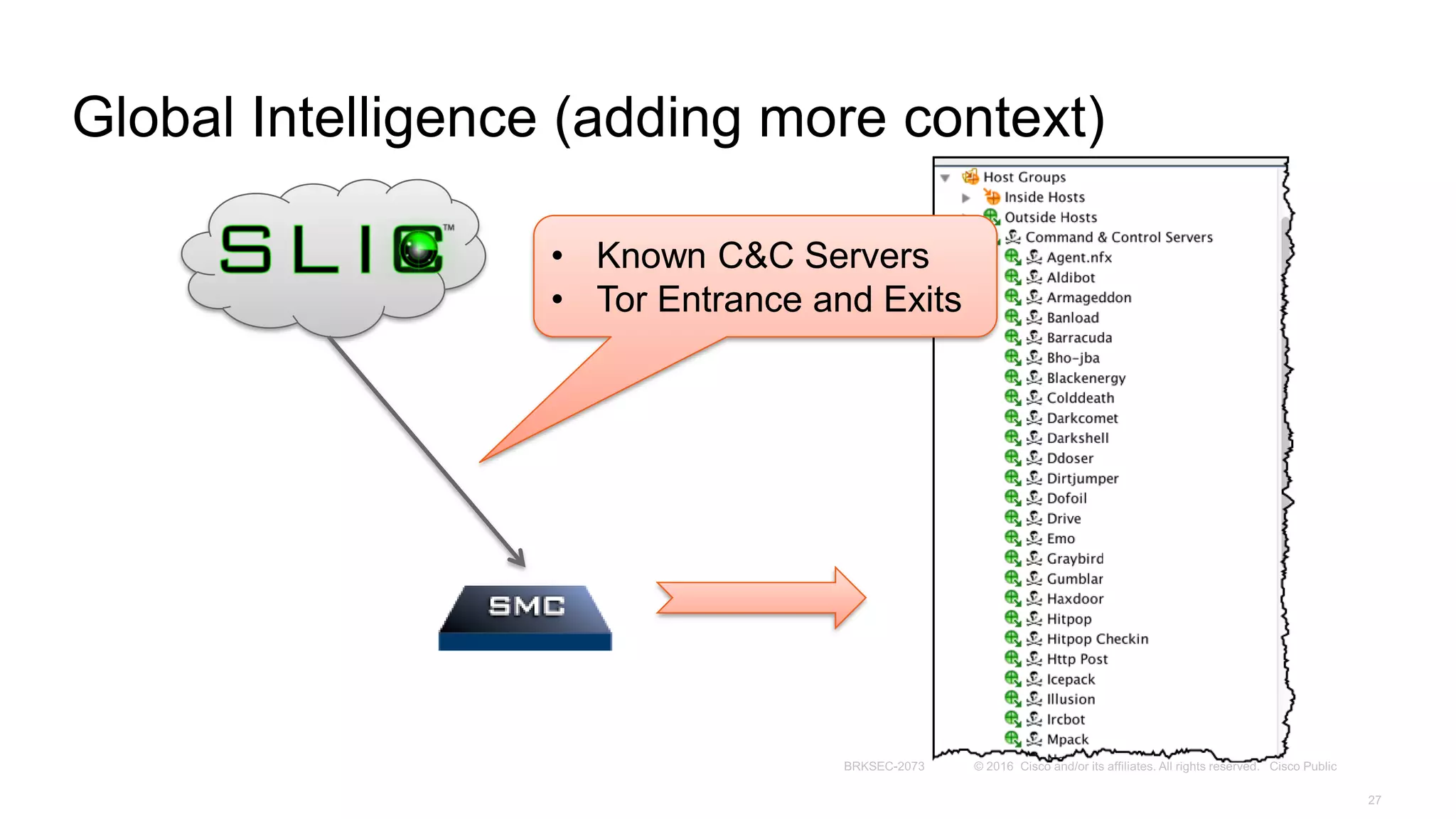

- 25. Global Intelligence (addingmore context) • Known C&C Servers • Tor Entrance and Exits

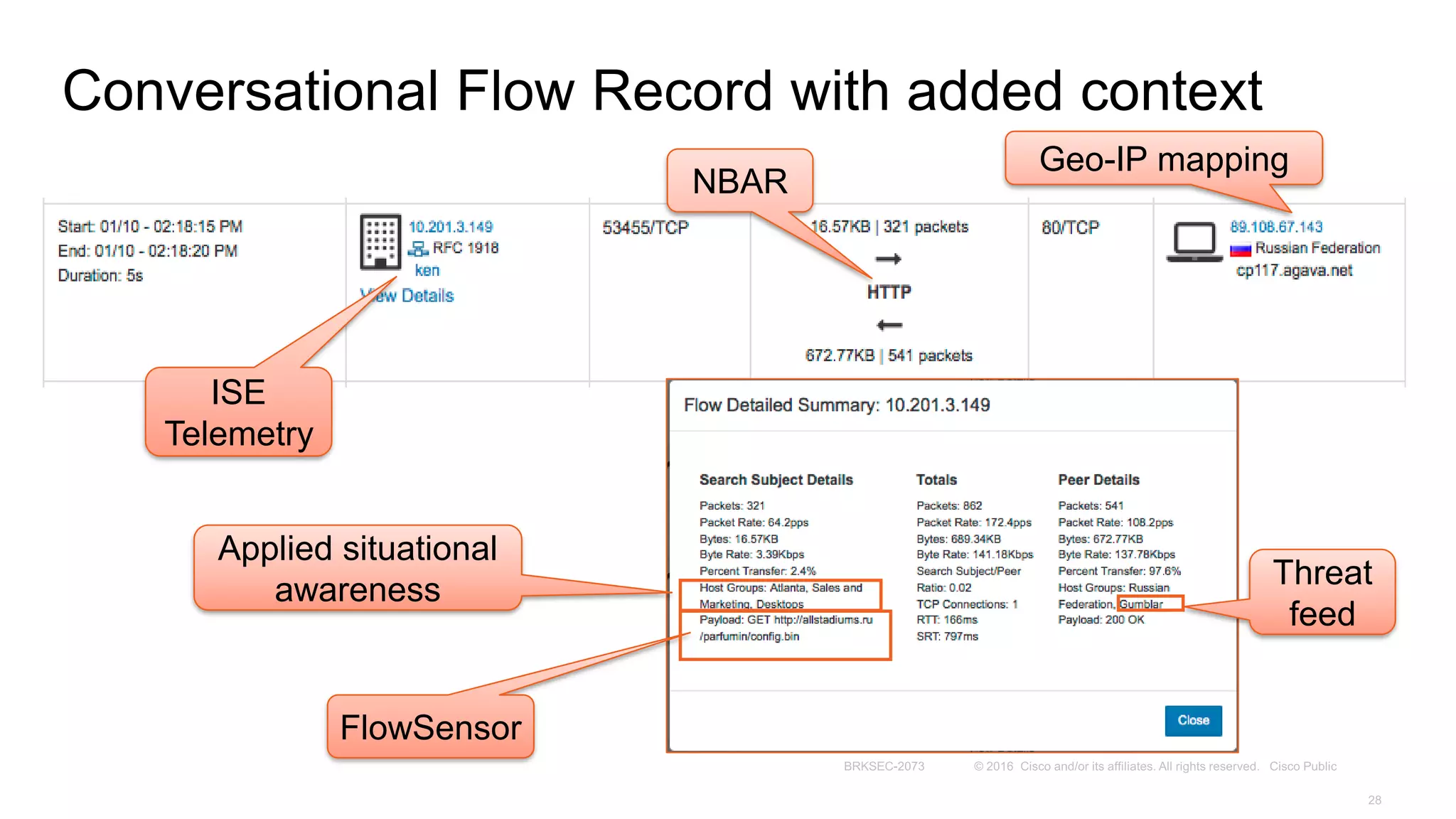

- 26. Conversational Flow Recordwith added context ISE Telemetry NBAR Applied situational awareness FlowSensor Geo-IP mapping Threat feed

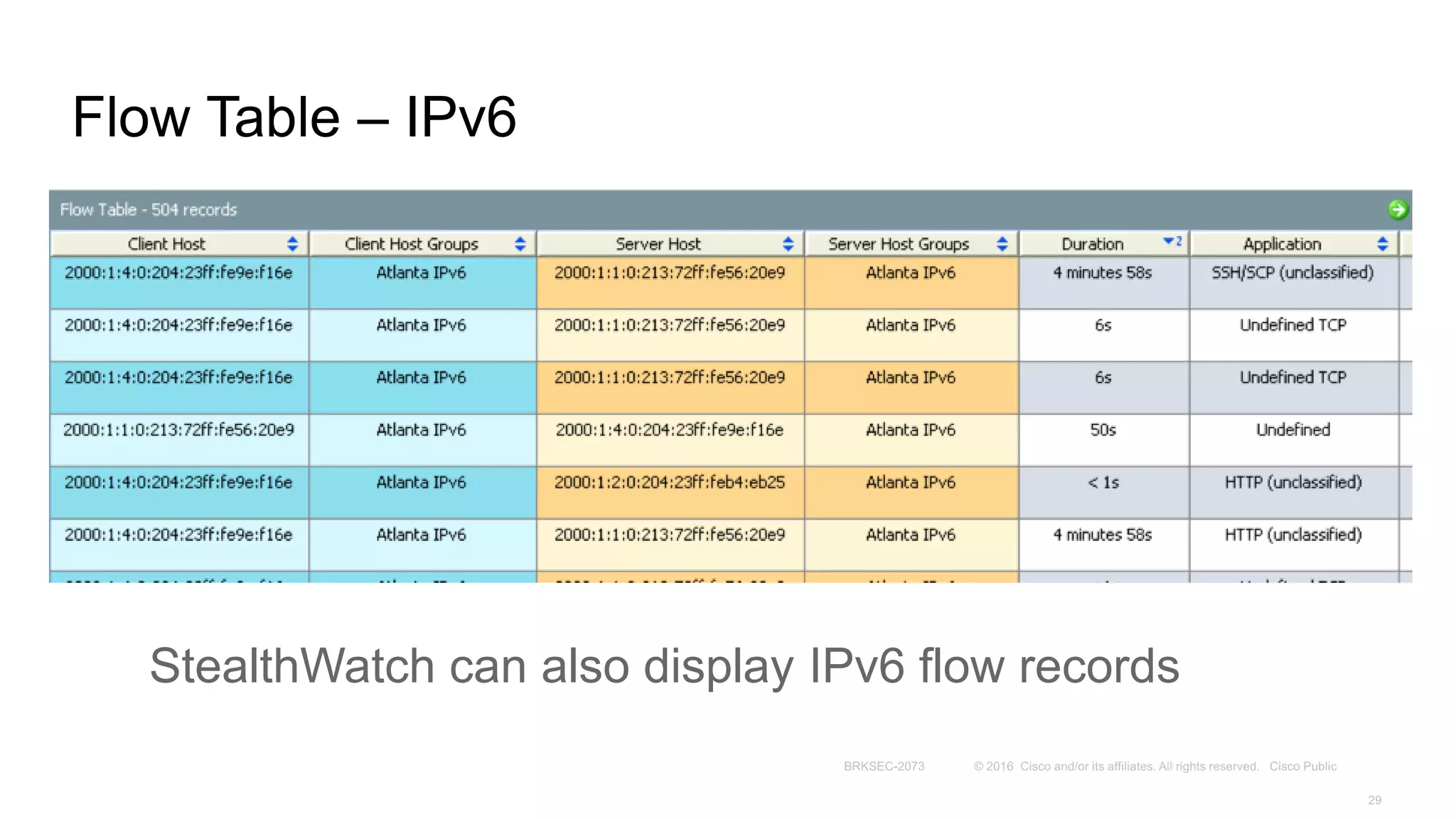

- 27. Flow Table –IPv6 StealthWatch can also display IPv6 flow records
- 28. “There is nothinglike first hand evidence” Sherlock Holmes, A Study in Scarlett Now, lets analyse all that good NetFlow data/evidence generated by the network.

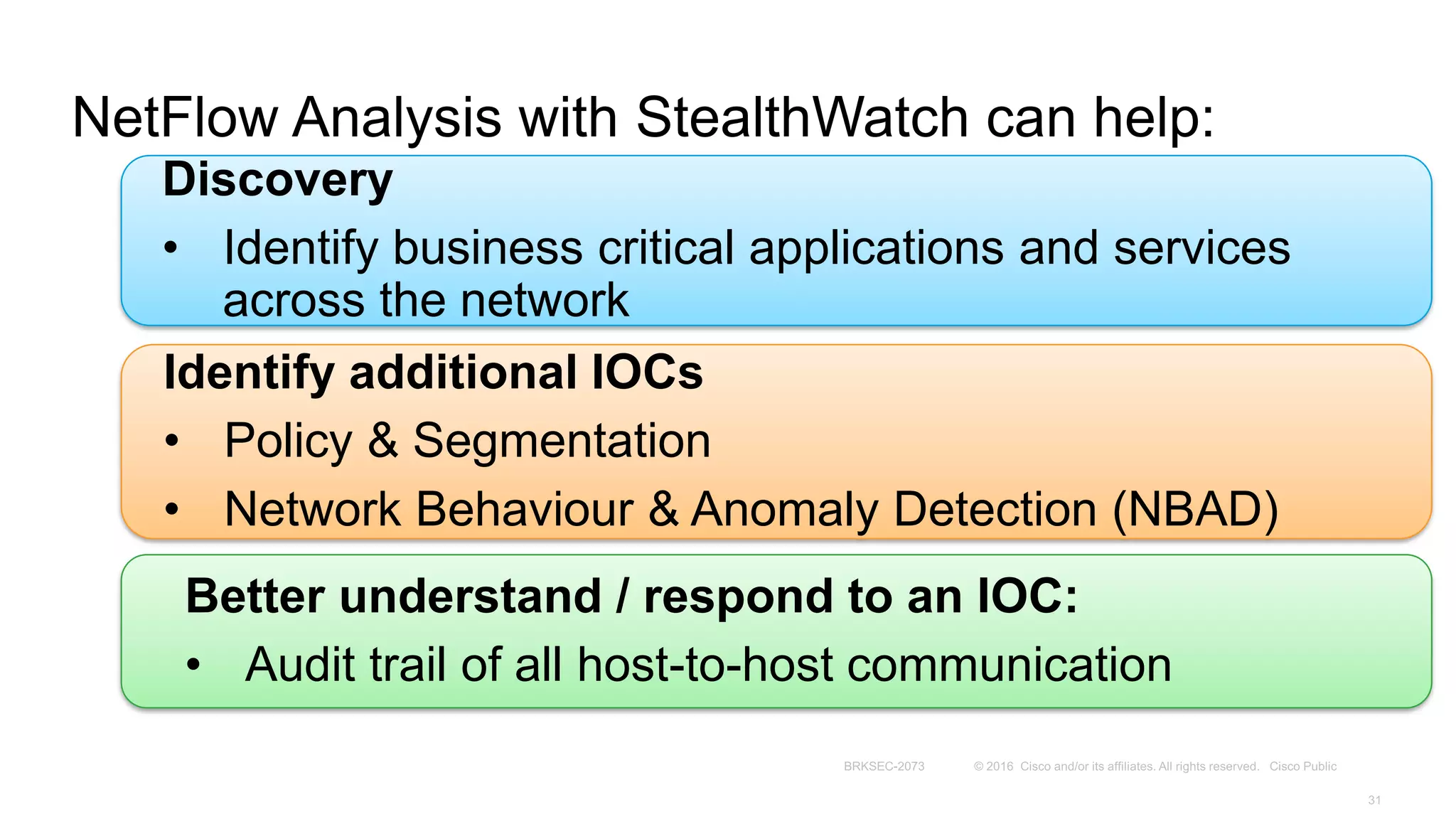

- 29. NetFlow Analysis withStealthWatch can help: Identify additional IOCs • Policy & Segmentation • Network Behaviour & Anomaly Detection (NBAD) Better understand / respond to an IOC: • Audit trail of all host-to-host communication Discovery • Identify business critical applications and services across the network

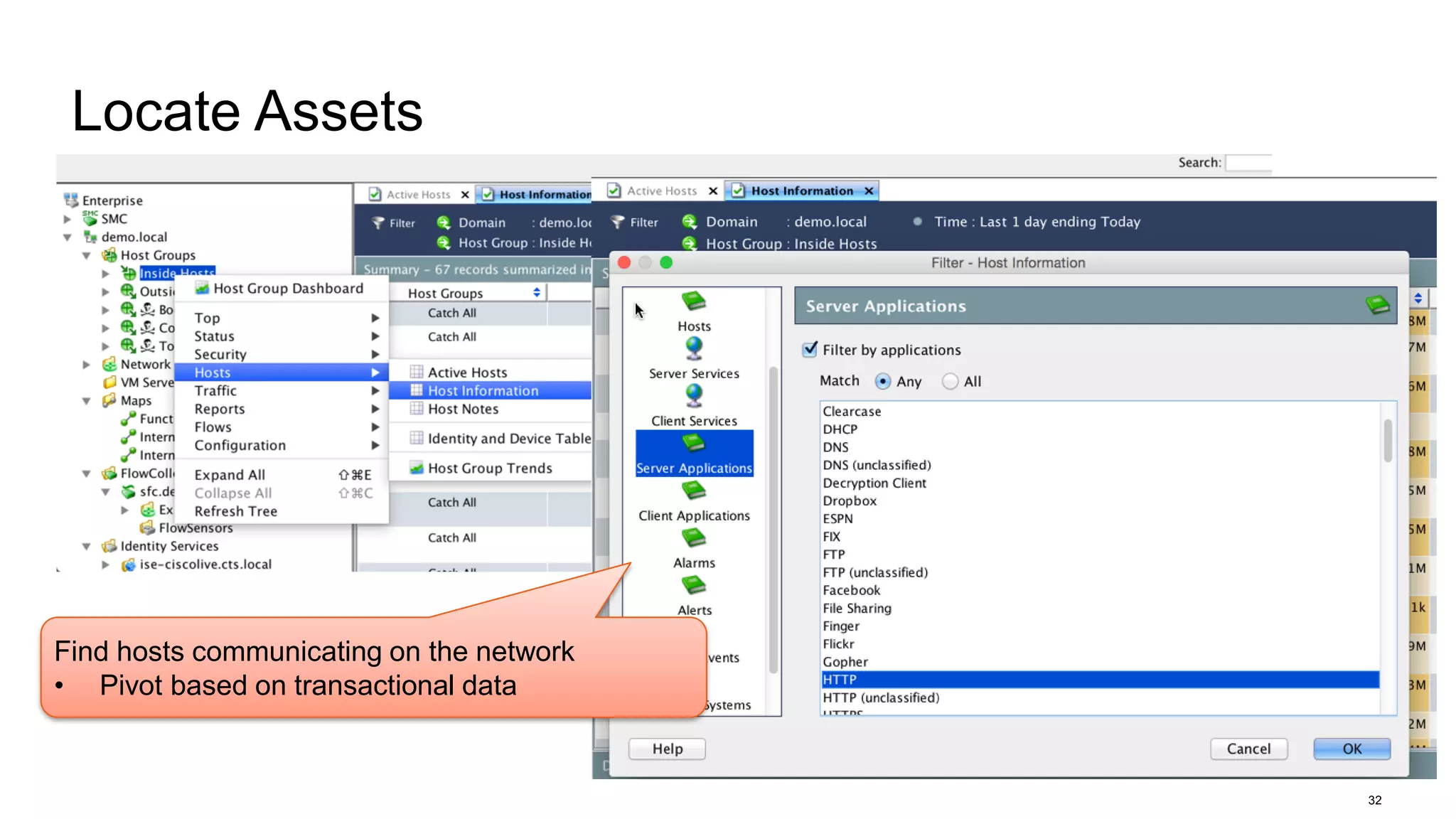

- 30. Locate Assets 32 Find hostscommunicating on the network • Pivot based on transactional data

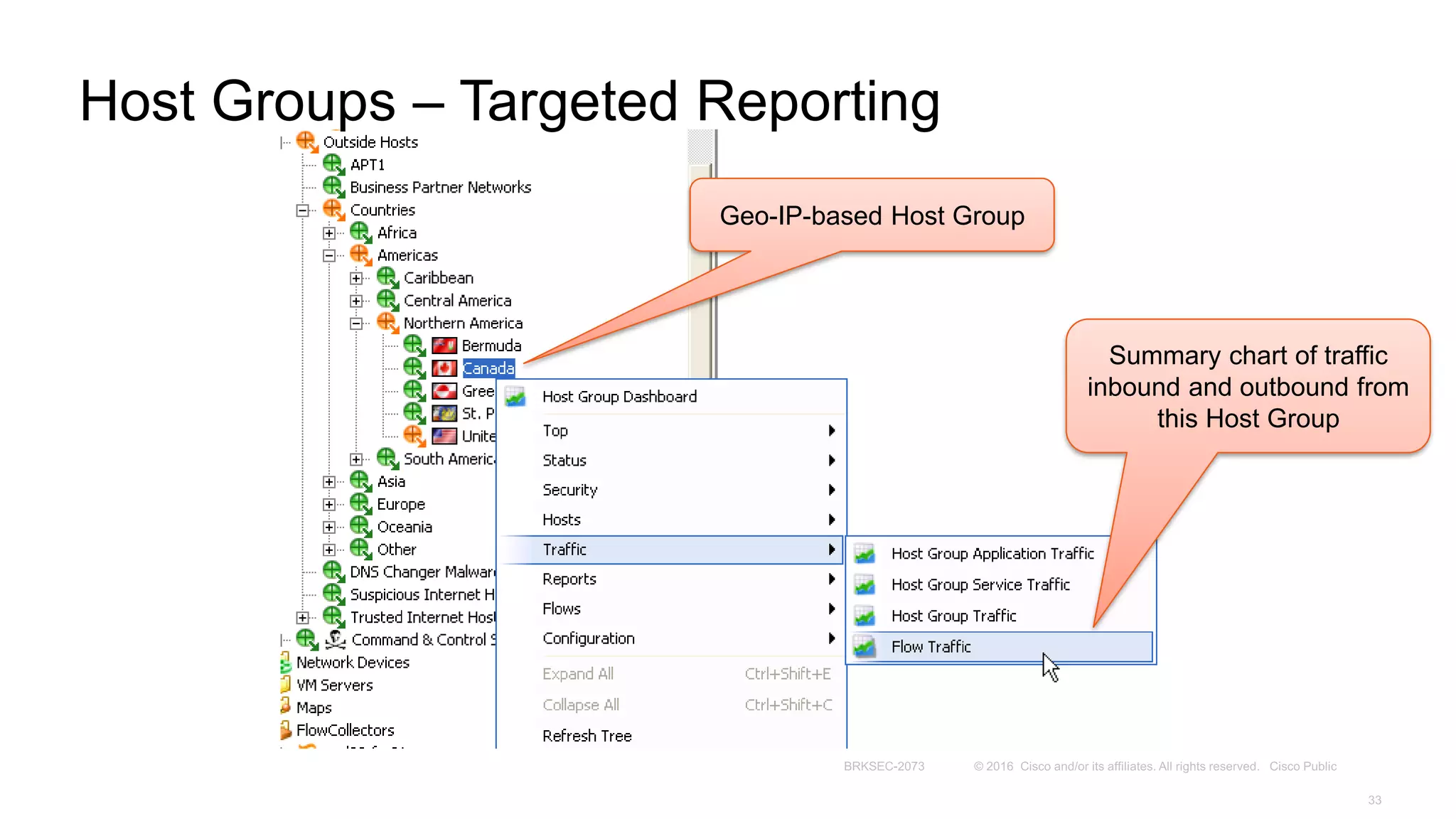

- 31. Host Groups –Targeted Reporting Geo-IP-based Host Group Summary chart of traffic inbound and outbound from this Host Group

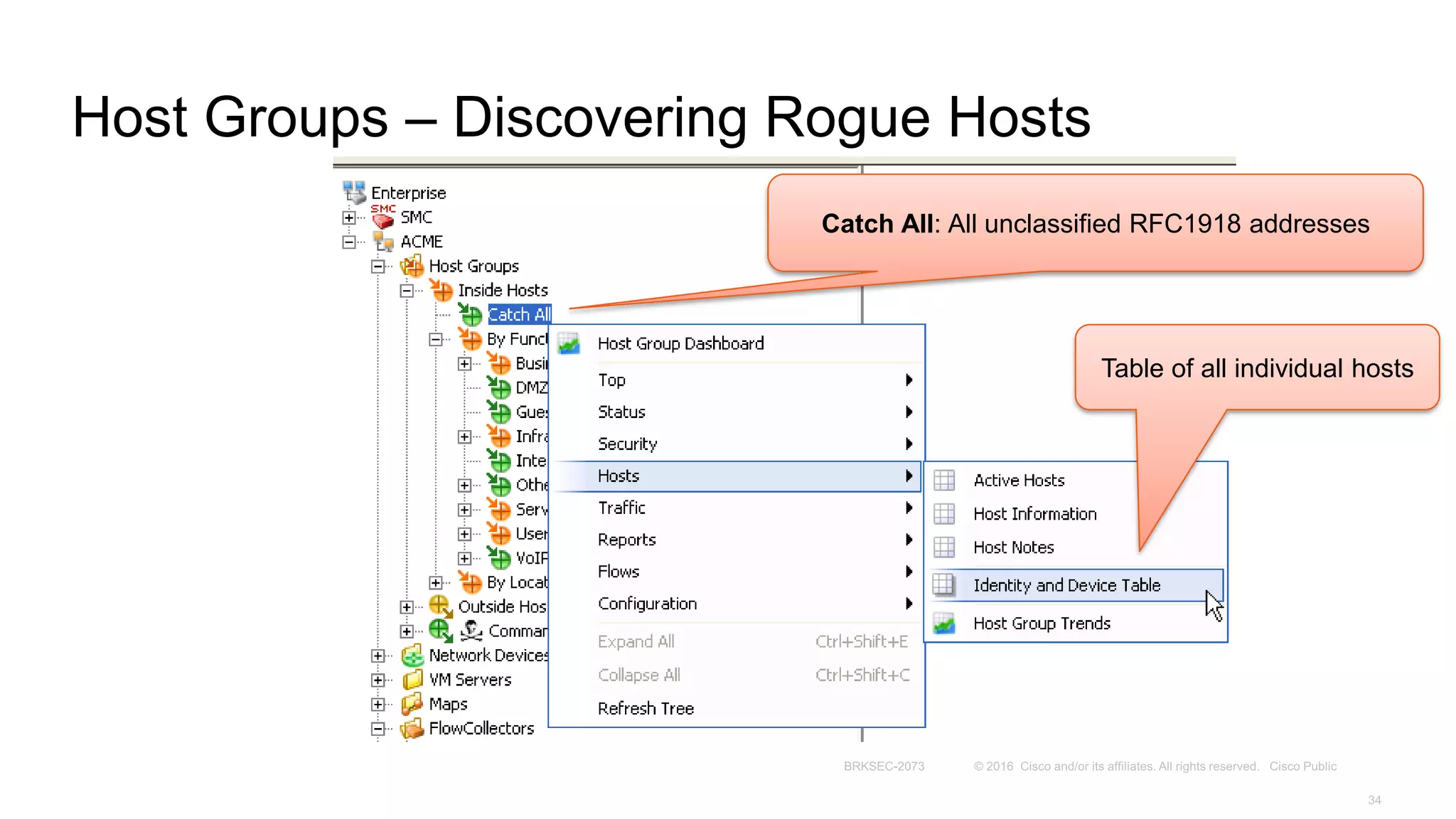

- 32. Host Groups –Discovering Rogue Hosts Catch All: All unclassified RFC1918 addresses Table of all individual hosts

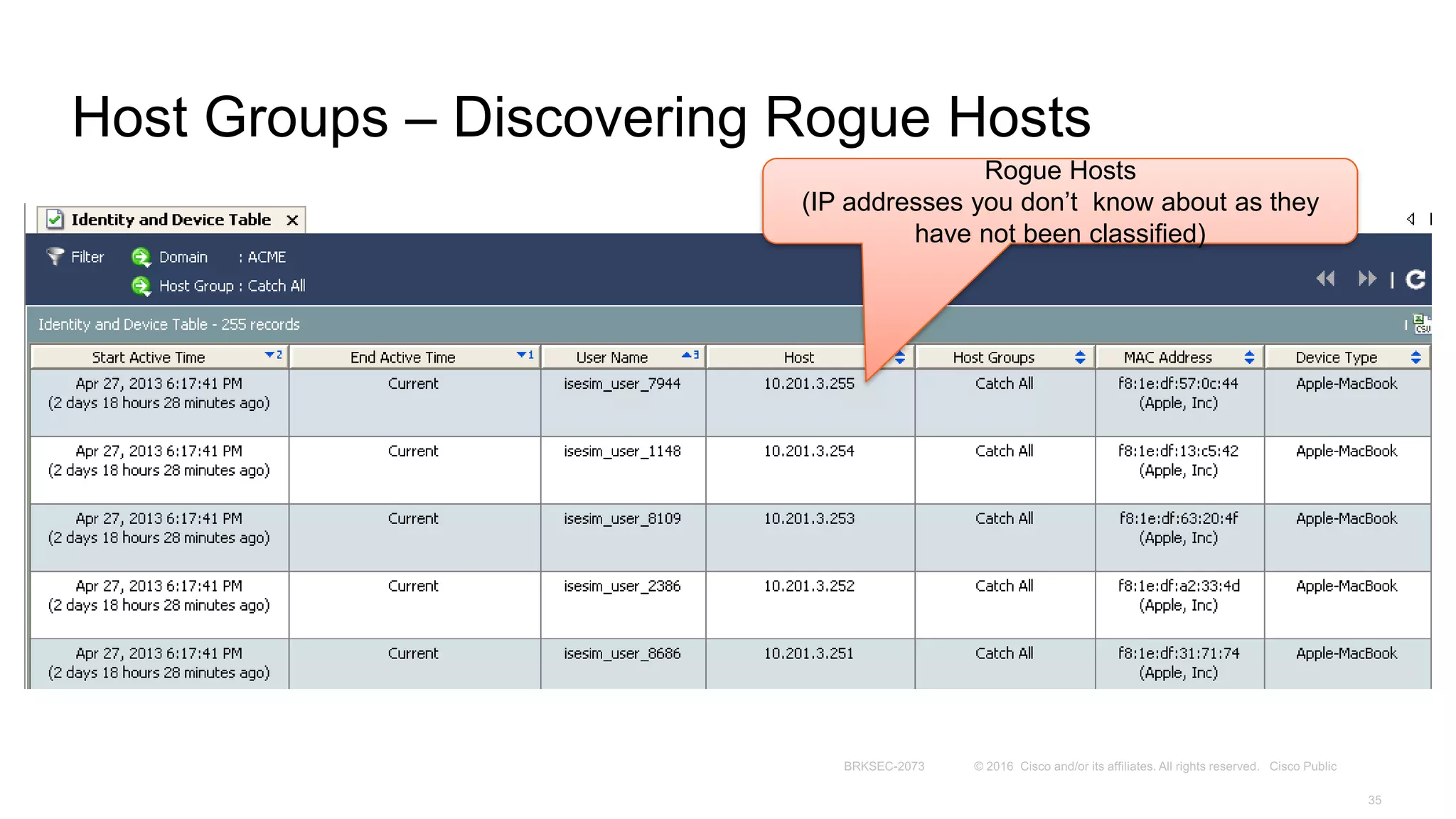

- 33. Host Groups –Discovering Rogue Hosts Rogue Hosts (IP addresses you don’t know about as they have not been classified)

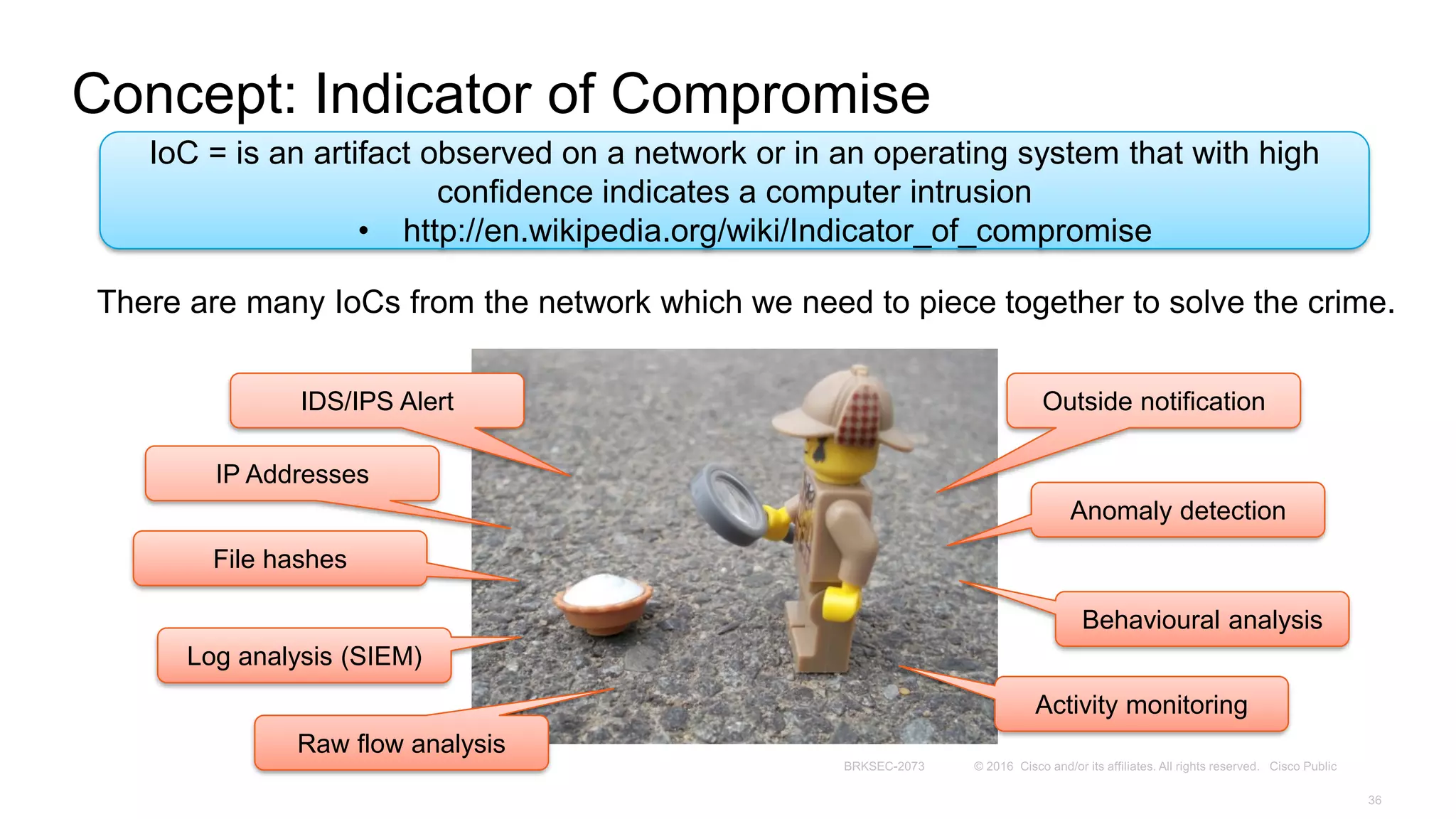

- 34. Concept: Indicator ofCompromise IDS/IPS Alert Log analysis (SIEM) Raw flow analysis Outside notification Behavioural analysis Activity monitoring IoC = is an artifact observed on a network or in an operating system that with high confidence indicates a computer intrusion • http://en.wikipedia.org/wiki/Indicator_of_compromise Anomaly detection File hashes IP Addresses There are many IoCs from the network which we need to piece together to solve the crime.

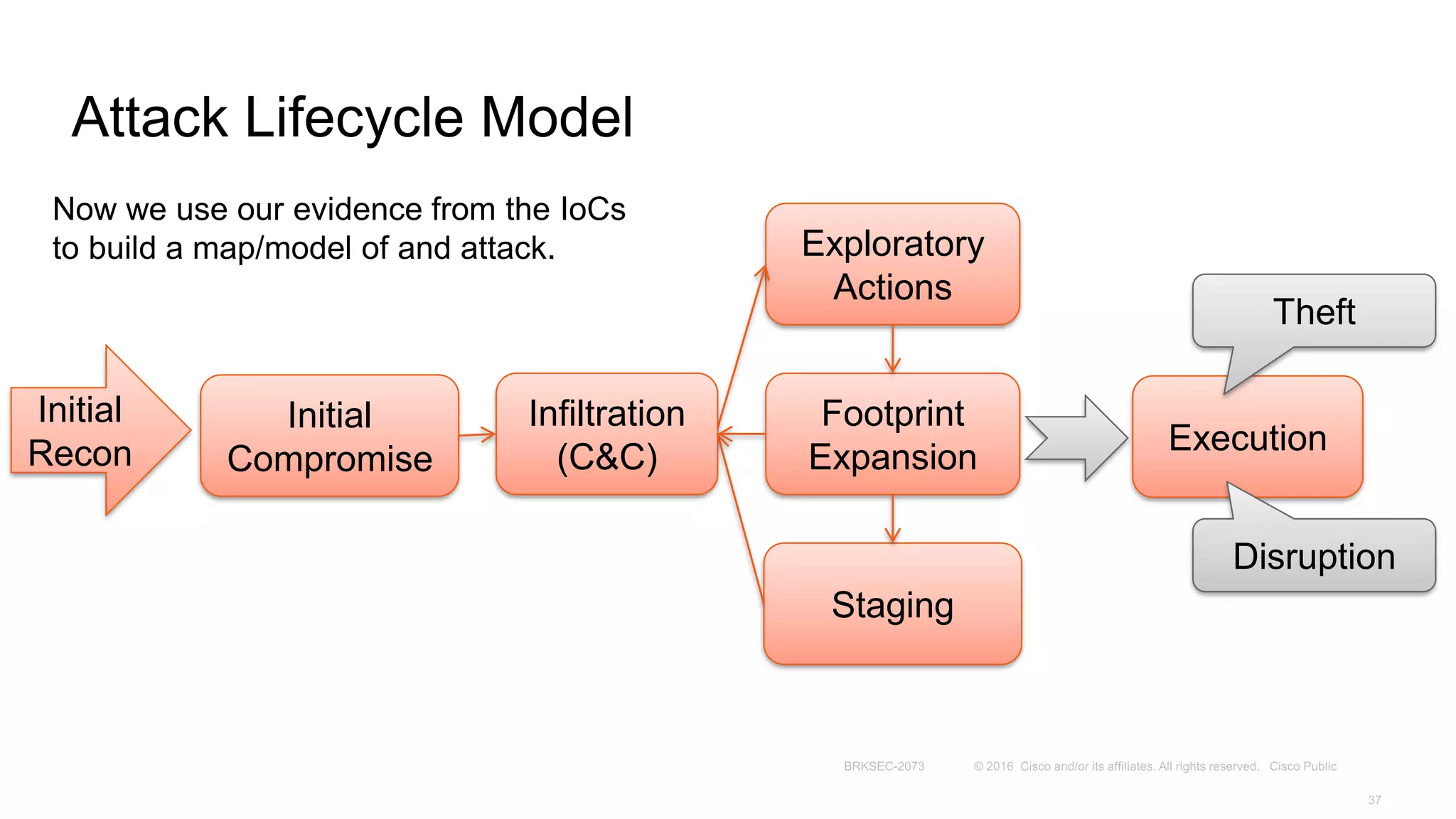

- 35. Attack Lifecycle Model Exploratory Actions Footprint Expansion Execution Theft Disruption Staging Initial Compromise Initial Recon Infiltration (C&C) Nowwe use our evidence from the IoCs to build a map/model of and attack.

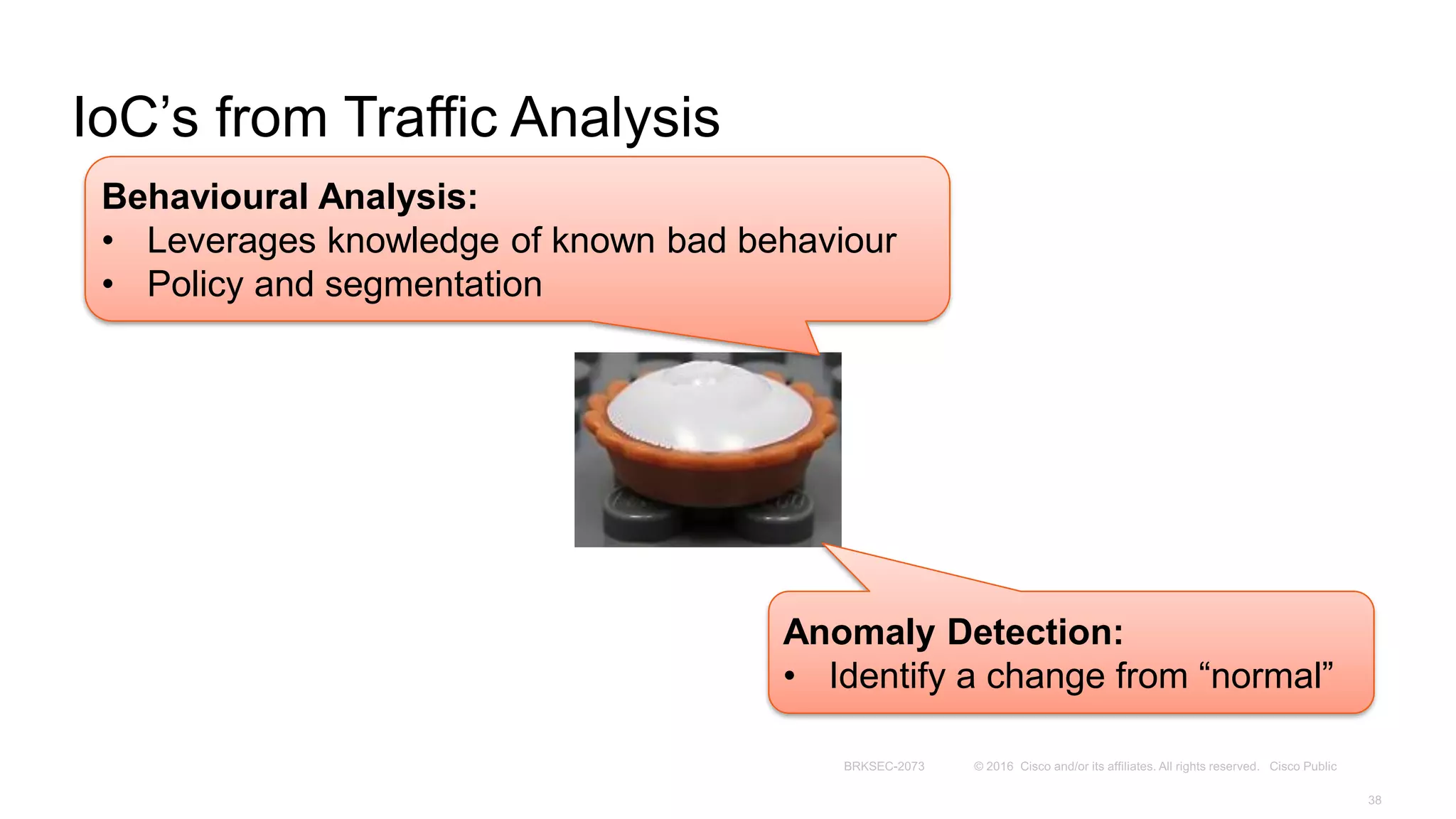

- 36. IoC’s from TrafficAnalysis Behavioural Analysis: • Leverages knowledge of known bad behaviour • Policy and segmentation Anomaly Detection: • Identify a change from “normal”

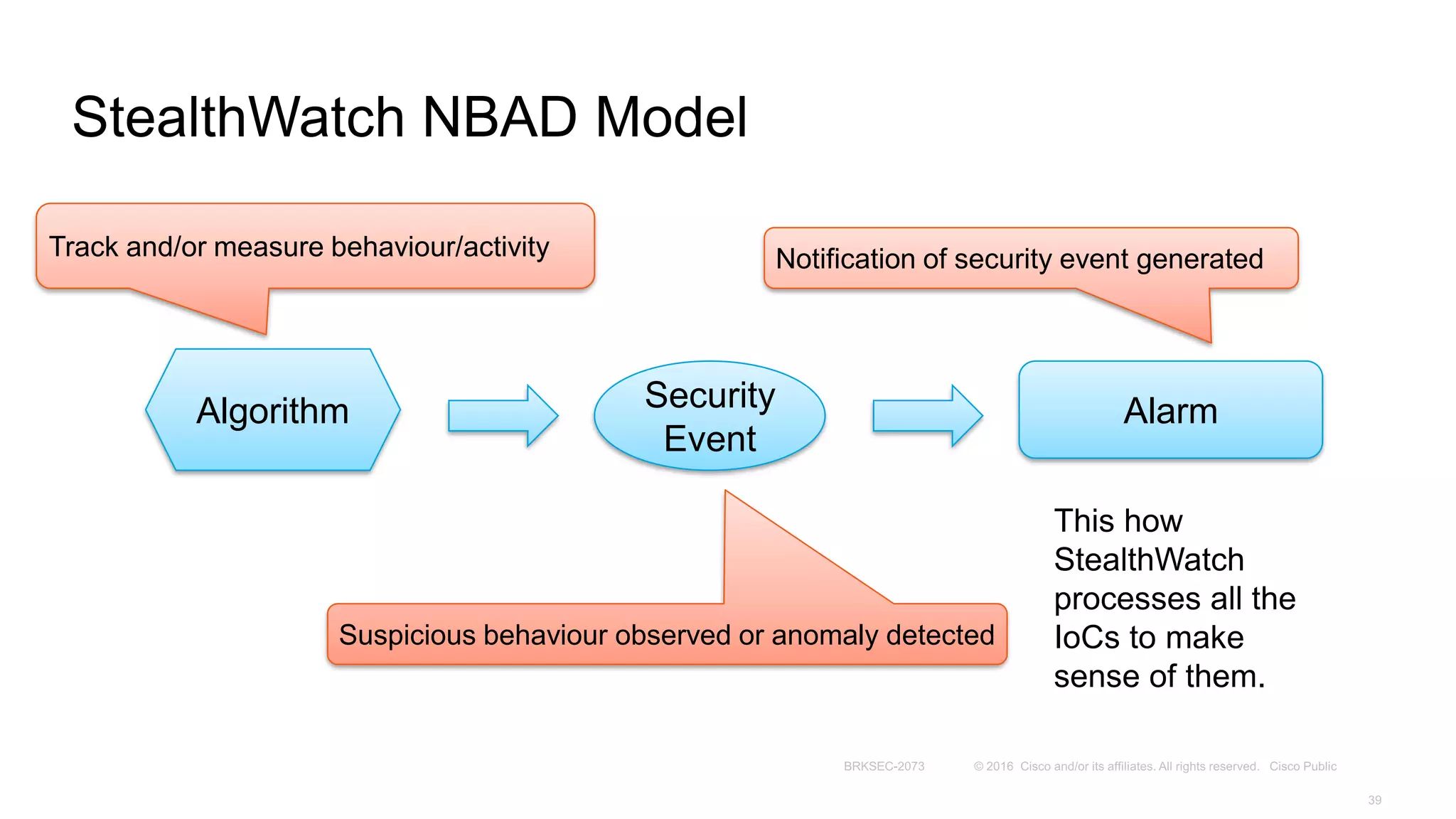

- 37. StealthWatch NBAD Model AlgorithmSecurity Event Alarm Track and/or measure behaviour/activity Suspicious behaviour observed or anomaly detected Notification of security event generated This how StealthWatch processes all the IoCs to make sense of them.

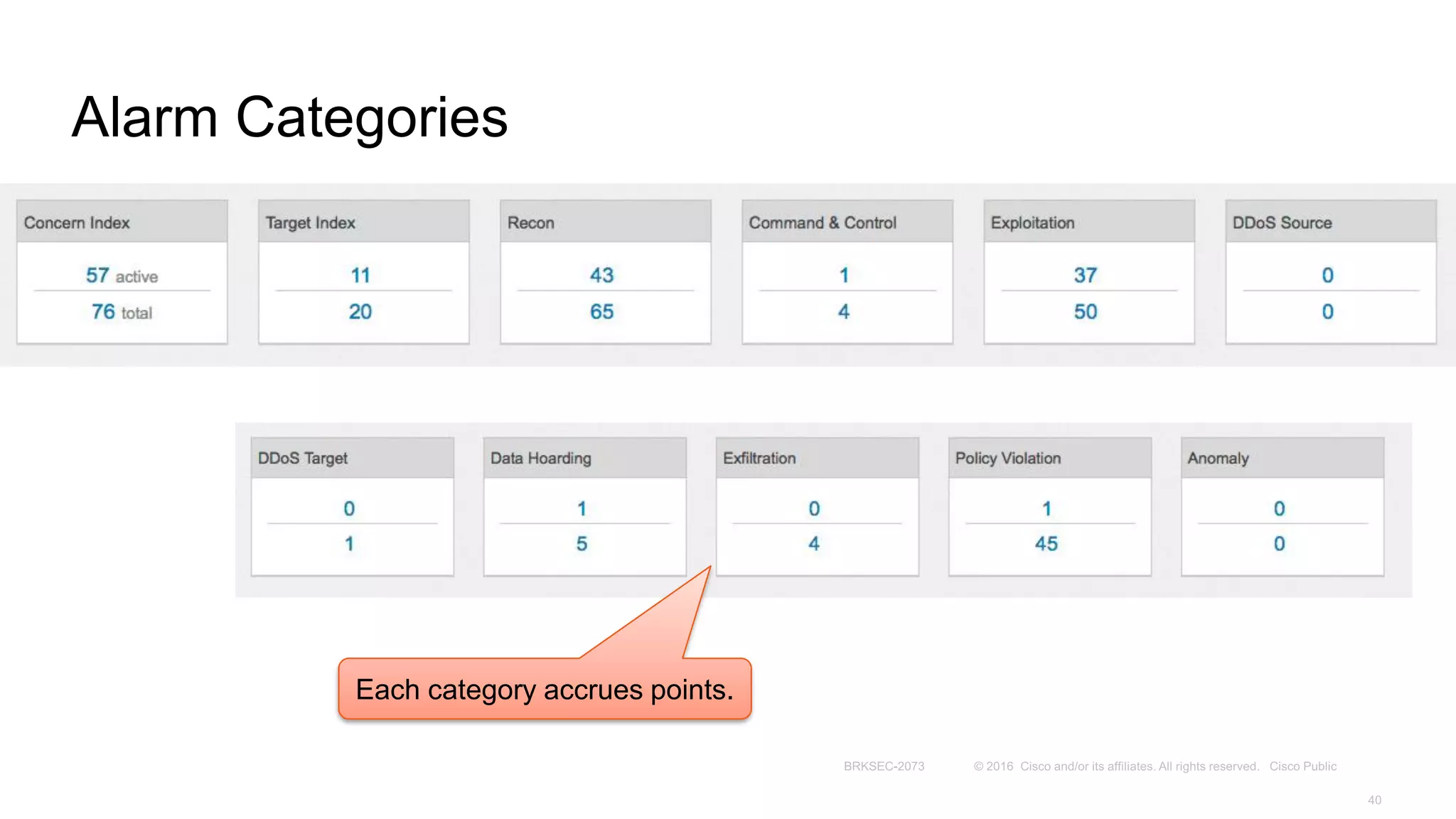

- 38. Alarm Categories Each categoryaccrues points.

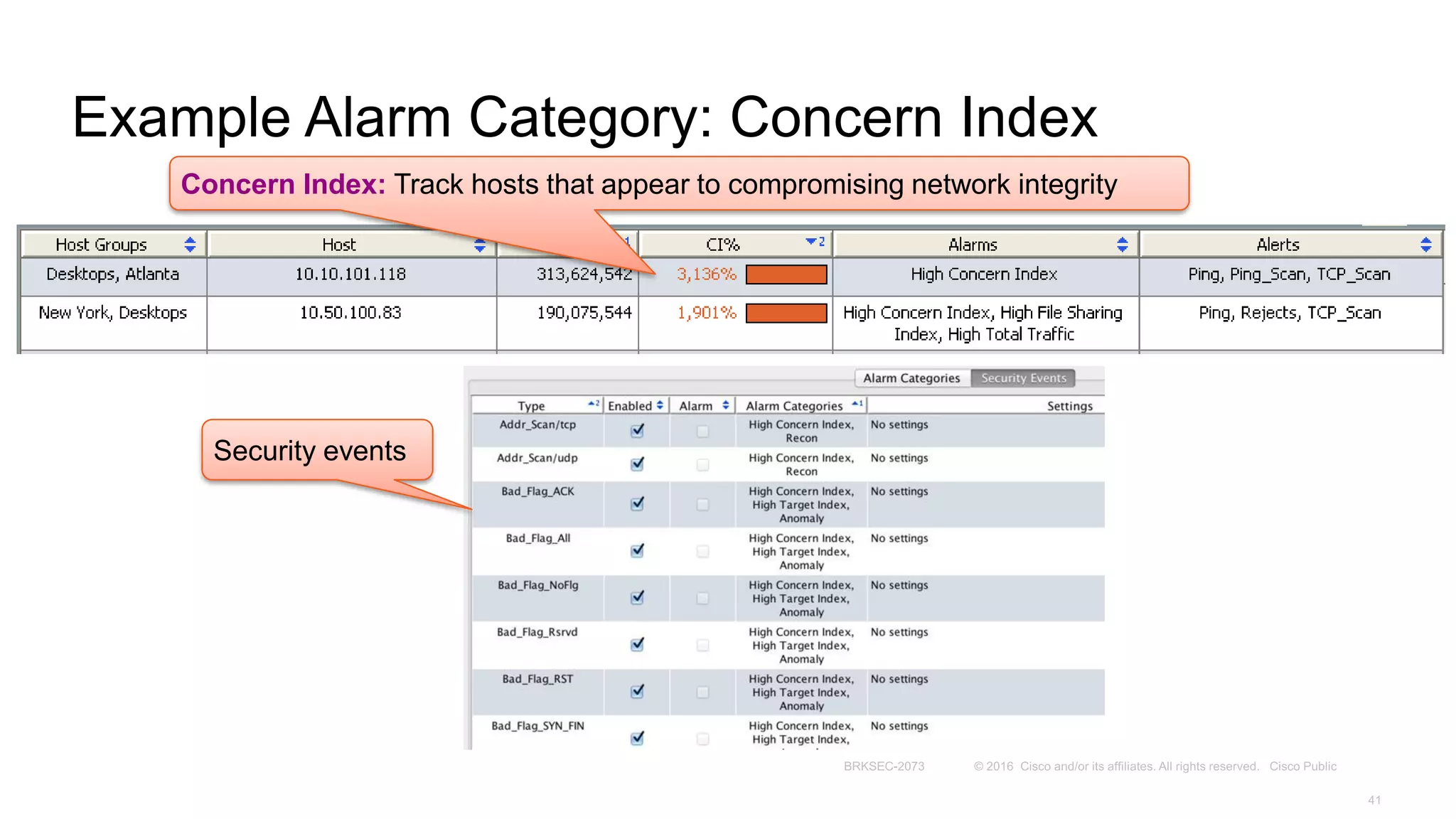

- 39. Example Alarm Category:Concern Index Concern Index: Track hosts that appear to compromising network integrity Security events

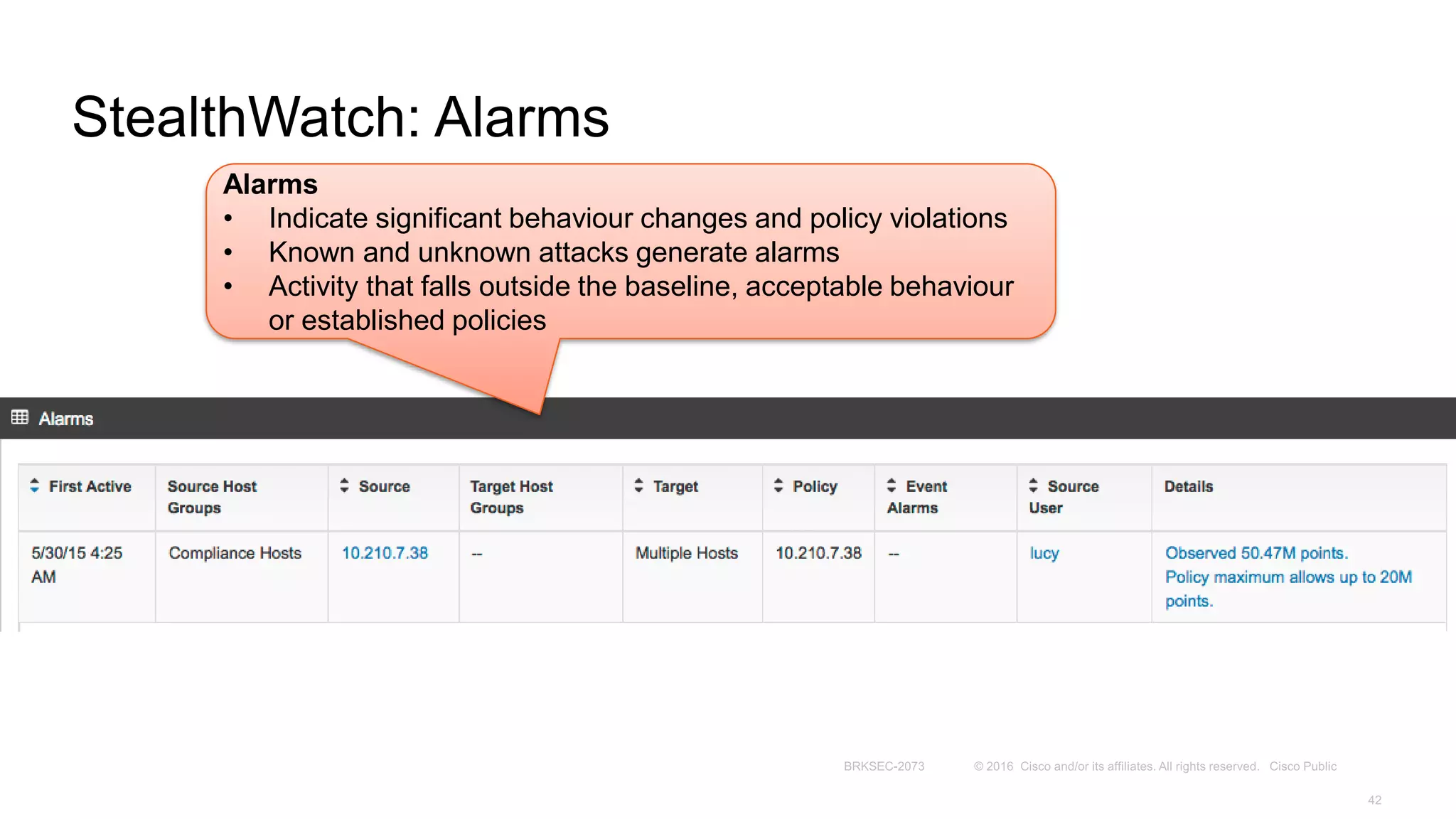

- 40. StealthWatch: Alarms Alarms • Indicatesignificant behaviour changes and policy violations • Known and unknown attacks generate alarms • Activity that falls outside the baseline, acceptable behaviour or established policies

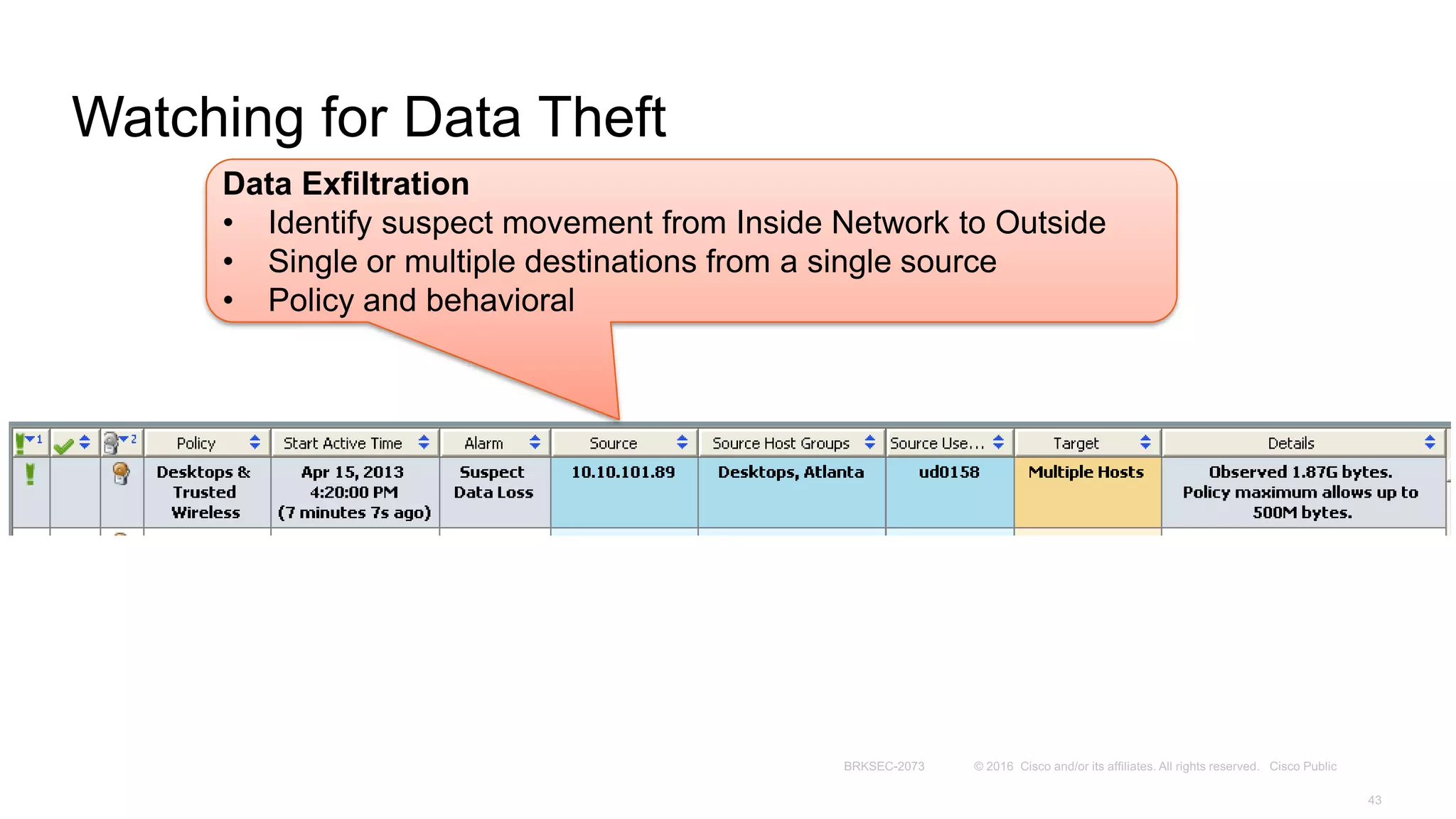

- 41. Watching for DataTheft Data Exfiltration • Identify suspect movement from Inside Network to Outside • Single or multiple destinations from a single source • Policy and behavioral

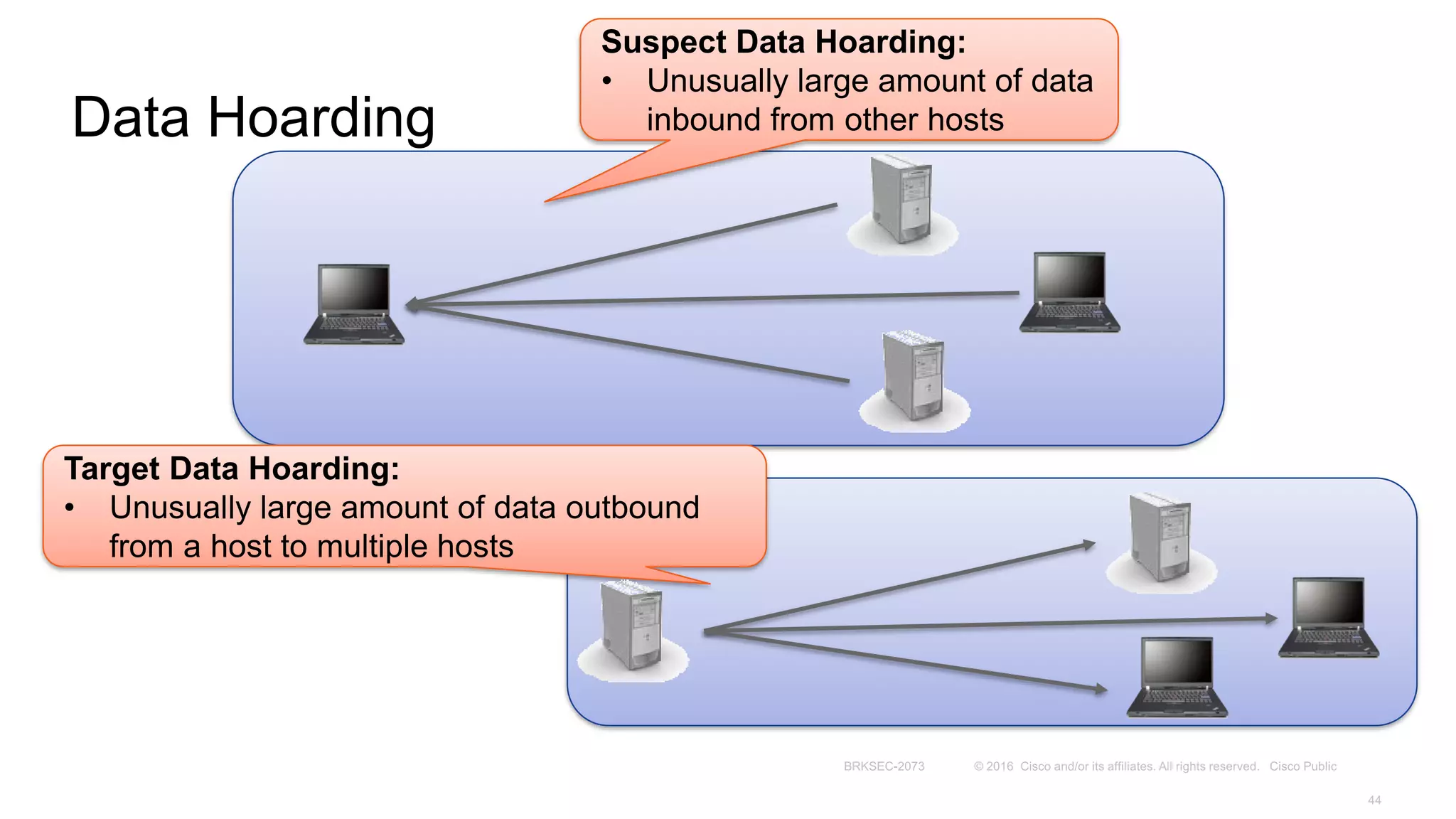

- 42. Data Hoarding Suspect DataHoarding: • Unusually large amount of data inbound from other hosts Target Data Hoarding: • Unusually large amount of data outbound from a host to multiple hosts

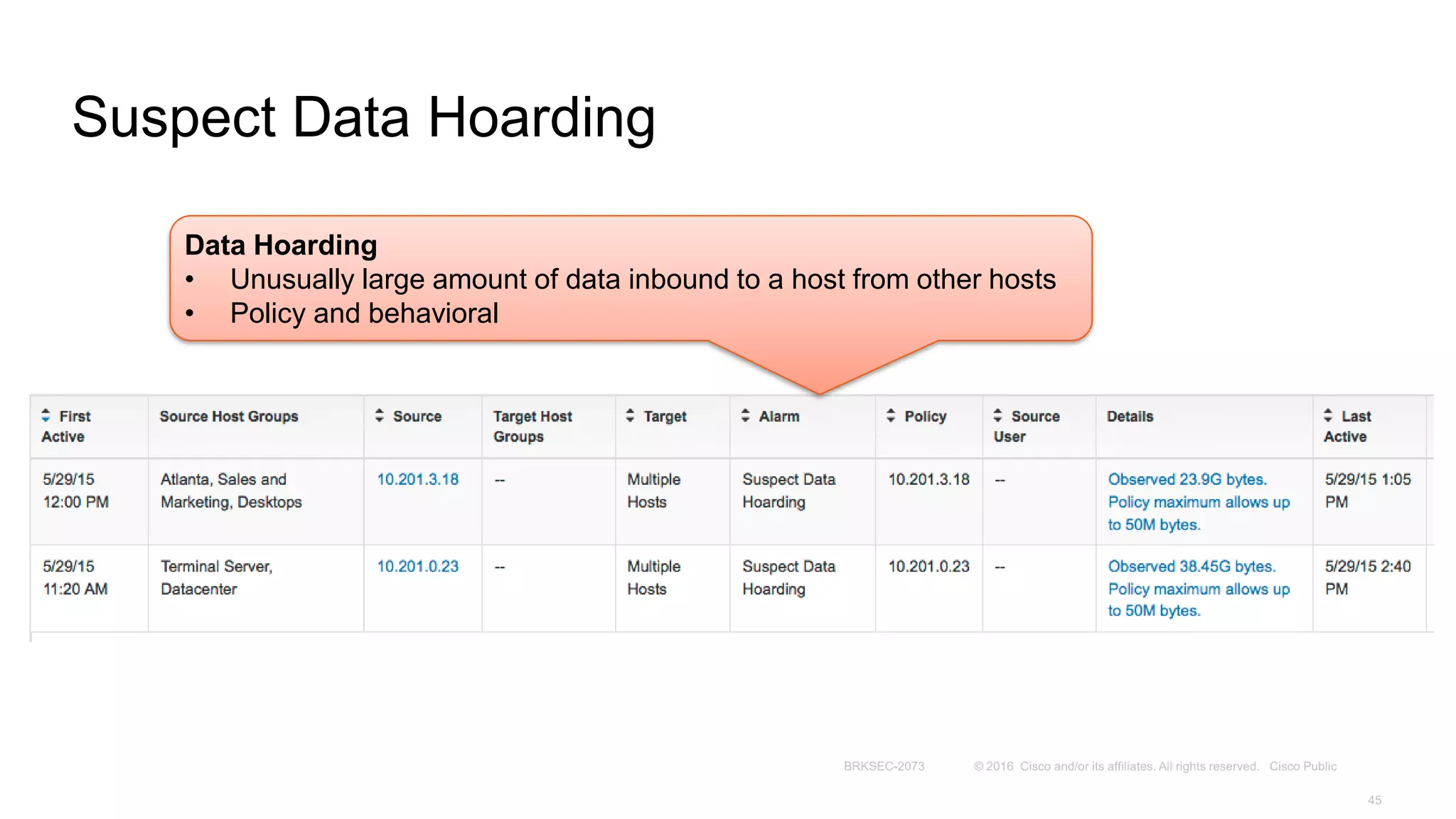

- 43. Suspect Data Hoarding DataHoarding • Unusually large amount of data inbound to a host from other hosts • Policy and behavioral

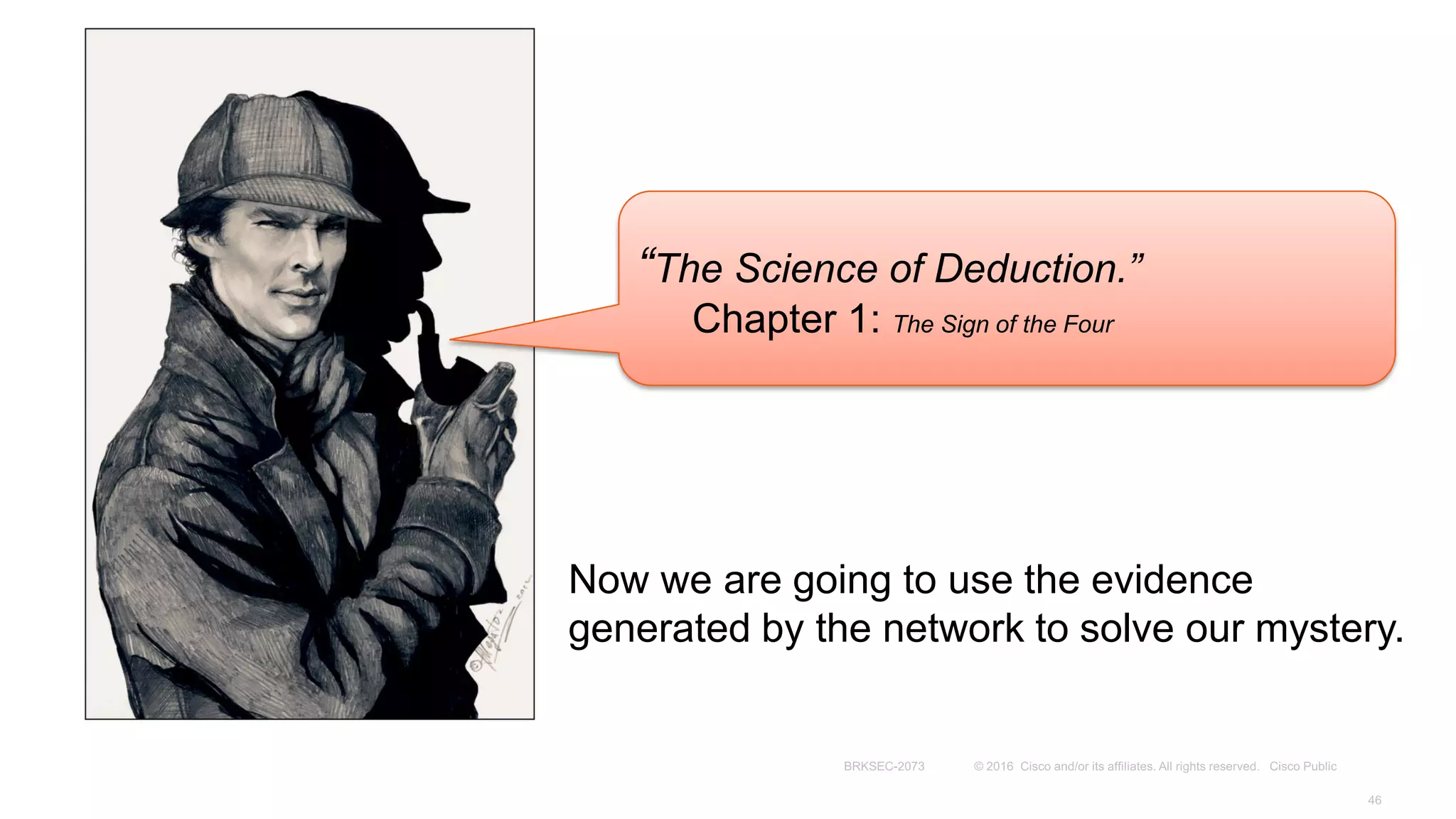

- 44. “The Science ofDeduction.” Chapter 1: The Sign of the Four Now we are going to use the evidence generated by the network to solve our mystery.

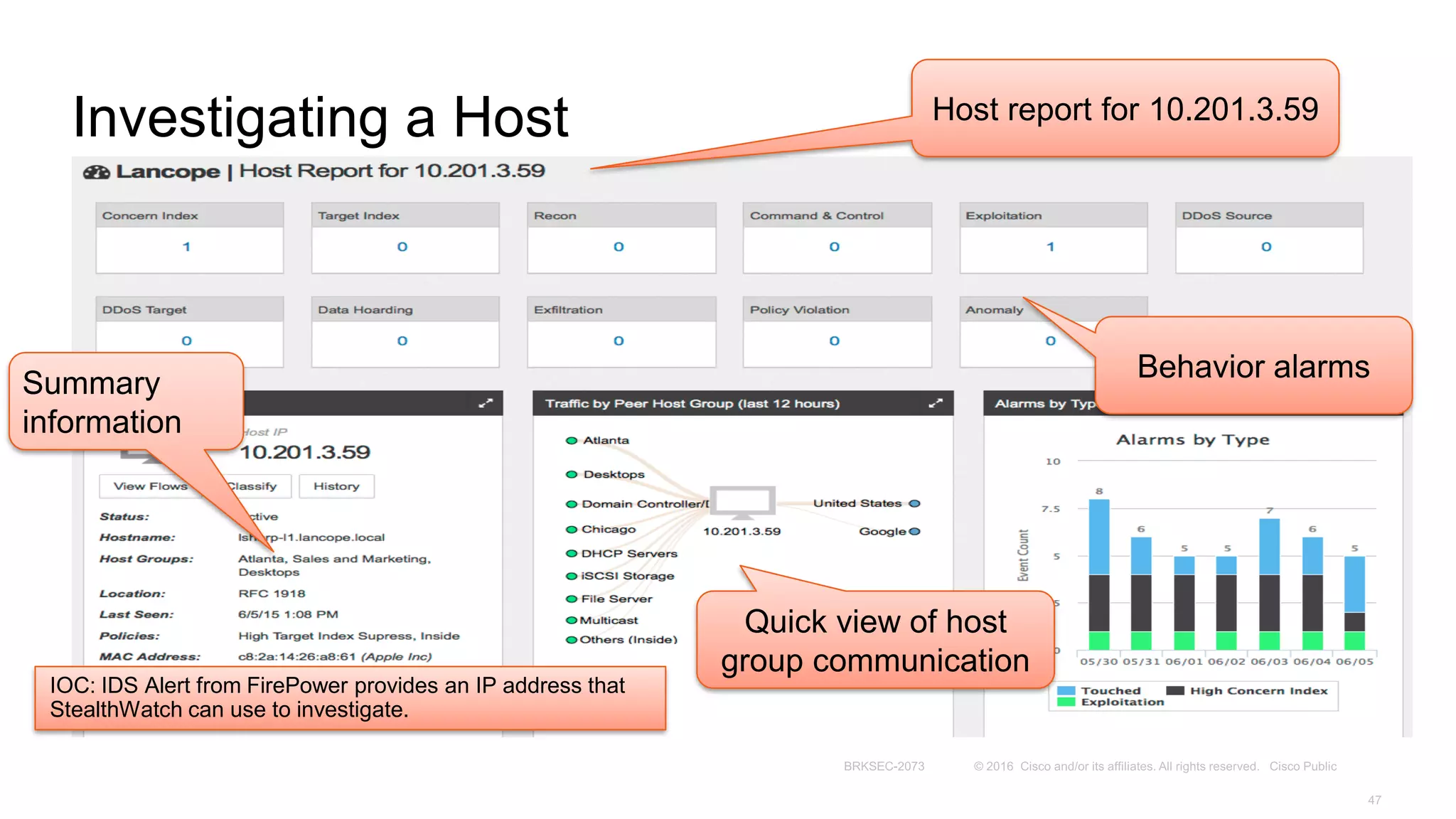

- 45. Investigating a Host IOC:IDS Alert from FirePower provides an IP address that StealthWatch can use to investigate. Host report for 10.201.3.59 Behavior alarms Quick view of host group communication Summary information

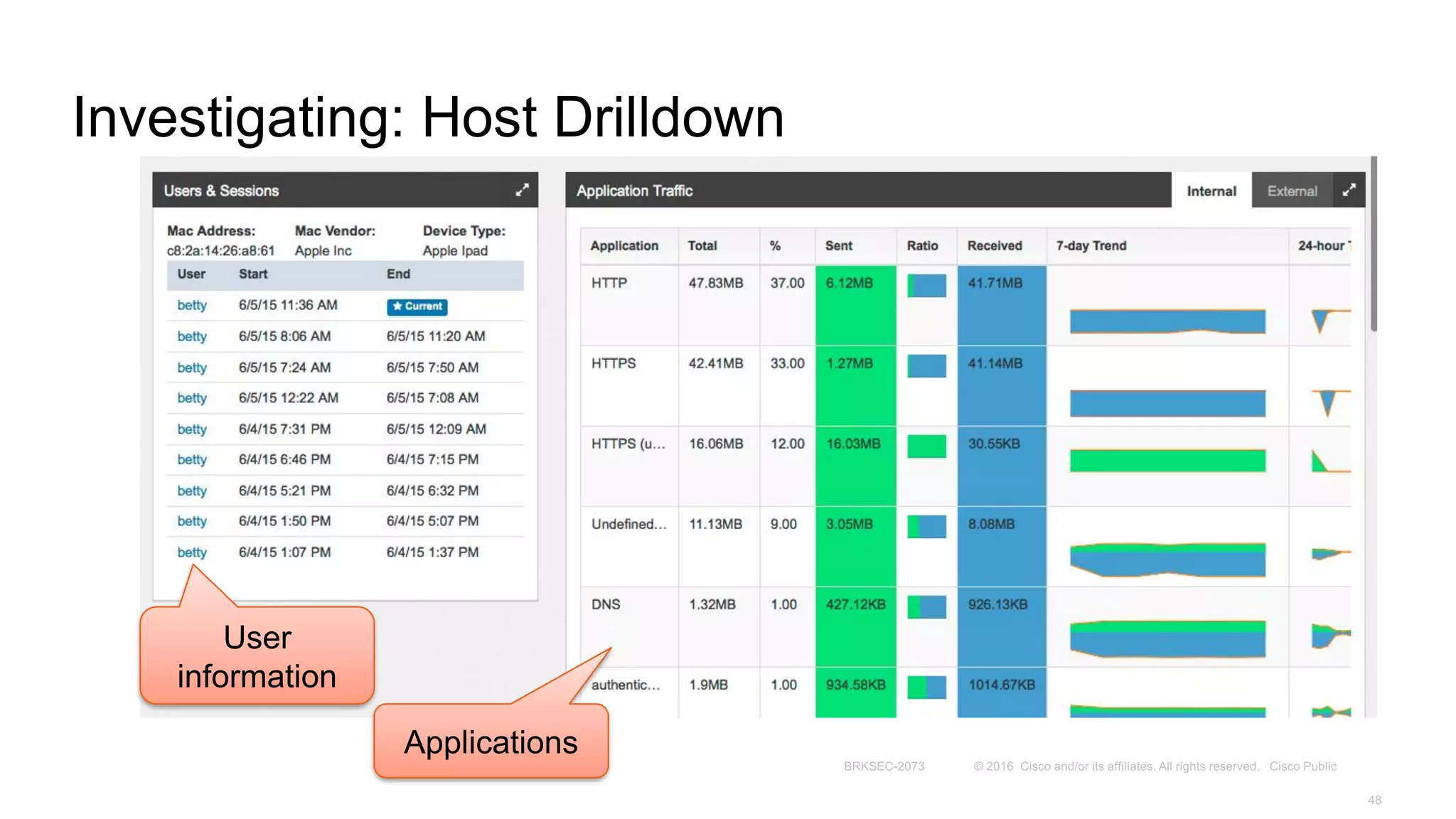

- 46.

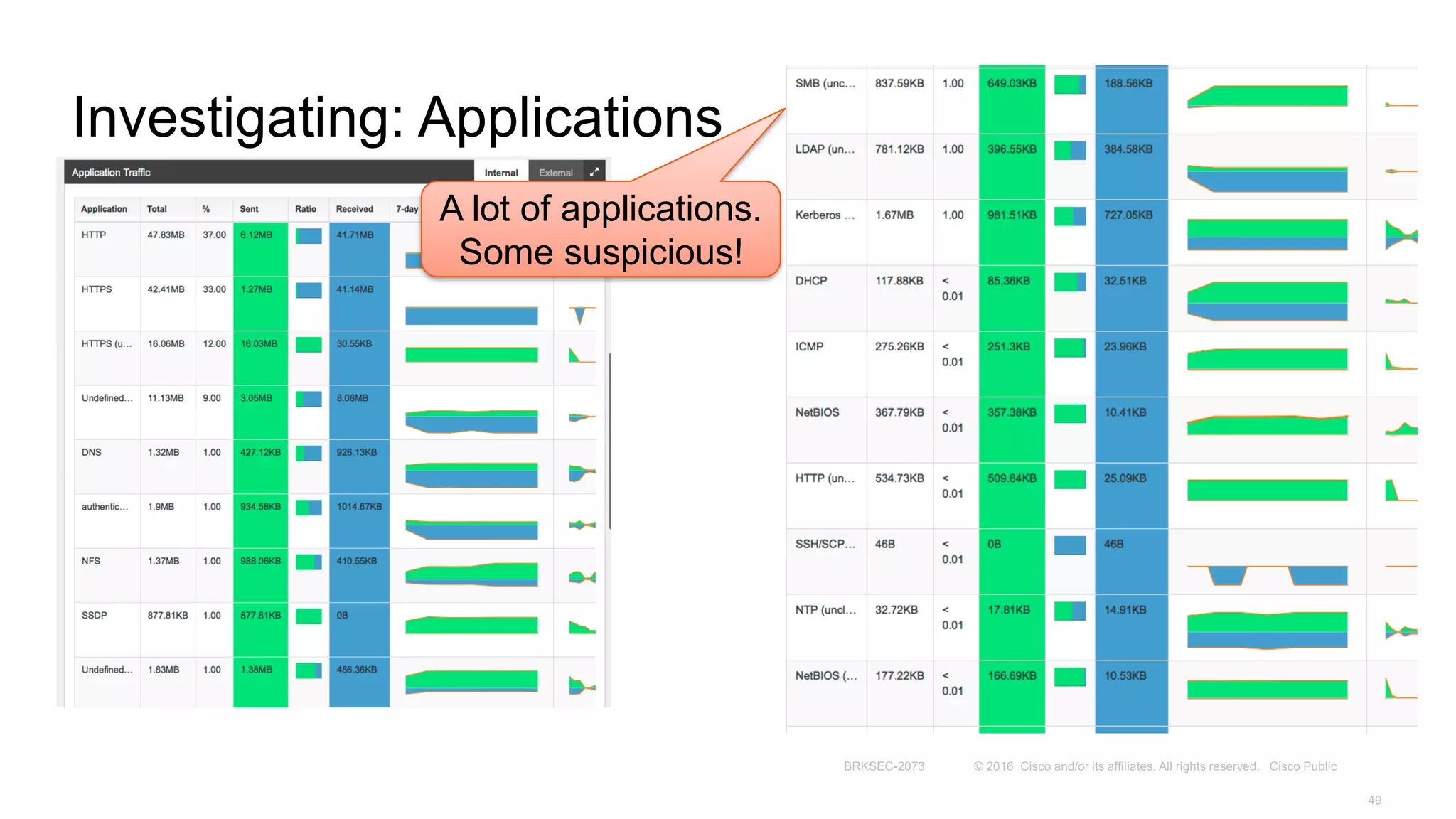

- 47. Investigating: Applications A lotof applications. Some suspicious!

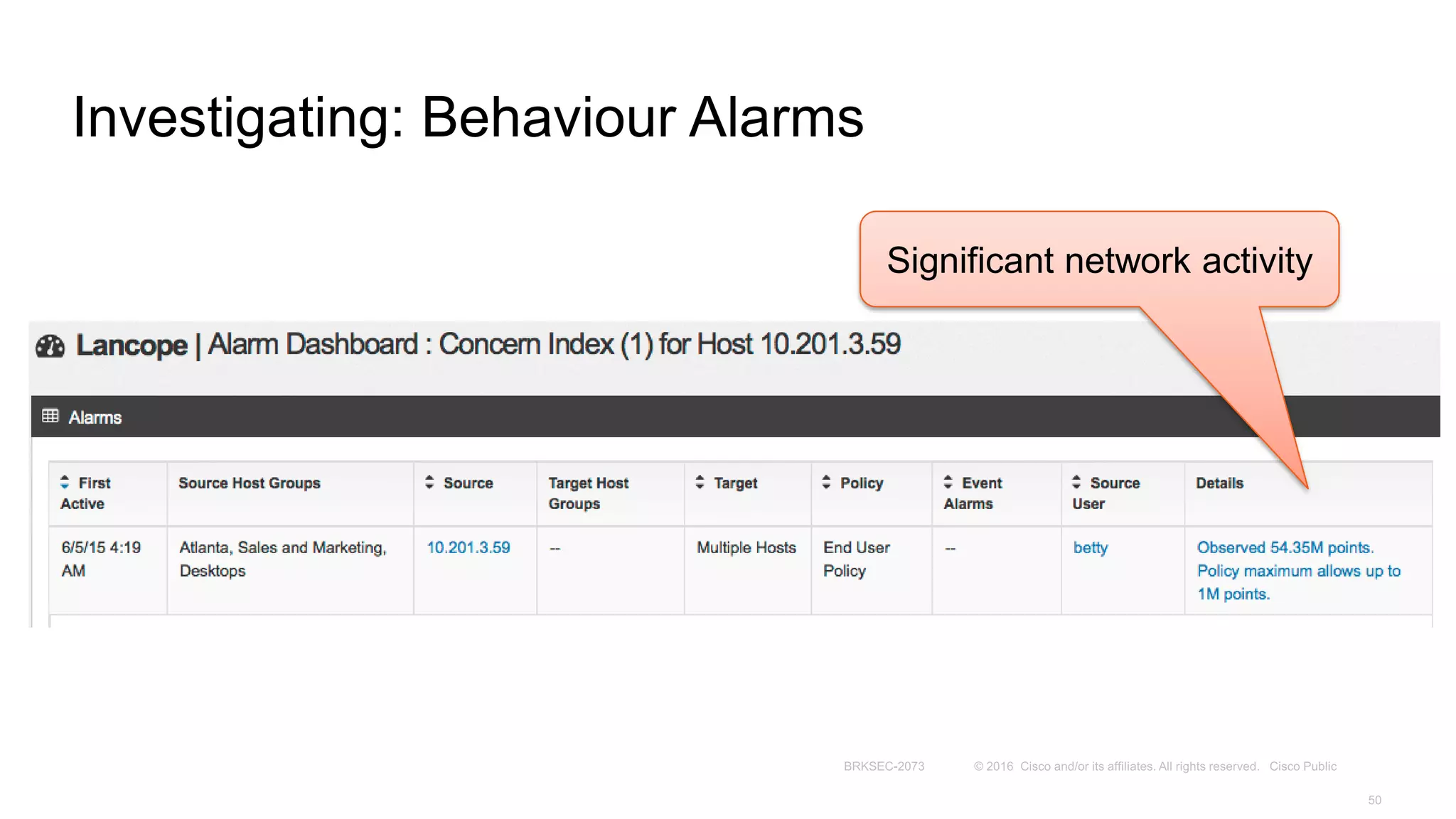

- 48. Investigating: Behaviour Alarms Significantnetwork activity

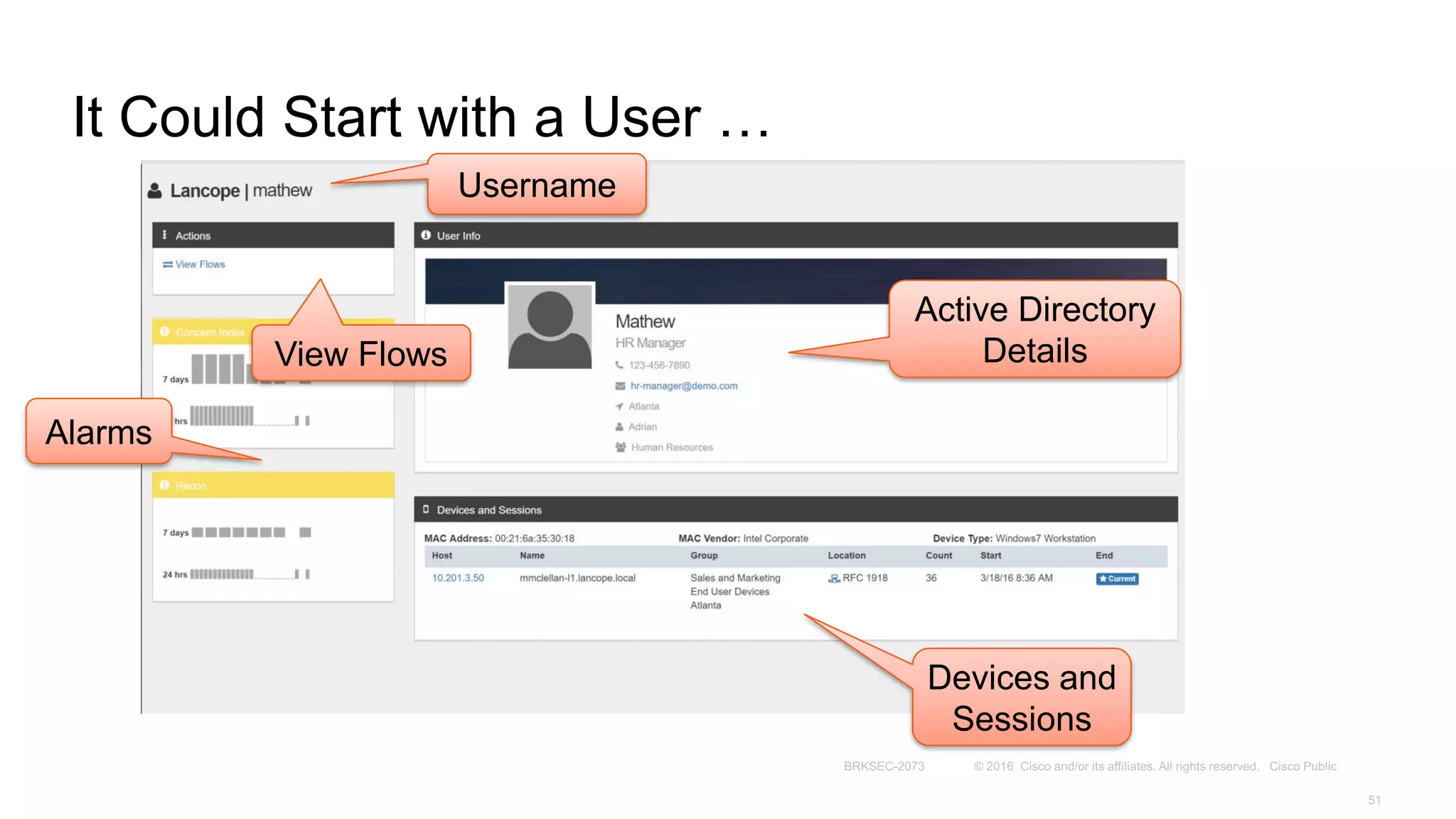

- 49. It Could Startwith a User … Alarms Devices and Sessions Active Directory Details Username View Flows

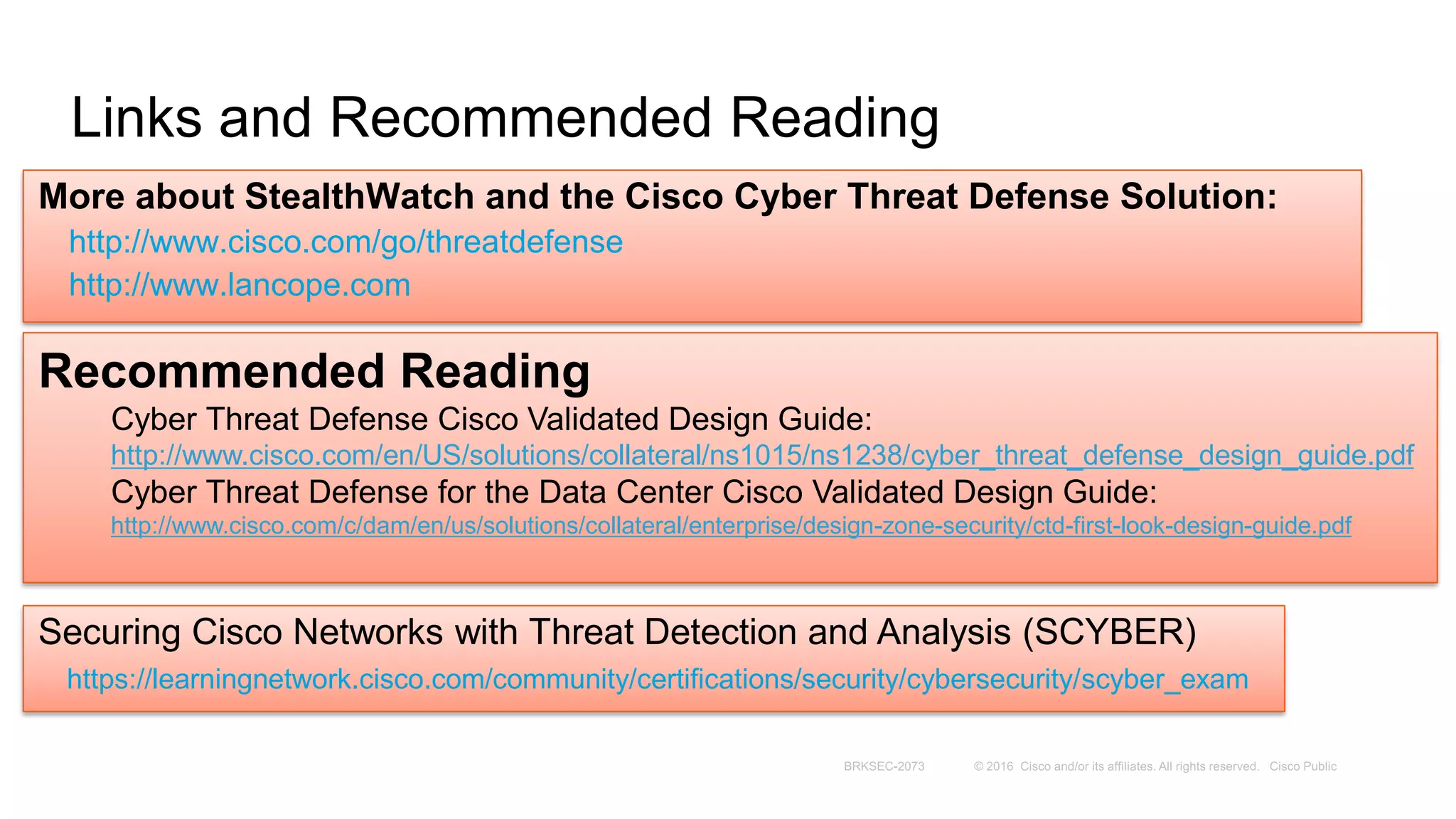

- 50. Links and RecommendedReading More about StealthWatch and the Cisco Cyber Threat Defense Solution: http://www.cisco.com/go/threatdefense http://www.lancope.com Recommended Reading Cyber Threat Defense Cisco Validated Design Guide: http://www.cisco.com/en/US/solutions/collateral/ns1015/ns1238/cyber_threat_defense_design_guide.pdf Cyber Threat Defense for the Data Center Cisco Validated Design Guide: http://www.cisco.com/c/dam/en/us/solutions/collateral/enterprise/design-zone-security/ctd-first-look-design-guide.pdf Securing Cisco Networks with Threat Detection and Analysis (SCYBER) https://learningnetwork.cisco.com/community/certifications/security/cybersecurity/scyber_exam

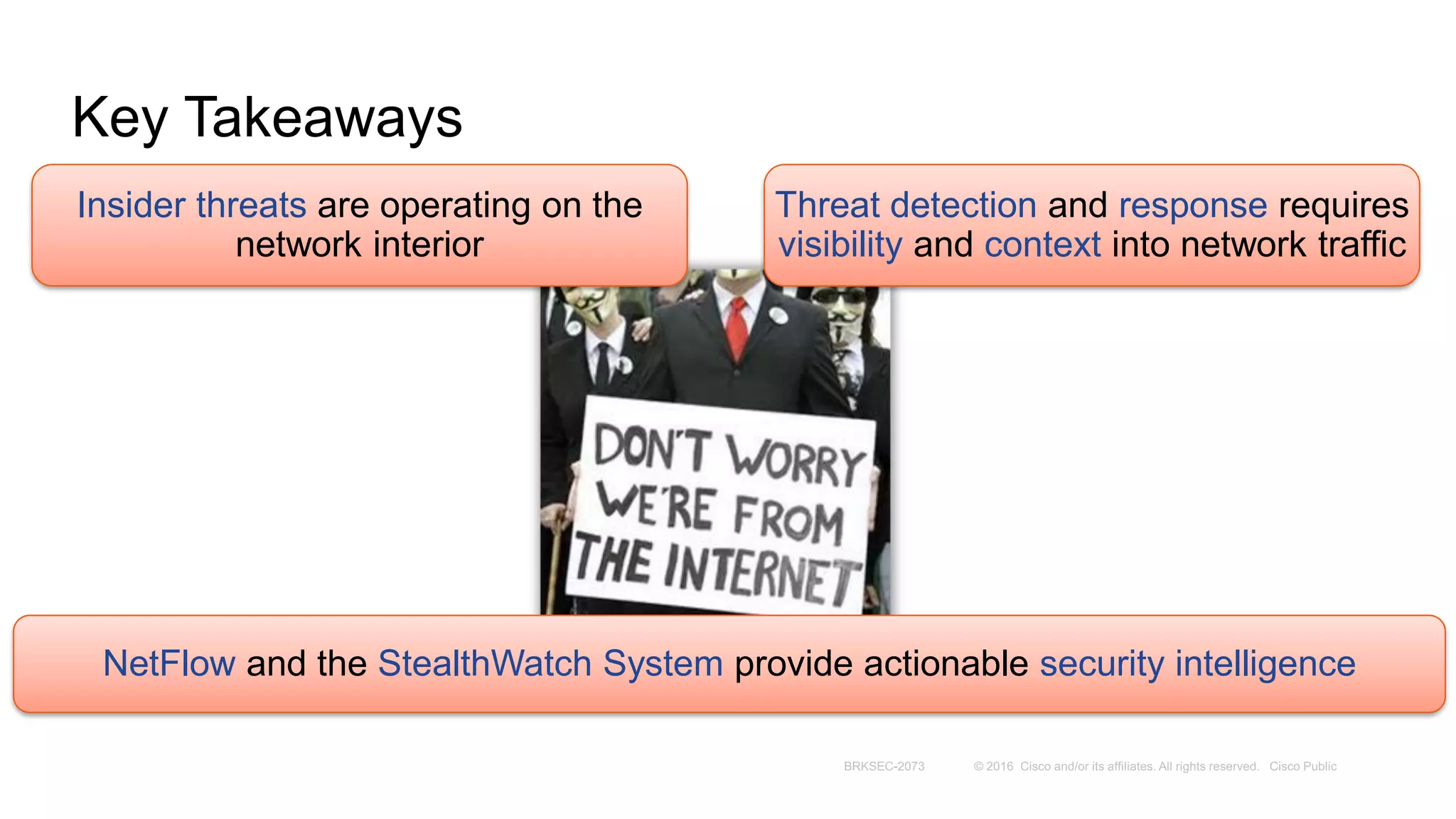

- 51. Key Takeaways Insider threatsare operating on the network interior Threat detection and response requires visibility and context into network traffic NetFlow and the StealthWatch System provide actionable security intelligence
- 52.
- 53. “The game isafoot!” Sherlock Holmes, The Adventure of the The Abbey Grange
- 54.
- 55.
