NetApp IT Efficiencies Gained with Flash, NetApp ONTAP, OnCommand Insight, AltaVault, StorageGrid and NPS
- 1. NetApp IT: Real-WorldIT Efficiencies with Flash, NetApp ONTAP, OnCommand Insight, AltaVault, StorageGRID, and NPS Eduardo Rivera Storage Architect, IT Storage Services Session ID 15891-2

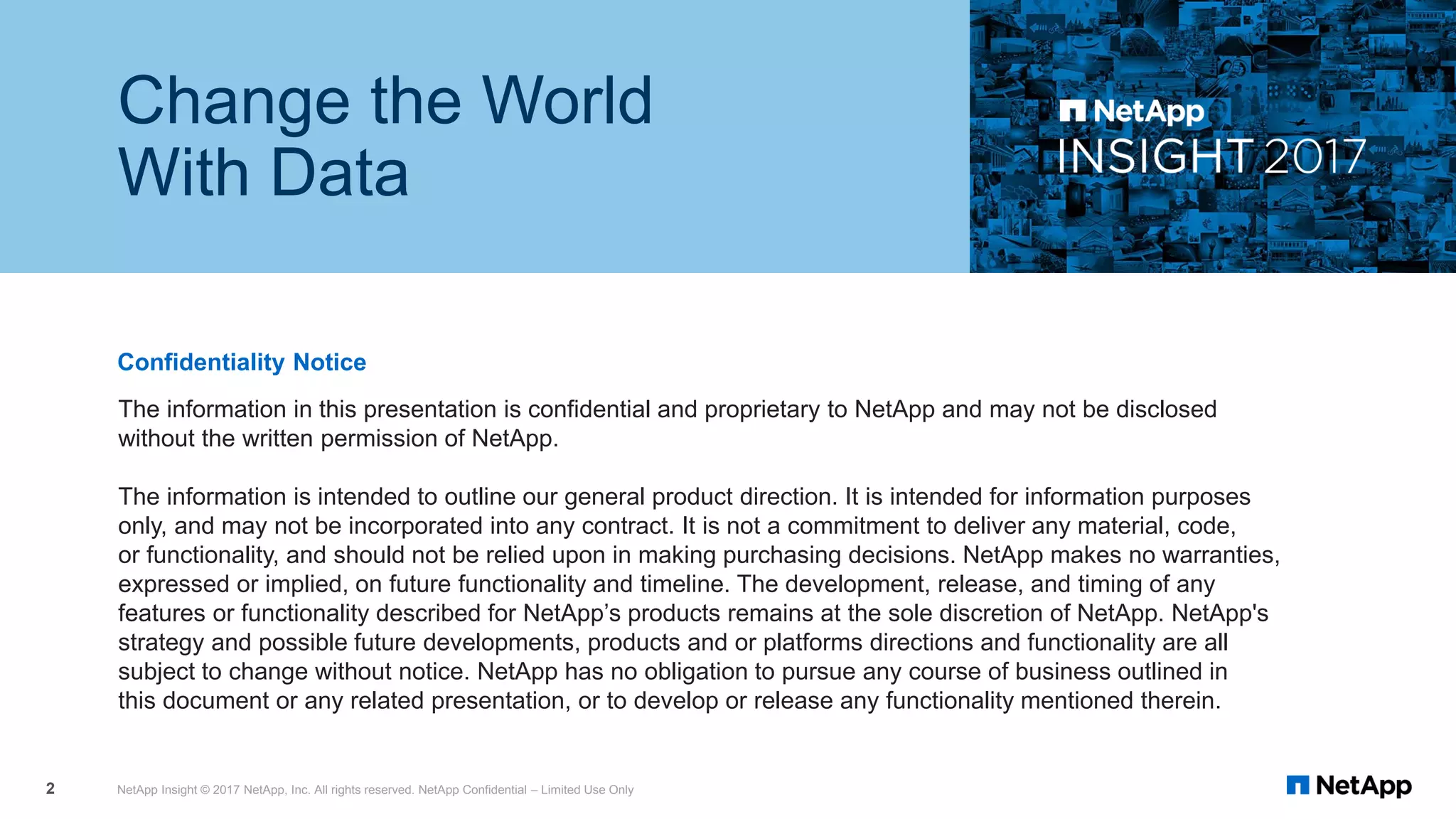

- 2. The information inthis presentation is confidential and proprietary to NetApp and may not be disclosed without the written permission of NetApp. The information is intended to outline our general product direction. It is intended for information purposes only, and may not be incorporated into any contract. It is not a commitment to deliver any material, code, or functionality, and should not be relied upon in making purchasing decisions. NetApp makes no warranties, expressed or implied, on future functionality and timeline. The development, release, and timing of any features or functionality described for NetApp’s products remains at the sole discretion of NetApp. NetApp's strategy and possible future developments, products and or platforms directions and functionality are all subject to change without notice. NetApp has no obligation to pursue any course of business outlined in this document or any related presentation, or to develop or release any functionality mentioned therein. Confidentiality Notice Change the World With Data NetApp Insight © 2017 NetApp, Inc. All rights reserved. NetApp Confidential – Limited Use Only2

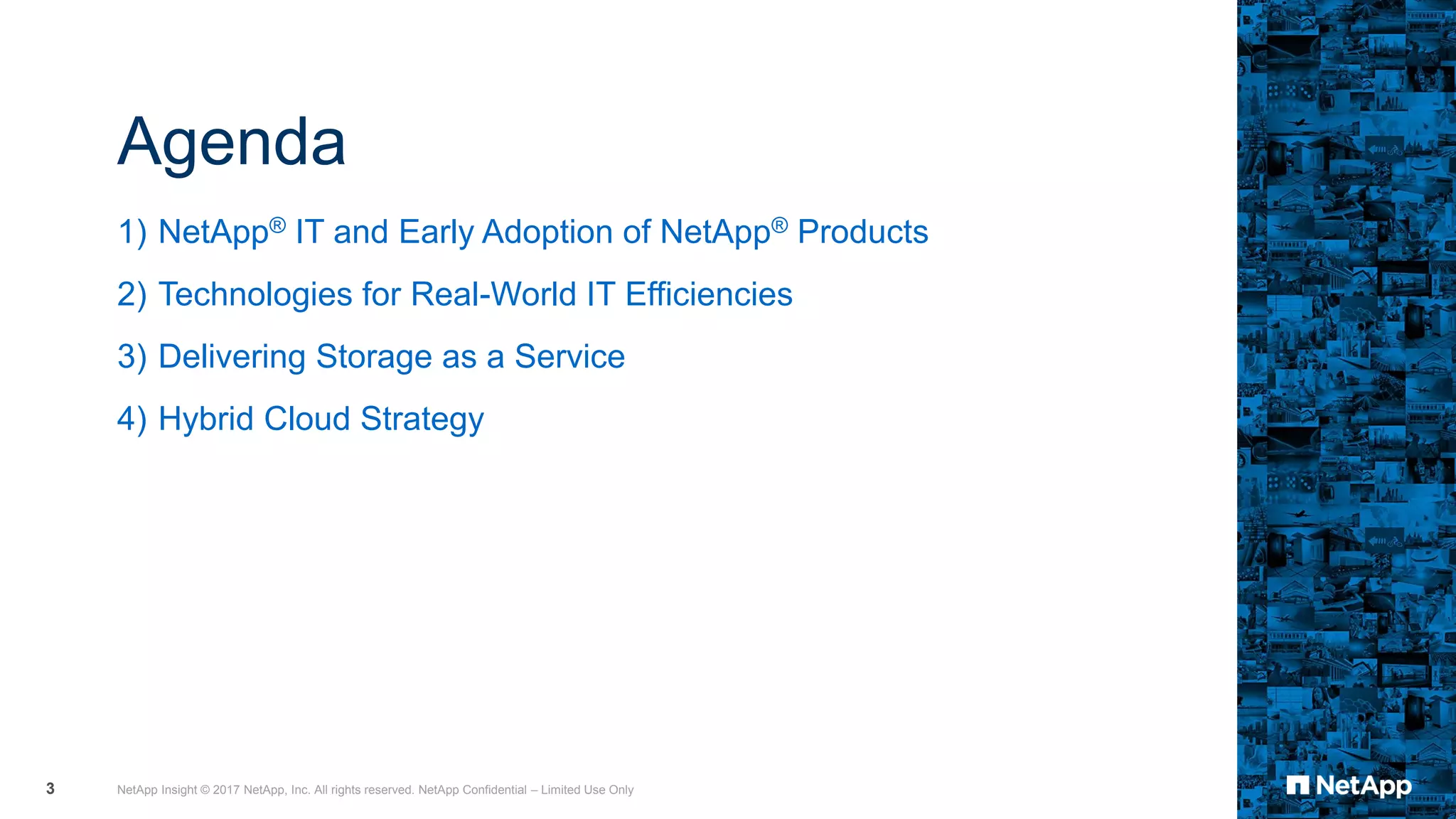

- 3. Agenda 1) NetApp® ITand Early Adoption of NetApp® Products 2) Technologies for Real-World IT Efficiencies 3) Delivering Storage as a Service 4) Hybrid Cloud Strategy NetApp Insight © 2017 NetApp, Inc. All rights reserved. NetApp Confidential – Limited Use Only3
- 4. NetApp Insight ©2017 NetApp, Inc. All rights reserved. NetApp Confidential – Limited Use Only4 Unique Value Proposition of NetApp® IT 10,000 employees 150 office locations 45 countries ▪ 5 data centers ▪ 5,348 servers (~75% virtualized) ▪ 58 PB data center storage ▪ 560 enterprise applications NetApp on NetApp ▪ Practitioner’s viewpoint ▪ Business benefits realization ▪ Sharing lessons learned Customer 1 ▪ Early product adoption ▪ Feedback on products & services ▪ Technology use cases

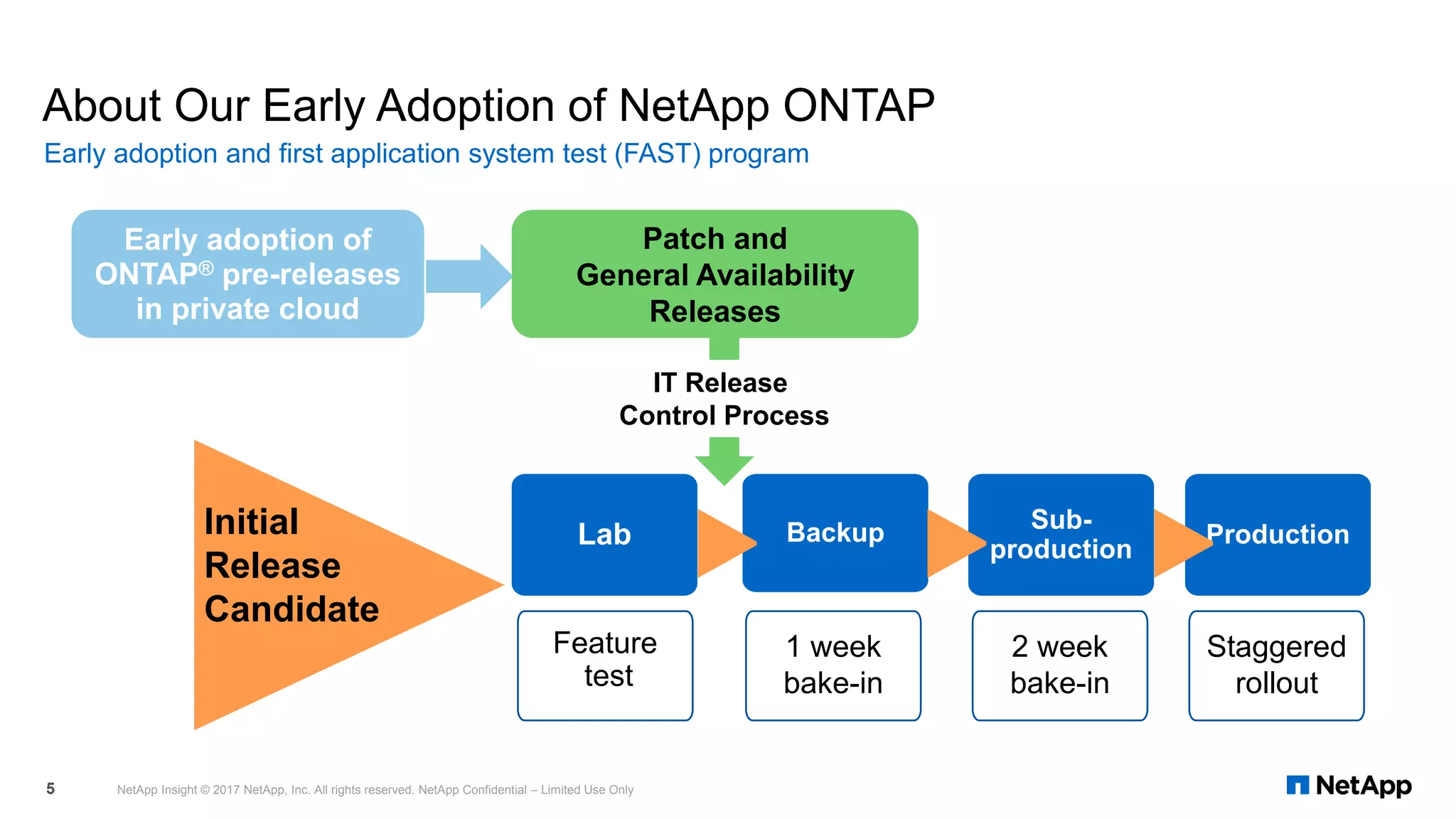

- 5. About Our EarlyAdoption of NetApp ONTAP Early adoption and first application system test (FAST) program NetApp Insight © 2017 NetApp, Inc. All rights reserved. NetApp Confidential – Limited Use Only5 1 week bake-in Backup Sub- production ProductionLabInitial Release Candidate Feature test Staggered rollout 2 week bake-in IT Release Control Process Patch and General Availability Releases Early adoption of ONTAP® pre-releases in private cloud

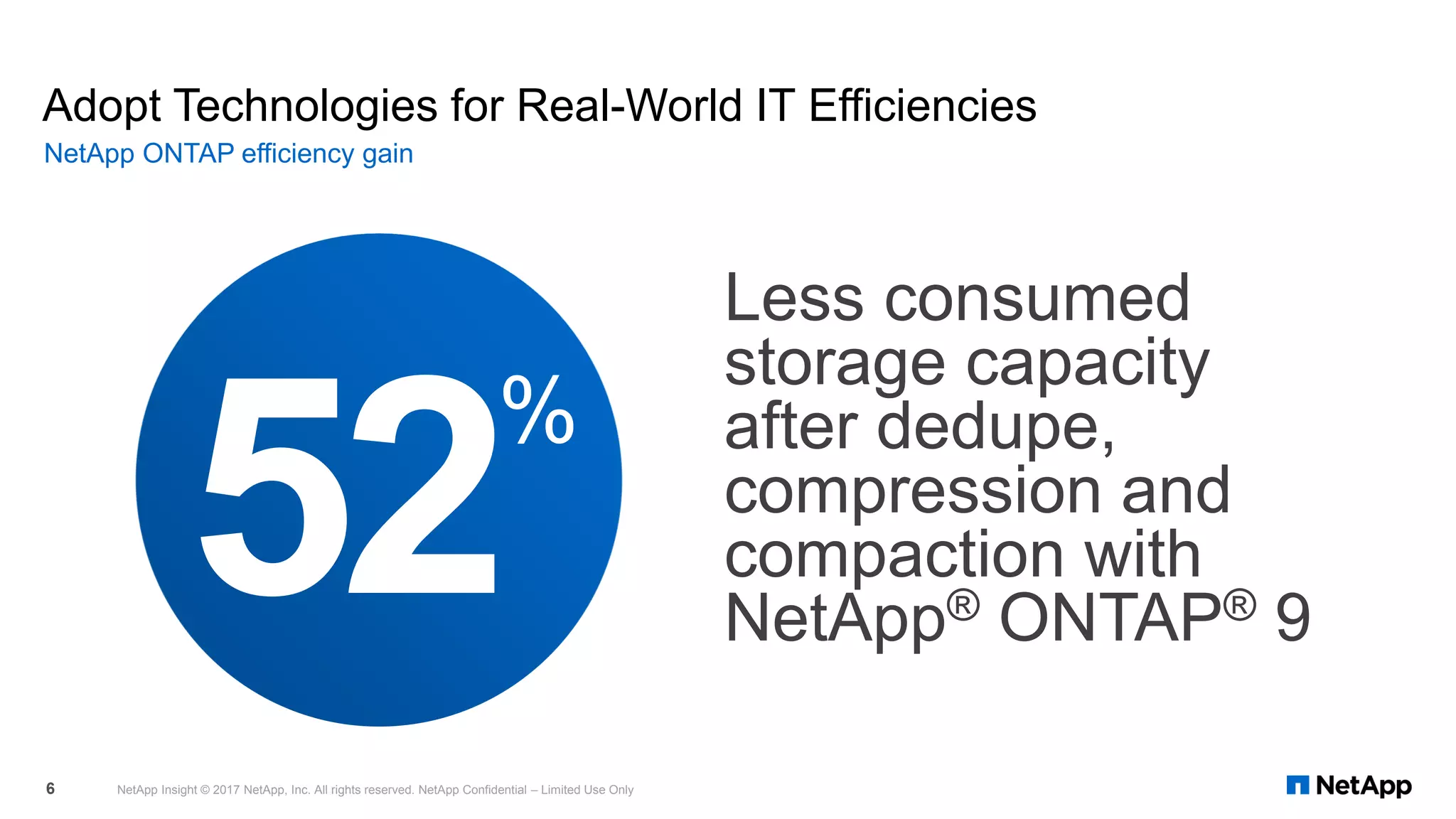

- 6. Adopt Technologies forReal-World IT Efficiencies NetApp ONTAP efficiency gain NetApp Insight © 2017 NetApp, Inc. All rights reserved. NetApp Confidential – Limited Use Only6 Less consumed storage capacity after dedupe, compression and compaction with NetApp® ONTAP® 9 % 52%

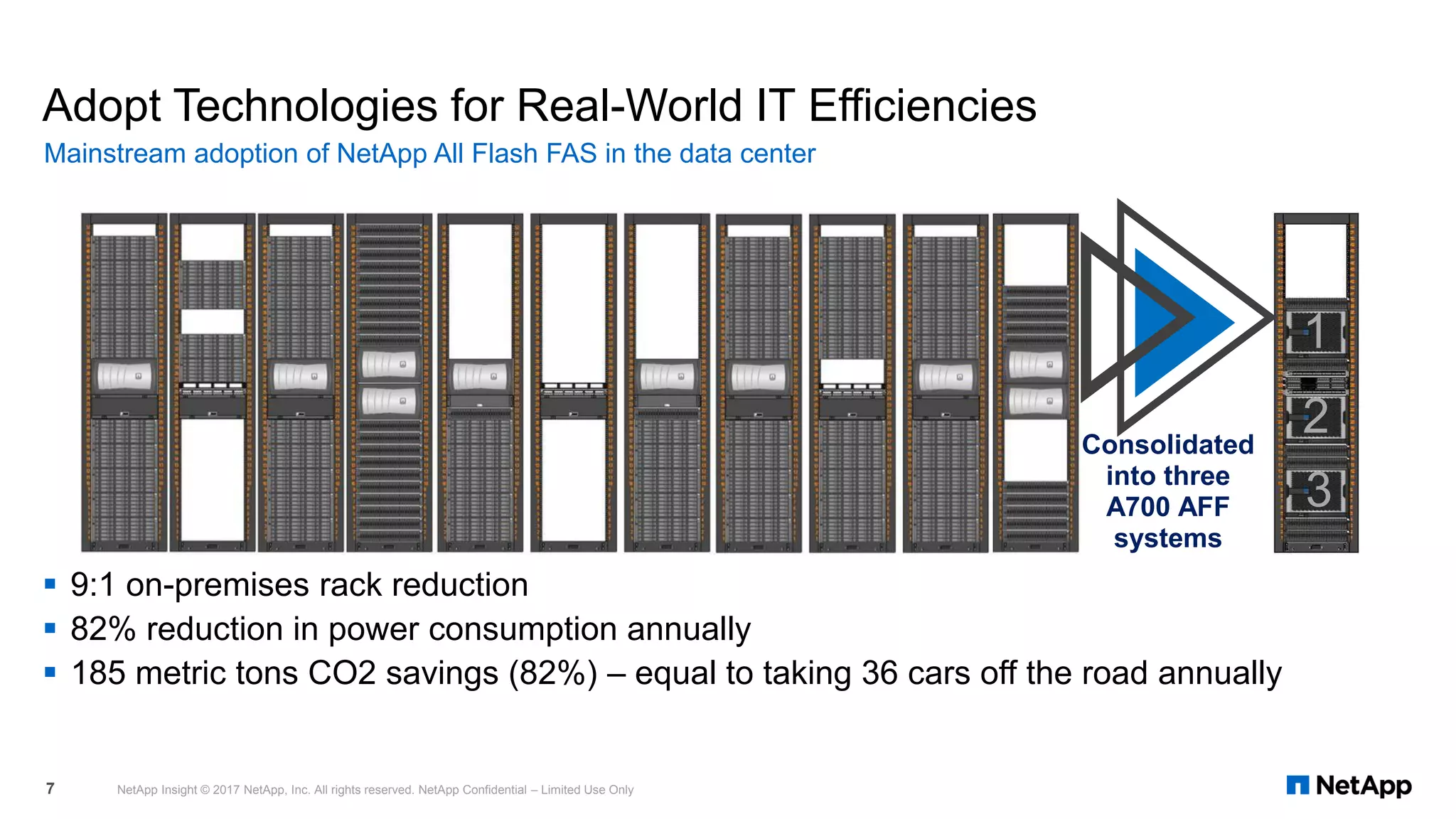

- 7. Adopt Technologies forReal-World IT Efficiencies ▪ 9:1 on-premises rack reduction ▪ 82% reduction in power consumption annually ▪ 185 metric tons CO2 savings (82%) – equal to taking 36 cars off the road annually Mainstream adoption of NetApp All Flash FAS in the data center NetApp Insight © 2017 NetApp, Inc. All rights reserved. NetApp Confidential – Limited Use Only7 1 2 3 Consolidated into three A700 AFF systems

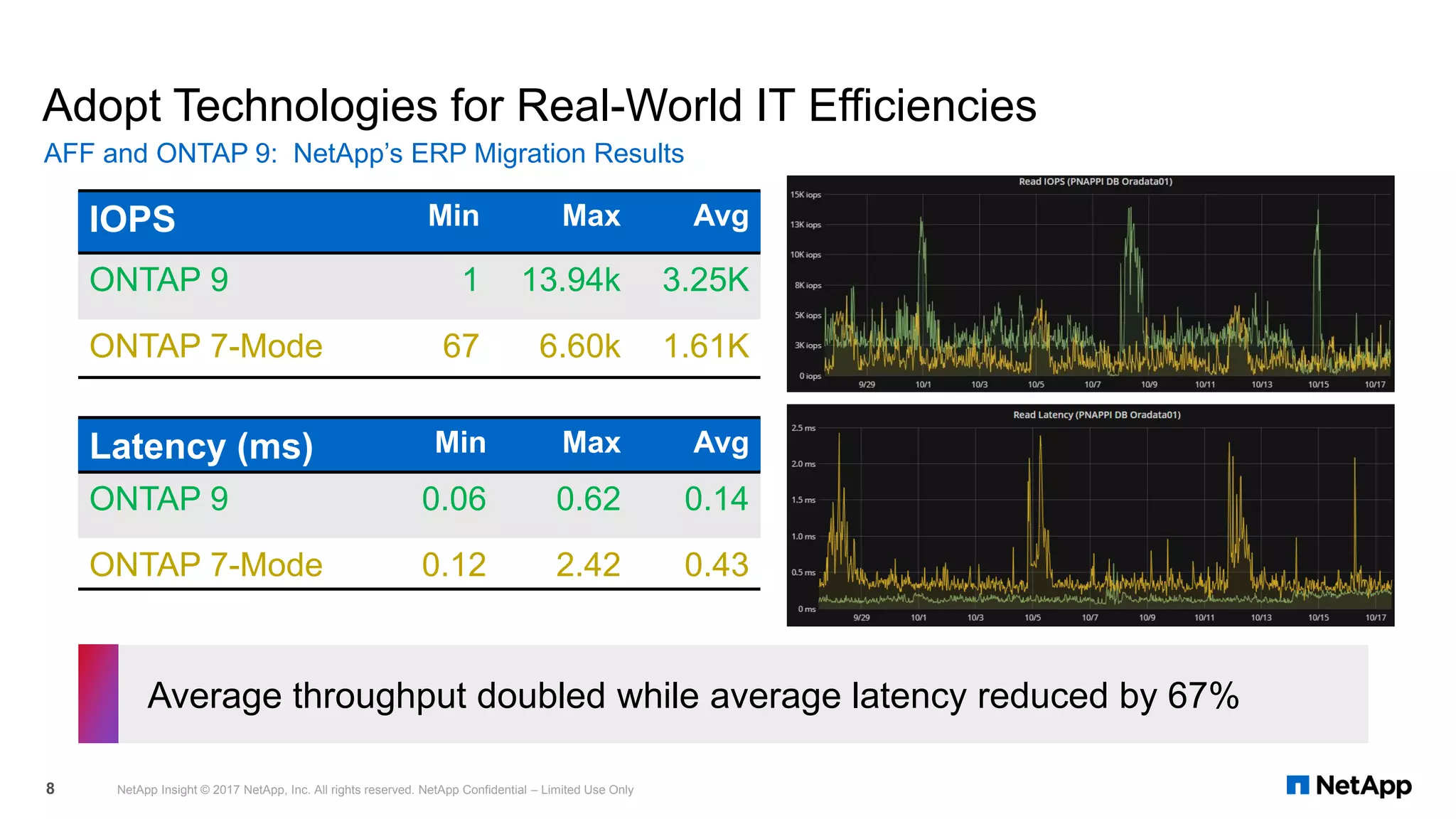

- 8. Adopt Technologies forReal-World IT Efficiencies AFF and ONTAP 9: NetApp’s ERP Migration Results 8 IOPS Min Max Avg ONTAP 9 1 13.94k 3.25K ONTAP 7-Mode 67 6.60k 1.61K Latency (ms) Min Max Avg ONTAP 9 0.06 0.62 0.14 ONTAP 7-Mode 0.12 2.42 0.43 Average throughput doubled while average latency reduced by 67% NetApp Insight © 2017 NetApp, Inc. All rights reserved. NetApp Confidential – Limited Use Only

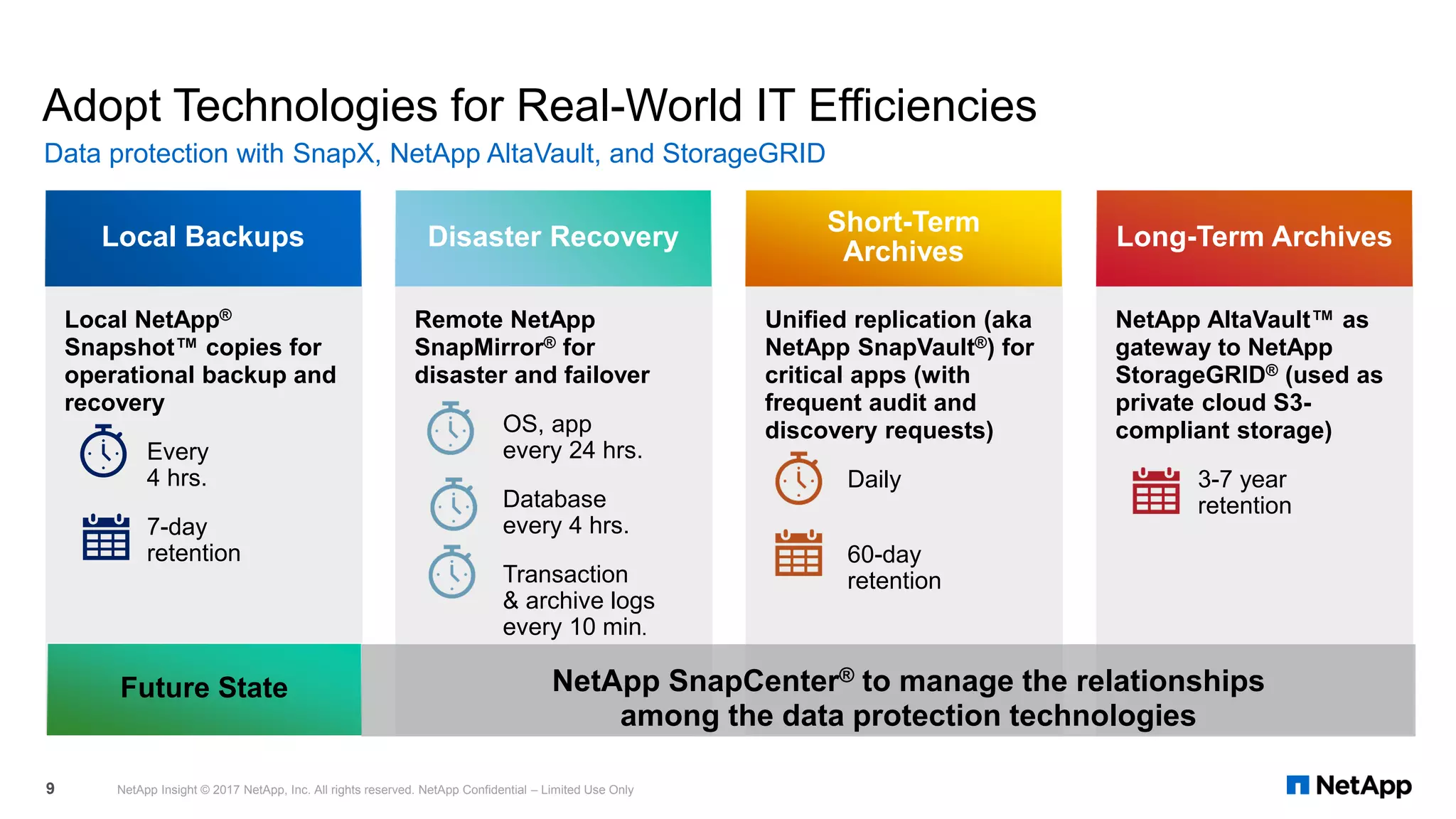

- 9. Adopt Technologies forReal-World IT Efficiencies Data protection with SnapX, NetApp AltaVault, and StorageGRID NetApp Insight © 2017 NetApp, Inc. All rights reserved. NetApp Confidential – Limited Use Only9 NetApp AltaVault™ as gateway to NetApp StorageGRID® (used as private cloud S3- compliant storage) 3-7 year retention Disaster Recovery Short-Term Archives Long-Term ArchivesLocal Backups Unified replication (aka NetApp SnapVault®) for critical apps (with frequent audit and discovery requests) Daily 60-day retention Remote NetApp SnapMirror® for disaster and failover OS, app every 24 hrs. Database every 4 hrs. Transaction & archive logs every 10 min. Local NetApp® Snapshot™ copies for operational backup and recovery Every 4 hrs. 7-day retention Future State NetApp SnapCenter® to manage the relationships among the data protection technologies

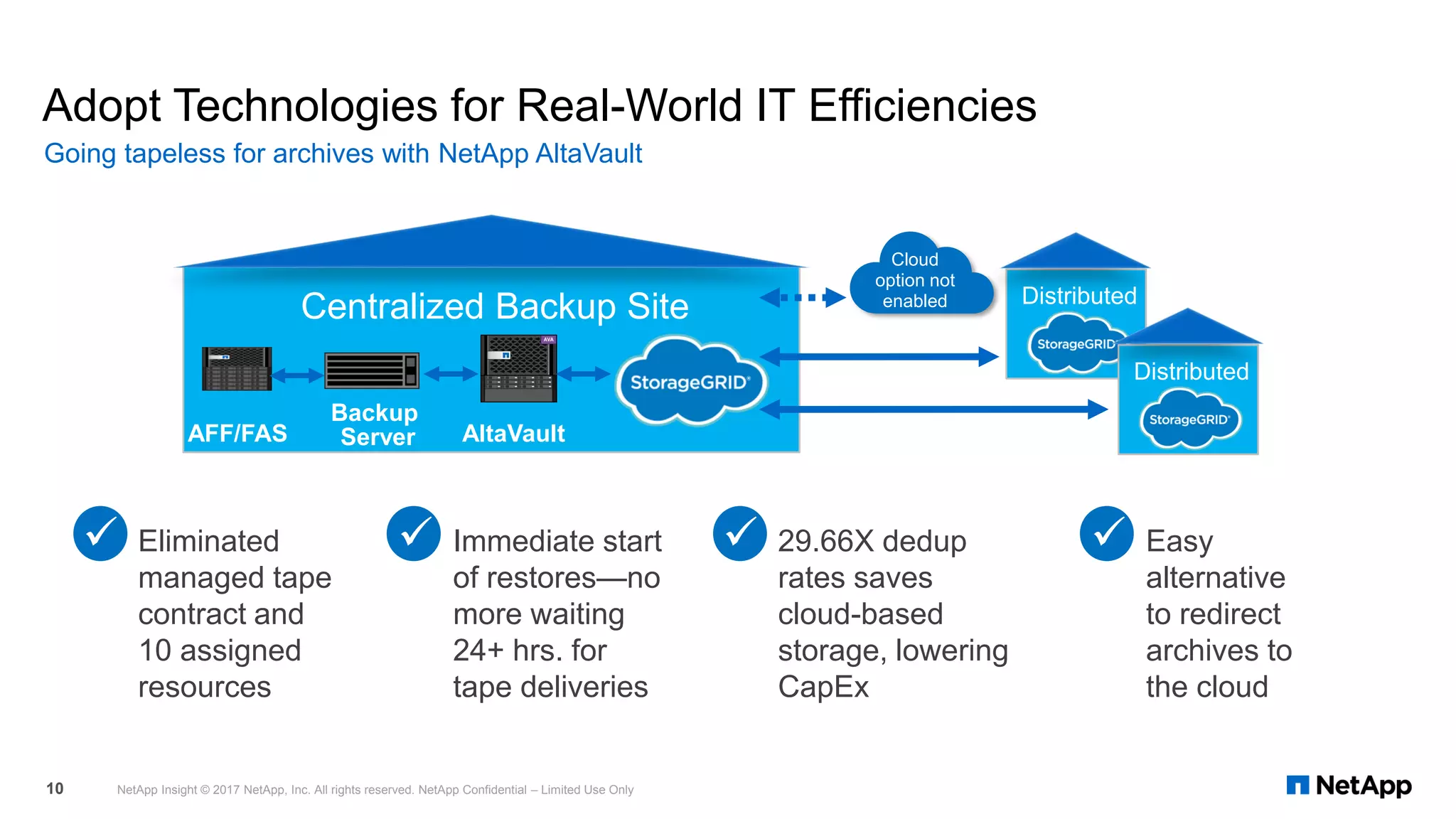

- 10. Adopt Technologies forReal-World IT Efficiencies Going tapeless for archives with NetApp AltaVault NetApp Insight © 2017 NetApp, Inc. All rights reserved. NetApp Confidential – Limited Use Only10 Backup ServerAFF/FAS Centralized Backup Site Distributed AltaVault Distributed Cloud option not enabled ✓ 29.66X dedup rates saves cloud-based storage, lowering CapEx ✓ Eliminated managed tape contract and 10 assigned resources ✓ Immediate start of restores—no more waiting 24+ hrs. for tape deliveries ✓ Easy alternative to redirect archives to the cloud

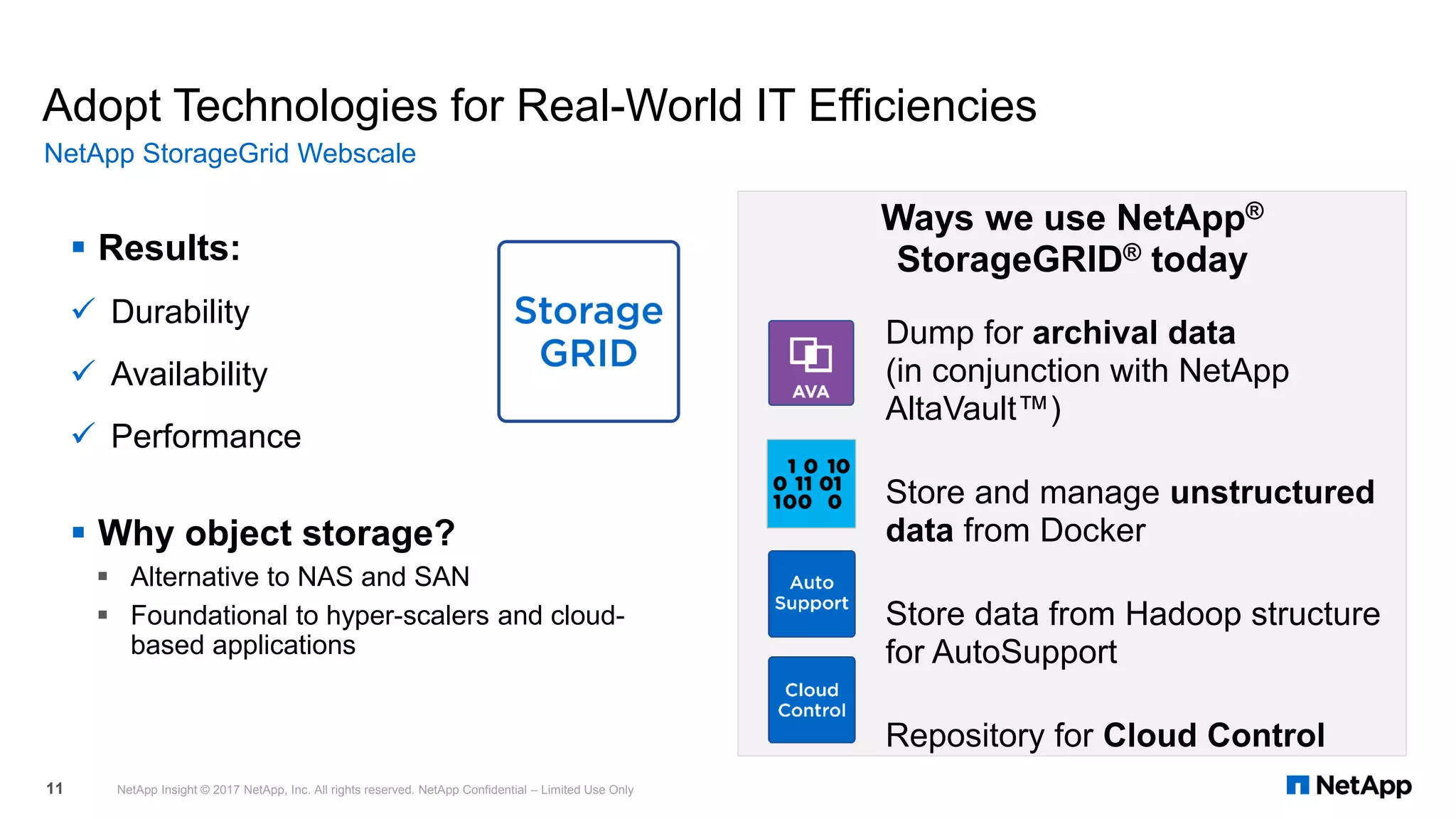

- 11. Adopt Technologies forReal-World IT Efficiencies NetApp StorageGrid Webscale NetApp Insight © 2017 NetApp, Inc. All rights reserved. NetApp Confidential – Limited Use Only11 Ways we use NetApp® StorageGRID® today Dump for archival data (in conjunction with NetApp AltaVault™) Store and manage unstructured data from Docker Store data from Hadoop structure for AutoSupport Repository for Cloud Control ▪ Results: ✓ Durability ✓ Availability ✓ Performance ▪ Why object storage? ▪ Alternative to NAS and SAN ▪ Foundational to hyper-scalers and cloud- based applications

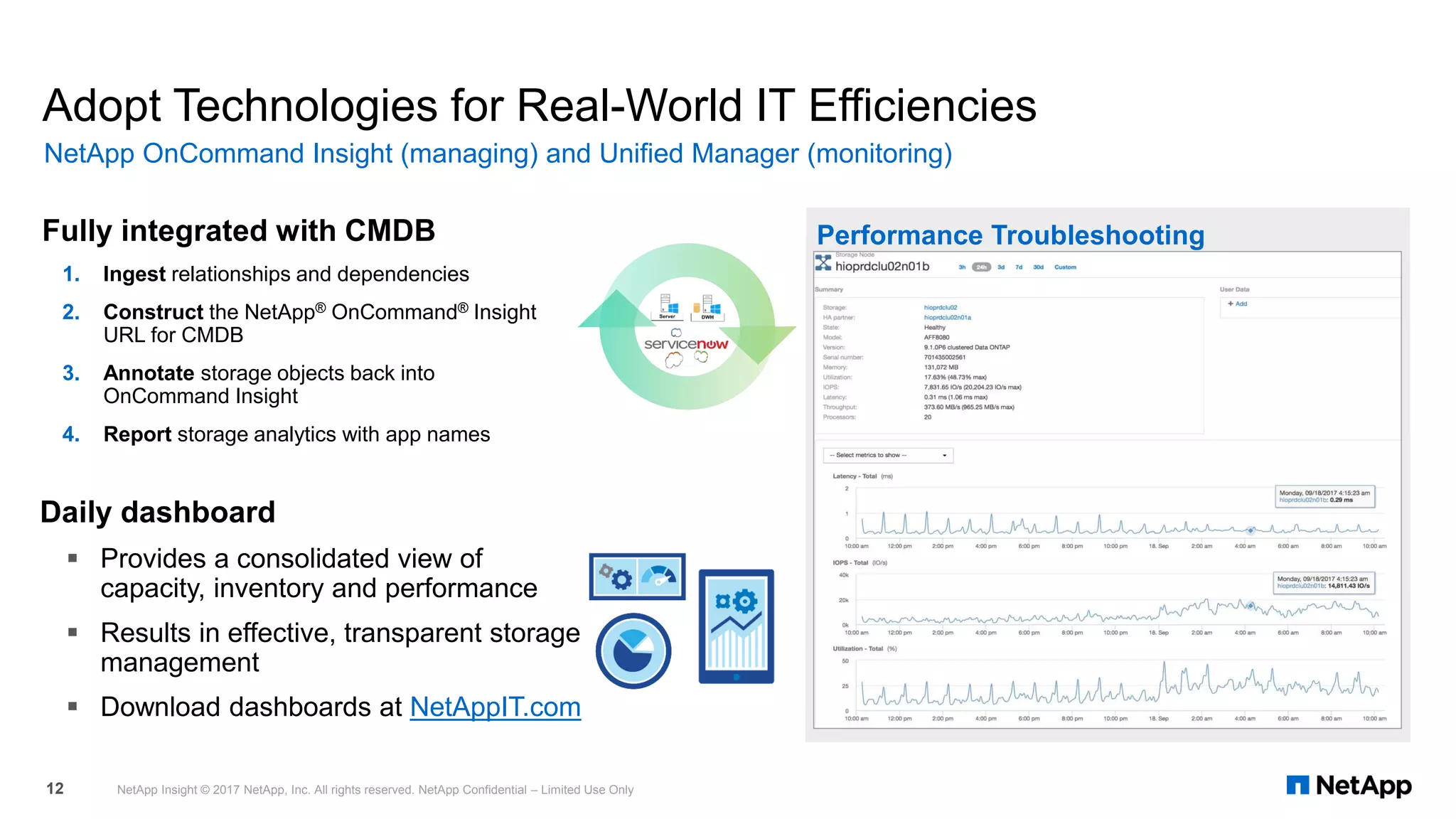

- 12. Adopt Technologies forReal-World IT Efficiencies NetApp OnCommand Insight (managing) and Unified Manager (monitoring) NetApp Insight © 2017 NetApp, Inc. All rights reserved. NetApp Confidential – Limited Use Only12 Daily dashboard ▪ Provides a consolidated view of capacity, inventory and performance ▪ Results in effective, transparent storage management ▪ Download dashboards at NetAppIT.com Fully integrated with CMDB 1. Ingest relationships and dependencies 2. Construct the NetApp® OnCommand® Insight URL for CMDB 3. Annotate storage objects back into OnCommand Insight 4. Report storage analytics with app names Performance Troubleshooting

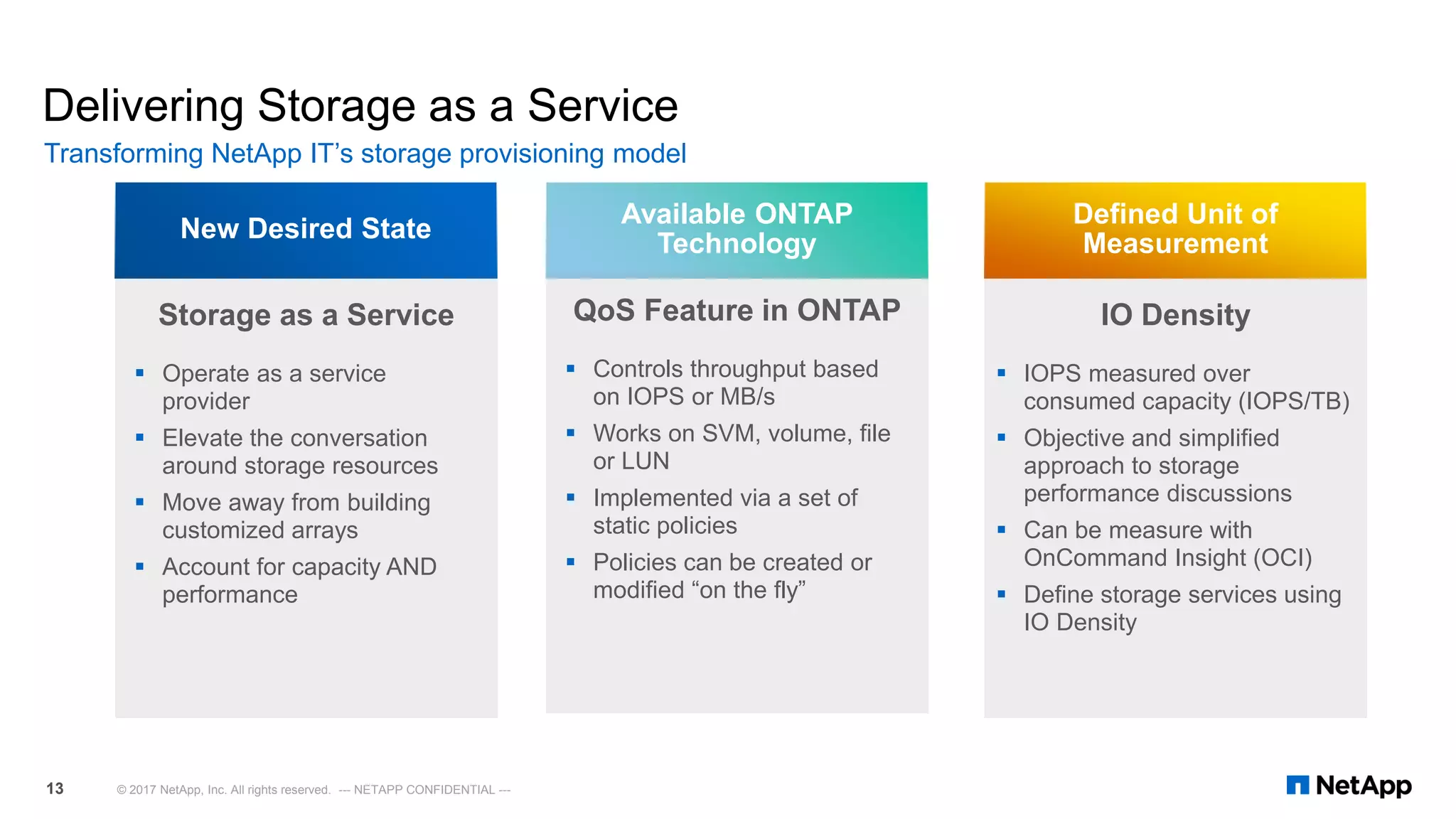

- 13. Delivering Storage asa Service Transforming NetApp IT’s storage provisioning model © 2017 NetApp, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---13 Available ONTAP Technology Defined Unit of Measurement New Desired State IO Density ▪ IOPS measured over consumed capacity (IOPS/TB) ▪ Objective and simplified approach to storage performance discussions ▪ Can be measure with OnCommand Insight (OCI) ▪ Define storage services using IO Density QoS Feature in ONTAP ▪ Controls throughput based on IOPS or MB/s ▪ Works on SVM, volume, file or LUN ▪ Implemented via a set of static policies ▪ Policies can be created or modified “on the fly” Storage as a Service ▪ Operate as a service provider ▪ Elevate the conversation around storage resources ▪ Move away from building customized arrays ▪ Account for capacity AND performance

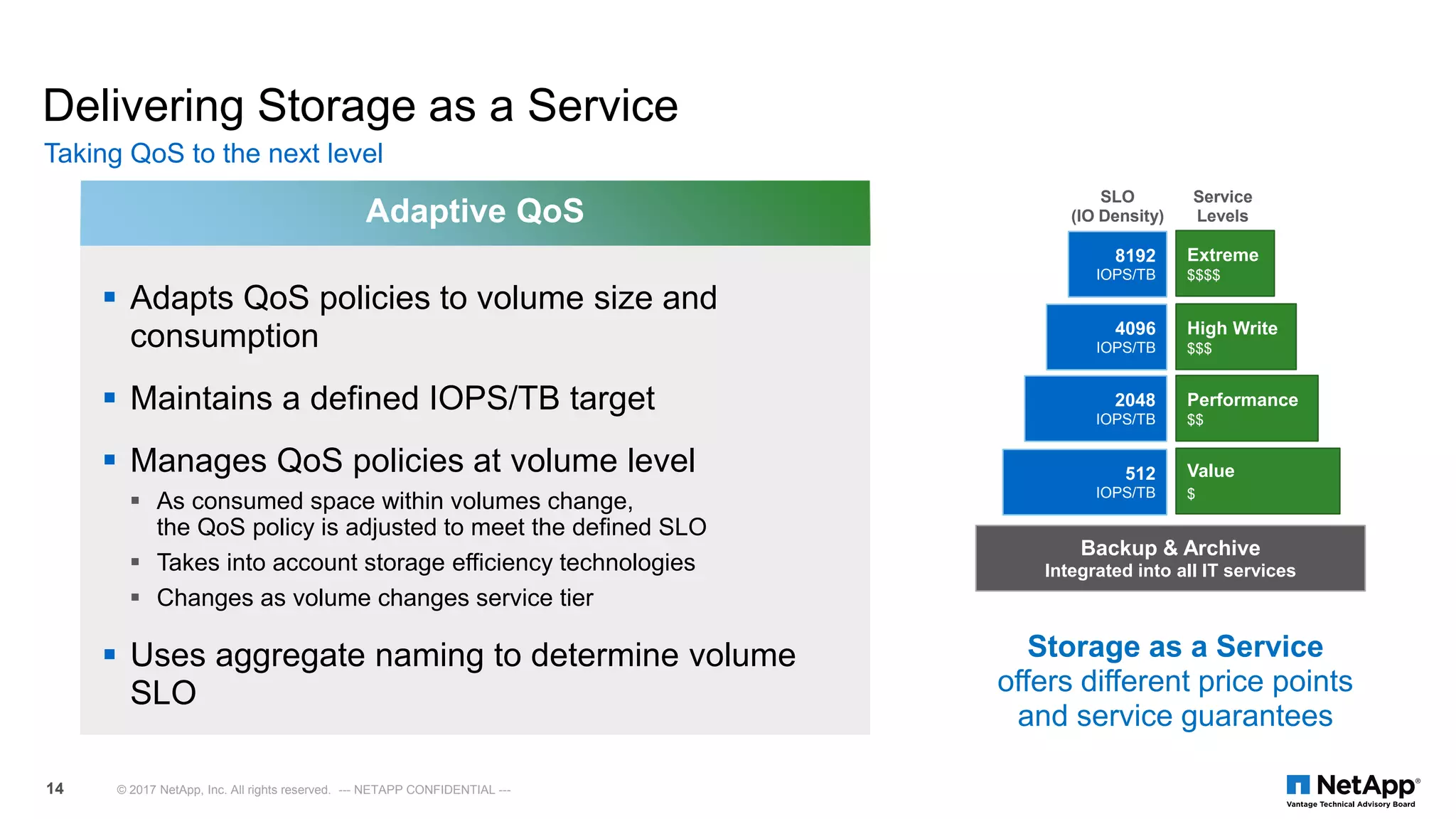

- 14. Delivering Storage asa Service Taking QoS to the next level 14 © 2017 NetApp, Inc. All rights reserved. --- NETAPP CONFIDENTIAL --- ▪ Adapts QoS policies to volume size and consumption ▪ Maintains a defined IOPS/TB target ▪ Manages QoS policies at volume level ▪ As consumed space within volumes change, the QoS policy is adjusted to meet the defined SLO ▪ Takes into account storage efficiency technologies ▪ Changes as volume changes service tier ▪ Uses aggregate naming to determine volume SLO Adaptive QoS Storage as a Service offers different price points and service guarantees Backup & Archive Integrated into all IT services 512 IOPS/TB Value $ 2048 IOPS/TB Performance $$ 8192 IOPS/TB Extreme $$$$ SLO (IO Density) Service Levels 4096 IOPS/TB High Write $$$

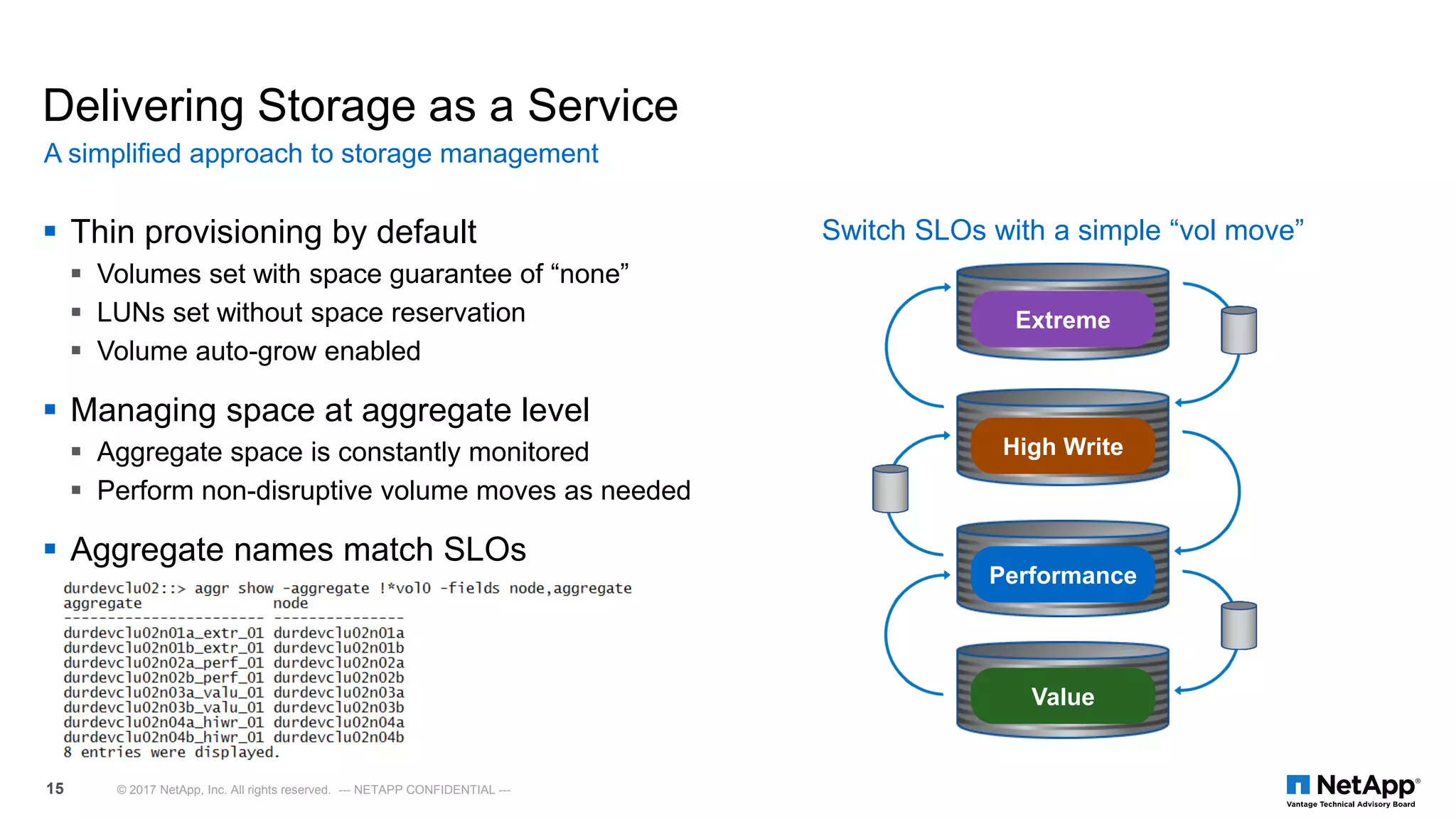

- 15. ▪ Thin provisioningby default ▪ Volumes set with space guarantee of “none” ▪ LUNs set without space reservation ▪ Volume auto-grow enabled ▪ Managing space at aggregate level ▪ Aggregate space is constantly monitored ▪ Perform non-disruptive volume moves as needed ▪ Aggregate names match SLOs Delivering Storage as a Service A simplified approach to storage management 15 © 2017 NetApp, Inc. All rights reserved. --- NETAPP CONFIDENTIAL --- Performance High Write Extreme Value Switch SLOs with a simple “vol move”

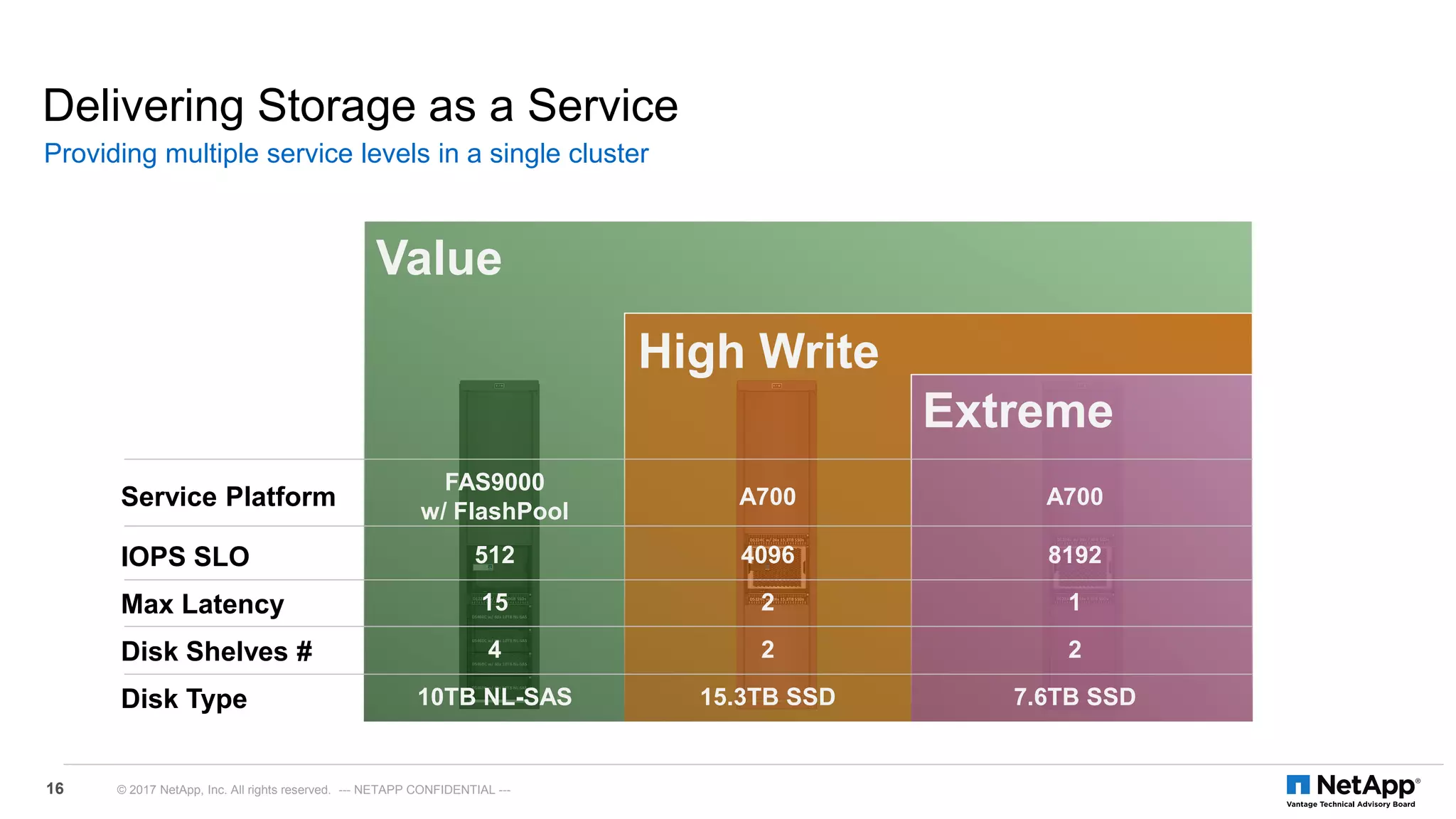

- 16. 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 4 5 670 1 2 3 12 13 14 158 9 10 11 20 21 22 2316 17 18 19 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB DS460CDS460C DS460CDS460C DS460CDS460C DS460CDS460C AB FAS9000FAS9000 DS224C w/ 12x 960GB SSDs DS460C w/ 60x 10TB NL-SAS DS460C w/ 60x 10TB NL-SAS DS460C w/ 60x 10TB NL-SAS DS460C w/ 40x 10TB NL-SAS 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 4 5 6 70 1 2 3 12 13 14 158 9 10 11 20 21 22 2316 17 18 19 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB AB AFF A700 4 5 6 70 1 2 3 12 13 14 158 9 10 11 20 21 22 2316 17 18 19 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB DS224C w/ 24x 7.6TB SSDs DS224C w/ 24x 7.6TB SSDs 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 4 5 6 70 1 2 3 12 13 14 158 9 10 11 20 21 22 2316 17 18 19 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 4 5 6 70 1 2 3 12 13 14 158 9 10 11 20 21 22 2316 17 18 19 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB AB AFF A700 DS224C w/ 24x 15.3TB SSDs DS224C w/ 24x 15.3TB SSDs Delivering Storage as a Service Providing multiple service levels in a single cluster 16 © 2017 NetApp, Inc. All rights reserved. --- NETAPP CONFIDENTIAL --- Value Extreme Service Platform FAS9000 w/ FlashPool A700 A700 IOPS SLO 512 4096 8192 Max Latency 15 2 1 Disk Shelves # 4 2 2 Disk Type 10TB NL-SAS 15.3TB SSD 7.6TB SSD High Write

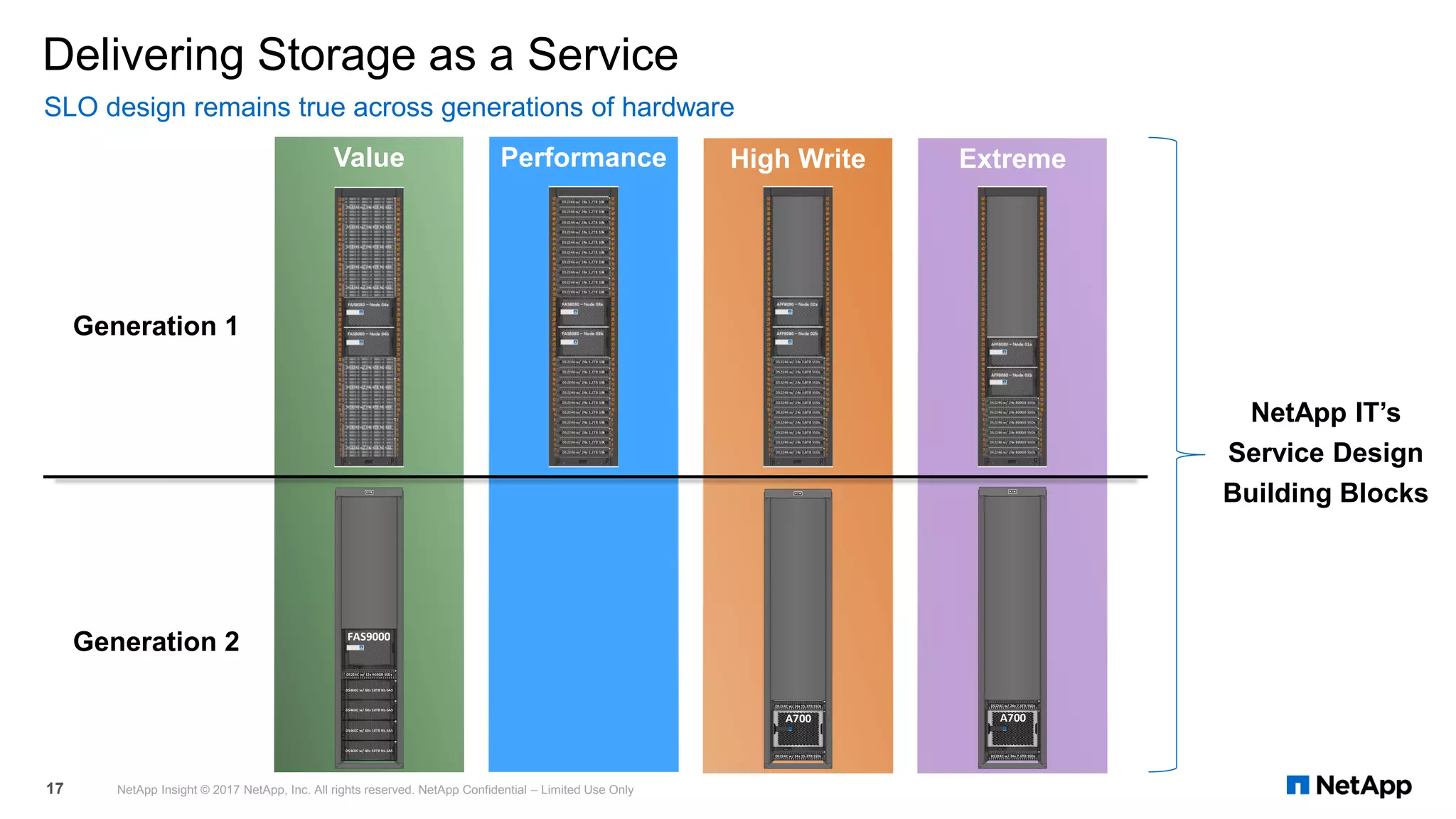

- 17. Delivering Storage asa Service SLO design remains true across generations of hardware NetApp Insight © 2017 NetApp, Inc. All rights reserved. NetApp Confidential – Limited Use Only17 Value 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 4 5 6 70 1 2 3 12 13 14 158 9 10 11 20 21 22 2316 17 18 19 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB 960GB DS460CDS460C DS460CDS460C DS460CDS460C DS460CDS460C AB FAS9000FAS9000 DS224C w/ 12x 960GB SSDs DS460C w/ 60x 10TB NL-SAS DS460C w/ 60x 10TB NL-SAS DS460C w/ 60x 10TB NL-SAS DS460C w/ 40x 10TB NL-SAS FAS9000 Performance High Write 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 4 5 6 70 1 2 3 12 13 14 158 9 10 11 20 21 22 2316 17 18 19 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 4 5 6 70 1 2 3 12 13 14 158 9 10 11 20 21 22 2316 17 18 19 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB 15.3TB AB AFF A700 DS224C w/ 24x 15.3TB SSDs DS224C w/ 24x 15.3TB SSDs A700 Extreme 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 4 5 6 70 1 2 3 12 13 14 158 9 10 11 20 21 22 2316 17 18 19 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB AB AFF A700 4 5 6 70 1 2 3 12 13 14 158 9 10 11 20 21 22 2316 17 18 19 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB 3.8TB A700 DS224C w/ 24x 7.6TB SSDs DS224C w/ 24x 7.6TB SSDs Generation 1 Generation 2 NetApp IT’s Service Design Building Blocks

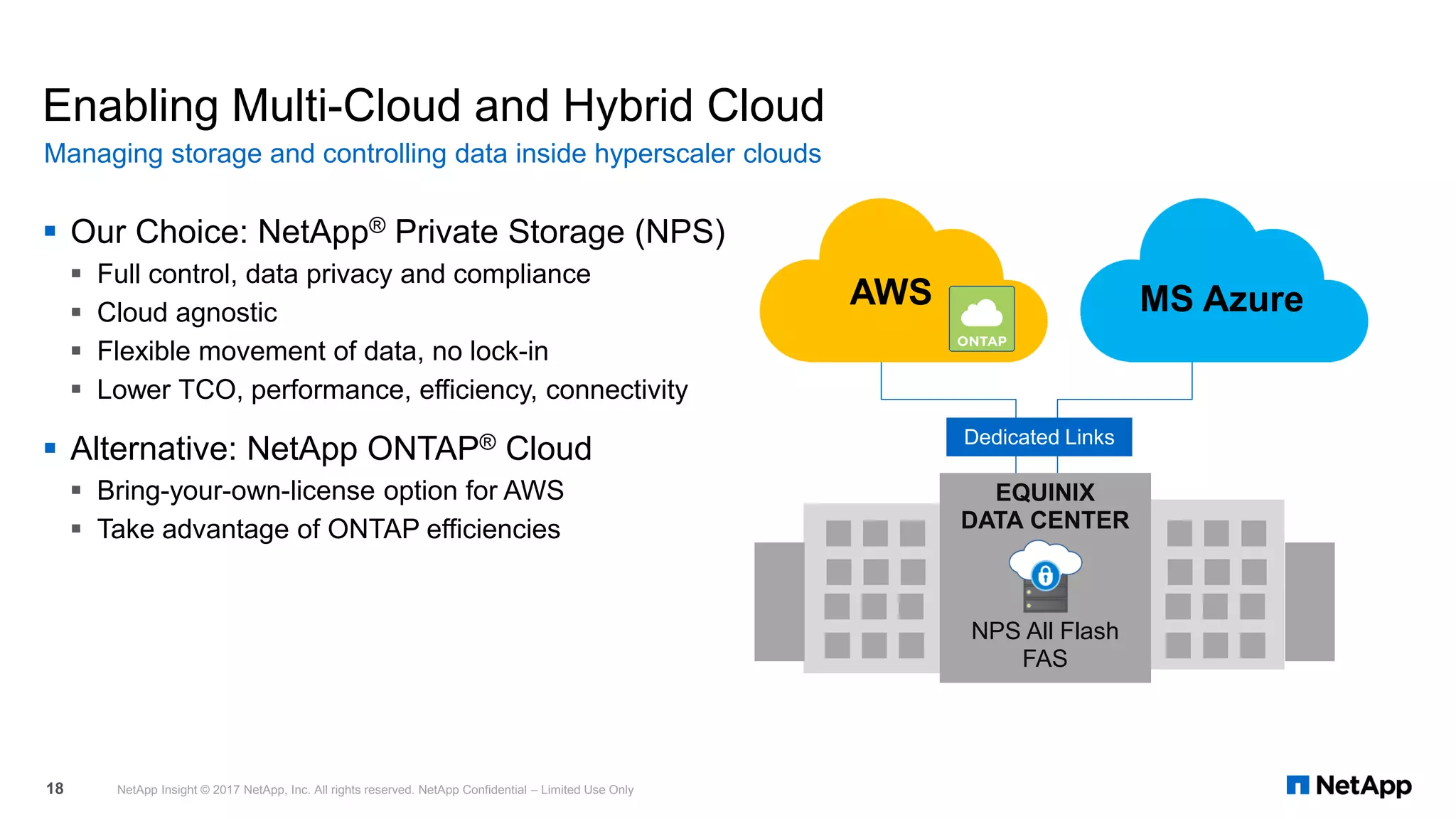

- 18. Enabling Multi-Cloud andHybrid Cloud ▪ Our Choice: NetApp® Private Storage (NPS) ▪ Full control, data privacy and compliance ▪ Cloud agnostic ▪ Flexible movement of data, no lock-in ▪ Lower TCO, performance, efficiency, connectivity ▪ Alternative: NetApp ONTAP® Cloud ▪ Bring-your-own-license option for AWS ▪ Take advantage of ONTAP efficiencies Managing storage and controlling data inside hyperscaler clouds NetApp Insight © 2017 NetApp, Inc. All rights reserved. NetApp Confidential – Limited Use Only18 Dedicated Links AWS MS Azure EQUINIX DATA CENTER NPS All Flash FAS

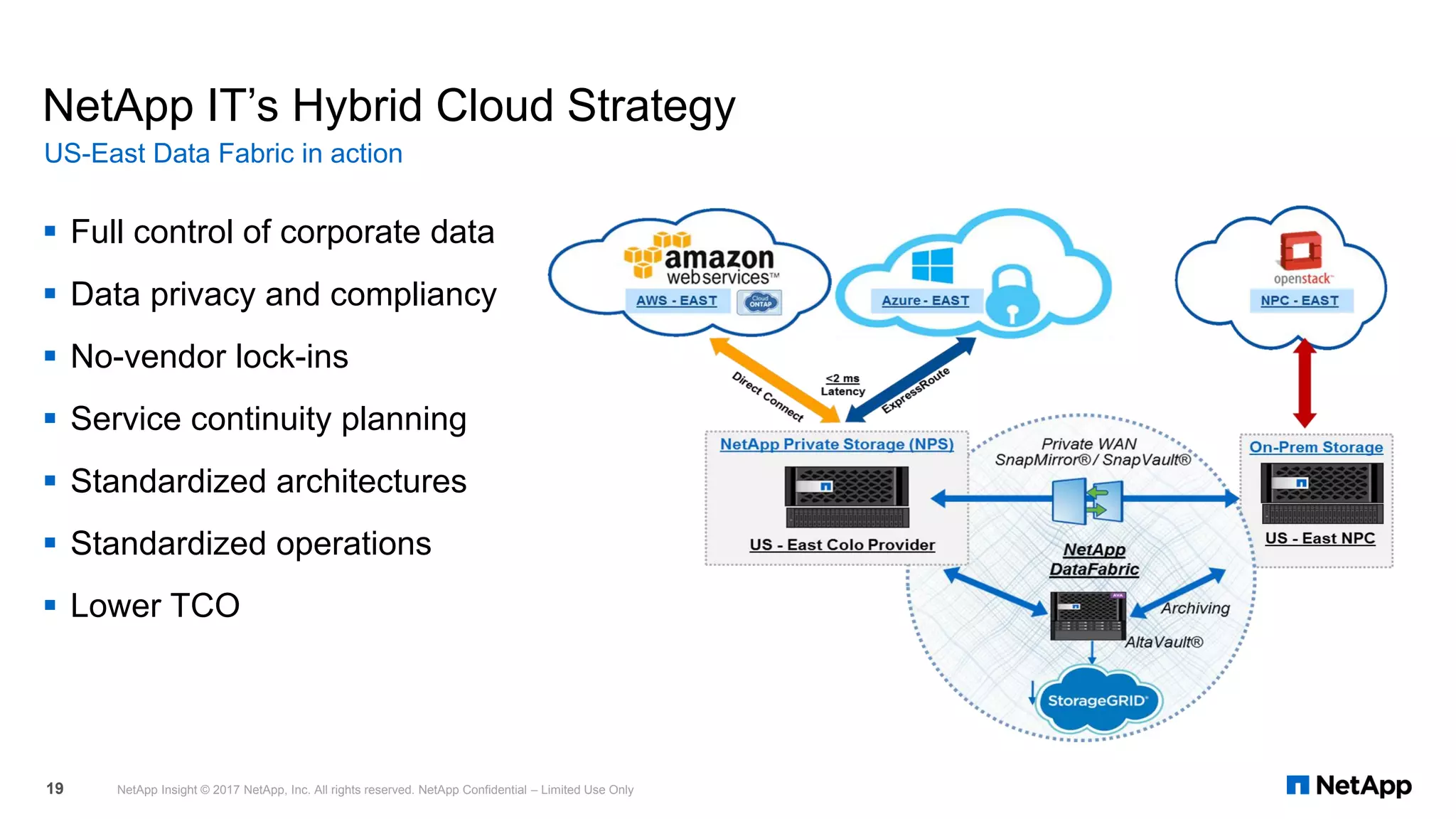

- 19. NetApp IT’s HybridCloud Strategy ▪ Full control of corporate data ▪ Data privacy and compliancy ▪ No-vendor lock-ins ▪ Service continuity planning ▪ Standardized architectures ▪ Standardized operations ▪ Lower TCO US-East Data Fabric in action NetApp Insight © 2017 NetApp, Inc. All rights reserved. NetApp Confidential – Limited Use Only19

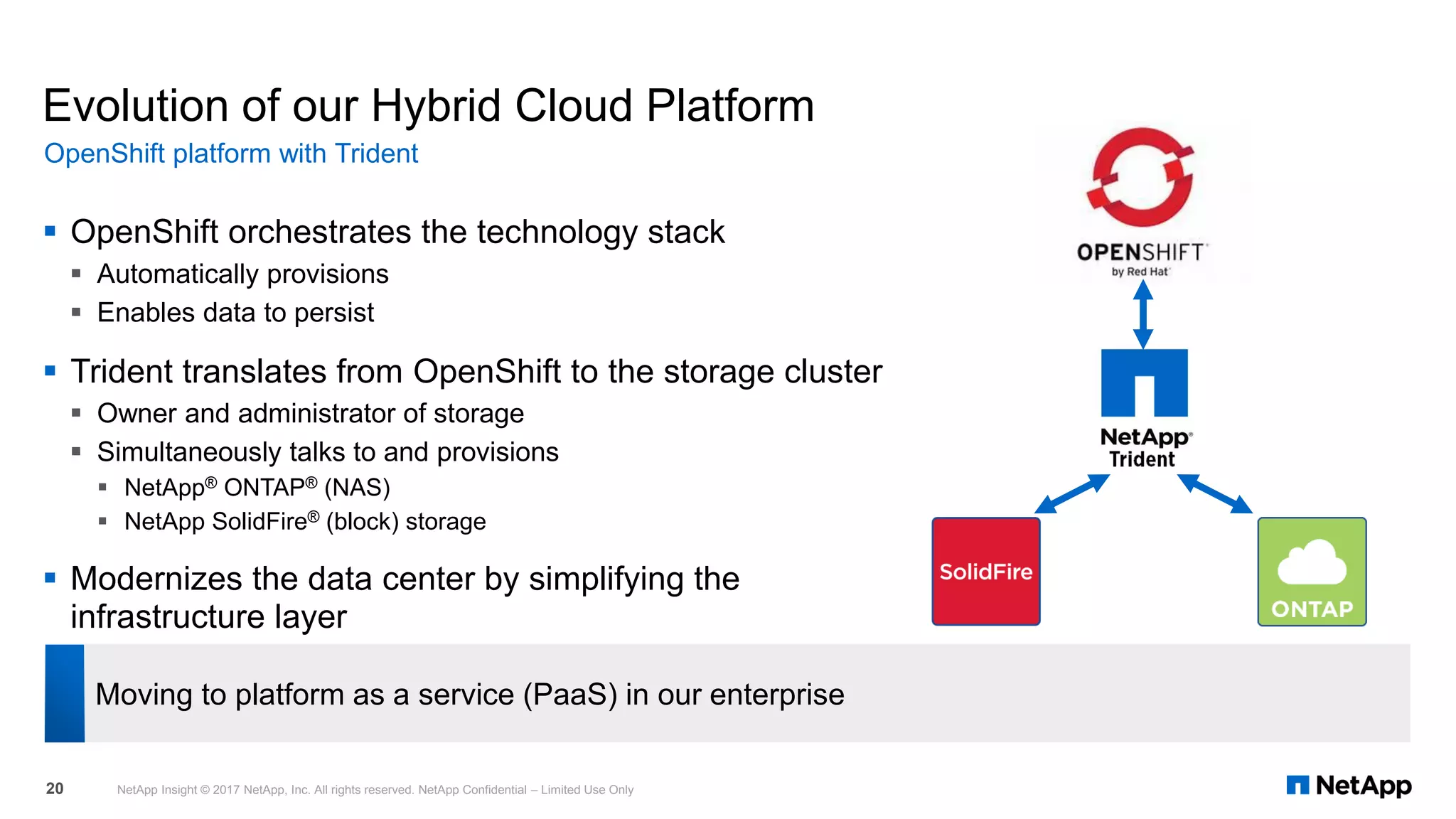

- 20. Evolution of ourHybrid Cloud Platform ▪ OpenShift orchestrates the technology stack ▪ Automatically provisions ▪ Enables data to persist ▪ Trident translates from OpenShift to the storage cluster ▪ Owner and administrator of storage ▪ Simultaneously talks to and provisions ▪ NetApp® ONTAP® (NAS) ▪ NetApp SolidFire® (block) storage ▪ Modernizes the data center by simplifying the infrastructure layer OpenShift platform with Trident NetApp Insight © 2017 NetApp, Inc. All rights reserved. NetApp Confidential – Limited Use Only20 Moving to platform as a service (PaaS) in our enterprise

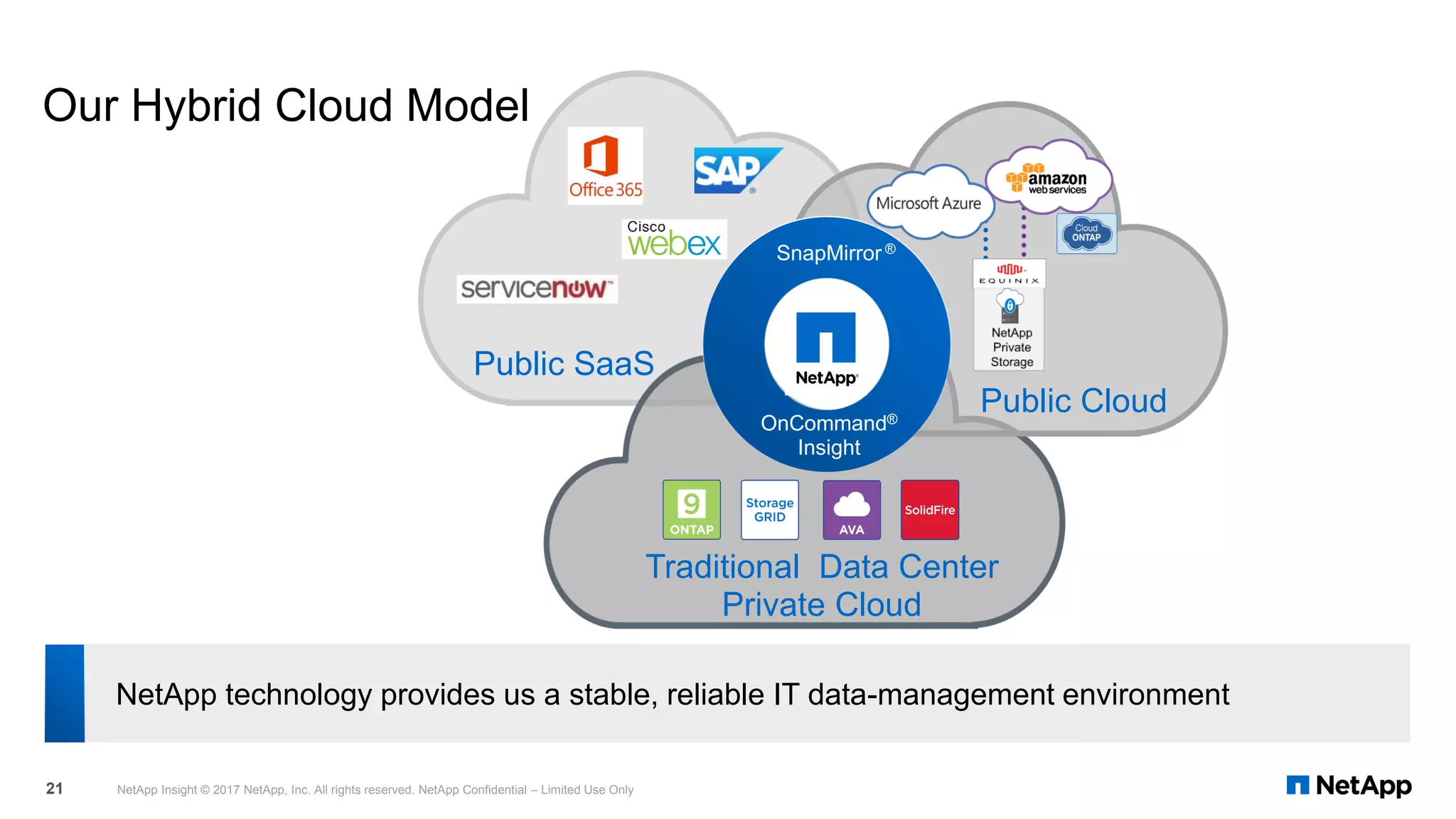

- 21. Public SaaS Traditional DataCenter Private Cloud Public Cloud Our Hybrid Cloud Model NetApp Insight © 2017 NetApp, Inc. All rights reserved. NetApp Confidential – Limited Use Only21 OnCommand® Insight SnapMirror ® NetApp technology provides us a stable, reliable IT data-management environment

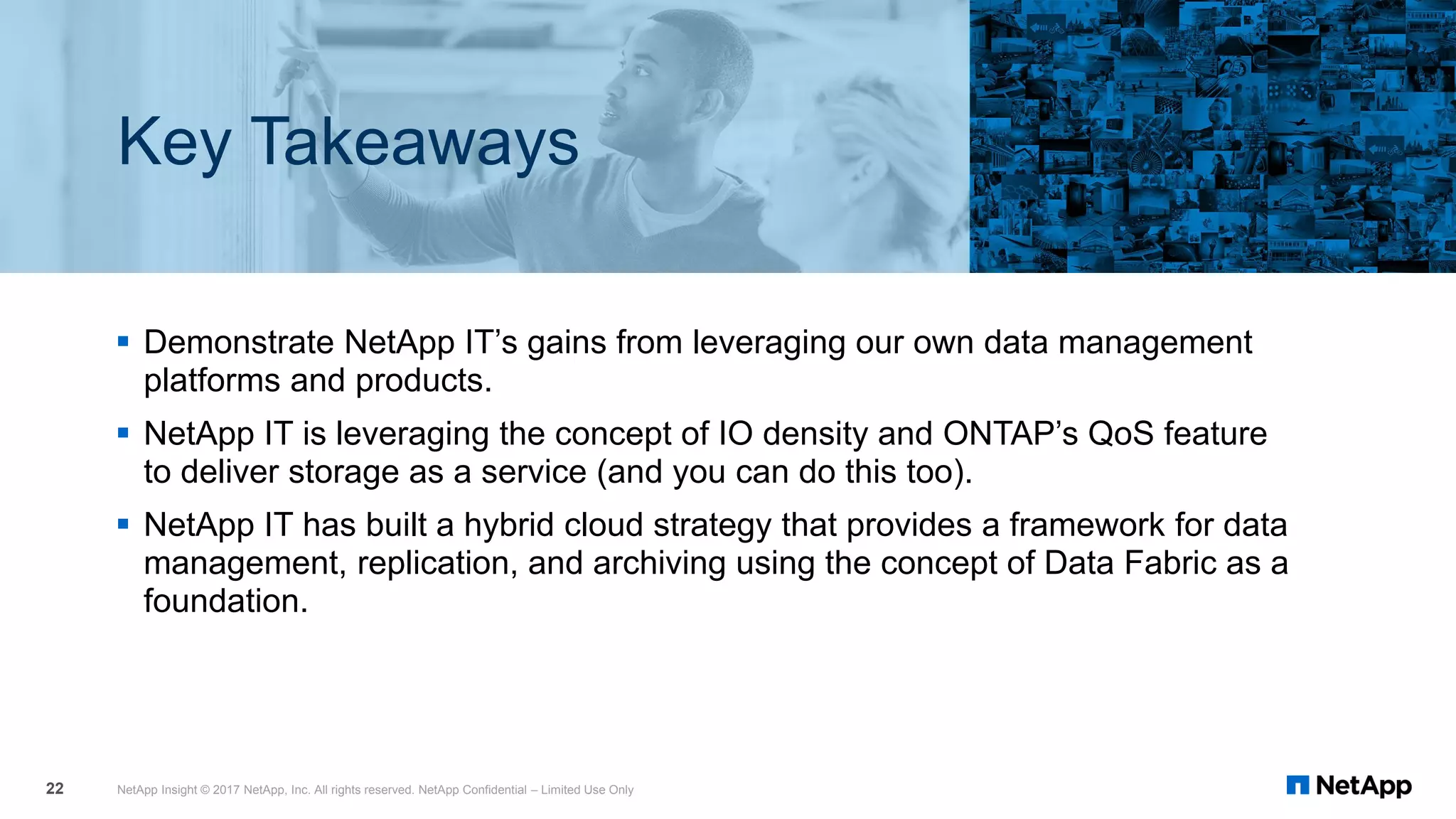

- 22. ▪ Demonstrate NetAppIT’s gains from leveraging our own data management platforms and products. ▪ NetApp IT is leveraging the concept of IO density and ONTAP’s QoS feature to deliver storage as a service (and you can do this too). ▪ NetApp IT has built a hybrid cloud strategy that provides a framework for data management, replication, and archiving using the concept of Data Fabric as a foundation. NetApp Insight © 2017 NetApp, Inc. All rights reserved. NetApp Confidential – Limited Use Only22 Key Takeaways
- 23. Tell Us WhatYou Thought Take an Insight survey on your mobile device. Completed surveys are entered into a drawing to win prizes. Don’t have the app? Download the Insight Mobile App at the Apple Store and on Google Play. NetApp Insight © 2017 NetApp, Inc. All rights reserved. NetApp Confidential – Limited Use Only23
- 24. Insight Stay Connected Follow NetAppInsight on Facebook and Twitter 24 NetApp Insight © 2017 NetApp, Inc. All rights reserved. NetApp Confidential – Limited Use Only www.NetAppIT.com @NetAppIT Visit our NetApp on NetApp Booth #38
- 25. © 2017 NetApp,Inc. All rights reserved. No portions of this presentation may be reproduced without prior written consent of NetApp, Inc. Specifications are subject to change without notice. NetApp and the NetApp logo are registered trademarks of NetApp, Inc. in the United States and/or other countries. All other brands or products are trademarks or registered trademarks of their respective holders. Thank You.
