- 1. Measuring & Analyzing Things That Matter When You Have Too Many Things To Keep Track Of* (chocolate salmon) by @chadfowler * this title easily understood by 13-15 year old students Thursday, February 23, 12
- 2.
- 3. How does thishappen? Thursday, February 23, 12

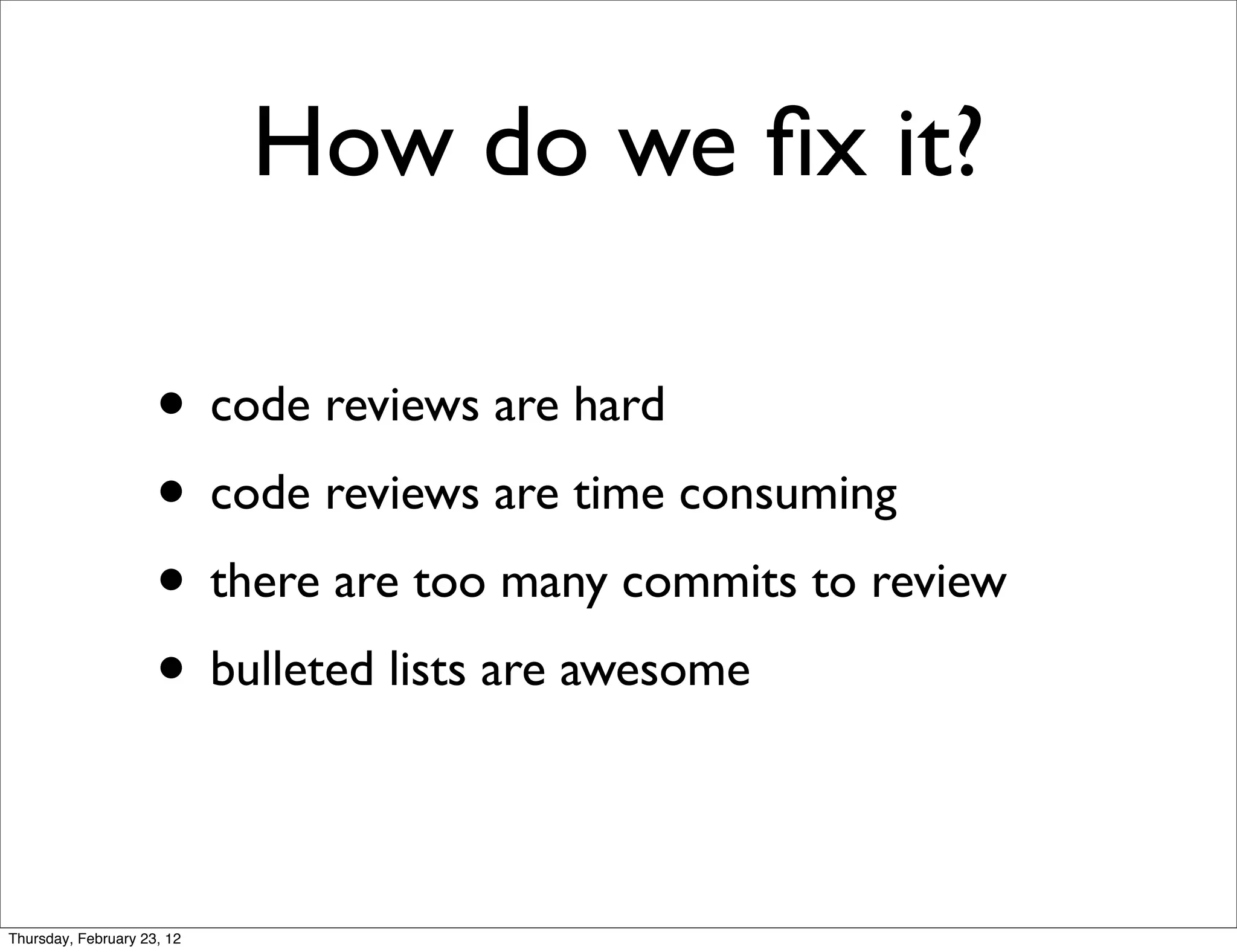

- 4. How do wefix it? • code reviews are hard • code reviews are time consuming • there are too many commits to review • bulleted lists are awesome Thursday, February 23, 12

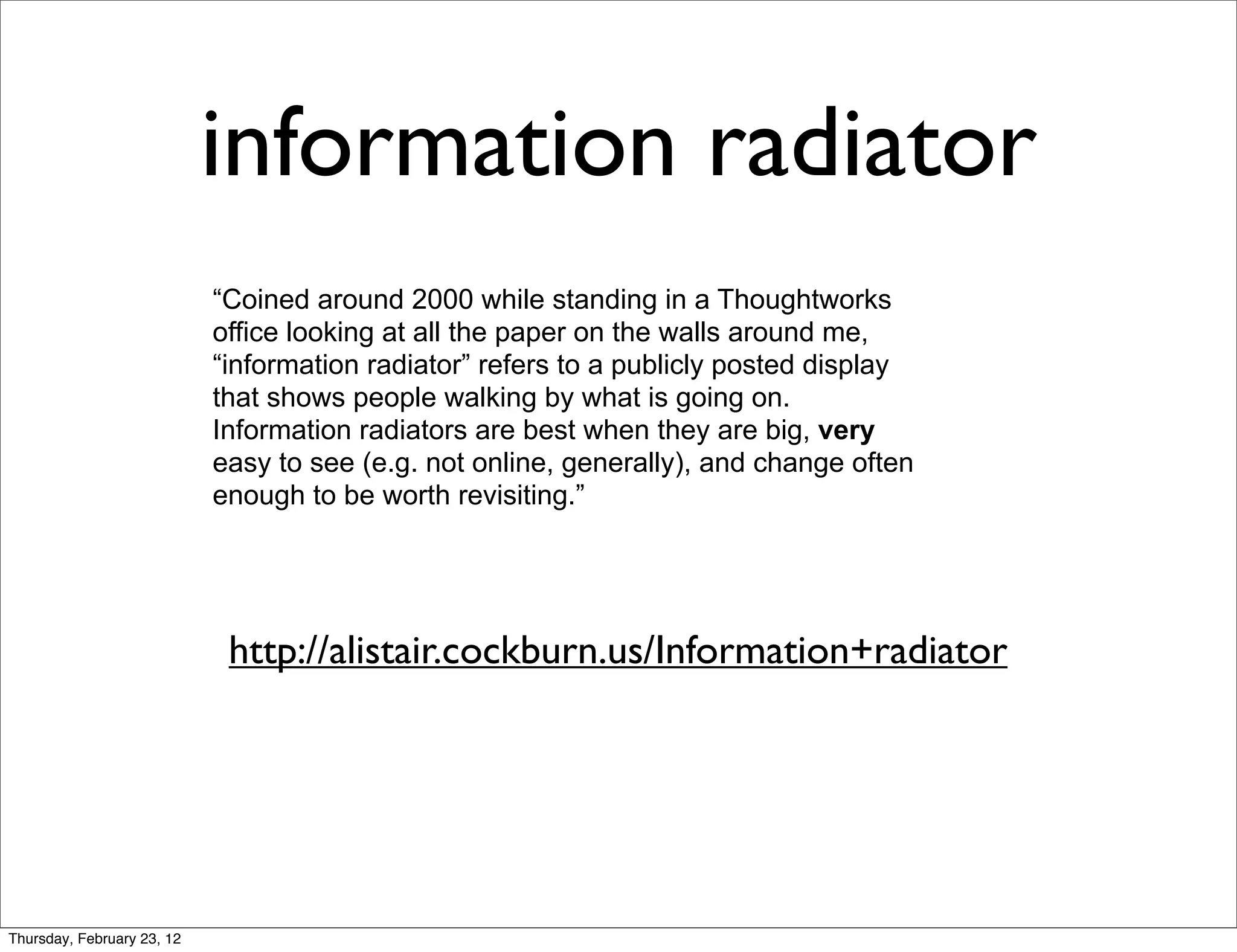

- 5. information radiator “Coined around 2000 while standing in a Thoughtworks office looking at all the paper on the walls around me, “information radiator” refers to a publicly posted display that shows people walking by what is going on. Information radiators are best when they are big, very easy to see (e.g. not online, generally), and change often enough to be worth revisiting.” http://alistair.cockburn.us/Information+radiator Thursday, February 23, 12

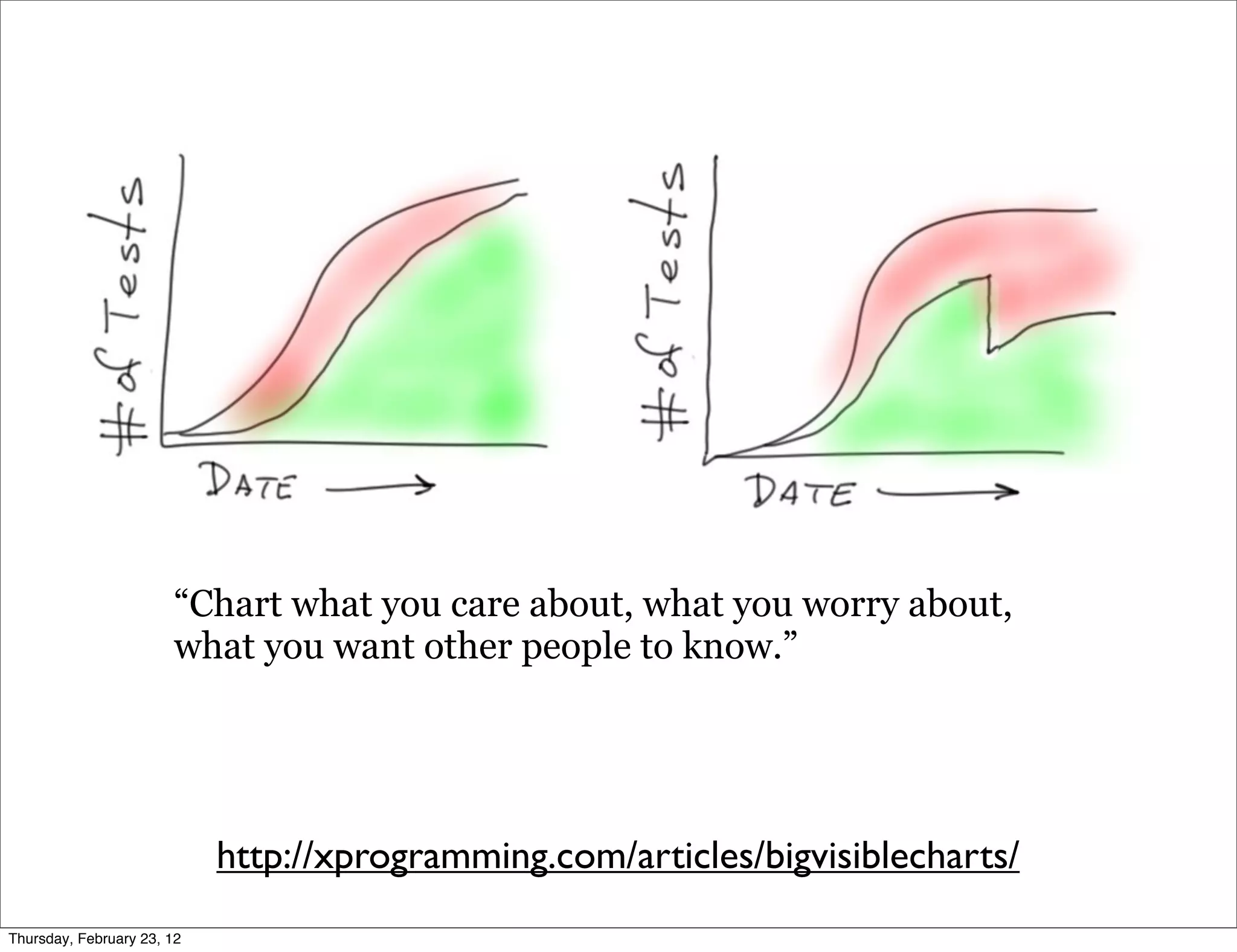

- 6. “Chart what youcare about, what you worry about, what you want other people to know.” http://xprogramming.com/articles/bigvisiblecharts/ Thursday, February 23, 12
- 7.
- 8. 1/2 Marathon Training Thursday,February 23, 12

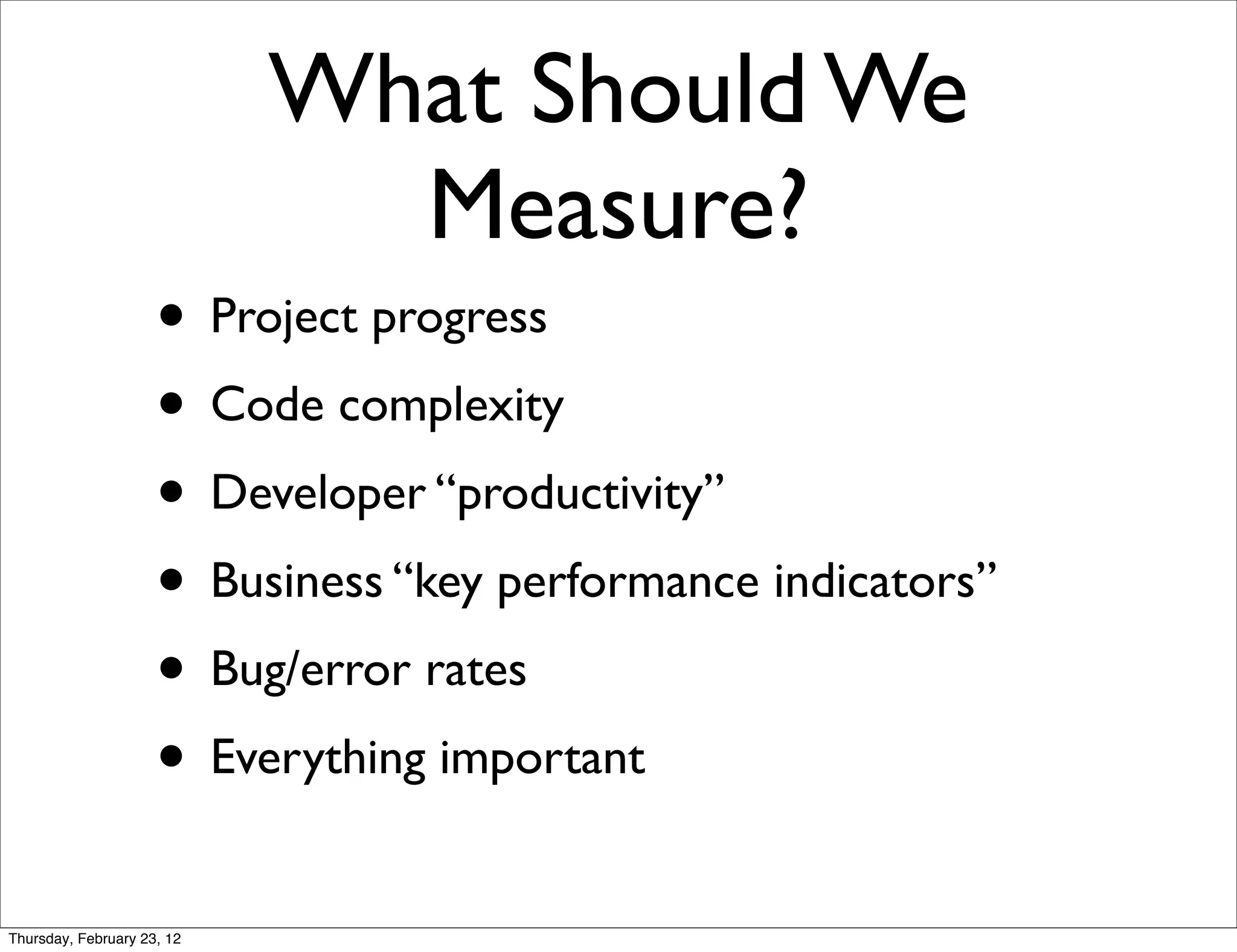

- 9. What Should We Measure? • Project progress • Code complexity • Developer “productivity” • Business “key performance indicators” • Bug/error rates • Everything important Thursday, February 23, 12
- 10.
- 11.

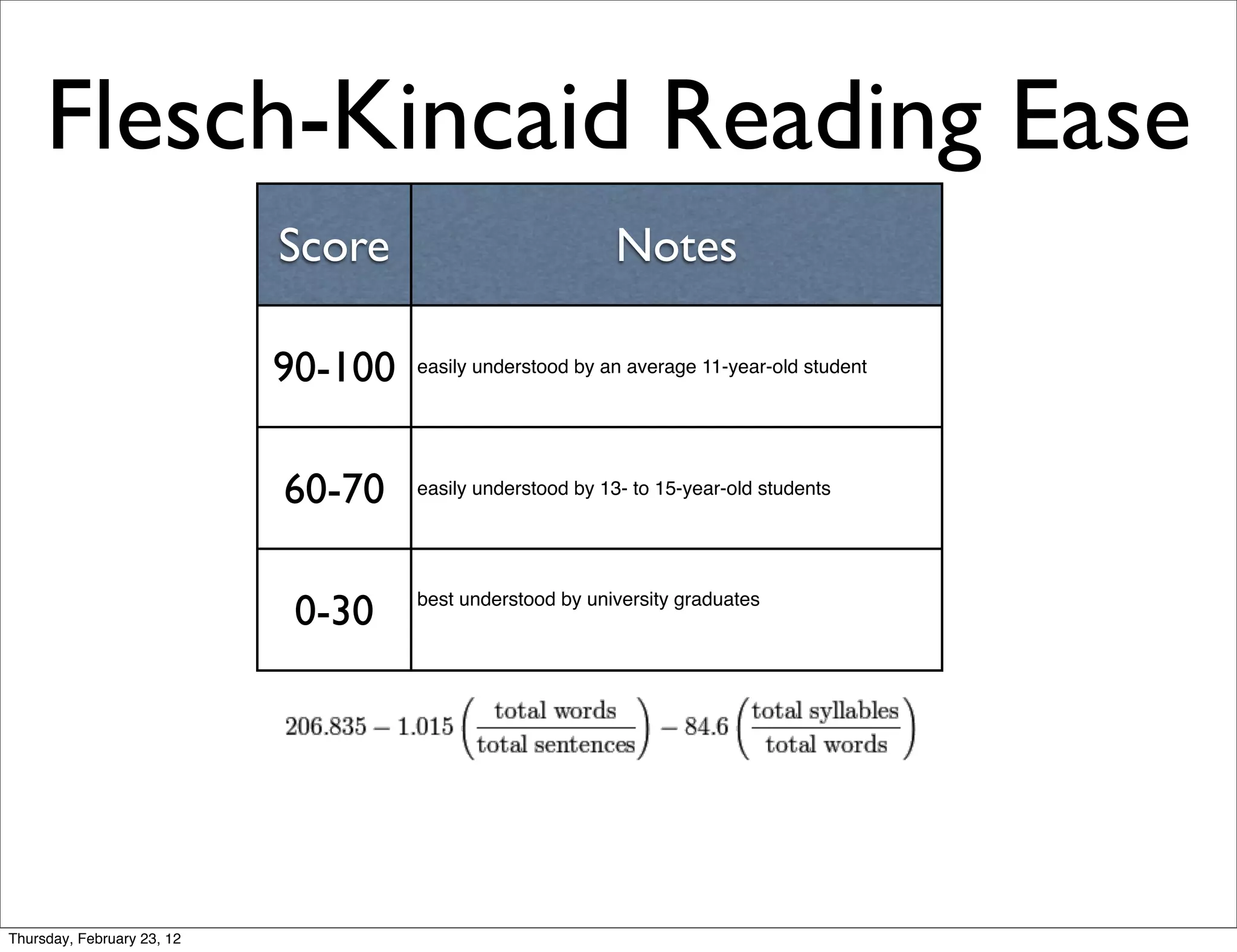

- 12. Flesch-Kincaid Reading Ease Score Notes 90-100 easily understood by an average 11-year-old student 60-70 easily understood by 13- to 15-year-old students 0-30 best understood by university graduates Thursday, February 23, 12

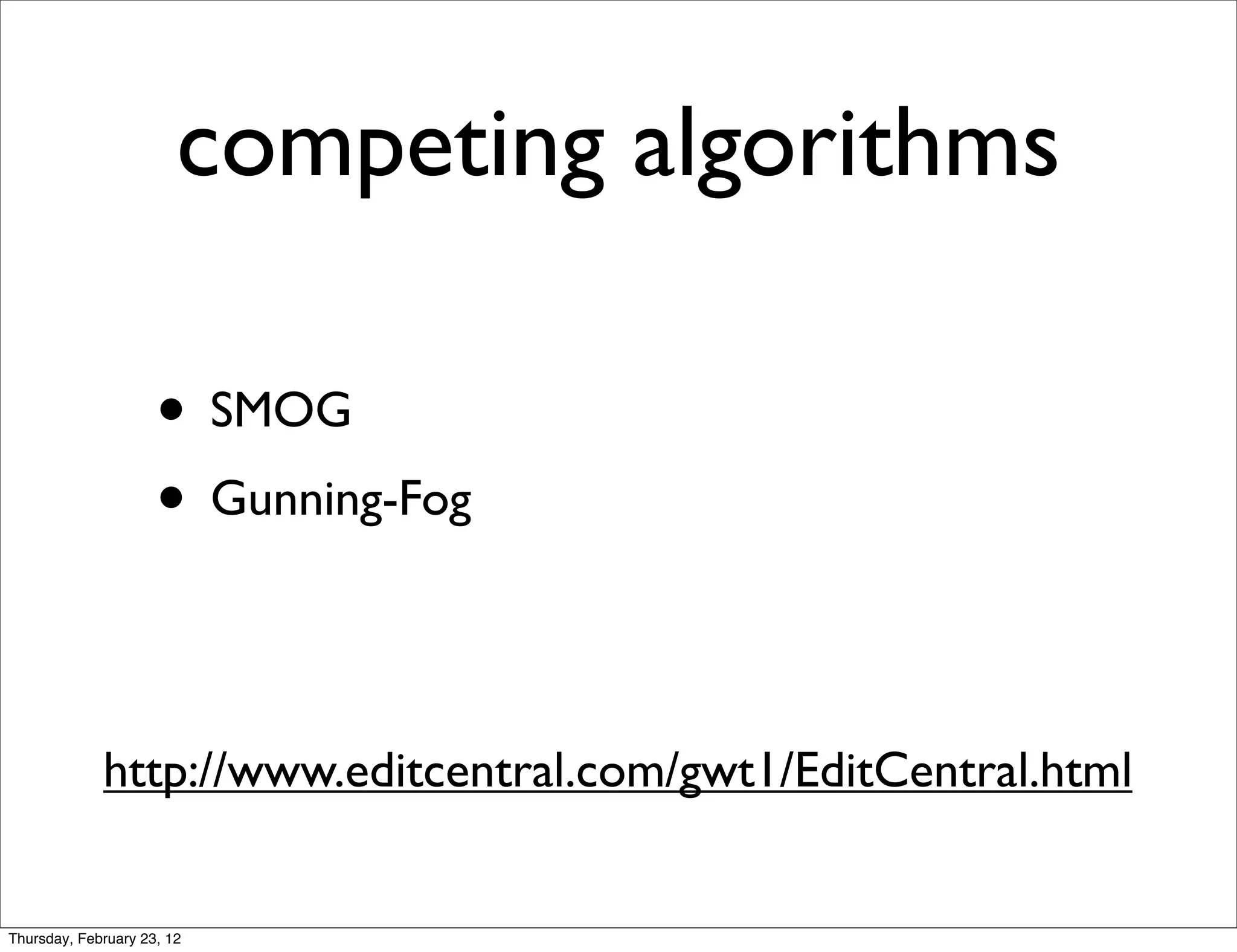

- 13. competing algorithms • SMOG • Gunning-Fog http://www.editcentral.com/gwt1/EditCentral.html Thursday, February 23, 12

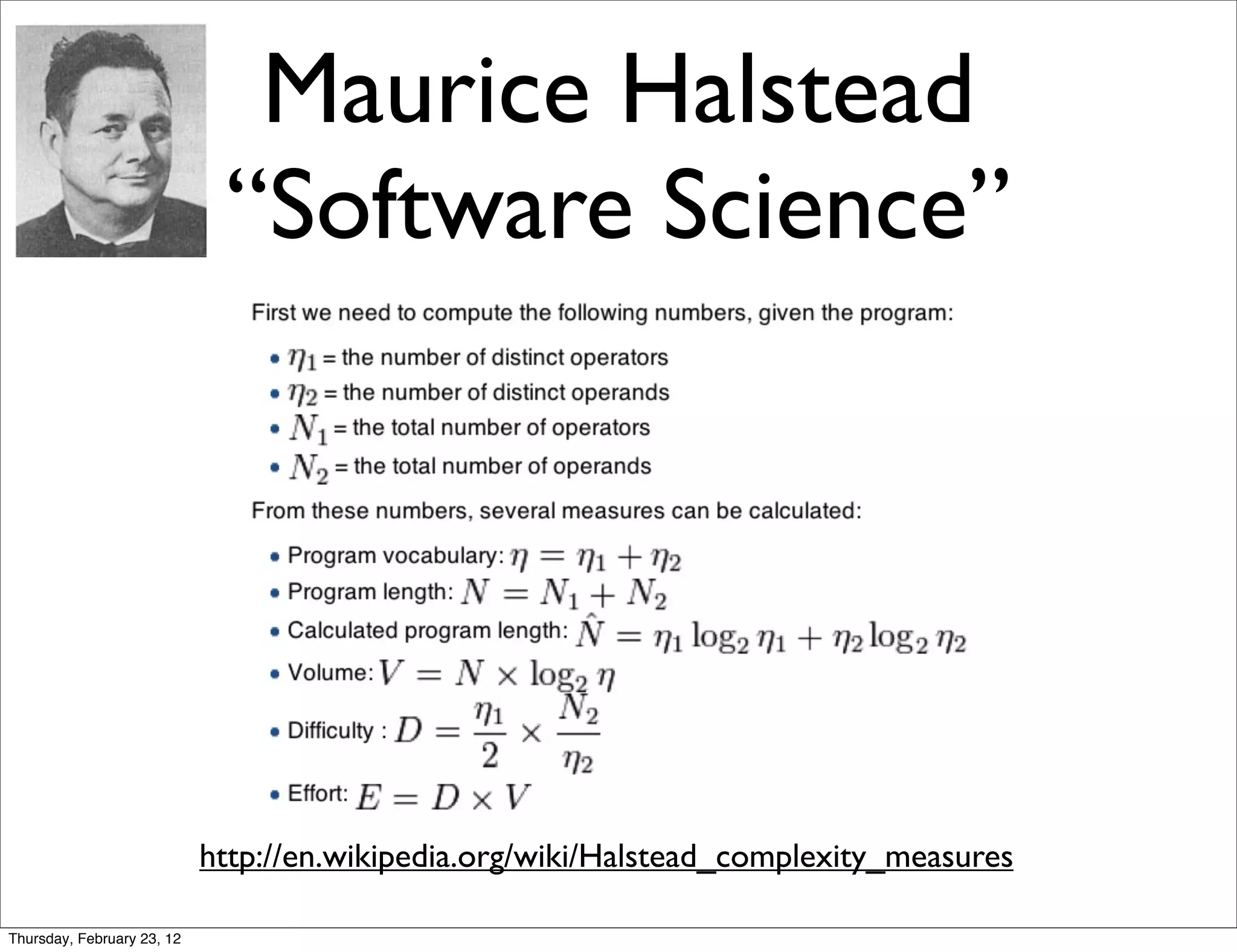

- 14. Maurice Halstead “Software Science” http://en.wikipedia.org/wiki/Halstead_complexity_measures Thursday, February 23, 12

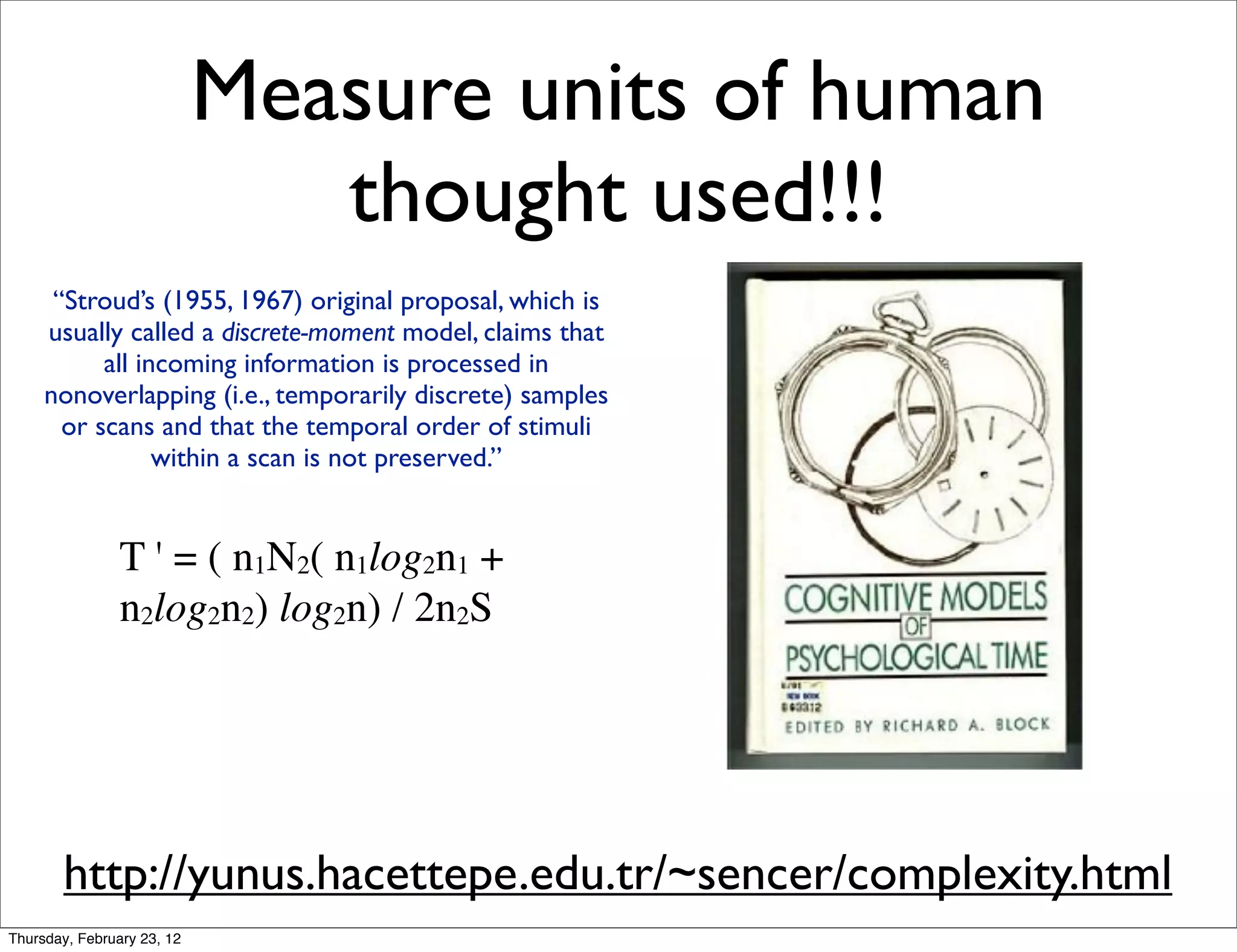

- 15. Measure units ofhuman thought used!!! “Stroud’s (1955, 1967) original proposal, which is usually called a discrete-moment model, claims that all incoming information is processed in nonoverlapping (i.e., temporarily discrete) samples or scans and that the temporal order of stimuli within a scan is not preserved.” T ' = ( n1N2( n1log2n1 + n2log2n2) log2n) / 2n2S http://yunus.hacettepe.edu.tr/~sencer/complexity.html Thursday, February 23, 12

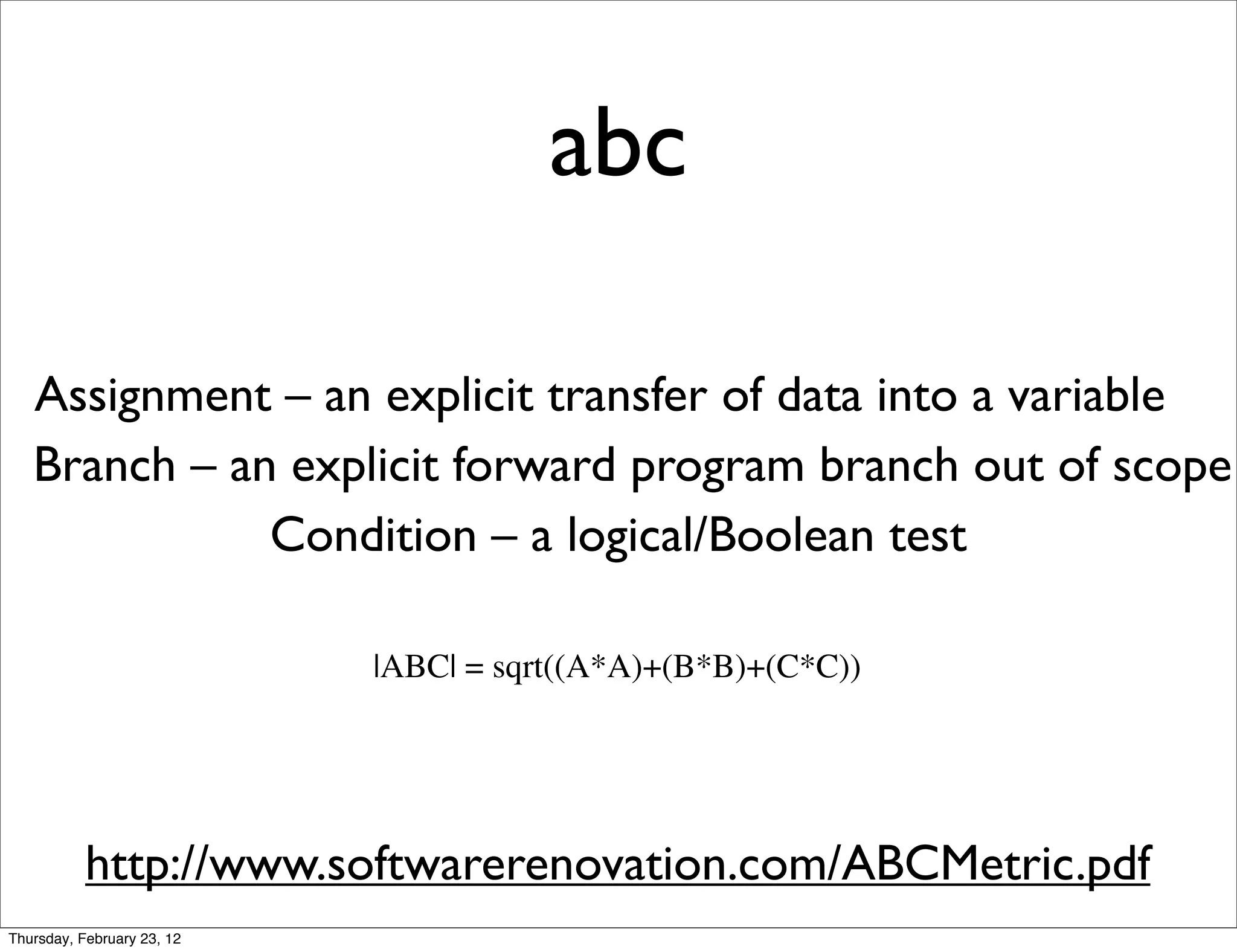

- 16. abc Assignment – an explicit transfer of data into a variable Branch – an explicit forward program branch out of scope Condition – a logical/Boolean test |ABC| = sqrt((A*A)+(B*B)+(C*C)) http://www.softwarerenovation.com/ABCMetric.pdf Thursday, February 23, 12

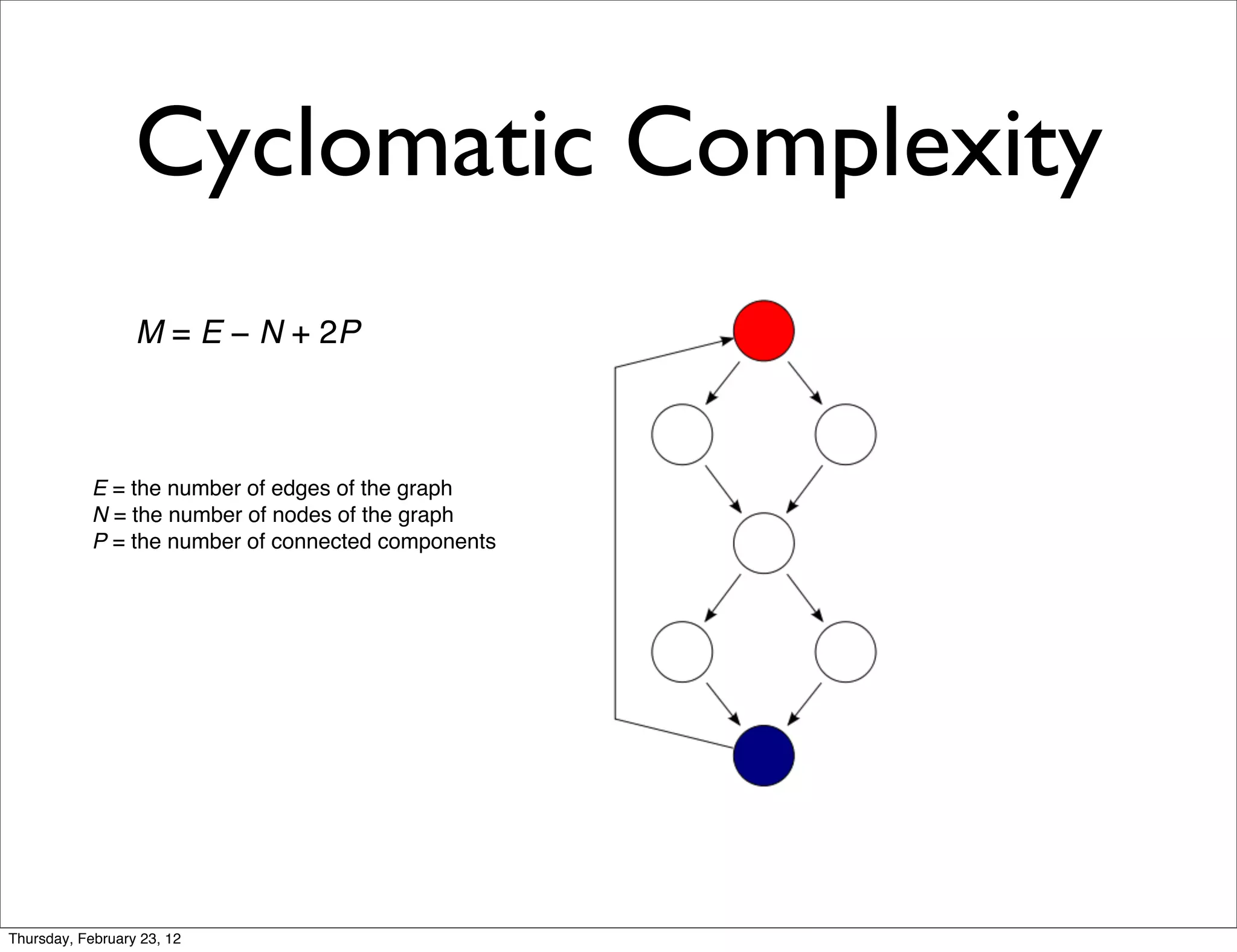

- 17. Cyclomatic Complexity M = E − N + 2P E = the number of edges of the graph N = the number of nodes of the graph P = the number of connected components Thursday, February 23, 12

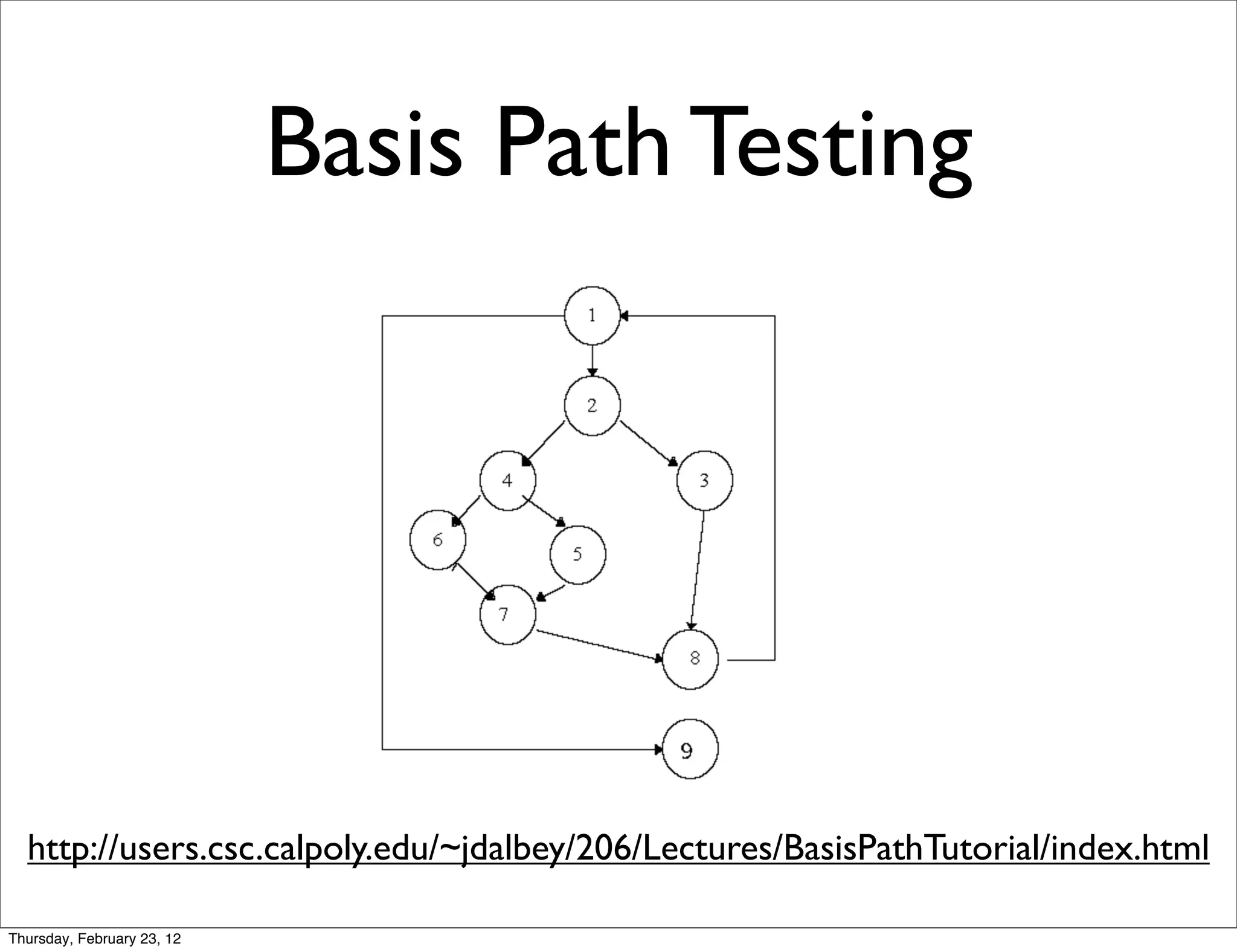

- 18. Basis Path Testing http://users.csc.calpoly.edu/~jdalbey/206/Lectures/BasisPathTutorial/index.html Thursday, February 23, 12

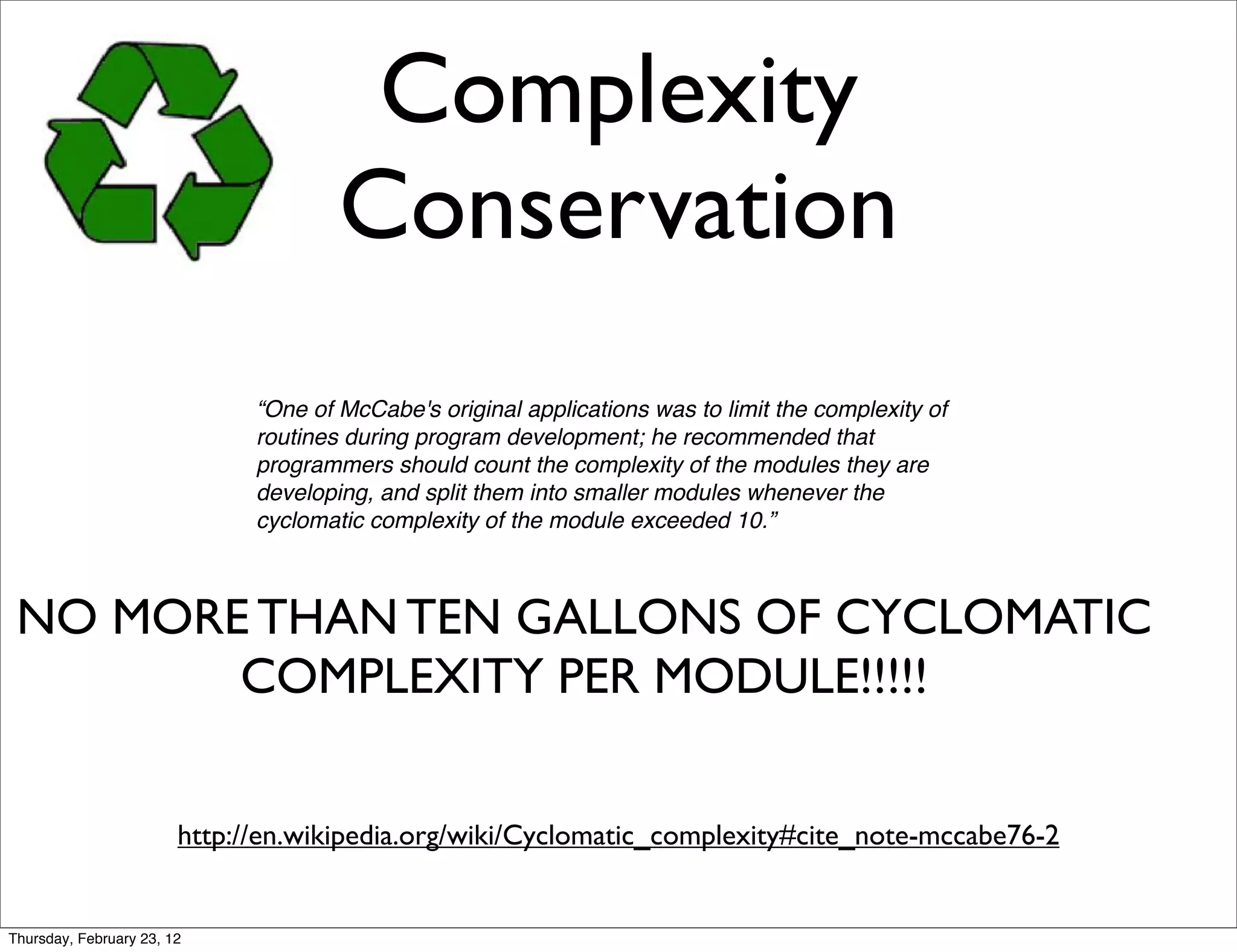

- 19. Complexity Conservation “One of McCabe's original applications was to limit the complexity of routines during program development; he recommended that programmers should count the complexity of the modules they are developing, and split them into smaller modules whenever the cyclomatic complexity of the module exceeded 10.” NO MORE THAN TEN GALLONS OF CYCLOMATIC COMPLEXITY PER MODULE!!!!! http://en.wikipedia.org/wiki/Cyclomatic_complexity#cite_note-mccabe76-2 Thursday, February 23, 12

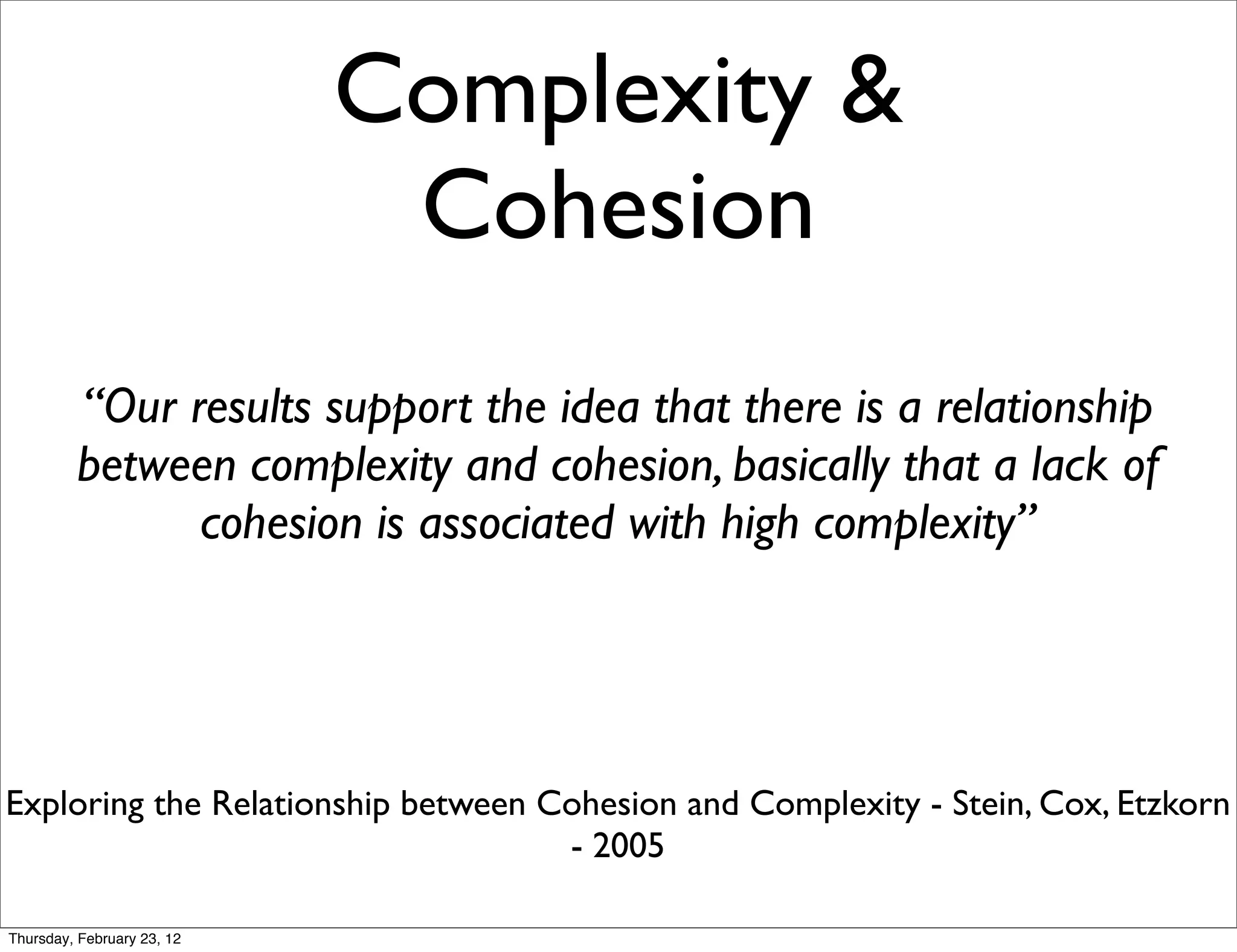

- 20. Complexity & Cohesion “Our results support the idea that there is a relationship between complexity and cohesion, basically that a lack of cohesion is associated with high complexity” Exploring the Relationship between Cohesion and Complexity - Stein, Cox, Etzkorn - 2005 Thursday, February 23, 12

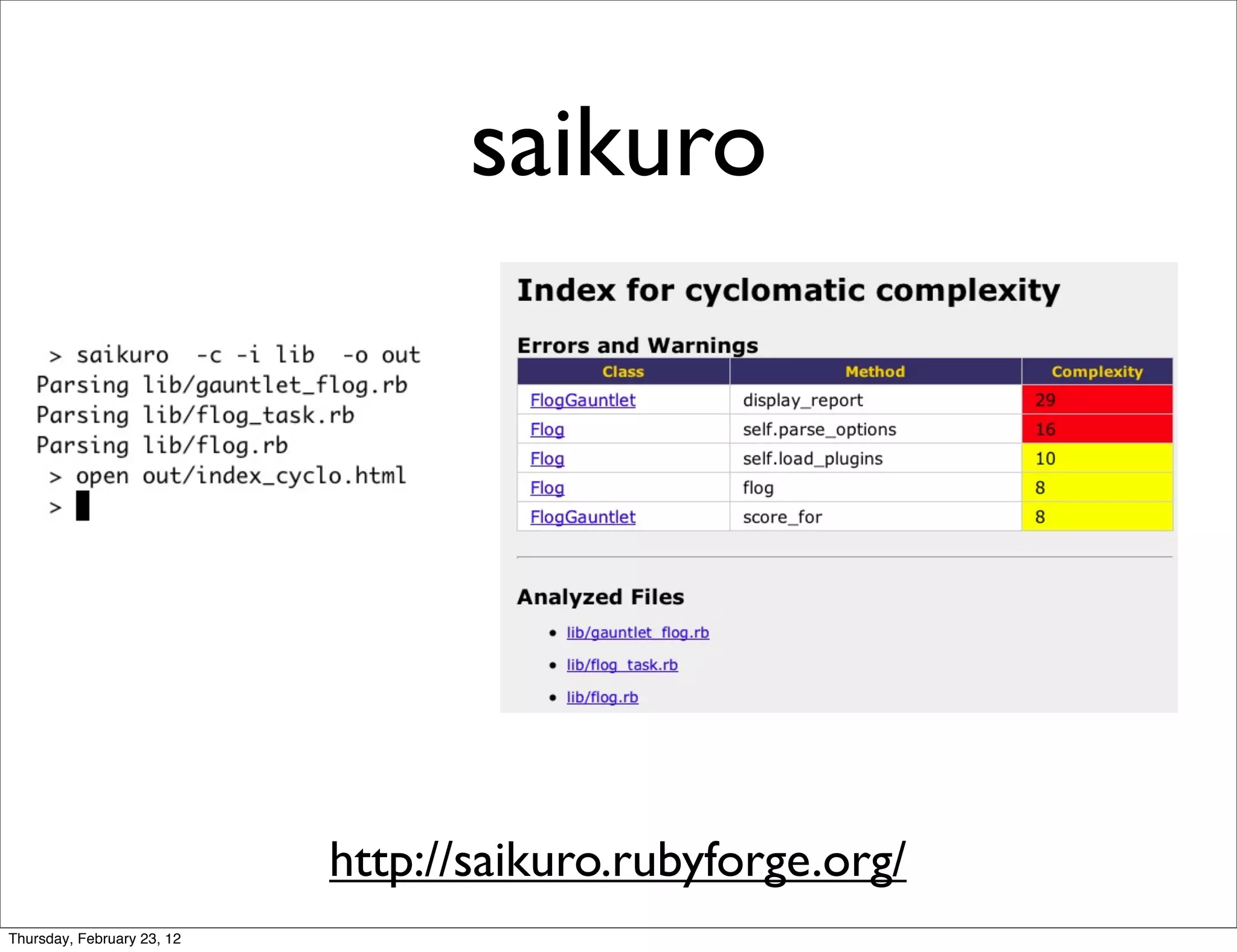

- 21. saikuro http://saikuro.rubyforge.org/ Thursday, February 23, 12

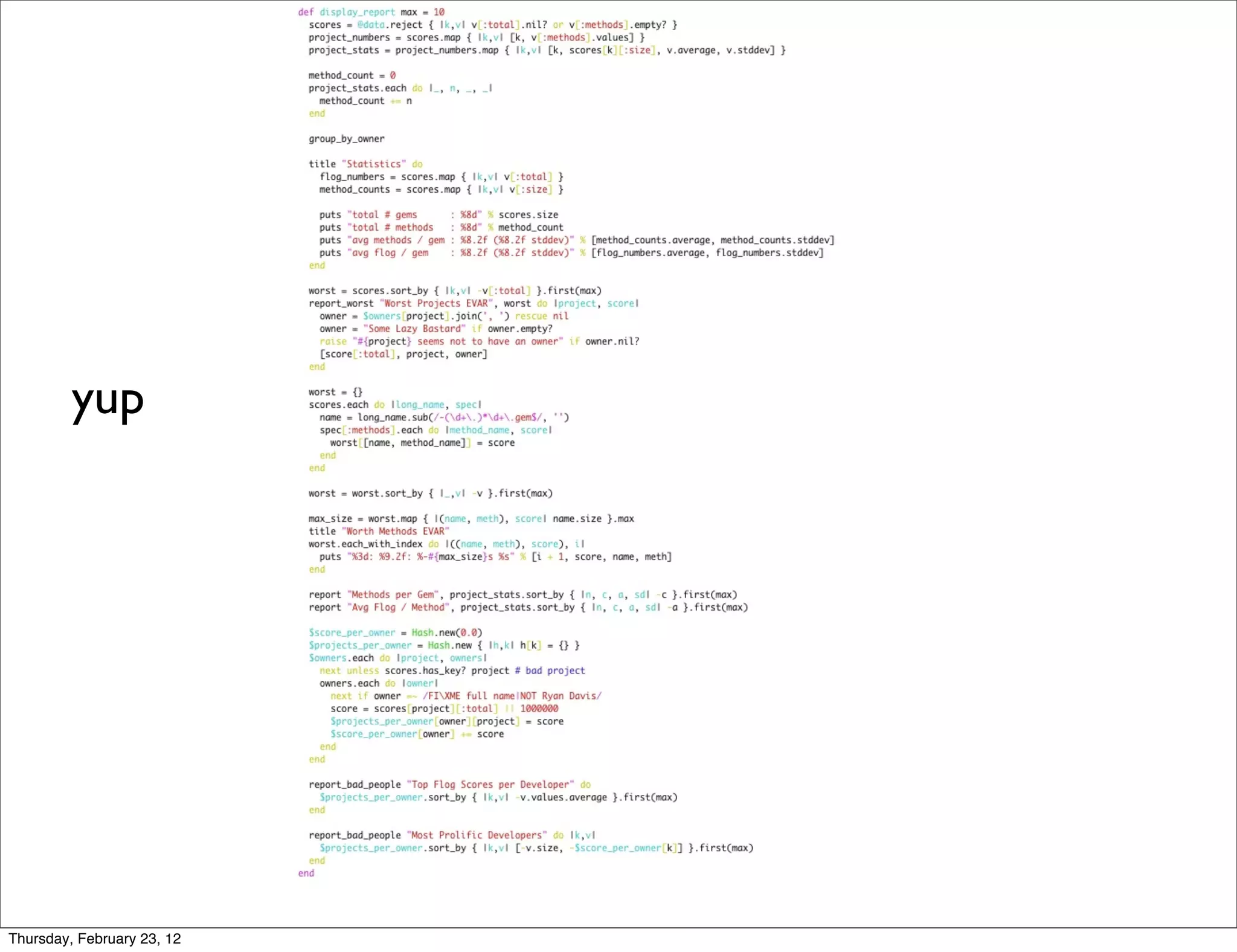

- 22.

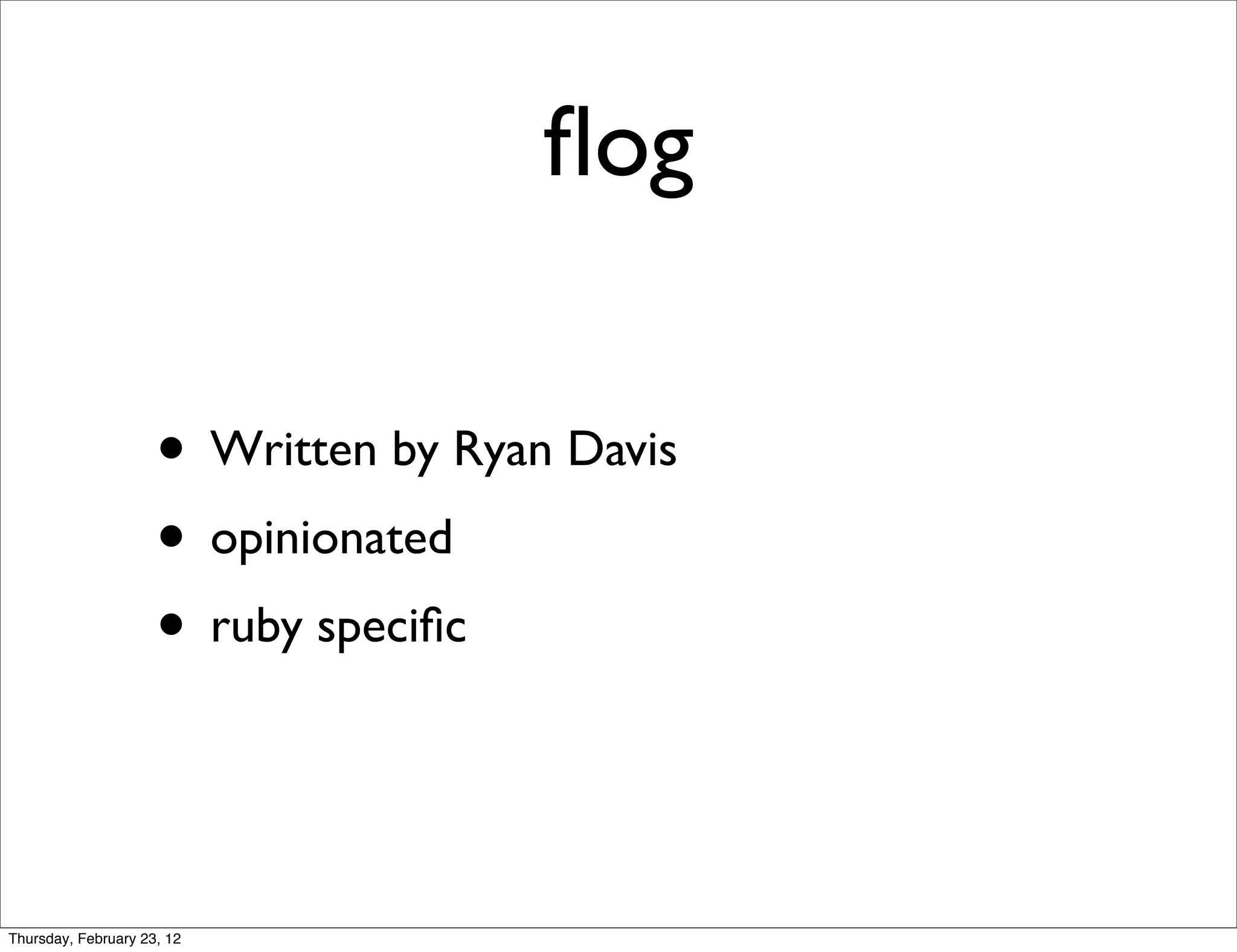

- 23. flog • Written by Ryan Davis • opinionated • ruby specific Thursday, February 23, 12
- 24.
- 25.

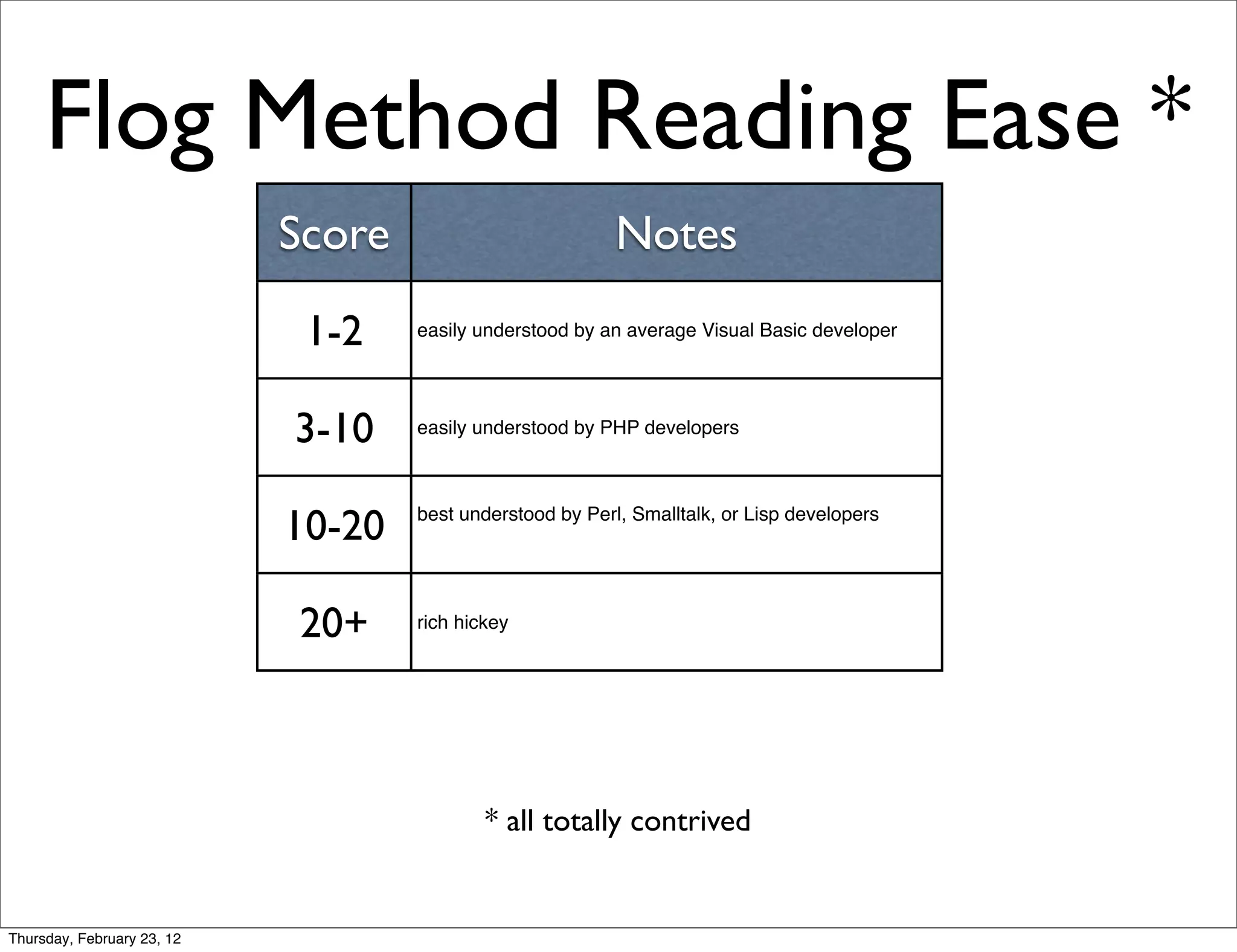

- 26. Flog Method ReadingEase * Score Notes 1-2 easily understood by an average Visual Basic developer 3-10 easily understood by PHP developers 10-20 best understood by Perl, Smalltalk, or Lisp developers 20+ rich hickey * all totally contrived Thursday, February 23, 12

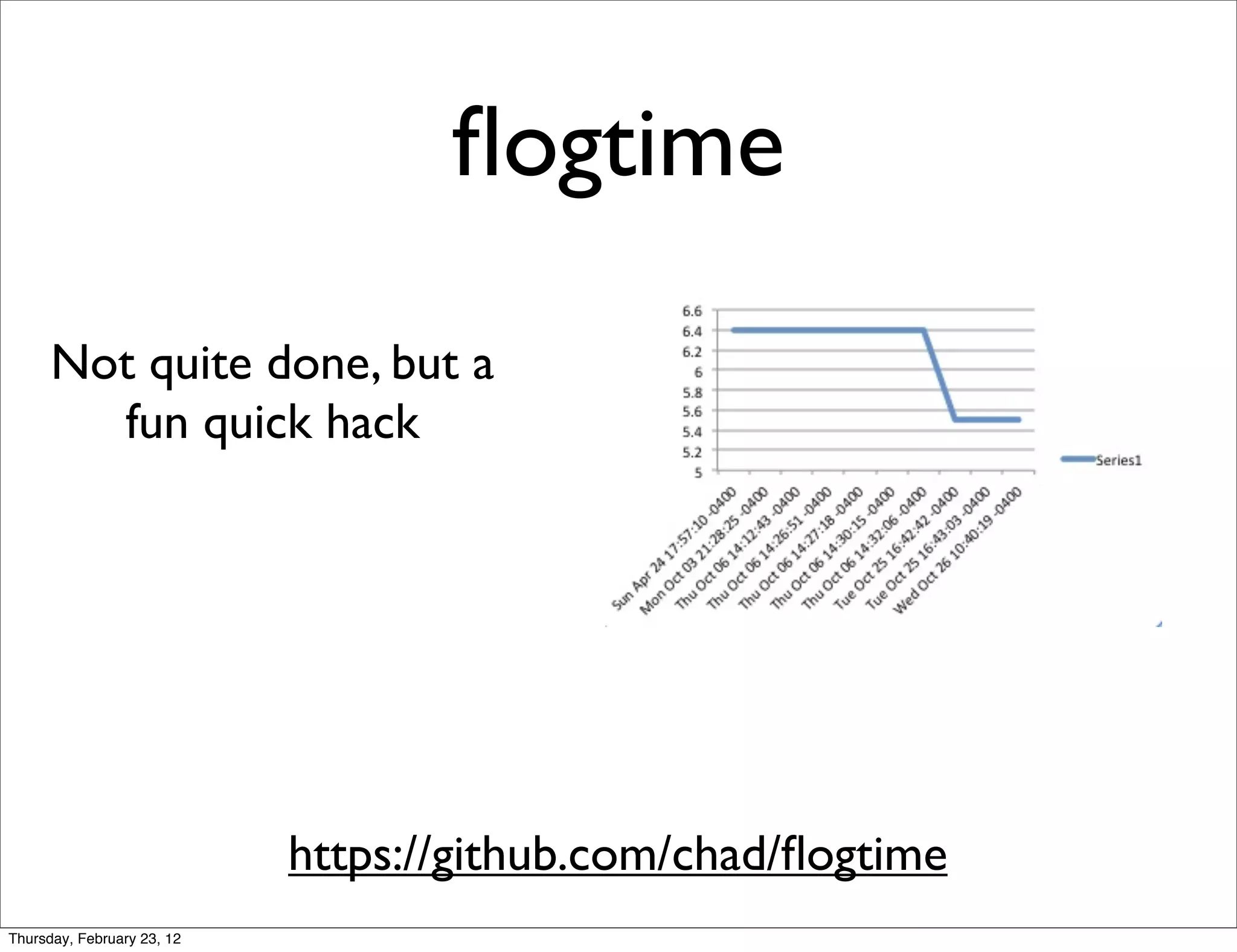

- 27. flogtime Not quite done, but a fun quick hack https://github.com/chad/flogtime Thursday, February 23, 12

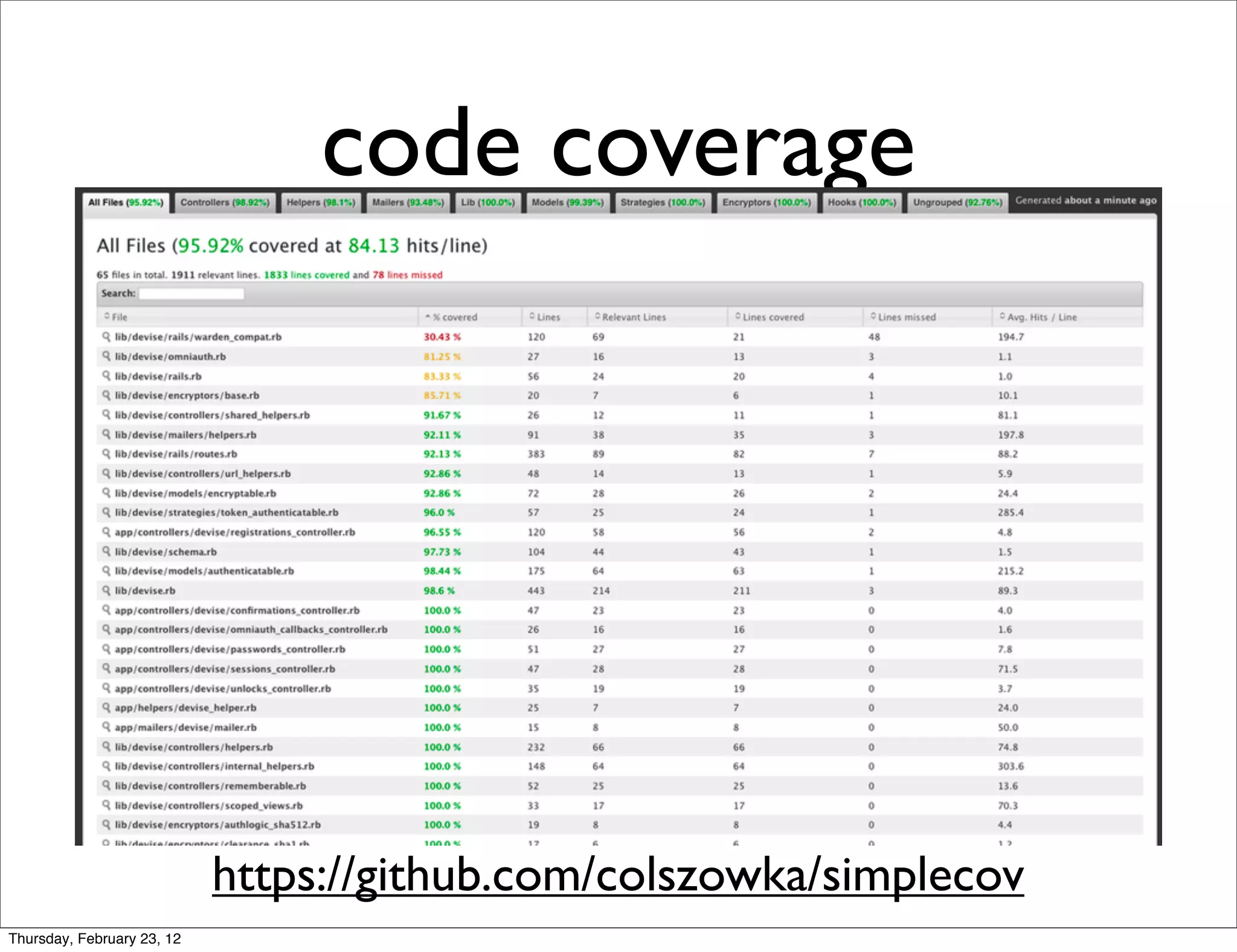

- 28. code coverage https://github.com/colszowka/simplecov Thursday, February 23, 12

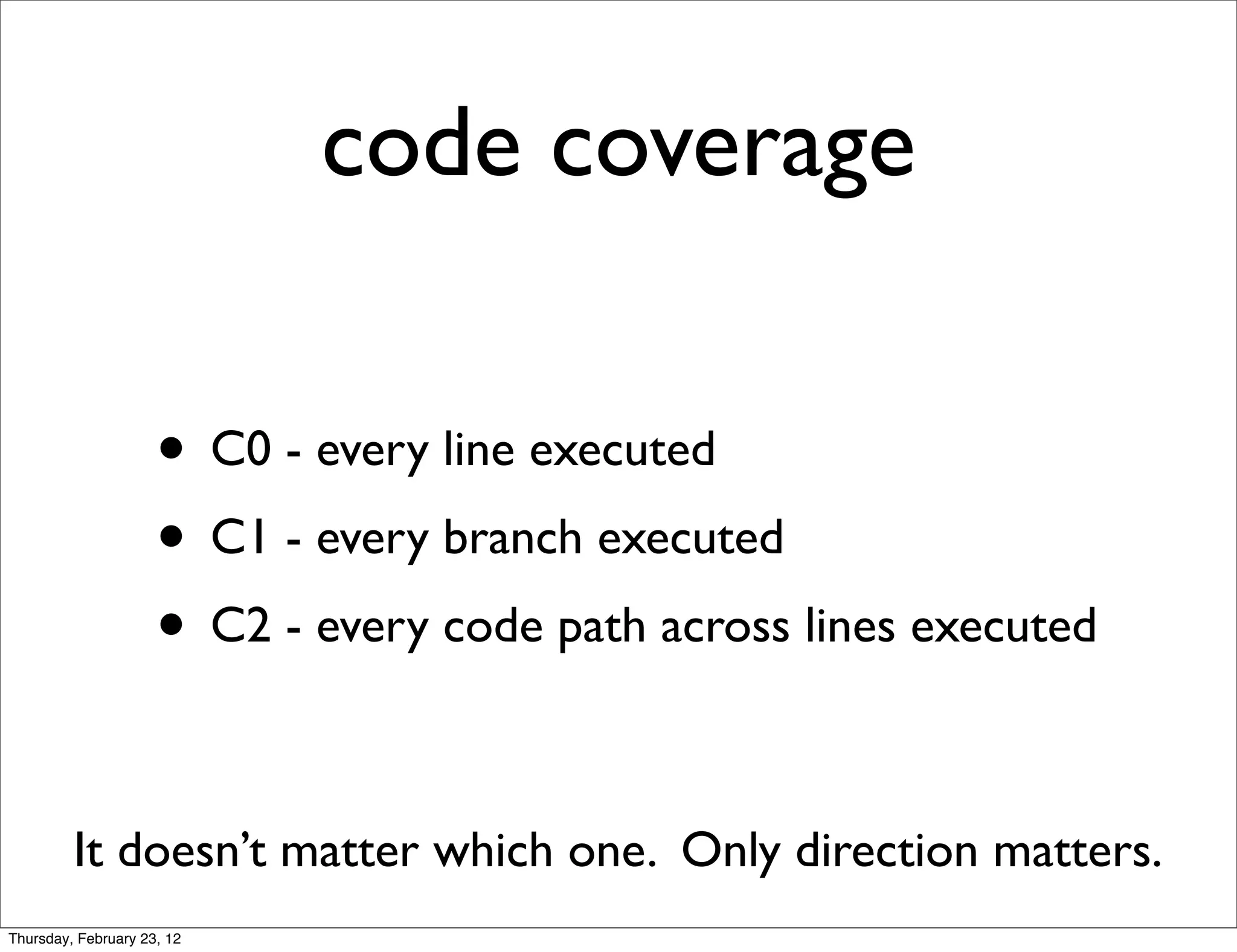

- 29. code coverage • C0 - every line executed • C1 - every branch executed • C2 - every code path across lines executed It doesn’t matter which one. Only direction matters. Thursday, February 23, 12

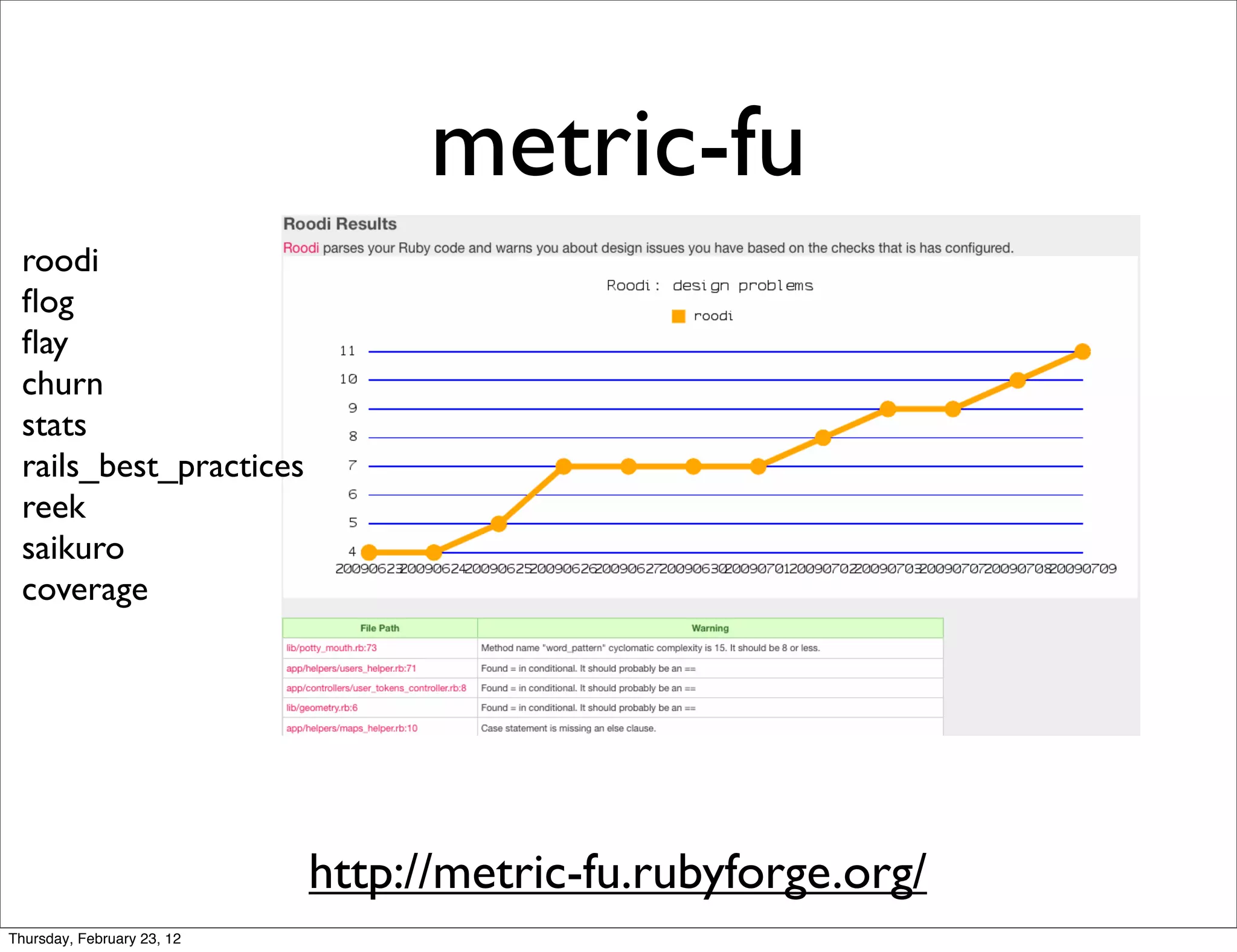

- 30. metric-fu roodi flog flay churn stats rails_best_practices reek saikuro coverage http://metric-fu.rubyforge.org/ Thursday, February 23, 12

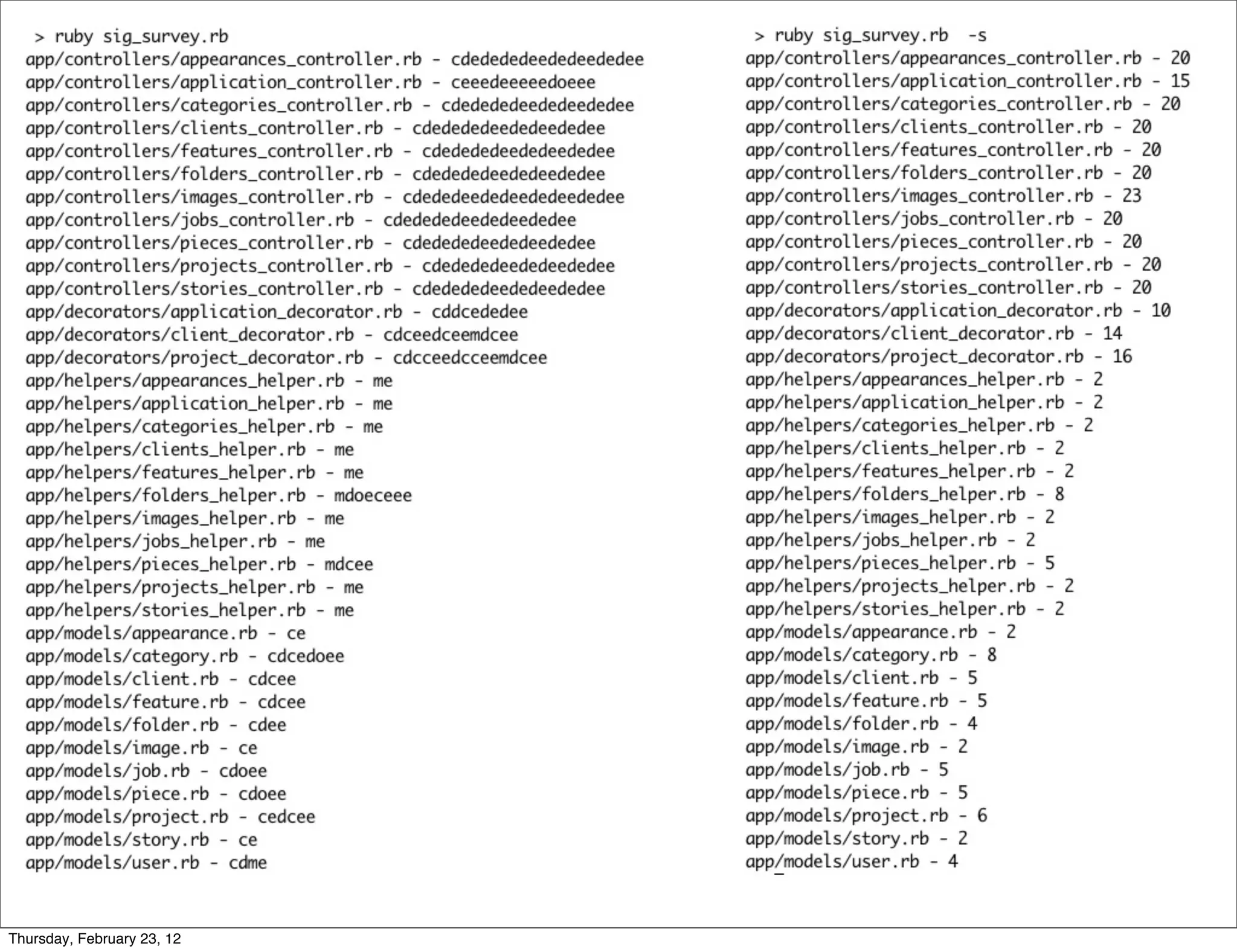

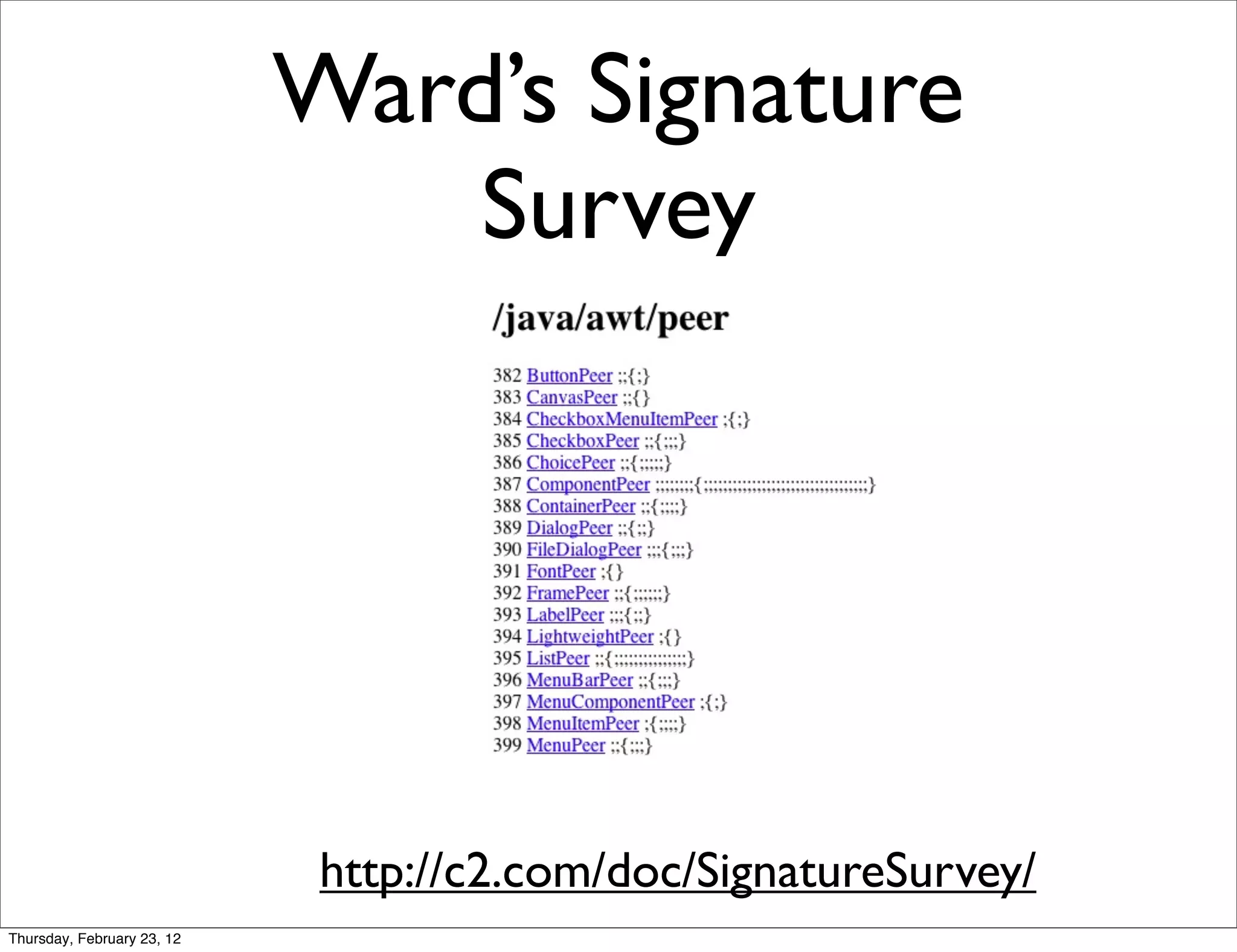

- 31. Ward’s Signature Survey http://c2.com/doc/SignatureSurvey/ Thursday, February 23, 12
- 32.
- 33.

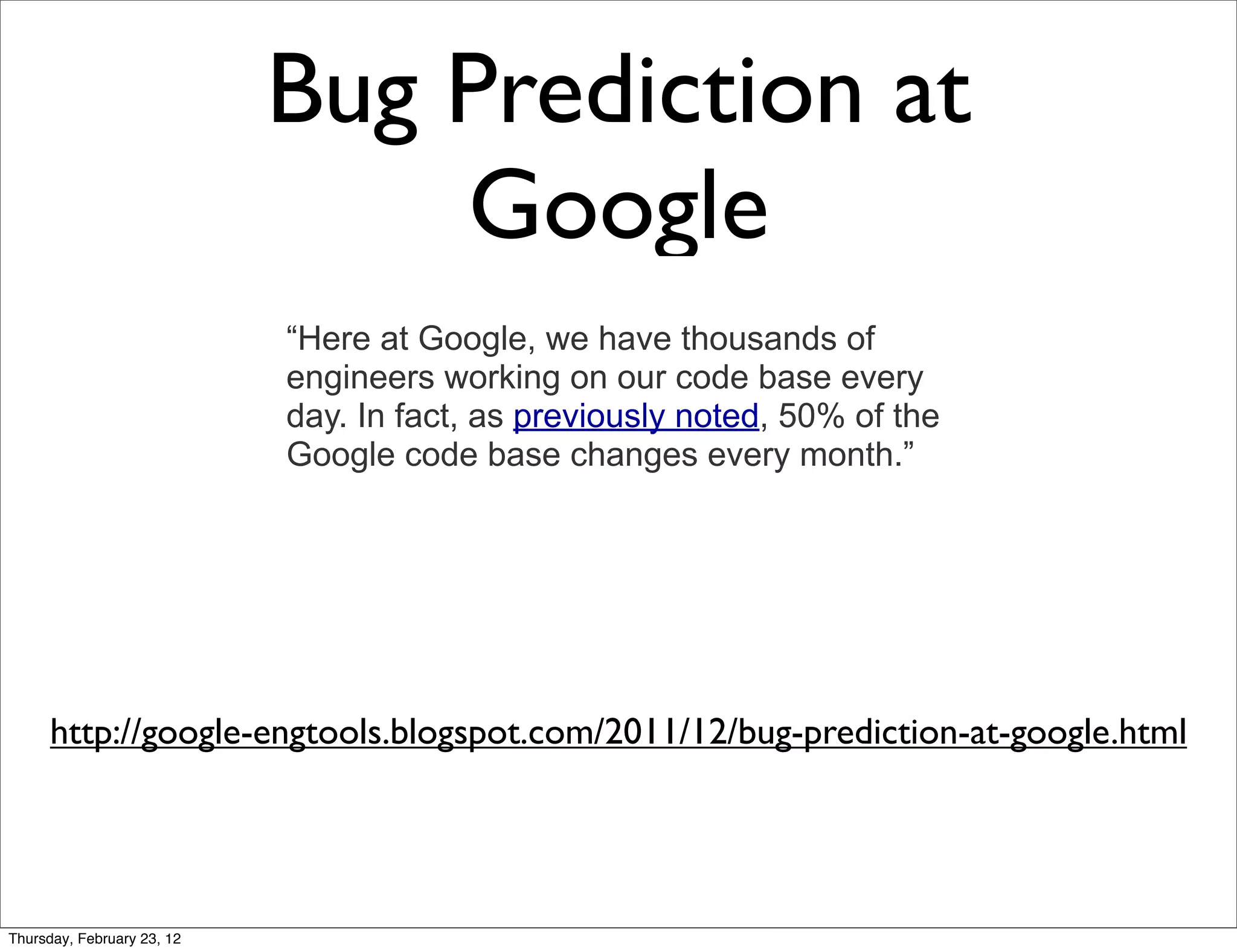

- 34. Bug Prediction at Google “Here at Google, we have thousands of engineers working on our code base every day. In fact, as previously noted, 50% of the Google code base changes every month.” http://google-engtools.blogspot.com/2011/12/bug-prediction-at-google.html Thursday, February 23, 12

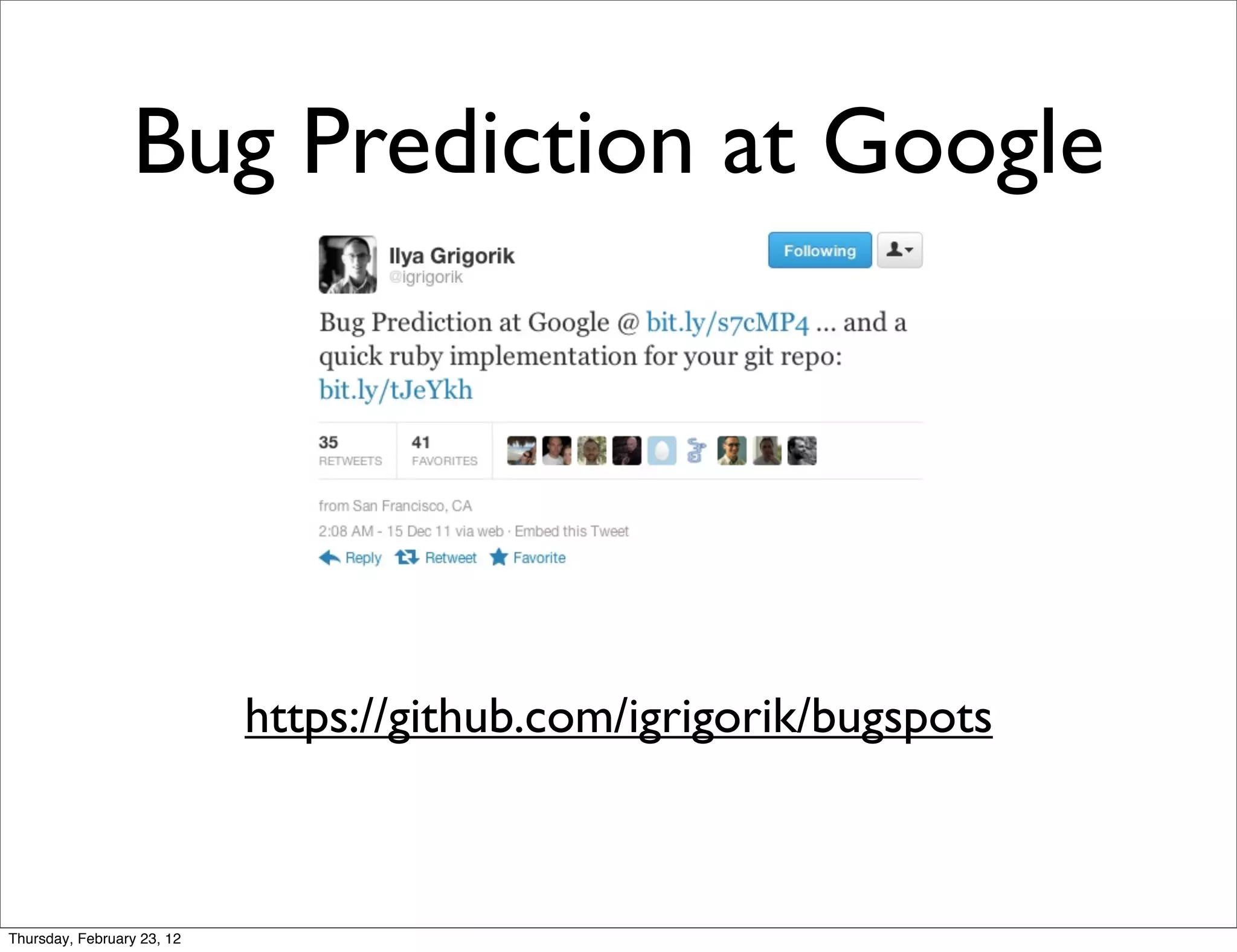

- 35. Bug Prediction atGoogle https://github.com/igrigorik/bugspots Thursday, February 23, 12

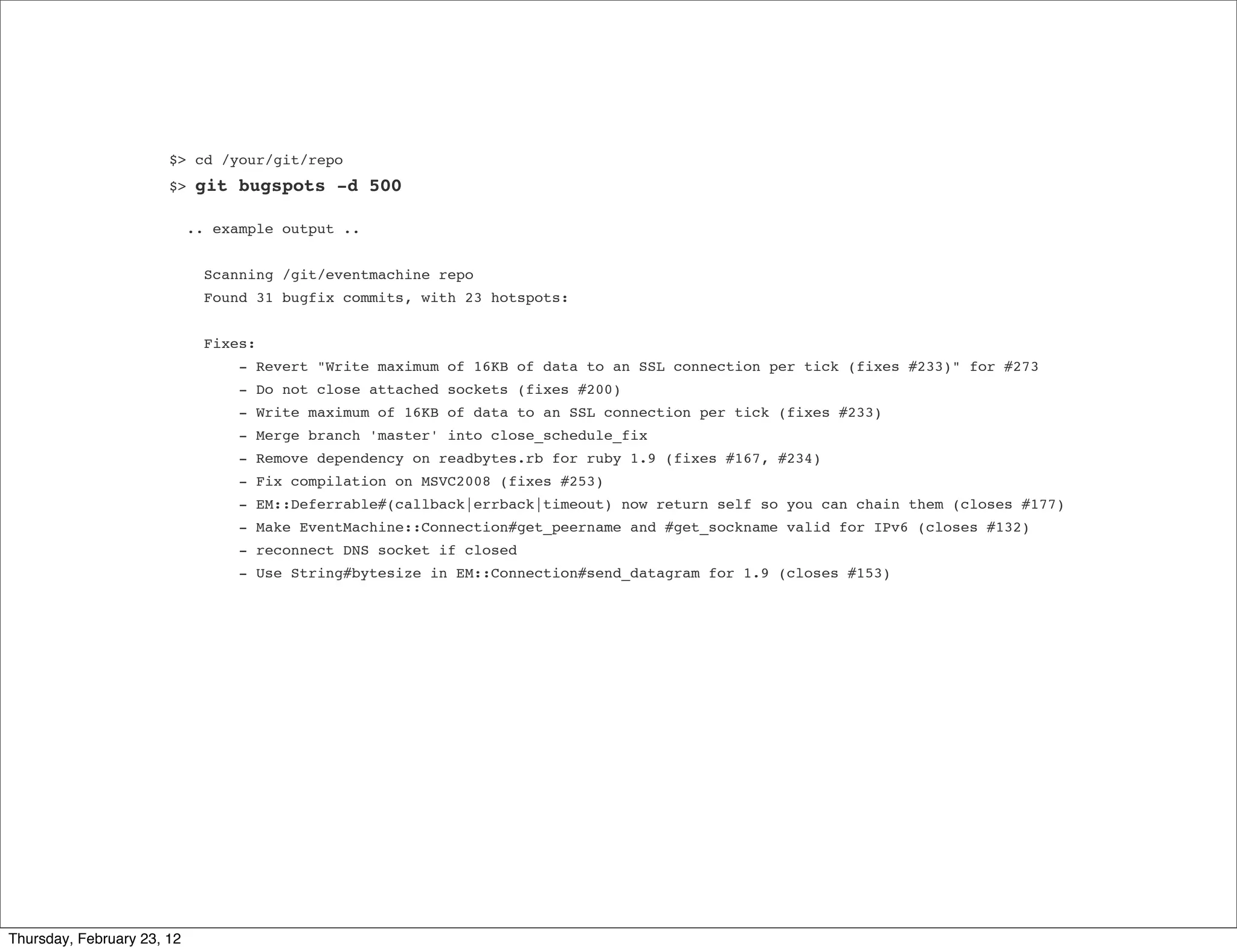

- 36. $> cd /your/git/repo $> git bugspots -d 500 .. example output .. Scanning /git/eventmachine repo Found 31 bugfix commits, with 23 hotspots: Fixes: - Revert "Write maximum of 16KB of data to an SSL connection per tick (fixes #233)" for #273 - Do not close attached sockets (fixes #200) - Write maximum of 16KB of data to an SSL connection per tick (fixes #233) - Merge branch 'master' into close_schedule_fix - Remove dependency on readbytes.rb for ruby 1.9 (fixes #167, #234) - Fix compilation on MSVC2008 (fixes #253) - EM::Deferrable#(callback|errback|timeout) now return self so you can chain them (closes #177) - Make EventMachine::Connection#get_peername and #get_sockname valid for IPv6 (closes #132) - reconnect DNS socket if closed - Use String#bytesize in EM::Connection#send_datagram for 1.9 (closes #153) Thursday, February 23, 12

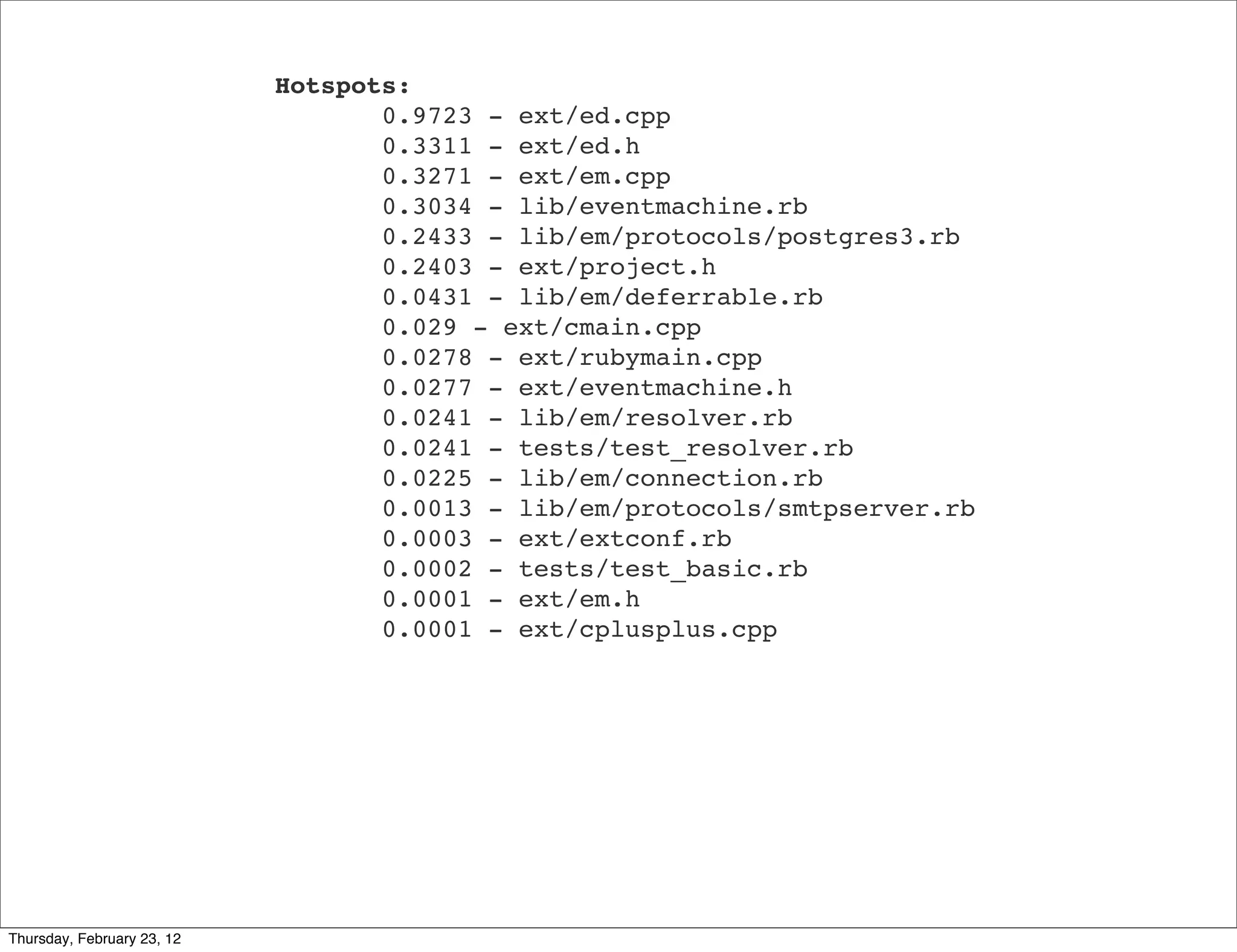

- 37. Hotspots: 0.9723 - ext/ed.cpp 0.3311 - ext/ed.h 0.3271 - ext/em.cpp 0.3034 - lib/eventmachine.rb 0.2433 - lib/em/protocols/postgres3.rb 0.2403 - ext/project.h 0.0431 - lib/em/deferrable.rb 0.029 - ext/cmain.cpp 0.0278 - ext/rubymain.cpp 0.0277 - ext/eventmachine.h 0.0241 - lib/em/resolver.rb 0.0241 - tests/test_resolver.rb 0.0225 - lib/em/connection.rb 0.0013 - lib/em/protocols/smtpserver.rb 0.0003 - ext/extconf.rb 0.0002 - tests/test_basic.rb 0.0001 - ext/em.h 0.0001 - ext/cplusplus.cpp Thursday, February 23, 12

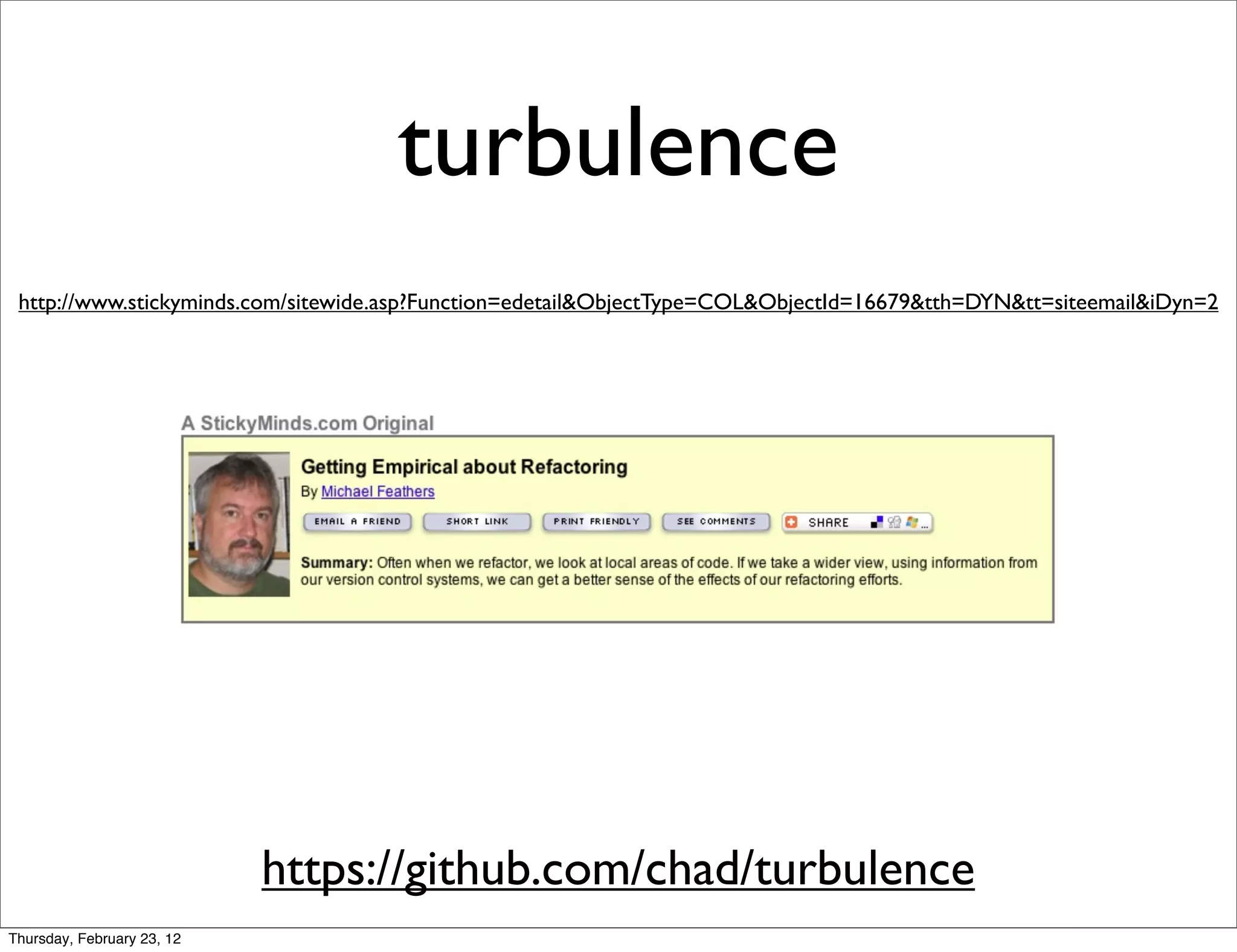

- 38. turbulence http://www.stickyminds.com/sitewide.asp?Function=edetail&ObjectType=COL&ObjectId=16679&tth=DYN&tt=siteemail&iDyn=2 https://github.com/chad/turbulence Thursday, February 23, 12

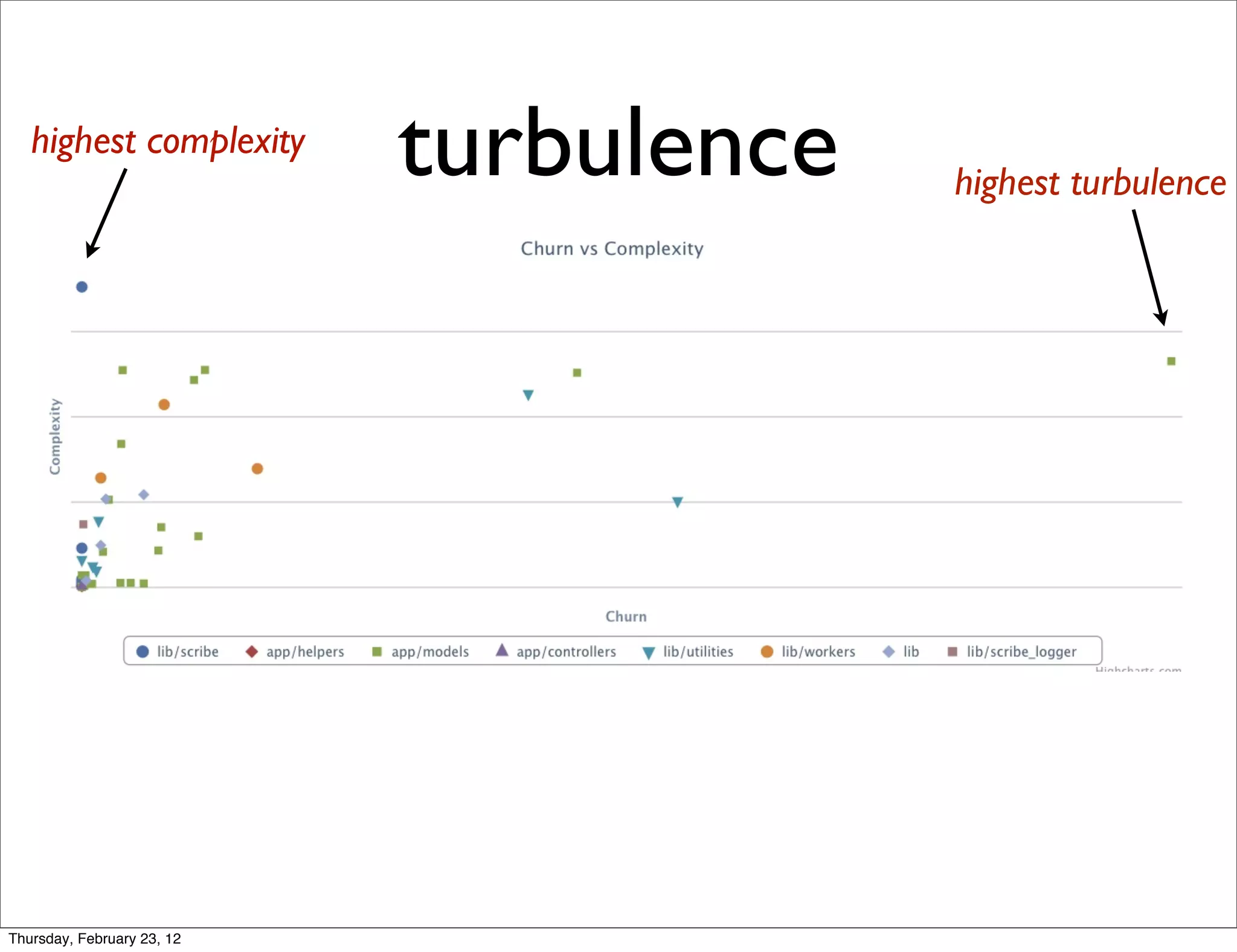

- 39. highest complexity turbulence highest turbulence Thursday, February 23, 12

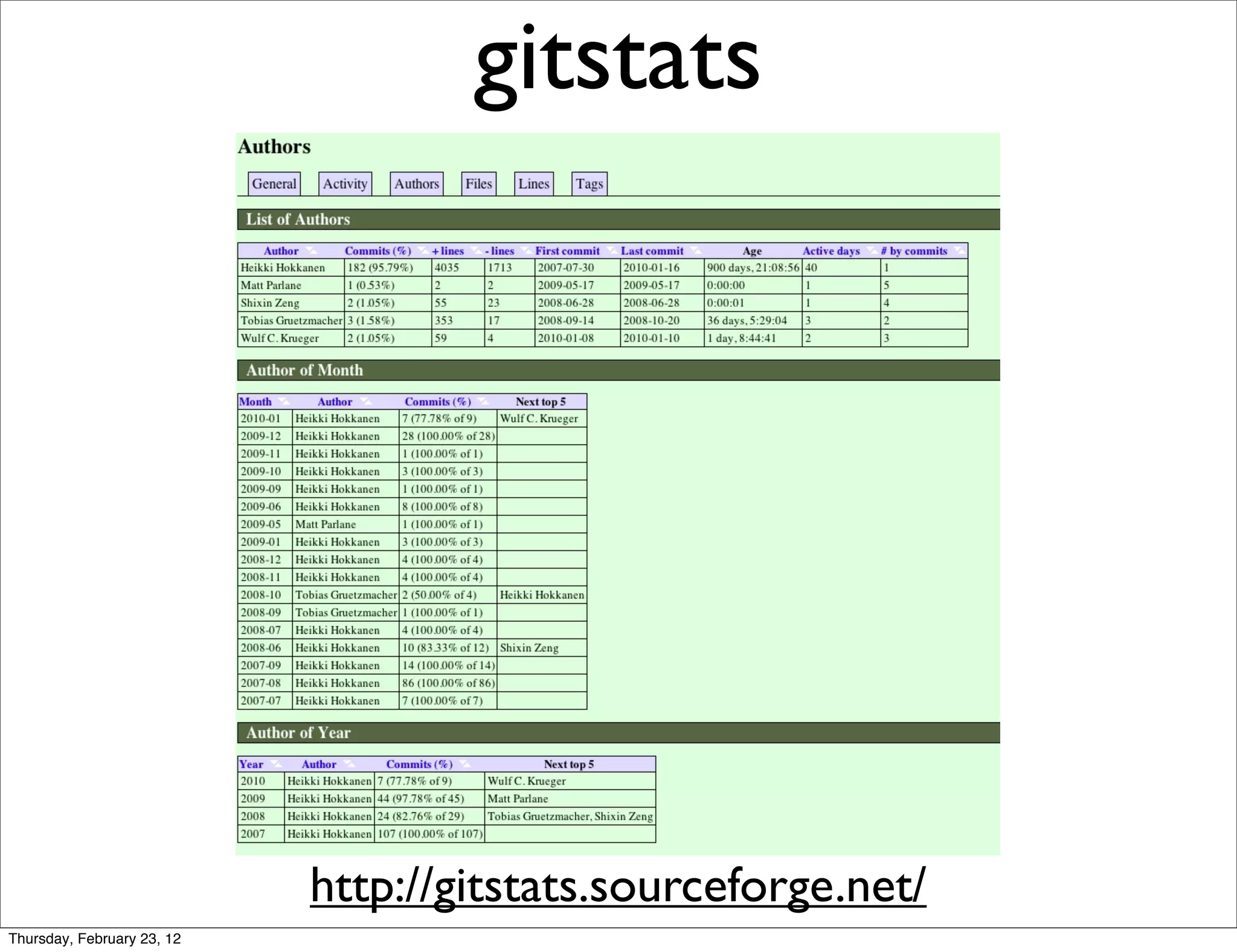

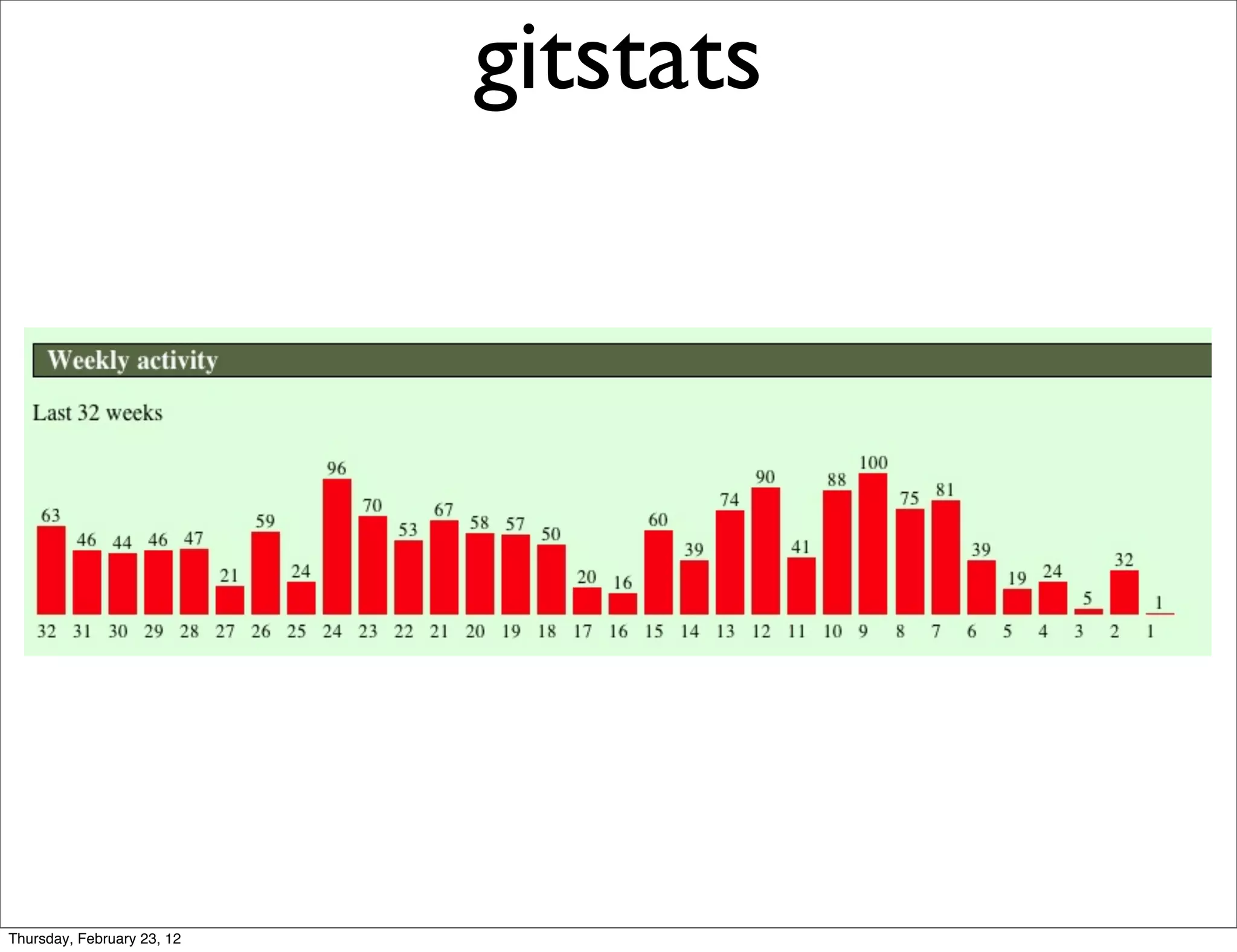

- 40. gitstats http://gitstats.sourceforge.net/ Thursday, February 23, 12
- 41.

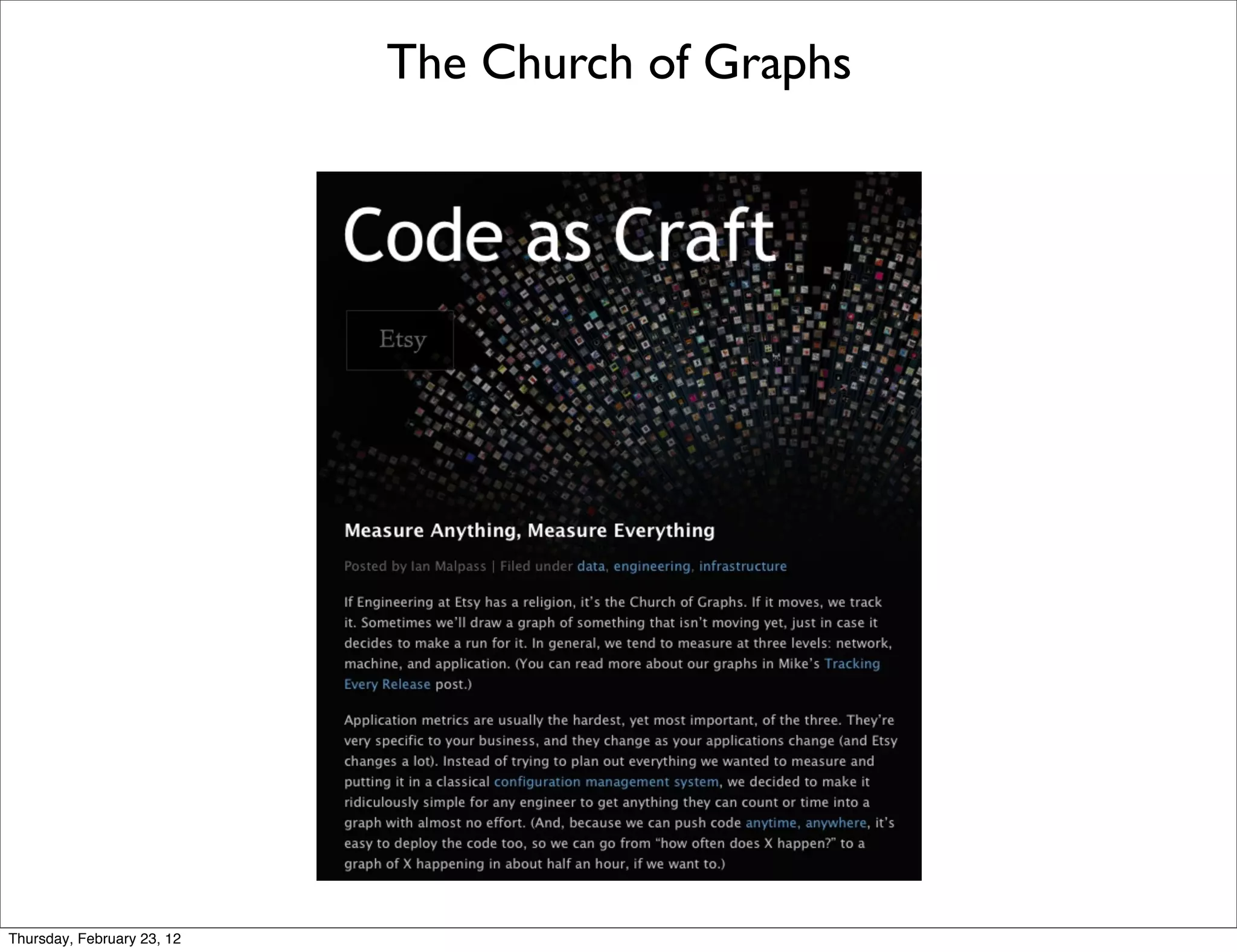

- 42. The Church ofGraphs Thursday, February 23, 12

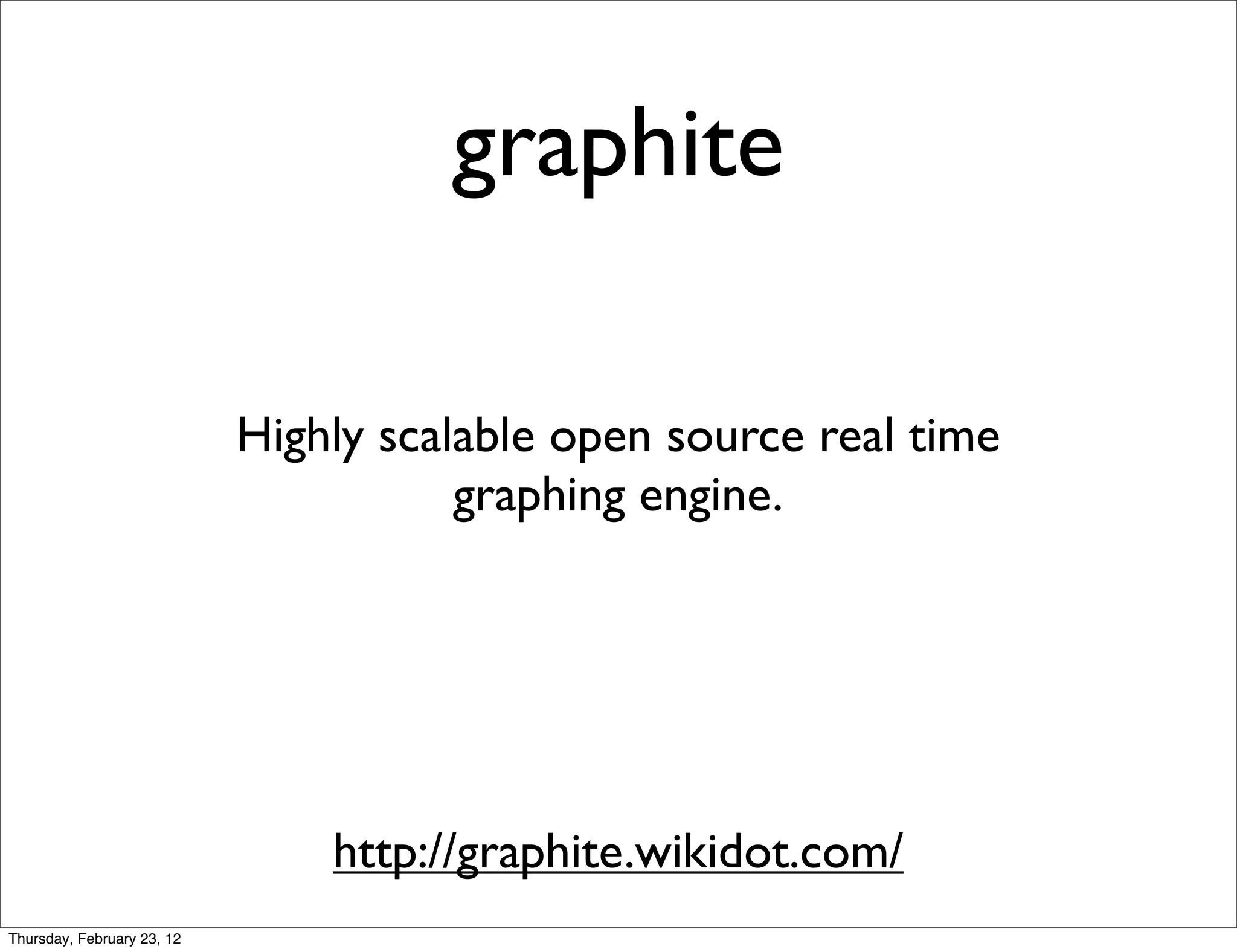

- 43. graphite Highly scalable open source real time graphing engine. http://graphite.wikidot.com/ Thursday, February 23, 12

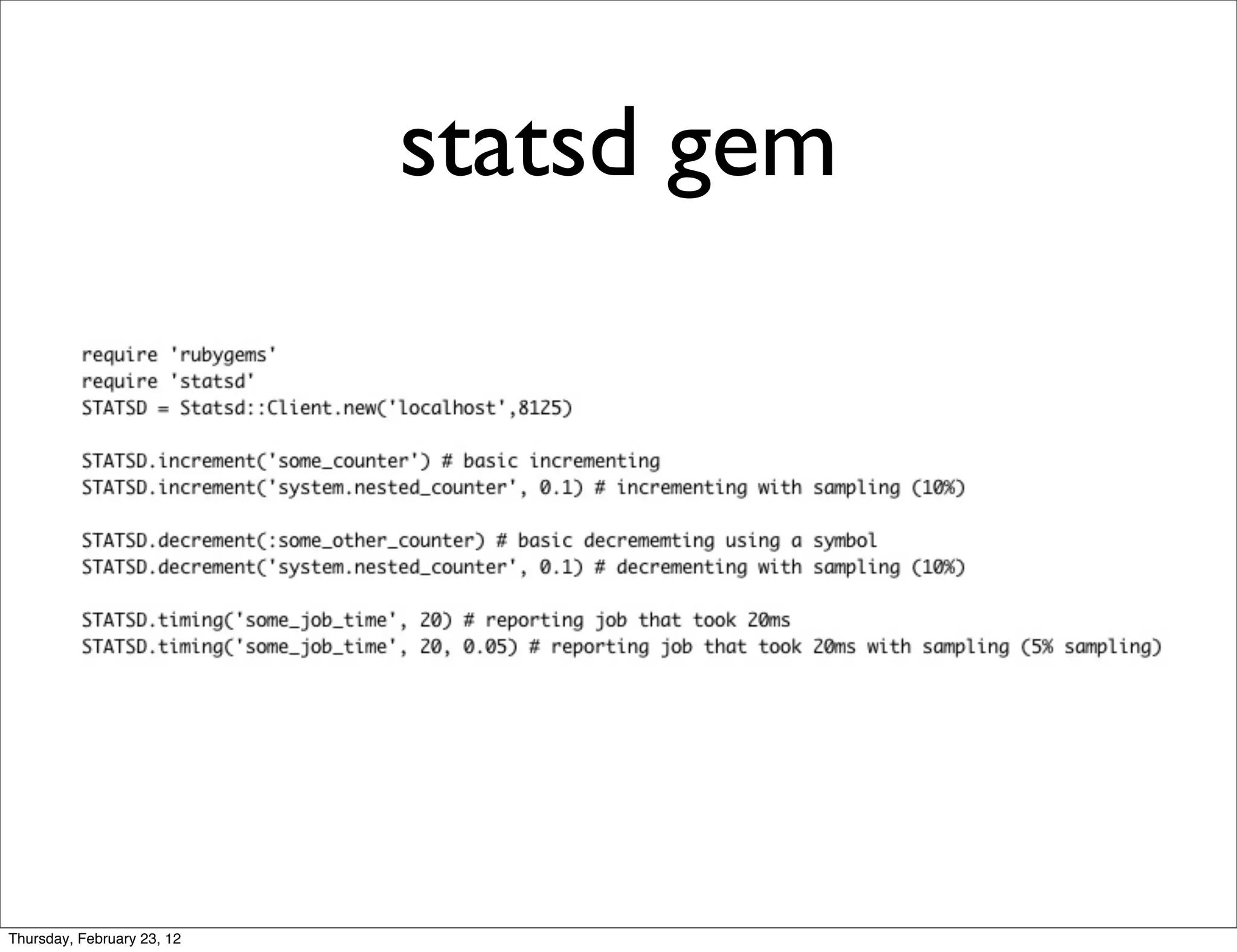

- 44. statsd Open source node-based daemon for stats aggregation. UDP front-end for fault- tolerance*. Pushes aggregated stats into graphite. https://github.com/etsy/statsd Thursday, February 23, 12
- 45.
- 46.

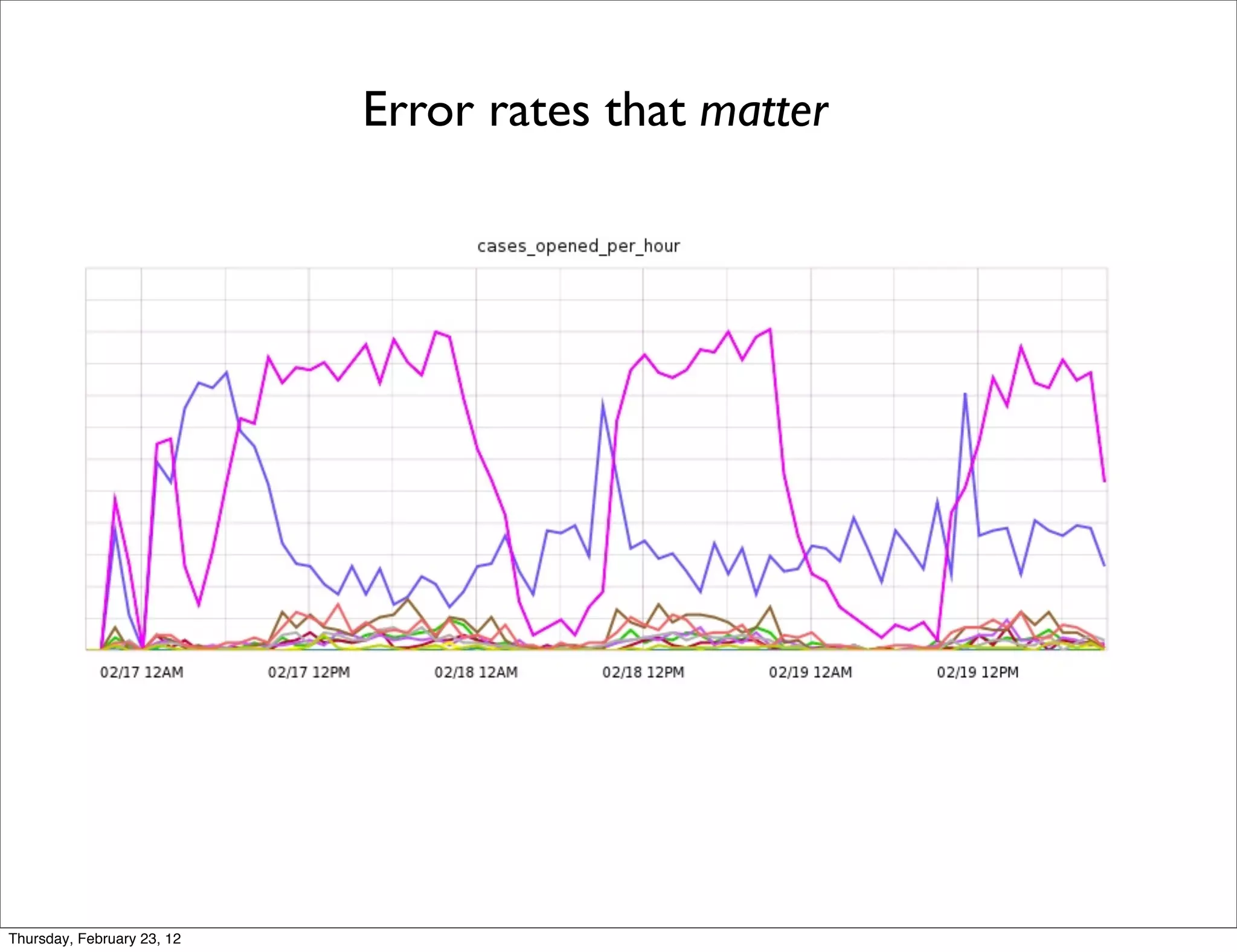

- 47. Error rates thatmatter Thursday, February 23, 12

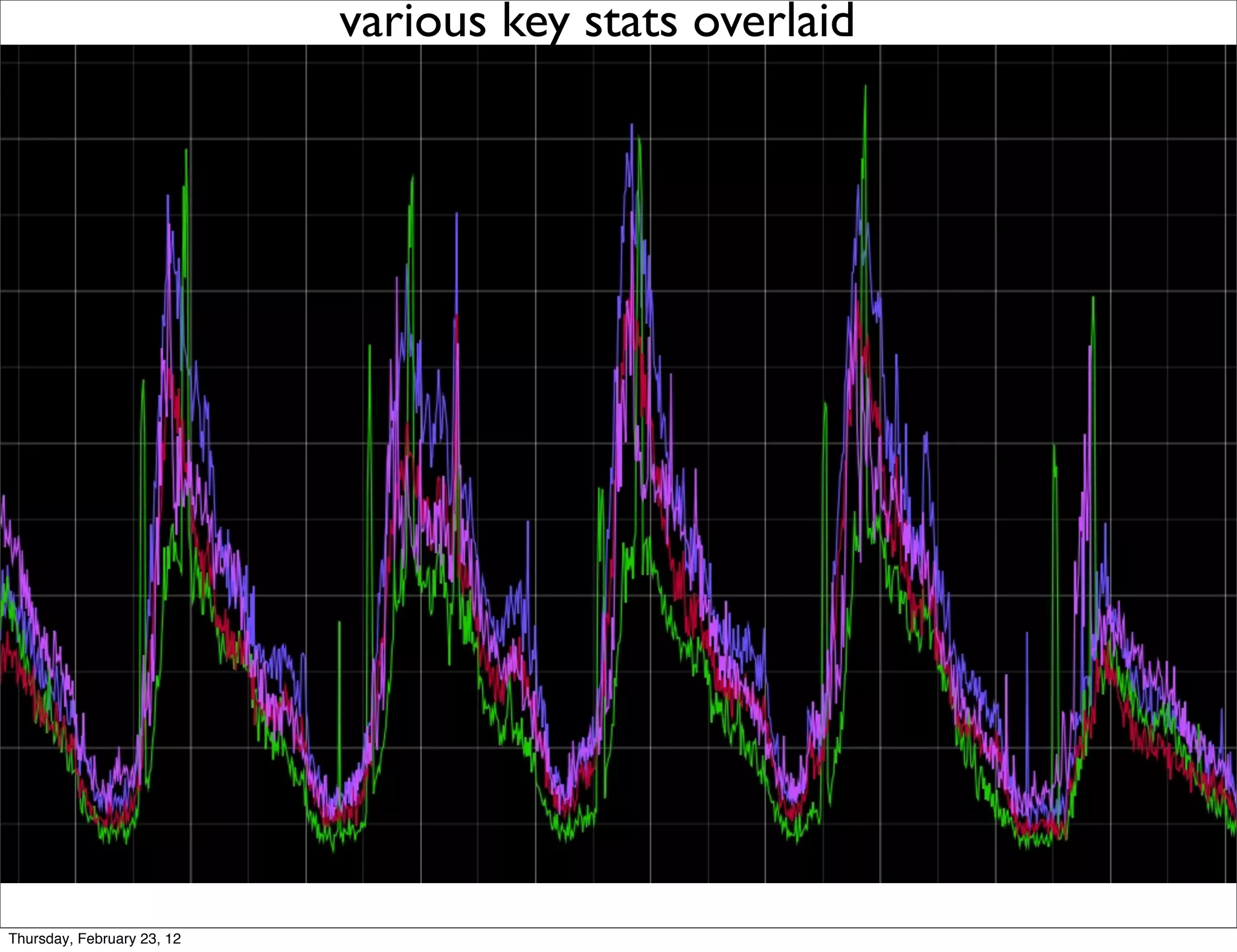

- 48. various key statsoverlaid Thursday, February 23, 12

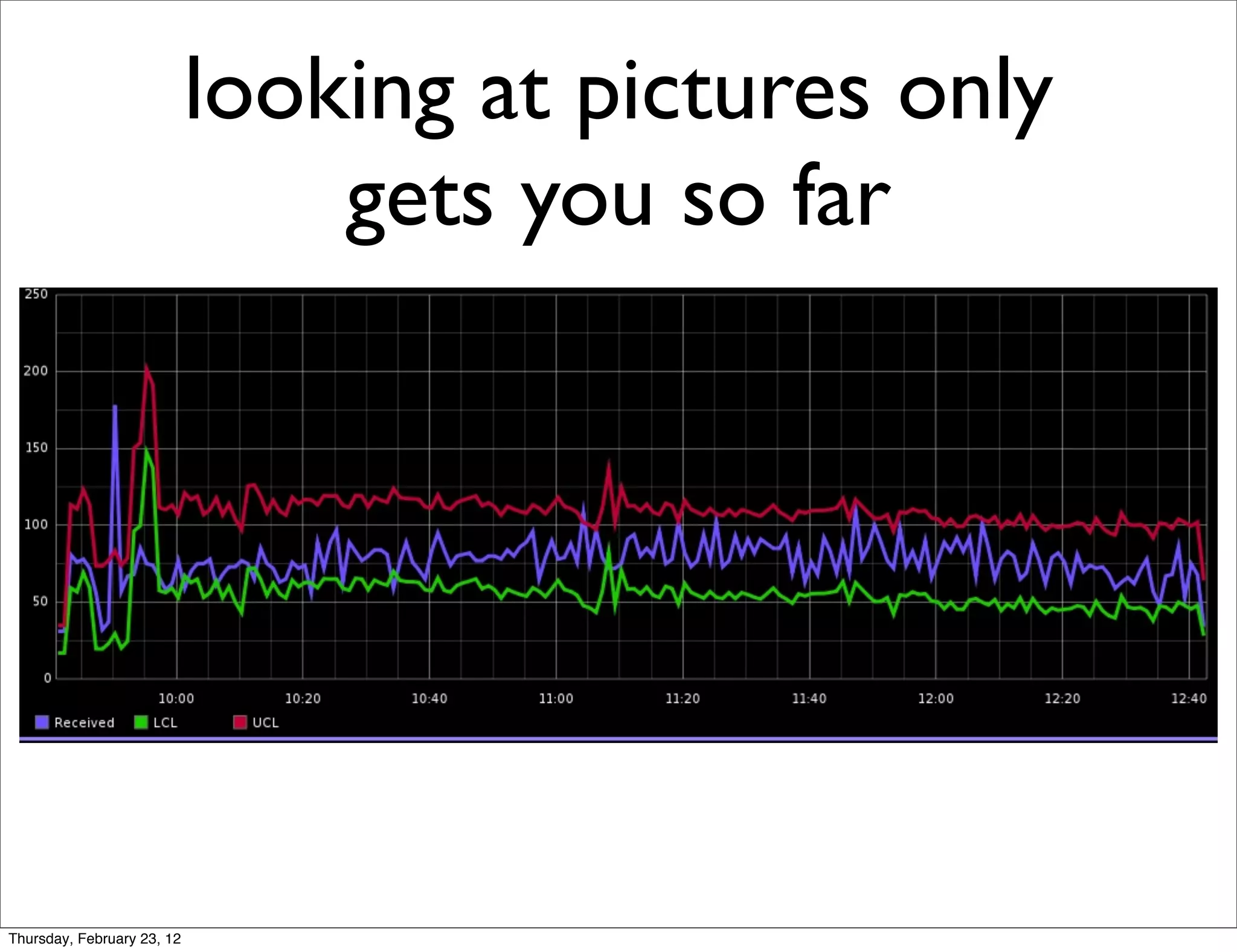

- 49. looking at picturesonly gets you so far Thursday, February 23, 12

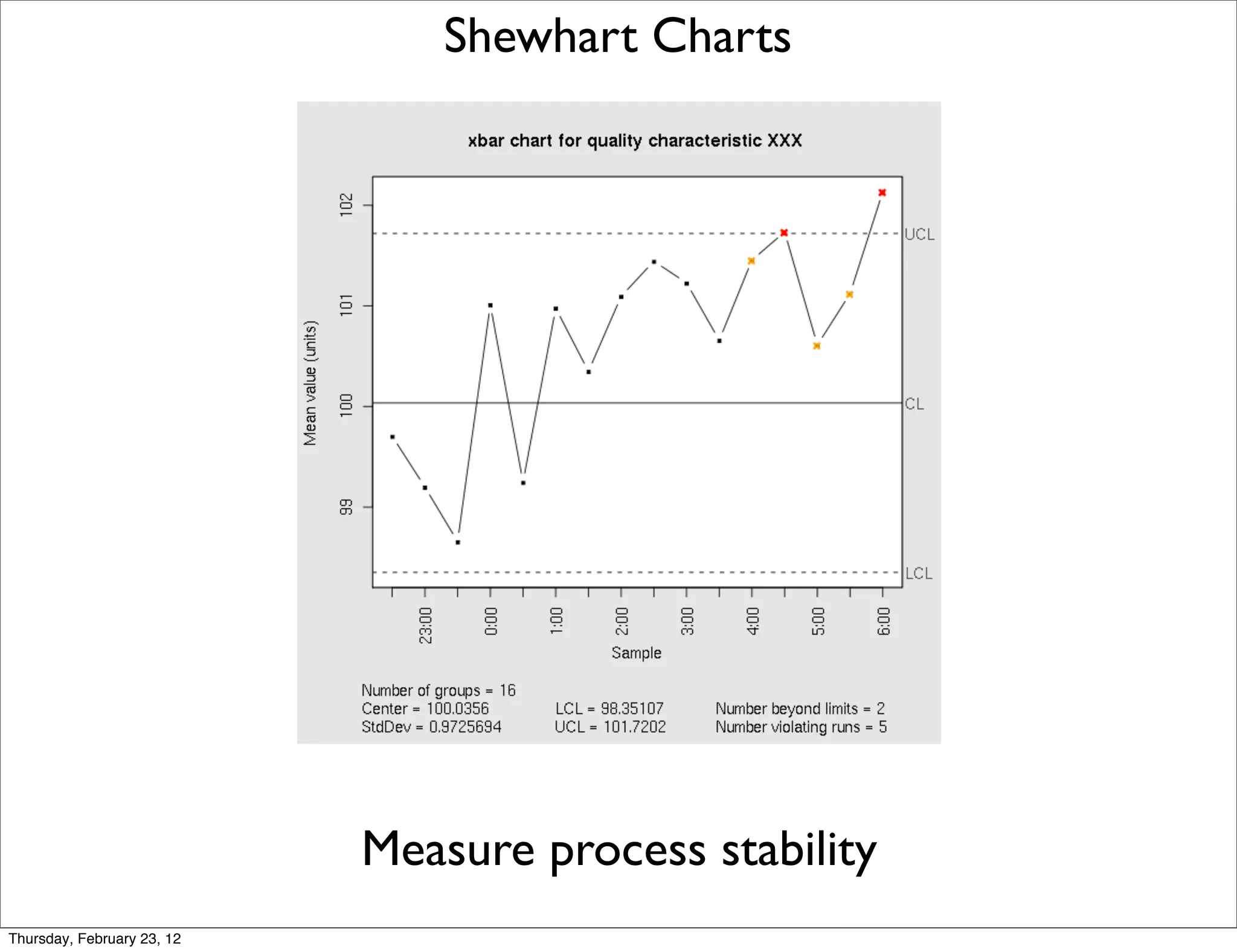

- 50. Shewhart Charts Measure process stability Thursday, February 23, 12

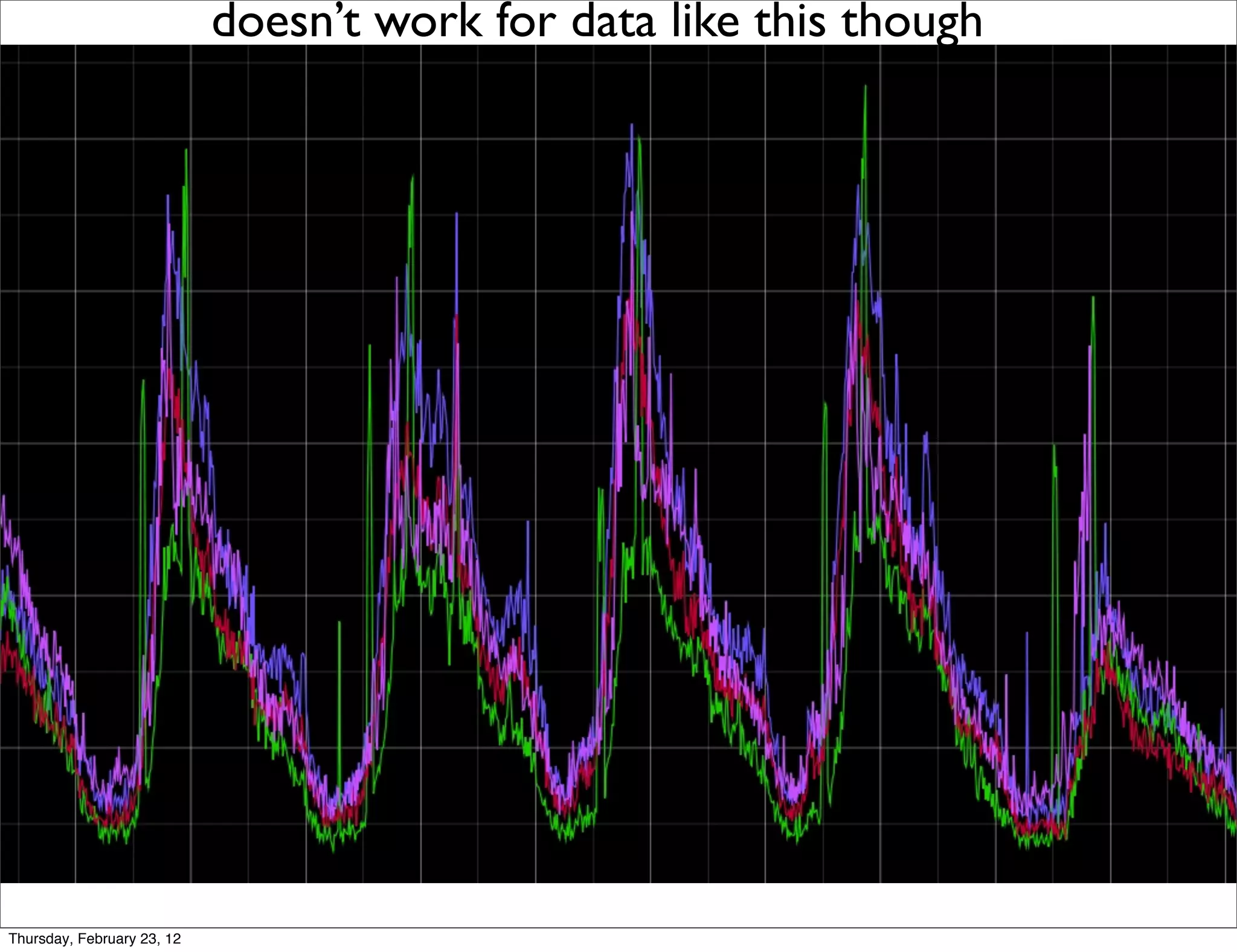

- 51. doesn’t work fordata like this though Thursday, February 23, 12

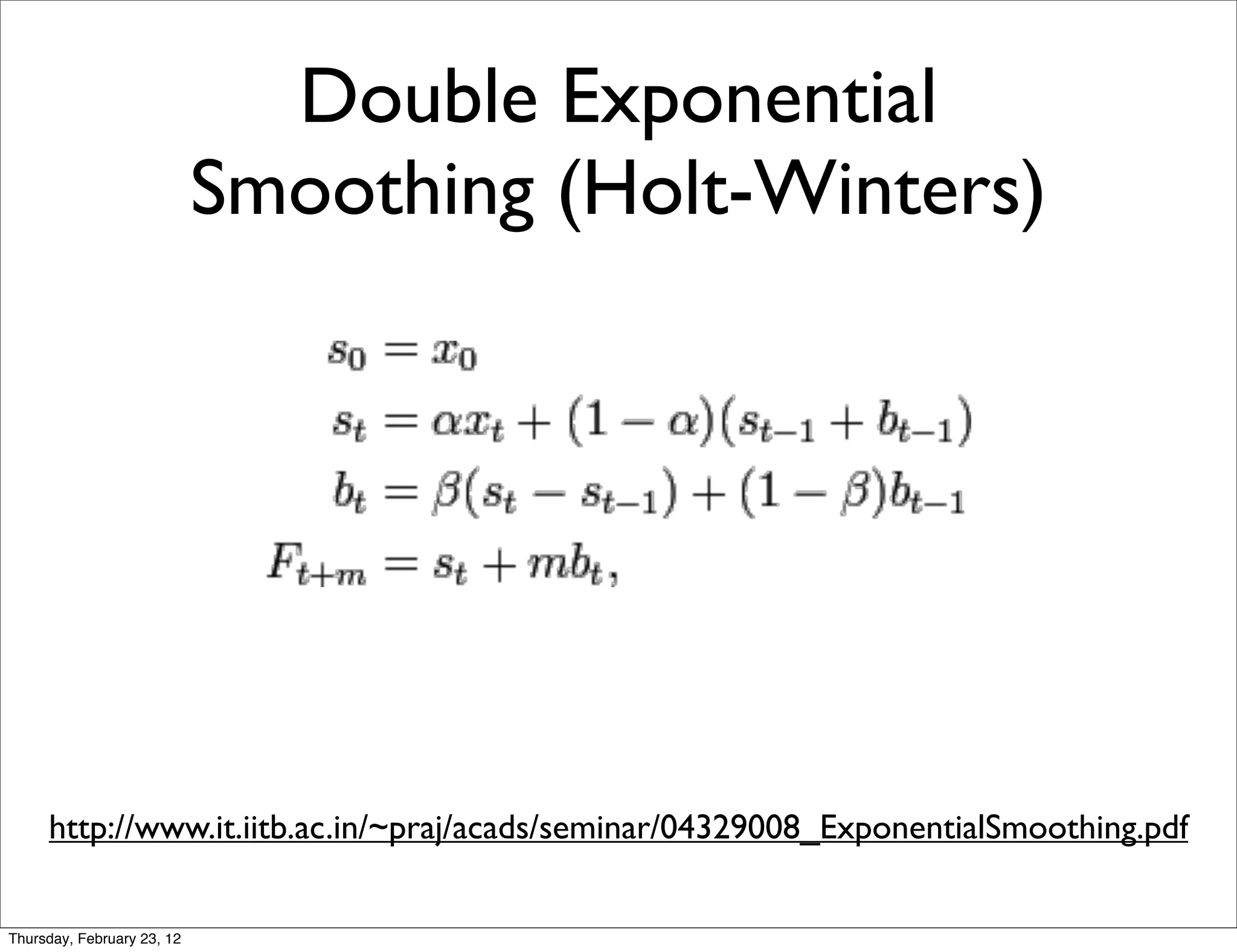

- 52. Double Exponential Smoothing (Holt-Winters) http://www.it.iitb.ac.in/~praj/acads/seminar/04329008_ExponentialSmoothing.pdf Thursday, February 23, 12
- 53.
- 54. What is QA? 50 releases per day redefines “QA” Thursday, February 23, 12
