An overview to Software Testing
The document provides an overview of software quality assurance and testing. It defines testing as executing a program to find errors based on the definitions of Glen Myers and Paul Jorgensen. The objectives of testing are finding failures, demonstrating correct execution, and being concerned with errors, faults, and incidents. The document also discusses testing life cycles, verification versus validation, classifications of testing at different levels and based on methodologies, relationships between specified and programmed behaviors, and test methodologies like black box and white box testing.
More Related Content
Similar to An overview to Software Testing
An overview to Software Testing

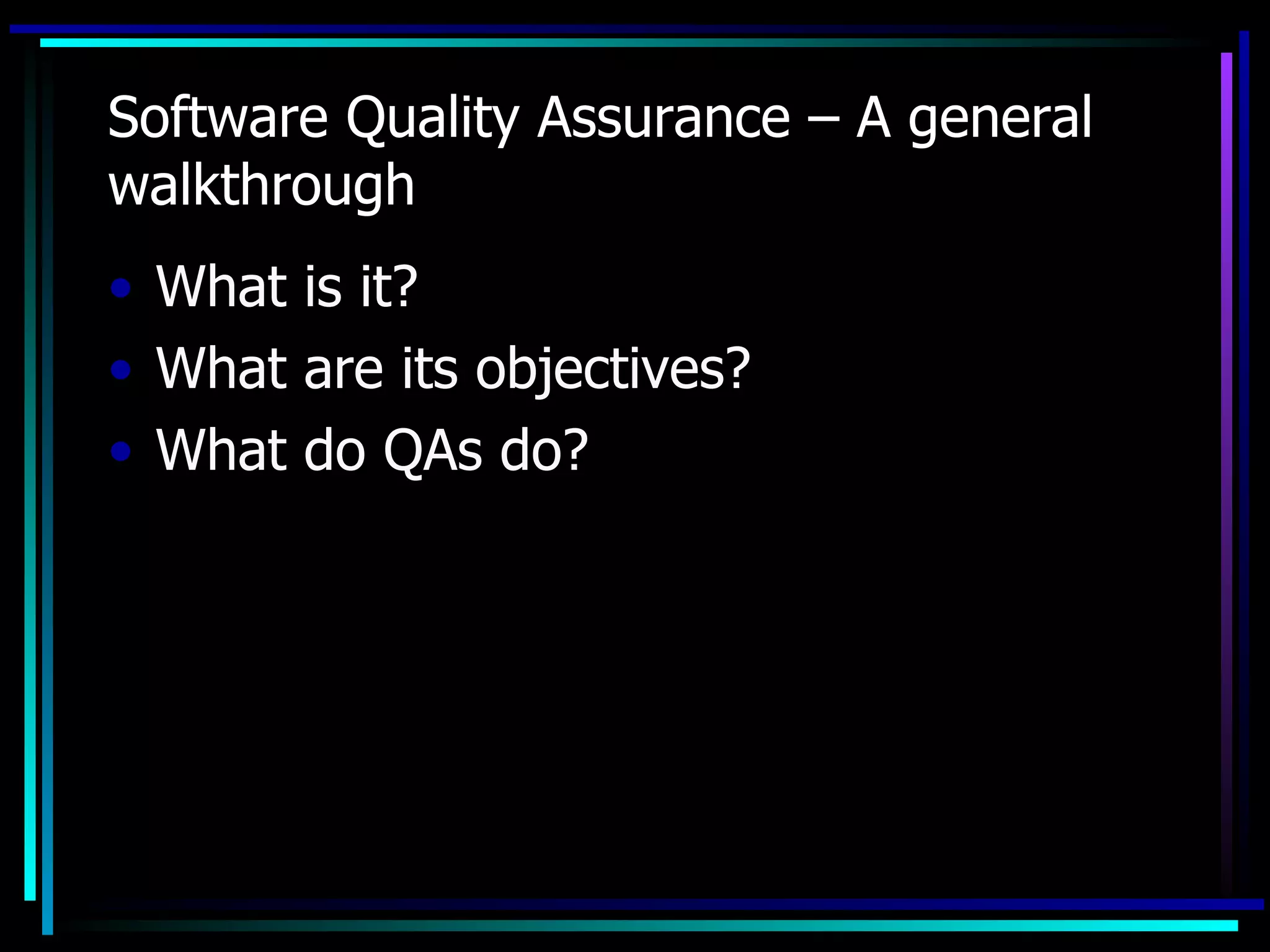

- 1. Software Quality Assurance– A general walkthrough • What is it? • What are its objectives? • What do QAs do?

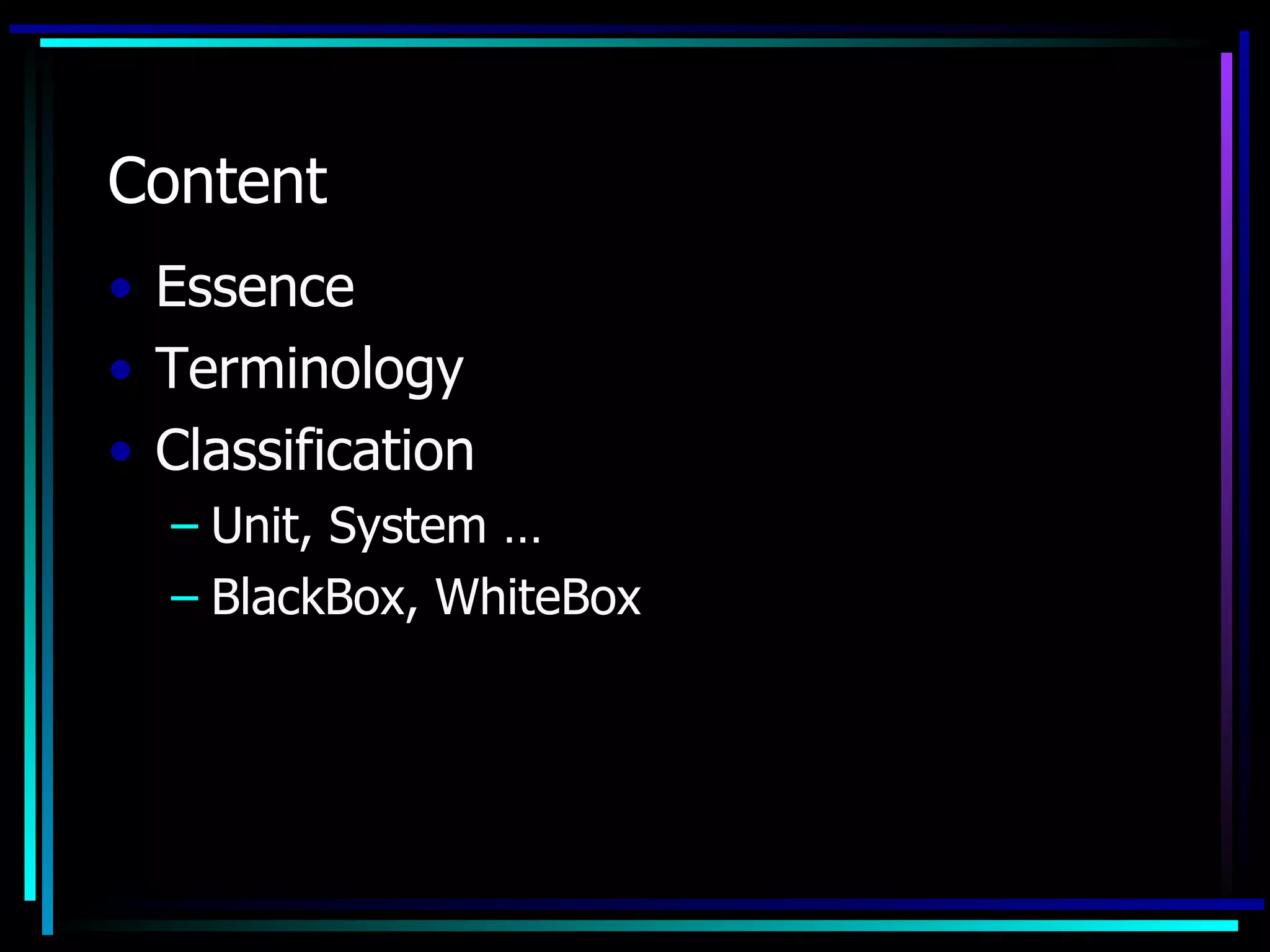

- 2. Content • Essence • Terminology •Classification – Unit, System … – BlackBox, WhiteBox

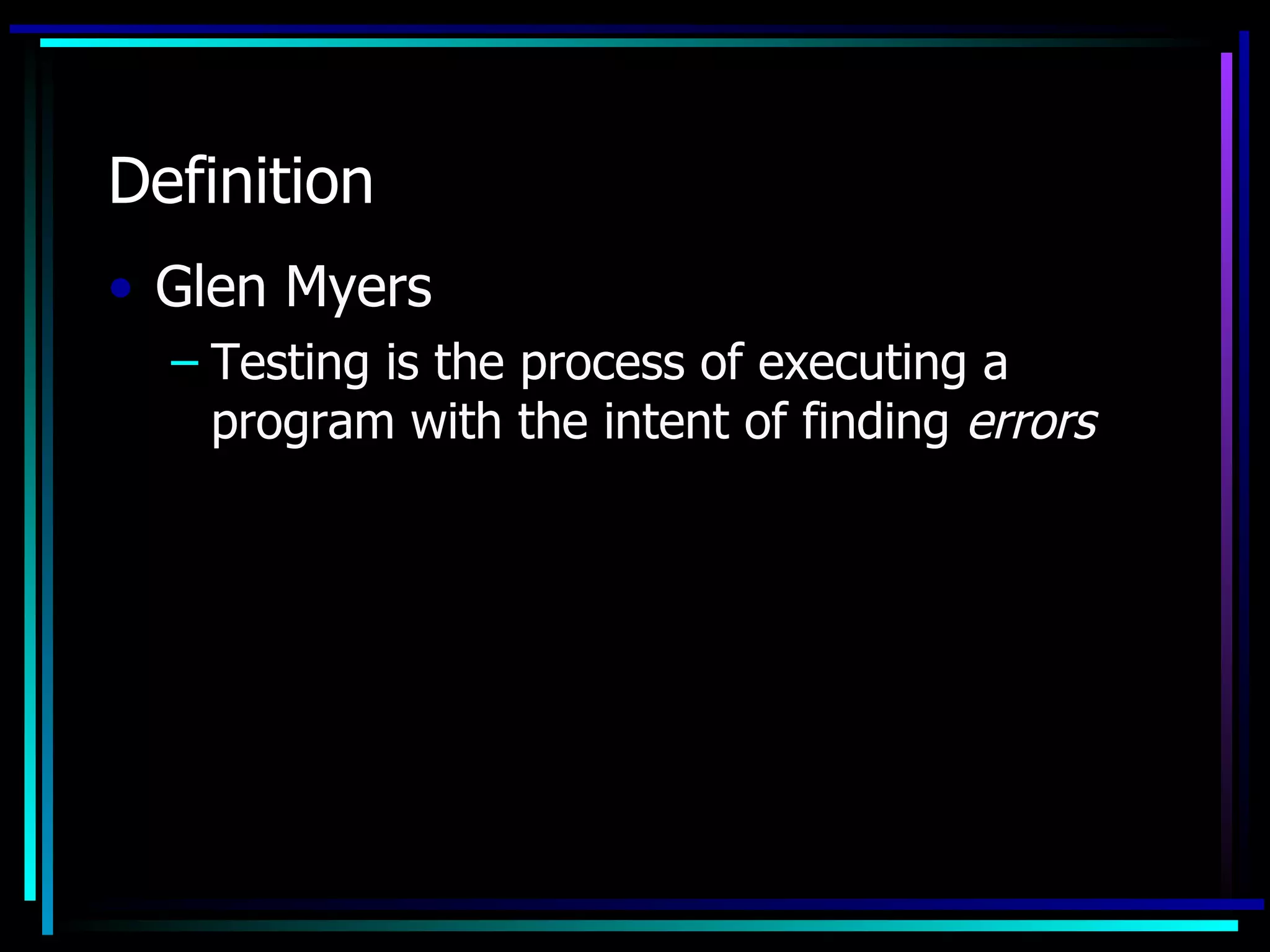

- 3. Definition • Glen Myers – Testing is the process of executing a program with the intent of finding errors

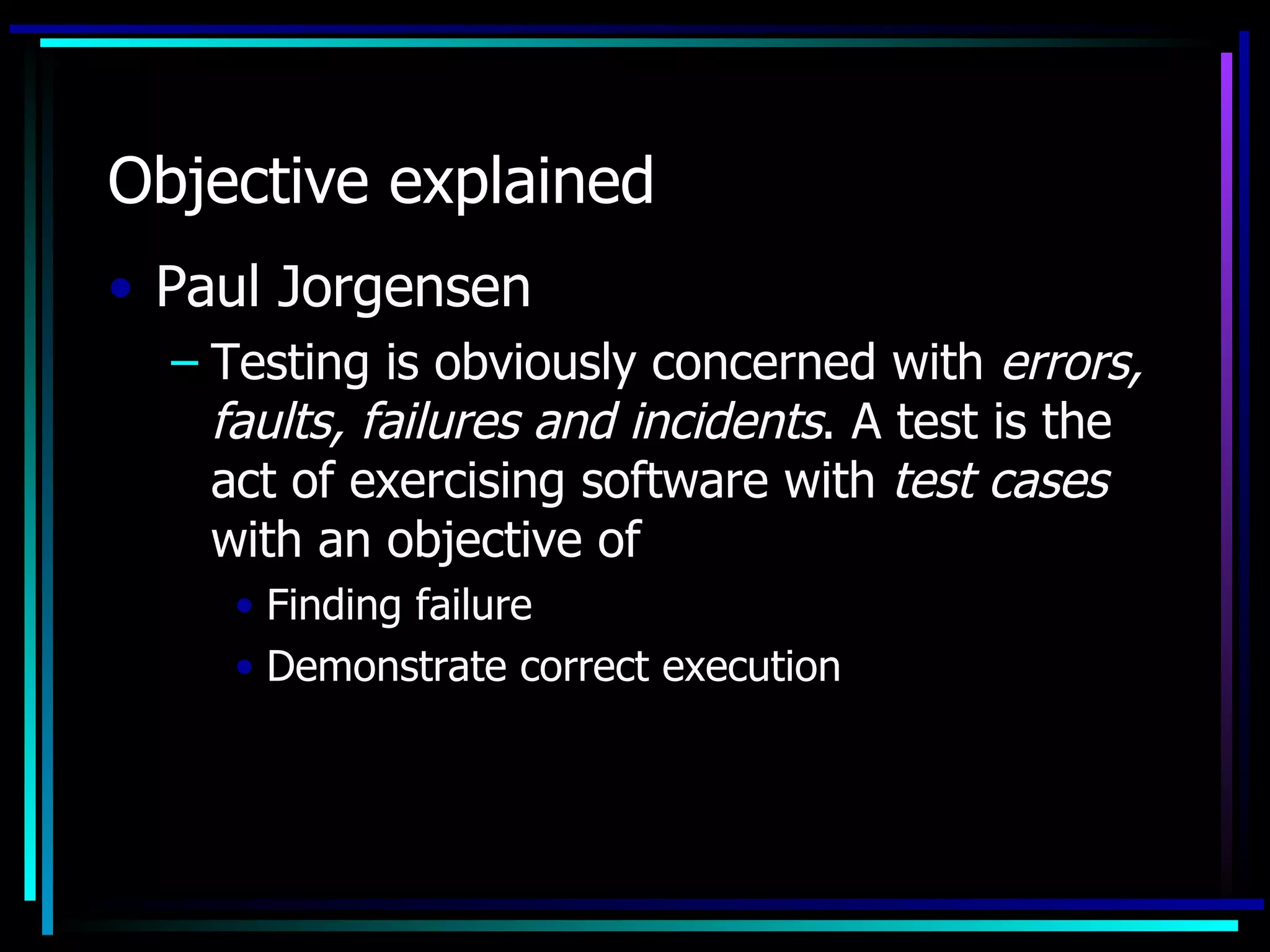

- 4. Objective explained • PaulJorgensen – Testing is obviously concerned with errors, faults, failures and incidents. A test is the act of exercising software with test cases with an objective of • Finding failure • Demonstrate correct execution

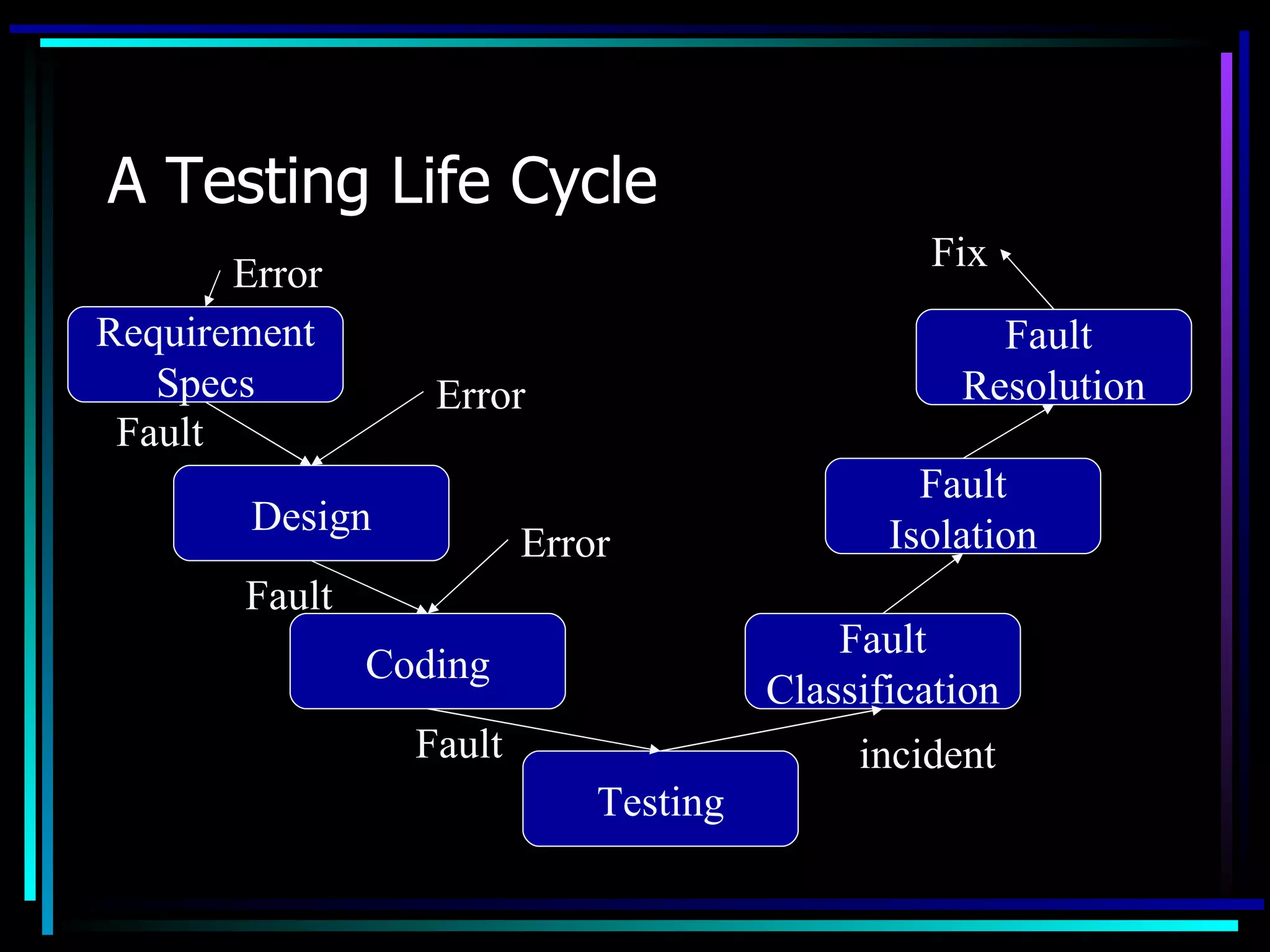

- 5. A Testing LifeCycle Fix Error Requirement Fault Specs Error Resolution Fault Fault Design Isolation Error Fault Fault Coding Classification Fault incident Testing

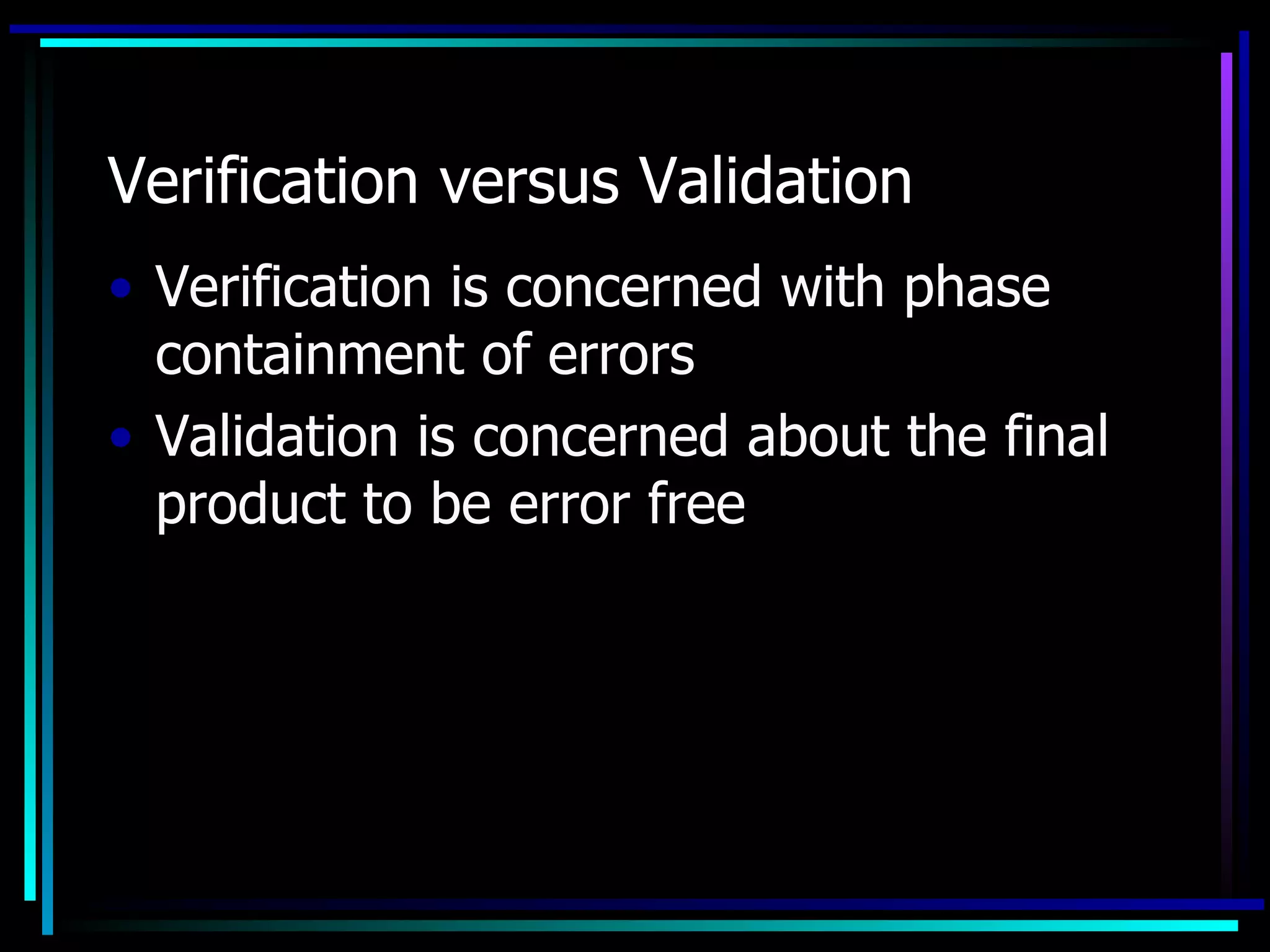

- 6. Verification versus Validation •Verification is concerned with phase containment of errors • Validation is concerned about the final product to be error free

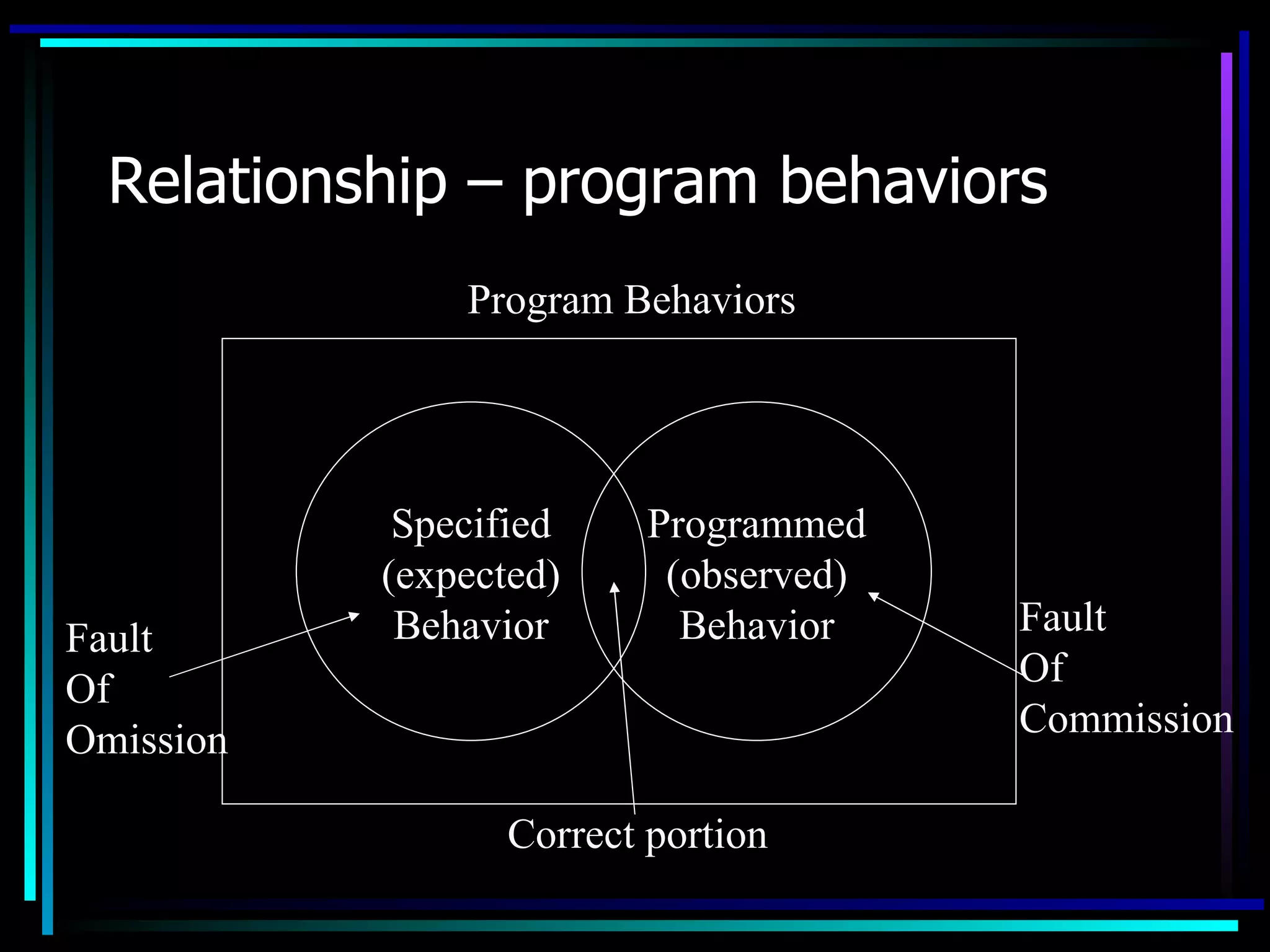

- 7. Relationship – programbehaviors Program Behaviors Specified Programmed (expected) (observed) Behavior Behavior Fault Fault Of Of Commission Omission Correct portion

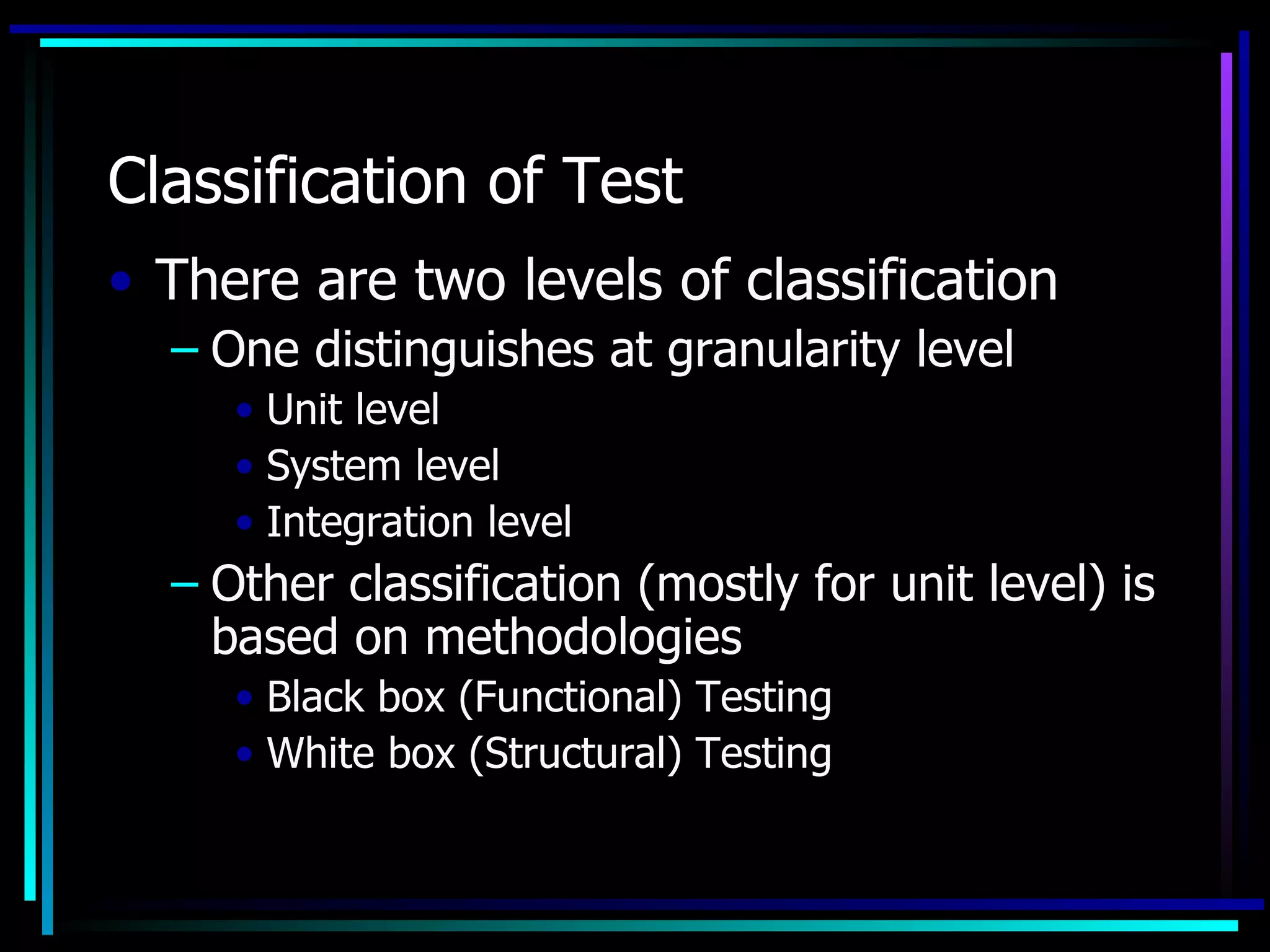

- 8. Classification of Test •There are two levels of classification – One distinguishes at granularity level • Unit level • System level • Integration level – Other classification (mostly for unit level) is based on methodologies • Black box (Functional) Testing • White box (Structural) Testing

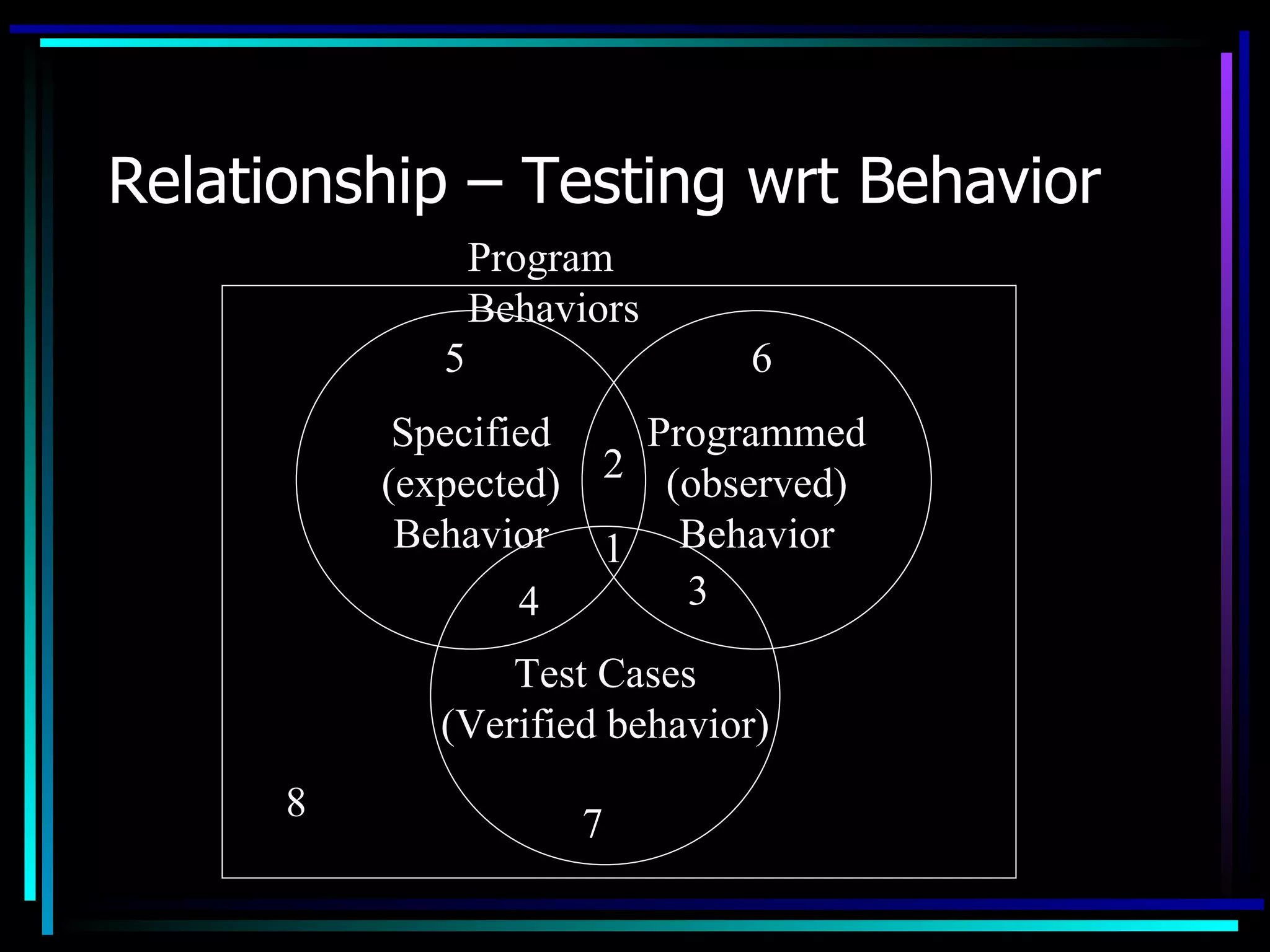

- 9. Relationship – Testingwrt Behavior Program Behaviors 5 6 Specified Programmed (expected) 2 (observed) Behavior 1 Behavior 4 3 Test Cases (Verified behavior) 8 7

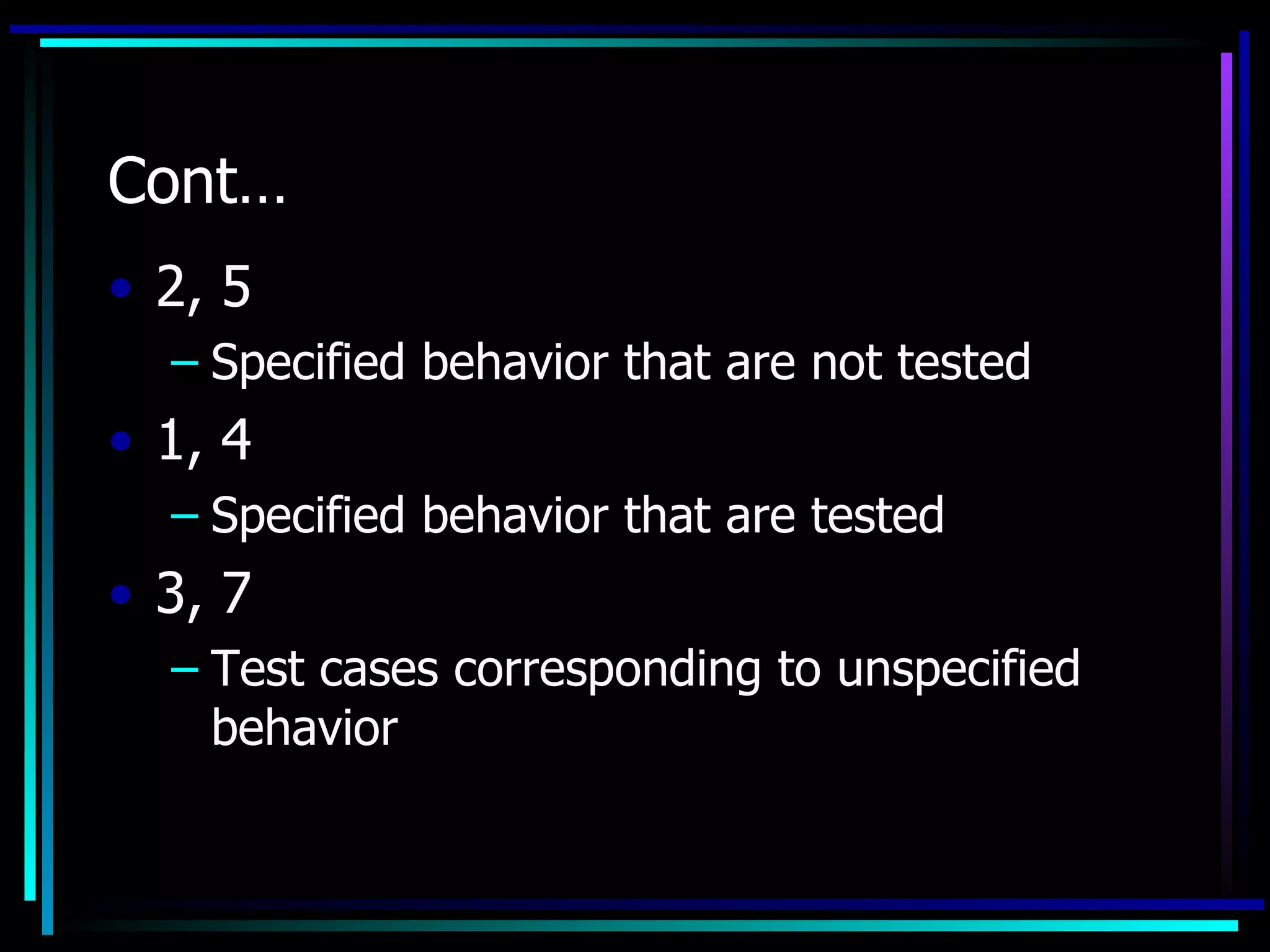

- 10. Cont… • 2, 5 – Specified behavior that are not tested • 1, 4 – Specified behavior that are tested • 3, 7 – Test cases corresponding to unspecified behavior

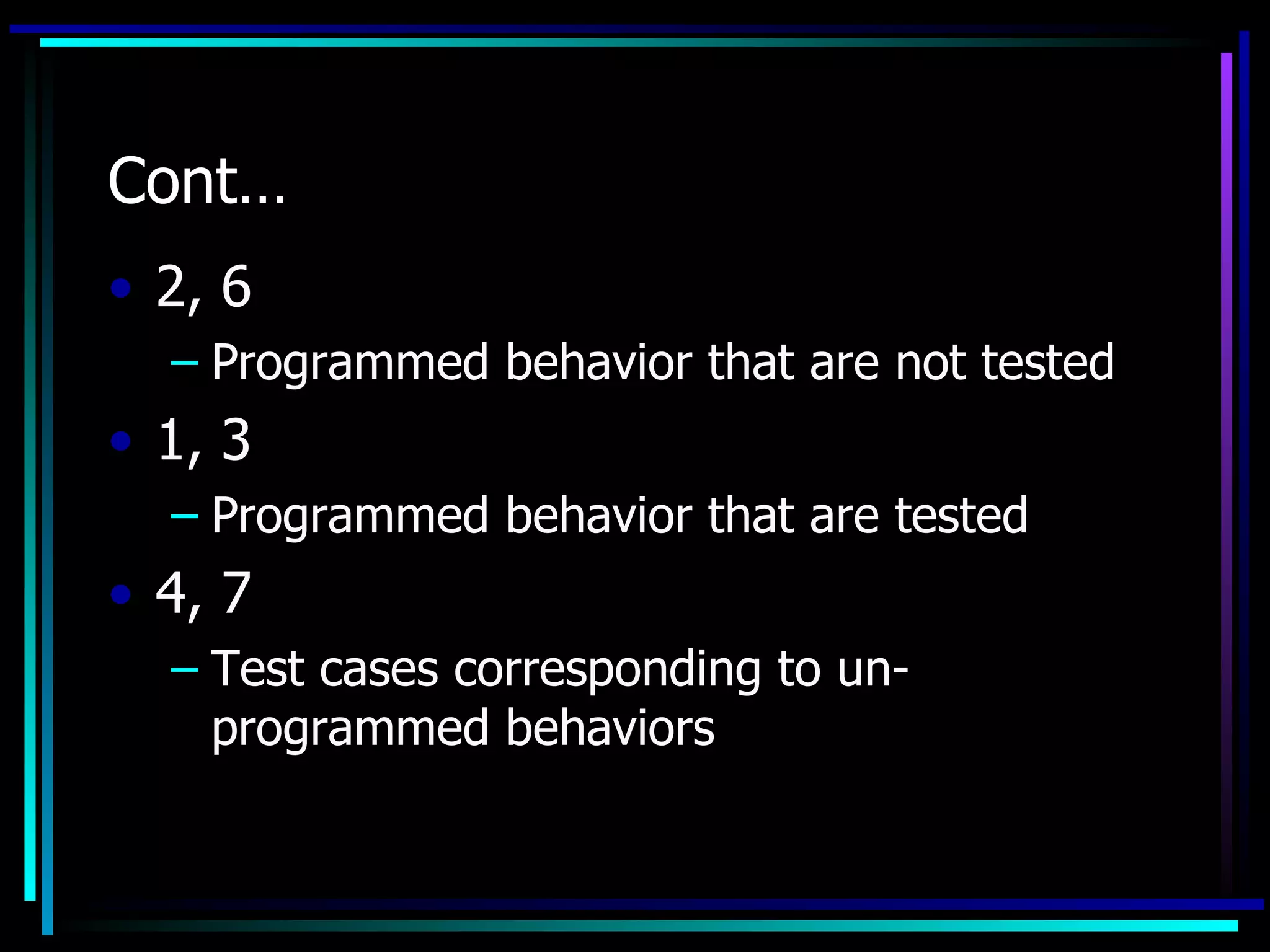

- 11. Cont… • 2, 6 – Programmed behavior that are not tested • 1, 3 – Programmed behavior that are tested • 4, 7 – Test cases corresponding to un- programmed behaviors

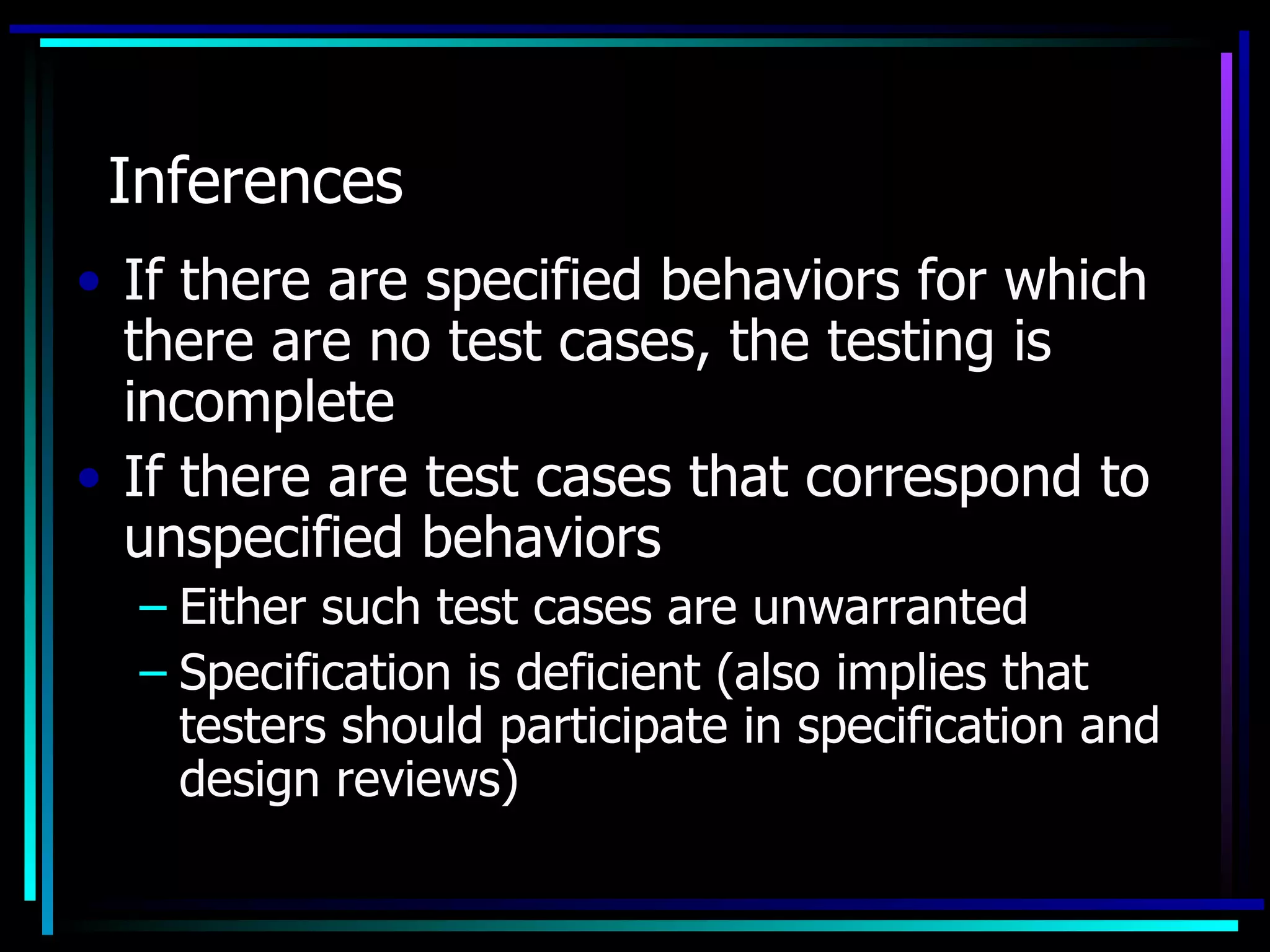

- 12. Inferences • If thereare specified behaviors for which there are no test cases, the testing is incomplete • If there are test cases that correspond to unspecified behaviors – Either such test cases are unwarranted – Specification is deficient (also implies that testers should participate in specification and design reviews)

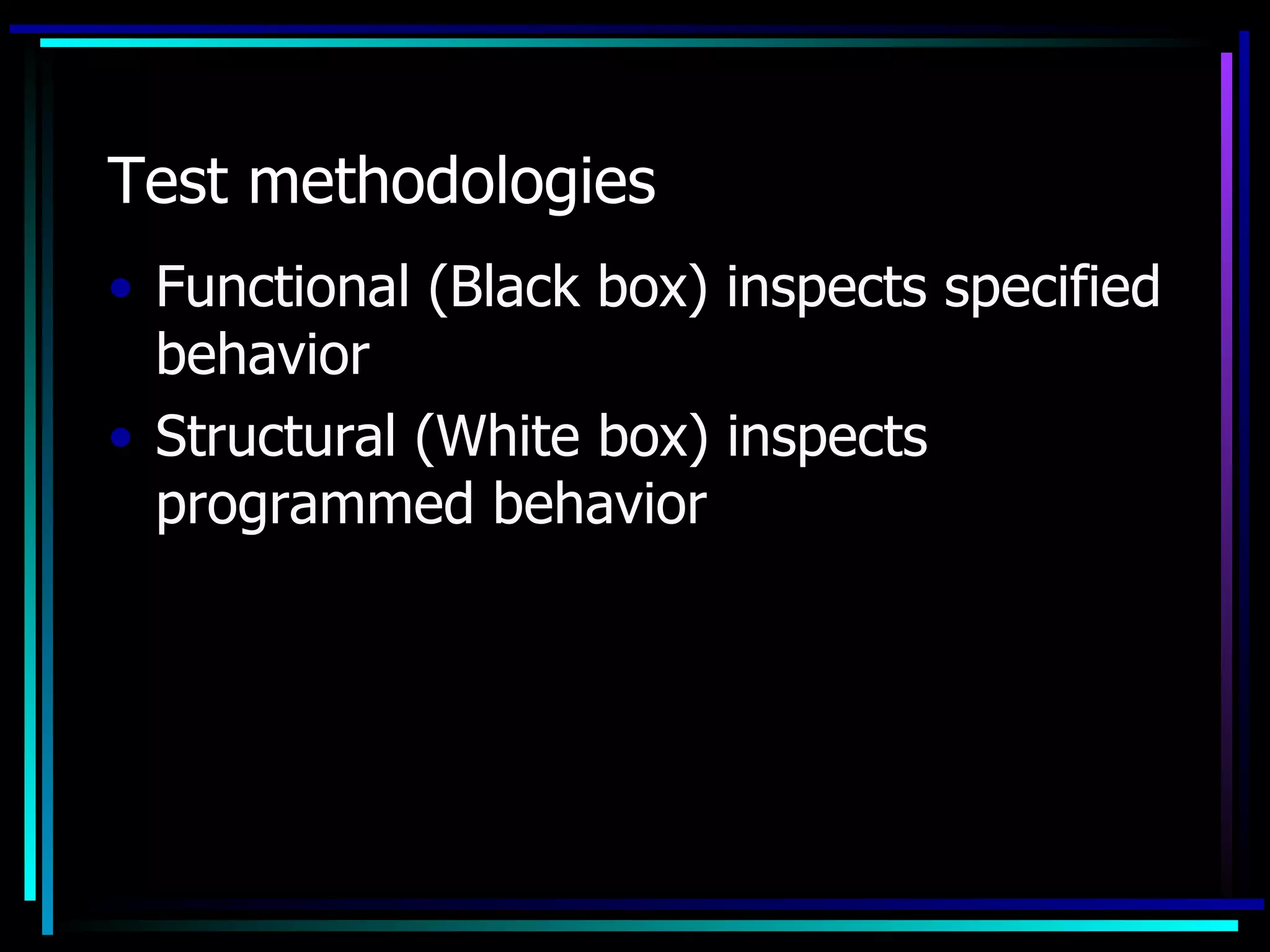

- 13. Test methodologies • Functional(Black box) inspects specified behavior • Structural (White box) inspects programmed behavior

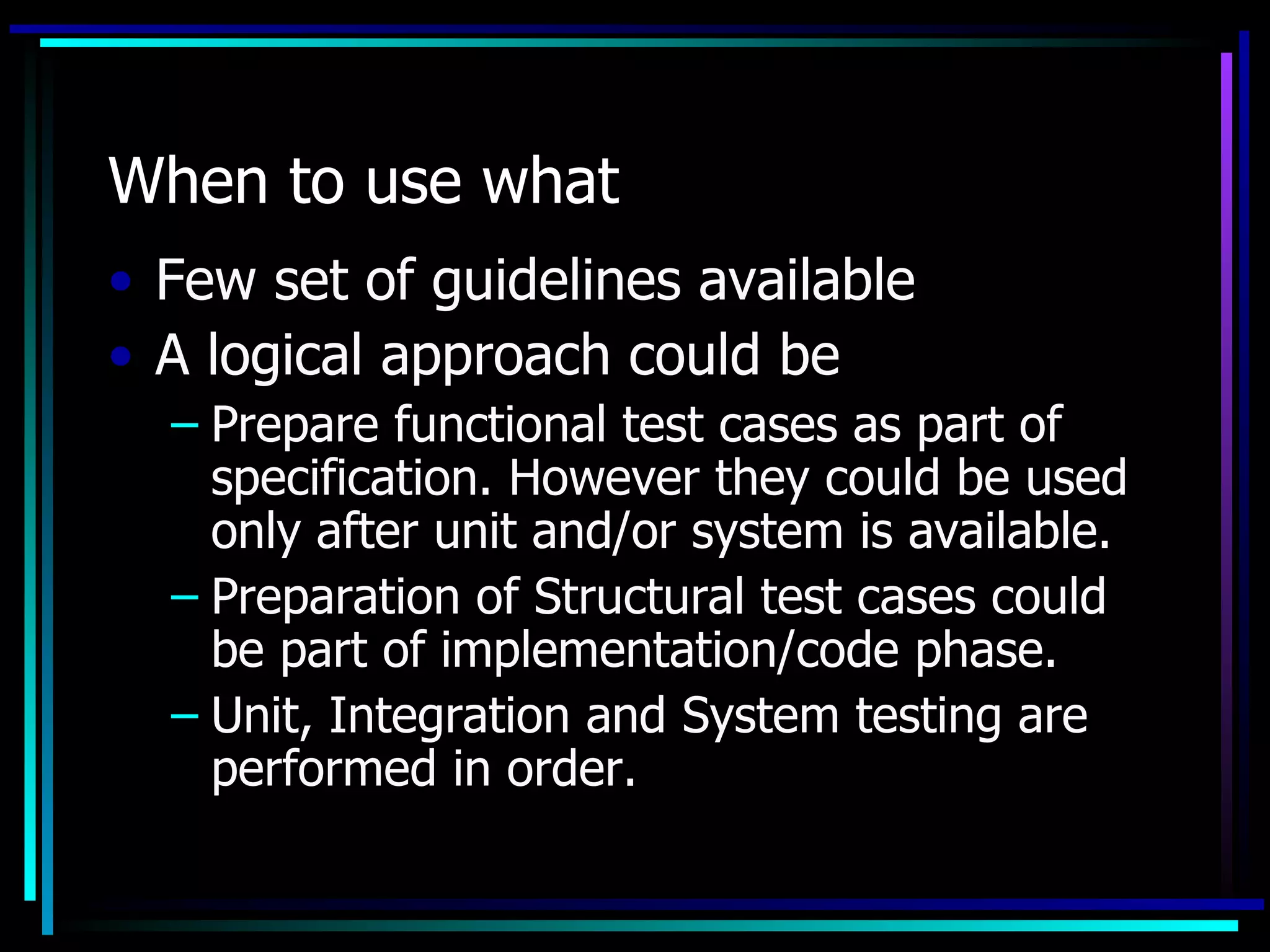

- 14. When to usewhat • Few set of guidelines available • A logical approach could be – Prepare functional test cases as part of specification. However they could be used only after unit and/or system is available. – Preparation of Structural test cases could be part of implementation/code phase. – Unit, Integration and System testing are performed in order.

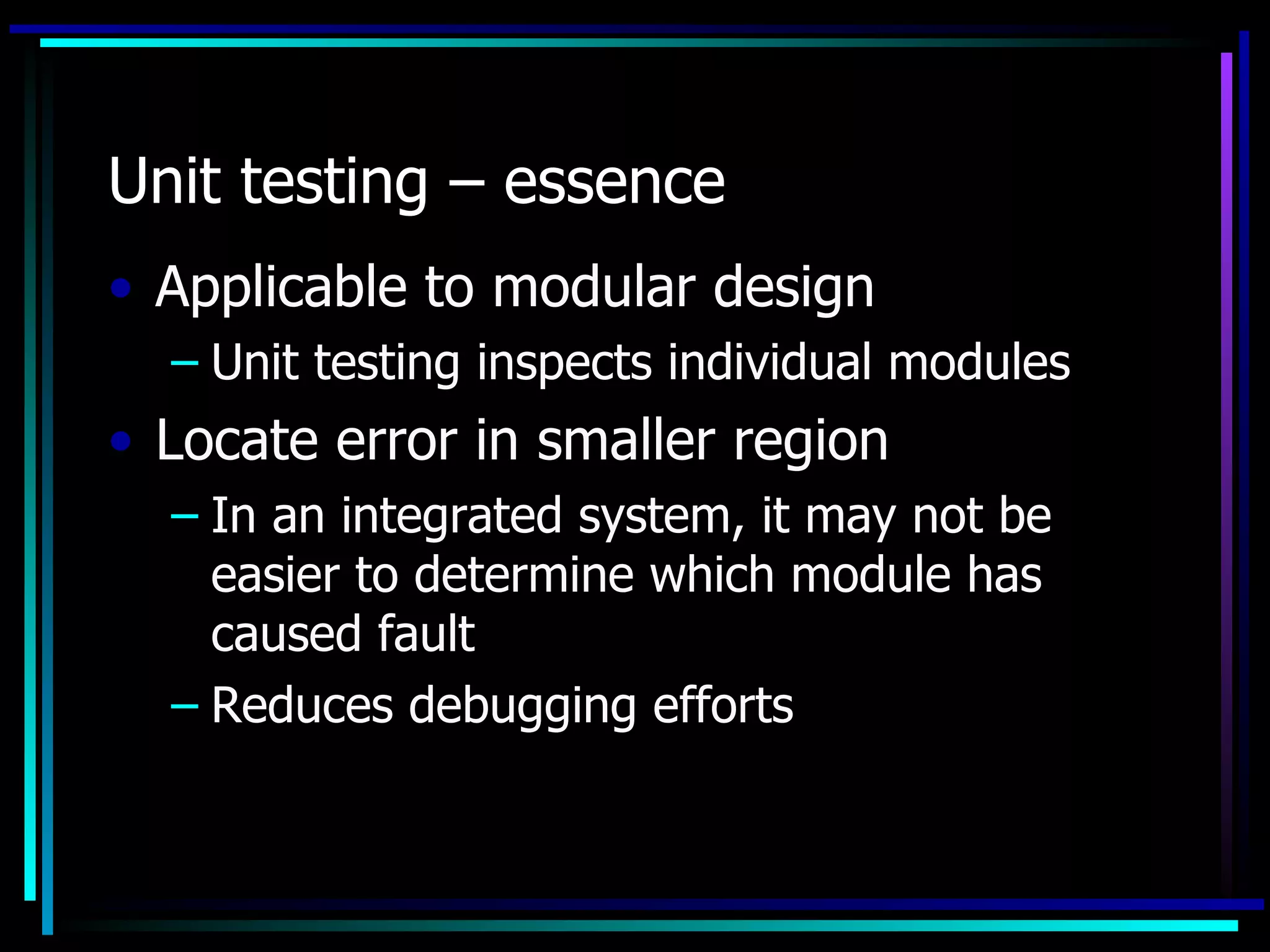

- 15. Unit testing –essence • Applicable to modular design – Unit testing inspects individual modules • Locate error in smaller region – In an integrated system, it may not be easier to determine which module has caused fault – Reduces debugging efforts

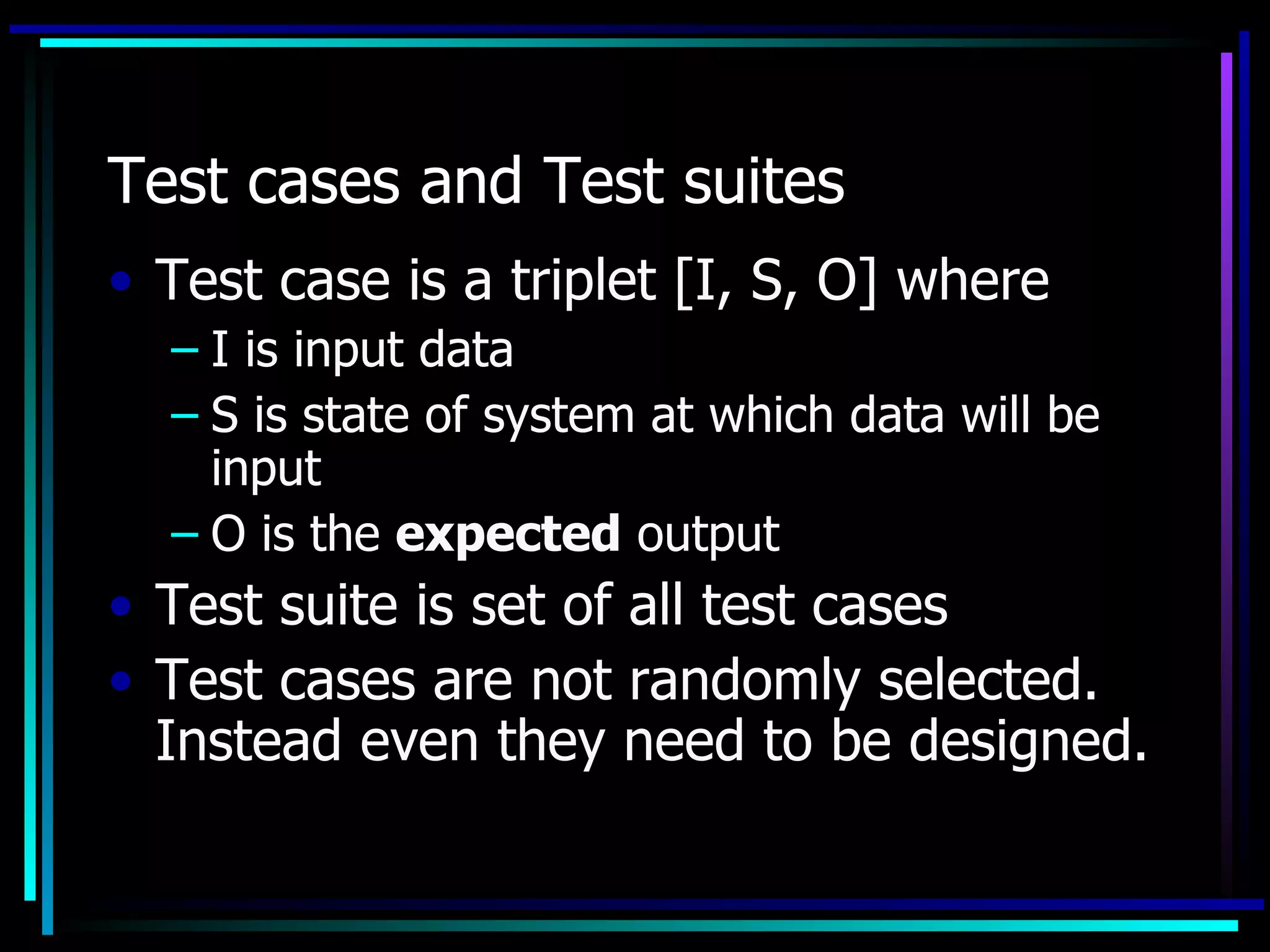

- 16. Test cases andTest suites • Test case is a triplet [I, S, O] where – I is input data – S is state of system at which data will be input – O is the expected output • Test suite is set of all test cases • Test cases are not randomly selected. Instead even they need to be designed.

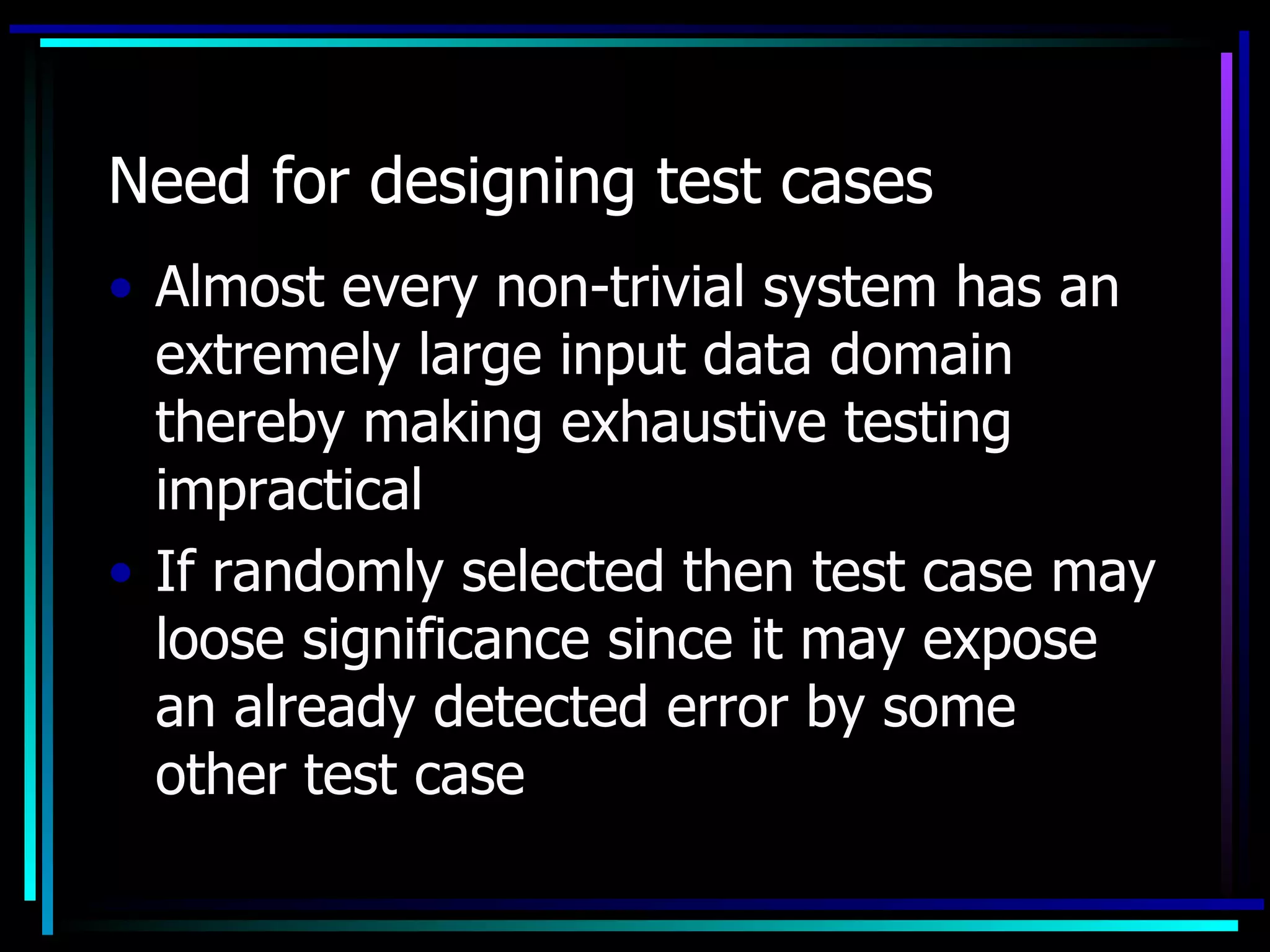

- 17. Need for designingtest cases • Almost every non-trivial system has an extremely large input data domain thereby making exhaustive testing impractical • If randomly selected then test case may loose significance since it may expose an already detected error by some other test case

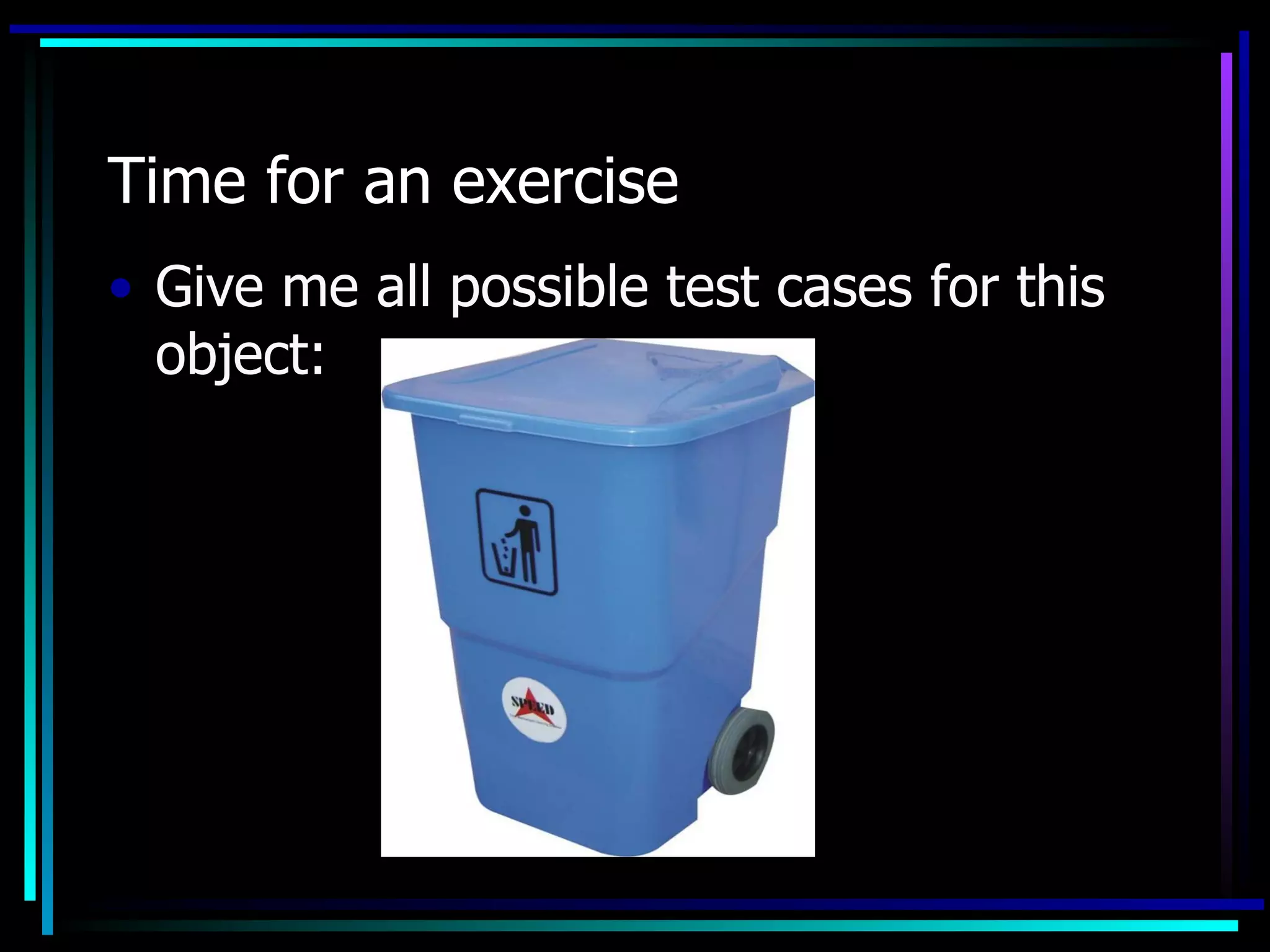

- 18. Time for anexercise • Give me all possible test cases for this object:

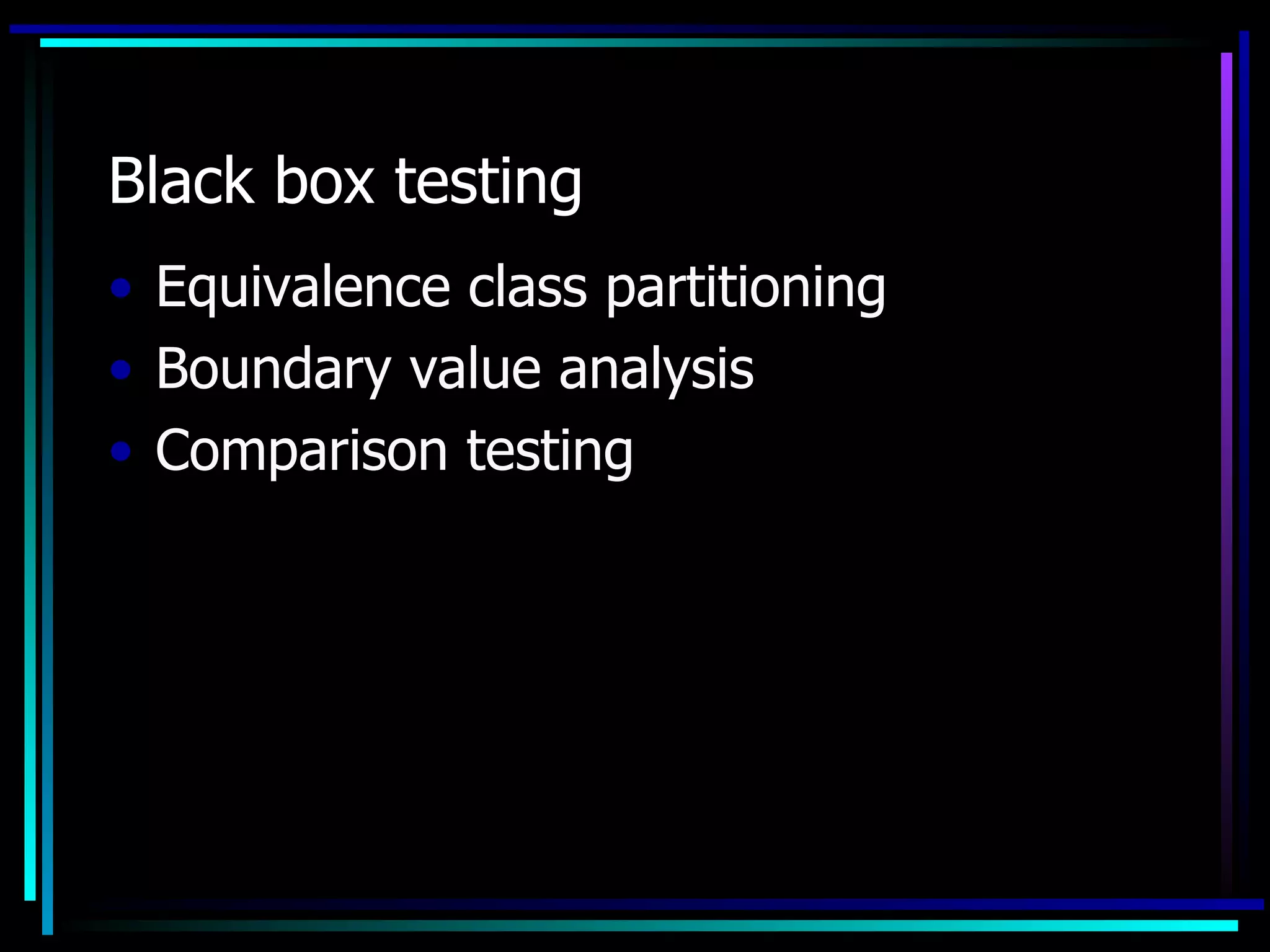

- 19. Black box testing •Equivalence class partitioning • Boundary value analysis • Comparison testing

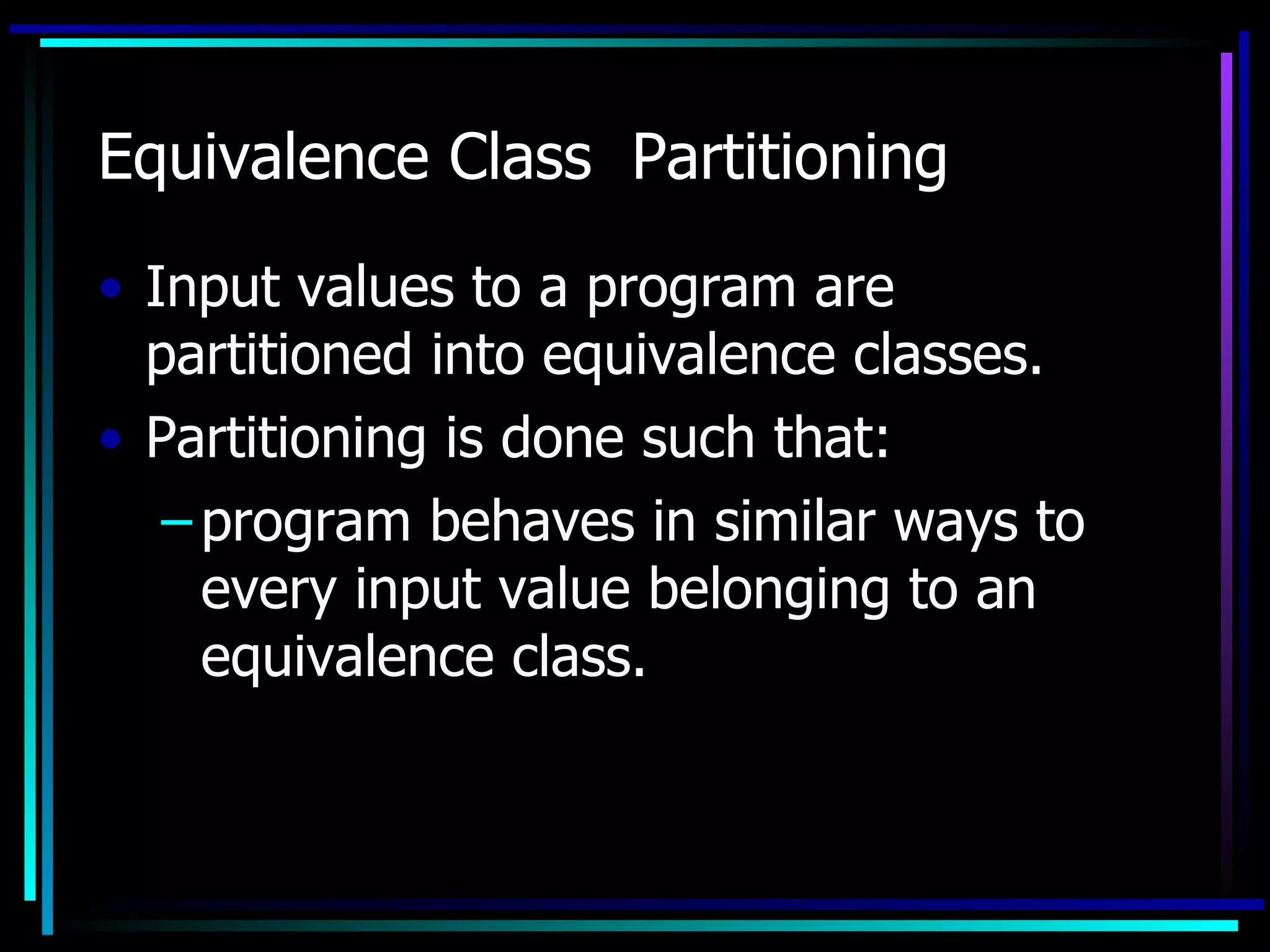

- 20. Equivalence Class Partitioning •Input values to a program are partitioned into equivalence classes. • Partitioning is done such that: – program behaves in similar ways to every input value belonging to an equivalence class.

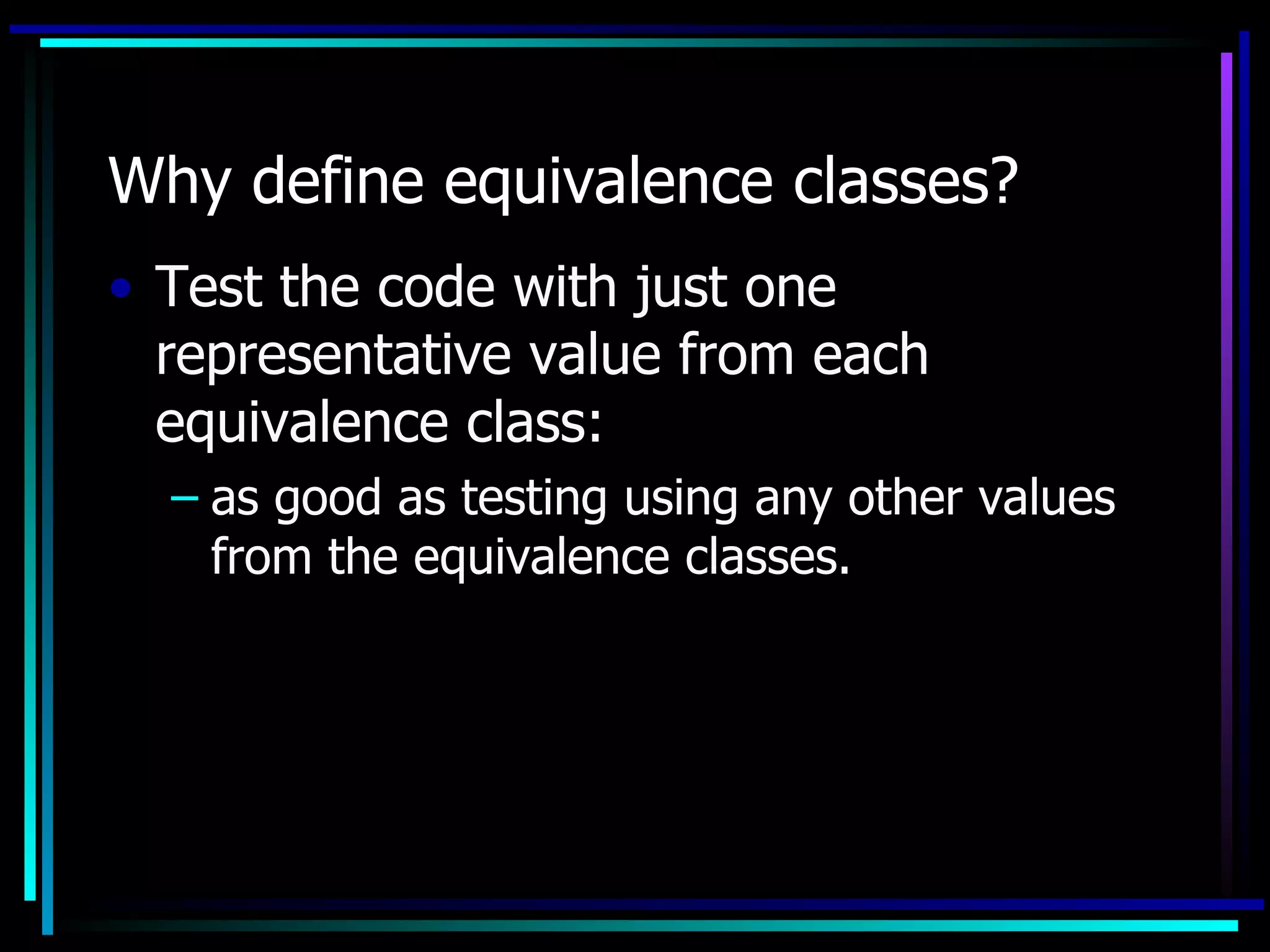

- 21. Why define equivalenceclasses? • Test the code with just one representative value from each equivalence class: – as good as testing using any other values from the equivalence classes.

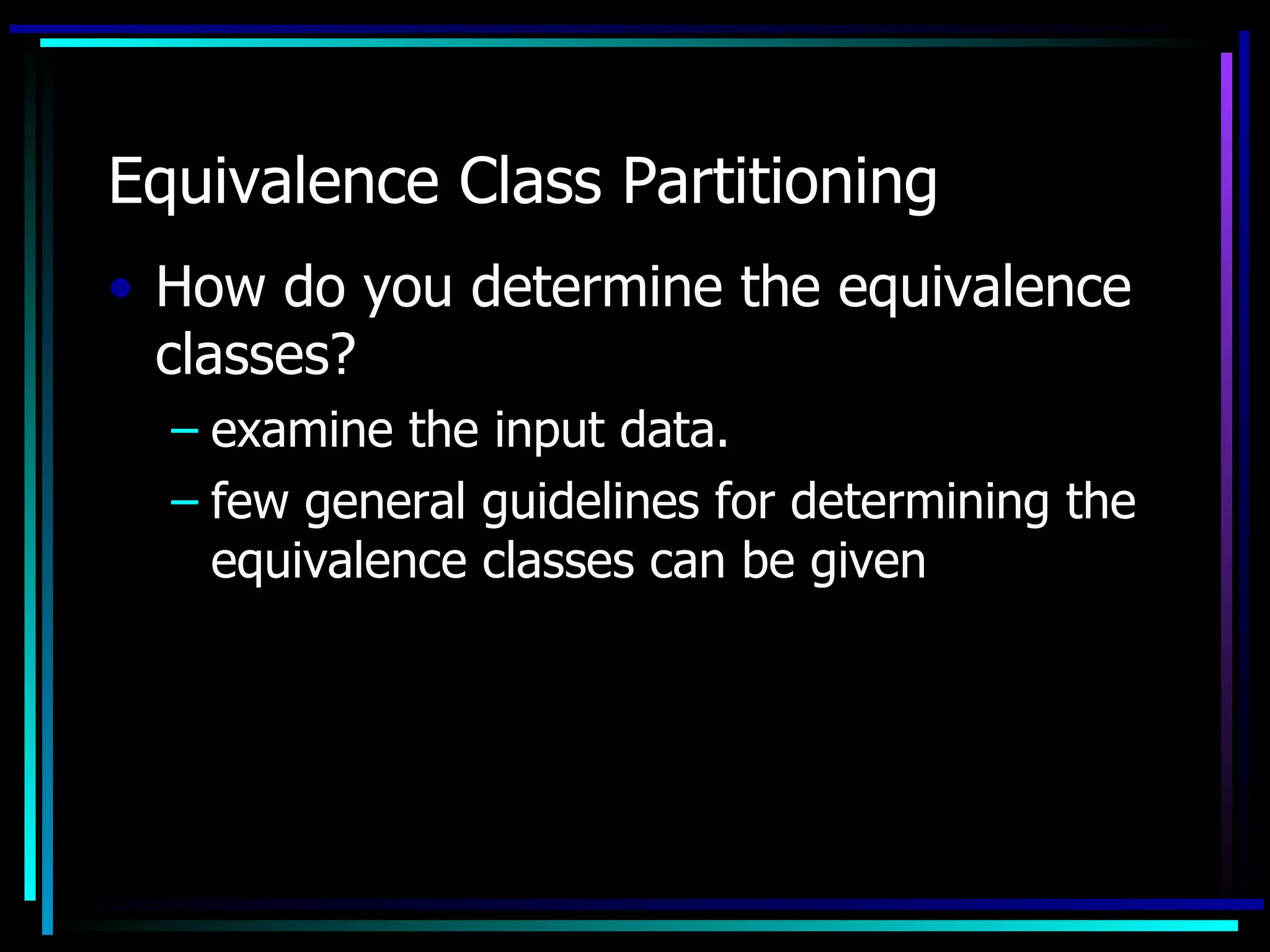

- 22. Equivalence Class Partitioning •How do you determine the equivalence classes? – examine the input data. – few general guidelines for determining the equivalence classes can be given

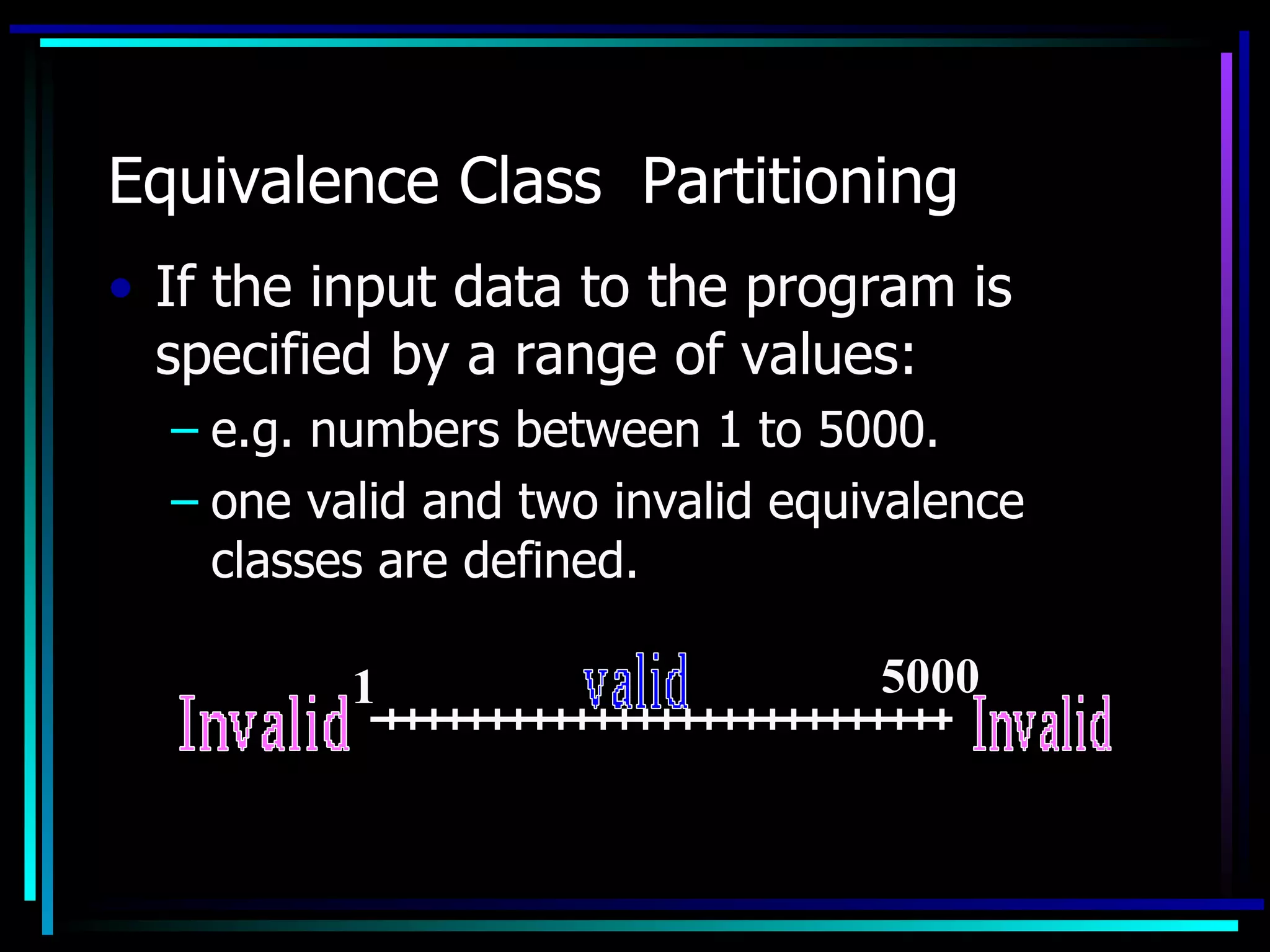

- 23. Equivalence Class Partitioning •If the input data to the program is specified by a range of values: – e.g. numbers between 1 to 5000. – one valid and two invalid equivalence classes are defined. 1 5000

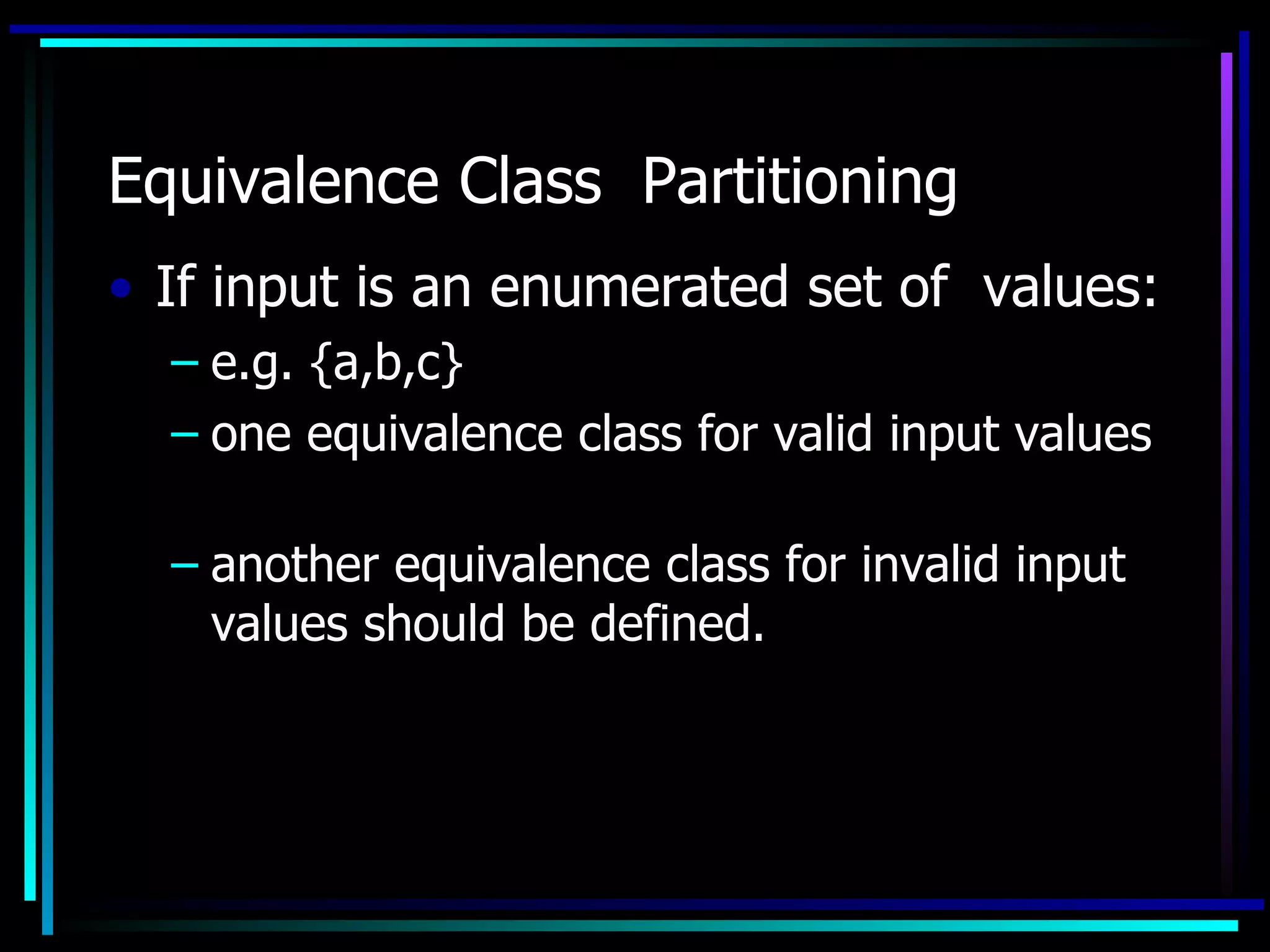

- 24. Equivalence Class Partitioning •If input is an enumerated set of values: – e.g. {a,b,c} – one equivalence class for valid input values – another equivalence class for invalid input values should be defined.
- 25. Example • A programreads an input value in the range of 1 and 5000: – computes the square root of the input number SQRT

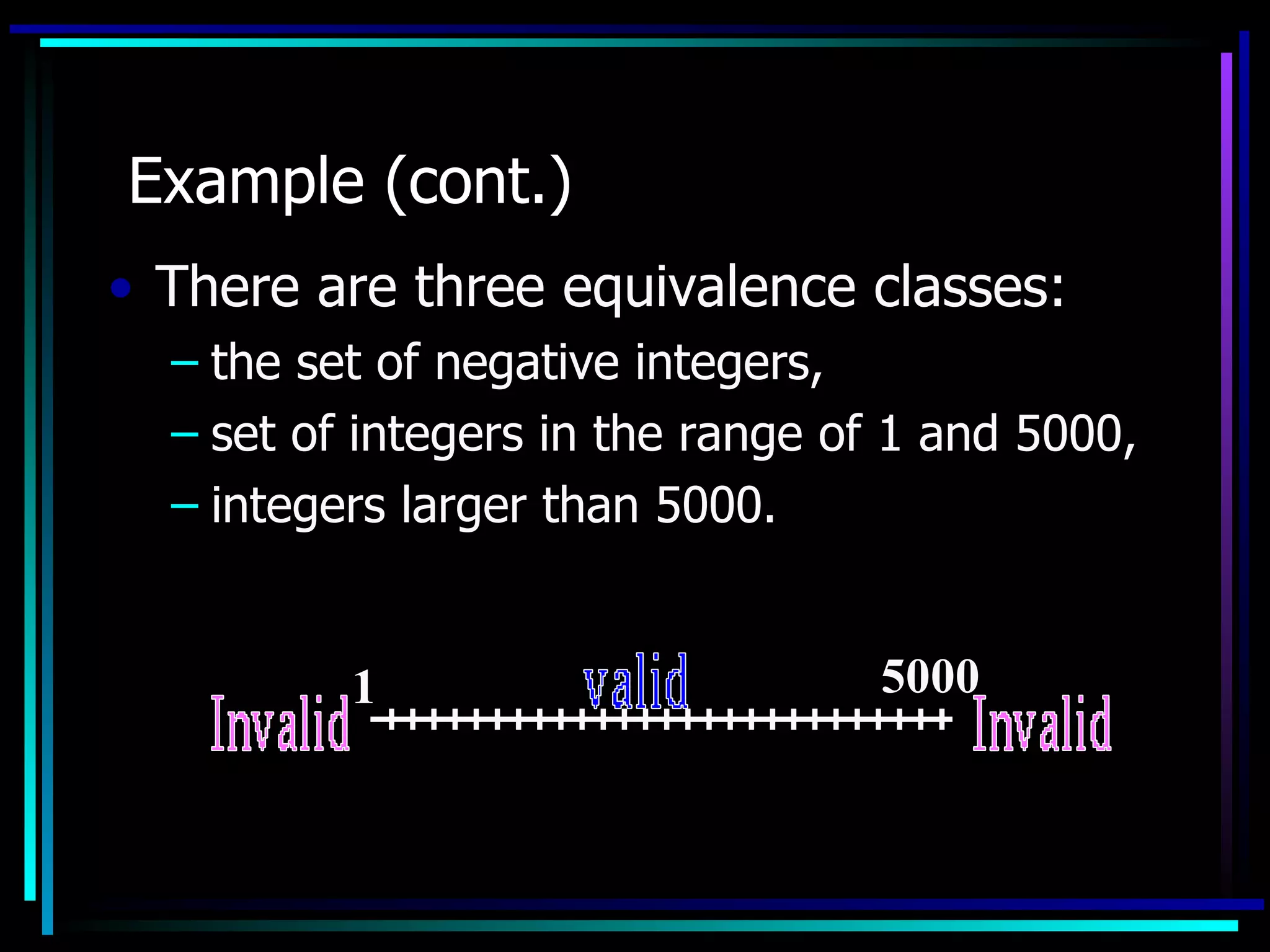

- 26. Example (cont.) • Thereare three equivalence classes: – the set of negative integers, – set of integers in the range of 1 and 5000, – integers larger than 5000. 1 5000

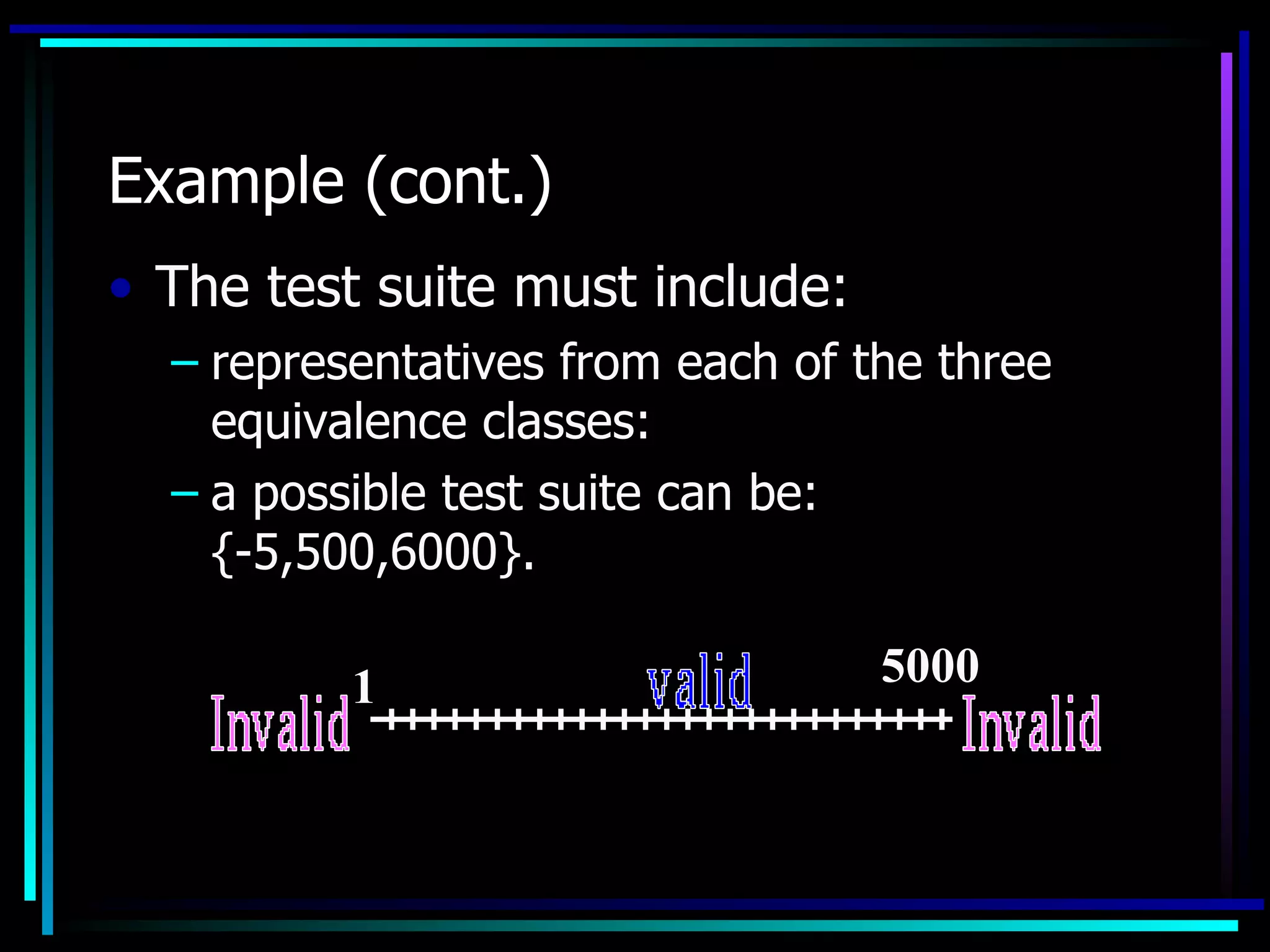

- 27. Example (cont.) • Thetest suite must include: – representatives from each of the three equivalence classes: – a possible test suite can be: {-5,500,6000}. 1 5000

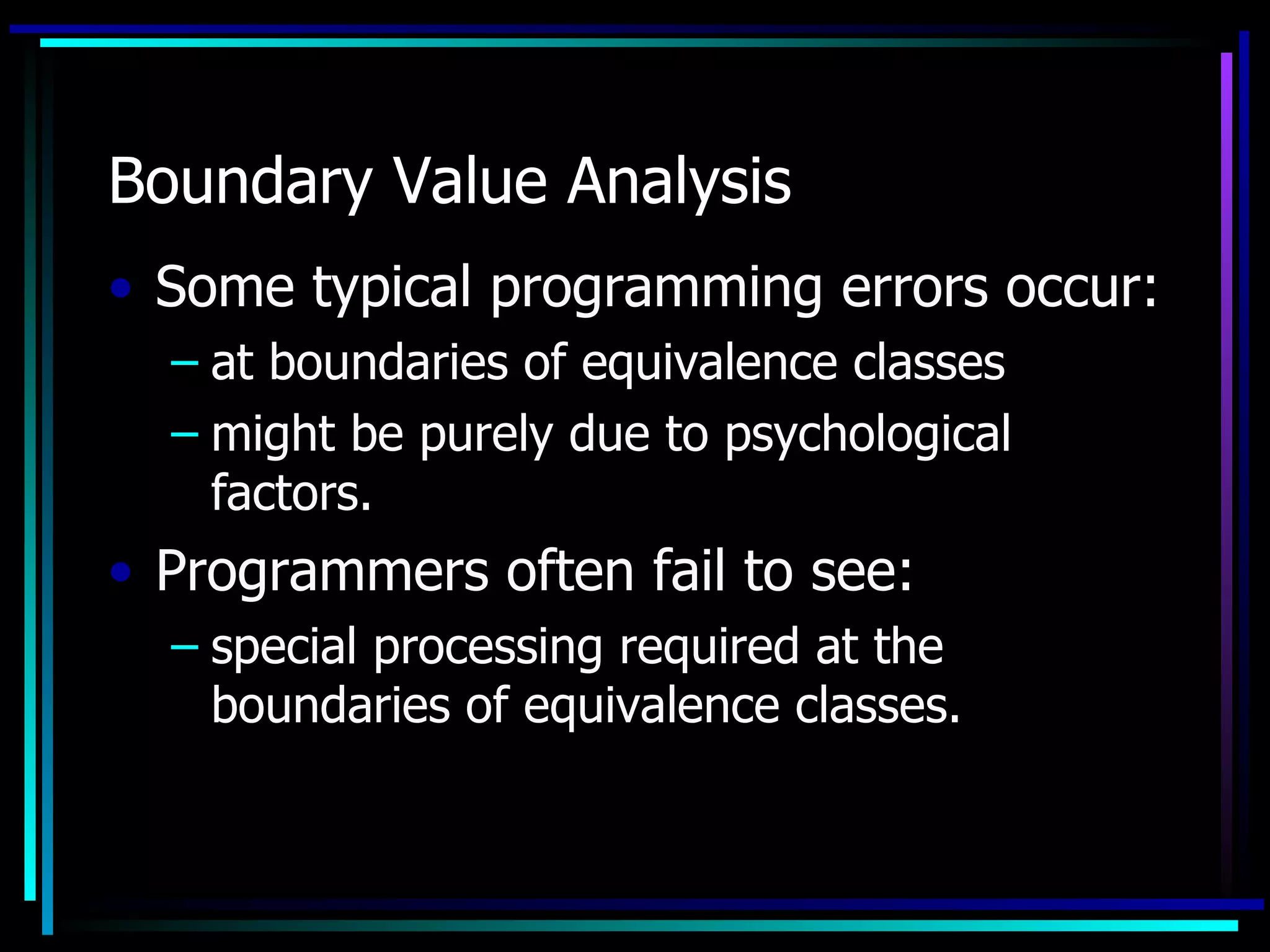

- 28. Boundary Value Analysis •Some typical programming errors occur: – at boundaries of equivalence classes – might be purely due to psychological factors. • Programmers often fail to see: – special processing required at the boundaries of equivalence classes.

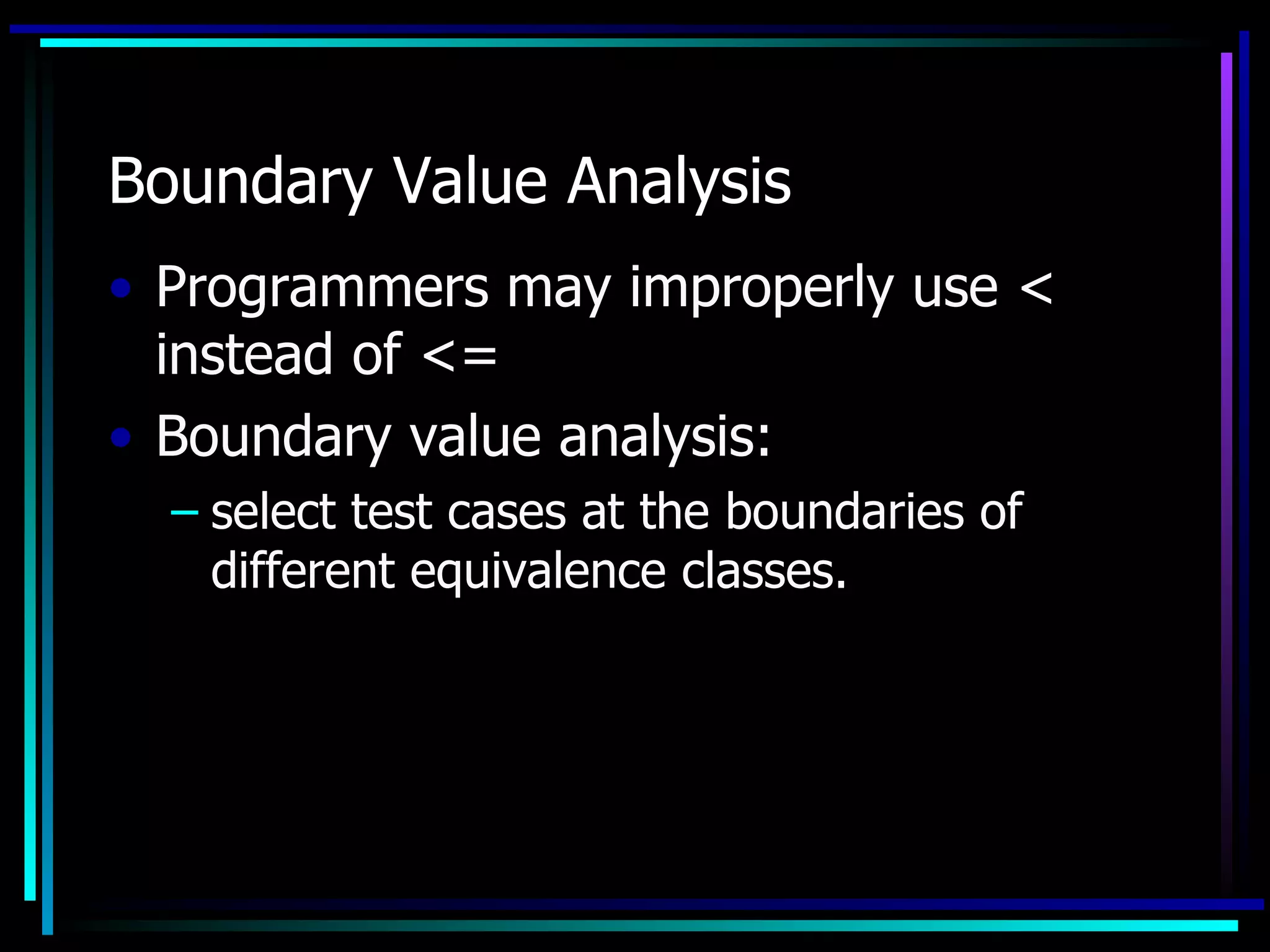

- 29. Boundary Value Analysis •Programmers may improperly use < instead of <= • Boundary value analysis: – select test cases at the boundaries of different equivalence classes.

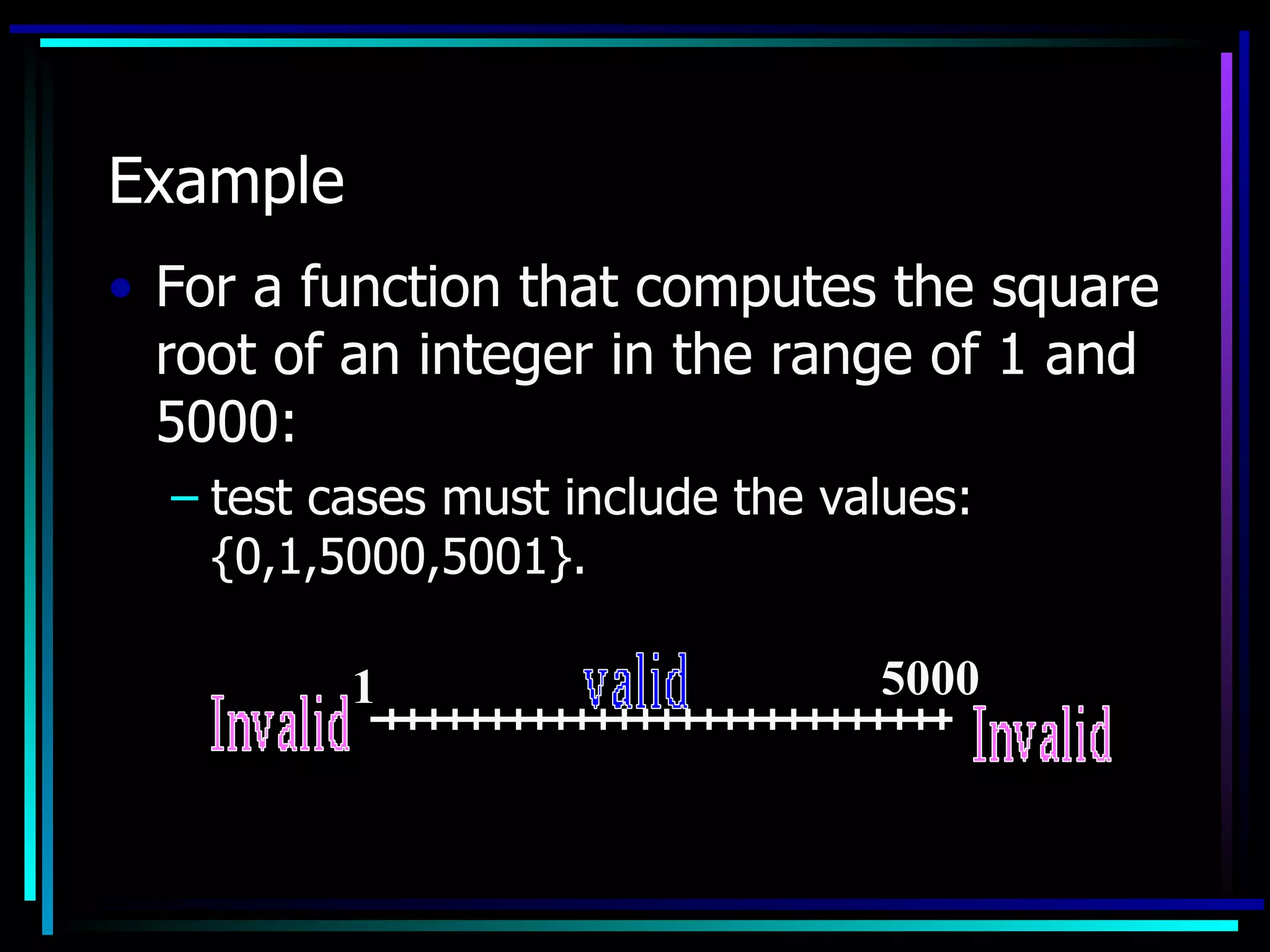

- 30. Example • For afunction that computes the square root of an integer in the range of 1 and 5000: – test cases must include the values: {0,1,5000,5001}. 1 5000

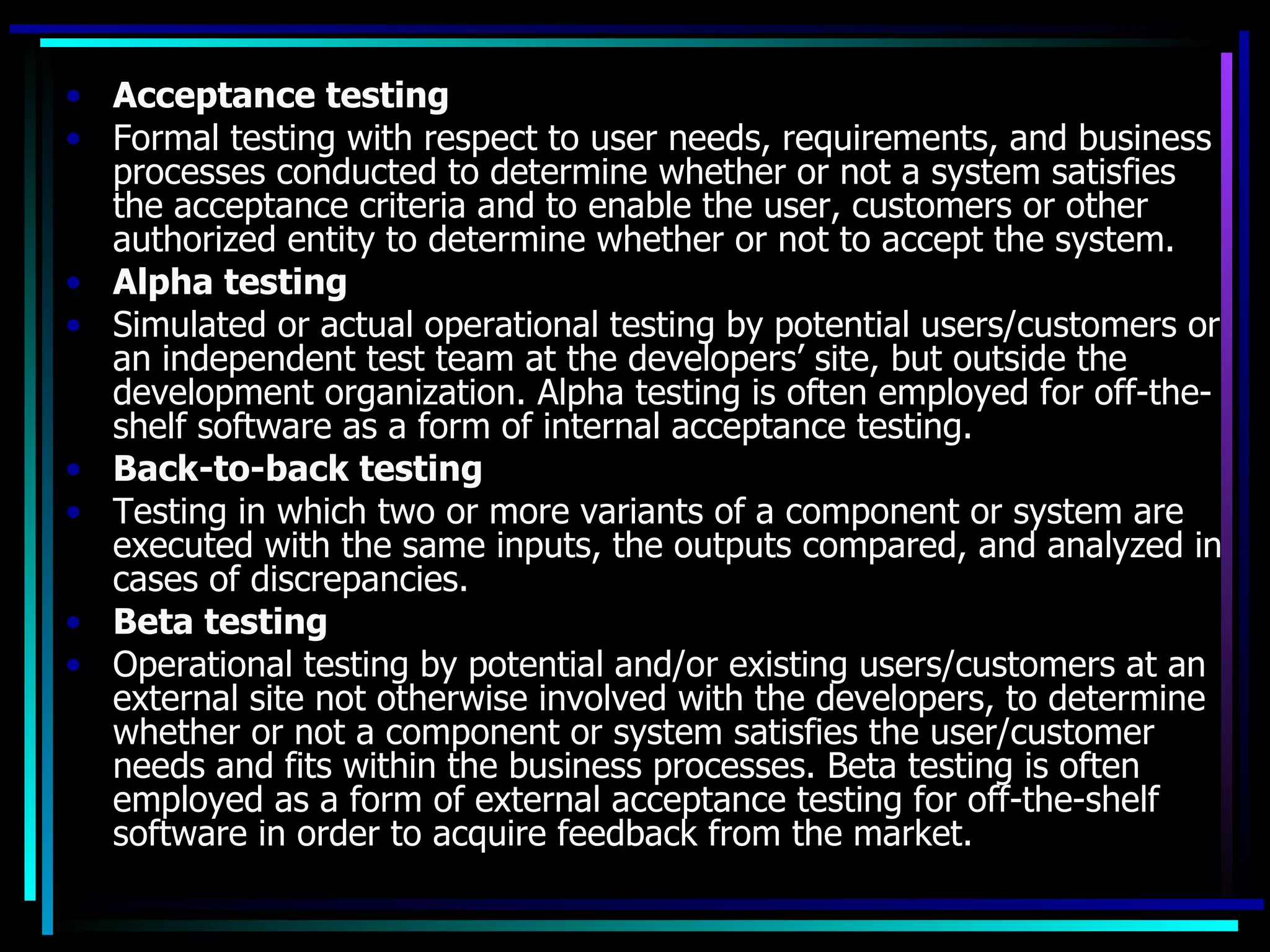

- 31. • Acceptance testing •Formal testing with respect to user needs, requirements, and business processes conducted to determine whether or not a system satisfies the acceptance criteria and to enable the user, customers or other authorized entity to determine whether or not to accept the system. • Alpha testing • Simulated or actual operational testing by potential users/customers or an independent test team at the developers’ site, but outside the development organization. Alpha testing is often employed for off-the- shelf software as a form of internal acceptance testing. • Back-to-back testing • Testing in which two or more variants of a component or system are executed with the same inputs, the outputs compared, and analyzed in cases of discrepancies. • Beta testing • Operational testing by potential and/or existing users/customers at an external site not otherwise involved with the developers, to determine whether or not a component or system satisfies the user/customer needs and fits within the business processes. Beta testing is often employed as a form of external acceptance testing for off-the-shelf software in order to acquire feedback from the market.

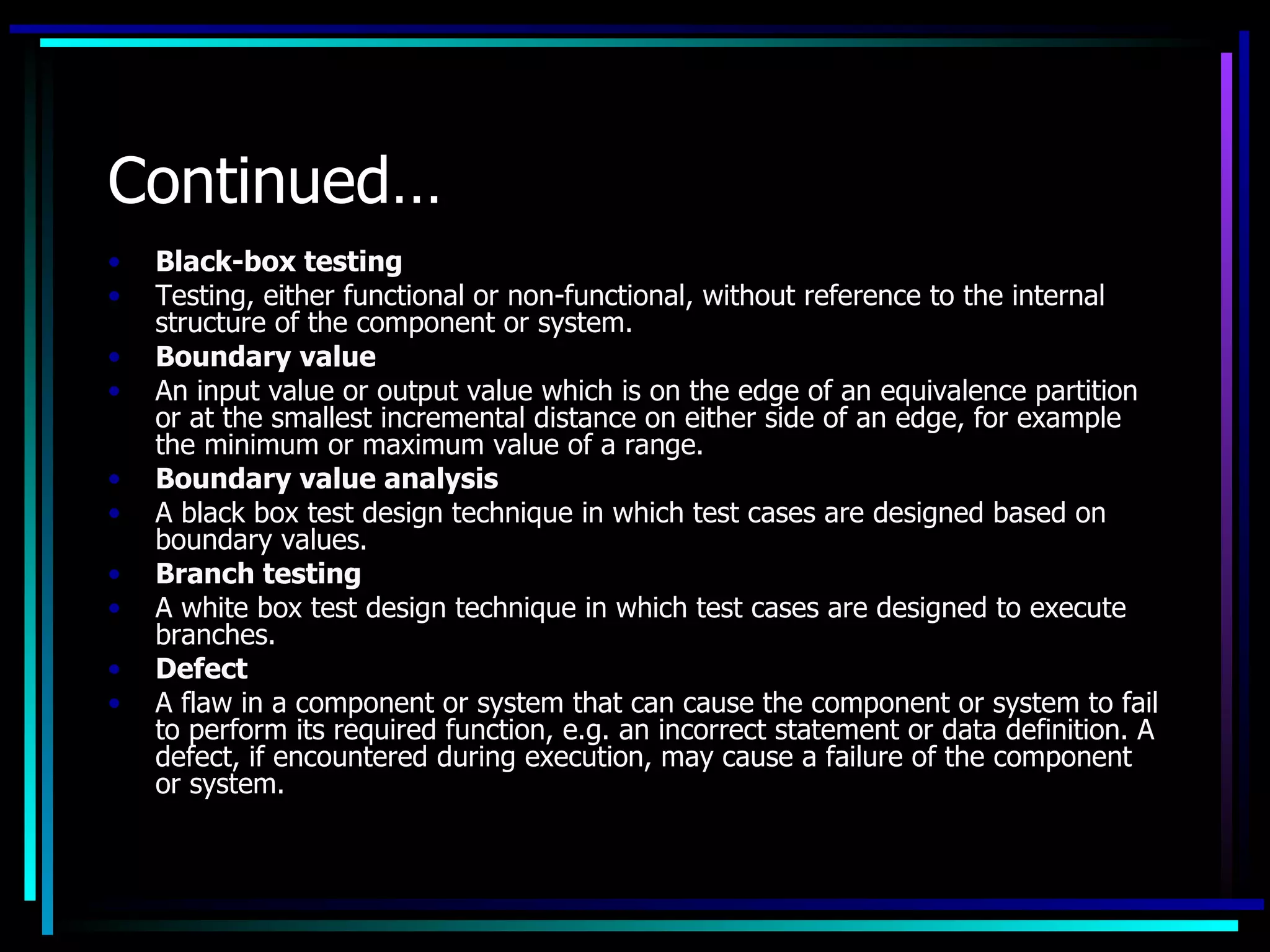

- 32. Continued… • Black-box testing • Testing, either functional or non-functional, without reference to the internal structure of the component or system. • Boundary value • An input value or output value which is on the edge of an equivalence partition or at the smallest incremental distance on either side of an edge, for example the minimum or maximum value of a range. • Boundary value analysis • A black box test design technique in which test cases are designed based on boundary values. • Branch testing • A white box test design technique in which test cases are designed to execute branches. • Defect • A flaw in a component or system that can cause the component or system to fail to perform its required function, e.g. an incorrect statement or data definition. A defect, if encountered during execution, may cause a failure of the component or system.

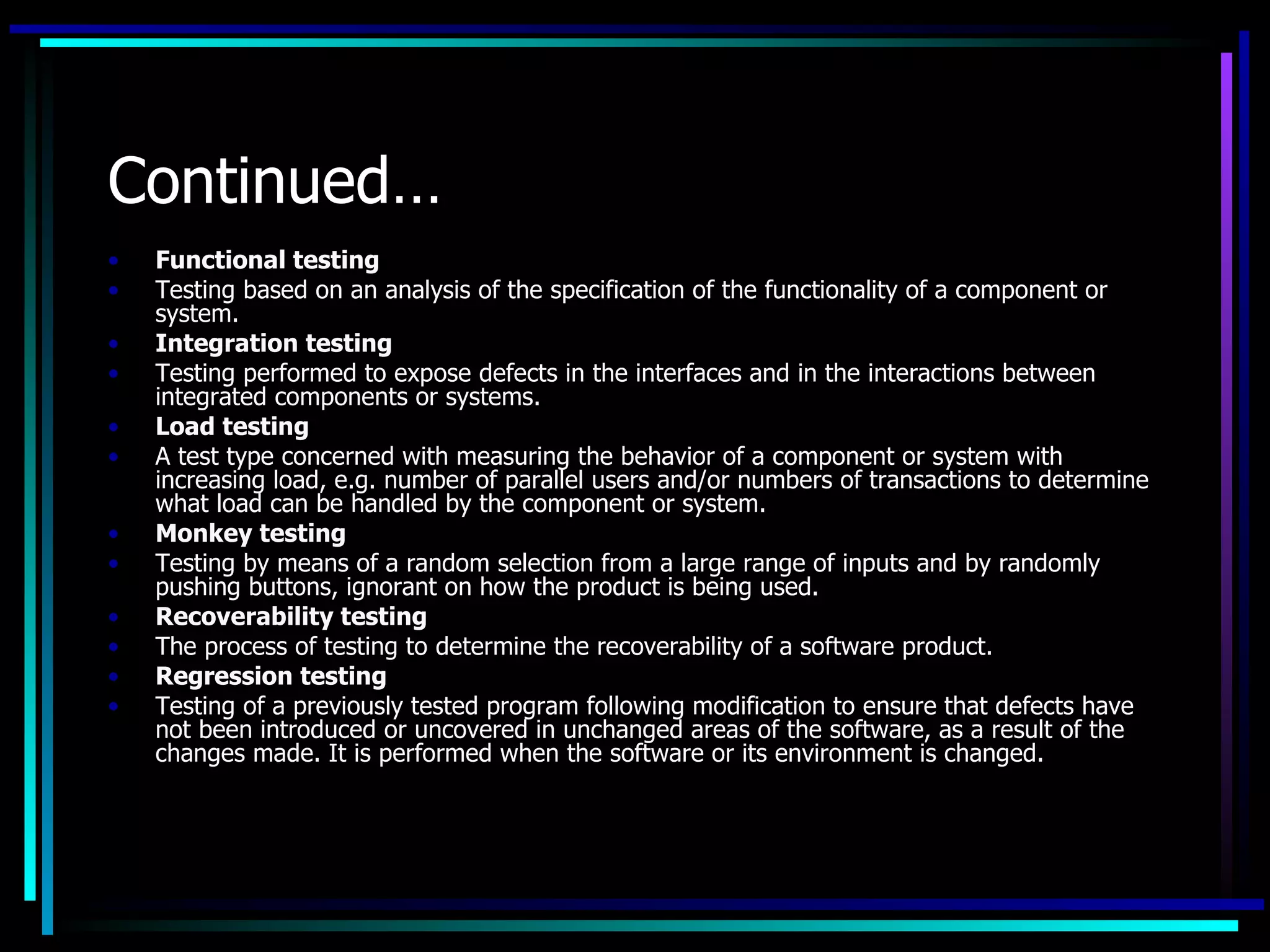

- 33. Continued… • Functional testing • Testing based on an analysis of the specification of the functionality of a component or system. • Integration testing • Testing performed to expose defects in the interfaces and in the interactions between integrated components or systems. • Load testing • A test type concerned with measuring the behavior of a component or system with increasing load, e.g. number of parallel users and/or numbers of transactions to determine what load can be handled by the component or system. • Monkey testing • Testing by means of a random selection from a large range of inputs and by randomly pushing buttons, ignorant on how the product is being used. • Recoverability testing • The process of testing to determine the recoverability of a software product. • Regression testing • Testing of a previously tested program following modification to ensure that defects have not been introduced or uncovered in unchanged areas of the software, as a result of the changes made. It is performed when the software or its environment is changed.

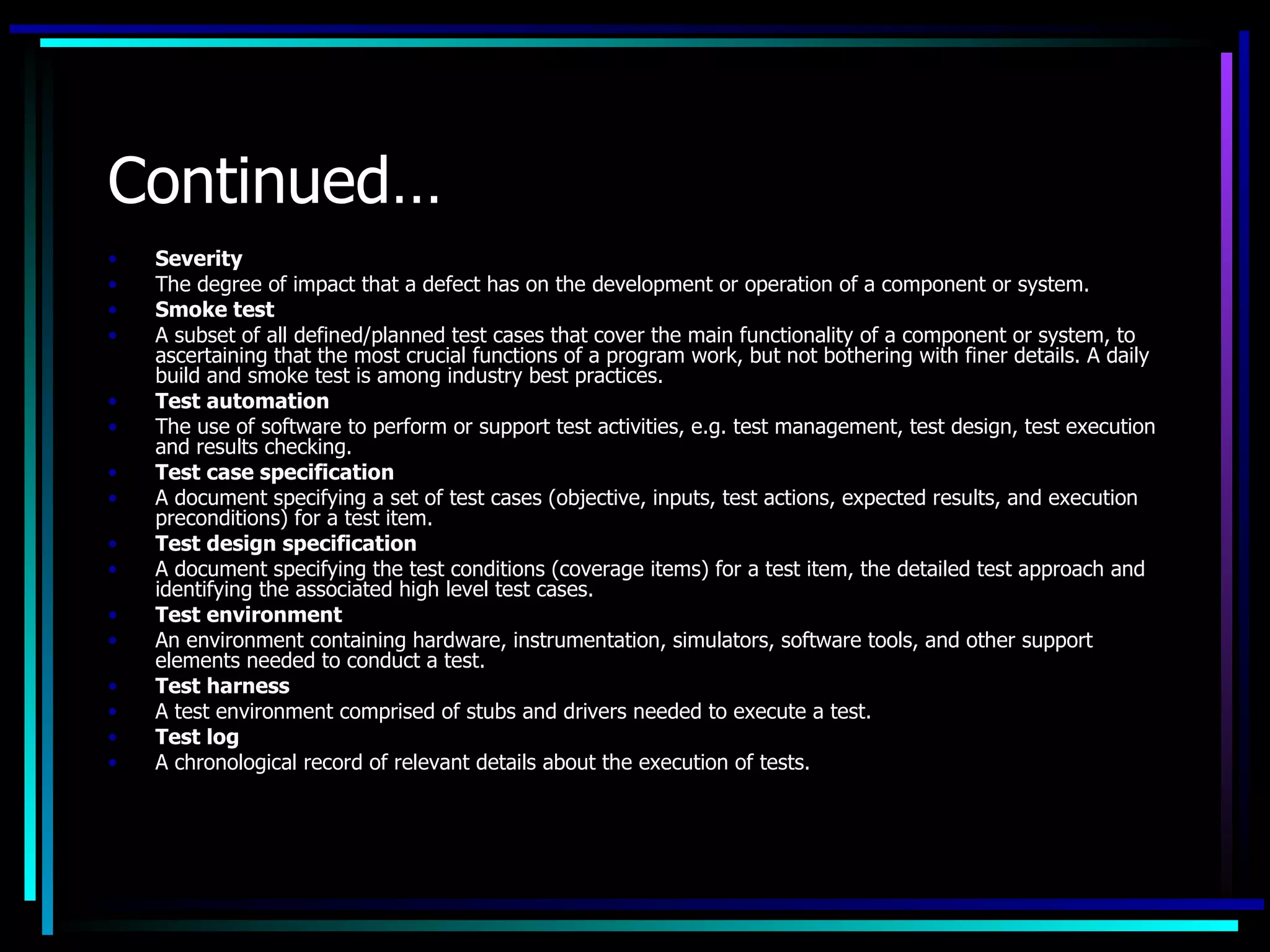

- 34. Continued… • Severity • The degree of impact that a defect has on the development or operation of a component or system. • Smoke test • A subset of all defined/planned test cases that cover the main functionality of a component or system, to ascertaining that the most crucial functions of a program work, but not bothering with finer details. A daily build and smoke test is among industry best practices. • Test automation • The use of software to perform or support test activities, e.g. test management, test design, test execution and results checking. • Test case specification • A document specifying a set of test cases (objective, inputs, test actions, expected results, and execution preconditions) for a test item. • Test design specification • A document specifying the test conditions (coverage items) for a test item, the detailed test approach and identifying the associated high level test cases. • Test environment • An environment containing hardware, instrumentation, simulators, software tools, and other support elements needed to conduct a test. • Test harness • A test environment comprised of stubs and drivers needed to execute a test. • Test log • A chronological record of relevant details about the execution of tests.
