Logic and Distributed Control Systems (PLC timer and counter).pptx

2
Function Blocks
• There are several types of function blocks in
ladder programming that implement:
 Logic operations (AND, OR, NOT, etc.).
 Math operations (addition, multiplication, etc.)
 Timers.
 Counters.
• In the following slides, we study different types of
timers and counters in PLC ladder programming.

3

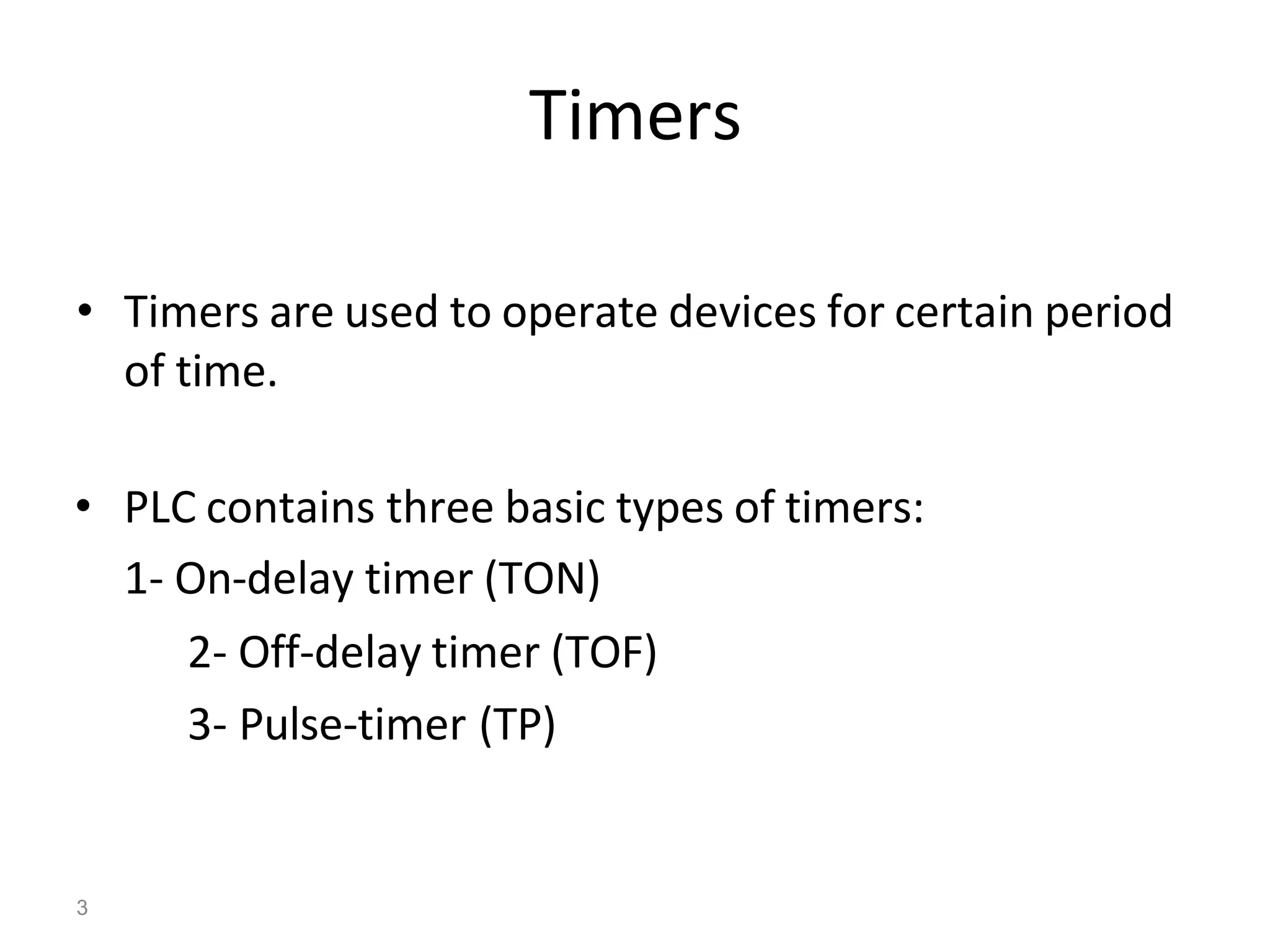

Timers
• Timers are used to operate devices for certain period
of time.
• PLC contains three basic types of timers:
1- On-delay timer (TON)
2- Off-delay timer (TOF)
3- Pulse-timer (TP)

6

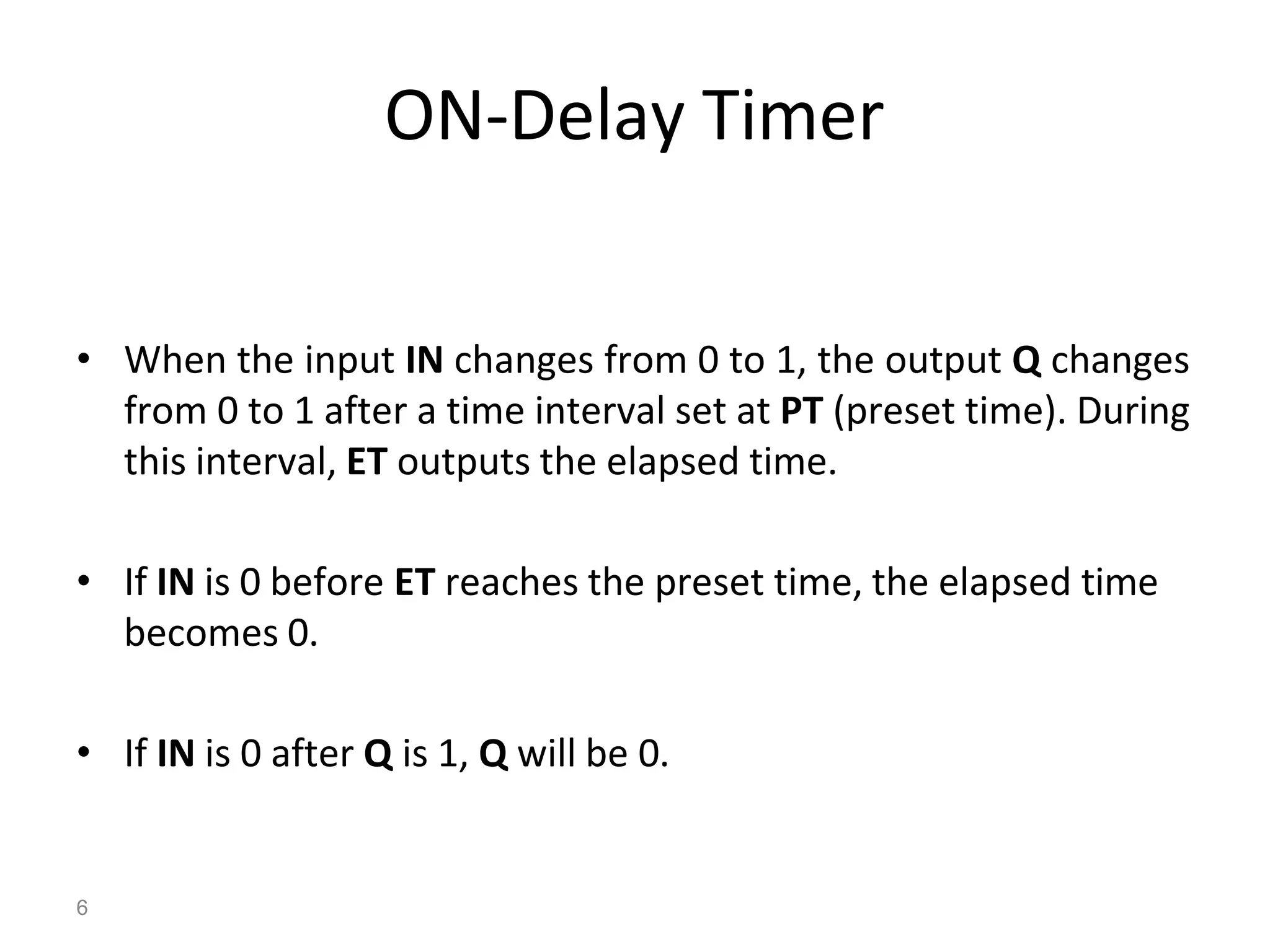

ON-Delay Timer
• When the input IN changes from 0 to 1, the output Q changes
from 0 to 1 after a time interval set at PT (preset time). During
this interval, ET outputs the elapsed time.
• If IN is 0 before ET reaches the preset time, the elapsed time
becomes 0.
• If IN is 0 after Q is 1, Q will be 0.

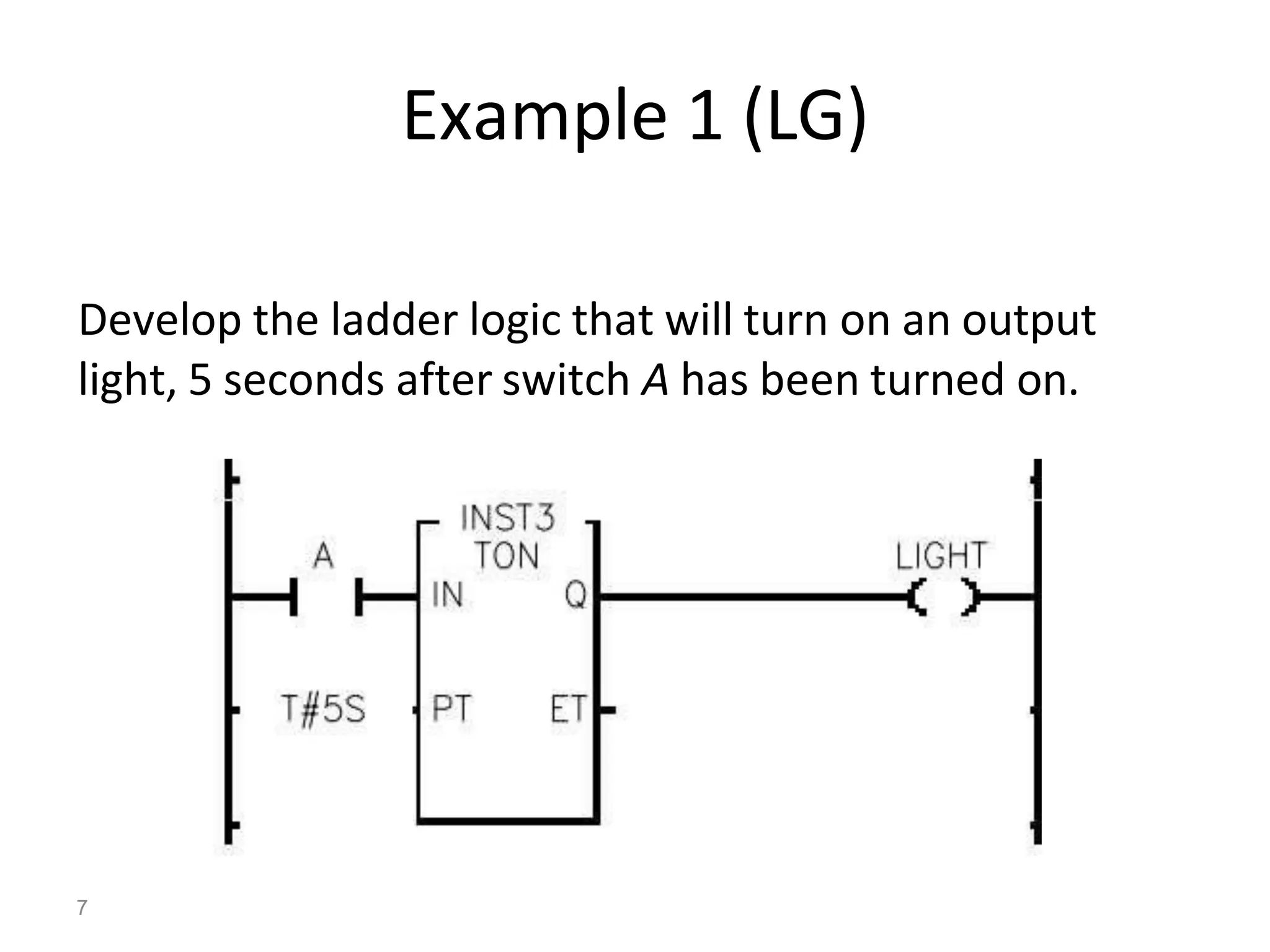

Example 1 (LG)
Develop the ladder logic that will turn on an output
light, 5 seconds after switch A has been turned on.
7

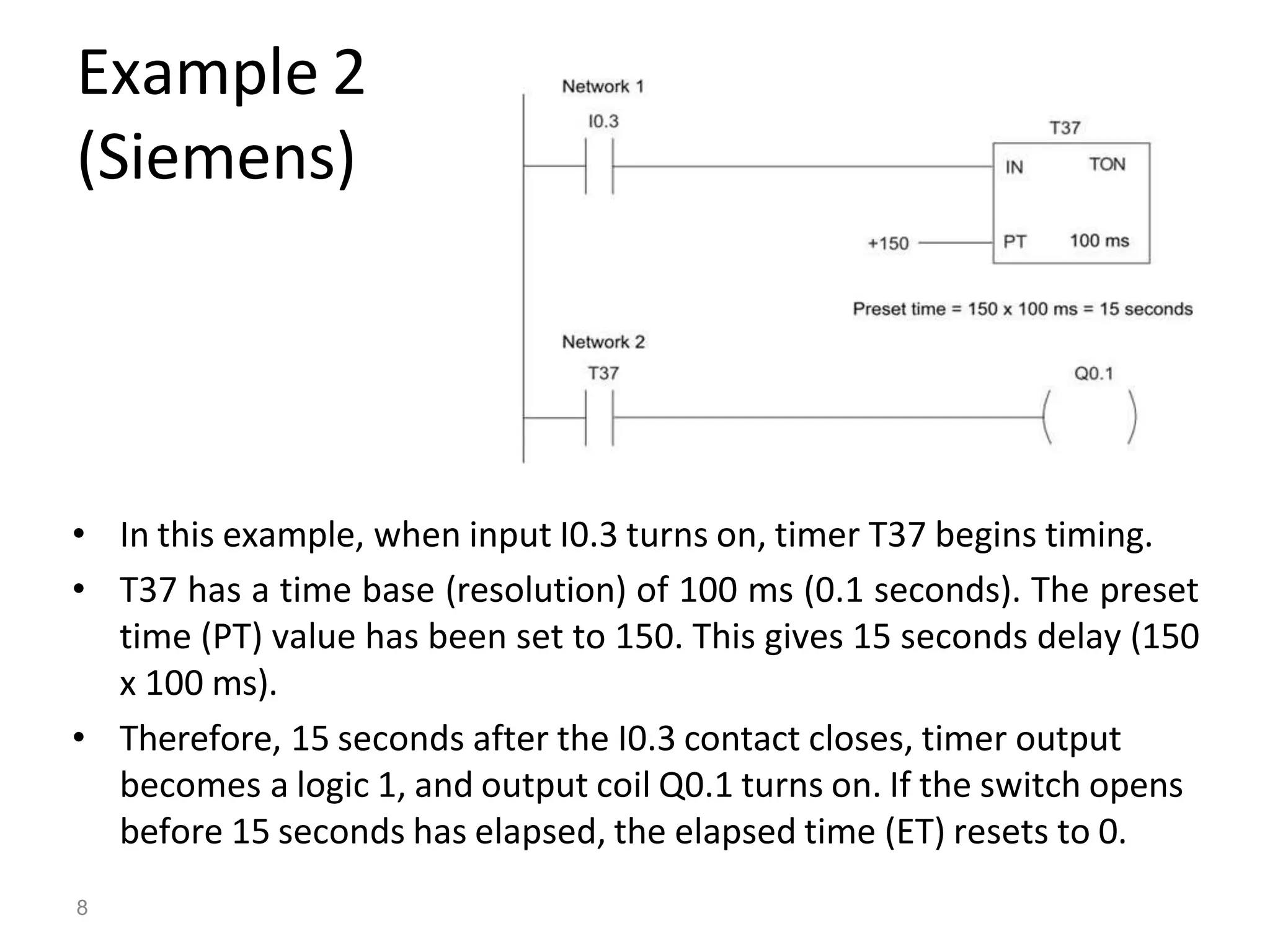

Example 2
(Siemens)
• In this example, when input I0.3 turns on, timer T37 begins timing.
• T37 has a time base (resolution) of 100 ms (0.1 seconds). The preset
time (PT) value has been set to 150. This gives 15 seconds delay (150
x 100 ms).
• Therefore, 15 seconds after the I0.3 contact closes, timer output
becomes a logic 1, and output coil Q0.1 turns on. If the switch opens
before 15 seconds has elapsed, the elapsed time (ET) resets to 0.
8

9

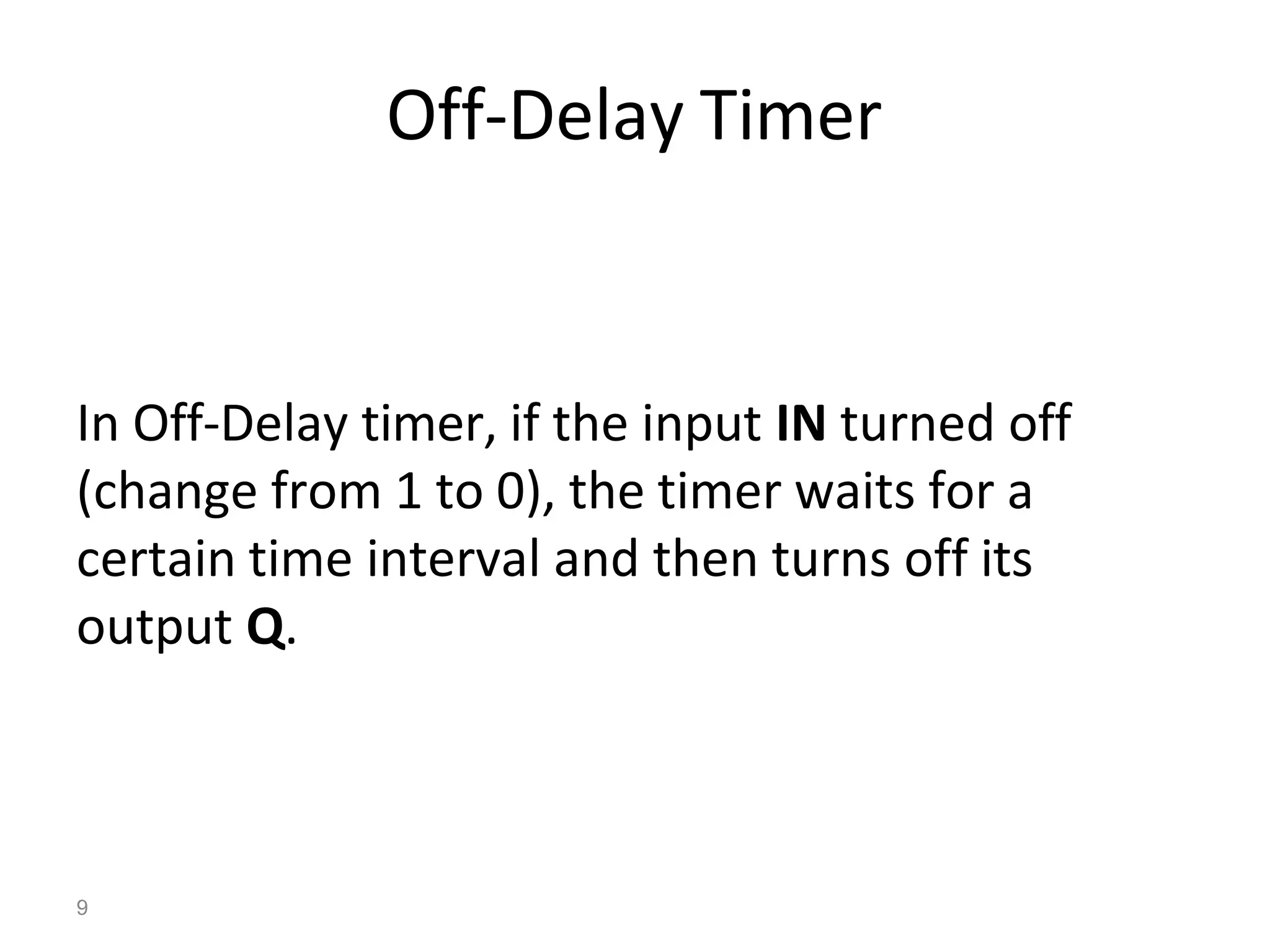

Off-Delay Timer
In Off-Delay timer, if the input IN turned off
(change from 1 to 0), the timer waits for a
certain time interval and then turns off its
output Q.

11

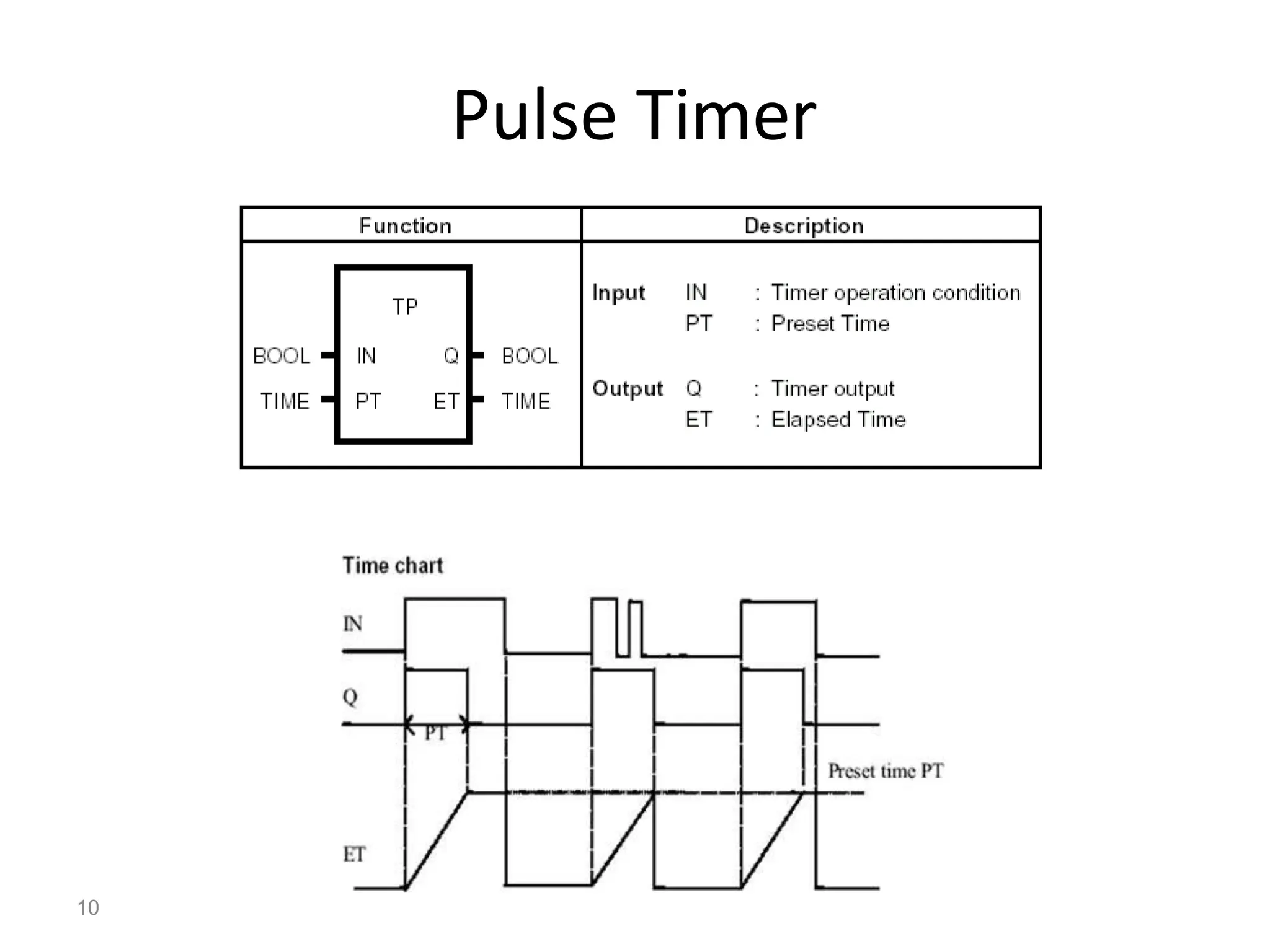

Pulse timer
• If IN is changes from 0 to 1, Q becomes 1 during
the preset time, and if ET reaches PT, Q becomes
0 automatically.
• Elapsed time ET increases when IN is 1 and holds
the value when it reaches PT and becomes 0
when IN is 0.
• It does not matter whether IN is 0 or 1 while the
output Q is 1.

12

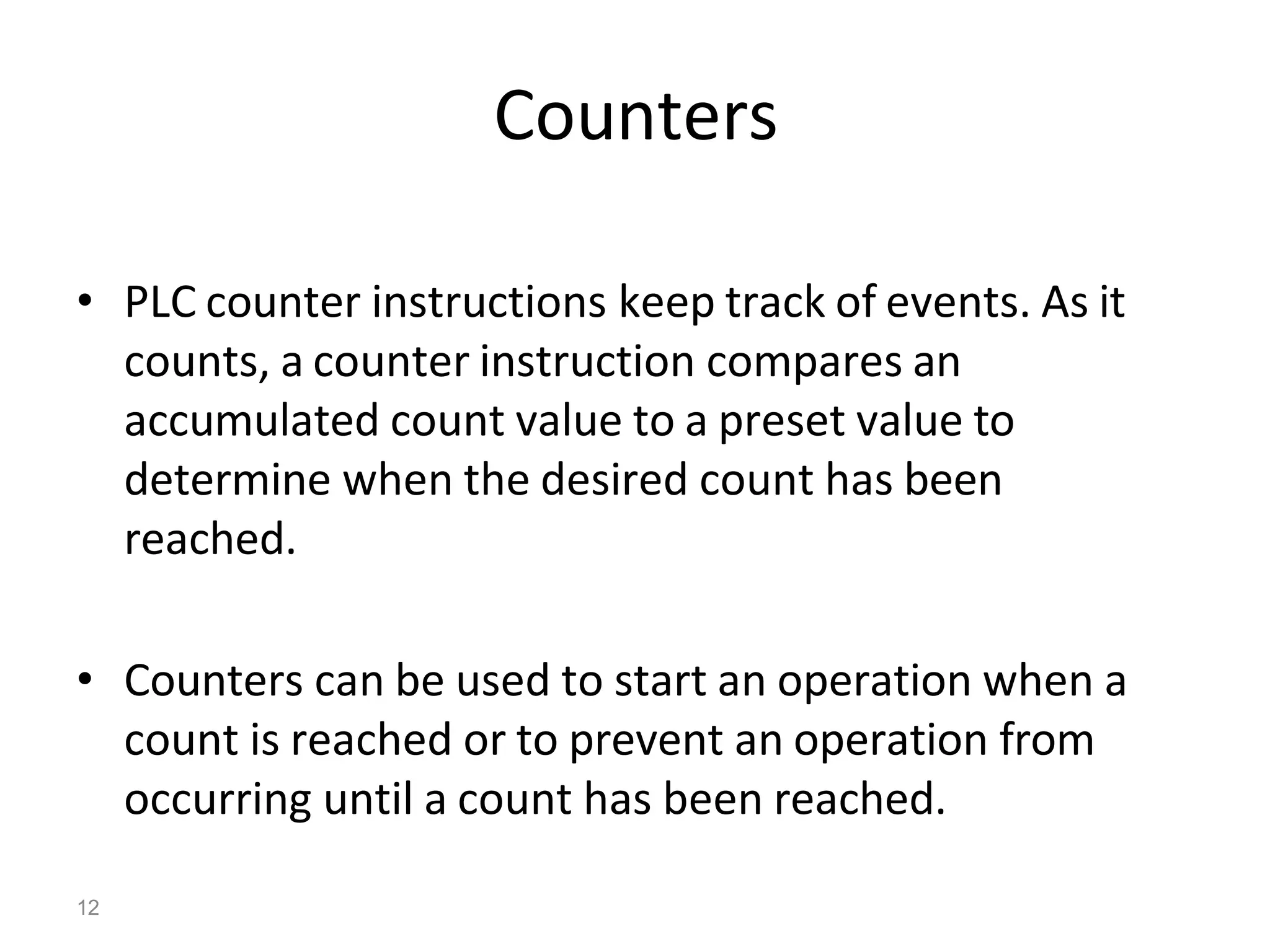

Counters
• PLC counter instructions keep track of events. As it
counts, a counter instruction compares an
accumulated count value to a preset value to
determine when the desired count has been
reached.
• Counters can be used to start an operation when a
count is reached or to prevent an operation from
occurring until a count has been reached.

13
Counters
Types of counters in PLC:
1 Up counter (CU)
2 Down counter (CD)
3 Up-down counter (CUD)

15

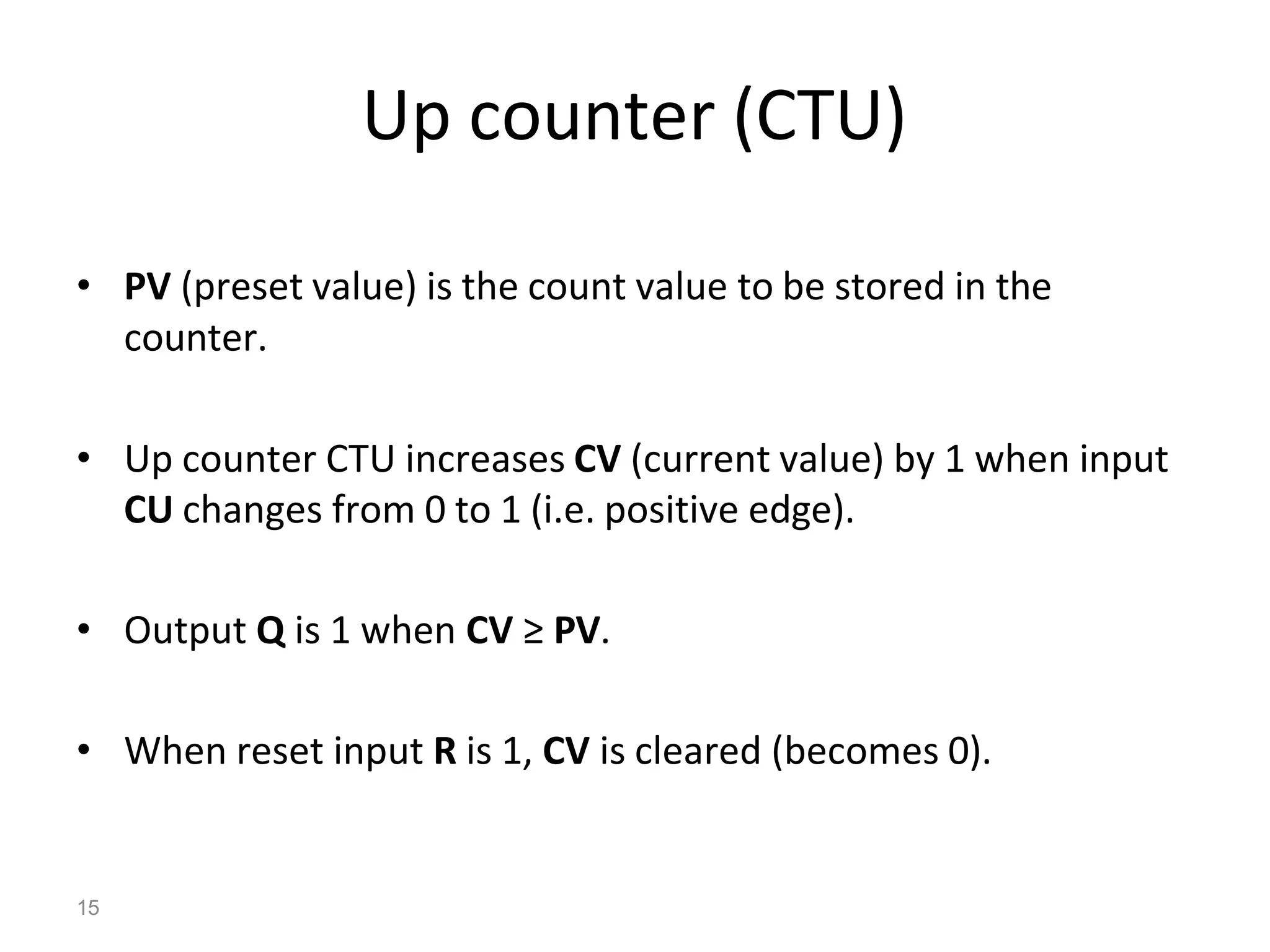

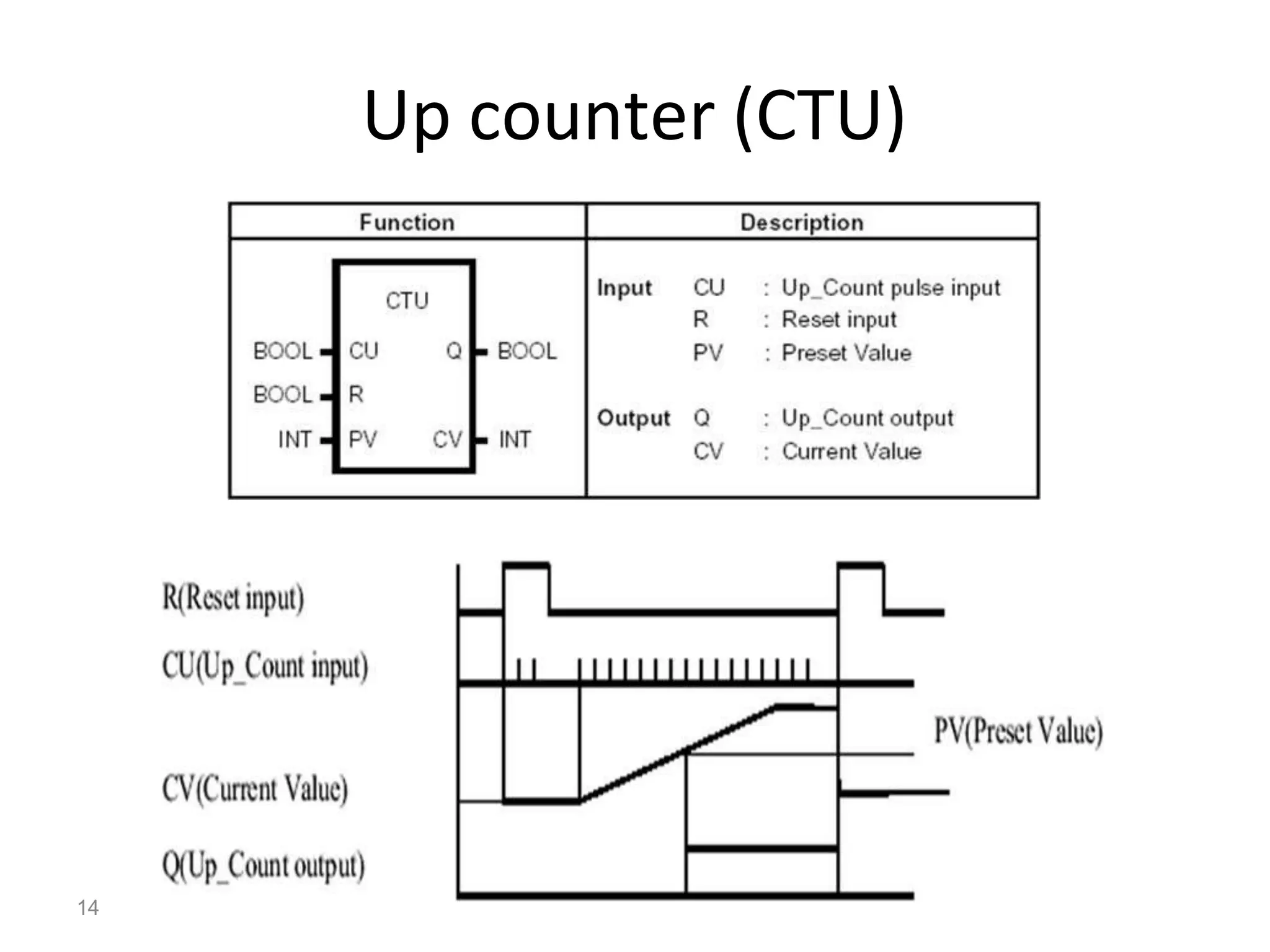

Up counter (CTU)
• PV (preset value) is the count value to be stored in the
counter.
• Up counter CTU increases CV (current value) by 1 when input
CU changes from 0 to 1 (i.e. positive edge).
• Output Q is 1 when CV ≥ PV.
• When reset input R is 1, CV is cleared (becomes 0).

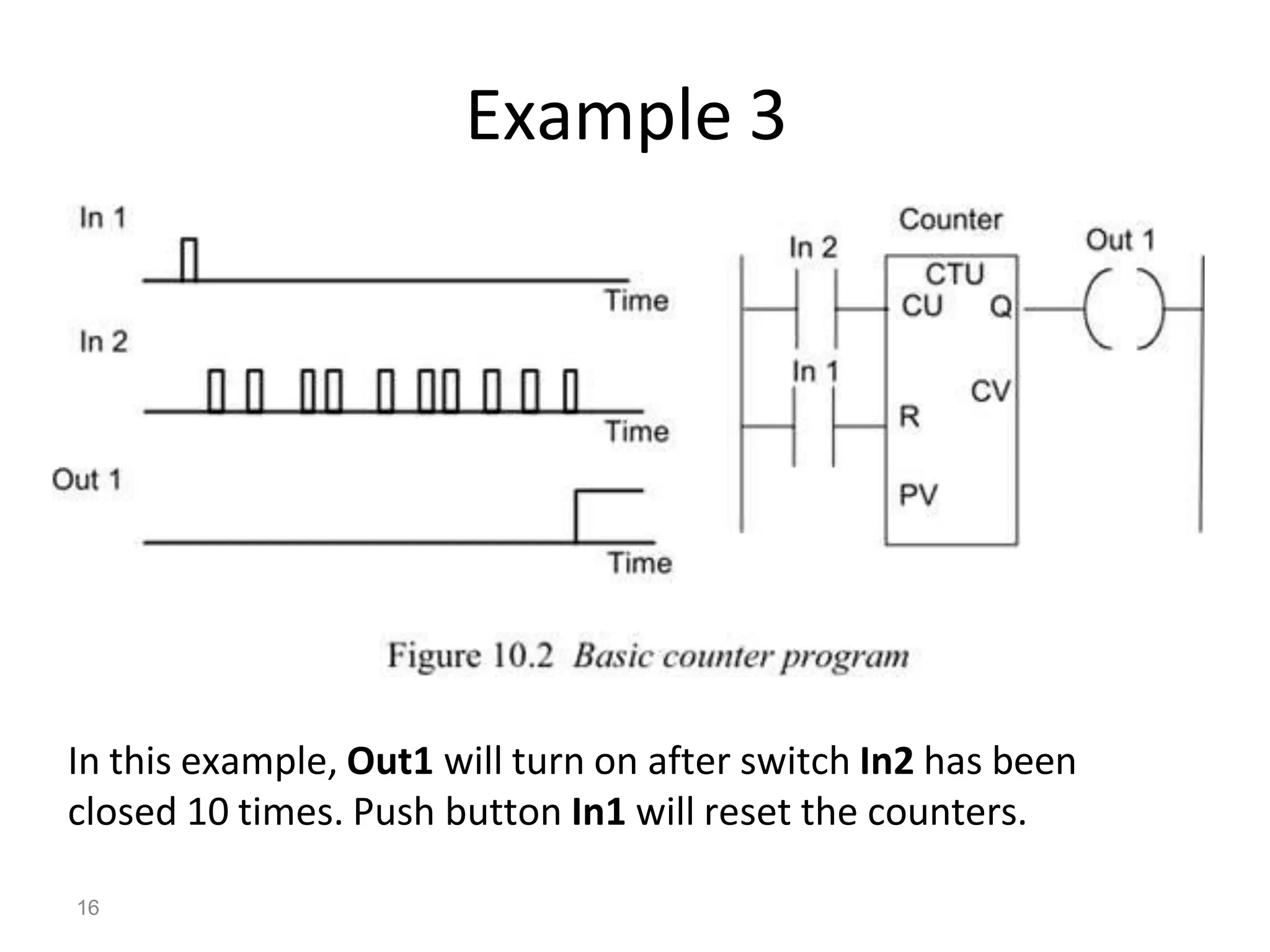

Example 3
In this example, Out1 will turn on after switch In2 has been
closed 10 times. Push button In1 will reset the counters.
16

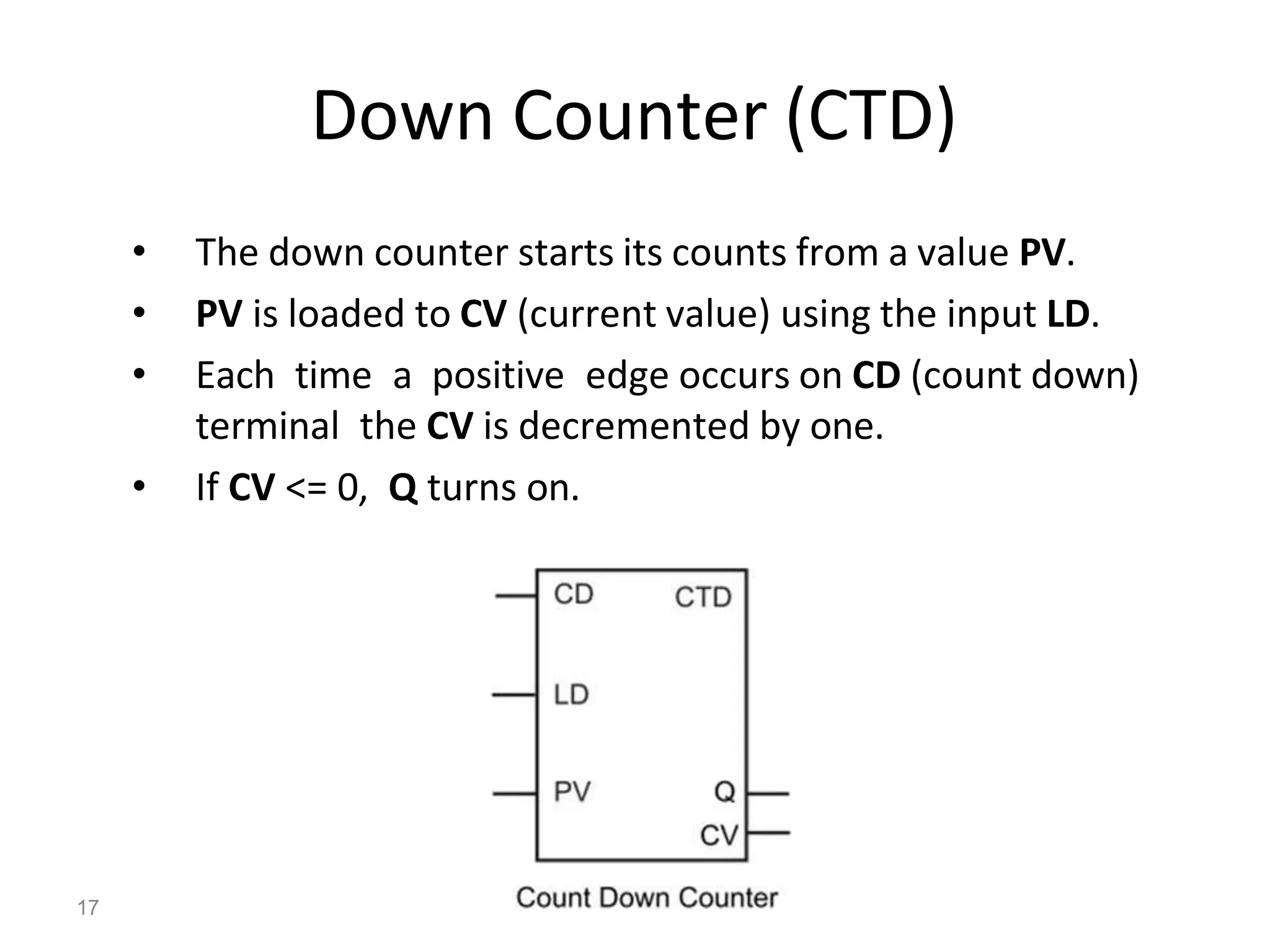

Down Counter (CTD)
• The down counter starts its counts from a value PV.
• PV is loaded to CV (current value) using the input LD.
• Each time a positive edge occurs on CD (count down)
terminal the CV is decremented by one.
• If CV <= 0, Q turns on.
17

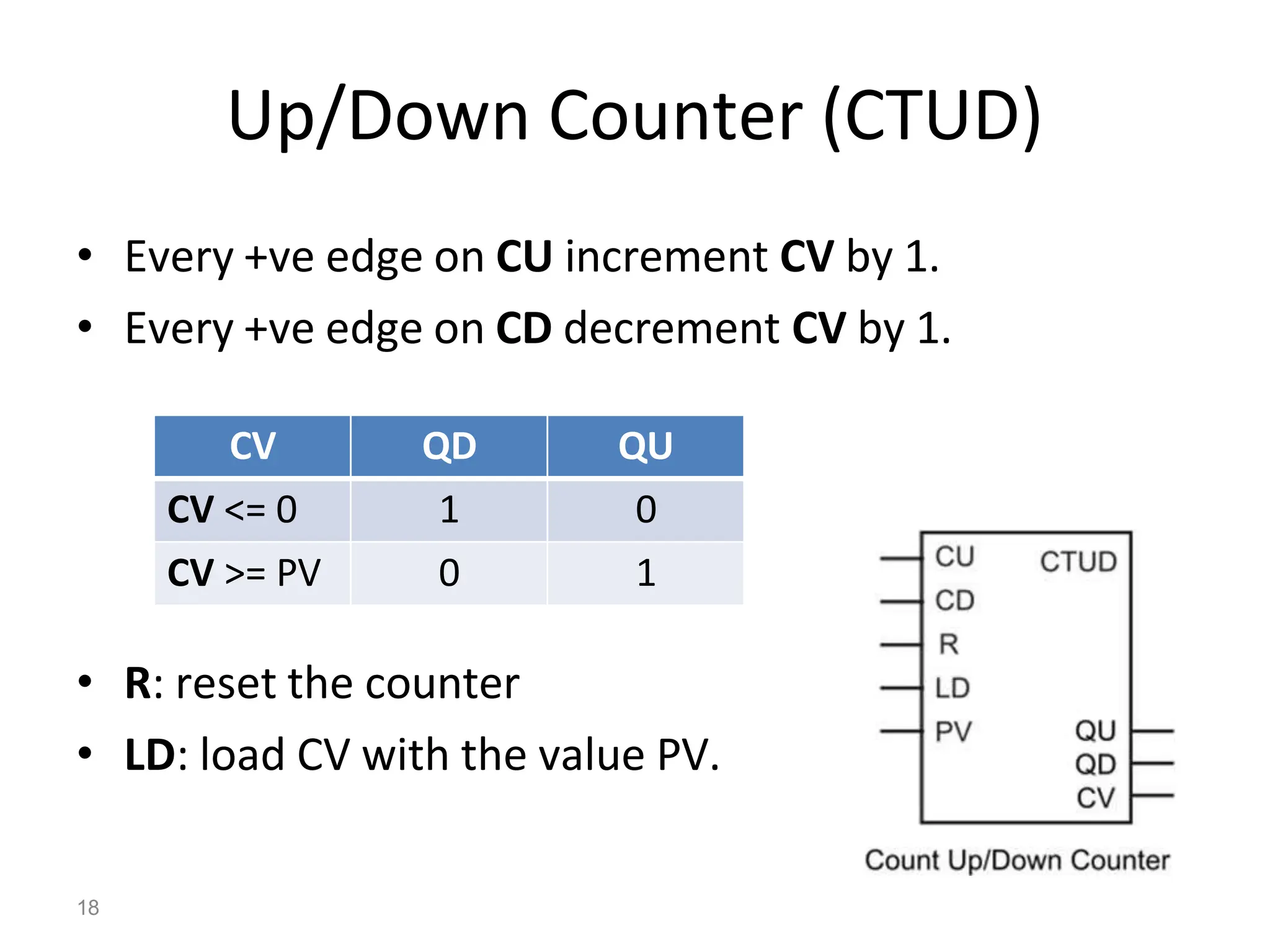

Up/Down Counter (CTUD)
• Every +ve edge on CU increment CV by 1.
• Every +ve edge on CD decrement CV by 1.
• R: reset the counter
• LD: load CV with the value PV.
CV QD QU
CV <= 0 1 0
CV >= PV 0 1
18

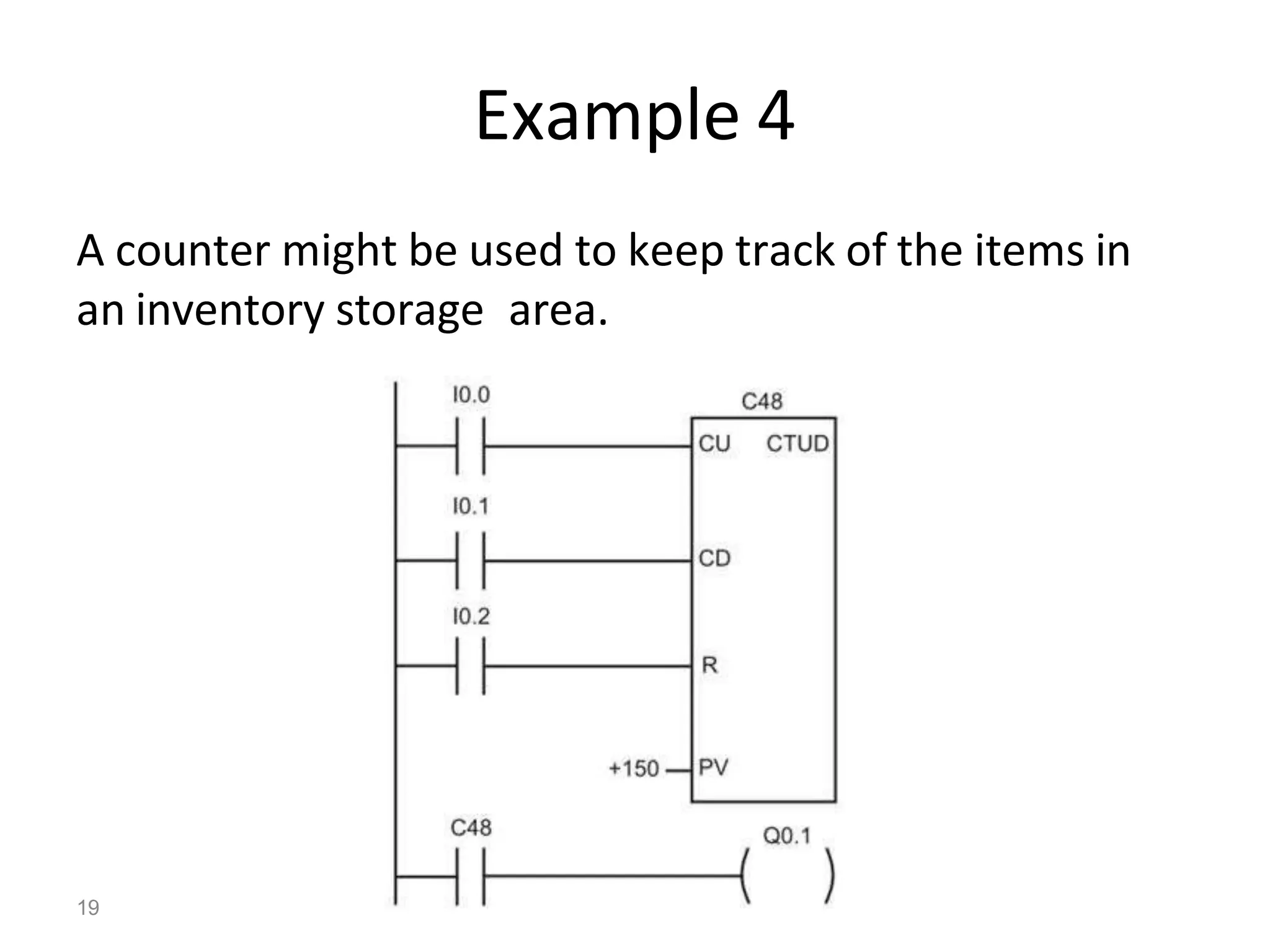

Example 4
A counter might be used to keep track of the items in
an inventory storage area.
19

20

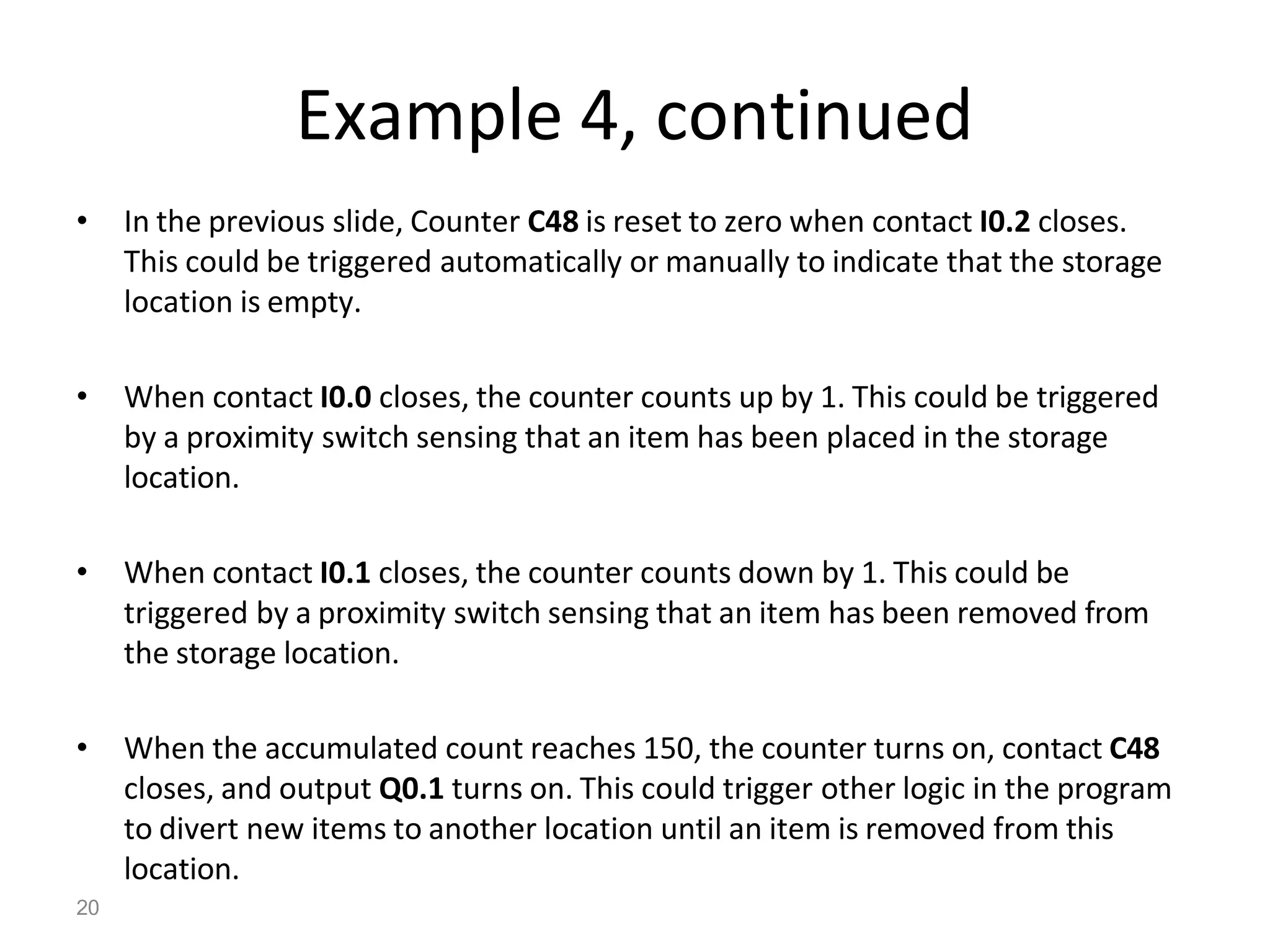

Example 4, continued
• In the previous slide, Counter C48 is reset to zero when contact I0.2 closes.
This could be triggered automatically or manually to indicate that the storage
location is empty.
• When contact I0.0 closes, the counter counts up by 1. This could be triggered
by a proximity switch sensing that an item has been placed in the storage
location.
• When contact I0.1 closes, the counter counts down by 1. This could be
triggered by a proximity switch sensing that an item has been removed from
the storage location.
• When the accumulated count reaches 150, the counter turns on, contact C48
closes, and output Q0.1 turns on. This could trigger other logic in the program
to divert new items to another location until an item is removed from this
location.

21

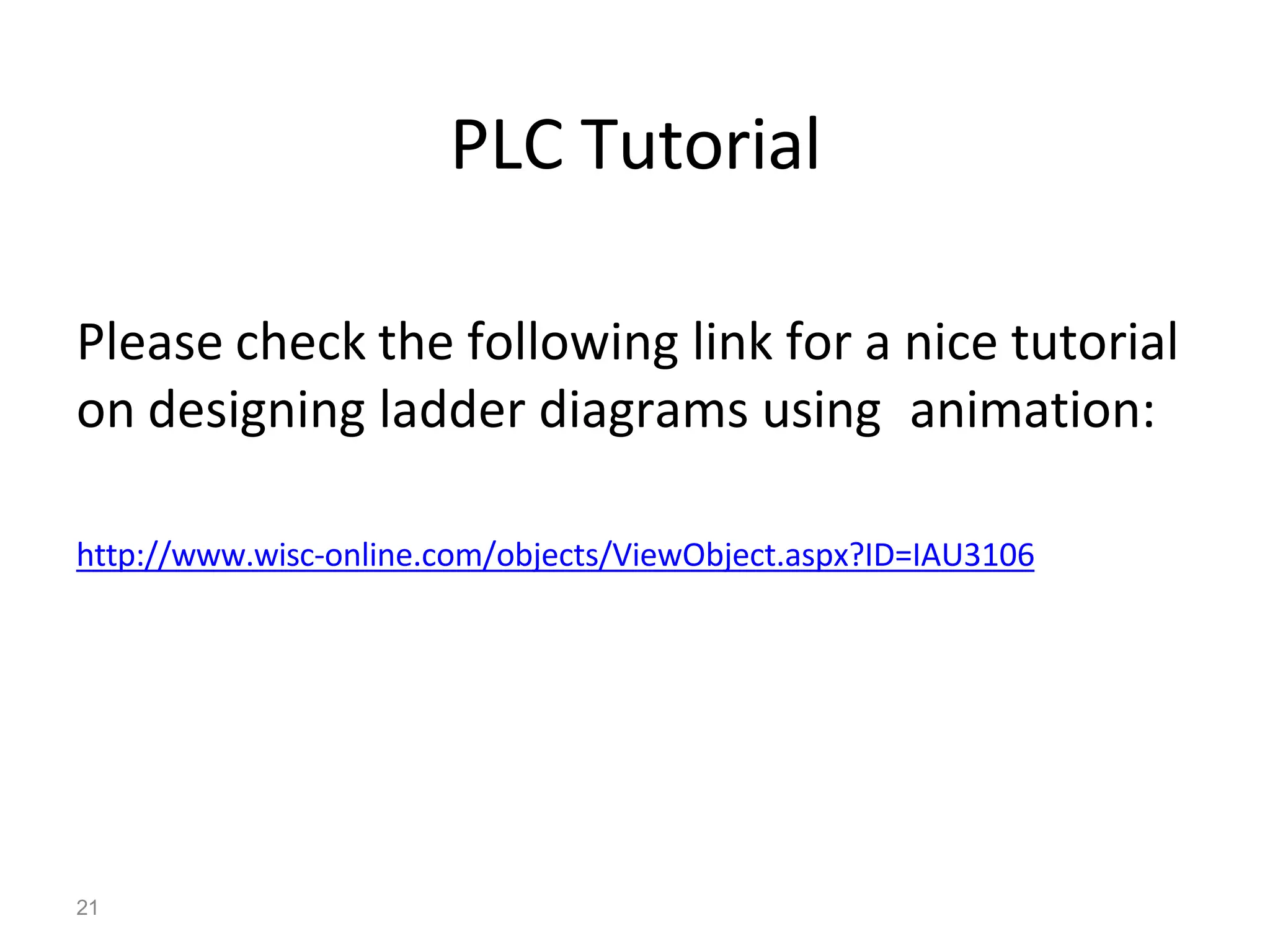

PLC Tutorial
Please check the following link for a nice tutorial
on designing ladder diagrams using animation:
http://www.wisc-online.com/objects/ViewObject.aspx?ID=IAU3106
