Linux Security Crash Course
- 1. Linux Security Crash Course February7th, 2018
- 2. Get in touchwith us Mailing List - Sign in and check “Add to Mailing List” Website - csg.utdallas.edu Slack - #csg on ecsutd.slack.com Email - utdcsg@gmail.com 2

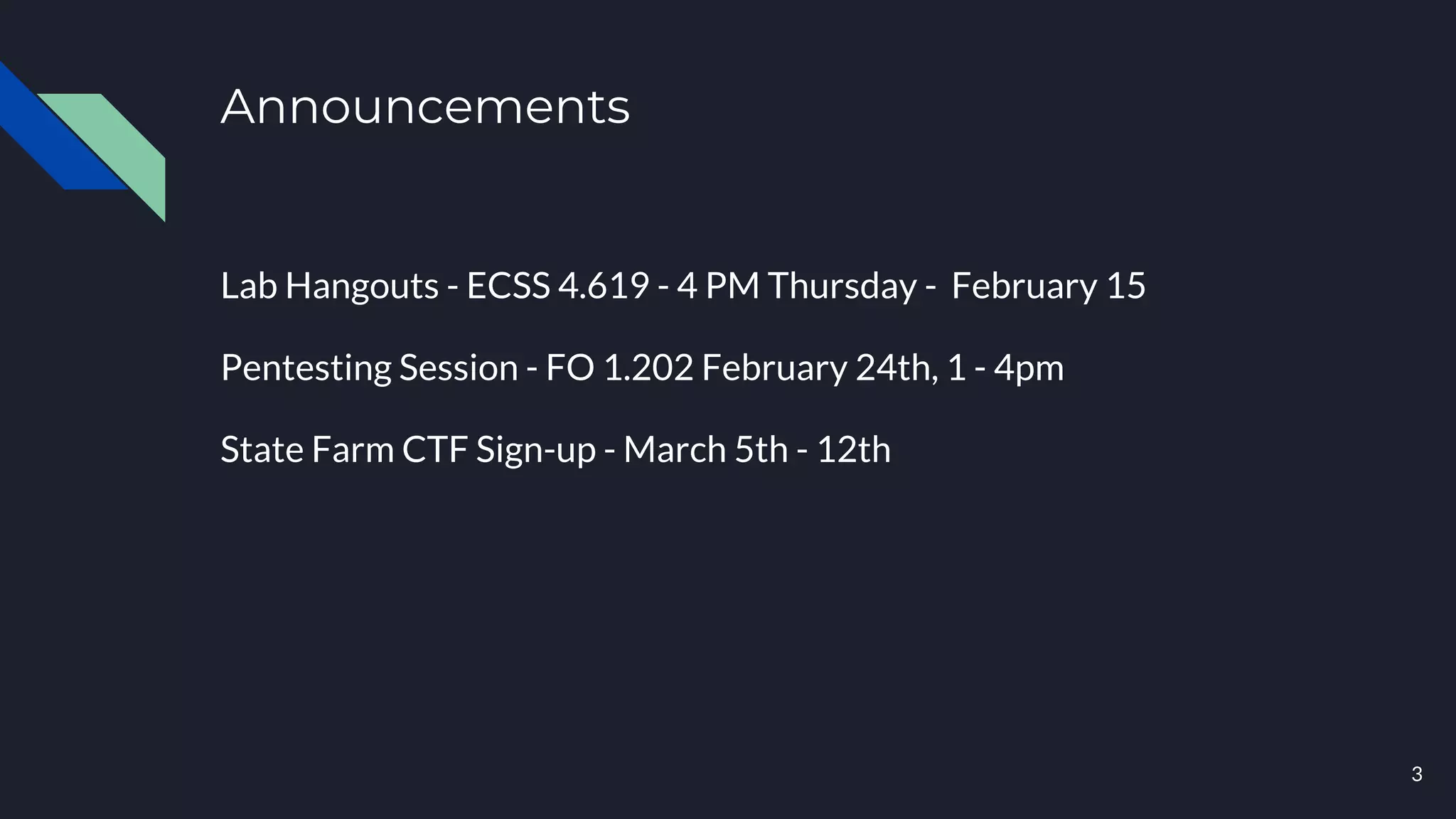

- 3. Announcements Lab Hangouts -ECSS 4.619 - 4 PM Thursday - February 15 Pentesting Session - FO 1.202 February 24th, 1 - 4pm State Farm CTF Sign-up - March 5th - 12th 3
- 4. Linux Security CrashCourse 1. Authentication a. PAM 2. Authorization a. sudo b. setuid & setgid c. capabilities d. ACL 3. Audit a. auditd 4 4. Services a. sshd 5. Firewall a. iptables b. firewalld 6. Intrusion Detection a. AIDE 7. Compliance a. OpenSCAP
- 5.

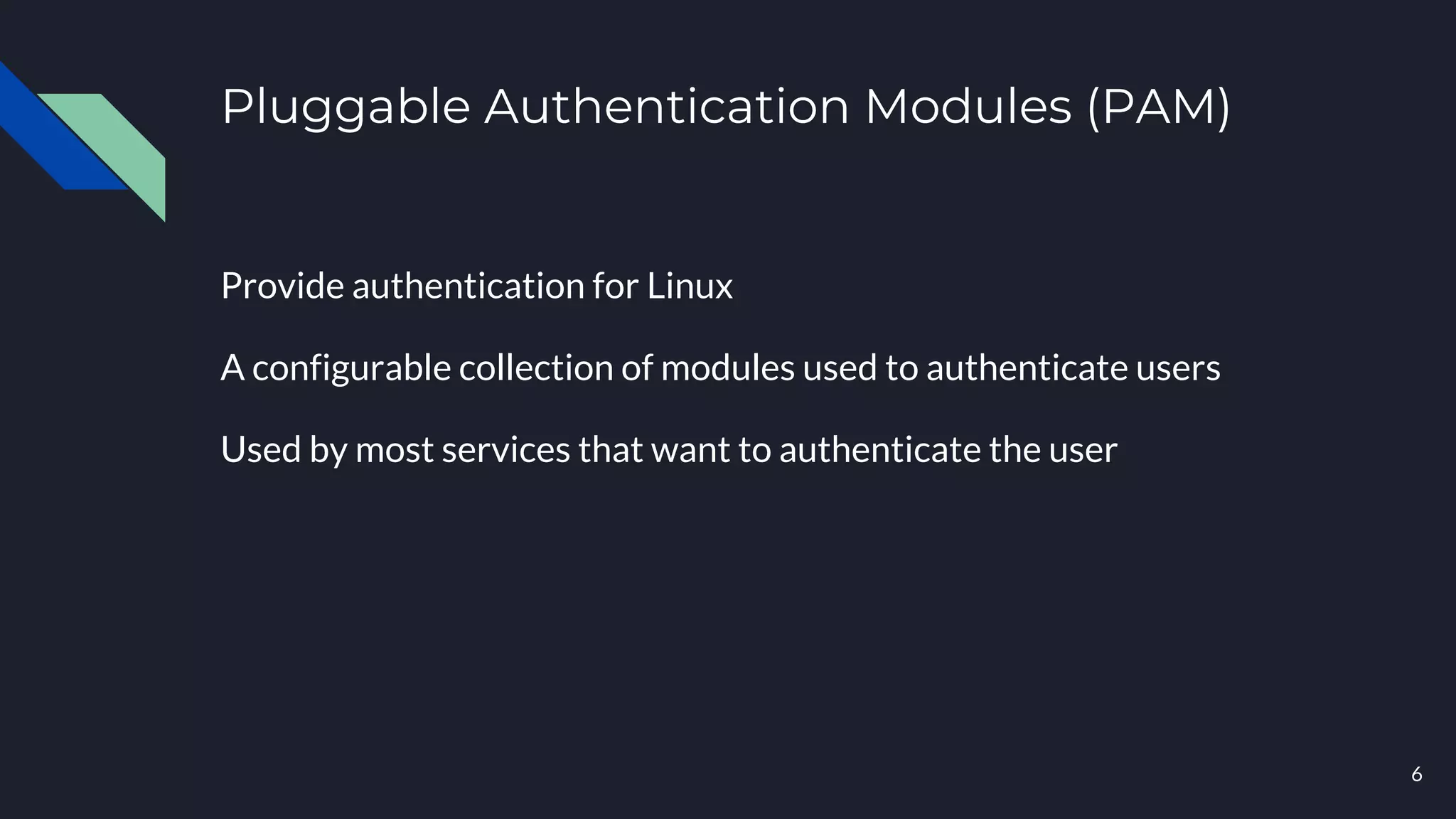

- 6. Pluggable Authentication Modules(PAM) Provide authentication for Linux A configurable collection of modules used to authenticate users Used by most services that want to authenticate the user 6

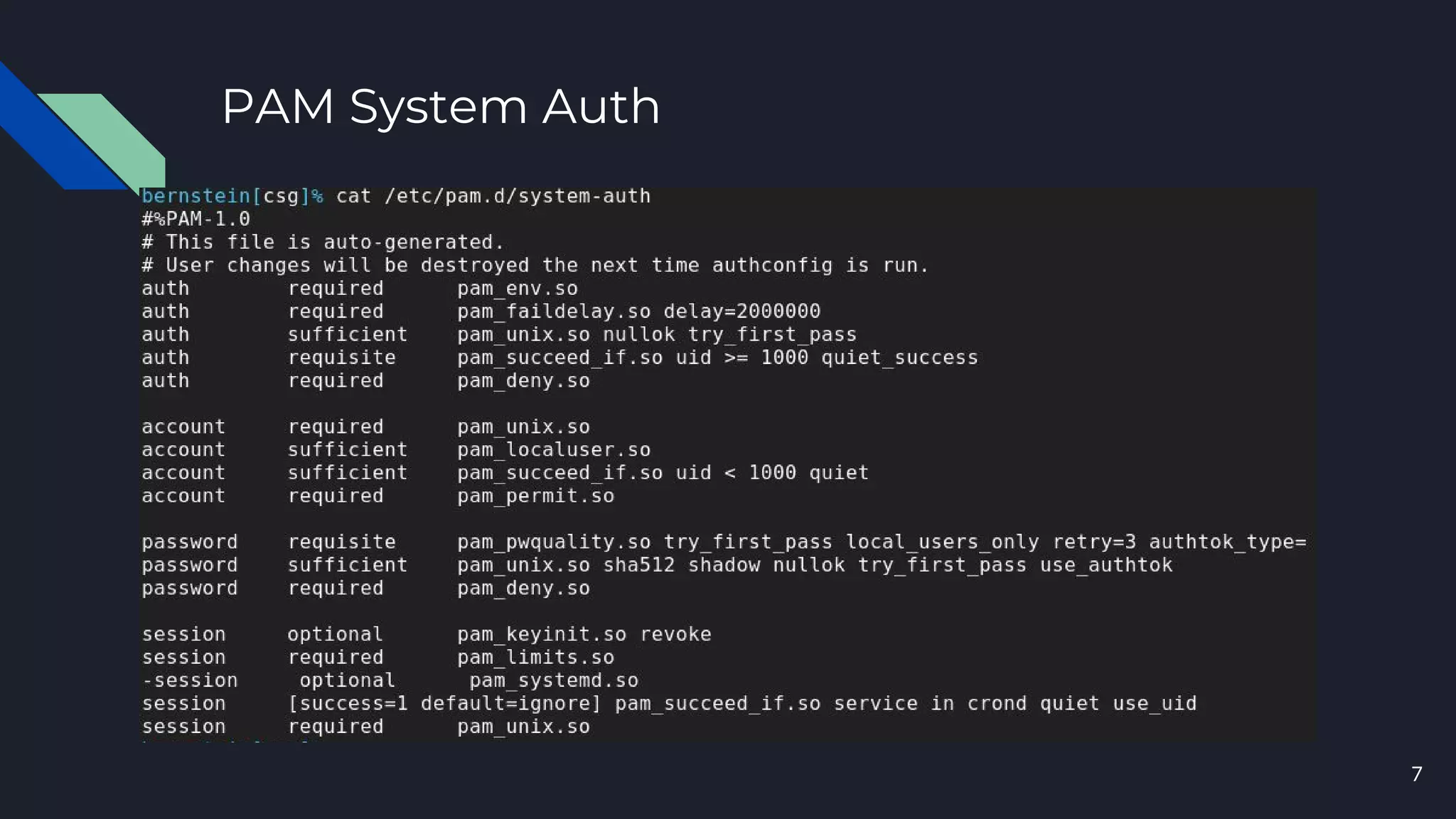

- 7.

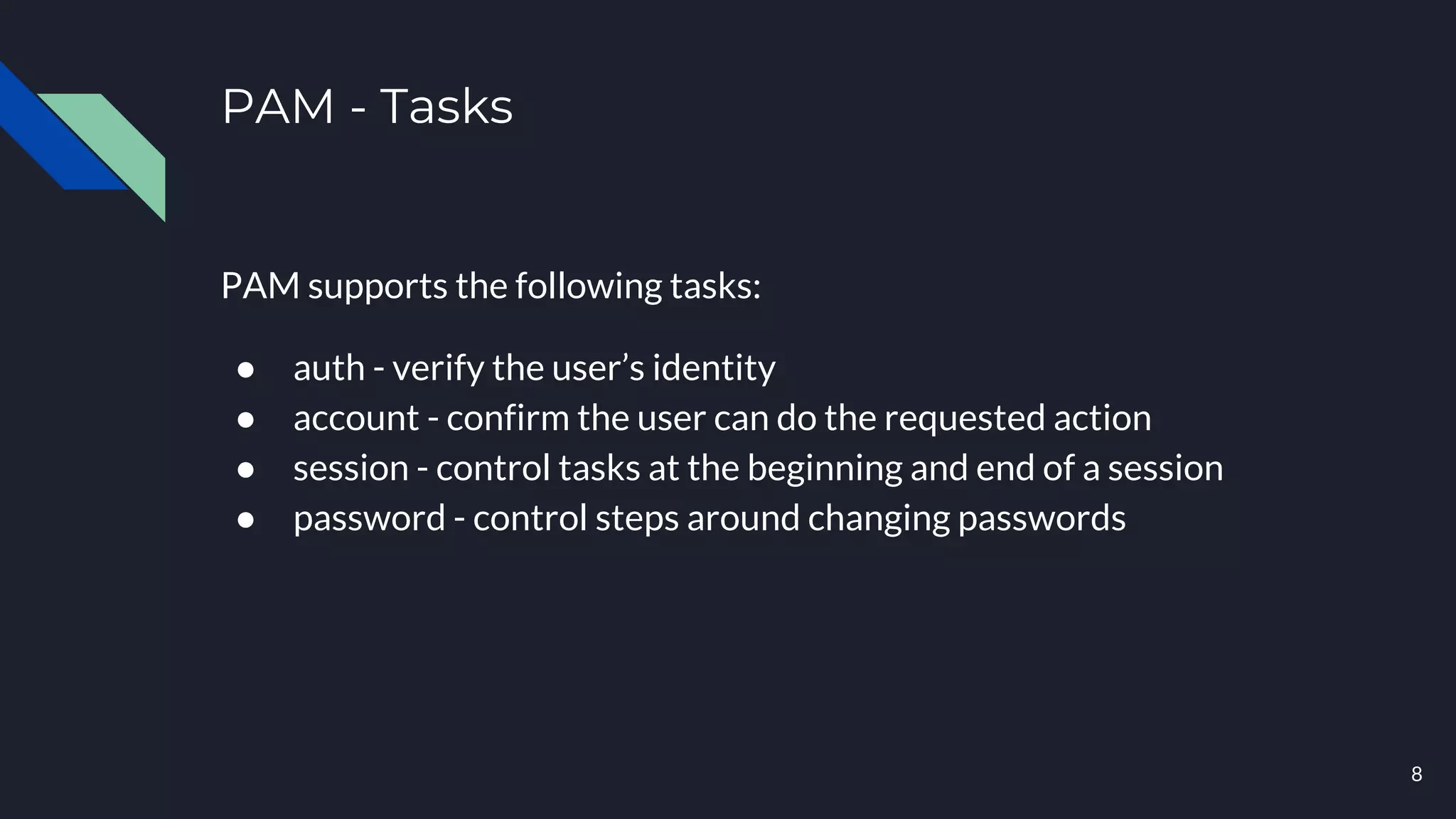

- 8. PAM - Tasks PAMsupports the following tasks: ● auth - verify the user’s identity ● account - confirm the user can do the requested action ● session - control tasks at the beginning and end of a session ● password - control steps around changing passwords 8

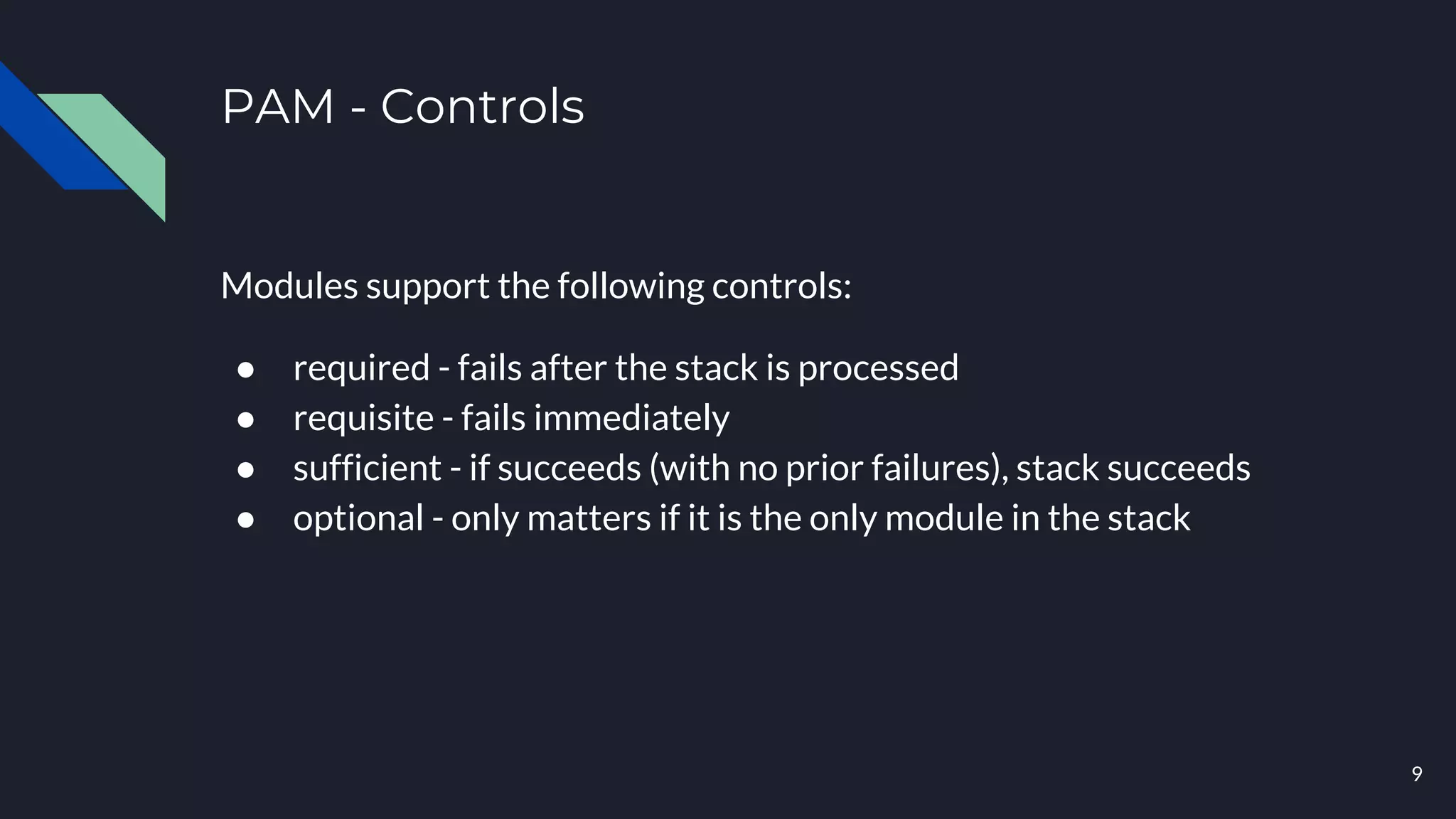

- 9. PAM - Controls Modulessupport the following controls: ● required - fails after the stack is processed ● requisite - fails immediately ● sufficient - if succeeds (with no prior failures), stack succeeds ● optional - only matters if it is the only module in the stack 9

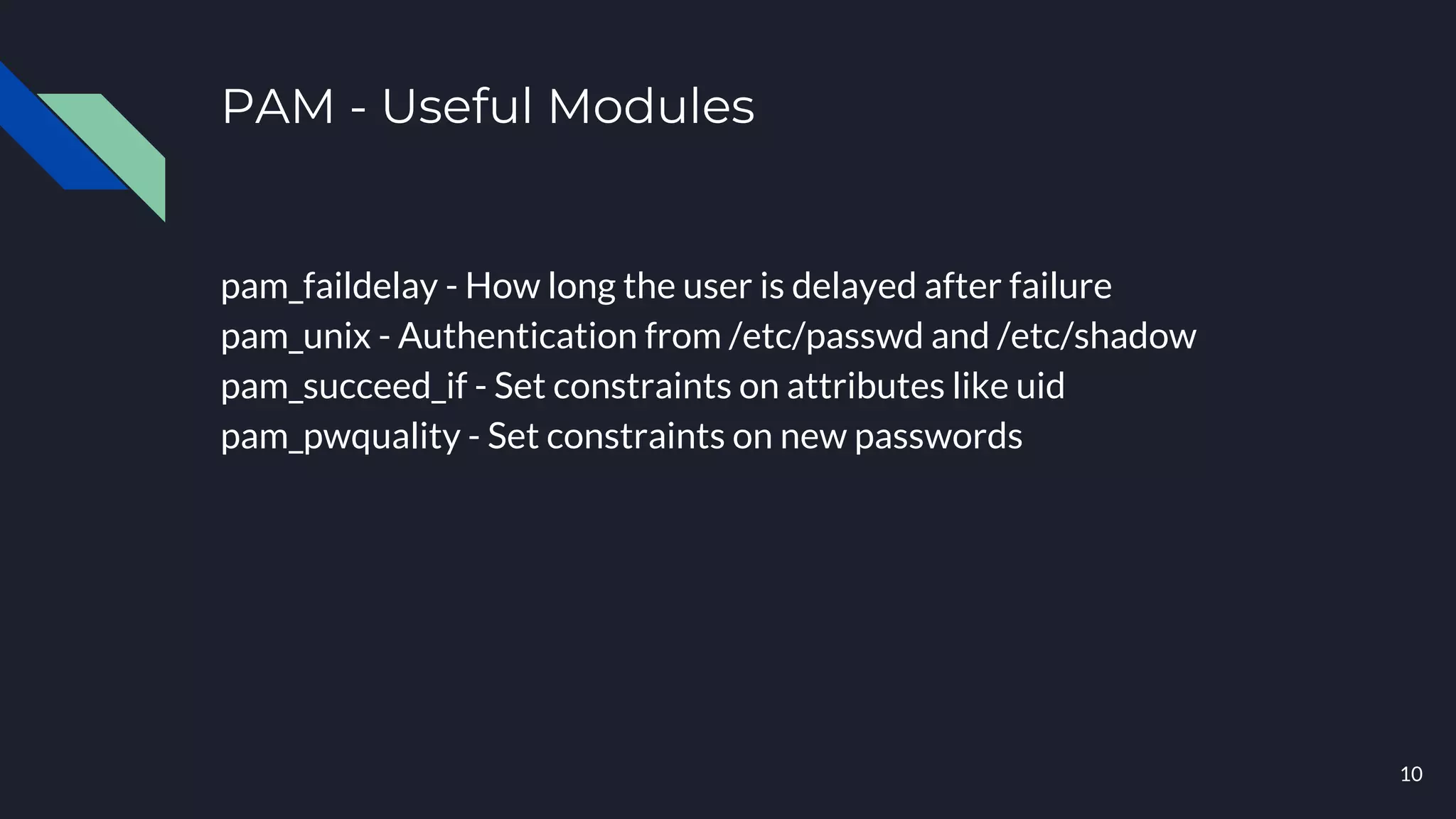

- 10. PAM - UsefulModules pam_faildelay - How long the user is delayed after failure pam_unix - Authentication from /etc/passwd and /etc/shadow pam_succeed_if - Set constraints on attributes like uid pam_pwquality - Set constraints on new passwords 10

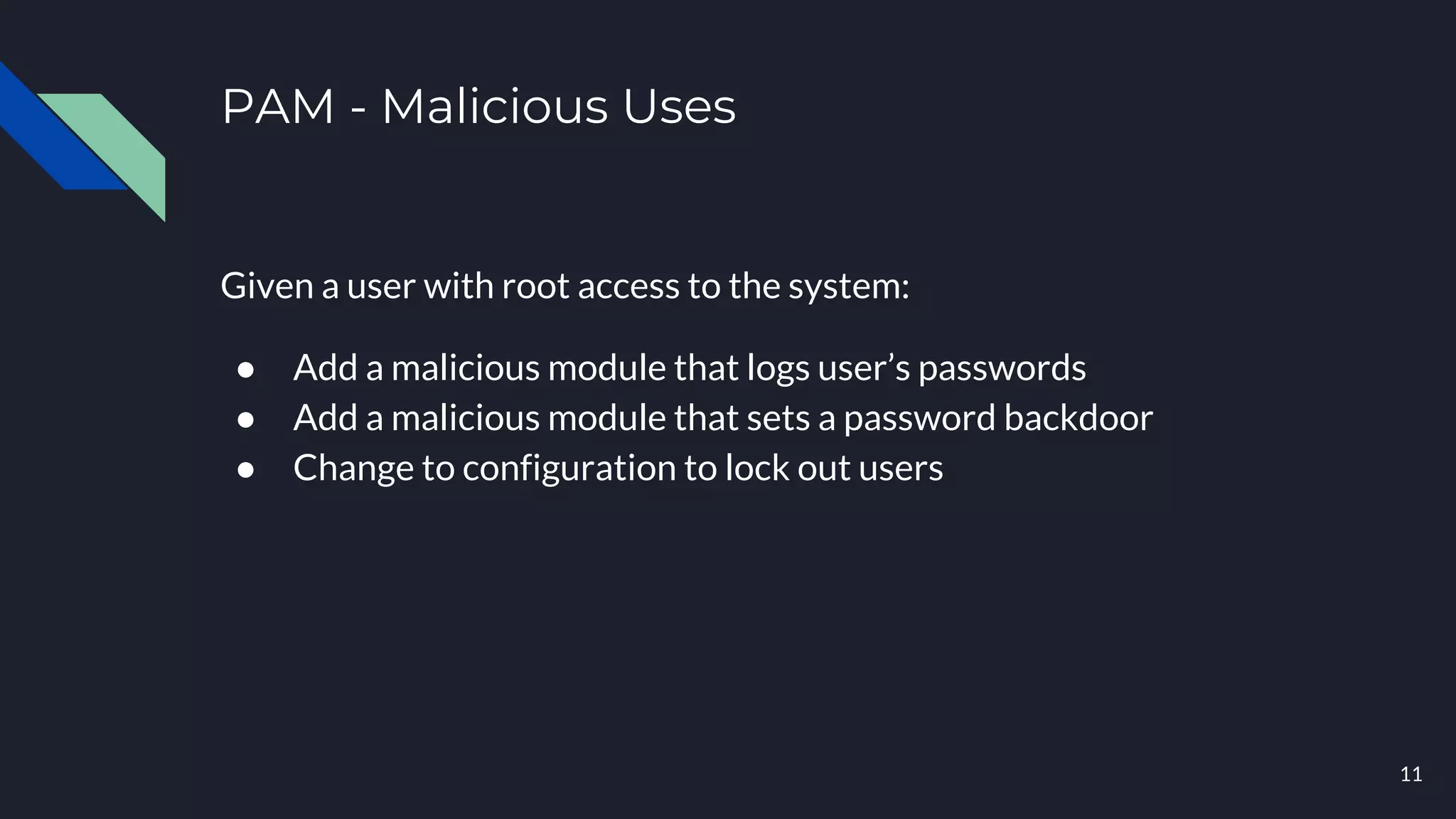

- 11. PAM - MaliciousUses Given a user with root access to the system: ● Add a malicious module that logs user’s passwords ● Add a malicious module that sets a password backdoor ● Change to configuration to lock out users 11
- 12.
- 13.

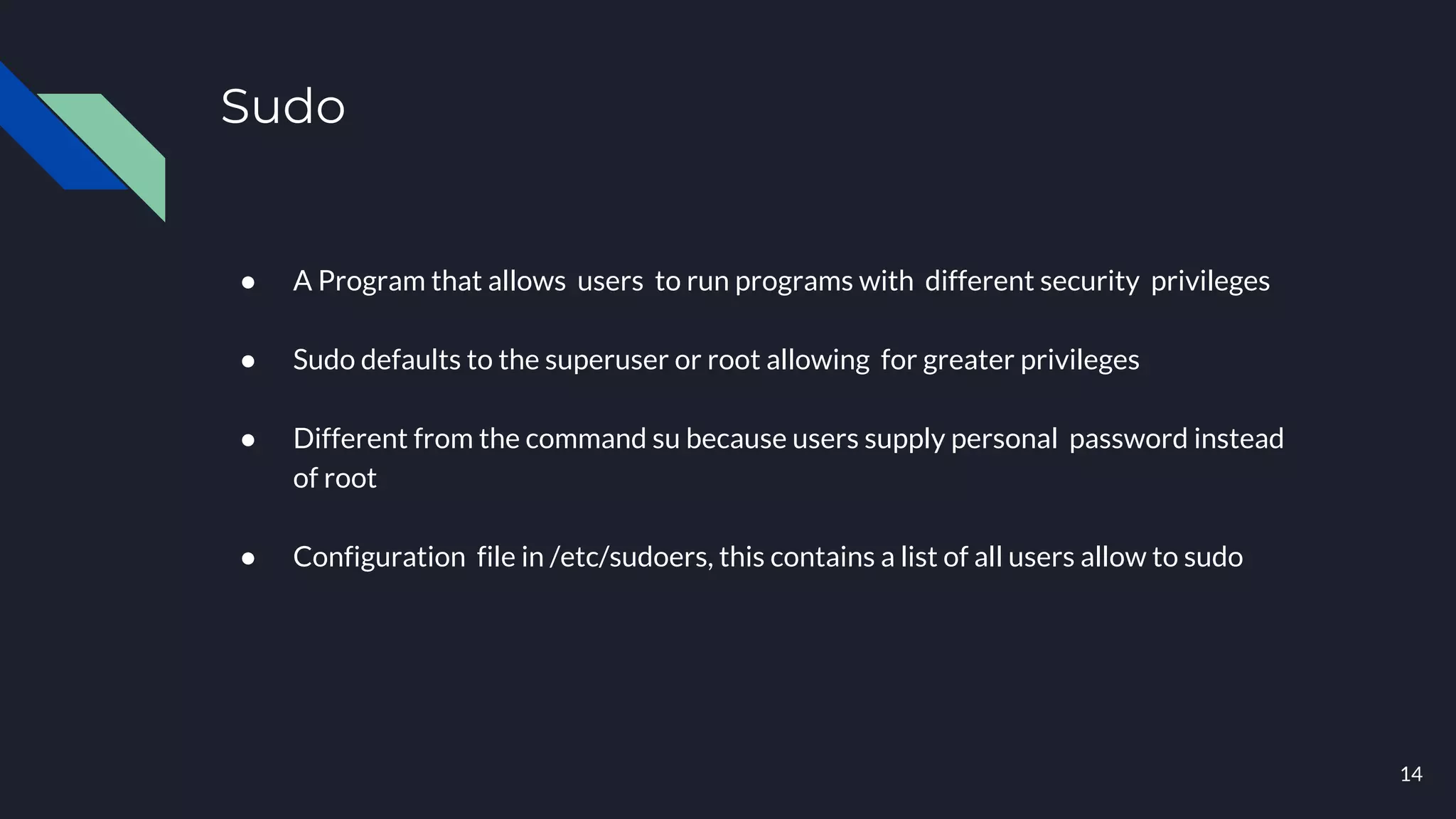

- 14. Sudo ● A Programthat allows users to run programs with different security privileges ● Sudo defaults to the superuser or root allowing for greater privileges ● Different from the command su because users supply personal password instead of root ● Configuration file in /etc/sudoers, this contains a list of all users allow to sudo 14

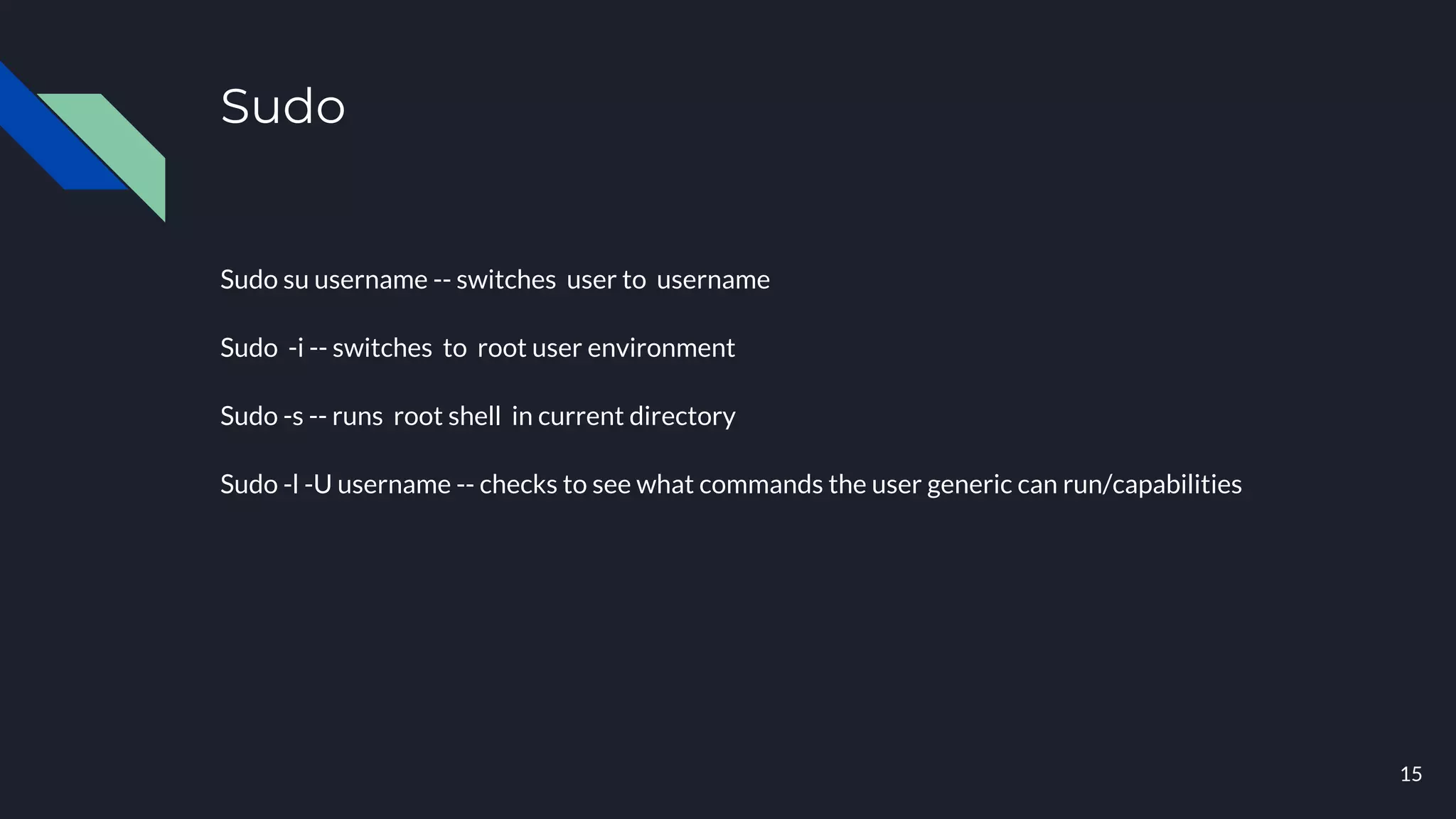

- 15. Sudo Sudo su username-- switches user to username Sudo -i -- switches to root user environment Sudo -s -- runs root shell in current directory Sudo -l -U username -- checks to see what commands the user generic can run/capabilities 15

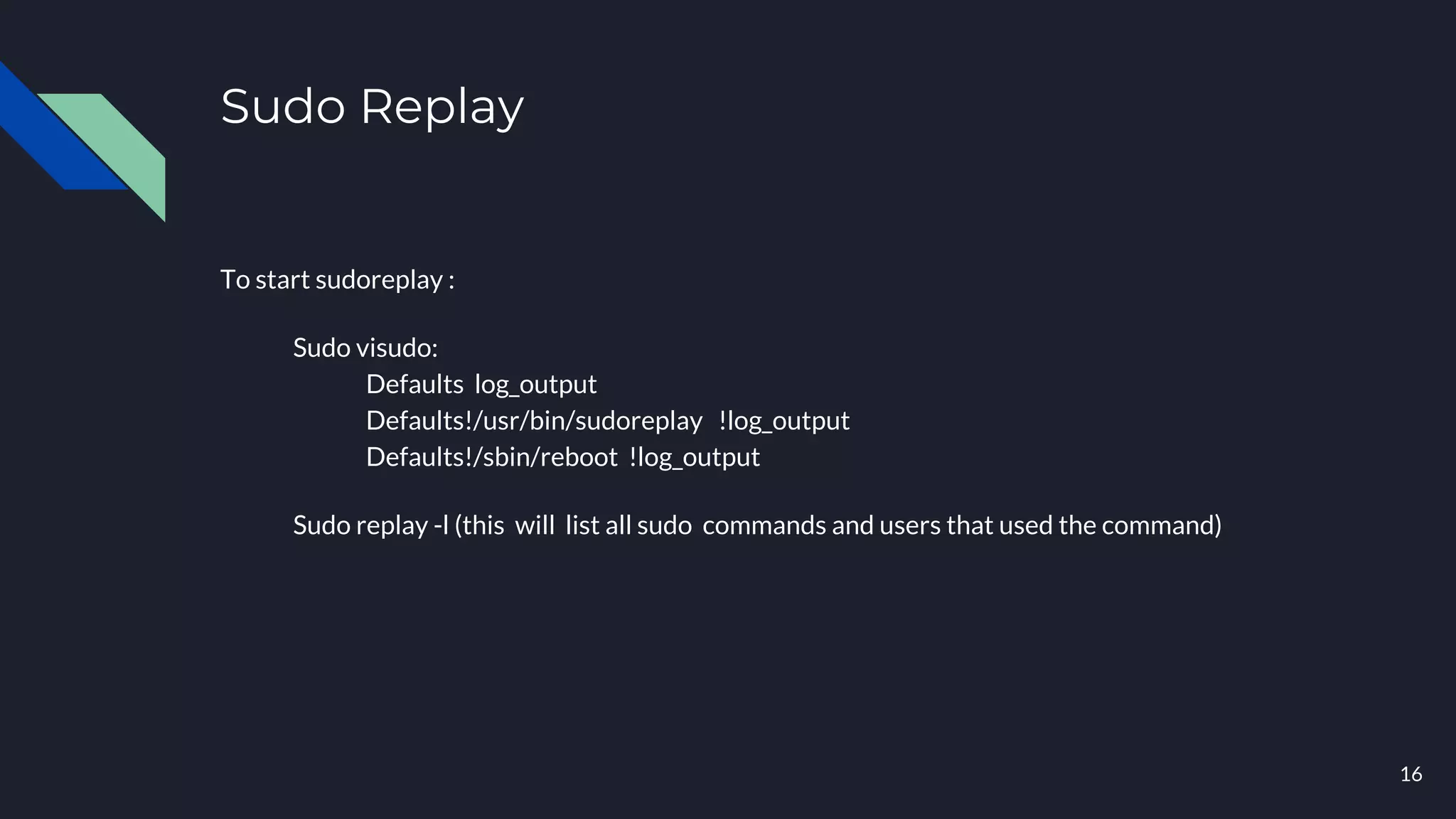

- 16. Sudo Replay To startsudoreplay : Sudo visudo: Defaults log_output Defaults!/usr/bin/sudoreplay !log_output Defaults!/sbin/reboot !log_output Sudo replay -l (this will list all sudo commands and users that used the command) 16

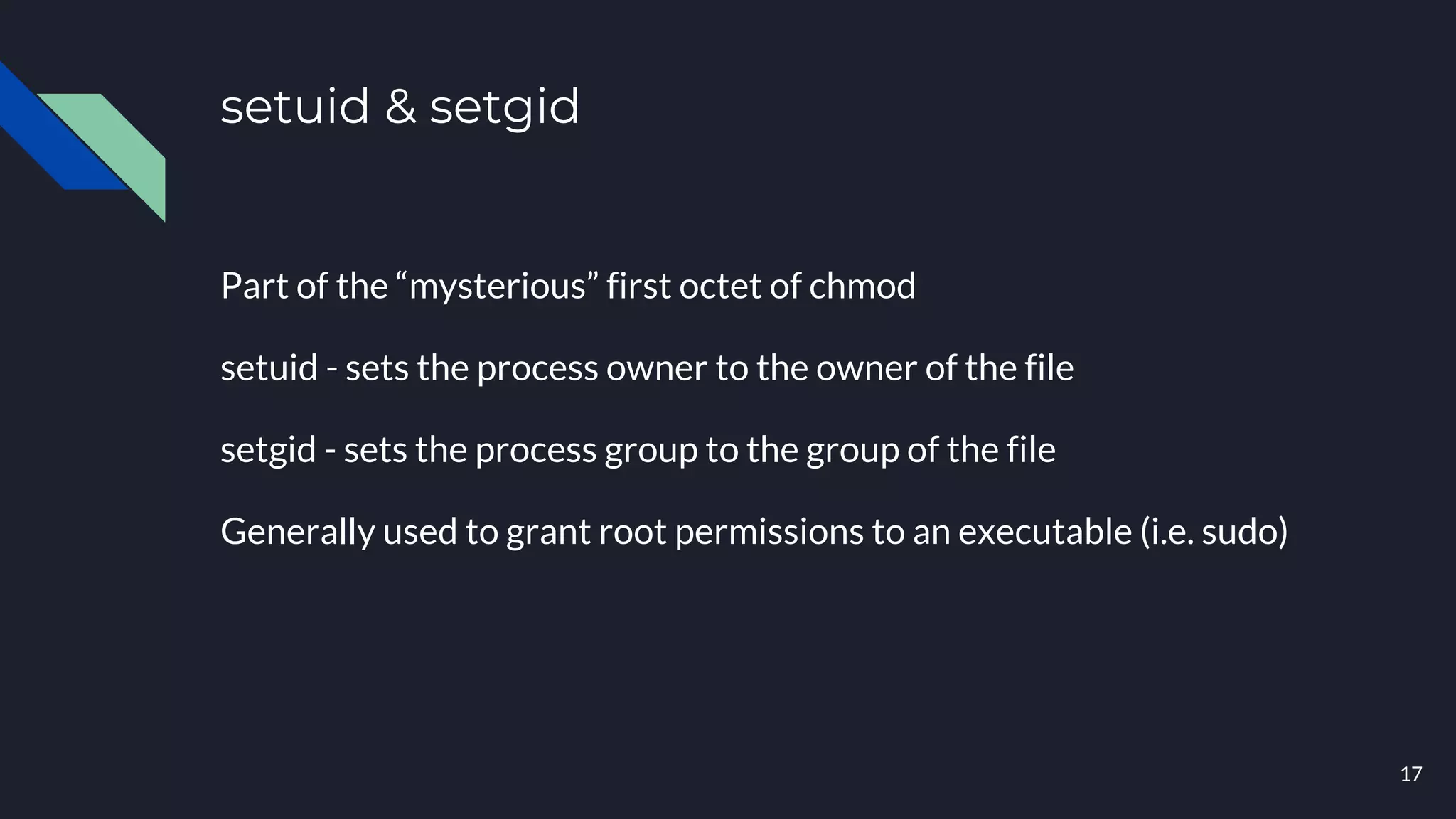

- 17. setuid & setgid Partof the “mysterious” first octet of chmod setuid - sets the process owner to the owner of the file setgid - sets the process group to the group of the file Generally used to grant root permissions to an executable (i.e. sudo) 17

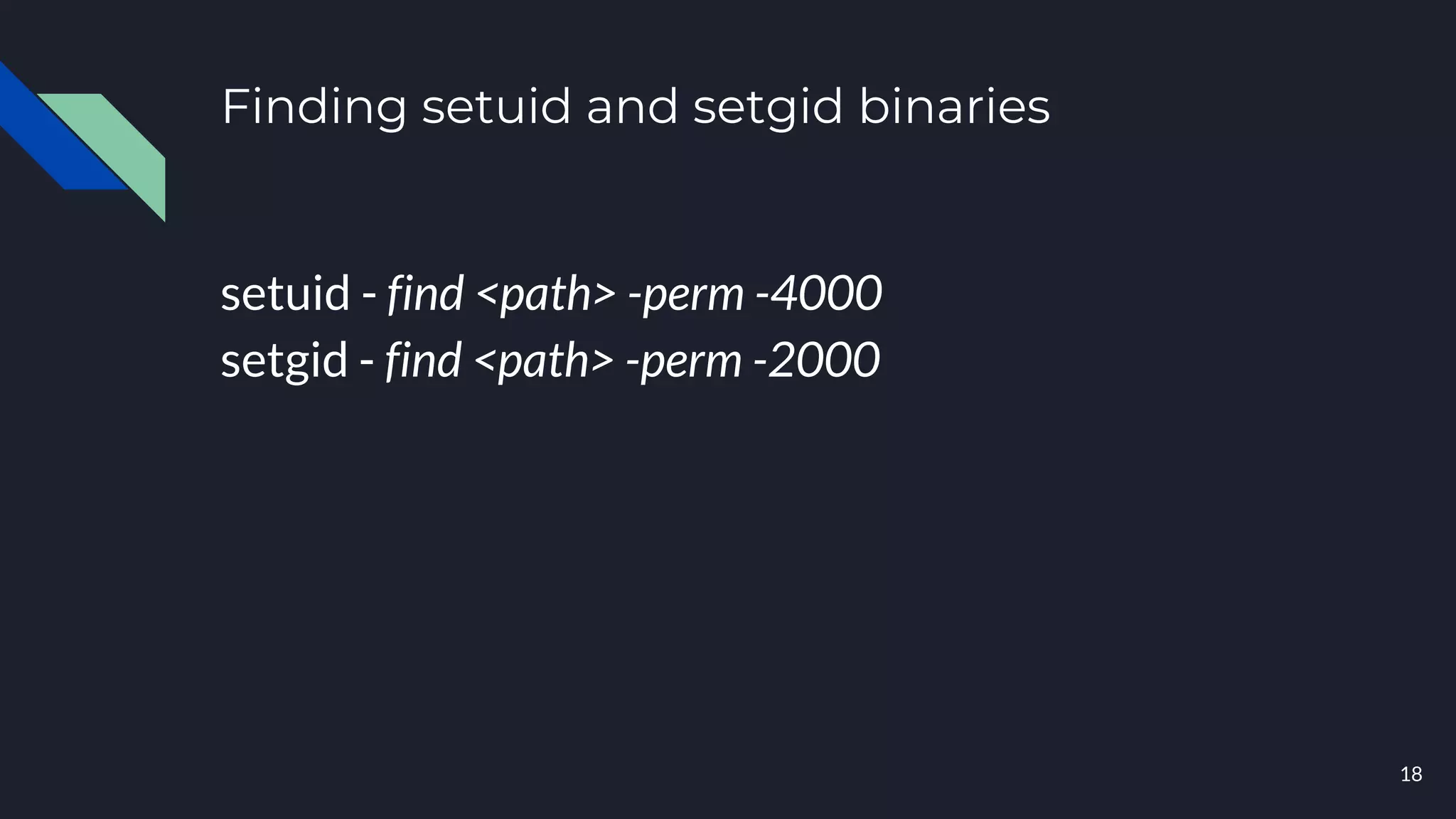

- 18. Finding setuid andsetgid binaries setuid - find <path> -perm -4000 setgid - find <path> -perm -2000 18

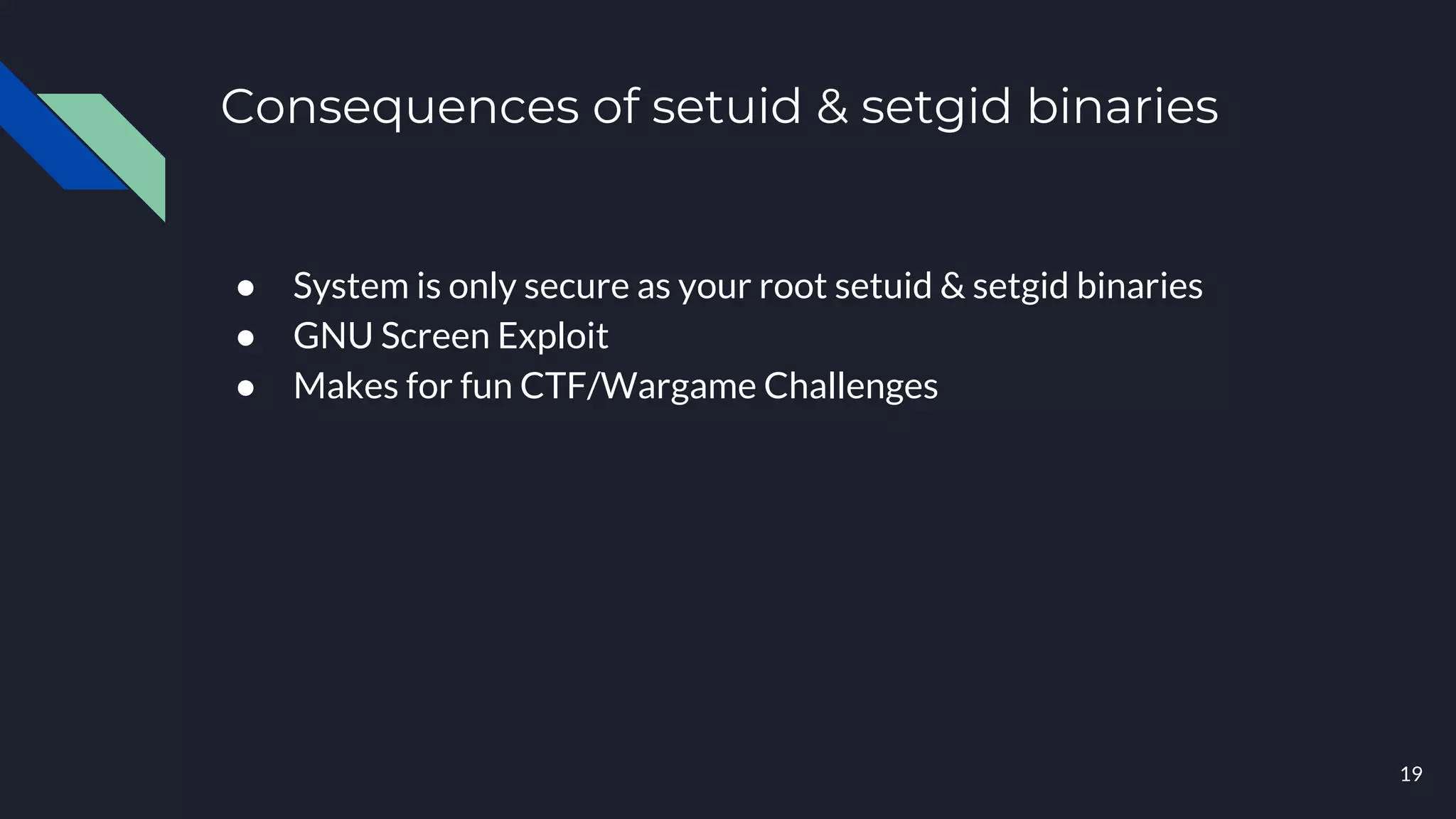

- 19. Consequences of setuid& setgid binaries ● System is only secure as your root setuid & setgid binaries ● GNU Screen Exploit ● Makes for fun CTF/Wargame Challenges 19

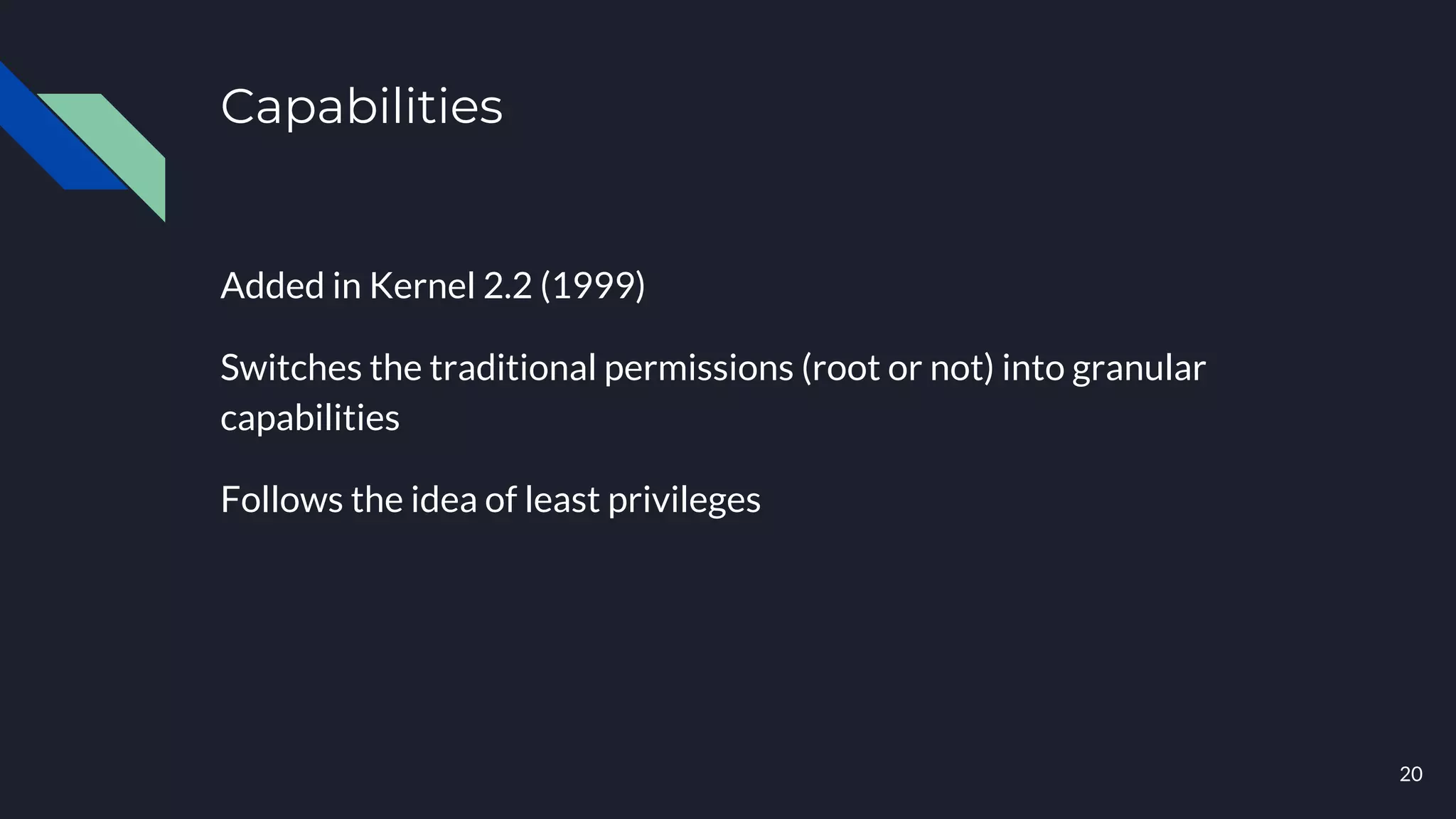

- 20. Capabilities Added in Kernel2.2 (1999) Switches the traditional permissions (root or not) into granular capabilities Follows the idea of least privileges 20

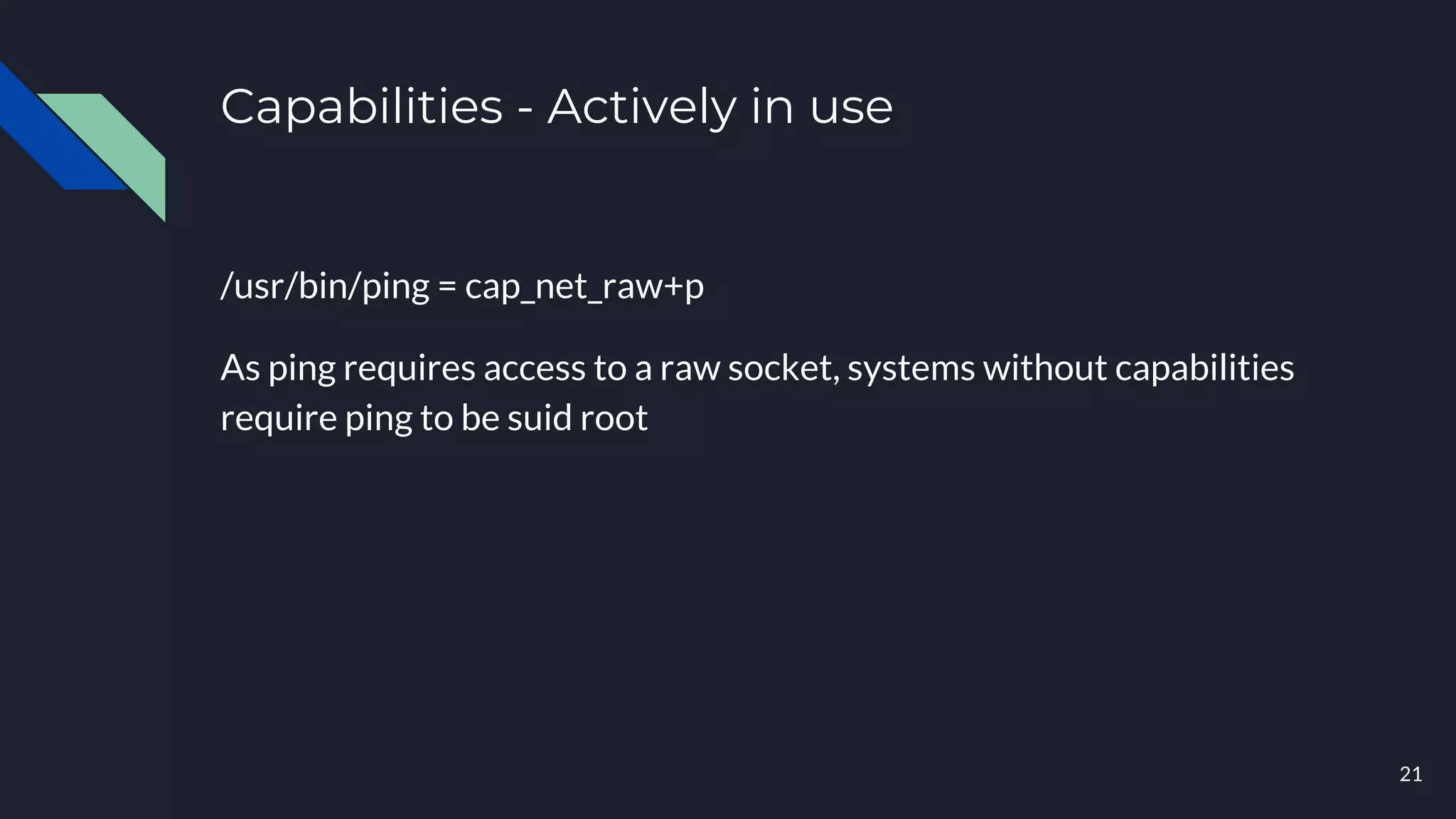

- 21. Capabilities - Activelyin use /usr/bin/ping = cap_net_raw+p As ping requires access to a raw socket, systems without capabilities require ping to be suid root 21

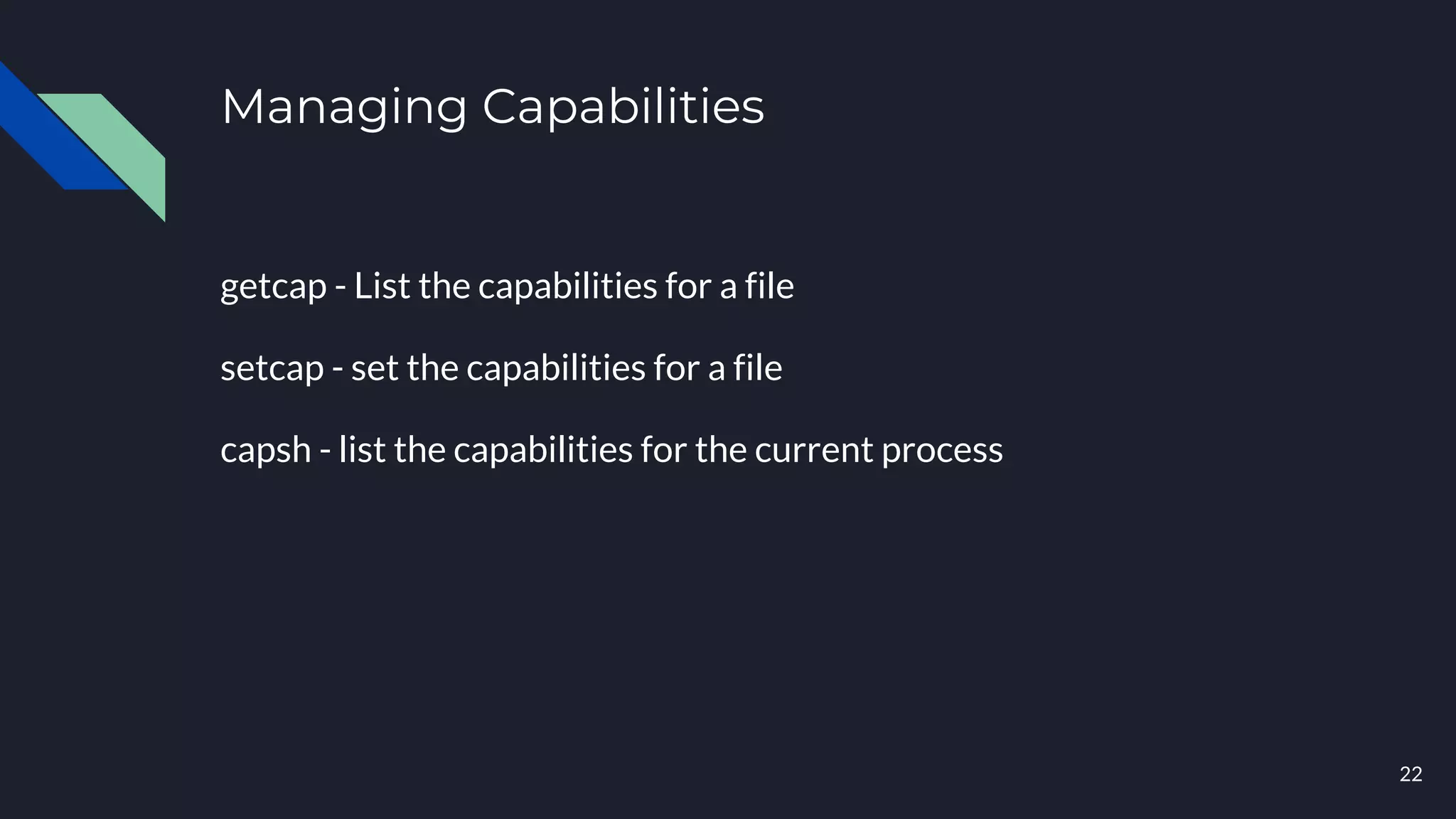

- 22. Managing Capabilities getcap -List the capabilities for a file setcap - set the capabilities for a file capsh - list the capabilities for the current process 22

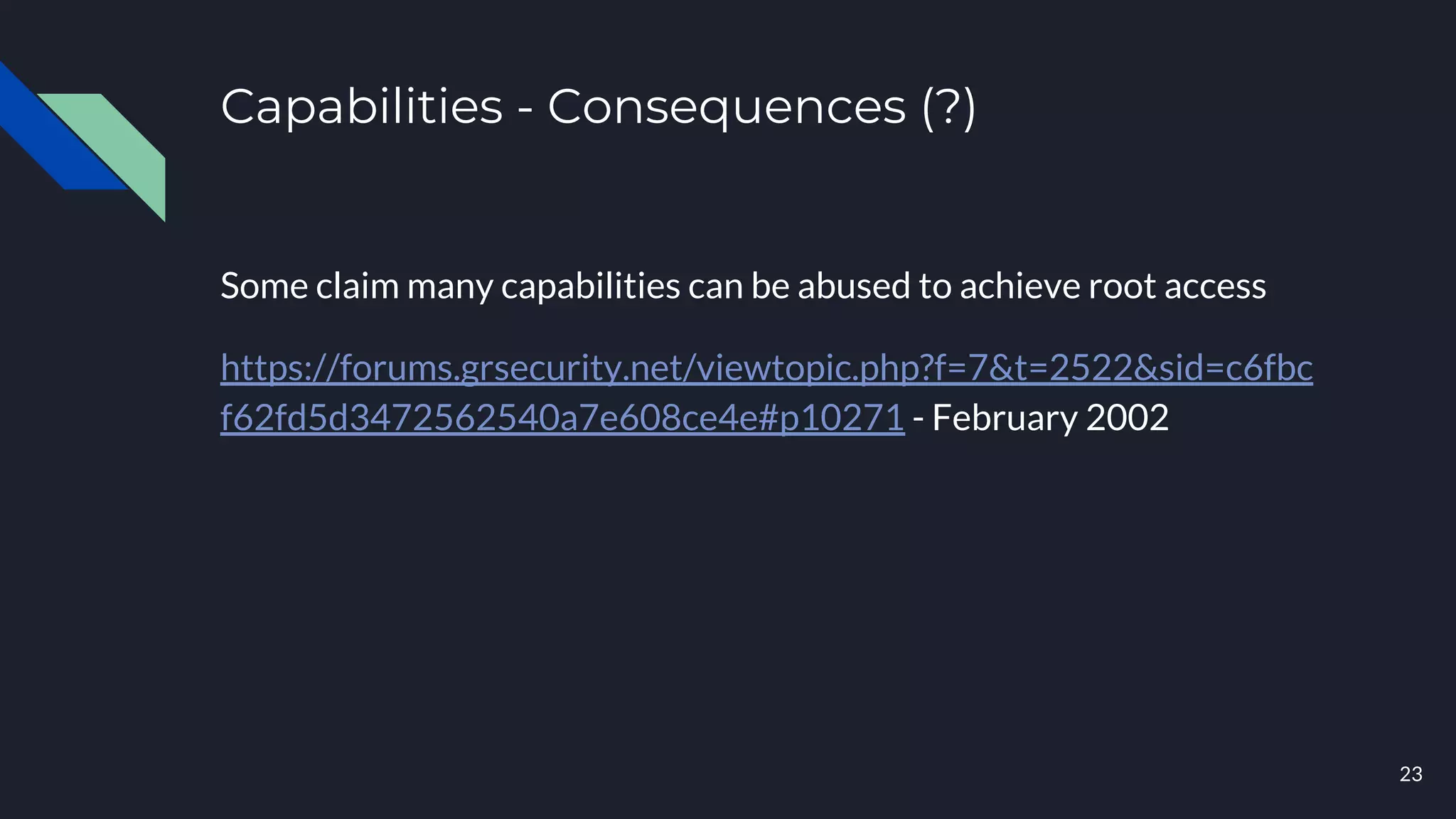

- 23. Capabilities - Consequences(?) Some claim many capabilities can be abused to achieve root access https://forums.grsecurity.net/viewtopic.php?f=7&t=2522&sid=c6fbc f62fd5d3472562540a7e608ce4e#p10271 - February 2002 23

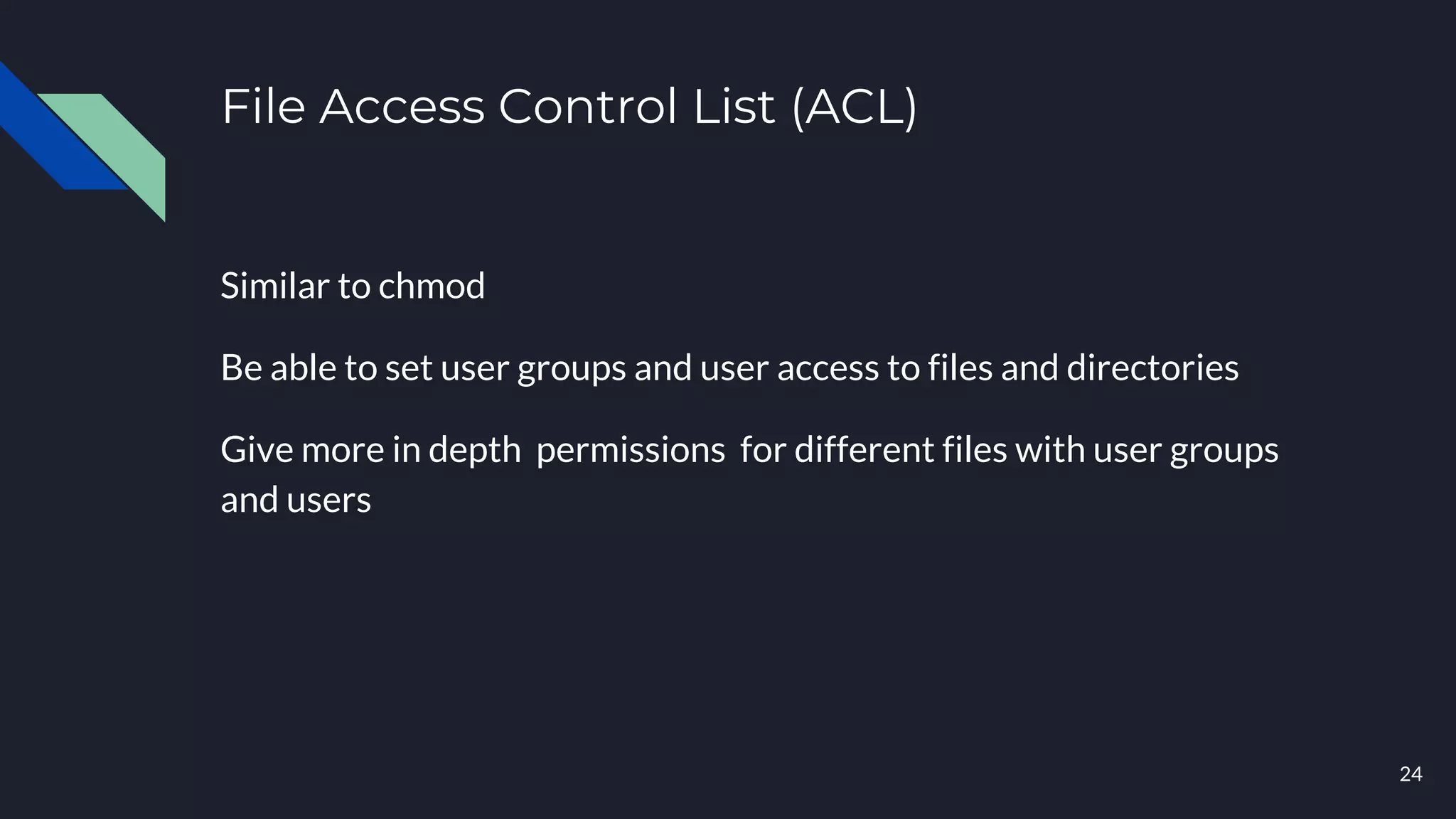

- 24. File Access ControlList (ACL) Similar to chmod Be able to set user groups and user access to files and directories Give more in depth permissions for different files with user groups and users 24

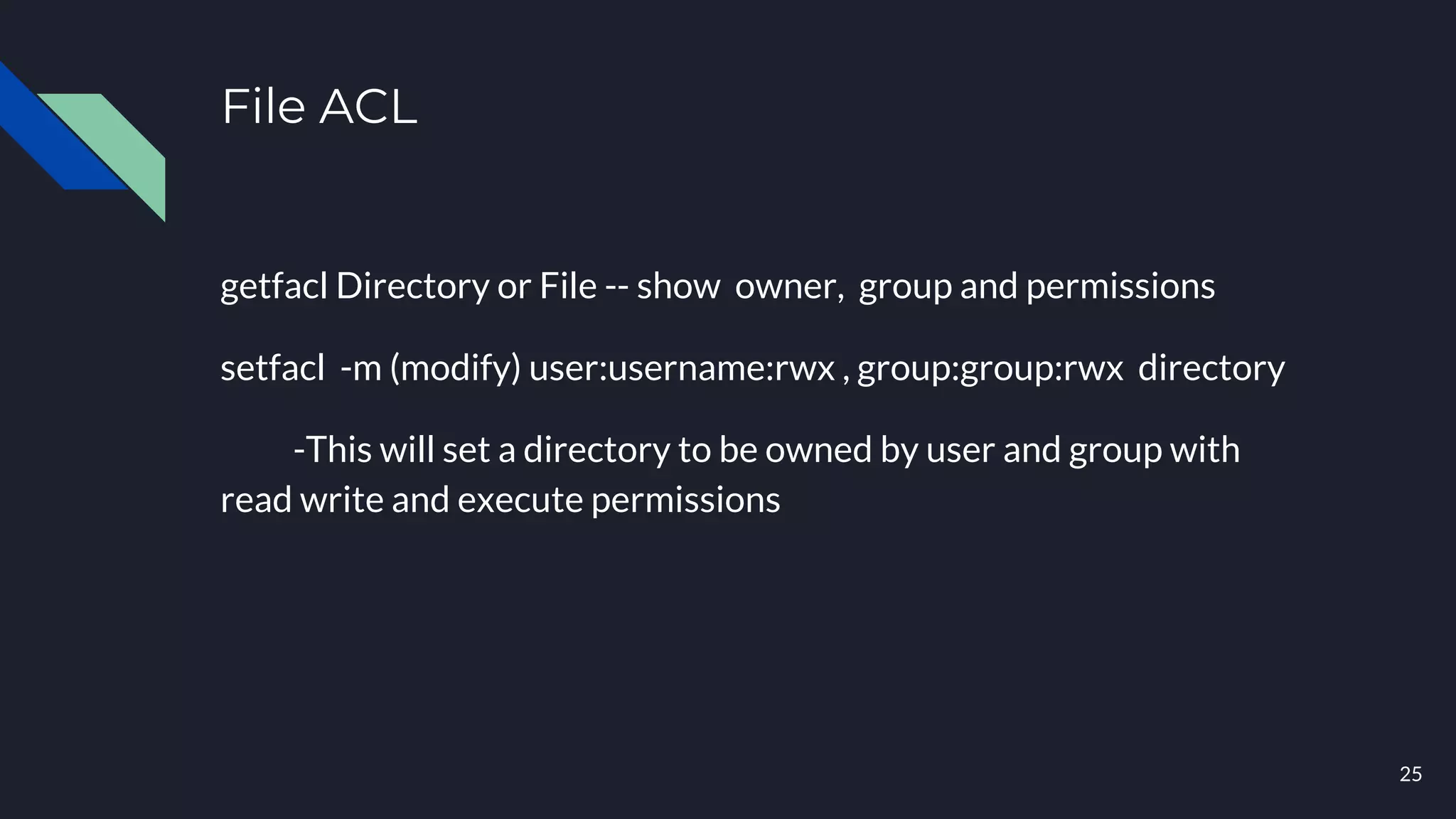

- 25. File ACL getfacl Directoryor File -- show owner, group and permissions setfacl -m (modify) user:username:rwx , group:group:rwx directory -This will set a directory to be owned by user and group with read write and execute permissions 25
- 26.

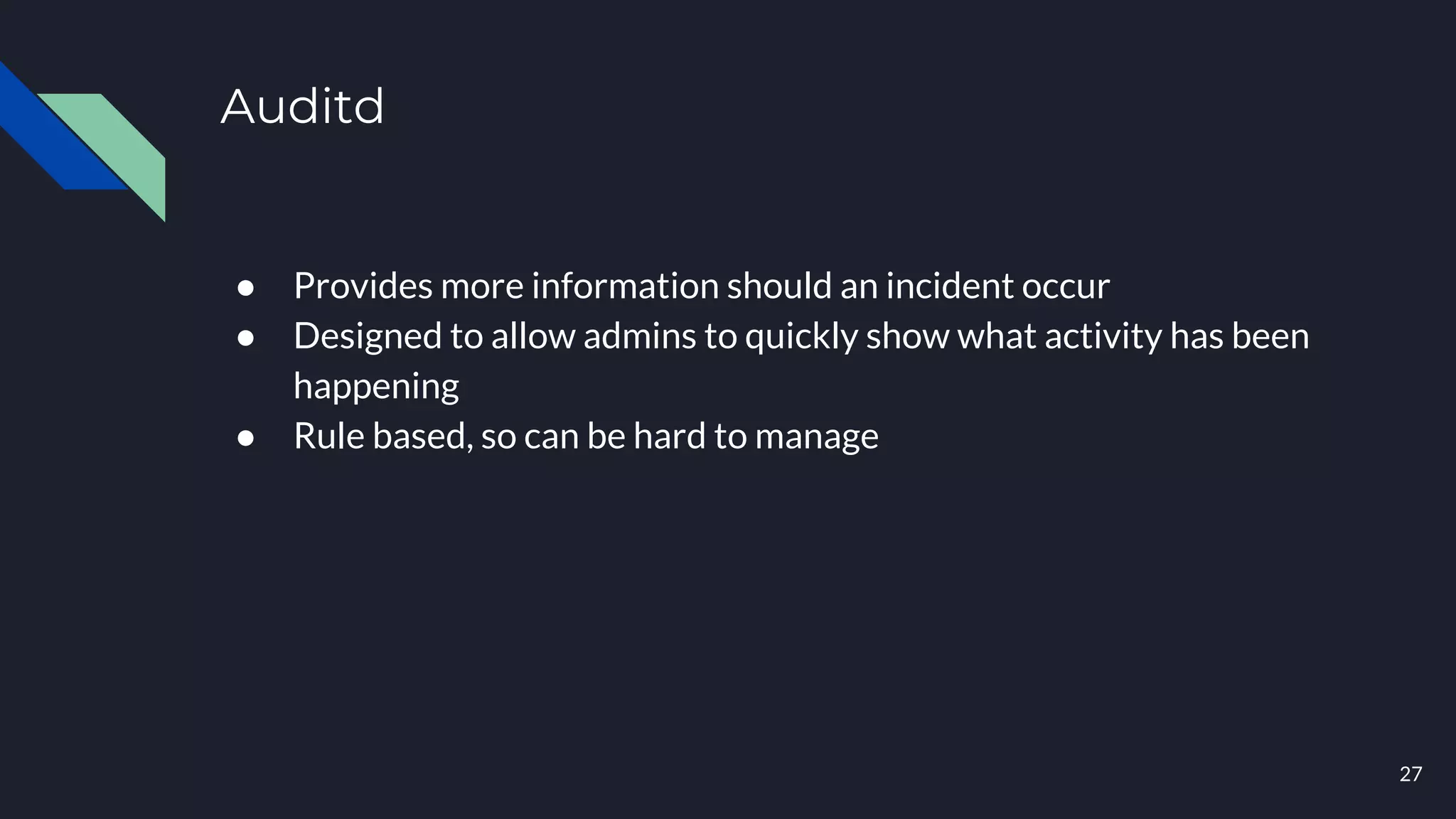

- 27. Auditd ● Provides moreinformation should an incident occur ● Designed to allow admins to quickly show what activity has been happening ● Rule based, so can be hard to manage 27

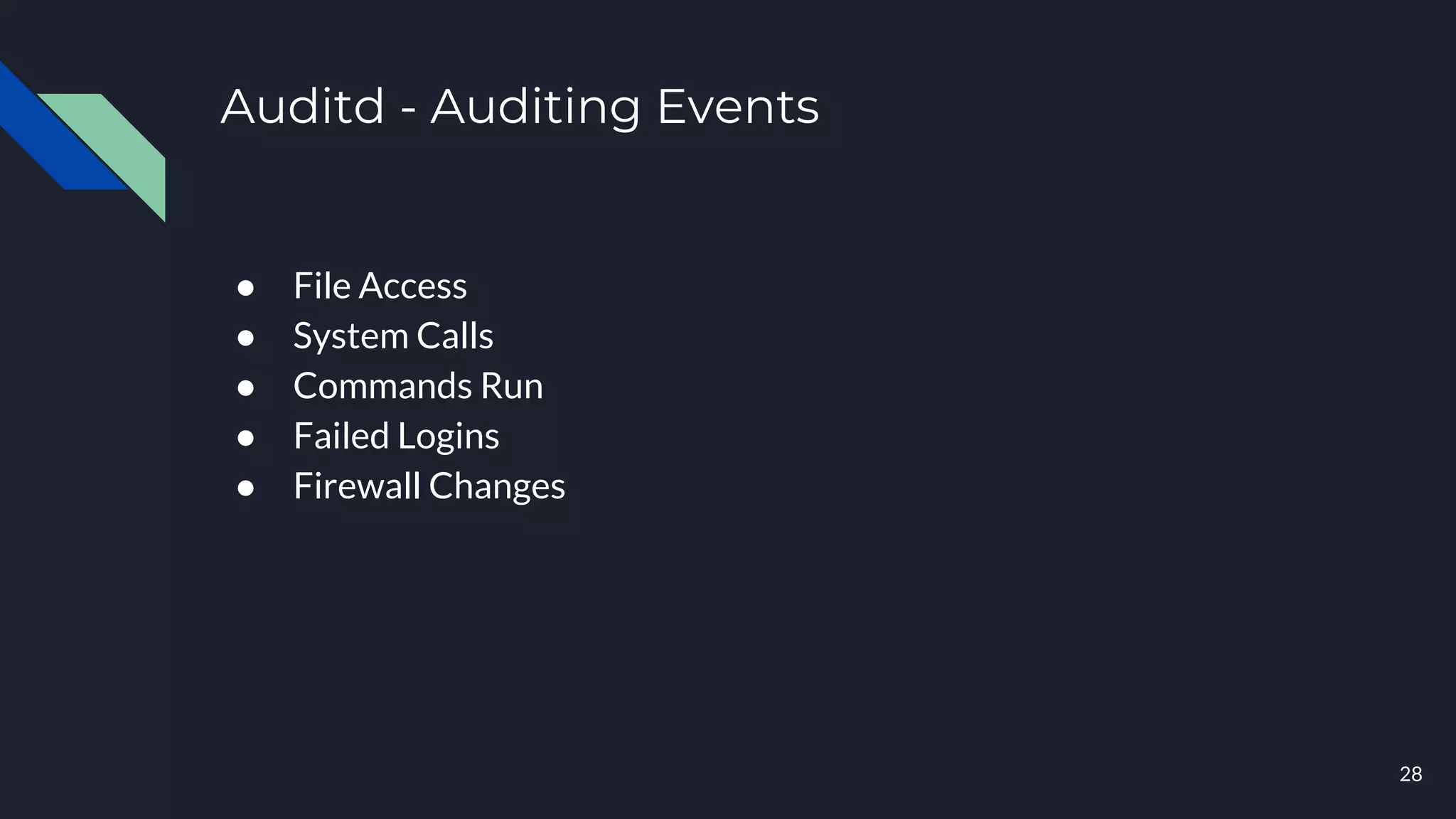

- 28. Auditd - AuditingEvents ● File Access ● System Calls ● Commands Run ● Failed Logins ● Firewall Changes 28

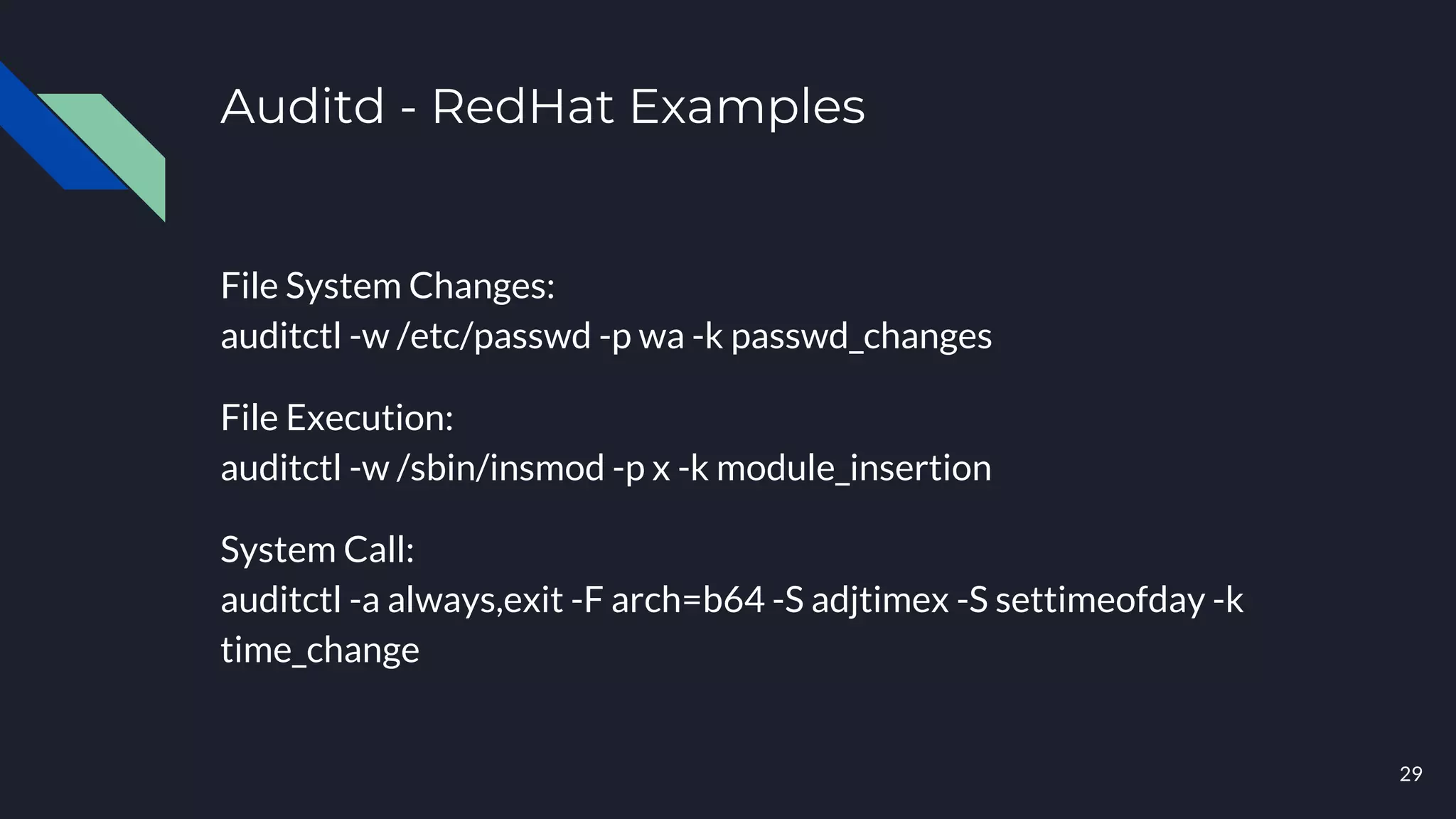

- 29. Auditd - RedHatExamples File System Changes: auditctl -w /etc/passwd -p wa -k passwd_changes File Execution: auditctl -w /sbin/insmod -p x -k module_insertion System Call: auditctl -a always,exit -F arch=b64 -S adjtimex -S settimeofday -k time_change 29

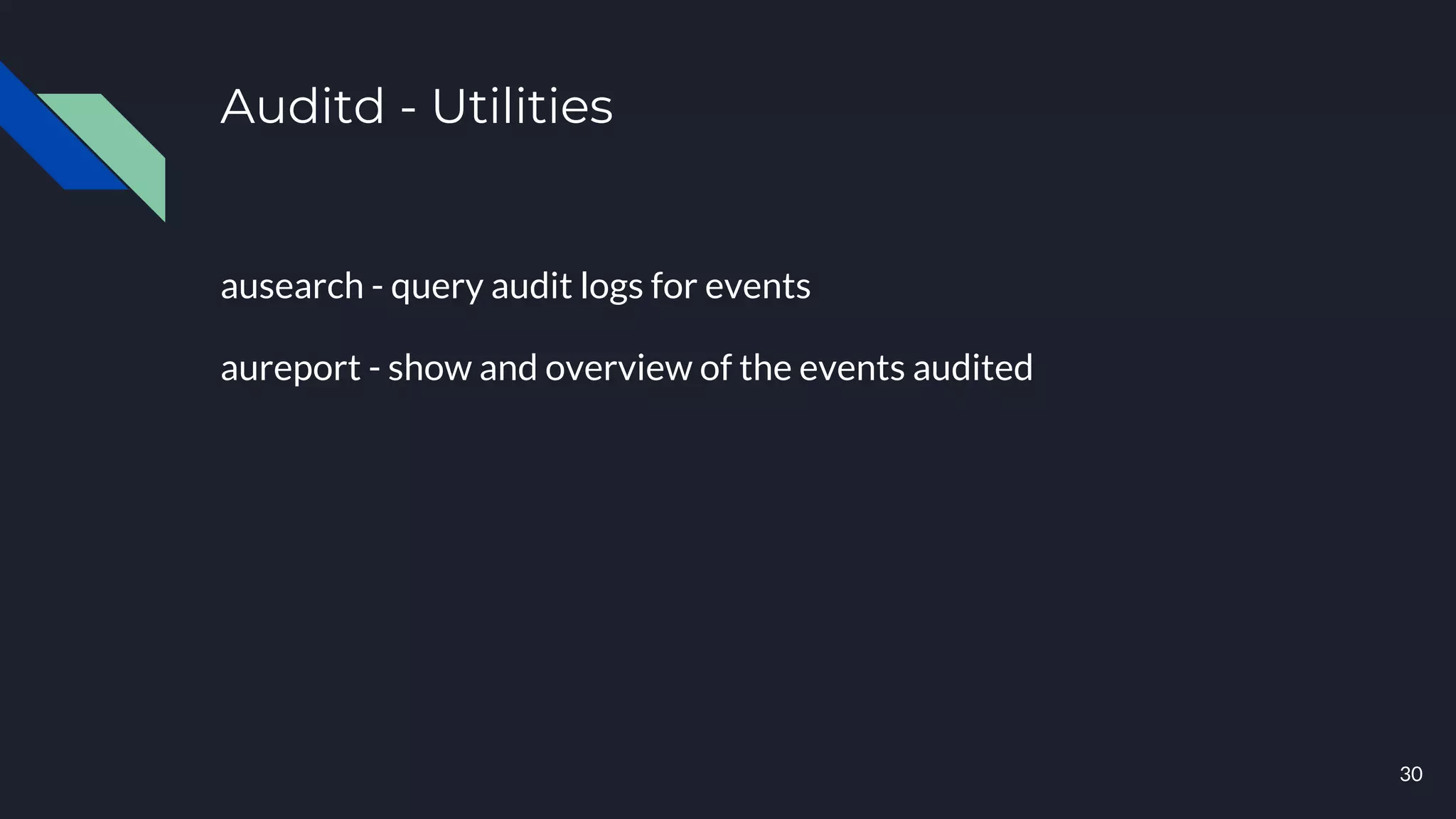

- 30. Auditd - Utilities ausearch- query audit logs for events aureport - show and overview of the events audited 30
- 31.

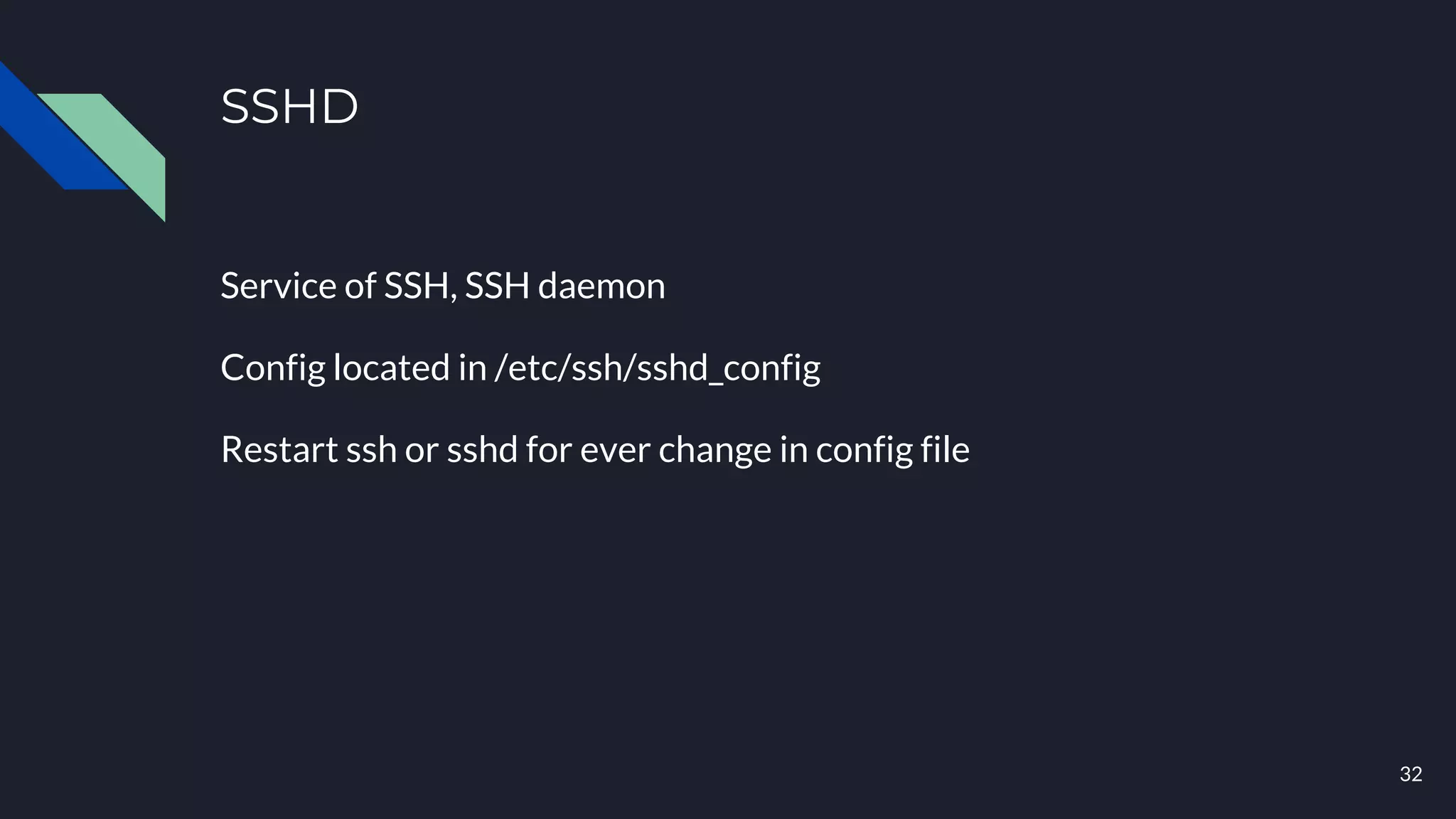

- 32. SSHD Service of SSH,SSH daemon Config located in /etc/ssh/sshd_config Restart ssh or sshd for ever change in config file 32

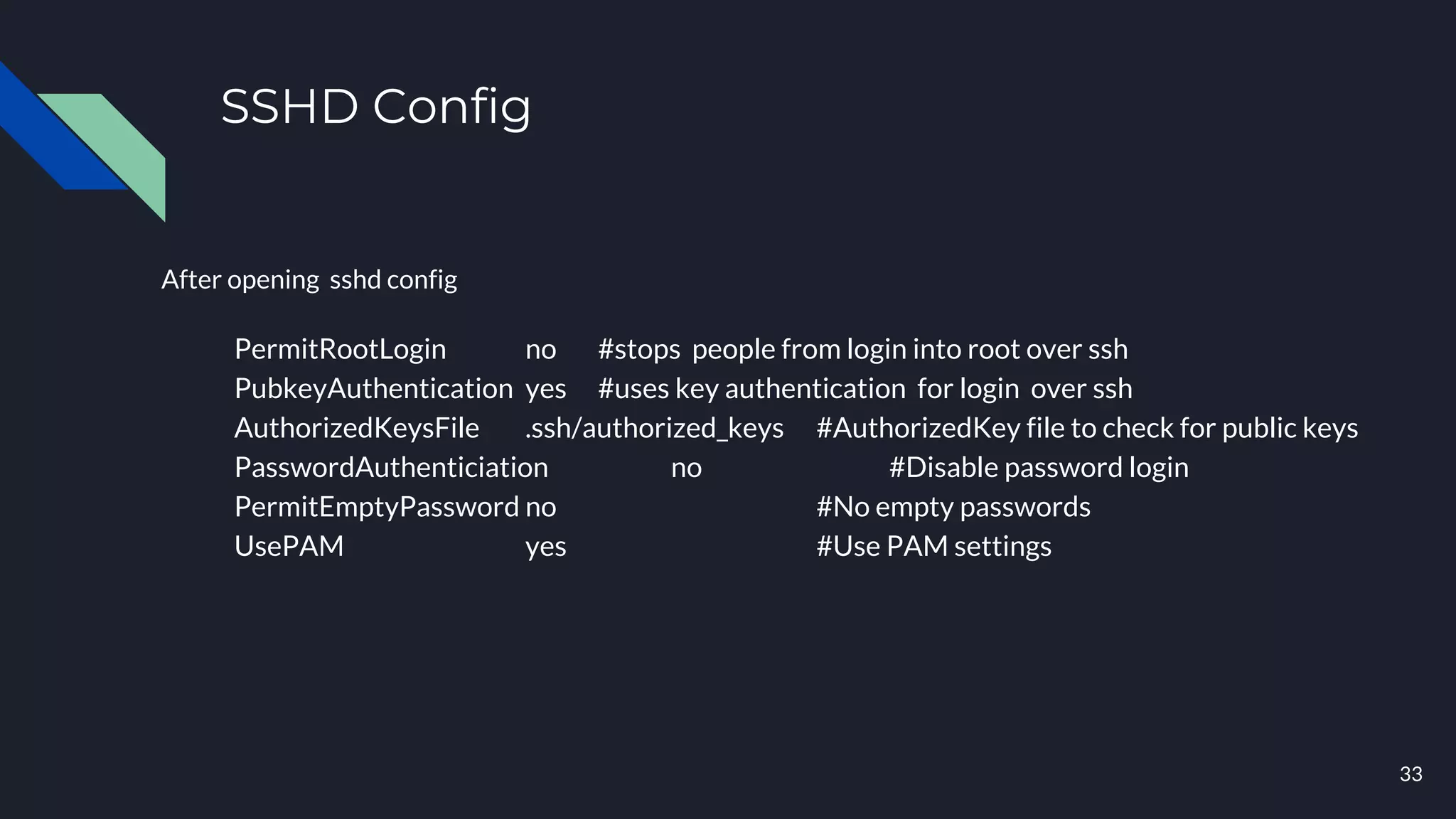

- 33. SSHD Config After openingsshd config PermitRootLogin no #stops people from login into root over ssh PubkeyAuthentication yes #uses key authentication for login over ssh AuthorizedKeysFile .ssh/authorized_keys #AuthorizedKey file to check for public keys PasswordAuthenticiation no #Disable password login PermitEmptyPassword no #No empty passwords UsePAM yes #Use PAM settings 33
- 34.

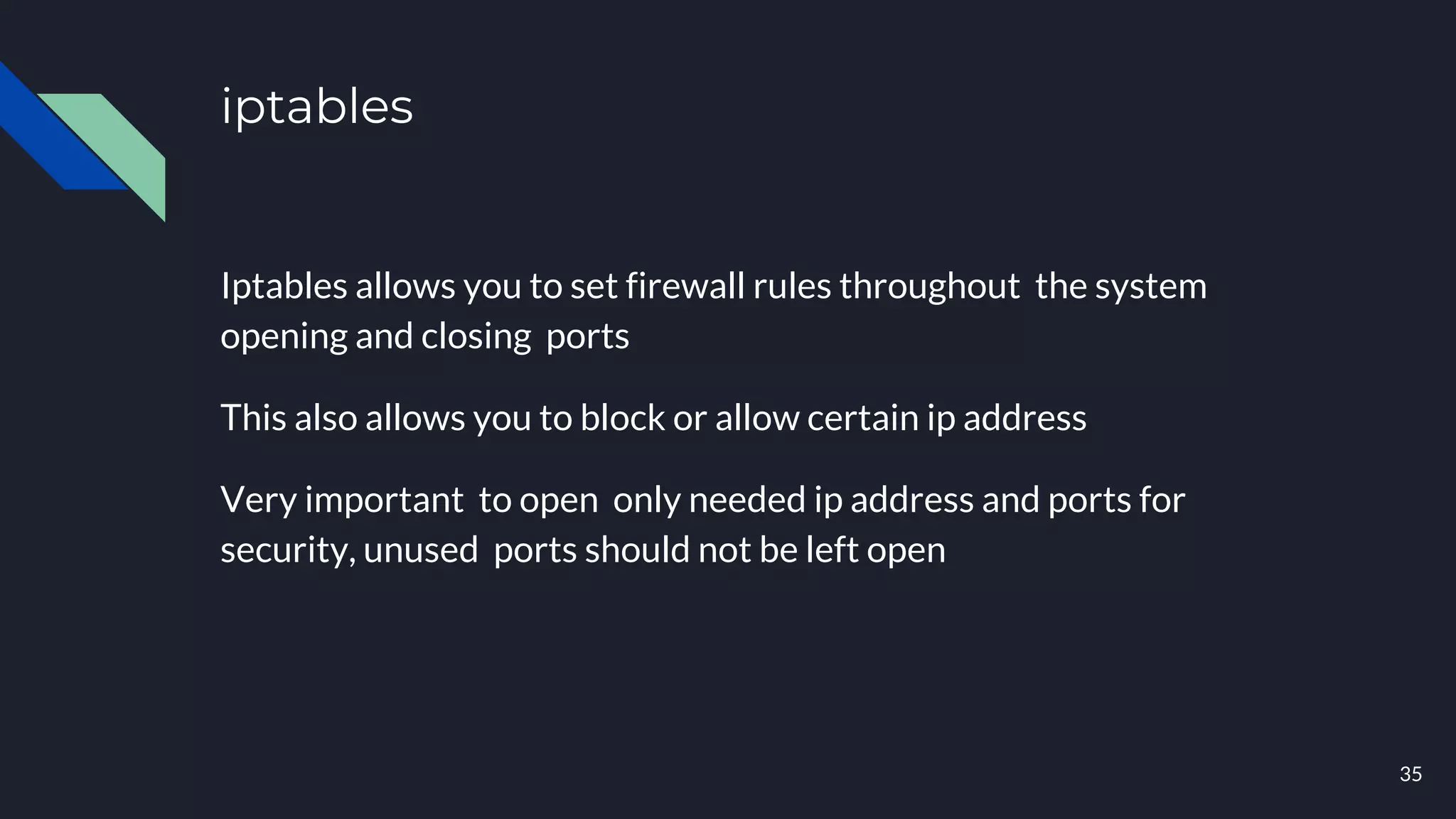

- 35. iptables Iptables allows youto set firewall rules throughout the system opening and closing ports This also allows you to block or allow certain ip address Very important to open only needed ip address and ports for security, unused ports should not be left open 35

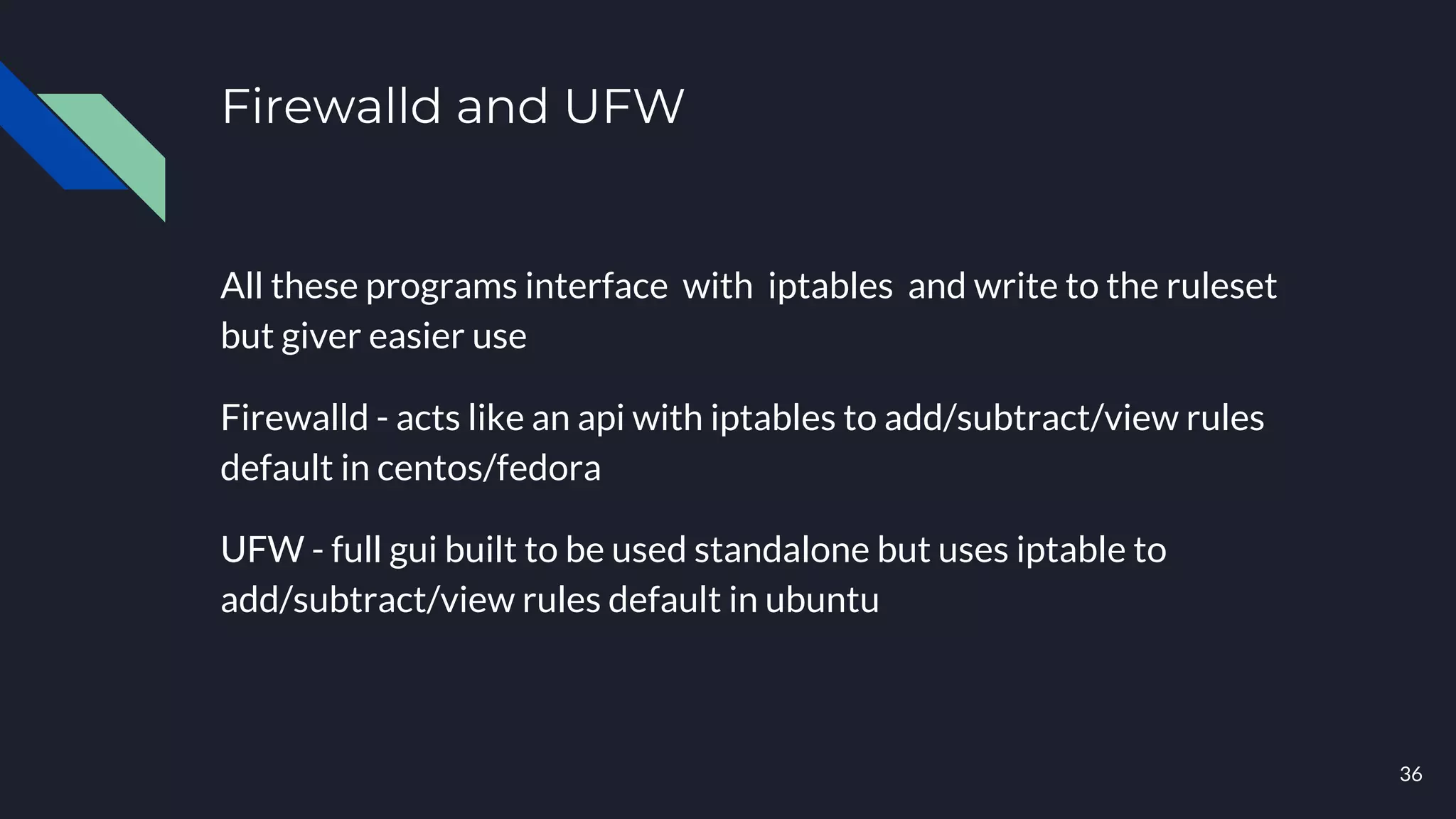

- 36. Firewalld and UFW Allthese programs interface with iptables and write to the ruleset but giver easier use Firewalld - acts like an api with iptables to add/subtract/view rules default in centos/fedora UFW - full gui built to be used standalone but uses iptable to add/subtract/view rules default in ubuntu 36

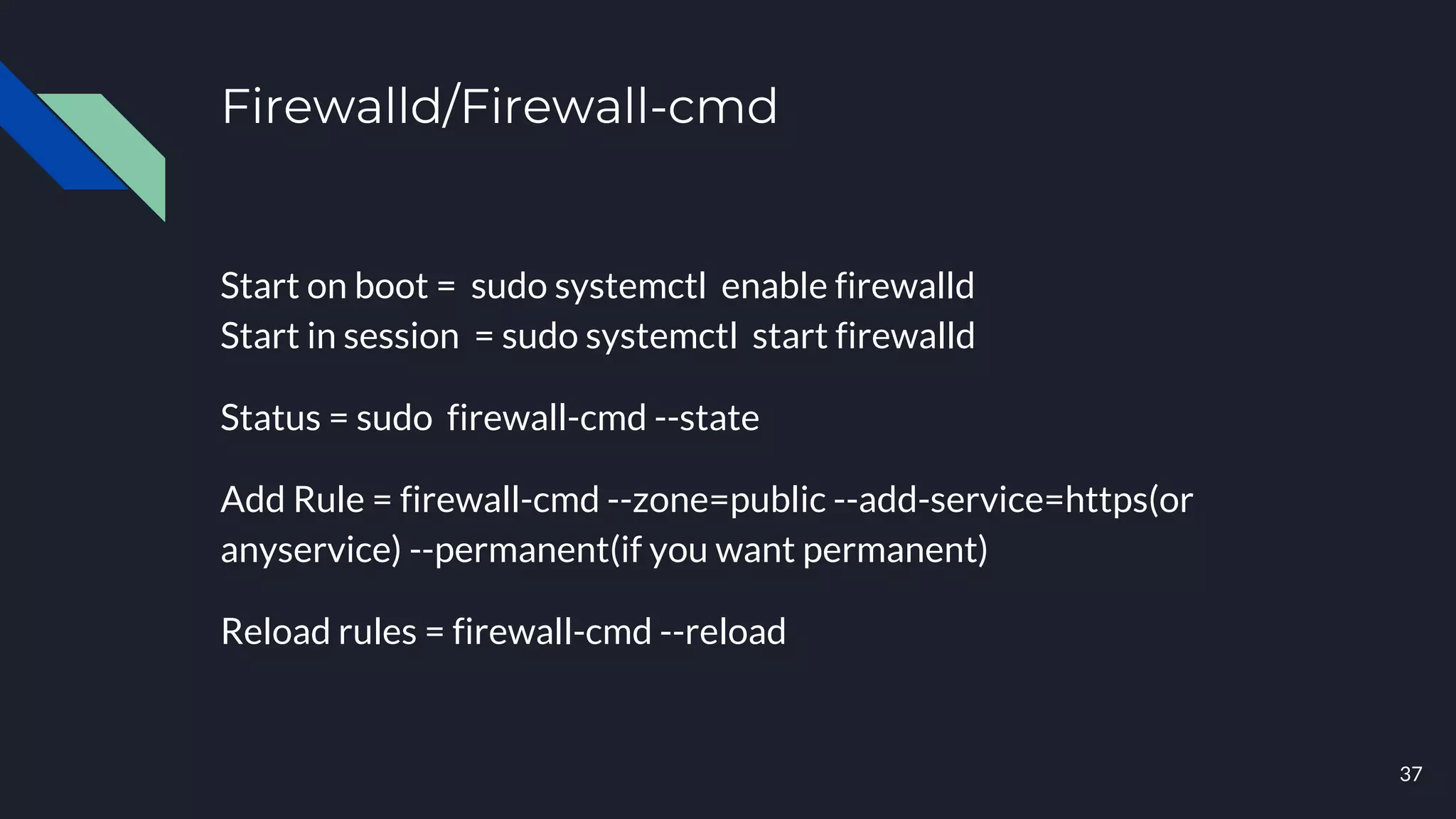

- 37. Firewalld/Firewall-cmd Start on boot= sudo systemctl enable firewalld Start in session = sudo systemctl start firewalld Status = sudo firewall-cmd --state Add Rule = firewall-cmd --zone=public --add-service=https(or anyservice) --permanent(if you want permanent) Reload rules = firewall-cmd --reload 37

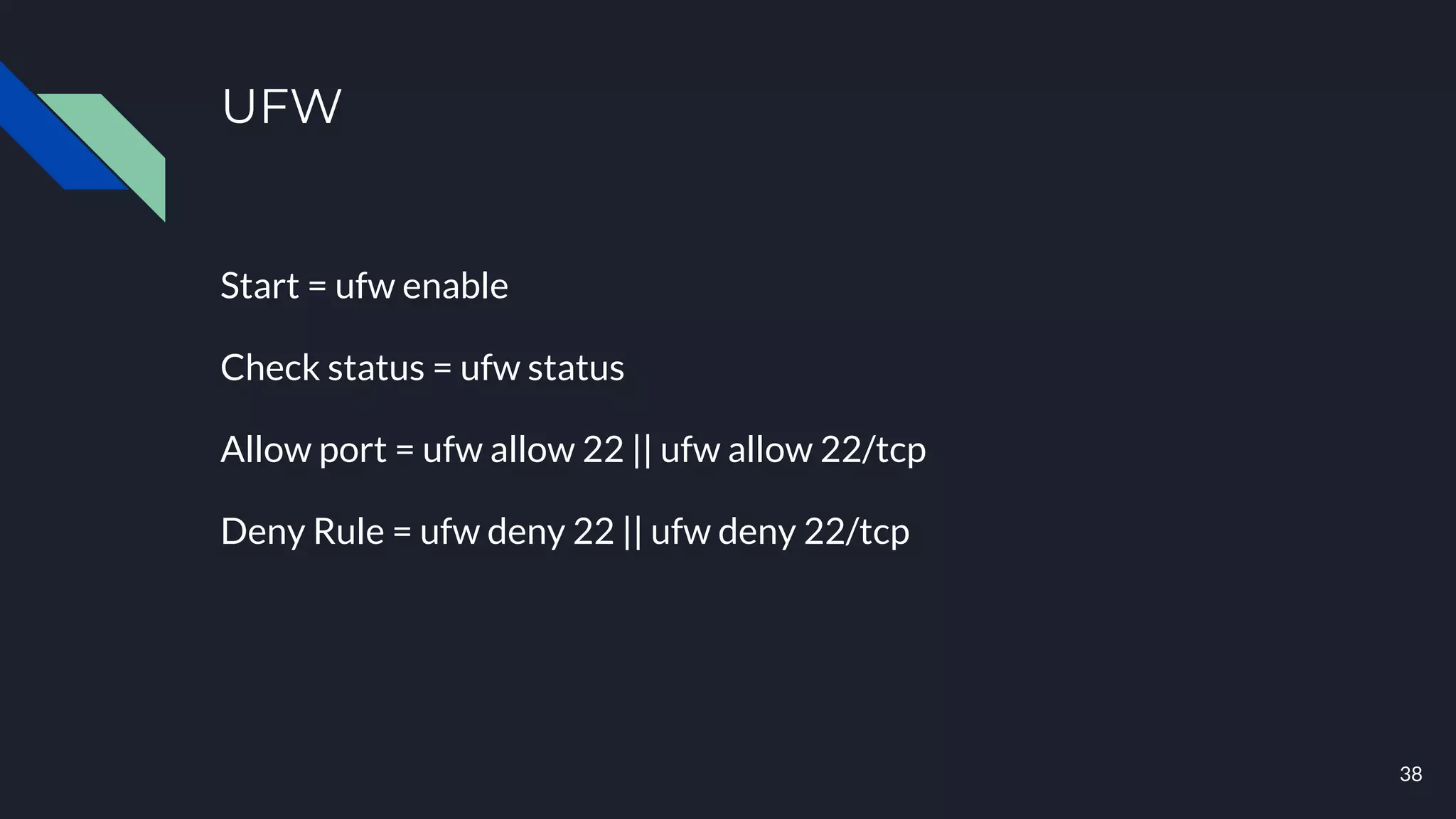

- 38. UFW Start = ufwenable Check status = ufw status Allow port = ufw allow 22 || ufw allow 22/tcp Deny Rule = ufw deny 22 || ufw deny 22/tcp 38
- 39.

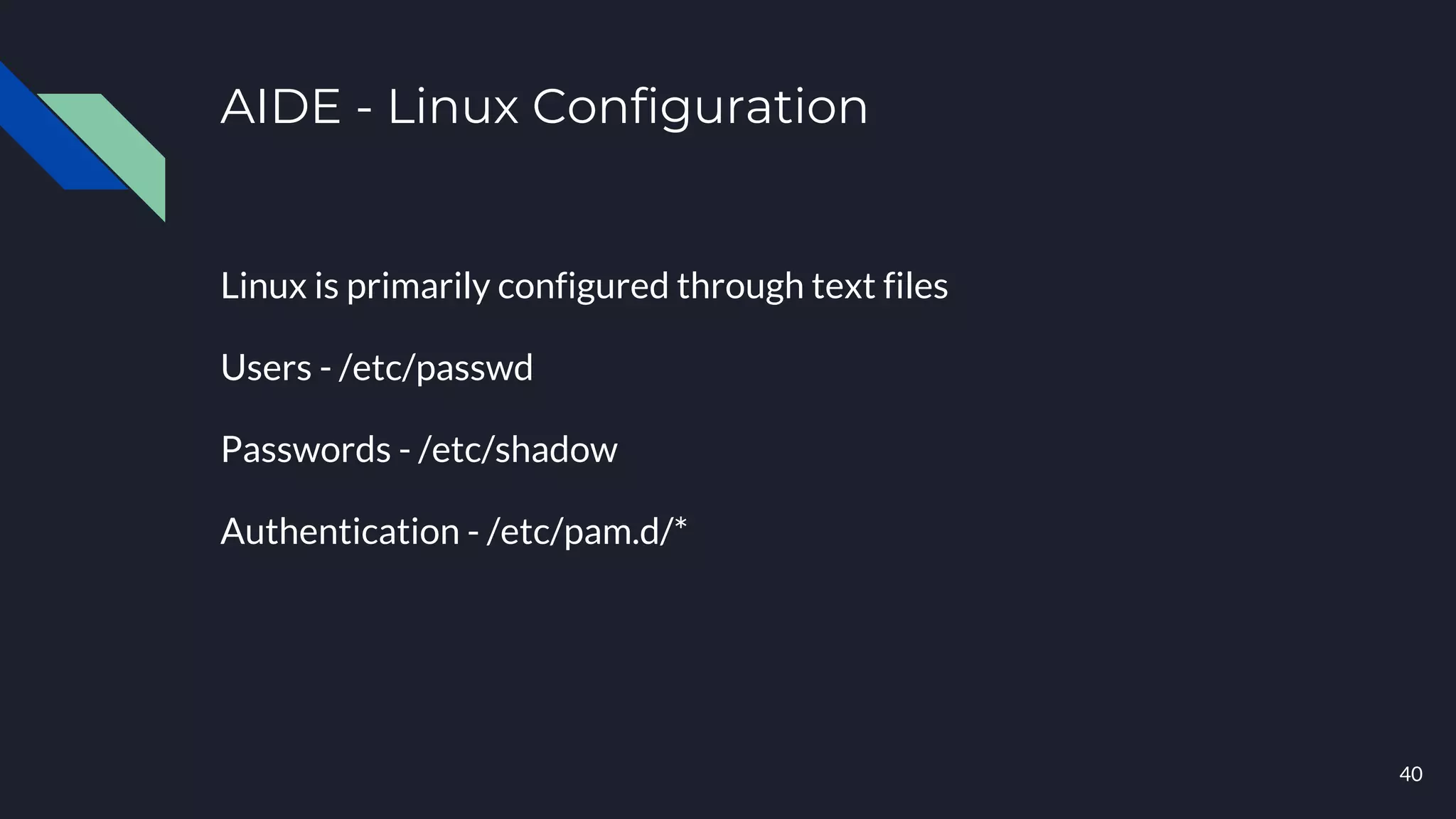

- 40. AIDE - LinuxConfiguration 40 Linux is primarily configured through text files Users - /etc/passwd Passwords - /etc/shadow Authentication - /etc/pam.d/*

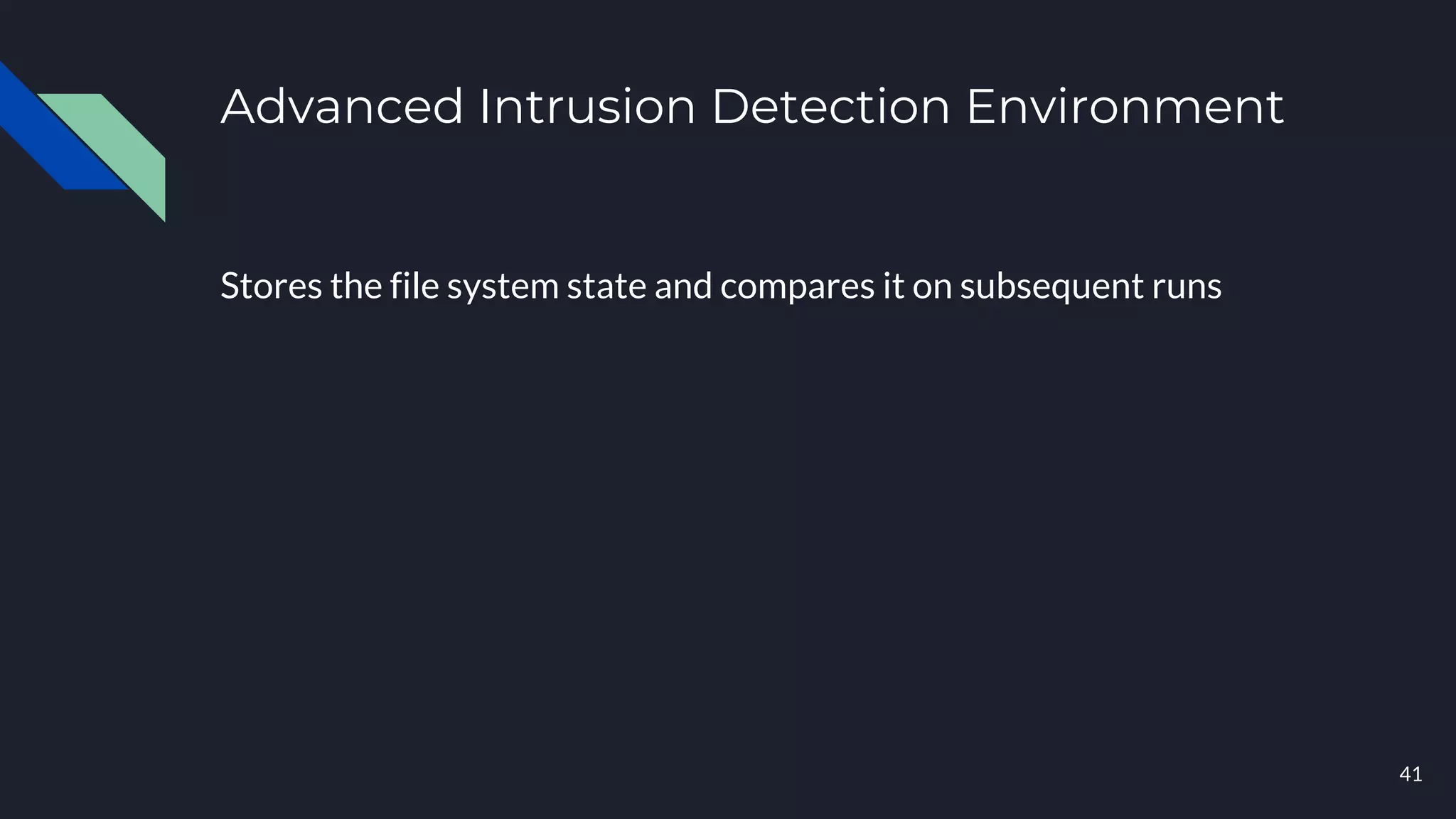

- 41. Advanced Intrusion DetectionEnvironment Stores the file system state and compares it on subsequent runs 41

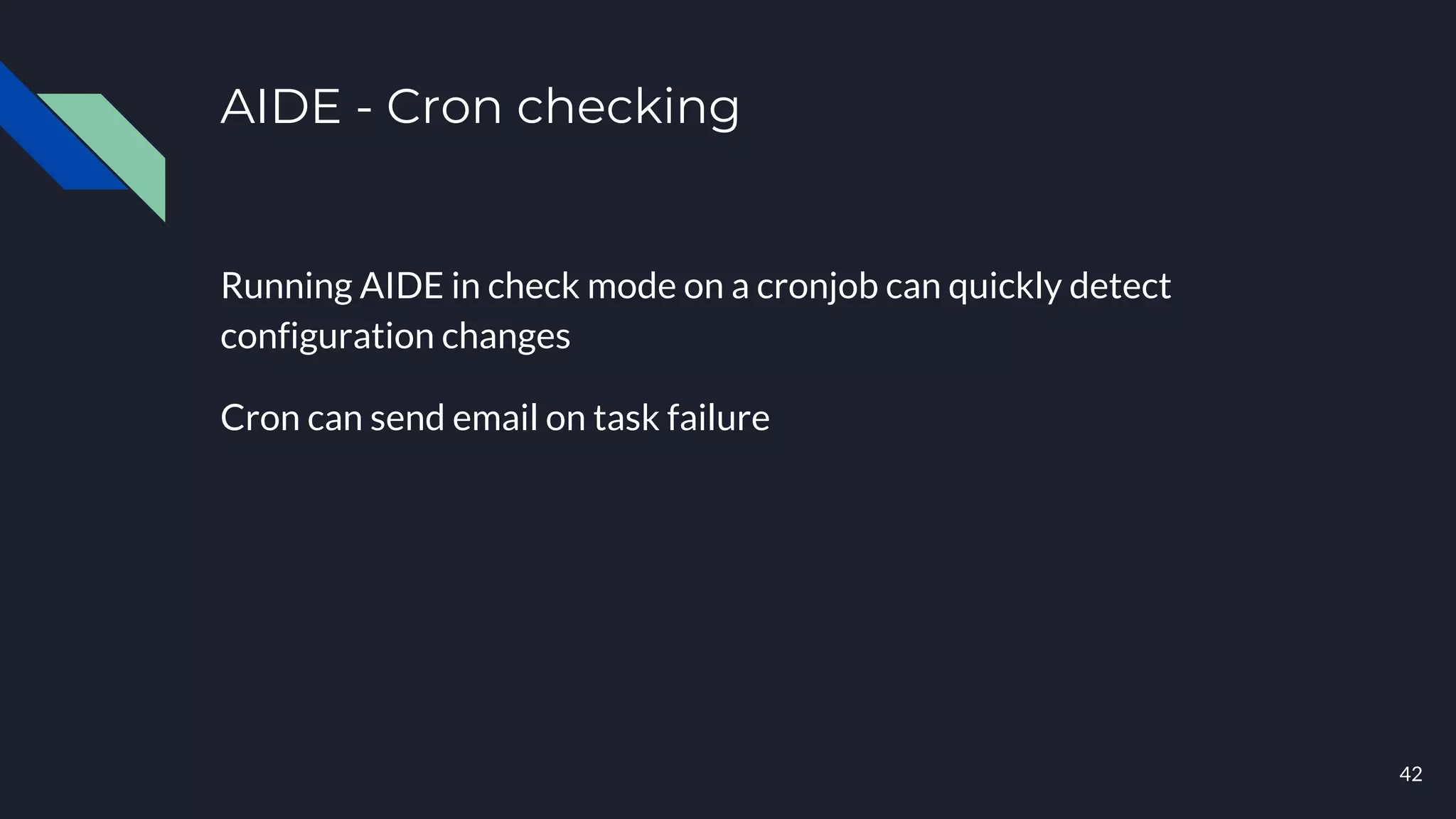

- 42. AIDE - Cronchecking Running AIDE in check mode on a cronjob can quickly detect configuration changes Cron can send email on task failure 42
- 43.

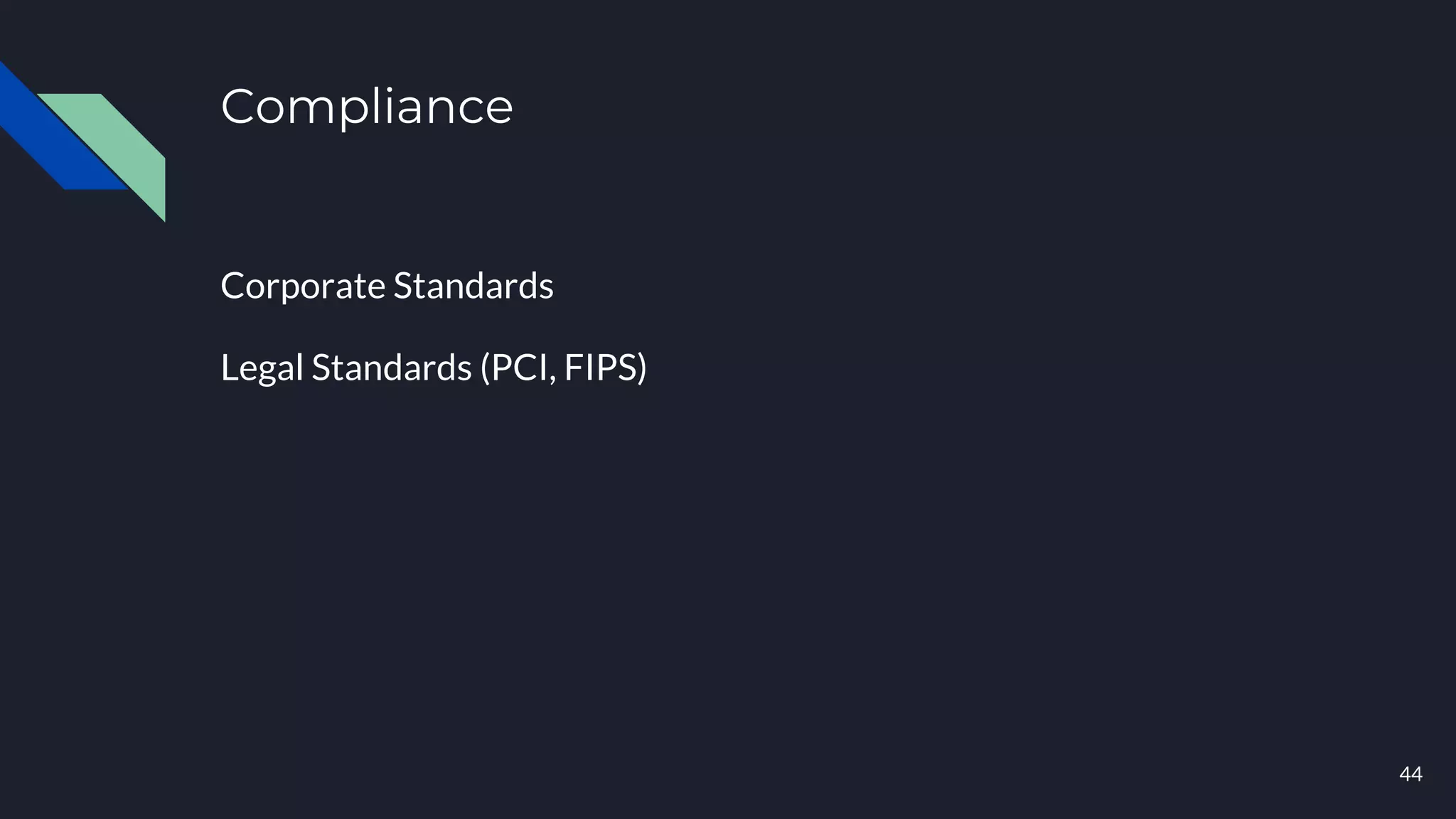

- 44.

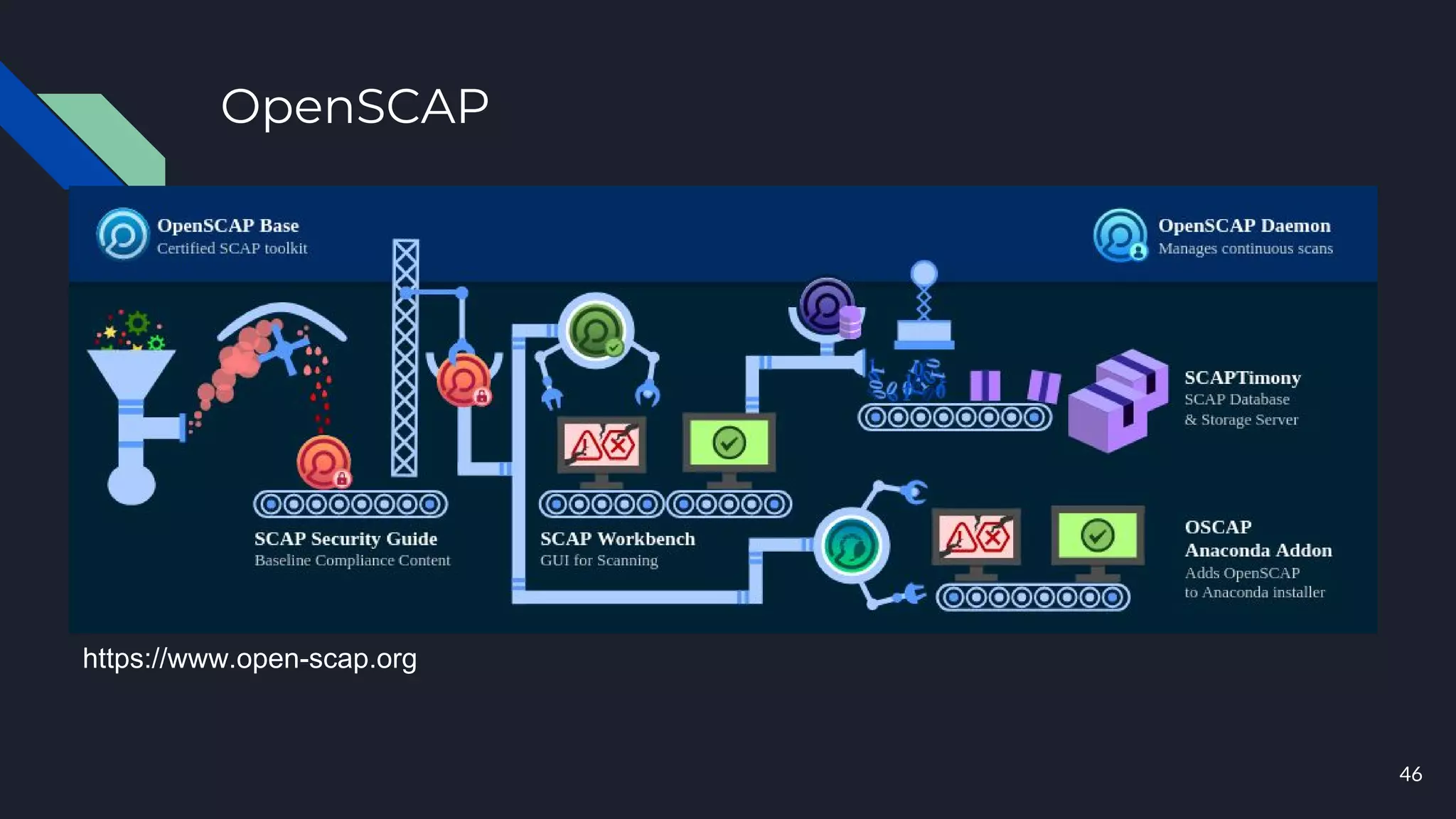

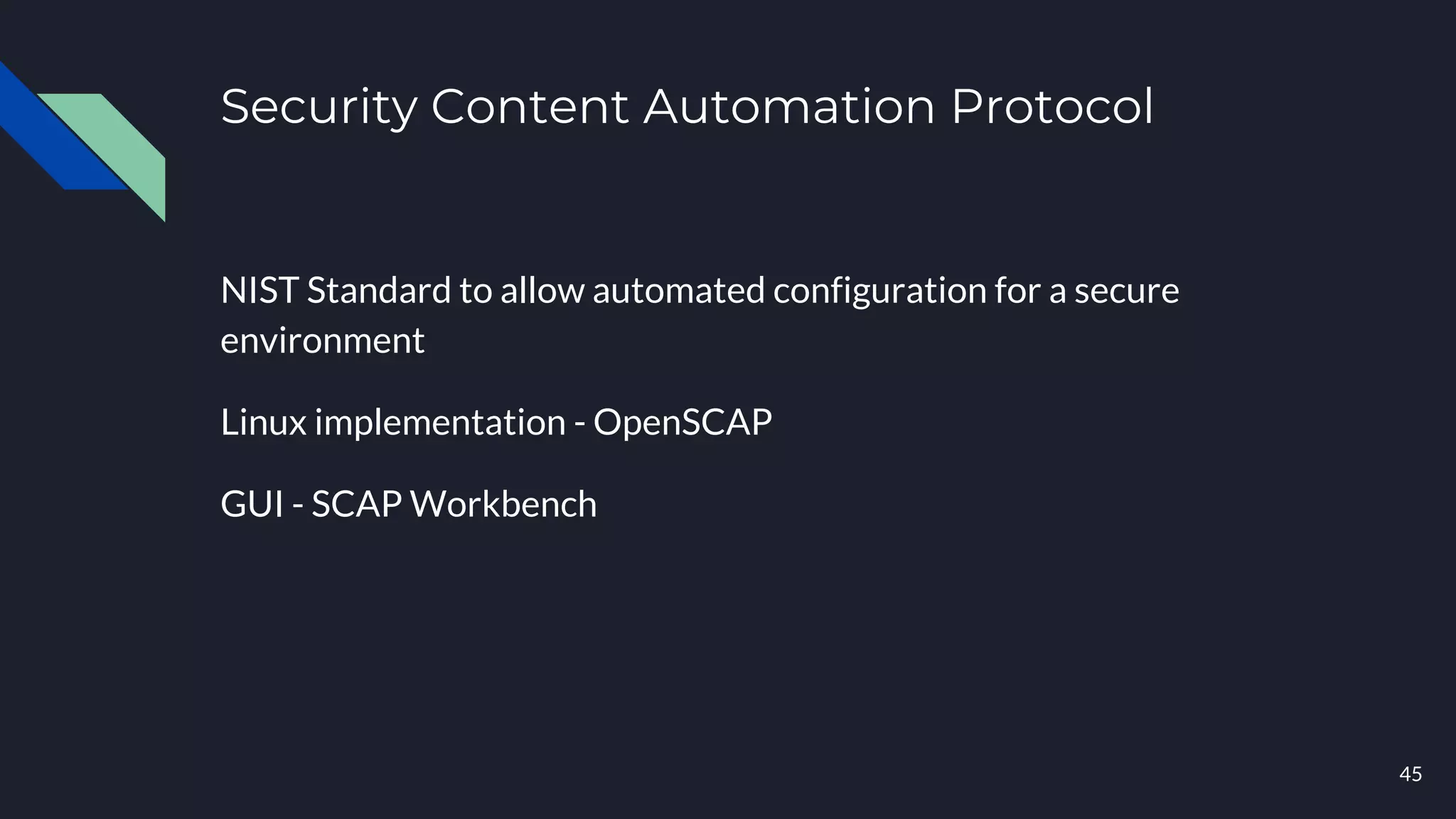

- 45. Security Content AutomationProtocol NIST Standard to allow automated configuration for a secure environment Linux implementation - OpenSCAP GUI - SCAP Workbench 45
- 46.

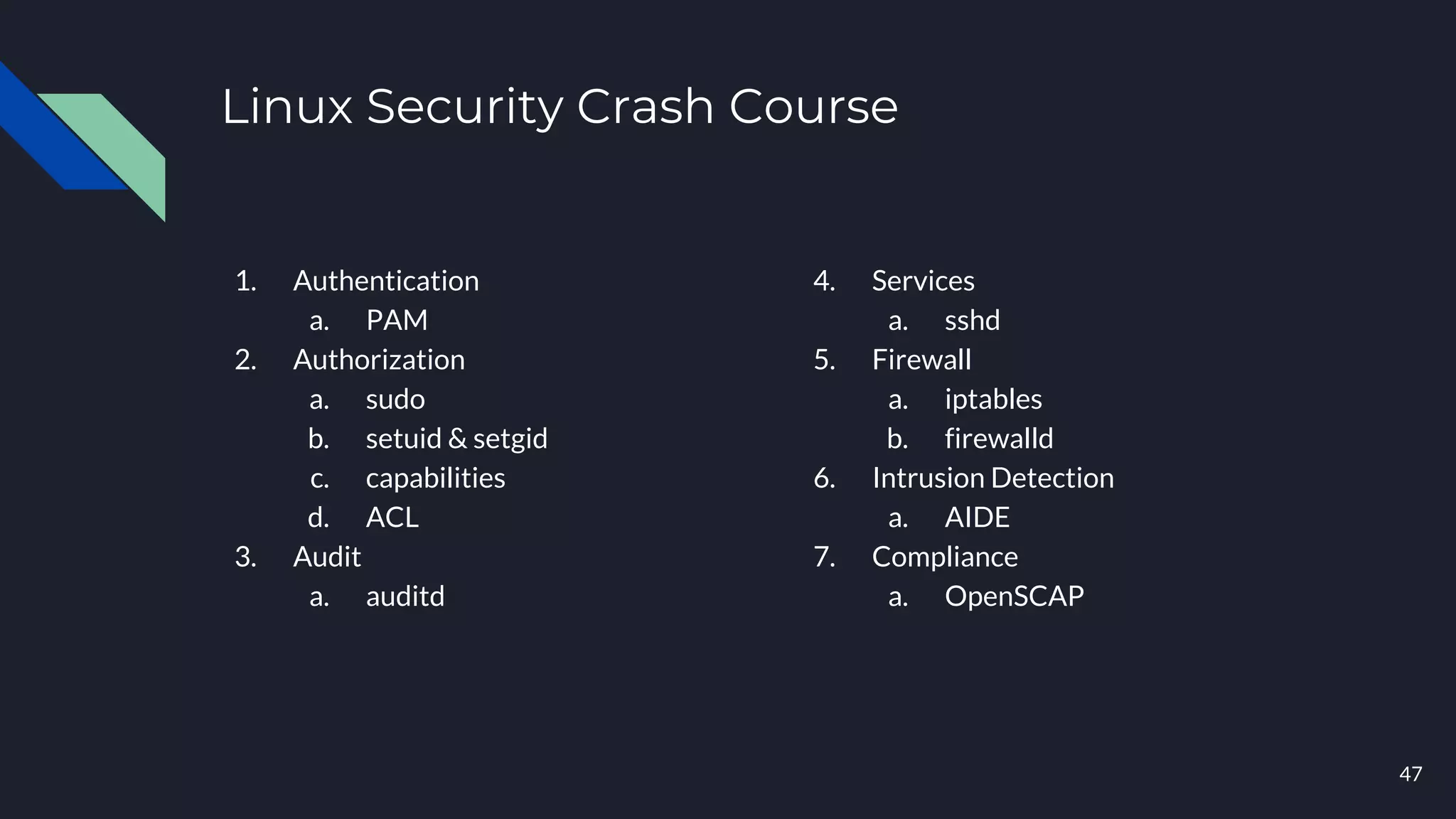

- 47. Linux Security CrashCourse 1. Authentication a. PAM 2. Authorization a. sudo b. setuid & setgid c. capabilities d. ACL 3. Audit a. auditd 47 4. Services a. sshd 5. Firewall a. iptables b. firewalld 6. Intrusion Detection a. AIDE 7. Compliance a. OpenSCAP
- 48.

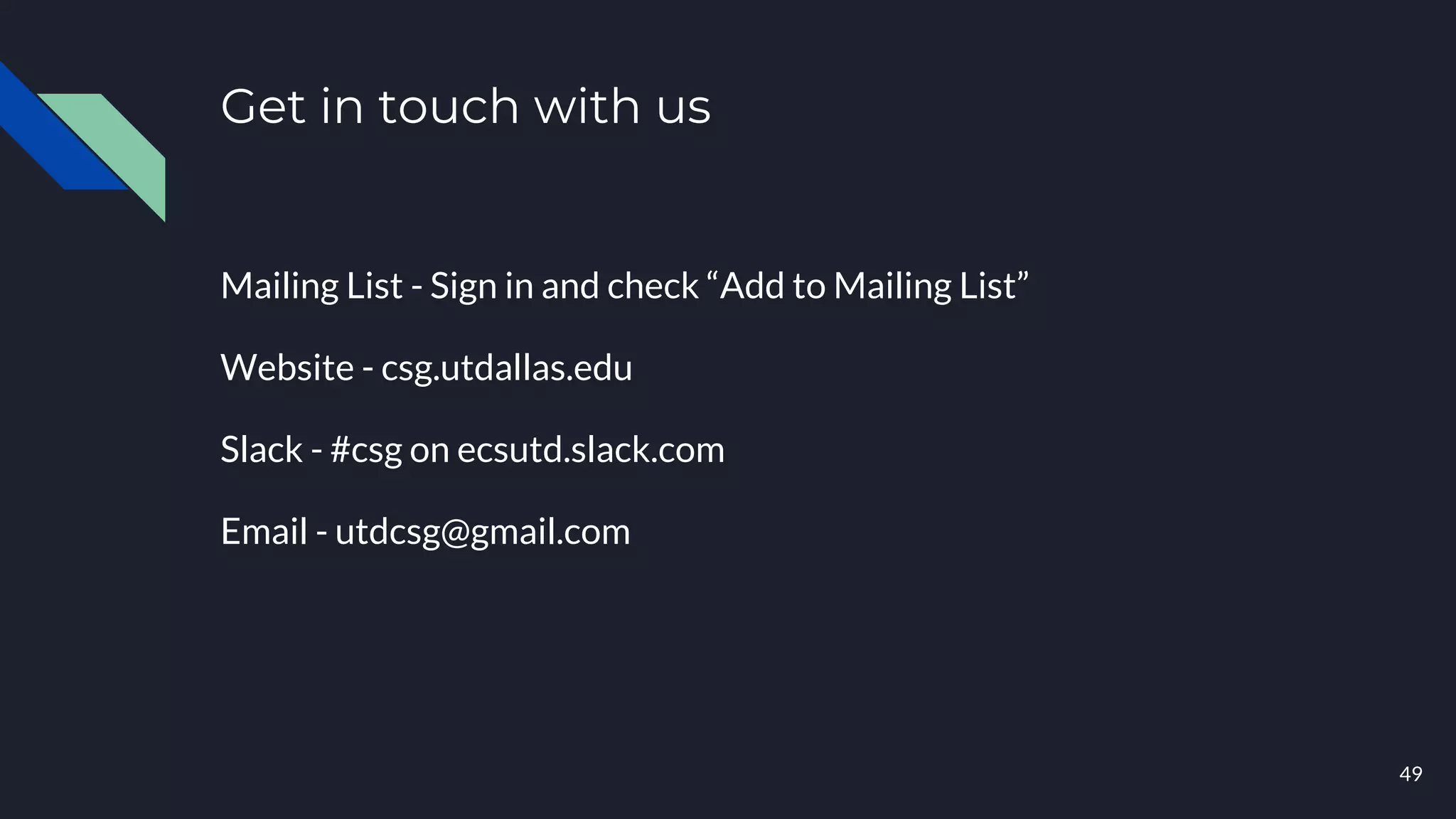

- 49. Get in touchwith us Mailing List - Sign in and check “Add to Mailing List” Website - csg.utdallas.edu Slack - #csg on ecsutd.slack.com Email - utdcsg@gmail.com 49
