Agenda

Agenda For The Session
i. What is DNS?
ii. How Does DNS Server Work?
iii. Configuring A DNS Server In 10 Steps.

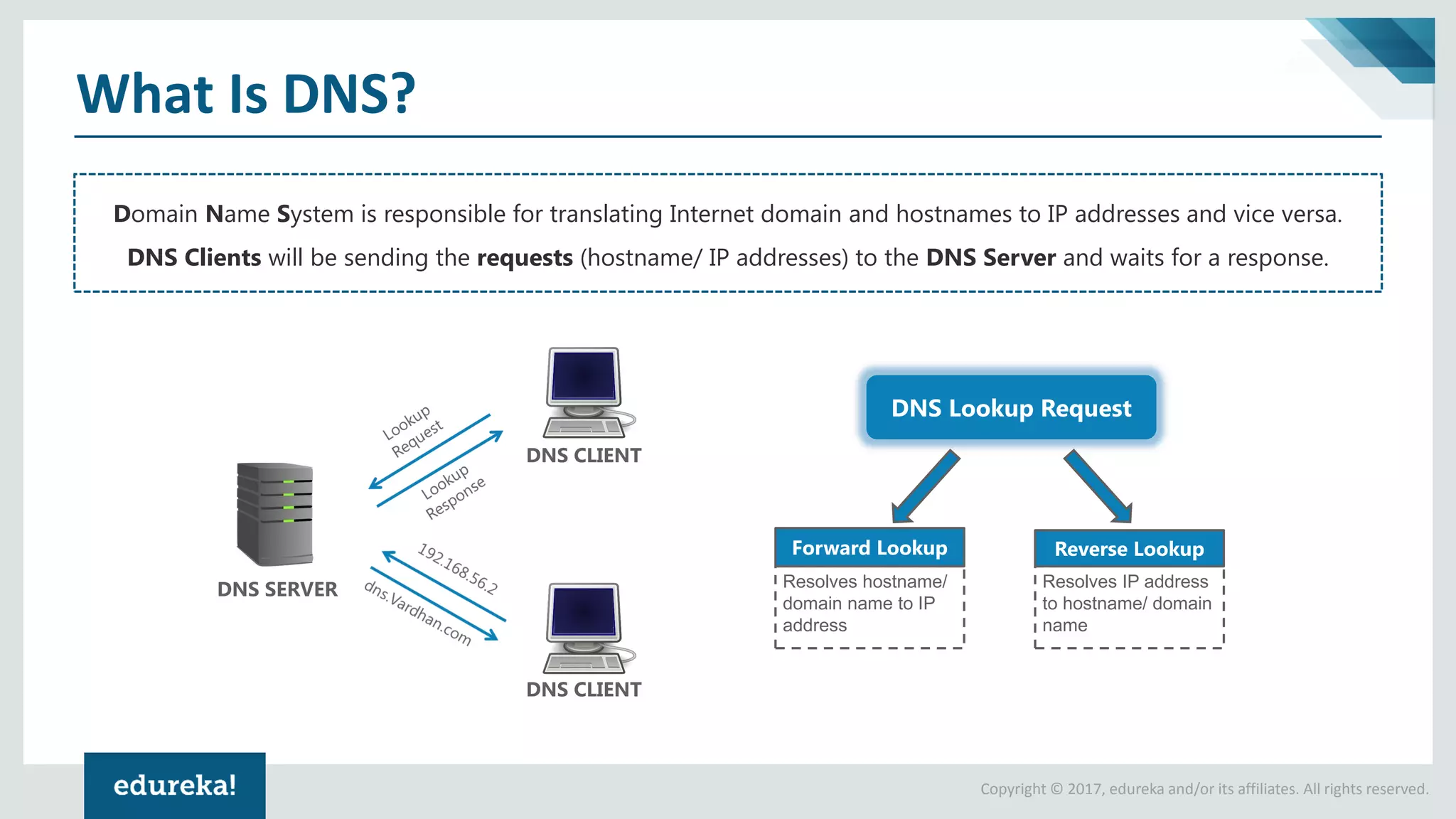

What Is DNS?
Domain Name System is responsible for translating Internet domain and hostnames to IP addresses and vice versa.
DNS Clients will be sending the requests (hostname/ IP addresses) to the DNS Server and waits for a response.
DNS Lookup Request
DNS SERVER
DNS CLIENT
DNS CLIENT
Forward Lookup Reverse Lookup
Resolves hostname/
domain name to IP
address
Resolves IP address
to hostname/ domain
name

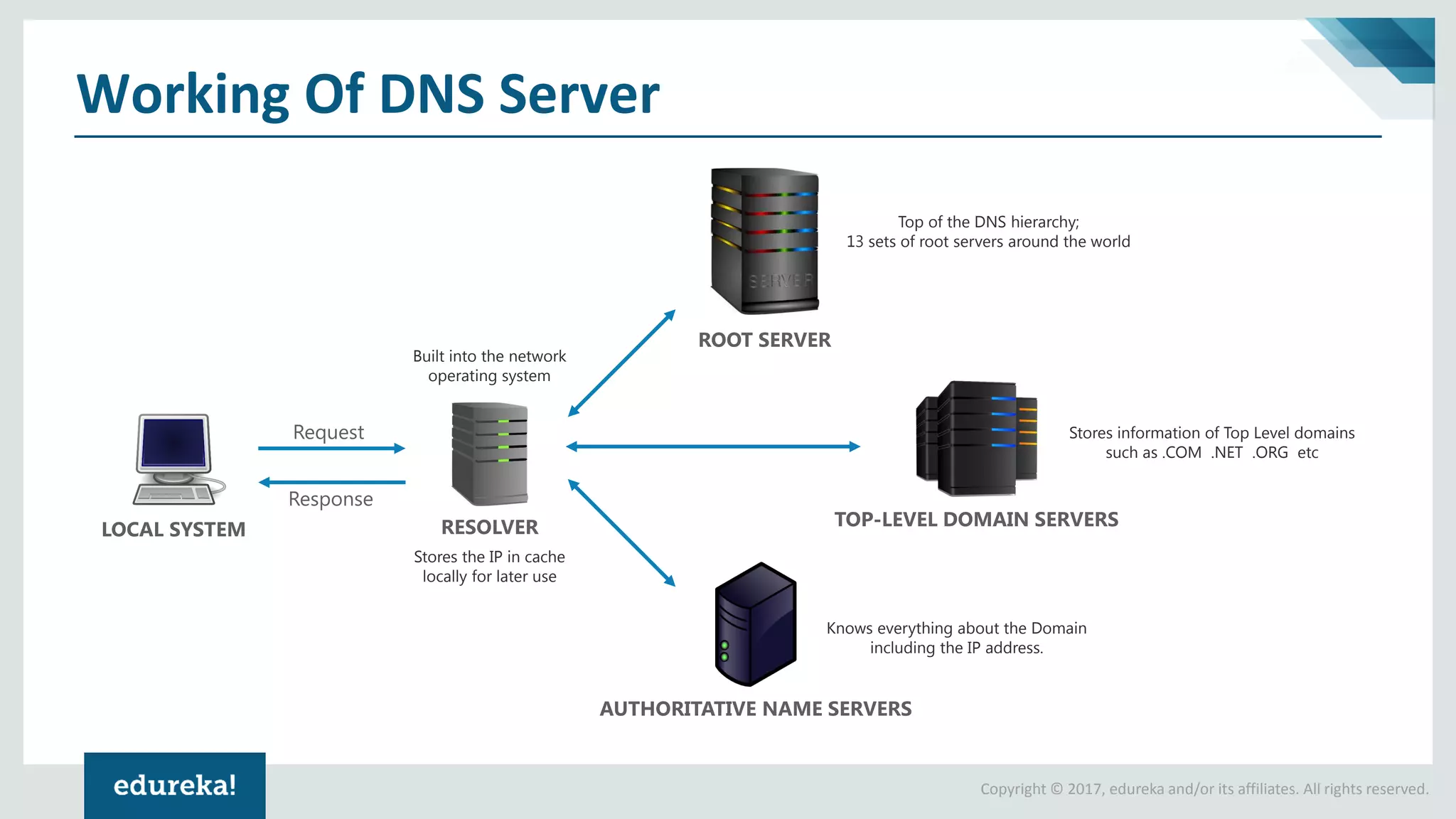

Working Of DNS Server
LOCAL SYSTEM RESOLVER
Built into the network
operating system
ROOT SERVER
Top of the DNS hierarchy;
13 sets of root servers around the world
TOP-LEVEL DOMAIN SERVERS
Stores information of Top Level domains
such as .COM .NET .ORG etc
AUTHORITATIVE NAME SERVERS
Knows everything about the Domain
including the IP address.
Request
Response
Stores the IP in cache
locally for later use

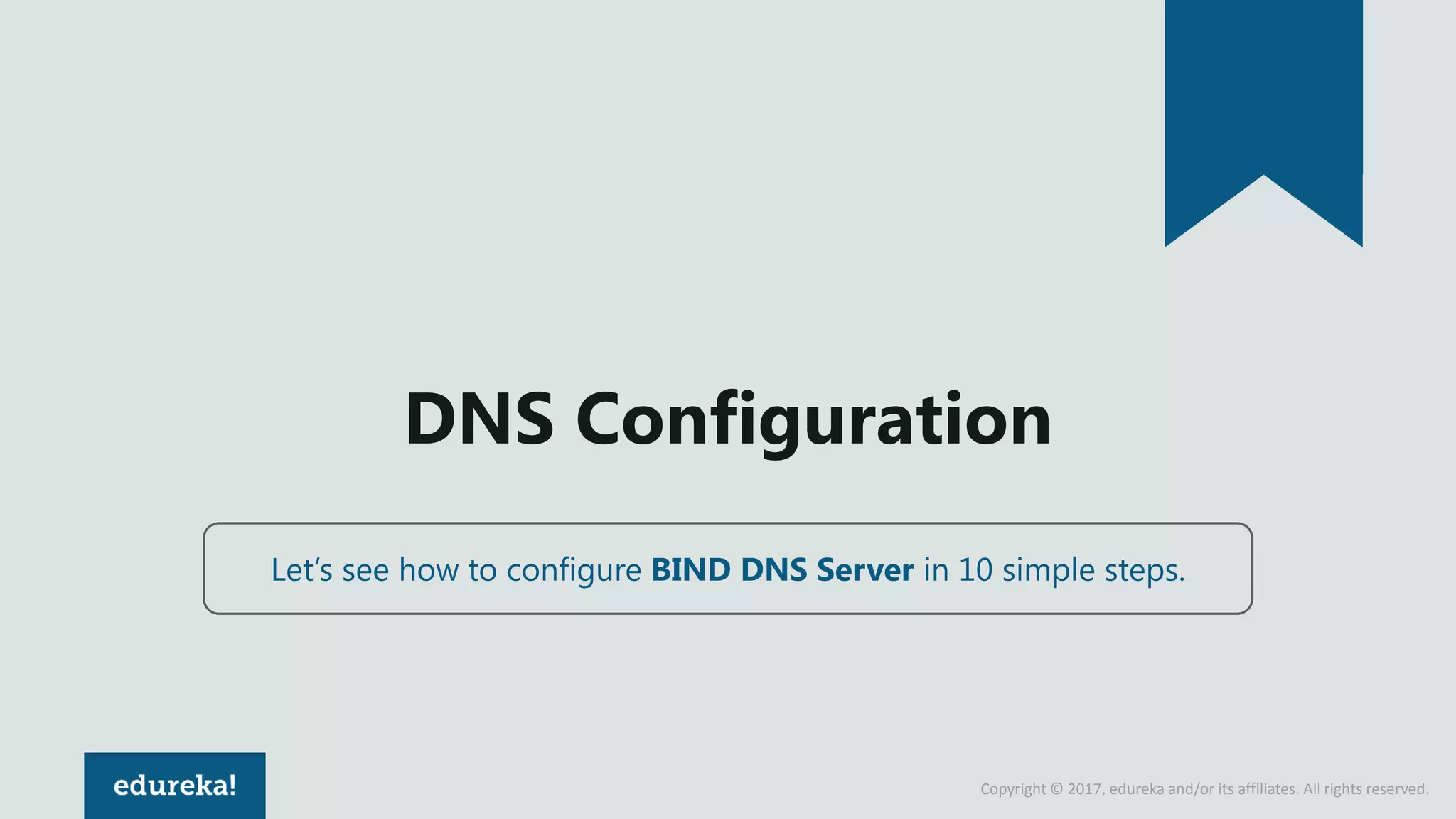

DNS Configuration
Let’s see how to configure BIND DNS Server in 10 simple steps.

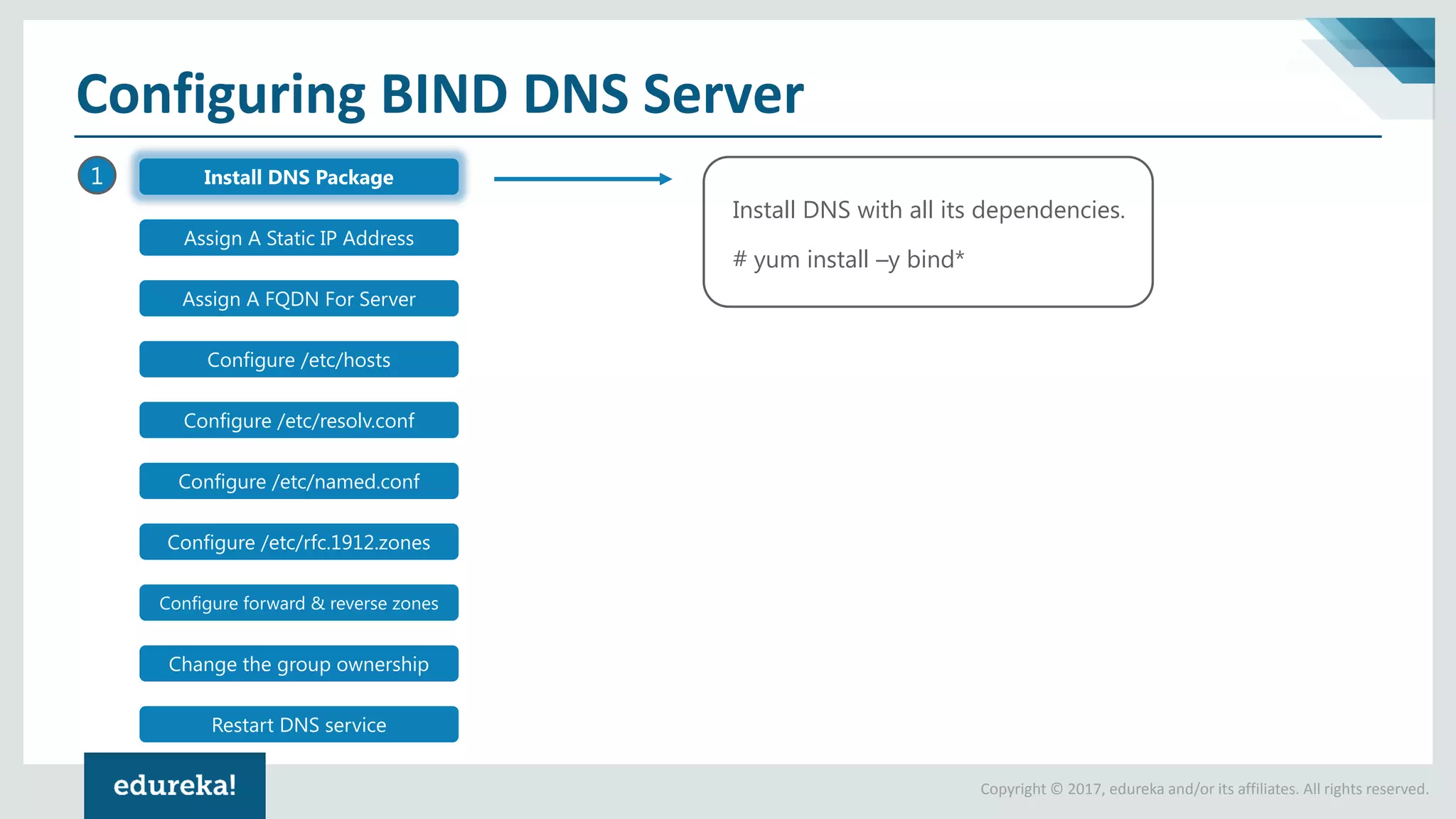

Configuring BIND DNS Server
1
Install DNS with all its dependencies.
# yum install –y bind*
Install DNS Package
Assign A Static IP Address
Assign A FQDN For Server
Configure /etc/hosts
Configure /etc/resolv.conf
Configure /etc/named.conf
Configure /etc/rfc.1912.zones
Configure forward & reverse zones
Change the group ownership
Restart DNS service

2
Install DNS Package
Restart DNS service

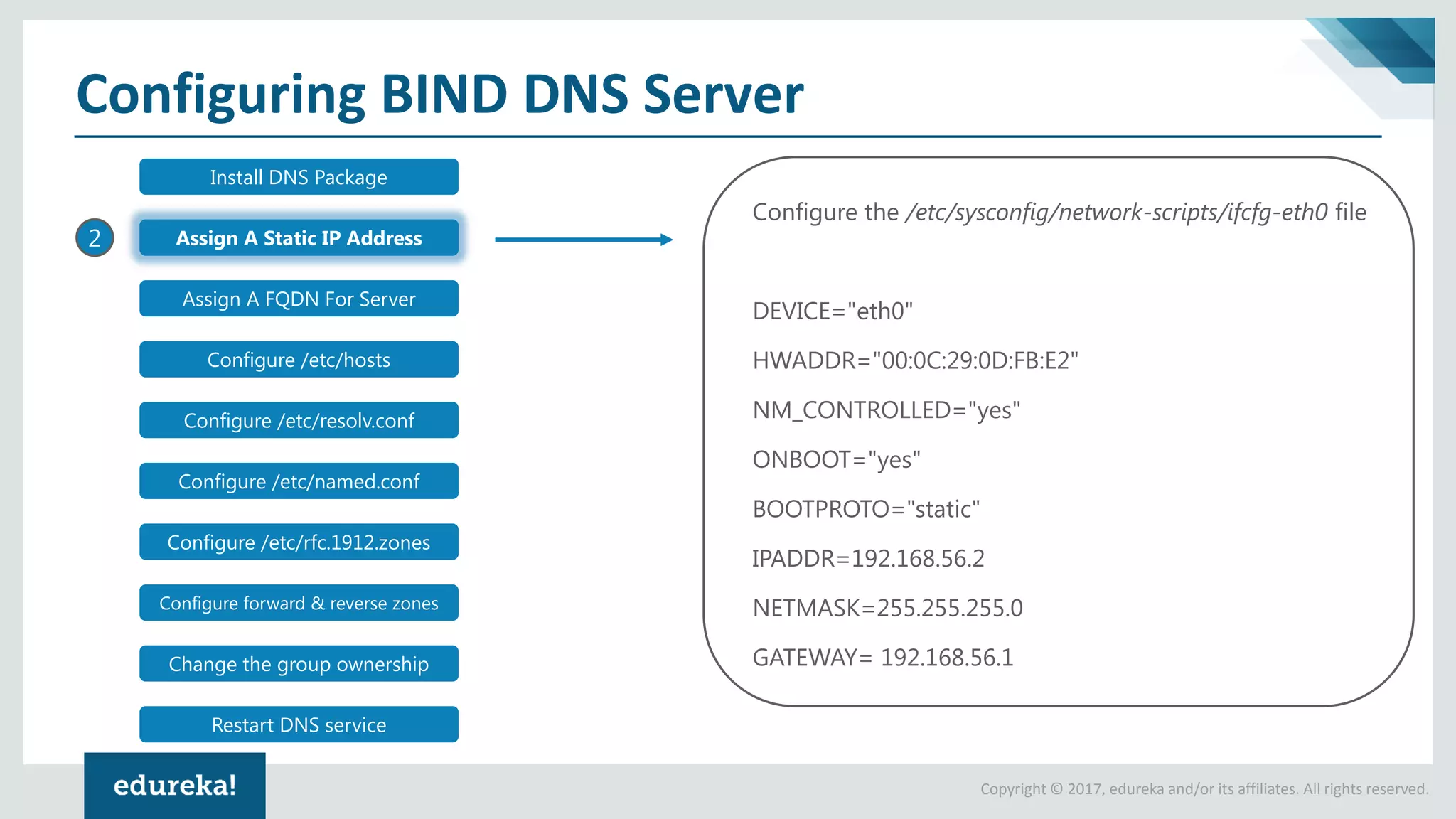

Configure the /etc/sysconfig/network-scripts/ifcfg-eth0 file
DEVICE="eth0"
HWADDR="00:0C:29:0D:FB:E2"
NM_CONTROLLED="yes"
ONBOOT="yes"
BOOTPROTO="static"
IPADDR=192.168.56.2
NETMASK=255.255.255.0
GATEWAY= 192.168.56.1

Install DNS Package
Restart DNS service
3
FQDN (Fully Qualified Domain Name) for the server.
# vim /etc/sysconfig/network
NETWORKING=yes
HOSTNAME=dns1.vardhan.com

4
Install DNS Package
Restart DNS service

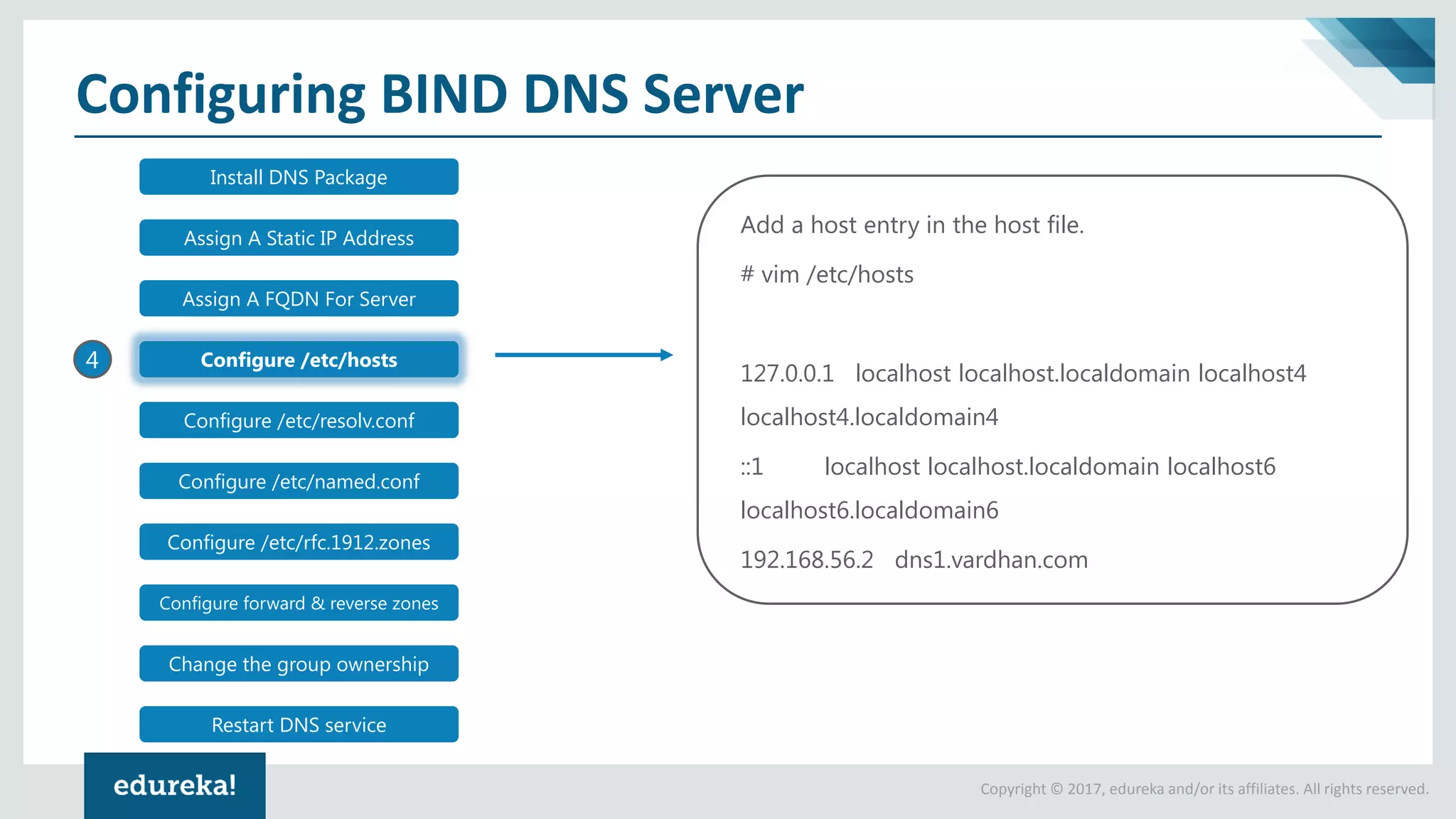

Add a host entry in the host file.
# vim /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4
localhost4.localdomain4
::1 localhost localhost.localdomain localhost6
localhost6.localdomain6
192.168.56.2 dns1.vardhan.com

5
Install DNS Package
Restart DNS service
Add server ip to the resolve.conf file.
# vim /etc/resolv.conf
search vardhan.com
nameserver 192.168.56.2

6
Install DNS Package
Restart DNS service

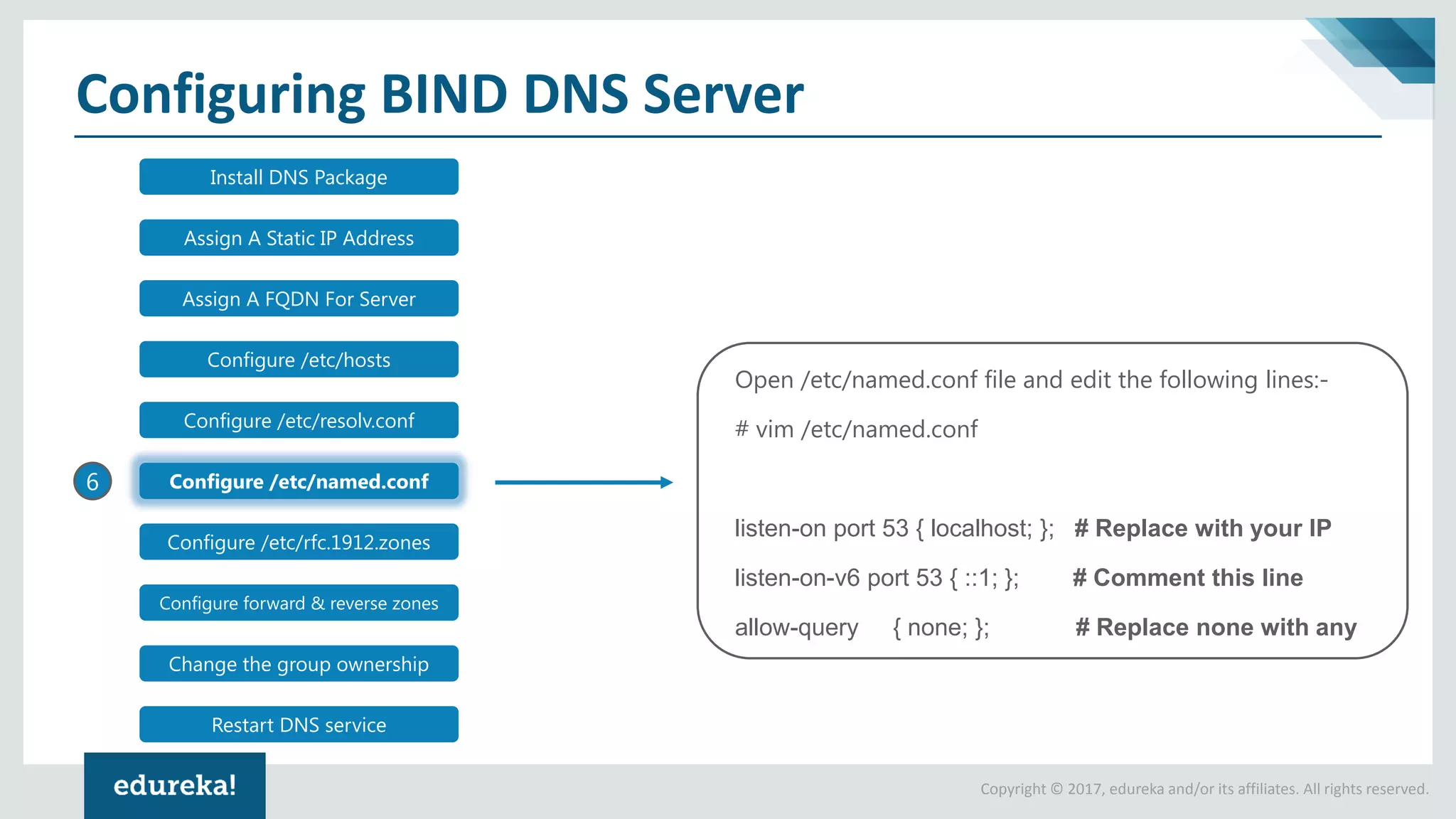

Open /etc/named.conf file and edit the following lines:-
# vim /etc/named.conf
listen-on port 53 { localhost; }; # Replace with your IP
listen-on-v6 port 53 { ::1; }; # Comment this line
allow-query { none; }; # Replace none with any

7
Install DNS Package
Restart DNS service
Open /etc/named.rfc1912.zones file and edit the lines
pointing to the zones.
zone “vardhan.com" IN
file "forward.zone";
zone "56.168.192.in-addr.arpa" IN
file "reverse.zone";

8
Install DNS Package
Restart DNS service

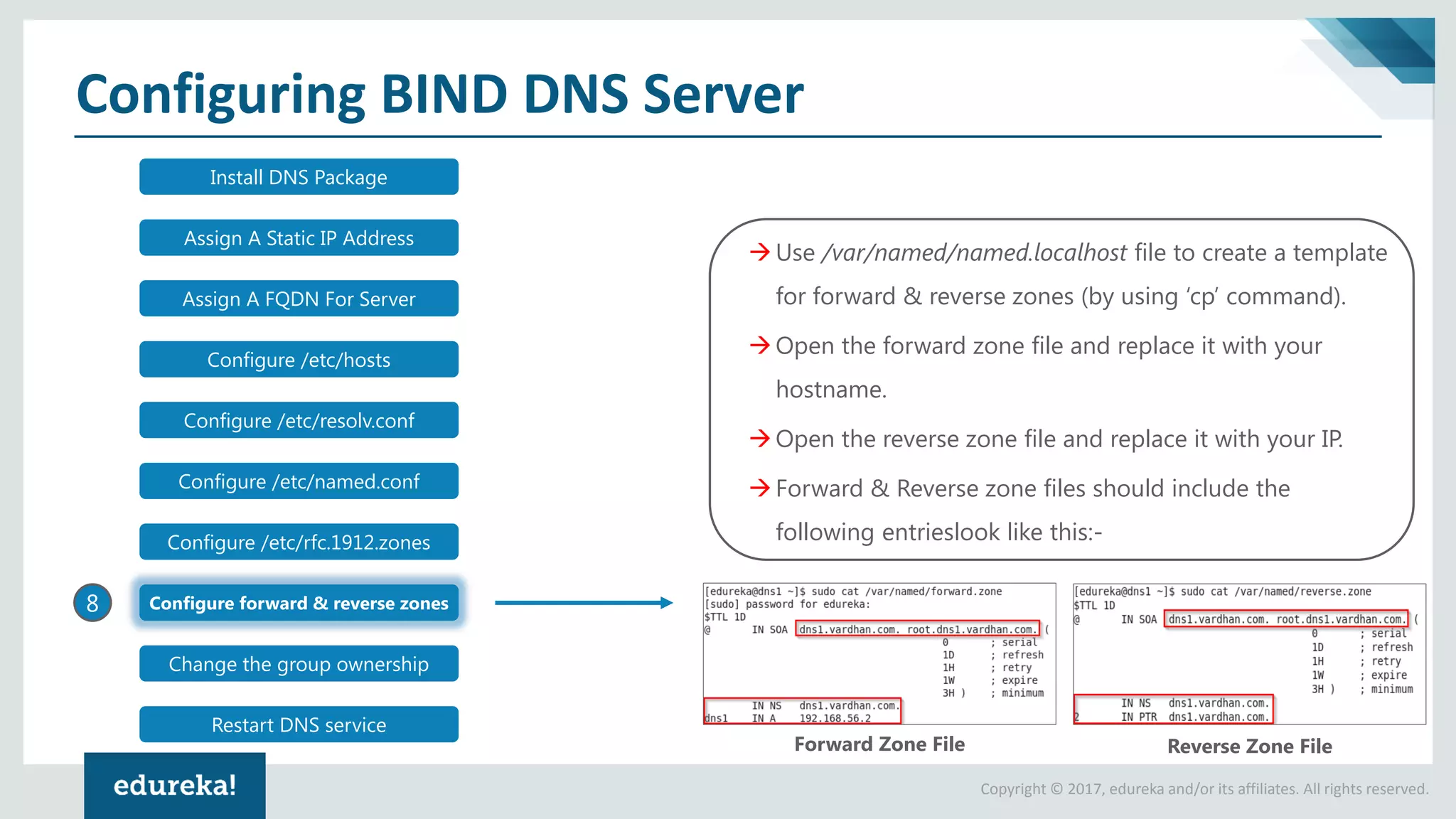

Use /var/named/named.localhost file to create a template
for forward & reverse zones (by using ‘cp’ command).
Open the forward zone file and replace it with your
hostname.
Open the reverse zone file and replace it with your IP.
Forward & Reverse zone files should include the
following entrieslook like this:-
Forward Zone File Reverse Zone File

9
Install DNS Package
Restart DNS service

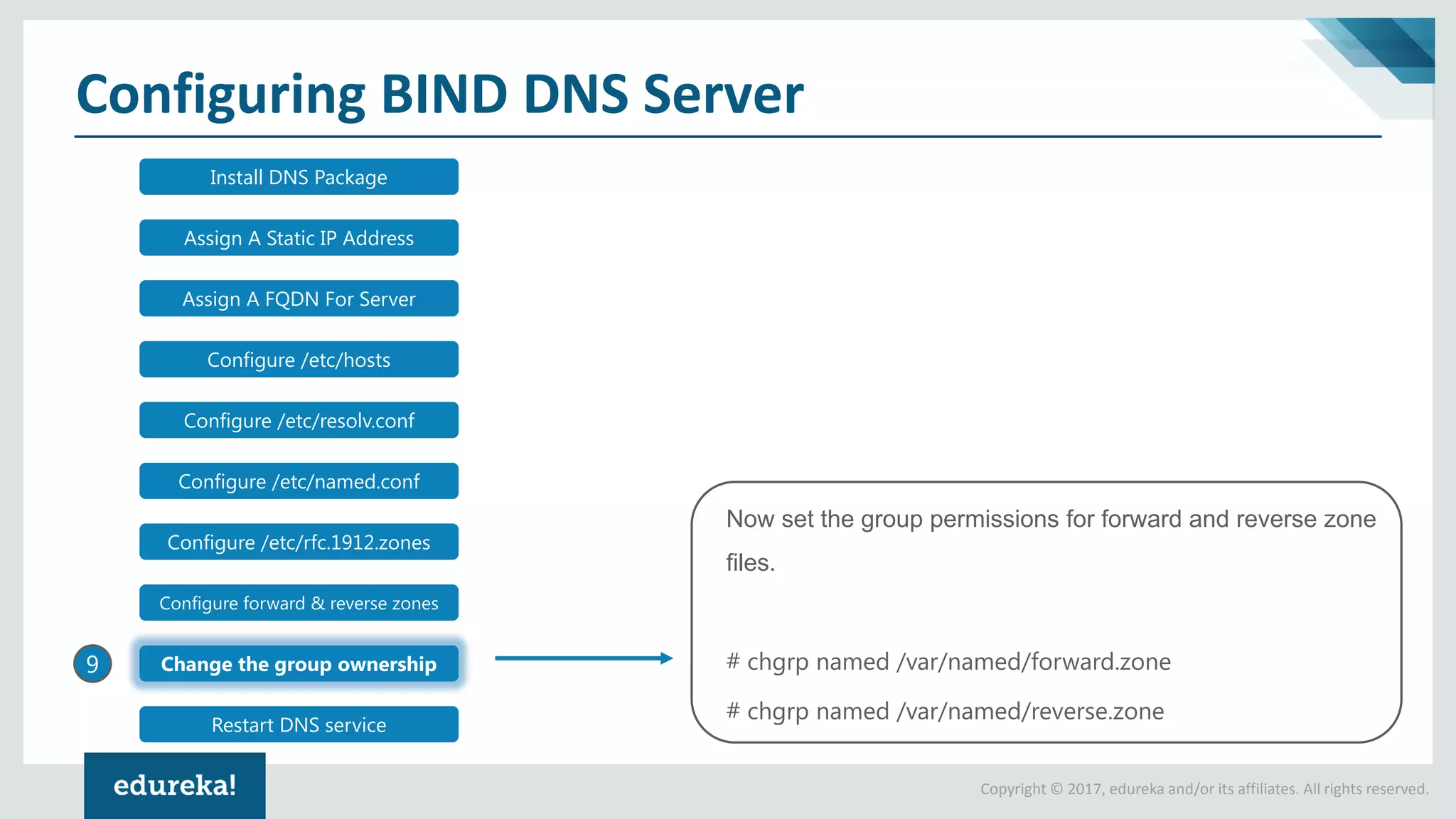

Now set the group permissions for forward and reverse zone
files.
# chgrp named /var/named/forward.zone
# chgrp named /var/named/reverse.zone

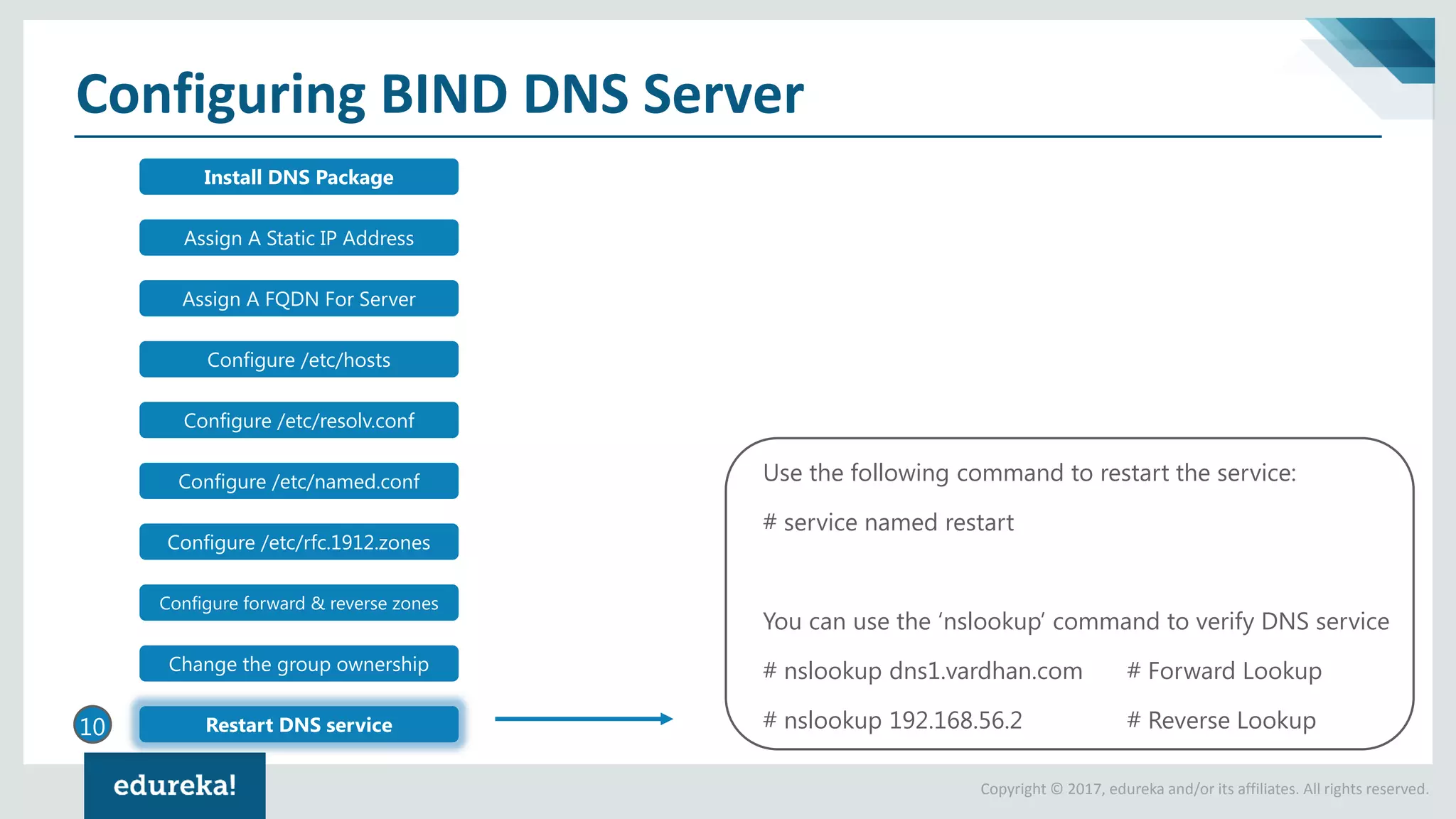

Use the following command to restart the service:
# service named restart
You can use the ‘nslookup’ command to verify DNS service
# nslookup dns1.vardhan.com # Forward Lookup
# nslookup 192.168.56.2 # Reverse Lookup
Install DNS Package
Restart DNS service10

Hands-On
Configuring BIND DNS Server in 10 simple steps.

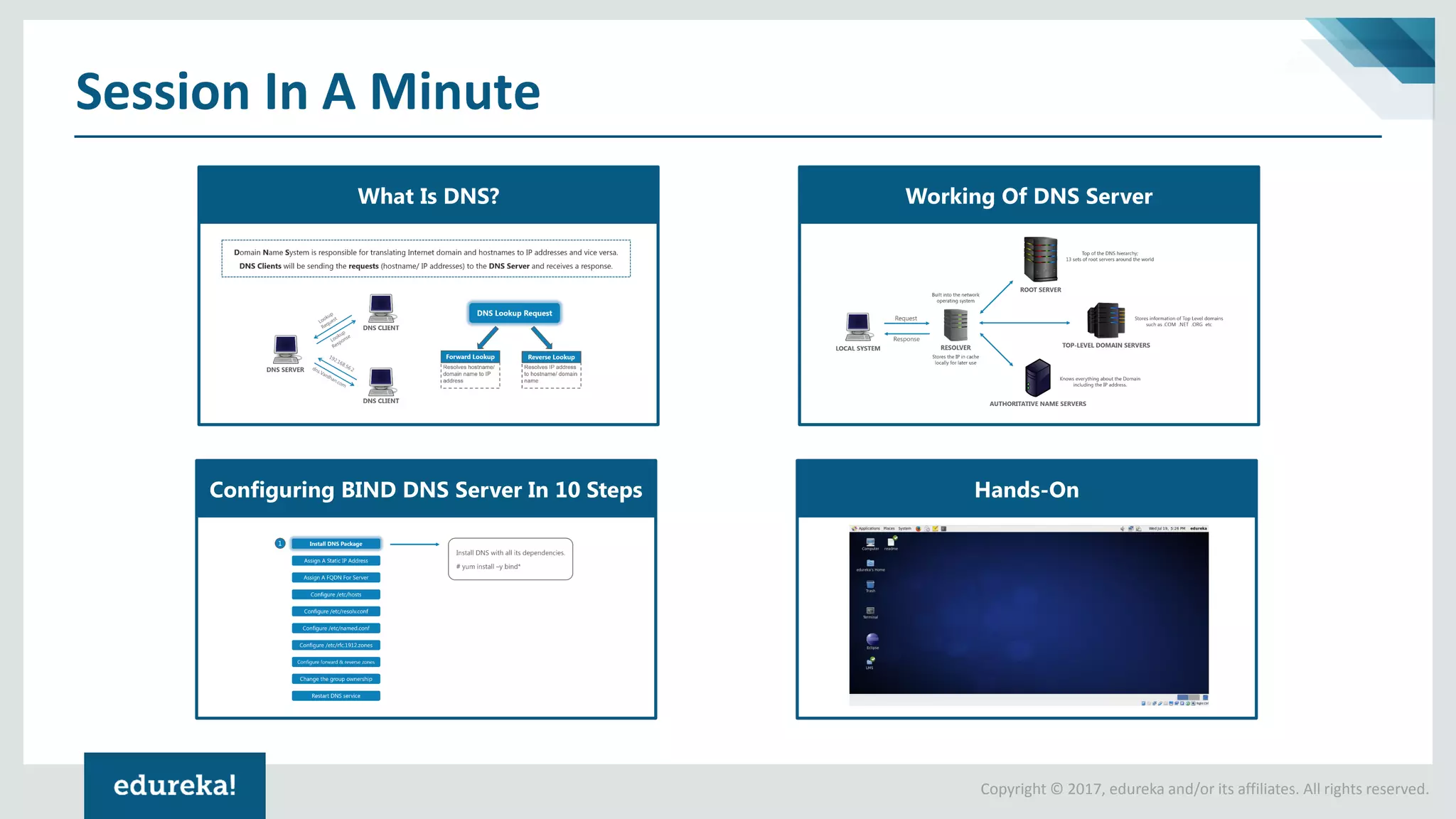

Session In A Minute
What Is DNS?
Configuring BIND DNS Server In 10 Steps
Working Of DNS Server
Hands-On
