Lesson 18 Automata .ppt

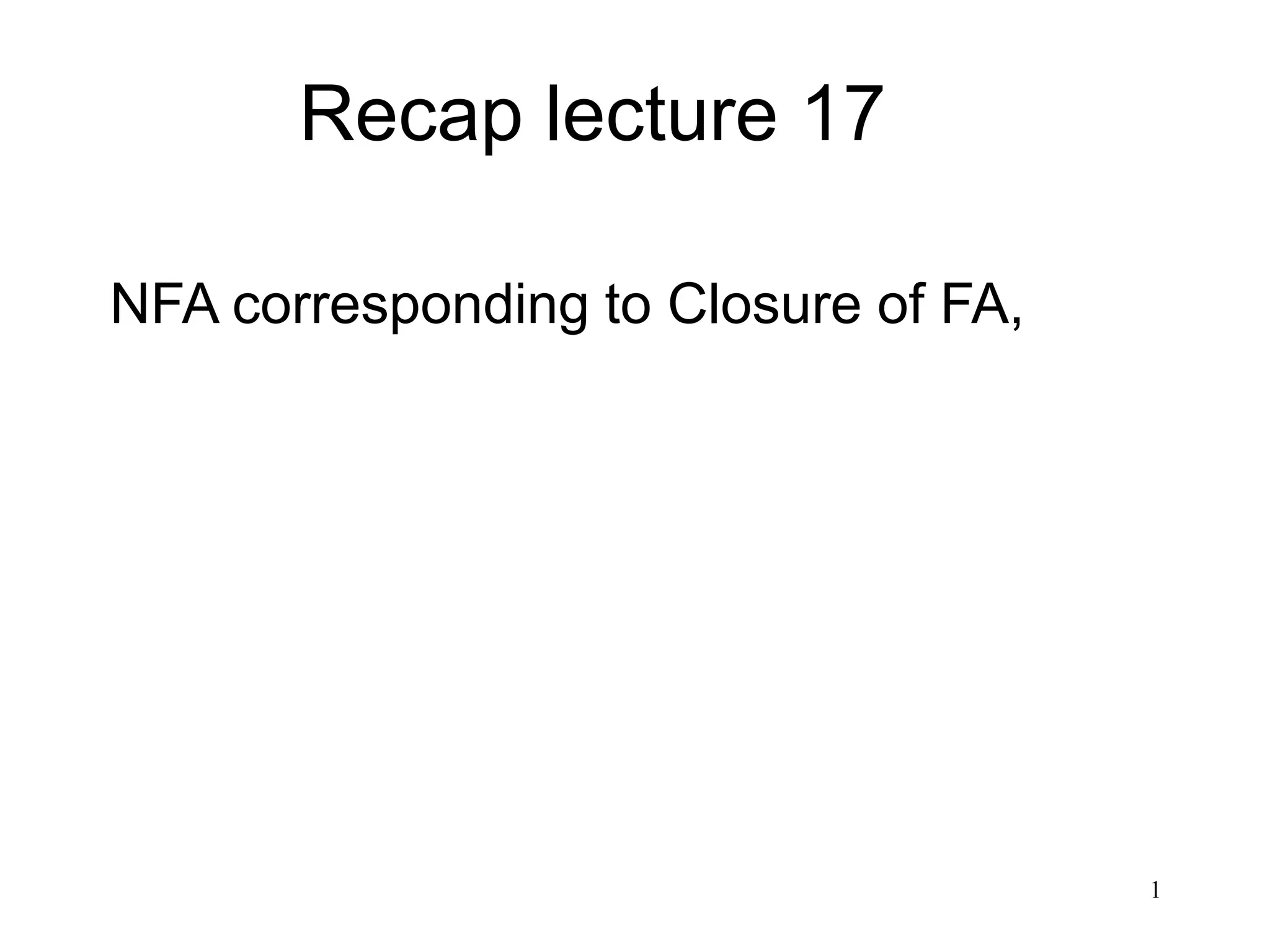

- 1. 1 Recap lecture 17 NFAcorresponding to Closure of FA,
- 2. 2 Moore machine A Mooremachine consists of the following 1. A finite set of states q0, q1, q2, … where q0 is the initial state. 2. An alphabet of letters = {a,b,c,…} from which the input strings are formed. 3. An alphabet ={x,y,z,…} of output characters from which output strings are generated.

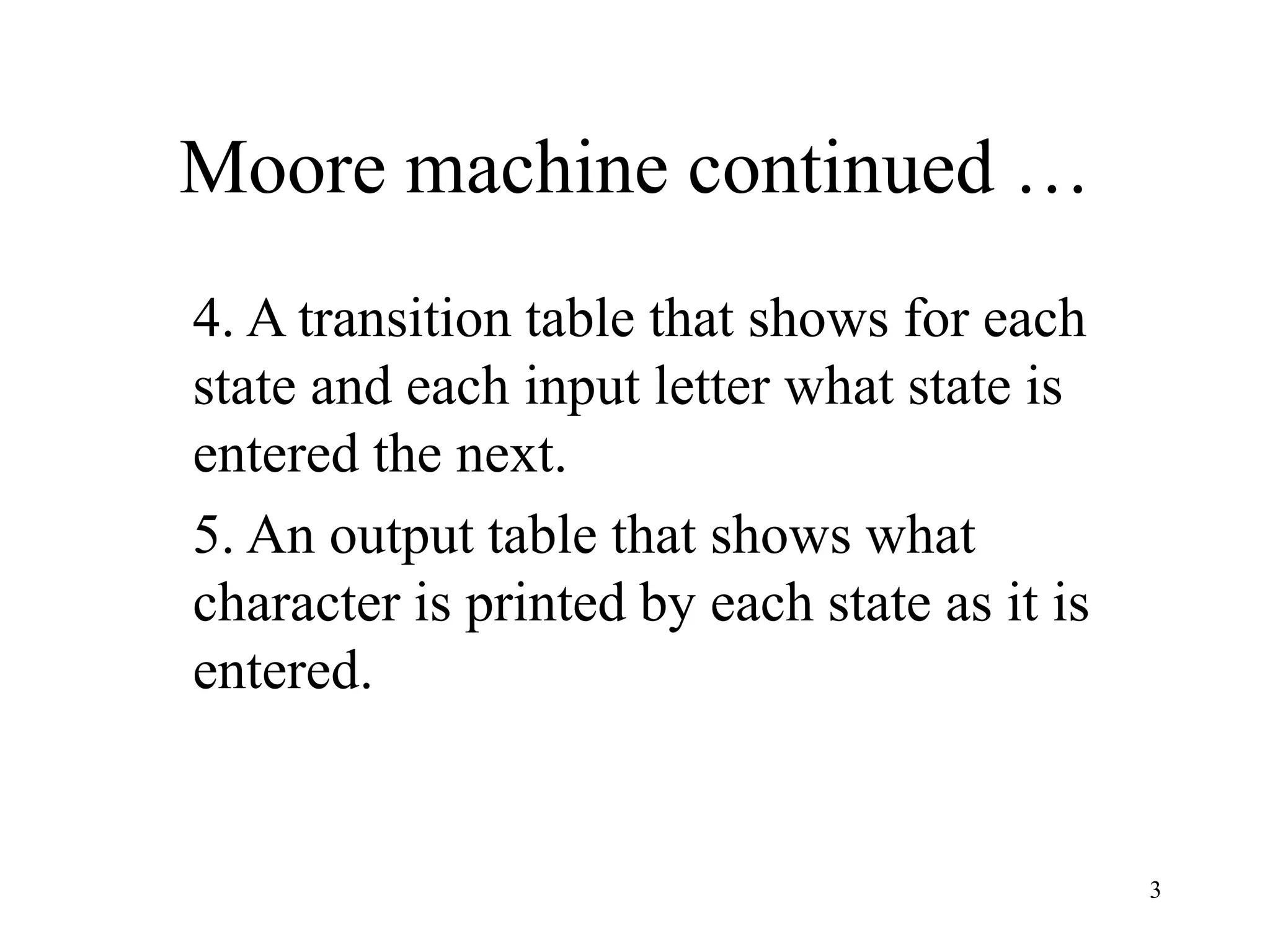

- 3. 3 Moore machine continued… 4. A transition table that shows for each state and each input letter what state is entered the next. 5. An output table that shows what character is printed by each state as it is entered.

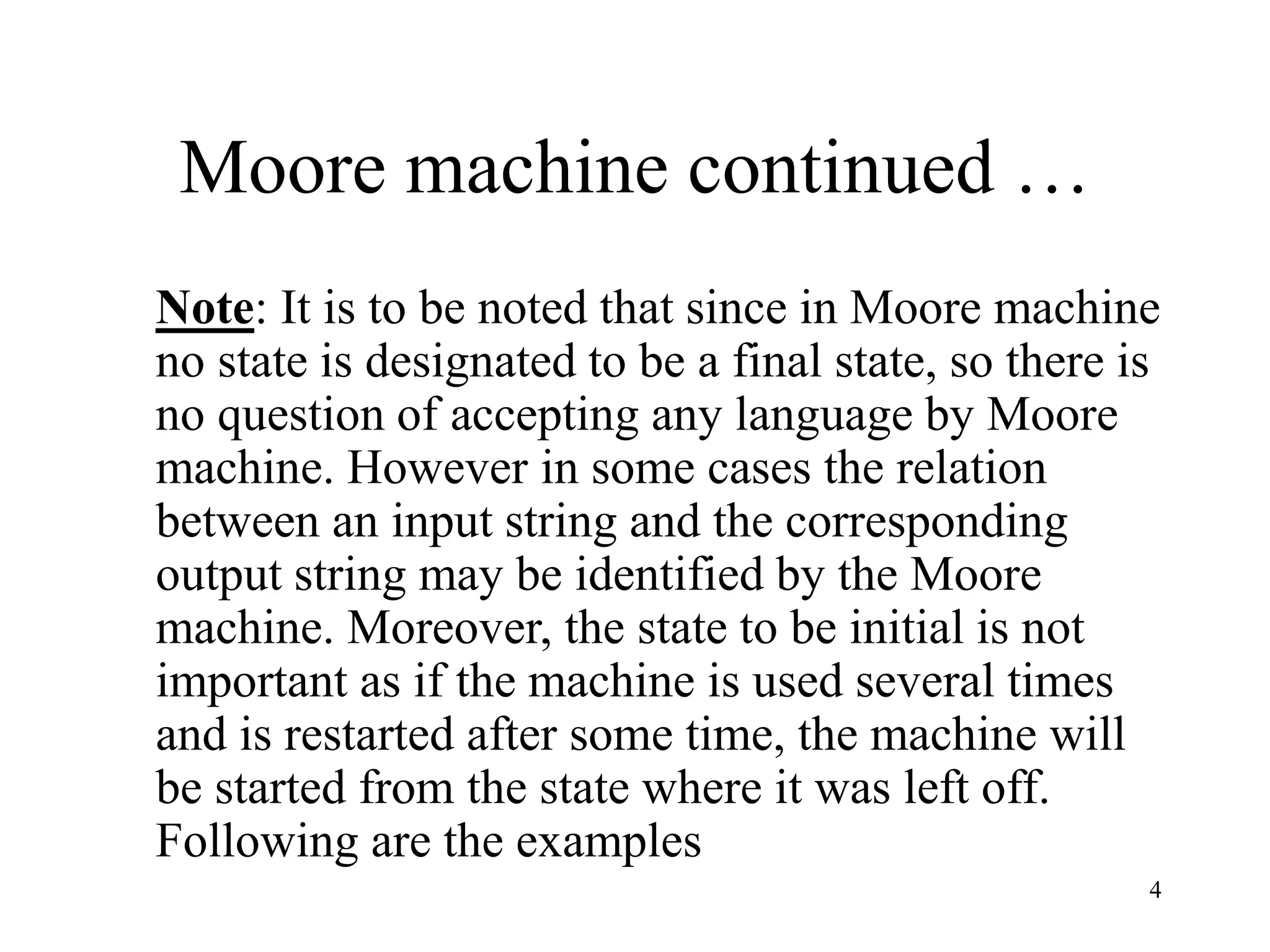

- 4. 4 Moore machine continued… Note: It is to be noted that since in Moore machine no state is designated to be a final state, so there is no question of accepting any language by Moore machine. However in some cases the relation between an input string and the corresponding output string may be identified by the Moore machine. Moreover, the state to be initial is not important as if the machine is used several times and is restarted after some time, the machine will be started from the state where it was left off. Following are the examples

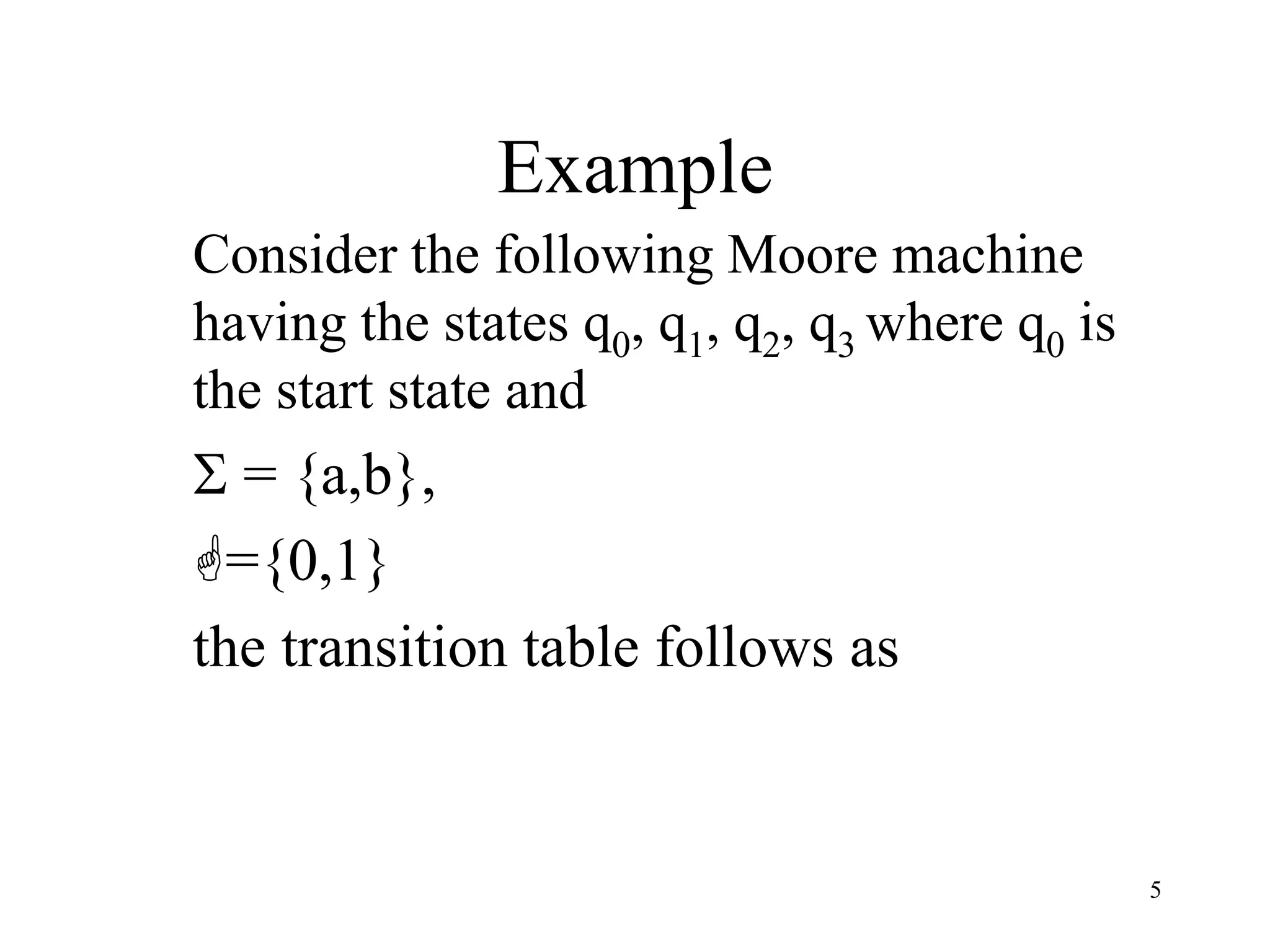

- 5. 5 Example Consider the followingMoore machine having the states q0, q1, q2, q3 where q0 is the start state and = {a,b}, ={0,1} the transition table follows as

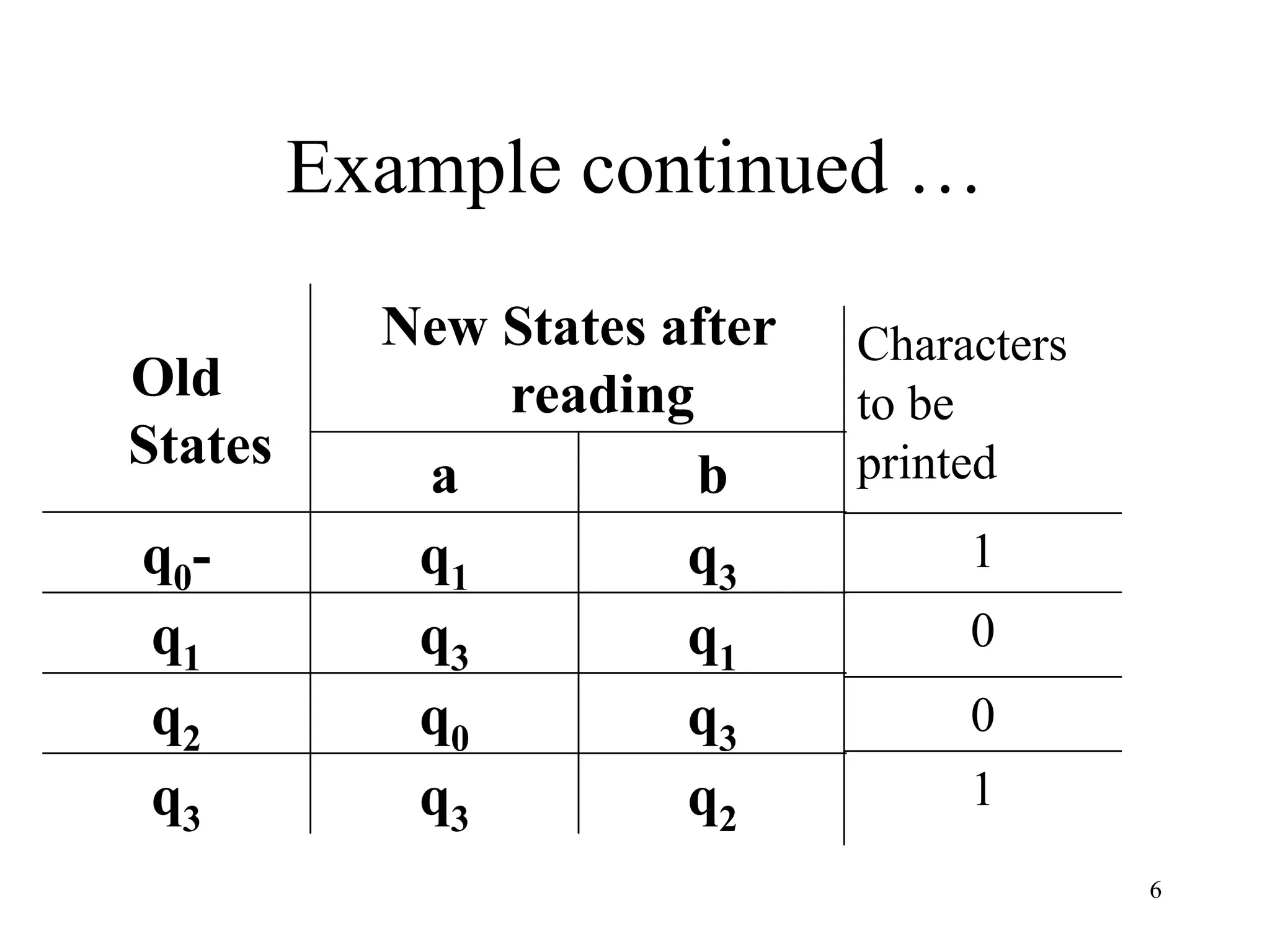

- 6. 6 Example continued … Old States NewStates after reading a b q0- q1 q3 q1 q3 q1 q2 q0 q3 q3 q3 q2 1 0 0 1 Characters to be printed

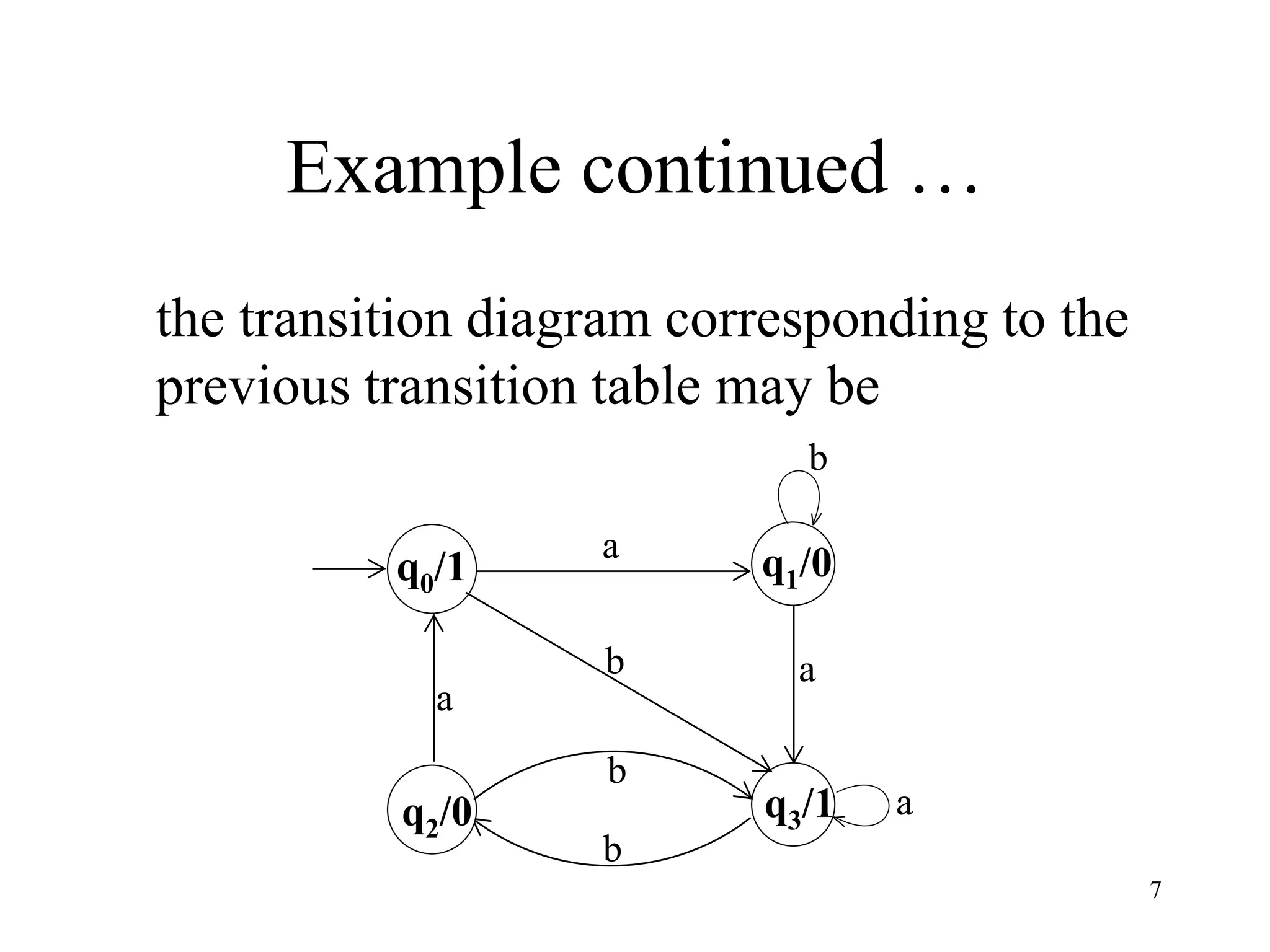

- 7. 7 Example continued … thetransition diagram corresponding to the previous transition table may be a b b a q0/1 a b q1/0 q2/0 q3/1 a b

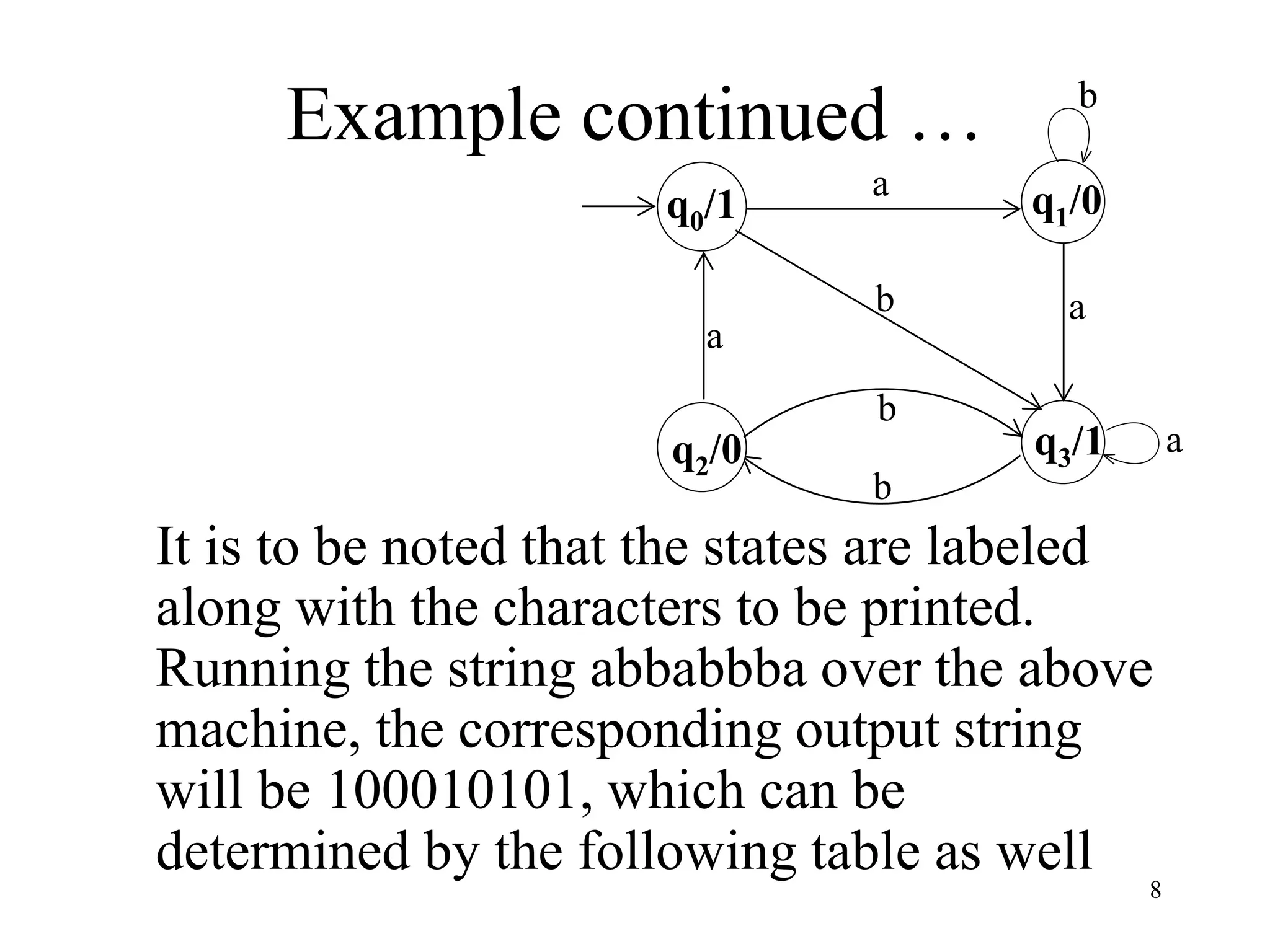

- 8. 8 Example continued … Itis to be noted that the states are labeled along with the characters to be printed. Running the string abbabbba over the above machine, the corresponding output string will be 100010101, which can be determined by the following table as well a b b a q0/1 a b q1/0 q2/0 q3/1 a b

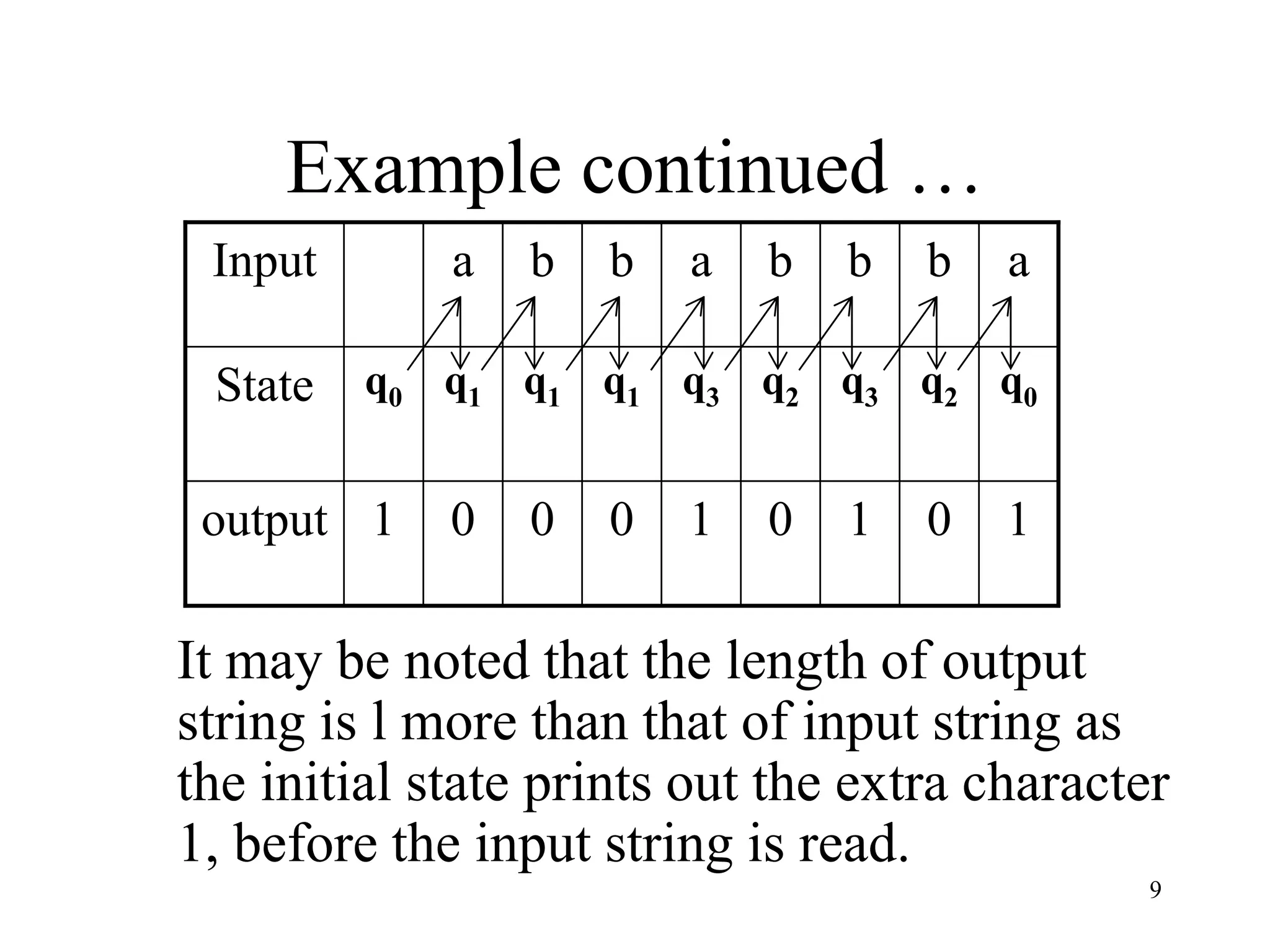

- 9. 9 Example continued … 1 0 1 0 1 0 0 0 1 output q0 q2 q3 q2 q3 q1 q1 q1 q0 State a b b b a b b a Input Itmay be noted that the length of output string is l more than that of input string as the initial state prints out the extra character 1, before the input string is read.

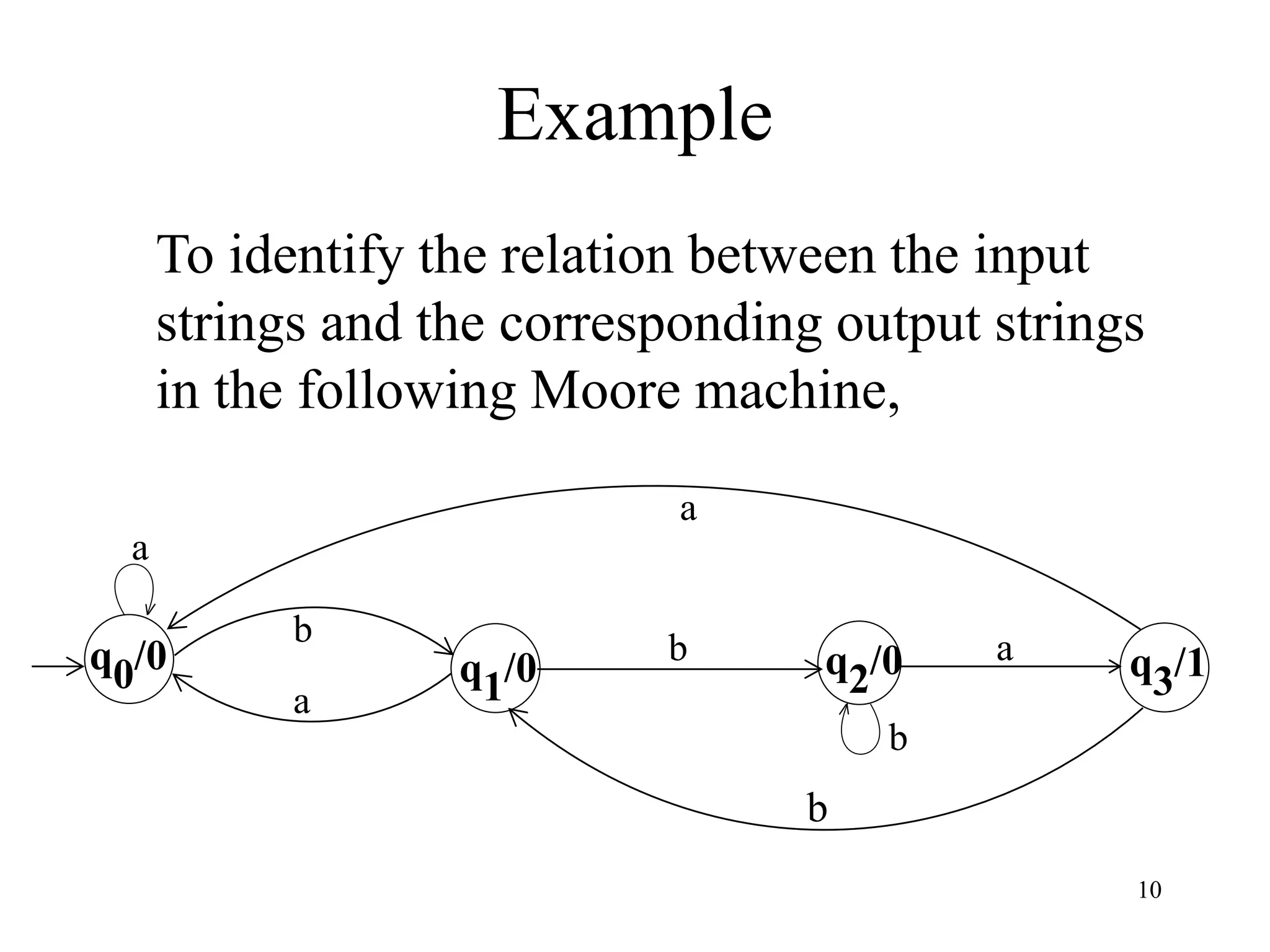

- 10. 10 Example To identify therelation between the input strings and the corresponding output strings in the following Moore machine, q2/0 b a a q1/0 q3/1 b q0/0 a b b a

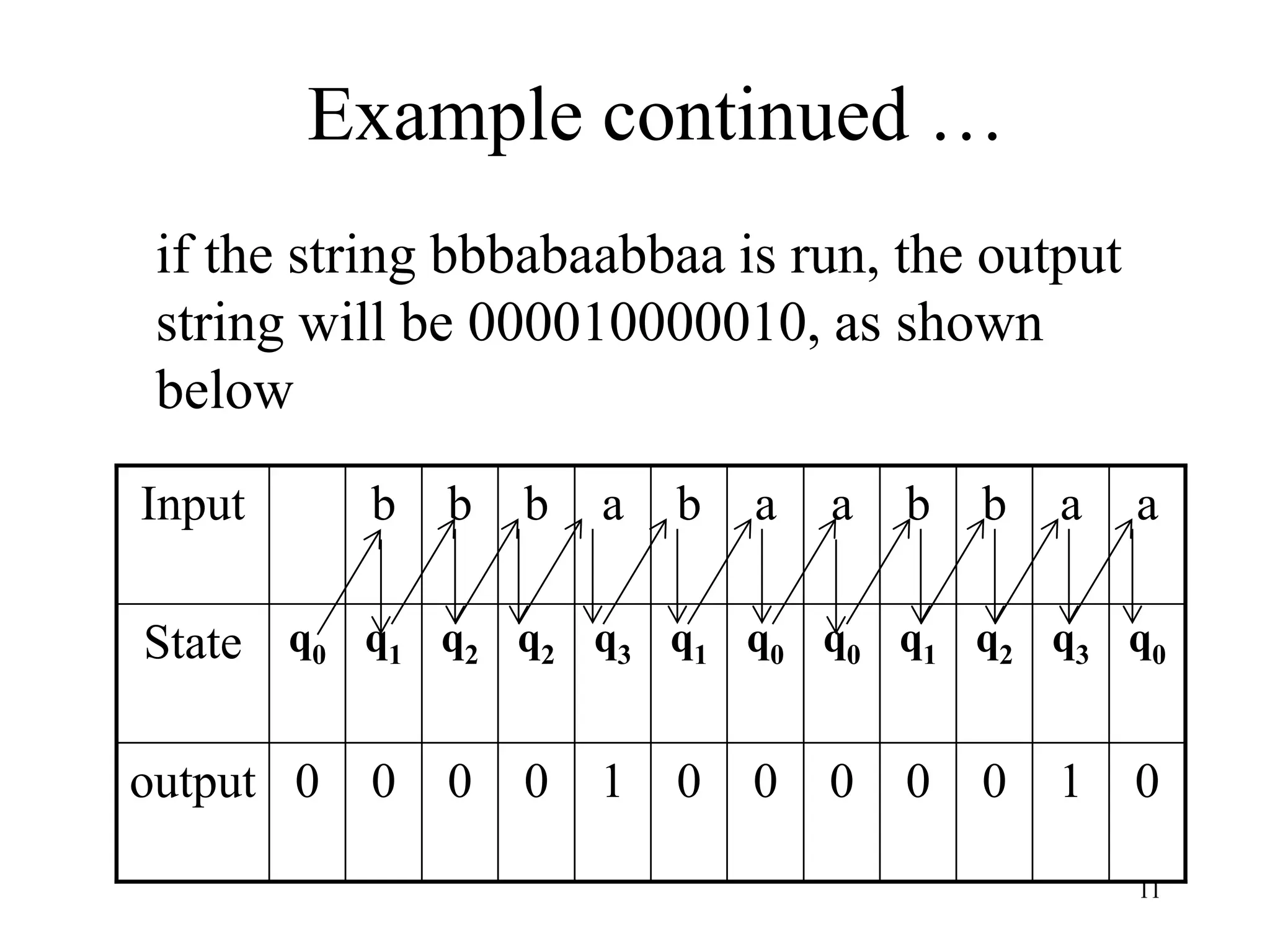

- 11. 11 Example continued … 0 1 0 0 0 0 0 1 0 0 0 0 output q0 q3 q2 q1 q0 q0 q1 q3 q2 q2 q1 q0 State a a b b a a b a b b b Input ifthe string bbbabaabbaa is run, the output string will be 000010000010, as shown below

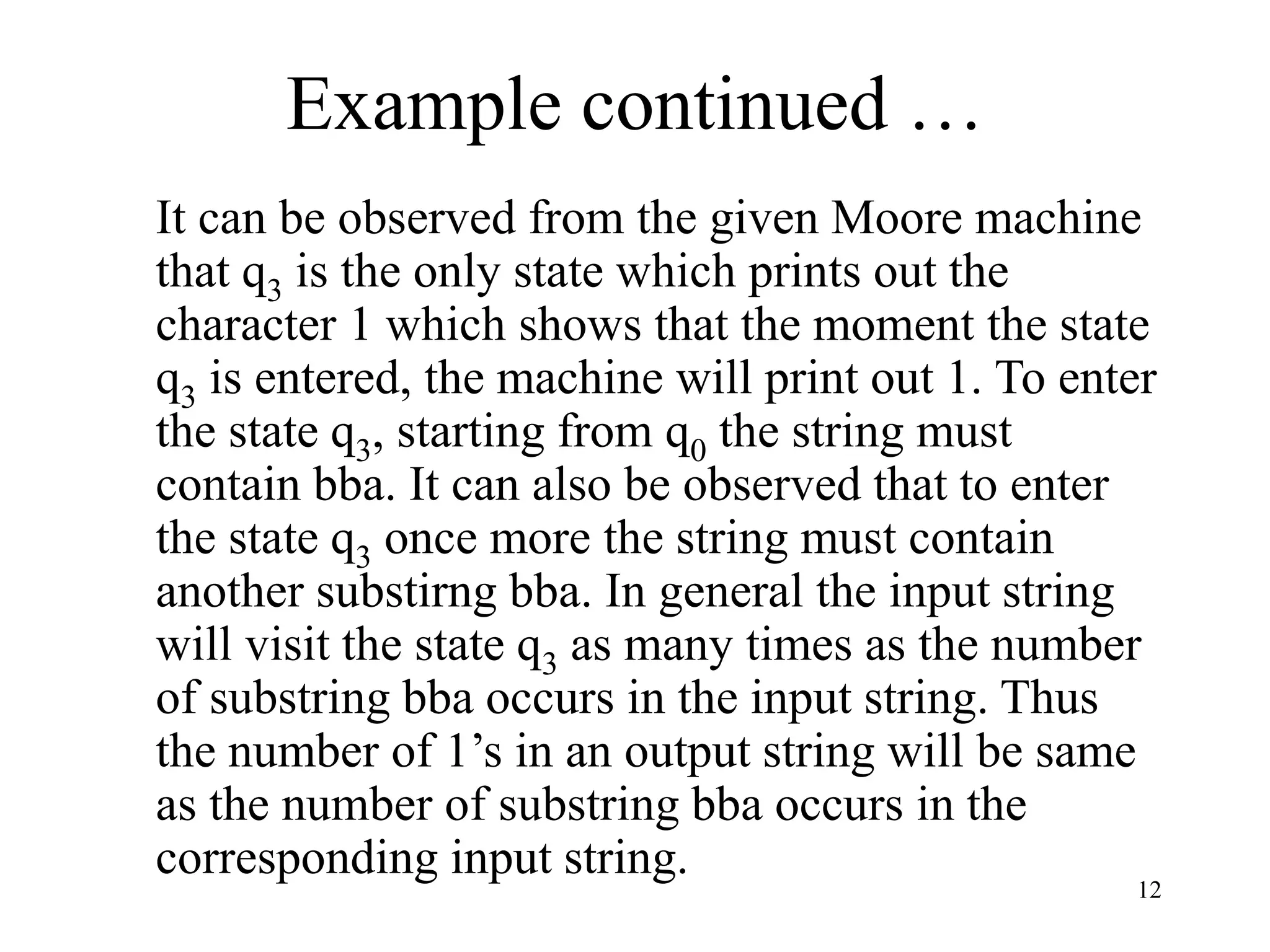

- 12. 12 Example continued … Itcan be observed from the given Moore machine that q3 is the only state which prints out the character 1 which shows that the moment the state q3 is entered, the machine will print out 1. To enter the state q3, starting from q0 the string must contain bba. It can also be observed that to enter the state q3 once more the string must contain another substirng bba. In general the input string will visit the state q3 as many times as the number of substring bba occurs in the input string. Thus the number of 1’s in an output string will be same as the number of substring bba occurs in the corresponding input string.

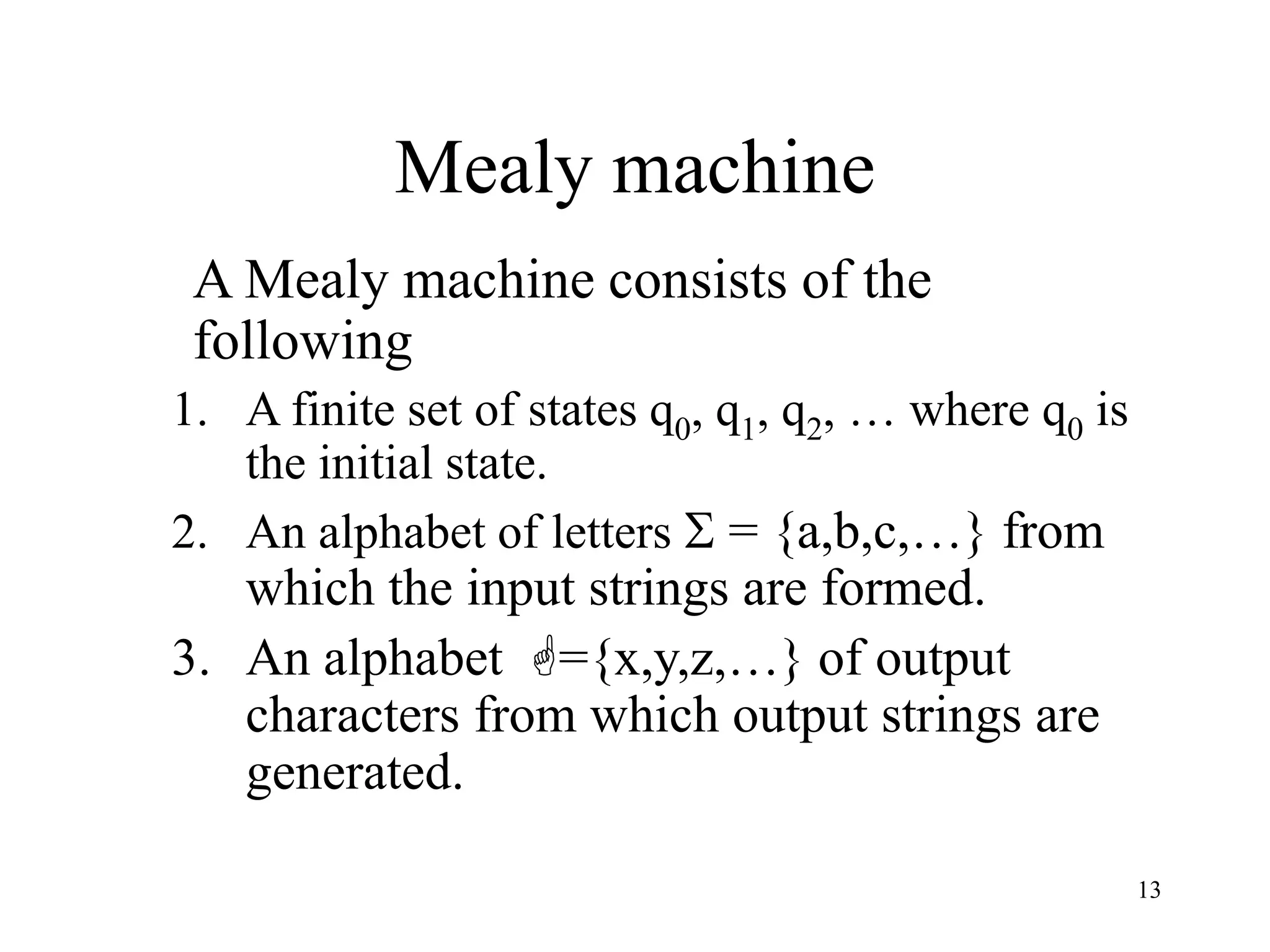

- 13. 13 Mealy machine A Mealymachine consists of the following 1. A finite set of states q0, q1, q2, … where q0 is the initial state. 2. An alphabet of letters = {a,b,c,…} from which the input strings are formed. 3. An alphabet ={x,y,z,…} of output characters from which output strings are generated.
- 14. 14 Mealy machine continued… 4. A pictorial representation with states and directed edges labeled by an input letter along with an output character. The directed edges also show how to go from one state to another corresponding to every possible input letter. Note: It is not possible to give transition table in this case.

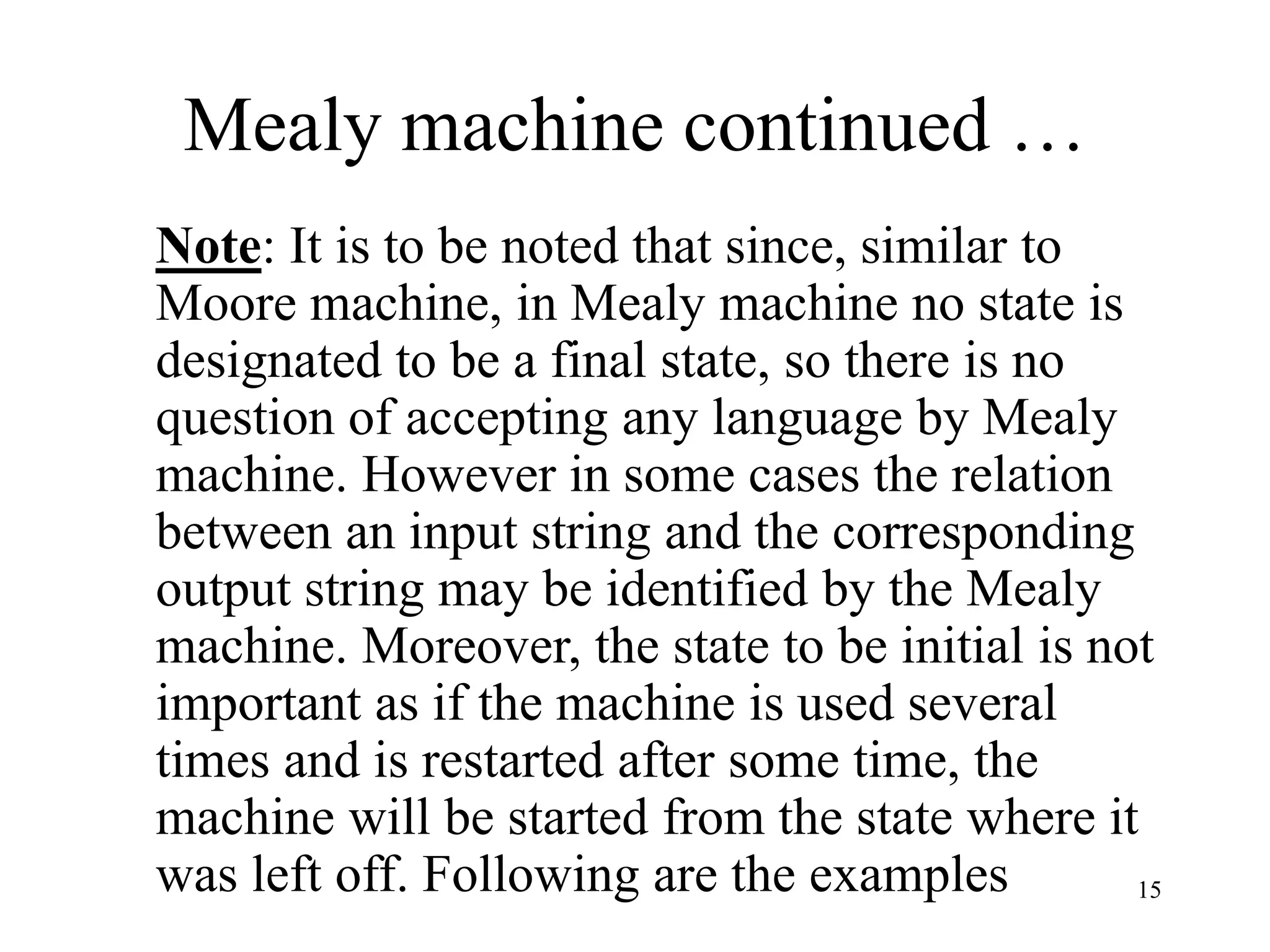

- 15. 15 Mealy machine continued… Note: It is to be noted that since, similar to Moore machine, in Mealy machine no state is designated to be a final state, so there is no question of accepting any language by Mealy machine. However in some cases the relation between an input string and the corresponding output string may be identified by the Mealy machine. Moreover, the state to be initial is not important as if the machine is used several times and is restarted after some time, the machine will be started from the state where it was left off. Following are the examples
- 16. 16 Example Consider the followingMealy machine having the states q0, q1, q2, q3 , where q0 is the start state and = {a,b}, ={0,1} a/0 b/1 a/1 q1 a/0 q2 q0 q3 a/1 b/0 b/1 b/1

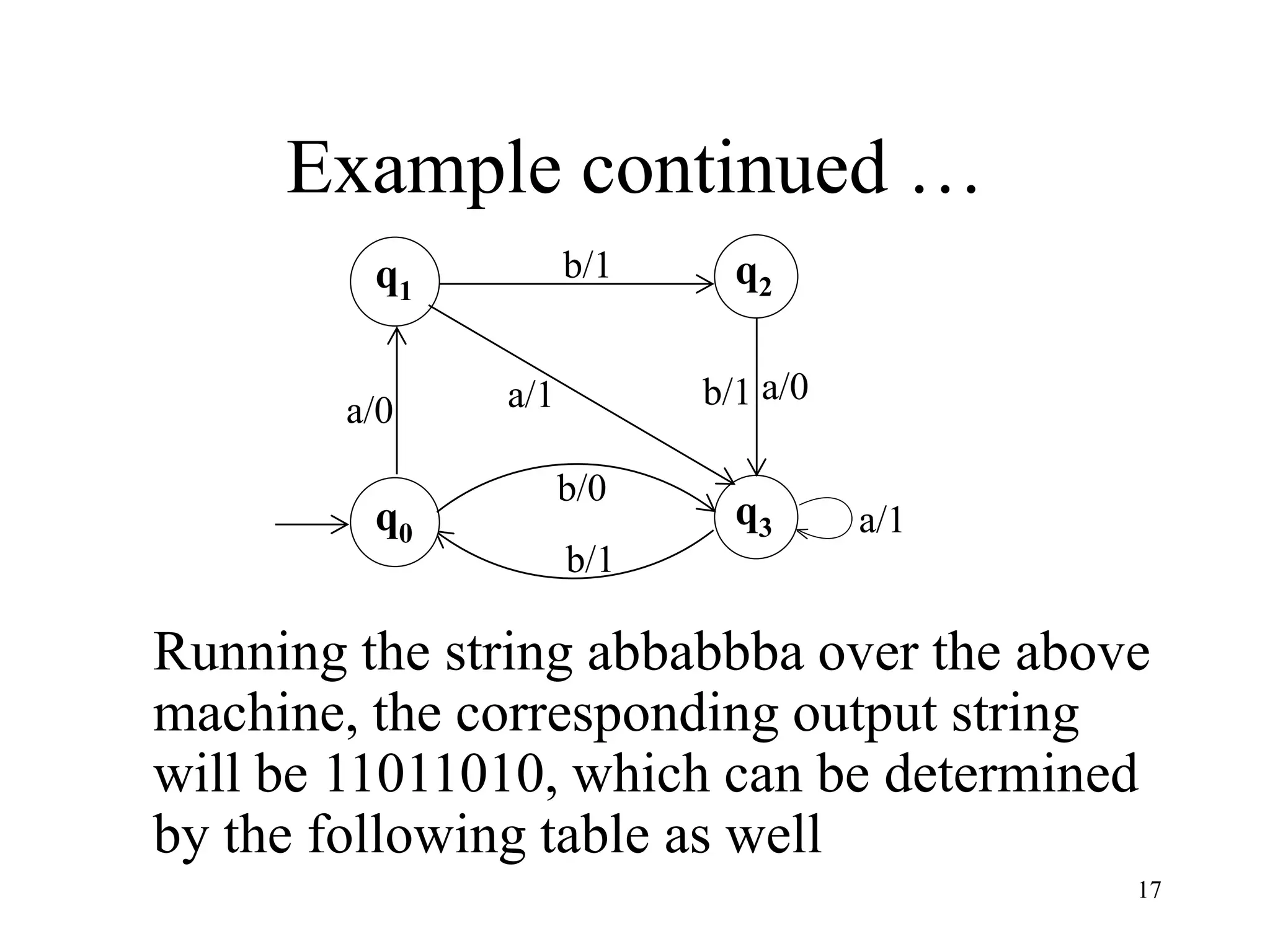

- 17. 17 Example continued … Runningthe string abbabbba over the above machine, the corresponding output string will be 11011010, which can be determined by the following table as well a/0 b/1 a/1 q1 a/0 q2 q0 q3 a/1 b/0 b/1 b/1

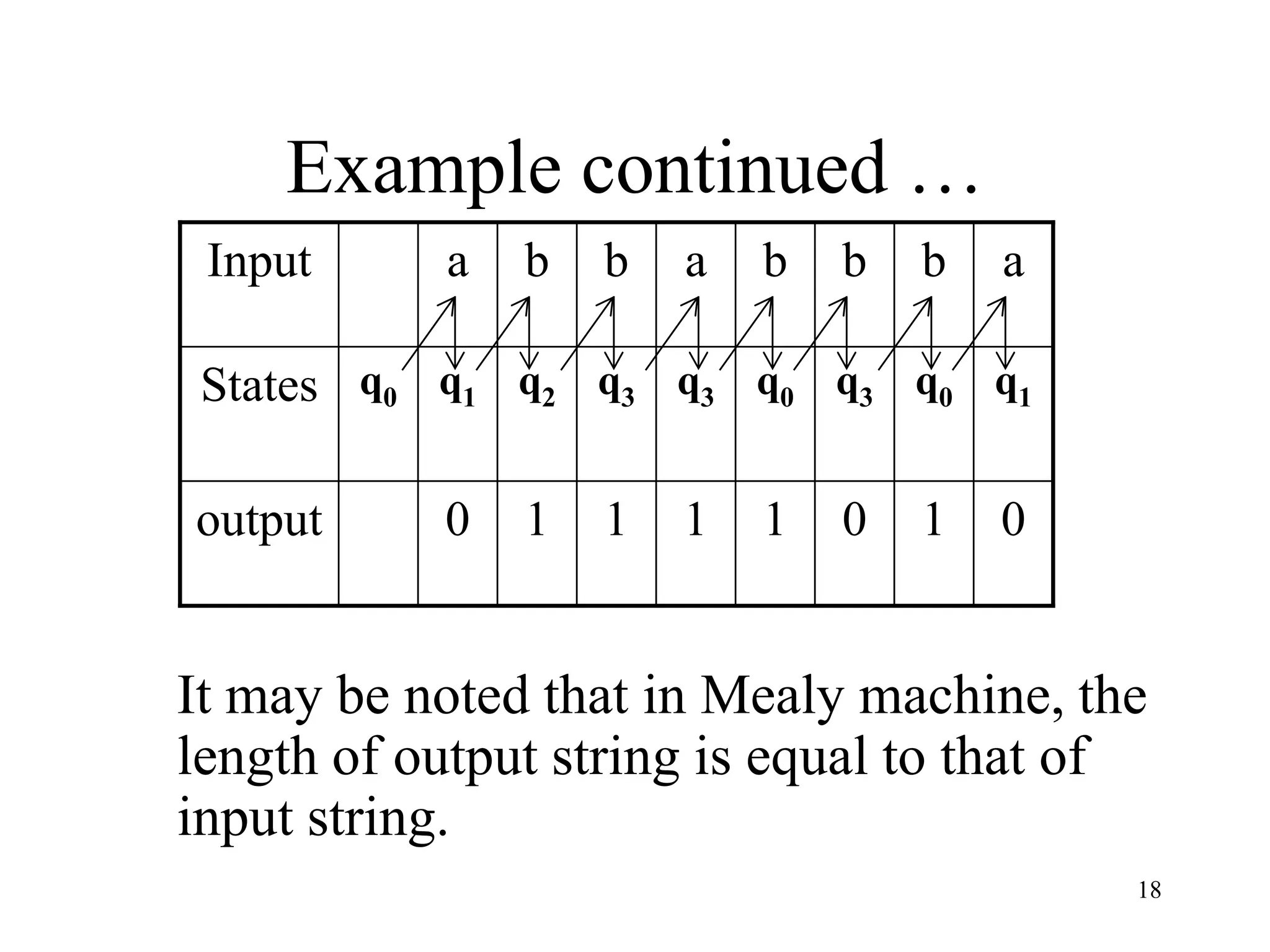

- 18. 18 Example continued … 0 1 0 1 1 1 1 0 output q1 q0 q3 q0 q3 q3 q2 q1 q0 States a b b b a b b a Input Itmay be noted that in Mealy machine, the length of output string is equal to that of input string.

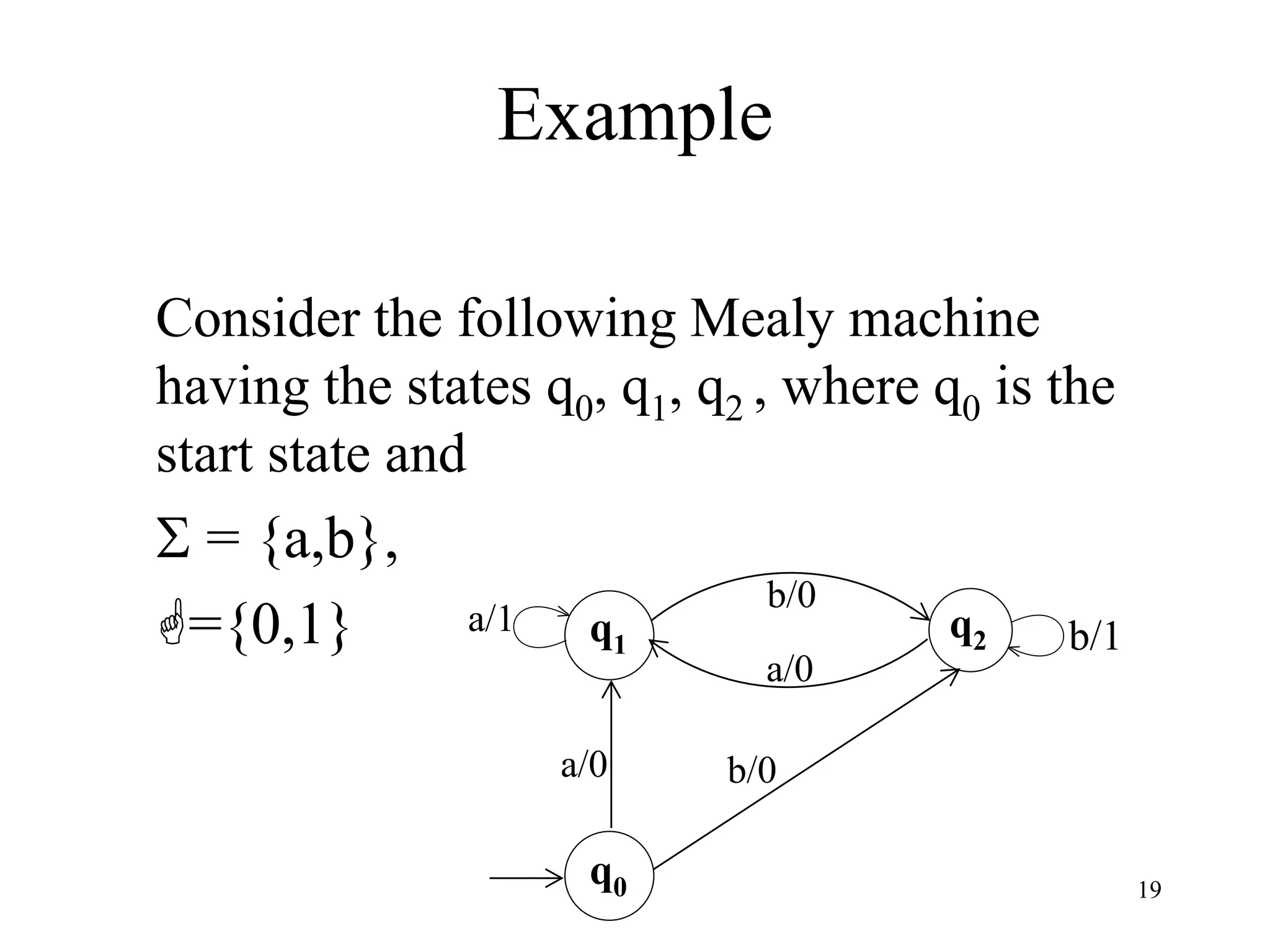

- 19. 19 Example Consider the followingMealy machine having the states q0, q1, q2 , where q0 is the start state and = {a,b}, ={0,1} a/0 q1 q2 q0 b/1 b/0 b/0 a/1 a/0

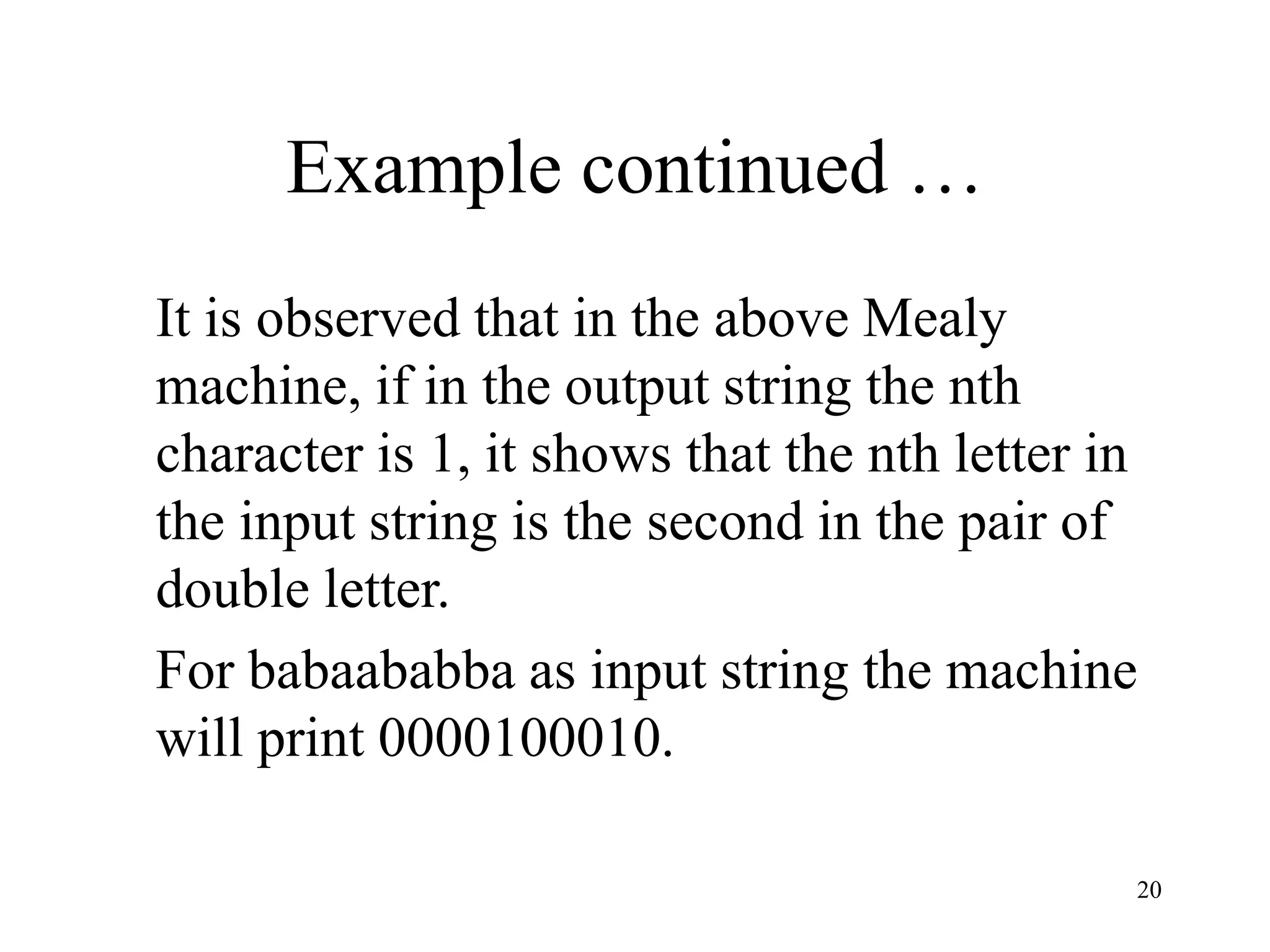

- 20. 20 Example continued … Itis observed that in the above Mealy machine, if in the output string the nth character is 1, it shows that the nth letter in the input string is the second in the pair of double letter. For babaababba as input string the machine will print 0000100010.

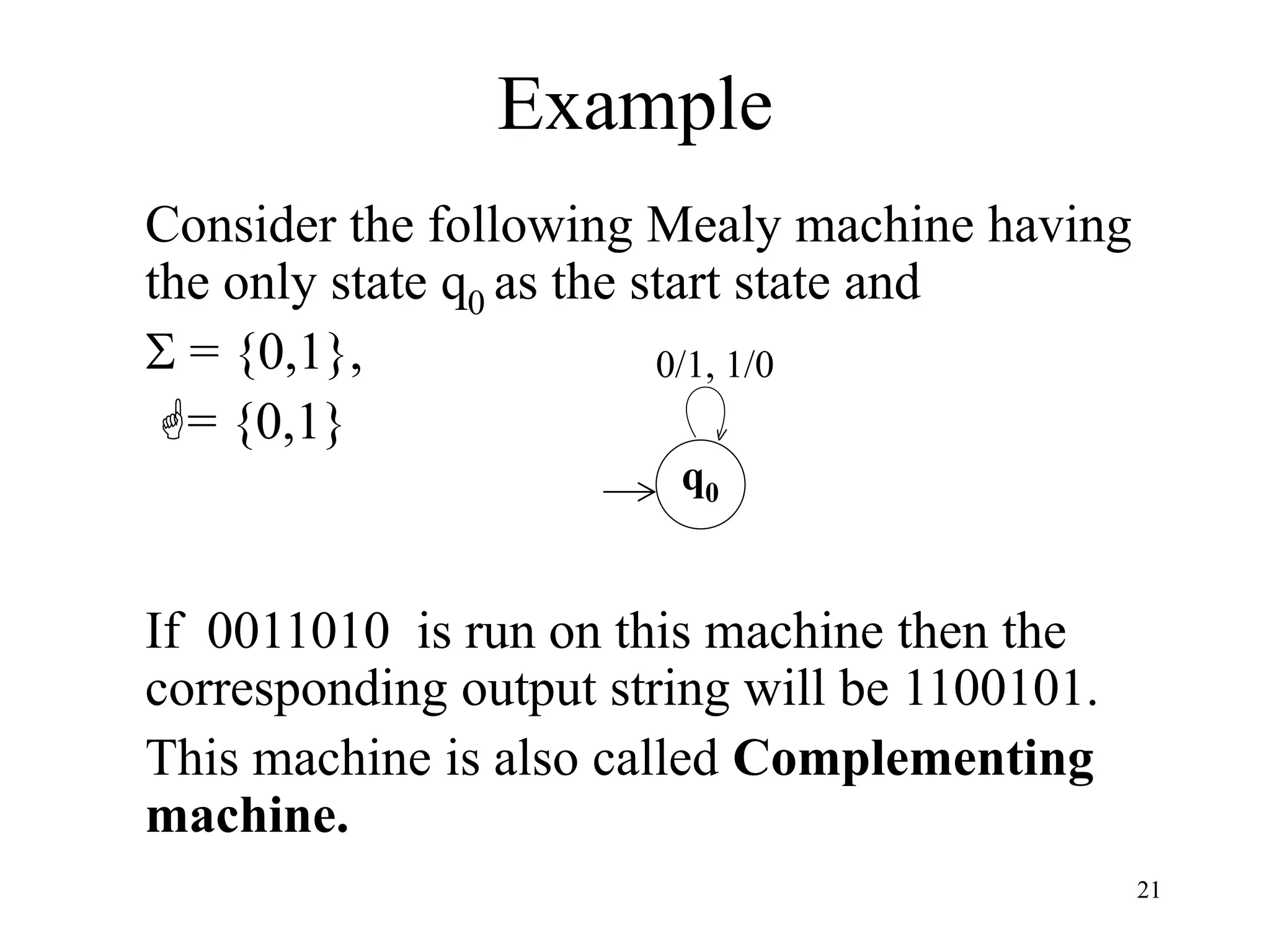

- 21. 21 Example Consider the followingMealy machine having the only state q0 as the start state and = {0,1}, = {0,1} If 0011010 is run on this machine then the corresponding output string will be 1100101. This machine is also called Complementing machine. q0 0/1, 1/0

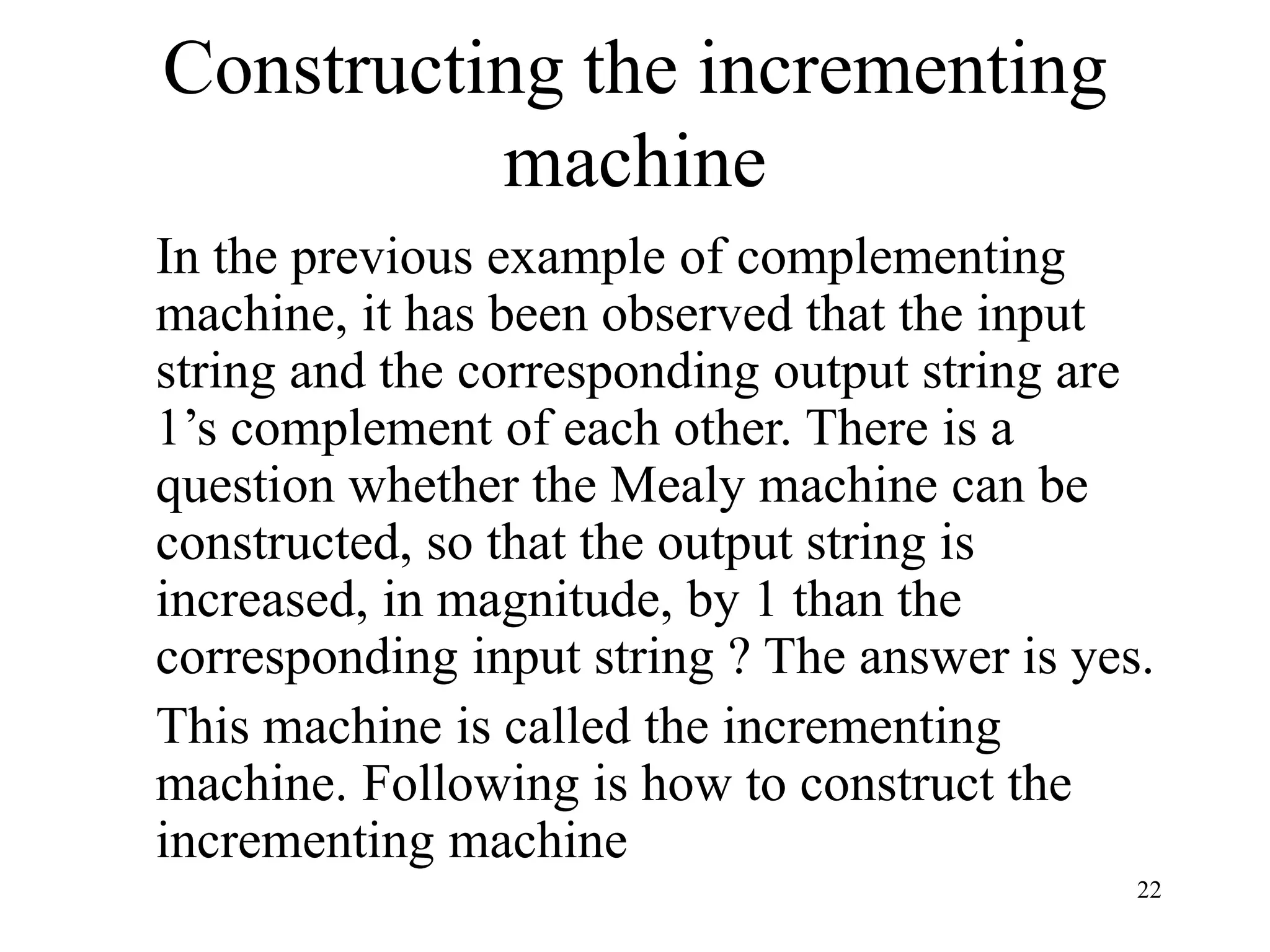

- 22. 22 Constructing the incrementing machine Inthe previous example of complementing machine, it has been observed that the input string and the corresponding output string are 1’s complement of each other. There is a question whether the Mealy machine can be constructed, so that the output string is increased, in magnitude, by 1 than the corresponding input string ? The answer is yes. This machine is called the incrementing machine. Following is how to construct the incrementing machine

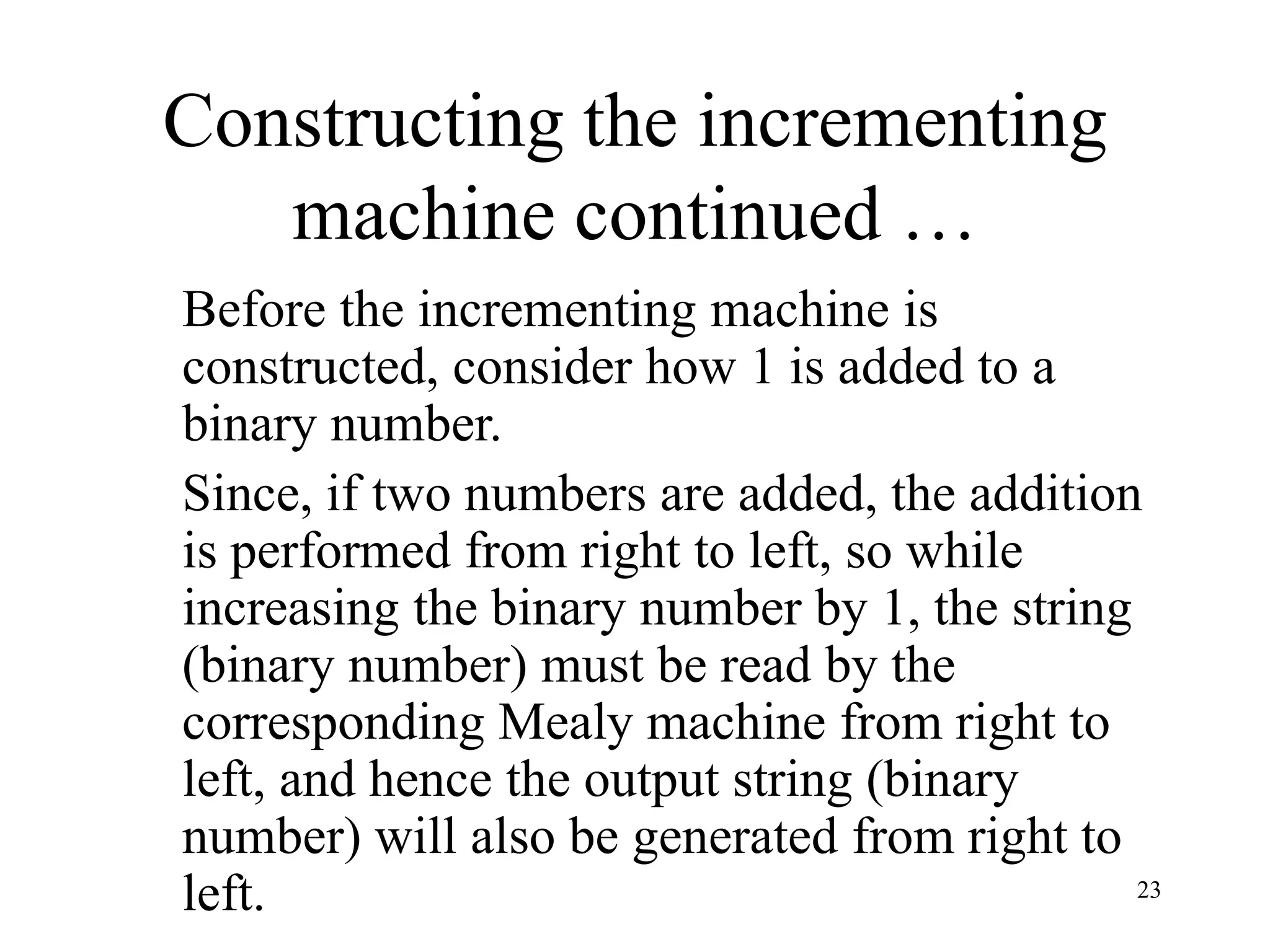

- 23. 23 Constructing the incrementing machinecontinued … Before the incrementing machine is constructed, consider how 1 is added to a binary number. Since, if two numbers are added, the addition is performed from right to left, so while increasing the binary number by 1, the string (binary number) must be read by the corresponding Mealy machine from right to left, and hence the output string (binary number) will also be generated from right to left.

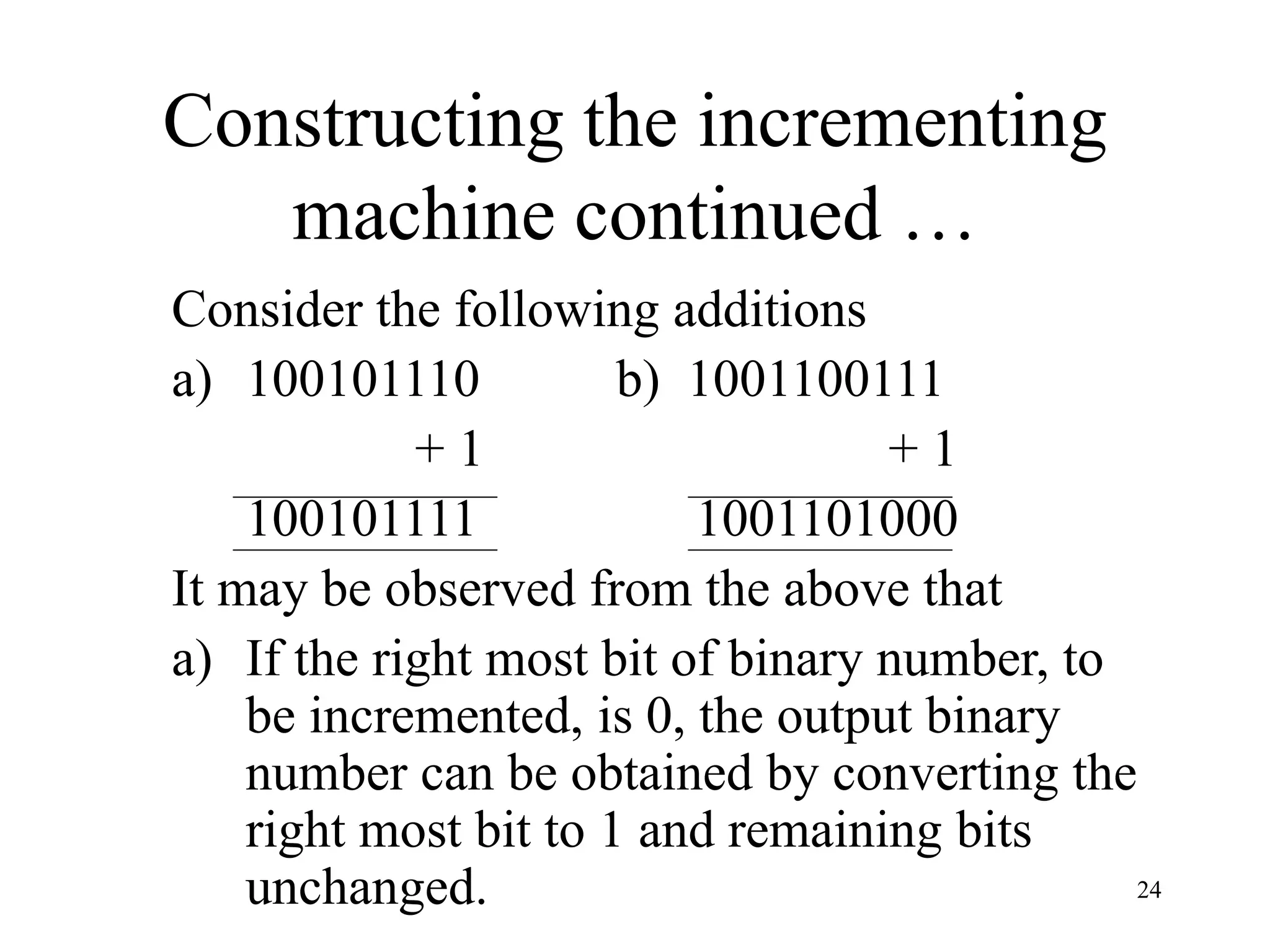

- 24. 24 Constructing the incrementing machinecontinued … Consider the following additions a) 100101110 b) 1001100111 + 1 + 1 100101111 1001101000 It may be observed from the above that a) If the right most bit of binary number, to be incremented, is 0, the output binary number can be obtained by converting the right most bit to 1 and remaining bits unchanged.

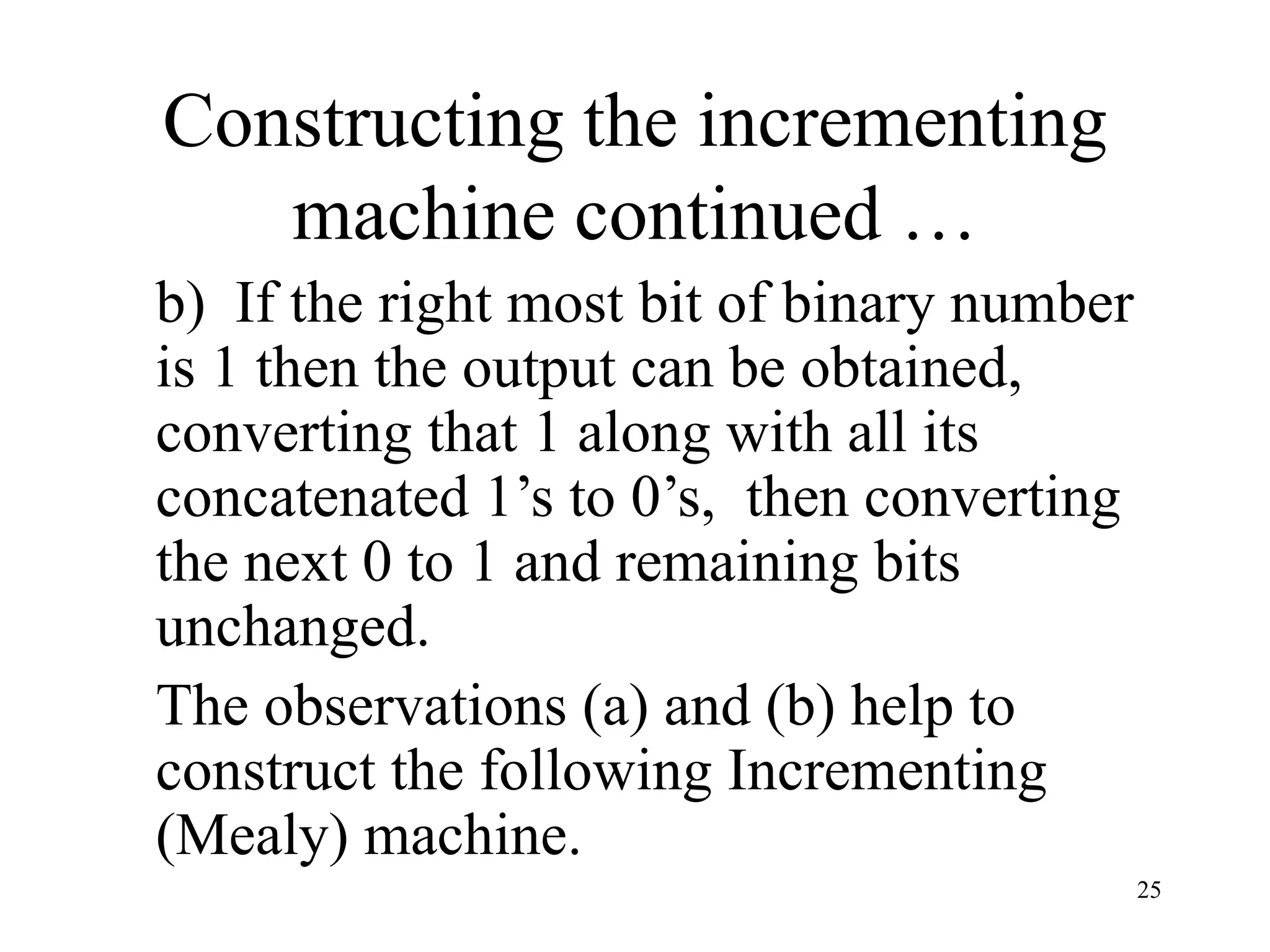

- 25. 25 Constructing the incrementing machinecontinued … b) If the right most bit of binary number is 1 then the output can be obtained, converting that 1 along with all its concatenated 1’s to 0’s, then converting the next 0 to 1 and remaining bits unchanged. The observations (a) and (b) help to construct the following Incrementing (Mealy) machine.

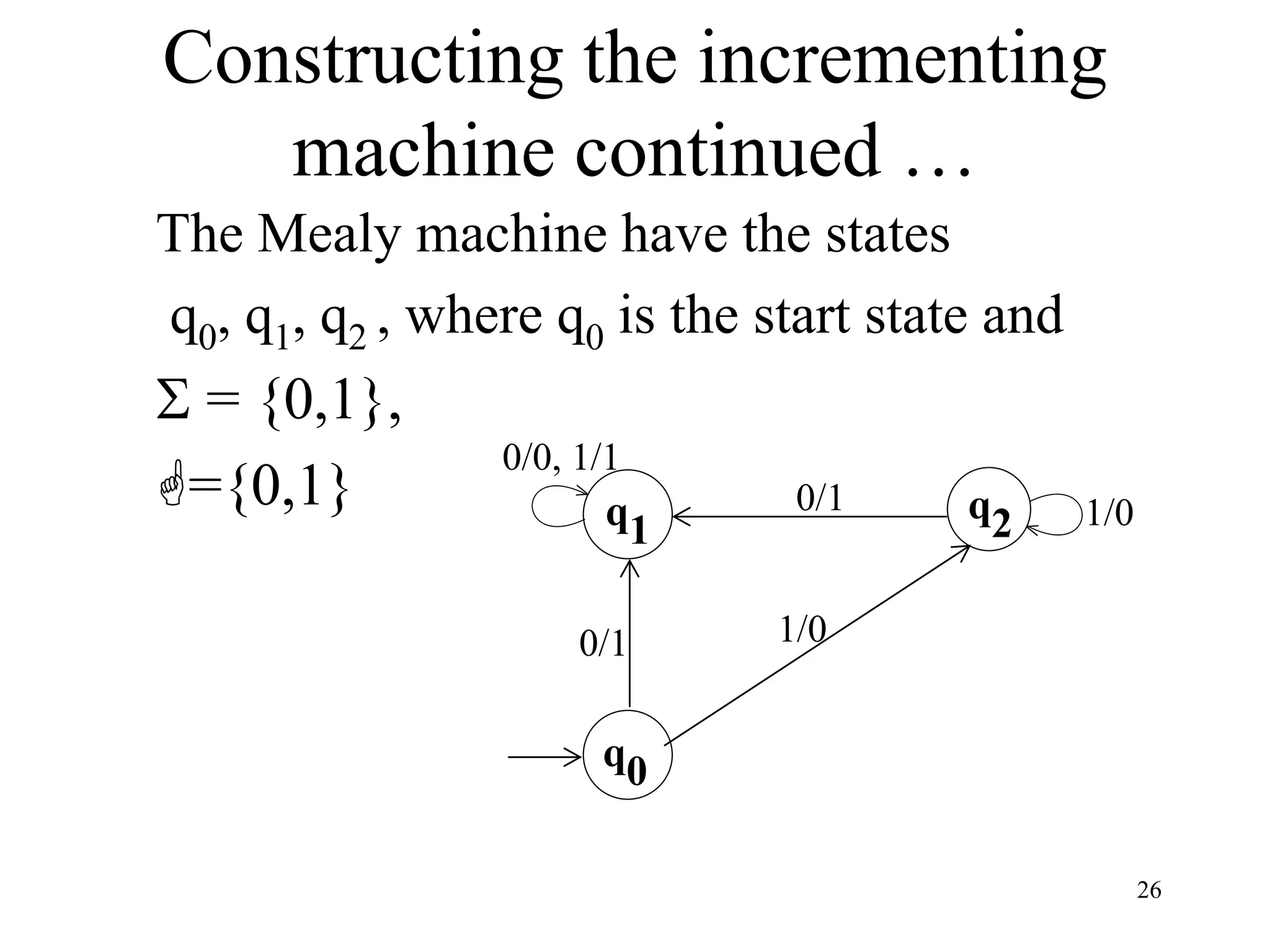

- 26. 26 Constructing the incrementing machinecontinued … The Mealy machine have the states q0, q1, q2 , where q0 is the start state and = {0,1}, ={0,1} 0/1 q1 q2 q0 1/0 0/1 1/0 0/0, 1/1

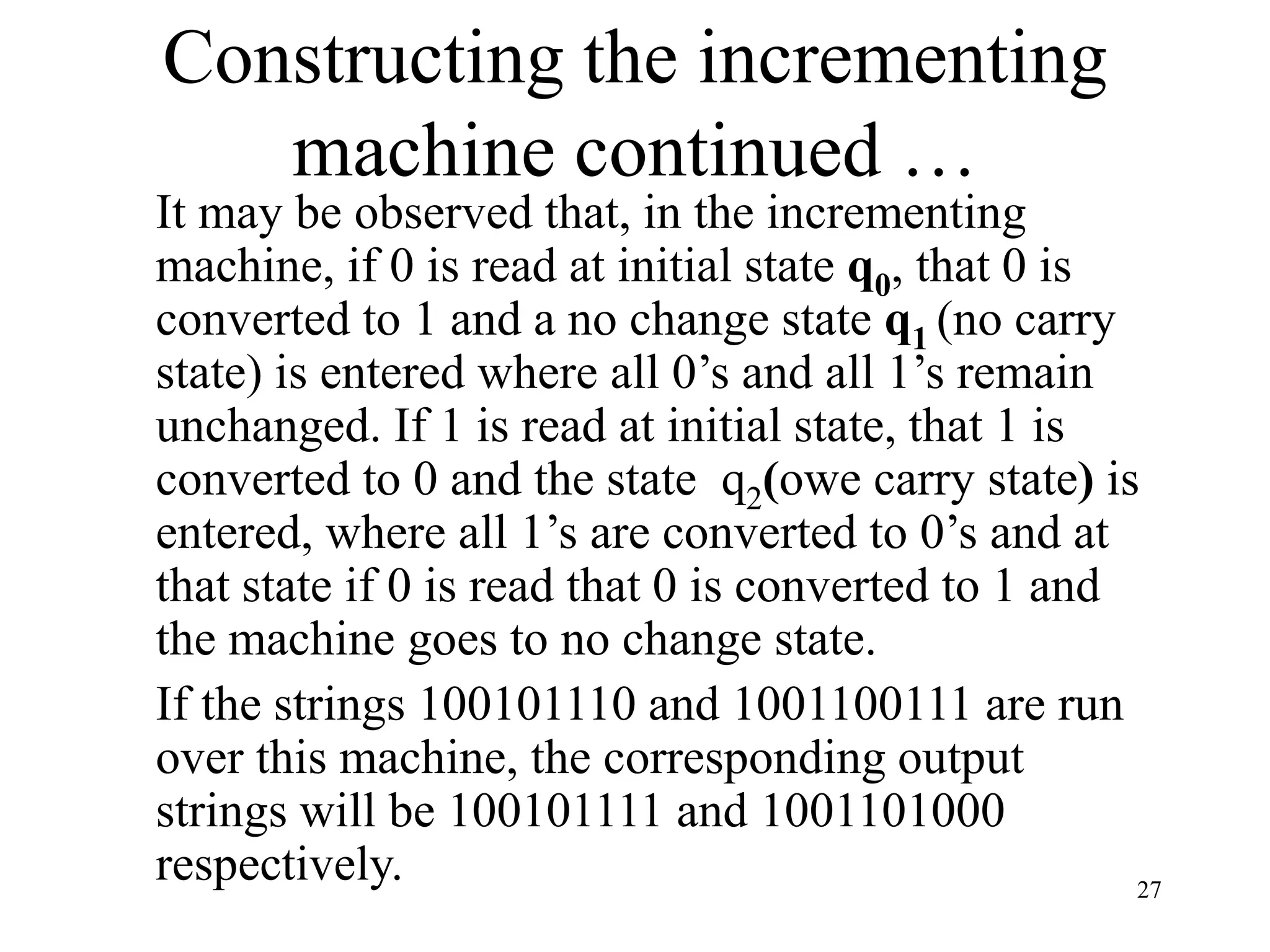

- 27. 27 Constructing the incrementing machinecontinued … It may be observed that, in the incrementing machine, if 0 is read at initial state q0, that 0 is converted to 1 and a no change state q1 (no carry state) is entered where all 0’s and all 1’s remain unchanged. If 1 is read at initial state, that 1 is converted to 0 and the state q2(owe carry state) is entered, where all 1’s are converted to 0’s and at that state if 0 is read that 0 is converted to 1 and the machine goes to no change state. If the strings 100101110 and 1001100111 are run over this machine, the corresponding output strings will be 100101111 and 1001101000 respectively.

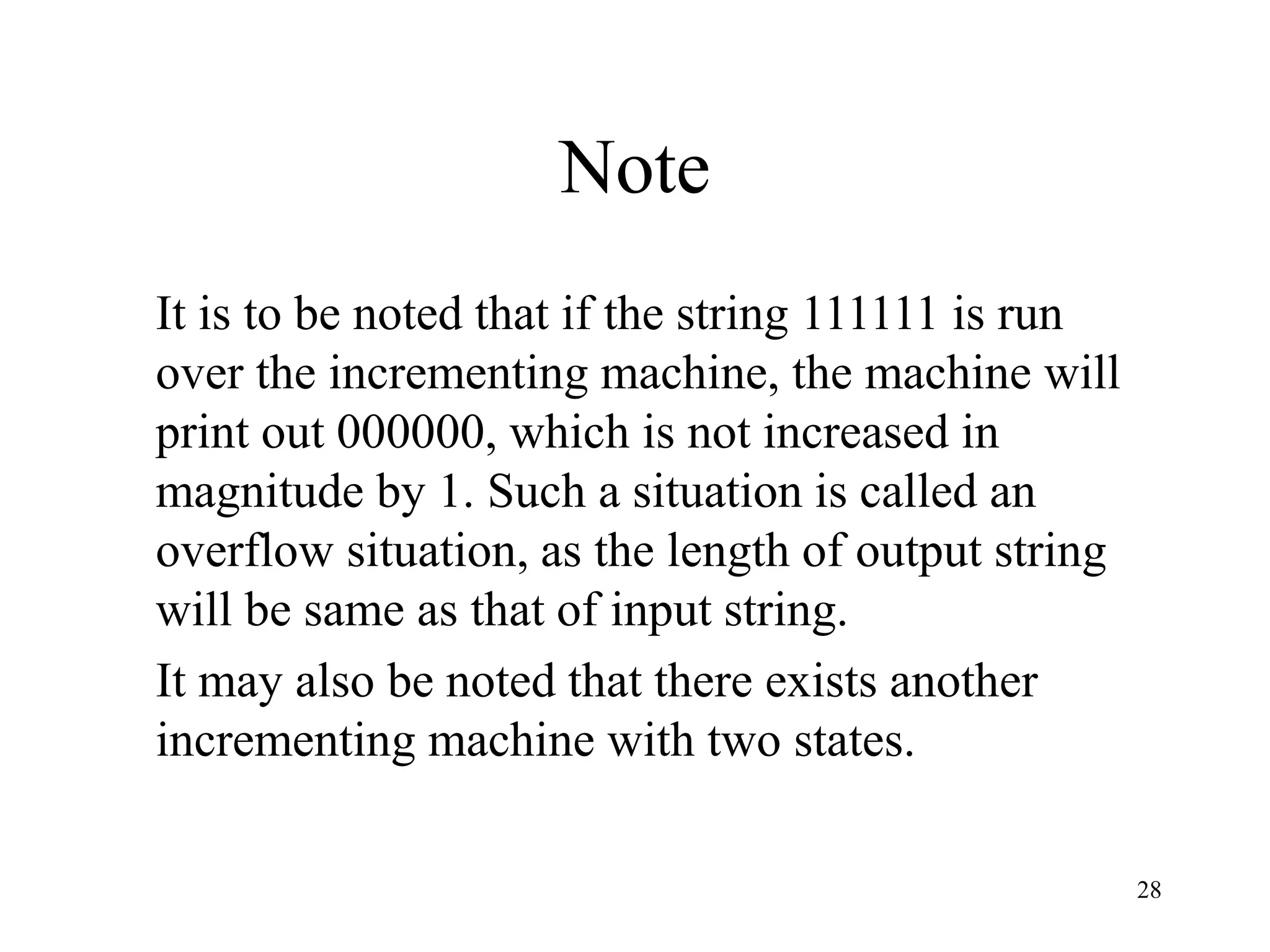

- 28. 28 Note It is tobe noted that if the string 111111 is run over the incrementing machine, the machine will print out 000000, which is not increased in magnitude by 1. Such a situation is called an overflow situation, as the length of output string will be same as that of input string. It may also be noted that there exists another incrementing machine with two states.

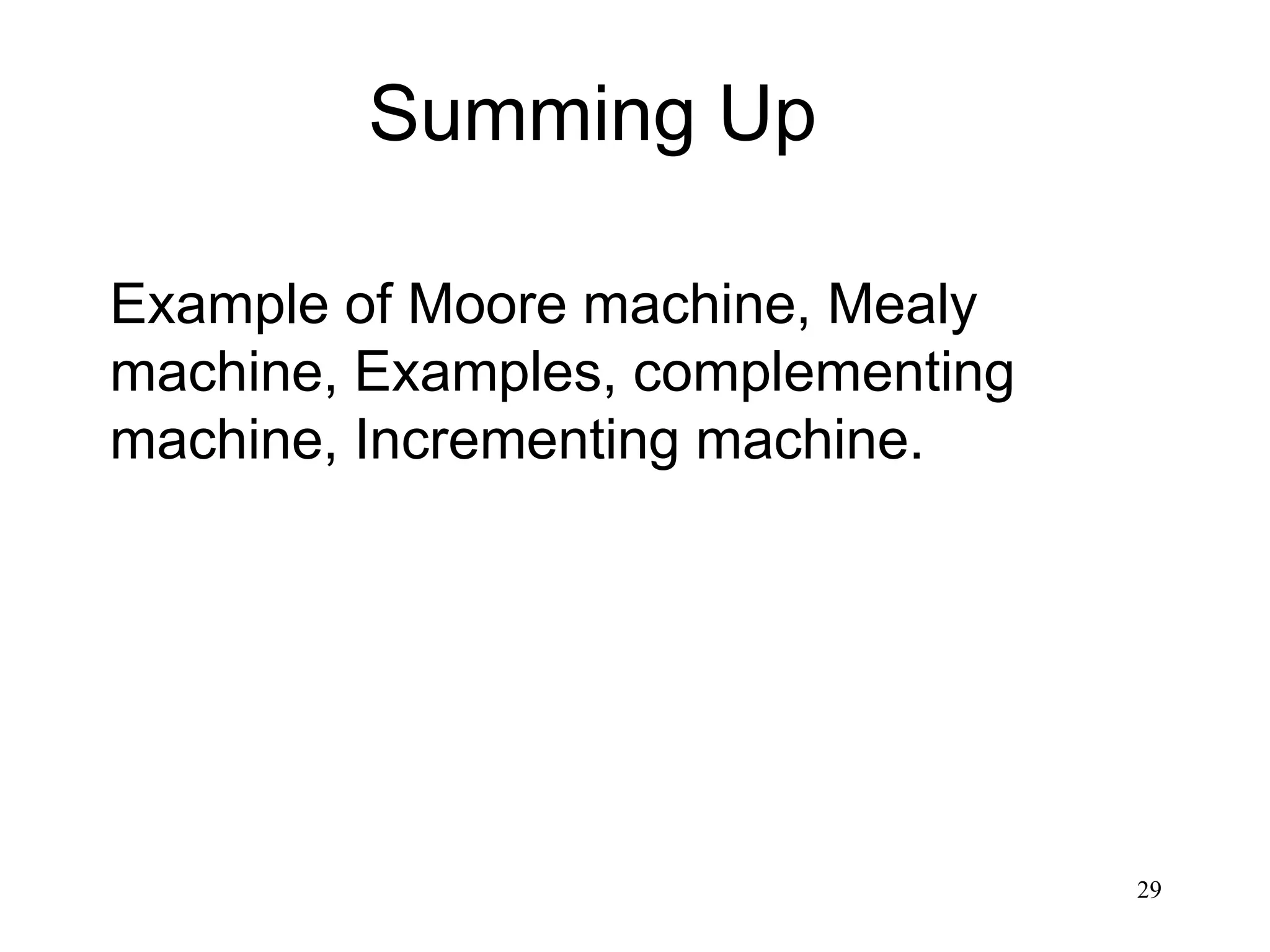

- 29. 29 Summing Up Example ofMoore machine, Mealy machine, Examples, complementing machine, Incrementing machine.
