lecture7-accesscontroool_ct1405.pptx.ppt
- 1.

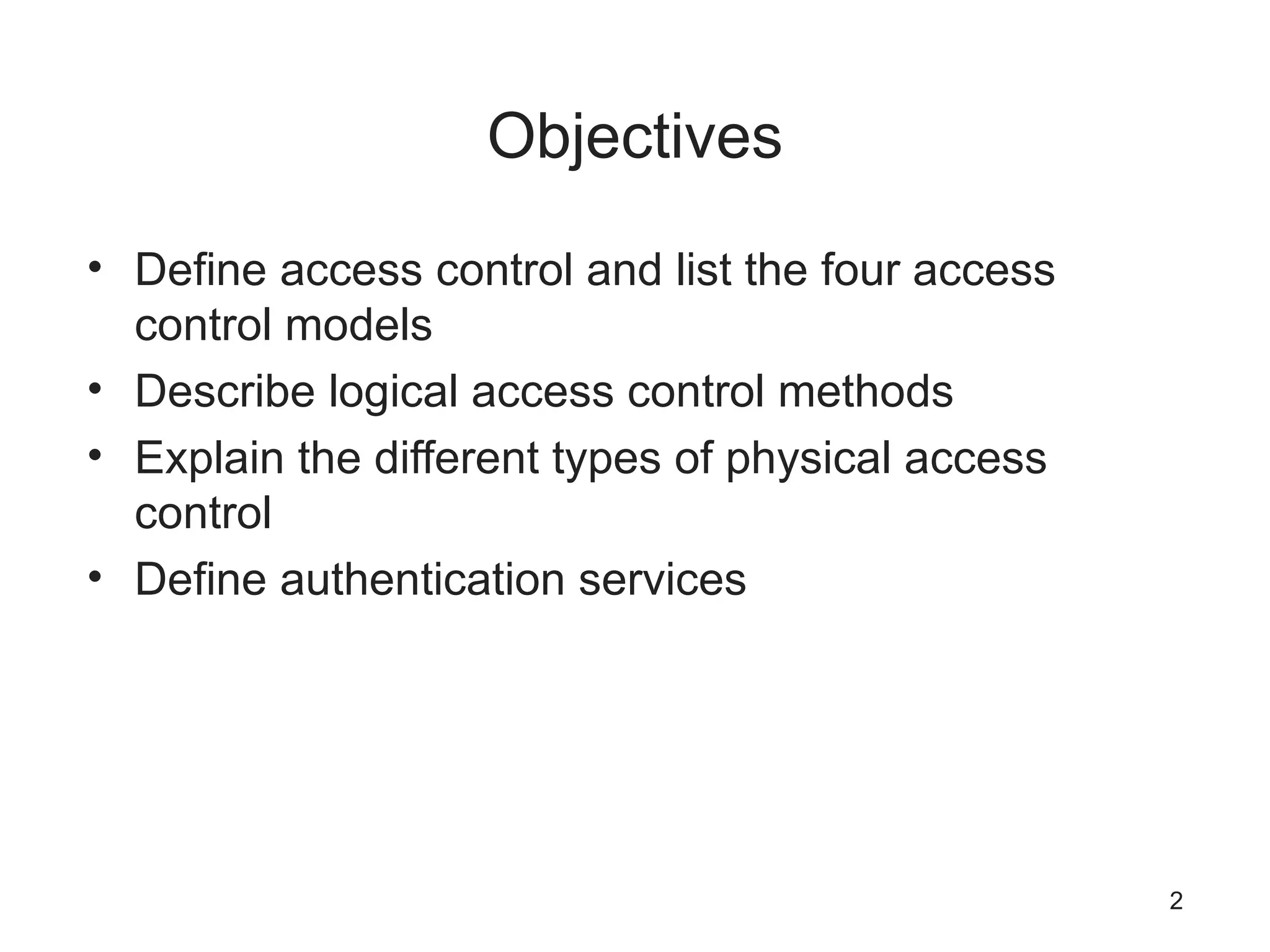

- 2. Objectives • Define accesscontrol and list the four access control models • Describe logical access control methods • Explain the different types of physical access control • Define authentication services 2

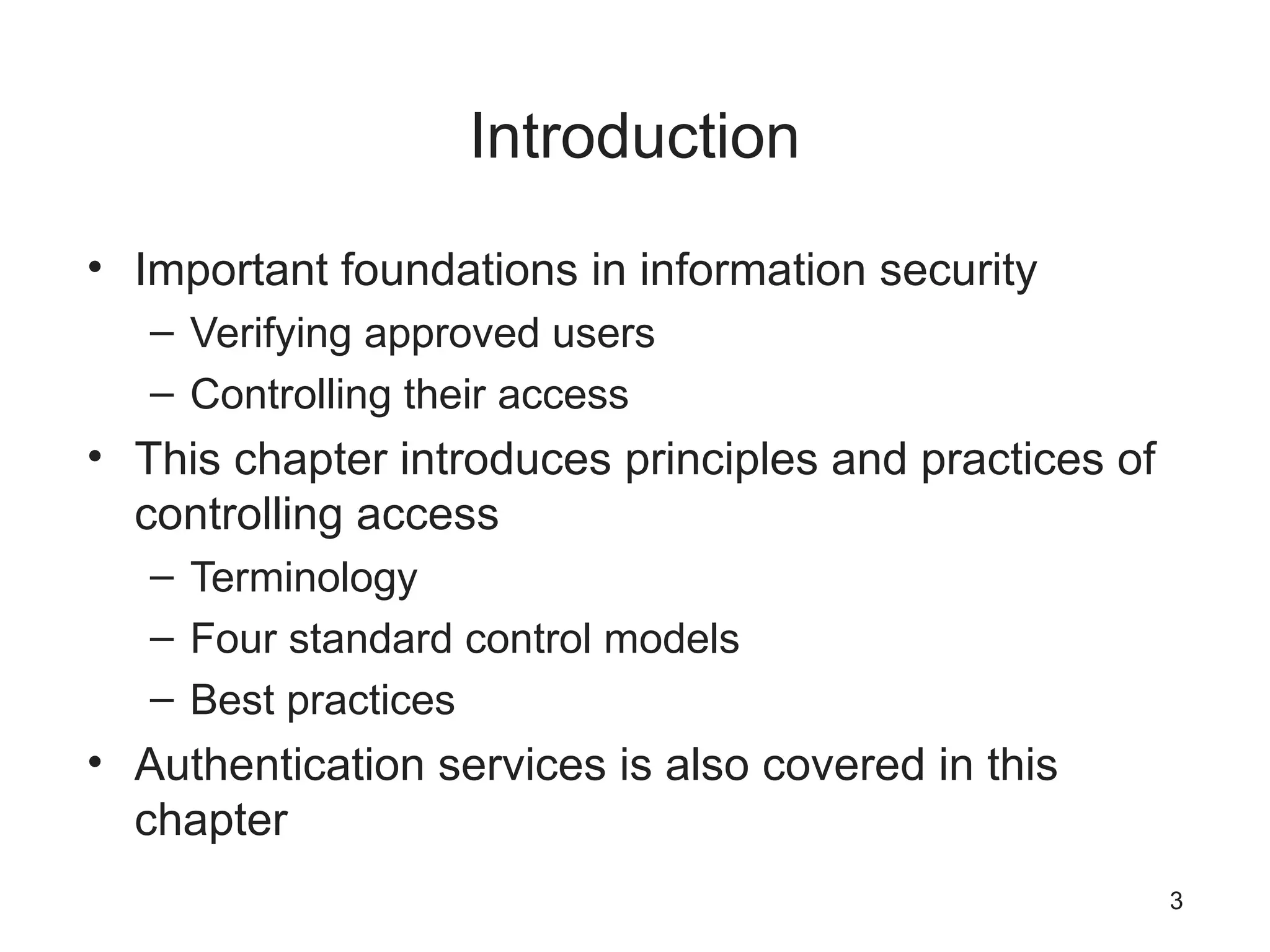

- 3. Introduction • Important foundationsin information security – Verifying approved users – Controlling their access • This chapter introduces principles and practices of controlling access – Terminology – Four standard control models – Best practices • Authentication services is also covered in this chapter 3

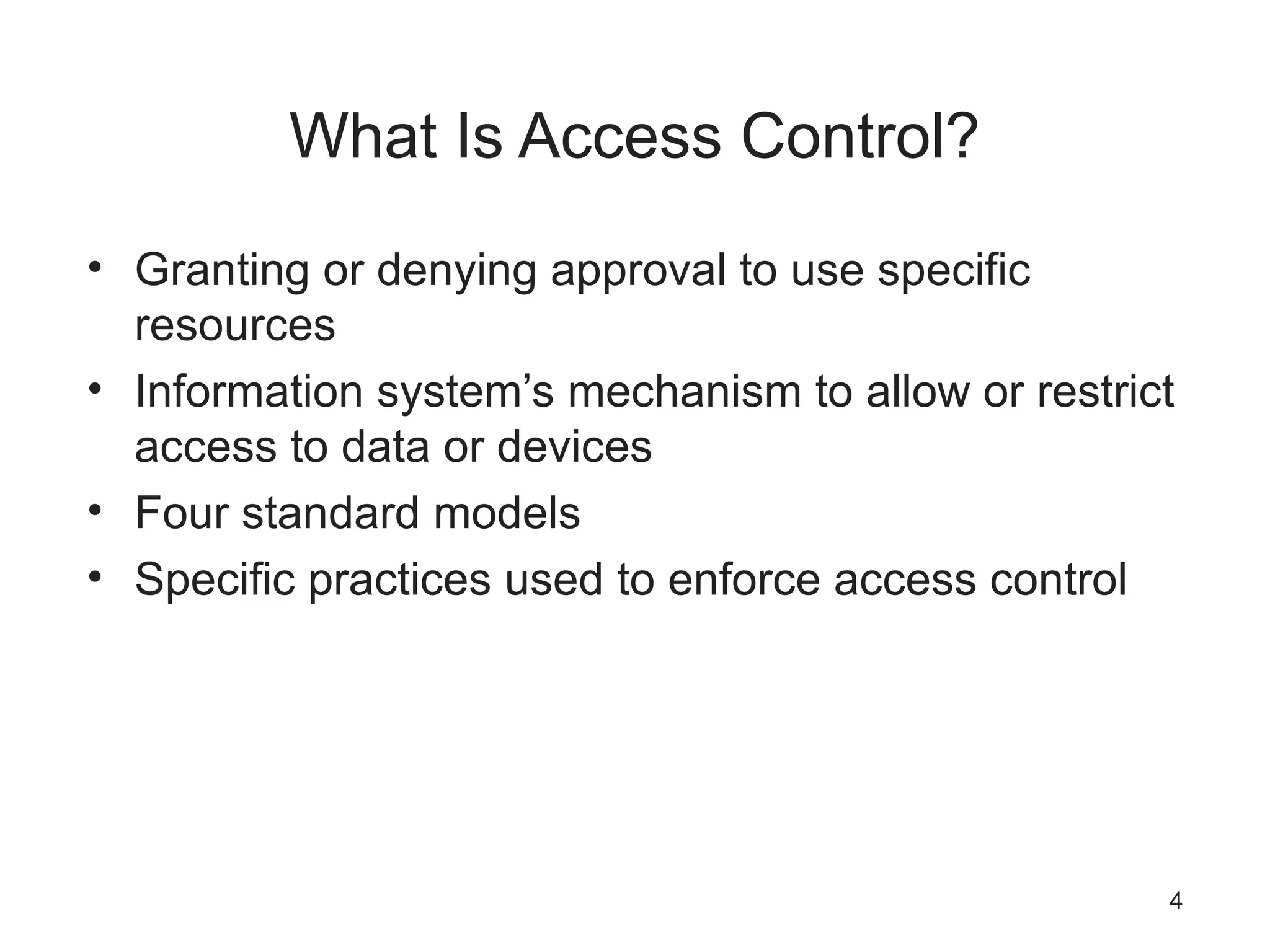

- 4. What Is AccessControl? • Granting or denying approval to use specific resources • Information system’s mechanism to allow or restrict access to data or devices • Four standard models • Specific practices used to enforce access control 4

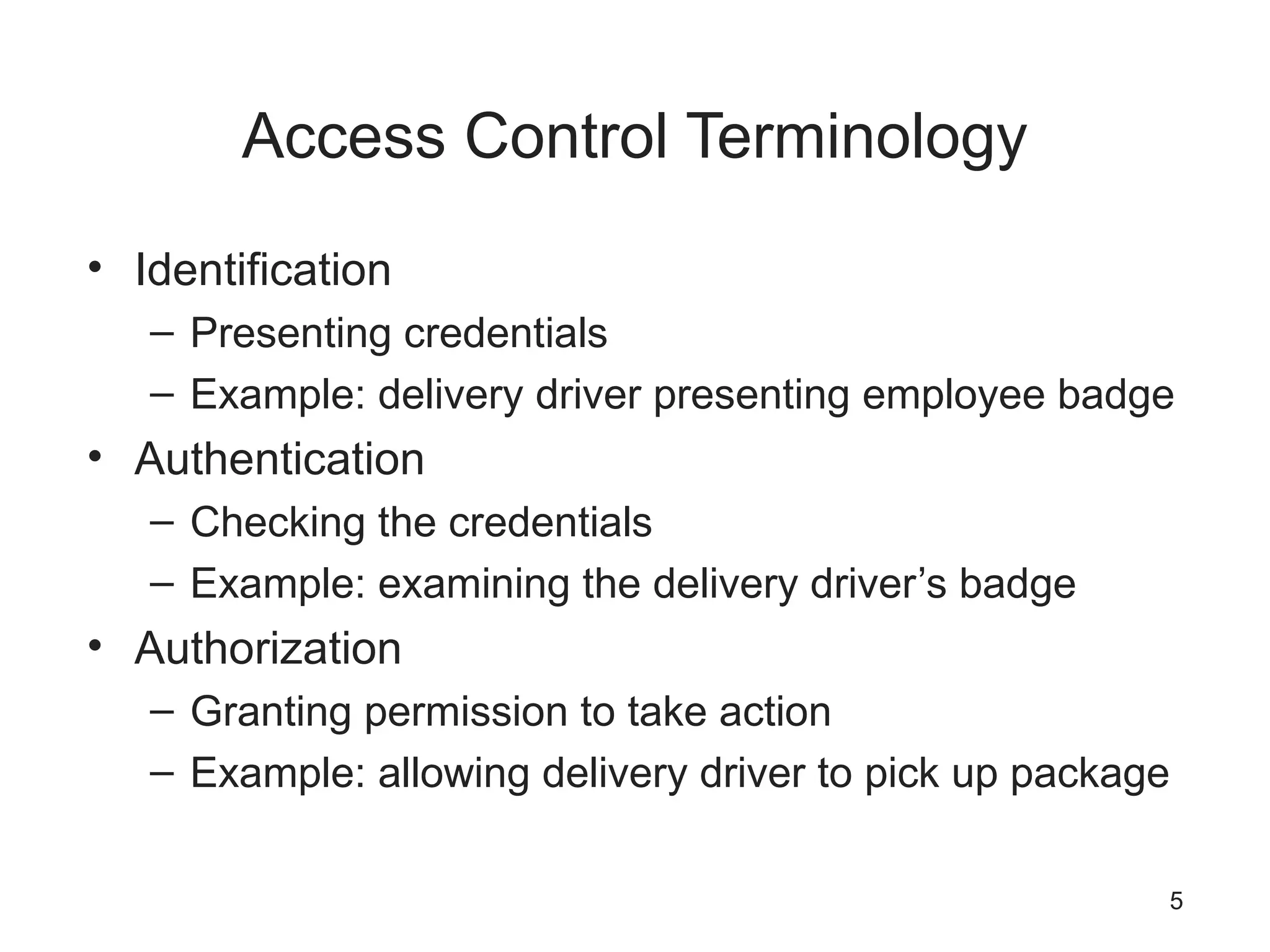

- 5. Access Control Terminology •Identification – Presenting credentials – Example: delivery driver presenting employee badge • Authentication – Checking the credentials – Example: examining the delivery driver’s badge • Authorization – Granting permission to take action – Example: allowing delivery driver to pick up package 5

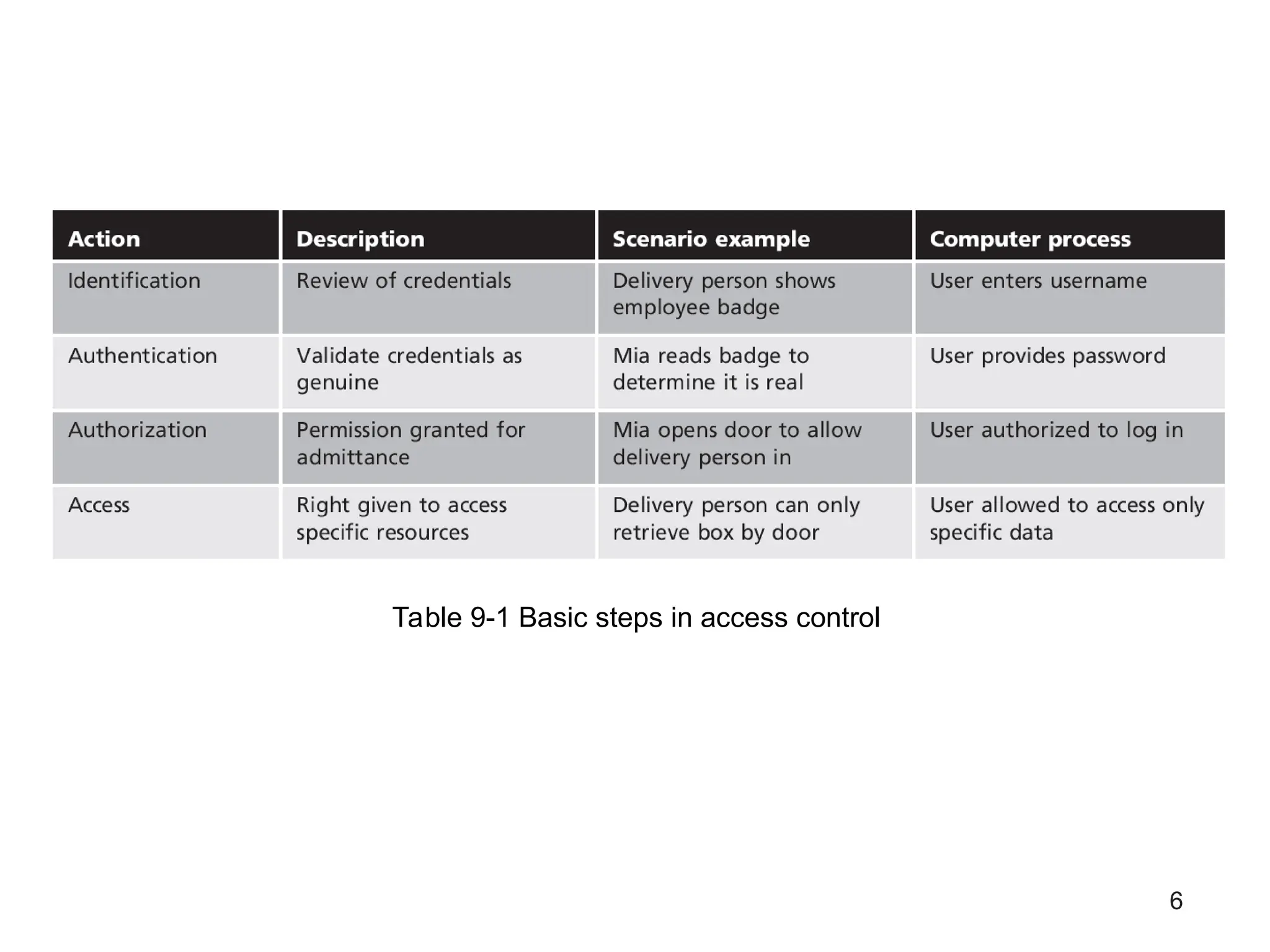

- 6. 6 Table 9-1 Basicsteps in access control

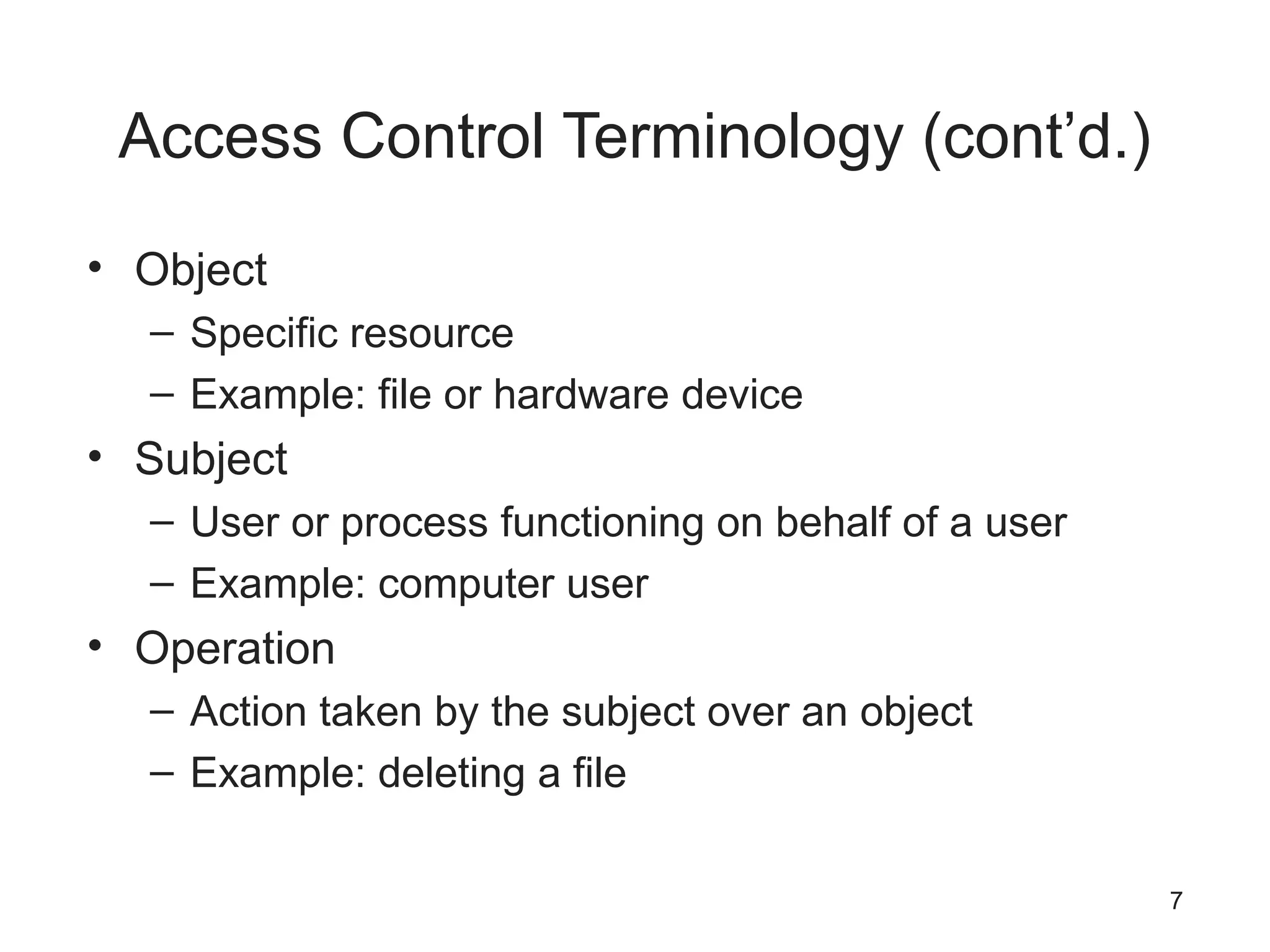

- 7. Access Control Terminology(cont’d.) • Object – Specific resource – Example: file or hardware device • Subject – User or process functioning on behalf of a user – Example: computer user • Operation – Action taken by the subject over an object – Example: deleting a file 7

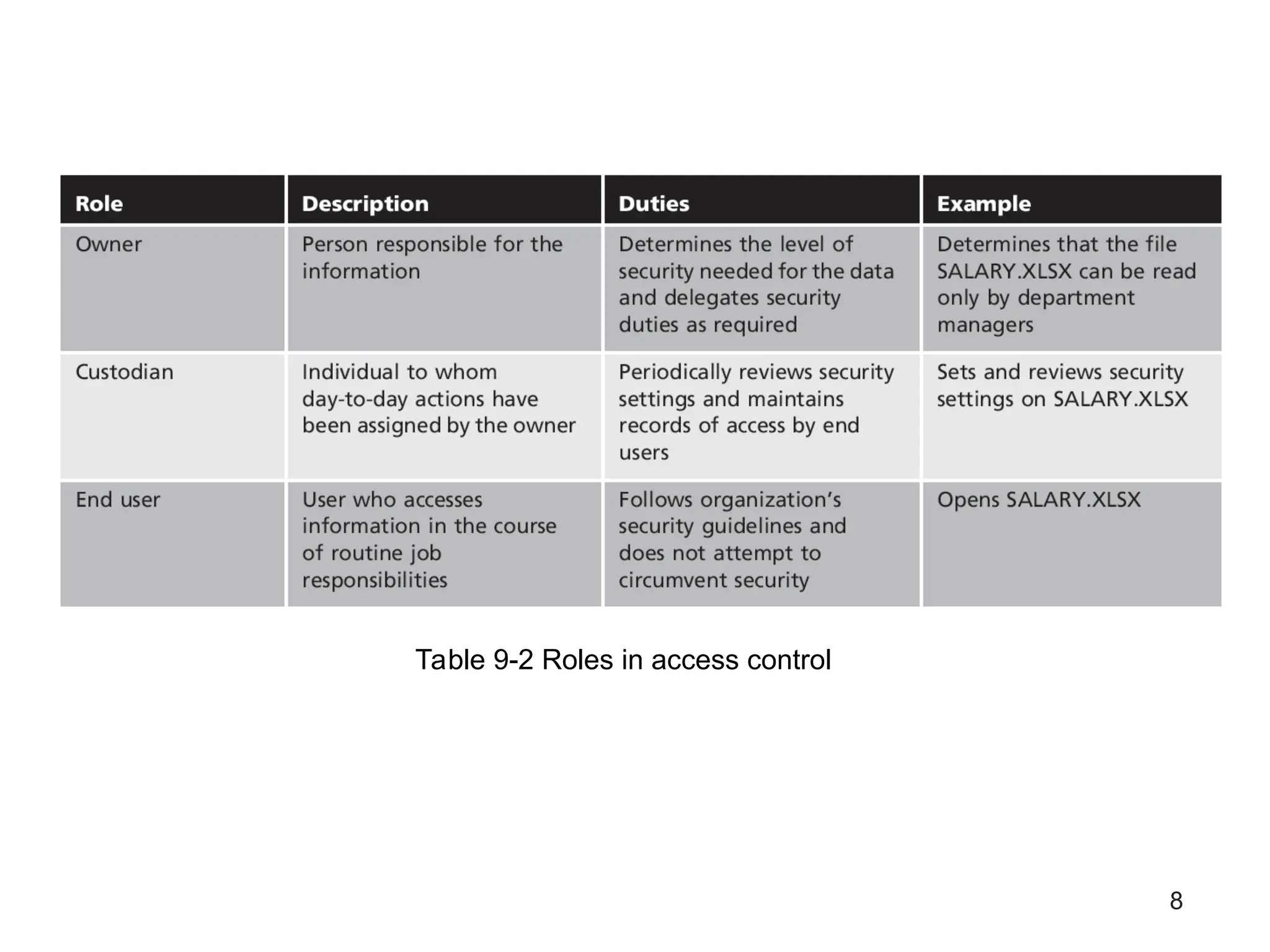

- 8. 8 Table 9-2 Rolesin access control

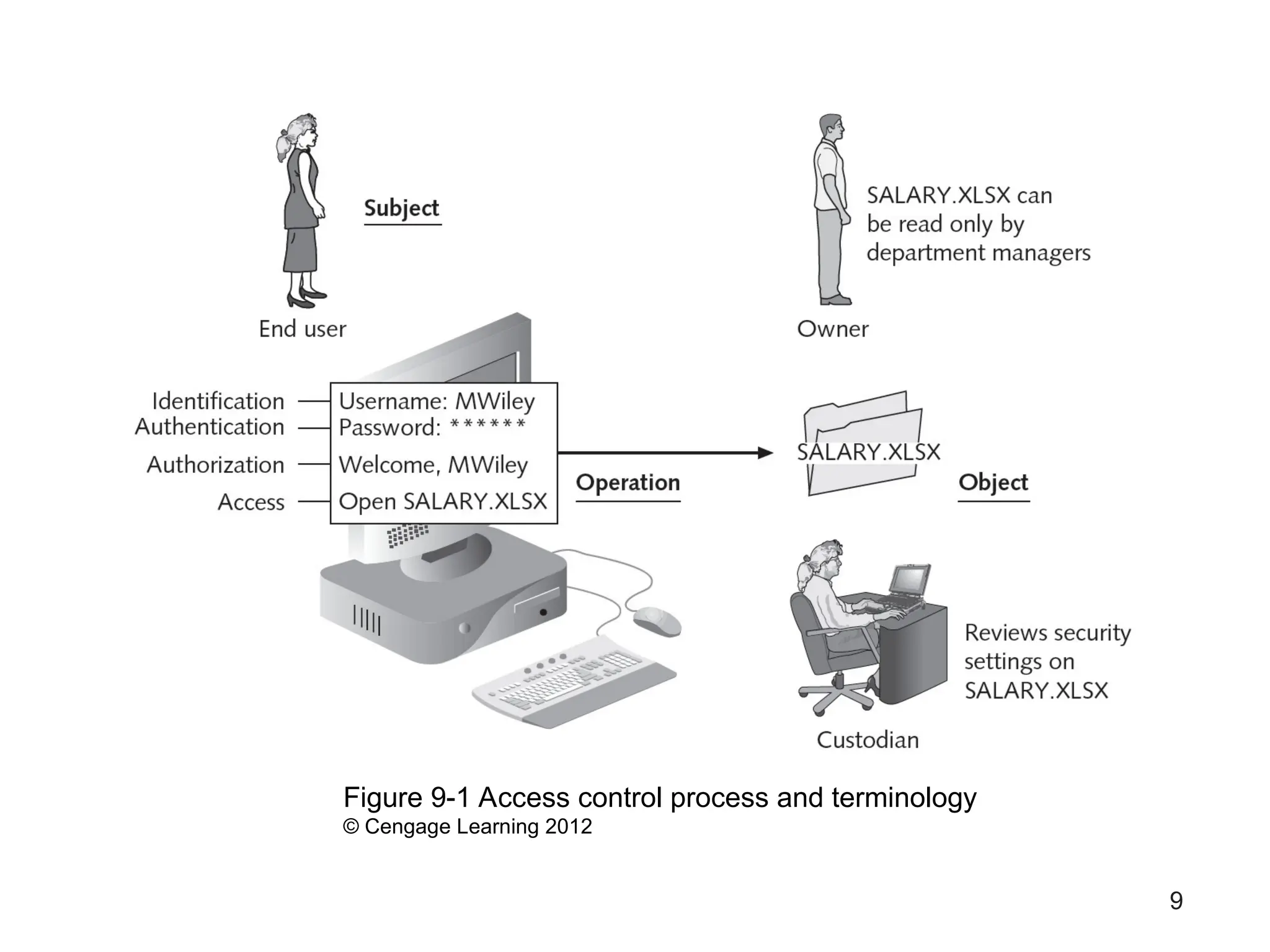

- 9. 9 Figure 9-1 Accesscontrol process and terminology © Cengage Learning 2012

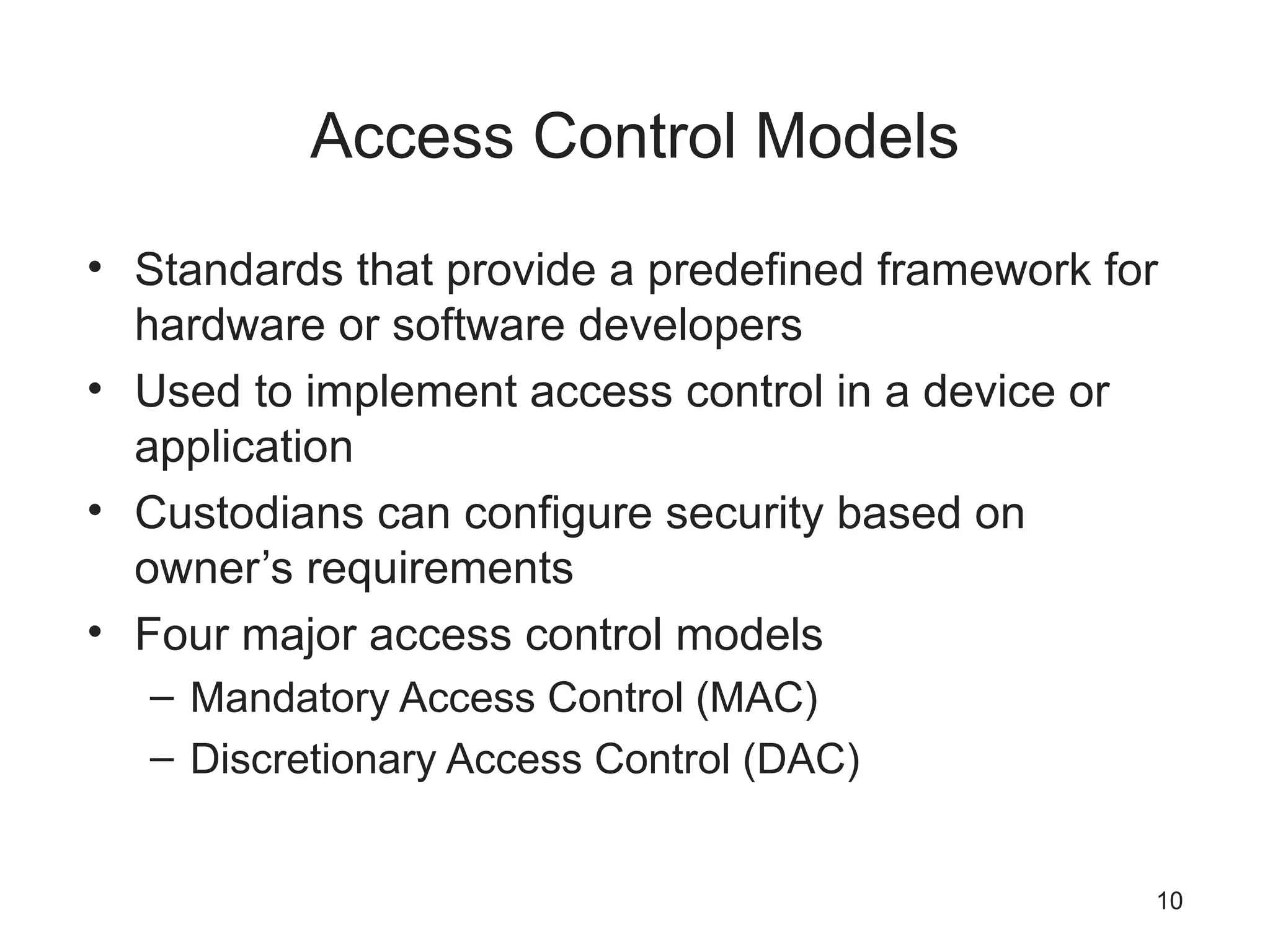

- 10. Access Control Models •Standards that provide a predefined framework for hardware or software developers • Used to implement access control in a device or application • Custodians can configure security based on owner’s requirements • Four major access control models – Mandatory Access Control (MAC) – Discretionary Access Control (DAC) 10

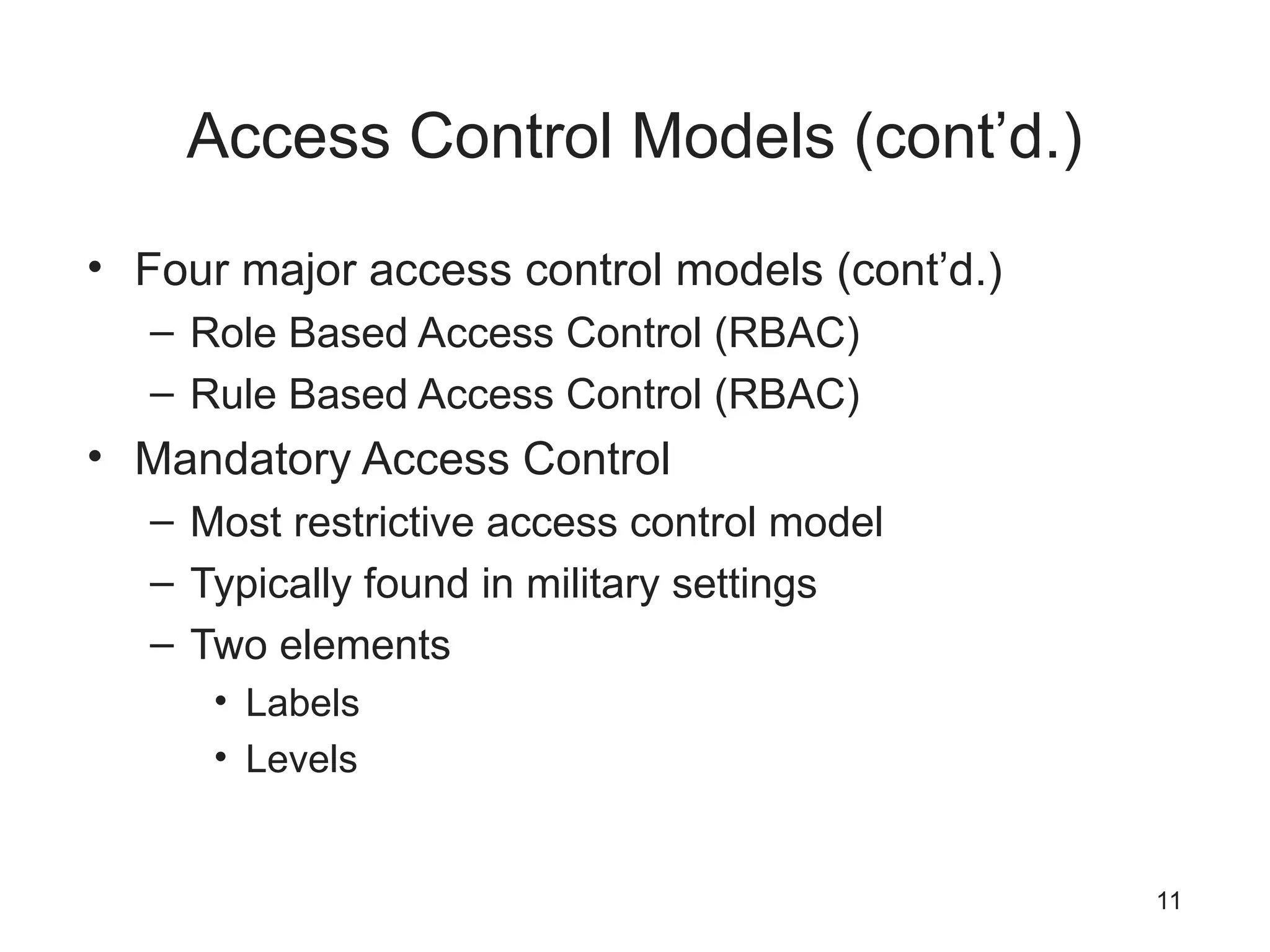

- 11. Access Control Models(cont’d.) • Four major access control models (cont’d.) – Role Based Access Control (RBAC) – Rule Based Access Control (RBAC) • Mandatory Access Control – Most restrictive access control model – Typically found in military settings – Two elements • Labels • Levels 11

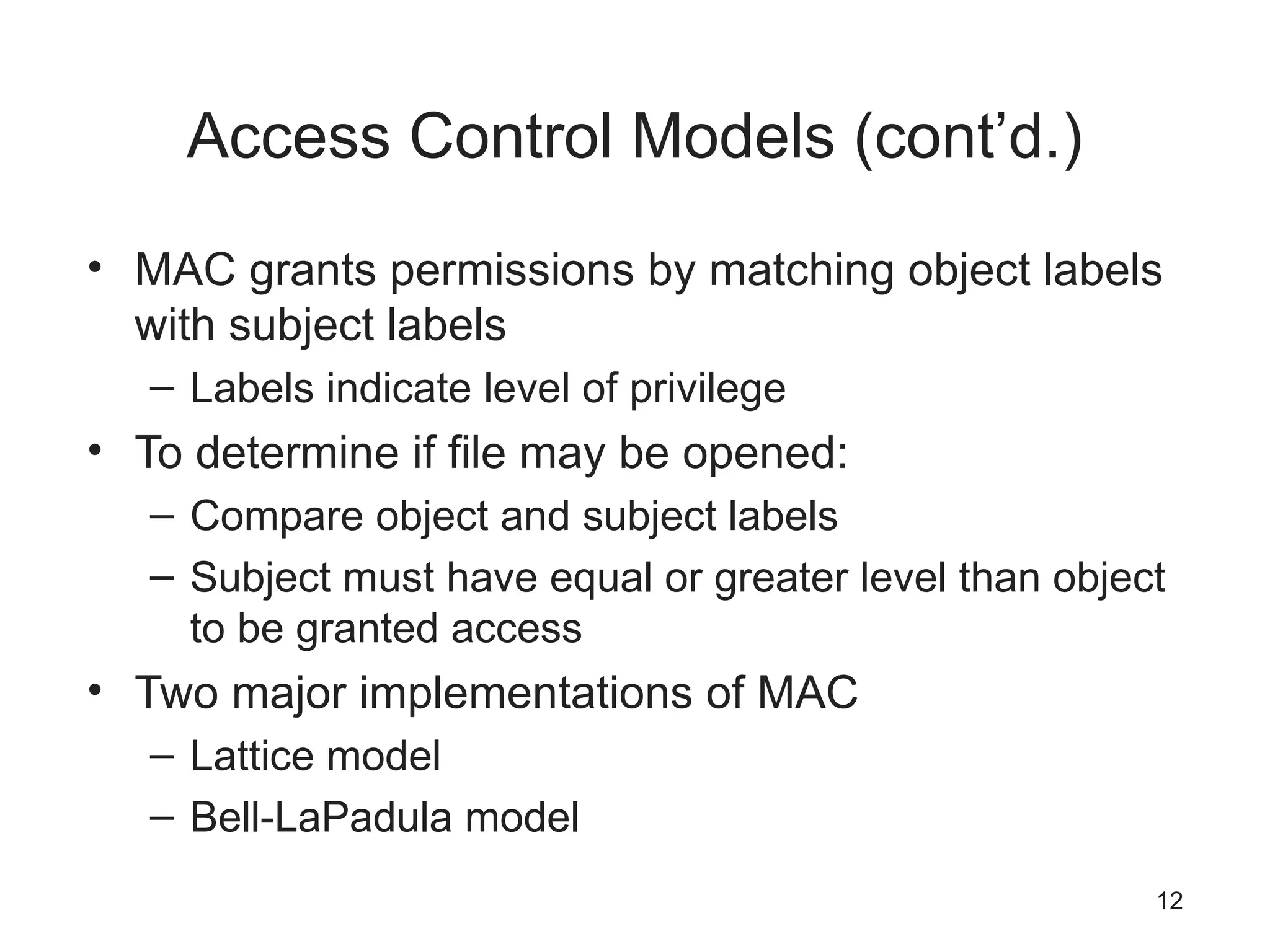

- 12. Access Control Models(cont’d.) • MAC grants permissions by matching object labels with subject labels – Labels indicate level of privilege • To determine if file may be opened: – Compare object and subject labels – Subject must have equal or greater level than object to be granted access • Two major implementations of MAC – Lattice model – Bell-LaPadula model 12

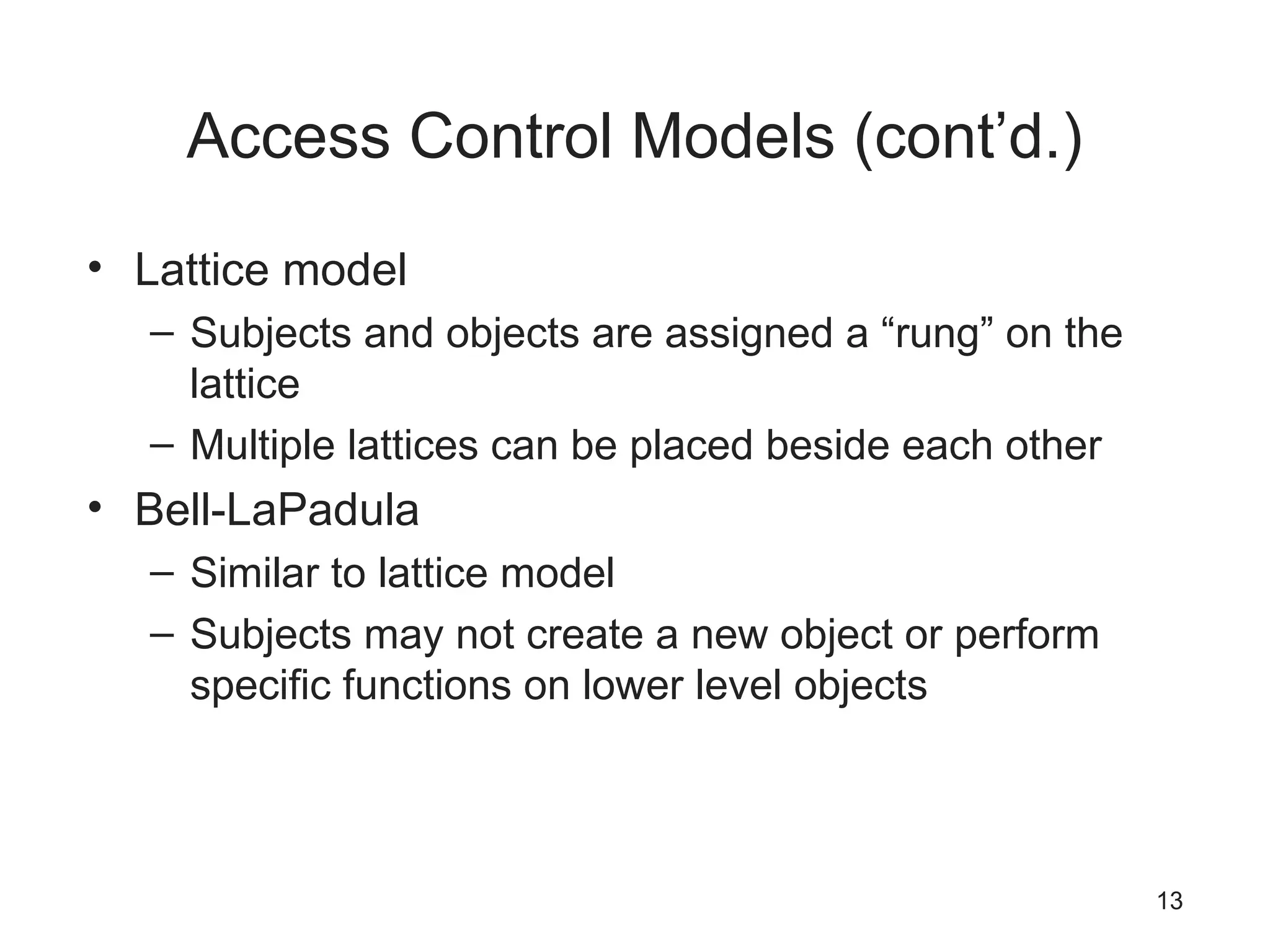

- 13. Access Control Models(cont’d.) • Lattice model – Subjects and objects are assigned a “rung” on the lattice – Multiple lattices can be placed beside each other • Bell-LaPadula – Similar to lattice model – Subjects may not create a new object or perform specific functions on lower level objects 13

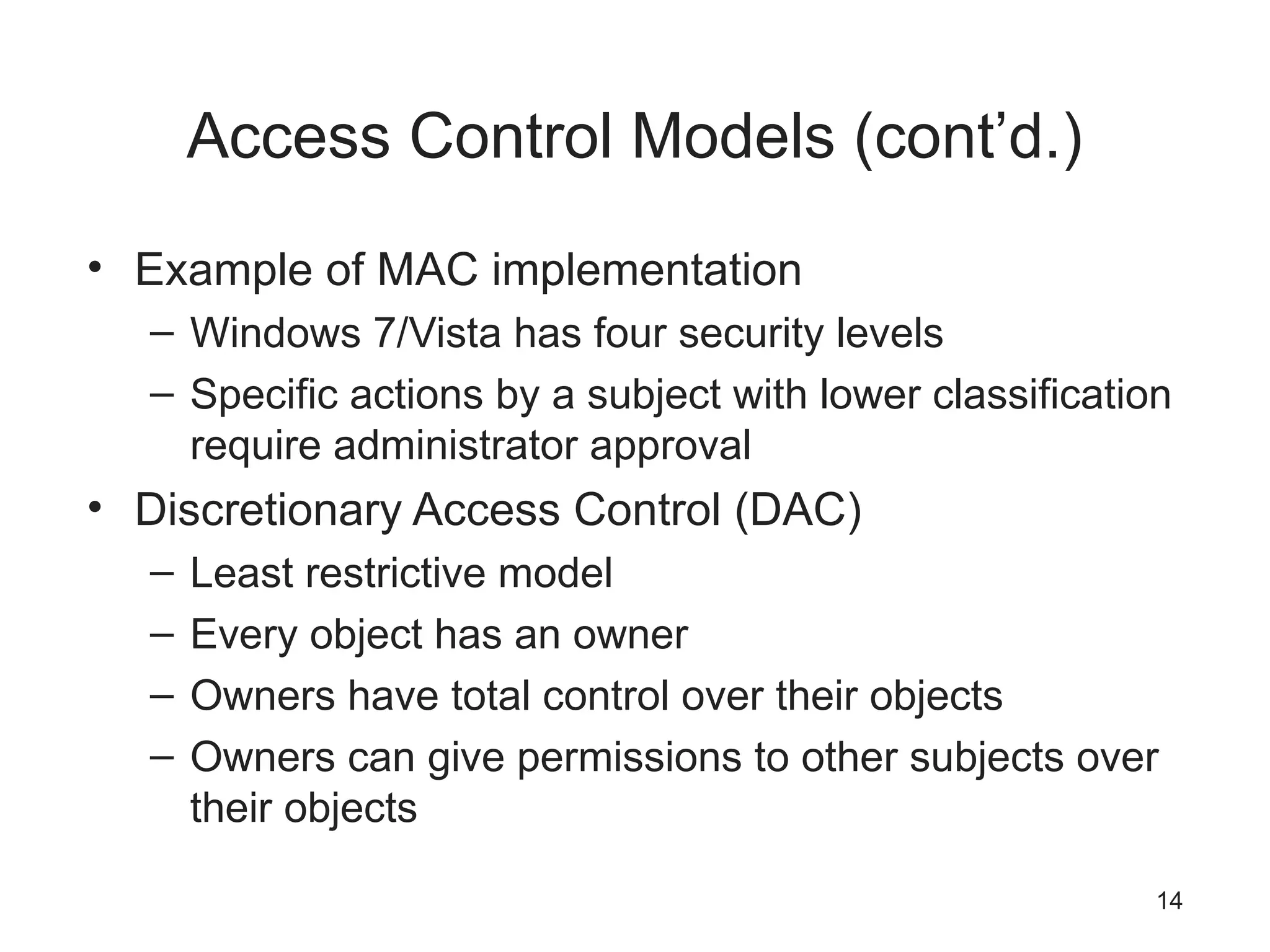

- 14. Access Control Models(cont’d.) • Example of MAC implementation – Windows 7/Vista has four security levels – Specific actions by a subject with lower classification require administrator approval • Discretionary Access Control (DAC) – Least restrictive model – Every object has an owner – Owners have total control over their objects – Owners can give permissions to other subjects over their objects 14

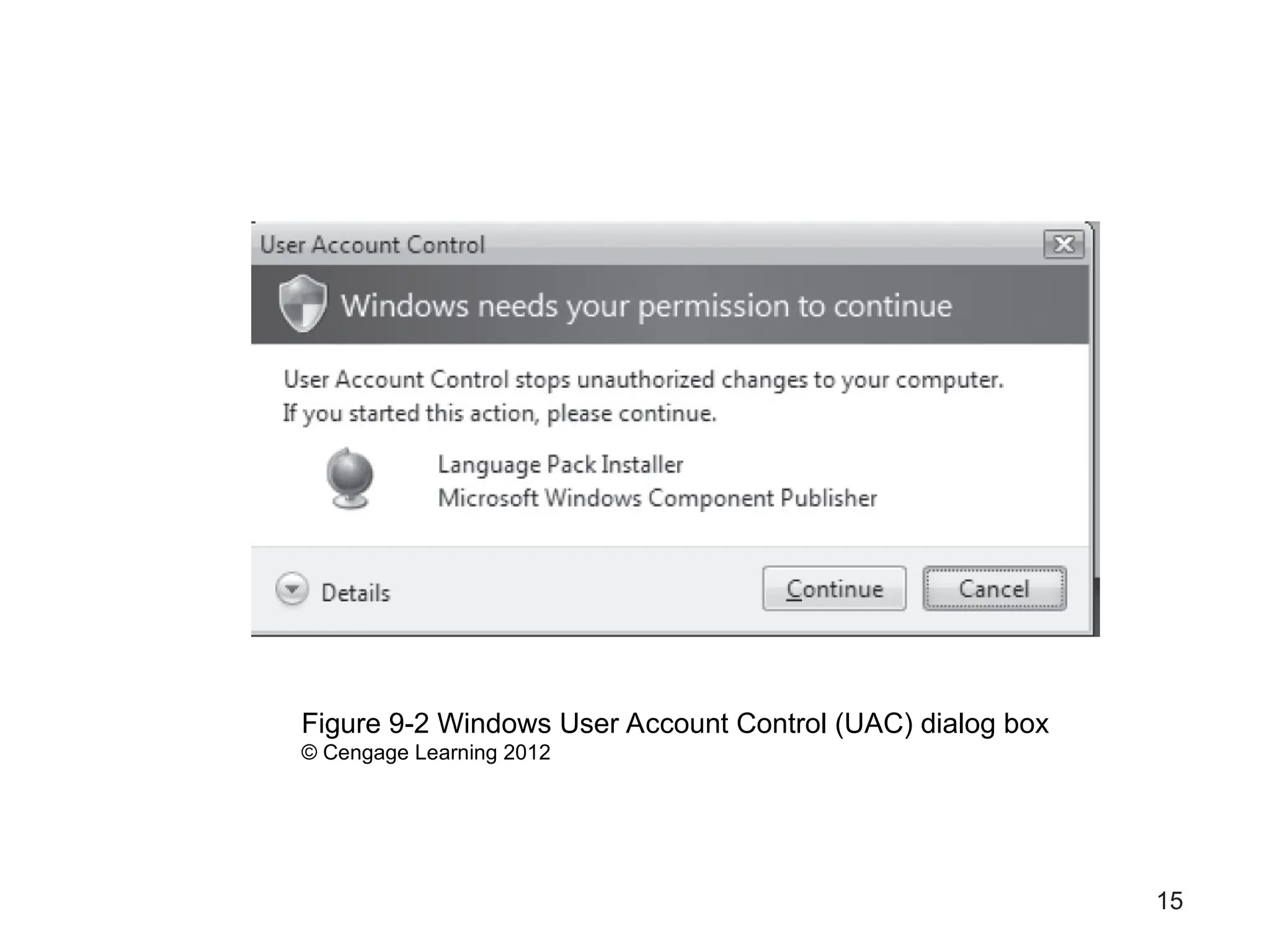

- 15. 15 Figure 9-2 WindowsUser Account Control (UAC) dialog box © Cengage Learning 2012

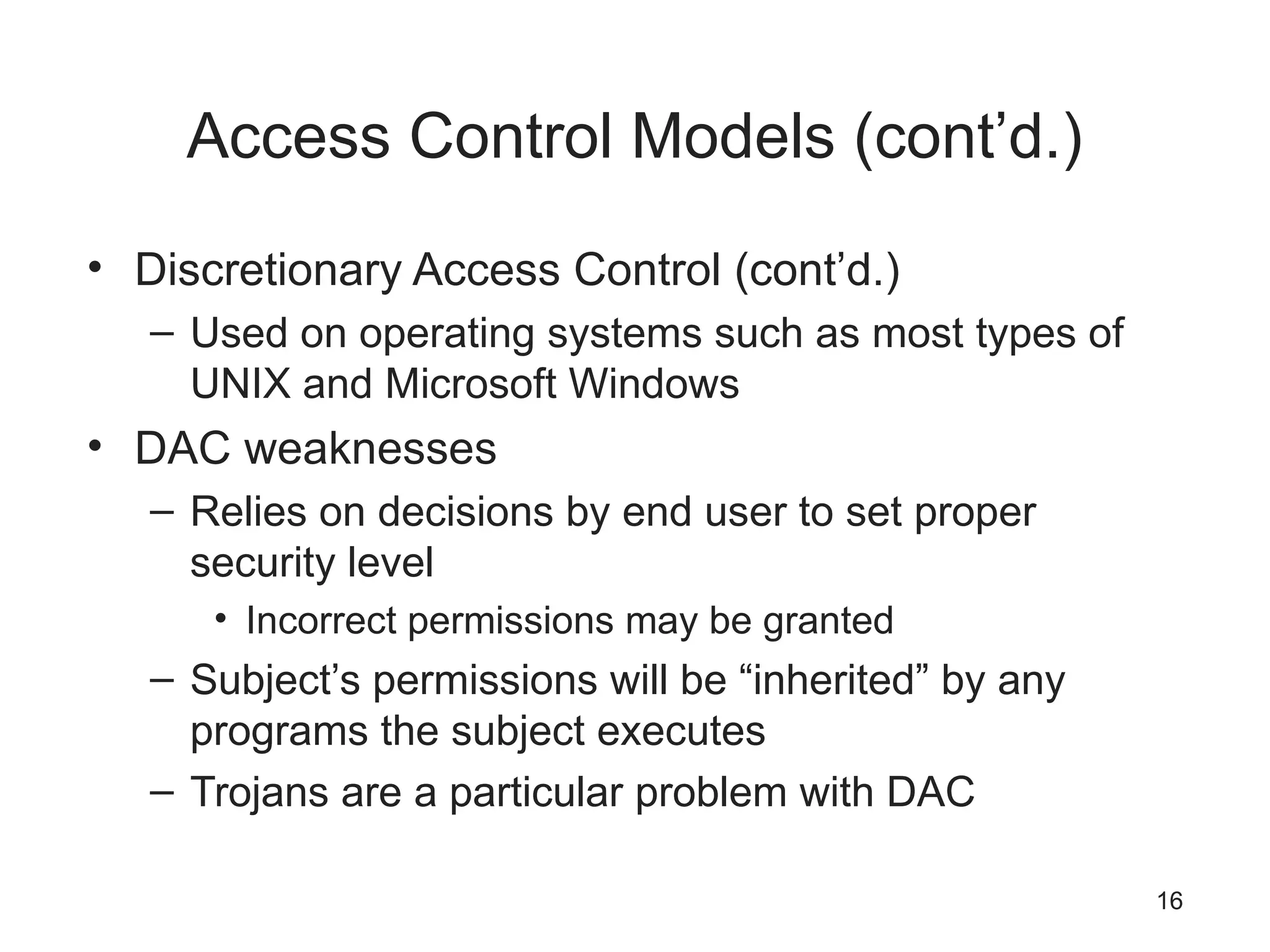

- 16. Access Control Models(cont’d.) • Discretionary Access Control (cont’d.) – Used on operating systems such as most types of UNIX and Microsoft Windows • DAC weaknesses – Relies on decisions by end user to set proper security level • Incorrect permissions may be granted – Subject’s permissions will be “inherited” by any programs the subject executes – Trojans are a particular problem with DAC 16

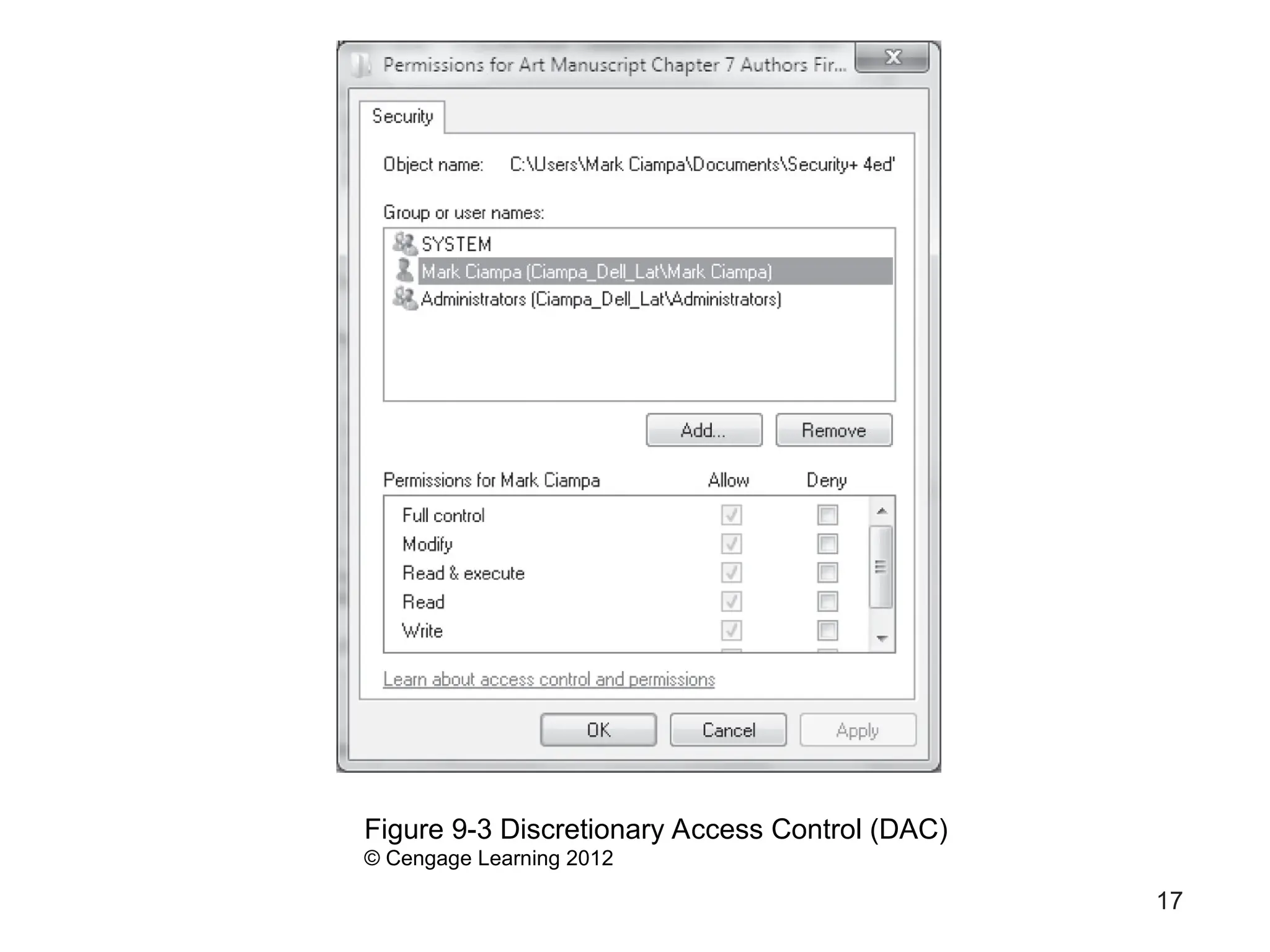

- 17. 17 Figure 9-3 DiscretionaryAccess Control (DAC) © Cengage Learning 2012

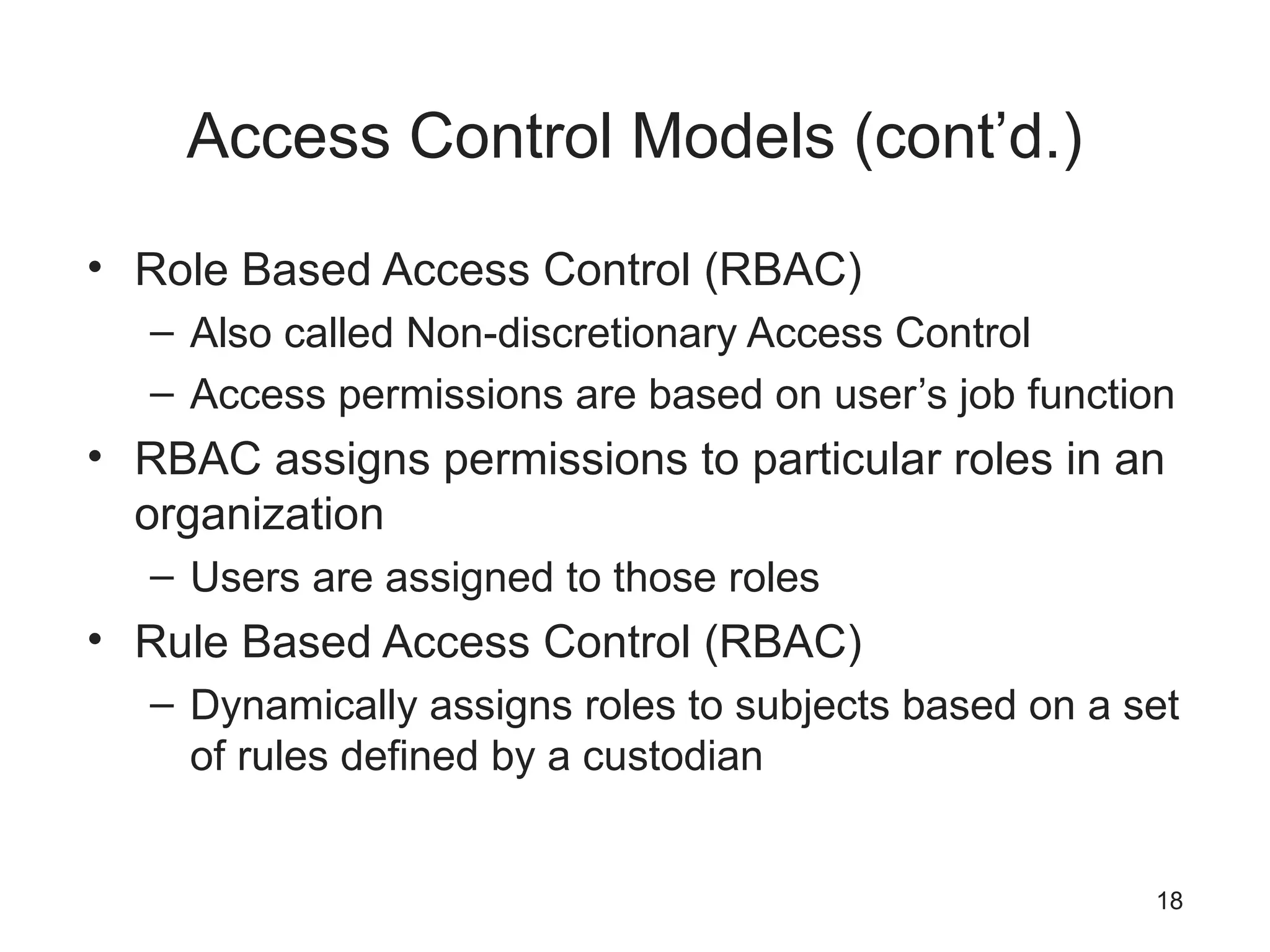

- 18. Access Control Models(cont’d.) • Role Based Access Control (RBAC) – Also called Non-discretionary Access Control – Access permissions are based on user’s job function • RBAC assigns permissions to particular roles in an organization – Users are assigned to those roles • Rule Based Access Control (RBAC) – Dynamically assigns roles to subjects based on a set of rules defined by a custodian 18

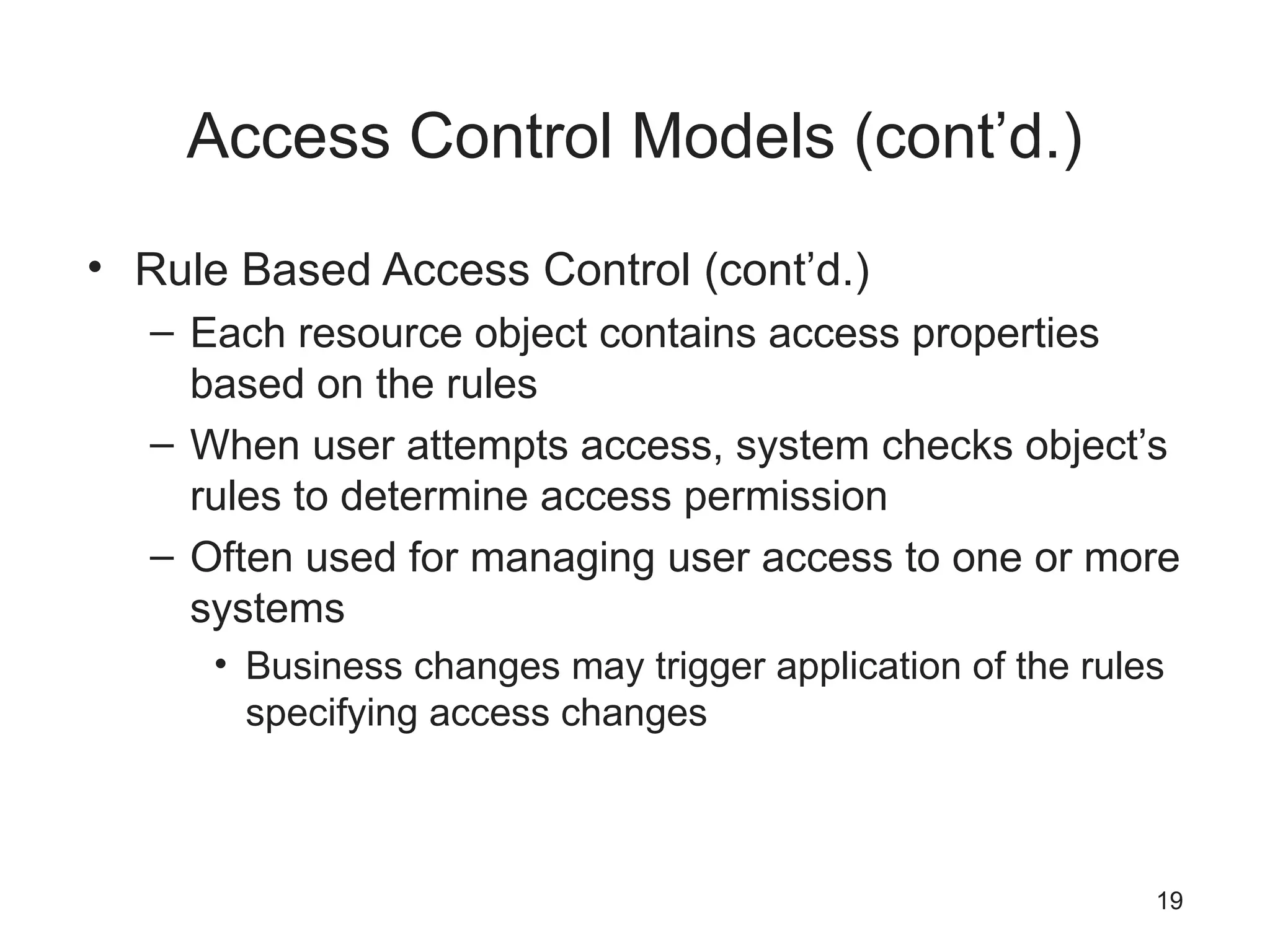

- 19. Access Control Models(cont’d.) • Rule Based Access Control (cont’d.) – Each resource object contains access properties based on the rules – When user attempts access, system checks object’s rules to determine access permission – Often used for managing user access to one or more systems • Business changes may trigger application of the rules specifying access changes 19

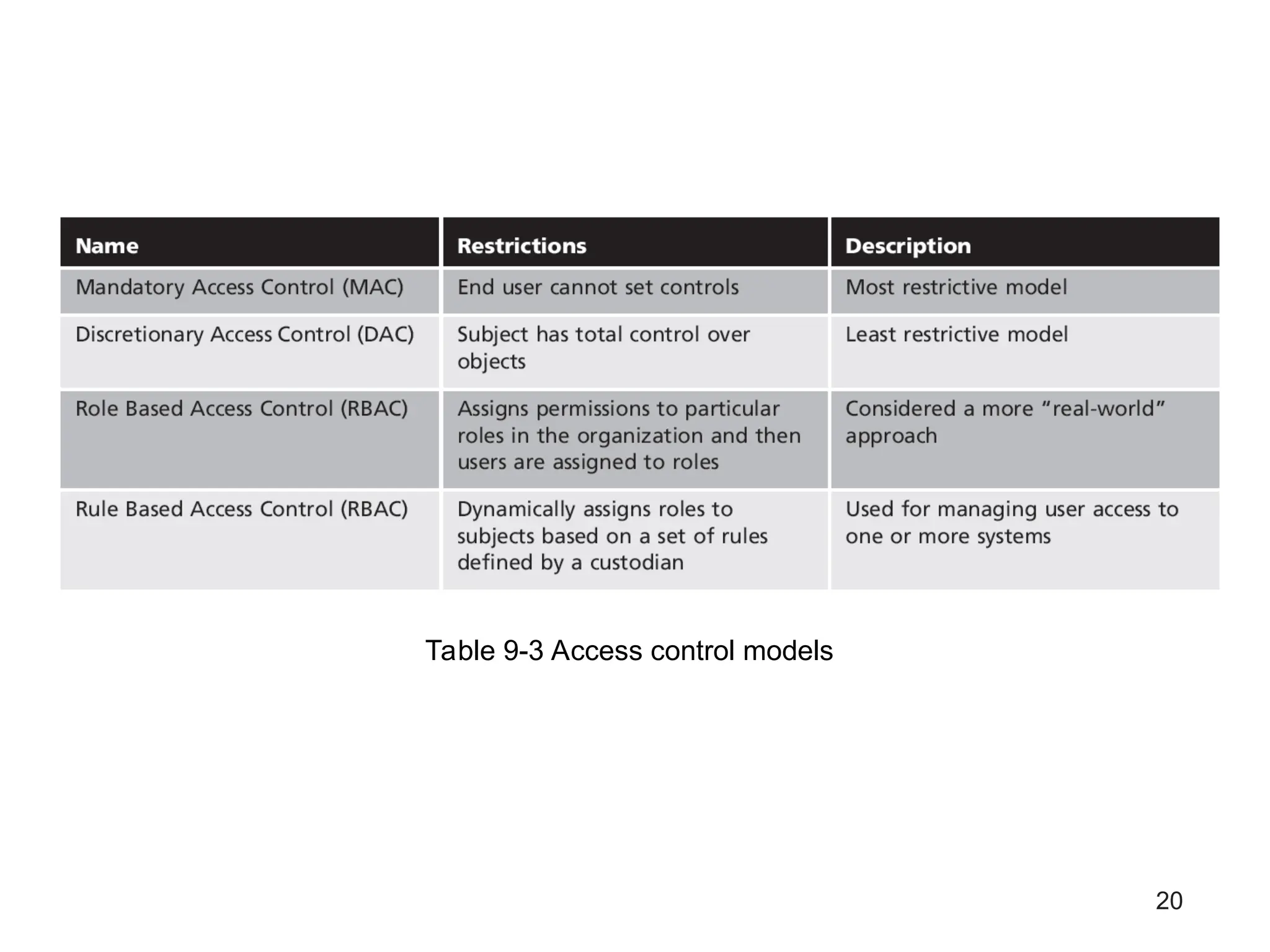

- 20. 20 Table 9-3 Accesscontrol models

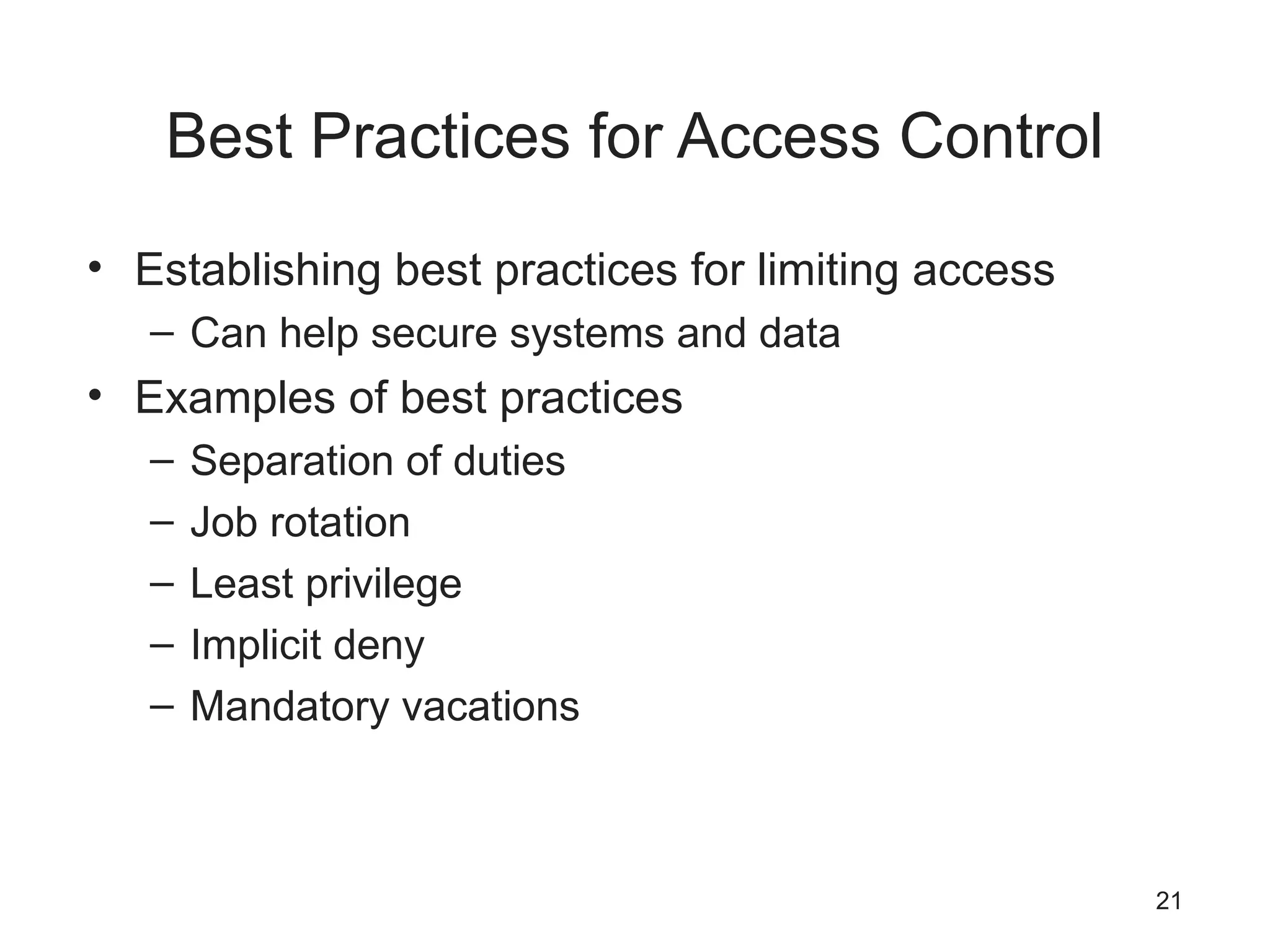

- 21. Best Practices forAccess Control • Establishing best practices for limiting access – Can help secure systems and data • Examples of best practices – Separation of duties – Job rotation – Least privilege – Implicit deny – Mandatory vacations 21

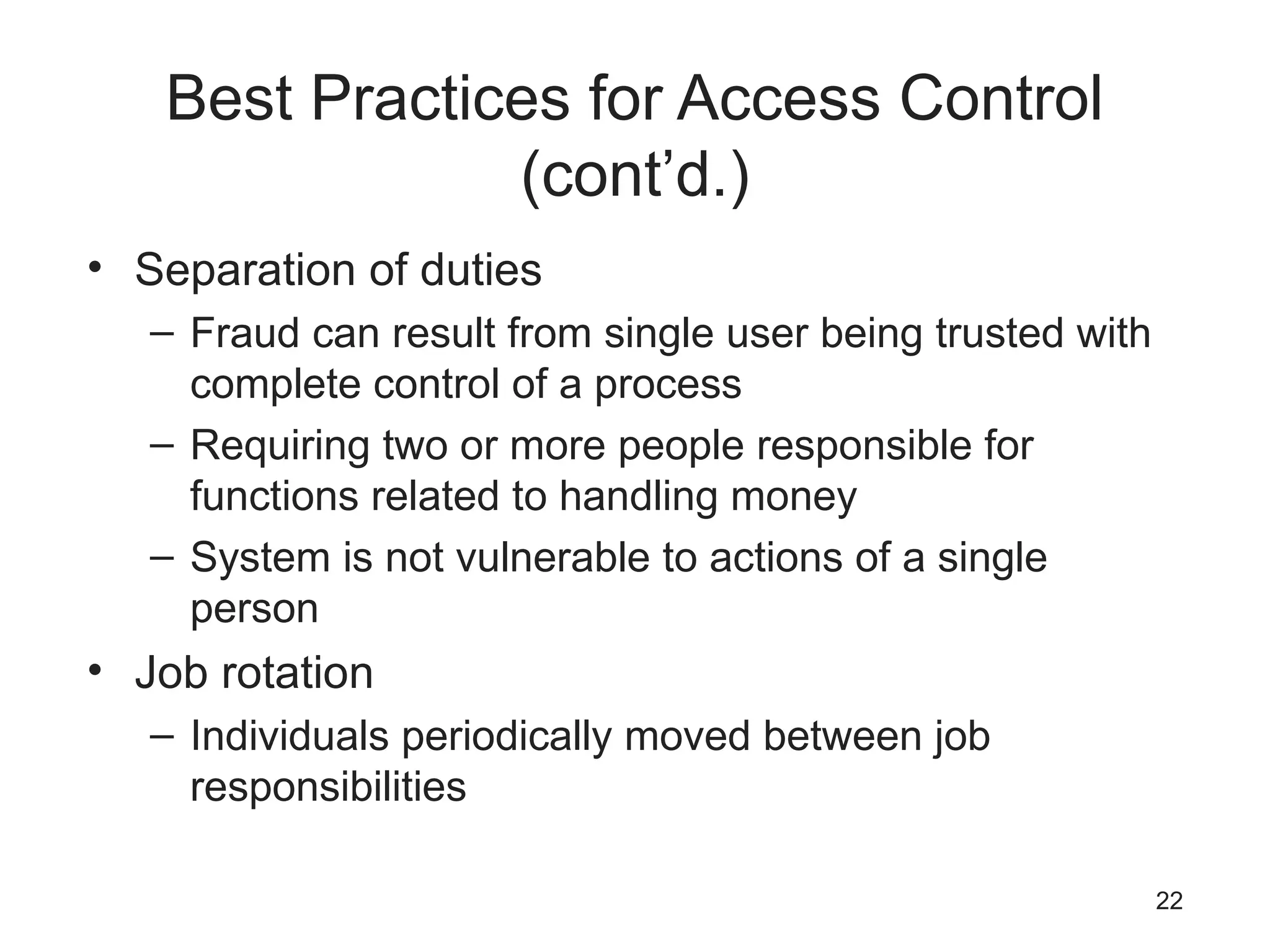

- 22. Best Practices forAccess Control (cont’d.) • Separation of duties – Fraud can result from single user being trusted with complete control of a process – Requiring two or more people responsible for functions related to handling money – System is not vulnerable to actions of a single person • Job rotation – Individuals periodically moved between job responsibilities 22
- 23. Best Practices forAccess Control (cont’d.) • Job rotation (cont’d.) – Employees can rotate within their department or across departments • Advantages of job rotation – Limits amount of time individuals are in a position to manipulate security configurations – Helps expose potential avenues for fraud • Individuals have different perspectives and may uncover vulnerabilities – Reduces employee burnout 23

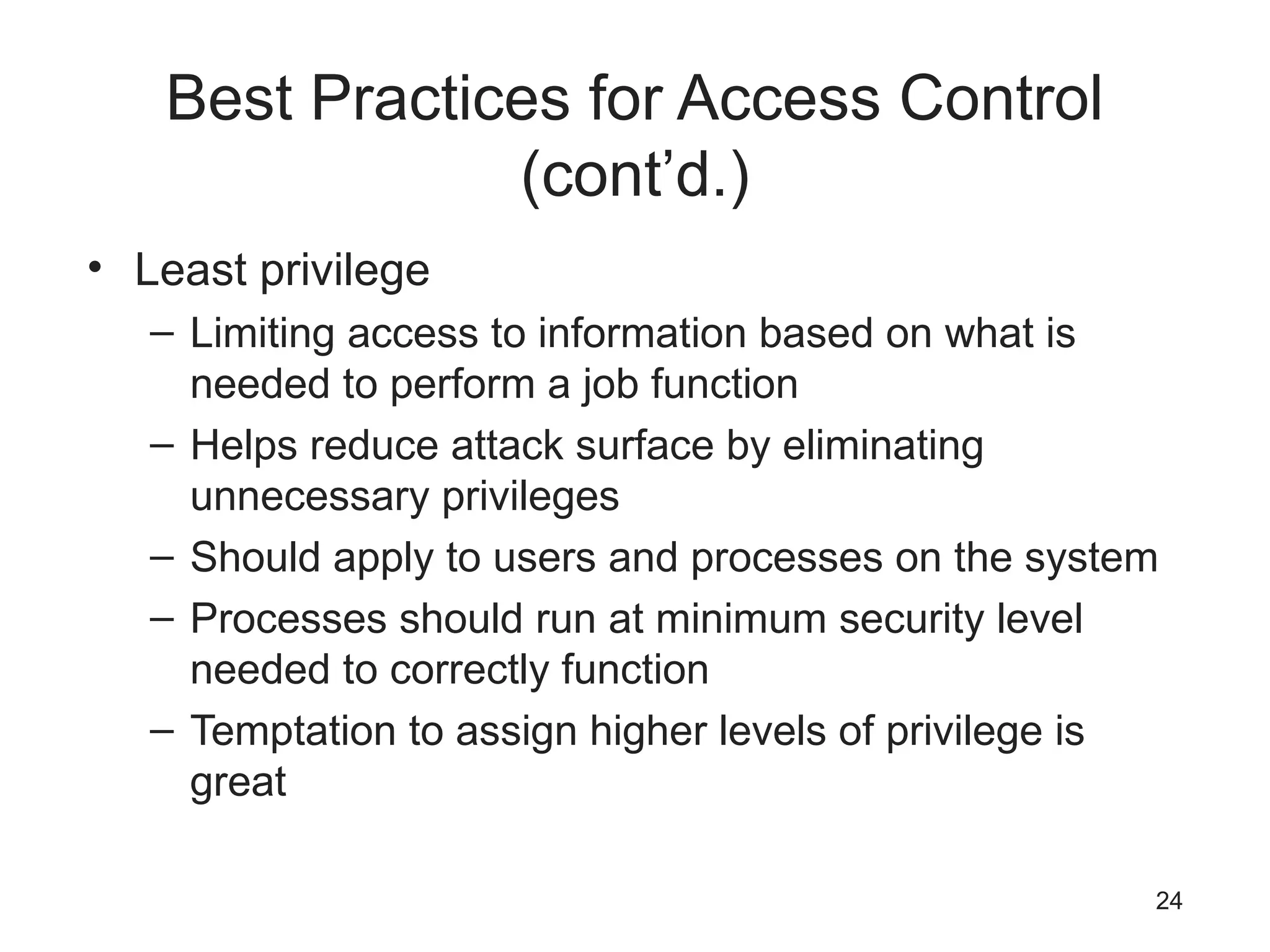

- 24. Best Practices forAccess Control (cont’d.) • Least privilege – Limiting access to information based on what is needed to perform a job function – Helps reduce attack surface by eliminating unnecessary privileges – Should apply to users and processes on the system – Processes should run at minimum security level needed to correctly function – Temptation to assign higher levels of privilege is great 24

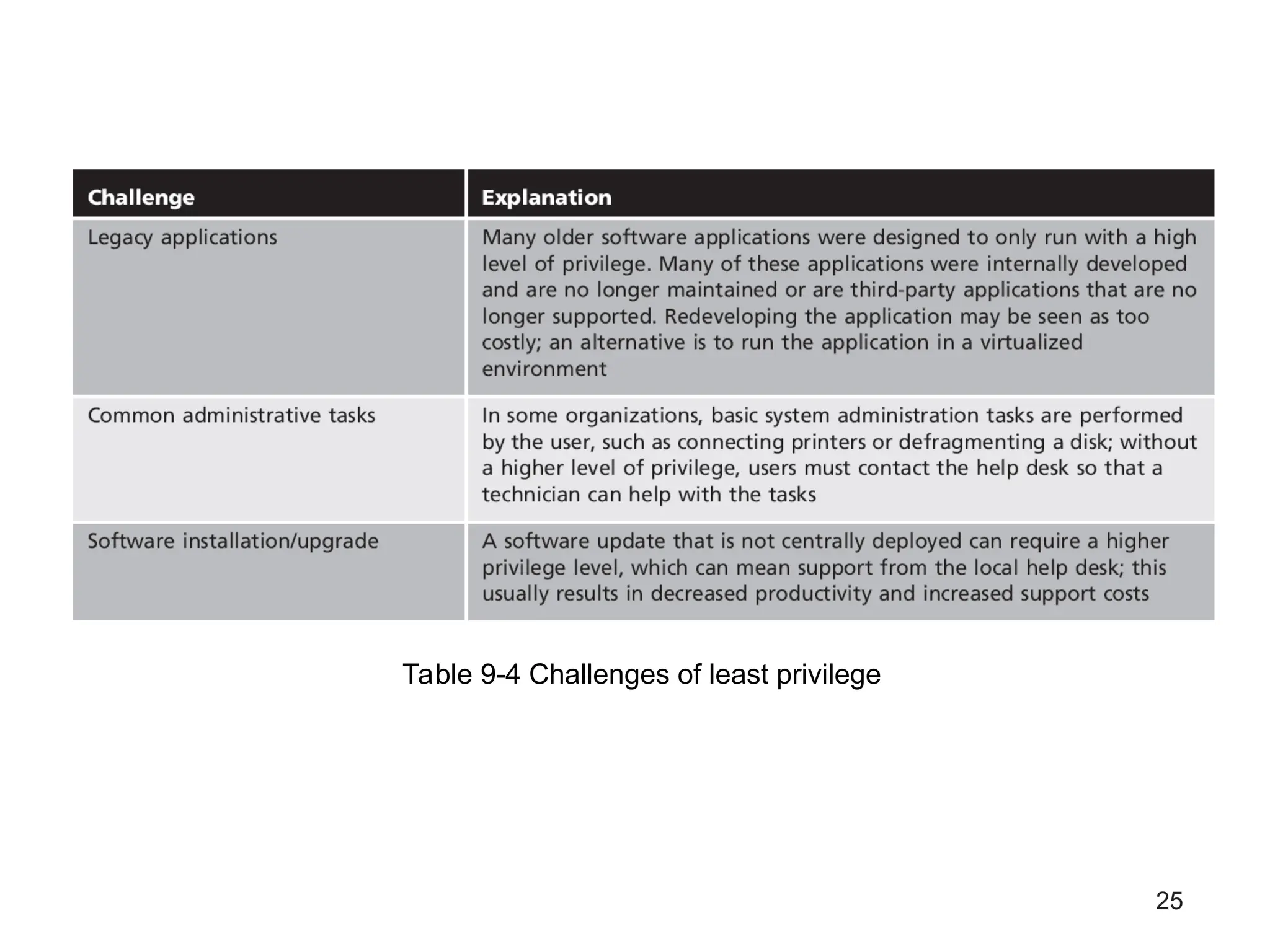

- 25. 25 Table 9-4 Challengesof least privilege

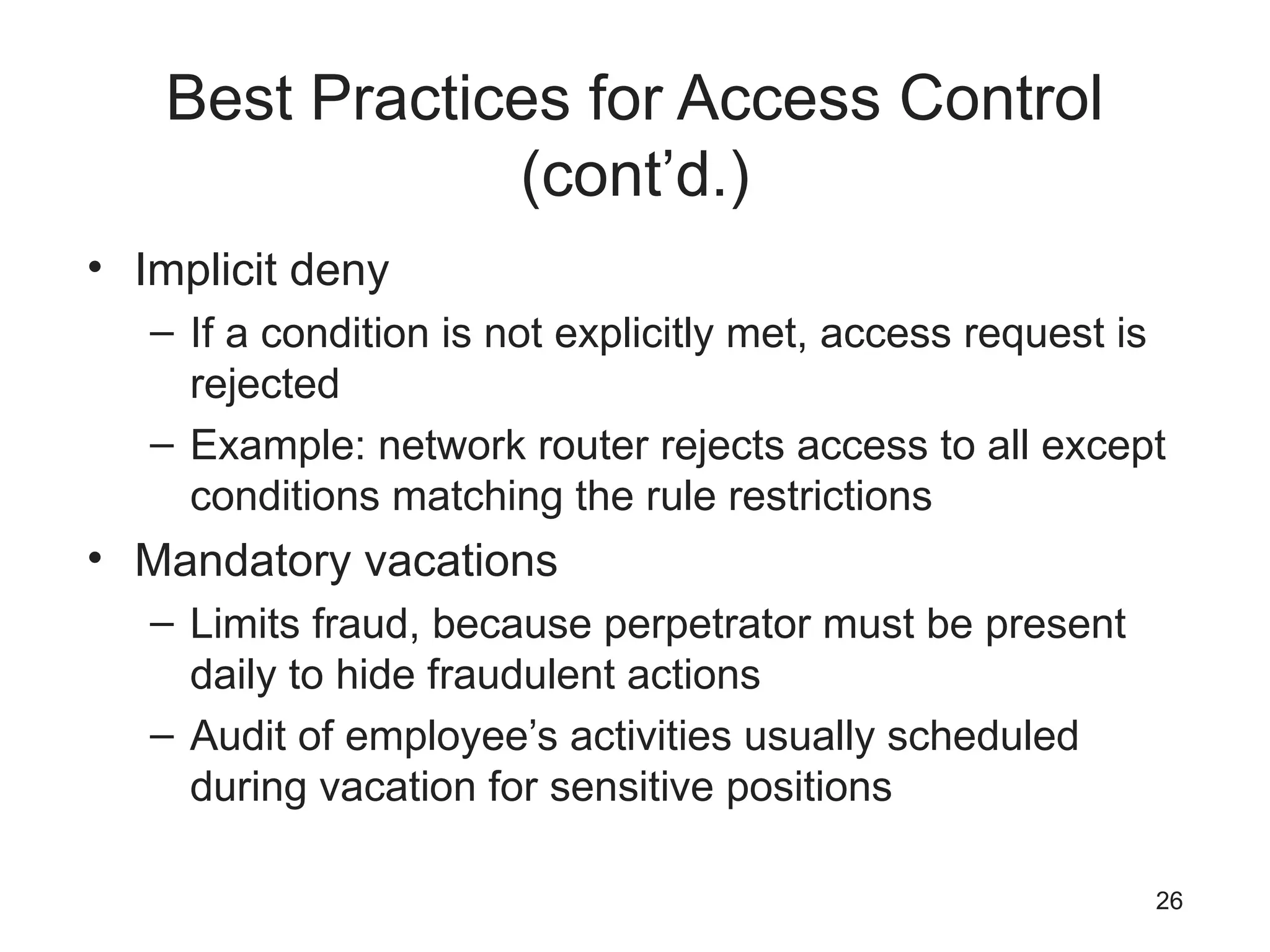

- 26. Best Practices forAccess Control (cont’d.) • Implicit deny – If a condition is not explicitly met, access request is rejected – Example: network router rejects access to all except conditions matching the rule restrictions • Mandatory vacations – Limits fraud, because perpetrator must be present daily to hide fraudulent actions – Audit of employee’s activities usually scheduled during vacation for sensitive positions 26

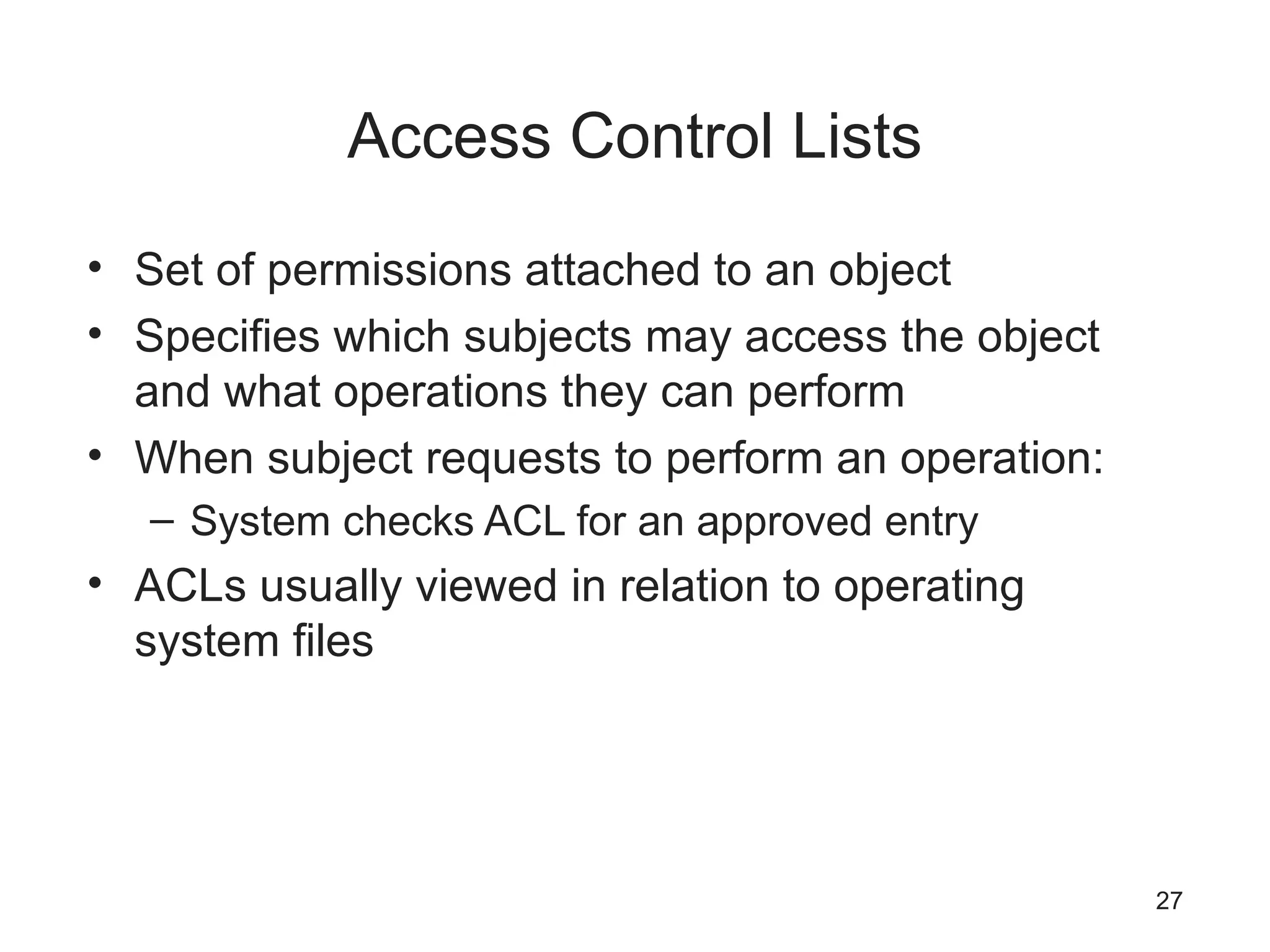

- 27. Access Control Lists •Set of permissions attached to an object • Specifies which subjects may access the object and what operations they can perform • When subject requests to perform an operation: – System checks ACL for an approved entry • ACLs usually viewed in relation to operating system files 27

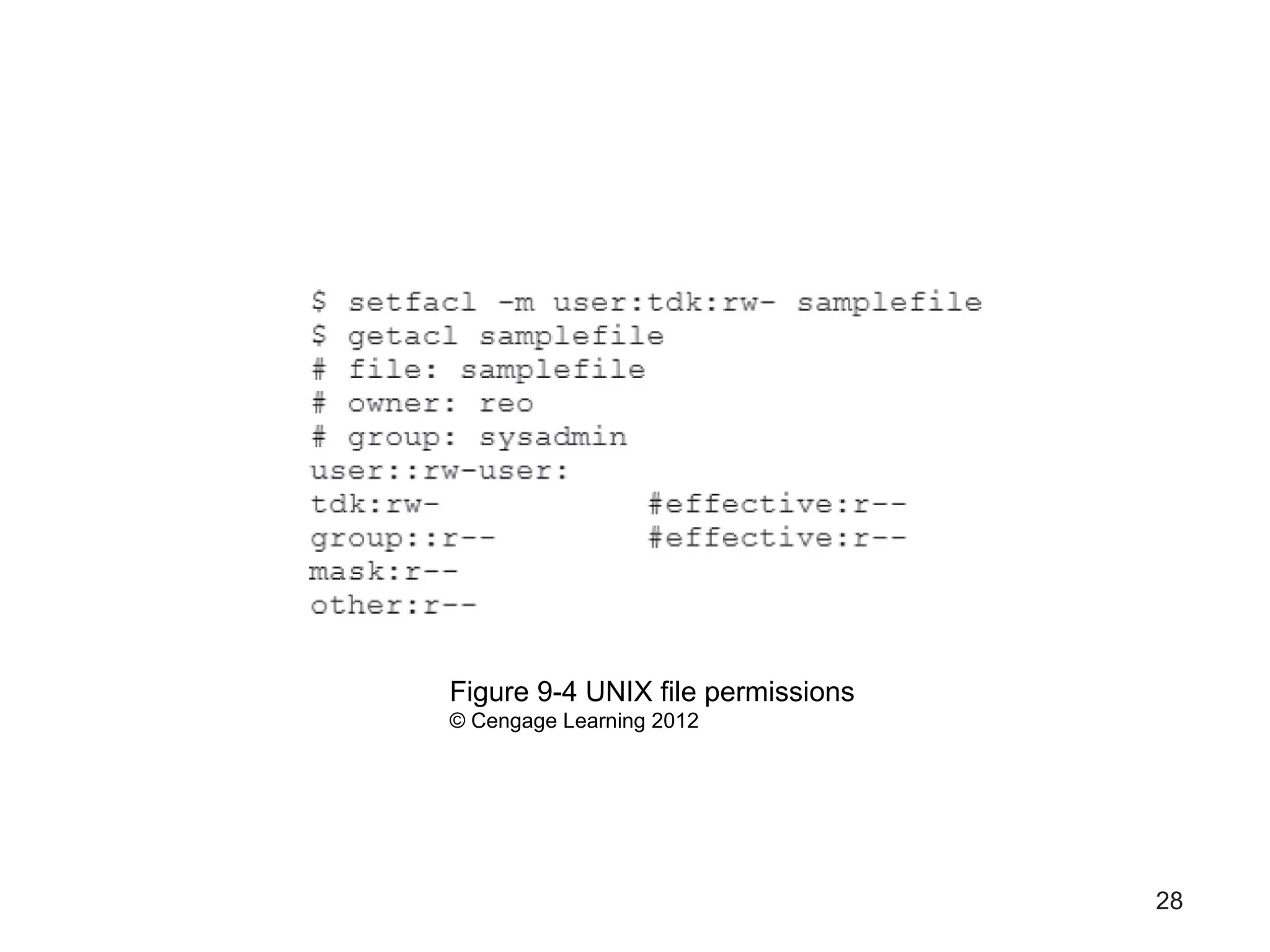

- 28. 28 Figure 9-4 UNIXfile permissions © Cengage Learning 2012

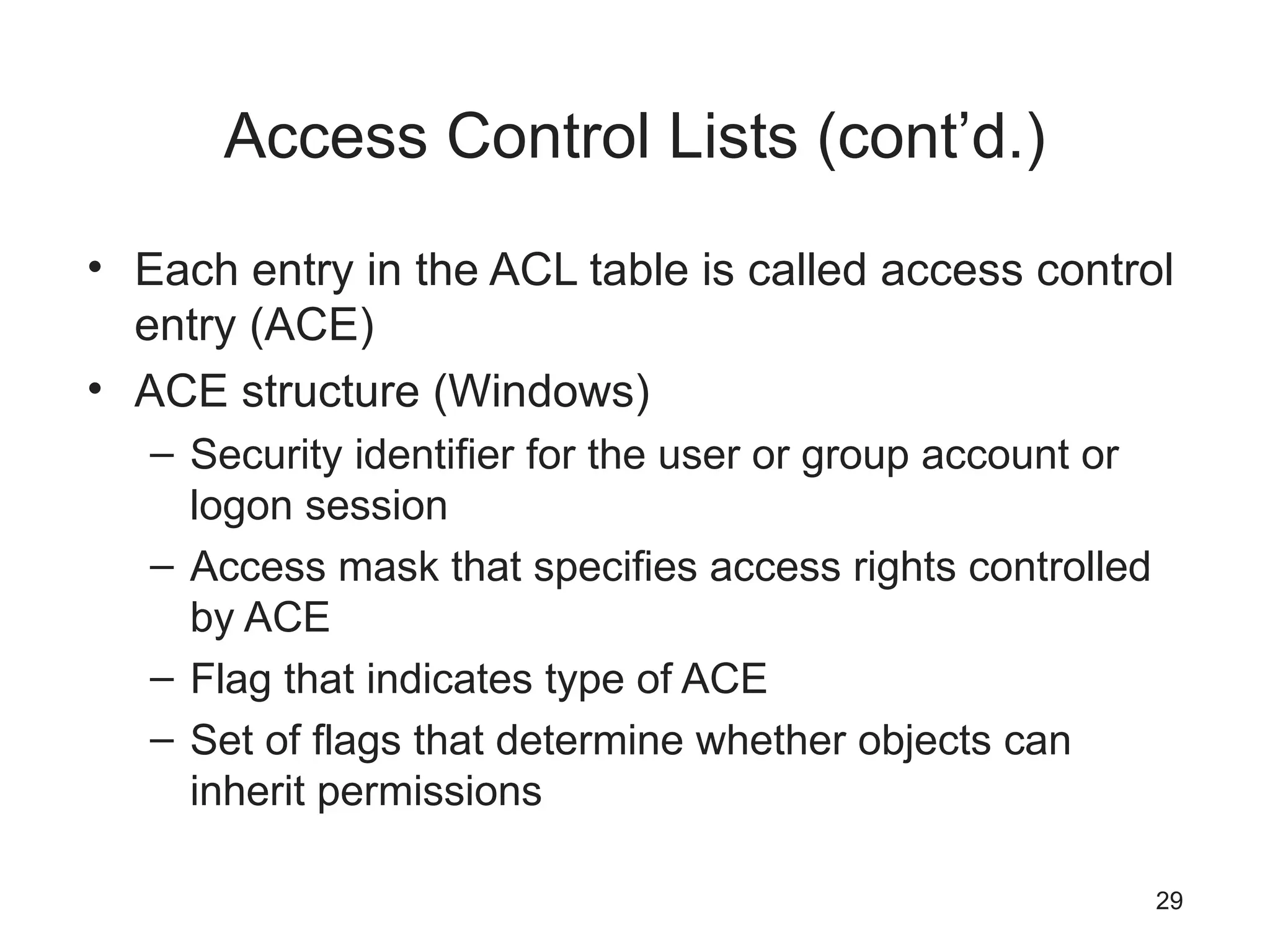

- 29. Access Control Lists(cont’d.) • Each entry in the ACL table is called access control entry (ACE) • ACE structure (Windows) – Security identifier for the user or group account or logon session – Access mask that specifies access rights controlled by ACE – Flag that indicates type of ACE – Set of flags that determine whether objects can inherit permissions 29

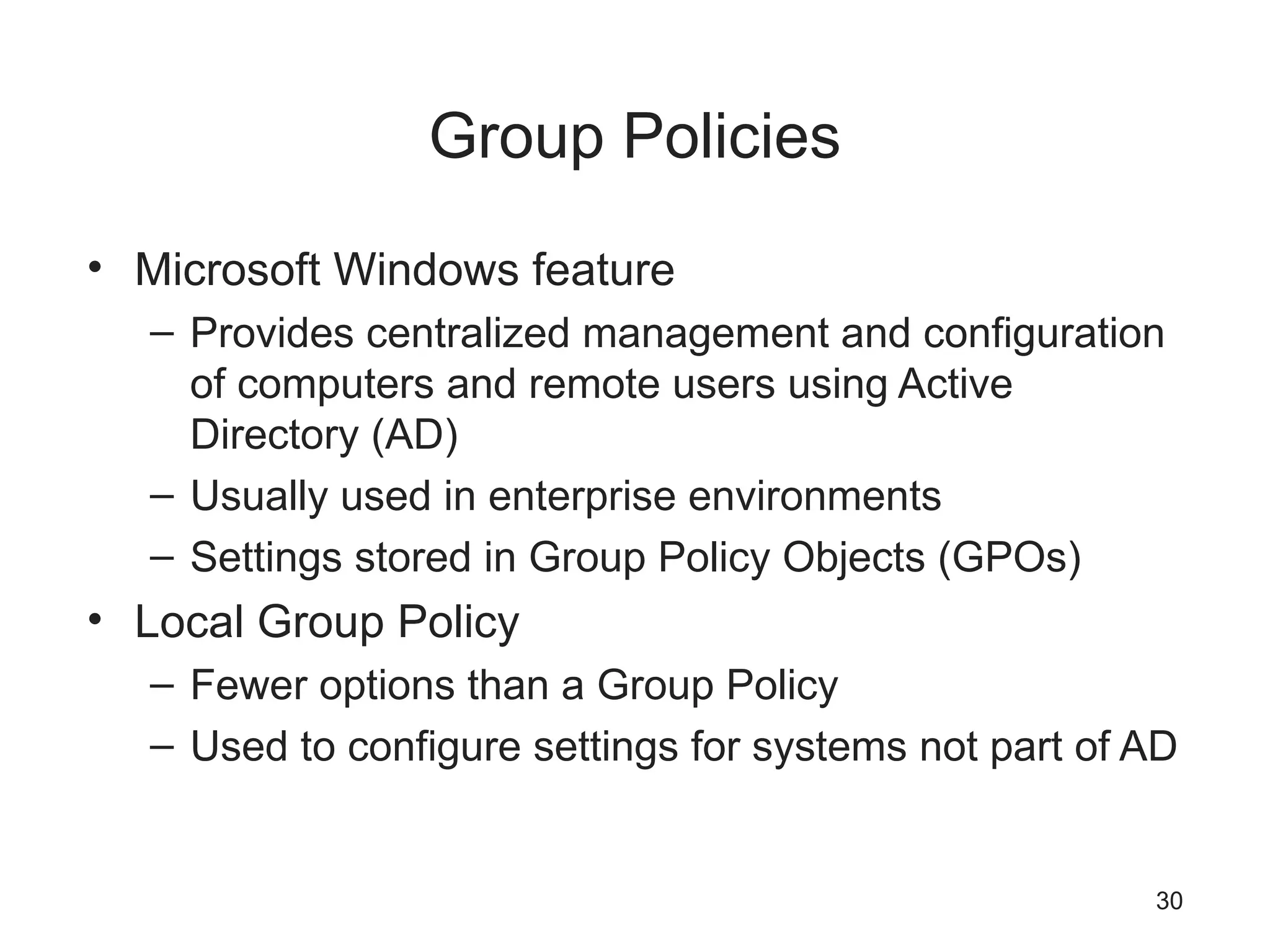

- 30. Group Policies • MicrosoftWindows feature – Provides centralized management and configuration of computers and remote users using Active Directory (AD) – Usually used in enterprise environments – Settings stored in Group Policy Objects (GPOs) • Local Group Policy – Fewer options than a Group Policy – Used to configure settings for systems not part of AD 30

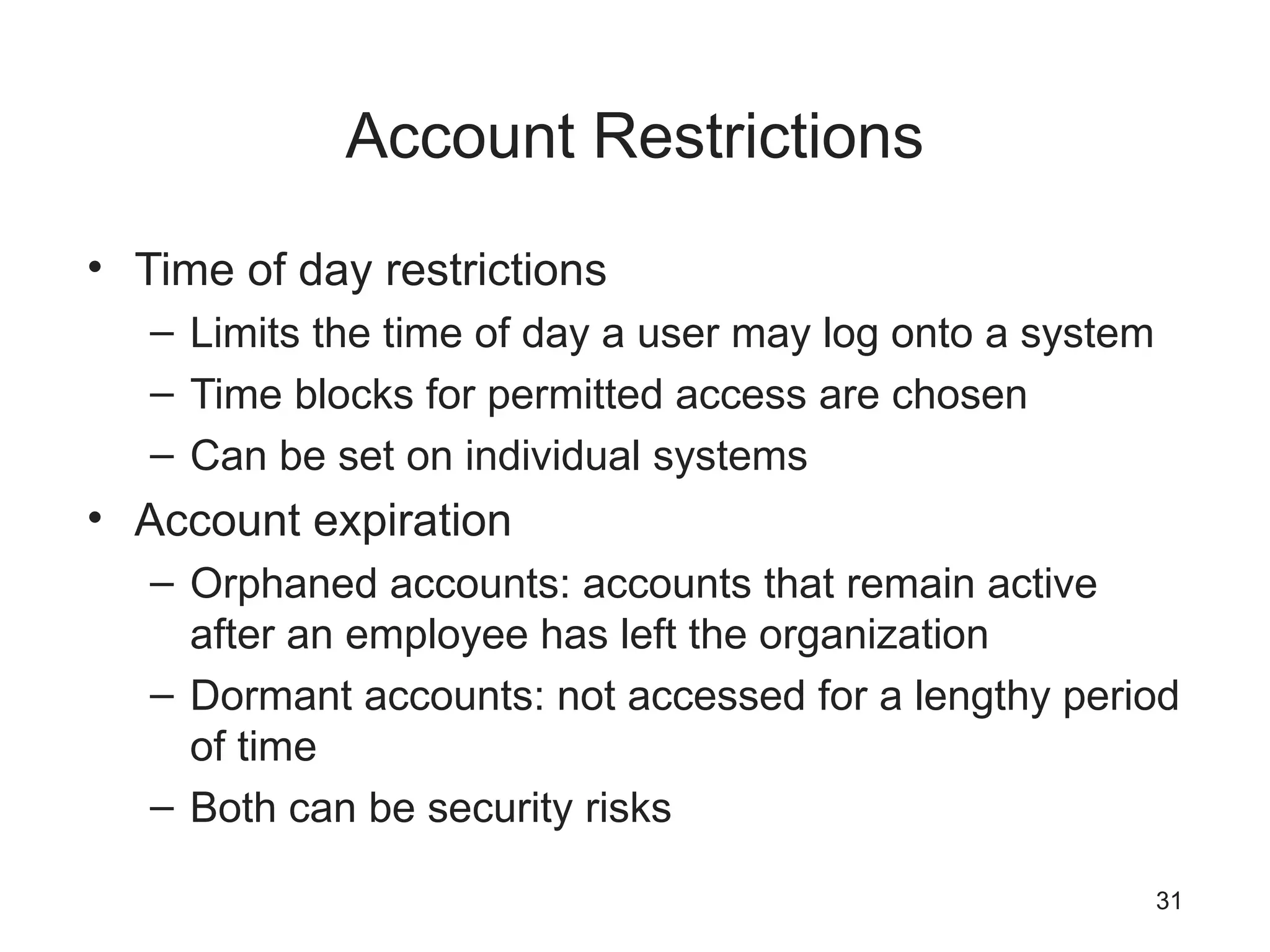

- 31. Account Restrictions • Timeof day restrictions – Limits the time of day a user may log onto a system – Time blocks for permitted access are chosen – Can be set on individual systems • Account expiration – Orphaned accounts: accounts that remain active after an employee has left the organization – Dormant accounts: not accessed for a lengthy period of time – Both can be security risks 31

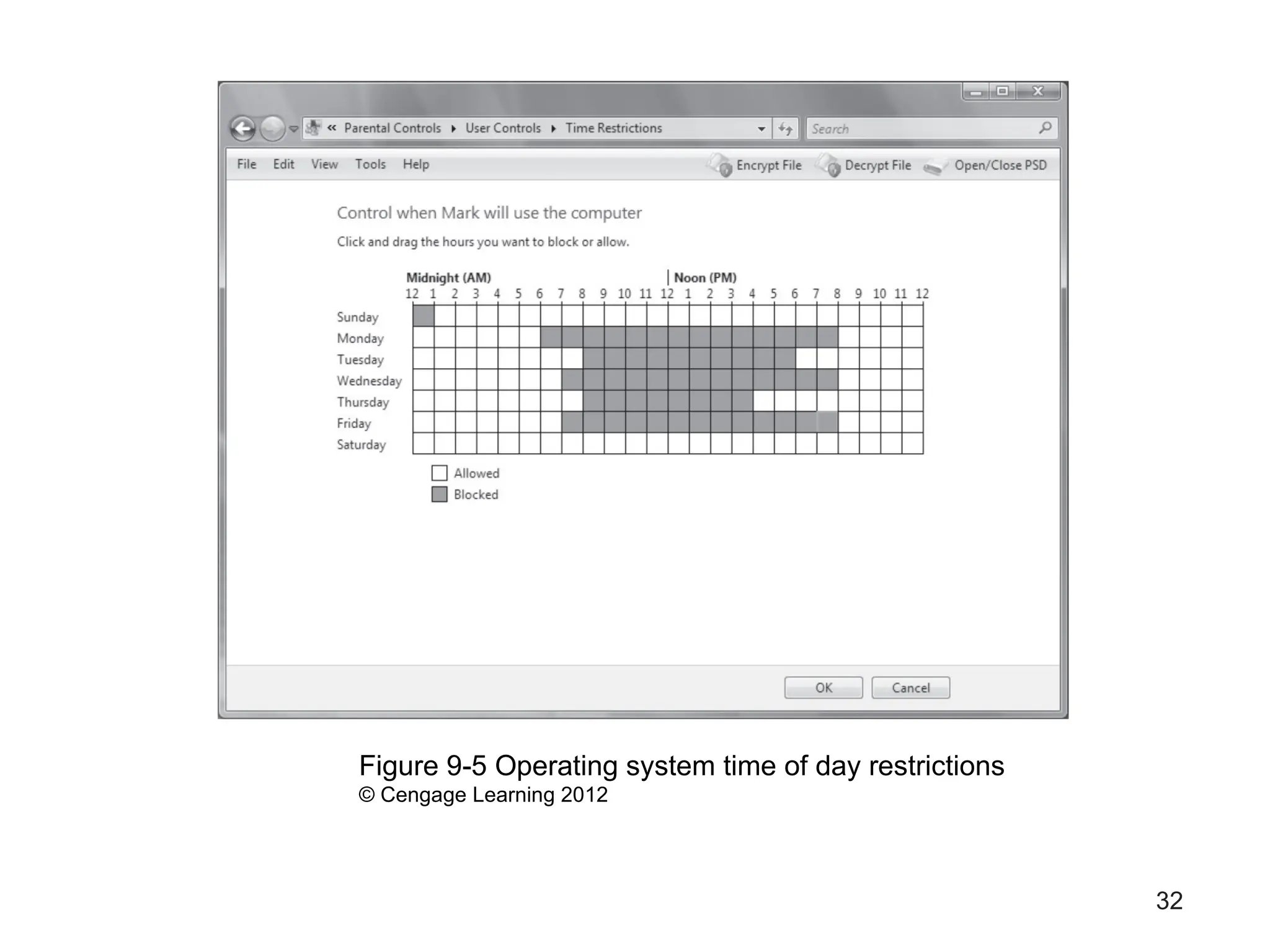

- 32. 32 Figure 9-5 Operatingsystem time of day restrictions © Cengage Learning 2012

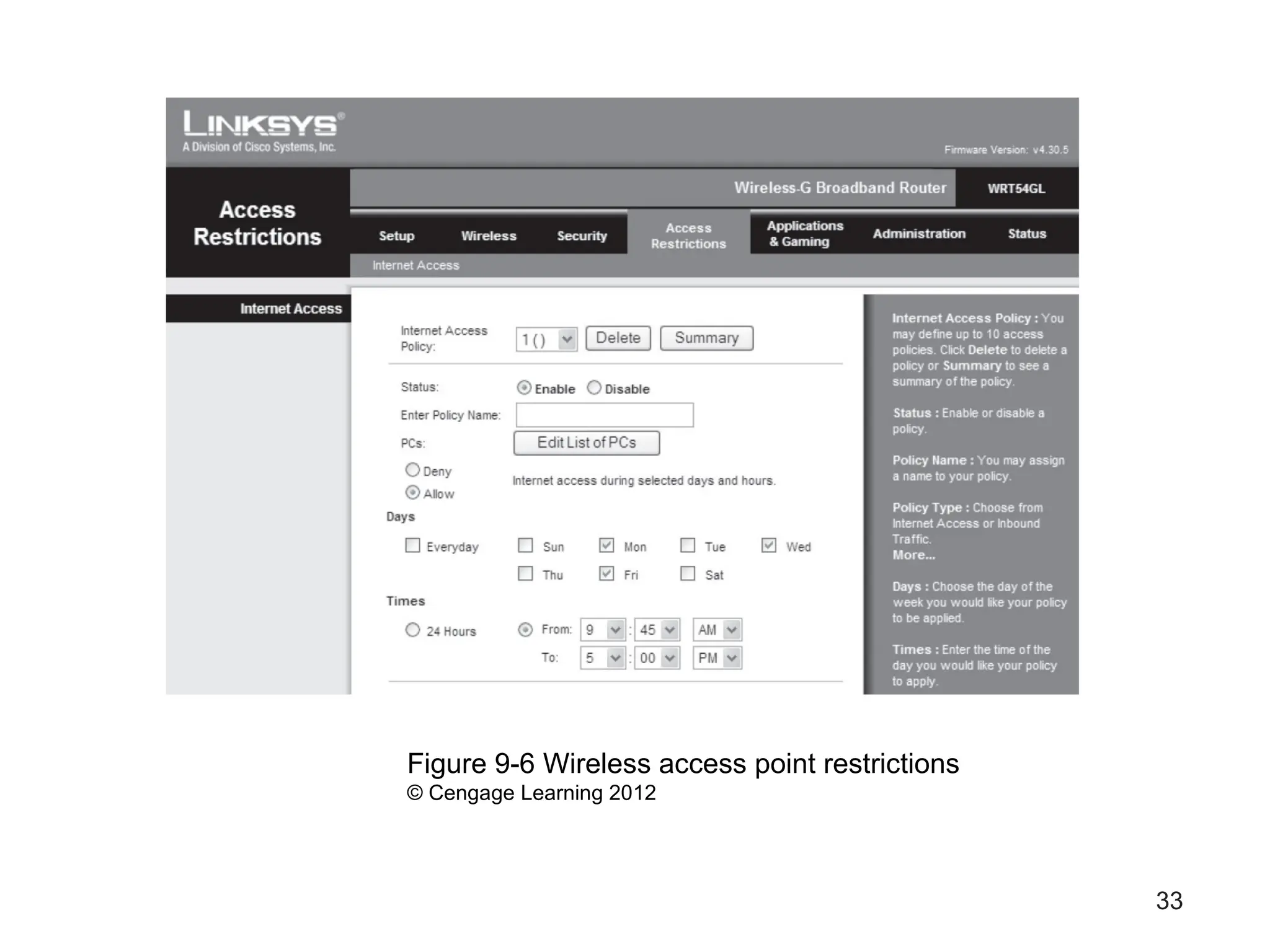

- 33. 33 Figure 9-6 Wirelessaccess point restrictions © Cengage Learning 2012

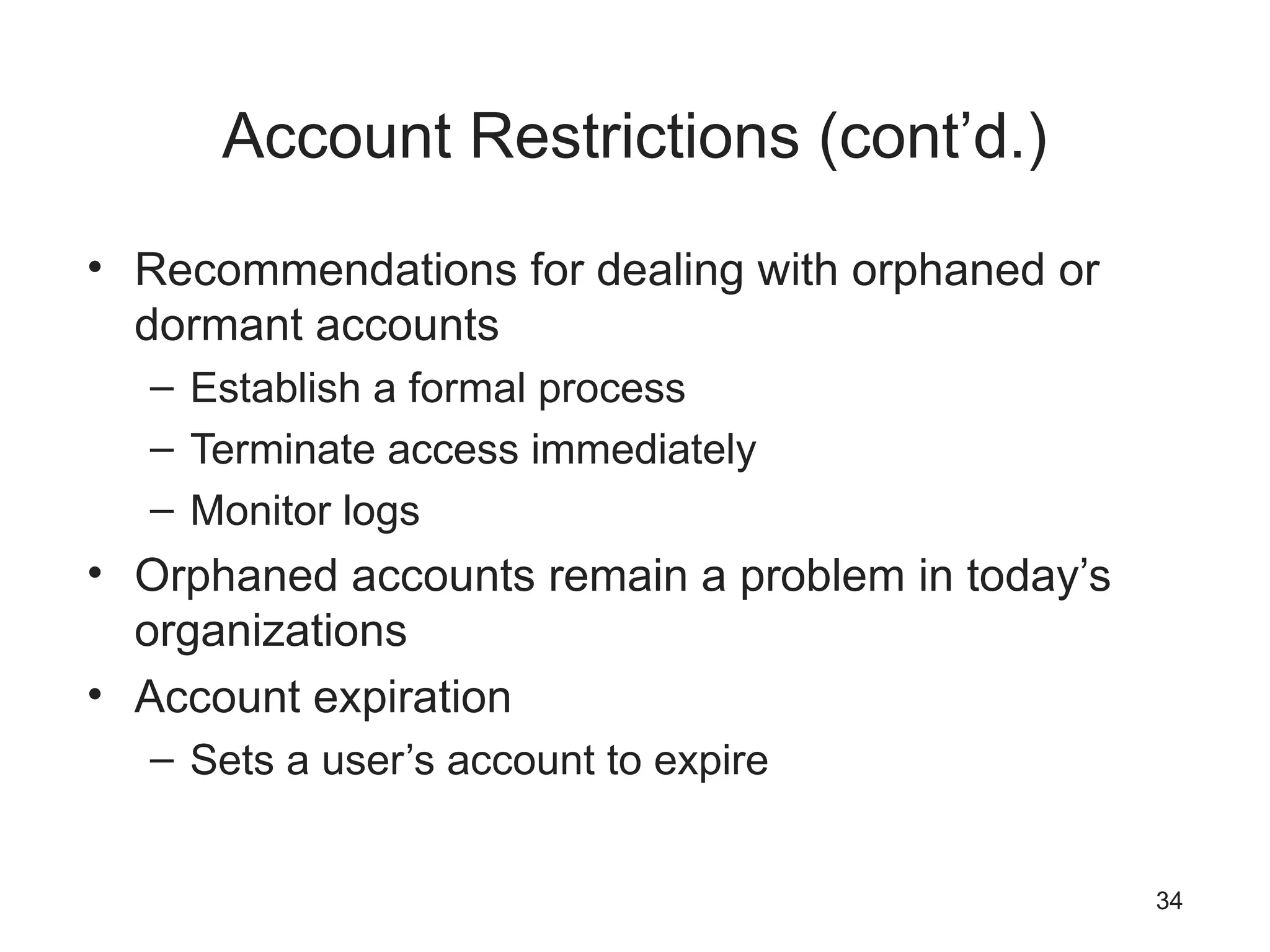

- 34. Account Restrictions (cont’d.) •Recommendations for dealing with orphaned or dormant accounts – Establish a formal process – Terminate access immediately – Monitor logs • Orphaned accounts remain a problem in today’s organizations • Account expiration – Sets a user’s account to expire 34

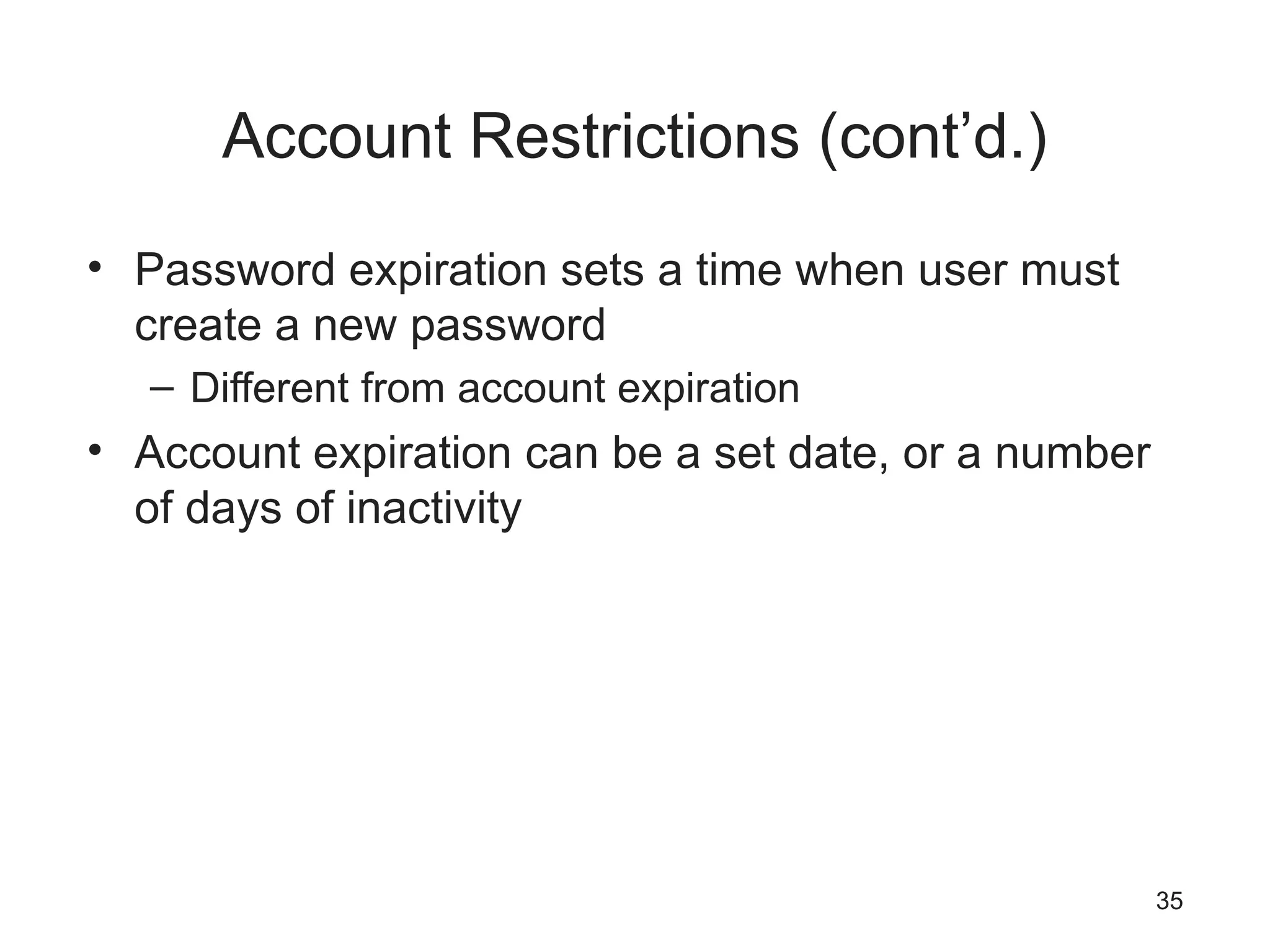

- 35. Account Restrictions (cont’d.) •Password expiration sets a time when user must create a new password – Different from account expiration • Account expiration can be a set date, or a number of days of inactivity 35

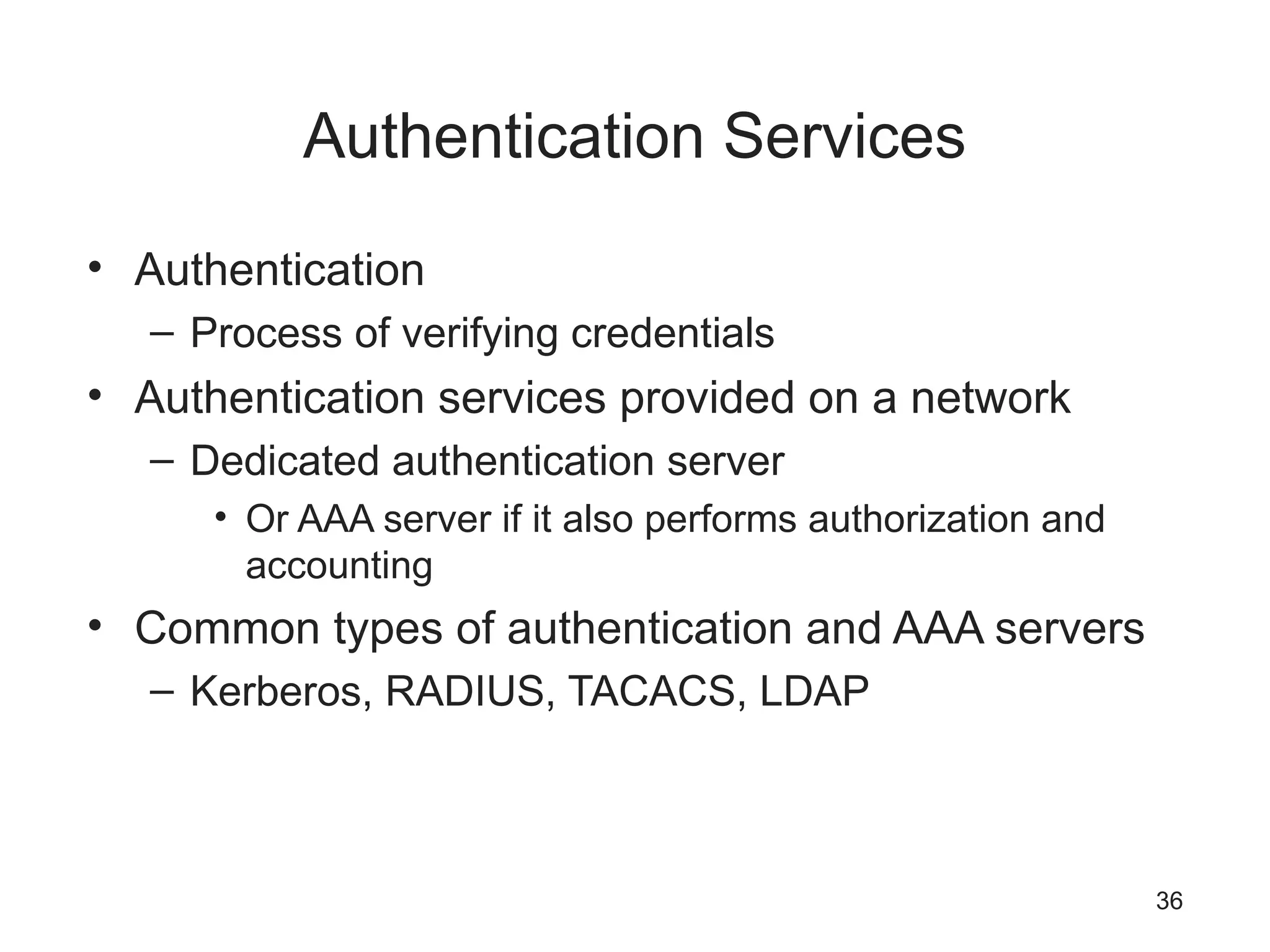

- 36. Authentication Services • Authentication –Process of verifying credentials • Authentication services provided on a network – Dedicated authentication server • Or AAA server if it also performs authorization and accounting • Common types of authentication and AAA servers – Kerberos, RADIUS, TACACS, LDAP 36

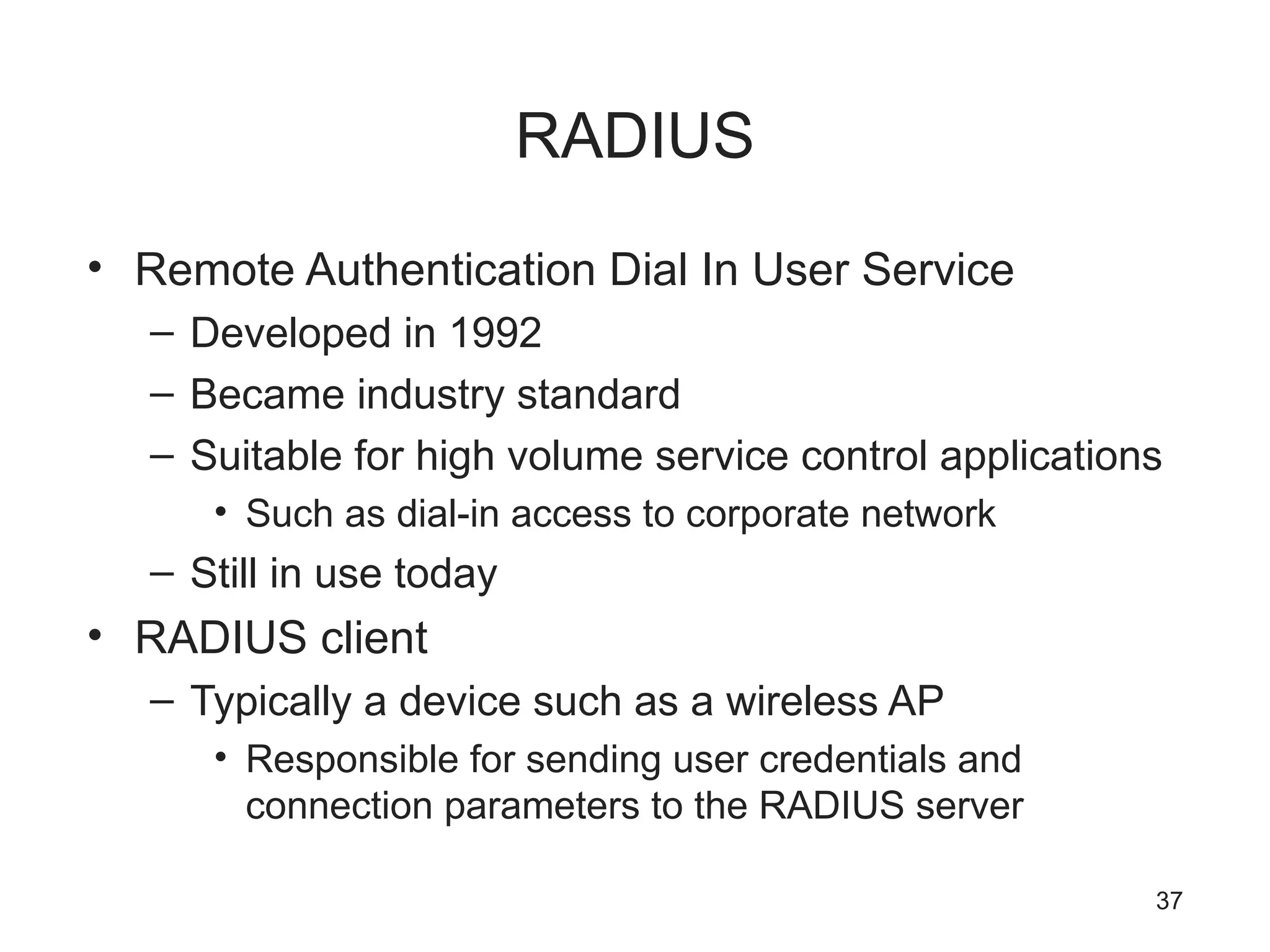

- 37. RADIUS • Remote AuthenticationDial In User Service – Developed in 1992 – Became industry standard – Suitable for high volume service control applications • Such as dial-in access to corporate network – Still in use today • RADIUS client – Typically a device such as a wireless AP • Responsible for sending user credentials and connection parameters to the RADIUS server 37

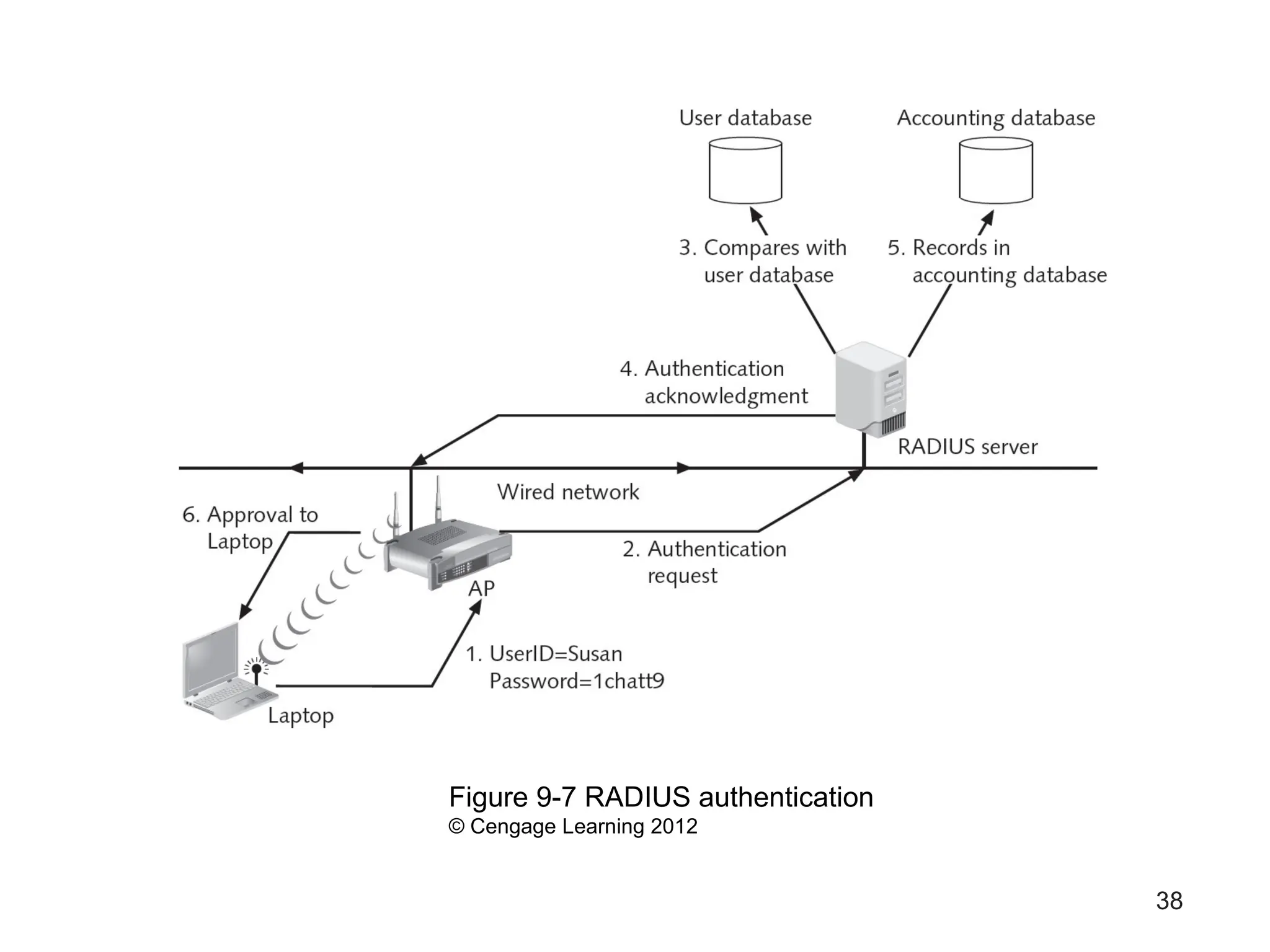

- 38. 38 Figure 9-7 RADIUSauthentication © Cengage Learning 2012

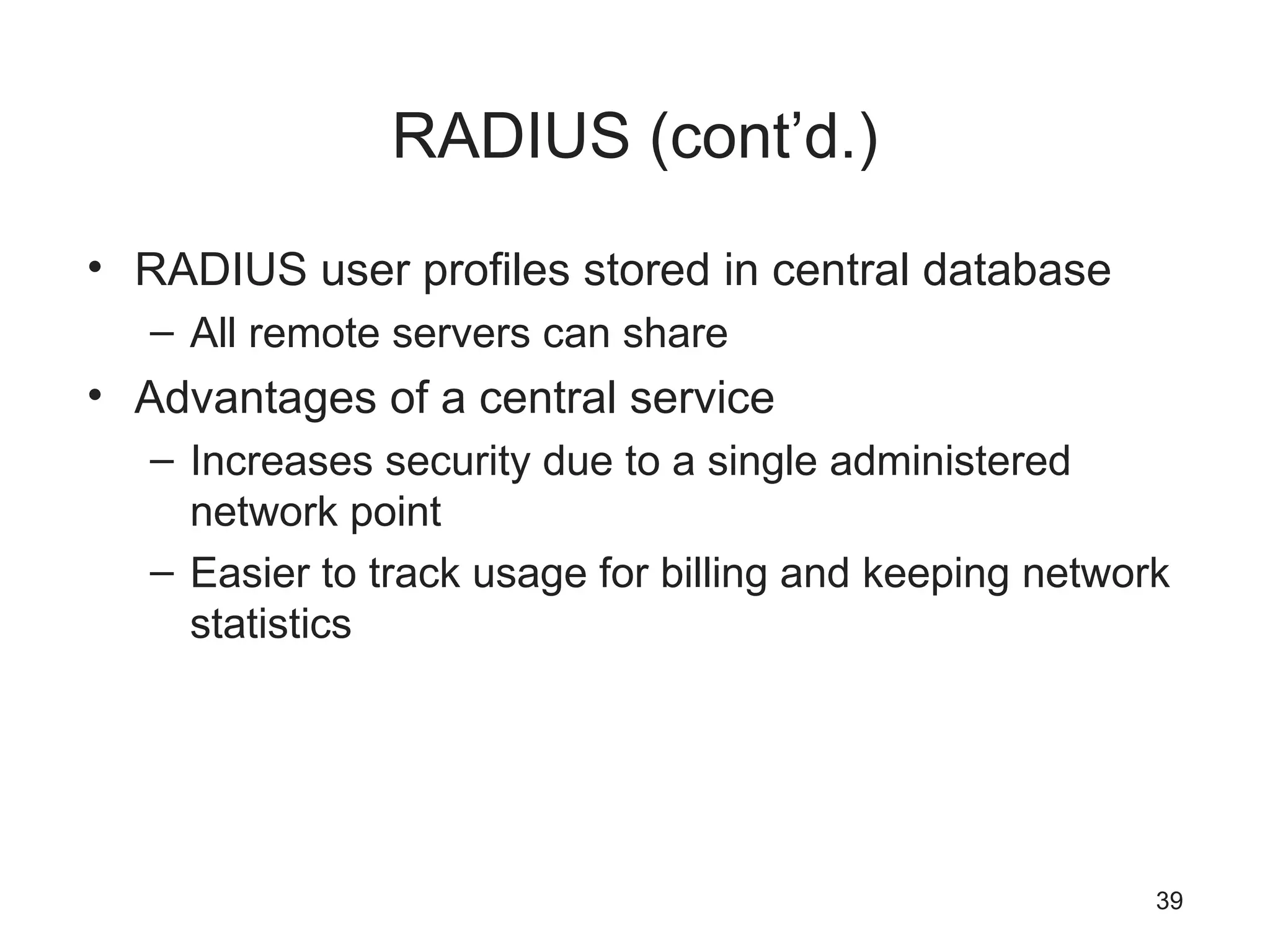

- 39. RADIUS (cont’d.) • RADIUSuser profiles stored in central database – All remote servers can share • Advantages of a central service – Increases security due to a single administered network point – Easier to track usage for billing and keeping network statistics 39

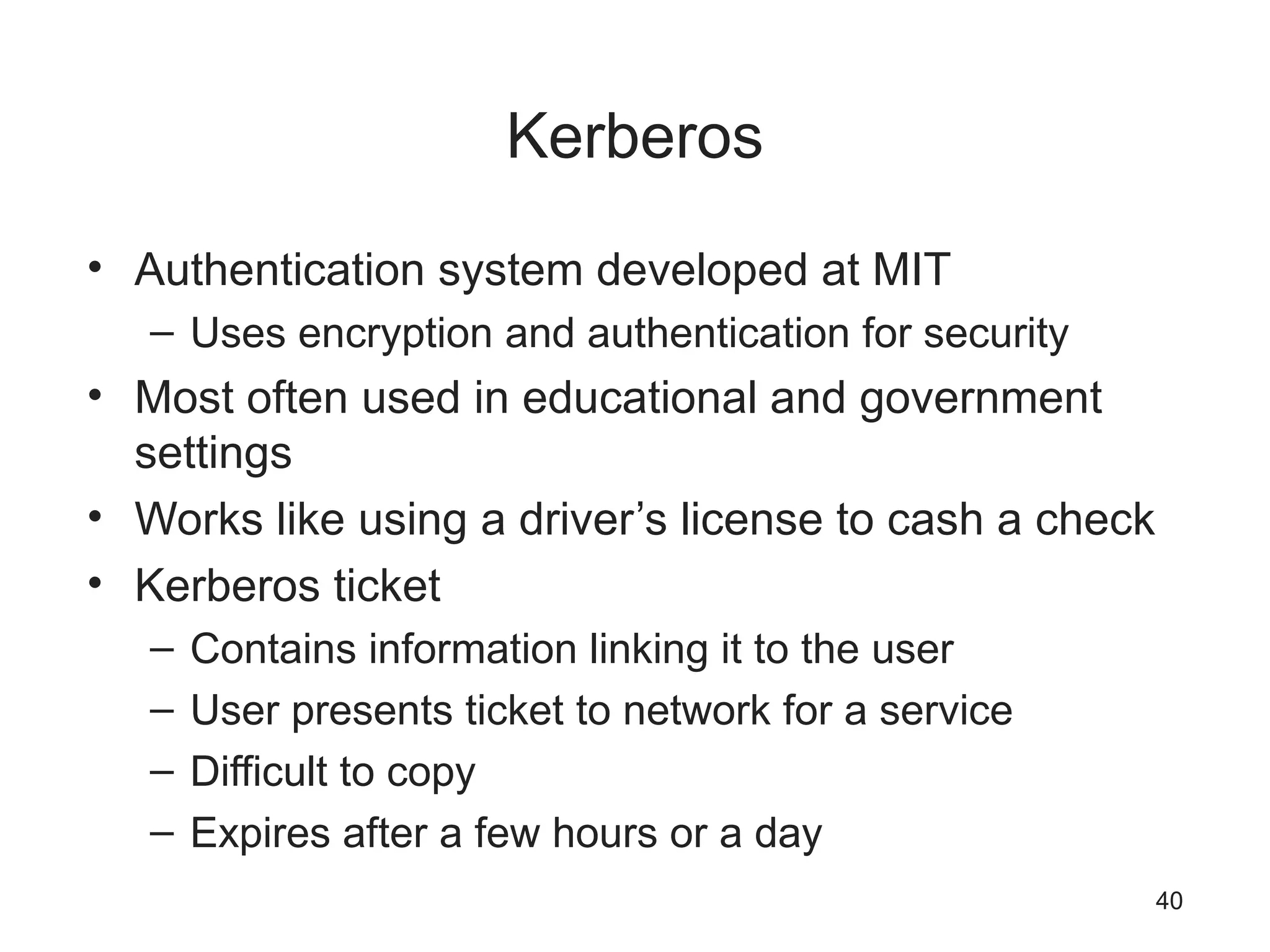

- 40. Kerberos • Authentication systemdeveloped at MIT – Uses encryption and authentication for security • Most often used in educational and government settings • Works like using a driver’s license to cash a check • Kerberos ticket – Contains information linking it to the user – User presents ticket to network for a service – Difficult to copy – Expires after a few hours or a day 40

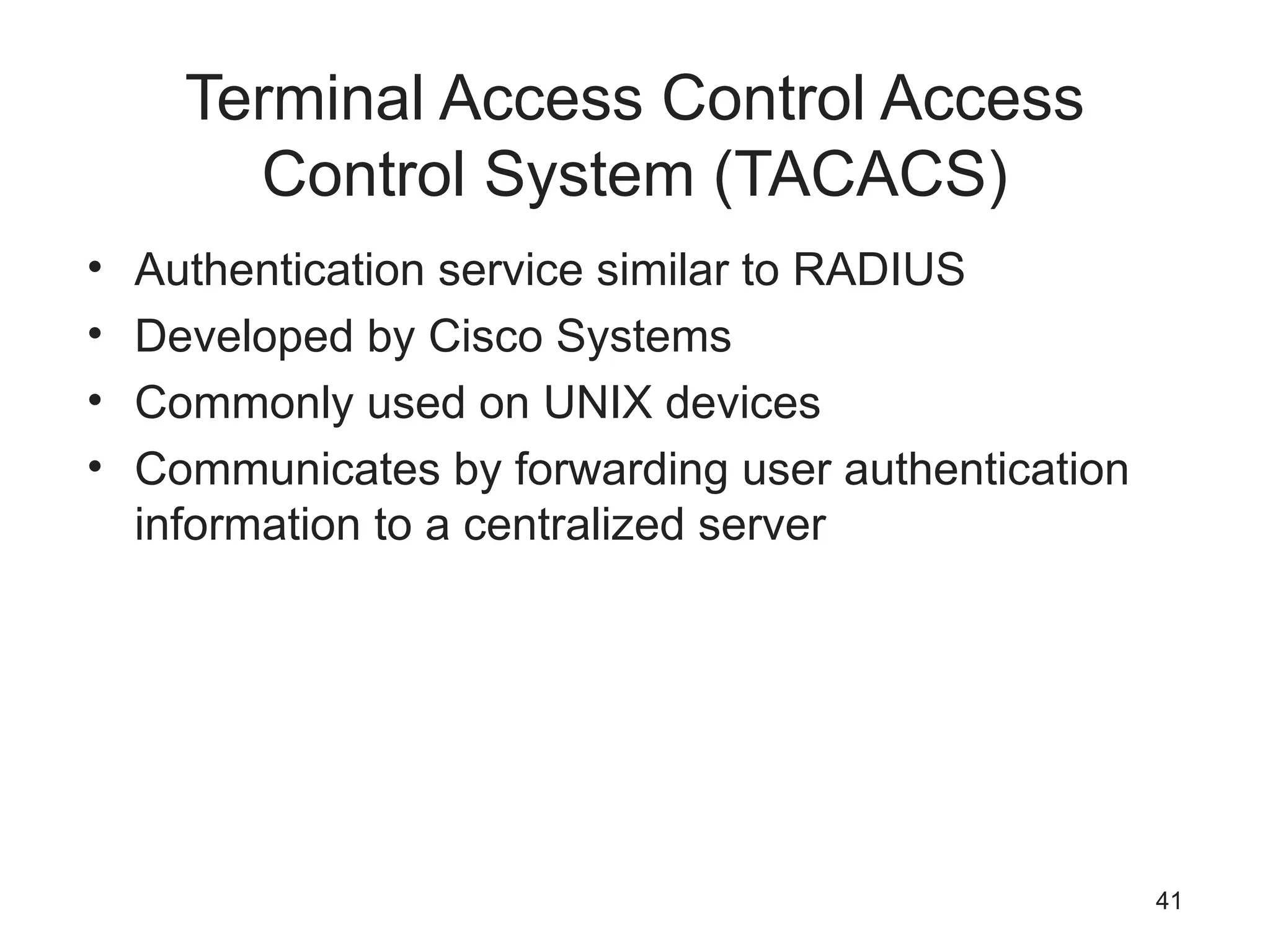

- 41. Terminal Access ControlAccess Control System (TACACS) • Authentication service similar to RADIUS • Developed by Cisco Systems • Commonly used on UNIX devices • Communicates by forwarding user authentication information to a centralized server 41

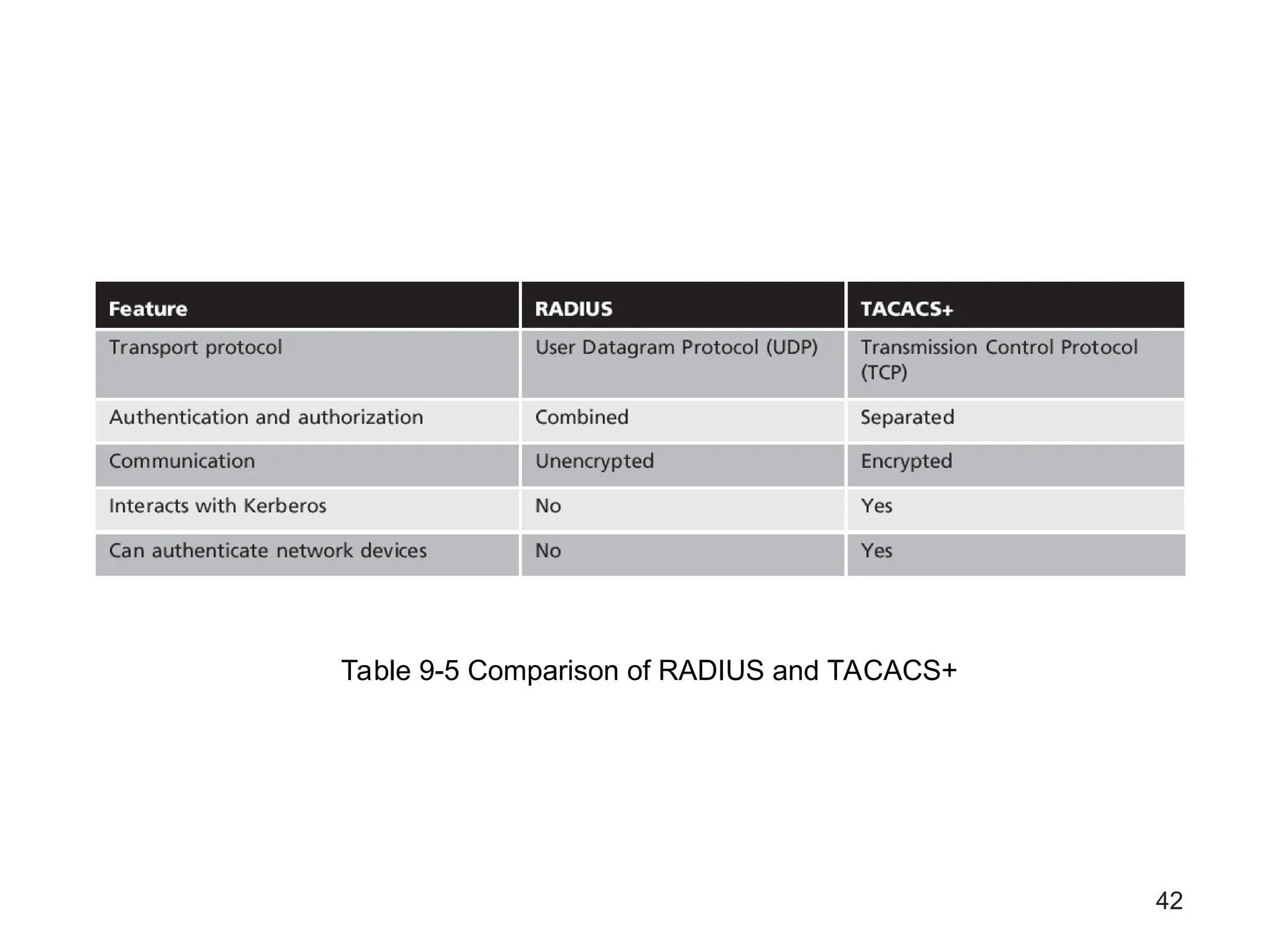

- 42. 42 Table 9-5 Comparisonof RADIUS and TACACS+

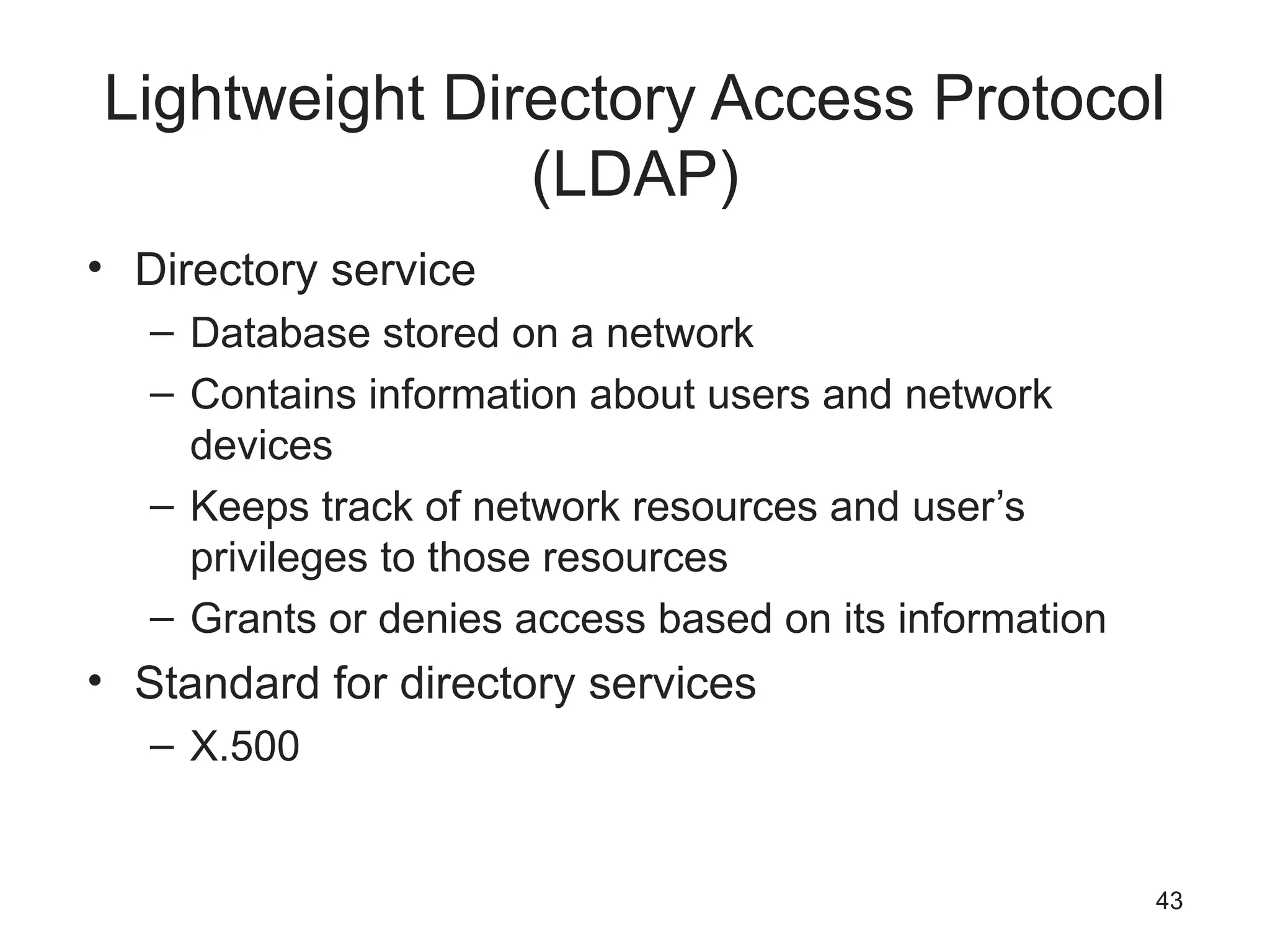

- 43. Lightweight Directory AccessProtocol (LDAP) • Directory service – Database stored on a network – Contains information about users and network devices – Keeps track of network resources and user’s privileges to those resources – Grants or denies access based on its information • Standard for directory services – X.500 43

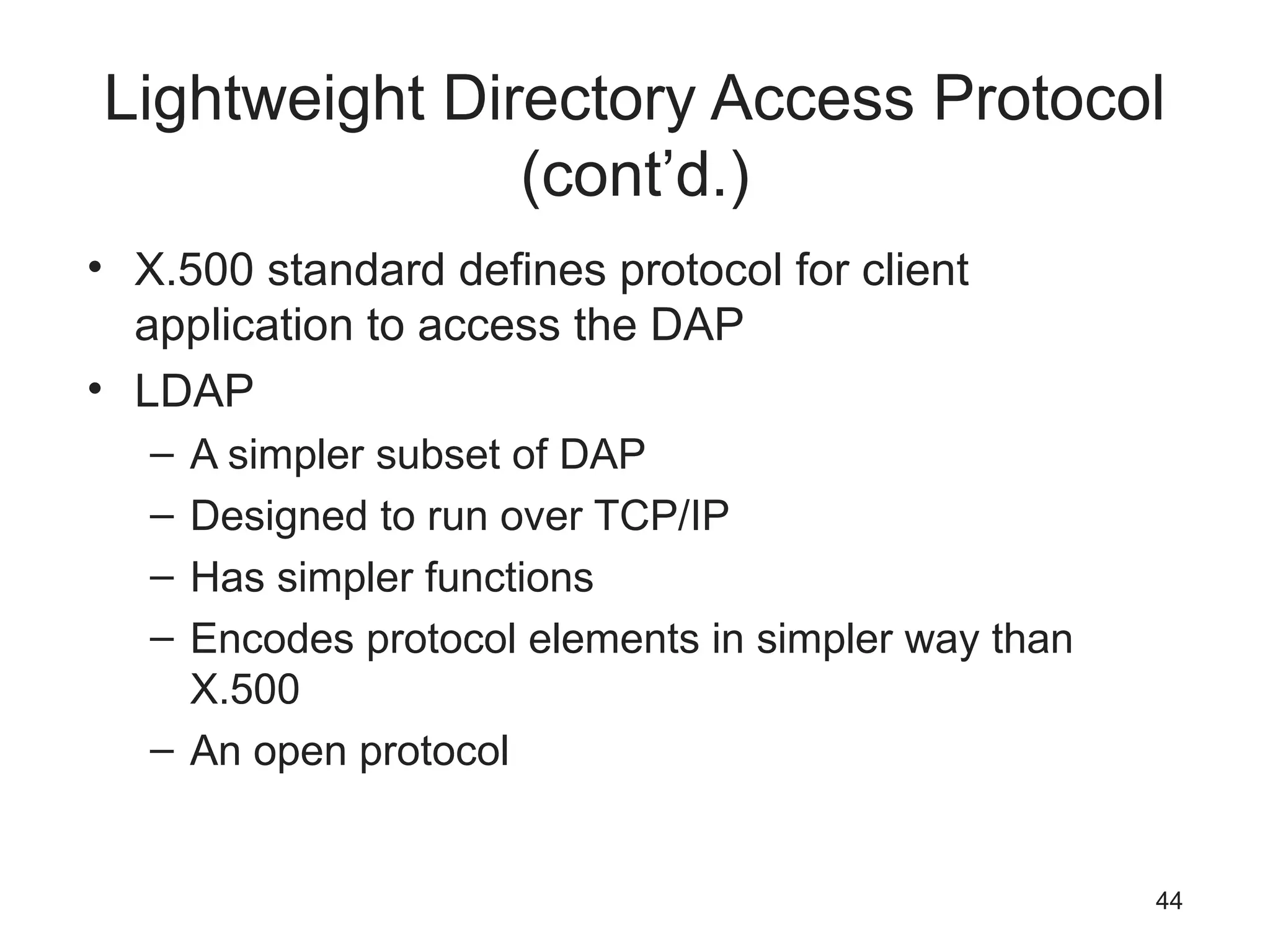

- 44. Lightweight Directory AccessProtocol (cont’d.) • X.500 standard defines protocol for client application to access the DAP • LDAP – A simpler subset of DAP – Designed to run over TCP/IP – Has simpler functions – Encodes protocol elements in simpler way than X.500 – An open protocol 44

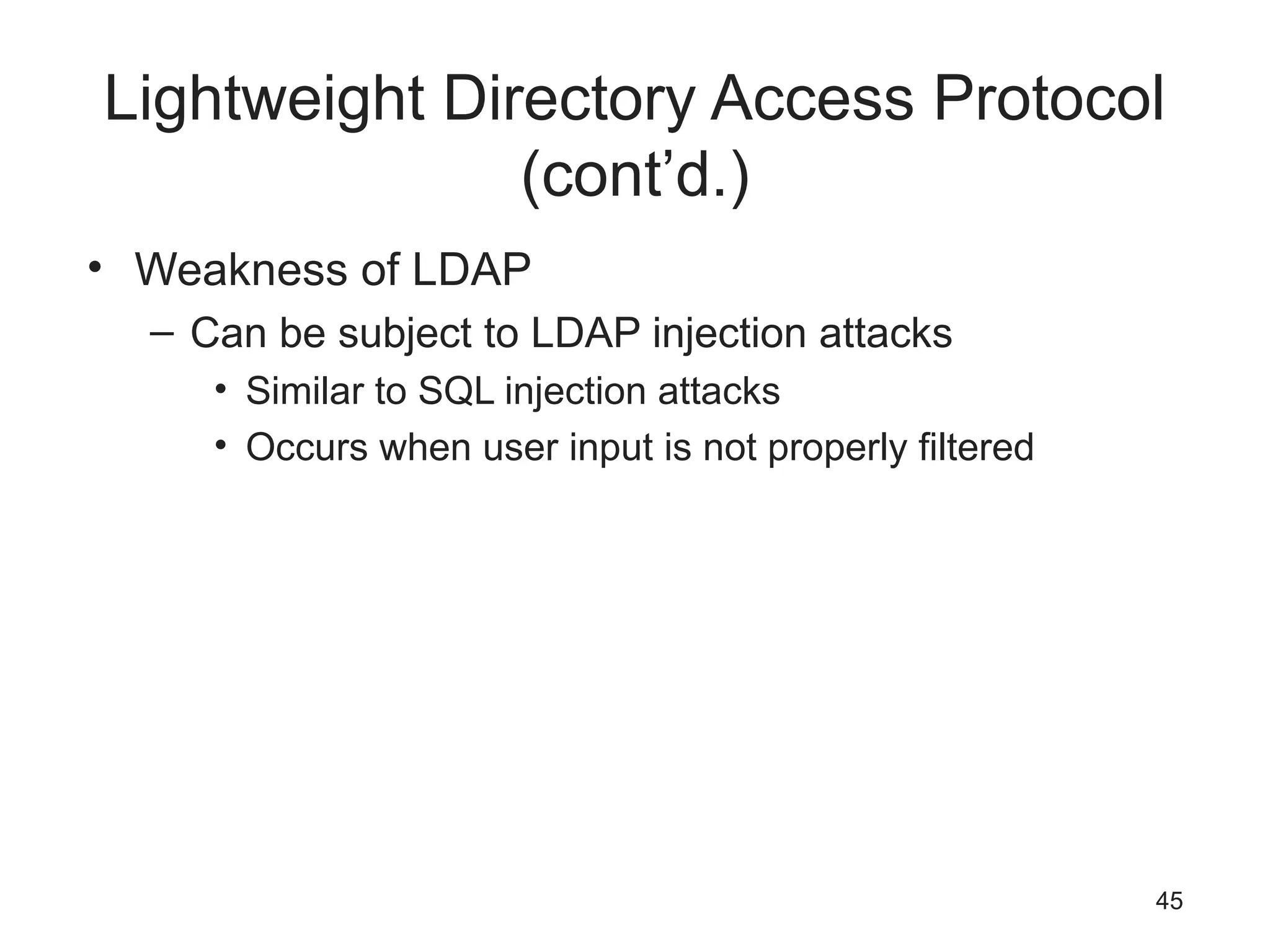

- 45. Lightweight Directory AccessProtocol (cont’d.) • Weakness of LDAP – Can be subject to LDAP injection attacks • Similar to SQL injection attacks • Occurs when user input is not properly filtered 45

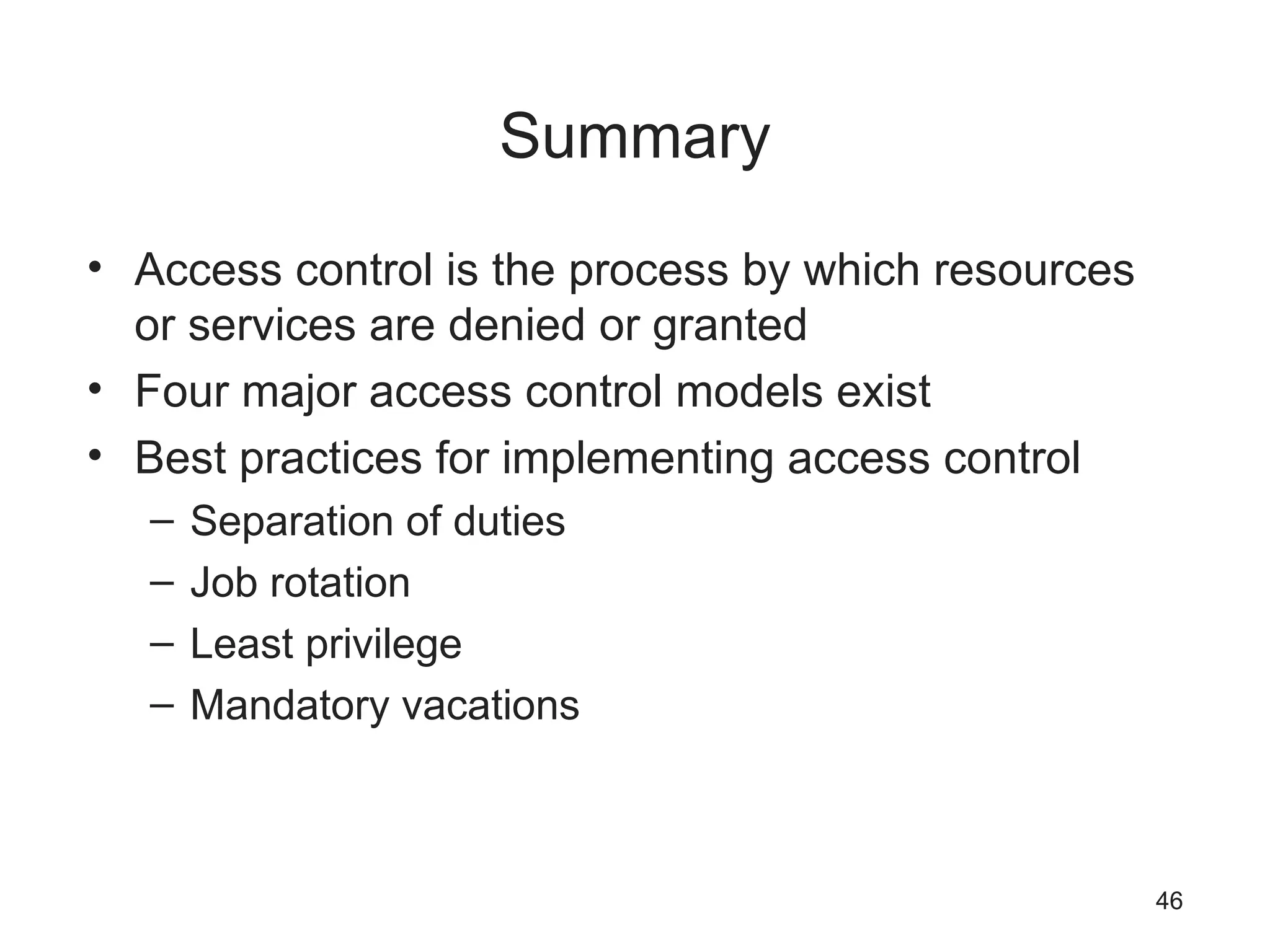

- 46. Summary • Access controlis the process by which resources or services are denied or granted • Four major access control models exist • Best practices for implementing access control – Separation of duties – Job rotation – Least privilege – Mandatory vacations 46

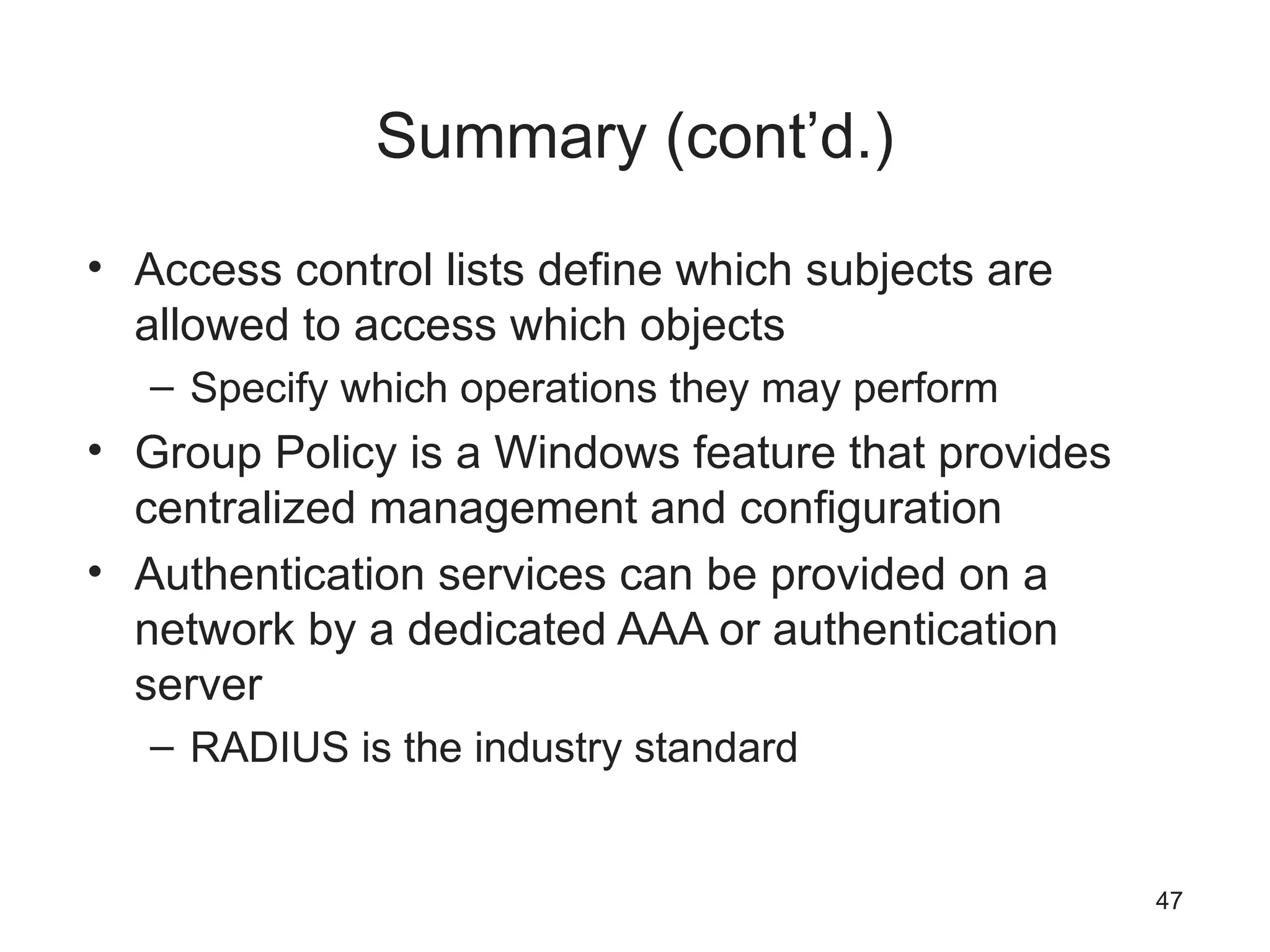

- 47. Summary (cont’d.) • Accesscontrol lists define which subjects are allowed to access which objects – Specify which operations they may perform • Group Policy is a Windows feature that provides centralized management and configuration • Authentication services can be provided on a network by a dedicated AAA or authentication server – RADIUS is the industry standard 47
