Uploaded byDhiviya Rose
CSEG1001 Unit 5 Structure and Unions
This document discusses structures and unions in C programming. It defines structures as a way to group dissimilar data types and define a new data type. Structures use the struct keyword and allow defining custom data types. Unions are similar to structures but can only store one data element at a time, with storage size equal to the largest member. The document provides examples of declaring and defining structures and accessing structure members using dot and arrow operators. It also discusses static and extern storage classes.
More Related Content
Similar to CSEG1001 Unit 5 Structure and Unions
CSEG1001 Unit 5 Structure and Unions
- 1. STRUCTURES AND UNIONS Instructor Dhiviya RoseJ , AP-Sr. Scale | SoCSE
- 2.

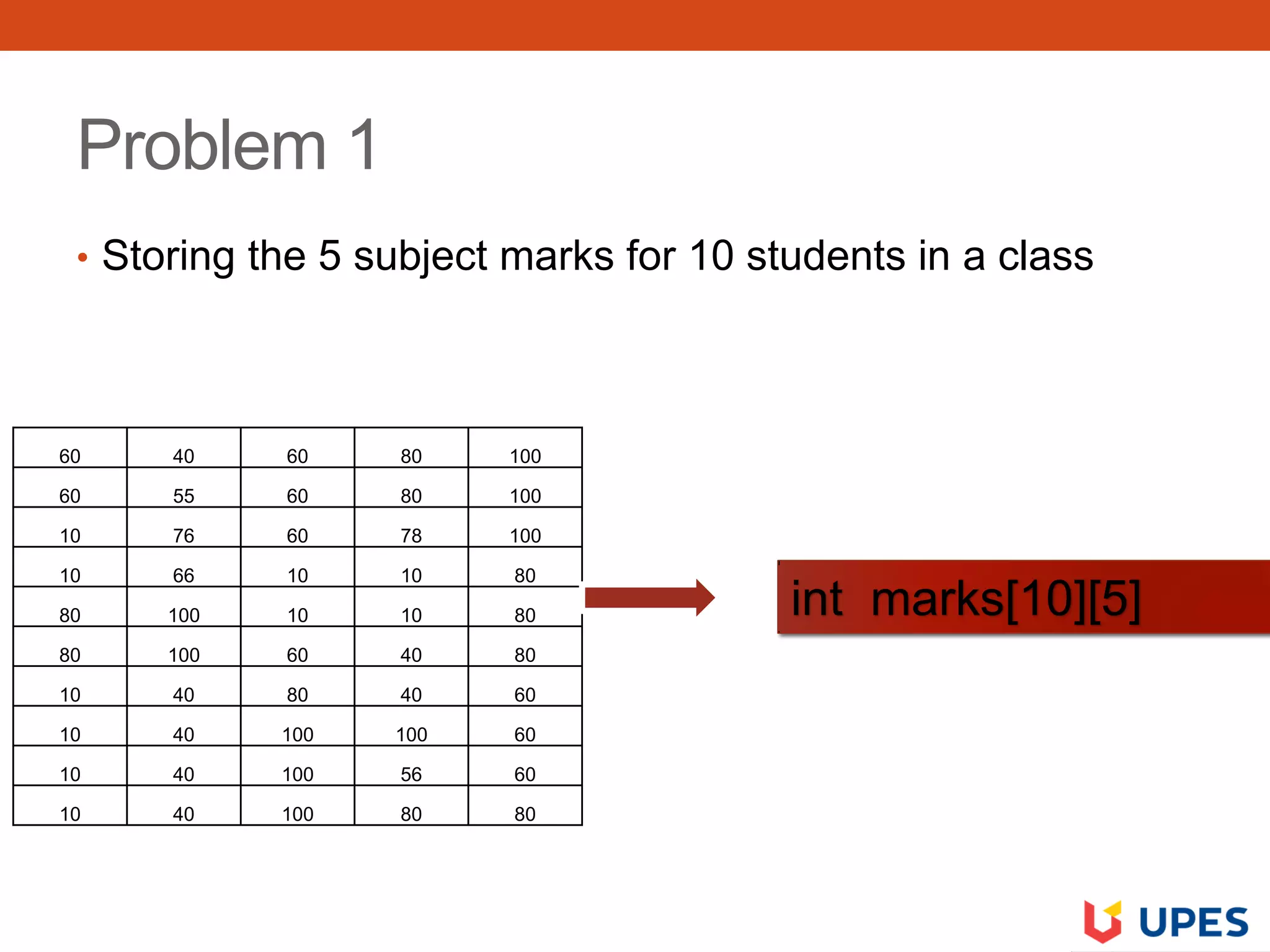

- 3. Problem 1 • Storingthe 5 subject marks for 10 students in a class 60 40 60 80 100 60 55 60 80 100 10 76 60 78 100 10 66 10 10 80 80 100 10 10 80 80 100 60 40 80 10 40 80 40 60 10 40 100 100 60 10 40 100 56 60 10 40 100 80 80 int marks[10][5]

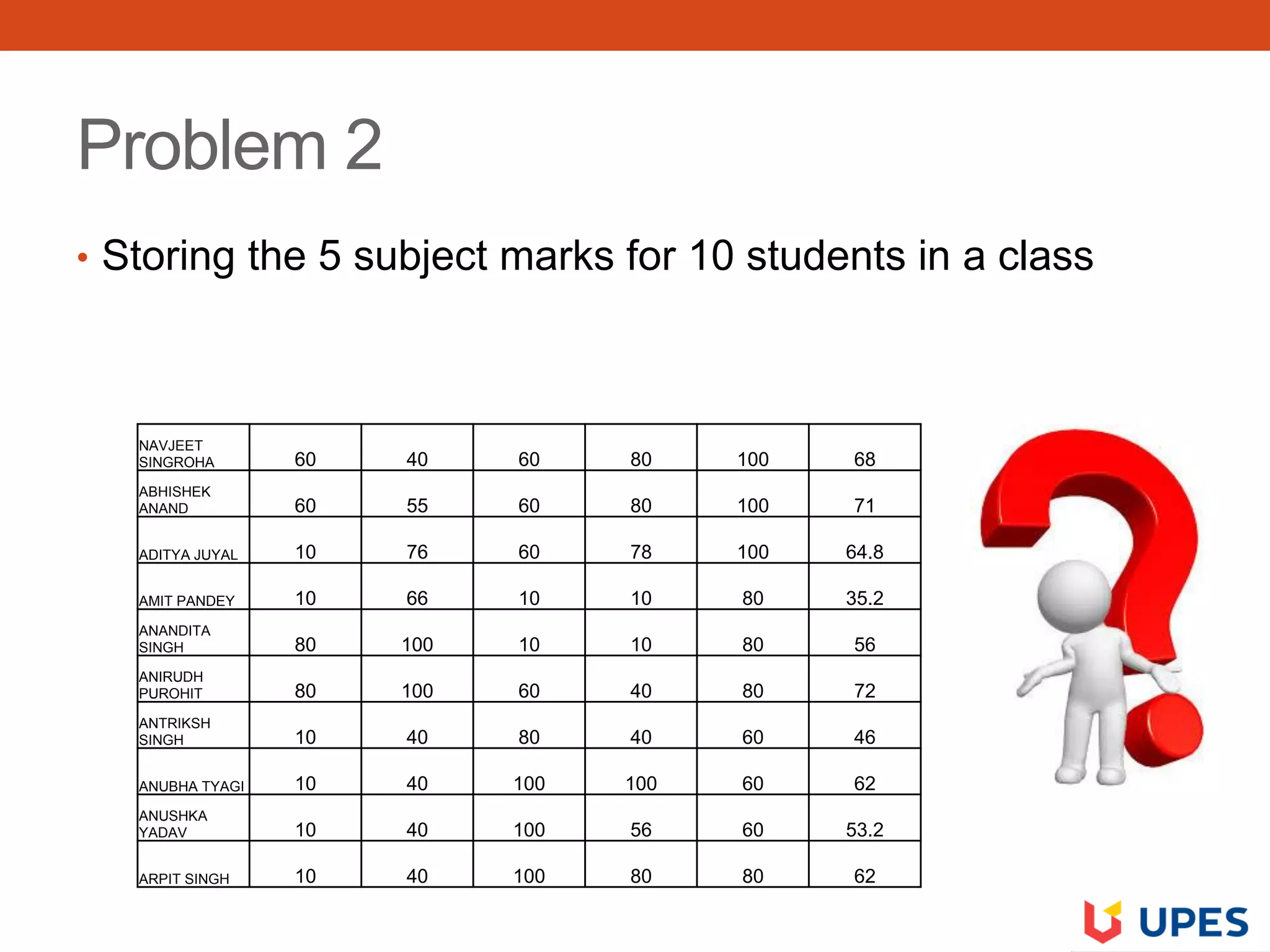

- 4. Problem 2 • Storingthe 5 subject marks for 10 students in a class NAVJEET SINGROHA 60 40 60 80 100 68 ABHISHEK ANAND 60 55 60 80 100 71 ADITYA JUYAL 10 76 60 78 100 64.8 AMIT PANDEY 10 66 10 10 80 35.2 ANANDITA SINGH 80 100 10 10 80 56 ANIRUDH PUROHIT 80 100 60 40 80 72 ANTRIKSH SINGH 10 40 80 40 60 46 ANUBHA TYAGI 10 40 100 100 60 62 ANUSHKA YADAV 10 40 100 56 60 53.2 ARPIT SINGH 10 40 100 80 80 62

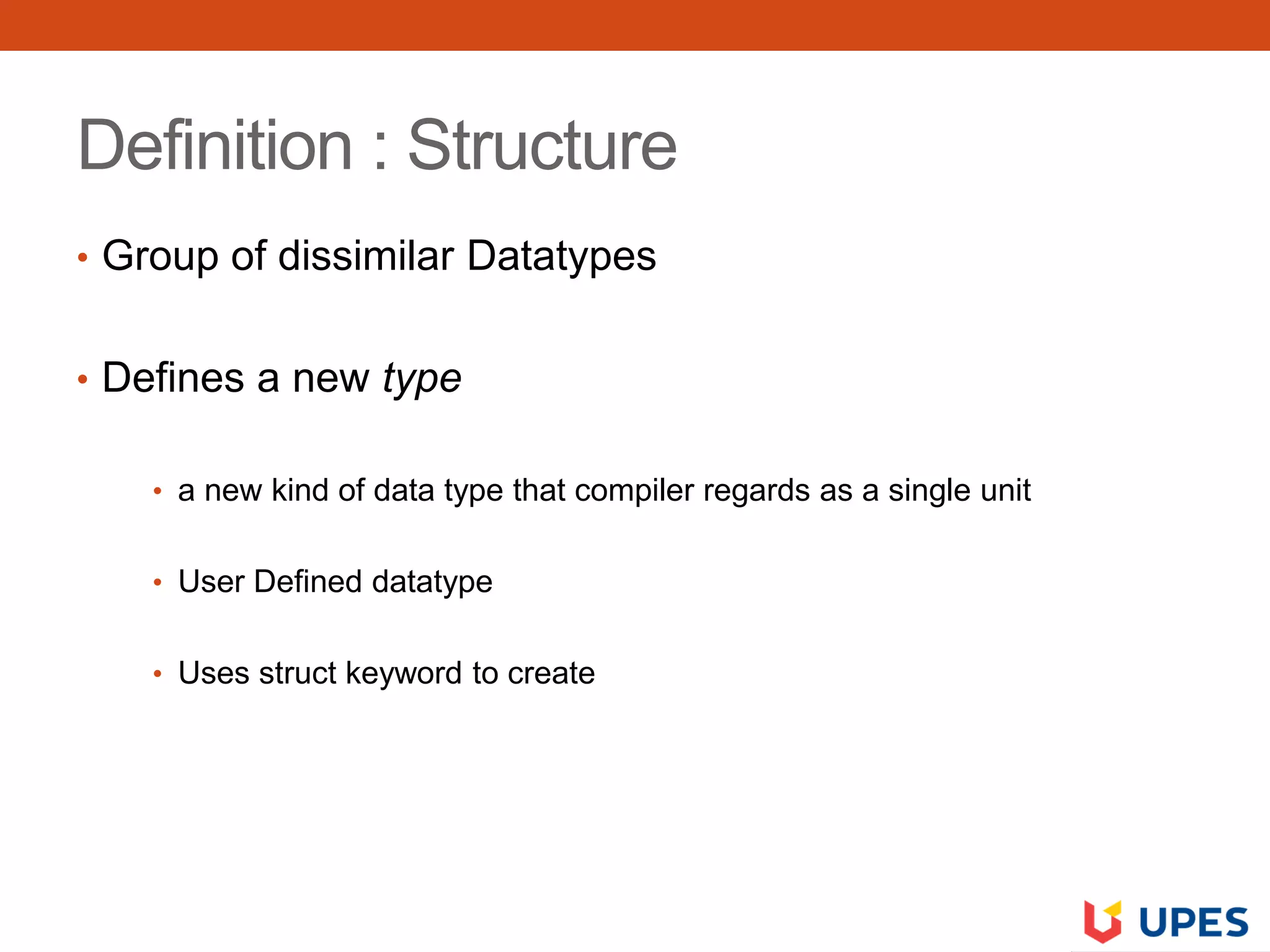

- 5. Definition : Structure •Group of dissimilar Datatypes • Defines a new type • a new kind of data type that compiler regards as a single unit • User Defined datatype • Uses struct keyword to create
- 6.

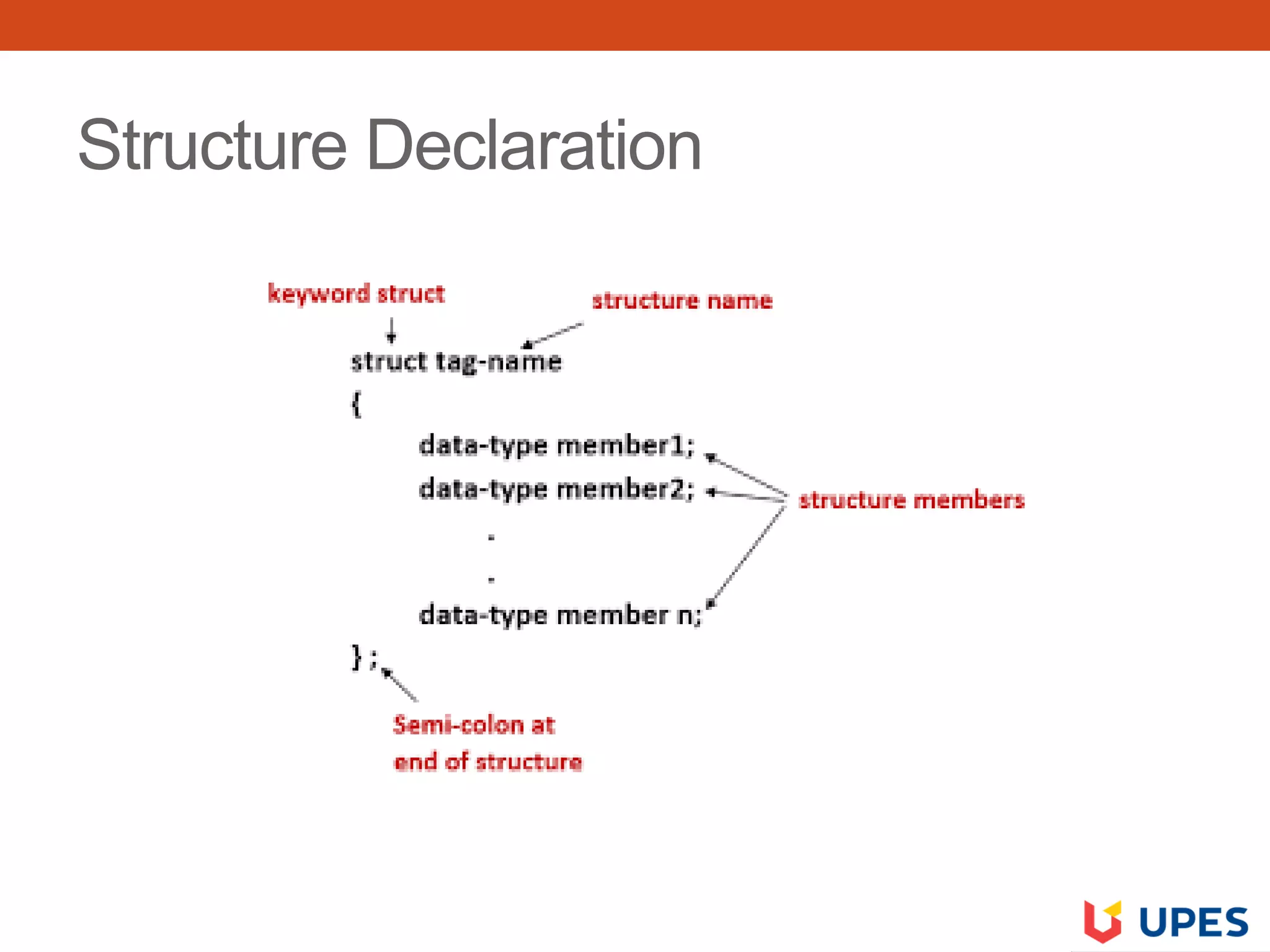

- 7.

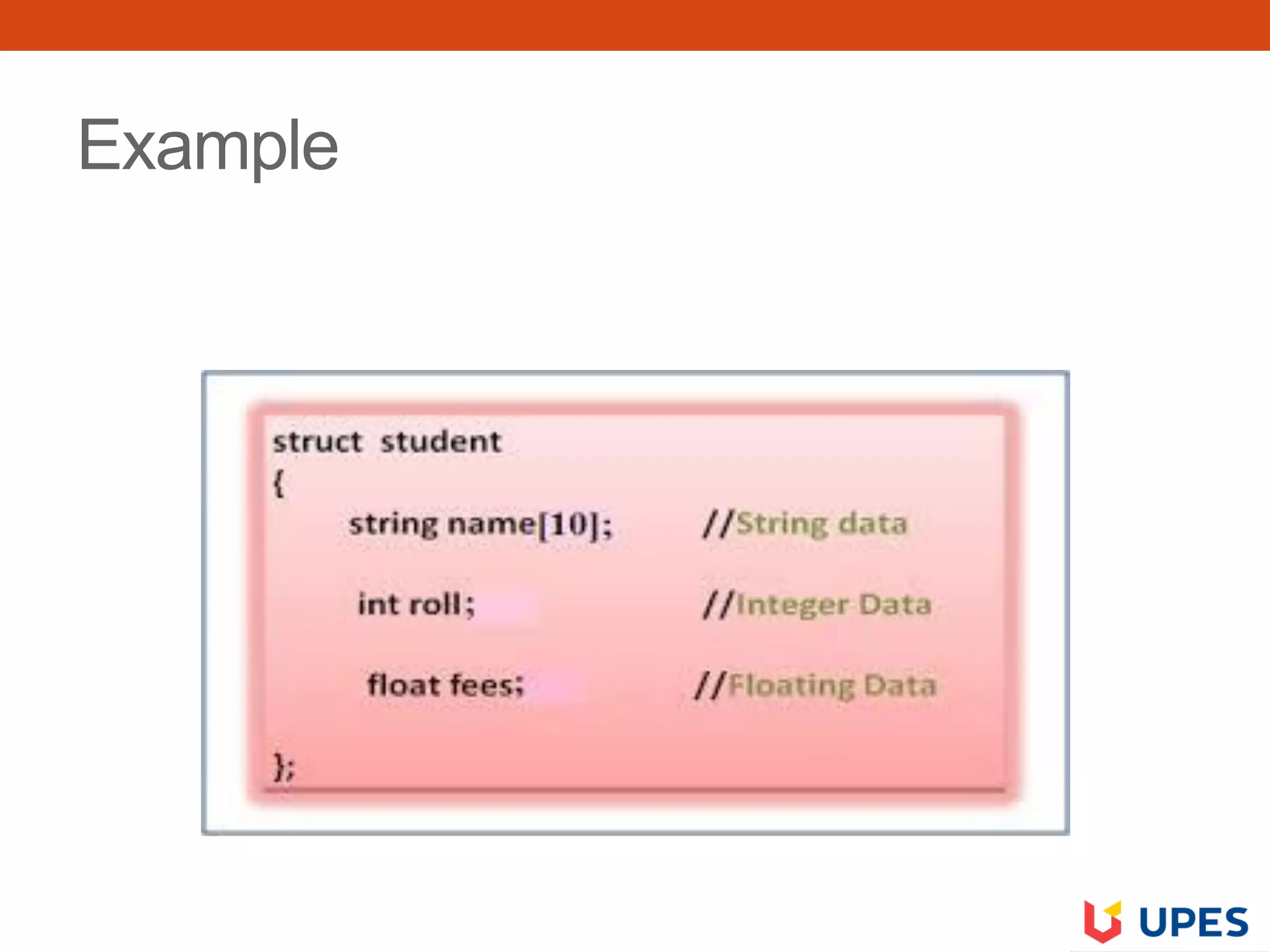

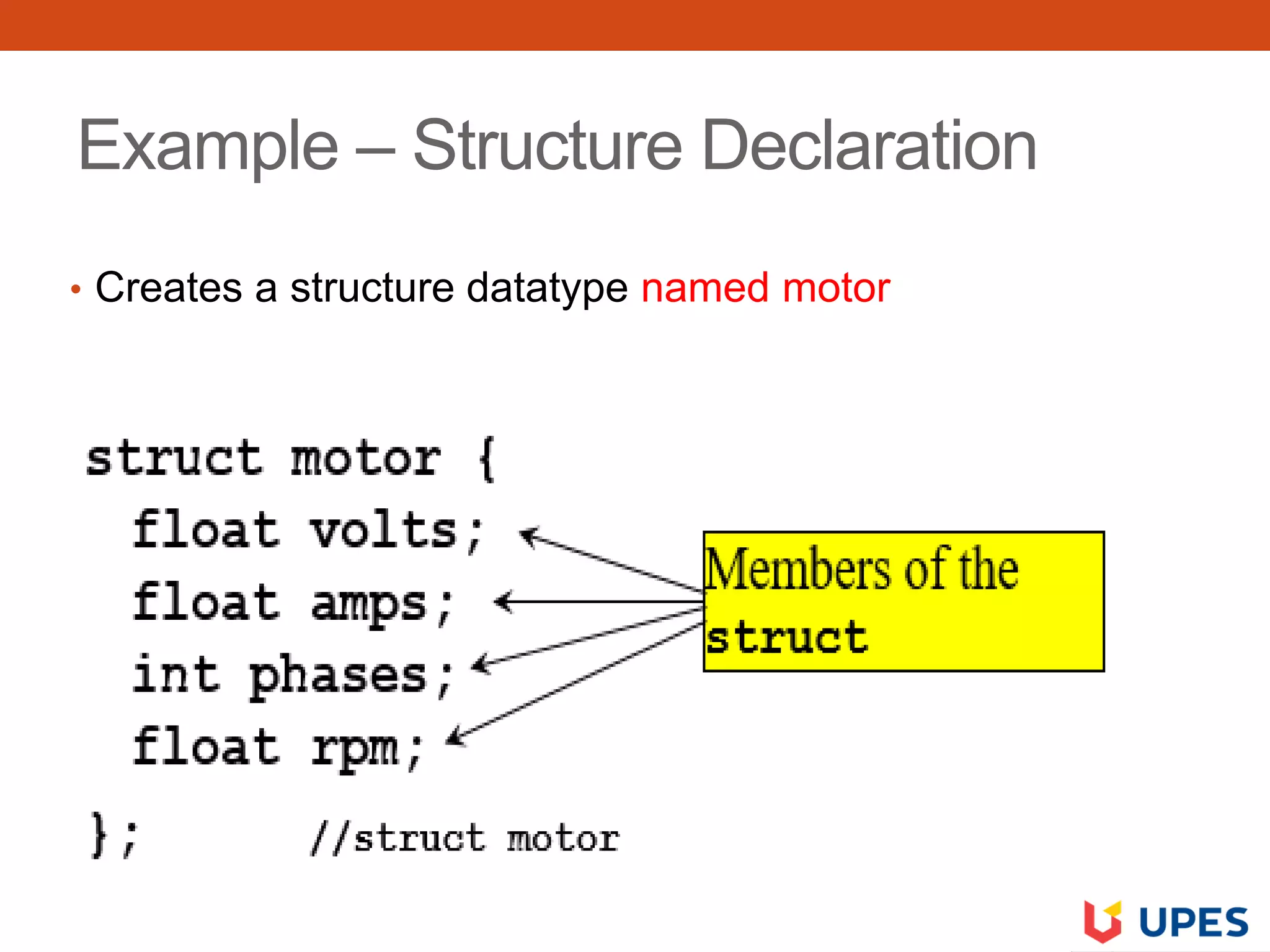

- 8. Example – StructureDeclaration • Creates a structure datatype named motor

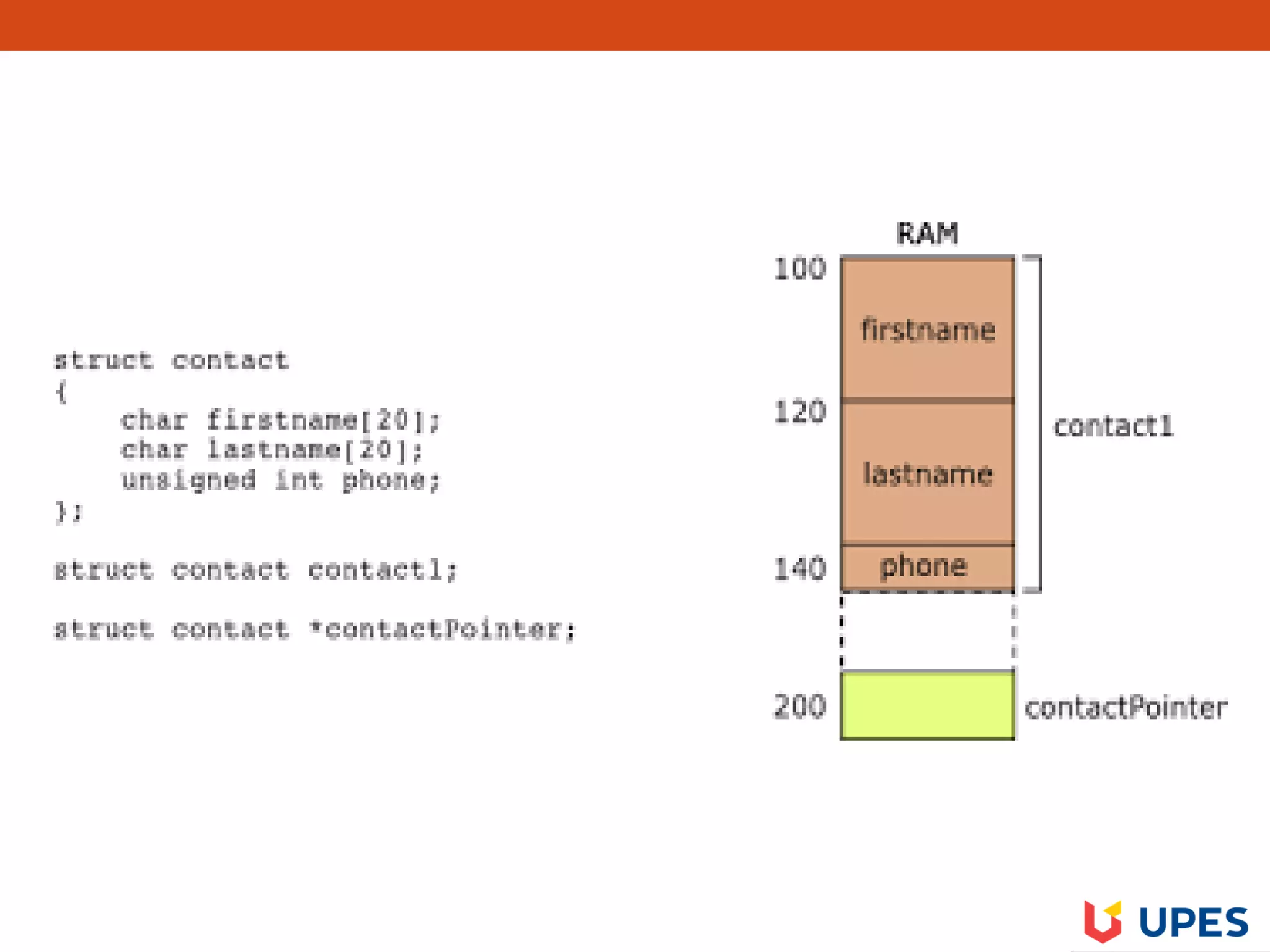

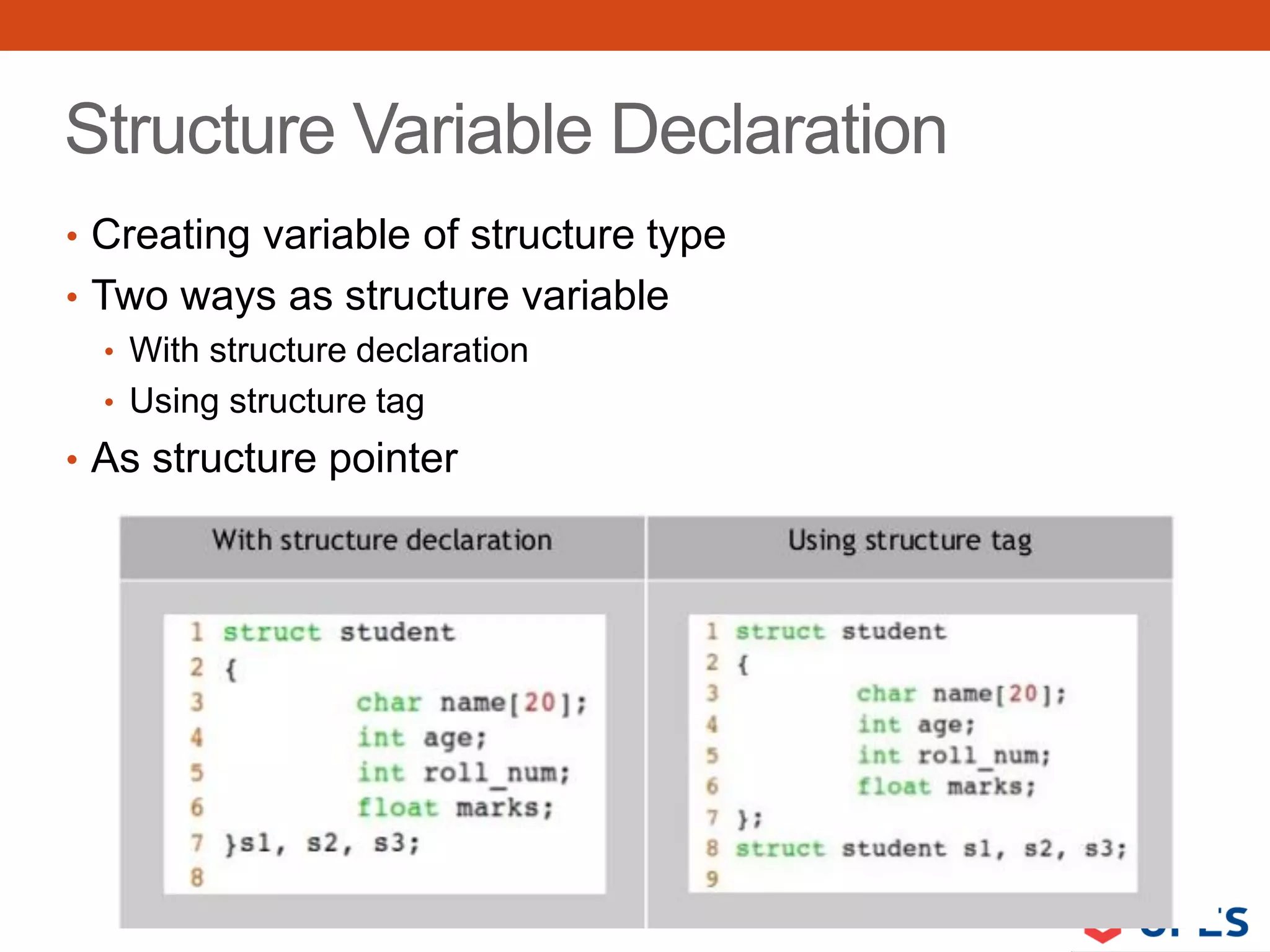

- 9. Structure Variable Declaration •Creating variable of structure type • Two ways as structure variable • With structure declaration • Using structure tag • As structure pointer

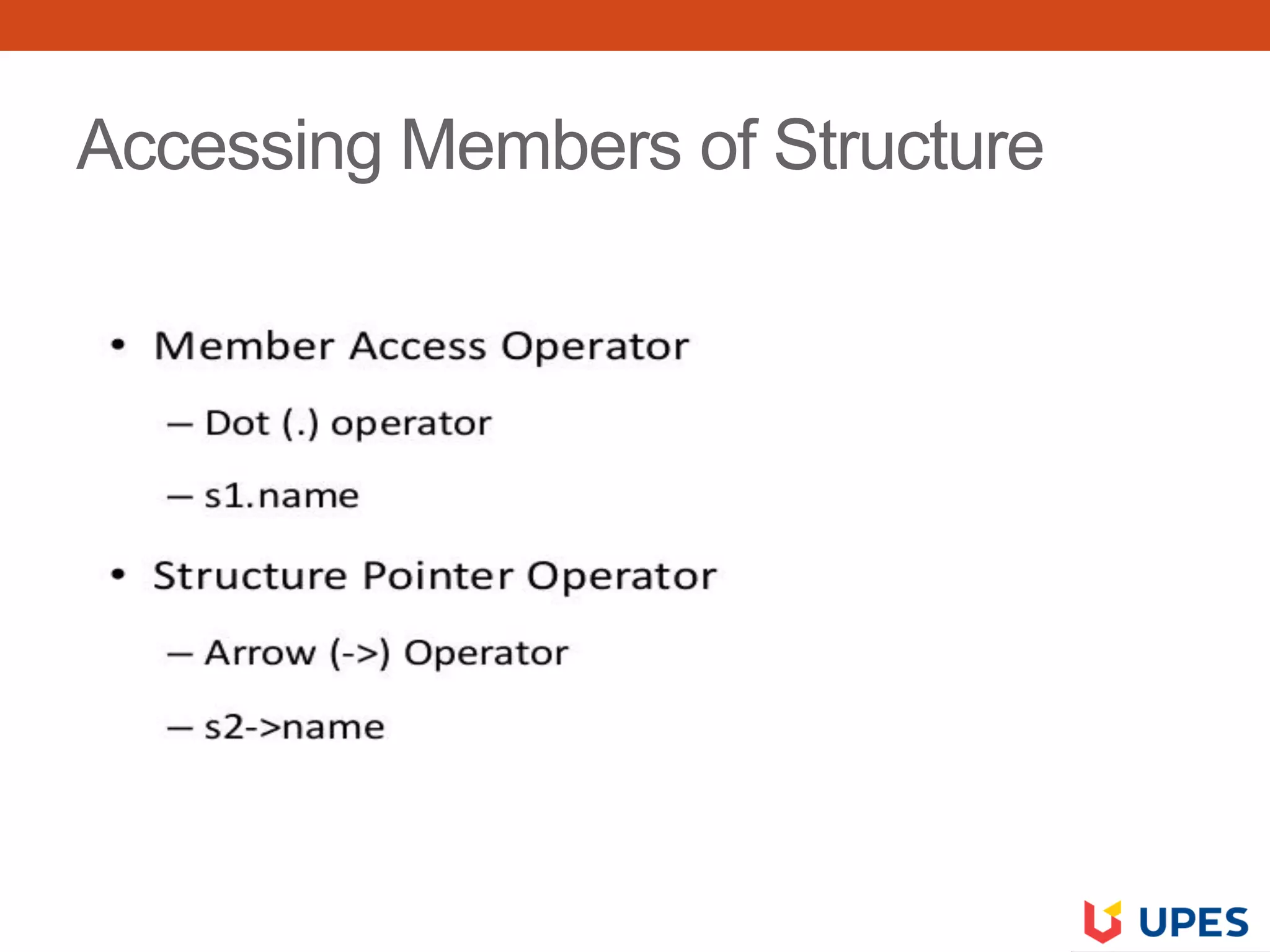

- 11. Accessing Members ofStructure

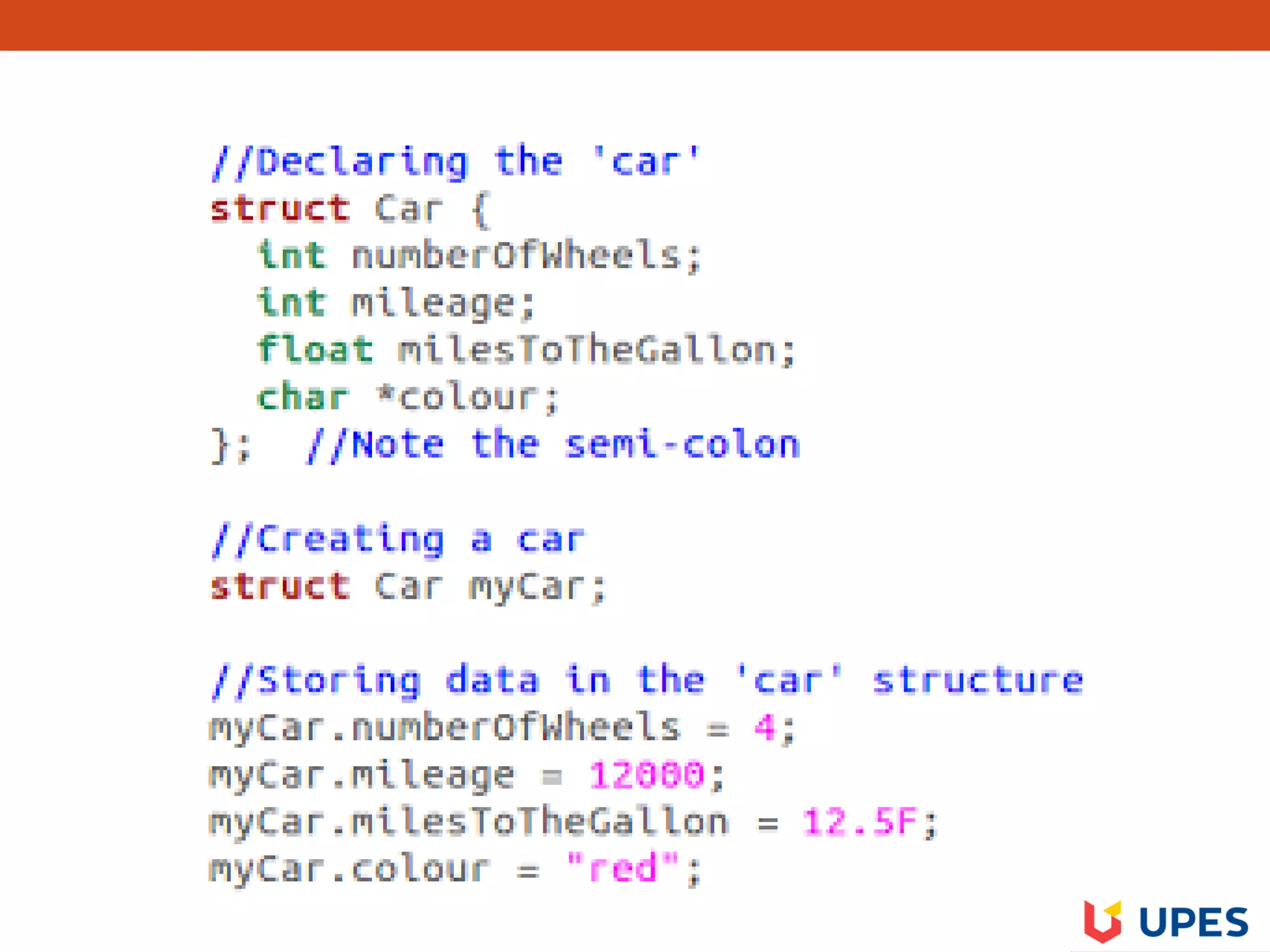

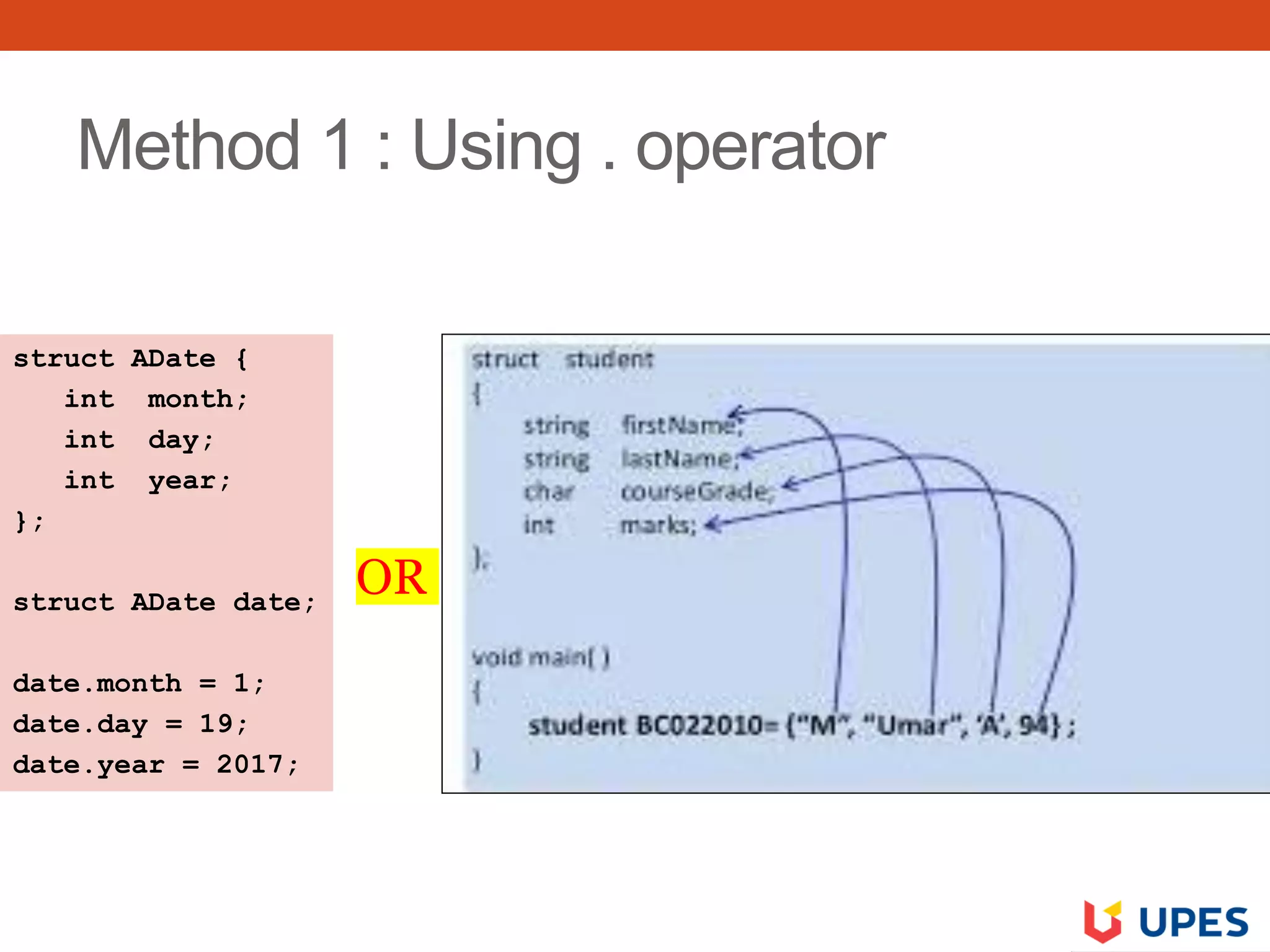

- 12. Method 1 :Using . operator struct ADate { int month; int day; int year; }; struct ADate date; date.month = 1; date.day = 19; date.year = 2017; OR

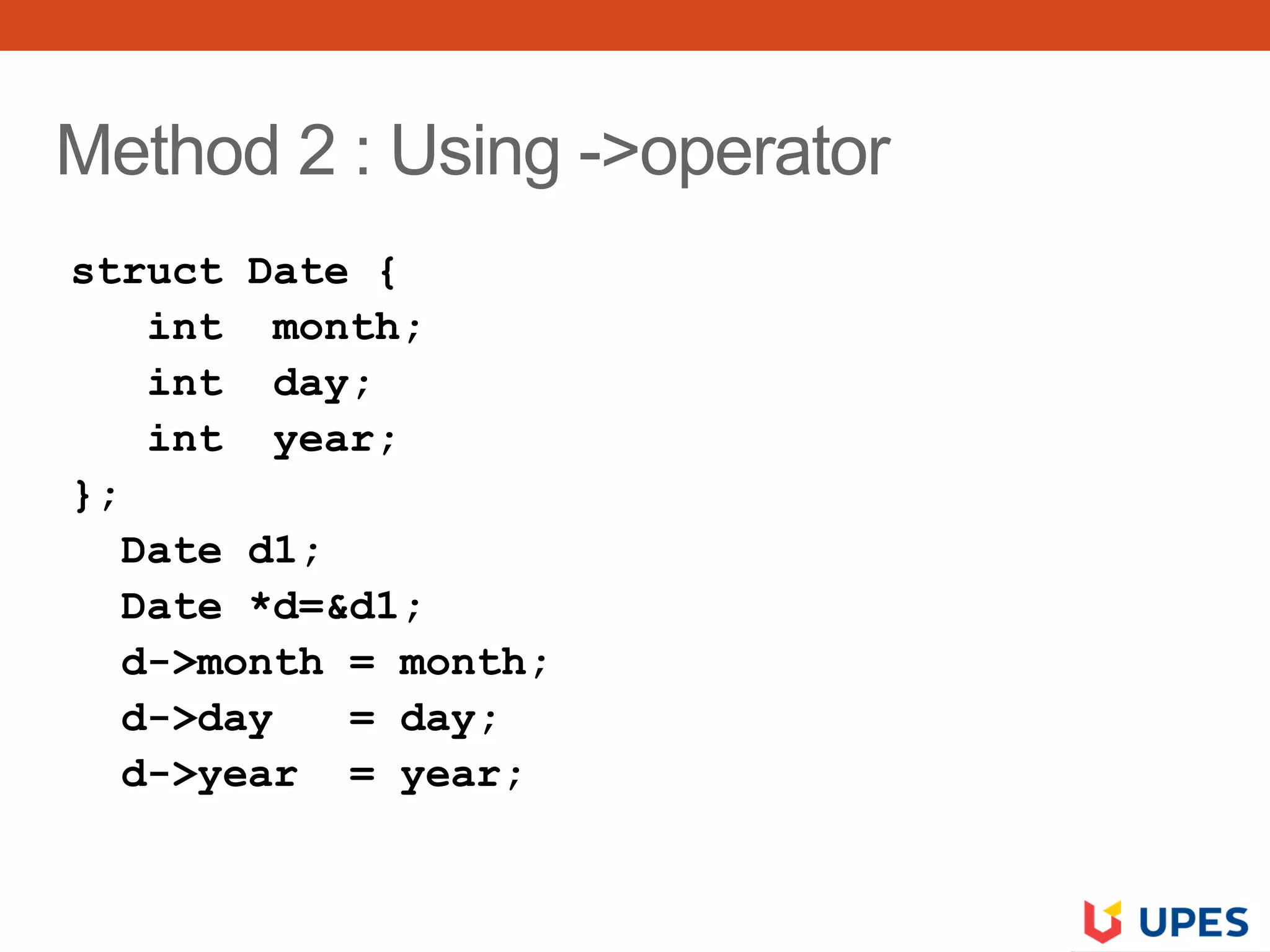

- 14. Method 2 :Using ->operator struct Date { int month; int day; int year; }; Date d1; Date *d=&d1; d->month = month; d->day = day; d->year = year;

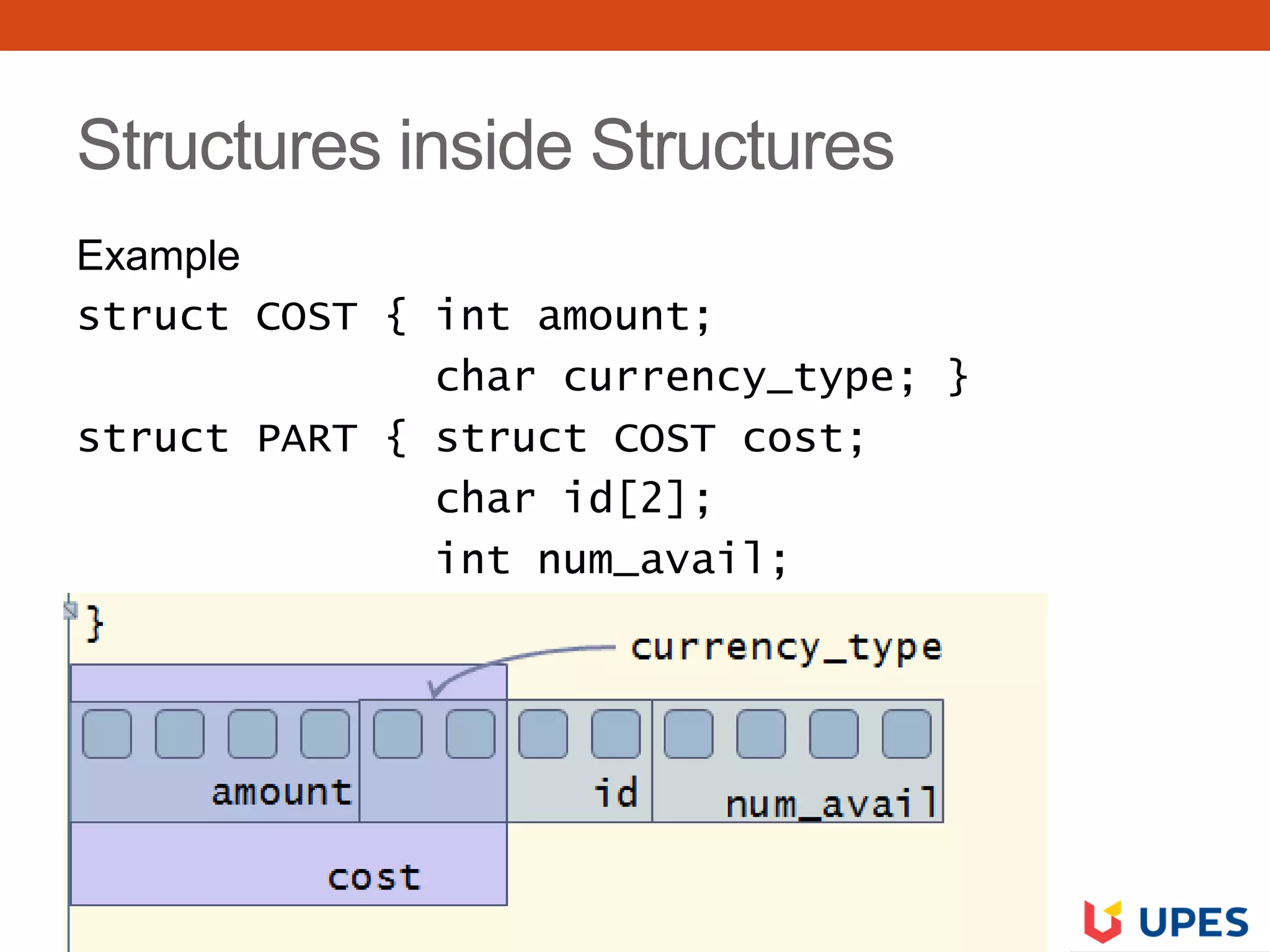

- 15. Structures inside Structures Example structCOST { int amount; char currency_type; } struct PART { struct COST cost; char id[2]; int num_avail; }

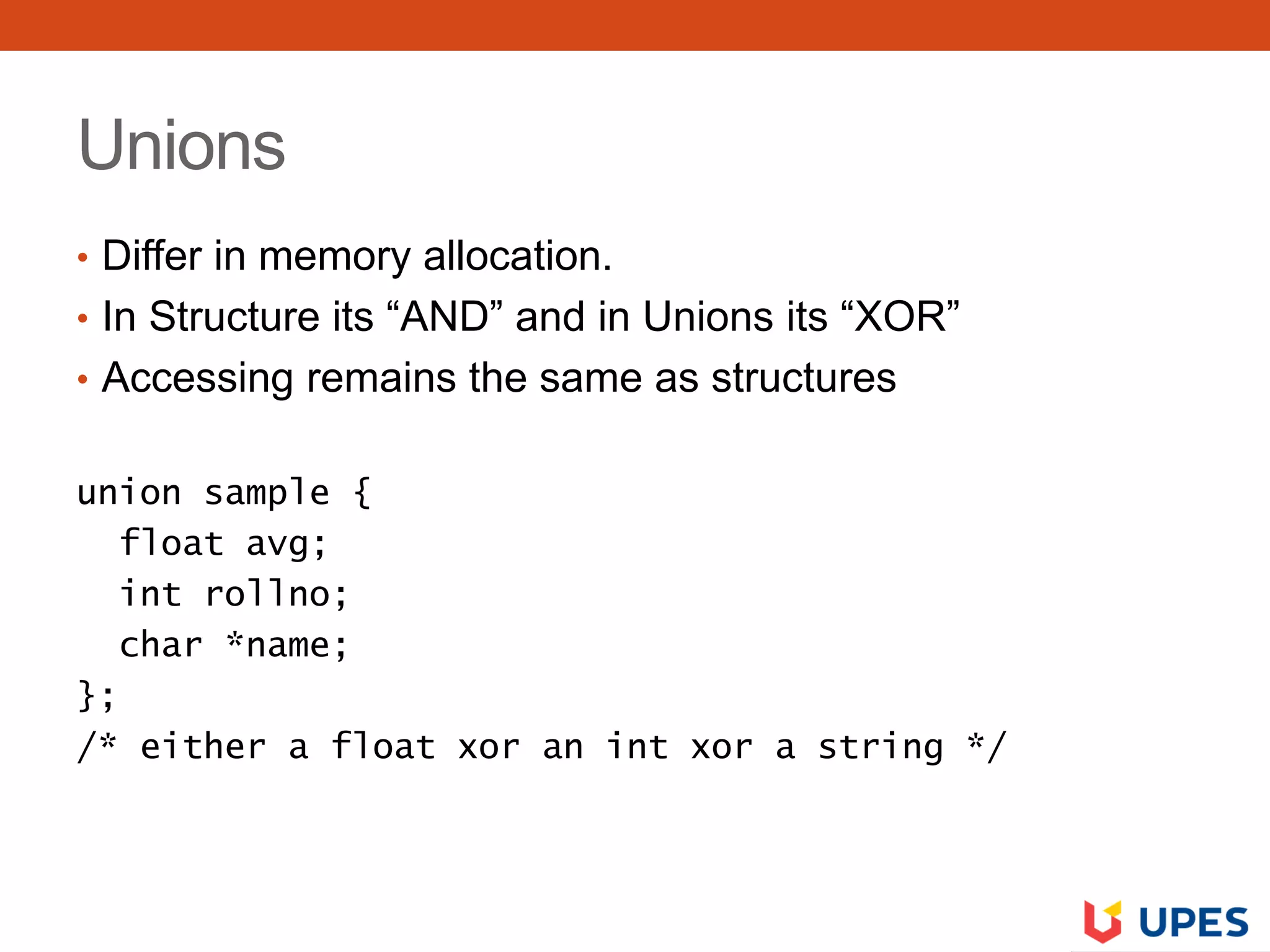

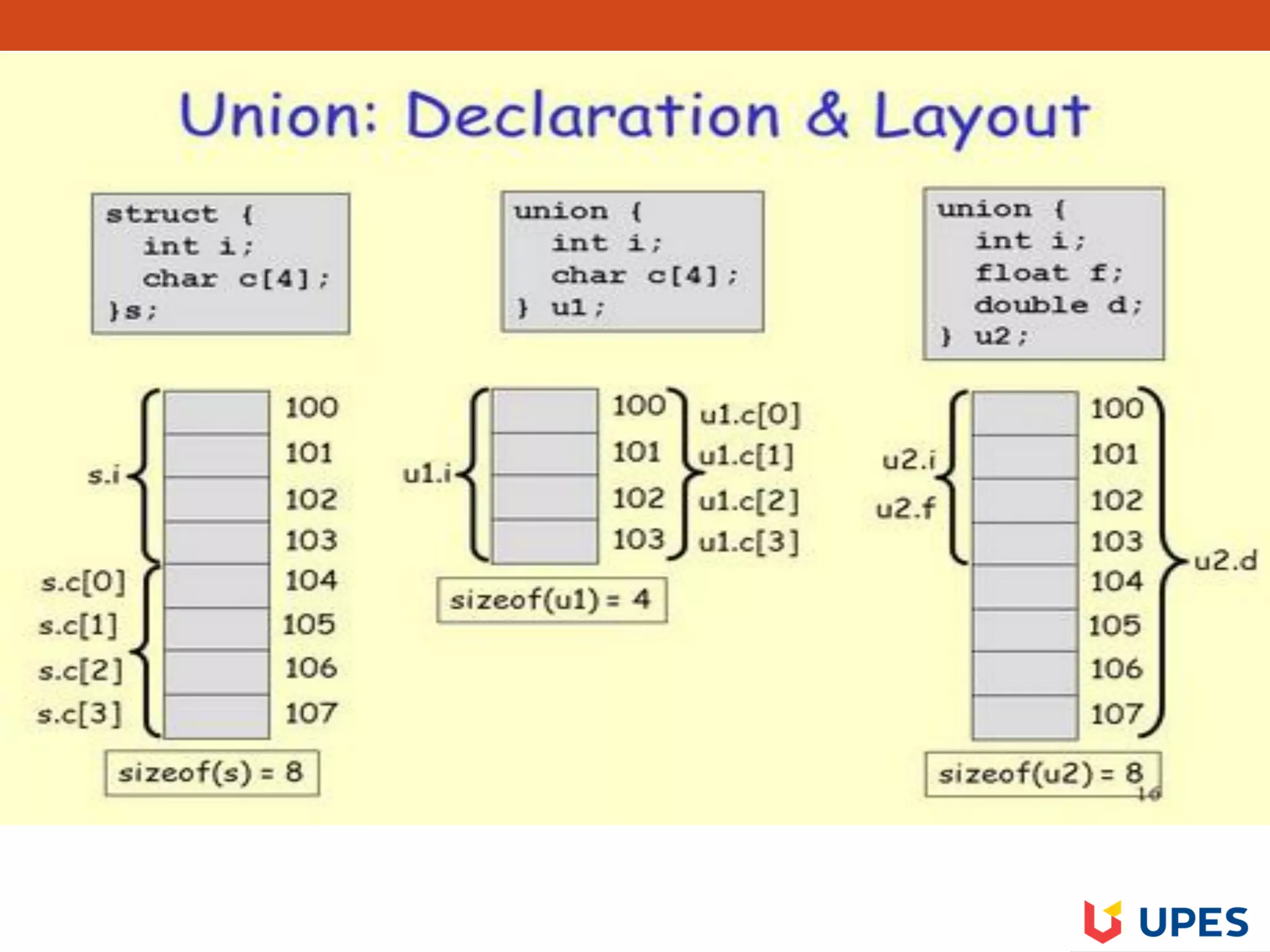

- 16. Unions • Differ inmemory allocation. • In Structure its “AND” and in Unions its “XOR” • Accessing remains the same as structures union sample { float avg; int rollno; char *name; }; /* either a float xor an int xor a string */

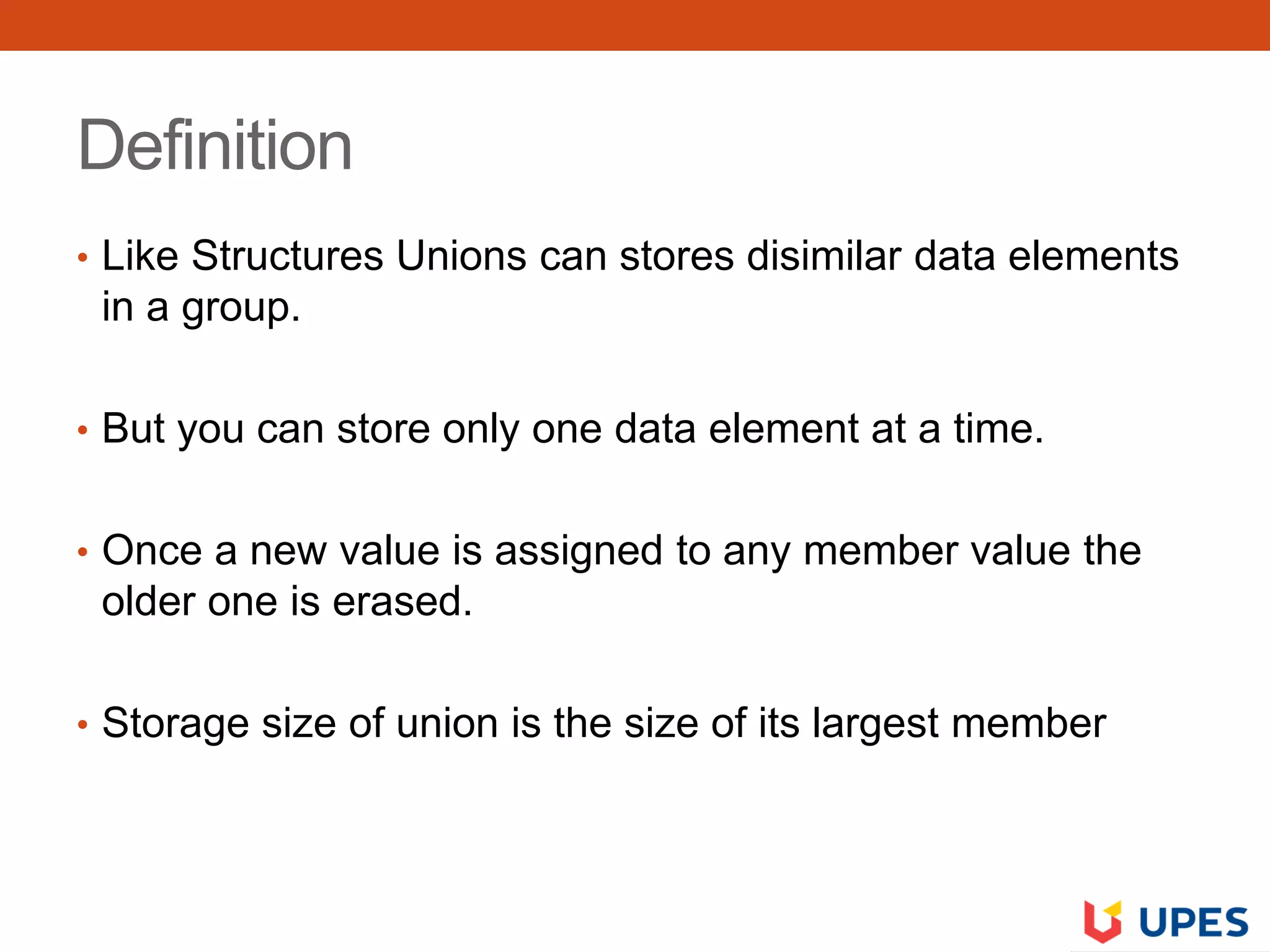

- 17. Definition • Like StructuresUnions can stores disimilar data elements in a group. • But you can store only one data element at a time. • Once a new value is assigned to any member value the older one is erased. • Storage size of union is the size of its largest member
- 20.

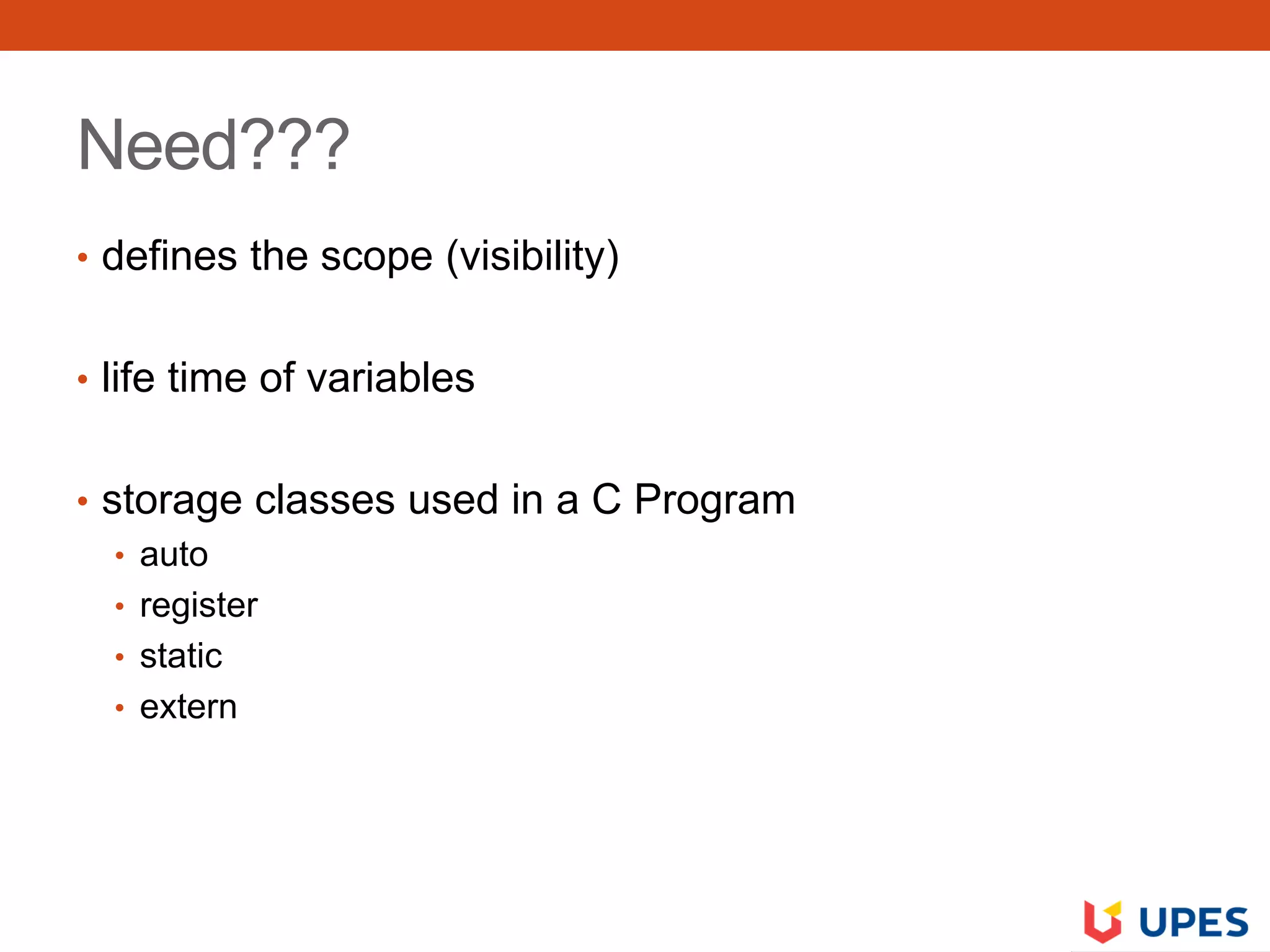

- 21. Need??? • defines thescope (visibility) • life time of variables • storage classes used in a C Program • auto • register • static • extern

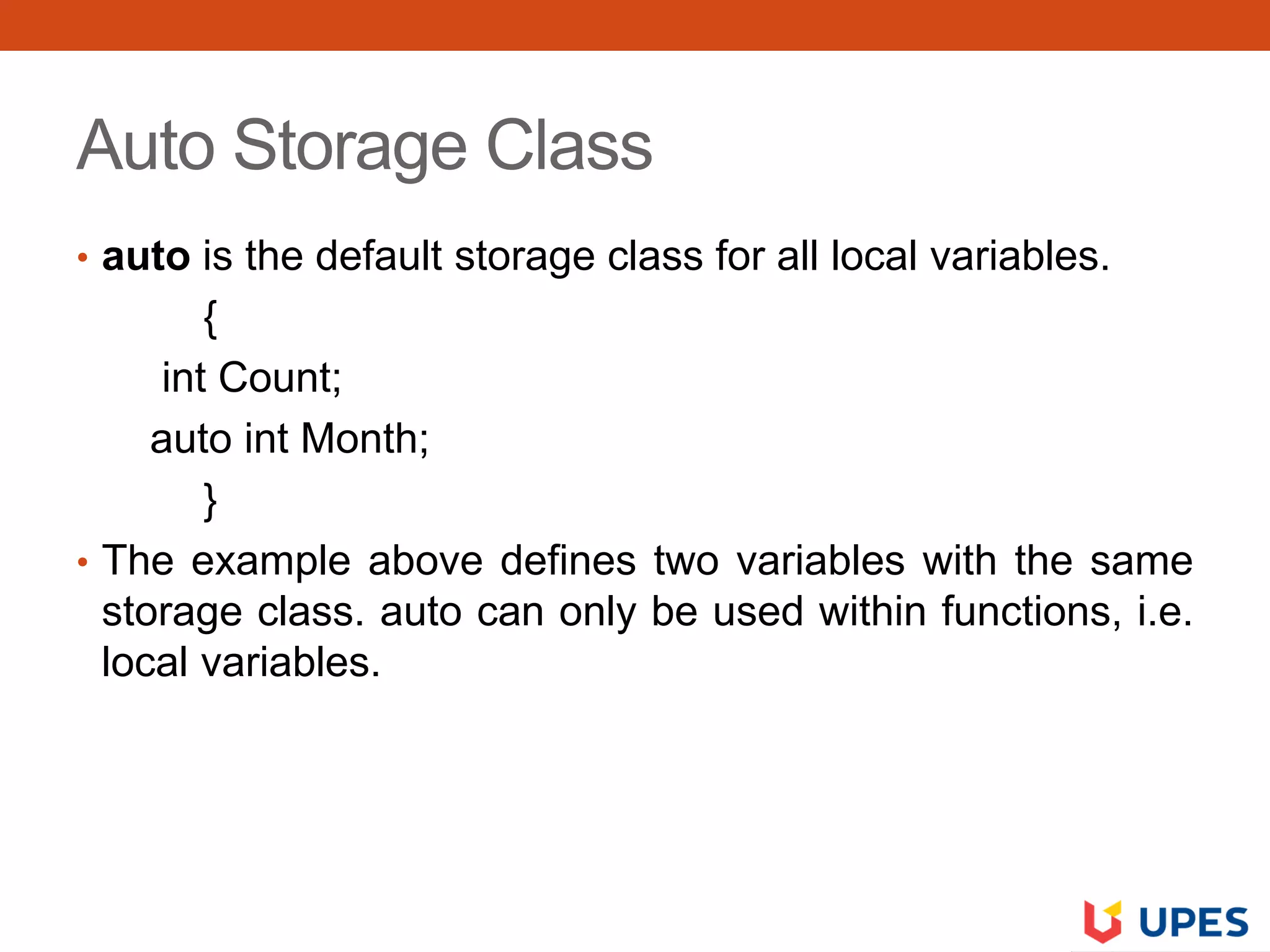

- 22. Auto Storage Class •auto is the default storage class for all local variables. { int Count; auto int Month; } • The example above defines two variables with the same storage class. auto can only be used within functions, i.e. local variables.

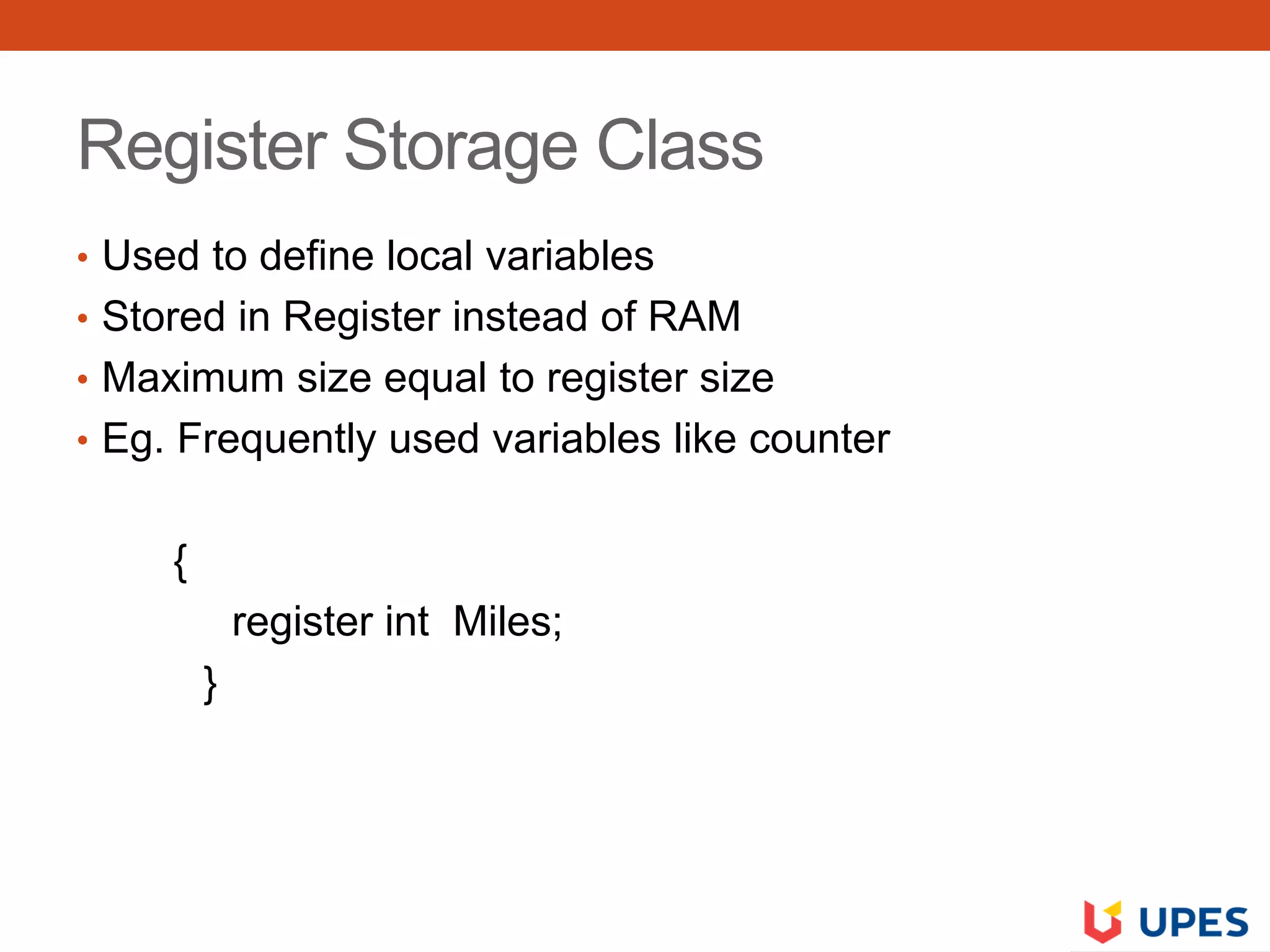

- 23. Register Storage Class •Used to define local variables • Stored in Register instead of RAM • Maximum size equal to register size • Eg. Frequently used variables like counter { register int Miles; }

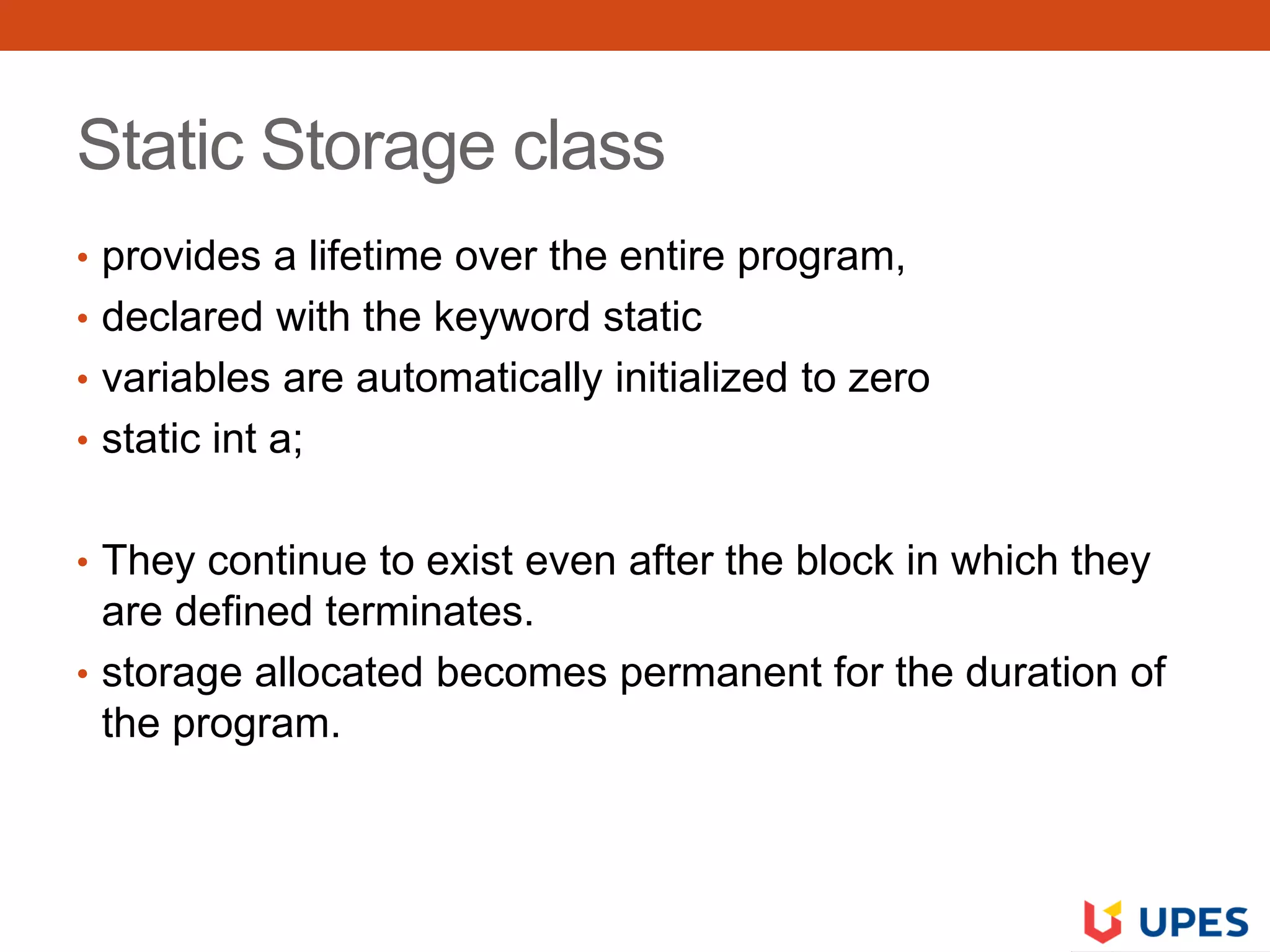

- 24. Static Storage class •provides a lifetime over the entire program, • declared with the keyword static • variables are automatically initialized to zero • static int a; • They continue to exist even after the block in which they are defined terminates. • storage allocated becomes permanent for the duration of the program.

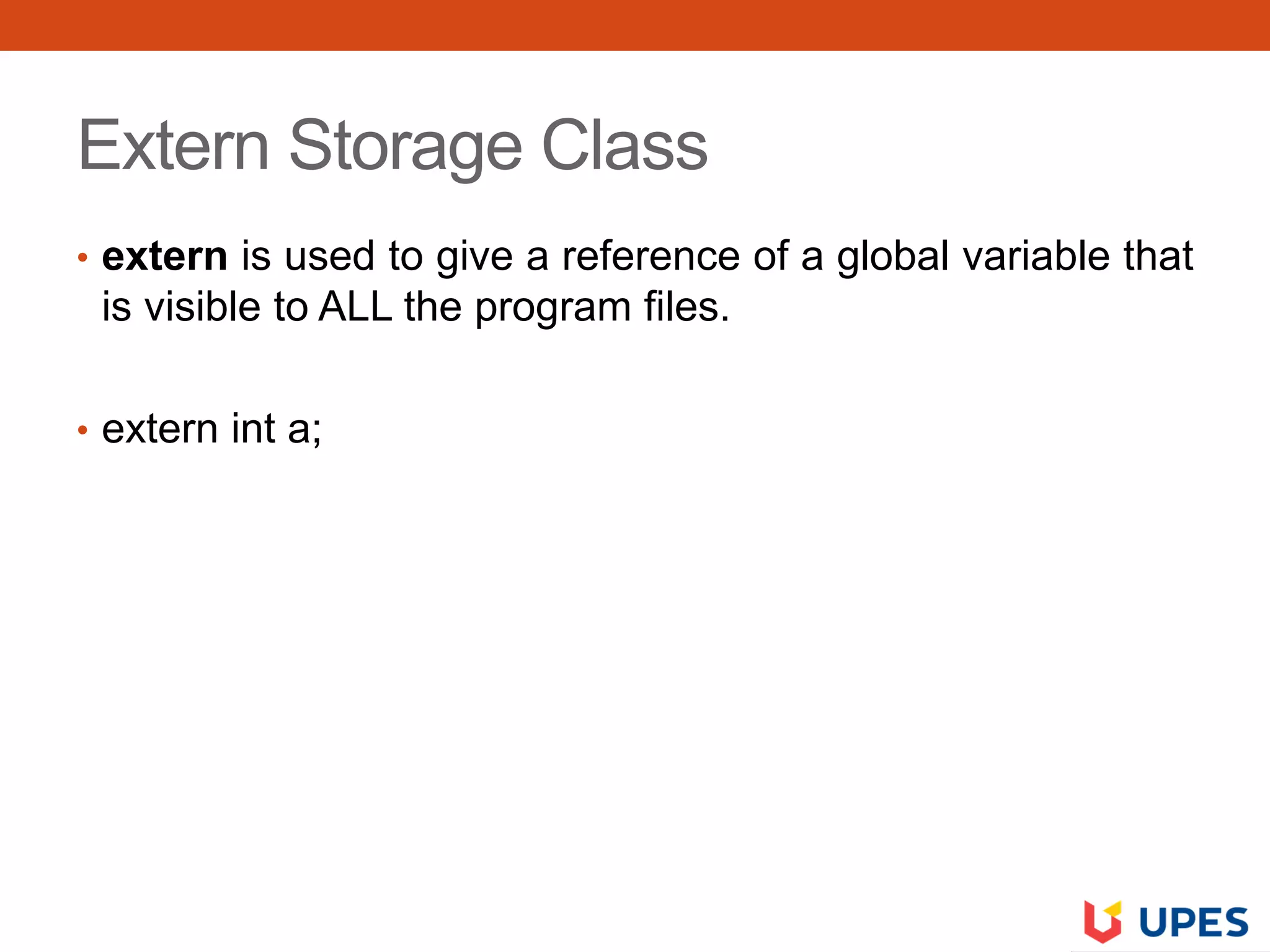

- 25. Extern Storage Class •extern is used to give a reference of a global variable that is visible to ALL the program files. • extern int a;
- 26.

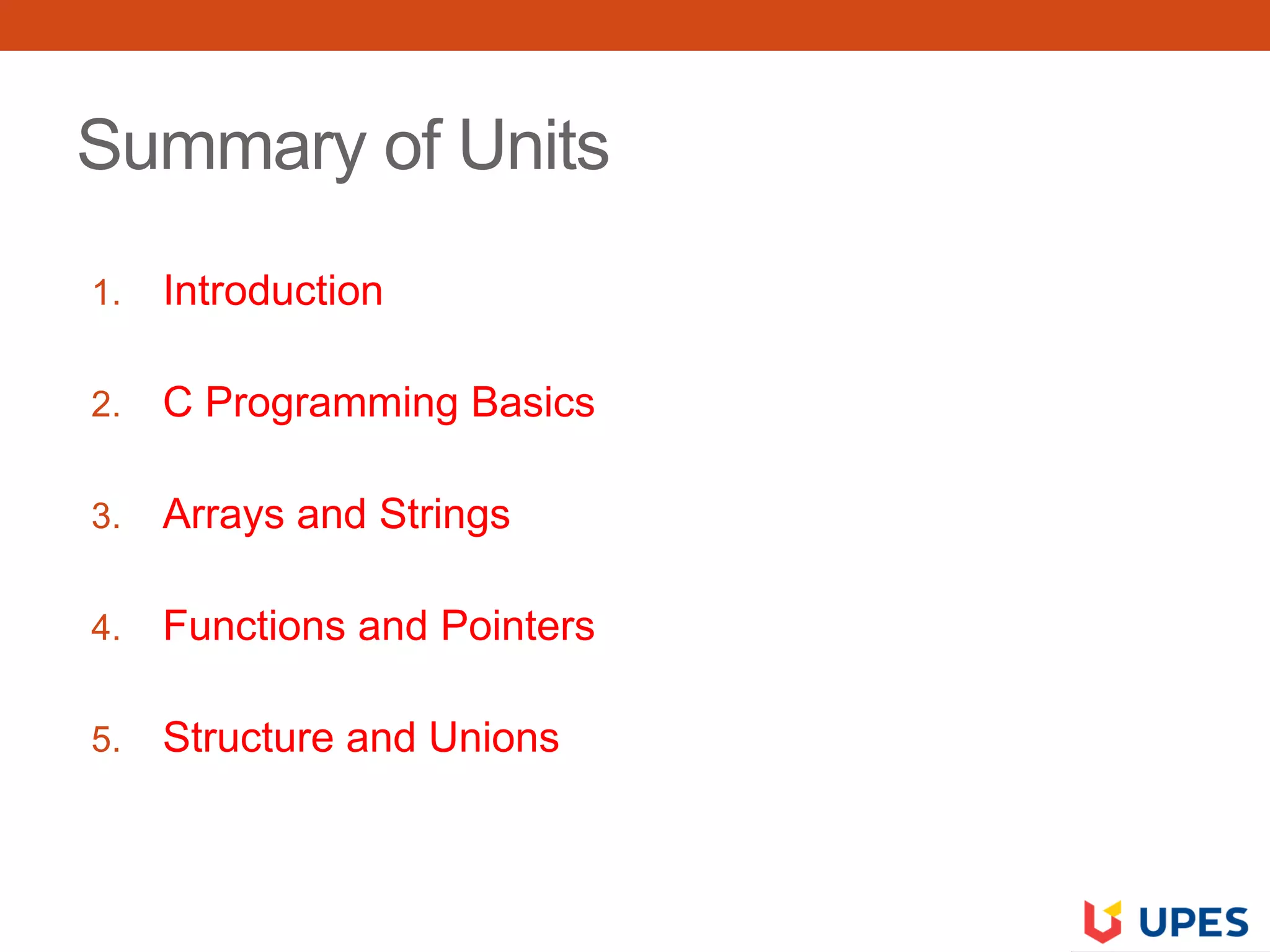

- 27. Summary of Units 1.Introduction 2. C Programming Basics 3. Arrays and Strings 4. Functions and Pointers 5. Structure and Unions

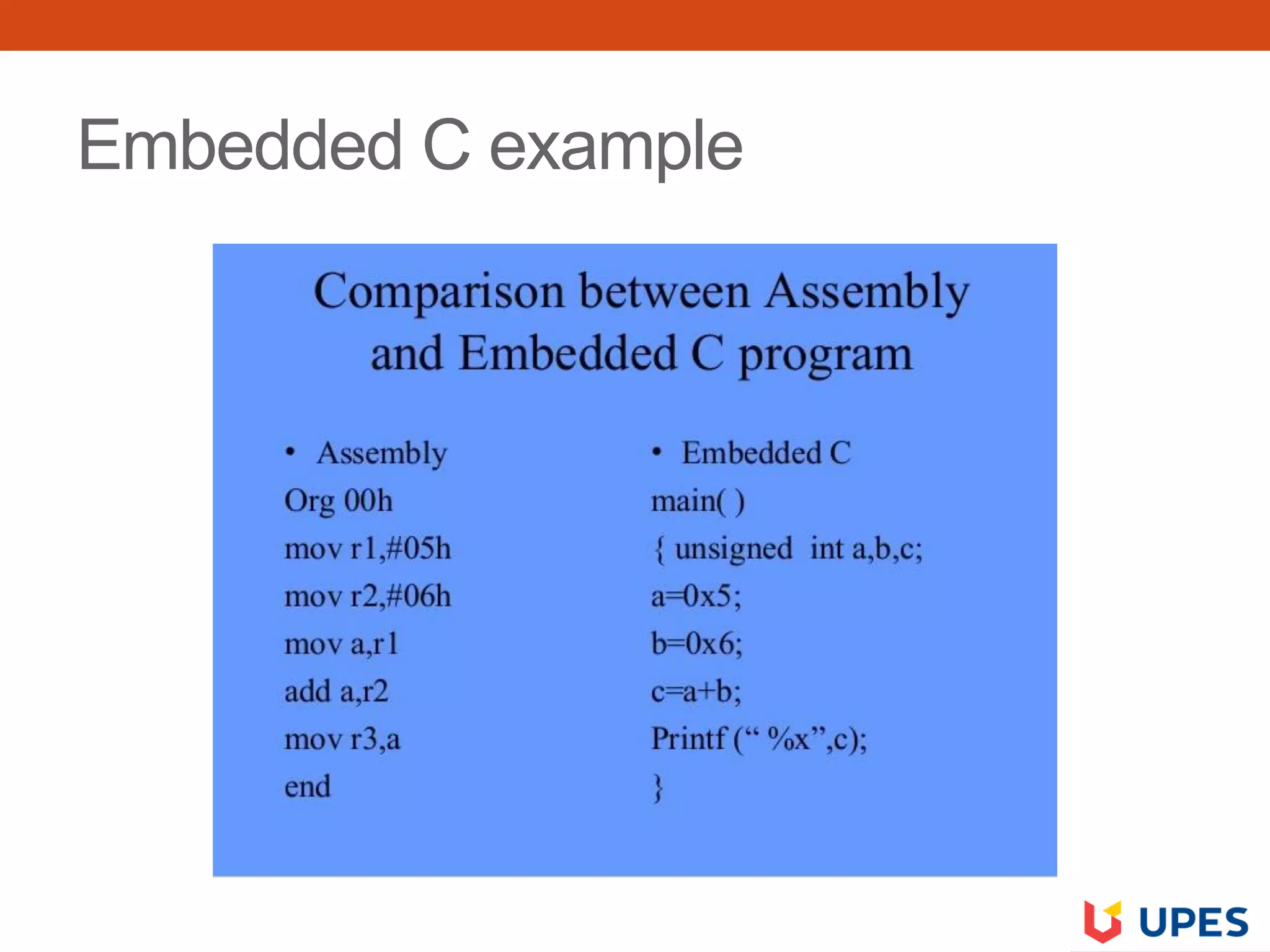

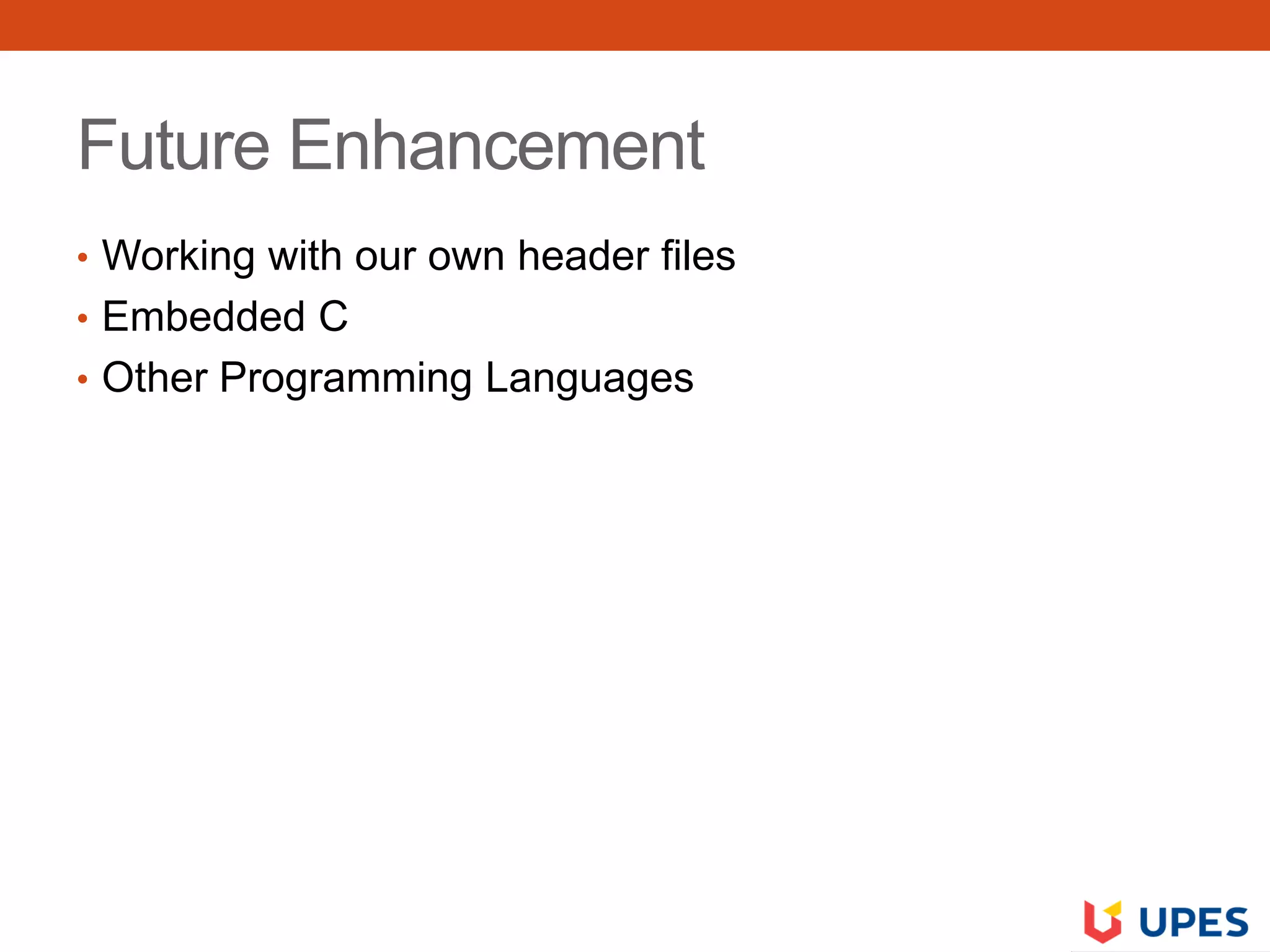

- 28. Future Enhancement • Workingwith our own header files • Embedded C • Other Programming Languages
- 29.
- 30.

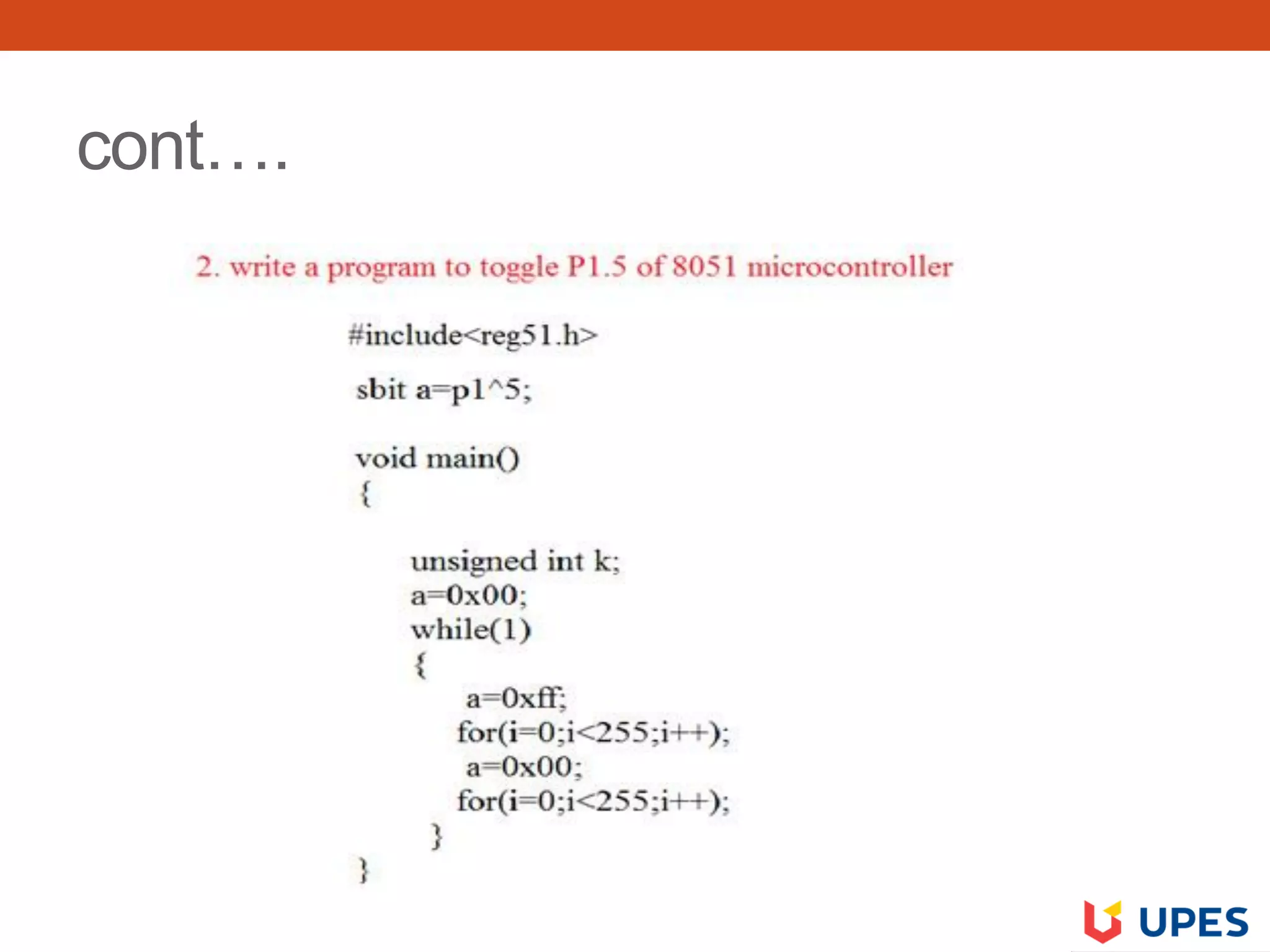

- 31.
