Kubernetes Administration from Zero to Hero.pdf

Kubernetes Administration from Zero to
(junior) Hero
László Budai – Component Soft Ltd.

2
(c) 2018 Component Soft Ltd. - v1.11revdraf

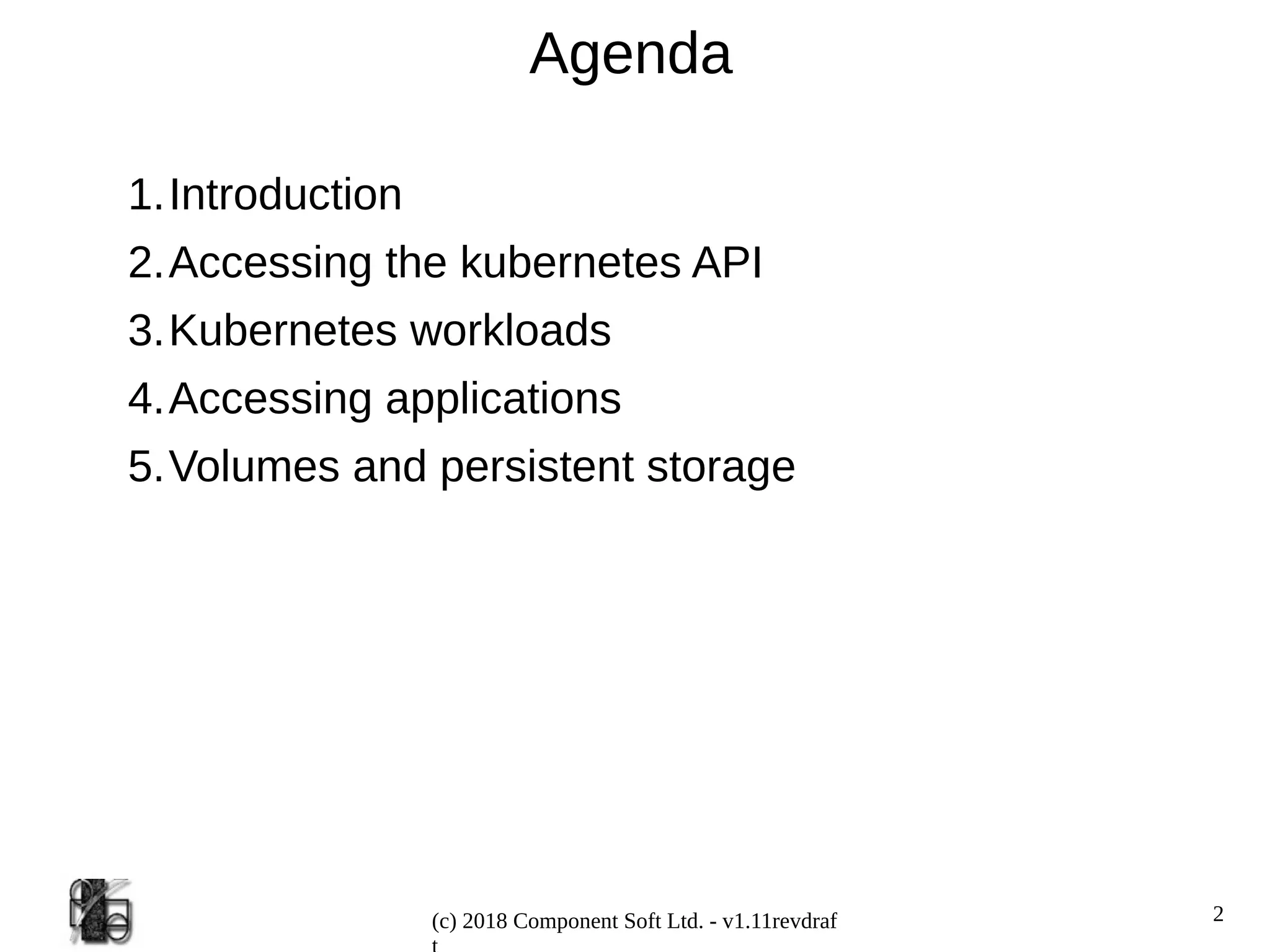

Agenda
1.Introduction
2.Accessing the kubernetes API
3.Kubernetes workloads
4.Accessing applications
5.Volumes and persistent storage

3

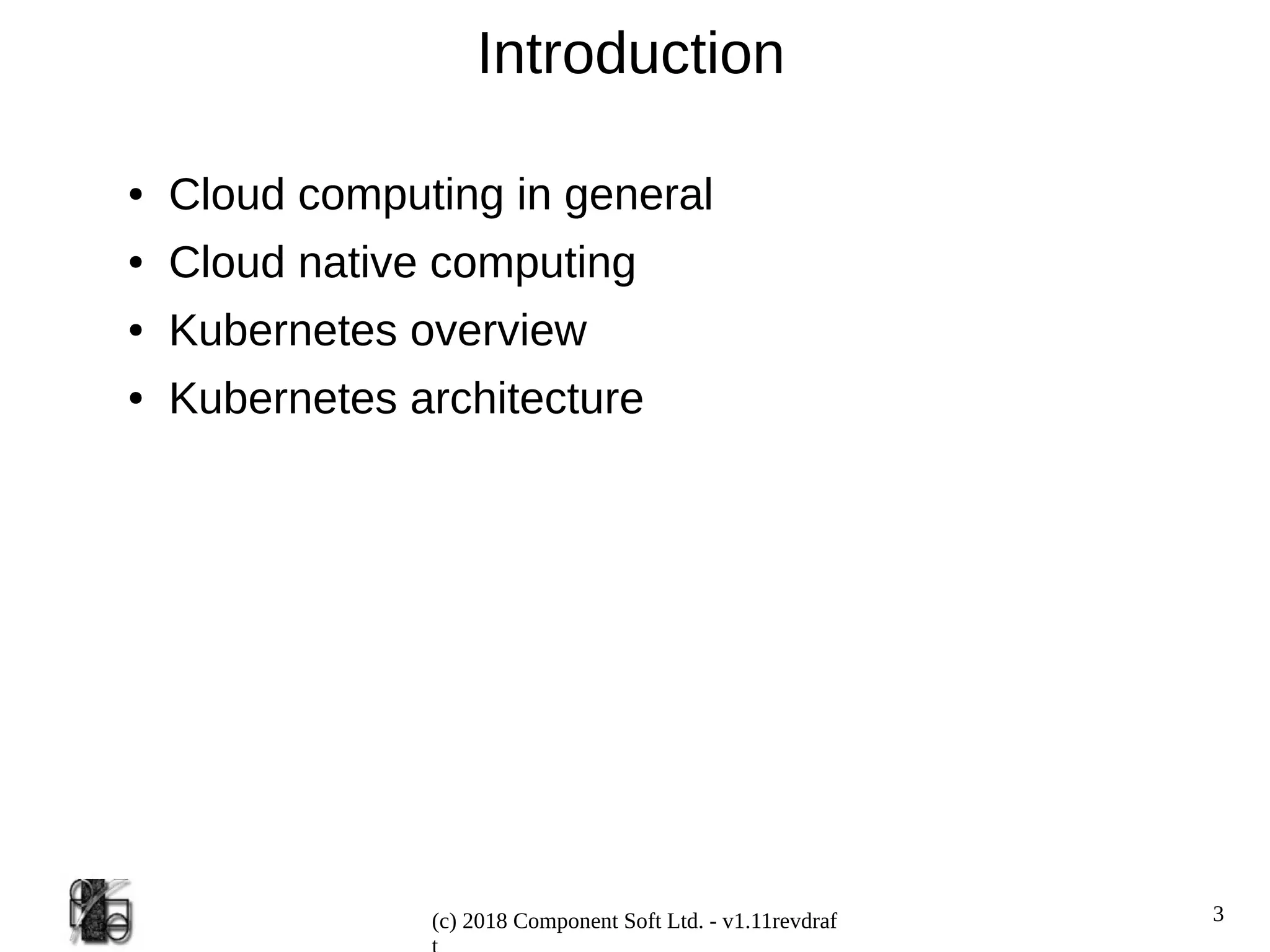

Introduction
● Cloud computing in general
● Cloud native computing
● Kubernetes overview
● Kubernetes architecture

4

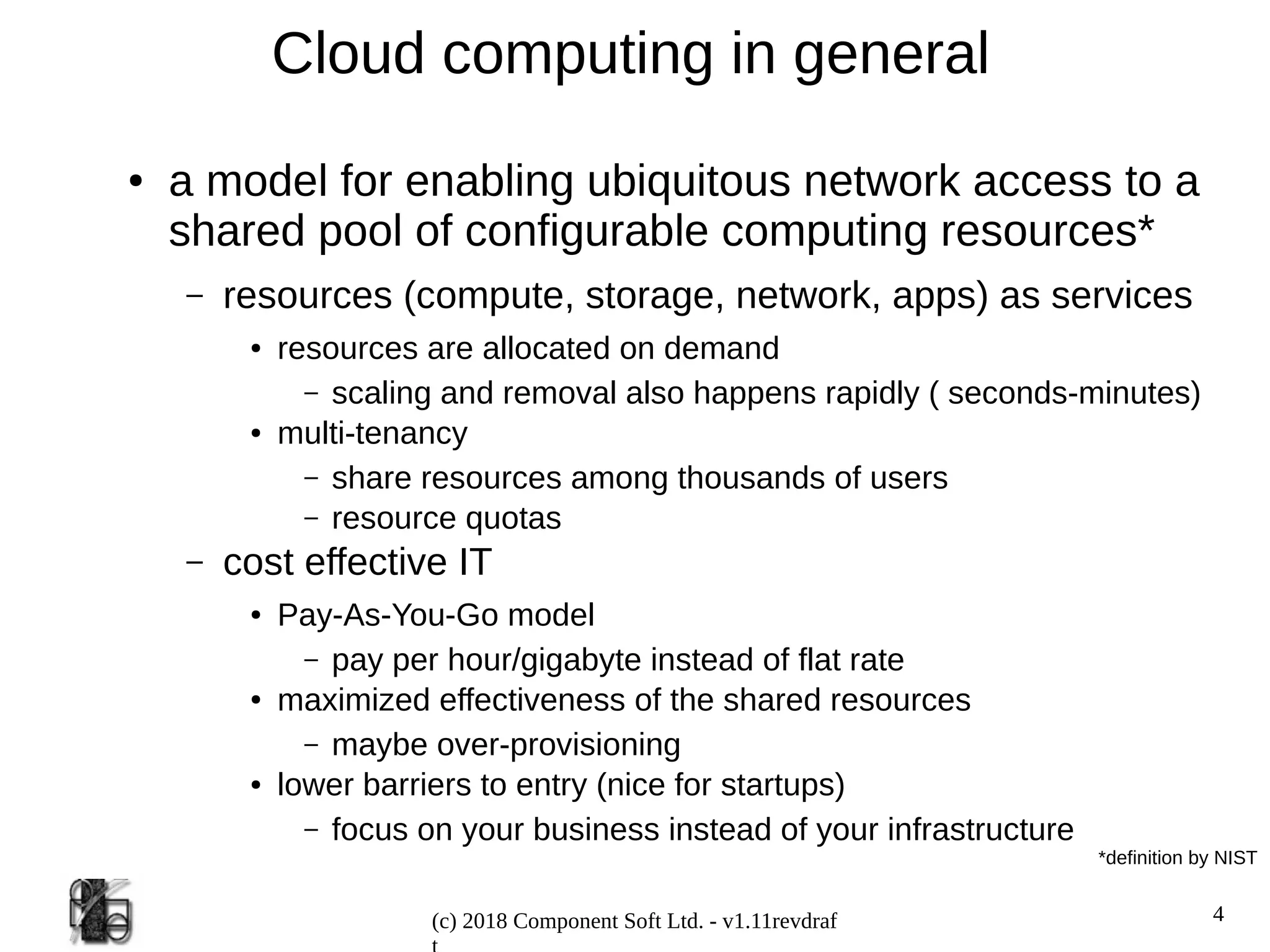

Cloud computing in general
● a model for enabling ubiquitous network access to a
shared pool of configurable computing resources*
– resources (compute, storage, network, apps) as services
● resources are allocated on demand
– scaling and removal also happens rapidly ( seconds-minutes)
● multi-tenancy
– share resources among thousands of users
– resource quotas
– cost effective IT
● Pay-As-You-Go model
– pay per hour/gigabyte instead of flat rate
● maximized effectiveness of the shared resources
– maybe over-provisioning
● lower barriers to entry (nice for startups)
– focus on your business instead of your infrastructure
*definition by NIST

5

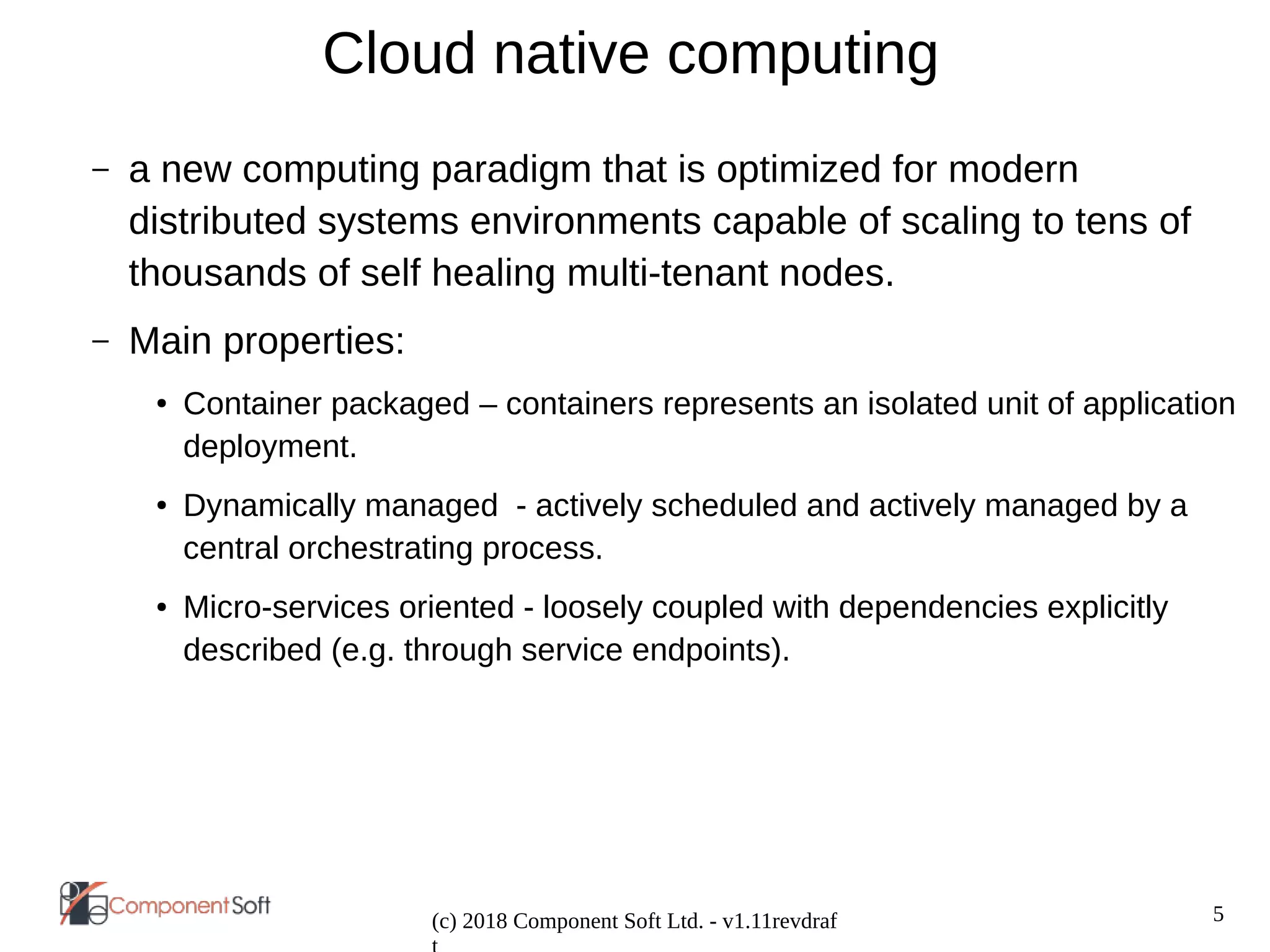

Cloud native computing
– a new computing paradigm that is optimized for modern
distributed systems environments capable of scaling to tens of
thousands of self healing multi-tenant nodes.
– Main properties:
● Container packaged – containers represents an isolated unit of application
deployment.
● Dynamically managed - actively scheduled and actively managed by a
central orchestrating process.
● Micro-services oriented - loosely coupled with dependencies explicitly
described (e.g. through service endpoints).

6

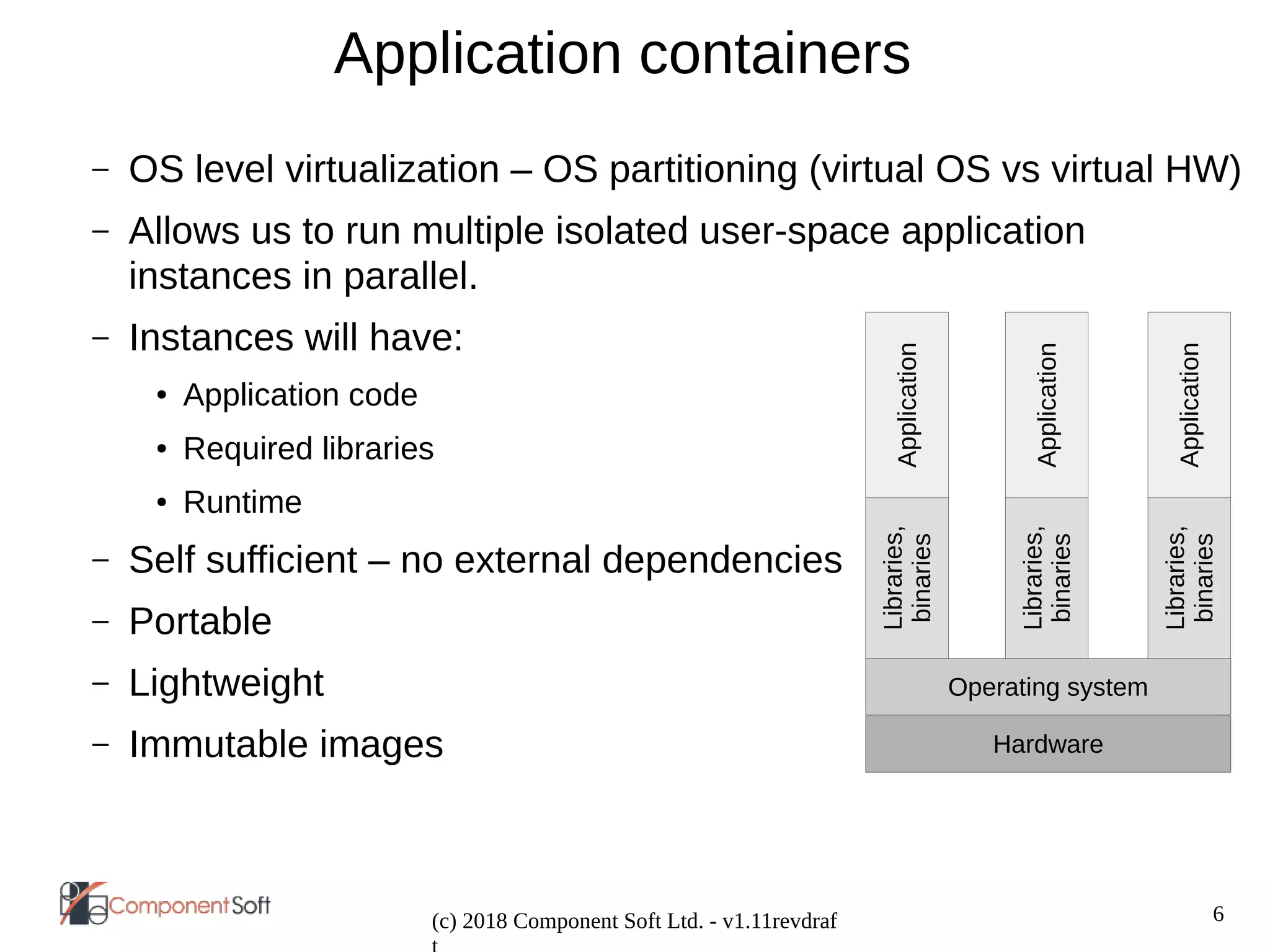

Application containers
– OS level virtualization – OS partitioning (virtual OS vs virtual HW)
– Allows us to run multiple isolated user-space application
instances in parallel.
– Instances will have:
● Application code
● Required libraries
● Runtime
– Self sufficient – no external dependencies
– Portable
– Lightweight
– Immutable images Hardware
Operating system
Libraries,
binaries
Application
Libraries,
binaries
Application
Libraries,
binaries
Application

7

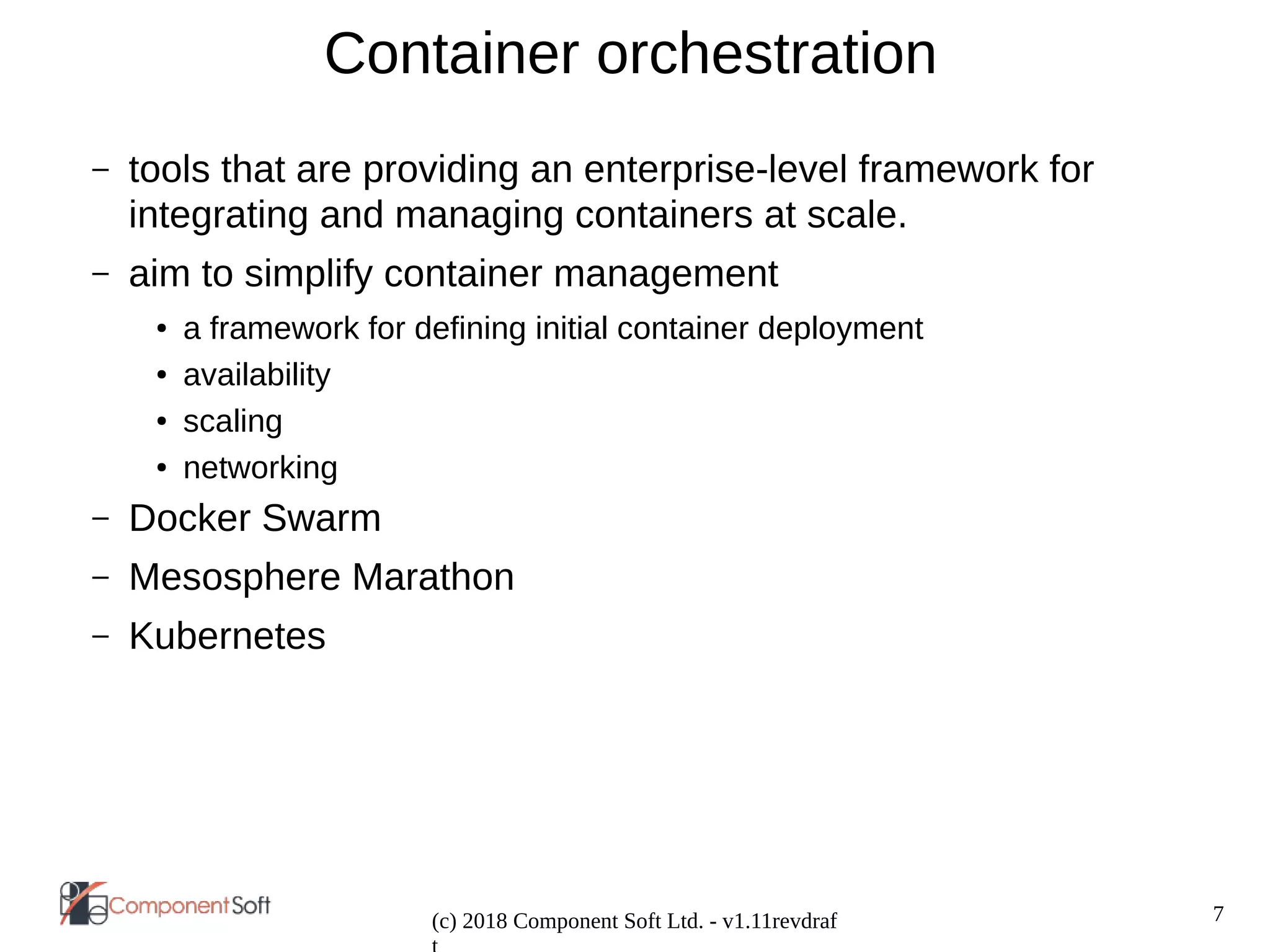

Container orchestration
– tools that are providing an enterprise-level framework for
integrating and managing containers at scale.
– aim to simplify container management
● a framework for defining initial container deployment
● availability
● scaling
● networking
– Docker Swarm
– Mesosphere Marathon
– Kubernetes

8

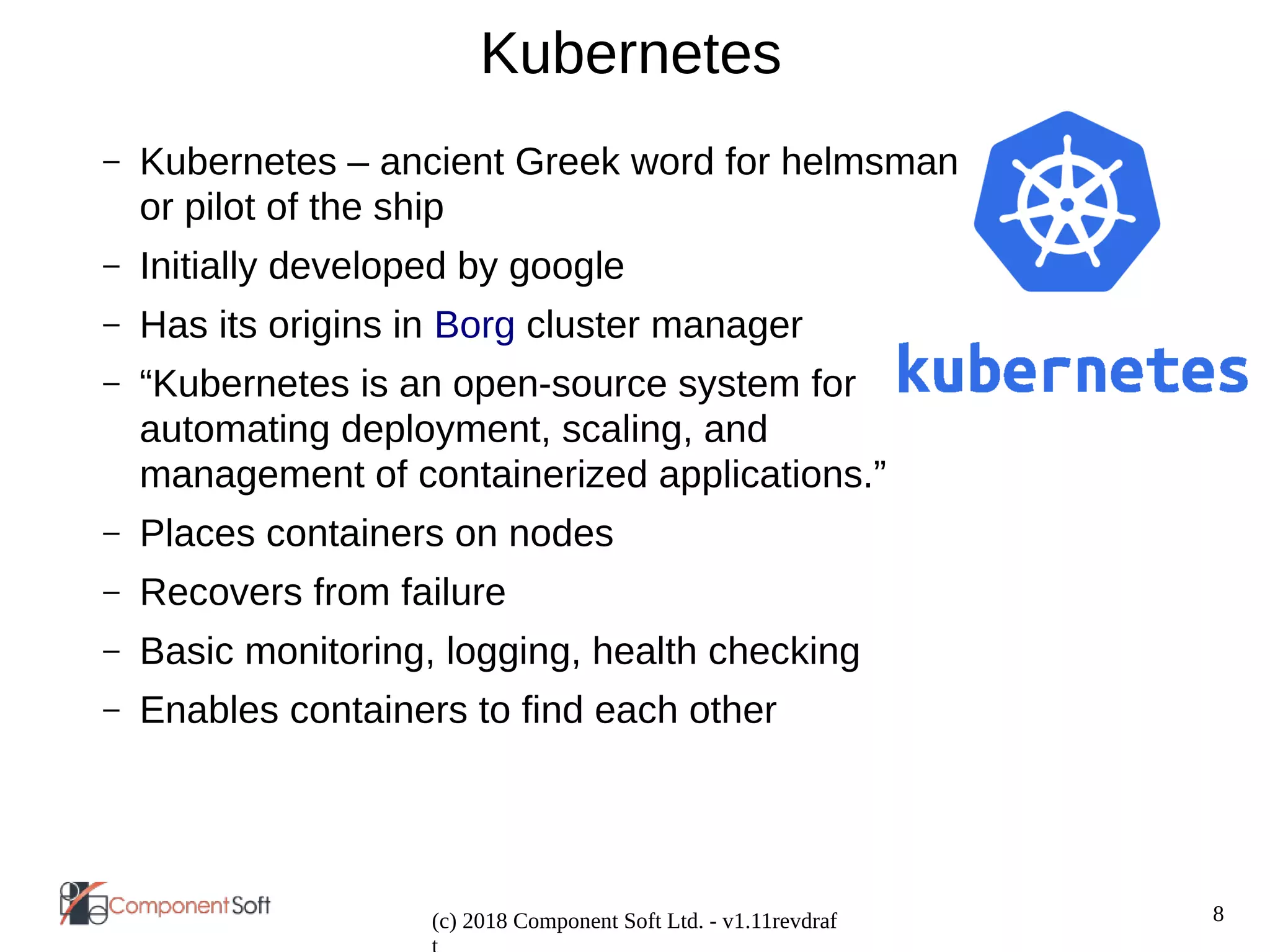

Kubernetes
– Kubernetes – ancient Greek word for helmsman
or pilot of the ship
– Initially developed by google
– Has its origins in Borg cluster manager
– “Kubernetes is an open-source system for
automating deployment, scaling, and
management of containerized applications.”
– Places containers on nodes
– Recovers from failure
– Basic monitoring, logging, health checking
– Enables containers to find each other

9

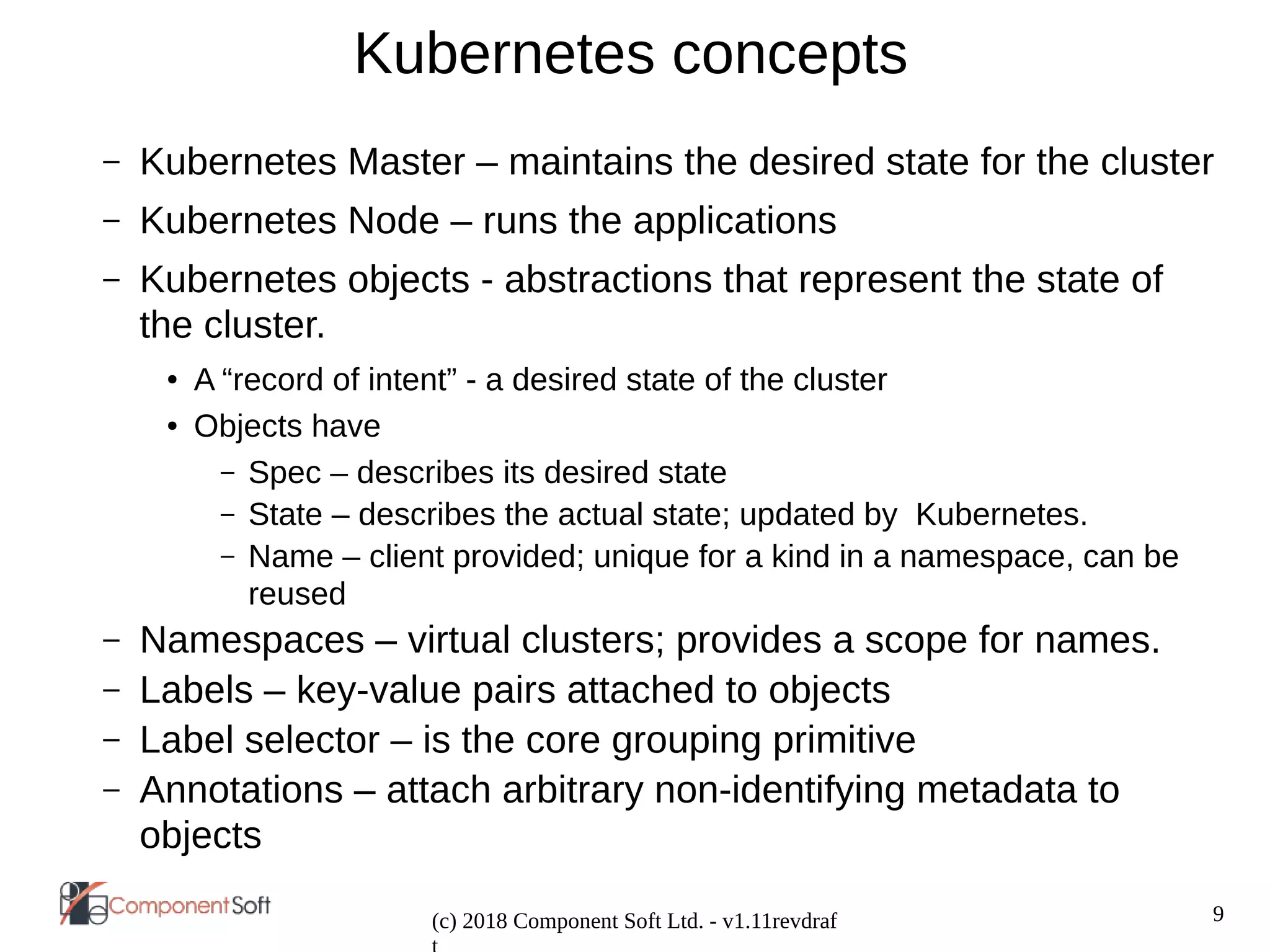

Kubernetes concepts
– Kubernetes Master – maintains the desired state for the cluster
– Kubernetes Node – runs the applications
– Kubernetes objects - abstractions that represent the state of
the cluster.
● A “record of intent” - a desired state of the cluster
● Objects have
– Spec – describes its desired state
– State – describes the actual state; updated by Kubernetes.
– Name – client provided; unique for a kind in a namespace, can be
reused
– Namespaces – virtual clusters; provides a scope for names.
– Labels – key-value pairs attached to objects
– Label selector – is the core grouping primitive
– Annotations – attach arbitrary non-identifying metadata to
objects

10

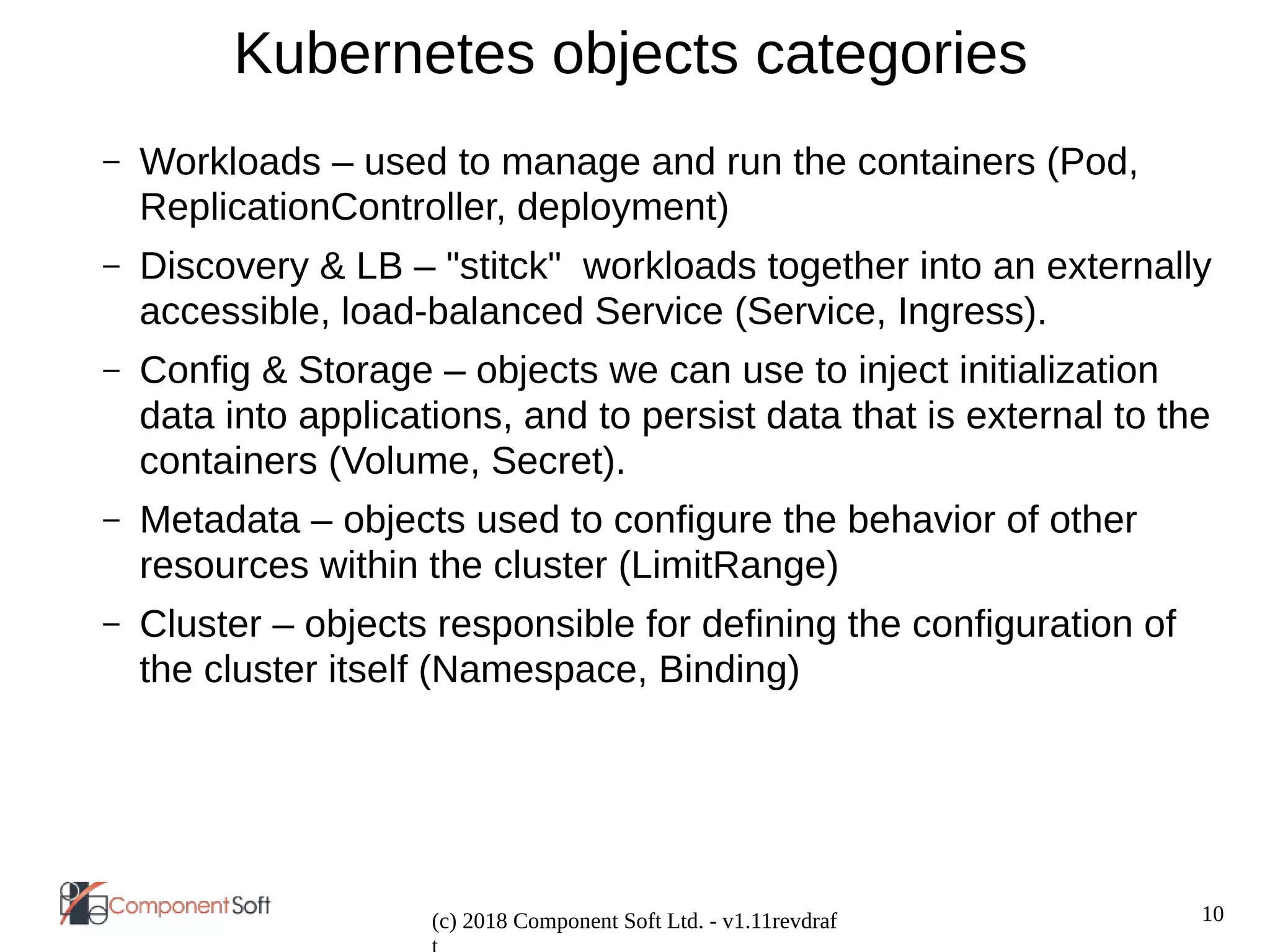

Kubernetes objects categories
– Workloads – used to manage and run the containers (Pod,
ReplicationController, deployment)
– Discovery & LB – "stitck" workloads together into an externally
accessible, load-balanced Service (Service, Ingress).
– Config & Storage – objects we can use to inject initialization
data into applications, and to persist data that is external to the
containers (Volume, Secret).
– Metadata – objects used to configure the behavior of other
resources within the cluster (LimitRange)
– Cluster – objects responsible for defining the configuration of
the cluster itself (Namespace, Binding)

11

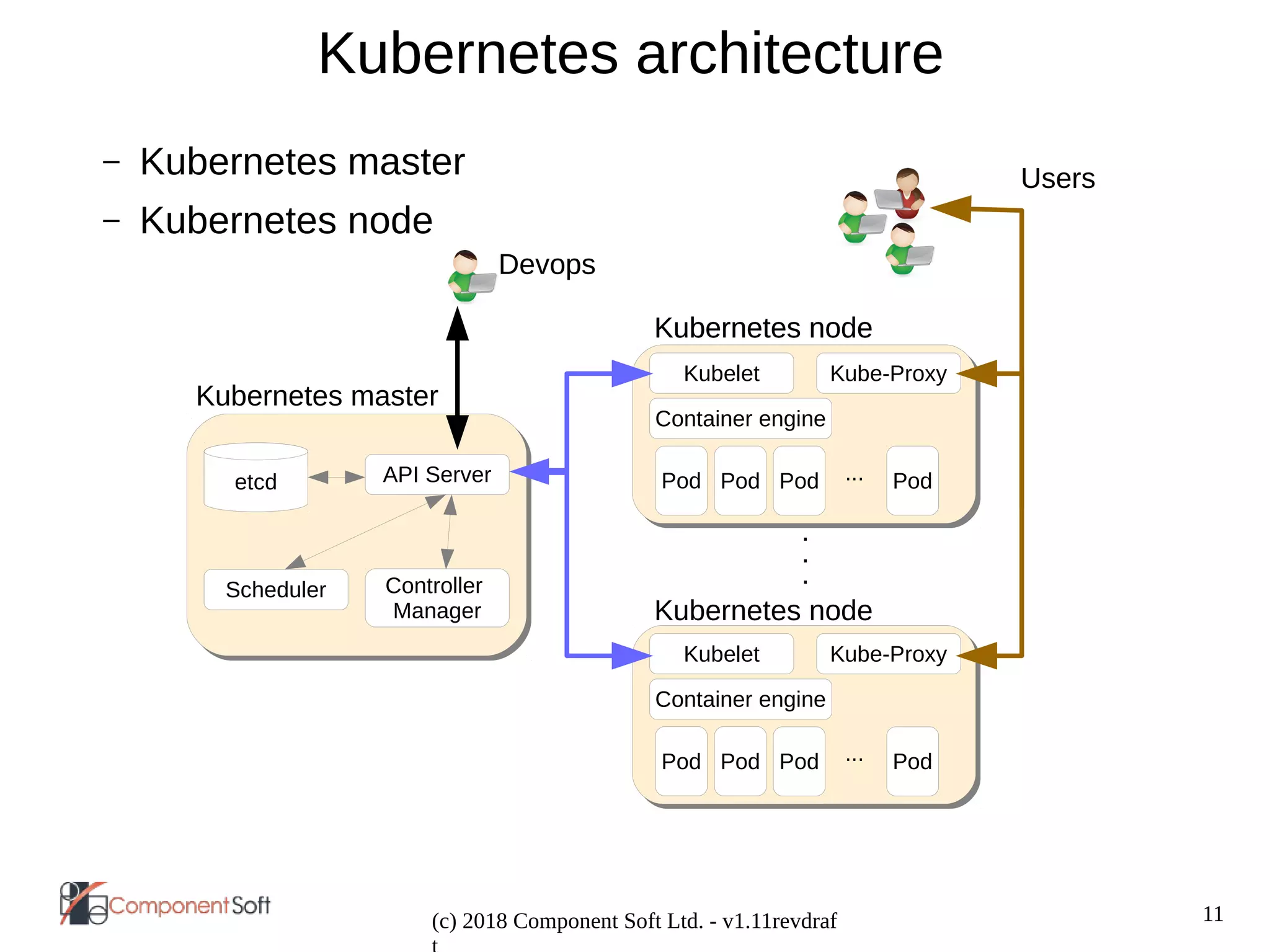

Kubernetes architecture
– Kubernetes master
– Kubernetes node
Kubernetes master
API Server
Controller
Manager
Scheduler
etcd
Kubernetes node
Kubelet Kube-Proxy
Pod Pod Pod Pod
...
.
.
.
Container engine
Kubernetes node
Kubelet Kube-Proxy
Pod Pod Pod Pod
...
Container engine
Users
Kubernetes node
Devops

12

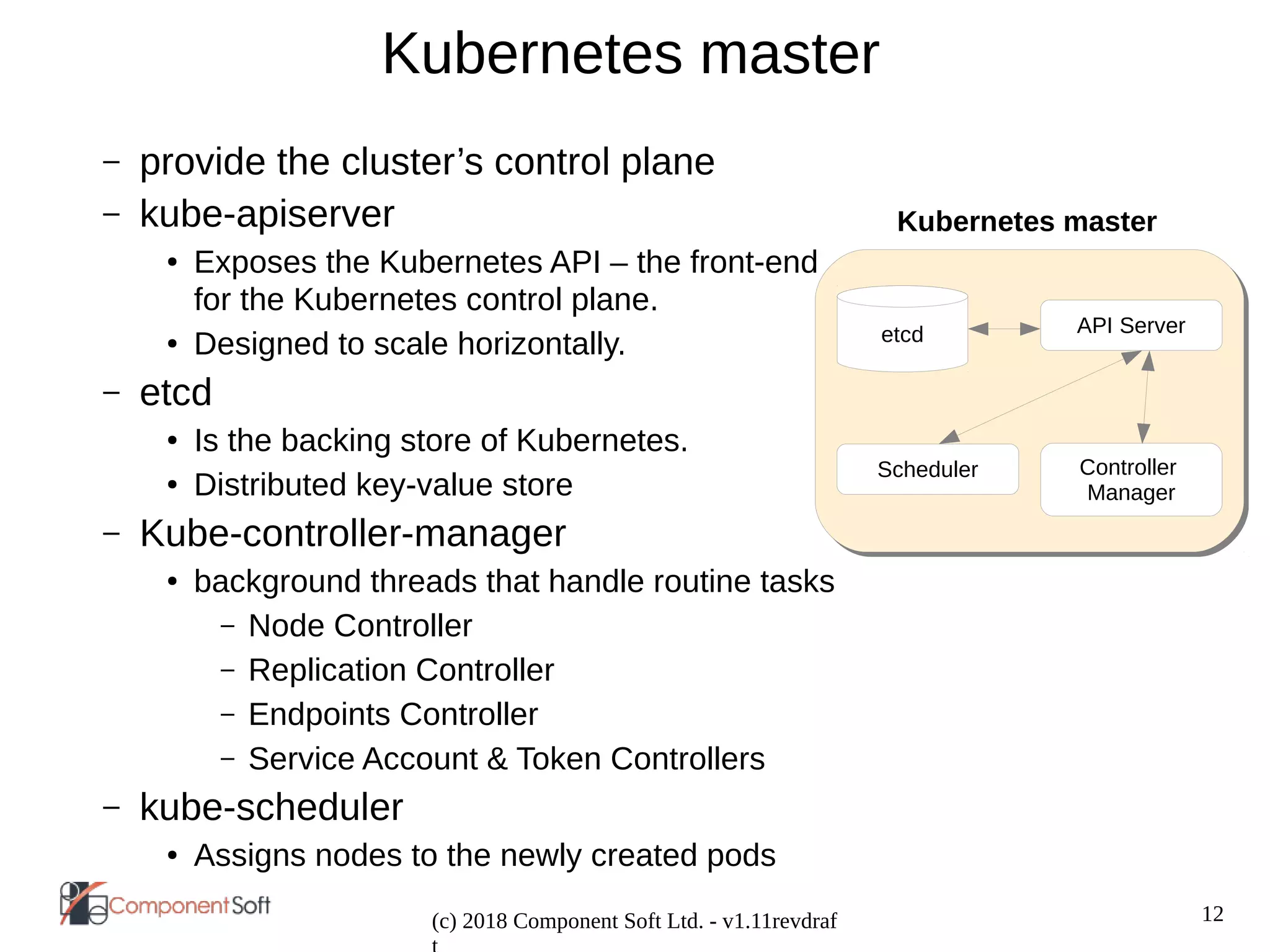

Kubernetes master
– provide the cluster’s control plane
– kube-apiserver
● Exposes the Kubernetes API – the front-end
for the Kubernetes control plane.
● Designed to scale horizontally.
– etcd
● Is the backing store of Kubernetes.
● Distributed key-value store
– Kube-controller-manager
● background threads that handle routine tasks
– Node Controller
– Replication Controller
– Endpoints Controller
– Service Account & Token Controllers
– kube-scheduler
● Assigns nodes to the newly created pods
Kubernetes master
API Server
Controller
Manager
Scheduler
etcd

13

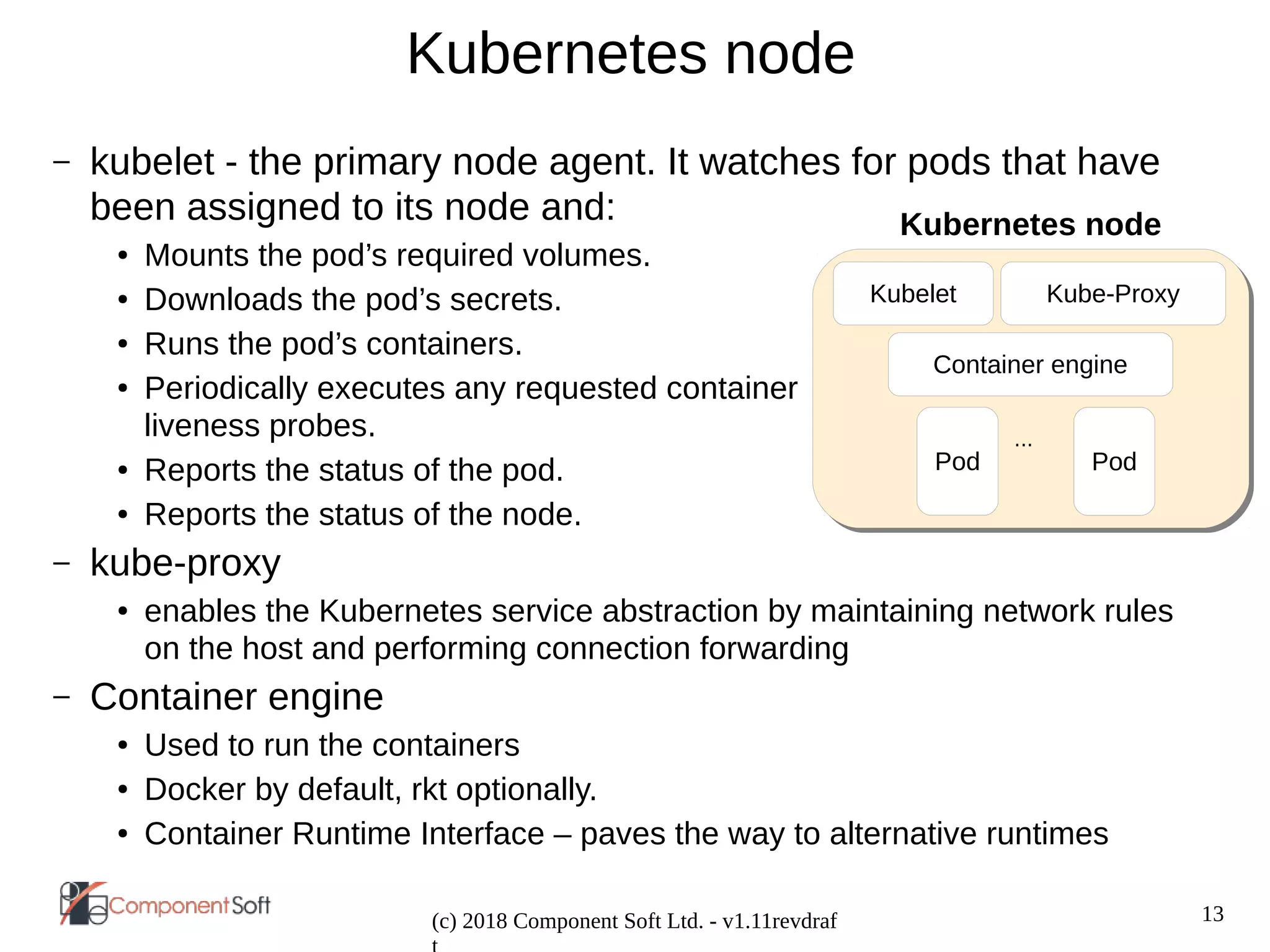

Kubernetes node
– kubelet - the primary node agent. It watches for pods that have
been assigned to its node and:
● Mounts the pod’s required volumes.
● Downloads the pod’s secrets.
● Runs the pod’s containers.
● Periodically executes any requested container
liveness probes.
● Reports the status of the pod.
● Reports the status of the node.
– kube-proxy
● enables the Kubernetes service abstraction by maintaining network rules
on the host and performing connection forwarding
– Container engine
● Used to run the containers
● Docker by default, rkt optionally.
● Container Runtime Interface – paves the way to alternative runtimes
Kubernetes node
Kubelet Kube-Proxy
Pod Pod
...
Container engine

14

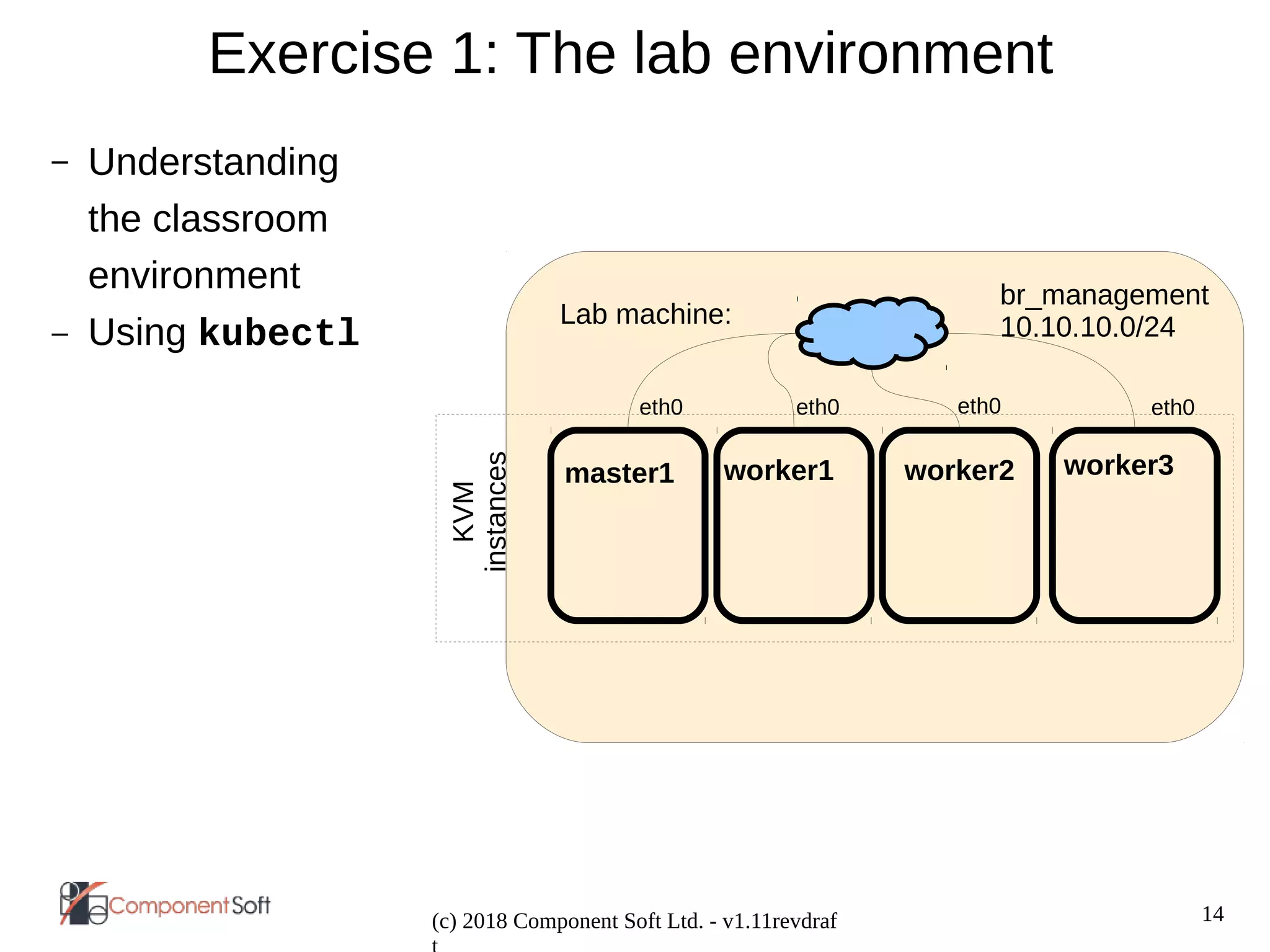

Exercise 1: The lab environment
– Understanding
the classroom
environment
– Using kubectl
br_management
10.10.10.0/24
Lab machine:
KVM
instances
master1 worker2 worker3
eth0 eth0 eth0
worker1
eth0

15

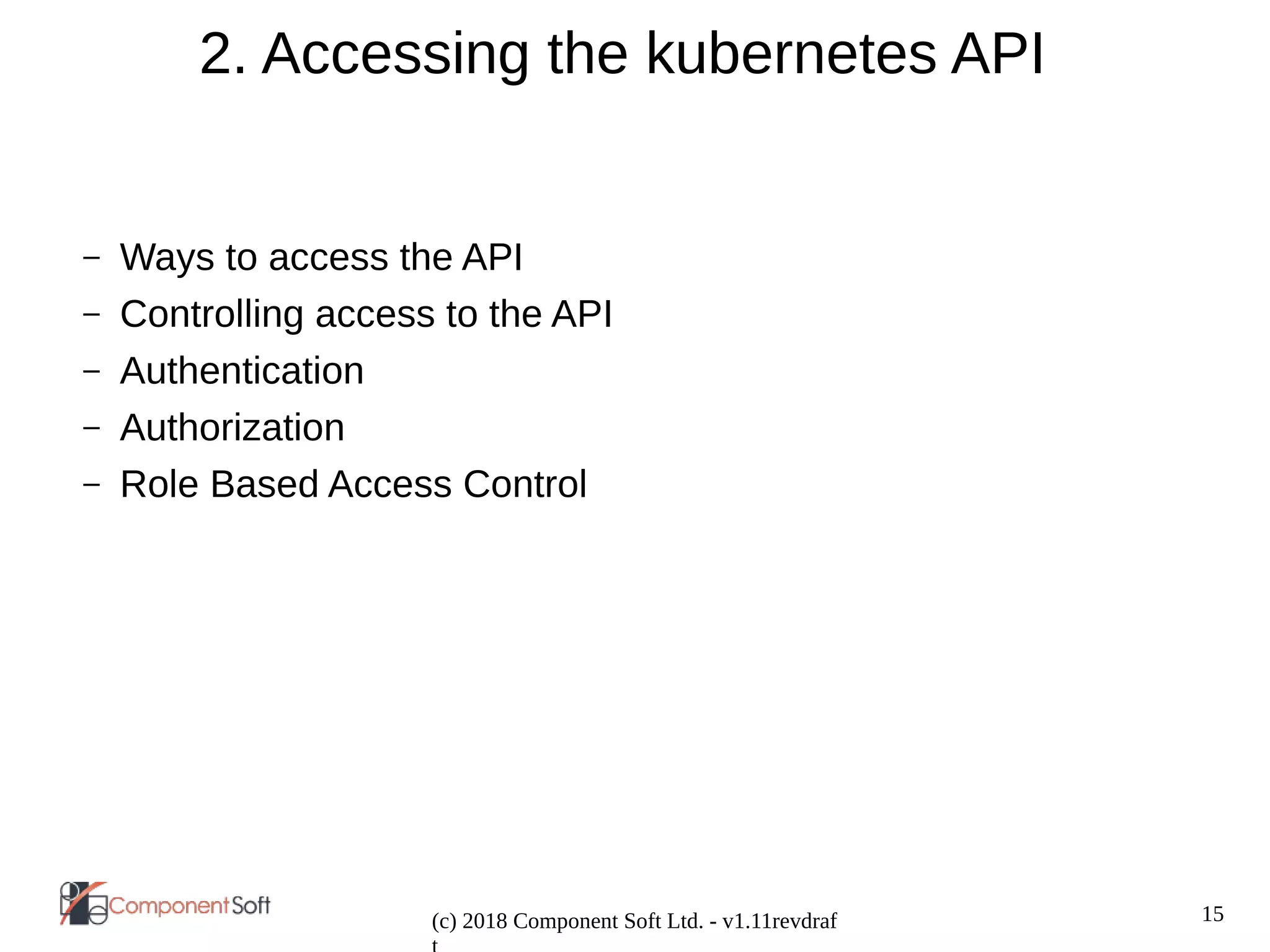

2. Accessing the kubernetes API
– Ways to access the API
– Controlling access to the API
– Authentication
– Authorization
– Role Based Access Control

16

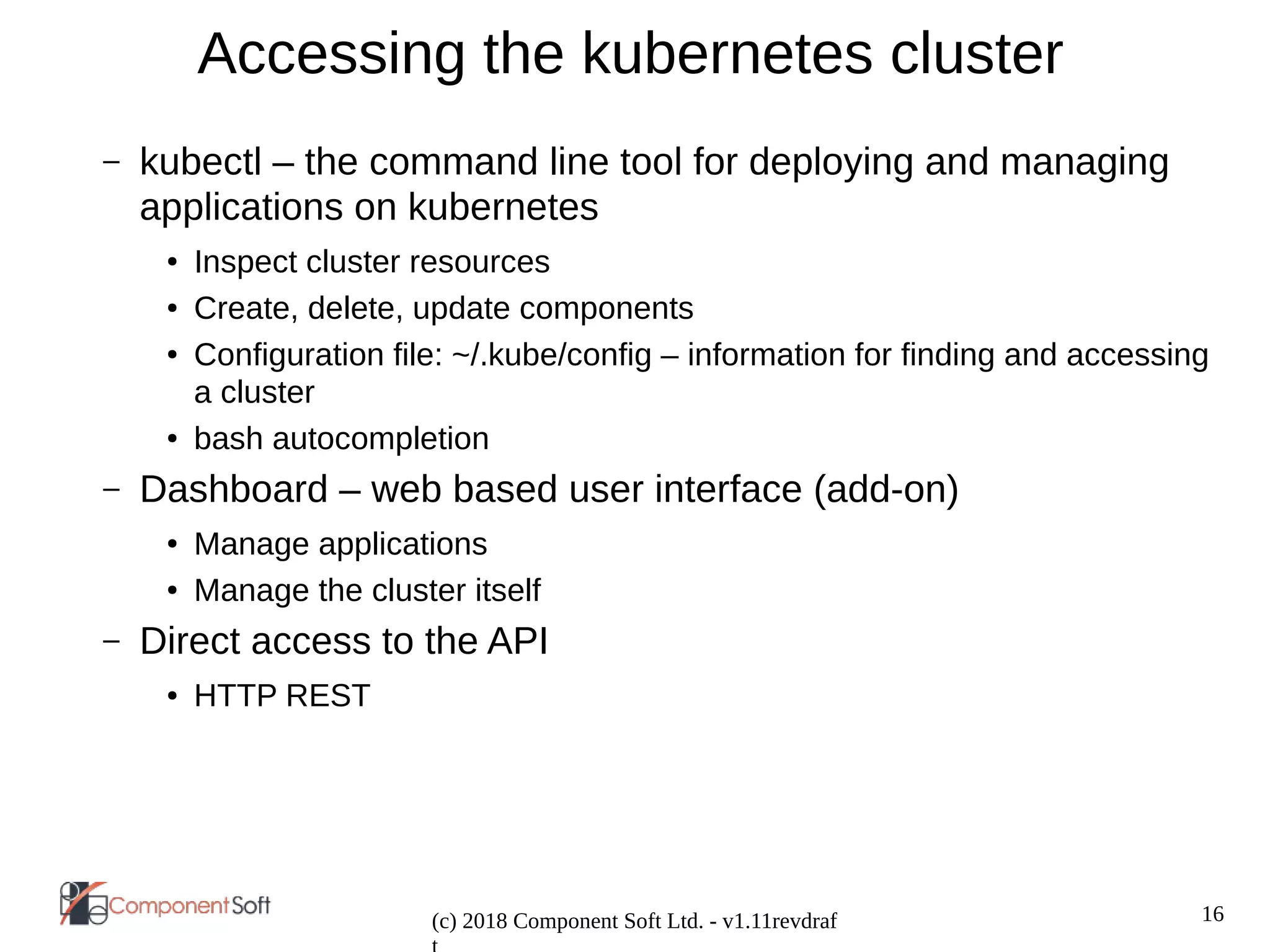

Accessing the kubernetes cluster
– kubectl – the command line tool for deploying and managing
applications on kubernetes
● Inspect cluster resources
● Create, delete, update components
● Configuration file: ~/.kube/config – information for finding and accessing
a cluster
● bash autocompletion
– Dashboard – web based user interface (add-on)
● Manage applications
● Manage the cluster itself
– Direct access to the API
● HTTP REST

17

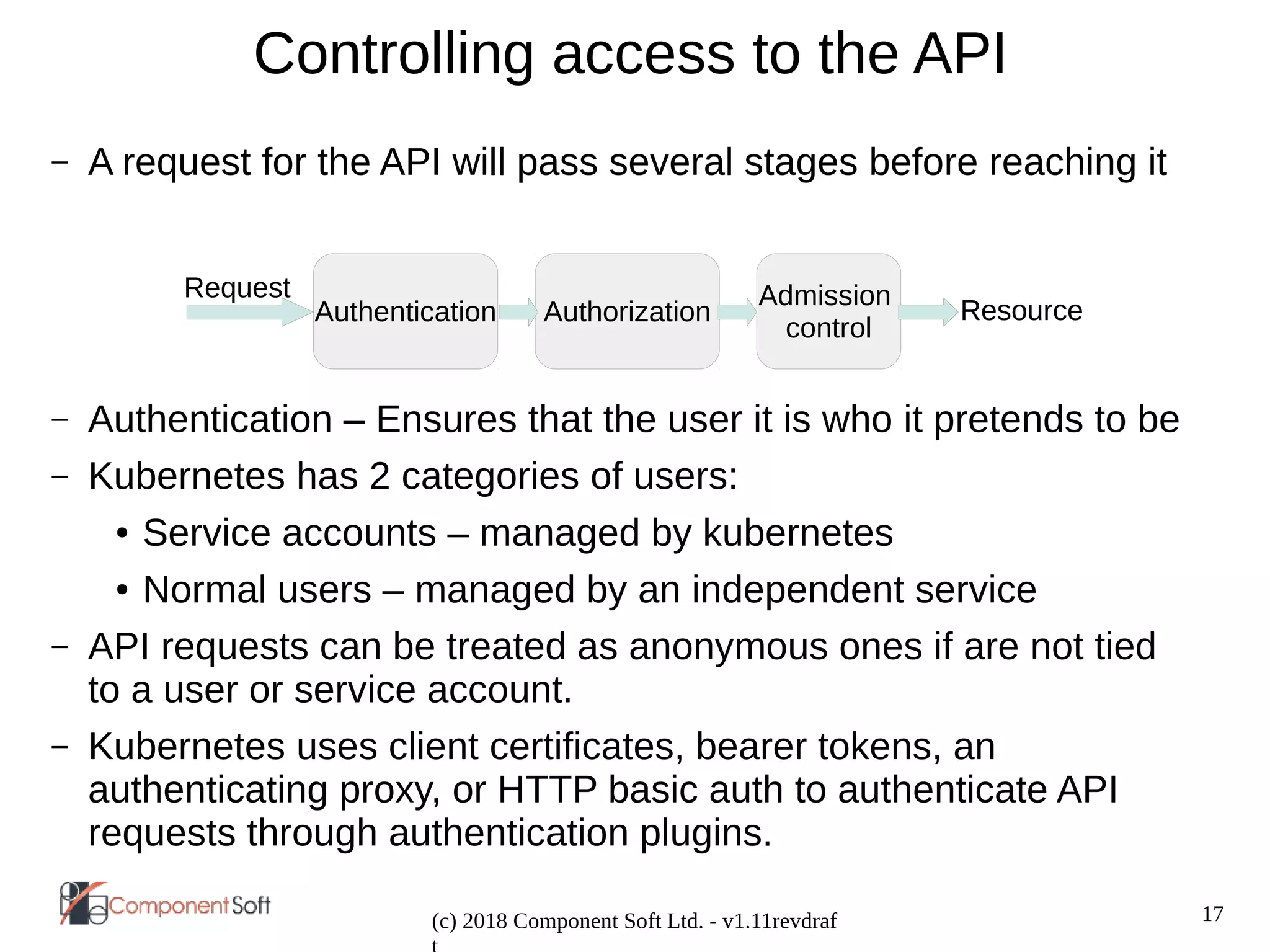

Controlling access to the API
– A request for the API will pass several stages before reaching it
Authentication Authorization
Admission
control
Resource
Resource
Request
– Authentication – Ensures that the user it is who it pretends to be
– Kubernetes has 2 categories of users:
● Service accounts – managed by kubernetes
● Normal users – managed by an independent service
– API requests can be treated as anonymous ones if are not tied
to a user or service account.
– Kubernetes uses client certificates, bearer tokens, an
authenticating proxy, or HTTP basic auth to authenticate API
requests through authentication plugins.

18

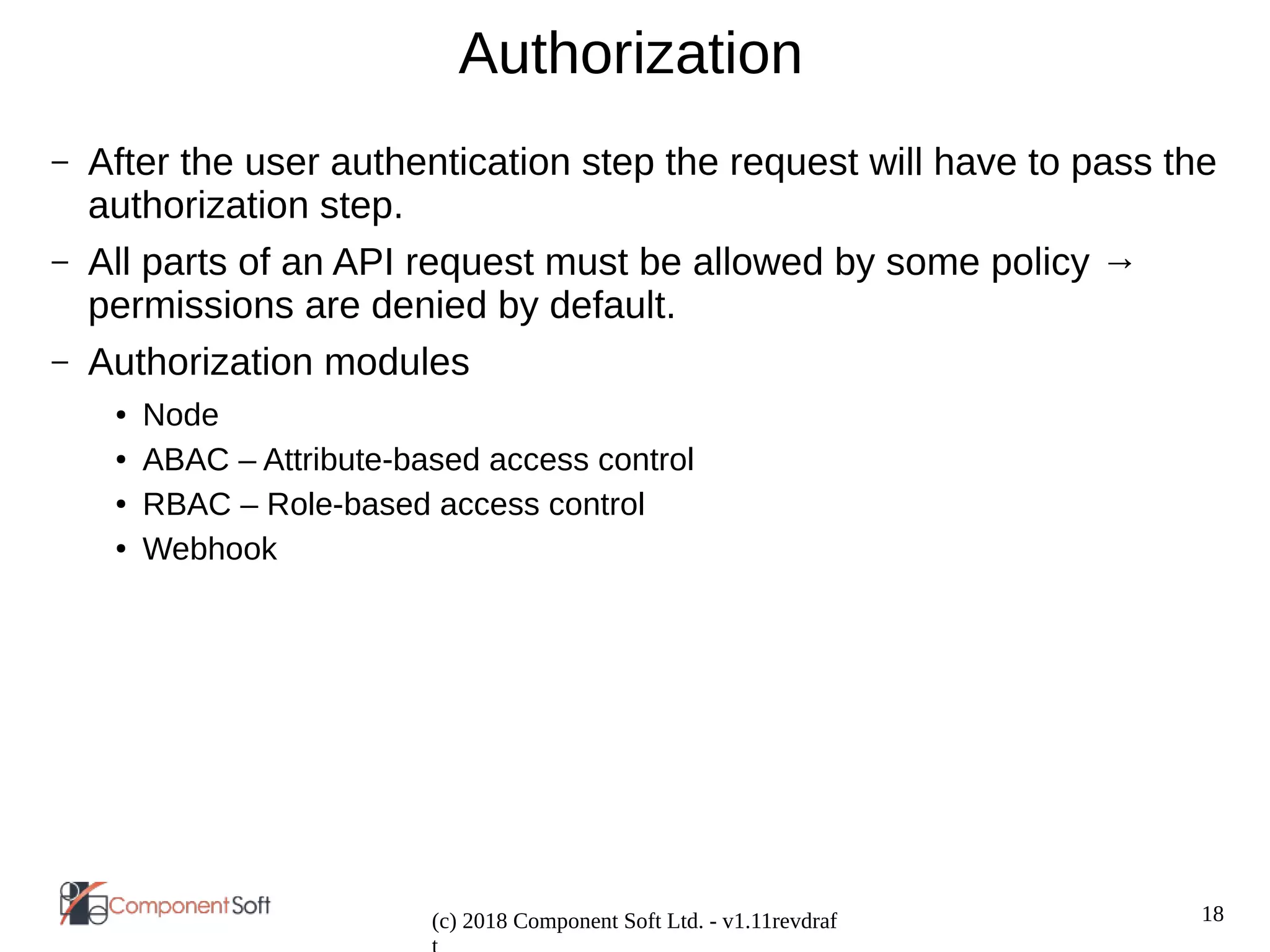

Authorization
– After the user authentication step the request will have to pass the
authorization step.
– All parts of an API request must be allowed by some policy →
permissions are denied by default.
– Authorization modules
● Node
● ABAC – Attribute-based access control
● RBAC – Role-based access control
● Webhook

19

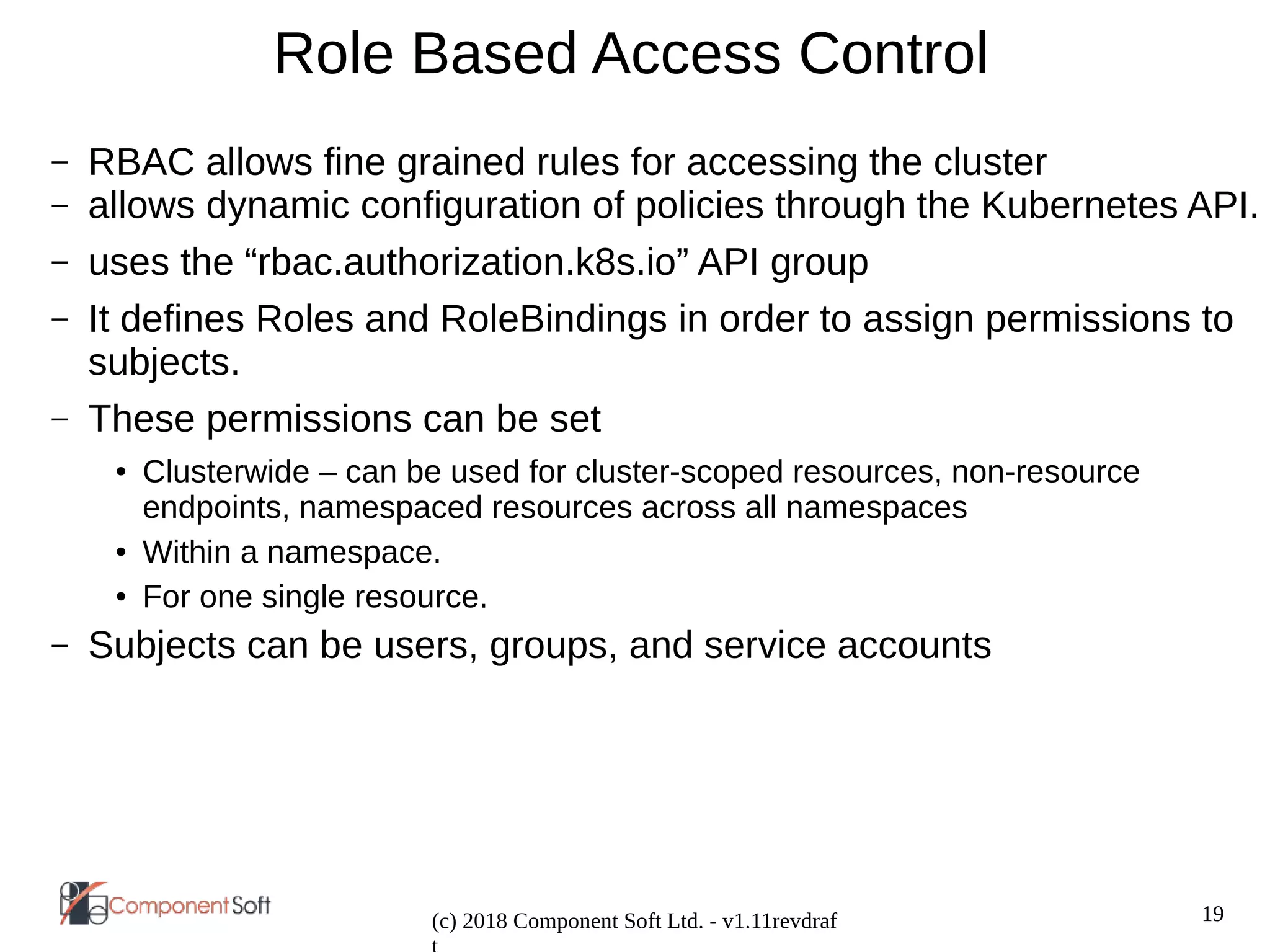

Role Based Access Control
– RBAC allows fine grained rules for accessing the cluster
– allows dynamic configuration of policies through the Kubernetes API.
– uses the “rbac.authorization.k8s.io” API group
– It defines Roles and RoleBindings in order to assign permissions to
subjects.
– These permissions can be set
● Clusterwide – can be used for cluster-scoped resources, non-resource
endpoints, namespaced resources across all namespaces
● Within a namespace.
● For one single resource.
– Subjects can be users, groups, and service accounts

20

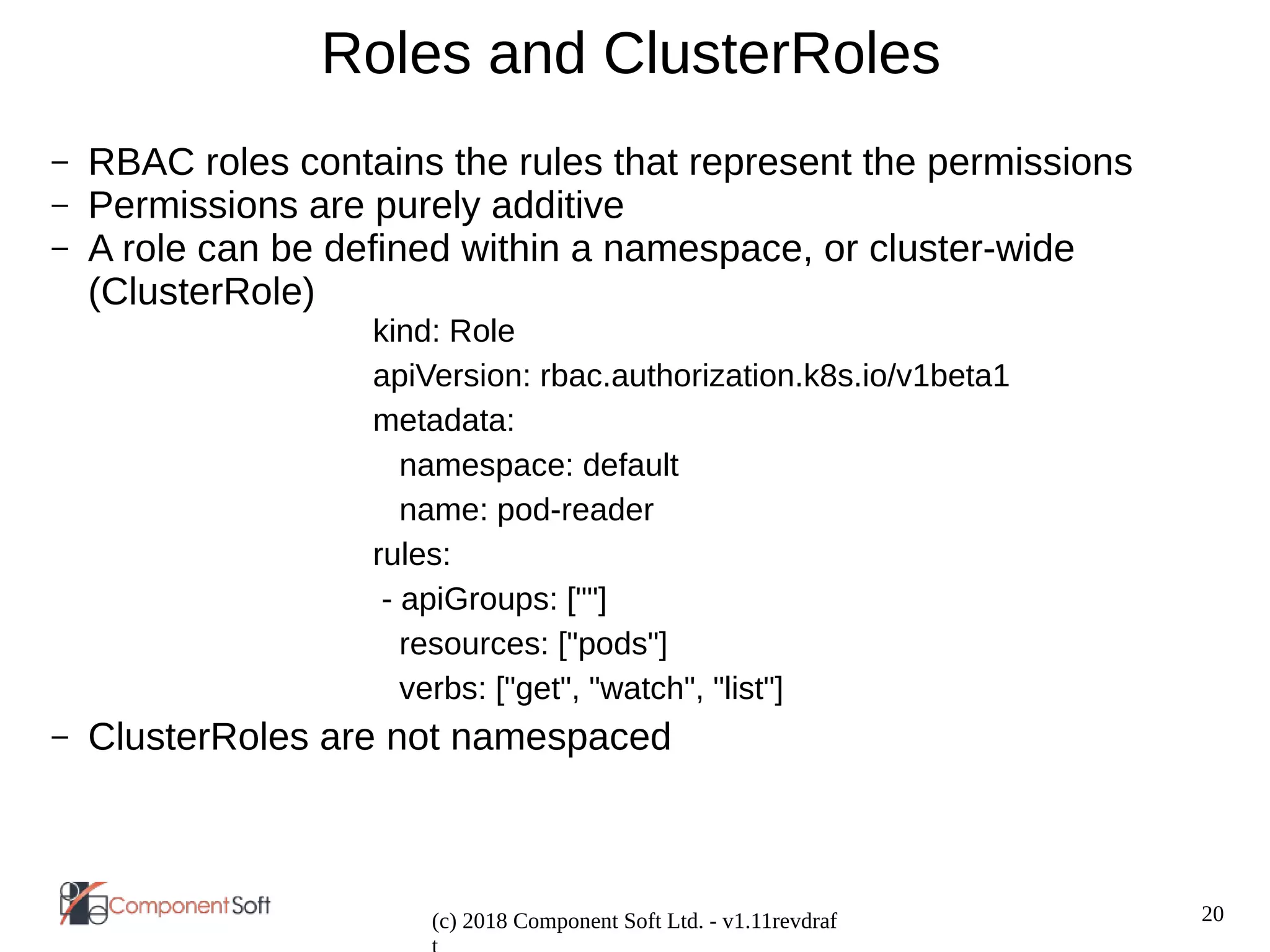

Roles and ClusterRoles
– RBAC roles contains the rules that represent the permissions
– Permissions are purely additive
– A role can be defined within a namespace, or cluster-wide
(ClusterRole)
kind: Role
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
namespace: default
name: pod-reader
rules:
- apiGroups: [""]
resources: ["pods"]
verbs: ["get", "watch", "list"]
– ClusterRoles are not namespaced

21

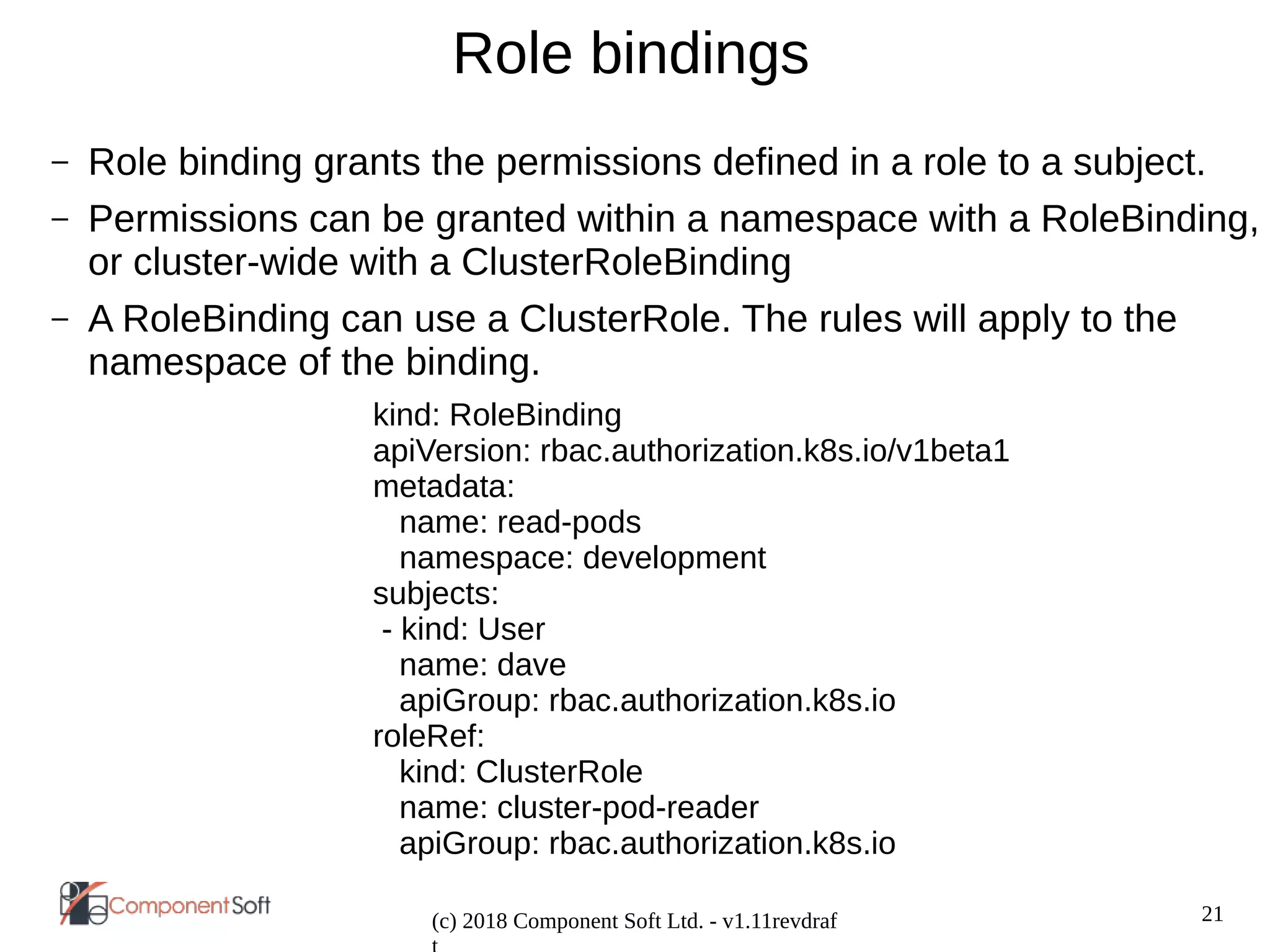

Role bindings
– Role binding grants the permissions defined in a role to a subject.
– Permissions can be granted within a namespace with a RoleBinding,
or cluster-wide with a ClusterRoleBinding
– A RoleBinding can use a ClusterRole. The rules will apply to the
namespace of the binding.
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
name: read-pods
namespace: development
subjects:
- kind: User
name: dave
apiGroup: rbac.authorization.k8s.io
roleRef:
kind: ClusterRole
name: cluster-pod-reader
apiGroup: rbac.authorization.k8s.io

22

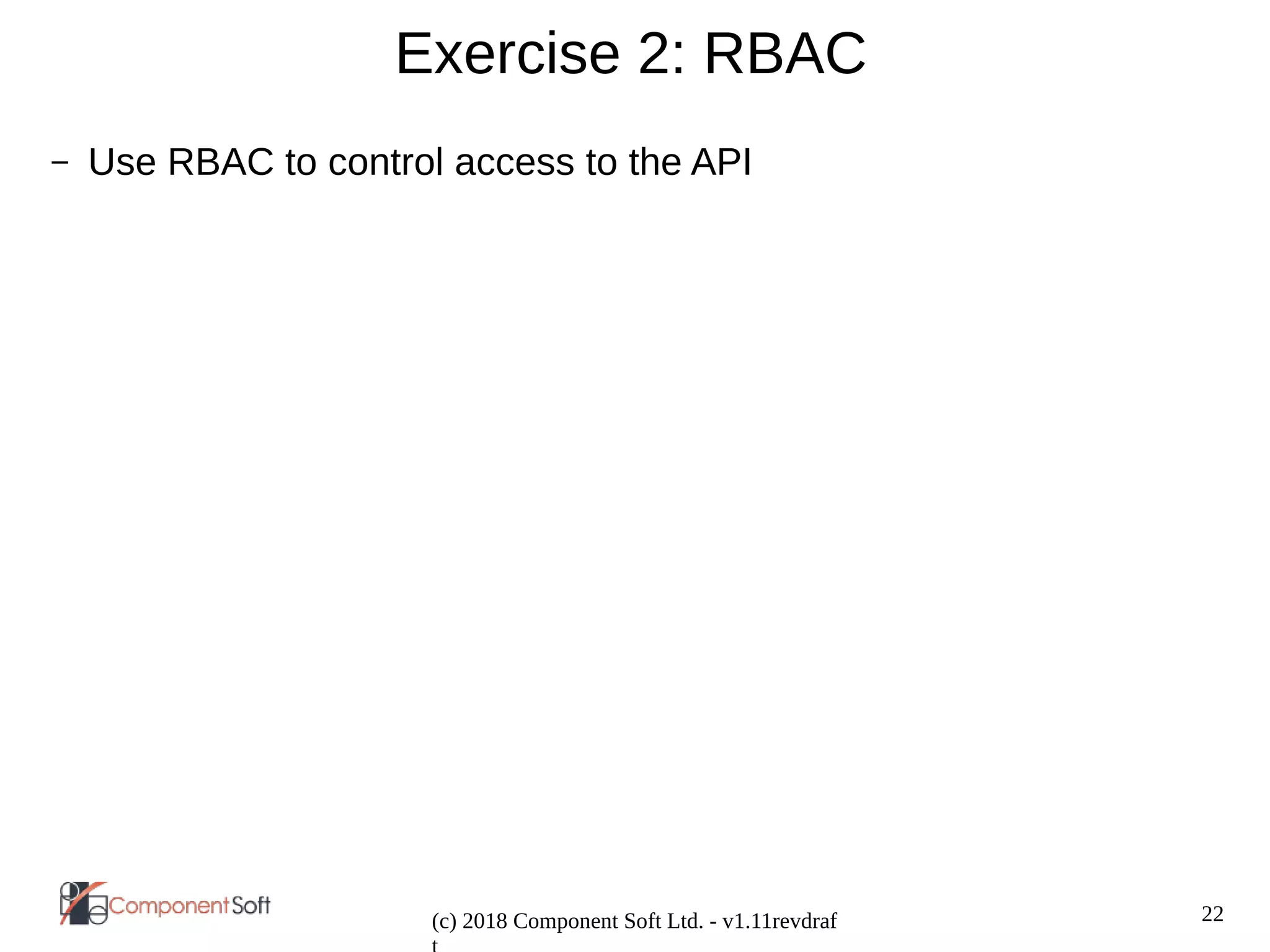

Exercise 2: RBAC
– Use RBAC to control access to the API

23

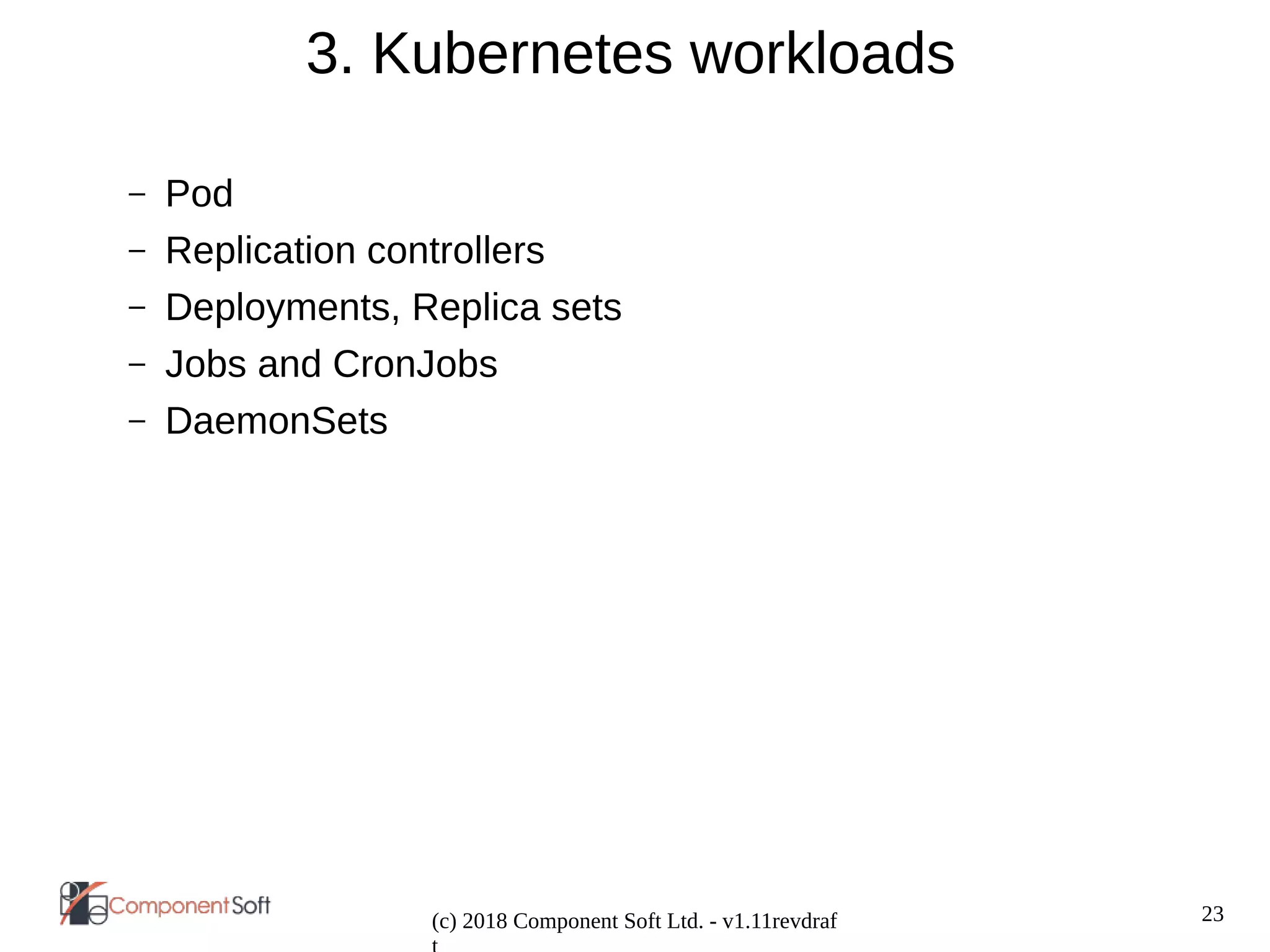

3. Kubernetes workloads
– Pod
– Replication controllers
– Deployments, Replica sets
– Jobs and CronJobs
– DaemonSets

24

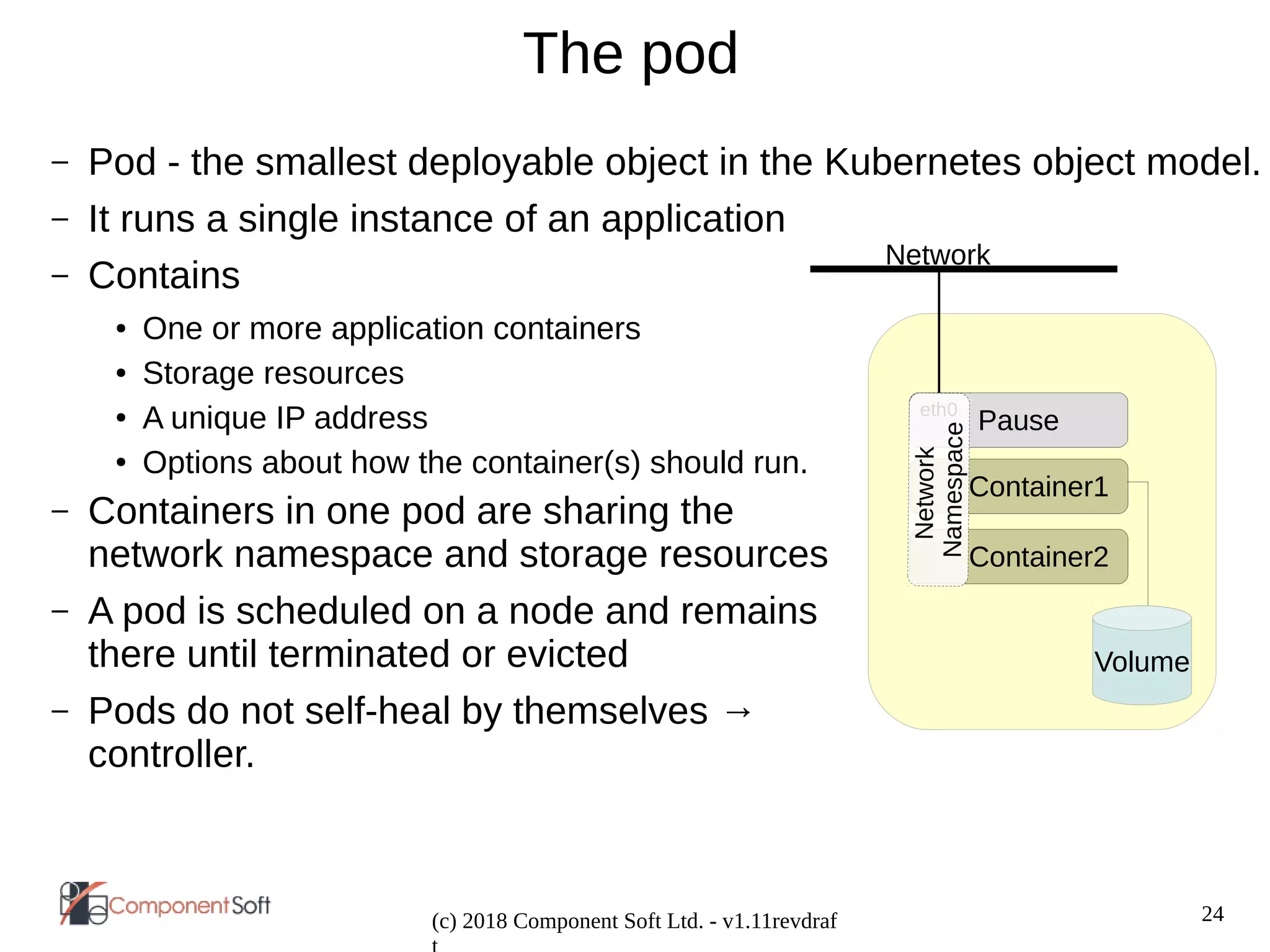

The pod
– Pod - the smallest deployable object in the Kubernetes object model.
– It runs a single instance of an application
– Contains
● One or more application containers
● Storage resources
● A unique IP address
● Options about how the container(s) should run.
– Containers in one pod are sharing the
network namespace and storage resources
– A pod is scheduled on a node and remains
there until terminated or evicted
– Pods do not self-heal by themselves →
controller.
Volume
Pause
Container1
Container2
eth0
Network
Namesp
ace
Network

25

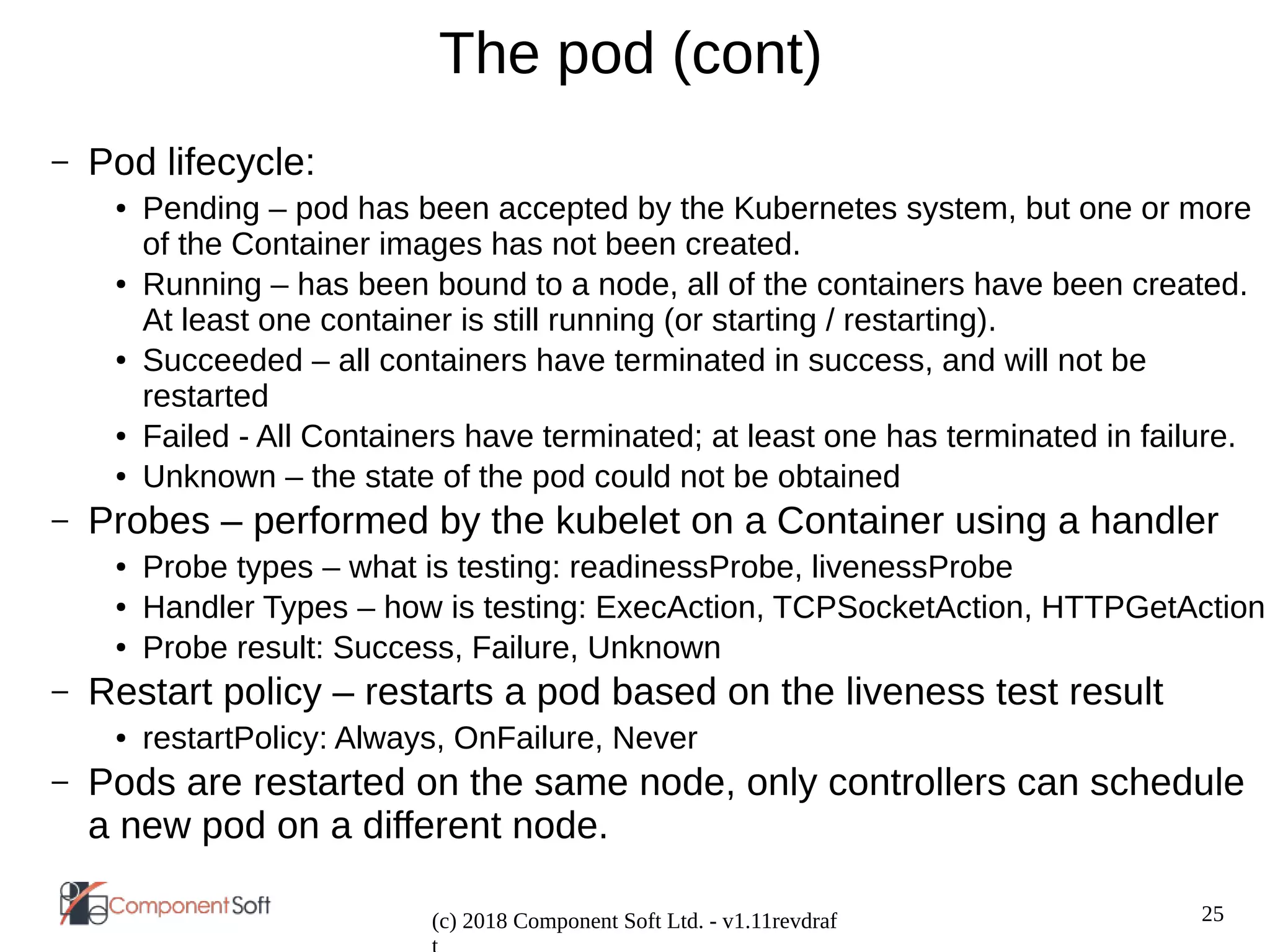

The pod (cont)
– Pod lifecycle:
● Pending – pod has been accepted by the Kubernetes system, but one or more
of the Container images has not been created.
● Running – has been bound to a node, all of the containers have been created.
At least one container is still running (or starting / restarting).
● Succeeded – all containers have terminated in success, and will not be
restarted
● Failed - All Containers have terminated; at least one has terminated in failure.
● Unknown – the state of the pod could not be obtained
– Probes – performed by the kubelet on a Container using a handler
● Probe types – what is testing: readinessProbe, livenessProbe
● Handler Types – how is testing: ExecAction, TCPSocketAction, HTTPGetAction
● Probe result: Success, Failure, Unknown
– Restart policy – restarts a pod based on the liveness test result
● restartPolicy: Always, OnFailure, Never
– Pods are restarted on the same node, only controllers can schedule
a new pod on a different node.

26

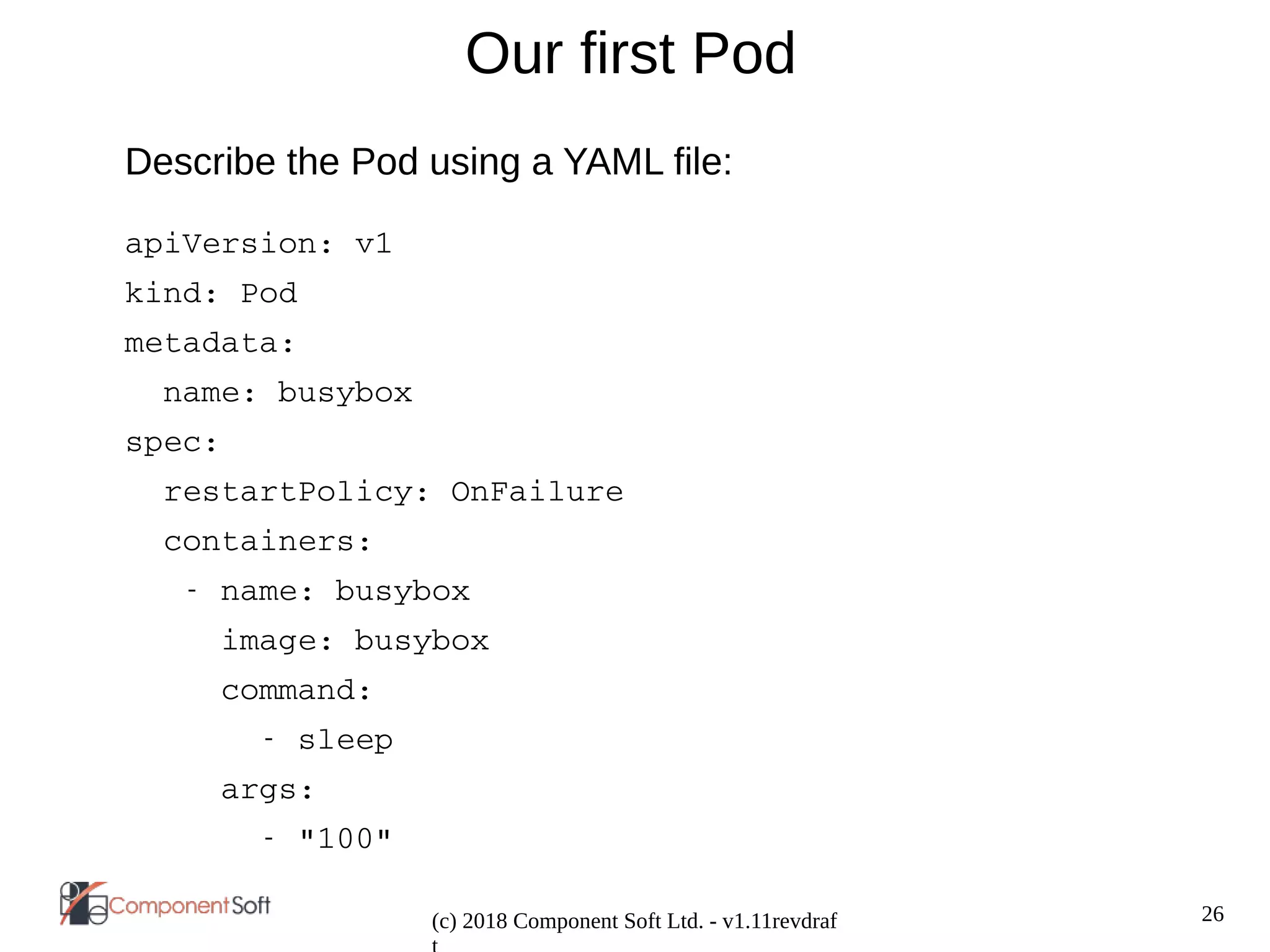

Our first Pod
Describe the Pod using a YAML file:
apiVersion: v1
kind: Pod
metadata:
  name: busybox
spec:
  restartPolicy: OnFailure
  containers:
    name: busybox
     image: busybox
     command:
        sleep
     args:
        "100"

27
Operations on pods
– Create the pod using the kubectl command:
● kubectl create -f pod1.yaml
– Check the pod status
● kubectl get pod busybox [-o wide]
● kubectl get pod --watch
– Get information about the pod
● kubectl describe pod busybox
● kubectl get pod busybox -o yaml
– Check the logs of a pod
● kubectl logs busybox
– Execute a command inside the pod
● kubectl exec -ti busybox sh
– Delete the pod
● kubectl delete pod busybox

28
ReplicaSet
– The ReplicaSet controller simply
ensures that the desired number of
pods matches its label selector
exists and are operational
– If the labels of the pod are modified
and they do not match the label
selector, then a new pod is spawned,
the old one stays there.
– The ReplicaSet provide a declarative
definition of what a Pod should be
and how many of it should be running
at a time.
apiVersion: apps/v1
kind: ReplicaSet
metadata:
name: nginx
spec:
replicas: 3
selector:
matchLabels:
app: nginx
template:
metadata:
name: nginx
labels:
app: nginx
spec:
containers:
- name: nginx
image: nginx
rs1.yaml

29

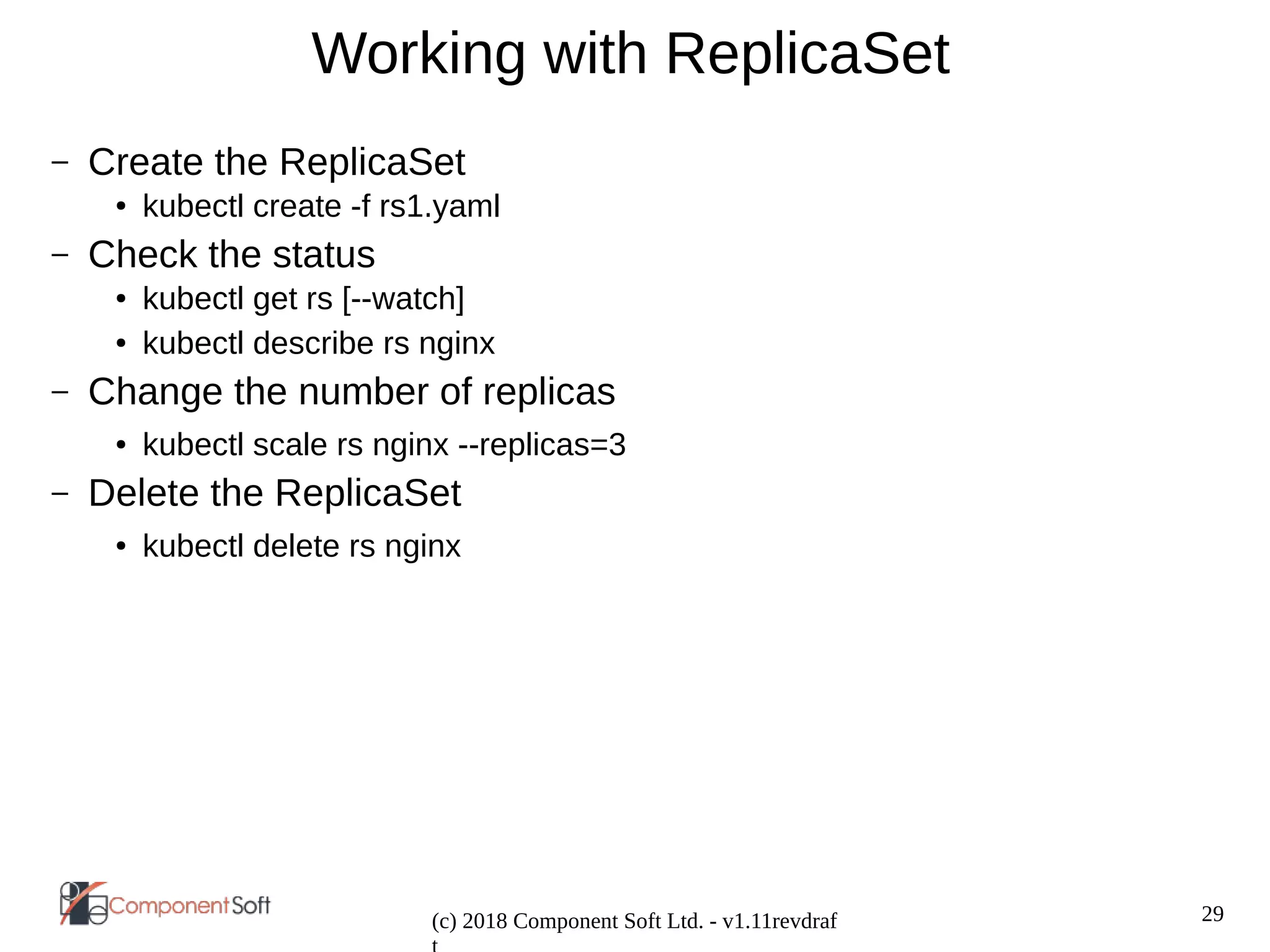

Working with ReplicaSet
– Create the ReplicaSet
● kubectl create -f rs1.yaml
– Check the status
● kubectl get rs [--watch]
● kubectl describe rs nginx
– Change the number of replicas
● kubectl scale rs nginx --replicas=3
– Delete the ReplicaSet
● kubectl delete rs nginx

30

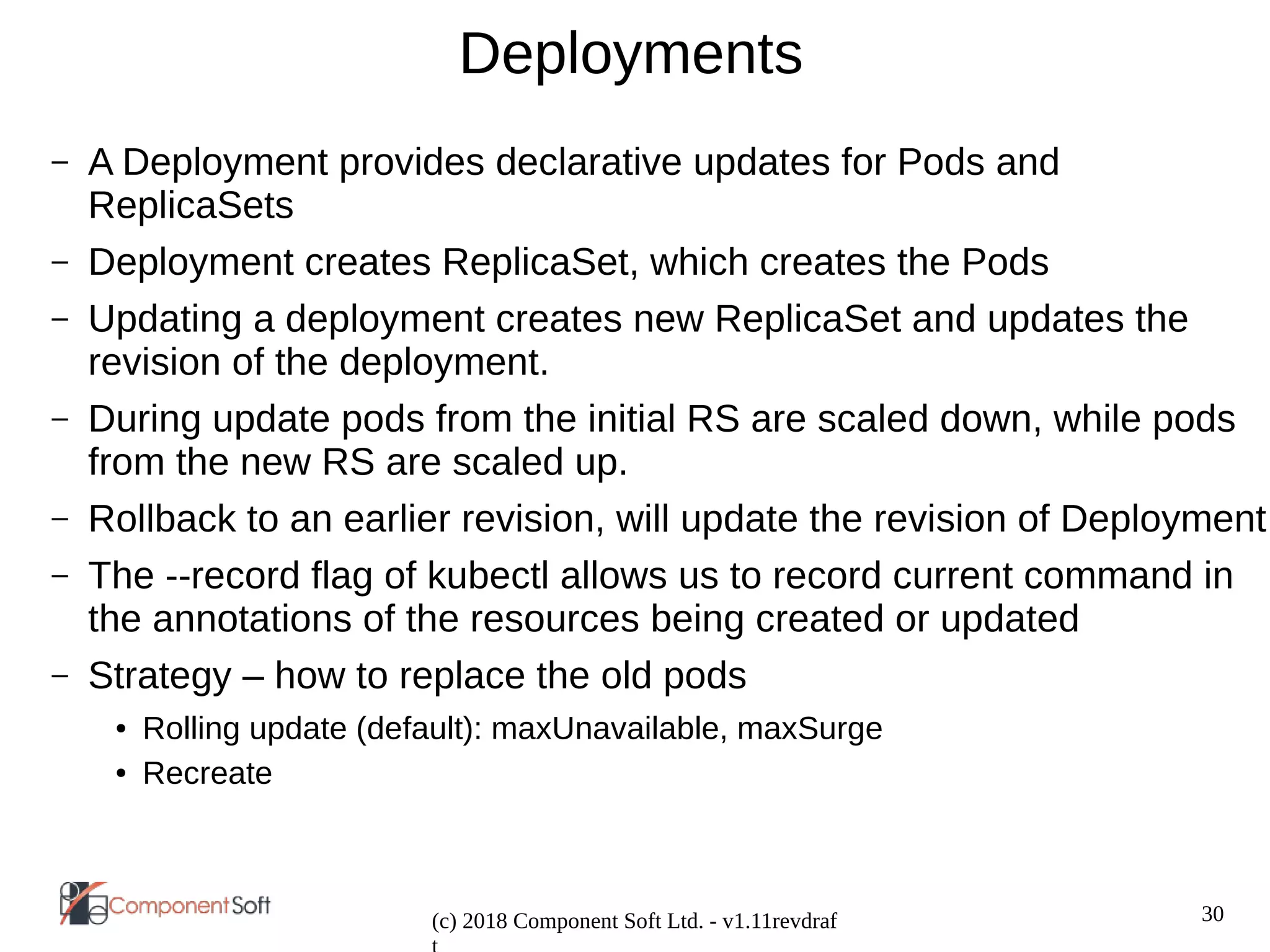

Deployments
– A Deployment provides declarative updates for Pods and
ReplicaSets
– Deployment creates ReplicaSet, which creates the Pods
– Updating a deployment creates new ReplicaSet and updates the
revision of the deployment.
– During update pods from the initial RS are scaled down, while pods
from the new RS are scaled up.
– Rollback to an earlier revision, will update the revision of Deployment
– The --record flag of kubectl allows us to record current command in
the annotations of the resources being created or updated
– Strategy – how to replace the old pods
● Rolling update (default): maxUnavailable, maxSurge
● Recreate

31

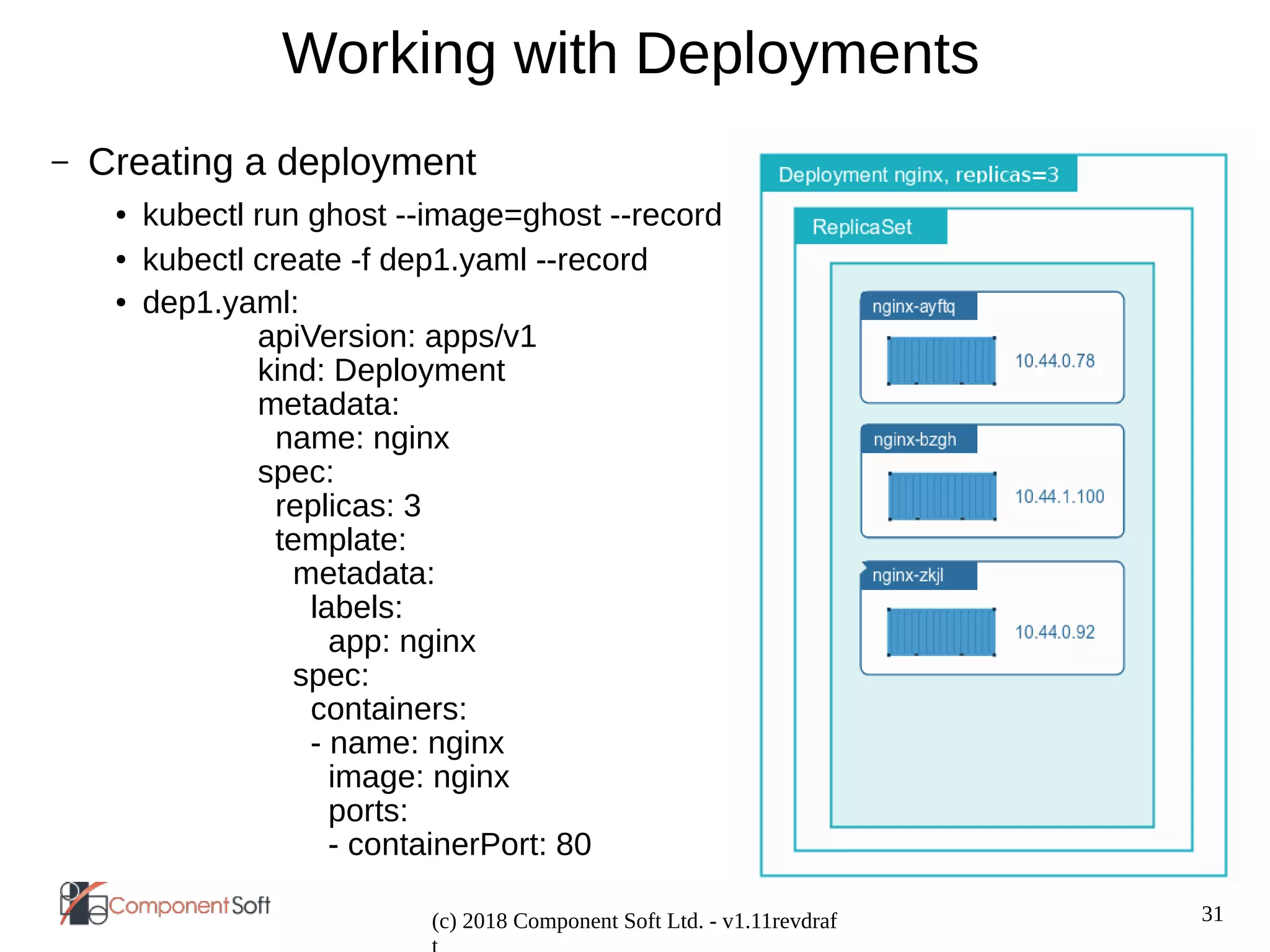

Working with Deployments
– Creating a deployment
● kubectl run ghost --image=ghost --record
● kubectl create -f dep1.yaml --record
● dep1.yaml:
apiVersion: apps/v1
kind: Deployment
metadata:
name: nginx
spec:
replicas: 3
template:
metadata:
labels:
app: nginx
spec:
containers:
- name: nginx
image: nginx
ports:
- containerPort: 80

32

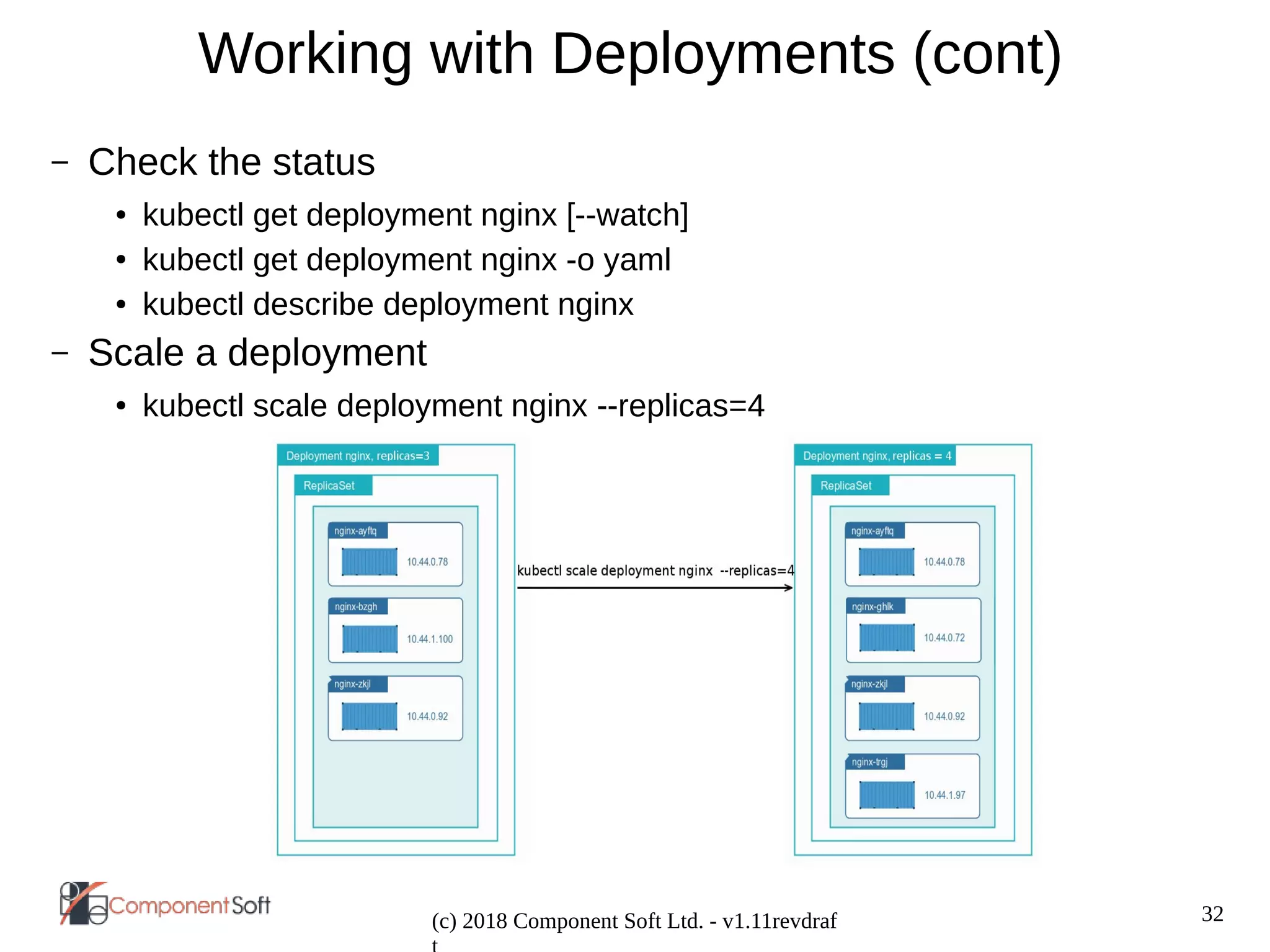

Working with Deployments (cont)
– Check the status
● kubectl get deployment nginx [--watch]
● kubectl get deployment nginx -o yaml
● kubectl describe deployment nginx
– Scale a deployment
● kubectl scale deployment nginx --replicas=4

33

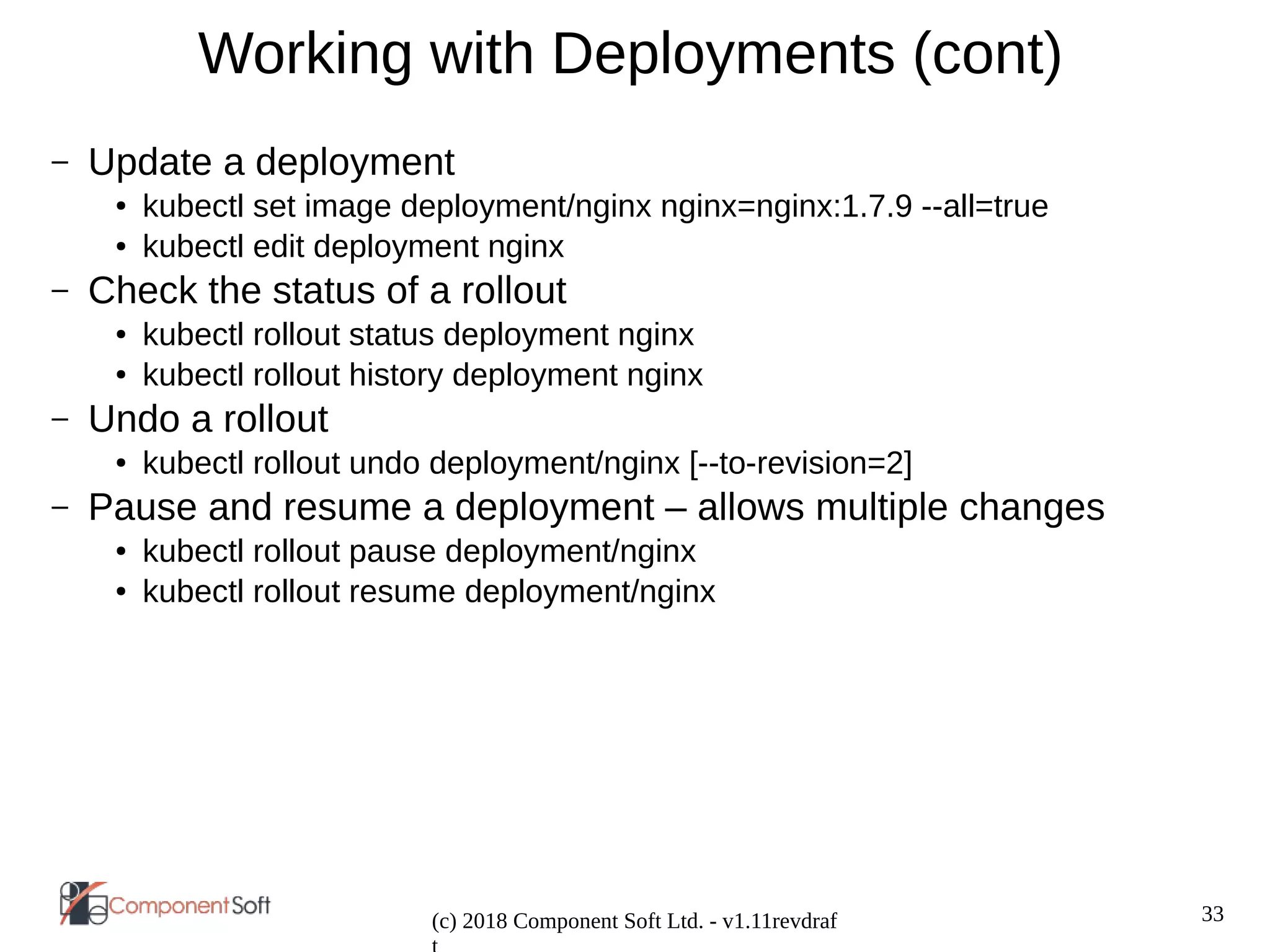

Working with Deployments (cont)
– Update a deployment
● kubectl set image deployment/nginx nginx=nginx:1.7.9 --all=true
● kubectl edit deployment nginx
– Check the status of a rollout
● kubectl rollout status deployment nginx
● kubectl rollout history deployment nginx
– Undo a rollout
● kubectl rollout undo deployment/nginx [--to-revision=2]
– Pause and resume a deployment – allows multiple changes
● kubectl rollout pause deployment/nginx
● kubectl rollout resume deployment/nginx

34
Jobs, CronJobs
– A job creates one or more pods and ensures that a specified number
of them successfully terminate.
– Jobs can be used to reliably run a Pod to completion the specified
number of times (.spec.completions)
– Jobs can run multiple Pods in parallel (.spec.parallelism)
– Pods in a Job can only use Never or OnFailure as their RestartPolicy
– It is up to the user to delete old jobs after noting their status
– Deleting a Job will delete the related Pods
– If Pods are failing, the Job will create new Pods forever. The
.spec.activeDeadlineSeconds will limit the time for which a Job will
create new Pods.
– CronJobs can create Jobs once or repeatedly at specified times
– .spec.jobTemplate will specify the Job to be created
– concurrencyPolicy: Allow, Forbid, Replace

35

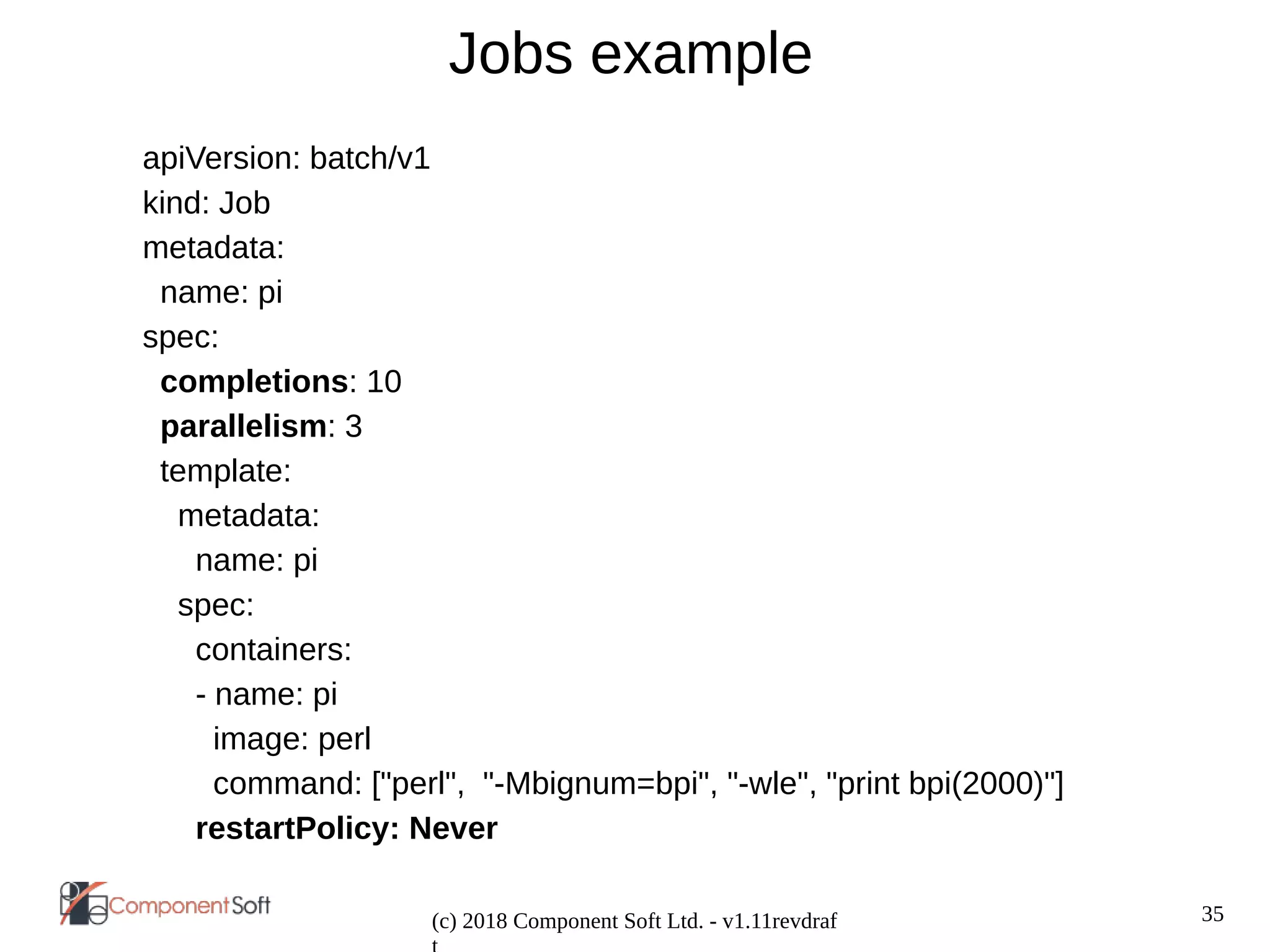

Jobs example
apiVersion: batch/v1
kind: Job
metadata:
name: pi
spec:
completions: 10
parallelism: 3
template:
metadata:
name: pi
spec:
containers:
- name: pi
image: perl
command: ["perl", "-Mbignum=bpi", "-wle", "print bpi(2000)"]
restartPolicy: Never

36
CronJobs example
apiVersion: batch/v2alpha1
kind: CronJob
metadata:
name: cron-pi
spec:
schedule: "*/1 * * * *"
jobTemplate:
spec:
completions: 10
parallelism: 3
template:
metadata:
name: pi
spec:
containers:
- name: pi
image: perl
command: ["perl", "-Mbignum=bpi", "-wle", "print bpi(2000)"]
restartPolicy: Never

37
DaemonSets
– A DaemonSet ensures that all (or some) nodes run a copy of a pod
– When nodes are added to the cluster, pods are added to them
– When nodes are removed from the cluster, those pods are garbage
collected
– To run pods only on some nodes:
● .spec.template.spec.nodeSelector – pods started on nodes that match the
node selector
● .spec.template.spec.affinity – pods are created on nodes that match the node
affinity
– If node labels are changed, the DaemonSet will promptly adapt
– Deleting a DaemonSet will delete the pods (except –cascade=false)
– UpdateStrategy:
● OnDelete - new pods will only be created when the old ones are manually
deleted
● RollingUpdate - after you update a DaemonSet template, old pods will be killed

38

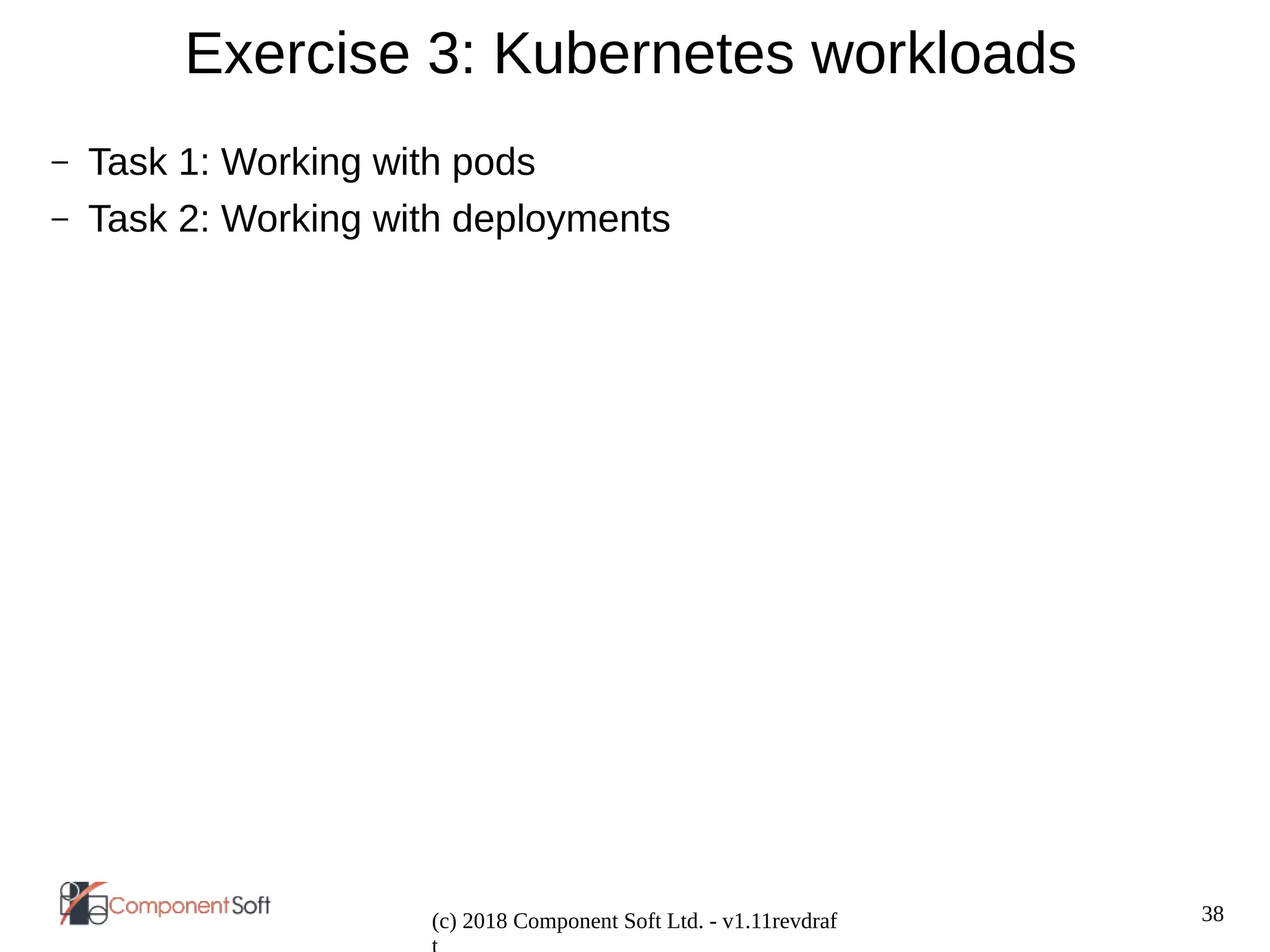

Exercise 3: Kubernetes workloads
– Task 1: Working with pods
– Task 2: Working with deployments

39

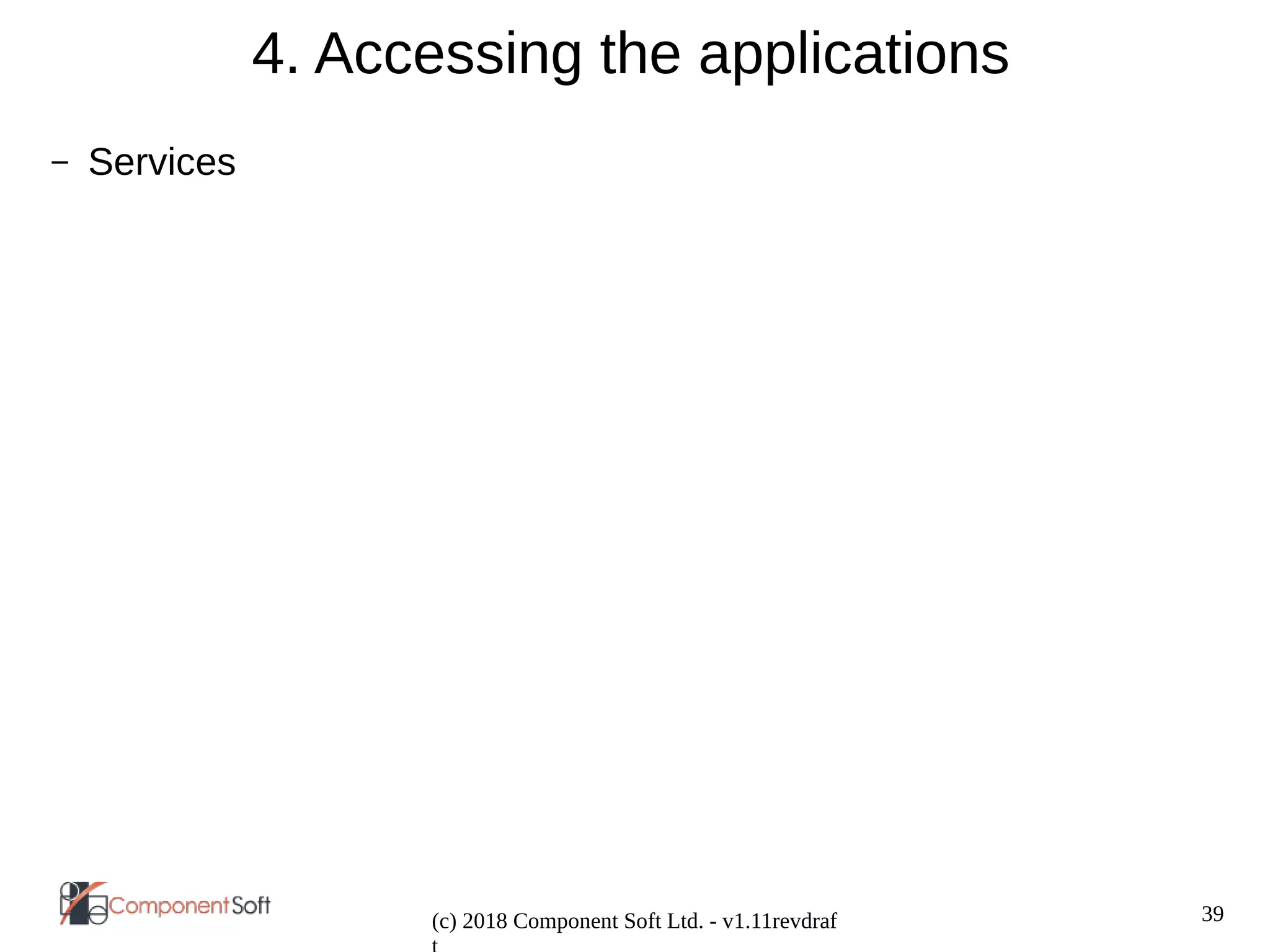

4. Accessing the applications
– Services

40

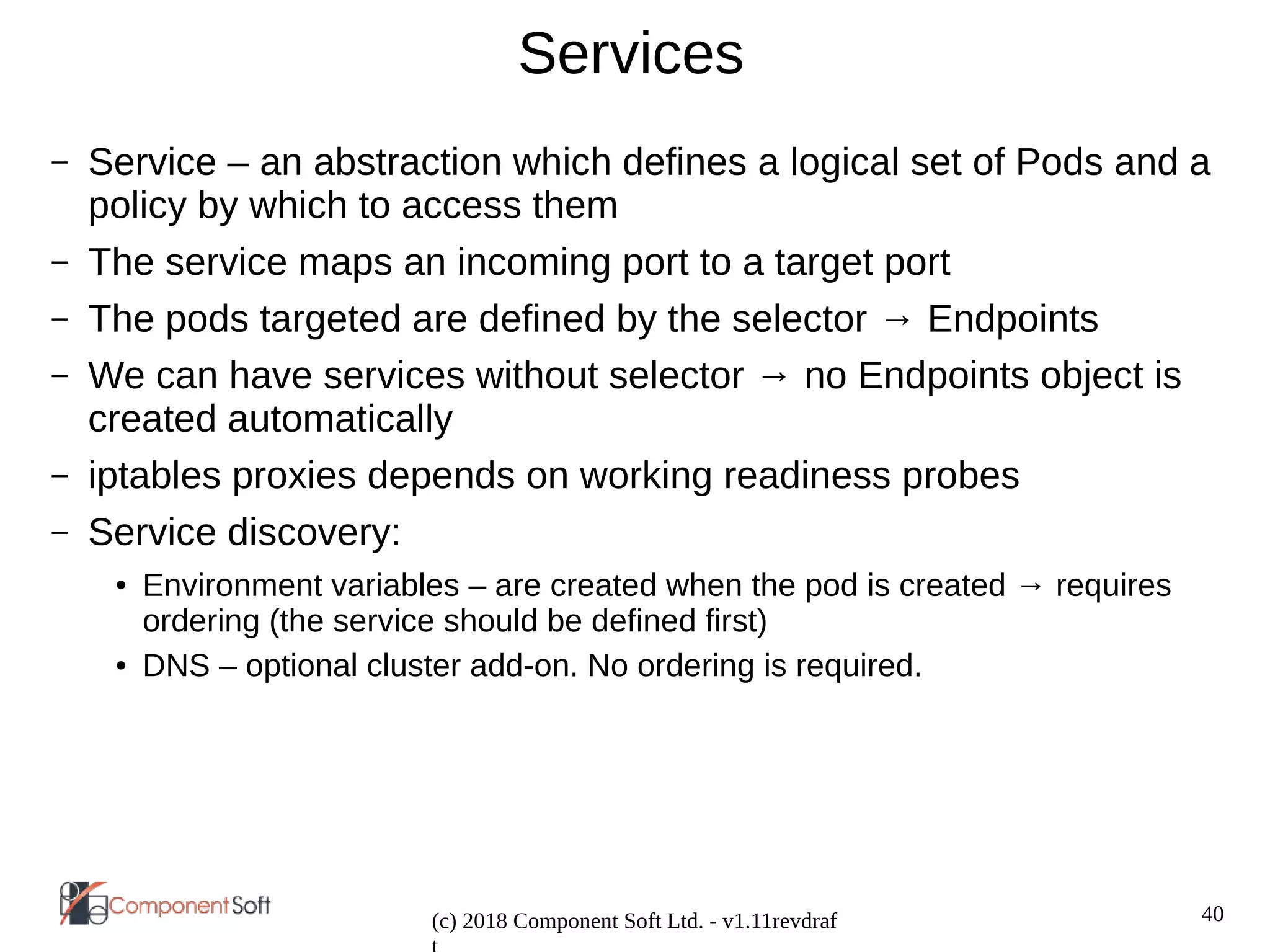

Services
– Service – an abstraction which defines a logical set of Pods and a
policy by which to access them
– The service maps an incoming port to a target port
– The pods targeted are defined by the selector → Endpoints
– We can have services without selector → no Endpoints object is
created automatically
– iptables proxies depends on working readiness probes
– Service discovery:
● Environment variables – are created when the pod is created → requires
ordering (the service should be defined first)
● DNS – optional cluster add-on. No ordering is required.

41

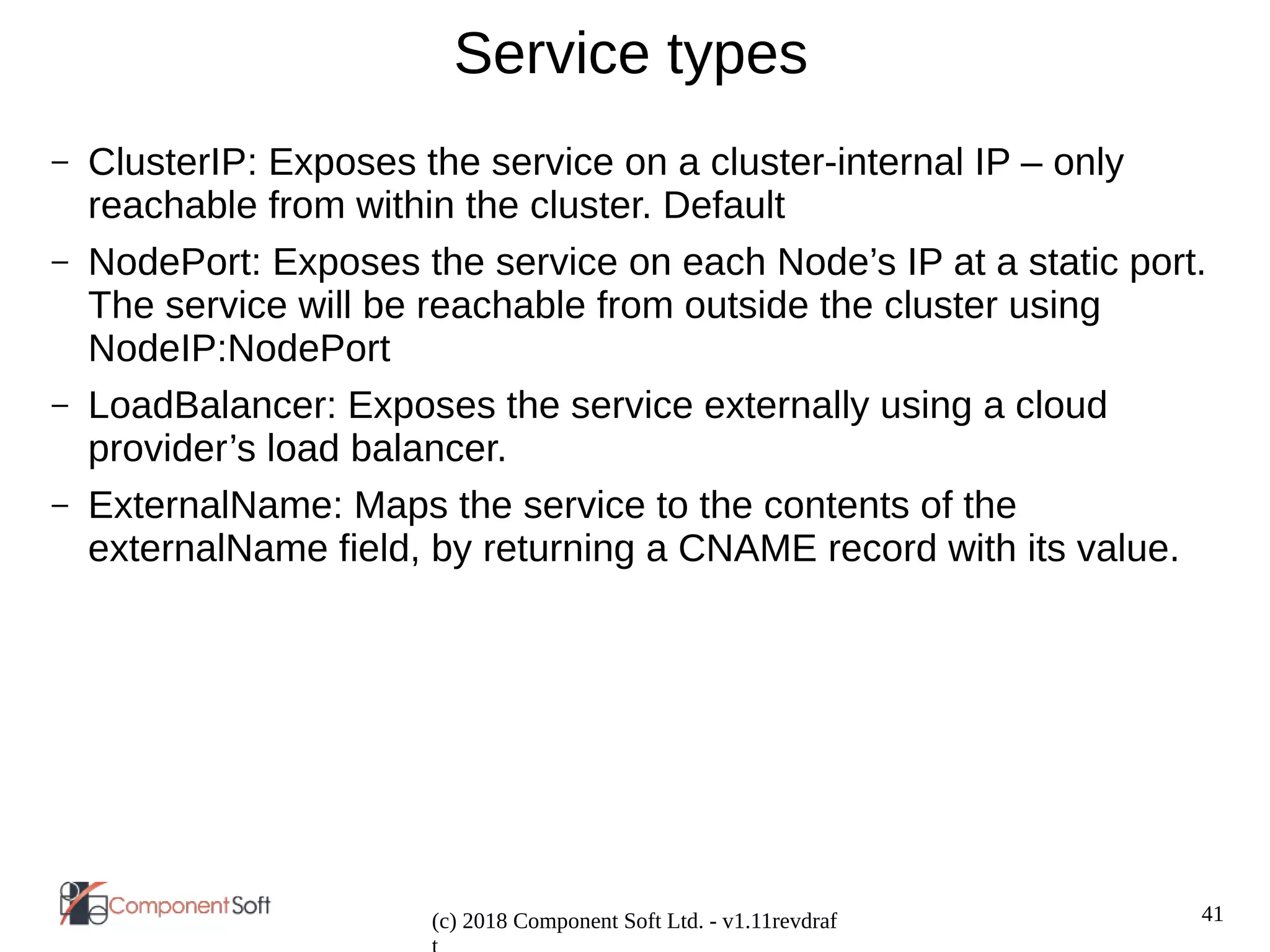

Service types
– ClusterIP: Exposes the service on a cluster-internal IP – only
reachable from within the cluster. Default
– NodePort: Exposes the service on each Node’s IP at a static port.
The service will be reachable from outside the cluster using
NodeIP:NodePort
– LoadBalancer: Exposes the service externally using a cloud
provider’s load balancer.
– ExternalName: Maps the service to the contents of the
externalName field, by returning a CNAME record with its value.

42

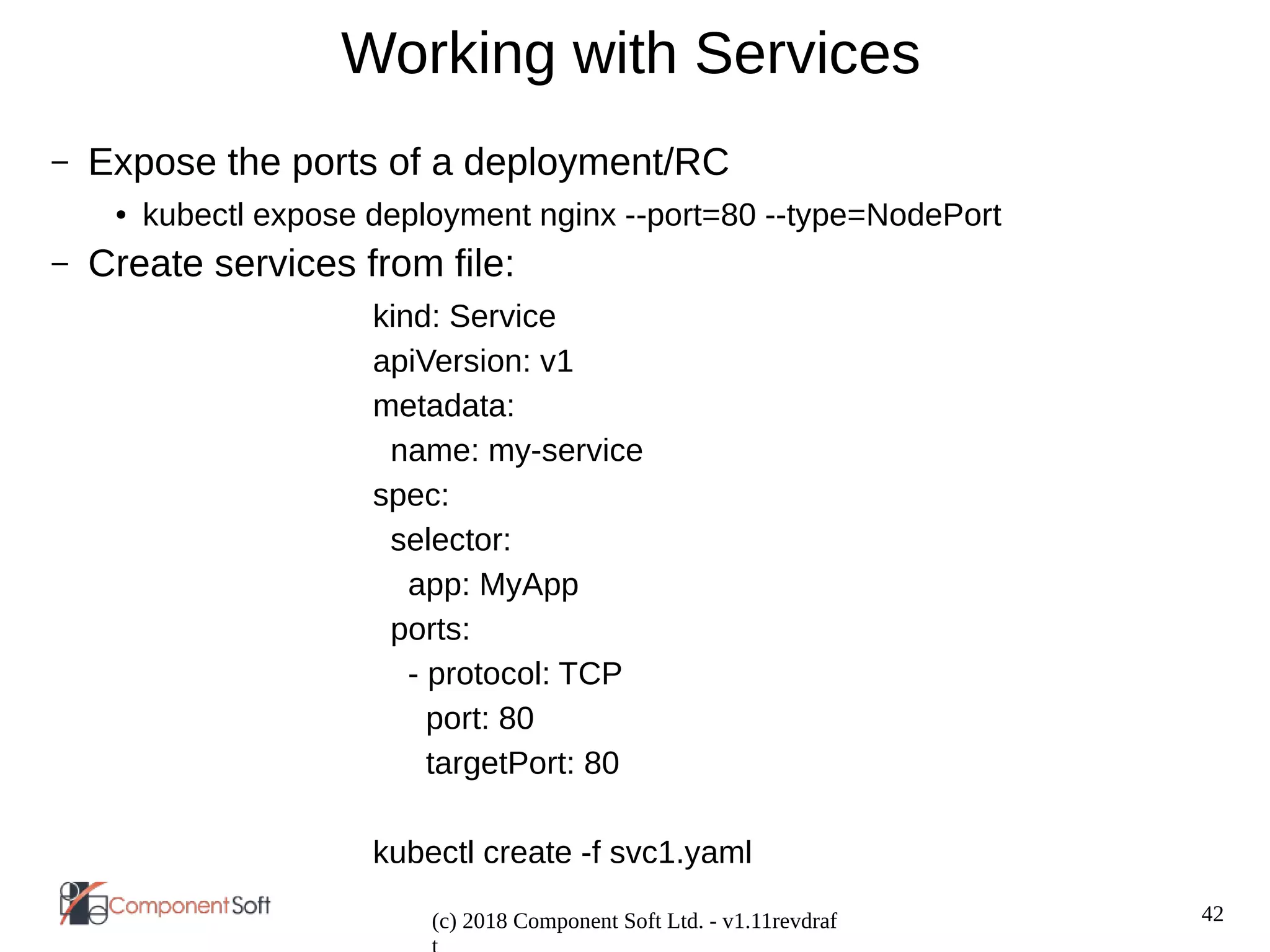

Working with Services
– Expose the ports of a deployment/RC
● kubectl expose deployment nginx --port=80 --type=NodePort
– Create services from file:
kind: Service
apiVersion: v1
metadata:
name: my-service
spec:
selector:
app: MyApp
ports:
- protocol: TCP
port: 80
targetPort: 80
kubectl create -f svc1.yaml

43

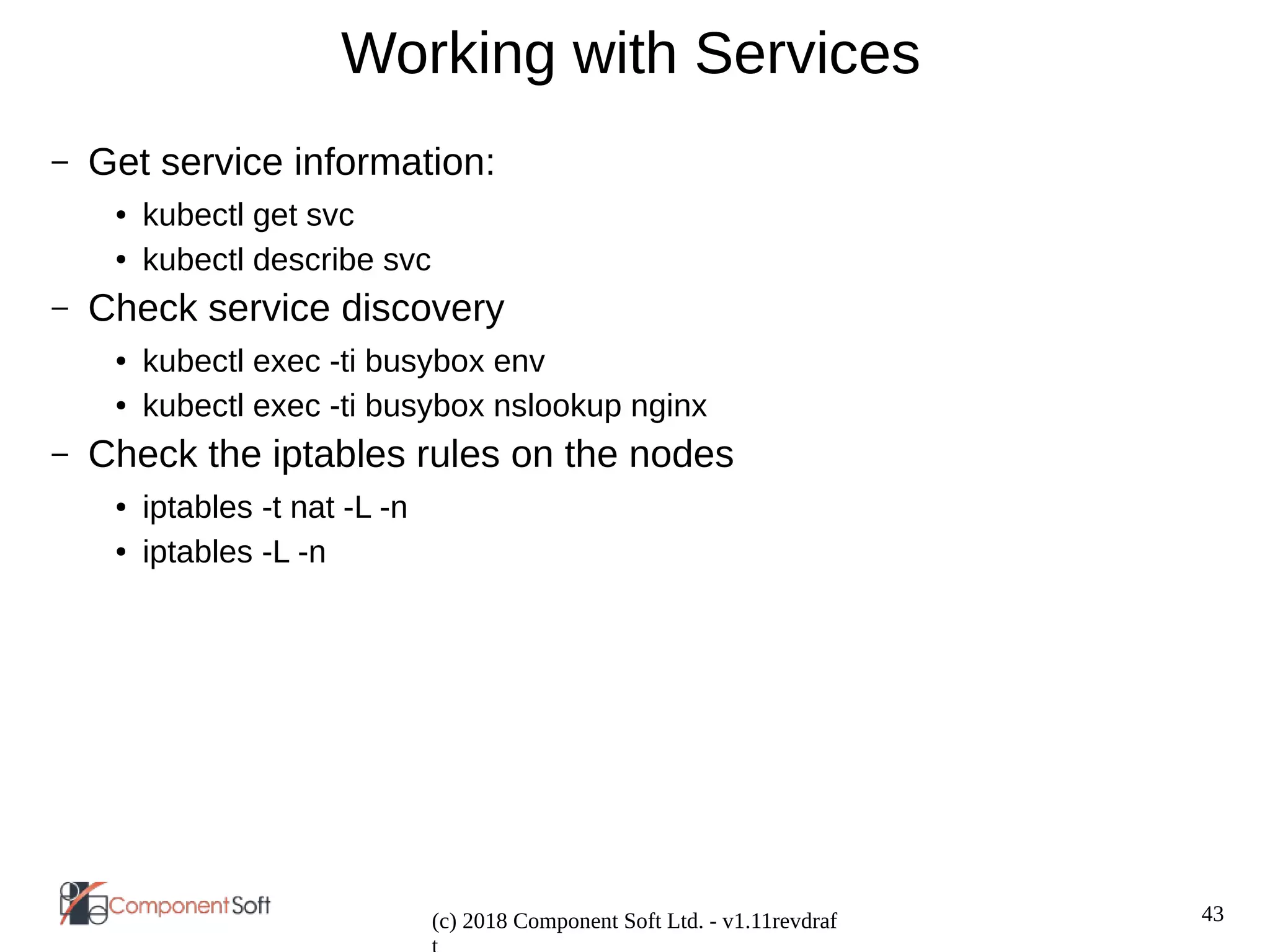

Working with Services
– Get service information:
● kubectl get svc
● kubectl describe svc
– Check service discovery
● kubectl exec -ti busybox env
● kubectl exec -ti busybox nslookup nginx
– Check the iptables rules on the nodes
● iptables -t nat -L -n
● iptables -L -n

44

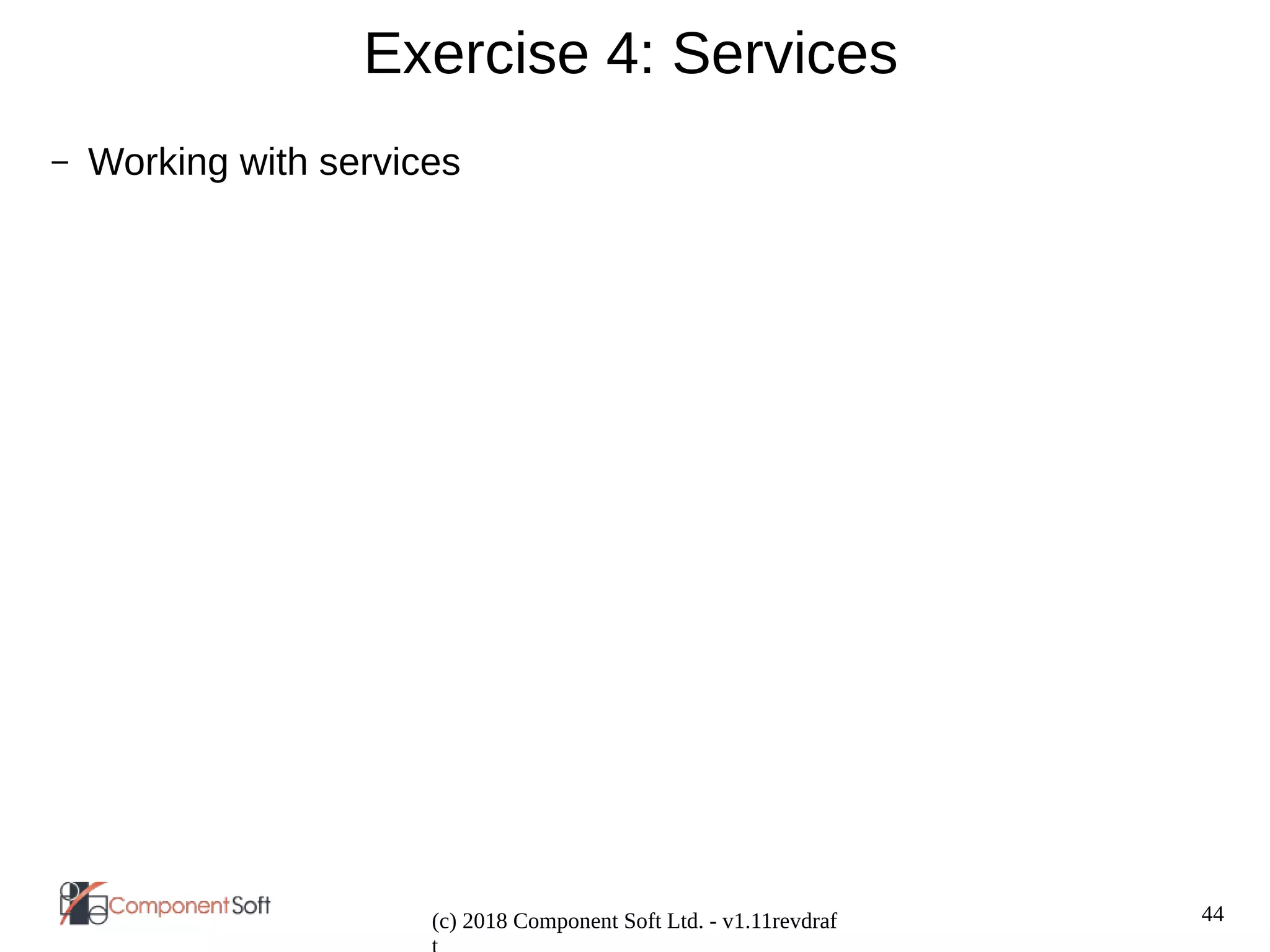

Exercise 4: Services
– Working with services

45
5. Persistent storage in kubernetes
– Volumes
– Persistent volumes and volume claims
– Secrets
– ConfigMaps

46

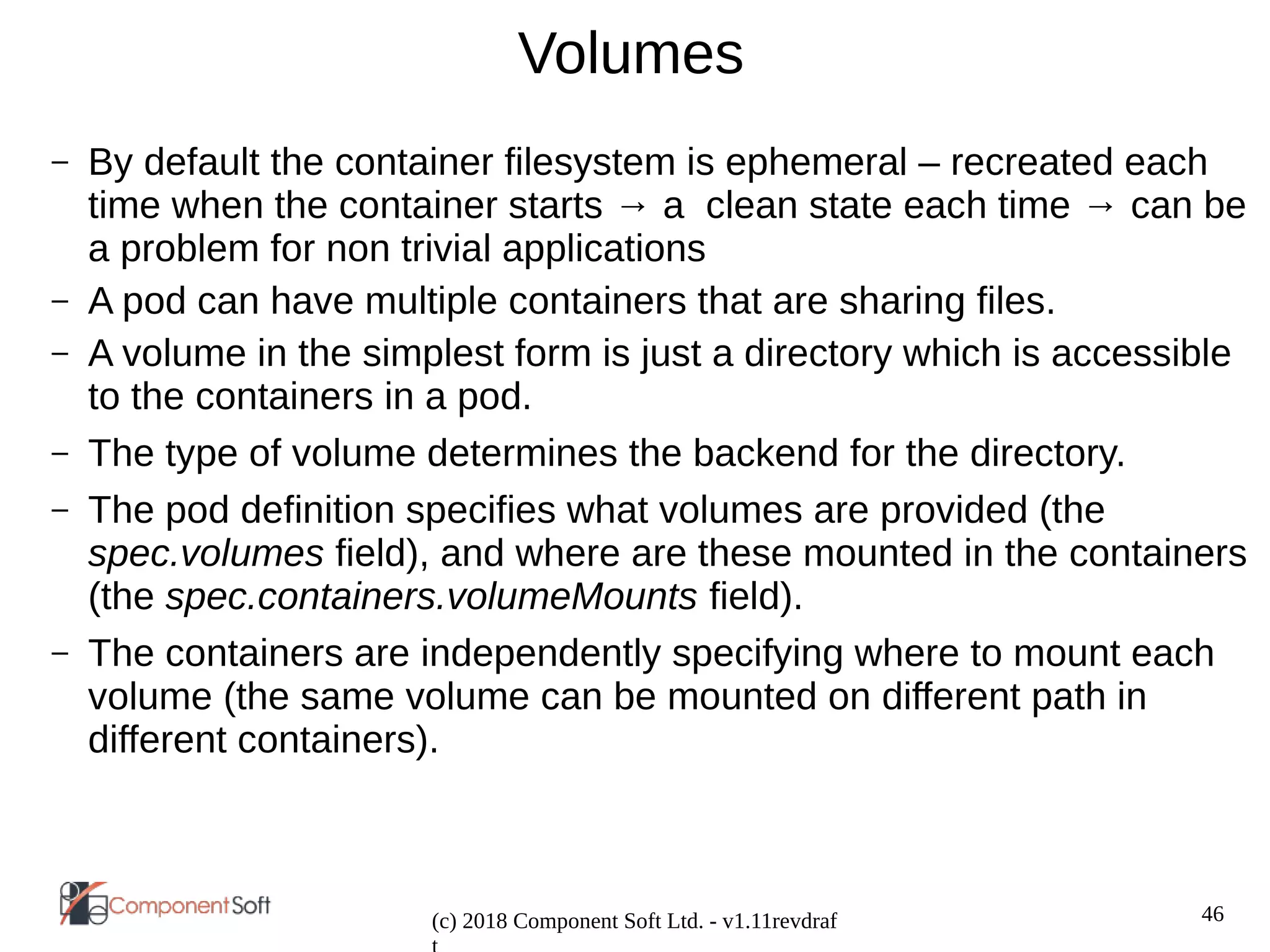

Volumes
– By default the container filesystem is ephemeral – recreated each
time when the container starts → a clean state each time → can be
a problem for non trivial applications
– A pod can have multiple containers that are sharing files.
– A volume in the simplest form is just a directory which is accessible
to the containers in a pod.
– The type of volume determines the backend for the directory.
– The pod definition specifies what volumes are provided (the
spec.volumes field), and where are these mounted in the containers
(the spec.containers.volumeMounts field).
– The containers are independently specifying where to mount each
volume (the same volume can be mounted on different path in
different containers).

47

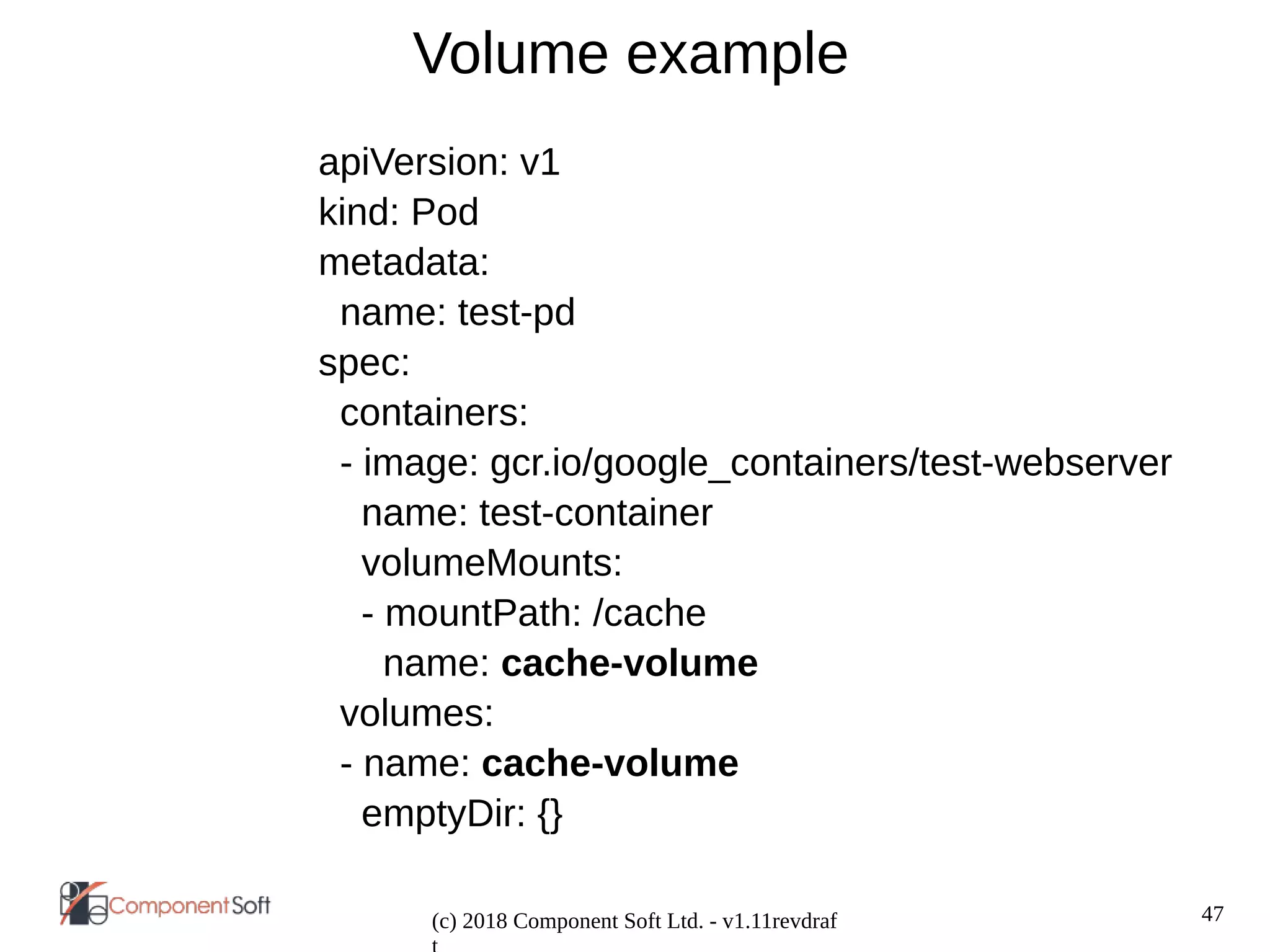

Volume example
apiVersion: v1
kind: Pod
metadata:
name: test-pd
spec:
containers:
- image: gcr.io/google_containers/test-webserver
name: test-container
volumeMounts:
- mountPath: /cache
name: cache-volume
volumes:
- name: cache-volume
emptyDir: {}

48

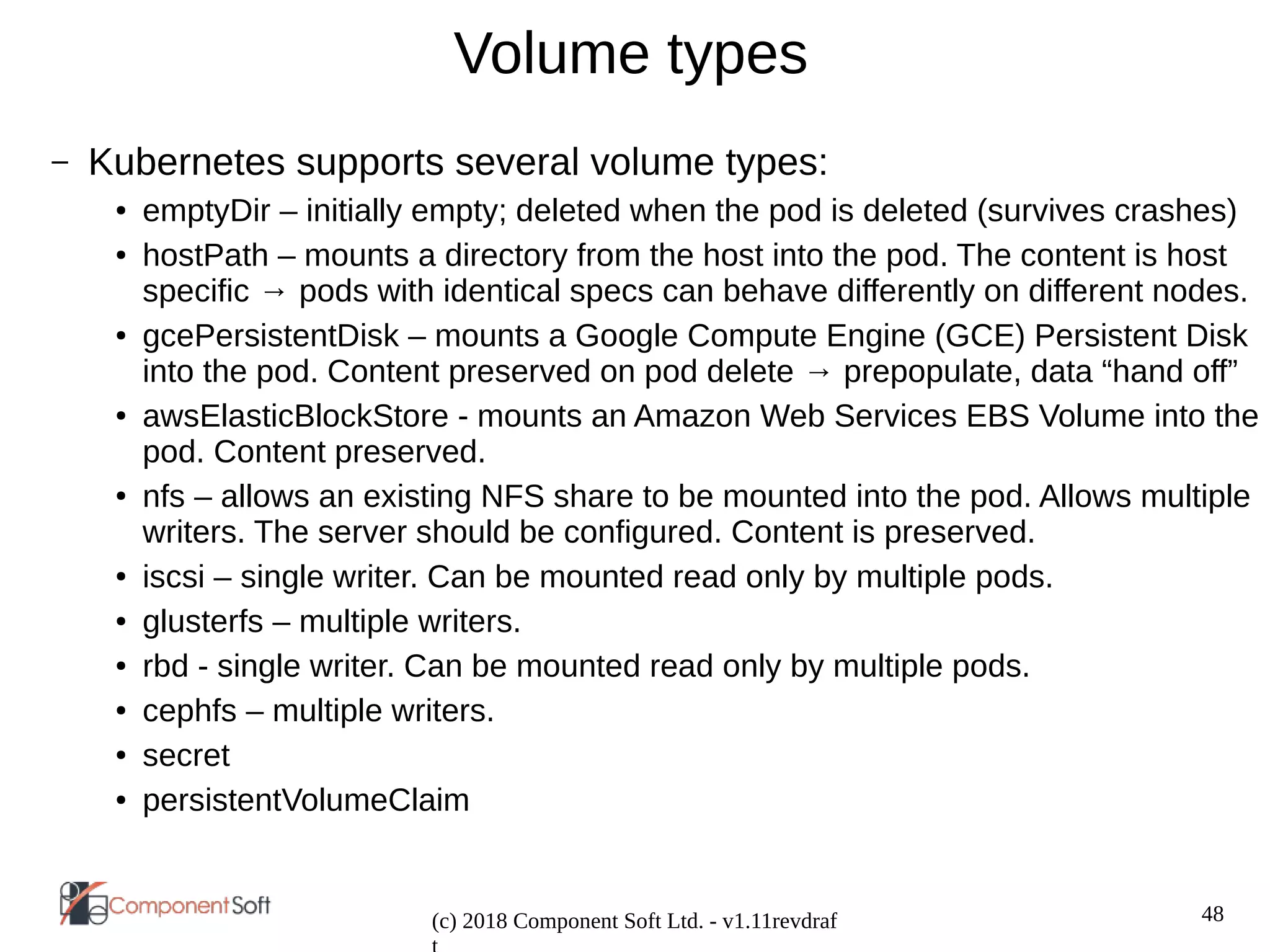

Volume types
– Kubernetes supports several volume types:
● emptyDir – initially empty; deleted when the pod is deleted (survives crashes)
● hostPath – mounts a directory from the host into the pod. The content is host
specific → pods with identical specs can behave differently on different nodes.
● gcePersistentDisk – mounts a Google Compute Engine (GCE) Persistent Disk
into the pod. Content preserved on pod delete → prepopulate, data “hand off”
● awsElasticBlockStore - mounts an Amazon Web Services EBS Volume into the
pod. Content preserved.
● nfs – allows an existing NFS share to be mounted into the pod. Allows multiple
writers. The server should be configured. Content is preserved.
● iscsi – single writer. Can be mounted read only by multiple pods.
● glusterfs – multiple writers.
● rbd - single writer. Can be mounted read only by multiple pods.
● cephfs – multiple writers.
● secret
● persistentVolumeClaim

49

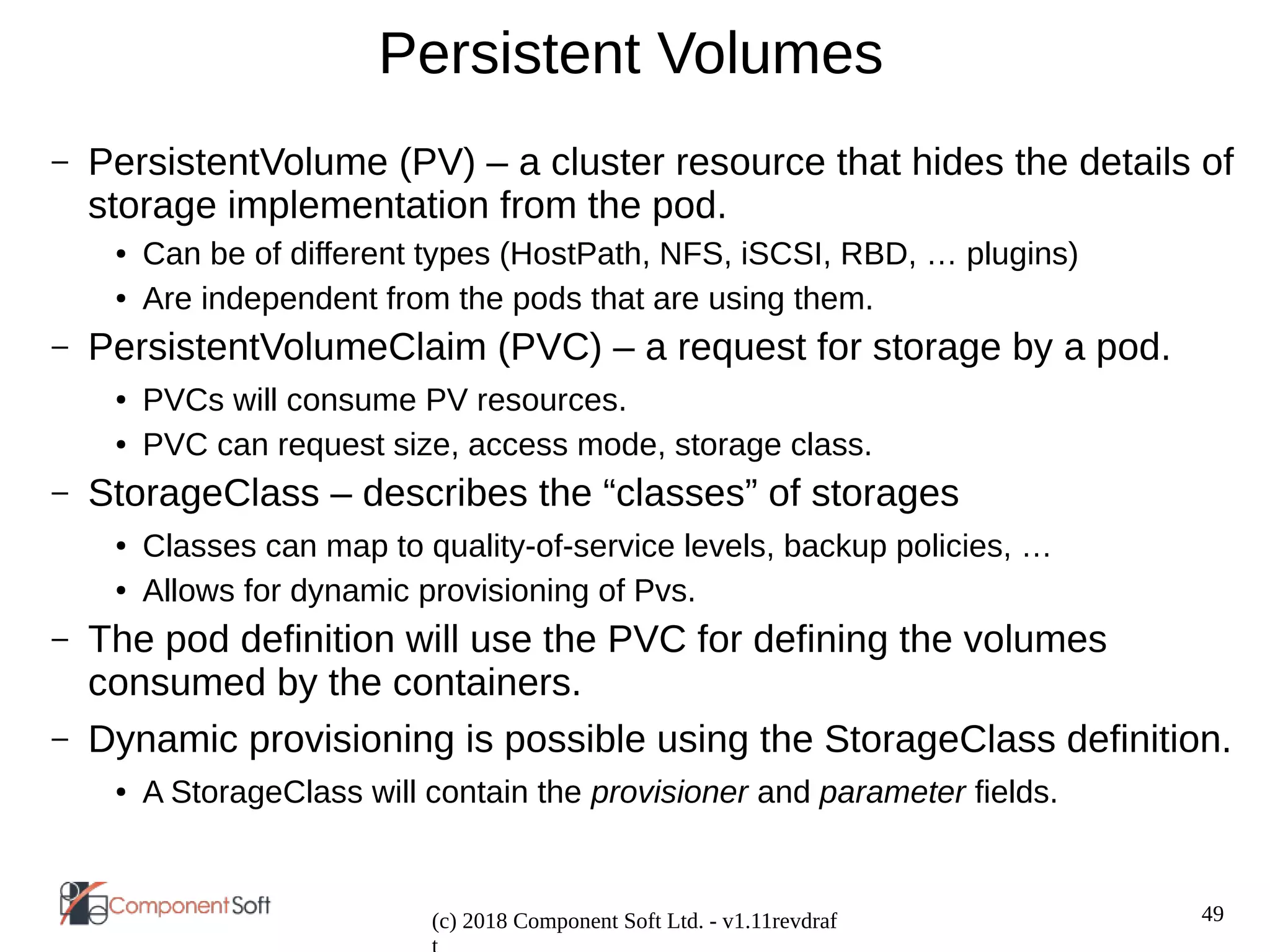

Persistent Volumes
– PersistentVolume (PV) – a cluster resource that hides the details of
storage implementation from the pod.
● Can be of different types (HostPath, NFS, iSCSI, RBD, … plugins)
● Are independent from the pods that are using them.
– PersistentVolumeClaim (PVC) – a request for storage by a pod.
● PVCs will consume PV resources.
● PVC can request size, access mode, storage class.
– StorageClass – describes the “classes” of storages
● Classes can map to quality-of-service levels, backup policies, …
● Allows for dynamic provisioning of Pvs.
– The pod definition will use the PVC for defining the volumes
consumed by the containers.
– Dynamic provisioning is possible using the StorageClass definition.
● A StorageClass will contain the provisioner and parameter fields.

50

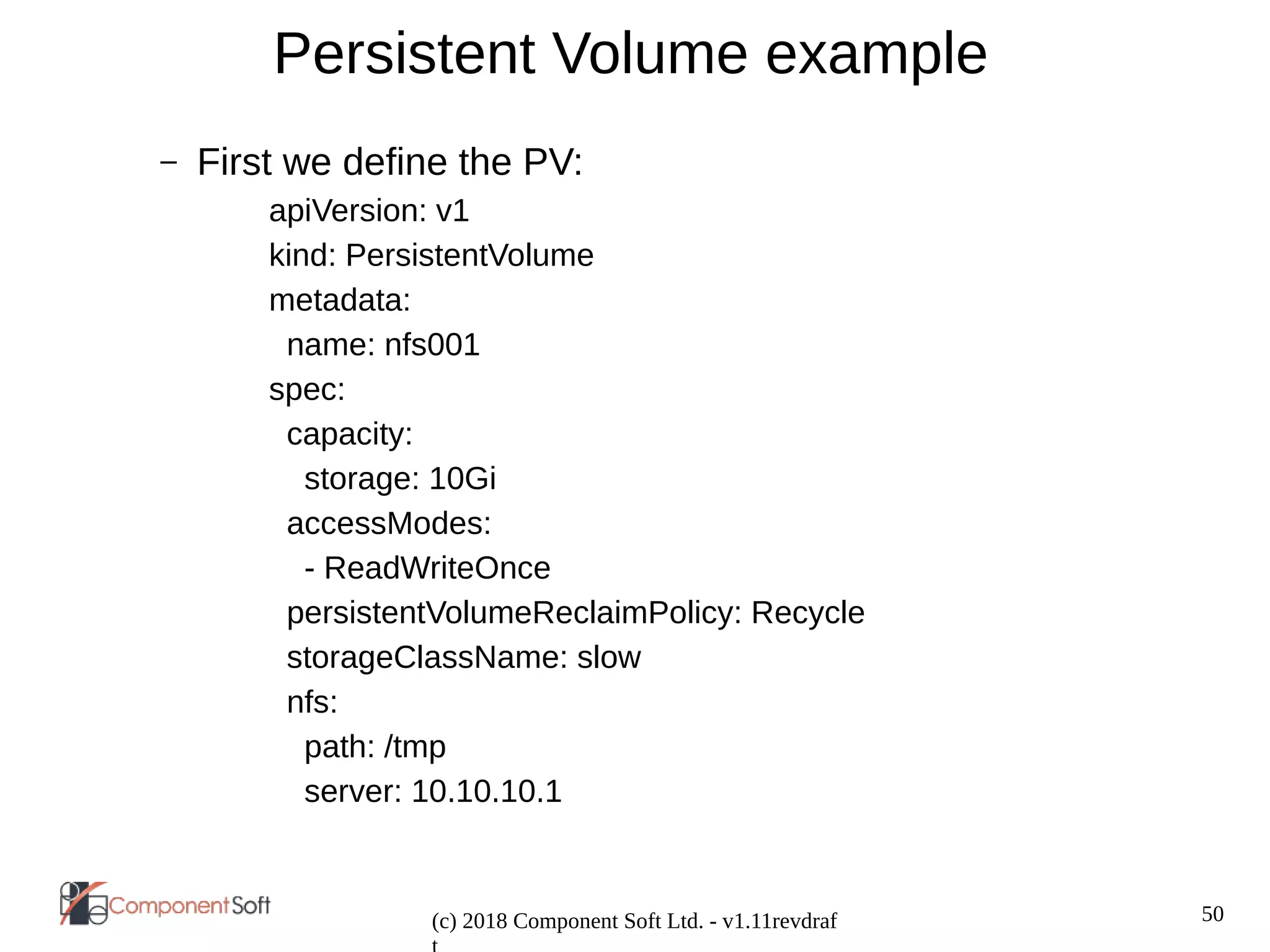

Persistent Volume example
– First we define the PV:
apiVersion: v1
kind: PersistentVolume
metadata:
name: nfs001
spec:
capacity:
storage: 10Gi
accessModes:
- ReadWriteOnce
persistentVolumeReclaimPolicy: Recycle
storageClassName: slow
nfs:
path: /tmp
server: 10.10.10.1

51

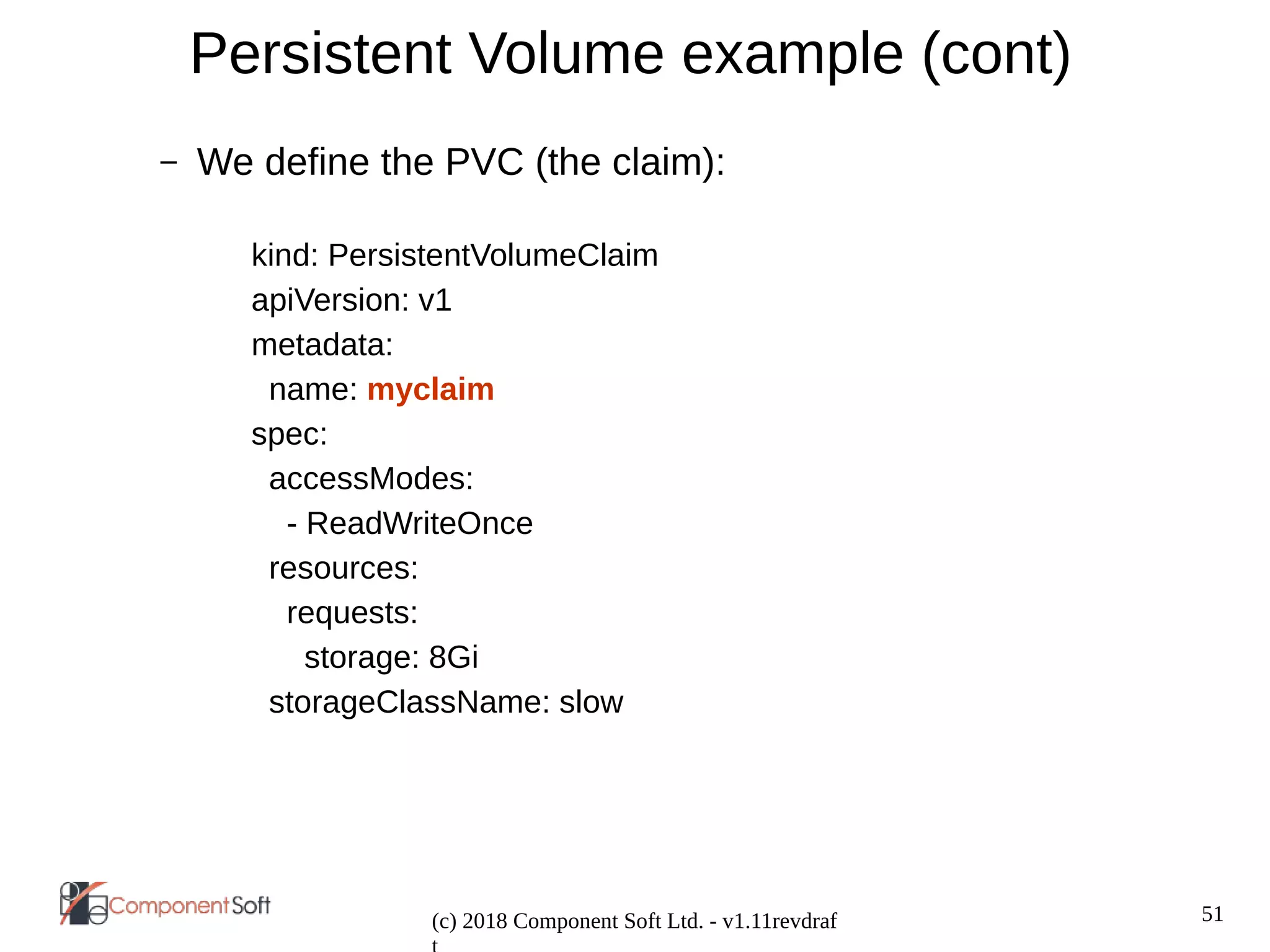

Persistent Volume example (cont)
– We define the PVC (the claim):
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: myclaim
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 8Gi
storageClassName: slow

52

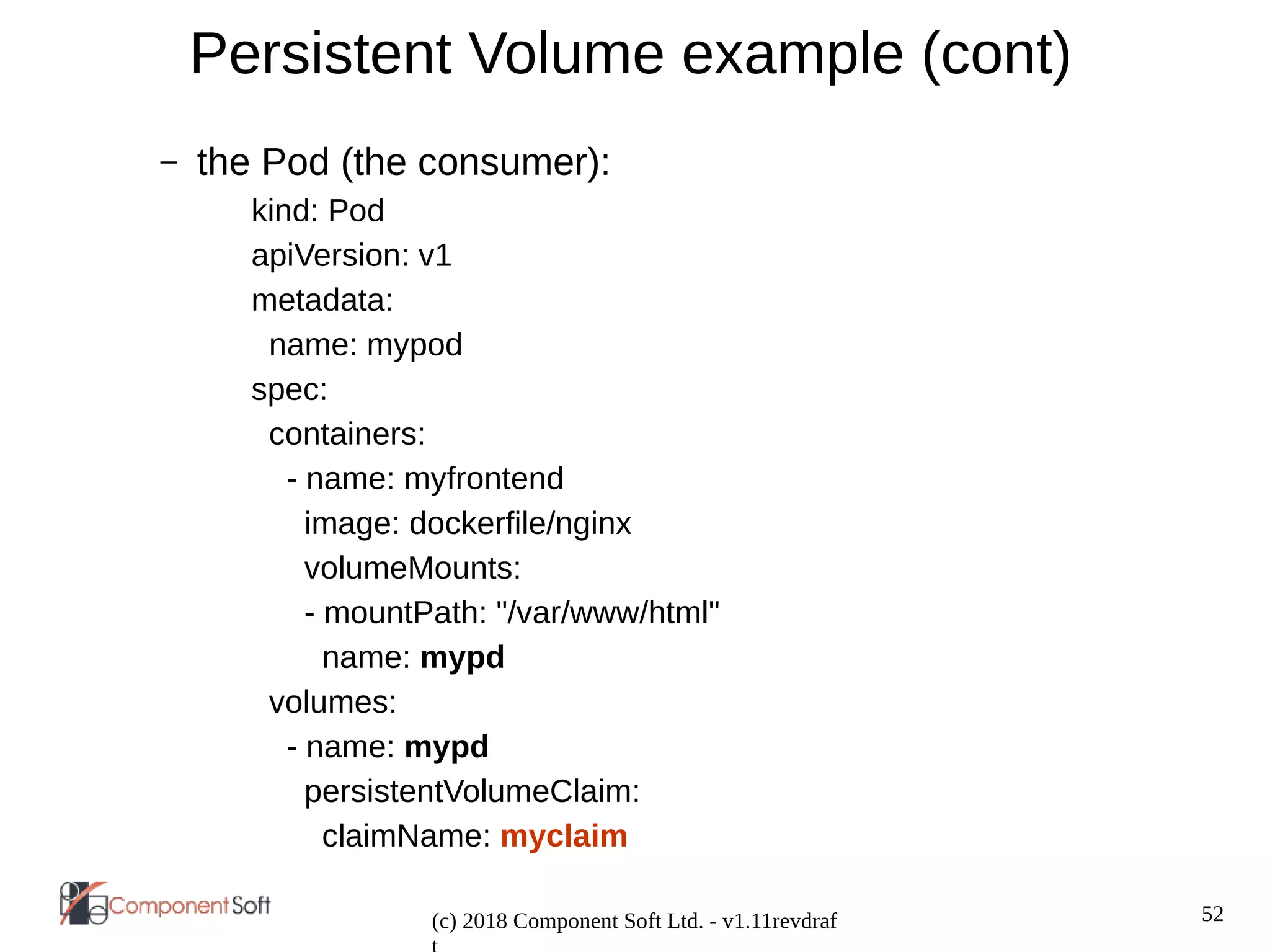

Persistent Volume example (cont)
– the Pod (the consumer):
kind: Pod
apiVersion: v1
metadata:
name: mypod
spec:
containers:
- name: myfrontend
image: dockerfile/nginx
volumeMounts:
- mountPath: "/var/www/html"
name: mypd
volumes:
- name: mypd
persistentVolumeClaim:
claimName: myclaim

53

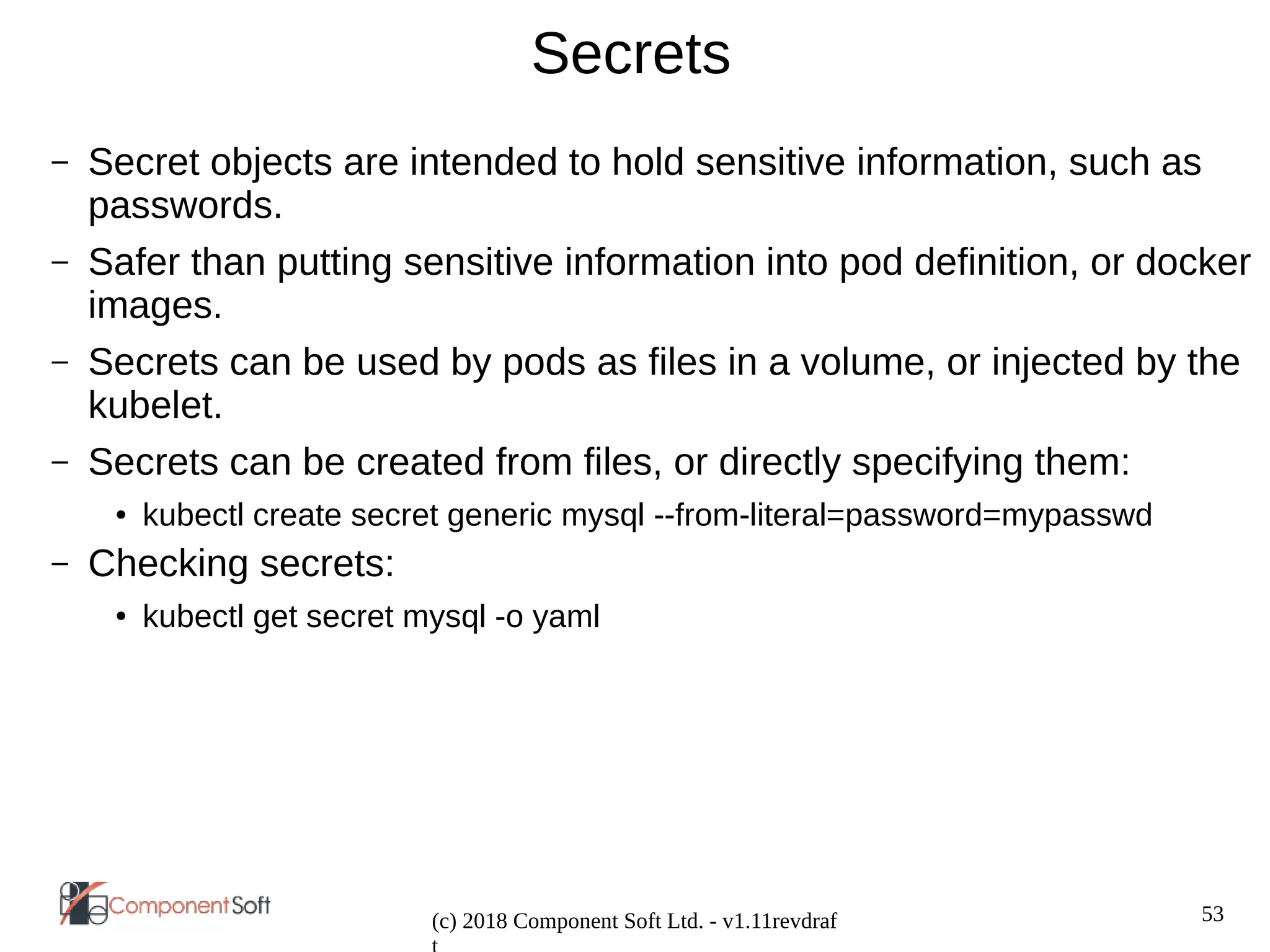

Secrets
– Secret objects are intended to hold sensitive information, such as
passwords.
– Safer than putting sensitive information into pod definition, or docker
images.
– Secrets can be used by pods as files in a volume, or injected by the
kubelet.
– Secrets can be created from files, or directly specifying them:
● kubectl create secret generic mysql --from-literal=password=mypasswd
– Checking secrets:
● kubectl get secret mysql -o yaml

54

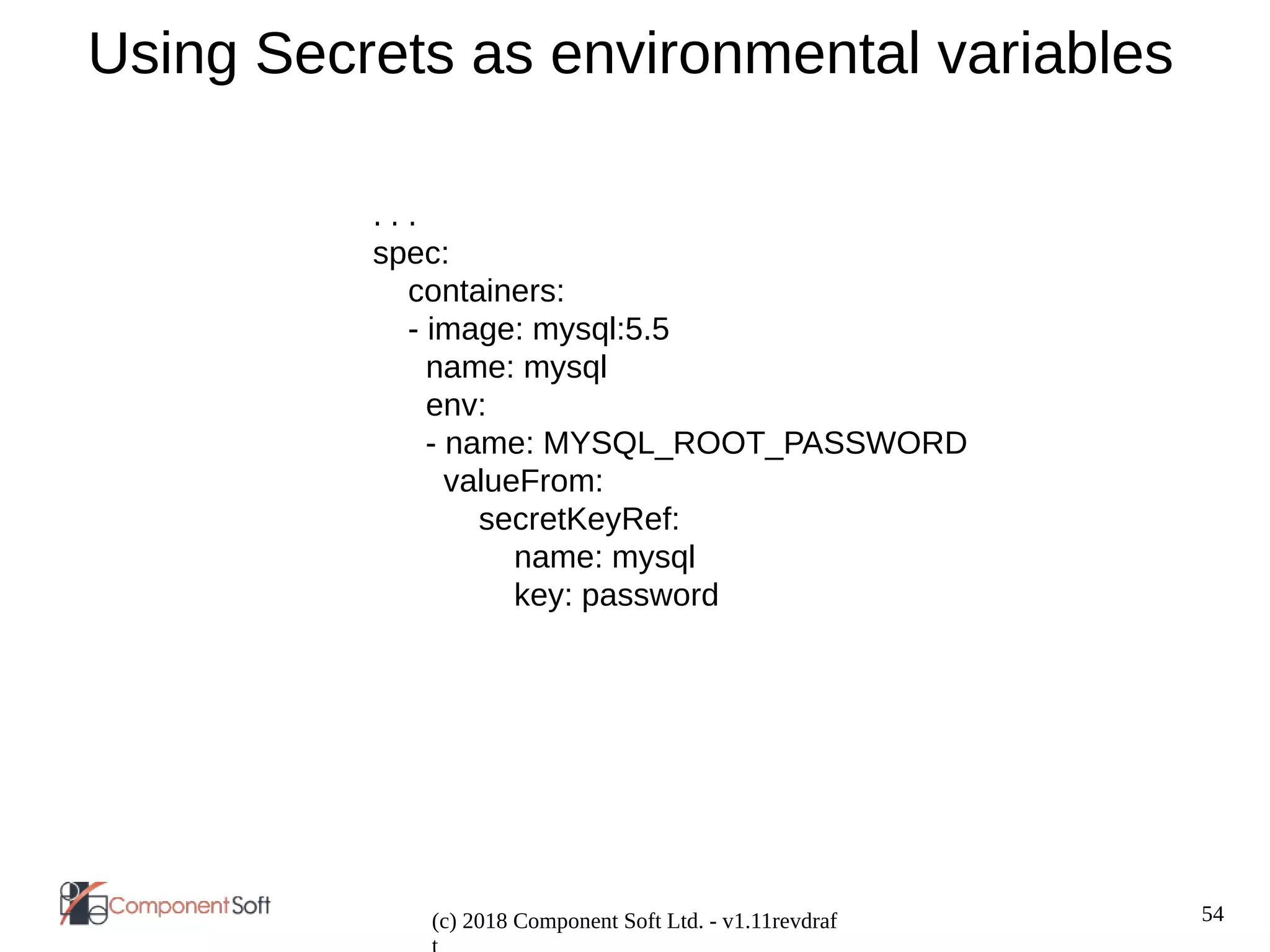

Using Secrets as environmental variables
. . .
spec:
containers:
- image: mysql:5.5
name: mysql
env:
- name: MYSQL_ROOT_PASSWORD
valueFrom:
secretKeyRef:
name: mysql
key: password

55

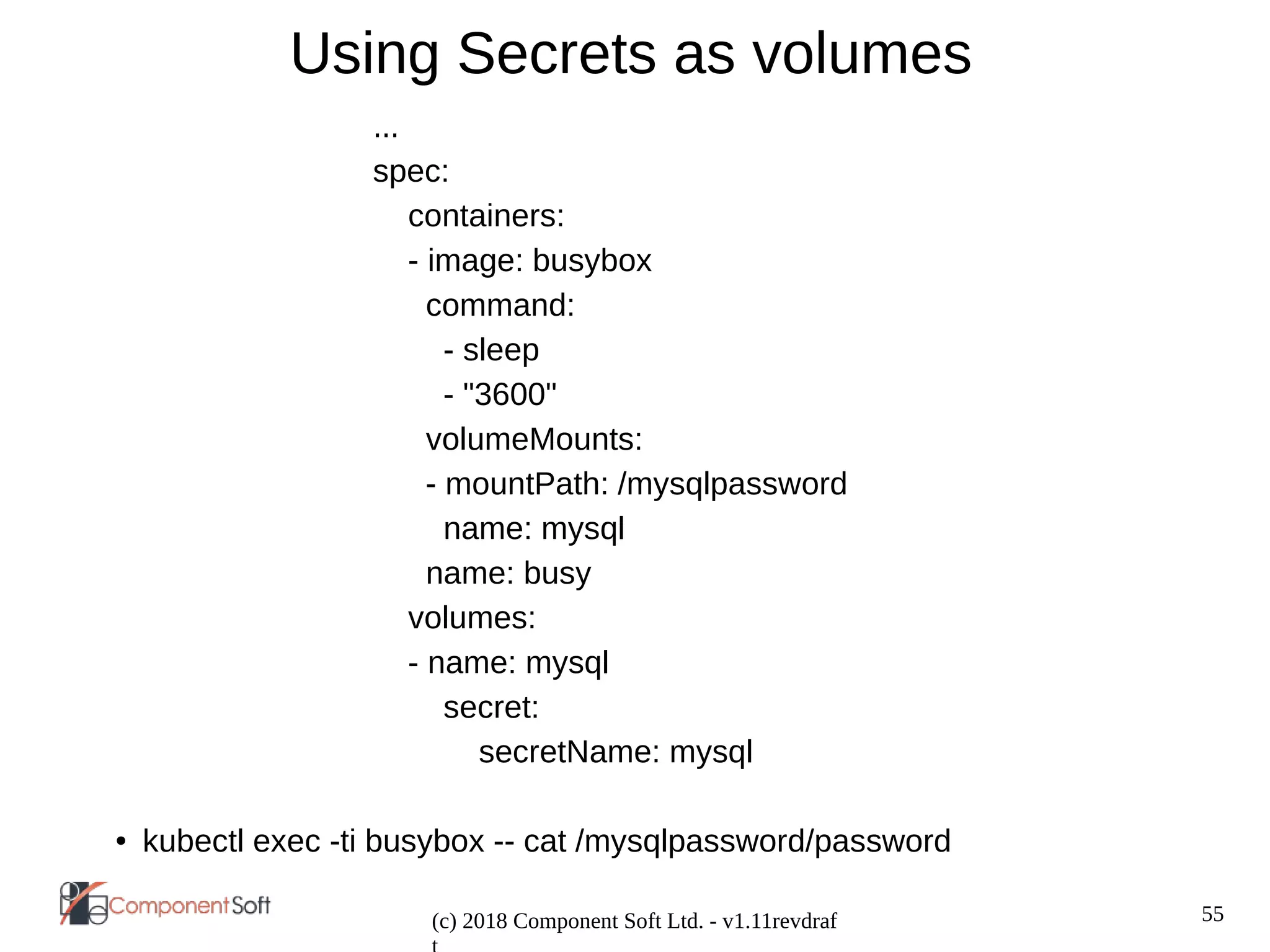

Using Secrets as volumes
...
spec:
containers:
- image: busybox
command:
- sleep
- "3600"
volumeMounts:
- mountPath: /mysqlpassword
name: mysql
name: busy
volumes:
- name: mysql
secret:
secretName: mysql
● kubectl exec -ti busybox -- cat /mysqlpassword/password

56

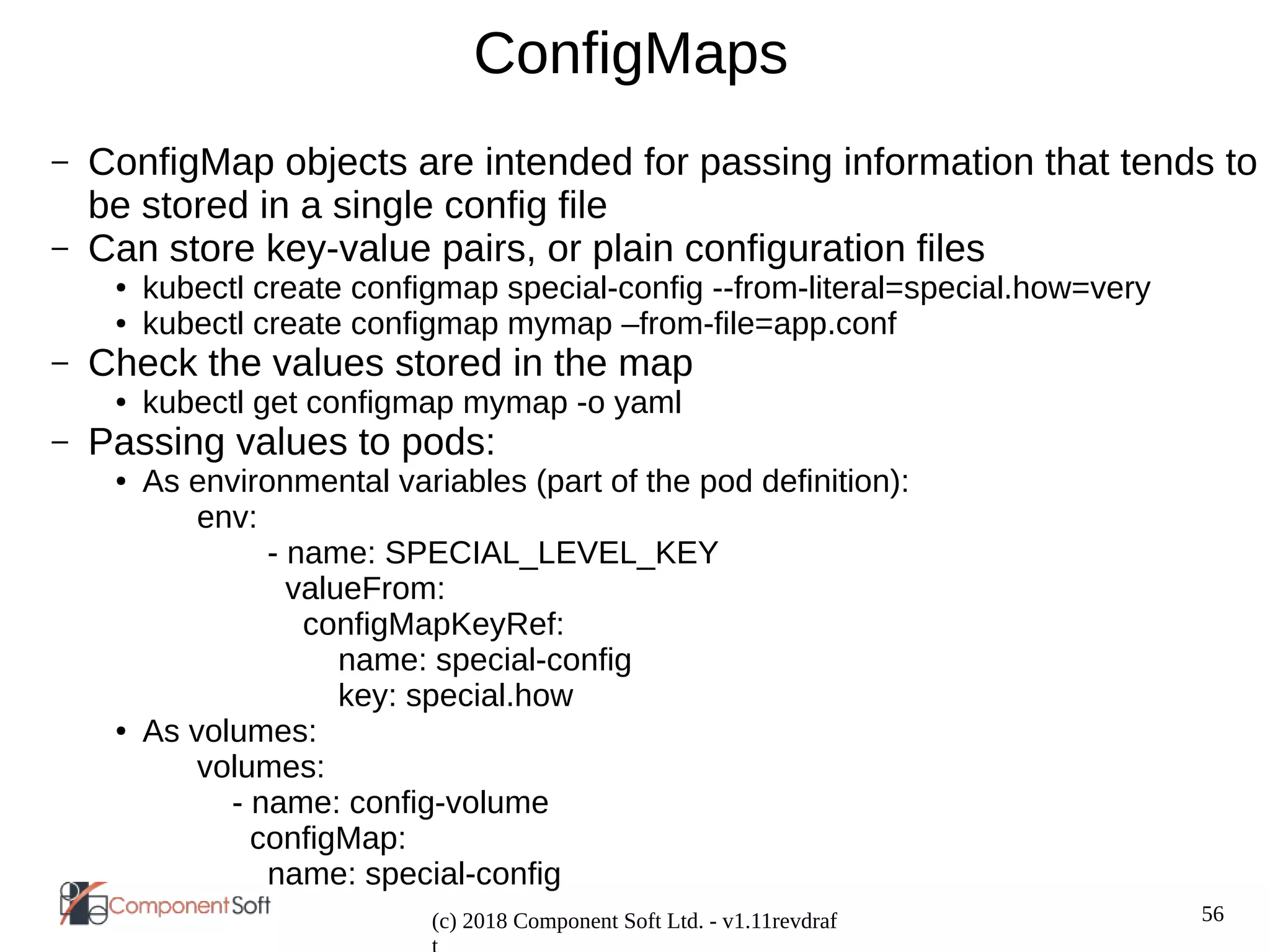

ConfigMaps
– ConfigMap objects are intended for passing information that tends to
be stored in a single config file
– Can store key-value pairs, or plain configuration files
● kubectl create configmap special-config --from-literal=special.how=very
● kubectl create configmap mymap –from-file=app.conf
– Check the values stored in the map
● kubectl get configmap mymap -o yaml
– Passing values to pods:
● As environmental variables (part of the pod definition):
env:
- name: SPECIAL_LEVEL_KEY
valueFrom:
configMapKeyRef:
name: special-config
key: special.how
● As volumes:
volumes:
- name: config-volume
configMap:
name: special-config

57

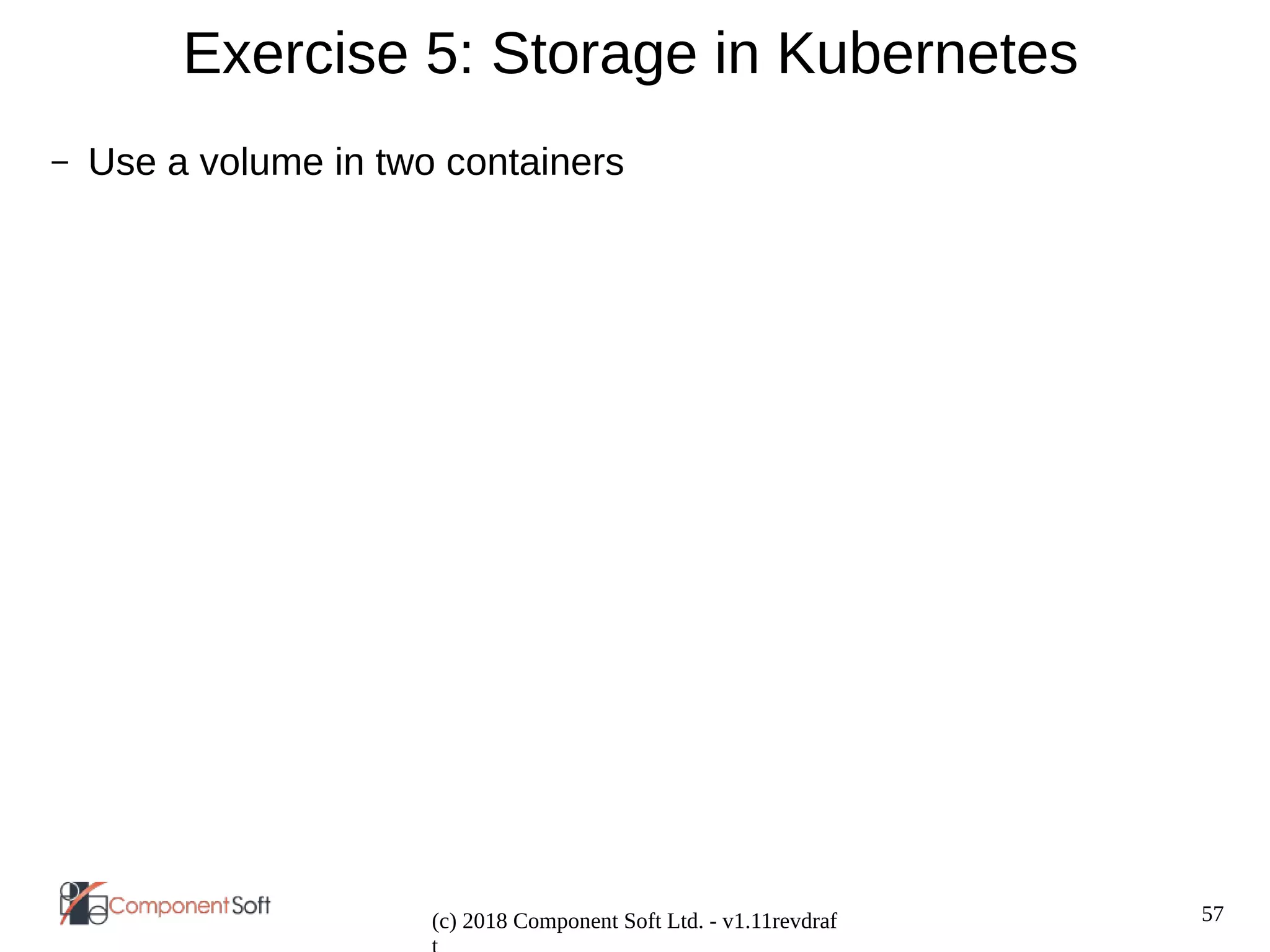

Exercise 5: Storage in Kubernetes
– Use a volume in two containers

Kubernetes Administration from Zero to Hero.pdf

More Related Content

Similar to Kubernetes Administration from Zero to Hero.pdf

Recently uploaded

Kubernetes Administration from Zero to Hero.pdf
