JSR 354 - Money and Currency API

JSR 354: Money and Currency API
Rajmahendra Hegde
JUGChennai Lead
Tweets: @rajonjava
JavaOne India 2013 Hyderabad 8th & 9th M

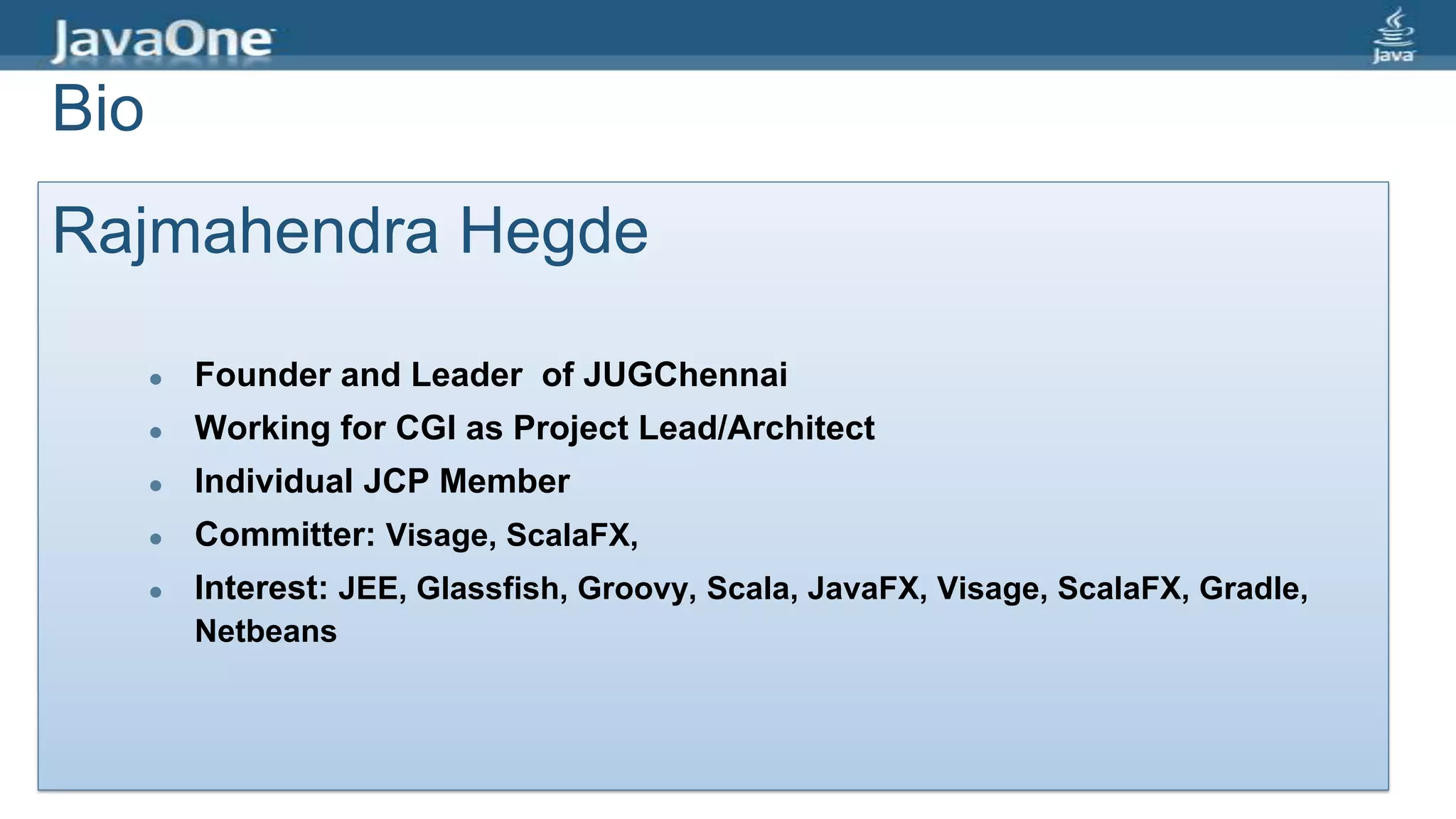

Bio
Rajmahendra Hegde
 Founder and Leader of JUGChennai
 Working for CGI as Project Lead/Architect
 Individual JCP Member
 Committer: Visage, ScalaFX,
 Interest: JEE, Glassfish, Groovy, Scala, JavaFX, Visage, ScalaFX, Gradle,
Netbeans

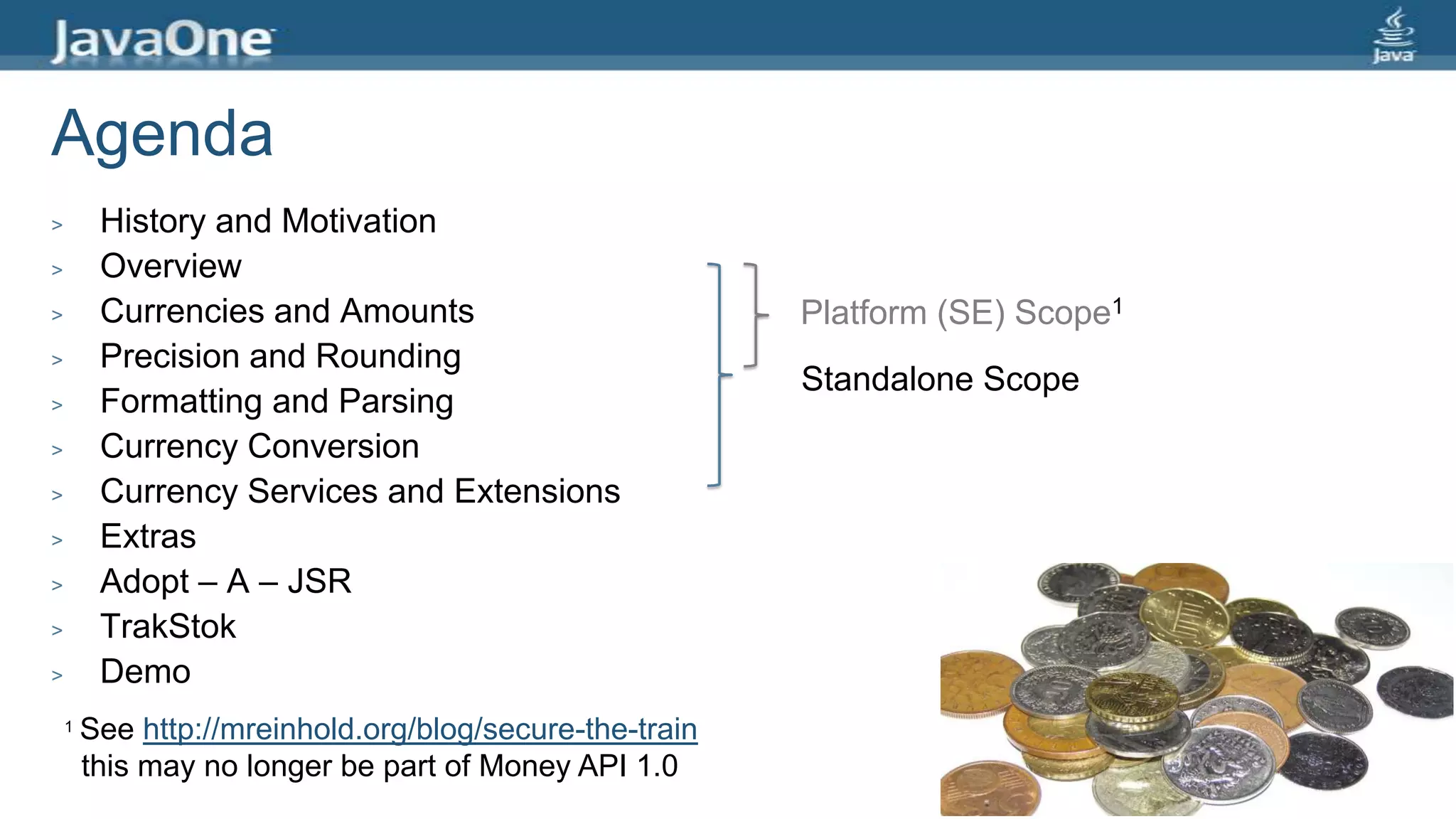

Agenda
> History and Motivation
> Overview
> Currencies and Amounts
> Precision and Rounding
> Formatting and Parsing
> Currency Conversion
> Currency Services and Extensions
> Extras
> Adopt – A – JSR
> TrakStok
> Demo
Platform (SE) Scope1
Standalone Scope
1 See http://mreinhold.org/blog/secure-the-train
this may no longer be part of Money API 1.0

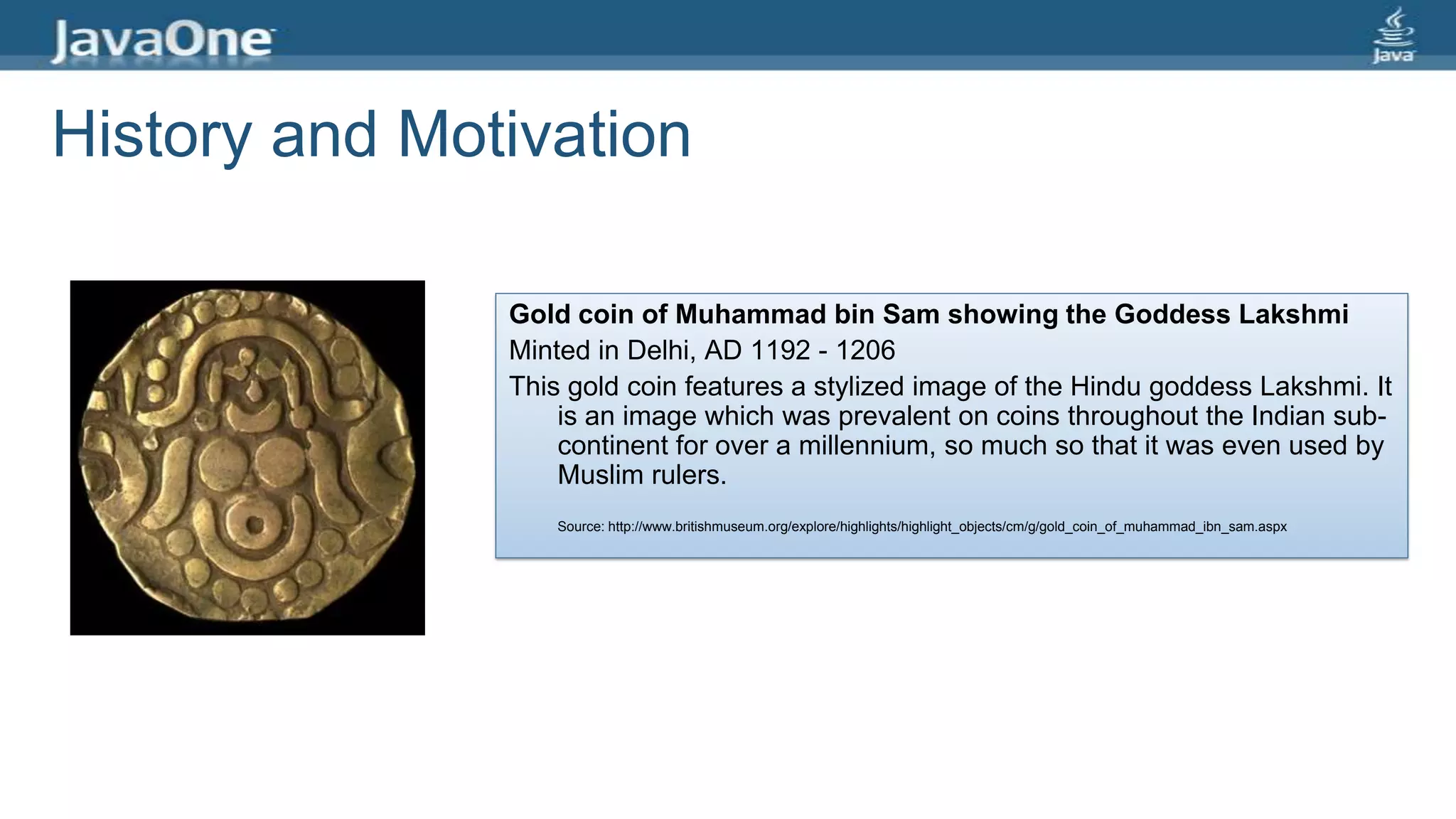

History and Motivation
Gold coin of Muhammad bin Sam showing the Goddess Lakshmi
Minted in Delhi, AD 1192 - 1206
This gold coin features a stylized image of the Hindu goddess Lakshmi. It
is an image which was prevalent on coins throughout the Indian sub-
continent for over a millennium, so much so that it was even used by
Muslim rulers.
Source: http://www.britishmuseum.org/explore/highlights/highlight_objects/cm/g/gold_coin_of_muhammad_ibn_sam.aspx

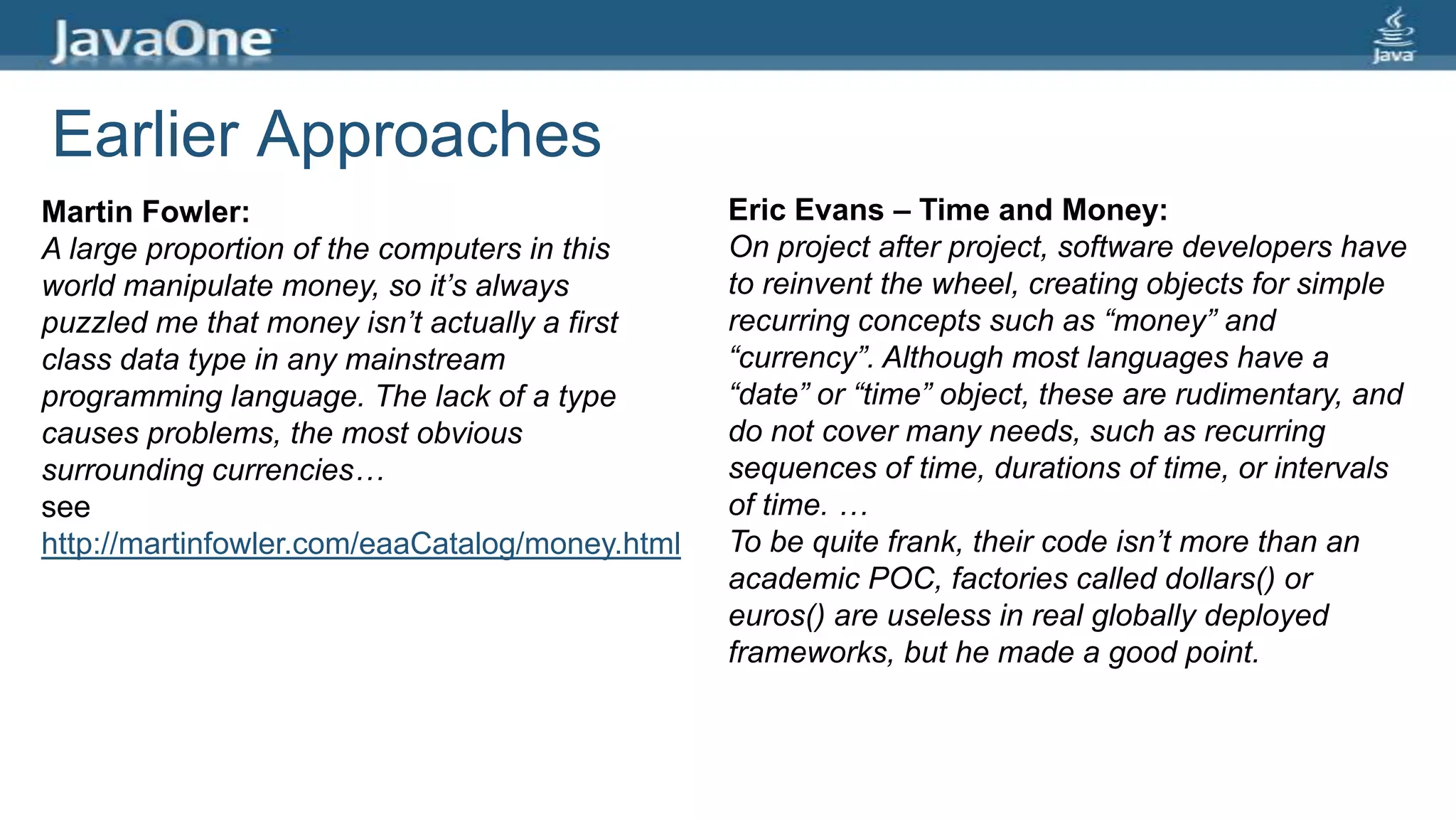

Earlier Approaches
Martin Fowler:
A large proportion of the computers in this
world manipulate money, so it’s always
puzzled me that money isn’t actually a first
class data type in any mainstream
programming language. The lack of a type
causes problems, the most obvious
surrounding currencies…
see
http://martinfowler.com/eaaCatalog/money.html
Eric Evans – Time and Money:
On project after project, software developers have
to reinvent the wheel, creating objects for simple
recurring concepts such as “money” and
“currency”. Although most languages have a
“date” or “time” object, these are rudimentary, and
do not cover many needs, such as recurring
sequences of time, durations of time, or intervals
of time. …
To be quite frank, their code isn’t more than an
academic POC, factories called dollars() or
euros() are useless in real globally deployed
frameworks, but he made a good point.

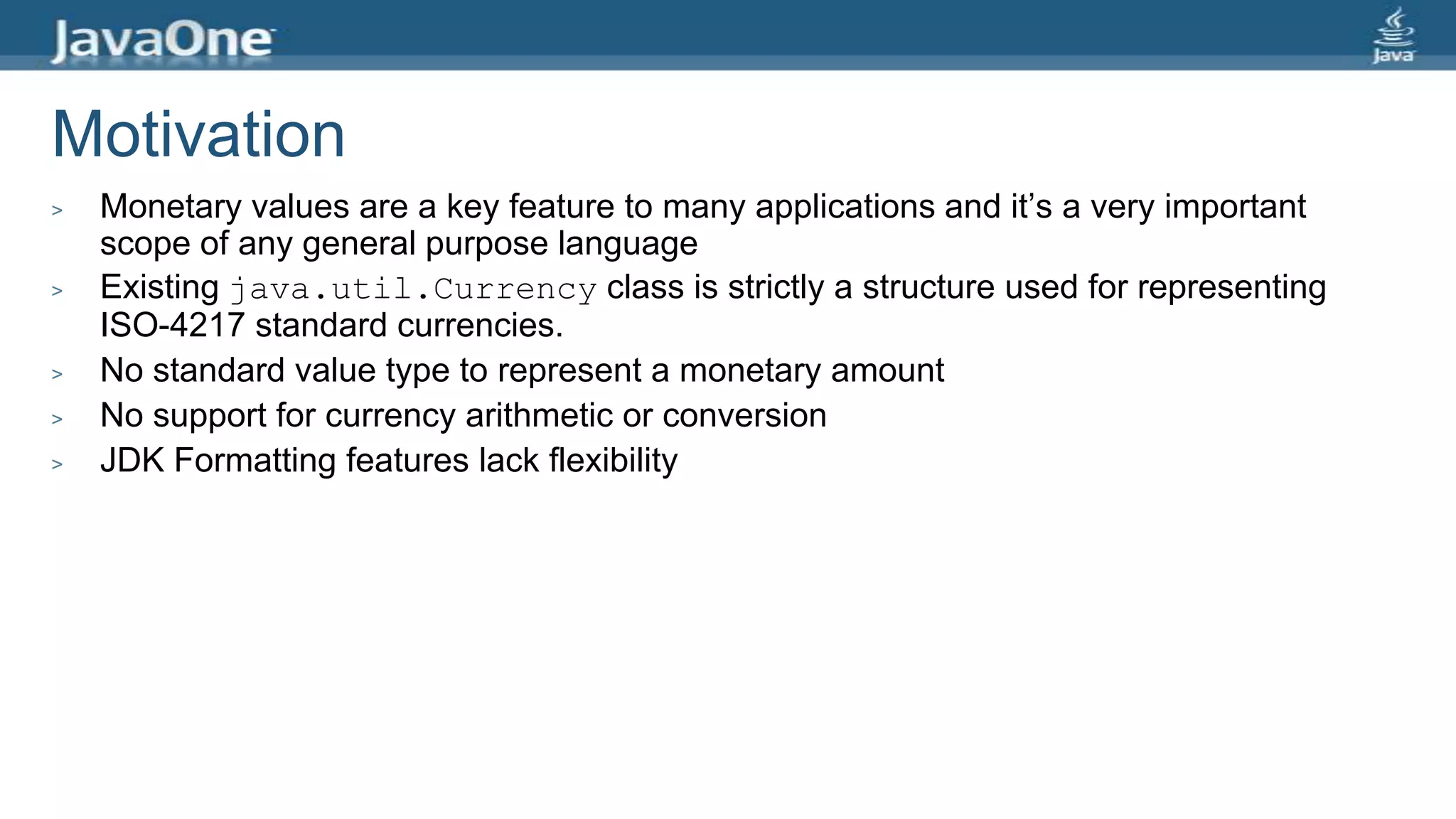

Motivation
> Monetary values are a key feature to many applications and it’s a very important
scope of any general purpose language
> Existing java.util.Currency class is strictly a structure used for representing
ISO-4217 standard currencies.
> No standard value type to represent a monetary amount
> No support for currency arithmetic or conversion
> JDK Formatting features lack flexibility

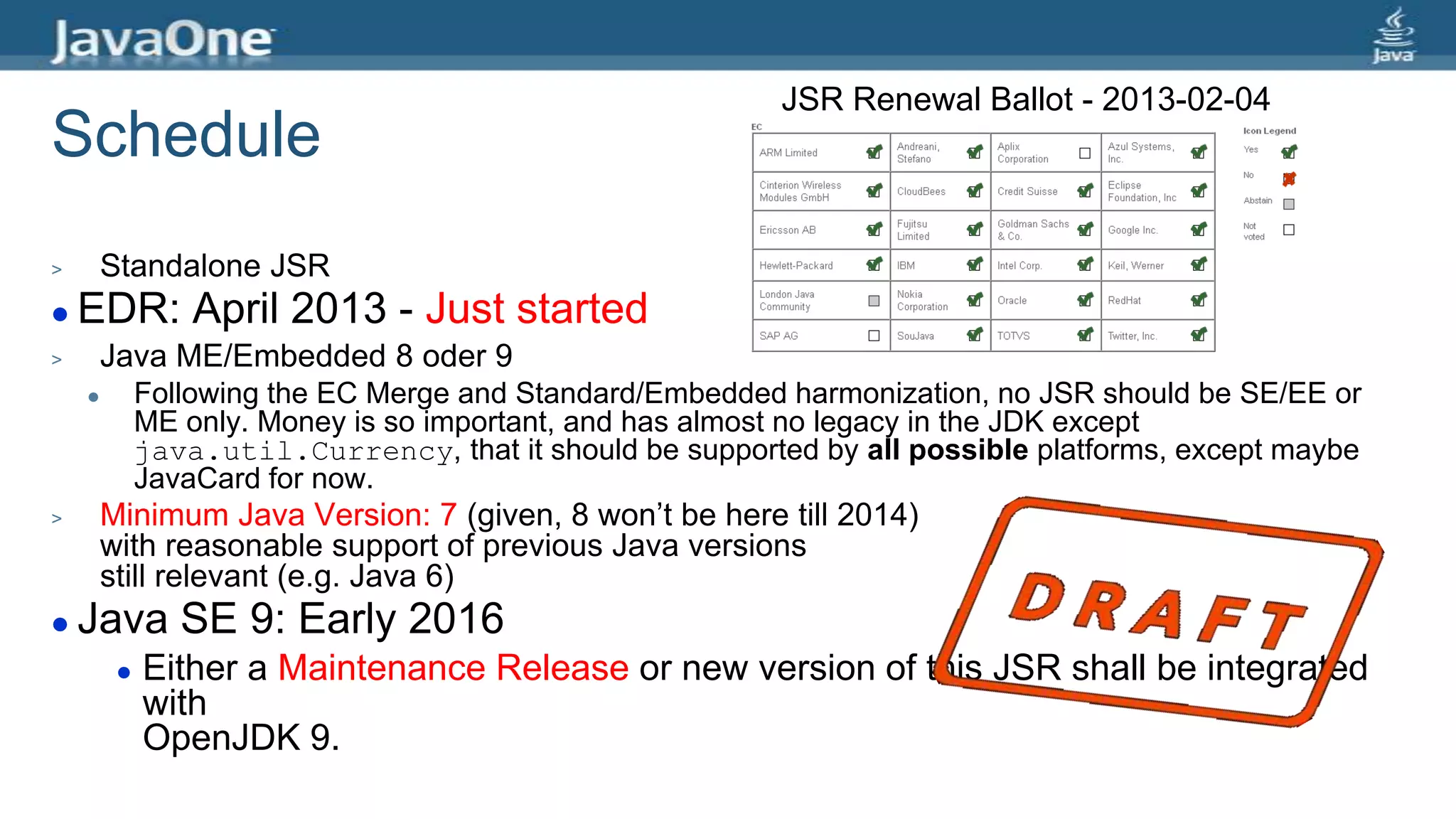

Schedule
> Standalone JSR
 EDR: April 2013 - Just started
> Java ME/Embedded 8 oder 9
 Following the EC Merge and Standard/Embedded harmonization, no JSR should be SE/EE or
ME only. Money is so important, and has almost no legacy in the JDK except
java.util.Currency, that it should be supported by all possible platforms, except maybe
JavaCard for now.
> Minimum Java Version: 7 (given, 8 won’t be here till 2014)
with reasonable support of previous Java versions
still relevant (e.g. Java 6)
 Java SE 9: Early 2016
 Either a Maintenance Release or new version of this JSR shall be integrated
with
OpenJDK 9.
JSR Renewal Ballot - 2013-02-04

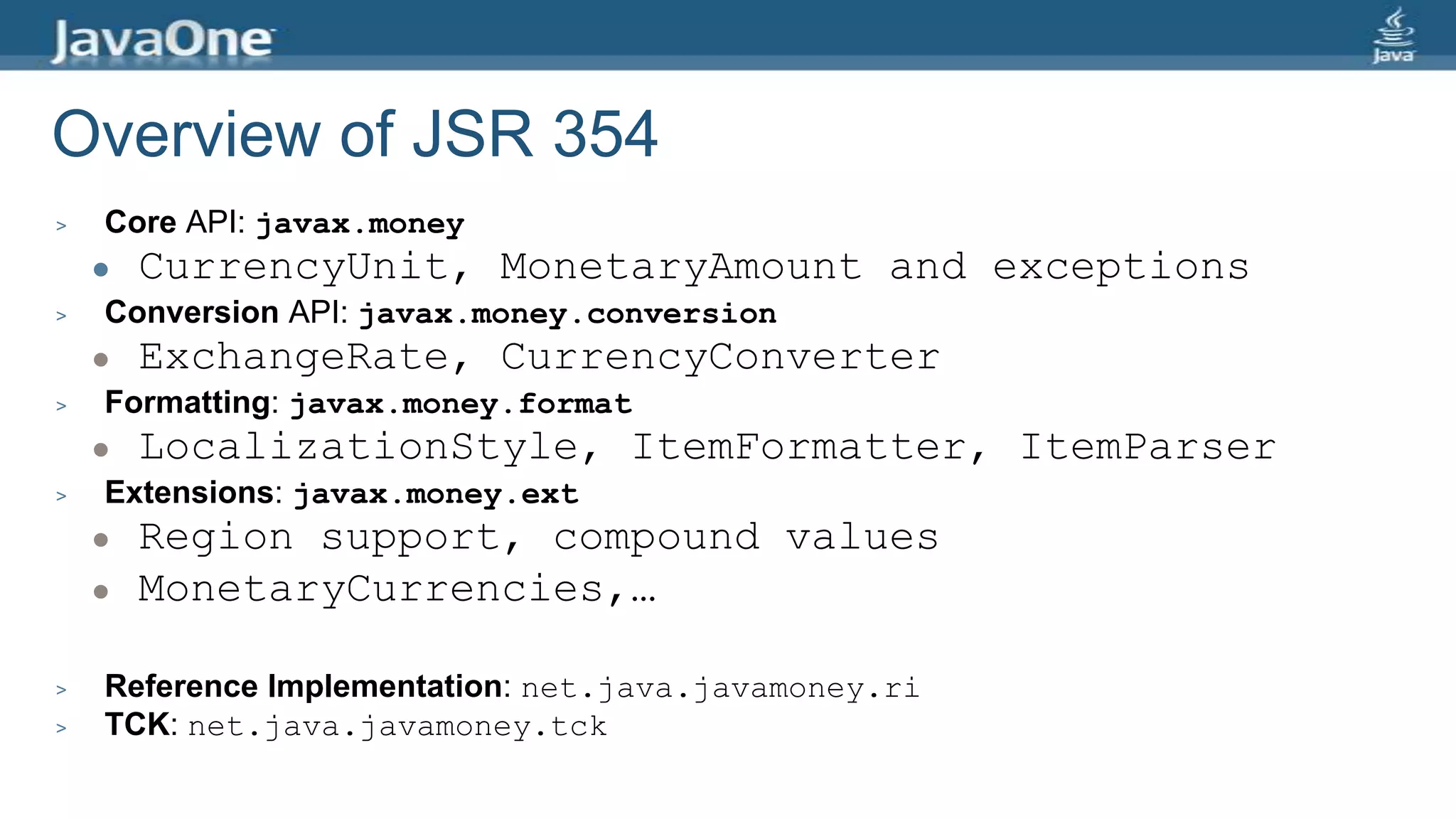

Overview of JSR 354
> Core API: javax.money
 CurrencyUnit, MonetaryAmount and exceptions
> Conversion API: javax.money.conversion
 ExchangeRate, CurrencyConverter
> Formatting: javax.money.format
 LocalizationStyle, ItemFormatter, ItemParser
> Extensions: javax.money.ext
 Region support, compound values
 MonetaryCurrencies,…
> Reference Implementation: net.java.javamoney.ri
> TCK: net.java.javamoney.tck

Currencies and Amounts
javax.money

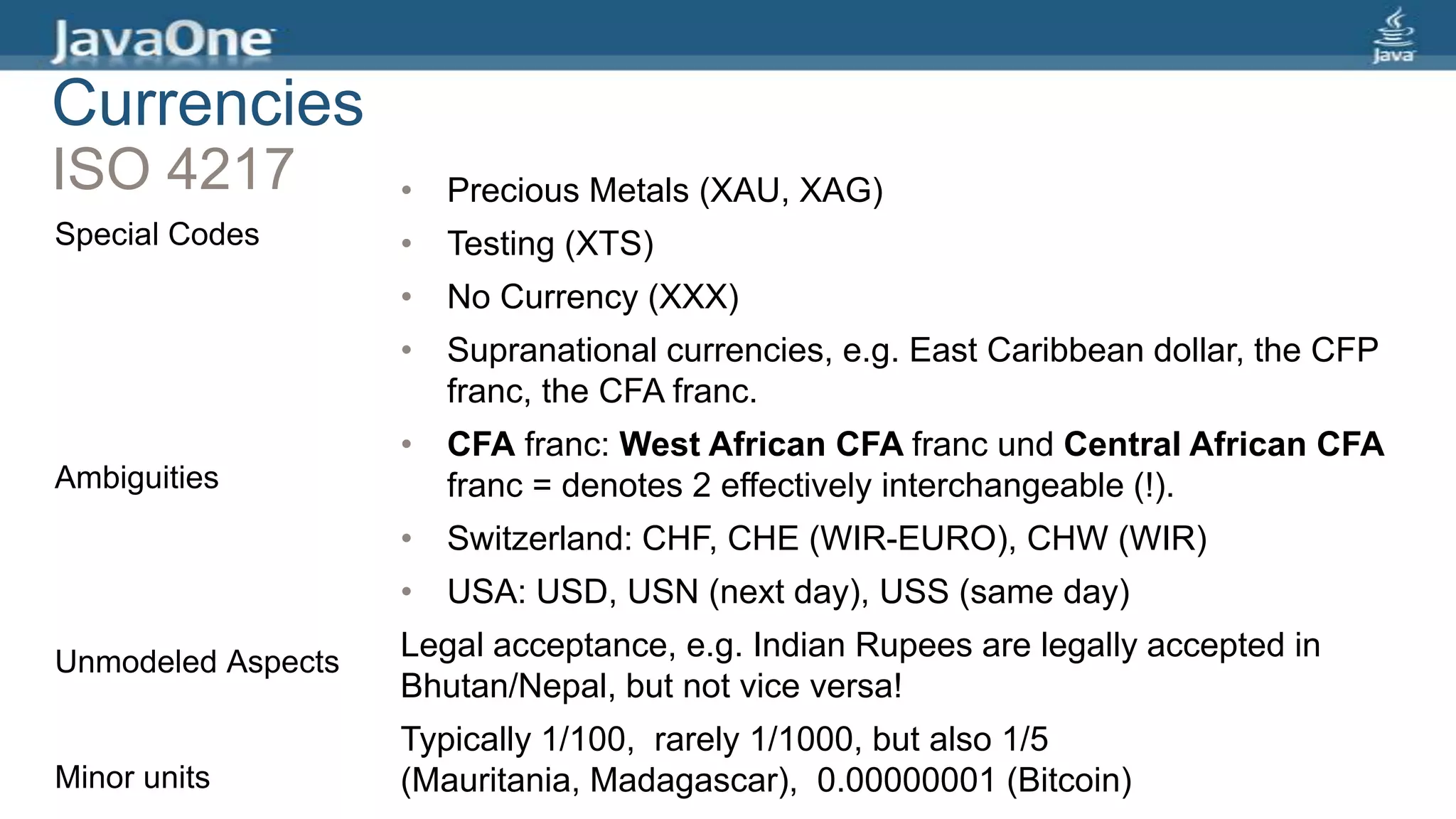

Currencies
ISO 4217
Special Codes
Ambiguities
Unmodeled Aspects
Minor units
• Precious Metals (XAU, XAG)
• Testing (XTS)
• No Currency (XXX)
• Supranational currencies, e.g. East Caribbean dollar, the CFP
franc, the CFA franc.
• CFA franc: West African CFA franc und Central African CFA
franc = denotes 2 effectively interchangeable (!).
• Switzerland: CHF, CHE (WIR-EURO), CHW (WIR)
• USA: USD, USN (next day), USS (same day)
Legal acceptance, e.g. Indian Rupees are legally accepted in
Bhutan/Nepal, but not vice versa!
Typically 1/100, rarely 1/1000, but also 1/5
(Mauritania, Madagascar), 0.00000001 (Bitcoin)

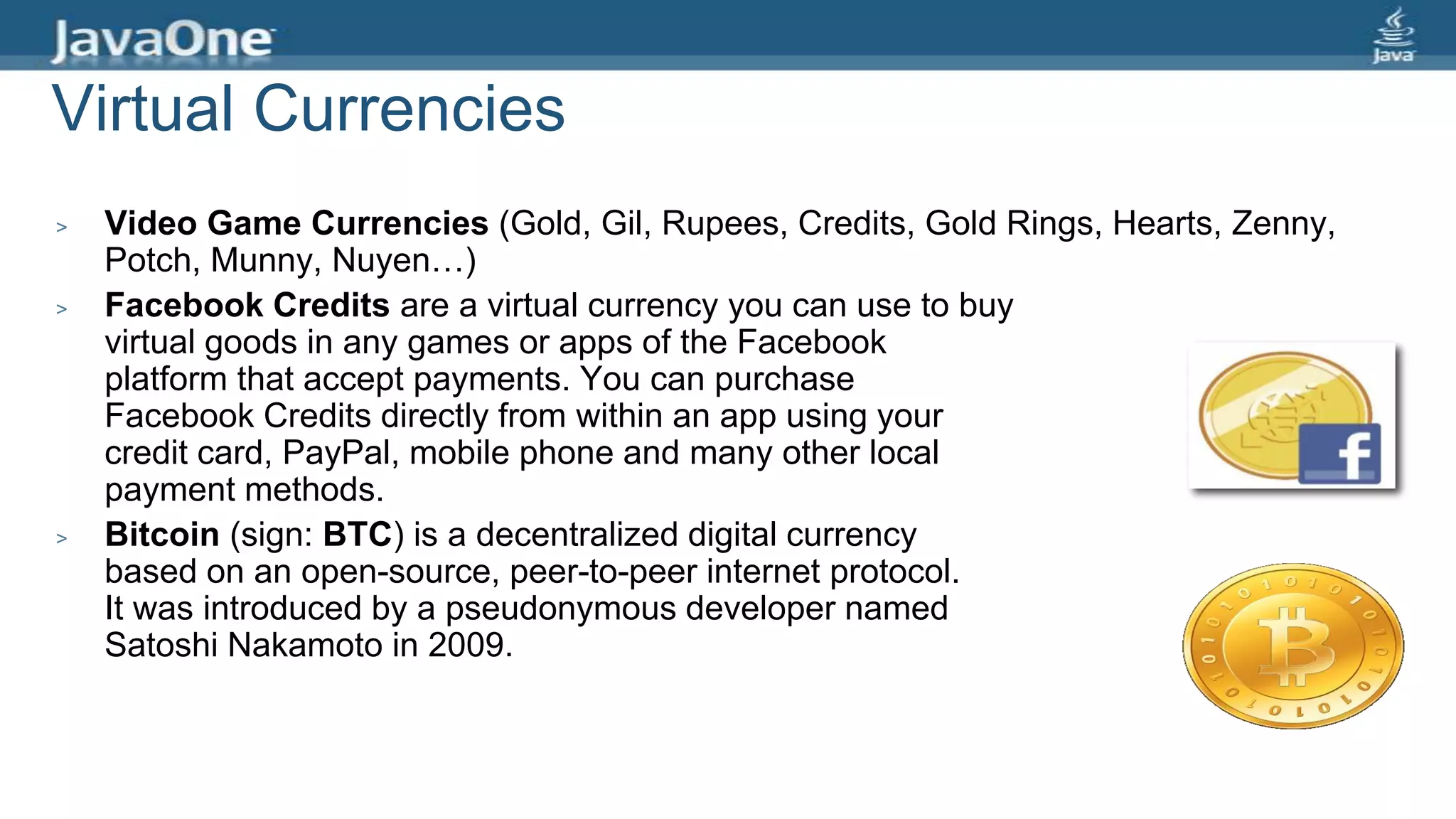

Virtual Currencies
> Video Game Currencies (Gold, Gil, Rupees, Credits, Gold Rings, Hearts, Zenny,
Potch, Munny, Nuyen…)
> Facebook Credits are a virtual currency you can use to buy
virtual goods in any games or apps of the Facebook
platform that accept payments. You can purchase
Facebook Credits directly from within an app using your
credit card, PayPal, mobile phone and many other local
payment methods.
> Bitcoin (sign: BTC) is a decentralized digital currency
based on an open-source, peer-to-peer internet protocol.
It was introduced by a pseudonymous developer named
Satoshi Nakamoto in 2009.

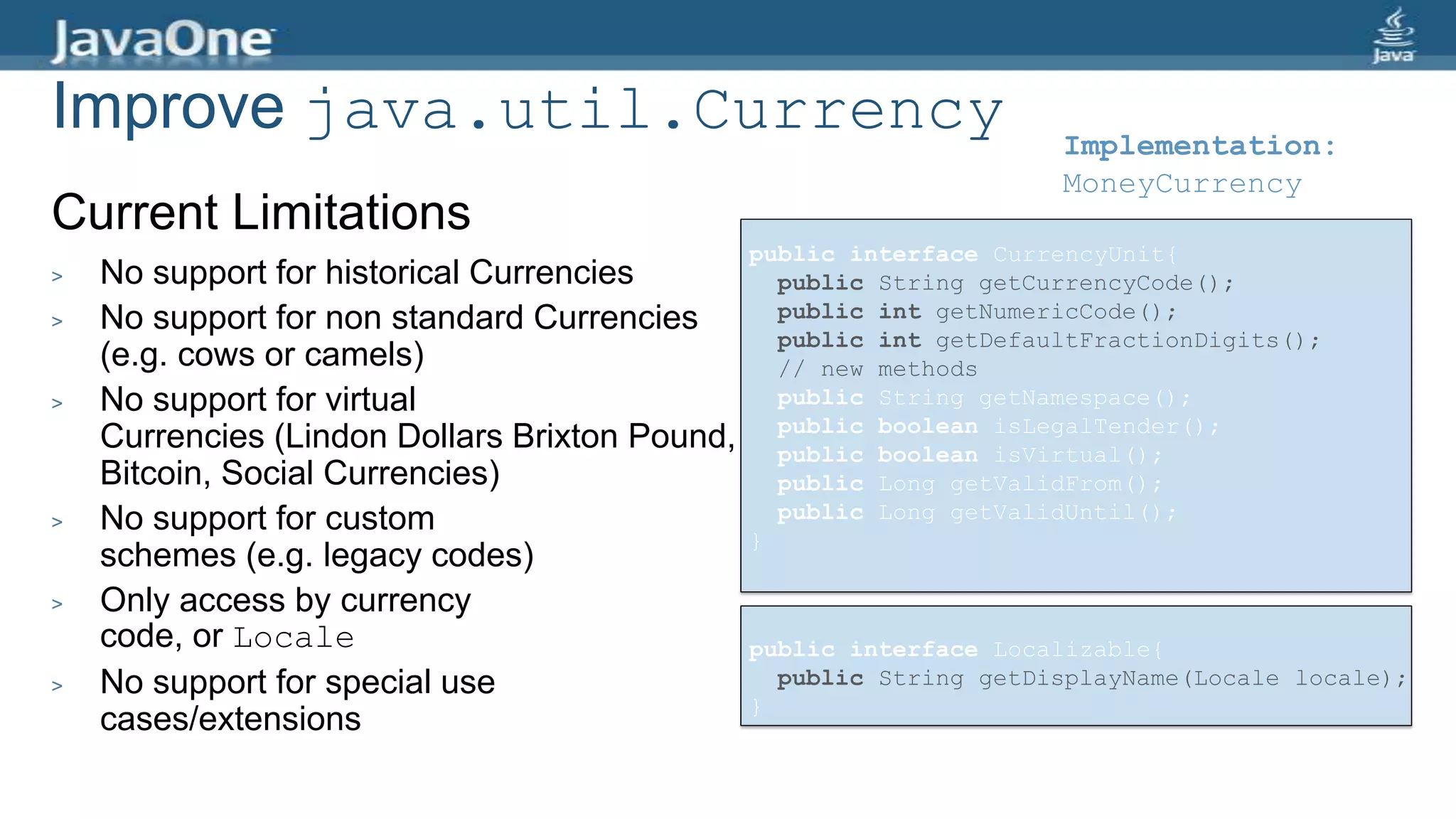

Improve java.util.Currency
Current Limitations
> No support for historical Currencies
> No support for non standard Currencies
(e.g. cows or camels)
> No support for virtual
Currencies (Lindon Dollars Brixton Pound,
Bitcoin, Social Currencies)
> No support for custom
schemes (e.g. legacy codes)
> Only access by currency
code, or Locale
> No support for special use
cases/extensions
Implementation:
MoneyCurrency
public interface CurrencyUnit{
public String getCurrencyCode();
public int getNumericCode();
public int getDefaultFractionDigits();
// new methods
public String getNamespace();
public boolean isLegalTender();
public boolean isVirtual();
public Long getValidFrom();
public Long getValidUntil();
}
public interface Localizable{
public String getDisplayName(Locale locale);
}

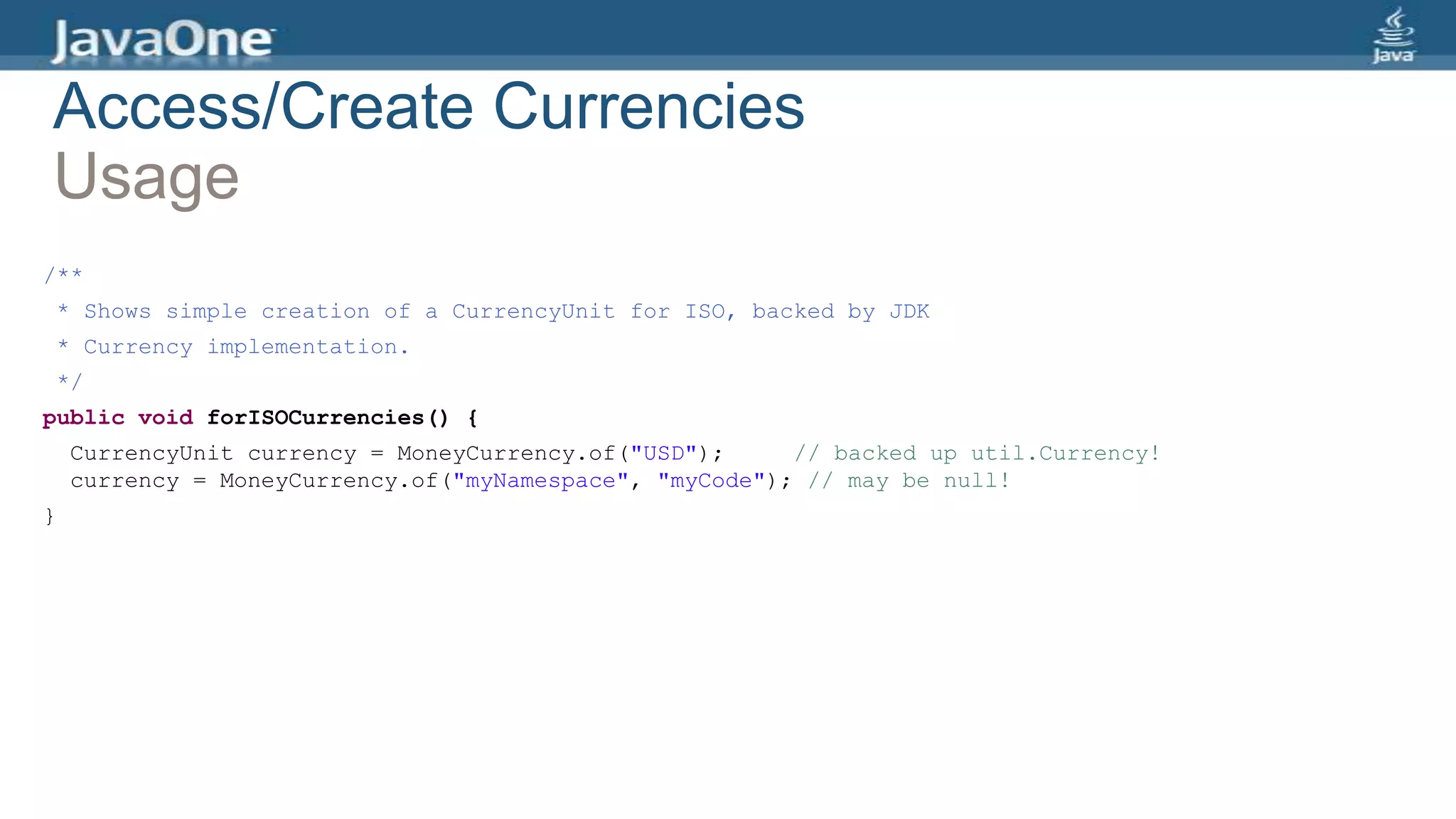

Access/Create Currencies
Usage
/**
* Shows simple creation of a CurrencyUnit for ISO, backed by JDK
* Currency implementation.
*/
public void forISOCurrencies() {
CurrencyUnit currency = MoneyCurrency.of("USD"); // backed up util.Currency!
currency = MoneyCurrency.of("myNamespace", "myCode"); // may be null!
}

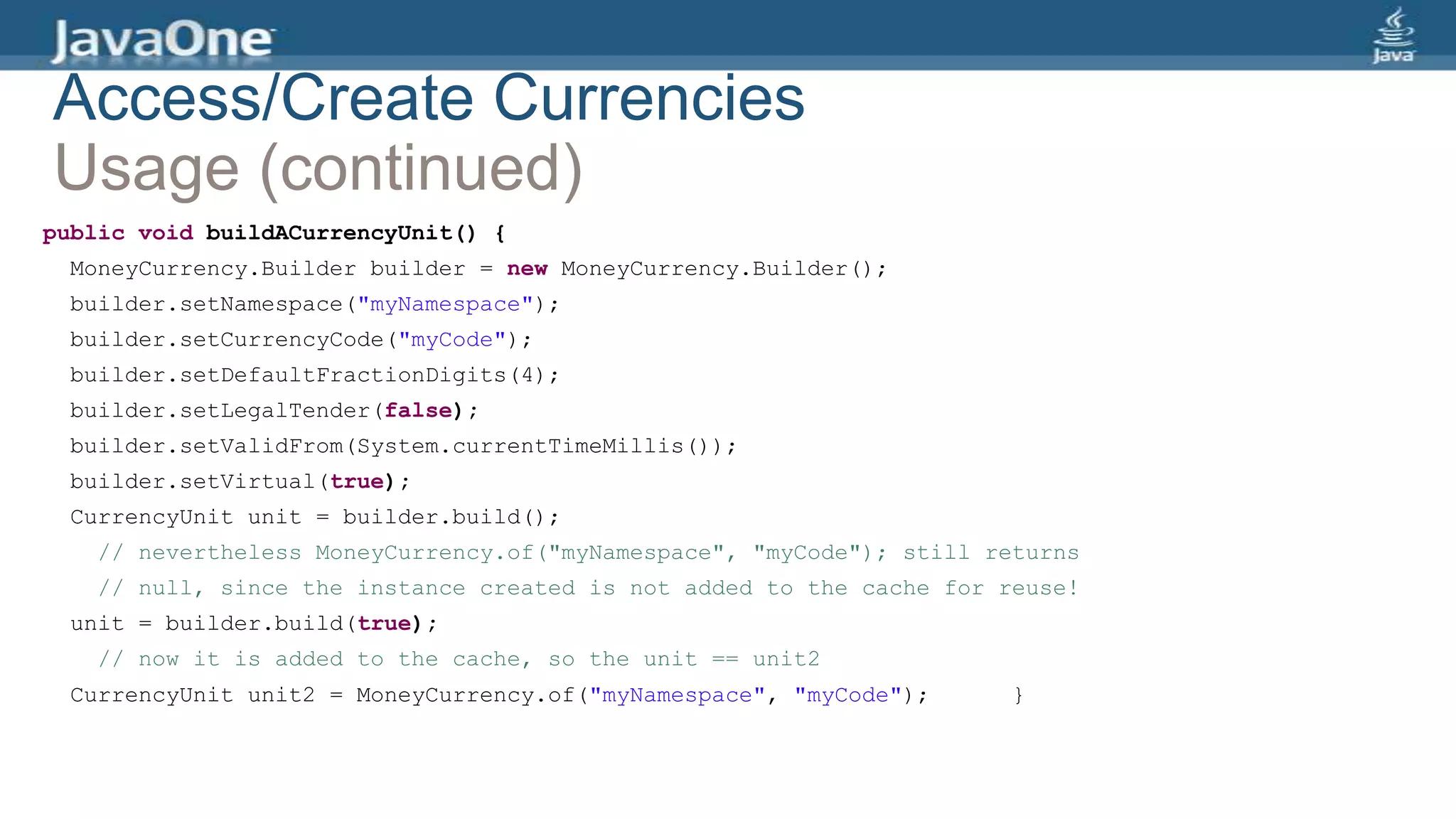

Access/Create Currencies
Usage (continued)
public void buildACurrencyUnit() {
MoneyCurrency.Builder builder = new MoneyCurrency.Builder();
builder.setNamespace("myNamespace");
builder.setCurrencyCode("myCode");
builder.setDefaultFractionDigits(4);
builder.setLegalTender(false);
builder.setValidFrom(System.currentTimeMillis());
builder.setVirtual(true);
CurrencyUnit unit = builder.build();
// nevertheless MoneyCurrency.of("myNamespace", "myCode"); still returns
// null, since the instance created is not added to the cache for reuse!
unit = builder.build(true);
// now it is added to the cache, so the unit == unit2
CurrencyUnit unit2 = MoneyCurrency.of("myNamespace", "myCode"); }

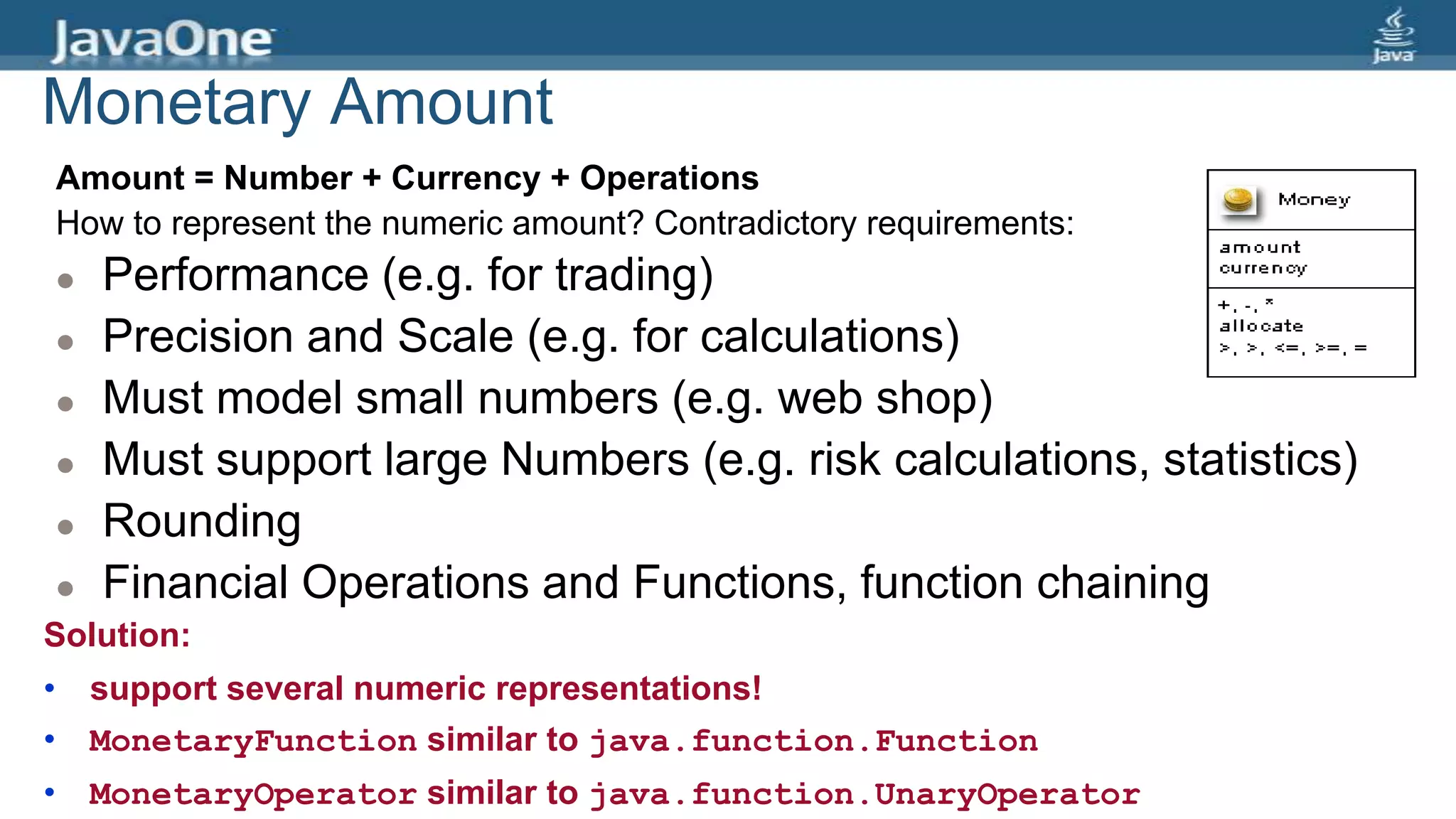

Monetary Amount
Amount = Number + Currency + Operations
How to represent the numeric amount? Contradictory requirements:
 Performance (e.g. for trading)
 Precision and Scale (e.g. for calculations)
 Must model small numbers (e.g. web shop)
 Must support large Numbers (e.g. risk calculations, statistics)
 Rounding
 Financial Operations and Functions, function chaining
Solution:
• support several numeric representations!
• MonetaryFunction similar to java.function.Function
• MonetaryOperator similar to java.function.UnaryOperator

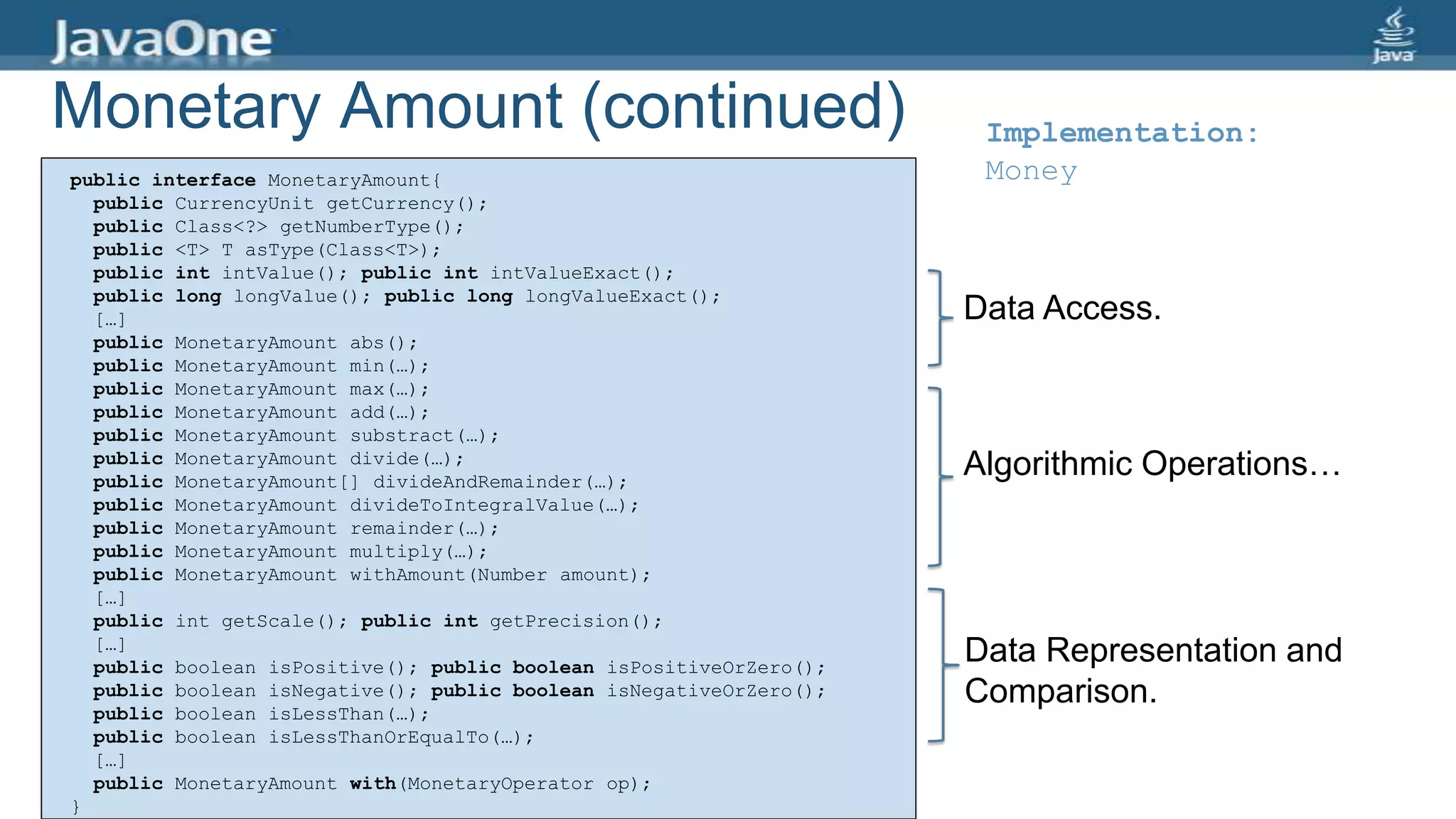

Monetary Amount (continued)
public interface MonetaryAmount{
public CurrencyUnit getCurrency();
public Class<?> getNumberType();
public <T> T asType(Class<T>);
public int intValue(); public int intValueExact();
public long longValue(); public long longValueExact();
[…]
public MonetaryAmount abs();
public MonetaryAmount min(…);
public MonetaryAmount max(…);
public MonetaryAmount add(…);
public MonetaryAmount substract(…);
public MonetaryAmount divide(…);
public MonetaryAmount[] divideAndRemainder(…);
public MonetaryAmount divideToIntegralValue(…);
public MonetaryAmount remainder(…);
public MonetaryAmount multiply(…);
public MonetaryAmount withAmount(Number amount);
[…]
public int getScale(); public int getPrecision();
[…]
public boolean isPositive(); public boolean isPositiveOrZero();
public boolean isNegative(); public boolean isNegativeOrZero();
public boolean isLessThan(…);
public boolean isLessThanOrEqualTo(…);
[…]
public MonetaryAmount with(MonetaryOperator op);
}
Algorithmic Operations…
Data Representation and
Comparison.
Data Access.
Implementation:
Money

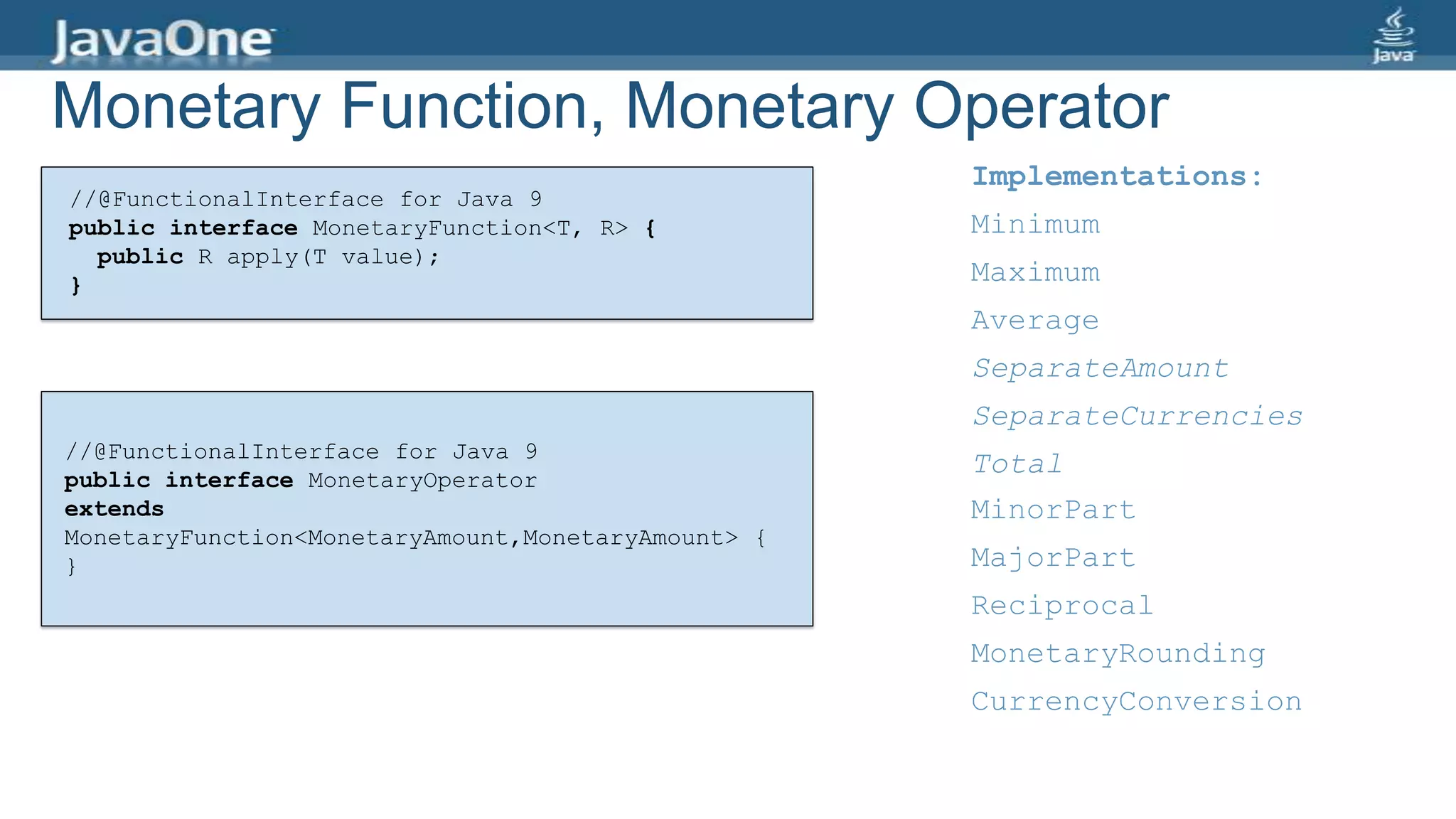

Monetary Function, Monetary Operator
//@FunctionalInterface for Java 9
public interface MonetaryFunction<T, R> {
public R apply(T value);
}
Implementations:
MinorPart
MajorPart
Reciprocal
MonetaryRounding
CurrencyConversion
//@FunctionalInterface for Java 9
public interface MonetaryOperator
extends
MonetaryFunction<MonetaryAmount,MonetaryAmount> {
}
Implementations:
Minimum
Maximum
Average
SeparateAmount
SeparateCurrencies
Total

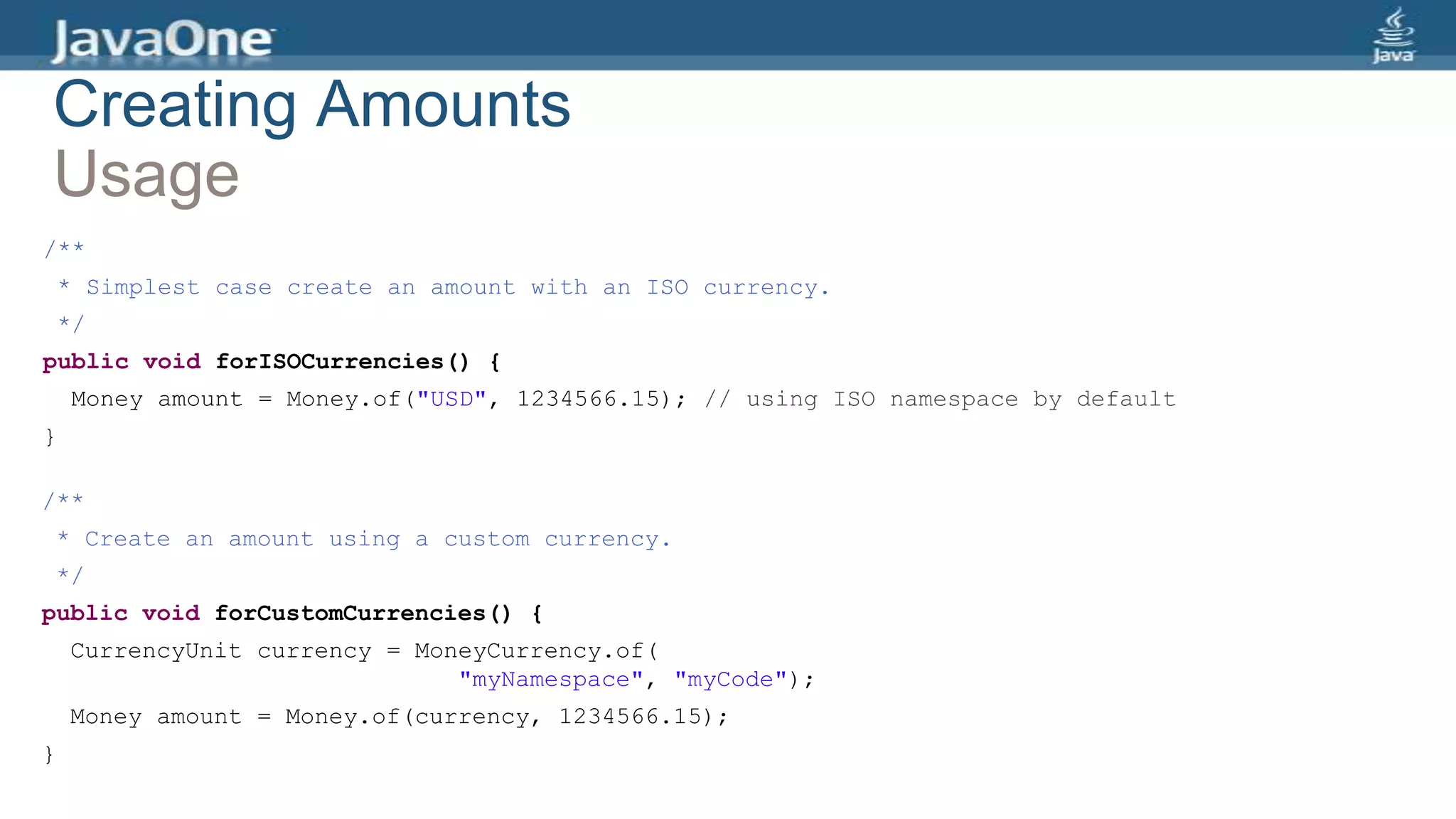

Creating Amounts
Usage
/**
* Simplest case create an amount with an ISO currency.
*/
public void forISOCurrencies() {
Money amount = Money.of("USD", 1234566.15); // using ISO namespace by default
}
/**
* Create an amount using a custom currency.
*/
public void forCustomCurrencies() {
CurrencyUnit currency = MoneyCurrency.of(
"myNamespace", "myCode");
Money amount = Money.of(currency, 1234566.15);
}

Precision and Rounding
javax.money

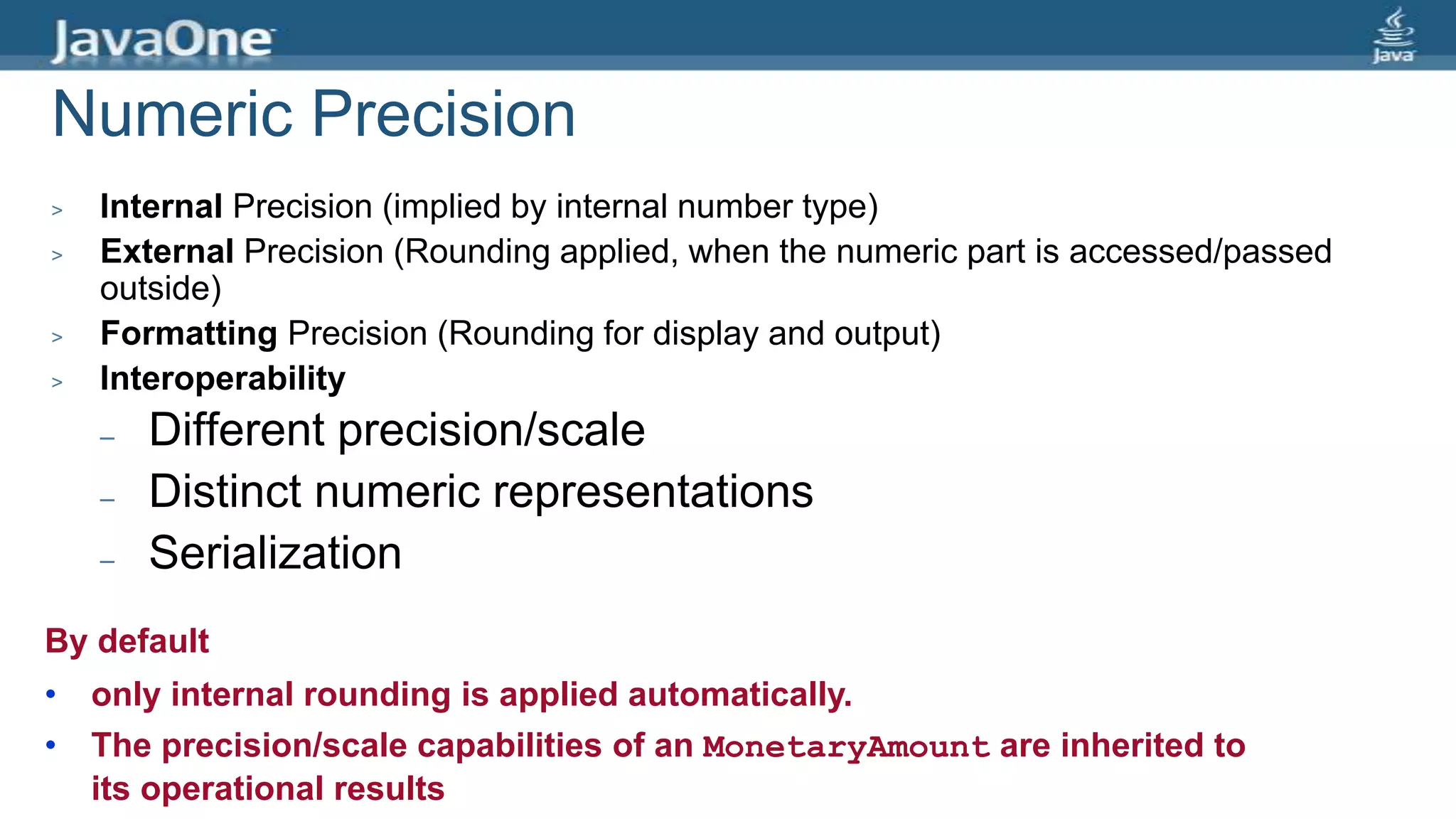

Numeric Precision
> Internal Precision (implied by internal number type)
> External Precision (Rounding applied, when the numeric part is accessed/passed
outside)
> Formatting Precision (Rounding for display and output)
> Interoperability
– Different precision/scale
– Distinct numeric representations
– Serialization
By default
• only internal rounding is applied automatically.
• The precision/scale capabilities of an MonetaryAmount are inherited to
its operational results

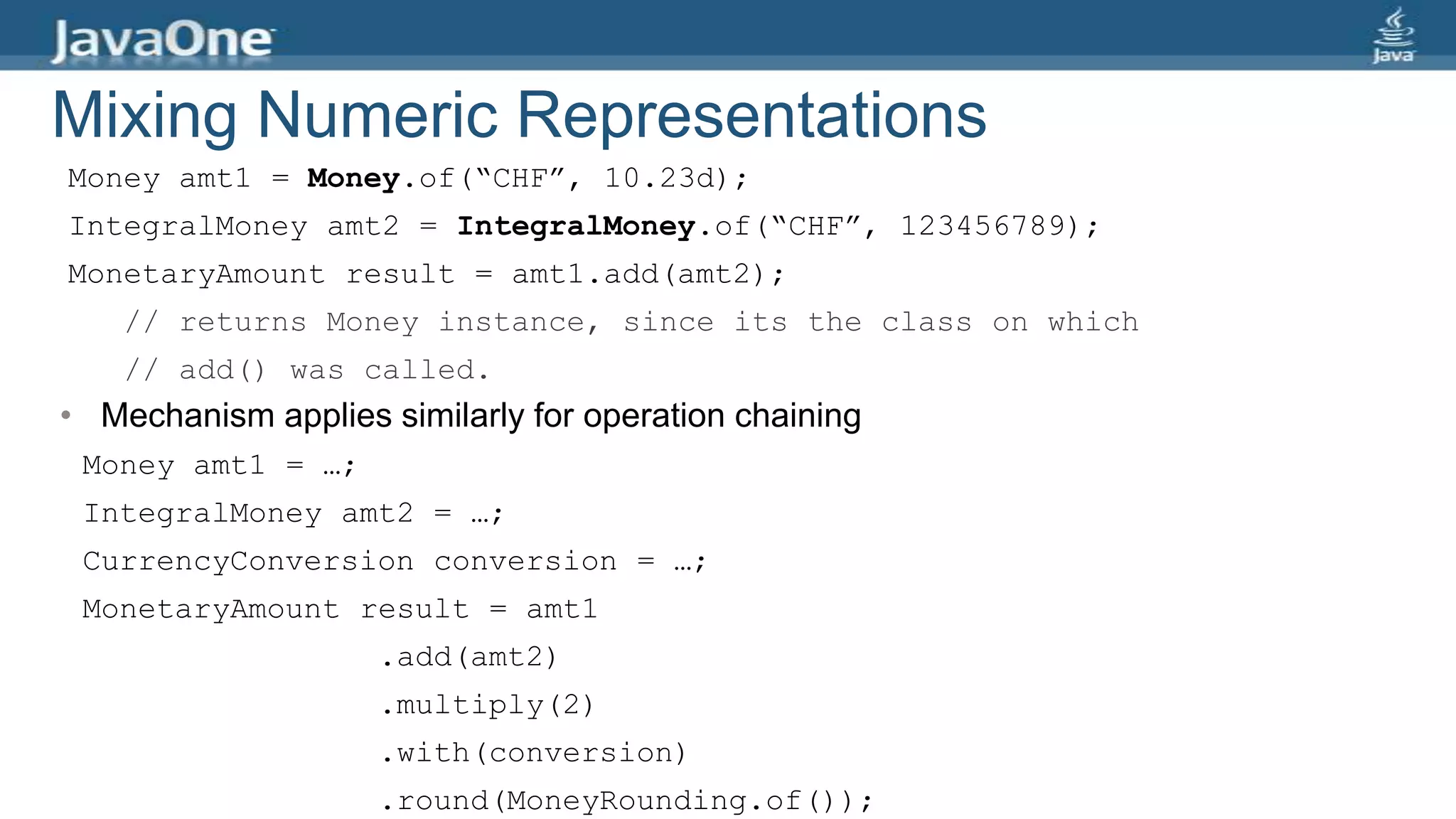

Mixing Numeric Representations
• Mechanism applies similarly for operation chaining
Money amt1 = Money.of(“CHF”, 10.23d);
IntegralMoney amt2 = IntegralMoney.of(“CHF”, 123456789);
MonetaryAmount result = amt1.add(amt2);
// returns Money instance, since its the class on which
// add() was called.
Money amt1 = …;
IntegralMoney amt2 = …;
CurrencyConversion conversion = …;
MonetaryAmount result = amt1
.add(amt2)
.multiply(2)
.with(conversion)
.round(MoneyRounding.of());

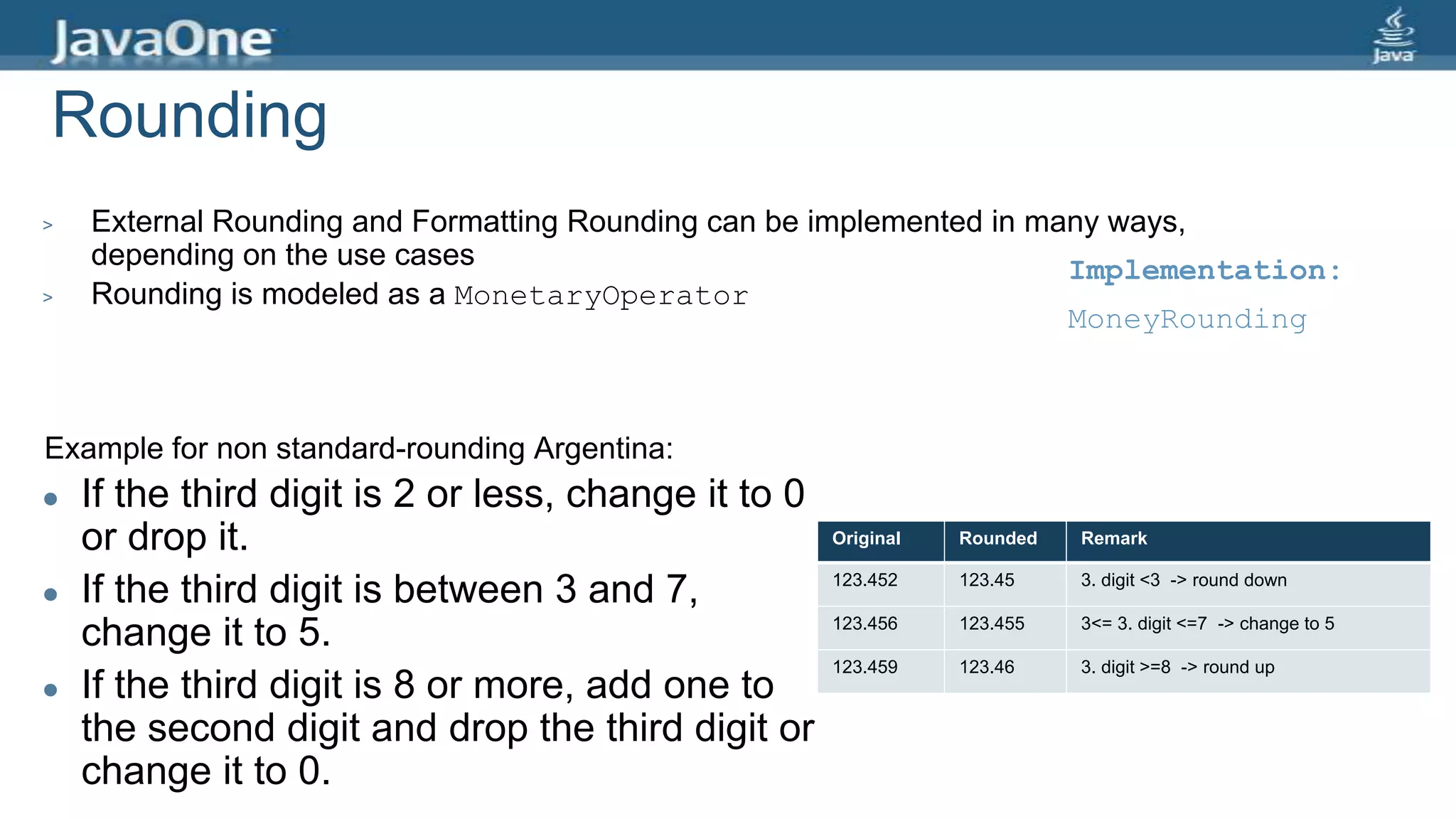

Rounding
> External Rounding and Formatting Rounding can be implemented in many ways,
depending on the use cases
> Rounding is modeled as a MonetaryOperator
Example for non standard-rounding Argentina:
 If the third digit is 2 or less, change it to 0
or drop it.
 If the third digit is between 3 and 7,
change it to 5.
 If the third digit is 8 or more, add one to
the second digit and drop the third digit or
change it to 0.
Original Rounded Remark
123.452 123.45 3. digit <3 -> round down
123.456 123.455 3<= 3. digit <=7 -> change to 5
123.459 123.46 3. digit >=8 -> round up
Implementation:
MoneyRounding

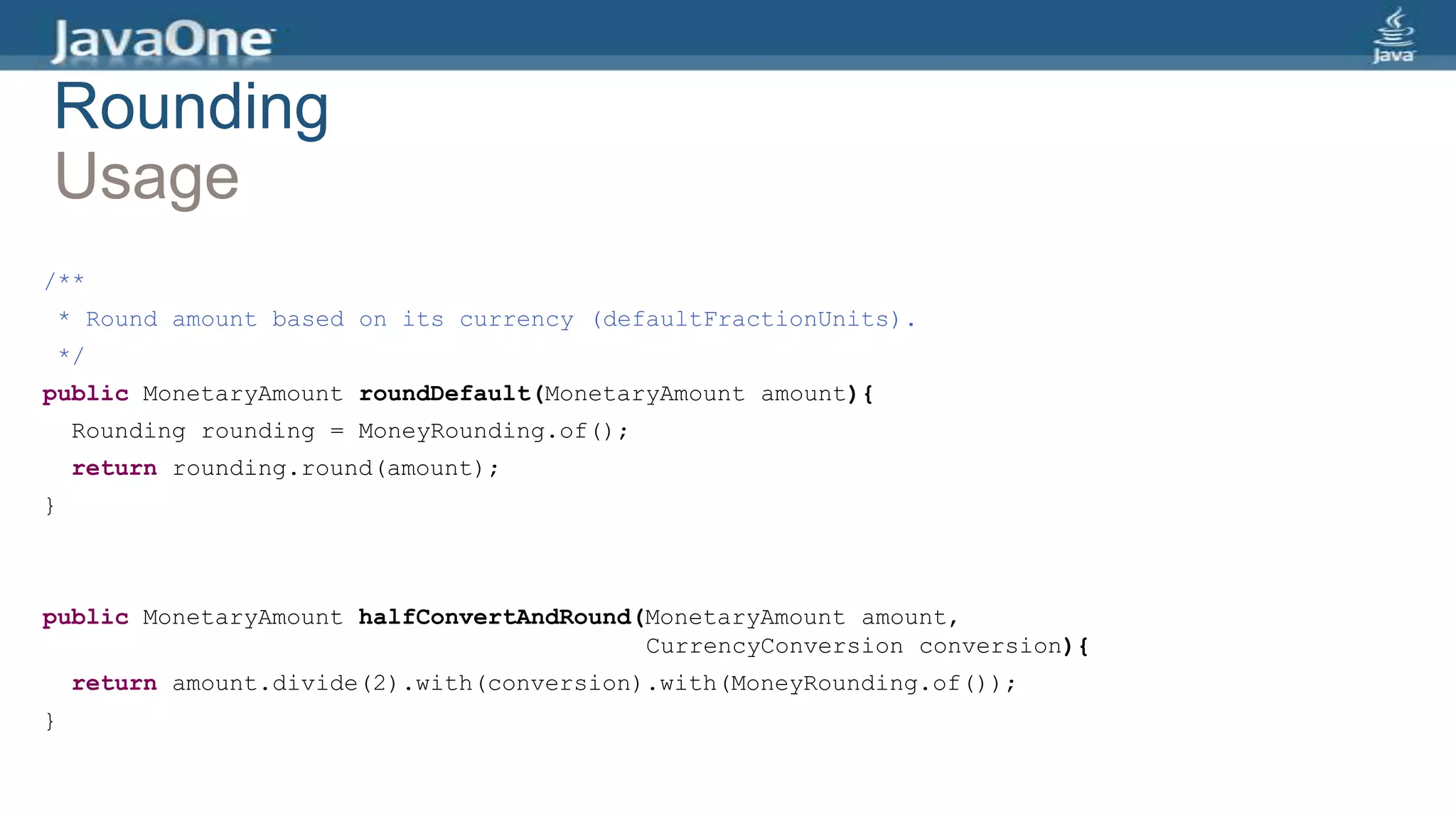

Rounding
Usage
/**
* Round amount based on its currency (defaultFractionUnits).
*/
public MonetaryAmount roundDefault(MonetaryAmount amount){
Rounding rounding = MoneyRounding.of();
return rounding.round(amount);
}
public MonetaryAmount halfConvertAndRound(MonetaryAmount amount,
CurrencyConversion conversion){
return amount.divide(2).with(conversion).with(MoneyRounding.of());
}

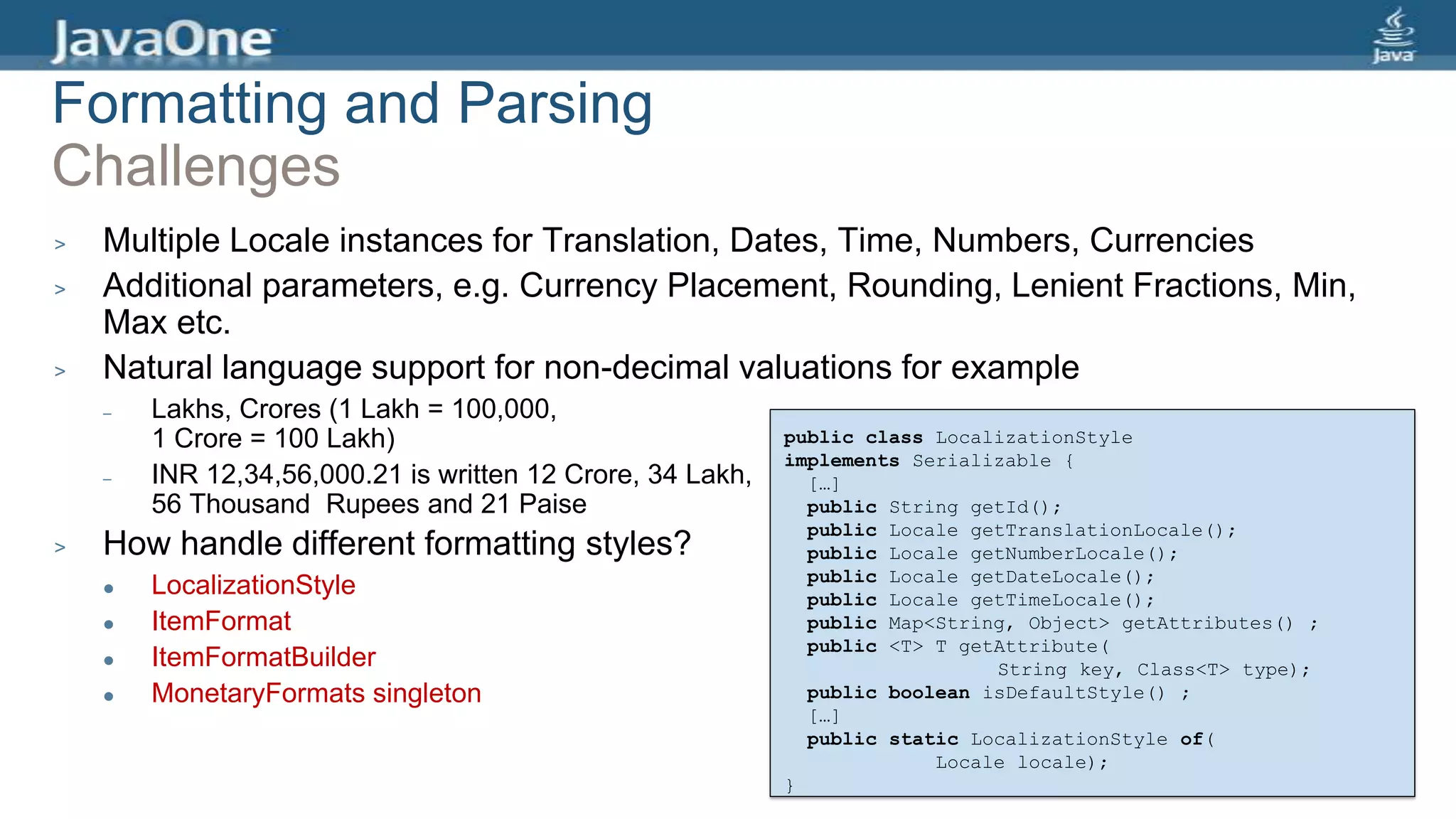

Formatting and Parsing
javax.money.format

Challenges
> Multiple Locale instances for Translation, Dates, Time, Numbers, Currencies
> Additional parameters, e.g. Currency Placement, Rounding, Lenient Fractions, Min,
Max etc.
> Natural language support for non-decimal valuations for example
– Lakhs, Crores (1 Lakh = 100,000,
1 Crore = 100 Lakh)
– INR 12,34,56,000.21 is written 12 Crore, 34 Lakh,
56 Thousand Rupees and 21 Paise
> How handle different formatting styles?
 LocalizationStyle
 ItemFormat
 ItemFormatBuilder
 MonetaryFormats singleton
public class LocalizationStyle
implements Serializable {
[…]
public String getId();
public Locale getTranslationLocale();
public Locale getNumberLocale();
public Locale getDateLocale();
public Locale getTimeLocale();
public Map<String, Object> getAttributes() ;
public <T> T getAttribute(
String key, Class<T> type);
public boolean isDefaultStyle() ;
[…]
public static LocalizationStyle of(
Locale locale);
}

public interface ItemFormat<T> {
public Class<T> getTargetClass();
public LocalizationStyle getStyle();
public String format(T item);
public void print(Appendable appendable,
T item)
throws IOException;
public T parse(CharSequence input)
throws ParseException;
}
public class ItemFormatBuilder<T> {
private List<FormatToken<T>> tokens = new ArrayList<FormatToken<T>>();
[…]
public ItemFormatBuilder(){…}
public ItemFormatBuilder(Class<T> targetType){…}
public ItemFormatBuilder<T> addToken(FormatToken<T> token) {…}
public ItemFormatBuilder<T> addLiteral(String token) {…}
public boolean isBuildable() {…}
public ItemFormat<T> build() {…}
[…] }
public interface FormatToken<T> {
public void print(Appendable appendable,
T item, LocalizationStyle s)
throws IOException;
public void parse(ParseContext<T> context,
LocalizationStyle style)
throws ItemParseException;
}
Implementations:
LiteralToken
NumberToken
CurrencyToken
AmountToken
…
ItemFormat, FormatToken and ItemFormatBuilder

Currency Conversion
javax.money.conversion

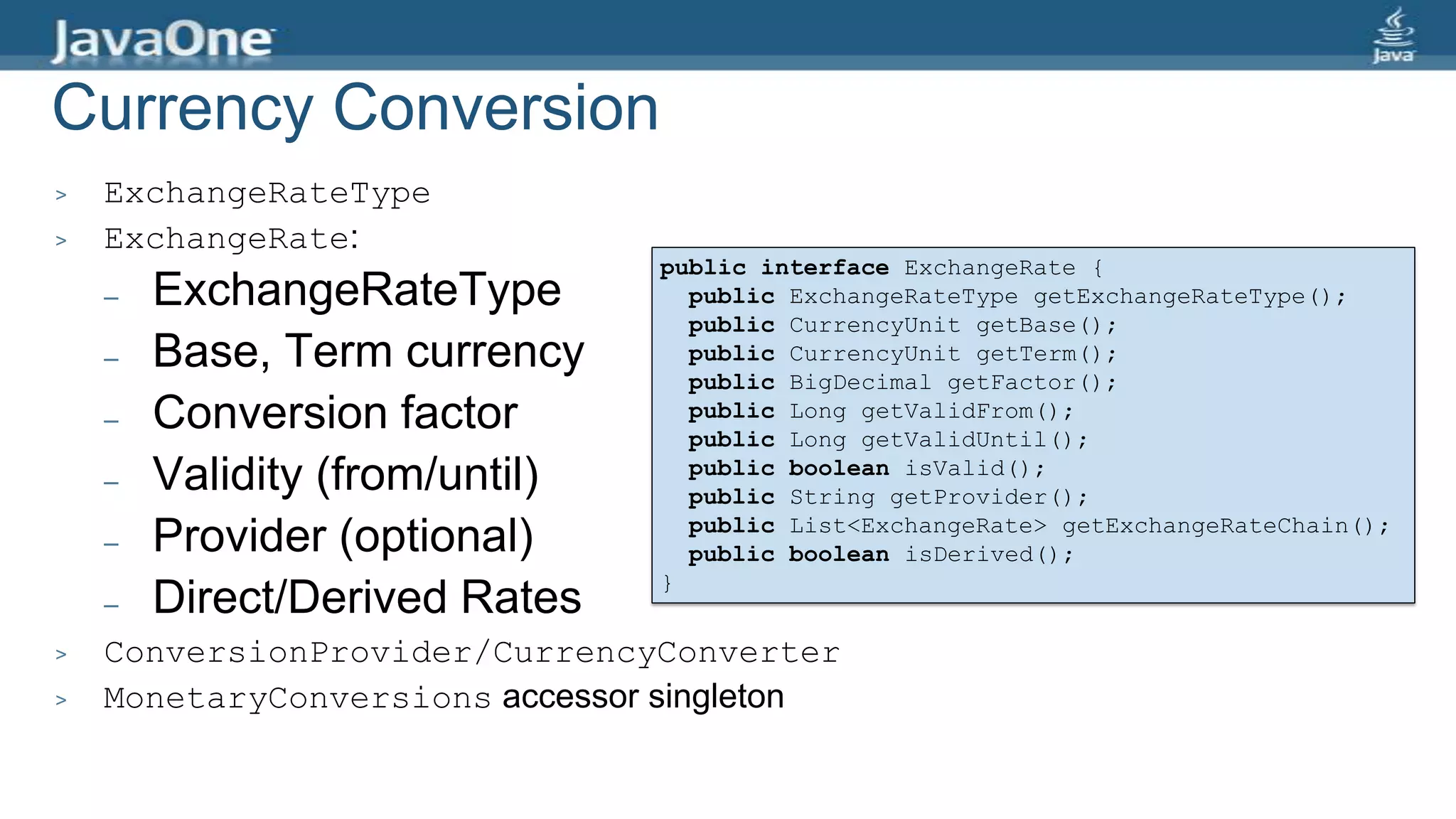

Currency Conversion
> ExchangeRateType
> ExchangeRate:
– ExchangeRateType
– Base, Term currency
– Conversion factor
– Validity (from/until)
– Provider (optional)
– Direct/Derived Rates
> ConversionProvider/CurrencyConverter
> MonetaryConversions accessor singleton
public interface ExchangeRate {
public ExchangeRateType getExchangeRateType();
public CurrencyUnit getBase();
public CurrencyUnit getTerm();
public BigDecimal getFactor();
public Long getValidFrom();
public Long getValidUntil();
public boolean isValid();
public String getProvider();
public List<ExchangeRate> getExchangeRateChain();
public boolean isDerived();
}

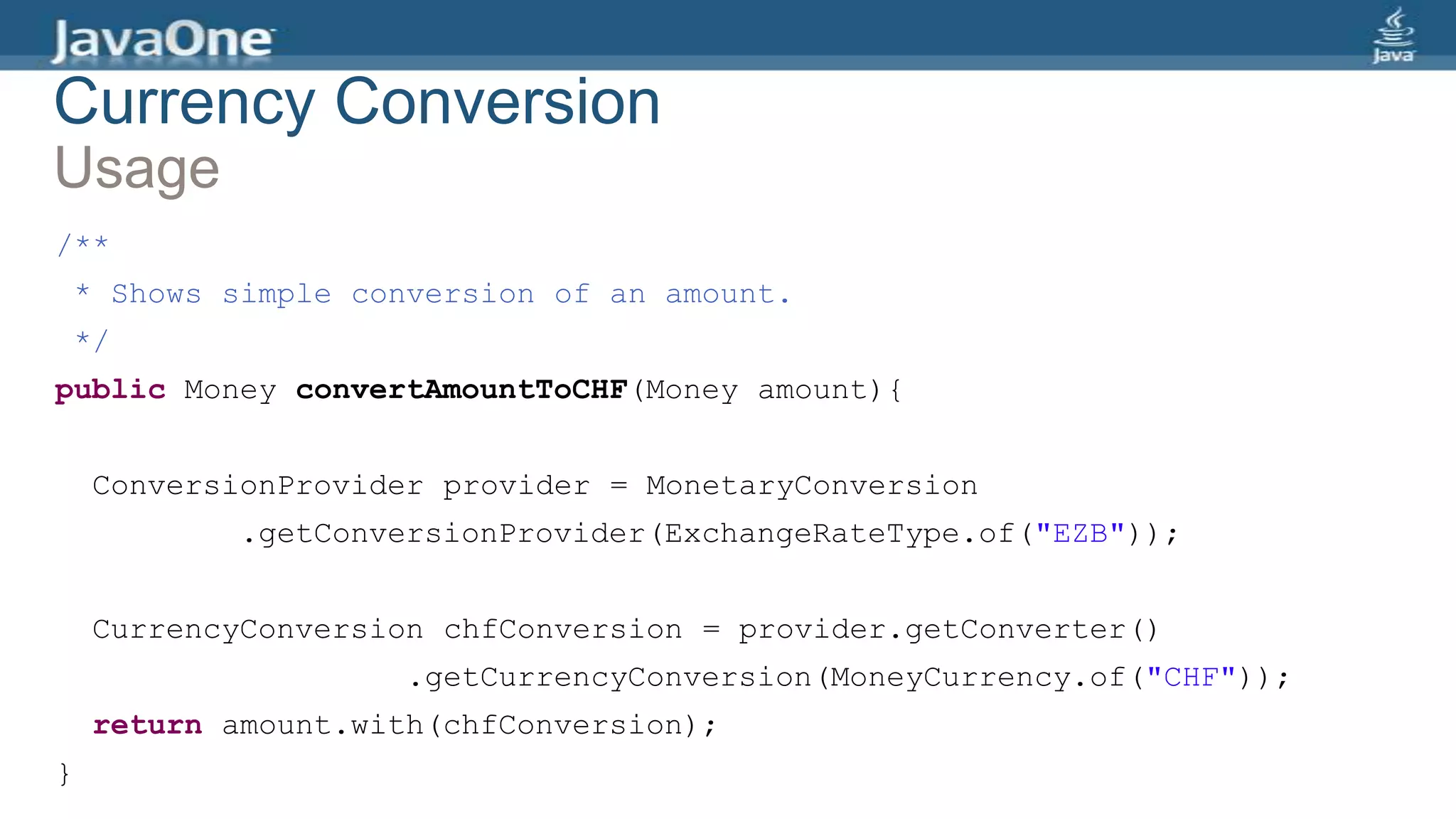

Currency Conversion
Usage
/**
* Shows simple conversion of an amount.
*/
public Money convertAmountToCHF(Money amount){
ConversionProvider provider = MonetaryConversion
.getConversionProvider(ExchangeRateType.of("EZB"));
CurrencyConversion chfConversion = provider.getConverter()
.getCurrencyConversion(MoneyCurrency.of("CHF"));
return amount.with(chfConversion);
}

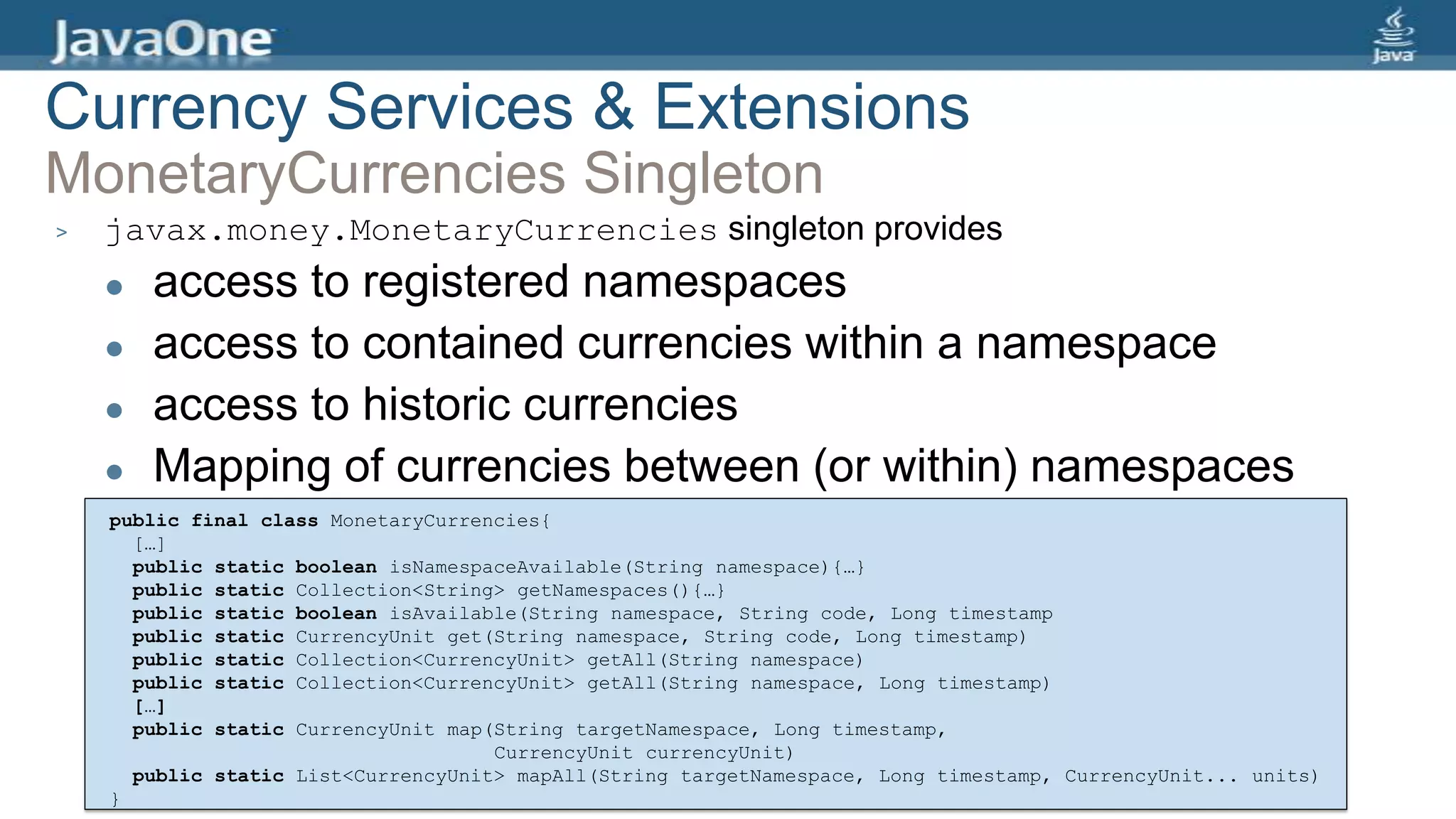

Currency Services & Extensions
javax.money.ext

> javax.money.MonetaryCurrencies singleton provides
 access to registered namespaces
 access to contained currencies within a namespace
 access to historic currencies
 Mapping of currencies between (or within) namespaces
public final class MonetaryCurrencies{
[…]
public static boolean isNamespaceAvailable(String namespace){…}
public static Collection<String> getNamespaces(){…}
public static boolean isAvailable(String namespace, String code, Long timestamp
public static CurrencyUnit get(String namespace, String code, Long timestamp)
public static Collection<CurrencyUnit> getAll(String namespace)
public static Collection<CurrencyUnit> getAll(String namespace, Long timestamp)
[…]
public static CurrencyUnit map(String targetNamespace, Long timestamp,
CurrencyUnit currencyUnit)
public static List<CurrencyUnit> mapAll(String targetNamespace, Long timestamp, CurrencyUnit... units)
}
Currency Services & Extensions
MonetaryCurrencies Singleton

Extensions
Some Functionalities that may or may not be included with the JSR:
 Calculation Utilities
 Regions/Regional Providers,
e.g. for mapping accepting
currencies, legal tenders etc.
 …
Recent direction:
 If and what extensions are useful
 Some could be factored out into Extras (see next slide)

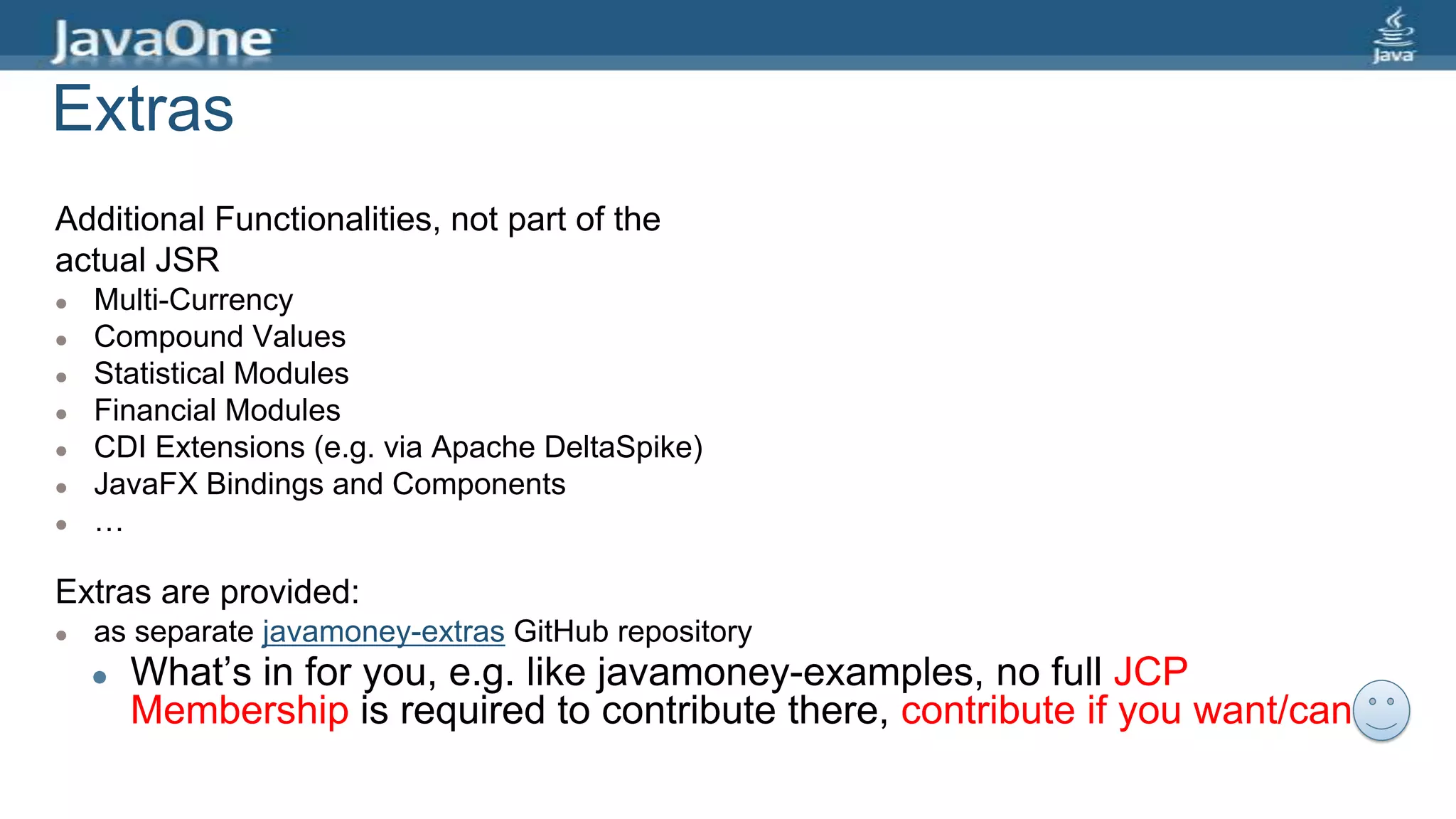

Extras
Additional Functionalities, not part of the
actual JSR
 Multi-Currency
 Compound Values
 Statistical Modules
 Financial Modules
 CDI Extensions (e.g. via Apache DeltaSpike)
 JavaFX Bindings and Components
 …
Extras are provided:
 as separate javamoney-extras GitHub repository
 What’s in for you, e.g. like javamoney-examples, no full JCP
Membership is required to contribute there, contribute if you want/can…

Adopt – A - JSR
> JUG’s initiative to encourage there members to
contribute to JSRs
> Open for all the Java User Groups
> MainSite: http://adoptajsr.java.net/
> For JSR-354
 London Java Community
 JUGChennai

> Started by JUGChennai
> Currently 5 members on-board
> Built using: current version of JSR-354, Glassfish,
PrimeFaces
> Current Status: Integrating basic design with the JSR,
Integrating EmpireAvenue using Agorava
> Future plan:JavaFX, Mobile (Android & Blackberry),
Identity API (Proposed), Virtual Currency (Proposed)
> GitHub: https://github.com/jugchennaiadoptjava/TrakStok
TrakStok - POC project using JSR-354

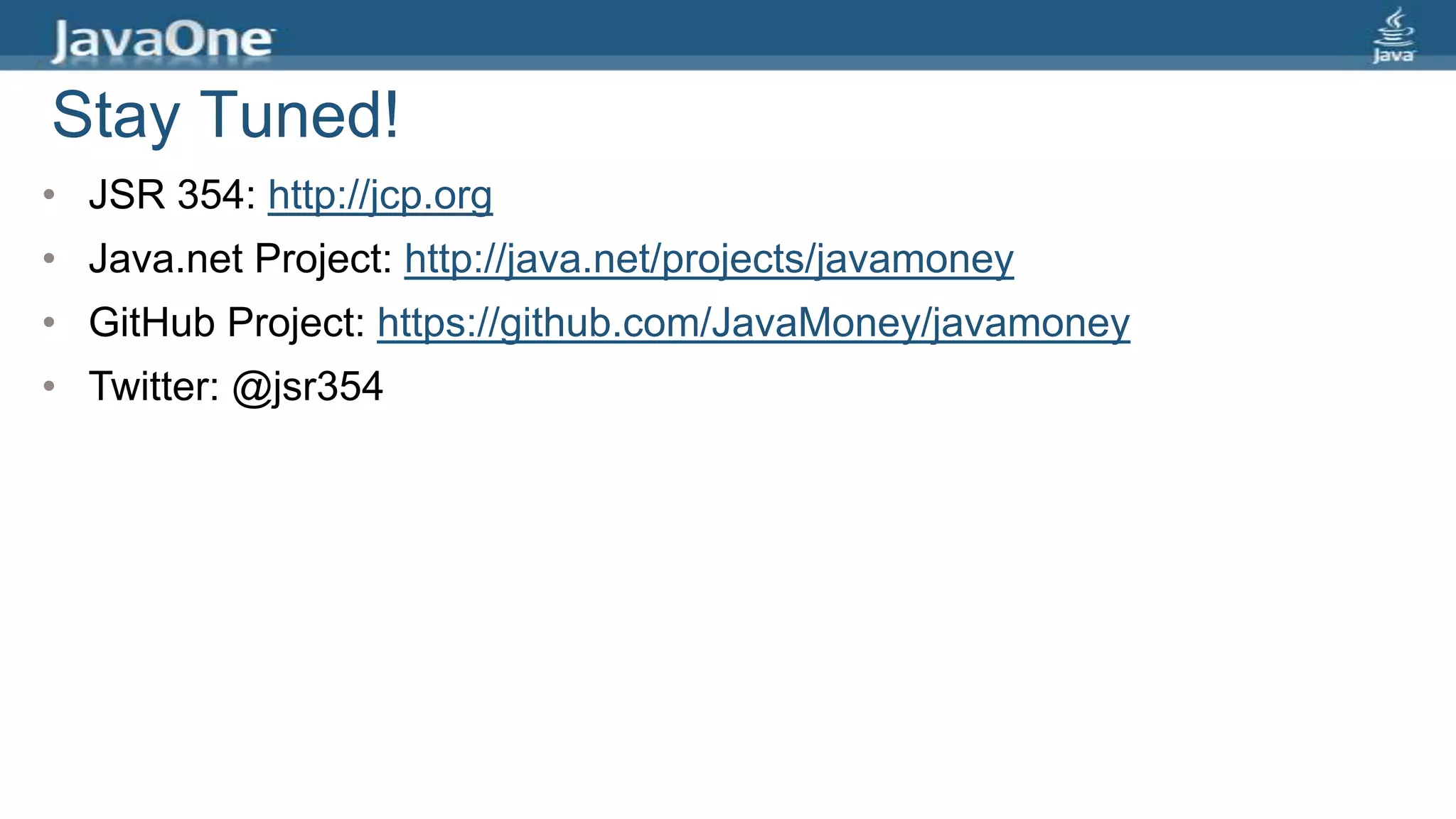

Stay Tuned!
• JSR 354: http://jcp.org
• Java.net Project: http://java.net/projects/javamoney
• GitHub Project: https://github.com/JavaMoney/javamoney
• Twitter: @jsr354

Rajmahendra Hegde
rajmahendra@gmail.com
tweet: @rajonjava
Java User Group Chennai
http://jugchennai.in
Twitter: jug_chennai
GoogleGroup: jugchennai
FacebookGroup: chennai.jug
GitHub Org: jugchennai

JSR 354 - Money and Currency API

More Related Content

Viewers also liked

Similar to JSR 354 - Money and Currency API

Recently uploaded

JSR 354 - Money and Currency API
