Introduction to OBIEE 11g
- 1. Presents OBIEE 11GInstallation A Webinar
- 2. Disclaimer All othertrademarks, service marks and logos used in this webinar are the trademarks, service marks or logos of their respective owners.

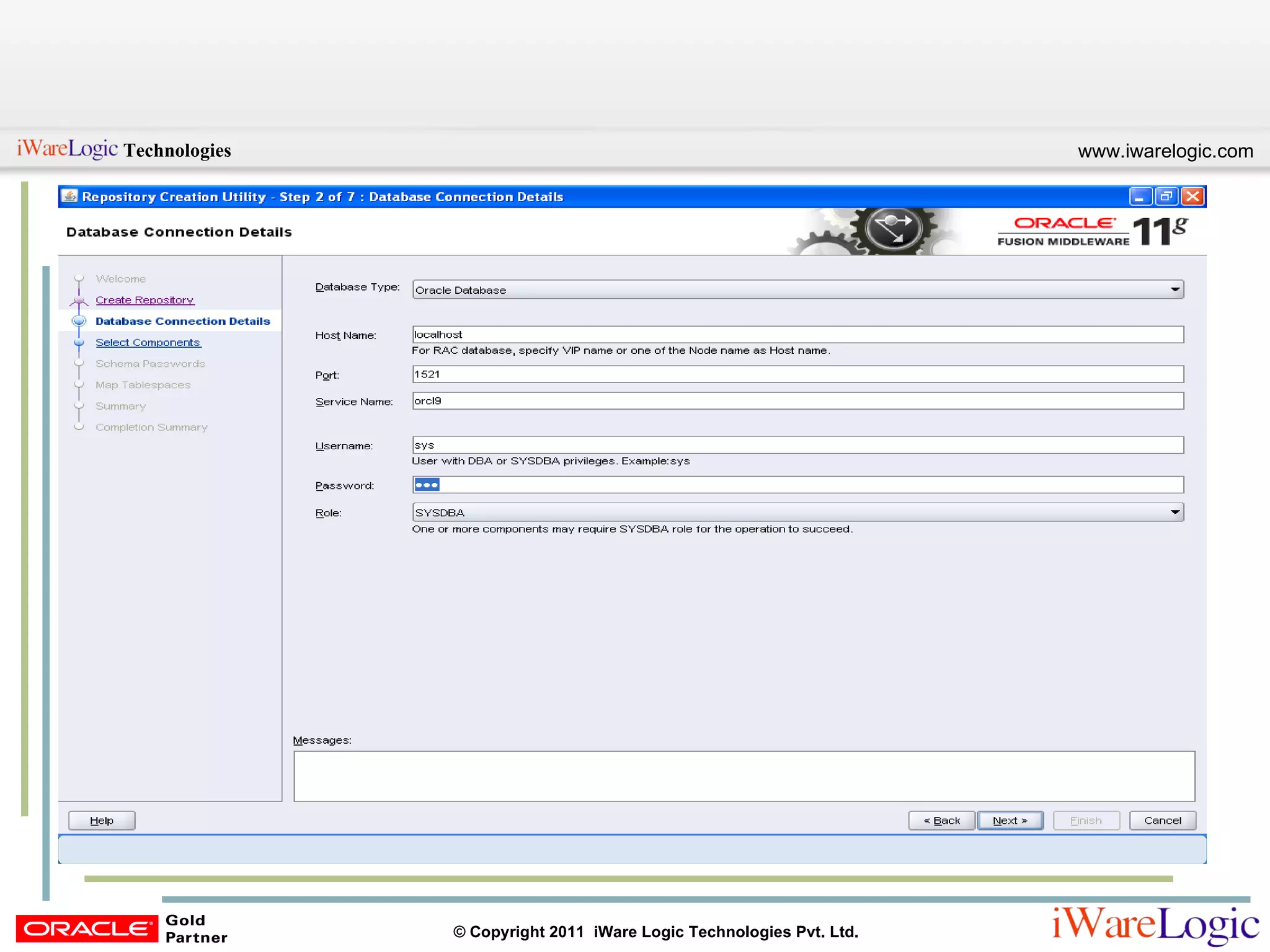

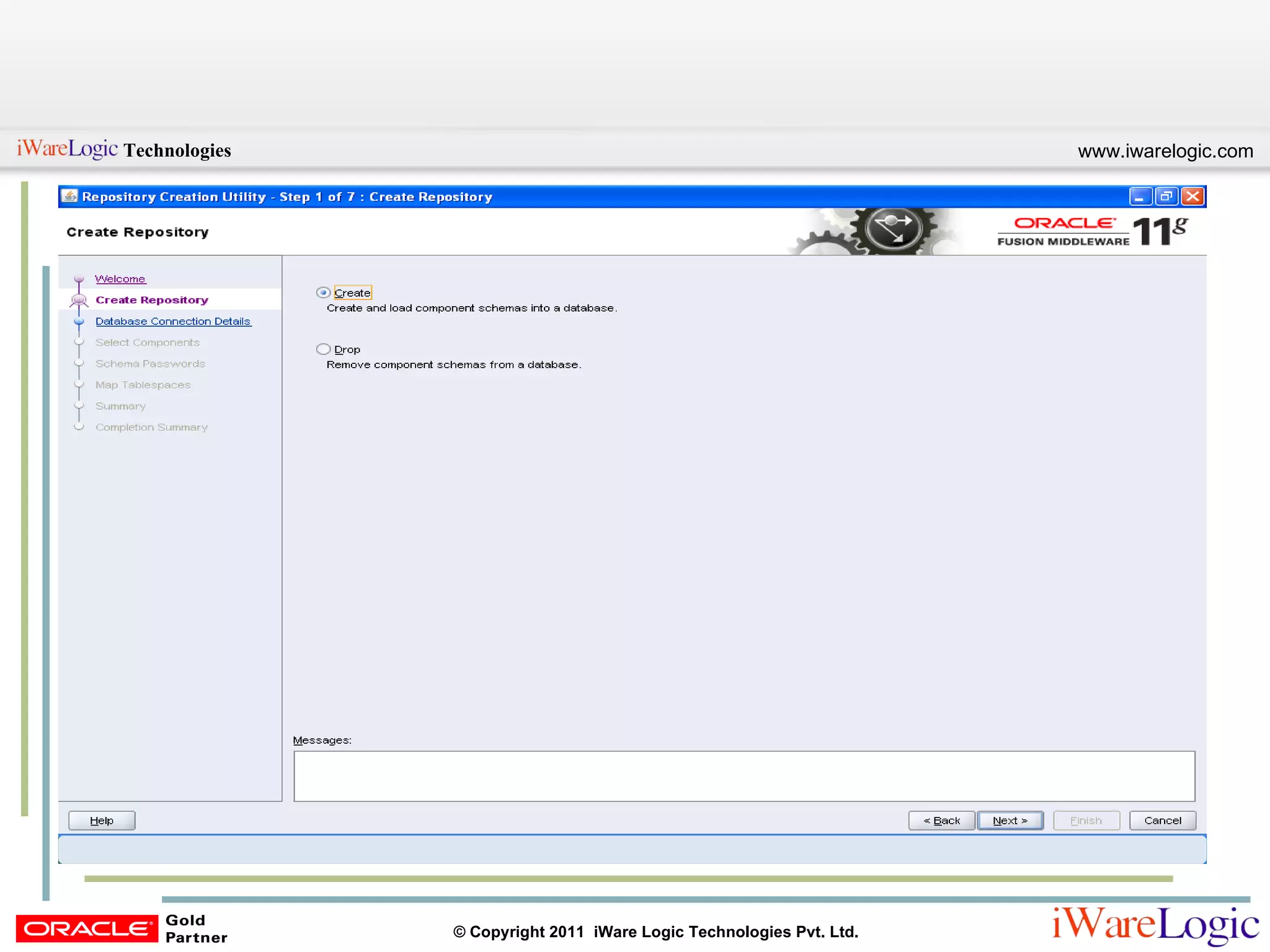

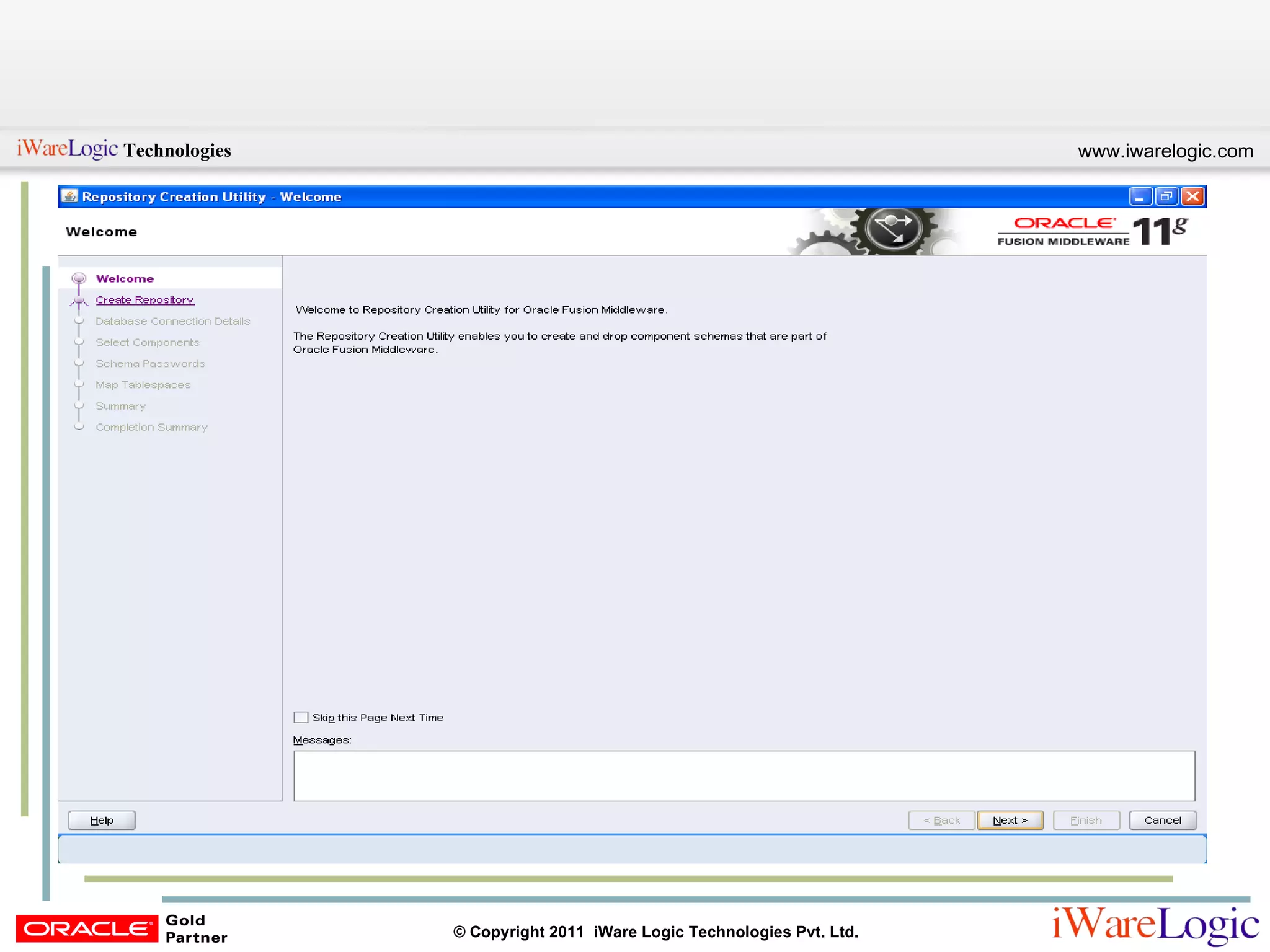

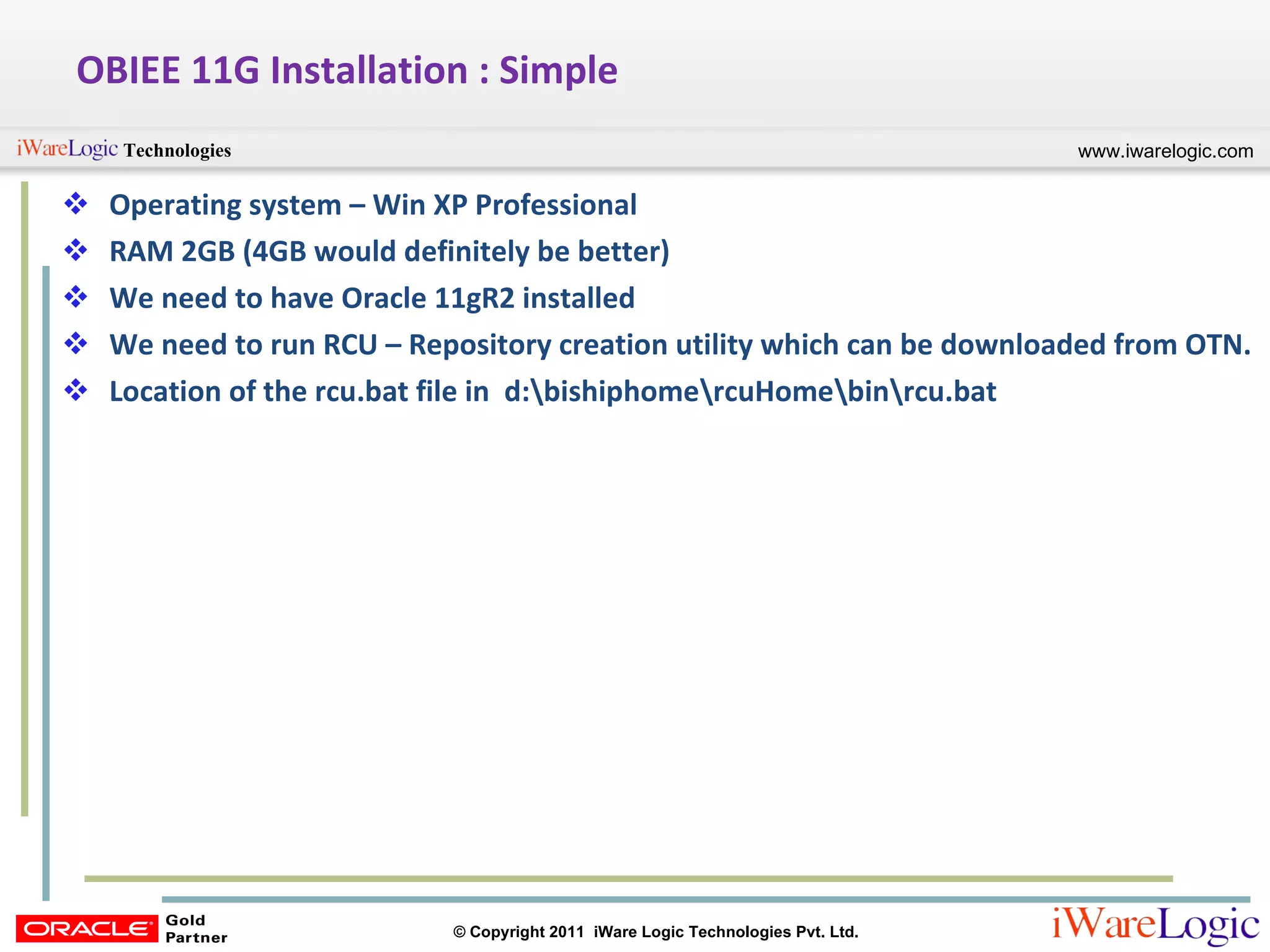

- 3. OBIEE 11G Installation: Simple Operating system – Win XP Professional RAM 2GB (4GB would definitely be better) We need to have Oracle 11gR2 installed We need to run RCU – Repository creation utility which can be downloaded from OTN. Location of the rcu.bat file in d:\bishiphome\rcuHome\bin\rcu.bat

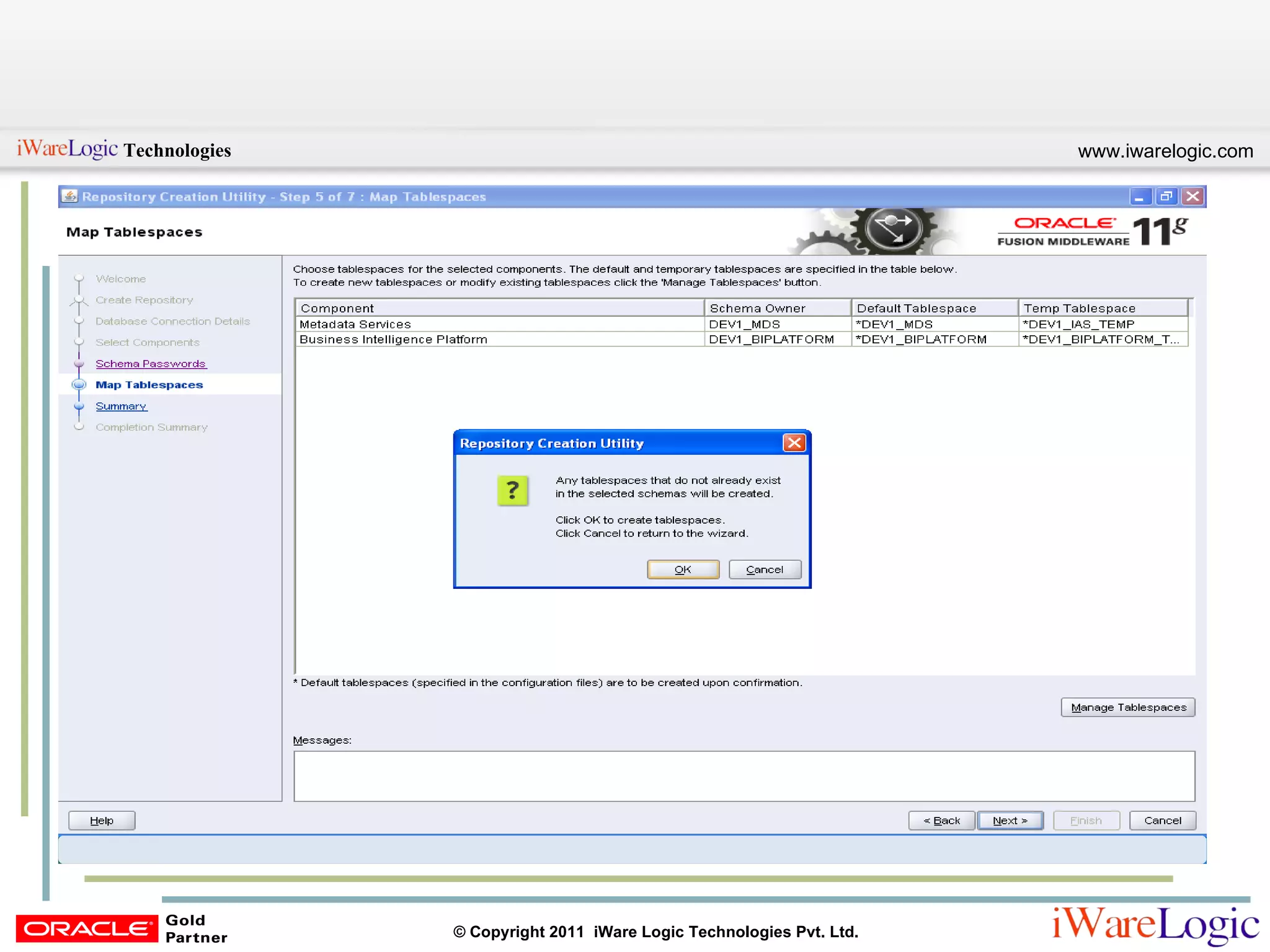

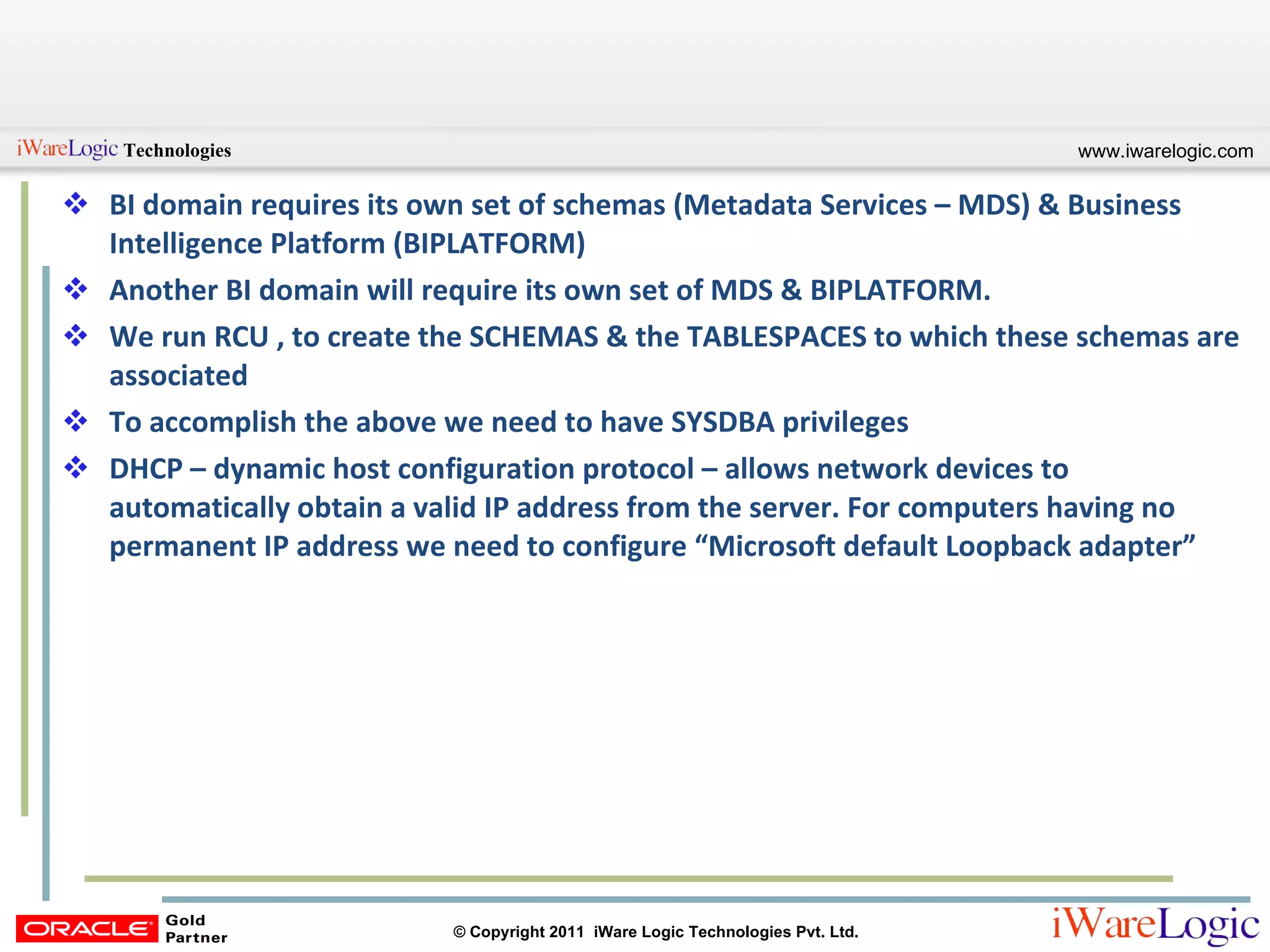

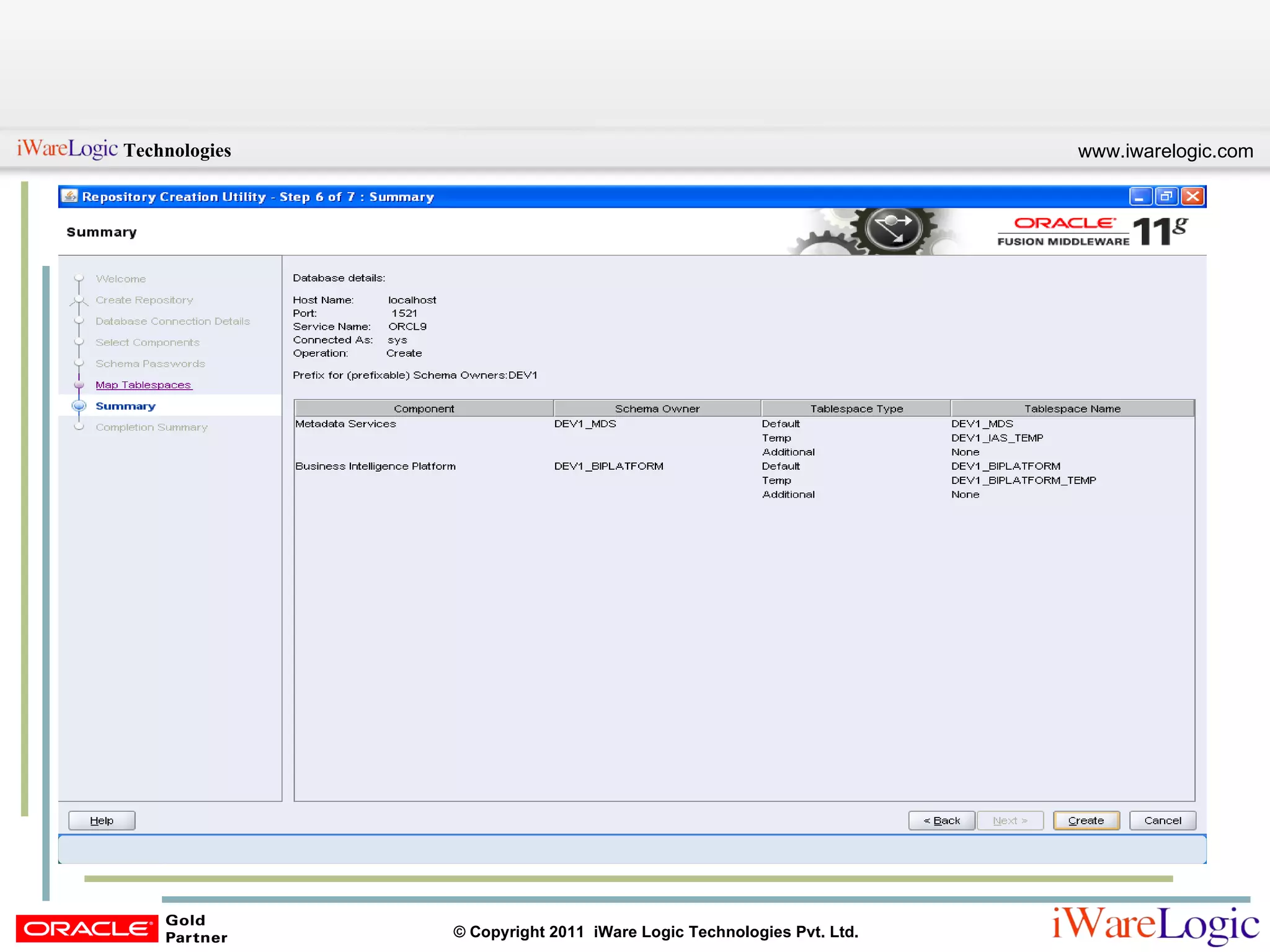

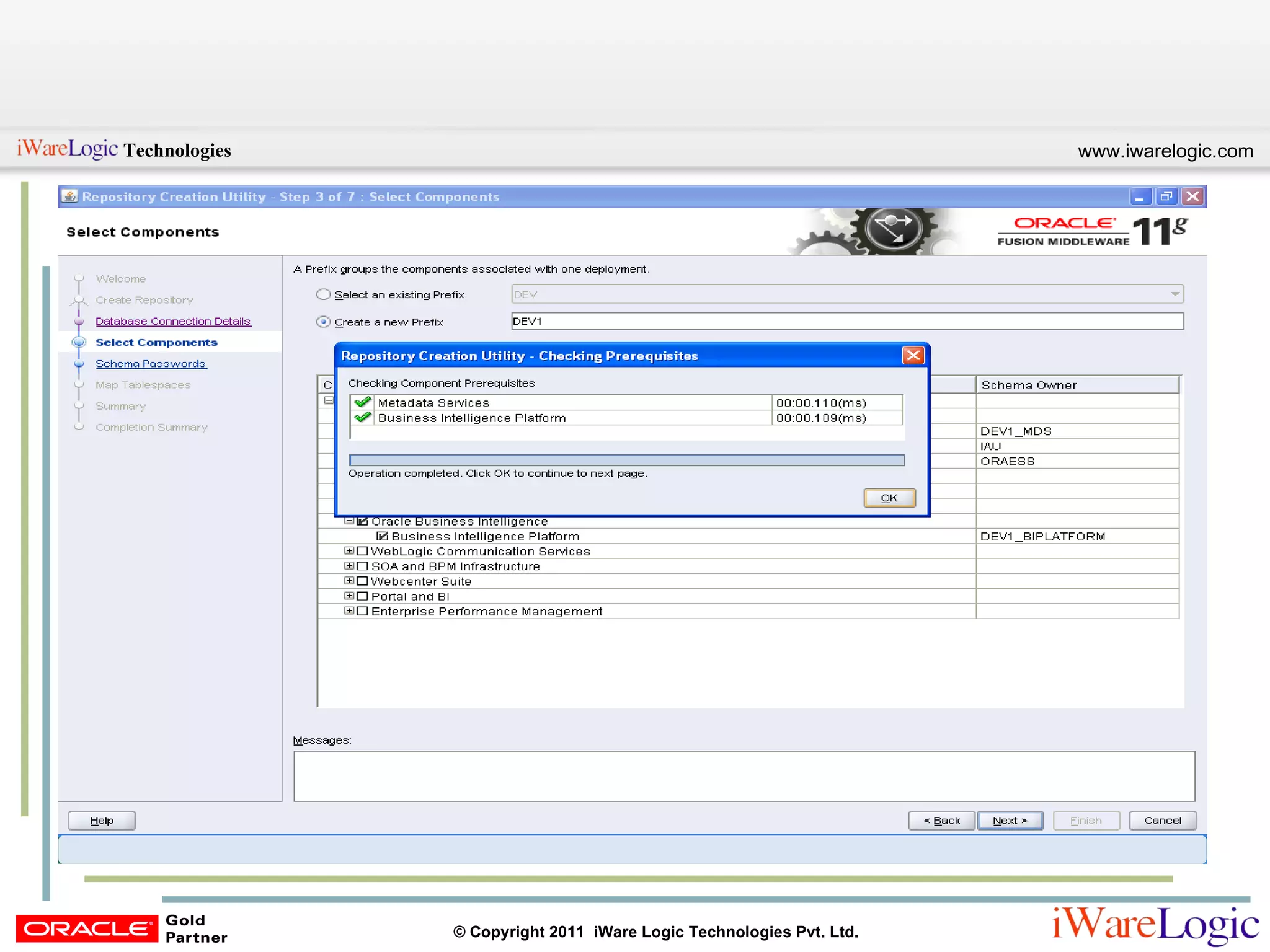

- 4. BI domain requiresits own set of schemas (Metadata Services – MDS) & Business Intelligence Platform (BIPLATFORM) Another BI domain will require its own set of MDS & BIPLATFORM. We run RCU , to create the SCHEMAS & the TABLESPACES to which these schemas are associated To accomplish the above we need to have SYSDBA privileges DHCP – dynamic host configuration protocol – allows network devices to automatically obtain a valid IP address from the server. For computers having no permanent IP address we need to configure “Microsoft default Loopback adapter”
- 5.
- 6.
- 7.

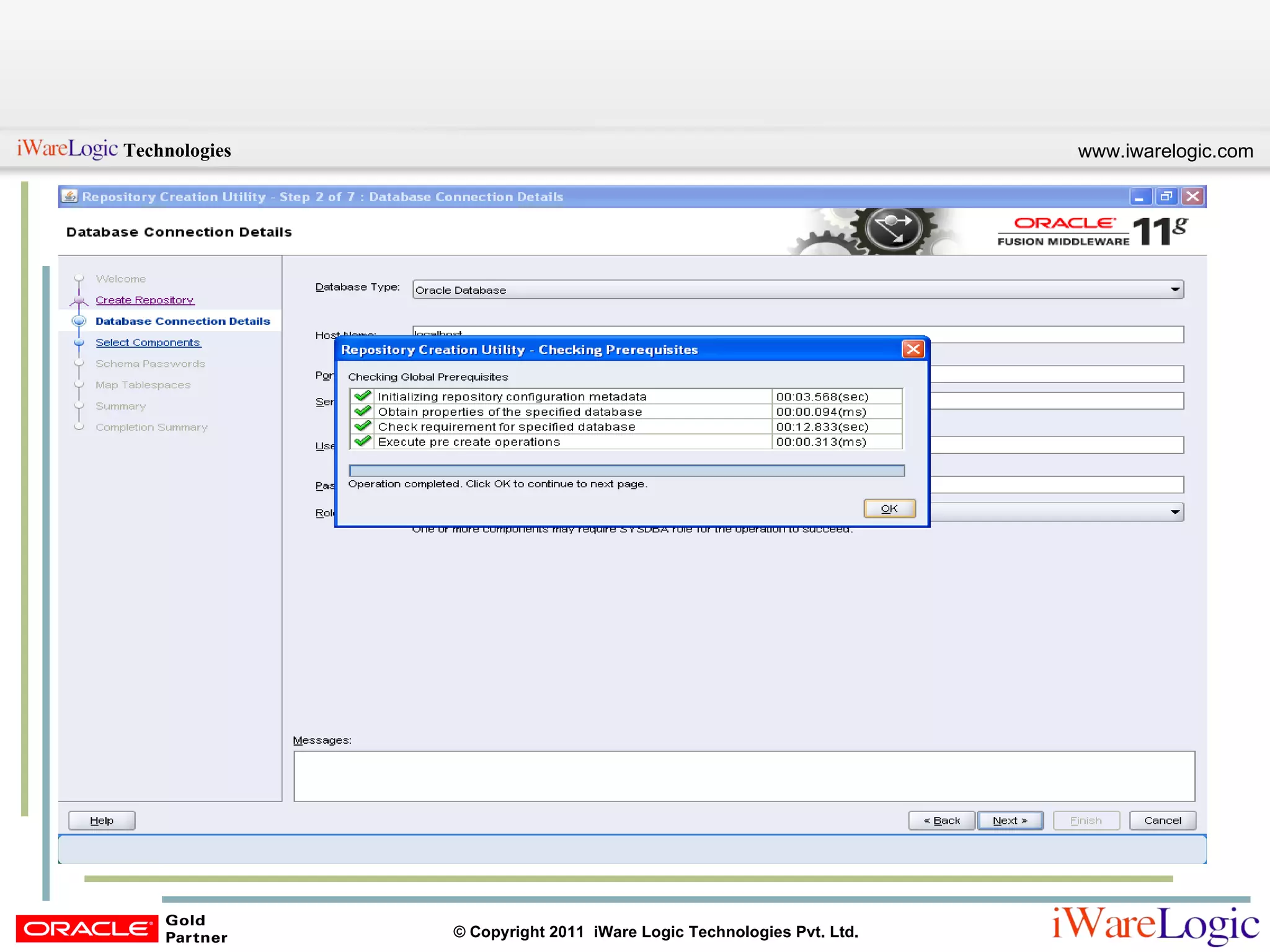

- 8.
- 9.
- 10.

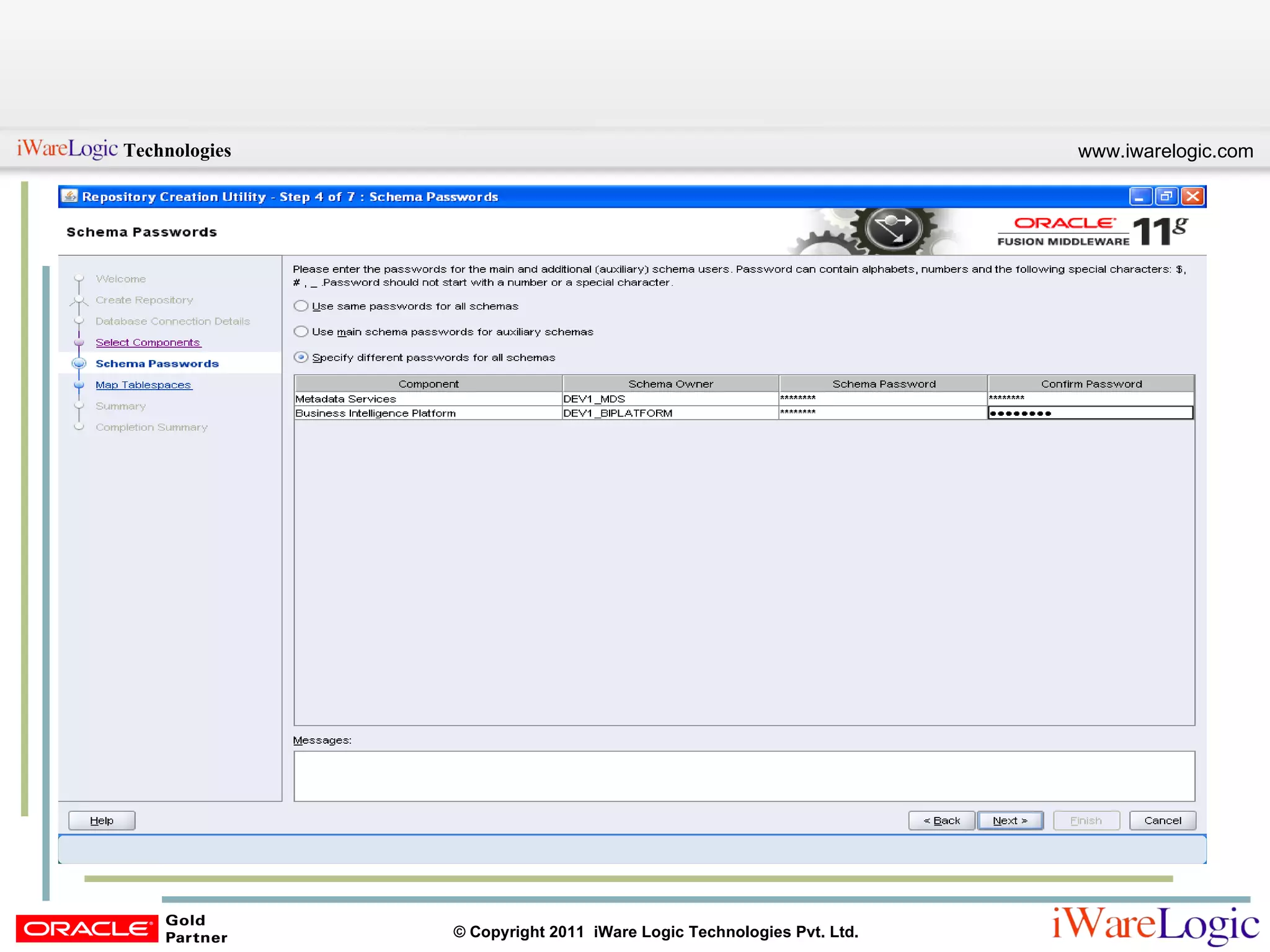

- 11.
- 12.

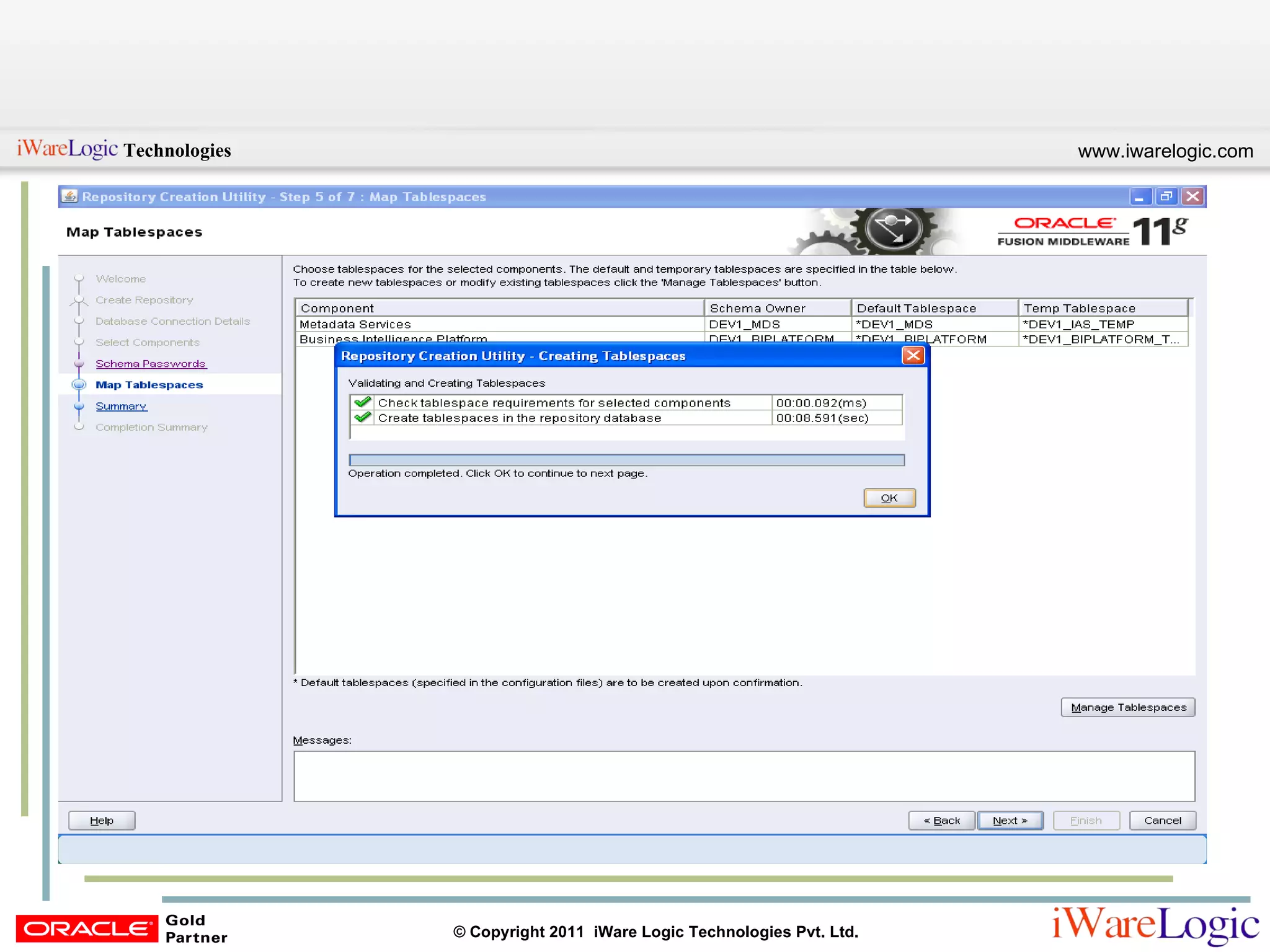

- 13.
- 14.

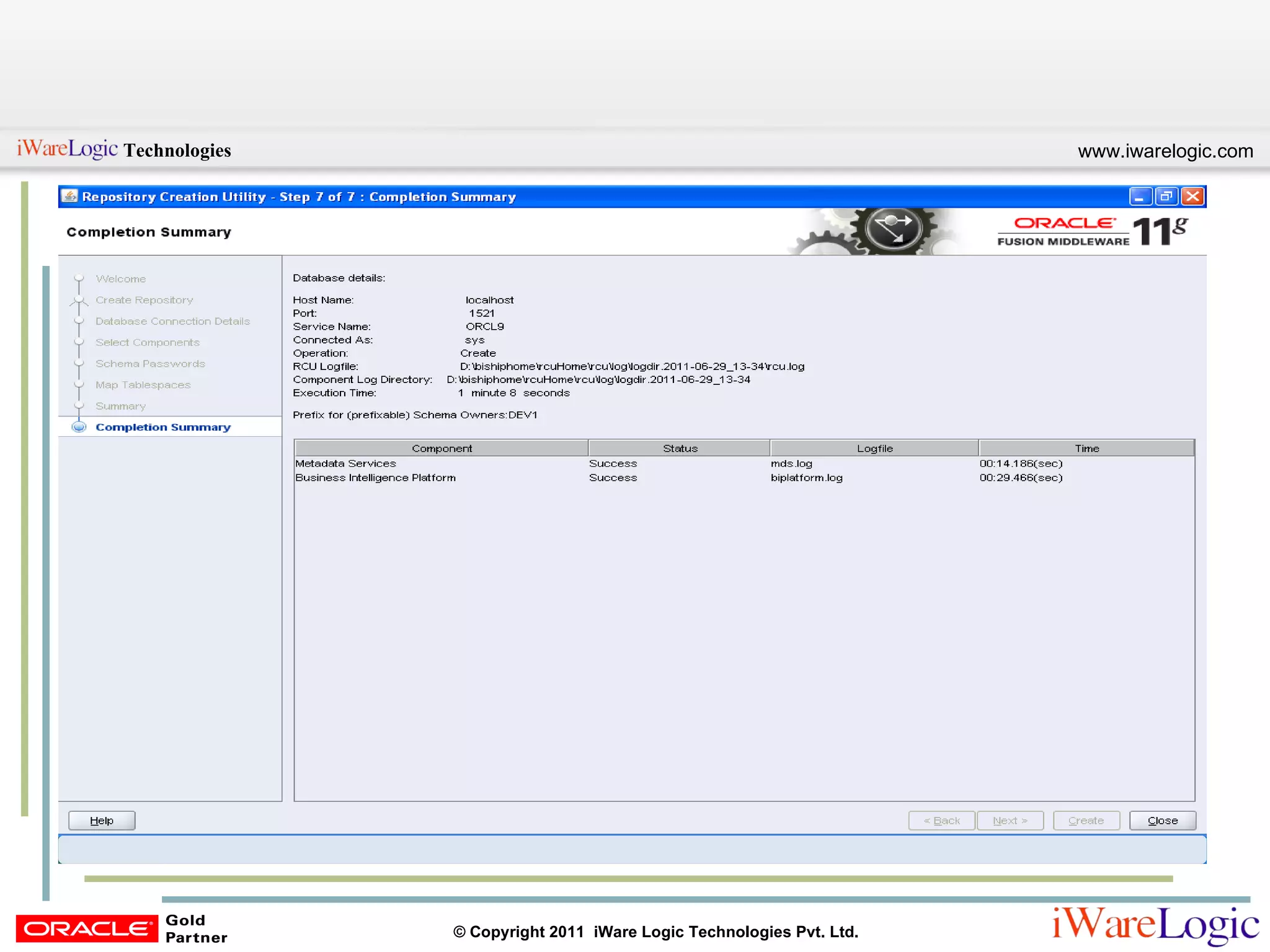

- 15.
- 16.

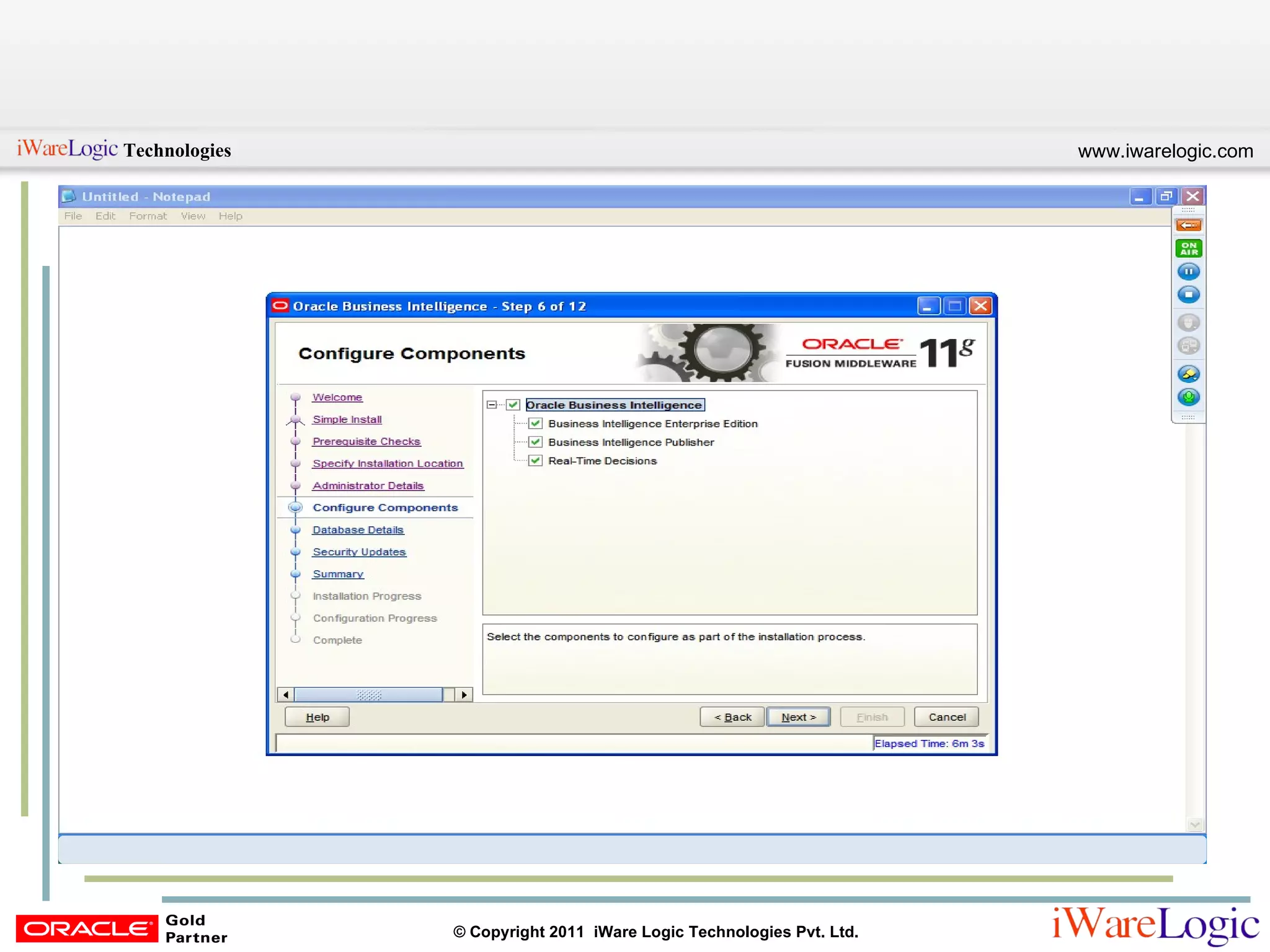

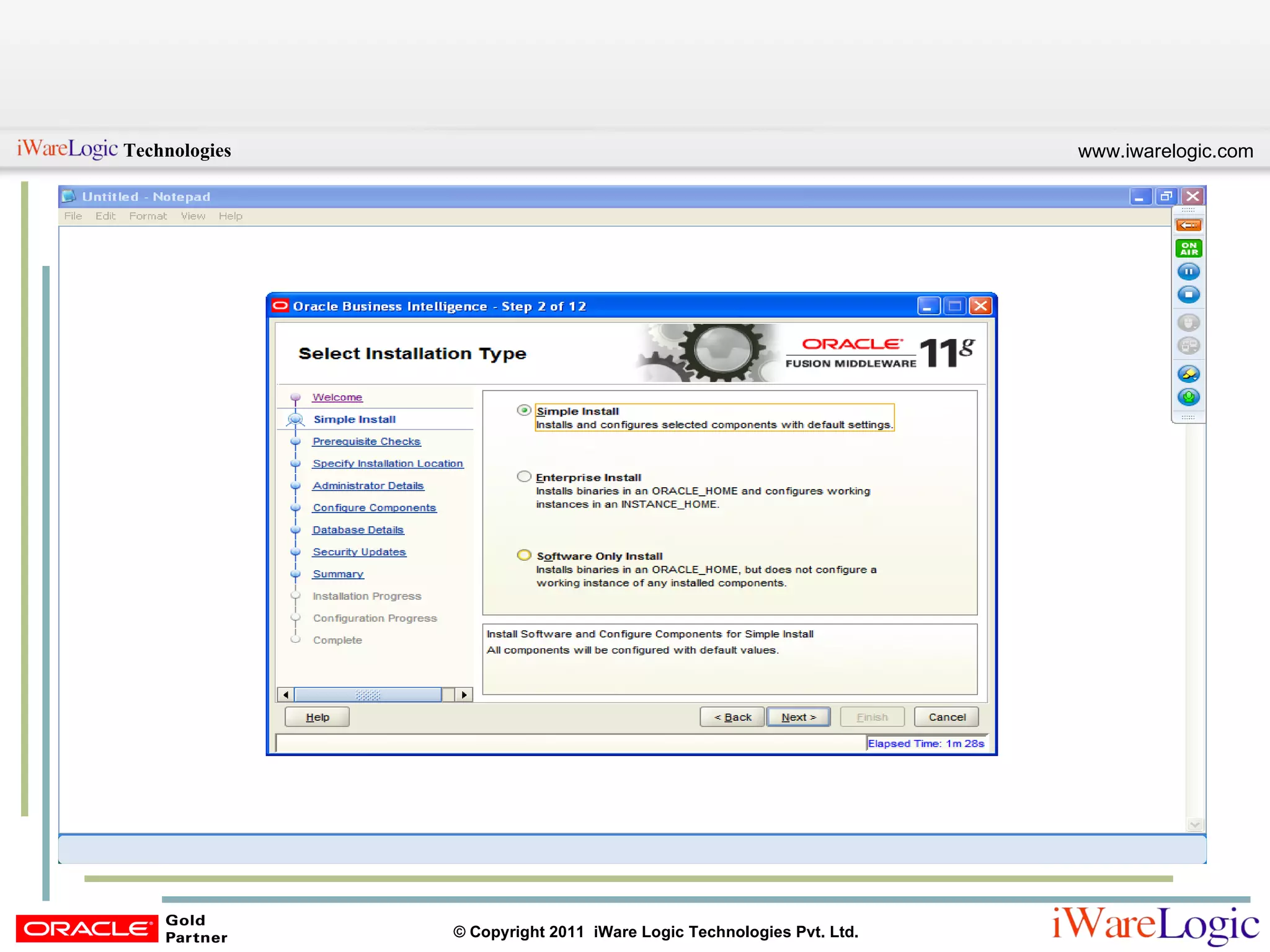

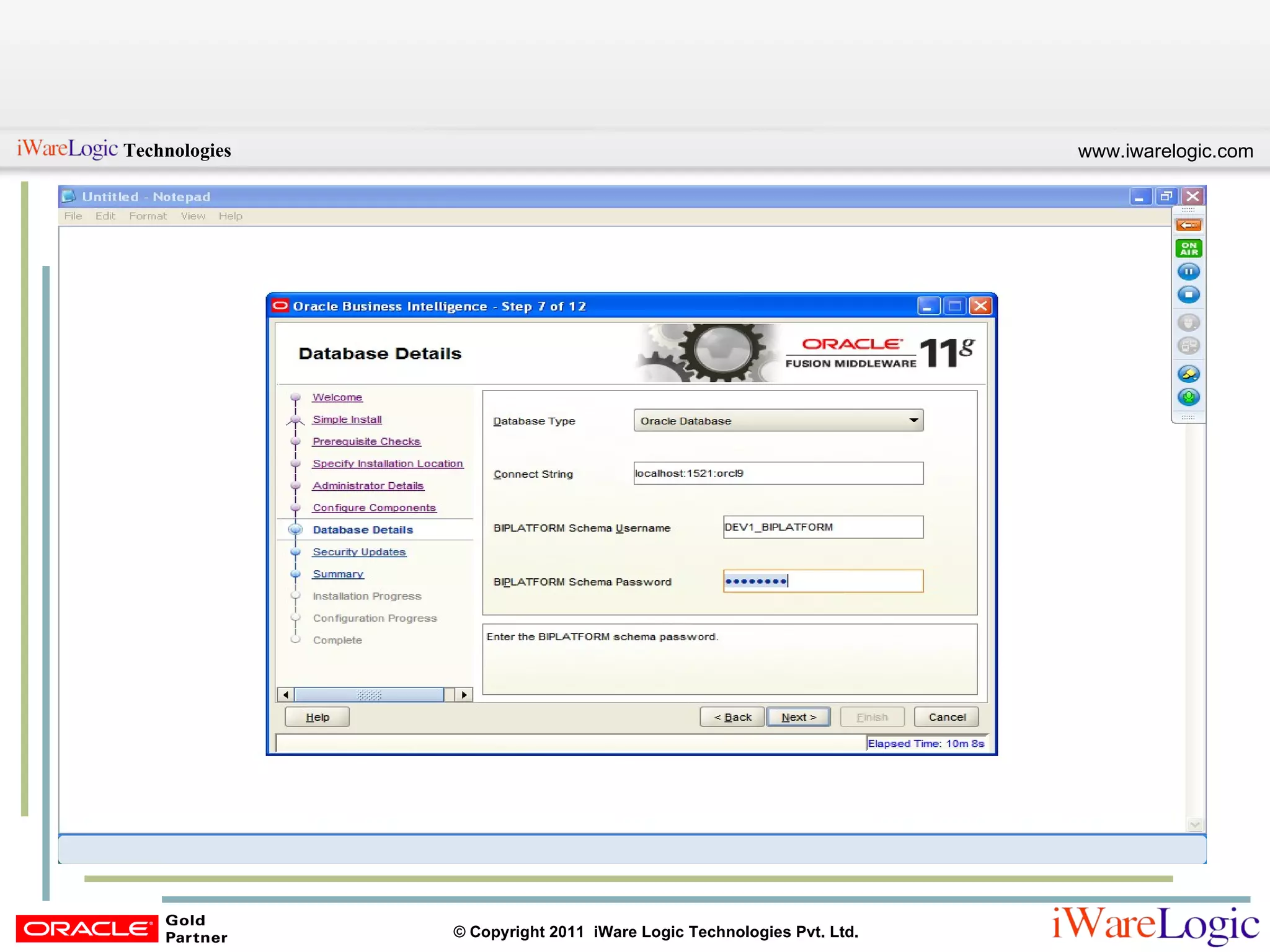

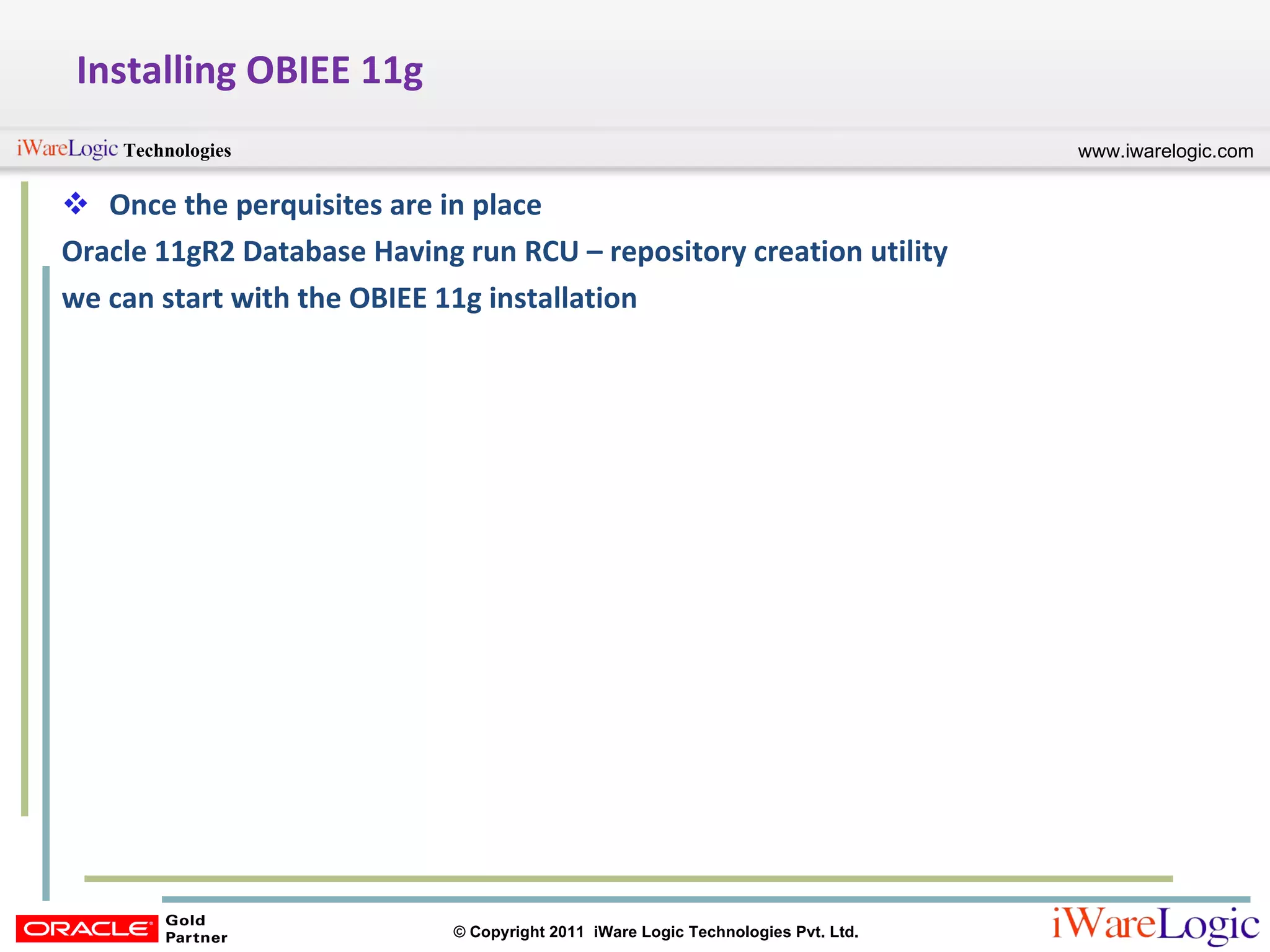

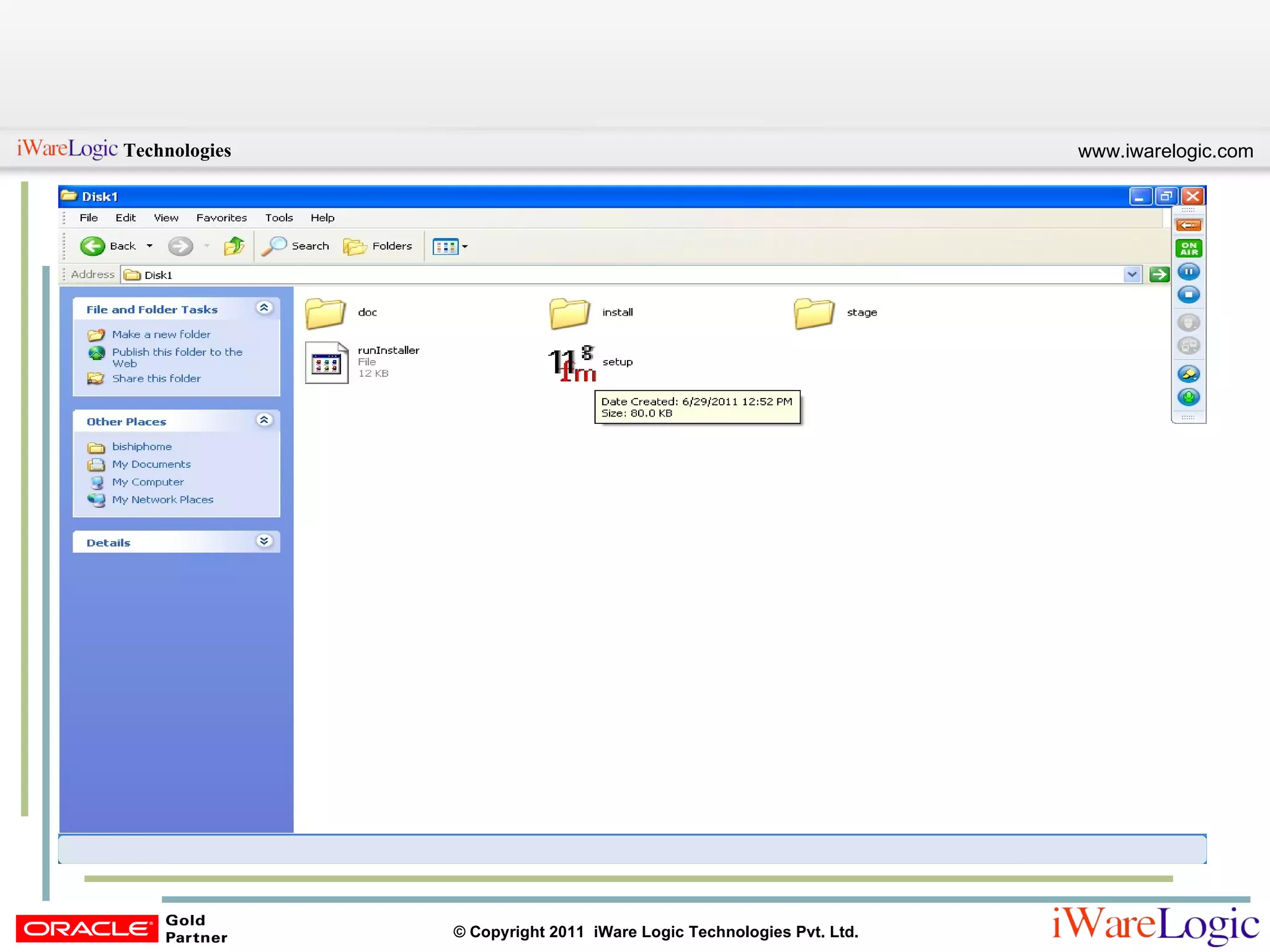

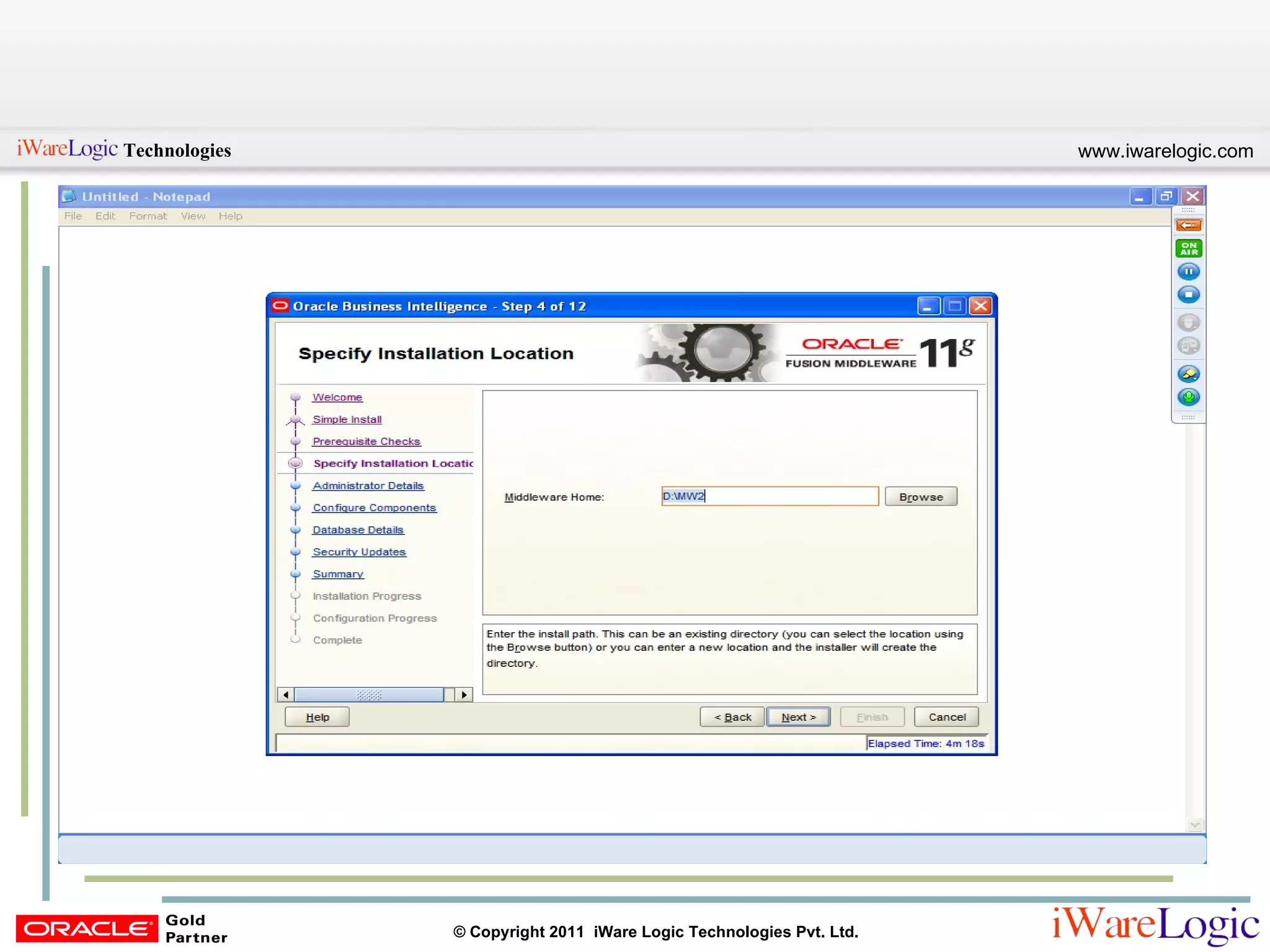

- 17. Installing OBIEE 11gOnce the perquisites are in place Oracle 11gR2 Database Having run RCU – repository creation utility we can start with the OBIEE 11g installation
- 18.

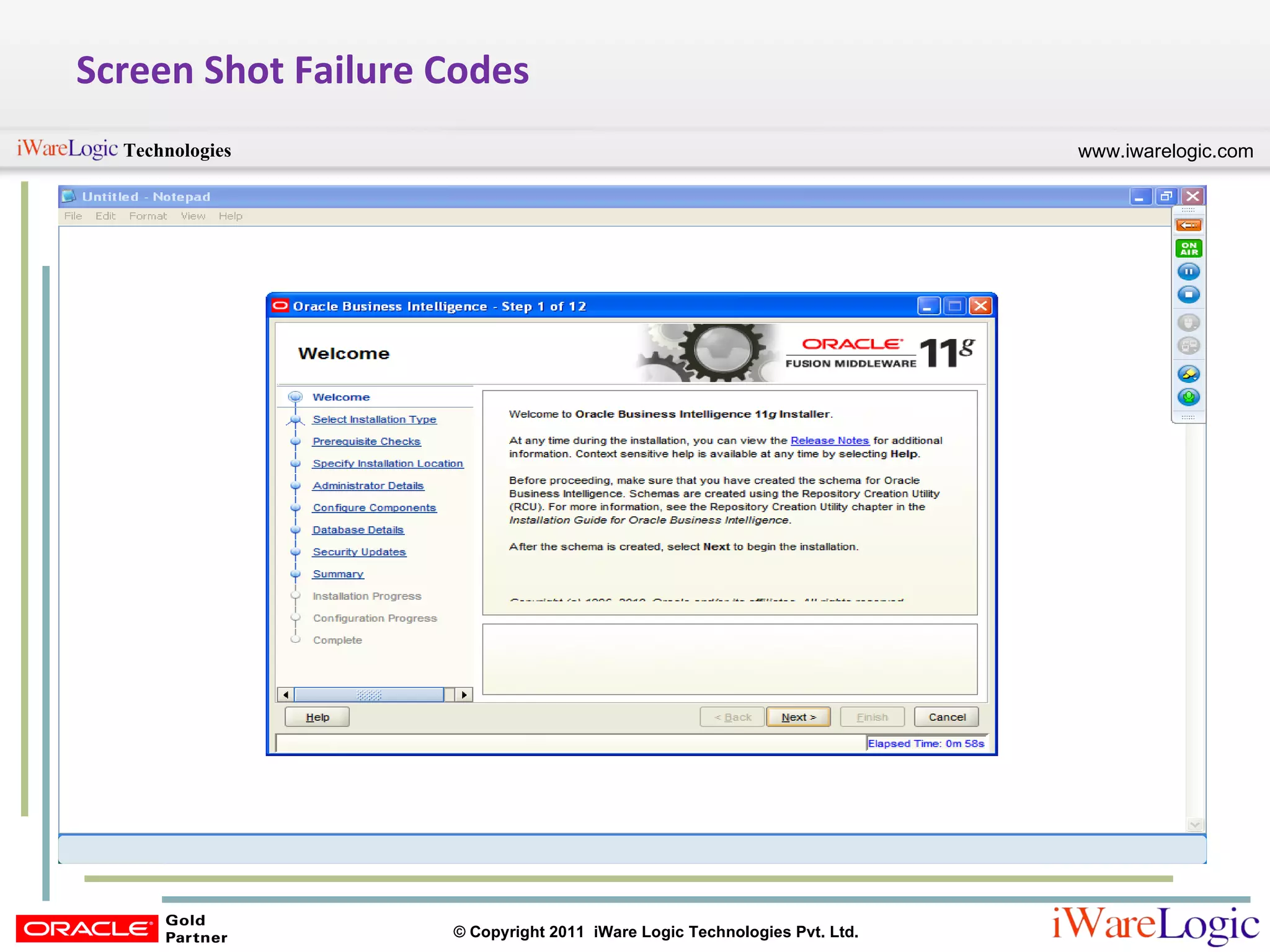

- 19. Screen Shot FailureCodes
- 20.
- 21.
- 22.

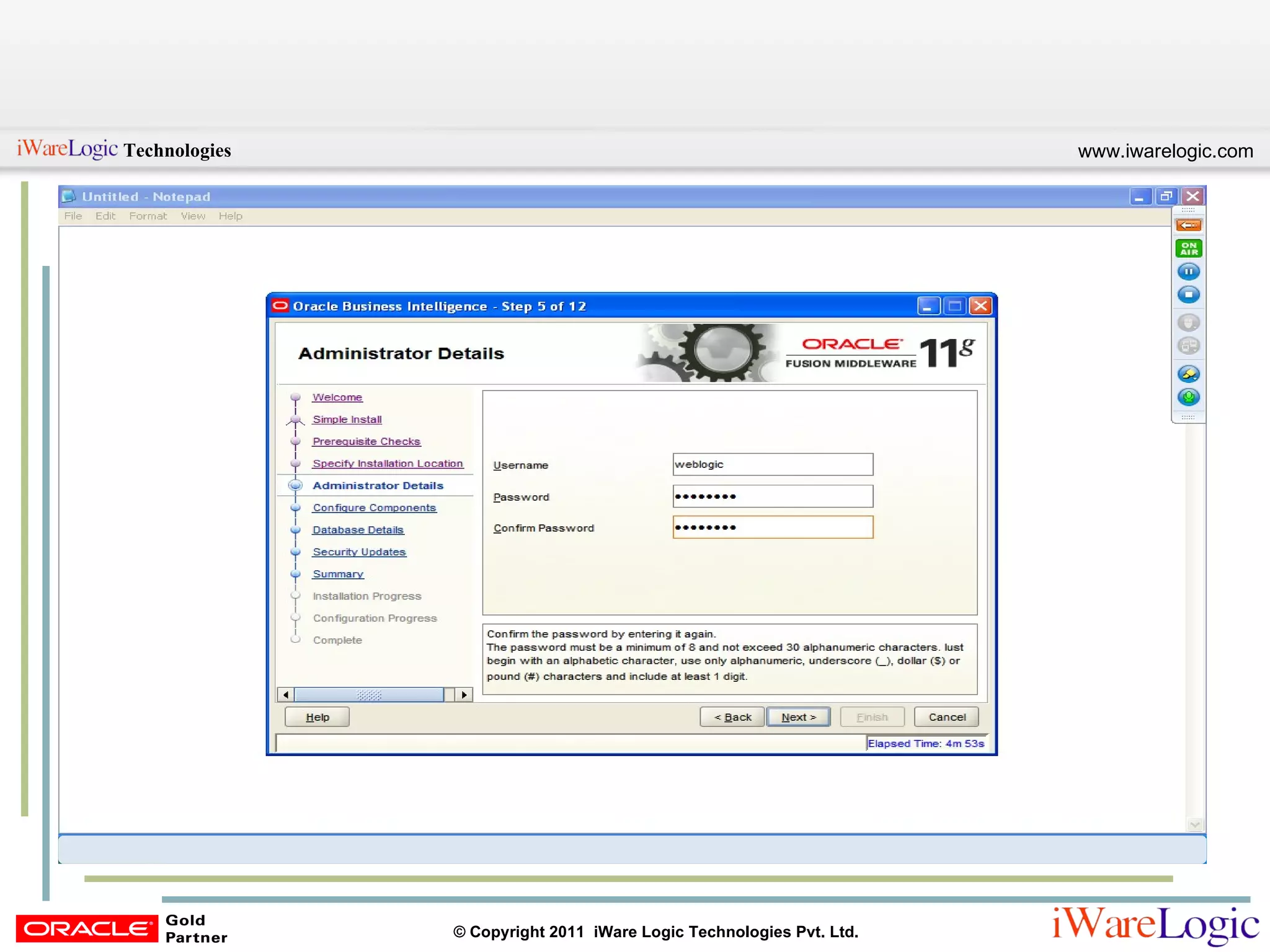

- 23.
- 24.
- 25.
- 26.
- 27.
- 28.

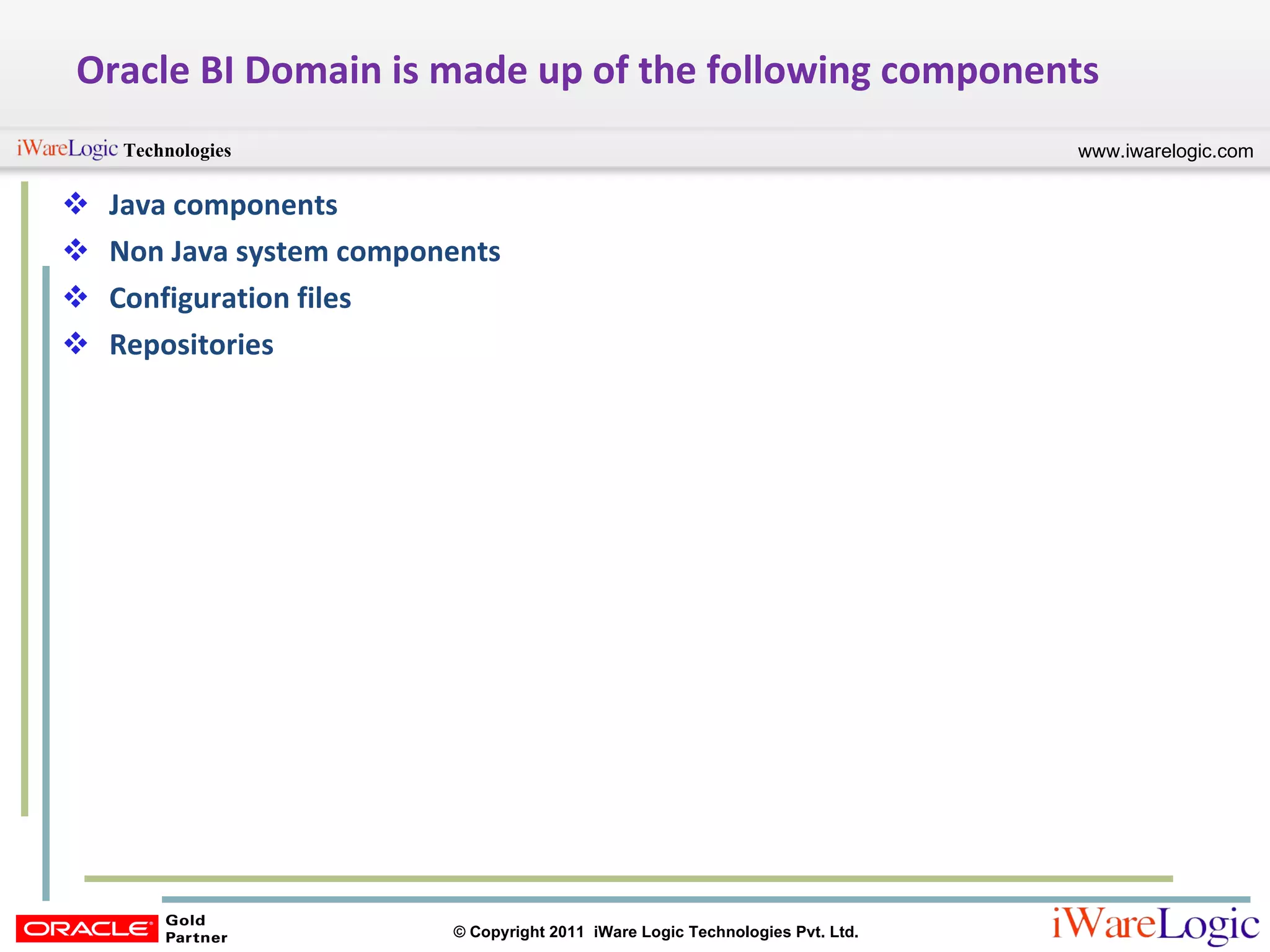

- 29. Java components NonJava system components Configuration files Repositories Oracle BI Domain is made up of the following components

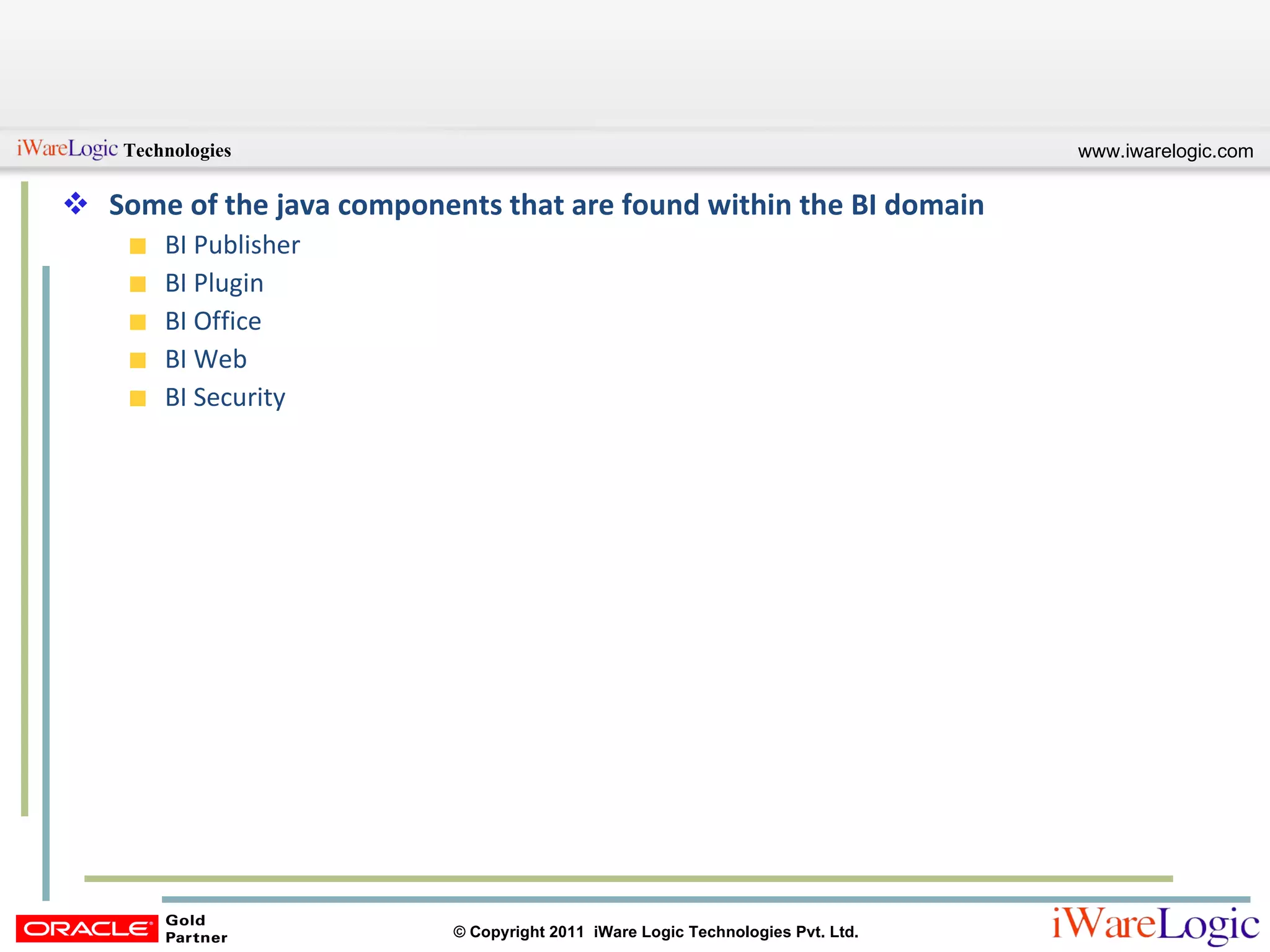

- 30. Some of thejava components that are found within the BI domain BI Publisher BI Plugin BI Office BI Web BI Security

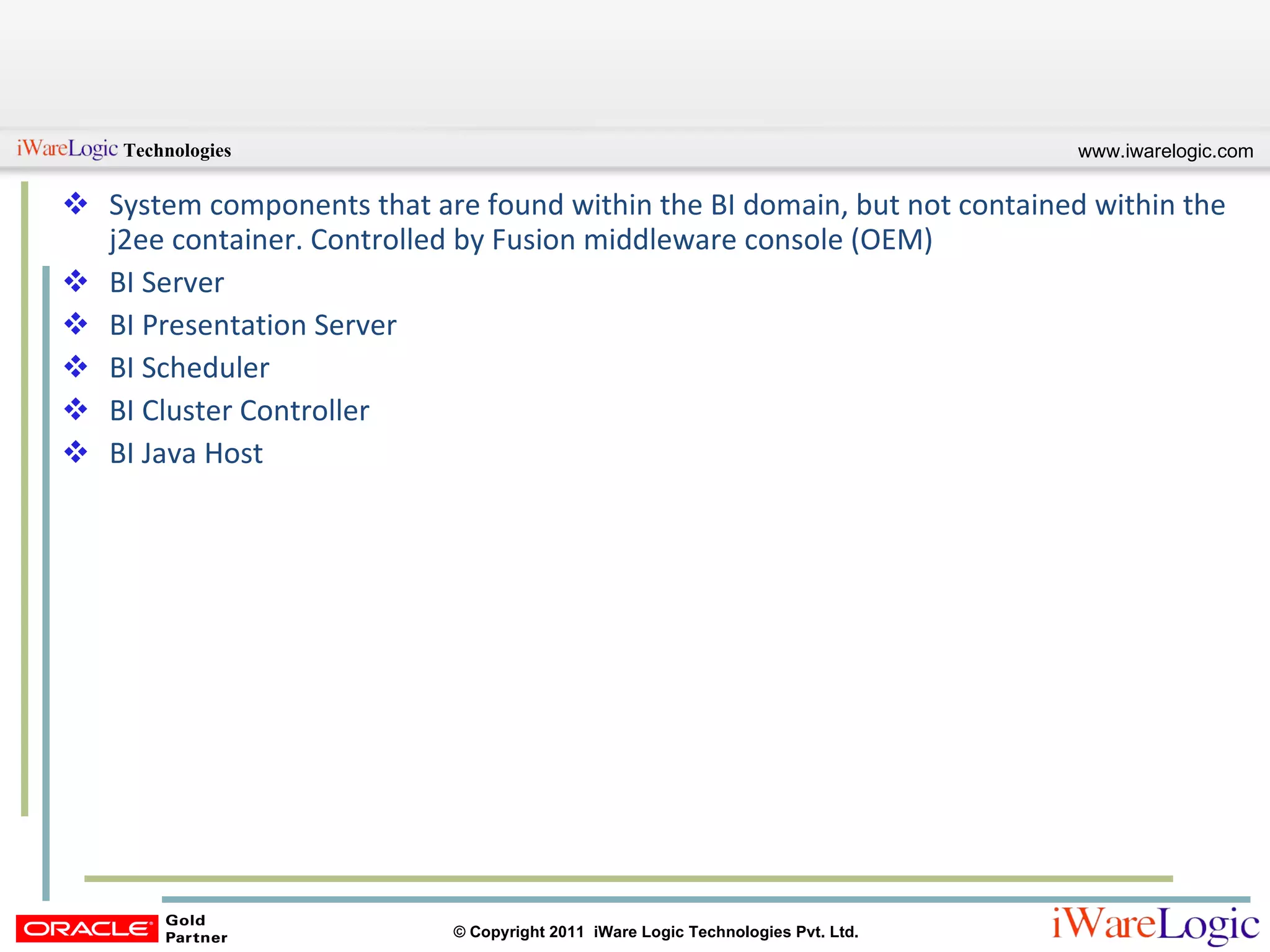

- 31. System components thatare found within the BI domain, but not contained within the j2ee container. Controlled by Fusion middleware console (OEM) BI Server BI Presentation Server BI Scheduler BI Cluster Controller BI Java Host

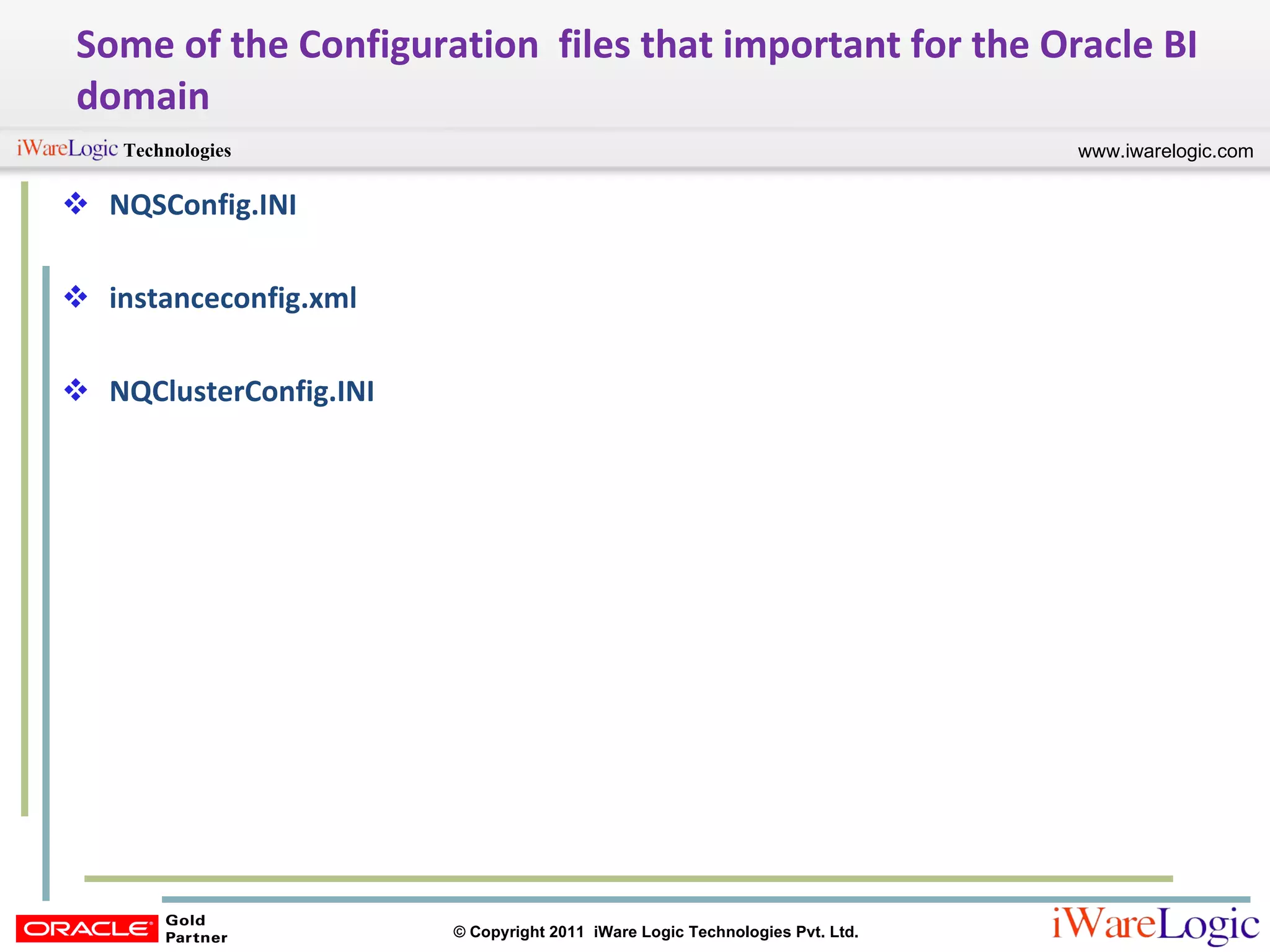

- 32. Some of theConfiguration files that important for the Oracle BI domain NQSConfig.INI instanceconfig.xml NQClusterConfig.INI

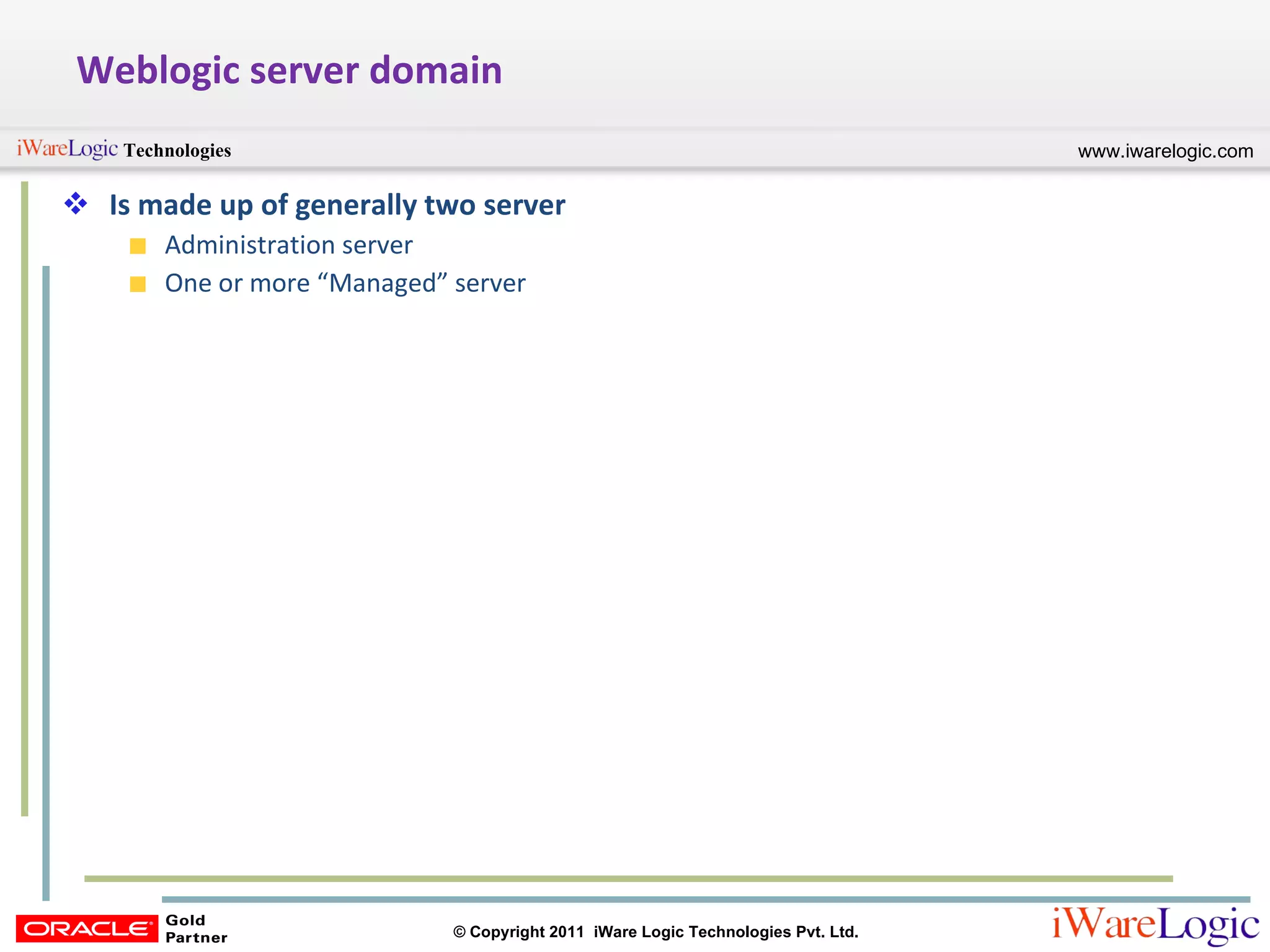

- 33. Weblogic server domainIs made up of generally two server Administration server One or more “Managed” server

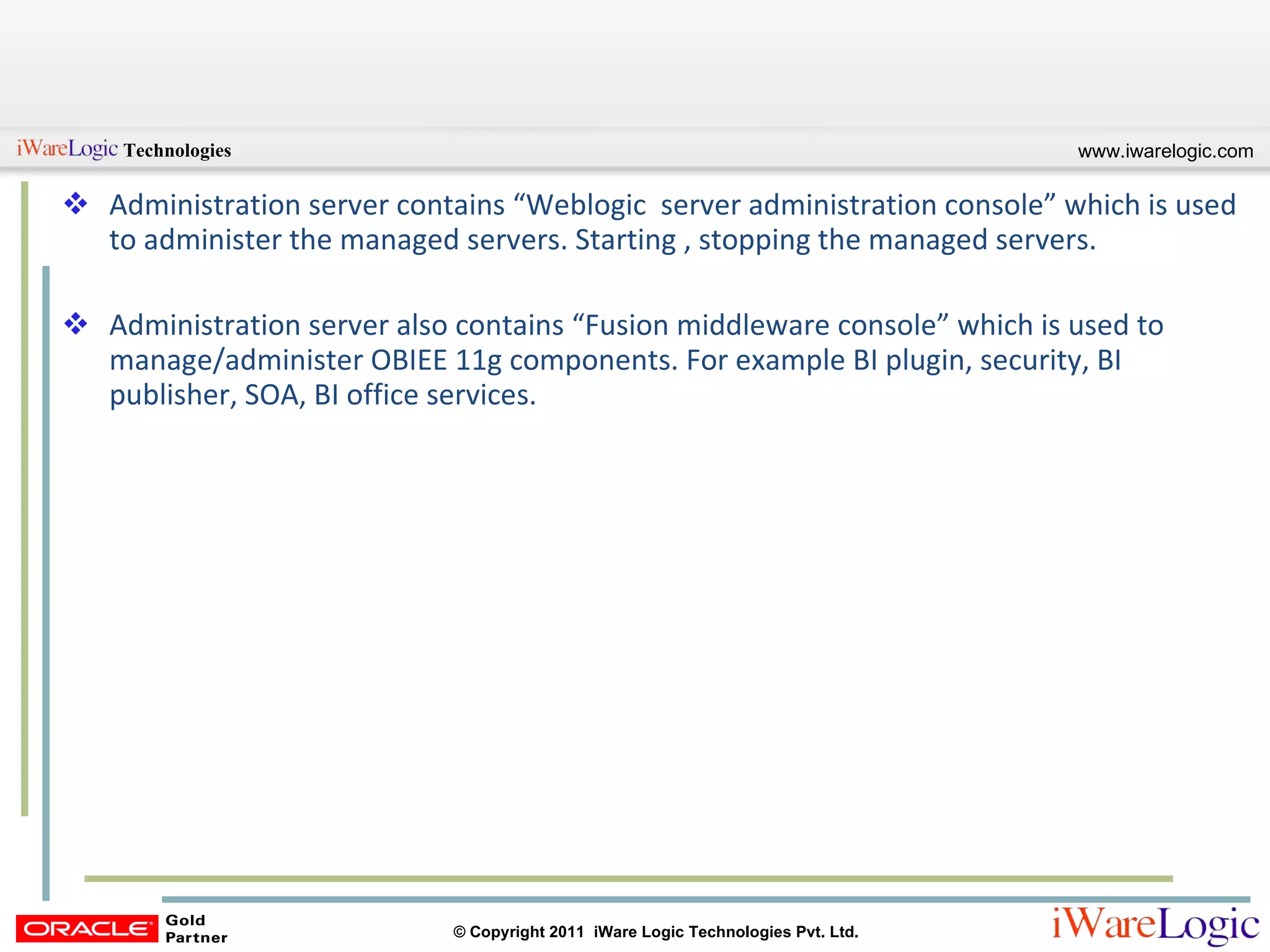

- 34. Administration server contains“Weblogic server administration console” which is used to administer the managed servers. Starting , stopping the managed servers. Administration server also contains “Fusion middleware console” which is used to manage/administer OBIEE 11g components. For example BI plugin, security, BI publisher, SOA, BI office services.

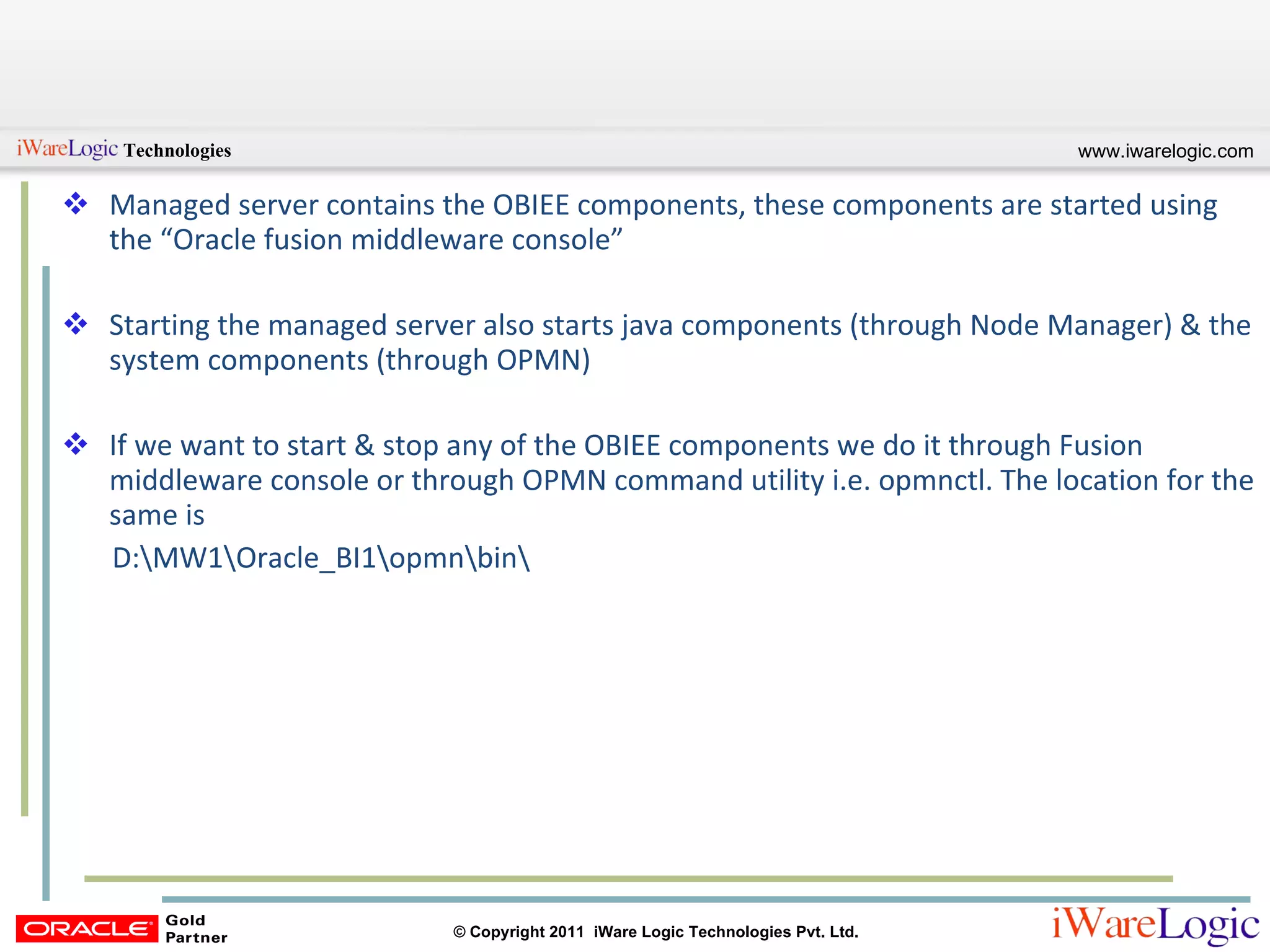

- 35. Managed server containsthe OBIEE components, these components are started using the “Oracle fusion middleware console” Starting the managed server also starts java components (through Node Manager) & the system components (through OPMN) If we want to start & stop any of the OBIEE components we do it through Fusion middleware console or through OPMN command utility i.e. opmnctl. The location for the same is D:\MW1\Oracle_BI1\opmn\bin\

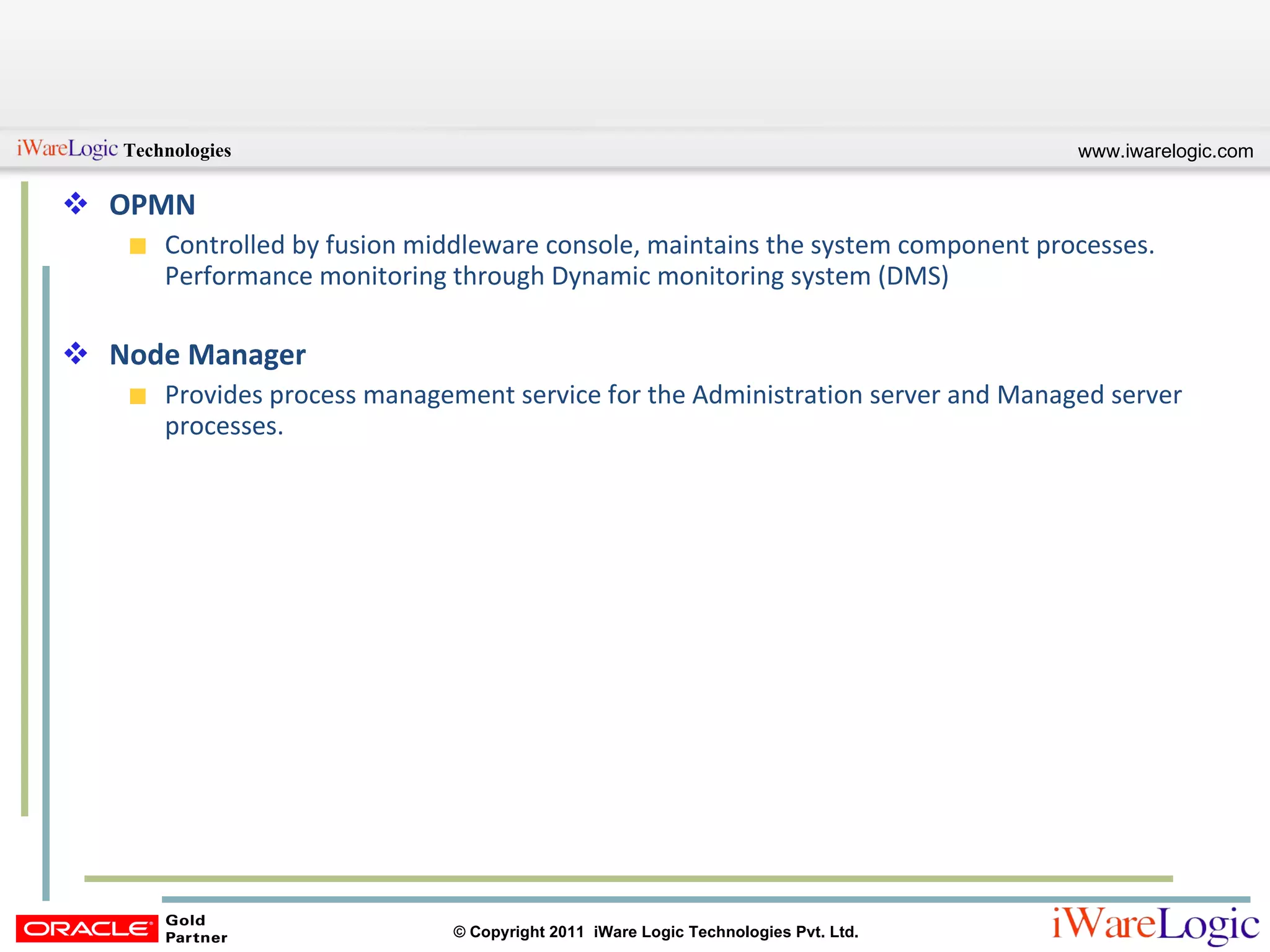

- 36. OPMN Controlled byfusion middleware console, maintains the system component processes. Performance monitoring through Dynamic monitoring system (DMS) Node Manager Provides process management service for the Administration server and Managed server processes.

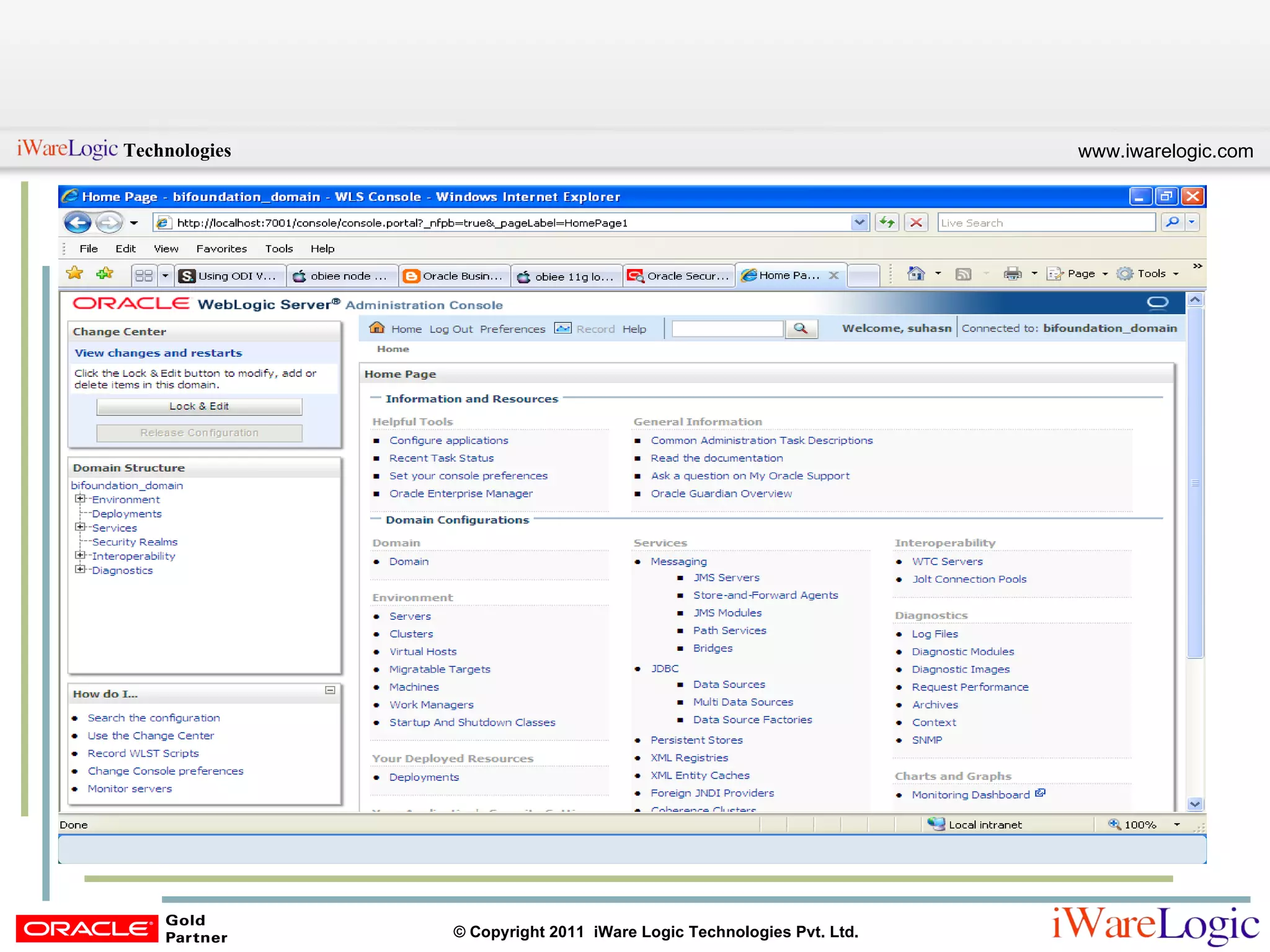

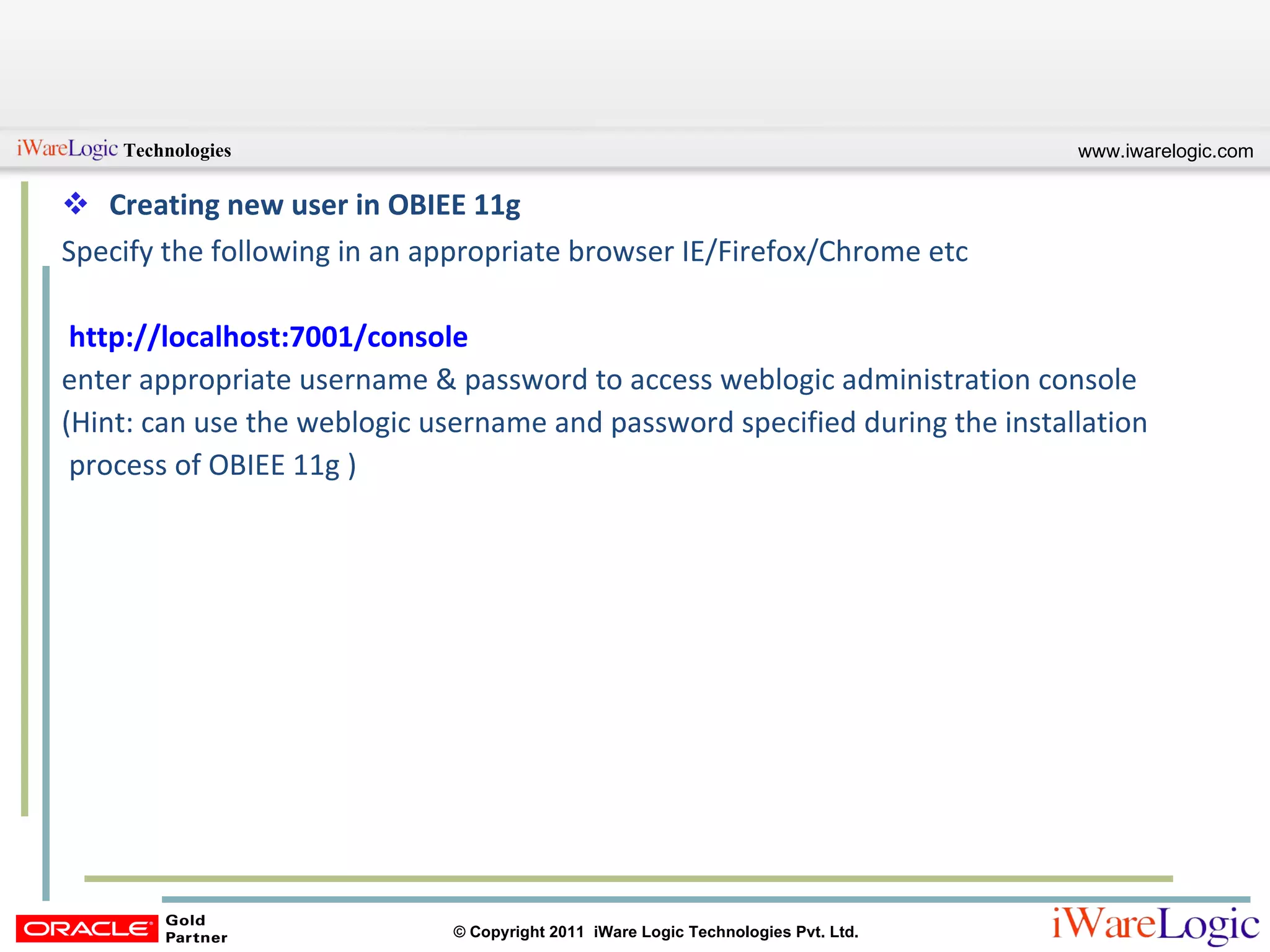

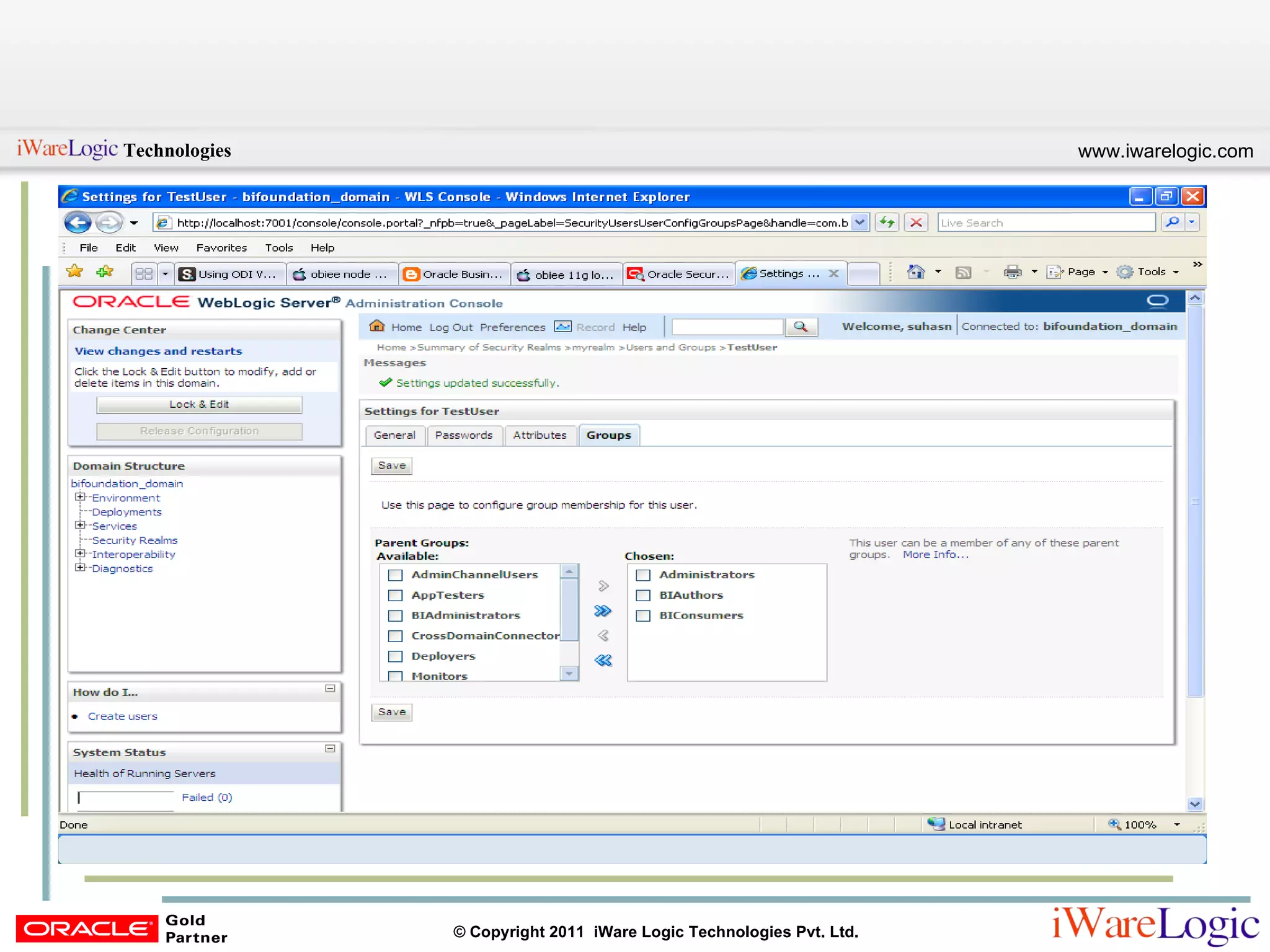

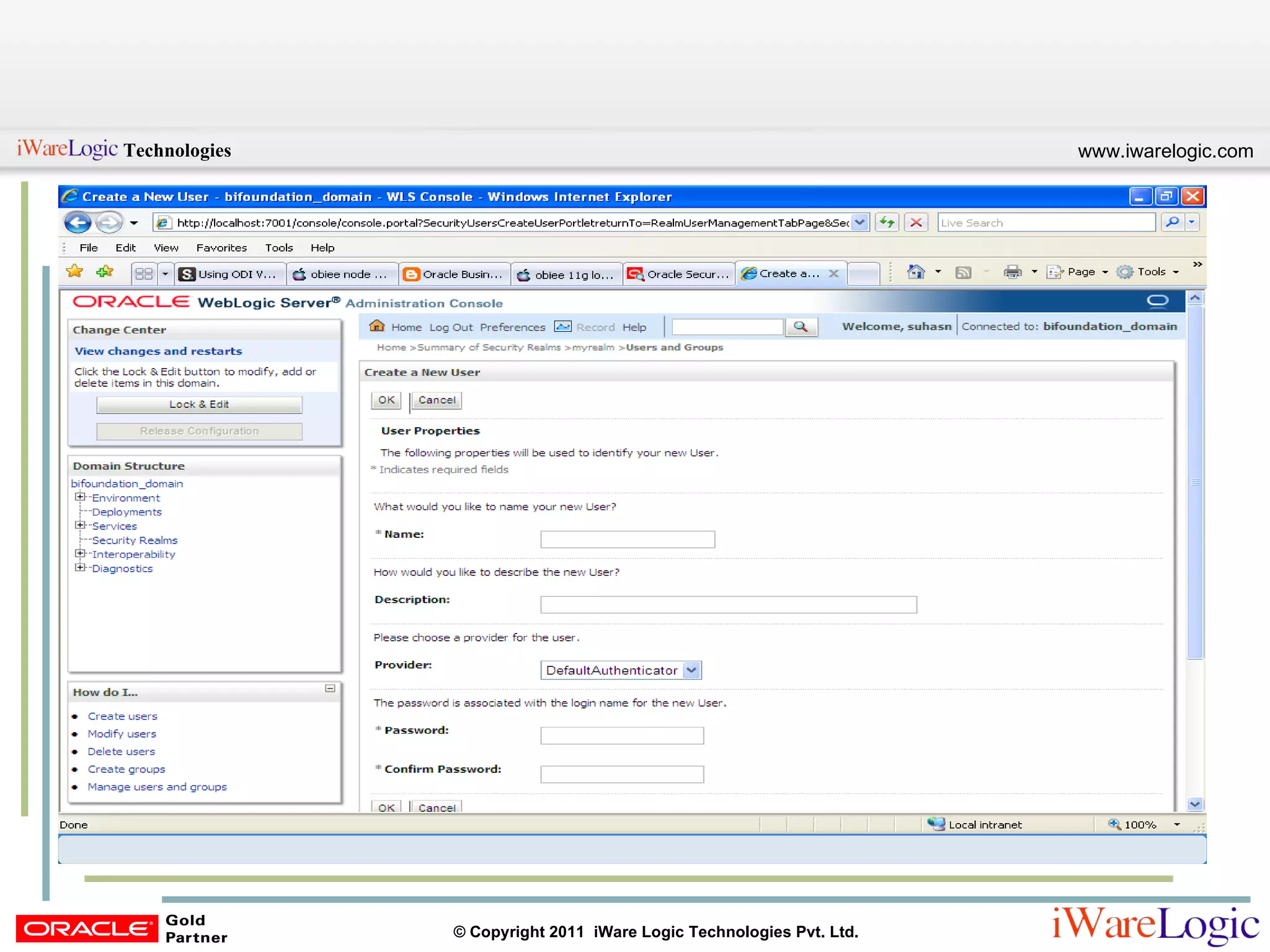

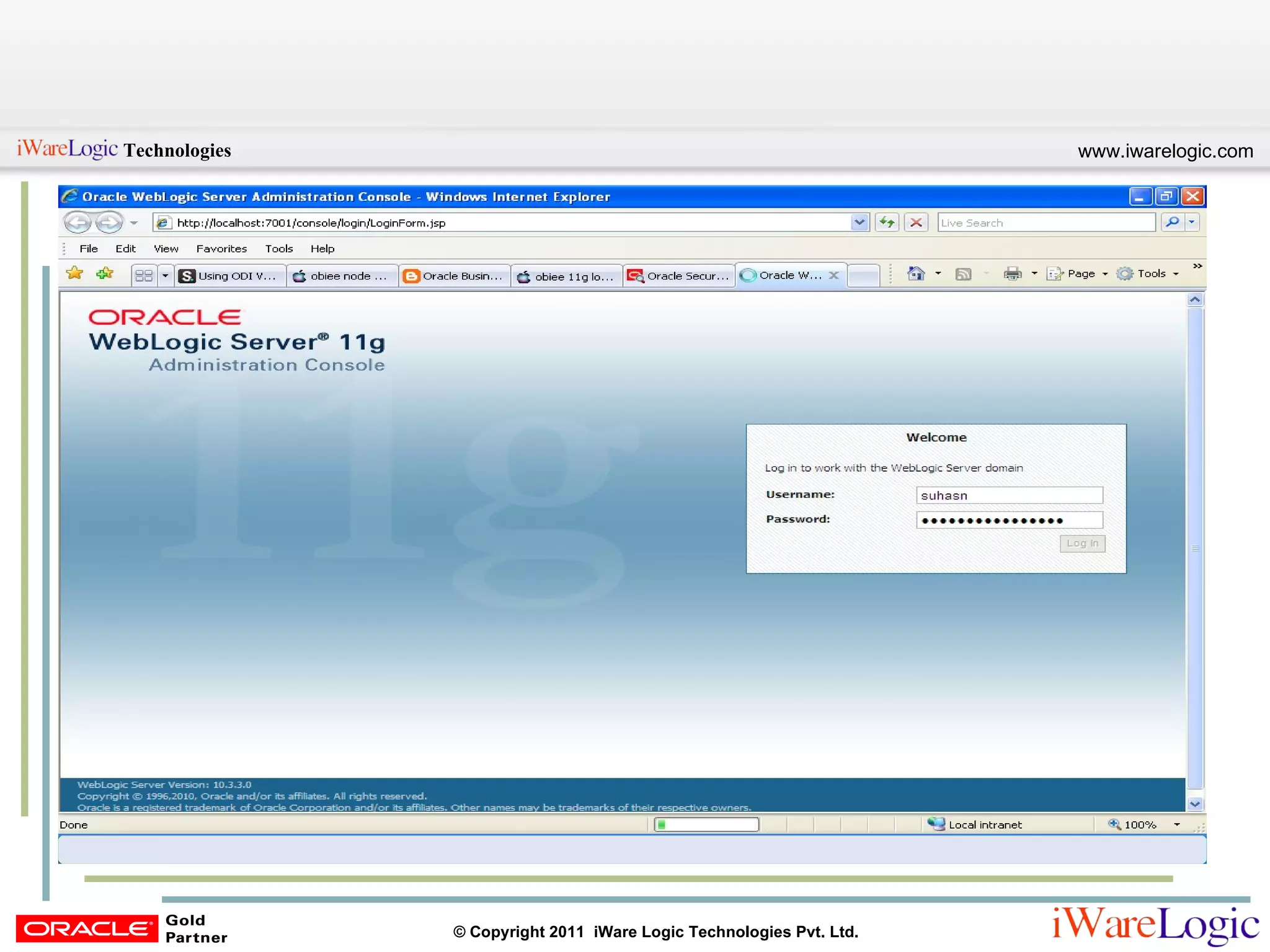

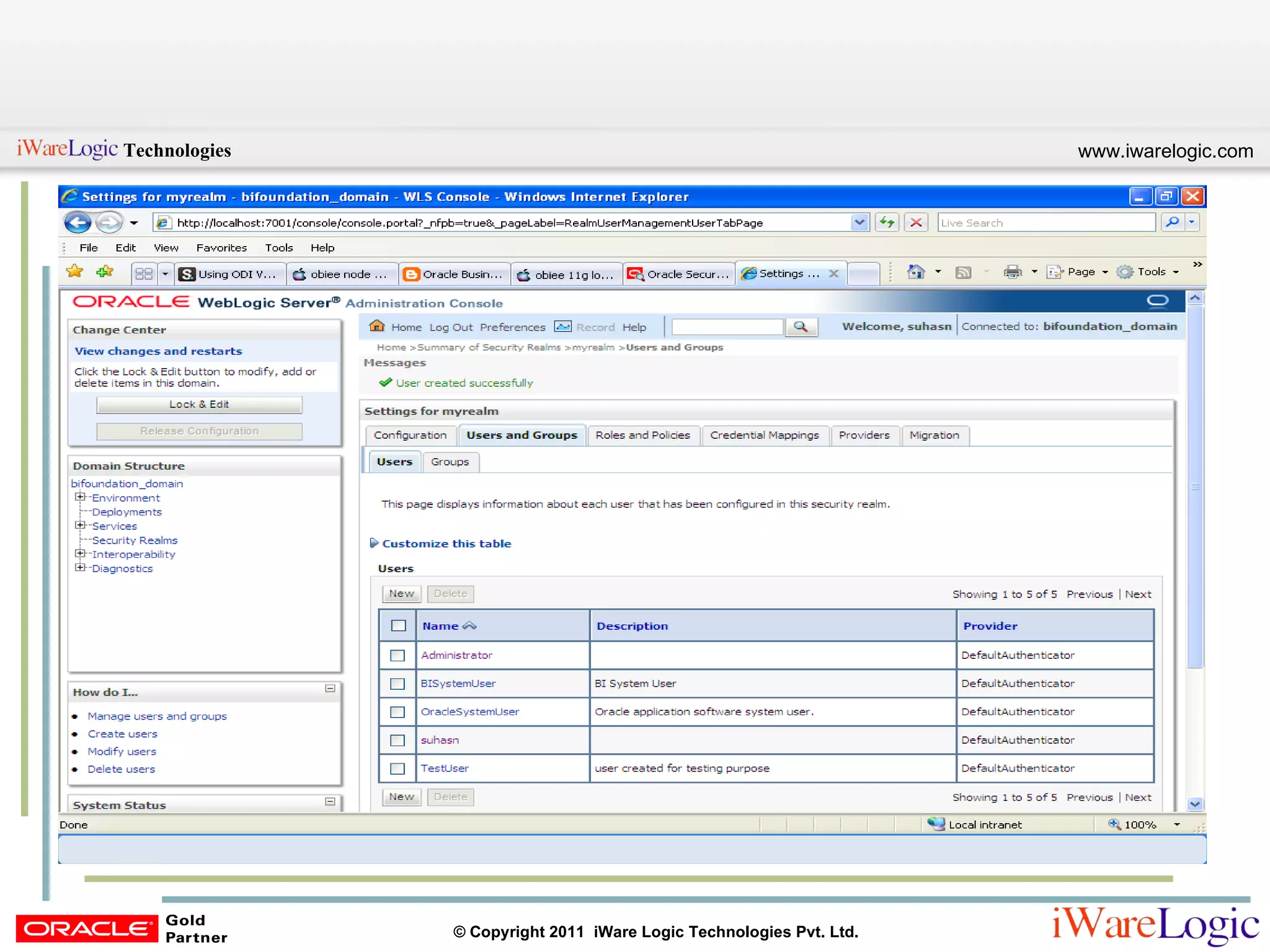

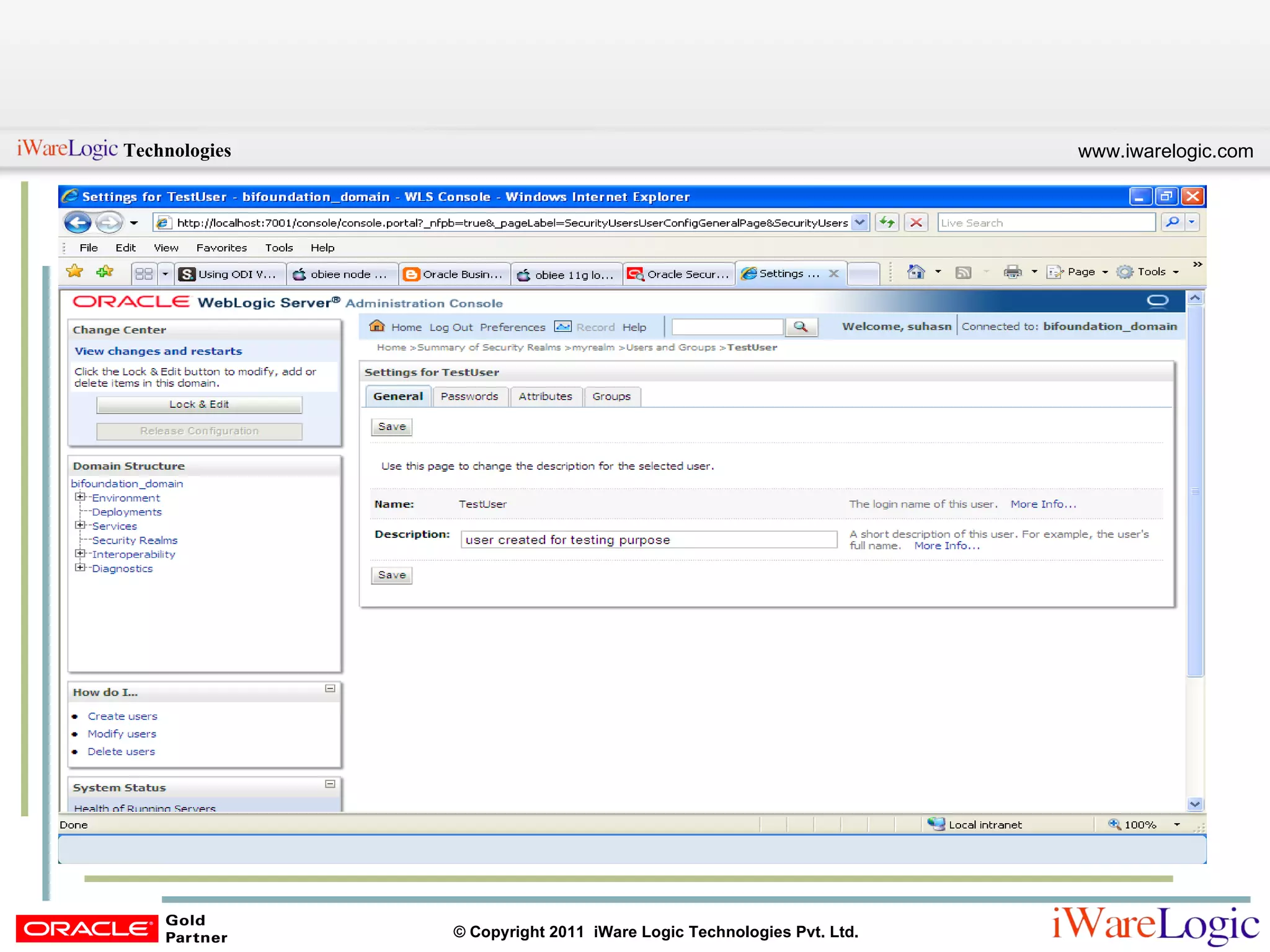

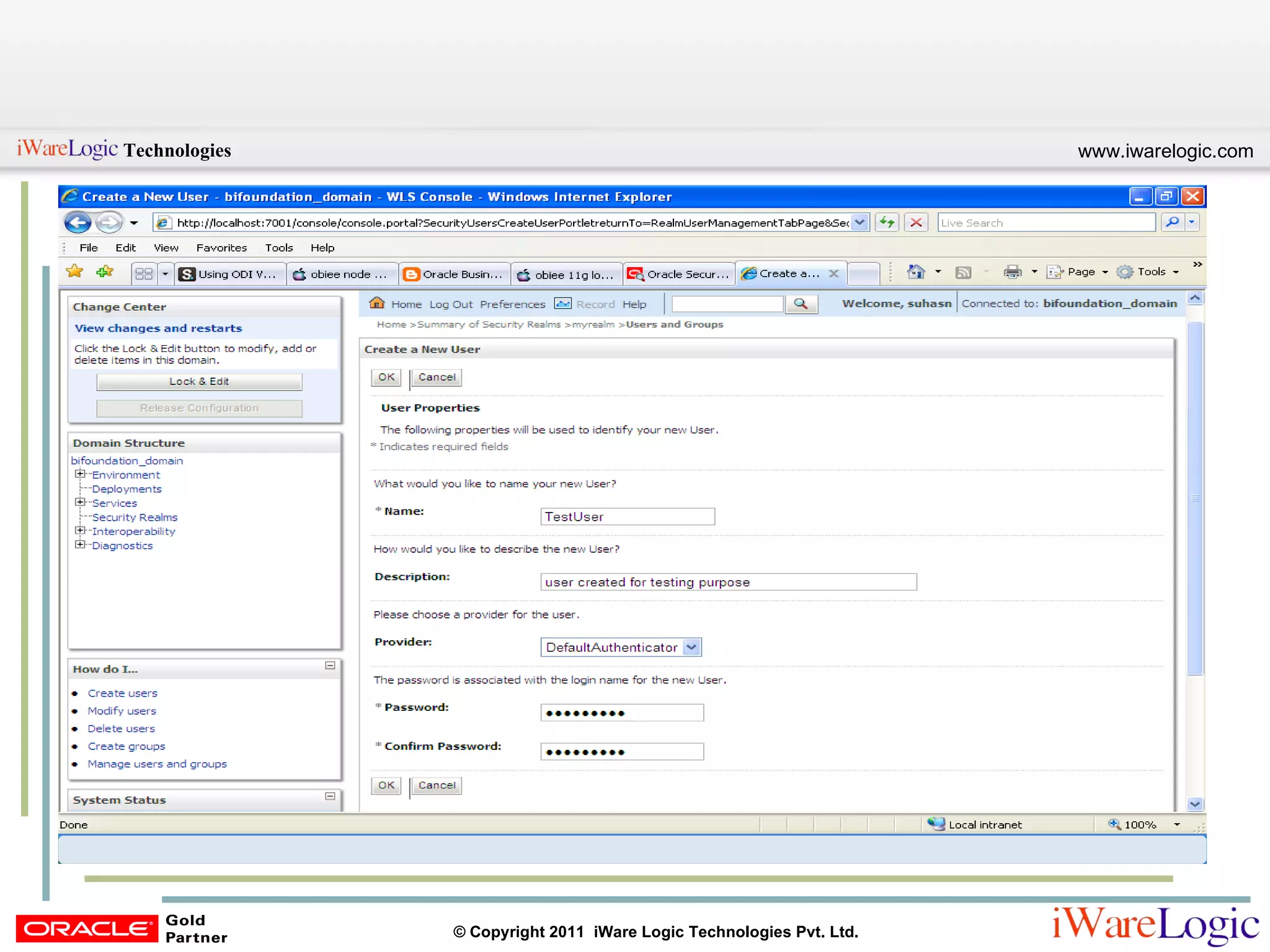

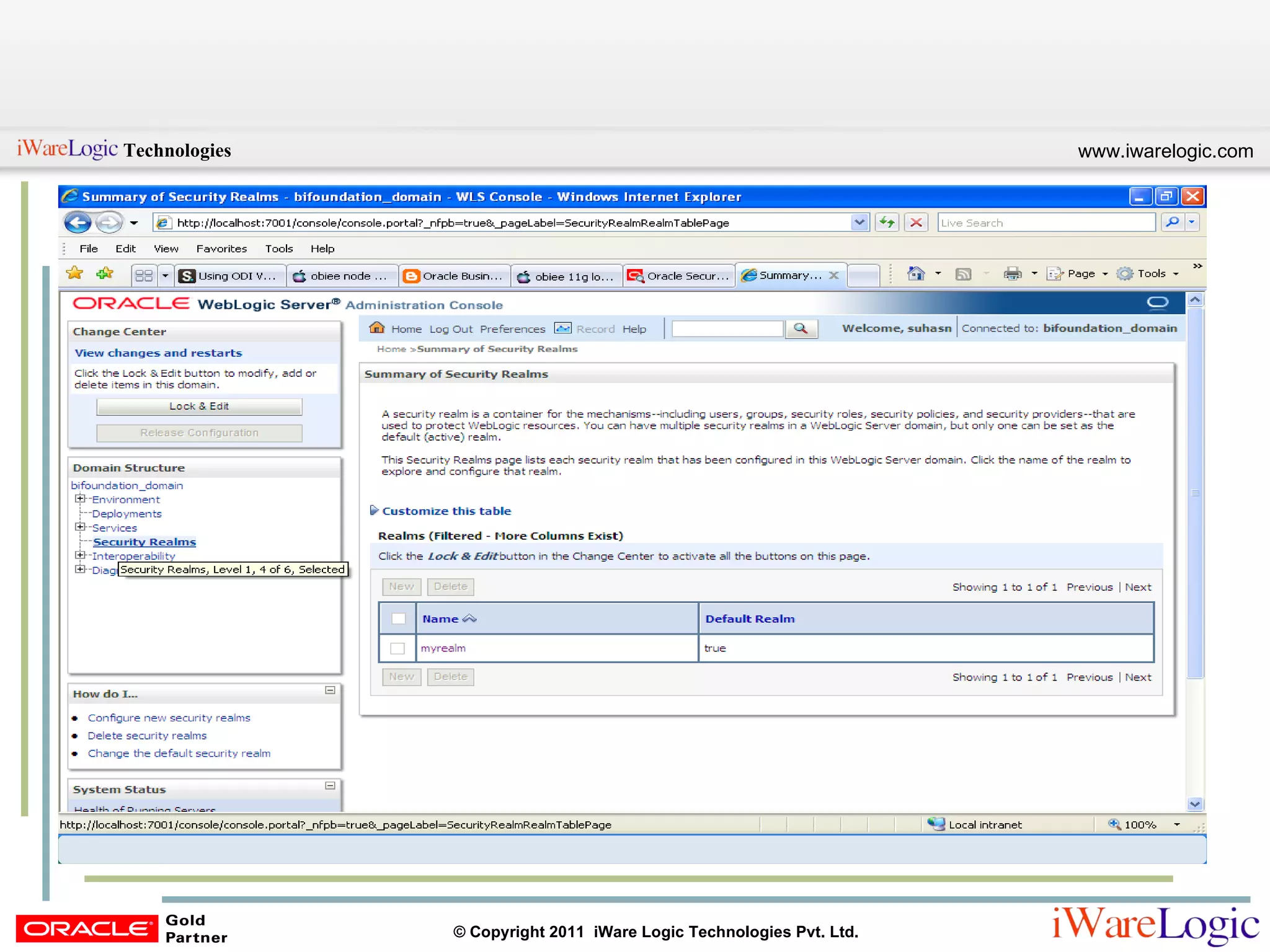

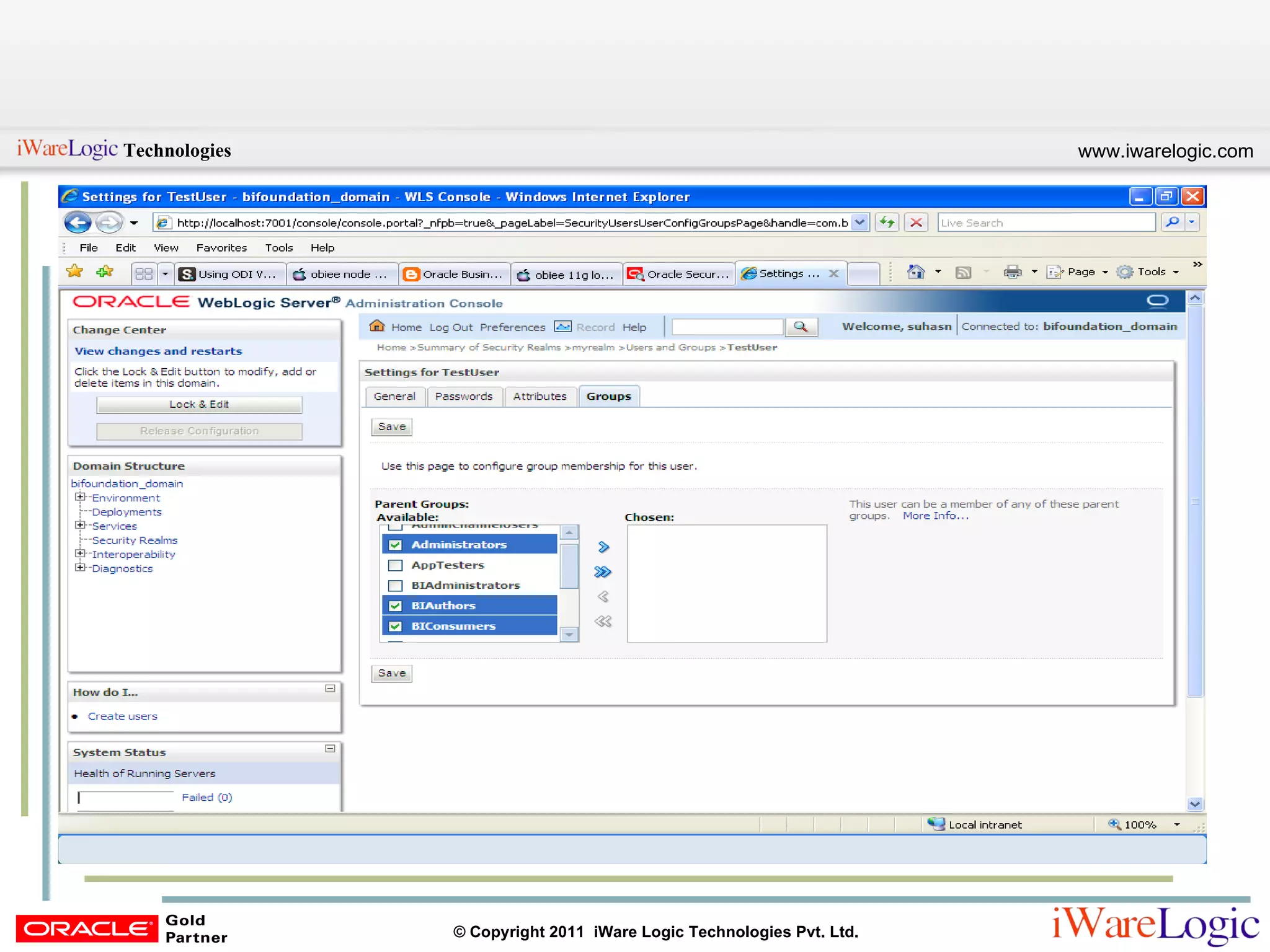

- 37. Creating new userin OBIEE 11g Specify the following in an appropriate browser IE/Firefox/Chrome etc http://localhost:7001/console enter appropriate username & password to access weblogic administration console (Hint: can use the weblogic username and password specified during the installation process of OBIEE 11g )
- 38.
- 39.
- 40.
- 41.
- 42.
- 43.
- 44.
- 45.

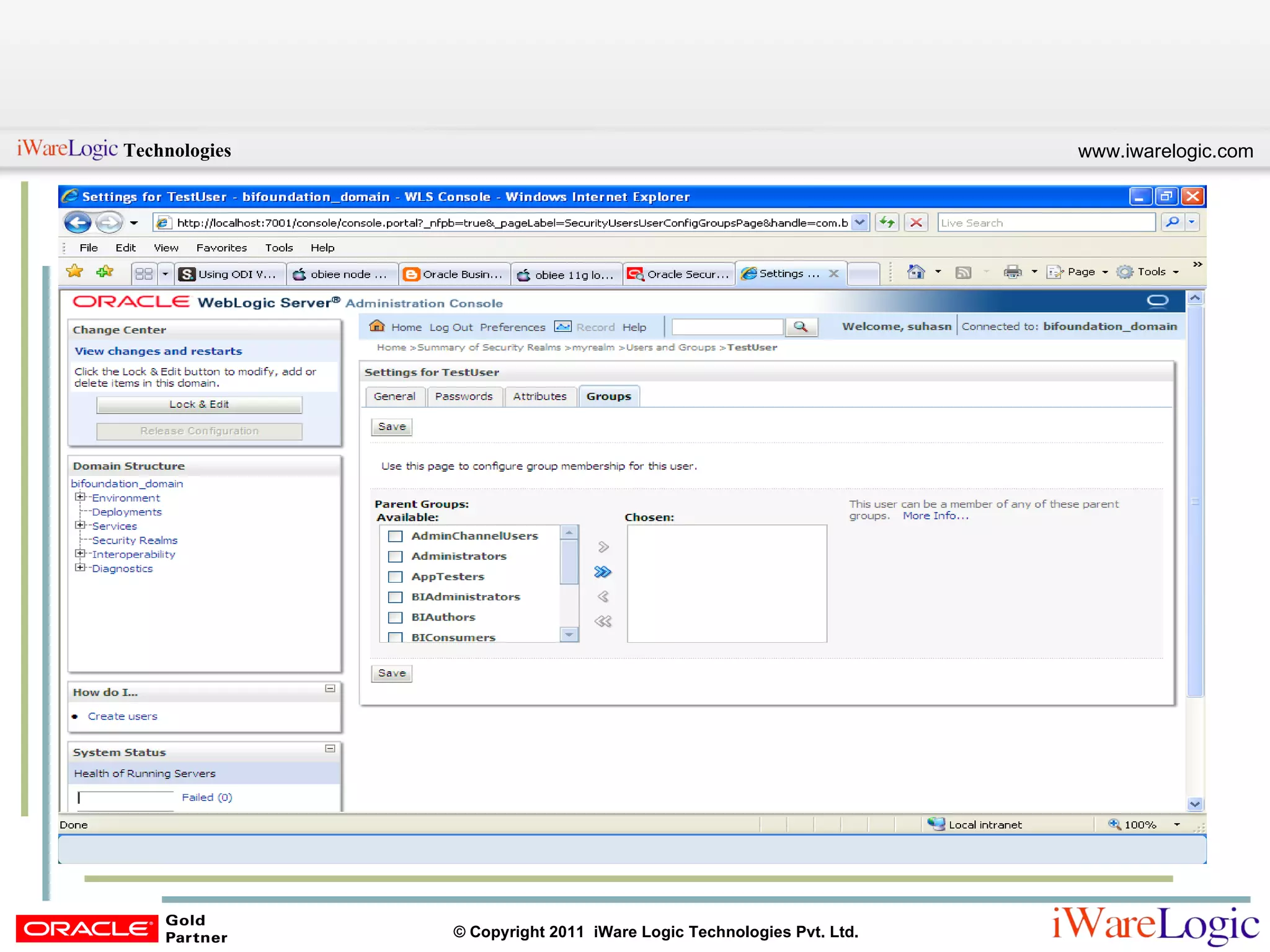

- 46.
- 47.

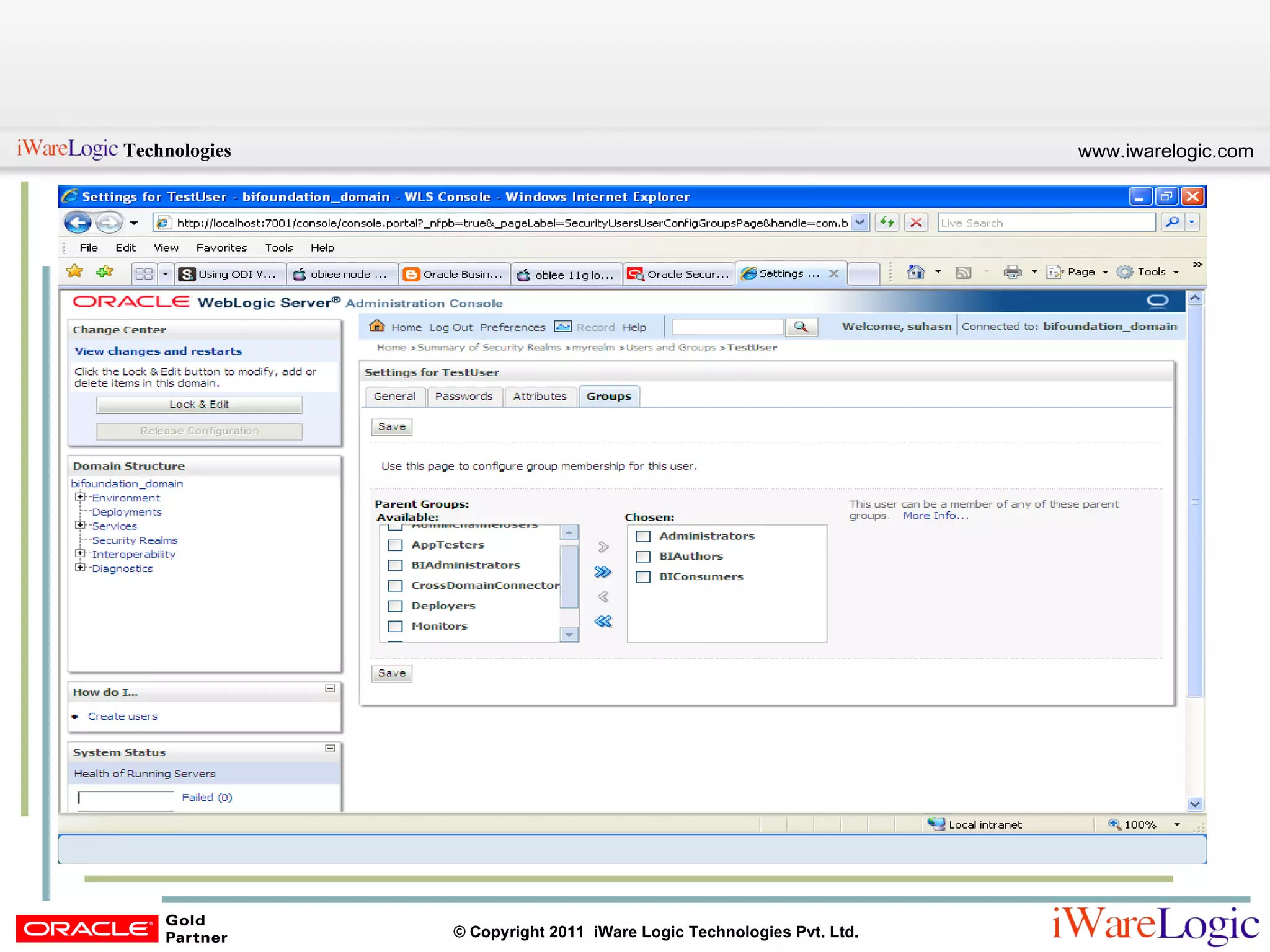

- 48.
- 49.
- 50.
- 51.

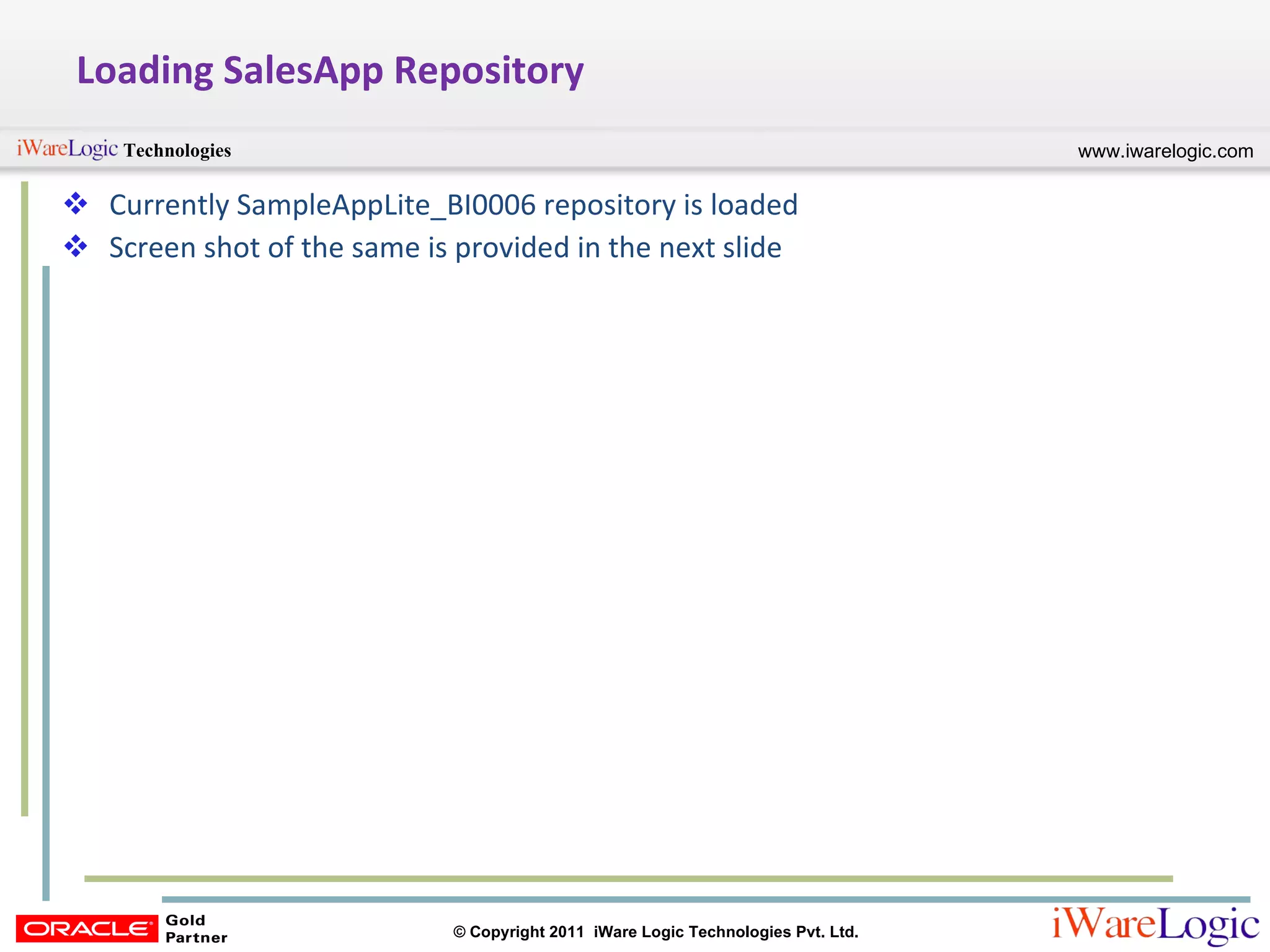

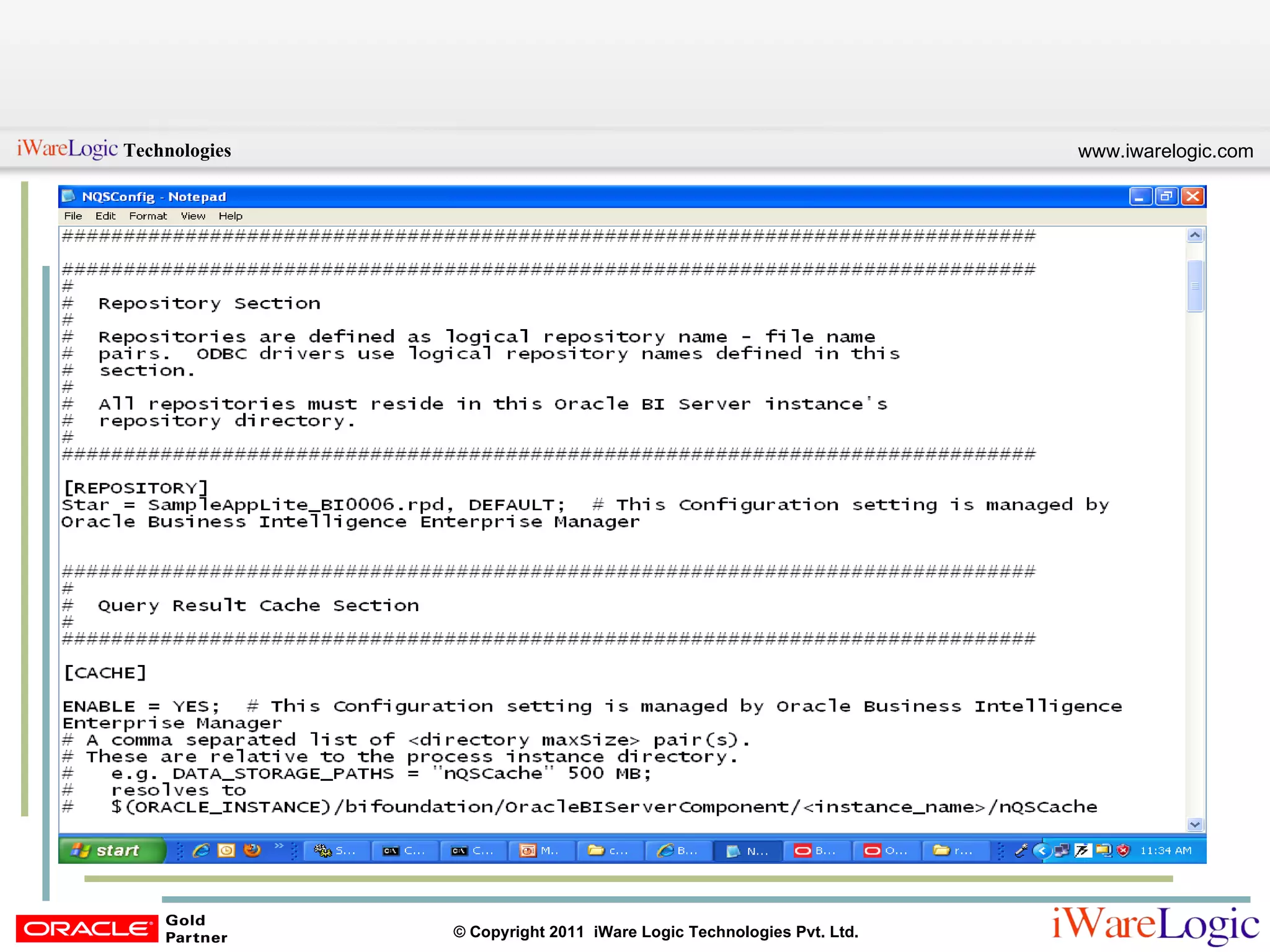

- 52. Loading SalesApp RepositoryCurrently SampleAppLite_BI0006 repository is loaded Screen shot of the same is provided in the next slide
- 53.

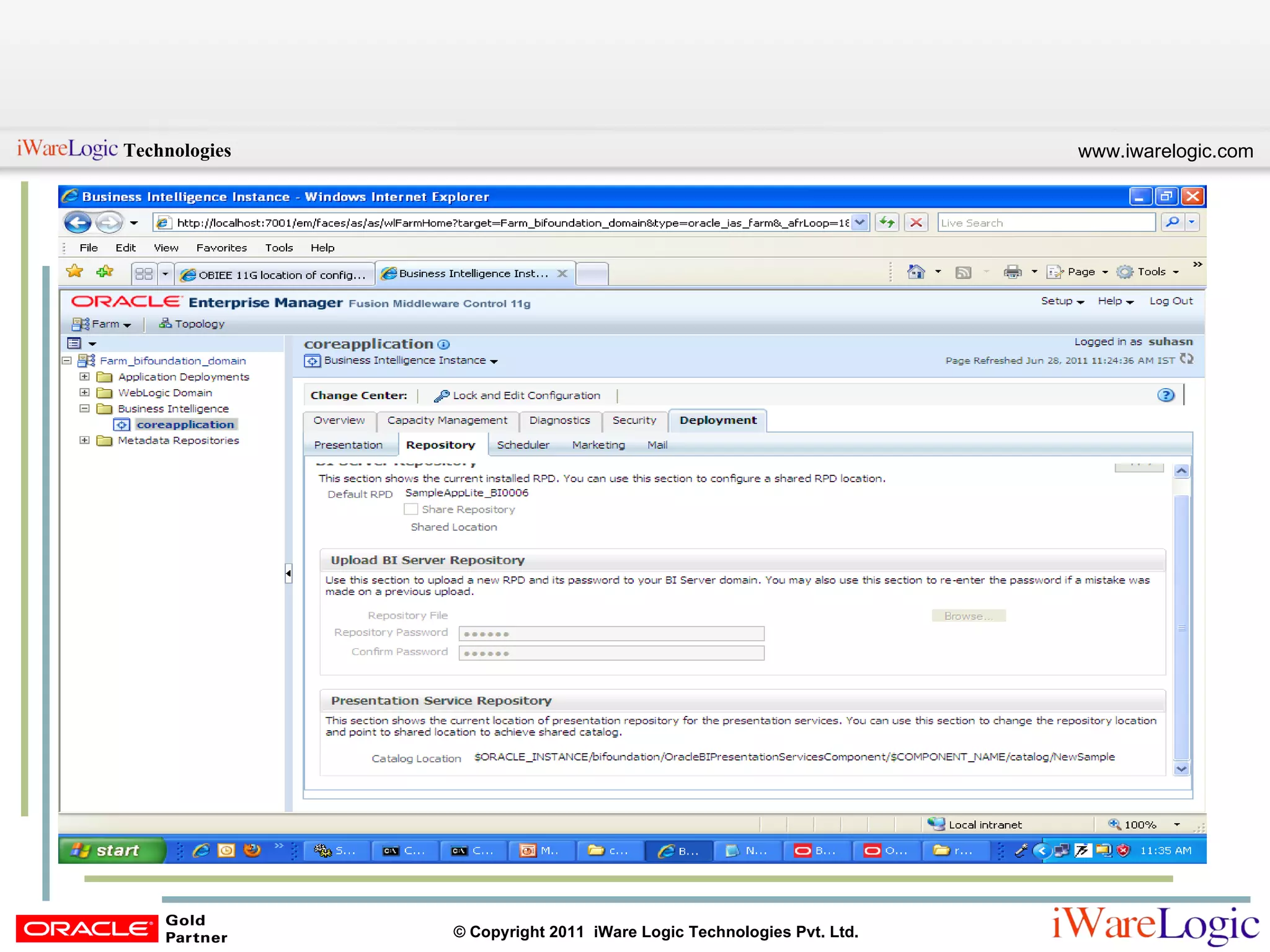

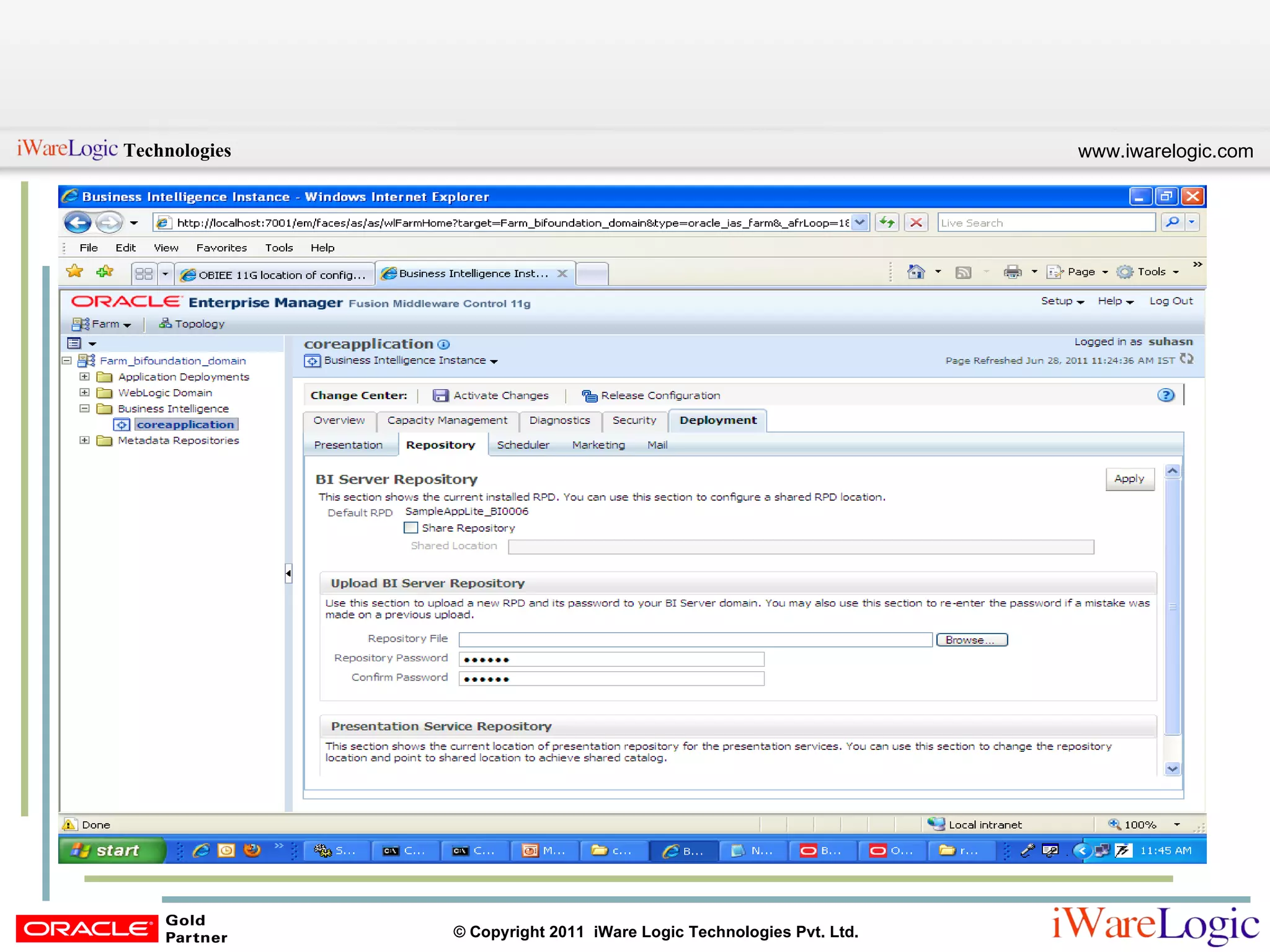

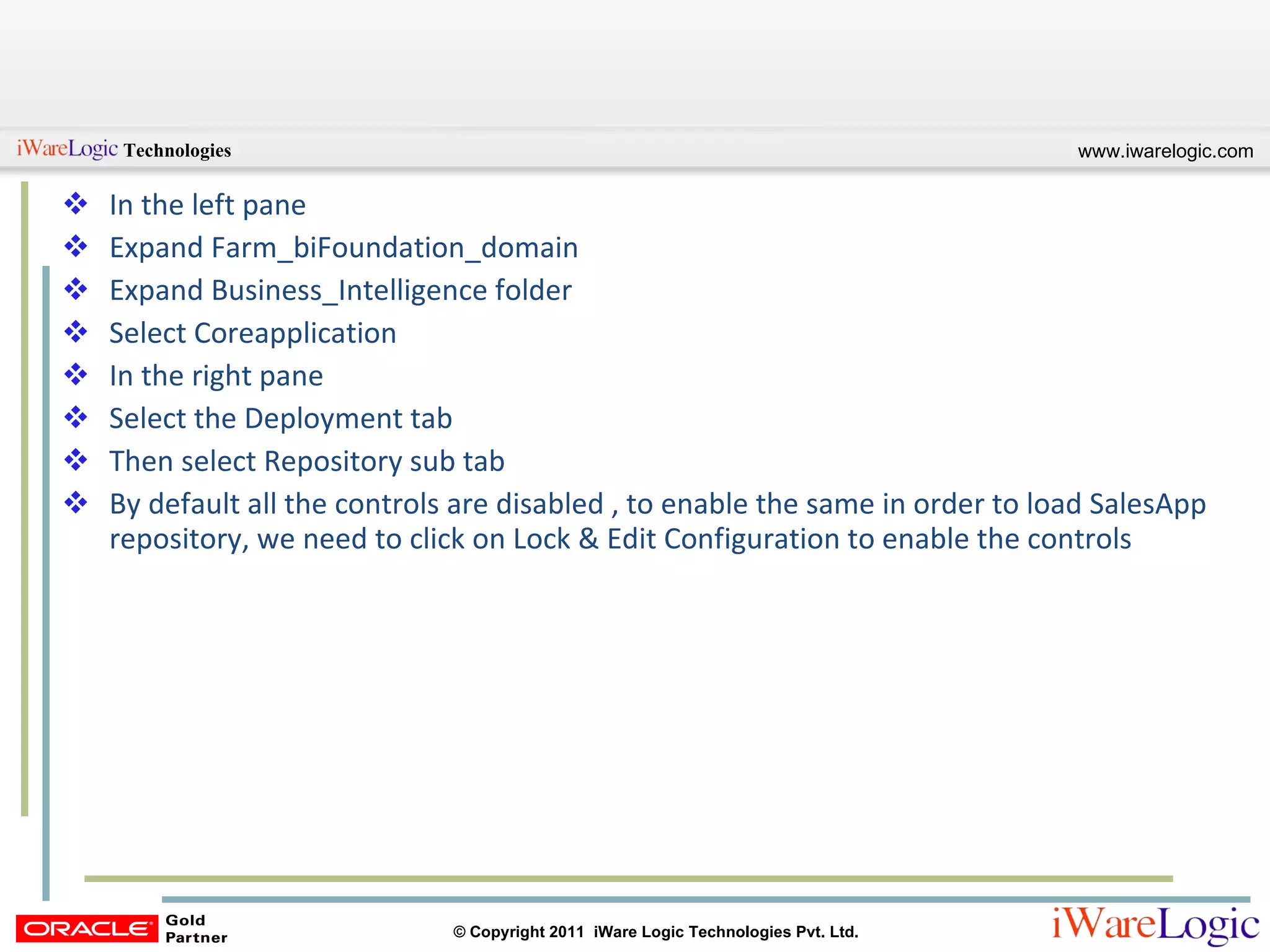

- 54. In the leftpane Expand Farm_biFoundation_domain Expand Business_Intelligence folder Select Coreapplication In the right pane Select the Deployment tab Then select Repository sub tab By default all the controls are disabled , to enable the same in order to load SalesApp repository, we need to click on Lock & Edit Configuration to enable the controls
- 55.
- 56.
- 57.
- 58.
- 59.

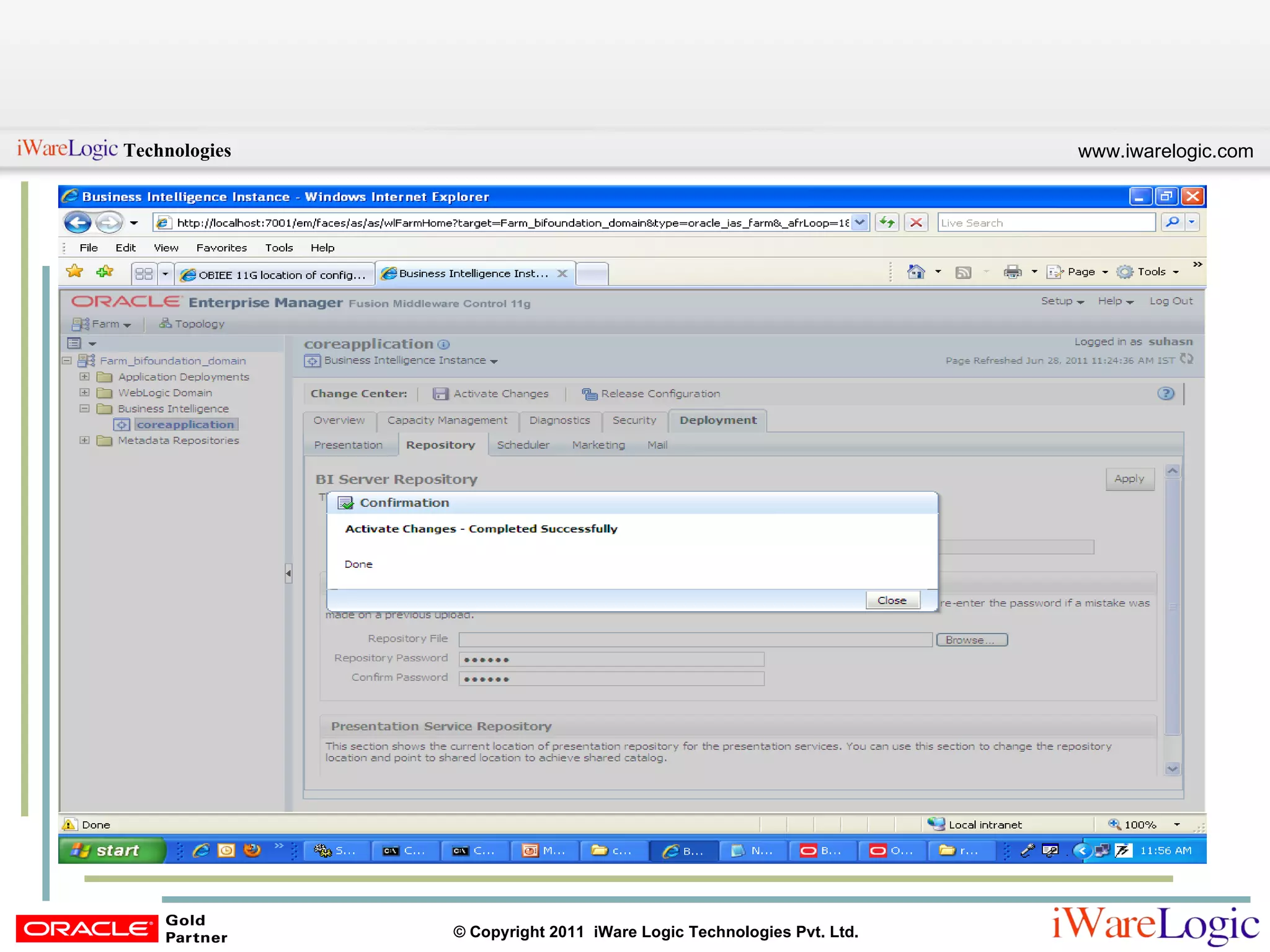

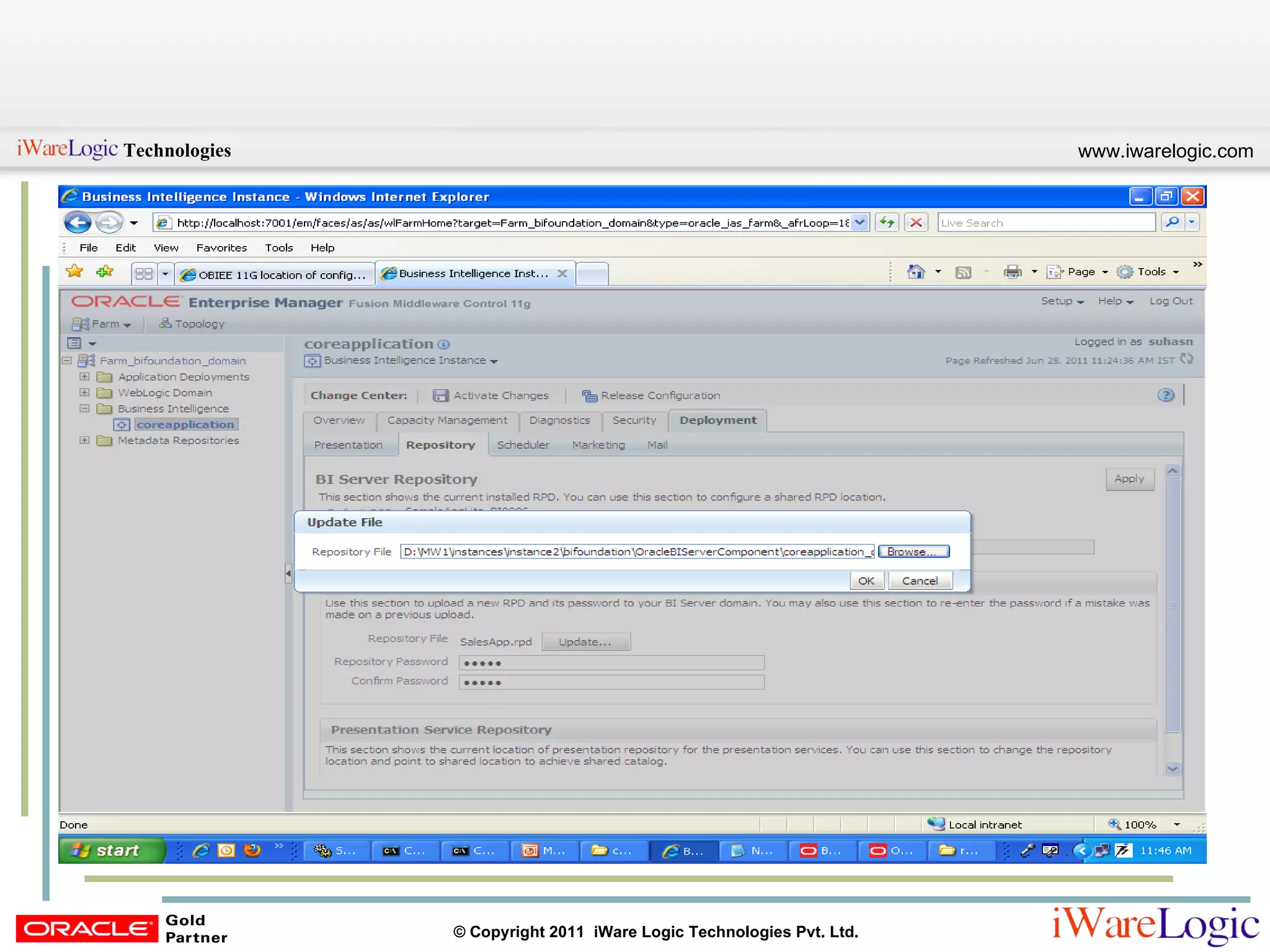

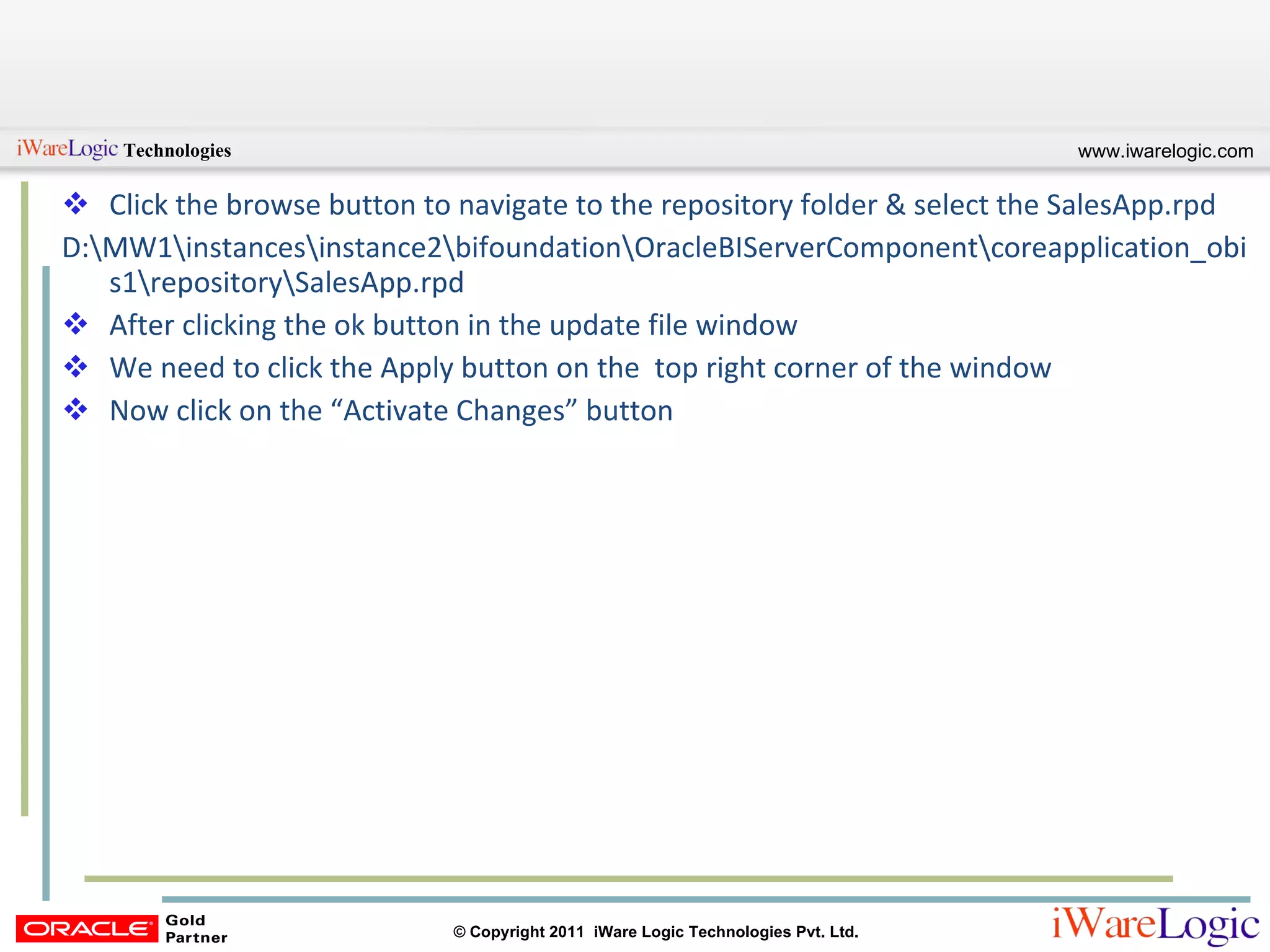

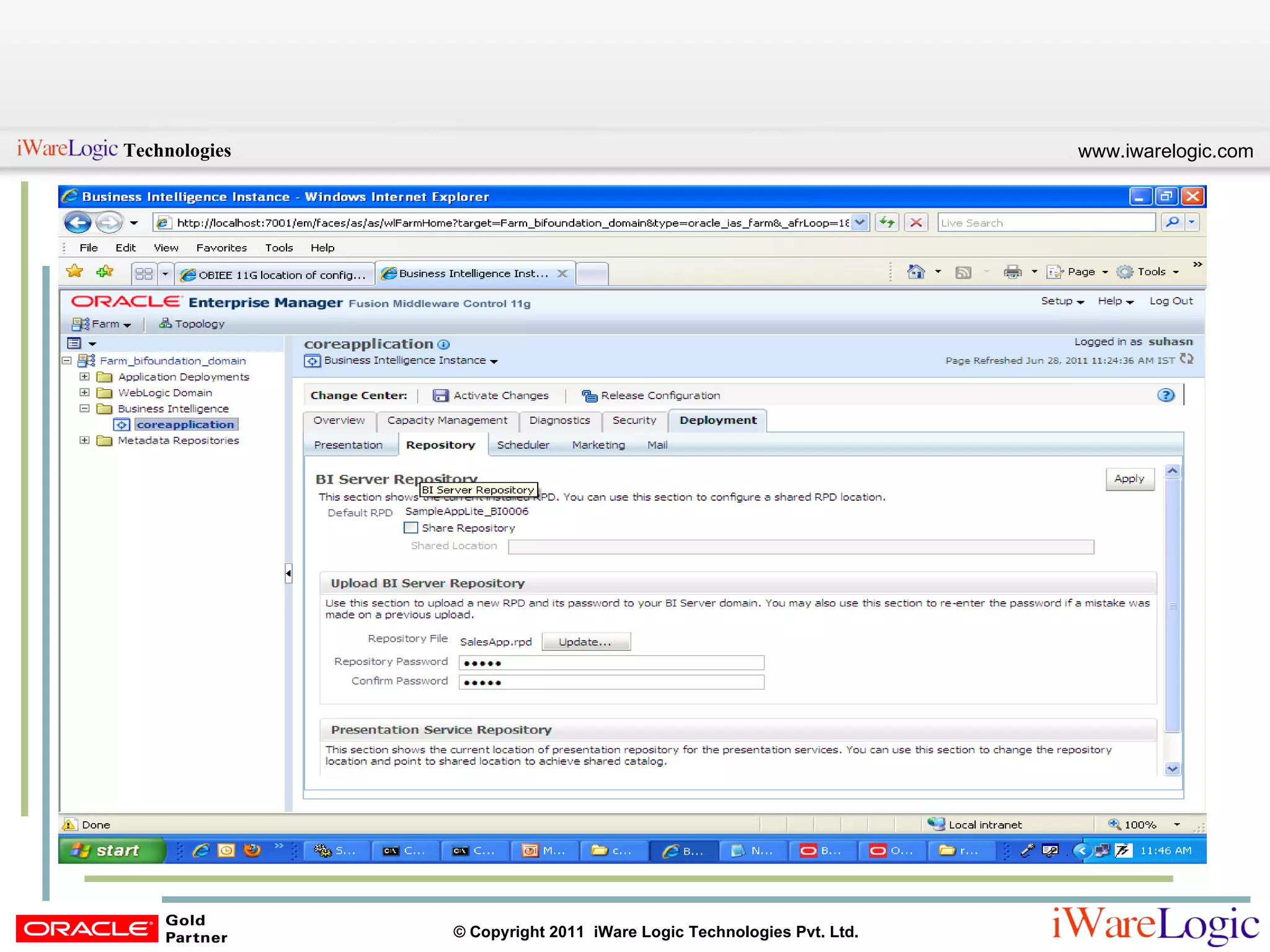

- 60. Click the browsebutton to navigate to the repository folder & select the SalesApp.rpd D:\MW1\instances\instance2\bifoundation\OracleBIServerComponent\coreapplication_obis1\repository\SalesApp.rpd After clicking the ok button in the update file window We need to click the Apply button on the top right corner of the window Now click on the “Activate Changes” button
- 61.
- 62.

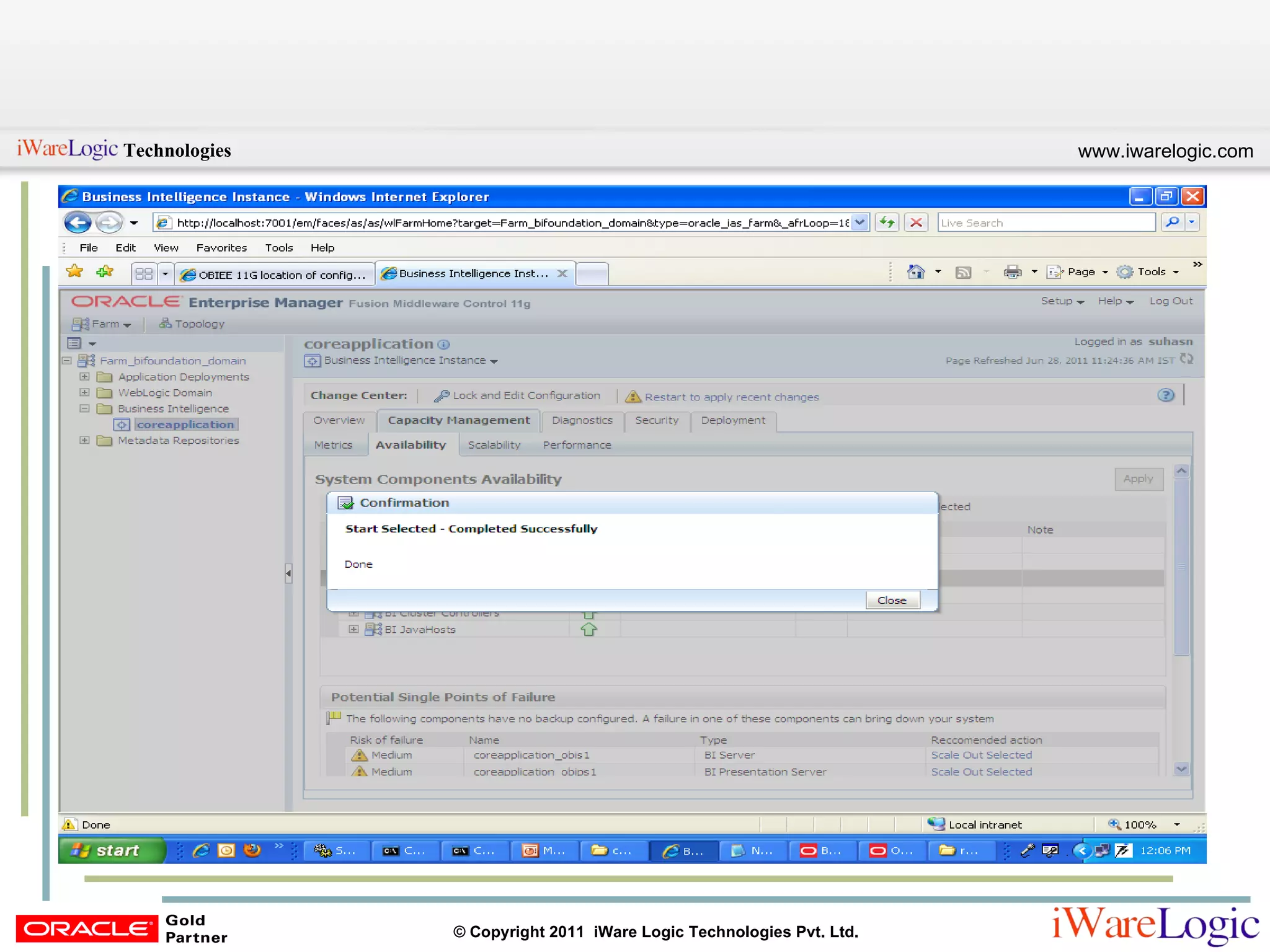

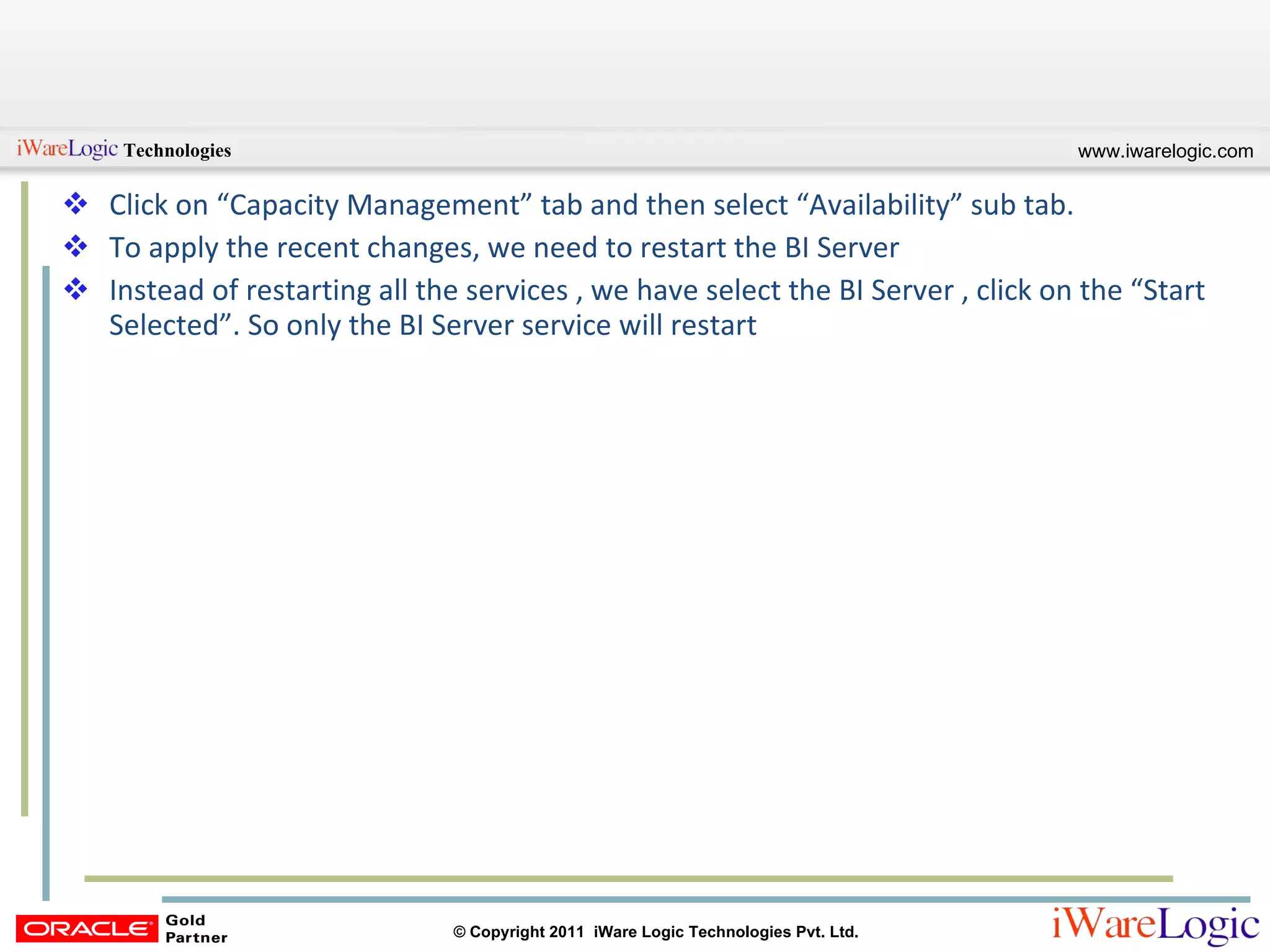

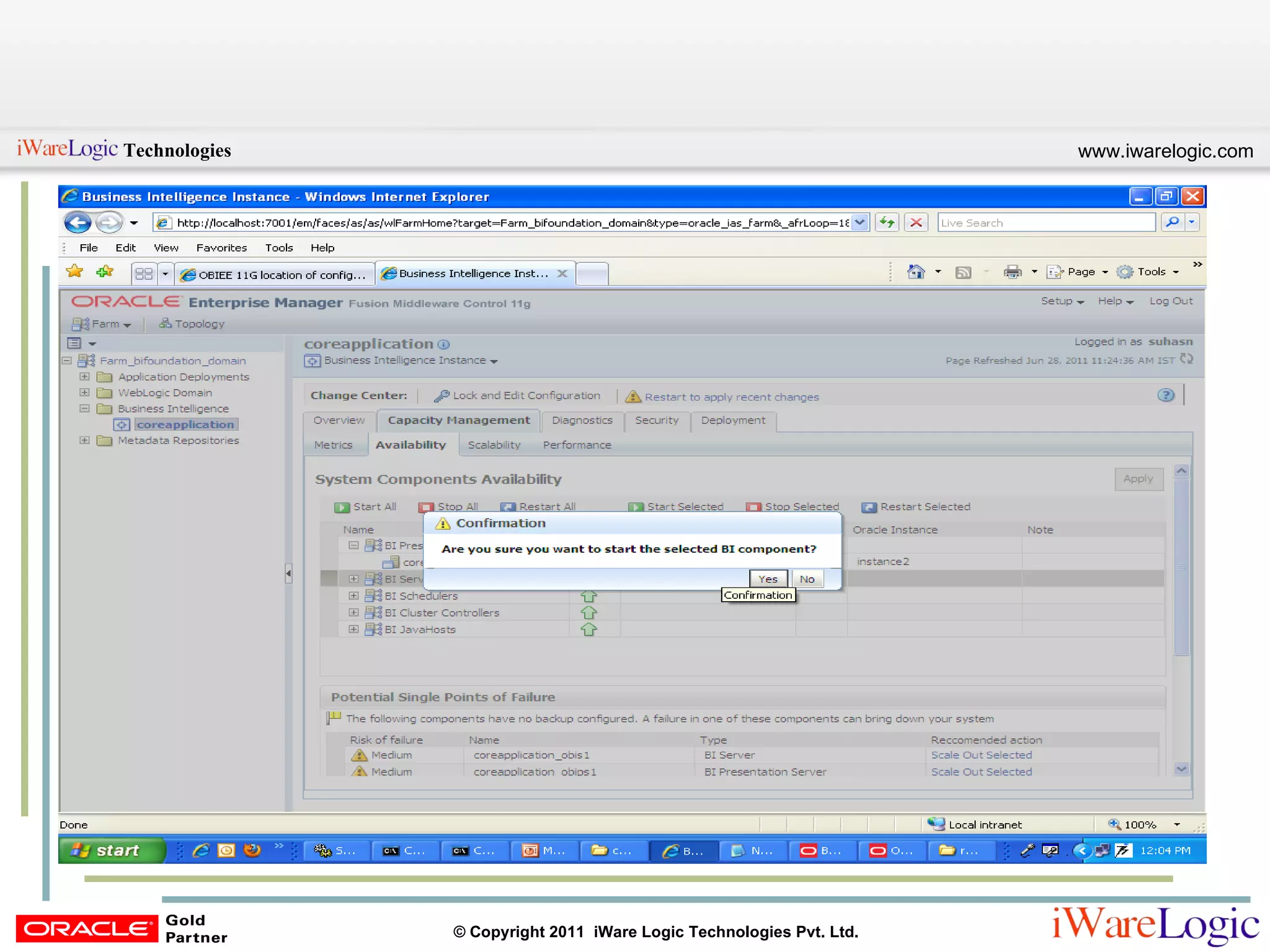

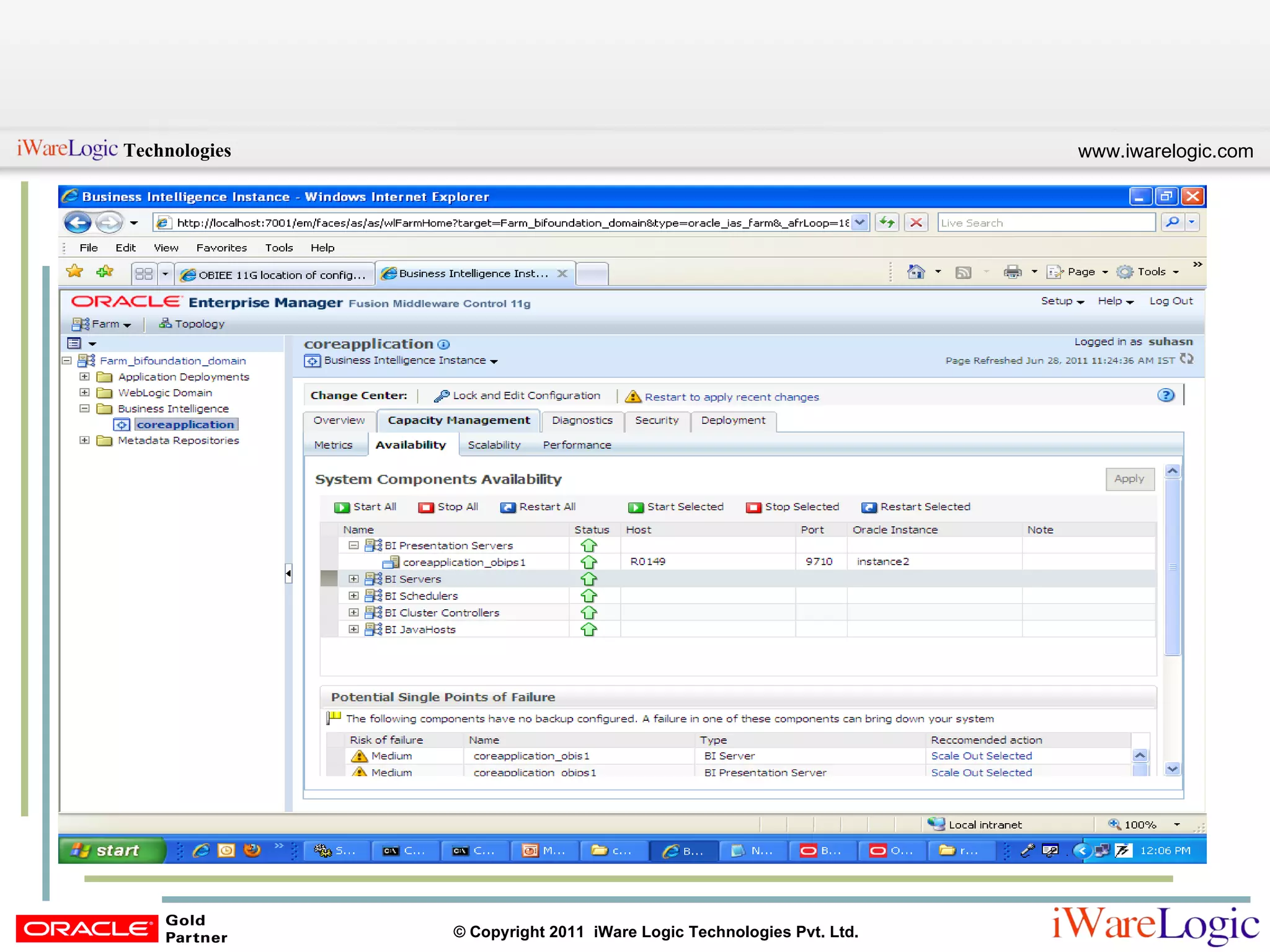

- 63. Click on “CapacityManagement” tab and then select “Availability” sub tab. To apply the recent changes, we need to restart the BI Server Instead of restarting all the services , we have select the BI Server , click on the “Start Selected”. So only the BI Server service will restart
- 64.
- 65.
- 66.

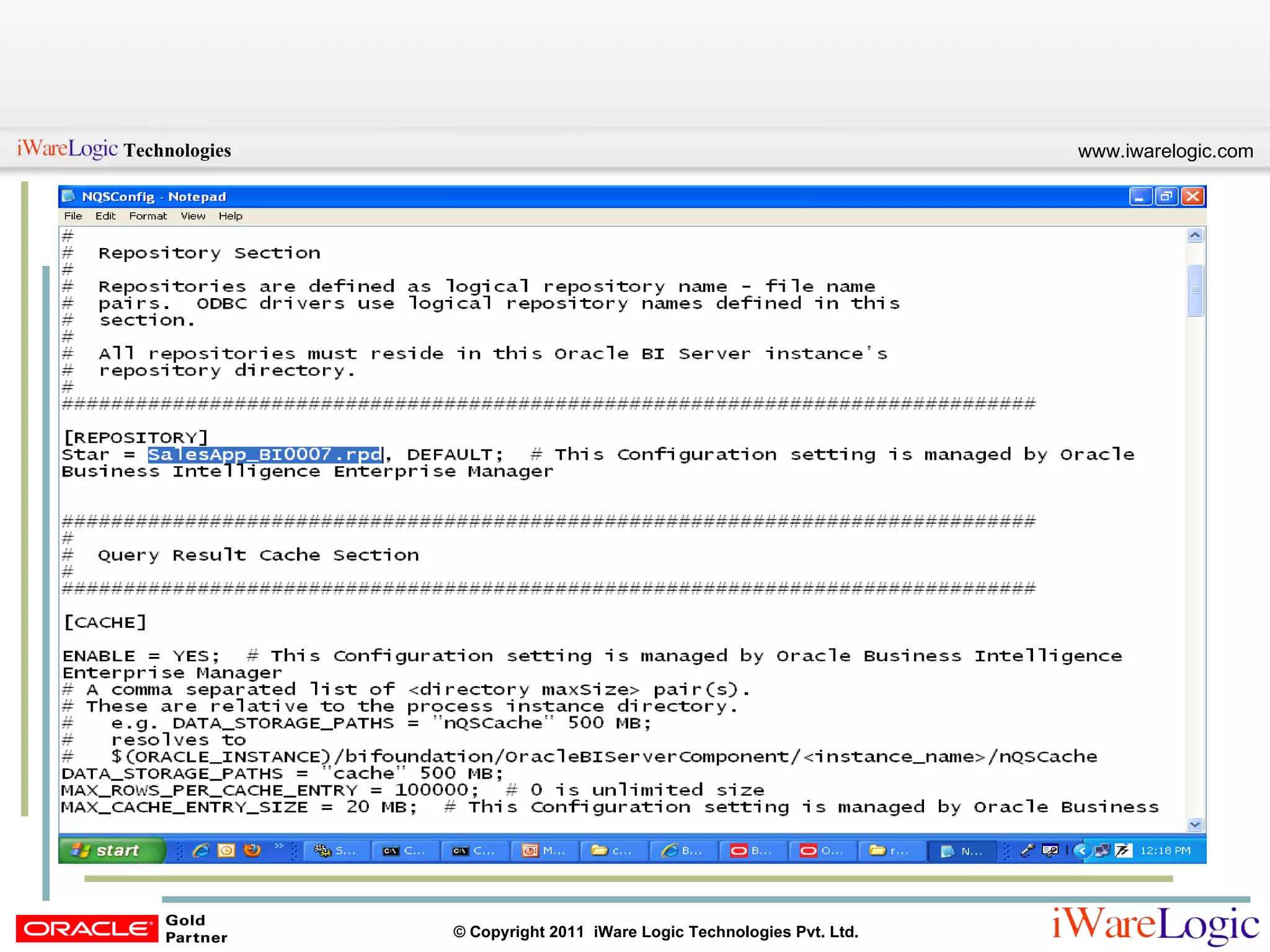

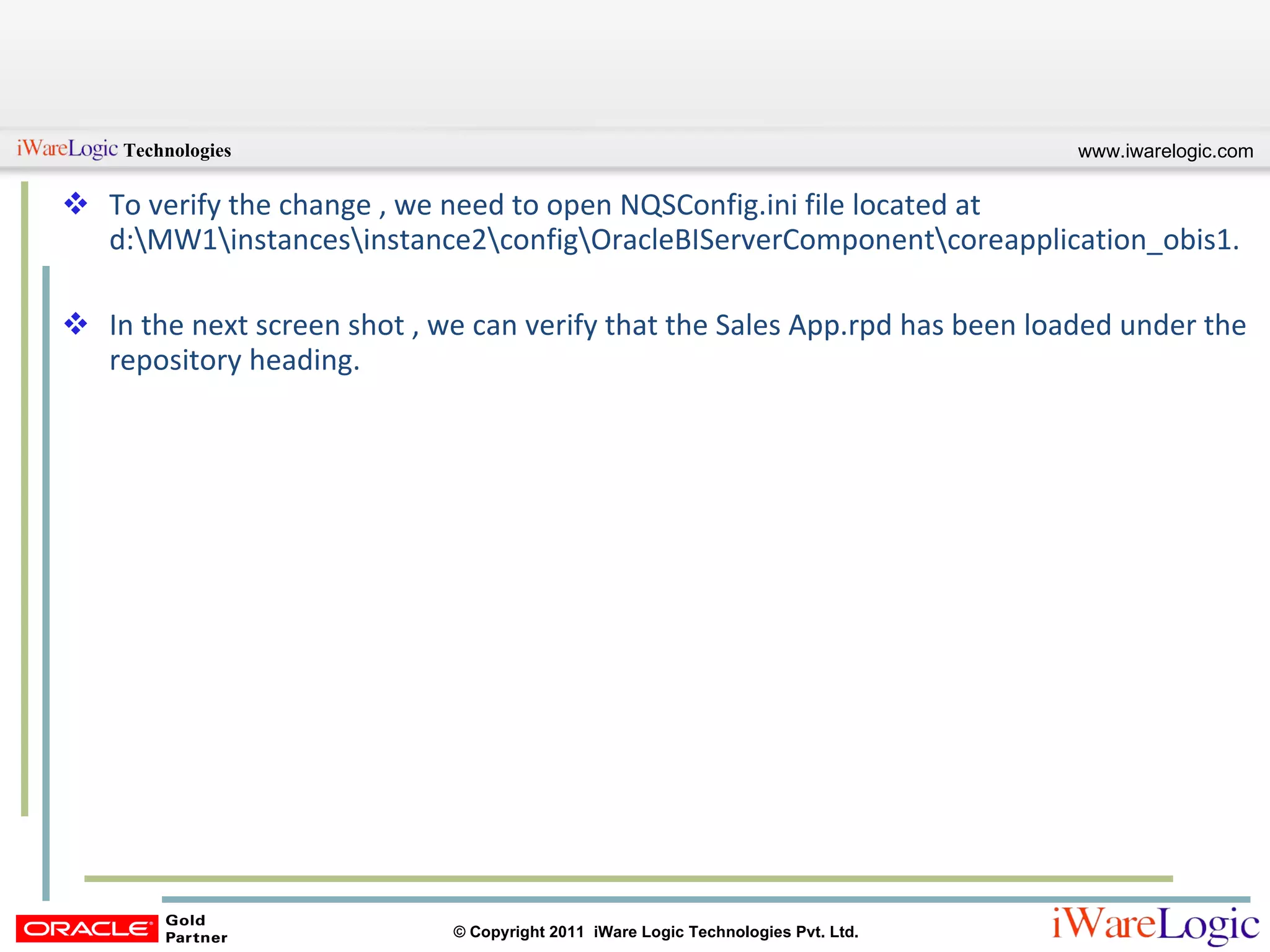

- 67. To verify thechange , we need to open NQSConfig.ini file located at d:\MW1\instances\instance2\config\OracleBIServerComponent\coreapplication_obis1. In the next screen shot , we can verify that the Sales App.rpd has been loaded under the repository heading.
- 68.

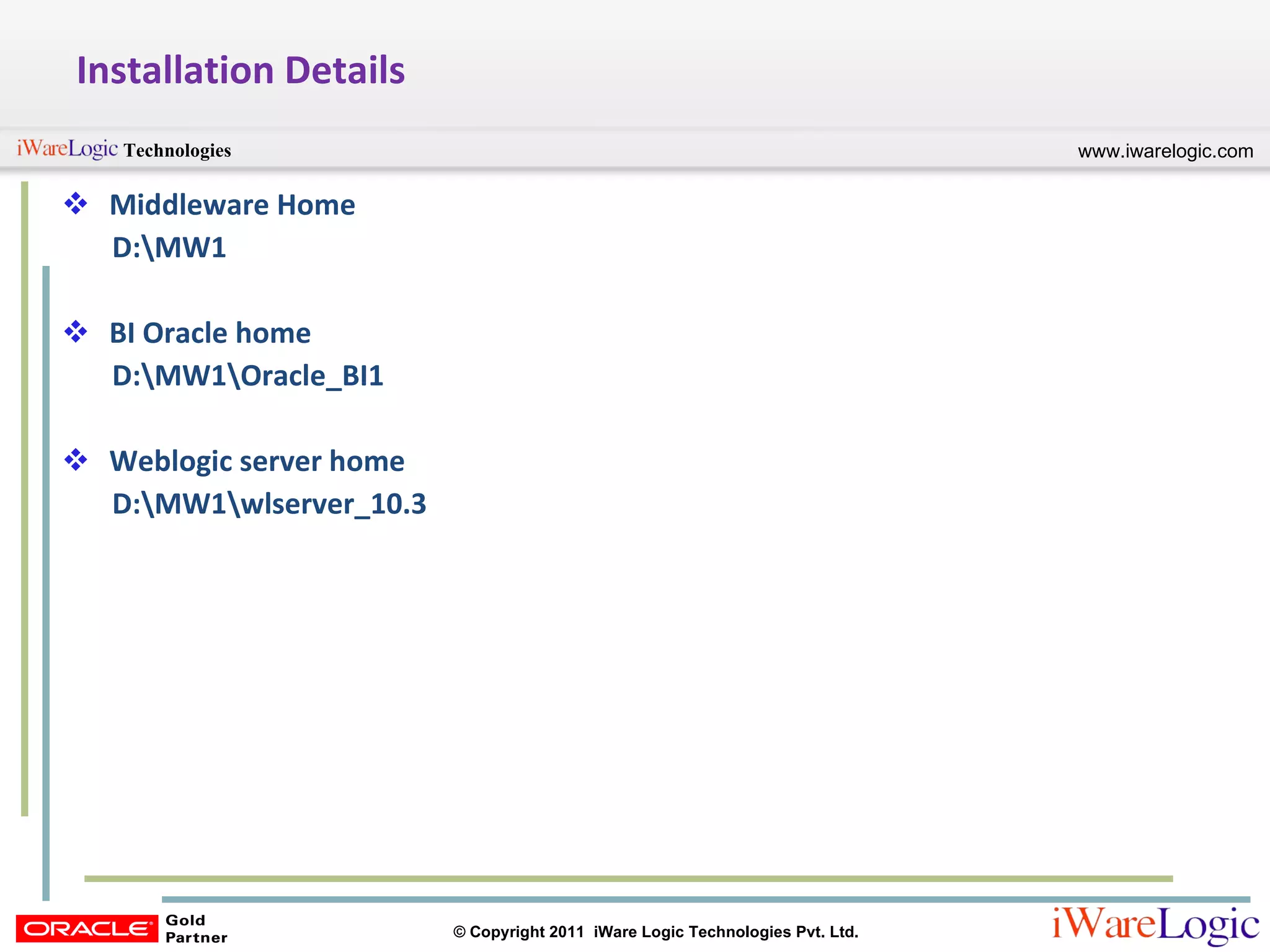

- 69. Installation Details MiddlewareHome D:\MW1 BI Oracle home D:\MW1\Oracle_BI1 Weblogic server home D:\MW1\wlserver_10.3

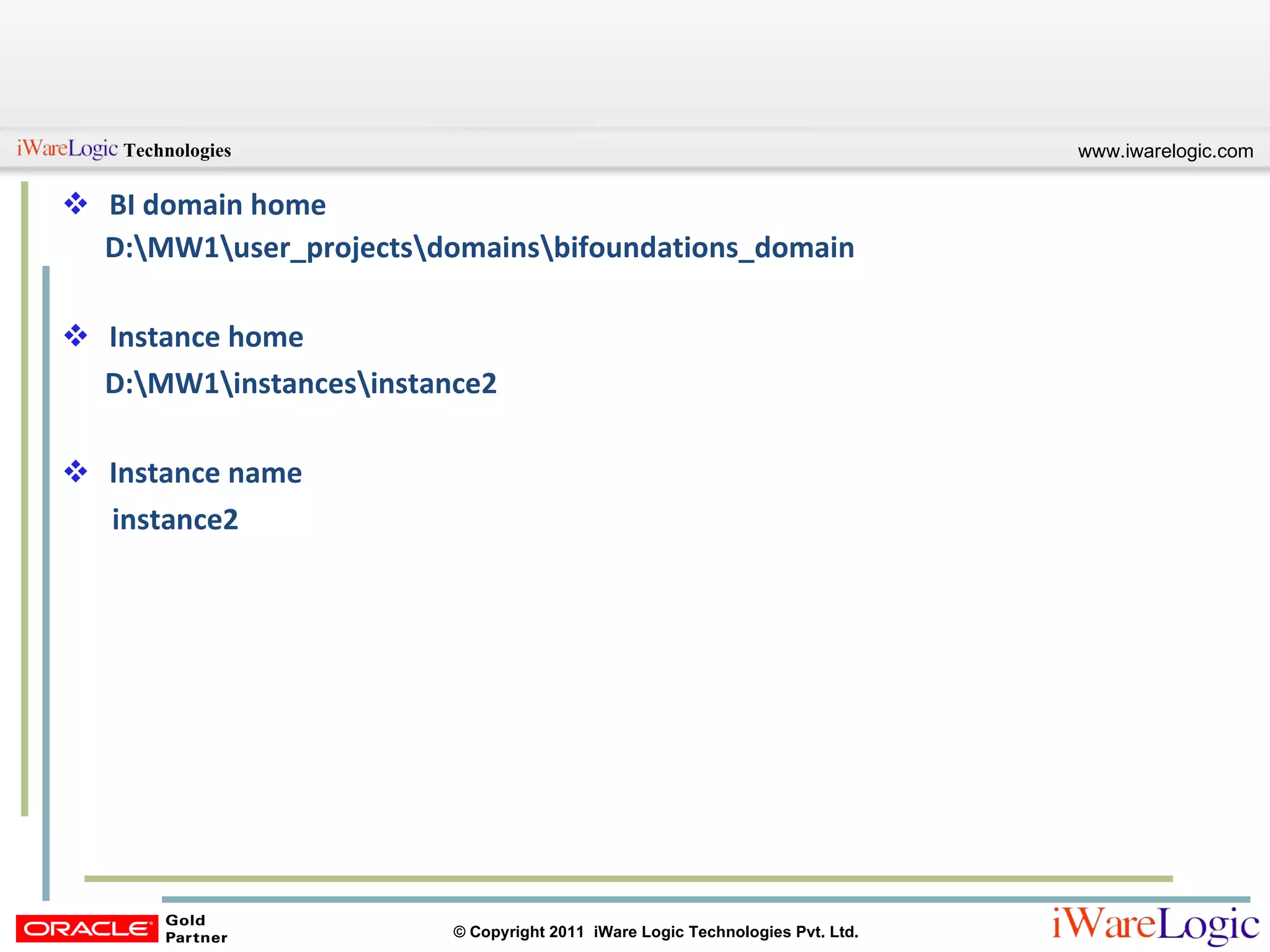

- 70. BI domain homeD:\MW1\user_projects\domains\bifoundations_domain Instance home D:\MW1\instances\instance2 Instance name instance2

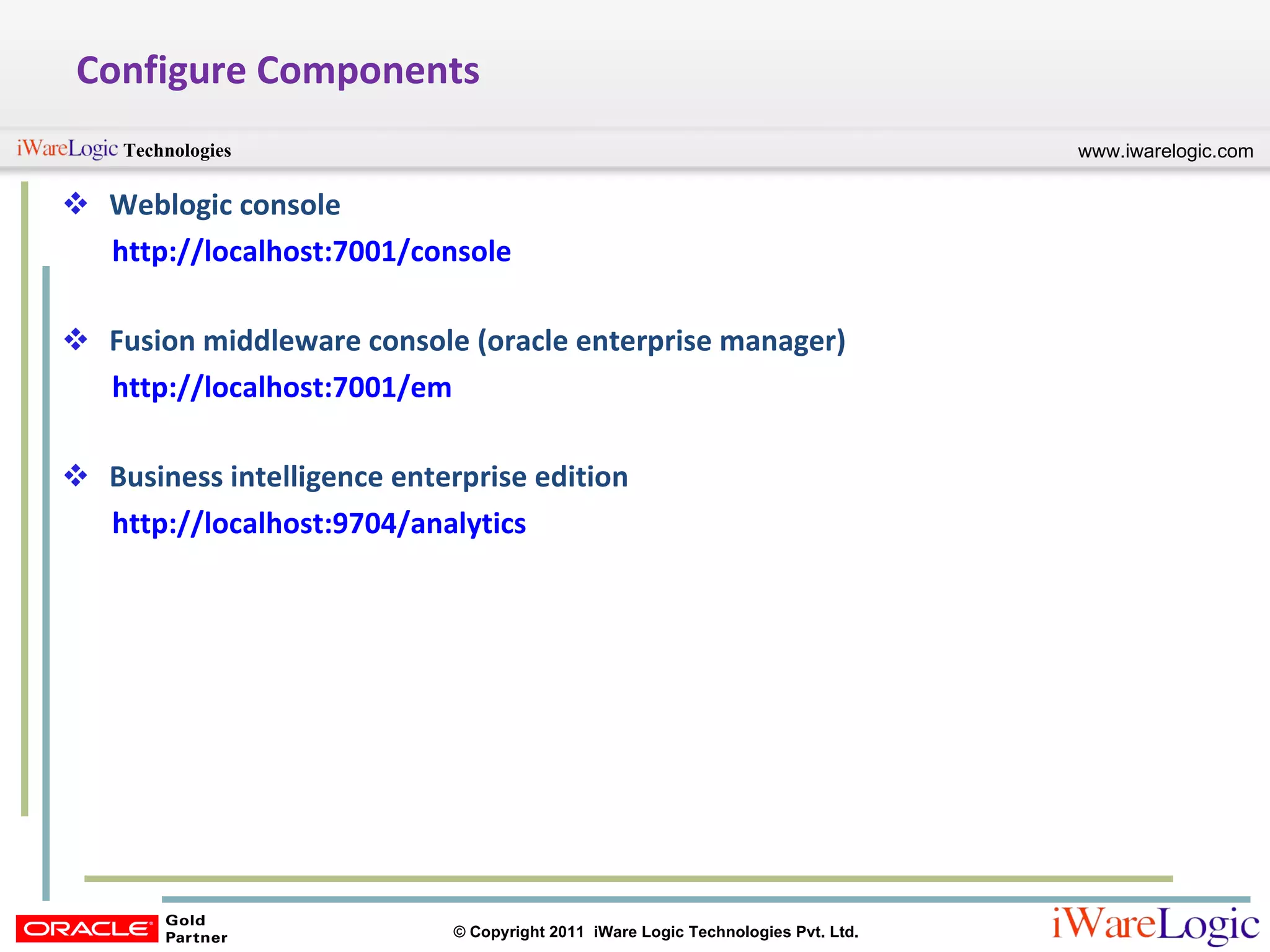

- 71. Configure Components Weblogicconsole http://localhost:7001/console Fusion middleware console (oracle enterprise manager) http://localhost:7001/em Business intelligence enterprise edition http://localhost:9704/analytics
- 72. Business intelligence publisherhttp://localhost:9704/xmlpserver Real time decision http://localhost:9704/ui

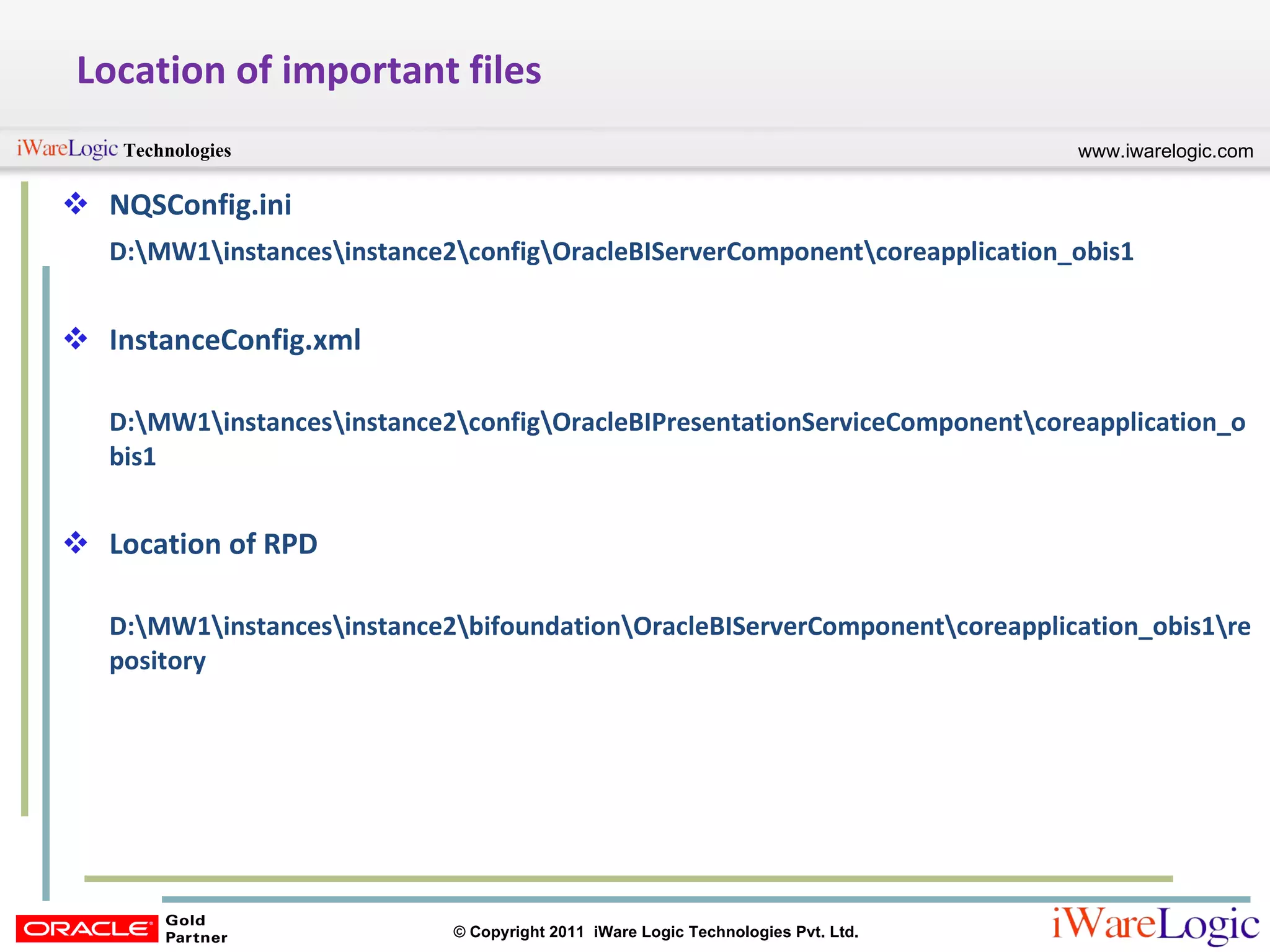

- 73. Location of importantfiles NQSConfig.ini D:\MW1\instances\instance2\config\OracleBIServerComponent\coreapplication_obis1 InstanceConfig.xml D:\MW1\instances\instance2\config\OracleBIPresentationServiceComponent\coreapplication_obis1 Location of RPD D:\MW1\instances\instance2\bifoundation\OracleBIServerComponent\coreapplication_obis1\repository

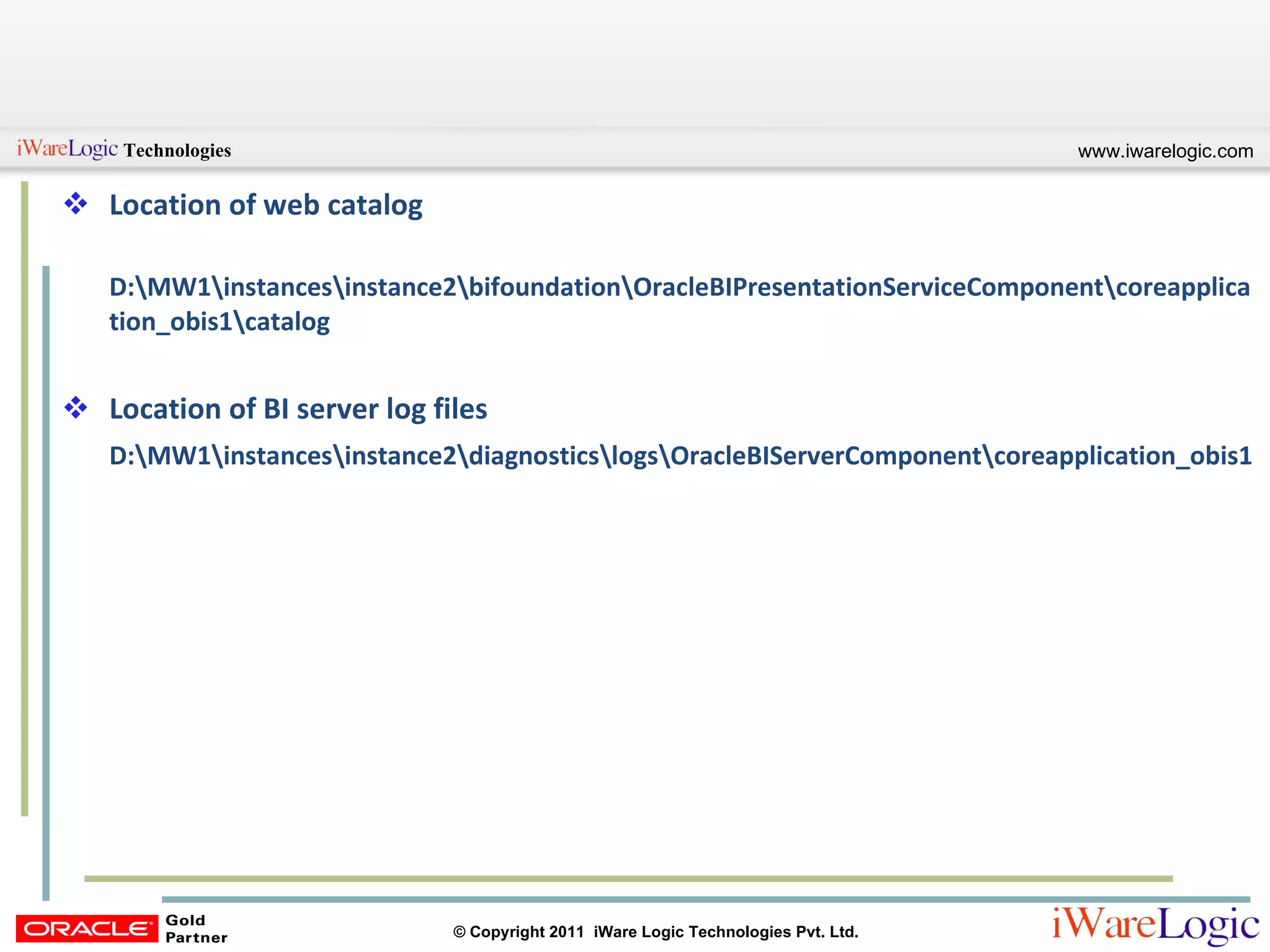

- 74. Location of webcatalog D:\MW1\instances\instance2\bifoundation\OracleBIPresentationServiceComponent\coreapplication_obis1\catalog Location of BI server log files D:\MW1\instances\instance2\diagnostics\logs\OracleBIServerComponent\coreapplication_obis1
- 75. About iWareLogic iWareLogic is an Enterprise Business Applications Consulting company, specializing in Oracle Applications and Technologies. iWare Logic is an Oracle Gold Partner providing IT Services in areas like Oracle E-Business Suite, OAF, ADF, BI DW and DBA. iWare Logic offers Application Development delivery with focus on application customizations, workflows, integrations, and data conversions. We also provide skilled resources for on-site/off-shore projects for Oracle Enterprise Applications' Implementations and Support. For any queries, feel free to drop a mail to [email_address]
- 76.
- 77. iWare Logic Technologies Pvt. Ltd. Aditi Samruddhi, Baner, Pune, India - 411045 Email: [email_address] Website: www.iwarelogic.com
