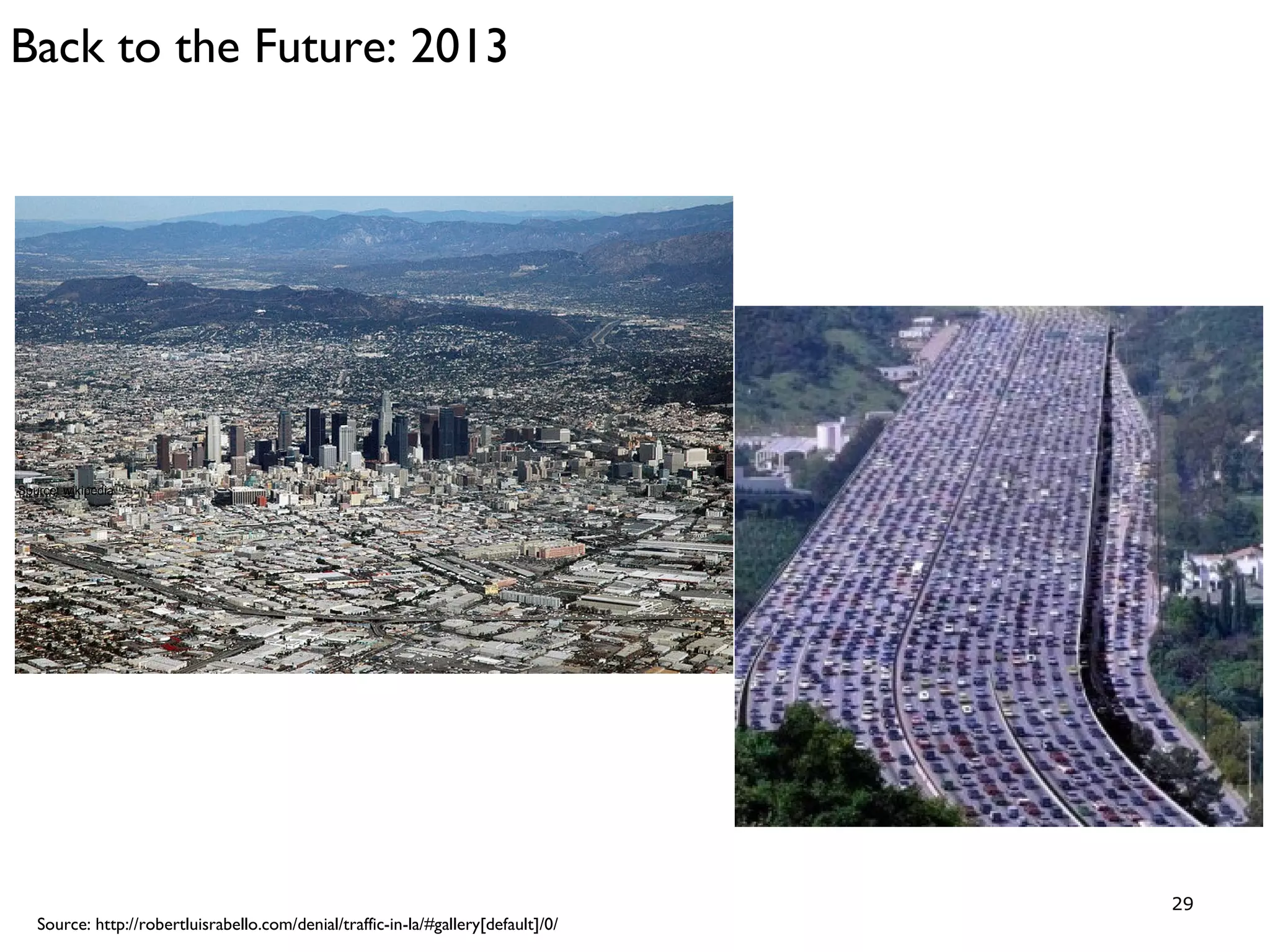

![29
Source: http://robertluisrabello.com/denial/traffic-in-la/#gallery[default]/0/
Source: wikipedia
Back to the Future: 2013](https://image.slidesharecdn.com/ietnetworkseptember2015-150922124045-lva1-app6892/75/Internet-of-Things-and-Large-scale-Data-Analytics-29-2048.jpg)
![29
Source: http://robertluisrabello.com/denial/traffic-in-la/#gallery[default]/0/
Source: wikipedia
Back to the Future: 2013](https://crownmelresort.com/image.slidesharecdn.com/ietnetworkseptember2015-150922124045-lva1-app6892/75/Internet-of-Things-and-Large-scale-Data-Analytics-29-2048.jpg)
Uploaded byPayamBarnaghi
Internet of Things and Large-scale Data Analytics
This document discusses Internet of Things (IoT) and large-scale data analytics. It begins by noting the increasing capabilities of computing devices over time, from early mainframes to modern smartphones. It then discusses the growing number of connected sensors, devices, and "things" that are part of the IoT. The document outlines some of the challenges around IoT and big data, such as heterogeneous, noisy data from many sources. It presents examples of applying IoT and analytics to problems in smart cities. Specifically, it discusses using sensor data for applications like transportation optimization and power grid management. The conclusion emphasizes that IoT analytics requires approaches that can handle resource constraints and cross-layer optimizations across the network architecture.
More Related Content
Similar to Internet of Things and Large-scale Data Analytics
Internet of Things and Large-scale Data Analytics
- 1. Internet of Thingsand Large-scale Data Analytics 1 Payam Barnaghi Institute for Communication Systems (ICS)/ 5G Innovation Centre University of Surrey Guildford, United Kingdom The IET Surrey Network, September 2015

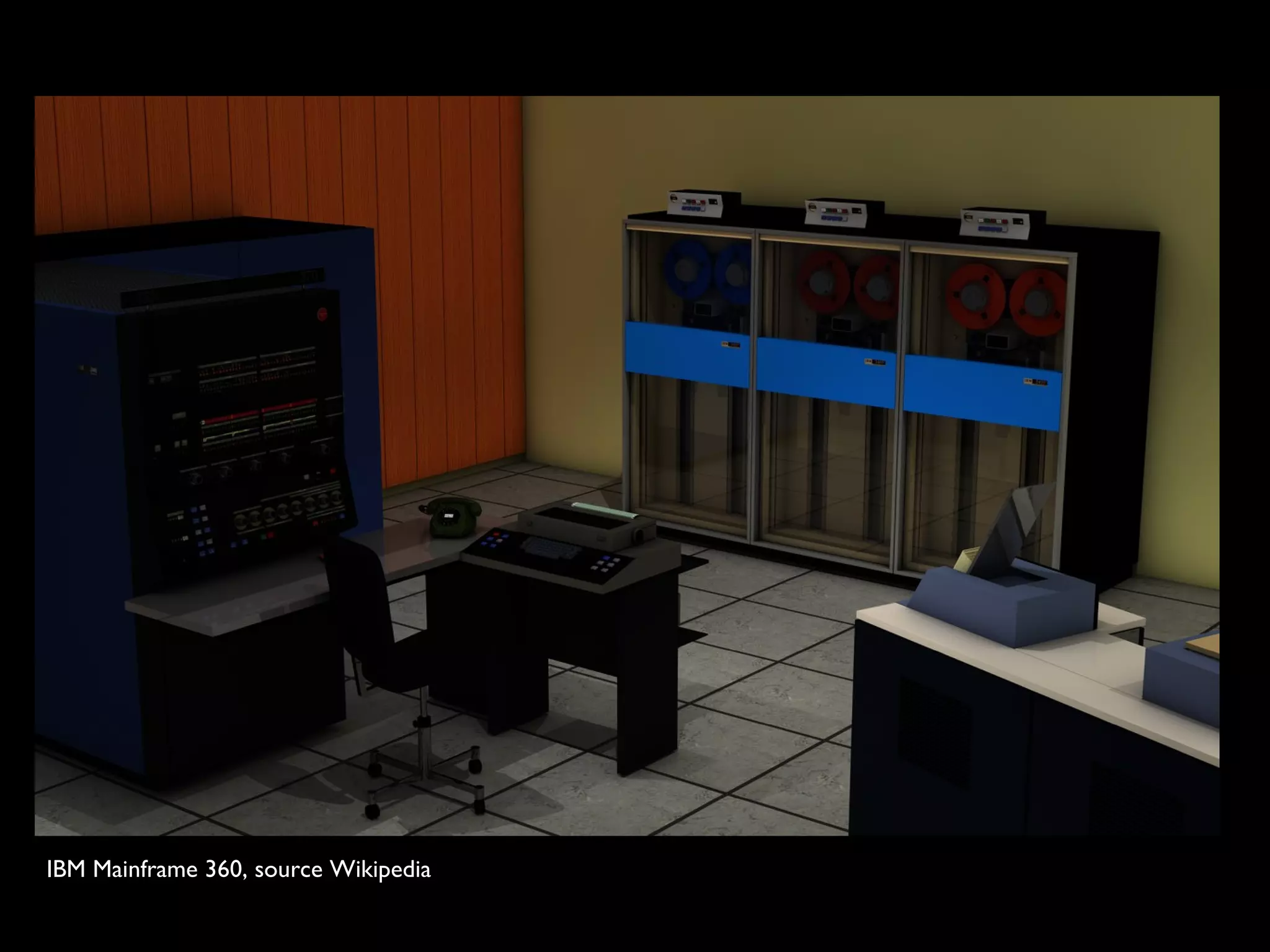

- 2. 2 IBM Mainframe 360,source Wikipedia

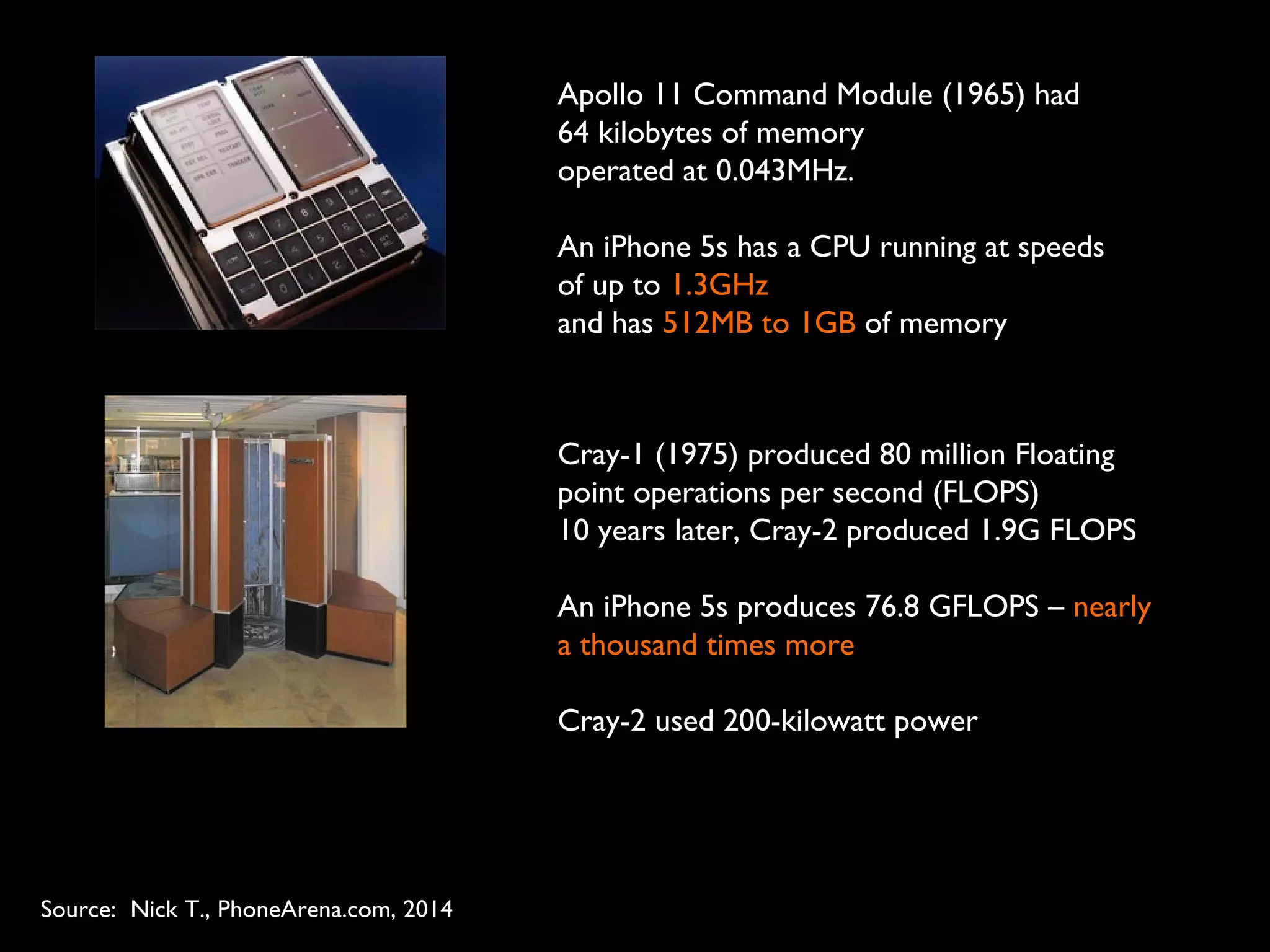

- 3. Apollo 11 CommandModule (1965) had 64 kilobytes of memory operated at 0.043MHz. An iPhone 5s has a CPU running at speeds of up to 1.3GHz and has 512MB to 1GB of memory Cray-1 (1975) produced 80 million Floating point operations per second (FLOPS) 10 years later, Cray-2 produced 1.9G FLOPS An iPhone 5s produces 76.8 GFLOPS – nearly a thousand times more Cray-2 used 200-kilowatt power Source: Nick T., PhoneArena.com, 2014

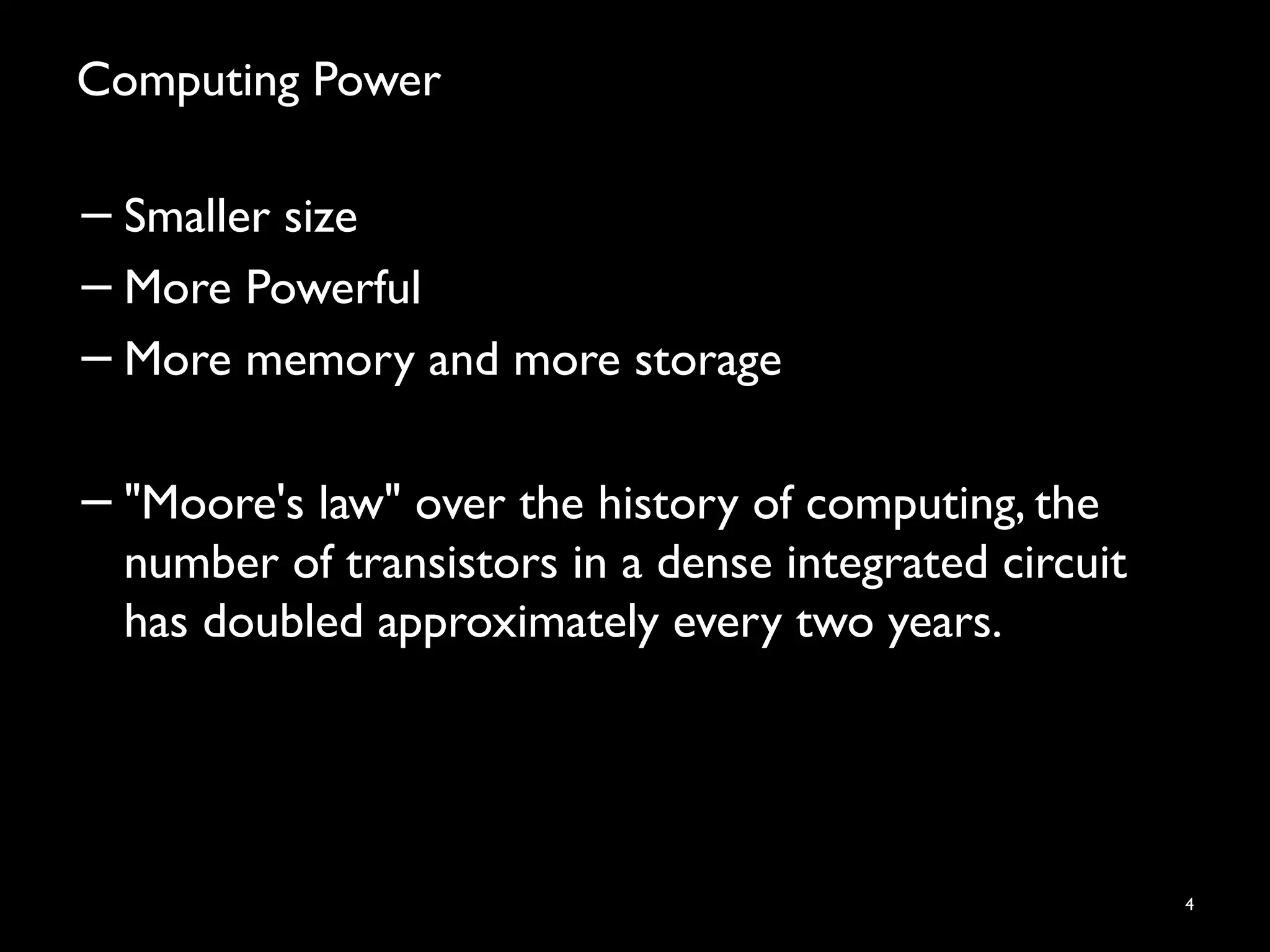

- 4. Computing Power 4 −Smaller size −MorePowerful −More memory and more storage −"Moore's law" over the history of computing, the number of transistors in a dense integrated circuit has doubled approximately every two years.

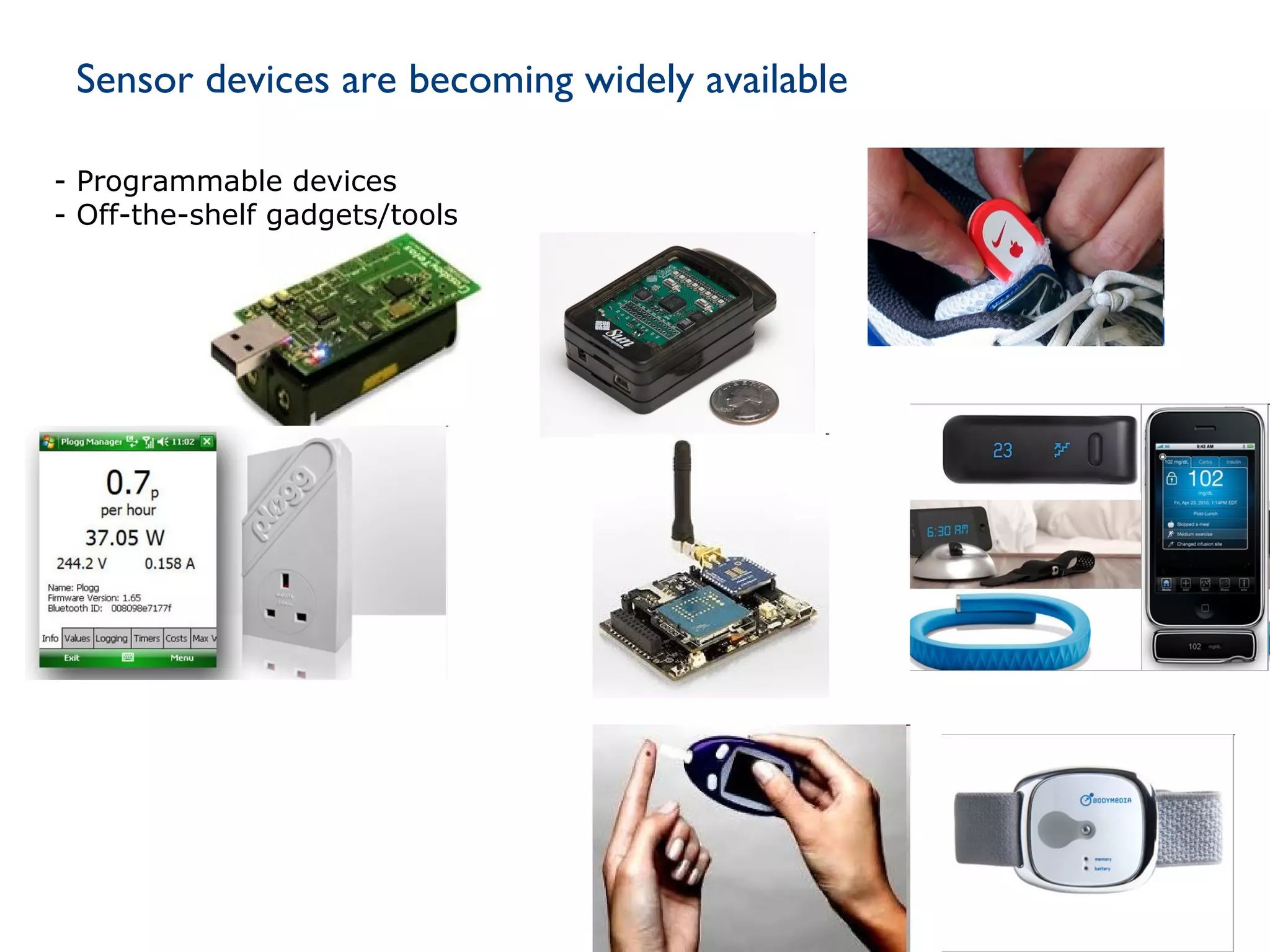

- 5. 5 Sensor devices arebecoming widely available - Programmable devices - Off-the-shelf gadgets/tools

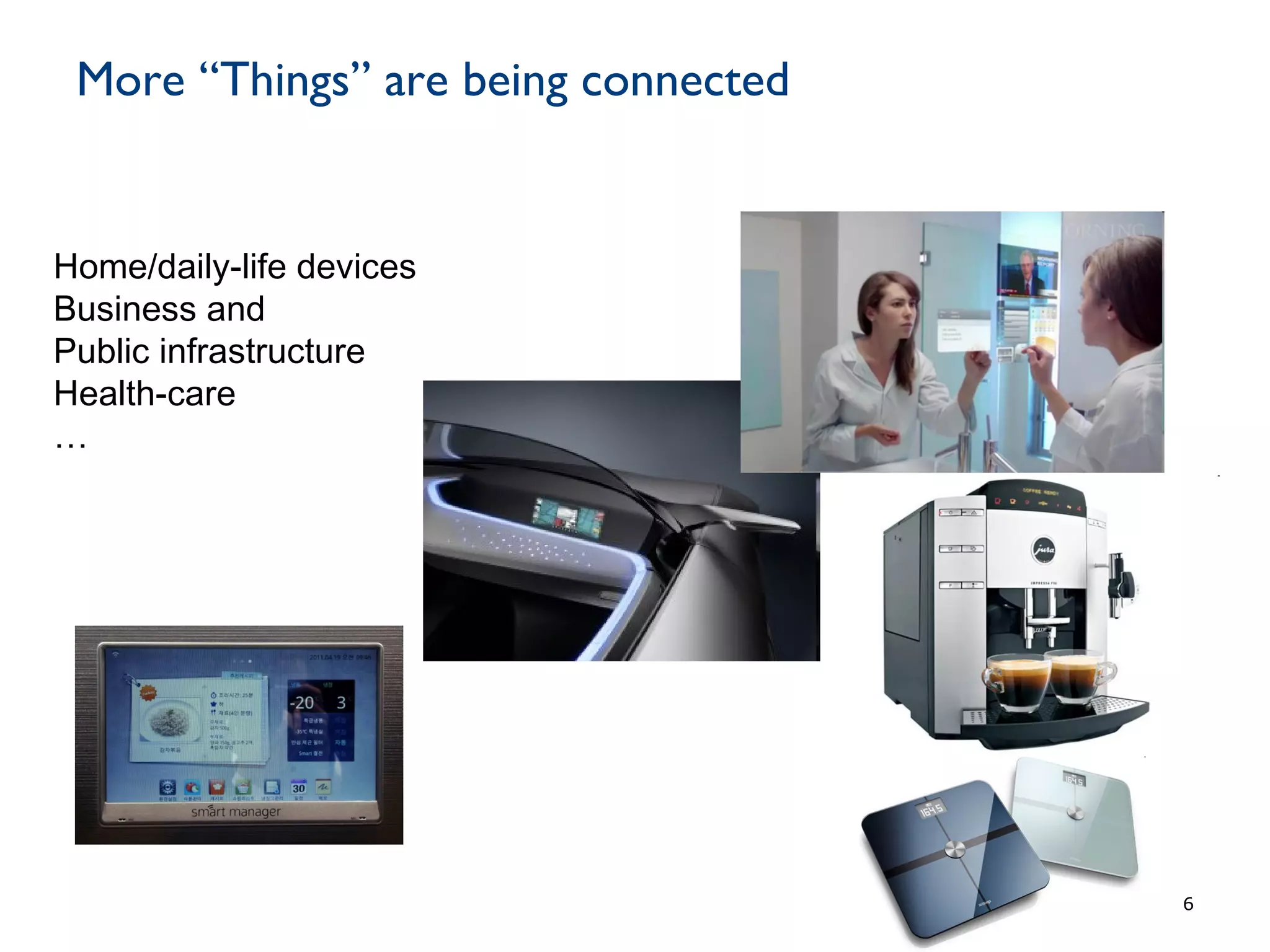

- 6. 6 More “Things” arebeing connected Home/daily-life devices Business and Public infrastructure Health-care …

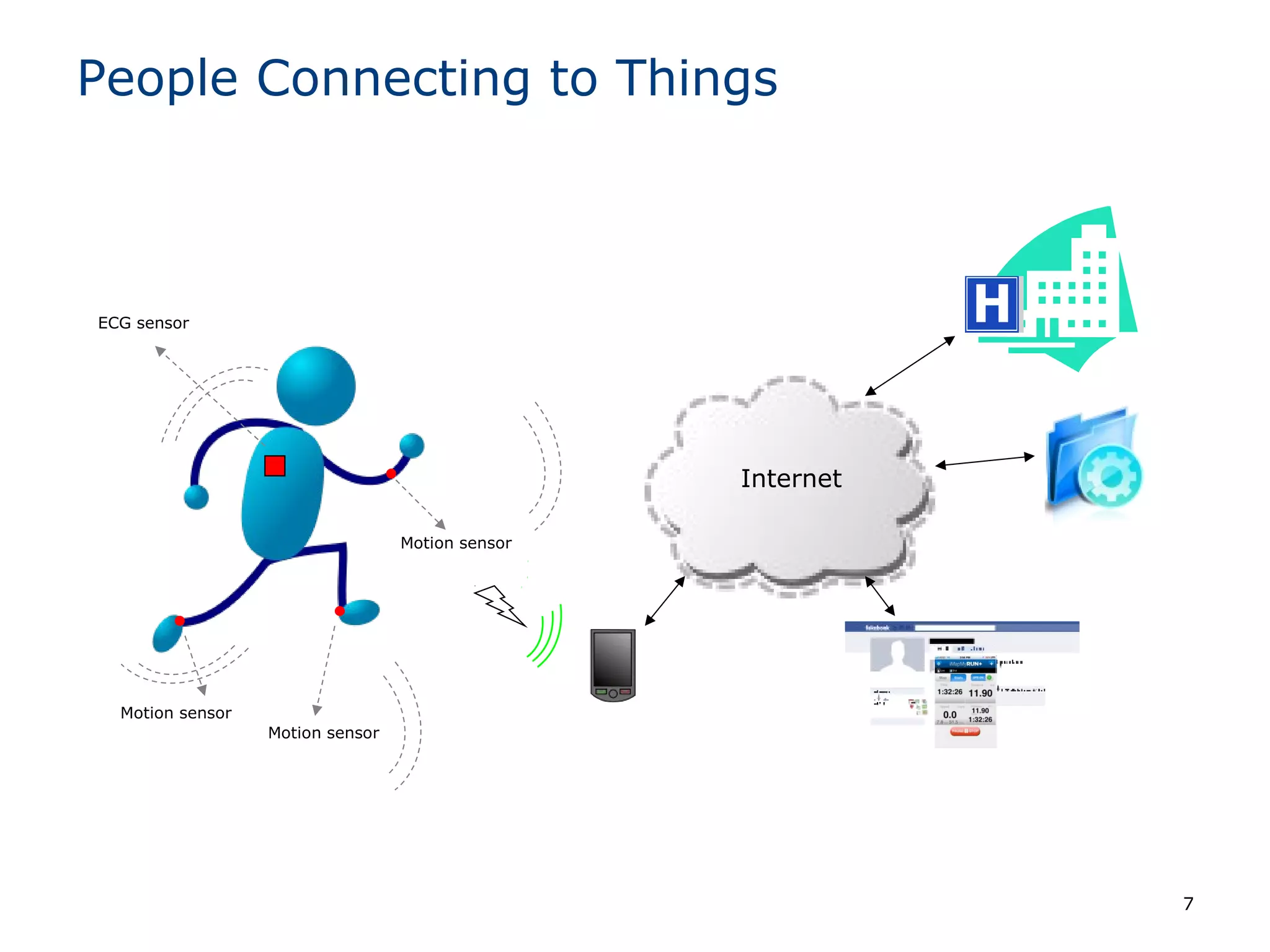

- 7. 7 People Connecting toThings Motion sensor Motion sensor Motion sensor ECG sensor Internet

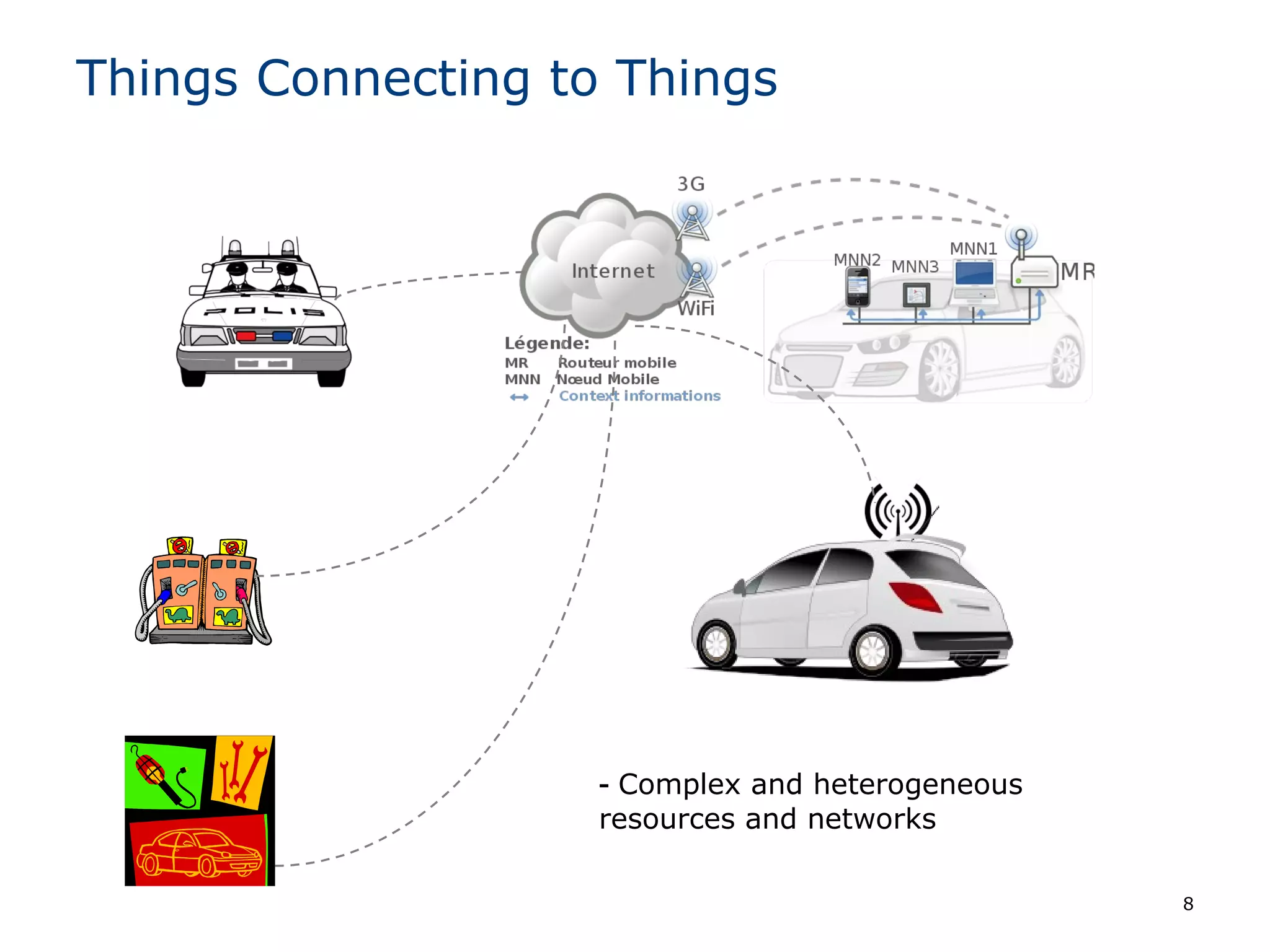

- 8. 8 Things Connecting toThings - Complex and heterogeneous resources and networks

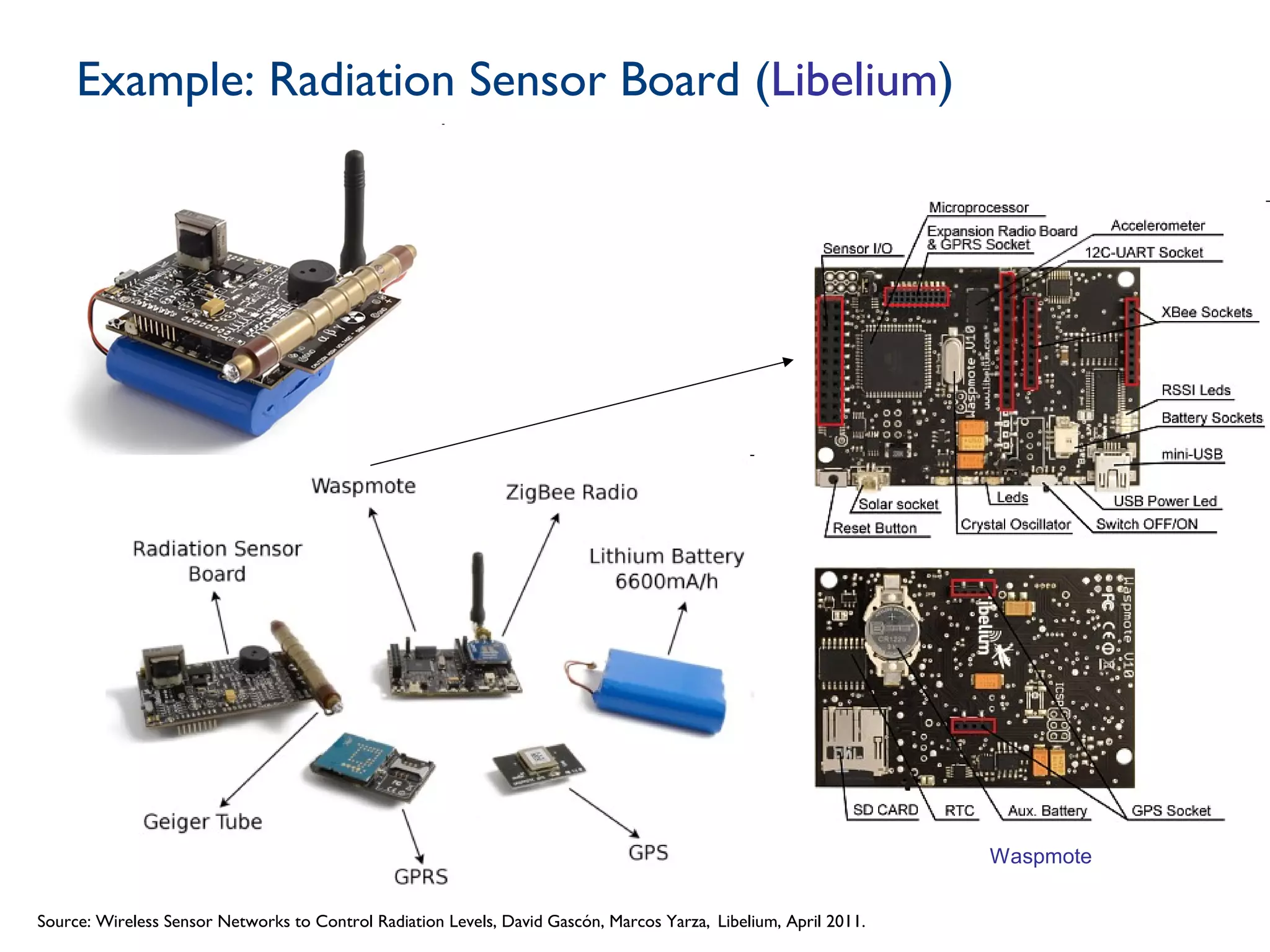

- 9. Example: Radiation SensorBoard (Libelium) Source: Wireless Sensor Networks to Control Radiation Levels, David Gascón, Marcos Yarza, Libelium, April 2011. Waspmote
- 10. Connected world 10Image courtesy:Wilgengebroed

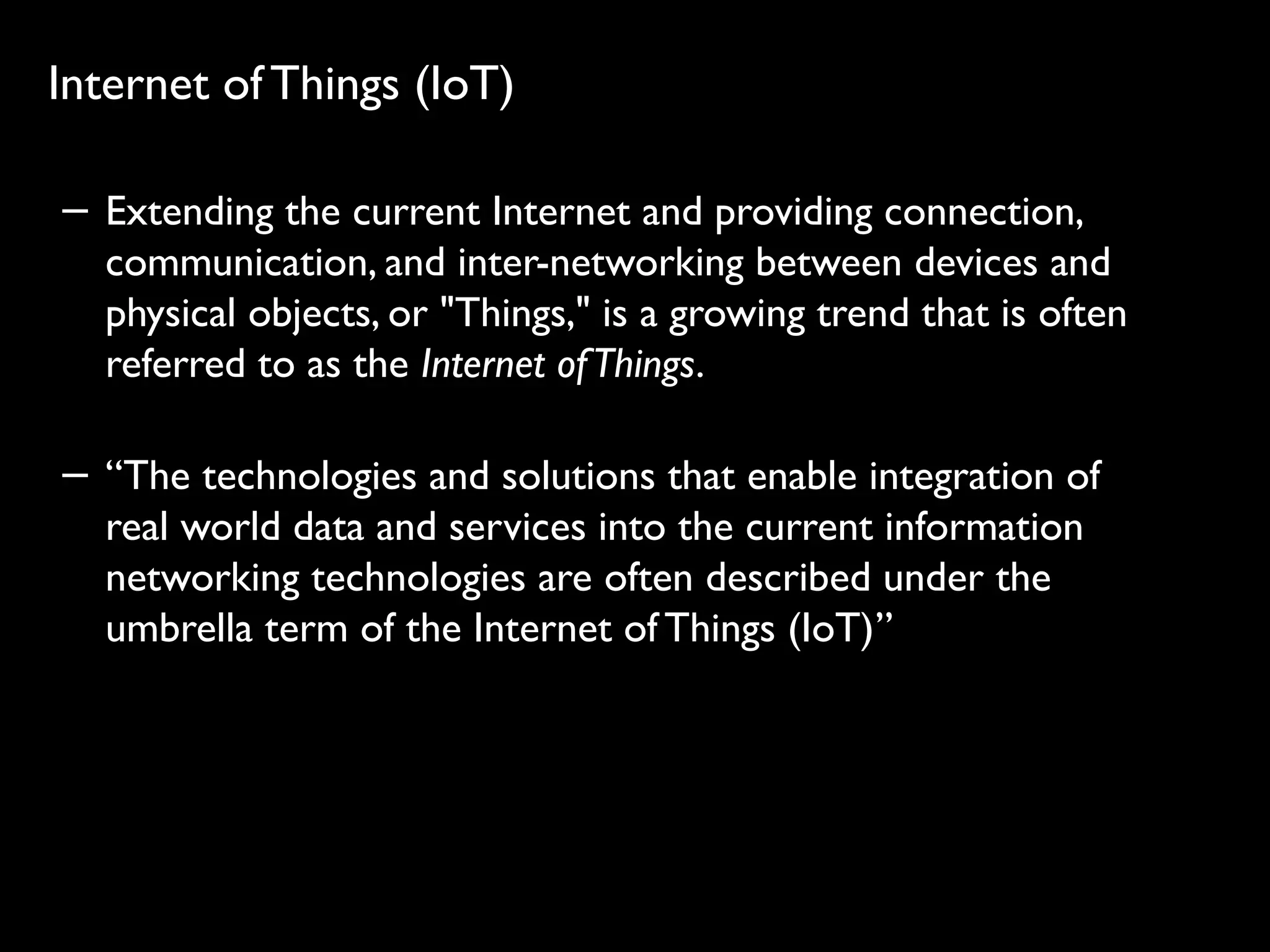

- 11. 11 Internet of Things(IoT) − Extending the current Internet and providing connection, communication, and inter-networking between devices and physical objects, or "Things," is a growing trend that is often referred to as the Internet ofThings. − “The technologies and solutions that enable integration of real world data and services into the current information networking technologies are often described under the umbrella term of the Internet of Things (IoT)”

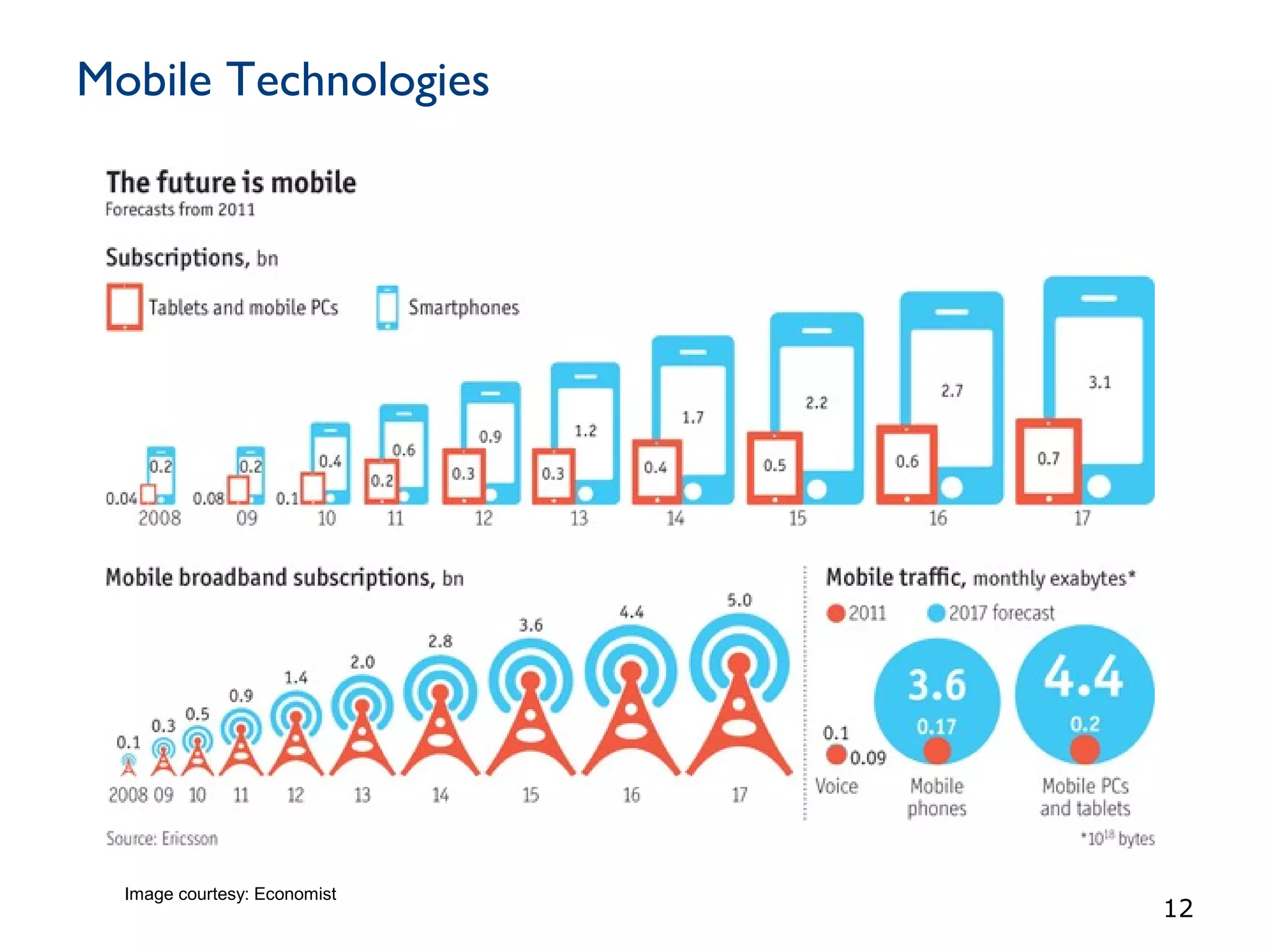

- 12.

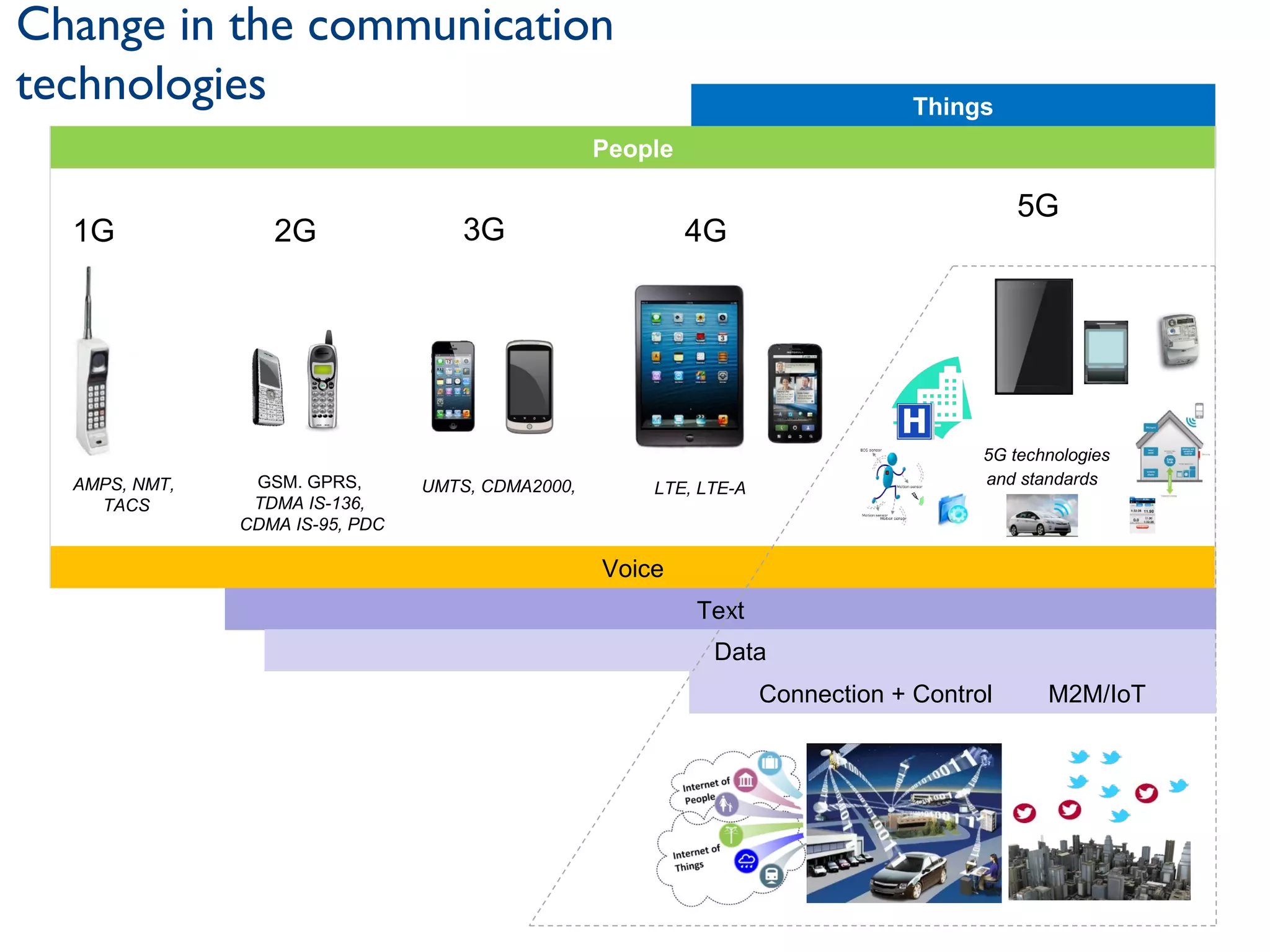

- 13. 1G AMPS, NMT, TACS 2G GSM. GPRS, TDMAIS-136, CDMA IS-95, PDC 3G UMTS, CDMA2000, 4G 5G LTE, LTE-A People Things Voice Text Data 5G technologies and standards Connection + Control M2M/IoT Change in the communication technologies
- 14. Mobile Services andApplications 14 Image courtesy: Economist
- 15. 15 Things, Devices, Data,and lots of it image courtesy: Smarter Data - I.03_C by Gwen Vanhee

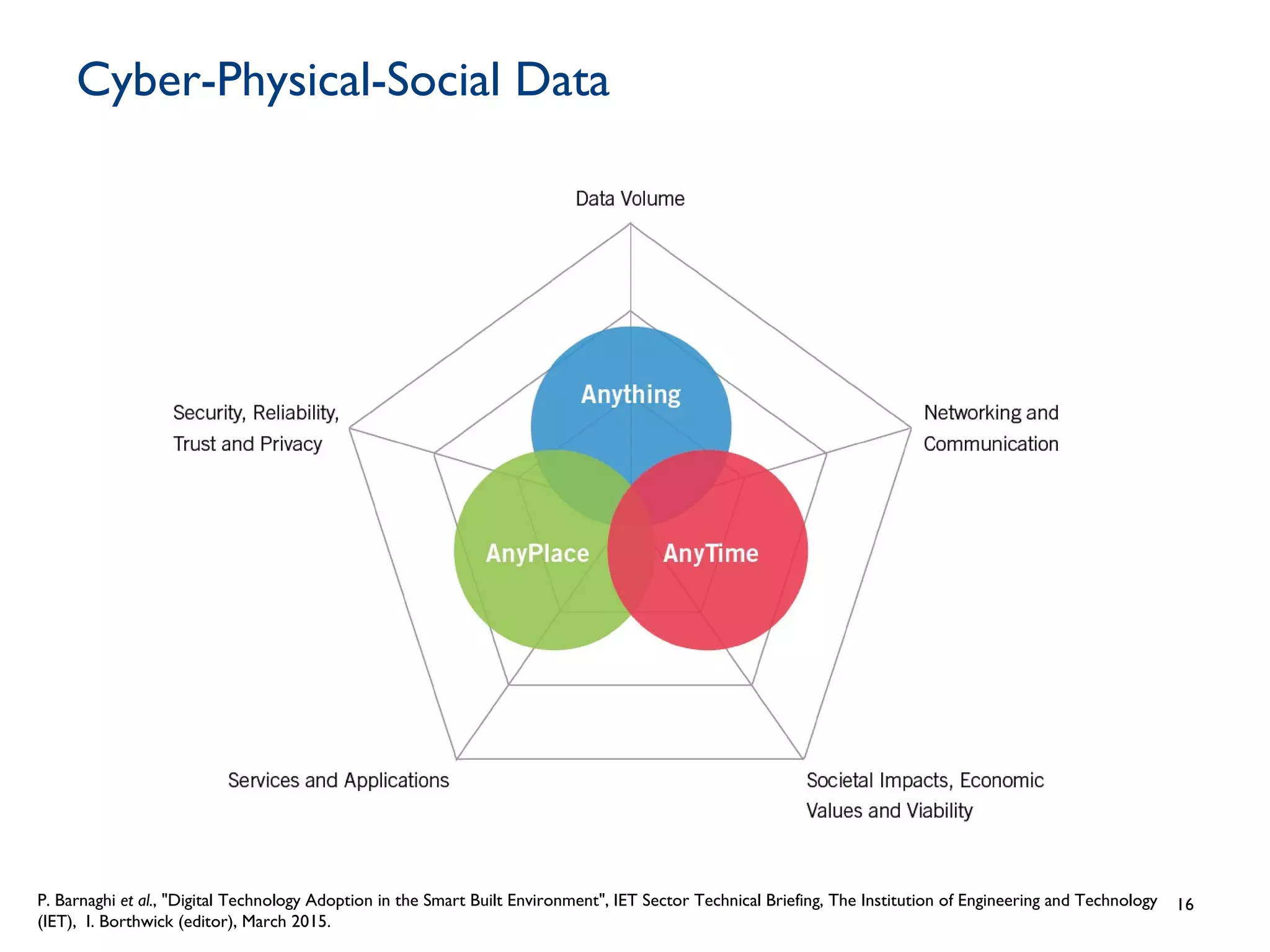

- 16. Cyber-Physical-Social Data 16P. Barnaghiet al., "Digital Technology Adoption in the Smart Built Environment", IET Sector Technical Briefing, The Institution of Engineering and Technology (IET), I. Borthwick (editor), March 2015.

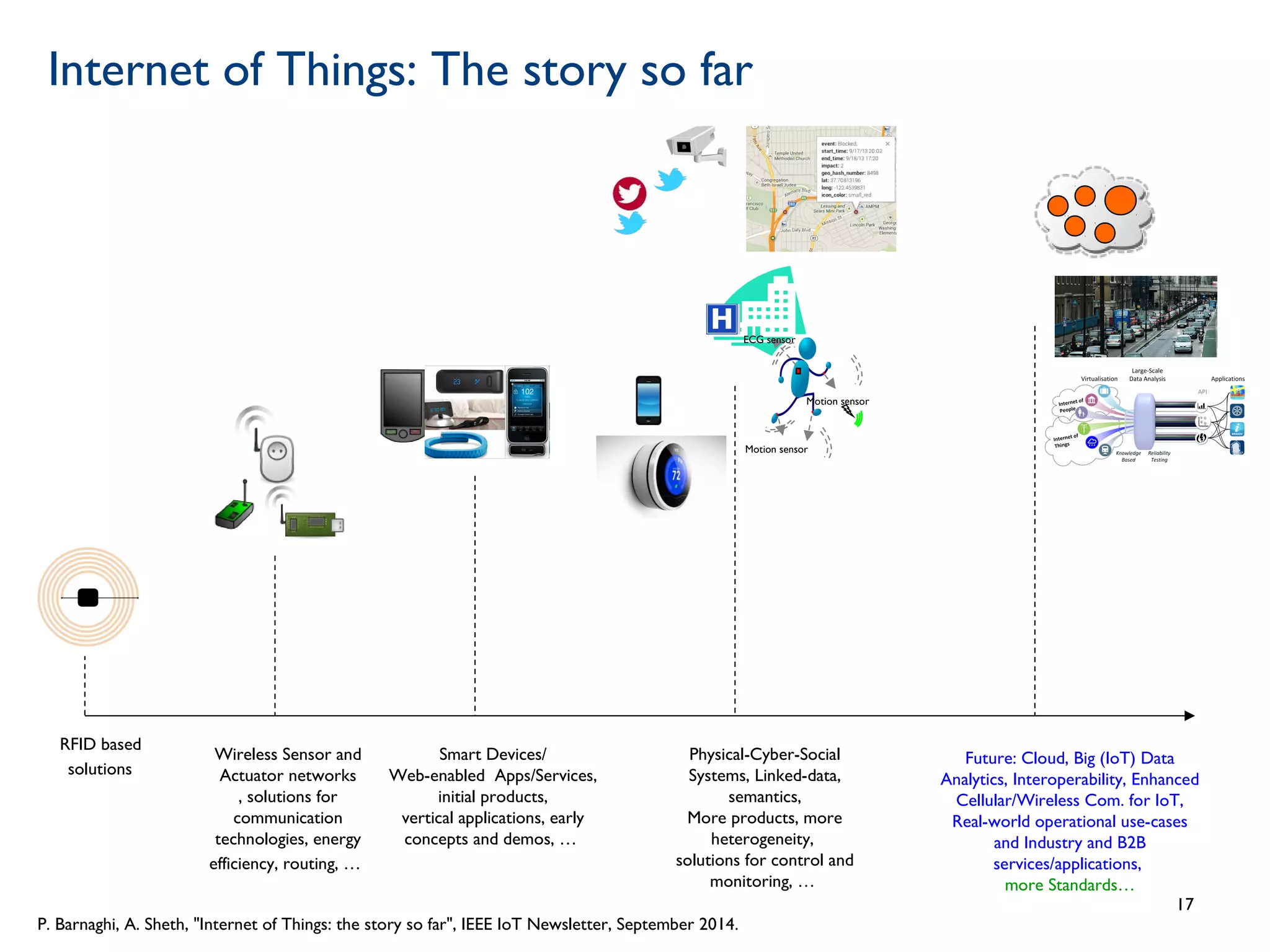

- 17. Internet of Things:The story so far RFID based solutions Wireless Sensor and Actuator networks , solutions for communication technologies, energy efficiency, routing, … Smart Devices/ Web-enabled Apps/Services, initial products, vertical applications, early concepts and demos, … Motion sensor Motion sensor ECG sensor Physical-Cyber-Social Systems, Linked-data, semantics, More products, more heterogeneity, solutions for control and monitoring, … Future: Cloud, Big (IoT) Data Analytics, Interoperability, Enhanced Cellular/Wireless Com. for IoT, Real-world operational use-cases and Industry and B2B services/applications, more Standards… P. Barnaghi, A. Sheth, "Internet of Things: the story so far", IEEE IoT Newsletter, September 2014. 17

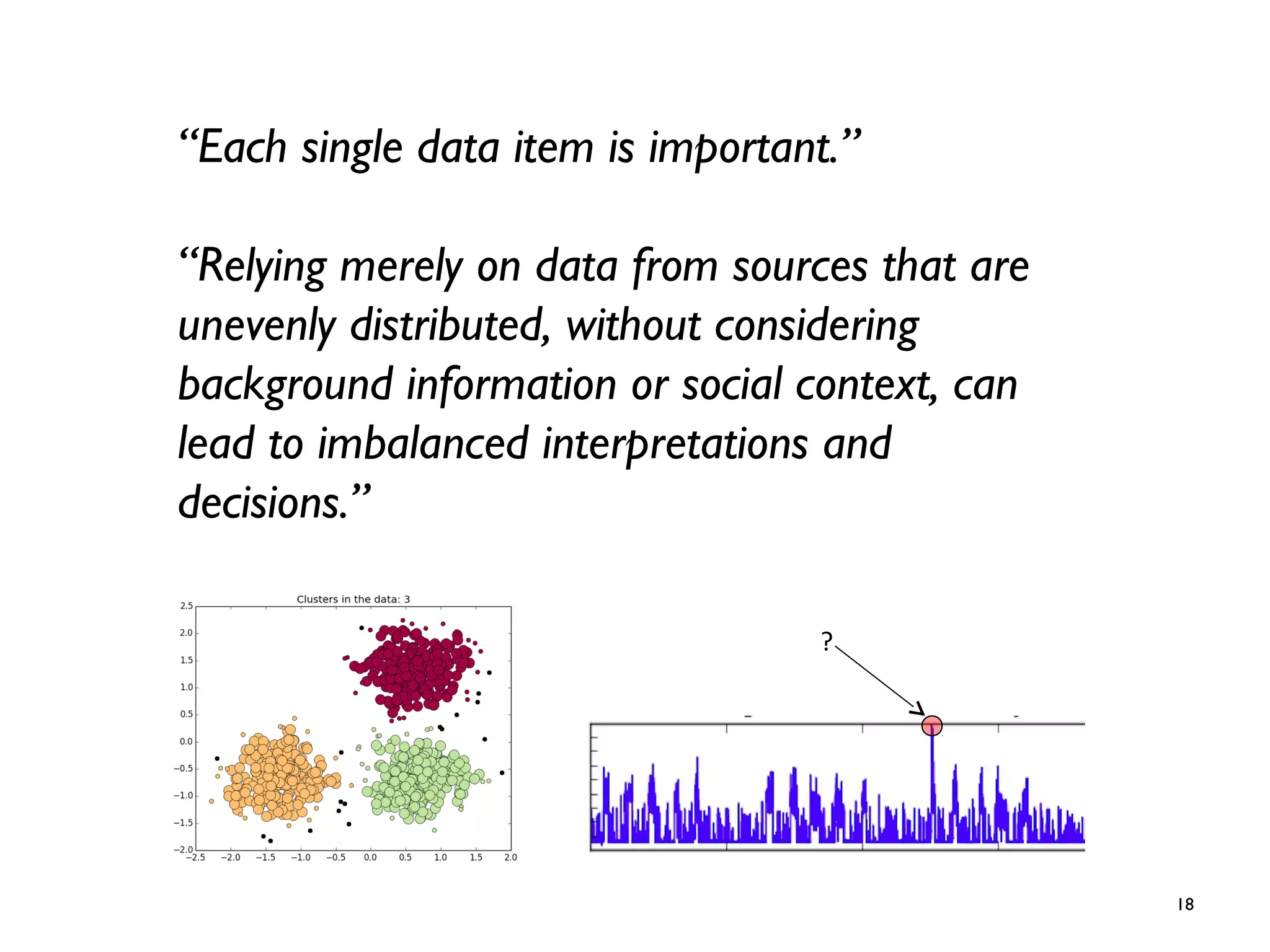

- 18. 18 “Each single dataitem is important.” “Relying merely on data from sources that are unevenly distributed, without considering background information or social context, can lead to imbalanced interpretations and decisions.” ?

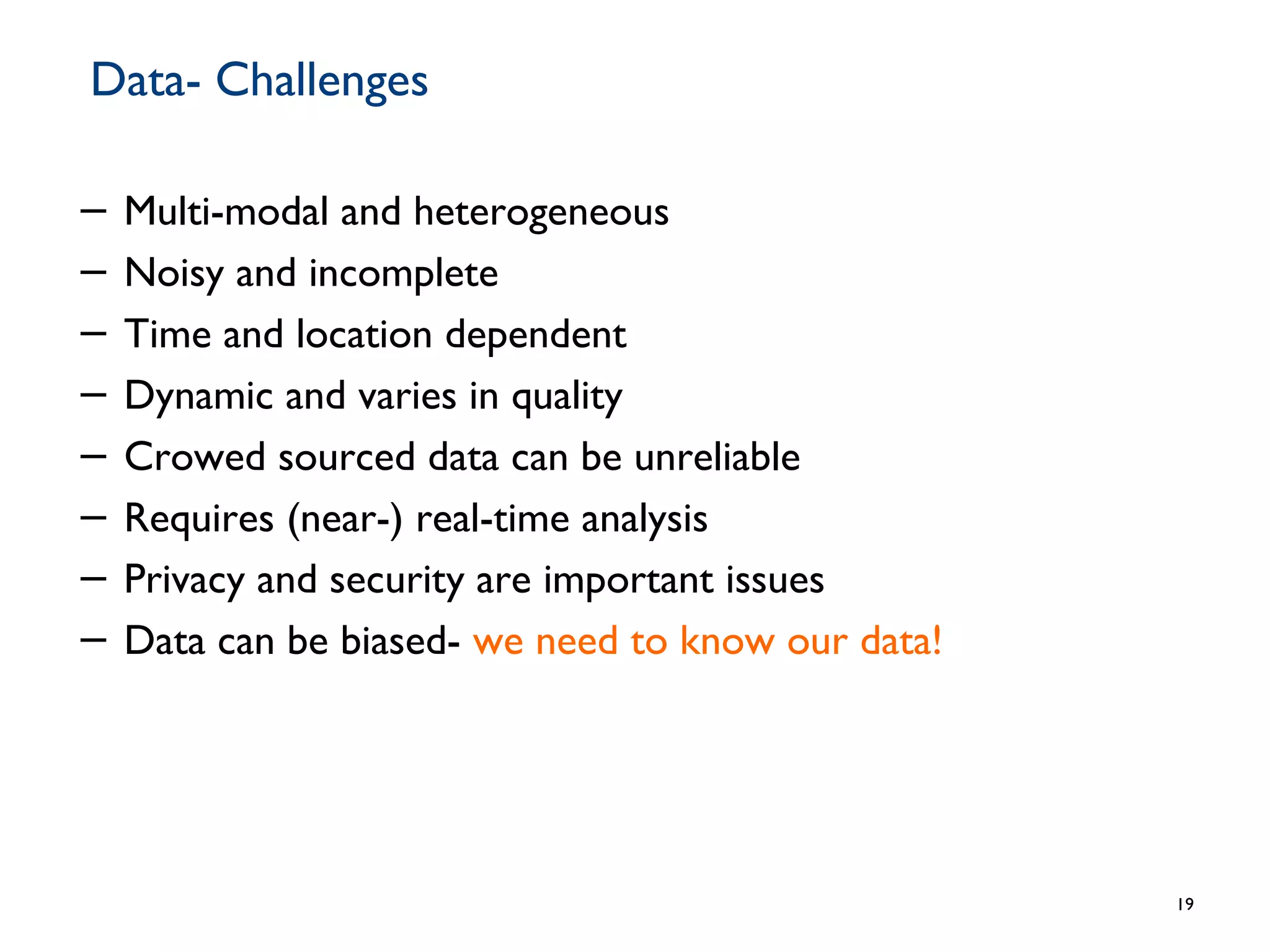

- 19. Data- Challenges − Multi-modaland heterogeneous − Noisy and incomplete − Time and location dependent − Dynamic and varies in quality − Crowed sourced data can be unreliable − Requires (near-) real-time analysis − Privacy and security are important issues − Data can be biased- we need to know our data! 19

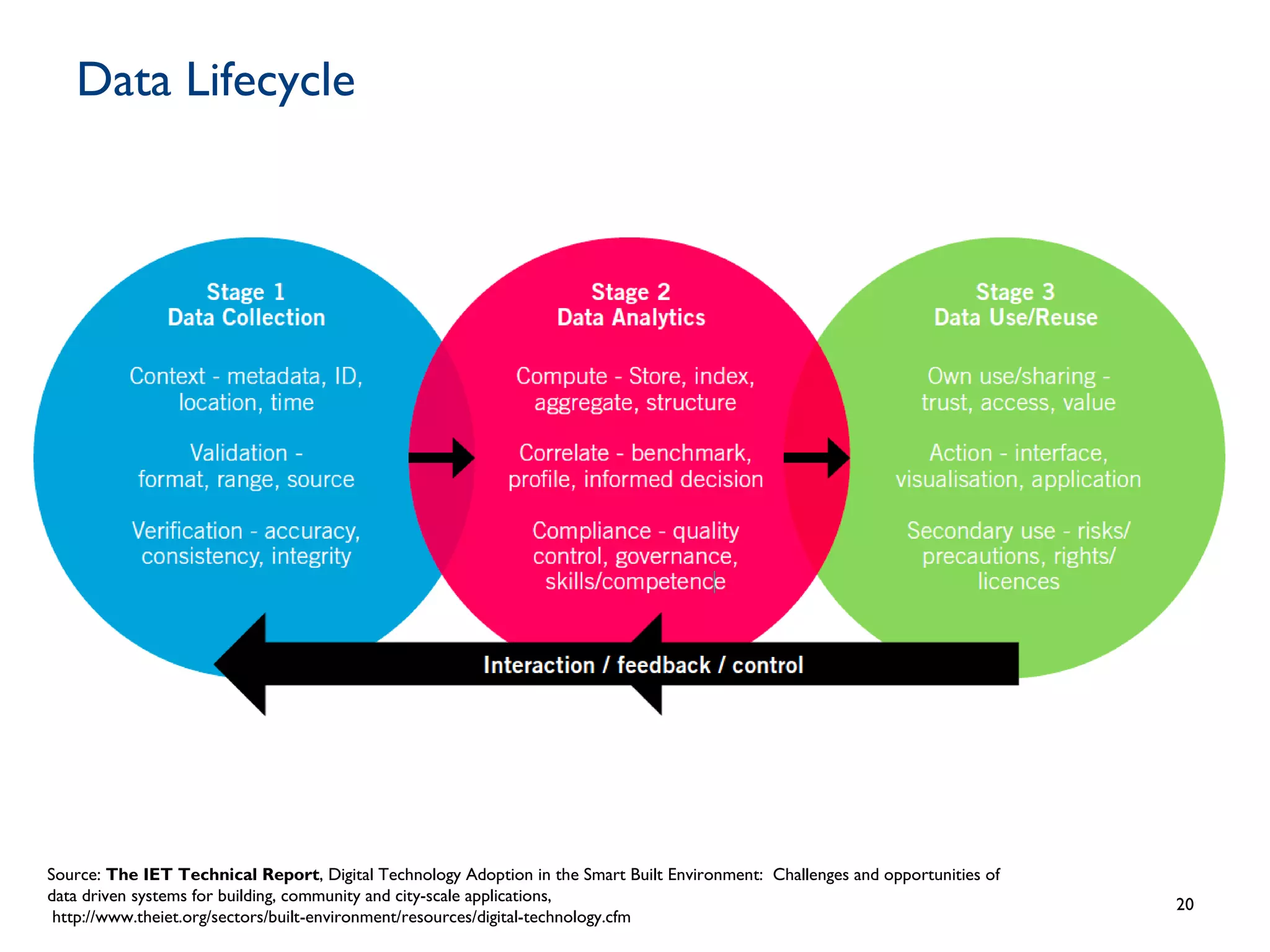

- 20. Data Lifecycle 20 Source: TheIET Technical Report, Digital Technology Adoption in the Smart Built Environment: Challenges and opportunities of data driven systems for building, community and city-scale applications, http://www.theiet.org/sectors/built-environment/resources/digital-technology.cfm

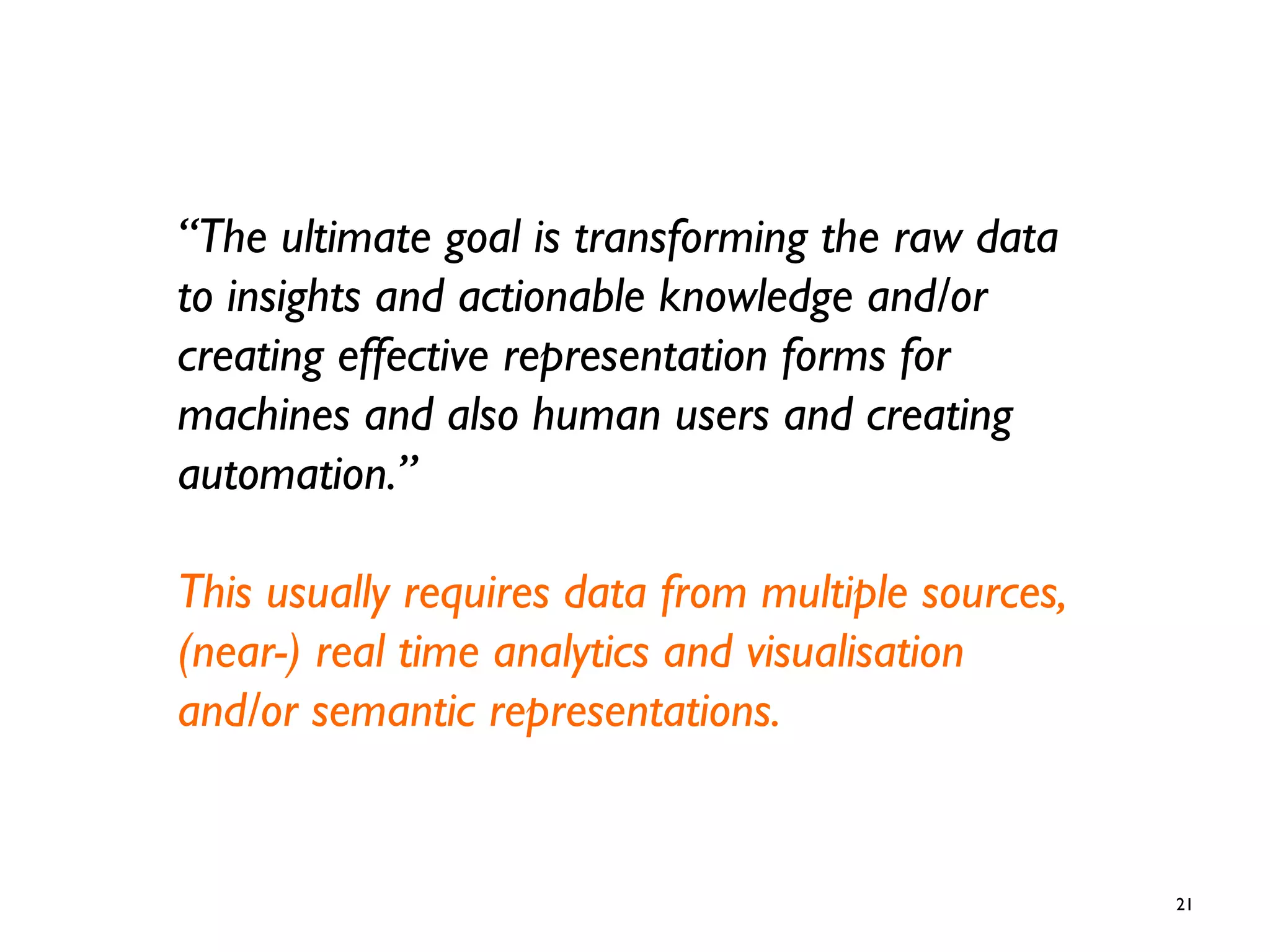

- 21. 21 “The ultimate goalis transforming the raw data to insights and actionable knowledge and/or creating effective representation forms for machines and also human users and creating automation.” This usually requires data from multiple sources, (near-) real time analytics and visualisation and/or semantic representations.

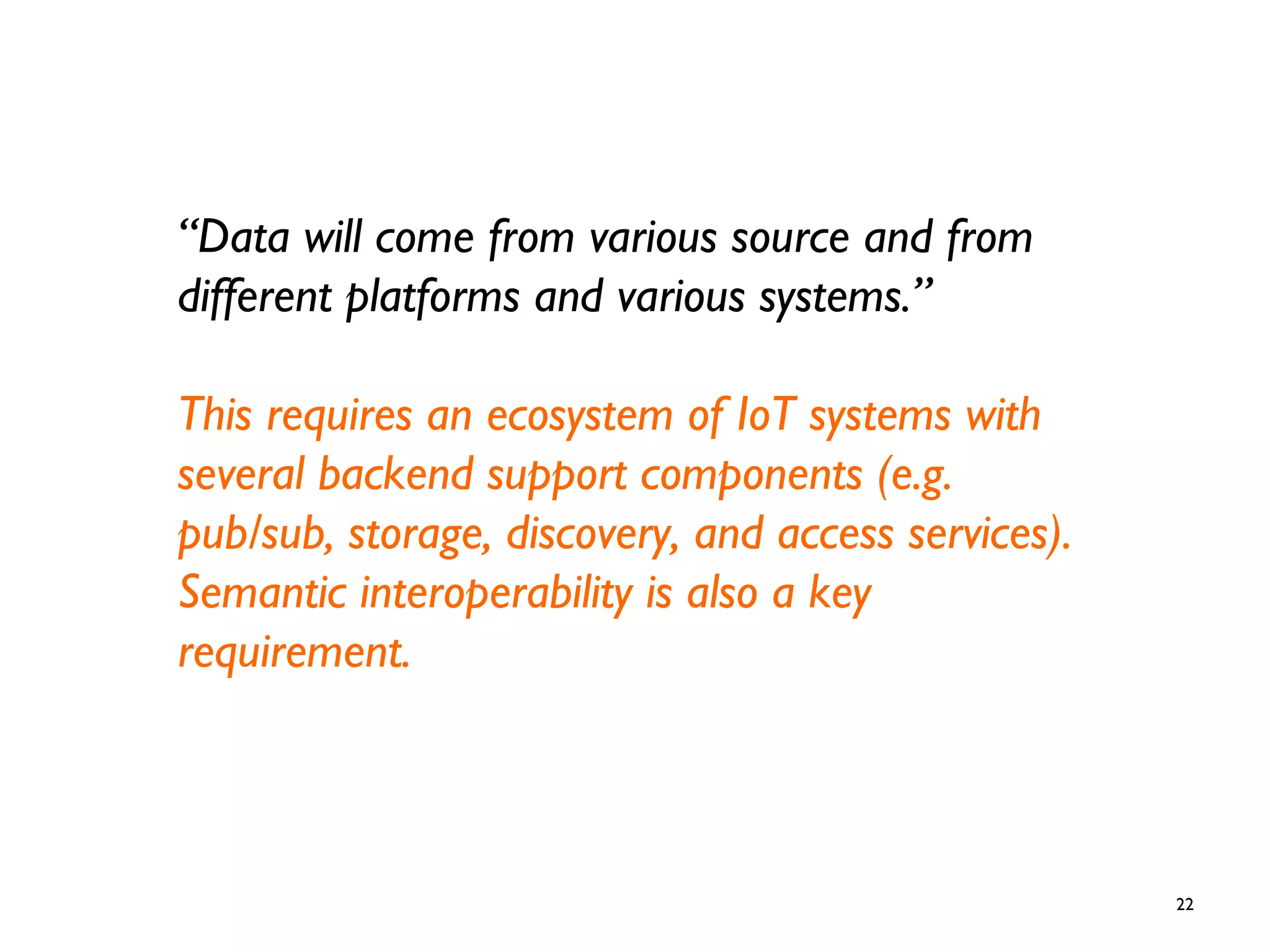

- 22. 22 “Data will comefrom various source and from different platforms and various systems.” This requires an ecosystem of IoT systems with several backend support components (e.g. pub/sub, storage, discovery, and access services). Semantic interoperability is also a key requirement.

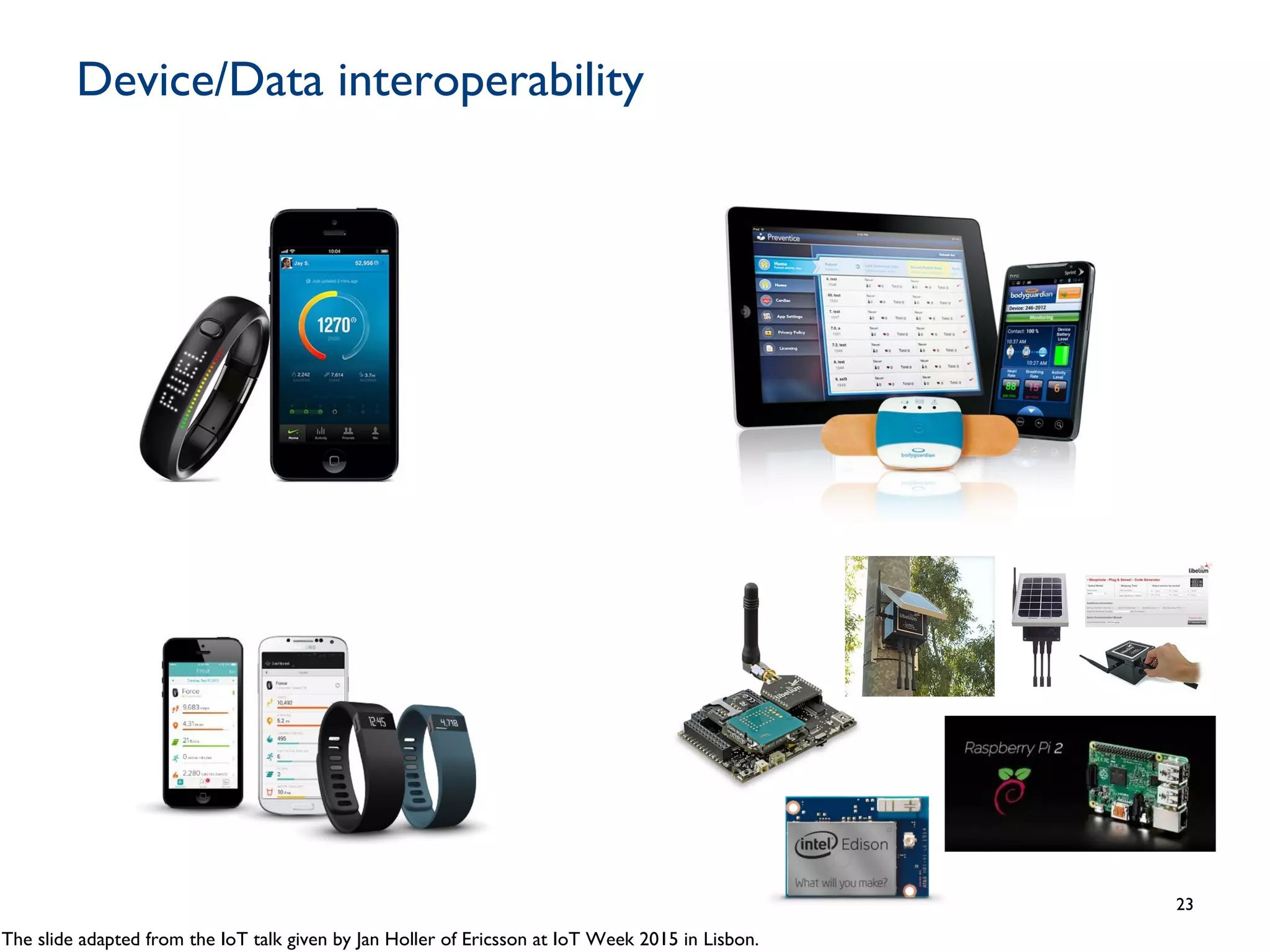

- 23. Device/Data interoperability 23 The slideadapted from the IoT talk given by Jan Holler of Ericsson at IoT Week 2015 in Lisbon.

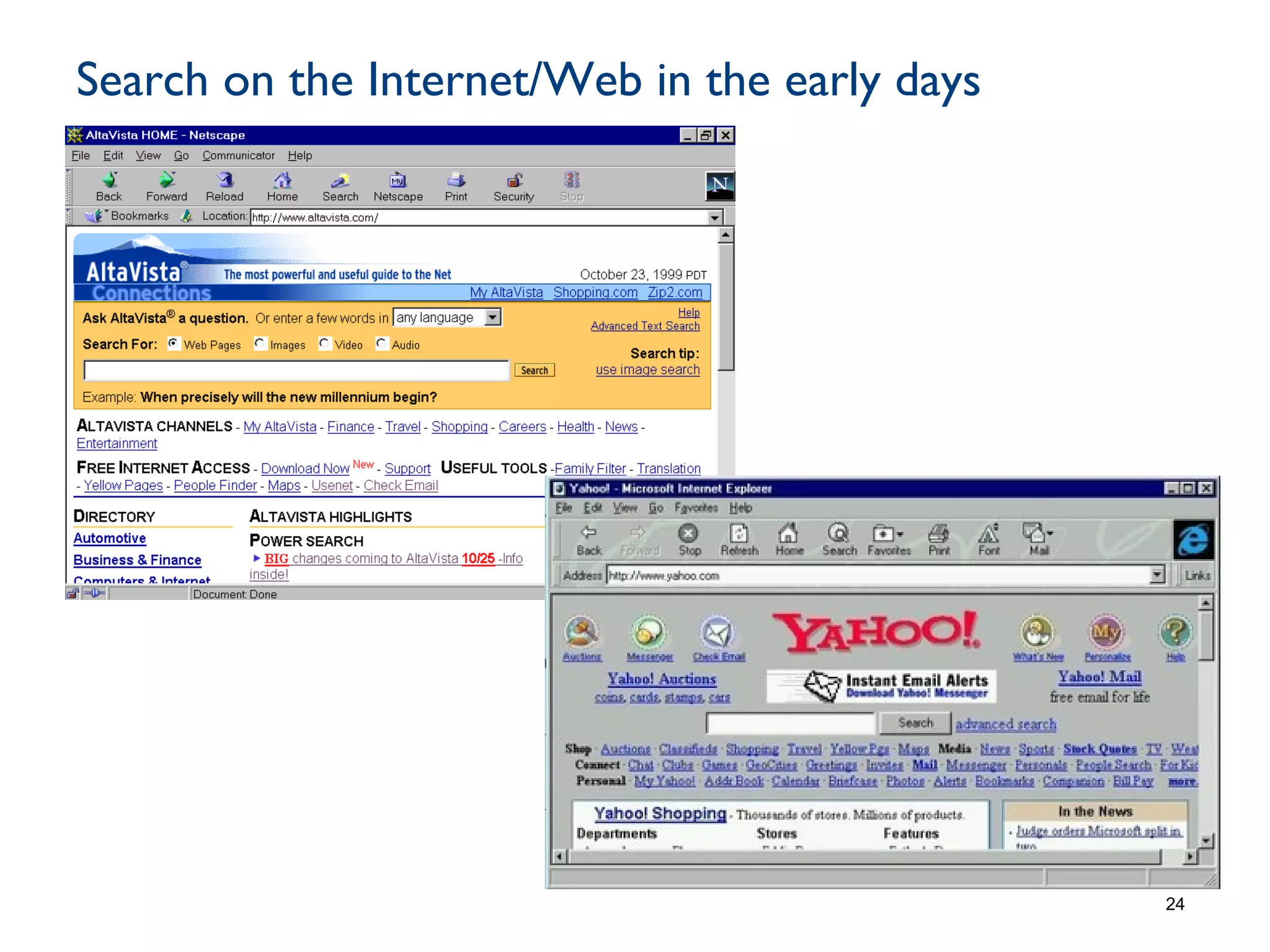

- 24. Search on theInternet/Web in the early days 2424

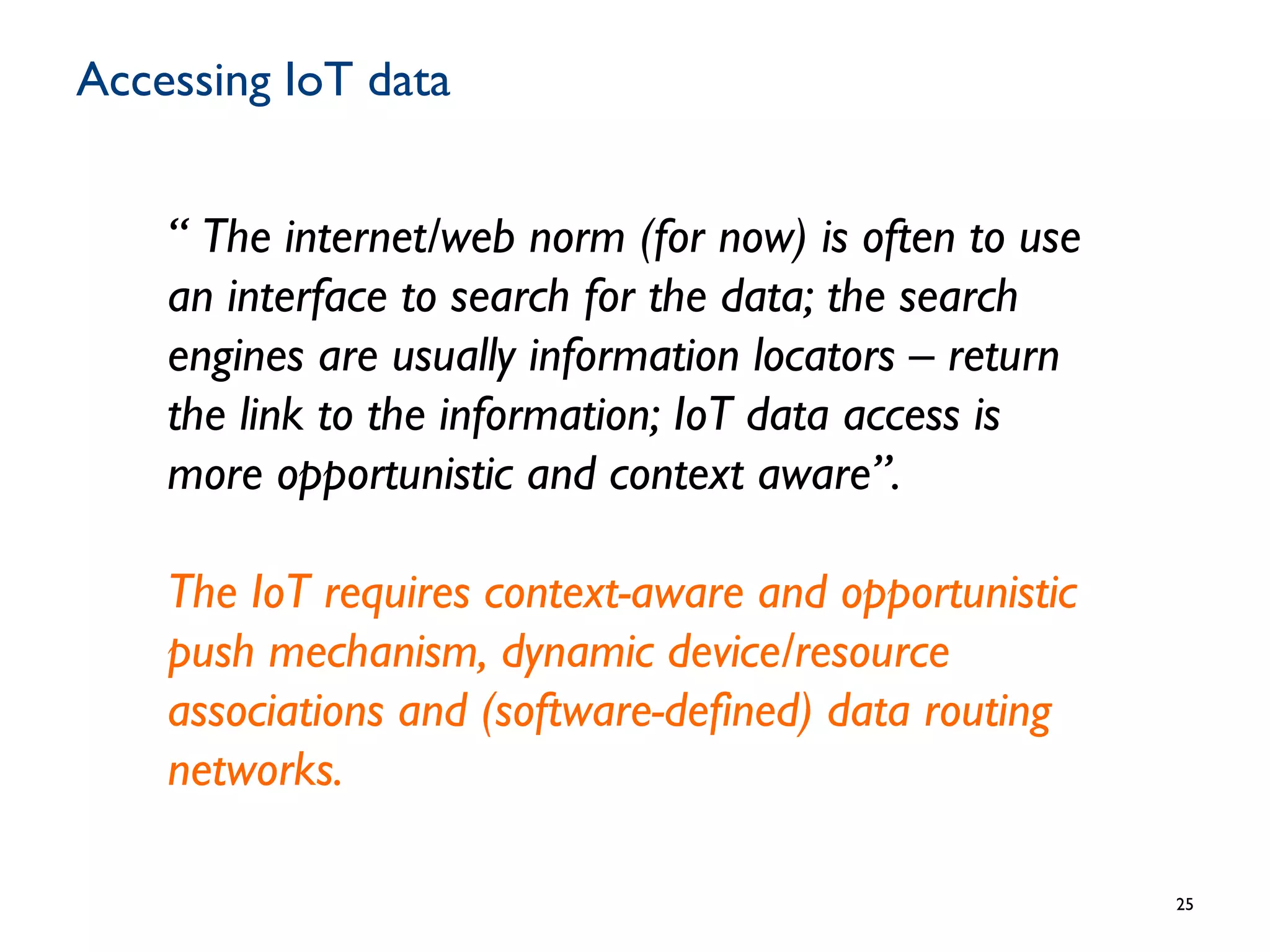

- 25. Accessing IoT data 25 “The internet/web norm (for now) is often to use an interface to search for the data; the search engines are usually information locators – return the link to the information; IoT data access is more opportunistic and context aware”. The IoT requires context-aware and opportunistic push mechanism, dynamic device/resource associations and (software-defined) data routing networks.

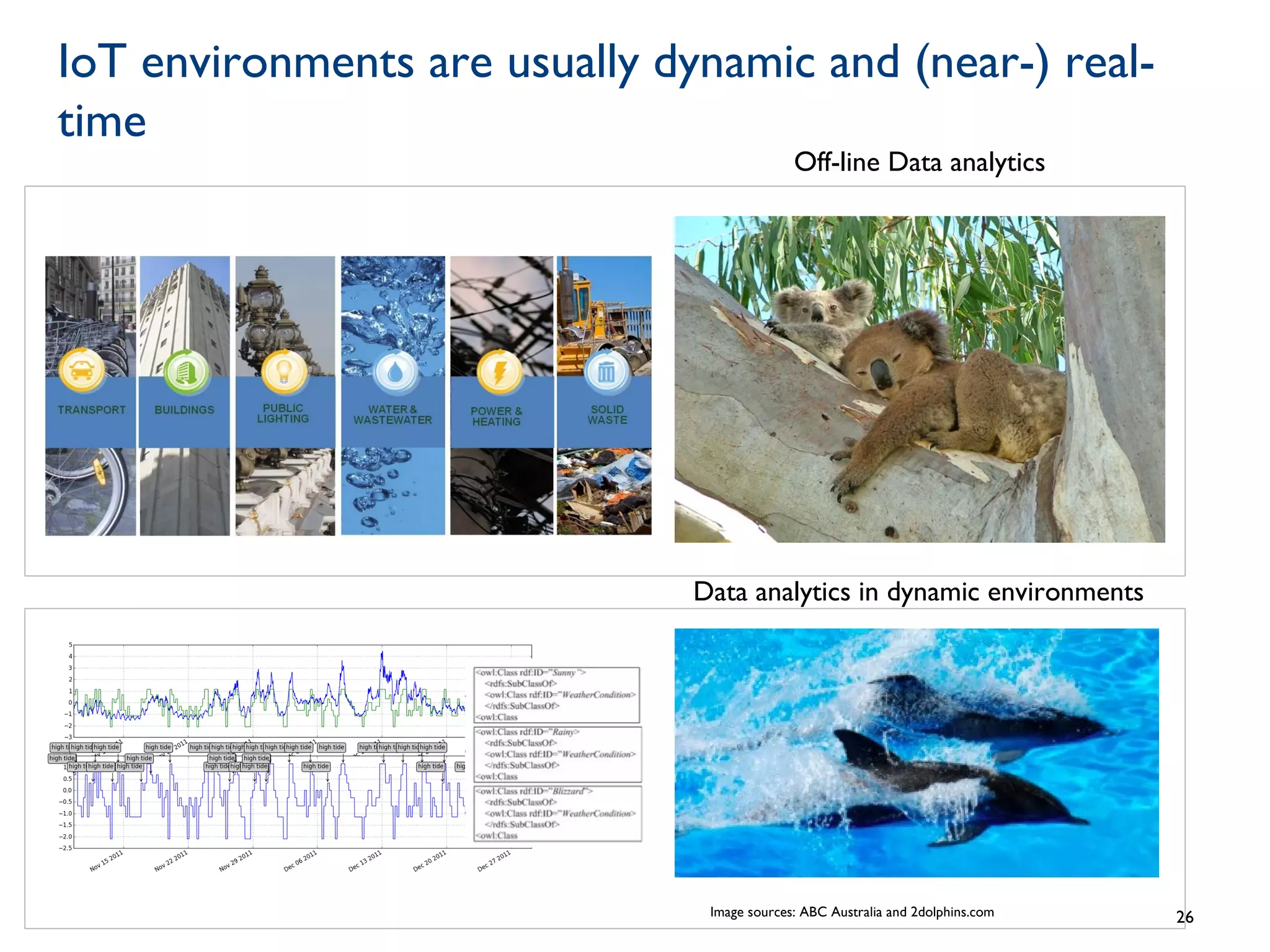

- 26. IoT environments areusually dynamic and (near-) real- time 26 Off-line Data analytics Data analytics in dynamic environments Image sources: ABC Australia and 2dolphins.com
- 27. What type ofproblems we expect to solve using the IoT and data analytics solutions?
- 28. 28Source LAT Times,http://documents.latimes.com/la-2013/ A smart City example Future cities: A view from 1998
- 29.

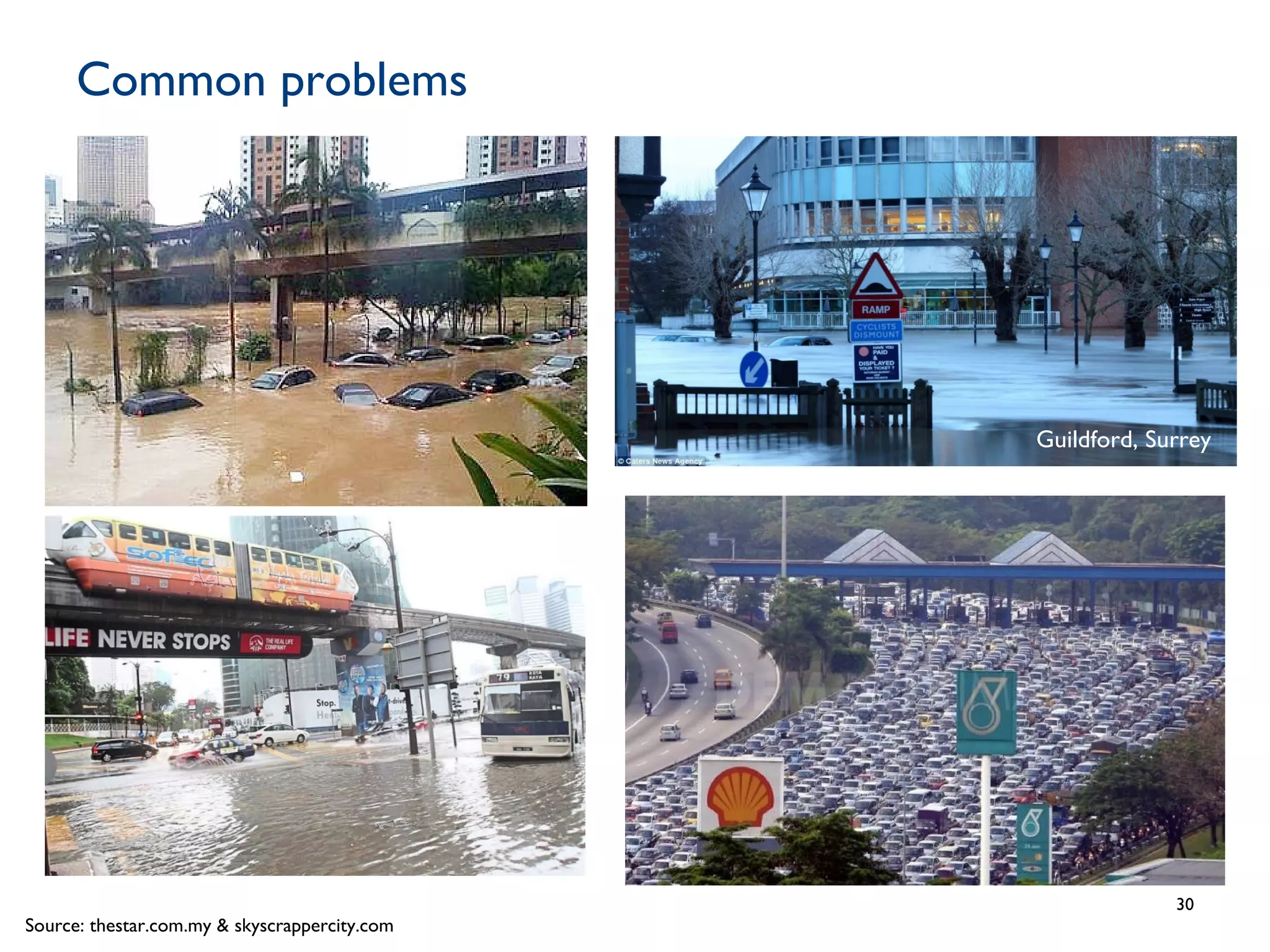

- 30. Common problems 30 Source: thestar.com.my& skyscrappercity.com Guildford, Surrey

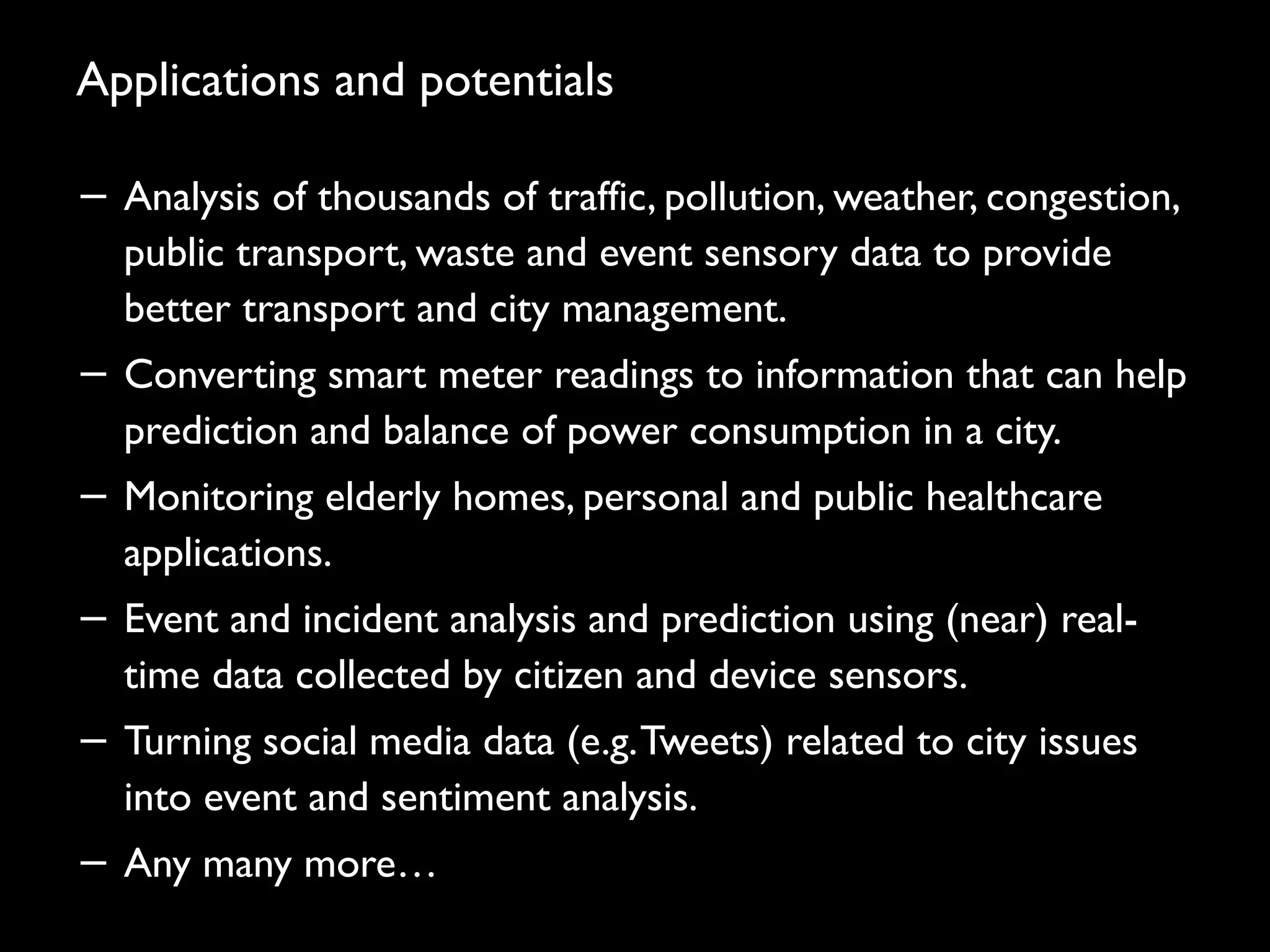

- 31. Applications and potentials −Analysis of thousands of traffic, pollution, weather, congestion, public transport, waste and event sensory data to provide better transport and city management. − Converting smart meter readings to information that can help prediction and balance of power consumption in a city. − Monitoring elderly homes, personal and public healthcare applications. − Event and incident analysis and prediction using (near) real- time data collected by citizen and device sensors. − Turning social media data (e.g.Tweets) related to city issues into event and sentiment analysis. − Any many more… 31
- 32.

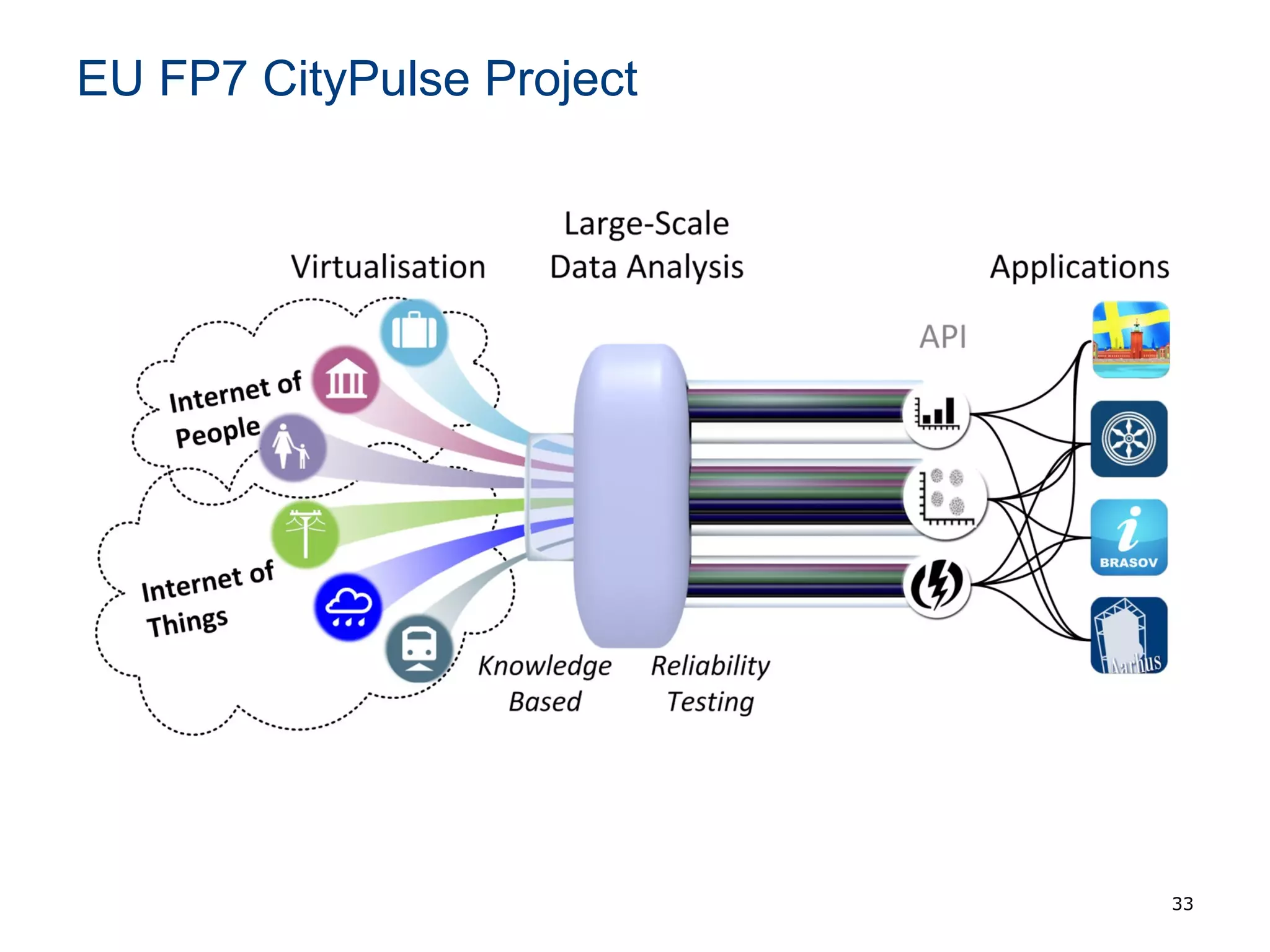

- 33. EU FP7 CityPulseProject 33
- 34. 34 CityPulse Consortium Industrial SIE (Austria, Romania), ERIC SMEAI, Higher Education UNIS, NUIG, UASO, WSU City BR, AA Partners: Duration: 36 months (2014-2017)
- 35.

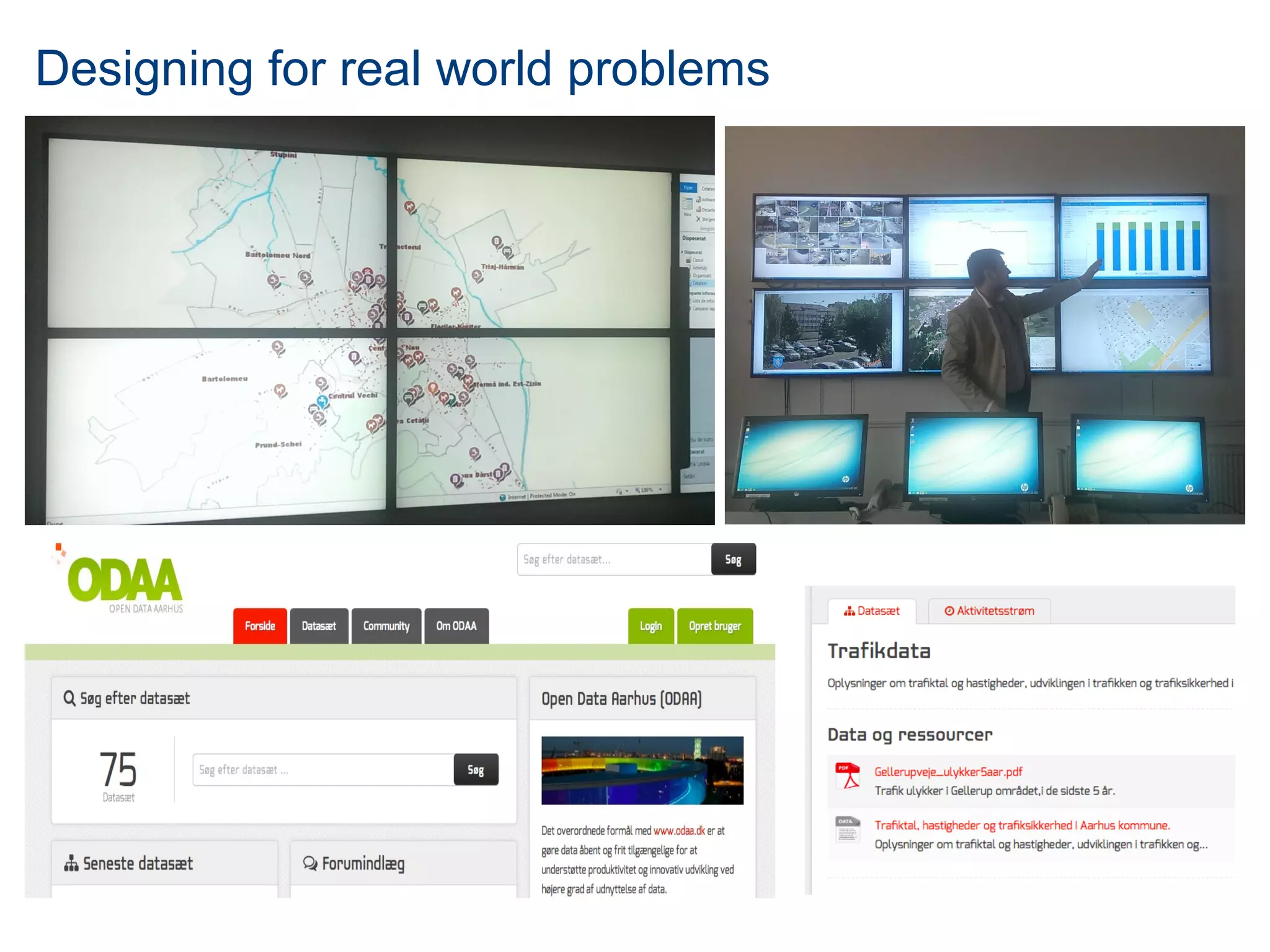

- 36. Designing for realworld problems

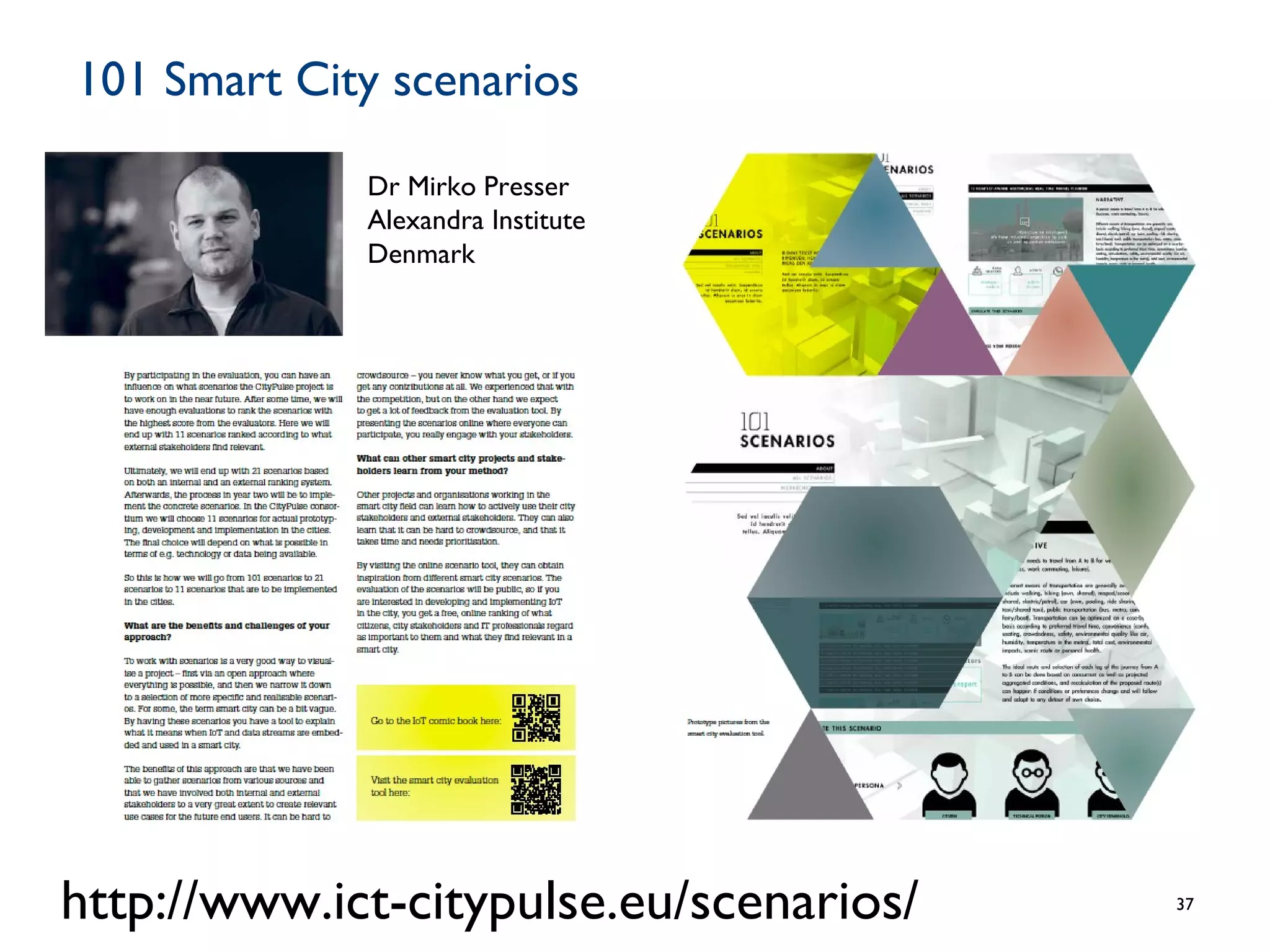

- 37. 101 Smart Cityscenarios 37http://www.ict-citypulse.eu/scenarios/ Dr Mirko Presser Alexandra Institute Denmark
- 38.
- 39.
- 40.

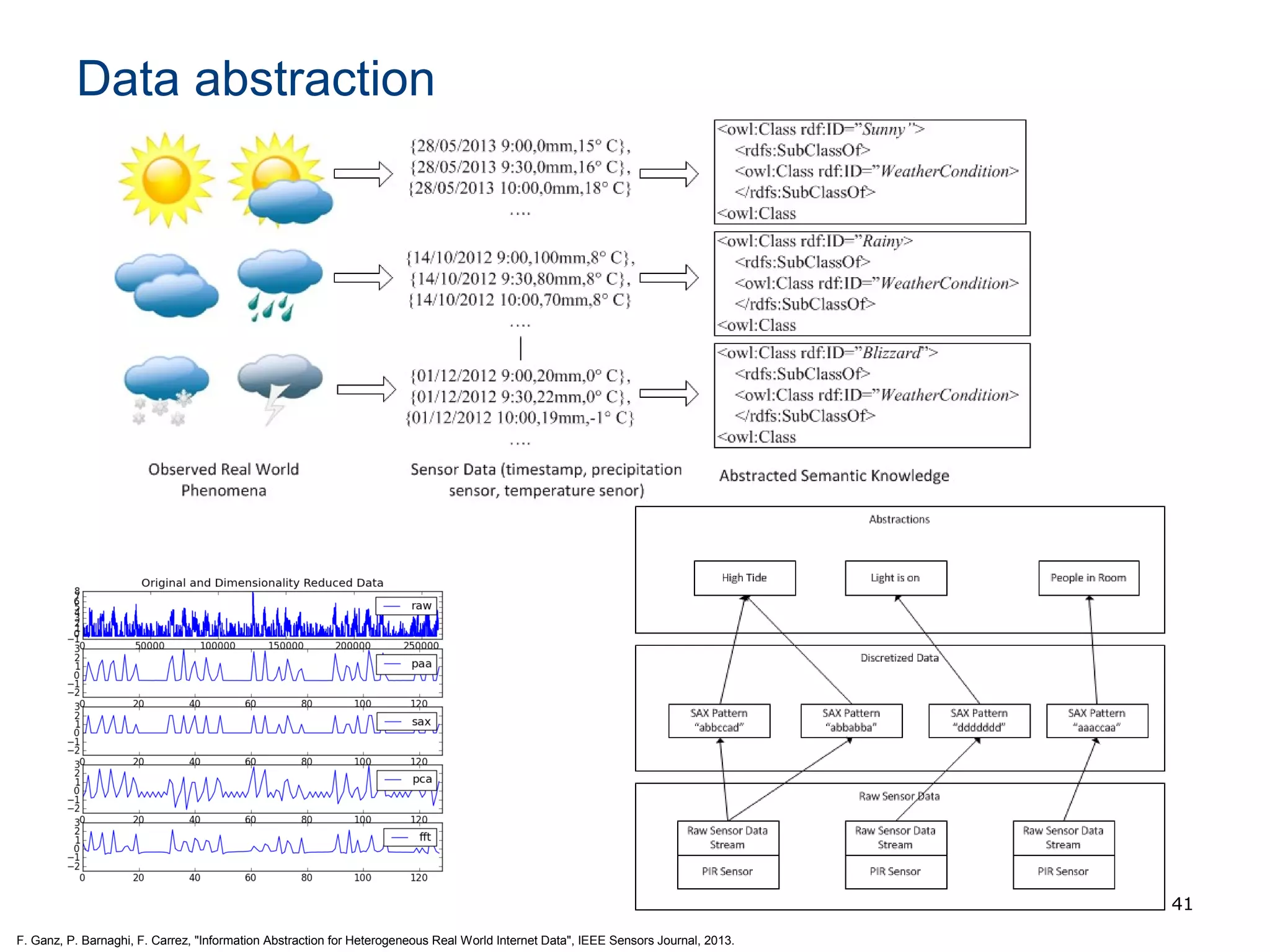

- 41. Data abstraction 41 F. Ganz,P. Barnaghi, F. Carrez, "Information Abstraction for Heterogeneous Real World Internet Data", IEEE Sensors Journal, 2013.

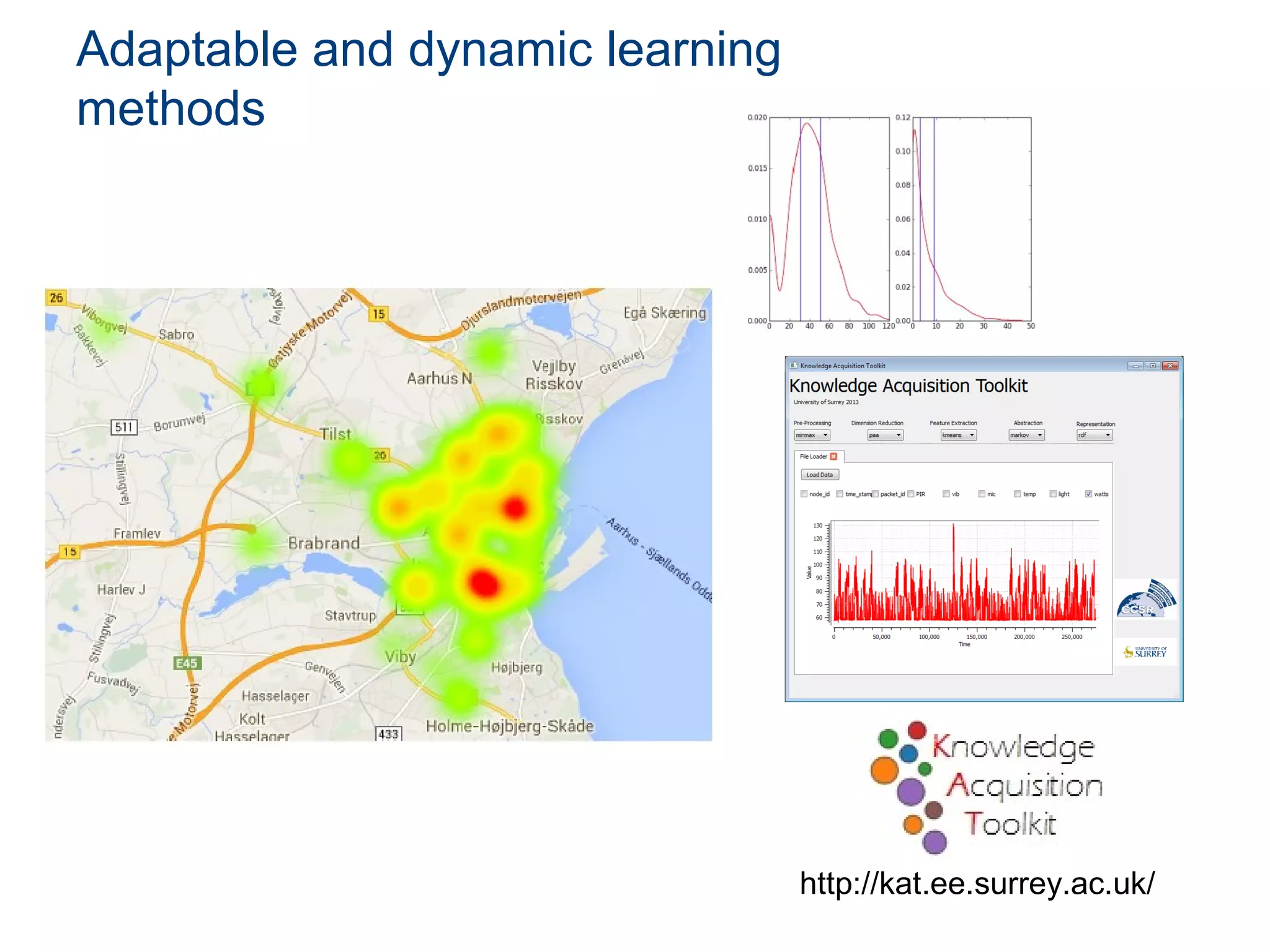

- 42. Adaptable and dynamiclearning methods http://kat.ee.surrey.ac.uk/
- 43.
- 44.

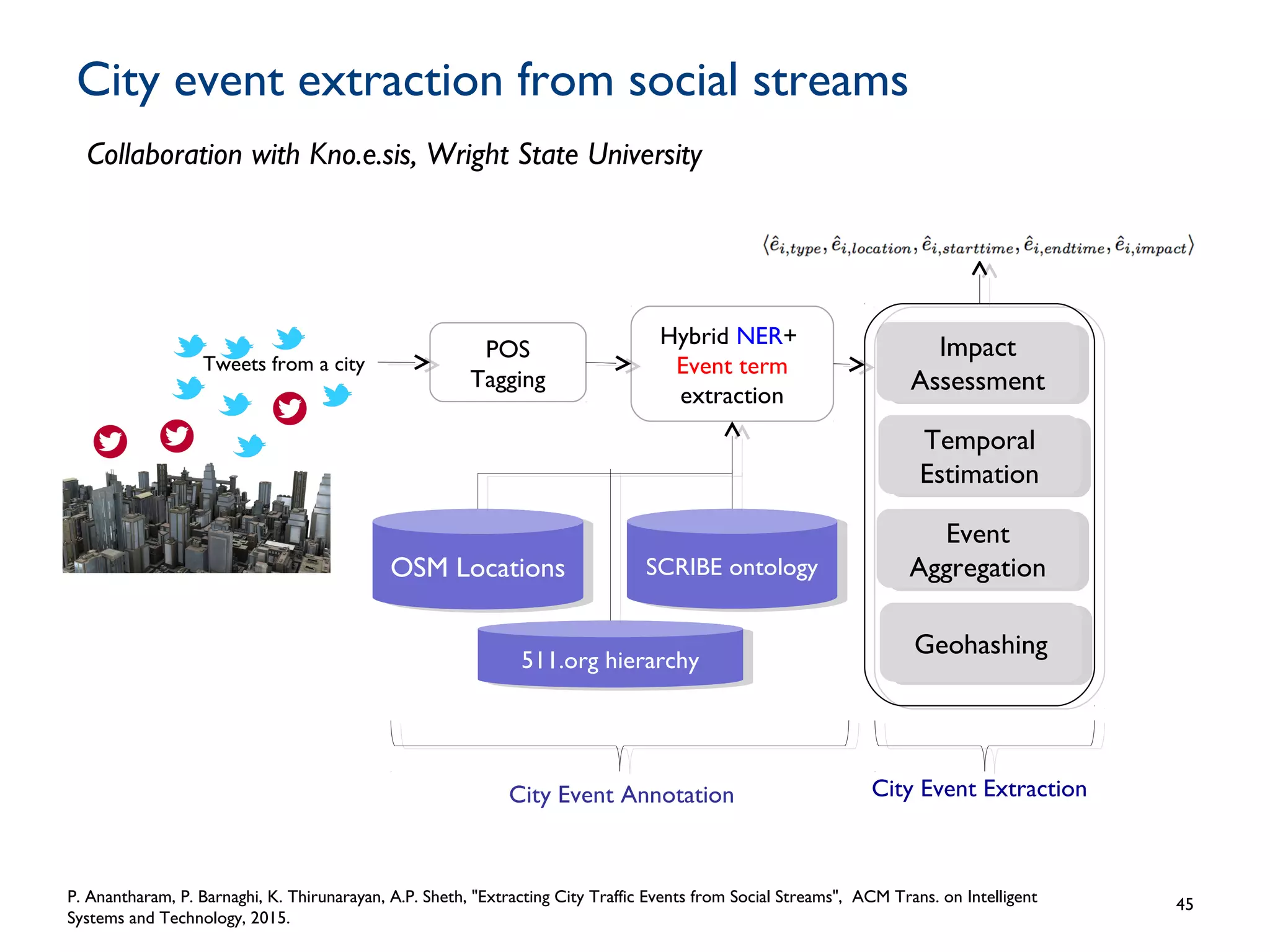

- 45. City event extractionfrom social streams 45 Tweets from a city POS Tagging Hybrid NER+ Event term extraction GeohashingGeohashing Temporal Estimation Temporal Estimation Impact Assessment Impact Assessment Event Aggregation Event AggregationOSM LocationsOSM Locations SCRIBE ontologySCRIBE ontology 511.org hierarchy511.org hierarchy City Event ExtractionCity Event Annotation P. Anantharam, P. Barnaghi, K. Thirunarayan, A.P. Sheth, "Extracting City Traffic Events from Social Streams", ACM Trans. on Intelligent Systems and Technology, 2015. Collaboration with Kno.e.sis, Wright State University

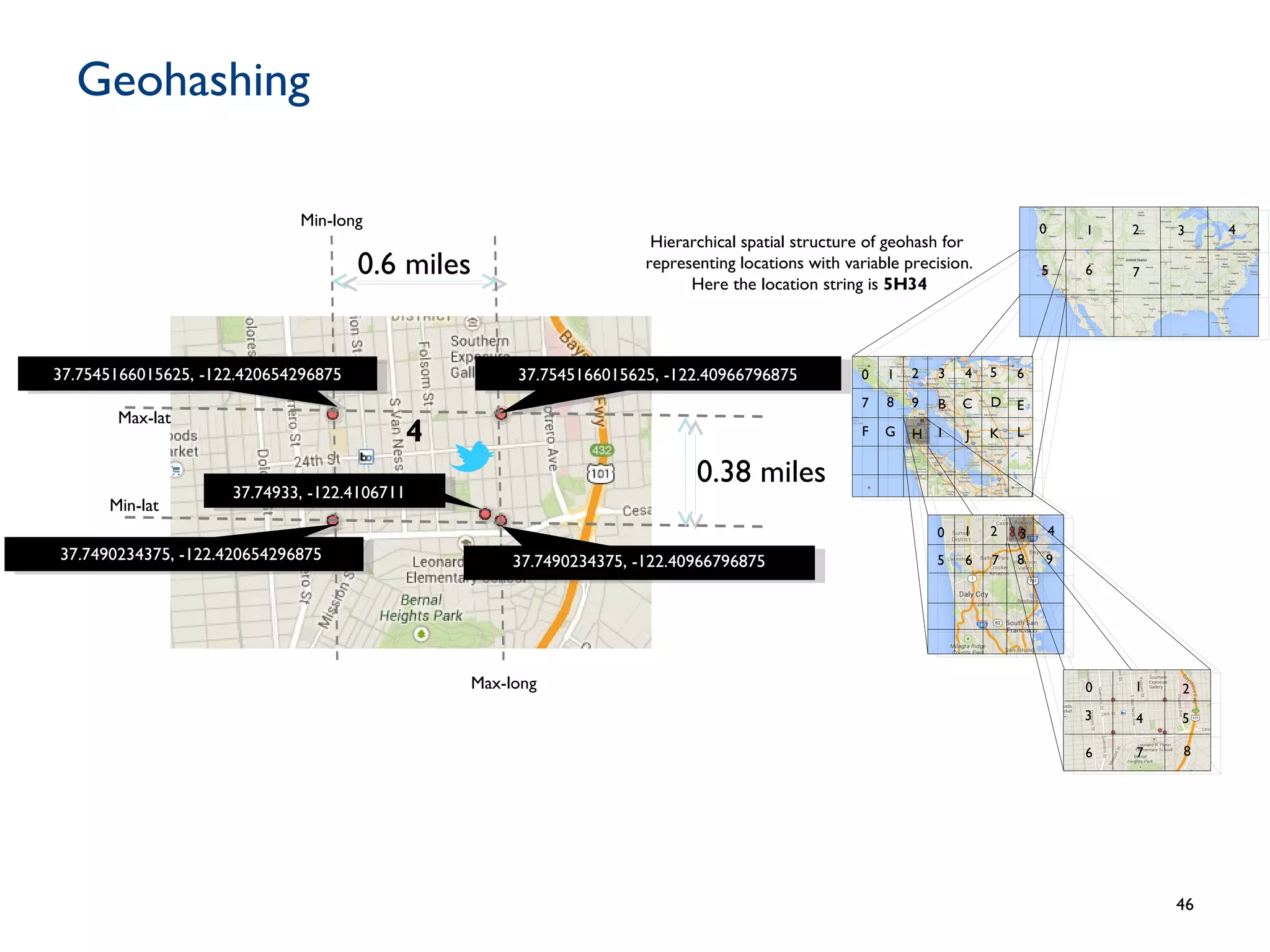

- 46. Geohashing 46 0.6 miles Max-lat Min-lat Min-long Max-long 0.38 miles 37.7545166015625,-122.40966796875 37.7490234375, -122.40966796875 37.7545166015625, -122.420654296875 37.7490234375, -122.420654296875 4 37.74933, -122.4106711 Hierarchical spatial structure of geohash for representing locations with variable precision. Here the location string is 5H34 0 1 2 3 4 5 6 7 8 9 B C D E F G H I J K L 0 1 7 2 3 4 5 6 8 9 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 8

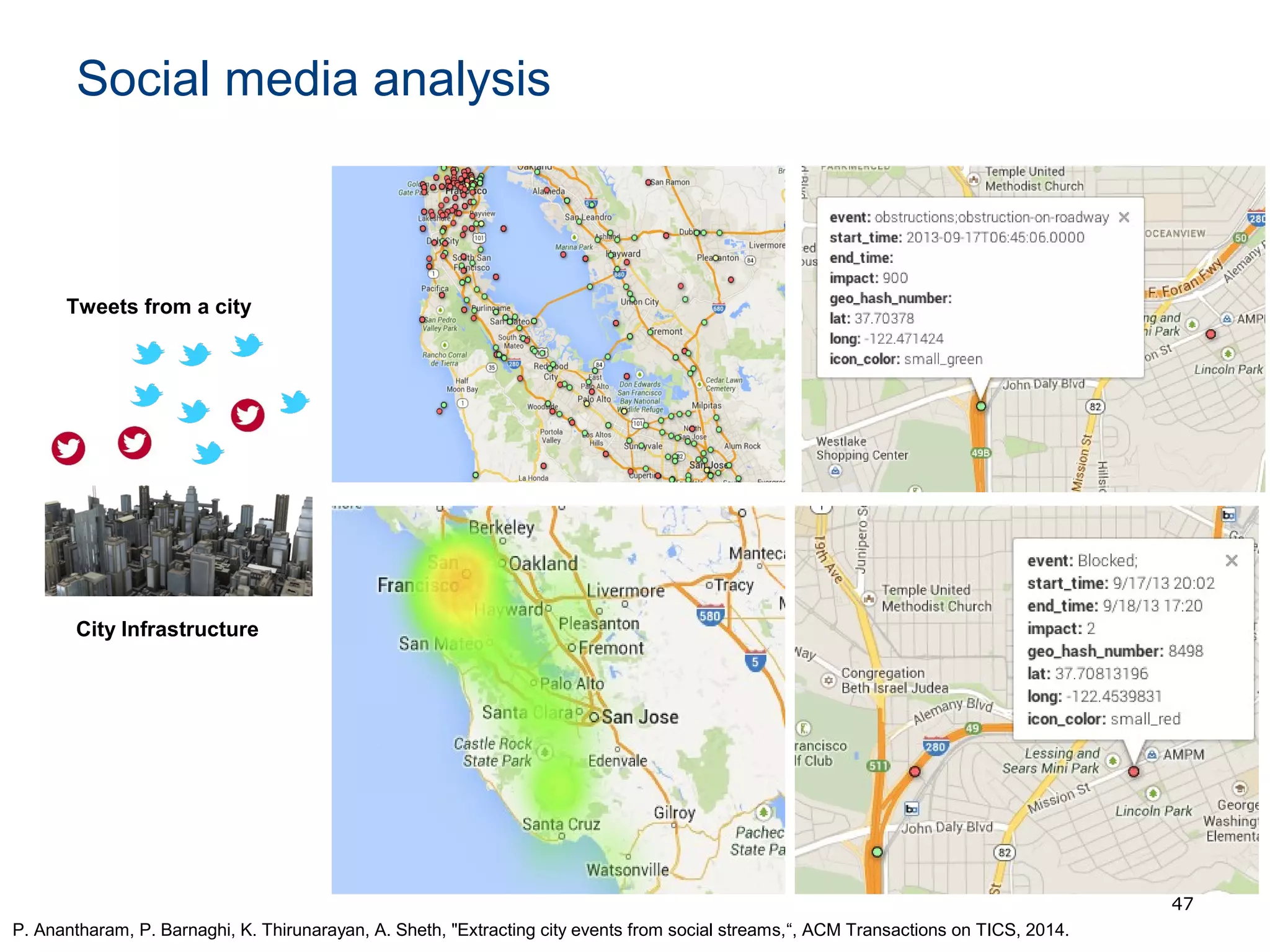

- 47. Social media analysis 47 CityInfrastructure Tweets from a city P. Anantharam, P. Barnaghi, K. Thirunarayan, A. Sheth, "Extracting city events from social streams,“, ACM Transactions on TICS, 2014.

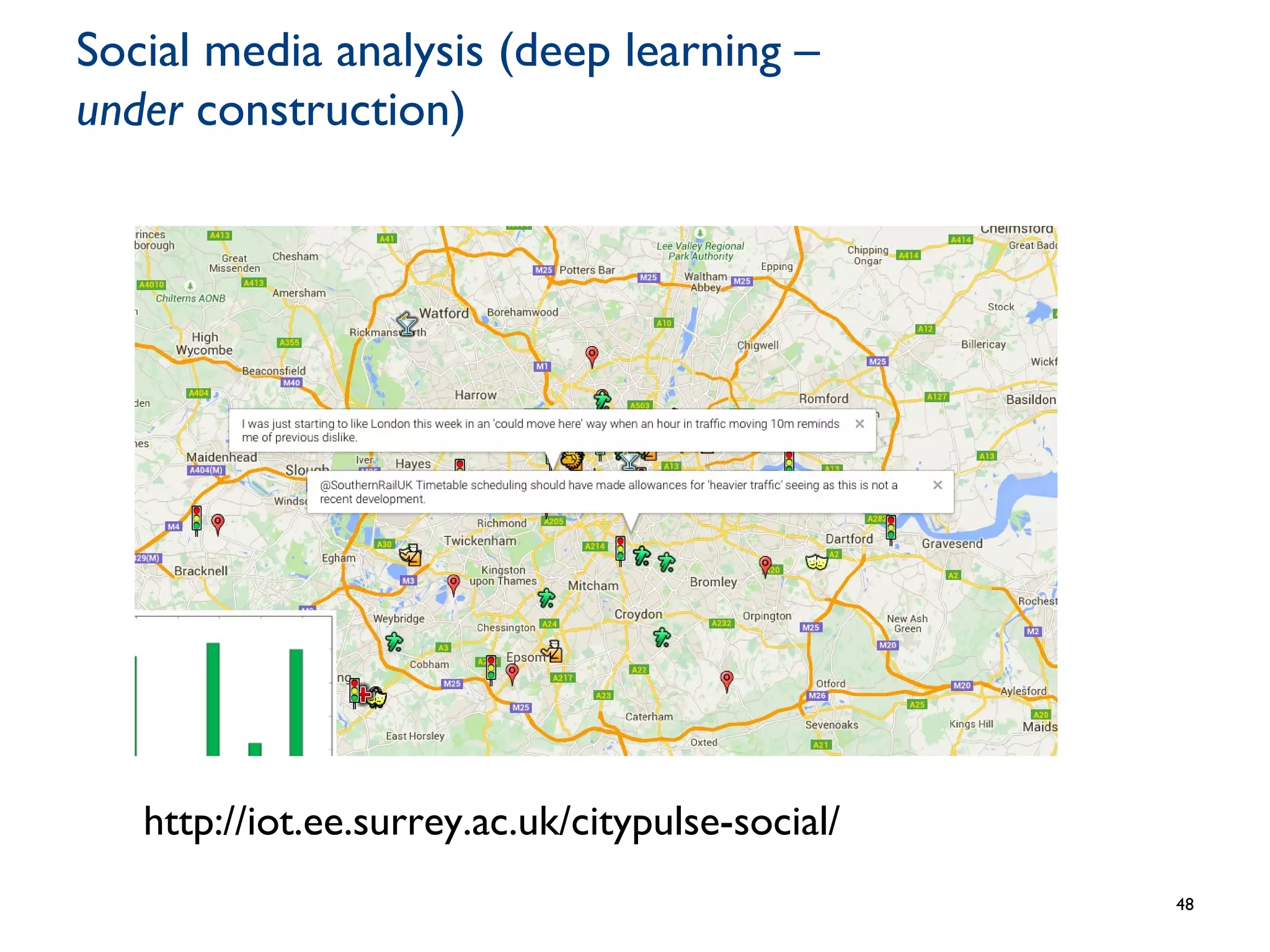

- 48. Social media analysis(deep learning – under construction) 48 http://iot.ee.surrey.ac.uk/citypulse-social/

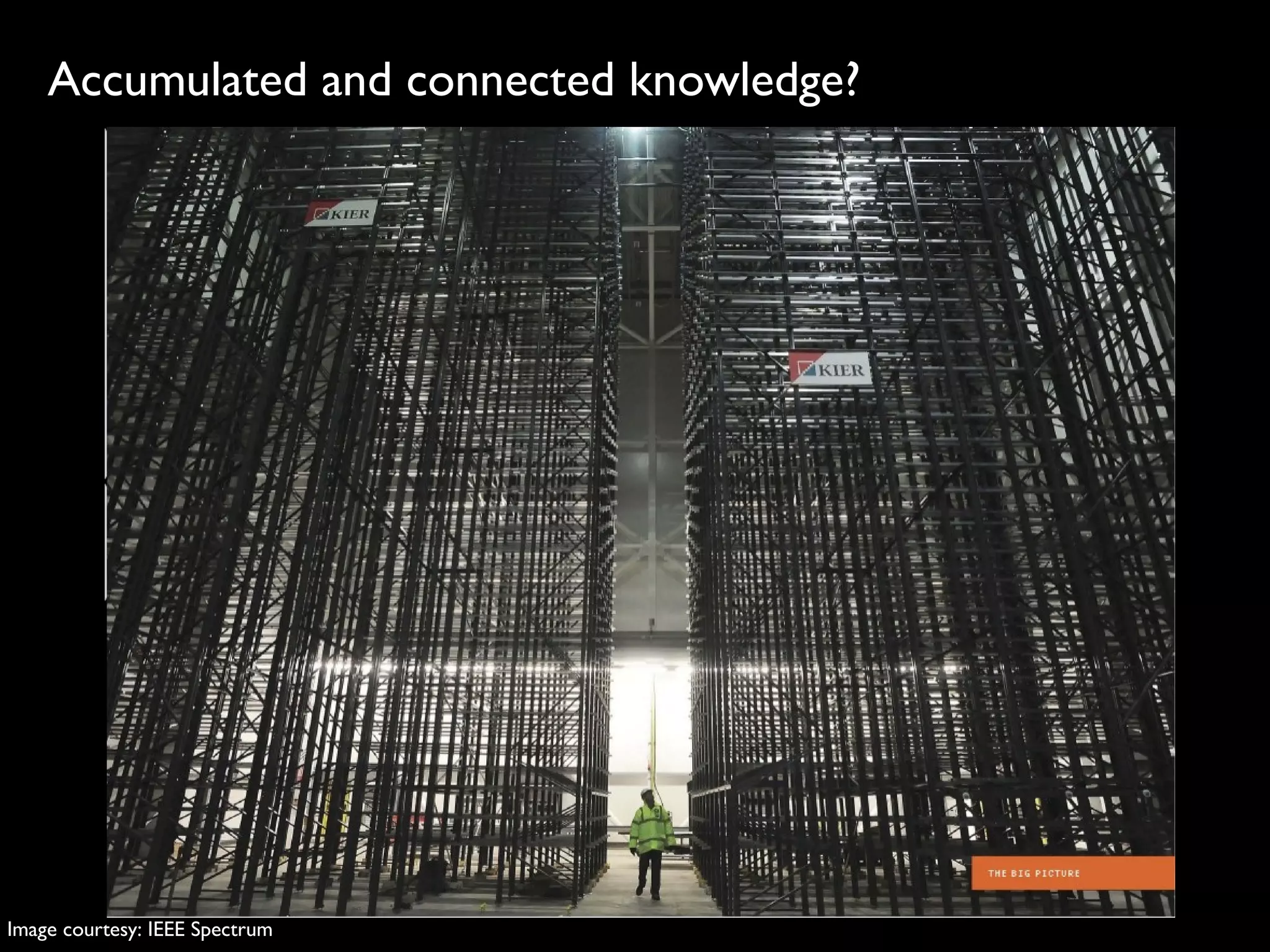

- 49. Accumulated and connectedknowledge? 49 Image courtesy: IEEE Spectrum

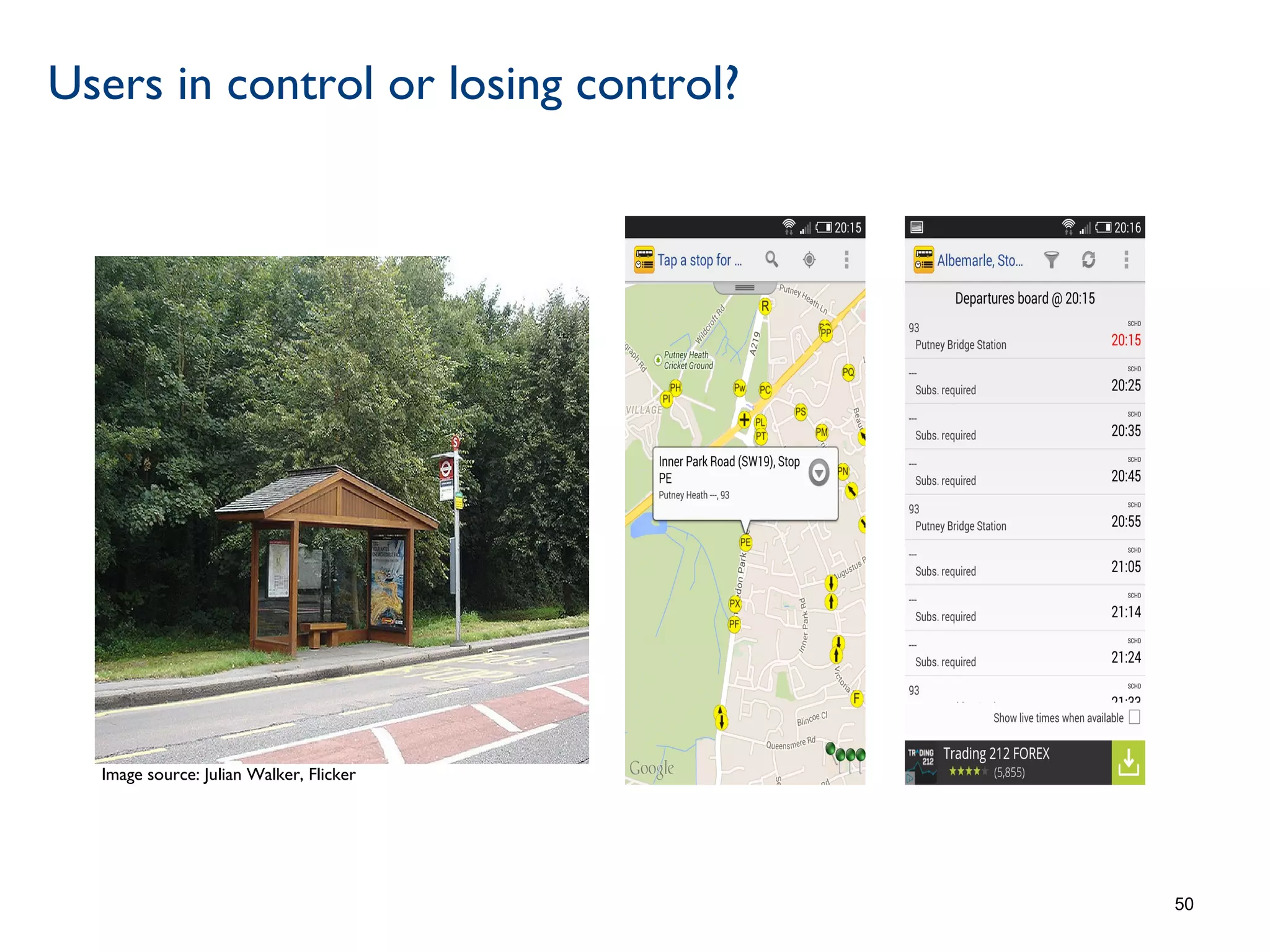

- 50. Users in controlor losing control? 50 Image source: Julian Walker, Flicker

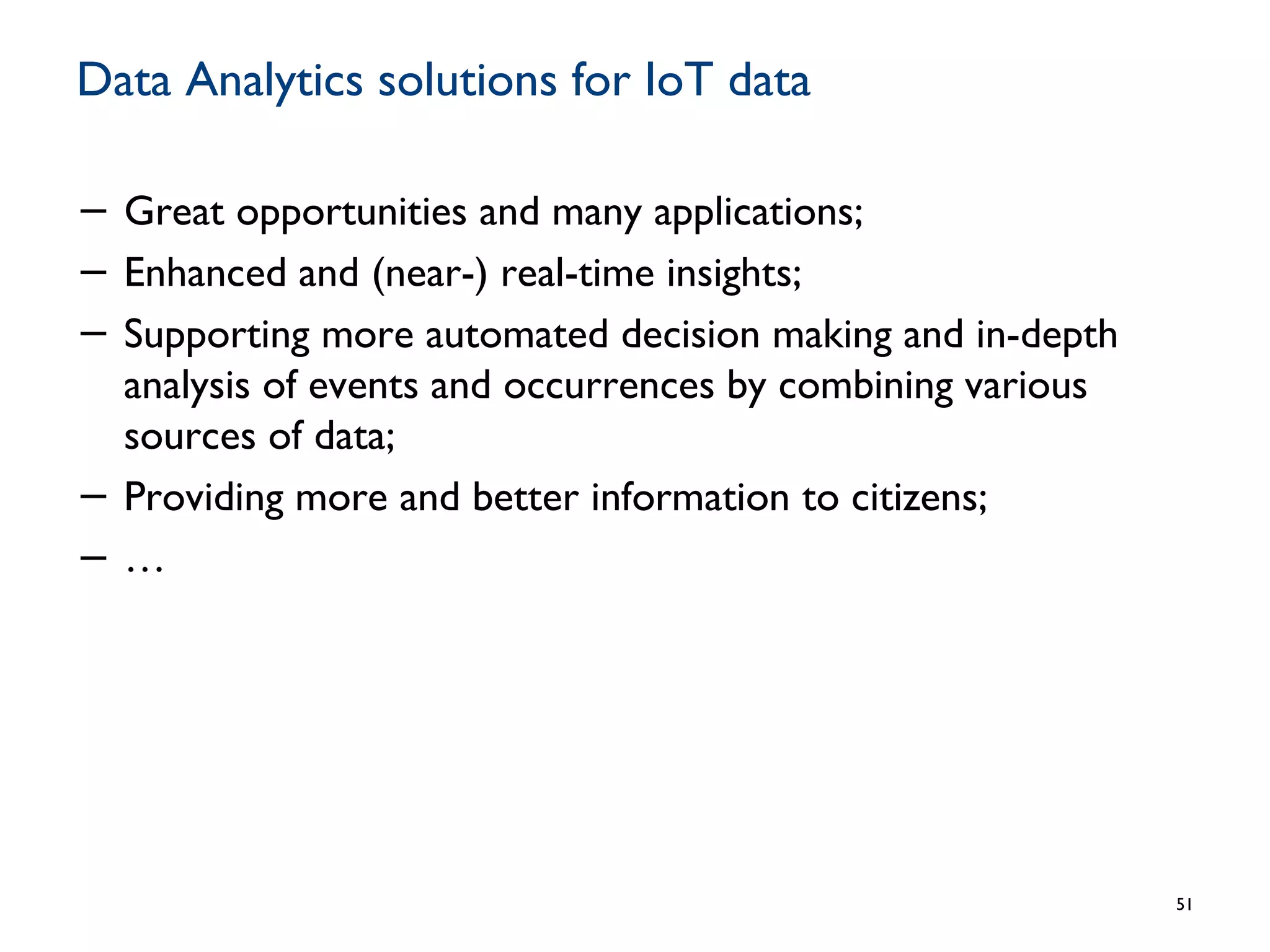

- 51. Data Analytics solutionsfor IoT data − Great opportunities and many applications; − Enhanced and (near-) real-time insights; − Supporting more automated decision making and in-depth analysis of events and occurrences by combining various sources of data; − Providing more and better information to citizens; − … 51

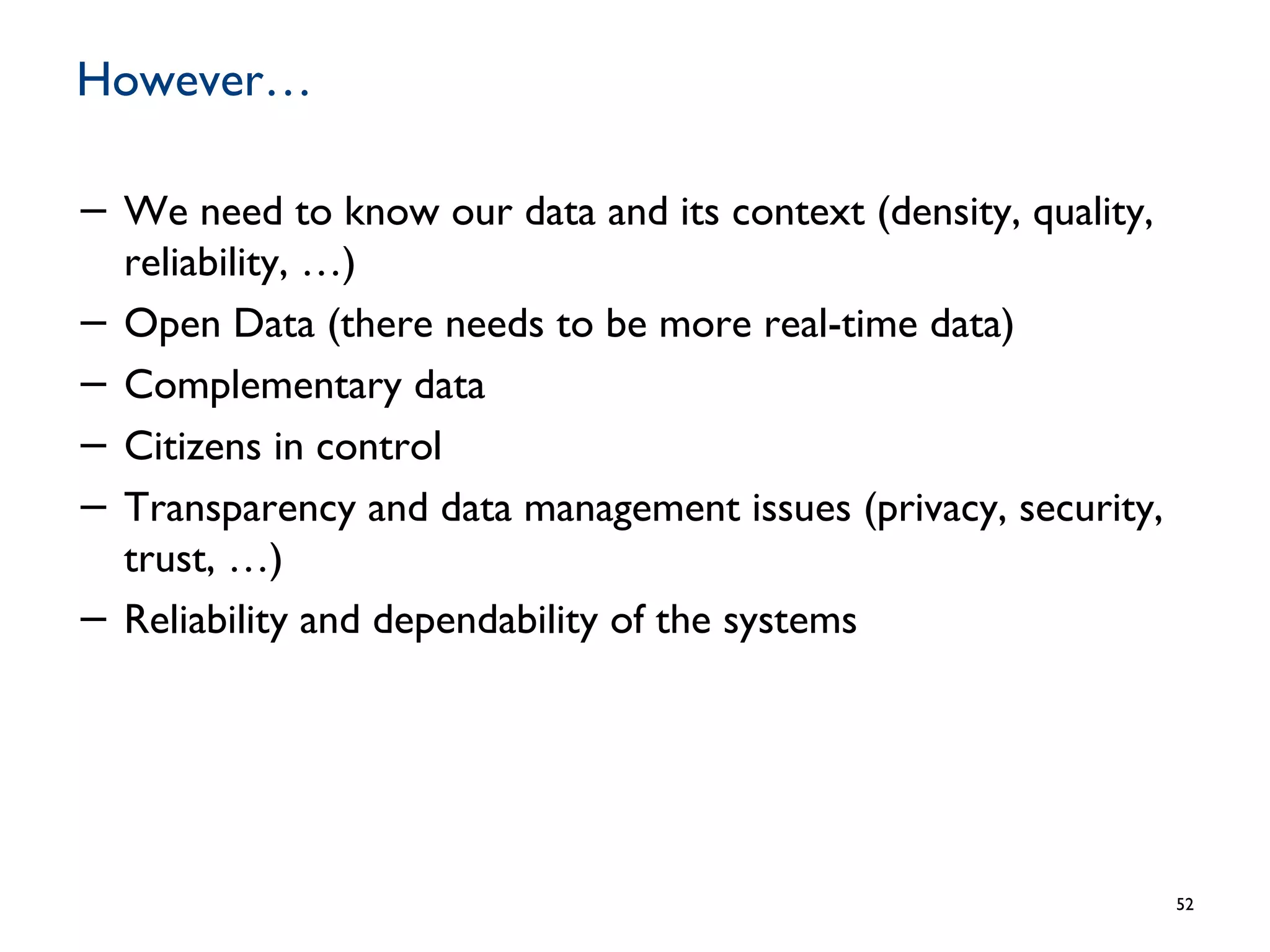

- 52. However… − We needto know our data and its context (density, quality, reliability, …) − Open Data (there needs to be more real-time data) − Complementary data − Citizens in control − Transparency and data management issues (privacy, security, trust, …) − Reliability and dependability of the systems 52

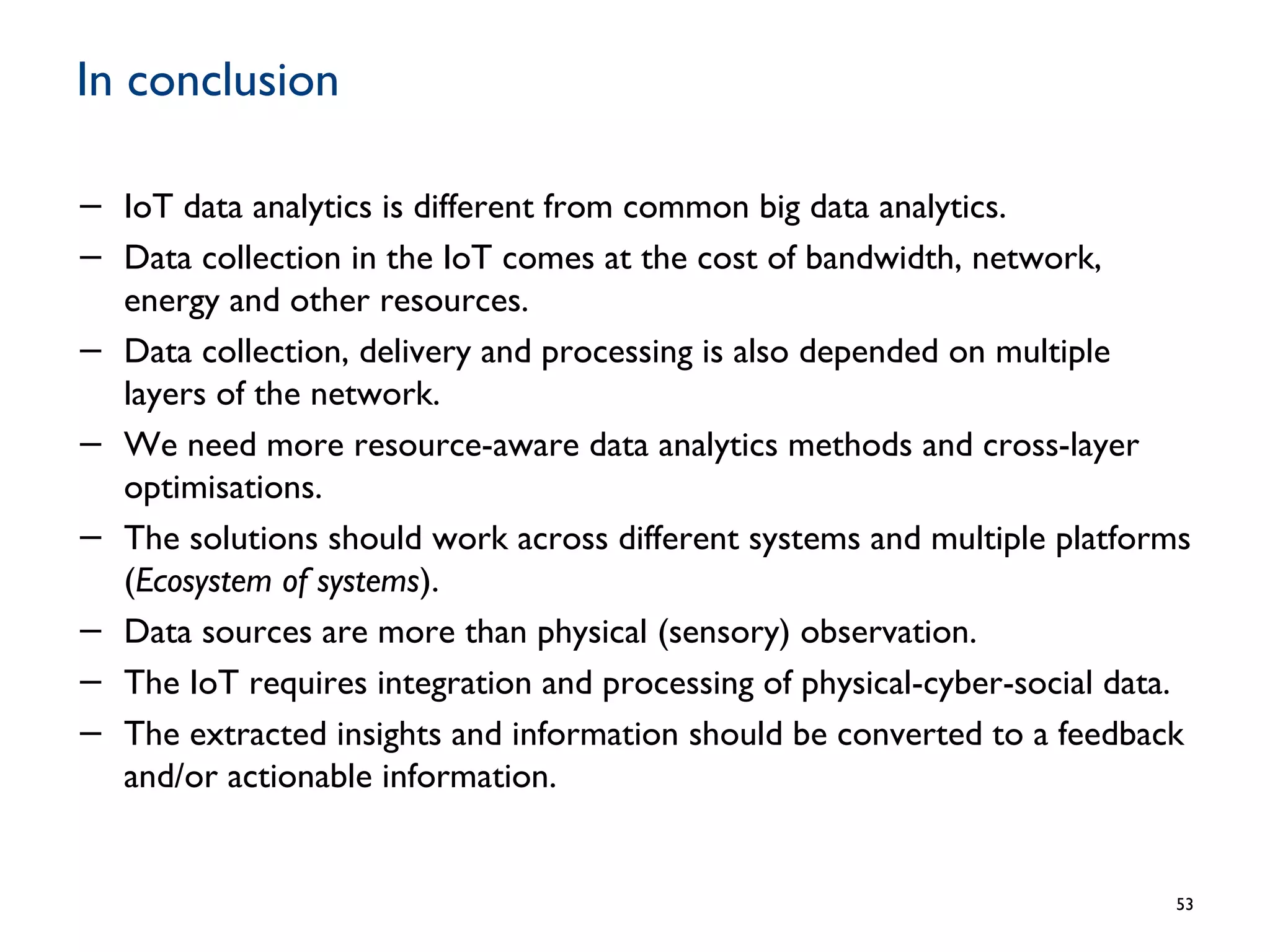

- 53. In conclusion − IoTdata analytics is different from common big data analytics. − Data collection in the IoT comes at the cost of bandwidth, network, energy and other resources. − Data collection, delivery and processing is also depended on multiple layers of the network. − We need more resource-aware data analytics methods and cross-layer optimisations. − The solutions should work across different systems and multiple platforms (Ecosystem of systems). − Data sources are more than physical (sensory) observation. − The IoT requires integration and processing of physical-cyber-social data. − The extracted insights and information should be converted to a feedback and/or actionable information. 53

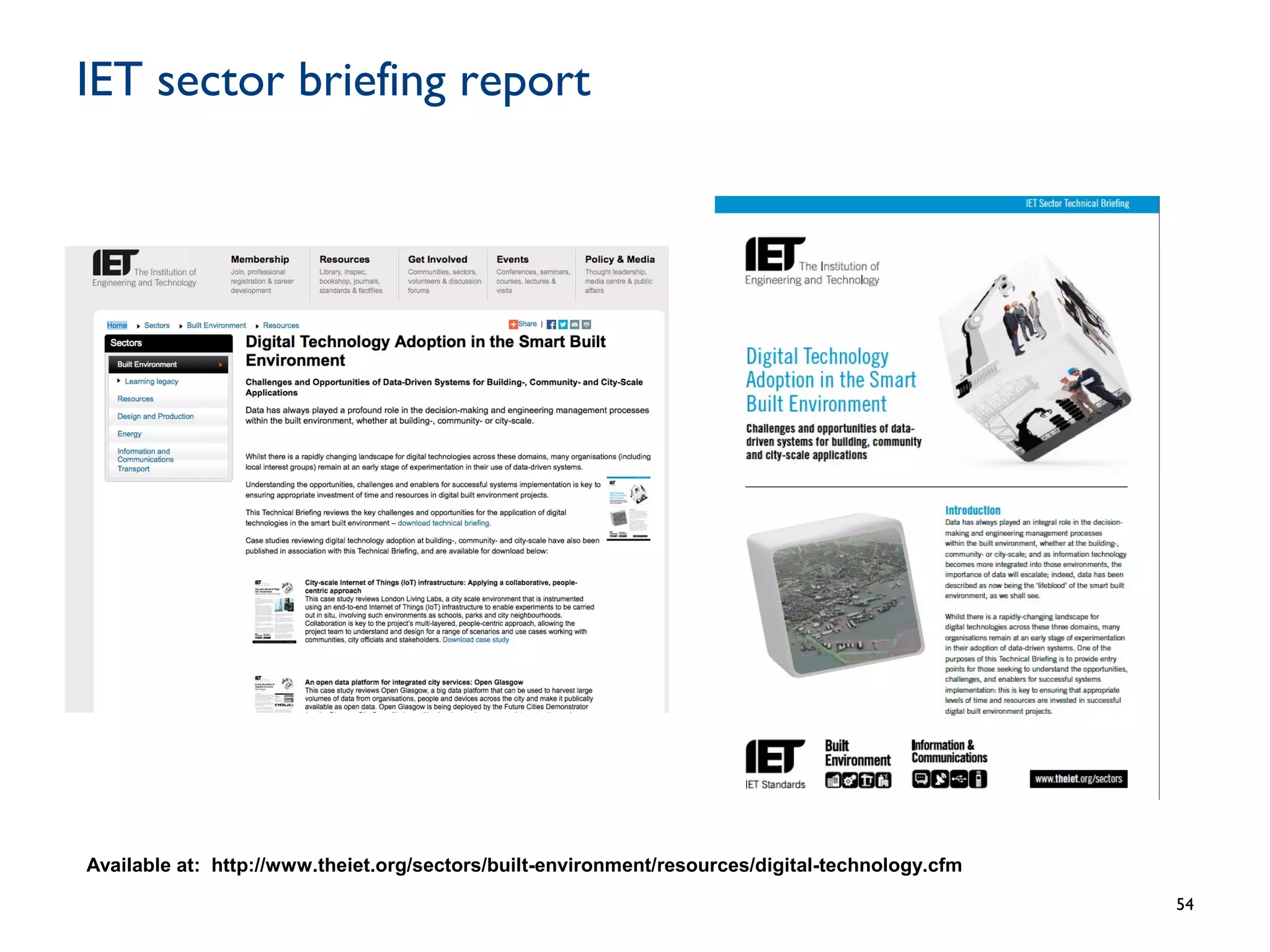

- 54. IET sector briefingreport 54 Available at: http://www.theiet.org/sectors/built-environment/resources/digital-technology.cfm
- 55.
- 56. Other challenges andtopics that I didn't talk about Security Privacy Trust, resilience and reliability Noise and incomplete data Cloud and distributed computing Networks, test-beds and mobility Mobile computing Applications and use-case scenarios 56
- 57.
