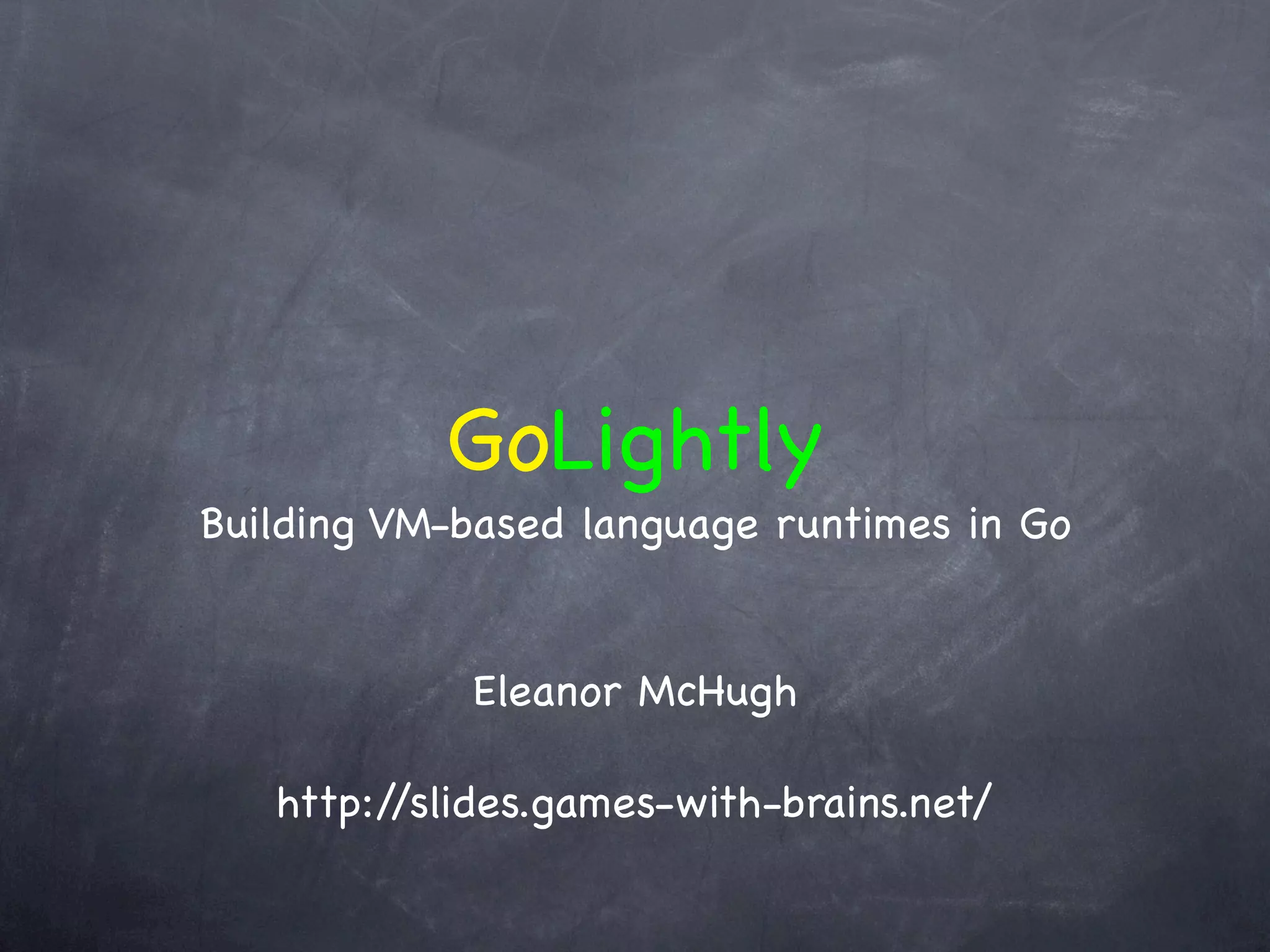

GoLightly: Building VM-Based Language Runtimes with Google Go

GoLightly
Building VM-based language runtimes in Go

Eleanor McHugh

http://slides.games-with-brains.net/

portrait of an artist...
physics major

http:/ feyele
embedded controllers

/
software reliability

dynamic languages

network scaling or.tel an

questionable taste in music Elean or McHugh

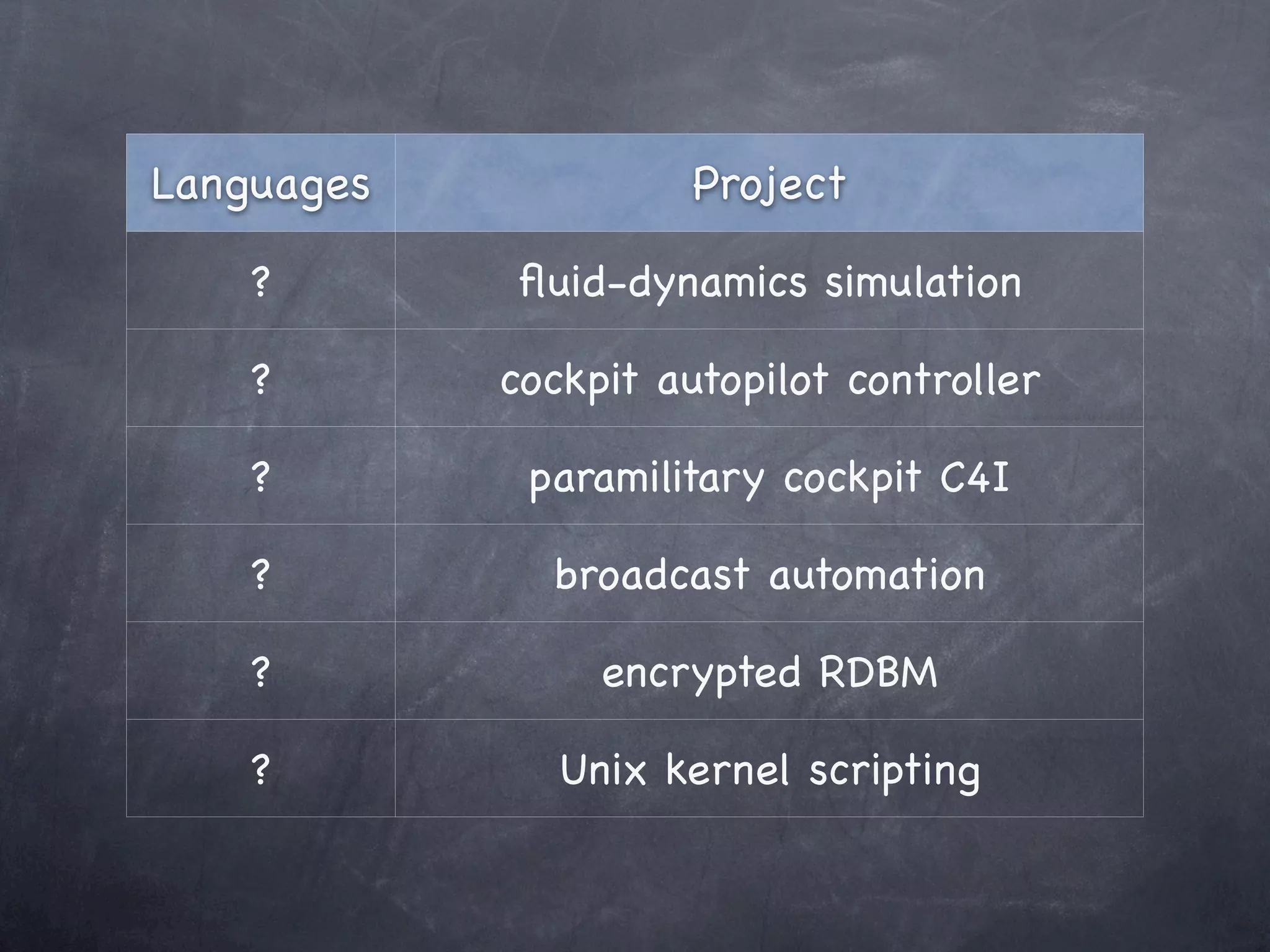

Languages Project

? ﬂuid-dynamics simulation

? cockpit autopilot controller

? paramilitary cockpit C4I

? broadcast automation

? encrypted RDBM

? Unix kernel scripting

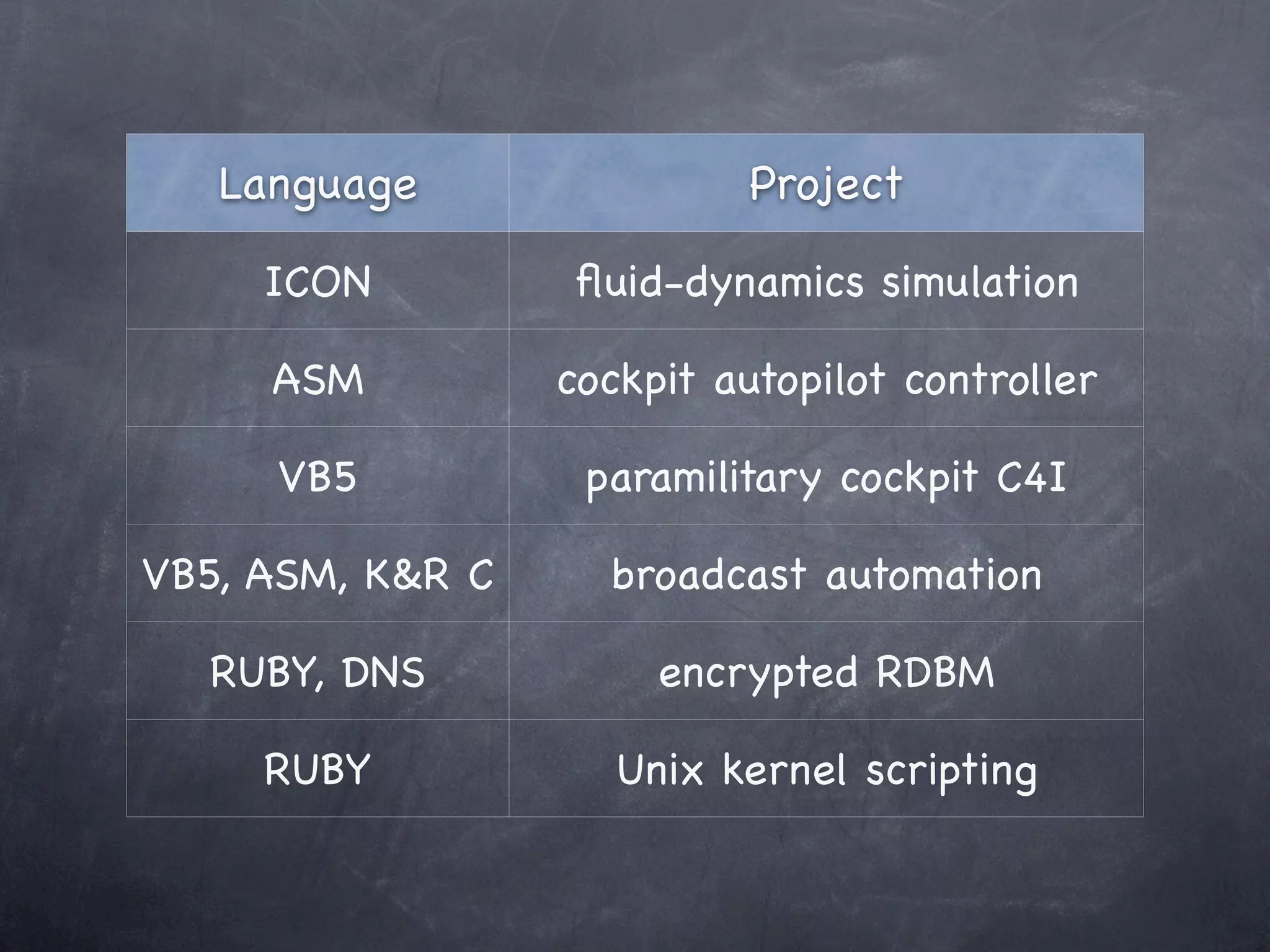

Language Project

ICON ﬂuid-dynamics simulation

ASM cockpit autopilot controller

VB5 paramilitary cockpit C4I

VB5, ASM, K&R C broadcast automation

RUBY, DNS encrypted RDBM

RUBY Unix kernel scripting

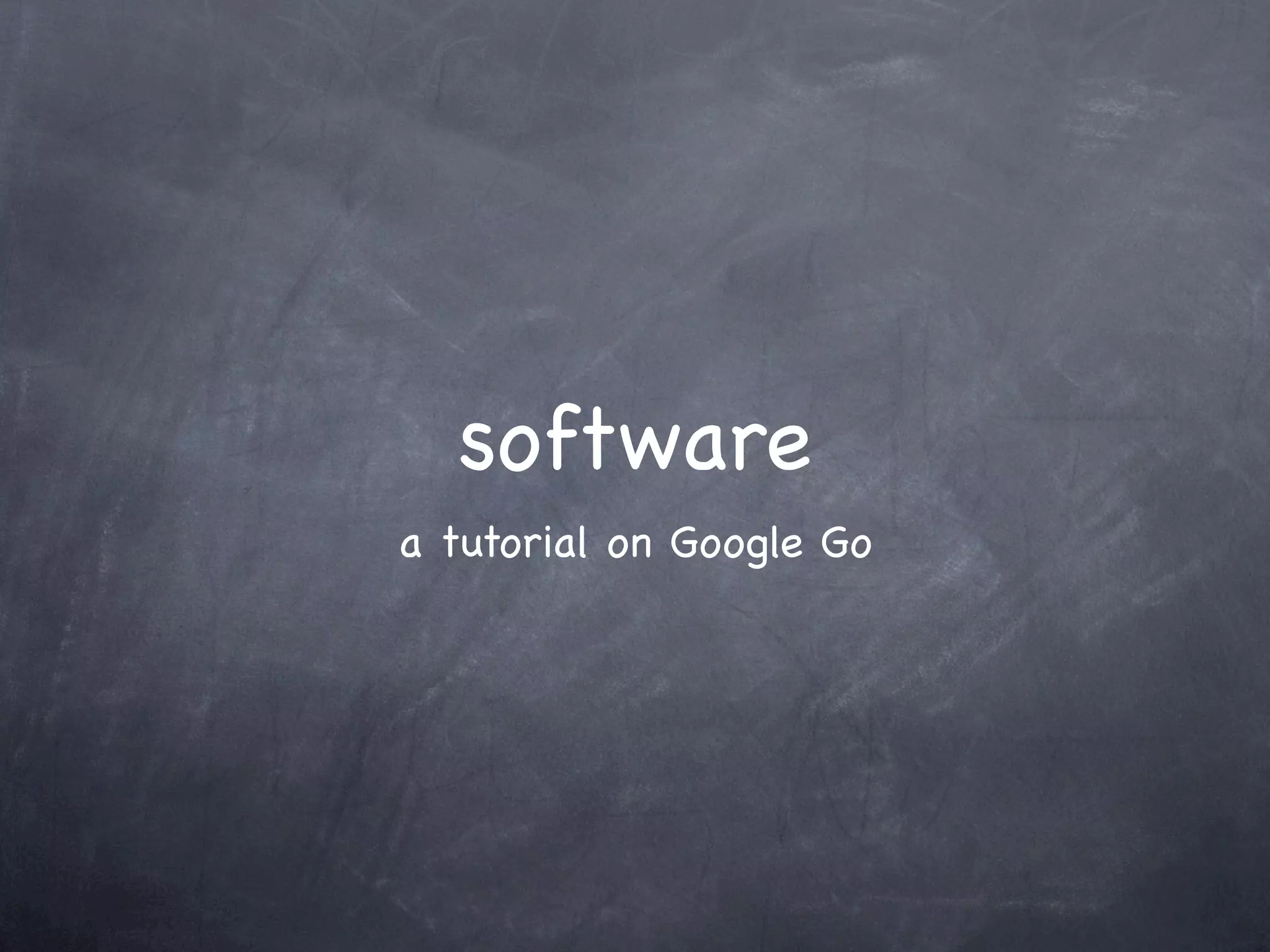

software
a tutorial on Google Go

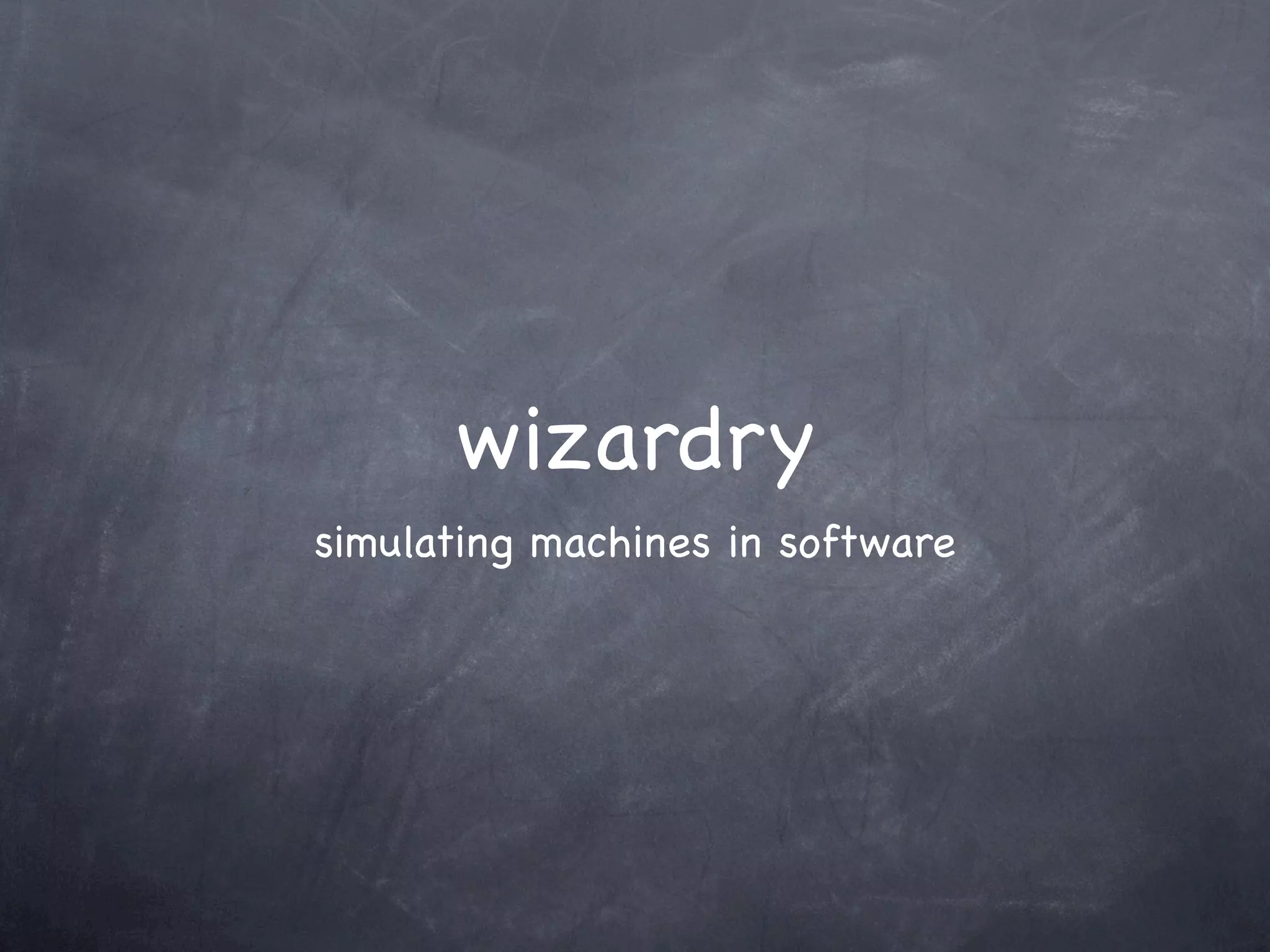

wizardry
simulating machines in software

Elric sent his mind into twisting tunnels of logic,
across endless plains of ideas, through mountains
of symbolism and endless universes of alternate
truths; he sent his mind out further and further
and as it went he sent with it the words which
issued from his writhing lips -- words that few
of his contemporaries would understand...

- Elric of Melniboné, Michael Moorcock

golightly
agnostic heterogenous virtualisation networks

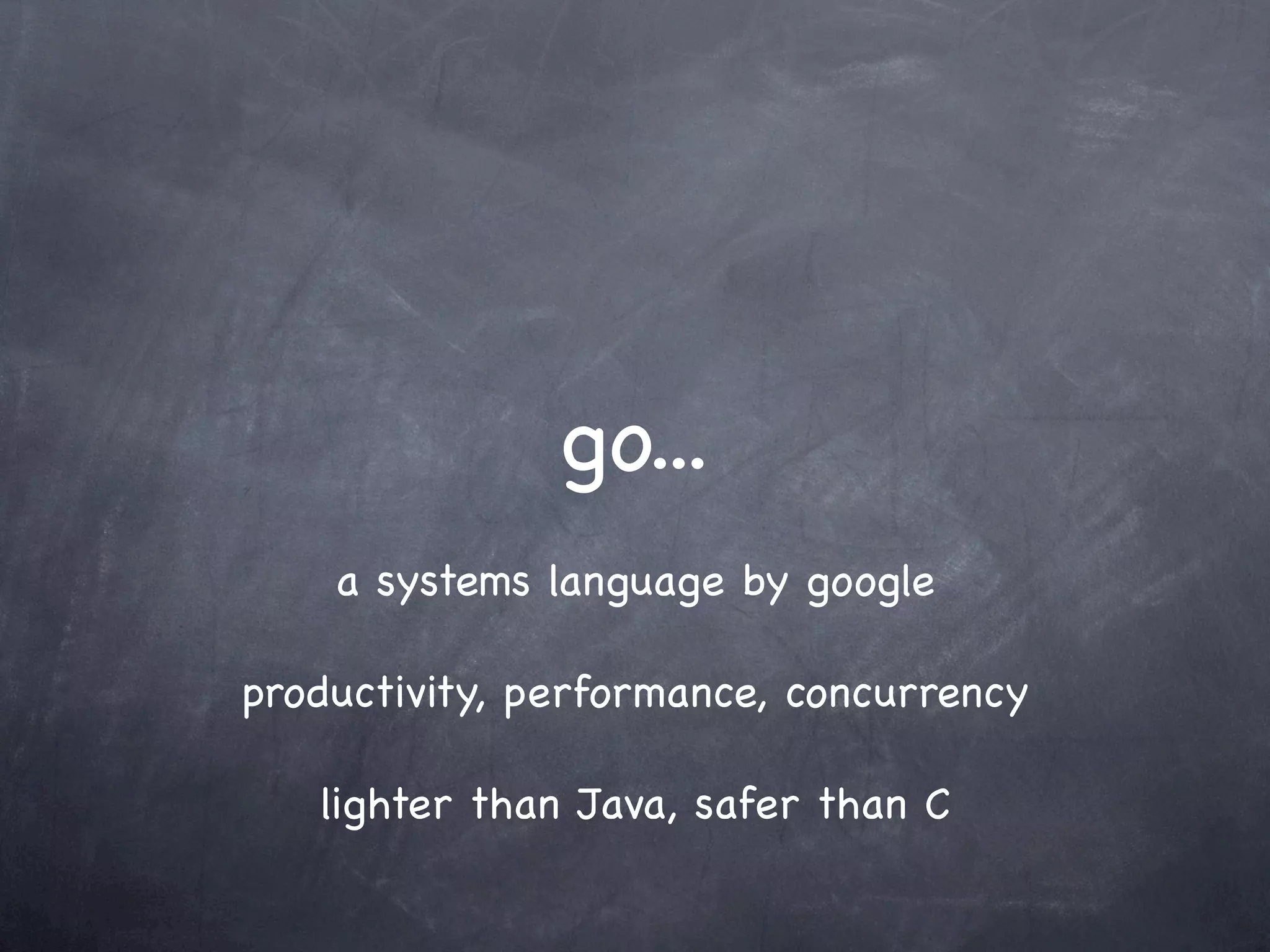

go...
a systems language by google

productivity, performance, concurrency

lighter than Java, safer than C

...lightly
clean abstractions

geared to performance

non-viral open source license

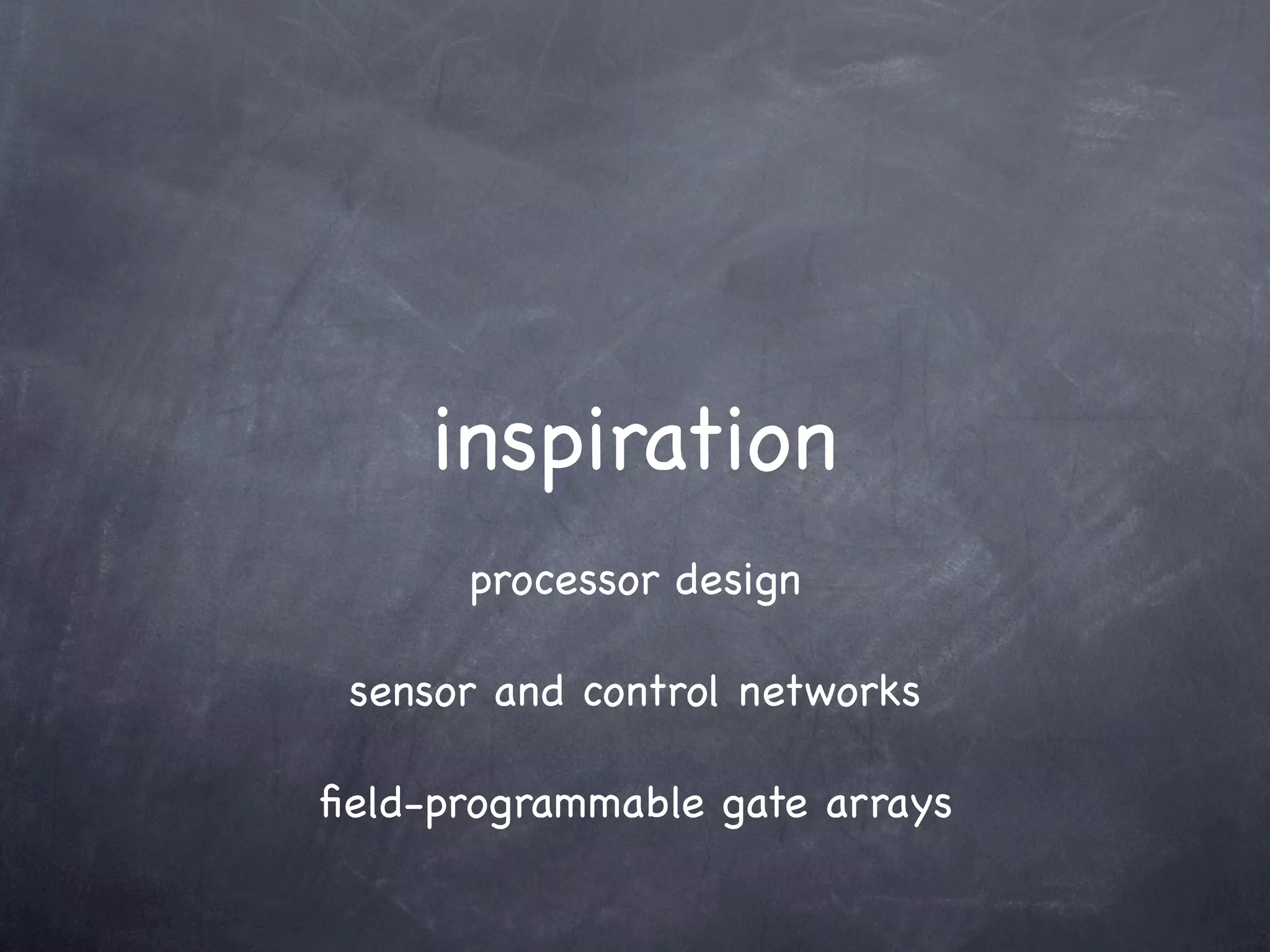

inspiration
processor design

sensor and control networks

ﬁeld-programmable gate arrays

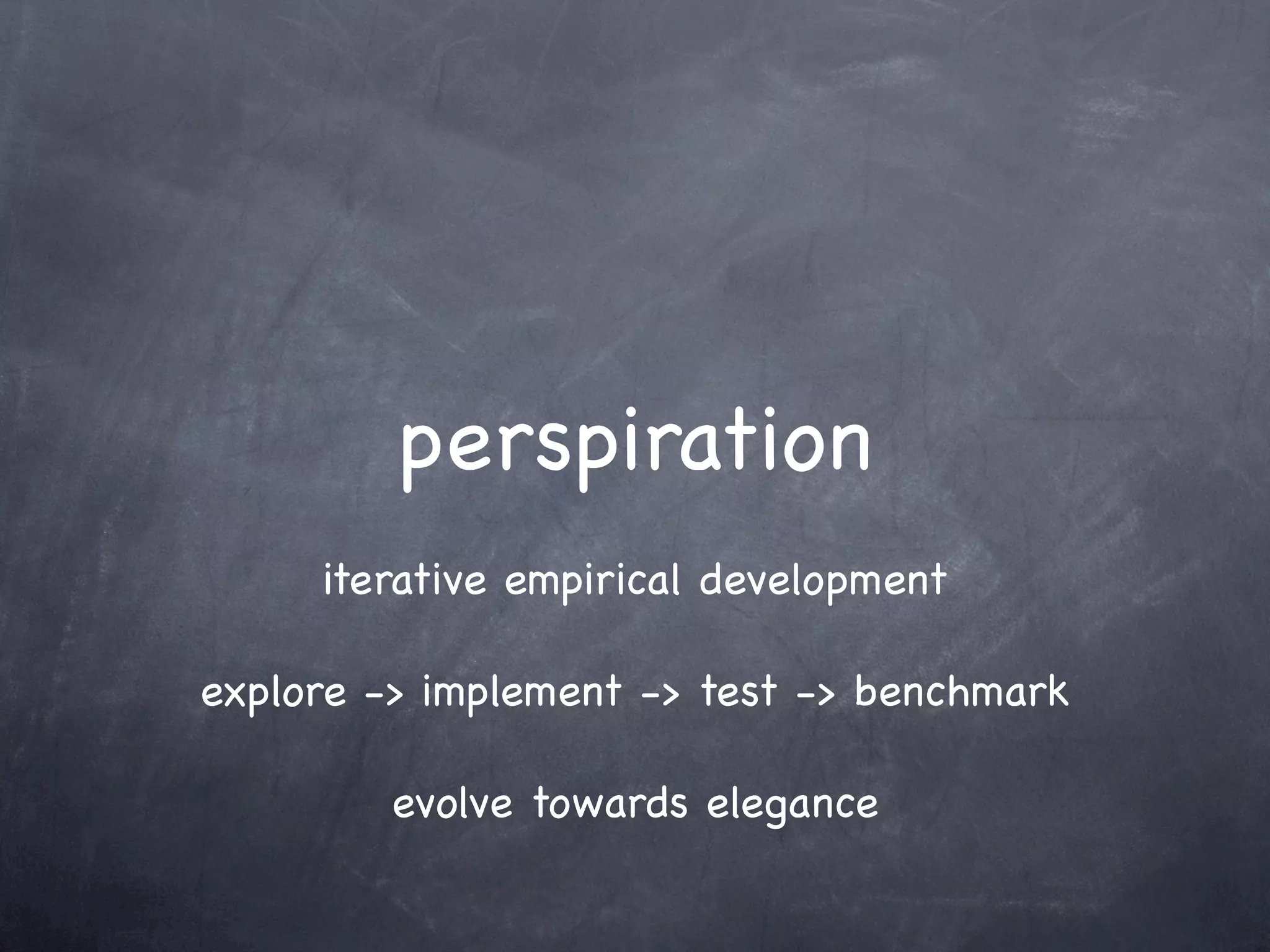

perspiration
iterative empirical development

explore -> implement -> test -> benchmark

evolve towards elegance

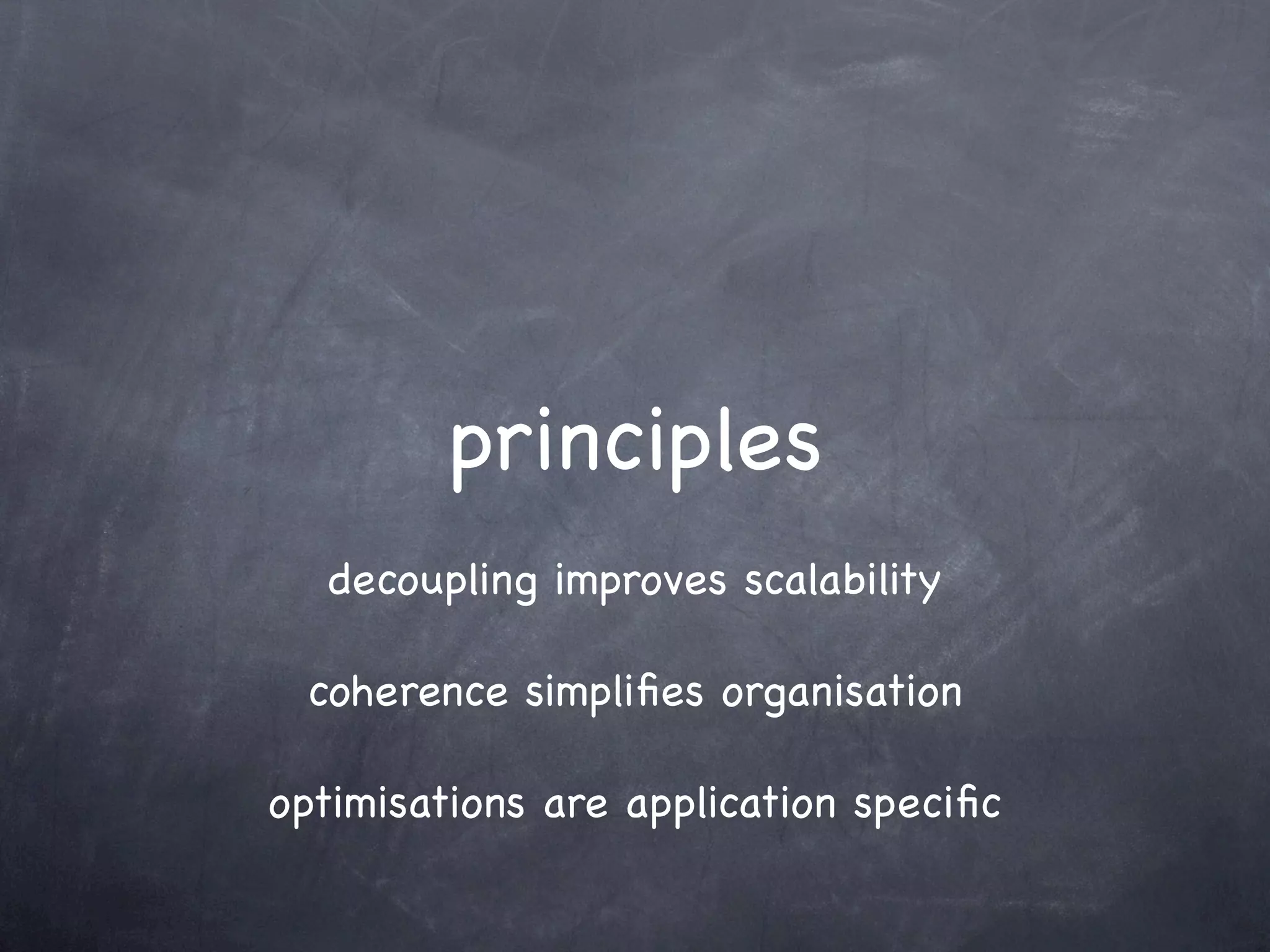

principles
decoupling improves scalability

coherence simpliﬁes organisation

optimisations are application speciﬁc

agnostic
no blessed programming languages

ﬂexible platform abstractions

write once, run everywhere it matters

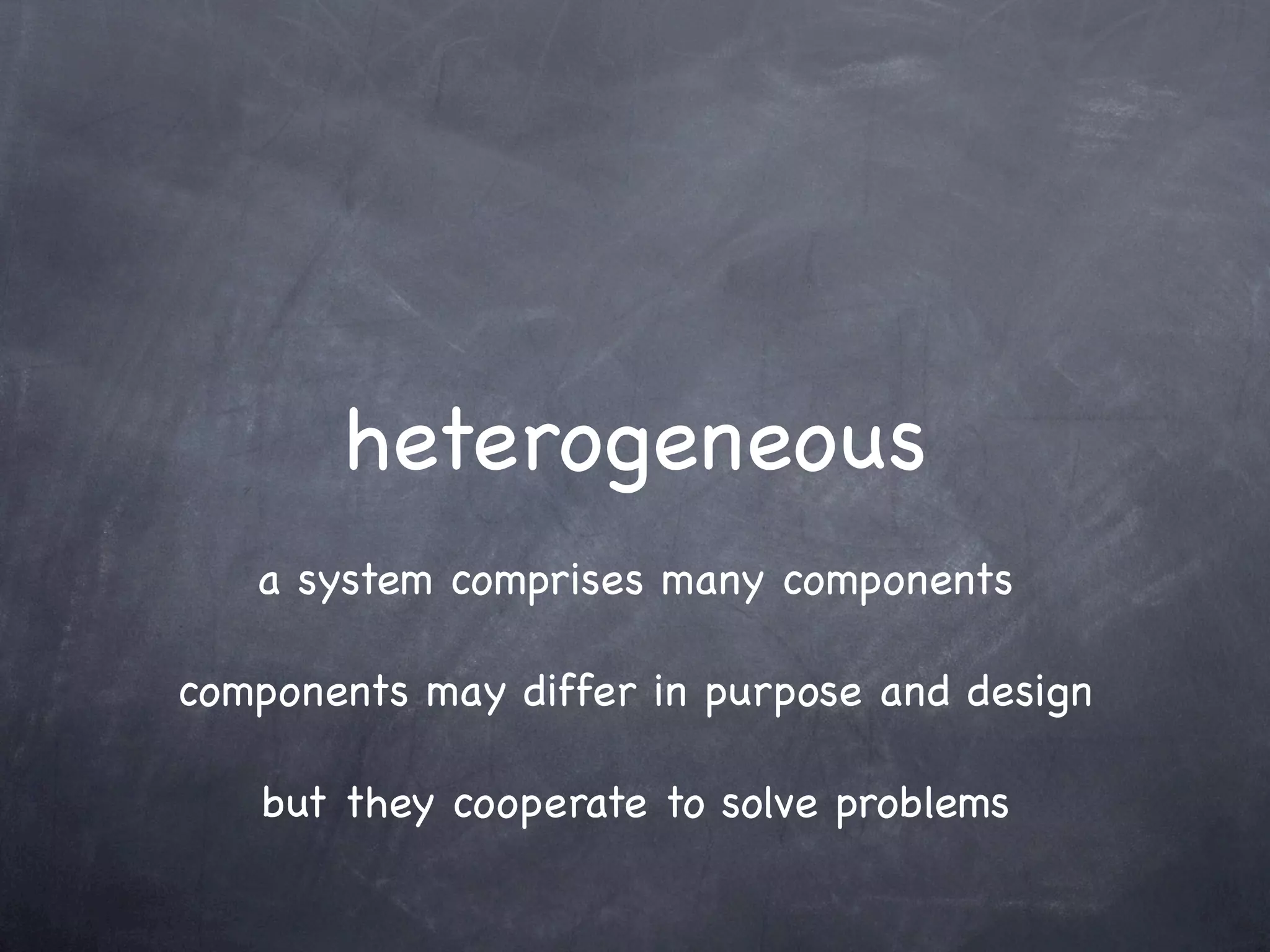

heterogeneous
a system comprises many components

components may differ in purpose and design

but they cooperate to solve problems

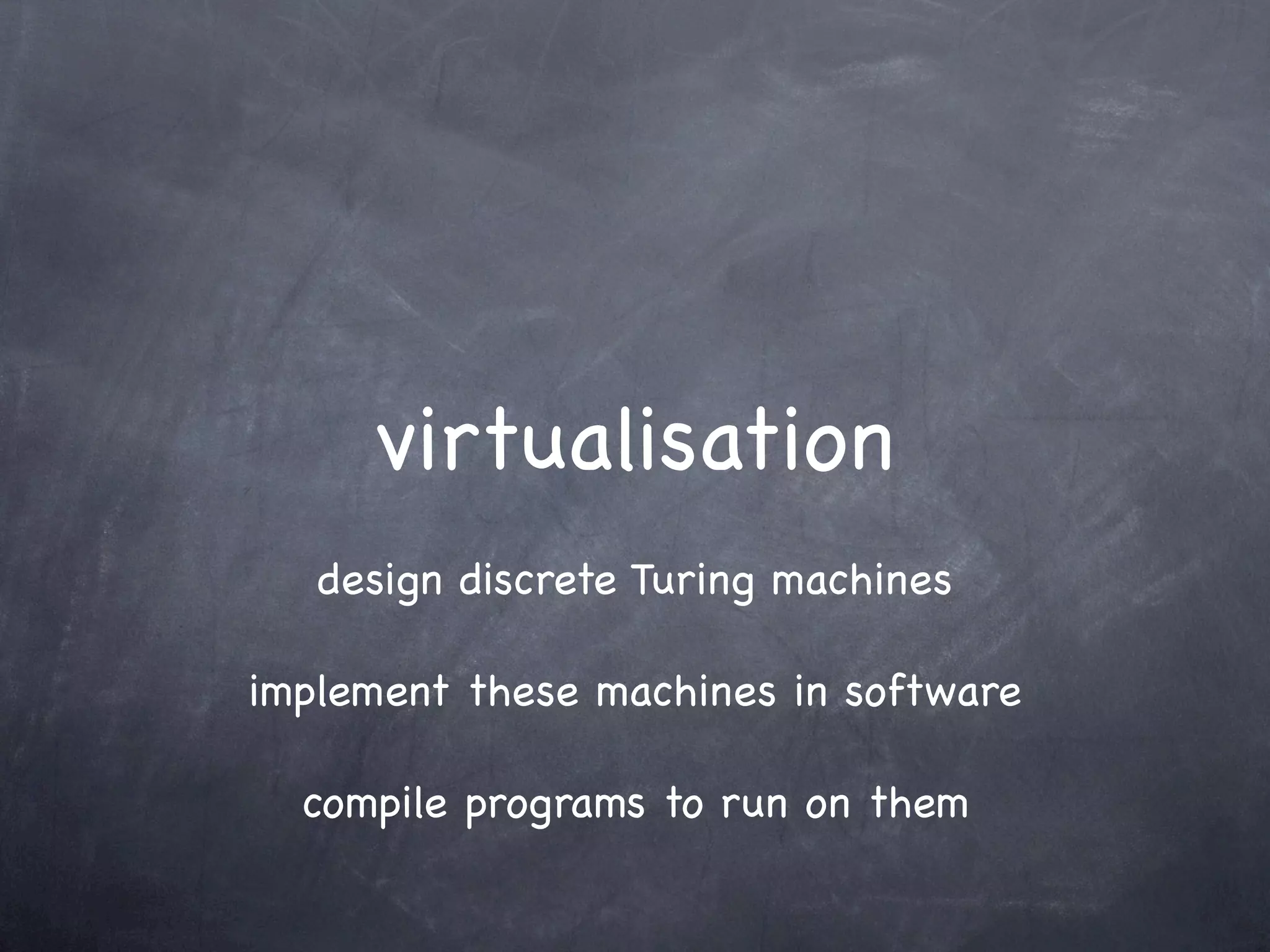

virtualisation
design discrete Turing machines

implement these machines in software

compile programs to run on them

networks
machines cooperate by sending messages

machine states can be serialised as messages

messages transcend process and host boundaries

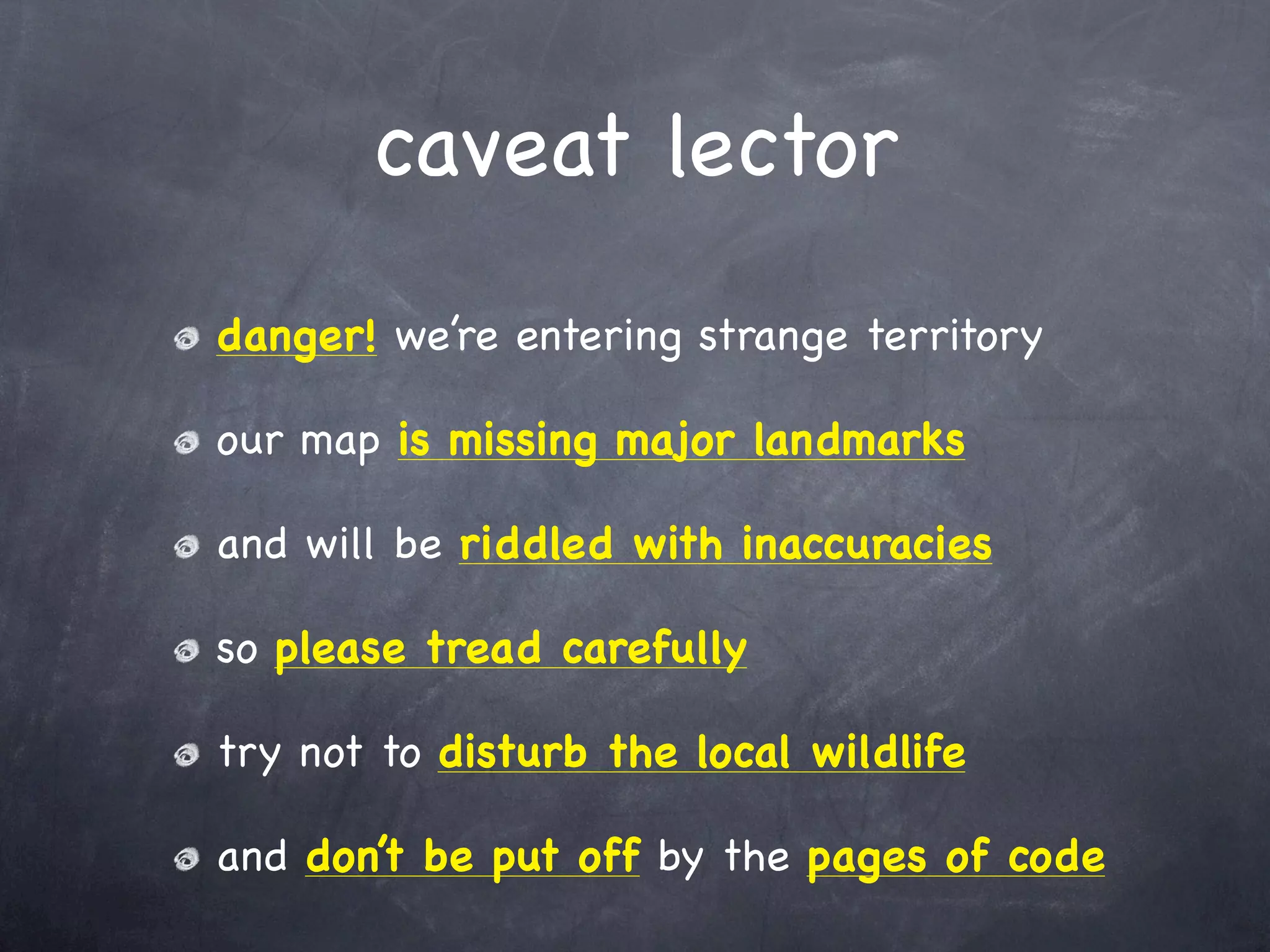

caveat lector
danger! we’re entering strange territory

our map is missing major landmarks

and will be riddled with inaccuracies

so please tread carefully

try not to disturb the local wildlife

and don’t be put off by the pages of code

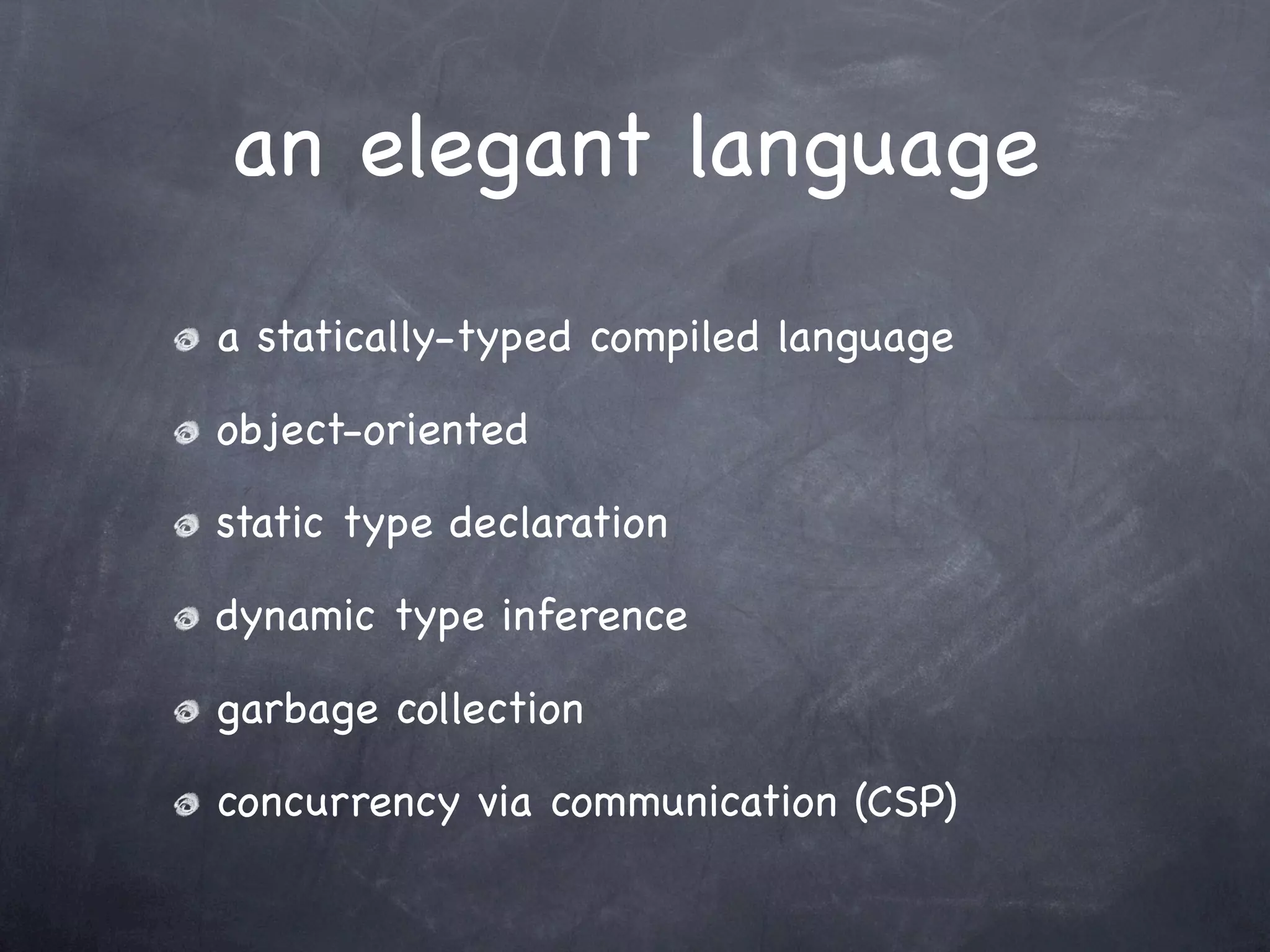

an elegant language
a statically-typed compiled language

object-oriented

static type declaration

dynamic type inference

garbage collection

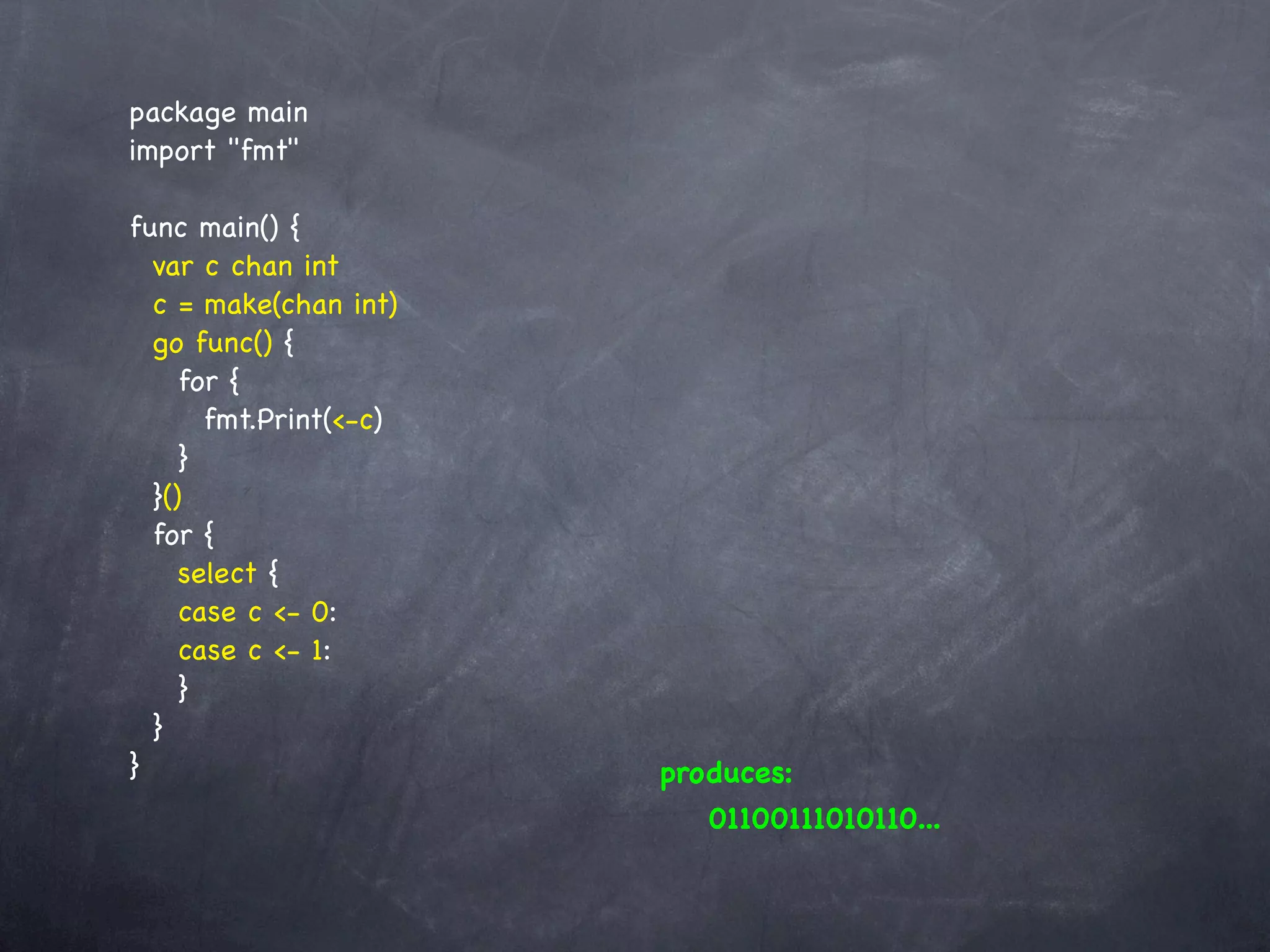

concurrency via communication (CSP)

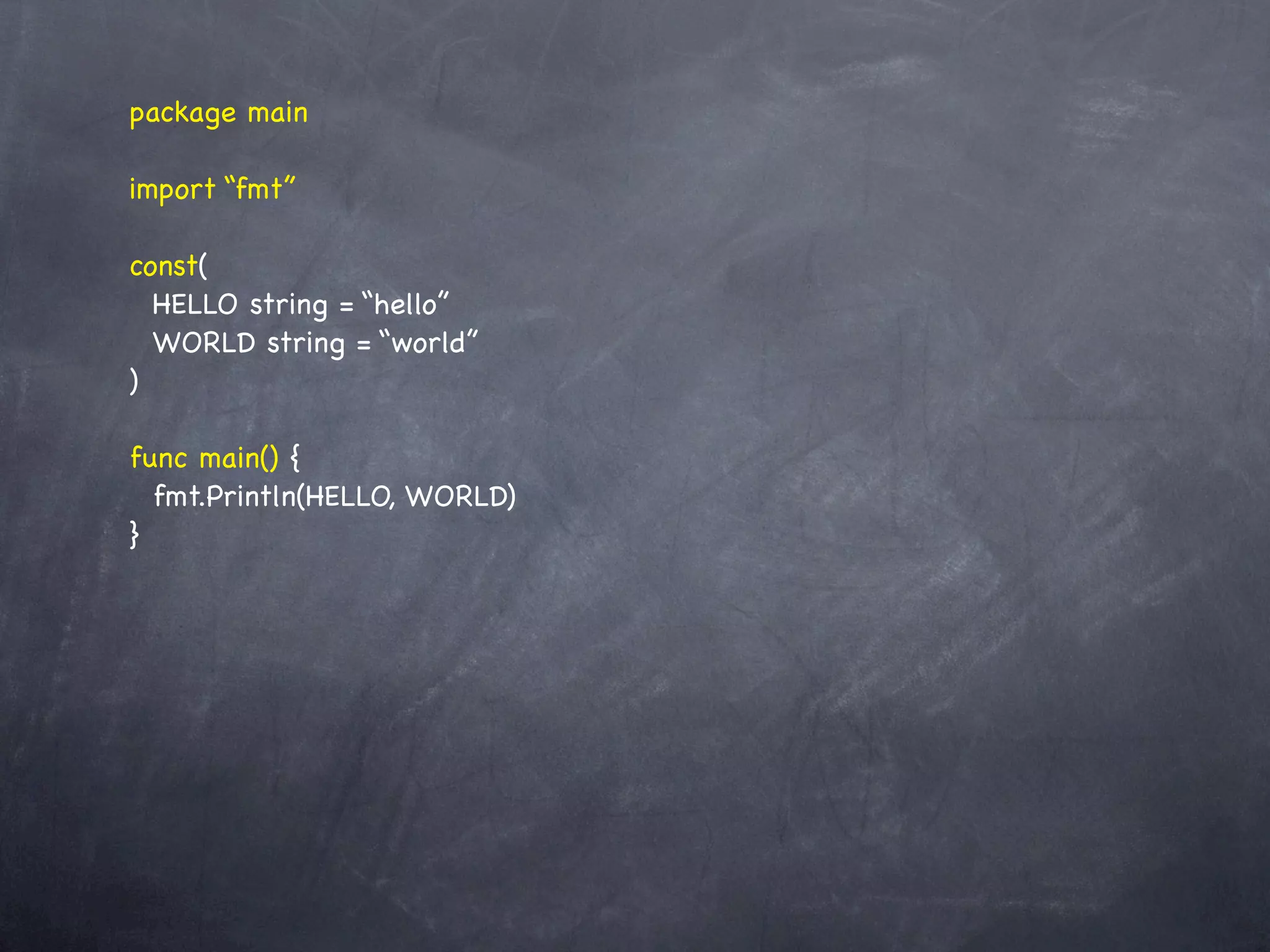

package main

import “fmt”

const(
HELLO string = “hello”
WORLD string = “world”
)

func main() {
fmt.Println(HELLO, WORLD)
}

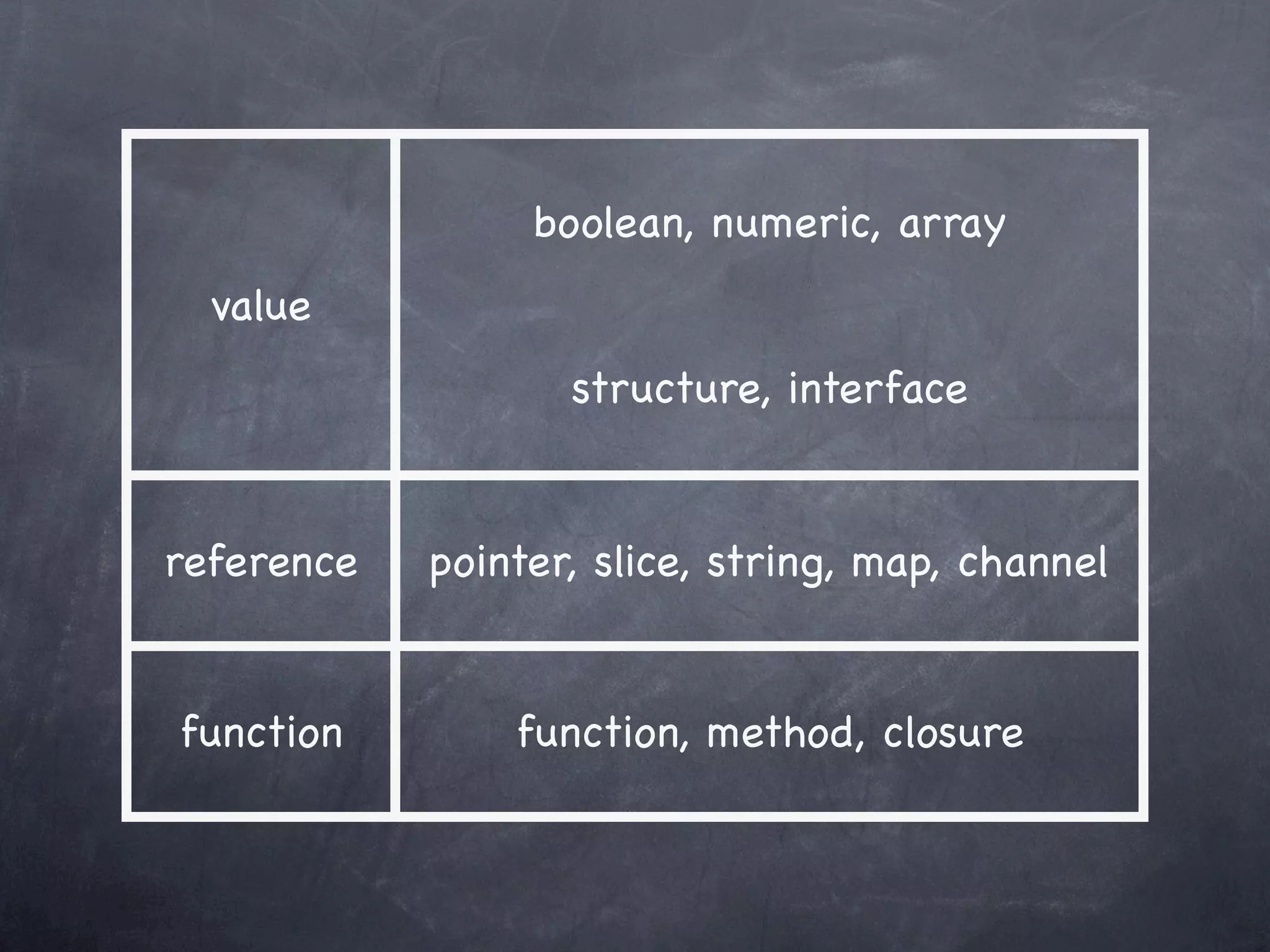

boolean, numeric, array
value
structure, interface

reference pointer, slice, string, map, channel

function function, method, closure

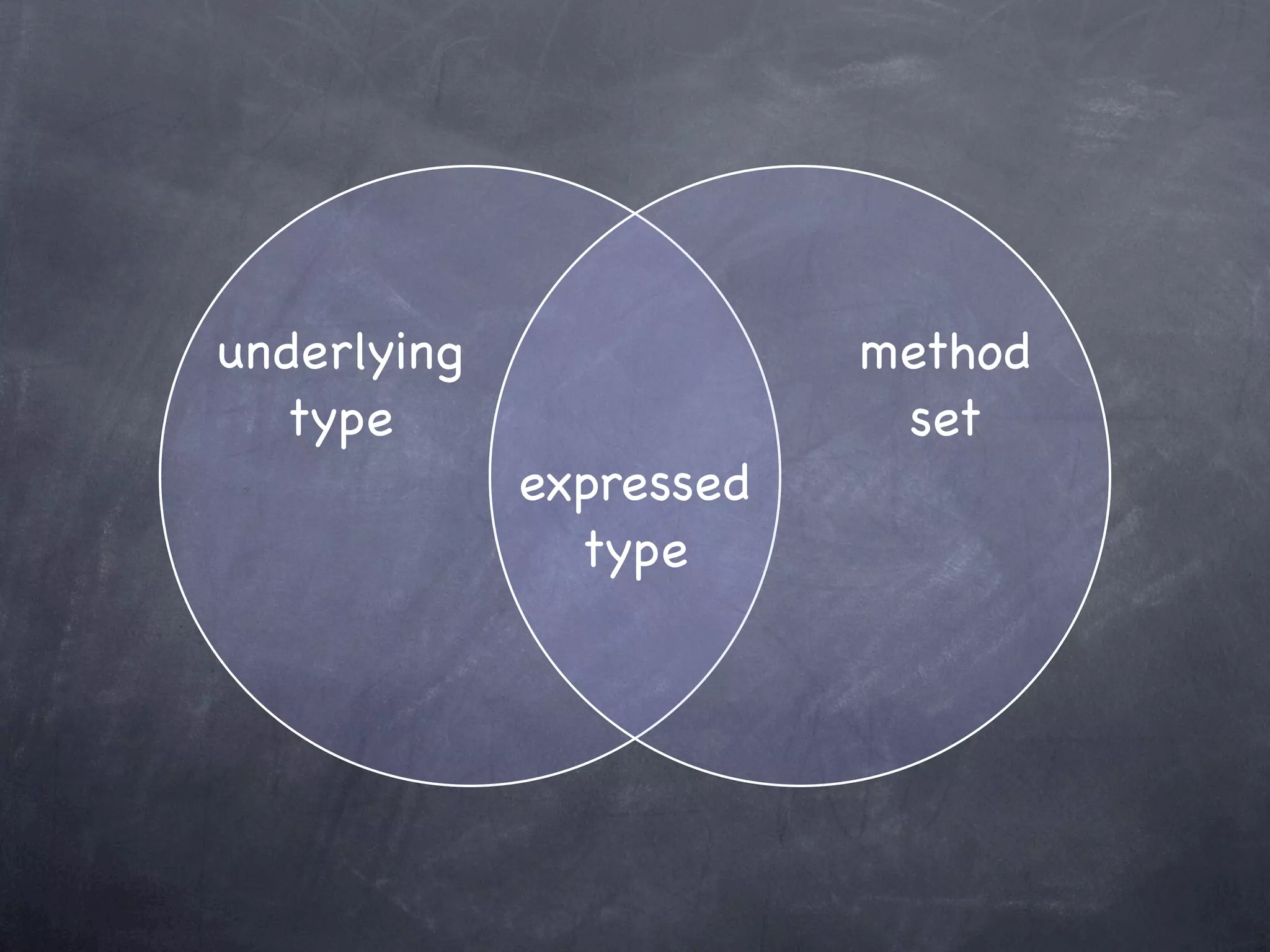

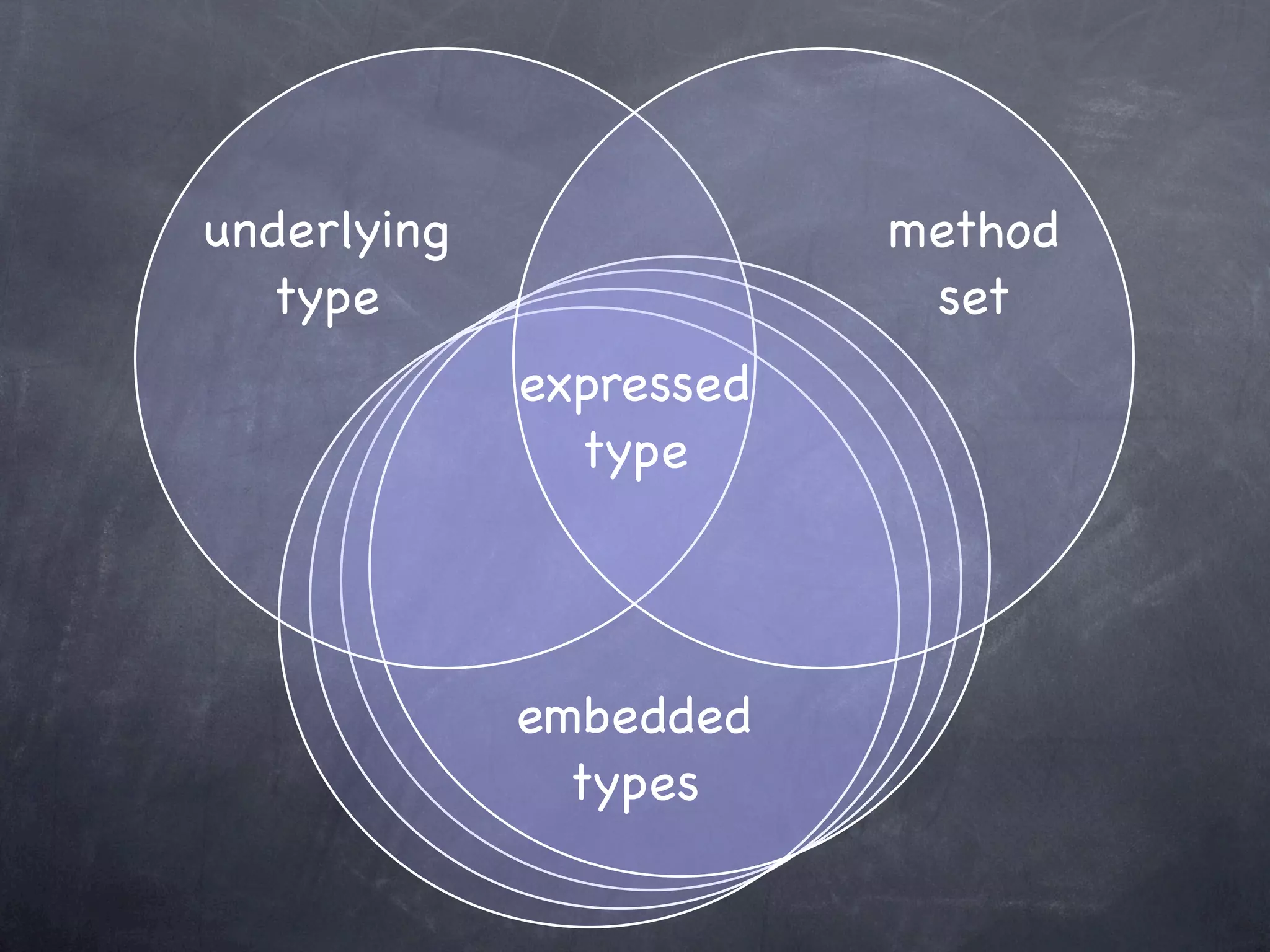

underlying method
type set
expressed
type

underlying method
type set
expressed
type

embedded
types

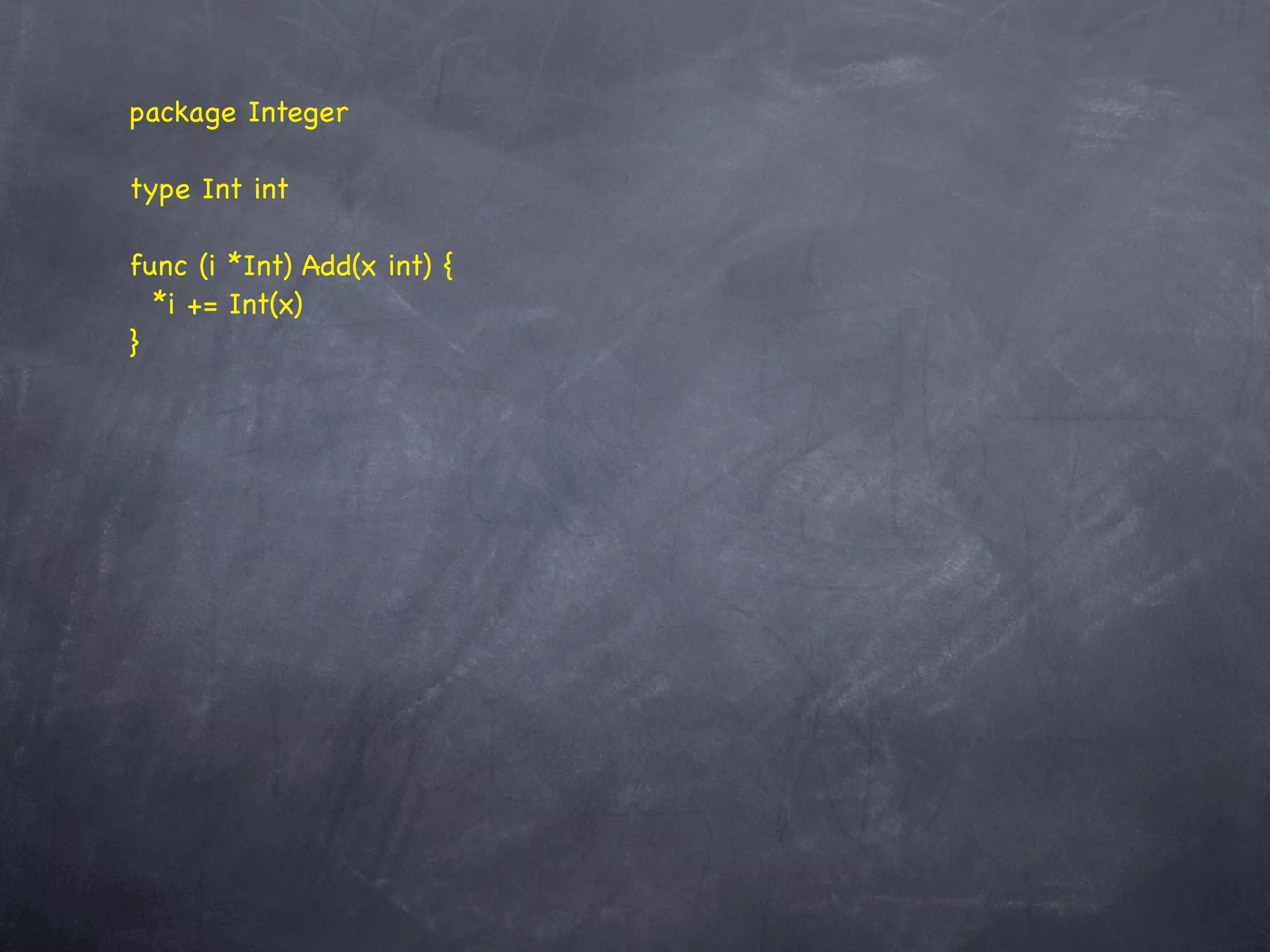

package Integer

type Int int

func (i *Int) Add(x int) {
*i += Int(x)
}

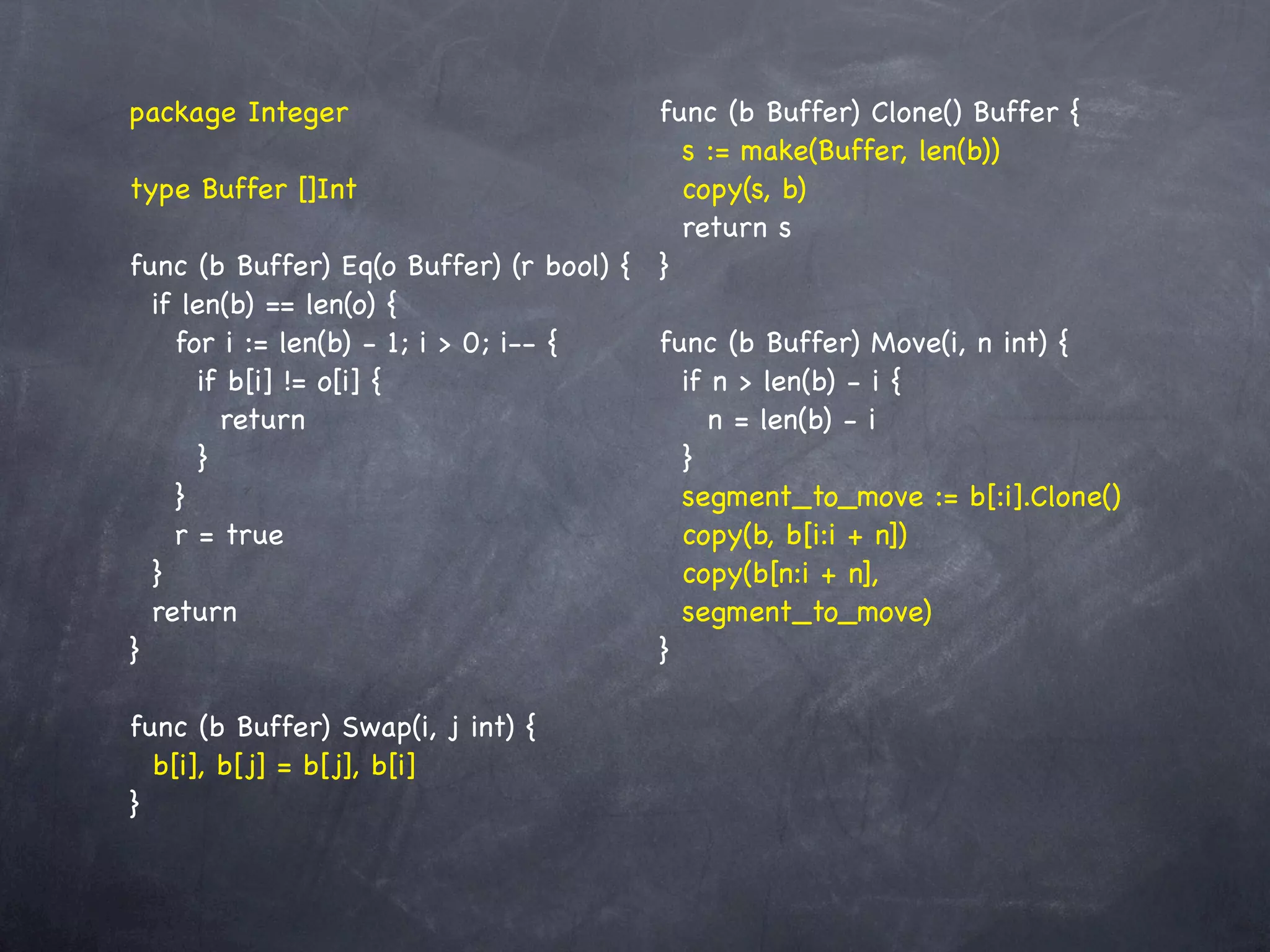

package Integer func (b Buffer) Clone() Buffer {
s := make(Buffer, len(b))
type Buffer []Int copy(s, b)
return s
func (b Buffer) Eq(o Buffer) (r bool) { }
if len(b) == len(o) {
for i := len(b) - 1; i > 0; i-- { func (b Buffer) Move(i, n int) {
if b[i] != o[i] { if n > len(b) - i {
return n = len(b) - i
} }
} segment_to_move := b[:i].Clone()
r = true copy(b, b[i:i + n])
} copy(b[n:i + n],
return segment_to_move)
} }

func (b Buffer) Swap(i, j int) {
b[i], b[j] = b[j], b[i]
}

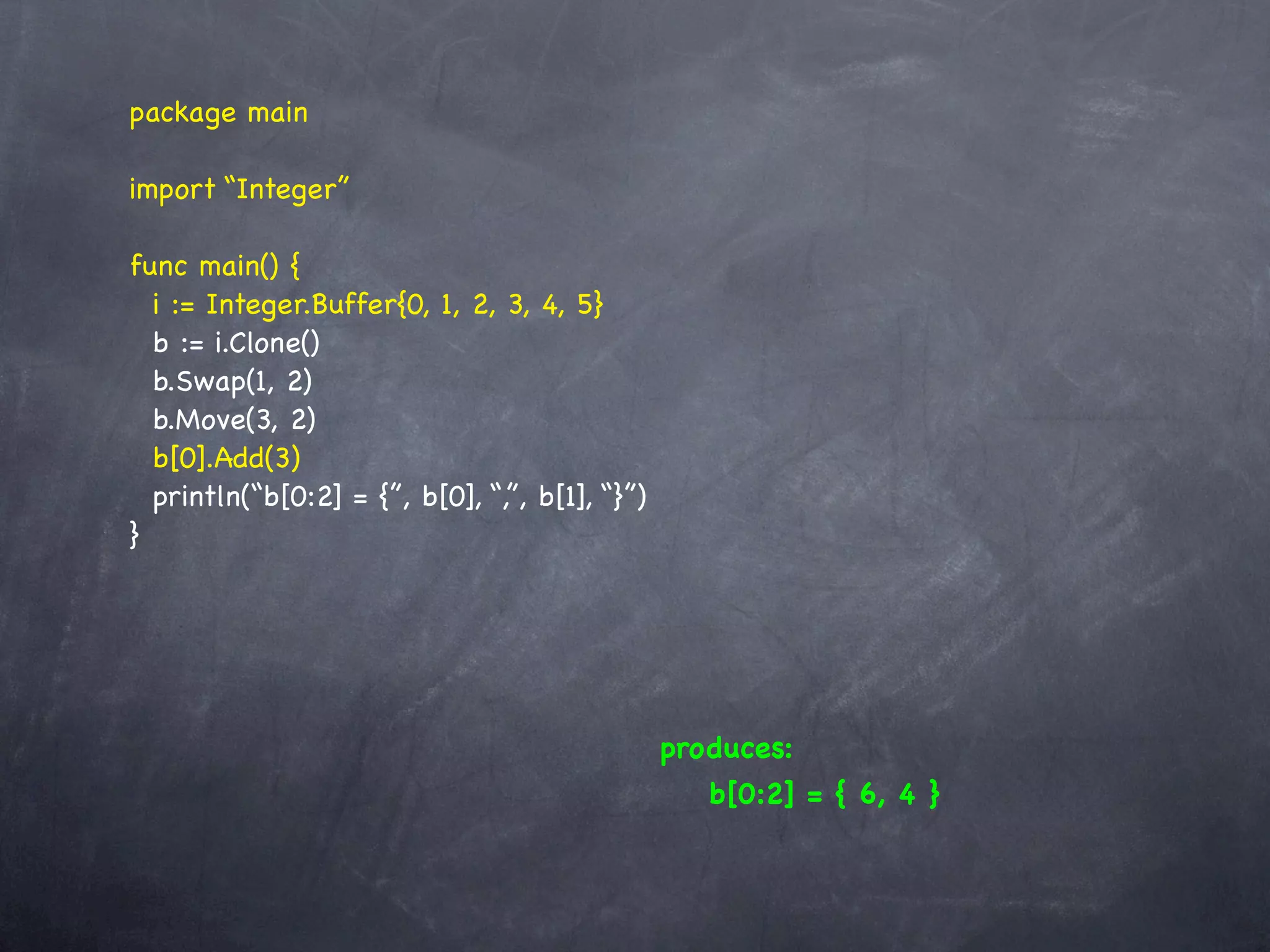

package main

import “Integer”

func main() {
i := Integer.Buffer{0, 1, 2, 3, 4, 5}
b := i.Clone()
b.Swap(1, 2)
b.Move(3, 2)
b[0].Add(3)
println(“b[0:2] = {”, b[0], “,”, b[1], “}”)
}

produces:
b[0:2] = { 6, 4 }

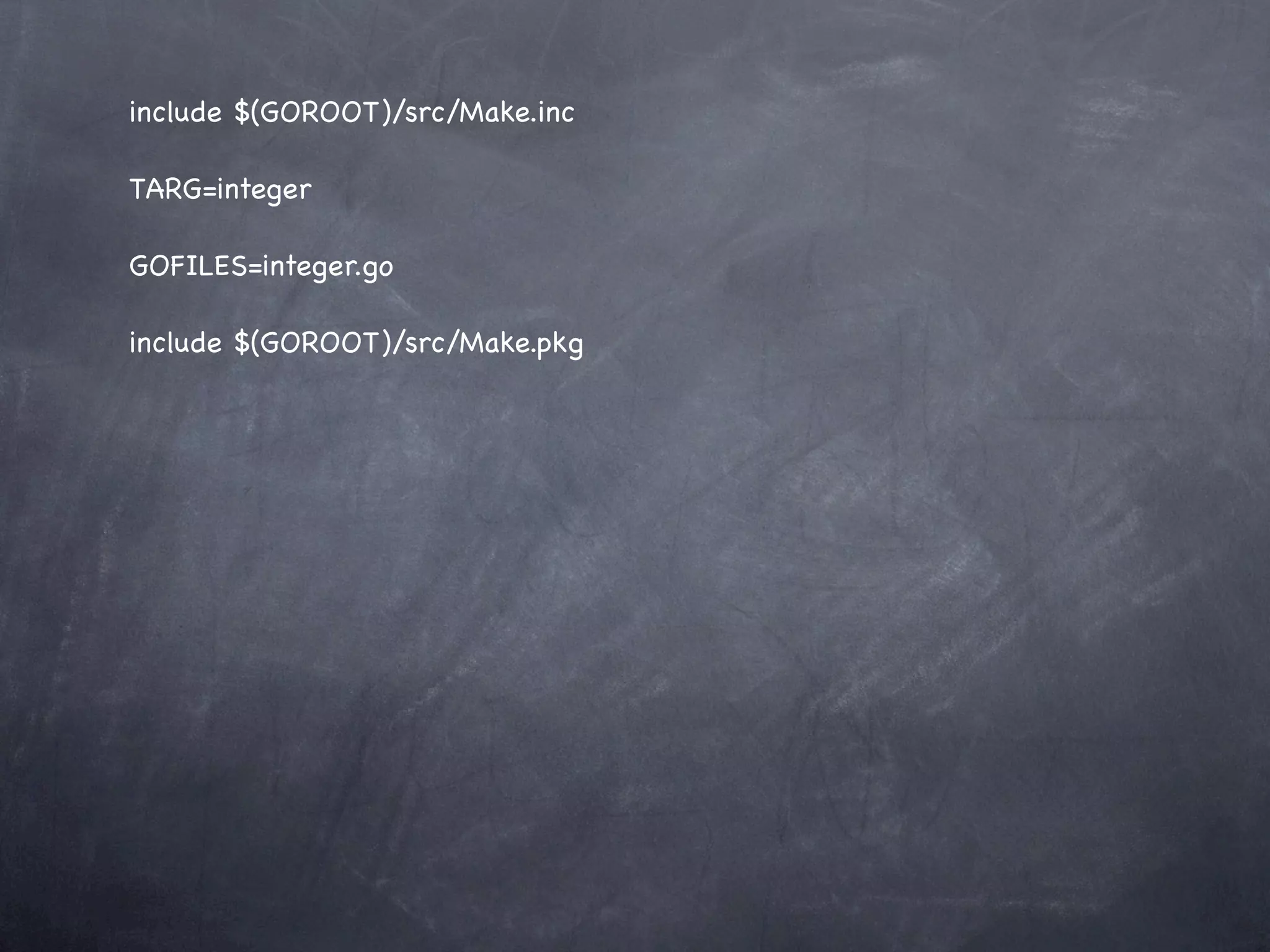

include $(GOROOT)/src/Make.inc

TARG=integer

GOFILES=integer.go

include $(GOROOT)/src/Make.pkg

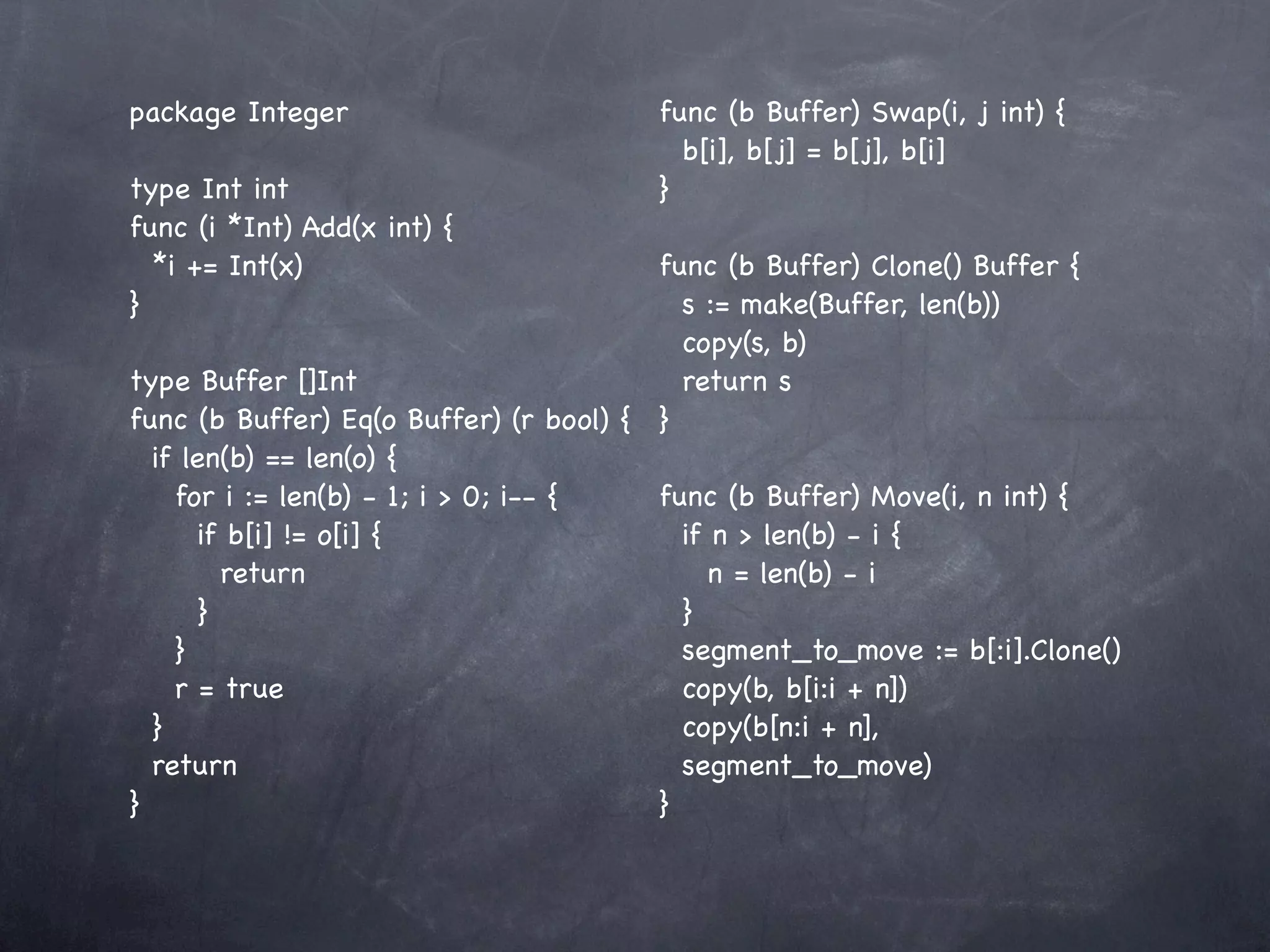

package Integer func (b Buffer) Swap(i, j int) {
b[i], b[j] = b[j], b[i]
type Int int }
func (i *Int) Add(x int) {
*i += Int(x) func (b Buffer) Clone() Buffer {
} s := make(Buffer, len(b))
copy(s, b)
type Buffer []Int return s
func (b Buffer) Eq(o Buffer) (r bool) { }
if len(b) == len(o) {
for i := len(b) - 1; i > 0; i-- { func (b Buffer) Move(i, n int) {
if b[i] != o[i] { if n > len(b) - i {
return n = len(b) - i
} }
} segment_to_move := b[:i].Clone()
r = true copy(b, b[i:i + n])
} copy(b[n:i + n],
return segment_to_move)
} }

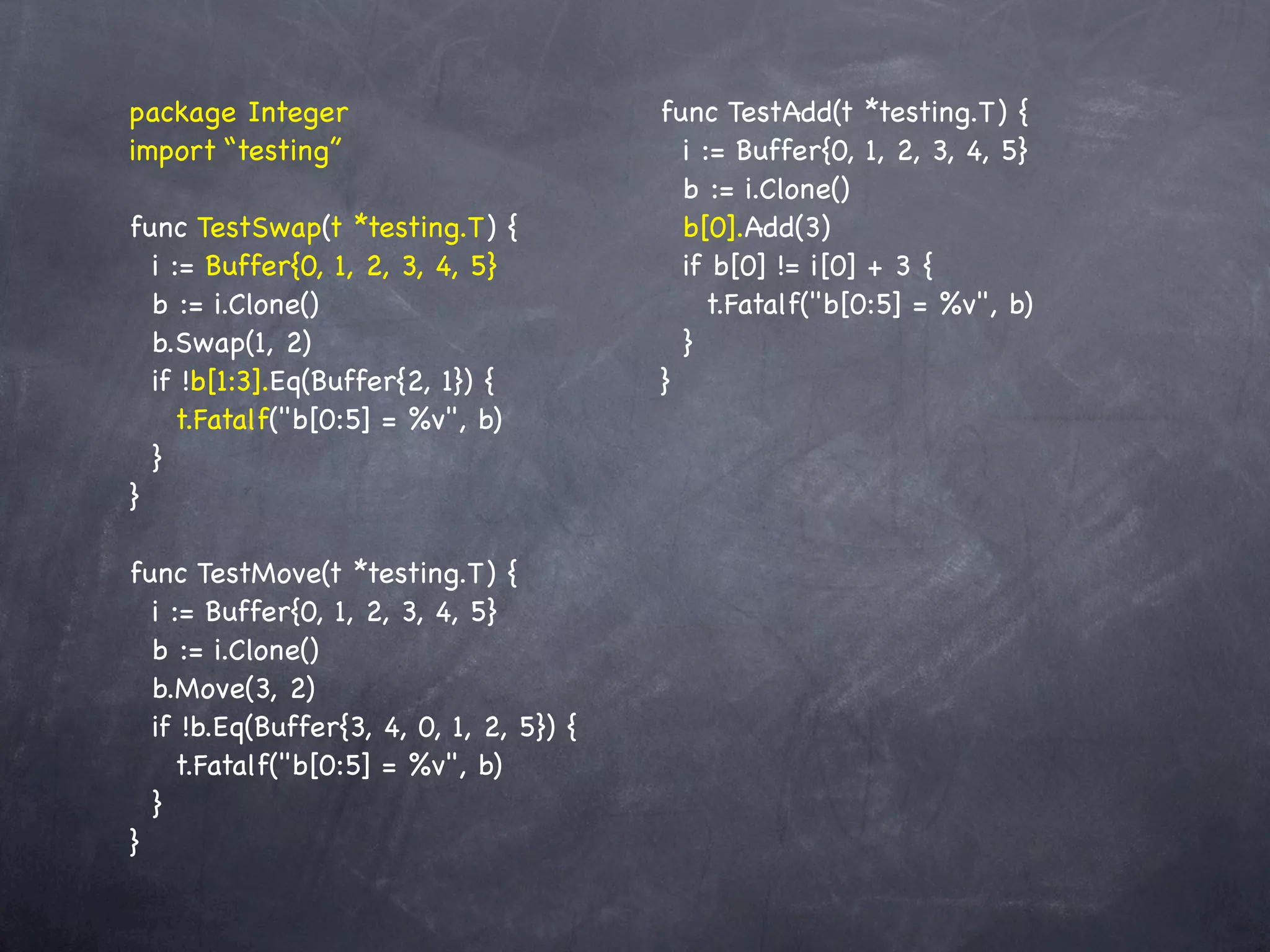

package Integer func TestAdd(t *testing.T) {
import “testing” i := Buffer{0, 1, 2, 3, 4, 5}
b := i.Clone()
func TestSwap(t *testing.T) { b[0].Add(3)
i := Buffer{0, 1, 2, 3, 4, 5} if b[0] != i[0] + 3 {
b := i.Clone() t.Fatalf("b[0:5] = %v", b)
b.Swap(1, 2) }
if !b[1:3].Eq(Buffer{2, 1}) { }
t.Fatalf("b[0:5] = %v", b)
}
}

func TestMove(t *testing.T) {
i := Buffer{0, 1, 2, 3, 4, 5}
b := i.Clone()
b.Move(3, 2)
if !b.Eq(Buffer{3, 4, 0, 1, 2, 5}) {
t.Fatalf("b[0:5] = %v", b)
}
}

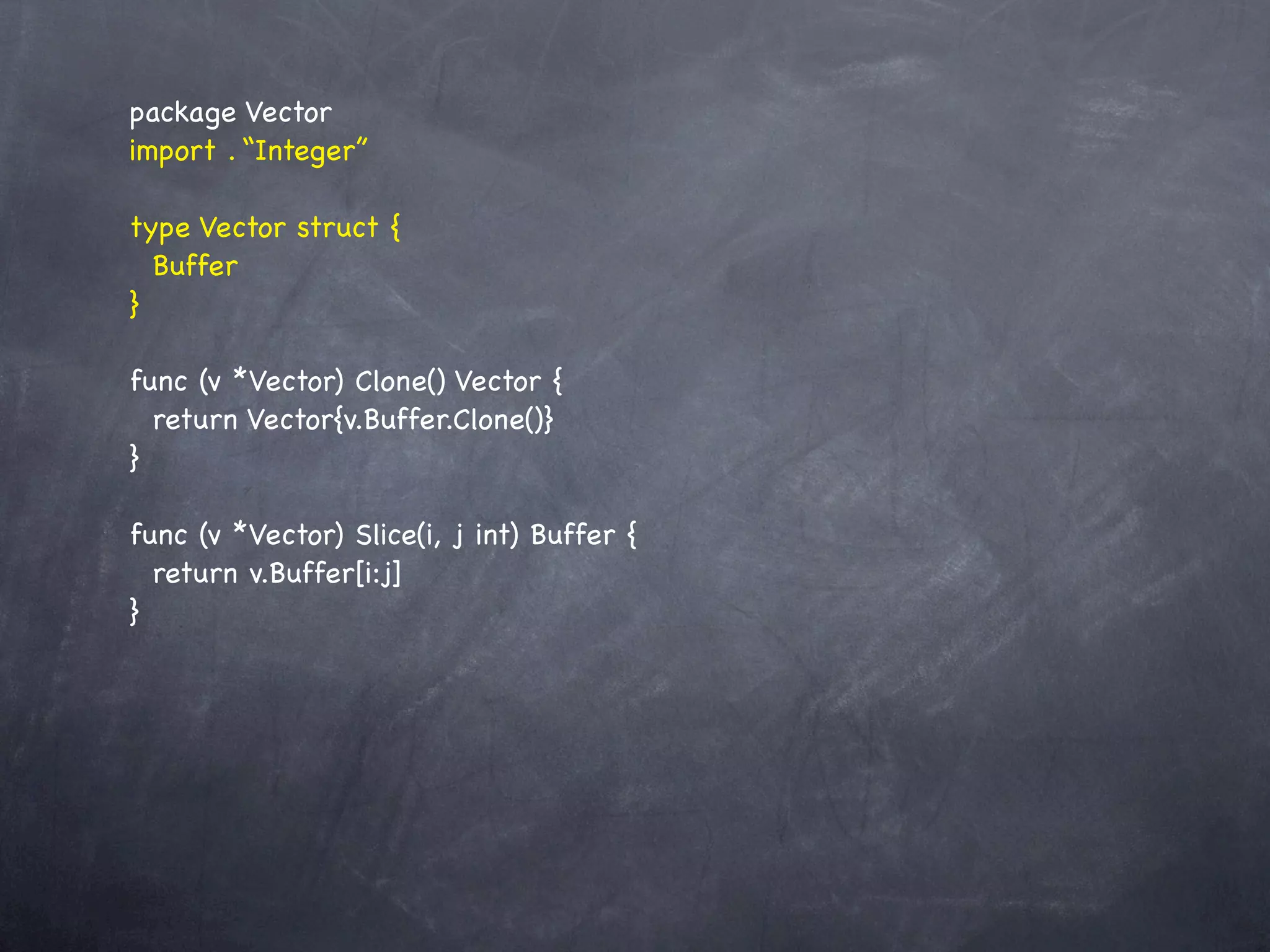

package Vector
import . “Integer”

type Vector struct {
Buffer
}

func (v *Vector) Clone() Vector {
return Vector{v.Buffer.Clone()}
}

func (v *Vector) Slice(i, j int) Buffer {
return v.Buffer[i:j]
}

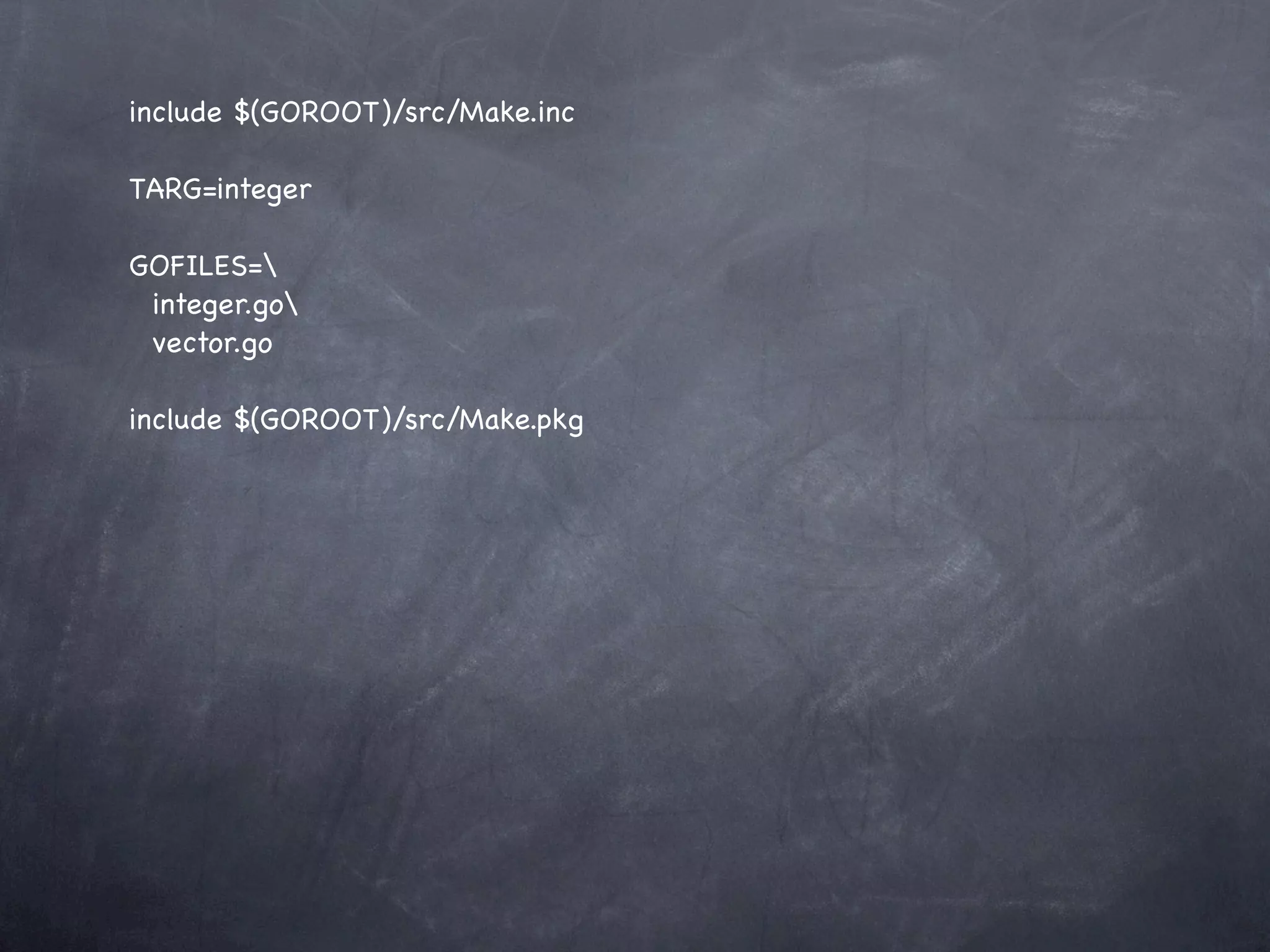

TARG=integer

GOFILES=
integer.go
vector.go

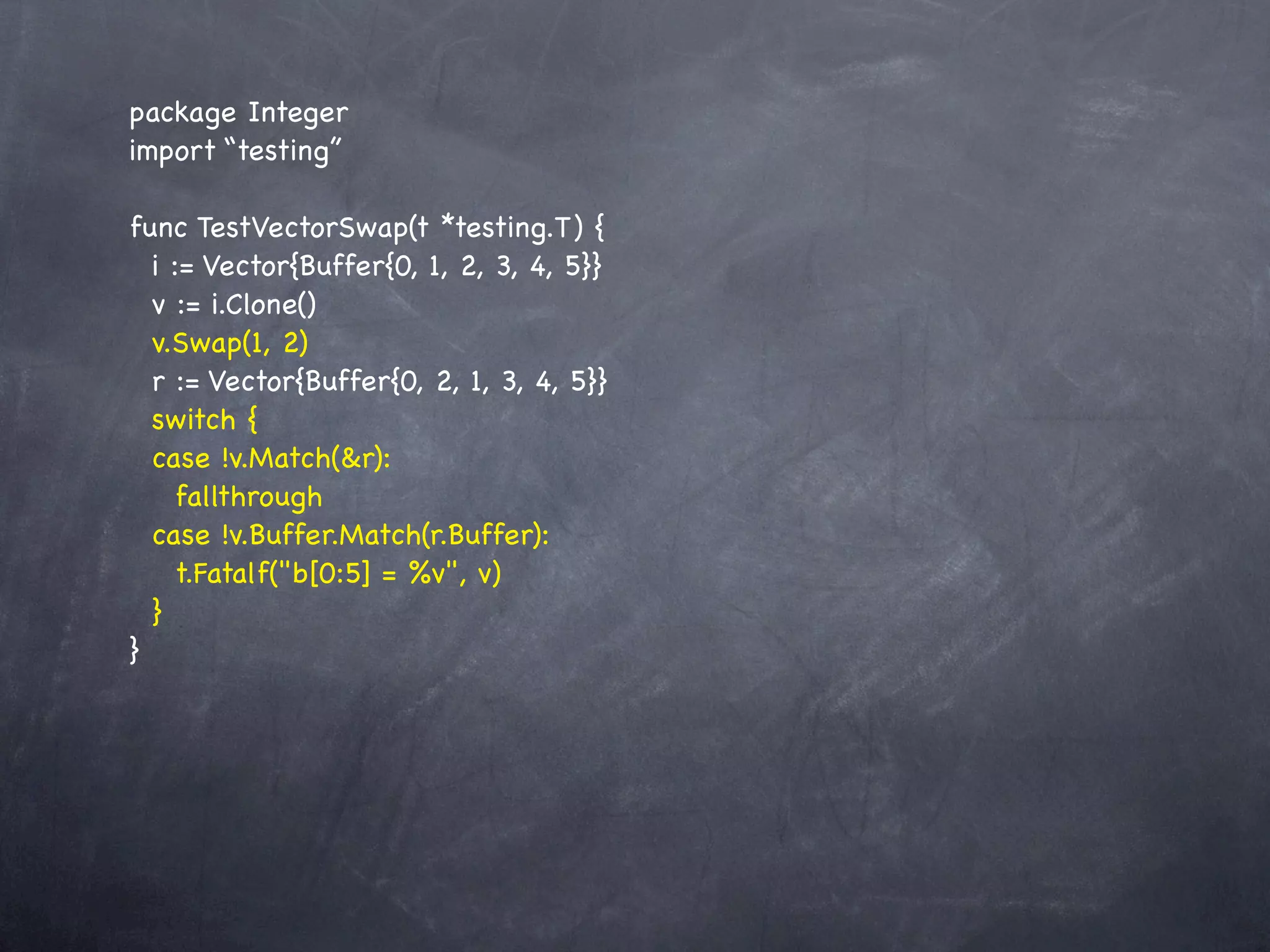

package Integer
import “testing”

func TestVectorSwap(t *testing.T) {
i := Vector{Buffer{0, 1, 2, 3, 4, 5}}
v := i.Clone()
v.Swap(1, 2)
r := Vector{Buffer{0, 2, 1, 3, 4, 5}}
switch {
case !v.Match(&r):
fallthrough
case !v.Buffer.Match(r.Buffer):
t.Fatalf("b[0:5] = %v", v)
}
}

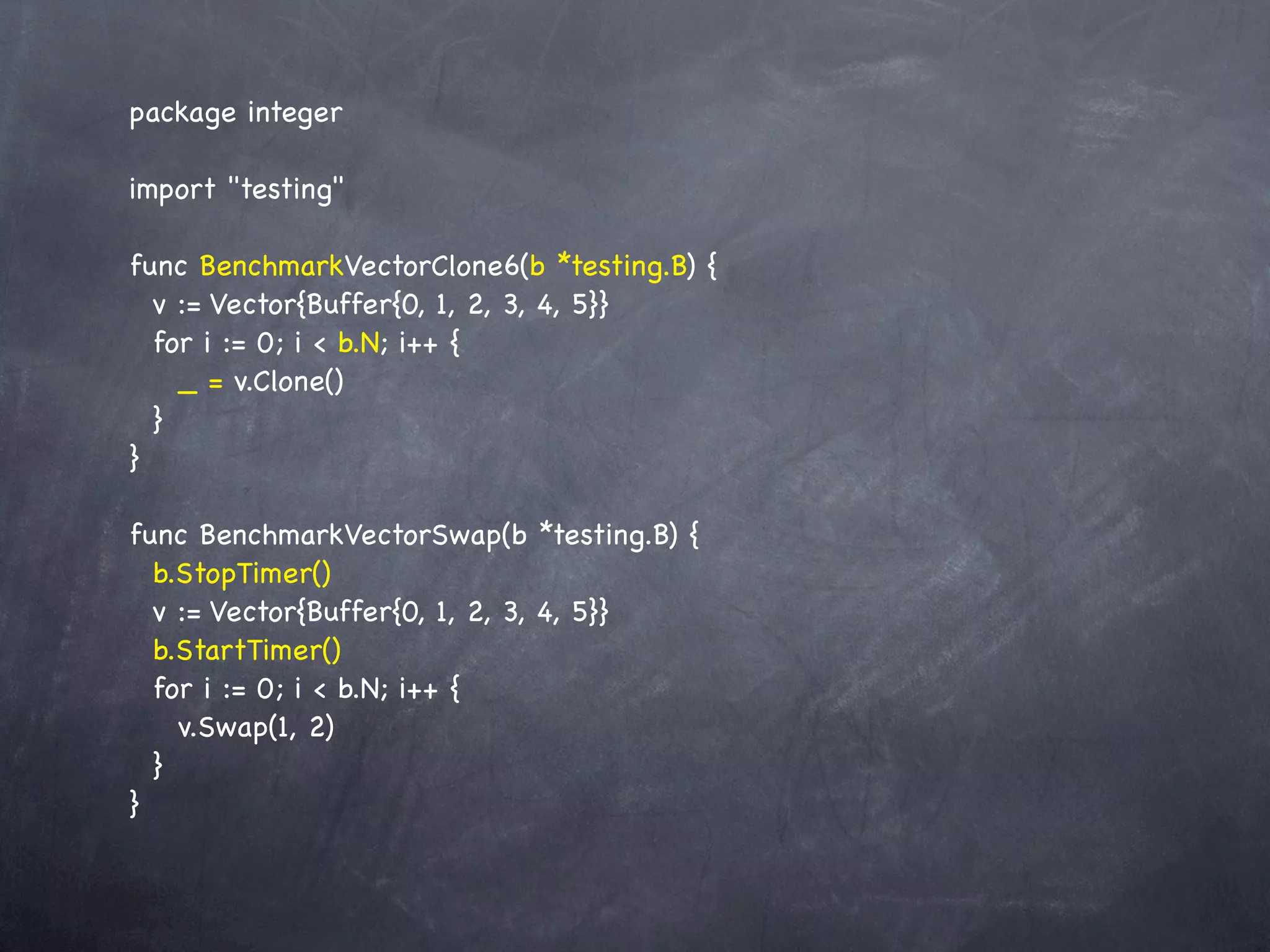

package integer

import "testing"

func BenchmarkVectorClone6(b *testing.B) {
v := Vector{Buffer{0, 1, 2, 3, 4, 5}}
for i := 0; i < b.N; i++ {
_ = v.Clone()
}
}

func BenchmarkVectorSwap(b *testing.B) {
b.StopTimer()
v := Vector{Buffer{0, 1, 2, 3, 4, 5}}
b.StartTimer()
for i := 0; i < b.N; i++ {
v.Swap(1, 2)
}
}

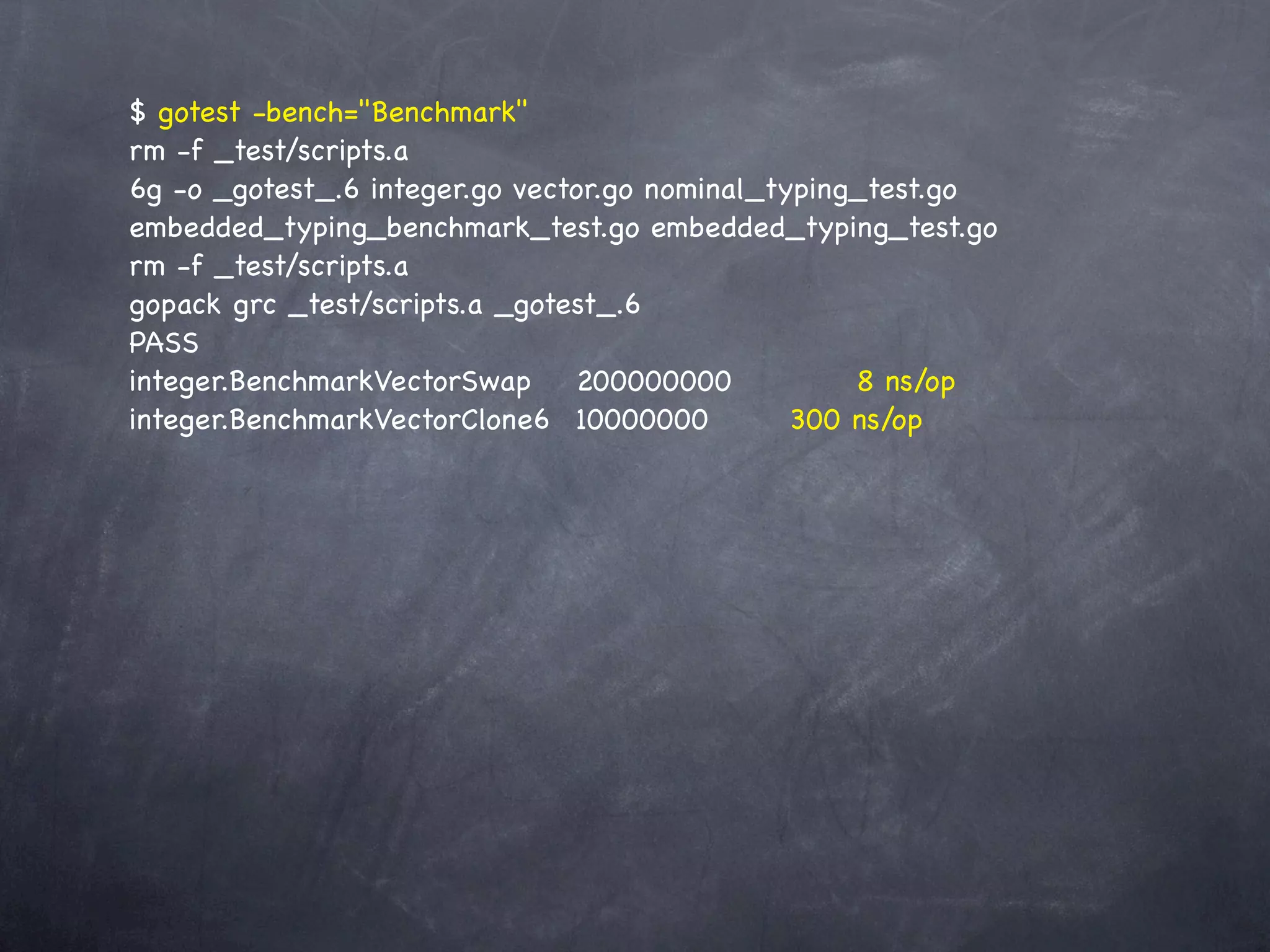

$ gotest -bench="Benchmark"
rm -f _test/scripts.a
6g -o _gotest_.6 integer.go vector.go nominal_typing_test.go
embedded_typing_benchmark_test.go embedded_typing_test.go
rm -f _test/scripts.a
gopack grc _test/scripts.a _gotest_.6
PASS
integer.BenchmarkVectorSwap! 200000000! 8 ns/op
integer.BenchmarkVectorClone6! 10000000! 300 ns/op

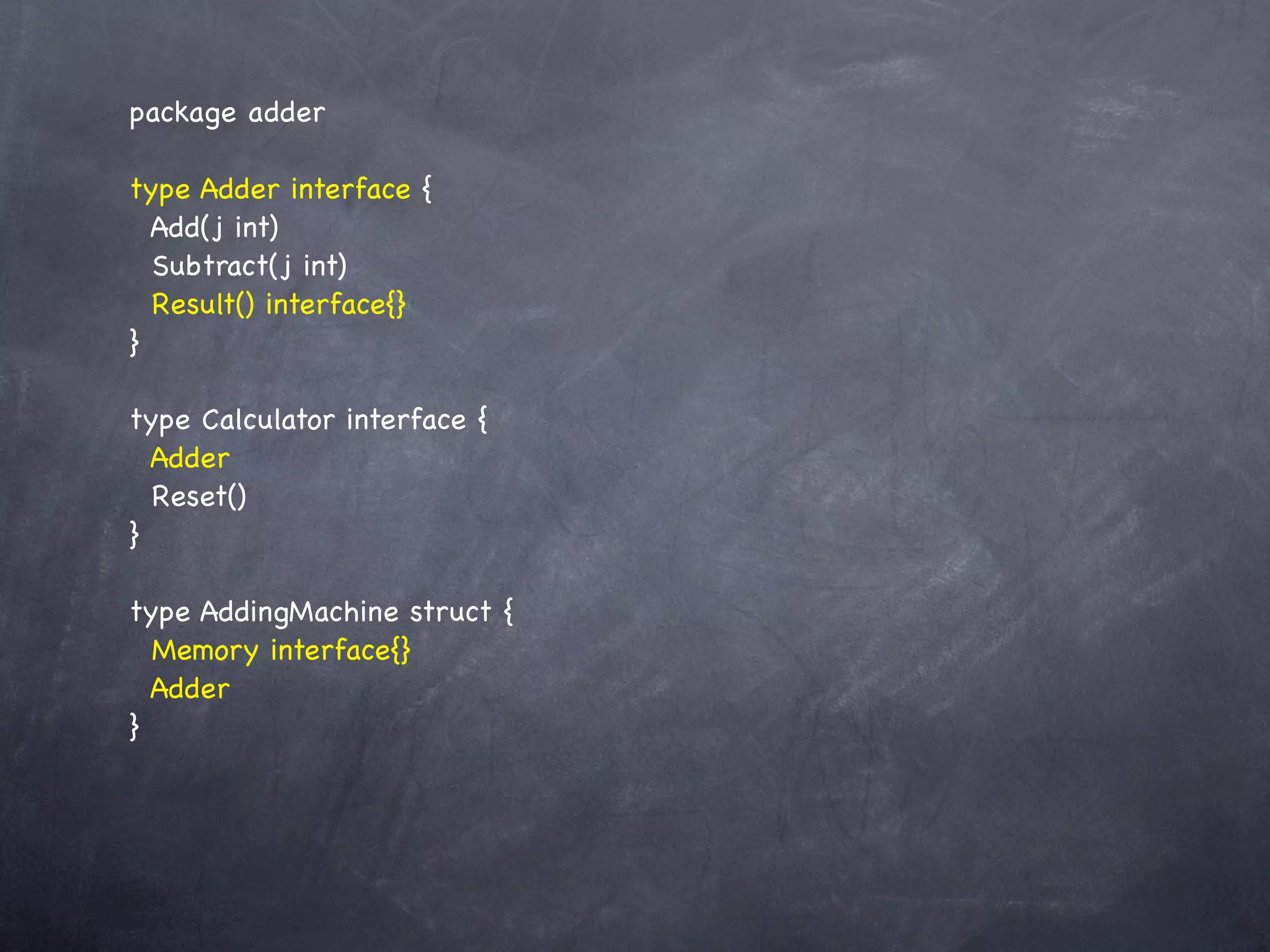

package adder

type Adder interface {
Add(j int)
Subtract(j int)
Result() interface{}
}

type Calculator interface {
Adder
Reset()
}

type AddingMachine struct {
Memory interface{}
Adder
}

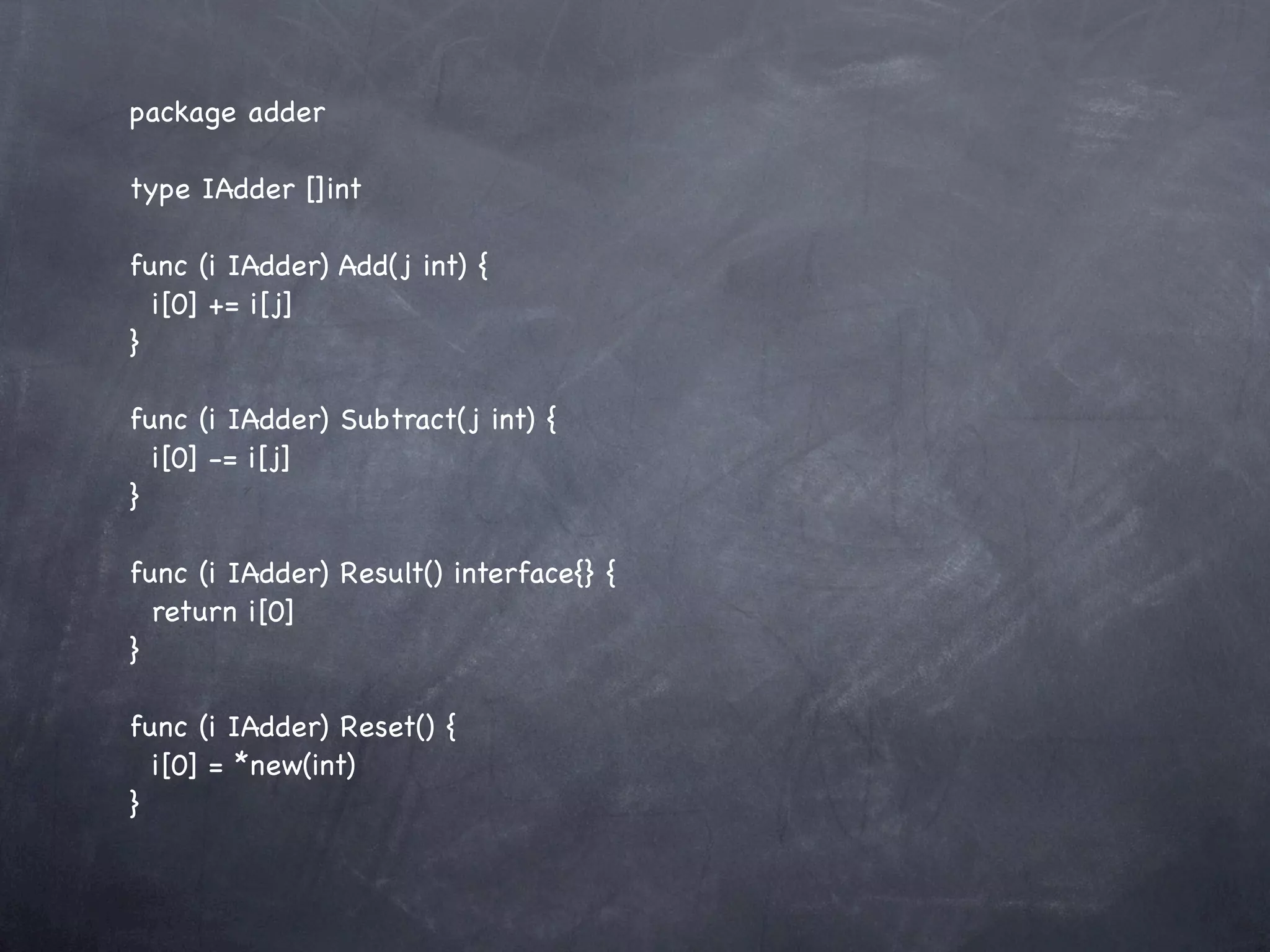

package adder

type IAdder []int

func (i IAdder) Add(j int) {
i[0] += i[j]
}

func (i IAdder) Subtract(j int) {
i[0] -= i[j]
}

func (i IAdder) Result() interface{} {
return i[0]
}

func (i IAdder) Reset() {
i[0] = *new(int)
}

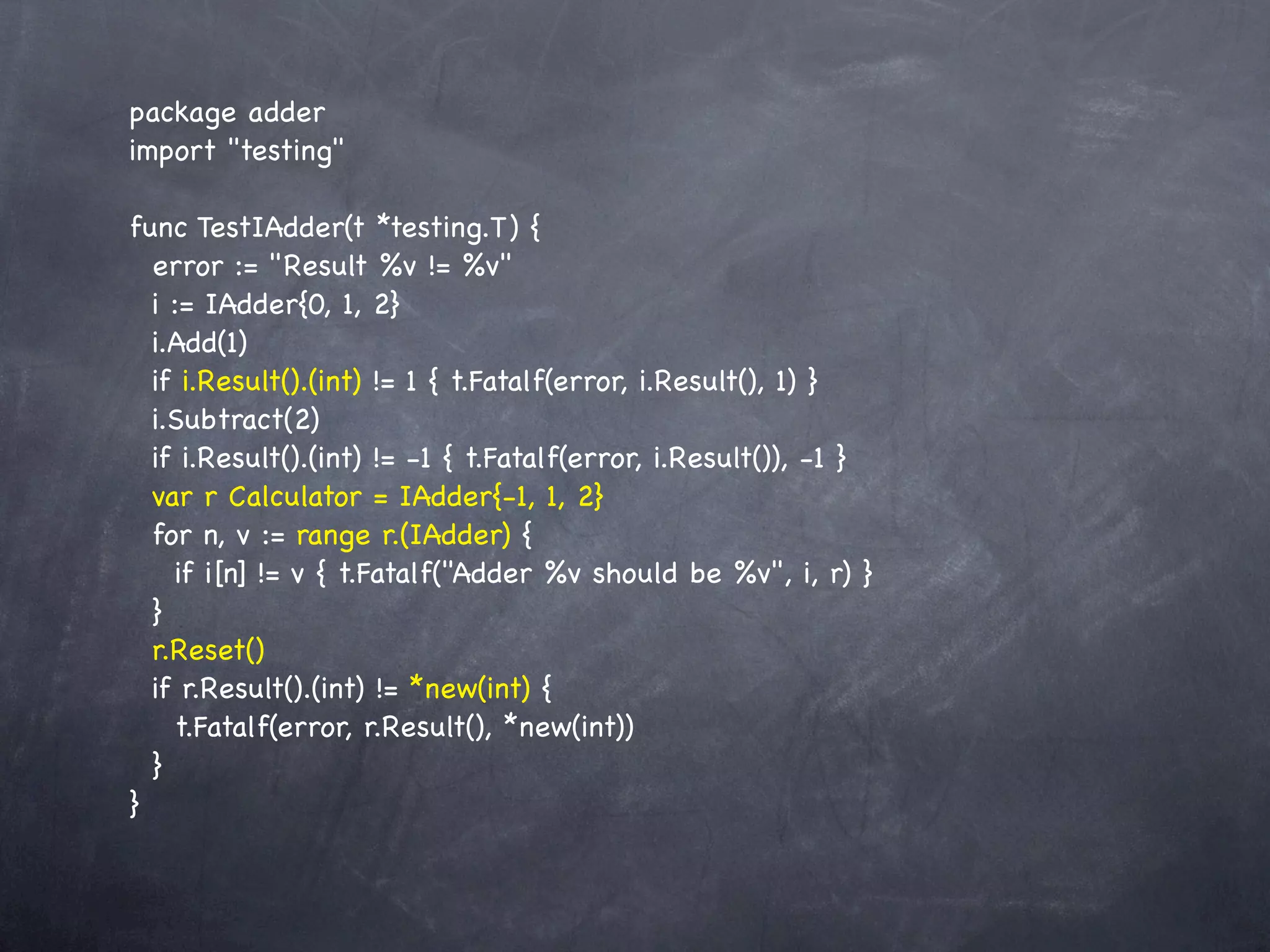

package adder
import "testing"

func TestIAdder(t *testing.T) {
error := "Result %v != %v"
i := IAdder{0, 1, 2}
i.Add(1)
if i.Result().(int) != 1 { t.Fatalf(error, i.Result(), 1) }
i.Subtract(2)
if i.Result().(int) != -1 { t.Fatalf(error, i.Result()), -1 }
var r Calculator = IAdder{-1, 1, 2}
for n, v := range r.(IAdder) {
if i[n] != v { t.Fatalf("Adder %v should be %v", i, r) }
}
r.Reset()
if r.Result().(int) != *new(int) {
t.Fatalf(error, r.Result(), *new(int))
}
}

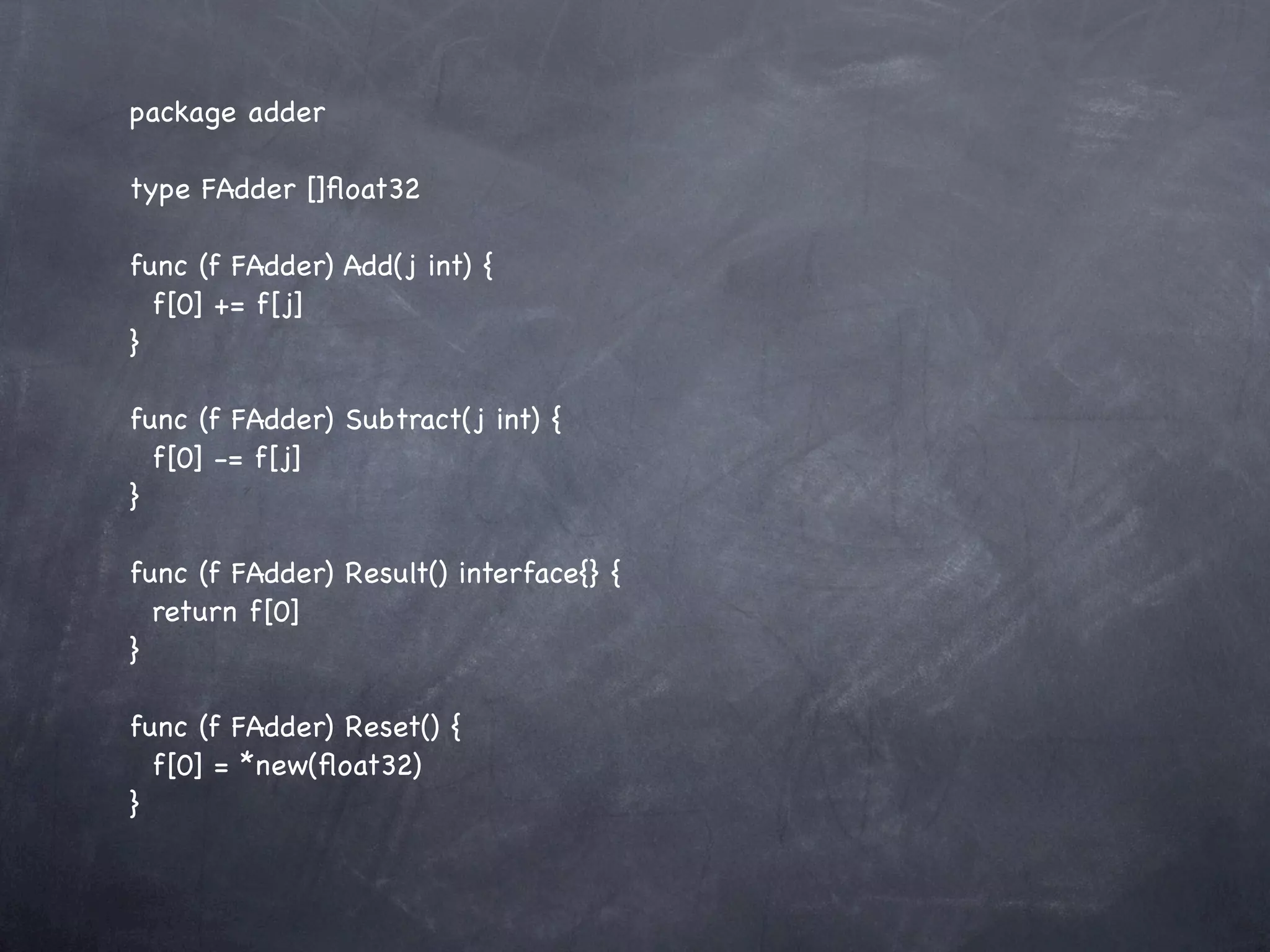

package adder

type FAdder []ﬂoat32

func (f FAdder) Add(j int) {
f[0] += f[j]
}

func (f FAdder) Subtract(j int) {
f[0] -= f[j]
}

func (f FAdder) Result() interface{} {
return f[0]
}

func (f FAdder) Reset() {
f[0] = *new(ﬂoat32)
}

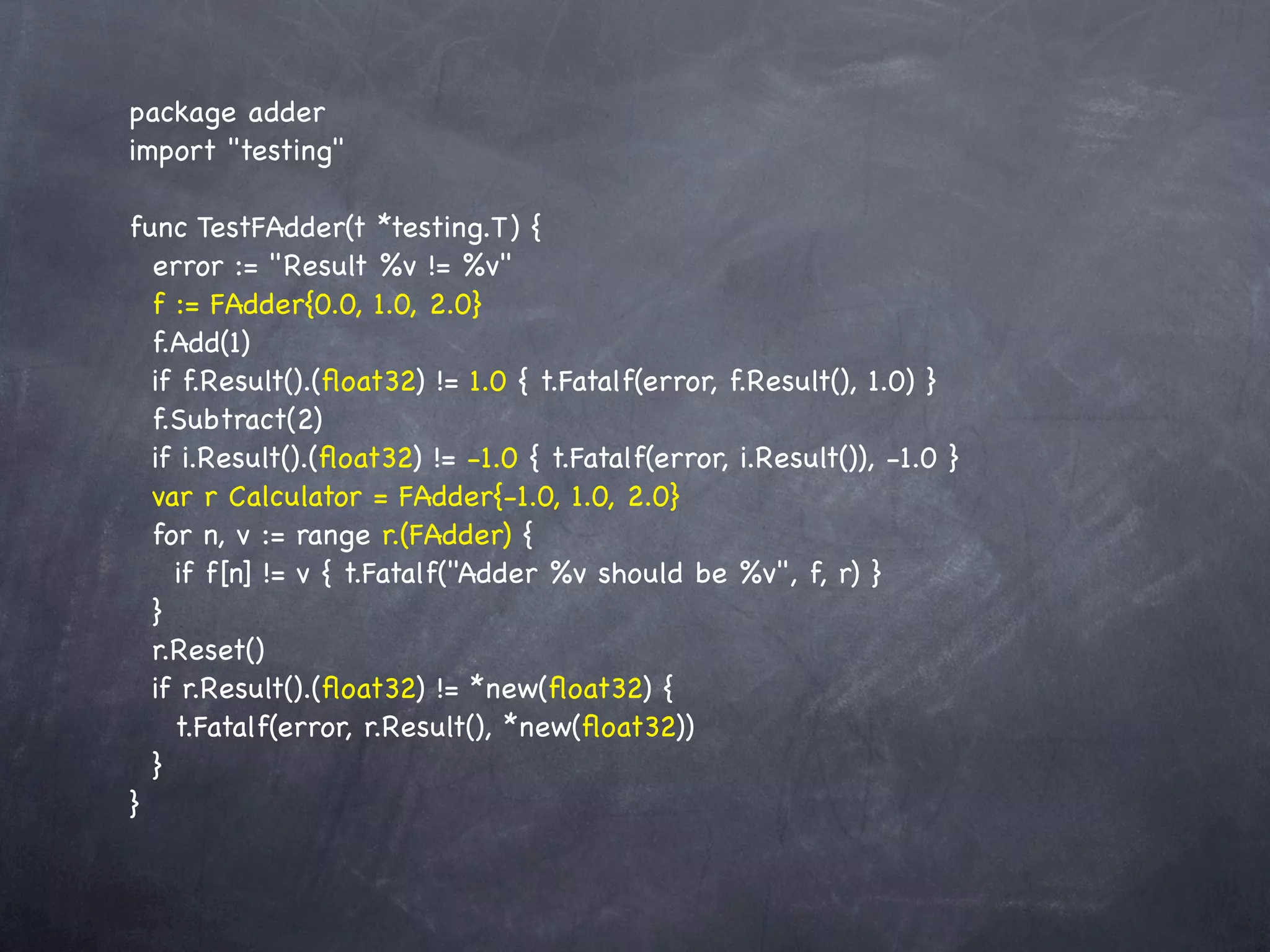

package adder
import "testing"

func TestFAdder(t *testing.T) {
f := FAdder{0.0, 1.0, 2.0}
f.Add(1)
if f.Result().(float32) != 1.0 { t.Fatalf(error, f.Result(), 1.0) }
f.Subtract(2)
if i.Result().(float32) != -1.0 { t.Fatalf(error, i.Result()), -1.0 }
var r Calculator = FAdder{-1.0, 1.0, 2.0}
for n, v := range r.(FAdder) {
if f[n] != v { t.Fatalf("Adder %v should be %v", f, r) }
}
r.Reset()
if r.Result().(float32) != *new(float32) {
t.Fatalf(error, r.Result(), *new(float32))
}
}

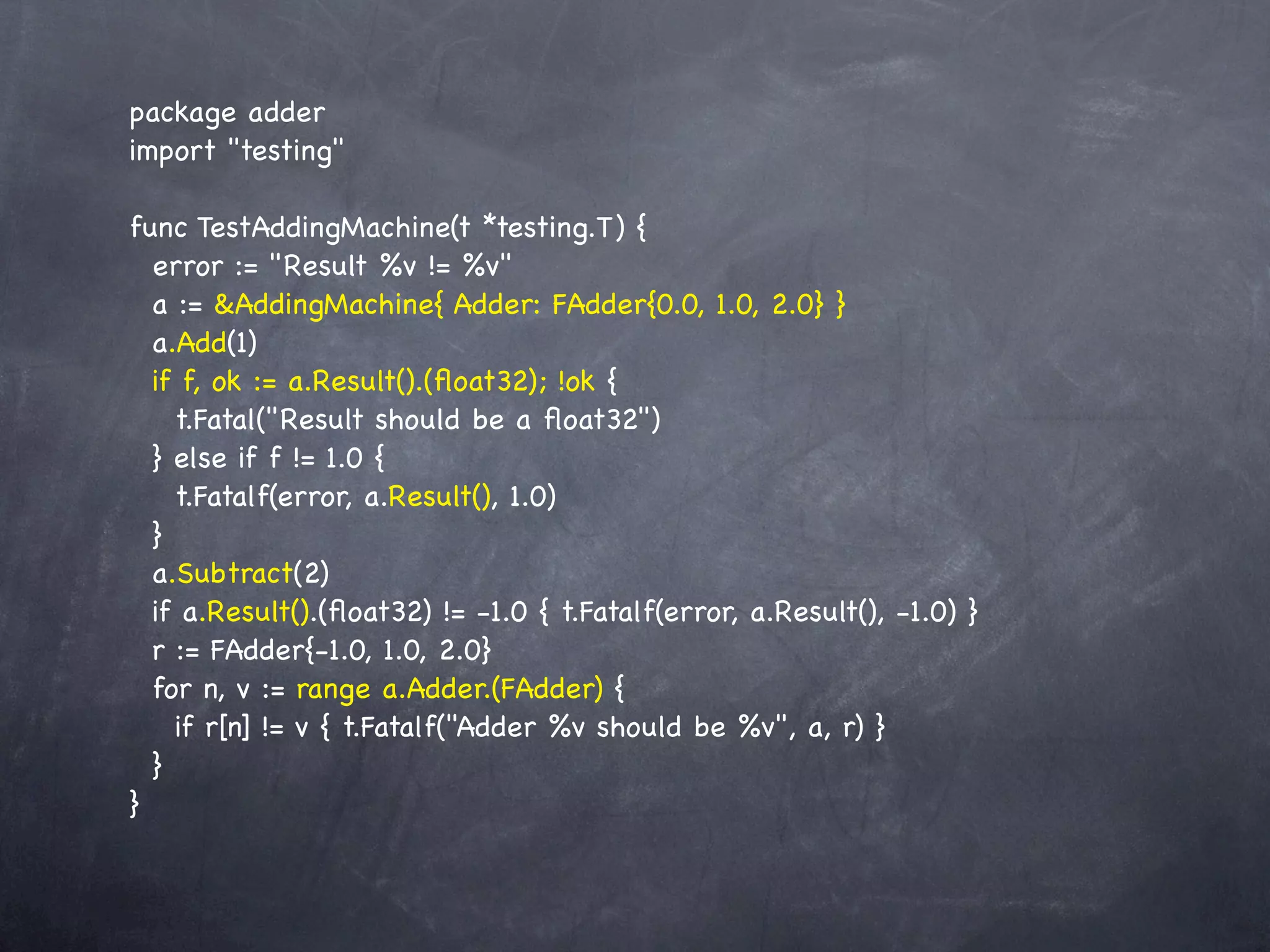

package adder
import "testing"

func TestAddingMachine(t *testing.T) {
a := &AddingMachine{ Adder: FAdder{0.0, 1.0, 2.0} }
a.Add(1)
if f, ok := a.Result().(float32); !ok {
t.Fatal("Result should be a float32")
} else if f != 1.0 {
t.Fatalf(error, a.Result(), 1.0)
}
a.Subtract(2)
if a.Result().(float32) != -1.0 { t.Fatalf(error, a.Result(), -1.0) }
r := FAdder{-1.0, 1.0, 2.0}
for n, v := range a.Adder.(FAdder) {
if r[n] != v { t.Fatalf("Adder %v should be %v", a, r) }
}
}

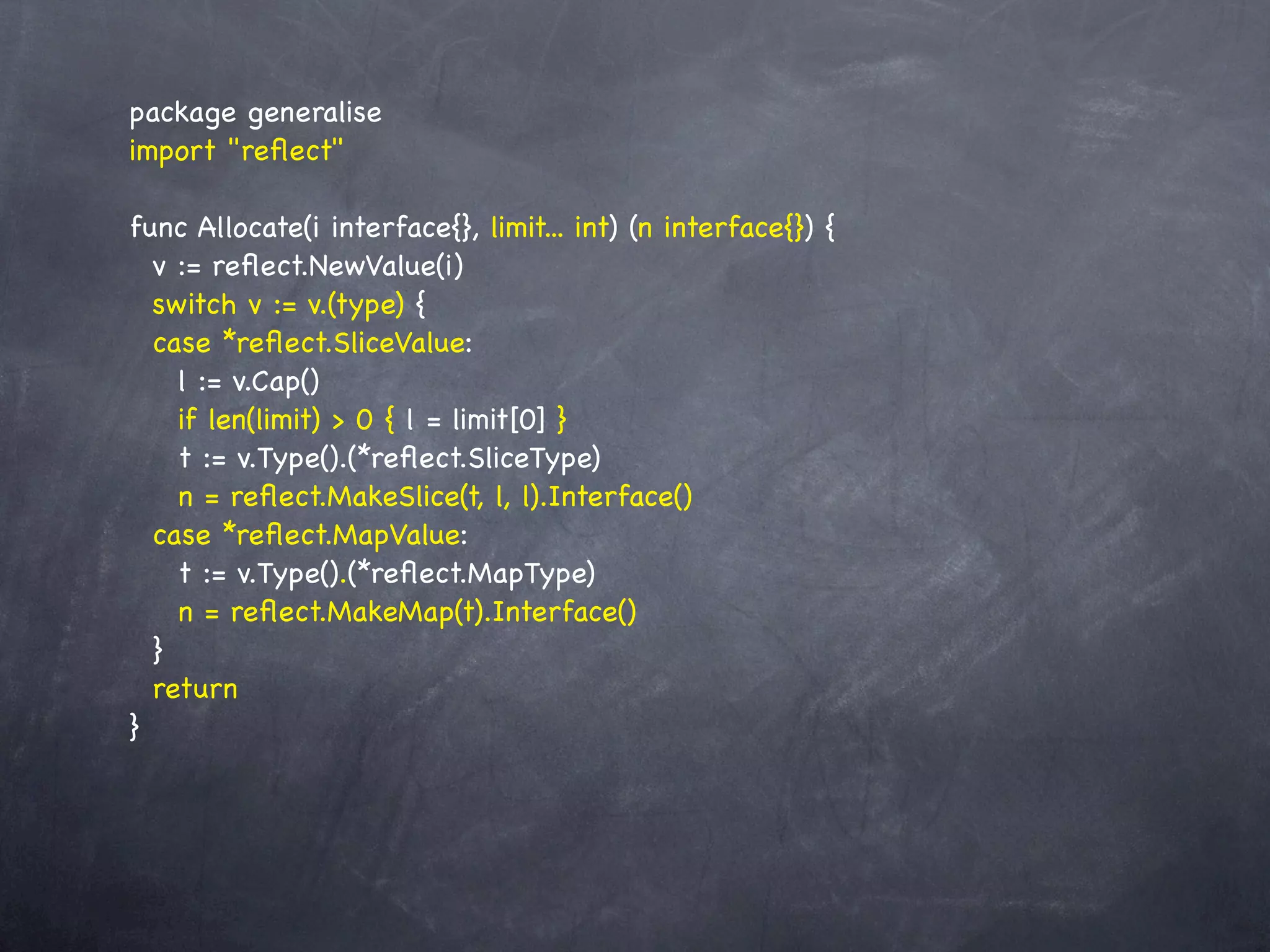

package generalise
import "reflect"

func Allocate(i interface{}, limit... int) (n interface{}) {
v := reflect.NewValue(i)
switch v := v.(type) {
case *reflect.SliceValue:
l := v.Cap()
if len(limit) > 0 { l = limit[0] }
t := v.Type().(*reflect.SliceType)
n = reflect.MakeSlice(t, l, l).Interface()
case *reflect.MapValue:
t := v.Type().(*reflect.MapType)
n = reflect.MakeMap(t).Interface()
}
return
}

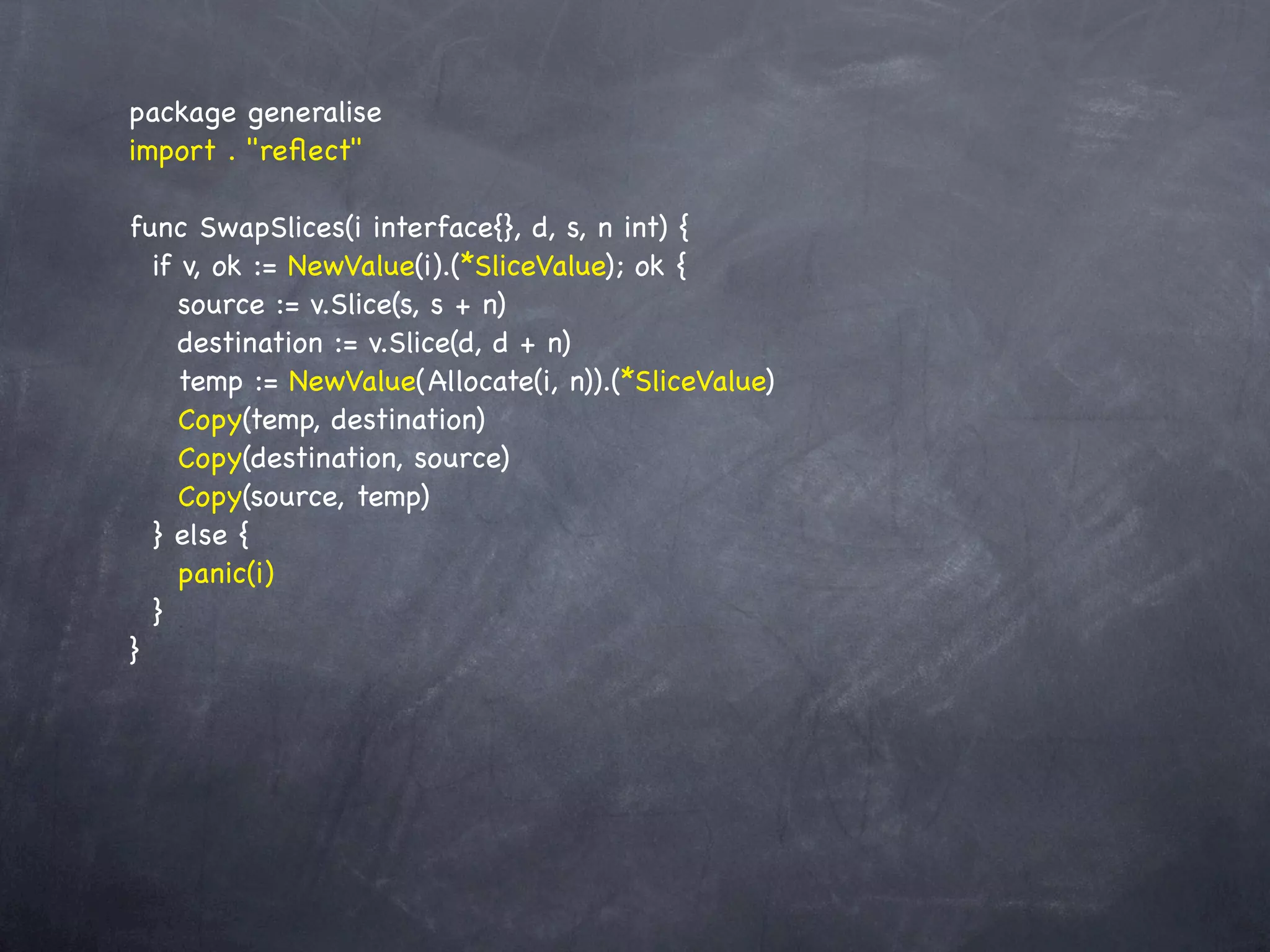

package generalise
import . "reﬂect"

func SwapSlices(i interface{}, d, s, n int) {
if v, ok := NewValue(i).(*SliceValue); ok {
source := v.Slice(s, s + n)
destination := v.Slice(d, d + n)
temp := NewValue(Allocate(i, n)).(*SliceValue)
Copy(temp, destination)
Copy(destination, source)
Copy(source, temp)
} else {
panic(i)
}
}

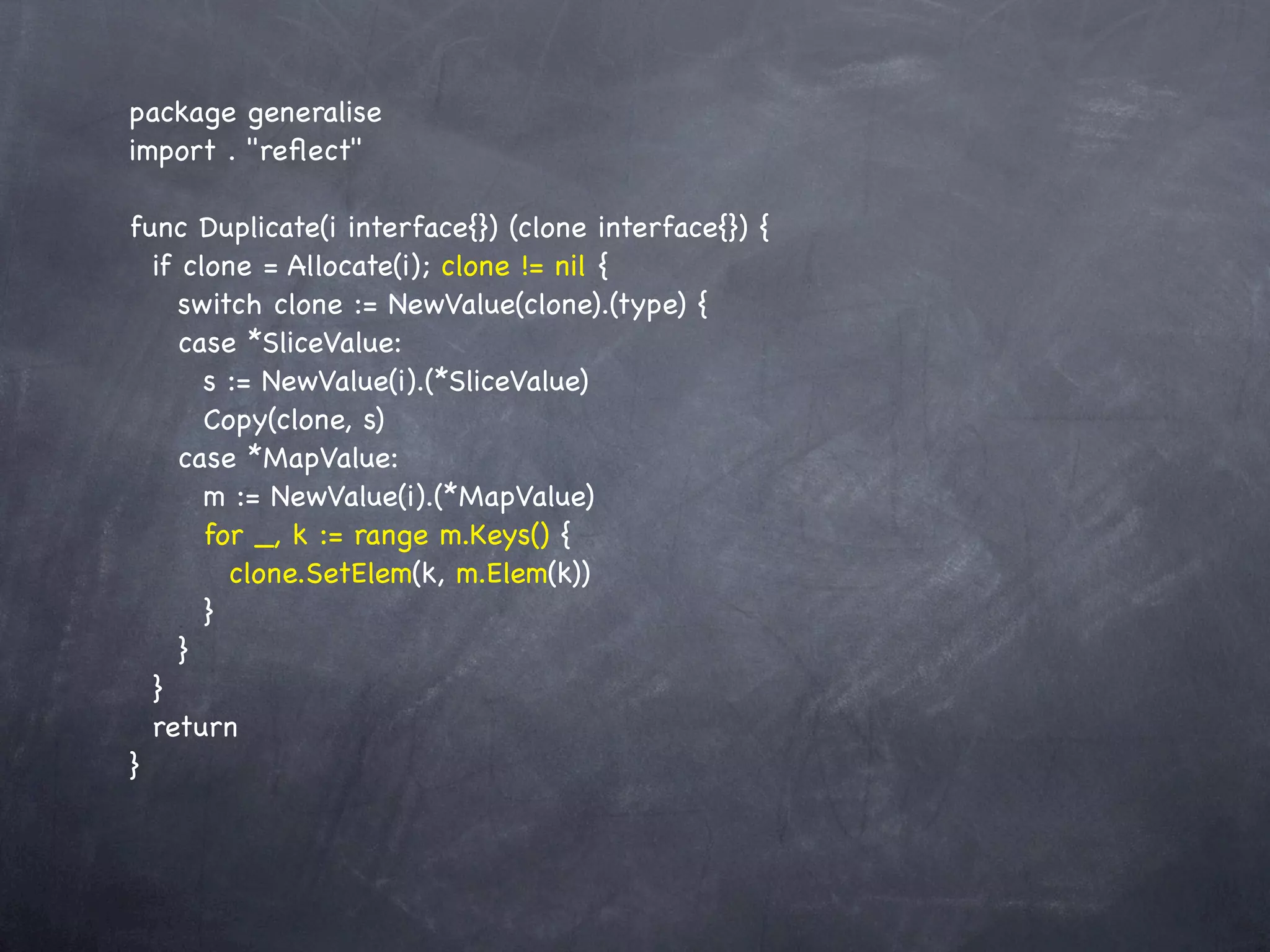

package generalise
import . "reﬂect"

func Duplicate(i interface{}) (clone interface{}) {
if clone = Allocate(i); clone != nil {
switch clone := NewValue(clone).(type) {
case *SliceValue:
s := NewValue(i).(*SliceValue)
Copy(clone, s)
case *MapValue:
m := NewValue(i).(*MapValue)
for _, k := range m.Keys() {
clone.SetElem(k, m.Elem(k))
}
}
}
return
}

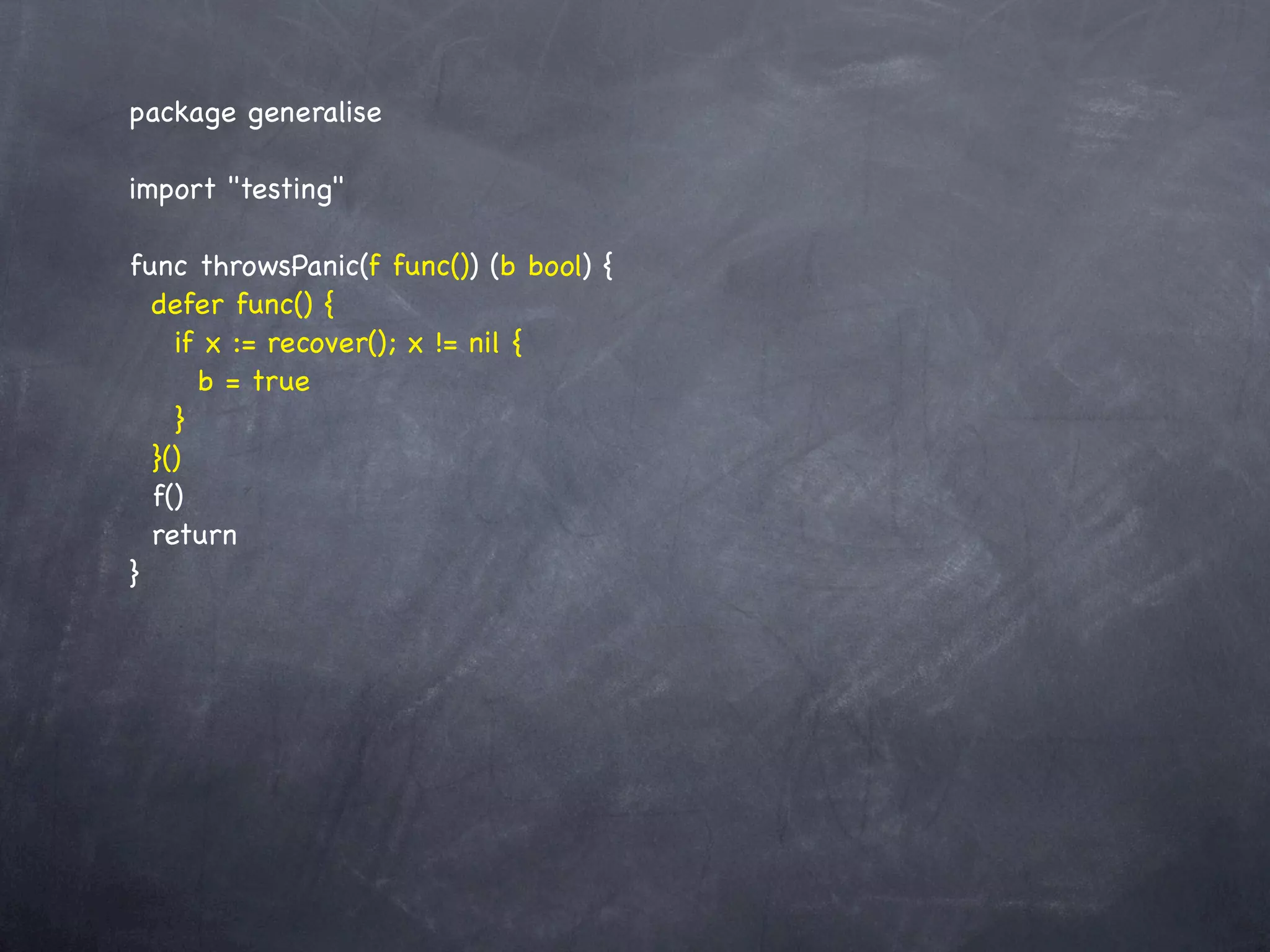

package generalise

import "testing"

func throwsPanic(f func()) (b bool) {
defer func() {
if x := recover(); x != nil {
b = true
}
}()
f()
return
}

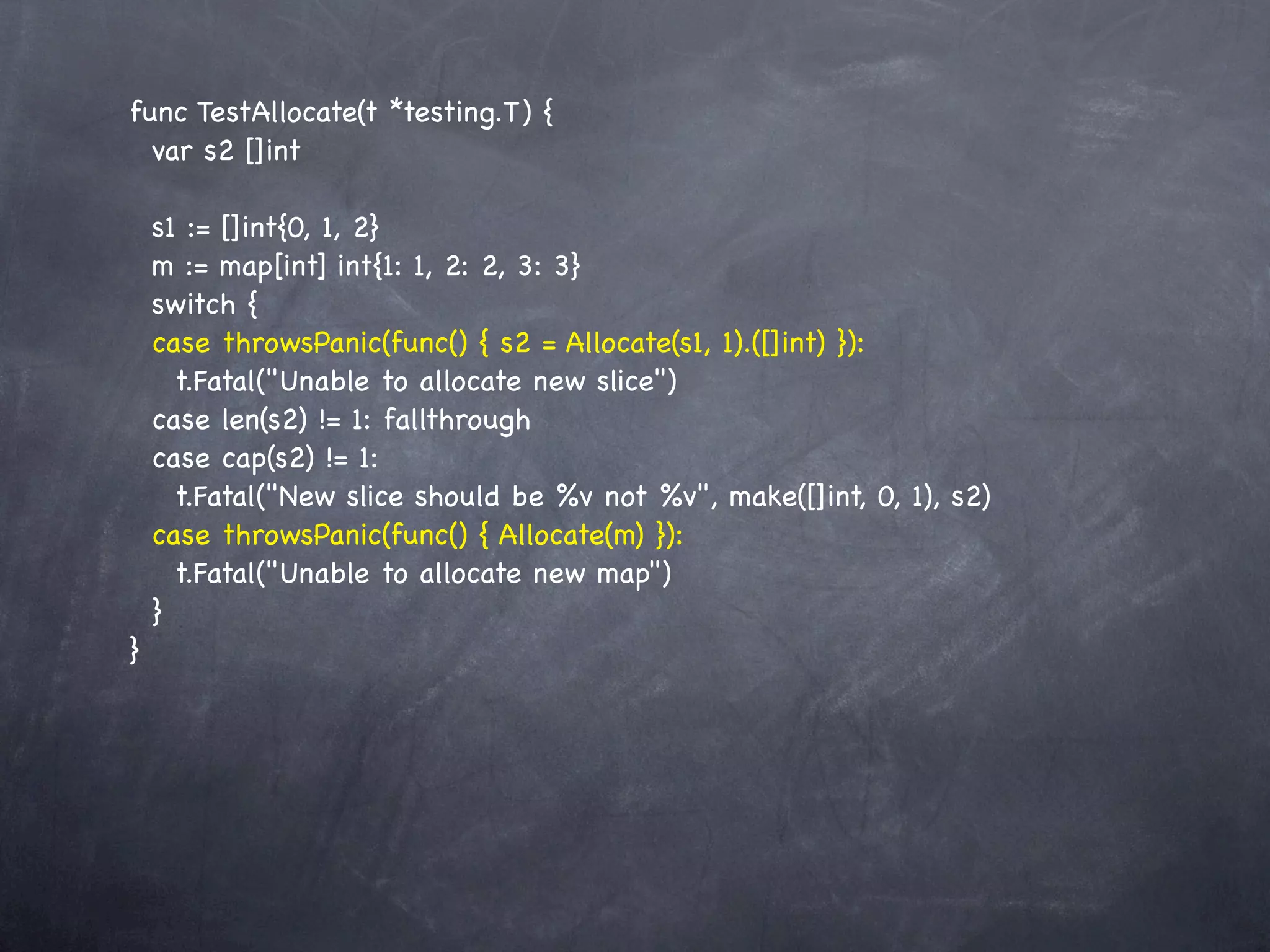

func TestAllocate(t *testing.T) {
var s2 []int

s1 := []int{0, 1, 2}
m := map[int] int{1: 1, 2: 2, 3: 3}
switch {
case throwsPanic(func() { s2 = Allocate(s1, 1).([]int) }):
t.Fatal("Unable to allocate new slice")
case len(s2) != 1: fallthrough
case cap(s2) != 1:
t.Fatal("New slice should be %v not %v", make([]int, 0, 1), s2)
case throwsPanic(func() { Allocate(m) }):
t.Fatal("Unable to allocate new map")
}
}

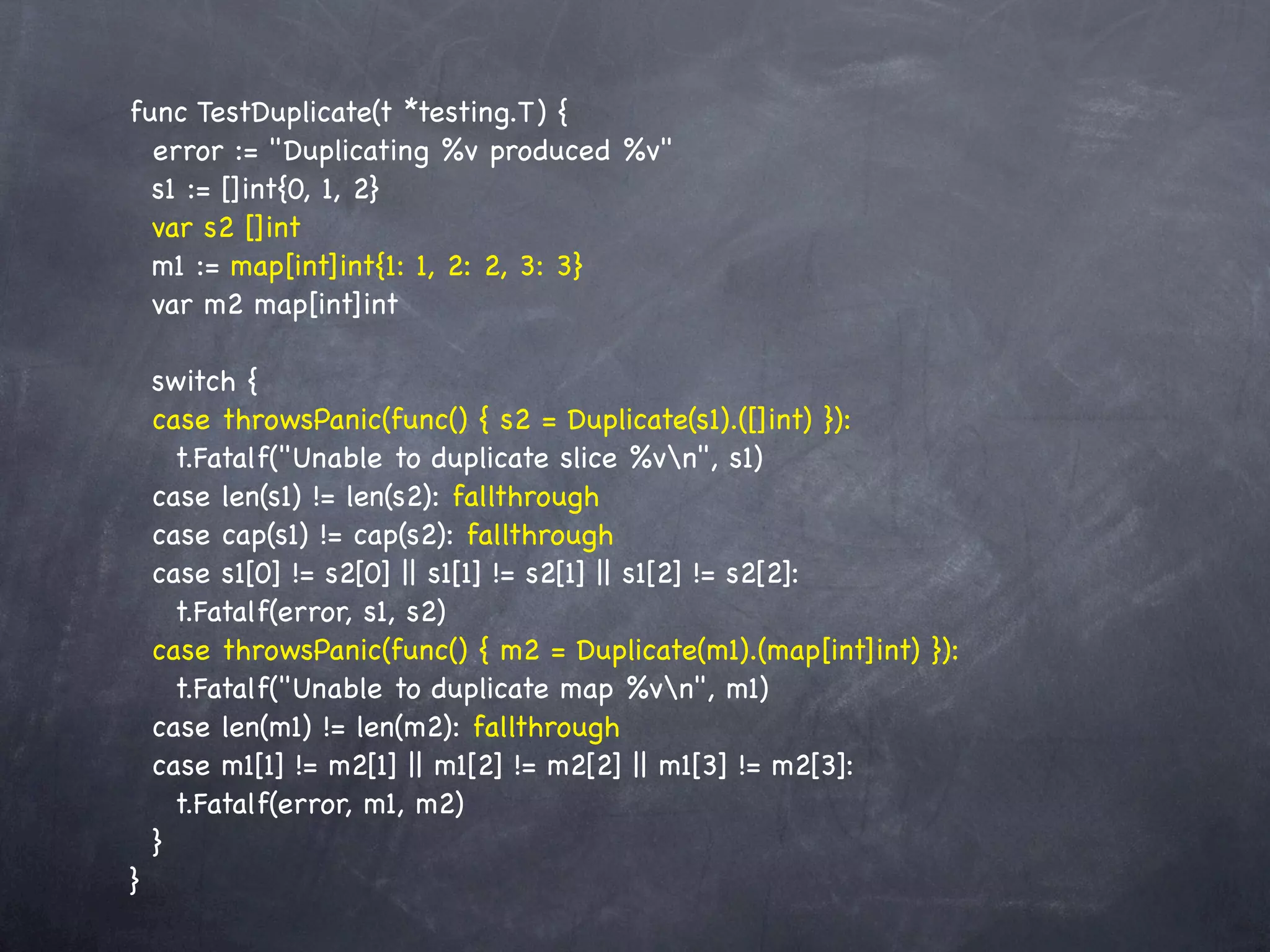

func TestDuplicate(t *testing.T) {
error := "Duplicating %v produced %v"
s1 := []int{0, 1, 2}
var s2 []int
m1 := map[int]int{1: 1, 2: 2, 3: 3}
var m2 map[int]int

switch {
case throwsPanic(func() { s2 = Duplicate(s1).([]int) }):
t.Fatalf("Unable to duplicate slice %vn", s1)
case len(s1) != len(s2): fallthrough
case cap(s1) != cap(s2): fallthrough
case s1[0] != s2[0] || s1[1] != s2[1] || s1[2] != s2[2]:
t.Fatalf(error, s1, s2)
case throwsPanic(func() { m2 = Duplicate(m1).(map[int]int) }):
t.Fatalf("Unable to duplicate map %vn", m1)
case len(m1) != len(m2): fallthrough
case m1[1] != m2[1] || m1[2] != m2[2] || m1[3] != m2[3]:
t.Fatalf(error, m1, m2)
}
}

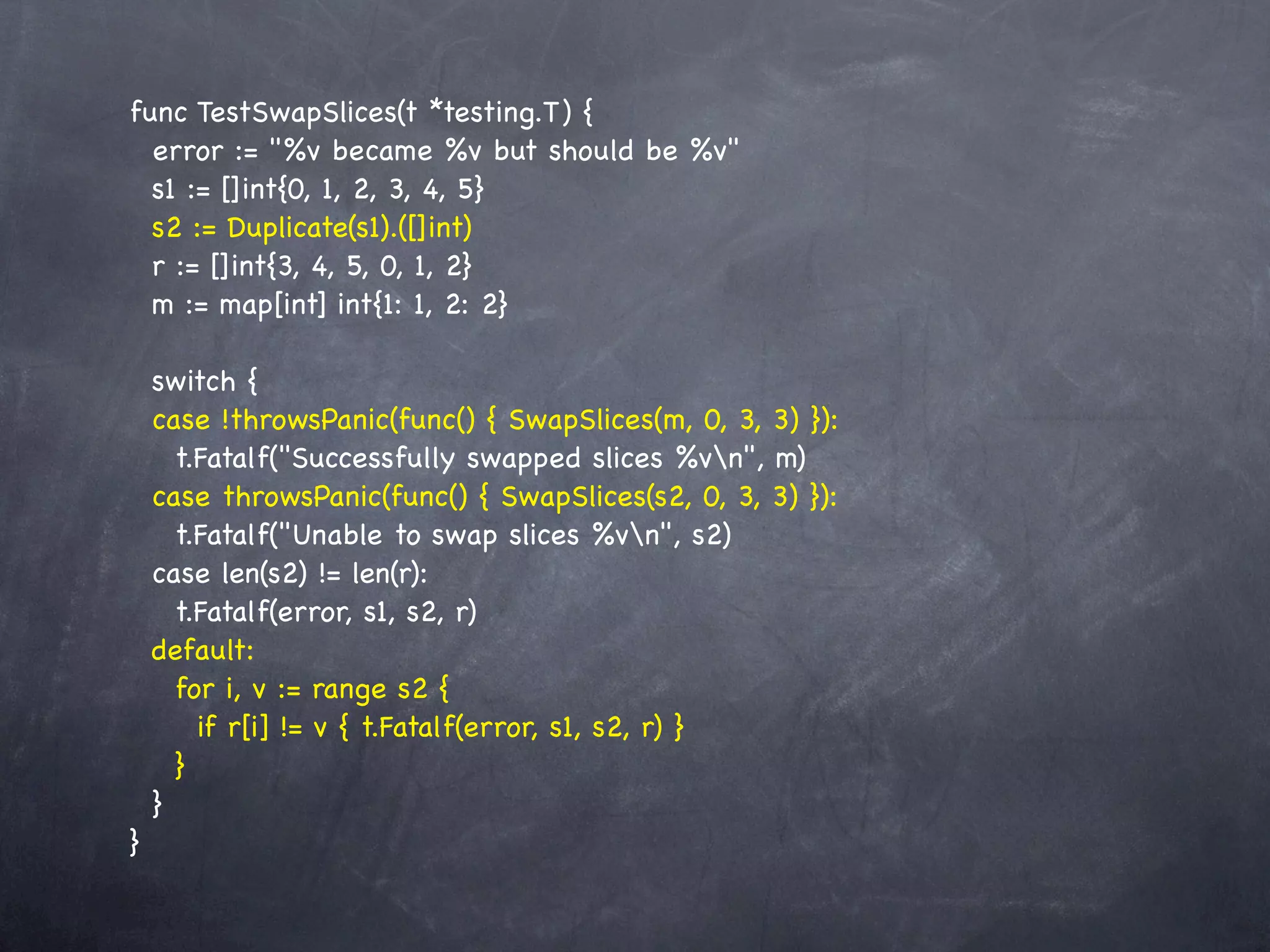

func TestSwapSlices(t *testing.T) {
error := "%v became %v but should be %v"
s1 := []int{0, 1, 2, 3, 4, 5}
s2 := Duplicate(s1).([]int)
r := []int{3, 4, 5, 0, 1, 2}
m := map[int] int{1: 1, 2: 2}

switch {
case !throwsPanic(func() { SwapSlices(m, 0, 3, 3) }):
t.Fatalf("Successfully swapped slices %vn", m)
case throwsPanic(func() { SwapSlices(s2, 0, 3, 3) }):
t.Fatalf("Unable to swap slices %vn", s2)
case len(s2) != len(r):
t.Fatalf(error, s1, s2, r)
default:
for i, v := range s2 {
if r[i] != v { t.Fatalf(error, s1, s2, r) }
}
}
}

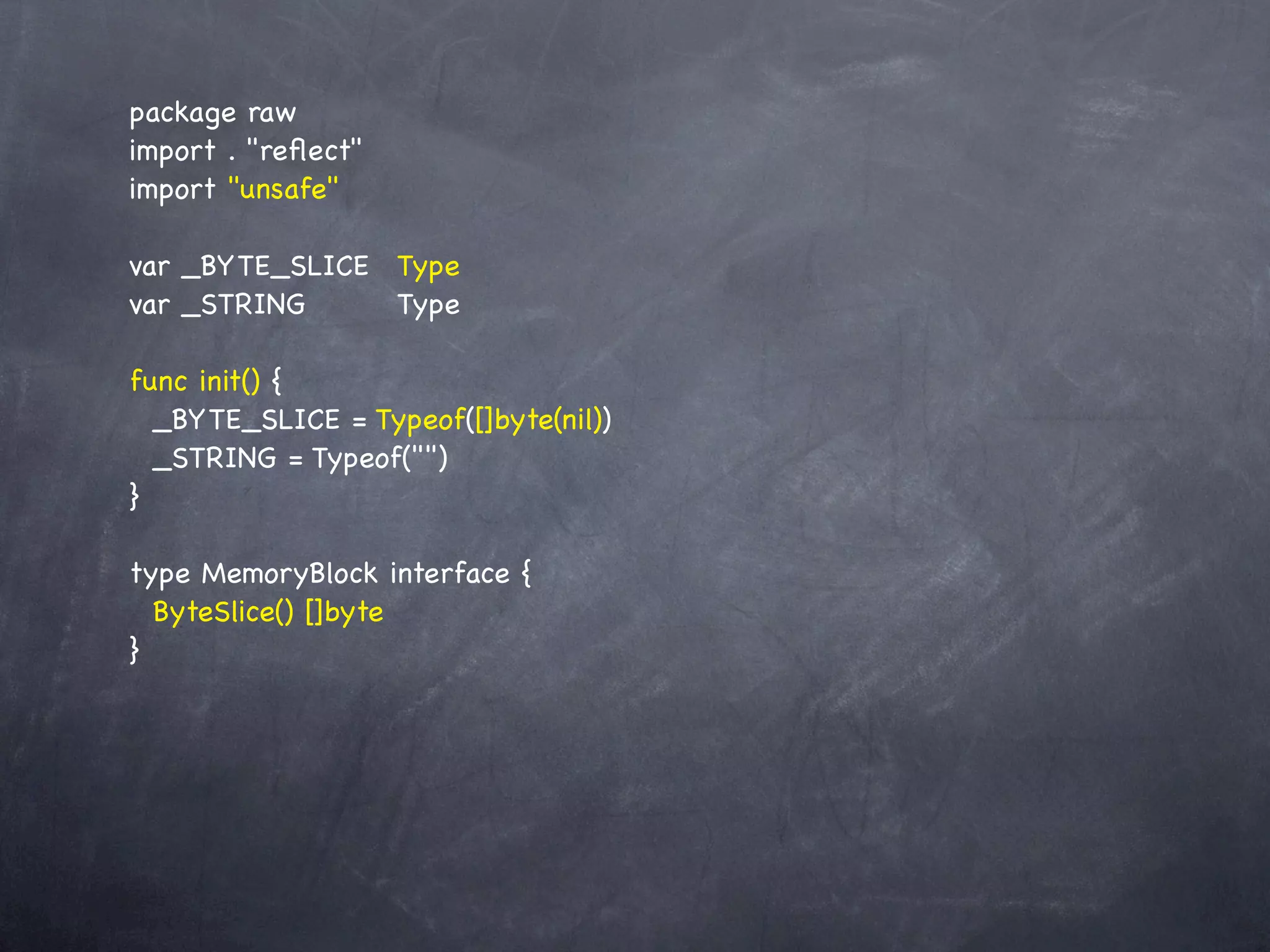

package raw
import . "reﬂect"
import "unsafe"

var _BYTE_SLICE! Type
var _STRING! ! Type
!

func init() {
_BYTE_SLICE = Typeof([]byte(nil))
_STRING = Typeof("")
}

type MemoryBlock interface {
ByteSlice() []byte
}

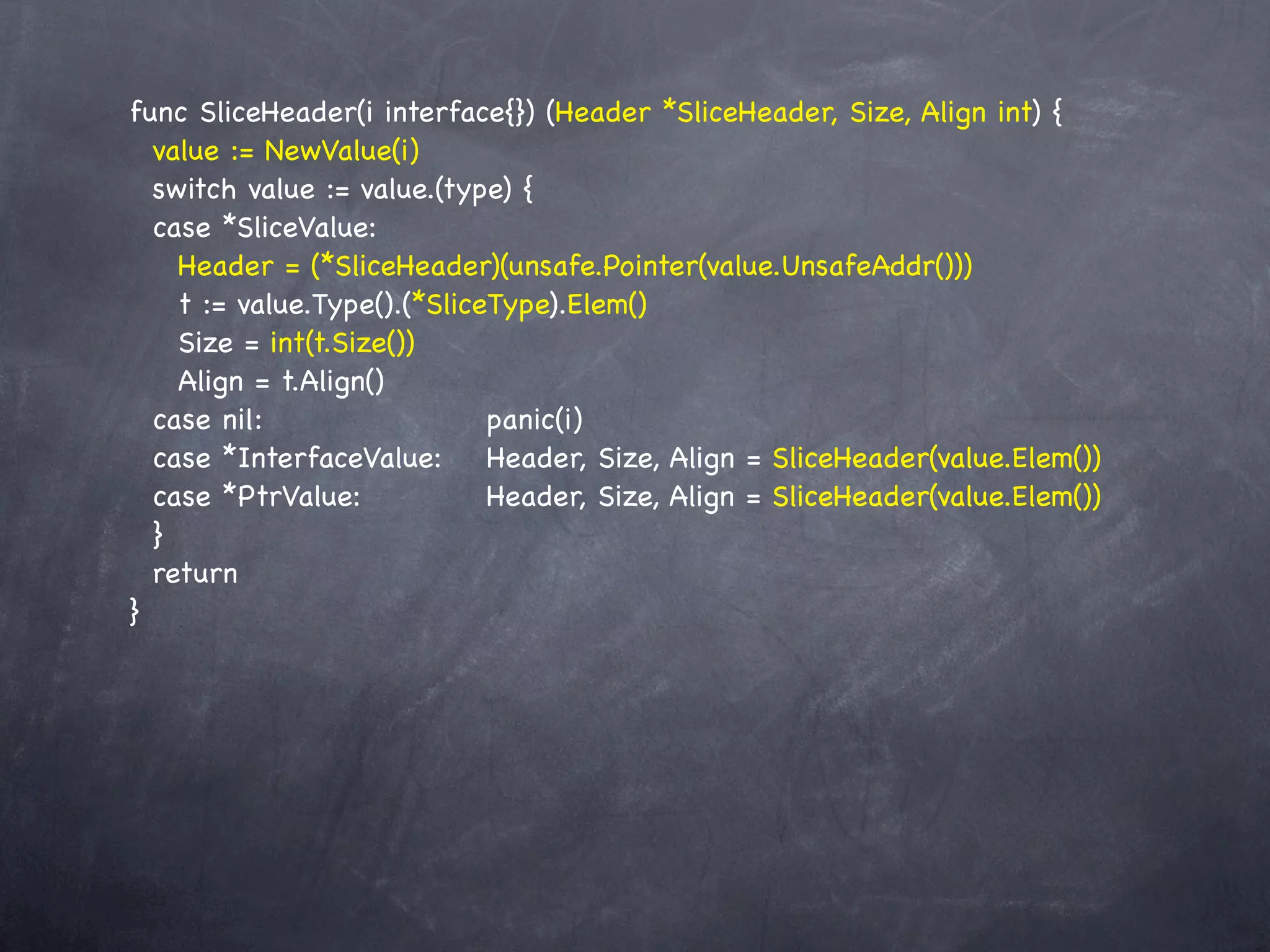

func SliceHeader(i interface{}) (Header *SliceHeader, Size, Align int) {
value := NewValue(i)
switch value := value.(type) {
case *SliceValue:
Header = (*SliceHeader)(unsafe.Pointer(value.UnsafeAddr()))
t := value.Type().(*SliceType).Elem()
Size = int(t.Size())
Align = t.Align()
case nil:! ! ! ! ! panic(i)
!
case *InterfaceValue:! Header, Size, Align = SliceHeader(value.Elem())
case *PtrValue:! ! ! Header, Size, Align = SliceHeader(value.Elem())
}
return
}

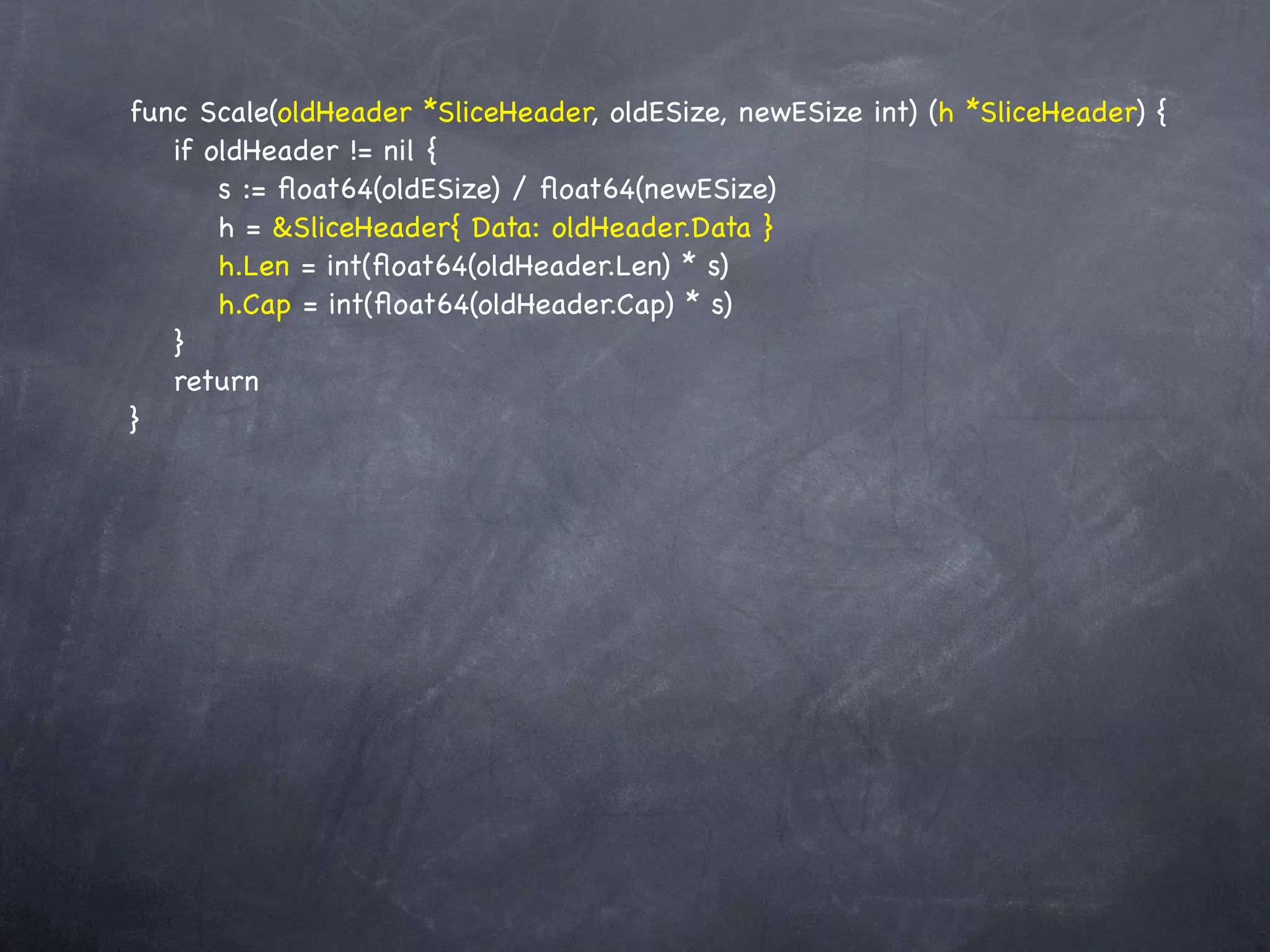

func Scale(oldHeader *SliceHeader, oldESize, newESize int) (h *SliceHeader) {
! if oldHeader != nil {
! ! s := float64(oldESize) / float64(newESize)
! ! h = &SliceHeader{ Data: oldHeader.Data }
! ! h.Len = int(float64(oldHeader.Len) * s)
! ! h.Cap = int(float64(oldHeader.Cap) * s)
! }
! return
}

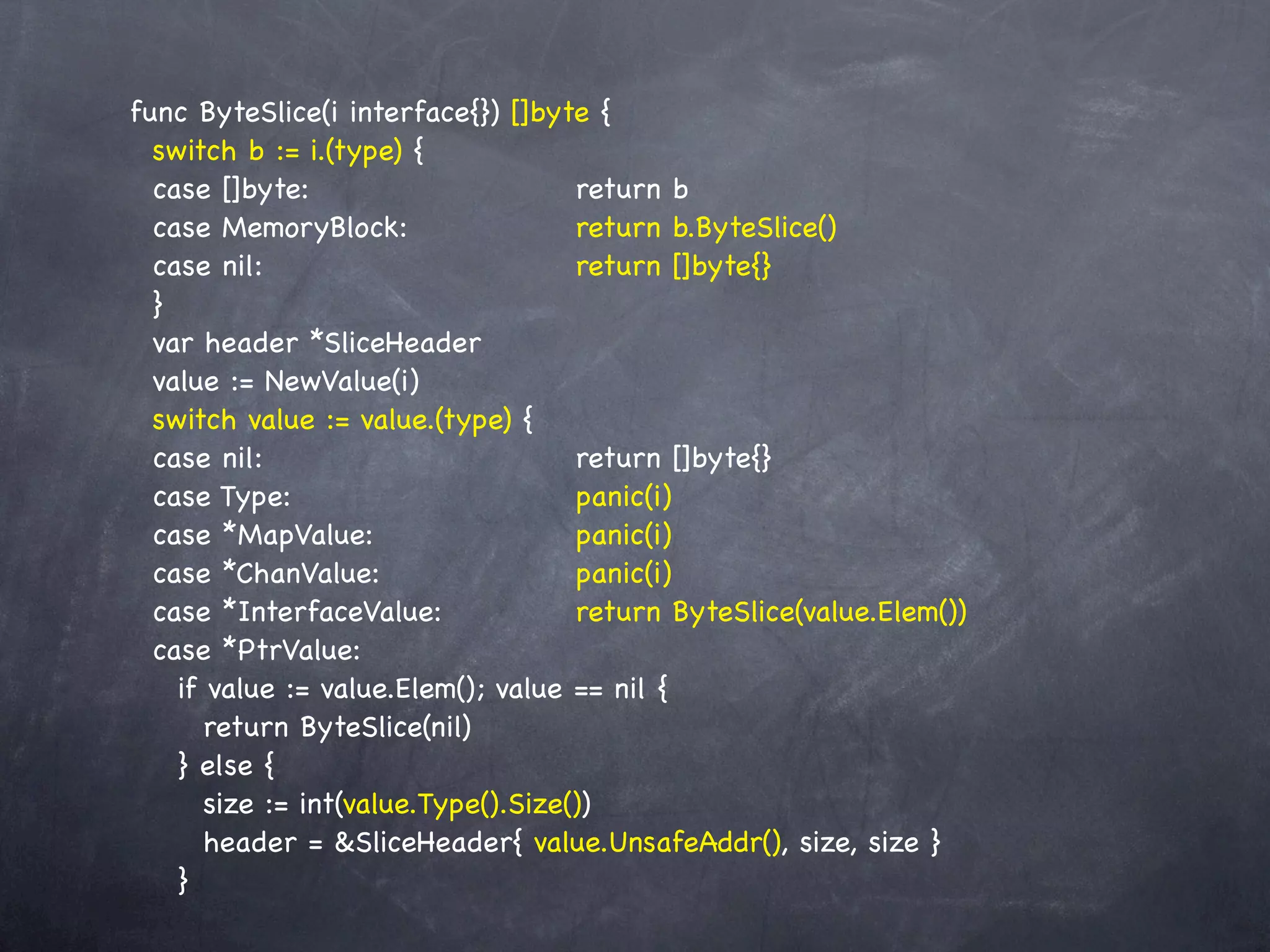

func ByteSlice(i interface{}) []byte {
switch b := i.(type) {
case []byte:! ! ! ! ! ! return b
case MemoryBlock:! ! ! ! return b.ByteSlice()
case nil:! ! ! ! ! ! ! return []byte{}
!
}
var header *SliceHeader
value := NewValue(i)
switch value := value.(type) {
case nil:! ! ! ! ! ! ! return []byte{}
!
case Type:! ! ! ! ! ! ! panic(i)
case *MapValue:! ! ! ! ! panic(i)
case *ChanValue:! ! ! ! ! panic(i)
case *InterfaceValue:! ! ! return ByteSlice(value.Elem())
case *PtrValue:
if value := value.Elem(); value == nil {
return ByteSlice(nil)
} else {
size := int(value.Type().Size())
header = &SliceHeader{ value.UnsafeAddr(), size, size }
}

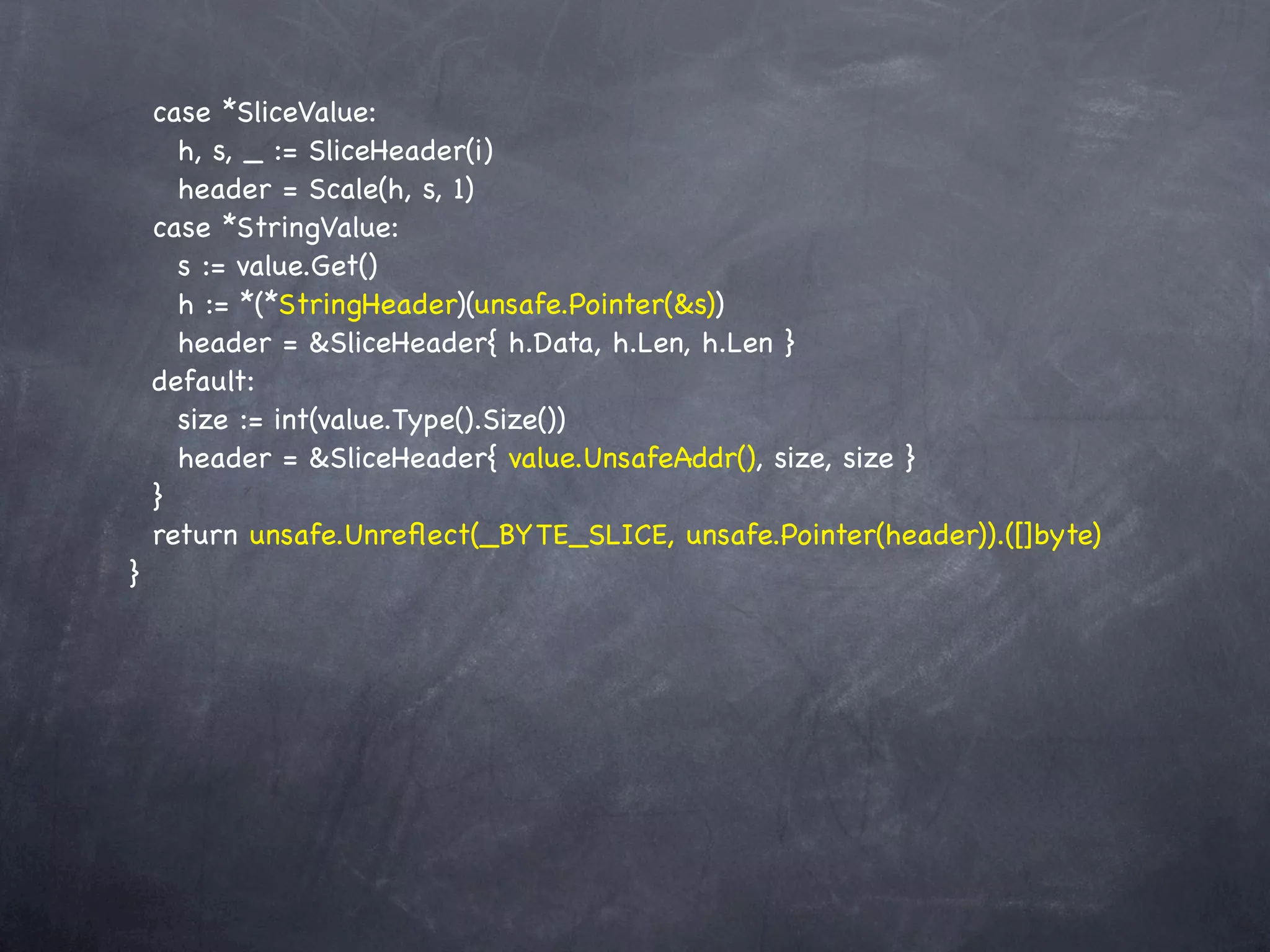

case *SliceValue:
h, s, _ := SliceHeader(i)
header = Scale(h, s, 1)
case *StringValue:
s := value.Get()
h := *(*StringHeader)(unsafe.Pointer(&s))
header = &SliceHeader{ h.Data, h.Len, h.Len }
default:
size := int(value.Type().Size())
header = &SliceHeader{ value.UnsafeAddr(), size, size }
}
return unsafe.Unreﬂect(_BYTE_SLICE, unsafe.Pointer(header)).([]byte)
}

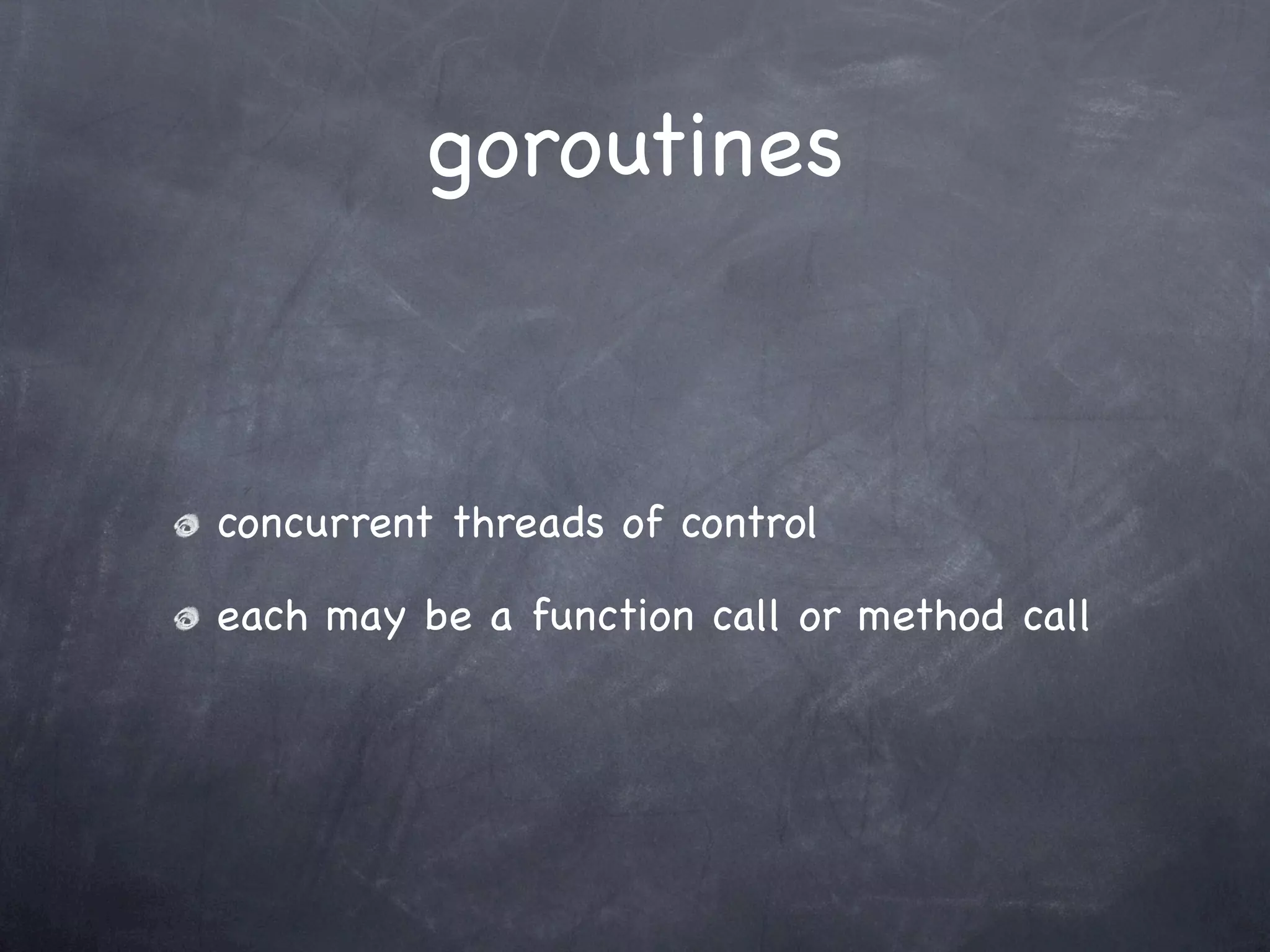

goroutines

concurrent threads of control

each may be a function call or method call

package main
import "fmt"

func main() {
var c chan int
c = make(chan int)
go func() {
for {
fmt.Print(<-c)
}
}()
for {
select {
case c <- 0:
case c <- 1:
}
}
} produces:
01100111010110...

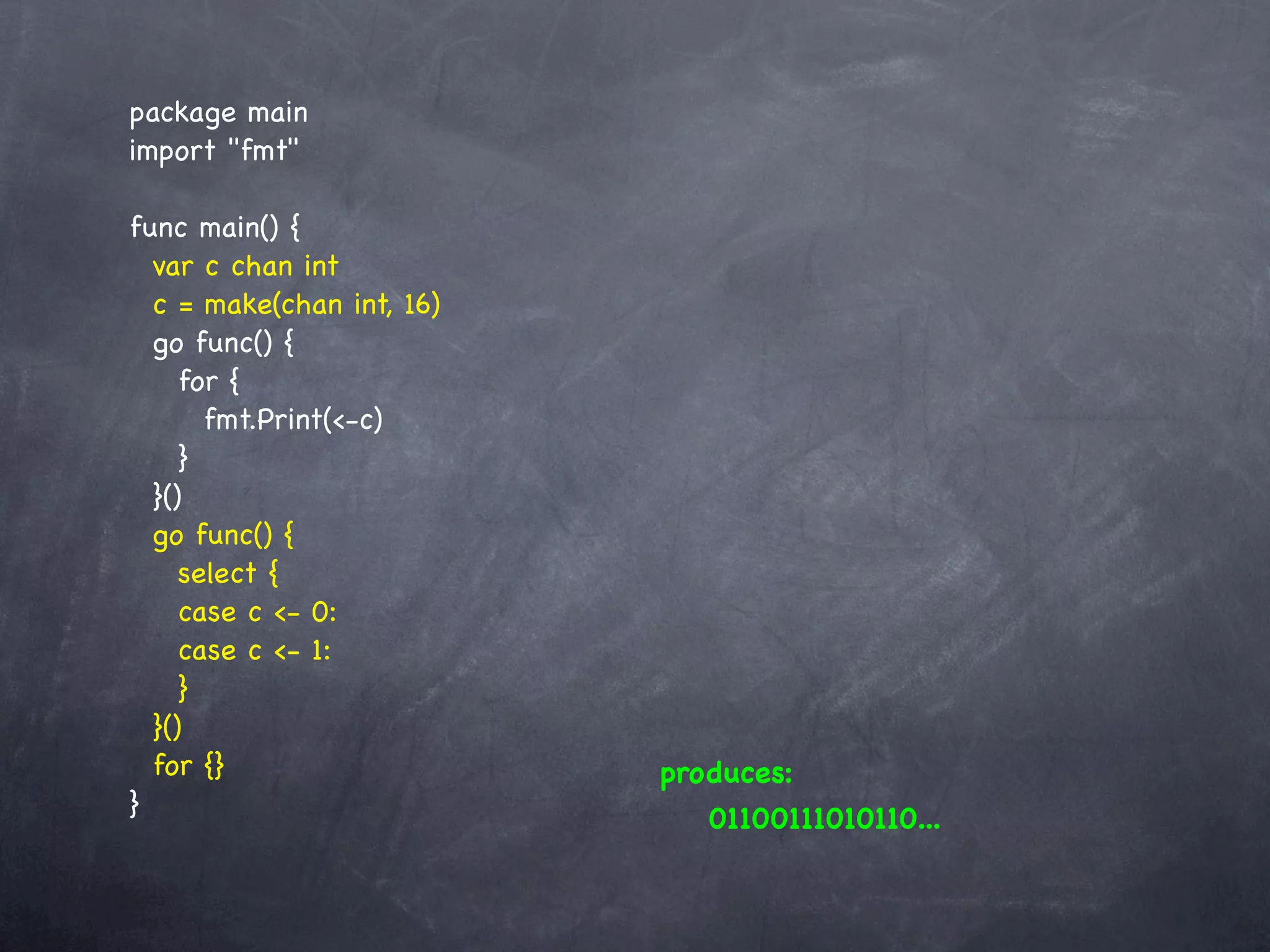

package main
import "fmt"

func main() {
var c chan int
c = make(chan int, 16)
go func() {
for {
fmt.Print(<-c)
}
}()
go func() {
select {
case c <- 0:
case c <- 1:
}
}()
for {} produces:
} 01100111010110...

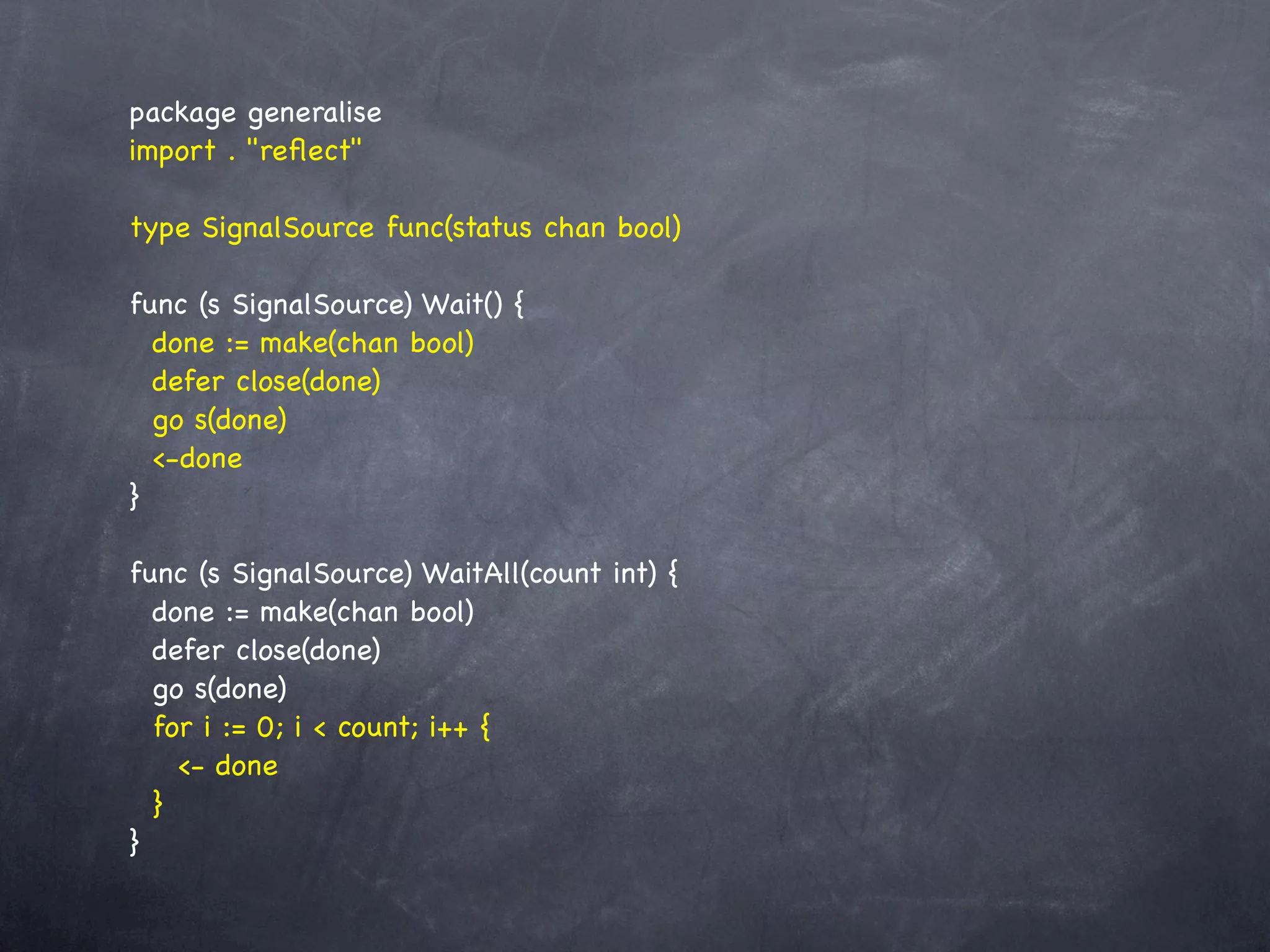

package generalise
import . "reﬂect"

type SignalSource func(status chan bool)

func (s SignalSource) Wait() {
done := make(chan bool)
defer close(done)
go s(done)
<-done
}

func (s SignalSource) WaitAll(count int) {
done := make(chan bool)
defer close(done)
go s(done)
for i := 0; i < count; i++ {
<- done
}
}

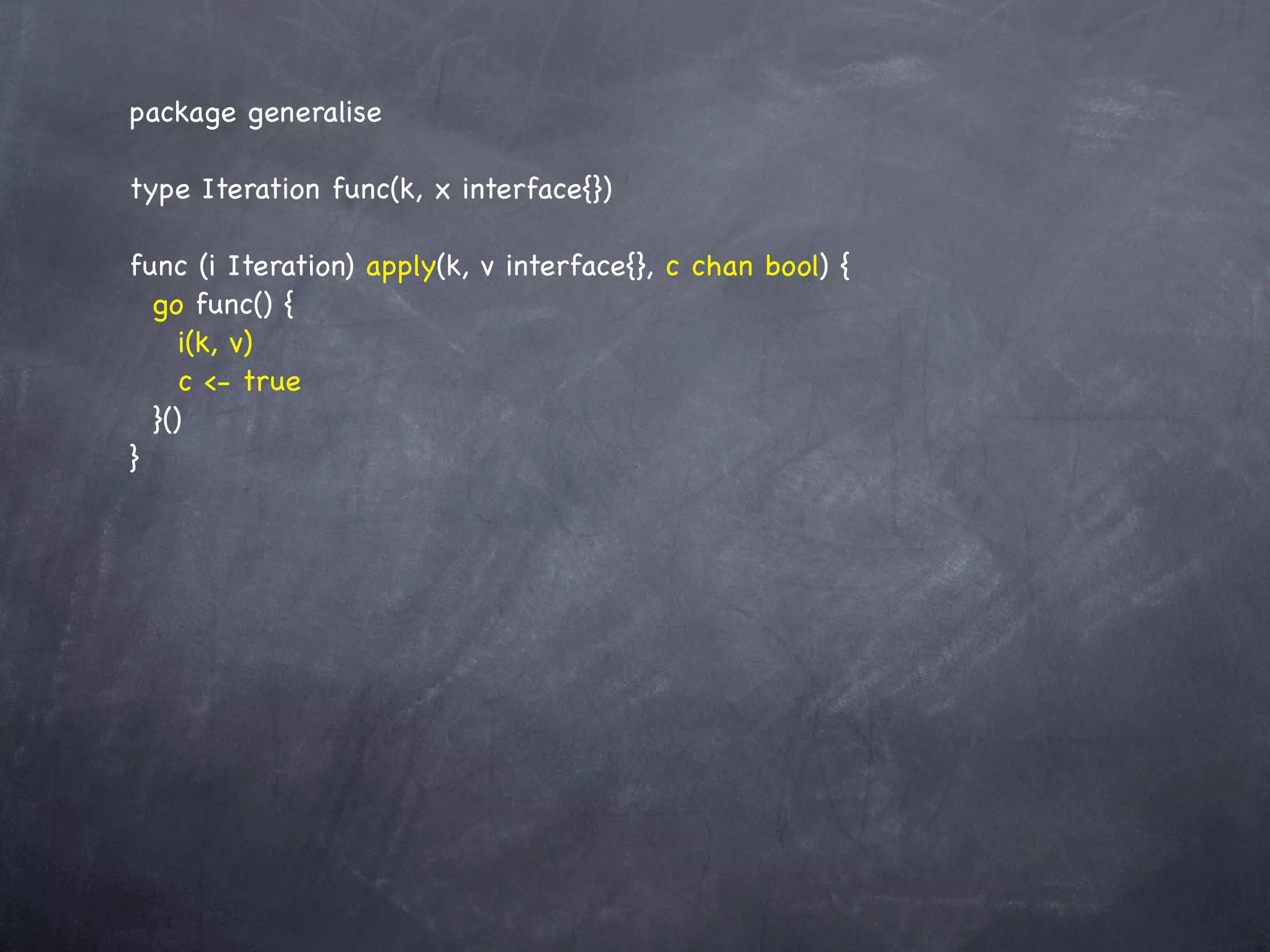

package generalise

type Iteration func(k, x interface{})

func (i Iteration) apply(k, v interface{}, c chan bool) {
go func() {
i(k, v)
c <- true
}()
}

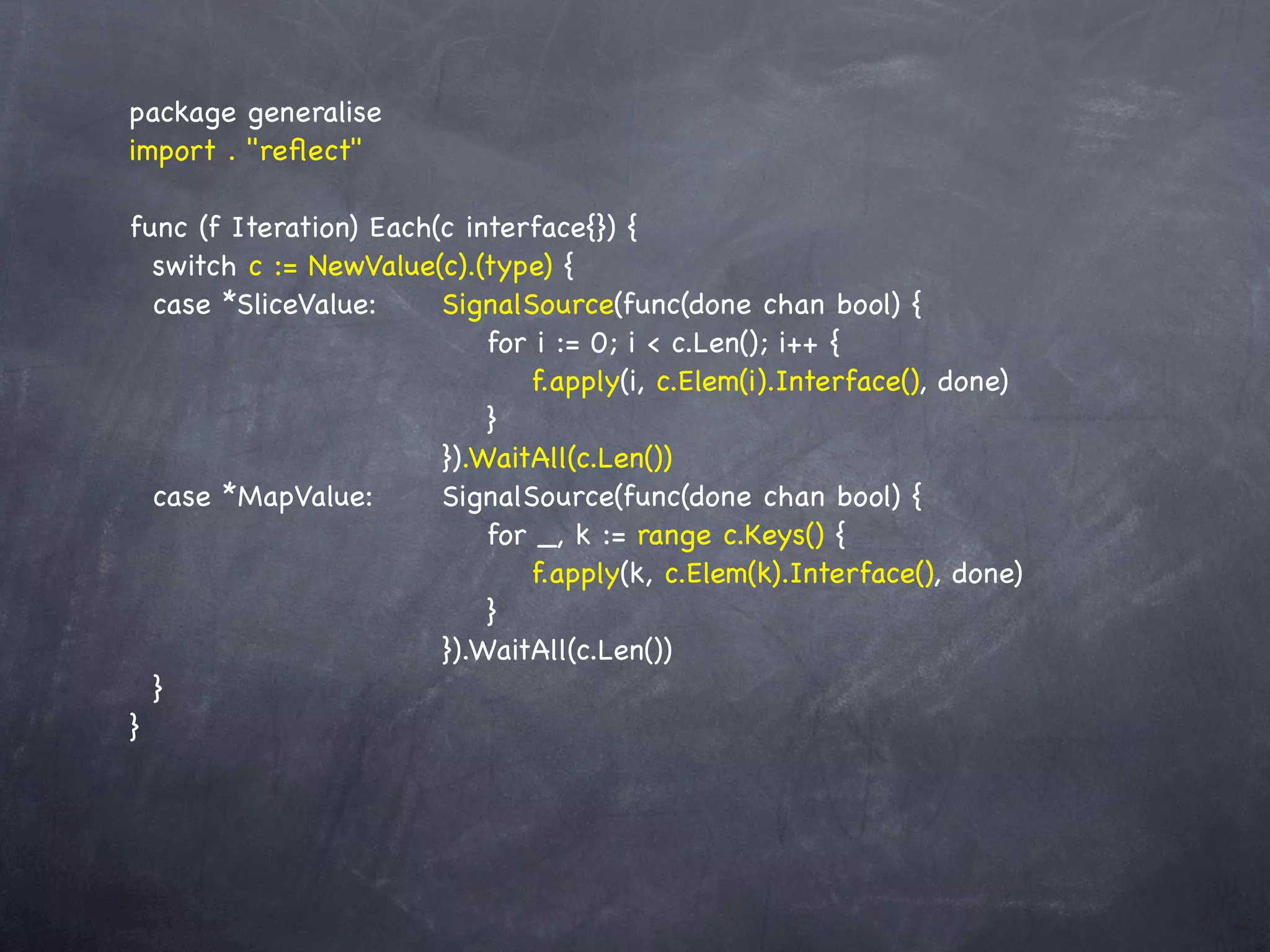

package generalise
import . "reﬂect"

func (f Iteration) Each(c interface{}) {
switch c := NewValue(c).(type) {
case *SliceValue:! ! SignalSource(func(done chan bool) {
! ! ! ! ! ! for i := 0; i < c.Len(); i++ {
! ! ! ! ! ! ! f.apply(i, c.Elem(i).Interface(), done)
! ! ! ! ! ! }
! ! ! ! ! ! }).WaitAll(c.Len())
case *MapValue:! ! SignalSource(func(done chan bool) {
! ! ! ! ! ! for _, k := range c.Keys() {
! ! ! ! ! ! ! f.apply(k, c.Elem(k).Interface(), done)
! ! ! ! ! ! }
! ! ! ! ! ! }).WaitAll(c.Len())
}
}

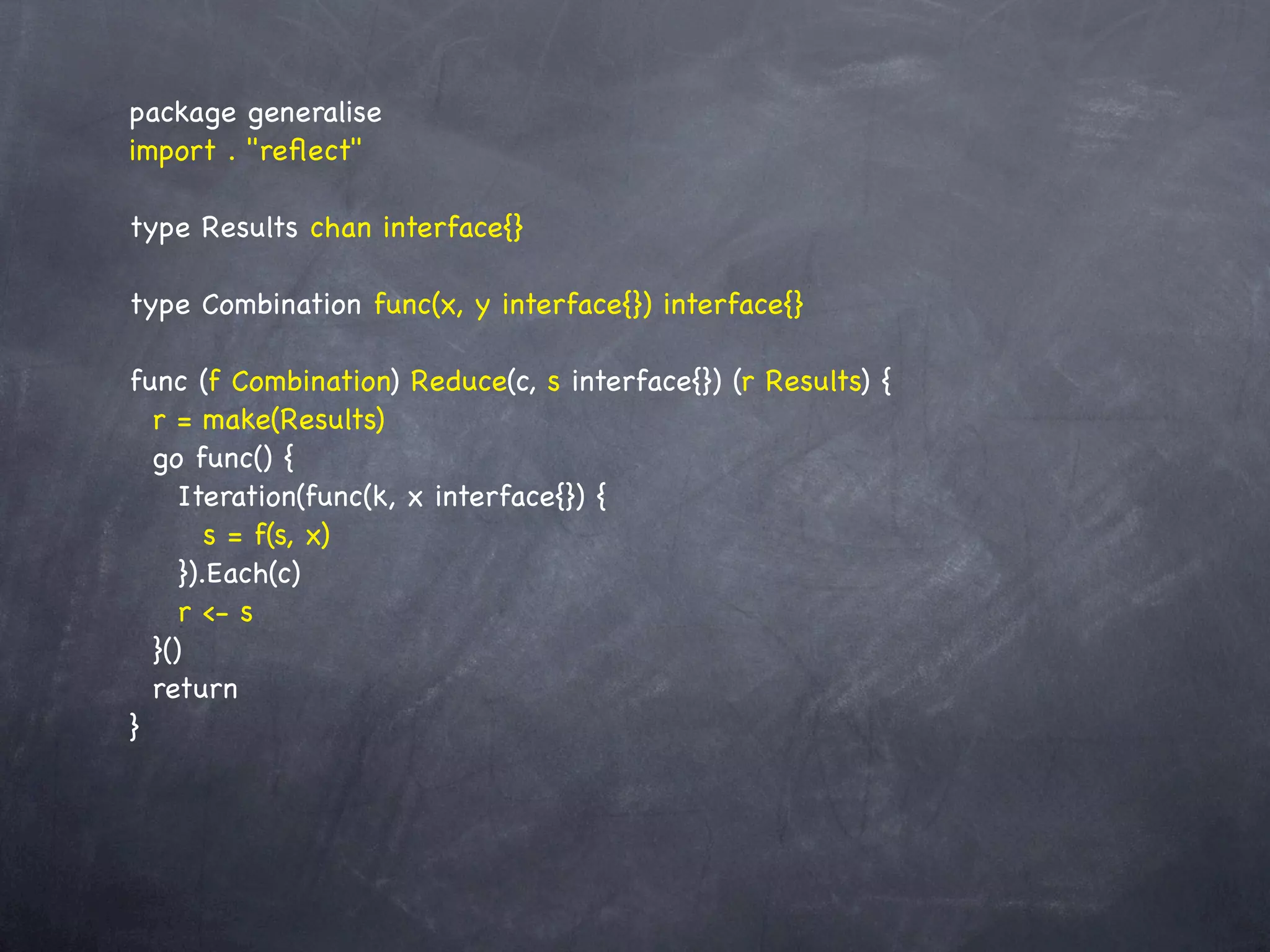

package generalise
import . "reﬂect"

type Results chan interface{}

type Combination func(x, y interface{}) interface{}

func (f Combination) Reduce(c, s interface{}) (r Results) {
r = make(Results)
go func() {
Iteration(func(k, x interface{}) {
s = f(s, x)
}).Each(c)
r <- s
}()
return
}

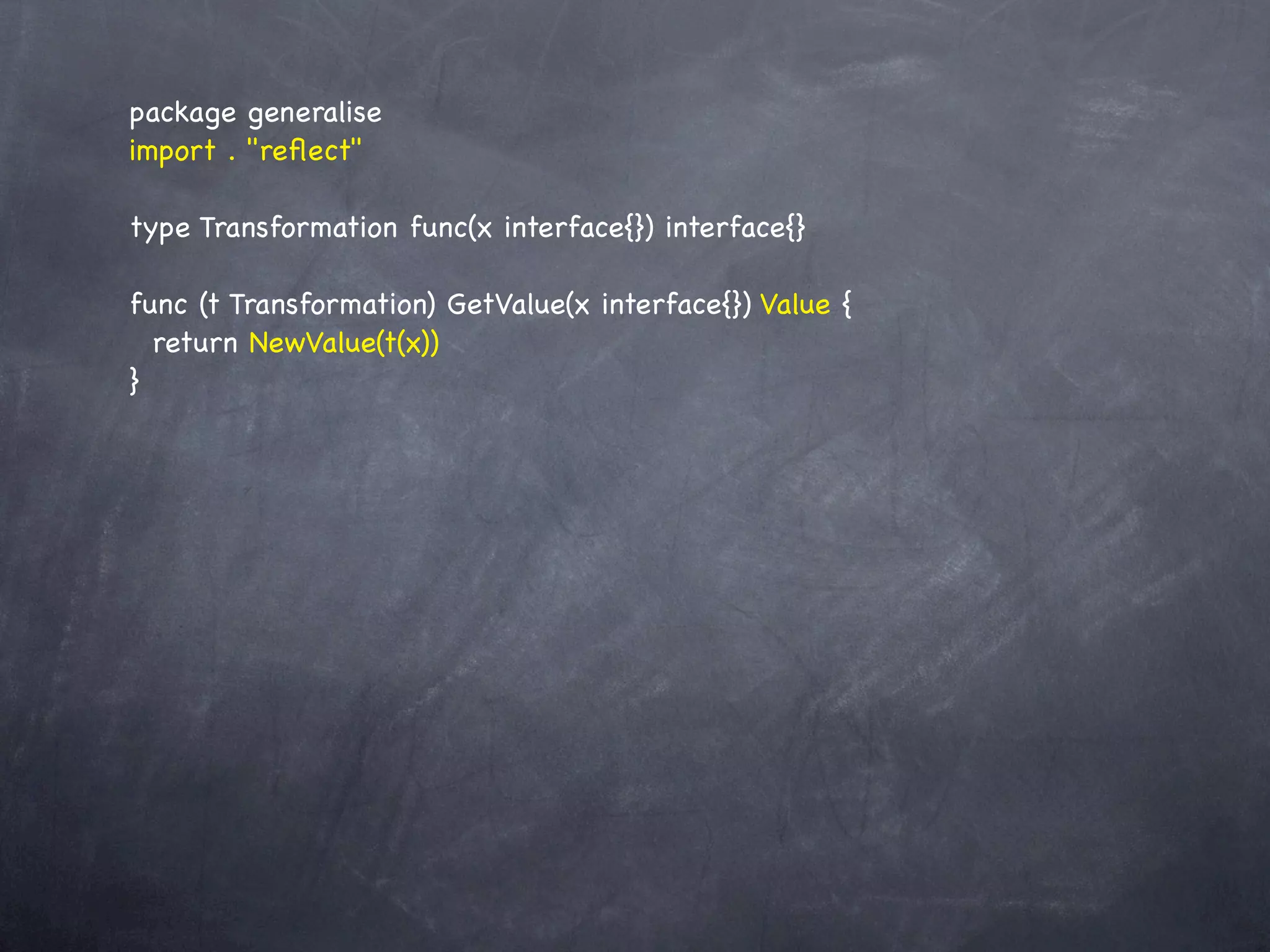

package generalise
import . "reﬂect"

type Transformation func(x interface{}) interface{}

func (t Transformation) GetValue(x interface{}) Value {
return NewValue(t(x))
}

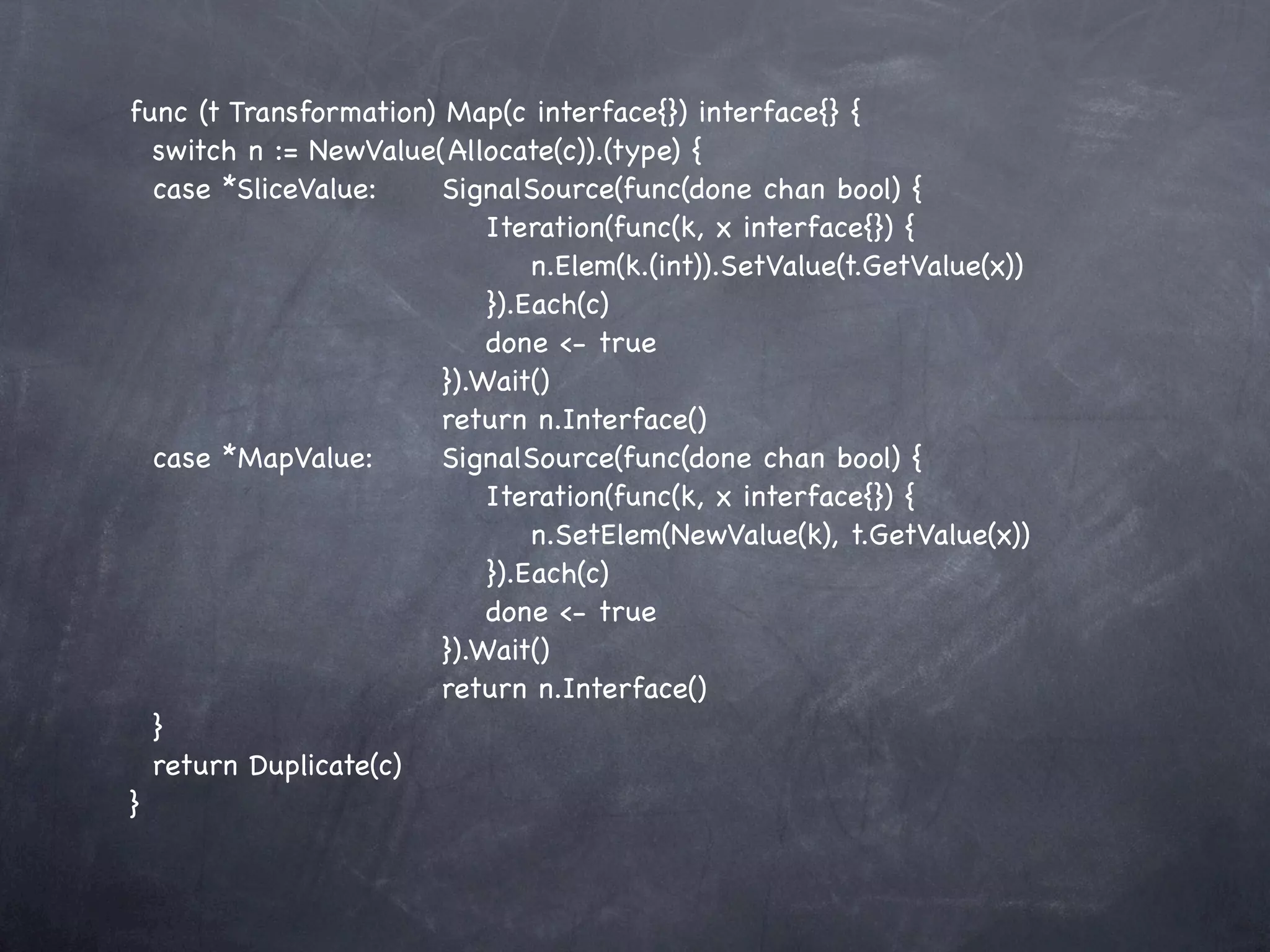

func (t Transformation) Map(c interface{}) interface{} {
switch n := NewValue(Allocate(c)).(type) {
case *SliceValue:! ! SignalSource(func(done chan bool) {
! ! ! ! ! ! ! Iteration(func(k, x interface{}) {
! ! ! ! ! ! ! ! n.Elem(k.(int)).SetValue(t.GetValue(x))
! ! ! ! ! ! }).Each(c)
! ! ! ! ! ! done <- true
! ! ! ! ! ! }).Wait()
! ! ! ! ! ! return n.Interface()
case *MapValue:! ! SignalSource(func(done chan bool) {
! ! ! ! ! ! ! Iteration(func(k, x interface{}) {
! ! ! ! ! ! ! ! n.SetElem(NewValue(k), t.GetValue(x))
! ! ! ! ! ! ! }).Each(c)
! ! ! ! ! ! done <- true
! ! ! ! ! ! }).Wait()
! ! ! ! ! ! return n.Interface()
}
return Duplicate(c)
}

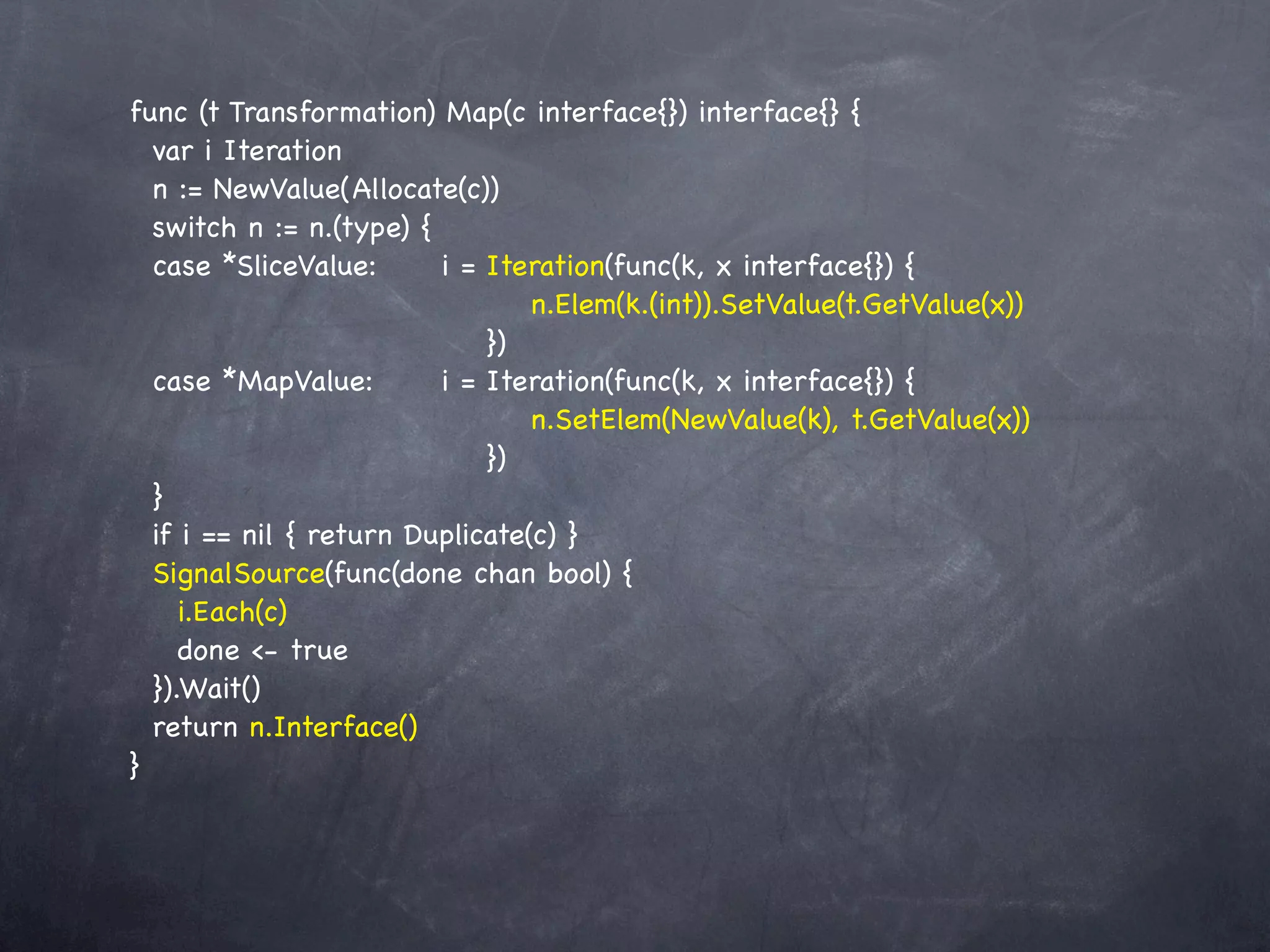

func (t Transformation) Map(c interface{}) interface{} {
var i Iteration
n := NewValue(Allocate(c))
switch n := n.(type) {
case *SliceValue:! ! i = Iteration(func(k, x interface{}) {
! ! ! ! ! ! ! ! n.Elem(k.(int)).SetValue(t.GetValue(x))
! ! ! ! ! ! })
case *MapValue:! ! i = Iteration(func(k, x interface{}) {
! ! ! ! ! ! ! ! n.SetElem(NewValue(k), t.GetValue(x))
! ! ! ! ! ! ! })
}
if i == nil { return Duplicate(c) }
SignalSource(func(done chan bool) {
i.Each(c)
done <- true
}).Wait()
return n.Interface()
}

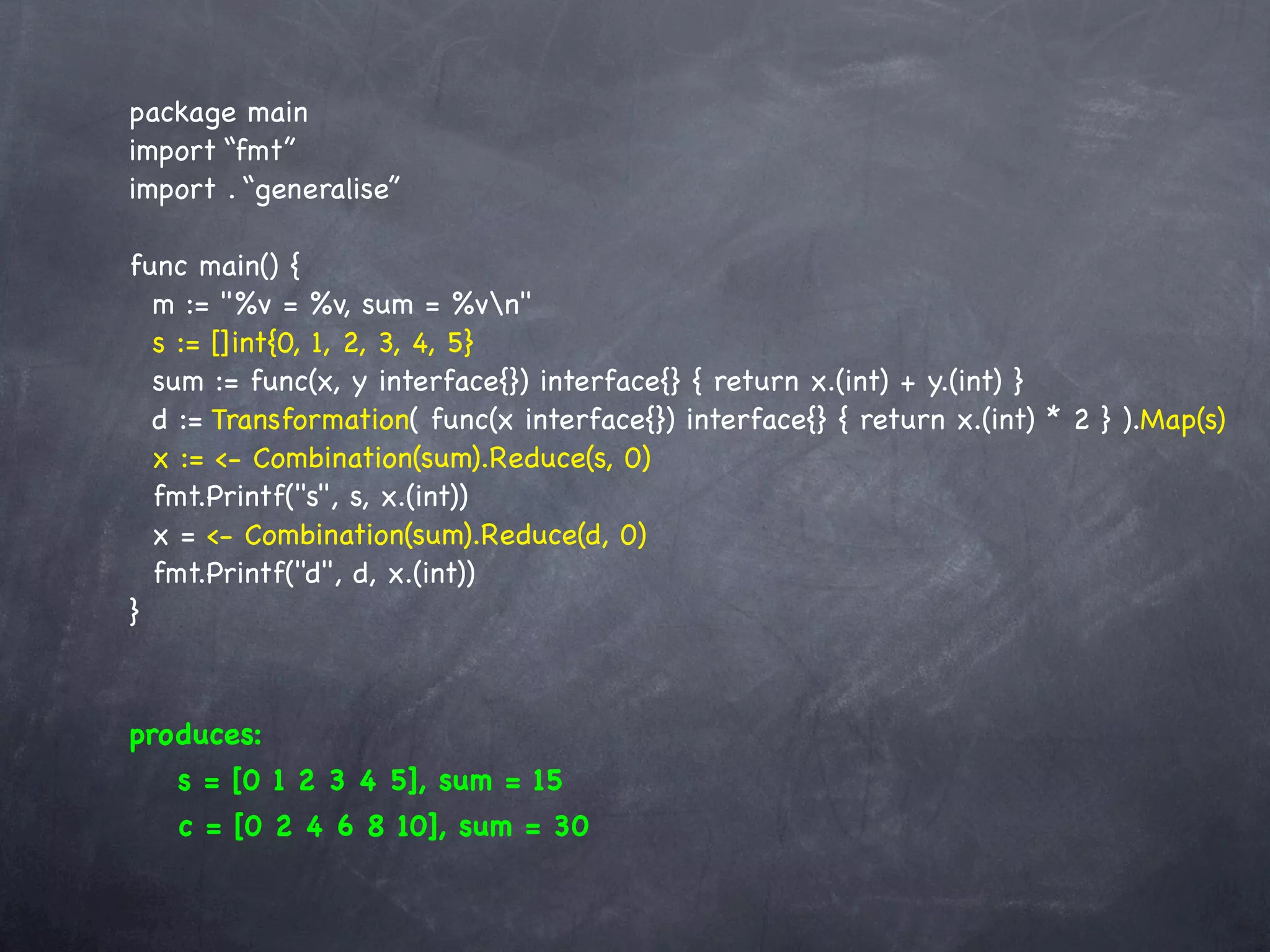

package main
import “fmt”
import . “generalise”

func main() {
m := "%v = %v, sum = %vn"
s := []int{0, 1, 2, 3, 4, 5}
sum := func(x, y interface{}) interface{} { return x.(int) + y.(int) }
d := Transformation( func(x interface{}) interface{} { return x.(int) * 2 } ).Map(s)
x := <- Combination(sum).Reduce(s, 0)
fmt.Printf("s", s, x.(int))
x = <- Combination(sum).Reduce(d, 0)
fmt.Printf("d", d, x.(int))
}

produces:
s = [0 1 2 3 4 5], sum = 15
c = [0 2 4 6 8 10], sum = 30

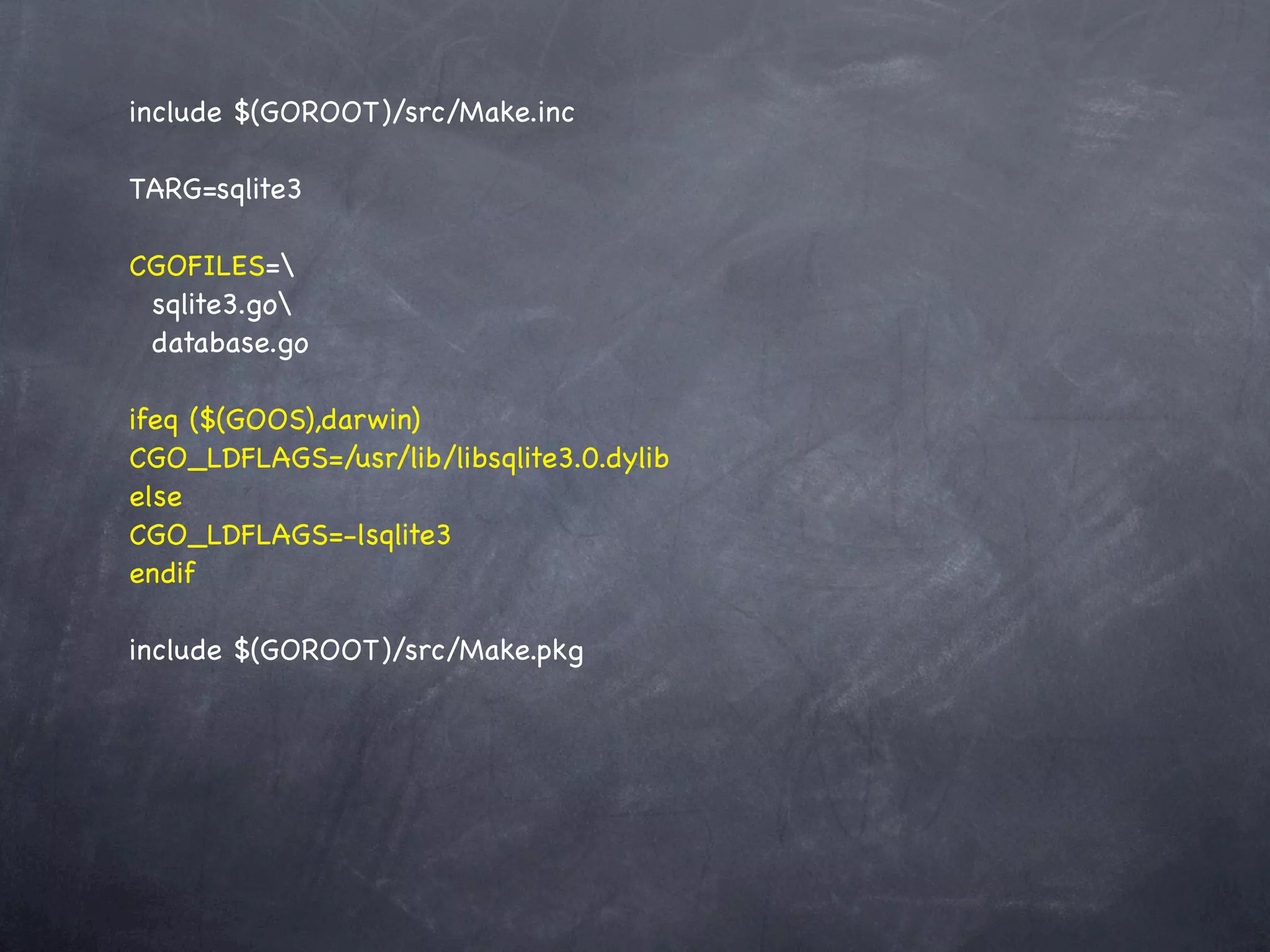

TARG=sqlite3

CGOFILES=
sqlite3.go
database.go

ifeq ($(GOOS),darwin)
CGO_LDFLAGS=/usr/lib/libsqlite3.0.dylib
else
CGO_LDFLAGS=-lsqlite3
endif

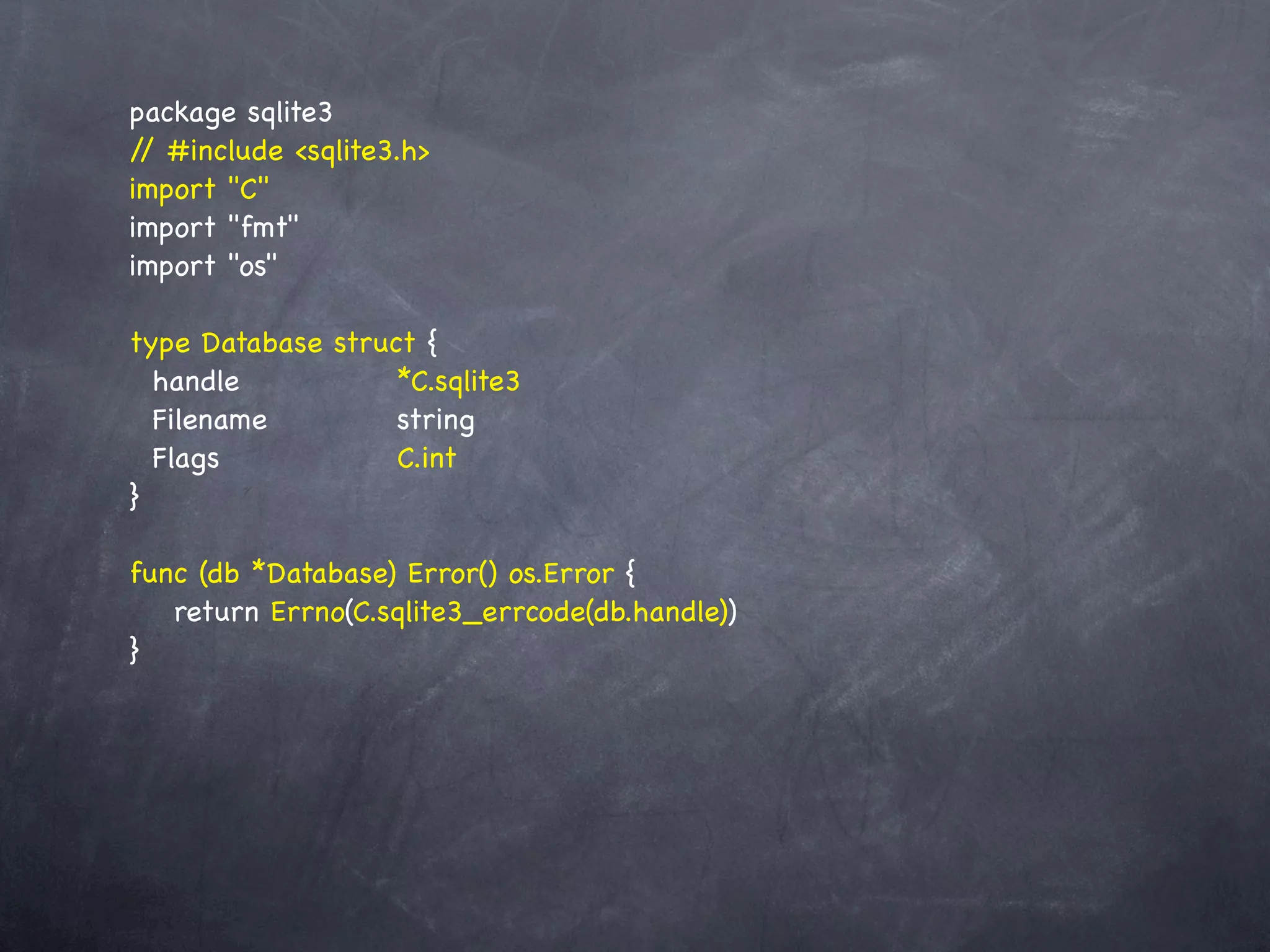

package sqlite3
/ #include <sqlite3.h>
/
import "C"
import "fmt"
import "os"

type Database struct {
handle! ! ! ! *C.sqlite3
Filename! ! ! string
Flags! ! ! ! C.int
}

func (db *Database) Error() os.Error {
! return Errno(C.sqlite3_errcode(db.handle))
}

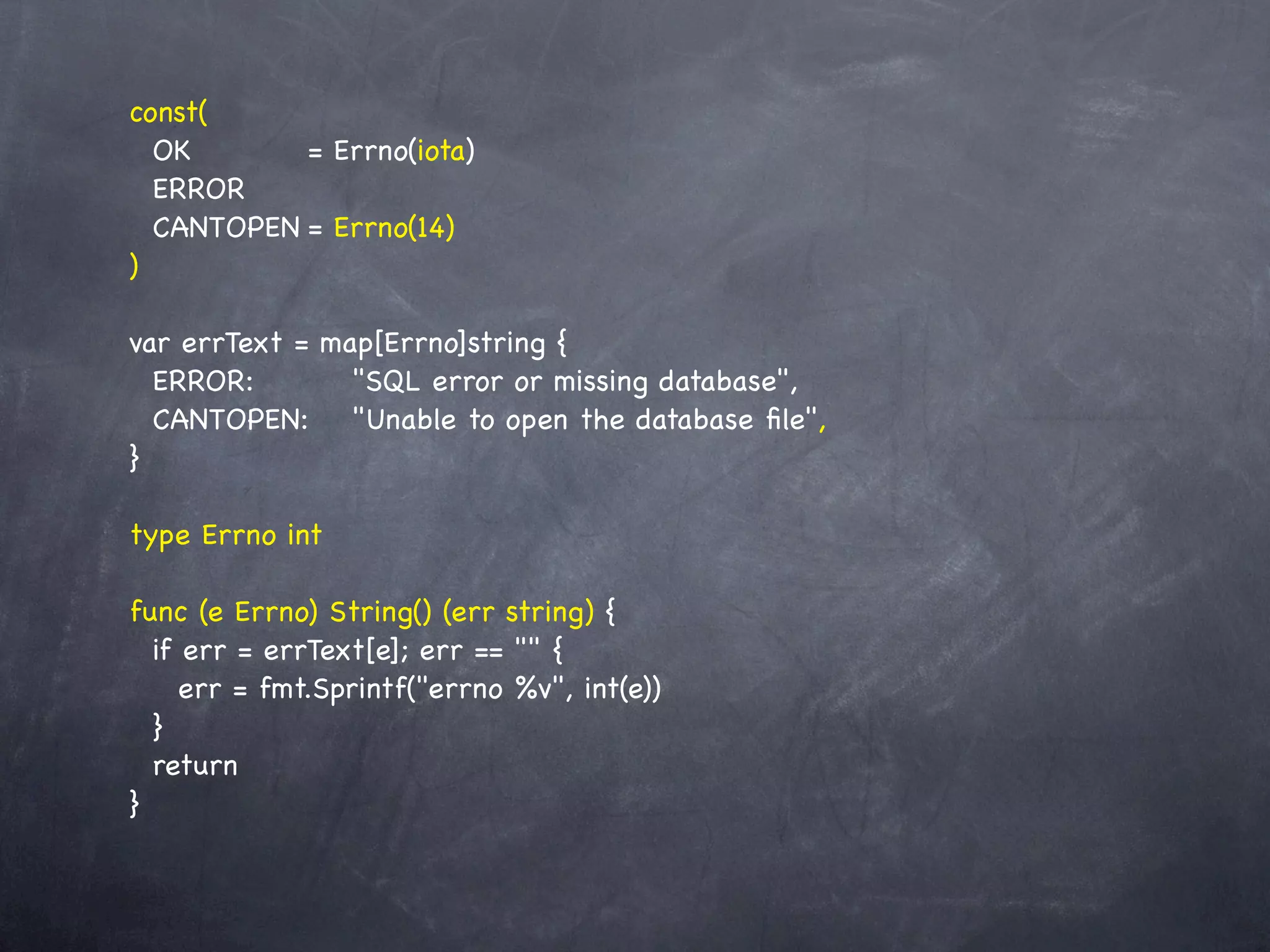

const(
OK! ! ! = Errno(iota)
ERROR
CANTOPEN!= Errno(14)
)

var errText = map[Errno]string {
ERROR: ! ! "SQL error or missing database",
CANTOPEN:! "Unable to open the database ﬁle",
}

type Errno int

func (e Errno) String() (err string) {
if err = errText[e]; err == "" {
err = fmt.Sprintf("errno %v", int(e))
}
return
}

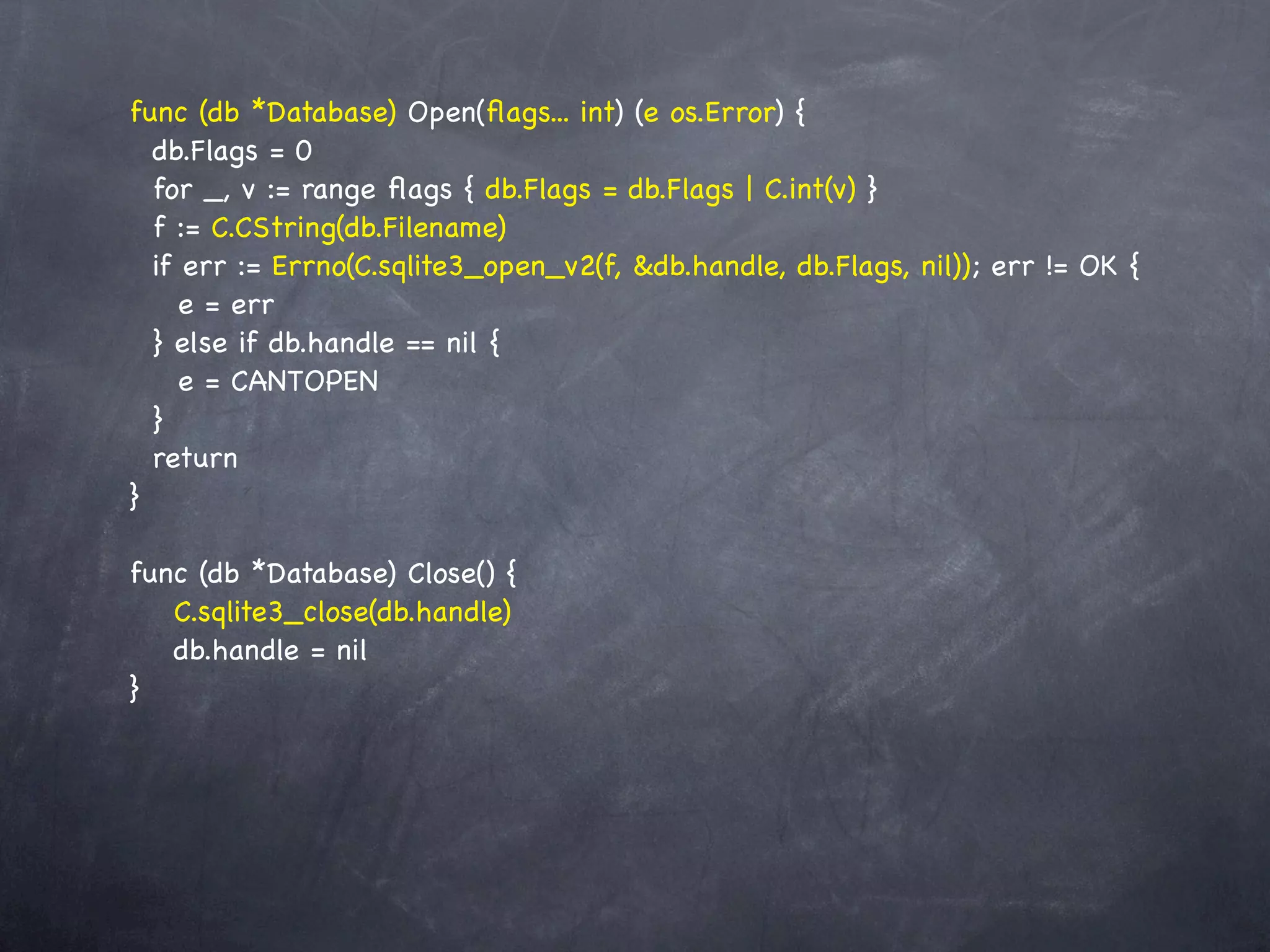

func (db *Database) Open(ﬂags... int) (e os.Error) {
db.Flags = 0
for _, v := range ﬂags { db.Flags = db.Flags | C.int(v) }
f := C.CString(db.Filename)
if err := Errno(C.sqlite3_open_v2(f, &db.handle, db.Flags, nil)); err != OK {
e = err
} else if db.handle == nil {
e = CANTOPEN
}
return
}

func (db *Database) Close() {
! C.sqlite3_close(db.handle)
! db.handle = nil
}

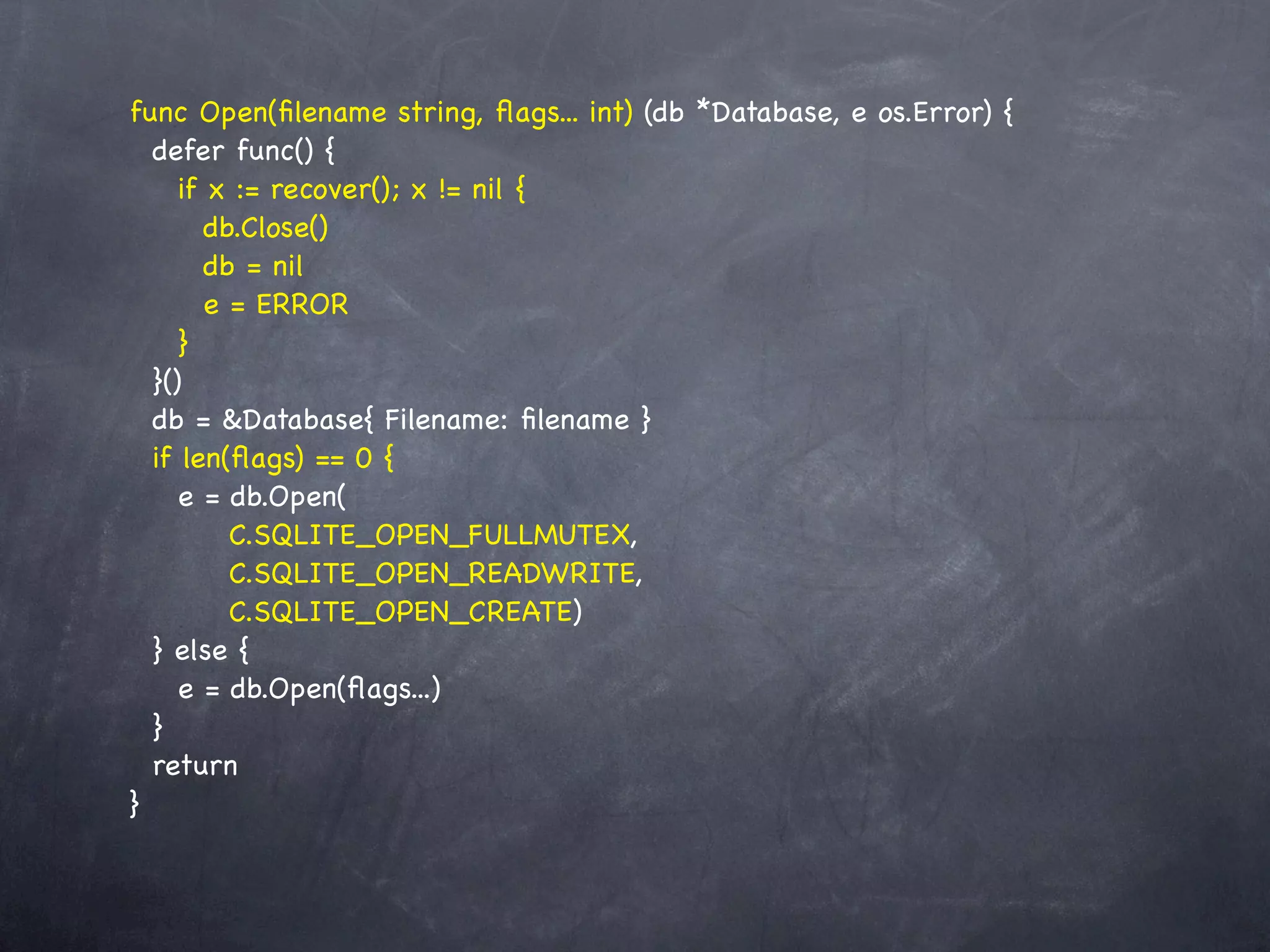

func Open(filename string, flags... int) (db *Database, e os.Error) {
defer func() {
if x := recover(); x != nil {
db.Close()
db = nil
e = ERROR
}
}()
db = &Database{ Filename: filename }
if len(flags) == 0 {
e = db.Open(
C.SQLITE_OPEN_FULLMUTEX,
C.SQLITE_OPEN_READWRITE,
C.SQLITE_OPEN_CREATE)
} else {
e = db.Open(flags...)
}
return
}

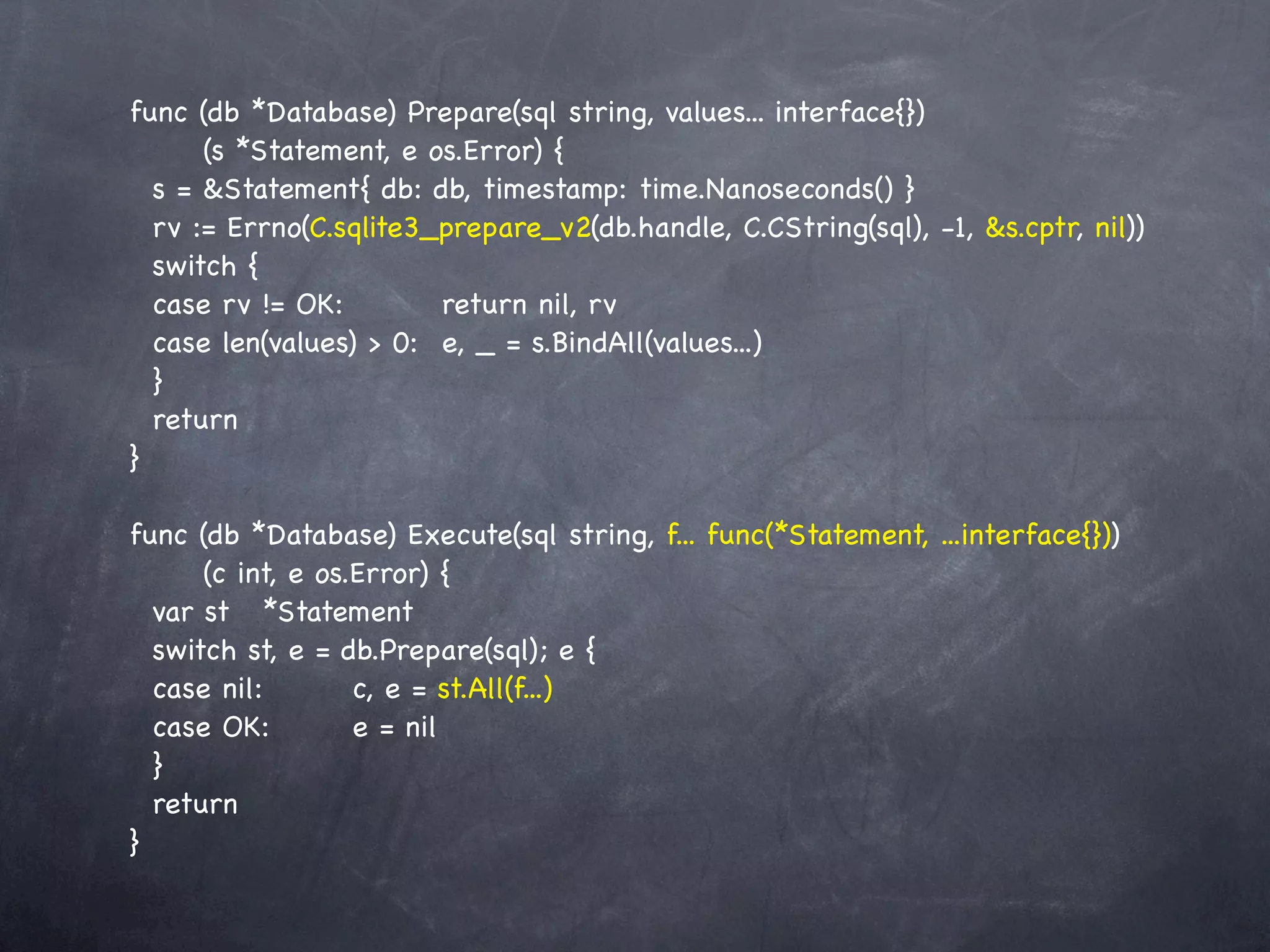

func (db *Database) Prepare(sql string, values... interface{})
(s *Statement, e os.Error) {
s = &Statement{ db: db, timestamp: time.Nanoseconds() }
rv := Errno(C.sqlite3_prepare_v2(db.handle, C.CString(sql), -1, &s.cptr, nil))
switch {
case rv != OK:!! ! return nil, rv
case len(values) > 0:! e, _ = s.BindAll(values...)
}
return
}

func (db *Database) Execute(sql string, f... func(*Statement, ...interface{}))
(c int, e os.Error) {
var st! *Statement
switch st, e = db.Prepare(sql); e {
case nil:! ! c, e = st.All(f...)
!
case OK:! ! e = nil
}
return
}

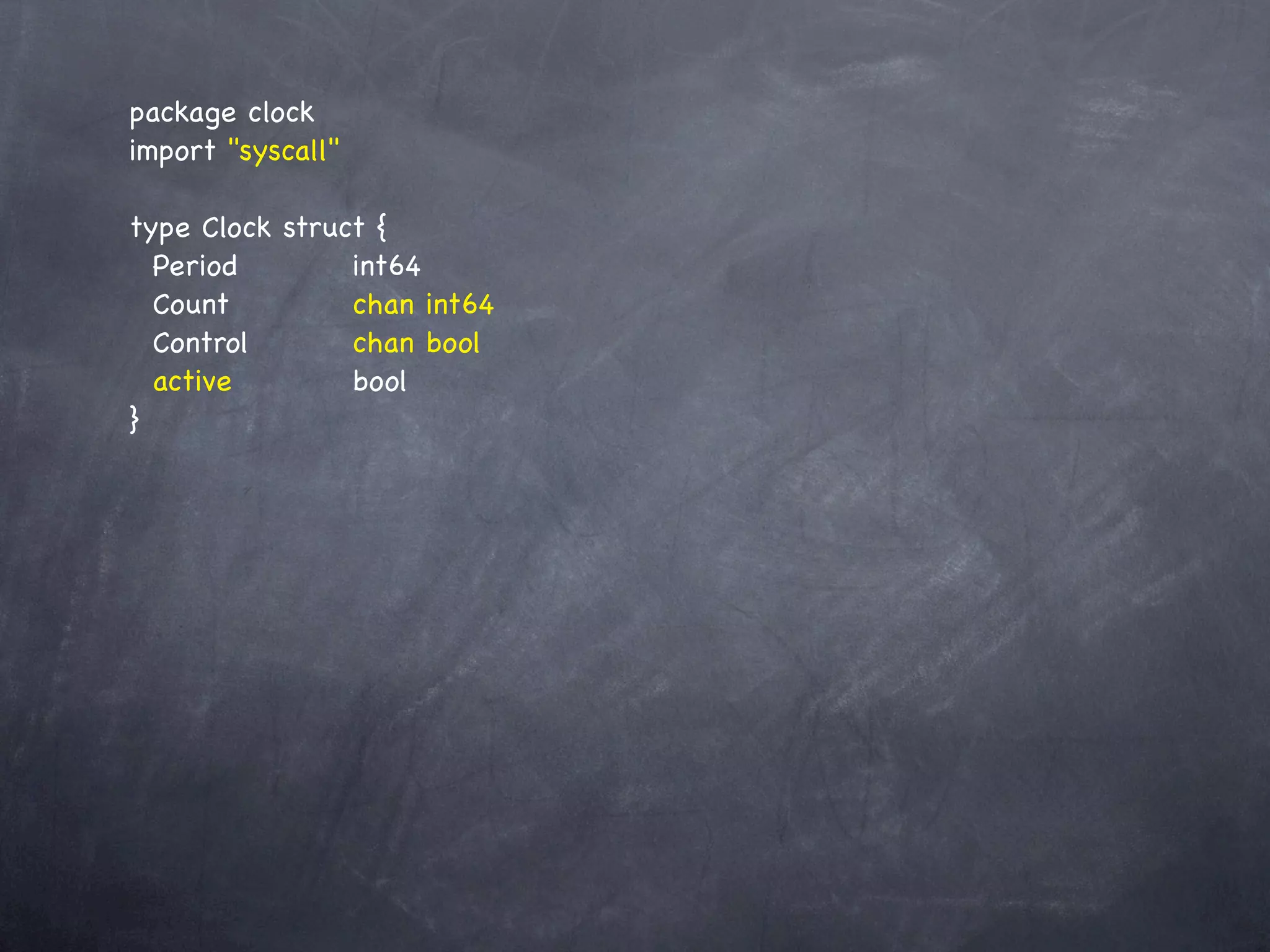

package clock
import "syscall"

type Clock struct {
Period! ! ! int64
Count! ! ! chan int64
Control!! ! chan bool
active! ! ! bool
}

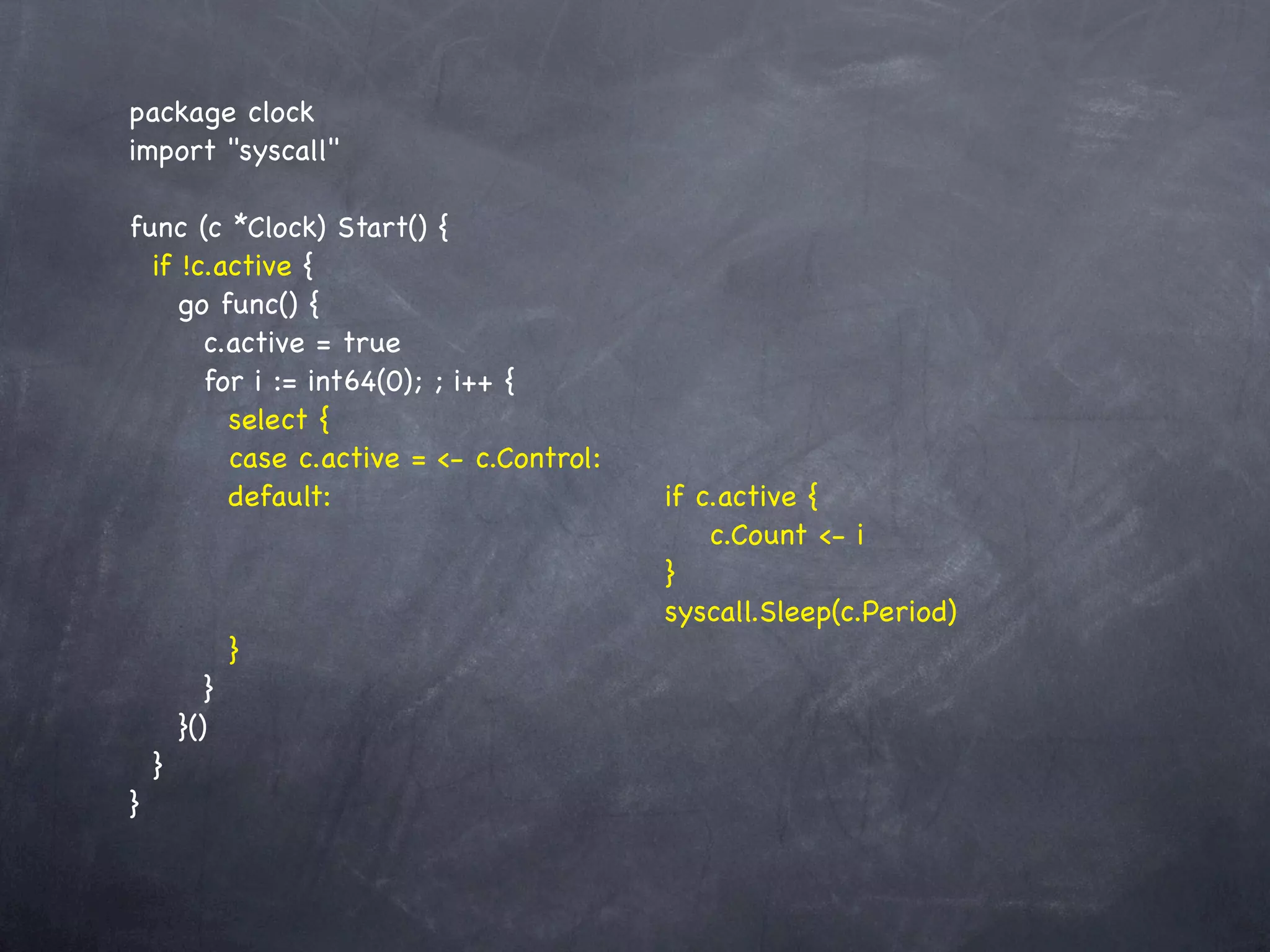

package clock
import "syscall"

func (c *Clock) Start() {
if !c.active {
go func() {
c.active = true
for i := int64(0); ; i++ {
select {
case c.active = <- c.Control:
default:! ! ! ! ! ! ! ! if c.active {
! ! ! ! ! ! ! ! ! ! ! c.Count <- i
! ! ! ! ! ! ! ! ! ! }
! ! ! ! ! ! ! ! ! syscall.Sleep(c.Period)
}
}
}()
}
}

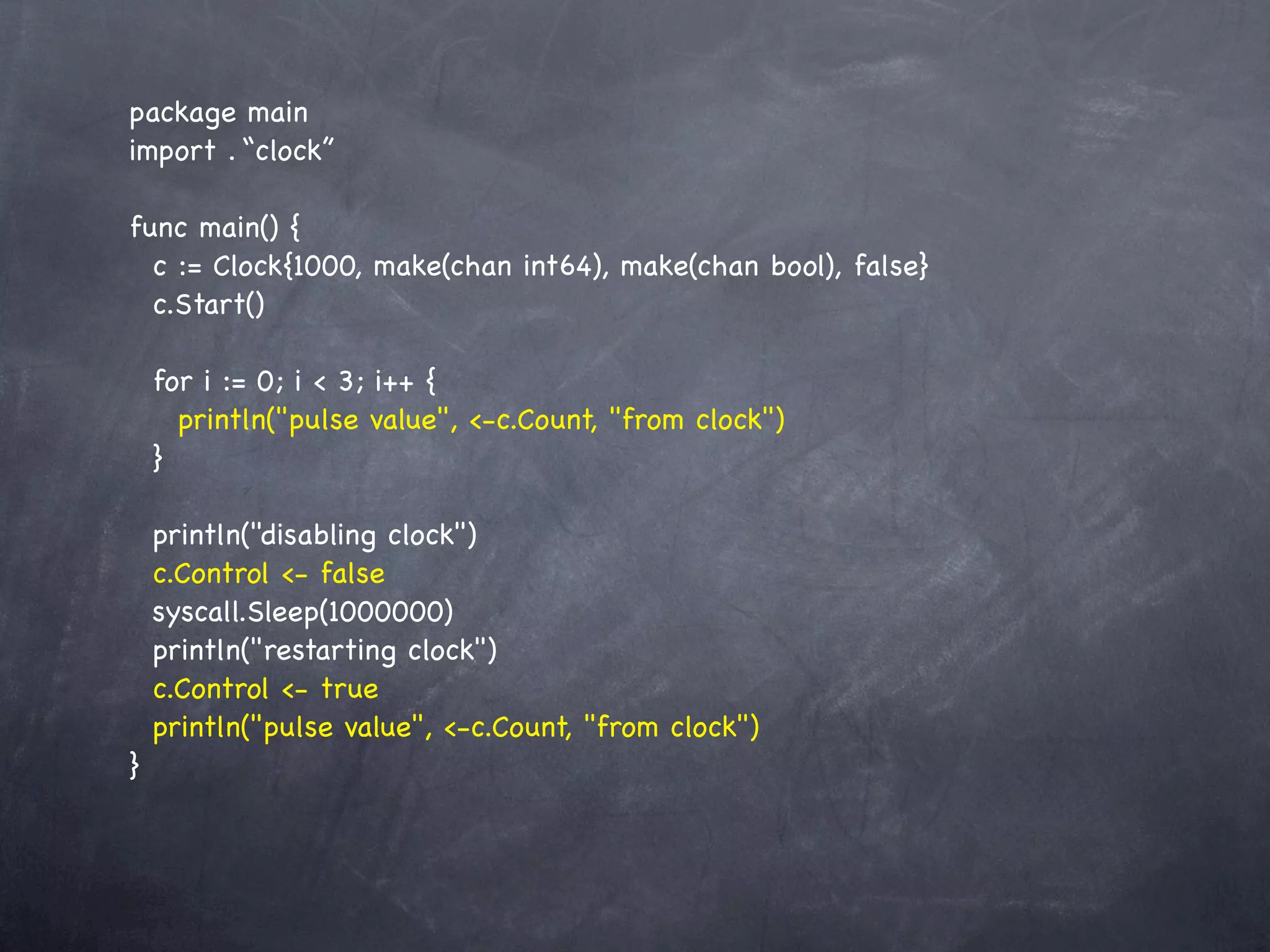

package main
import . “clock”

func main() {
c := Clock{1000, make(chan int64), make(chan bool), false}
c.Start()

for i := 0; i < 3; i++ {
println("pulse value", <-c.Count, "from clock")
}

println("disabling clock")
c.Control <- false
syscall.Sleep(1000000)
println("restarting clock")
c.Control <- true
println("pulse value", <-c.Count, "from clock")
}

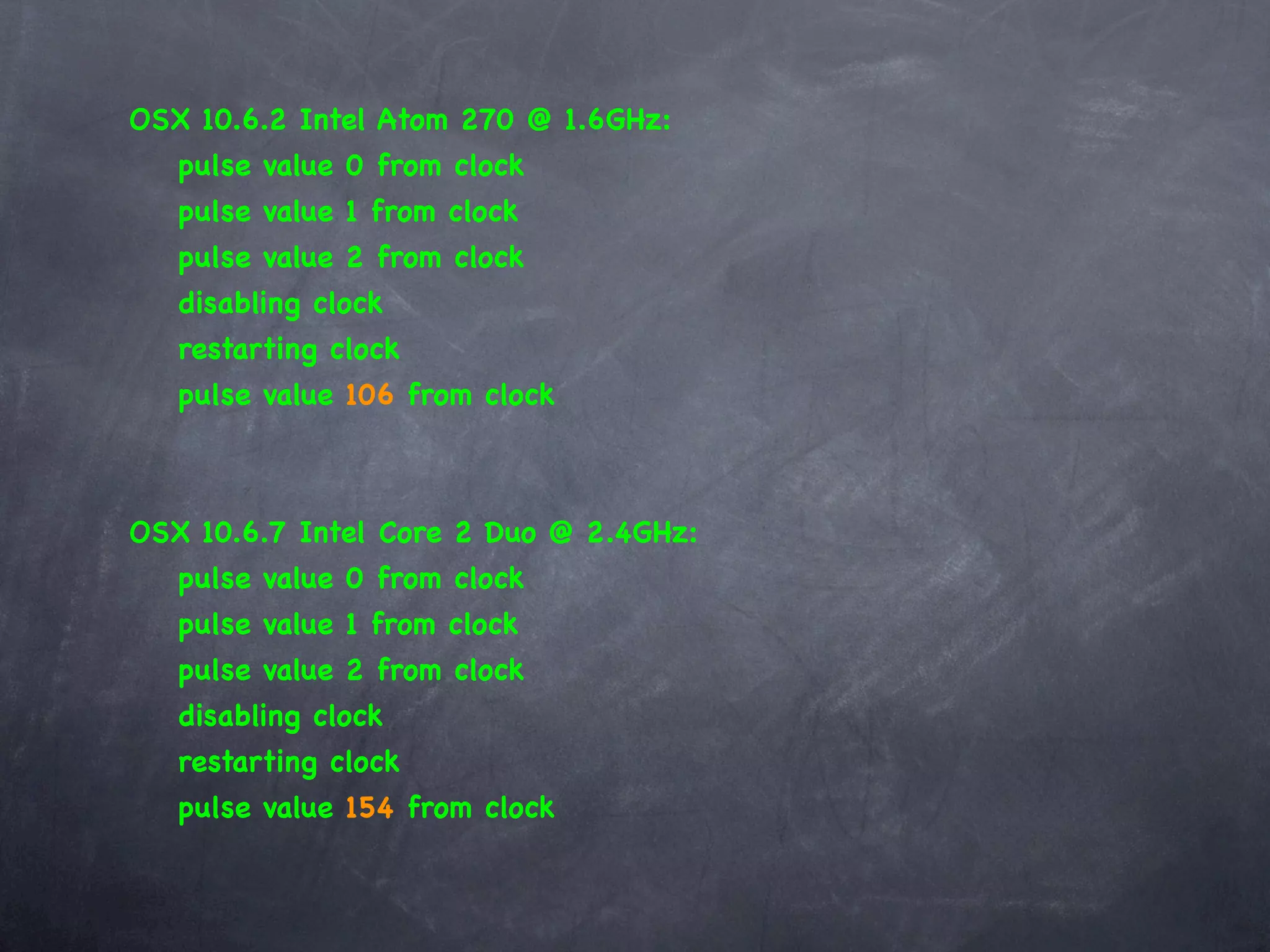

OSX 10.6.2 Intel Atom 270 @ 1.6GHz:
pulse value 0 from clock
disabling clock
restarting clock

OSX 10.6.7 Intel Core 2 Duo @ 2.4GHz:
disabling clock
restarting clock

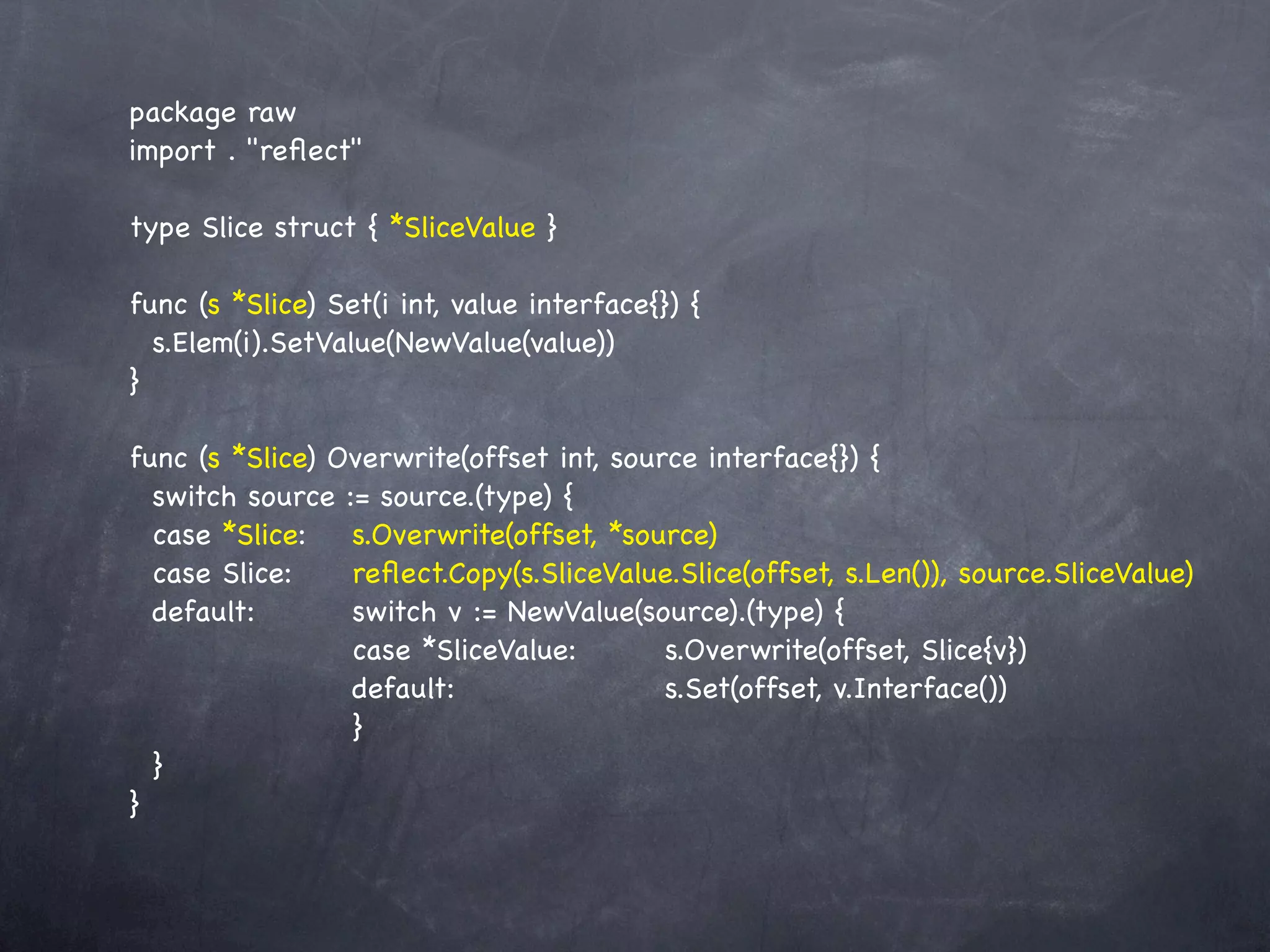

package raw
import . "reﬂect"

type Slice struct { *SliceValue }

func (s *Slice) Set(i int, value interface{}) {
s.Elem(i).SetValue(NewValue(value))
}

func (s *Slice) Overwrite(offset int, source interface{}) {
switch source := source.(type) {
case *Slice:! s.Overwrite(offset, *source)
!
case Slice:!! reﬂect.Copy(s.SliceValue.Slice(offset, s.Len()), source.SliceValue)
default:!! ! switch v := NewValue(source).(type) {
! ! ! ! ! case *SliceValue:! ! s.Overwrite(offset, Slice{v})
! ! ! ! ! default:! ! ! ! ! s.Set(offset, v.Interface())
! ! ! ! ! }
}
}

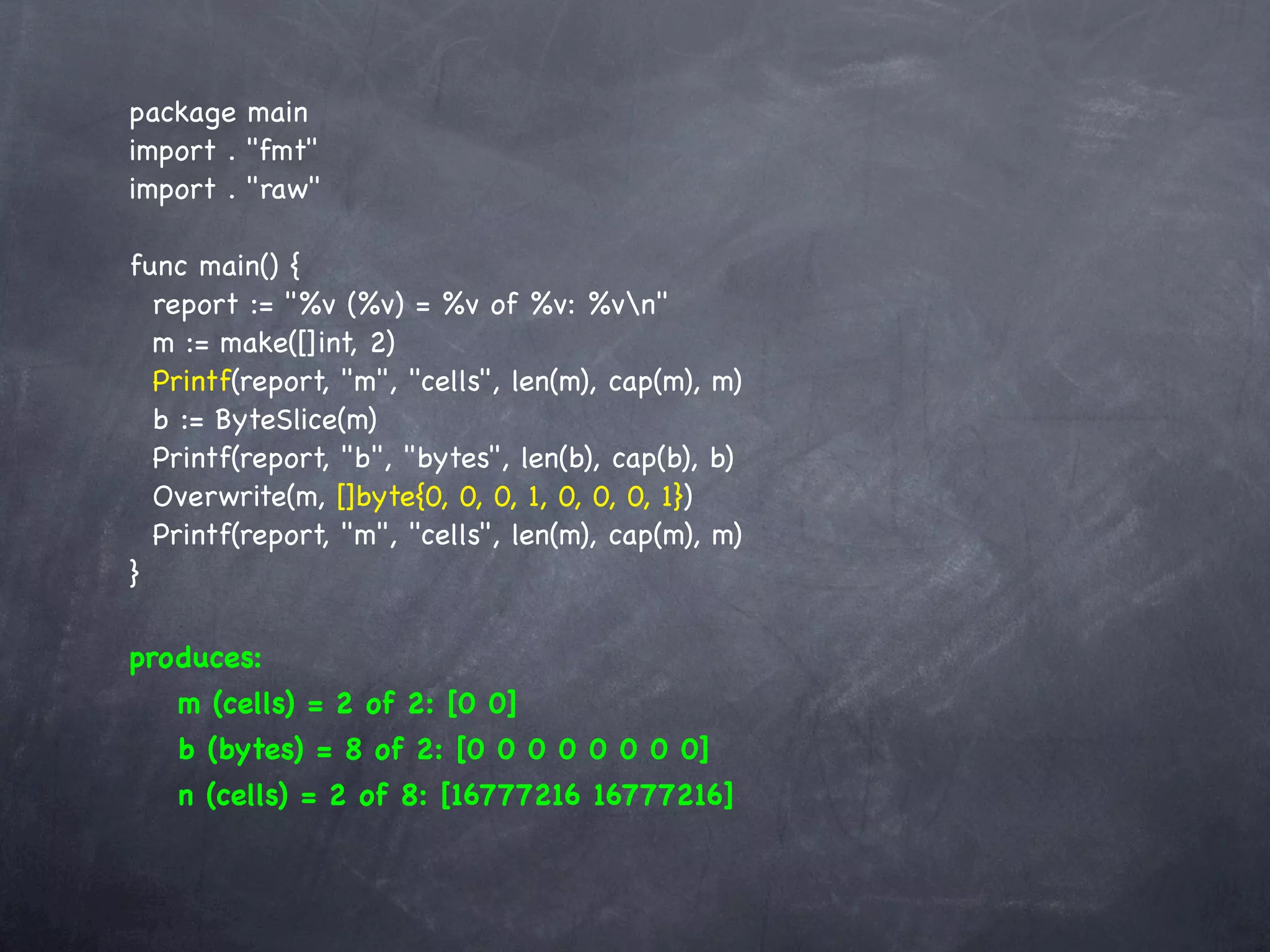

package main
import . "fmt"
import . "raw"

func main() {
report := "%v (%v) = %v of %v: %vn"
m := make([]int, 2)
Printf(report, "m", "cells", len(m), cap(m), m)
b := ByteSlice(m)
Printf(report, "b", "bytes", len(b), cap(b), b)
Overwrite(m, []byte{0, 0, 0, 1, 0, 0, 0, 1})
Printf(report, "m", "cells", len(m), cap(m), m)
}

produces:
m (cells) = 2 of 2: [0 0]
b (bytes) = 8 of 2: [0 0 0 0 0 0 0 0]
n (cells) = 2 of 8: [16777216 16777216]

subtleties
von Neumann & Harvard architectures

indirection bits

byte-ordering

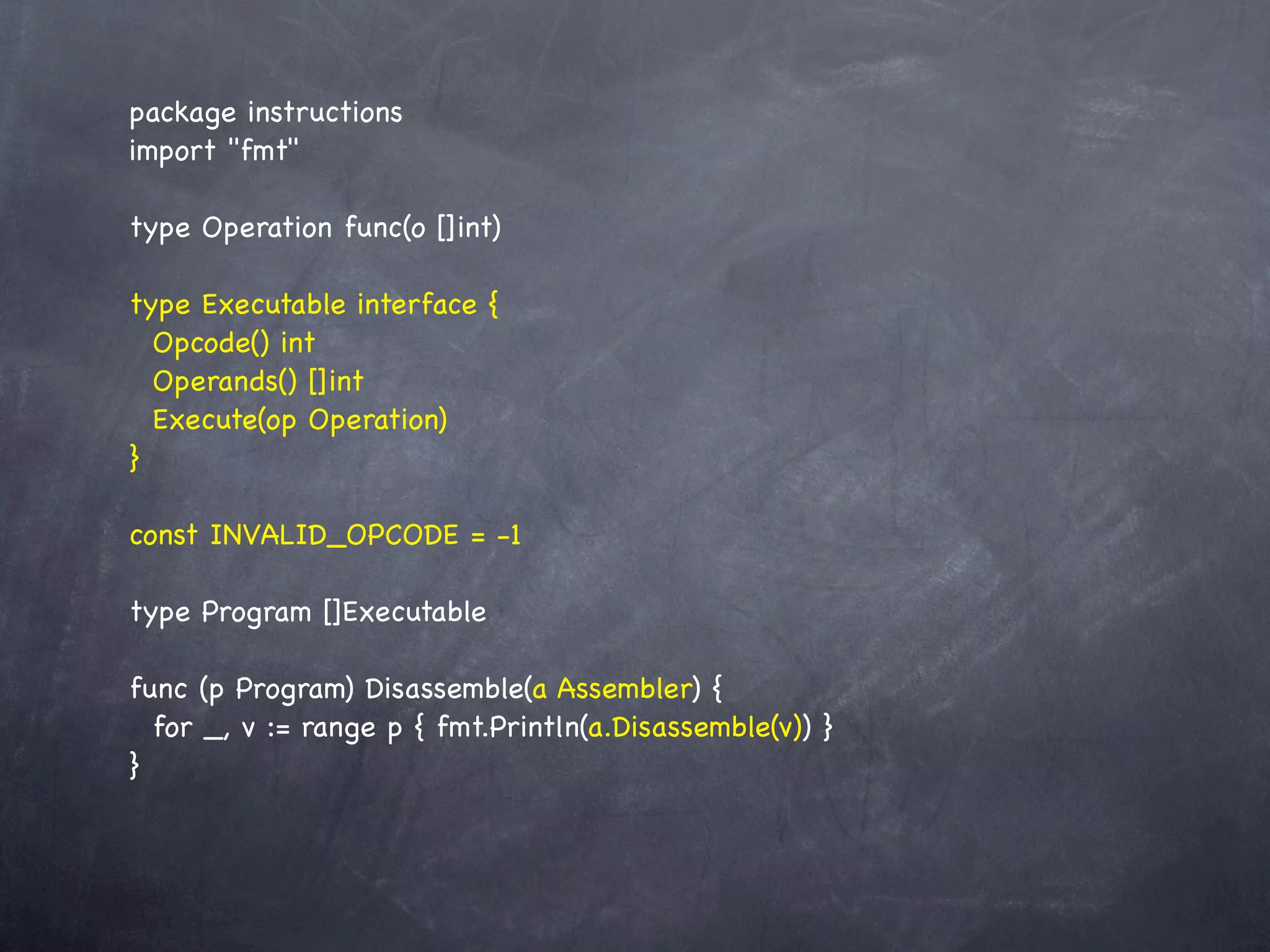

package instructions
import "fmt"

type Operation func(o []int)

type Executable interface {
Opcode() int
Operands() []int
Execute(op Operation)
}

const INVALID_OPCODE = -1

type Program []Executable

func (p Program) Disassemble(a Assembler) {
for _, v := range p { fmt.Println(a.Disassemble(v)) }
}

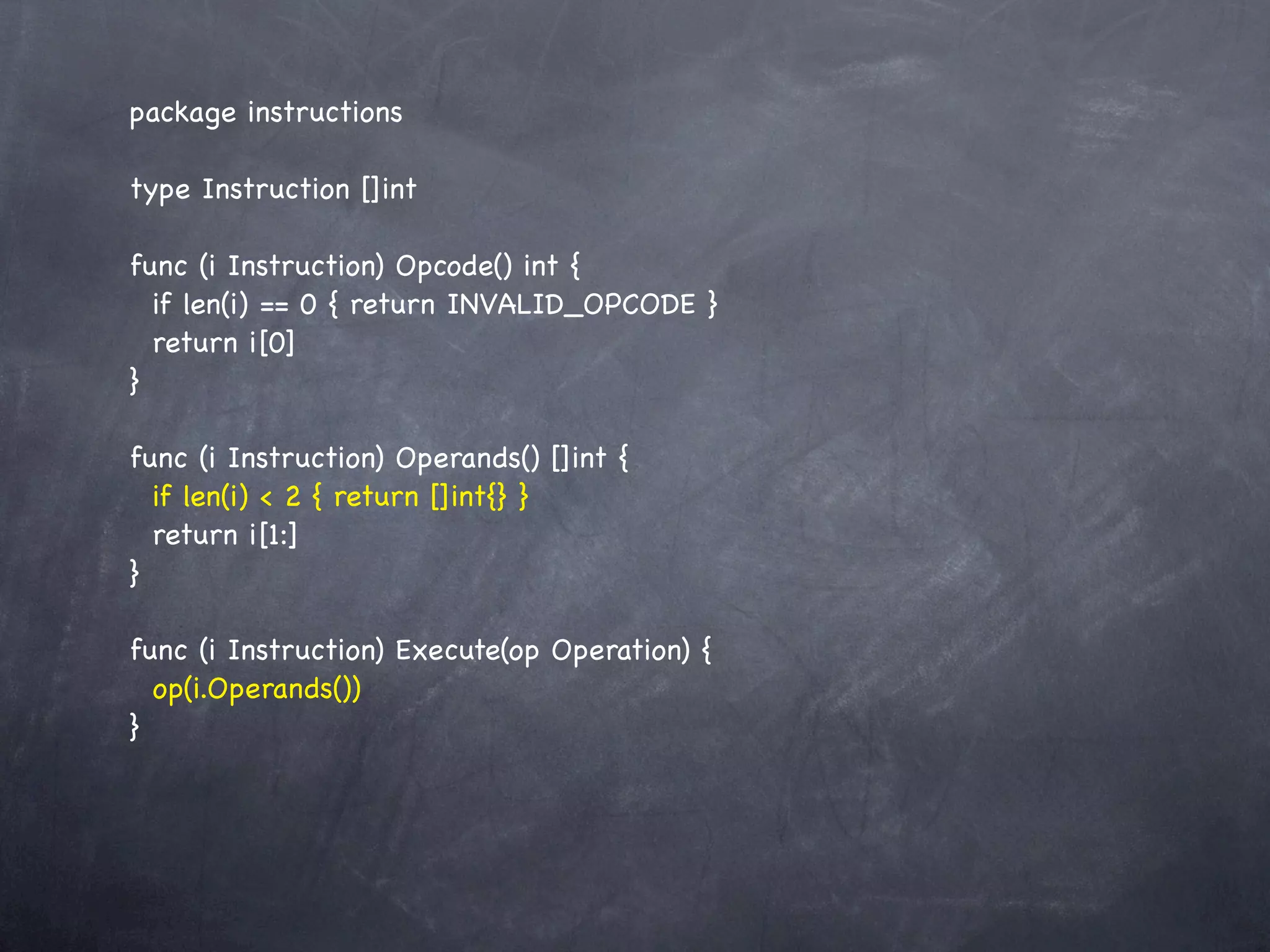

type Instruction []int

func (i Instruction) Opcode() int {
if len(i) == 0 { return INVALID_OPCODE }
return i[0]
}

func (i Instruction) Operands() []int {
if len(i) < 2 { return []int{} }
return i[1:]
}

func (i Instruction) Execute(op Operation) {
op(i.Operands())
}

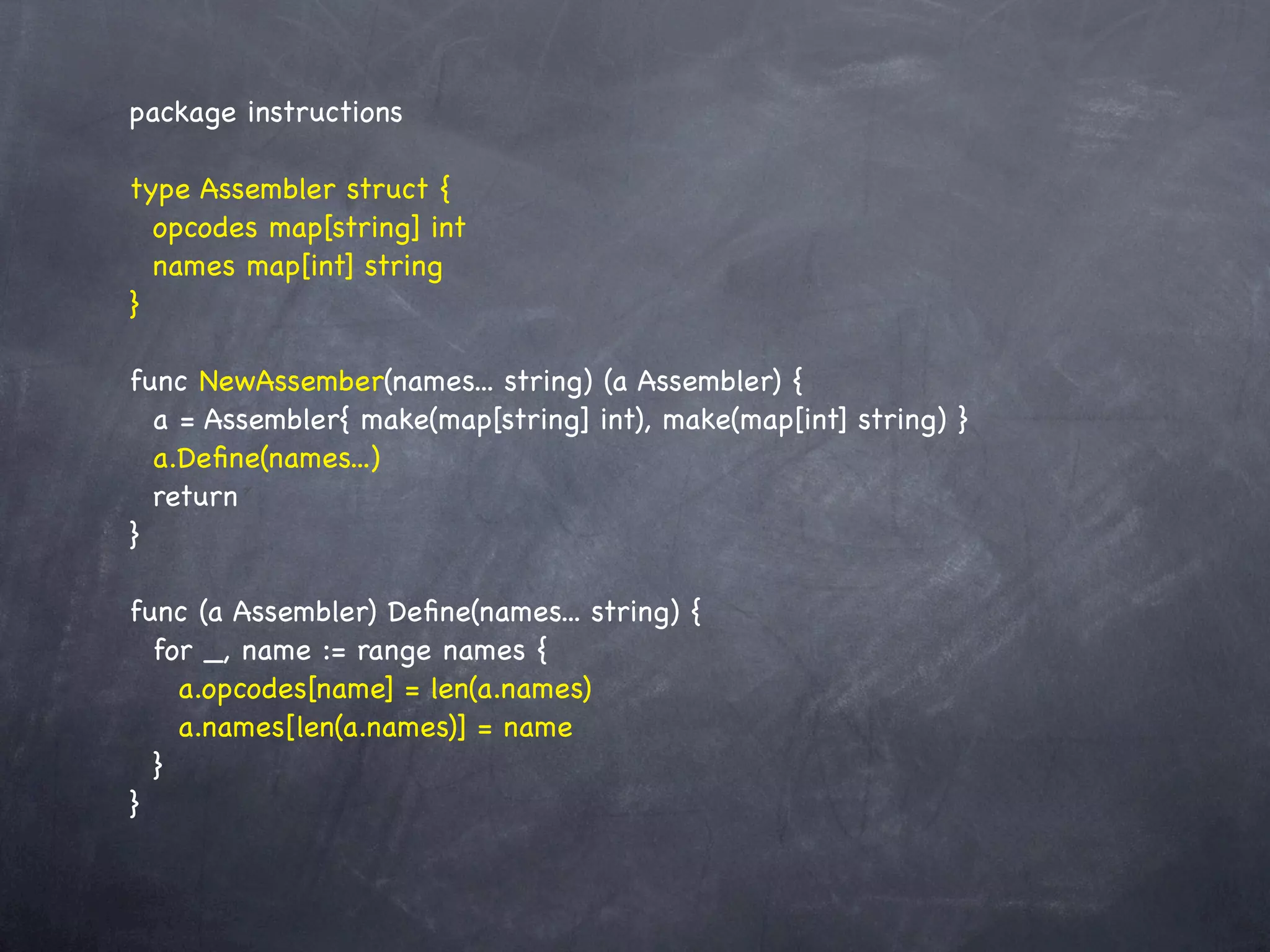

type Assembler struct {
opcodes map[string] int
names map[int] string
}

func NewAssember(names... string) (a Assembler) {
a = Assembler{ make(map[string] int), make(map[int] string) }
a.Deﬁne(names...)
return
}

func (a Assembler) Deﬁne(names... string) {
for _, name := range names {
a.opcodes[name] = len(a.names)
a.names[len(a.names)] = name
}
}


func (a Assembler) Assemble(name string, params... int) (i Instruction) {
i = make(Instruction, len(params) + 1)
switch opcode, ok := a.opcodes[name]; {
case ok:! i[0] = opcode
!
default:!! i[0] = INVALID_OPCODE
}
copy(i[1:], params)
return
}

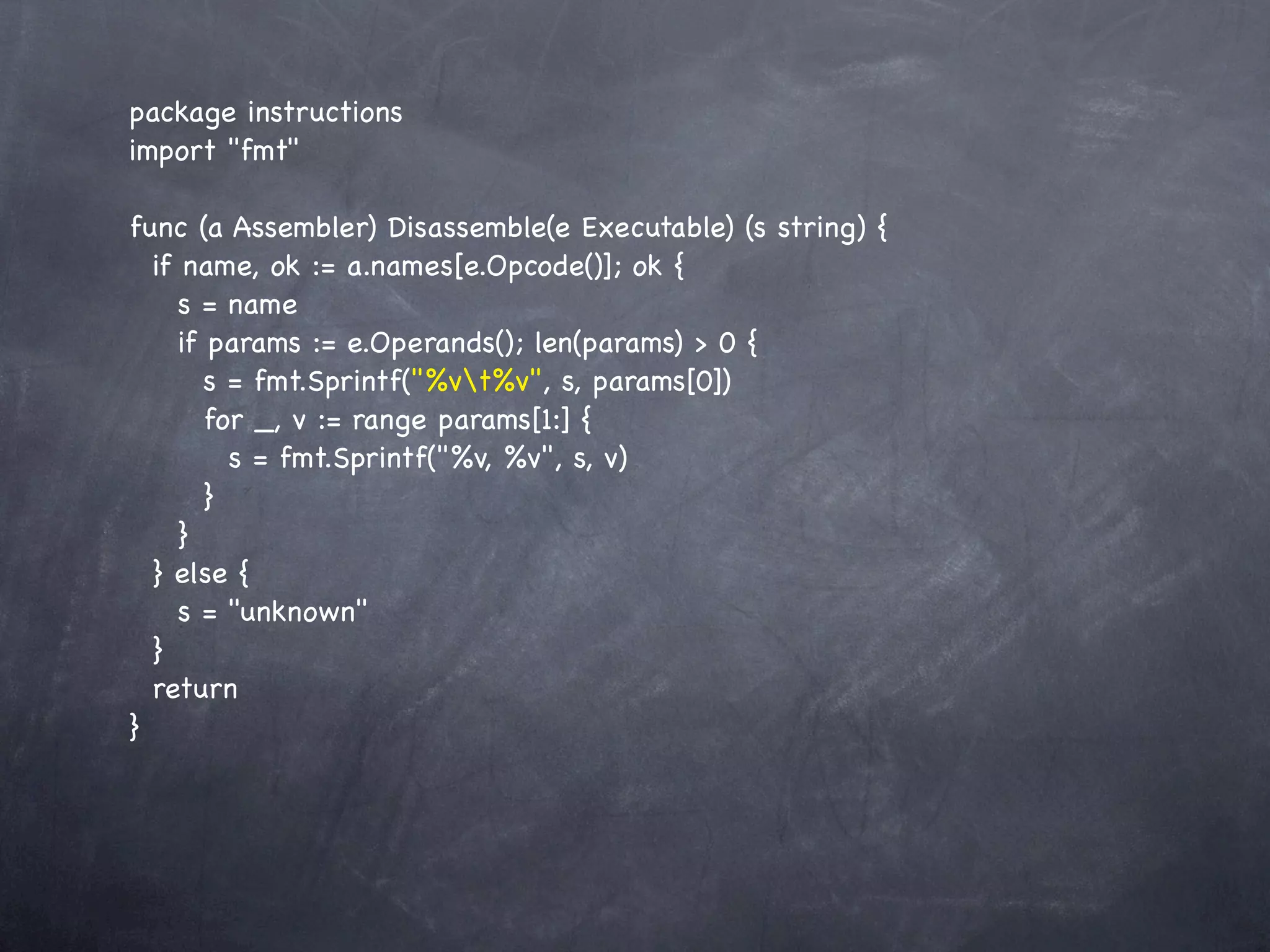

import "fmt"

func (a Assembler) Disassemble(e Executable) (s string) {
if name, ok := a.names[e.Opcode()]; ok {
s = name
if params := e.Operands(); len(params) > 0 {
s = fmt.Sprintf("%vt%v", s, params[0])
for _, v := range params[1:] {
s = fmt.Sprintf("%v, %v", s, v)
}
}
} else {
s = "unknown"
}
return
}

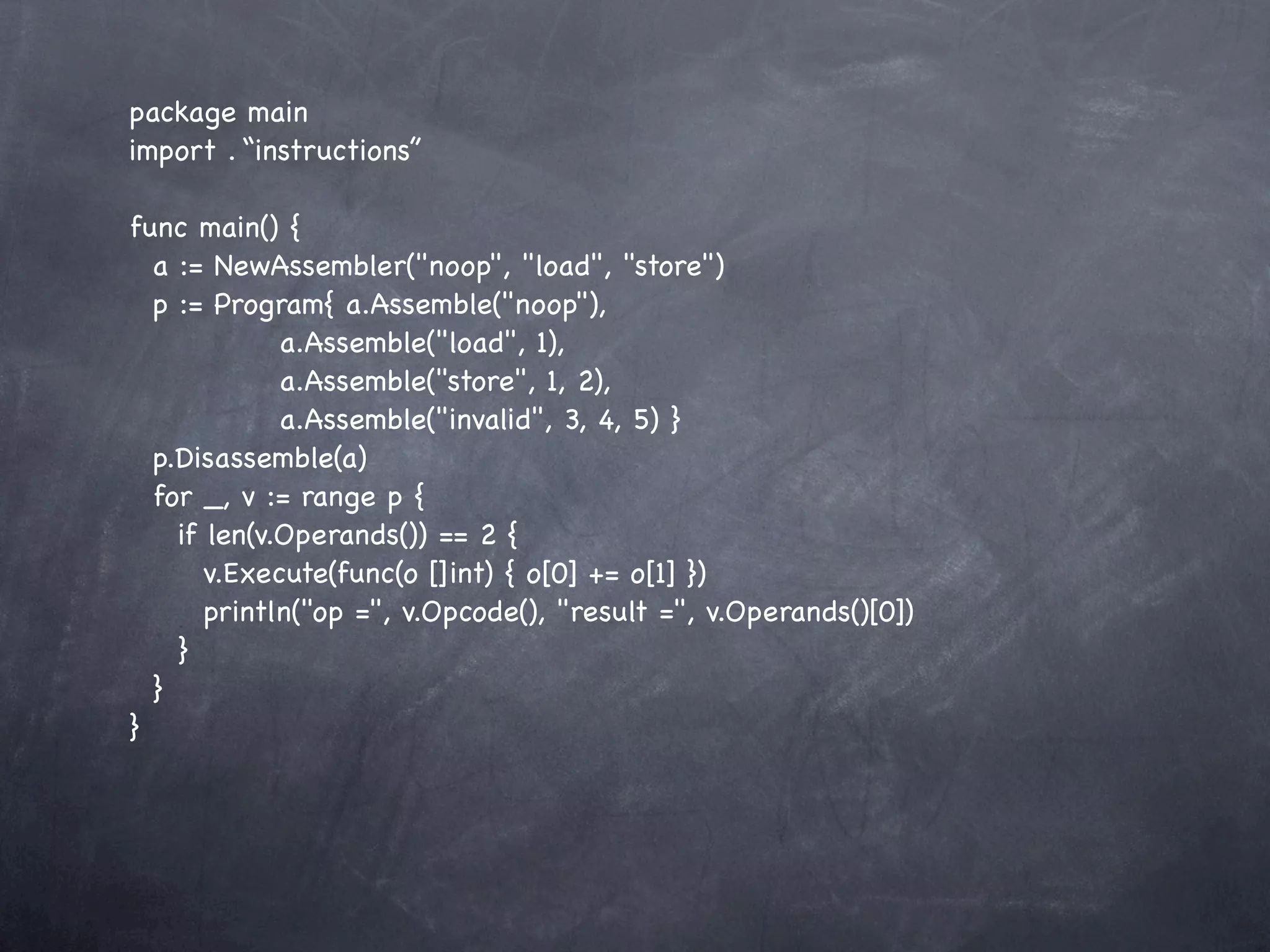

package main
import . “instructions”

func main() {
a := NewAssembler("noop", "load", "store")
p := Program{ a.Assemble("noop"),
a.Assemble("load", 1),
a.Assemble("store", 1, 2),
a.Assemble("invalid", 3, 4, 5) }
p.Disassemble(a)
for _, v := range p {
if len(v.Operands()) == 2 {
v.Execute(func(o []int) { o[0] += o[1] })
println("op =", v.Opcode(), "result =", v.Operands()[0])
}
}
}

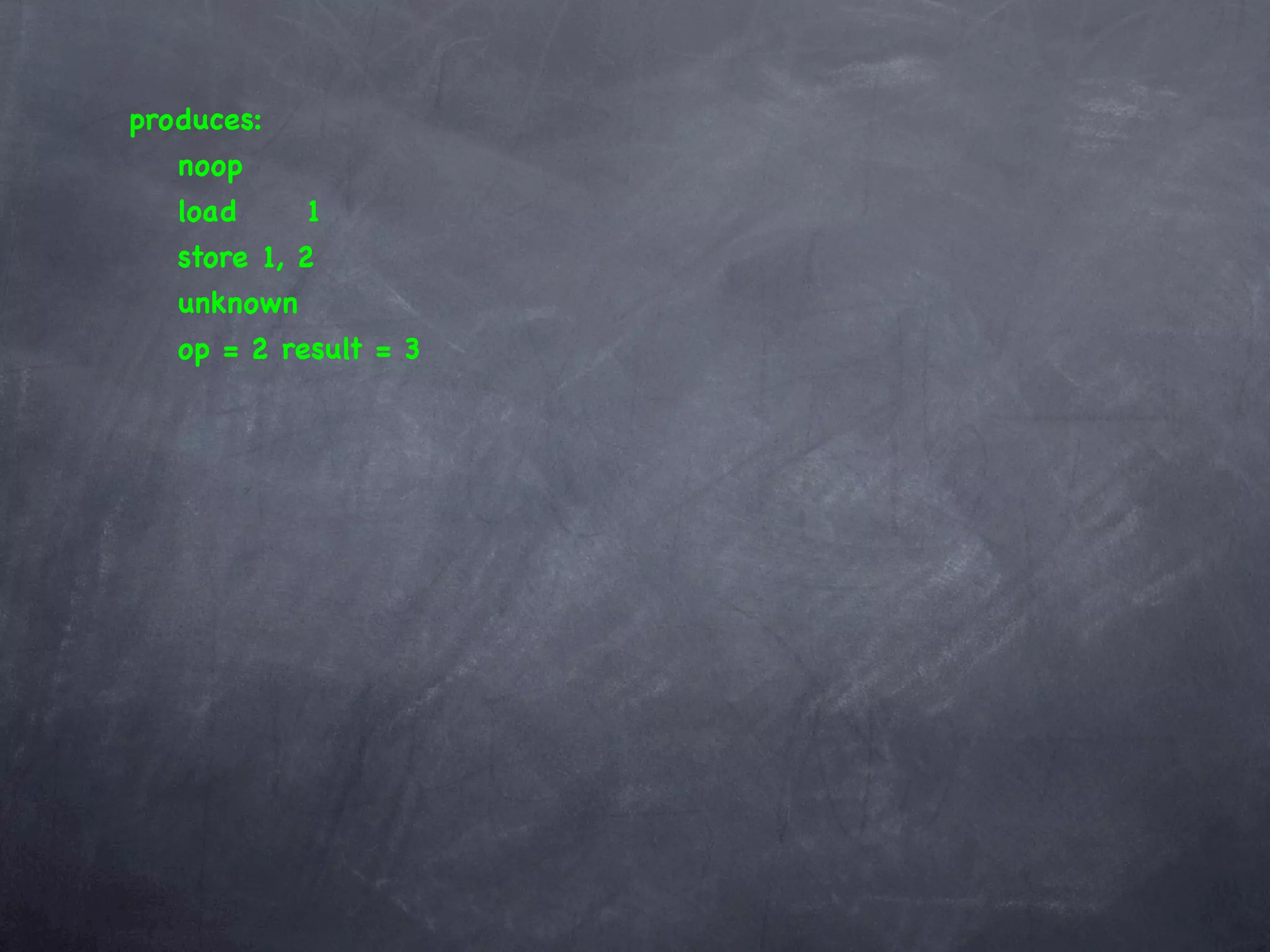

produces:
noop
load! ! 1
store!1, 2
unknown
op = 2 result = 3

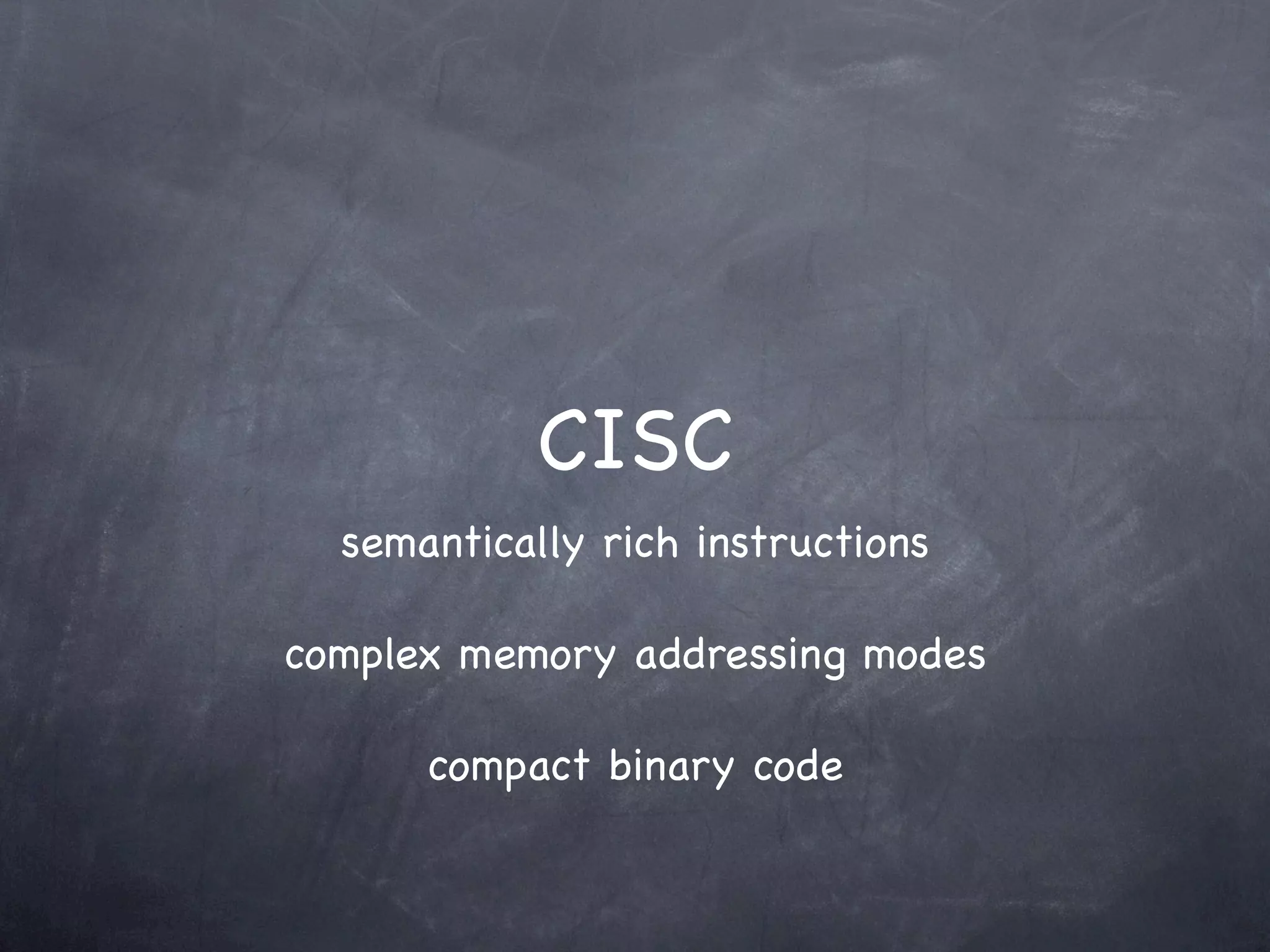

CISC
semantically rich instructions

complex memory addressing modes

compact binary code

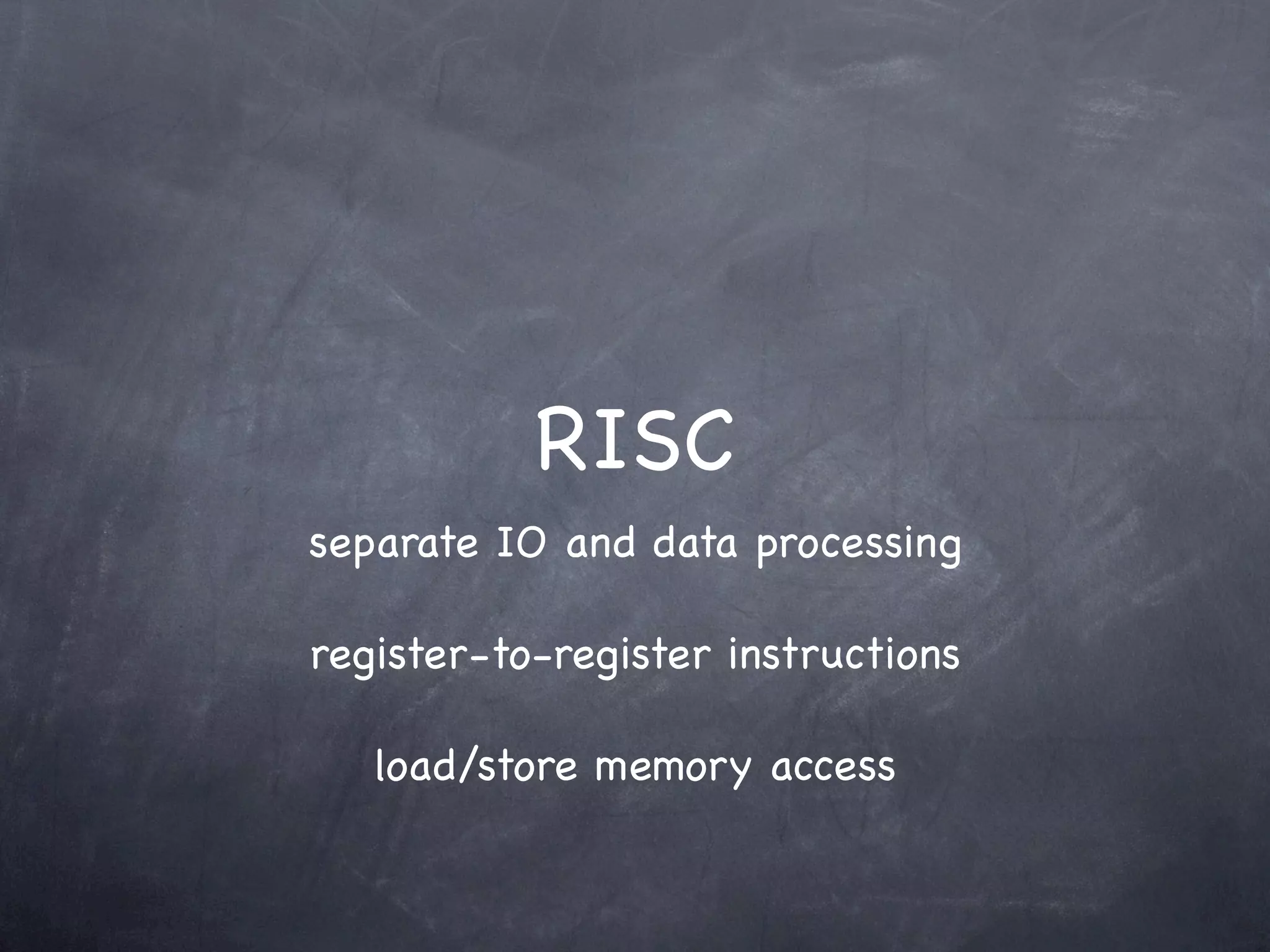

RISC
separate IO and data processing

register-to-register instructions

load/store memory access

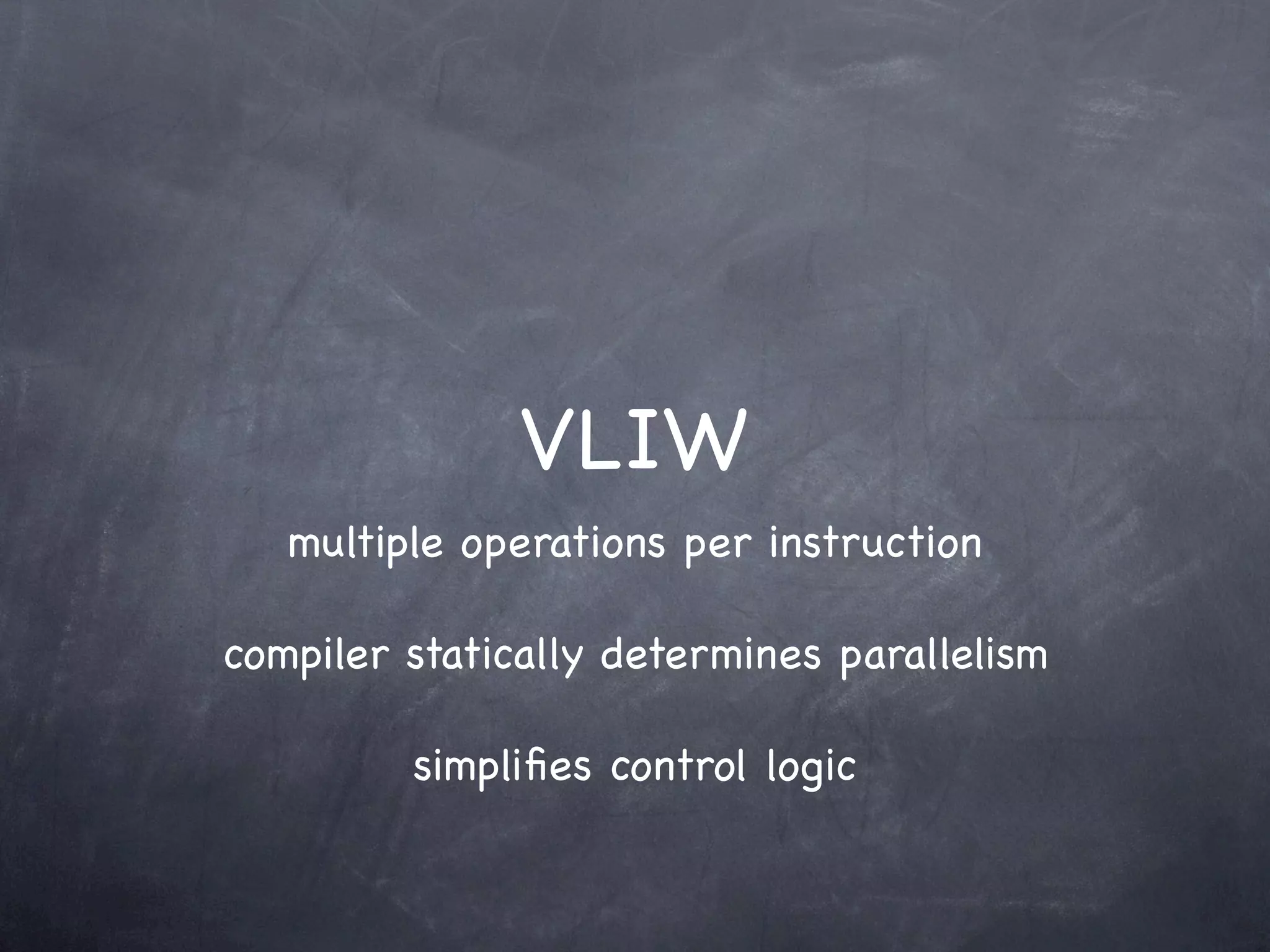

VLIW
multiple operations per instruction

compiler statically determines parallelism

simpliﬁes control logic

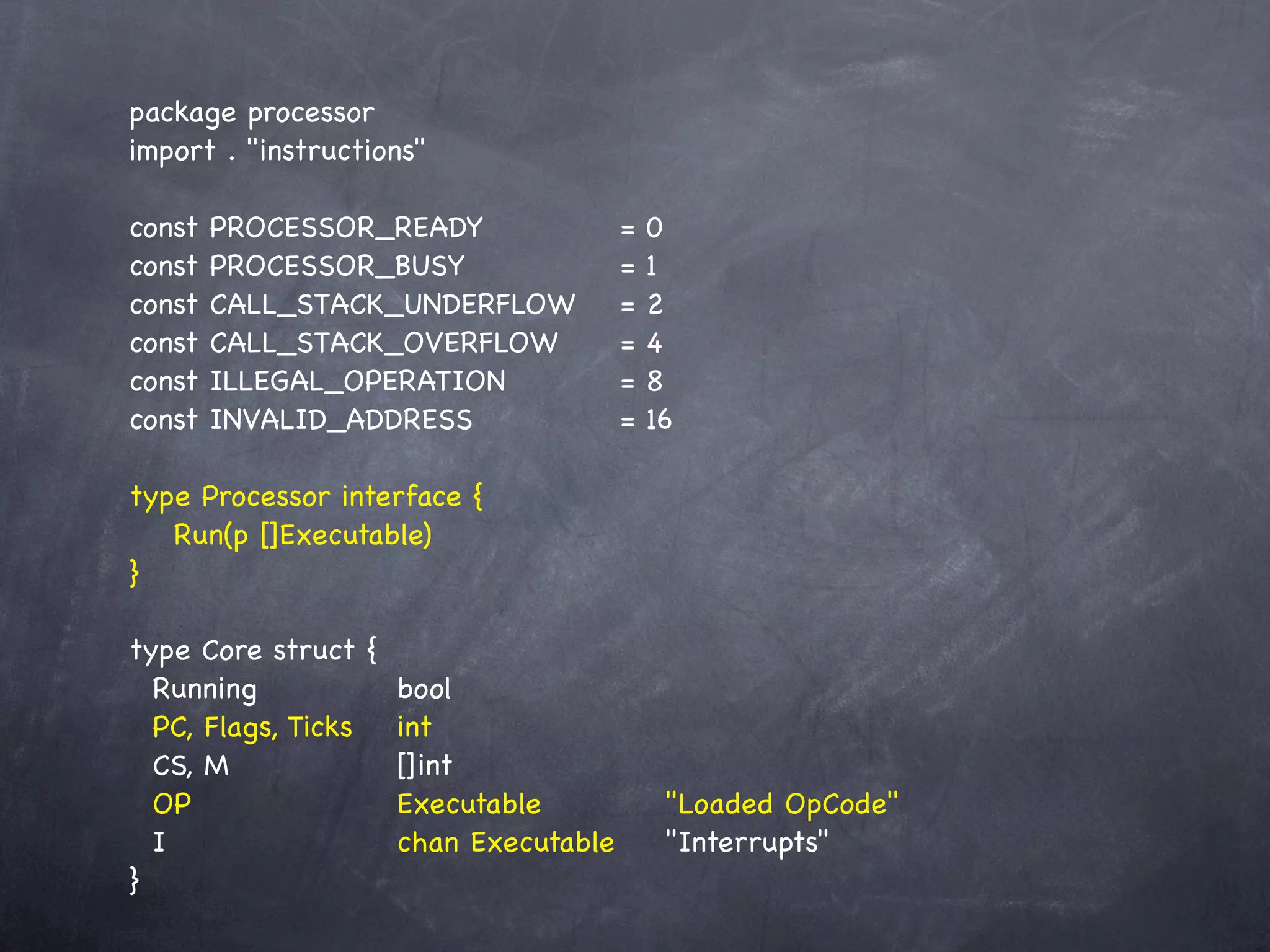

package processor
import . "instructions"

const PROCESSOR_READY! ! !
! = 0
const PROCESSOR_BUSY! ! ! ! = 1
const CALL_STACK_UNDERFLOW! = 2
const CALL_STACK_OVERFLOW! ! = 4
const ILLEGAL_OPERATION! ! ! = 8
const INVALID_ADDRESS!! ! ! = 16

type Processor interface {
! Run(p []Executable)
}

type Core struct {
Running! ! !
! bool
PC, Flags, Ticks! int
CS, M! ! ! ! []int
OP! ! ! ! ! Executable! ! ! "Loaded OpCode"
I! ! ! ! ! chan Executable!
! "Interrupts"
}

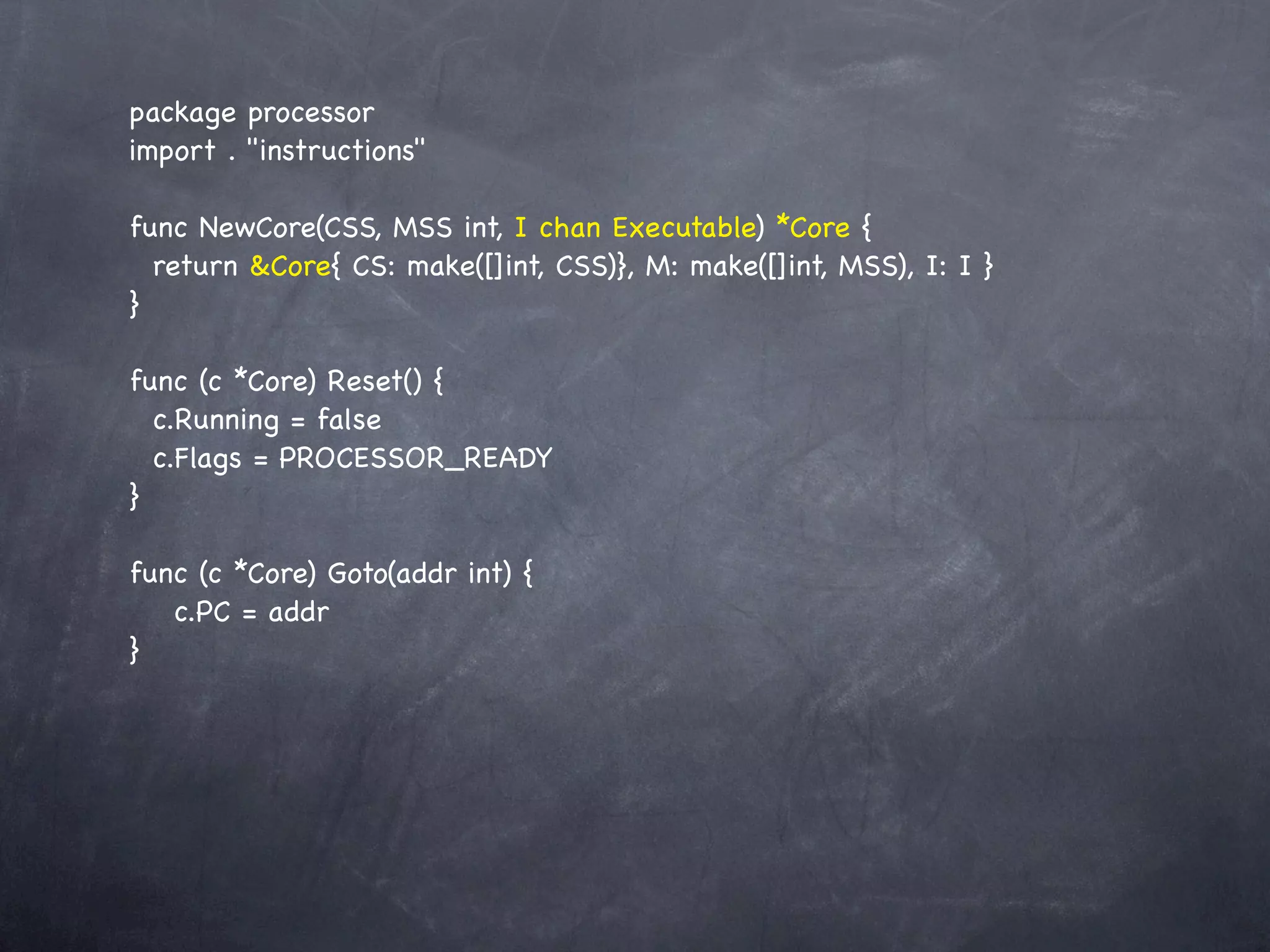

package processor

func NewCore(CSS, MSS int, I chan Executable) *Core {
return &Core{!CS: make([]int, CSS)}, M: make([]int, MSS), I: I }
}

func (c *Core) Reset() {
c.Running = false
c.Flags = PROCESSOR_READY
}

func (c *Core) Goto(addr int) {
! c.PC = addr
}

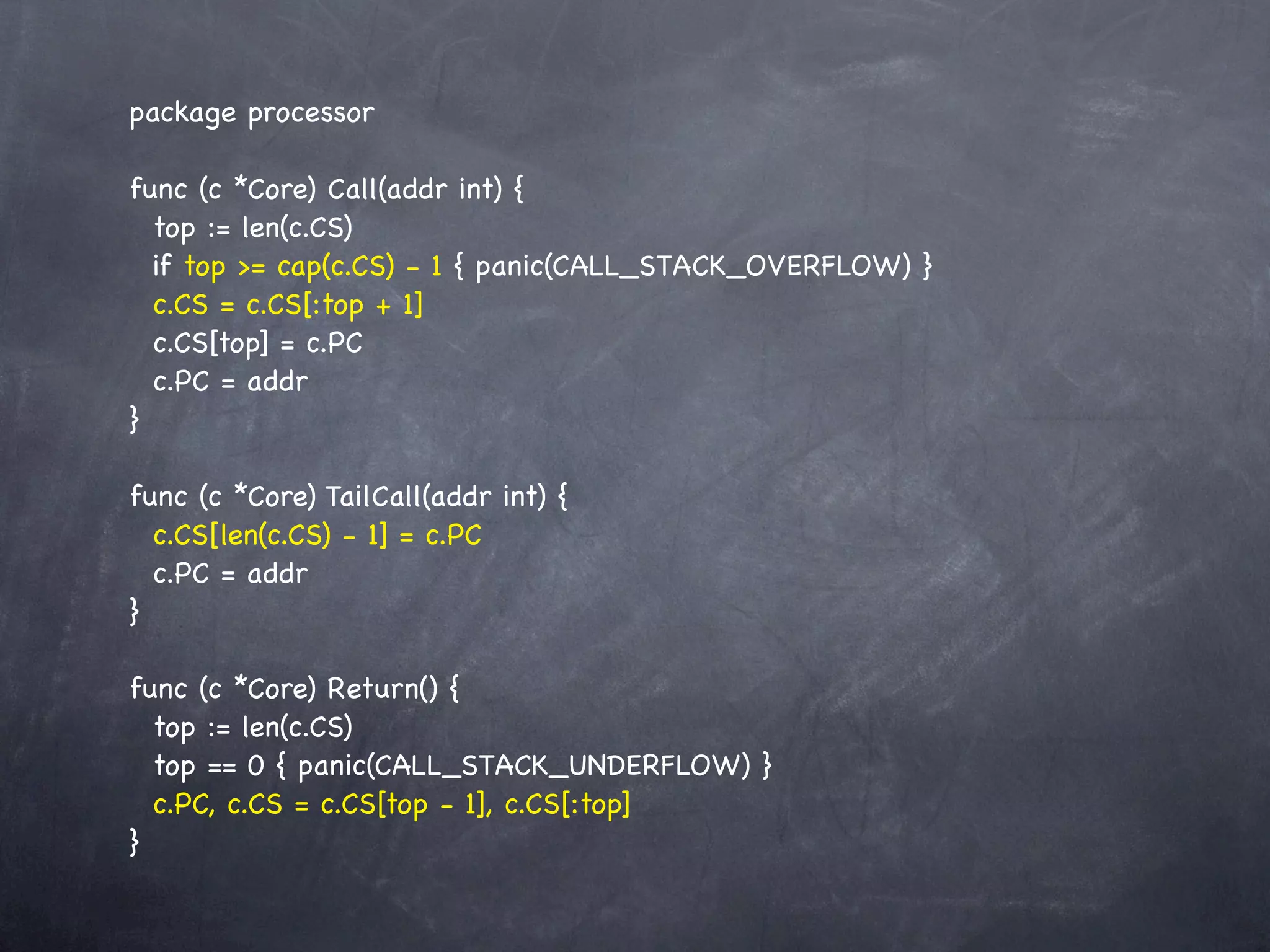

package processor

func (c *Core) Call(addr int) {
top := len(c.CS)
if top >= cap(c.CS) - 1 { panic(CALL_STACK_OVERFLOW) }
c.CS = c.CS[:top + 1]
c.CS[top] = c.PC
c.PC = addr
}

func (c *Core) TailCall(addr int) {
c.CS[len(c.CS) - 1] = c.PC
c.PC = addr
}

func (c *Core) Return() {
top := len(c.CS)
top == 0 { panic(CALL_STACK_UNDERFLOW) }
c.PC, c.CS = c.CS[top - 1], c.CS[:top]
}

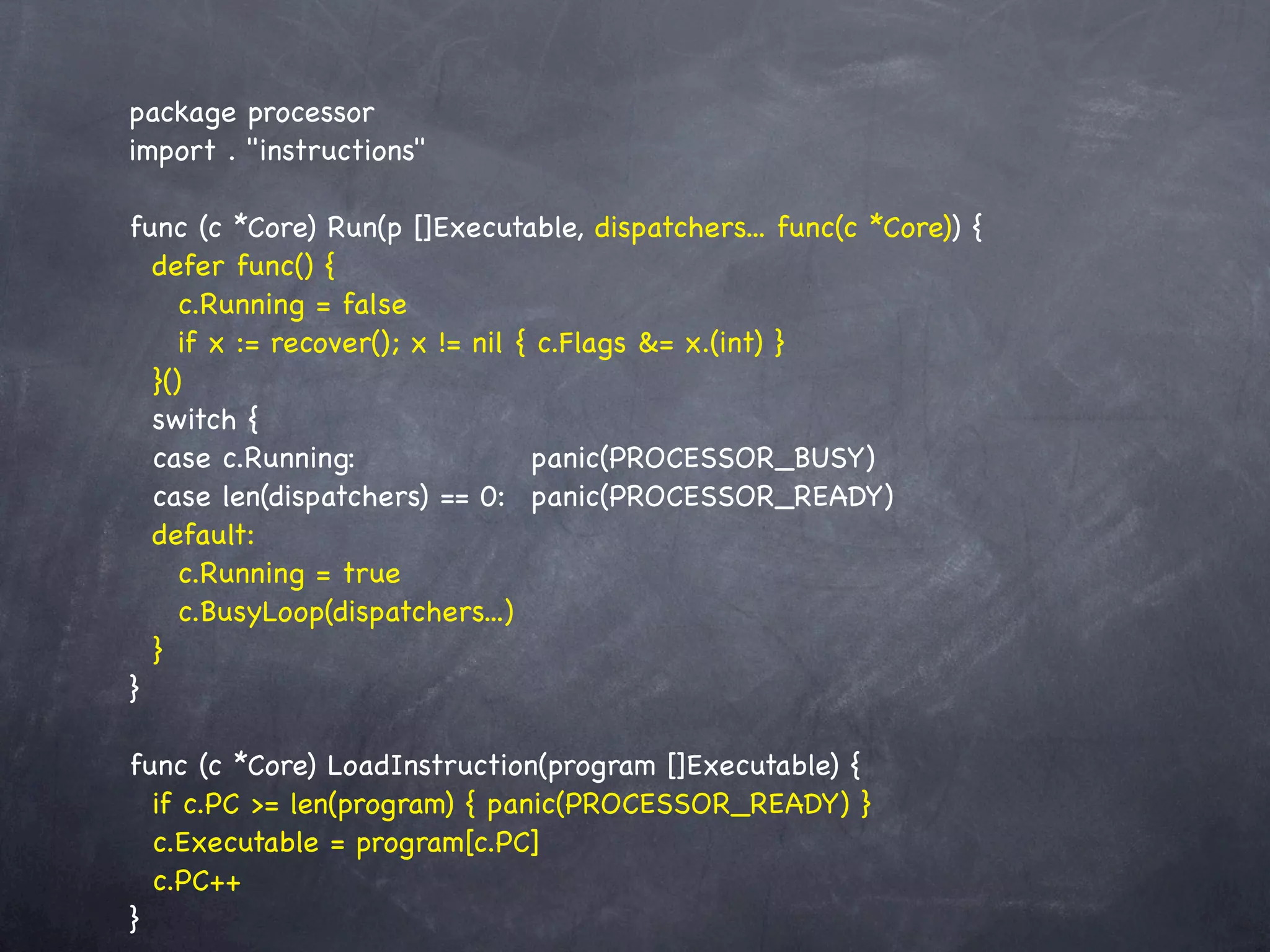

package processor

func (c *Core) Run(p []Executable, dispatchers... func(c *Core)) {
defer func() {
c.Running = false
if x := recover(); x != nil { c.Flags &= x.(int) }
}()
switch {
case c.Running:! ! ! ! panic(PROCESSOR_BUSY)
case len(dispatchers) == 0:! panic(PROCESSOR_READY)
default:
c.Running = true
c.BusyLoop(dispatchers...)
}
}

func (c *Core) LoadInstruction(program []Executable) {
if c.PC >= len(program) { panic(PROCESSOR_READY) }
c.Executable = program[c.PC]
c.PC++
}

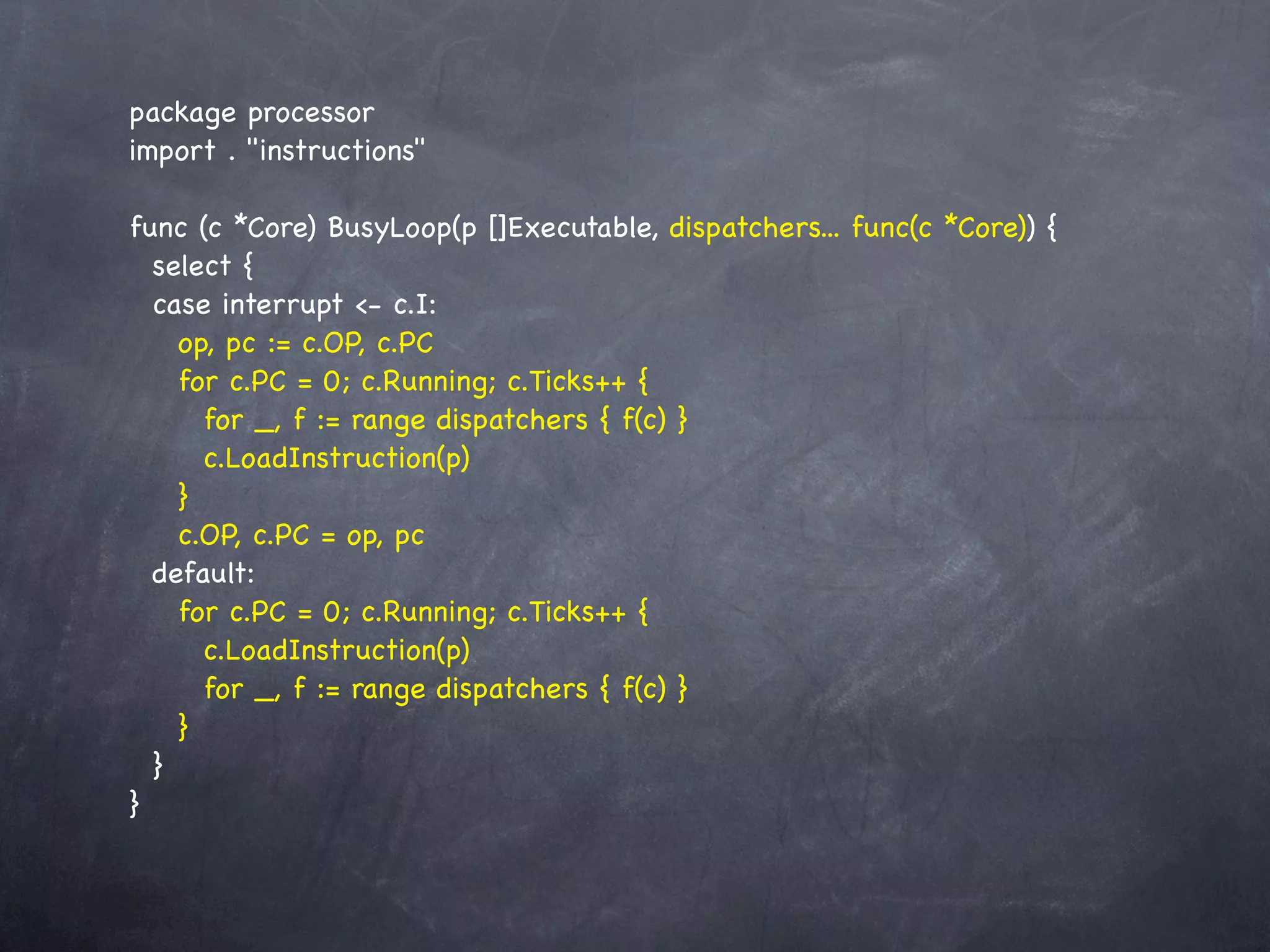

package processor

func (c *Core) BusyLoop(p []Executable, dispatchers... func(c *Core)) {
select {
case interrupt <- c.I:
op, pc := c.OP, c.PC
for c.PC = 0; c.Running; c.Ticks++ {
for _, f := range dispatchers { f(c) }
c.LoadInstruction(p)
}
c.OP, c.PC = op, pc
default:
for _, f := range dispatchers { f(c) }
}
}
}

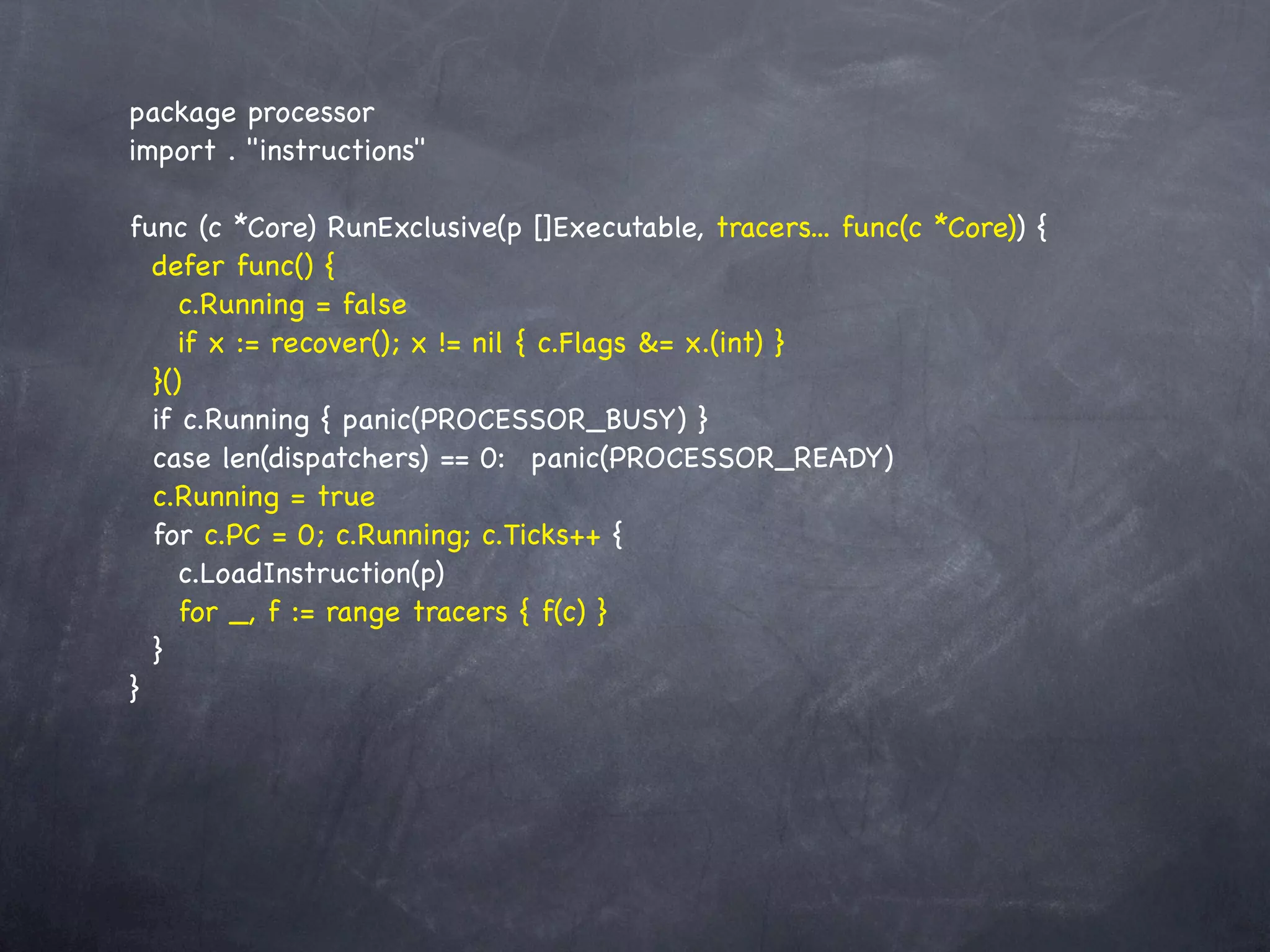

package processor

func (c *Core) RunExclusive(p []Executable, tracers... func(c *Core)) {
defer func() {
c.Running = false
if x := recover(); x != nil { c.Flags &= x.(int) }
}()
if c.Running { panic(PROCESSOR_BUSY) }
case len(dispatchers) == 0:! panic(PROCESSOR_READY)
c.Running = true
for _, f := range tracers { f(c) }
}
}

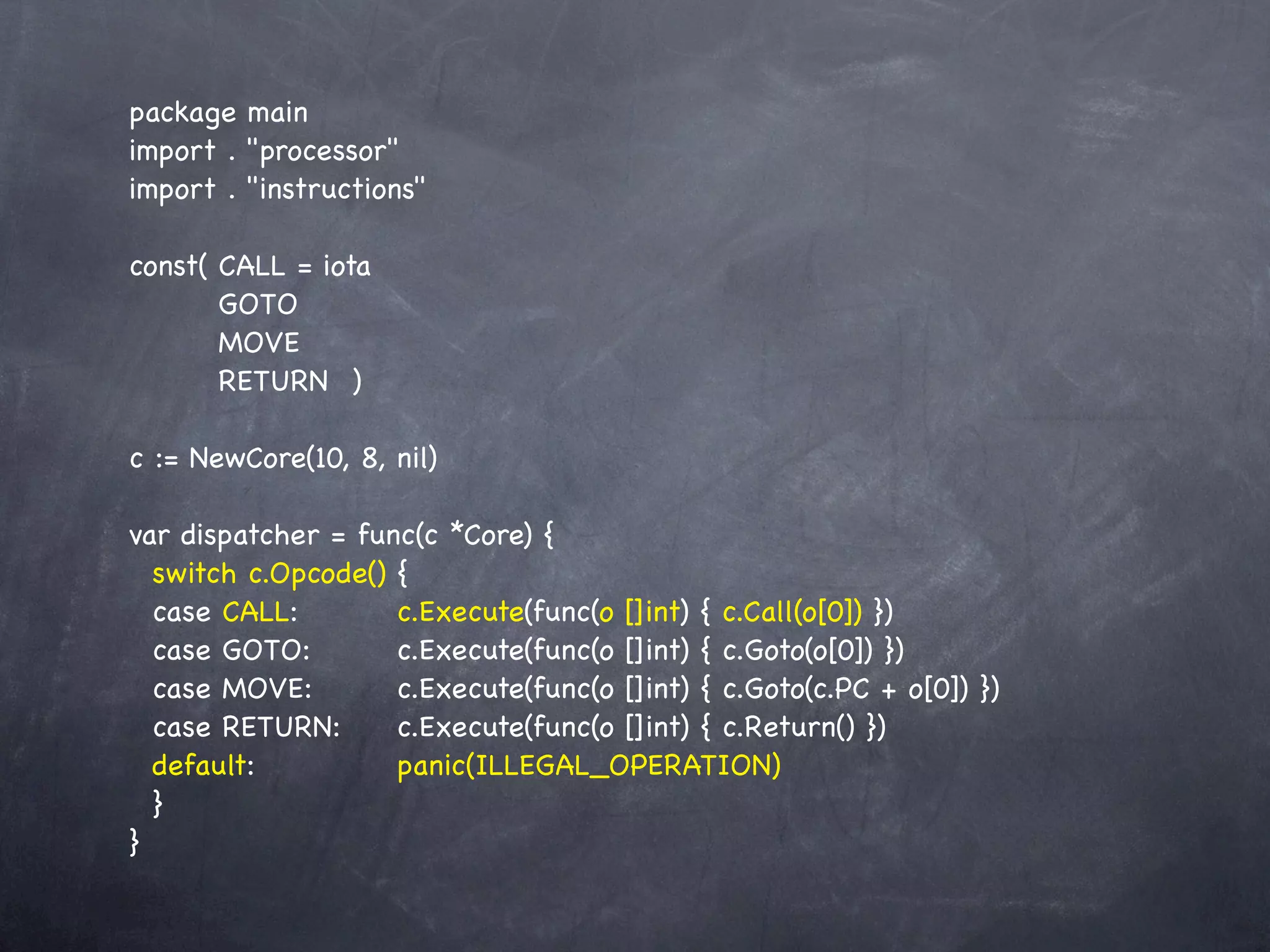

package main
import . "processor"

const(!CALL = iota
! GOTO
! MOVE
! RETURN! )

c := NewCore(10, 8, nil)

var dispatcher = func(c *Core) {
switch c.Opcode() {
case CALL:!! ! c.Execute(func(o []int) { c.Call(o[0]) })
case GOTO:! ! c.Execute(func(o []int) { c.Goto(o[0]) })
case MOVE:! ! c.Execute(func(o []int) { c.Goto(c.PC + o[0]) })
case RETURN:!! c.Execute(func(o []int) { c.Return() })
default:!! ! ! panic(ILLEGAL_OPERATION)
}
}

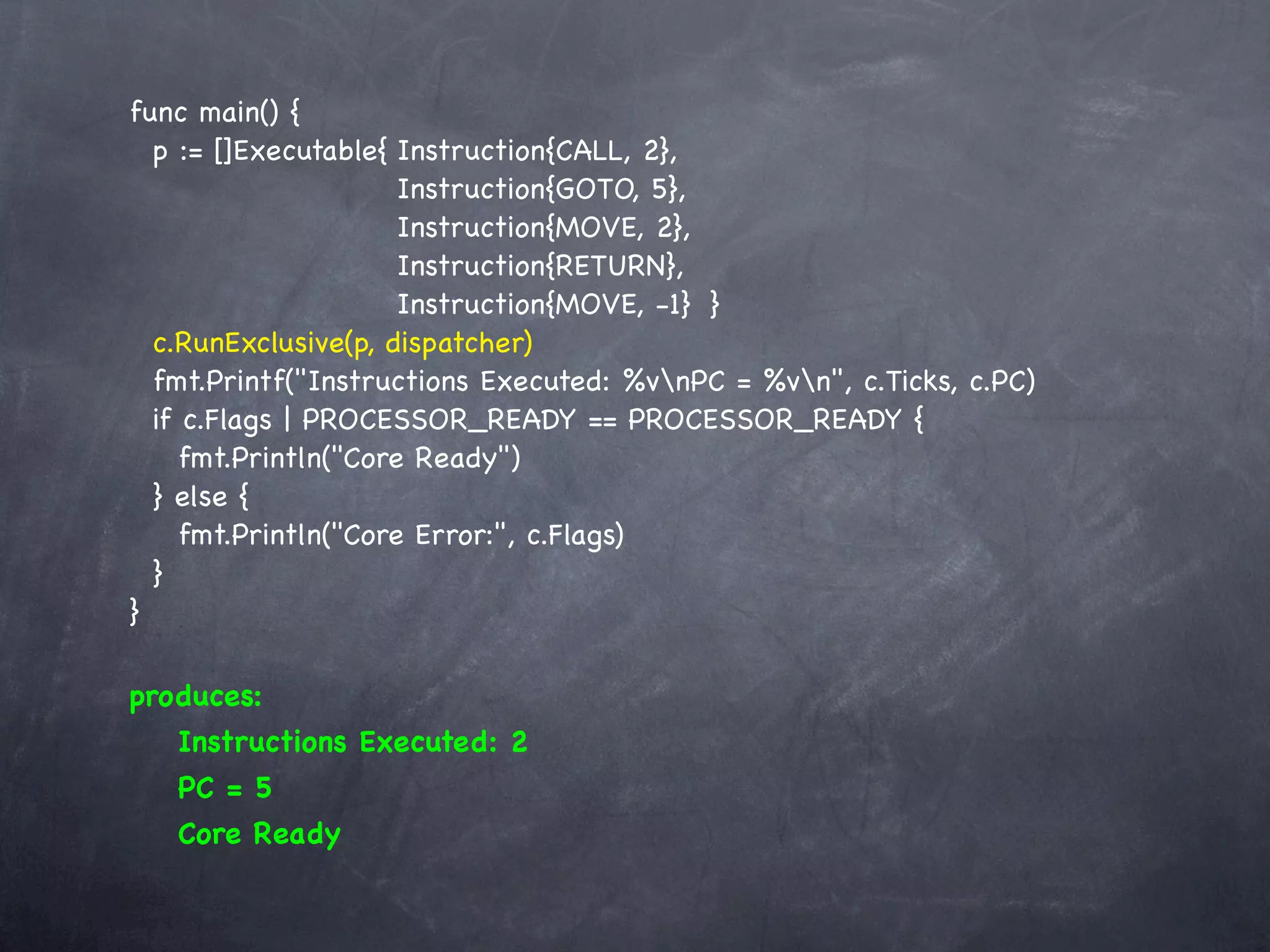

func main() {
p := []Executable{!Instruction{CALL, 2},
! ! ! ! ! Instruction{GOTO, 5},
! ! ! ! ! Instruction{MOVE, 2},
! ! ! ! ! Instruction{RETURN},
! ! ! ! ! Instruction{MOVE, -1}! }
c.RunExclusive(p, dispatcher)
fmt.Printf("Instructions Executed: %vnPC = %vn", c.Ticks, c.PC)
if c.Flags | PROCESSOR_READY == PROCESSOR_READY {
fmt.Println("Core Ready")
} else {
fmt.Println("Core Error:", c.Flags)
}
}

produces:
Instructions Executed: 2
PC = 5
Core Ready

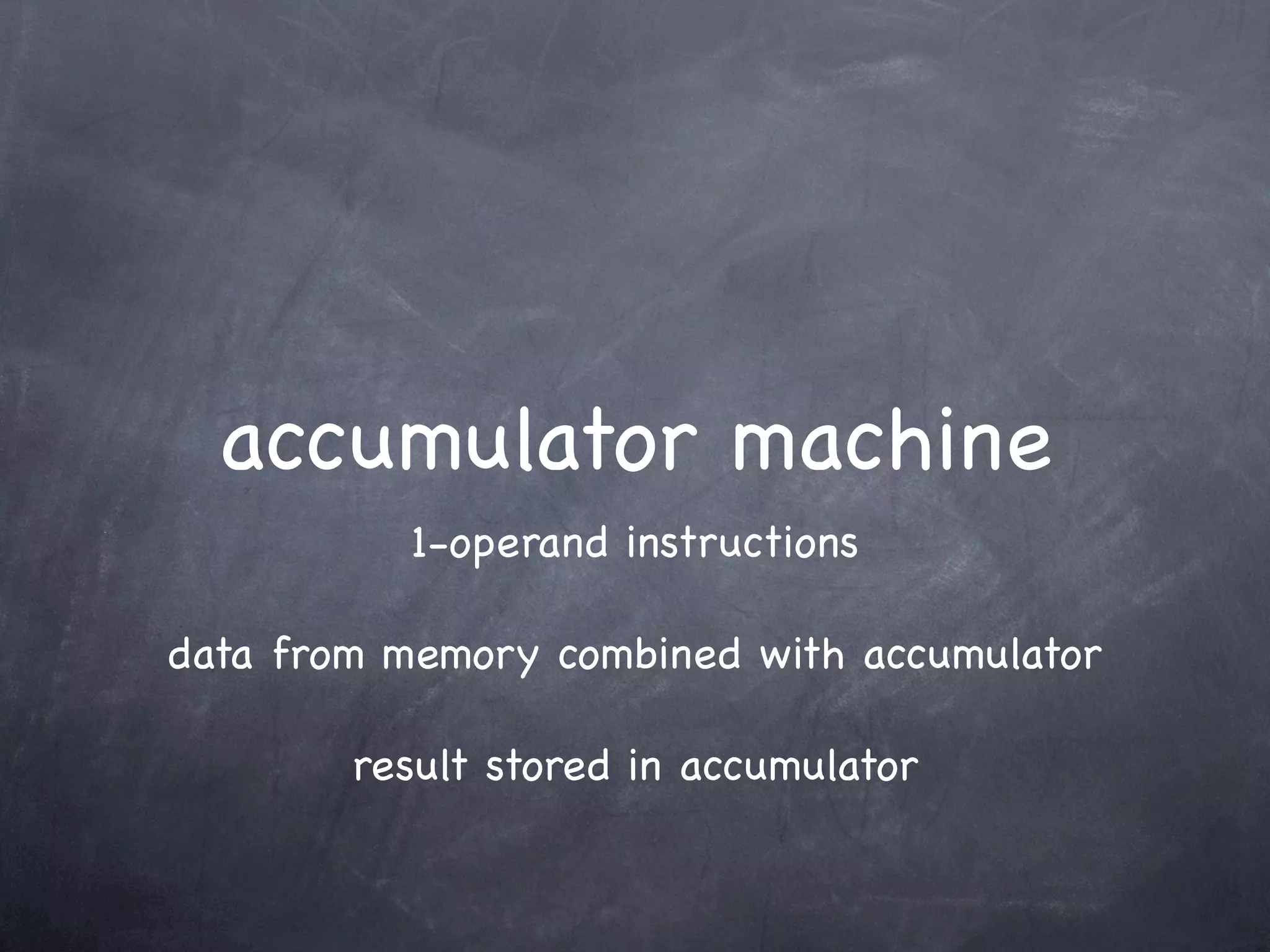

accumulator machine
1-operand instructions

data from memory combined with accumulator

result stored in accumulator

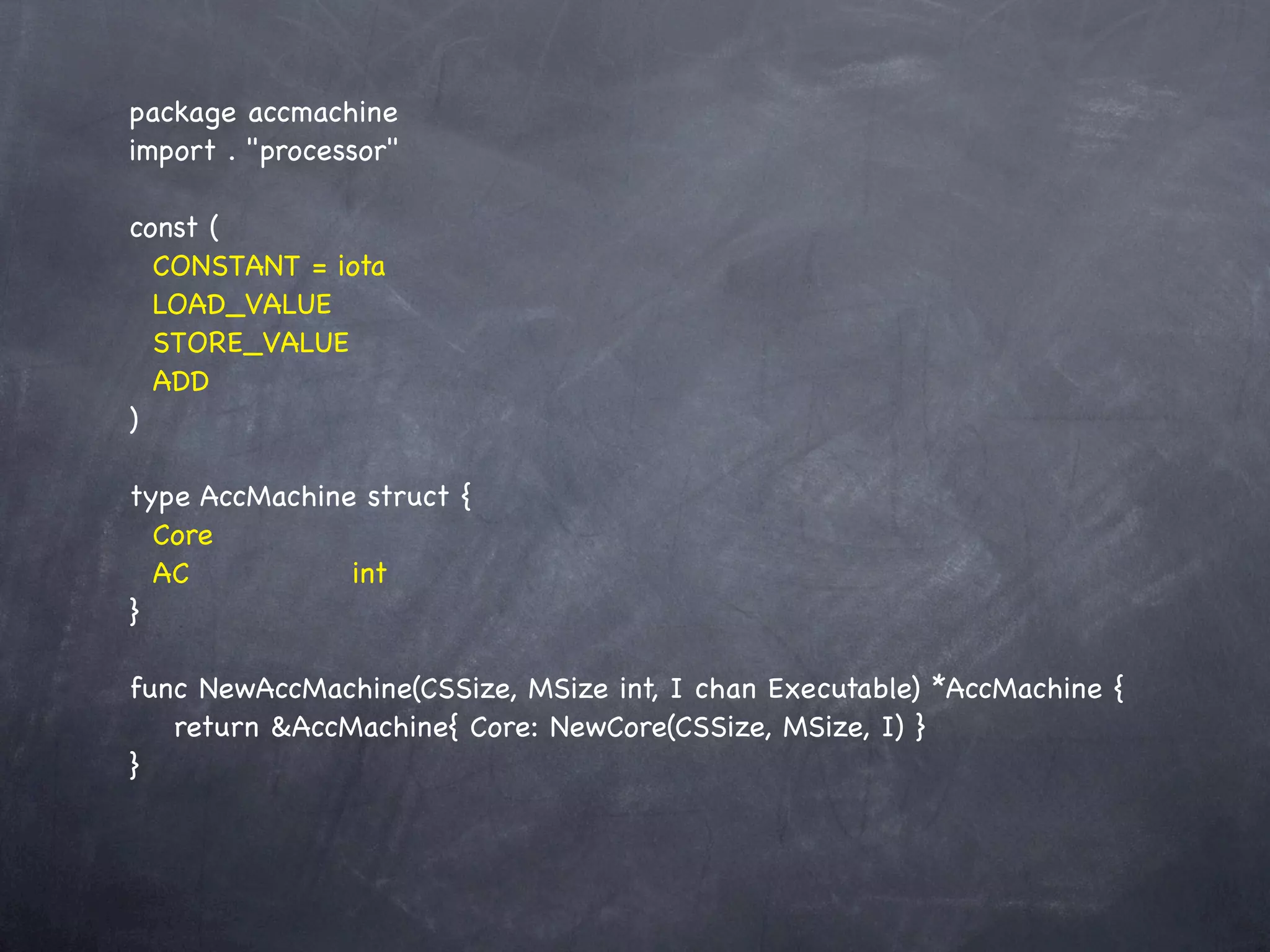

package accmachine

const (
CONSTANT = iota
LOAD_VALUE
STORE_VALUE
ADD
)

type AccMachine struct {
Core
AC! ! ! ! int
}

func NewAccMachine(CSSize, MSize int, I chan Executable) *AccMachine {
! return &AccMachine{ Core: NewCore(CSSize, MSize, I) }
}

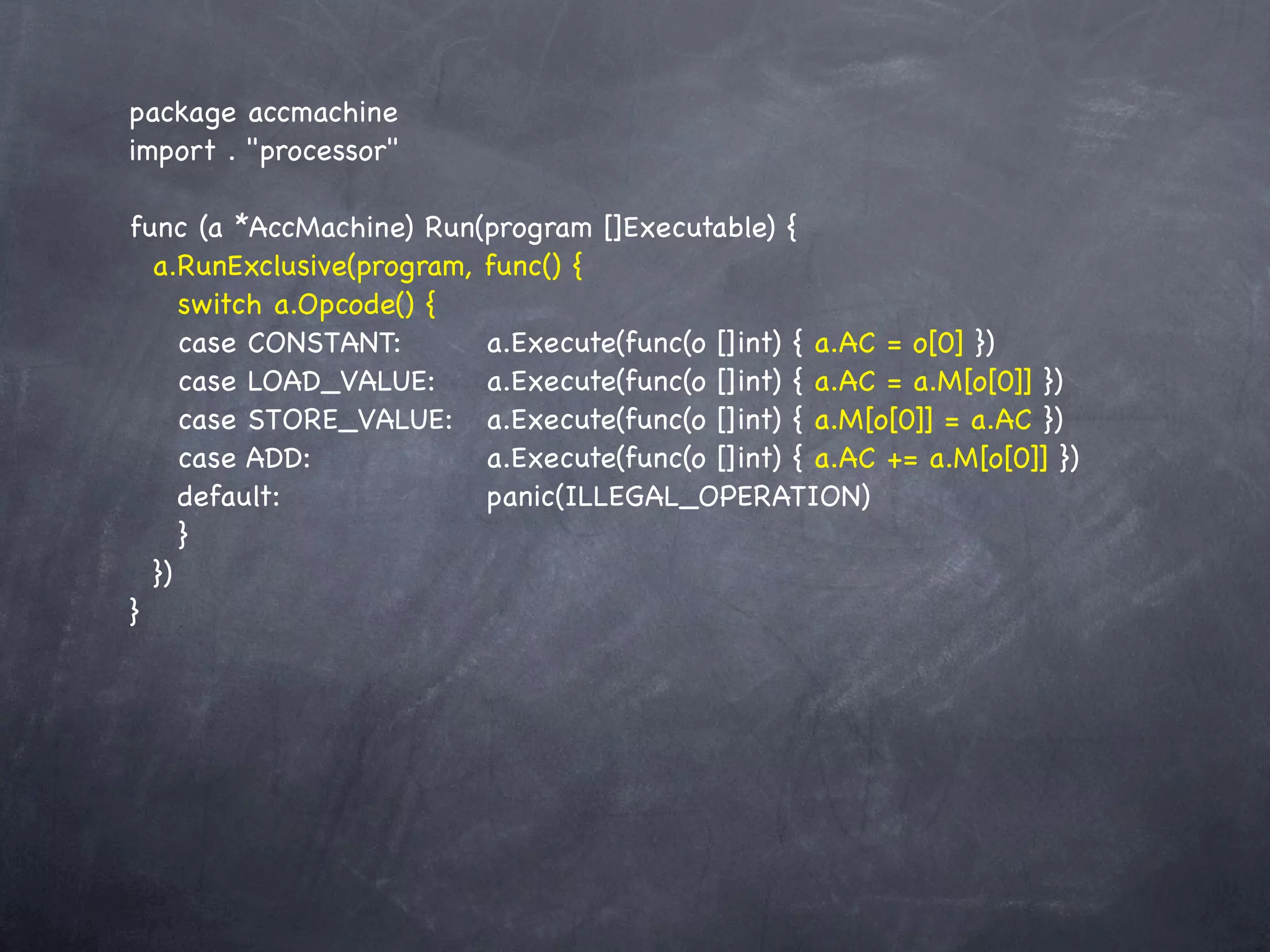

package accmachine

func (a *AccMachine) Run(program []Executable) {
a.RunExclusive(program, func() {
switch a.Opcode() {
case CONSTANT:! ! a.Execute(func(o []int) { a.AC = o[0] })
case LOAD_VALUE:!! a.Execute(func(o []int) { a.AC = a.M[o[0]] })
case STORE_VALUE:! a.Execute(func(o []int) { a.M[o[0]] = a.AC })
case ADD:! ! ! ! a.Execute(func(o []int) { a.AC += a.M[o[0]] })
default:! ! ! ! ! panic(ILLEGAL_OPERATION)
}
})
}

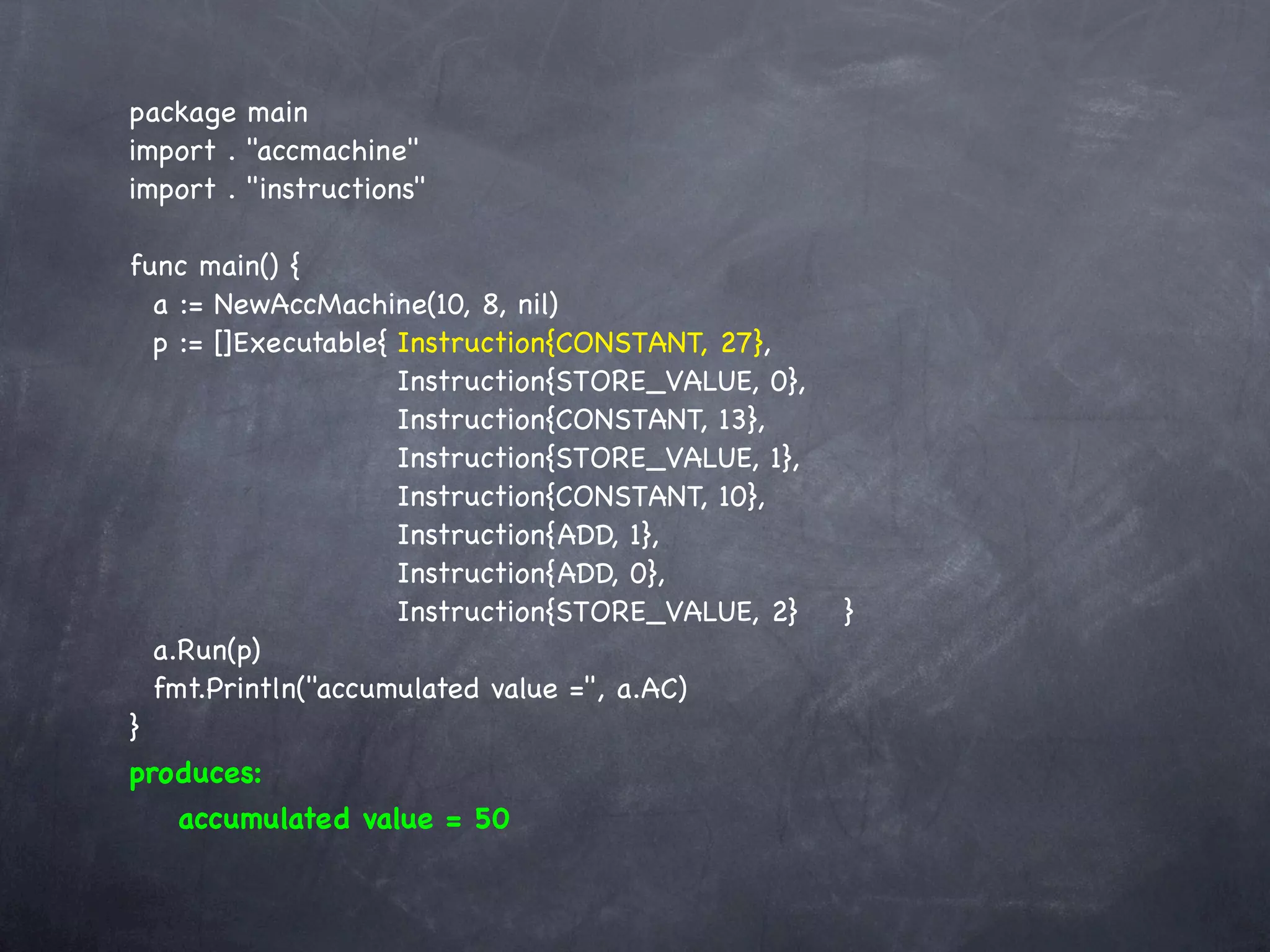

package main
import . "accmachine"

func main() {
a := NewAccMachine(10, 8, nil)
p := []Executable{!Instruction{CONSTANT, 27},
! ! ! ! ! Instruction{STORE_VALUE, 0},
! ! ! ! ! Instruction{CONSTANT, 13},
! ! ! ! ! Instruction{STORE_VALUE, 1},
! ! ! ! ! Instruction{ADD, 1},
! ! ! ! ! Instruction{ADD, 0},
! ! ! ! ! Instruction{STORE_VALUE, 2}! ! }
a.Run(p)
fmt.Println("accumulated value =", a.AC)
}
produces:
accumulated value = 50

stack machine
0-operand instructions

data popped from stack

results pushed on stack

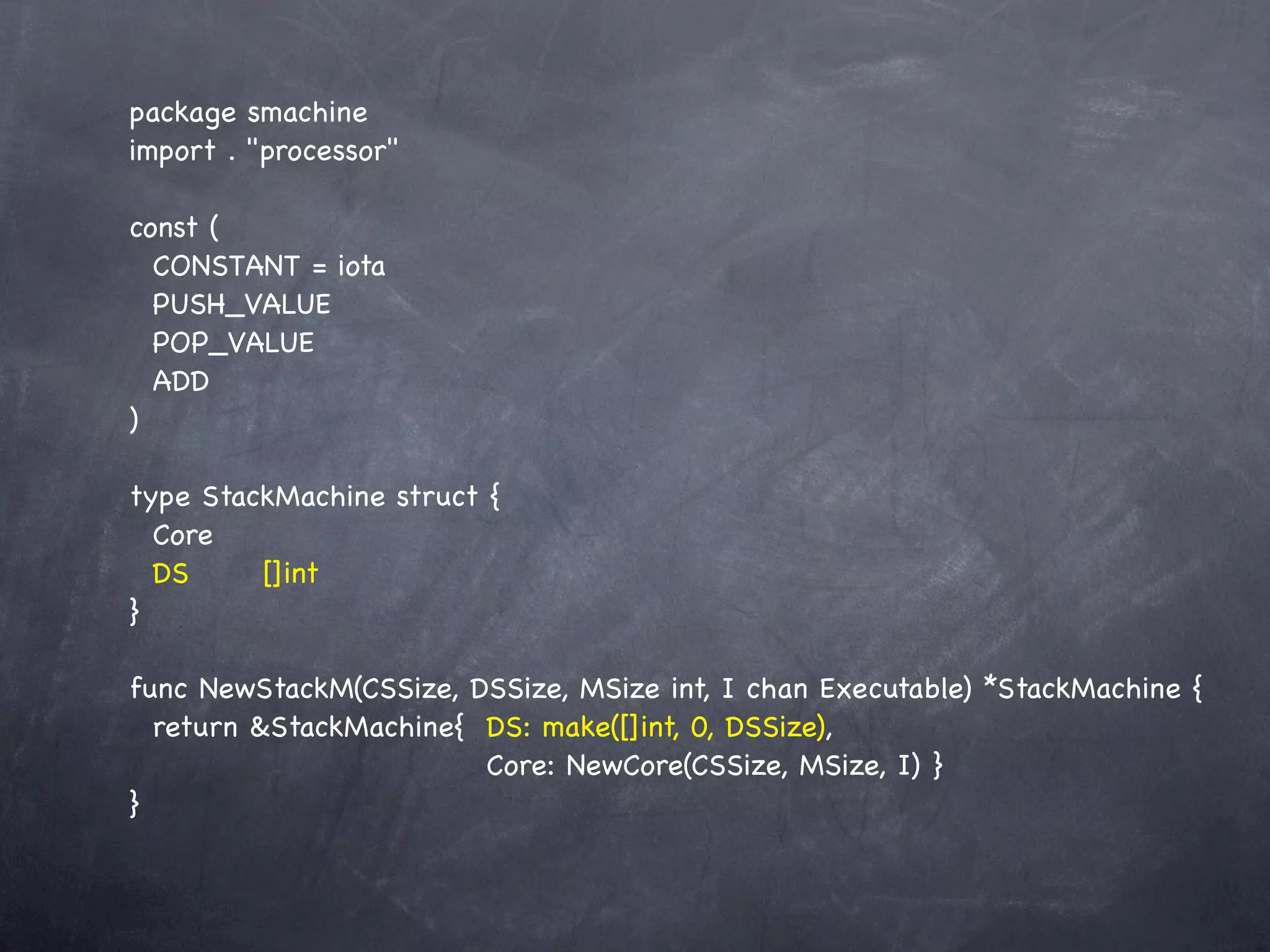

package smachine

const (
CONSTANT = iota
PUSH_VALUE
POP_VALUE
ADD
)

type StackMachine struct {
Core
DS! ! []int
}

func NewStackM(CSSize, DSSize, MSize int, I chan Executable) *StackMachine {
return &StackMachine{! DS: make([]int, 0, DSSize),
! ! ! ! ! ! ! Core: NewCore(CSSize, MSize, I)!}
}

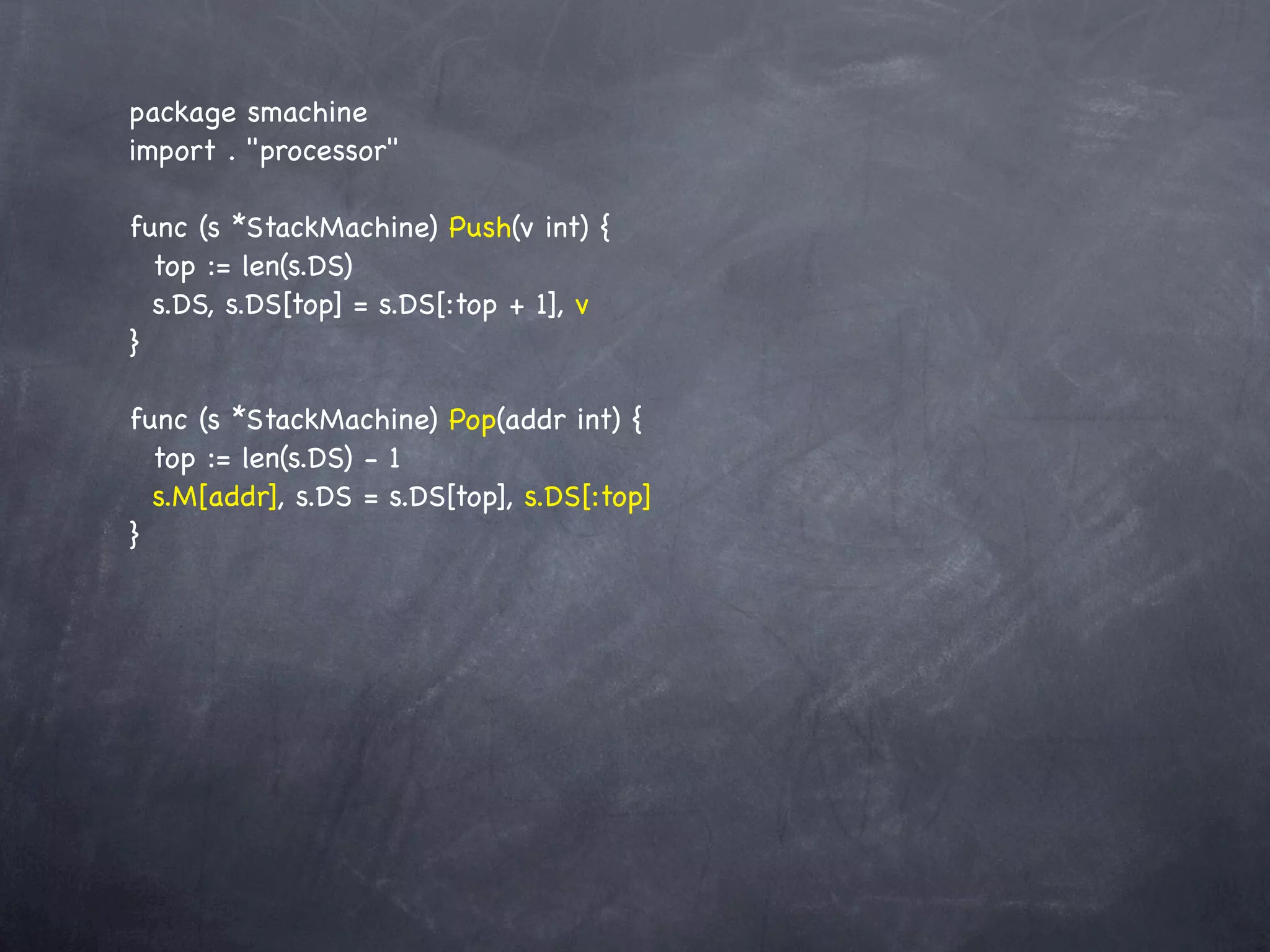

package smachine

func (s *StackMachine) Push(v int) {
top := len(s.DS)
s.DS, s.DS[top] = s.DS[:top + 1], v
}

func (s *StackMachine) Pop(addr int) {
top := len(s.DS) - 1
s.M[addr], s.DS = s.DS[top], s.DS[:top]
}

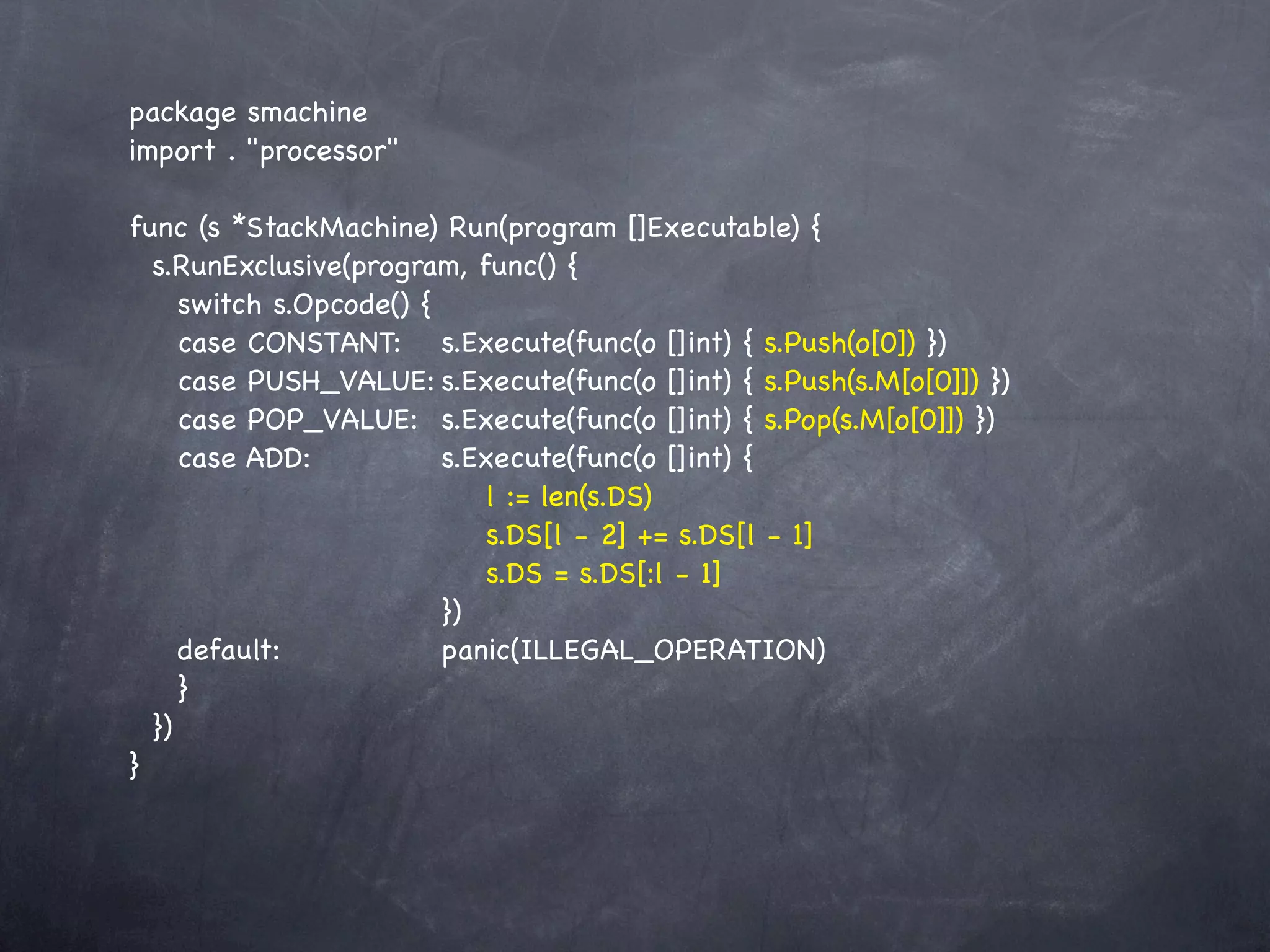

package smachine

func (s *StackMachine) Run(program []Executable) {
s.RunExclusive(program, func() {
switch s.Opcode() {
case CONSTANT:! s.Execute(func(o []int) { s.Push(o[0]) })
case PUSH_VALUE:! s.Execute(func(o []int) { s.Push(s.M[o[0]]) })
case POP_VALUE:! s.Execute(func(o []int) { s.Pop(s.M[o[0]]) })
case ADD:! ! ! s.Execute(func(o []int) {
! ! ! ! ! ! ! l := len(s.DS)
! ! ! ! ! ! ! s.DS[l - 2] += s.DS[l - 1]
! ! ! ! ! ! ! s.DS = s.DS[:l - 1]
! ! ! ! ! ! })
default:! ! ! ! panic(ILLEGAL_OPERATION)
}
})
}

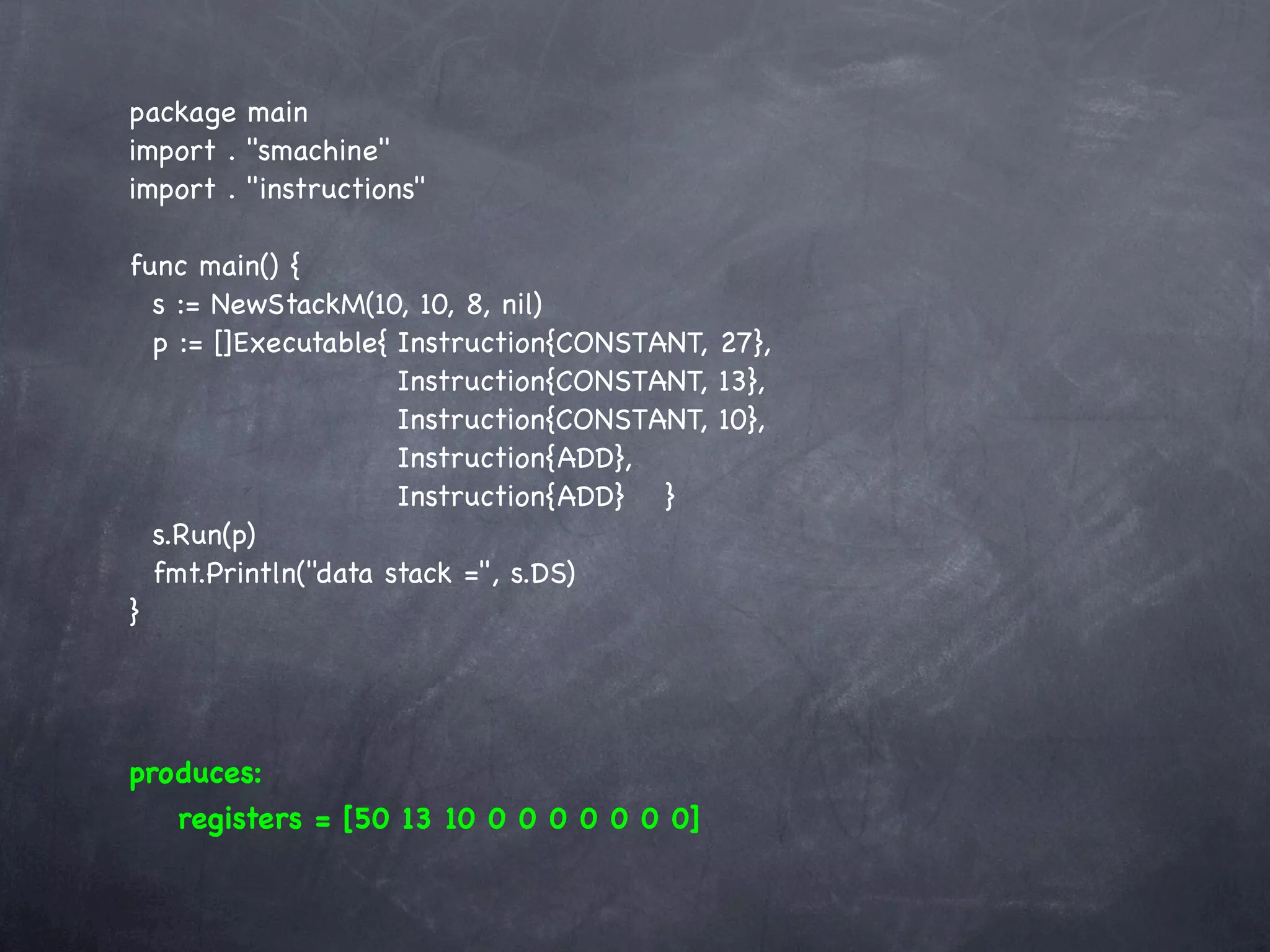

package main
import . "smachine"

func main() {
s := NewStackM(10, 10, 8, nil)
p := []Executable{!Instruction{CONSTANT, 27},
! ! ! ! ! Instruction{ADD},
! ! ! ! ! Instruction{ADD}! }
s.Run(p)
fmt.Println("data stack =", s.DS)
}

produces:
registers = [50 13 10 0 0 0 0 0 0 0]

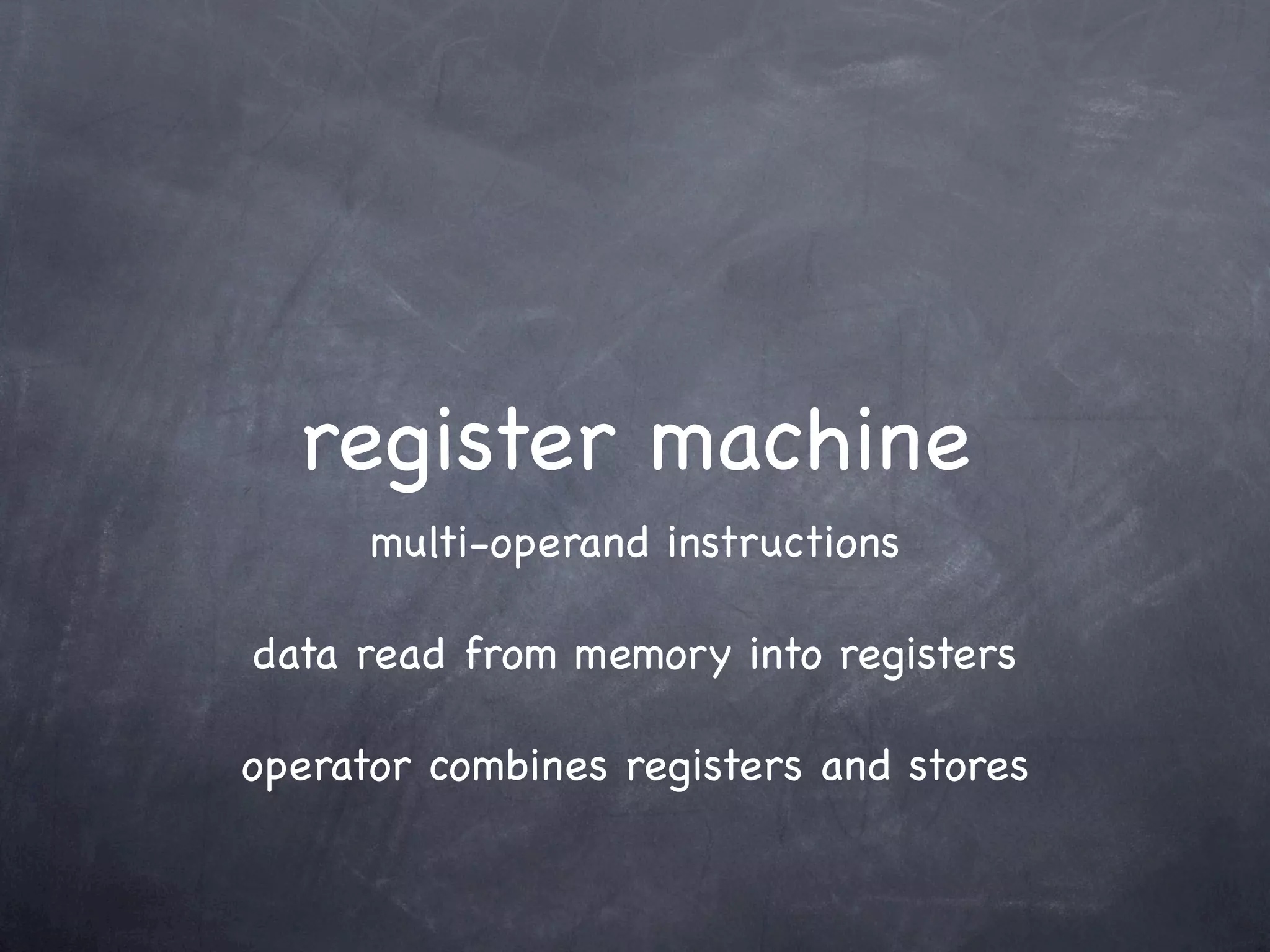

register machine
multi-operand instructions

data read from memory into registers

operator combines registers and stores

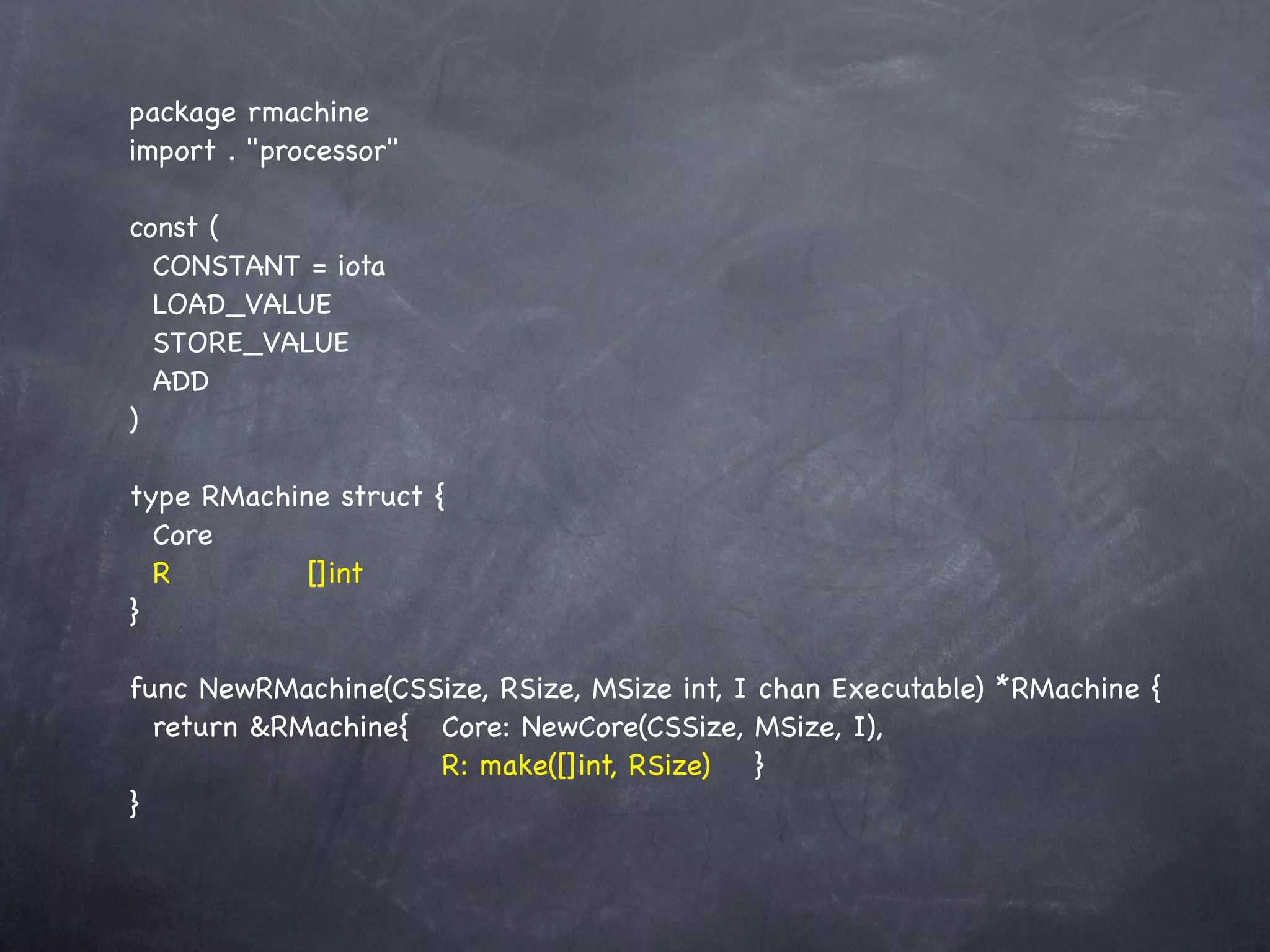

package rmachine

const (
CONSTANT = iota
LOAD_VALUE
STORE_VALUE
ADD
)

type RMachine struct {
Core
R! ! ! []int
}

func NewRMachine(CSSize, RSize, MSize int, I chan Executable) *RMachine {
return &RMachine{! Core: NewCore(CSSize, MSize, I),
! ! ! ! ! ! R: make([]int, RSize)! }
}

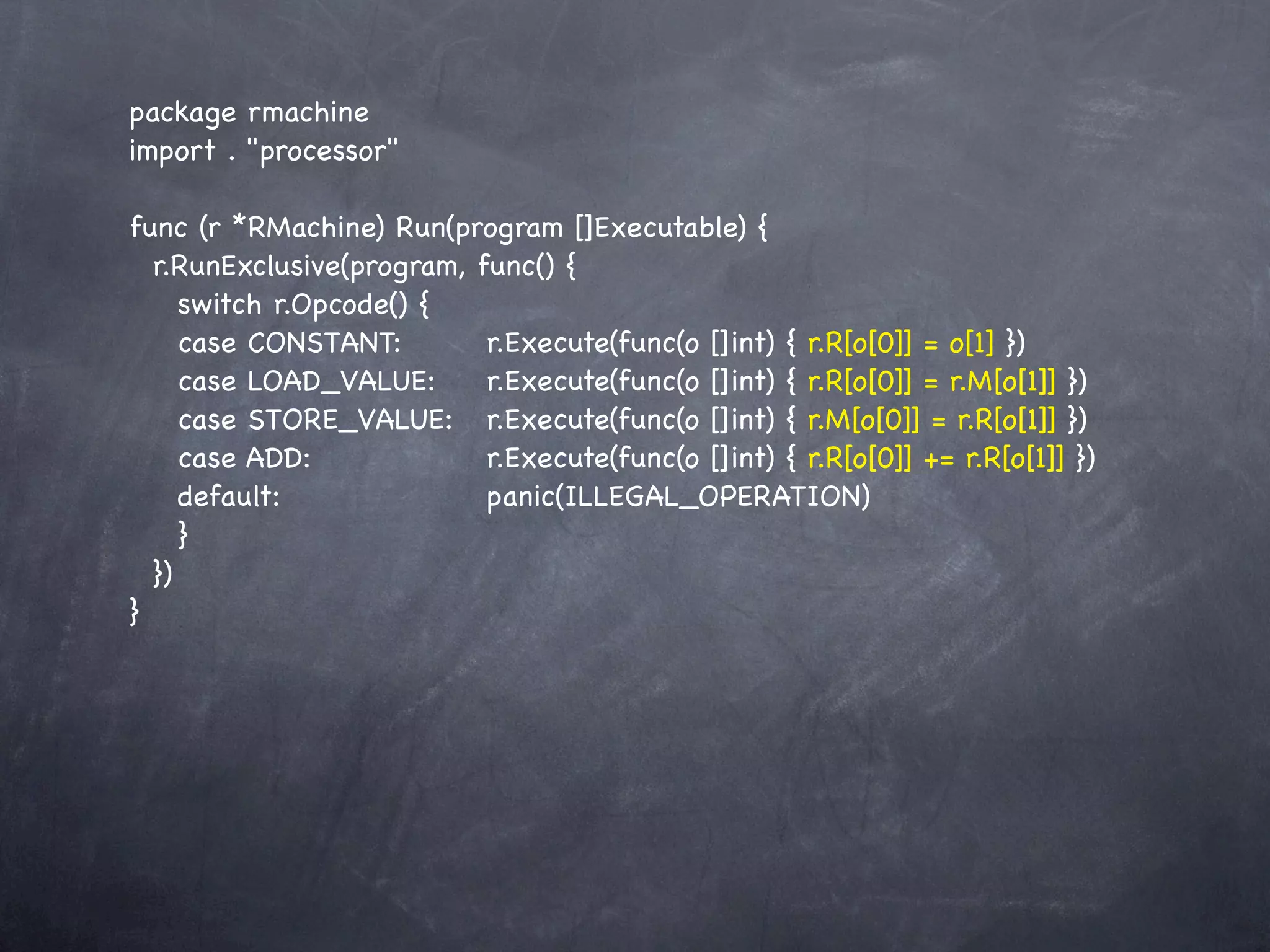

package rmachine

func (r *RMachine) Run(program []Executable) {
r.RunExclusive(program, func() {
switch r.Opcode() {
case CONSTANT:! ! r.Execute(func(o []int) { r.R[o[0]] = o[1] })
case LOAD_VALUE:!! r.Execute(func(o []int) { r.R[o[0]] = r.M[o[1]] })
case STORE_VALUE:! r.Execute(func(o []int) { r.M[o[0]] = r.R[o[1]] })
case ADD:! ! ! ! r.Execute(func(o []int) { r.R[o[0]] += r.R[o[1]] })
}
})
}

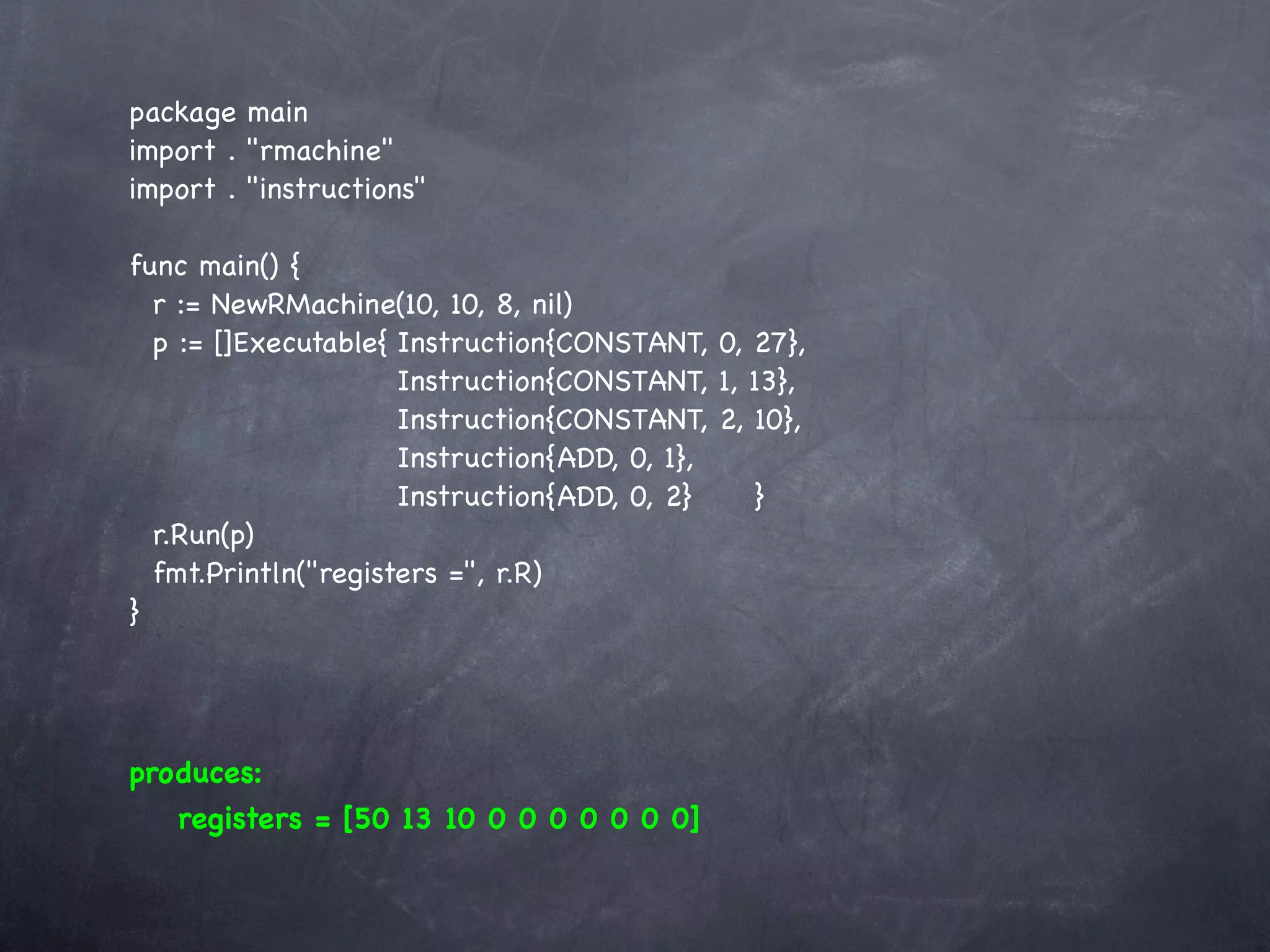

package main
import . "rmachine"

func main() {
r := NewRMachine(10, 10, 8, nil)
p := []Executable{!Instruction{CONSTANT, 0, 27},
! ! ! ! ! Instruction{CONSTANT, 1, 13},
! ! ! ! ! Instruction{ADD, 0, 1},
! ! ! ! ! Instruction{ADD, 0, 2}! ! }
r.Run(p)
fmt.Println("registers =", r.R)
}

produces:
registers = [50 13 10 0 0 0 0 0 0 0]

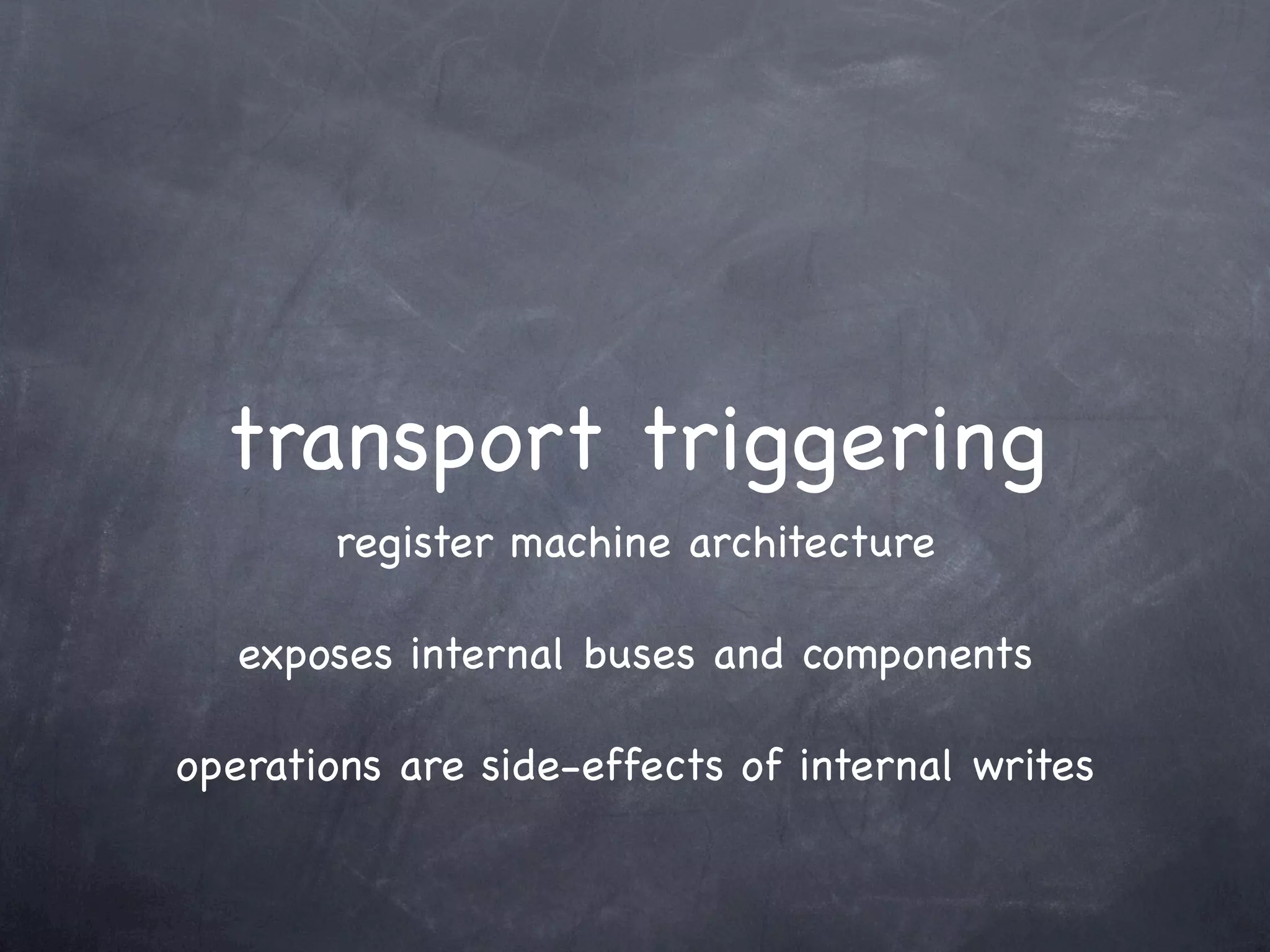

transport triggering
register machine architecture

exposes internal buses and components

operations are side-effects of internal writes

vector machine
multi-operand instructions

data vectors read from memory into registers

operations combine registers

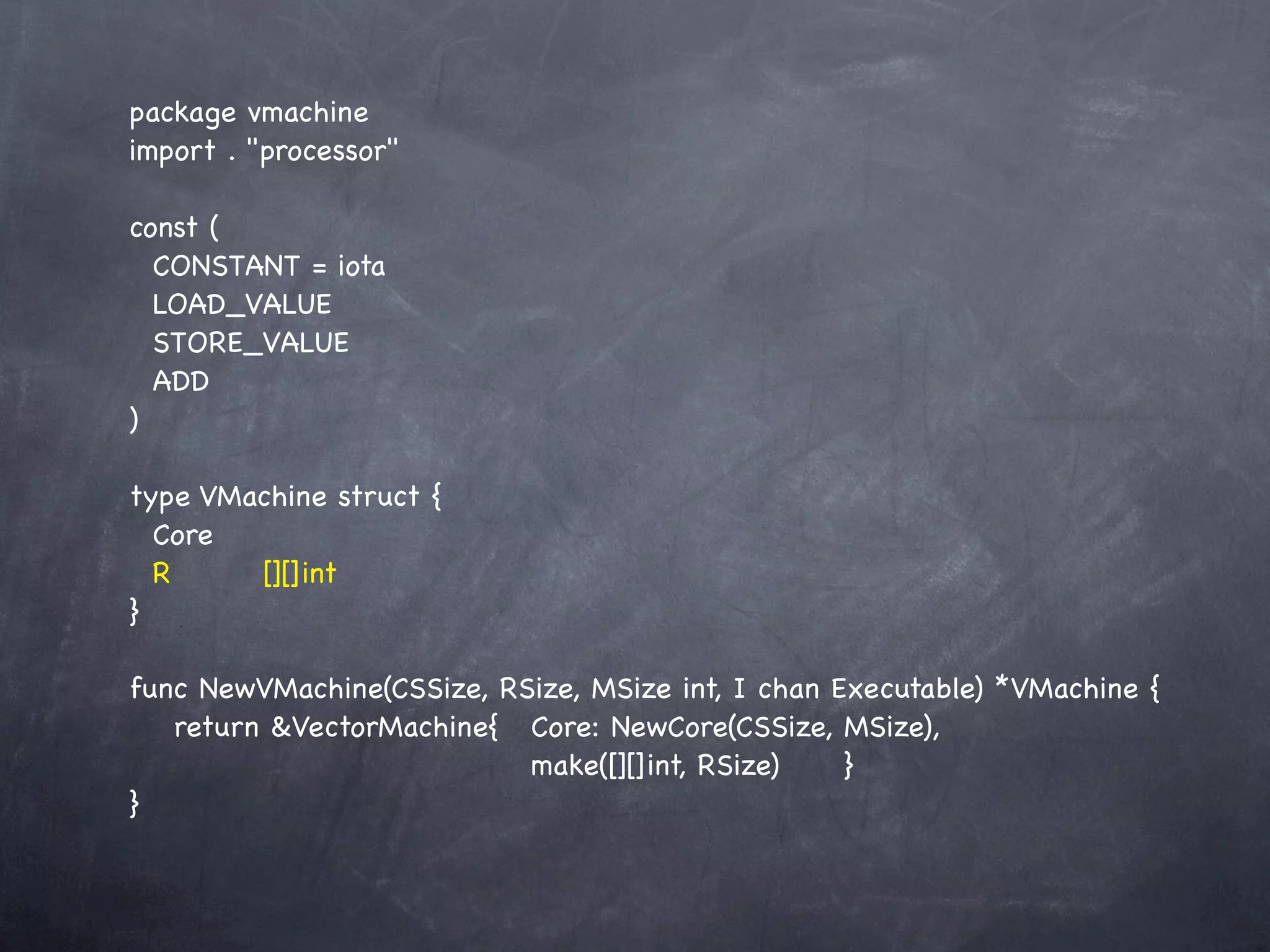

package vmachine

const (
CONSTANT = iota
LOAD_VALUE
STORE_VALUE
ADD
)

type VMachine struct {
Core
R! ! [][]int
}

func NewVMachine(CSSize, RSize, MSize int, I chan Executable) *VMachine {
! return &VectorMachine{! Core: NewCore(CSSize, MSize),
! ! ! ! ! ! ! make([][]int, RSize)! ! }
}

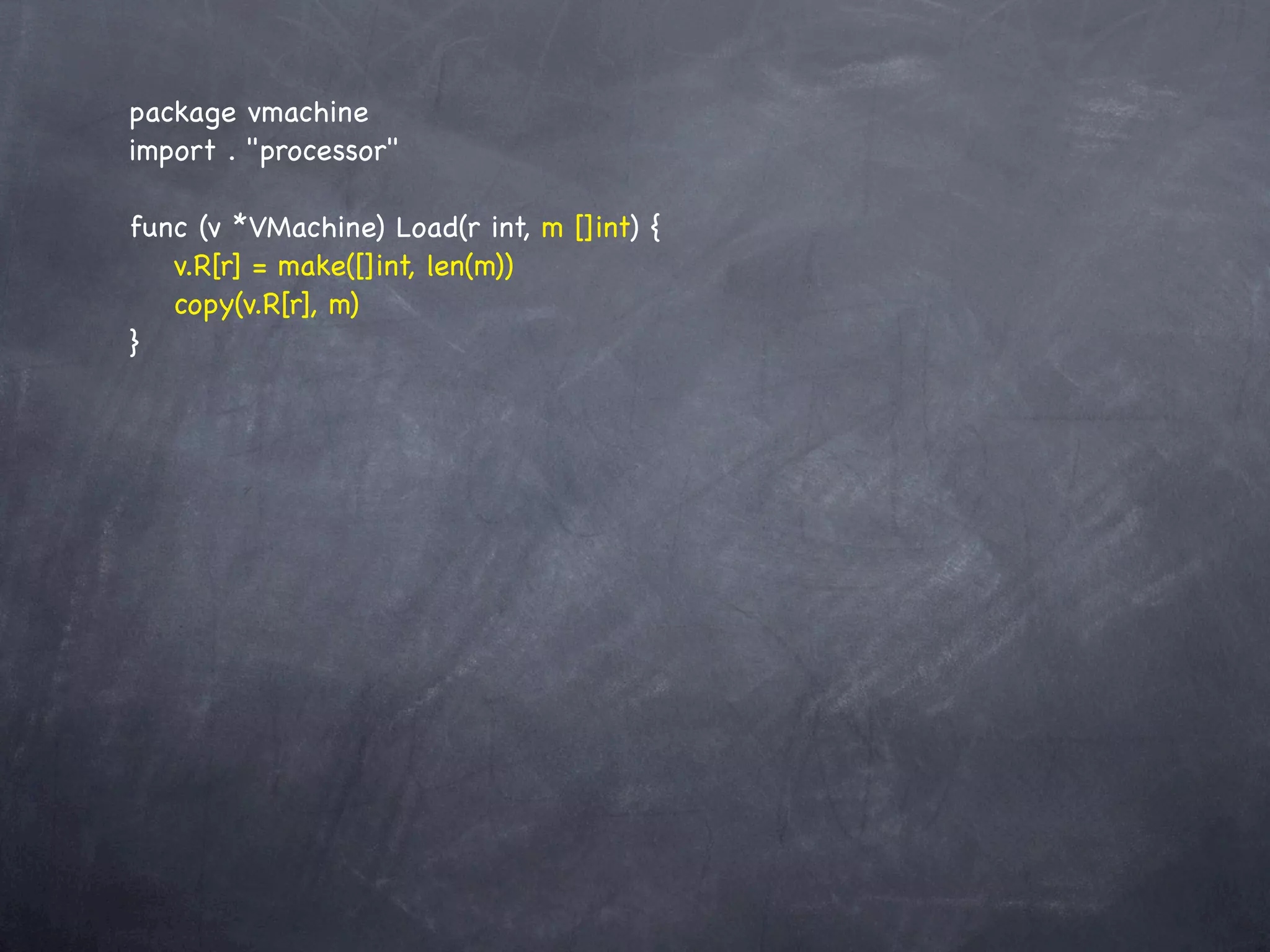

package vmachine

func (v *VMachine) Load(r int, m []int) {
! v.R[r] = make([]int, len(m))
! copy(v.R[r], m)
}

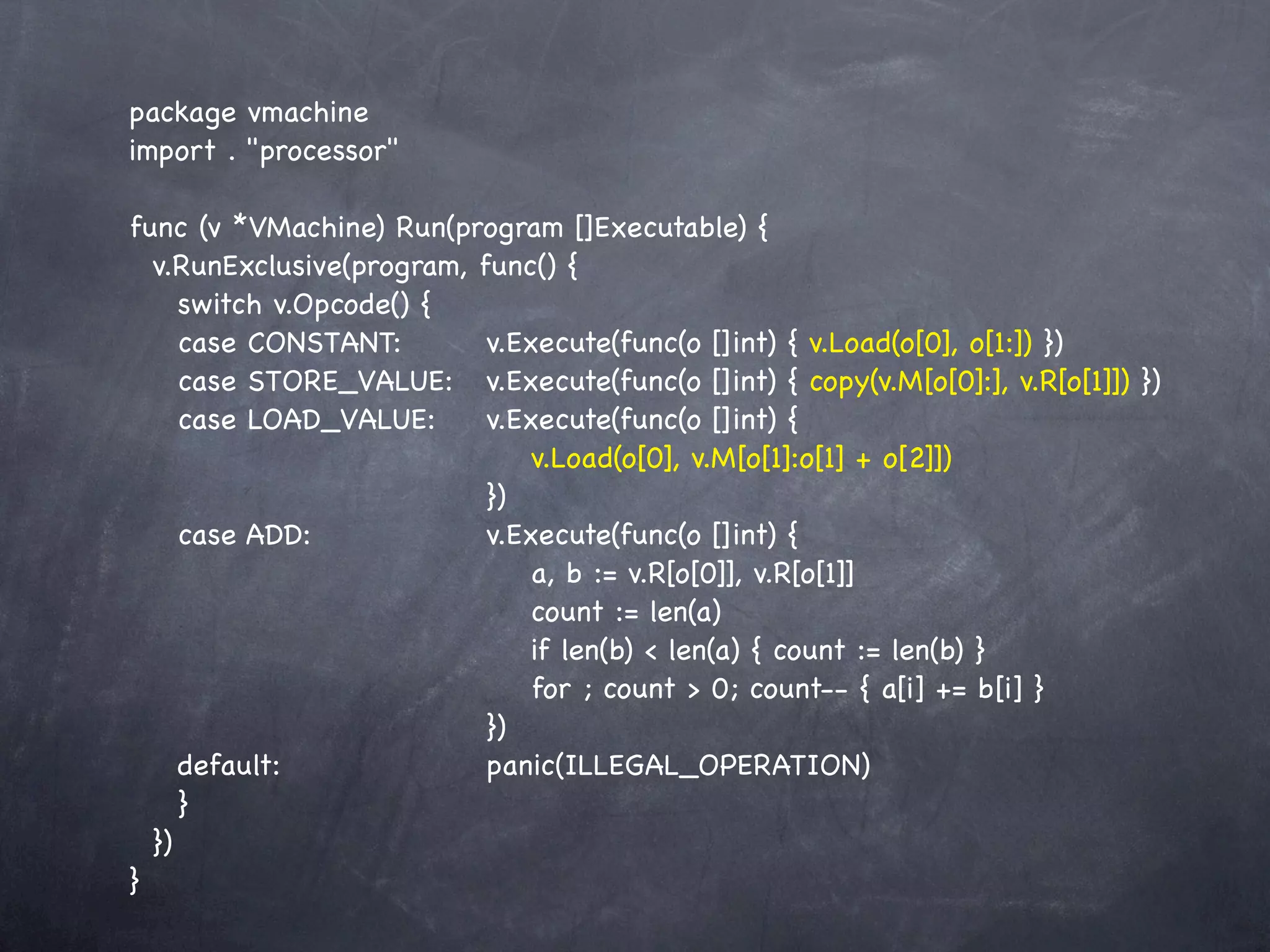

package vmachine

func (v *VMachine) Run(program []Executable) {
v.RunExclusive(program, func() {
switch v.Opcode() {
case CONSTANT:! ! v.Execute(func(o []int) { v.Load(o[0], o[1:]) })
case STORE_VALUE:! v.Execute(func(o []int) { copy(v.M[o[0]:], v.R[o[1]]) })
case LOAD_VALUE:!! v.Execute(func(o []int) {
! ! ! ! ! ! ! ! v.Load(o[0], v.M[o[1]:o[1] + o[2]])
! ! ! ! ! ! ! })
case ADD:! ! ! ! v.Execute(func(o []int) {
! ! ! ! ! ! ! ! a, b := v.R[o[0]], v.R[o[1]]
! ! ! ! ! ! ! ! count := len(a)
! ! ! ! ! ! ! ! if len(b) < len(a) { count := len(b) }
! ! ! ! ! ! ! for ; count > 0; count-- { a[i] += b[i] }
! ! ! ! ! ! })
}
})
}

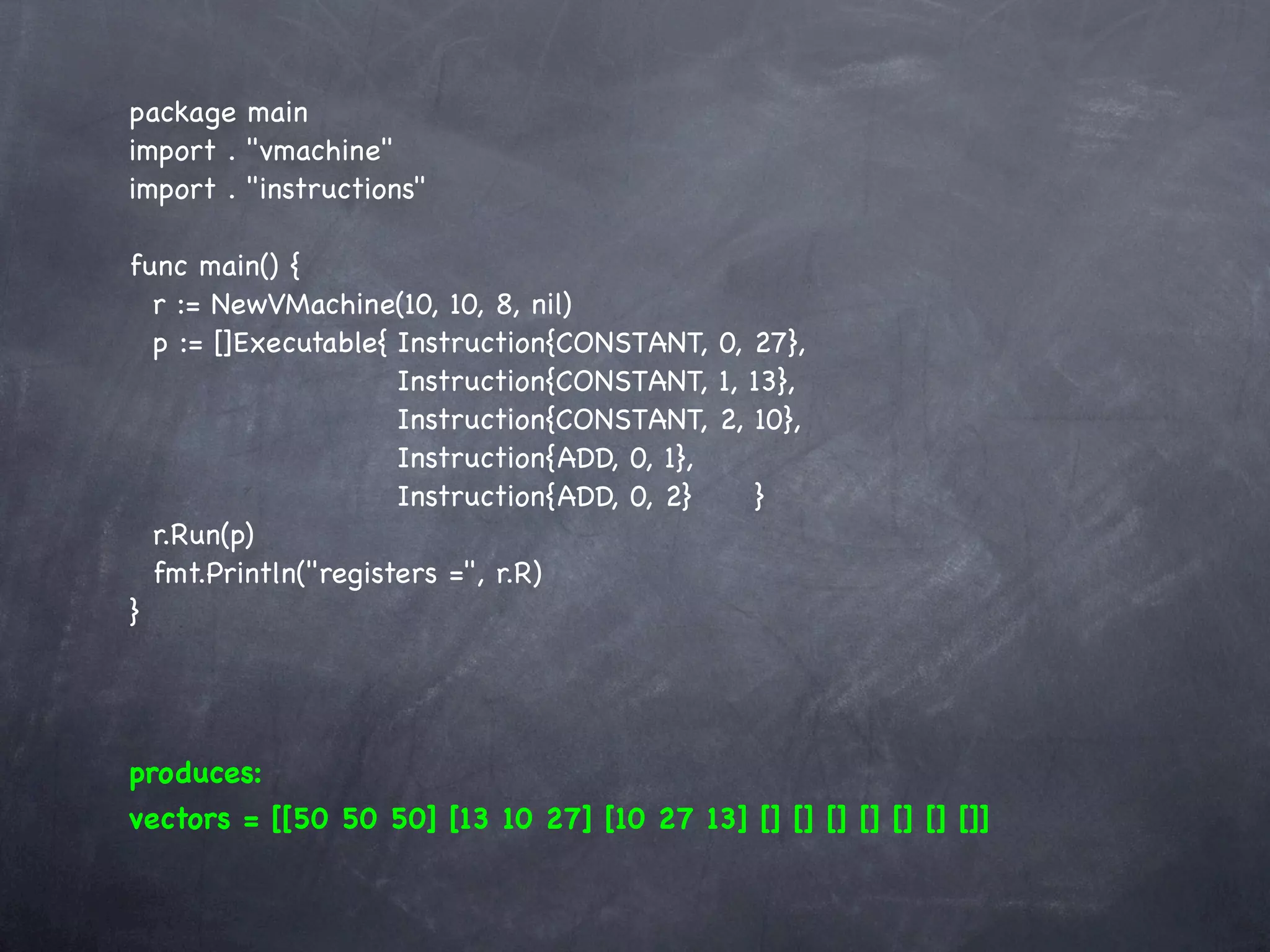

package main
import . "vmachine"

func main() {
r := NewVMachine(10, 10, 8, nil)
p := []Executable{!Instruction{CONSTANT, 0, 27},
! ! ! ! ! Instruction{ADD, 0, 1},
! ! ! ! ! Instruction{ADD, 0, 2}! ! }
r.Run(p)
fmt.Println("registers =", r.R)
}

produces:
vectors = [[50 50 50] [13 10 27] [10 27 13] [] [] [] [] [] [] []]

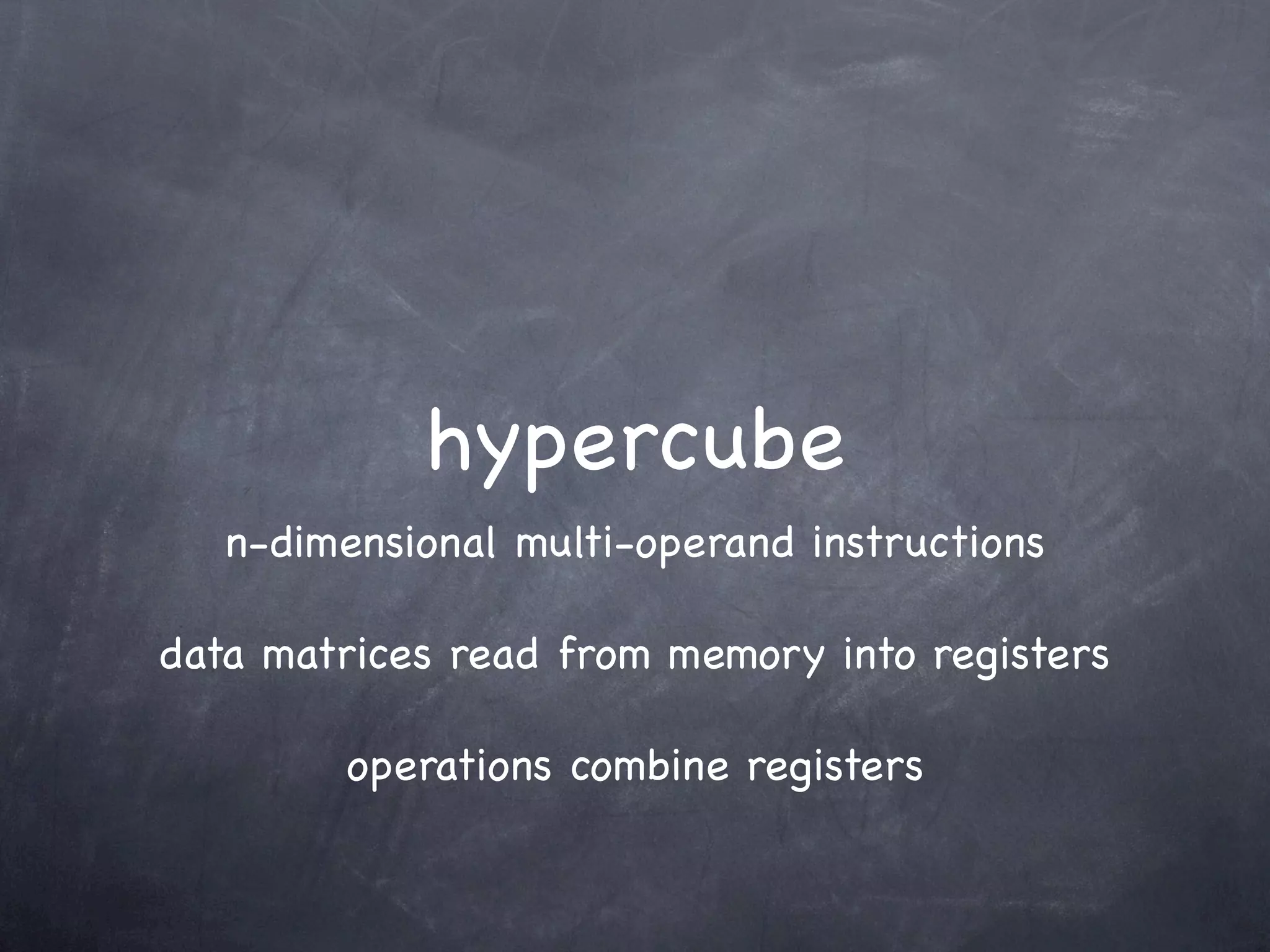

hypercube
n-dimensional multi-operand instructions

data matrices read from memory into registers

operations combine registers

superscalar
multiple execution units

processor caching

out-of-order execution

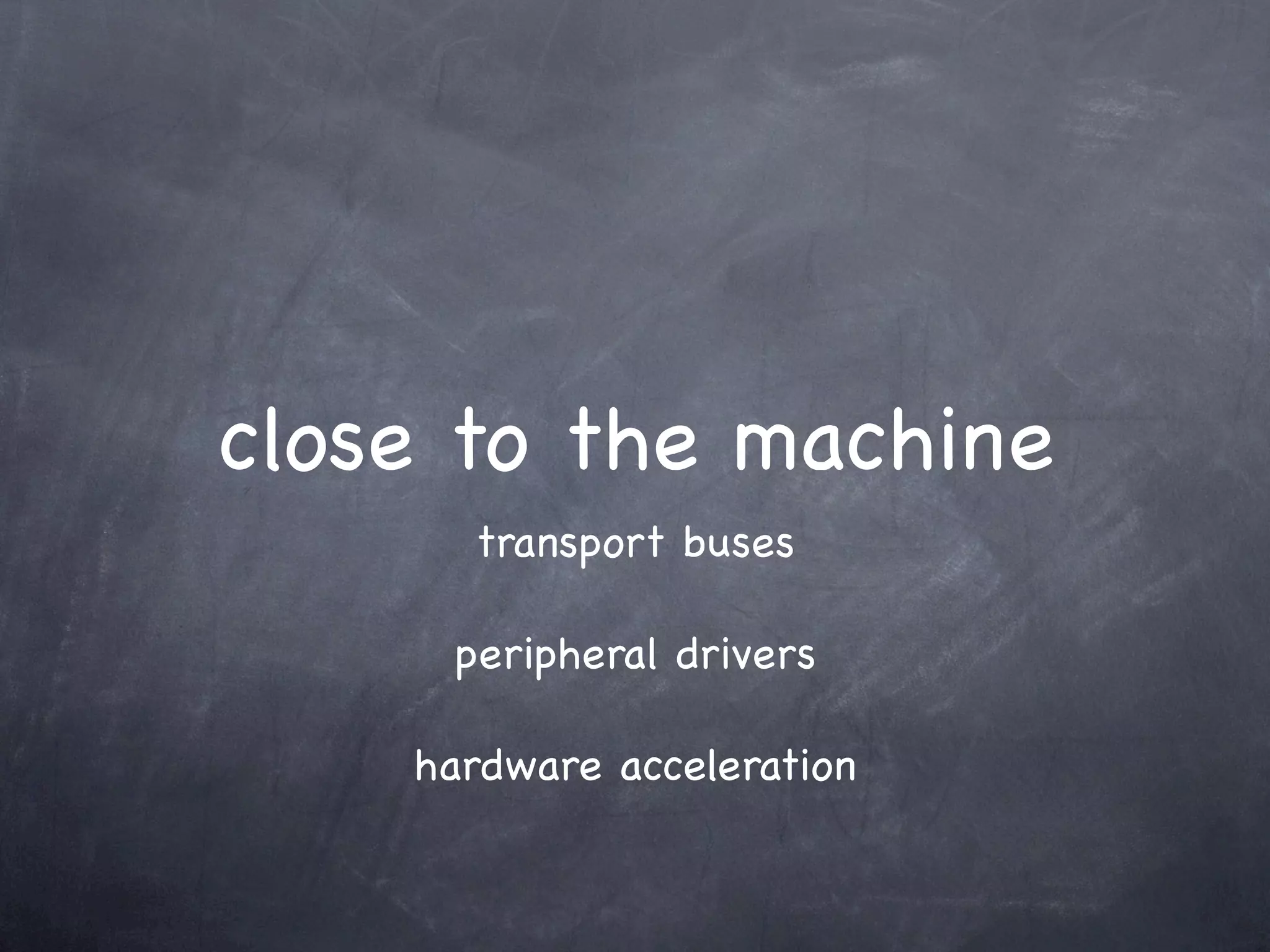

close to the machine
transport buses

peripheral drivers

hardware acceleration

ﬁnding out more
http://golang.org/

http://feyeleanor.tel/

http://golightly.games-with-brains.net/

http://github.com/feyeleanor/

twitter://#golightly

wikipedia or google

GoLightly: Building VM-Based Language Runtimes with Google Go

More Related Content

What's hot

Similar to GoLightly: Building VM-Based Language Runtimes with Google Go

More from Eleanor McHugh

Recently uploaded

GoLightly: Building VM-Based Language Runtimes with Google Go

Editor's Notes
