The document defines GIS as a system for capturing, storing, integrating, manipulating, analyzing and displaying spatially referenced data related to the Earth. It allows for spatial data to be overlaid and analyzed to derive new information and insights. Some key benefits of GIS include better information management, higher quality spatial analysis, ability to model "what if" scenarios, and improved project efficiency through the use of spatial data and tools.
Gis

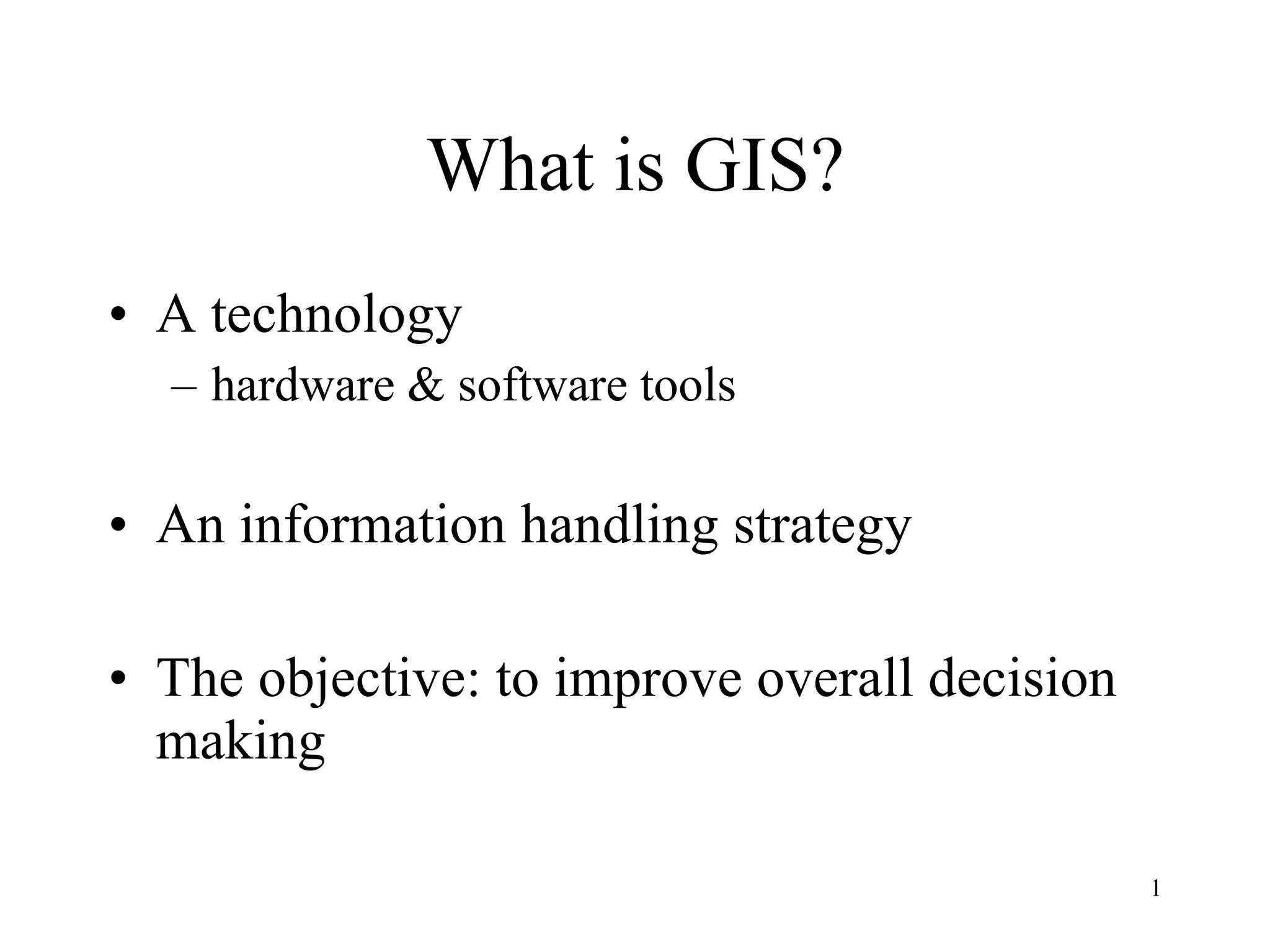

- 1. What is GIS?A technology hardware & software tools An information handling strategy The objective: to improve overall decision making

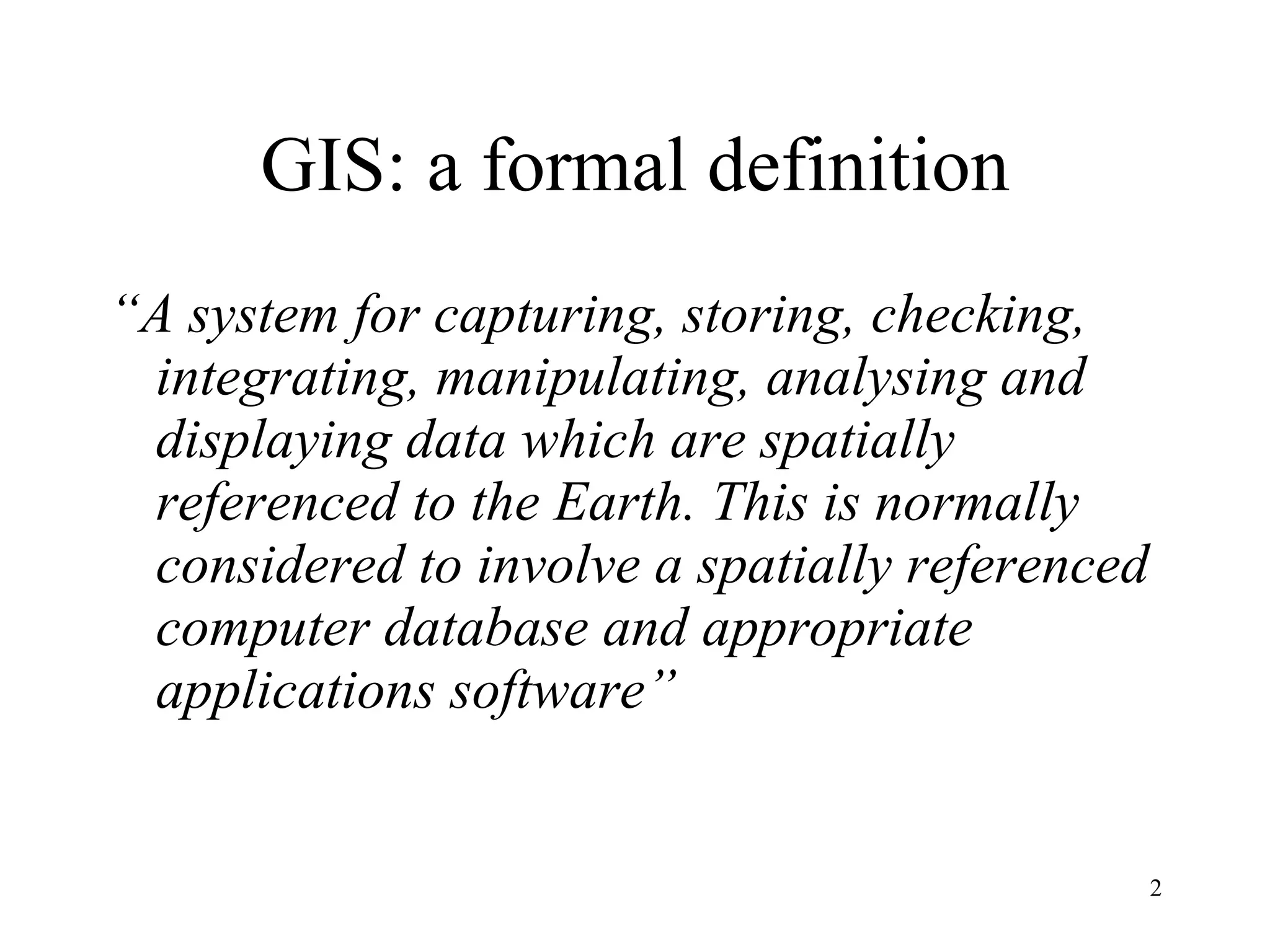

- 2. GIS: a formaldefinition “ A system for capturing, storing, checking, integrating, manipulating, analysing and displaying data which are spatially referenced to the Earth. This is normally considered to involve a spatially referenced computer database and appropriate applications software”

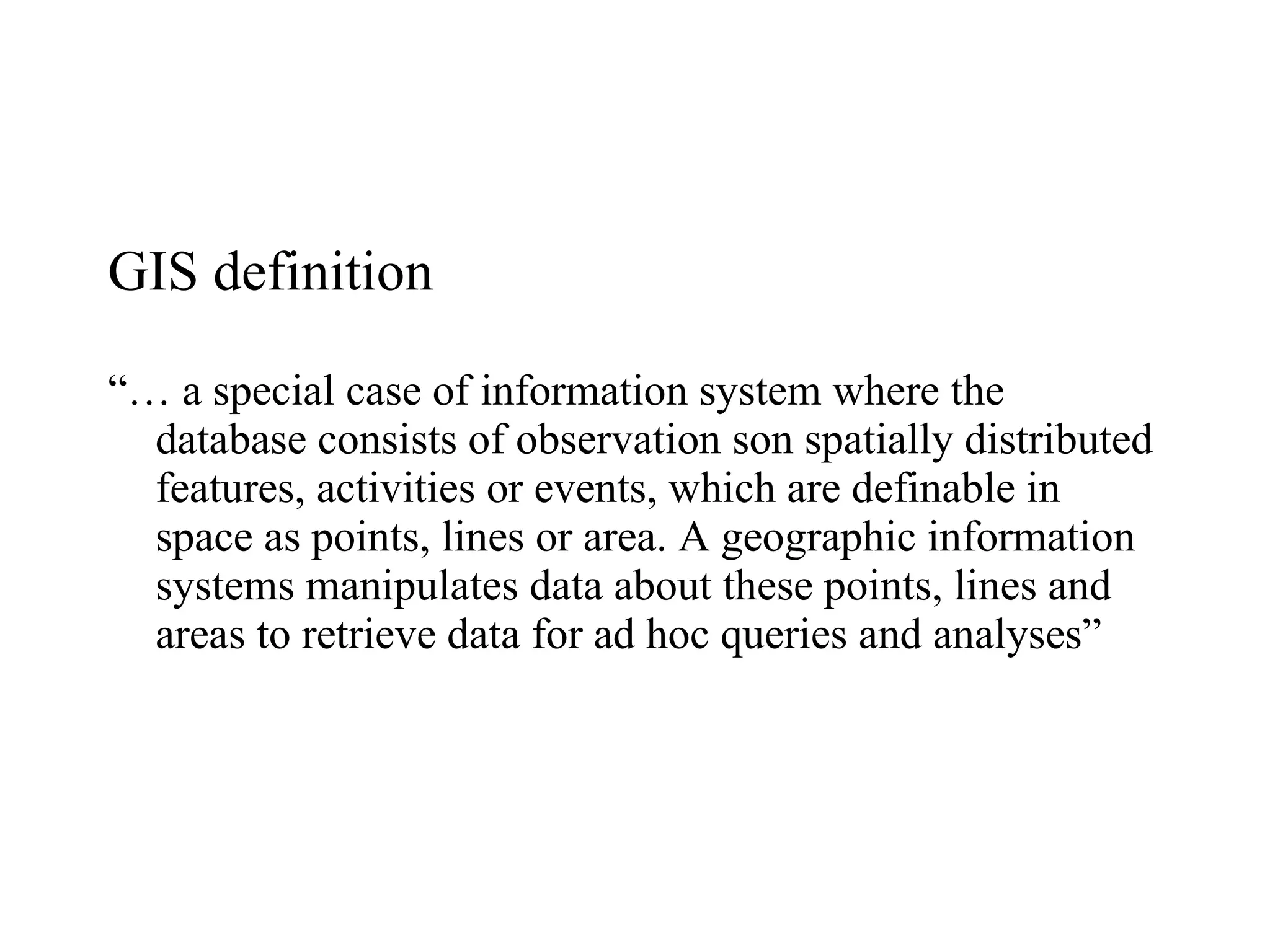

- 3. GIS definition “… a special case of information system where the database consists of observation son spatially distributed features, activities or events, which are definable in space as points, lines or area. A geographic information systems manipulates data about these points, lines and areas to retrieve data for ad hoc queries and analyses”

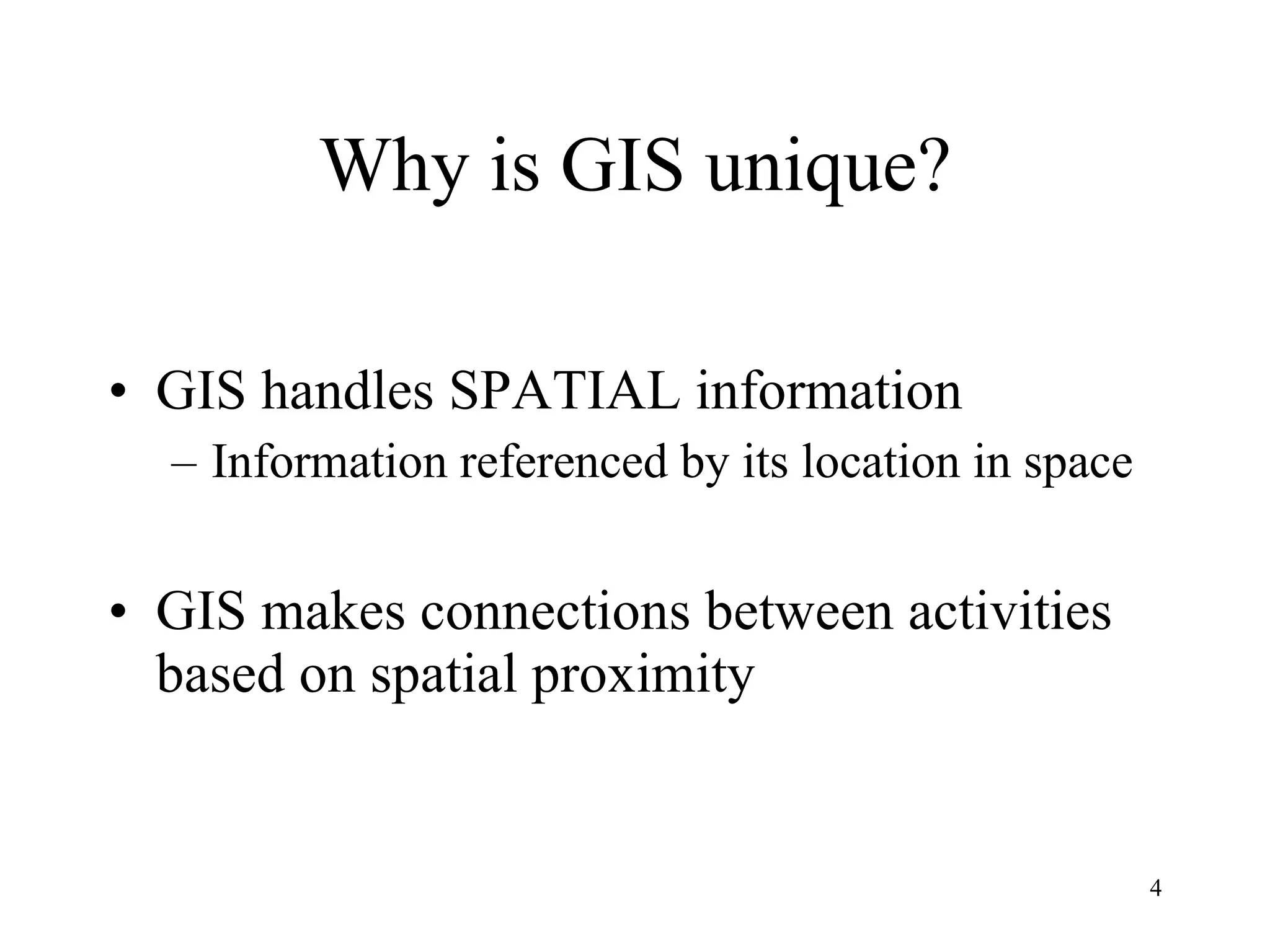

- 4. Why is GISunique? GIS handles SPATIAL information Information referenced by its location in space GIS makes connections between activities based on spatial proximity

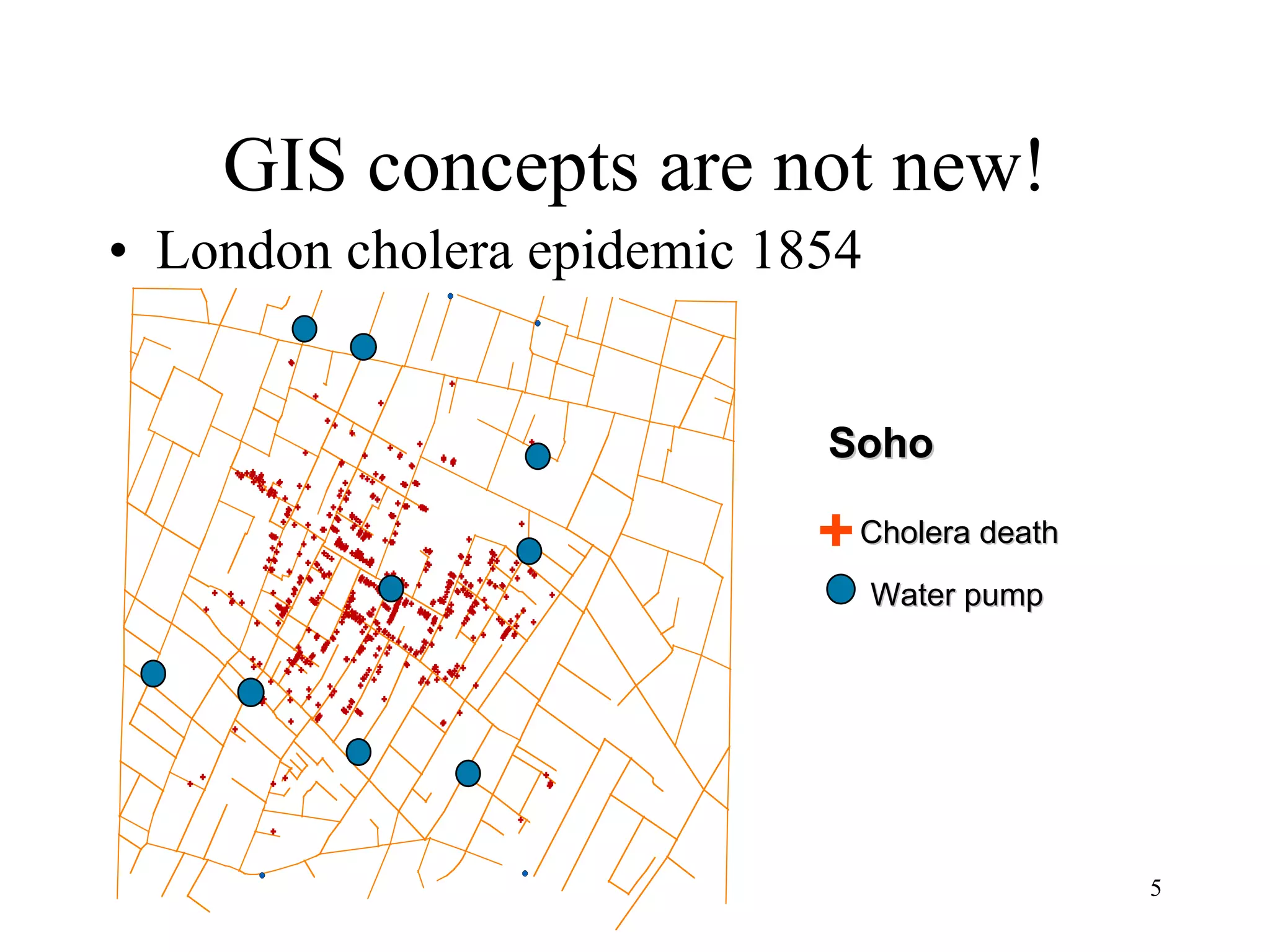

- 5. GIS concepts arenot new! London cholera epidemic 1854 Cholera death Water pump Soho +

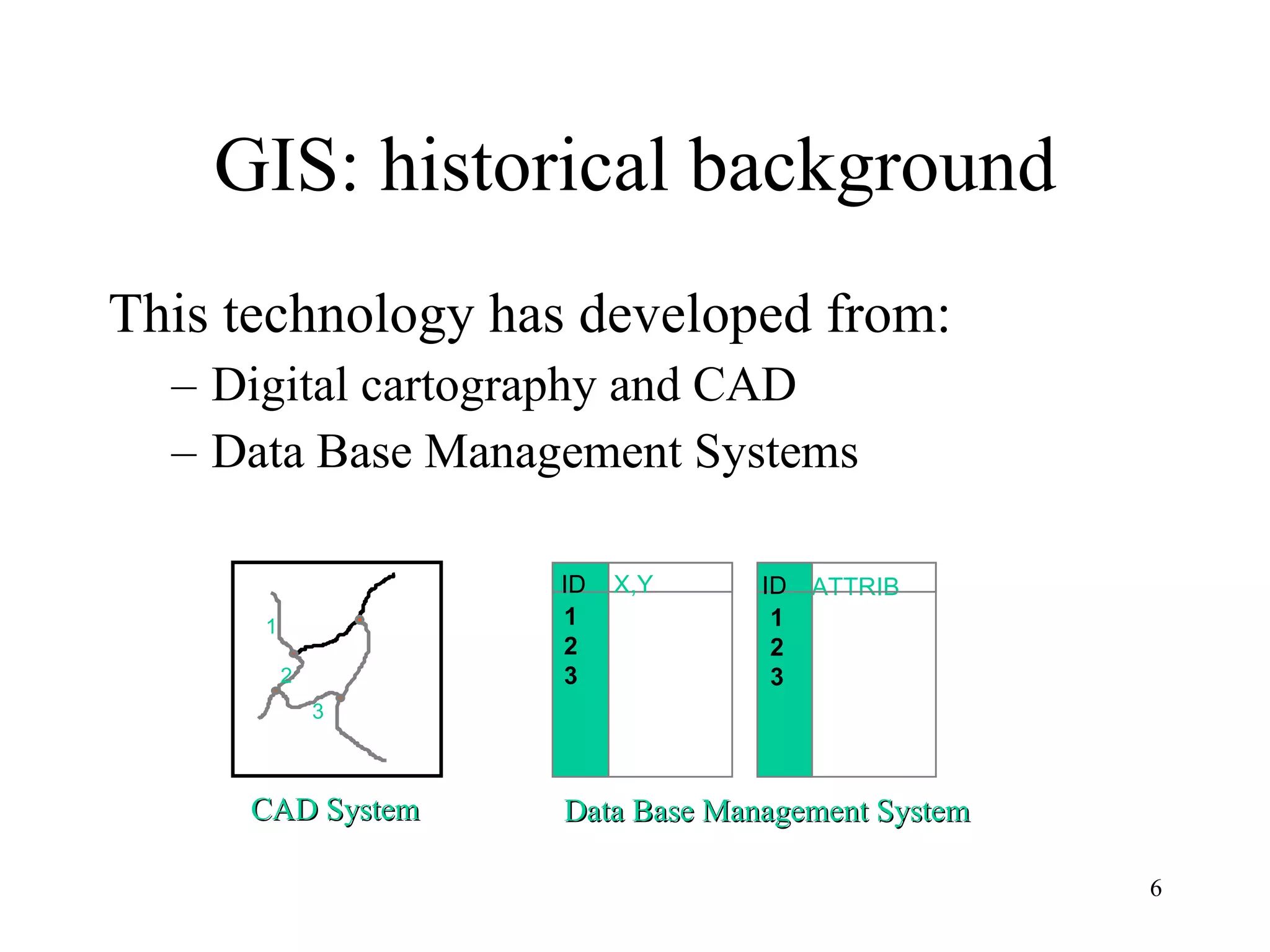

- 6. GIS: historical backgroundThis technology has developed from: Digital cartography and CAD Data Base Management Systems 1 2 3 ATTRIB ID X,Y 1 2 3 ID 1 2 3 CAD System Data Base Management System

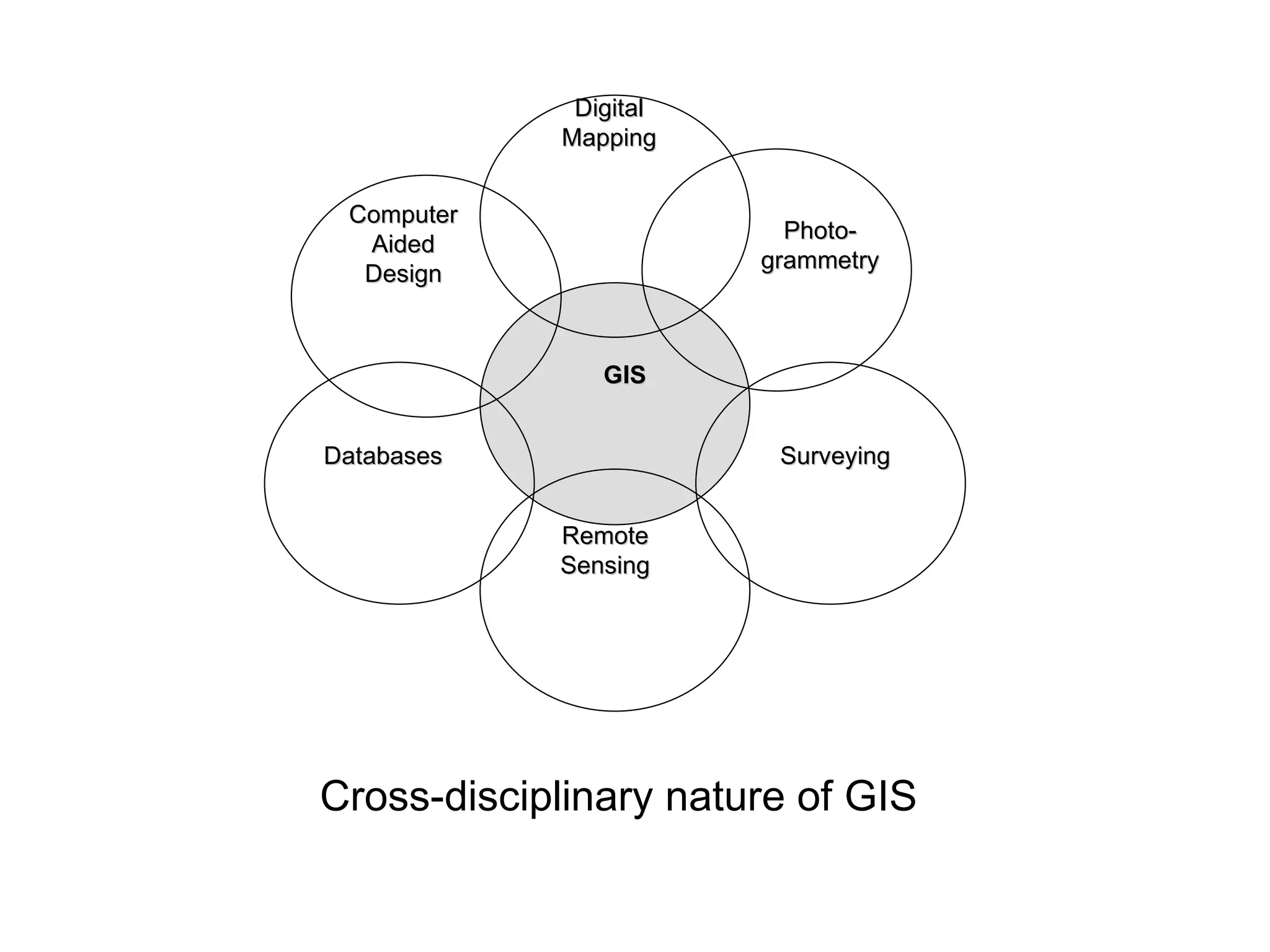

- 7. Digital Mapping Photo-grammetry Computer Aided Design Surveying Remote Sensing Databases GIS Cross-disciplinary nature of GIS

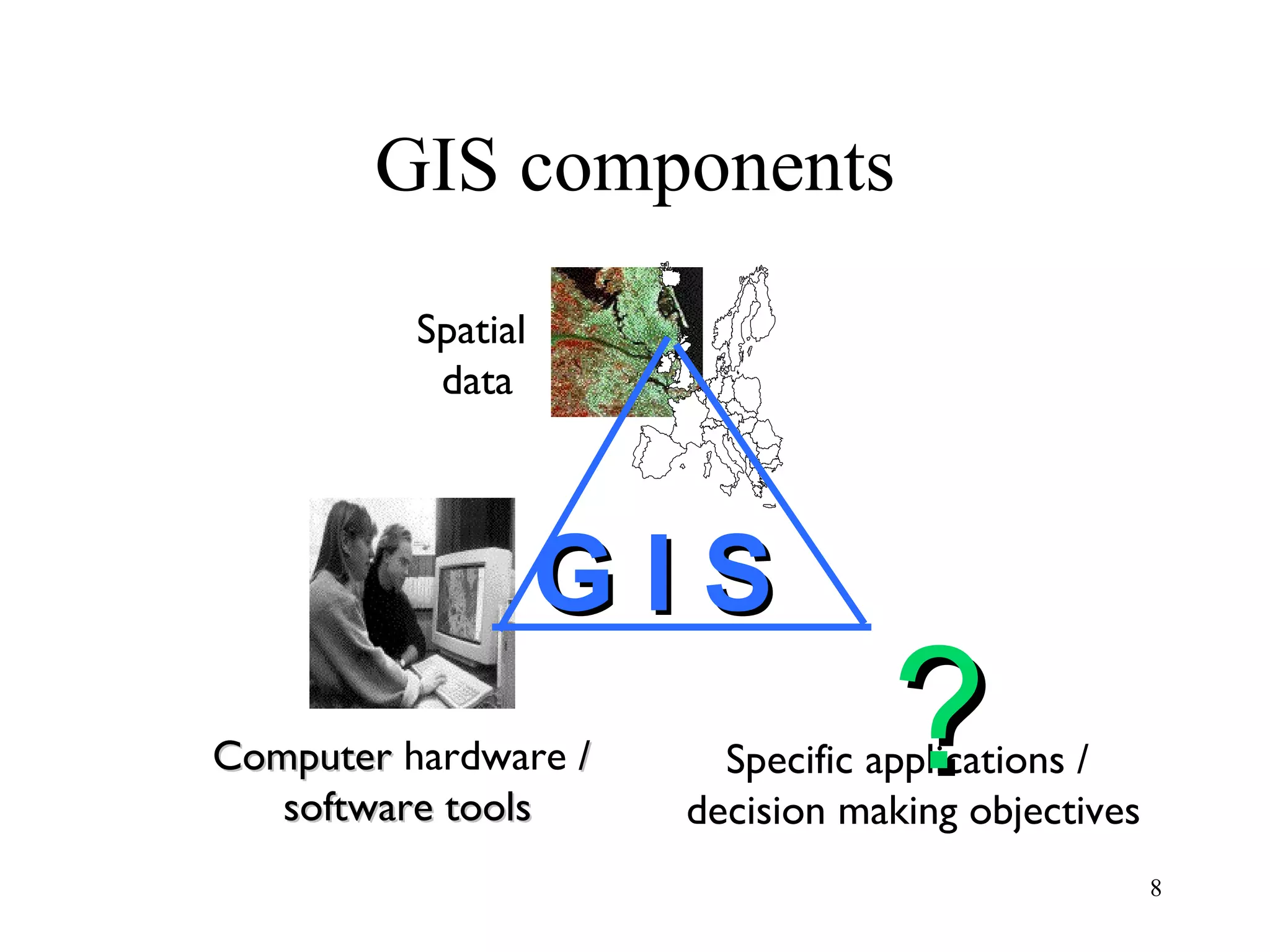

- 8. GIS components Specificapplications / decision making objectives ? G I S Spatial data Computer hardware / software tools

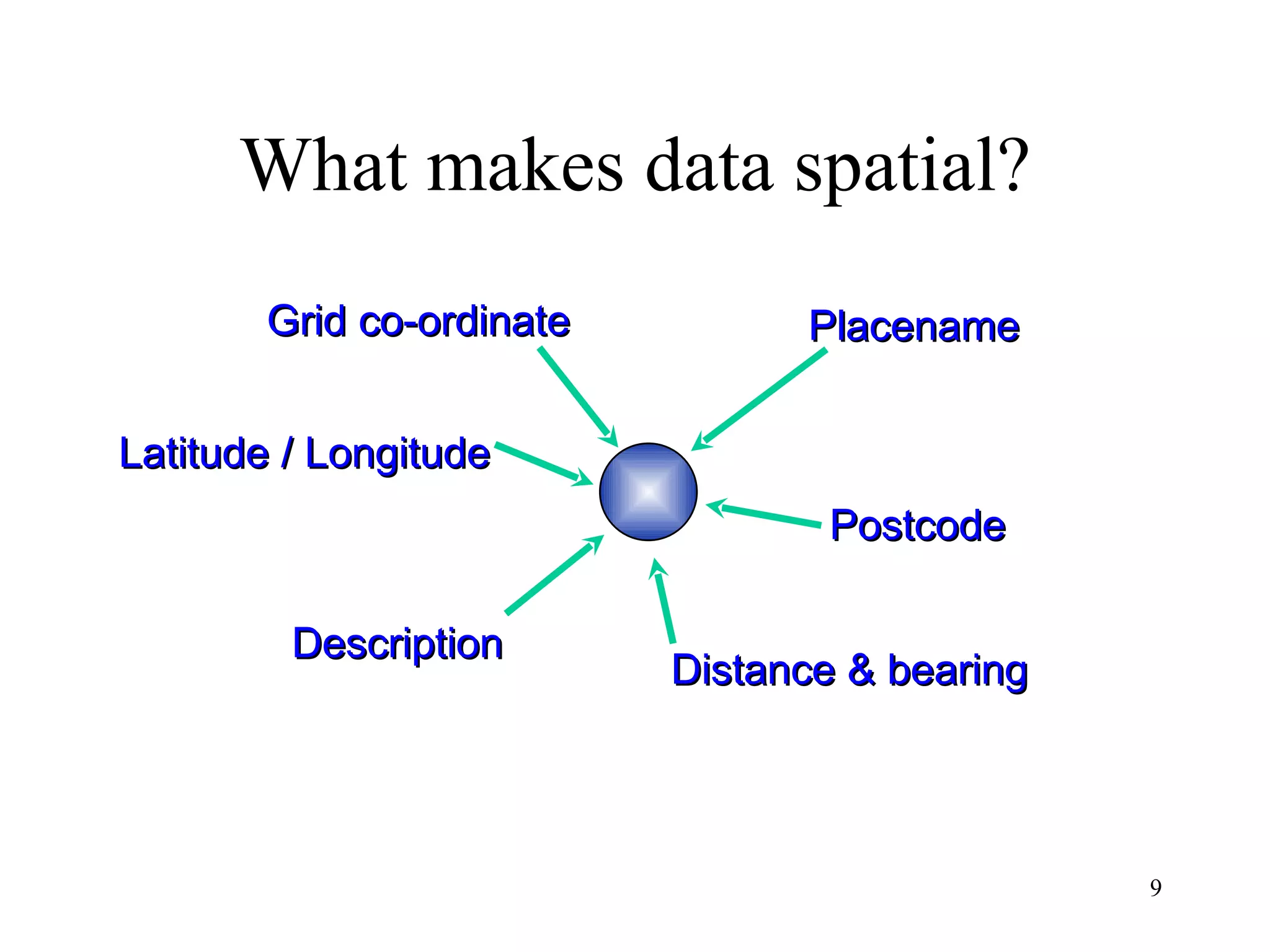

- 9. What makes dataspatial? Placename Grid co-ordinate Postcode Distance & bearing Description Latitude / Longitude

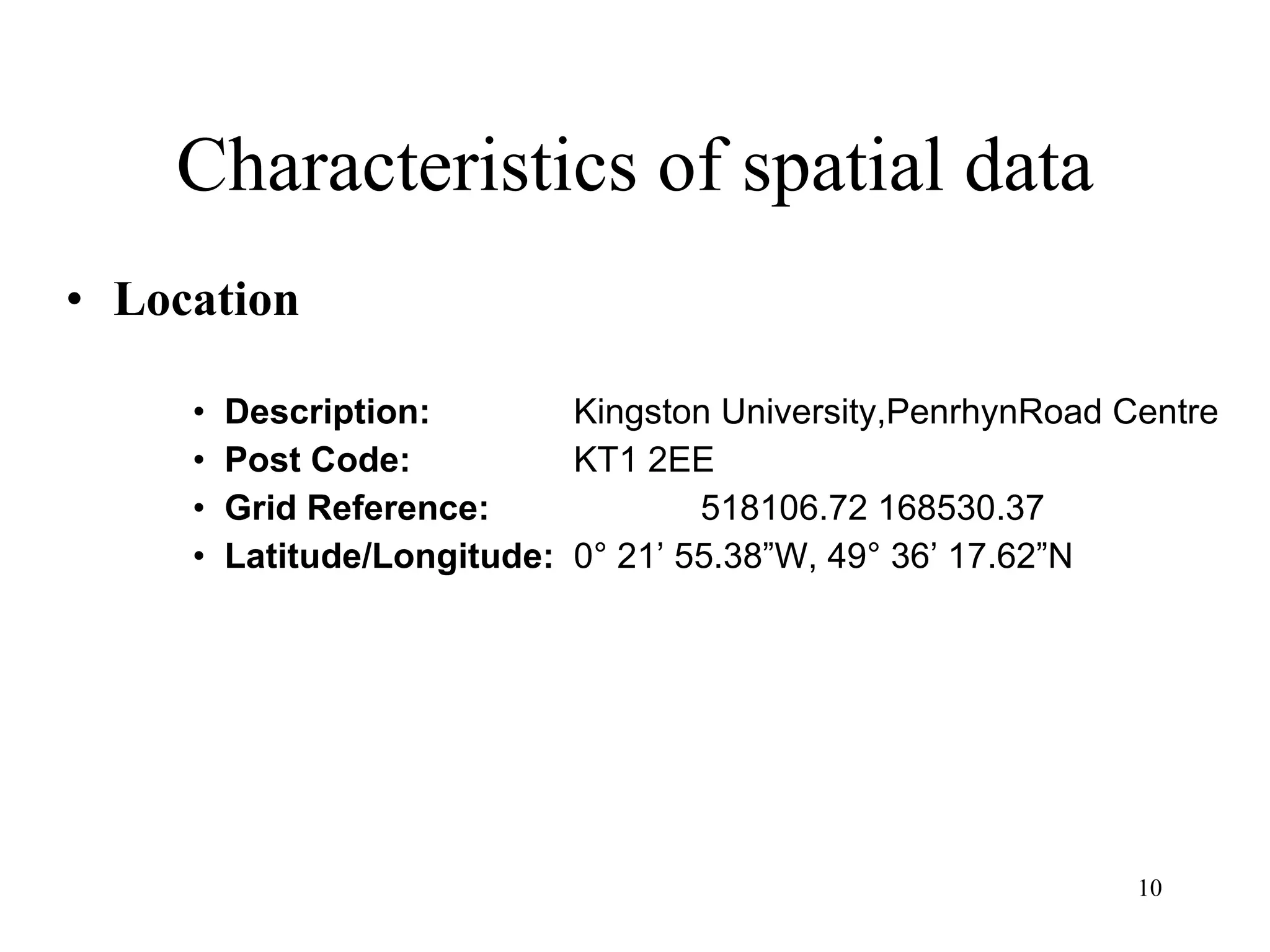

- 10. Characteristics of spatialdata Location Description: Kingston University,PenrhynRoad Centre Post Code: KT1 2EE Grid Reference: 518106.72 168530.37 Latitude/Longitude: 0° 21’ 55.38”W, 49° 36’ 17.62”N

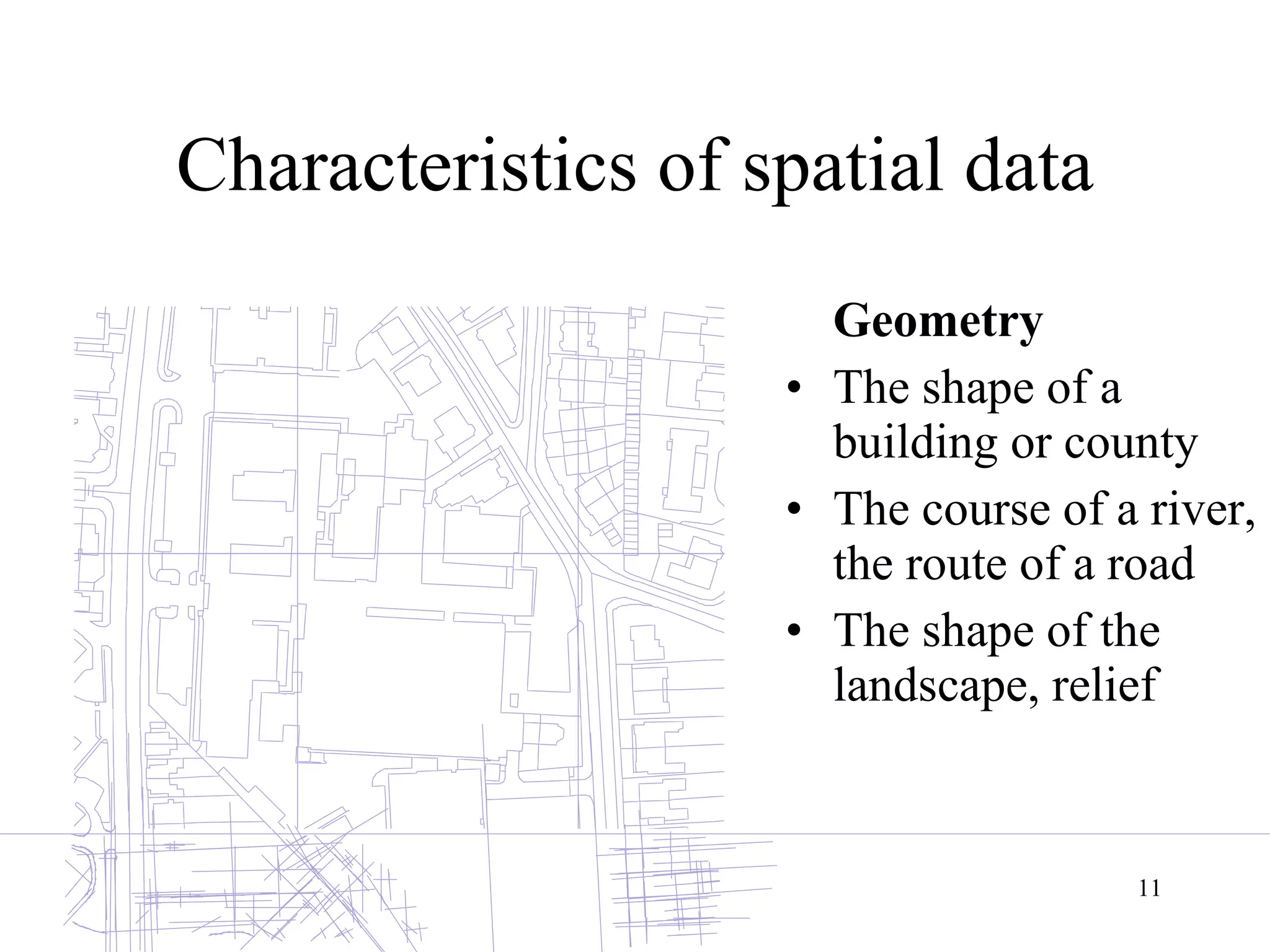

- 11. Characteristics of spatialdata Geometry The shape of a building or county The course of a river, the route of a road The shape of the landscape, relief

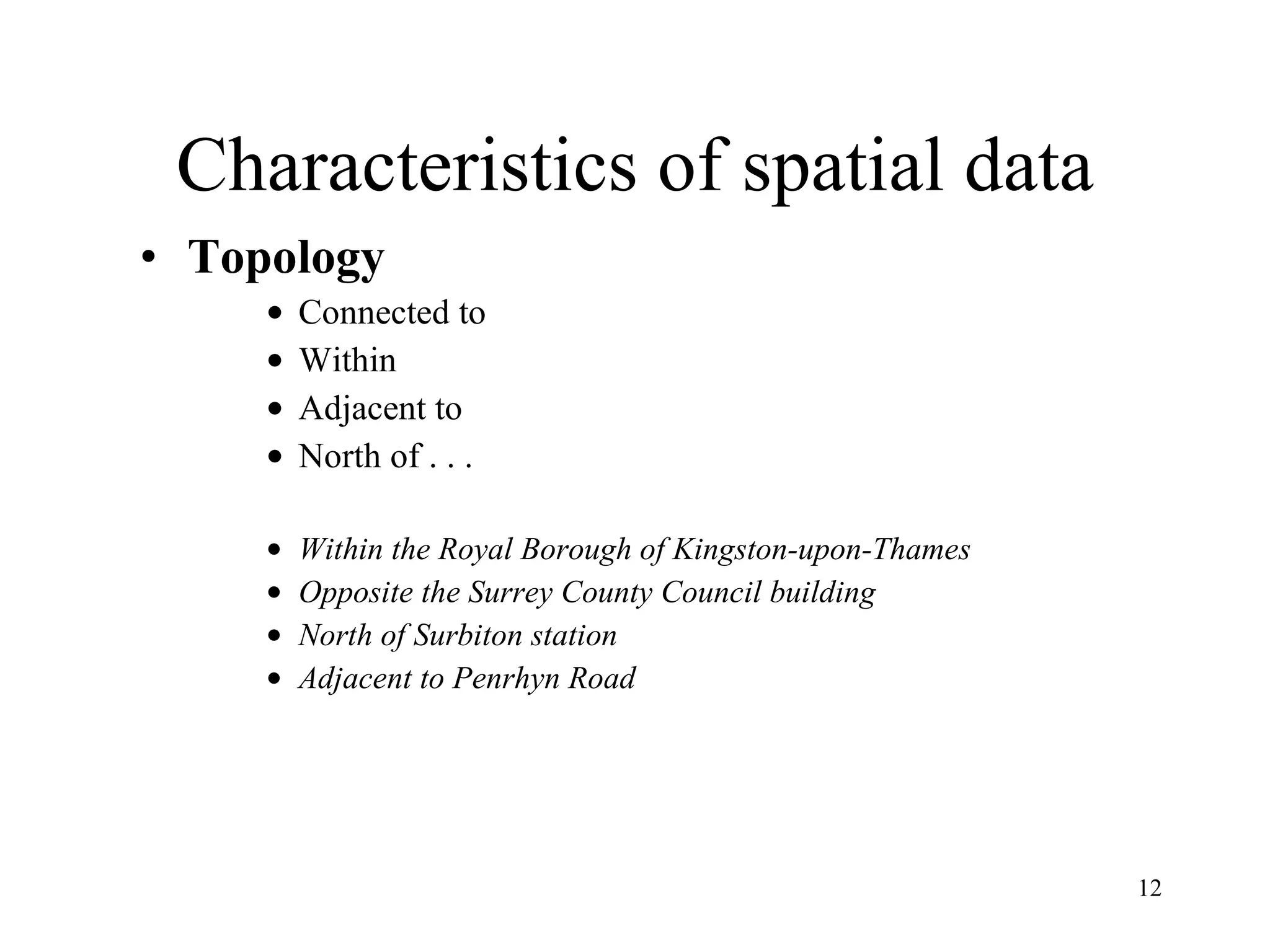

- 12. Characteristics of spatialdata Topology Connected to Within Adjacent to North of . . . Within the Royal Borough of Kingston-upon-Thames Opposite the Surrey County Council building North of Surbiton station Adjacent to Penrhyn Road

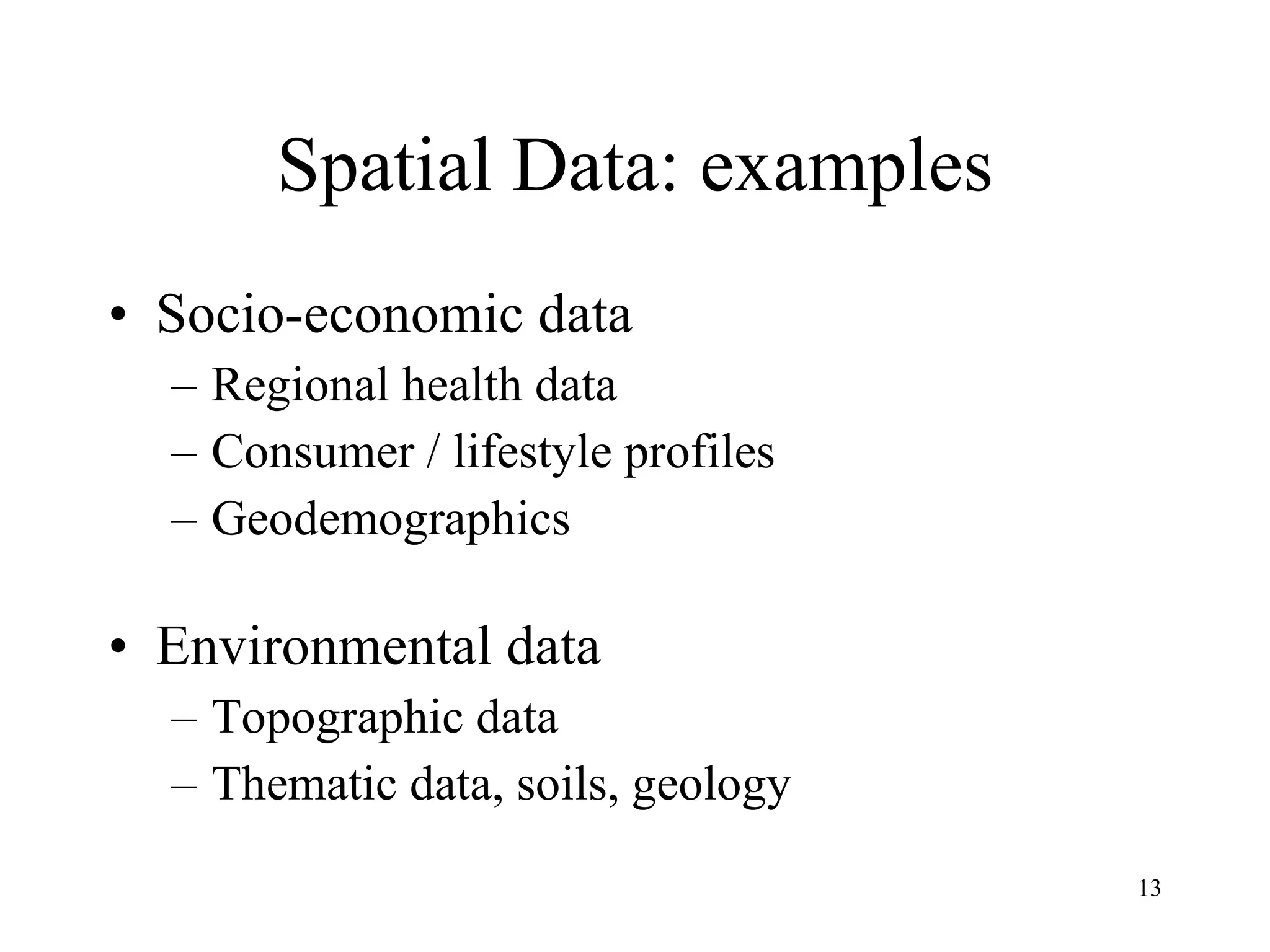

- 13. Spatial Data: examplesSocio-economic data Regional health data Consumer / lifestyle profiles Geodemographics Environmental data Topographic data Thematic data, soils, geology

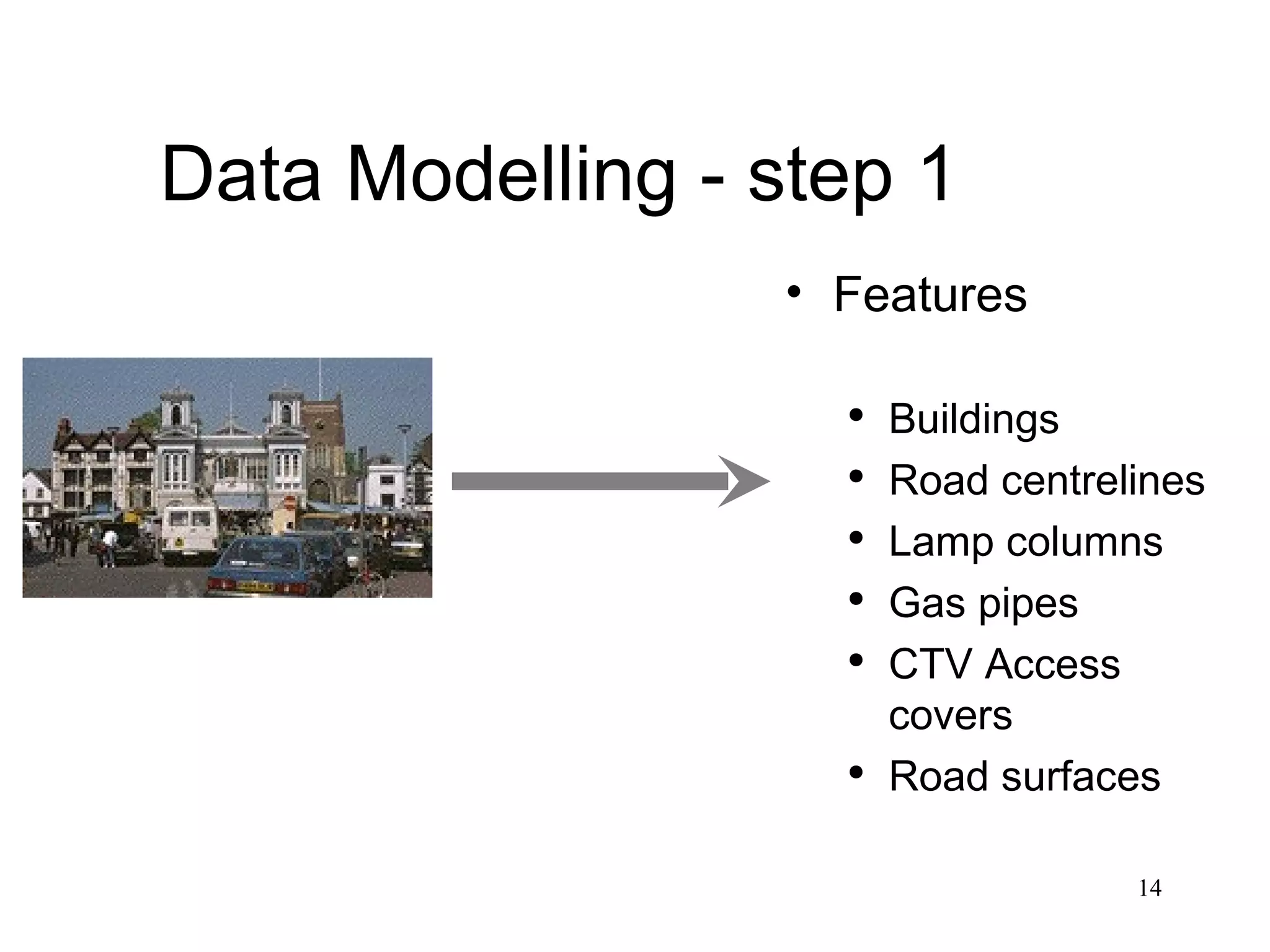

- 14. Data Modelling -step 1 Features Buildings Road centrelines Lamp columns Gas pipes CTV Access covers Road surfaces

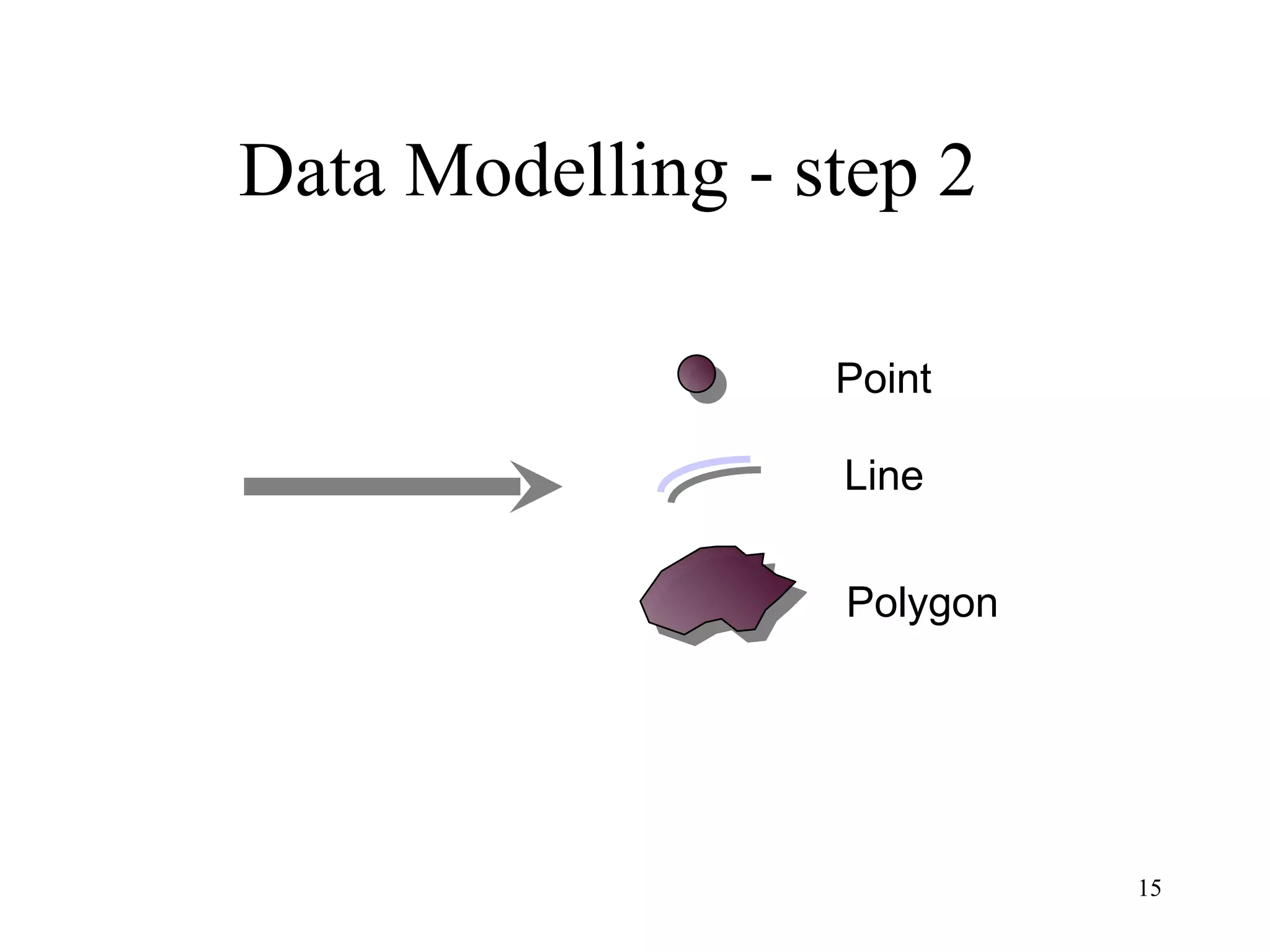

- 15. Data Modelling -step 2 Point Line Polygon

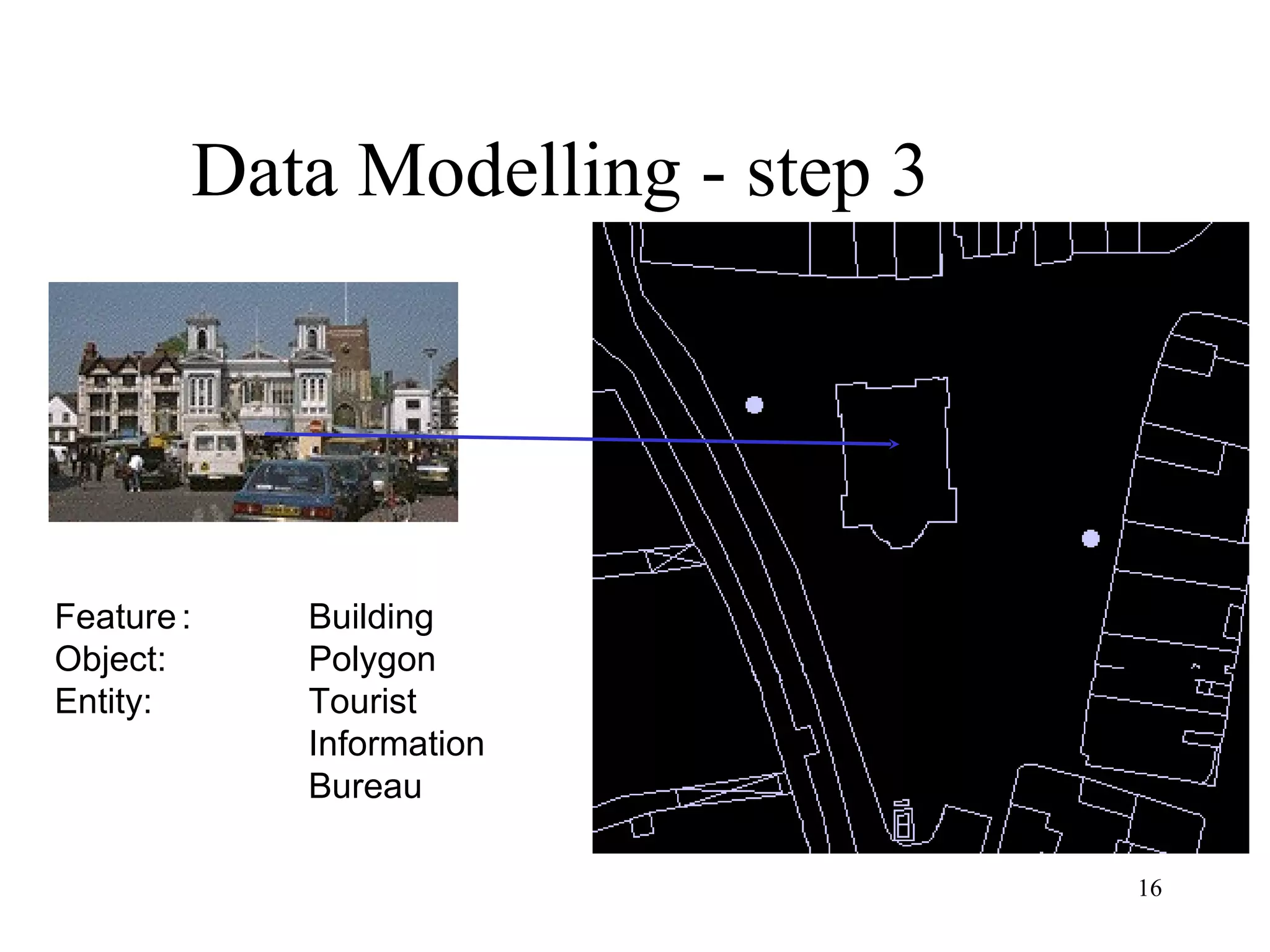

- 16. Data Modelling -step 3 Feature : Building Object: Polygon Entity: Tourist Information Bureau

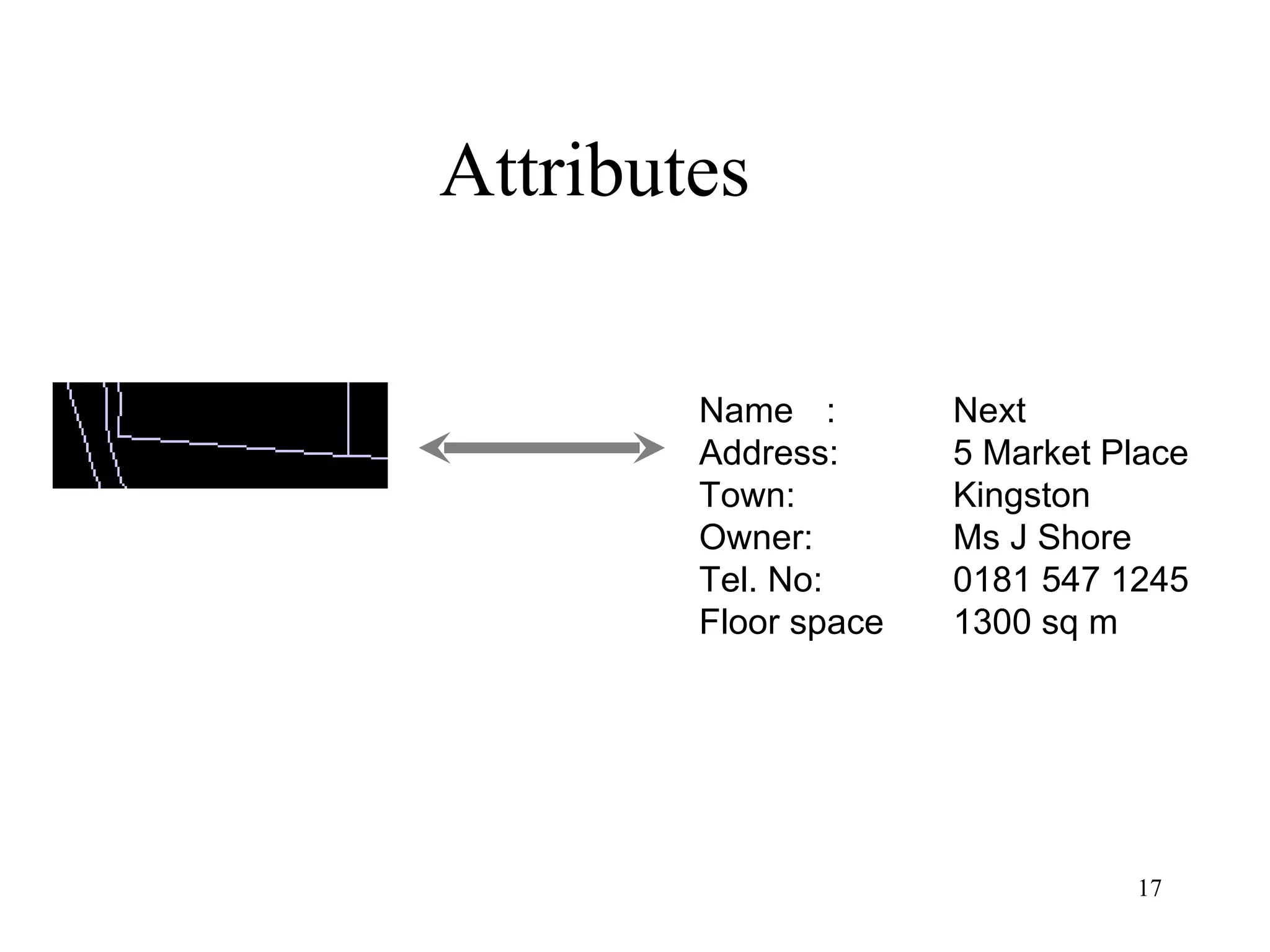

- 17. Attributes Name : Next Address: 5 Market Place Town: Kingston Owner: Ms J Shore Tel. No: 0181 547 1245 Floor space 1300 sq m

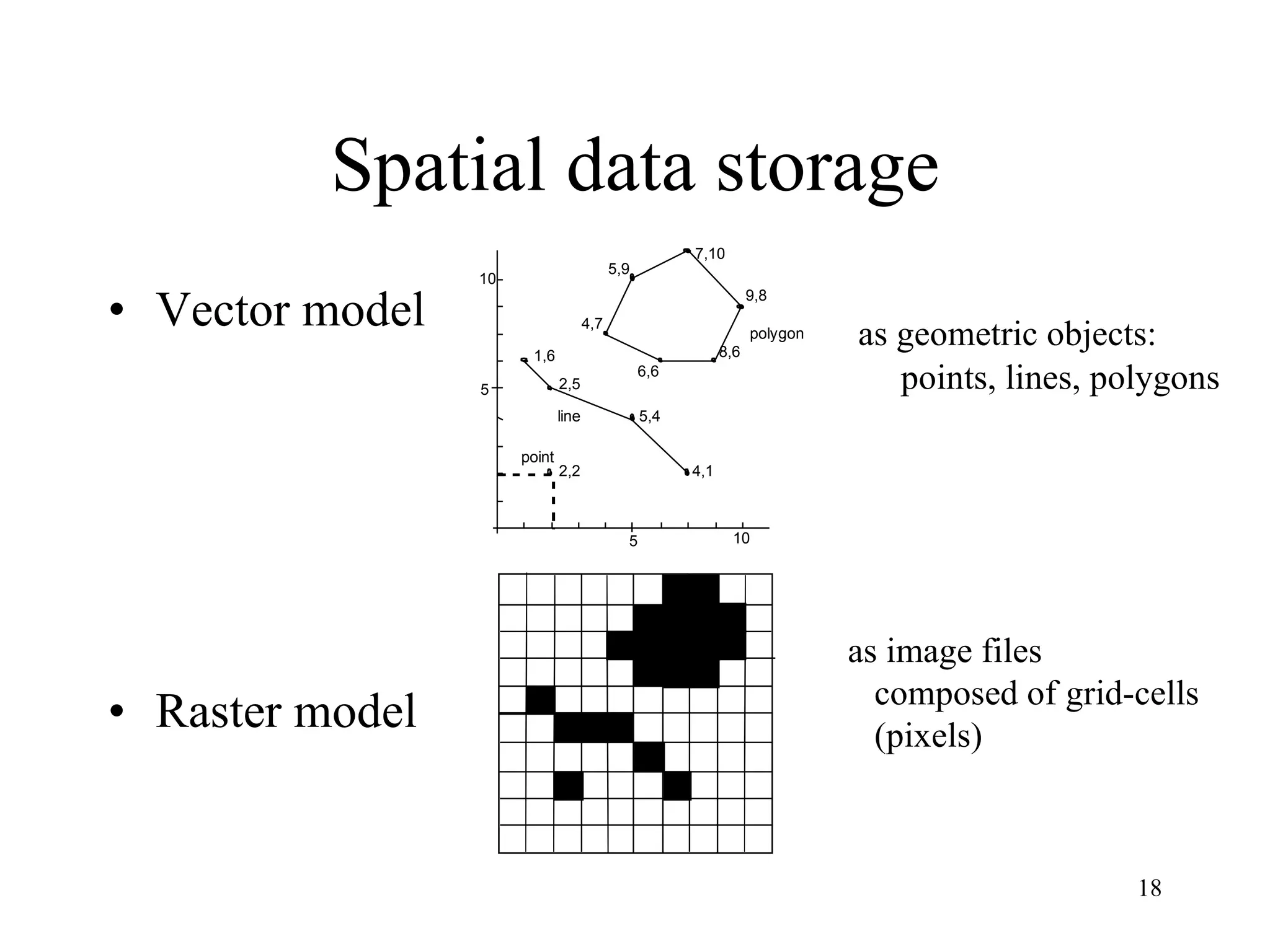

- 18. Spatial data storageVector model Raster model as geometric objects: points, lines, polygons as image files composed of grid-cells (pixels)

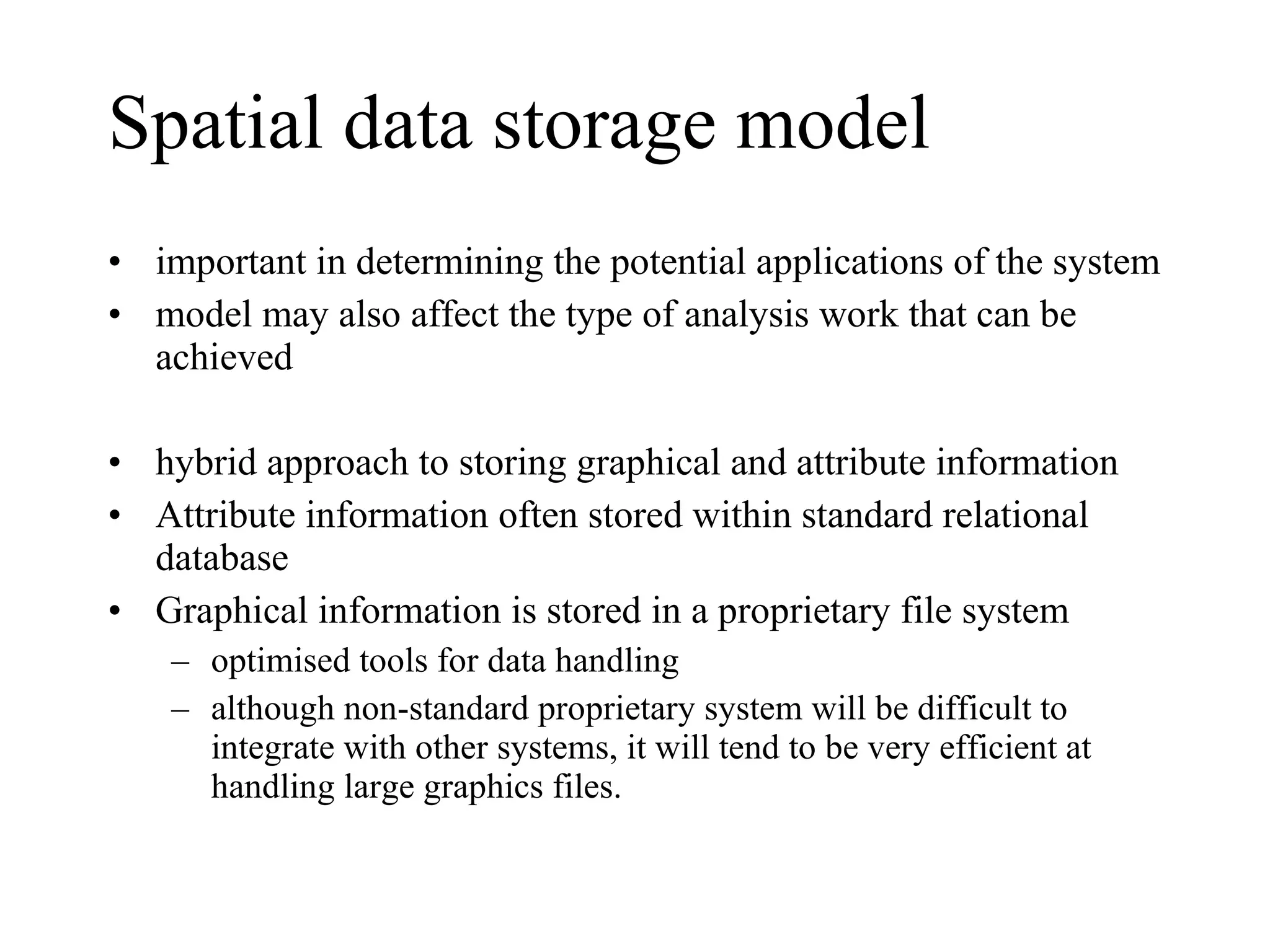

- 19. Spatial data storagemodel important in determining the potential applications of the system model may also affect the type of analysis work that can be achieved hybrid approach to storing graphical and attribute information Attribute information often stored within standard relational database Graphical information is stored in a proprietary file system optimised tools for data handling although non-standard proprietary system will be difficult to integrate with other systems, it will tend to be very efficient at handling large graphics files.

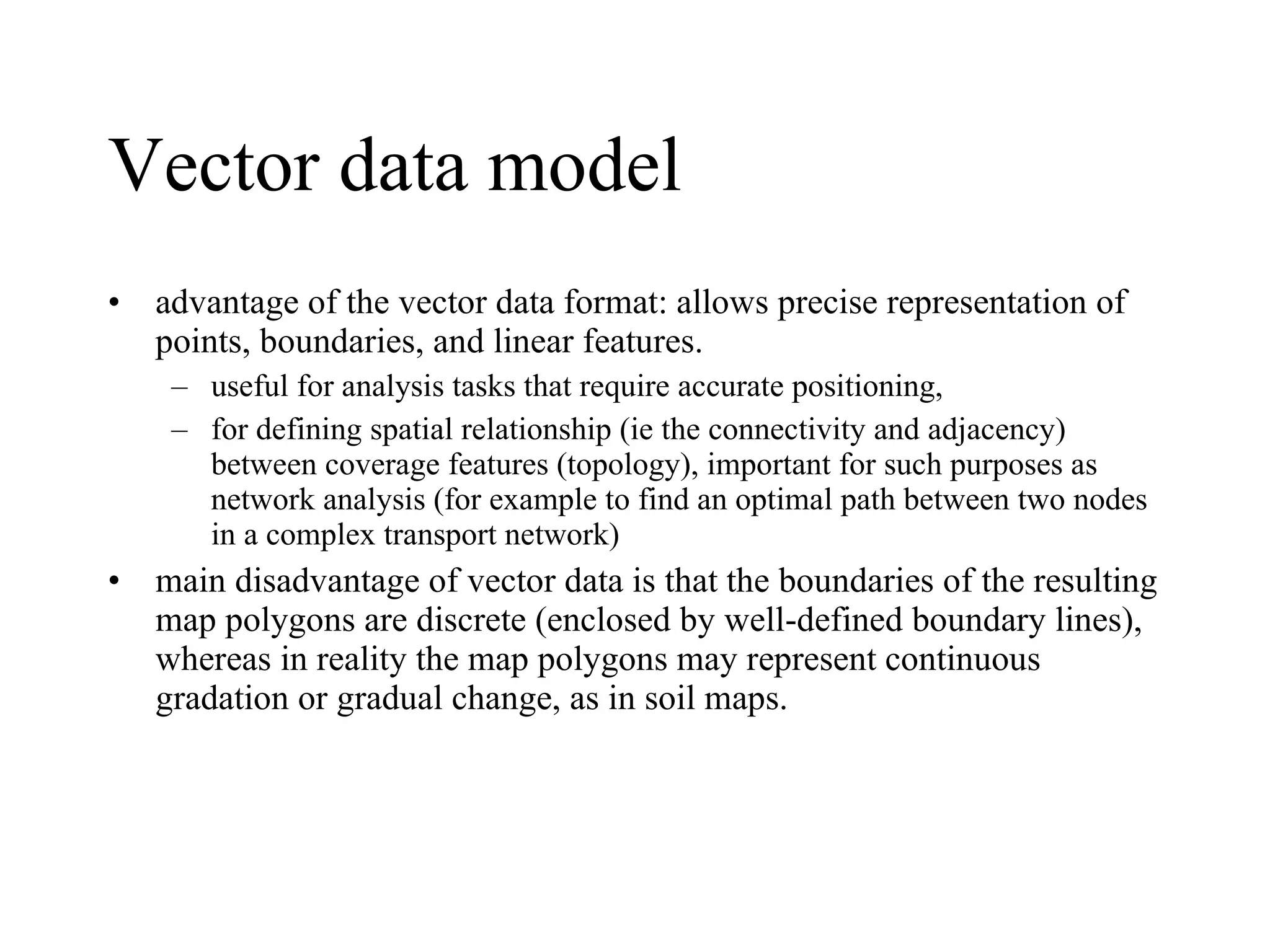

- 20. Vector data modeladvantage of the vector data format: allows precise representation of points, boundaries, and linear features. useful for analysis tasks that require accurate positioning, for defining spatial relationship (ie the connectivity and adjacency) between coverage features (topology), important for such purposes as network analysis (for example to find an optimal path between two nodes in a complex transport network) main disadvantage of vector data is that the boundaries of the resulting map polygons are discrete (enclosed by well-defined boundary lines), whereas in reality the map polygons may represent continuous gradation or gradual change, as in soil maps.

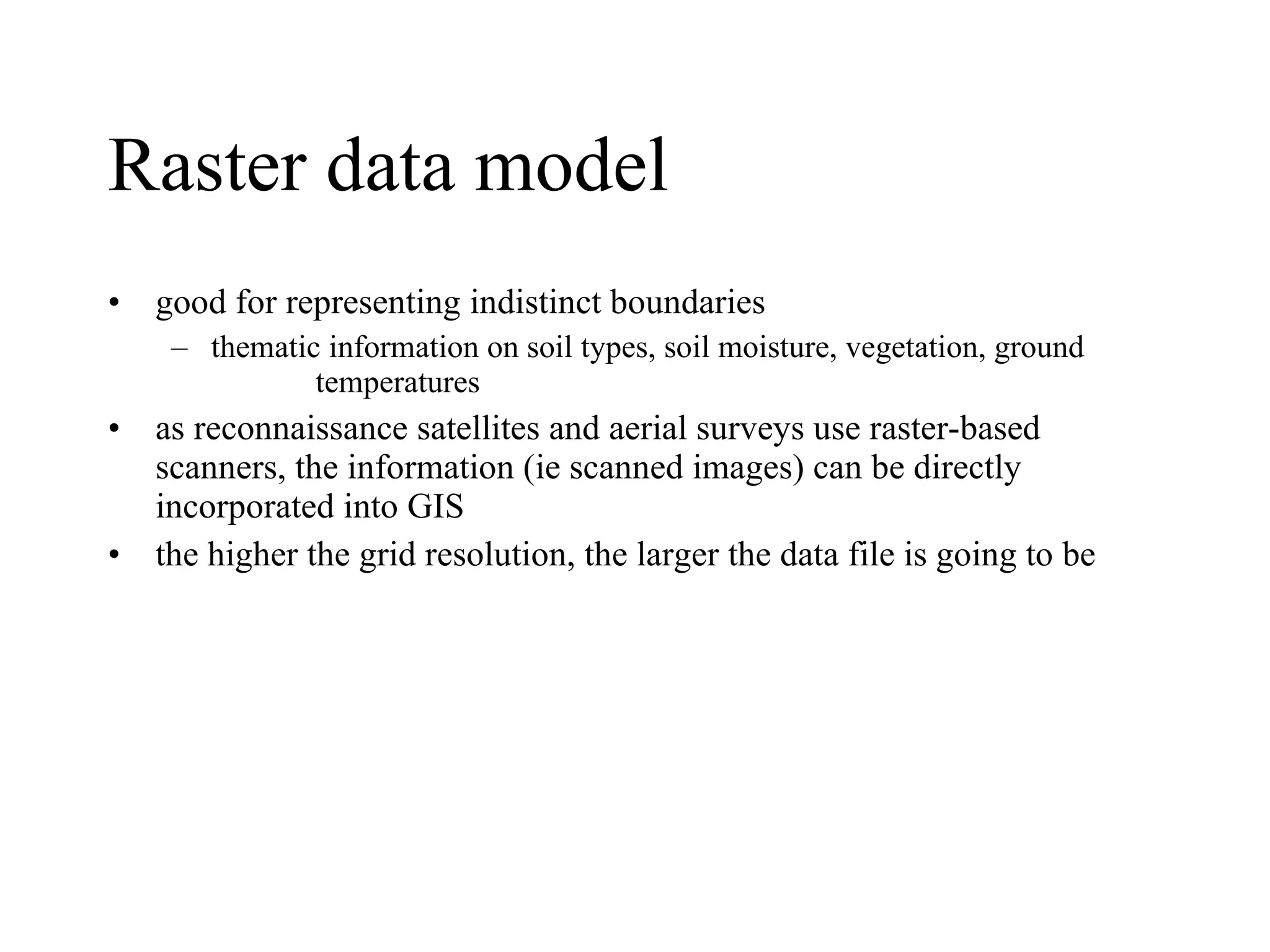

- 21. Raster data modelgood for representing indistinct boundaries thematic information on soil types, soil moisture, vegetation, ground temperatures as reconnaissance satellites and aerial surveys use raster-based scanners, the information (ie scanned images) can be directly incorporated into GIS the higher the grid resolution, the larger the data file is going to be
- 22. Modelling the realworld 1 1 20 50 1 2 24 45 1 3 52 55 2 1 0 45 46 40 ... 0 0 0 0 0 0 0 2 0 0 0 0 0 0 1 0 0 0 0 2 0 0 1 0 0 0 0 0 0 0 0 2 0 0 0 0 2 2 2 0 1 ... x y

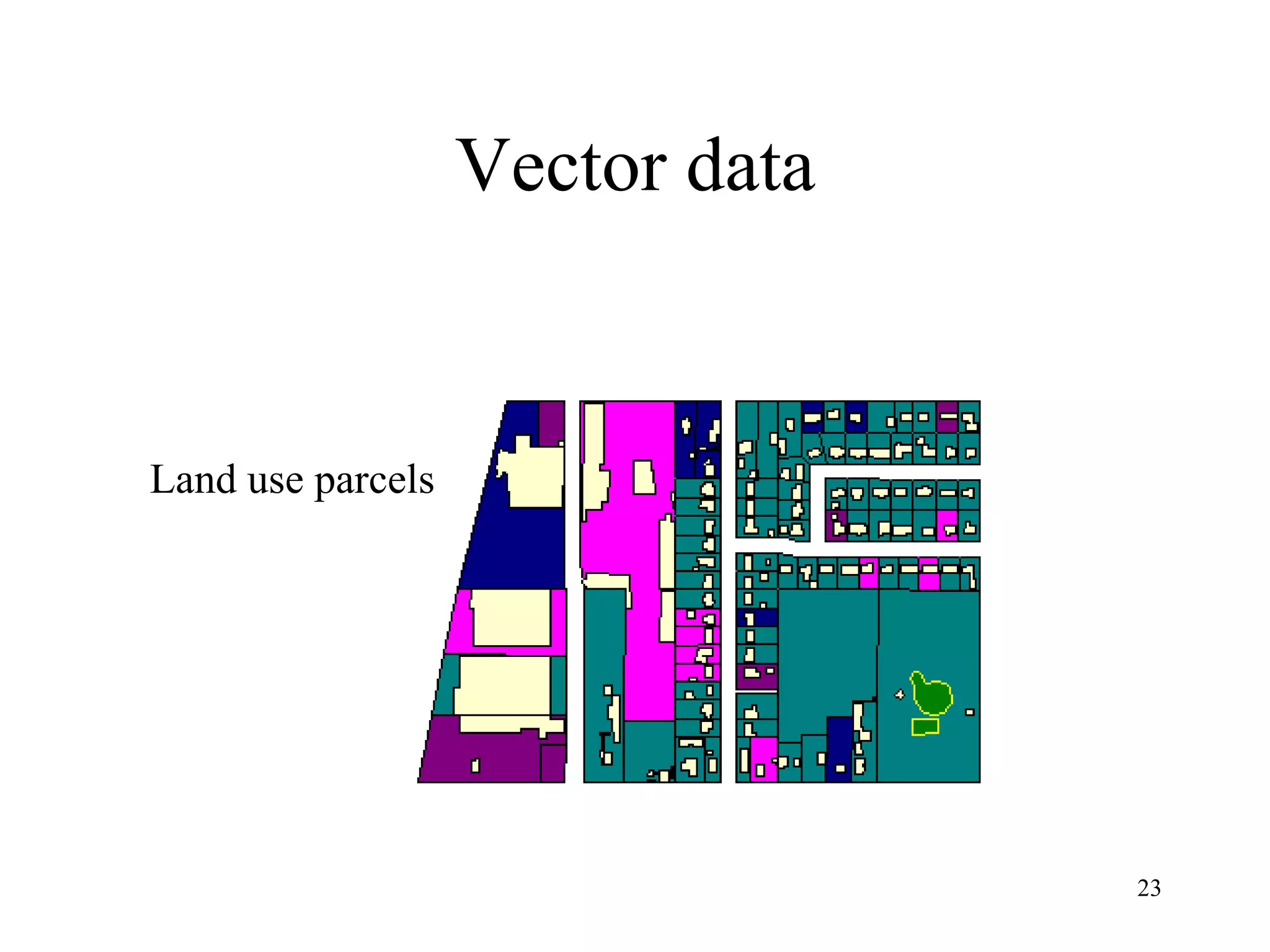

- 23. Vector data Landuse parcels

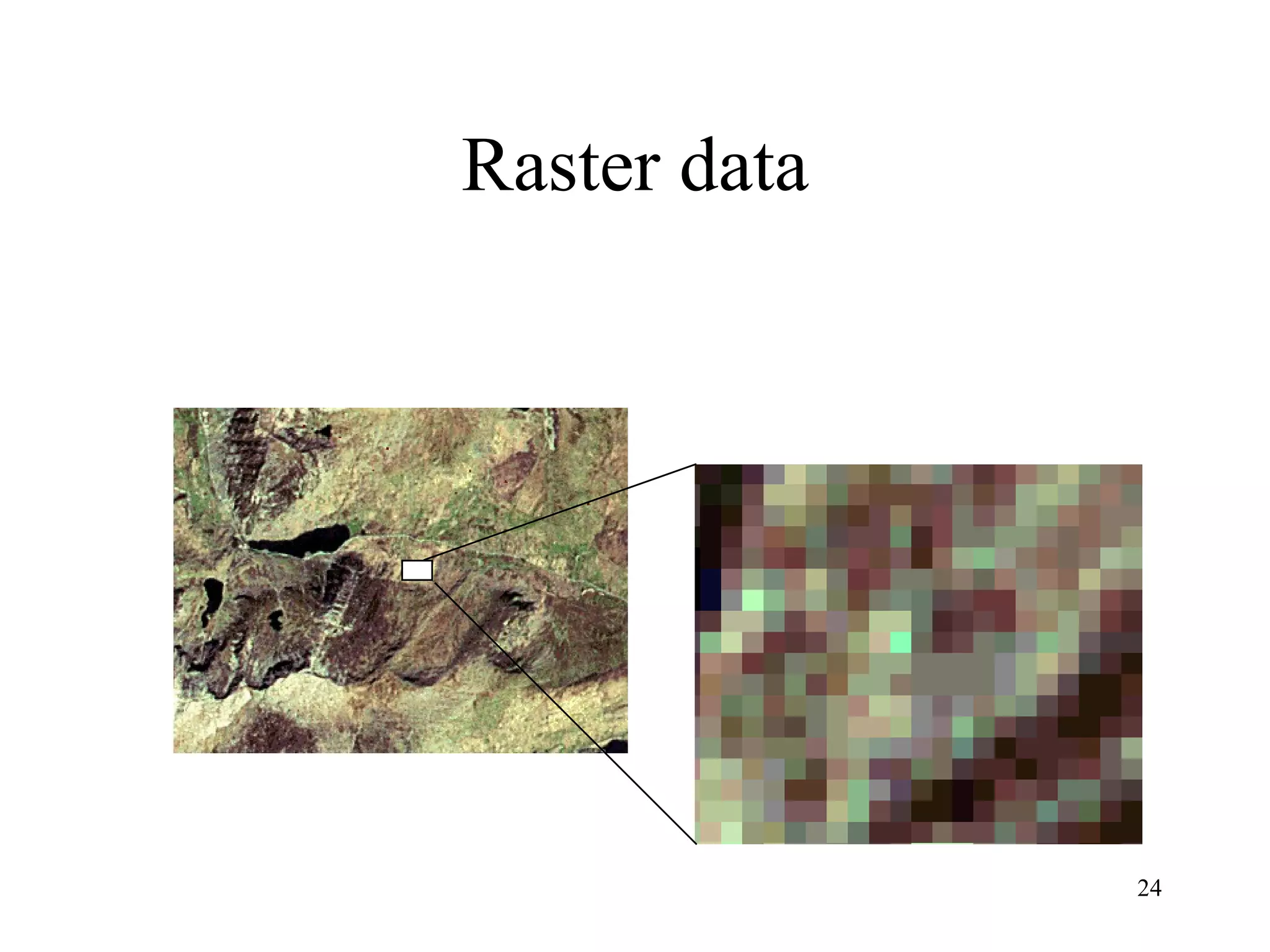

- 24.

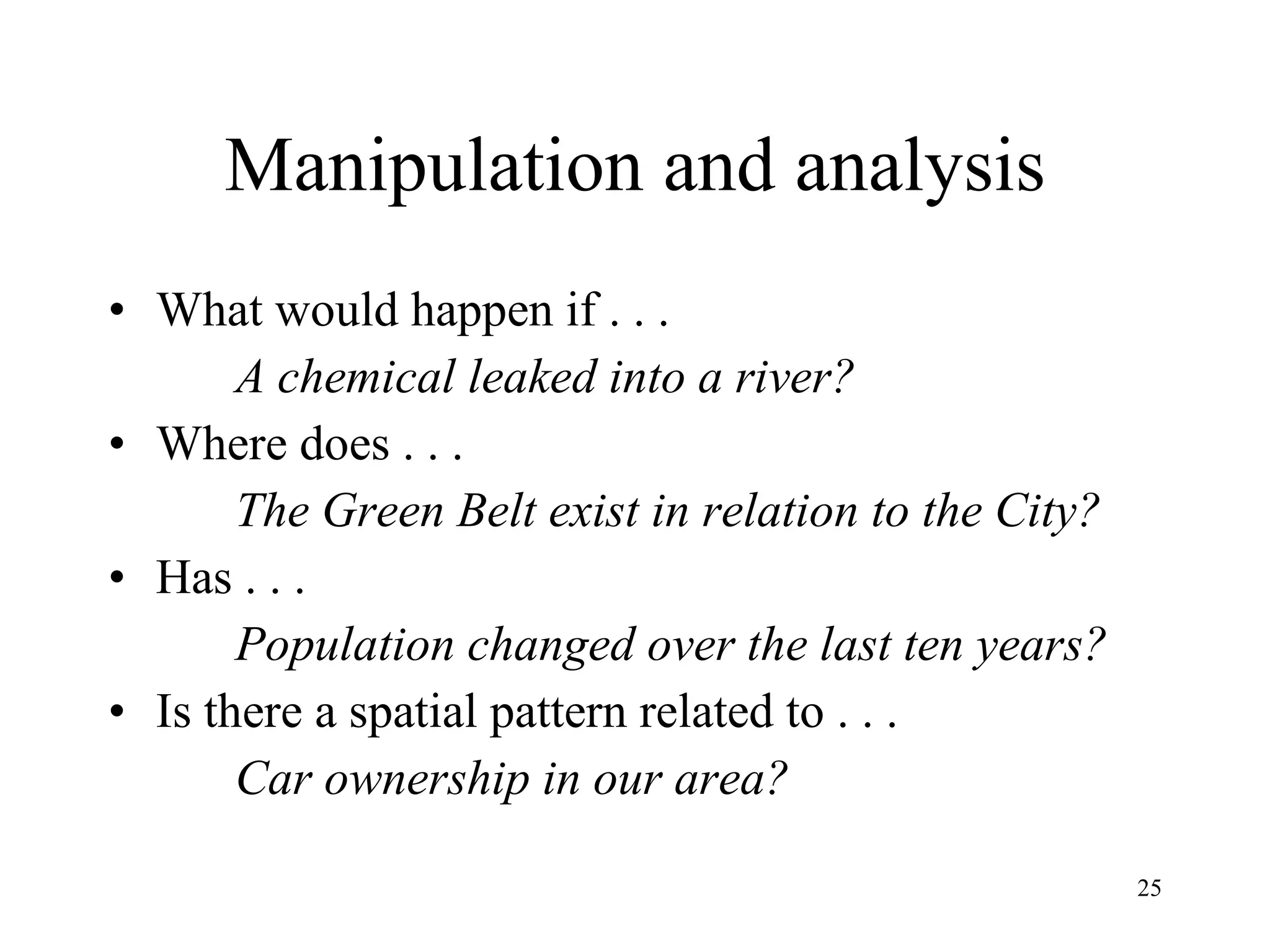

- 25. Manipulation and analysisWhat would happen if . . . A chemical leaked into a river? Where does . . . The Green Belt exist in relation to the City? Has . . . Population changed over the last ten years? Is there a spatial pattern related to . . . Car ownership in our area?

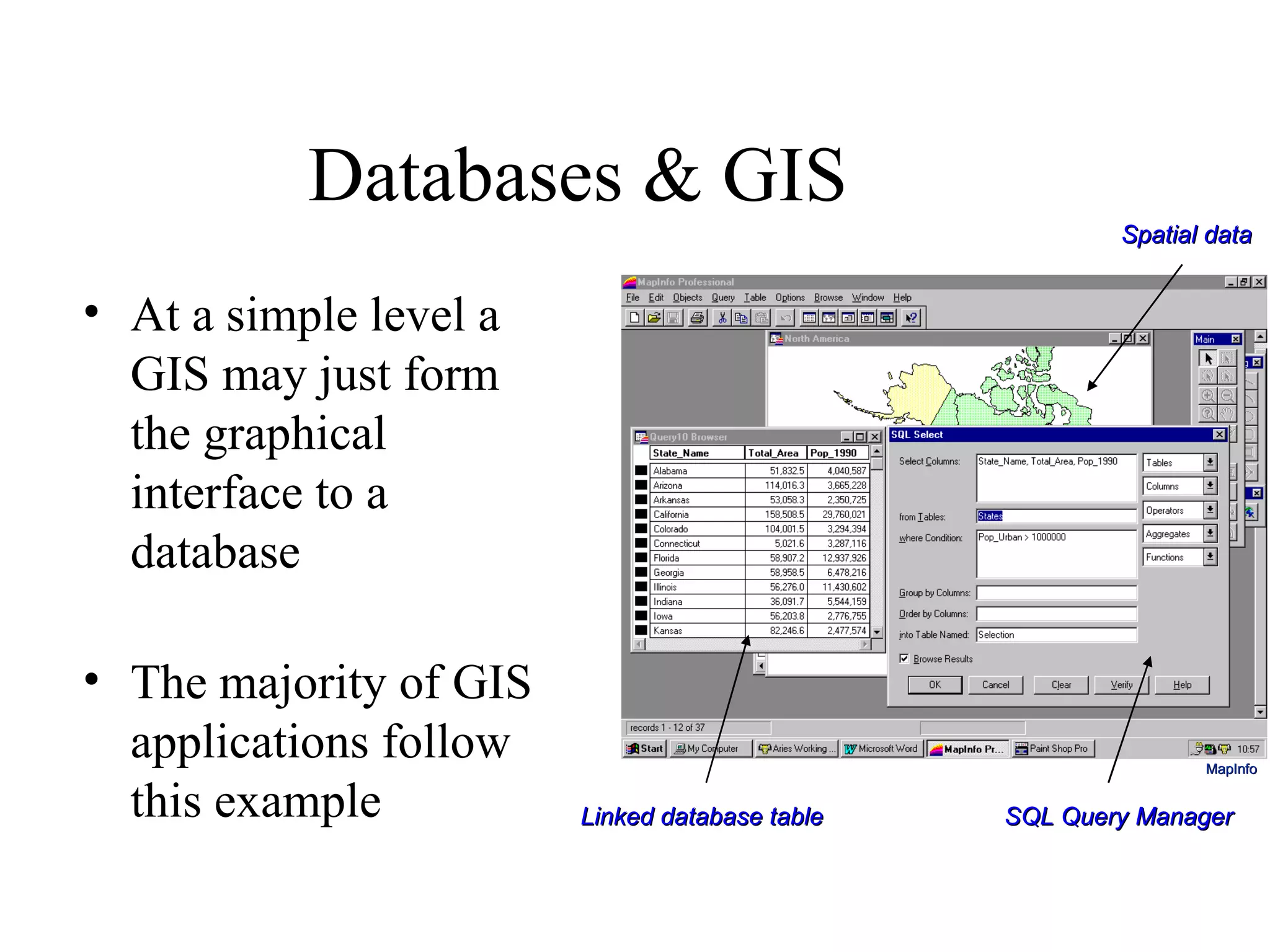

- 26. Databases & GISAt a simple level a GIS may just form the graphical interface to a database The majority of GIS applications follow this example Linked database table Spatial data SQL Query Manager MapInfo

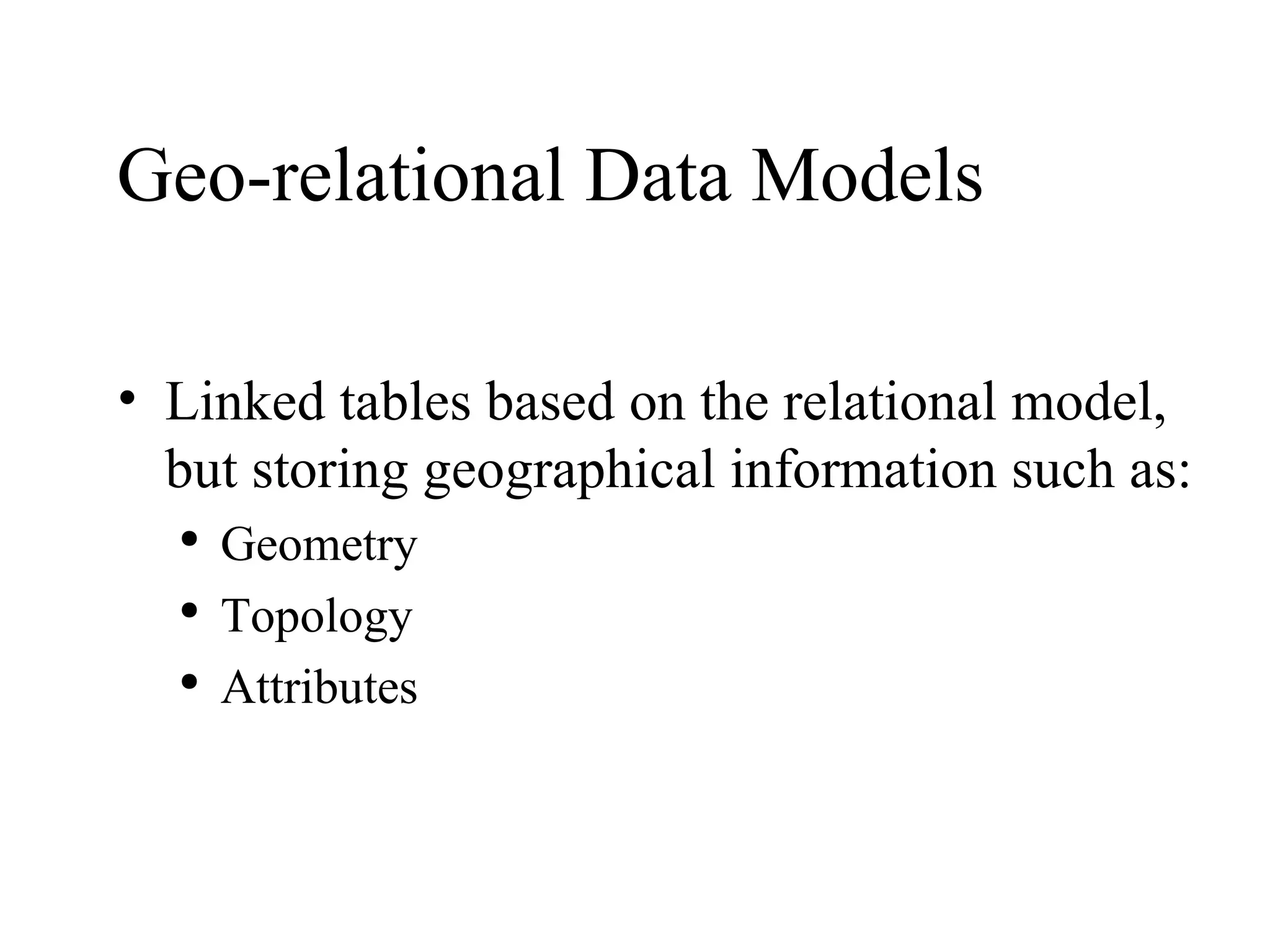

- 27. Geo-relational Data ModelsLinked tables based on the relational model, but storing geographical information such as: Geometry Topology Attributes
- 28. GIS & AnalysisIn the context of GIS, analysis is... “ Deriving new information from existing data” It is also the manipulation of data to solve a problem e.g. identify all areas within 500m of a lake Increasing use is made of the analytical capabilities of GIS, BUT many GIS projects only use the software to store and manage geographical data Yet analysis often relies on many simple basic GIS techniques

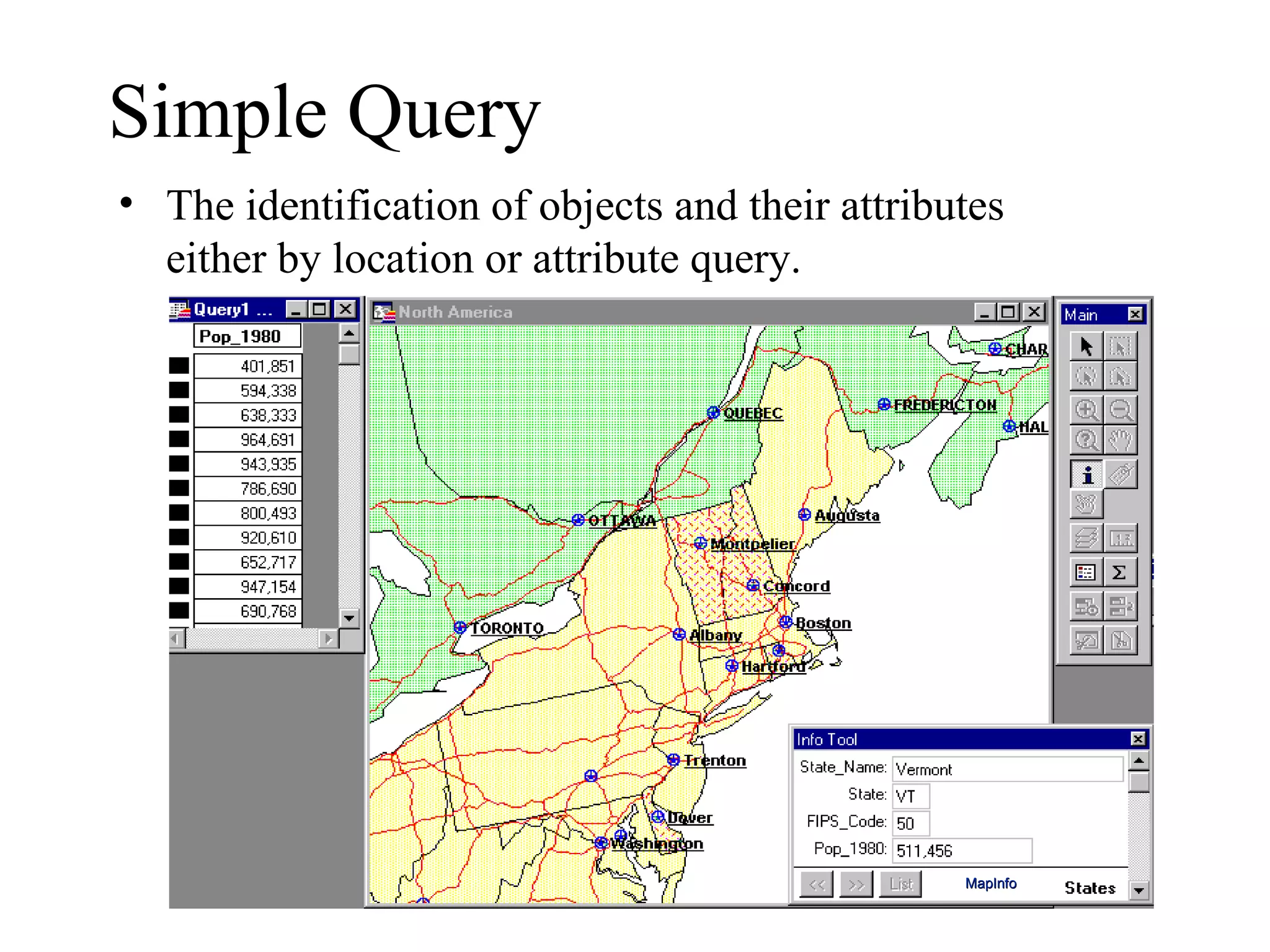

- 29. Simple Query Theidentification of objects and their attributes either by location or attribute query. MapInfo

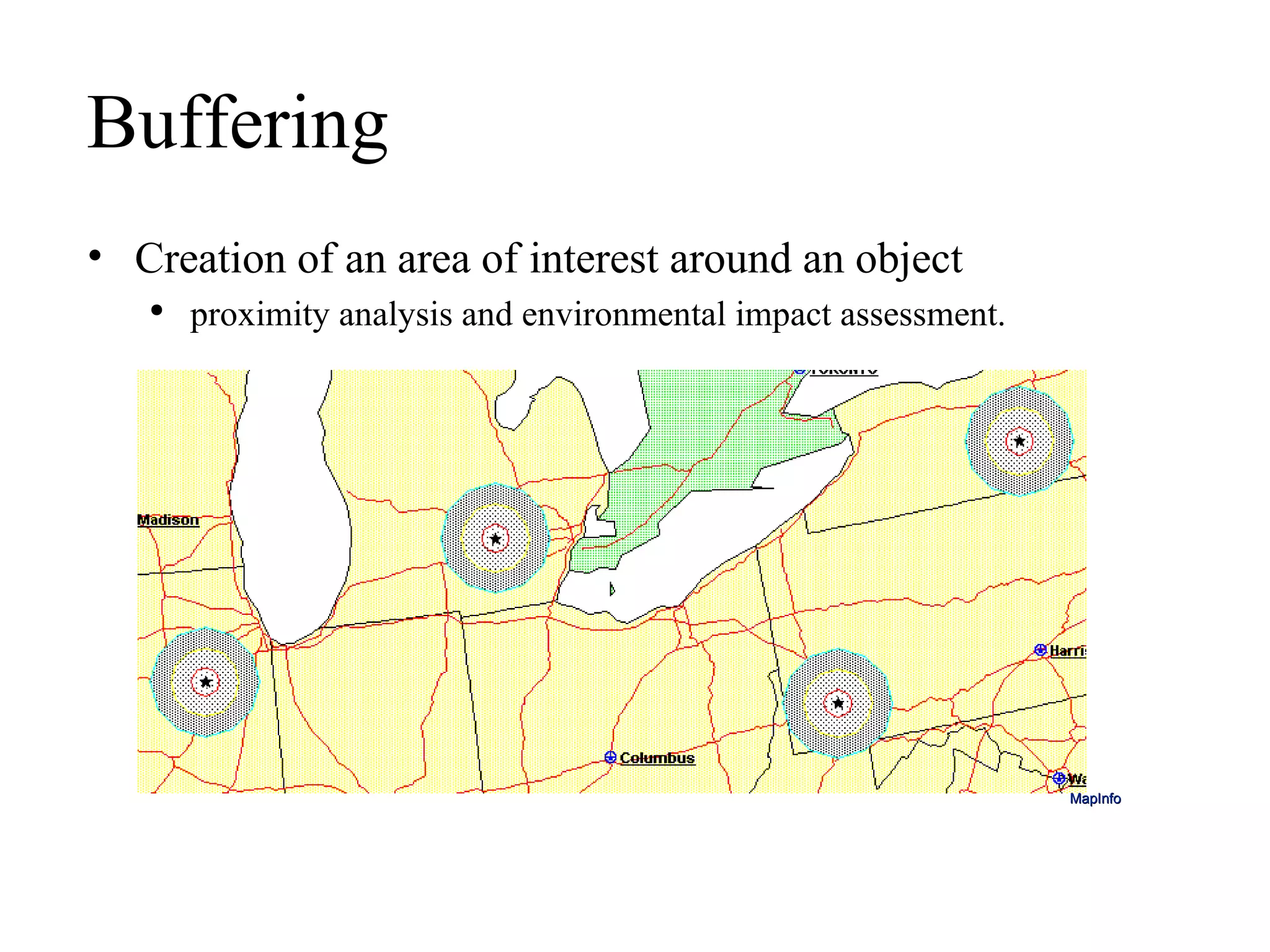

- 30. Buffering Creation ofan area of interest around an object proximity analysis and environmental impact assessment. MapInfo

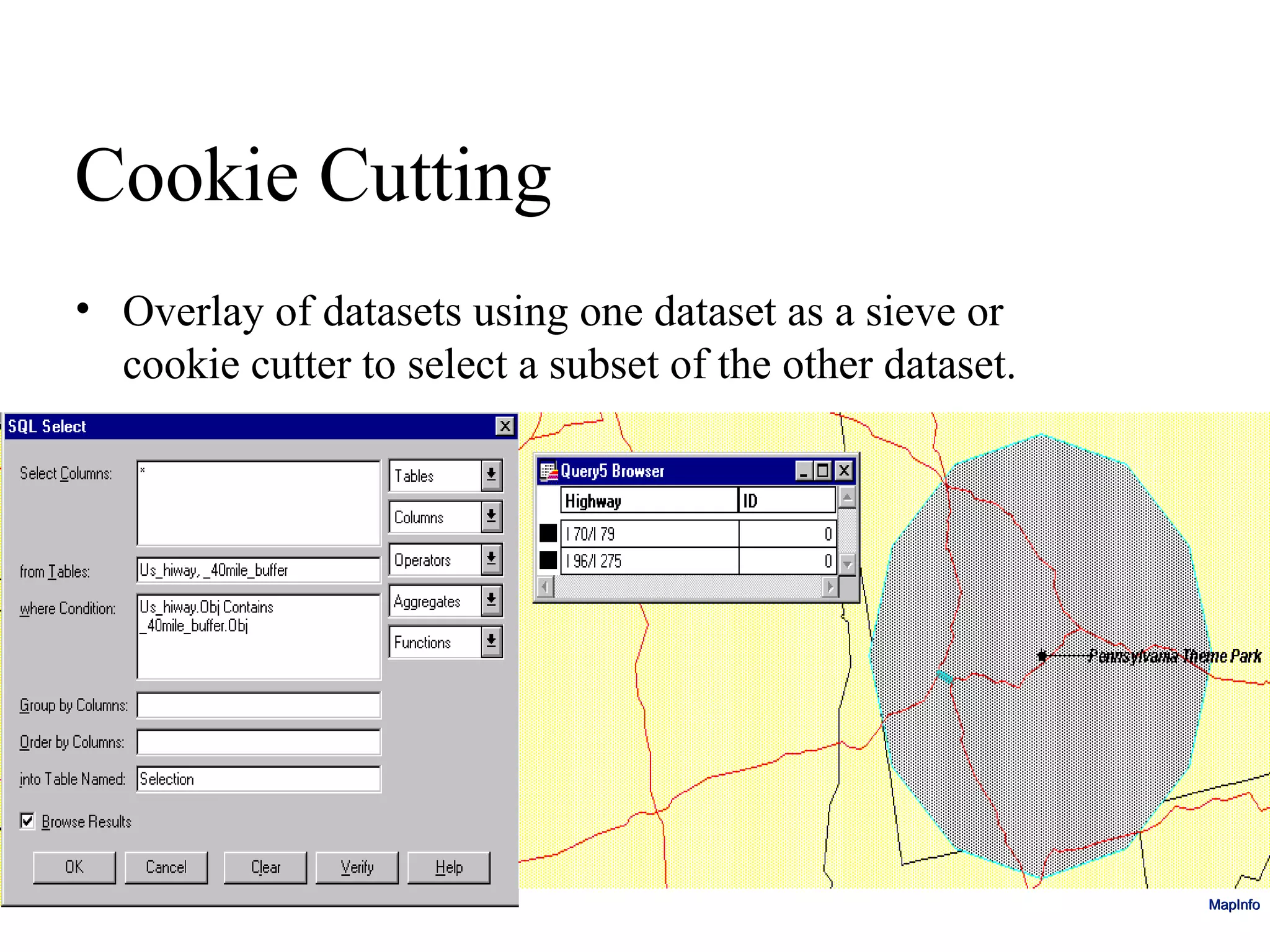

- 31. Cookie Cutting Overlayof datasets using one dataset as a sieve or cookie cutter to select a subset of the other dataset. MapInfo

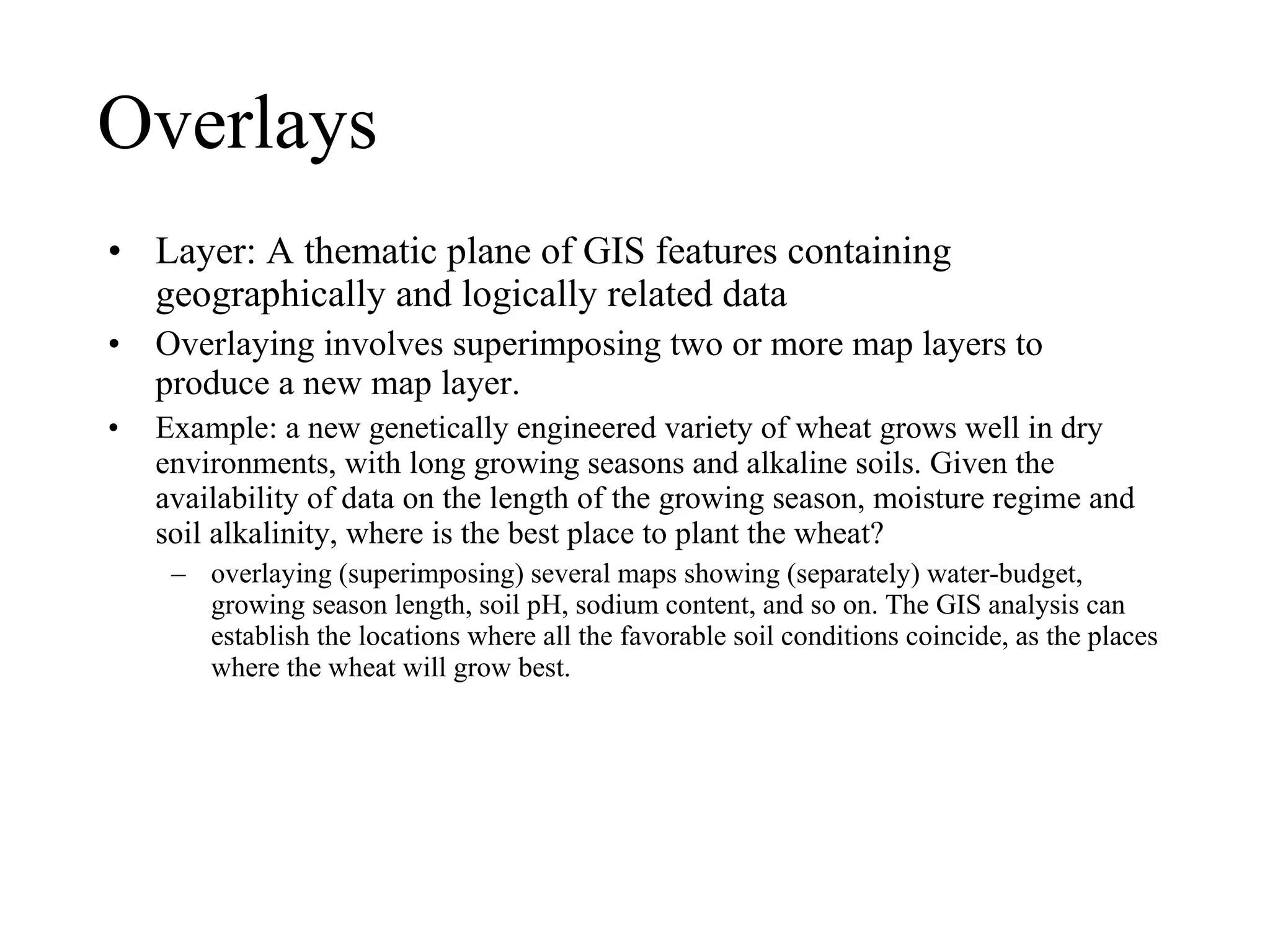

- 32. Overlays Layer: Athematic plane of GIS features containing geographically and logically related data Overlaying involves superimposing two or more map layers to produce a new map layer. Example: a new genetically engineered variety of wheat grows well in dry environments, with long growing seasons and alkaline soils. Given the availability of data on the length of the growing season, moisture regime and soil alkalinity, where is the best place to plant the wheat? overlaying (superimposing) several maps showing (separately) water-budget, growing season length, soil pH, sodium content, and so on. The GIS analysis can establish the locations where all the favorable soil conditions coincide, as the places where the wheat will grow best.

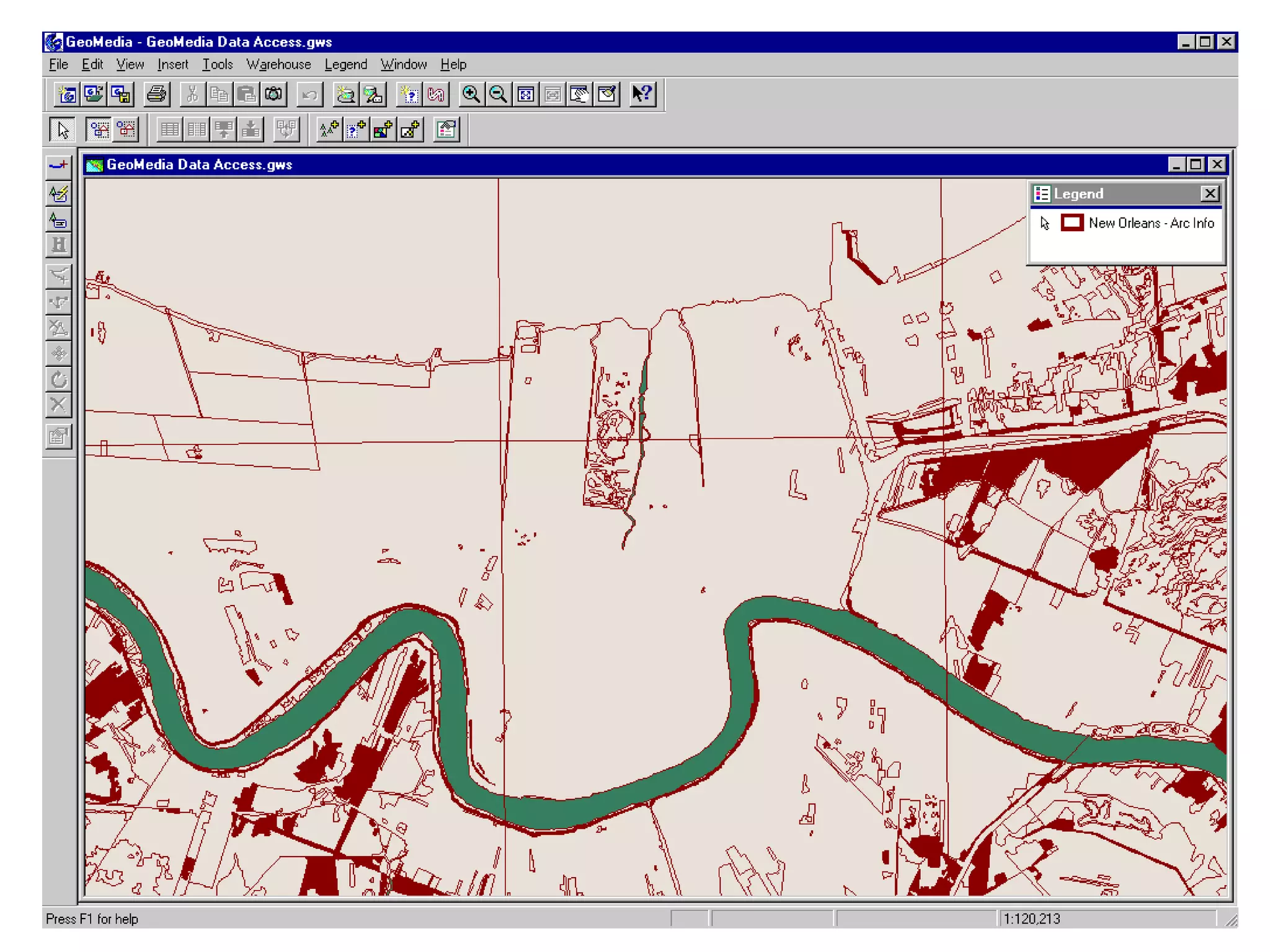

- 33.

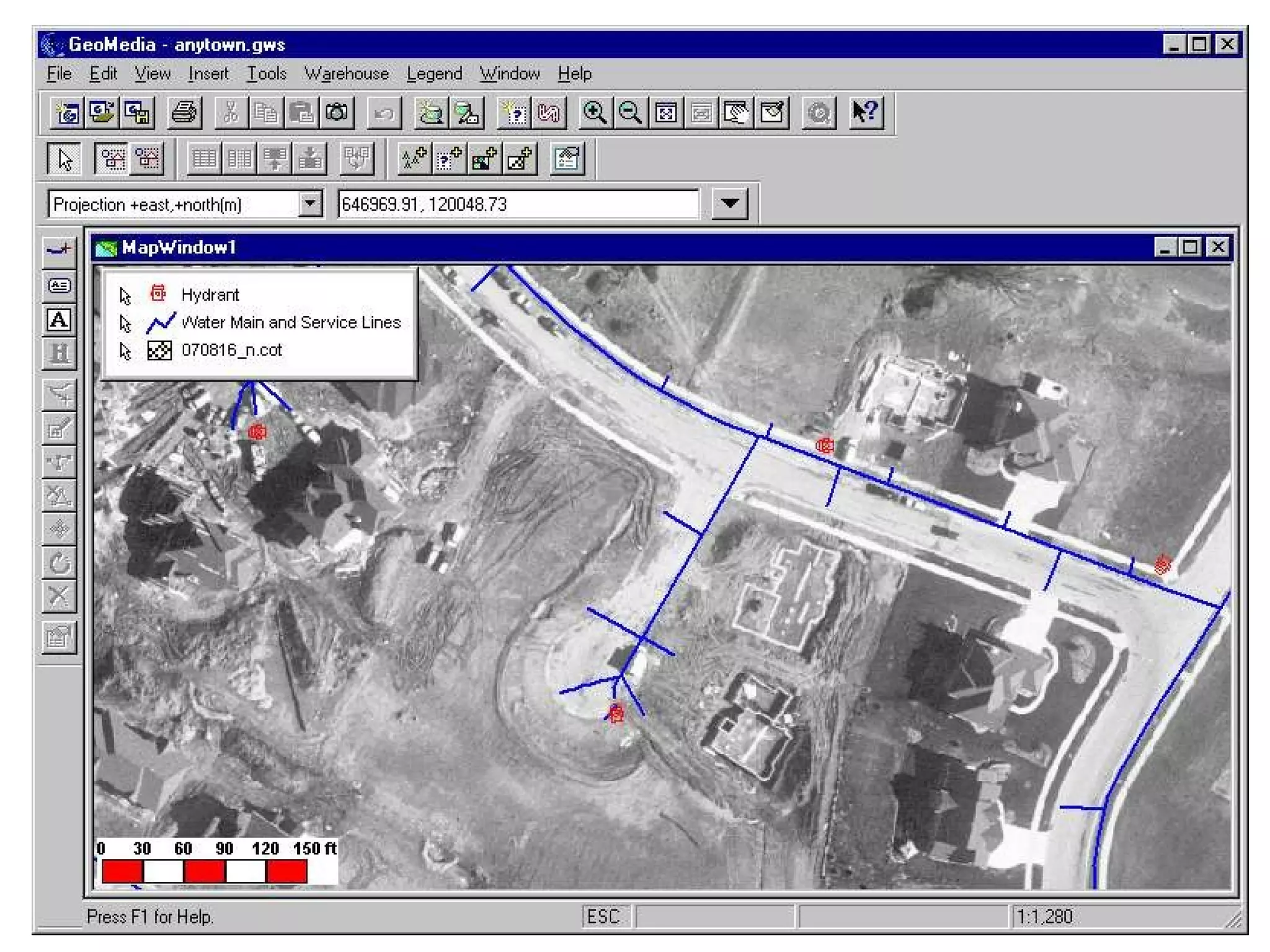

- 34.

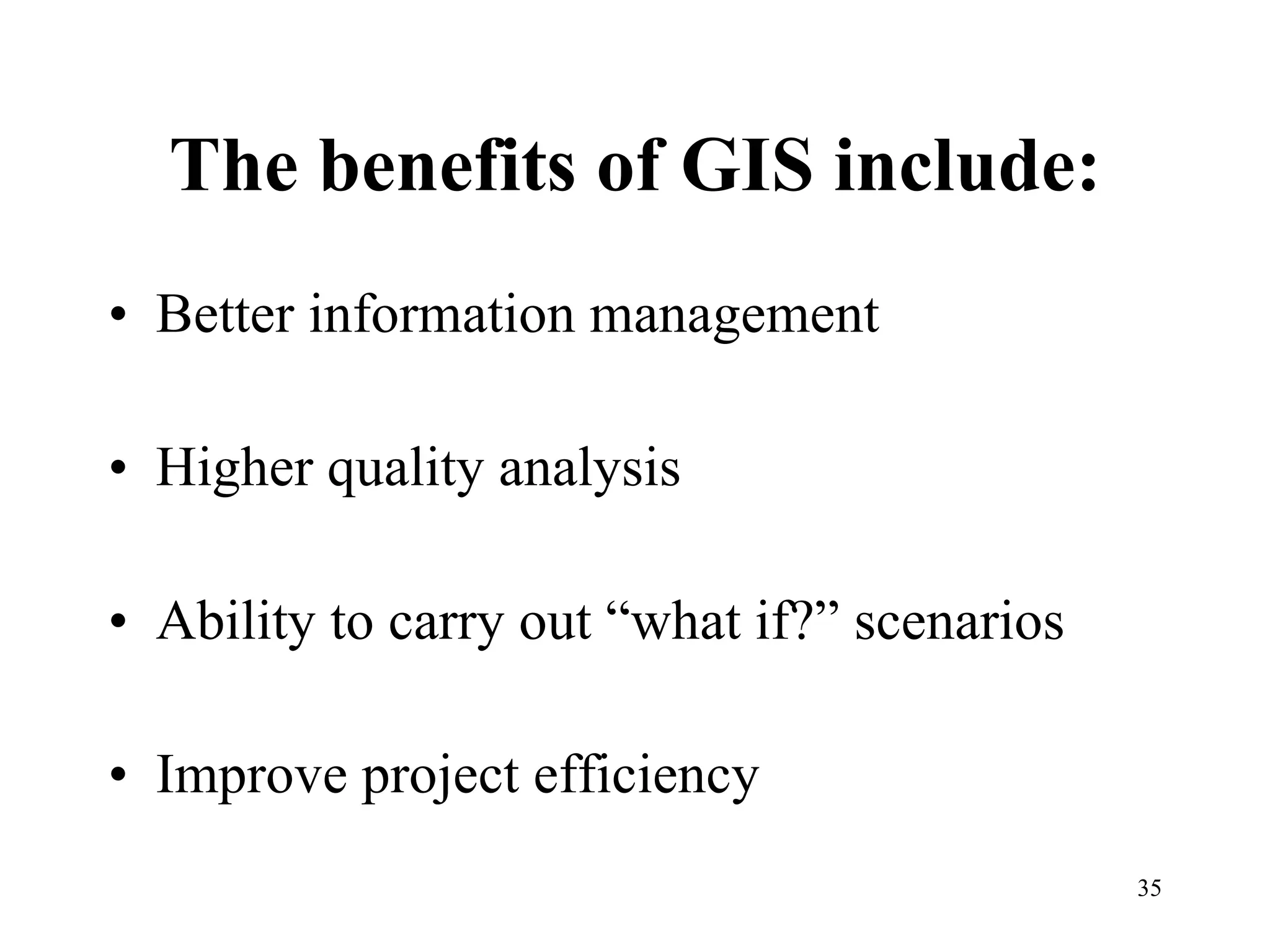

- 35. The benefits ofGIS include: Better information management Higher quality analysis Ability to carry out “what if?” scenarios Improve project efficiency

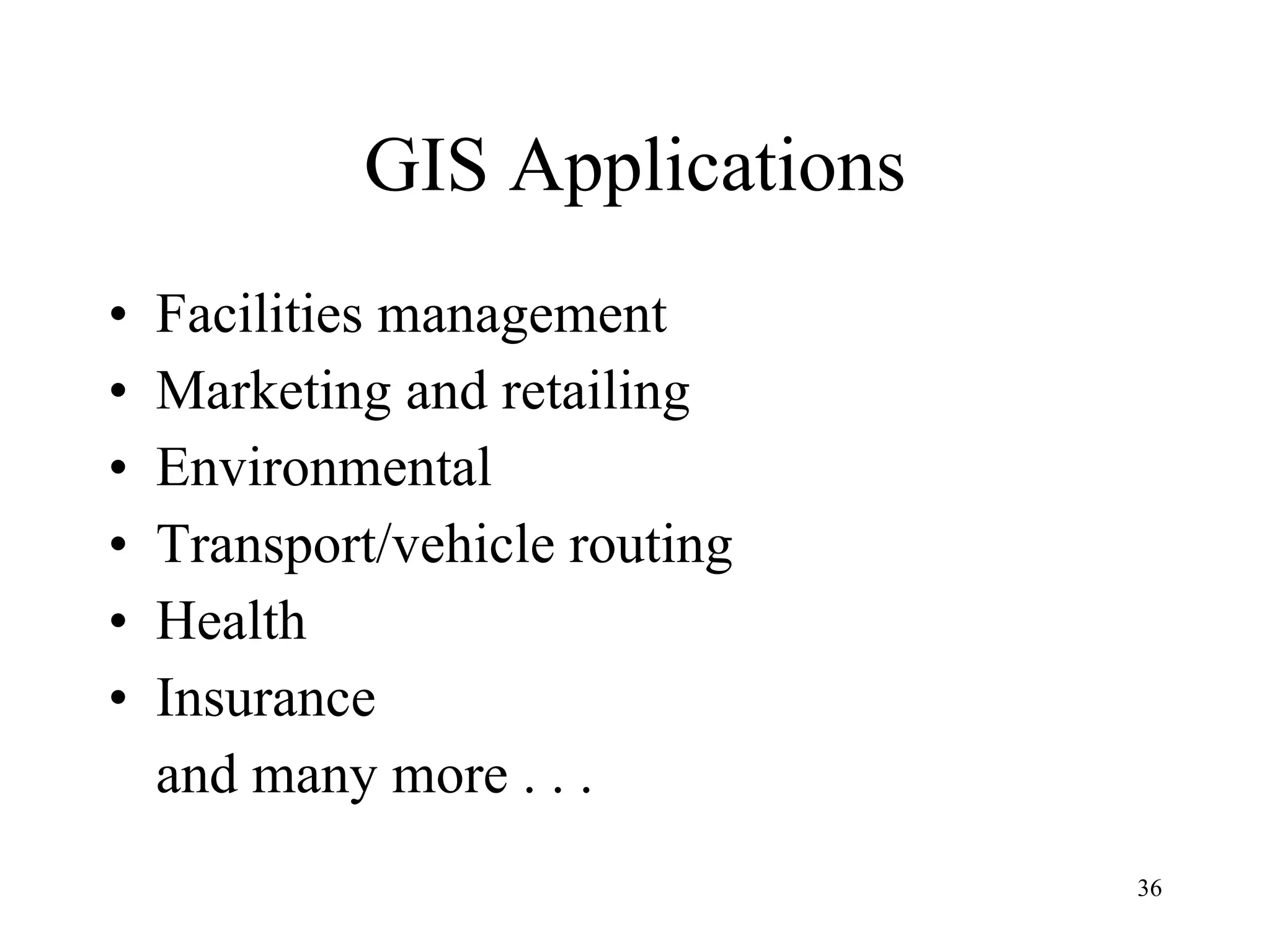

- 36. GIS Applications Facilitiesmanagement Marketing and retailing Environmental Transport/vehicle routing Health Insurance and many more . . .
