Gamifying Teaching and Learning of Software Engineering and Programming
The document discusses the integration of gamification in software engineering education through tools like Pex for Fun and Code Hunt, which utilize dynamic symbolic execution for coding challenges. It highlights how these platforms improve engagement and retention in learning programming while providing real-time feedback and assessments. The application targets various audiences including students, educators, and industry recruiters, facilitating a fun and competitive environment for learning coding skills.
More Related Content
Similar to Gamifying Teaching and Learning of Software Engineering and Programming
Gamifying Teaching and Learning of Software Engineering and Programming
- 1. Gamifying Teaching and Learning of Software Engineering and Programming Tao Xie University of Illinois at Urbana-Champaign In collaboration with Nikolai Tillmann, Jonathan de Halleux, and Judith Bishop (Microsoft Research) http://pex4fun.com https://www.codehunt.com Related Papers/Resources: https://sites.google.com/site/asergrp/projects/ese
- 2. Working for fun Enjoyment adds to long term retention on a task Discovery is a powerful driver, contrasting with direct instructions Gaming joins these two, and is hugely popular Can we add these elements to coding? Write a program to determine all the sets of effectively identical rooms in a maze. (A page of background, sample input and output given)

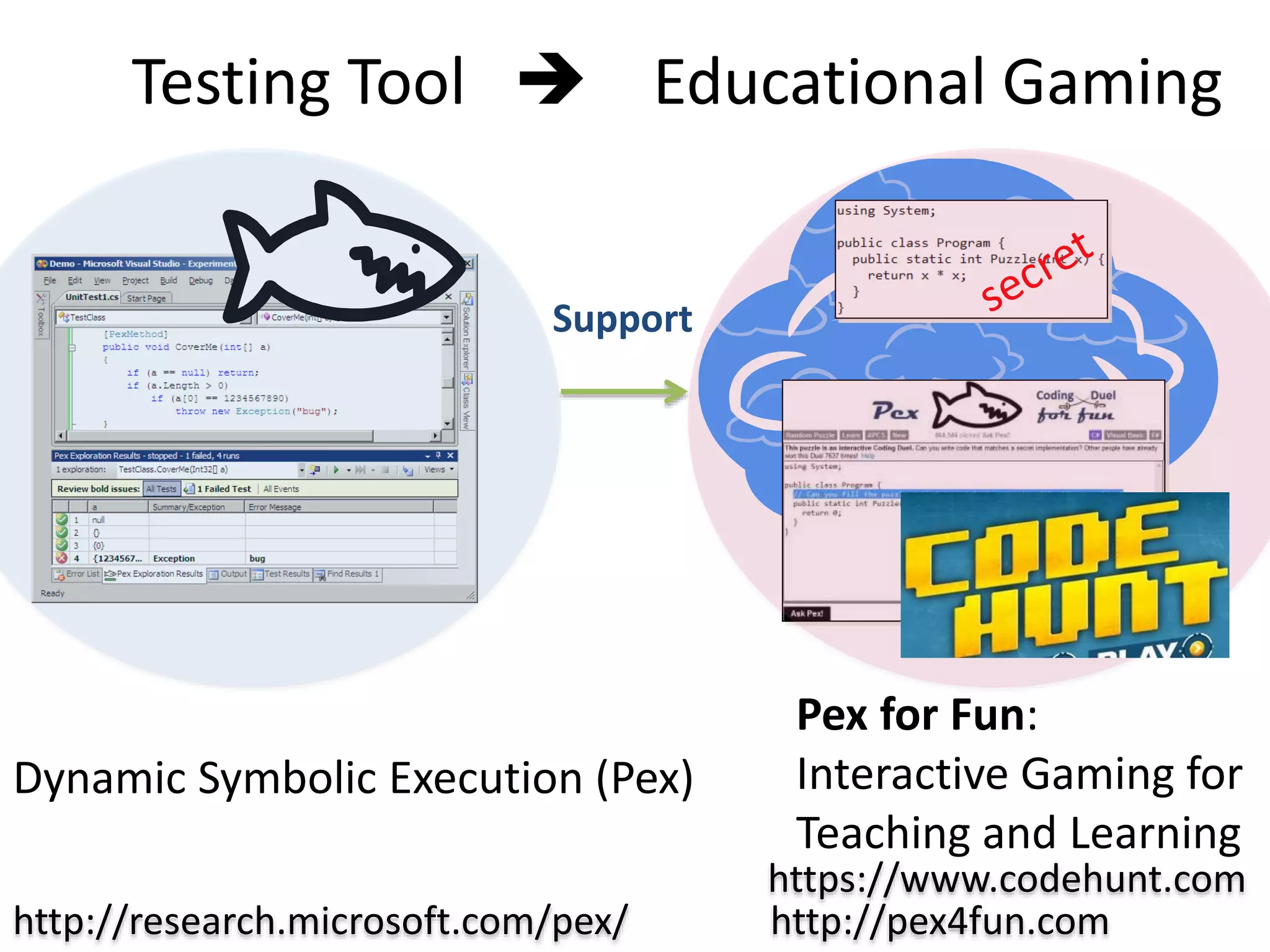

- 3. Testing Tool Educational Gaming Dynamic Symbolic Execution (Pex) Pex for Fun: Interactive Gaming for Teaching and Learning Support https://www.codehunt.com http://research.microsoft.com/pex/ http://pex4fun.com

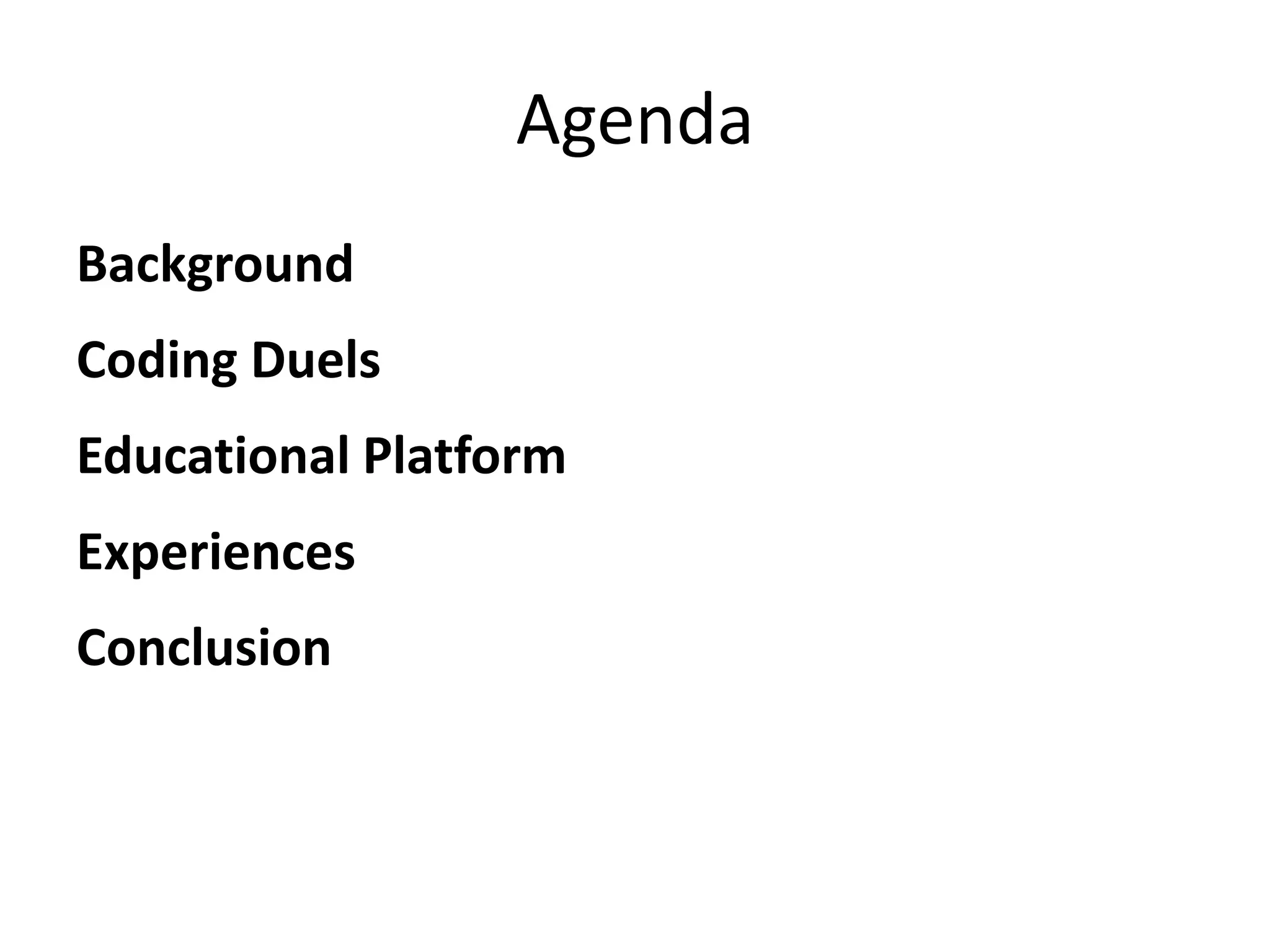

- 4. Agenda Background CodingDuels Educational Platform Experiences Conclusion
- 5. Agenda Background CodingDuels Educational Platform Experiences Conclusion

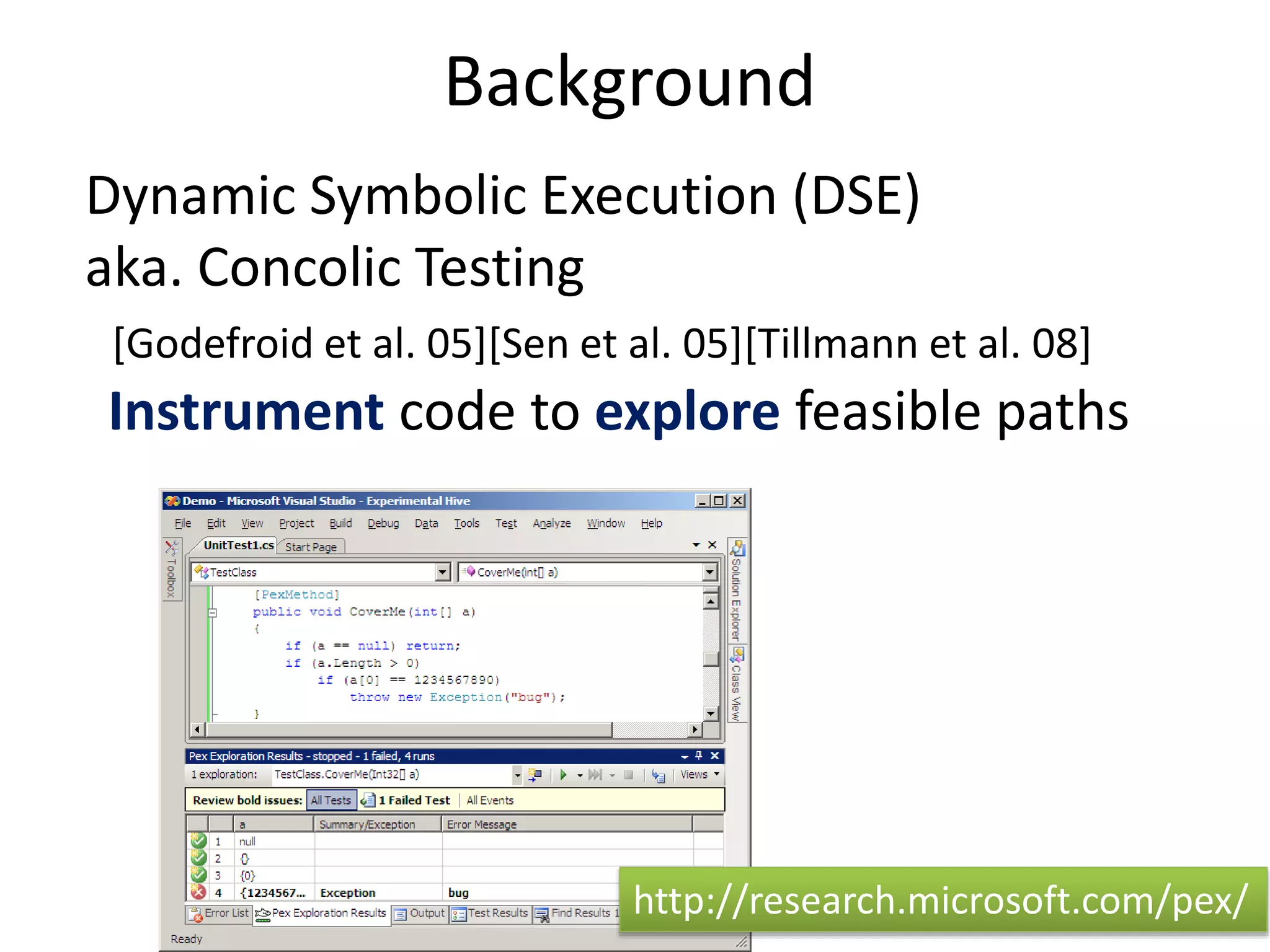

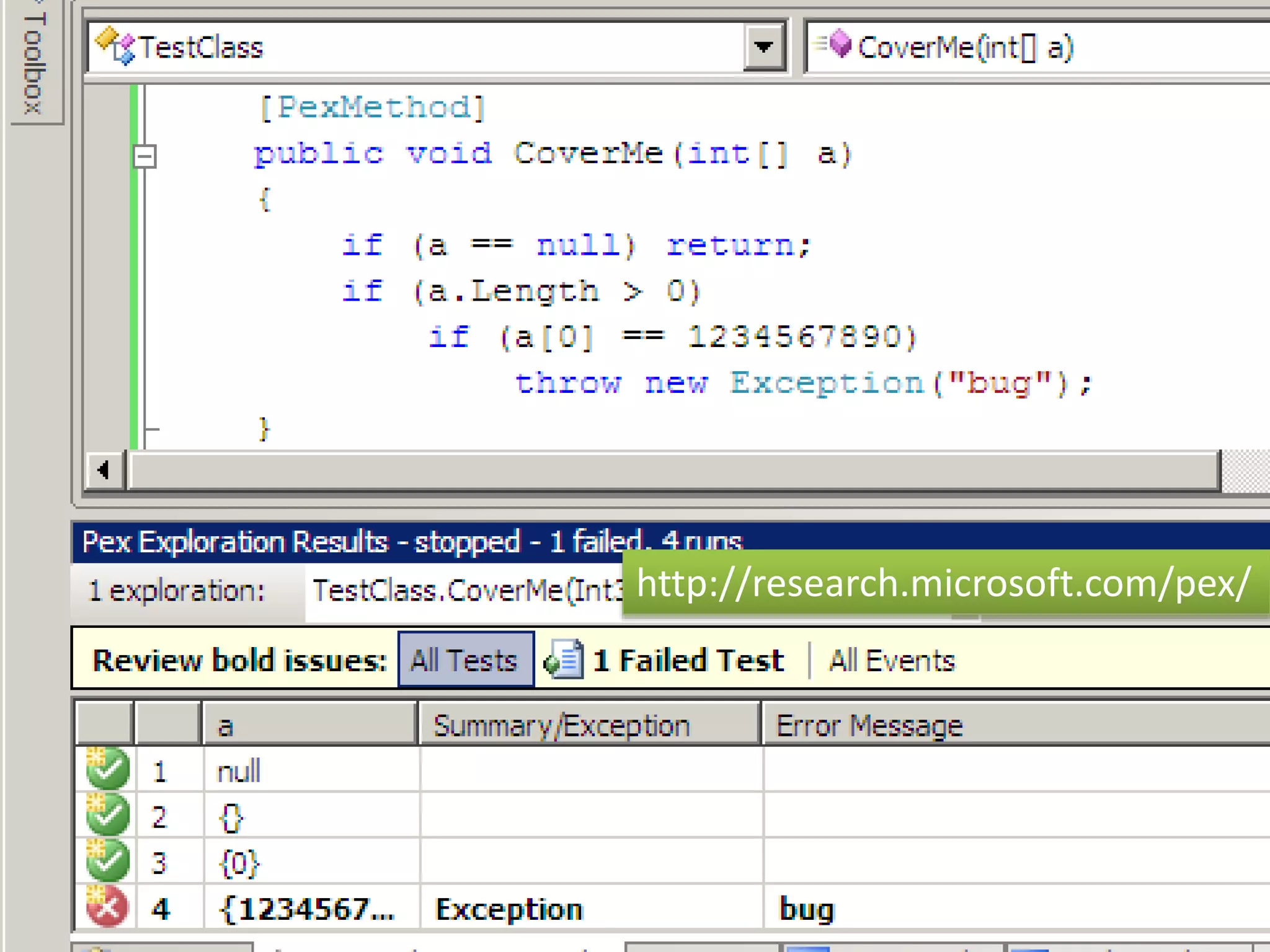

- 6. Background Dynamic SymbolicExecution (DSE) aka. Concolic Testing [Godefroid et al. 05][Sen et al. 05][Tillmann et al. 08] Instrument code to explore feasible paths http://research.microsoft.com/pex/
- 7.

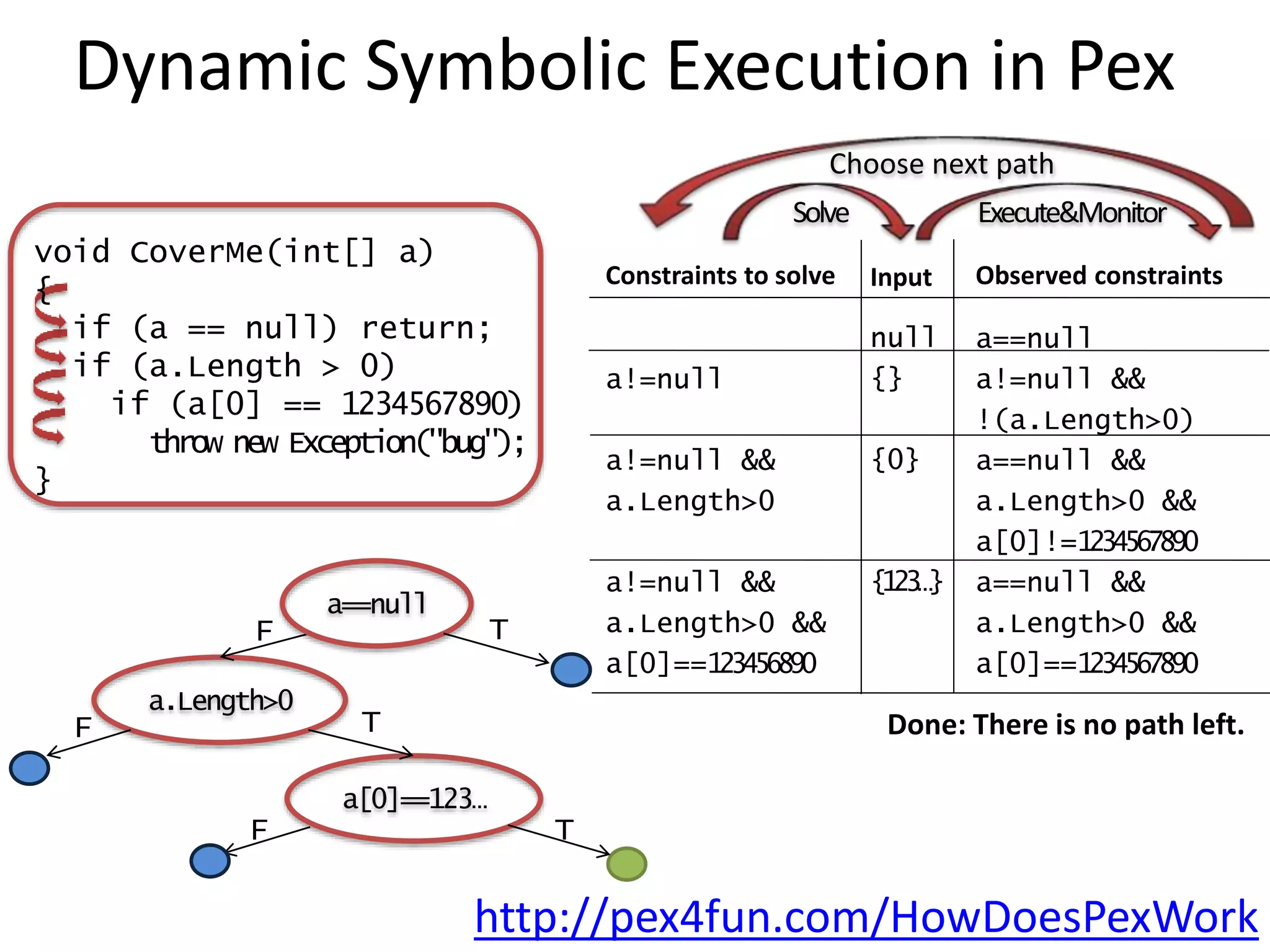

- 8. Dynamic Symbolic Executionin Pex void CoverMe(int[] a) { if (a == null) return; if (a.Length > 0) if (a[0] == 1234567890) throw new Exception("bug"); } F a.Length>0 F T a[0]==123… T F a==null T Choose next path Solve Execute&Monitor Constraints to solve a!=null a!=null && a.Length>0 a!=null && a.Length>0 && a[0]==123456890 Input null {} {0} {123…} Observed constraints a==null a!=null && !(a.Length>0) a==null && a.Length>0 && a[0]!=1234567890 a==null && a.Length>0 && a[0]==1234567890 Done: There is no path left. http://pex4fun.com/HowDoesPexWork

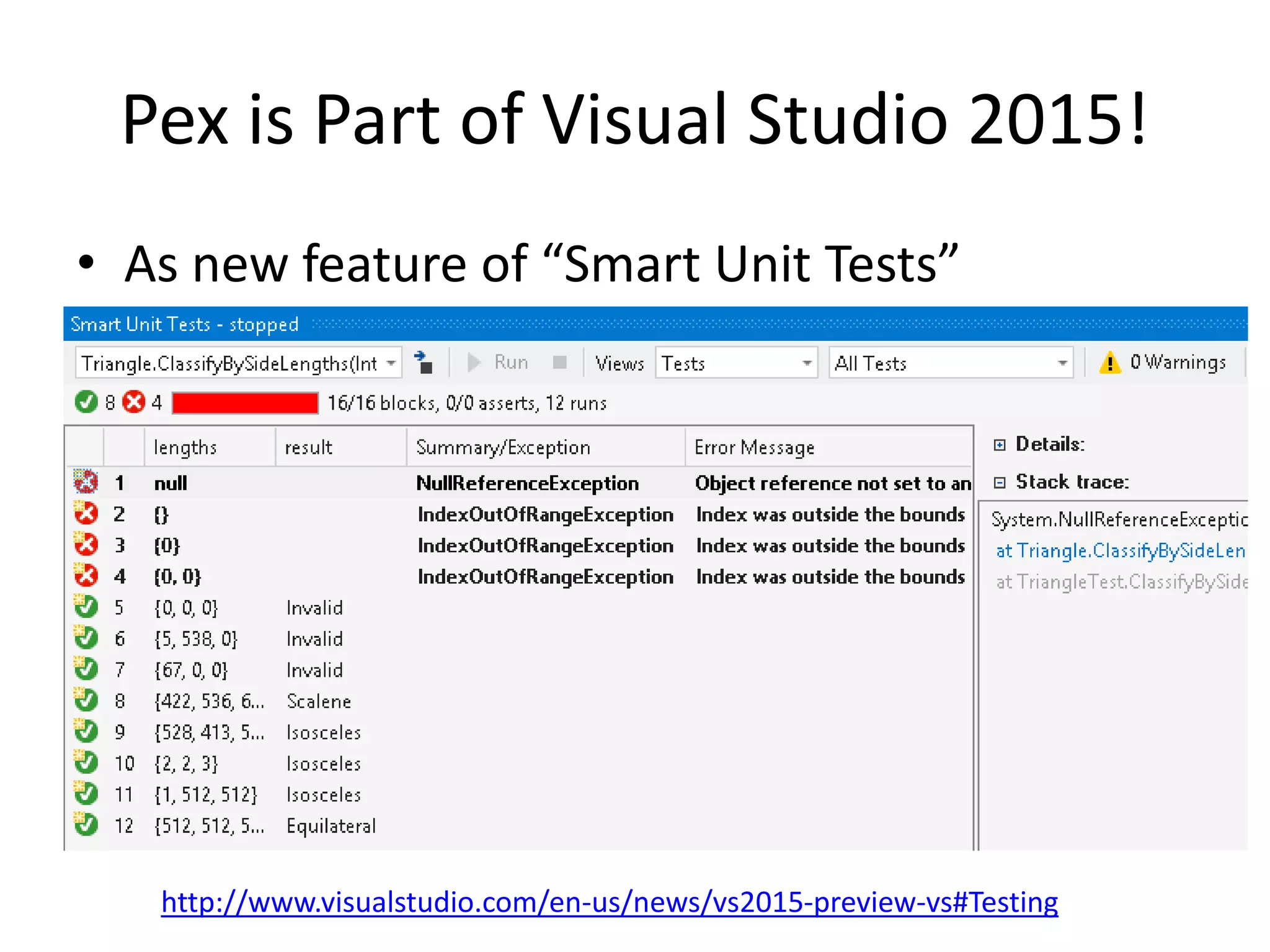

- 9. Pex is Partof Visual Studio 2015! • As new feature of “Smart Unit Tests” http://www.visualstudio.com/en-us/news/vs2015-preview-vs#Testing

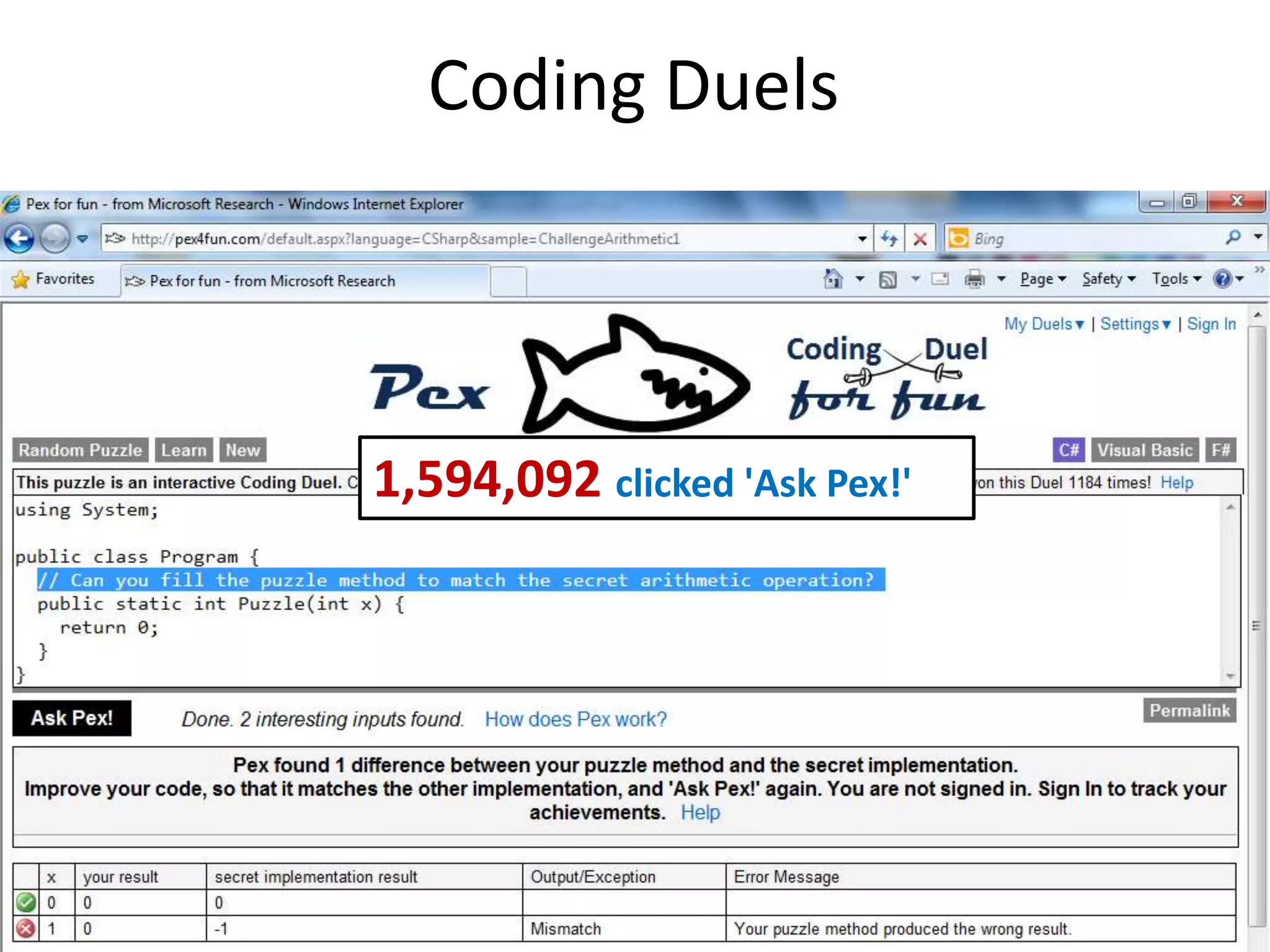

- 10. Coding Duels 1,594,092clicked 'Ask Pex!'

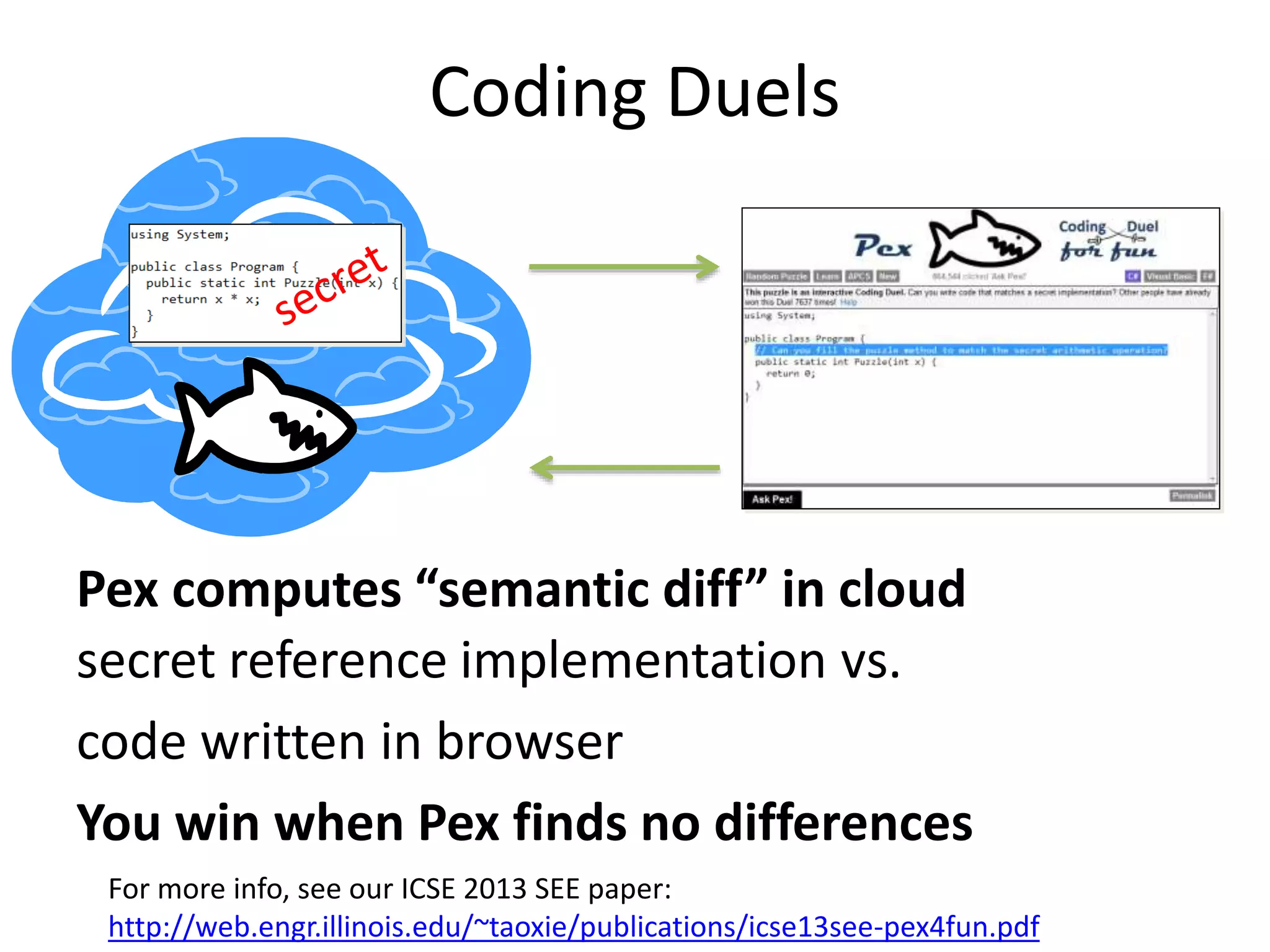

- 11. Coding Duels Pexcomputes “semantic diff” in cloud secret reference implementation vs. code written in browser You win when Pex finds no differences For more info, see our ICSE 2013 SEE paper: http://web.engr.illinois.edu/~taoxie/publications/icse13see-pex4fun.pdf

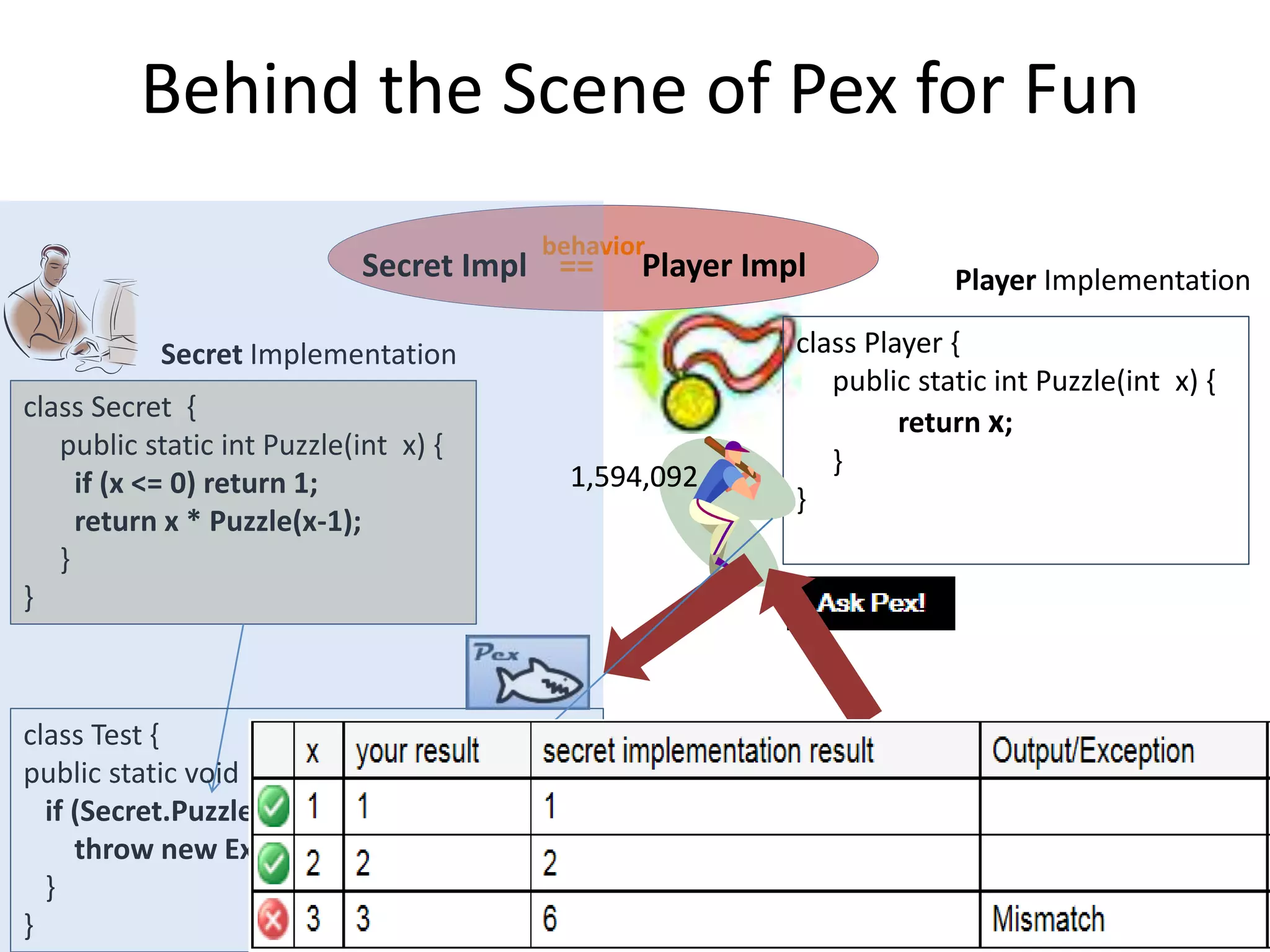

- 12. Behind the Sceneof Pex for Fun Secret Implementation class Secret { public static int Puzzle(int x) { if (x <= 0) return 1; return x * Puzzle(x-1); } } Player Implementation class Player { public static int Puzzle(int x) { return x; } } class Test { public static void Driver(int x) { if (Secret.Puzzle(x) != Player.Puzzle(x)) throw new Exception(“Mismatch”); } } behavior Secret Impl == Player Impl 12 1,594,092
- 13.

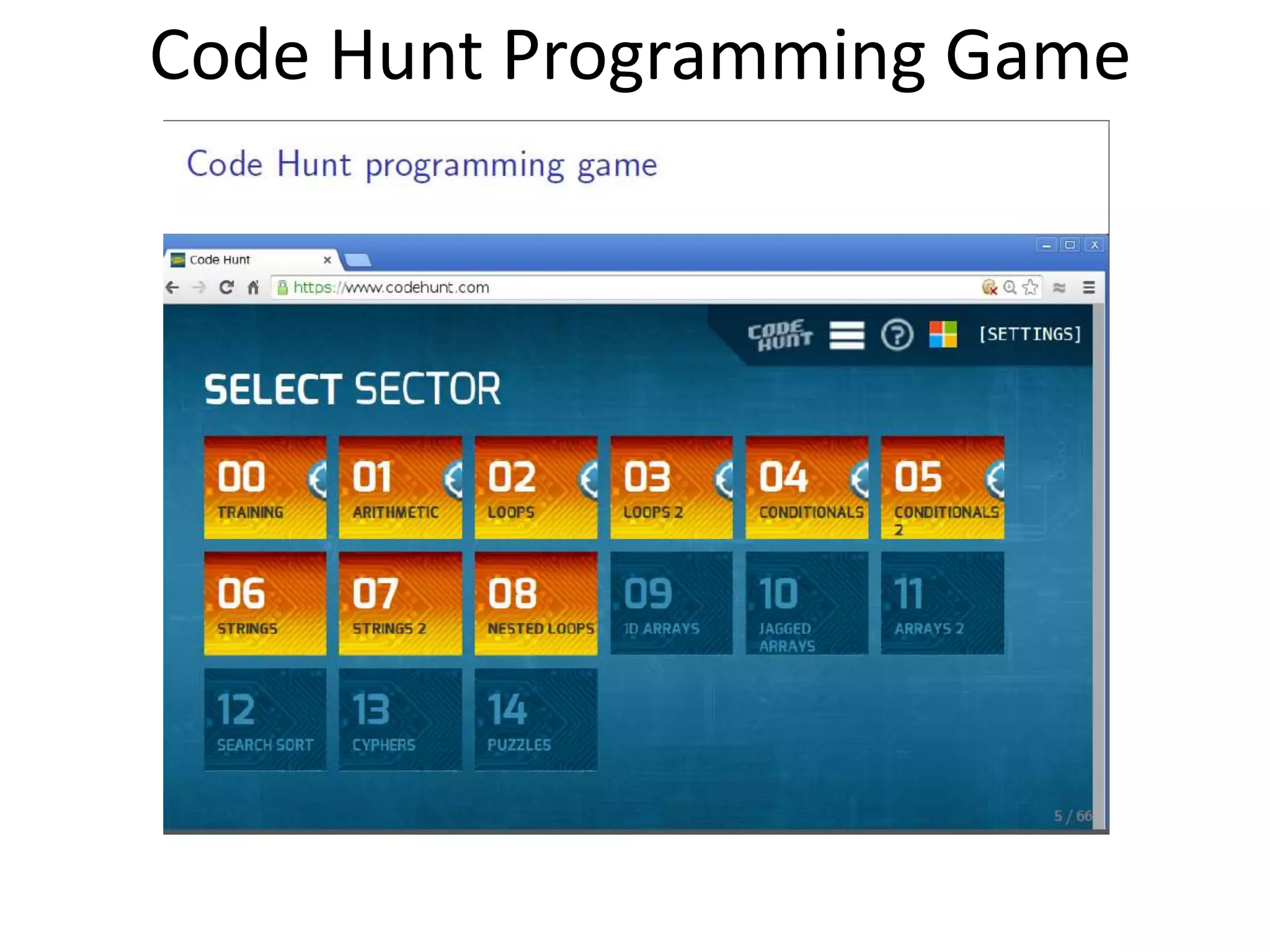

- 14.

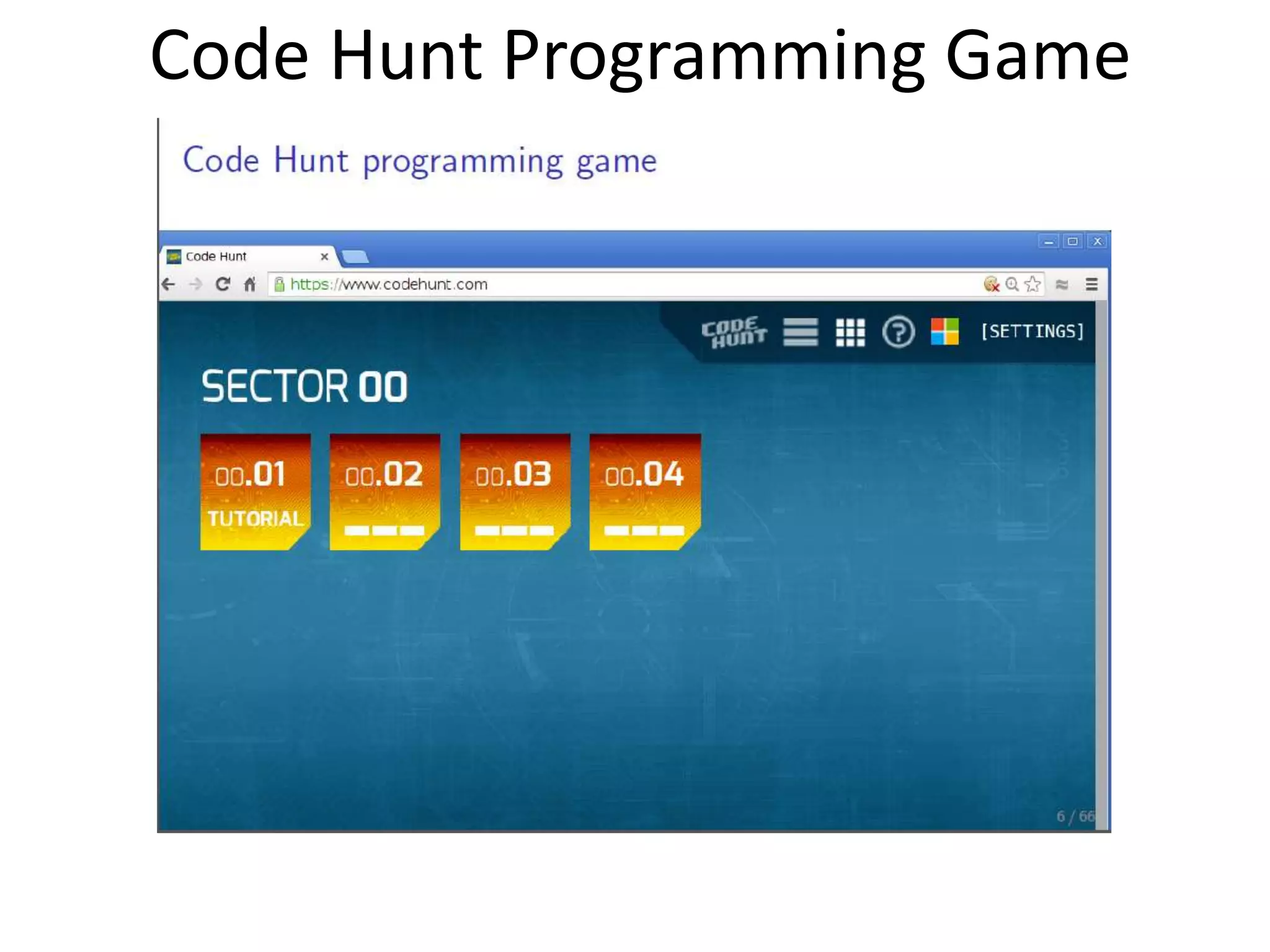

- 15.

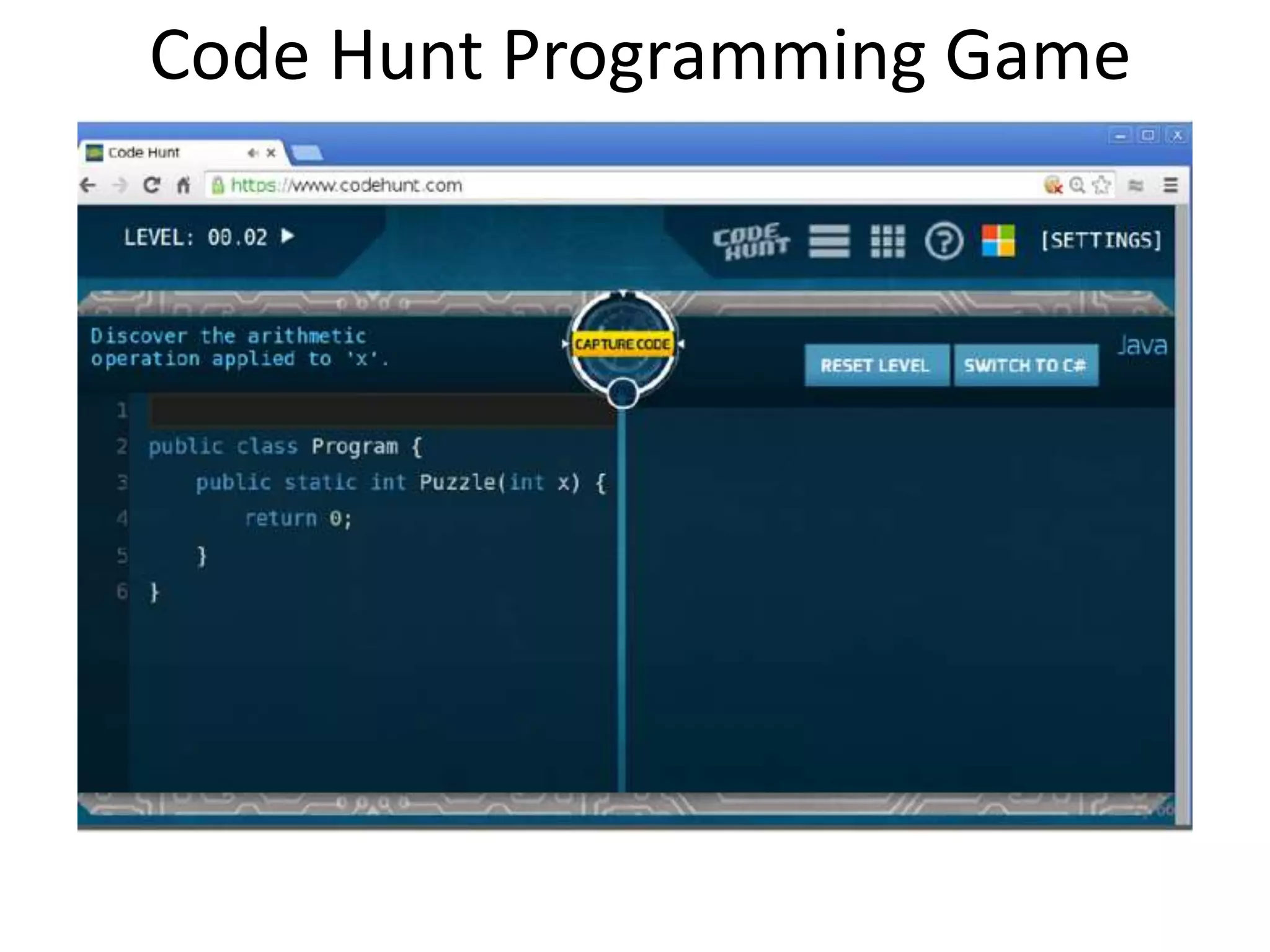

- 16.

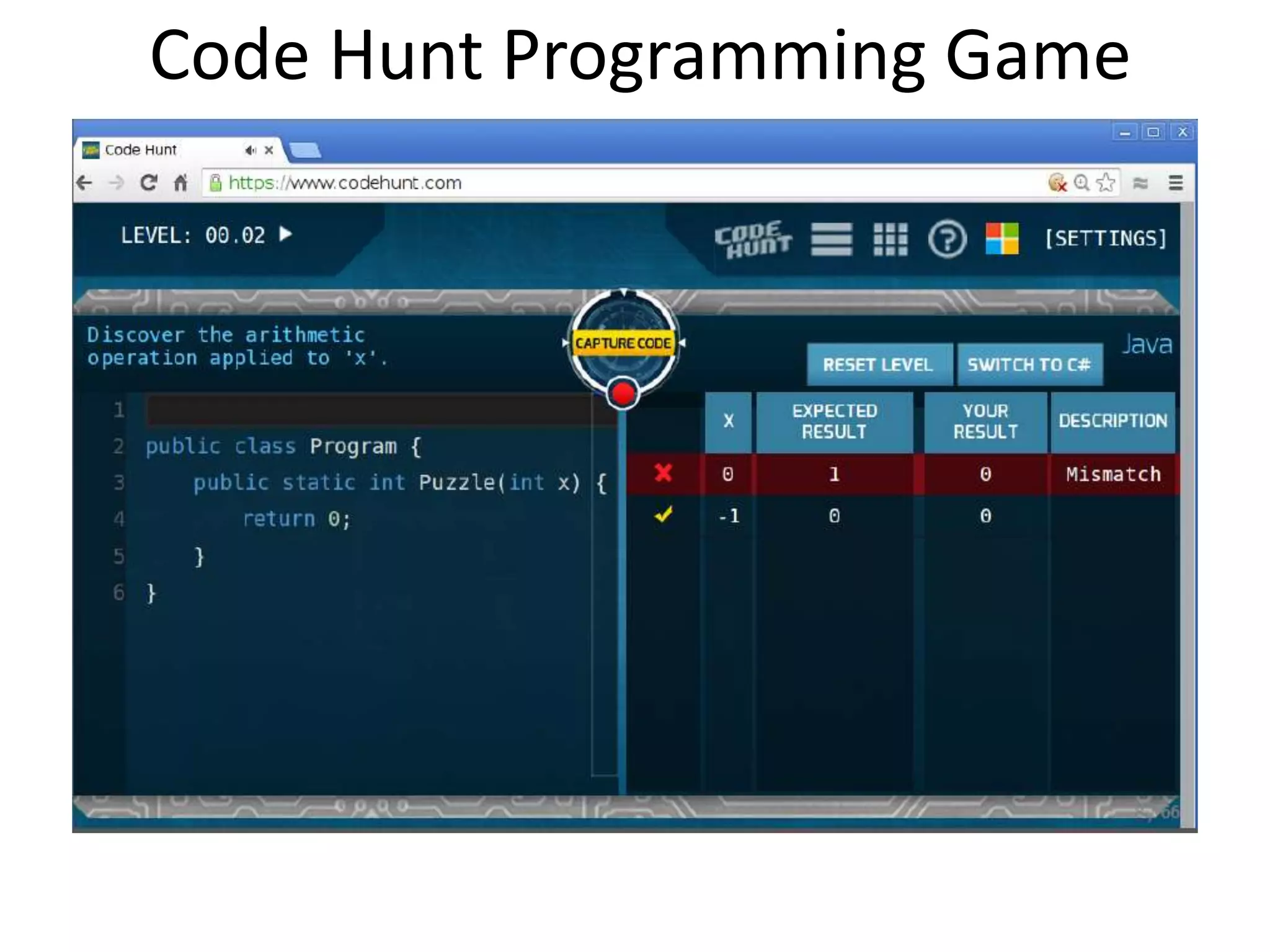

- 17.
- 18.
- 19.

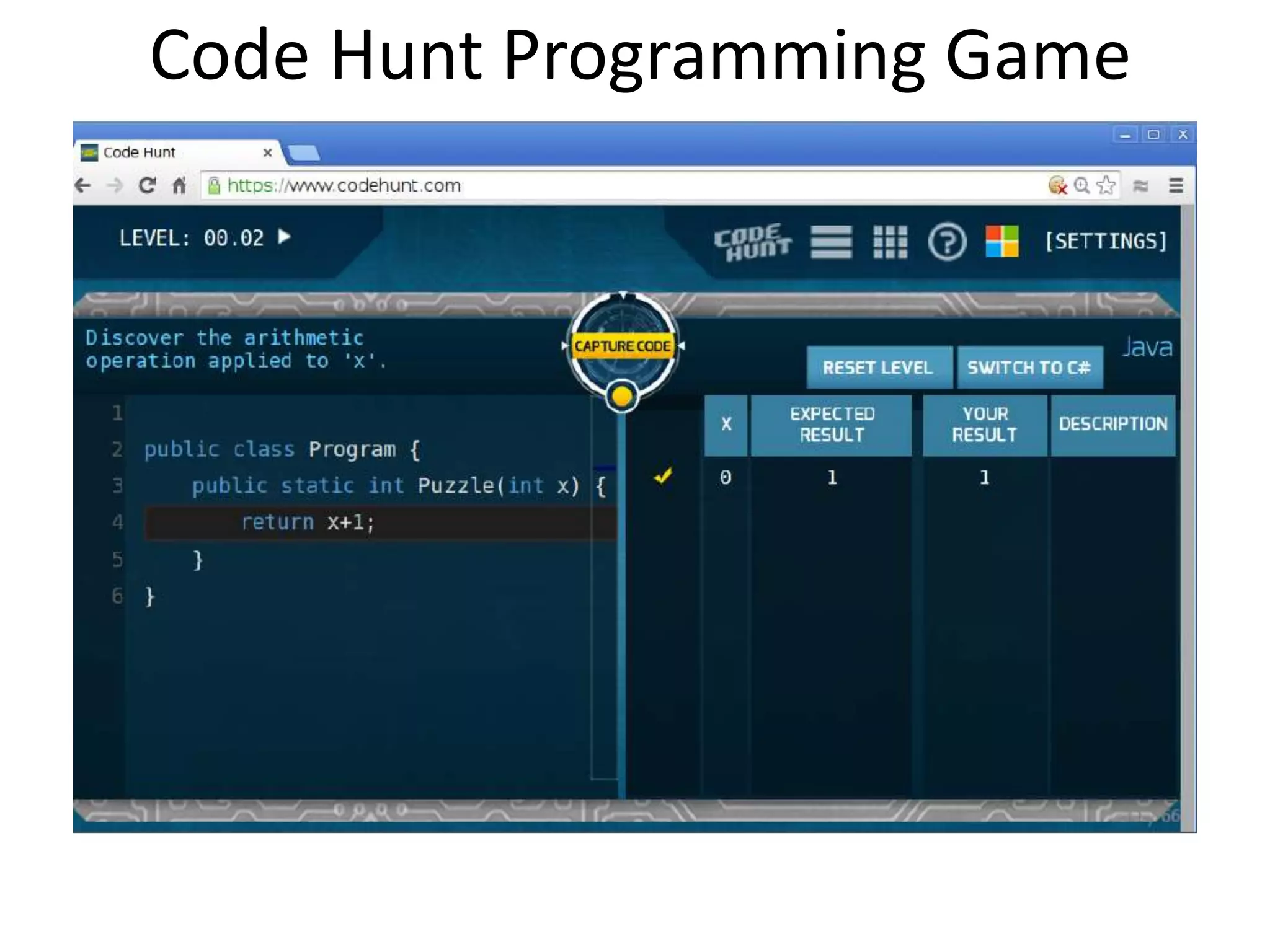

- 20.

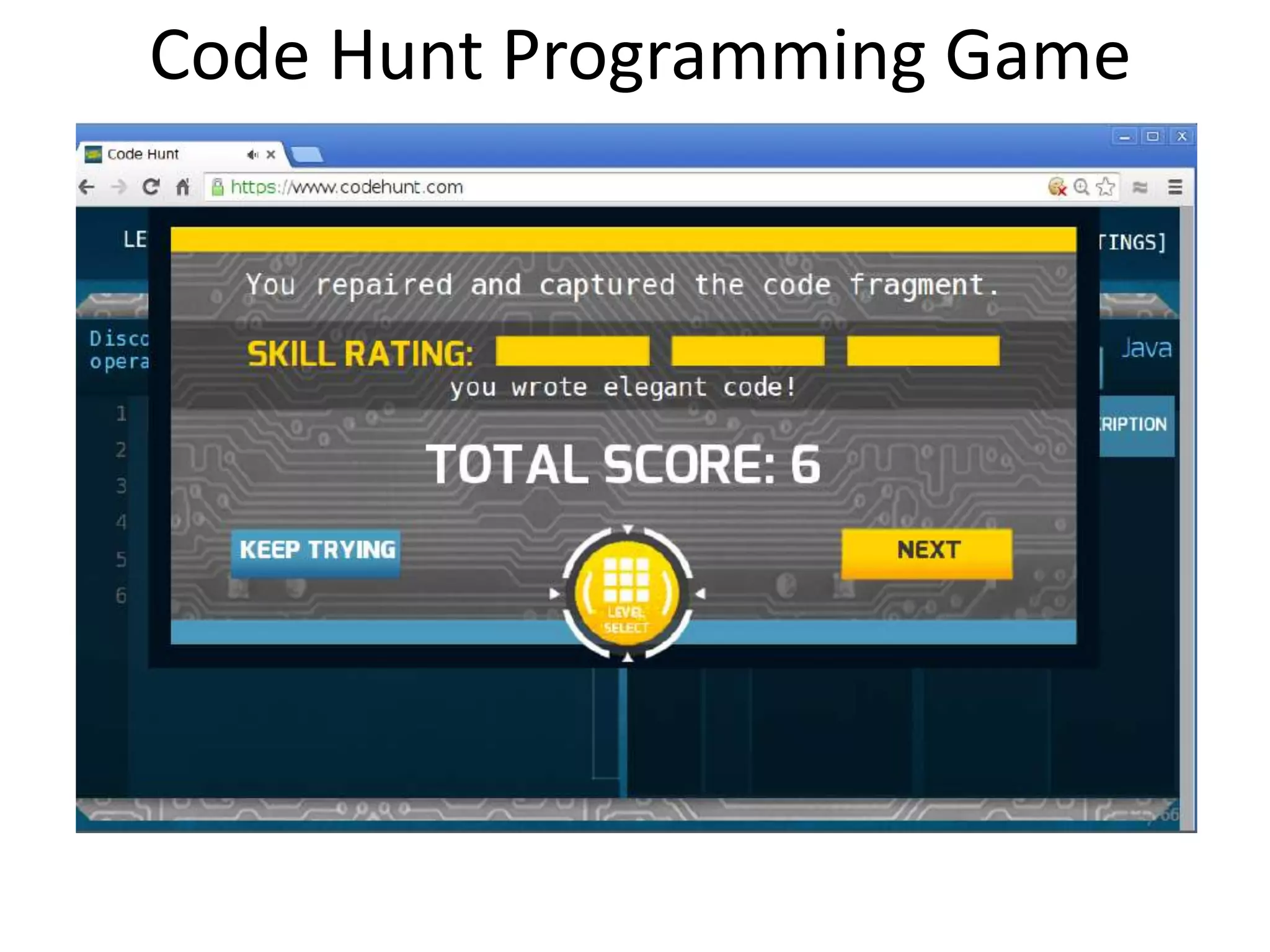

- 21.

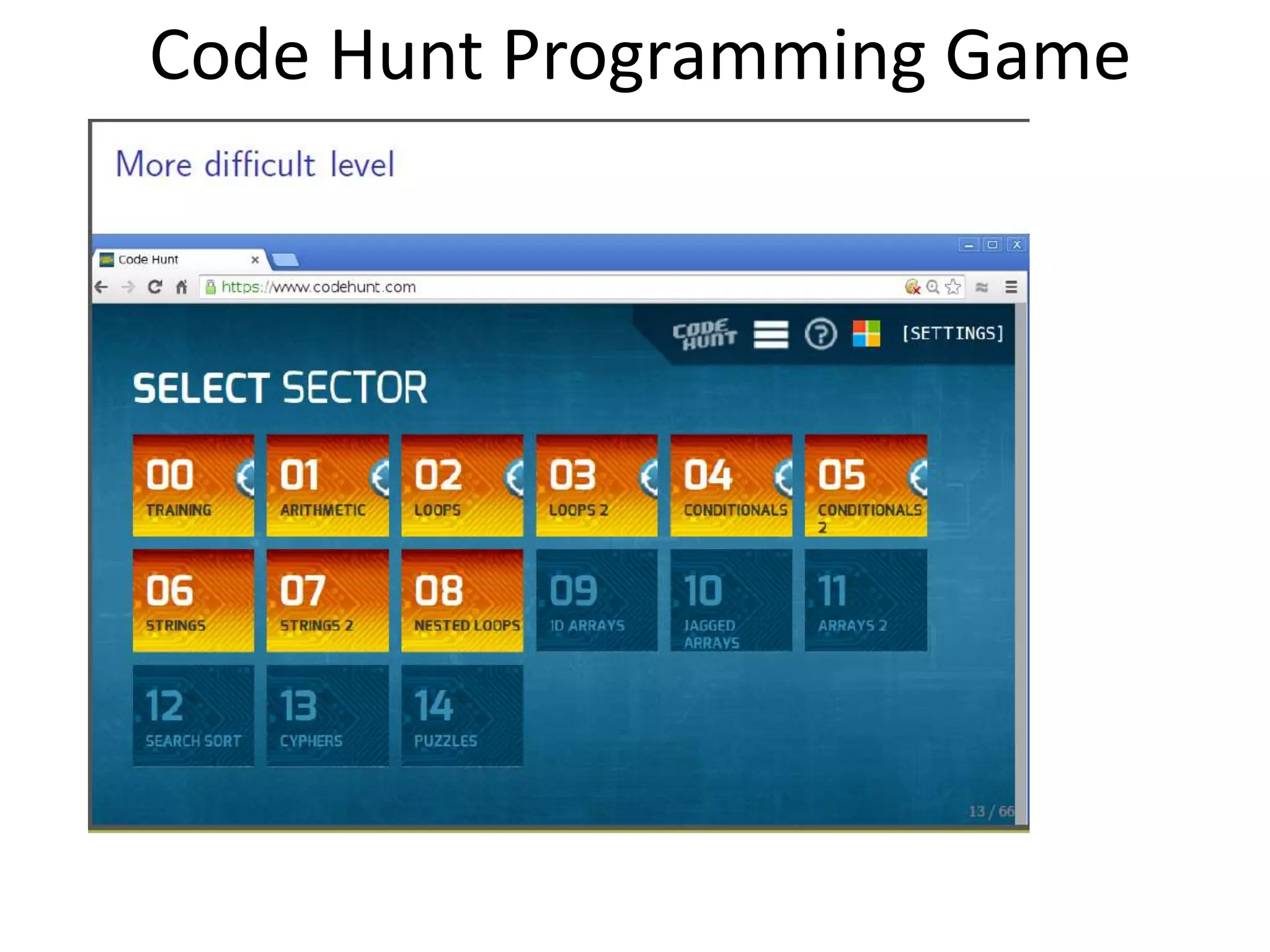

- 22.

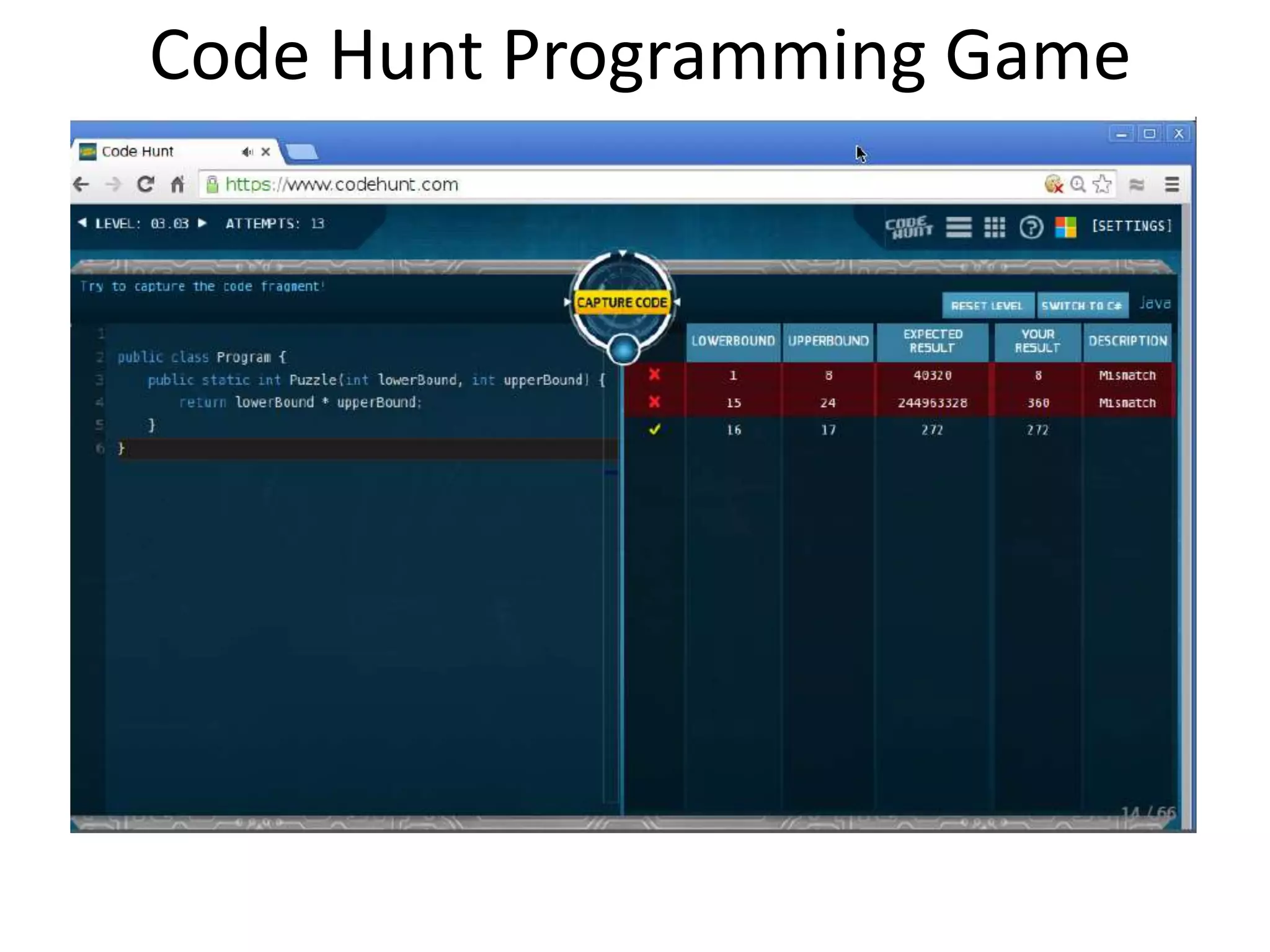

- 23.
- 24.
- 25.

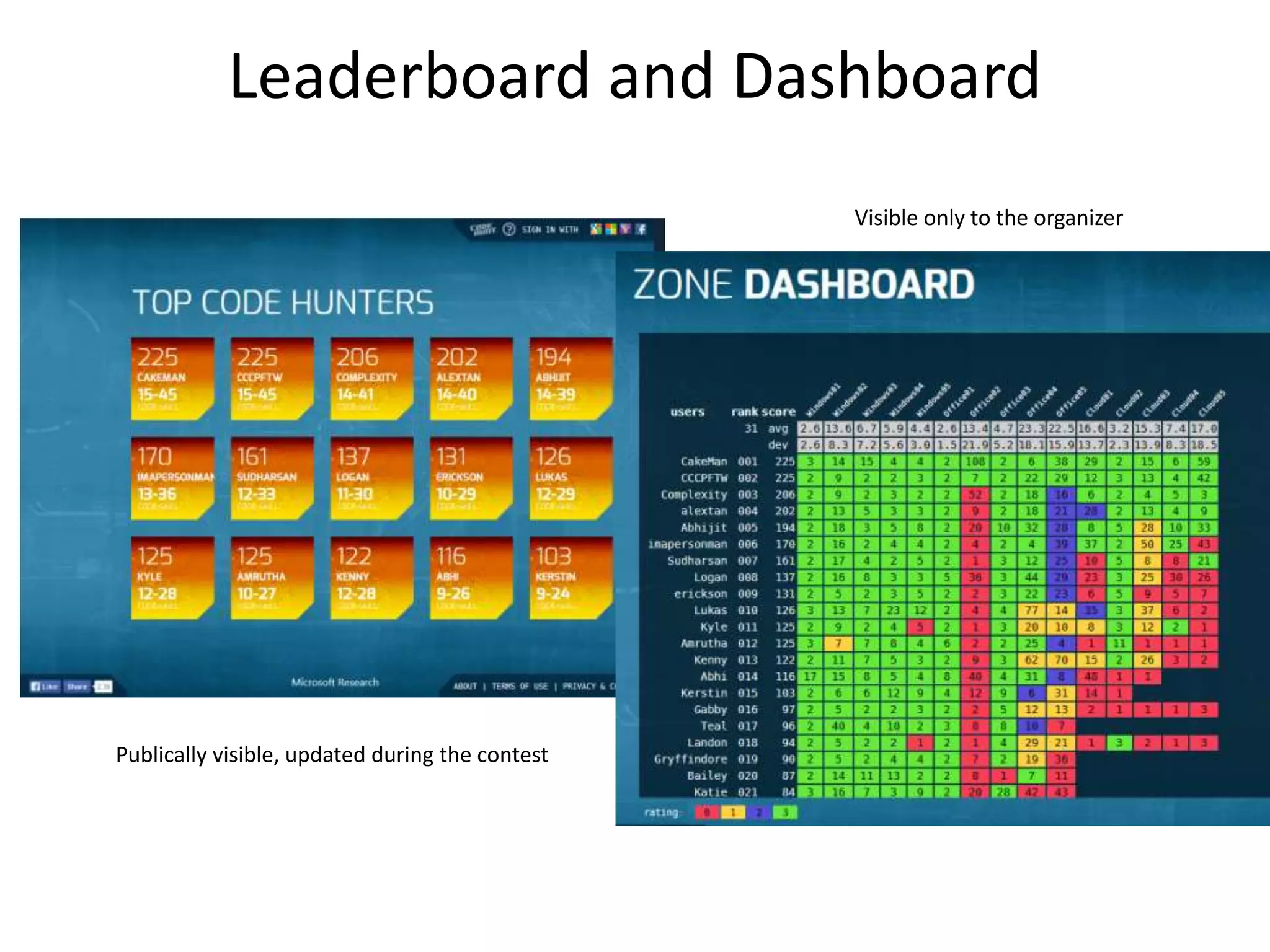

- 26. Leaderboard and Dashboard Publically visible, updated during the contest Visible only to the organizer

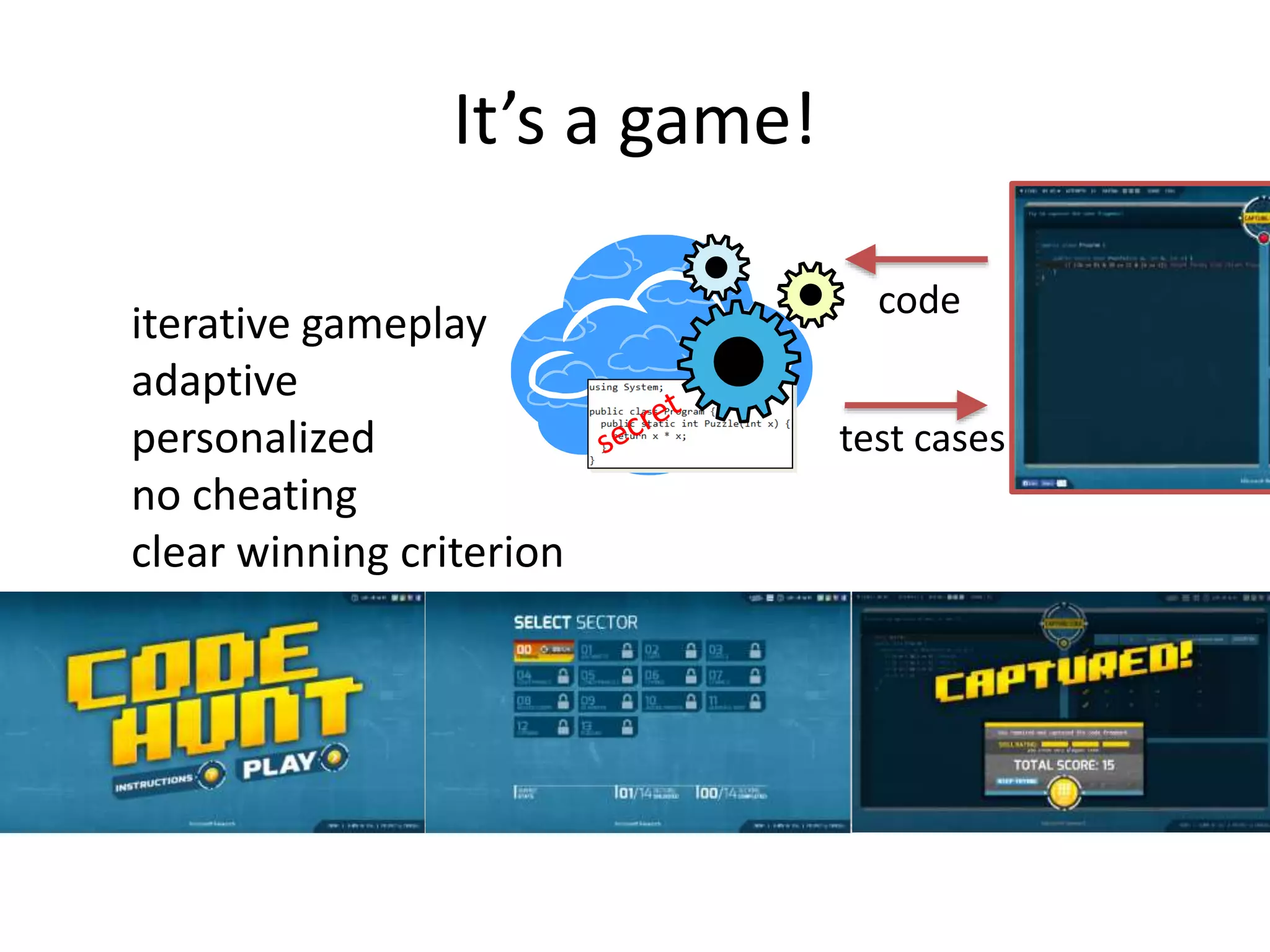

- 27. It’s a game! iterative gameplay adaptive personalized no cheating clear winning criterion code test cases

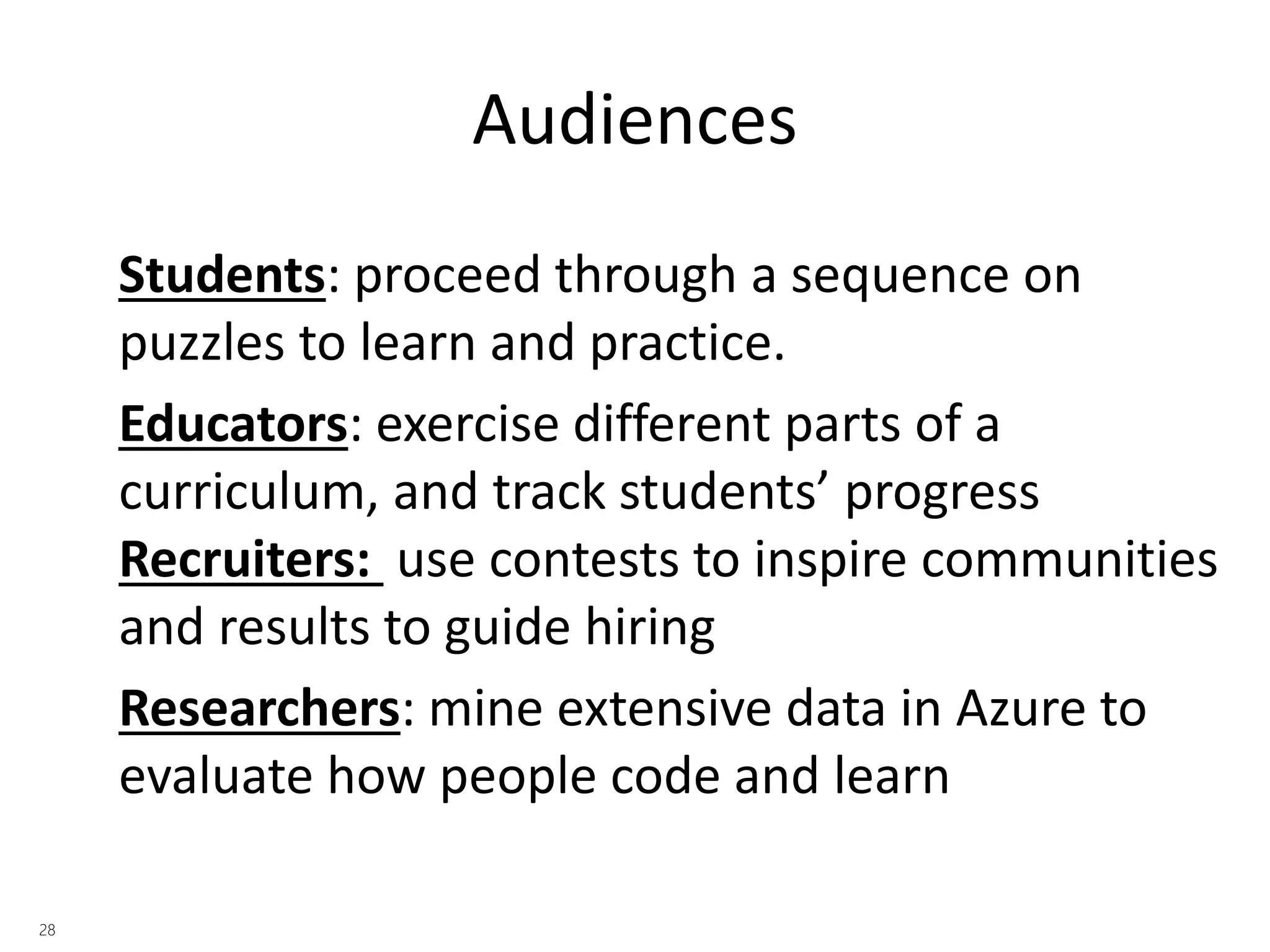

- 28. Audiences Students: proceedthrough a sequence on puzzles to learn and practice. Educators: exercise different parts of a curriculum, and track students’ progress Recruiters: use contests to inspire communities and results to guide hiring Researchers: mine extensive data in Azure to evaluate how people code and learn

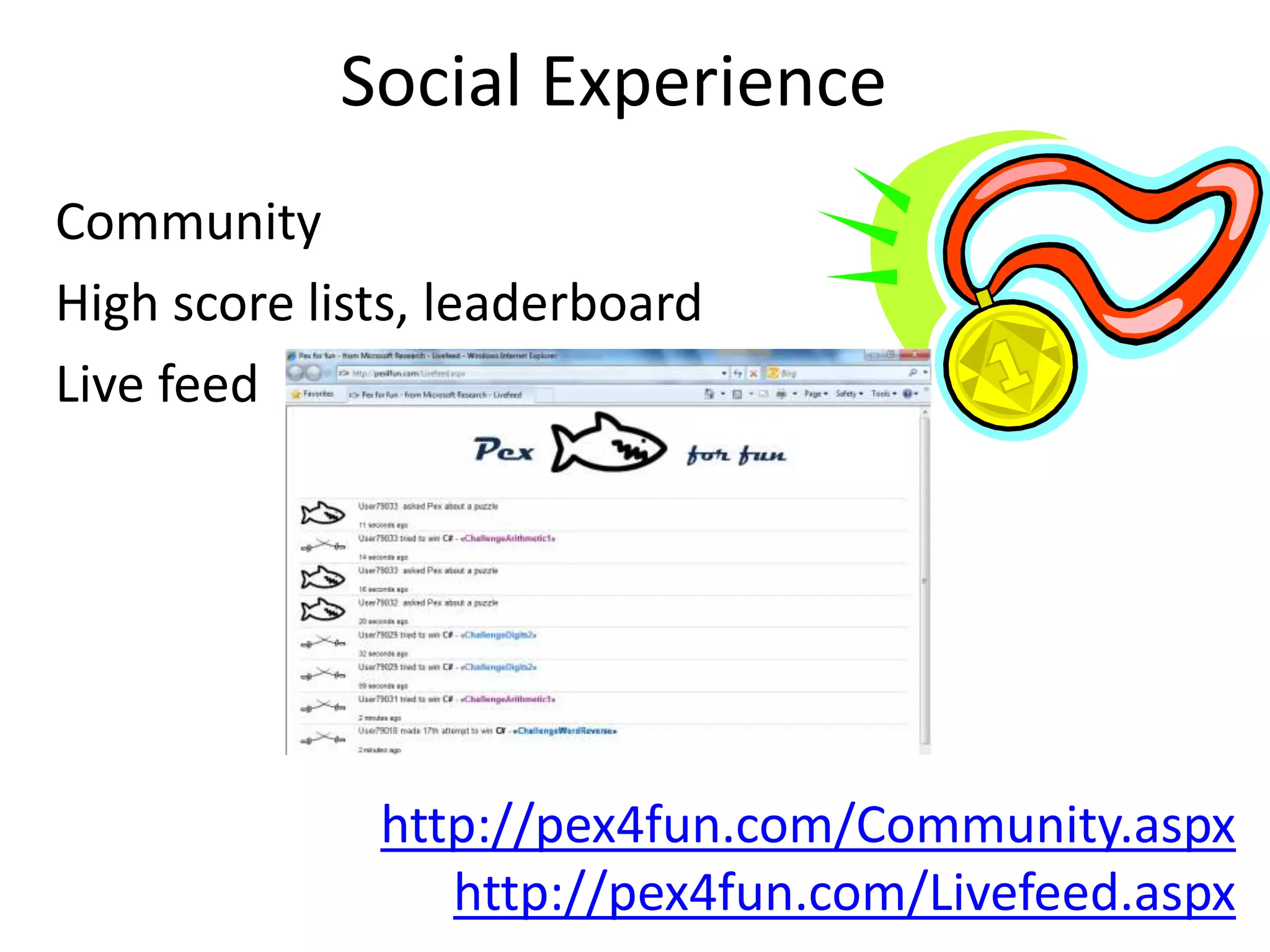

- 29. Social Experience Community High score lists, leaderboard Live feed http://pex4fun.com/Community.aspx http://pex4fun.com/Livefeed.aspx

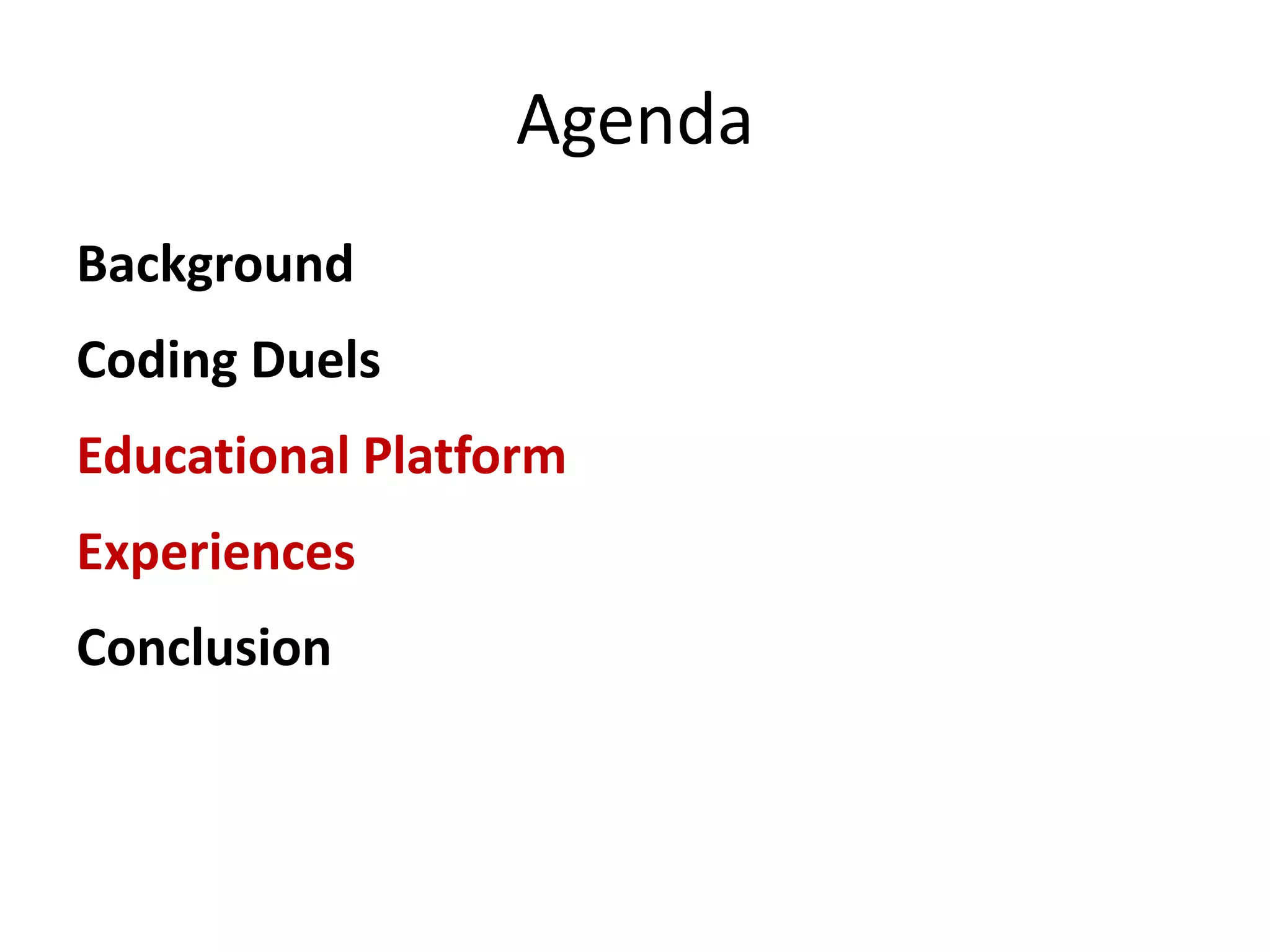

- 30. Agenda Background CodingDuels Educational Platform Experiences Conclusion

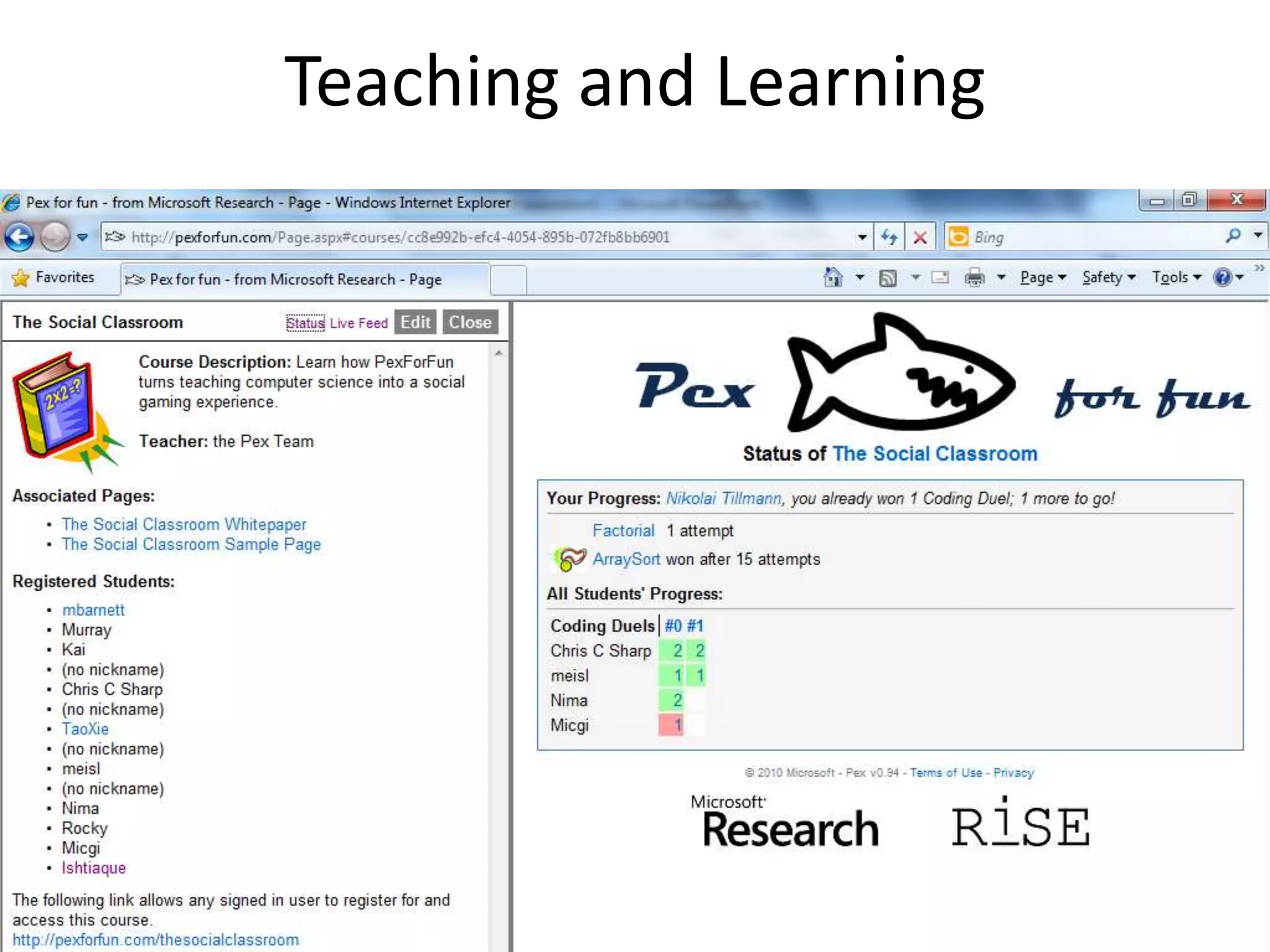

- 31.

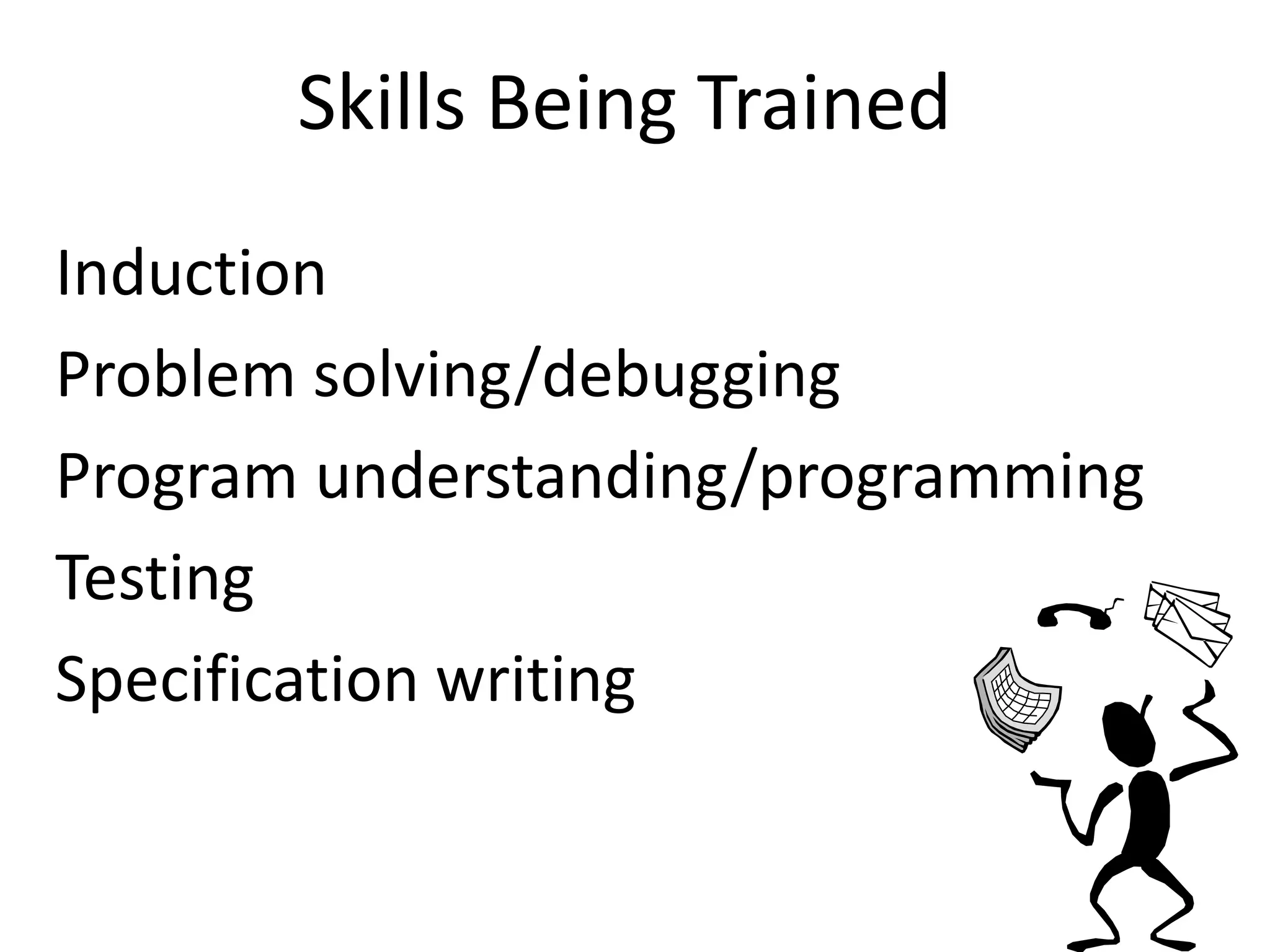

- 32. Skills Being Trained Induction Problem solving/debugging Program understanding/programming Testing Specification writing

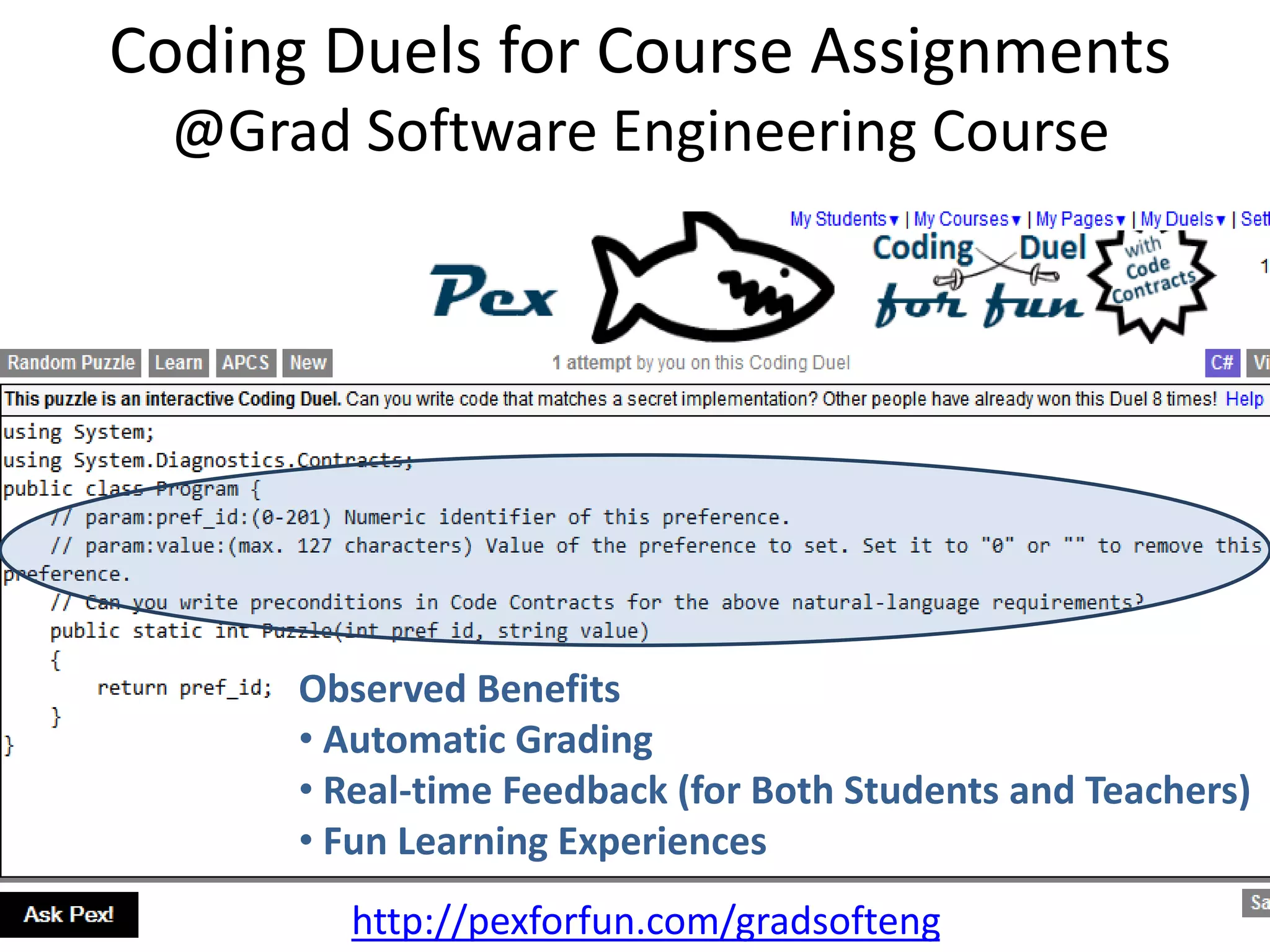

- 33. Coding Duels forCourse Assignments @Grad Software Engineering Course Observed Benefits • Automatic Grading • Real-time Feedback (for Both Students and Teachers) • Fun Learning Experiences http://pexforfun.com/gradsofteng

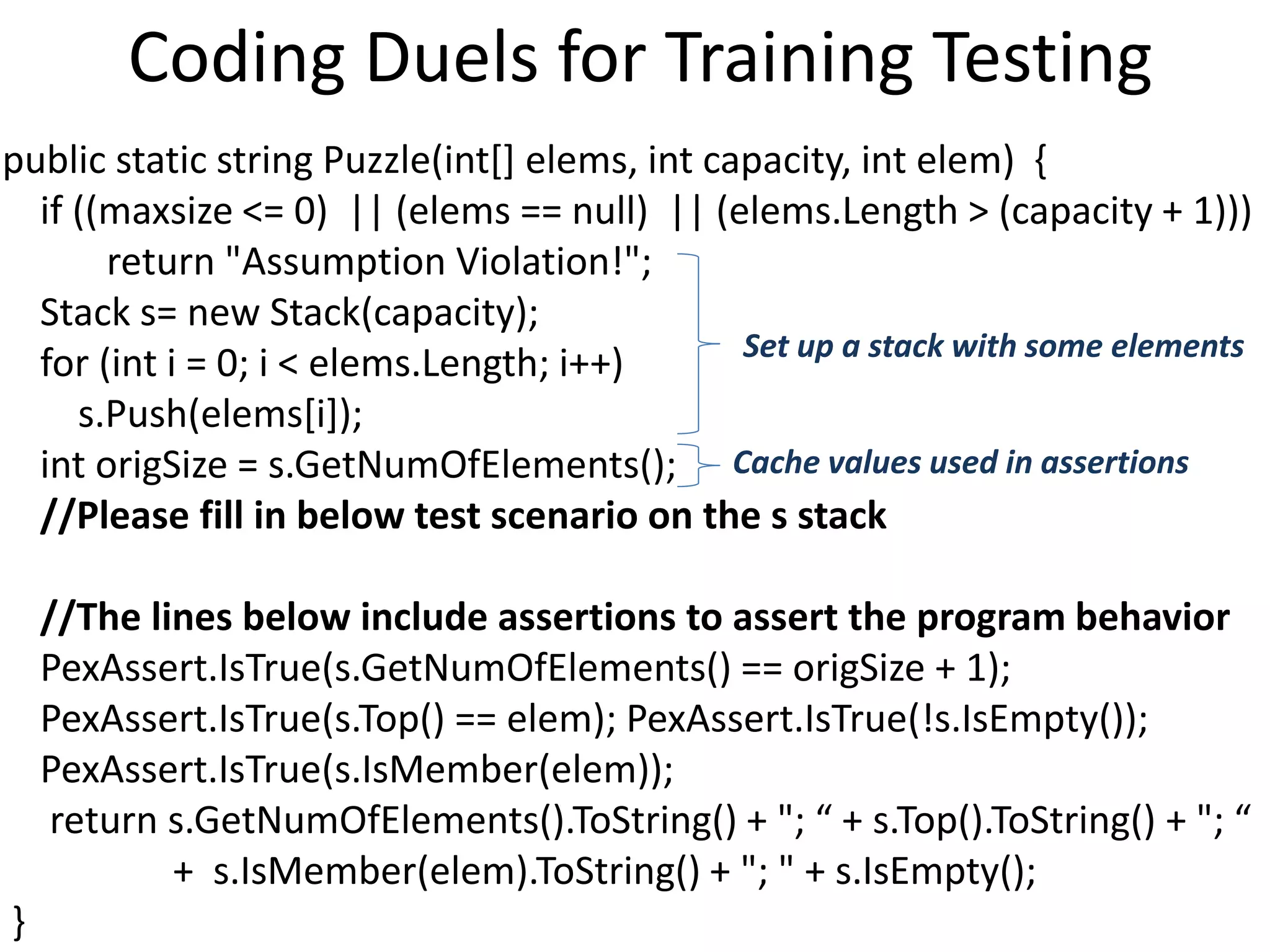

- 34. Coding Duels forTraining Testing public static string Puzzle(int[] elems, int capacity, int elem) { if ((maxsize <= 0) || (elems == null) || (elems.Length > (capacity + 1))) return "Assumption Violation!"; Stack s= new Stack(capacity); for (int i = 0; i < elems.Length; i++) s.Push(elems[i]); int origSize = s.GetNumOfElements(); //Please fill in below test scenario on the s stack //The lines below include assertions to assert the program behavior PexAssert.IsTrue(s.GetNumOfElements() == origSize + 1); PexAssert.IsTrue(s.Top() == elem); PexAssert.IsTrue(!s.IsEmpty()); PexAssert.IsTrue(s.IsMember(elem)); return s.GetNumOfElements().ToString() + "; “ + s.Top().ToString() + "; “ + s.IsMember(elem).ToString() + "; " + s.IsEmpty(); } Set up a stack with some elements Cache values used in assertions

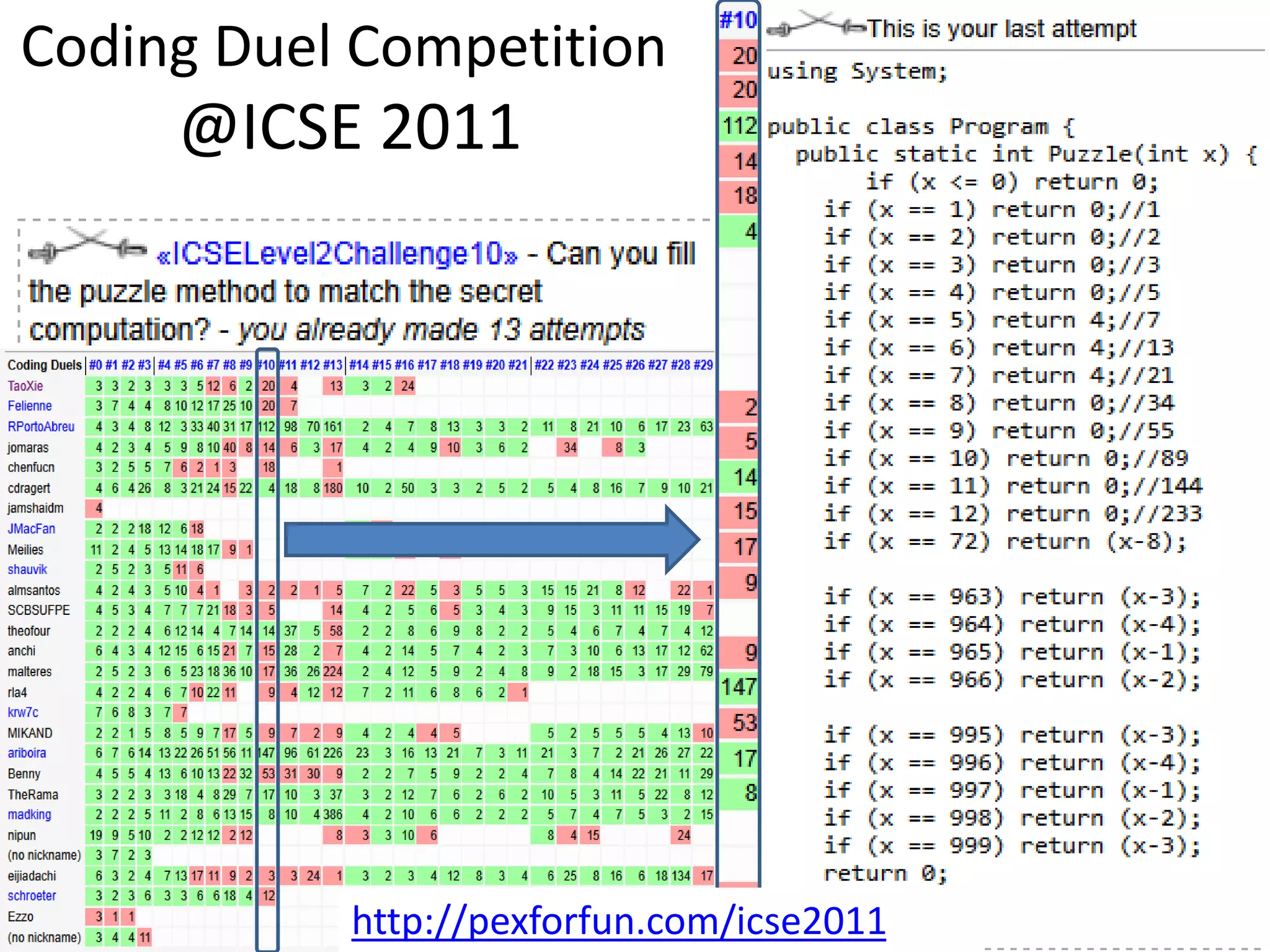

- 35. Coding Duel Competition @ICSE 2011 http://pexforfun.com/icse2011
- 36. Example User Feedback Released since 2010 “I used to love the first person shooters and the satisfaction of blowing away a whole team of Noobies playing Rainbow Six, but this is far more fun.” X “I’m afraid I’ll have to constrain myself to spend just an hour or so a day on this really exciting stuff, as I’m really stuffed with work.” “It really got me *excited*. The part that got me most is about spreading interest in teaching CS: I do think that it’s REALLY great for teaching | learning!”

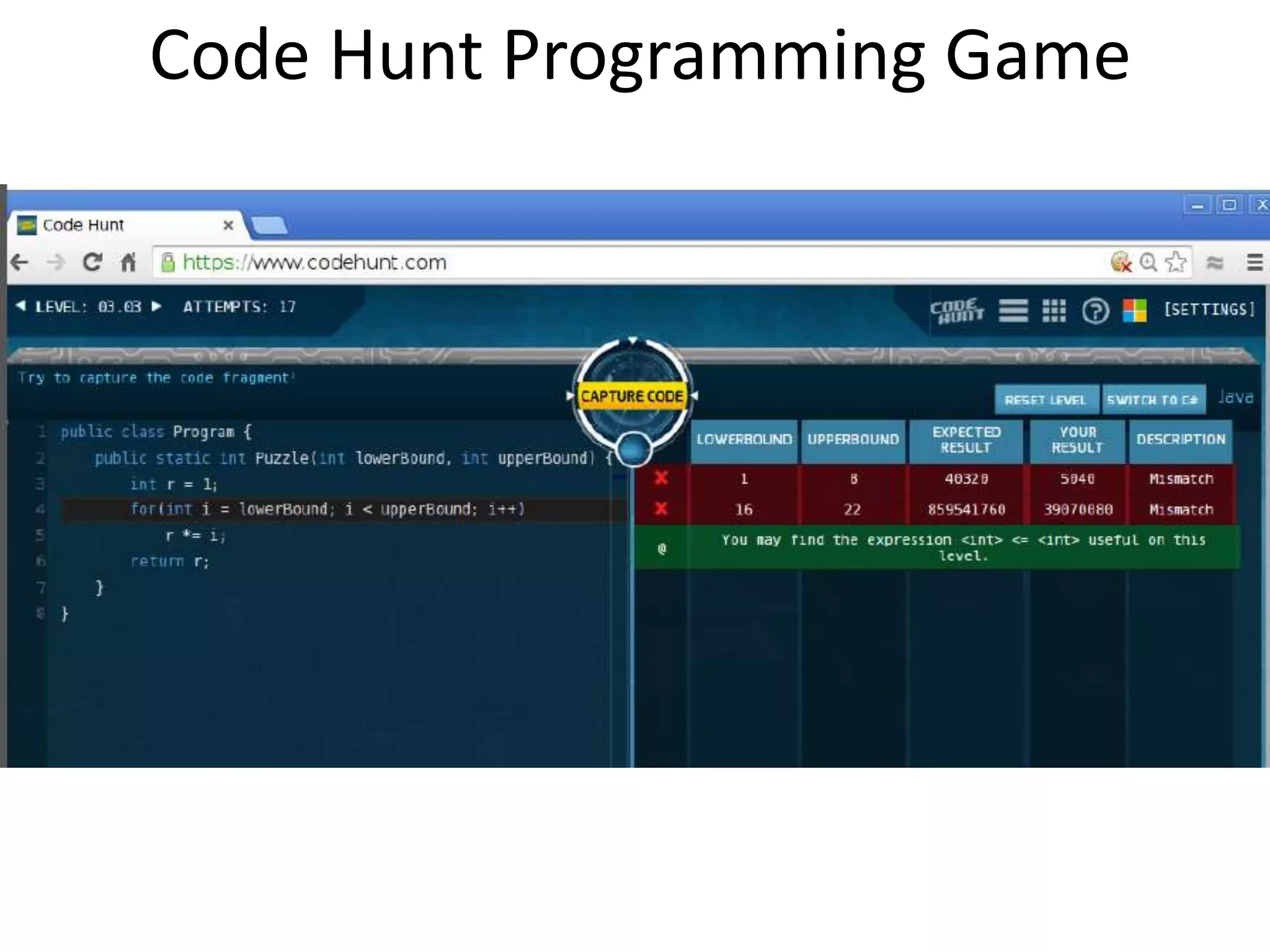

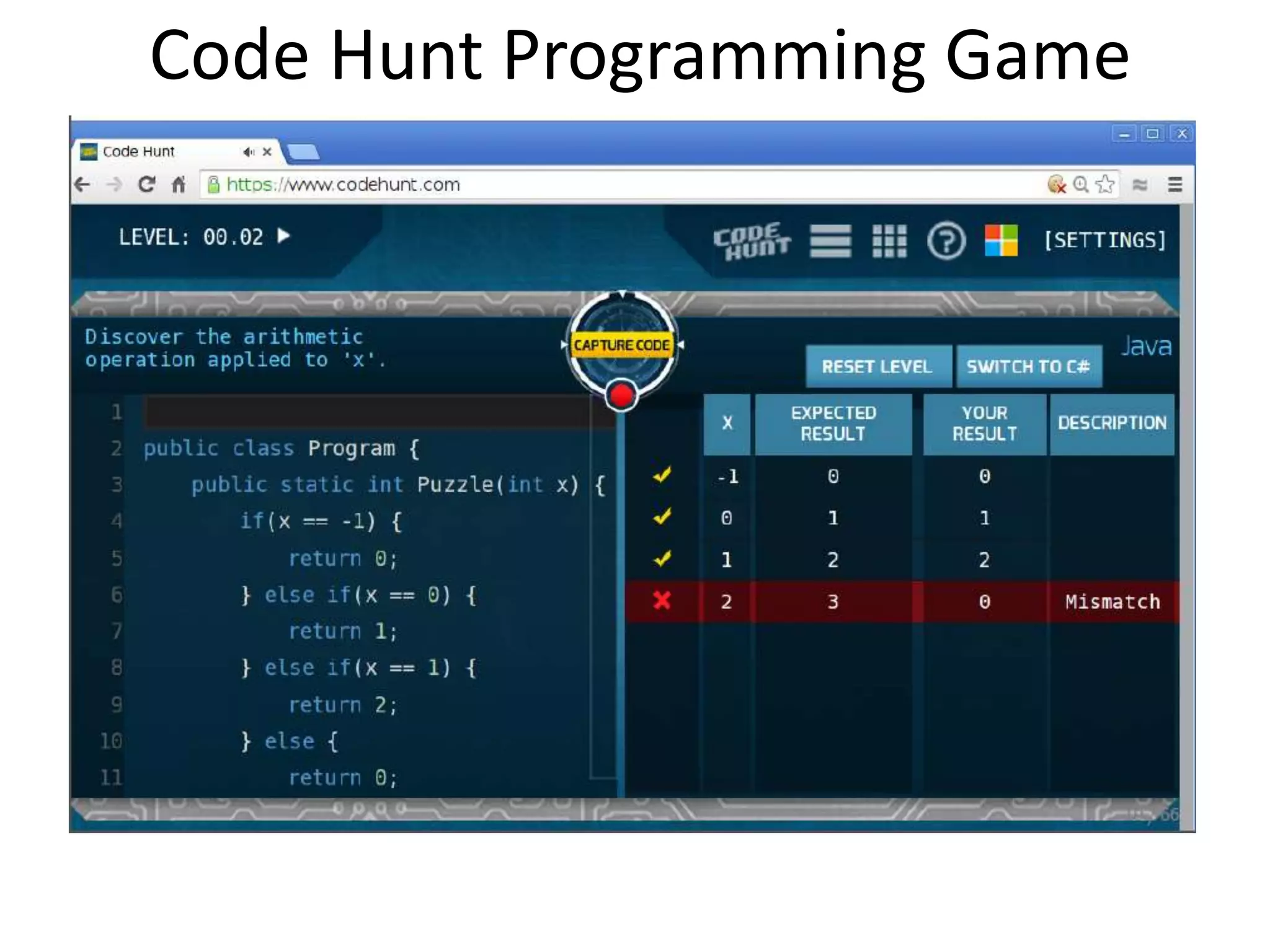

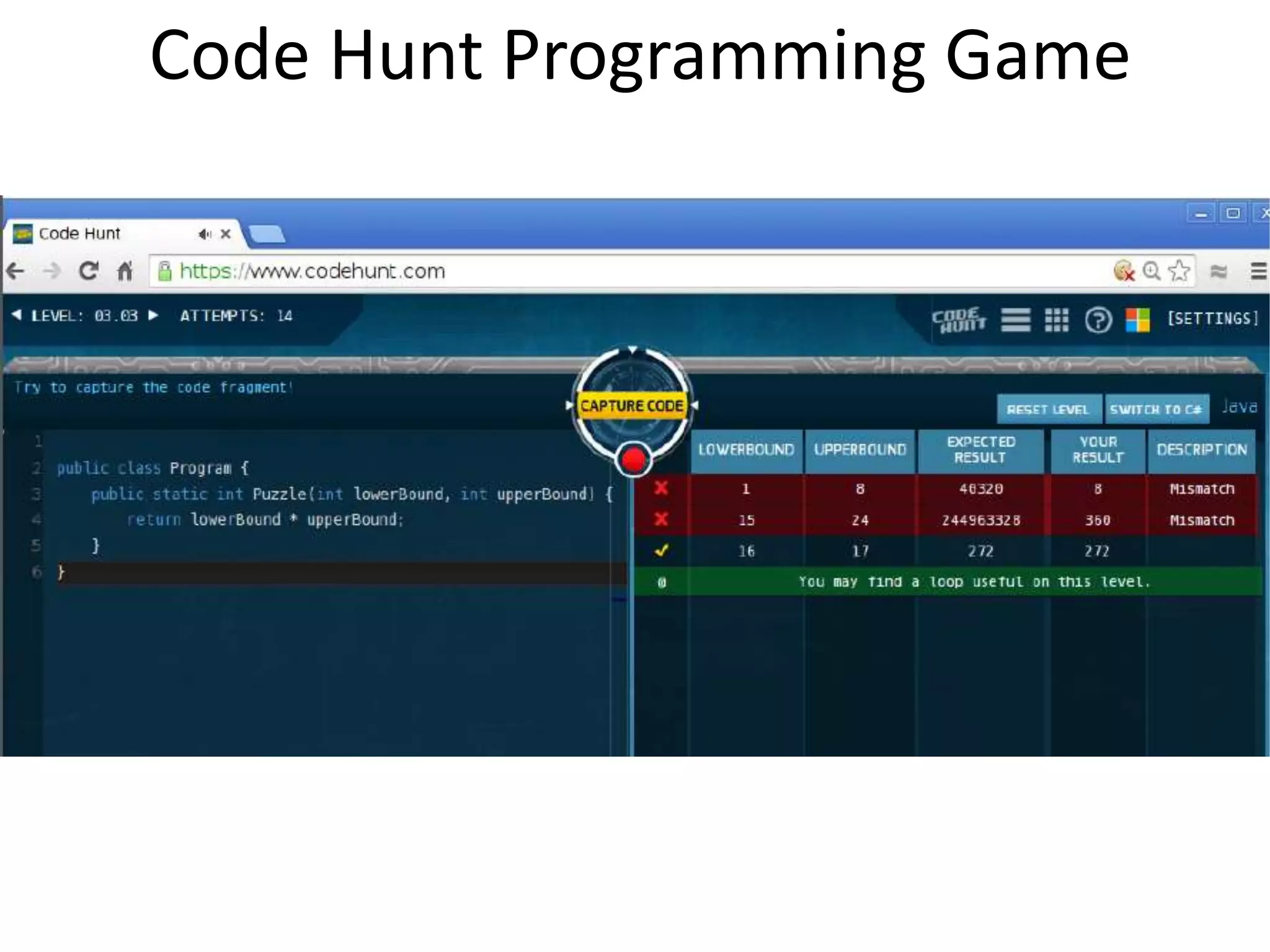

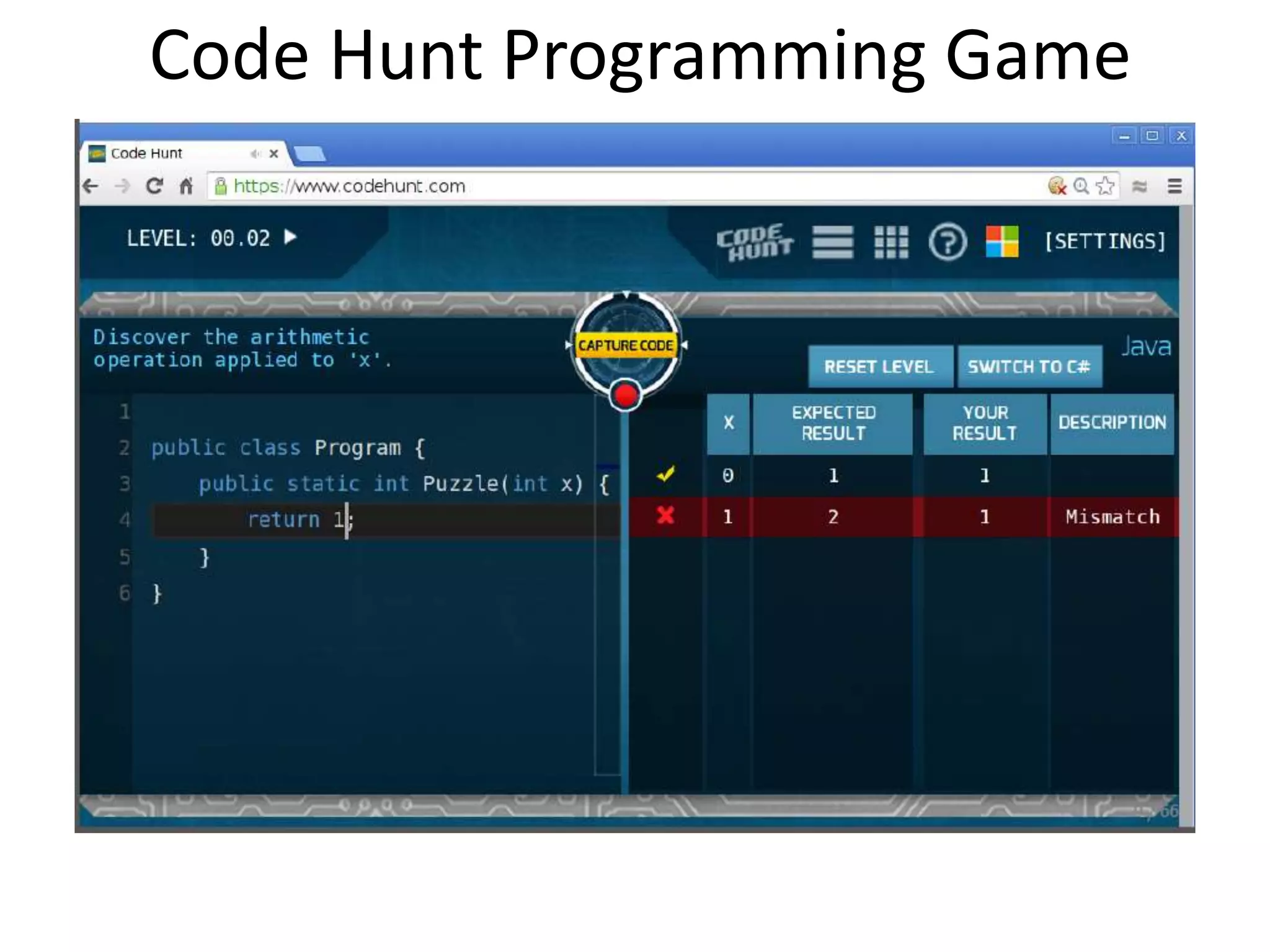

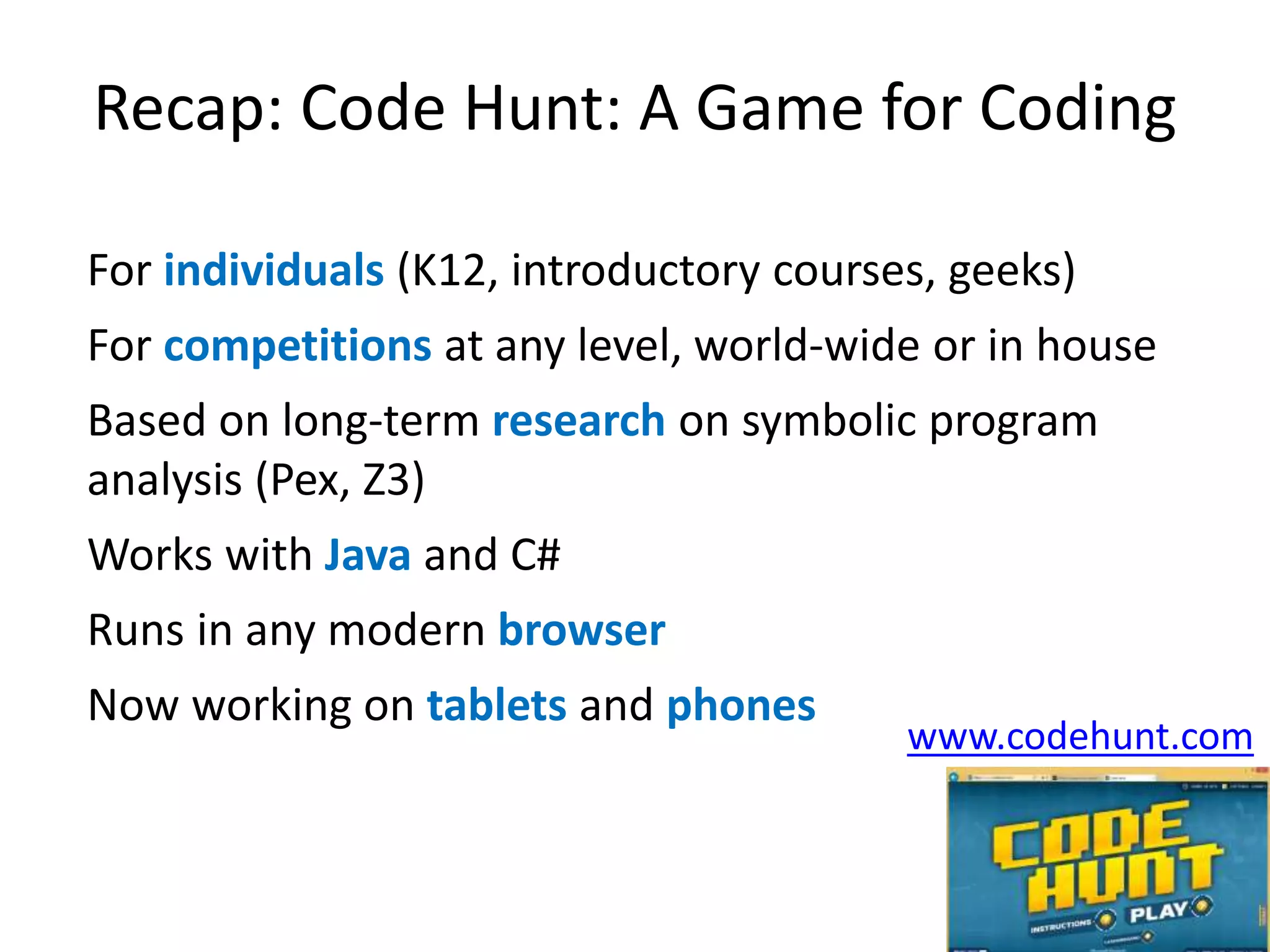

- 37. Recap: Code Hunt:A Game for Coding For individuals (K12, introductory courses, geeks) For competitions at any level, world-wide or in house Based on long-term research on symbolic program analysis (Pex, Z3) Works with Java and C# Runs in any modern browser Now working on tablets and phones www.codehunt.com

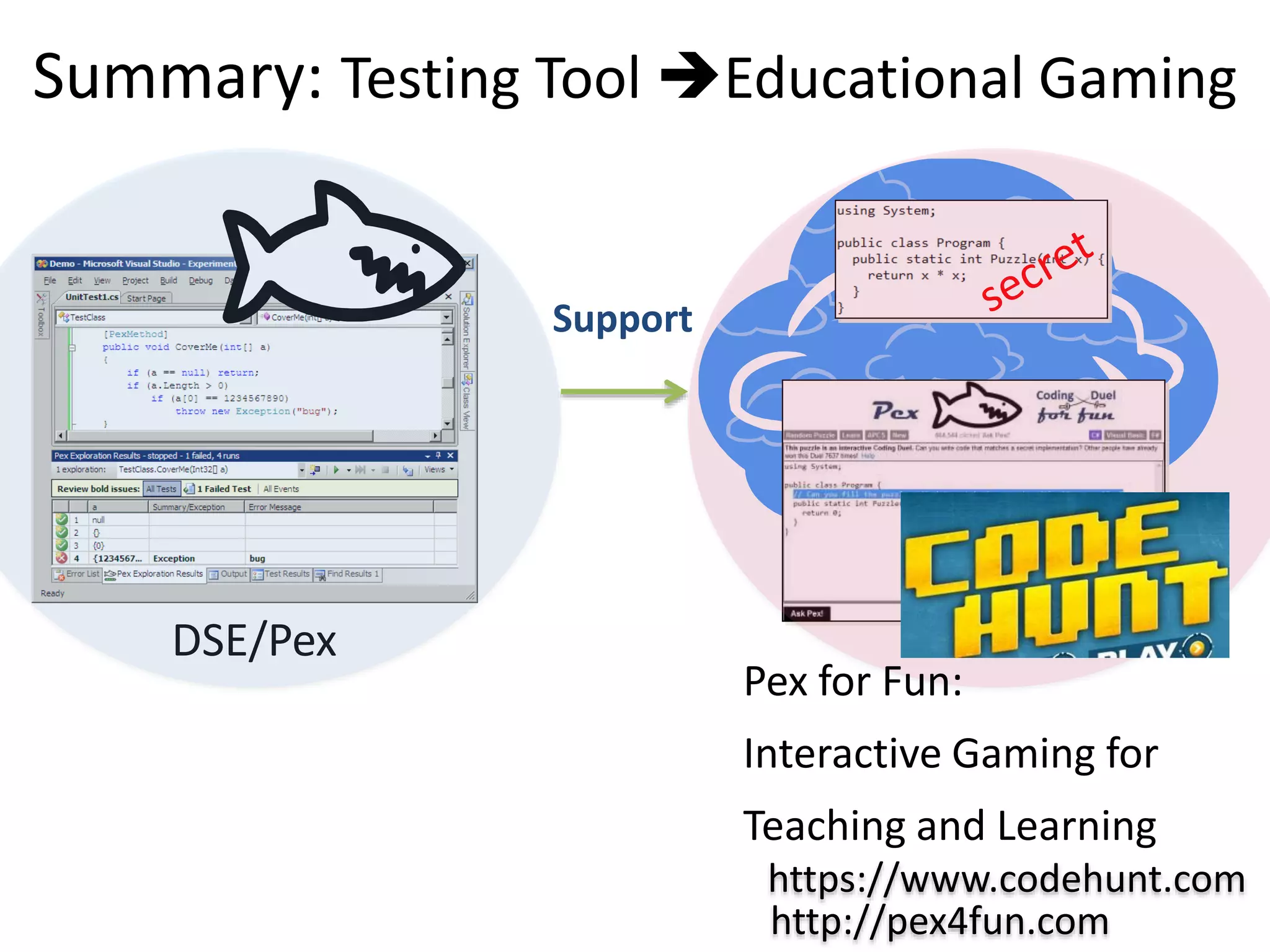

- 38. Summary: Testing ToolEducational Gaming DSE/Pex Pex for Fun: Interactive Gaming for Teaching and Learning Support https://www.codehunt.com http://pex4fun.com

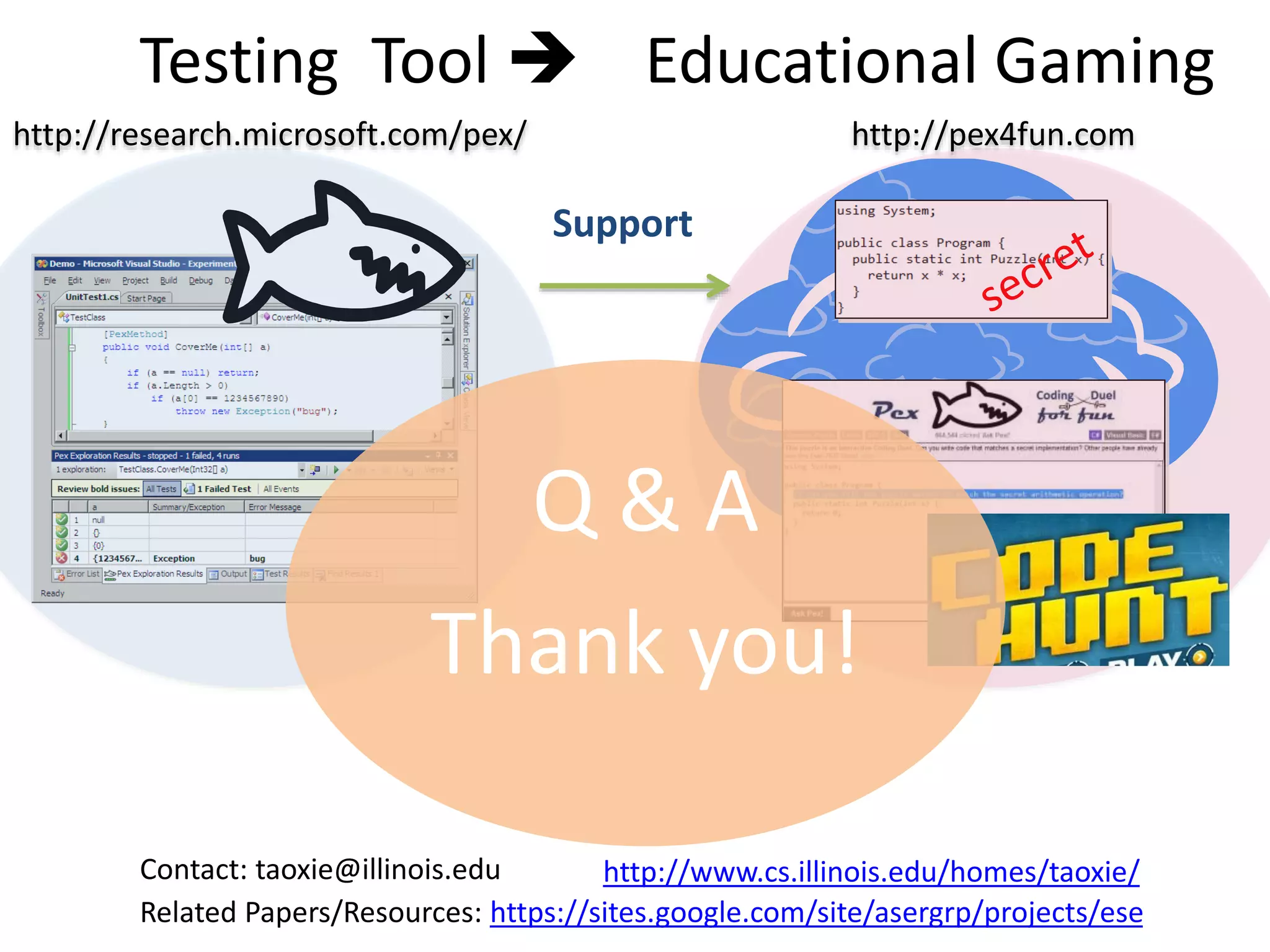

- 39. Testing Tool Educational Gaming http://research.microsoft.com/pex/ http://pex4fun.com Support Q & A Thank you! Contact: taoxie@illinois.edu http://www.cs.illinois.edu/homes/taoxie/ Related Papers/Resources: https://sites.google.com/site/asergrp/projects/ese
- 40. Summary: Testing ToolEducational Gaming DSE/Pex Pex for Fun: Interactive Gaming for Teaching and Learning Support https://www.codehunt.com http://pex4fun.com
Editor's Notes
- #9 8
