Game Programming 04 - Style & Design Principles

Game Programming
Style & Design Principles
Nick Prühs

Objectives
• To get an idea of good code style and structure in general
• To understand the importance of consistent naming and code
conventions
• To learn how to property design types and members
2 / 61

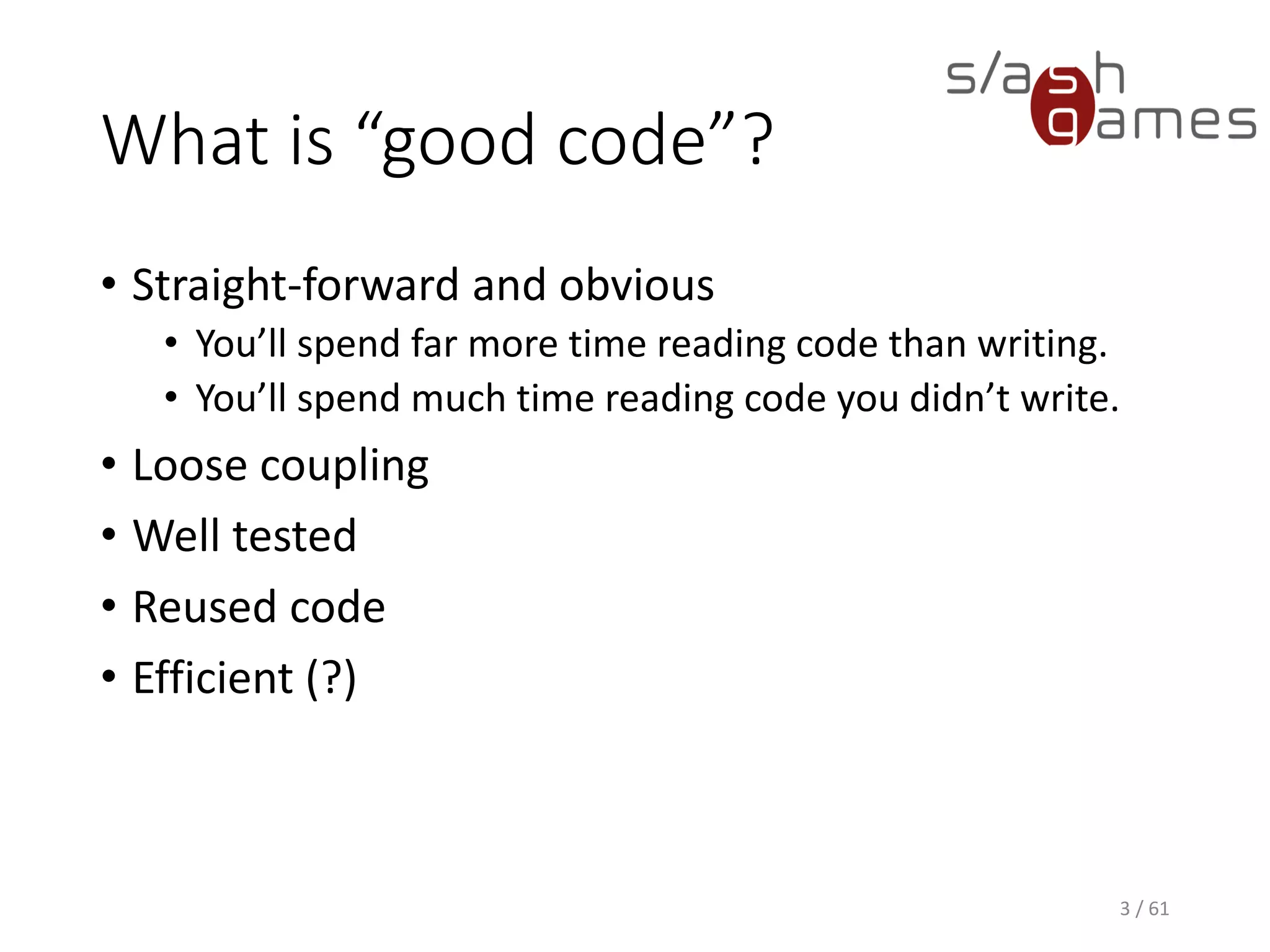

What is “good code”?
• Straight-forward and obvious
 You’ll spend far more time reading code than writing.
 You’ll spend much time reading code you didn’t write.
• Loose coupling
• Well tested
• Reused code
• Efficient (?)
3 / 61

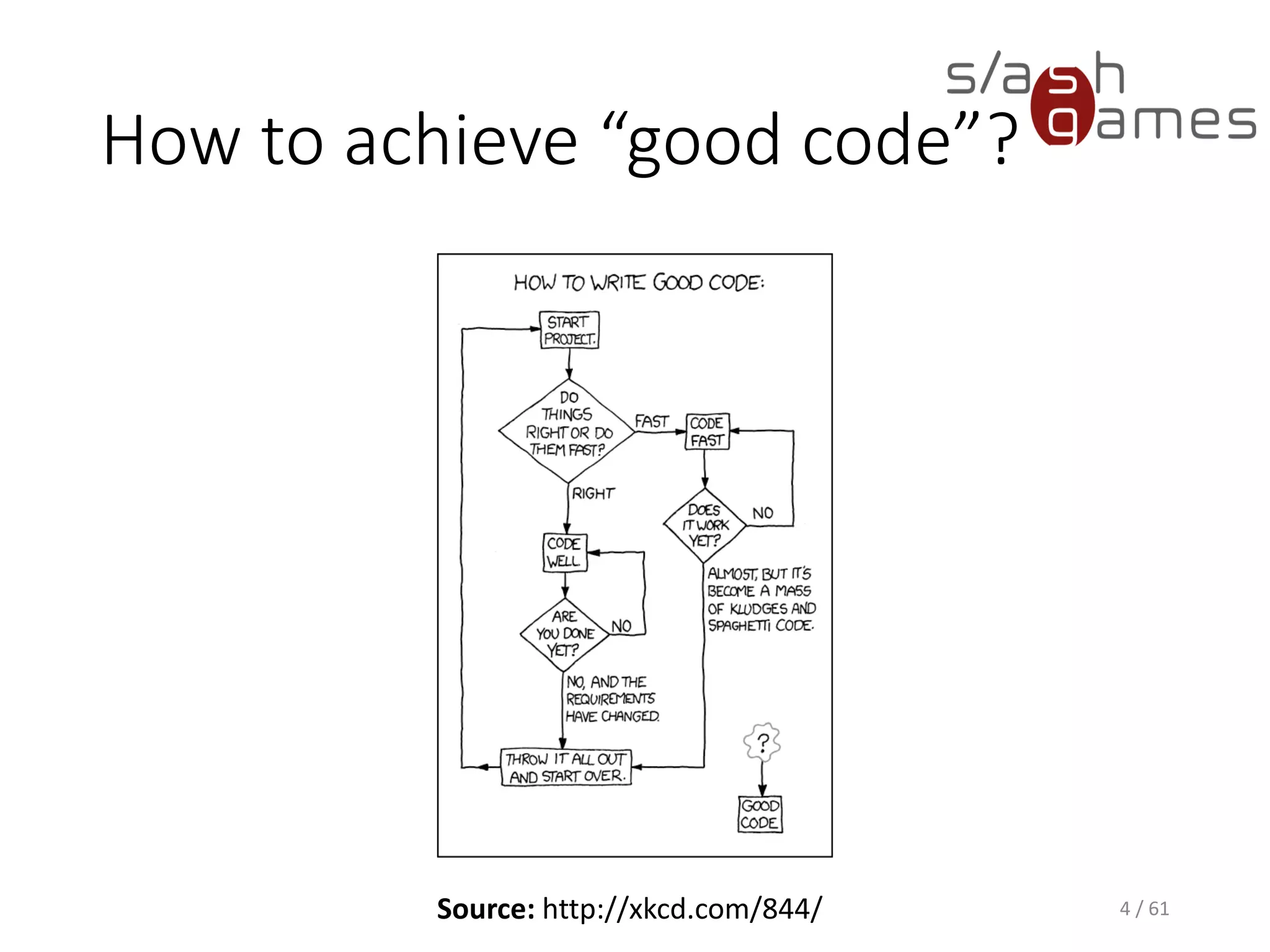

How to achieve “good code”?
Source: http://xkcd.com/844/ 4 / 61

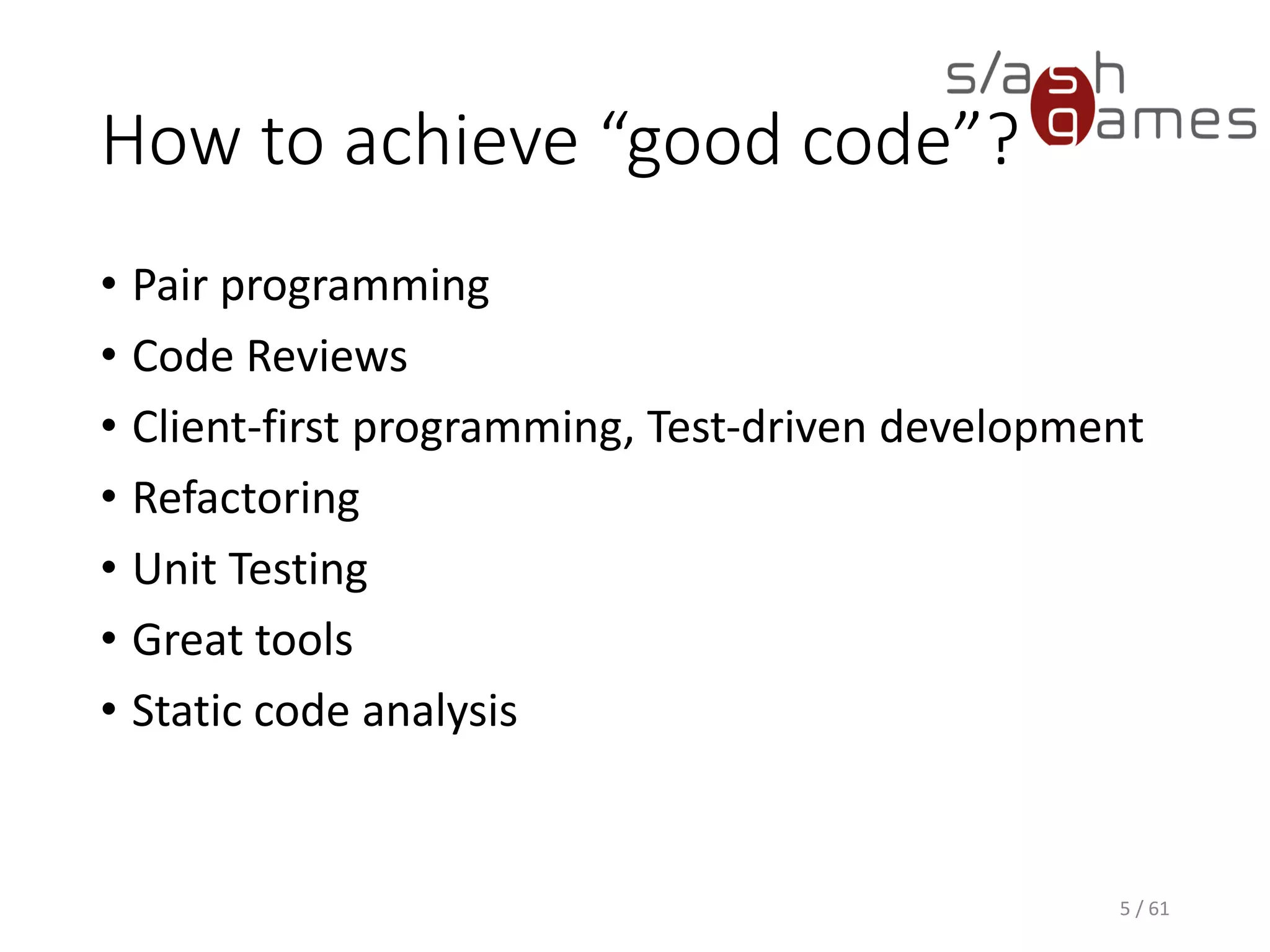

How to achieve “good code”?
• Pair programming
• Code Reviews
• Client-first programming, Test-driven development
• Refactoring
• Unit Testing
• Great tools
• Static code analysis
5 / 61

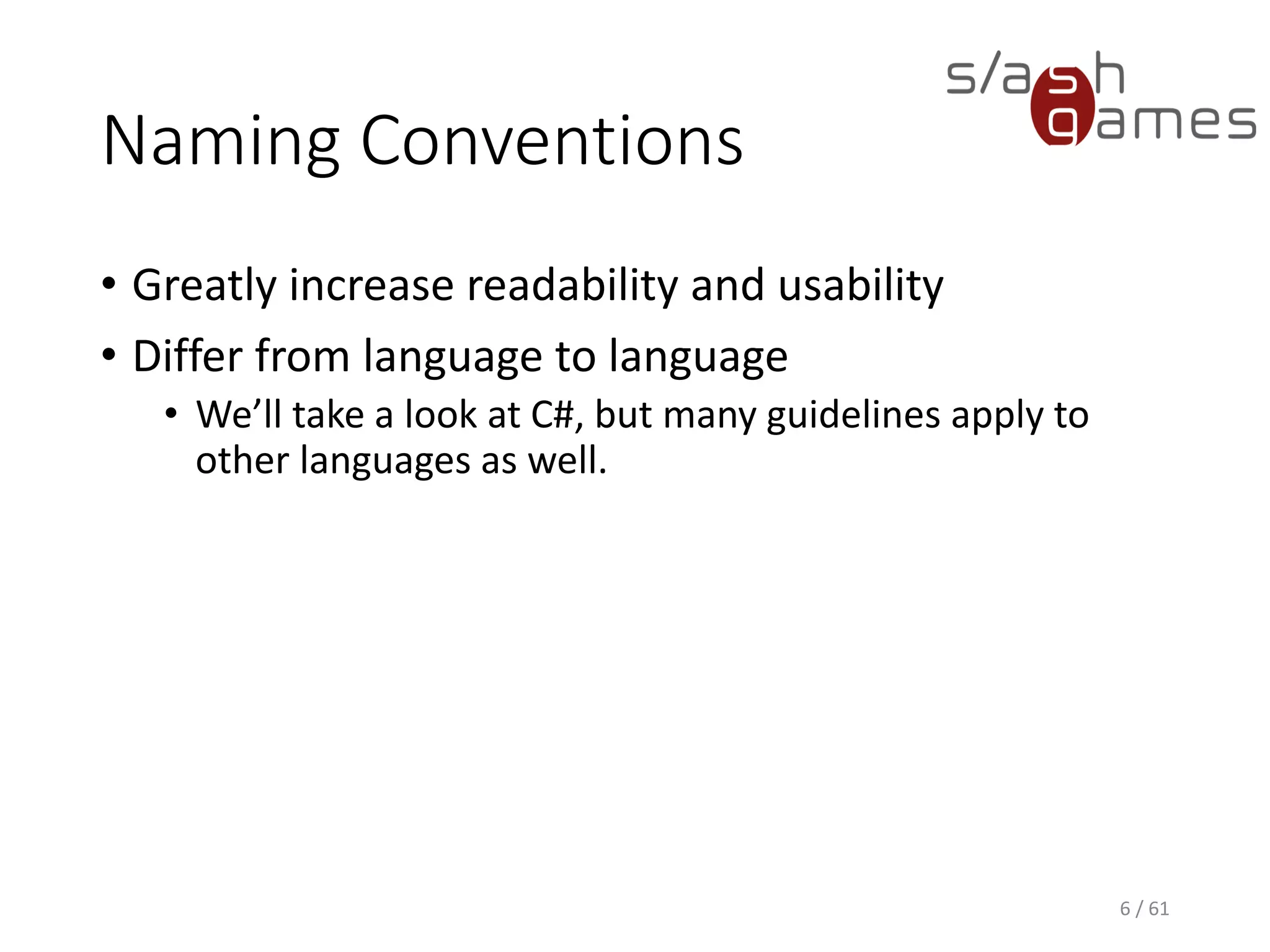

Naming Conventions
• Greatly increase readability and usability
• Differ from language to language
 We’ll take a look at C#, but many guidelines apply to other
languages as well.
6 / 61

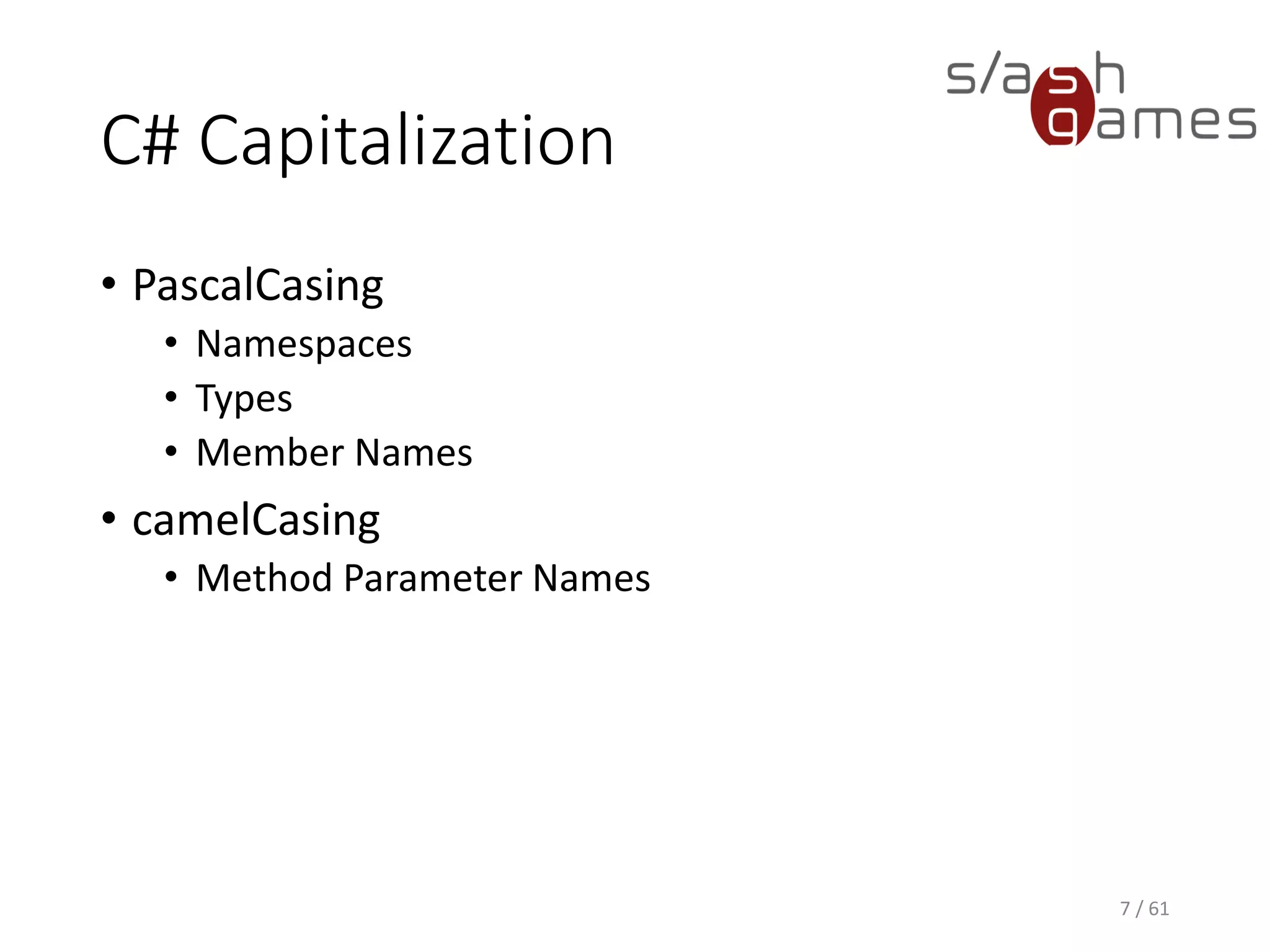

C# Capitalization
• PascalCasing
 Namespaces
 Types
 Member Names
• camelCasing
 Method Parameter Names
7 / 61

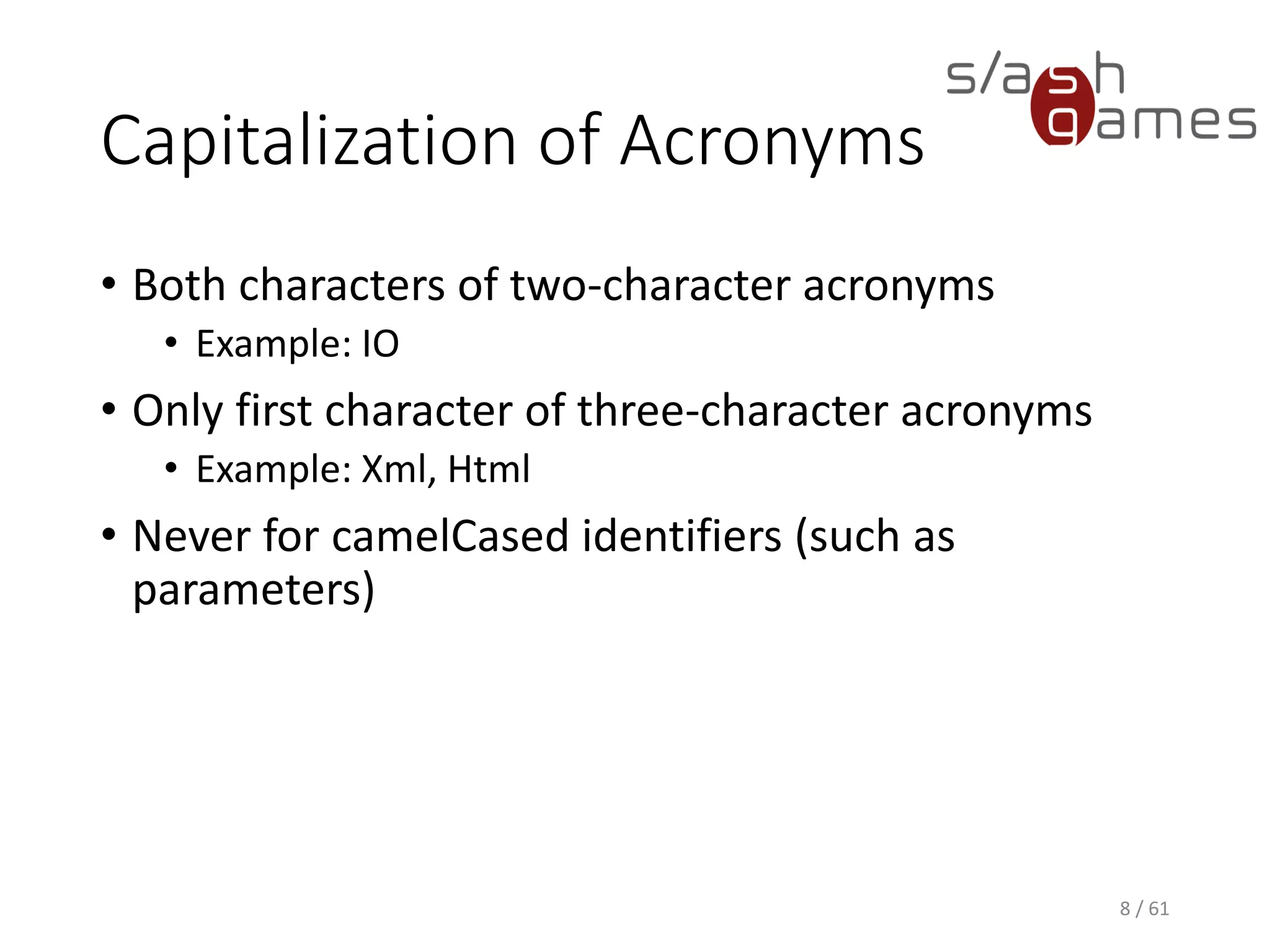

Capitalization of Acronyms
• Both characters of two-character acronyms
 Example: IO
• Only first character of three-character acronyms
 Example: Xml, Html
• Never for camelCased identifiers (such as parameters)
8 / 61

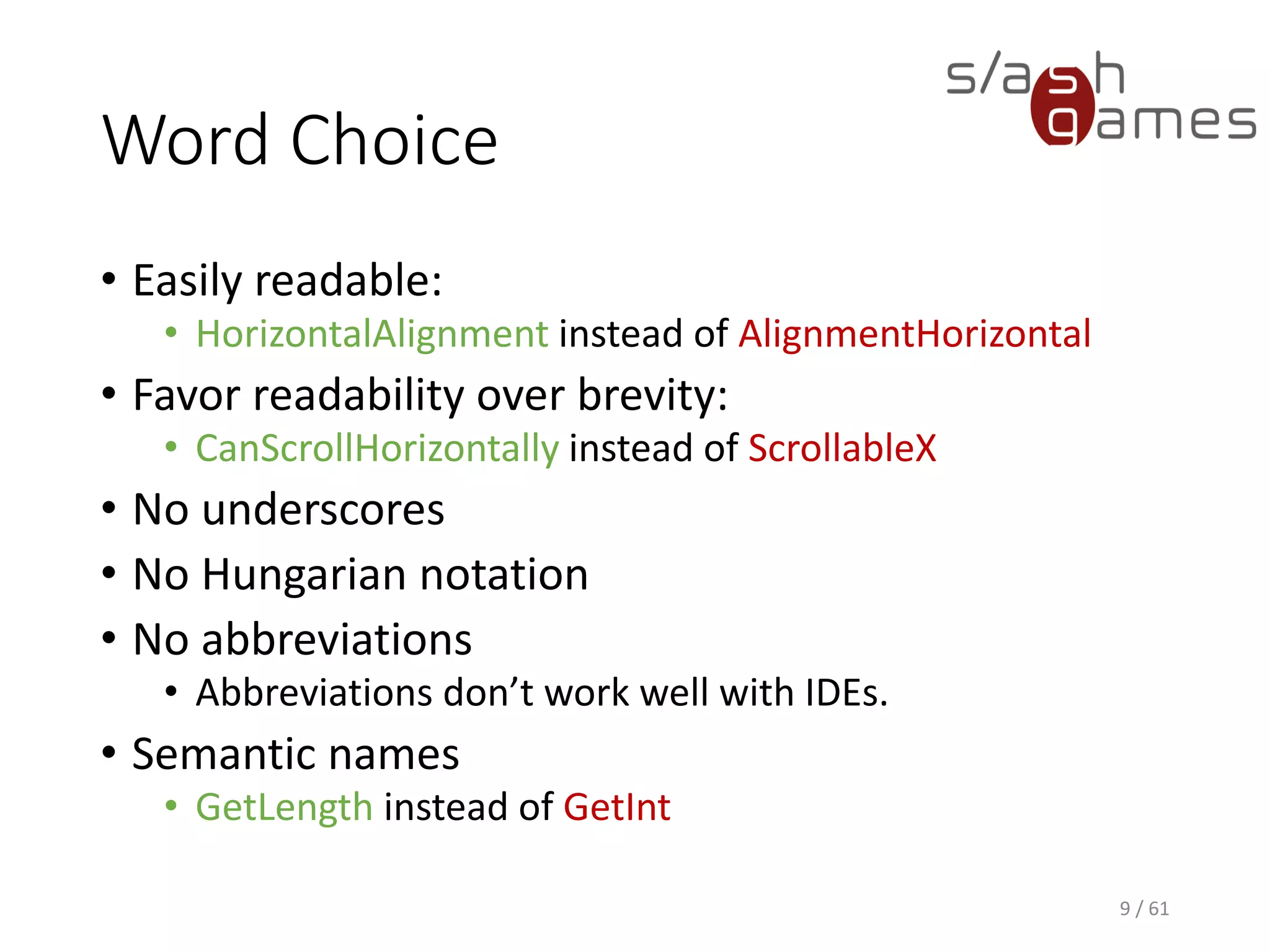

Word Choice
• Easily readable:
 HorizontalAlignment instead of AlignmentHorizontal
• Favor readability over brevity:
 CanScrollHorizontally instead of ScrollableX
• No underscores
• No Hungarian notation
• No abbreviations
 Abbreviations don’t work well with IDEs.
• Semantic names
 GetLength instead of GetInt
9 / 61

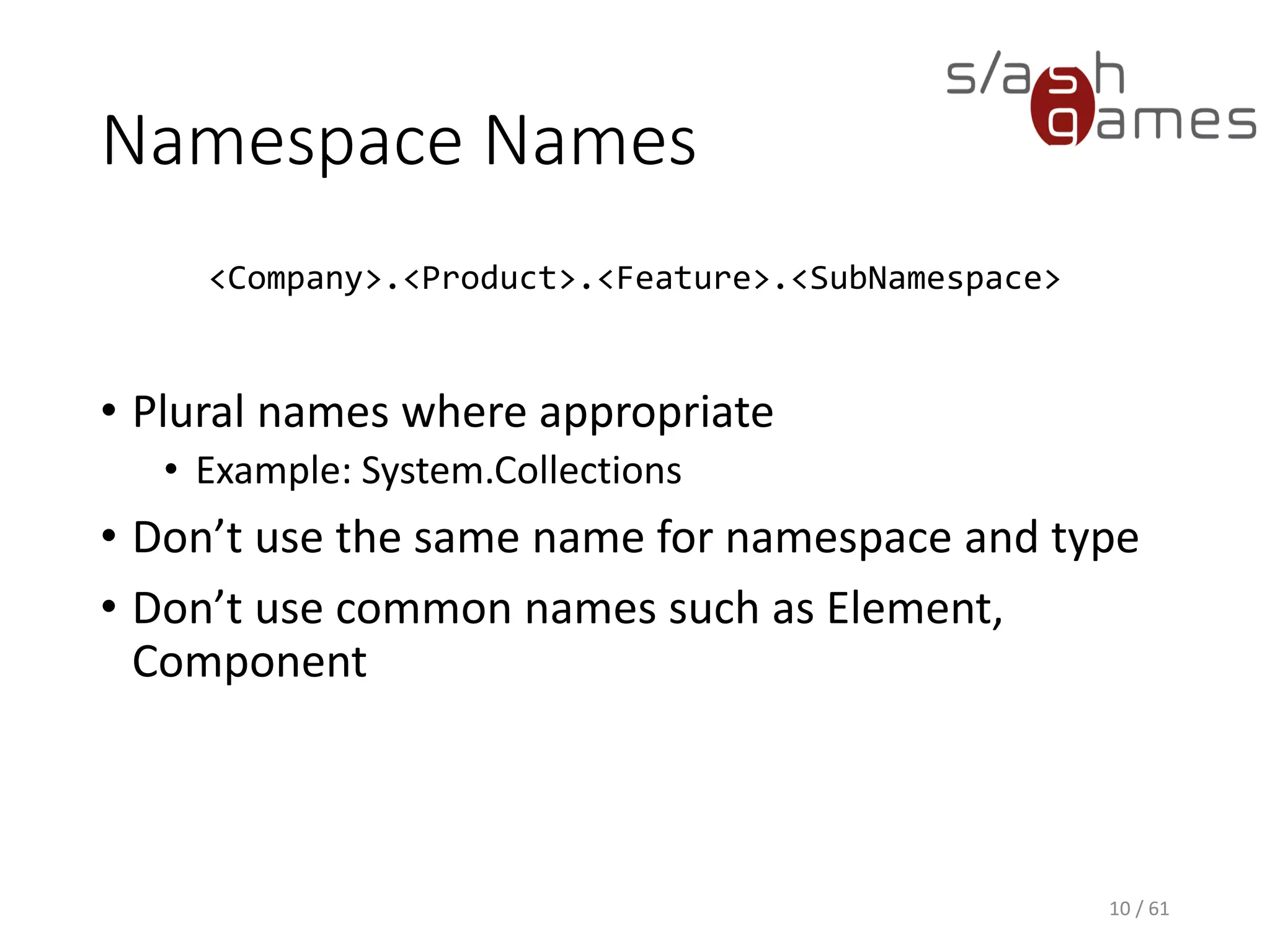

Namespace Names
<Company>.<Product>.<Feature>.<SubNamespace>
• Plural names where appropriate
 Example: System.Collections
• Don’t use the same name for namespace and type
• Don’t use common names such as Element, Component
10 / 61

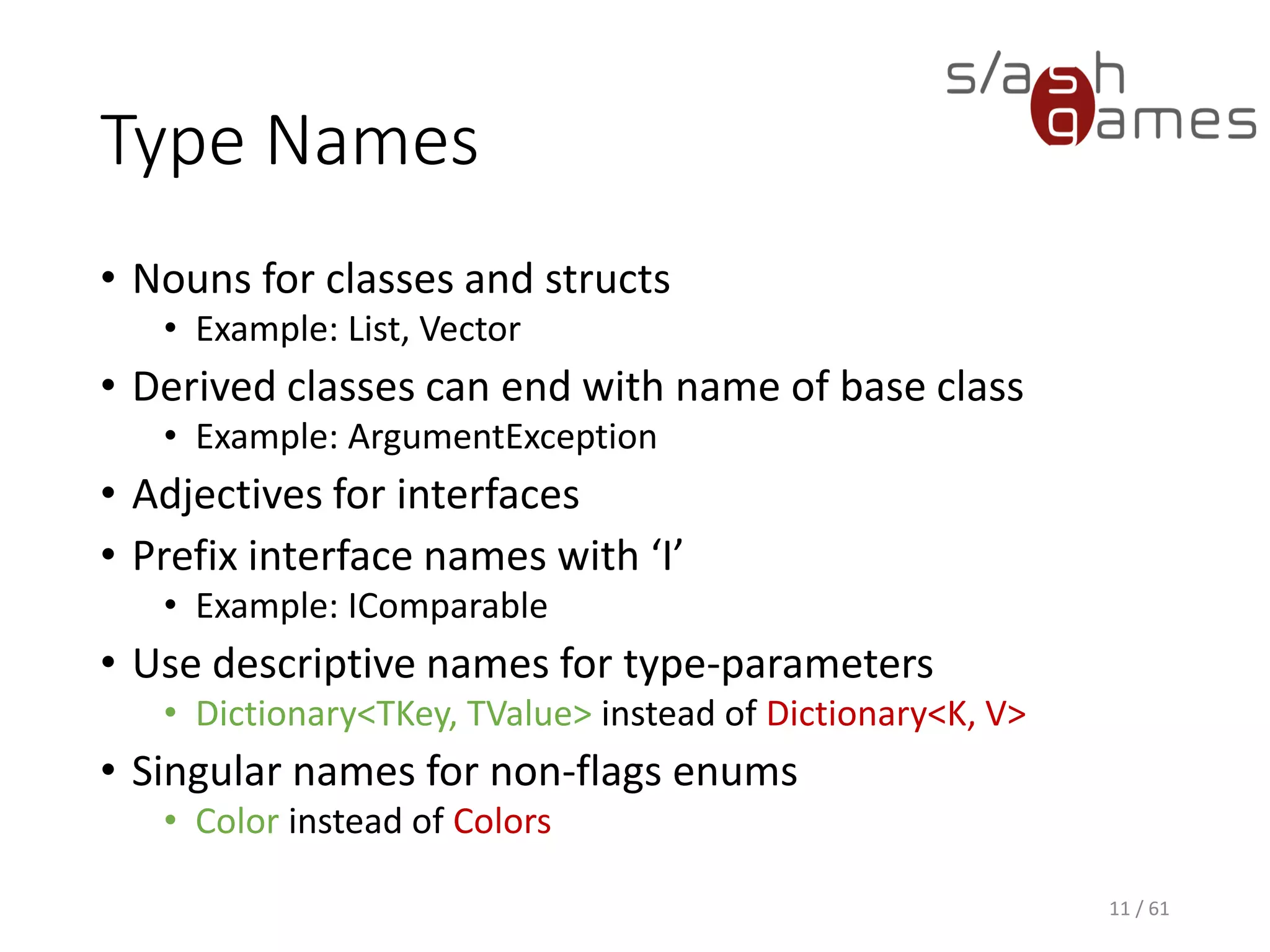

Type Names
• Nouns for classes and structs
 Example: List, Vector
• Derived classes can end with name of base class
 Example: ArgumentException
• Adjectives for interfaces
• Prefix interface names with ‘I’
 Example: IComparable
• Use descriptive names for type-parameters
 Dictionary<TKey, TValue> instead of Dictionary<K, V>
• Singular names for non-flags enums
 Color instead of Colors
11 / 61

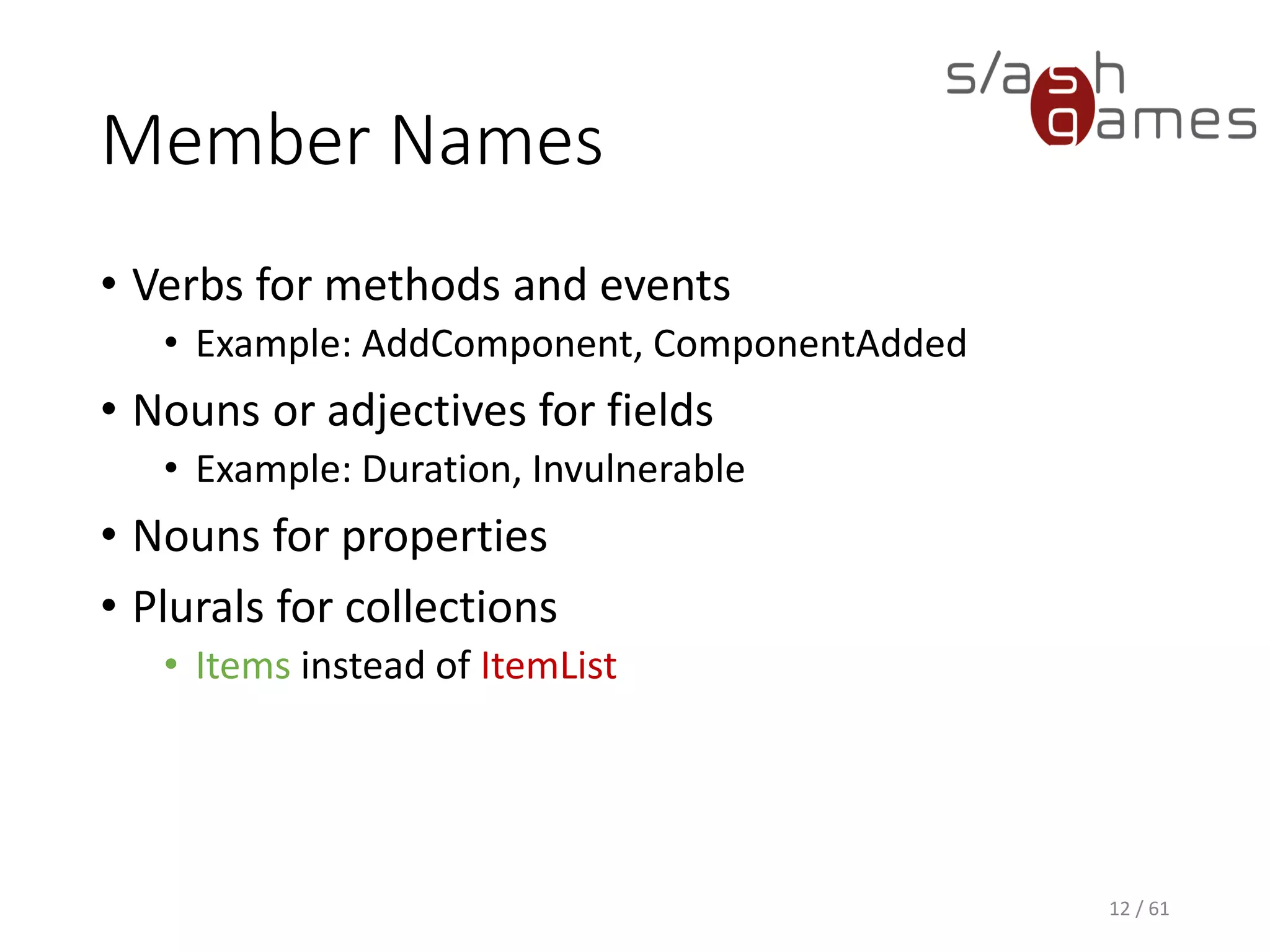

Member Names
• Verbs for methods and events
 Example: AddComponent, ComponentAdded
• Nouns or adjectives for fields
 Example: Duration, Invulnerable
• Nouns for properties
• Plurals for collections
 Items instead of ItemList
12 / 61

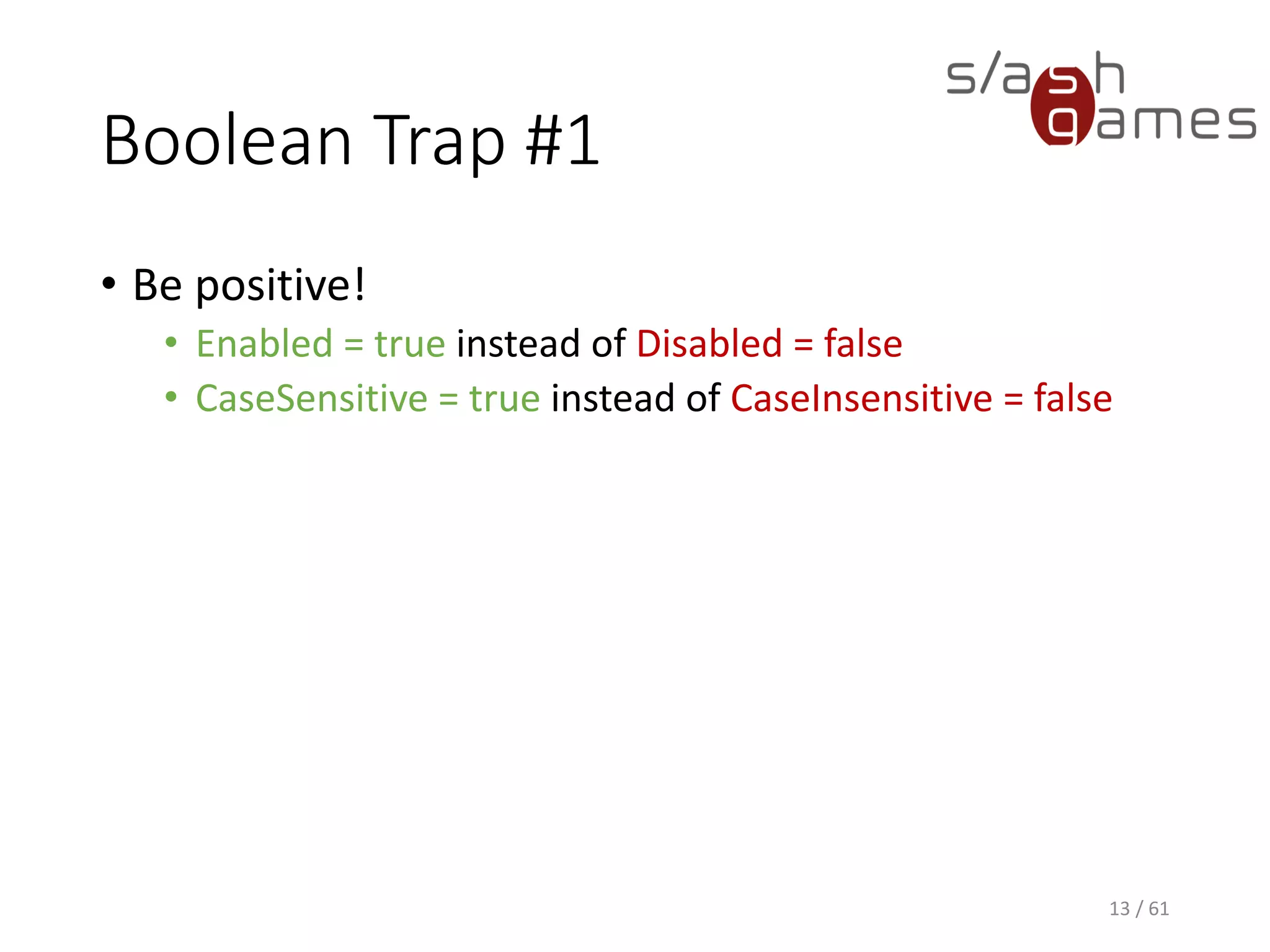

Boolean Trap #1
• Be positive!
 Enabled = true instead of Disabled = false
 CaseSensitive = true instead of CaseInsensitive = false
13 / 61

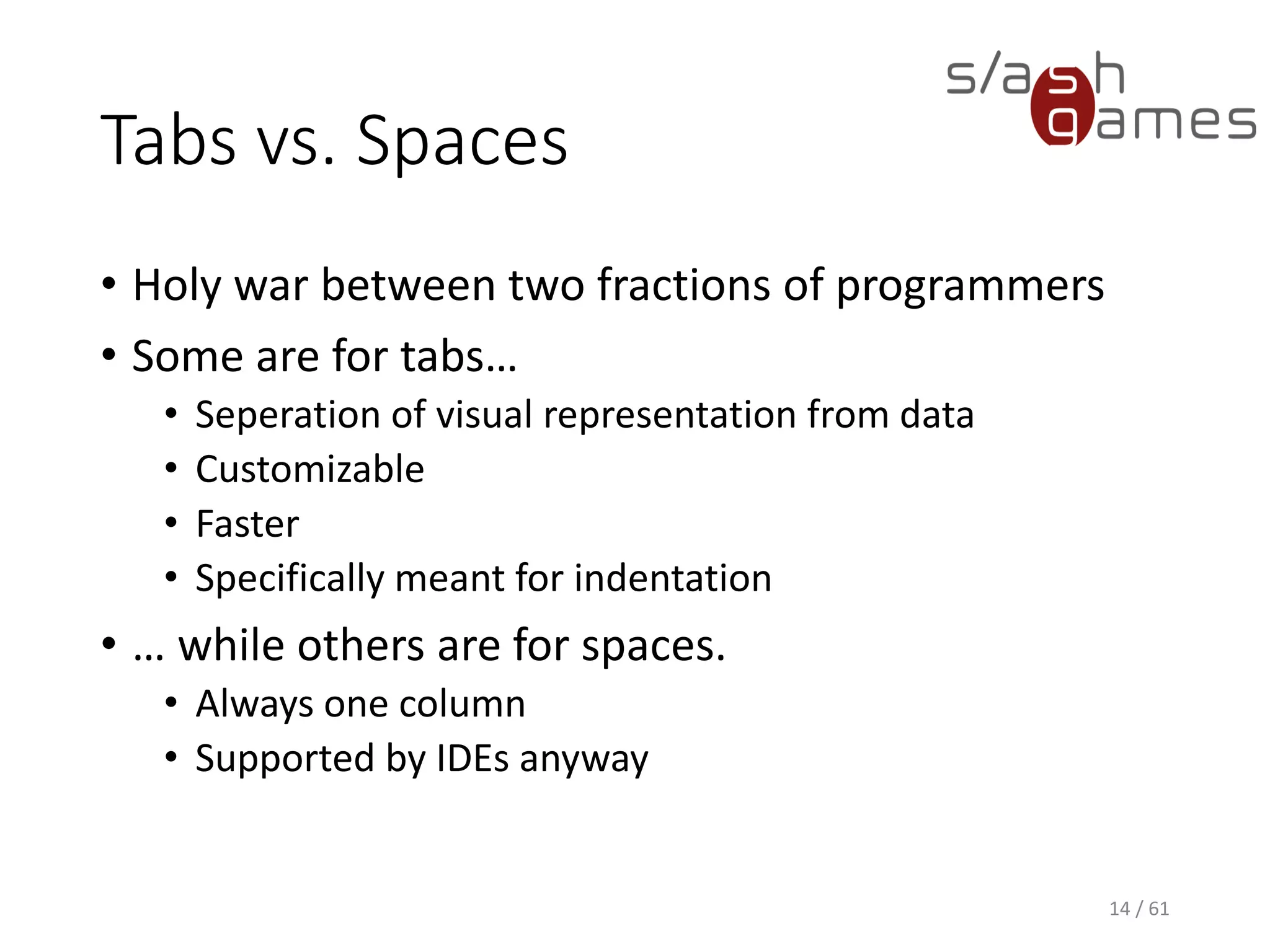

Tabs vs. Spaces
• Holy war between two fractions of programmers
• Some are for tabs…
 Seperation of visual representation from data
 Customizable
 Faster
 Specifically meant for indentation
• … while others are for spaces.
 Always one column
 Supported by IDEs anyway
14 / 61

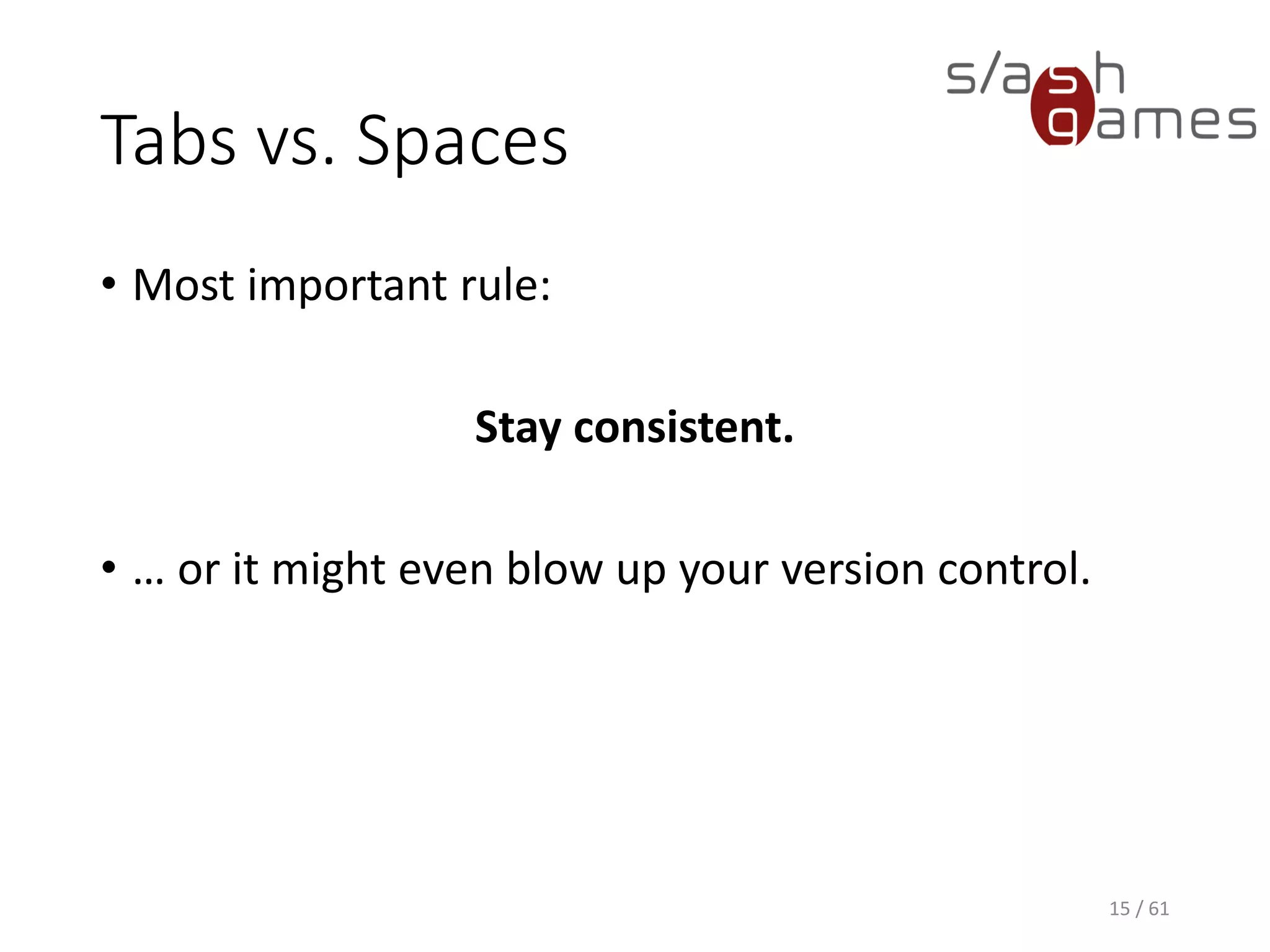

Tabs vs. Spaces
Most important rule:
Stay consistent.
… or it might even blow up your version control.
15 / 61

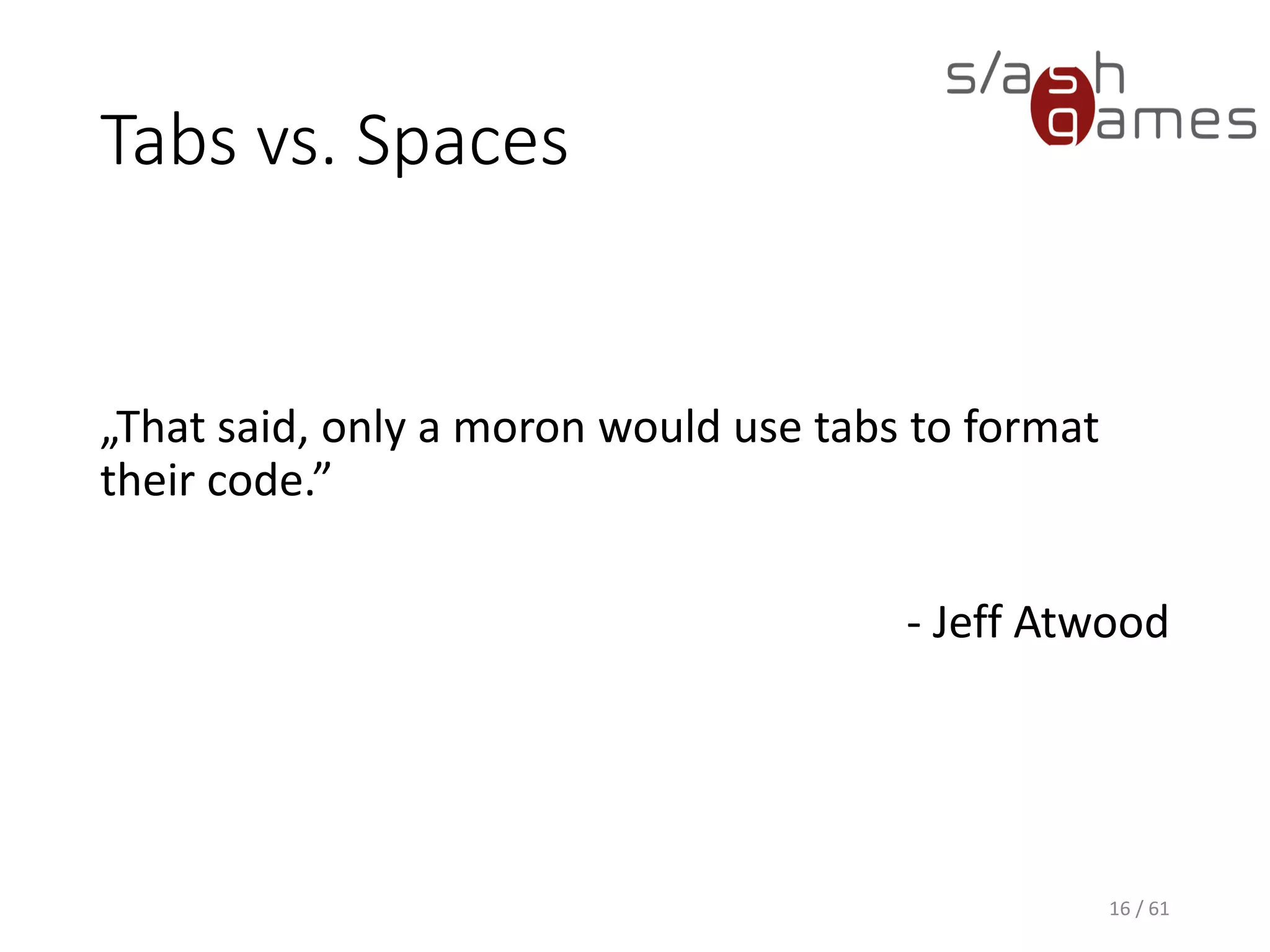

Tabs vs. Spaces
„That said, only a moron would use tabs to format their code.”
- Jeff Atwood
16 / 61

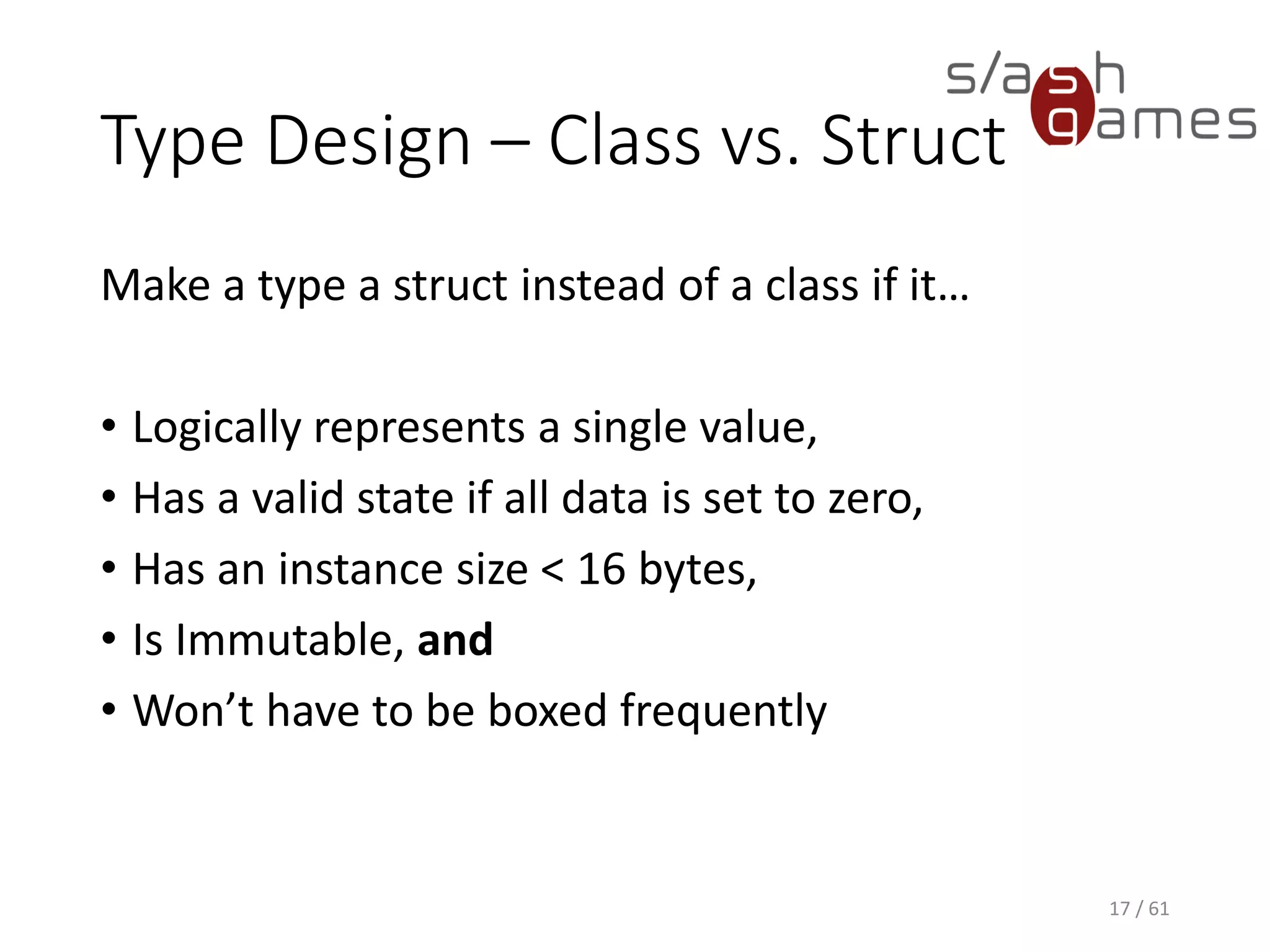

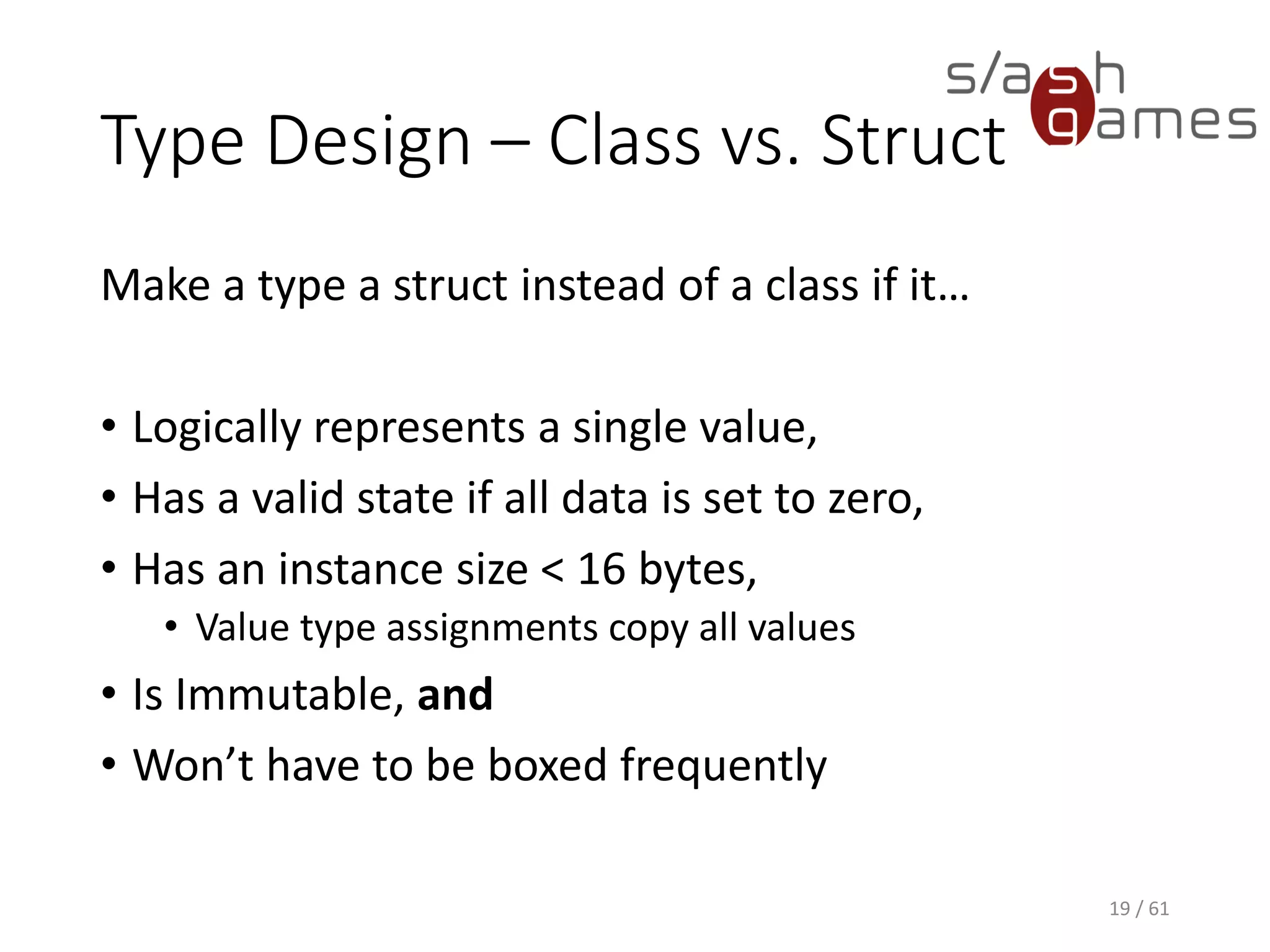

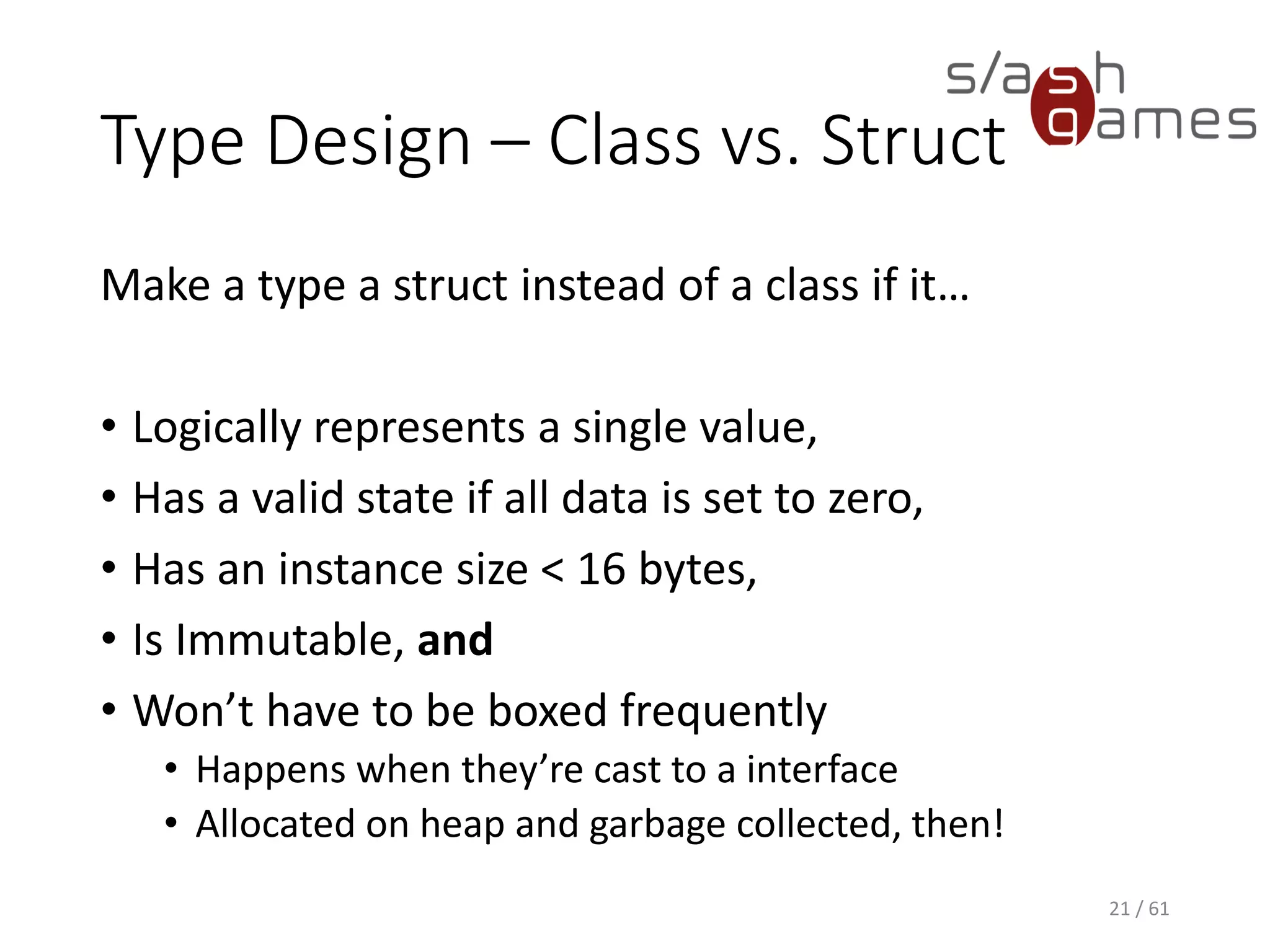

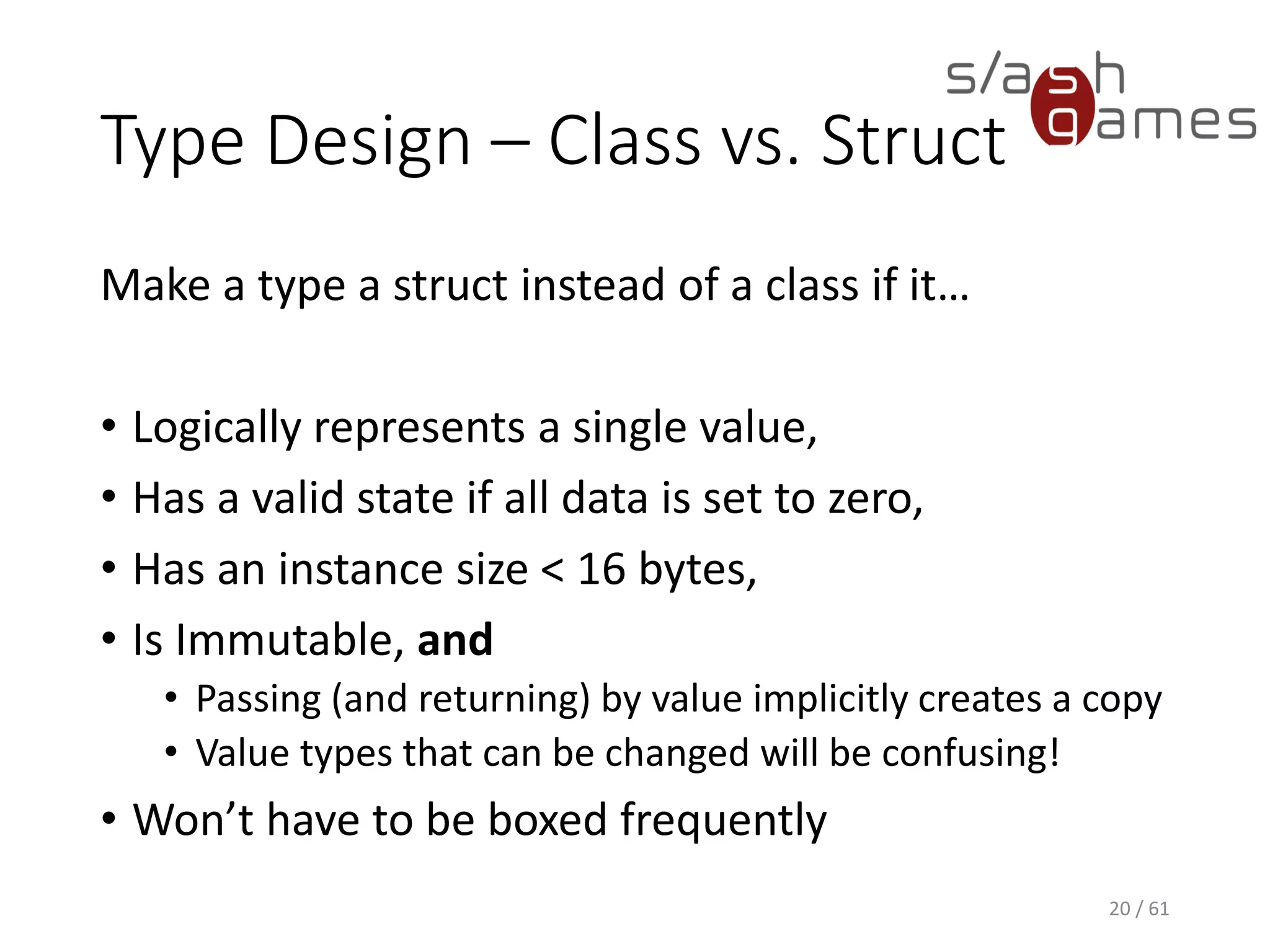

Type Design – Class vs. Struct
Make a type a struct instead of a class if it…
• Logically represents a single value,
• Has a valid state if all data is set to zero,
• Has an instance size < 16 bytes,
• Is Immutable, and
• Won’t have to be boxed frequently
17 / 61

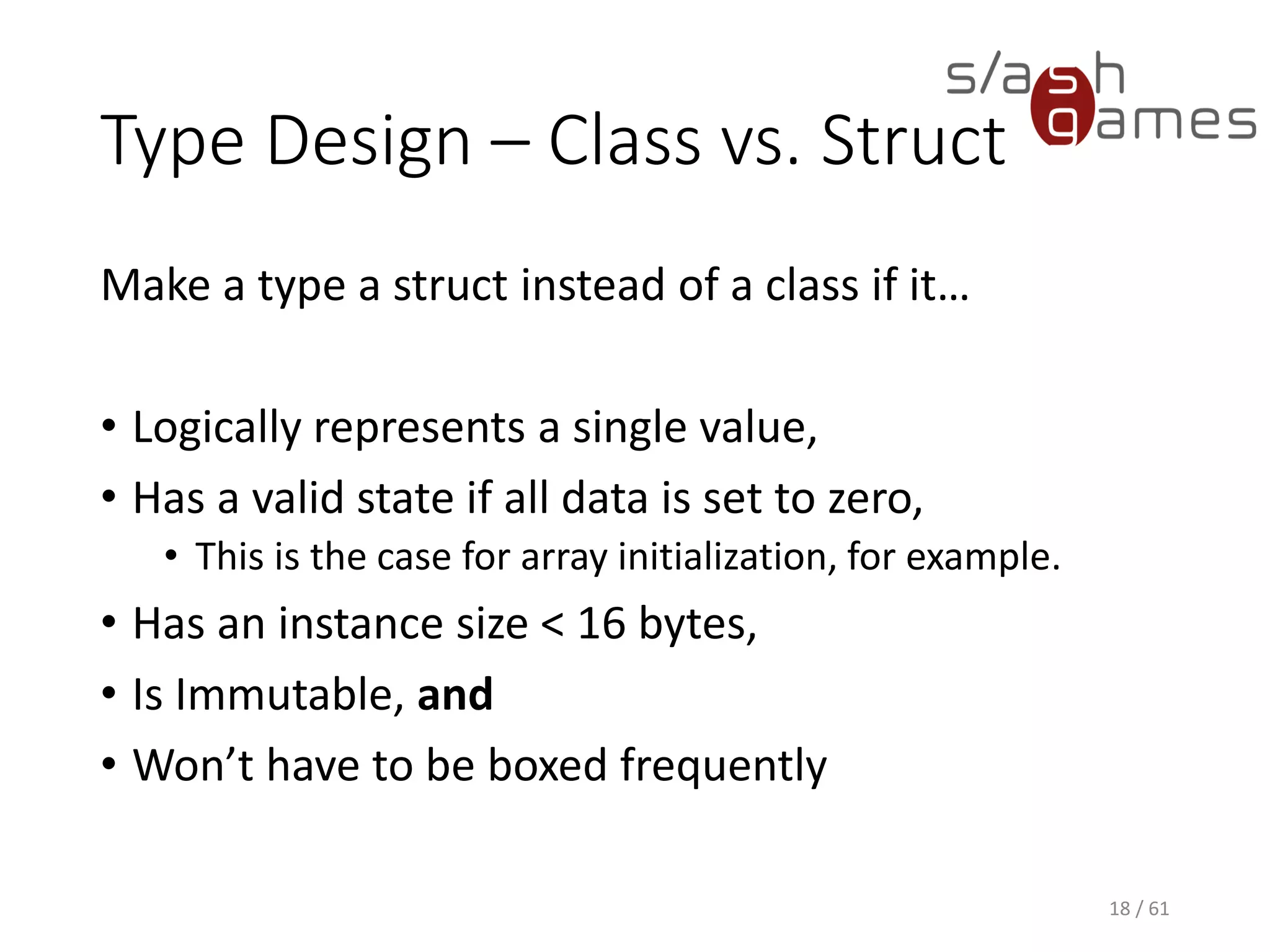

 This is the case for array initialization, for example.
18 / 61

 Value type assignments copy all values
19 / 61

 Passing (and returning) by value implicitly creates a copy
 Value types that can be changed will be confusing!
20 / 61

 Happens when they’re cast to a interface
 Allocated on heap and garbage collected, then!
21 / 61

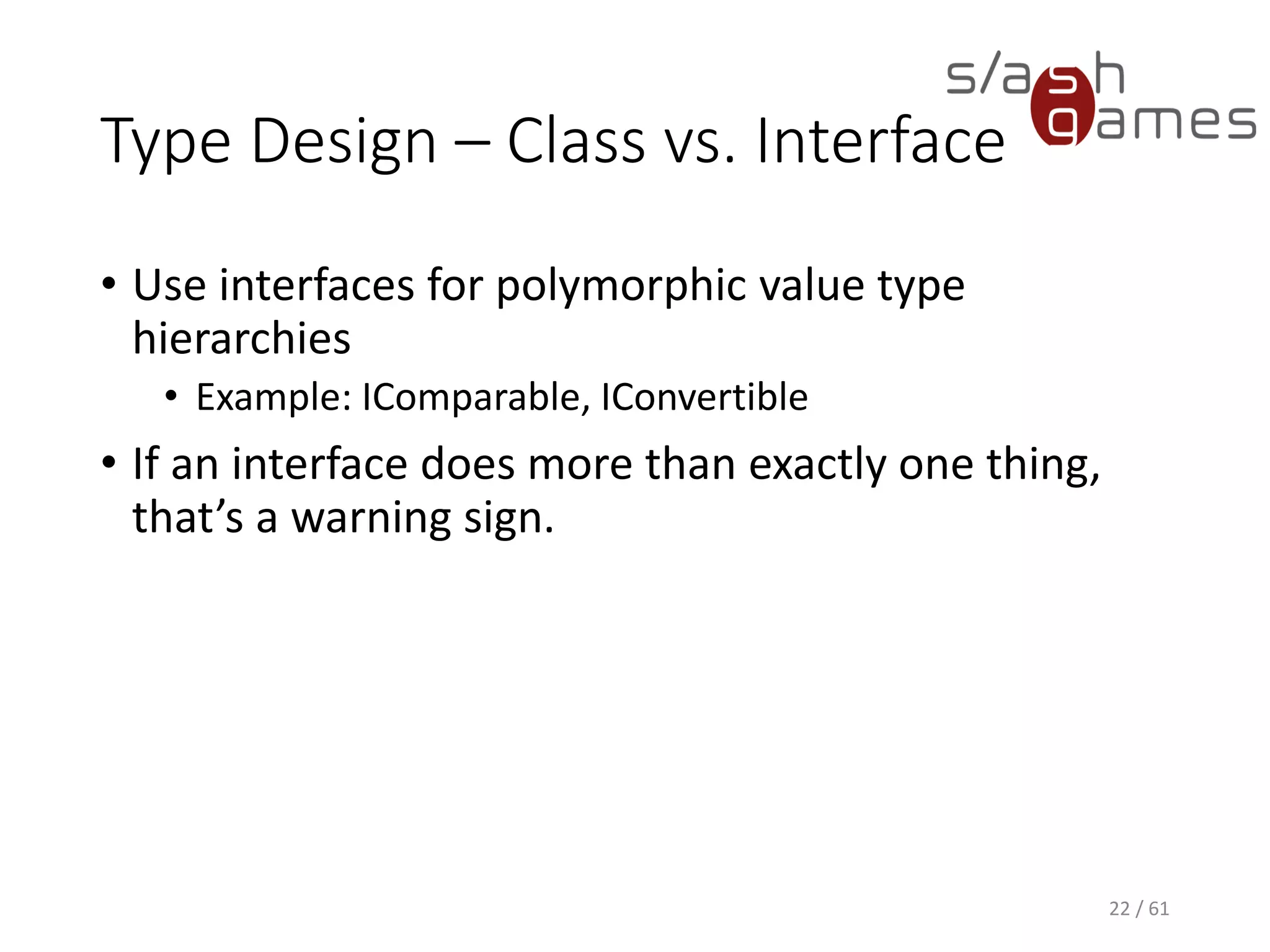

Type Design – Class vs. Interface
• Use interfaces for polymorphic value type hierarchies
 Example: IComparable, IConvertible
• If an interface does more than exactly one thing, that’s a warning
sign.
22 / 61

23 / 61

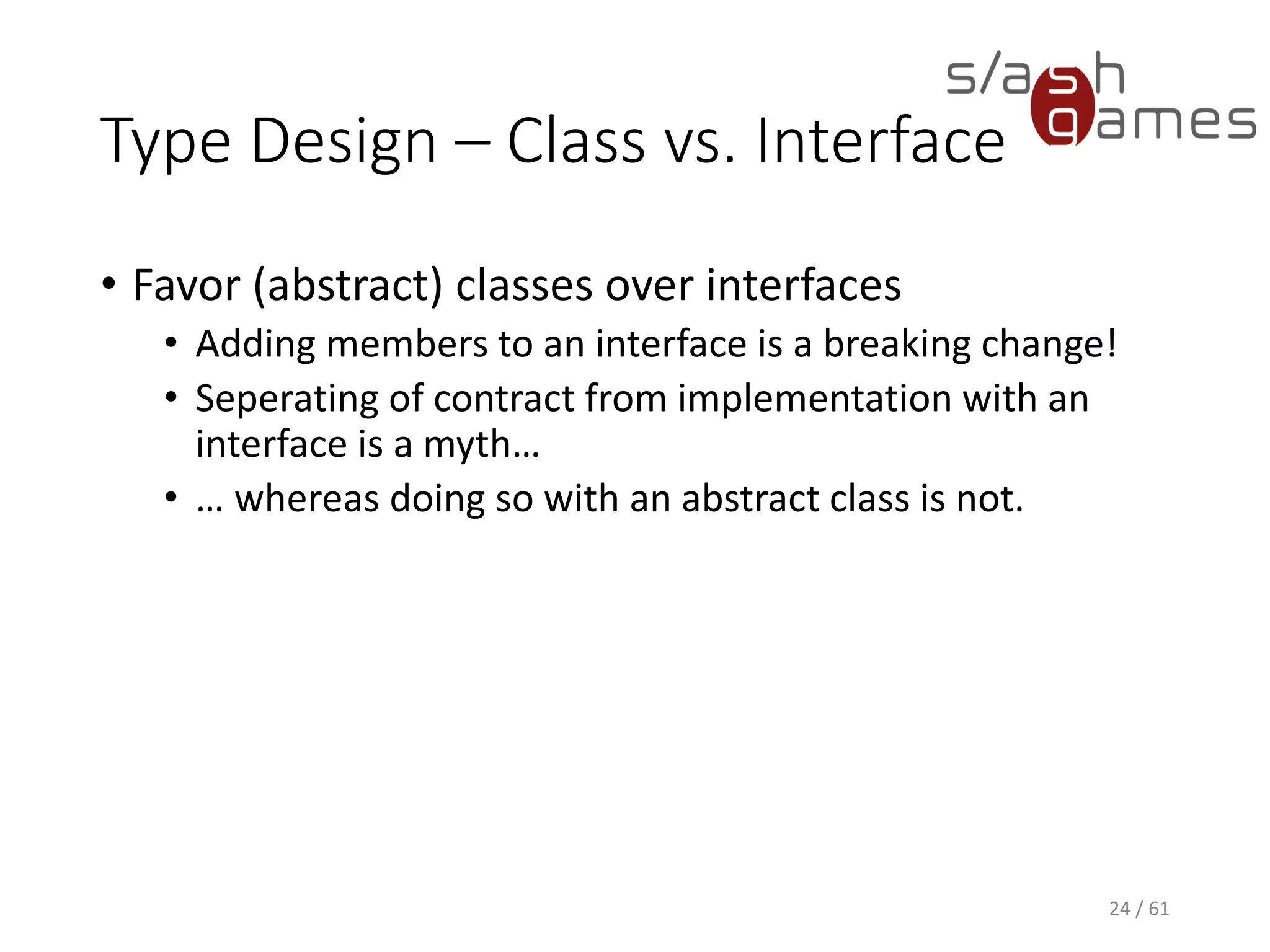

• Favor (abstract) classes over interfaces
 Adding members to an interface is a breaking change!
 Seperating of contract from implementation with an interface is a
myth…
 … whereas doing so with an abstract class is not.
24 / 61

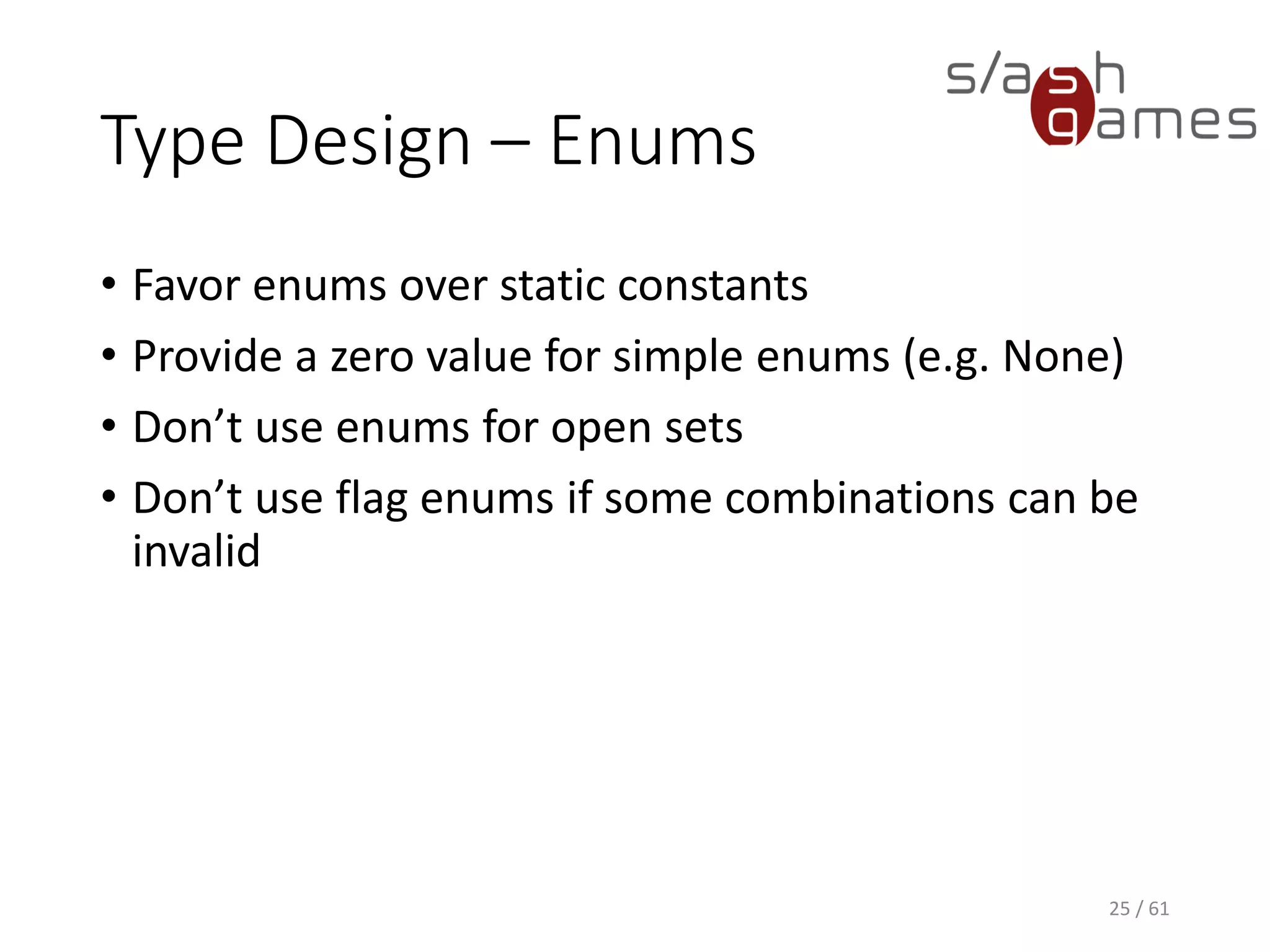

Type Design – Enums
• Favor enums over static constants
• Provide a zero value for simple enums (e.g. None)
• Don’t use enums for open sets
• Don’t use flag enums if some combinations can be invalid
25 / 61

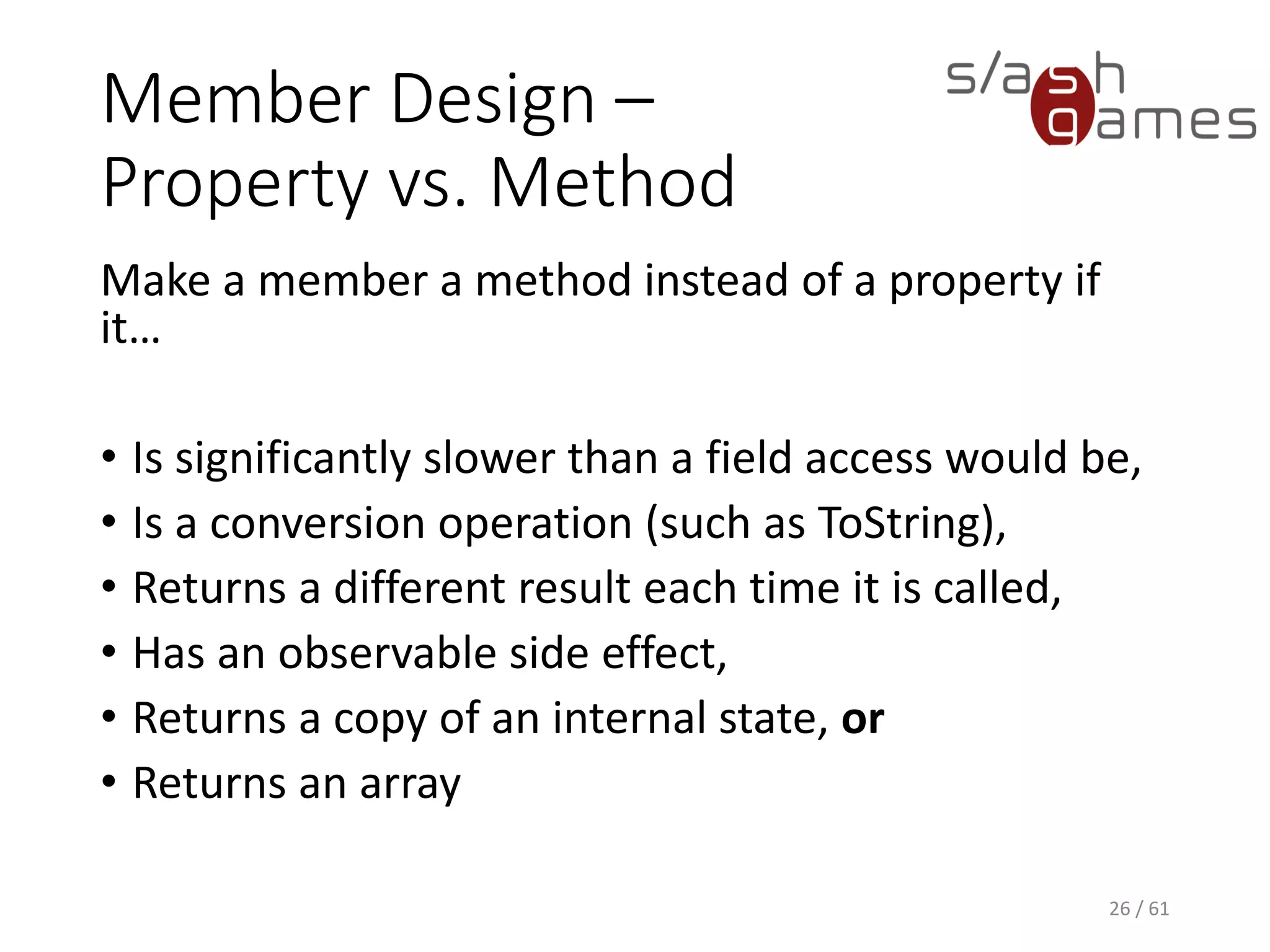

Member Design – Property vs. Method
Make a member a method instead of a property if it…
• Is significantly slower than a field access would be,
• Is a conversion operation (such as ToString),
• Returns a different result each time it is called,
• Has an observable side effect,
• Returns a copy of an internal state, or
• Returns an array
26 / 61

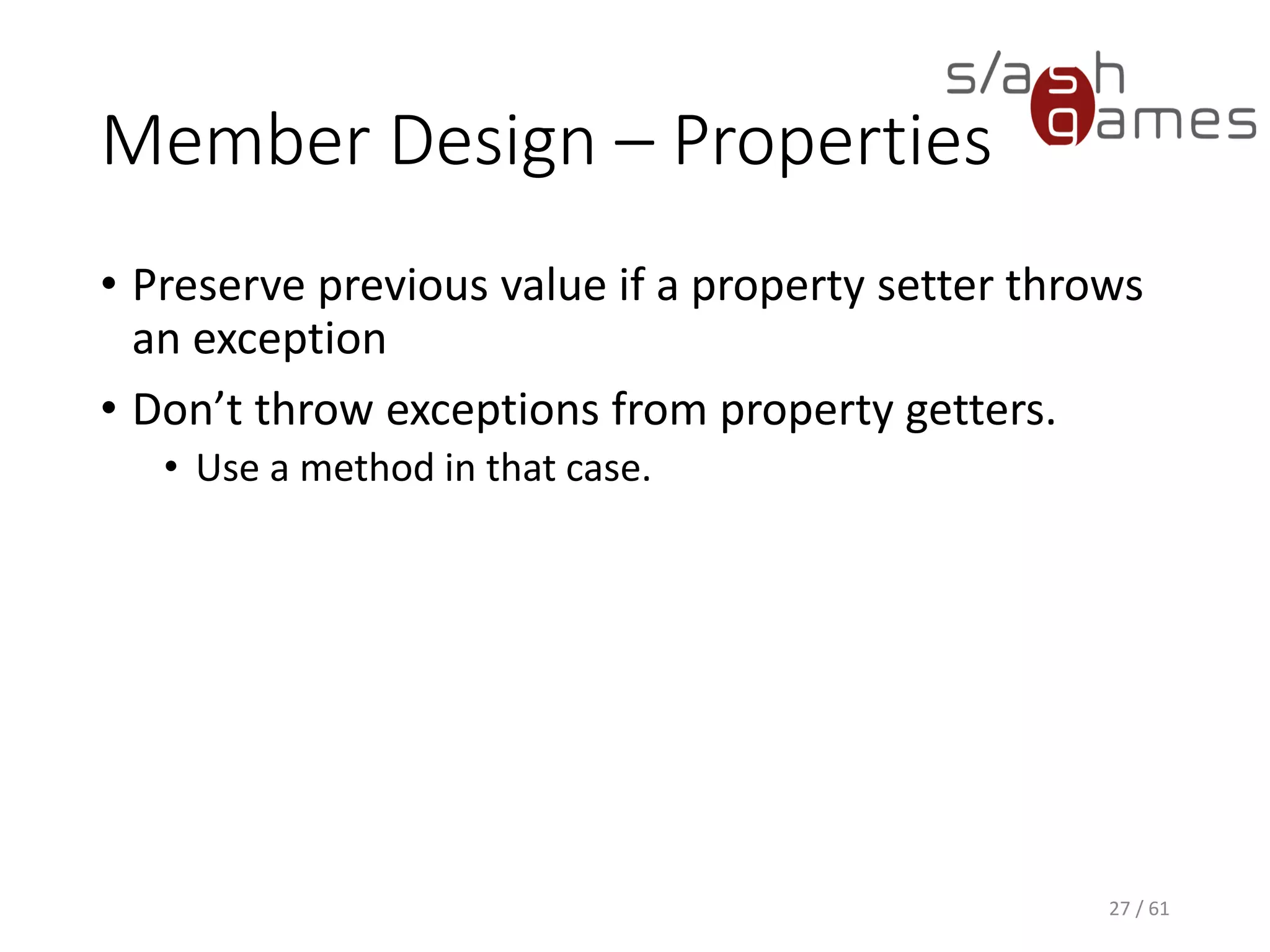

Member Design – Properties
• Preserve previous value if a property setter throws an exception
• Don’t throw exceptions from property getters.
 Use a method in that case.
27 / 61

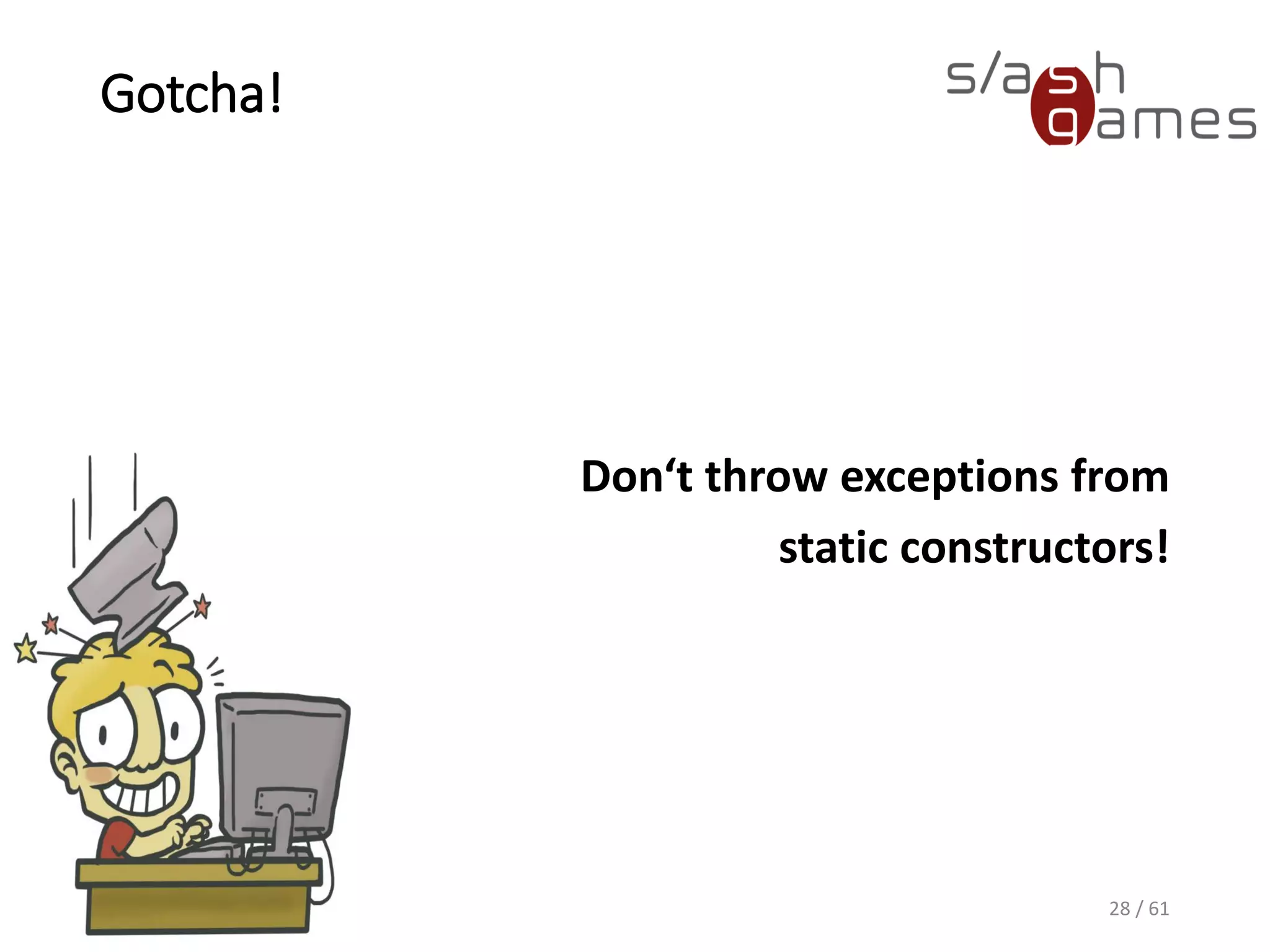

Gotcha!
Don‘t throw exceptions from
static constructors!
28 / 61

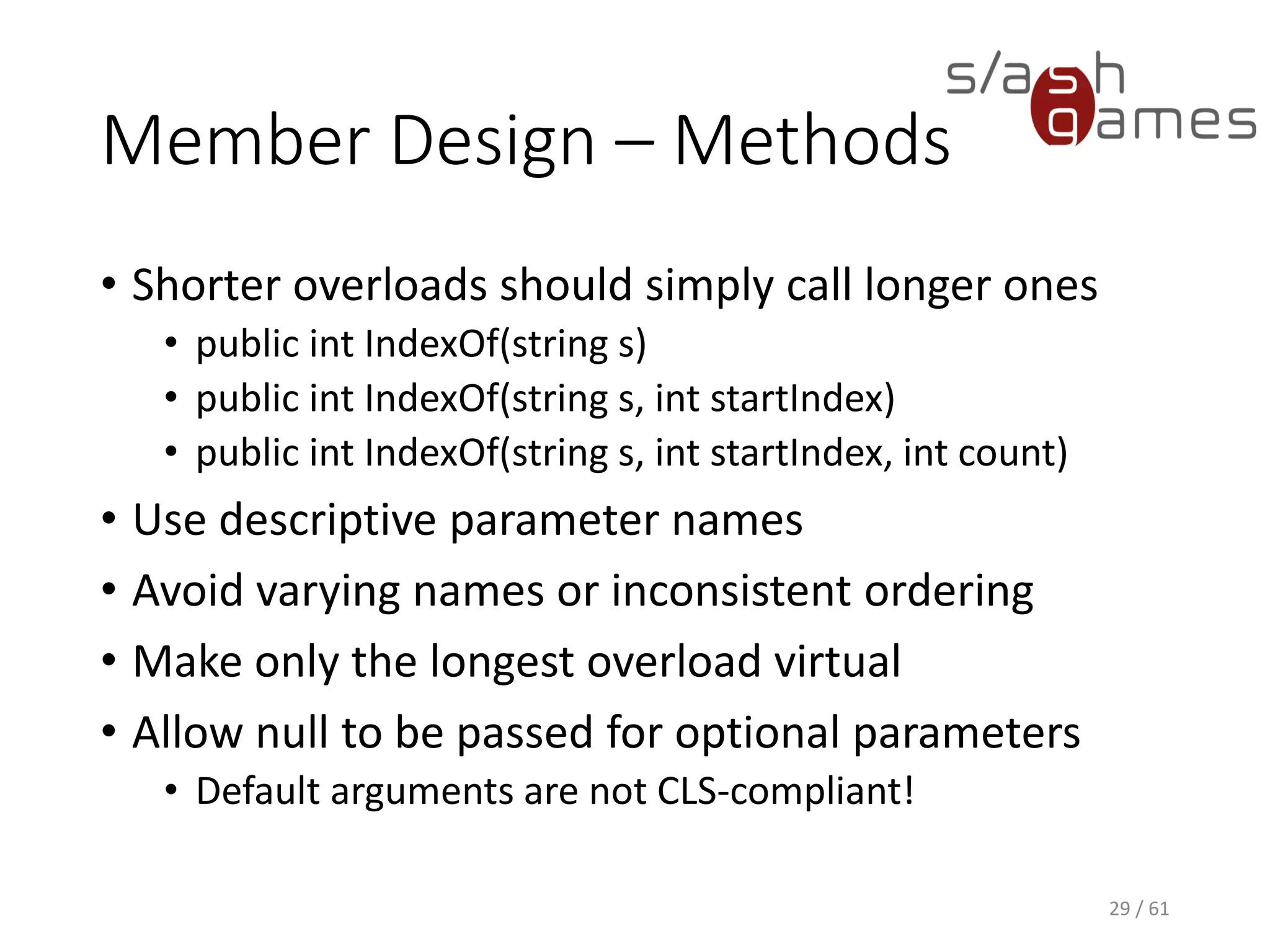

Member Design – Methods
• Shorter overloads should simply call longer ones
 public int IndexOf(string s)
 public int IndexOf(string s, int startIndex)
 public int IndexOf(string s, int startIndex, int count)
• Use descriptive parameter names
• Avoid varying names or inconsistent ordering
• Make only the longest overload virtual
• Allow null to be passed for optional parameters
 Default arguments are not CLS-compliant!
29 / 61

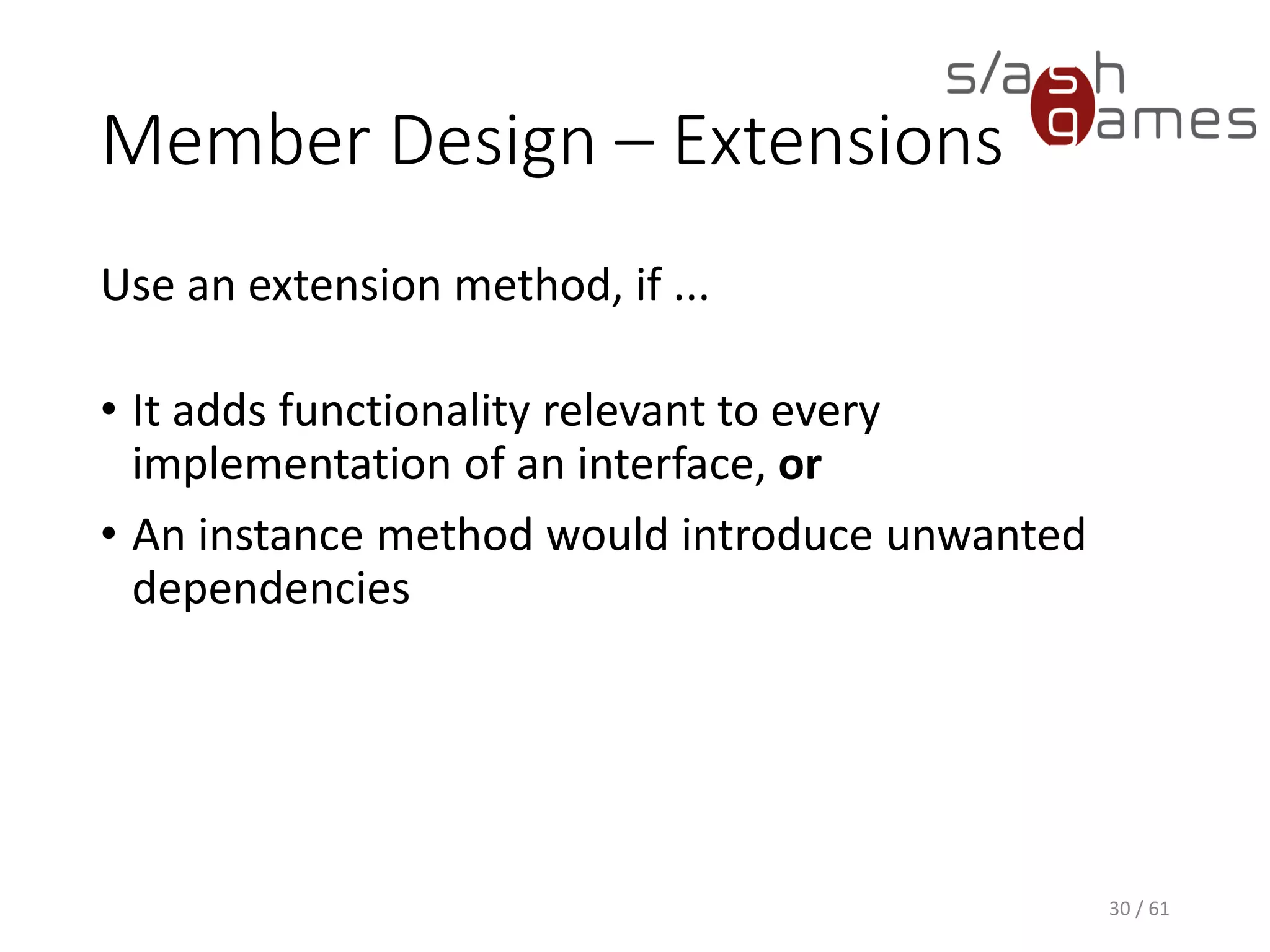

Member Design – Extensions
Use an extension method, if ...
• It adds functionality relevant to every implementation of an interface,
or
• An instance method would introduce unwanted dependencies
30 / 61

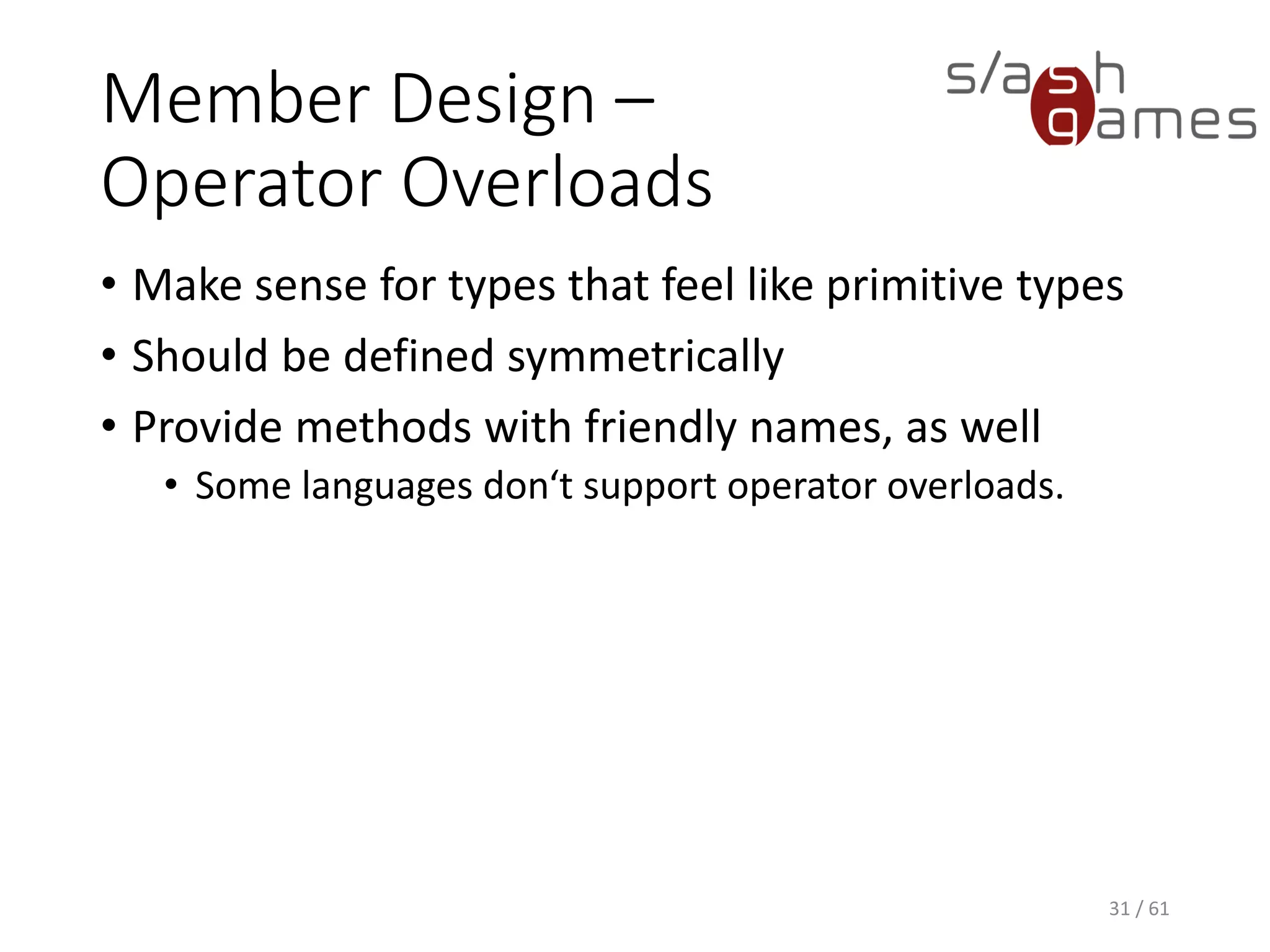

Member Design – Operator Overloads
• Make sense for types that feel like primitive types
• Should be defined symmetrically
• Provide methods with friendly names, as well
 Some languages don‘t support operator overloads.
31 / 61

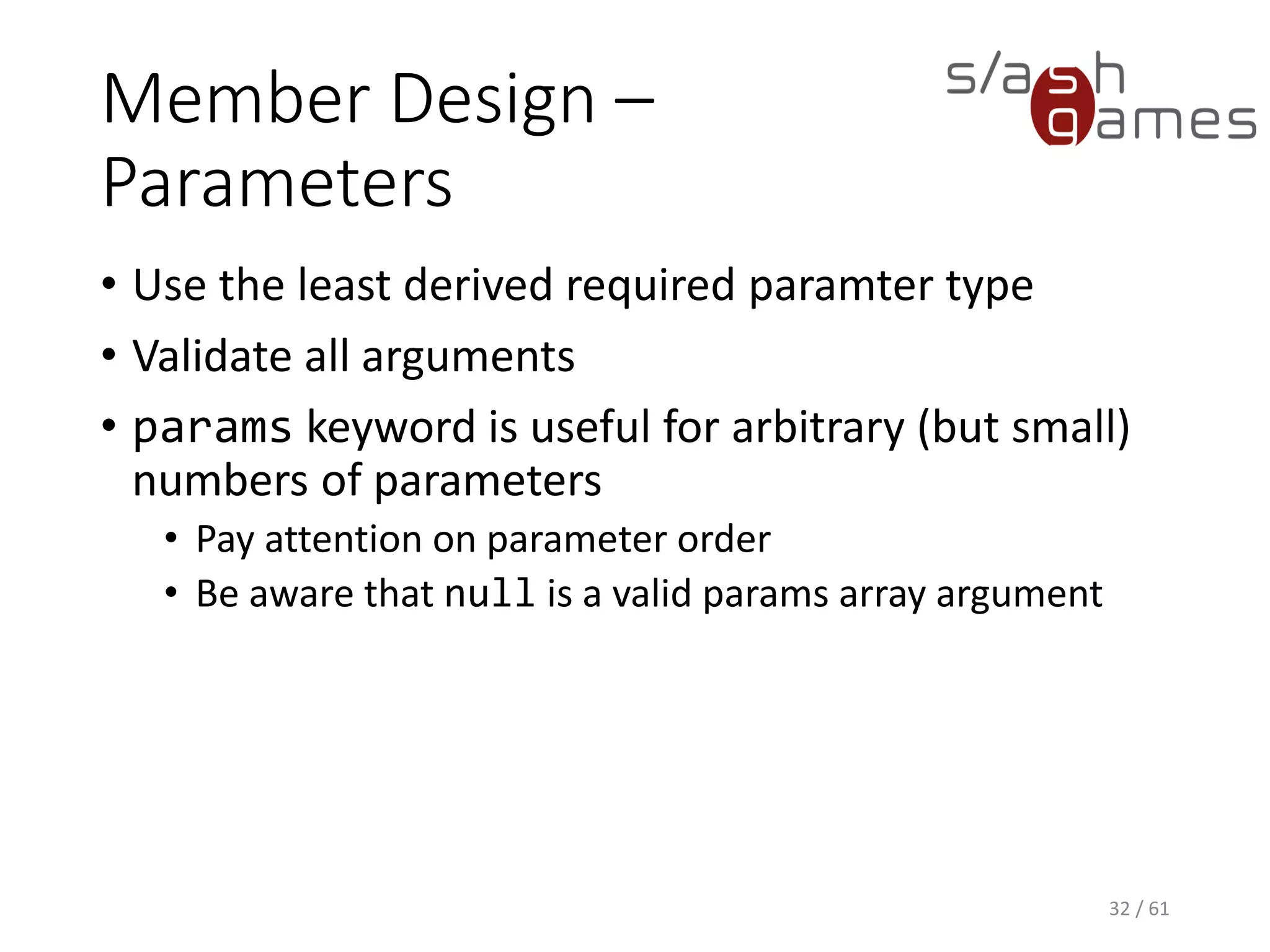

Member Design – Parameters
• Use the least derived required paramter type
• Validate all arguments
• params keyword is useful for arbitrary (but small) numbers of
parameters
 Pay attention on parameter order
 Be aware that null is a valid params array argument
32 / 61

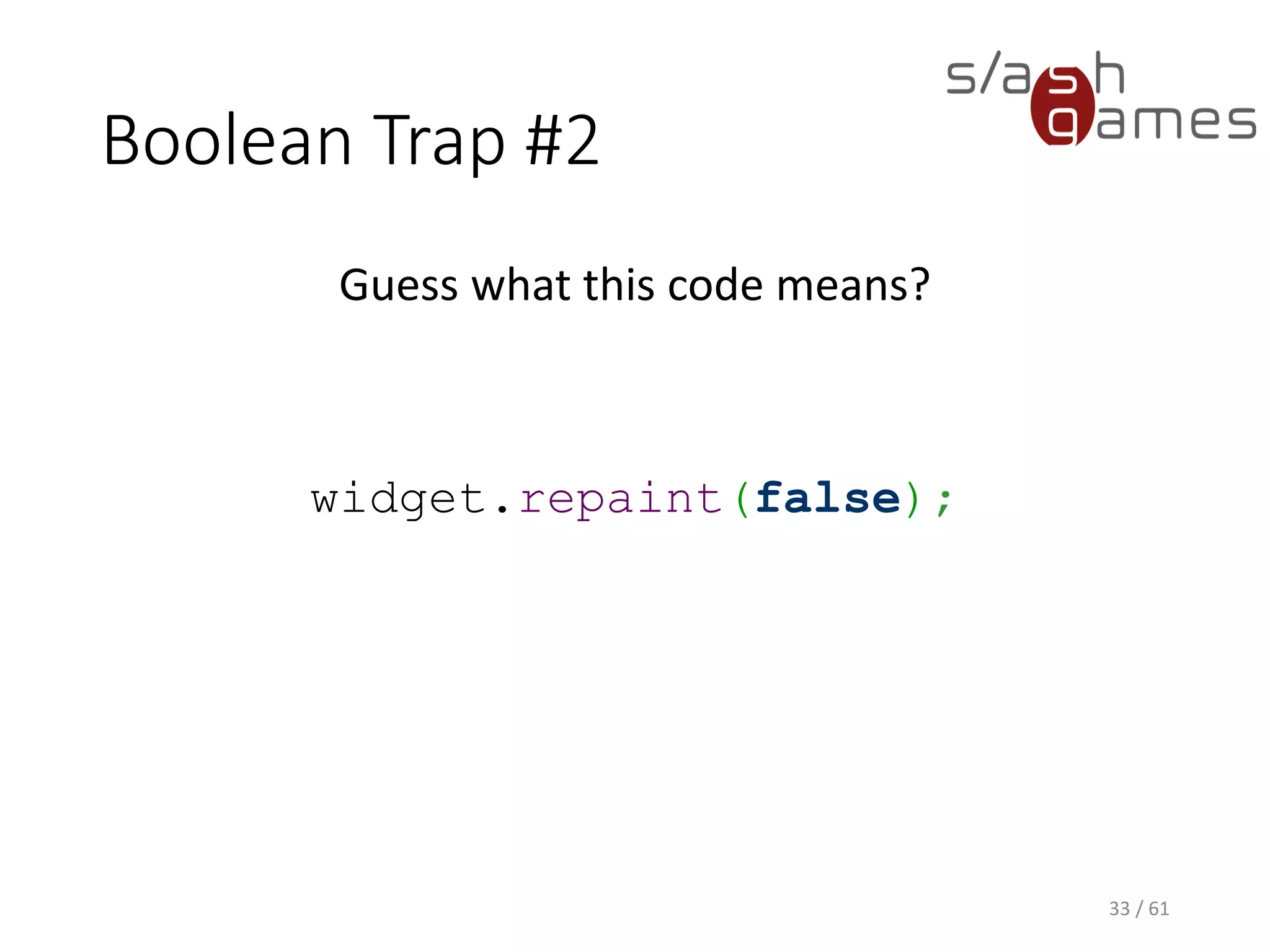

Boolean Trap #2
Guess what this code means?
widget.repaint(false);
33 / 61

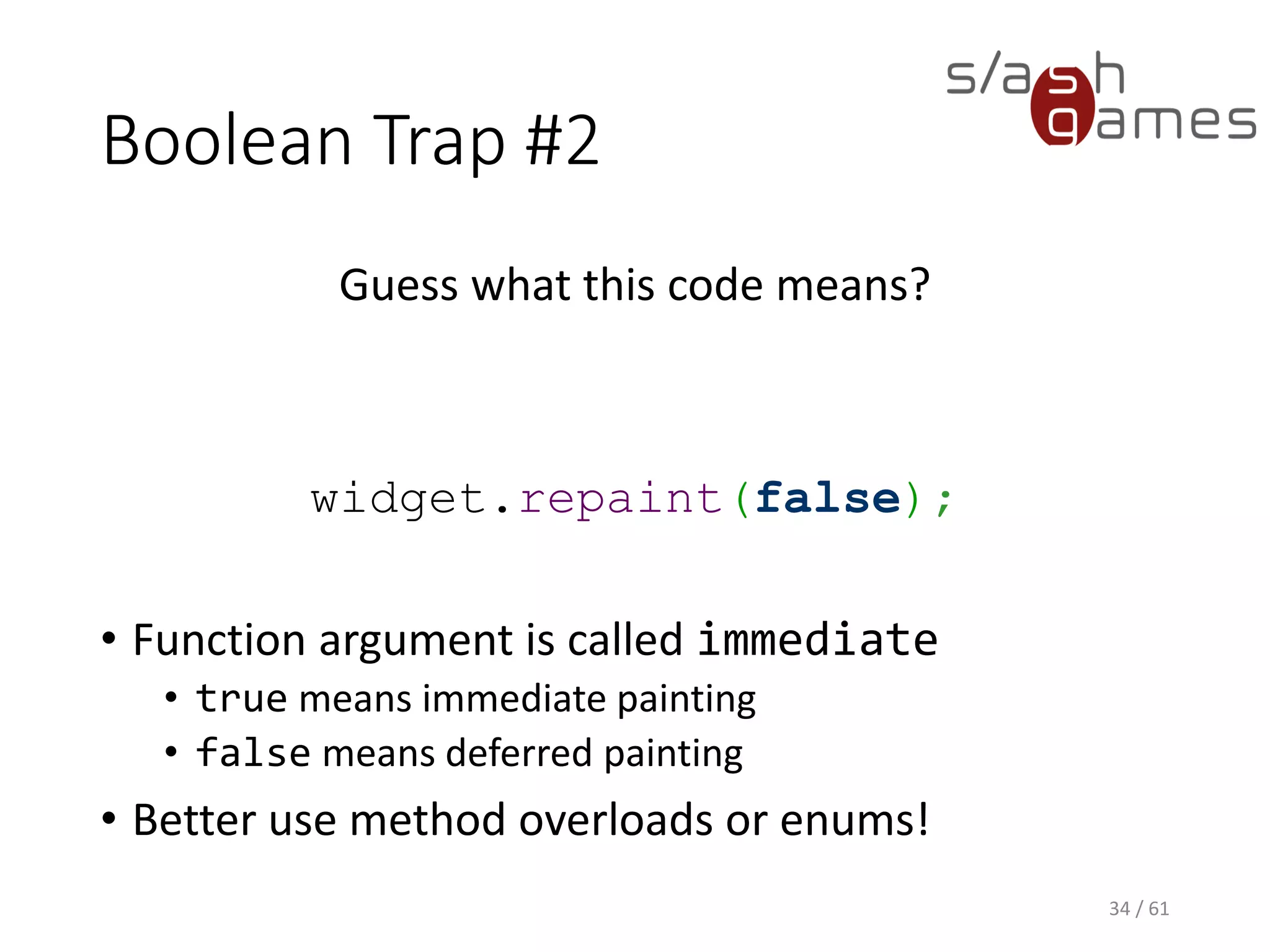

Boolean Trap #2
widget.repaint(false);
• Function argument is called immediate
 true means immediate painting
 false means deferred painting
• Better use method overloads or enums!
34 / 61

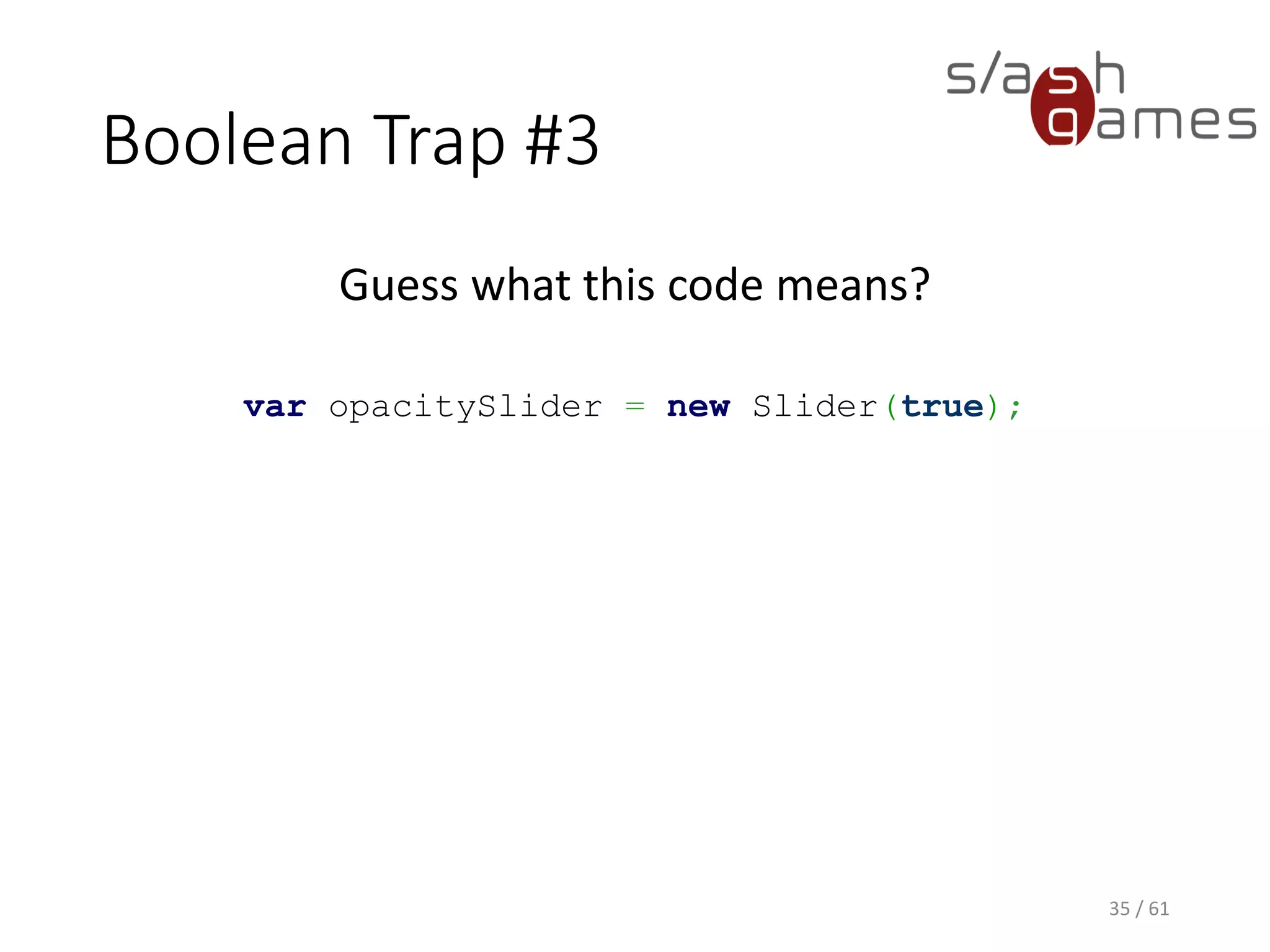

Boolean Trap #3
var opacitySlider = new Slider(true);
35 / 61

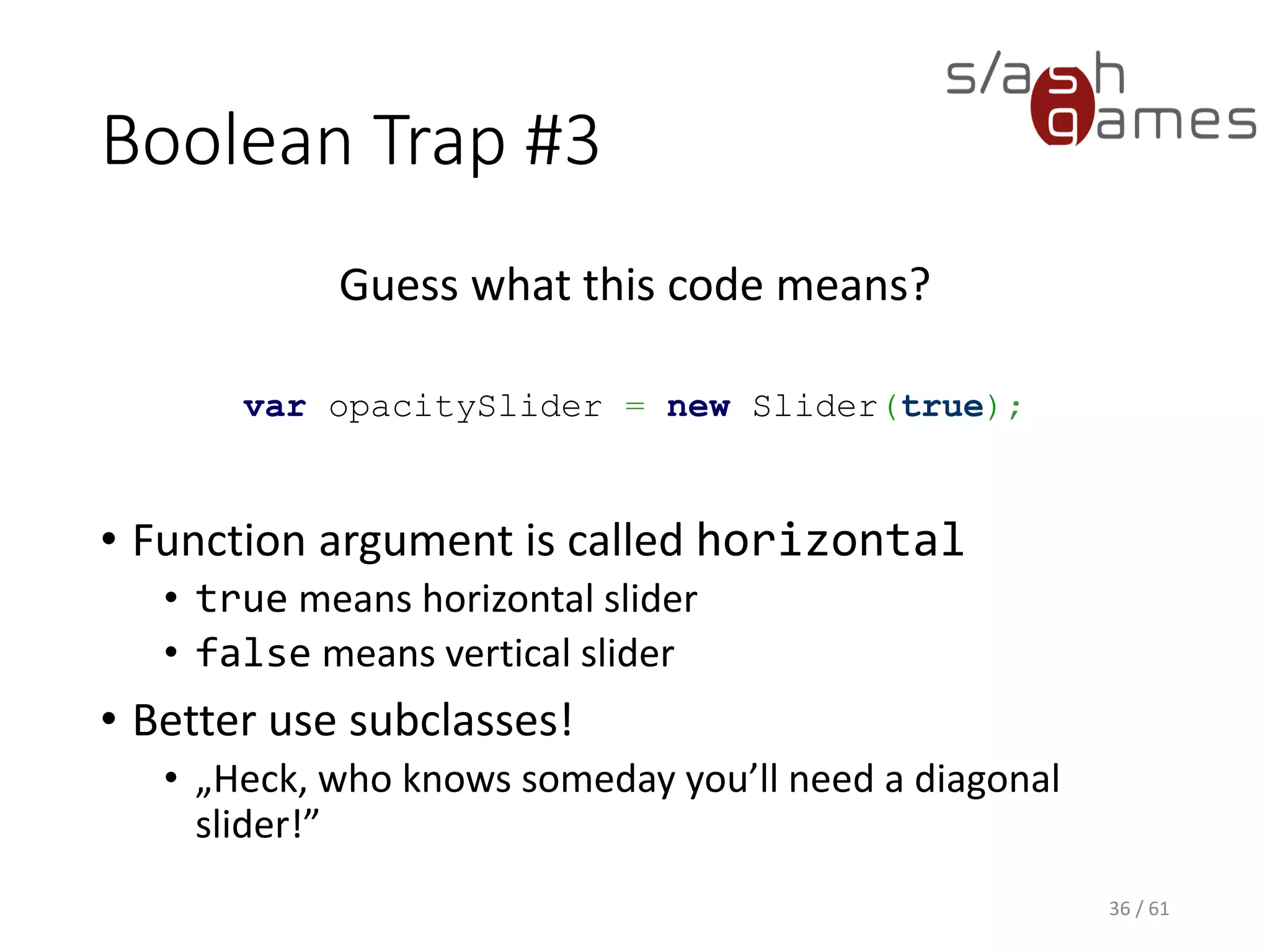

Boolean Trap #3
var opacitySlider = new Slider(true);
• Function argument is called horizontal
 true means horizontal slider
 false means vertical slider
• Better use subclasses!
 „Heck, who knows someday you’ll need a
diagonal slider!”
36 / 61

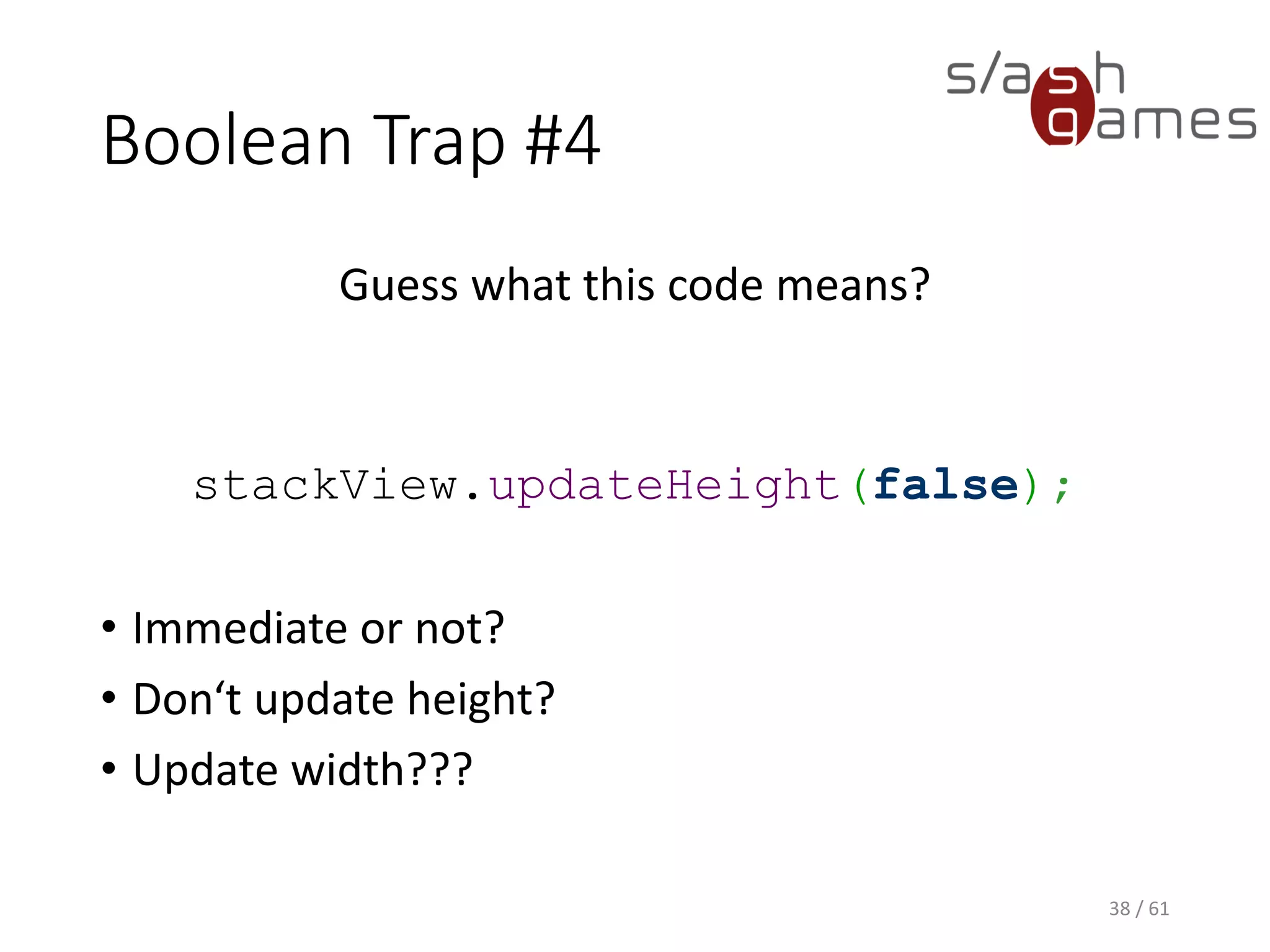

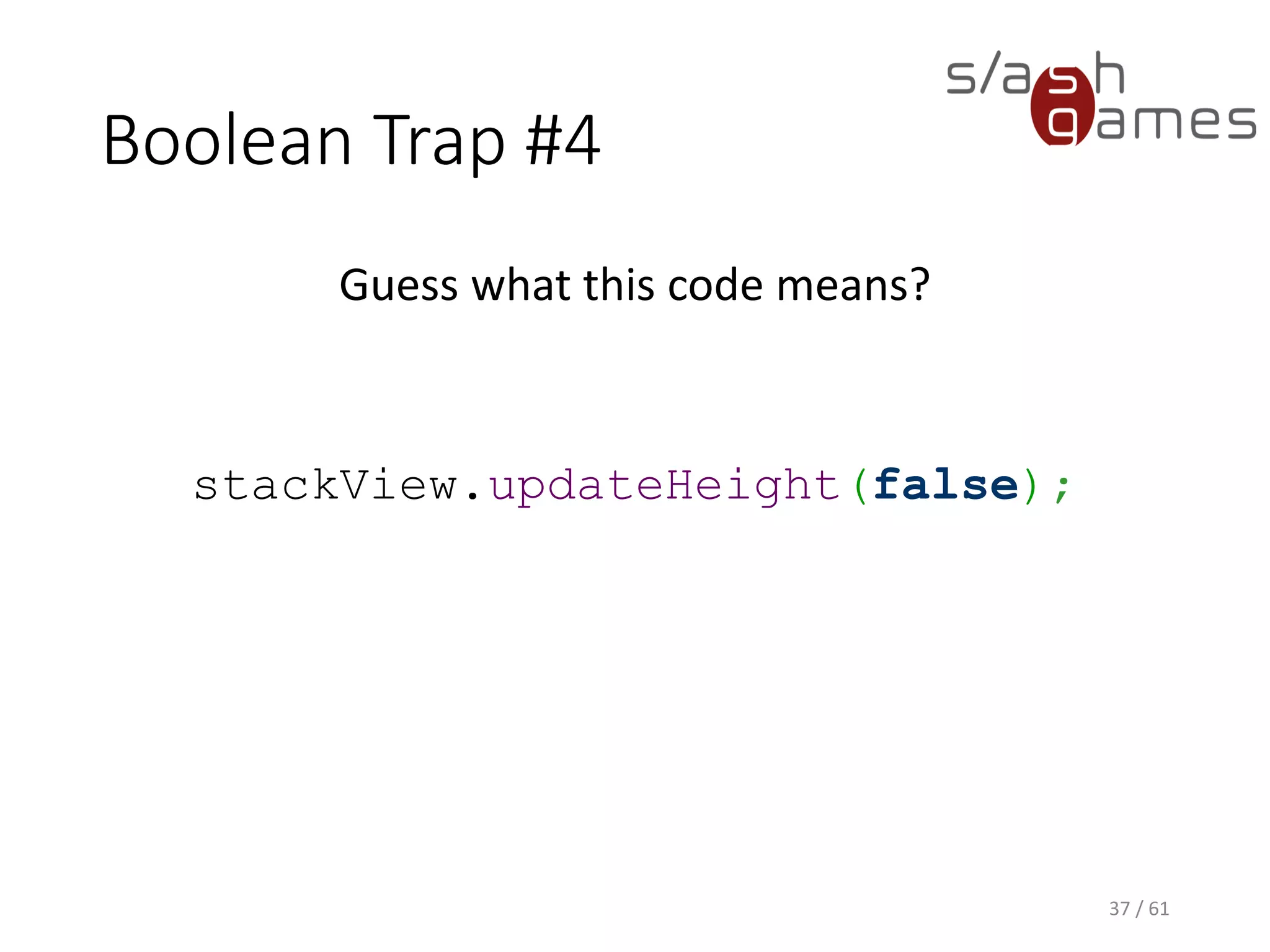

Boolean Trap #4
stackView.updateHeight(false);
37 / 61

Boolean Trap #4
stackView.updateHeight(false);
• Immediate or not?
• Don‘t update height?
• Update width???
38 / 61

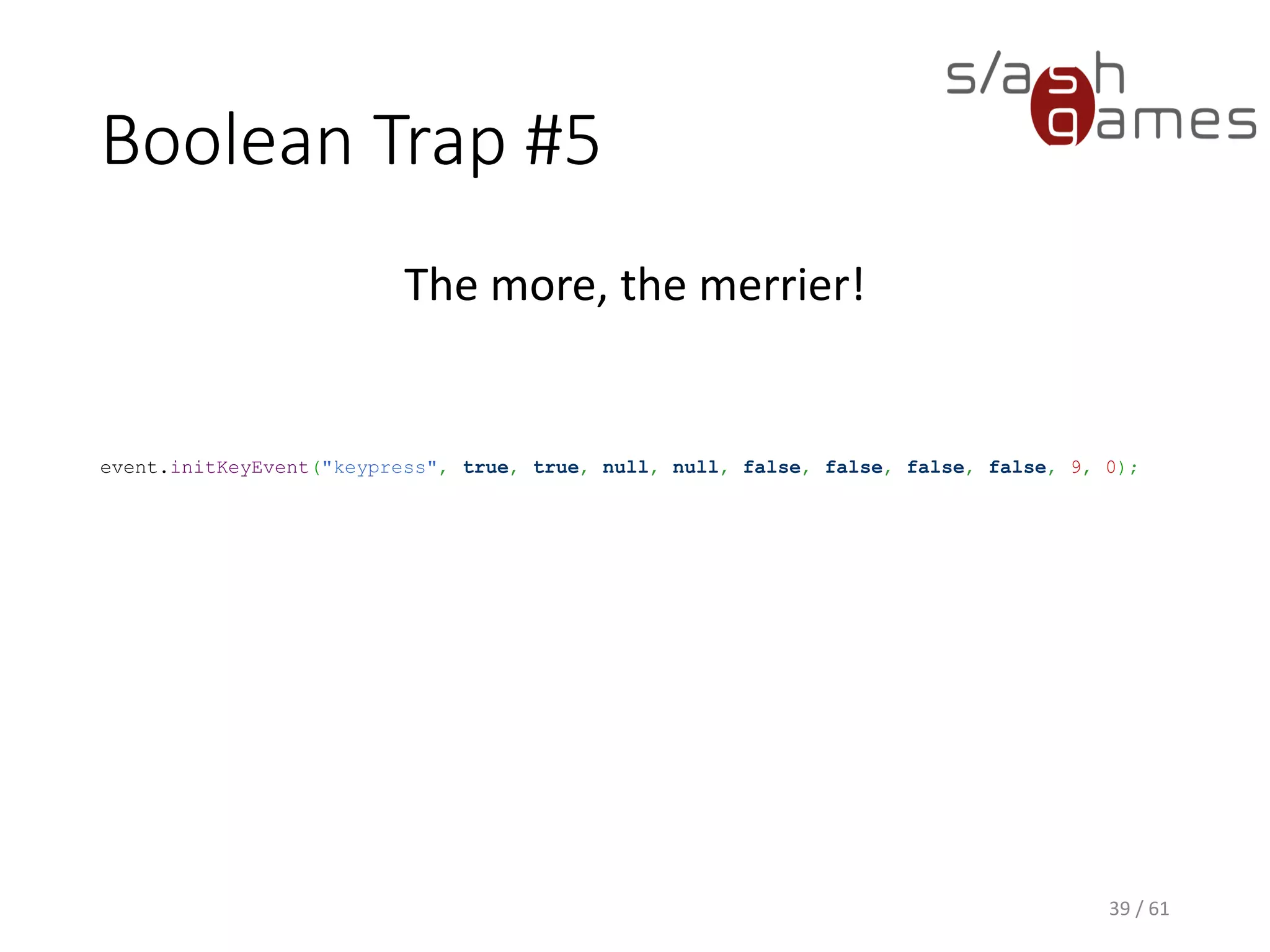

Boolean Trap #5
The more, the merrier!
event.initKeyEvent("keypress", true, true,
null, null, false, false, false, false, 9,
0);
39 / 61

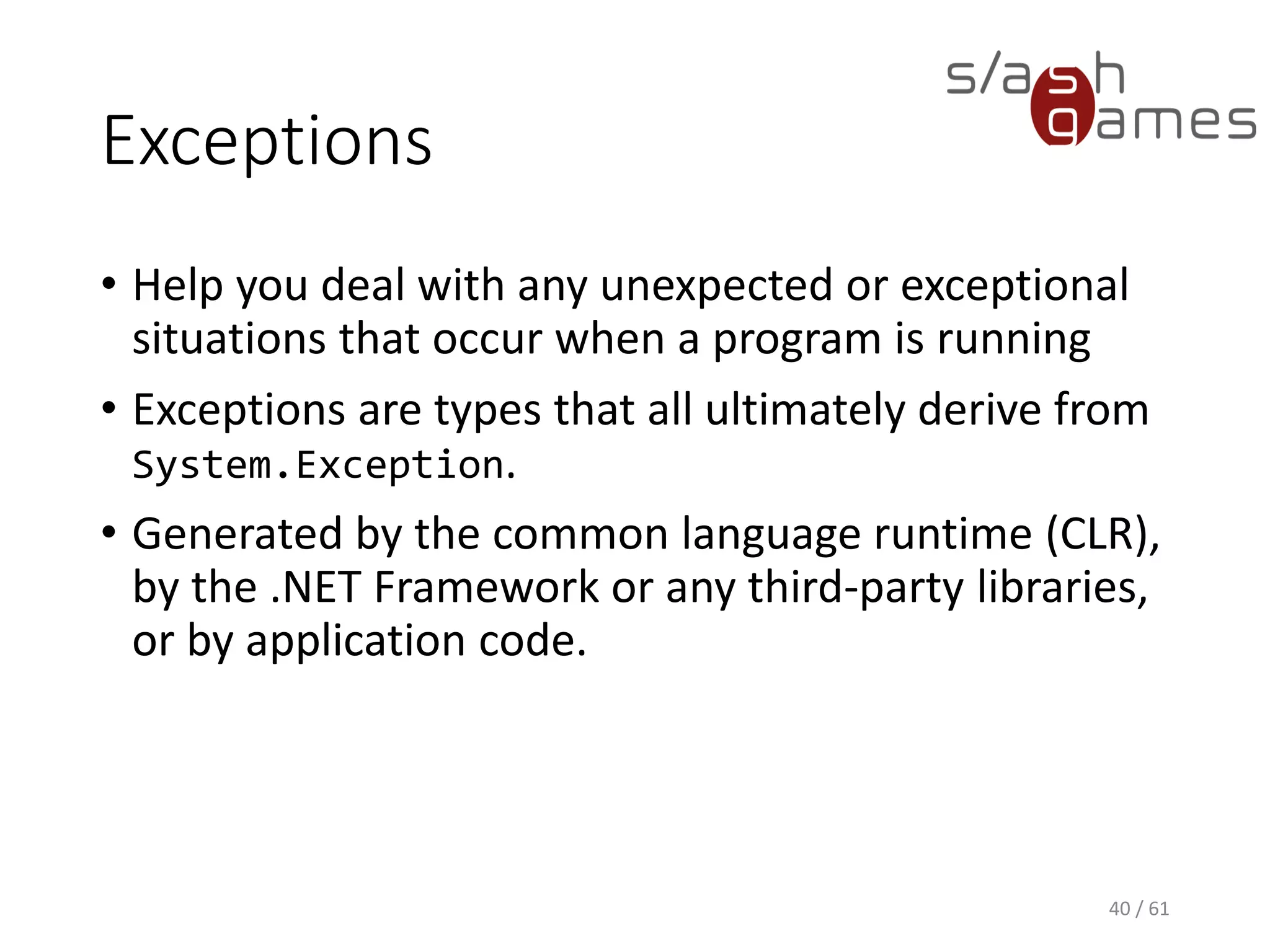

Exceptions
• Help you deal with any unexpected or exceptional situations that
occur when a program is running
• Exceptions are types that all ultimately derive from
System.Exception.
• Generated by the common language runtime (CLR), by the .NET
Framework or any third-party libraries, or by application code.
40 / 61

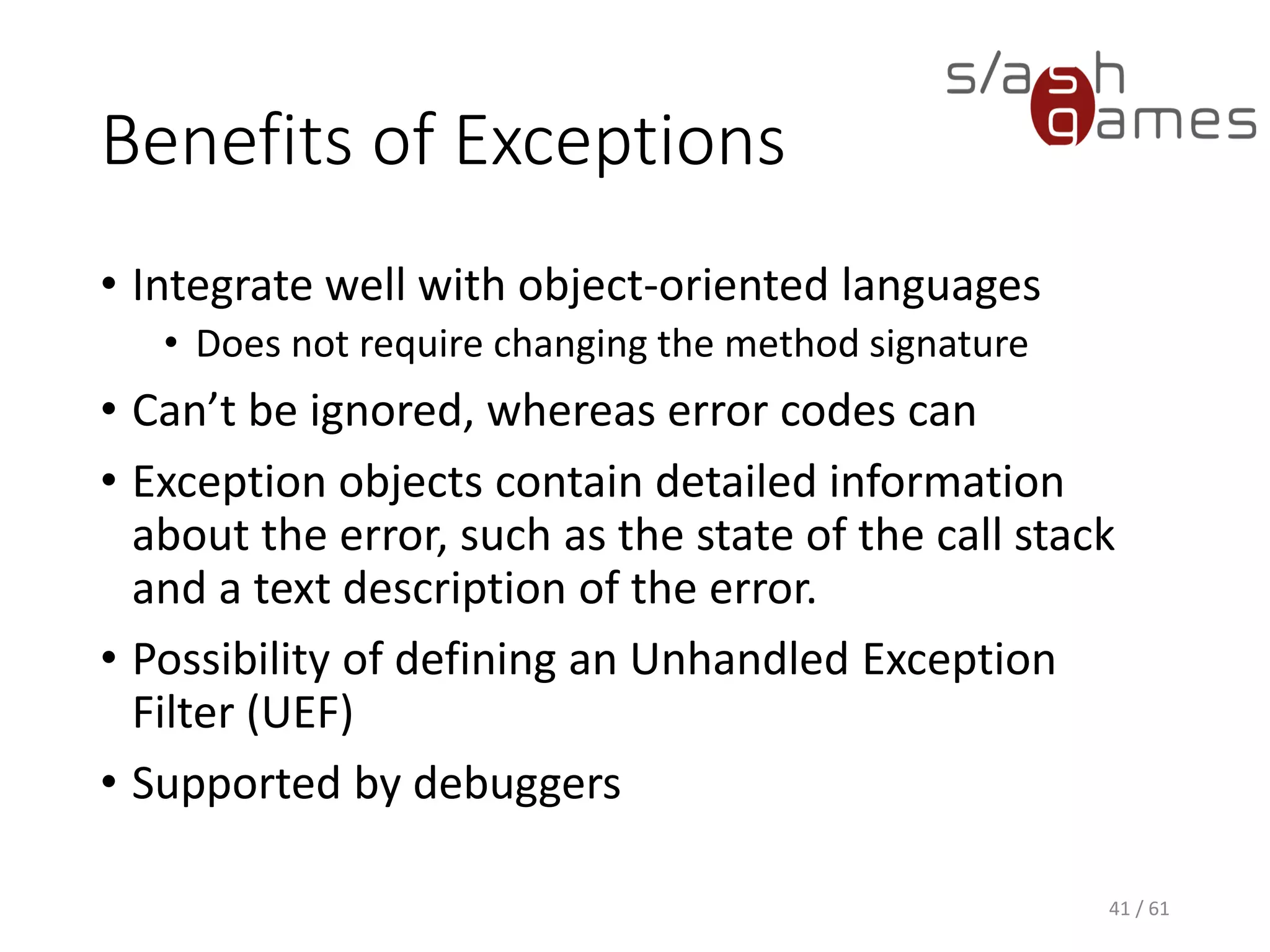

Benefits of Exceptions
• Integrate well with object-oriented languages
 Does not require changing the method signature
• Can’t be ignored, whereas error codes can
• Exception objects contain detailed information about the error, such
as the state of the call stack and a text description of the error.
• Possibility of defining an Unhandled Exception Filter (UEF)
• Supported by debuggers
41 / 61

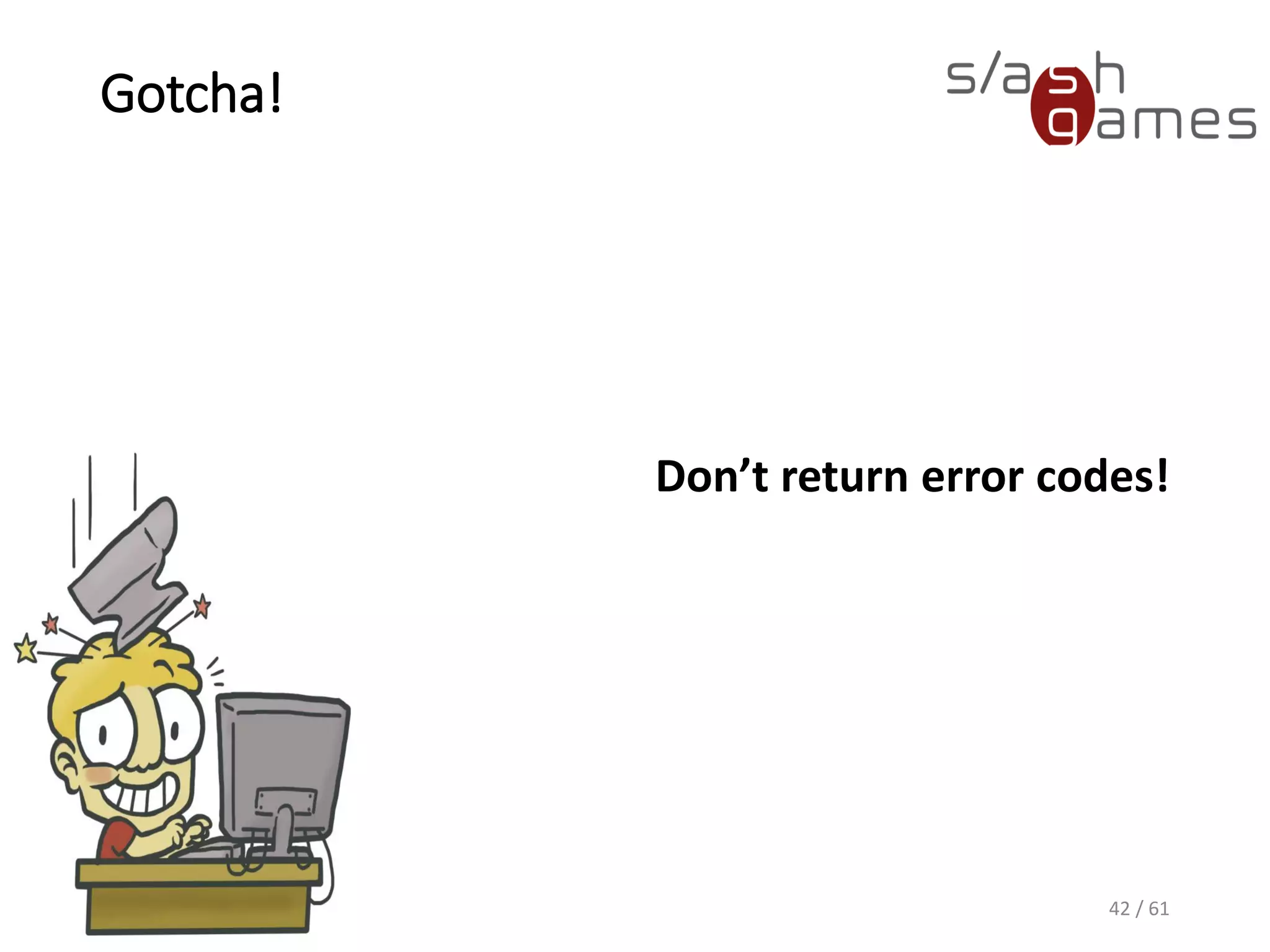

Gotcha!
Don’t return error codes!
42 / 61

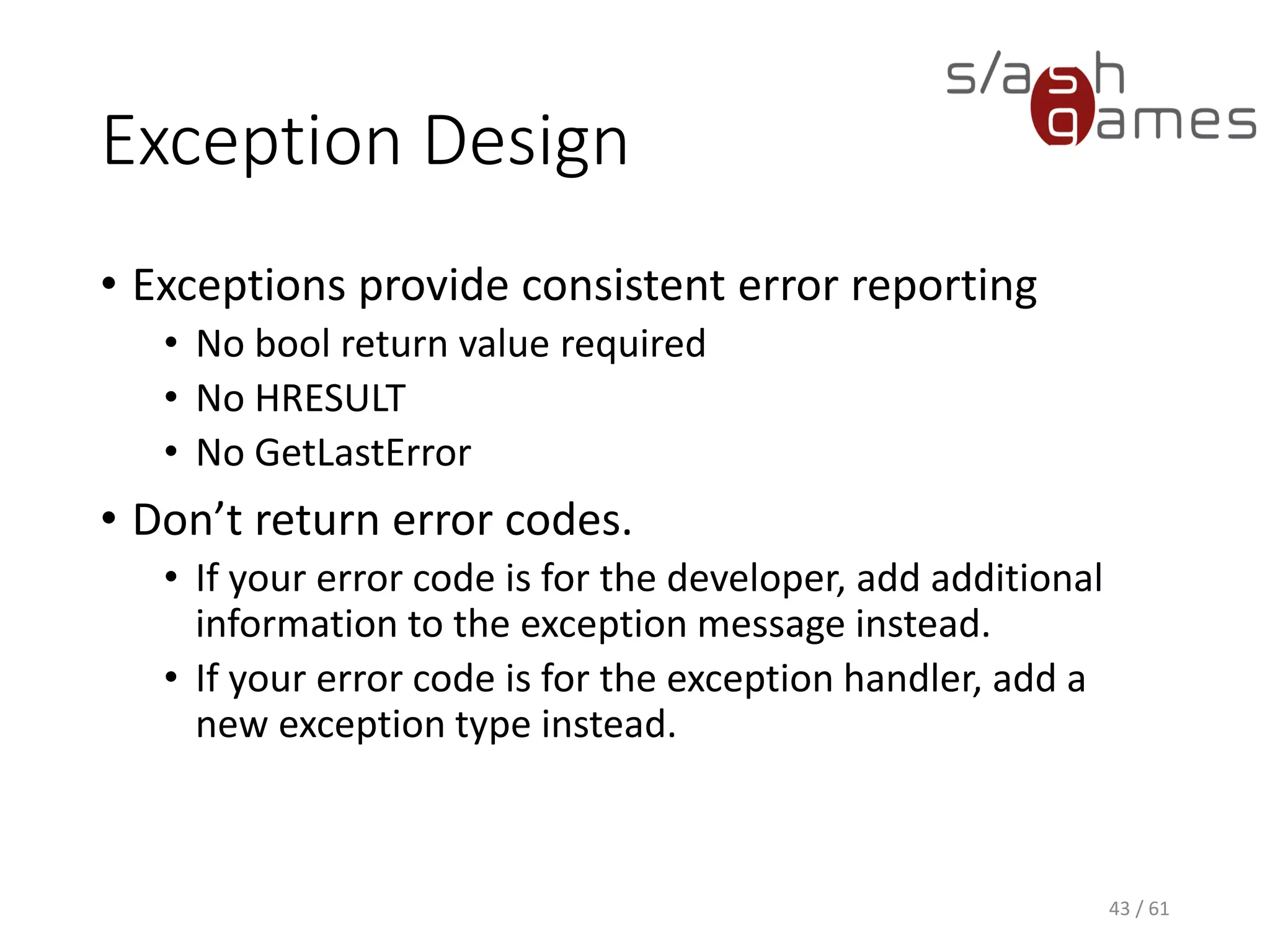

Exception Design
• Exceptions provide consistent error reporting
 No bool return value required
 No HRESULT
 No GetLastError
• Don’t return error codes.
 If your error code is for the developer, add additional information
to the exception message instead.
 If your error code is for the exception handler, add a new
exception type instead.
43 / 61

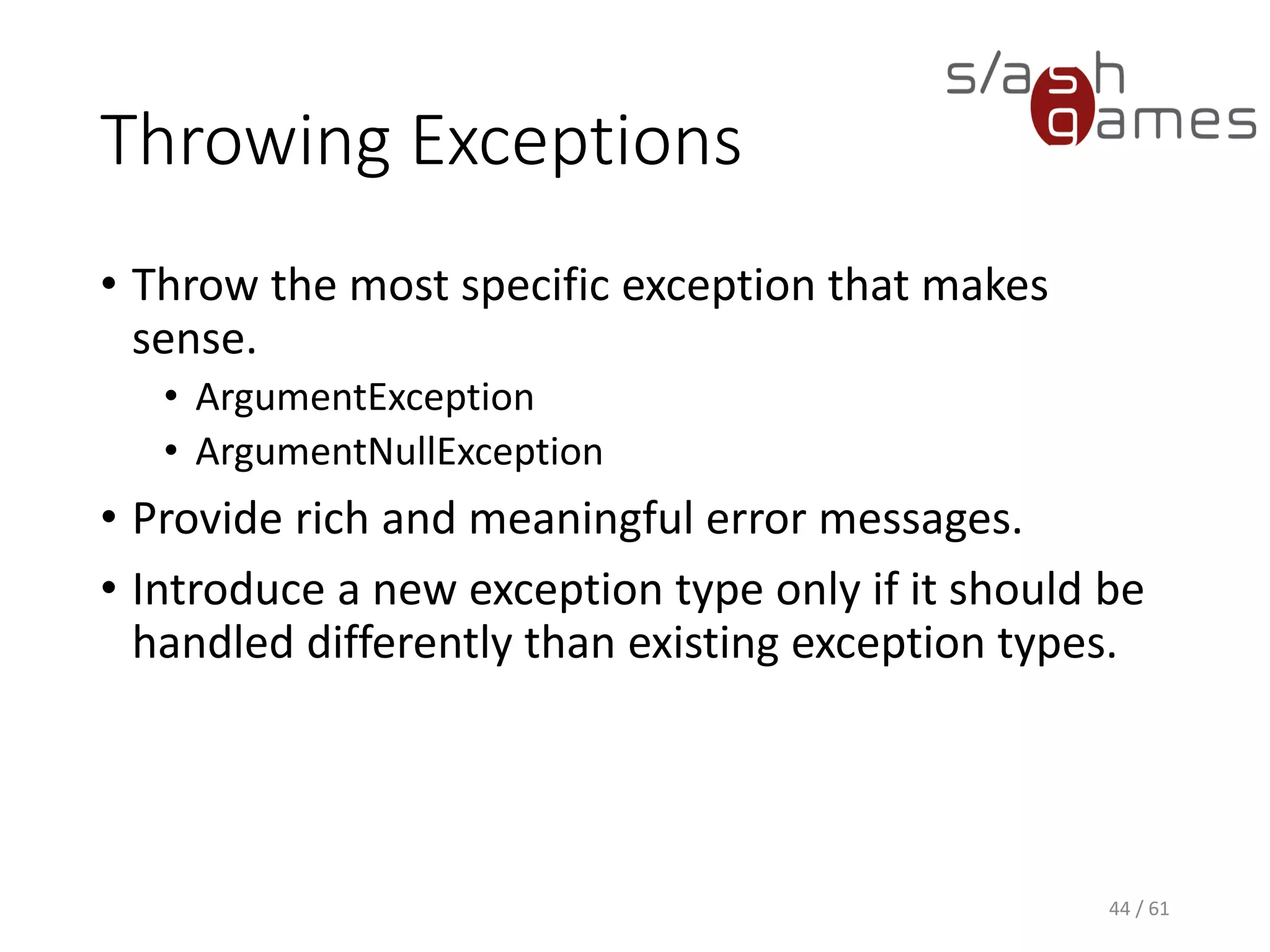

Throwing Exceptions
• Throw the most specific exception that makes sense.
 ArgumentException
 ArgumentNullException
• Provide rich and meaningful error messages.
• Introduce a new exception type only if it should be handled
differently than existing exception types.
44 / 61

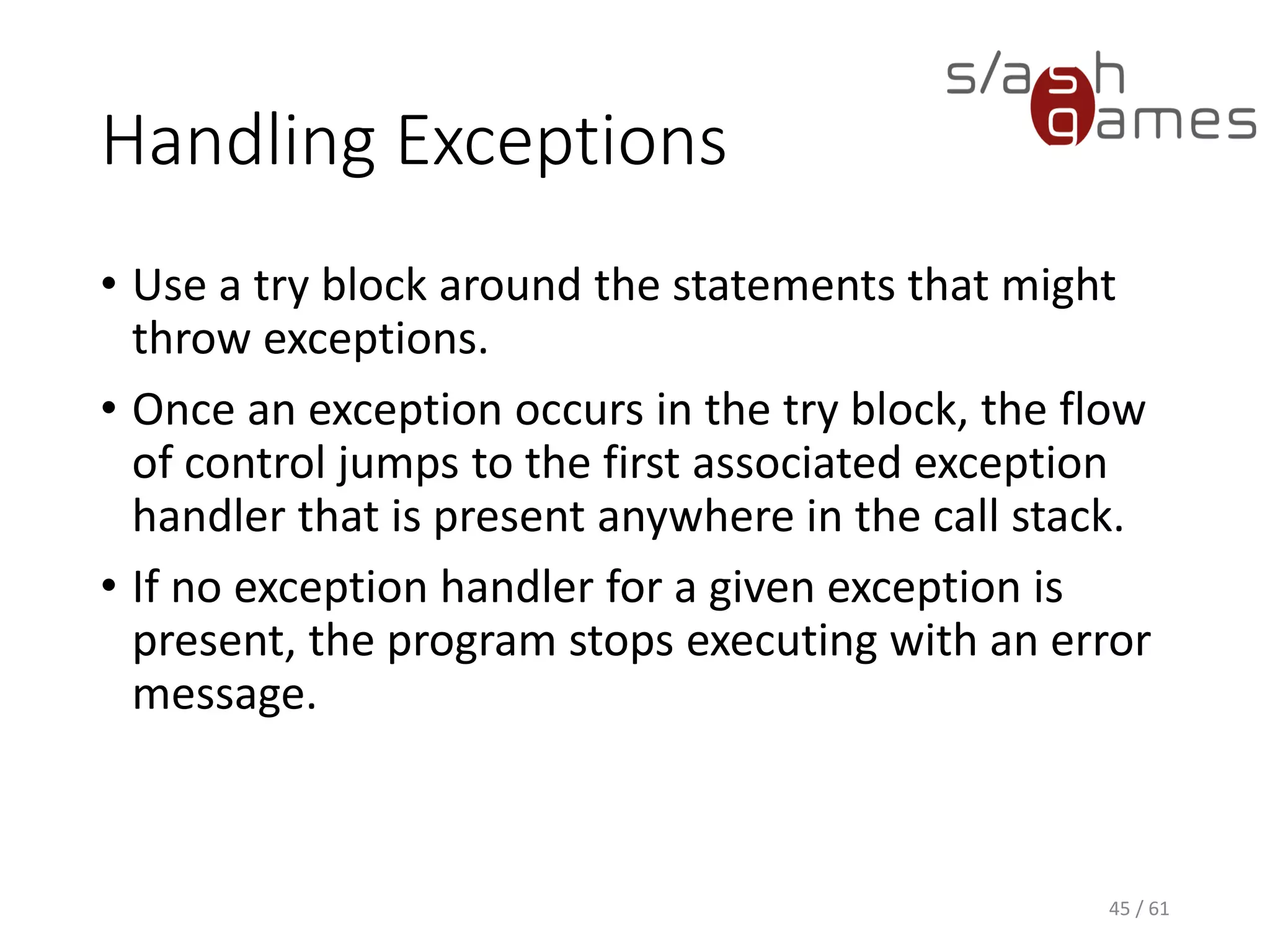

Handling Exceptions
• Use a try block around the statements that might throw exceptions.
• Once an exception occurs in the try block, the flow of control jumps
to the first associated exception handler that is present anywhere in
the call stack.
• If no exception handler for a given exception is present, the program
stops executing with an error message.
45 / 61

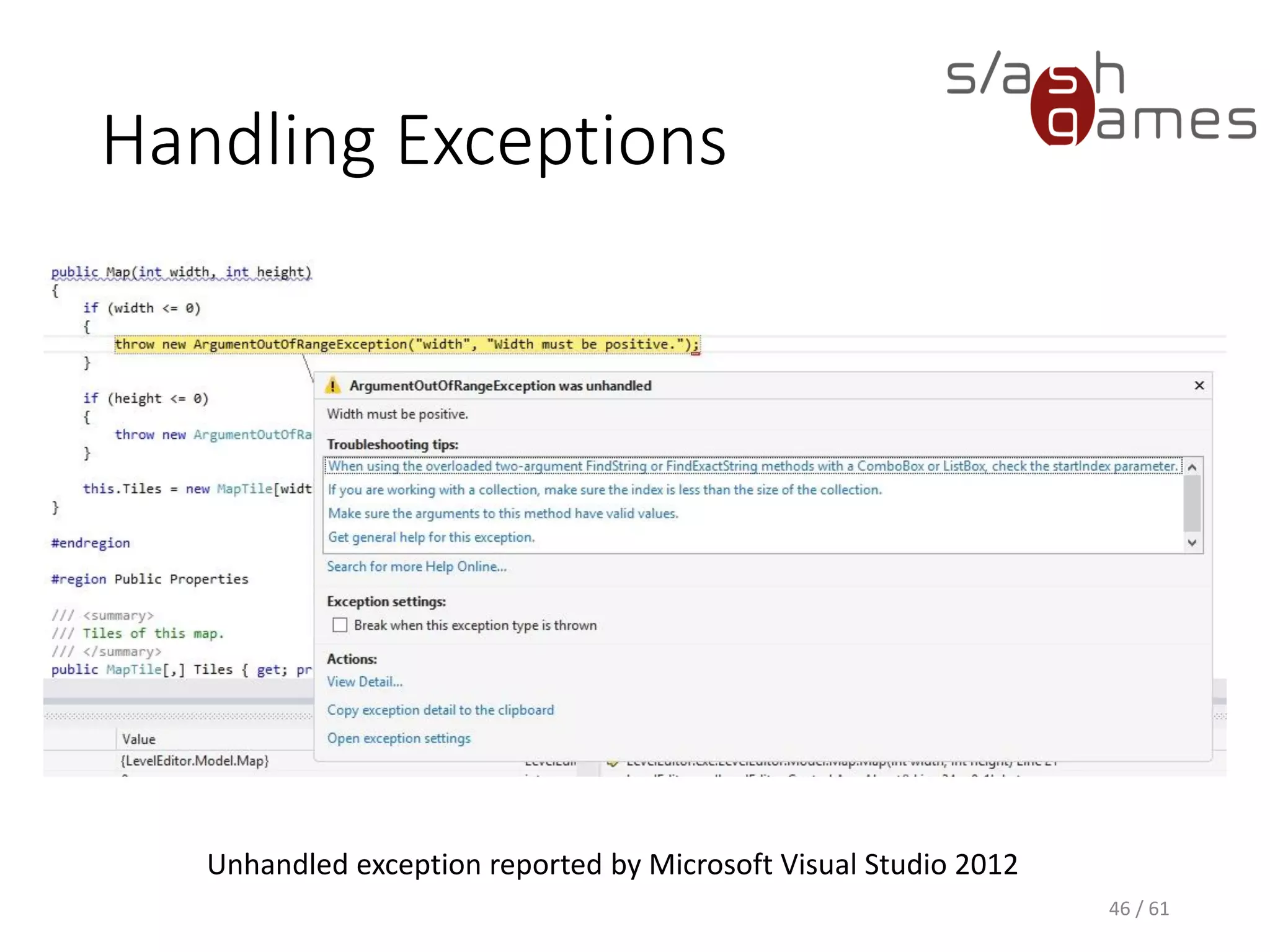

Handling Exceptions
Unhandled exception reported by Microsoft Visual Studio 2012
46 / 61

Exception Best Practice
47 / 61

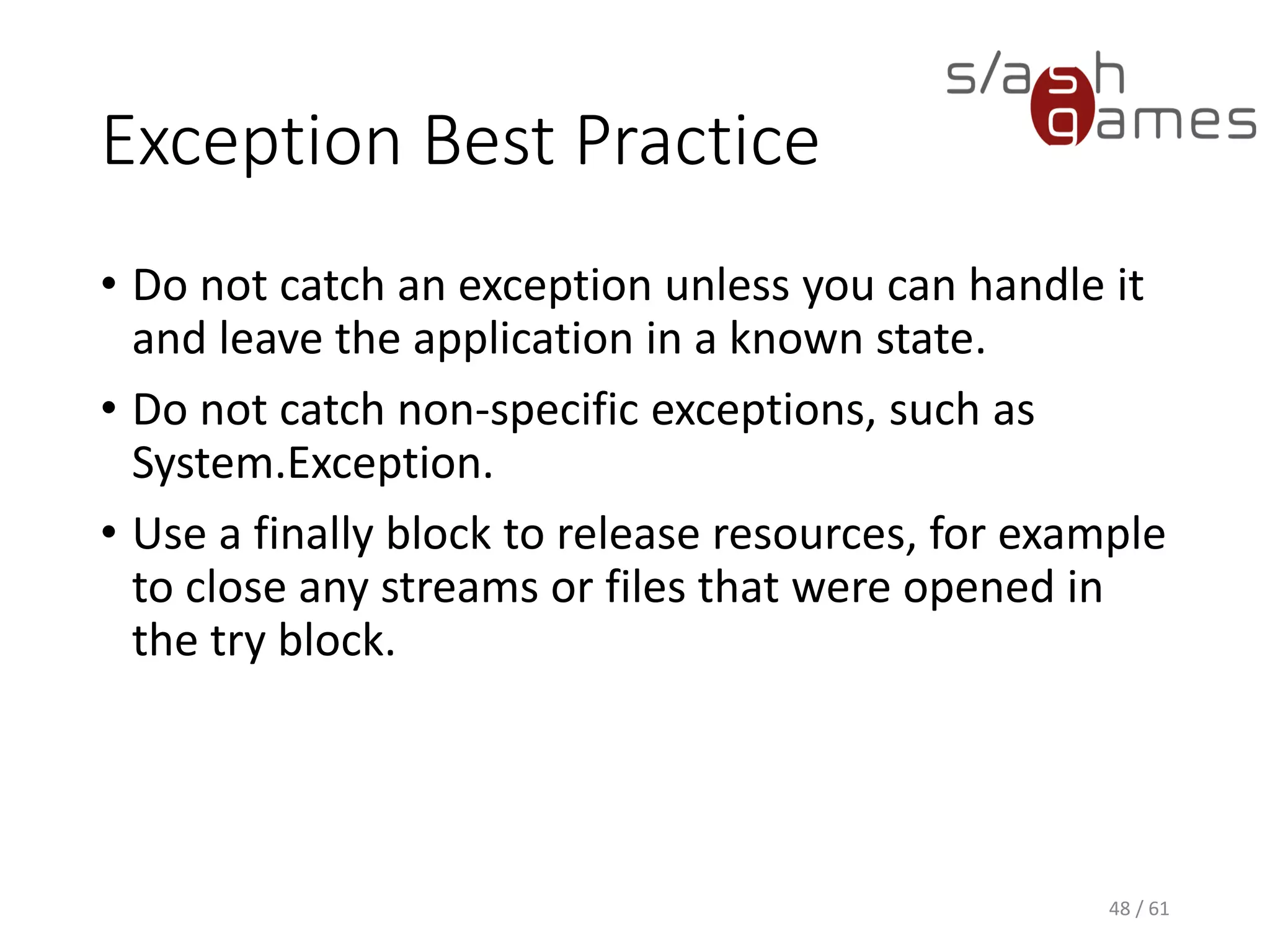

Exception Best Practice
• Do not catch an exception unless you can handle it and leave the
application in a known state.
• Do not catch non-specific exceptions, such as System.Exception.
• Use a finally block to release resources, for example to close any
streams or files that were opened in the try block.
48 / 61

Gotcha!
Never use empty catch blocks!
49 / 61

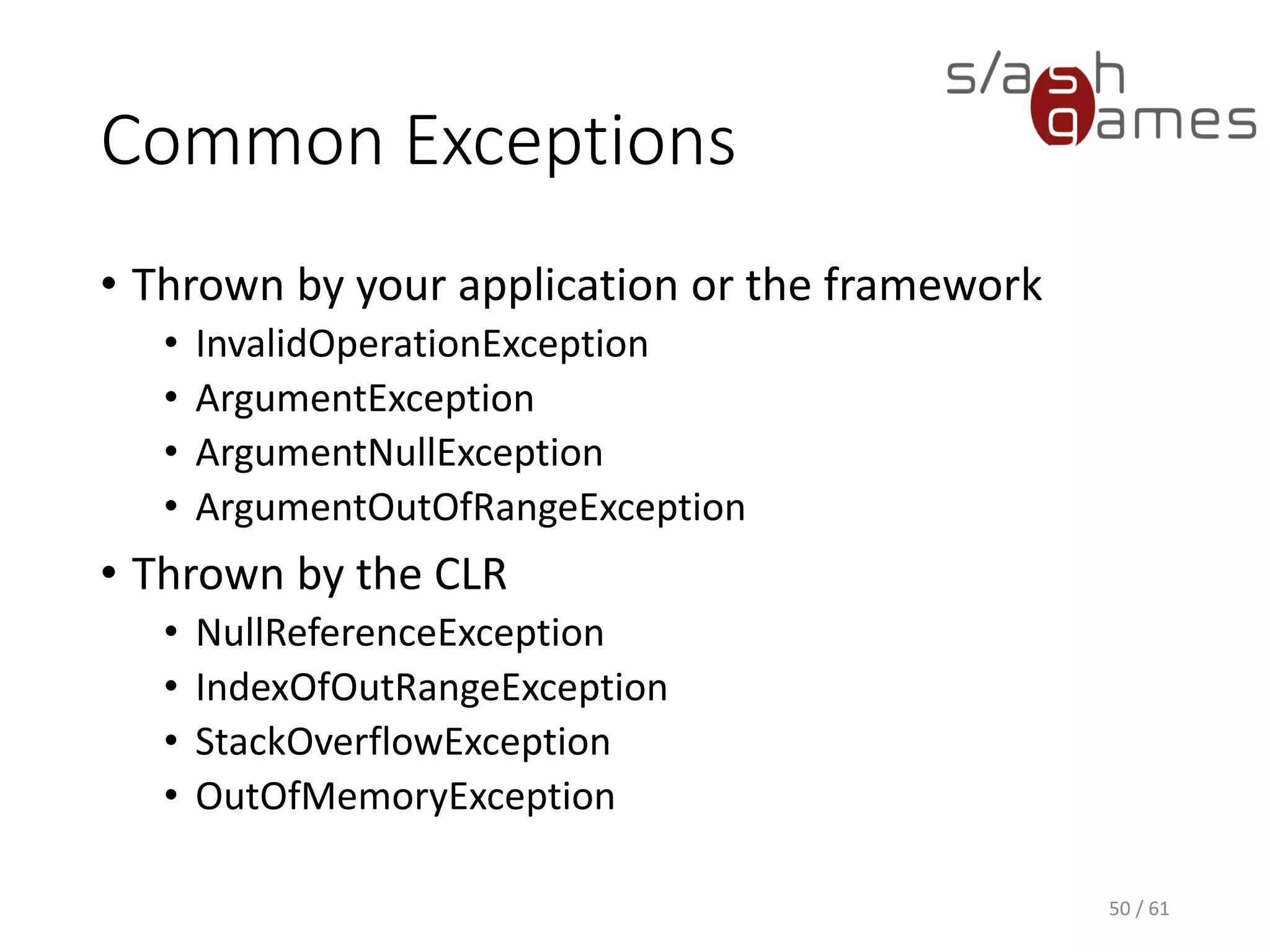

Common Exceptions
• Thrown by your application or the framework
 InvalidOperationException
 ArgumentException
 ArgumentNullException
 ArgumentOutOfRangeException
• Thrown by the CLR
 NullReferenceException
 IndexOfOutRangeException
 StackOverflowException
 OutOfMemoryException
50 / 61

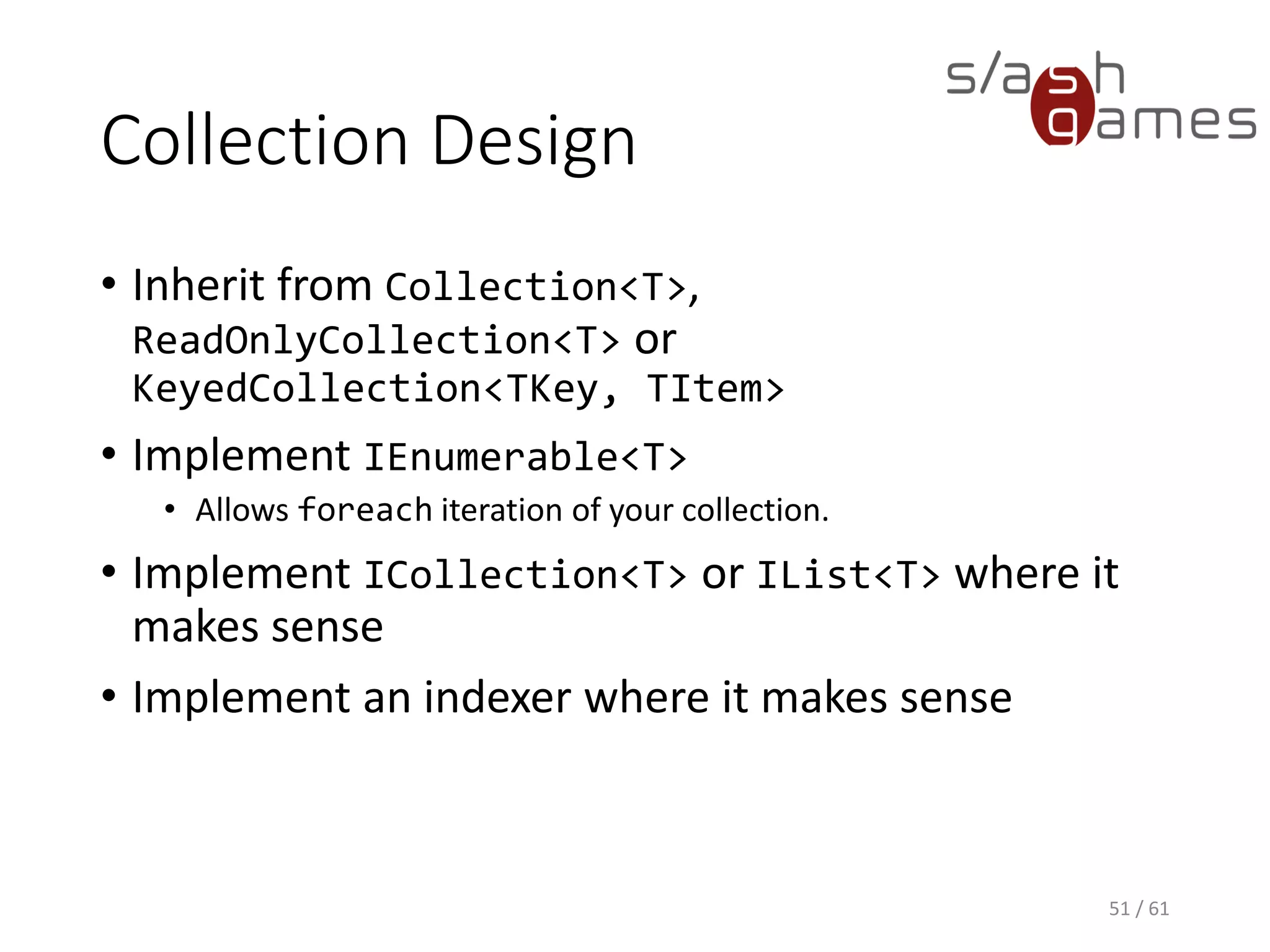

Collection Design
• Inherit from Collection<T>, ReadOnlyCollection<T> or
KeyedCollection<TKey, TItem>
• Implement IEnumerable<T>
 Allows foreach iteration of your collection.
• Implement ICollection<T> or IList<T> where it makes sense
• Implement an indexer where it makes sense
51 / 61

Gotcha!
Don’t implement ICloneable!
52 / 61

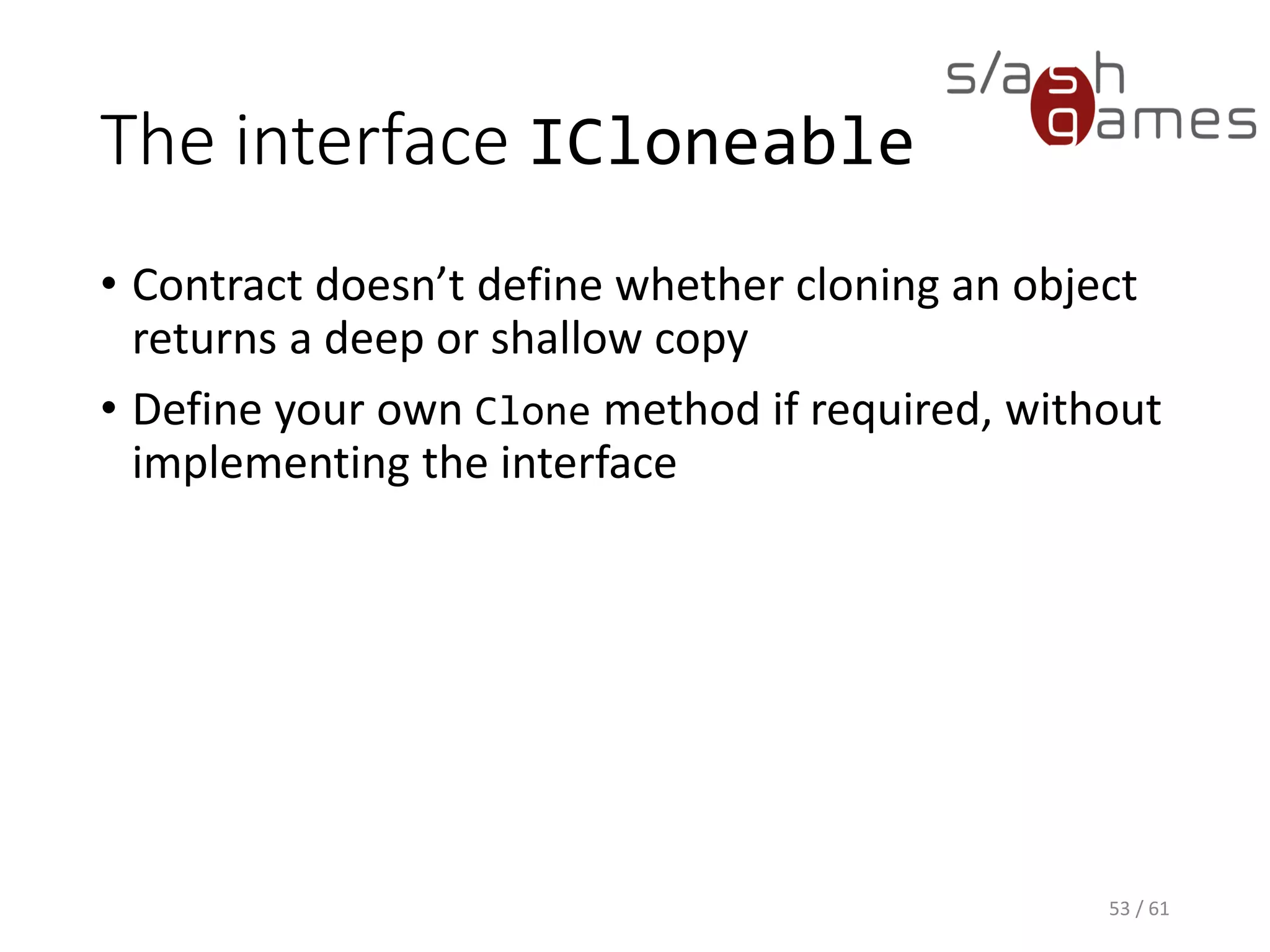

The interface ICloneable
• Contract doesn’t define whether cloning an object returns a deep or
shallow copy
• Define your own Clone method if required, without implementing the
interface
53 / 61

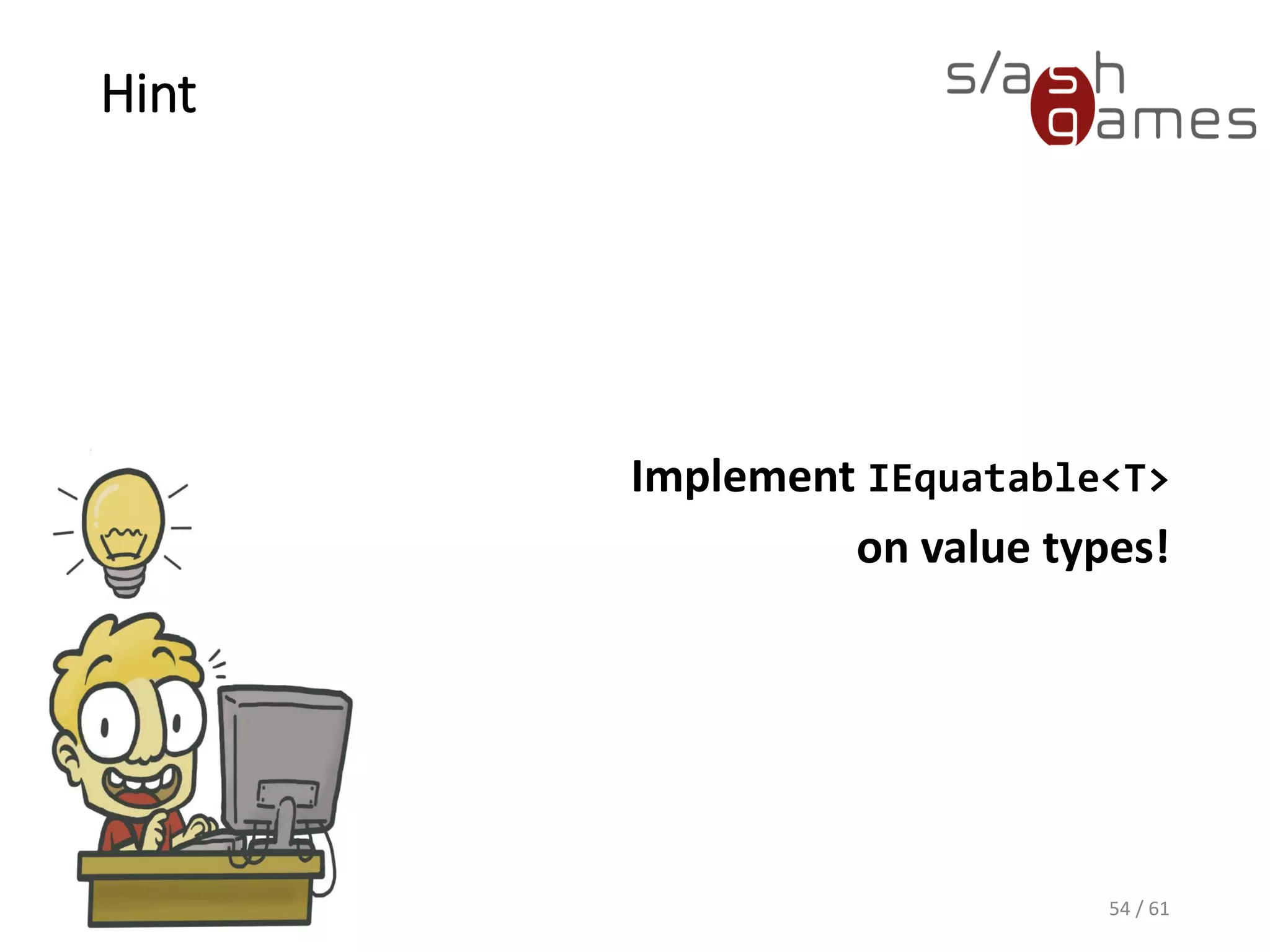

Hint
Implement IEquatable<T>
on value types!
54 / 61

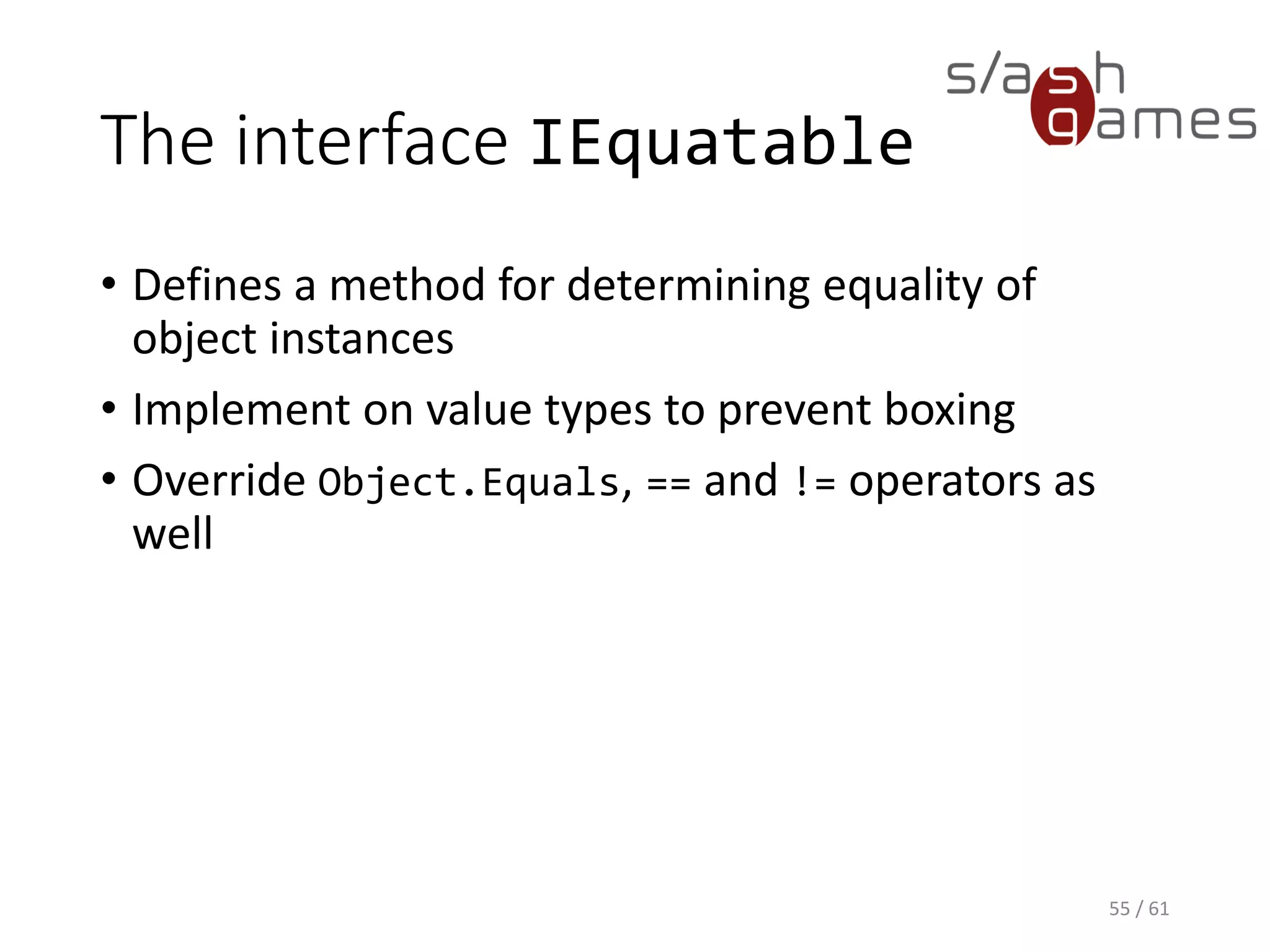

The interface IEquatable
• Defines a method for determining equality of object instances
• Implement on value types to prevent boxing
• Override Object.Equals, == and != operators as well
55 / 61

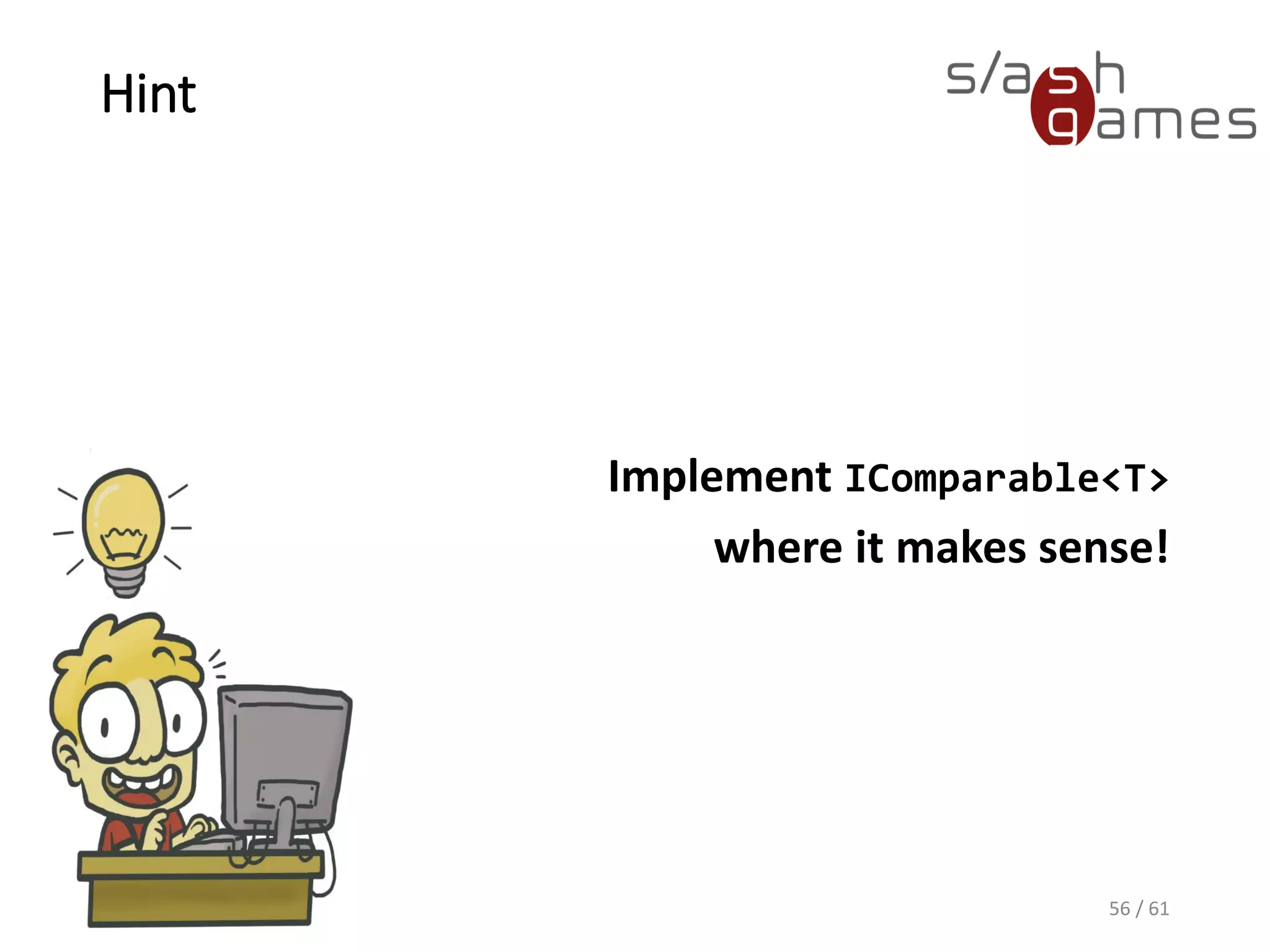

Hint
Implement IComparable<T>
where it makes sense!
56 / 61

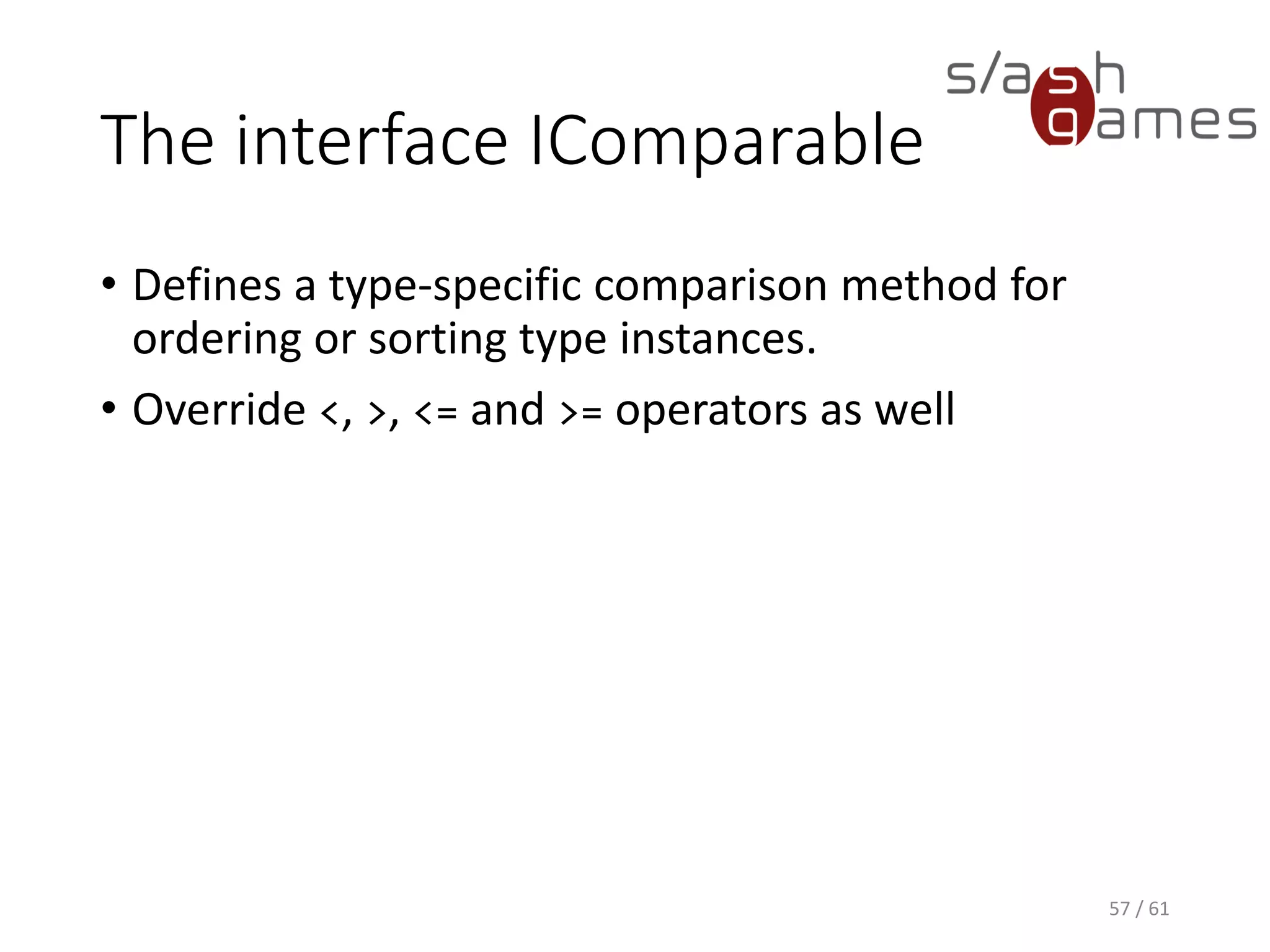

The interface IComparable
• Defines a type-specific comparison method for ordering or sorting
type instances.
• Override <, >, <= and >= operators as well
57 / 61

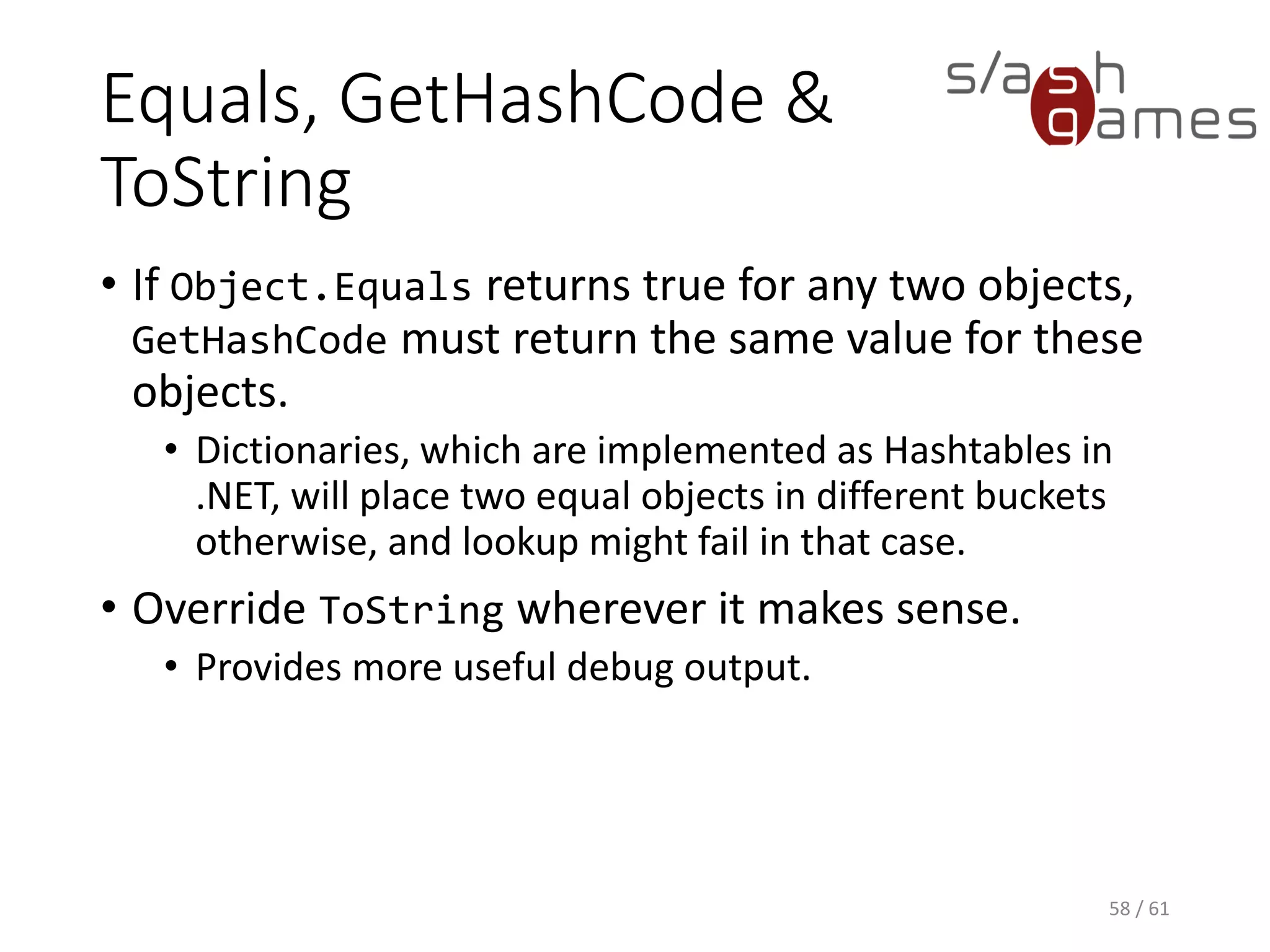

Equals, GetHashCode & ToString
• If Object.Equals returns true for any two objects, GetHashCode must
return the same value for these objects.
 Dictionaries, which are implemented as Hashtables in .NET, will
place two equal objects in different buckets otherwise, and
lookup might fail in that case.
• Override ToString wherever it makes sense.
 Provides more useful debug output.
58 / 61

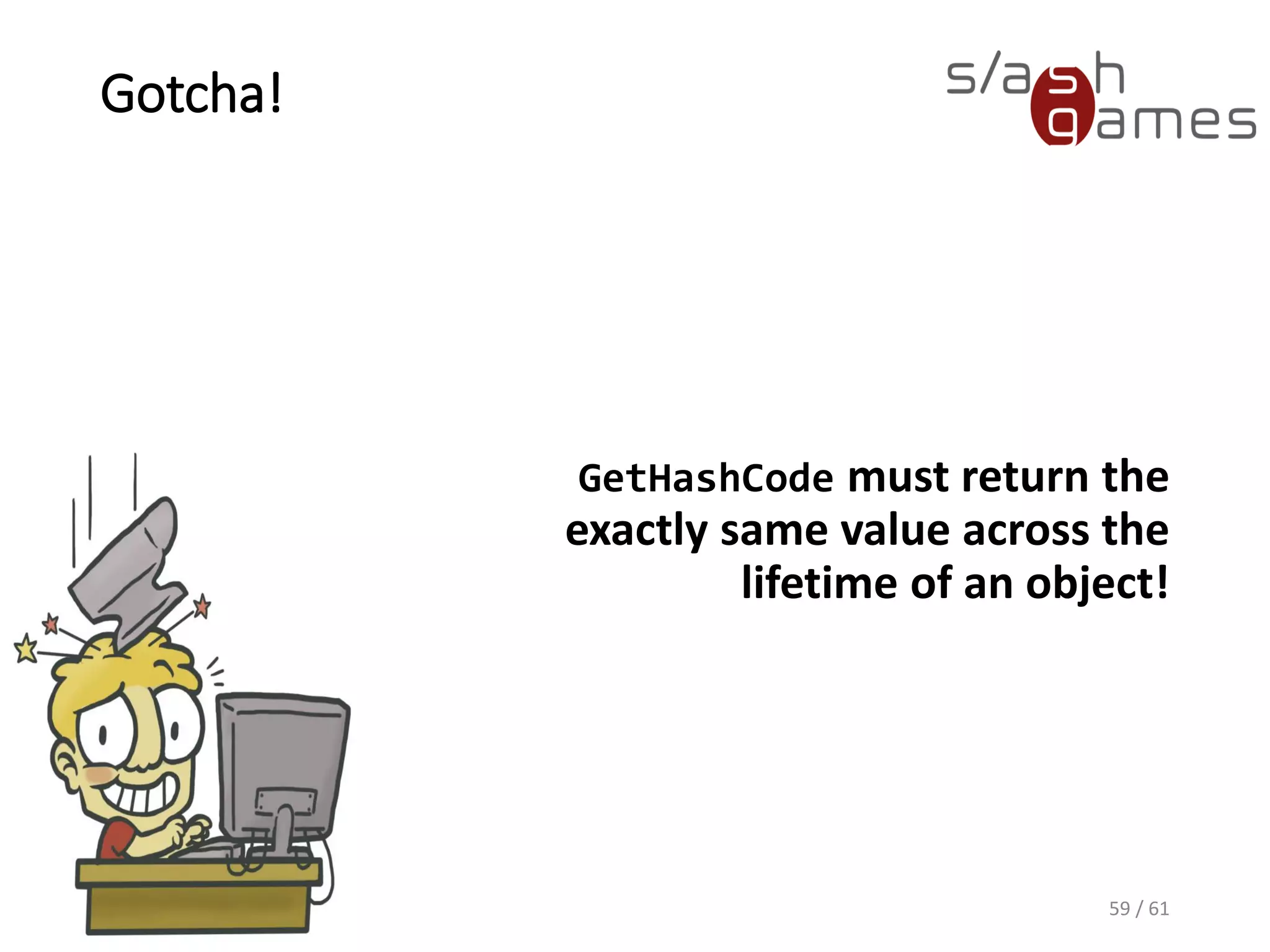

Gotcha!
GetHashCode must return the
exactly same value across the
lifetime of an object!
59 / 61

References
• Stack Overflow. What does a good programmer's code look like?
http://stackoverflow.com/questions/366588/what-does-a-good-
programmers-code-look-like, April 2017.
• Cwalina, Abrams. Framework Design Guidelines. 2nd Edition. Addison-
Wesley, 2011.
• Hidayat. hall of api shame: boolean trap.
http://ariya.ofilabs.com/2011/08/hall-of-api-shame-boolean-trap.html,
August 24, 2011.
• Atwood. Death to the Space Infidels!
http://www.codinghorror.com/blog/2009/04/death-to-the-space-
infidels.html, April 13, 2009.
• MSDN. System Namespace. https://msdn.microsoft.com/en-
us/library/System(v=vs.110).aspx, April 2017.
60 / 61

Thank you!
http://www.npruehs.de
https://github.com/npruehs
@npruehs
nick.pruehs@daedalic.com

5 Minute Review Session
• Name a few characteristics of good code!
• How can you achieve good code?
• Tabs or spaces?
• When should you use a struct instead of a class?
• When should you use a method instead of a property?
• Name the three common interfaces and base classes that can be used
for collections in .NET!
• What is the main purpose of the interface IEquatable?
• What is the main purpose of the interface IComparable?
• How are Equals and GetHashCode related to each other?

Game Programming 04 - Style & Design Principles

More Related Content

What's hot

Viewers also liked

Similar to Game Programming 04 - Style & Design Principles

More from Nick Pruehs

Recently uploaded

Game Programming 04 - Style & Design Principles
