Fundamentals of Physics "ROLLING, TORQUE, AND ANGULAR MOMENTUM"

E X T E N D E D
FUNDAMENTALS OF PHYSICS
T E N T H E D I T I O N

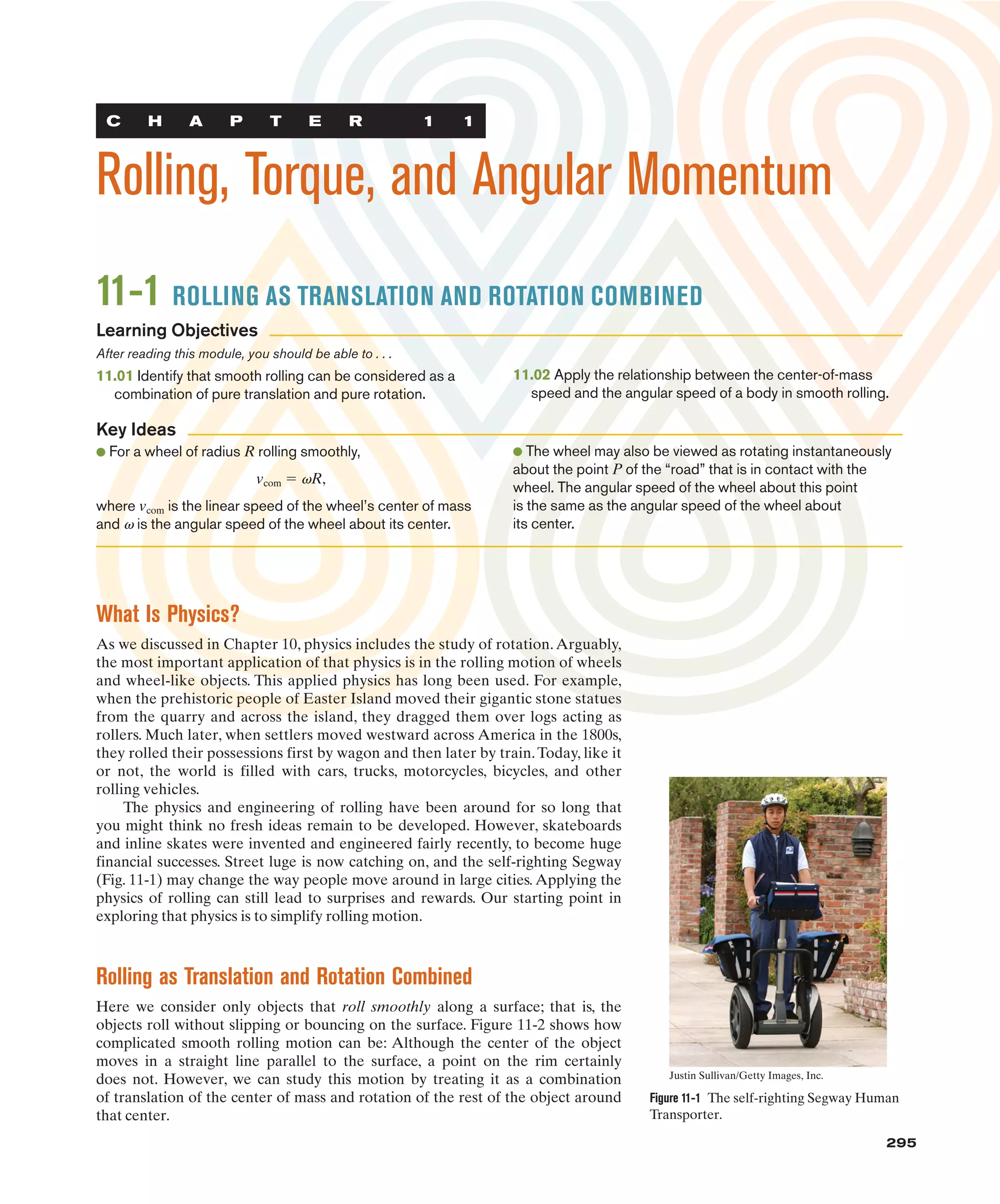

C H A P T E R 1 1
Rolling, Torque, and Angular Momentum
295
295
11-1 ROLLING AS TRANSLATION AND ROTATION COMBINED
After reading this module, you should be able to . . .
11.01 Identify that smooth rolling can be considered as a
combination of pure translation and pure rotation.
11.02 Apply the relationship between the center-of-mass
speed and the angular speed of a body in smooth rolling.
● For a wheel of radius R rolling smoothly,
vcom ! vR,
where vcom is the linear speed of the wheel’s center of mass
and v is the angular speed of the wheel about its center.
● The wheel may also be viewed as rotating instantaneously
about the point P of the “road” that is in contact with the
wheel. The angular speed of the wheel about this point
is the same as the angular speed of the wheel about
its center.
Learning Objectives
Key Ideas
What Is Physics?
As we discussed in Chapter 10, physics includes the study of rotation.Arguably,
the most important application of that physics is in the rolling motion of wheels
and wheel-like objects. This applied physics has long been used. For example,
when the prehistoric people of Easter Island moved their gigantic stone statues
from the quarry and across the island, they dragged them over logs acting as
rollers. Much later, when settlers moved westward across America in the 1800s,
they rolled their possessions first by wagon and then later by train.Today, like it
or not, the world is filled with cars, trucks, motorcycles, bicycles, and other
rolling vehicles.
The physics and engineering of rolling have been around for so long that
you might think no fresh ideas remain to be developed. However, skateboards
and inline skates were invented and engineered fairly recently, to become huge
financial successes. Street luge is now catching on, and the self-righting Segway
(Fig. 11-1) may change the way people move around in large cities. Applying the
physics of rolling can still lead to surprises and rewards. Our starting point in
exploring that physics is to simplify rolling motion.
Rolling as Translation and Rotation Combined
Here we consider only objects that roll smoothly along a surface; that is, the
objects roll without slipping or bouncing on the surface. Figure 11-2 shows how
complicated smooth rolling motion can be: Although the center of the object
moves in a straight line parallel to the surface, a point on the rim certainly
does not. However, we can study this motion by treating it as a combination
of translation of the center of mass and rotation of the rest of the object around
that center.
Figure 11-1 The self-righting Segway Human
Transporter.
Justin Sullivan/Getty Images, Inc.

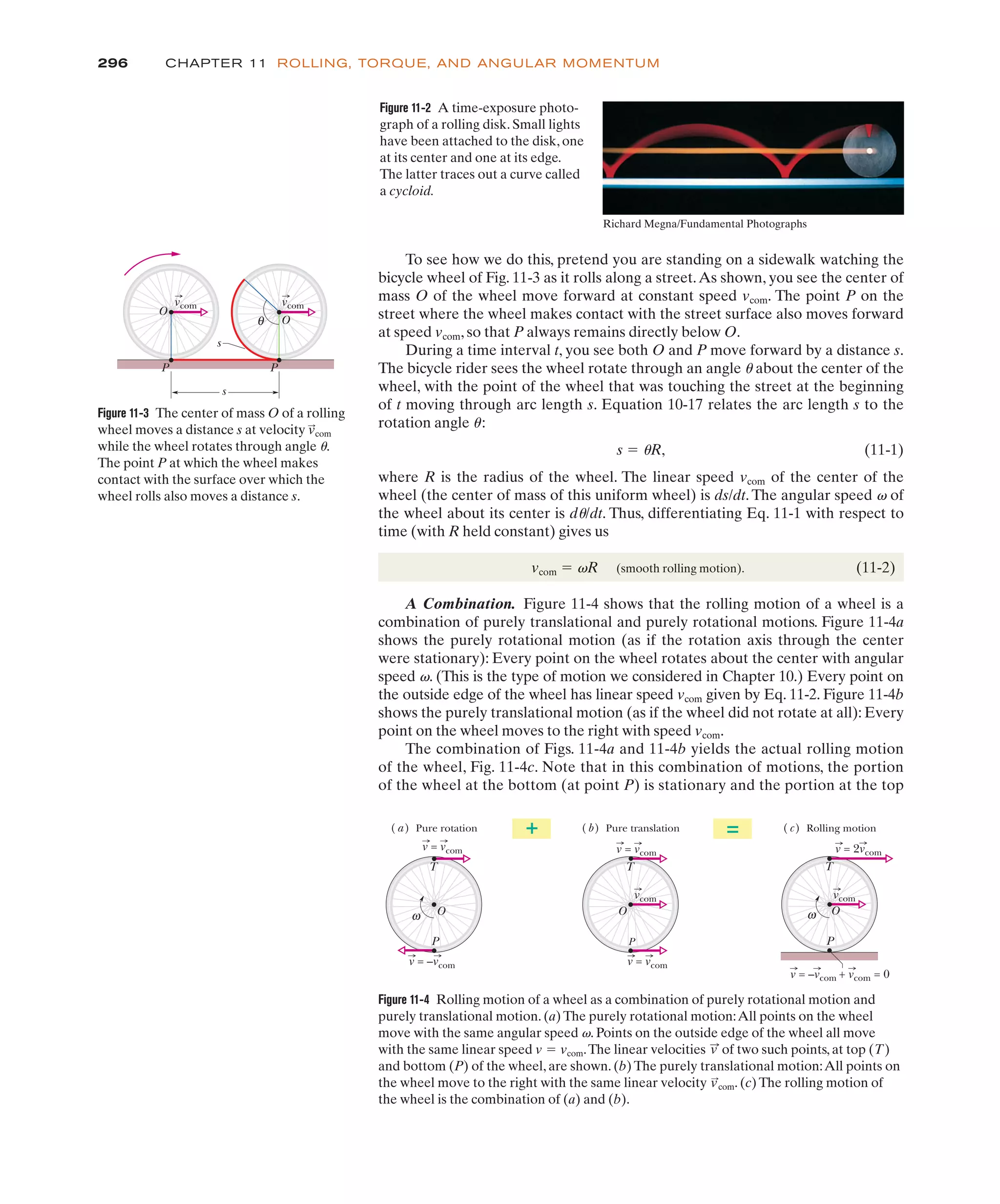

To see how we do this, pretend you are standing on a sidewalk watching the
bicycle wheel of Fig. 11-3 as it rolls along a street.As shown, you see the center of
mass O of the wheel move forward at constant speed vcom. The point P on the
street where the wheel makes contact with the street surface also moves forward
at speed vcom, so that P always remains directly below O.
During a time interval t, you see both O and P move forward by a distance s.
The bicycle rider sees the wheel rotate through an angle u about the center of the
wheel, with the point of the wheel that was touching the street at the beginning
of t moving through arc length s. Equation 10-17 relates the arc length s to the
rotation angle u:
s ! uR, (11-1)
where R is the radius of the wheel. The linear speed vcom of the center of the
wheel (the center of mass of this uniform wheel) is ds/dt. The angular speed v of
the wheel about its center is du/dt. Thus, differentiating Eq. 11-1 with respect to
time (with R held constant) gives us
vcom ! vR (smooth rolling motion). (11-2)
A Combination. Figure 11-4 shows that the rolling motion of a wheel is a
combination of purely translational and purely rotational motions. Figure 11-4a
shows the purely rotational motion (as if the rotation axis through the center
were stationary): Every point on the wheel rotates about the center with angular
speed v. (This is the type of motion we considered in Chapter 10.) Every point on
the outside edge of the wheel has linear speed vcom given by Eq. 11-2. Figure 11-4b
shows the purely translational motion (as if the wheel did not rotate at all): Every
point on the wheel moves to the right with speed vcom.
The combination of Figs. 11-4a and 11-4b yields the actual rolling motion
of the wheel, Fig. 11-4c. Note that in this combination of motions, the portion
of the wheel at the bottom (at point P) is stationary and the portion at the top
296 CHAPTER 11 ROLLING, TORQUE, AND ANGULAR MOMENTUM
Figure 11-2 A time-exposure photo-
graph of a rolling disk. Small lights
have been attached to the disk, one
at its center and one at its edge.
The latter traces out a curve called
a cycloid.
Richard Megna/Fundamental Photographs
P
O
vcom
T
v = 2vcom
v = –vcom + vcom = 0
P
O
vcom
T
v = vcom
v = vcom
P
O
T
v = vcom
v = –vcom
+
+ =
= (c) Rolling motion
(b) Pure translation
(a) Pure rotation
ω ω
Figure 11-4 Rolling motion of a wheel as a combination of purely rotational motion and
purely translational motion. (a) The purely rotational motion:All points on the wheel
move with the same angular speed v. Points on the outside edge of the wheel all move
with the same linear speed v ! vcom.The linear velocities of two such points, at top (T)
and bottom (P) of the wheel, are shown. (b) The purely translational motion:All points on
the wheel move to the right with the same linear velocity . (c) The rolling motion of
the wheel is the combination of (a) and (b).
v
:
com
v
:
Figure 11-3 The center of mass O of a rolling
wheel moves a distance s at velocity
while the wheel rotates through angle u.
The point P at which the wheel makes
contact with the surface over which the
wheel rolls also moves a distance s.
v
:
com
P P
O
O
θ
s
vcom
s
vcom

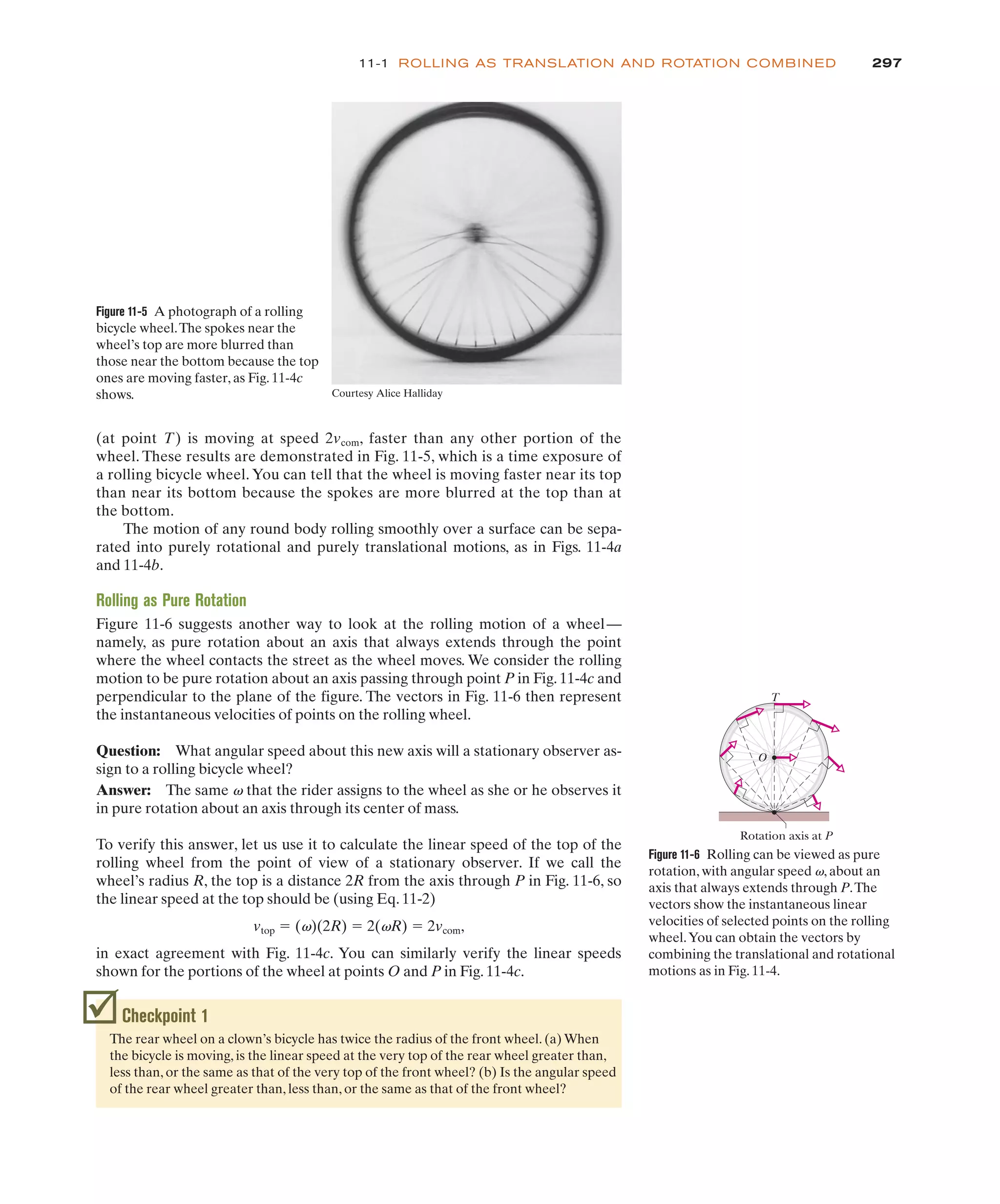

(at point T) is moving at speed 2vcom, faster than any other portion of the
wheel. These results are demonstrated in Fig. 11-5, which is a time exposure of
a rolling bicycle wheel. You can tell that the wheel is moving faster near its top
than near its bottom because the spokes are more blurred at the top than at
the bottom.
The motion of any round body rolling smoothly over a surface can be sepa-
rated into purely rotational and purely translational motions, as in Figs. 11-4a
and 11-4b.
Rolling as Pure Rotation
Figure 11-6 suggests another way to look at the rolling motion of a wheel—
namely, as pure rotation about an axis that always extends through the point
where the wheel contacts the street as the wheel moves. We consider the rolling
motion to be pure rotation about an axis passing through point P in Fig. 11-4c and
perpendicular to the plane of the figure. The vectors in Fig. 11-6 then represent
the instantaneous velocities of points on the rolling wheel.
Question: What angular speed about this new axis will a stationary observer as-
sign to a rolling bicycle wheel?
Answer: The same v that the rider assigns to the wheel as she or he observes it
in pure rotation about an axis through its center of mass.
To verify this answer, let us use it to calculate the linear speed of the top of the
rolling wheel from the point of view of a stationary observer. If we call the
wheel’s radius R, the top is a distance 2R from the axis through P in Fig. 11-6, so
the linear speed at the top should be (using Eq. 11-2)
vtop ! (v)(2R) ! 2(vR) ! 2vcom,
in exact agreement with Fig. 11-4c. You can similarly verify the linear speeds
shown for the portions of the wheel at points O and P in Fig. 11-4c.
297
11-1 ROLLING AS TRANSLATION AND ROTATION COMBINED
Figure 11-5 A photograph of a rolling
bicycle wheel.The spokes near the
wheel’s top are more blurred than
those near the bottom because the top
ones are moving faster, as Fig. 11-4c
shows. Courtesy Alice Halliday
Checkpoint 1
The rear wheel on a clown’s bicycle has twice the radius of the front wheel. (a) When
the bicycle is moving, is the linear speed at the very top of the rear wheel greater than,
less than, or the same as that of the very top of the front wheel? (b) Is the angular speed
of the rear wheel greater than, less than, or the same as that of the front wheel?
Figure 11-6 Rolling can be viewed as pure
rotation, with angular speed v, about an
axis that always extends through P.The
vectors show the instantaneous linear
velocities of selected points on the rolling
wheel.You can obtain the vectors by
combining the translational and rotational
motions as in Fig. 11-4.
T
Rotation axis at P
O

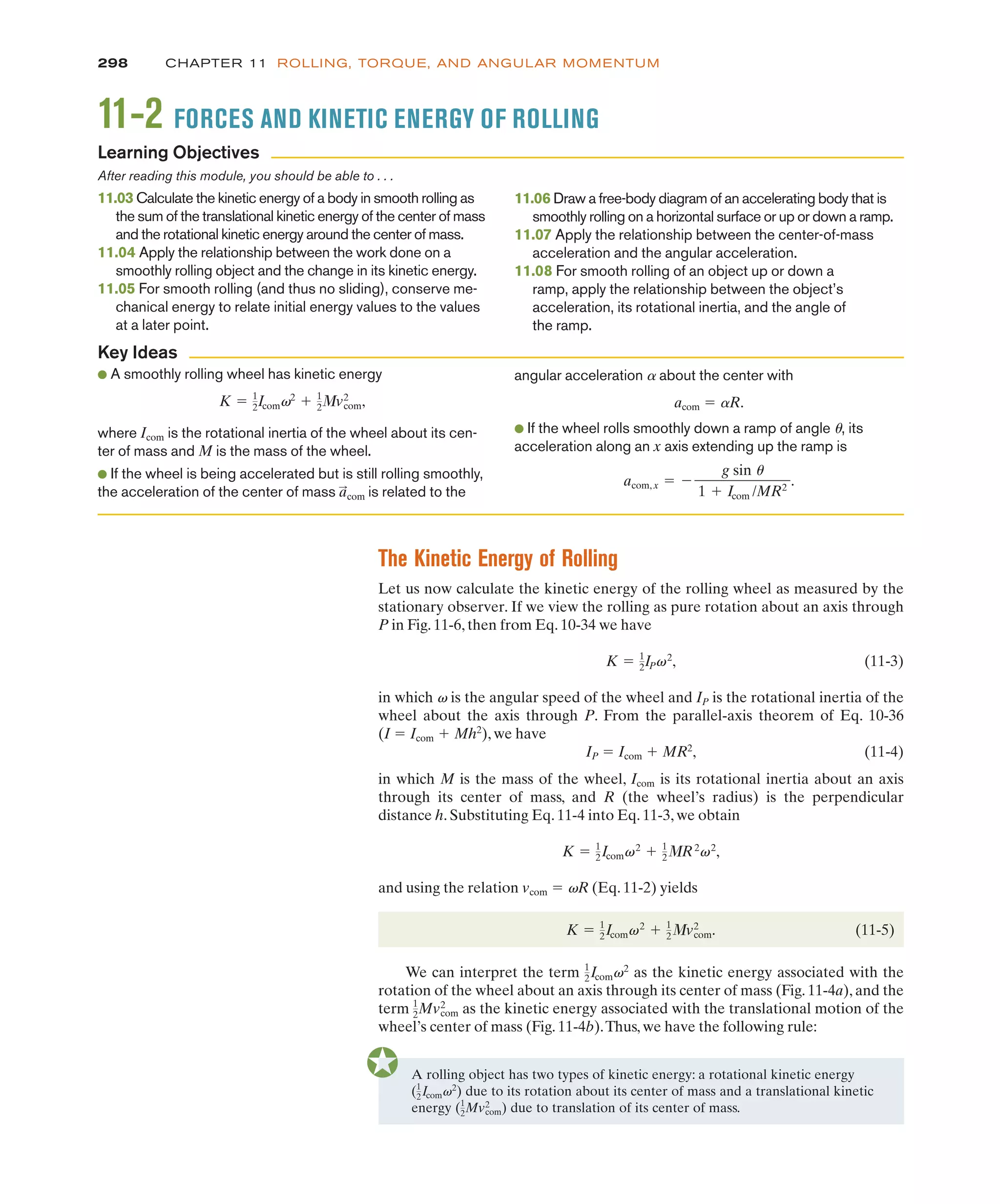

The Kinetic Energy of Rolling
Let us now calculate the kinetic energy of the rolling wheel as measured by the
stationary observer. If we view the rolling as pure rotation about an axis through
P in Fig. 11-6, then from Eq. 10-34 we have
(11-3)
in which v is the angular speed of the wheel and IP is the rotational inertia of the
wheel about the axis through P. From the parallel-axis theorem of Eq. 10-36
(I ! Icom & Mh2
), we have
IP ! Icom & MR2
, (11-4)
in which M is the mass of the wheel, Icom is its rotational inertia about an axis
through its center of mass, and R (the wheel’s radius) is the perpendicular
distance h. Substituting Eq. 11-4 into Eq. 11-3, we obtain
and using the relation vcom ! vR (Eq. 11-2) yields
(11-5)
We can interpret the term as the kinetic energy associated with the
rotation of the wheel about an axis through its center of mass (Fig. 11-4a), and the
term as the kinetic energy associated with the translational motion of the
wheel’s center of mass (Fig. 11-4b).Thus, we have the following rule:
1
2Mvcom
2
1
2Icomv2
K ! 1
2Icomv2
& 1
23v2
com.
K ! 1
2Icomv2
& 1
23R2
v2
,
K ! 1
2IPv2
,
● A smoothly rolling wheel has kinetic energy
where Icom is the rotational inertia of the wheel about its cen-
ter of mass and M is the mass of the wheel.
● If the wheel is being accelerated but is still rolling smoothly,
the acceleration of the center of mass is related to the
a
:
com
K ! 1
2Icomv2
& 1
23v2
com,
angular acceleration a about the center with
acom ! aR.
● If the wheel rolls smoothly down a ramp of angle u, its
acceleration along an x axis extending up the ramp is
acom, x ! %
g sin u
1 & Icom /MR2
.
Key Ideas
A rolling object has two types of kinetic energy: a rotational kinetic energy
due to its rotation about its center of mass and a translational kinetic
(1
2Icomv2
)
energy due to translation of its center of mass.
(1
2Mvcom
2
)
11-2 FORCES AND KINETIC ENERGY OF ROLLING
11.03 Calculate the kinetic energy of a body in smooth rolling as
the sum of the translational kinetic energy of the center of mass
and the rotational kinetic energy around the center of mass.
11.04 Apply the relationship between the work done on a
smoothly rolling object and the change in its kinetic energy.
11.05 For smooth rolling (and thus no sliding), conserve me-
chanical energy to relate initial energy values to the values
at a later point.
11.06 Draw a free-body diagram of an accelerating body that is
smoothly rolling on a horizontal surface or up or down a ramp.
11.07 Apply the relationship between the center-of-mass
acceleration and the angular acceleration.
11.08 For smooth rolling of an object up or down a
ramp, apply the relationship between the object’s
acceleration, its rotational inertia, and the angle of
the ramp.
Learning Objectives

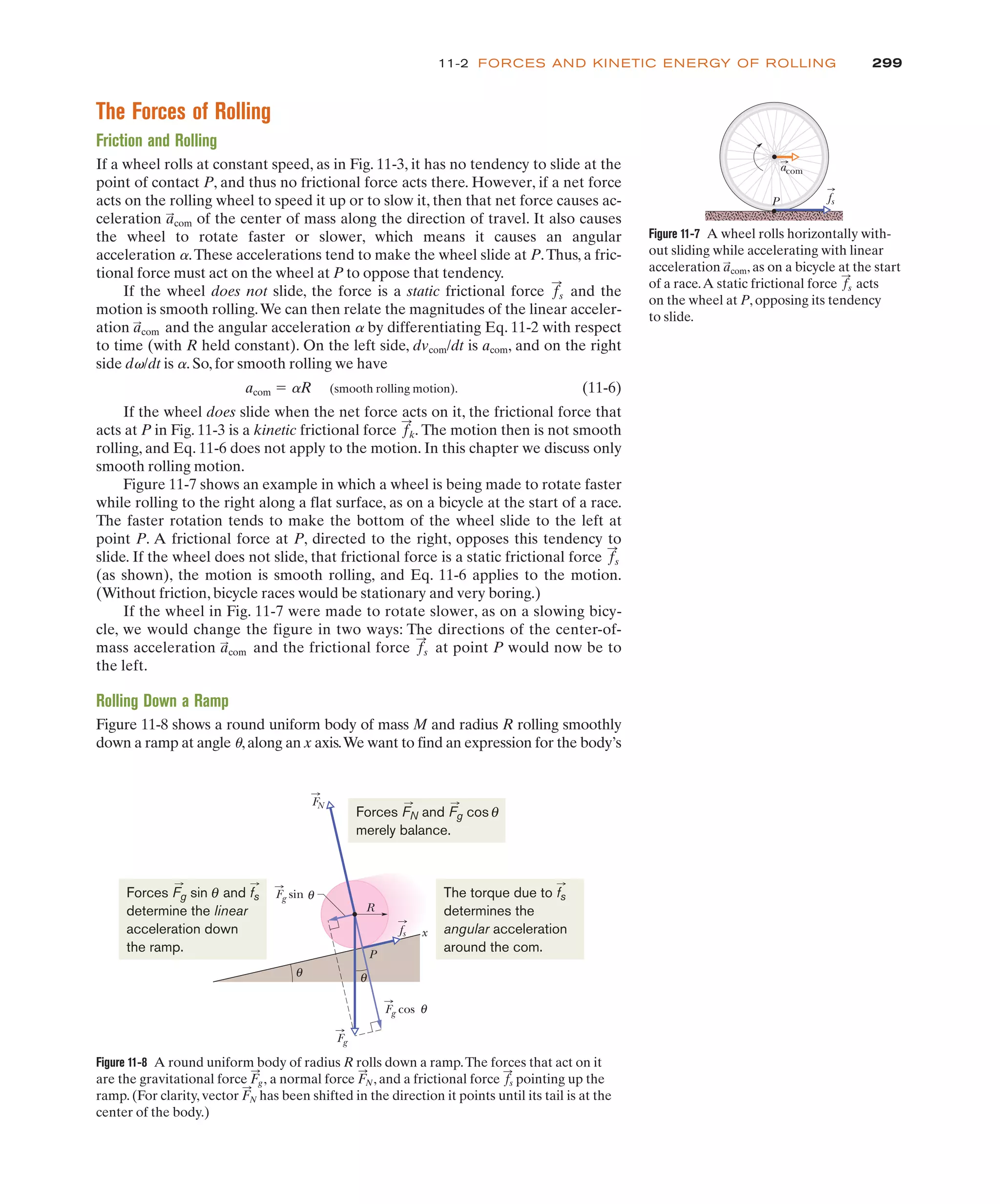

The Forces of Rolling
Friction and Rolling
If a wheel rolls at constant speed, as in Fig. 11-3, it has no tendency to slide at the
point of contact P, and thus no frictional force acts there. However, if a net force
acts on the rolling wheel to speed it up or to slow it, then that net force causes ac-
celeration of the center of mass along the direction of travel. It also causes
the wheel to rotate faster or slower, which means it causes an angular
acceleration a.These accelerations tend to make the wheel slide at P.Thus, a fric-
tional force must act on the wheel at P to oppose that tendency.
If the wheel does not slide, the force is a static frictional force and the
motion is smooth rolling.We can then relate the magnitudes of the linear acceler-
ation and the angular acceleration a by differentiating Eq. 11-2 with respect
to time (with R held constant). On the left side, dvcom/dt is acom, and on the right
side dv/dt is a. So, for smooth rolling we have
acom ! aR (smooth rolling motion). (11-6)
If the wheel does slide when the net force acts on it, the frictional force that
acts at P in Fig. 11-3 is a kinetic frictional force The motion then is not smooth
rolling, and Eq. 11-6 does not apply to the motion. In this chapter we discuss only
smooth rolling motion.
Figure 11-7 shows an example in which a wheel is being made to rotate faster
while rolling to the right along a flat surface, as on a bicycle at the start of a race.
The faster rotation tends to make the bottom of the wheel slide to the left at
point P. A frictional force at P, directed to the right, opposes this tendency to
slide. If the wheel does not slide, that frictional force is a static frictional force
(as shown), the motion is smooth rolling, and Eq. 11-6 applies to the motion.
(Without friction, bicycle races would be stationary and very boring.)
If the wheel in Fig. 11-7 were made to rotate slower, as on a slowing bicy-
cle, we would change the figure in two ways: The directions of the center-of-
mass acceleration and the frictional force at point P would now be to
the left.
Rolling Down a Ramp
Figure 11-8 shows a round uniform body of mass M and radius R rolling smoothly
down a ramp at angle u,along an x axis.We want to find an expression for the body’s
f
:
s
a
:
com
f
:
s
f
:
k.
a
:
com
f
:
s
a
:
com
299
11-2 FORCES AND KINETIC ENERGY OF ROLLING
Figure 11-7 A wheel rolls horizontally with-
out sliding while accelerating with linear
acceleration , as on a bicycle at the start
of a race.A static frictional force acts
on the wheel at P, opposing its tendency
to slide.
f
:
s
a
:
com
P fs
acom
Figure 11-8 A round uniform body of radius R rolls down a ramp.The forces that act on it
are the gravitational force F
:
g, a normal force F
:
N, and a frictional force f
:
s pointing up the
ramp. (For clarity, vector F
:
N has been shifted in the direction it points until its tail is at the
center of the body.)
R
Fg cos θ
Fg
Fg sin θ
θ
θ
P
x
fs
FN
Forces FN and Fg cos
merely balance.
θ
Forces Fg sin and fs
determine the linear
acceleration down
the ramp.
θ The torque due to fs
determines the
angular acceleration
around the com.

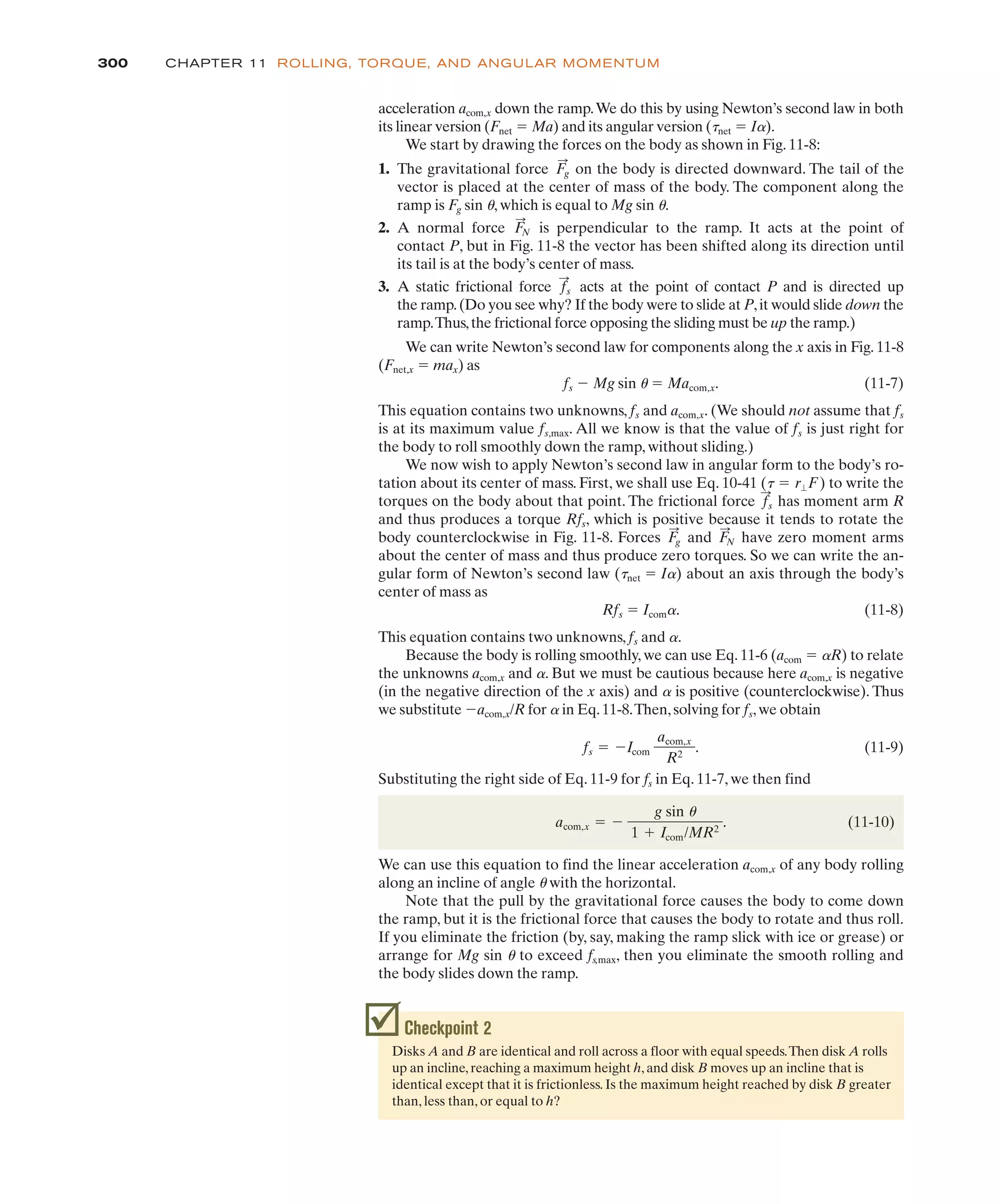

acceleration acom,x down the ramp.We do this by using Newton’s second law in both
its linear version (Fnet ! Ma) and its angular version (tnet ! Ia).
We start by drawing the forces on the body as shown in Fig. 11-8:
1. The gravitational force on the body is directed downward. The tail of the
vector is placed at the center of mass of the body. The component along the
ramp is Fg sin u, which is equal to Mg sin u.
2. A normal force is perpendicular to the ramp. It acts at the point of
contact P, but in Fig. 11-8 the vector has been shifted along its direction until
its tail is at the body’s center of mass.
3. A static frictional force acts at the point of contact P and is directed up
the ramp.(Do you see why? If the body were to slide at P,it would slide down the
ramp.Thus,the frictional force opposing the sliding must be up the ramp.)
We can write Newton’s second law for components along the x axis in Fig. 11-8
(Fnet,x ! max) as
fs % Mg sin u ! Macom,x. (11-7)
This equation contains two unknowns, fs and acom,x. (We should not assume that fs
is at its maximum value fs,max. All we know is that the value of fs is just right for
the body to roll smoothly down the ramp, without sliding.)
We now wish to apply Newton’s second law in angular form to the body’s ro-
tation about its center of mass. First, we shall use Eq. 10-41 to write the
torques on the body about that point. The frictional force has moment arm R
and thus produces a torque Rfs, which is positive because it tends to rotate the
body counterclockwise in Fig. 11-8. Forces and have zero moment arms
about the center of mass and thus produce zero torques. So we can write the an-
gular form of Newton’s second law (tnet ! Ia) about an axis through the body’s
center of mass as
Rfs ! Icoma. (11-8)
This equation contains two unknowns,fs and a.
Because the body is rolling smoothly, we can use Eq. 11-6 (acom ! aR) to relate
the unknowns acom,x and a. But we must be cautious because here acom,x is negative
(in the negative direction of the x axis) and a is positive (counterclockwise). Thus
we substitute %acom,x/R for a in Eq.11-8.Then,solving for fs,we obtain
(11-9)
Substituting the right side of Eq. 11-9 for fs in Eq. 11-7, we then find
(11-10)
We can use this equation to find the linear acceleration acom,x of any body rolling
along an incline of angle u with the horizontal.
Note that the pull by the gravitational force causes the body to come down
the ramp, but it is the frictional force that causes the body to rotate and thus roll.
If you eliminate the friction (by, say, making the ramp slick with ice or grease) or
arrange for Mg sin u to exceed fs,max, then you eliminate the smooth rolling and
the body slides down the ramp.
acom,x ! %
g sin u
1 & Icom/MR2
.
fs ! %Icom
acom,x
R2
.
F
:
N
F
:
g
f
:
s
(t ! r"F)
f
:
s
F
:
N
F
:
g
Checkpoint 2
Disks A and B are identical and roll across a floor with equal speeds.Then disk A rolls
up an incline,reaching a maximum height h,and disk B moves up an incline that is
identical except that it is frictionless. Is the maximum height reached by disk B greater
than, less than, or equal to h?

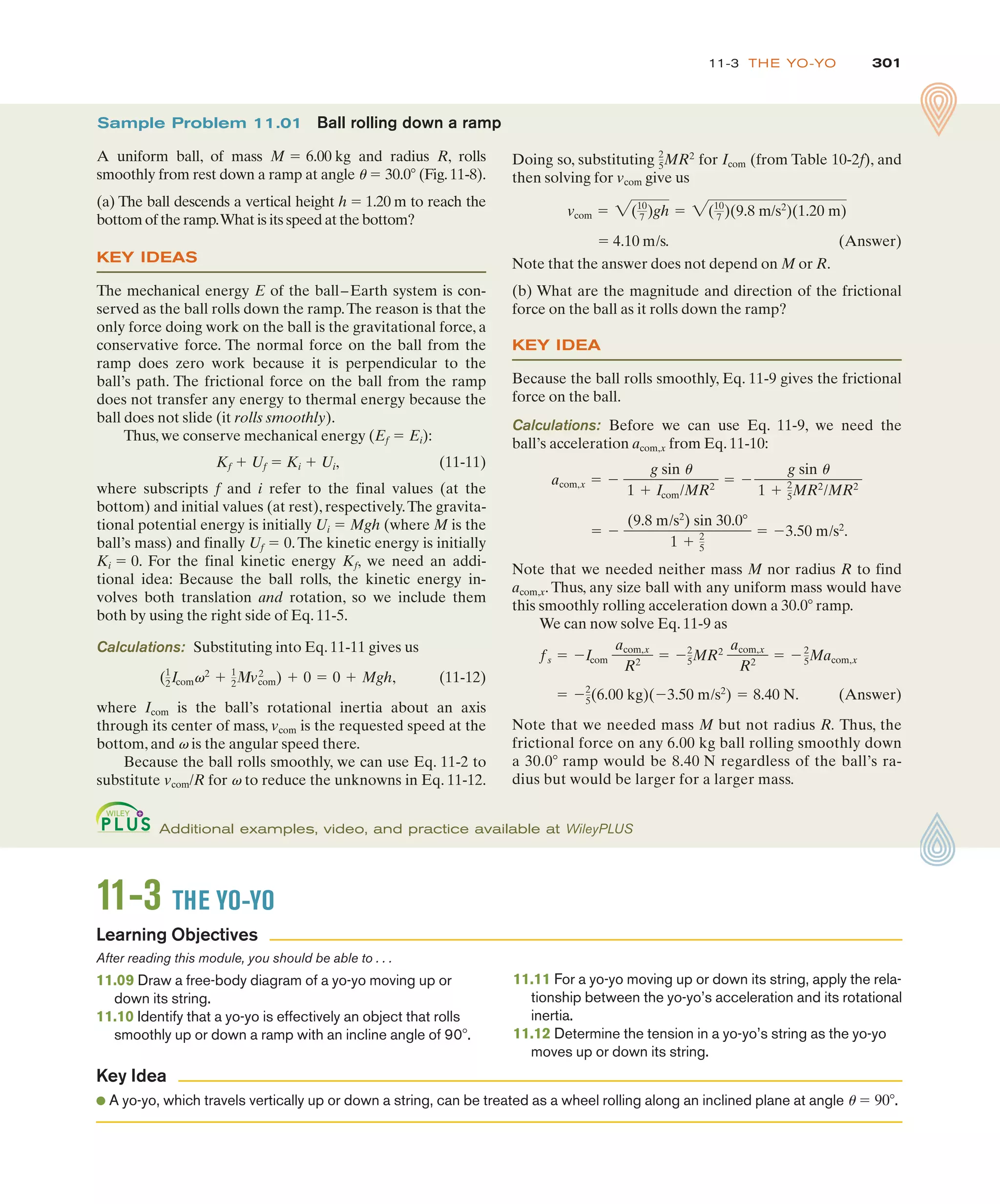

301
11-3 THE YO-YO
Doing so, substituting for Icom (from Table 10-2f), and
then solving for vcom give us
! 4.10 m/s. (Answer)
Note that the answer does not depend on M or R.
(b) What are the magnitude and direction of the frictional
force on the ball as it rolls down the ramp?
KEY IDEA
Because the ball rolls smoothly, Eq. 11-9 gives the frictional
force on the ball.
Calculations: Before we can use Eq. 11-9, we need the
ball’s acceleration acom,x from Eq. 11-10:
Note that we needed neither mass M nor radius R to find
acom,x. Thus, any size ball with any uniform mass would have
this smoothly rolling acceleration down a 30.0# ramp.
We can now solve Eq. 11-9 as
(Answer)
Note that we needed mass M but not radius R. Thus, the
frictional force on any 6.00 kg ball rolling smoothly down
a 30.0# ramp would be 8.40 N regardless of the ball’s ra-
dius but would be larger for a larger mass.
! %2
5(6.00 kg)(%3.50 m/s2
) ! 8.40 N.
fs ! %Icom
acom,x
R2
! %2
5MR2
acom,x
R2
! %2
5Macom,x
! %
(9.8 m/s2
) sin 30.0#
1 & 2
5
! %3.50 m/s2
.
acom,x ! %
g sin u
1 & Icom/MR2
! %
g sin u
1 & 2
5MR2
/MR2
vcom ! 2(10
7 )gh ! 2(10
7 )(9.8 m/s2
)(1.20 m)
2
5MR2
Sample Problem 11.01 Ball rolling down a ramp
A uniform ball, of mass M 6.00 kg and radius R, rolls
smoothly from rest down a ramp at angle u ! 30.0# (Fig.11-8).
(a) The ball descends a vertical height h ! 1.20 m to reach the
bottom of the ramp.What is its speed at the bottom?
KEY IDEAS
The mechanical energy E of the ball–Earth system is con-
served as the ball rolls down the ramp.The reason is that the
only force doing work on the ball is the gravitational force, a
conservative force. The normal force on the ball from the
ramp does zero work because it is perpendicular to the
ball’s path. The frictional force on the ball from the ramp
does not transfer any energy to thermal energy because the
ball does not slide (it rolls smoothly).
Thus, we conserve mechanical energy (Ef ! Ei):
Kf & Uf ! Ki & Ui, (11-11)
where subscripts f and i refer to the final values (at the
bottom) and initial values (at rest), respectively.The gravita-
tional potential energy is initially Ui ! Mgh (where M is the
ball’s mass) and finally Uf ! 0.The kinetic energy is initially
Ki ! 0. For the final kinetic energy Kf, we need an addi-
tional idea: Because the ball rolls, the kinetic energy in-
volves both translation and rotation, so we include them
both by using the right side of Eq. 11-5.
Calculations: Substituting into Eq. 11-11 gives us
(11-12)
where Icom is the ball’s rotational inertia about an axis
through its center of mass, vcom is the requested speed at the
bottom, and v is the angular speed there.
Because the ball rolls smoothly, we can use Eq. 11-2 to
substitute vcom/R for v to reduce the unknowns in Eq. 11-12.
(1
2Icomv2
& 1
23vcom
2
) & 0 ! 0 & Mgh,
!
Additional examples, video, and practice available at WileyPLUS
11-3 THE YO-YO
11.09 Draw a free-body diagram of a yo-yo moving up or
down its string.
11.10 Identify that a yo-yo is effectively an object that rolls
smoothly up or down a ramp with an incline angle of 90#.
11.11 For a yo-yo moving up or down its string, apply the rela-
tionship between the yo-yo’s acceleration and its rotational
inertia.
11.12 Determine the tension in a yo-yo’s string as the yo-yo
moves up or down its string.
● A yo-yo, which travels vertically up or down a string, can be treated as a wheel rolling along an inclined plane at angle u ! 90#.
Learning Objectives
Key Idea

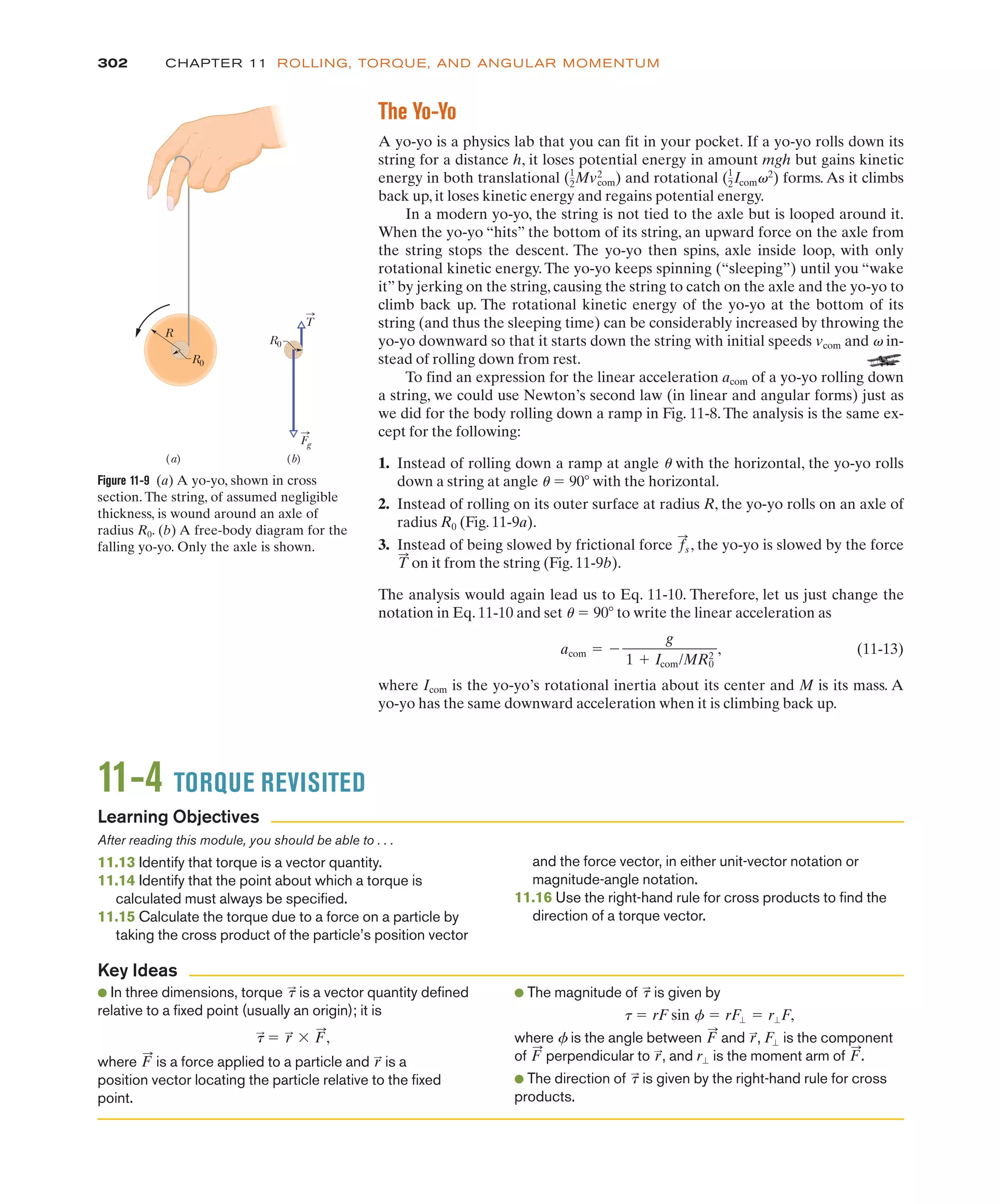

The Yo-Yo
A yo-yo is a physics lab that you can fit in your pocket. If a yo-yo rolls down its
string for a distance h, it loses potential energy in amount mgh but gains kinetic
energy in both translational and rotational forms. As it climbs
back up, it loses kinetic energy and regains potential energy.
In a modern yo-yo, the string is not tied to the axle but is looped around it.
When the yo-yo “hits” the bottom of its string, an upward force on the axle from
the string stops the descent. The yo-yo then spins, axle inside loop, with only
rotational kinetic energy. The yo-yo keeps spinning (“sleeping”) until you “wake
it” by jerking on the string, causing the string to catch on the axle and the yo-yo to
climb back up. The rotational kinetic energy of the yo-yo at the bottom of its
string (and thus the sleeping time) can be considerably increased by throwing the
yo-yo downward so that it starts down the string with initial speeds vcom and v in-
stead of rolling down from rest.
To find an expression for the linear acceleration acom of a yo-yo rolling down
a string, we could use Newton’s second law (in linear and angular forms) just as
we did for the body rolling down a ramp in Fig. 11-8.The analysis is the same ex-
cept for the following:
1. Instead of rolling down a ramp at angle u with the horizontal, the yo-yo rolls
down a string at angle u ! 90# with the horizontal.
2. Instead of rolling on its outer surface at radius R, the yo-yo rolls on an axle of
radius R0 (Fig. 11-9a).
3. Instead of being slowed by frictional force , the yo-yo is slowed by the force
on it from the string (Fig. 11-9b).
The analysis would again lead us to Eq. 11-10. Therefore, let us just change the
notation in Eq. 11-10 and set u ! 90# to write the linear acceleration as
(11-13)
where Icom is the yo-yo’s rotational inertia about its center and M is its mass. A
yo-yo has the same downward acceleration when it is climbing back up.
acom ! %
g
1 & Icom/MR2
0
,
T
:
f
:
s
(1
2Icomv2
)
(1
2Mvcom
2
)
Figure 11-9 (a) A yo-yo, shown in cross
section. The string, of assumed negligible
thickness, is wound around an axle of
radius R0. (b) A free-body diagram for the
falling yo-yo. Only the axle is shown.
Fg
(a) (b)
R
R0
R0
T

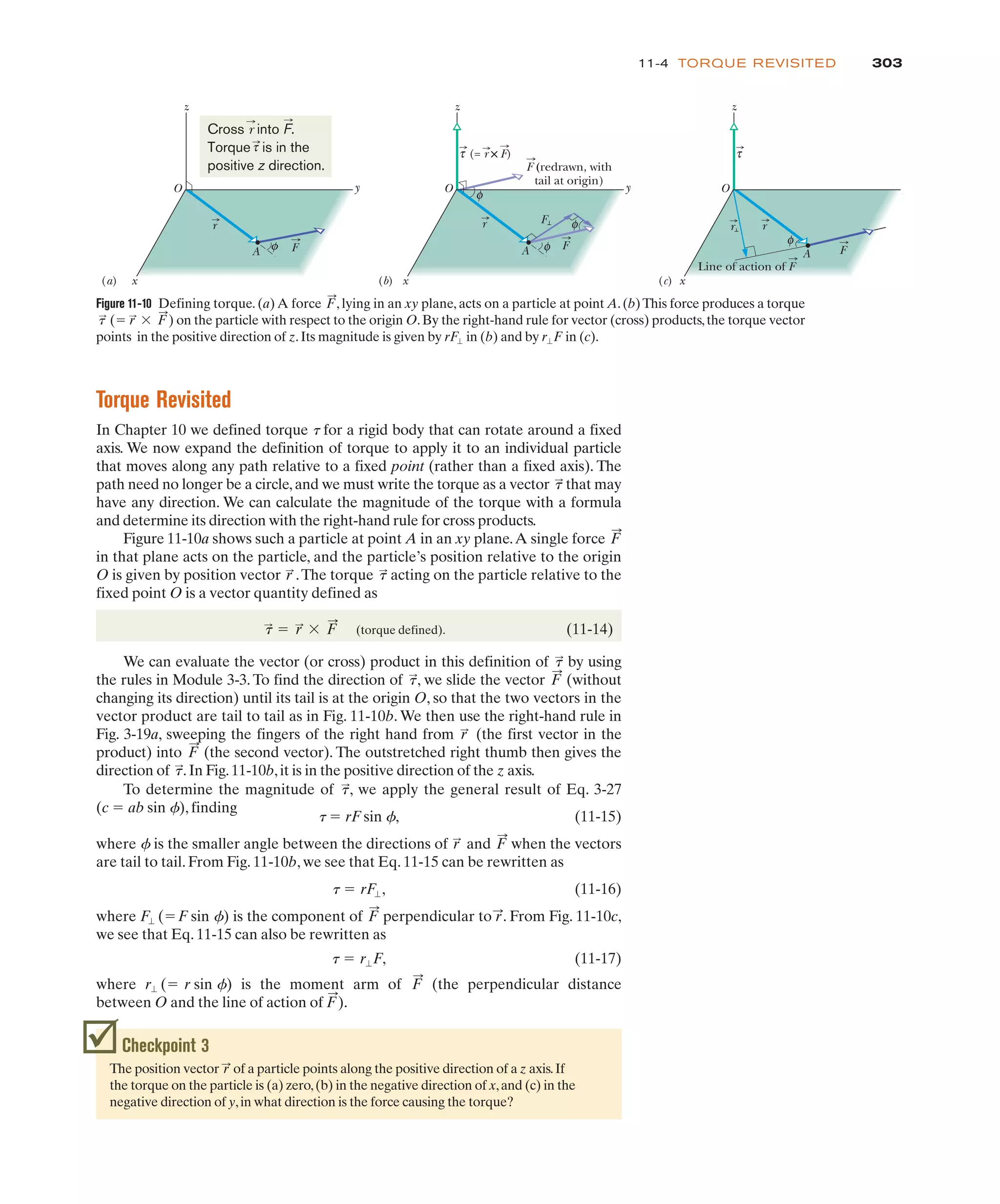

11-4 TORQUE REVISITED
11.13 Identify that torque is a vector quantity.
11.14 Identify that the point about which a torque is
calculated must always be specified.
11.15 Calculate the torque due to a force on a particle by
taking the cross product of the particle’s position vector
and the force vector, in either unit-vector notation or
magnitude-angle notation.
11.16 Use the right-hand rule for cross products to find the
direction of a torque vector.
● In three dimensions, torque is a vector quantity defined
relative to a fixed point (usually an origin); it is
where is a force applied to a particle and is a
position vector locating the particle relative to the fixed
point.
r
:
F
:
t
:
! r
:
$ F
:
,
t
:
● The magnitude of is given by
where f is the angle between and , is the component
of perpendicular to , and is the moment arm of .
● The direction of is given by the right-hand rule for cross
products.
t
:
F
:
r"
r
:
F
:
F"
r
:
F
:
t ! rF sin f ! rF" ! r"F,
t
:
Learning Objectives
Key Ideas

Torque Revisited
In Chapter 10 we defined torque t for a rigid body that can rotate around a fixed
axis. We now expand the definition of torque to apply it to an individual particle
that moves along any path relative to a fixed point (rather than a fixed axis). The
path need no longer be a circle,and we must write the torque as a vector that may
have any direction. We can calculate the magnitude of the torque with a formula
and determine its direction with the right-hand rule for cross products.
Figure 11-10a shows such a particle at point A in an xy plane.A single force
in that plane acts on the particle, and the particle’s position relative to the origin
O is given by position vector .The torque acting on the particle relative to the
fixed point O is a vector quantity defined as
(torque defined). (11-14)
We can evaluate the vector (or cross) product in this definition of by using
the rules in Module 3-3. To find the direction of , we slide the vector (without
changing its direction) until its tail is at the origin O, so that the two vectors in the
vector product are tail to tail as in Fig. 11-10b. We then use the right-hand rule in
Fig. 3-19a, sweeping the fingers of the right hand from (the first vector in the
product) into (the second vector). The outstretched right thumb then gives the
direction of .In Fig.11-10b,it is in the positive direction of the z axis.
t
:
F
:
r
:
F
:
t
:
t
:
t
:
! r
:
$ F
:
t
:
r
:
F
:
t
:
303
11-4 TORQUE REVISITED
Checkpoint 3
The position vector of a particle points along the positive direction of a z axis.If
the torque on the particle is (a) zero,(b) in the negative direction of x,and (c) in the
negative direction of y,in what direction is the force causing the torque?
r
:
To determine the magnitude of , we apply the general result of Eq. 3-27
(c ! ab sin f), finding
t ! rF sin f, (11-15)
where f is the smaller angle between the directions of and when the vectors
are tail to tail. From Fig. 11-10b, we see that Eq. 11-15 can be rewritten as
(11-16)
where is the component of perpendicular to r
:
. From Fig. 11-10c,
we see that Eq. 11-15 can also be rewritten as
(11-17)
where is the moment arm of (the perpendicular distance
between O and the line of action of F
:
).
F
:
r" (! r sin f)
t ! r"F,
F
:
F" (!F sin f)
t ! rF",
F
:
r
:
t
:
Figure 11-10 Defining torque. (a) A force , lying in an xy plane, acts on a particle at point A.(b)This force produces a torque
on the particle with respect to the origin O.By the right-hand rule for vector (cross) products,the torque vector
points in the positive direction of z.Its magnitude is given by in (b) and by in (c).
r"F
rF"
t
:
(! r
:
$ F
:
)
F
:
A
φ
φ
z
x
y
F
(= r × F)
F (redrawn, with
tail at origin)
(b)
O
φ
τ
F
r
A
z
x
y
r
Line of action of F
φ
(c)
O
τ
F
r
A φ
z
x
y
(a)
O
F
r
Cross r into F.
Torque is in the
positive z direction.
τ

the position vector are to see.) In Fig. 11-11d, the angle be-
tween the directions of and is 90# and the symbol #
F
:
3
r
:

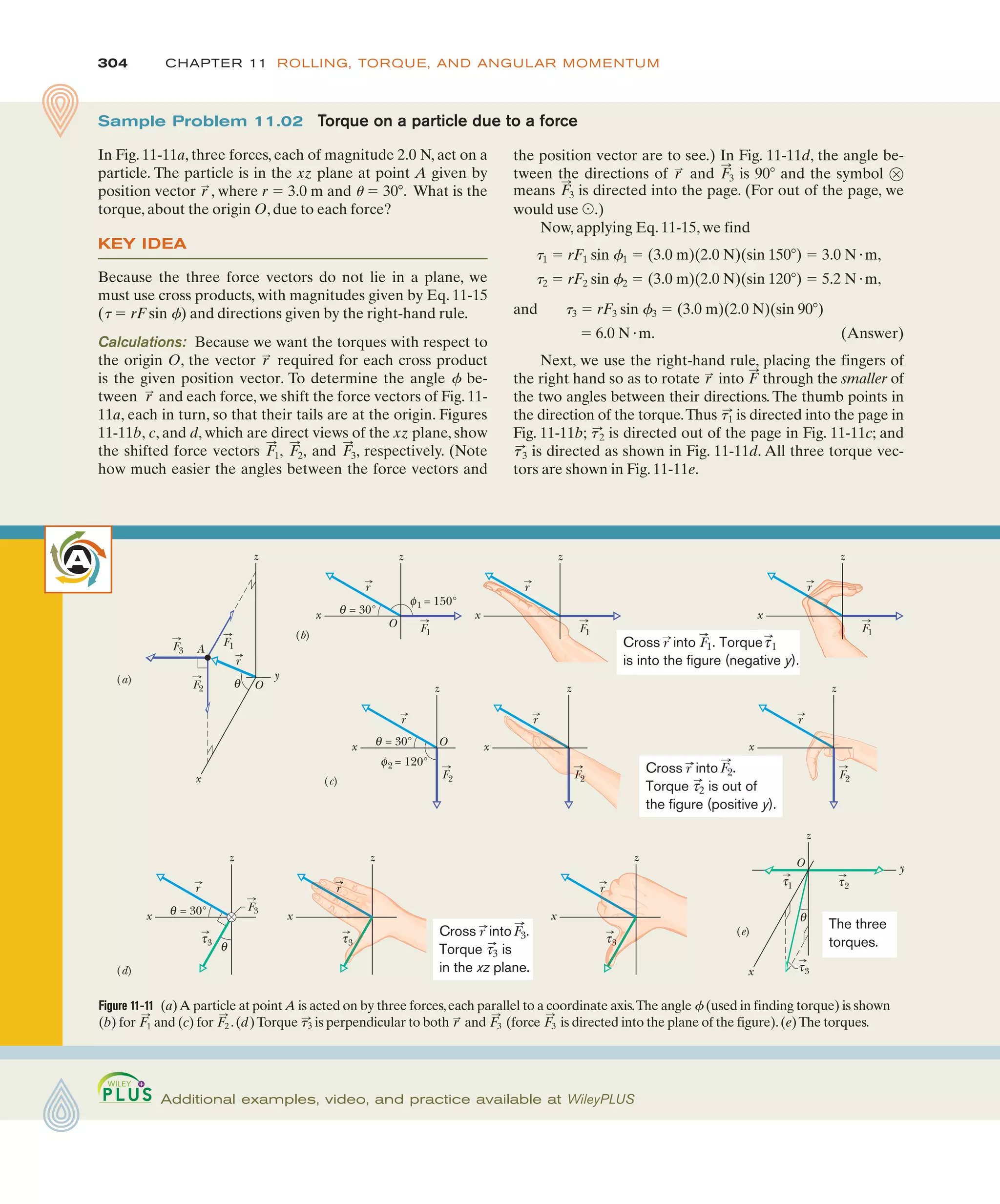

Sample Problem 11.02 Torque on a particle due to a force
In Fig. 11-11a, three forces, each of magnitude 2.0 N, act on a
particle. The particle is in the xz plane at point A given by
position vector , where r ! 3.0 m and u ! 30#. What is the
torque, about the origin O, due to each force?
KEY IDEA
Because the three force vectors do not lie in a plane, we
must use cross products, with magnitudes given by Eq. 11-15
(t ! rF sin f) and directions given by the right-hand rule.
Calculations: Because we want the torques with respect to
the origin O, the vector required for each cross product
is the given position vector. To determine the angle f be-
tween and each force, we shift the force vectors of Fig. 11-
11a, each in turn, so that their tails are at the origin. Figures
11-11b, c, and d, which are direct views of the xz plane, show
the shifted force vectors and , respectively. (Note
how much easier the angles between the force vectors and
F
:
3
F
:
2,
F
:
1,
r
:
r
:
r
:
Figure 11-11 (a)A particle at point A is acted on by three forces,each parallel to a coordinate axis.The angle f (used in finding torque) is shown
(b) for and (c) for .(d)Torque t
:
3 is perpendicular to both and (force is directed into the plane of the figure).(e)The torques.
F
:
3
F
:
3
r
:
F
:
2
F
:
1
A
z
x
y
(a)
F3
F1
F2 θ O
r
x
z
θ = 30°
(b)
φ1 = 150°
O F1
r
x
z
F1
r
x
z
F1
r
Cross into F1. Torque 1
is into the figure (negative y).
r τ
x
z
θ = 30°
φ2 = 120°
O
(c)
F2
r
x
z
F2
r
F2
F
F
F2
F
F
F
F
F
F2
F
F Cross into
Torque 2 is out of
the figure (positive y).
F2.
r
τ
x
z
F2
r
x
z
θ = 30°
τ3
θ
(d)
F3
r
x
z
τ3
r
3
r
3
r
3
x
z
τ3
r
3
r
r
3
3
3
r
y
z
x
2
1
O
τ3
θ
(e)
τ
τ
The three
torques.
Cross into
Torque 3 is
in the xz plane.
F3.
r
τ
A
means is directed into the page. (For out of the page, we
F
:
3
would use $.)
Now, applying Eq. 11-15, we find
t1 ! rF1 sin f1 ! (3.0 m)(2.0 N)(sin 150#) ! 3.0 N)m,
t2 ! rF2 sin f2 ! (3.0 m)(2.0 N)(sin 120#) ! 5.2 N)m,
and t3 ! rF3 sin f3 ! (3.0 m)(2.0 N)(sin 90#)
! 6.0 N)m. (Answer)
Next, we use the right-hand rule, placing the fingers of
the right hand so as to rotate into through the smaller of
the two angles between their directions. The thumb points in
the direction of the torque.Thus t
:
1 is directed into the page in
Fig. 11-11b; t
:
2 is directed out of the page in Fig. 11-11c; and
t
:
3 is directed as shown in Fig. 11-11d. All three torque vec-
tors are shown in Fig. 11-11e.
F
:
r
:

305

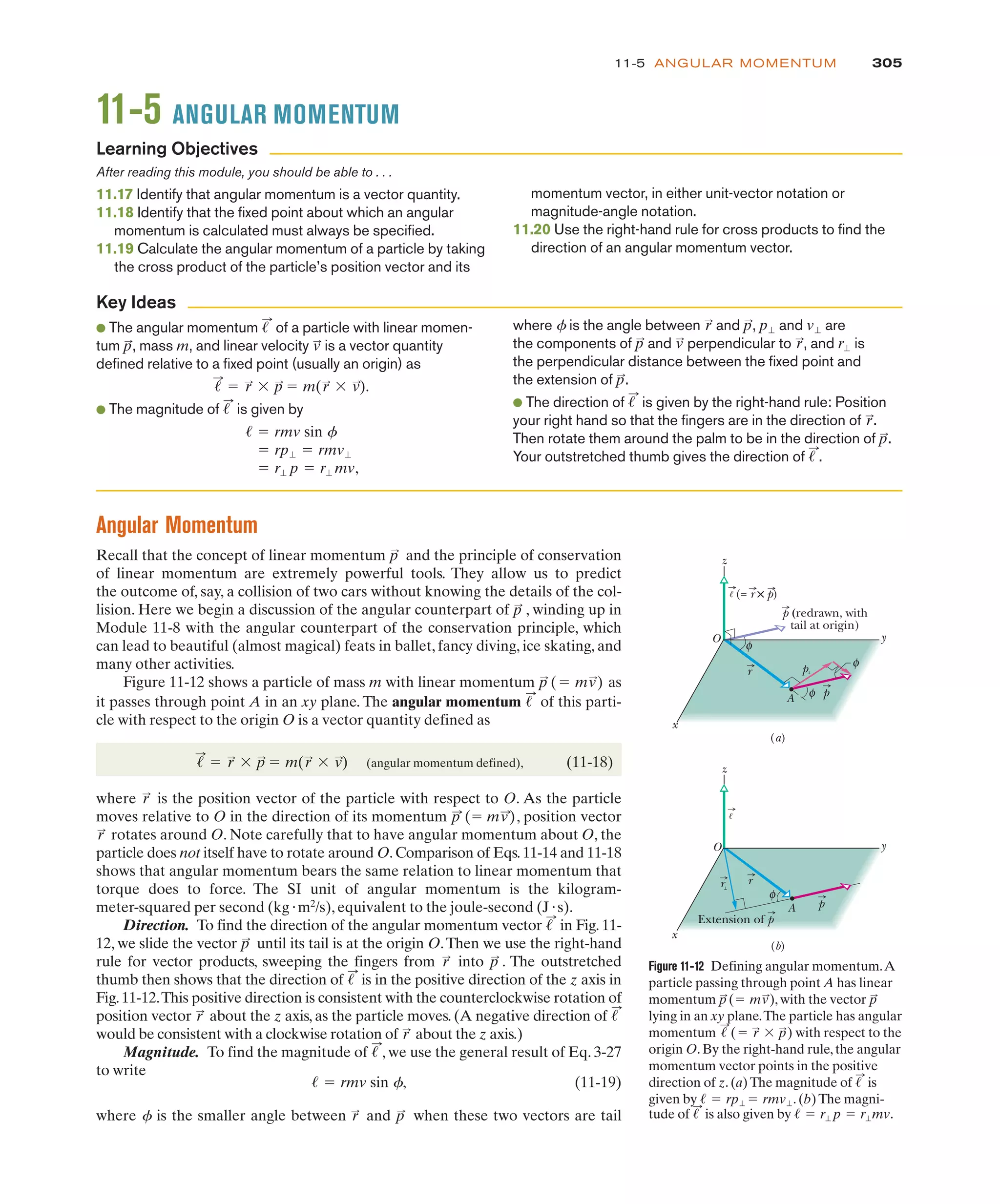

11-5 ANGULAR MOMENTUM
11-5 ANGULAR MOMENTUM
11.17 Identify that angular momentum is a vector quantity.
11.18 Identify that the fixed point about which an angular
momentum is calculated must always be specified.
11.19 Calculate the angular momentum of a particle by taking
the cross product of the particle’s position vector and its
momentum vector, in either unit-vector notation or
magnitude-angle notation.
11.20 Use the right-hand rule for cross products to find the
direction of an angular momentum vector.
● The angular momentum of a particle with linear momen-
tum , mass m, and linear velocity is a vector quantity
defined relative to a fixed point (usually an origin) as
● The magnitude of is given by
! r" p ! r" mv,
! rp" ! rmv"
! ! rmv sin f
!
:
!
:
! r
:
$ p
:
! m(r
:
$ v
:
).
v
:
p
:
!
:
where f is the angle between and , and are
the components of and perpendicular to , and is
the perpendicular distance between the fixed point and
the extension of .
● The direction of is given by the right-hand rule: Position
your right hand so that the fingers are in the direction of .
Then rotate them around the palm to be in the direction of .
Your outstretched thumb gives the direction of .
!
:
p
:
r
:
!
:
p
:
r"
r
:
v
:
p
:
v"
p"
p
:
r
:
Learning Objectives
Key Ideas
Angular Momentum
Recall that the concept of linear momentum and the principle of conservation
of linear momentum are extremely powerful tools. They allow us to predict
the outcome of, say, a collision of two cars without knowing the details of the col-
lision. Here we begin a discussion of the angular counterpart of , winding up in
Module 11-8 with the angular counterpart of the conservation principle, which
can lead to beautiful (almost magical) feats in ballet, fancy diving, ice skating, and
many other activities.
Figure 11-12 shows a particle of mass m with linear momentum as
it passes through point A in an xy plane. The angular momentum of this parti-
cle with respect to the origin O is a vector quantity defined as
(angular momentum defined), (11-18)
where is the position vector of the particle with respect to O. As the particle
moves relative to O in the direction of its momentum , position vector
rotates around O. Note carefully that to have angular momentum about O, the
particle does not itself have to rotate around O.Comparison of Eqs.11-14 and 11-18
shows that angular momentum bears the same relation to linear momentum that
torque does to force. The SI unit of angular momentum is the kilogram-
meter-squared per second (kg)m2
/s), equivalent to the joule-second (J)s).
Direction. To find the direction of the angular momentum vector in Fig. 11-
12, we slide the vector until its tail is at the origin O.Then we use the right-hand
rule for vector products, sweeping the fingers from into . The outstretched
thumb then shows that the direction of is in the positive direction of the z axis in
Fig.11-12.This positive direction is consistent with the counterclockwise rotation of
position vector about the z axis, as the particle moves. (A negative direction of
would be consistent with a clockwise rotation of about the z axis.)
Magnitude. To find the magnitude of , we use the general result of Eq. 3-27
to write
(11-19)
where f is the smaller angle between and when these two vectors are tail
p
:
r
:
! ! rmv sin f,
!
:
r
:
!
:
r
:
!
:
p
:
r
:
p
:
!
:
r
:
p
:
(! mv
:
)
r
:
!
:
! r
:
$ p
:
! m(r
:
$ v
:
)
!
:
p
:
(! mv
:
)
p
:
p
:
Figure 11-12 Defining angular momentum.A
particle passing through point A has linear
momentum ,with the vector
lying in an xy plane.The particle has angular
momentum with respect to the
origin O.By the right-hand rule,the angular
momentum vector points in the positive
direction of z.(a)The magnitude of is
given by ! .(b)The magni-
! rp" ! rmv"
!
:
!
:
(! r
:
$ p
:
)
p
:
p
:
(! mv
:
)
A
φ
φ
z
x
y
p
(= r × p)
p (redrawn, with
tail at origin)
A
z
x
y
Extension of p
φ
(a)
(b)
O
O
φ
r
r
r p
p
!
!
tude of is also given by ! .
! r" p ! r"mv
!
:

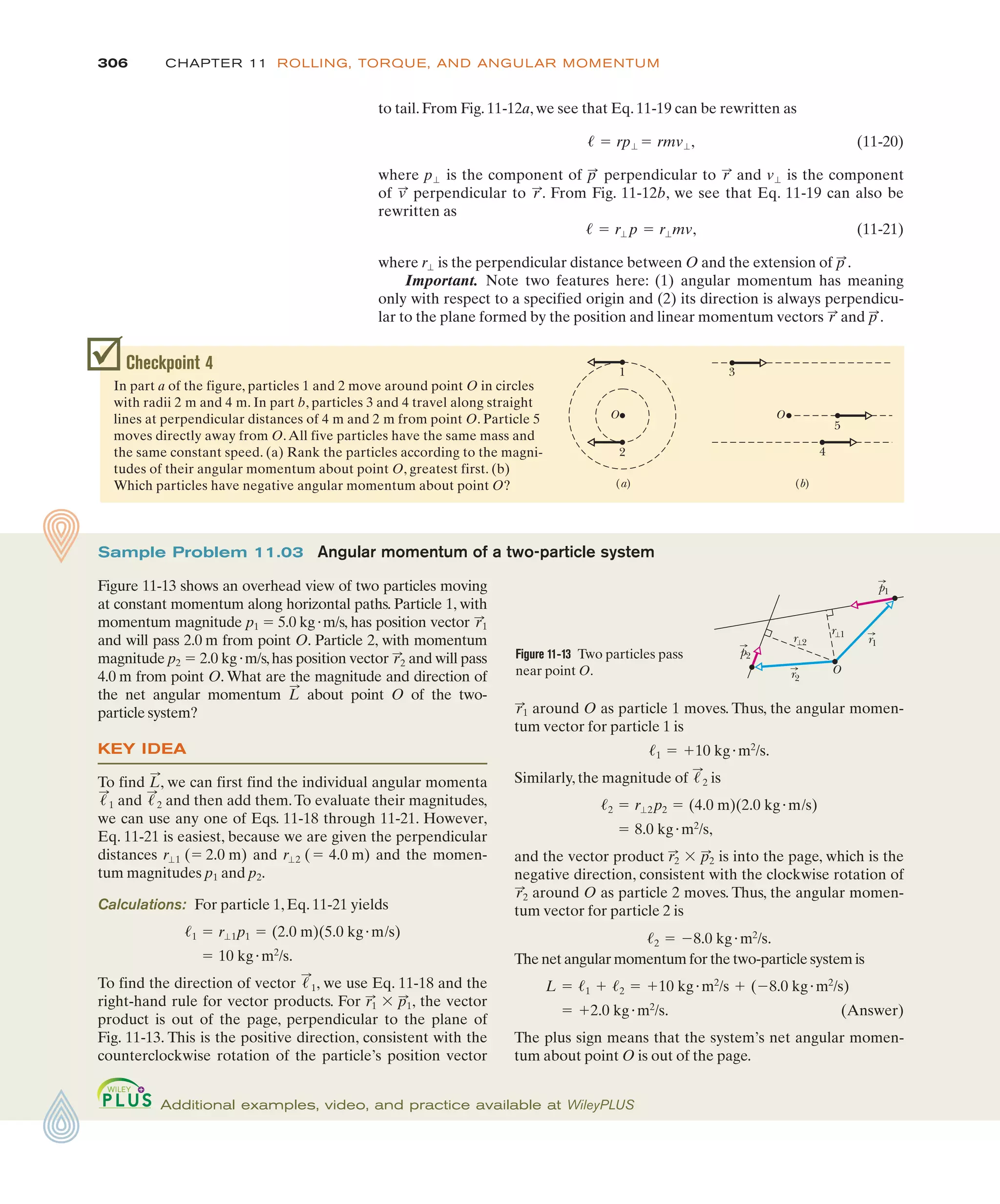

to tail. From Fig. 11-12a, we see that Eq. 11-19 can be rewritten as
(11-20)
where is the component of perpendicular to and is the component
of perpendicular to . From Fig. 11-12b, we see that Eq. 11-19 can also be
rewritten as
(11-21)
where is the perpendicular distance between O and the extension of .
Important. Note two features here: (1) angular momentum has meaning
only with respect to a specified origin and (2) its direction is always perpendicu-
lar to the plane formed by the position and linear momentum vectors and .
p
:
r
:
p
:
r"
! ! r" p ! r"mv,
r
:
v
:
v"
r
:
p
:
p"
! ! rp" ! rmv",
Checkpoint 4
In part a of the figure, particles 1 and 2 move around point O in circles
with radii 2 m and 4 m. In part b, particles 3 and 4 travel along straight
lines at perpendicular distances of 4 m and 2 m from point O. Particle 5
moves directly away from O.All five particles have the same mass and
the same constant speed. (a) Rank the particles according to the magni-
tudes of their angular momentum about point O, greatest first. (b)
Which particles have negative angular momentum about point O? (a) (b)
O
2
1 3
5
4
O
around O as particle 1 moves. Thus, the angular momen-
tum vector for particle 1 is
Similarly, the magnitude of is
and the vector product is into the page, which is the
negative direction, consistent with the clockwise rotation of
around O as particle 2 moves. Thus, the angular momen-
tum vector for particle 2 is
The net angular momentum for the two-particle system is
(Answer)
The plus sign means that the system’s net angular momen-
tum about point O is out of the page.
! &2.0 kg)m2
/s.
L ! !1 & !2 ! &10 kg)m2
/s & (%8.0 kg)m2
/s)
!2 ! %8.0 kg)m2
/s.
r
:
2
r2
:
$ p2
:
! 8.0 kg)m2
/s,
!2 ! r"2 p2 ! (4.0 m)(2.0 kg)m/s)
!
:
2
!1 ! &10 kg)m2
/s.
r
:
1
Sample Problem 11.03 Angular momentum of a two-particle system
Figure 11-13 shows an overhead view of two particles moving
at constant momentum along horizontal paths. Particle 1, with
momentum magnitude p1 ! 5.0 kg)m/s, has position vector
and will pass 2.0 m from point O. Particle 2, with momentum
magnitude p2 ! 2.0 kg)m/s,has position vector and will pass
4.0 m from point O. What are the magnitude and direction of
the net angular momentum about point O of the two-
particle system?
KEY IDEA
To find , we can first find the individual angular momenta
and and then add them.To evaluate their magnitudes,
we can use any one of Eqs. 11-18 through 11-21. However,
Eq. 11-21 is easiest, because we are given the perpendicular
distances and and the momen-
tum magnitudes p1 and p2.
Calculations: For particle 1, Eq. 11-21 yields
To find the direction of vector , we use Eq. 11-18 and the
right-hand rule for vector products. For , the vector
product is out of the page, perpendicular to the plane of
Fig. 11-13. This is the positive direction, consistent with the
counterclockwise rotation of the particle’s position vector
r1
:
$ p1
:
!
:
1
! 10 kg)m2
/s.
!1 ! r"1p1 ! (2.0 m)(5.0 kg)m/s)
r"2 (! 4.0 m)
r"1 (! 2.0 m)
!
:
2
!
:
1
L
:
L
:
r
:
2
r
:
1
Figure 11-13 Two particles pass
near point O.
r⊥1
r⊥2
r2
r1
O
p2
p1

307

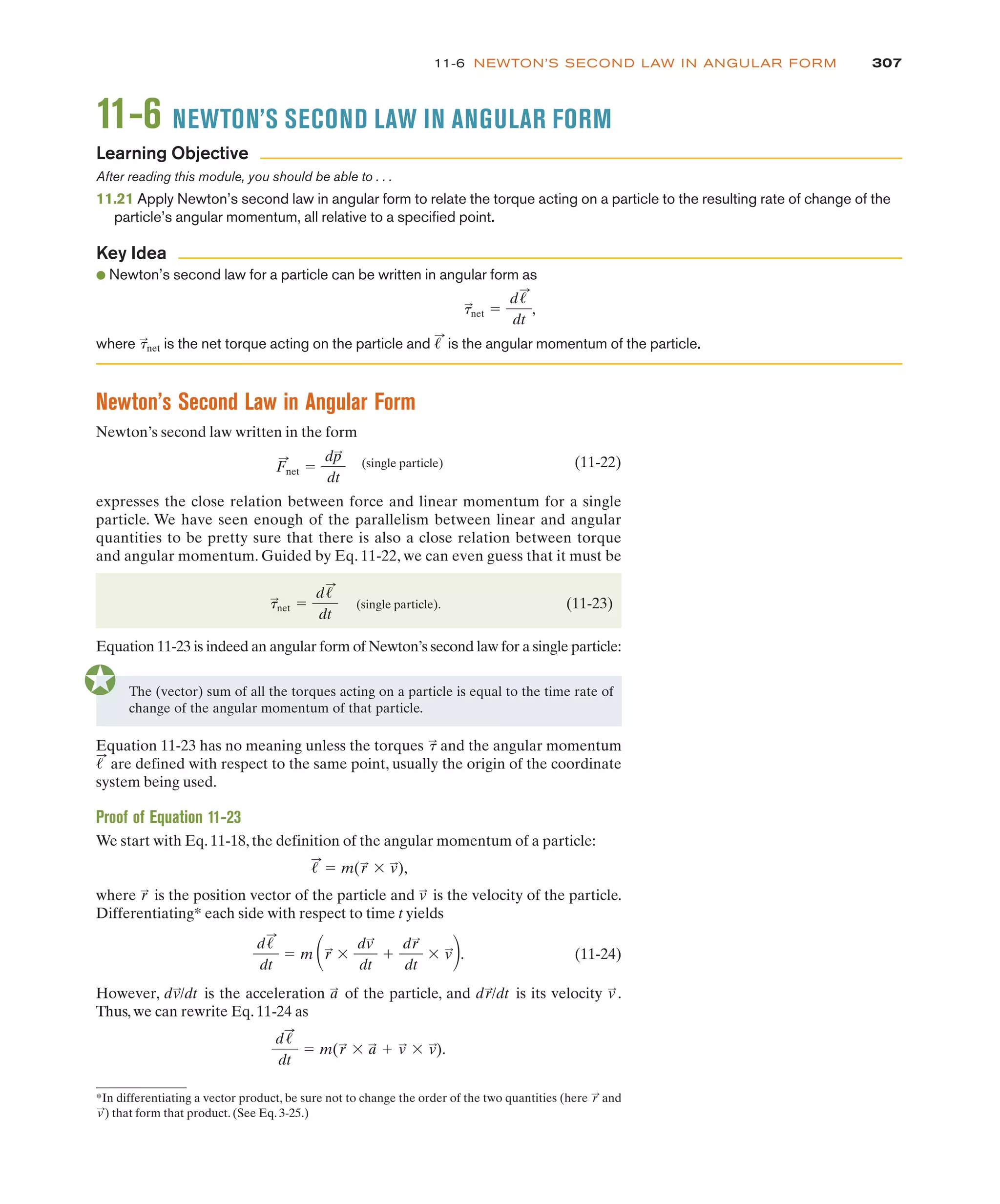

11-6 NEWTON’S SECOND LAW IN ANGULAR FORM
11.21 Apply Newton’s second law in angular form to relate the torque acting on a particle to the resulting rate of change of the
particle’s angular momentum, all relative to a specified point.
● Newton’s second law for a particle can be written in angular form as
where is the net torque acting on the particle and is the angular momentum of the particle.
!
:
t
:
net
t
:
net !
d!
:
dt
,
Learning Objective
Key Idea
Newton’s Second Law in Angular Form
Newton’s second law written in the form
(single particle) (11-22)
expresses the close relation between force and linear momentum for a single
particle. We have seen enough of the parallelism between linear and angular
quantities to be pretty sure that there is also a close relation between torque
and angular momentum. Guided by Eq. 11-22, we can even guess that it must be
(single particle). (11-23)
Equation 11-23 is indeed an angular form of Newton’s second law for a single particle:
t
:
net !
d!
:
dt
F
:
net !
dp
:
dt
The (vector) sum of all the torques acting on a particle is equal to the time rate of
change of the angular momentum of that particle.
Equation 11-23 has no meaning unless the torques and the angular momentum
are defined with respect to the same point, usually the origin of the coordinate
system being used.
Proof of Equation 11-23
We start with Eq. 11-18, the definition of the angular momentum of a particle:
where is the position vector of the particle and is the velocity of the particle.
Differentiating* each side with respect to time t yields
(11-24)
However, is the acceleration of the particle, and is its velocity .
Thus, we can rewrite Eq. 11-24 as
d!
:
dt
! m(r
:
$ a
:
& v
:
$ v
:
).
v
:
dr
:
/dt
a
:
dv
:
/dt
d!
:
dt
! m #r
:
$
dv
:
dt
&
dr
:
dt
$ v
:
$.
v
:
r
:
!
:
! m(r
:
$ v
:
),
!
:
t
:
*In differentiating a vector product, be sure not to change the order of the two quantities (here and
) that form that product. (See Eq. 3-25.)
v
:
r
:

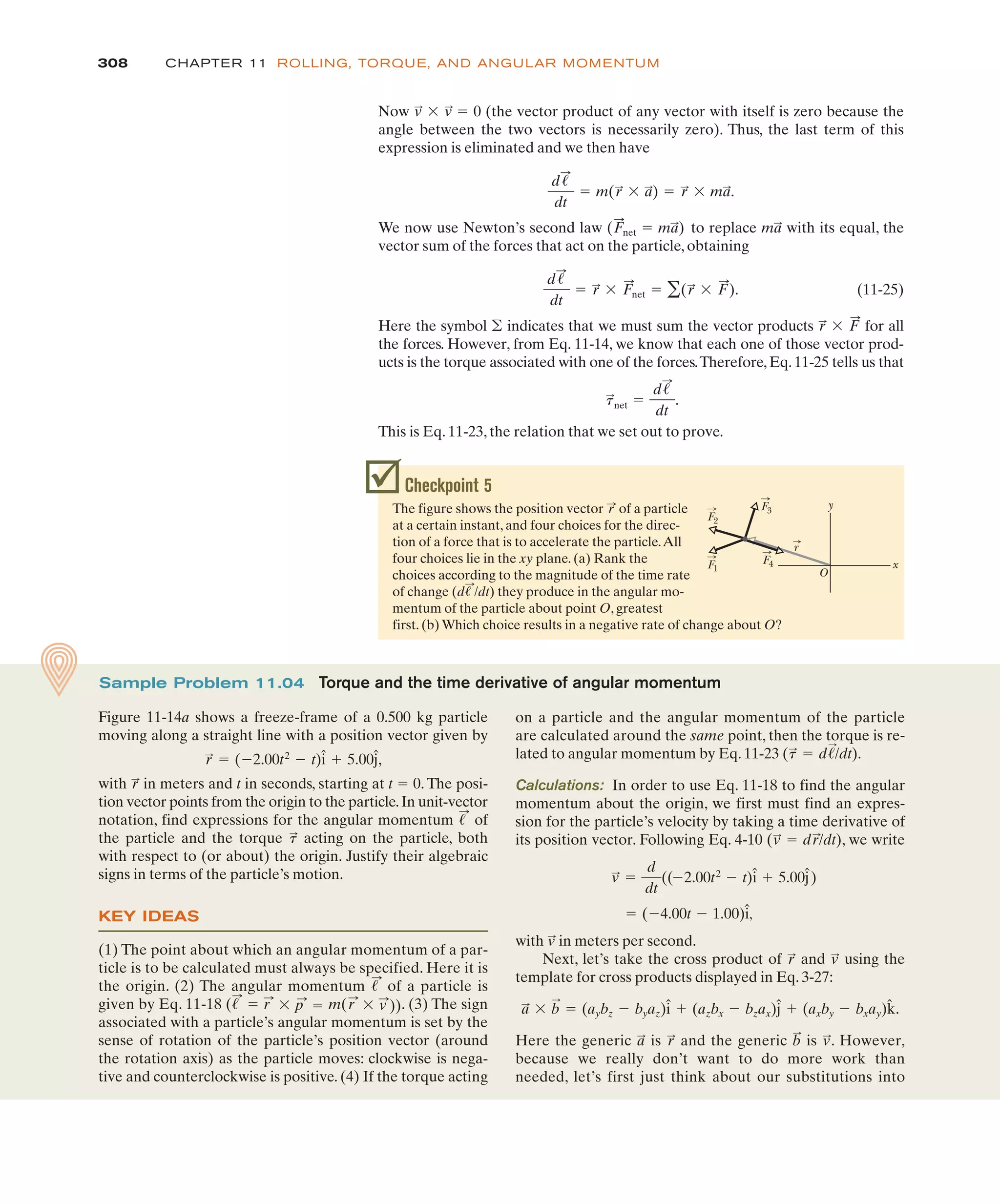

Checkpoint 5
The figure shows the position vector of a particle
at a certain instant, and four choices for the direc-
tion of a force that is to accelerate the particle.All
four choices lie in the xy plane. (a) Rank the
choices according to the magnitude of the time rate
of change they produce in the angular mo-
mentum of the particle about point O, greatest
first. (b) Which choice results in a negative rate of change about O?
(d!
:
/dt)
r
:
x
F1
O
y
F2
F3
F4
r
on a particle and the angular momentum of the particle
are calculated around the same point, then the torque is re-
lated to angular momentum by Eq. 11-23 ( ).
Calculations: In order to use Eq. 11-18 to find the angular
momentum about the origin, we first must find an expres-
sion for the particle’s velocity by taking a time derivative of
its position vector. Following Eq. 4-10 ( ), we write
,
with in meters per second.
Next, let’s take the cross product of and using the
template for cross products displayed in Eq. 3-27:
Here the generic is and the generic is . However,
because we really don’t want to do more work than
needed, let’s first just think about our substitutions into
v
:
b
:
r
:
a
:
a
:
$ b
:
! (aybz % byaz)î & (azbx % bzax)ĵ & (axby % bxay)k̂.
v
:
r
:
v
:
! (%4.00t % 1.00)î
v
:
!
d
dt
((%2.00t2
% t)î & 5.00ĵ)
! dr
:
/dt
v
:
! d!
:
/dt
t
:
Sample Problem 11.04 Torque and the time derivative of angular momentum
Figure 11-14a shows a freeze-frame of a 0.500 kg particle
moving along a straight line with a position vector given by
,
with in meters and t in seconds, starting at t ! 0. The posi-
tion vector points from the origin to the particle.In unit-vector
notation, find expressions for the angular momentum of
the particle and the torque acting on the particle, both
with respect to (or about) the origin. Justify their algebraic
signs in terms of the particle’s motion.
KEY IDEAS
(1) The point about which an angular momentum of a par-
ticle is to be calculated must always be specified. Here it is
the origin. (2) The angular momentum of a particle is
given by Eq. 11-18 . (3) The sign
associated with a particle’s angular momentum is set by the
sense of rotation of the particle’s position vector (around
the rotation axis) as the particle moves: clockwise is nega-
tive and counterclockwise is positive. (4) If the torque acting
(!
:
! r
:
$ p
:
! m(r
:
$ v
:
))
!
:
t
:
!
:
r
:
r
:
! (%2.00t2
% t)î & 5.00ĵ
Now (the vector product of any vector with itself is zero because the
angle between the two vectors is necessarily zero). Thus, the last term of this
expression is eliminated and we then have
We now use Newton’s second law to replace with its equal, the
vector sum of the forces that act on the particle, obtaining
(11-25)
Here the symbol indicates that we must sum the vector products for all
the forces. However, from Eq. 11-14, we know that each one of those vector prod-
ucts is the torque associated with one of the forces.Therefore,Eq.11-25 tells us that
This is Eq. 11-23, the relation that we set out to prove.
t
:
net !
d!
:
dt
.
r
:
$ F
:
'
d!
:
dt
! r
:
$ F
:
net ! '(r
:
$ F
:
).
ma
:
(F
:
net ! ma
:
)
d!
:
dt
! m(r
:
$ a
:
) ! r
:
$ ma
:
.
v
:
$ v
:
! 0

309

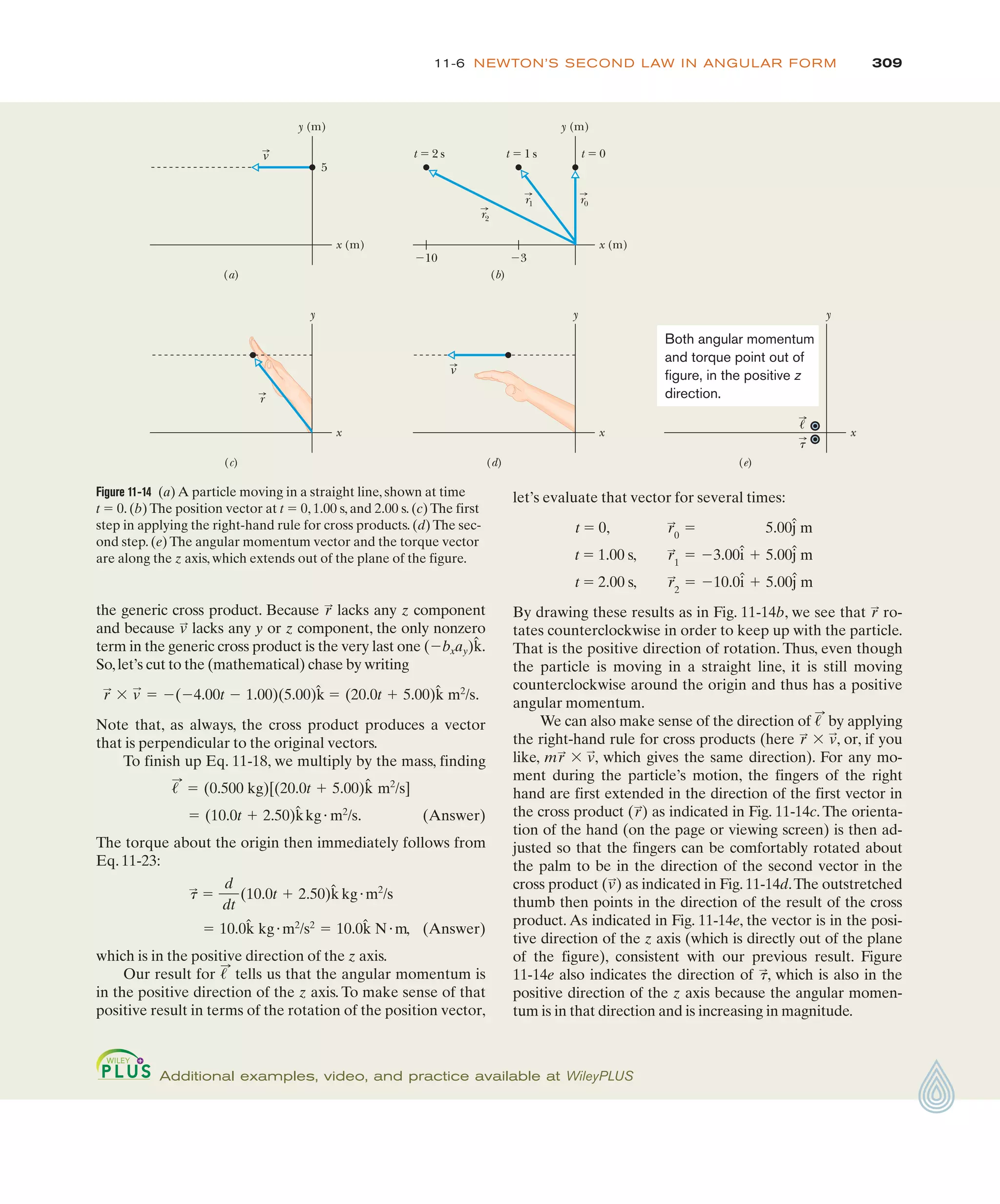

Figure 11-14 (a) A particle moving in a straight line, shown at time
t ! 0. (b) The position vector at t ! 0, 1.00 s, and 2.00 s. (c) The first
step in applying the right-hand rule for cross products. (d) The sec-
ond step. (e) The angular momentum vector and the torque vector
are along the z axis, which extends out of the plane of the figure.
y (m)
5
(a)
v
x (m)
y (m)
t ! 2 s t ! 1 s t ! 0
"10 "3
(b)
x (m)
r2
r1 r0
y
(c)
r
x
y
(d)
v
x
y
(e)
x
!
t
Both angular momentum
and torque point out of
figure, in the positive z
direction.
the generic cross product. Because lacks any z component
and because lacks any y or z component, the only nonzero
term in the generic cross product is the very last one .
So,let’s cut to the (mathematical) chase by writing
Note that, as always, the cross product produces a vector
that is perpendicular to the original vectors.
To finish up Eq. 11-18, we multiply by the mass, finding
(Answer)
The torque about the origin then immediately follows from
Eq. 11-23:
(Answer)
which is in the positive direction of the z axis.
Our result for tells us that the angular momentum is
in the positive direction of the z axis. To make sense of that
positive result in terms of the rotation of the position vector,
!
:
! 10.0k̂ kg"m2
/s2
! 10.0k̂ N"m,
t
:
!
d
dt
(10.0t # 2.50)k̂ kg"m2
/s
! (10.0t # 2.50)k̂kg"m2
/s.
!
:
! (0.500 kg)[(20.0t # 5.00)k̂ m2
/s]
r
:
$ v
:
! %(%4.00t % 1.00)(5.00)k̂ ! (20.0t # 5.00)k̂ m2
/s.
(%bxay)k̂
v
:
r
:
let’s evaluate that vector for several times:
t ! 0,
t ! 1.00 s,
t ! 2.00 s,
By drawing these results as in Fig. 11-14b, we see that ro-
tates counterclockwise in order to keep up with the particle.
That is the positive direction of rotation. Thus, even though
the particle is moving in a straight line, it is still moving
counterclockwise around the origin and thus has a positive
angular momentum.
We can also make sense of the direction of by applying
the right-hand rule for cross products (here , or, if you
like, , which gives the same direction). For any mo-
ment during the particle’s motion, the fingers of the right
hand are first extended in the direction of the first vector in
the cross product ( ) as indicated in Fig. 11-14c. The orienta-
tion of the hand (on the page or viewing screen) is then ad-
justed so that the fingers can be comfortably rotated about
the palm to be in the direction of the second vector in the
cross product ( ) as indicated in Fig. 11-14d.The outstretched
thumb then points in the direction of the result of the cross
product. As indicated in Fig. 11-14e, the vector is in the posi-
tive direction of the z axis (which is directly out of the plane
of the figure), consistent with our previous result. Figure
11-14e also indicates the direction of , which is also in the
positive direction of the z axis because the angular momen-
tum is in that direction and is increasing in magnitude.
t
:
v
:
r
:
mr
:
$ v
:
r
:
$ v
:
!
:
r
:
%10.0î # 5.00ĵ m
r
:
2
!
%3.00î # 5.00ĵ m
r
:
1
!
5.00ĵ m
r
:
0
!

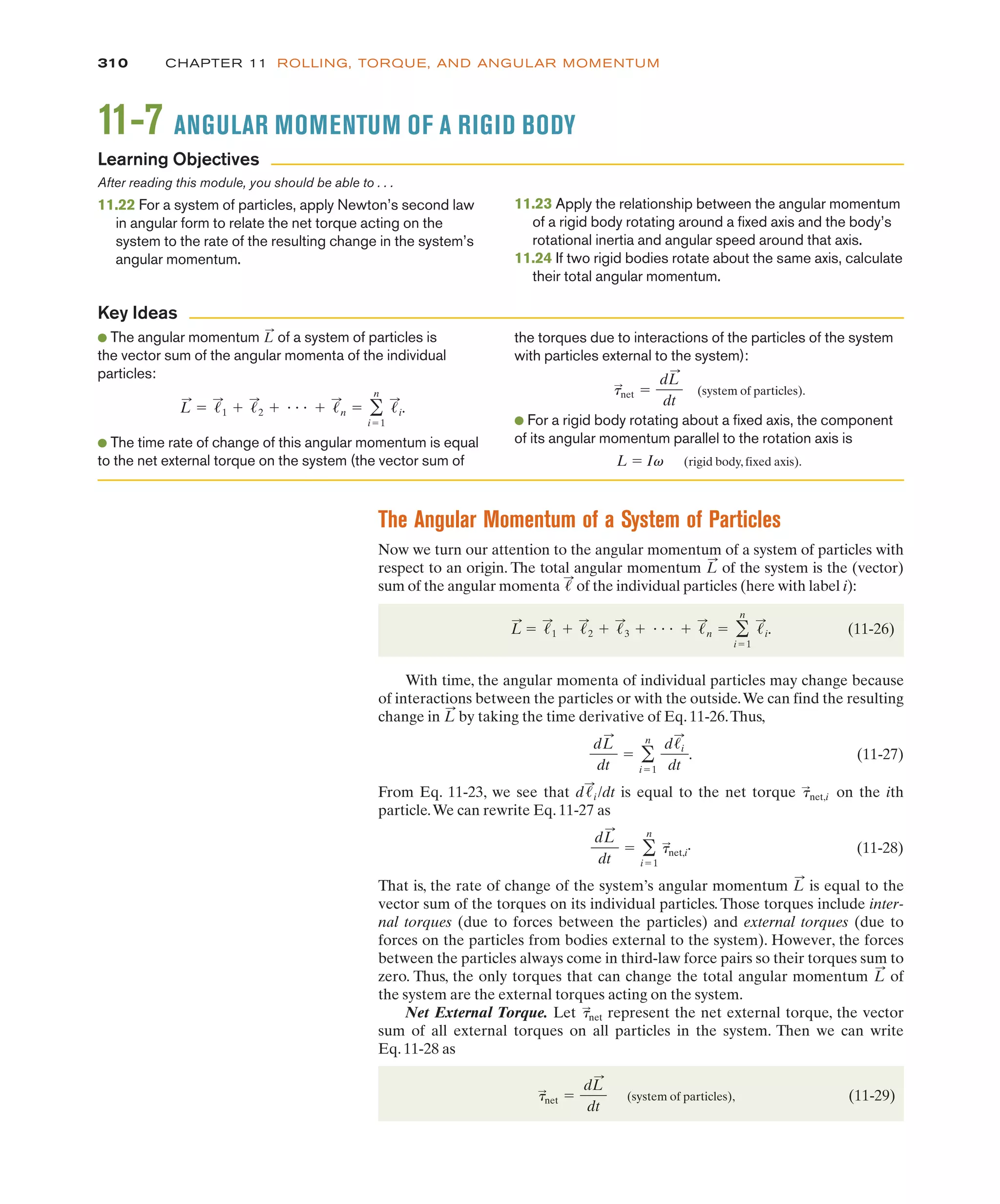

The Angular Momentum of a System of Particles
Now we turn our attention to the angular momentum of a system of particles with
respect to an origin. The total angular momentum of the system is the (vector)
sum of the angular momenta of the individual particles (here with label i):
(11-26)
With time, the angular momenta of individual particles may change because
of interactions between the particles or with the outside.We can find the resulting
change in by taking the time derivative of Eq. 11-26.Thus,
(11-27)
From Eq. 11-23, we see that is equal to the net torque on the ith
particle.We can rewrite Eq. 11-27 as
(11-28)
That is, the rate of change of the system’s angular momentum is equal to the
vector sum of the torques on its individual particles. Those torques include inter-
nal torques (due to forces between the particles) and external torques (due to
forces on the particles from bodies external to the system). However, the forces
between the particles always come in third-law force pairs so their torques sum to
zero. Thus, the only torques that can change the total angular momentum of
the system are the external torques acting on the system.
Net External Torque. Let represent the net external torque, the vector
sum of all external torques on all particles in the system. Then we can write
Eq. 11-28 as
(system of particles), (11-29)
&
:
net !
dL
:
dt
&
:
net
L
:
L
:
dL
:
dt
! '
n
i!1
&
:
net,i
.
&
:
net,i
d!
:
i /dt
dL
:
dt
! '
n
i!1
d!i
:
dt
.
L
:
L
:
! !
:
1 # !
:
2 # !
:
3 # " " " # !
:
n ! '
n
i!1
!
:
i.
!
:
L
:
11-7 ANGULAR MOMENTUM OF A RIGID BODY
11.22 For a system of particles, apply Newton’s second law
in angular form to relate the net torque acting on the
system to the rate of the resulting change in the system’s
angular momentum.
11.23 Apply the relationship between the angular momentum
of a rigid body rotating around a fixed axis and the body’s
rotational inertia and angular speed around that axis.
11.24 If two rigid bodies rotate about the same axis, calculate
their total angular momentum.
● The angular momentum of a system of particles is
the vector sum of the angular momenta of the individual
particles:
● The time rate of change of this angular momentum is equal
to the net external torque on the system (the vector sum of
L
:
! !
:
1 # !
:
2 # " " " # !
:
n ! '
n
i!1
!
:
i.
L
:
the torques due to interactions of the particles of the system
with particles external to the system):
(system of particles).
● For a rigid body rotating about a fixed axis, the component
of its angular momentum parallel to the rotation axis is
L ! Iv (rigid body, fixed axis).
t
:
net !
dL
:
dt
Learning Objectives
Key Ideas

311

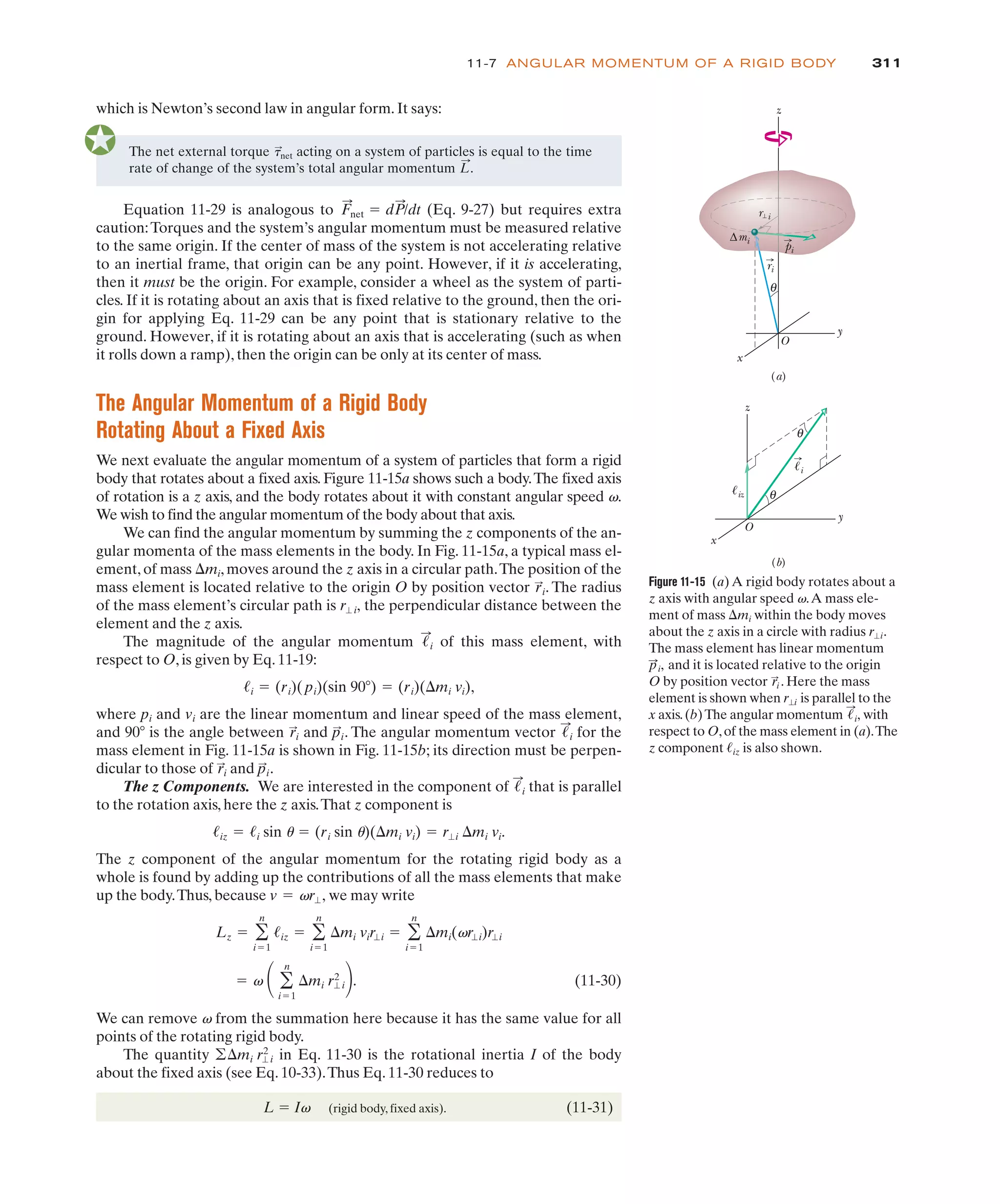

11-7 ANGULAR MOMENTUM OF A RIGID BODY
The net external torque acting on a system of particles is equal to the time
rate of change of the system’s total angular momentum .
L
:
&
:
net
Equation 11-29 is analogous to (Eq. 9-27) but requires extra
caution:Torques and the system’s angular momentum must be measured relative
to the same origin. If the center of mass of the system is not accelerating relative
to an inertial frame, that origin can be any point. However, if it is accelerating,
then it must be the origin. For example, consider a wheel as the system of parti-
cles. If it is rotating about an axis that is fixed relative to the ground, then the ori-
gin for applying Eq. 11-29 can be any point that is stationary relative to the
ground. However, if it is rotating about an axis that is accelerating (such as when
it rolls down a ramp), then the origin can be only at its center of mass.
The Angular Momentum of a Rigid Body
Rotating About a Fixed Axis
We next evaluate the angular momentum of a system of particles that form a rigid
body that rotates about a fixed axis. Figure 11-15a shows such a body.The fixed axis
of rotation is a z axis, and the body rotates about it with constant angular speed v.
We wish to find the angular momentum of the body about that axis.
We can find the angular momentum by summing the z components of the an-
gular momenta of the mass elements in the body. In Fig. 11-15a, a typical mass el-
ement, of mass 'mi, moves around the z axis in a circular path.The position of the
mass element is located relative to the origin O by position vector . The radius
of the mass element’s circular path is the perpendicular distance between the
element and the z axis.
The magnitude of the angular momentum of this mass element, with
respect to O, is given by Eq. 11-19:
where pi and vi are the linear momentum and linear speed of the mass element,
and 90( is the angle between and . The angular momentum vector for the
mass element in Fig. 11-15a is shown in Fig. 11-15b; its direction must be perpen-
dicular to those of and .
The z Components. We are interested in the component of that is parallel
to the rotation axis, here the z axis.That z component is
The z component of the angular momentum for the rotating rigid body as a
whole is found by adding up the contributions of all the mass elements that make
up the body.Thus, because we may write
(11-30)
We can remove v from the summation here because it has the same value for all
points of the rotating rigid body.
The quantity in Eq. 11-30 is the rotational inertia I of the body
about the fixed axis (see Eq. 10-33).Thus Eq. 11-30 reduces to
L ! Iv (rigid body, fixed axis). (11-31)
''mi r"i
2
! v # '
n
i!1
'mi r"i
2
$.
Lz ! '
n
i!1
!iz ! '
n
i!1
'mi vir"i ! '
n
i!1
'mi(vr"i)r"i
v ! vr",
!iz ! !i sin u ! (ri sin u)('mi vi) ! r"i 'mi vi.
!
:
i
p
:
i
r
:
i
!
:
i
p
:
i
r
:
i
!i ! (ri)(pi)(sin 90() ! (ri)('mi vi),
!
:
i
r"i,
r
:
i
F
:
net ! dP
:
/dt
Figure 11-15 (a) A rigid body rotates about a
z axis with angular speed v.A mass ele-
ment of mass 'mi within the body moves
about the z axis in a circle with radius .
The mass element has linear momentum
and it is located relative to the origin
O by position vector . Here the mass
element is shown when is parallel to the
x axis.(b)The angular momentum with
respect to O,of the mass element in (a).The
z component is also shown.
!iz
!
:
i,
r"i
r
:
i
p
:
i,
r"i
θ
z
x
y
∆mi
r i
ri
pi
O
z
x
y
!i
θ
θ
!iz
O
(a)
(b)
which is Newton’s second law in angular form. It says:

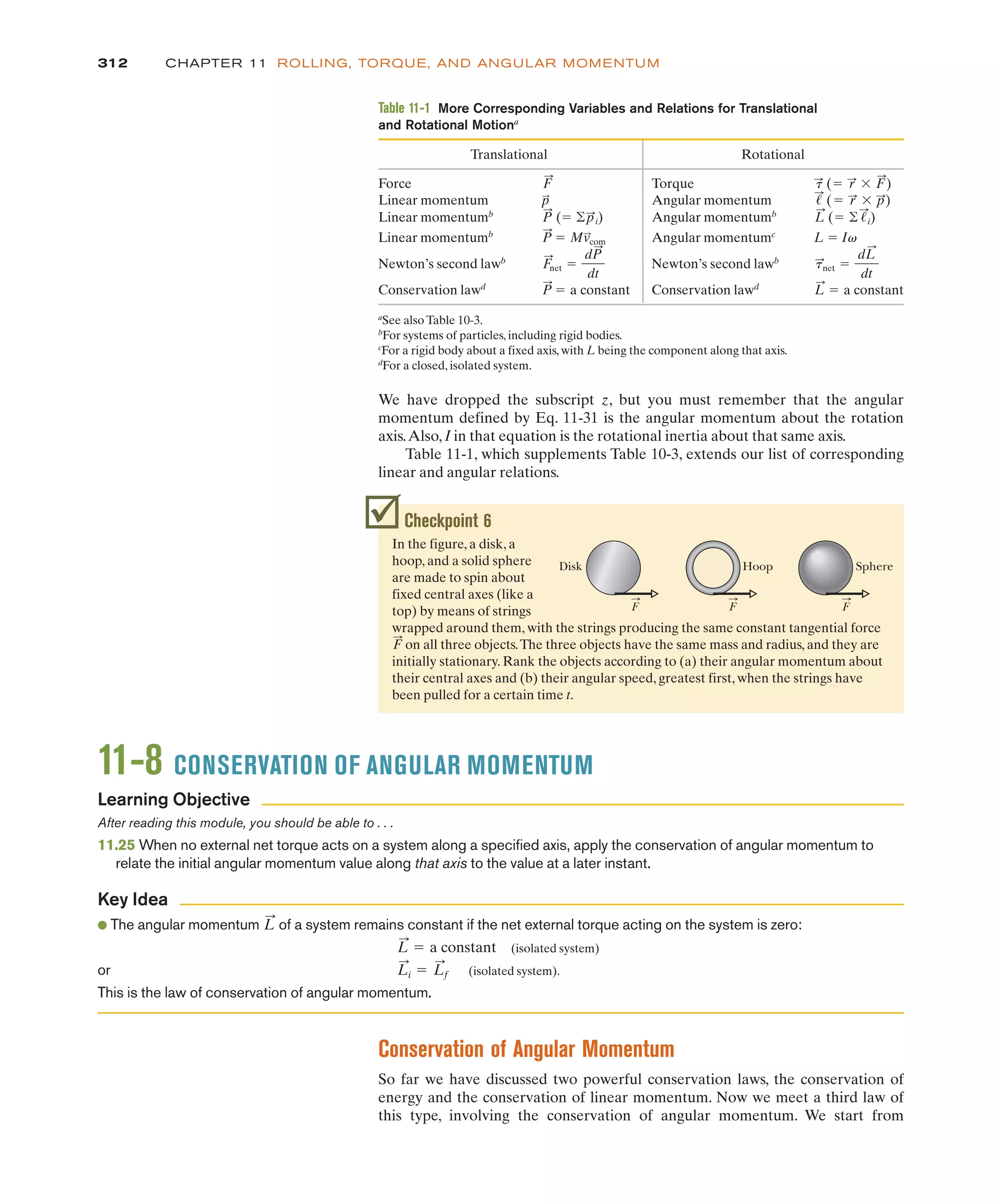

Conservation of Angular Momentum
So far we have discussed two powerful conservation laws, the conservation of
energy and the conservation of linear momentum. Now we meet a third law of
this type, involving the conservation of angular momentum. We start from
We have dropped the subscript z, but you must remember that the angular
momentum defined by Eq. 11-31 is the angular momentum about the rotation
axis.Also, I in that equation is the rotational inertia about that same axis.
Table 11-1, which supplements Table 10-3, extends our list of corresponding
linear and angular relations.
Checkpoint 6
In the figure, a disk, a
hoop, and a solid sphere
are made to spin about
fixed central axes (like a
top) by means of strings
wrapped around them, with the strings producing the same constant tangential force
on all three objects.The three objects have the same mass and radius, and they are
initially stationary. Rank the objects according to (a) their angular momentum about
their central axes and (b) their angular speed, greatest first, when the strings have
been pulled for a certain time t.
F
:
Disk Hoop Sphere
F F F
11-8 CONSERVATION OF ANGULAR MOMENTUM
11.25 When no external net torque acts on a system along a specified axis, apply the conservation of angular momentum to
relate the initial angular momentum value along that axis to the value at a later instant.
● The angular momentum of a system remains constant if the net external torque acting on the system is zero:
(isolated system)
or (isolated system).
This is the law of conservation of angular momentum.
L
:
i ! L
:
f
L
:
! a constant
L
:
Learning Objective
Key Idea
Table 11-1 More Corresponding Variables and Relations for Translational
and Rotational Motiona
Translational Rotational
Force Torque
Linear momentum Angular momentum
Linear momentumb
Angular momentumb
L
:
(! ' !
:
i)
P
:
(! 'p
:
i)
!
:
(! r
:
$ p
:
)
p
:
&
:
(! r
:
$ F
:
)
F
:
Linear momentumb
Angular momentumc
L ! Iv
Newton’s second lawb
Newton’s second lawb
Conservation lawd
Conservation lawd
a
See also Table 10-3.
b
For systems of particles, including rigid bodies.
c
For a rigid body about a fixed axis, with L being the component along that axis.
d
For a closed, isolated system.
L
:
! a constant
P
:
! a constant
&
:
net !
dL
:
dt
F
:
net !
dP
:
dt
P
:
! Mv
:
com

313

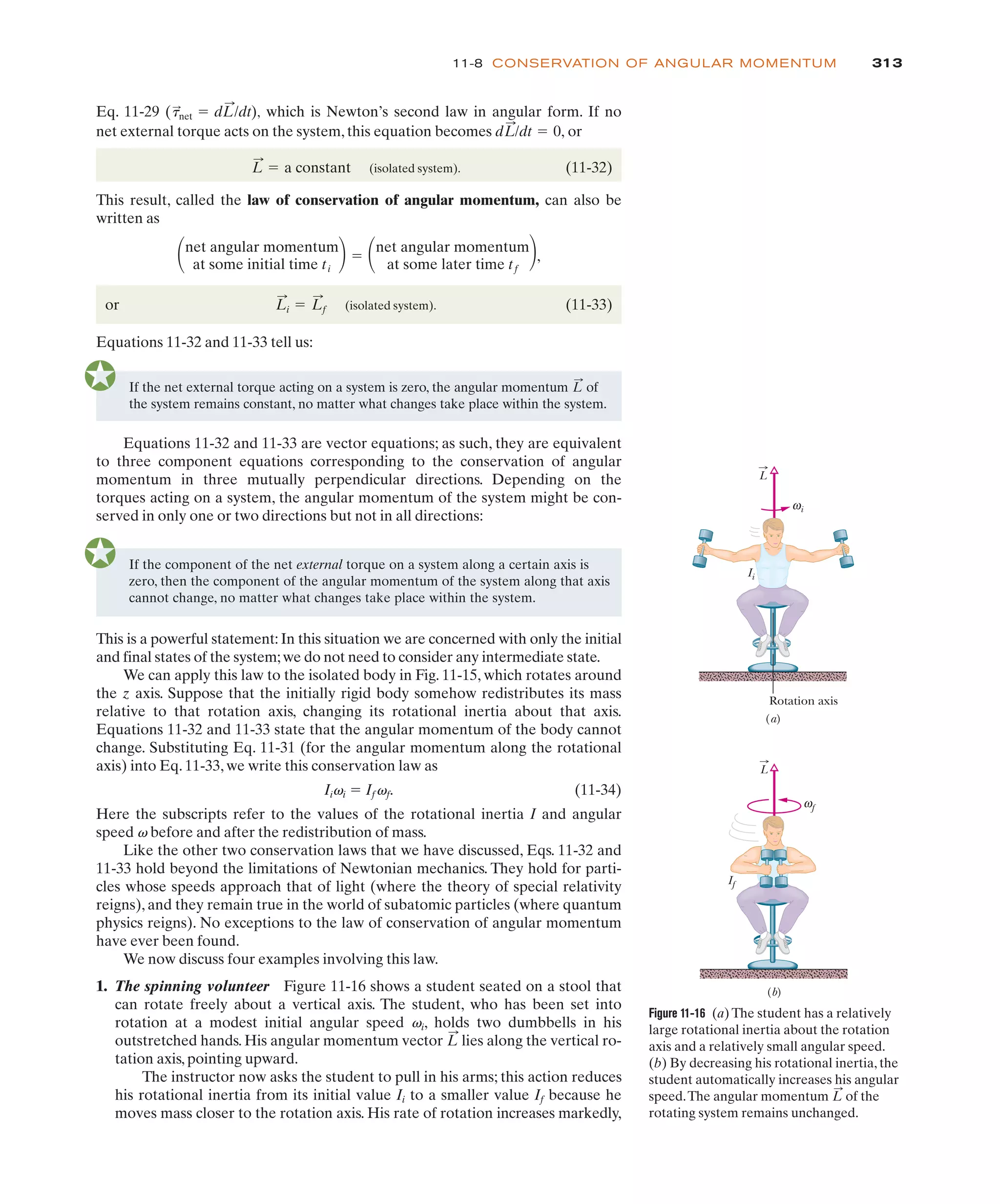

If the net external torque acting on a system is zero, the angular momentum of
the system remains constant, no matter what changes take place within the system.
L
:
Equations 11-32 and 11-33 are vector equations; as such, they are equivalent
to three component equations corresponding to the conservation of angular
momentum in three mutually perpendicular directions. Depending on the
torques acting on a system, the angular momentum of the system might be con-
served in only one or two directions but not in all directions:
Eq. 11-29 , which is Newton’s second law in angular form. If no
(t
:
net ! dL
:
/dt)
net external torque acts on the system, this equation becomes or
(isolated system). (11-32)
This result, called the law of conservation of angular momentum, can also be
written as
,
or (isolated system). (11-33)
Equations 11-32 and 11-33 tell us:
L
:
i ! L
:
f
#net angular momentum
at some initial time ti
$! #net angular momentum
at some later time tf
$
L
:
! a constant
dL
:
/dt ! 0,
If the component of the net external torque on a system along a certain axis is
zero, then the component of the angular momentum of the system along that axis
cannot change, no matter what changes take place within the system.
This is a powerful statement: In this situation we are concerned with only the initial
and final states of the system;we do not need to consider any intermediate state.
We can apply this law to the isolated body in Fig. 11-15, which rotates around
the z axis. Suppose that the initially rigid body somehow redistributes its mass
relative to that rotation axis, changing its rotational inertia about that axis.
Equations 11-32 and 11-33 state that the angular momentum of the body cannot
change. Substituting Eq. 11-31 (for the angular momentum along the rotational
axis) into Eq. 11-33, we write this conservation law as
Iivi ! Ifvf. (11-34)
Here the subscripts refer to the values of the rotational inertia I and angular
speed v before and after the redistribution of mass.
Like the other two conservation laws that we have discussed, Eqs. 11-32 and
11-33 hold beyond the limitations of Newtonian mechanics. They hold for parti-
cles whose speeds approach that of light (where the theory of special relativity
reigns), and they remain true in the world of subatomic particles (where quantum
physics reigns). No exceptions to the law of conservation of angular momentum
have ever been found.
We now discuss four examples involving this law.
1. The spinning volunteer Figure 11-16 shows a student seated on a stool that
can rotate freely about a vertical axis. The student, who has been set into
rotation at a modest initial angular speed vi, holds two dumbbells in his
outstretched hands. His angular momentum vector lies along the vertical ro-
tation axis, pointing upward.
The instructor now asks the student to pull in his arms; this action reduces
his rotational inertia from its initial value Ii to a smaller value If because he
moves mass closer to the rotation axis. His rate of rotation increases markedly,
L
:
Figure 11-16 (a) The student has a relatively
large rotational inertia about the rotation
axis and a relatively small angular speed.
(b) By decreasing his rotational inertia, the
student automatically increases his angular
speed.The angular momentum of the
rotating system remains unchanged.
L
:
L
Ii
If
Rotation axis
(a)
(b)
i
ω
f
ω
L

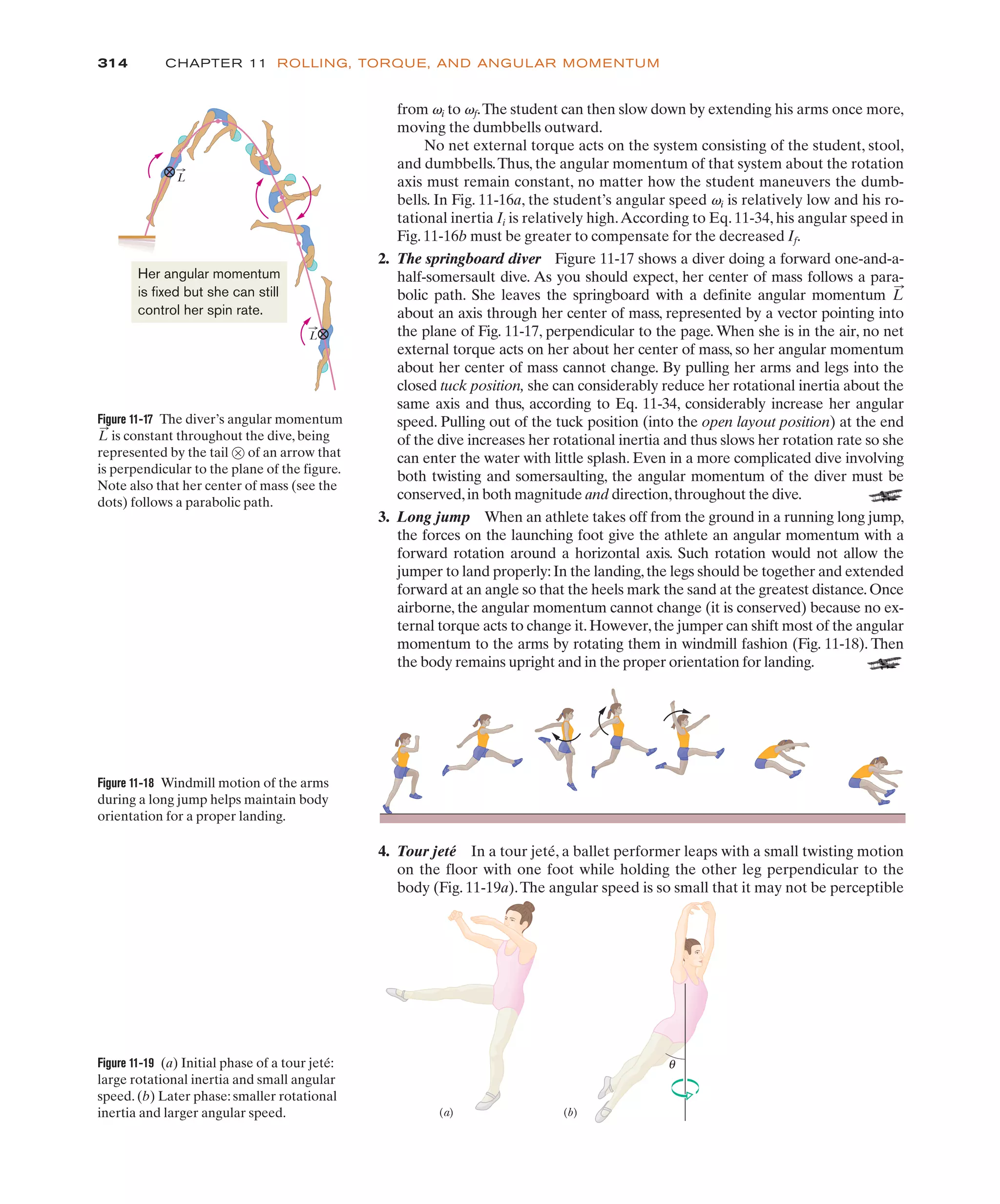

from vi to vf.The student can then slow down by extending his arms once more,
moving the dumbbells outward.
No net external torque acts on the system consisting of the student, stool,
and dumbbells.Thus, the angular momentum of that system about the rotation
axis must remain constant, no matter how the student maneuvers the dumb-
bells. In Fig. 11-16a, the student’s angular speed vi is relatively low and his ro-
tational inertia Ii is relatively high.According to Eq. 11-34, his angular speed in
Fig. 11-16b must be greater to compensate for the decreased If.
2. The springboard diver Figure 11-17 shows a diver doing a forward one-and-a-
half-somersault dive. As you should expect, her center of mass follows a para-
bolic path. She leaves the springboard with a definite angular momentum
about an axis through her center of mass, represented by a vector pointing into
the plane of Fig. 11-17, perpendicular to the page. When she is in the air, no net
external torque acts on her about her center of mass, so her angular momentum
about her center of mass cannot change. By pulling her arms and legs into the
closed tuck position, she can considerably reduce her rotational inertia about the
same axis and thus, according to Eq. 11-34, considerably increase her angular
speed. Pulling out of the tuck position (into the open layout position) at the end
of the dive increases her rotational inertia and thus slows her rotation rate so she
can enter the water with little splash. Even in a more complicated dive involving
both twisting and somersaulting, the angular momentum of the diver must be
conserved,in both magnitude and direction,throughout the dive.
3. Long jump When an athlete takes off from the ground in a running long jump,
the forces on the launching foot give the athlete an angular momentum with a
forward rotation around a horizontal axis. Such rotation would not allow the
jumper to land properly:In the landing,the legs should be together and extended
forward at an angle so that the heels mark the sand at the greatest distance.Once
airborne, the angular momentum cannot change (it is conserved) because no ex-
ternal torque acts to change it.However,the jumper can shift most of the angular
momentum to the arms by rotating them in windmill fashion (Fig. 11-18). Then
the body remains upright and in the proper orientation for landing.
L
:
Figure 11-18 Windmill motion of the arms
during a long jump helps maintain body
orientation for a proper landing.
(a) (b)
θ
Figure 11-19 (a) Initial phase of a tour jeté:
large rotational inertia and small angular
speed. (b) Later phase: smaller rotational
inertia and larger angular speed.
Figure 11-17 The diver’s angular momentum
is constant throughout the dive, being
represented by the tail # of an arrow that
is perpendicular to the plane of the figure.
Note also that her center of mass (see the
dots) follows a parabolic path.
L
:
L
L
Her angular momentum
is fixed but she can still
control her spin rate.
4. Tour jeté In a tour jeté, a ballet performer leaps with a small twisting motion
on the floor with one foot while holding the other leg perpendicular to the
body (Fig. 11-19a).The angular speed is so small that it may not be perceptible

315

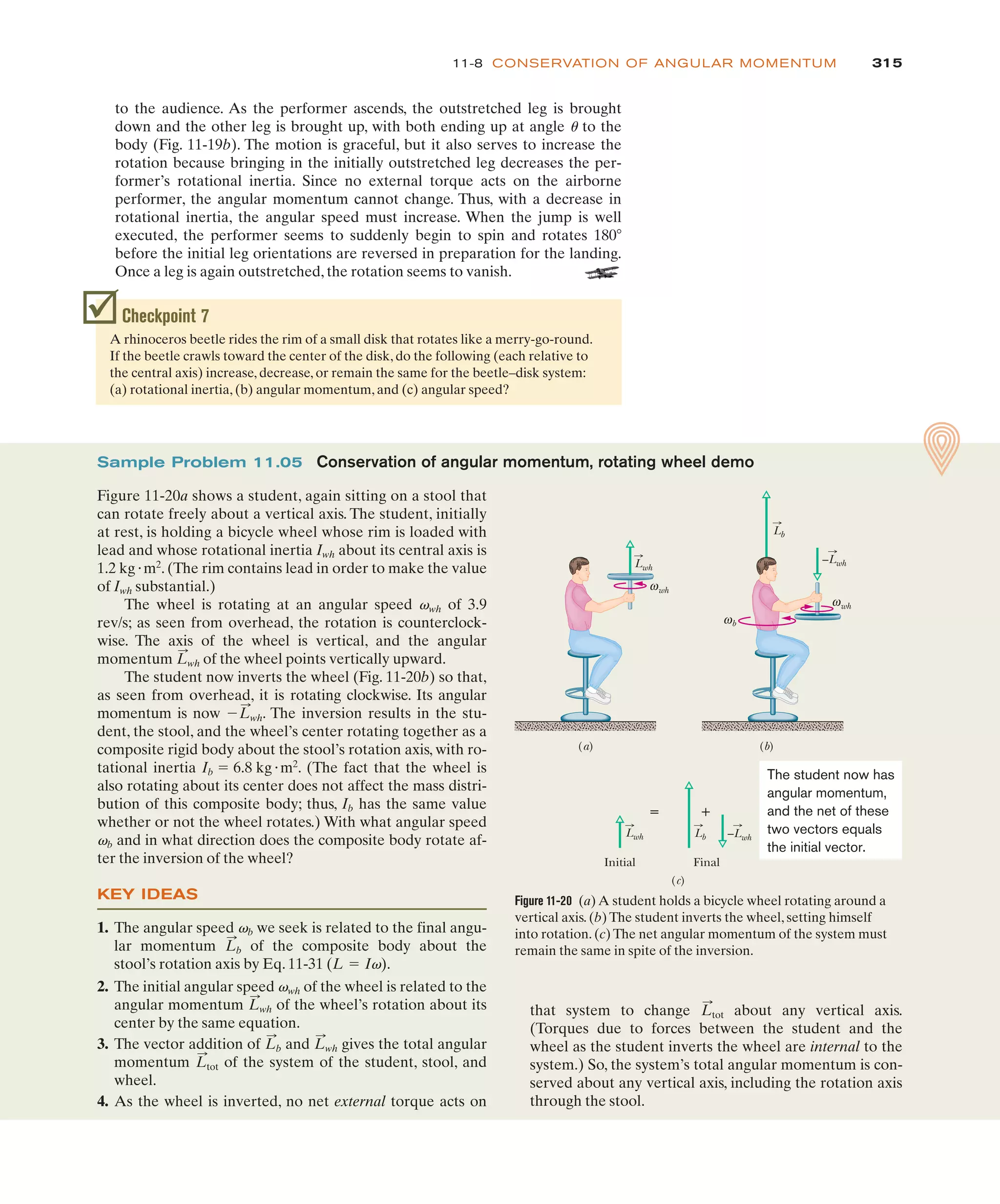

Checkpoint 7
A rhinoceros beetle rides the rim of a small disk that rotates like a merry-go-round.
If the beetle crawls toward the center of the disk, do the following (each relative to
the central axis) increase, decrease, or remain the same for the beetle–disk system:
(a) rotational inertia, (b) angular momentum, and (c) angular speed?
to the audience. As the performer ascends, the outstretched leg is brought
down and the other leg is brought up, with both ending up at angle u to the
body (Fig. 11-19b). The motion is graceful, but it also serves to increase the
rotation because bringing in the initially outstretched leg decreases the per-
former’s rotational inertia. Since no external torque acts on the airborne
performer, the angular momentum cannot change. Thus, with a decrease in
rotational inertia, the angular speed must increase. When the jump is well
executed, the performer seems to suddenly begin to spin and rotates 180(
before the initial leg orientations are reversed in preparation for the landing.
Once a leg is again outstretched, the rotation seems to vanish.
Sample Problem 11.05 Conservation of angular momentum, rotating wheel demo
Figure 11-20a shows a student, again sitting on a stool that
can rotate freely about a vertical axis. The student, initially
at rest, is holding a bicycle wheel whose rim is loaded with
lead and whose rotational inertia Iwh about its central axis is
1.2 kg"m2
. (The rim contains lead in order to make the value
of Iwh substantial.)
The wheel is rotating at an angular speed vwh of 3.9
rev/s; as seen from overhead, the rotation is counterclock-
wise. The axis of the wheel is vertical, and the angular
momentum of the wheel points vertically upward.
The student now inverts the wheel (Fig. 11-20b) so that,
as seen from overhead, it is rotating clockwise. Its angular
momentum is now . The inversion results in the stu-
dent, the stool, and the wheel’s center rotating together as a
composite rigid body about the stool’s rotation axis, with ro-
tational inertia Ib ! 6.8 kg"m2
. (The fact that the wheel is
also rotating about its center does not affect the mass distri-
bution of this composite body; thus, Ib has the same value
whether or not the wheel rotates.) With what angular speed
vb and in what direction does the composite body rotate af-
ter the inversion of the wheel?
KEY IDEAS
1. The angular speed vb we seek is related to the final angu-
lar momentum of the composite body about the
stool’s rotation axis by Eq. 11-31 (L Iv).
2. The initial angular speed vwh of the wheel is related to the
angular momentum of the wheel’s rotation about its
center by the same equation.
3. The vector addition of and gives the total angular
momentum of the system of the student, stool, and
wheel.
4. As the wheel is inverted, no net external torque acts on
L
:
tot
L
:
wh
L
:
b
L
:
wh
!
L
:
b
%L
:
wh
L
:
wh
Figure 11-20 (a) A student holds a bicycle wheel rotating around a
vertical axis. (b) The student inverts the wheel, setting himself
into rotation. (c) The net angular momentum of the system must
remain the same in spite of the inversion.
Lb
wh
(a) (b)
Lwh
–Lwh
ω
wh
ω
ω
Lb
Lwh –Lwh
= +
(c)
Initial Final
b
The student now has
angular momentum,
and the net of these
two vectors equals
the initial vector.
that system to change about any vertical axis.
(Torques due to forces between the student and the
wheel as the student inverts the wheel are internal to the
system.) So, the system’s total angular momentum is con-
served about any vertical axis, including the rotation axis
through the stool.
L
:
tot

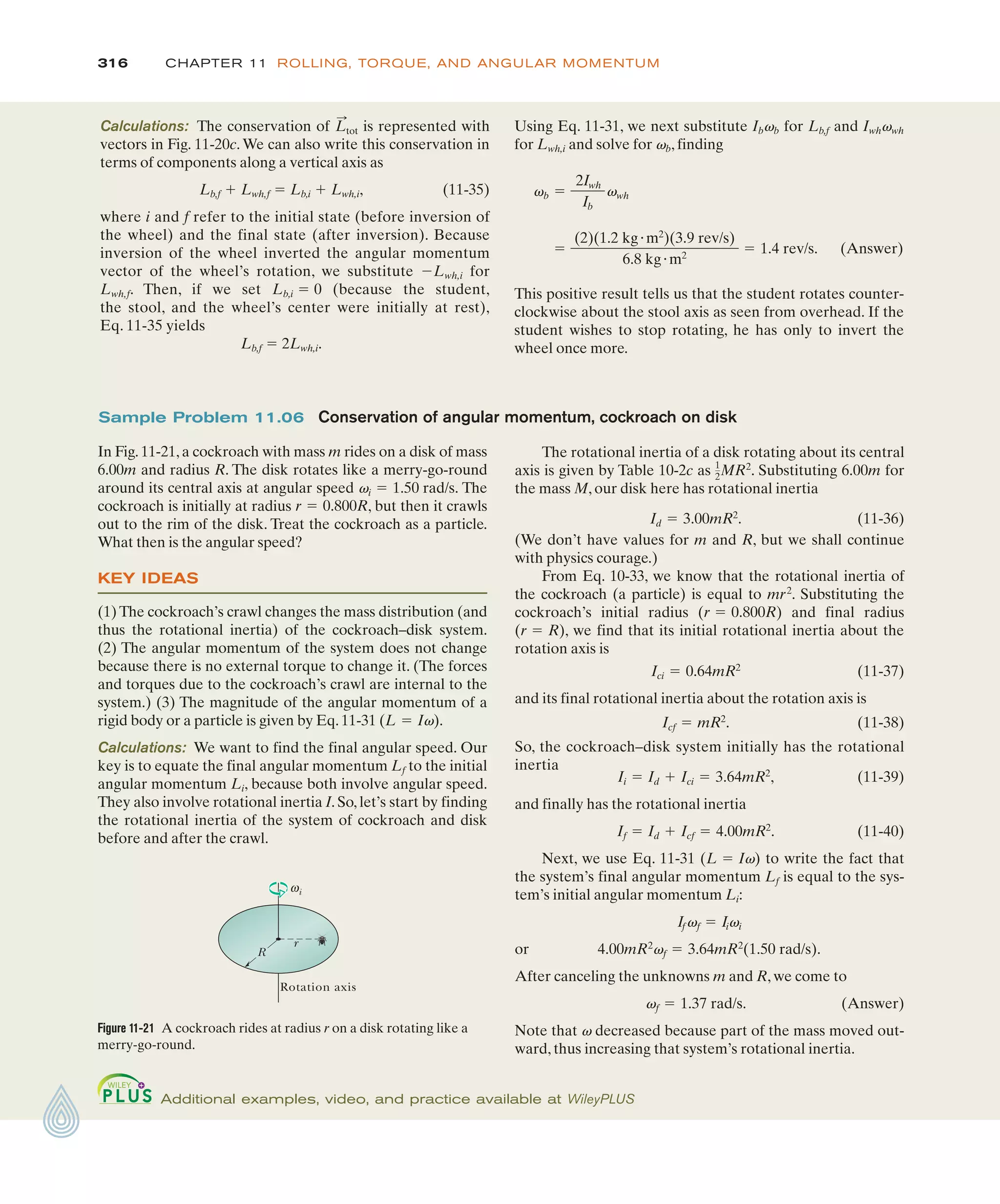

Calculations: The conservation of is represented with
vectors in Fig. 11-20c.We can also write this conservation in
terms of components along a vertical axis as
Lb,f # Lwh,f ! Lb,i # Lwh,i, (11-35)
where i and f refer to the initial state (before inversion of
the wheel) and the final state (after inversion). Because
inversion of the wheel inverted the angular momentum
vector of the wheel’s rotation, we substitute %Lwh,i for
Lwh,f. Then, if we set Lb,i ! 0 (because the student,
the stool, and the wheel’s center were initially at rest),
Eq. 11-35 yields
Lb,f ! 2Lwh,i.
L
:
tot
The rotational inertia of a disk rotating about its central
axis is given by Table 10-2c as . Substituting 6.00m for
the mass M, our disk here has rotational inertia
. (11-36)
(We don’t have values for m and R, but we shall continue
with physics courage.)
From Eq. 10-33, we know that the rotational inertia of
the cockroach (a particle) is equal to mr2
. Substituting the
cockroach’s initial radius ( ) and final radius
( ), we find that its initial rotational inertia about the
rotation axis is
(11-37)
and its final rotational inertia about the rotation axis is
. (11-38)
So, the cockroach–disk system initially has the rotational
inertia
, (11-39)
and finally has the rotational inertia
. (11-40)
Next, we use Eq. 11-31 ( ) to write the fact that
the system’s final angular momentum Lf is equal to the sys-
tem’s initial angular momentum Li:
or .
After canceling the unknowns m and R, we come to
. (Answer)
Note that v decreased because part of the mass moved out-
ward, thus increasing that system’s rotational inertia.
vf ! 1.37 rad/s
4.00mR2
vf ! 3.64mR2
(1.50 rad/s)
If vf ! Iivi
L ! Iv
If ! Id # Icf ! 4.00mR2
Ii ! Id # Ici ! 3.64mR2
Icf ! mR2
Ici ! 0.64mR2
r ! R
r ! 0.800R
Id ! 3.00mR2
1
2MR2
Sample Problem 11.06 Conservation of angular momentum, cockroach on disk
In Fig. 11-21, a cockroach with mass m rides on a disk of mass
6.00m and radius R. The disk rotates like a merry-go-round
around its central axis at angular speed The
cockroach is initially at radius , but then it crawls
out to the rim of the disk. Treat the cockroach as a particle.
What then is the angular speed?
KEY IDEAS
(1) The cockroach’s crawl changes the mass distribution (and
thus the rotational inertia) of the cockroach–disk system.
(2) The angular momentum of the system does not change
because there is no external torque to change it. (The forces
and torques due to the cockroach’s crawl are internal to the
system.) (3) The magnitude of the angular momentum of a
rigid body or a particle is given by Eq.11-31 ( ).
Calculations: We want to find the final angular speed. Our
key is to equate the final angular momentum Lf to the initial
angular momentum Li, because both involve angular speed.
They also involve rotational inertia I. So, let’s start by finding
the rotational inertia of the system of cockroach and disk
before and after the crawl.
L ! Iv
r ! 0.800R
vi ! 1.50 rad/s.
Figure 11-21 A cockroach rides at radius r on a disk rotating like a
merry-go-round.
Rotation axis
R
r
i
ω
Using Eq. 11-31, we next substitute Ibvb for Lb,f and Iwhvwh
for Lwh,i and solve for vb, finding
(Answer)
This positive result tells us that the student rotates counter-
clockwise about the stool axis as seen from overhead. If the
student wishes to stop rotating, he has only to invert the
wheel once more.
!
(2)(1.2 kg"m2
)(3.9 rev/s)
6.8 kg"m2
! 1.4 rev/s.
)b !
2Iwh
Ib
vwh

317

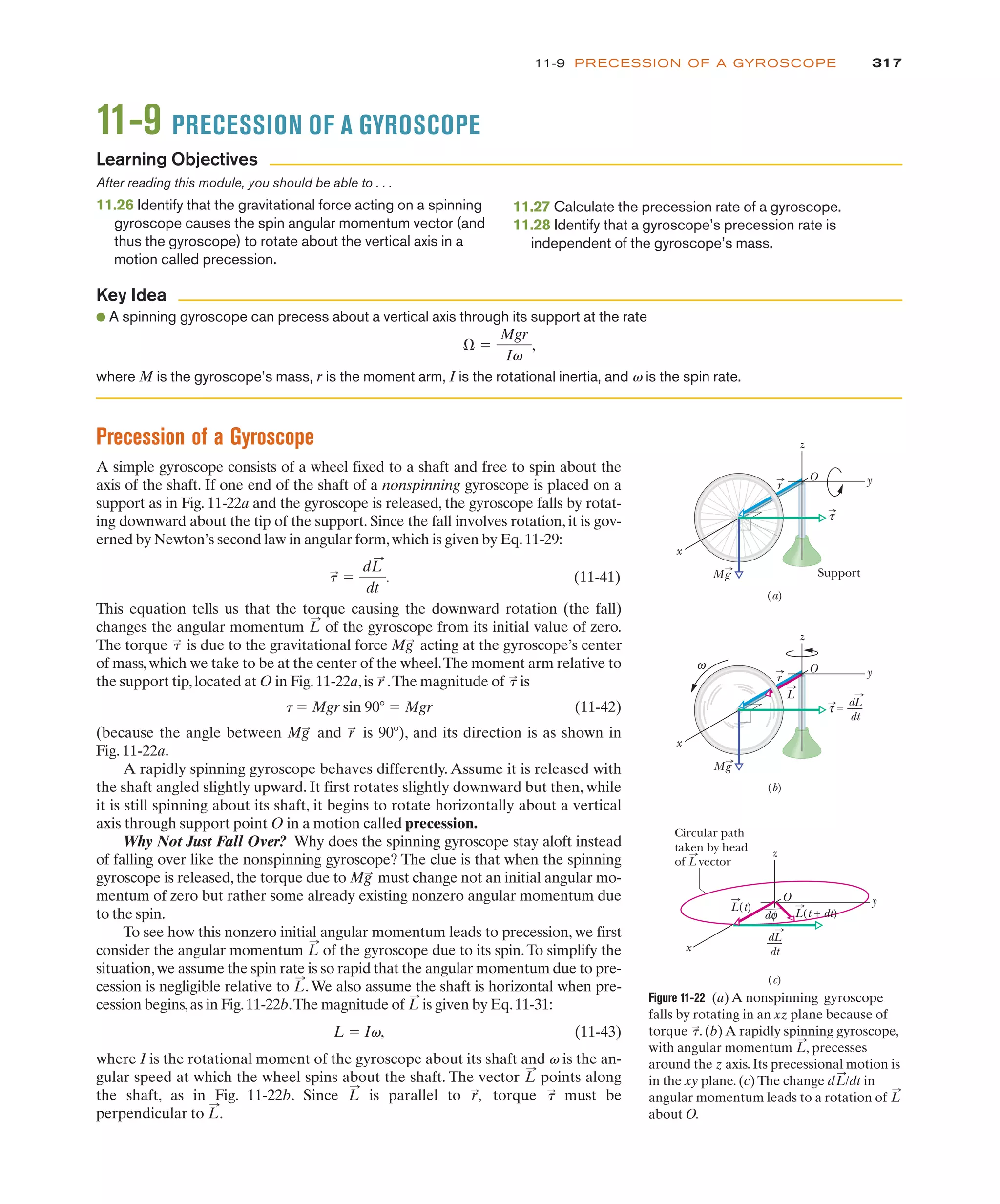

11-9 PRECESSION OF A GYROSCOPE
Precession of a Gyroscope
A simple gyroscope consists of a wheel fixed to a shaft and free to spin about the
axis of the shaft. If one end of the shaft of a nonspinning gyroscope is placed on a
support as in Fig. 11-22a and the gyroscope is released, the gyroscope falls by rotat-
ing downward about the tip of the support. Since the fall involves rotation, it is gov-
erned by Newton’s second law in angular form,which is given by Eq.11-29:
(11-41)
This equation tells us that the torque causing the downward rotation (the fall)
changes the angular momentum of the gyroscope from its initial value of zero.
The torque is due to the gravitational force acting at the gyroscope’s center
of mass,which we take to be at the center of the wheel.The moment arm relative to
the support tip,located at O in Fig.11-22a,is .The magnitude of is
t ! Mgr sin 90( ! Mgr (11-42)
(because the angle between and is 90(), and its direction is as shown in
Fig. 11-22a.
A rapidly spinning gyroscope behaves differently. Assume it is released with
the shaft angled slightly upward. It first rotates slightly downward but then, while
it is still spinning about its shaft, it begins to rotate horizontally about a vertical
axis through support point O in a motion called precession.
Why Not Just Fall Over? Why does the spinning gyroscope stay aloft instead
of falling over like the nonspinning gyroscope? The clue is that when the spinning
gyroscope is released, the torque due to must change not an initial angular mo-
mentum of zero but rather some already existing nonzero angular momentum due
to the spin.
To see how this nonzero initial angular momentum leads to precession, we first
consider the angular momentum of the gyroscope due to its spin.To simplify the
situation,we assume the spin rate is so rapid that the angular momentum due to pre-
cession is negligible relative to .We also assume the shaft is horizontal when pre-
cession begins,as in Fig.11-22b.The magnitude of is given by Eq.11-31:
L ! Iv, (11-43)
where I is the rotational moment of the gyroscope about its shaft and v is the an-
gular speed at which the wheel spins about the shaft. The vector points along
the shaft, as in Fig. 11-22b. Since is parallel to torque must be
perpendicular to .
L
:
t
:
r
:
,
L
:
L
:
L
:
L
:
L
:
Mg
:
r
:
Mg
:
t
:
r
:
Mg
:
&
:
L
:
t
:
!
dL
:
dt
.
Figure 11-22 (a) A nonspinning gyroscope
falls by rotating in an xz plane because of
torque . (b) A rapidly spinning gyroscope,
with angular momentum precesses
around the z axis. Its precessional motion is
in the xy plane. (c) The change in
angular momentum leads to a rotation of
about O.
L
:
dL
:
/dt
L
:
,
t
:
x
y
z
τ
O
x
y
z
O
L
ω
=
dL
___
dt
(a)
(b)
x
y
z
O
L(t)
dL
___
dt
dφ L(t + dt)
Circular path
taken by head
of L vector
(c)
τ
r
r
Mg
Mg
Support
11-9 PRECESSION OF A GYROSCOPE
11.26 Identify that the gravitational force acting on a spinning
gyroscope causes the spin angular momentum vector (and
thus the gyroscope) to rotate about the vertical axis in a
motion called precession.
11.27 Calculate the precession rate of a gyroscope.
11.28 Identify that a gyroscope’s precession rate is
independent of the gyroscope’s mass.
● A spinning gyroscope can precess about a vertical axis through its support at the rate
where M is the gyroscope’s mass, r is the moment arm, I is the rotational inertia, and v is the spin rate.
* !
Mgr
Iv
,
Learning Objectives
Key Idea

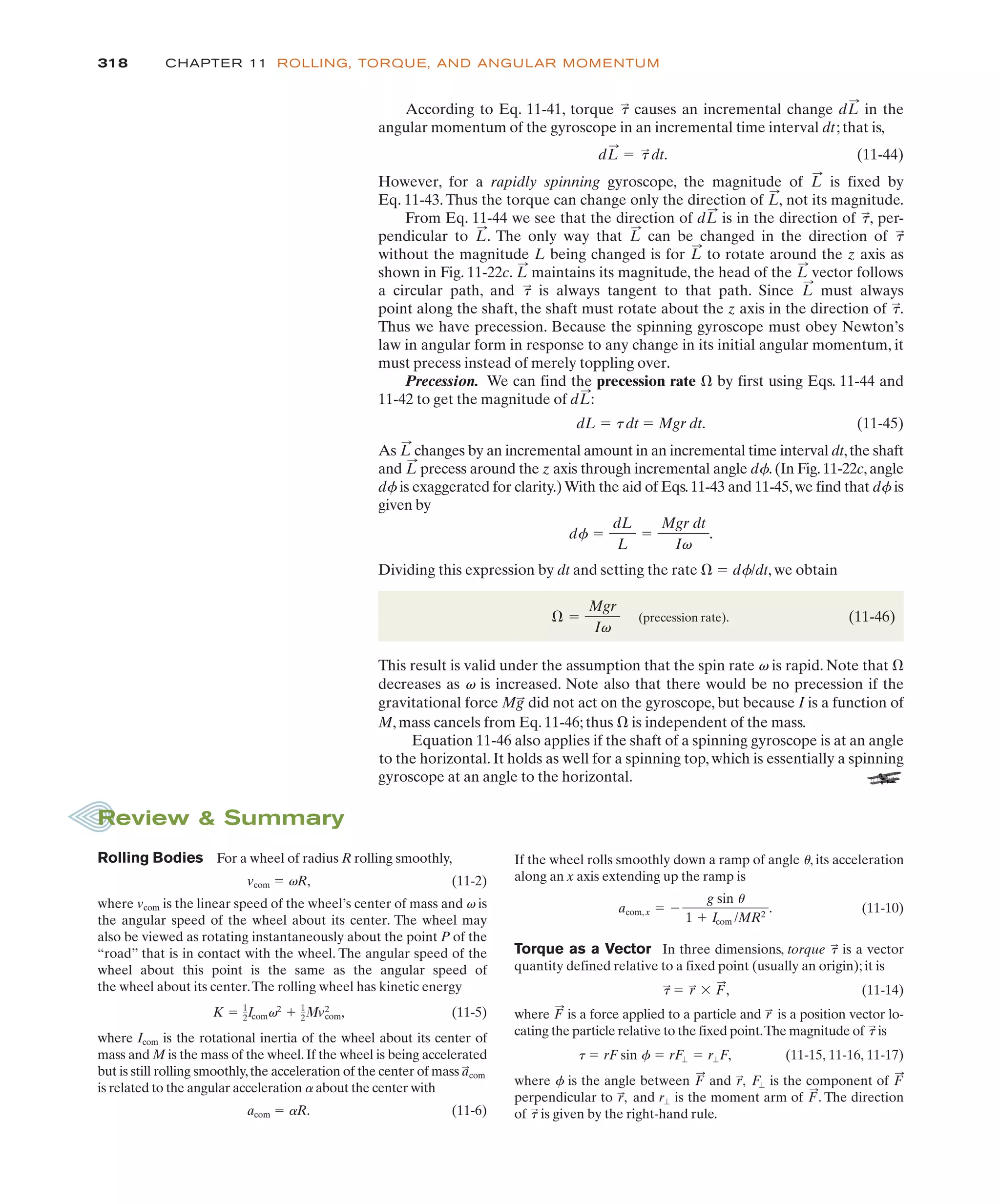

M, mass cancels from Eq. 11-46; thus * is independent of the mass.
Equation 11-46 also applies if the shaft of a spinning gyroscope is at an angle
to the horizontal. It holds as well for a spinning top, which is essentially a spinning
gyroscope at an angle to the horizontal.
According to Eq. 11-41, torque causes an incremental change in the
angular momentum of the gyroscope in an incremental time interval dt; that is,
(11-44)
However, for a rapidly spinning gyroscope, the magnitude of is fixed by
Eq. 11-43.Thus the torque can change only the direction of not its magnitude.
From Eq. 11-44 we see that the direction of is in the direction of per-
pendicular to . The only way that can be changed in the direction of
without the magnitude L being changed is for to rotate around the z axis as
shown in Fig. 11-22c. maintains its magnitude, the head of the vector follows
a circular path, and is always tangent to that path. Since must always
point along the shaft, the shaft must rotate about the z axis in the direction of .
Thus we have precession. Because the spinning gyroscope must obey Newton’s
law in angular form in response to any change in its initial angular momentum, it
must precess instead of merely toppling over.
Precession. We can find the precession rate * by first using Eqs. 11-44 and
11-42 to get the magnitude of :
dL ! t dt ! Mgr dt. (11-45)
As changes by an incremental amount in an incremental time interval dt,the shaft
and precess around the z axis through incremental angle df.(In Fig.11-22c,angle
df is exaggerated for clarity.)With the aid of Eqs.11-43 and 11-45,we find that df is
given by
Dividing this expression by dt and setting the rate * ! df/dt, we obtain
(precession rate). (11-46)
This result is valid under the assumption that the spin rate v is rapid. Note that *
decreases as v is increased. Note also that there would be no precession if the
gravitational force did not act on the gyroscope, but because I is a function of
Mg
:
* !
Mgr
Iv
df !
dL
L
!
Mgr dt
Iv
.
L
:
L
:
dL
:
t
:
L
:
t
:
L
:
L
:
L
:
t
:
L
:
L
:
t
:
,
dL
:
L
:
,
L
:
dL
:
! t
:
dt.
dL
:
t
:
Rolling Bodies For a wheel of radius R rolling smoothly,
vcom ! vR, (11-2)
where vcom is the linear speed of the wheel’s center of mass and v is
the angular speed of the wheel about its center. The wheel may
also be viewed as rotating instantaneously about the point P of the
“road” that is in contact with the wheel. The angular speed of the
wheel about this point is the same as the angular speed of
the wheel about its center.The rolling wheel has kinetic energy
(11-5)
where Icom is the rotational inertia of the wheel about its center of
mass and M is the mass of the wheel.If the wheel is being accelerated
but is still rolling smoothly,the acceleration of the center of mass
is related to the angular acceleration a about the center with
acom ! aR. (11-6)
a
:
com
K ! 1
2Icomv2
# 1
2+v2
com,
Review & Summary
If the wheel rolls smoothly down a ramp of angle u, its acceleration
along an x axis extending up the ramp is
(11-10)
Torque as a Vector In three dimensions, torque is a vector
quantity defined relative to a fixed point (usually an origin); it is
(11-14)
where is a force applied to a particle and is a position vector lo-
cating the particle relative to the fixed point.The magnitude of is
(11-15, 11-16, 11-17)
where f is the angle between and is the component of
perpendicular to and is the moment arm of . The direction
of is given by the right-hand rule.
t
:
F
:
r"
r
:
,
F
:
F"
r
:
,
F
:
t ! rF sin f ! rF" ! r"F,
t
:
r
:
F
:
t
:
! r
:
$ F
:
,
t
:
acom, x ! %
g sin u
1 # Icom /MR2
.

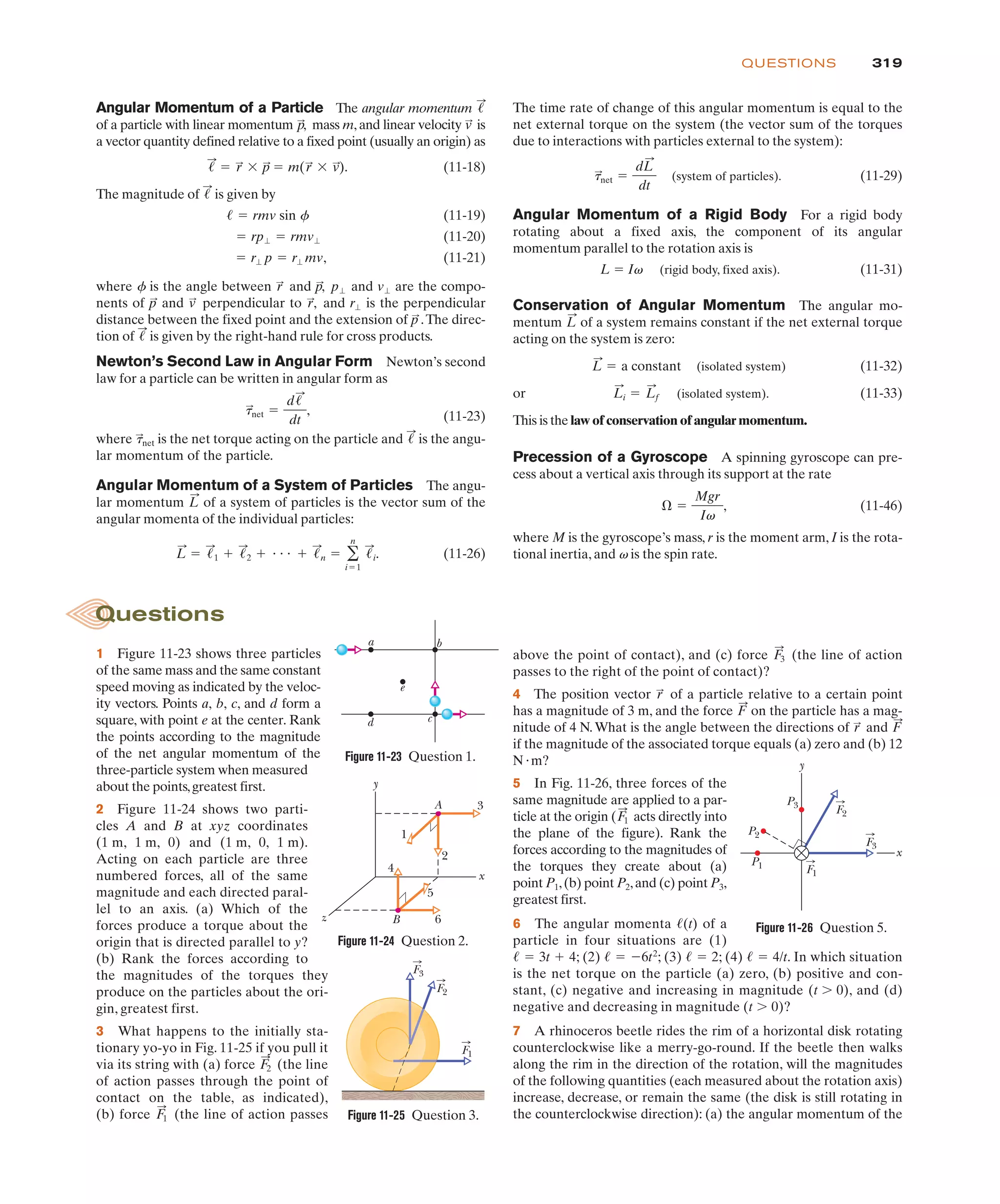

319
QUESTIONS
Angular Momentum of a Particle The angular momentum
of a particle with linear momentum mass m, and linear velocity is
a vector quantity defined relative to a fixed point (usually an origin) as
(11-18)
The magnitude of is given by
(11-19)
(11-20)
(11-21)
where f is the angle between and and are the compo-
nents of and perpendicular to and is the perpendicular
distance between the fixed point and the extension of .The direc-
tion of is given by the right-hand rule for cross products.
Newton’s Second Law in Angular Form Newton’s second
law for a particle can be written in angular form as
(11-23)
where is the net torque acting on the particle and is the angu-
lar momentum of the particle.
Angular Momentum of a System of Particles The angu-
lar momentum of a system of particles is the vector sum of the
angular momenta of the individual particles:
(11-26)
L
:
! !
:
1 # !
:
2 # " " " # !
:
n ! '
n
i!1
!
:
i.
L
:
!
:
t
:
net
t
:
net !
d!
:
dt
,
!
:
p
:
r"
r
:
,
v
:
p
:
v"
p"
p
:
,
r
:
! r" p ! r" mv,
! rp" ! rmv"
! ! rmv sin f
!
:
!
:
! r
:
$ p
:
! m(r
:
$ v
:
).
v
:
p
:
,
!
:
The time rate of change of this angular momentum is equal to the
net external torque on the system (the vector sum of the torques
due to interactions with particles external to the system):
(system of particles). (11-29)
Angular Momentum of a Rigid Body For a rigid body
rotating about a fixed axis, the component of its angular
momentum parallel to the rotation axis is
L ! Iv (rigid body, fixed axis). (11-31)
Conservation of Angular Momentum The angular mo-
mentum of a system remains constant if the net external torque
acting on the system is zero:
(isolated system) (11-32)
or (isolated system). (11-33)
This is the law of conservation of angular momentum.
Precession of a Gyroscope A spinning gyroscope can pre-
cess about a vertical axis through its support at the rate
(11-46)
where M is the gyroscope’s mass, r is the moment arm, I is the rota-
tional inertia, and v is the spin rate.
* !
Mgr
Iv
,
L
:
i ! L
:
f
L
:
! a constant
L
:
t
:
net !
dL
:
dt
1 Figure 11-23 shows three particles
of the same mass and the same constant
speed moving as indicated by the veloc-
ity vectors. Points a, b, c, and d form a
square, with point e at the center. Rank
the points according to the magnitude
of the net angular momentum of the
three-particle system when measured
about the points,greatest first.
2 Figure 11-24 shows two parti-
cles A and B at xyz coordinates
(1 m, 1 m, 0) and (1 m, 0, 1 m).
Acting on each particle are three
numbered forces, all of the same
magnitude and each directed paral-
lel to an axis. (a) Which of the
forces produce a torque about the
origin that is directed parallel to y?
(b) Rank the forces according to
the magnitudes of the torques they
produce on the particles about the ori-
gin, greatest first.
3 What happens to the initially sta-
tionary yo-yo in Fig. 11-25 if you pull it
via its string with (a) force (the line
of action passes through the point of
contact on the table, as indicated),
(b) force (the line of action passes
F
:
1
F
:
2
above the point of contact), and (c) force (the line of action
passes to the right of the point of contact)?
4 The position vector of a particle relative to a certain point
has a magnitude of 3 m, and the force on the particle has a mag-
nitude of 4 N.What is the angle between the directions of and
if the magnitude of the associated torque equals (a) zero and (b) 12
N"m?
5 In Fig. 11-26, three forces of the
same magnitude are applied to a par-
ticle at the origin ( acts directly into
the plane of the figure). Rank the
forces according to the magnitudes of
the torques they create about (a)
point P1,(b) point P2,and (c) point P3,
greatest first.
6 The angular momenta of a
particle in four situations are (1)
; (2) ; (3) ; (4) . In which situation
is the net torque on the particle (a) zero, (b) positive and con-
stant, (c) negative and increasing in magnitude (t , 0), and (d)
negative and decreasing in magnitude (t , 0)?
7 A rhinoceros beetle rides the rim of a horizontal disk rotating
counterclockwise like a merry-go-round. If the beetle then walks
along the rim in the direction of the rotation, will the magnitudes
of the following quantities (each measured about the rotation axis)
increase, decrease, or remain the same (the disk is still rotating in
the counterclockwise direction): (a) the angular momentum of the
! ! 4/t
! ! 2
! ! %6t2
! ! 3t # 4
!(t)
F
:
1
F
:
r
:
F
:
r
:
F
:
3
Figure 11-23 Question 1.
c
d
e
a b
y
x
z
A
B 6
5
4
2
1
3
F3
F2
F1
Questions
P1
P3
P2
F1
F3
F2
x
y

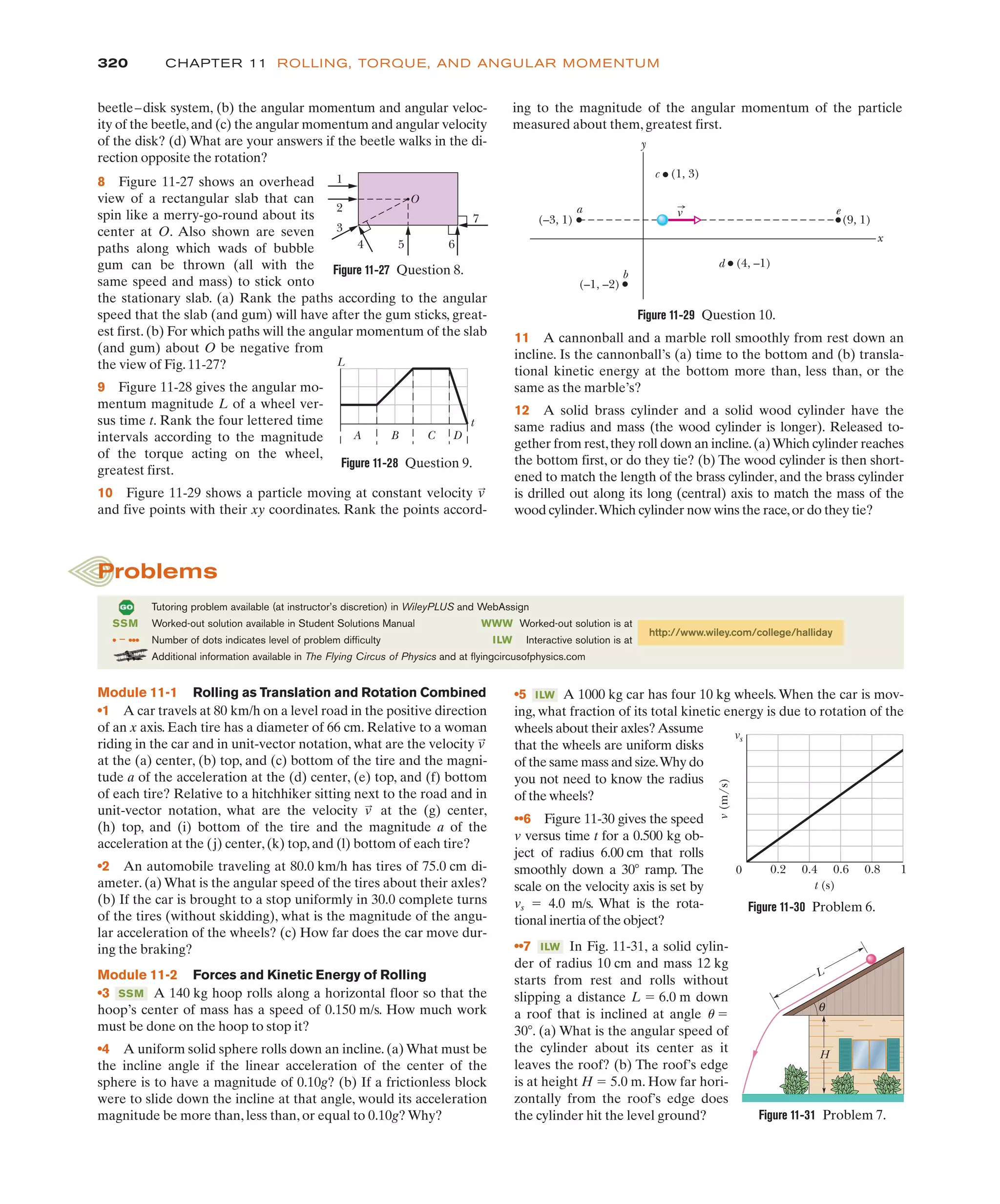

ing to the magnitude of the angular momentum of the particle
measured about them, greatest first.
beetle–disk system, (b) the angular momentum and angular veloc-
ity of the beetle,and (c) the angular momentum and angular velocity
of the disk? (d) What are your answers if the beetle walks in the di-
rection opposite the rotation?
8 Figure 11-27 shows an overhead
view of a rectangular slab that can
spin like a merry-go-round about its
center at O. Also shown are seven
paths along which wads of bubble
gum can be thrown (all with the
same speed and mass) to stick onto
the stationary slab. (a) Rank the paths according to the angular
speed that the slab (and gum) will have after the gum sticks, great-
est first. (b) For which paths will the angular momentum of the slab
(and gum) about O be negative from
the view of Fig. 11-27?
9 Figure 11-28 gives the angular mo-
mentum magnitude L of a wheel ver-
sus time t. Rank the four lettered time
intervals according to the magnitude
of the torque acting on the wheel,
greatest first.
10 Figure 11-29 shows a particle moving at constant velocity
and five points with their xy coordinates. Rank the points accord-
v
:
11 A cannonball and a marble roll smoothly from rest down an
incline. Is the cannonball’s (a) time to the bottom and (b) transla-
tional kinetic energy at the bottom more than, less than, or the
same as the marble’s?
12 A solid brass cylinder and a solid wood cylinder have the
same radius and mass (the wood cylinder is longer). Released to-
gether from rest,they roll down an incline.(a)Which cylinder reaches
the bottom first, or do they tie? (b) The wood cylinder is then short-
ened to match the length of the brass cylinder, and the brass cylinder
is drilled out along its long (central) axis to match the mass of the
wood cylinder.Which cylinder now wins the race,or do they tie?
(–3, 1) (9, 1)
x
(1, 3)
c
a
b
d
e
(–1, –2)
(4, –1)
y
v
A B C D
L
t
•5 A 1000 kg car has four 10 kg wheels. When the car is mov-
ing, what fraction of its total kinetic energy is due to rotation of the
wheels about their axles?Assume
that the wheels are uniform disks
of the same mass and size.Why do
you not need to know the radius
of the wheels?
••6 Figure 11-30 gives the speed
v versus time t for a 0.500 kg ob-
ject of radius 6.00 cm that rolls
smoothly down a 30( ramp. The
scale on the velocity axis is set by
vs ! 4.0 m/s. What is the rota-
tional inertia of the object?
••7 In Fig. 11-31, a solid cylin-
der of radius 10 cm and mass 12 kg
starts from rest and rolls without
slipping a distance L ! 6.0 m down
a roof that is inclined at angle u !
30(. (a) What is the angular speed of
the cylinder about its center as it
leaves the roof? (b) The roof’s edge
is at height H ! 5.0 m. How far hori-
zontally from the roof’s edge does
the cylinder hit the level ground?
ILW
ILW
Tutoring problem available (at instructor’s discretion) in WileyPLUS and WebAssign
SSM Worked-out solution available in Student Solutions Manual
• – ••• Number of dots indicates level of problem difficulty
Additional information available in The Flying Circus of Physics and at flyingcircusofphysics.com
WWW Worked-out solution is at
ILW Interactive solution is at
http://www.wiley.com/college/halliday
Problems
Module 11-1 Rolling as Translation and Rotation Combined
•1 A car travels at 80 km/h on a level road in the positive direction
of an x axis. Each tire has a diameter of 66 cm. Relative to a woman
riding in the car and in unit-vector notation, what are the velocity
at the (a) center, (b) top, and (c) bottom of the tire and the magni-
tude a of the acceleration at the (d) center, (e) top, and (f) bottom
of each tire? Relative to a hitchhiker sitting next to the road and in
unit-vector notation, what are the velocity at the (g) center,
(h) top, and (i) bottom of the tire and the magnitude a of the
acceleration at the (j) center,(k) top,and (l) bottom of each tire?
•2 An automobile traveling at 80.0 km/h has tires of 75.0 cm di-
ameter. (a) What is the angular speed of the tires about their axles?
(b) If the car is brought to a stop uniformly in 30.0 complete turns
of the tires (without skidding), what is the magnitude of the angu-
lar acceleration of the wheels? (c) How far does the car move dur-
ing the braking?
Module 11-2 Forces and Kinetic Energy of Rolling
•3 A 140 kg hoop rolls along a horizontal floor so that the
hoop’s center of mass has a speed of 0.150 m/s. How much work
must be done on the hoop to stop it?
•4 A uniform solid sphere rolls down an incline. (a) What must be
the incline angle if the linear acceleration of the center of the
sphere is to have a magnitude of 0.10g? (b) If a frictionless block
were to slide down the incline at that angle, would its acceleration
magnitude be more than, less than, or equal to 0.10g? Why?
SSM
v
:
v
:
v
(m/s)
vs
0 0.2 0.4
t (s)
0.6 0.8 1
Figure 11-30 Problem 6.
L
H
θ
O
1
2
3
4 5 6
7

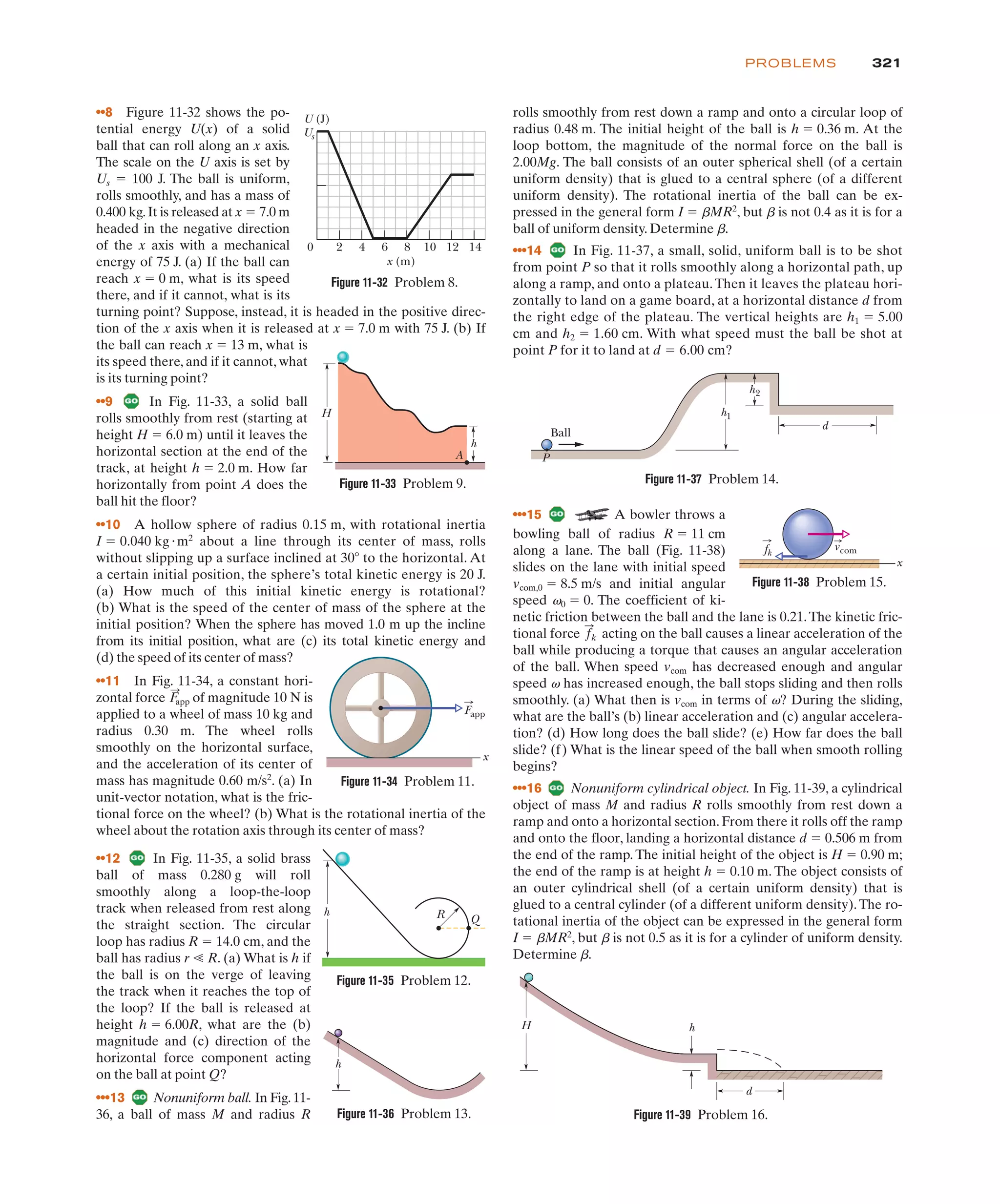

321
PROBLEMS
bowling ball of radius R ! 11 cm
along a lane. The ball (Fig. 11-38)
slides on the lane with initial speed
vcom,0 ! 8.5 m/s and initial angular
speed v0 ! 0. The coefficient of ki-
netic friction between the ball and the lane is 0.21.The kinetic fric-
tional force acting on the ball causes a linear acceleration of the
ball while producing a torque that causes an angular acceleration
of the ball. When speed vcom has decreased enough and angular
speed v has increased enough, the ball stops sliding and then rolls
smoothly. (a) What then is vcom in terms of v? During the sliding,
what are the ball’s (b) linear acceleration and (c) angular accelera-
tion? (d) How long does the ball slide? (e) How far does the ball
slide? (f) What is the linear speed of the ball when smooth rolling
begins?
•••16 Nonuniform cylindrical object. In Fig. 11-39, a cylindrical
object of mass M and radius R rolls smoothly from rest down a
ramp and onto a horizontal section. From there it rolls off the ramp
and onto the floor, landing a horizontal distance d ! 0.506 m from
the end of the ramp. The initial height of the object is H ! 0.90 m;
the end of the ramp is at height h ! 0.10 m. The object consists of
an outer cylindrical shell (of a certain uniform density) that is
glued to a central cylinder (of a different uniform density).The ro-
tational inertia of the object can be expressed in the general form
I ! bMR2
, but b is not 0.5 as it is for a cylinder of uniform density.
Determine b.
f
:
k
••8 Figure 11-32 shows the po-
tential energy U(x) of a solid
ball that can roll along an x axis.
The scale on the U axis is set by
Us ! 100 J. The ball is uniform,
rolls smoothly, and has a mass of
0.400 kg.It is released at x ! 7.0 m
headed in the negative direction
of the x axis with a mechanical
energy of 75 J. (a) If the ball can
reach x ! 0 m, what is its speed
there, and if it cannot, what is its
turning point? Suppose, instead, it is headed in the positive direc-
tion of the x axis when it is released at x ! 7.0 m with 75 J. (b) If
the ball can reach x ! 13 m, what is
its speed there, and if it cannot, what
is its turning point?
••9 In Fig. 11-33, a solid ball
rolls smoothly from rest (starting at
height H ! 6.0 m) until it leaves the
horizontal section at the end of the
track, at height h ! 2.0 m. How far
horizontally from point A does the
ball hit the floor?
••10 A hollow sphere of radius 0.15 m, with rotational inertia
I ! 0.040 kg"m2
about a line through its center of mass, rolls
without slipping up a surface inclined at 30( to the horizontal. At
a certain initial position, the sphere’s total kinetic energy is 20 J.
(a) How much of this initial kinetic energy is rotational?
(b) What is the speed of the center of mass of the sphere at the
initial position? When the sphere has moved 1.0 m up the incline
from its initial position, what are (c) its total kinetic energy and
(d) the speed of its center of mass?
••11 In Fig. 11-34, a constant hori-
zontal force of magnitude 10 N is
applied to a wheel of mass 10 kg and
radius 0.30 m. The wheel rolls
smoothly on the horizontal surface,
and the acceleration of its center of
mass has magnitude 0.60 m/s2
. (a) In
unit-vector notation, what is the fric-
tional force on the wheel? (b) What is the rotational inertia of the
wheel about the rotation axis through its center of mass?
F
:
app
rolls smoothly from rest down a ramp and onto a circular loop of
radius 0.48 m. The initial height of the ball is h ! 0.36 m. At the
loop bottom, the magnitude of the normal force on the ball is
2.00Mg. The ball consists of an outer spherical shell (of a certain
uniform density) that is glued to a central sphere (of a different
uniform density). The rotational inertia of the ball can be ex-
pressed in the general form I ! bMR2
, but b is not 0.4 as it is for a
ball of uniform density. Determine b.
•••14 In Fig. 11-37, a small, solid, uniform ball is to be shot
from point P so that it rolls smoothly along a horizontal path, up
along a ramp, and onto a plateau.Then it leaves the plateau hori-
zontally to land on a game board, at a horizontal distance d from
the right edge of the plateau. The vertical heights are h1 ! 5.00
cm and h2 ! 1.60 cm. With what speed must the ball be shot at
point P for it to land at d ! 6.00 cm?
H
h
A
0 2 4 6 8 10 12 14
Us
U (J)
x (m)
h R Q
h
Ball
P
h1
d
h2
Fapp
x
•••15 A bowler throws a
H h
d
x
fk
vcom
••12 In Fig. 11-35, a solid brass
ball of mass 0.280 g will roll
smoothly along a loop-the-loop
track when released from rest along
the straight section. The circular
loop has radius R ! 14.0 cm, and the
ball has radius r - R. (a) What is h if
the ball is on the verge of leaving
the track when it reaches the top of
the loop? If the ball is released at
height h ! 6.00R, what are the (b)
magnitude and (c) direction of the
horizontal force component acting
on the ball at point Q?
•••13 Nonuniform ball. In Fig.11-
36, a ball of mass M and radius R

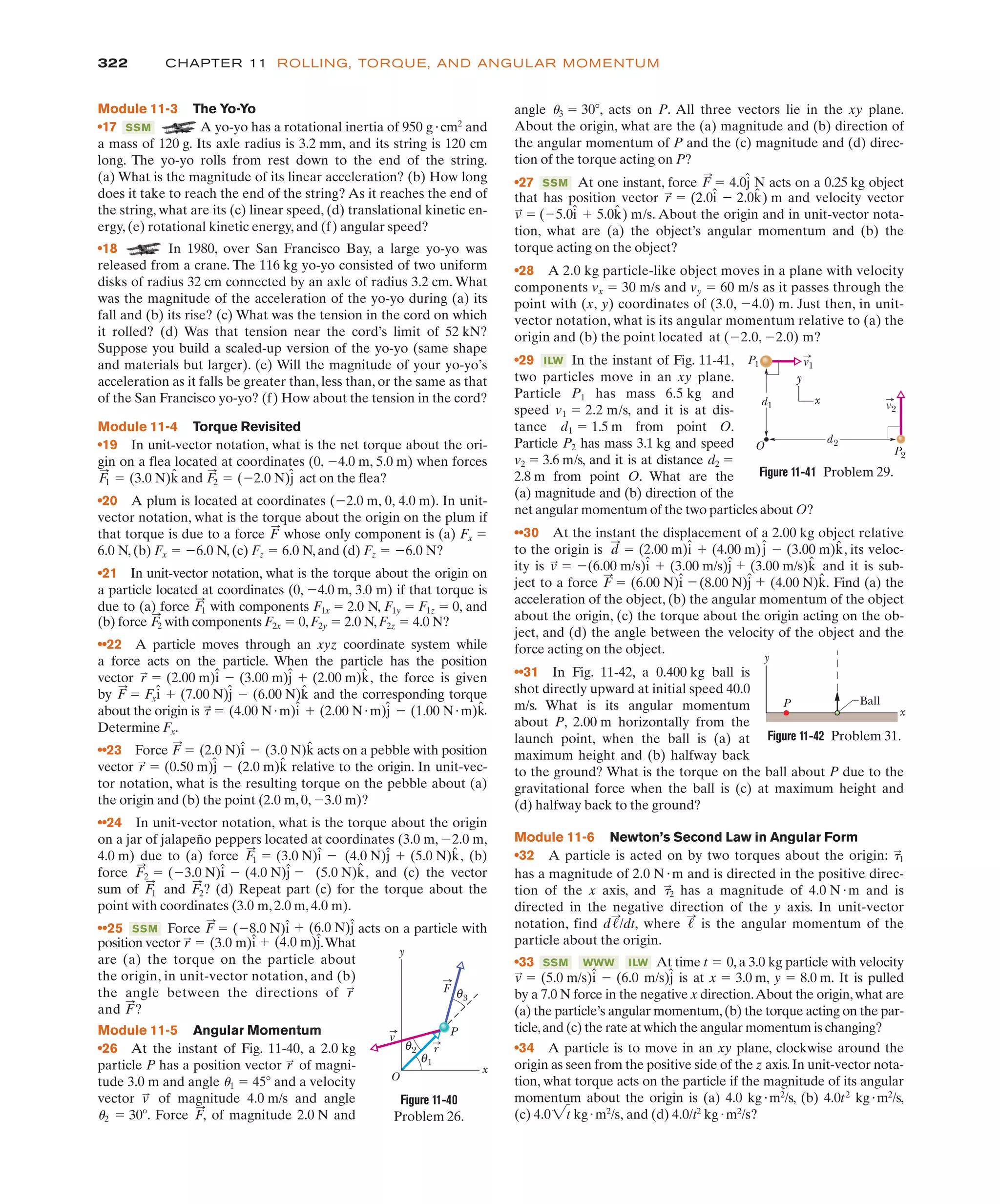

position vector .What
are (a) the torque on the particle about
the origin, in unit-vector notation, and (b)
the angle between the directions of
and ?
Module 11-5 Angular Momentum
•26 At the instant of Fig. 11-40, a 2.0 kg
particle P has a position vector of magni-
tude 3.0 m and angle u1 ! 45( and a velocity
vector of magnitude 4.0 m/s and angle
u2 ! 30(. Force of magnitude 2.0 N and
F
:
,
v
:
r
:
F
:
r
:
r
:
! (3.0 m)î # (4.0 m)ĵ
(b) force with components F2x ! 0,F2y ! 2.0 N,F2z ! 4.0 N?
••22 A particle moves through an xyz coordinate system while
a force acts on the particle. When the particle has the position
vector the force is given
by and the corresponding torque
about the origin is
Determine Fx.
••23 Force acts on a pebble with position
vector relative to the origin. In unit-vec-
tor notation, what is the resulting torque on the pebble about (a)
the origin and (b) the point (2.0 m, 0, %3.0 m)?
••24 In unit-vector notation, what is the torque about the origin
on a jar of jalapeño peppers located at coordinates (3.0 m, %2.0 m,
4.0 m) due to (a) force (b)
force and (c) the vector
sum of and ? (d) Repeat part (c) for the torque about the
point with coordinates (3.0 m, 2.0 m, 4.0 m).
••25 Force acts on a particle with
F
:
! (%8.0 N)î # (6.0 N)ĵ
SSM
F
:
2
F
:
1
(5.0 N)k̂,
F
:
2 ! (%3.0 N)î % (4.0 N)ĵ %
(4.0 N)ĵ # (5.0 N)k̂,
F
:
1 ! (3.0 N)î %
r
:
! (0.50 m)ĵ % (2.0 m)k̂
F
:
! (2.0 N)î % (3.0 N)k̂
(2.00 N"m)ĵ % (1.00 N"m)k̂.
t
:
! (4.00 N"m)î #
F
:
! Fxî # (7.00 N)ĵ % (6.00 N)k̂
r
:
! (2.00 m)î % (3.00 m)ĵ # (2.00 m)k̂,
F
:
2
Module 11-3 The Yo-Yo
•17 A yo-yo has a rotational inertia of 950 g"cm2
and
a mass of 120 g. Its axle radius is 3.2 mm, and its string is 120 cm
long. The yo-yo rolls from rest down to the end of the string.
(a) What is the magnitude of its linear acceleration? (b) How long
does it take to reach the end of the string? As it reaches the end of
the string, what are its (c) linear speed, (d) translational kinetic en-
ergy, (e) rotational kinetic energy, and (f) angular speed?
•18 In 1980, over San Francisco Bay, a large yo-yo was
released from a crane. The 116 kg yo-yo consisted of two uniform
disks of radius 32 cm connected by an axle of radius 3.2 cm. What
was the magnitude of the acceleration of the yo-yo during (a) its
fall and (b) its rise? (c) What was the tension in the cord on which
it rolled? (d) Was that tension near the cord’s limit of 52 kN?
Suppose you build a scaled-up version of the yo-yo (same shape
and materials but larger). (e) Will the magnitude of your yo-yo’s
acceleration as it falls be greater than, less than, or the same as that
of the San Francisco yo-yo? (f) How about the tension in the cord?
Module 11-4 Torque Revisited
•19 In unit-vector notation, what is the net torque about the ori-
gin on a flea located at coordinates (0, %4.0 m, 5.0 m) when forces
and act on the flea?
•20 A plum is located at coordinates (%2.0 m, 0, 4.0 m). In unit-
vector notation, what is the torque about the origin on the plum if
that torque is due to a force whose only component is (a) Fx !
6.0 N, (b) Fx ! %6.0 N, (c) Fz ! 6.0 N, and (d) Fz ! %6.0 N?
•21 In unit-vector notation, what is the torque about the origin on
a particle located at coordinates (0, %4.0 m, 3.0 m) if that torque is
due to (a) force with components F1x ! 2.0 N, F1y ! F1z ! 0, and
F
:
1
F
:
F
:
2 ! (%2.0 N)ĵ
F
:
1 ! (3.0 N)k̂
SSM
that has position vector and velocity vector
. About the origin and in unit-vector nota-
tion, what are (a) the object’s angular momentum and (b) the
torque acting on the object?
•28 A 2.0 kg particle-like object moves in a plane with velocity
components vx ! 30 m/s and vy ! 60 m/s as it passes through the
point with (x, y) coordinates of (3.0, %4.0) m. Just then, in unit-
vector notation, what is its angular momentum relative to (a) the
origin and (b) the point located at (%2.0, %2.0) m?
•29 In the instant of Fig. 11-41,
two particles move in an xy plane.
Particle P1 has mass 6.5 kg and
speed v1 ! 2.2 m/s, and it is at dis-
tance d1 ! 1.5 m from point O.
Particle P2 has mass 3.1 kg and speed
v2 ! 3.6 m/s, and it is at distance d2 !
2.8 m from point O. What are the
(a) magnitude and (b) direction of the
net angular momentum of the two particles about O?
••30 At the instant the displacement of a 2.00 kg object relative
to the origin is its veloc-
ity is and it is sub-
ject to a force Find (a) the
acceleration of the object, (b) the angular momentum of the object
about the origin, (c) the torque about the origin acting on the ob-
ject, and (d) the angle between the velocity of the object and the
force acting on the object.
••31 In Fig. 11-42, a 0.400 kg ball is
shot directly upward at initial speed 40.0
m/s. What is its angular momentum
about P, 2.00 m horizontally from the
launch point, when the ball is (a) at
maximum height and (b) halfway back
to the ground? What is the torque on the ball about P due to the
gravitational force when the ball is (c) at maximum height and
(d) halfway back to the ground?
Module 11-6 Newton’s Second Law in Angular Form
•32 A particle is acted on by two torques about the origin: &
:
1
(4.00 N)k̂.
(8.00 N)ĵ #
F
:
! (6.00 N)î %
(3.00 m/s)k̂
v
:
! %(6.00 m/s)î # (3.00 m/s)ĵ #
d
:
! (2.00 m)î # (4.00 m)ĵ % (3.00 m)k̂,
ILW
v
:
! (%5.0î # 5.0k̂) m/s
r
:
! (2.0î % 2.0k̂) m
Figure 11-40
Problem 26.
y
x
O
1
P
F
v
r
θ
2
θ
3
θ
P2
O
d2
d1 v2
v1
P1
y
x
Ball
P
y
x
has a magnitude of 2.0 N"m and is directed in the positive direc-
tion of the x axis, and has a magnitude of 4.0 N"m and is
directed in the negative direction of the y axis. In unit-vector
notation, find where is the angular momentum of the
particle about the origin.
•33 At time t 0, a 3.0 kg particle with velocity
!
ILW
WWW
SSM
!
:
d!
:
/dt,
t
:
2
angle u3 ! 30(, acts on P. All three vectors lie in the xy plane.
About the origin, what are the (a) magnitude and (b) direction of
the angular momentum of P and the (c) magnitude and (d) direc-
tion of the torque acting on P?
•27 At one instant, force acts on a 0.25 kg object
F
:
! 4.0ĵ N
SSM
is at x 3.0 m, y 8.0 m. It is pulled
by a 7.0 N force in the negative x direction.About the origin,what are
(a) the particle’s angular momentum,(b) the torque acting on the par-
ticle,and (c) the rate at which the angular momentum is changing?
•34 A particle is to move in an xy plane, clockwise around the
origin as seen from the positive side of the z axis.In unit-vector nota-
tion, what torque acts on the particle if the magnitude of its angular
momentum about the origin is (a) 4.0 kg"m2
/s, (b) 4.0t2
kg"m2
/s,
(c) and (d) 4.0/t2
kg"m2
/s?
4.02t kg"m2
/s,
!
!
m/s)ĵ
v
:
! (5.0 m/s)î % (6.0

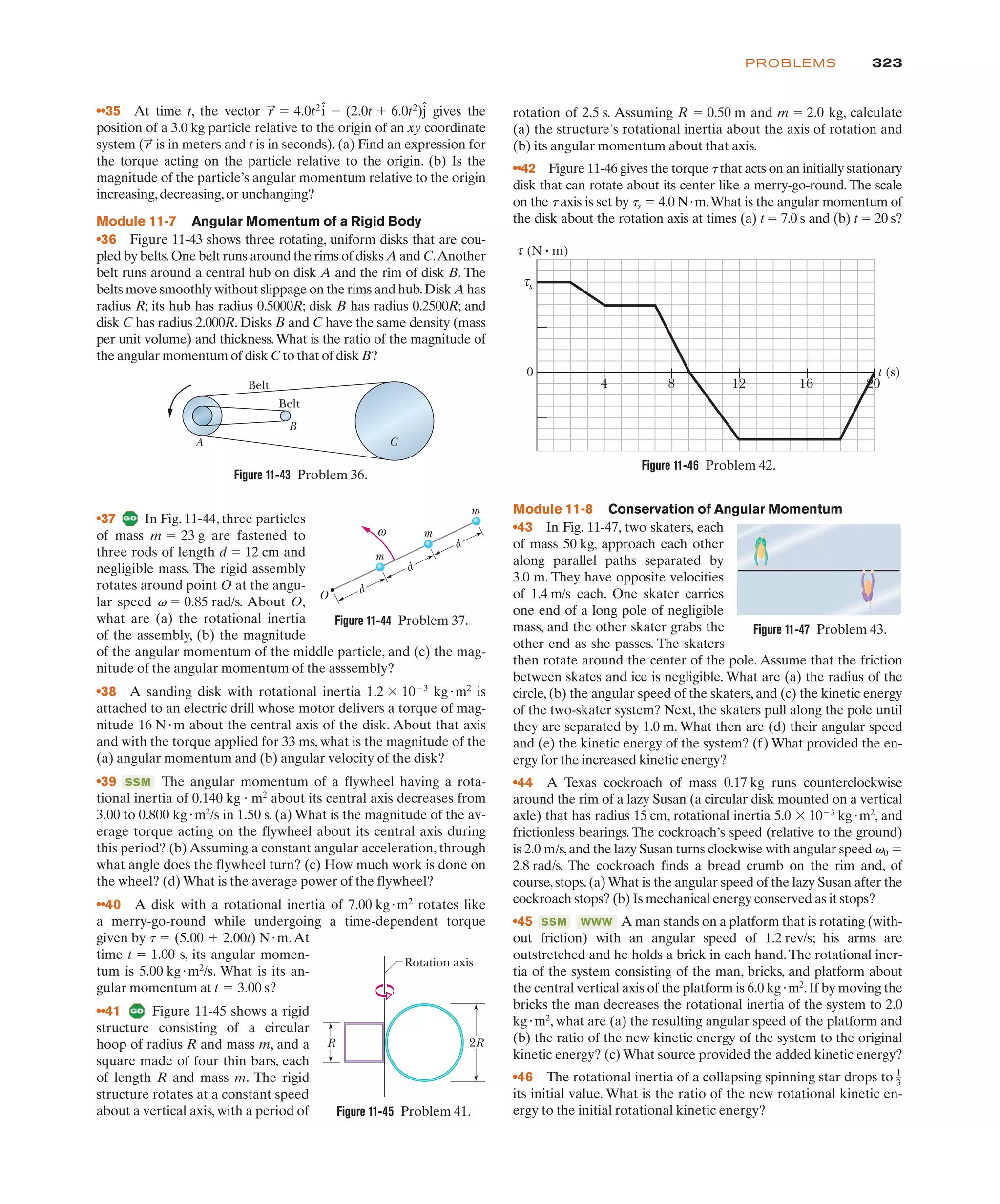

323
PROBLEMS
Module 11-8 Conservation of Angular Momentum
•43 In Fig. 11-47, two skaters, each
of mass 50 kg, approach each other
along parallel paths separated by
3.0 m. They have opposite velocities
of 1.4 m/s each. One skater carries
one end of a long pole of negligible
mass, and the other skater grabs the
other end as she passes. The skaters
then rotate around the center of the pole. Assume that the friction
between skates and ice is negligible. What are (a) the radius of the
circle, (b) the angular speed of the skaters, and (c) the kinetic energy
of the two-skater system? Next, the skaters pull along the pole until
they are separated by 1.0 m. What then are (d) their angular speed
and (e) the kinetic energy of the system? (f) What provided the en-
ergy for the increased kinetic energy?
•44 A Texas cockroach of mass 0.17 kg runs counterclockwise
around the rim of a lazy Susan (a circular disk mounted on a vertical
axle) that has radius 15 cm, rotational inertia 5.0 $ 10%3
kg"m2
, and
frictionless bearings. The cockroach’s speed (relative to the ground)
is 2.0 m/s,and the lazy Susan turns clockwise with angular speed v0 !
2.8 rad/s. The cockroach finds a bread crumb on the rim and, of
course,stops.(a)What is the angular speed of the lazy Susan after the
cockroach stops? (b) Is mechanical energy conserved as it stops?
•45 A man stands on a platform that is rotating (with-
out friction) with an angular speed of 1.2 rev/s; his arms are
outstretched and he holds a brick in each hand.The rotational iner-
tia of the system consisting of the man, bricks, and platform about
the central vertical axis of the platform is 6.0 kg"m2
.If by moving the
bricks the man decreases the rotational inertia of the system to 2.0
kg"m2
, what are (a) the resulting angular speed of the platform and
(b) the ratio of the new kinetic energy of the system to the original
kinetic energy? (c) What source provided the added kinetic energy?
•46 The rotational inertia of a collapsing spinning star drops to
its initial value. What is the ratio of the new rotational kinetic en-
ergy to the initial rotational kinetic energy?
1
3
WWW
SSM
•37 In Fig. 11-44, three particles
of mass m 23 g are fastened to
three rods of length d ! 12 cm and
negligible mass. The rigid assembly
rotates around point O at the angu-
lar speed v ! 0.85 rad/s. About O,
what are (a) the rotational inertia
of the assembly, (b) the magnitude
of the angular momentum of the middle particle, and (c) the mag-
nitude of the angular momentum of the asssembly?
•38 A sanding disk with rotational inertia 1.2 $ 10%3
kg"m2
is
attached to an electric drill whose motor delivers a torque of mag-
nitude 16 N"m about the central axis of the disk. About that axis
and with the torque applied for 33 ms, what is the magnitude of the
(a) angular momentum and (b) angular velocity of the disk?
•39 The angular momentum of a flywheel having a rota-
tional inertia of 0.140 kg m2
about its central axis decreases from
3.00 to 0.800 kg"m2
/s in 1.50 s. (a) What is the magnitude of the av-
erage torque acting on the flywheel about its central axis during
this period? (b) Assuming a constant angular acceleration, through
what angle does the flywheel turn? (c) How much work is done on
the wheel? (d) What is the average power of the flywheel?
••40 A disk with a rotational inertia of rotates like
a merry-go-round while undergoing a time-dependent torque
given by .At
time 1.00 s, its angular momen-
tum is . What is its an-
gular momentum at s?
••41 Figure 11-45 shows a rigid
structure consisting of a circular
hoop of radius R and mass m, and a
square made of four thin bars, each
of length R and mass m. The rigid
structure rotates at a constant speed
about a vertical axis, with a period of
t ! 3.00
5.00 kg"m2
/s
t !
(5.00 # 2.00t) N"m
t !
7.00 kg"m2
"
SSM
!
••35 At time t, the vector gives the
position of a 3.0 kg particle relative to the origin of an xy coordinate
system ( is in meters and t is in seconds). (a) Find an expression for
the torque acting on the particle relative to the origin. (b) Is the
magnitude of the particle’s angular momentum relative to the origin
increasing,decreasing,or unchanging?
Module 11-7 Angular Momentum of a Rigid Body
•36 Figure 11-43 shows three rotating, uniform disks that are cou-
pled by belts.One belt runs around the rims of disks A and C.Another
belt runs around a central hub on disk A and the rim of disk B. The
belts move smoothly without slippage on the rims and hub.Disk A has
radius R; its hub has radius 0.5000R; disk B has radius 0.2500R; and
disk C has radius 2.000R. Disks B and C have the same density (mass
per unit volume) and thickness.What is the ratio of the magnitude of
the angular momentum of disk C to that of disk B?
r
:
r
:
! 4.0t2
î % (2.0t # 6.0t2
)ĵ rotation of 2.5 s. Assuming R ! 0.50 m and m ! 2.0 kg, calculate
(a) the structure’s rotational inertia about the axis of rotation and
(b) its angular momentum about that axis.
••42 Figure 11-46 gives the torque t that acts on an initially stationary
disk that can rotate about its center like a merry-go-round. The scale
on the t axis is set by ts ! 4.0 N"m.What is the angular momentum of
the disk about the rotation axis at times (a) t ! 7.0 s and (b) t ! 20 s?
Belt
Belt
A
B
C
O
m
m
m
d
ω
d
d
Rotation axis
R 2R
0
4 8 12 16 20
t (s)
s
τ
τ (N • m)

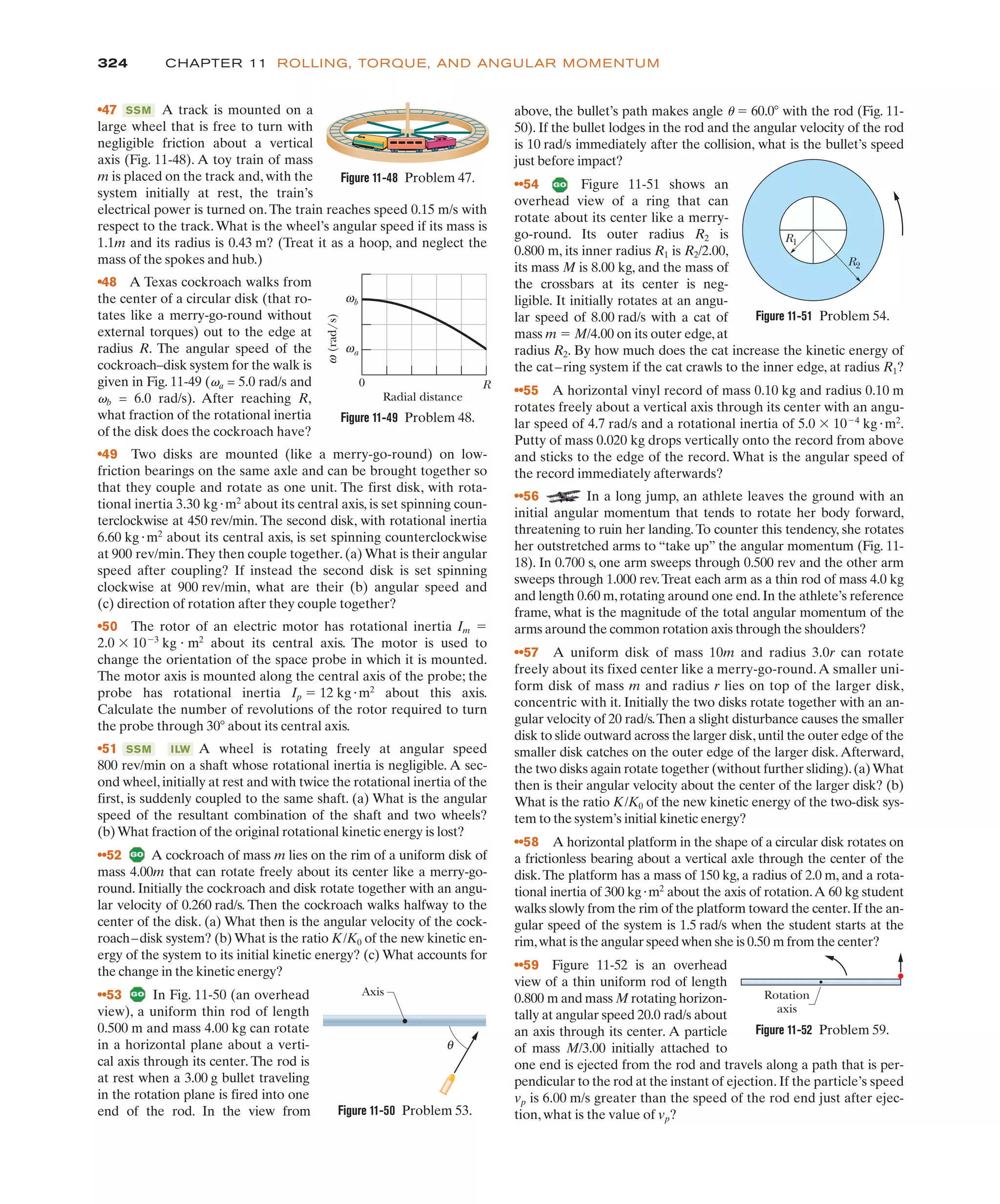

•47 A track is mounted on a
large wheel that is free to turn with
negligible friction about a vertical
axis (Fig. 11-48). A toy train of mass
m is placed on the track and, with the
system initially at rest, the train’s
electrical power is turned on.The train reaches speed 0.15 m/s with
respect to the track.What is the wheel’s angular speed if its mass is
1.1m and its radius is 0.43 m? (Treat it as a hoop, and neglect the
mass of the spokes and hub.)
•48 A Texas cockroach walks from
the center of a circular disk (that ro-
tates like a merry-go-round without
external torques) out to the edge at
radius R. The angular speed of the
cockroach–disk system for the walk is
given in Fig. 11-49 (va = 5.0 rad/s and
vb = 6.0 rad/s). After reaching R,
what fraction of the rotational inertia
of the disk does the cockroach have?
•49 Two disks are mounted (like a merry-go-round) on low-
friction bearings on the same axle and can be brought together so
that they couple and rotate as one unit. The first disk, with rota-
tional inertia 3.30 kg"m2
about its central axis, is set spinning coun-
terclockwise at 450 rev/min. The second disk, with rotational inertia
6.60 kg"m2
about its central axis, is set spinning counterclockwise
at 900 rev/min.They then couple together. (a) What is their angular
speed after coupling? If instead the second disk is set spinning
clockwise at 900 rev/min, what are their (b) angular speed and
(c) direction of rotation after they couple together?
•50 The rotor of an electric motor has rotational inertia Im !
2.0 $ 10%3
kg " m2
about its central axis. The motor is used to
change the orientation of the space probe in which it is mounted.
The motor axis is mounted along the central axis of the probe; the
probe has rotational inertia Ip ! 12 kg"m2
about this axis.
Calculate the number of revolutions of the rotor required to turn
the probe through 30( about its central axis.
•51 A wheel is rotating freely at angular speed
800 rev/min on a shaft whose rotational inertia is negligible. A sec-
ond wheel,initially at rest and with twice the rotational inertia of the
first, is suddenly coupled to the same shaft. (a) What is the angular
speed of the resultant combination of the shaft and two wheels?
(b)What fraction of the original rotational kinetic energy is lost?
••52 A cockroach of mass m lies on the rim of a uniform disk of
mass 4.00m that can rotate freely about its center like a merry-go-
round. Initially the cockroach and disk rotate together with an angu-
lar velocity of 0.260 rad/s. Then the cockroach walks halfway to the
center of the disk. (a) What then is the angular velocity of the cock-
roach–disk system? (b) What is the ratio K/K0 of the new kinetic en-
ergy of the system to its initial kinetic energy? (c) What accounts for
the change in the kinetic energy?
••53 In Fig. 11-50 (an overhead
view), a uniform thin rod of length
0.500 m and mass 4.00 kg can rotate
in a horizontal plane about a verti-
cal axis through its center. The rod is
at rest when a 3.00 g bullet traveling
in the rotation plane is fired into one
end of the rod. In the view from
ILW
SSM
SSM above, the bullet’s path makes angle u ! 60.0( with the rod (Fig. 11-
50). If the bullet lodges in the rod and the angular velocity of the rod
is 10 rad/s immediately after the collision, what is the bullet’s speed
just before impact?
••54 Figure 11-51 shows an
overhead view of a ring that can
rotate about its center like a merry-
go-round. Its outer radius R2 is
0.800 m, its inner radius R1 is R2/2.00,
its mass M is 8.00 kg, and the mass of
the crossbars at its center is neg-
ligible. It initially rotates at an angu-
lar speed of 8.00 rad/s with a cat of
mass m ! M/4.00 on its outer edge,at
radius R2. By how much does the cat increase the kinetic energy of
the cat–ring system if the cat crawls to the inner edge, at radius R1?
••55 A horizontal vinyl record of mass 0.10 kg and radius 0.10 m
rotates freely about a vertical axis through its center with an angu-
lar speed of 4.7 rad/s and a rotational inertia of 5.0 $ 10%4
kg"m2
.
Putty of mass 0.020 kg drops vertically onto the record from above
and sticks to the edge of the record. What is the angular speed of
the record immediately afterwards?
••56 In a long jump, an athlete leaves the ground with an
initial angular momentum that tends to rotate her body forward,
threatening to ruin her landing.To counter this tendency, she rotates
her outstretched arms to “take up” the angular momentum (Fig. 11-
18). In 0.700 s, one arm sweeps through 0.500 rev and the other arm
sweeps through 1.000 rev.Treat each arm as a thin rod of mass 4.0 kg
and length 0.60 m,rotating around one end.In the athlete’s reference
frame, what is the magnitude of the total angular momentum of the
arms around the common rotation axis through the shoulders?
••57 A uniform disk of mass 10m and radius 3.0r can rotate
freely about its fixed center like a merry-go-round.A smaller uni-
form disk of mass m and radius r lies on top of the larger disk,
concentric with it. Initially the two disks rotate together with an an-
gular velocity of 20 rad/s.Then a slight disturbance causes the smaller
disk to slide outward across the larger disk,until the outer edge of the
smaller disk catches on the outer edge of the larger disk.Afterward,
the two disks again rotate together (without further sliding).(a)What
then is their angular velocity about the center of the larger disk? (b)
What is the ratio K/K0 of the new kinetic energy of the two-disk sys-
tem to the system’s initial kinetic energy?
••58 A horizontal platform in the shape of a circular disk rotates on
a frictionless bearing about a vertical axle through the center of the
disk.The platform has a mass of 150 kg, a radius of 2.0 m, and a rota-
tional inertia of 300 kg"m2
about the axis of rotation.A 60 kg student
walks slowly from the rim of the platform toward the center.If the an-
gular speed of the system is 1.5 rad/s when the student starts at the
rim,what is the angular speed when she is 0.50 m from the center?
••59 Figure 11-52 is an overhead
view of a thin uniform rod of length
0.800 m and mass M rotating horizon-
tally at angular speed 20.0 rad/s about
an axis through its center. A particle
of mass M/3.00 initially attached to
one end is ejected from the rod and travels along a path that is per-
pendicular to the rod at the instant of ejection. If the particle’s speed
vp is 6.00 m/s greater than the speed of the rod end just after ejec-
tion, what is the value of vp?
ω
(rad/s)
ωb
ωa
0
Radial distance
R
Axis
θ
R1
R2
Rotation
axis

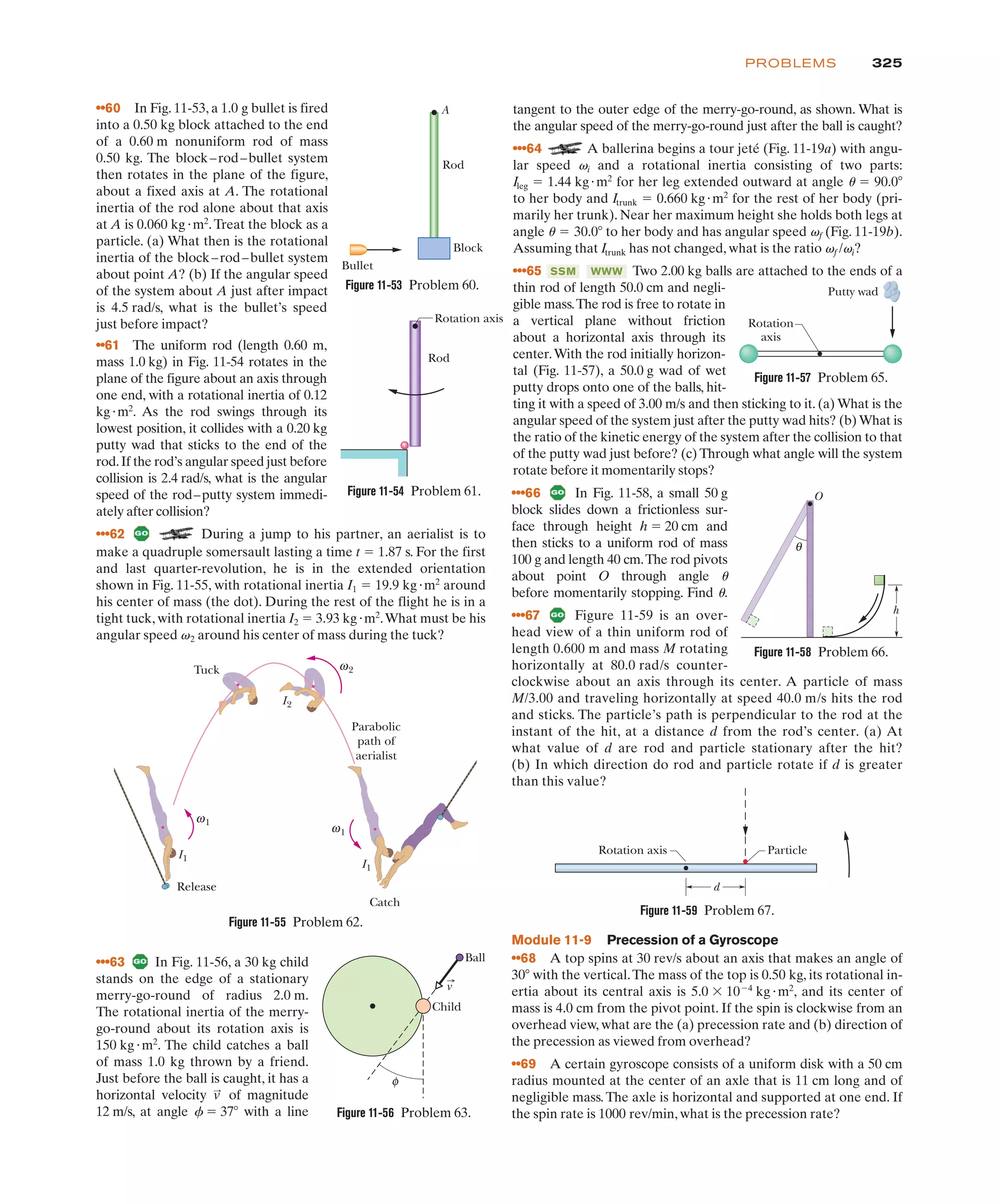

325
PROBLEMS
••60 In Fig. 11-53, a 1.0 g bullet is fired
into a 0.50 kg block attached to the end
of a 0.60 m nonuniform rod of mass
0.50 kg. The block–rod–bullet system
then rotates in the plane of the figure,
about a fixed axis at A. The rotational
inertia of the rod alone about that axis
at A is 0.060 kg"m2
.Treat the block as a
particle. (a) What then is the rotational
inertia of the block–rod–bullet system
about point A? (b) If the angular speed
of the system about A just after impact
is 4.5 rad/s, what is the bullet’s speed
just before impact?
••61 The uniform rod (length 0.60 m,
mass 1.0 kg) in Fig. 11-54 rotates in the
plane of the figure about an axis through
one end, with a rotational inertia of 0.12
kg"m2
. As the rod swings through its
lowest position, it collides with a 0.20 kg
putty wad that sticks to the end of the
rod.If the rod’s angular speed just before
collision is 2.4 rad/s, what is the angular
speed of the rod–putty system immedi-
ately after collision?
•••62 During a jump to his partner, an aerialist is to
tangent to the outer edge of the merry-go-round, as shown. What is
the angular speed of the merry-go-round just after the ball is caught?
•••64 A ballerina begins a tour jeté (Fig. 11-19a) with angu-
lar speed and a rotational inertia consisting of two parts:
for her leg extended outward at angle
to her body and for the rest of her body (pri-
marily her trunk). Near her maximum height she holds both legs at
angle to her body and has angular speed (Fig. 11-19b).
Assuming that has not changed, what is the ratio ?
•••65 Two 2.00 kg balls are attached to the ends of a
thin rod of length 50.0 cm and negli-
gible mass.The rod is free to rotate in
a vertical plane without friction
about a horizontal axis through its
center.With the rod initially horizon-
tal (Fig. 11-57), a 50.0 g wad of wet
putty drops onto one of the balls, hit-
ting it with a speed of 3.00 m/s and then sticking to it. (a) What is the
angular speed of the system just after the putty wad hits? (b)What is
the ratio of the kinetic energy of the system after the collision to that
of the putty wad just before? (c) Through what angle will the system
rotate before it momentarily stops?
WWW
SSM
vf /vi
Itrunk
vf
u ! 30.0(
Itrunk ! 0.660 kg"m2
u ! 90.0(
Ileg ! 1.44 kg"m2
vi
A
Bullet
Block
Rod
Rod
Rotation axis
Release
Catch
Parabolic
path of
aerialist
Tuck
I1
I1
ω1
I2
ω2
ω1
Putty wad
Rotation
axis
θ
O
h
•••63 In Fig. 11-56, a 30 kg child
stands on the edge of a stationary
merry-go-round of radius 2.0 m.
The rotational inertia of the merry-
go-round about its rotation axis is
150 kg"m2
. The child catches a ball
of mass 1.0 kg thrown by a friend.
Just before the ball is caught, it has a
horizontal velocity of magnitude
12 m/s, at angle f ! 37( with a line
v
:
φ
Child
Ball
v
make a quadruple somersault lasting a time t ! 1.87 s. For the first
and last quarter-revolution, he is in the extended orientation
shown in Fig. 11-55, with rotational inertia I1 ! 19.9 kg"m2
around
his center of mass (the dot). During the rest of the flight he is in a
tight tuck, with rotational inertia I2 ! 3.93 kg"m2
.What must be his
angular speed v2 around his center of mass during the tuck?
•••66 In Fig. 11-58, a small 50 g
block slides down a frictionless sur-
face through height h ! 20 cm and
then sticks to a uniform rod of mass
100 g and length 40 cm.The rod pivots
about point O through angle u
before momentarily stopping. Find u.
•••67 Figure 11-59 is an over-
head view of a thin uniform rod of
length 0.600 m and mass M rotating
horizontally at 80.0 rad/s counter-
clockwise about an axis through its center. A particle of mass
M/3.00 and traveling horizontally at speed 40.0 m/s hits the rod
and sticks. The particle’s path is perpendicular to the rod at the
instant of the hit, at a distance d from the rod’s center. (a) At
what value of d are rod and particle stationary after the hit?
(b) In which direction do rod and particle rotate if d is greater
than this value?
Module 11-9 Precession of a Gyroscope
••68 A top spins at 30 rev/s about an axis that makes an angle of
30( with the vertical.The mass of the top is 0.50 kg, its rotational in-
ertia about its central axis is 5.0 $ 10%4
kg"m2
, and its center of
mass is 4.0 cm from the pivot point. If the spin is clockwise from an
overhead view, what are the (a) precession rate and (b) direction of
the precession as viewed from overhead?
••69 A certain gyroscope consists of a uniform disk with a 50 cm
radius mounted at the center of an axle that is 11 cm long and of
negligible mass.The axle is horizontal and supported at one end. If
the spin rate is 1000 rev/min, what is the precession rate?
Rotation axis Particle
d

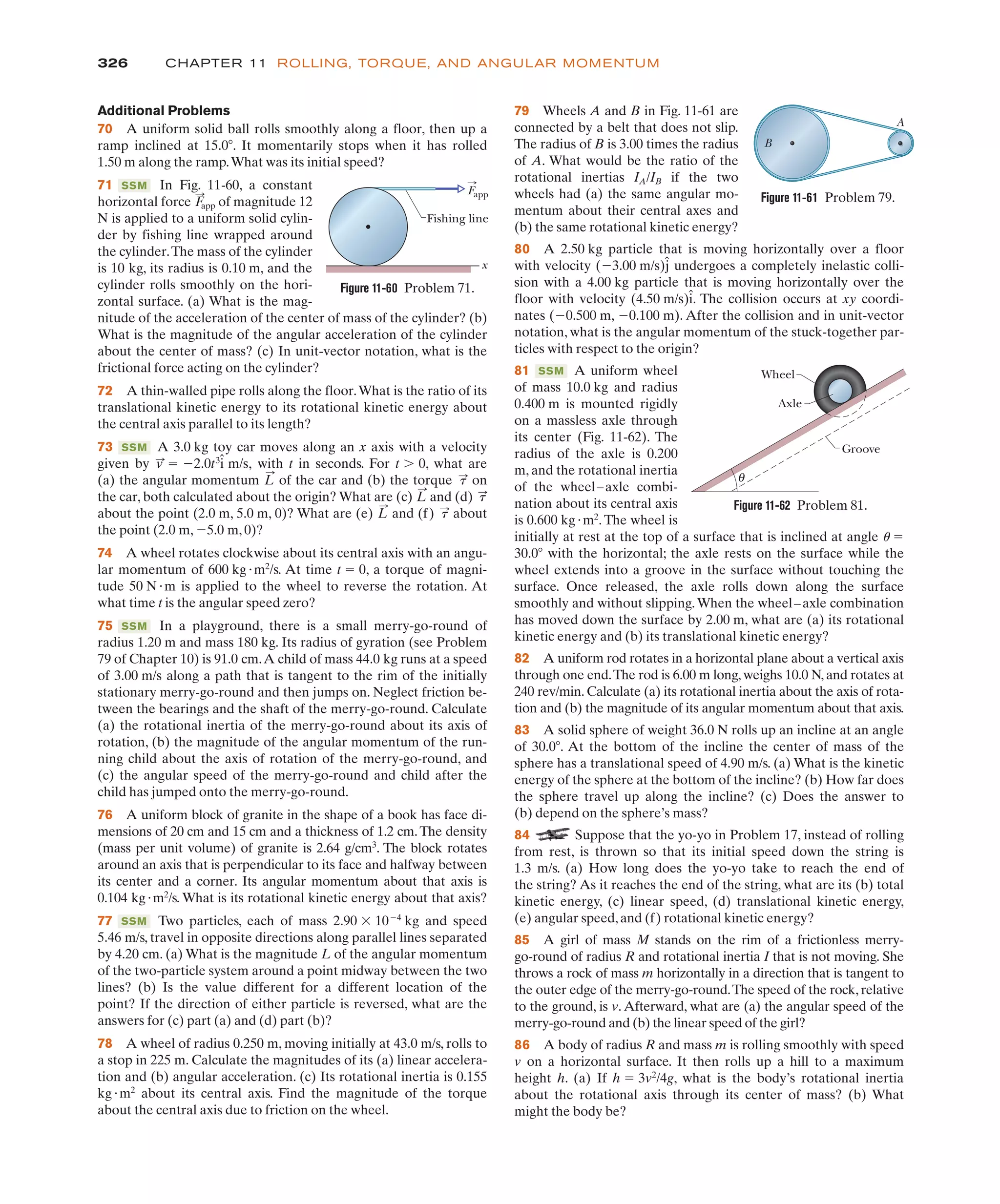

Additional Problems
70 A uniform solid ball rolls smoothly along a floor, then up a
ramp inclined at 15.0(. It momentarily stops when it has rolled
1.50 m along the ramp.What was its initial speed?
71 In Fig. 11-60, a constant
horizontal force of magnitude 12
N is applied to a uniform solid cylin-
der by fishing line wrapped around
the cylinder.The mass of the cylinder
is 10 kg, its radius is 0.10 m, and the
cylinder rolls smoothly on the hori-
zontal surface. (a) What is the mag-
nitude of the acceleration of the center of mass of the cylinder? (b)
What is the magnitude of the angular acceleration of the cylinder
about the center of mass? (c) In unit-vector notation, what is the
frictional force acting on the cylinder?
72 A thin-walled pipe rolls along the floor.What is the ratio of its
translational kinetic energy to its rotational kinetic energy about
the central axis parallel to its length?
73 A 3.0 kg toy car moves along an x axis with a velocity
given by with t in seconds. For t 0, what are
(a) the angular momentum of the car and (b) the torque on
the car, both calculated about the origin? What are (c) and (d)
about the point (2.0 m, 5.0 m, 0)? What are (e) and (f) about
the point (2.0 m, %5.0 m, 0)?
74 A wheel rotates clockwise about its central axis with an angu-
lar momentum of 600 kg"m2
/s. At time t ! 0, a torque of magni-
tude 50 N"m is applied to the wheel to reverse the rotation. At
what time t is the angular speed zero?
75 In a playground, there is a small merry-go-round of
radius 1.20 m and mass 180 kg. Its radius of gyration (see Problem
79 of Chapter 10) is 91.0 cm.A child of mass 44.0 kg runs at a speed
of 3.00 m/s along a path that is tangent to the rim of the initially
stationary merry-go-round and then jumps on. Neglect friction be-
tween the bearings and the shaft of the merry-go-round. Calculate
(a) the rotational inertia of the merry-go-round about its axis of
rotation, (b) the magnitude of the angular momentum of the run-
ning child about the axis of rotation of the merry-go-round, and
(c) the angular speed of the merry-go-round and child after the
child has jumped onto the merry-go-round.
76 A uniform block of granite in the shape of a book has face di-
mensions of 20 cm and 15 cm and a thickness of 1.2 cm.The density
(mass per unit volume) of granite is 2.64 g/cm3
. The block rotates
around an axis that is perpendicular to its face and halfway between
its center and a corner. Its angular momentum about that axis is
0.104 kg"m2
/s. What is its rotational kinetic energy about that axis?
77 Two particles, each of mass 2.90 $ 10%4
kg and speed
5.46 m/s, travel in opposite directions along parallel lines separated
by 4.20 cm. (a) What is the magnitude L of the angular momentum
of the two-particle system around a point midway between the two
lines? (b) Is the value different for a different location of the
point? If the direction of either particle is reversed, what are the
answers for (c) part (a) and (d) part (b)?
78 A wheel of radius 0.250 m, moving initially at 43.0 m/s, rolls to
a stop in 225 m. Calculate the magnitudes of its (a) linear accelera-
tion and (b) angular acceleration. (c) Its rotational inertia is 0.155
kg"m2
about its central axis. Find the magnitude of the torque
about the central axis due to friction on the wheel.
SSM
SSM
t
:
L
:
t
:
L
:
t
:
L
:
,
v
:
! %2.0t3
î m/s,
SSM
F
:
app
SSM
79 Wheels A and B in Fig. 11-61 are
connected by a belt that does not slip.
The radius of B is 3.00 times the radius
of A. What would be the ratio of the
rotational inertias IA/IB if the two
wheels had (a) the same angular mo-
mentum about their central axes and
(b) the same rotational kinetic energy?
80 A 2.50 kg particle that is moving horizontally over a floor
with velocity (%3.00 m/s)ĵ undergoes a completely inelastic colli-
sion with a 4.00 kg particle that is moving horizontally over the
floor with velocity (4.50 m/s)î. The collision occurs at xy coordi-
nates (%0.500 m, %0.100 m). After the collision and in unit-vector
notation, what is the angular momentum of the stuck-together par-
ticles with respect to the origin?
81 A uniform wheel
of mass 10.0 kg and radius
0.400 m is mounted rigidly
on a massless axle through
its center (Fig. 11-62). The
radius of the axle is 0.200
m, and the rotational inertia
of the wheel–axle combi-
nation about its central axis
is 0.600 kg"m2
.The wheel is
initially at rest at the top of a surface that is inclined at angle u !
30.0( with the horizontal; the axle rests on the surface while the
wheel extends into a groove in the surface without touching the
surface. Once released, the axle rolls down along the surface
smoothly and without slipping.When the wheel–axle combination
has moved down the surface by 2.00 m, what are (a) its rotational
kinetic energy and (b) its translational kinetic energy?
82 A uniform rod rotates in a horizontal plane about a vertical axis
through one end.The rod is 6.00 m long, weighs 10.0 N, and rotates at
240 rev/min. Calculate (a) its rotational inertia about the axis of rota-
tion and (b) the magnitude of its angular momentum about that axis.
83 A solid sphere of weight 36.0 N rolls up an incline at an angle
of 30.0(. At the bottom of the incline the center of mass of the
sphere has a translational speed of 4.90 m/s. (a) What is the kinetic
energy of the sphere at the bottom of the incline? (b) How far does
the sphere travel up along the incline? (c) Does the answer to
(b) depend on the sphere’s mass?
84 Suppose that the yo-yo in Problem 17, instead of rolling
from rest, is thrown so that its initial speed down the string is
1.3 m/s. (a) How long does the yo-yo take to reach the end of
the string? As it reaches the end of the string, what are its (b) total
kinetic energy, (c) linear speed, (d) translational kinetic energy,
(e) angular speed,and (f) rotational kinetic energy?
85 A girl of mass M stands on the rim of a frictionless merry-
go-round of radius R and rotational inertia I that is not moving. She
throws a rock of mass m horizontally in a direction that is tangent to
the outer edge of the merry-go-round.The speed of the rock, relative
to the ground, is v. Afterward, what are (a) the angular speed of the
merry-go-round and (b) the linear speed of the girl?
86 A body of radius R and mass m is rolling smoothly with speed
v on a horizontal surface. It then rolls up a hill to a maximum
height h. (a) If h ! 3v2
/4g, what is the body’s rotational inertia
about the rotational axis through its center of mass? (b) What
might the body be?
SSM
Fishing line
x
Fapp
Groove
Axle
Wheel
θ
B
A

Fundamentals of Physics "ROLLING, TORQUE, AND ANGULAR MOMENTUM"

More Related Content

What's hot

Similar to Fundamentals of Physics "ROLLING, TORQUE, AND ANGULAR MOMENTUM"

More from Leather Jackets & Coats

Recently uploaded

Fundamentals of Physics "ROLLING, TORQUE, AND ANGULAR MOMENTUM"
