Uploaded byAndri Yadi
Fullstack IoT Development
The document discusses the Internet of Things (IoT) and full-stack development, highlighting technical aspects such as device connectivity, cloud integration, and developer skills using platforms like ESP8266. It emphasizes the importance of using Azure IoT Hub for communication and device management, and introduces dycodex's IoT development board and cloud services. Additionally, it encourages developer engagement through education and community involvement in IoT projects.
More Related Content
Similar to Fullstack IoT Development
Fullstack IoT Development
- 2. #techBDV21 and collect printedphotos at Jepret Allegra booth
- 3.
- 4. Disclaimer It’s technical Talk, Sorryif you can’t catch up :)
- 5. Andri Yadi @andri_yadi |a at dycode dot com http://andriyadi.me | http://dycodex.com

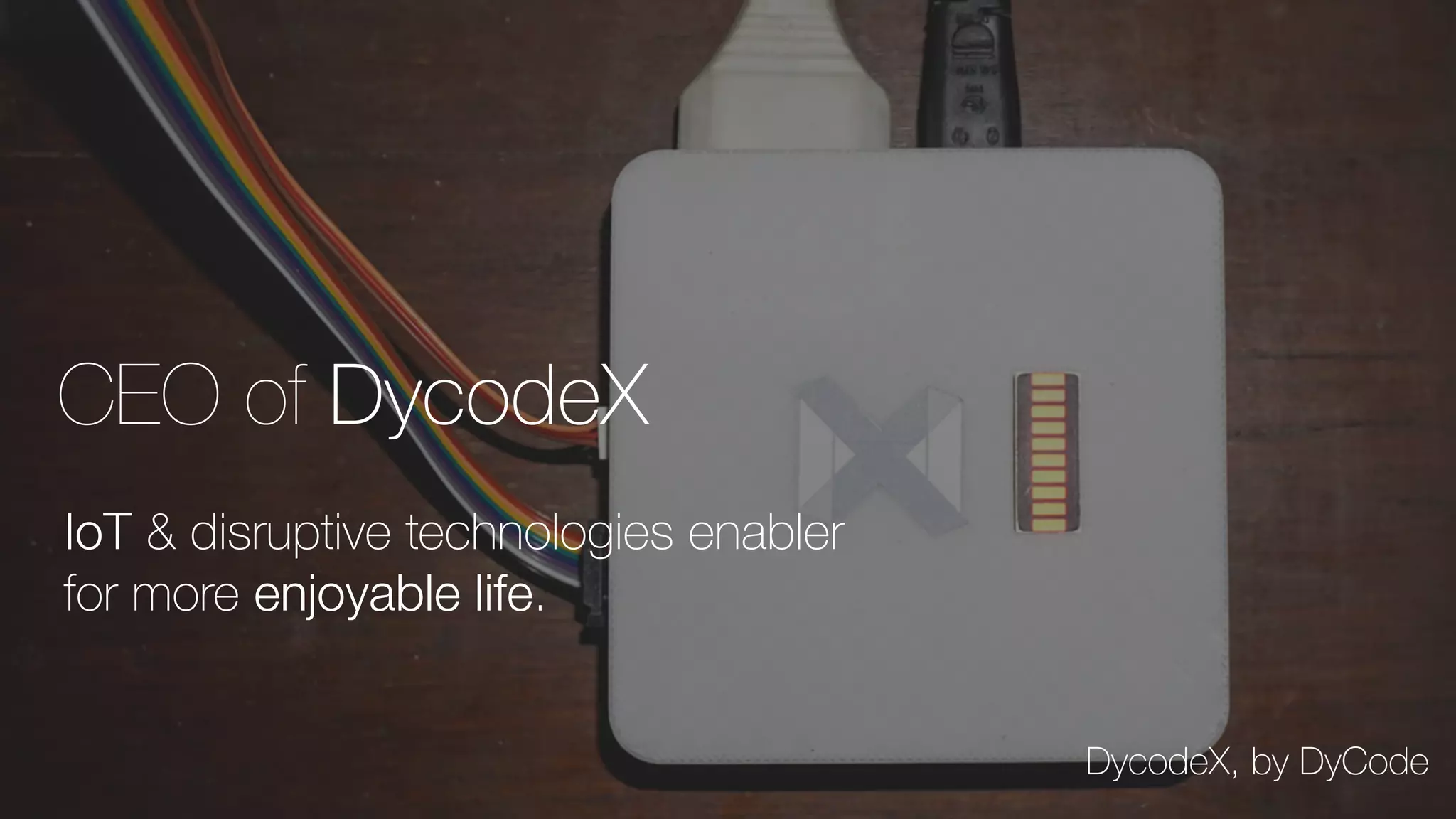

- 6. CEO of DycodeX IoT& disruptive technologies enabler for more enjoyable life. DycodeX, by DyCode
- 7. 8 years ina row
- 8. What is it,really? Image source: https://www.youtube.com/watch?v=KflfJwXncy8
- 9. “Network-connected devices with embeddedprocessing power„ Internet of Things
- 10. *Microsoft’s definition ofIoT Connectivity Data AnalyticsThings Internet of Things

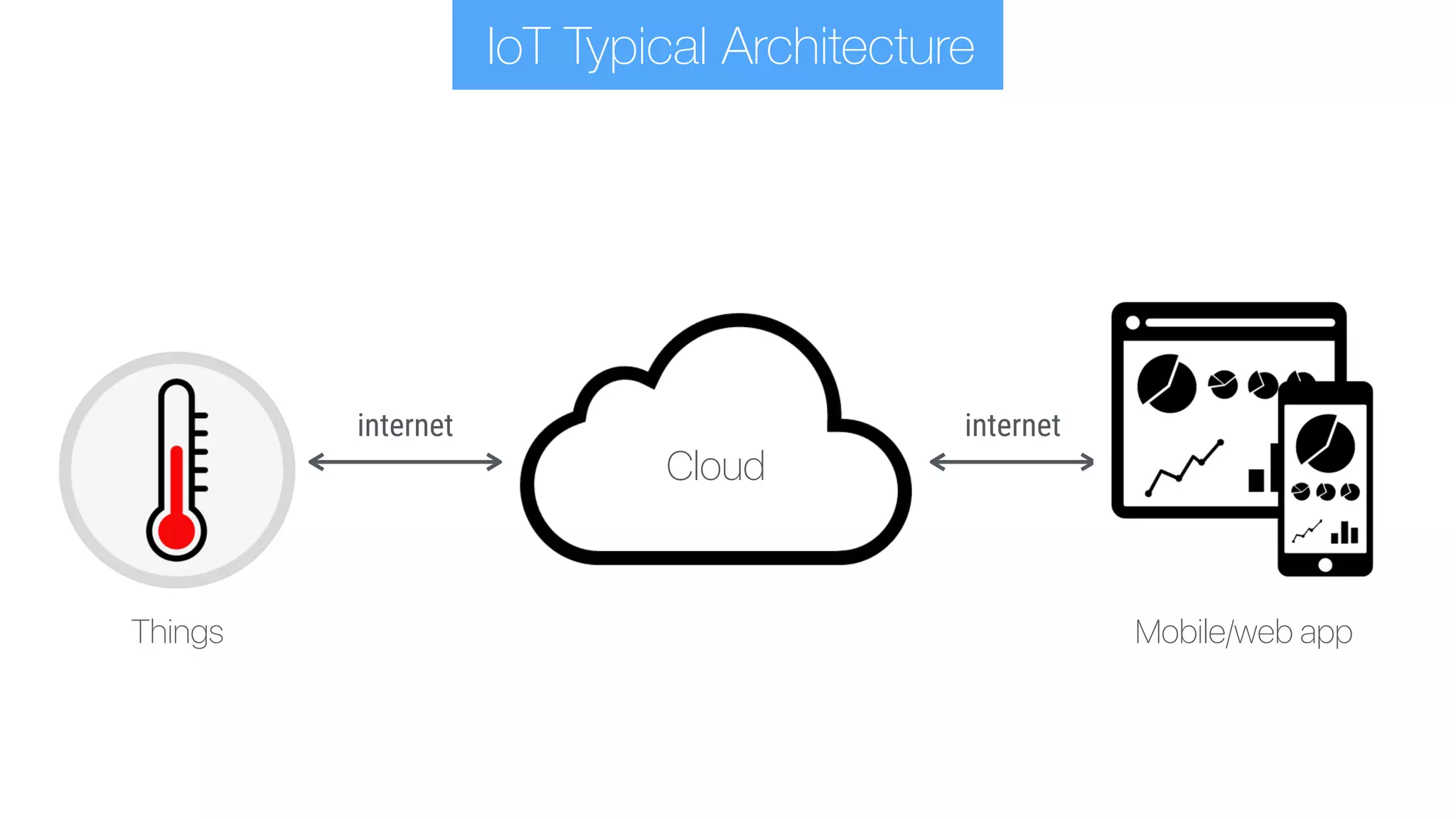

- 11. internet Cloud Mobile/web app internet IoT TypicalArchitecture Things

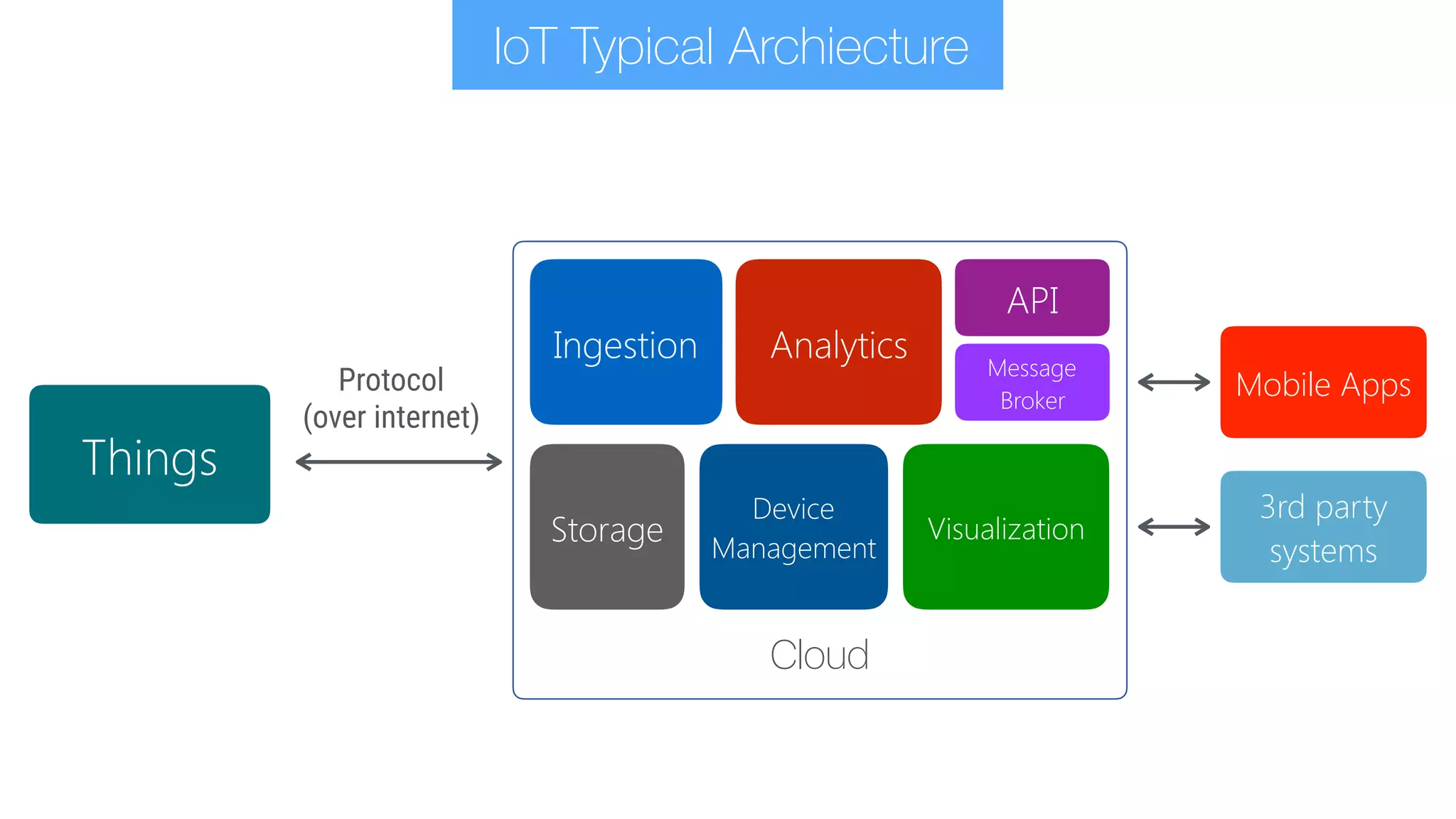

- 12. Things IoT Typical Archiecture Protocol (overinternet) Ingestion Analytics Storage Visualization Device Management API Cloud Message Broker Mobile Apps 3rd party systems
- 13.
- 14. When we’re talkingabout full stack/ end-to-end IoT Development… So…
- 15. …we’re talking aboutdeveloping for: Things, Cloud, Mobile
- 16. as developer… Image source:https://www.entrepreneur.com/article/241644
- 17. Developer Skillset Thing sideBackend side Mobile side [Obj-C]
- 18.
- 19.

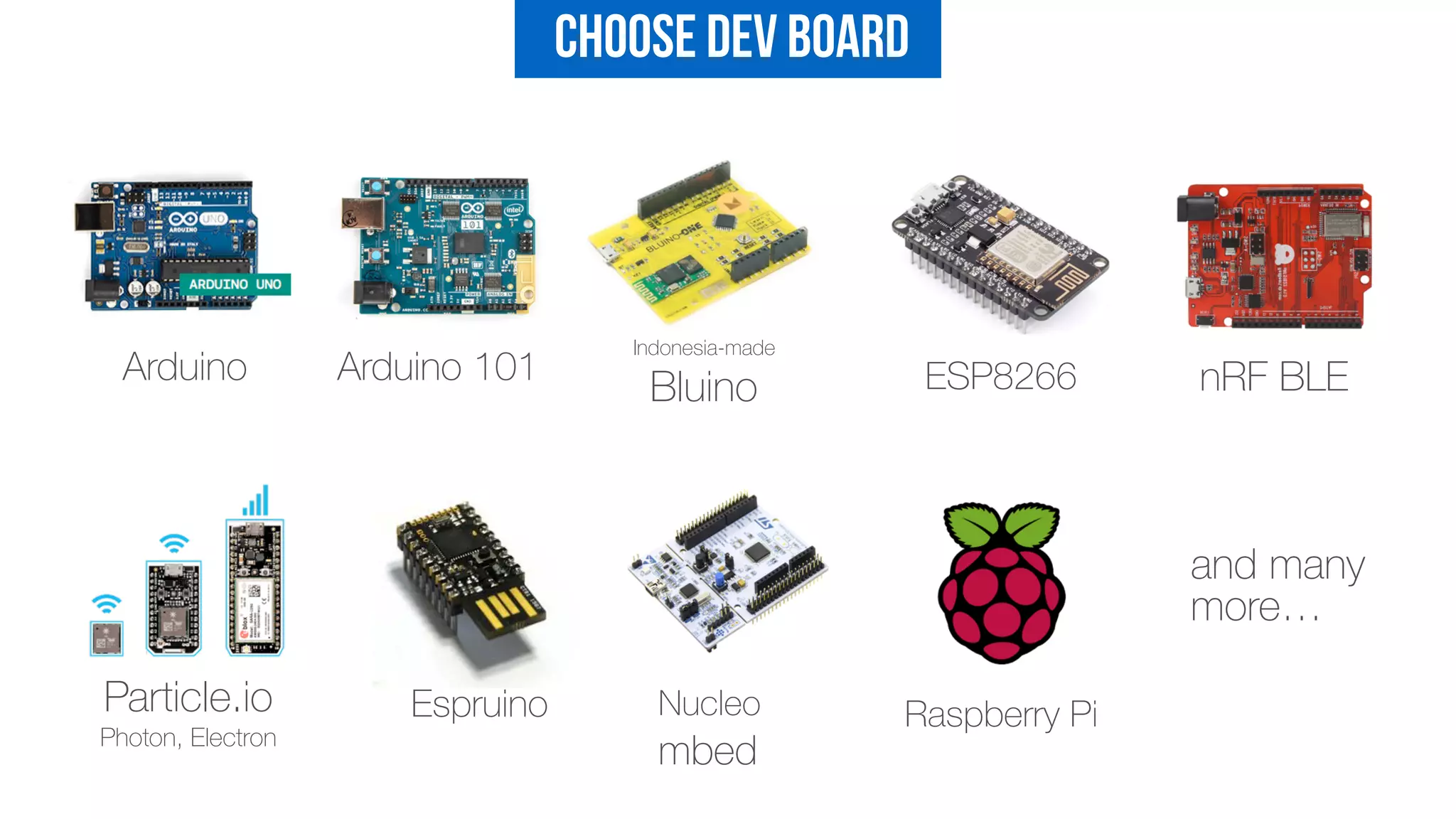

- 20. ESP8266Arduino nRF BLE EspruinoParticle.io Photon,Electron Arduino 101 Indonesia-made Bluino Nucleo mbed Raspberry Pi and many more… Choose Dev Board
- 21. Choose Dev Platform COSATeensy and many more…Sming
- 22.
- 23. Disclaimer Let’s focus toESP8266

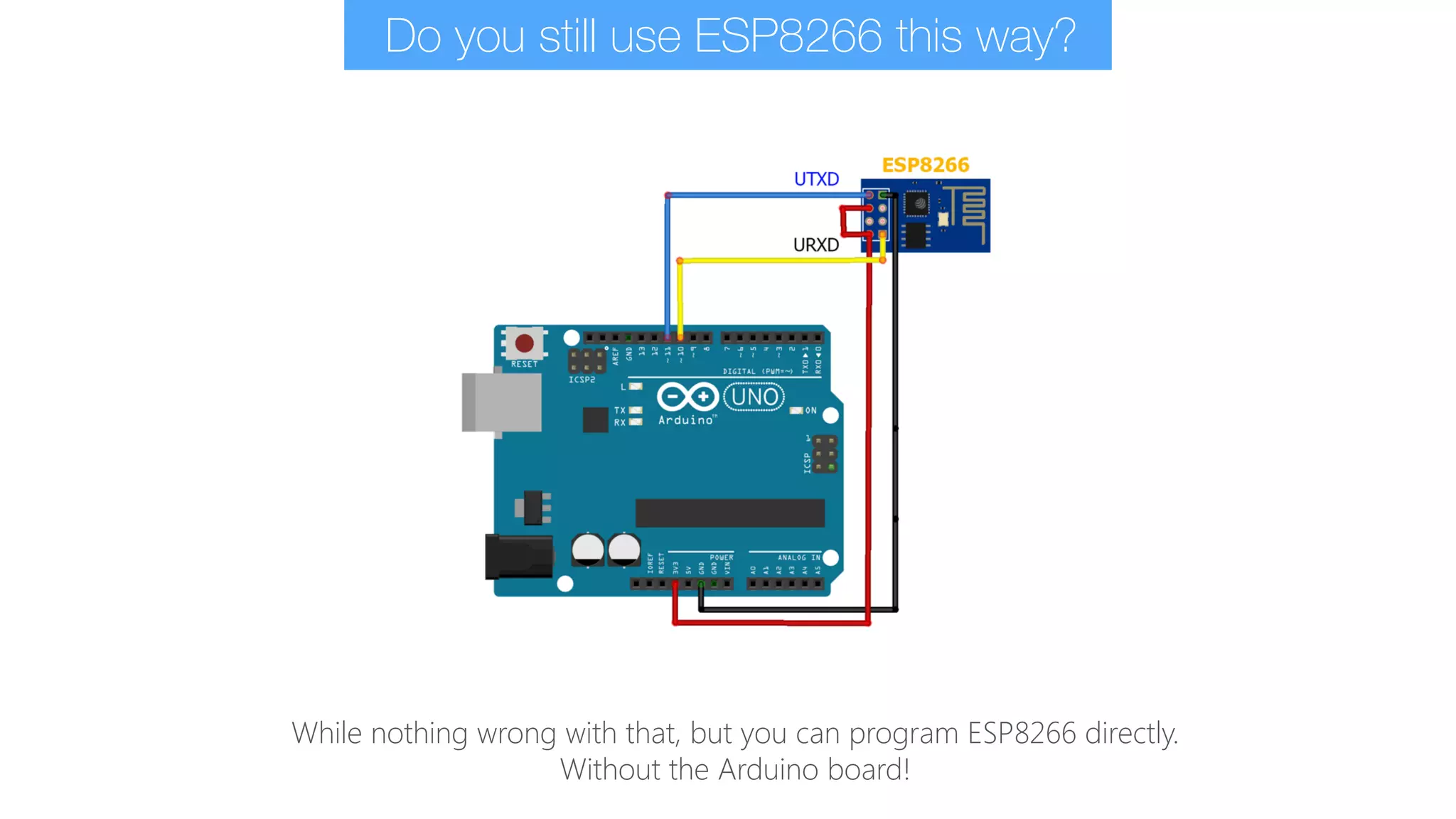

- 24. Do you stilluse ESP8266 this way? While nothing wrong with that, but you can program ESP8266 directly. Without the Arduino board!

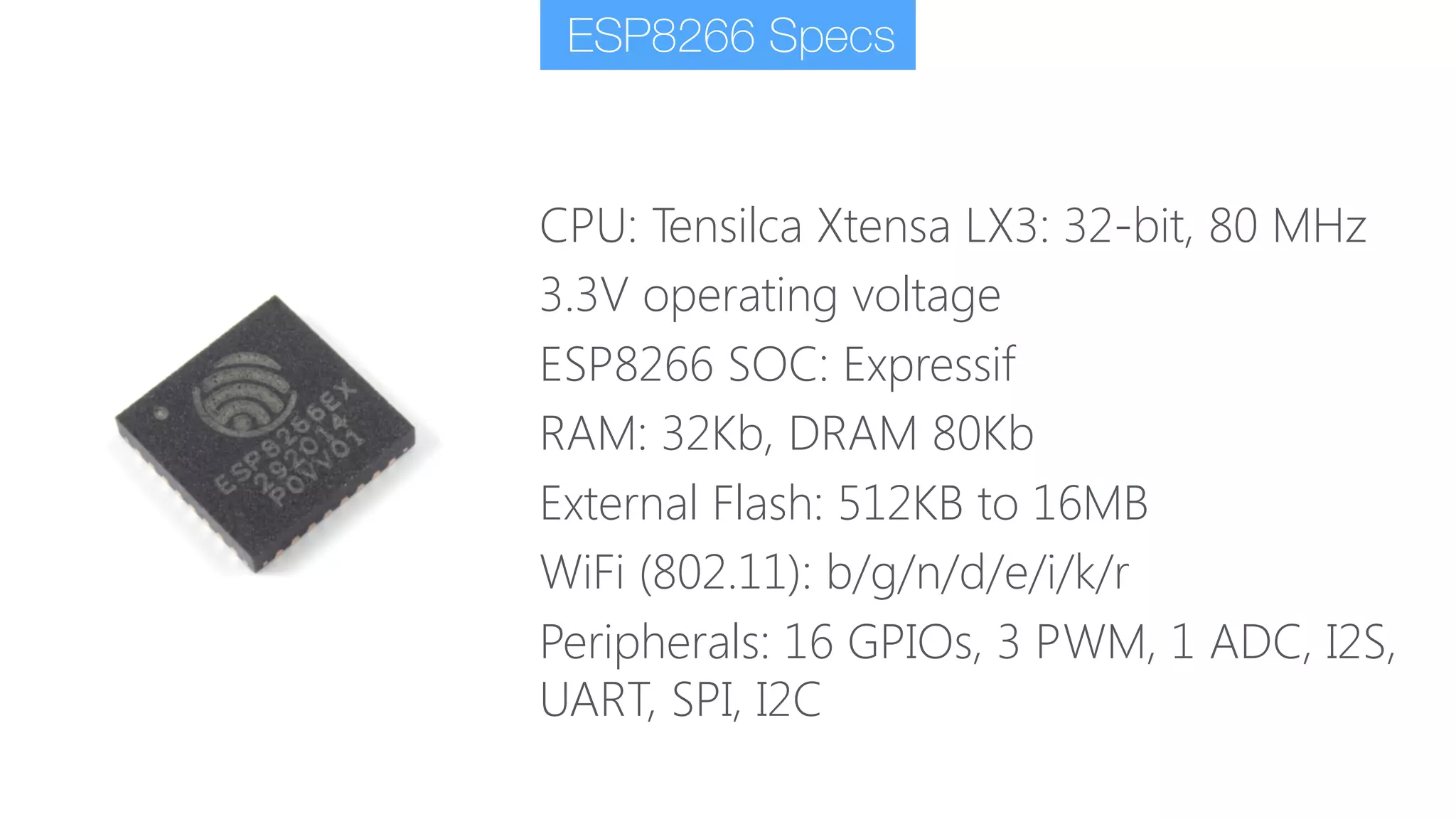

- 25. CPU: Tensilca XtensaLX3: 32-bit, 80 MHz 3.3V operating voltage ESP8266 SOC: Expressif RAM: 32Kb, DRAM 80Kb External Flash: 512KB to 16MB WiFi (802.11): b/g/n/d/e/i/k/r Peripherals: 16 GPIOs, 3 PWM, 1 ADC, I2S, UART, SPI, I2C ESP8266 Specs

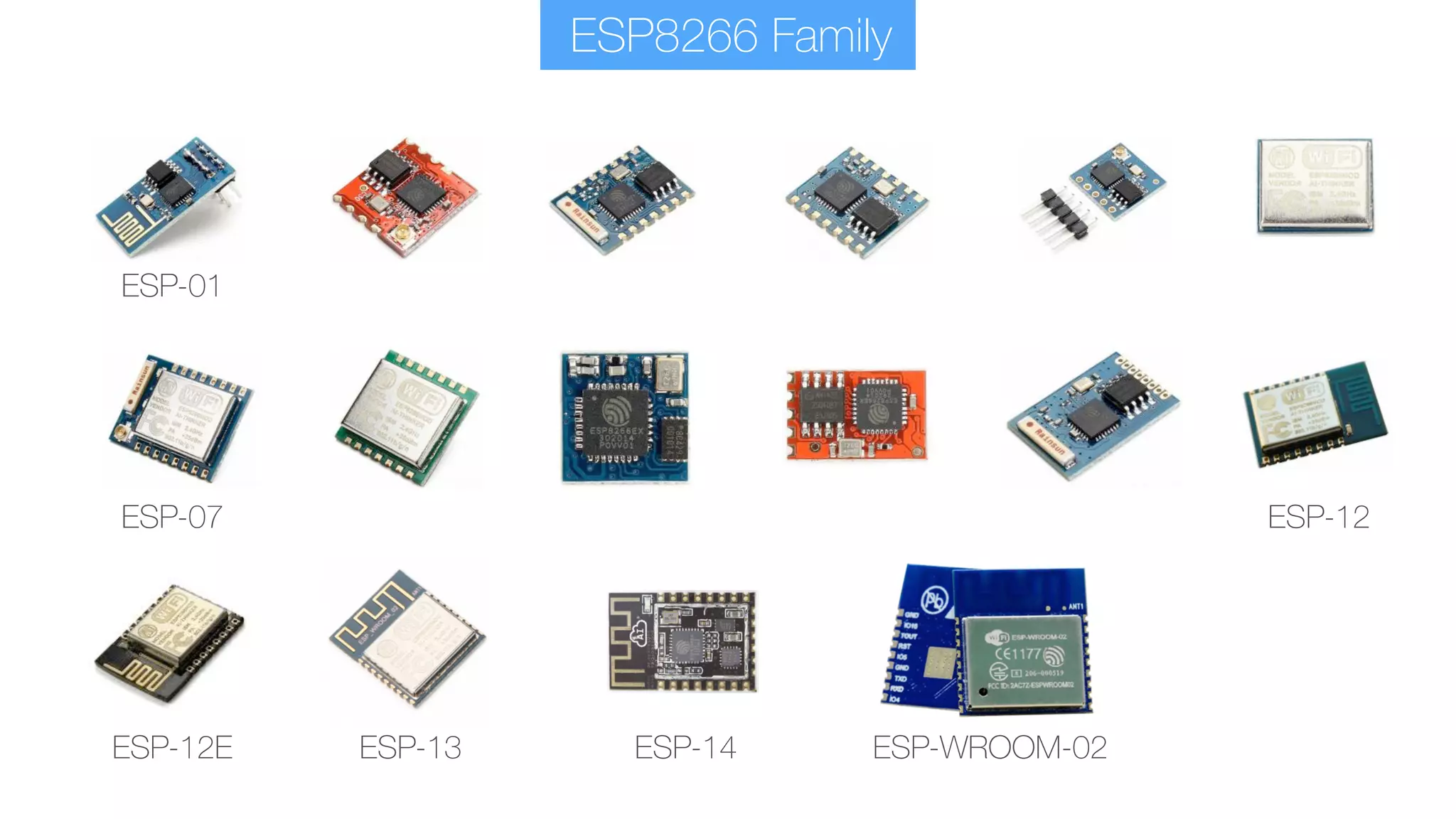

- 26.
- 27.
- 28.
- 29. Did I mentionit’s only $2

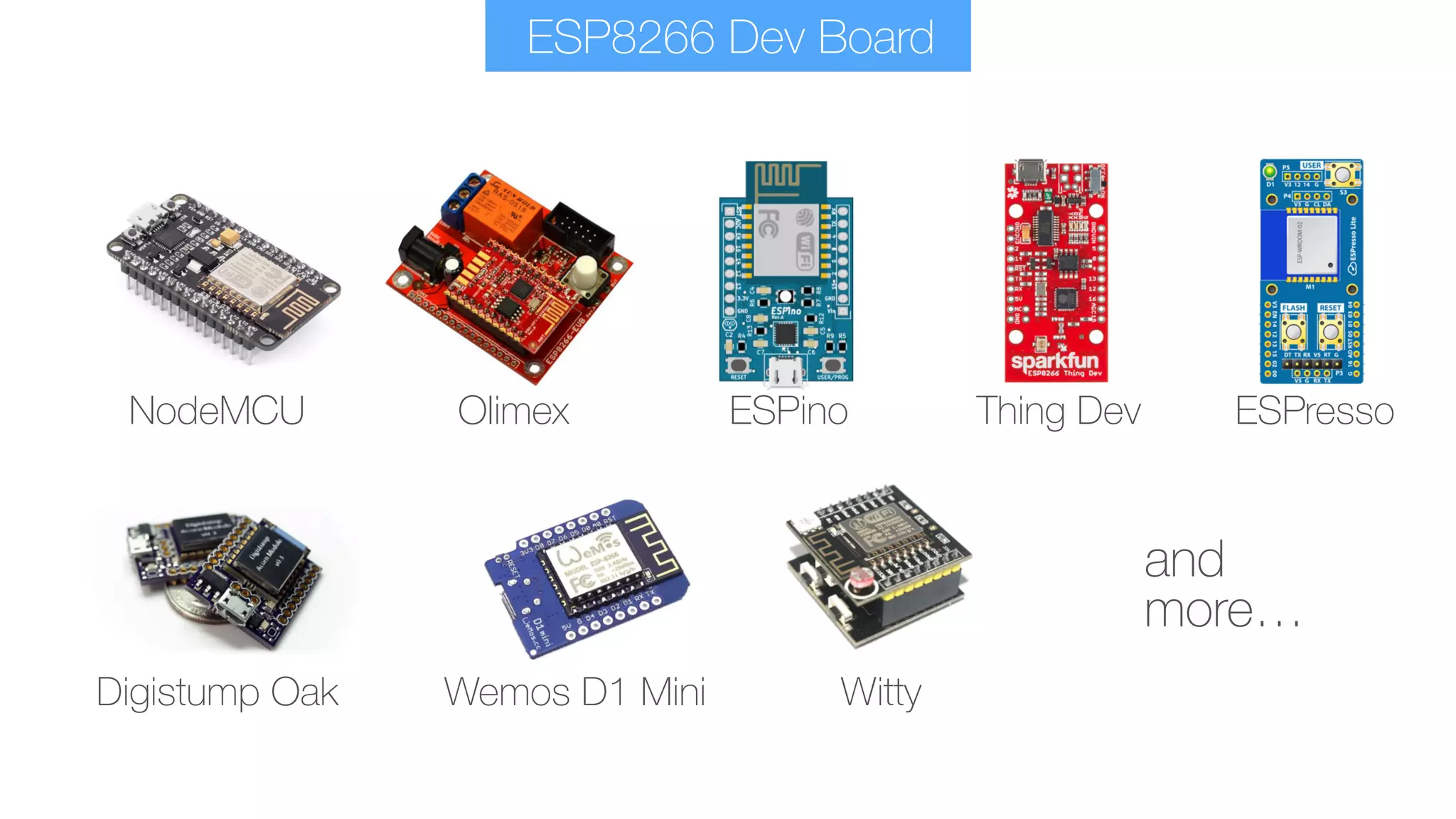

- 30. ESP8266 Dev Board OlimexNodeMCUESPino Thing Dev ESPresso Digistump Oak Wemos D1 Mini Witty and more…
- 31.

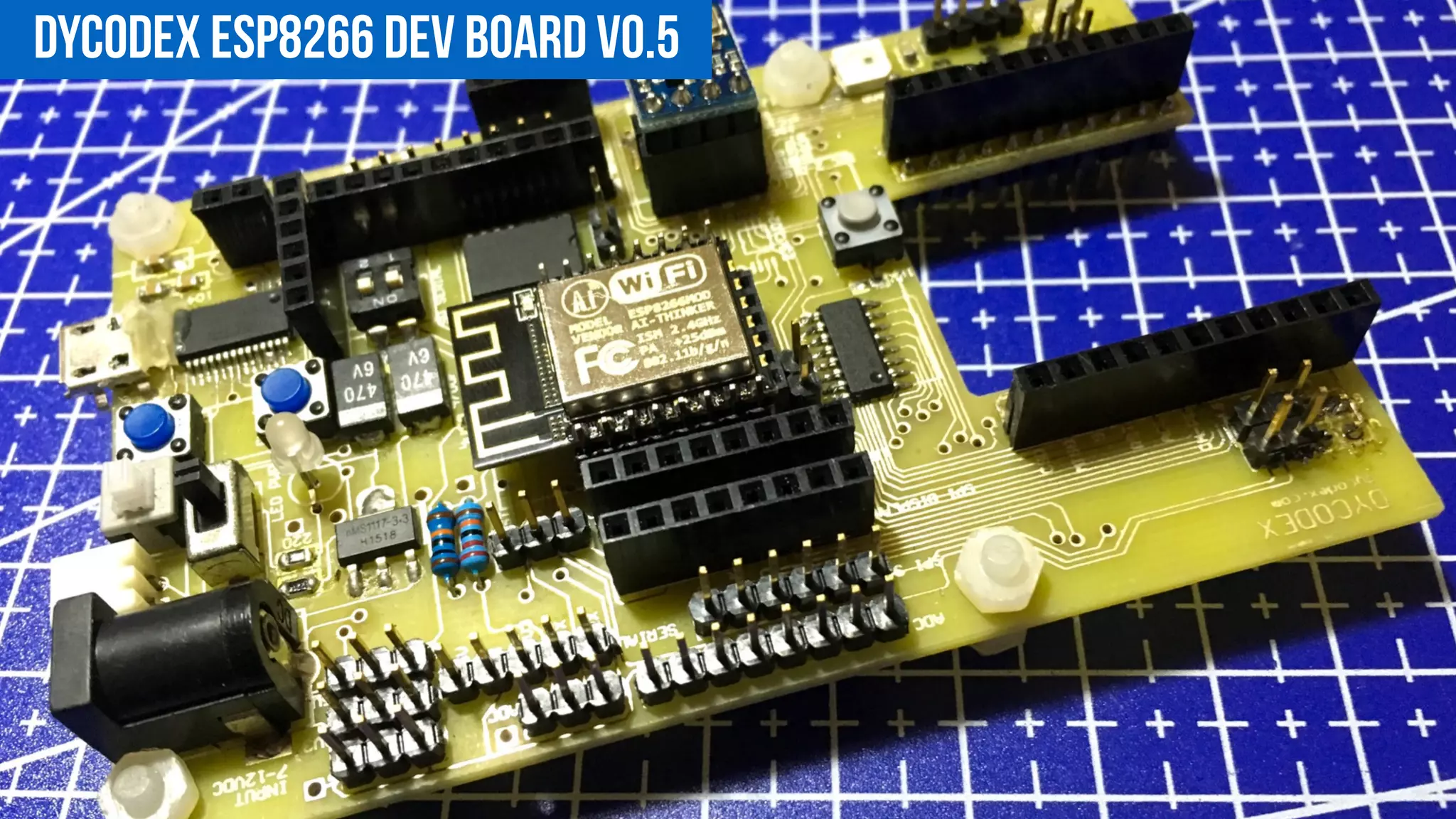

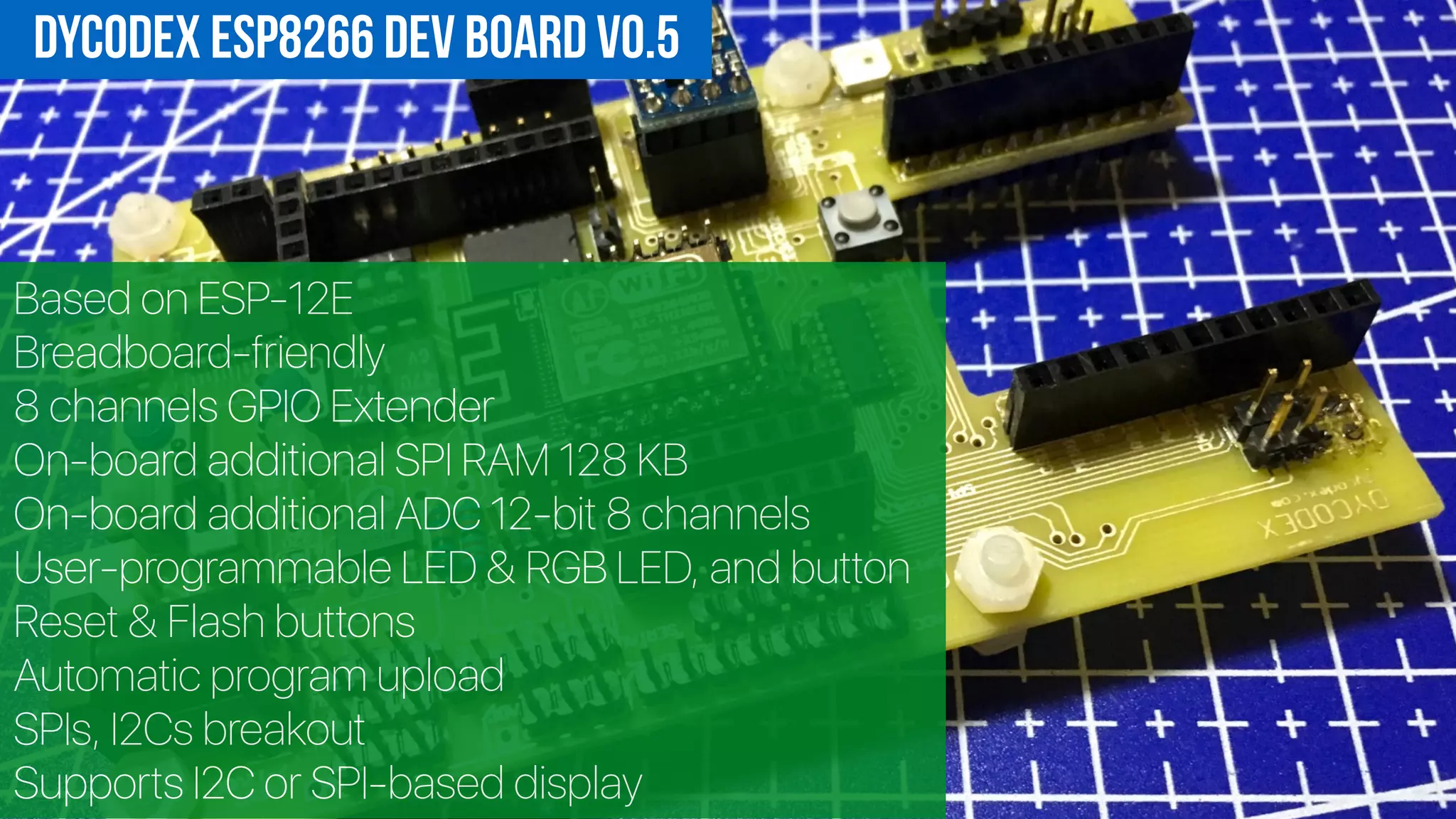

- 32. DycodeX ESP8266 DevBoard v0.5
- 33. Based on ESP-12E Breadboard-friendly 8channels GPIO Extender On-board additional SPI RAM 128 KB On-board additional ADC 12-bit 8 channels User-programmable LED & RGB LED, and button Reset & Flash buttons Automatic program upload SPIs, I2Cs breakout Supports I2C or SPI-based display DycodeX ESP8266 Dev Board v0.5
- 34. Demo Let there bea light…
- 35.
- 36. Cloud Platform Azure IoT Hub anda whole lot more…

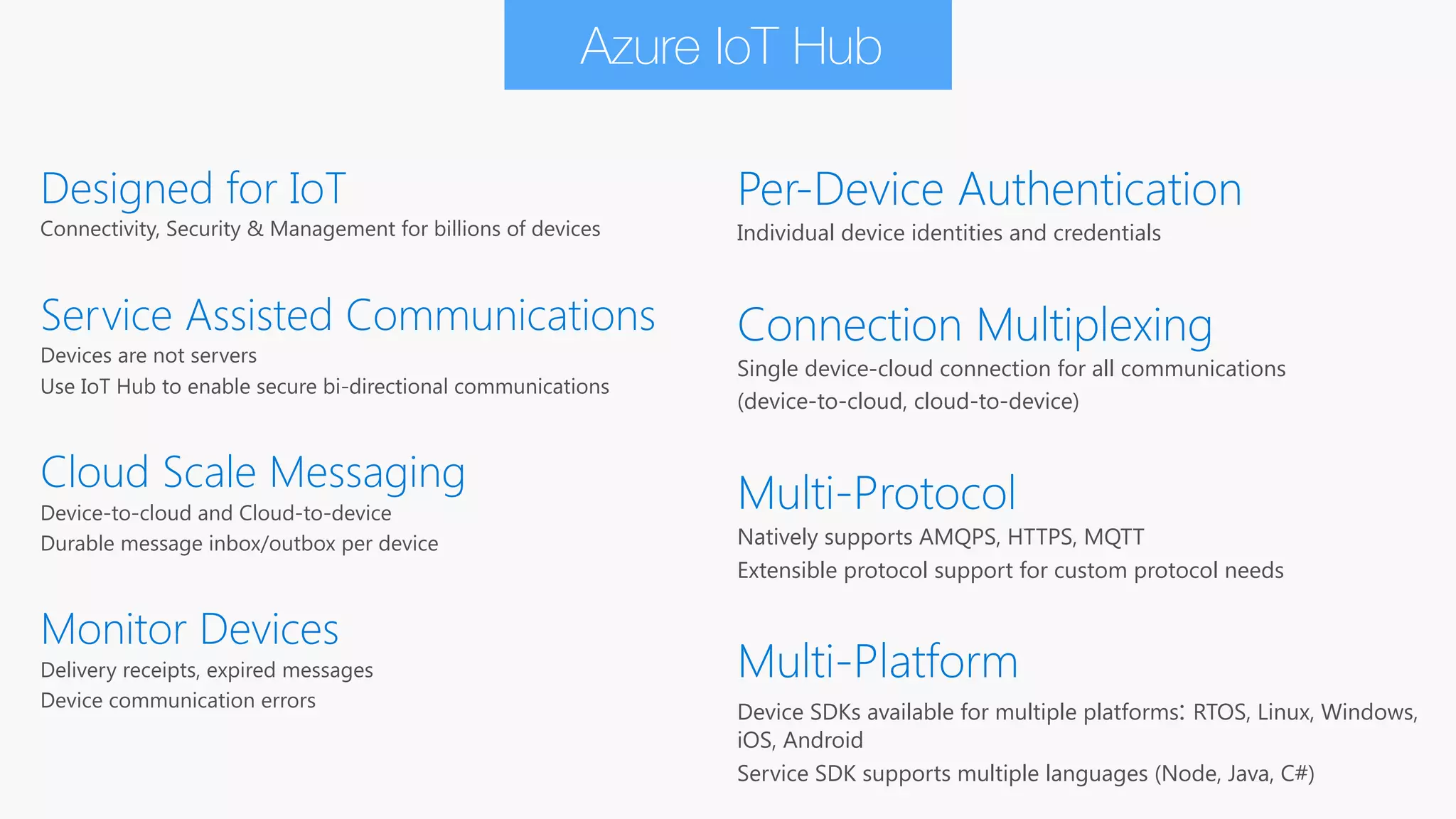

- 37. Designed for IoT Connectivity,Security & Management for billions of devices Service Assisted Communications Devices are not servers Use IoT Hub to enable secure bi-directional communications Cloud Scale Messaging Device-to-cloud and Cloud-to-device Durable message inbox/outbox per device Monitor Devices Delivery receipts, expired messages Device communication errors Per-Device Authentication Individual device identities and credentials Connection Multiplexing Single device-cloud connection for all communications (device-to-cloud, cloud-to-device) Multi-Protocol Natively supports AMQPS, HTTPS, MQTT Extensible protocol support for custom protocol needs Multi-Platform Device SDKs available for multiple platforms: RTOS, Linux, Windows, iOS, Android Service SDK supports multiple languages (Node, Java, C#) Azure IoT Hub

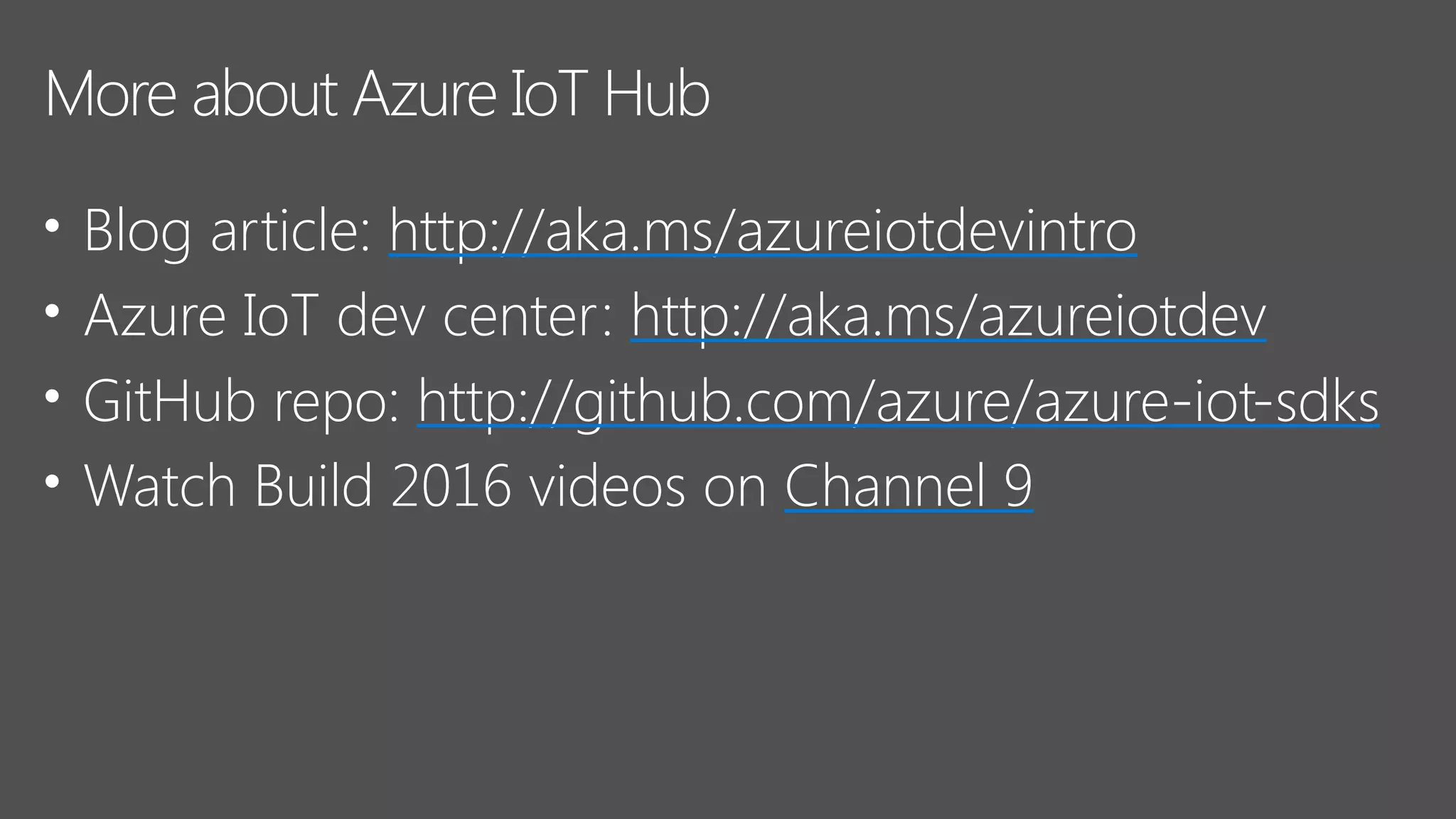

- 38. • Blog article:http://aka.ms/azureiotdevintro • Azure IoT dev center: http://aka.ms/azureiotdev • GitHub repo: http://github.com/azure/azure-iot-sdks • Watch Build 2016 videos on Channel 9 More about Azure IoT Hub
- 39.
- 40.

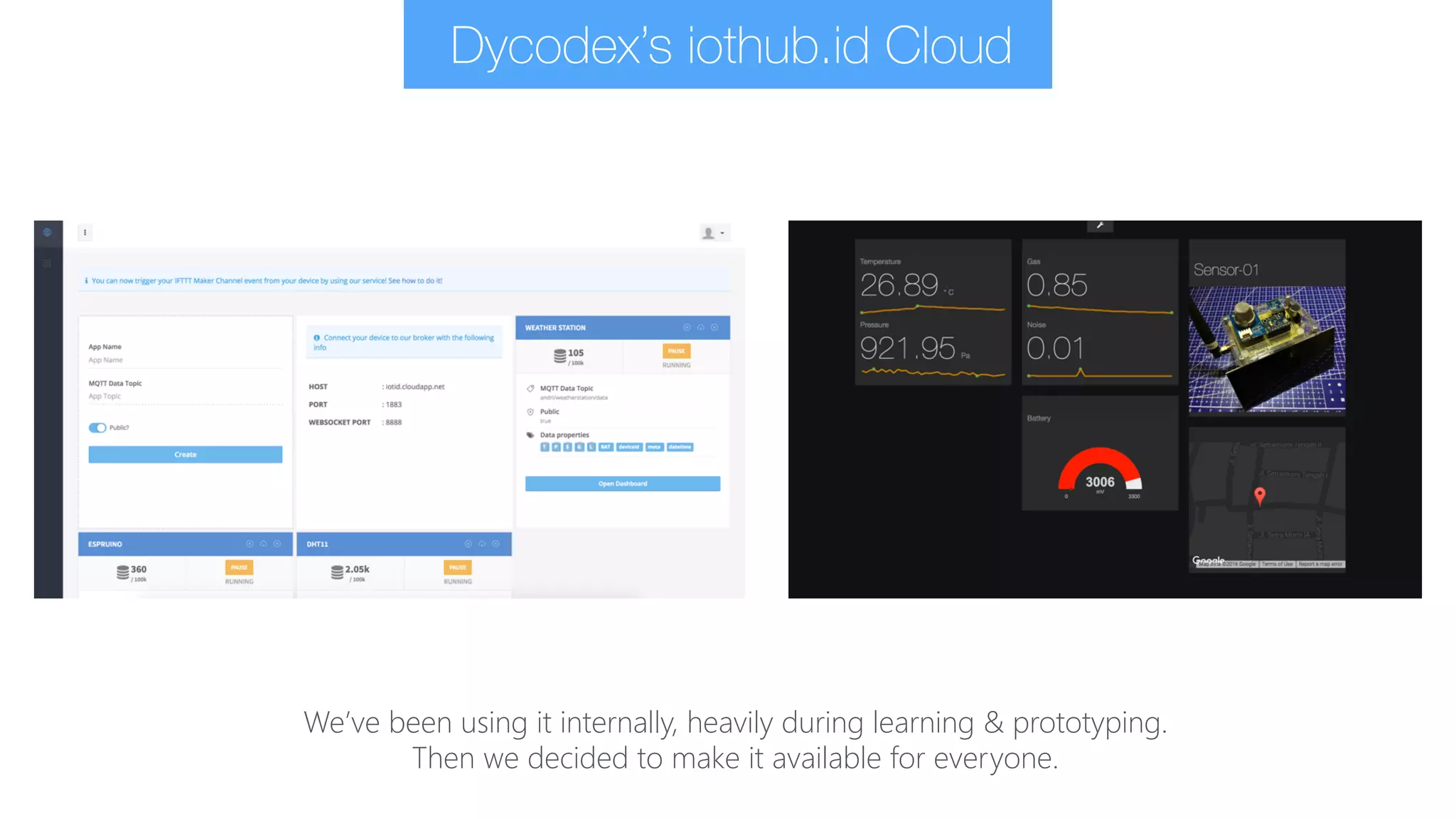

- 41. Dycodex’s iothub.id Cloud We’vebeen using it internally, heavily during learning & prototyping. Then we decided to make it available for everyone.

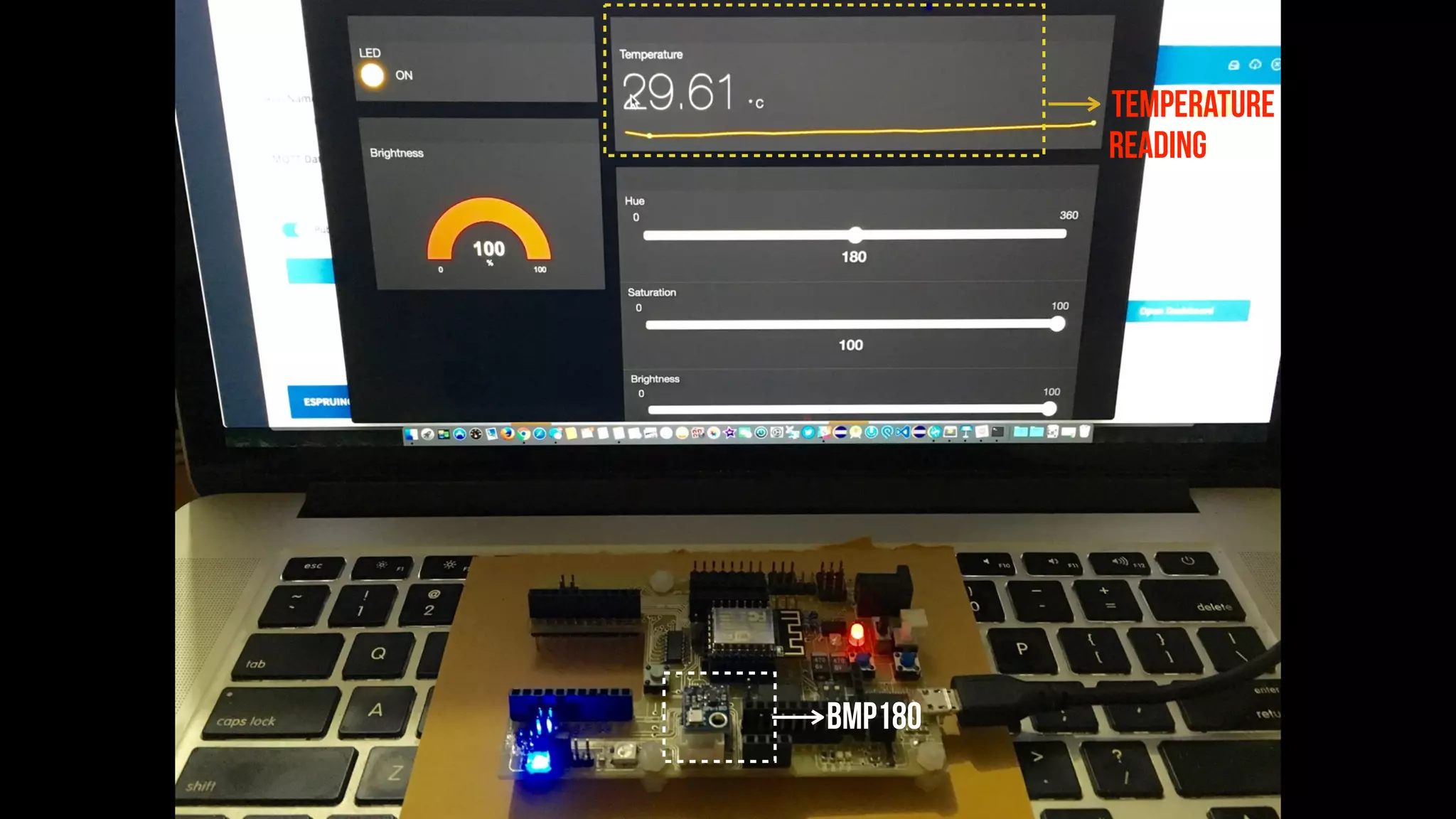

- 42. Demo How hot isit here?
- 43.
- 44.
- 45.
- 46.
- 47. How to start? fordevelopers
- 48. Solve your ownproblem Start with…
- 49.
- 50. Learn to code Whatdo you need
- 51. Developer Skillset Electronics sideBackend side Mobile side [Obj-C]
- 52. Learn Basic Electronics especiallydigital electronics What do you need
- 53.
- 54.
- 55. Explore The RealWorld techs
- 56. IoT 3G orWiFinot only
- 57.

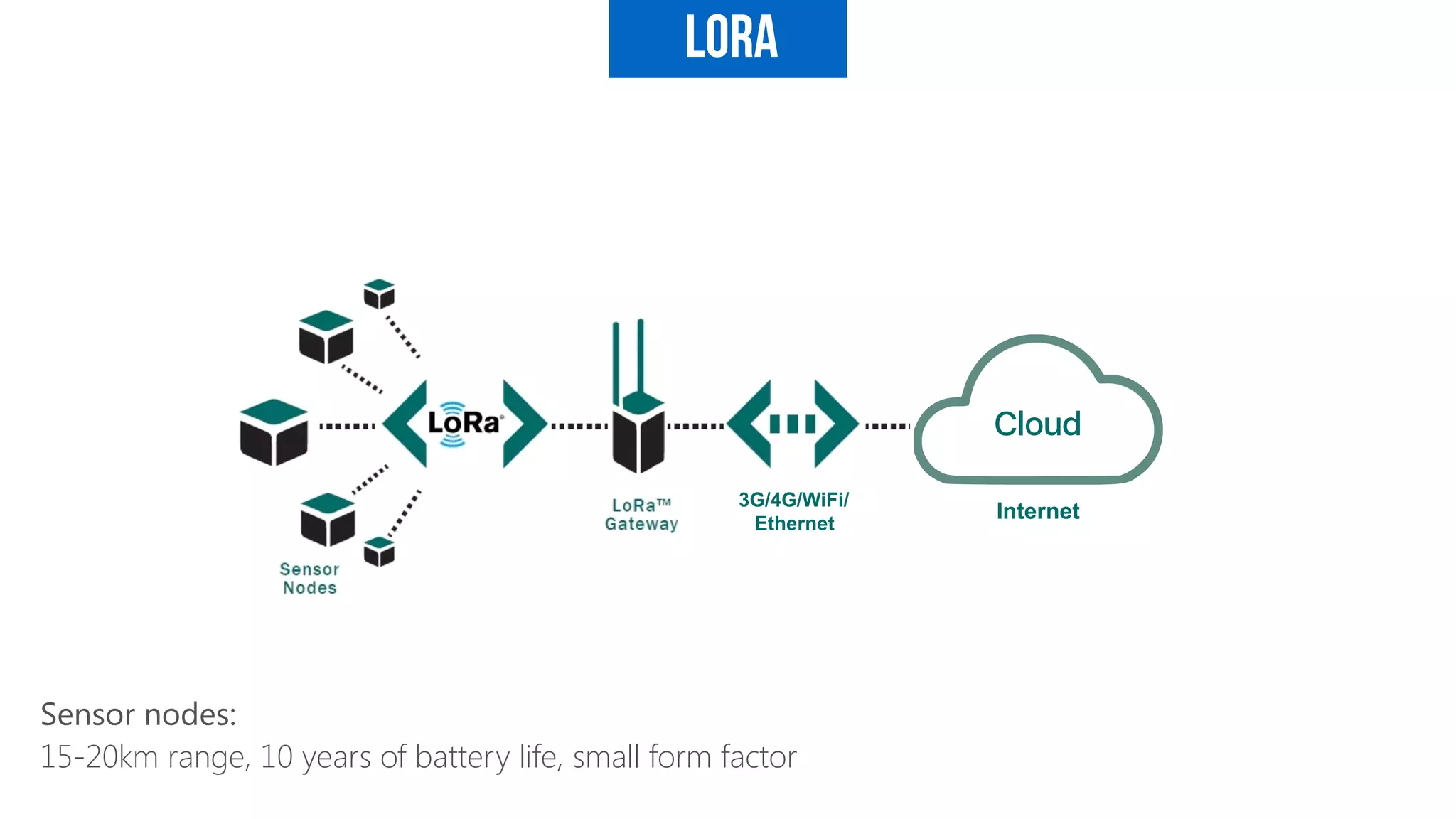

- 58. LoRa Cloud 3G/4G/WiFi/ Ethernet Internet Sensor nodes: 15-20km range,10 years of battery life, small form factor

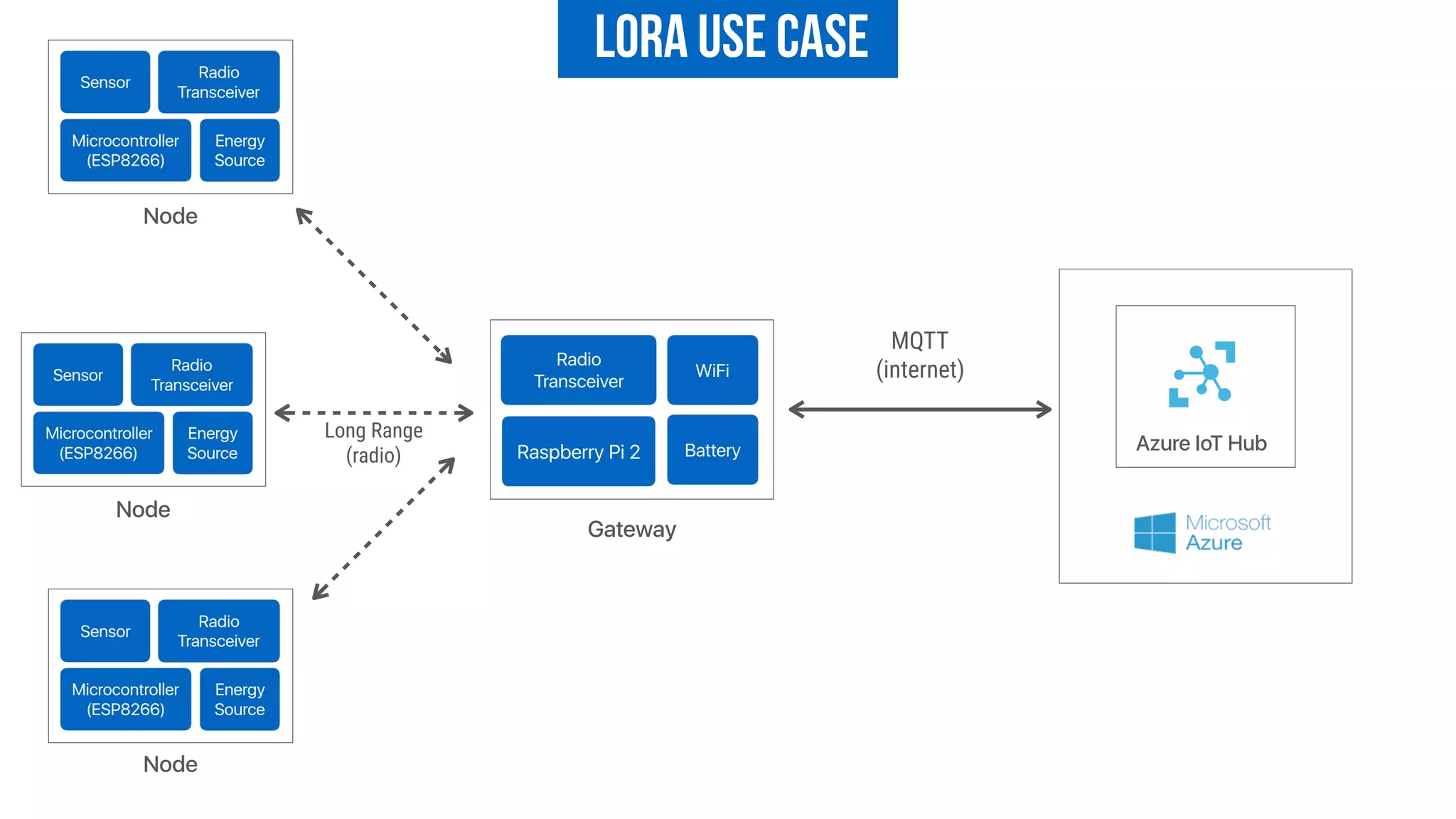

- 59. Sensor Radio Transceiver Microcontroller (ESP8266) Energy Source Sensor Radio Transceiver Microcontroller (ESP8266) Energy Source MQTT (internet) Node Azure IoT Hub Node Node Gateway Radio Transceiver WiFi RaspberryPi 2 Battery Long Range (radio) Sensor Radio Transceiver Microcontroller (ESP8266) Energy Source LoRa Use Case
- 60.
- 61.
- 62. Challenge & Expo NextYear! Join v1.0 just finished on early June 2016
- 63. Join Our Classes… + Pleasekeep checking our website http://edu.dycode.co.id
- 64. + + [Obj-C] + JoinOur Classes… http://edu.dycode.co.id/ios/
- 65. IoT development willbreed A new type of engineer, expert in electronics Engineering while fluent in software development I believe…
- 66. DycodeX IS HIRING! Internsare welcome
- 67.
- 68. • IoT communitieson Facebook: IoT Geek Surabaya, IoT for Bandung, Arduino Indonesia, Raspberry Indonesia, IoT Indonesia, Indonesia IoT Connect, ESP8266 Indonesia • Connect your things: http://iothub.id • Professional training: http://edu.dycode.co.id • DycodeX’s IoT products: http://dycodex.com Call to Action
- 69. Thanks! Andri Yadi Email —a at dycode dot com twitter — @andri_yadi www — andriyadi.me github — github.com/andriyadi
