FORTIFICATION OF HYBRID INTRUSION DETECTION SYSTEM USING VARIANTS OF NEURAL NETWORKS AND SUPPORT VECTOR MACHINES

International Journal of Network Security & Its Applications (IJNSA), Vol.5, No.1, January 2013

FORTIFICATION OF HYBRID INTRUSION
DETECTION SYSTEM USING VARIANTS OF NEURAL
NETWORKS AND SUPPORT VECTOR MACHINES

A. M. Chandrashekhar1 and K. Raghuveer2
1
Department of Computer Science, Sri Jayachamarajendra College of Engineering
(SJCE), Mysore, Karnataka, 570006, India,
amblechandru@gmail.com
2
Department of Information Science, National Institute of Engineering (NIE),
Mysore, Karnataka 57008, India.
raghunie@yahoo.com

ABSTRACT
Intrusion Detection Systems (IDS) form a key part of system defence, where it identifies abnormal
activities happening in a computer system. In recent years different soft computing based techniques have
been proposed for the development of IDS. On the other hand, intrusion detection is not yet a perfect
technology. This has provided an opportunity for data mining to make quite a lot of important
contributions in the field of intrusion detection. In this paper we have proposed a new hybrid technique
by utilizing data mining techniques such as fuzzy C means clustering, Fuzzy neural network / Neuro-
fuzzy and radial basis function(RBF) SVM for fortification of the intrusion detection system. The
proposed technique has five major steps in which, first step is to perform the relevance analysis, and then
input data is clustered using Fuzzy C-means clustering. After that, neuro-fuzzy is trained, such that each
of the data point is trained with the corresponding neuro-fuzzy classifier associated with the cluster.
Subsequently, a vector for SVM classification is formed and in the last step, classification using RBF-
SVM is performed to detect intrusion has happened or not. Data set used is the KDD cup 1999 dataset
and we have used precision, recall, F-measure and accuracy as the evaluation metrics parameters. Our
technique could achieve better accuracy for all types of intrusions. The results of proposed technique are
compared with the other existing techniques. These comparisons proved the effectiveness of our
technique.

KEYWORDS
Intrusion Detection System, Fuzzy C-Means Clustering, fuzzy neural network, Support Vector Machine

1. INTRODUCTION
Due to the sudden growth and extension of World Wide Web and network systems the
computing world is witnessing enormous changes and challenges. Intrusion detection system
has been an active area of research and development for the past few decades. This is primarily
because of the mounting of attacks on computers and on networks in recent years and
computerized scrutiny has become a compulsory addition to IT security [1]. Malicious ways
like in the form of viruses, self-propagating worms, and denial of service attacks is a brutal
threat to the internet and to the infrastructures using it for communication. The catastrophe of
analysing illegitimate access of computer systems on the network which is to make out
individuals who are using a computer system without permission (crackers) and those who have
legal access to the system but are prevail over their privileges (insider threat) is known as
intrusion detection. The system that detects and logs illegal access is called as intrusion
detection system [2]. An intrusion detection system (IDS) typically consists of three major
functional elements: an information source that provides a stream of event records, an analysis
DOI : 10.5121/ijnsa.2013.5106 71

Engine that determines signs of intrusions and a decision maker that applies a number of rules
on the results of the analysis engine, and resolves what reactions should be done based on the
outcomes of the analysis engine [3]. Based on a study on latest research literatures, there are
quite a lot of result that attempts to relate data mining and machine learning techniques to the
intrusion detection systems so as to design more intelligent intrusion detection model. Currently
the support vector learning technique is featuring superior [4].
There are three categories of intrusion detection systems which are host-based where
information is found on a single or multiple host systems, network- based that examines the
information captured from network communications and vulnerability assessment-based that
identifies vulnerabilities in internal networks and firewall whereas based on the functionality
intrusion detection can be classified into two as anomaly detection and misuse detection [5].
Intrusions are diagnosed by searching for actions that correlate to signatures of intrusions or
vulnerabilities previously known in misuse detection based IDS. All signatures of possible
attacks are incorporated in a pattern database that comprises the IDS. When the system matches
the data with the attack pattern, the IDS look upon it as an attack [6]. It can be used very swiftly.
The IDS don’t have any prerequisite to “learn” the network activities before it is to be used. The
overhead, which can turn out to be unacceptably high is one of the principal concerns of IDS.
The operating system should keep track of all information concerning the actions performed for
analysing system logs, which continuously results in huge amounts of data, requiring disk space
and CPU resource [7]. On the other hand, anomaly detection based-IDS detect intrusions by
searching for unusual network traffic [8]. Conventional techniques of network intrusion
detection rely on the saved patterns of known attacks. Human experts present the attack patterns
which are used to evaluate the network connection features for detecting intrusions [9]. Network
administrators could take preventive measures by detecting planned and coordinated attacks
through distributed monitoring [10].
In intrusion detection systems that relies on expert system, the rule-based detection using
Denning’s [11] profile model can be employed. A set of predefined rules that are supplied by an
administrator or created by the system is employed for Rule-based examination. Kumar et al.
[12] put forward a misuse detection system that uses pattern matching. The well-known
intrusion signatures are determined as patterns in their system, which are then evaluated with
the audit data commenced by the analysis component. An anomaly detection algorithm based on
robust support vector machines (SVM) has been put forward by Hu et al. [13] in which, they
could efficiently identified the intrusions although noise is there. The conventional SVM has
been extended to Robust SVM and one-class SVM to be of online forms to get better training
efficiency. A hierarchical hybrid intelligent system named DT-SVM that depends on decision
trees (DT) and support vector machines to detect intrusions have been proposed by
Peddabachigari et al. [14].
Chengjie GU et al. [15] proposed proximal support vector machine (PSVM) rather than SVM,
which steer to an enormously fast and simple algorithm for generating a system of linear
equations. The major drawback of traditional methods is that they cannot distinguish unknown
intrusion and are incapable of adapting to new networks. A number of short-comings of the
Anomaly-based Intrusion Detection are an elevated false positive rate and the capability to be
fooled by a correctly delivered attack [16]. Intrusion detection systems that follow the misuse
detection model need to be continuously updated to stay a step ahead of the hackers.
The motivation for our proposed intrusion detection technique is as follows: The dataset given
as input for intrusion detection technique consists of large number of data, where each of the
data considered has numerous attributes associated with it. Hence, to perform classification
considering all these attributes is a hectic and time consuming task. Processing and executing
this lump amount of data also results in increasing the error rate and also negatively affects
efficacy of the classifier system. In order to overcome this problem, our proposed technique we
come up with a solution where the number of attributes defining each of the data is reduced to a
72

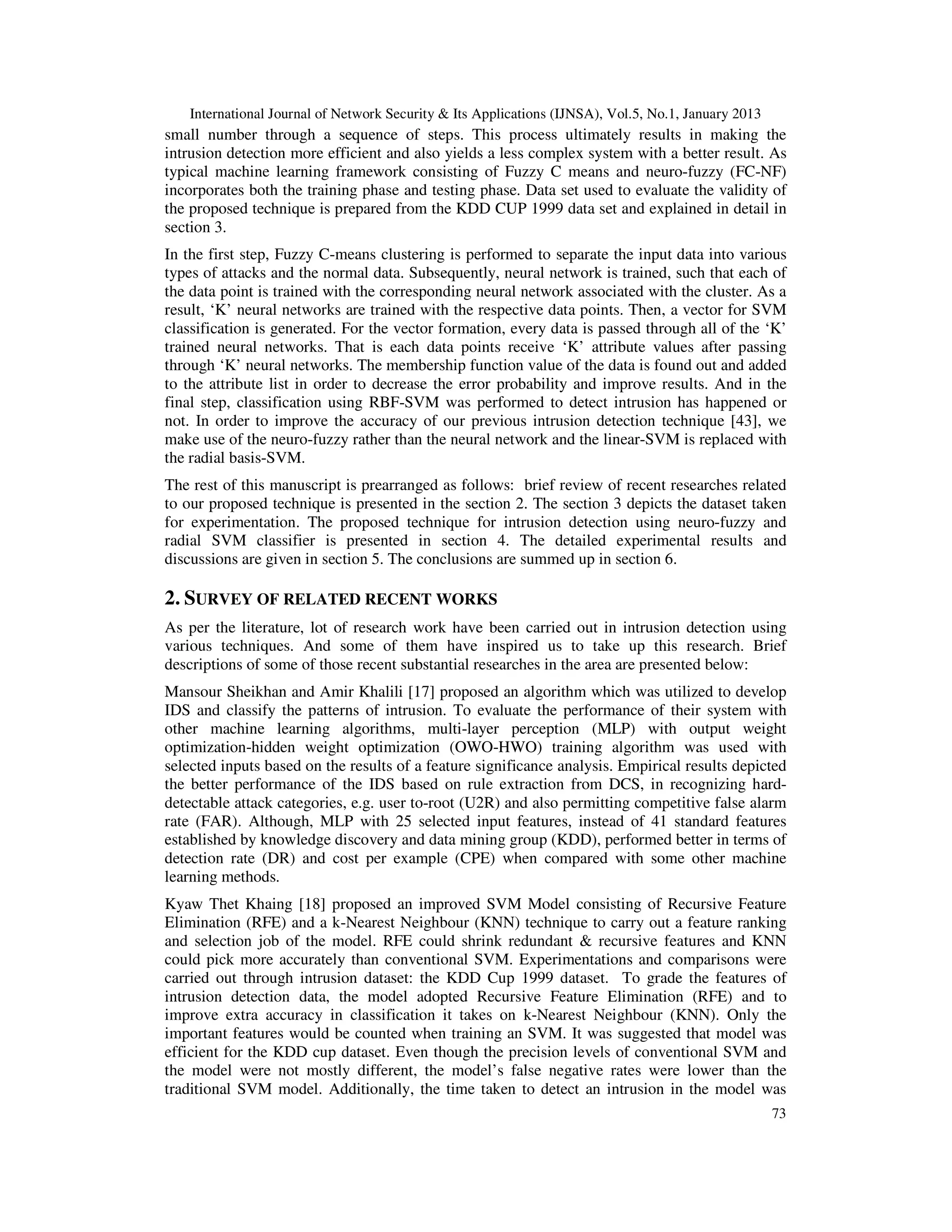

small number through a sequence of steps. This process ultimately results in making the
intrusion detection more efficient and also yields a less complex system with a better result. As
typical machine learning framework consisting of Fuzzy C means and neuro-fuzzy (FC-NF)
incorporates both the training phase and testing phase. Data set used to evaluate the validity of
the proposed technique is prepared from the KDD CUP 1999 data set and explained in detail in
section 3.
In the first step, Fuzzy C-means clustering is performed to separate the input data into various
types of attacks and the normal data. Subsequently, neural network is trained, such that each of
the data point is trained with the corresponding neural network associated with the cluster. As a
result, ‘K’ neural networks are trained with the respective data points. Then, a vector for SVM
classification is generated. For the vector formation, every data is passed through all of the ‘K’
trained neural networks. That is each data points receive ‘K’ attribute values after passing
through ‘K’ neural networks. The membership function value of the data is found out and added
to the attribute list in order to decrease the error probability and improve results. And in the
final step, classification using RBF-SVM was performed to detect intrusion has happened or
not. In order to improve the accuracy of our previous intrusion detection technique [43], we
make use of the neuro-fuzzy rather than the neural network and the linear-SVM is replaced with
the radial basis-SVM.
The rest of this manuscript is prearranged as follows: brief review of recent researches related
to our proposed technique is presented in the section 2. The section 3 depicts the dataset taken
for experimentation. The proposed technique for intrusion detection using neuro-fuzzy and
radial SVM classifier is presented in section 4. The detailed experimental results and
discussions are given in section 5. The conclusions are summed up in section 6.

2. SURVEY OF RELATED RECENT WORKS
As per the literature, lot of research work have been carried out in intrusion detection using
various techniques. And some of them have inspired us to take up this research. Brief
descriptions of some of those recent substantial researches in the area are presented below:
Mansour Sheikhan and Amir Khalili [17] proposed an algorithm which was utilized to develop
IDS and classify the patterns of intrusion. To evaluate the performance of their system with
other machine learning algorithms, multi-layer perception (MLP) with output weight
optimization-hidden weight optimization (OWO-HWO) training algorithm was used with
selected inputs based on the results of a feature significance analysis. Empirical results depicted
the better performance of the IDS based on rule extraction from DCS, in recognizing hard-
detectable attack categories, e.g. user to-root (U2R) and also permitting competitive false alarm
rate (FAR). Although, MLP with 25 selected input features, instead of 41 standard features
established by knowledge discovery and data mining group (KDD), performed better in terms of
detection rate (DR) and cost per example (CPE) when compared with some other machine
learning methods.
Kyaw Thet Khaing [18] proposed an improved SVM Model consisting of Recursive Feature
Elimination (RFE) and a k-Nearest Neighbour (KNN) technique to carry out a feature ranking
and selection job of the model. RFE could shrink redundant & recursive features and KNN
could pick more accurately than conventional SVM. Experimentations and comparisons were
carried out through intrusion dataset: the KDD Cup 1999 dataset. To grade the features of
intrusion detection data, the model adopted Recursive Feature Elimination (RFE) and to
improve extra accuracy in classification it takes on k-Nearest Neighbour (KNN). Only the
important features would be counted when training an SVM. It was suggested that model was
efficient for the KDD cup dataset. Even though the precision levels of conventional SVM and
the model were not mostly different, the model’s false negative rates were lower than the
traditional SVM model. Additionally, the time taken to detect an intrusion in the model was

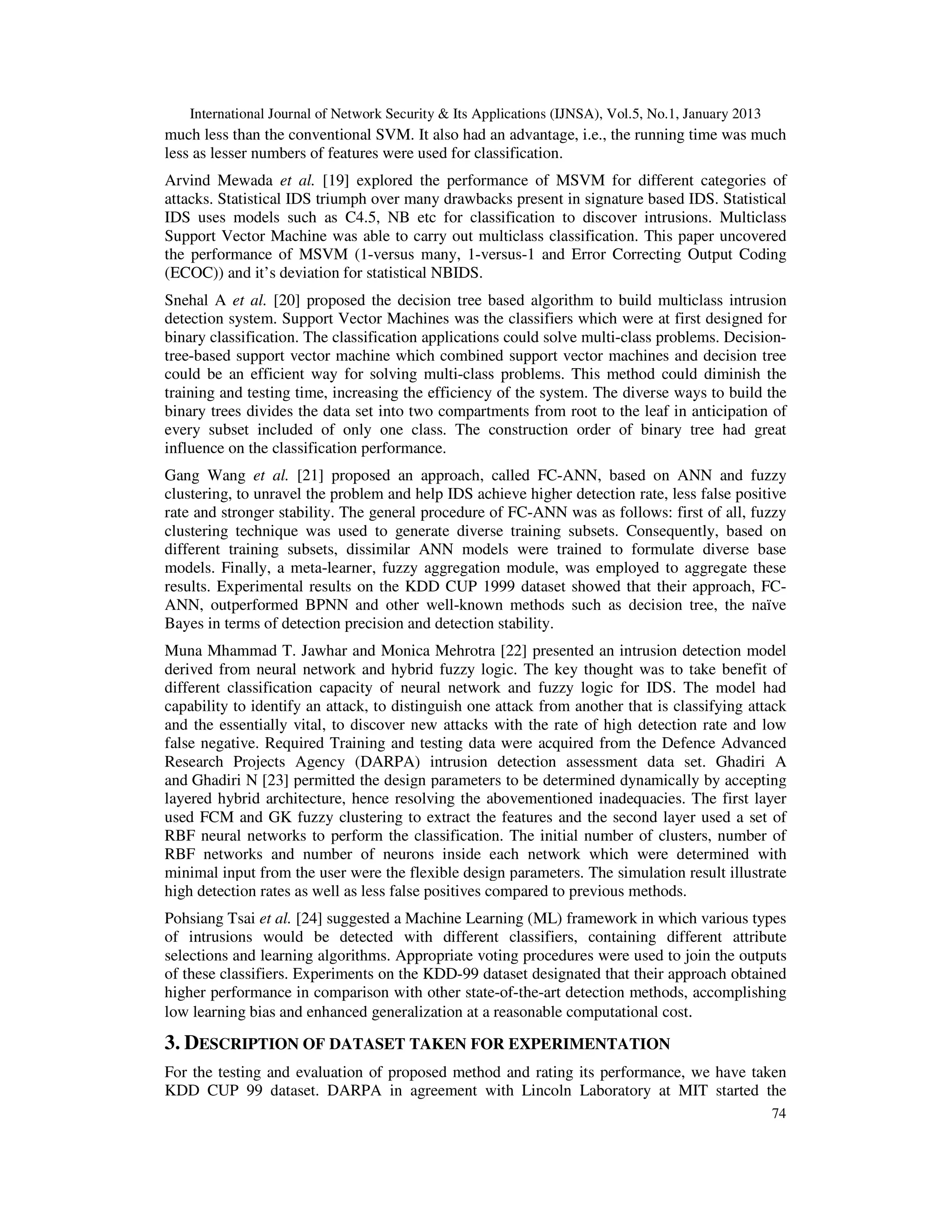

73

much less than the conventional SVM. It also had an advantage, i.e., the running time was much
less as lesser numbers of features were used for classification.
Arvind Mewada et al. [19] explored the performance of MSVM for different categories of
attacks. Statistical IDS triumph over many drawbacks present in signature based IDS. Statistical
IDS uses models such as C4.5, NB etc for classification to discover intrusions. Multiclass
Support Vector Machine was able to carry out multiclass classification. This paper uncovered
the performance of MSVM (1-versus many, 1-versus-1 and Error Correcting Output Coding
(ECOC)) and it’s deviation for statistical NBIDS.
Snehal A et al. [20] proposed the decision tree based algorithm to build multiclass intrusion
detection system. Support Vector Machines was the classifiers which were at first designed for
binary classification. The classification applications could solve multi-class problems. Decision-
tree-based support vector machine which combined support vector machines and decision tree
could be an efficient way for solving multi-class problems. This method could diminish the
training and testing time, increasing the efficiency of the system. The diverse ways to build the
binary trees divides the data set into two compartments from root to the leaf in anticipation of
every subset included of only one class. The construction order of binary tree had great
influence on the classification performance.
Gang Wang et al. [21] proposed an approach, called FC-ANN, based on ANN and fuzzy
clustering, to unravel the problem and help IDS achieve higher detection rate, less false positive
rate and stronger stability. The general procedure of FC-ANN was as follows: first of all, fuzzy
clustering technique was used to generate diverse training subsets. Consequently, based on
different training subsets, dissimilar ANN models were trained to formulate diverse base
models. Finally, a meta-learner, fuzzy aggregation module, was employed to aggregate these
results. Experimental results on the KDD CUP 1999 dataset showed that their approach, FC-
ANN, outperformed BPNN and other well-known methods such as decision tree, the naïve
Bayes in terms of detection precision and detection stability.
Muna Mhammad T. Jawhar and Monica Mehrotra [22] presented an intrusion detection model
derived from neural network and hybrid fuzzy logic. The key thought was to take benefit of
different classification capacity of neural network and fuzzy logic for IDS. The model had
capability to identify an attack, to distinguish one attack from another that is classifying attack
and the essentially vital, to discover new attacks with the rate of high detection rate and low
false negative. Required Training and testing data were acquired from the Defence Advanced
Research Projects Agency (DARPA) intrusion detection assessment data set. Ghadiri A
and Ghadiri N [23] permitted the design parameters to be determined dynamically by accepting
layered hybrid architecture, hence resolving the abovementioned inadequacies. The first layer
used FCM and GK fuzzy clustering to extract the features and the second layer used a set of
RBF neural networks to perform the classification. The initial number of clusters, number of
RBF networks and number of neurons inside each network which were determined with
minimal input from the user were the flexible design parameters. The simulation result illustrate
high detection rates as well as less false positives compared to previous methods.
Pohsiang Tsai et al. [24] suggested a Machine Learning (ML) framework in which various types
of intrusions would be detected with different classifiers, containing different attribute
selections and learning algorithms. Appropriate voting procedures were used to join the outputs
of these classifiers. Experiments on the KDD-99 dataset designated that their approach obtained
higher performance in comparison with other state-of-the-art detection methods, accomplishing
low learning bias and enhanced generalization at a reasonable computational cost.

3. DESCRIPTION OF DATASET TAKEN FOR EXPERIMENTATION
For the testing and evaluation of proposed method and rating its performance, we have taken
KDD CUP 99 dataset. DARPA in agreement with Lincoln Laboratory at MIT started the
74

DARPA 1998 dataset for estimating IDS [25]. The complicated version of DARPA dataset
which encircle only network data (TCP-dump data) is named as KDD dataset [26]. KDD
training dataset consists of moderately around 5 million vectors single correlation vectors and
testing data set contains around 2 million vectors, where each single connection vector
consisting of 41 features and is marked as a normal or an attack, through accurately one
particular attack type [27]. These characteristics had all types of constant and symbolic with
extensively altering ranges falling in to one of the four categories:
• First category in a connection consists of the inherent features which include the
primary features of every individual TCP connections. Like for example, some of the
features for each individual TCP connections are type of the protocol (TCP, UDP, etc.),
duration of the connection and network service (http, telnet, etc.).
• The content features recommended by domain knowledge are employed to compute the
payload of the original TCP packets, say for example the count of unsuccessful login
attempts.
• The similar host features monitor the familiar connections having the identical target
/destination host as present in past two seconds inside a connection and the statistics
related to the protocol behaviour, service, etc are estimated.
• The related identical service features investigate the connections having the similar
service as the existing connection in past two seconds.
The sample portion of network connection records are shown below in the table-1.

Table 1. Network connection records

A wide range of attacks integrated in the dataset come beneath the following four main
categories:
• Denial of Service (DOS) Attacks: DOS attack is an attack where as the attacker creates
a few calculations or memory resource completely engaged or out of stock to handle
authentic requirements, or reject justifiable users the right to utilize a machine.
• User to Root (U2R) Attacks: These are a category of attack where an attacker begins by
accessing normal user account in the system (maybe attained by hunting the passwords,
by social engineering or by attacking dictionary) and get advantage of several
vulnerability to accomplish root entrée to the system.
• Remote to local (R2L) Attacks: R2L attack occurs when an intruder who has the
potential to send packets to a system/machine over a network without having an account
in that system/machine, makes use of a few vulnerability to accomplish local access as a
client of that system/machine.
• Probes (PROBE) Attack: Probing is a collection of attacks where an attacker scrutinizes
a network to gather information or to conclude prominent vulnerabilities.
75

Table 2. List of continuous features in the connection vector of KDD cup 99 dataset
FI Feature Name Description
1 Duration Length (no. of seconds) of the connection.
5 src_bytes Number of data bytes from source to destination.
6 dst_bytes Number of data bytes from destination to source.
8 wrong_fragment Number of ``wrong'' fragments.
9 Urgent Number of urgent packets.
10 Hot Number of ``hot'' indicators.
11 num_failed_logins Number of failed login attempts.
13 num_compromised Number of ``compromised'' conditions.
14 root_shell 1 if root shell is obtained; otherwise 0.
15 su_attempted 1 if ``su root'' command attempted; otherwise 0.
16 num_root Number of ``root'' accesses.
17 num_file_creations Number of file creation operations.
18 num_shells Number of shell prompts.
19 num_access_files Number of operations on access control files.
20 num_outbound_cmds Number of outbound commands in an ftp session.
23 Count Number of connections to the same host as the current
connection in the earlier period of two seconds.
24 srv_count Number of connections to the same service as the
current connection in the earlier period of two seconds
25 serror_rate % of connections having ``SYN'' errors
26 srv_serror_rate % of connections having ``SYN'' errors
27 rerror_rate % of connections having ``REJ'' errors
28 srv_rerror_rate % of connections having ``REJ'' errors
29 same_srv_rate % of connections to the similar service
30 diff_srv_rate % of connections to dissimilar services
31 srv_diff_host_rate % of connections to dissimilar hosts
32 dst_host_count count for target /destination host
33 dst_host_srv_count srv_count for target /destination host
34 dst_host_same_srv_rate same_srv_rate for target /destination host
35 dst_host_diff_srv_rate diff_srv_rate for target /destination host
36 dst_host_same_src_port_rate same_src_port_rate for target /destination host
37 dst_host_srv_diff_host_rate diff_host_rate for target /destination host
38 dst_host_serror_rate serror_rate for target /destination host
39 dst_host_srv_serror_rate srv_serror_rate for target /destination host
40 dst_host_rerror_rate rerror_rate for target /destination host
41 dst_host_srv_rerror_rate srv_serror_rate for target /destination host

Table 3. List of symbolic features in the connection vector of KDD cup 99 dataset
F-Index Feature Name Description
2 protocol_type type of the protocol, say TCP, UDP, etc.
3 Service network service on the destination, say http, telnet, etc.
4 Flag normal status or error status of connection
7 Land 1 if connection is to/ from the same port / host; otherwise 0.
12 logged_in 1 if successfully logged in; otherwise 0
21 is_hot_login 1 if the login is fit in to the ``hot'' list; otherwise 0.
22 is_guest_login 1 if the login is a ‘guest’; otherwise 0
These network examinations are reasonably significant for an attacker who is aiming an attack
in future. An attacker having a proof, of which system/machine and facilities are accessible on a
76

given network, can exploit this information to search for subtle points. Here, table-2 presents list
of continuous features and table-3 lists the symbolic features for the correlation records.
Different attacks that come under four major categories are listed in table 4.
Table 4. Categories of attacks and its types
No. Category of Attack Types of Attacks
1 Denial of Service Attacks neptune, back, land, pod, teardrop, smurf.
2 User to Root Attacks Buffer_overflow, loadmodule, perl, rootkit.
3 Remote to Local Attacks guess_passwd, ftp_write, imap, multihop,
warezclient, phf, spy, warezmaster.
4 Probes Portsweep, satan, ipsweep, nmap.

4. PROPOSED TECHNIQUES FOR INTRUSION DETECTION SYSTEM
In this section, we present the architecture of proposed system and techniques we used to
implement the proposed system like the fuzzy C-means clustering (FCC), Neuro-fuzzy classifier
(NF) and the RBF-SVM are explained. The detailed description of each step used in the
proposed technique is also given in this section.

KDD CUP 1999 Data-

Relevance Input Data-set

Training Dataset Testing Data-set TS

Fuzzy C-means Clustering

Subset Subset Subset Subset Subset
TR1 TR2 TR3 TR4 TR5

FNN1 FNN2 FNN3 FNN4 FNN5

Support Vector Generator for SVM Classification

RBF-SVM Classification RESULT
Figure 1: Framework of Proposed Technique

4.1 System Architecture of Proposed IDS
The proposed hybrid intrusion detection technique is a five step methodology. The block
diagram of the proposed technique is given below in the figure-1.
77

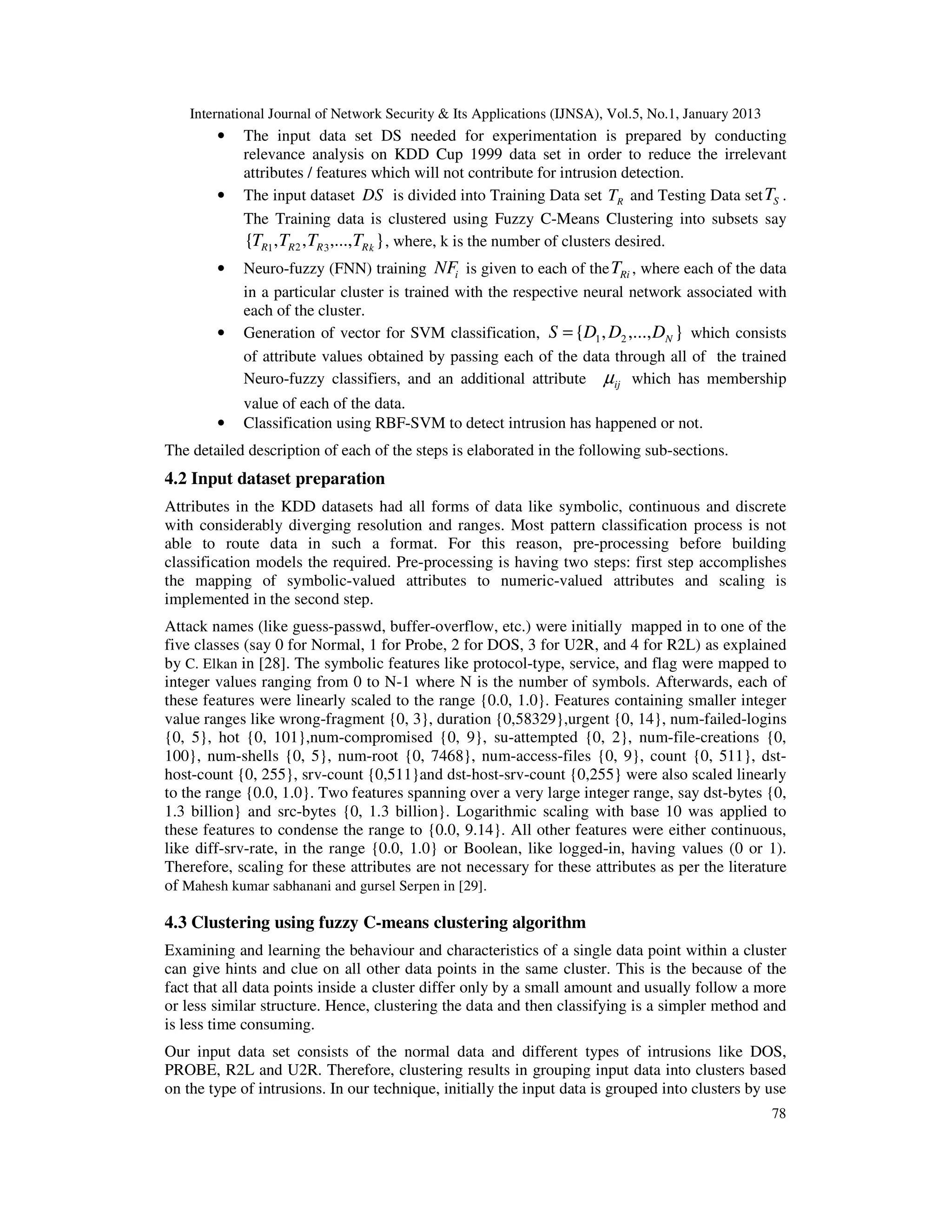

• The input data set DS needed for experimentation is prepared by conducting
relevance analysis on KDD Cup 1999 data set in order to reduce the irrelevant
attributes / features which will not contribute for intrusion detection.
• The input dataset DS is divided into Training Data set TR and Testing Data set TS .
The Training data is clustered using Fuzzy C-Means Clustering into subsets say
{TR1 , TR 2 , TR 3 ,...,TR k } , where, k is the number of clusters desired.
• Neuro-fuzzy (FNN) training NFi is given to each of the TRi , where each of the data
in a particular cluster is trained with the respective neural network associated with
each of the cluster.
• Generation of vector for SVM classification, S = {D1 , D2 ,..., DN } which consists
of attribute values obtained by passing each of the data through all of the trained
Neuro-fuzzy classifiers, and an additional attribute µij which has membership
value of each of the data.
• Classification using RBF-SVM to detect intrusion has happened or not.
The detailed description of each of the steps is elaborated in the following sub-sections.
4.2 Input dataset preparation
Attributes in the KDD datasets had all forms of data like symbolic, continuous and discrete
with considerably diverging resolution and ranges. Most pattern classification process is not
able to route data in such a format. For this reason, pre-processing before building
classification models the required. Pre-processing is having two steps: first step accomplishes
the mapping of symbolic-valued attributes to numeric-valued attributes and scaling is
implemented in the second step.
Attack names (like guess-passwd, buffer-overflow, etc.) were initially mapped in to one of the
five classes (say 0 for Normal, 1 for Probe, 2 for DOS, 3 for U2R, and 4 for R2L) as explained
by C. Elkan in [28]. The symbolic features like protocol-type, service, and flag were mapped to
integer values ranging from 0 to N-1 where N is the number of symbols. Afterwards, each of
these features were linearly scaled to the range {0.0, 1.0}. Features containing smaller integer
value ranges like wrong-fragment {0, 3}, duration {0,58329},urgent {0, 14}, num-failed-logins
{0, 5}, hot {0, 101},num-compromised {0, 9}, su-attempted {0, 2}, num-file-creations {0,
100}, num-shells {0, 5}, num-root {0, 7468}, num-access-files {0, 9}, count {0, 511}, dst-
host-count {0, 255}, srv-count {0,511}and dst-host-srv-count {0,255} were also scaled linearly
to the range {0.0, 1.0}. Two features spanning over a very large integer range, say dst-bytes {0,
1.3 billion} and src-bytes {0, 1.3 billion}. Logarithmic scaling with base 10 was applied to
these features to condense the range to {0.0, 9.14}. All other features were either continuous,
like diff-srv-rate, in the range {0.0, 1.0} or Boolean, like logged-in, having values (0 or 1).
Therefore, scaling for these attributes are not necessary for these attributes as per the literature
of Mahesh kumar sabhanani and gursel Serpen in [29].

4.3 Clustering using fuzzy C-means clustering algorithm
Examining and learning the behaviour and characteristics of a single data point within a cluster
can give hints and clue on all other data points in the same cluster. This is the because of the
fact that all data points inside a cluster differ only by a small amount and usually follow a more
or less similar structure. Hence, clustering the data and then classifying is a simpler method and
is less time consuming.
Our input data set consists of the normal data and different types of intrusions like DOS,
PROBE, R2L and U2R. Therefore, clustering results in grouping input data into clusters based
on the type of intrusions. In our technique, initially the input data is grouped into clusters by use
78

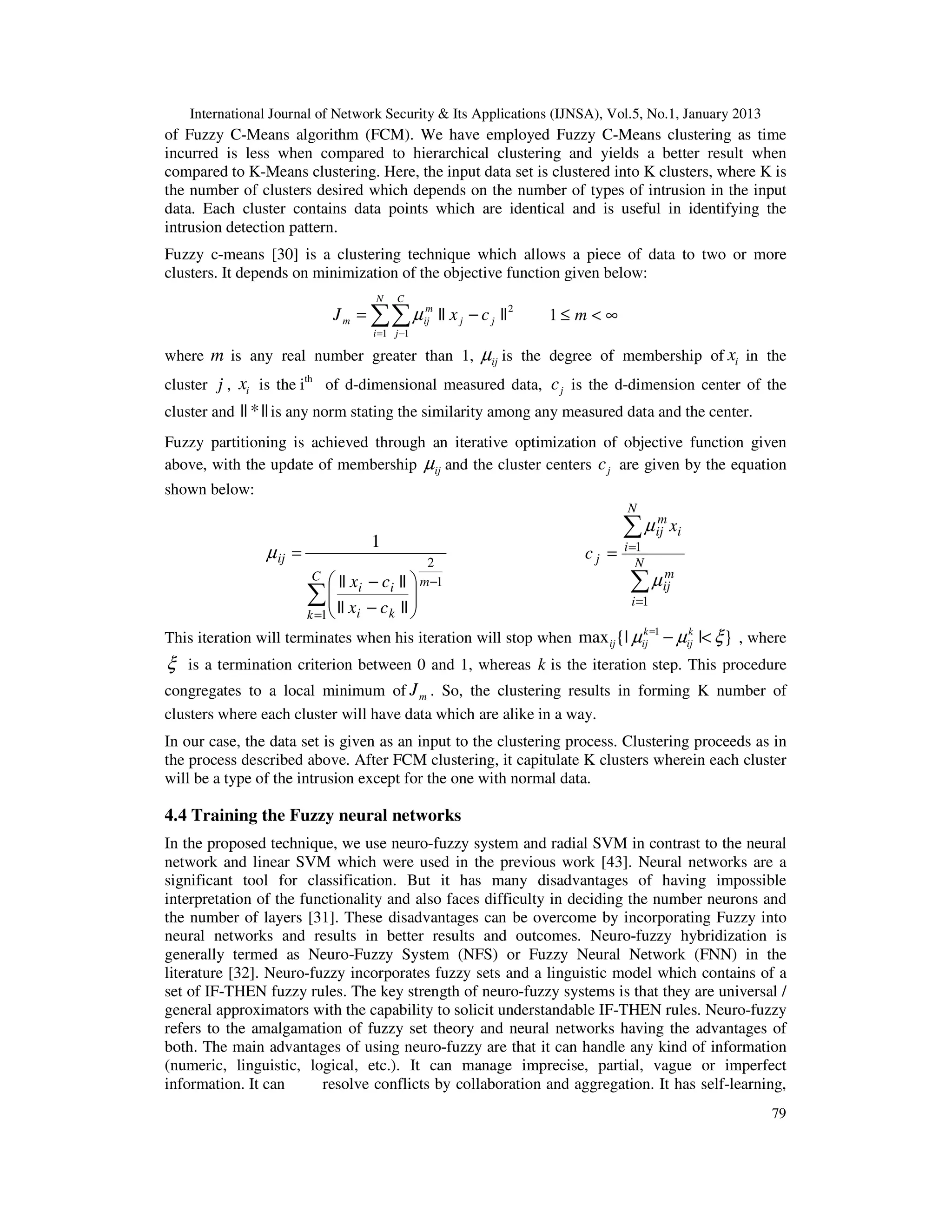

of Fuzzy C-Means algorithm (FCM). We have employed Fuzzy C-Means clustering as time
incurred is less when compared to hierarchical clustering and yields a better result when
compared to K-Means clustering. Here, the input data set is clustered into K clusters, where K is
the number of clusters desired which depends on the number of types of intrusion in the input
data. Each cluster contains data points which are identical and is useful in identifying the
intrusion detection pattern.
Fuzzy c-means [30] is a clustering technique which allows a piece of data to two or more
clusters. It depends on minimization of the objective function given below:
N C
J m = ∑∑ µ ij || x j − c j || 2
m
1≤ m < ∞
i =1 j −1

where m is any real number greater than 1, µij is the degree of membership of xi in the
cluster j , xi is the ith of d-dimensional measured data, c j is the d-dimension center of the
cluster and || * || is any norm stating the similarity among any measured data and the center.
Fuzzy partitioning is achieved through an iterative optimization of objective function given
above, with the update of membership µ ij and the cluster centers c j are given by the equation
shown below:
N

1
∑ µ ij xi
m

i =1
µ ij = 2
cj = N
C  || x − c ||  m−1 ∑ µ ij
m
∑  || x i − c i || 
  i =1
k =1  i k 
This iteration will terminates when his iteration will stop when max ij {| µij =1 − µij |< ξ } , where
k k

ξ is a termination criterion between 0 and 1, whereas k is the iteration step. This procedure
congregates to a local minimum of J m . So, the clustering results in forming K number of
clusters where each cluster will have data which are alike in a way.
In our case, the data set is given as an input to the clustering process. Clustering proceeds as in
the process described above. After FCM clustering, it capitulate K clusters wherein each cluster
will be a type of the intrusion except for the one with normal data.

4.4 Training the Fuzzy neural networks
In the proposed technique, we use neuro-fuzzy system and radial SVM in contrast to the neural
network and linear SVM which were used in the previous work [43]. Neural networks are a
significant tool for classification. But it has many disadvantages of having impossible
interpretation of the functionality and also faces difficulty in deciding the number neurons and
the number of layers [31]. These disadvantages can be overcome by incorporating Fuzzy into
neural networks and results in better results and outcomes. Neuro-fuzzy hybridization is
generally termed as Neuro-Fuzzy System (NFS) or Fuzzy Neural Network (FNN) in the
literature [32]. Neuro-fuzzy incorporates fuzzy sets and a linguistic model which contains of a
set of IF-THEN fuzzy rules. The key strength of neuro-fuzzy systems is that they are universal /
general approximators with the capability to solicit understandable IF-THEN rules. Neuro-fuzzy
refers to the amalgamation of fuzzy set theory and neural networks having the advantages of
both. The main advantages of using neuro-fuzzy are that it can handle any kind of information
(numeric, linguistic, logical, etc.). It can manage imprecise, partial, vague or imperfect
information. It can resolve conflicts by collaboration and aggregation. It has self-learning,
79

self-organizing and self-tuning capabilities. There is no need of previous knowledge of
relationships of data imitate human decision making process. It can perform fast computation
using fuzzy number operations.
Fuzzy C-Means clustering results in the formation of K-clusters where each cluster will be a
type of cluster or the normal data. For every cluster, we have a neuro-fuzzy associated with it.
That is, there will be K number of neuro-fuzzy classifiers for K number of clusters formed.
Each neuro-fuzzy classifier is trained with the data in the respective cluster.

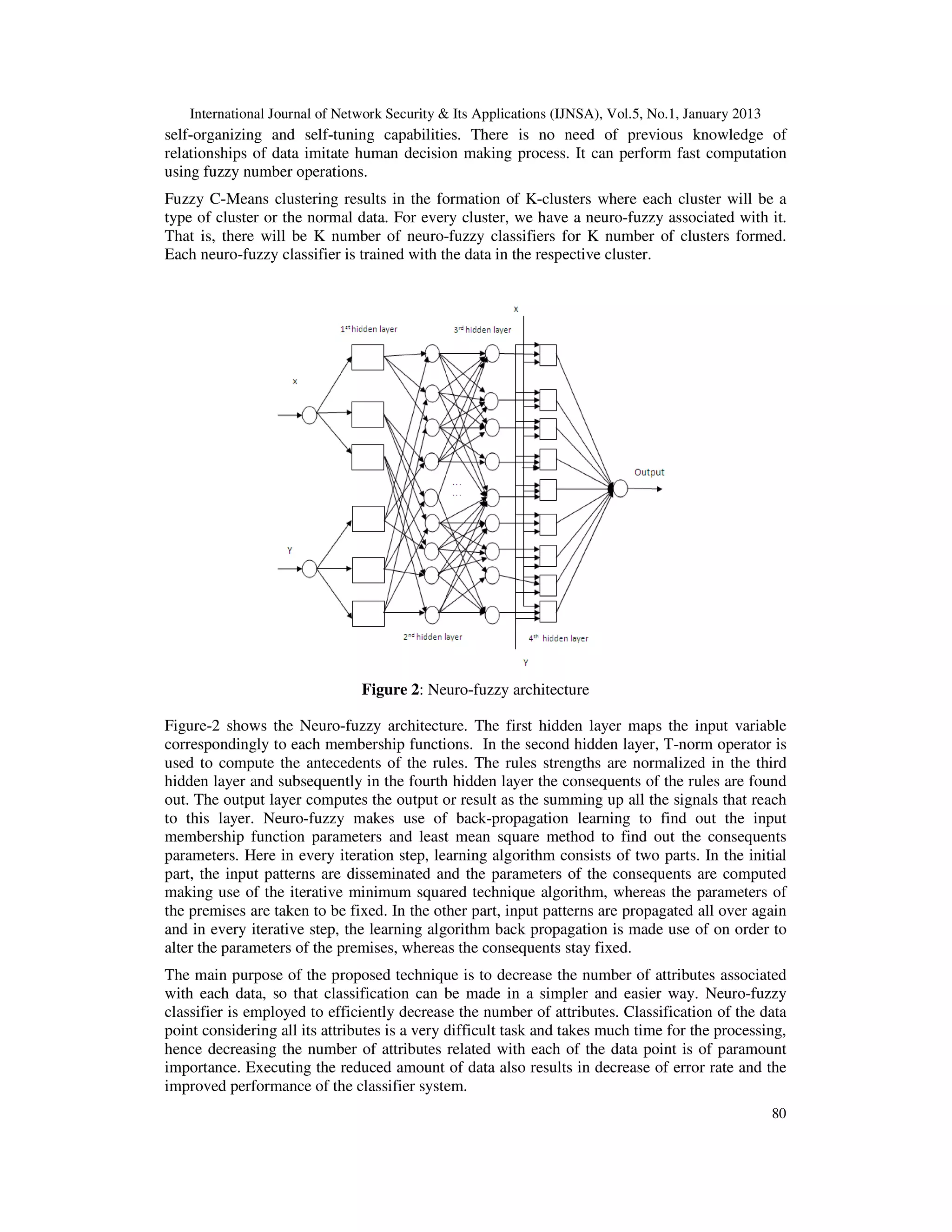

Figure 2: Neuro-fuzzy architecture

Figure-2 shows the Neuro-fuzzy architecture. The first hidden layer maps the input variable
correspondingly to each membership functions. In the second hidden layer, T-norm operator is
used to compute the antecedents of the rules. The rules strengths are normalized in the third
hidden layer and subsequently in the fourth hidden layer the consequents of the rules are found
out. The output layer computes the output or result as the summing up all the signals that reach
to this layer. Neuro-fuzzy makes use of back-propagation learning to find out the input
membership function parameters and least mean square method to find out the consequents
parameters. Here in every iteration step, learning algorithm consists of two parts. In the initial
part, the input patterns are disseminated and the parameters of the consequents are computed
making use of the iterative minimum squared technique algorithm, whereas the parameters of
the premises are taken to be fixed. In the other part, input patterns are propagated all over again
and in every iterative step, the learning algorithm back propagation is made use of on order to
alter the parameters of the premises, whereas the consequents stay fixed.
The main purpose of the proposed technique is to decrease the number of attributes associated
with each data, so that classification can be made in a simpler and easier way. Neuro-fuzzy
classifier is employed to efficiently decrease the number of attributes. Classification of the data
point considering all its attributes is a very difficult task and takes much time for the processing,
hence decreasing the number of attributes related with each of the data point is of paramount
importance. Executing the reduced amount of data also results in decrease of error rate and the
improved performance of the classifier system.
80

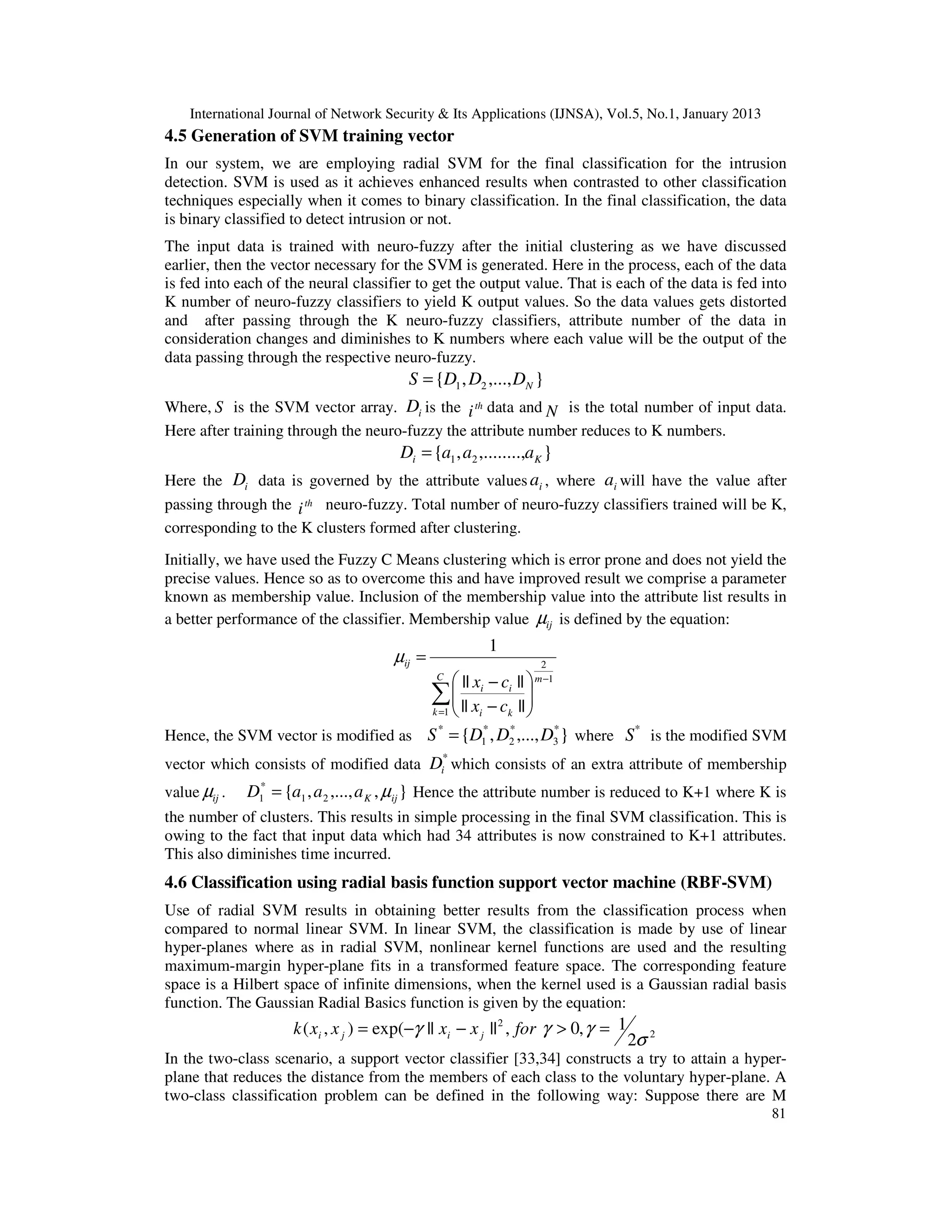

4.5 Generation of SVM training vector
In our system, we are employing radial SVM for the final classification for the intrusion
detection. SVM is used as it achieves enhanced results when contrasted to other classification
techniques especially when it comes to binary classification. In the final classification, the data
is binary classified to detect intrusion or not.
The input data is trained with neuro-fuzzy after the initial clustering as we have discussed
earlier, then the vector necessary for the SVM is generated. Here in the process, each of the data
is fed into each of the neural classifier to get the output value. That is each of the data is fed into
K number of neuro-fuzzy classifiers to yield K output values. So the data values gets distorted
and after passing through the K neuro-fuzzy classifiers, attribute number of the data in
consideration changes and diminishes to K numbers where each value will be the output of the
data passing through the respective neuro-fuzzy.
S = {D1 , D2 ,..., DN }
Where, S is the SVM vector array. Di is the i th data and N is the total number of input data.
Here after training through the neuro-fuzzy the attribute number reduces to K numbers.
Di = {a1 , a2 ,........,aK }
Here the Di data is governed by the attribute values ai , where ai will have the value after
passing through the i th neuro-fuzzy. Total number of neuro-fuzzy classifiers trained will be K,
corresponding to the K clusters formed after clustering.
Initially, we have used the Fuzzy C Means clustering which is error prone and does not yield the
precise values. Hence so as to overcome this and have improved result we comprise a parameter
known as membership value. Inclusion of the membership value into the attribute list results in
a better performance of the classifier. Membership value µij is defined by the equation:
1
µij = 2
 || x − c ||  m −1
C

∑  || x i − c i || 

k =1 

i k 
* * * * *
Hence, the SVM vector is modified as S = {D1 , D2 ,..., D3 } where S is the modified SVM
*
vector which consists of modified data Di which consists of an extra attribute of membership
value µij . D1* = {a1 , a 2 ,..., a K , µij } Hence the attribute number is reduced to K+1 where K is
the number of clusters. This results in simple processing in the final SVM classification. This is
owing to the fact that input data which had 34 attributes is now constrained to K+1 attributes.
This also diminishes time incurred.
4.6 Classification using radial basis function support vector machine (RBF-SVM)
Use of radial SVM results in obtaining better results from the classification process when
compared to normal linear SVM. In linear SVM, the classification is made by use of linear
hyper-planes where as in radial SVM, nonlinear kernel functions are used and the resulting
maximum-margin hyper-plane fits in a transformed feature space. The corresponding feature
space is a Hilbert space of infinite dimensions, when the kernel used is a Gaussian radial basis
function. The Gaussian Radial Basics function is given by the equation:
k ( xi , x j ) = exp(−γ || xi − x j || 2 , for γ > 0, γ = 1
2σ 2
In the two-class scenario, a support vector classifier [33,34] constructs a try to attain a hyper-
plane that reduces the distance from the members of each class to the voluntary hyper-plane. A
two-class classification problem can be defined in the following way: Suppose there are M
81

training samples that can be given by the set pairs {( xi , yi ), i = 1,2,3......, M )} with xi being
n
the class label of value ± 1 and yi ∈ where feature vector with n components. The classifier
is given by the function f ( y;α ) → x with α, the parameter factors of the classifier. The

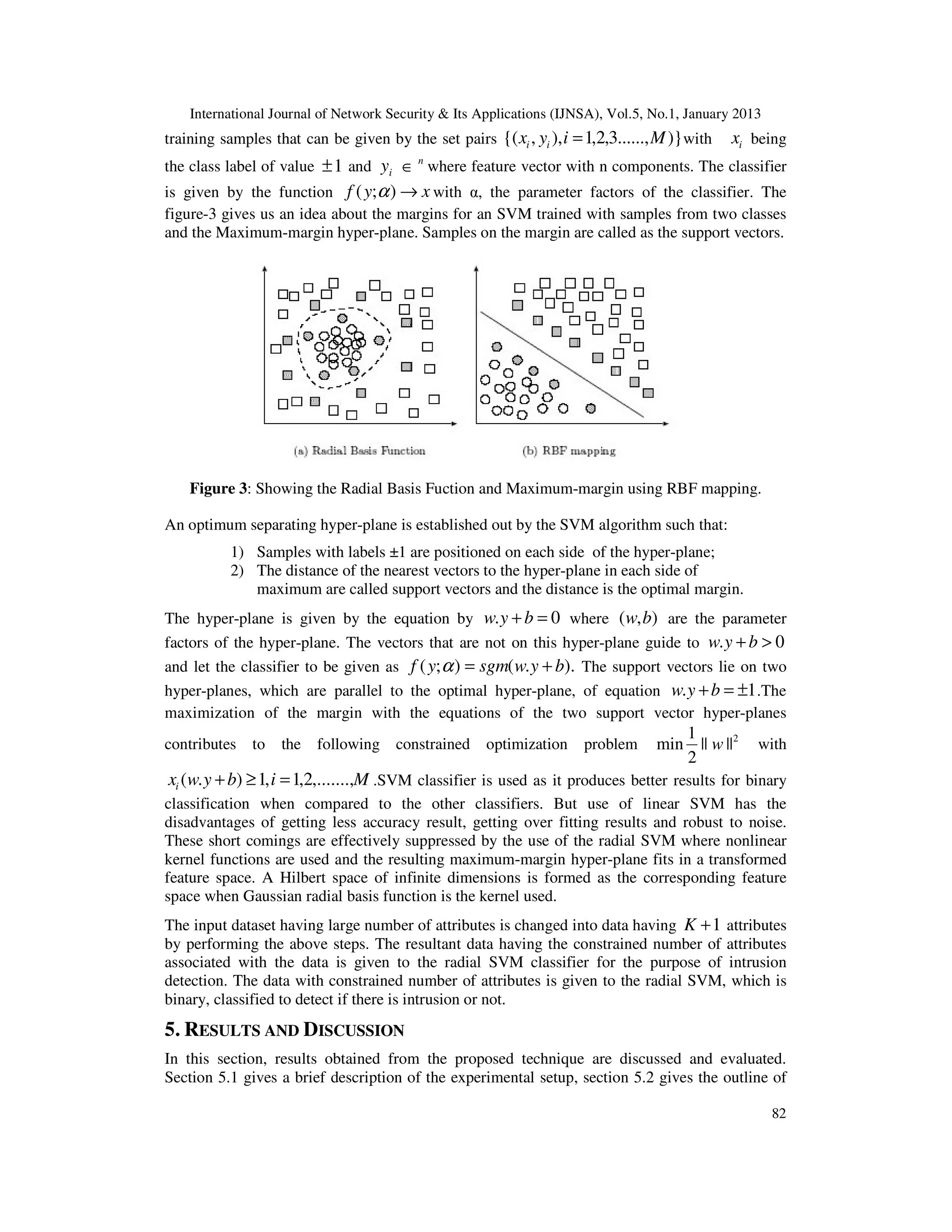

figure-3 gives us an idea about the margins for an SVM trained with samples from two classes
and the Maximum-margin hyper-plane. Samples on the margin are called as the support vectors.

Figure 3: Showing the Radial Basis Fuction and Maximum-margin using RBF mapping.

An optimum separating hyper-plane is established out by the SVM algorithm such that:
1) Samples with labels ±1 are positioned on each side of the hyper-plane;
2) The distance of the nearest vectors to the hyper-plane in each side of
maximum are called support vectors and the distance is the optimal margin.
The hyper-plane is given by the equation by w. y + b = 0 where ( w, b) are the parameter
factors of the hyper-plane. The vectors that are not on this hyper-plane guide to w. y + b > 0
and let the classifier to be given as f ( y; α ) = sgm( w. y + b). The support vectors lie on two
hyper-planes, which are parallel to the optimal hyper-plane, of equation w. y + b = ±1 .The
maximization of the margin with the equations of the two support vector hyper-planes
1
contributes to the following constrained optimization problem min || w ||2 with
2
xi (w. y + b) ≥ 1, i = 1,2,.......,M .SVM classifier is used as it produces better results for binary
classification when compared to the other classifiers. But use of linear SVM has the
disadvantages of getting less accuracy result, getting over fitting results and robust to noise.
These short comings are effectively suppressed by the use of the radial SVM where nonlinear
kernel functions are used and the resulting maximum-margin hyper-plane fits in a transformed
feature space. A Hilbert space of infinite dimensions is formed as the corresponding feature
space when Gaussian radial basis function is the kernel used.
The input dataset having large number of attributes is changed into data having K + 1 attributes
by performing the above steps. The resultant data having the constrained number of attributes
associated with the data is given to the radial SVM classifier for the purpose of intrusion
detection. The data with constrained number of attributes is given to the radial SVM, which is
binary, classified to detect if there is intrusion or not.
5. RESULTS AND DISCUSSION
In this section, results obtained from the proposed technique are discussed and evaluated.
Section 5.1 gives a brief description of the experimental setup, section 5.2 gives the outline of

82

the evaluation metrics used for the validity of the proposed technique, section 5.3 provides
experimentation results and comparative analysis is explained in section 5.4.
5.1 Experimental set up
The proposed technique is implemented using MATLAB. It is very tough to perform the
proposed technique on the KDD cup 99 dataset for estimating the performance, because it is of
large scale. The subset of 10% of KDD Cup 99 dataset is made use for training and testing. The
performance of the proposed technique is estimated by means of Precision, Recall, F-measure
and Accuracy. The number of data points taken training for and testing phase is given in table 5.
Table 5. Training and Testing dataset taken for evaluation
Normal DOS PROBE R2L U2R
Training Dataset 12500 12500 1054 39 21
Testing Dataset 12500 12500 2053 38 21

5.2 Evaluation metrics
During testing phase, testing dataset is given as an input to the proposed technique and the
obtained result is estimated with the evaluation metrics namely, precision, recall, F-measure
and Accuracy [35]. In order to discover these metrics, first, we calculate confusion matrices like
True positive (TP), False negative (FN), True negative (TN), and False positive (FP). The table
6 given below explains the confusion matrix and its definitions.
Table 6: Confusion matrix and its definitions
CONFUSION MATRIX DEFINATIONS
Predicted Class TP and TN:-True positive and True negative are
YES NO correct classifications.
YES True False FP: - False Positive occurs when the result is
Actual Positive Negative envisaged as positive when it is actually negative.
Class NO False True FN: - False Negative occurs when the result is
Positive Negative envisaged as negative when it is actually positive.

The performance of a binary classification test is statistically measured by precision and recall.
The proportion of actual positives which are correctly recognized is calculated by Recall. The
overall accuracy is calculated by using precision, recall and F-measure which are generally used
to estimate the rare class prediction. It is advantageous to achieve a high recall devoid of loss of
precision. Harmonic mean of precision and recall is called as F-measure. The equation used for
Recall, precision, F-measure and overall accuracy is given below

Precision= TP / (TP+ FP) Recall = TP / (TP + FN)
F - Measure= (2 * Recall* Precision / (Recall+ Precision)
)
Accuracy = (TN + TP) / (TN + TP + FN + FP)
5.3 Experimentation and results
This section describes the experimental results and performance evaluation of the proposed
technique. as discussed earlier, we used a subset of KDD cup data called 10% KDD cup 99
dataset for experimental assessment. In the training, we consider 26114 data points and in the
testing we consider 27112 data points. The confusion metrics are computed for both training
and testing dataset and the attained results are tabulated in table-7 and table-8. The evaluation
metrics are calculated and the experimental results obtained for training data set and testing data

83

set are also tabulated in table 9 and table 10 respectively. These evaluation metrics gives an
overall performance categorization of the proposed system. From the table, it is clear that our
proposed system performs very well. We have achieved 98.94% accuracy in case of DOS
intrusion and in other cases such as PROBE, RLA and URA; we got 97.11%, 97.78% and
97.80% respectively. Figure-4 and figure-5 illustrates the graphical representation of
performance evaluation of our proposed technique for training and testing datasets.

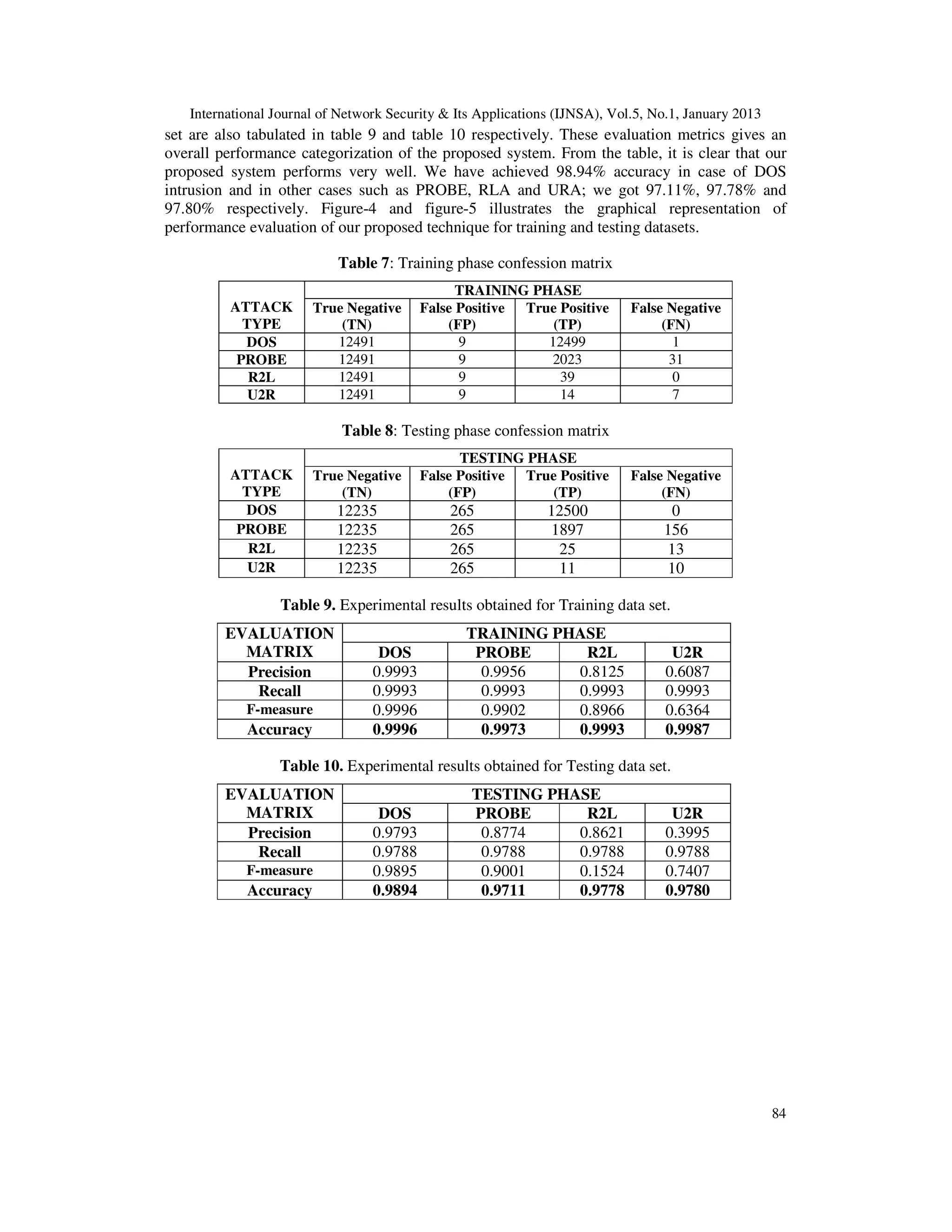

Table 7: Training phase confession matrix
TRAINING PHASE
ATTACK True Negative False Positive True Positive False Negative
TYPE (TN) (FP) (TP) (FN)
DOS 12491 9 12499 1
PROBE 12491 9 2023 31
R2L 12491 9 39 0
U2R 12491 9 14 7

Table 8: Testing phase confession matrix
TESTING PHASE
ATTACK True Negative False Positive True Positive False Negative
TYPE (TN) (FP) (TP) (FN)
DOS 12235 265 12500 0
PROBE 12235 265 1897 156
R2L 12235 265 25 13
U2R 12235 265 11 10

Table 9. Experimental results obtained for Training data set.
EVALUATION TRAINING PHASE
MATRIX DOS PROBE R2L U2R
Precision 0.9993 0.9956 0.8125 0.6087
Recall 0.9993 0.9993 0.9993 0.9993
F-measure 0.9996 0.9902 0.8966 0.6364
Accuracy 0.9996 0.9973 0.9993 0.9987

Table 10. Experimental results obtained for Testing data set.
EVALUATION TESTING PHASE
MATRIX DOS PROBE R2L U2R
Precision 0.9793 0.8774 0.8621 0.3995
Recall 0.9788 0.9788 0.9788 0.9788
F-measure 0.9895 0.9001 0.1524 0.7407
Accuracy 0.9894 0.9711 0.9778 0.9780

84

Vol.

100
90
80
70 DOS
60 PROBE
50
40 R2L
30
U2R
20
10
0
PRECISION RECALL F-MEASURE ACCUARCY

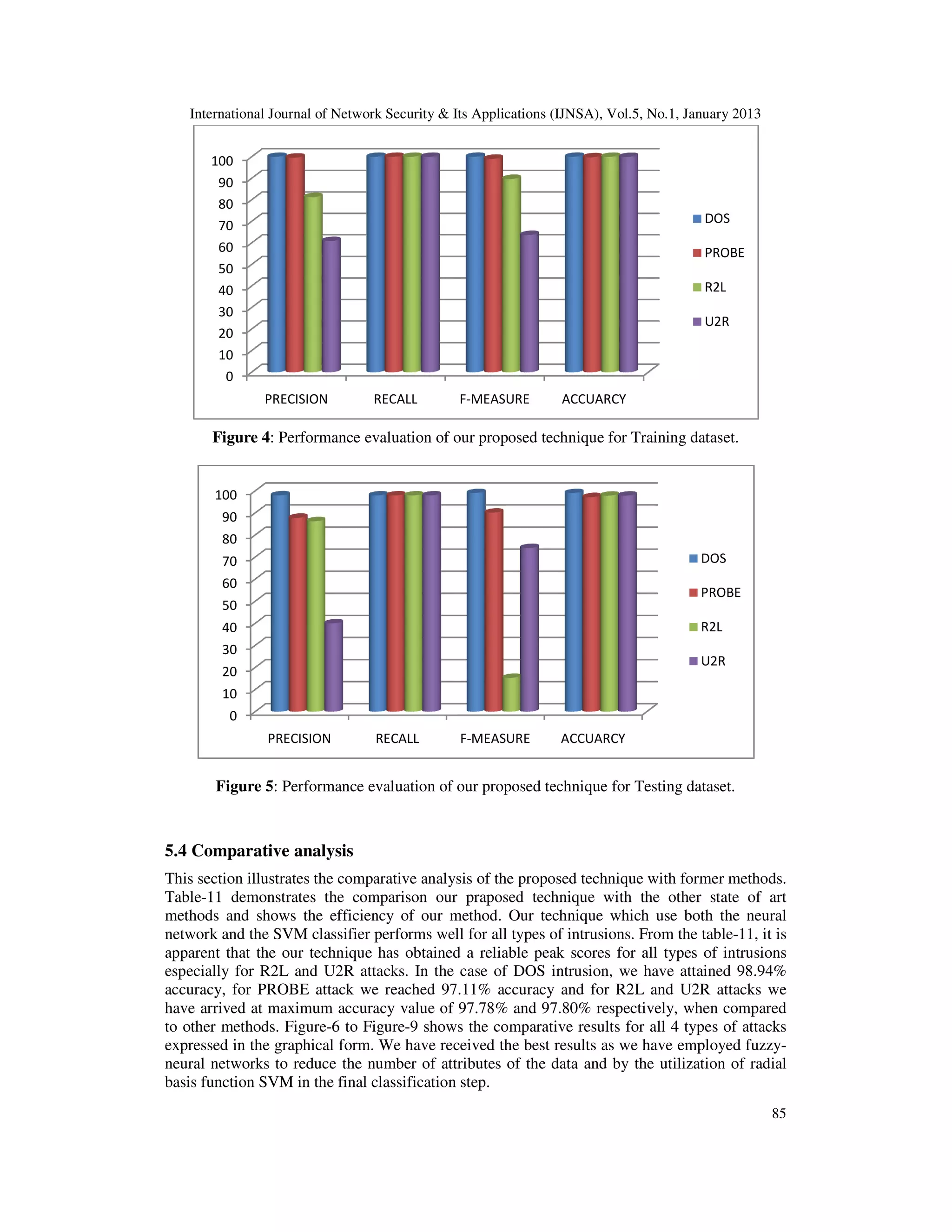

Figure 4: Performance evaluation of our proposed technique for Training dataset.
:

100
90
80
70 DOS
60
PROBE
50
40 R2L
30
U2R
20
10
0
PRECISION RECALL F-MEASURE ACCUARCY

Figure 5: Performance evaluation of our proposed technique for Testing dataset.
:

5.4 Comparative analysis
This section illustrates the comparative analysis of the proposed technique with former methods.
Table-11 demonstrates the comparison our praposed technique with the other state of art
methods and shows the efficiency of our method. Our technique which use both the neural
network and the SVM classifier performs well for all types of intrusions. From the table-11, it is
table
apparent that the our technique has obtained a reliable peak scores for all types of intrusions
especially for R2L and U2R attacks. In the case of DOS intrusion, we have attained 98.94%
attacks 98.
accuracy, for PROBE attack we reached 97.11% accuracy and for R2L and U2R attacks we
97.
have arrived at maximum accuracy value of 97.78% and 97.80% respectively, when compared
to other methods. Figure-6 to Figure-9 shows the comparative results for all 4 types of attacks
Figure
expressed in the graphical form. We have received the best results as we have employed fuzzy
. fuzzy-
neural networks to reduce the number of attributes of the data and by the utilization of radial
basis function SVM in the final classification step.
85

Vol.

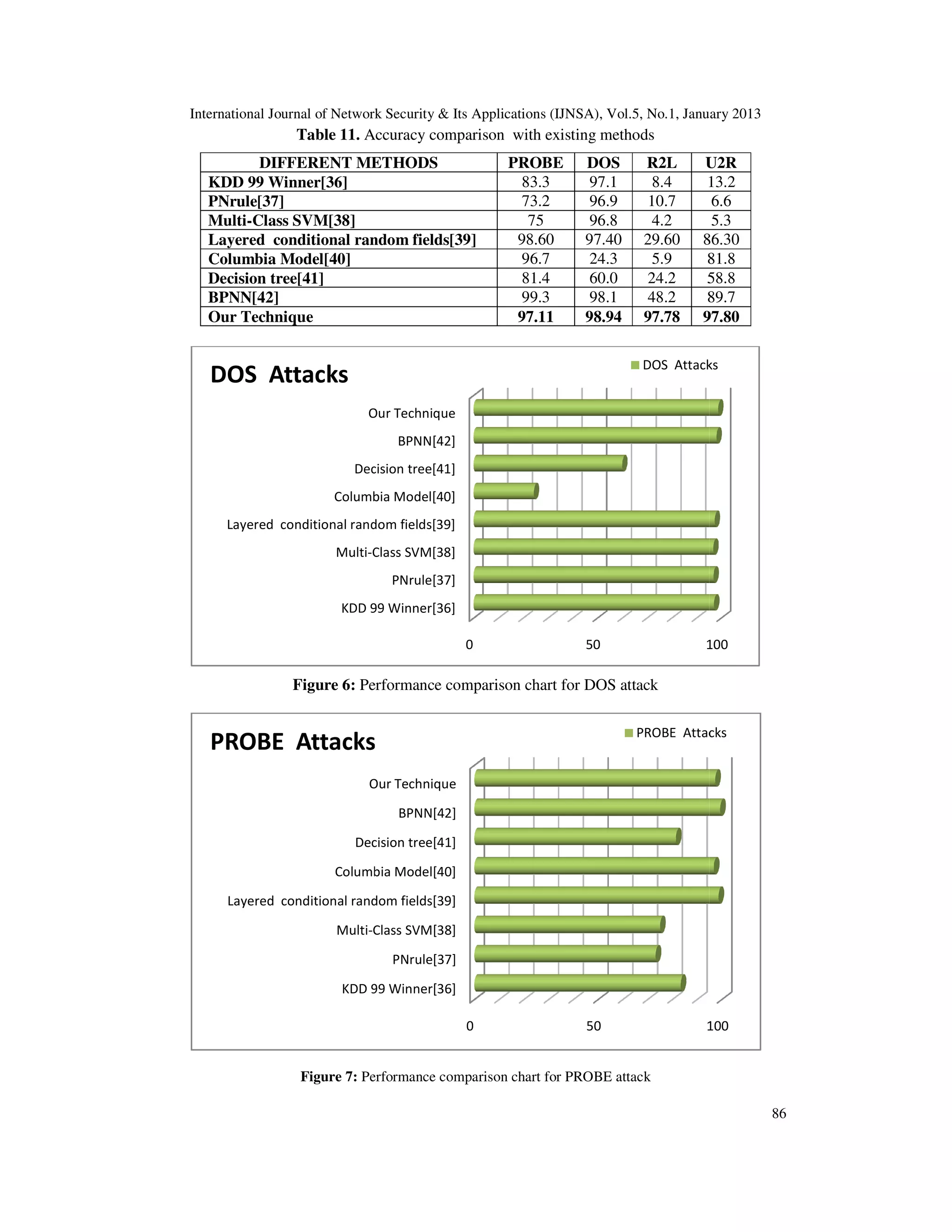

Table 11. Accuracy comparison with existing methods
DIFFERENT METHODS PROBE DOS R2L U2R
KDD 99 Winner[36] 83.3 97.1 8.4 13.2
PNrule[37] 73.2 96.9 10.7 6.6
Multi-Class SVM[38] 75 96.8 4.2 5.3
Layered conditional random fields[39] 98.60 97.40 29.60 86.30
Columbia Model[40] 96.7 24.3 5.9 81.8
Decision tree[41] 81.4 60.0 24.2 58.8
BPNN[42] 99.3 98.1 48.2 89.7
Our Technique 97.11 98.94 97.78 97.
97.80

DOS Attacks
DOS Attacks
Our Technique
BPNN[42]
Decision tree[41]
Columbia Model[40]
Layered conditional random fields[39]
Multi-Class SVM[38]
Class
PNrule[37]
KDD 99 Winner[36]

0 50 100

Figure 6: Performance comparison chart for DOS attack
erformance

PROBE Attacks
PROBE Attacks
Our Technique

BPNN[42]

Decision tree[41]

Columbia Model[40]

Multi-Class SVM[38]
Class

PNrule[37]

KDD 99 Winner[36]

0 50 100

Figure 7: Performance comparison chart for PROBE attack

86

Vol.

U2R Attacks
U2R Attacks
Our Technique

BPNN[42]

Decision tree[41]

Columbia Model[40]


Multi-Class SVM[38]
Class

PNrule[37]

KDD 99 Winner[36]

0 50 100

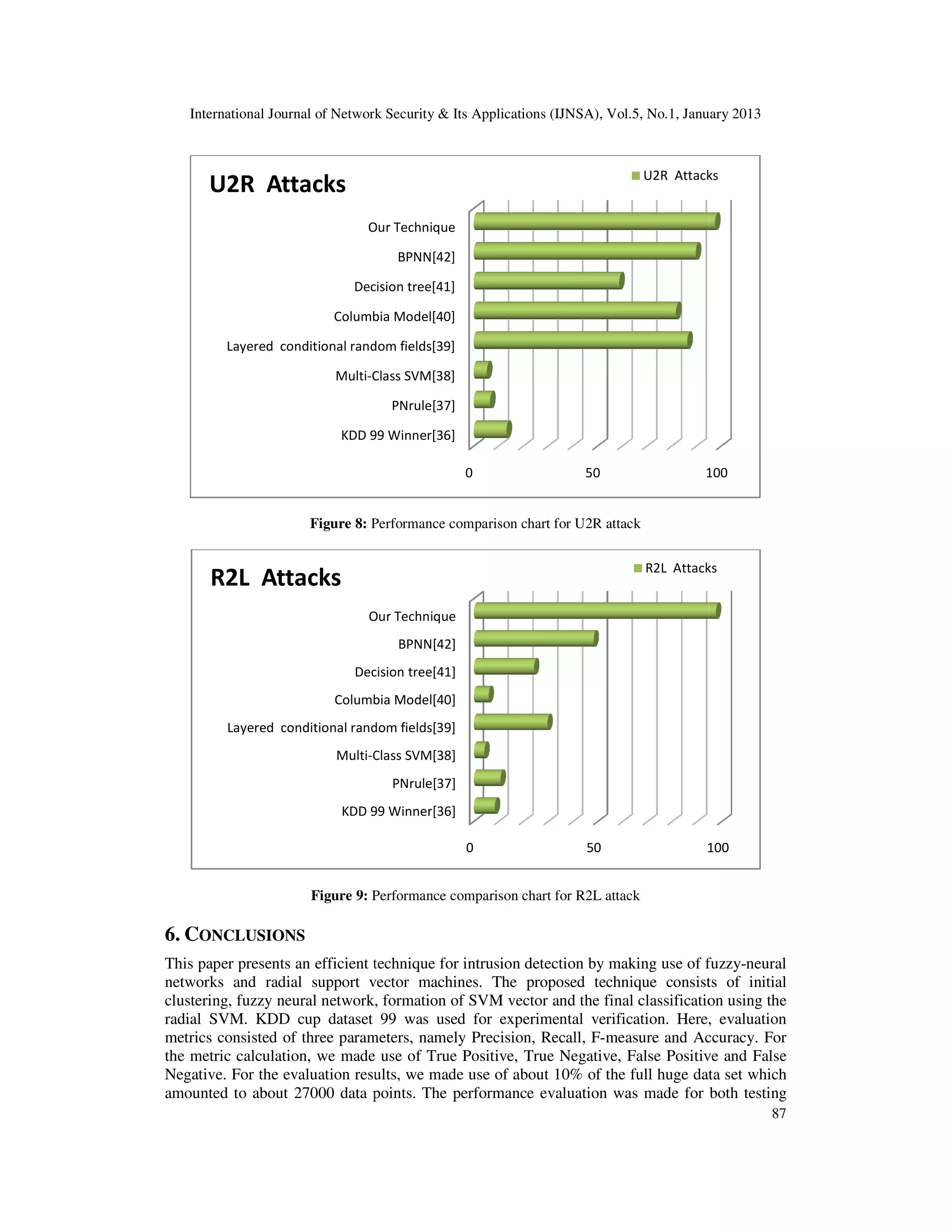

Figure 8: Performance comparison chart for U2R attack

R2L Attacks
R2L Attacks
Our Technique
BPNN[42]
Decision tree[41]
Columbia Model[40]
Multi-Class SVM[38]
Class
PNrule[37]
KDD 99 Winner[36]

0 50 100

Figure 9: Performance comparison chart for R2L attack

6. CONCLUSIONS
This paper presents an efficient technique for intrusion detection by making use of fuzzy
fuzzy-neural
networks and radial support vector machines. The proposed technique consists of initial
clustering, fuzzy neural network, formation of SVM vector and the final classification using the
radial SVM. KDD cup dataset 99 was used for experimental verification. Here, evaluation
metrics consisted of three parameters, namely Precision, Recall, F-measure and Accuracy. For
measure Accuracy
the metric calculation, we made use of True Positive, True Negative, False Positive and False
Positive,
Negative. For the evaluation results, we made use of about 10% of the full huge data set which
amounted to about 27000 data points. The performance evaluation was made for both testing
87

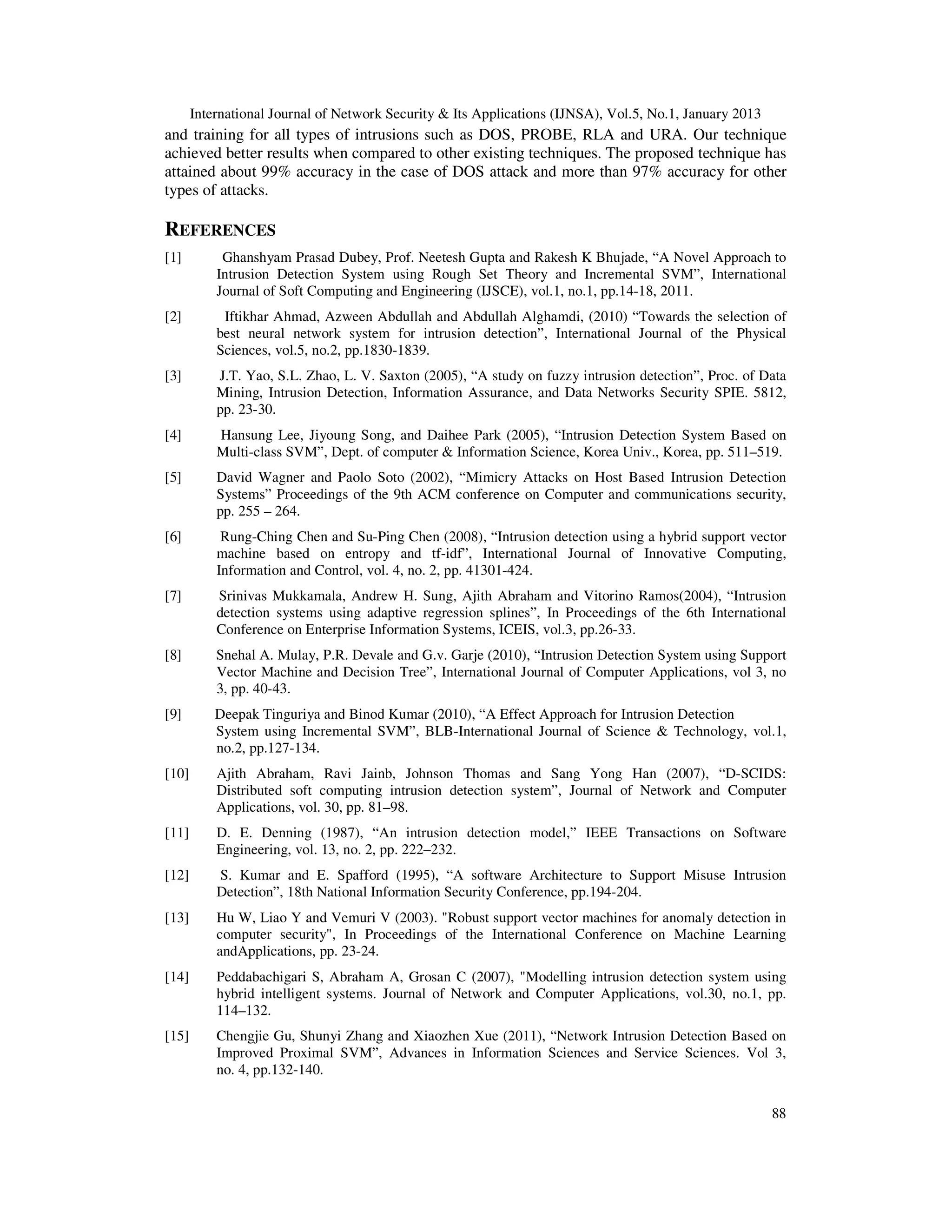

and training for all types of intrusions such as DOS, PROBE, RLA and URA. Our technique
achieved better results when compared to other existing techniques. The proposed technique has
attained about 99% accuracy in the case of DOS attack and more than 97% accuracy for other
types of attacks.

REFERENCES
[1] Ghanshyam Prasad Dubey, Prof. Neetesh Gupta and Rakesh K Bhujade, “A Novel Approach to
Intrusion Detection System using Rough Set Theory and Incremental SVM”, International
Journal of Soft Computing and Engineering (IJSCE), vol.1, no.1, pp.14-18, 2011.
[2] Iftikhar Ahmad, Azween Abdullah and Abdullah Alghamdi, (2010) “Towards the selection of
best neural network system for intrusion detection”, International Journal of the Physical
Sciences, vol.5, no.2, pp.1830-1839.
[3] J.T. Yao, S.L. Zhao, L. V. Saxton (2005), “A study on fuzzy intrusion detection”, Proc. of Data
Mining, Intrusion Detection, Information Assurance, and Data Networks Security SPIE. 5812,
pp. 23-30.
[4] Hansung Lee, Jiyoung Song, and Daihee Park (2005), “Intrusion Detection System Based on
Multi-class SVM”, Dept. of computer & Information Science, Korea Univ., Korea, pp. 511–519.
[5] David Wagner and Paolo Soto (2002), “Mimicry Attacks on Host Based Intrusion Detection
Systems” Proceedings of the 9th ACM conference on Computer and communications security,
pp. 255 – 264.
[6] Rung-Ching Chen and Su-Ping Chen (2008), “Intrusion detection using a hybrid support vector
machine based on entropy and tf-idf”, International Journal of Innovative Computing,
Information and Control, vol. 4, no. 2, pp. 41301-424.
[7] Srinivas Mukkamala, Andrew H. Sung, Ajith Abraham and Vitorino Ramos(2004), “Intrusion
detection systems using adaptive regression splines”, In Proceedings of the 6th International
Conference on Enterprise Information Systems, ICEIS, vol.3, pp.26-33.
[8] Snehal A. Mulay, P.R. Devale and G.v. Garje (2010), “Intrusion Detection System using Support
Vector Machine and Decision Tree”, International Journal of Computer Applications, vol 3, no
3, pp. 40-43.
[9] Deepak Tinguriya and Binod Kumar (2010), “A Effect Approach for Intrusion Detection
System using Incremental SVM”, BLB-International Journal of Science & Technology, vol.1,
no.2, pp.127-134.
[10] Ajith Abraham, Ravi Jainb, Johnson Thomas and Sang Yong Han (2007), “D-SCIDS:
Distributed soft computing intrusion detection system”, Journal of Network and Computer
Applications, vol. 30, pp. 81–98.
[11] D. E. Denning (1987), “An intrusion detection model,” IEEE Transactions on Software
Engineering, vol. 13, no. 2, pp. 222–232.
[12] S. Kumar and E. Spafford (1995), “A software Architecture to Support Misuse Intrusion
Detection”, 18th National Information Security Conference, pp.194-204.
[13] Hu W, Liao Y and Vemuri V (2003). "Robust support vector machines for anomaly detection in
computer security", In Proceedings of the International Conference on Machine Learning
andApplications, pp. 23-24.
[14] Peddabachigari S, Abraham A, Grosan C (2007), "Modelling intrusion detection system using
hybrid intelligent systems. Journal of Network and Computer Applications, vol.30, no.1, pp.
114–132.
[15] Chengjie Gu, Shunyi Zhang and Xiaozhen Xue (2011), “Network Intrusion Detection Based on
Improved Proximal SVM”, Advances in Information Sciences and Service Sciences. Vol 3,
no. 4, pp.132-140.

88

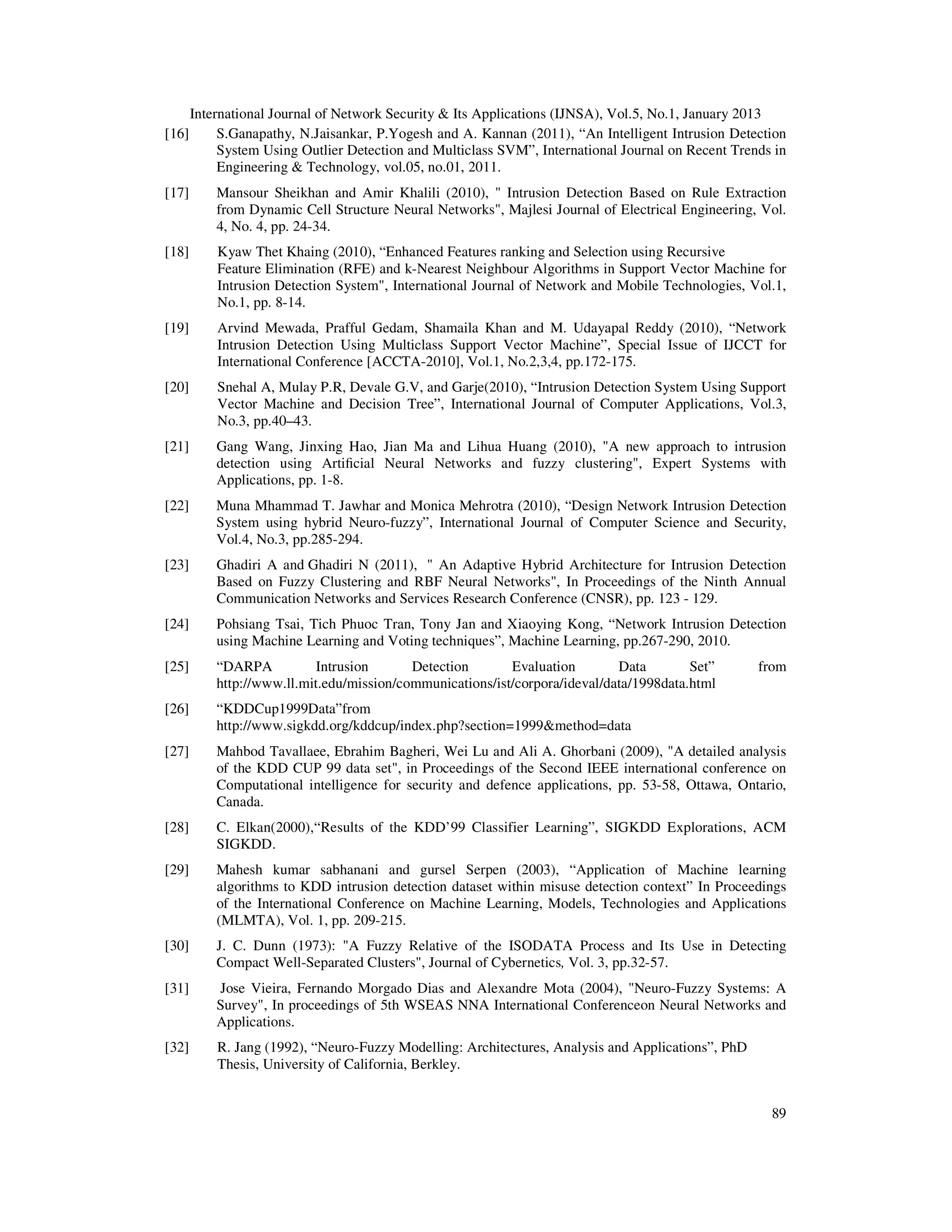

[16] S.Ganapathy, N.Jaisankar, P.Yogesh and A. Kannan (2011), “An Intelligent Intrusion Detection
System Using Outlier Detection and Multiclass SVM”, International Journal on Recent Trends in
Engineering & Technology, vol.05, no.01, 2011.
[17] Mansour Sheikhan and Amir Khalili (2010), " Intrusion Detection Based on Rule Extraction
from Dynamic Cell Structure Neural Networks", Majlesi Journal of Electrical Engineering, Vol.
4, No. 4, pp. 24-34.
[18] Kyaw Thet Khaing (2010), “Enhanced Features ranking and Selection using Recursive
Feature Elimination (RFE) and k-Nearest Neighbour Algorithms in Support Vector Machine for
Intrusion Detection System", International Journal of Network and Mobile Technologies, Vol.1,
No.1, pp. 8-14.
[19] Arvind Mewada, Prafful Gedam, Shamaila Khan and M. Udayapal Reddy (2010), “Network
Intrusion Detection Using Multiclass Support Vector Machine”, Special Issue of IJCCT for
International Conference [ACCTA-2010], Vol.1, No.2,3,4, pp.172-175.
[20] Snehal A, Mulay P.R, Devale G.V, and Garje(2010), “Intrusion Detection System Using Support
Vector Machine and Decision Tree”, International Journal of Computer Applications, Vol.3,
No.3, pp.40–43.
[21] Gang Wang, Jinxing Hao, Jian Ma and Lihua Huang (2010), "A new approach to intrusion
detection using Artiﬁcial Neural Networks and fuzzy clustering", Expert Systems with
Applications, pp. 1-8.
[22] Muna Mhammad T. Jawhar and Monica Mehrotra (2010), “Design Network Intrusion Detection
System using hybrid Neuro-fuzzy”, International Journal of Computer Science and Security,
Vol.4, No.3, pp.285-294.
[23] Ghadiri A and Ghadiri N (2011), " An Adaptive Hybrid Architecture for Intrusion Detection
Based on Fuzzy Clustering and RBF Neural Networks", In Proceedings of the Ninth Annual
Communication Networks and Services Research Conference (CNSR), pp. 123 - 129.
[24] Pohsiang Tsai, Tich Phuoc Tran, Tony Jan and Xiaoying Kong, “Network Intrusion Detection
using Machine Learning and Voting techniques”, Machine Learning, pp.267-290, 2010.
[25] “DARPA Intrusion Detection Evaluation Data Set” from
http://www.ll.mit.edu/mission/communications/ist/corpora/ideval/data/1998data.html
[26] “KDDCup1999Data”from
http://www.sigkdd.org/kddcup/index.php?section=1999&method=data
[27] Mahbod Tavallaee, Ebrahim Bagheri, Wei Lu and Ali A. Ghorbani (2009), "A detailed analysis
of the KDD CUP 99 data set", in Proceedings of the Second IEEE international conference on
Computational intelligence for security and defence applications, pp. 53-58, Ottawa, Ontario,
Canada.
[28] C. Elkan(2000),“Results of the KDD’99 Classifier Learning”, SIGKDD Explorations, ACM
SIGKDD.
[29] Mahesh kumar sabhanani and gursel Serpen (2003), “Application of Machine learning
algorithms to KDD intrusion detection dataset within misuse detection context” In Proceedings
of the International Conference on Machine Learning, Models, Technologies and Applications
(MLMTA), Vol. 1, pp. 209-215.
[30] J. C. Dunn (1973): "A Fuzzy Relative of the ISODATA Process and Its Use in Detecting
Compact Well-Separated Clusters", Journal of Cybernetics, Vol. 3, pp.32-57.
[31] Jose Vieira, Fernando Morgado Dias and Alexandre Mota (2004), "Neuro-Fuzzy Systems: A
Survey", In proceedings of 5th WSEAS NNA International Conferenceon Neural Networks and
Applications.
[32] R. Jang (1992), “Neuro-Fuzzy Modelling: Architectures, Analysis and Applications”, PhD
Thesis, University of California, Berkley.

89

[33] Cristianini, Nello and Shawe-Taylor, John (2000), “An Introduction to Support Vector Machines
and other kernel based learning methods", Cambridge University Press, Cambridge.
[34] Li Zhuo, Jing Zheng, Fang Wang, Xia Li, Bin Ai, Junping Qian (2008), "A Genetic Algorithm
Based Wrapper Feature Selection Method For Classification Of Hyper spectral Images Using
Support Vector Machine", The International Archives of the Photogrammetric, Remote Sensing
and Spatial Information Science, Vol. XXXVII, No. B7, pp.397-402.
[35] Wen Zhu, Nancy Zeng, Ning Wang (2010), “Sensitivity, Specificity, Accuracy, Associated
Confidence Interval and ROC Analysis with Practical SAS® Implementations”, NESUG
proceedings: Health Care and Life Sciences, Baltimore, Maryland.
[36] B. Pfahringer (2000), "Winning the KDD99 Classification Cup: Bagged Boosting," SIGKDD
Explorations, vol. 1, pp. 65–66.
[37] R. Agarwal and M. V. Joshi (2000), "PNrule: A New Framework for Learning Classifier Models
in Data Mining," in A Case-Study in Network Intrusion Detection.
[38] T. Ambwani (2003), "Multi class support vector machine implementation to intrusion detection,"
in Proc. of IJCNN, pp. 2300-2305.
[39] K. K. Gupta, B. Nath, and R. Kotagiri (2008), "Layered Approach using Conditional Random
Fields for Intrusion Detection," IEEE Transactions on Dependable & Secure Computing, vol. 5.
[40] W. Lee and S. Stolfo (2000), "A Framework for Constructing Features and Models for Intrusion
Detection Systems," Information and System Security, vol. 4, pp. 227-261.
[41] J.-H. Lee, J.-H. Lee, S.-G. Sohn, J.-H. Ryu, and T.-M. Chung (2008), "Effective Value of
Decision Tree with KDD 99 Intrusion Detection Datasets for Intrusion Detection System," in
10th International Conference on Advanced Communication Technology. vol. 2, pp. 1170-1175.
[42] Tich Phuoc Tran, Longbing Cao , Dat Tran and Cuong Duc Nguyen (2009) , “Novel Intrusion
Detection using Probabilistic Neural Network and Adaptive Boosting”, International Journal of
Computer Science and Information Security, Vol. 6, No. 1, pp. 83-91.
[43] A.M. Chandrasekhar and K. Raguveer (2012), “fusion of multiple data mining techniques for
Effective network intrusion detection – A contemporary approach”, in proceedings of 5th ACM
International conference on security of information and networks (SIN 2012), pp. 33-37.

90

FORTIFICATION OF HYBRID INTRUSION DETECTION SYSTEM USING VARIANTS OF NEURAL NETWORKS AND SUPPORT VECTOR MACHINES

More Related Content

What's hot

Viewers also liked

Similar to FORTIFICATION OF HYBRID INTRUSION DETECTION SYSTEM USING VARIANTS OF NEURAL NETWORKS AND SUPPORT VECTOR MACHINES

Recently uploaded

FORTIFICATION OF HYBRID INTRUSION DETECTION SYSTEM USING VARIANTS OF NEURAL NETWORKS AND SUPPORT VECTOR MACHINES
