Exploring Risk and Mapping the Internet of Things with Autonomous Drones
Praetorian is collaborating with Dronesense to automate drone operations and secure IoT projects. The document discusses the development and implementation of strategies for end-to-end security in IoT systems, including techniques for attacking Zigbee networks and vulnerabilities in embedded devices. It also emphasizes the importance of integrating security considerations throughout the product development lifecycle and provides recommendations for security best practices.
More Related Content
Similar to Exploring Risk and Mapping the Internet of Things with Autonomous Drones
Exploring Risk and Mapping the Internet of Things with Autonomous Drones
- 1. THE SECURITY EXPERTS WWW.PRAETORIAN.COM 1 PAULJAUREGUI VP, SECURING IOT @ PRAETORIAN RICHARD MCPHERSON PHD CANDIDATE, INTERN, PRAETORIAN (2015) NISHIL SHAH UT GRADUATE, INTERN, PRAETORIAN (2015) DALLAS KAMAN SENIOR SECURITY ENGINEER, PRAETORIAN Internet of Things Map Project Team | Summer 2015 and beyond
- 2. THE SECURITY EXPERTS WWW.PRAETORIAN.COM 2Praetorian Partnered with DroneSense (dronesense.com) for FAA Exemption and Autonomous Drone Automation

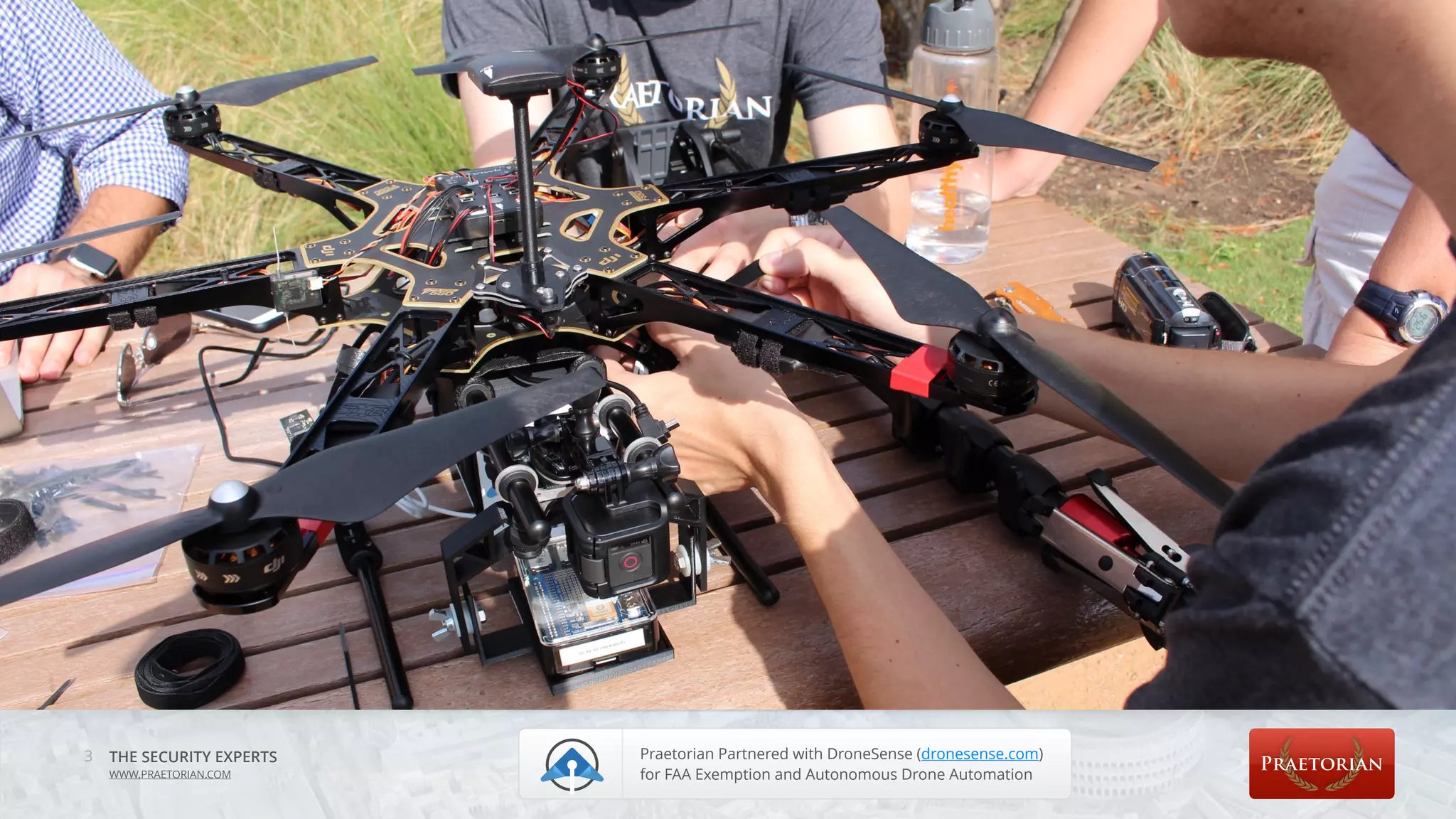

- 3. THE SECURITY EXPERTS WWW.PRAETORIAN.COM 3Praetorian Partnered with DroneSense (dronesense.com) for FAA Exemption and Autonomous Drone Automation

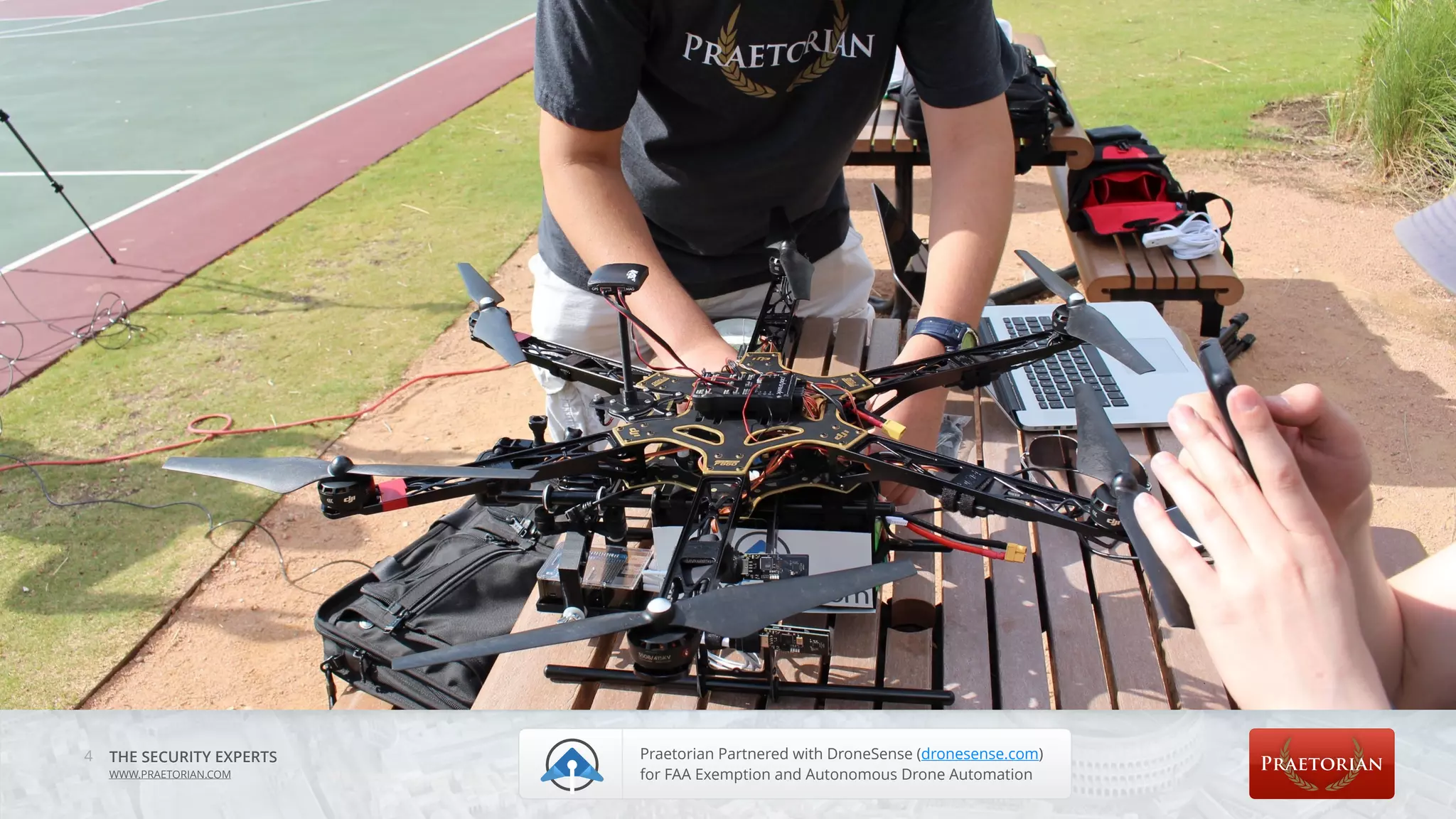

- 4. THE SECURITY EXPERTS WWW.PRAETORIAN.COM 4Praetorian Partnered with DroneSense (dronesense.com) for FAA Exemption and Autonomous Drone Automation

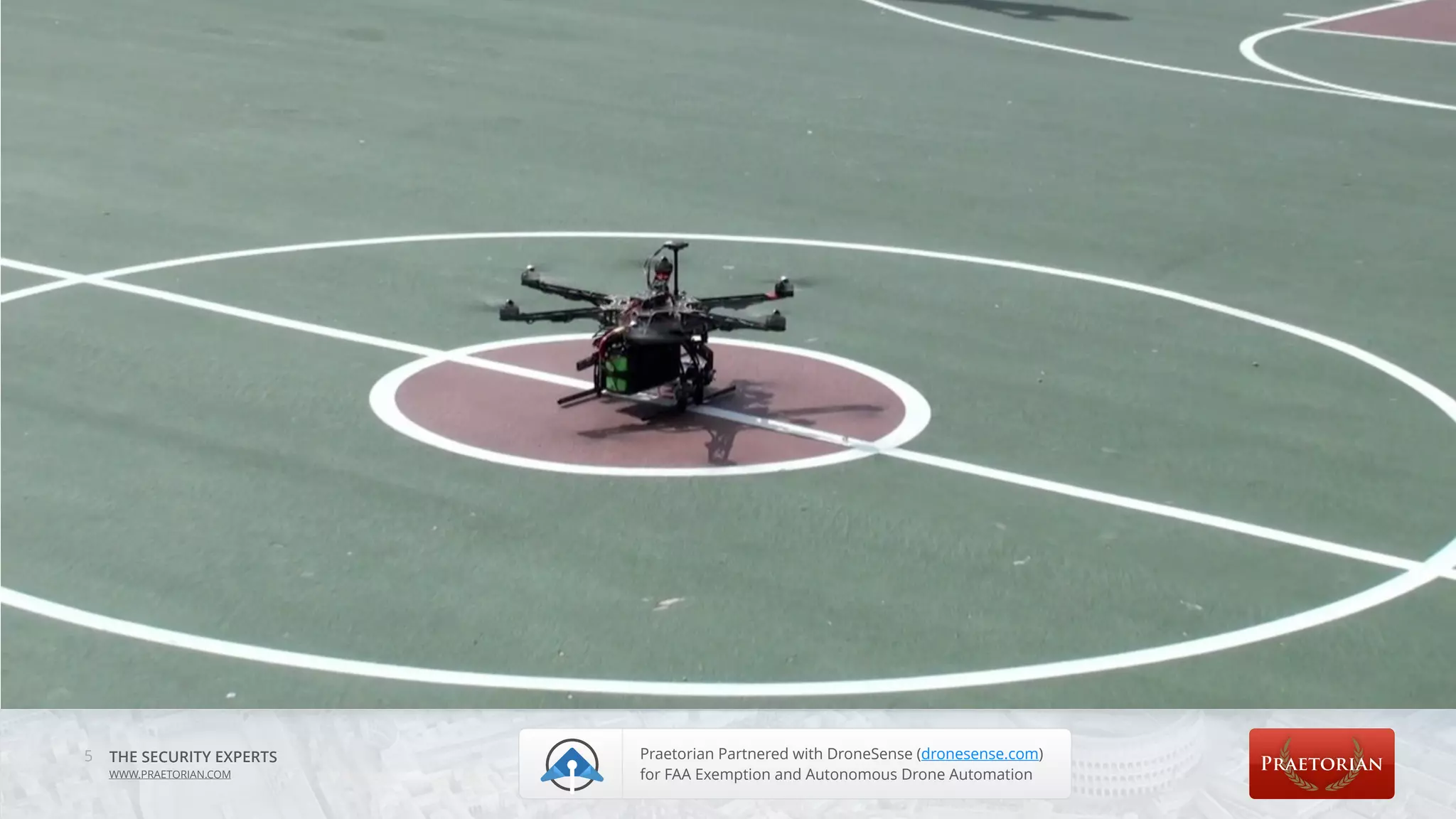

- 5. THE SECURITY EXPERTS WWW.PRAETORIAN.COM 5Praetorian Partnered with DroneSense (dronesense.com) for FAA Exemption and Autonomous Drone Automation

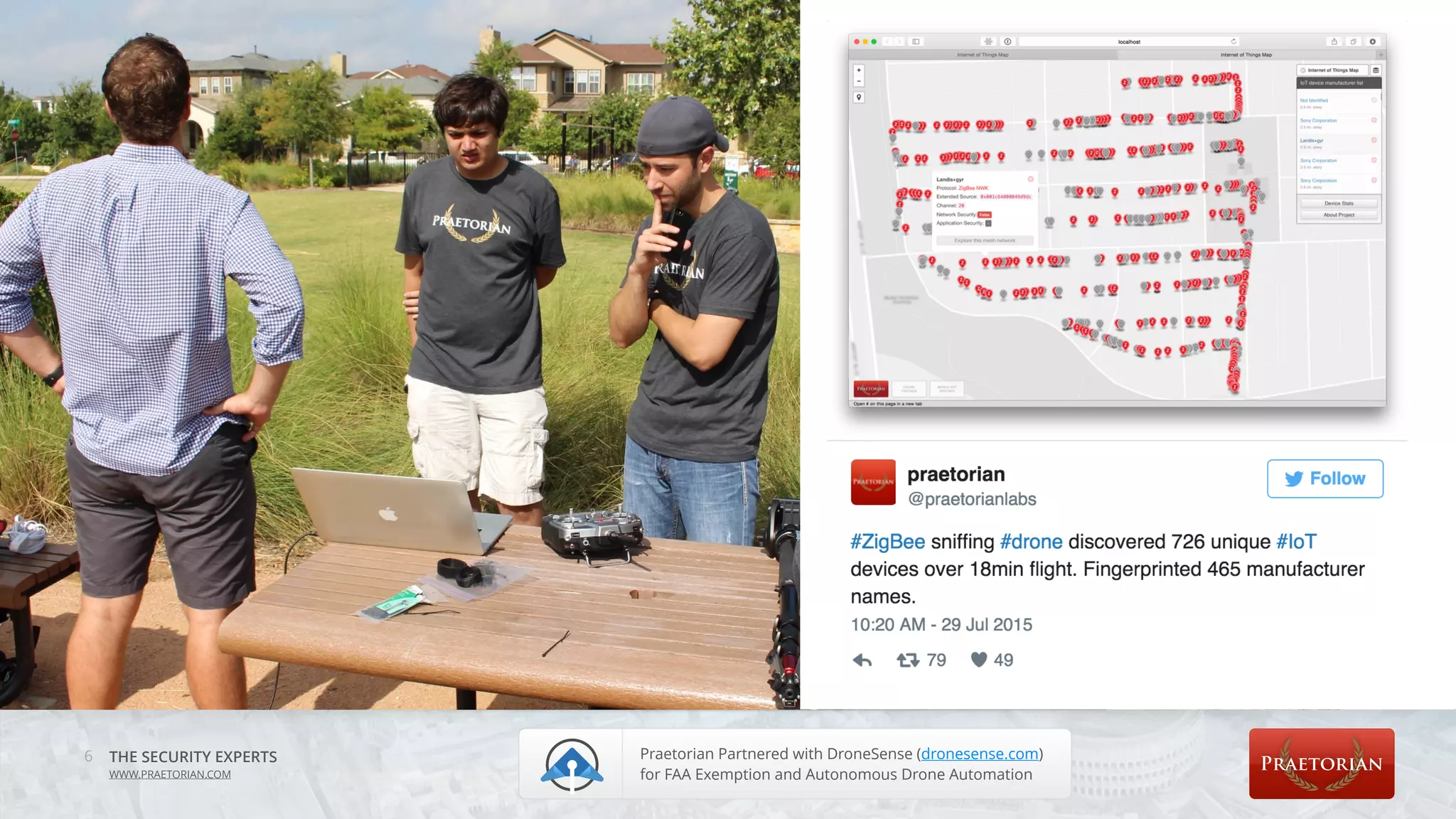

- 6. THE SECURITY EXPERTS WWW.PRAETORIAN.COM 6Praetorian Partnered with DroneSense (dronesense.com) for FAA Exemption and Autonomous Drone Automation
- 7. THE SECURITY EXPERTS WWW.PRAETORIAN.COM 7 RESEARCHMEDIA AWARENESS

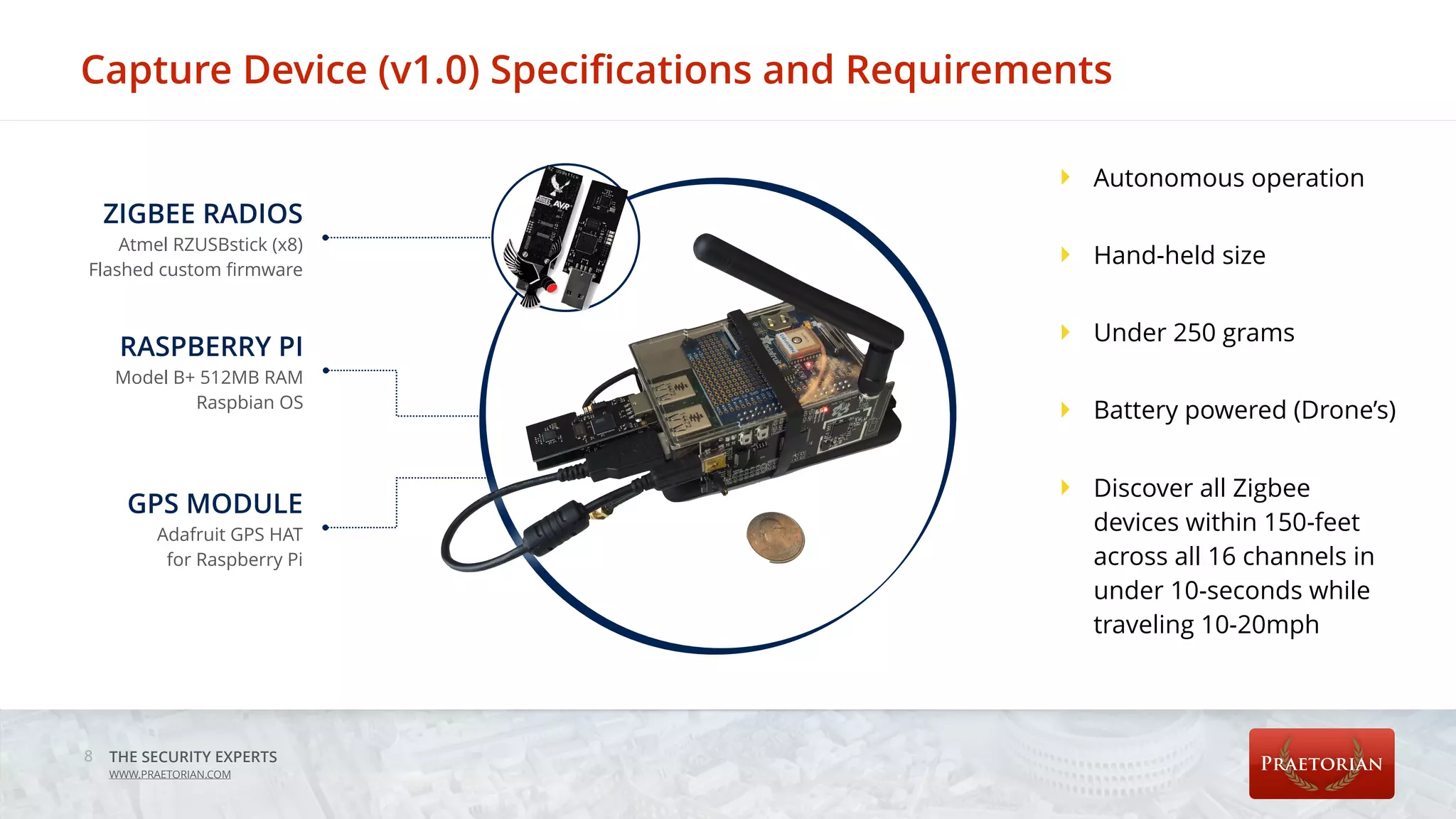

- 8. THE SECURITY EXPERTS WWW.PRAETORIAN.COM CaptureDevice (v1.0) Specifications and Requirements 8 ZIGBEE RADIOS Atmel RZUSBstick (x8) Flashed custom firmware GPS MODULE Adafruit GPS HAT for Raspberry Pi RASPBERRY PI Model B+ 512MB RAM Raspbian OS ‣ Autonomous operation ‣ Hand-held size ‣ Under 250 grams ‣ Battery powered (Drone’s) ‣ Discover all Zigbee devices within 150-feet across all 16 channels in under 10-seconds while traveling 10-20mph
- 9. THE SECURITY EXPERTS WWW.PRAETORIAN.COM ExtendingKillerbee 802.15.4 Network Attacking Framework 9 11 12 13 14 15 16 18 19 20 21 22 23 24 25 26 2400MHz 2483MHz2.4GHz Zigbee Channels PROCESS 1 PROCESS 2 PROCESS 3 17 ‣ Extended Killerbee zbwardrive utility ‣ Added new Python multiprocessing ‣ All Zigbee radios cycle through channels simultaneously ‣ Channels record for a set amount of time DOWNLOAD KILLERBEE FRAMEWORK AT HTTPS://GITHUB.COM/RIVERLOOPSEC/KILLERBEE

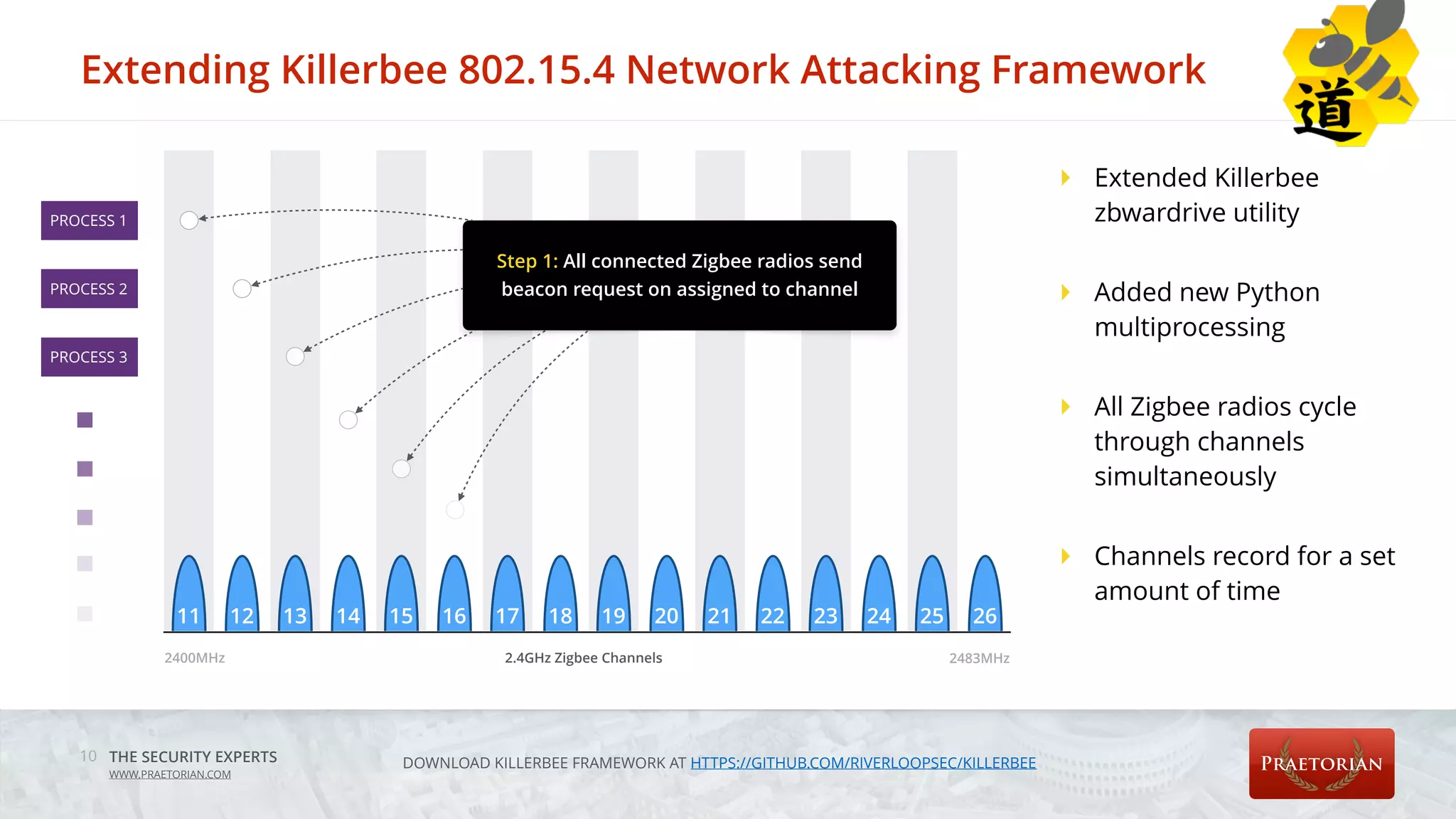

- 10. THE SECURITY EXPERTS WWW.PRAETORIAN.COM ExtendingKillerbee 802.15.4 Network Attacking Framework 10 11 12 13 14 15 16 18 19 20 21 22 23 24 25 26 2400MHz 2483MHz2.4GHz Zigbee Channels PROCESS 1 PROCESS 2 PROCESS 3 17 ‣ Extended Killerbee zbwardrive utility ‣ Added new Python multiprocessing ‣ All Zigbee radios cycle through channels simultaneously ‣ Channels record for a set amount of time DOWNLOAD KILLERBEE FRAMEWORK AT HTTPS://GITHUB.COM/RIVERLOOPSEC/KILLERBEE Step 1: All connected Zigbee radios send beacon request on assigned to channel

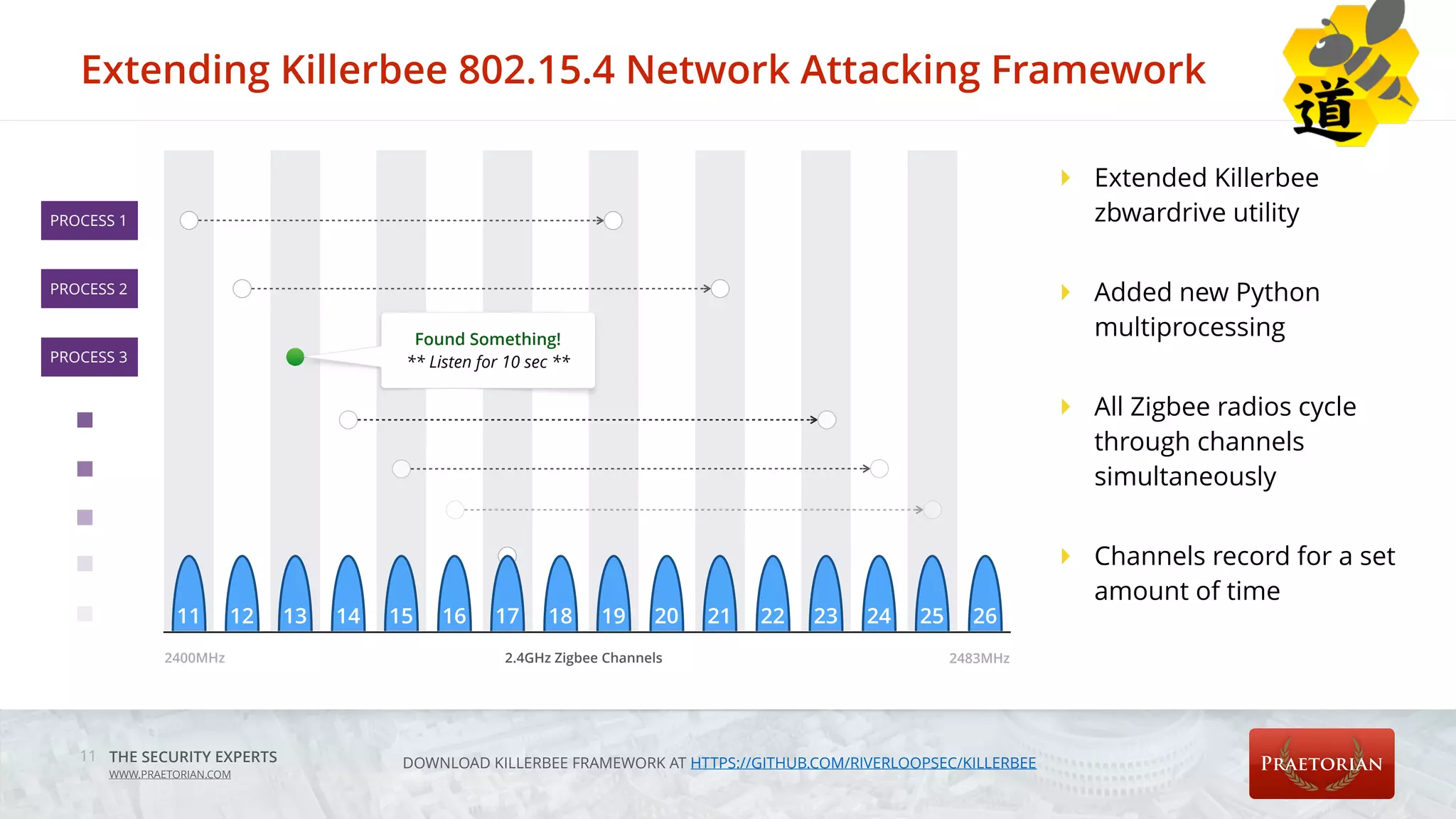

- 11. THE SECURITY EXPERTS WWW.PRAETORIAN.COM ExtendingKillerbee 802.15.4 Network Attacking Framework 11 11 12 13 14 15 16 18 19 20 21 22 23 24 25 26 2400MHz 2483MHz2.4GHz Zigbee Channels PROCESS 1 PROCESS 2 PROCESS 3 17 Found Something! ** Listen for 10 sec ** ‣ Extended Killerbee zbwardrive utility ‣ Added new Python multiprocessing ‣ All Zigbee radios cycle through channels simultaneously ‣ Channels record for a set amount of time DOWNLOAD KILLERBEE FRAMEWORK AT HTTPS://GITHUB.COM/RIVERLOOPSEC/KILLERBEE

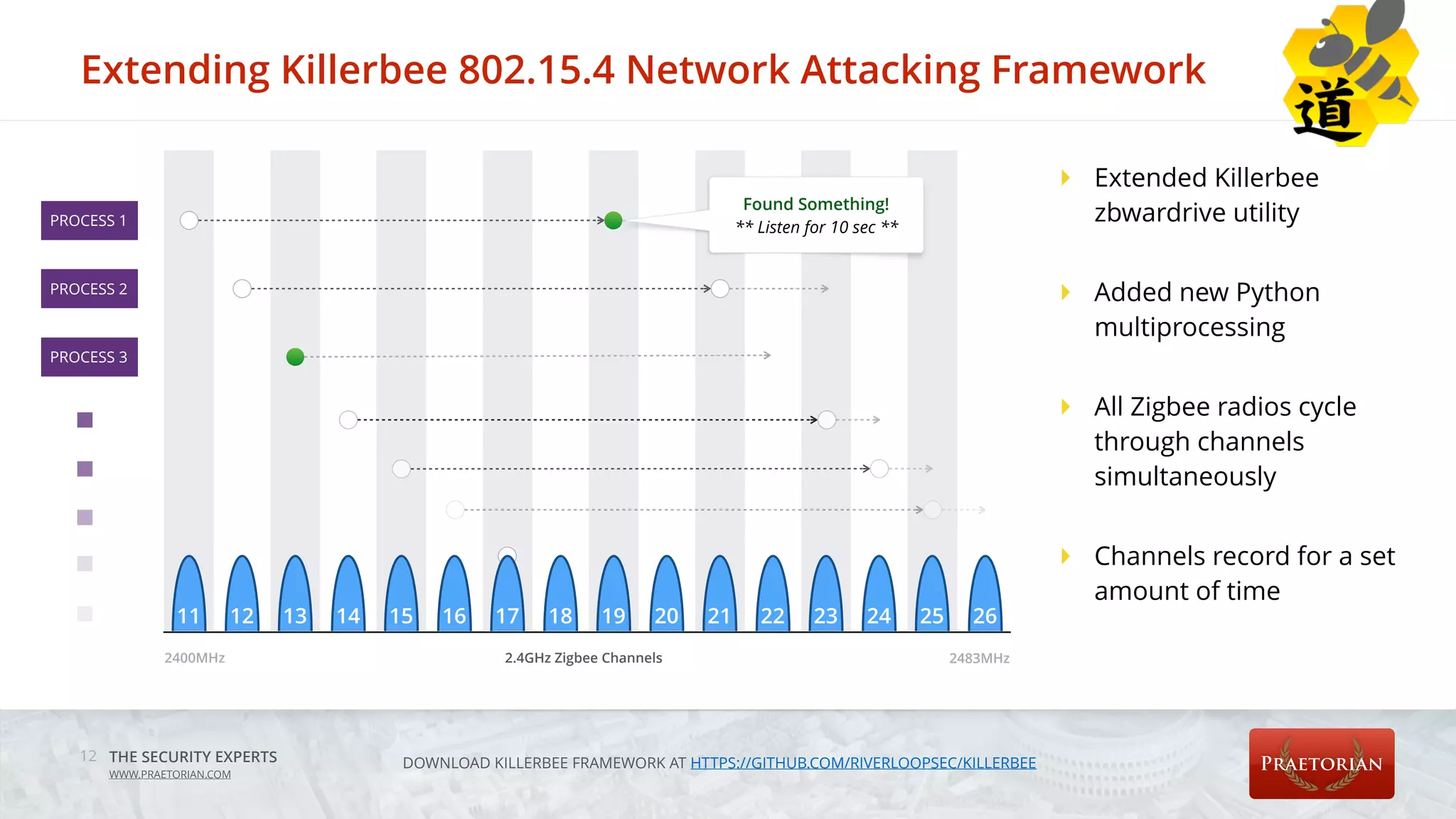

- 12. THE SECURITY EXPERTS WWW.PRAETORIAN.COM ExtendingKillerbee 802.15.4 Network Attacking Framework 12 11 12 13 14 15 16 18 19 20 21 22 23 24 25 26 2400MHz 2483MHz2.4GHz Zigbee Channels PROCESS 1 PROCESS 2 PROCESS 3 17 Found Something! ** Listen for 10 sec ** ‣ Extended Killerbee zbwardrive utility ‣ Added new Python multiprocessing ‣ All Zigbee radios cycle through channels simultaneously ‣ Channels record for a set amount of time DOWNLOAD KILLERBEE FRAMEWORK AT HTTPS://GITHUB.COM/RIVERLOOPSEC/KILLERBEE

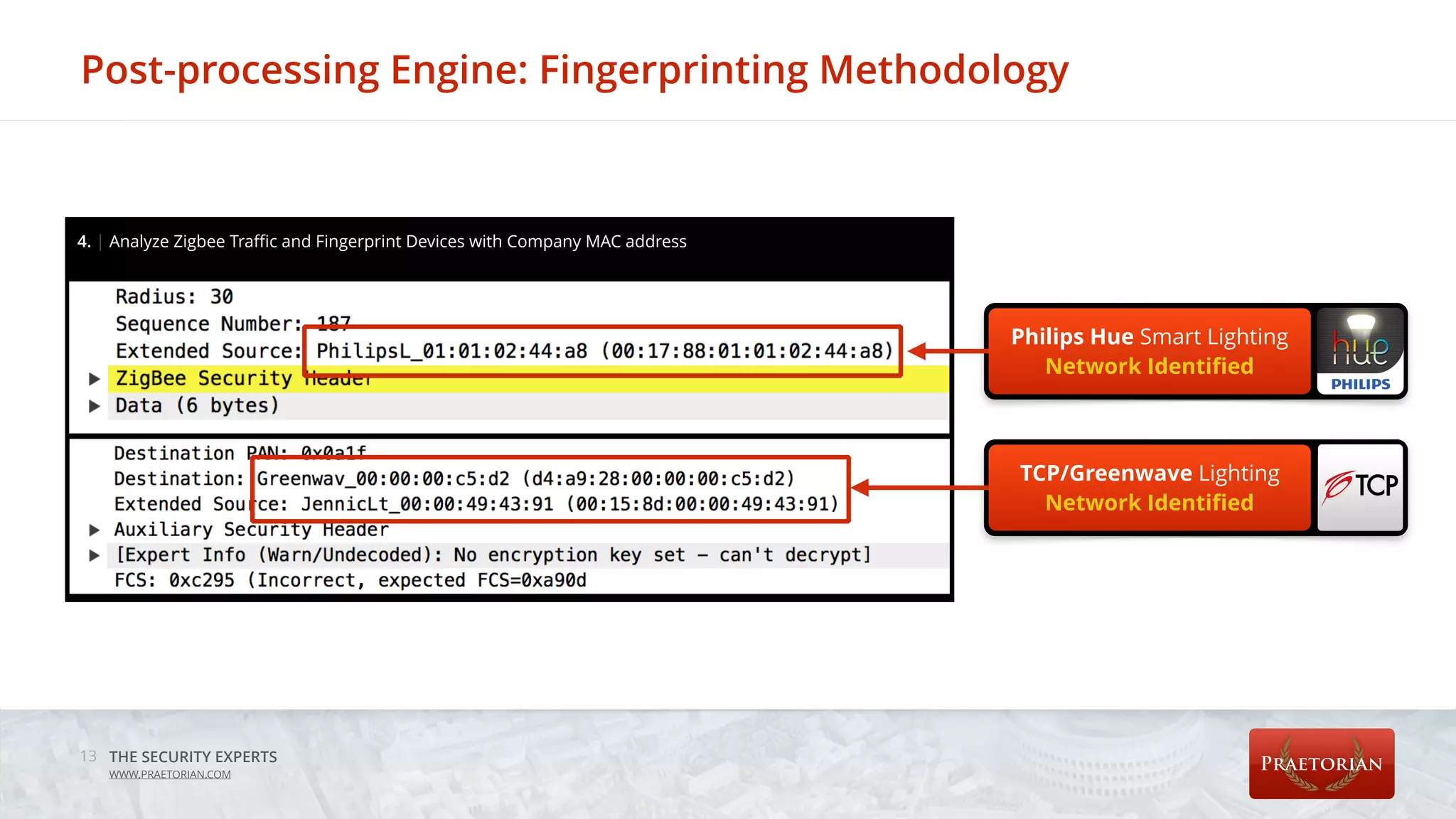

- 13. THE SECURITY EXPERTS WWW.PRAETORIAN.COM Post-processingEngine: Fingerprinting Methodology 13 4. | Analyze Zigbee Traffic and Fingerprint Devices with Company MAC address Philips Hue Smart Lighting Network Identified TCP/Greenwave Lighting Network Identified
- 14.

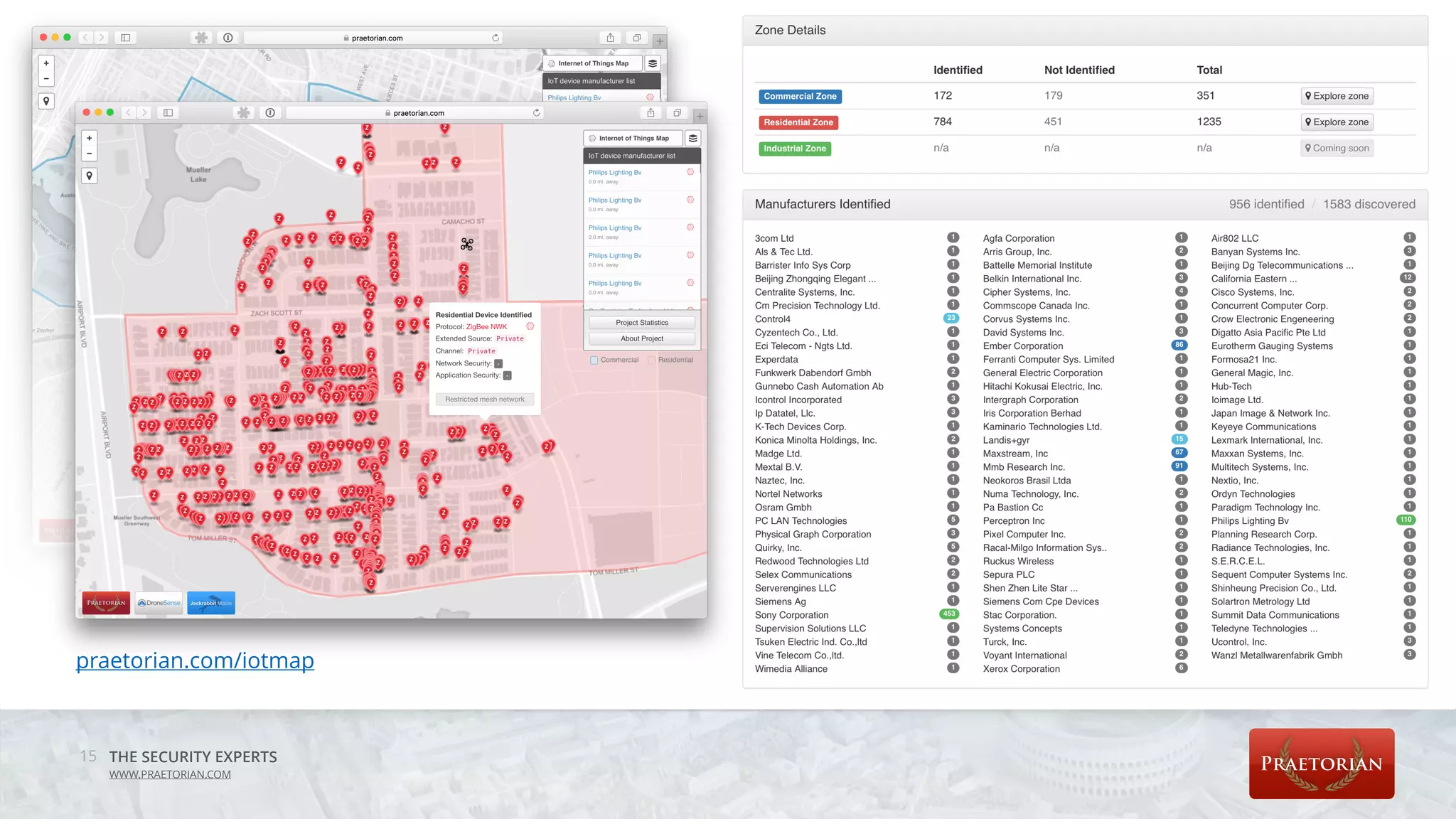

- 15.
- 16.

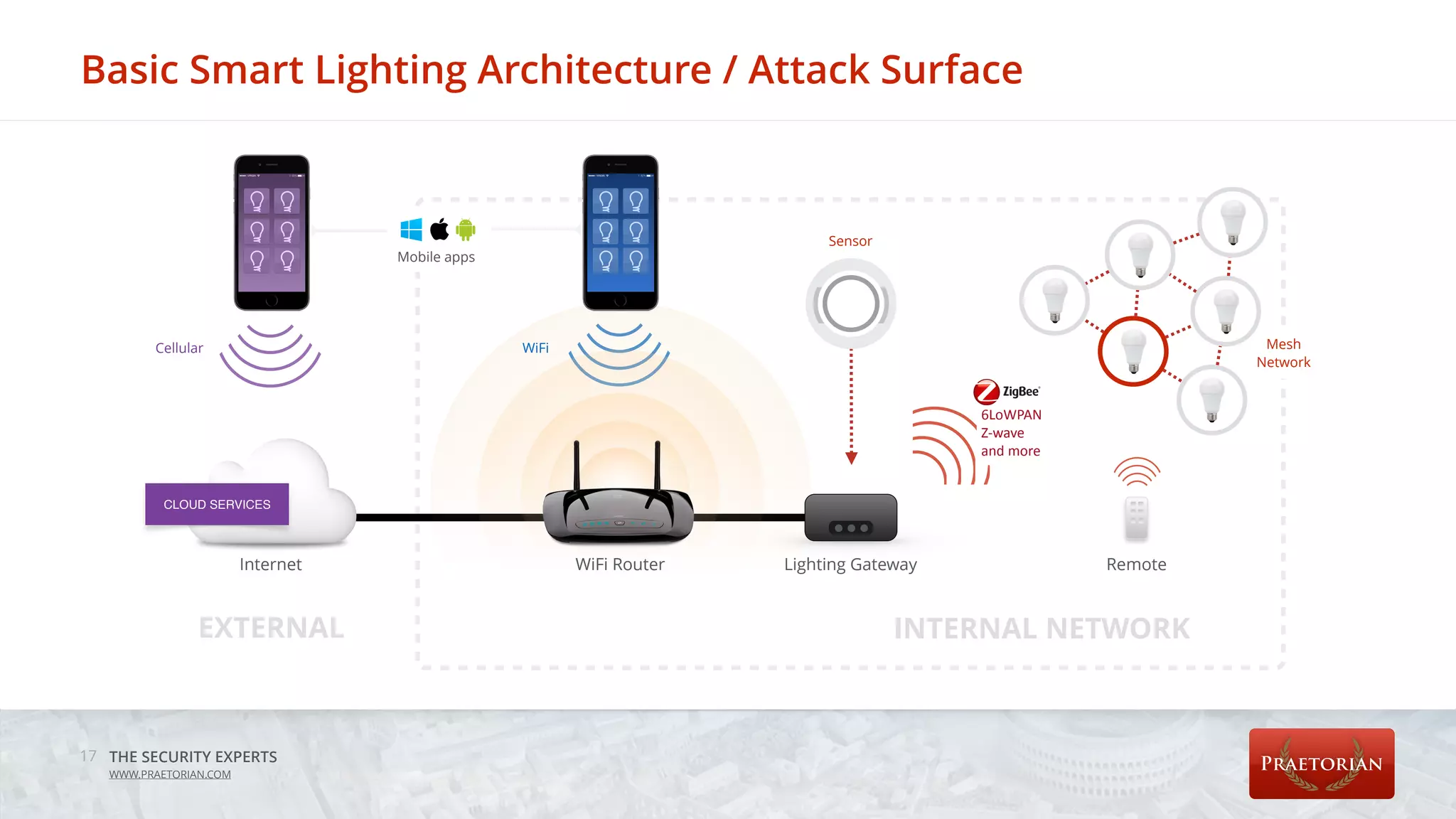

- 17. THE SECURITY EXPERTS WWW.PRAETORIAN.COM Mesh Network BasicSmart Lighting Architecture / Attack Surface 17 CLOUD SERVICES Internet WiFi Router Lighting Gateway Remote INTERNAL NETWORKEXTERNAL WiFiCellular Mobile apps Sensor 6LoWPAN Z-wave and more

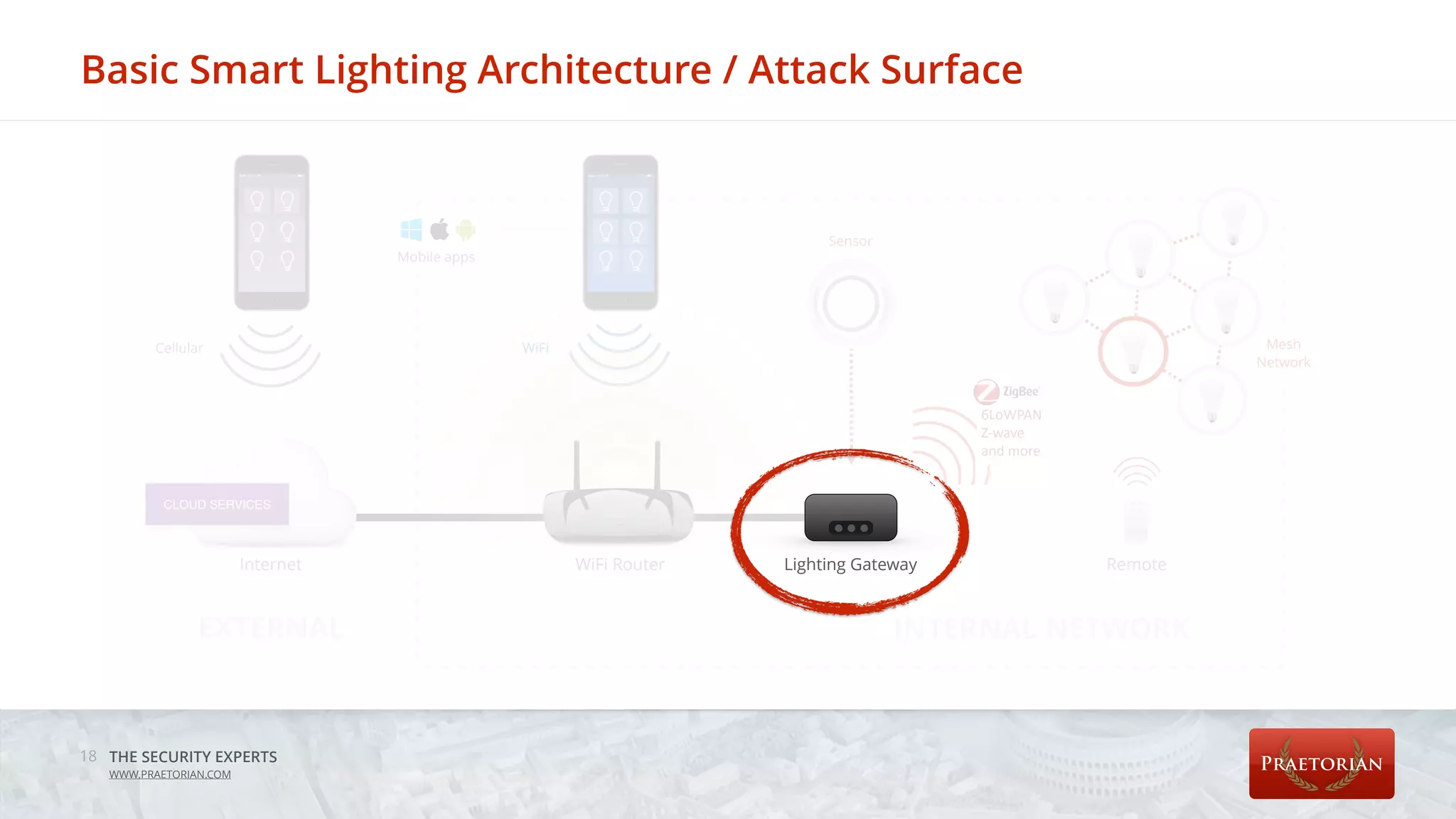

- 18. THE SECURITY EXPERTS WWW.PRAETORIAN.COM Mesh Network BasicSmart Lighting Architecture / Attack Surface 18 CLOUD SERVICES Internet WiFi Router Remote INTERNAL NETWORKEXTERNAL WiFiCellular Mobile apps Sensor 6LoWPAN Z-wave and more Lighting Gateway

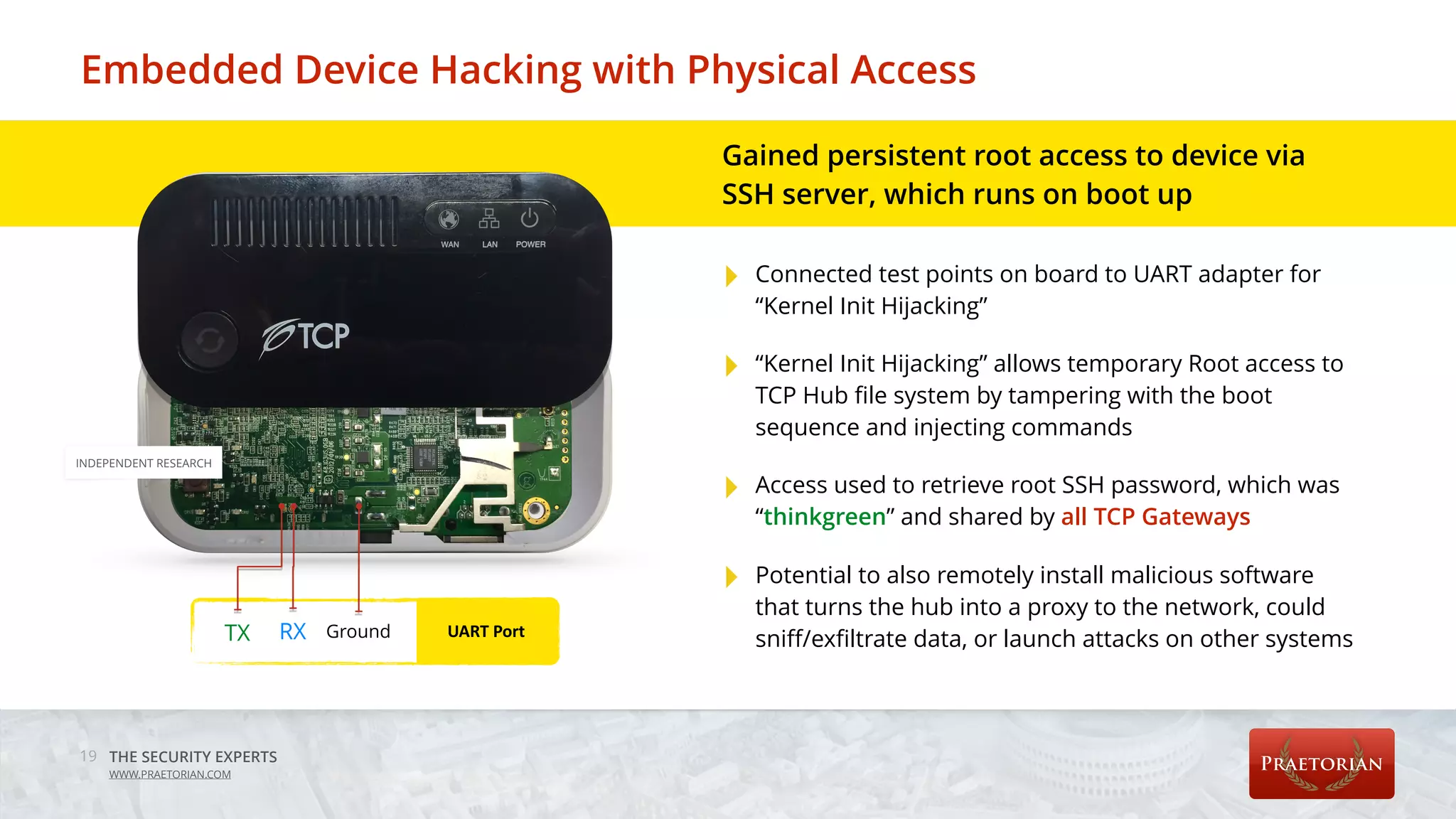

- 19. THE SECURITY EXPERTS WWW.PRAETORIAN.COM EmbeddedDevice Hacking with Physical Access 19 TX RX Ground UART Port Gained persistent root access to device via SSH server, which runs on boot up ‣ Connected test points on board to UART adapter for “Kernel Init Hijacking” ‣ “Kernel Init Hijacking” allows temporary Root access to TCP Hub file system by tampering with the boot sequence and injecting commands ‣ Access used to retrieve root SSH password, which was “thinkgreen” and shared by all TCP Gateways ‣ Potential to also remotely install malicious software that turns the hub into a proxy to the network, could sniff/exfiltrate data, or launch attacks on other systems INDEPENDENT RESEARCH

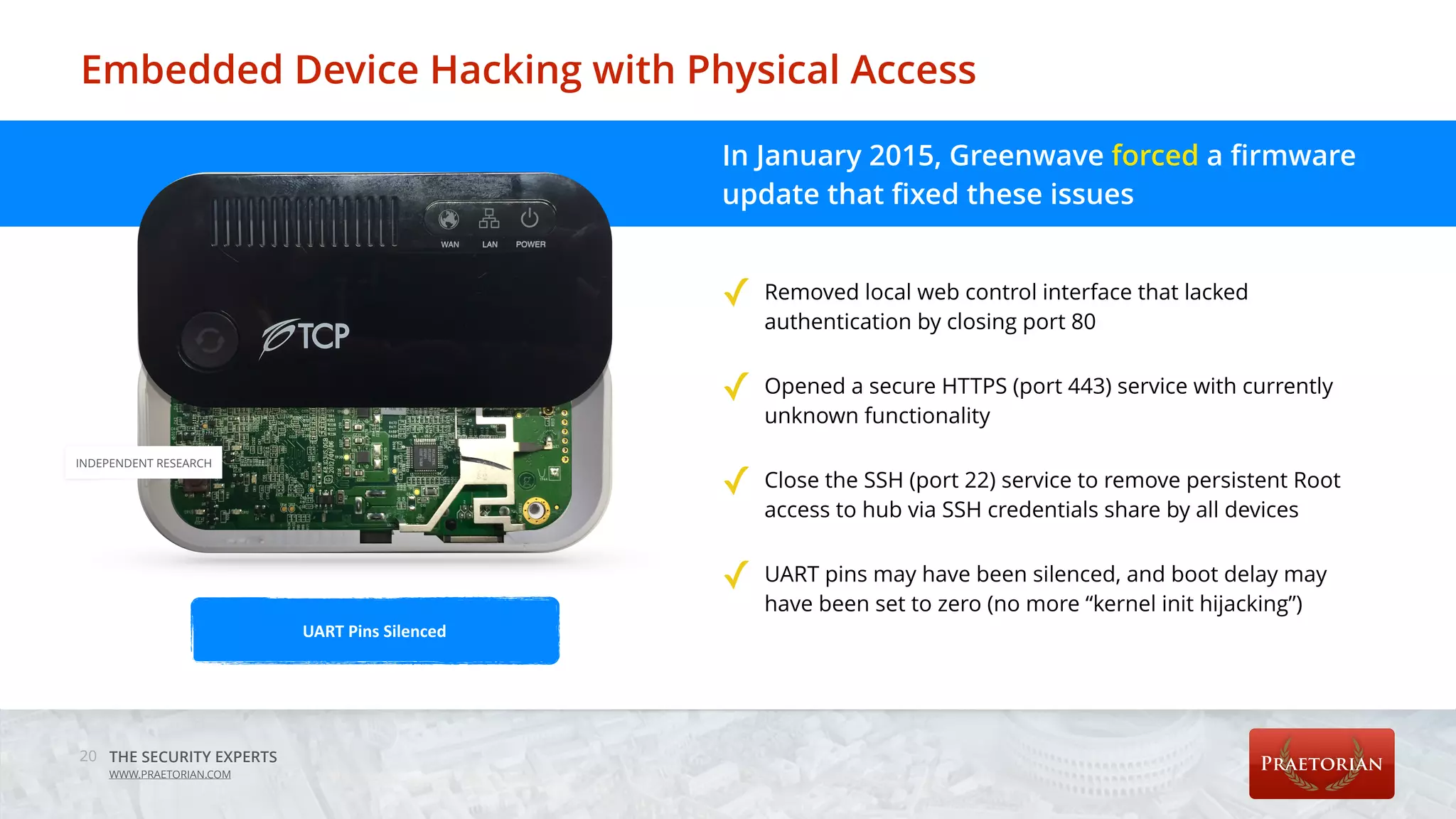

- 20. THE SECURITY EXPERTS WWW.PRAETORIAN.COM EmbeddedDevice Hacking with Physical Access 20 In January 2015, Greenwave forced a firmware update that fixed these issues ✓ Removed local web control interface that lacked authentication by closing port 80 ✓ Opened a secure HTTPS (port 443) service with currently unknown functionality ✓ Close the SSH (port 22) service to remove persistent Root access to hub via SSH credentials share by all devices ✓ UART pins may have been silenced, and boot delay may have been set to zero (no more “kernel init hijacking”) UART Pins Silenced INDEPENDENT RESEARCH

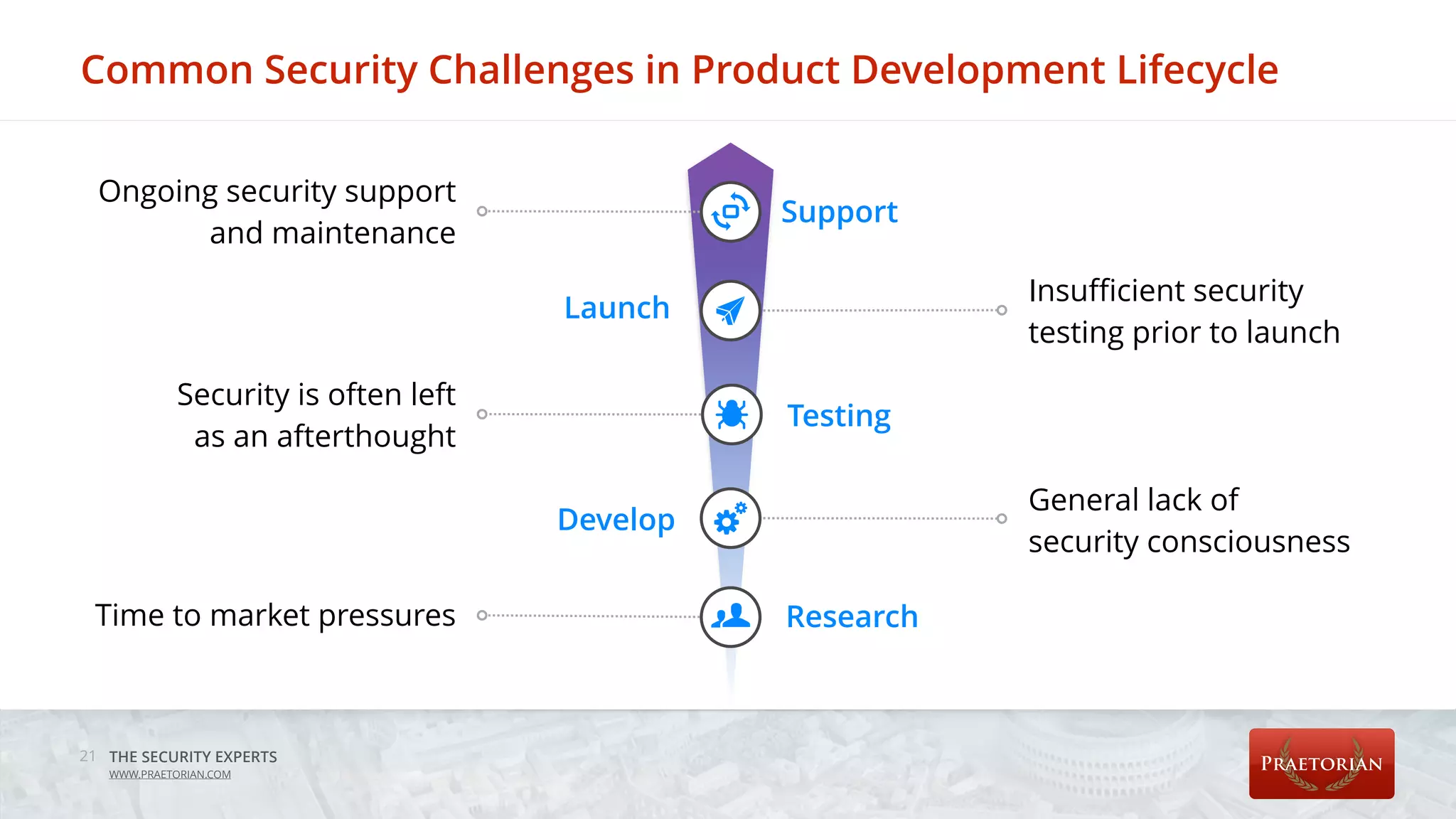

- 21. THE SECURITY EXPERTS WWW.PRAETORIAN.COM CommonSecurity Challenges in Product Development Lifecycle 21 ResearchTime to market pressures Testing Security is often left as an afterthought Support Ongoing security support and maintenance Launch Develop General lack of security consciousness Insufficient security testing prior to launch

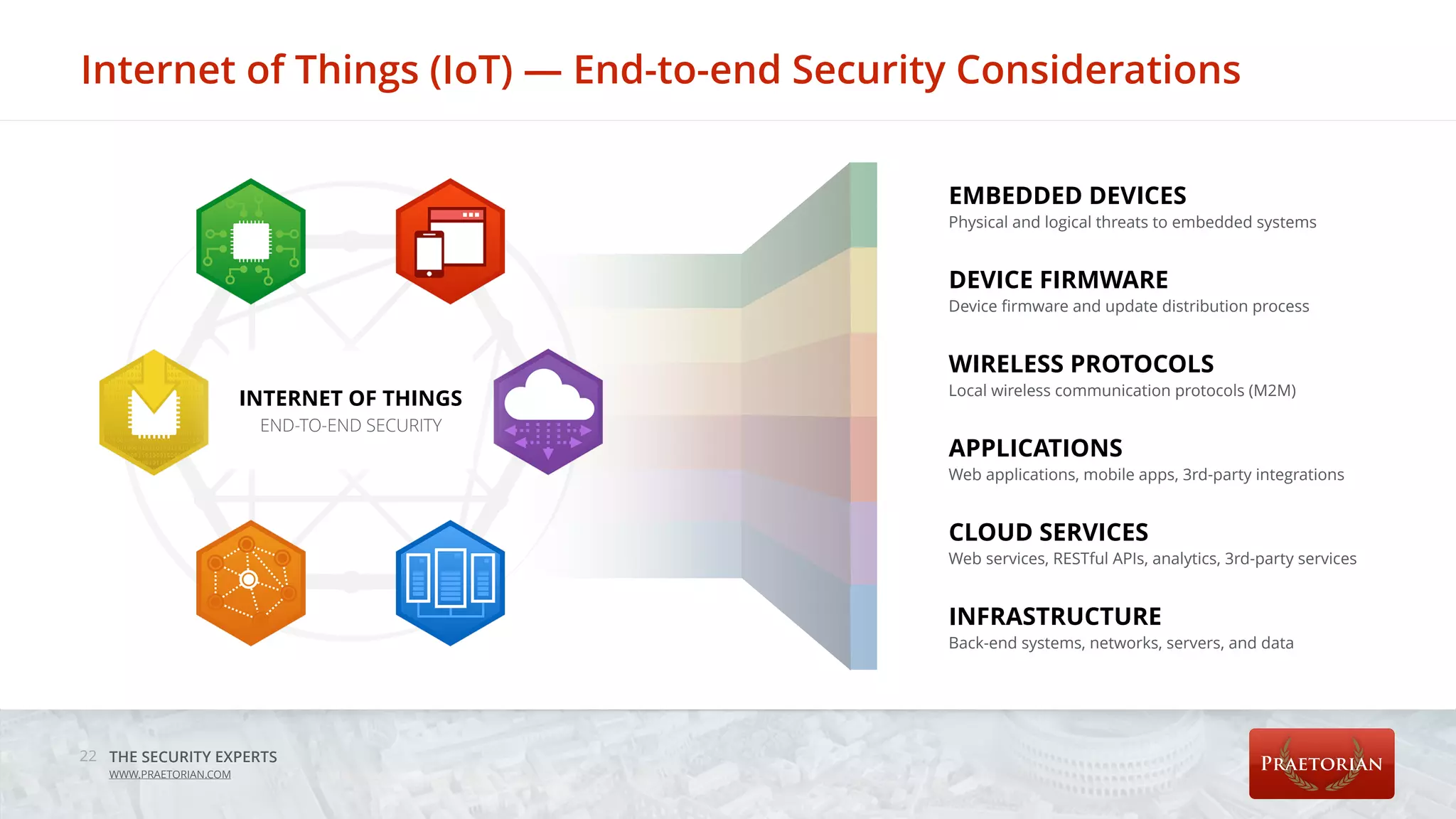

- 22. THE SECURITY EXPERTS WWW.PRAETORIAN.COM Internetof Things (IoT) — End-to-end Security Considerations 22 EMBEDDED DEVICES Physical and logical threats to embedded systems DEVICE FIRMWARE Device firmware and update distribution process WIRELESS PROTOCOLS Local wireless communication protocols (M2M) APPLICATIONS Web applications, mobile apps, 3rd-party integrations CLOUD SERVICES Web services, RESTful APIs, analytics, 3rd-party services INFRASTRUCTURE Back-end systems, networks, servers, and data INTERNET OF THINGS END-TO-END SECURITY

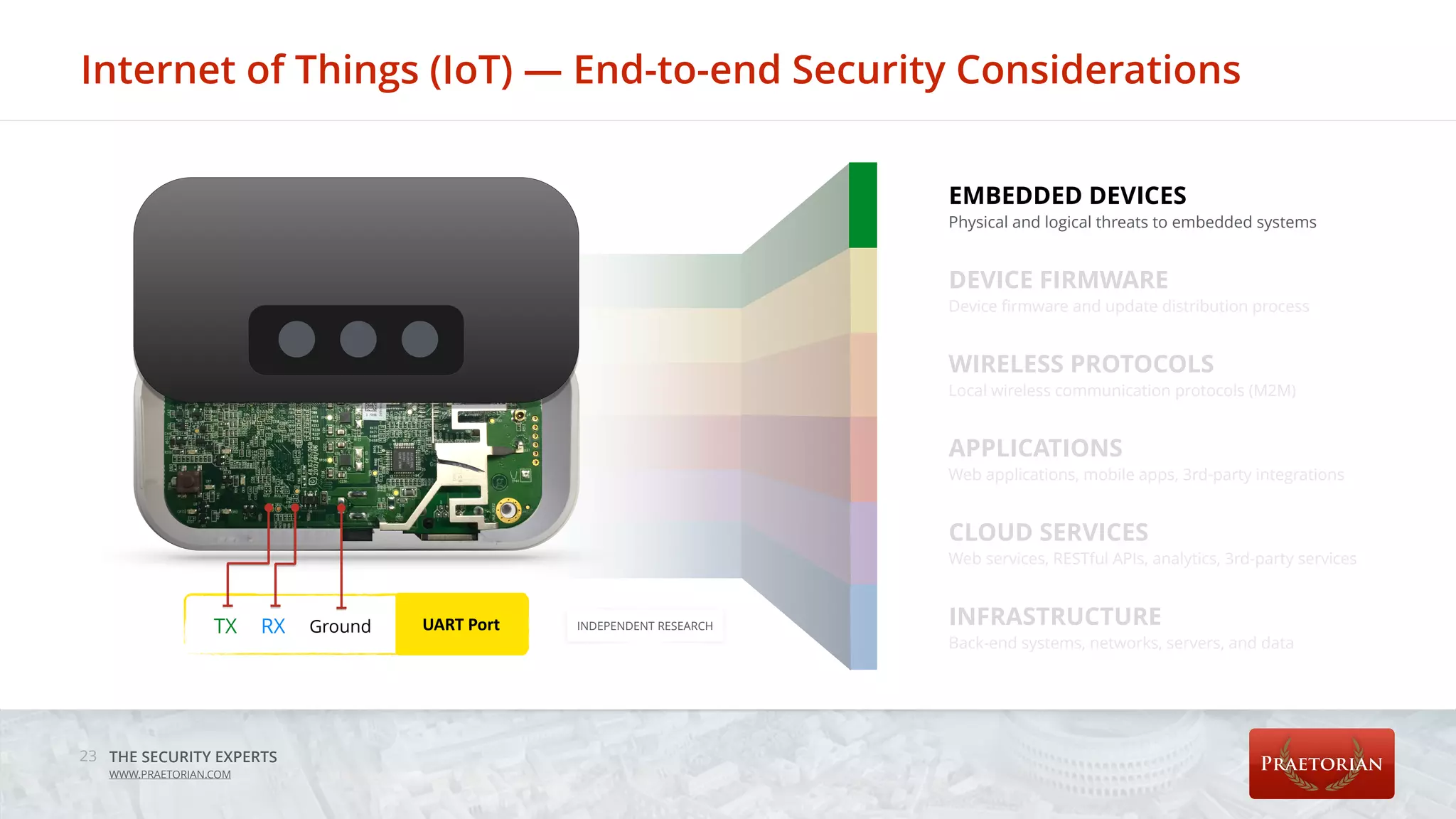

- 23. THE SECURITY EXPERTS WWW.PRAETORIAN.COM Internetof Things (IoT) — End-to-end Security Considerations 23 EMBEDDED DEVICES Physical and logical threats to embedded systems DEVICE FIRMWARE Device firmware and update distribution process WIRELESS PROTOCOLS Local wireless communication protocols (M2M) APPLICATIONS Web applications, mobile apps, 3rd-party integrations CLOUD SERVICES Web services, RESTful APIs, analytics, 3rd-party services INFRASTRUCTURE Back-end systems, networks, servers, and data TX RX Ground UART Port INDEPENDENT RESEARCH

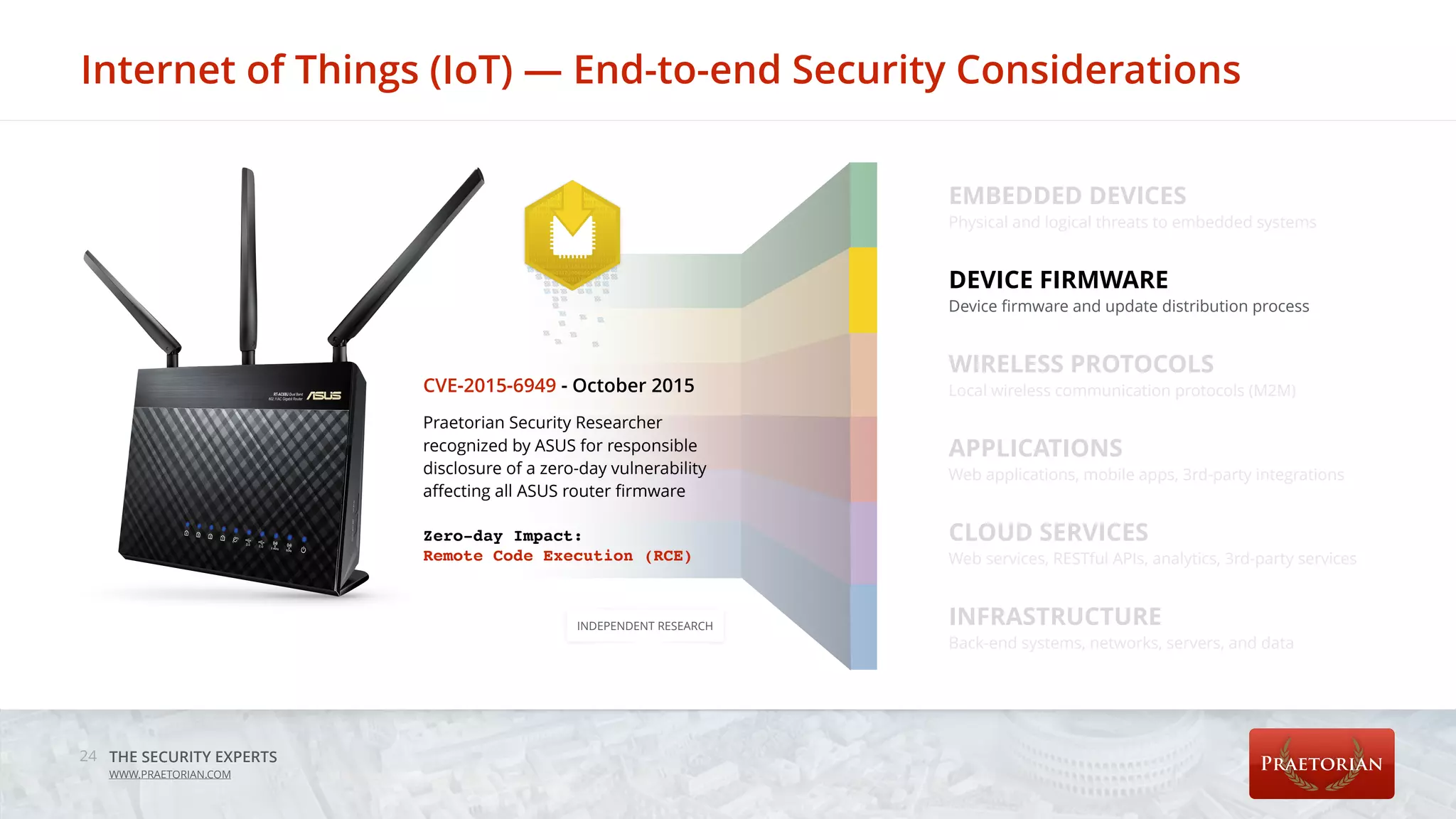

- 24. THE SECURITY EXPERTS WWW.PRAETORIAN.COM Internetof Things (IoT) — End-to-end Security Considerations 24 EMBEDDED DEVICES Physical and logical threats to embedded systems DEVICE FIRMWARE Device firmware and update distribution process WIRELESS PROTOCOLS Local wireless communication protocols (M2M) APPLICATIONS Web applications, mobile apps, 3rd-party integrations CLOUD SERVICES Web services, RESTful APIs, analytics, 3rd-party services INFRASTRUCTURE Back-end systems, networks, servers, and data CVE-2015-6949 - October 2015 Praetorian Security Researcher recognized by ASUS for responsible disclosure of a zero-day vulnerability affecting all ASUS router firmware Zero-day Impact: Remote Code Execution (RCE) INDEPENDENT RESEARCH

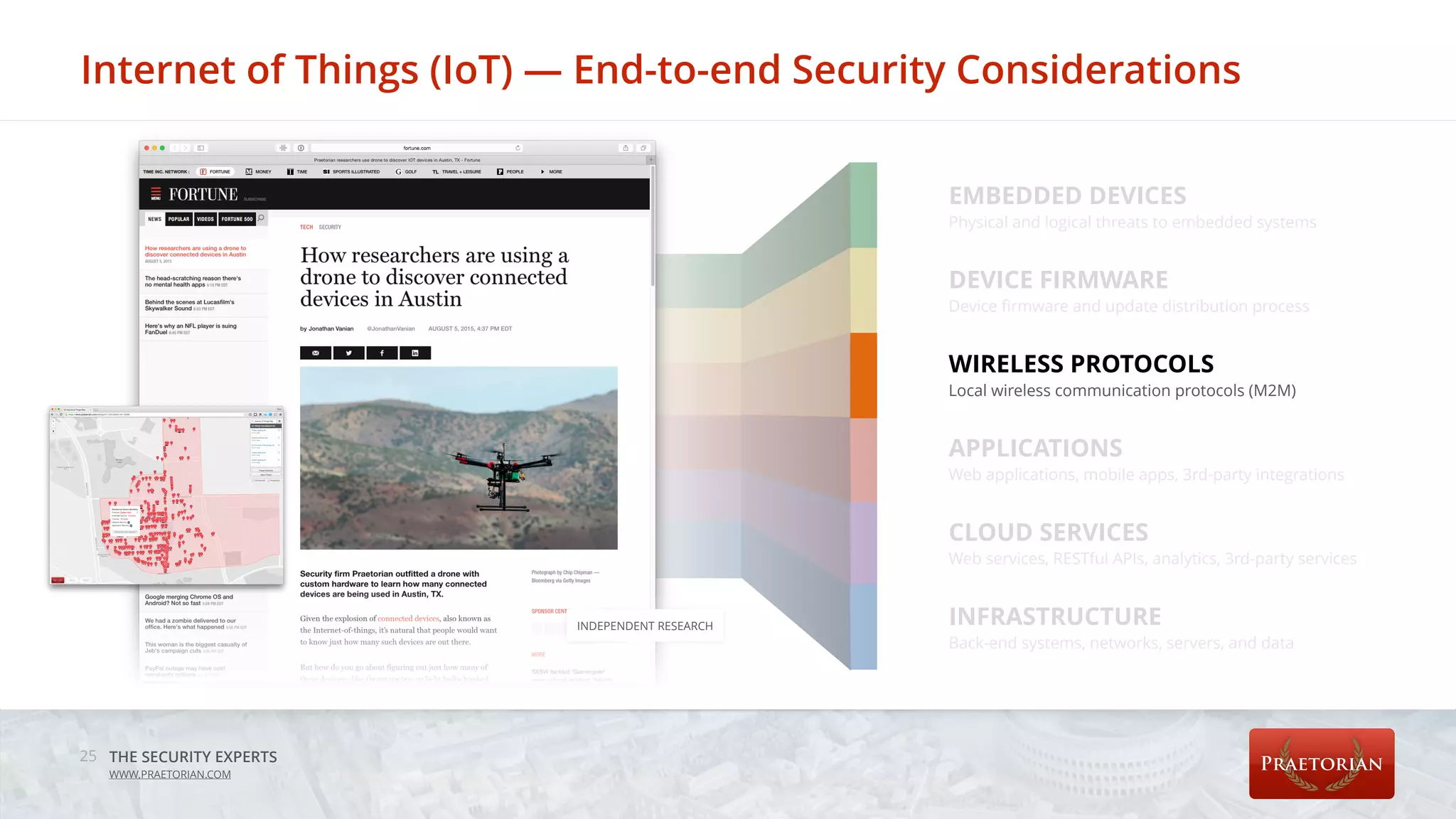

- 25. THE SECURITY EXPERTS WWW.PRAETORIAN.COM Internetof Things (IoT) — End-to-end Security Considerations 25 EMBEDDED DEVICES Physical and logical threats to embedded systems DEVICE FIRMWARE Device firmware and update distribution process WIRELESS PROTOCOLS Local wireless communication protocols (M2M) APPLICATIONS Web applications, mobile apps, 3rd-party integrations CLOUD SERVICES Web services, RESTful APIs, analytics, 3rd-party services INFRASTRUCTURE Back-end systems, networks, servers, and data INDEPENDENT RESEARCH

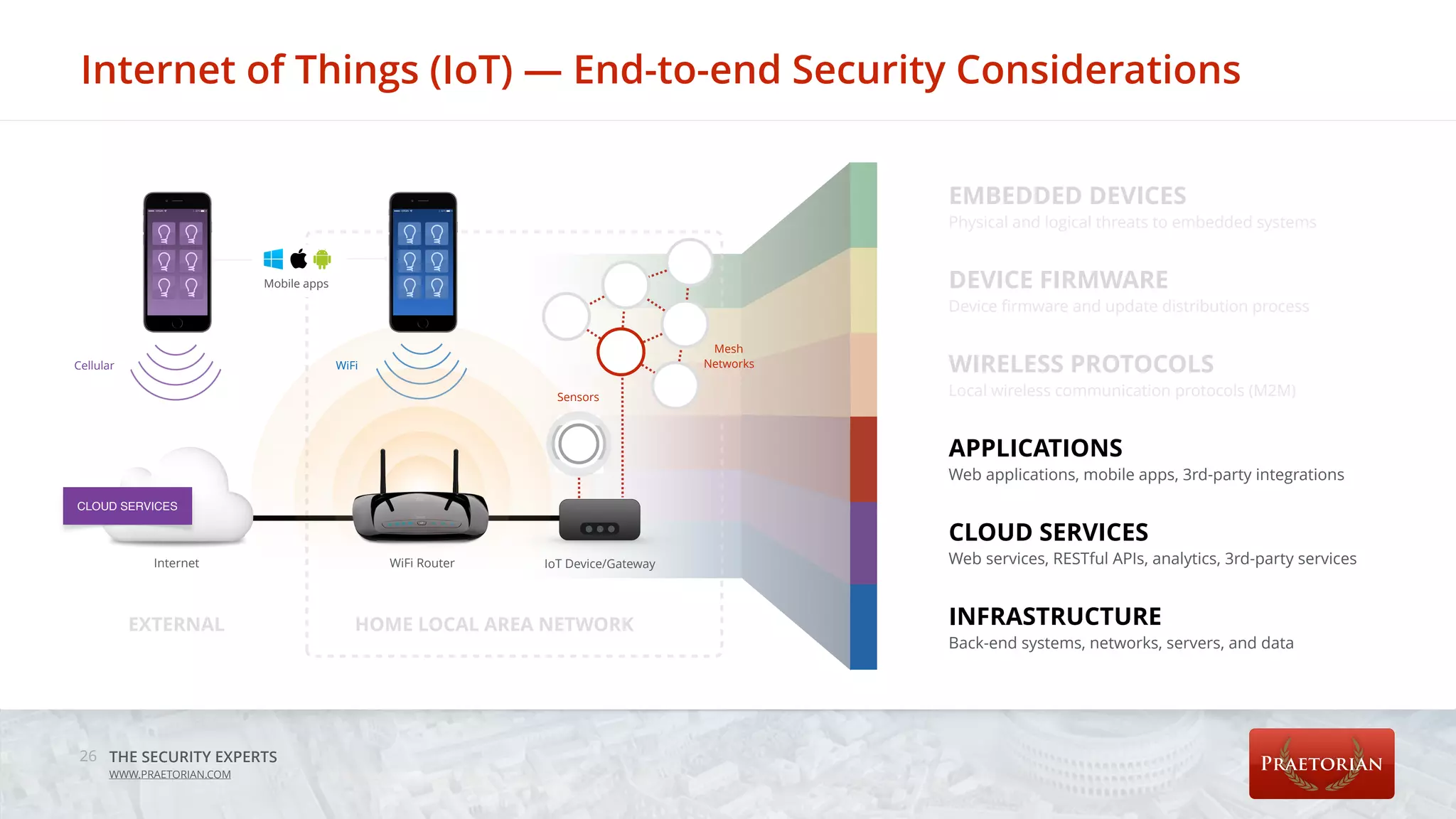

- 26. THE SECURITY EXPERTS WWW.PRAETORIAN.COM Internetof Things (IoT) — End-to-end Security Considerations 26 EMBEDDED DEVICES Physical and logical threats to embedded systems DEVICE FIRMWARE Device firmware and update distribution process WIRELESS PROTOCOLS Local wireless communication protocols (M2M) APPLICATIONS Web applications, mobile apps, 3rd-party integrations CLOUD SERVICES Web services, RESTful APIs, analytics, 3rd-party services INFRASTRUCTURE Back-end systems, networks, servers, and data CLOUD SERVICES Internet WiFi Router HOME LOCAL AREA NETWORKEXTERNAL WiFiCellular Mobile apps IoT Device/Gateway Sensors Mesh Networks

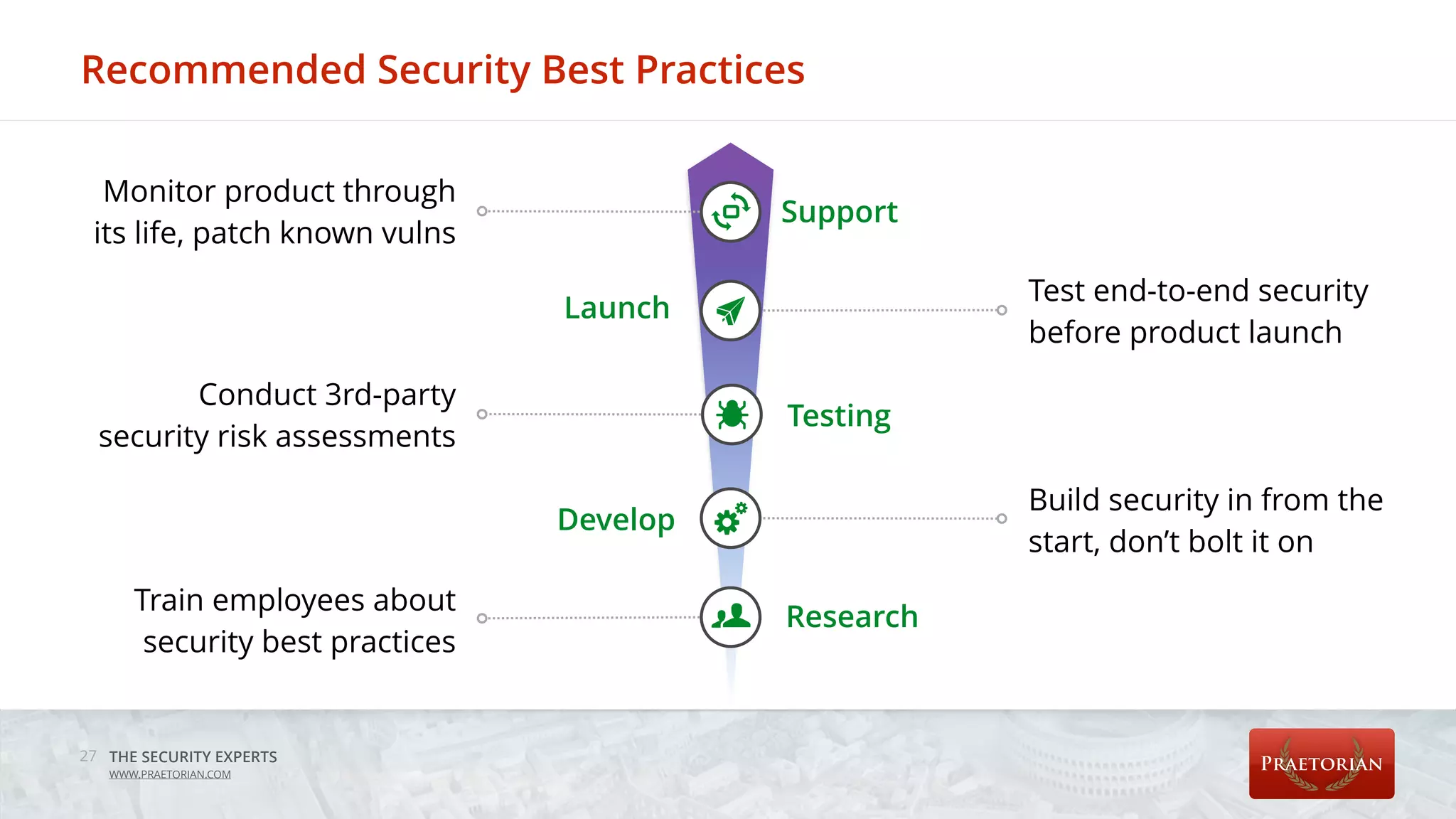

- 27. THE SECURITY EXPERTS WWW.PRAETORIAN.COM RecommendedSecurity Best Practices 27 Research Train employees about security best practices Testing Conduct 3rd-party security risk assessments Support Monitor product through its life, patch known vulns Launch Develop Build security in from the start, don’t bolt it on Test end-to-end security before product launch
- 28. NETWORK APPLICATION MOBILECLOUD IOT Internet of Things Map Project Exploring Risk & Mapping the Internet of Things with Autonomous Drones
