Evidence for a polar circumbinary exoplanet orbiting a pair of eclipsing brown dwarfs

Evidence for a polar circumbinary exoplanet orbiting
a pair of eclipsing brown dwarfs
Evidence for a polar circumbinary exoplanet
Thomas A. Baycroft1∗, Lalitha Sairam1,2, Amaury H.M.J. Triaud1
Alexandre C.M. Correia3,4
1School of Physics and Astronomy, University of Birmingham, Edgbaston, Birmingham, B15 2TT, United Kingdom.
2Institute of Astronomy, University of Cambridge, Madingley road, Cambridge, CB3 0HA, United Kingdom.
3CFisUC, Departamento de Fisica, Universidade de Coimbra, 3004-516 Coimbra, Portugal.
4IMCCE, UMR8028 CNRS, Observatoire de Paris, PSL Universite, 77 avenue Denfert-Rochereau, 75014 , Paris, France.
∗Corresponding author. Email: txb187@bham.ac.uk
One notable example of exoplanet diversity is the population of circumbinary
planets, which orbit around both stars of a binary star system. There are so far
only 16 known circumbinary exoplanets, all of which lie in the same orbital plane
as the host binary. Suggestions exist that circumbinary planets could also exist on
orbits highly inclined to the binary, close to 90◦, polar orbits. No such planets have
been found yet but polar circumbinary gas and debris discs have been observed
and if these were to form planets then those would be left on a polar orbit. We
report strong evidence for a polar circumbinary exoplanet, which orbits a close
pair of brown dwarfs which are on an eccentric orbit. We use radial-velocities to
measure a retrograde apsidal precession for the binary, and show that this can
only be attributed to the presence of a polar planet.
Using the dynamics of the 3-body problem, a planet orbiting at an angle close to 90 degrees
1

from a binary orbit is inferred.
1 Introduction
Sixteen circumbinary exoplanets have been detected to-date. The majority were identified using
the transit method with Kepler (1) and TESS (2). Given the sample of 12 transiting circumbinary
planets found by Kepler, it is argued that the main population of circumbinary planets must be
close to coplanar with the binary (with mutual inclinations Δ𝑖 < 5◦) (3), otherwise the occurrence
rate of circumbinary planets would be greater than that of similar-sized planets orbiting single
stars. (Preliminary results from the BEBOP (Binaries Escorted By Orbiting Planets) search for
circumbinary planets using radial velocities are broadly consistent with those results (4)).
Despite this observational evidence, there may still exist a comparatively small and yet-
undetected population of circumbinary planets occupying misaligned (5, 6) or polar (7) orbits.
Polar circumbinary orbits are stable, even very close to the binary, if the binary is eccentric enough
and the third body’s orbital plane lies perpendicular to the inner binary’s line of apsides (8–10). A
circumbinary orbit can exist in one of two possible states. With sufficient inclination to an eccentric
binary the orbit will librate about the binary’s eccentricity vector. The critical inclination above
which this happens depends on the binary eccentricity (8), if the inclination is below this limit then
the orbit will instead circulate about the binary’s angular momentum vector.
The existence of circumbinary planets on polar orbits, while exotic and seemingly unlikely,
has a theoretical and observational basis, and has been postulated before (5, 11). Circumbinary
protoplanetary and debris discs in a polar orientation have been observed in a few systems (12,13),
and various mechanisms exist to form misaligned discs (14–17) as well as to form planets from
these discs that would therefore be misaligned or polar (6,7). One of the polar discs also displays
evidence for dust growth, indicating planet formation within polar discs is feasible (13). While
no polar circumbinary planets have been found so far, it has been suggested that AC Her a post-
asymptotic giant branch binary star, which has a polar circumbinary disc (18), may also host a third
body. The disc in that case is truncated and could be explained by a companion orbiting the binary
2

interior to the disc (19) in an assumed polar orbit. Polar orbits are also fairly frequently encountered
for hot Jupiters orbiting single stars (20,21). It has been suggested that polar circumbinary planets
where the inner binary has subsequently merged could be a possible origin of polar planets around
single stars (22).
The radial velocity method has now detected three circumbinary planets: detecting Kepler-
16b (23), confirming the detection of and improving the physical and orbital parameters of
TIC 172900988 b (24), and the first stand-alone radial velocity discovery of BEBOP-1c (25) (the in-
ner planet TOI-1338b having been found in transit (2)). These are all detections made by measuring
the reflex orbital motion of the centre-of-mass of the system caused by a planet. A third body such
as a circumbinary planet also has a dynamical influence on the orbit of the binary, most notably on
its apsidal precession rate. Measurements of the apsidal precession rate have been used to constrain
the masses of some of the Kepler transiting circumbinary planets (26) and can in principle be used
on their own to infer the presence of a planet within radial-velocity data.
2MASS J15104786-2818174 (hearafter 2M1510) is a double-lined eclipsing binary composed
of two equal-mass brown dwarfs (27) of mass 0.0331 and 0.0332 𝑀⊙ respectively. The orbital
geometry of the binary results in a single eclipse. This is due to the combination of a high ec-
centricity, a very slight inclination with respect to the line-of-sight, and the line-of-apsides being
along the line-of-sight. The system has been found to be a kinematic member of the 45 ± 5 Myr old
Argus moving group, making it the second of only two known young eclipsing double-lined brown
dwarf binaries, important objects for calibrating brown dwarf evolutionary models (27–29). The
binary has an orbital period of 20.9 days, an eccentricity of 0.36, and there is also a visual brown
dwarf tertiary companion, at a projected separation of ∼ 250 AU from the central, eclipsing pair (27).
Archival and newly obtained radial velocities of 2M1510 exist, observed with the UVES
(Ultraviolet and Visual Echelle Spectrograph) instrument on the European Southern Observatory
(ESO)’s Very Large Telescope (VLT). In this work we analyse the radial velosities and detect
strong evidence for a retrograde apsidal precession. We interpret this as a sign of a polar orbiting
circumbinary planet, one of the few possible causes for a retrograde precession (30).
3

2 Results
Retrograde apsidal precession

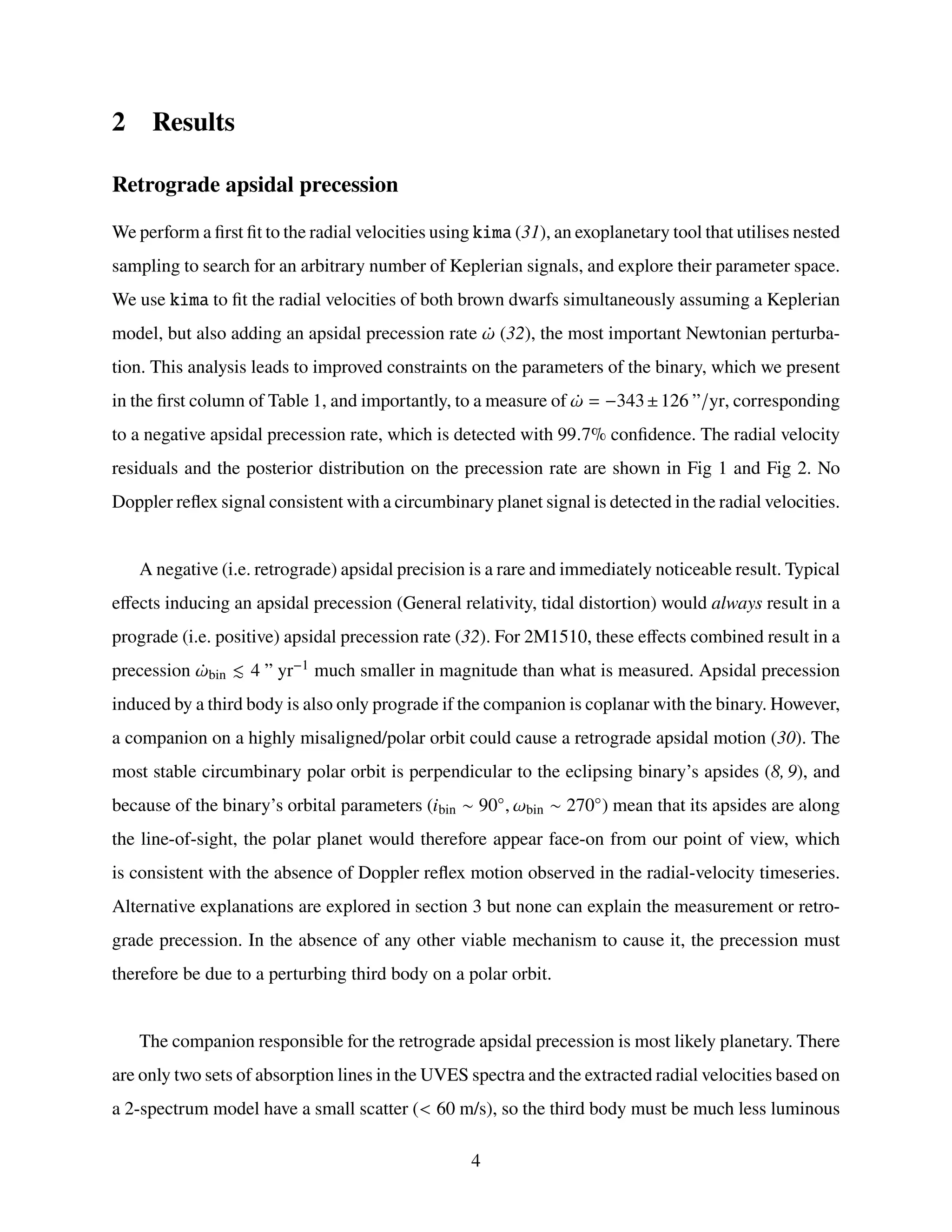

We perform a first fit to the radial velocities using kima (31), an exoplanetary tool that utilises nested
sampling to search for an arbitrary number of Keplerian signals, and explore their parameter space.
We use kima to fit the radial velocities of both brown dwarfs simultaneously assuming a Keplerian
model, but also adding an apsidal precession rate ¤
𝜔 (32), the most important Newtonian perturba-
tion. This analysis leads to improved constraints on the parameters of the binary, which we present
in the first column of Table 1, and importantly, to a measure of ¤
𝜔 = −343±126 ”/yr, corresponding
to a negative apsidal precession rate, which is detected with 99.7% confidence. The radial velocity
residuals and the posterior distribution on the precession rate are shown in Fig 1 and Fig 2. No
Doppler reflex signal consistent with a circumbinary planet signal is detected in the radial velocities.
A negative (i.e. retrograde) apsidal precision is a rare and immediately noticeable result. Typical
effects inducing an apsidal precession (General relativity, tidal distortion) would always result in a
prograde (i.e. positive) apsidal precession rate (32). For 2M1510, these effects combined result in a
precession ¤
𝜔bin ≲ 4 ” yr−1 much smaller in magnitude than what is measured. Apsidal precession
induced by a third body is also only prograde if the companion is coplanar with the binary. However,
a companion on a highly misaligned/polar orbit could cause a retrograde apsidal motion (30). The
most stable circumbinary polar orbit is perpendicular to the eclipsing binary’s apsides (8, 9), and
because of the binary’s orbital parameters (𝑖bin ∼ 90◦, 𝜔bin ∼ 270◦) mean that its apsides are along
the line-of-sight, the polar planet would therefore appear face-on from our point of view, which
is consistent with the absence of Doppler reflex motion observed in the radial-velocity timeseries.
Alternative explanations are explored in section 3 but none can explain the measurement or retro-
grade precession. In the absence of any other viable mechanism to cause it, the precession must
therefore be due to a perturbing third body on a polar orbit.
The companion responsible for the retrograde apsidal precession is most likely planetary. There
are only two sets of absorption lines in the UVES spectra and the extracted radial velocities based on
a 2-spectrum model have a small scatter (< 60 m/s), so the third body must be much less luminous
4

than the inner brown dwarf pair. Since their individual masses are around 35𝑀Jup, a fainter, inclined
companion is very likely be planetary in nature.
N-body analysis
To assess what planet configurations could cause this precession rate we fit the radial velocity data
using an N-body fit (more details in section 4. The binary parameters from this fit are shown in

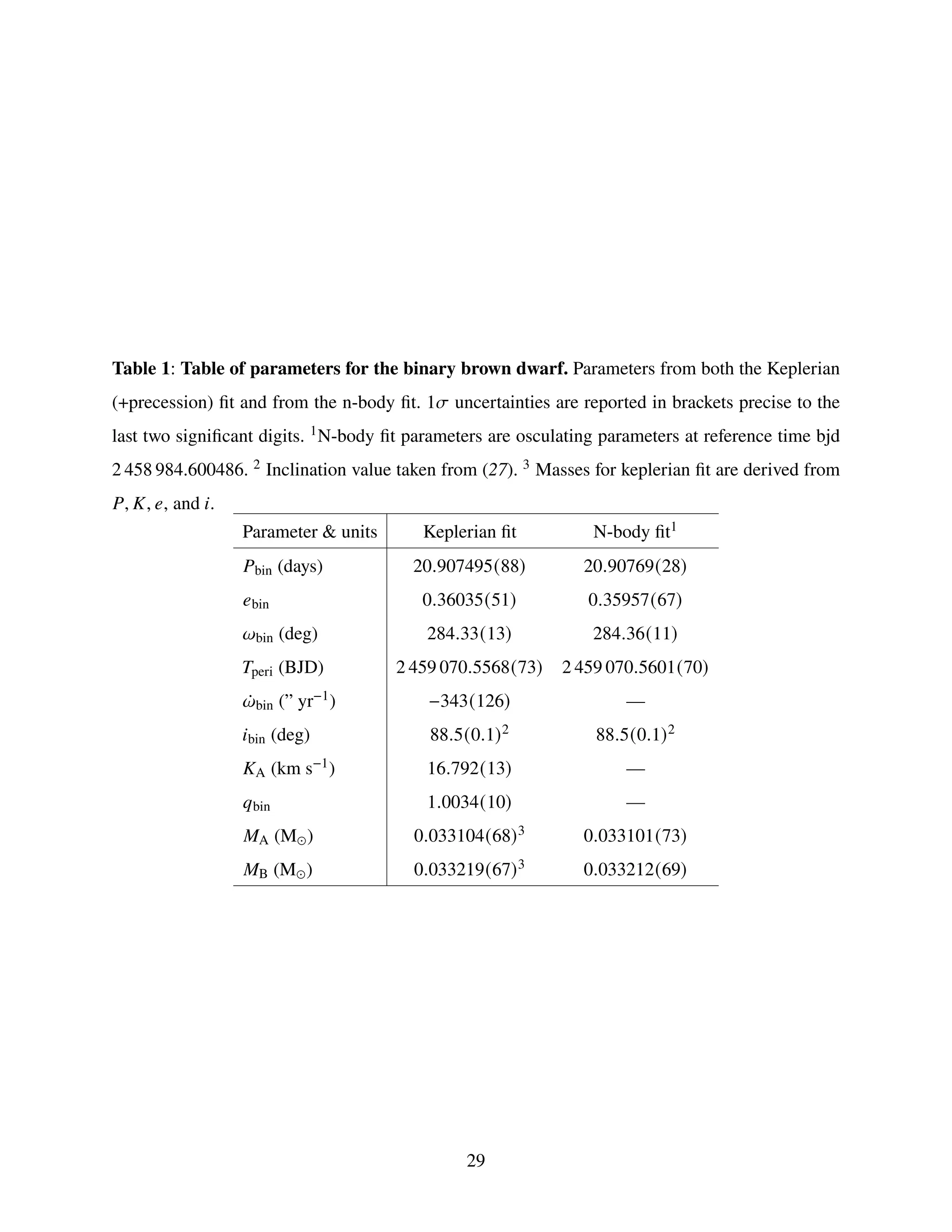

Table 1.

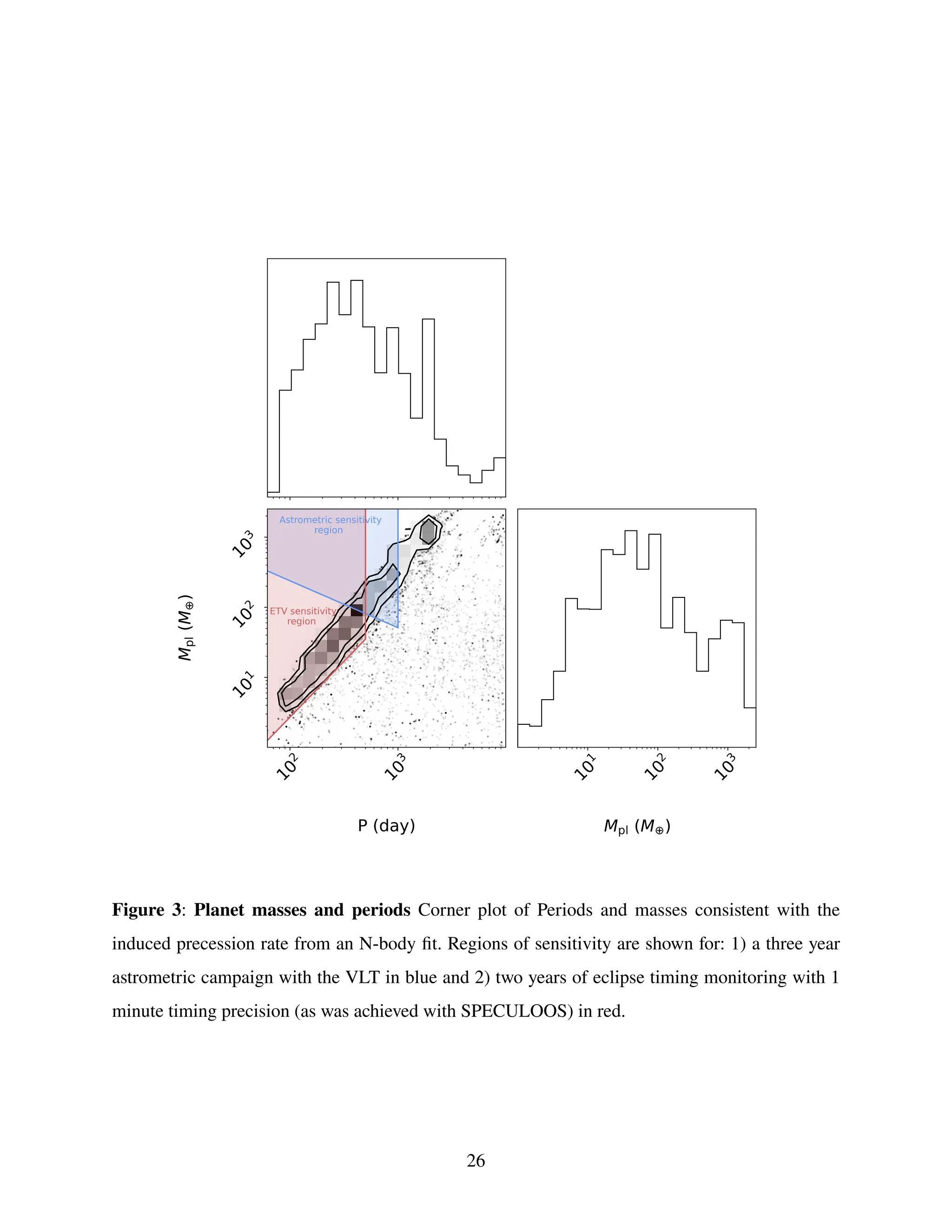

Fig 3 shows the constraints on the mass and orbital period of the third body from the N-body
fit. Since the radial velocities are not directly sensitive to that third object, neither the mass nor
the orbital period is individually constrained (testing with different priors shows that we remain
prior-dominated). However, the relationship between mass and period is constrained through the the
apsidal precession rate. This leads to a “wedge” of masses and periods where the N-body integrator
reproduces the observed radial-velocities. Most circumbinary planets are detected right outside the
unstable region surrounding the inner binary (5,8). Should this be the case for 2M1510 b, the polar
planet, then its parameters would be of order 𝑃 ≈ 100 days and 𝑀 ≈ 10 𝑀⊕. If instead 𝑃 ≈ 400
days, then 𝑀 ≈ 100 𝑀⊕.
The planet is indeed a polar planet in the librating regime. Fig 4 shows the energy levels of
the Hamiltonian with the posteriors from the N-body fit plotted on top. We show the islands of
libration and circulation of a test particle within the 2M1510 binary, with red showing circulation
and orange depicting libration. We take a random sample of 600 posteriors from the run restricted
to periods < 300 days. 16 of these are unstable (the orbital period of the planet changes by a factor
of 1.5 within 400,000 days) and of the remaining 584 posterior samples, 96% are in the librating
regime.
5

3 Discussion

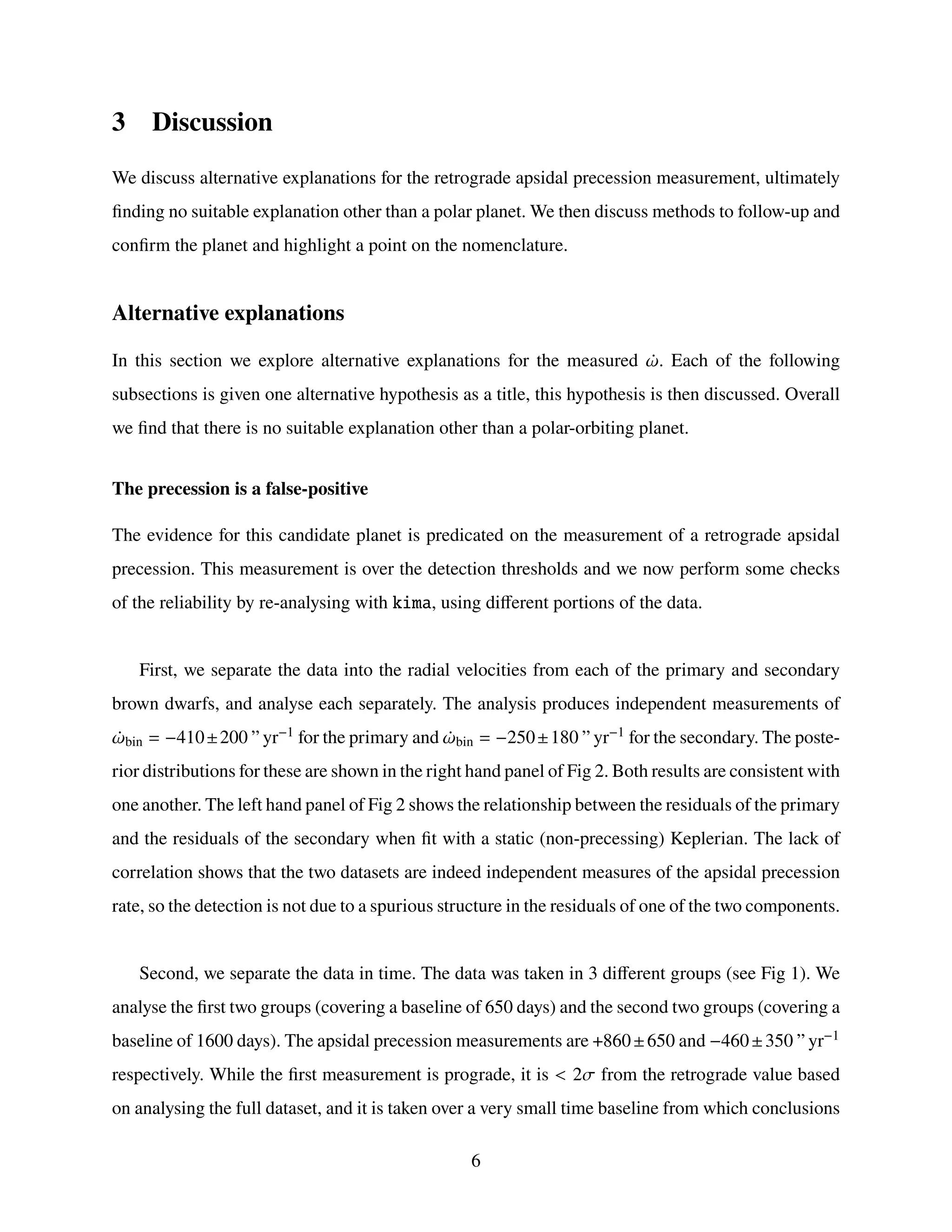

We discuss alternative explanations for the retrograde apsidal precession measurement, ultimately
finding no suitable explanation other than a polar planet. We then discuss methods to follow-up and
confirm the planet and highlight a point on the nomenclature.
Alternative explanations
In this section we explore alternative explanations for the measured ¤
𝜔. Each of the following
subsections is given one alternative hypothesis as a title, this hypothesis is then discussed. Overall
we find that there is no suitable explanation other than a polar-orbiting planet.
The precession is a false-positive
The evidence for this candidate planet is predicated on the measurement of a retrograde apsidal
precession. This measurement is over the detection thresholds and we now perform some checks
of the reliability by re-analysing with kima, using different portions of the data.

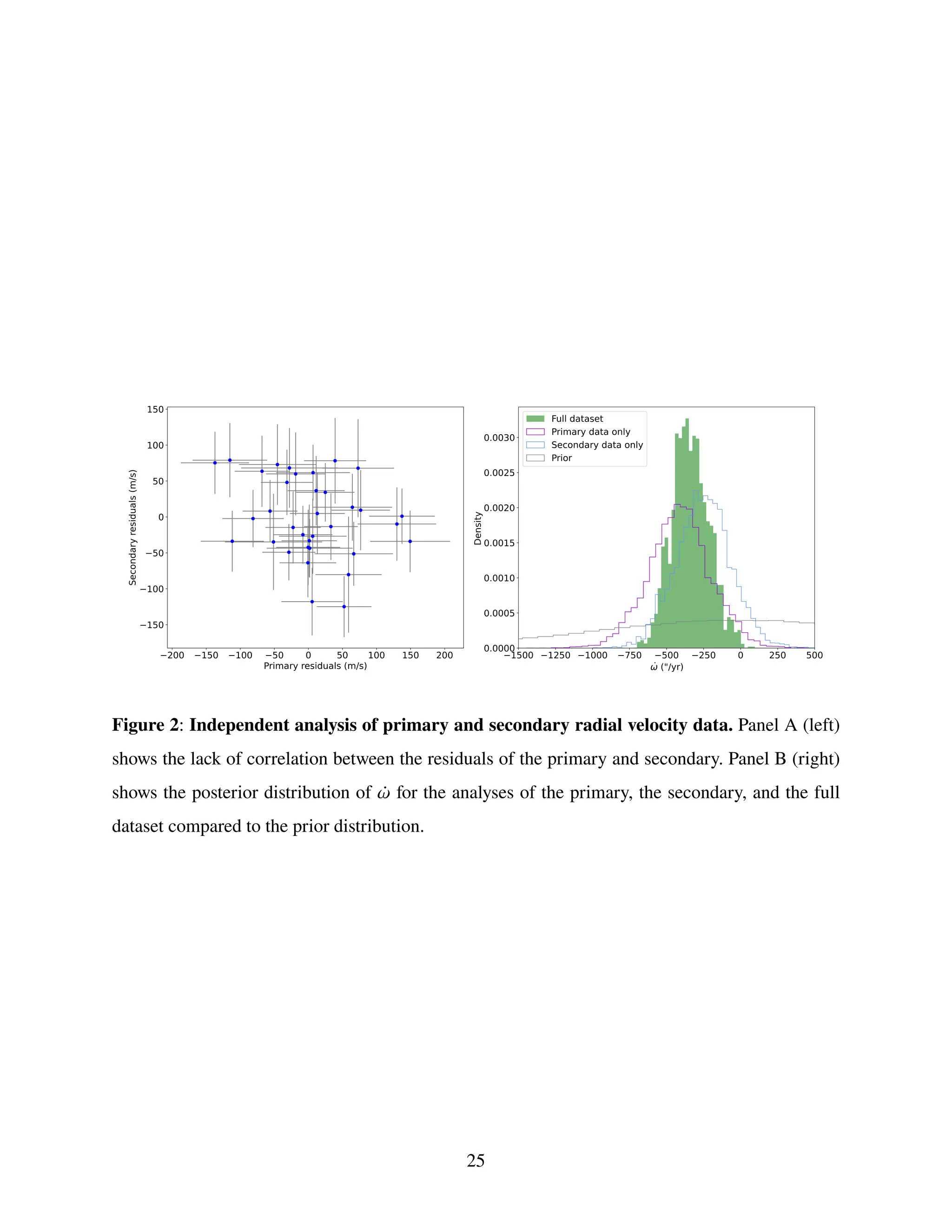

First, we separate the data into the radial velocities from each of the primary and secondary
brown dwarfs, and analyse each separately. The analysis produces independent measurements of
¤
𝜔bin = −410±200 ” yr−1 for the primary and ¤
𝜔bin = −250±180 ” yr−1 for the secondary. The poste-
rior distributions for these are shown in the right hand panel of Fig 2. Both results are consistent with
one another. The left hand panel of Fig 2 shows the relationship between the residuals of the primary
and the residuals of the secondary when fit with a static (non-precessing) Keplerian. The lack of
correlation shows that the two datasets are indeed independent measures of the apsidal precession
rate, so the detection is not due to a spurious structure in the residuals of one of the two components.
Second, we separate the data in time. The data was taken in 3 different groups (see Fig 1). We
analyse the first two groups (covering a baseline of 650 days) and the second two groups (covering a
baseline of 1600 days). The apsidal precession measurements are +860±650 and −460±350 ” yr−1
respectively. While the first measurement is prograde, it is < 2𝜎 from the retrograde value based
on analysing the full dataset, and it is taken over a very small time baseline from which conclusions
6

about the long-term precession rate are hard to extract. This shows that the measurement is most
strongly reliant on the final group of data, but this is expected as this group extends the baseline the
most and a long baseline is vital to a good measurement of the apsidal precession rate of a binary.
The fact that the measurement refines in precision and becomes more negative when more data
is included gives us confidence the signal is real. However, further radial velocity measurements
extending the baseline would be very helpful in constraining the negative ¤
𝜔, refining its precision.
This is also important to better constrain the possible mass and period combinations for the polar
planet, the current constraint being shown in Fig 3.

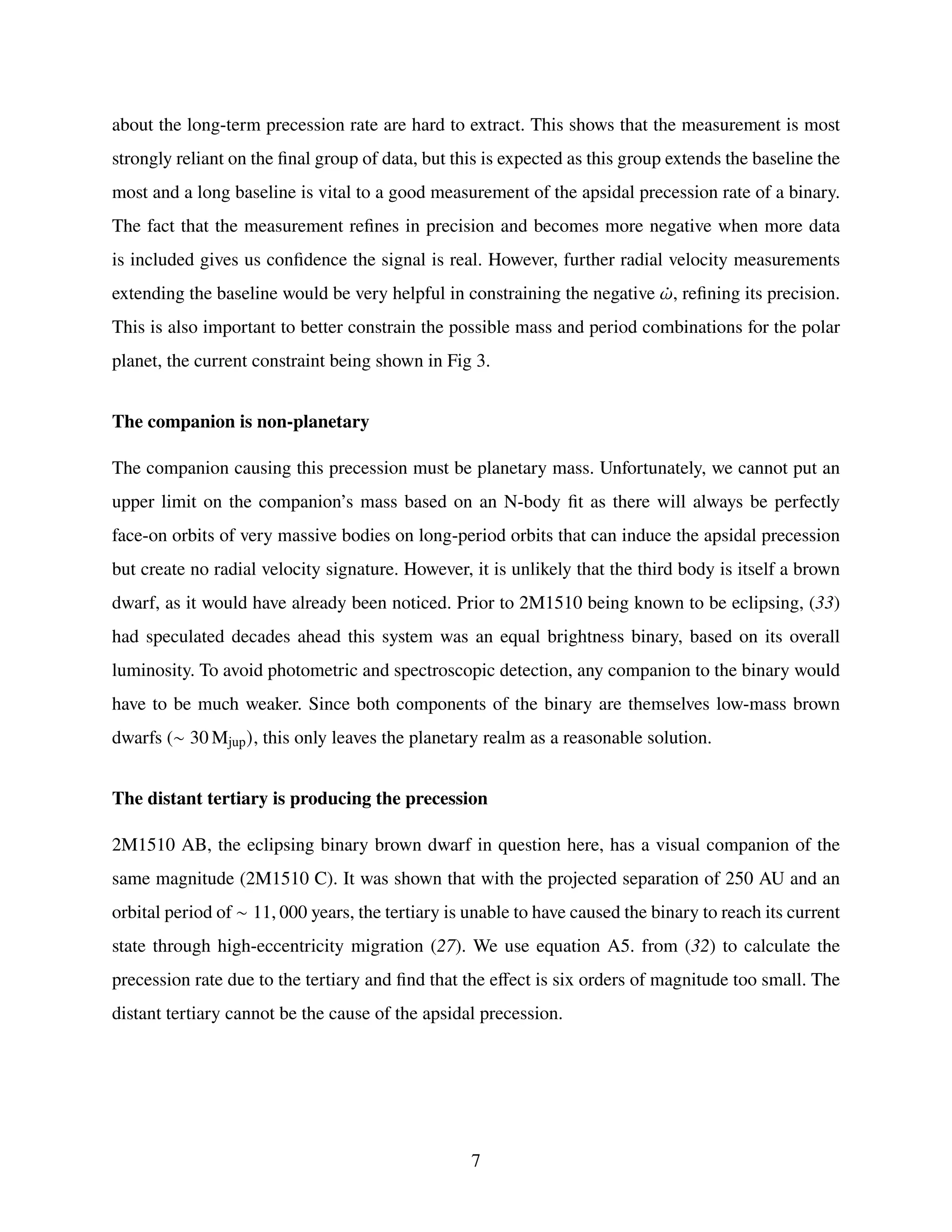

The companion is non-planetary
The companion causing this precession must be planetary mass. Unfortunately, we cannot put an
upper limit on the companion’s mass based on an N-body fit as there will always be perfectly
face-on orbits of very massive bodies on long-period orbits that can induce the apsidal precession
but create no radial velocity signature. However, it is unlikely that the third body is itself a brown
dwarf, as it would have already been noticed. Prior to 2M1510 being known to be eclipsing, (33)
had speculated decades ahead this system was an equal brightness binary, based on its overall
luminosity. To avoid photometric and spectroscopic detection, any companion to the binary would
have to be much weaker. Since both components of the binary are themselves low-mass brown
dwarfs (∼ 30 Mjup), this only leaves the planetary realm as a reasonable solution.
The distant tertiary is producing the precession
2M1510 AB, the eclipsing binary brown dwarf in question here, has a visual companion of the
same magnitude (2M1510 C). It was shown that with the projected separation of 250 AU and an
orbital period of ∼ 11, 000 years, the tertiary is unable to have caused the binary to reach its current
state through high-eccentricity migration (27). We use equation A5. from (32) to calculate the
precession rate due to the tertiary and find that the effect is six orders of magnitude too small. The
distant tertiary cannot be the cause of the apsidal precession.
7

Proper-motion changing the viewing angle
An apparent apsidal precession can occur for a high proper-motion system due to the viewing
angle changing (34). This is only important for very high proper-motion systems, for 2M1510 we
calculate an upper limit of | ¤
𝜔| < 0.13 ”/yr, so this effect is negligible here.
A spin–orbit misalignment
Retrograde precession can also be induced if the binary has a spin–orbit misalignment, as is the
case in DI Her (35) where the retrograde precession induced in this system made its measured
precession, while still prograde, much smaller than is predicted by GR alone. However, this effect
is negligible here too.
We utilise eq. (7) derived below. The eccentricity (𝑒), semi-major-axis (𝑎), and the masses are
observables that we have measured or derivable from them. (27) measured the inclination (𝐼), and
constrained the rotational periods of the stars to be between 20-30 hours. We assume 20 hours
rotation period for both brown dwarfs to be conservative. We use Love numbers (𝑘2,𝑖) of 0.4,
corresponding to apsidal constants of 0.2 slightly more conservative that the value of 0.143 used
for a similar brown dwarf system (36). We draw 1, 000, 000 randomisations of the binary longitude
of ascending node (Ω), and the angles 𝜀𝑖 and 𝜑𝑖. From these we calculate that ¤
𝜔 > −2.15 ”/yr so
the spin-induced apsidal precession is two orders of magnitude too small to cause the measured
effect.
A polar disc
Apsidal precession induced by a third body is a secular effect. This could equally be produced by a
highly inclined circumbinary disc. However, while the binary is relatively young at ∼ 45 Myr (27)
it is old enough for the protoplanetary disc to have dissipated (37), and no infrared excess is
noticed (27). Any remaining and undetected disc would presumably be a debris disc. Distinguishing
a massive close-in debris disc from a single planet, or from multiple planets is not possible. All
contribute to apsidal precession, and we chose to favour the simplest version of a single perturbing
body.
8

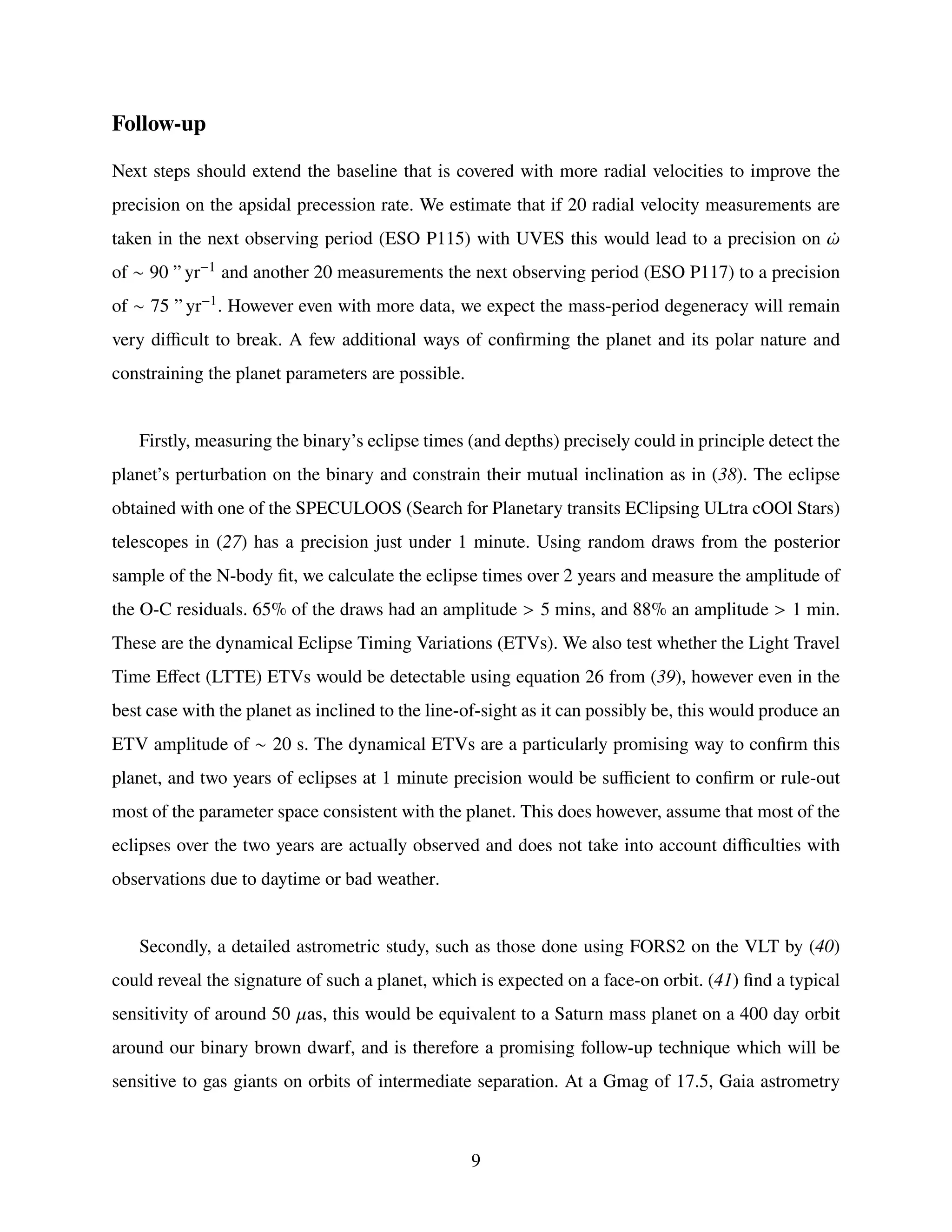

Follow-up
Next steps should extend the baseline that is covered with more radial velocities to improve the
precision on the apsidal precession rate. We estimate that if 20 radial velocity measurements are
taken in the next observing period (ESO P115) with UVES this would lead to a precision on ¤
𝜔
of ∼ 90 ” yr−1 and another 20 measurements the next observing period (ESO P117) to a precision
of ∼ 75 ” yr−1. However even with more data, we expect the mass-period degeneracy will remain
very difficult to break. A few additional ways of confirming the planet and its polar nature and
constraining the planet parameters are possible.
Firstly, measuring the binary’s eclipse times (and depths) precisely could in principle detect the
planet’s perturbation on the binary and constrain their mutual inclination as in (38). The eclipse
obtained with one of the SPECULOOS (Search for Planetary transits EClipsing ULtra cOOl Stars)
telescopes in (27) has a precision just under 1 minute. Using random draws from the posterior
sample of the N-body fit, we calculate the eclipse times over 2 years and measure the amplitude of
the O-C residuals. 65% of the draws had an amplitude > 5 mins, and 88% an amplitude > 1 min.
These are the dynamical Eclipse Timing Variations (ETVs). We also test whether the Light Travel
Time Effect (LTTE) ETVs would be detectable using equation 26 from (39), however even in the
best case with the planet as inclined to the line-of-sight as it can possibly be, this would produce an
ETV amplitude of ∼ 20 s. The dynamical ETVs are a particularly promising way to confirm this
planet, and two years of eclipses at 1 minute precision would be sufficient to confirm or rule-out
most of the parameter space consistent with the planet. This does however, assume that most of the
eclipses over the two years are actually observed and does not take into account difficulties with
observations due to daytime or bad weather.
Secondly, a detailed astrometric study, such as those done using FORS2 on the VLT by (40)
could reveal the signature of such a planet, which is expected on a face-on orbit. (41) find a typical
sensitivity of around 50 𝜇as, this would be equivalent to a Saturn mass planet on a 400 day orbit
around our binary brown dwarf, and is therefore a promising follow-up technique which will be
sensitive to gas giants on orbits of intermediate separation. At a Gmag of 17.5, Gaia astrometry
9

will not be sensitive enough to constrain a planet as well as ground-based astrometry.
A third option is the direct-imaging method where a planet can be detected from its formation’s
residual heat, using an adaptive optics system to distinguish it from the glare of its host. At its best,
the method can detect an object with a flux ratio Δ F∼ 10−5 at an angular separation of 0.2” (42).
At the distance of 2M1510, this corresponds to a projected orbital separations > 7.3AU (which is
∼ 27 000 days). At this separation a companion would have to have a mass of ∼ 0.7 M⊙ to induce
the required apsidal precession. Direct imaging will therefore not be sensitive to the planet causing
the precession, but it could be sensitive to other planets on more distant orbits. Assuming a system
age of 50 Myr (27), and using the Baraffe models (COND03) (43,44) we estimate a 3.4 MJup planet
could be detectable in this system if at 7.3 AU. At further orbital distances, sensitivity improves to
1.7 MJup.
The regions of sensitivity of a 3 year campaign of precise ground-based astrometry, and of a 2
year complete set of eclipse measurements are highlighted in Fig 3.
Nomenclature
We clarify the naming convention that we are using. While the discovery paper for the eclipsing
binary (27) referred to the eclipsing binary as 2M1510 A and the distant companion as 2M1510 B.
Instead we refer the the two components of the eclipsing binary as 2M1510 A and 2M1510 B; the
visual companion is 2M1510 C; the eclipsing binary as a pair of stars is 2M1510 AB; and the planet
is 2M1510 (AB)b though we simplify and refer to it as 2M1510 b. Fig 5 shows the configuration
of the system and shows the naming convention we have just described.
4 Materials and Methods
Observations and radial velocities
35 spectra were obtained with the UVES instrument (45) on the VLT between 2017-08-16 and
2023-08-25 (Prog.ID 299.C-5046, 2100.C-5024 and 0103.C-0042, PI Triaud). All observations
used the UVES instrument on UT2-Kueyen. Of these, 13 are recent UVES observations obtained
10

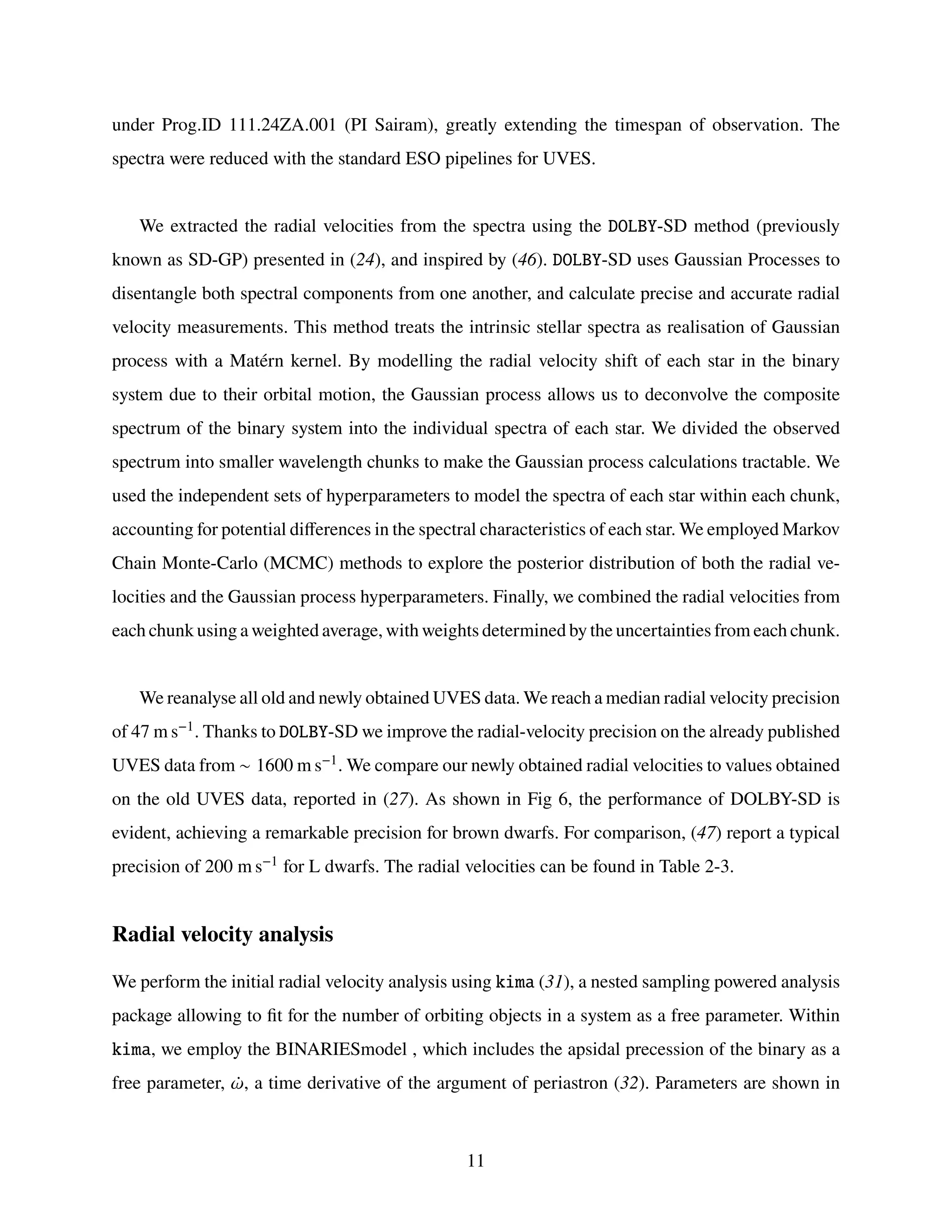

under Prog.ID 111.24ZA.001 (PI Sairam), greatly extending the timespan of observation. The
spectra were reduced with the standard ESO pipelines for UVES.
We extracted the radial velocities from the spectra using the DOLBY-SD method (previously
known as SD-GP) presented in (24), and inspired by (46). DOLBY-SD uses Gaussian Processes to
disentangle both spectral components from one another, and calculate precise and accurate radial
velocity measurements. This method treats the intrinsic stellar spectra as realisation of Gaussian
process with a Matérn kernel. By modelling the radial velocity shift of each star in the binary
system due to their orbital motion, the Gaussian process allows us to deconvolve the composite
spectrum of the binary system into the individual spectra of each star. We divided the observed
spectrum into smaller wavelength chunks to make the Gaussian process calculations tractable. We
used the independent sets of hyperparameters to model the spectra of each star within each chunk,
accounting for potential differences in the spectral characteristics of each star. We employed Markov
Chain Monte-Carlo (MCMC) methods to explore the posterior distribution of both the radial ve-
locities and the Gaussian process hyperparameters. Finally, we combined the radial velocities from
each chunk using a weighted average, with weights determined by the uncertainties from each chunk.
We reanalyse all old and newly obtained UVES data. We reach a median radial velocity precision
of 47 m s−1. Thanks to DOLBY-SD we improve the radial-velocity precision on the already published
UVES data from ∼ 1600 m s−1. We compare our newly obtained radial velocities to values obtained

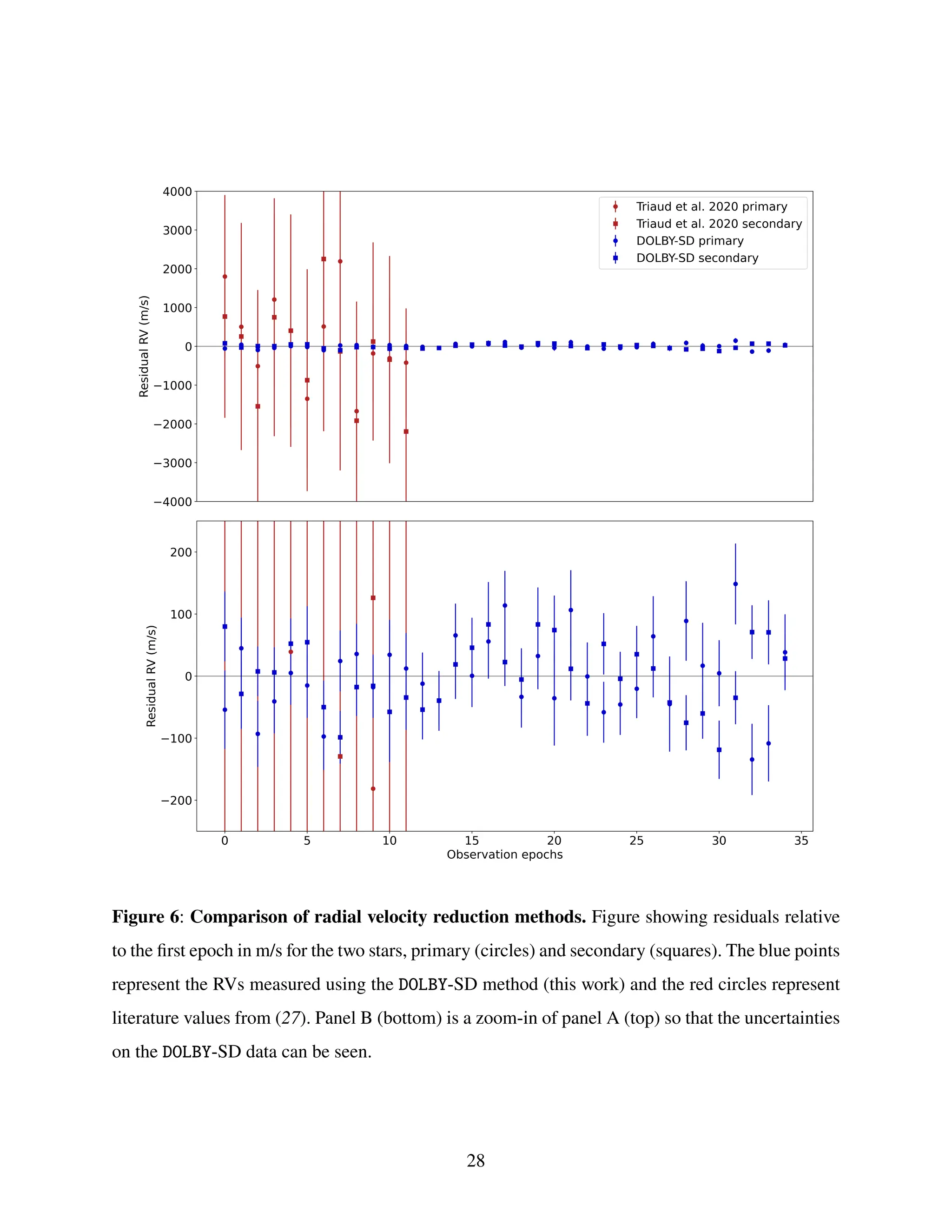

on the old UVES data, reported in (27). As shown in Fig 6, the performance of DOLBY-SD is
evident, achieving a remarkable precision for brown dwarfs. For comparison, (47) report a typical
precision of 200 m s−1 for L dwarfs. The radial velocities can be found in Table 2-3.
Radial velocity analysis
We perform the initial radial velocity analysis using kima (31), a nested sampling powered analysis
package allowing to fit for the number of orbiting objects in a system as a free parameter. Within
kima, we employ the BINARIESmodel , which includes the apsidal precession of the binary as a
free parameter, ¤
𝜔, a time derivative of the argument of periastron (32). Parameters are shown in
11

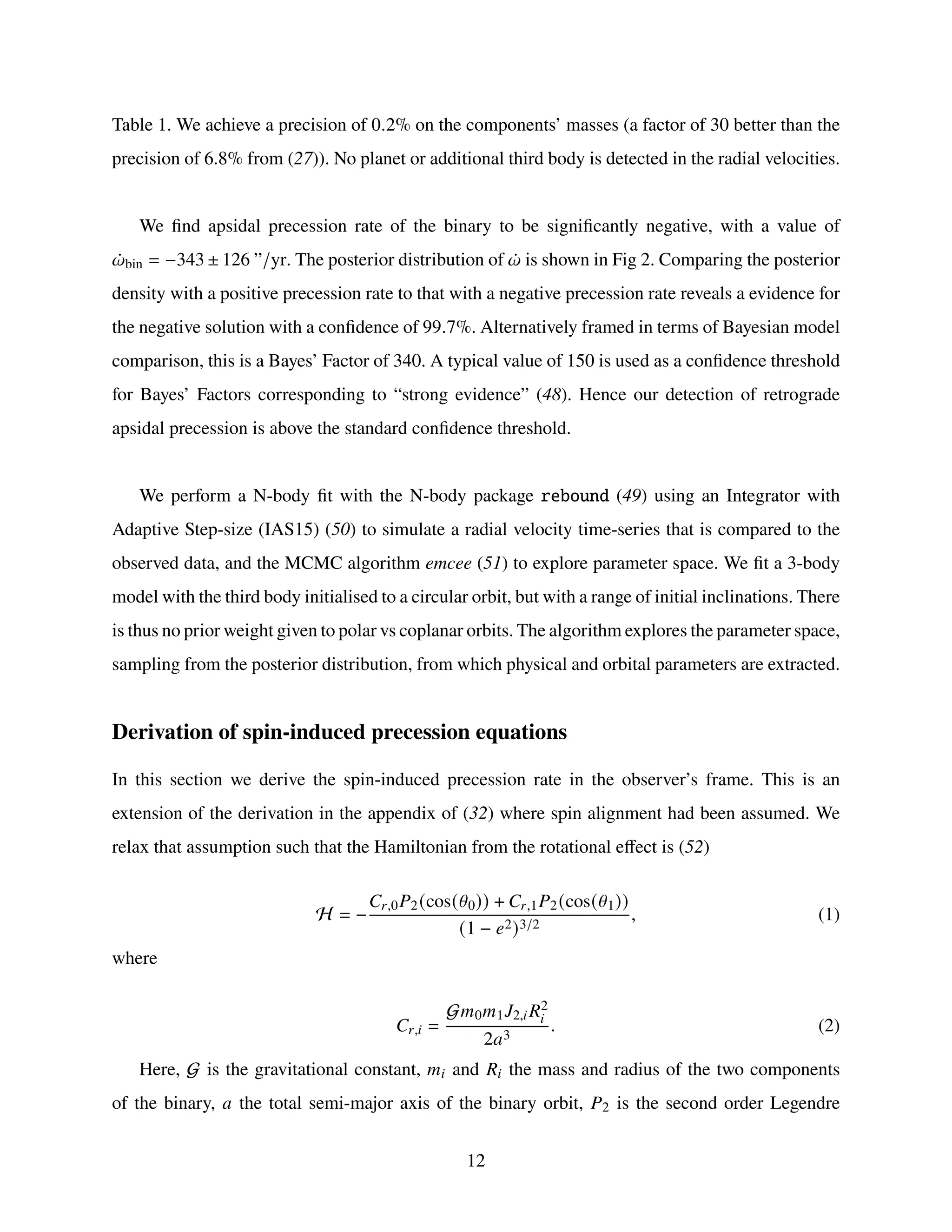

Table 1. We achieve a precision of 0.2% on the components’ masses (a factor of 30 better than the
precision of 6.8% from (27)). No planet or additional third body is detected in the radial velocities.
We find apsidal precession rate of the binary to be significantly negative, with a value of
¤
𝜔bin = −343 ± 126 ”/yr. The posterior distribution of ¤
𝜔 is shown in Fig 2. Comparing the posterior
density with a positive precession rate to that with a negative precession rate reveals a evidence for
the negative solution with a confidence of 99.7%. Alternatively framed in terms of Bayesian model
comparison, this is a Bayes’ Factor of 340. A typical value of 150 is used as a confidence threshold
for Bayes’ Factors corresponding to “strong evidence” (48). Hence our detection of retrograde
apsidal precession is above the standard confidence threshold.
We perform a N-body fit with the N-body package rebound (49) using an Integrator with
Adaptive Step-size (IAS15) (50) to simulate a radial velocity time-series that is compared to the
observed data, and the MCMC algorithm emcee (51) to explore parameter space. We fit a 3-body
model with the third body initialised to a circular orbit, but with a range of initial inclinations. There
is thus no prior weight given to polar vs coplanar orbits. The algorithm explores the parameter space,
sampling from the posterior distribution, from which physical and orbital parameters are extracted.
Derivation of spin-induced precession equations
In this section we derive the spin-induced precession rate in the observer’s frame. This is an
extension of the derivation in the appendix of (32) where spin alignment had been assumed. We
relax that assumption such that the Hamiltonian from the rotational effect is (52)
H = −
𝐶𝑟,0𝑃2(cos(𝜃0)) + 𝐶𝑟,1𝑃2(cos(𝜃1))
(1 − 𝑒2)3/2
, (1)
where
𝐶𝑟,𝑖 =
G𝑚0𝑚1𝐽2,𝑖 𝑅2
𝑖
2𝑎3
. (2)
Here, G is the gravitational constant, 𝑚𝑖 and 𝑅𝑖 the mass and radius of the two components
of the binary, 𝑎 the total semi-major axis of the binary orbit, 𝑃2 is the second order Legendre
12

polynomial 𝑃2(𝑥) =
3𝑥2 − 1
2
, and
𝐽2,𝑖 = 𝑘2,𝑖
Ω2
𝑖 𝑅3
𝑖
3G𝑚𝑖
, (3)
where Ω𝑖 and 𝑘2,𝑖 are the rotation rate and second Love number for body 𝑖 respectively. The angle
𝜃𝑖 is the obliquity, i.e. the angle between the spin axis of star 𝑖 and the normal to the orbit. It can be
expressed in the observer’s frame as (53)
cos 𝜃𝑖 = cos 𝐼 cos 𝜀𝑖 + sin 𝐼 sin 𝜀𝑖 cos(Ω − 𝜑𝑖), (4)
where 𝐼 and Ω are the orbital inclination and longitude of ascending node of the binary orbit, 𝜀𝑖 is
the angle between the equator of star 𝑖 and the plane of the sky, and 𝜑𝑖, the spin precession angle,
is the angle between the the x reference axis in the plane of the sky and the line of nodes between
this plane and the equator of star 𝑖.
We use the Lagrange Planetary Equations (54)
𝑑𝜔
𝑑𝑡
= −
(1 − 𝑒2)
𝑒𝐺1
𝜕H
𝜕𝑒
+
cot 𝐼
𝐺1
𝜕H
𝜕𝐼
, (5)
where 𝐺1 is the norm of the orbital angular momentum
𝐺1 =
𝑚0𝑚1
𝑚0 + 𝑚1
√︁
G(𝑚0 + 𝑚1)𝑎(1 − 𝑒2). (6)
Substituting in the Hamiltonian from eq. (1), we get that the spin-induced apsidal precession
rate is
𝑑𝜔
𝑑𝑡
= 3
(𝐶𝑟,0𝑃2(cos(𝜃0)) + 𝐶𝑟,1𝑃2(cos(𝜃1)))
𝐺1(1 − 𝑒2)3/2
−
cot 𝐼
𝐺1(1 − 𝑒2)3/2

𝐶𝑟,0
𝜕𝑃2(cos 𝜃0)
𝜕𝐼
+ 𝐶𝑟,1
𝜕𝑃2(cos 𝜃1)
𝜕𝐼

,
(7)
and
𝜕𝑃2(cos 𝜃𝑖)
𝜕𝐼
= 3 cos 𝜃𝑖 [cos 𝐼 sin 𝜀𝑖 cos(Ω − 𝜑𝑖) − sin 𝐼 cos 𝜀𝑖] . (8)
13

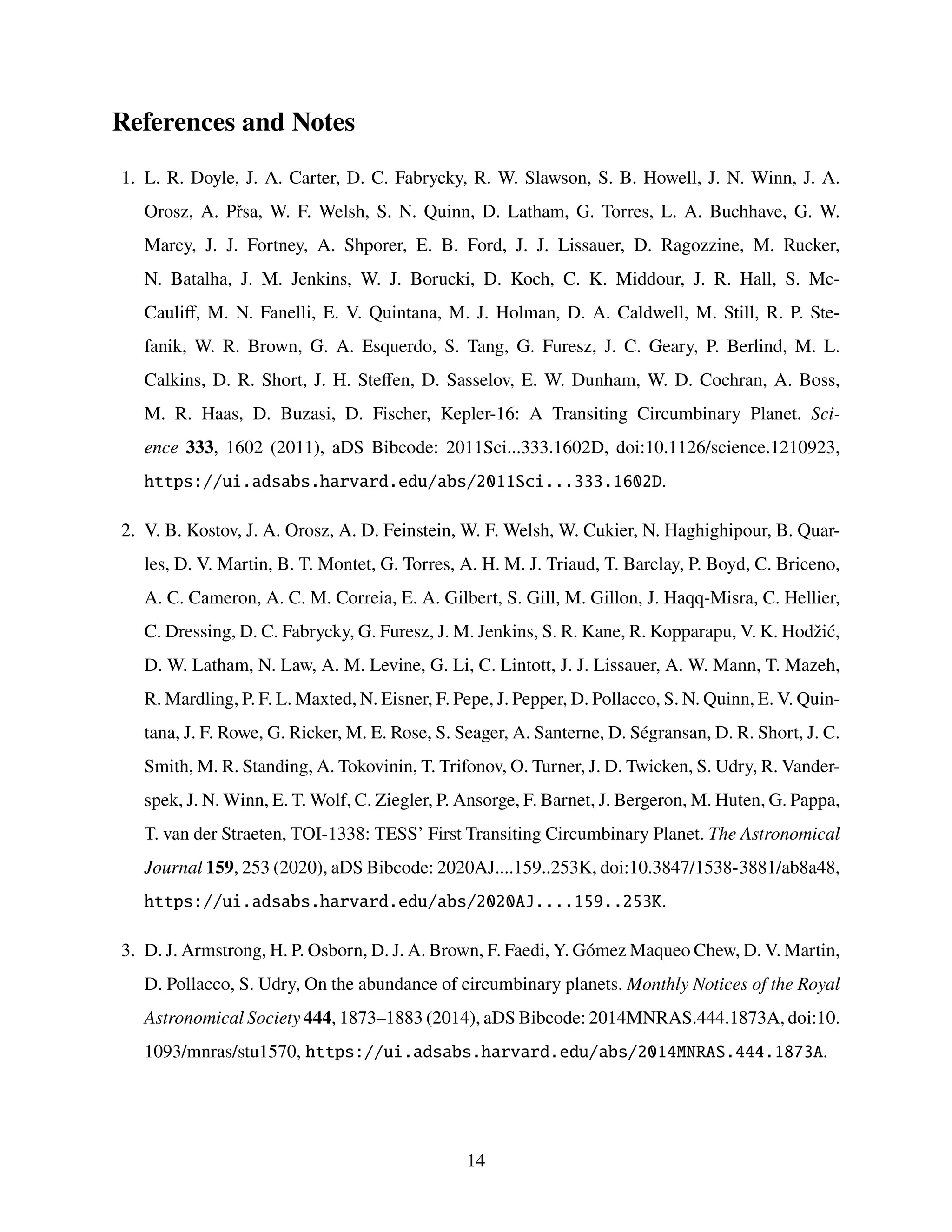

References and Notes
1. L. R. Doyle, J. A. Carter, D. C. Fabrycky, R. W. Slawson, S. B. Howell, J. N. Winn, J. A.
Orosz, A. Přsa, W. F. Welsh, S. N. Quinn, D. Latham, G. Torres, L. A. Buchhave, G. W.
Marcy, J. J. Fortney, A. Shporer, E. B. Ford, J. J. Lissauer, D. Ragozzine, M. Rucker,
N. Batalha, J. M. Jenkins, W. J. Borucki, D. Koch, C. K. Middour, J. R. Hall, S. Mc-
Cauliff, M. N. Fanelli, E. V. Quintana, M. J. Holman, D. A. Caldwell, M. Still, R. P. Ste-
fanik, W. R. Brown, G. A. Esquerdo, S. Tang, G. Furesz, J. C. Geary, P. Berlind, M. L.
Calkins, D. R. Short, J. H. Steffen, D. Sasselov, E. W. Dunham, W. D. Cochran, A. Boss,
M. R. Haas, D. Buzasi, D. Fischer, Kepler-16: A Transiting Circumbinary Planet. Sci-
ence 333, 1602 (2011), aDS Bibcode: 2011Sci...333.1602D, doi:10.1126/science.1210923,
https://ui.adsabs.harvard.edu/abs/2011Sci...333.1602D.
2. V. B. Kostov, J. A. Orosz, A. D. Feinstein, W. F. Welsh, W. Cukier, N. Haghighipour, B. Quar-
les, D. V. Martin, B. T. Montet, G. Torres, A. H. M. J. Triaud, T. Barclay, P. Boyd, C. Briceno,
A. C. Cameron, A. C. M. Correia, E. A. Gilbert, S. Gill, M. Gillon, J. Haqq-Misra, C. Hellier,
C. Dressing, D. C. Fabrycky, G. Furesz, J. M. Jenkins, S. R. Kane, R. Kopparapu, V. K. Hodžić,
D. W. Latham, N. Law, A. M. Levine, G. Li, C. Lintott, J. J. Lissauer, A. W. Mann, T. Mazeh,
R. Mardling, P. F. L. Maxted, N. Eisner, F. Pepe, J. Pepper, D. Pollacco, S. N. Quinn, E. V. Quin-
tana, J. F. Rowe, G. Ricker, M. E. Rose, S. Seager, A. Santerne, D. Ségransan, D. R. Short, J. C.
Smith, M. R. Standing, A. Tokovinin, T. Trifonov, O. Turner, J. D. Twicken, S. Udry, R. Vander-
spek, J. N. Winn, E. T. Wolf, C. Ziegler, P. Ansorge, F. Barnet, J. Bergeron, M. Huten, G. Pappa,
T. van der Straeten, TOI-1338: TESS’ First Transiting Circumbinary Planet. The Astronomical
Journal 159, 253 (2020), aDS Bibcode: 2020AJ....159..253K, doi:10.3847/1538-3881/ab8a48,
https://ui.adsabs.harvard.edu/abs/2020AJ....159..253K.
3. D. J. Armstrong, H. P. Osborn, D. J. A. Brown, F. Faedi, Y. Gómez Maqueo Chew, D. V. Martin,
D. Pollacco, S. Udry, On the abundance of circumbinary planets. Monthly Notices of the Royal
Astronomical Society 444, 1873–1883 (2014), aDS Bibcode: 2014MNRAS.444.1873A, doi:10.
1093/mnras/stu1570, https://ui.adsabs.harvard.edu/abs/2014MNRAS.444.1873A.
14

4. T. A. Baycroft, A. H. M. J. Triaud, D. Lai, Progress report on the BEBOP search for
circumbinary planets with radial velocities 382, 51–58 (2024), conference Name: IAU
Symposium ADS Bibcode: 2024IAUS..382...51B, doi:10.1017/S1743921323004180, https:
//ui.adsabs.harvard.edu/abs/2024IAUS..382...51B.
5. D. V. Martin, A. H. M. J. Triaud, Planets transiting non-eclipsing binaries. Astronomy
Astrophysics 570, A91 (2014), doi:10.1051/0004-6361/201323112, https://ui.adsabs.
harvard.edu/abs/2014A%26A...570A..91M/abstract.
6. A. C. Childs, R. G. Martin, Misalignment of Terrestrial Circumbinary Planets as an Indicator
of Their Formation Mechanism. The Astrophysical Journal 927, L7 (2022), publisher: IOP
ADS Bibcode: 2022ApJ...927L...7C, doi:10.3847/2041-8213/ac574f, https://ui.adsabs.
harvard.edu/abs/2022ApJ...927L...7C.
7. A. C. Childs, R. G. Martin, Formation of Polar Terrestrial Circumbinary Planets. The Astrophys-
ical Journal 920, L8 (2021), publisher: IOP ADS Bibcode: 2021ApJ...920L...8C, doi:10.3847/
2041-8213/ac2957, https://ui.adsabs.harvard.edu/abs/2021ApJ...920L...8C.
8. S. Doolin, K. M. Blundell, The dynamics and stability of circumbinary orbits. Monthly No-
tices of the Royal Astronomical Society 418, 2656–2668 (2011), aDS Bibcode: 2011MN-
RAS.418.2656D, doi:10.1111/j.1365-2966.2011.19657.x, https://ui.adsabs.harvard.
edu/abs/2011MNRAS.418.2656D.
9. C. Chen, A. Franchini, S. H. Lubow, R. G. Martin, Orbital dynamics of circumbinary planets.
Monthly Notices of the Royal Astronomical Society 490 (4), 5634–5646 (2019), doi:10.1093/
mnras/stz2948, https://academic.oup.com/mnras/article/490/4/5634/5602605.
10. C. Chen, S. H. Lubow, R. G. Martin, Polar planets around highly eccentric binaries are the
most stable. Monthly Notices of the Royal Astronomical Society 494 (4), 4645–4655 (2020),
arXiv: 2004.07230, doi:10.1093/mnras/staa1037, http://arxiv.org/abs/2004.07230.

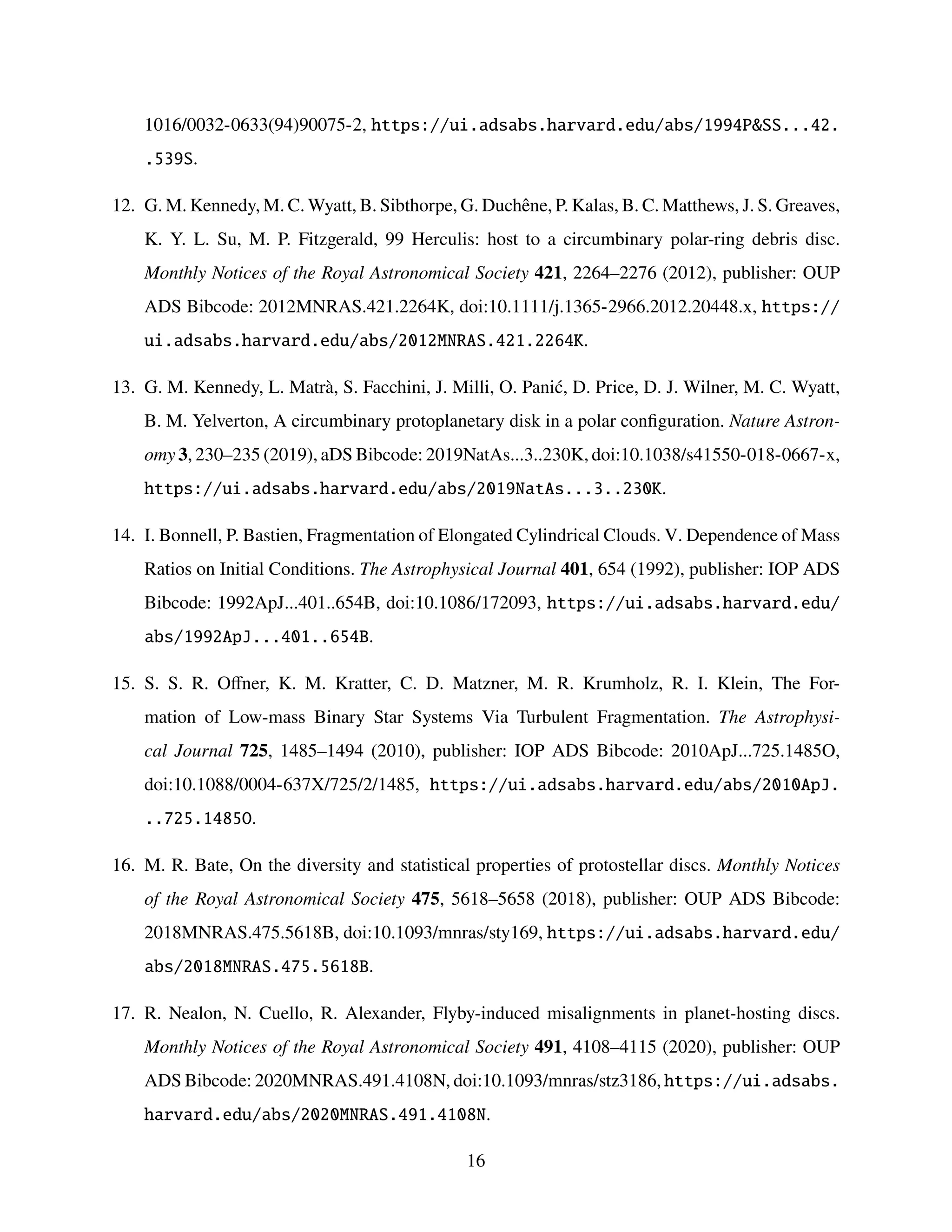

11. J. Schneider, On the occultations of a binary star by a circum-orbiting dark companion.
Planetary and Space Science 42, 539–544 (1994), aDS Bibcode: 1994PSS...42..539S, doi:10.
15

1016/0032-0633(94)90075-2, https://ui.adsabs.harvard.edu/abs/1994PSS...42.
.539S.
12. G. M. Kennedy, M. C. Wyatt, B. Sibthorpe, G. Duchêne, P. Kalas, B. C. Matthews, J. S. Greaves,
K. Y. L. Su, M. P. Fitzgerald, 99 Herculis: host to a circumbinary polar-ring debris disc.
Monthly Notices of the Royal Astronomical Society 421, 2264–2276 (2012), publisher: OUP
ADS Bibcode: 2012MNRAS.421.2264K, doi:10.1111/j.1365-2966.2012.20448.x, https://
ui.adsabs.harvard.edu/abs/2012MNRAS.421.2264K.
13. G. M. Kennedy, L. Matrà, S. Facchini, J. Milli, O. Panić, D. Price, D. J. Wilner, M. C. Wyatt,
B. M. Yelverton, A circumbinary protoplanetary disk in a polar configuration. Nature Astron-
omy 3, 230–235 (2019), aDS Bibcode: 2019NatAs...3..230K, doi:10.1038/s41550-018-0667-x,
https://ui.adsabs.harvard.edu/abs/2019NatAs...3..230K.
14. I. Bonnell, P. Bastien, Fragmentation of Elongated Cylindrical Clouds. V. Dependence of Mass
Ratios on Initial Conditions. The Astrophysical Journal 401, 654 (1992), publisher: IOP ADS
Bibcode: 1992ApJ...401..654B, doi:10.1086/172093, https://ui.adsabs.harvard.edu/
abs/1992ApJ...401..654B.
15. S. S. R. Offner, K. M. Kratter, C. D. Matzner, M. R. Krumholz, R. I. Klein, The For-
mation of Low-mass Binary Star Systems Via Turbulent Fragmentation. The Astrophysi-
cal Journal 725, 1485–1494 (2010), publisher: IOP ADS Bibcode: 2010ApJ...725.1485O,
doi:10.1088/0004-637X/725/2/1485, https://ui.adsabs.harvard.edu/abs/2010ApJ.
..725.1485O.
16. M. R. Bate, On the diversity and statistical properties of protostellar discs. Monthly Notices
of the Royal Astronomical Society 475, 5618–5658 (2018), publisher: OUP ADS Bibcode:
2018MNRAS.475.5618B, doi:10.1093/mnras/sty169, https://ui.adsabs.harvard.edu/
abs/2018MNRAS.475.5618B.
17. R. Nealon, N. Cuello, R. Alexander, Flyby-induced misalignments in planet-hosting discs.
Monthly Notices of the Royal Astronomical Society 491, 4108–4115 (2020), publisher: OUP
ADS Bibcode: 2020MNRAS.491.4108N, doi:10.1093/mnras/stz3186, https://ui.adsabs.
harvard.edu/abs/2020MNRAS.491.4108N.
16

18. R. G. Martin, S. H. Lubow, D. Vallet, N. Anugu, D. R. Gies, AC Her: Evidence of
the First Polar Circumbinary Planet. The Astrophysical Journal 957, L28 (2023), pub-
lisher: IOP ADS Bibcode: 2023ApJ...957L..28M, doi:10.3847/2041-8213/ad0730, https:
//ui.adsabs.harvard.edu/abs/2023ApJ...957L..28M.
19. J. Kluska, H. Van Winckel, Q. Coppée, G. M. Oomen, K. Dsilva, D. Kamath, V. Bujarra-
bal, M. Min, A population of transition disks around evolved stars: Fingerprints of plan-
ets. Catalog of disks surrounding Galactic post-AGB binaries. Astronomy and Astrophysics
658, A36 (2022), aDS Bibcode: 2022AA...658A..36K, doi:10.1051/0004-6361/202141690,
https://ui.adsabs.harvard.edu/abs/2022AA...658A..36K.
20. A. H. M. J. Triaud, The Rossiter-McLaughlin Effect in Exoplanet Research (Springer) (2018),
doi:10.1007/978-3-319-55333-7 2, https://ui.adsabs.harvard.edu/abs/2018haex.
bookE...2T, pages: 2 Publication Title: Handbook of Exoplanets ADS Bibcode:
2018haex.bookE...2T.
21. S. H. Albrecht, M. L. Marcussen, J. N. Winn, R. I. Dawson, E. Knudstrup, A Preponder-
ance of Perpendicular Planets. The Astrophysical Journal 916, L1 (2021), publisher: IOP
ADS Bibcode: 2021ApJ...916L...1A, doi:10.3847/2041-8213/ac0f03, https://ui.adsabs.
harvard.edu/abs/2021ApJ...916L...1A.
22. C. Chen, S. A. Baronett, C. J. Nixon, R. G. Martin, On the origin of polar planets around single
stars. Monthly Notices of the Royal Astronomical Society 533, L37–L42 (2024), publisher: OUP
ADS Bibcode: 2024MNRAS.533L..37C, doi:10.1093/mnrasl/slae058, https://ui.adsabs.
harvard.edu/abs/2024MNRAS.533L..37C.
23. A. H. M. J. Triaud, M. R. Standing, N. Heidari, D. V. Martin, I. Boisse, A. Santerne, A. C. M.
Correia, L. Acuña, M. Battley, X. Bonfils, A. Carmona, A. Collier Cameron, P. Cortés-
Zuleta, G. Dransfield, S. Dalal, M. Deleuil, X. Delfosse, J. Faria, T. Forveille, N. C. Hara,
G. Hébrard, S. Hoyer, F. Kiefer, V. Kunovac, P. F. L. Maxted, E. Martioli, N. J. Miller,
R. P. Nelson, M. Poveda, H. Rein, L. Sairam, S. Udry, E. Willett, BEBOP III. Observa-
tions and an independent mass measurement of Kepler-16 (AB) b - the first circumbinary
planet detected with radial velocities. Monthly Notices of the Royal Astronomical Society 511,
17

3561–3570 (2022), aDS Bibcode: 2022MNRAS.511.3561T, doi:10.1093/mnras/stab3712,
https://ui.adsabs.harvard.edu/abs/2022MNRAS.511.3561T.
24. L. Sairam, A. H. M. J. Triaud, T. A. Baycroft, J. Orosz, I. Boisse, N. Heidari, D. Sebas-
tian, G. Dransfield, D. V. Martin, A. Santerne, M. R. Standing, New methods for radial-
velocity measurements of double-lined binaries, and detection of a circumbinary planet
orbiting TIC 172900988. Monthly Notices of the Royal Astronomical Society 527, 2261–
2278 (2024), aDS Bibcode: 2024MNRAS.527.2261S, doi:10.1093/mnras/stad3136, https:
//ui.adsabs.harvard.edu/abs/2024MNRAS.527.2261S.
25. M. R. Standing, L. Sairam, D. V. Martin, A. H. M. J. Triaud, A. C. M. Correia, G. A. L. Coleman,
T. A. Baycroft, V. Kunovac, I. Boisse, A. C. Cameron, G. Dransfield, J. P. Faria, M. Gillon, N. C.
Hara, C. Hellier, J. Howard, E. Lane, R. Mardling, P. F. L. Maxted, N. J. Miller, R. P. Nelson,
J. A. Orosz, F. Pepe, A. Santerne, D. Sebastian, S. Udry, W. F. Welsh, Radial-velocity discovery
of a second planet in the TOI-1338/BEBOP-1 circumbinary system. Nature Astronomy 7, 702–
714 (2023), aDS Bibcode: 2023NatAs...7..702S, doi:10.1038/s41550-023-01948-4, https:
//ui.adsabs.harvard.edu/abs/2023NatAs...7..702S.
26. V. B. Kostov, J. A. Orosz, W. F. Welsh, L. R. Doyle, D. C. Fabrycky, N. Haghighipour,
B. Quarles, D. R. Short, W. D. Cochran, M. Endl, E. B. Ford, J. Gregorio, T. C. Hinse,
H. Isaacson, J. M. Jenkins, E. L. N. Jensen, S. Kane, I. Kull, D. W. Latham, J. J. Lis-
sauer, G. W. Marcy, T. Mazeh, T. W. A. Müller, J. Pepper, S. N. Quinn, D. Ragozzine,
A. Shporer, J. H. Steffen, G. Torres, G. Windmiller, W. J. Borucki, KEPLER-1647B:
THE LARGEST AND LONGEST-PERIOD KEPLER TRANSITING CIRCUMBINARY
PLANET. The Astrophysical Journal 827 (1), 86 (2016), doi:10.3847/0004-637X/827/1/86,
https://iopscience.iop.org/article/10.3847/0004-637X/827/1/86.
27. A. H. M. J. Triaud, A. J. Burgasser, A. Burdanov, V. Kunovac Hodžić, R. Alonso,
D. Bardalez Gagliuffi, L. Delrez, B.-O. Demory, J. de Wit, E. Ducrot, F. V. Hessman,
T.-O. Husser, E. Jehin, P. P. Pedersen, D. Queloz, J. McCormac, C. Murray, D. Se-
bastian, S. Thompson, V. Van Grootel, M. Gillon, An eclipsing substellar binary in a
young triple system discovered by SPECULOOS. Nature Astronomy 4, 650–657 (2020),
18

aDS Bibcode: 2020NatAs...4..650T, doi:10.1038/s41550-020-1018-2, https://ui.adsabs.
harvard.edu/abs/2020NatAs...4..650T.
28. A. Burrows, W. B. Hubbard, J. I. Lunine, J. Liebert, The theory of brown dwarfs and extrasolar
giant planets. Reviews of Modern Physics 73, 719–765 (2001), publisher: APS ADS Bibcode:
2001RvMP...73..719B, doi:10.1103/RevModPhys.73.719, https://ui.adsabs.harvard.
edu/abs/2001RvMP...73..719B.
29. K. G. Stassun, R. D. Mathieu, J. A. Valenti, Discovery of two young brown dwarfs in an
eclipsing binary system. Nature 440 (7082), 311–314 (2006), publisher: Nature Publishing
Group, doi:10.1038/nature04570, https://www.nature.com/articles/nature04570.
30. Z. Zhang, D. C. Fabrycky, Distinguishing Polar and Coplanar Circumbinary Exoplanets by
Eclipse Timing Variations. The Astrophysical Journal 879 (2), 92 (2019), publisher: The
American Astronomical Society, doi:10.3847/1538-4357/ab24d5, https://dx.doi.org/
10.3847/1538-4357/ab24d5.
31. J. P. Faria, N. C. Santos, P. Figueira, B. J. Brewer, kima: Exoplanet detection in radial velocities.
The Journal of Open Source Software 3, 487 (2018), aDS Bibcode: 2018JOSS....3..487F, doi:
10.21105/joss.00487, https://ui.adsabs.harvard.edu/abs/2018JOSS....3..487F.
32. T. A. Baycroft, A. H. M. J. Triaud, J. Faria, A. C. M. Correia, M. R. Standing, Improv-
ing circumbinary planet detections by fitting their binary’s apsidal precession. Monthly No-
tices of the Royal Astronomical Society 521, 1871–1879 (2023), aDS Bibcode: 2023MN-
RAS.521.1871B, doi:10.1093/mnras/stad607, https://ui.adsabs.harvard.edu/abs/
2023MNRAS.521.1871B.
33. J. E. Gizis, Brown Dwarfs and the TW Hydrae Association. The Astrophysical Journal 575,
484–492 (2002), publisher: IOP ADS Bibcode: 2002ApJ...575..484G, doi:10.1086/341259,
https://ui.adsabs.harvard.edu/abs/2002ApJ...575..484G.
34. R. R. Rafikov, Stellar Proper Motion and the Timing of Planetary Transits. The Astrophysical
Journal 700, 965–970 (2009), publisher: IOP ADS Bibcode: 2009ApJ...700..965R, doi:10.
19

1088/0004-637X/700/2/965, https://ui.adsabs.harvard.edu/abs/2009ApJ...700.
.965R.
35. S. Albrecht, S. Reffert, I. A. G. Snellen, J. N. Winn, Misaligned spin and orbital
axes cause the anomalous precession of DI Herculis. Nature 461, 373–376 (2009), aDS
Bibcode: 2009Natur.461..373A, doi:10.1038/nature08408, https://ui.adsabs.harvard.
edu/abs/2009Natur.461..373A.
36. R. Heller, B. Jackson, R. Barnes, R. Greenberg, D. Homeier, Tidal effects on brown dwarfs:
application to the eclipsing binary 2MASS J05352184-0546085 - The anomalous temperature
reversal in the context of tidal heating. Astronomy Astrophysics 514, A22 (2010), publisher:
EDP Sciences, doi:10.1051/0004-6361/200912826, https://www.aanda.org/articles/
aa/abs/2010/06/aa12826-09/aa12826-09.html.
37. E. E. Mamajek, Initial Conditions of Planet Formation: Lifetimes of Primordial Disks 1158,
3–10 (2009), conference Name: Exoplanets and Disks: Their Formation and Diversity Place:
eprint: arXiv:0906.5011 Publisher: AIP ADS Bibcode: 2009AIPC.1158....3M, doi:10.1063/1.
3215910, https://ui.adsabs.harvard.edu/abs/2009AIPC.1158....3M.
38. M. Goldberg, D. Fabrycky, D. V. Martin, S. Albrecht, H. J. Deeg, G. Nowak, A 5MJup non-
transiting coplanar circumbinary planet around Kepler-1660AB. Monthly Notices of the Royal
Astronomical Society 525, 4628–4641 (2023), aDS Bibcode: 2023MNRAS.525.4628G, doi:10.
1093/mnras/stad2568, https://ui.adsabs.harvard.edu/abs/2023MNRAS.525.4628G.
39. T. Borkovits, S. Csizmadia, E. Forgács-Dajka, T. Hegedüs, Transit timing variations in ec-
centric hierarchical triple exoplanetary systems. I. Perturbations on the time scale of the
orbital period of the perturber. Astronomy and Astrophysics 528, A53 (2011), aDS Bib-
code: 2011AA...528A..53B, doi:10.1051/0004-6361/201015867, https://ui.adsabs.
harvard.edu/abs/2011AA...528A..53B.
40. J. Sahlmann, P. F. Lazorenko, D. Ségransan, E. L. Martı́n, M. Mayor, D. Queloz, S. Udry,
Astrometric planet search around southern ultracool dwarfs. I. First results, including par-
allaxes of 20 M8-L2 dwarfs. Astronomy and Astrophysics 565, A20 (2014), aDS Bib-
20

code: 2014AA...565A..20S, doi:10.1051/0004-6361/201323208, https://ui.adsabs.
harvard.edu/abs/2014AA...565A..20S.

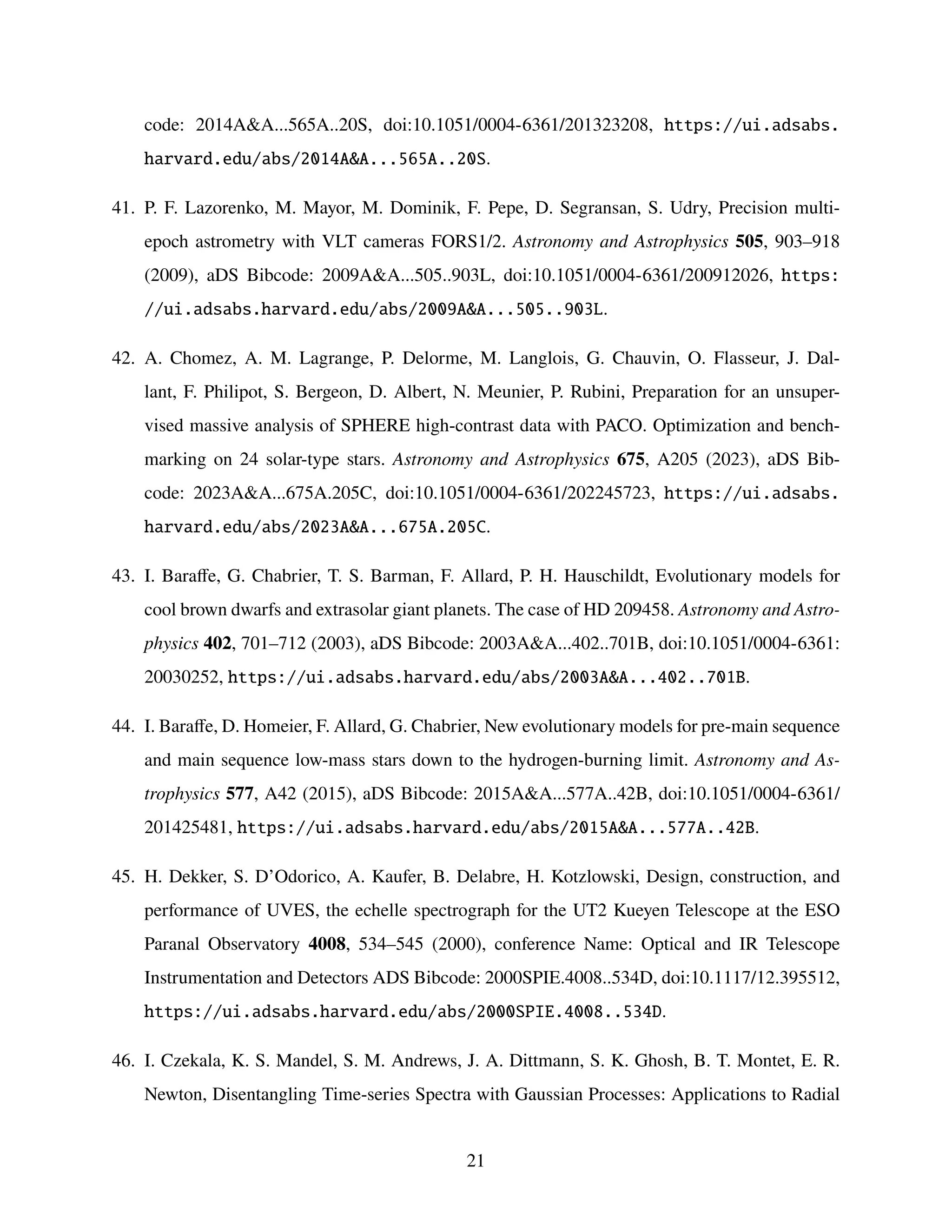

41. P. F. Lazorenko, M. Mayor, M. Dominik, F. Pepe, D. Segransan, S. Udry, Precision multi-
epoch astrometry with VLT cameras FORS1/2. Astronomy and Astrophysics 505, 903–918
(2009), aDS Bibcode: 2009AA...505..903L, doi:10.1051/0004-6361/200912026, https:
//ui.adsabs.harvard.edu/abs/2009AA...505..903L.
42. A. Chomez, A. M. Lagrange, P. Delorme, M. Langlois, G. Chauvin, O. Flasseur, J. Dal-
lant, F. Philipot, S. Bergeon, D. Albert, N. Meunier, P. Rubini, Preparation for an unsuper-
vised massive analysis of SPHERE high-contrast data with PACO. Optimization and bench-
marking on 24 solar-type stars. Astronomy and Astrophysics 675, A205 (2023), aDS Bib-
code: 2023AA...675A.205C, doi:10.1051/0004-6361/202245723, https://ui.adsabs.
harvard.edu/abs/2023AA...675A.205C.
43. I. Baraffe, G. Chabrier, T. S. Barman, F. Allard, P. H. Hauschildt, Evolutionary models for
cool brown dwarfs and extrasolar giant planets. The case of HD 209458. Astronomy and Astro-
physics 402, 701–712 (2003), aDS Bibcode: 2003AA...402..701B, doi:10.1051/0004-6361:
20030252, https://ui.adsabs.harvard.edu/abs/2003AA...402..701B.
44. I. Baraffe, D. Homeier, F. Allard, G. Chabrier, New evolutionary models for pre-main sequence
and main sequence low-mass stars down to the hydrogen-burning limit. Astronomy and As-
trophysics 577, A42 (2015), aDS Bibcode: 2015AA...577A..42B, doi:10.1051/0004-6361/
201425481, https://ui.adsabs.harvard.edu/abs/2015AA...577A..42B.
45. H. Dekker, S. D’Odorico, A. Kaufer, B. Delabre, H. Kotzlowski, Design, construction, and
performance of UVES, the echelle spectrograph for the UT2 Kueyen Telescope at the ESO
Paranal Observatory 4008, 534–545 (2000), conference Name: Optical and IR Telescope
Instrumentation and Detectors ADS Bibcode: 2000SPIE.4008..534D, doi:10.1117/12.395512,
https://ui.adsabs.harvard.edu/abs/2000SPIE.4008..534D.
46. I. Czekala, K. S. Mandel, S. M. Andrews, J. A. Dittmann, S. K. Ghosh, B. T. Montet, E. R.
Newton, Disentangling Time-series Spectra with Gaussian Processes: Applications to Radial
21

Velocity Analysis. The Astrophysical Journal 840, 49 (2017), publisher: IOP ADS Bibcode:
2017ApJ...840...49C, doi:10.3847/1538-4357/aa6aab, https://ui.adsabs.harvard.edu/
abs/2017ApJ...840...49C.
47. C. H. Blake, D. Charbonneau, R. J. White, The NIRSPEC Ultracool Dwarf Radial Veloc-
ity Survey. The Astrophysical Journal 723, 684–706 (2010), publisher: IOP ADS Bibcode:
2010ApJ...723..684B, doi:10.1088/0004-637X/723/1/684, https://ui.adsabs.harvard.
edu/abs/2010ApJ...723..684B.
48. R. Trotta, Bayes in the sky: Bayesian inference and model selection in cosmology. Con-
temporary Physics 49, 71–104 (2008), aDS Bibcode: 2008ConPh..49...71T, doi:10.1080/
00107510802066753, https://ui.adsabs.harvard.edu/abs/2008ConPh..49...71T.
49. H. Rein, S.-F. Liu, REBOUND: an open-source multi-purpose N-body code for collisional
dynamics. Astronomy and Astrophysics 537, A128 (2012), doi:10.1051/0004-6361/201118085,
https://ui.adsabs.harvard.edu/abs/2012AA...537A.128R/abstract.
50. H. Rein, D. S. Spiegel, IAS15: a fast, adaptive, high-order integrator for gravitational dy-
namics, accurate to machine precision over a billion orbits. Monthly Notices of the Royal
Astronomical Society 446, 1424–1437 (2015), publisher: OUP ADS Bibcode: 2015MN-
RAS.446.1424R, doi:10.1093/mnras/stu2164, https://ui.adsabs.harvard.edu/abs/
2015MNRAS.446.1424R.
51. D. Foreman-Mackey, D. W. Hogg, D. Lang, J. Goodman, emcee: The MCMC Hammer.
Publications of the Astronomical Society of the Pacific 125, 306 (2013), publisher: IOP ADS
Bibcode: 2013PASP..125..306F, doi:10.1086/670067, https://ui.adsabs.harvard.edu/
abs/2013PASP..125..306F.
52. P. Goldreich, History of the Lunar Orbit. Reviews of Geophysics and Space Physics 4, 411–
439 (1966), aDS Bibcode: 1966RvGSP...4..411G, doi:10.1029/RG004i004p00411, https:
//ui.adsabs.harvard.edu/abs/1966RvGSP...4..411G.
53. A. C. M. Correia, G. Boué, J. Laskar, Secular and tidal evolution of circumbinary systems.
Celestial Mechanics and Dynamical Astronomy 126, 189–225 (2016), publisher: Springer ADS
22

Bibcode: 2016CeMDA.126..189C, doi:10.1007/s10569-016-9709-9, https://ui.adsabs.
harvard.edu/abs/2016CeMDA.126..189C.
54. C. D. Murray, S. F. Dermott, Solar System Dynamics (Cambridge University
Press) (1999), doi:10.1017/CBO9781139174817, https://ui.adsabs.harvard.edu/
abs/1999ssd..book.....M, publication Title: Solar System Dynamics ADS Bibcode:
1999ssd..book.....M.

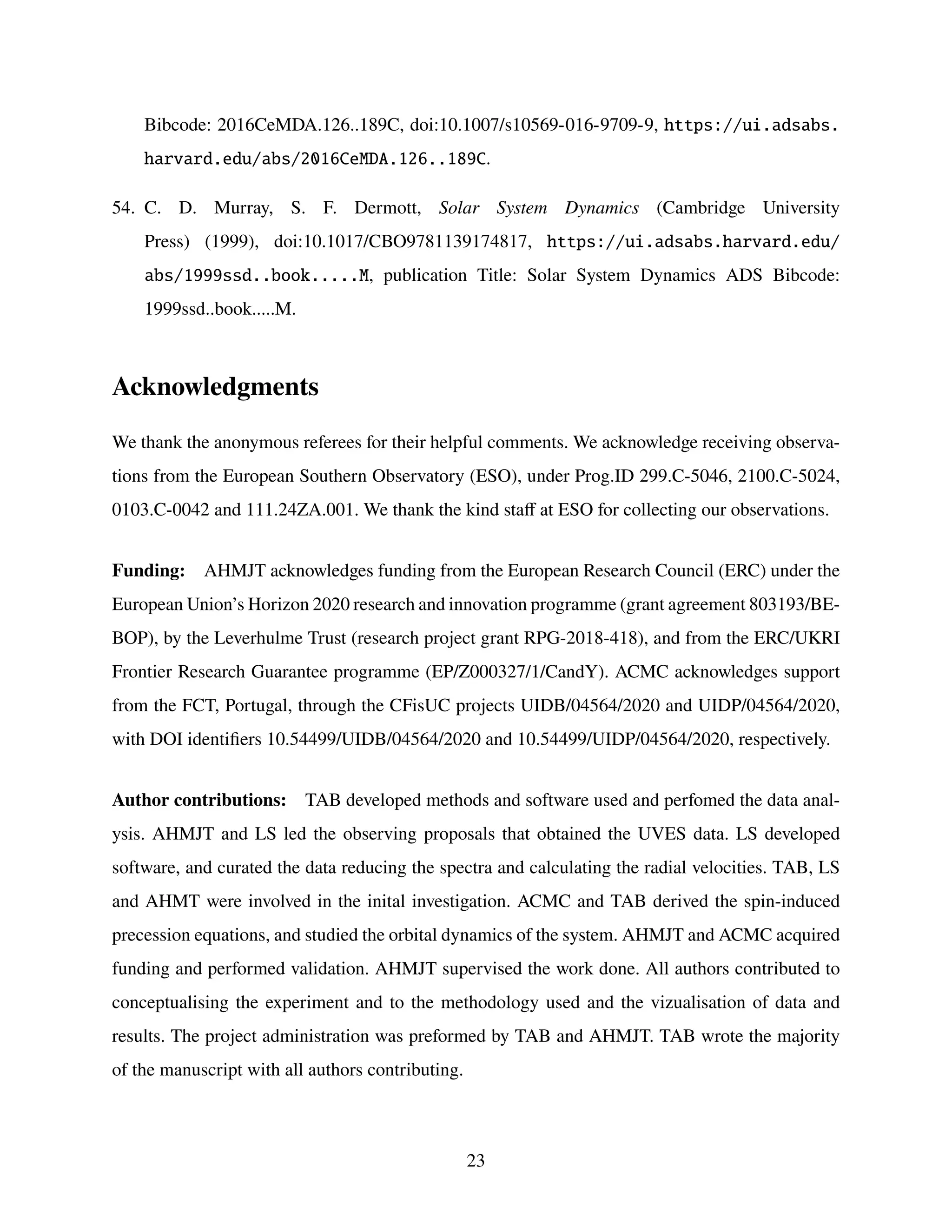

Acknowledgments
We thank the anonymous referees for their helpful comments. We acknowledge receiving observa-
tions from the European Southern Observatory (ESO), under Prog.ID 299.C-5046, 2100.C-5024,
0103.C-0042 and 111.24ZA.001. We thank the kind staff at ESO for collecting our observations.
Funding: AHMJT acknowledges funding from the European Research Council (ERC) under the
European Union’s Horizon 2020 research and innovation programme (grant agreement 803193/BE-
BOP), by the Leverhulme Trust (research project grant RPG-2018-418), and from the ERC/UKRI
Frontier Research Guarantee programme (EP/Z000327/1/CandY). ACMC acknowledges support
from the FCT, Portugal, through the CFisUC projects UIDB/04564/2020 and UIDP/04564/2020,
with DOI identifiers 10.54499/UIDB/04564/2020 and 10.54499/UIDP/04564/2020, respectively.
Author contributions: TAB developed methods and software used and perfomed the data anal-
ysis. AHMJT and LS led the observing proposals that obtained the UVES data. LS developed
software, and curated the data reducing the spectra and calculating the radial velocities. TAB, LS
and AHMT were involved in the inital investigation. ACMC and TAB derived the spin-induced
precession equations, and studied the orbital dynamics of the system. AHMJT and ACMC acquired
funding and performed validation. AHMJT supervised the work done. All authors contributed to
conceptualising the experiment and to the methodology used and the vizualisation of data and
results. The project administration was preformed by TAB and AHMJT. TAB wrote the majority
of the manuscript with all authors contributing.
23

Competing interests: There are no competing interests to declare.
Data and materials availability: All data needed to evaluate the conclusions in the paper are
present in the paper and/or the Supplementary Materials. The radial velocity data are included in
the manuscript in Tab. 2-3. The spectra are available on the ESO archive. The codes utilised in this
work are all publicly available.
kima: https://www.kima.science/
rebound: https://rebound.readthedocs.io/en/latest/
emcee: https://emcee.readthedocs.io/en/stable/

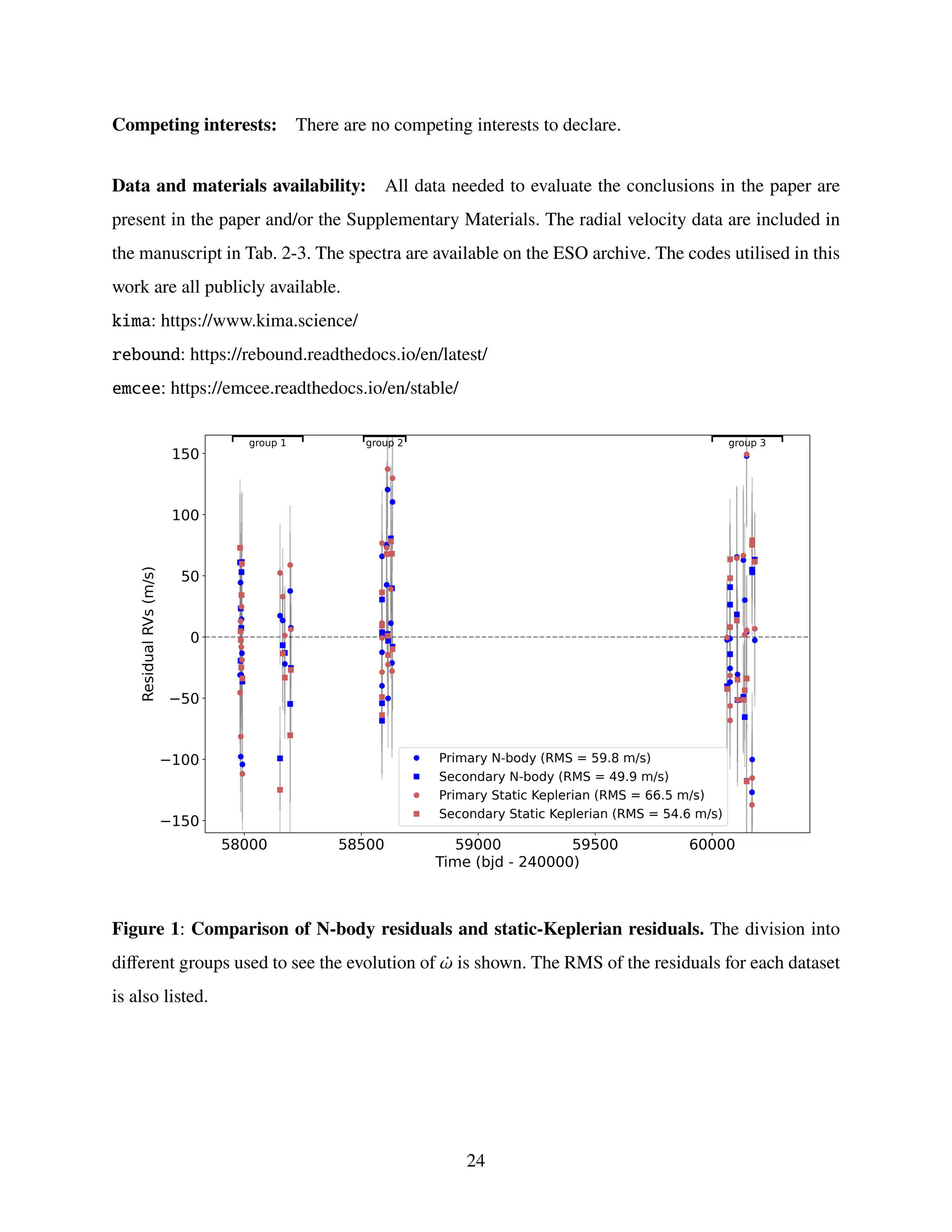

Figure 1: Comparison of N-body residuals and static-Keplerian residuals. The division into
different groups used to see the evolution of ¤
𝜔 is shown. The RMS of the residuals for each dataset
is also listed.
24

Figure 2: Independent analysis of primary and secondary radial velocity data. Panel A (left)
shows the lack of correlation between the residuals of the primary and secondary. Panel B (right)
shows the posterior distribution of ¤
𝜔 for the analyses of the primary, the secondary, and the full
dataset compared to the prior distribution.
25

Figure 3: Planet masses and periods Corner plot of Periods and masses consistent with the
induced precession rate from an N-body fit. Regions of sensitivity are shown for: 1) a three year
astrometric campaign with the VLT in blue and 2) two years of eclipse timing monitoring with 1
minute timing precision (as was achieved with SPECULOOS) in red.
26

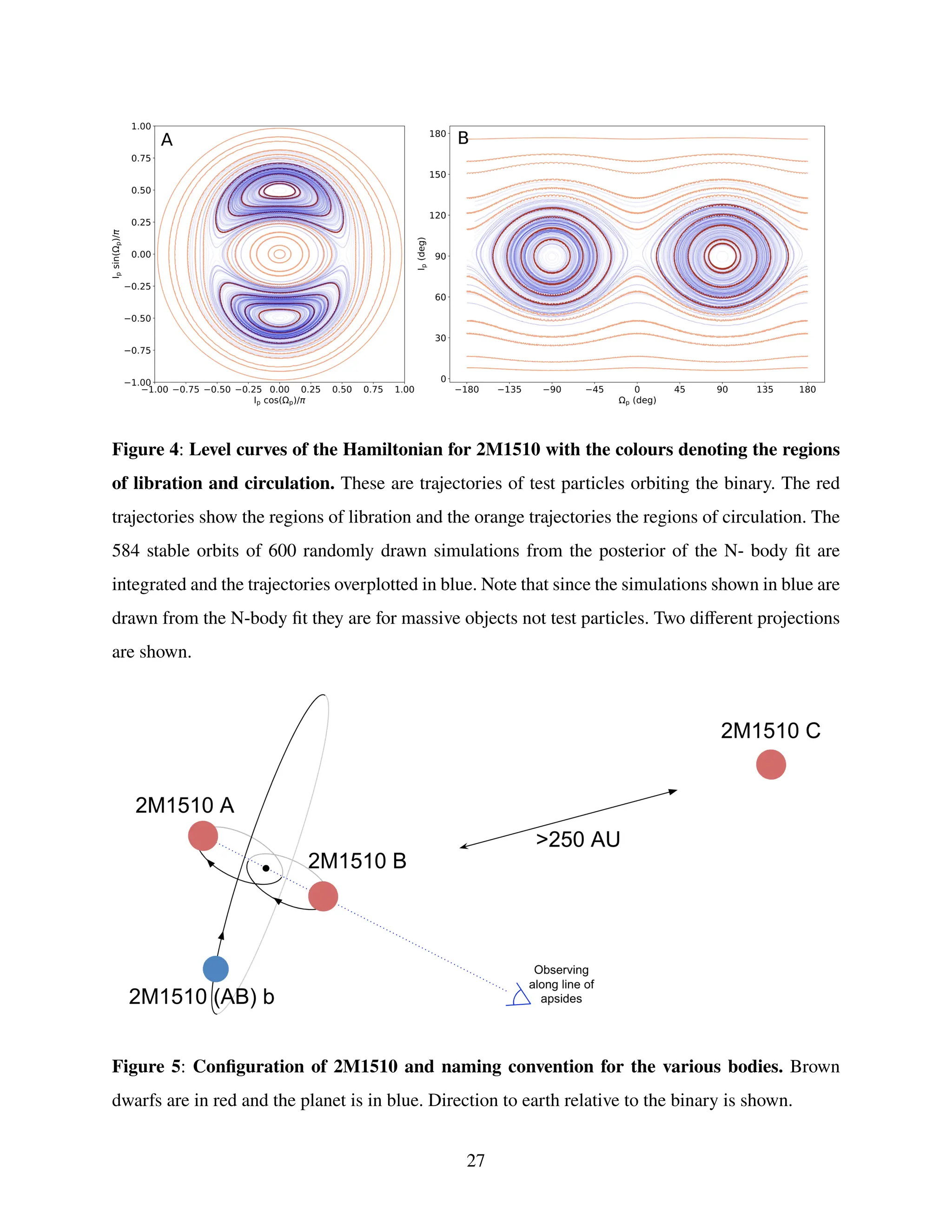

Figure 4: Level curves of the Hamiltonian for 2M1510 with the colours denoting the regions
of libration and circulation. These are trajectories of test particles orbiting the binary. The red
trajectories show the regions of libration and the orange trajectories the regions of circulation. The
584 stable orbits of 600 randomly drawn simulations from the posterior of the N- body fit are
integrated and the trajectories overplotted in blue. Note that since the simulations shown in blue are
drawn from the N-body fit they are for massive objects not test particles. Two different projections
are shown.
Figure 5: Configuration of 2M1510 and naming convention for the various bodies. Brown
dwarfs are in red and the planet is in blue. Direction to earth relative to the binary is shown.
27

Figure 6: Comparison of radial velocity reduction methods. Figure showing residuals relative
to the first epoch in m/s for the two stars, primary (circles) and secondary (squares). The blue points
represent the RVs measured using the DOLBY-SD method (this work) and the red circles represent
literature values from (27). Panel B (bottom) is a zoom-in of panel A (top) so that the uncertainties
on the DOLBY-SD data can be seen.
28

Table 1: Table of parameters for the binary brown dwarf. Parameters from both the Keplerian
(+precession) fit and from the n-body fit. 1𝜎 uncertainties are reported in brackets precise to the
last two significant digits. 1N-body fit parameters are osculating parameters at reference time bjd
2 458 984.600486. 2 Inclination value taken from (27). 3 Masses for keplerian fit are derived from
𝑃, 𝐾, 𝑒, and 𝑖.
Parameter units Keplerian fit N-body fit1
𝑃bin (days) 20.907495(88) 20.90769(28)
𝑒bin 0.36035(51) 0.35957(67)
𝜔bin (deg) 284.33(13) 284.36(11)
𝑇peri (BJD) 2 459 070.5568(73) 2 459 070.5601(70)
¤
𝜔bin (” yr−1) −343(126) —
𝑖bin (deg) 88.5(0.1)2 88.5(0.1)2
𝐾A (km s−1) 16.792(13) —
𝑞bin 1.0034(10) —
𝑀A (M⊙) 0.033104(68)3 0.033101(73)
𝑀B (M⊙) 0.033219(67)3 0.033212(69)
29

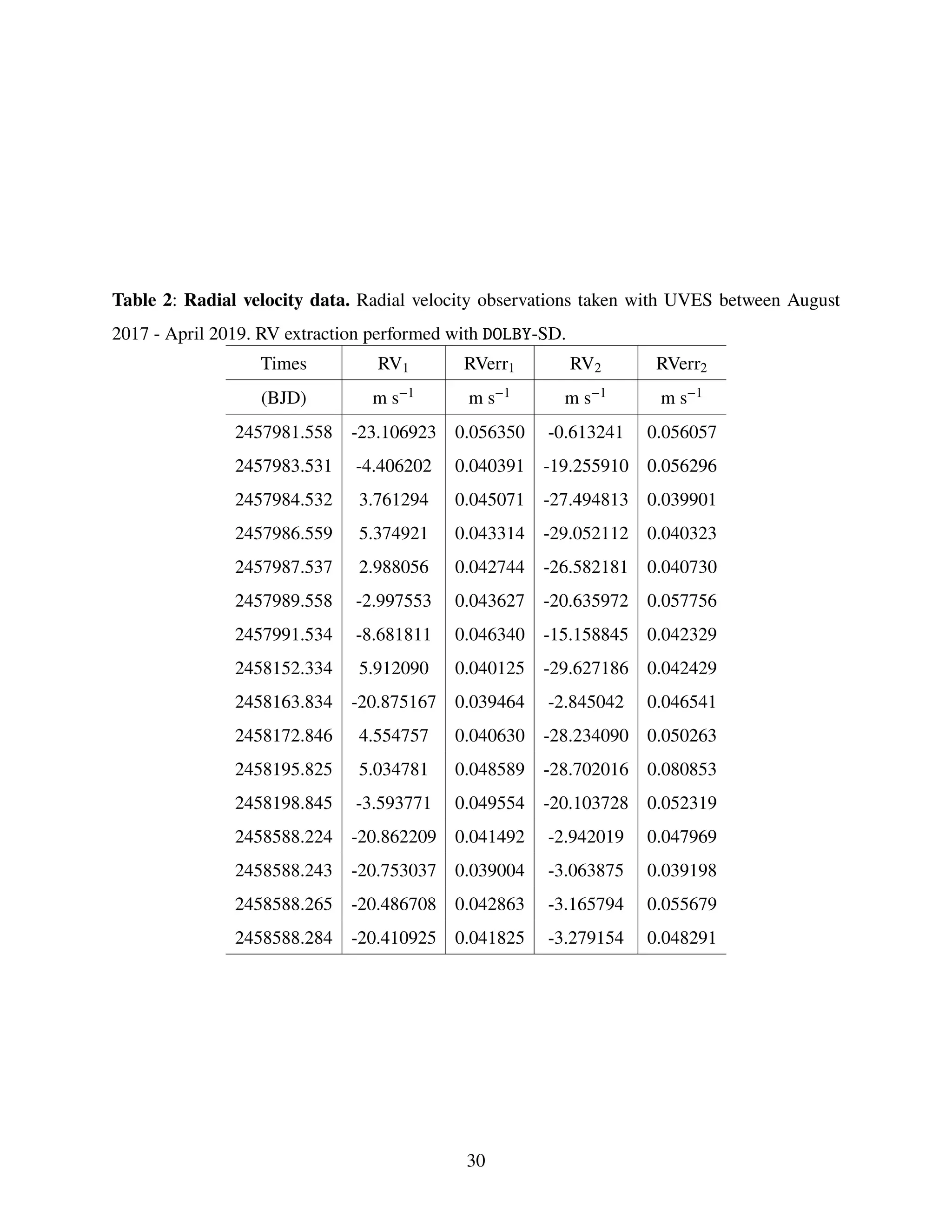

Table 2: Radial velocity data. Radial velocity observations taken with UVES between August
2017 - April 2019. RV extraction performed with DOLBY-SD.
Times RV1 RVerr1 RV2 RVerr2
(BJD) m s−1 m s−1 m s−1 m s−1
2457981.558 -23.106923 0.056350 -0.613241 0.056057
2457983.531 -4.406202 0.040391 -19.255910 0.056296
2457984.532 3.761294 0.045071 -27.494813 0.039901
2457986.559 5.374921 0.043314 -29.052112 0.040323
2457987.537 2.988056 0.042744 -26.582181 0.040730
2457989.558 -2.997553 0.043627 -20.635972 0.057756
2457991.534 -8.681811 0.046340 -15.158845 0.042329
2458152.334 5.912090 0.040125 -29.627186 0.042429
2458163.834 -20.875167 0.039464 -2.845042 0.046541
2458172.846 4.554757 0.040630 -28.234090 0.050263
2458195.825 5.034781 0.048589 -28.702016 0.080853
2458198.845 -3.593771 0.049554 -20.103728 0.052319
2458588.224 -20.862209 0.041492 -2.942019 0.047969
2458588.243 -20.753037 0.039004 -3.063875 0.039198
2458588.265 -20.486708 0.042863 -3.165794 0.055679
2458588.284 -20.410925 0.041825 -3.279154 0.048291
30

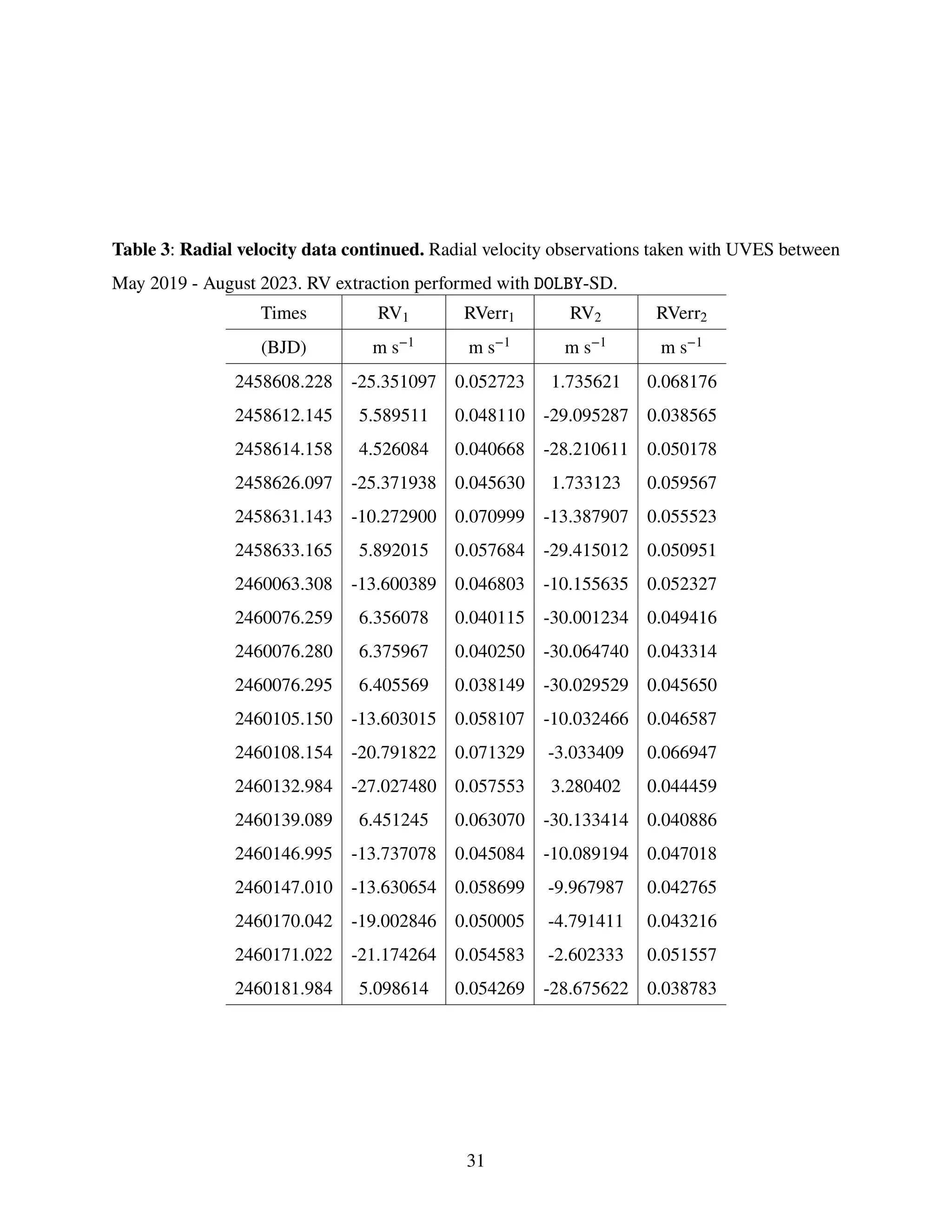

Table 3: Radial velocity data continued. Radial velocity observations taken with UVES between
May 2019 - August 2023. RV extraction performed with DOLBY-SD.
Times RV1 RVerr1 RV2 RVerr2
(BJD) m s−1 m s−1 m s−1 m s−1
2458608.228 -25.351097 0.052723 1.735621 0.068176
2458612.145 5.589511 0.048110 -29.095287 0.038565
2458614.158 4.526084 0.040668 -28.210611 0.050178
2458626.097 -25.371938 0.045630 1.733123 0.059567
2458631.143 -10.272900 0.070999 -13.387907 0.055523
2458633.165 5.892015 0.057684 -29.415012 0.050951
2460063.308 -13.600389 0.046803 -10.155635 0.052327
2460076.259 6.356078 0.040115 -30.001234 0.049416
2460076.280 6.375967 0.040250 -30.064740 0.043314
2460076.295 6.405569 0.038149 -30.029529 0.045650
2460105.150 -13.603015 0.058107 -10.032466 0.046587
2460108.154 -20.791822 0.071329 -3.033409 0.066947
2460132.984 -27.027480 0.057553 3.280402 0.044459
2460139.089 6.451245 0.063070 -30.133414 0.040886
2460146.995 -13.737078 0.045084 -10.089194 0.047018
2460147.010 -13.630654 0.058699 -9.967987 0.042765
2460170.042 -19.002846 0.050005 -4.791411 0.043216
2460171.022 -21.174264 0.054583 -2.602333 0.051557
2460181.984 5.098614 0.054269 -28.675622 0.038783
31

Evidence for a polar circumbinary exoplanet orbiting a pair of eclipsing brown dwarfs

More Related Content

Similar to Evidence for a polar circumbinary exoplanet orbiting a pair of eclipsing brown dwarfs

More from Sérgio Sacani

Recently uploaded

Evidence for a polar circumbinary exoplanet orbiting a pair of eclipsing brown dwarfs
