Event Driven Autoscaling using KEDA - MVP
The document discusses event-driven autoscaling in Kubernetes using KEDA, focusing on its architecture and capabilities for scaling applications based on external metrics. It emphasizes the compatibility with cloud-native designs and the variety of supported scale triggers, including RabbitMQ and Azure Event Hub. Additionally, KEDA allows applications to scale to zero, optimizing resource usage and costs.
More Related Content
Similar to Event Driven Autoscaling using KEDA - MVP
![Support, Monitoring, Continuous Improvement & Scaling Agentic Automation [3/3]](https://cdn.slidesharecdn.com/ss_thumbnails/agenticcommunityseries-day3-cfd-251120170304-ddef8112-thumbnail.jpg?width=640&height=640&fit=bounds)
Event Driven Autoscaling using KEDA - MVP
- 1. Event Driven Autoscaling using KEDA NileshGule @nileshgule
- 2. $whoami { “name” : “NileshGule”, “website” : “https://www.HandsOnArchitect.com", “github” : “https://GitHub.com/NileshGule" “twitter” : “@nileshgule”, “linkedin” : “https://www.linkedin.com/in/nileshgule”, “YouTube” : “https://www.YouTube.com/@nilesh-gule” “likes” : “Technical Evangelism, Cricket”, }

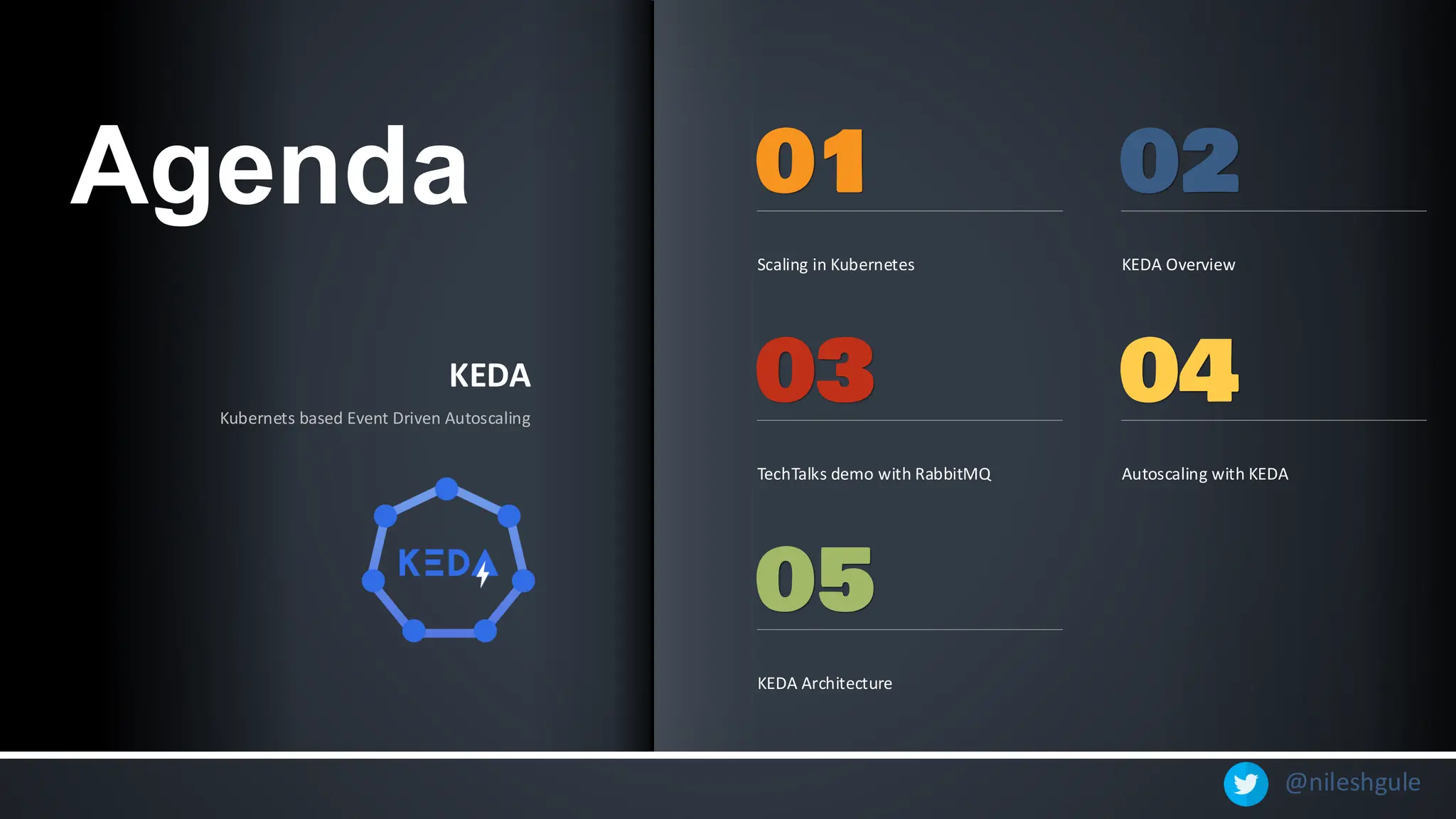

- 4. @nileshgule KEDA Kubernets based EventDriven Autoscaling Scaling in Kubernetes KEDA Overview TechTalks demo with RabbitMQ Autoscaling with KEDA KEDA Architecture Agenda

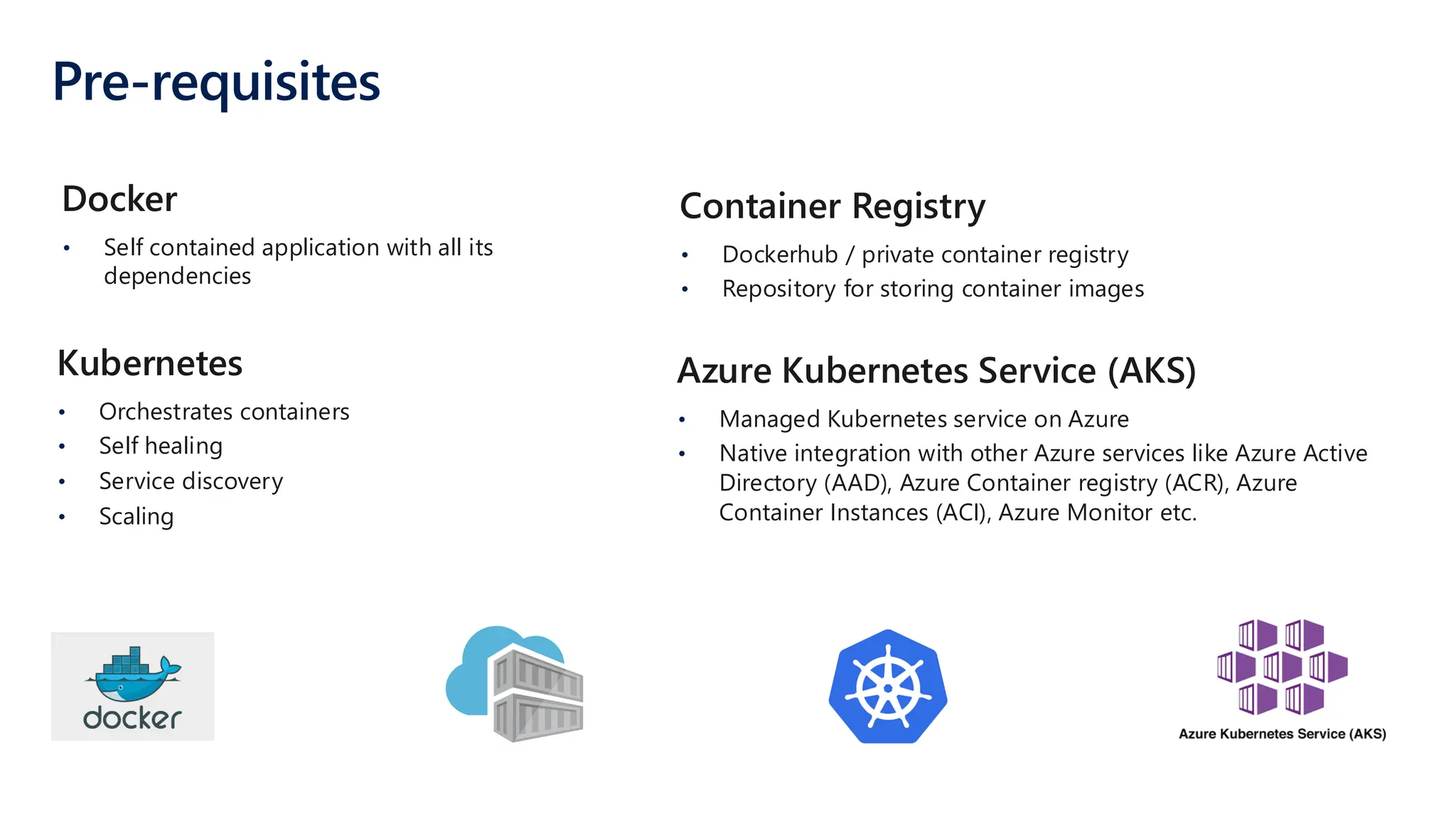

- 5. Pre-requisites • Self containedapplication with all its dependencies Docker • Orchestrates containers • Self healing • Service discovery • Scaling Kubernetes • Dockerhub / private container registry • Repository for storing container images Container Registry • Managed Kubernetes service on Azure • Native integration with other Azure services like Azure Active Directory (AAD), Azure Container registry (ACR), Azure Container Instances (ACI), Azure Monitor etc. Azure Kubernetes Service (AKS)

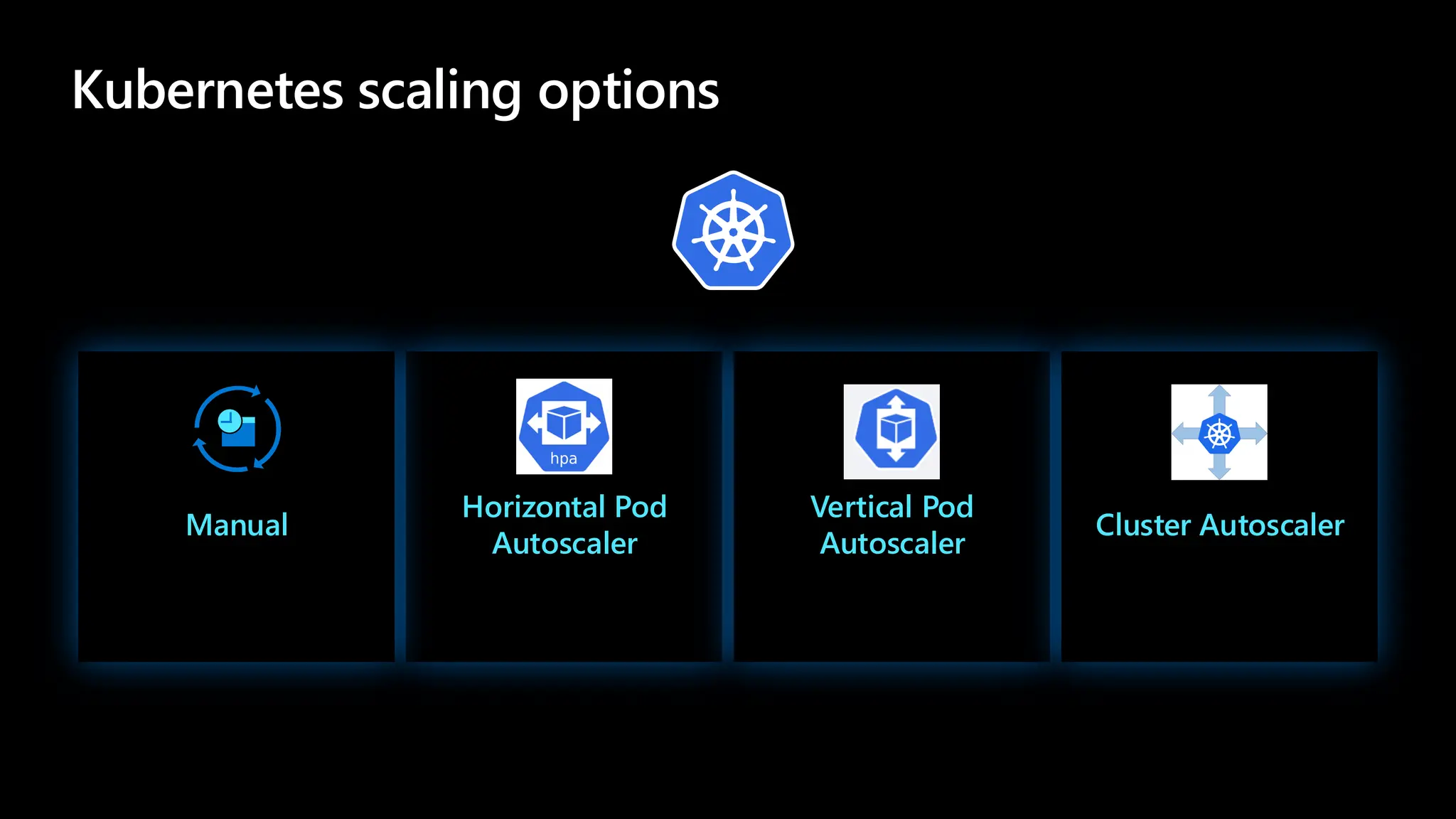

- 6. Kubernetes scaling options HorizontalPod Autoscaler Vertical Pod Autoscaler Cluster Autoscaler Manual

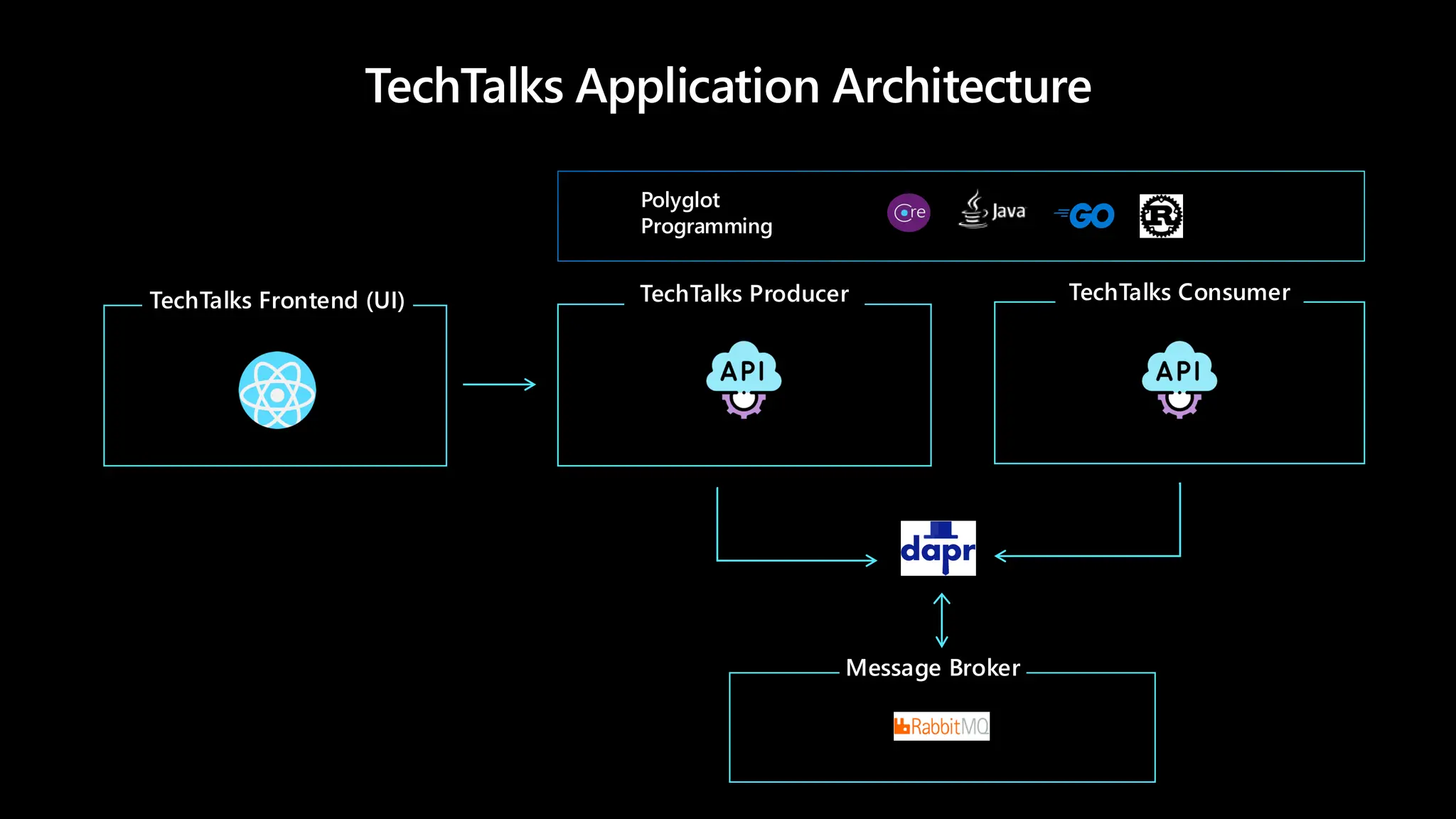

- 7. TechTalks Application Architecture TechTalksConsumer TechTalks Producer TechTalks Frontend (UI) Message Broker Polyglot Programming
- 8.
- 9.

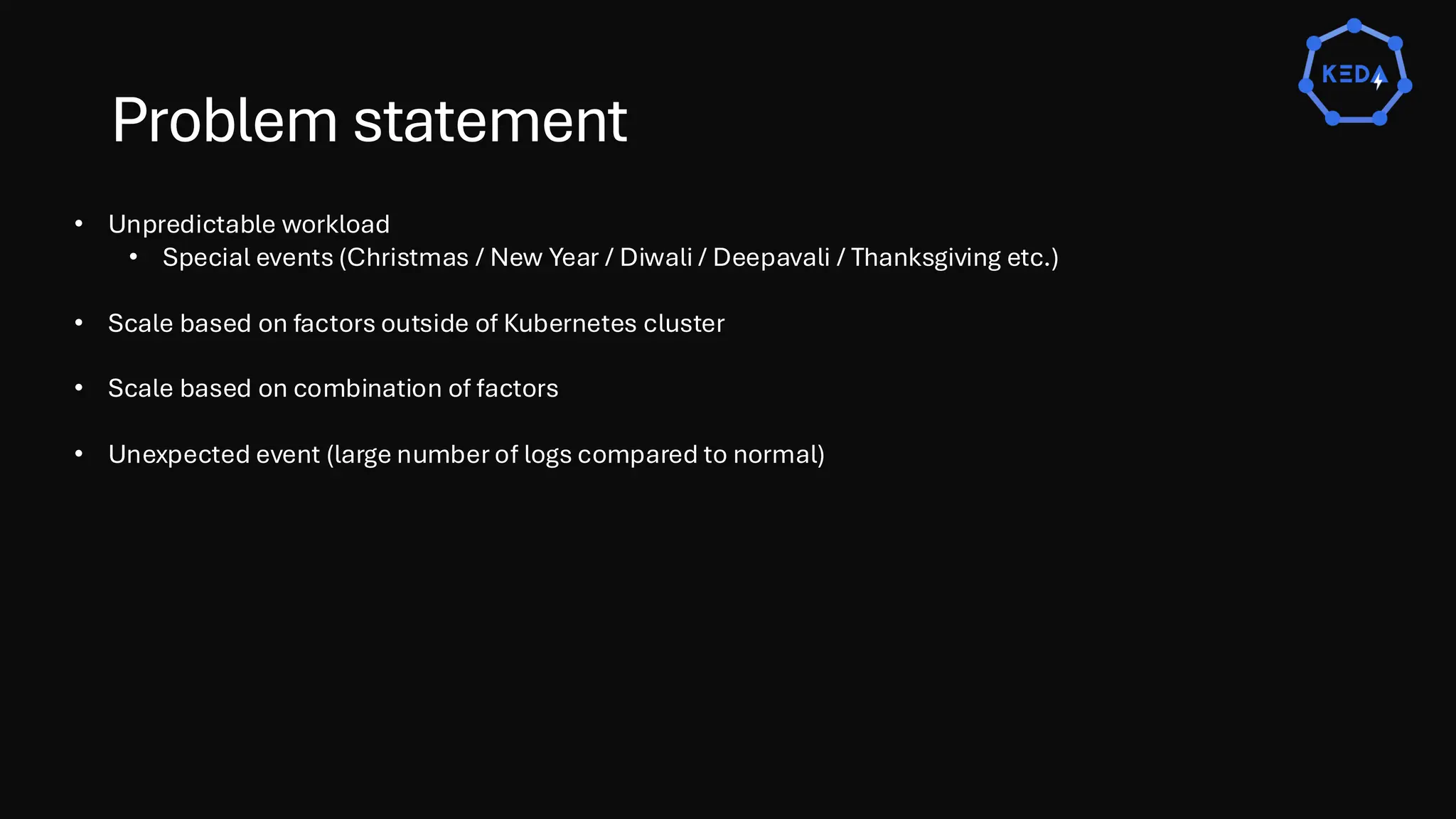

- 10. Problem statement • Unpredictableworkload • Special events (Christmas / New Year / Diwali / Deepavali / Thanksgiving etc.) • Scale based on factors outside of Kubernetes cluster • Scale based on combination of factors • Unexpected event (large number of logs compared to normal)
- 11. @nileshgule Demo KEDA inaction
- 12.
- 13.

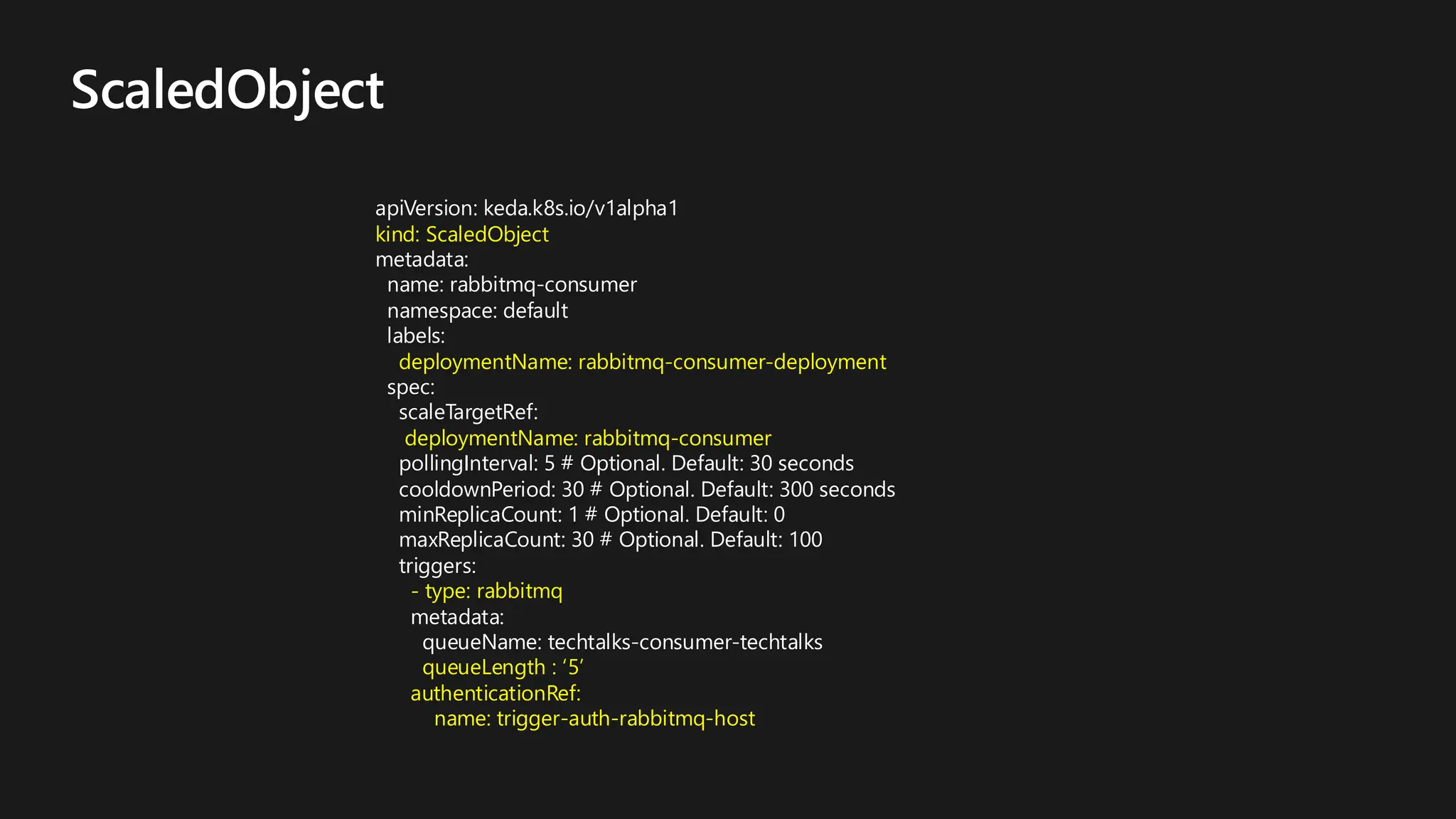

- 14. ScaledObject apiVersion: keda.k8s.io/v1alpha1 kind: ScaledObject metadata: name:rabbitmq-consumer namespace: default labels: deploymentName: rabbitmq-consumer-deployment spec: scaleTargetRef: deploymentName: rabbitmq-consumer pollingInterval: 5 # Optional. Default: 30 seconds cooldownPeriod: 30 # Optional. Default: 300 seconds minReplicaCount: 1 # Optional. Default: 0 maxReplicaCount: 30 # Optional. Default: 100 triggers: - type: rabbitmq metadata: queueName: techtalks-consumer-techtalks queueLength : ‘5’ authenticationRef: name: trigger-auth-rabbitmq-host
- 15.

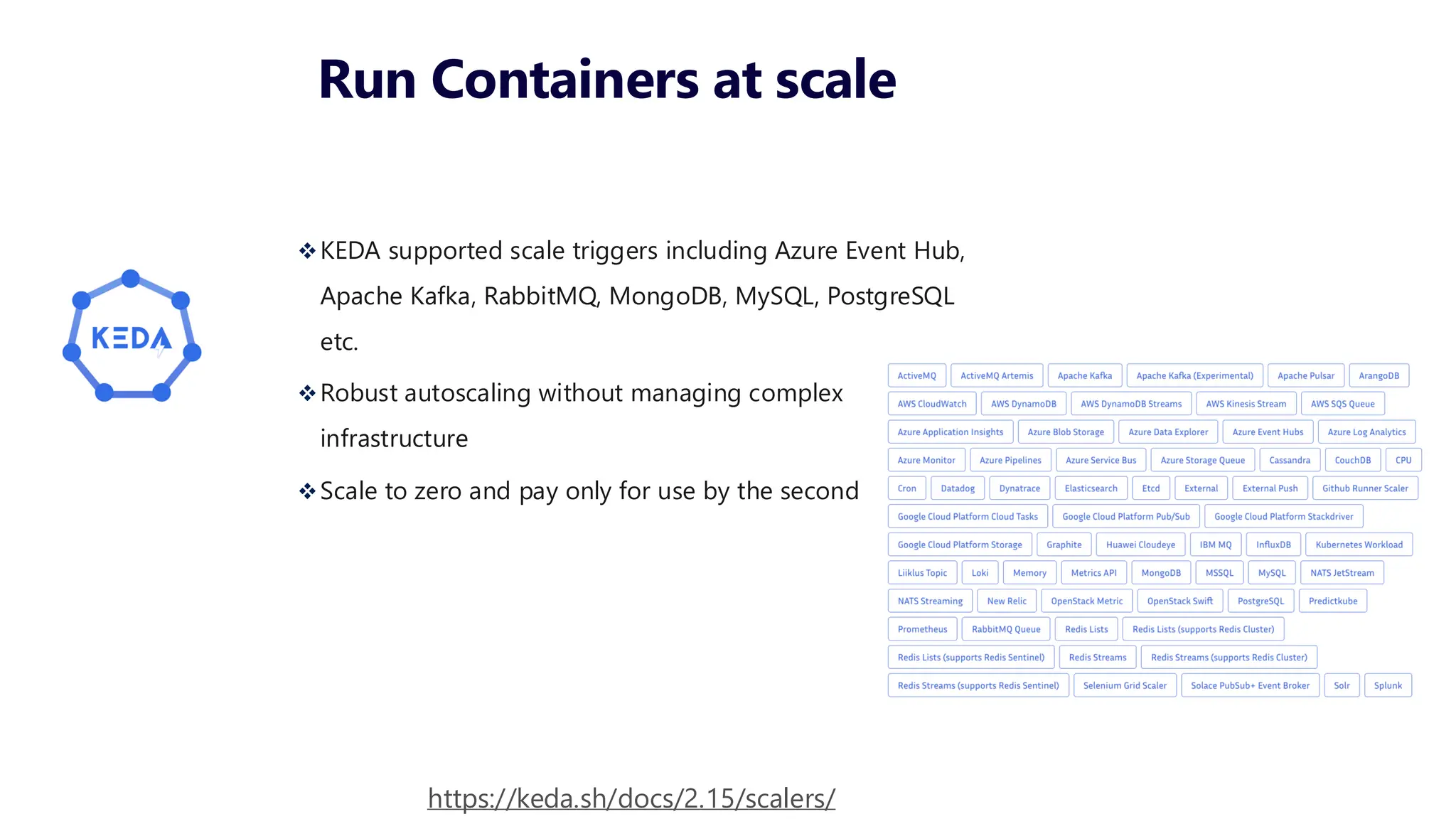

- 16. Run Containers atscale ❖KEDA supported scale triggers including Azure Event Hub, Apache Kafka, RabbitMQ, MongoDB, MySQL, PostgreSQL etc. ❖Robust autoscaling without managing complex infrastructure ❖Scale to zero and pay only for use by the second https://keda.sh/docs/2.15/scalers/

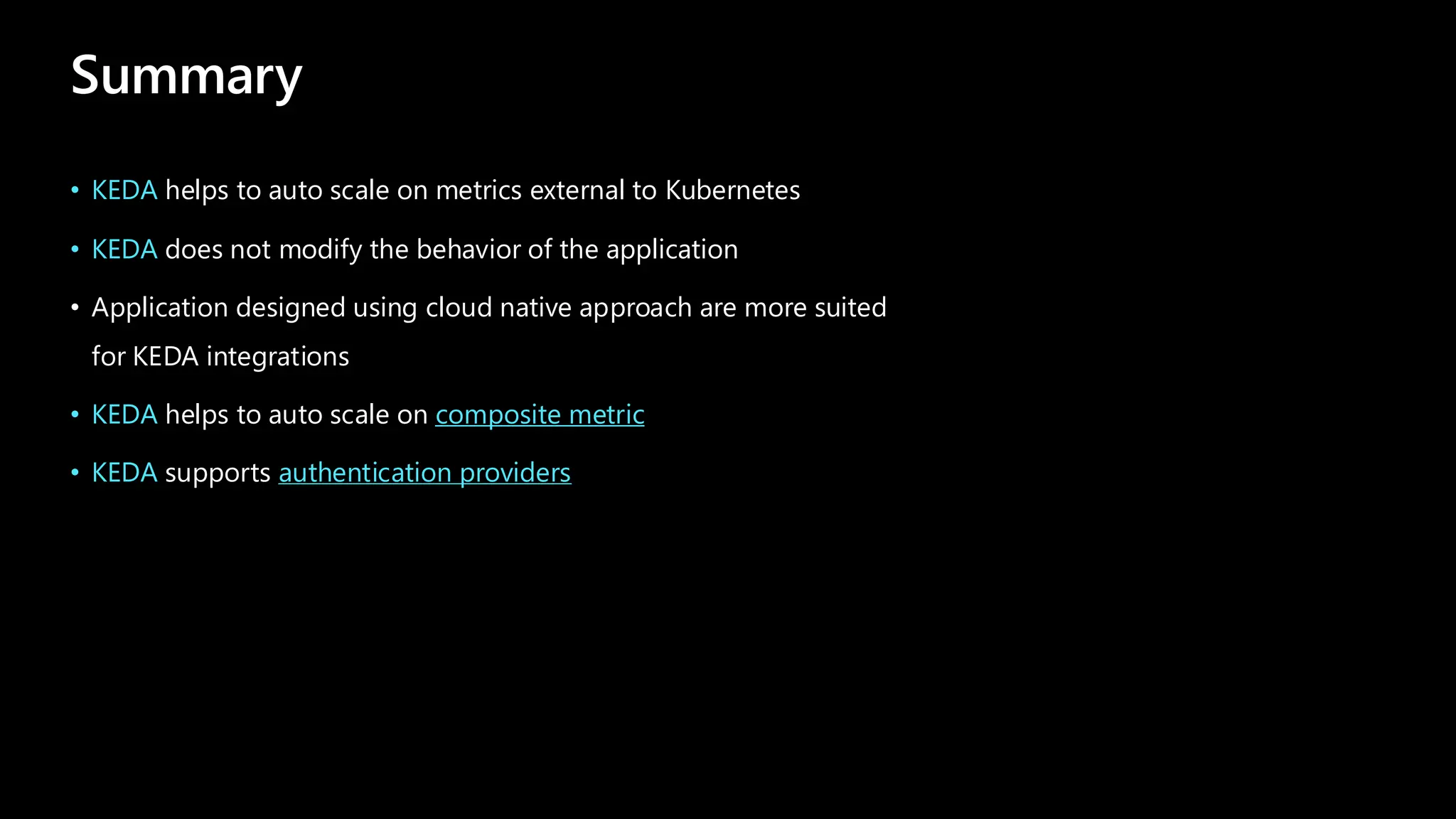

- 17. Summary • KEDA helpsto auto scale on metrics external to Kubernetes • KEDA does not modify the behavior of the application • Application designed using cloud native approach are more suited for KEDA integrations • KEDA helps to auto scale on composite metric • KEDA supports authentication providers

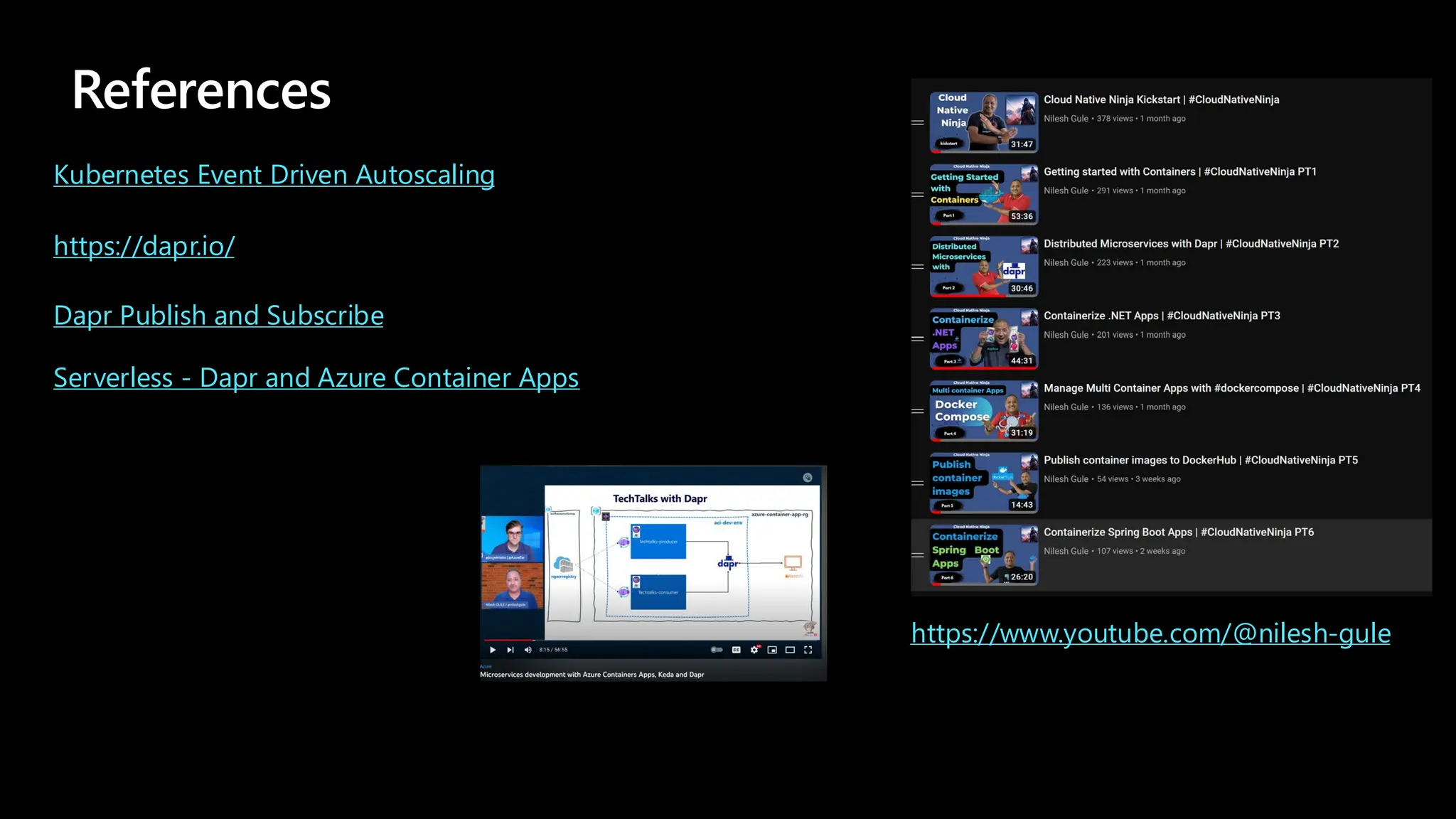

- 18. References https://www.youtube.com/@nilesh-gule https://dapr.io/ Dapr Publish andSubscribe Kubernetes Event Driven Autoscaling Serverless - Dapr and Azure Container Apps

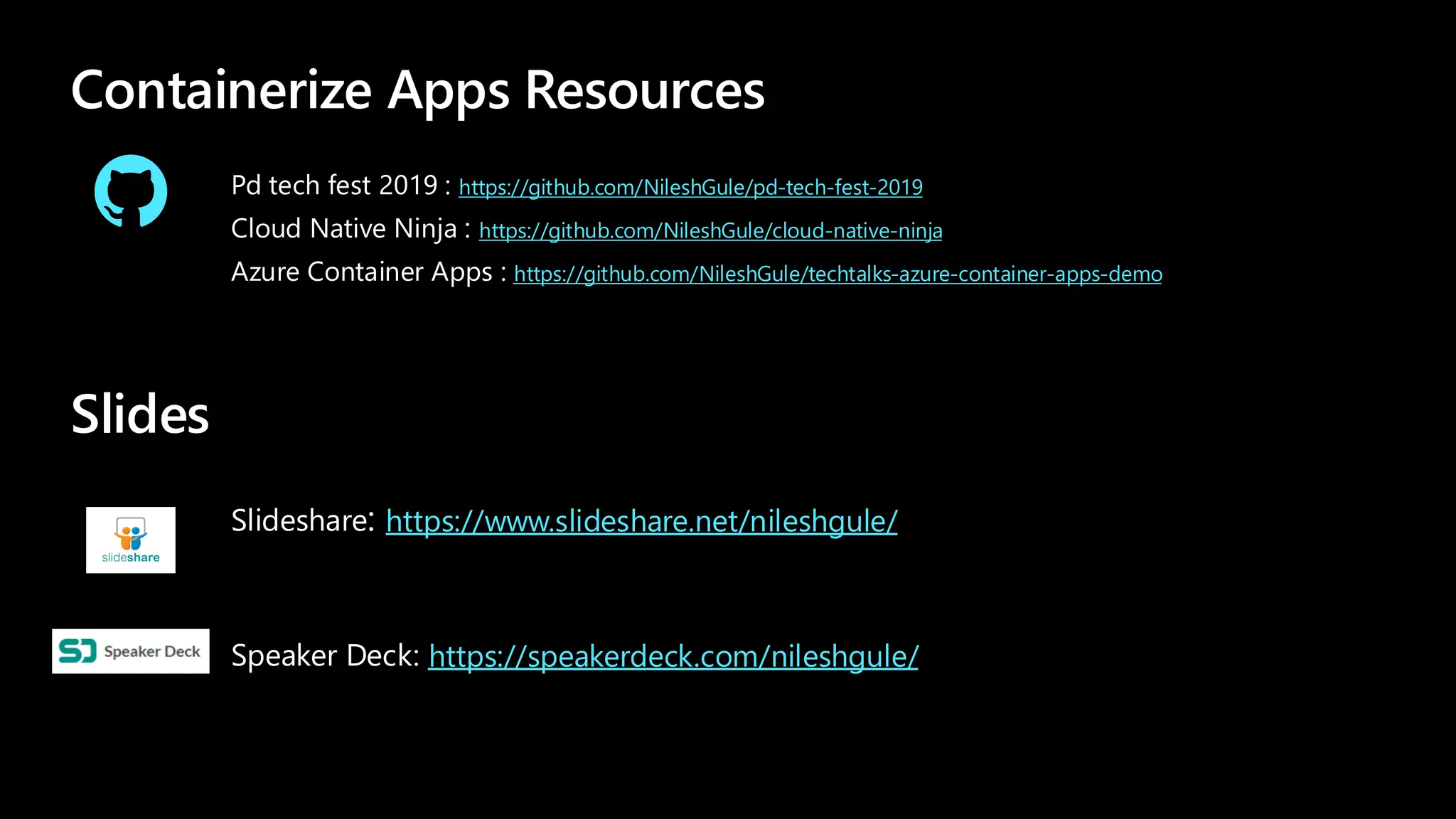

- 19. Containerize Apps Resources https://github.com/NileshGule/pd-tech-fest-2019 https://github.com/NileshGule/cloud-native-ninja https://github.com/NileshGule/techtalks-azure-container-apps-demo Pdtech fest 2019 : https://github.com/NileshGule/pd-tech-fest-2019 Cloud Native Ninja : https://github.com/NileshGule/cloud-native-ninja Azure Container Apps : https://github.com/NileshGule/techtalks-azure-container-apps-demo Slides https://www.slideshare.net/nileshgule/ Slideshare: https://www.slideshare.net/nileshgule/ https://speakerdeck.com/nileshgule/ Speaker Deck: https://speakerdeck.com/nileshgule/
- 20. Nilesh Gule ARCHITECT |MICROSOFT MVP “Code with Passion and Strive for Excellence” nileshgule @nileshgule Nilesh Gule NileshGule www.handsonarchitect.com https://www.youtube.com/@nilesh-gule
- 21.
