Design and Implement Azure Web Apps
The document provides an overview of Azure App Service, a platform-as-a-service offering by Microsoft, detailing its benefits, deployment models, and configuration options for web applications. It covers concepts like app service plans, deployment slots for testing, and the scaling of web apps. The document also includes demonstrations on deploying and configuring web apps within Azure.
More Related Content
![[White/Himmelstein] Bridge the Cloud Divide with Hybrid Business Intelligence](https://cdn.slidesharecdn.com/ss_thumbnails/hucbm6lpsnmb7lx8kjb7-signature-d4523b3bf020616e67040d2a940ba8bf9aeab187b20da49956548f98de22ea12-poli-180606121948-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Design and Implement Azure Web Apps
Design and Implement Azure Web Apps
- 1. Design and ImplementAzure Web App C# Corner Bangalore Chapter Meet Ayush Rathi DEVELOPER | DESIGNER | TRAINER @ayushrathi15 AyushRathi.com
- 2. Hybrid • App ServiceOverview • App Service Plan • Deploying Web Apps • Defining Deployment Slots • Configuring Web Apps • Scaling Web Apps

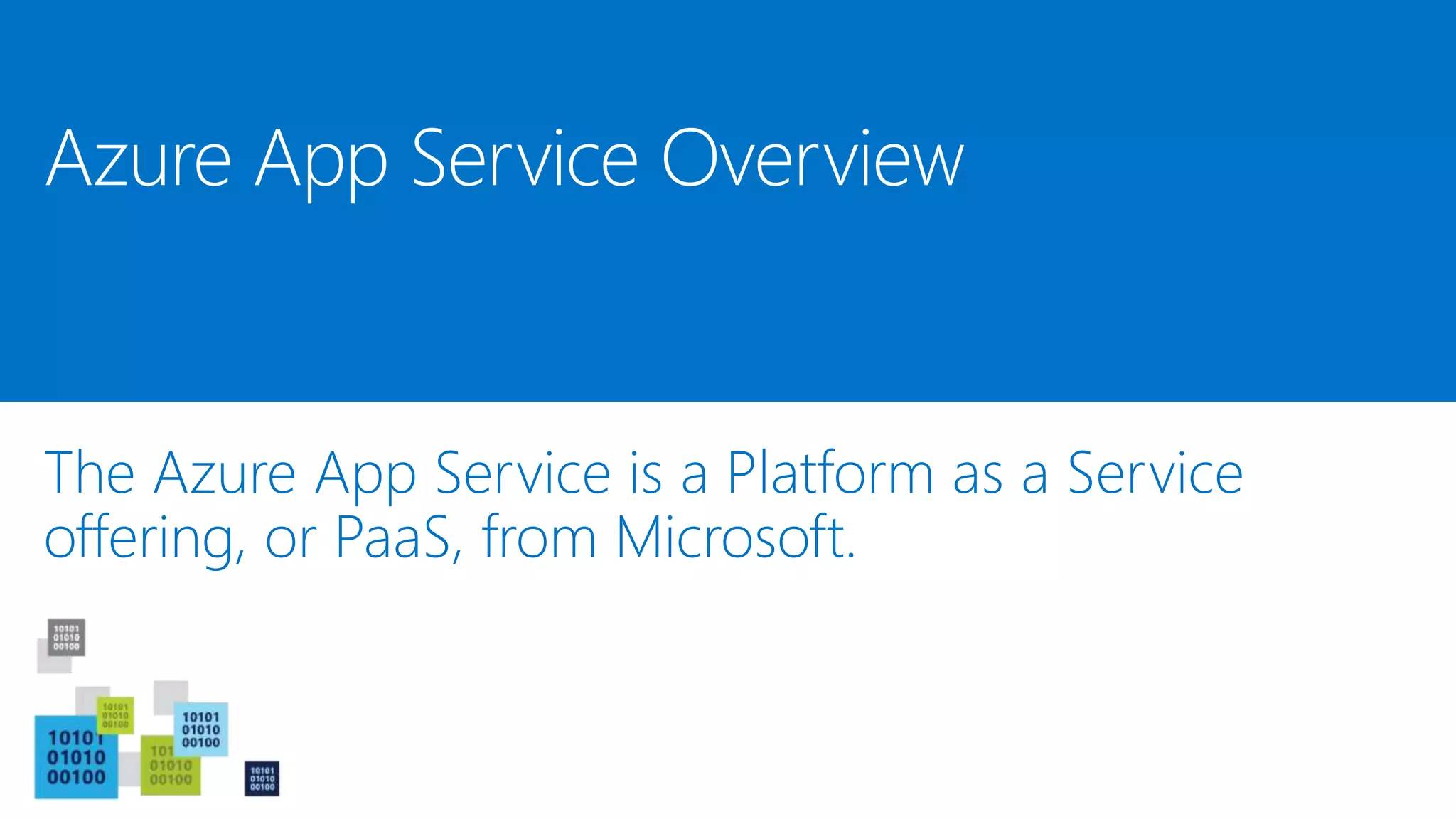

- 3. The Azure AppService is a Platform as a Service offering, or PaaS, from Microsoft. Azure App Service Overview

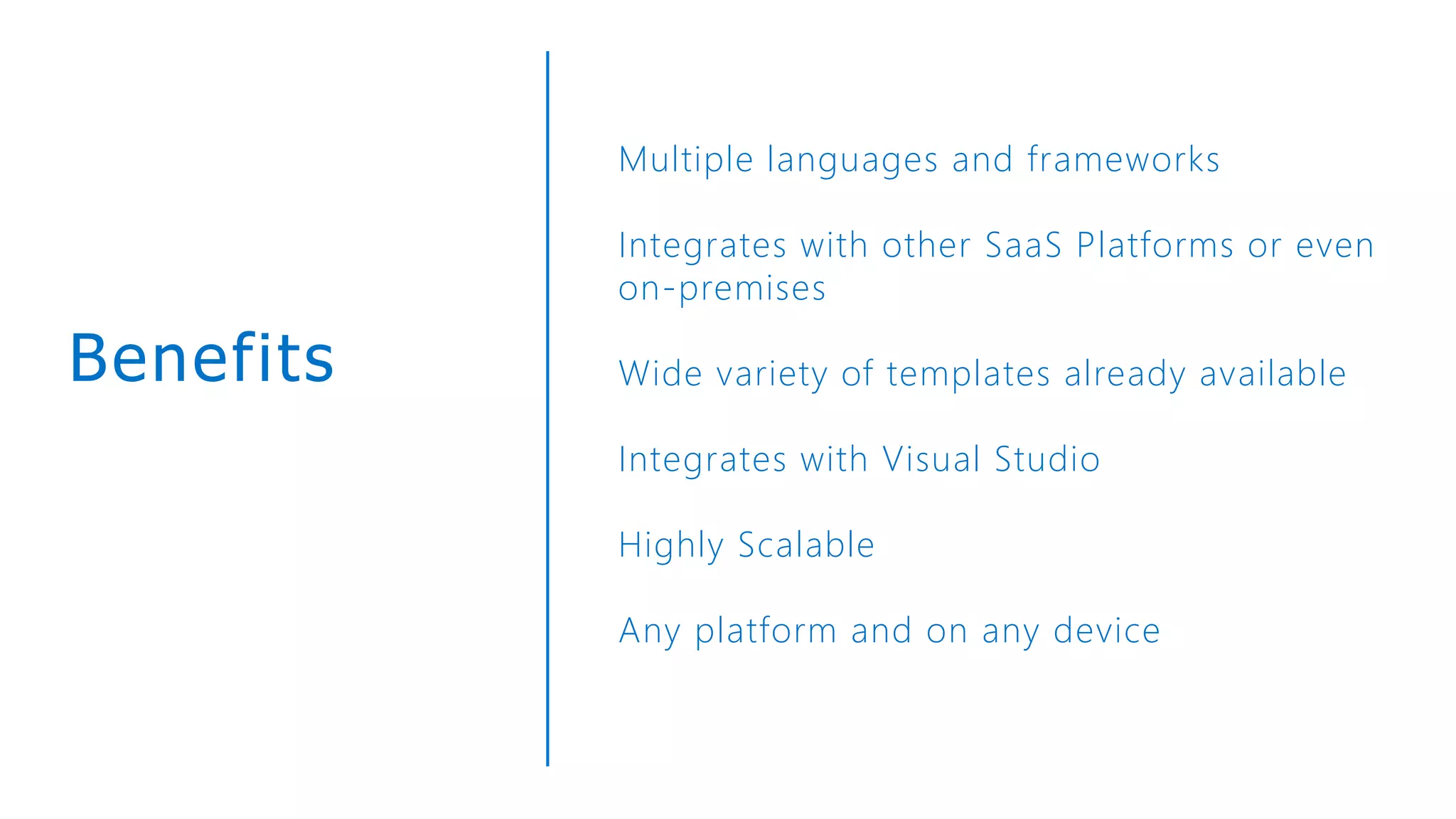

- 4. Benefits Multiple languages andframeworks Integrates with other SaaS Platforms or even on-premises Wide variety of templates already available Integrates with Visual Studio Highly Scalable Any platform and on any device

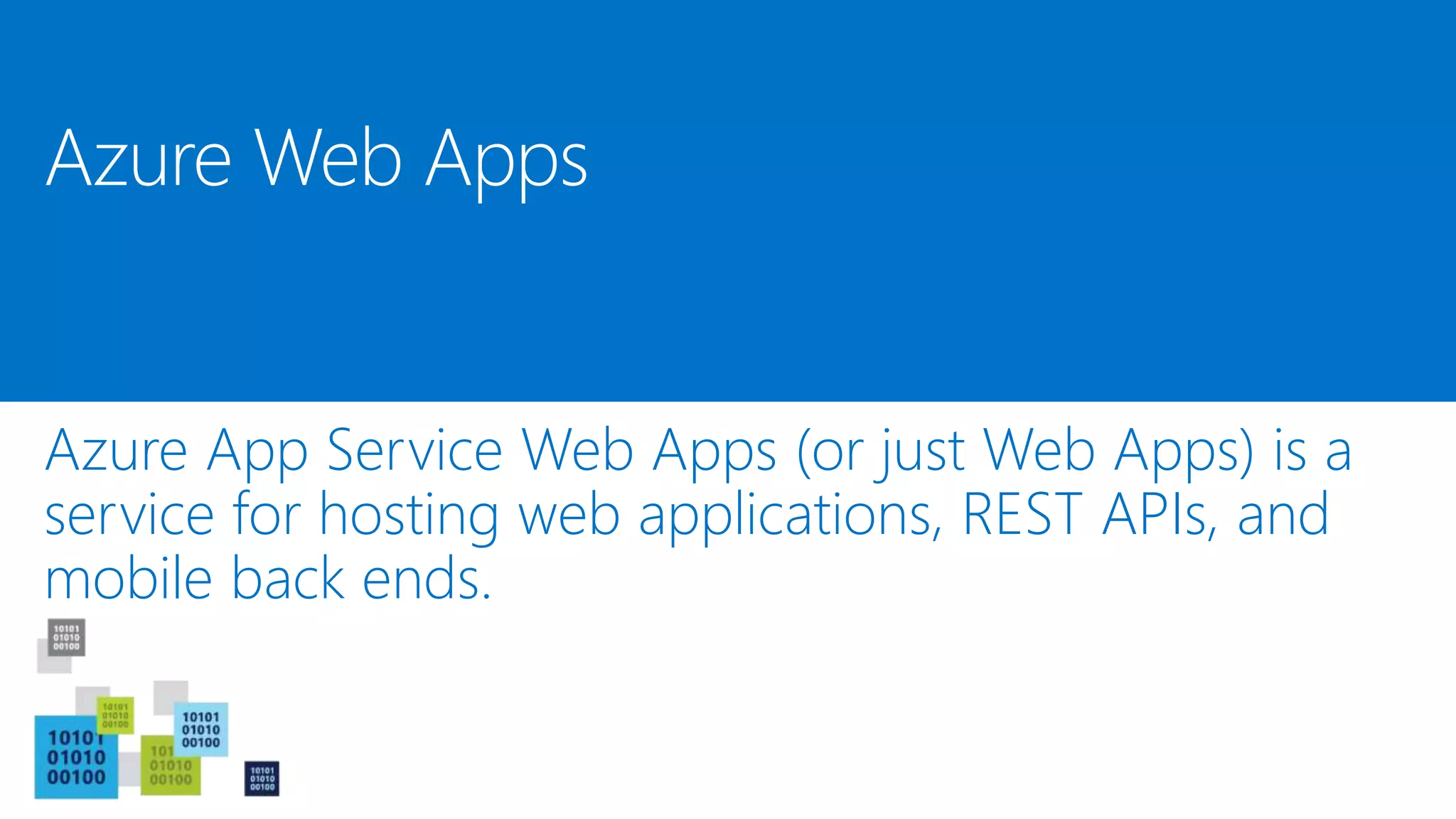

- 5. Azure App ServiceWeb Apps (or just Web Apps) is a service for hosting web applications, REST APIs, and mobile back ends. Azure Web Apps
- 6.

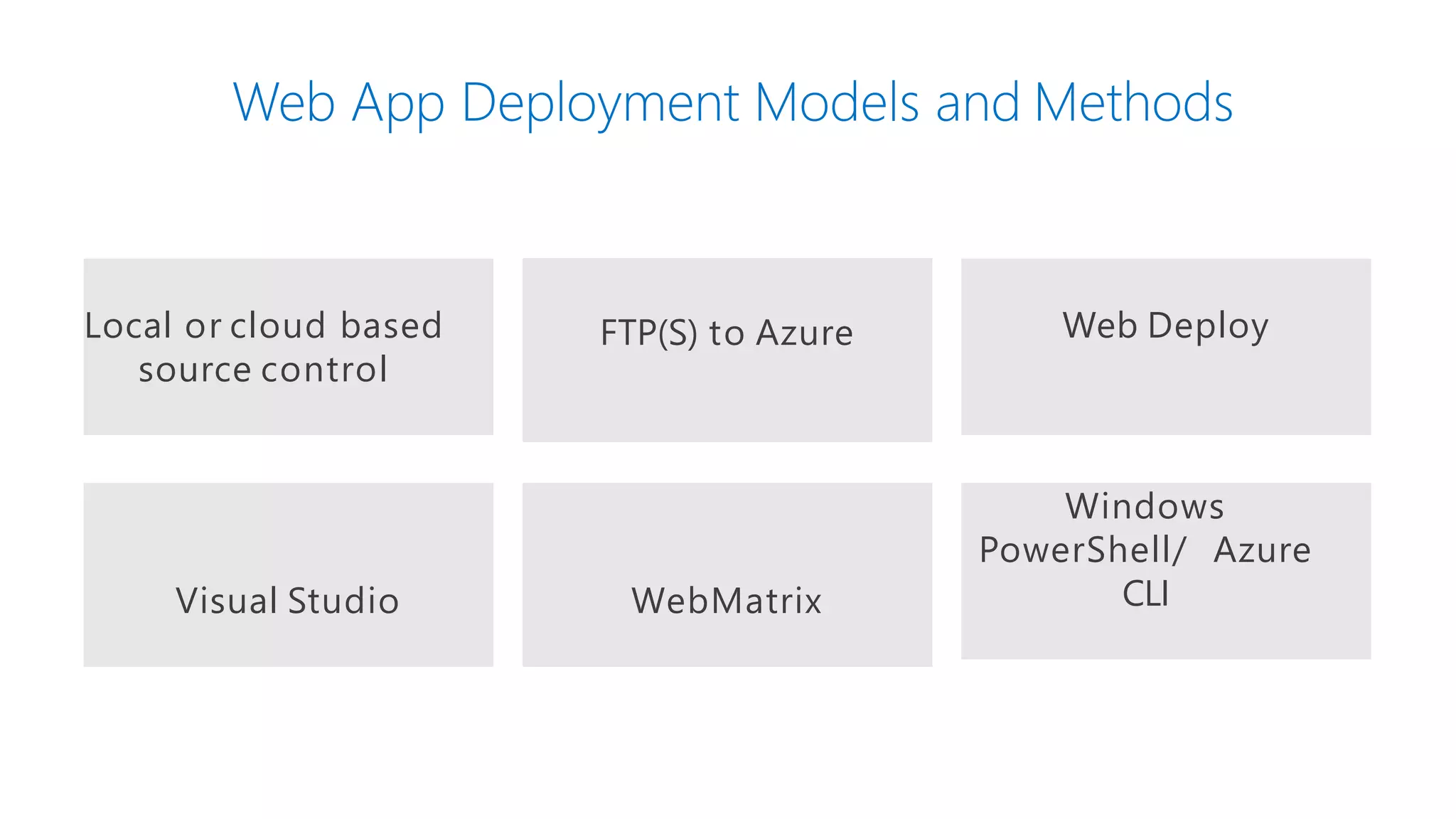

- 7. Windows PowerShell/ Azure CLIWebMatrixVisual Studio WebDeployFTP(S) to AzureLocal or cloud based source control Web App Deployment Models and Methods
- 8. App Service Plan •Every app needs to be associated to an app service plan. • An App Service plan defines a set of compute resources for a web app to run.
- 9. App Service Plans Freeand shared • Test and dev Basic • Low traffic, manual scaling, 3 instances Standard • Production apps, auto-scaling and backup, 10 instances Premium • Can use App Service Environments (ASE), 20 instances
- 10.

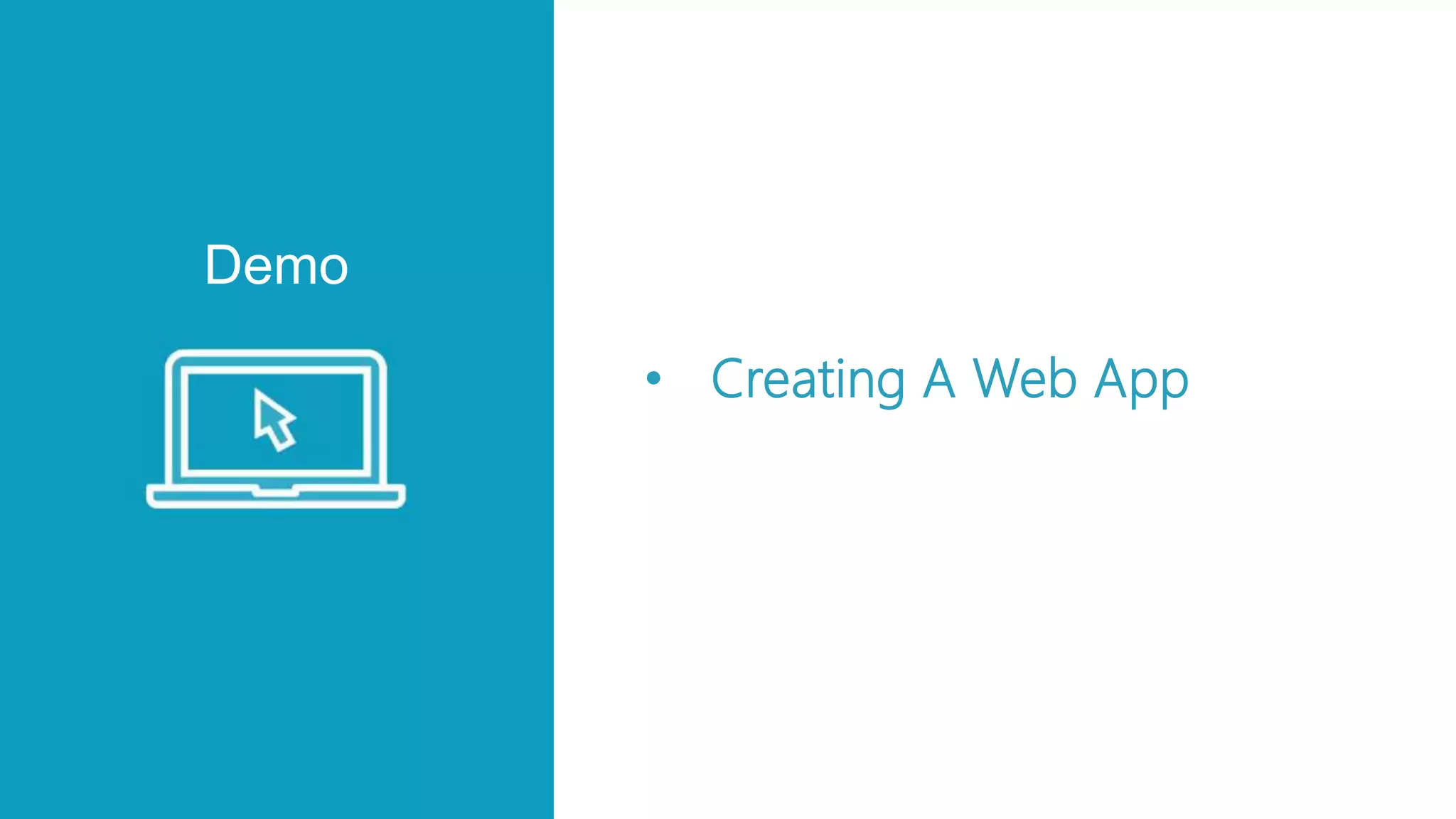

- 11. Demo • Creating AWeb App

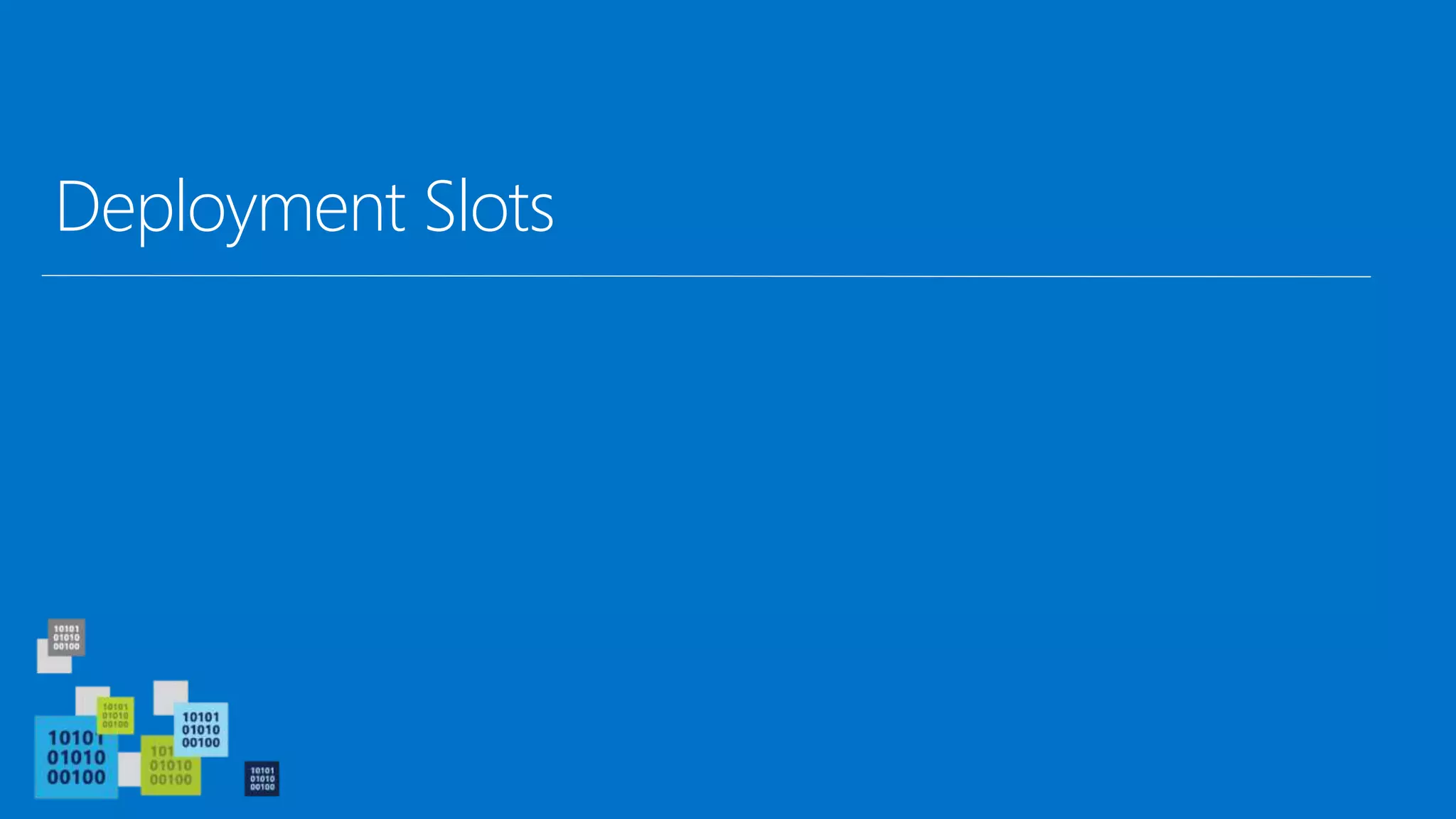

- 12.

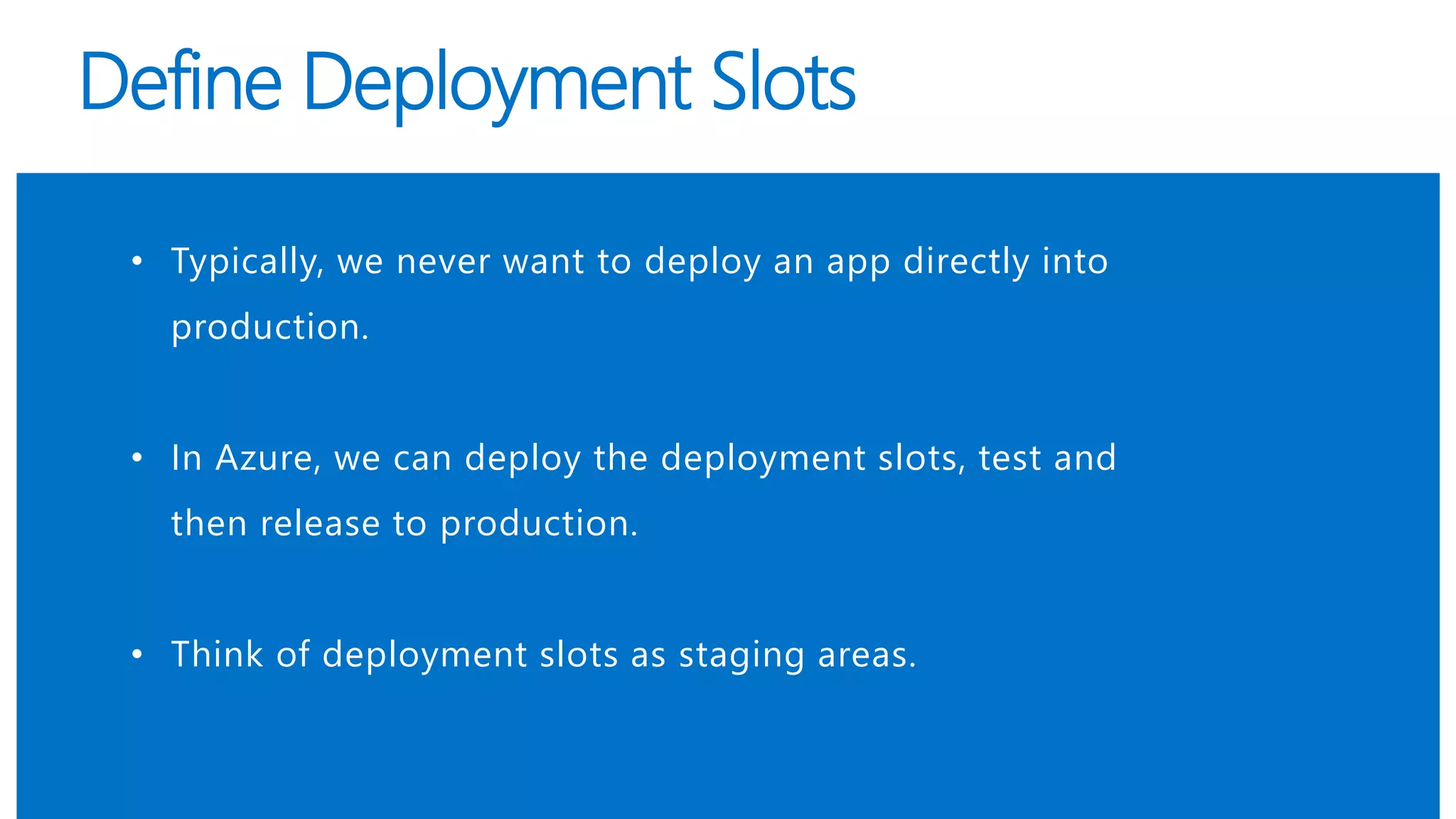

- 13. Define Deployment Slots •Typically, we never want to deploy an app directly into production. • In Azure, we can deploy the deployment slots, test and then release to production. • Think of deployment slots as staging areas.

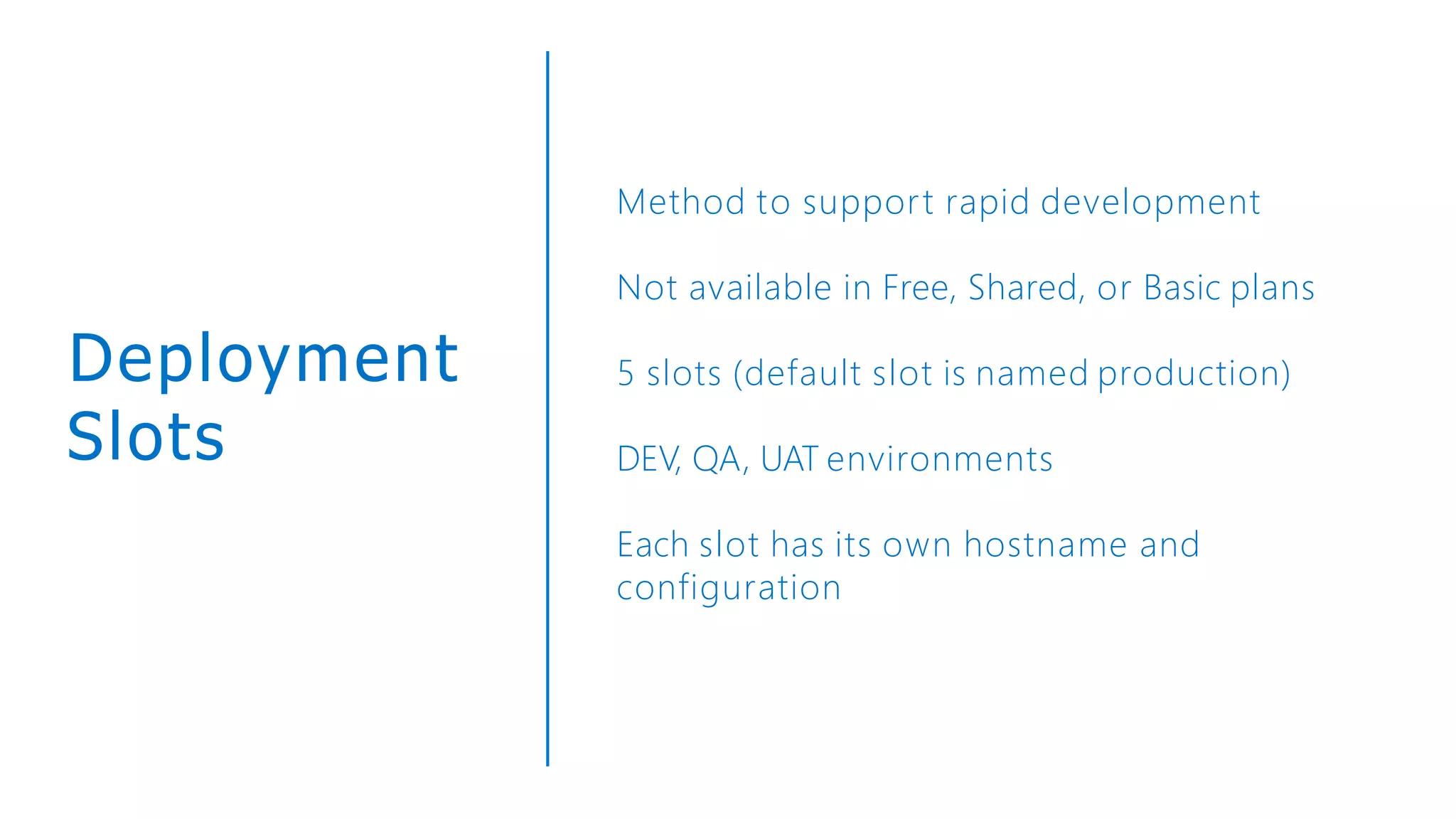

- 14. Deployment Slots Method to supportrapid development Not available in Free, Shared, or Basic plans 5 slots (default slot is named production) DEV, QA, UAT environments Each slot has its own hostname and configuration

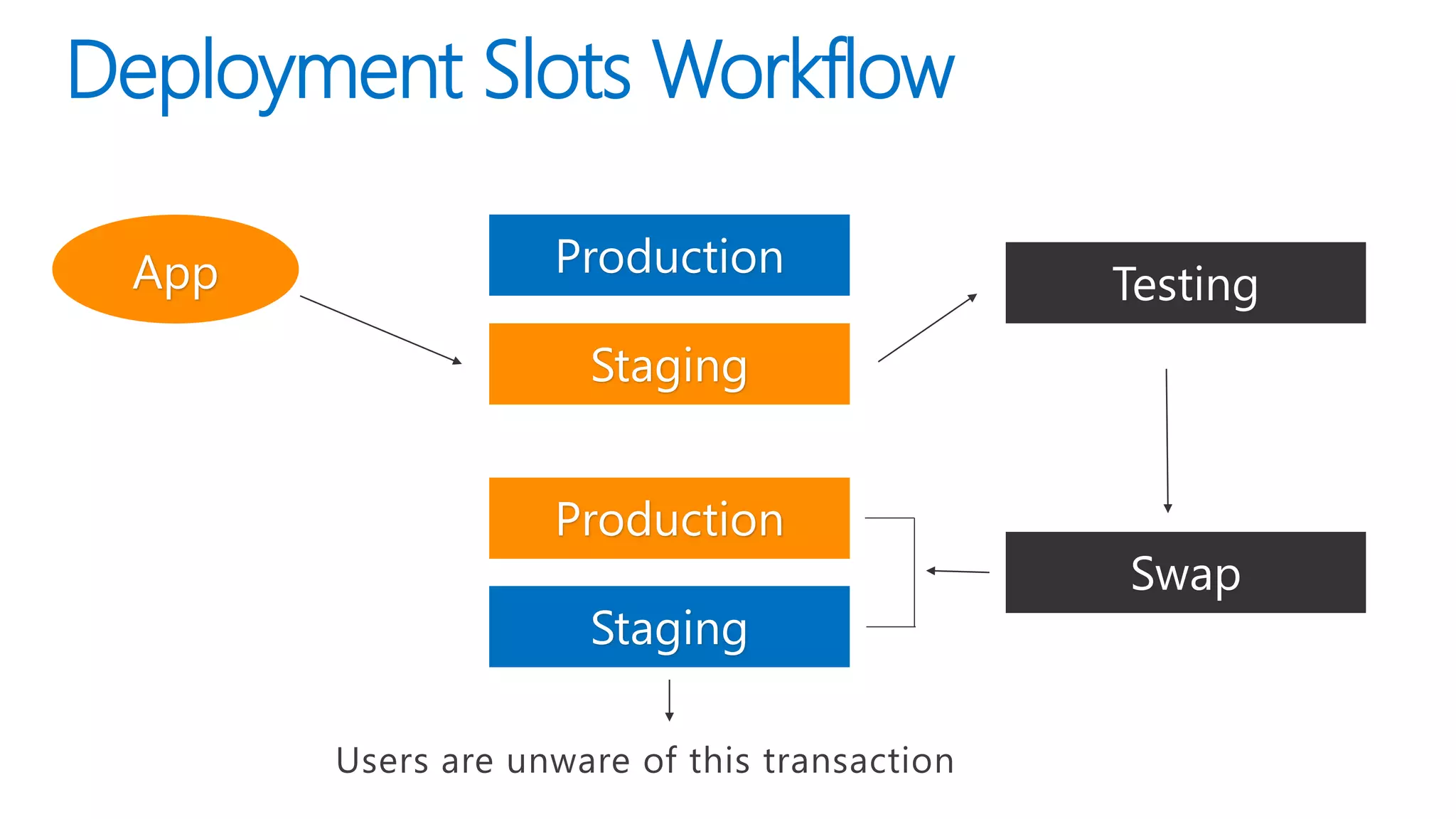

- 15. Deployment Slots Workflow AppProduction Staging Testing Production Staging Swap Users are unware of this transaction

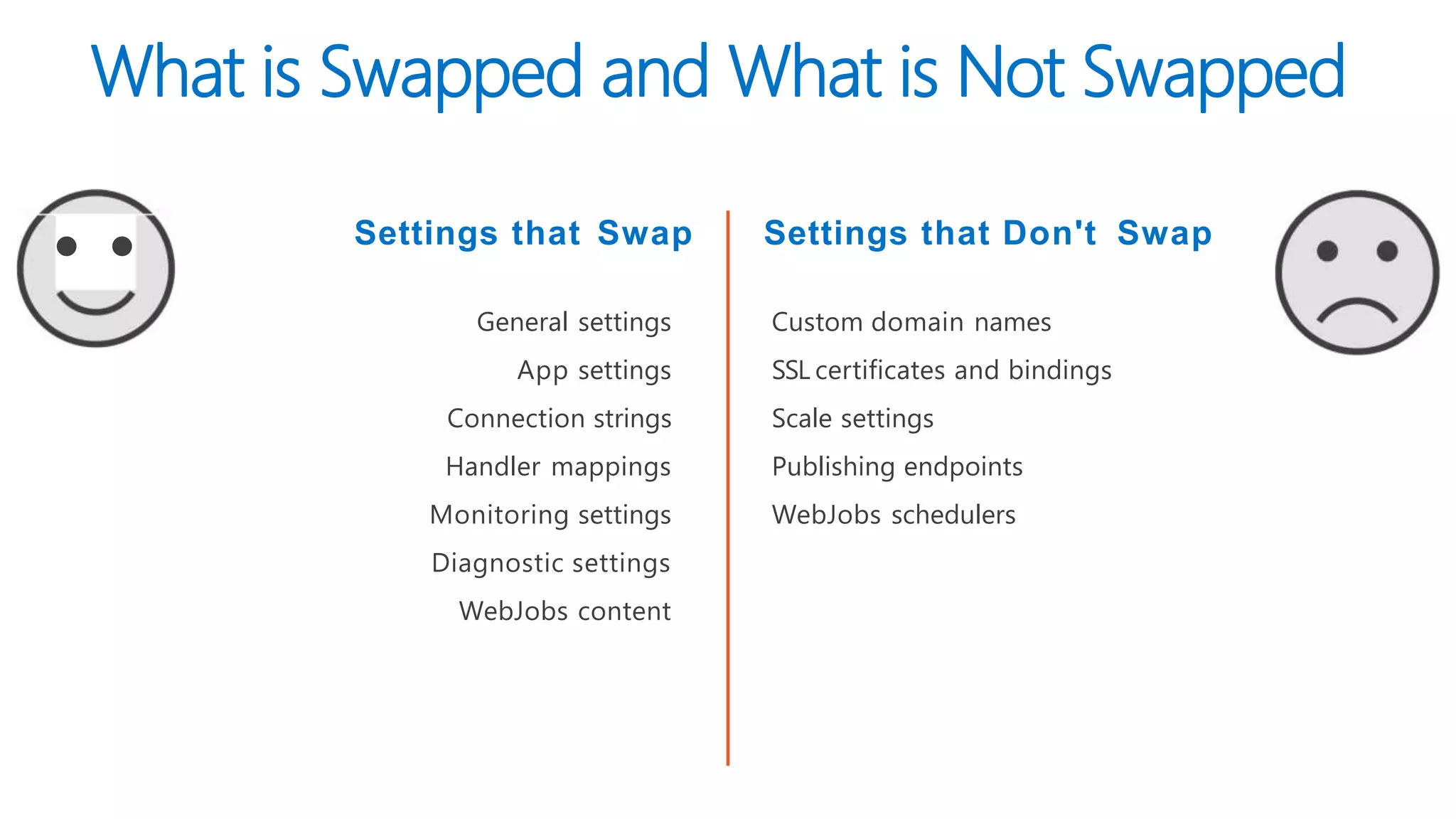

- 16. • • Settingsthat Swap Settings that Don't Swap What is Swapped and What is Not Swapped General settings App settings Connection strings Handler mappings Monitoring settings Diagnostic settings WebJobs content Custom domain names SSL certificates and bindings Scale settings Publishing endpoints WebJobs schedulers

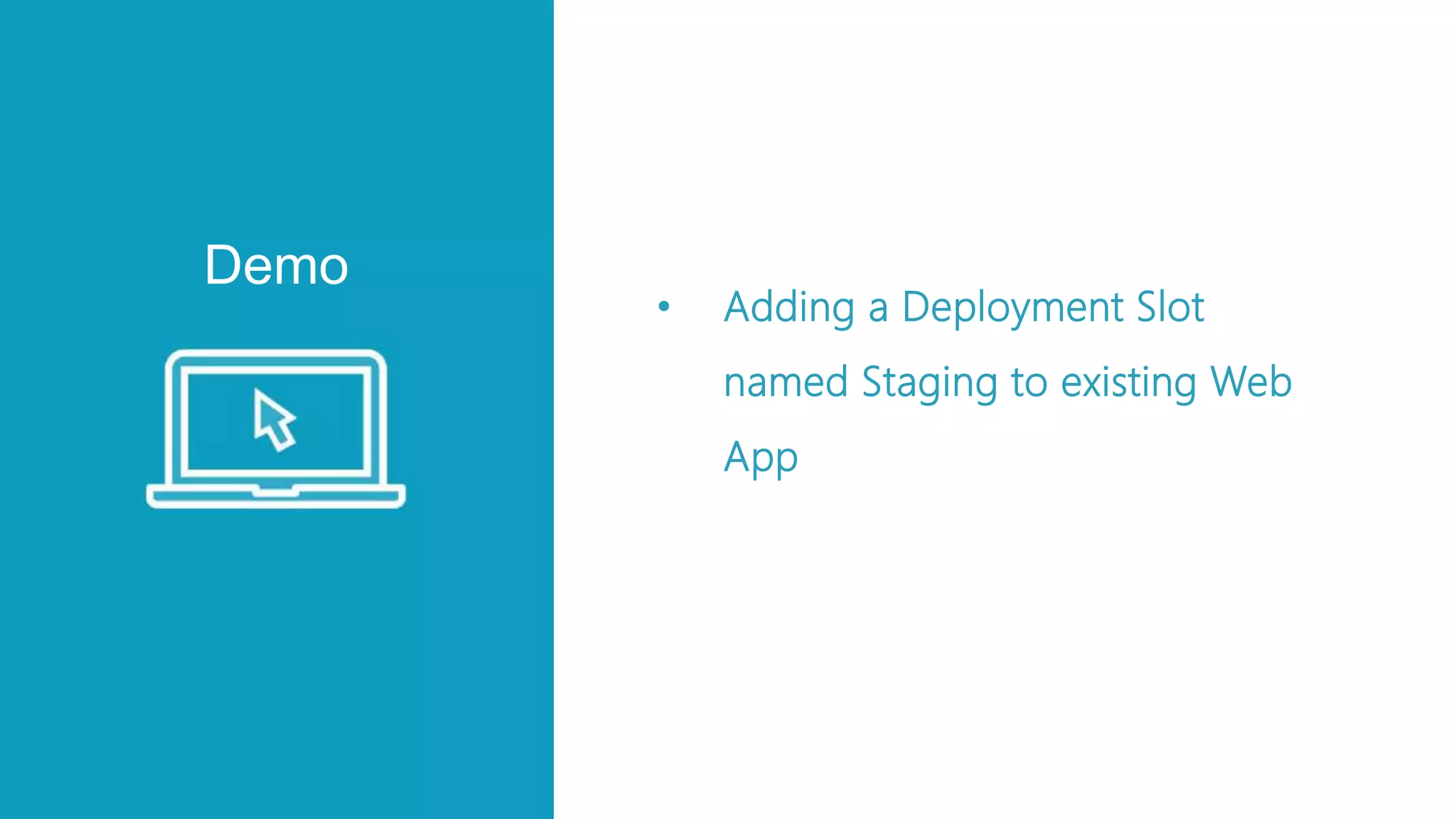

- 17. Demo • Adding aDeployment Slot named Staging to existing Web App
- 18.
- 19. Demo • Configure appsettings
- 20.

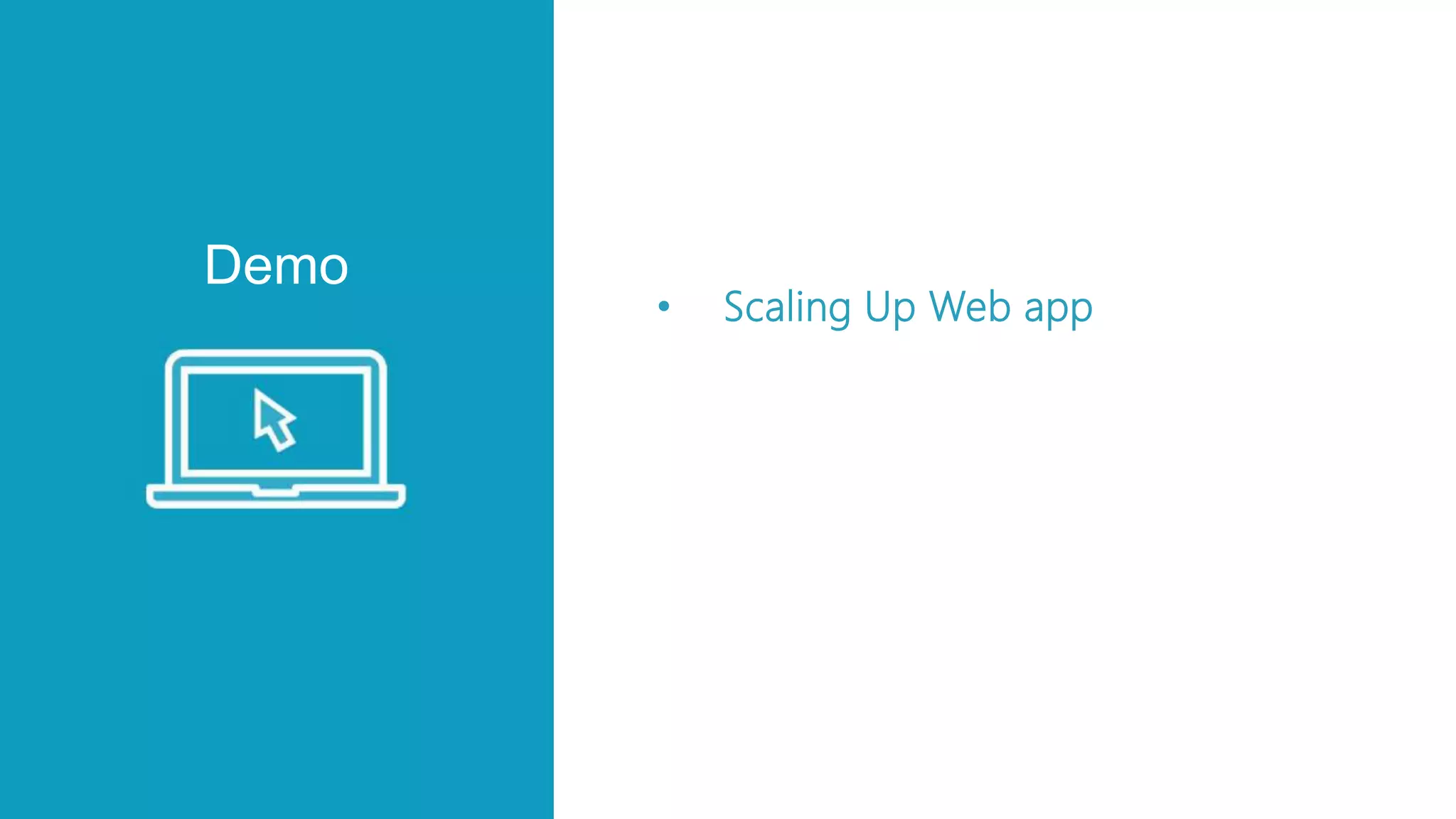

- 21. Demo • Scaling UpWeb app

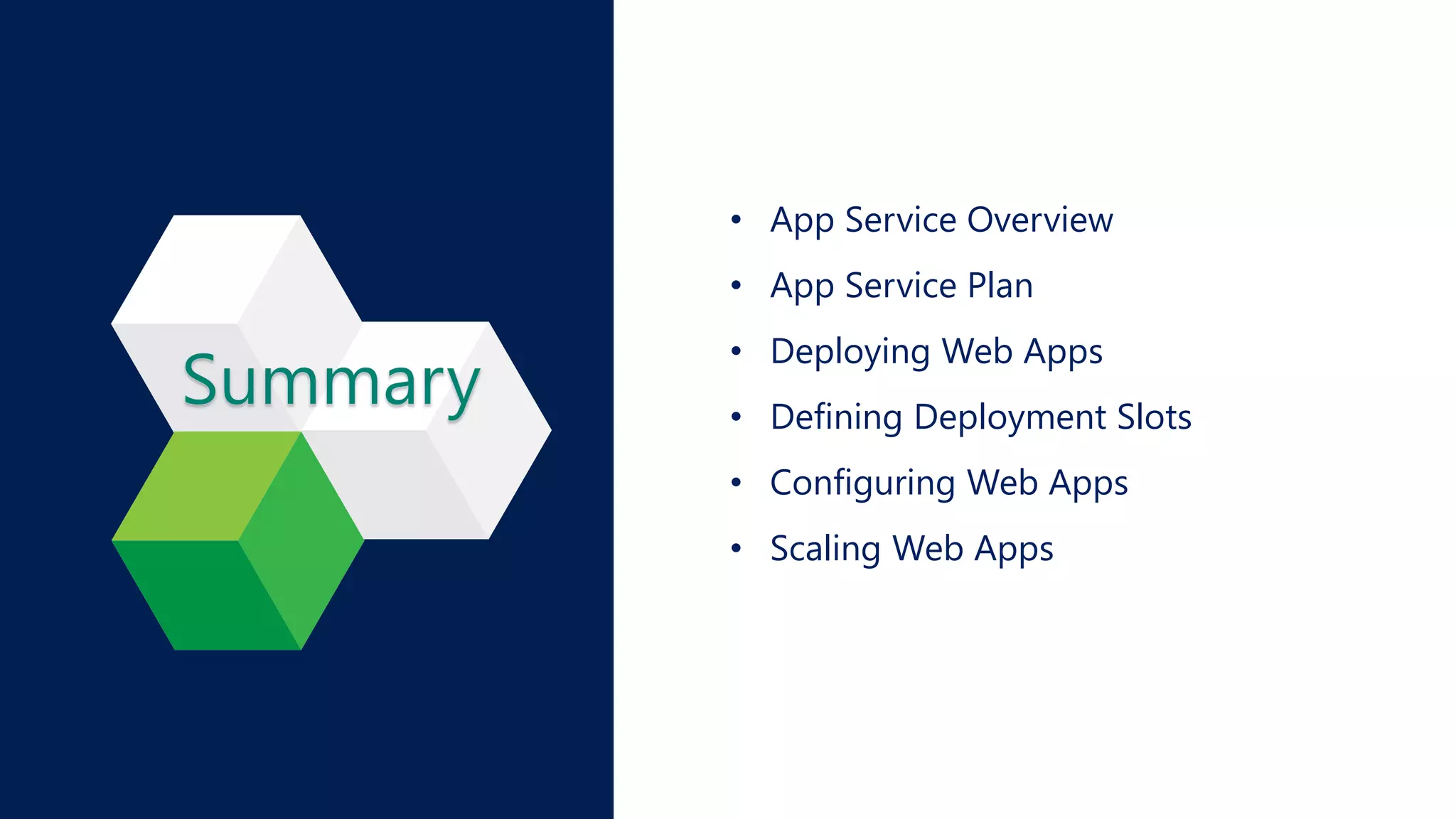

- 22. • App ServiceOverview • App Service Plan • Deploying Web Apps • Defining Deployment Slots • Configuring Web Apps • Scaling Web Apps
- 23. The Cloud ischanging the world
- 24.
Editor's Notes
- #18 1. URL is different for deployment slots. 2. a.Click on SWAP b. Swap type – Swap / Swap with preview c. Source – Staging d. Destination – Production e. Click OK 3. If you go to resource group and check, you have another web app staging.
- #20 Open Web App Settings -> Application Settings General Settings - > .net, php, java, python, nodejs version Platform – 32Bit (Free, Shared) , 64Bit (Basic, Premium) Managed Pipeline – Integrated OR Classic(used for legacy app) ARR Affinity – Also known as sticky sessions. You could turn it on to ensure that the particular client is always directed to the same instance for the duration of that session. Auto Swap – When ever there is a new update to staging slot then it will automatically be swapped into the production slot. Debugging – Turn on so as to use Visual Studio to connect directly to the web app. Once on, it remained turned on for 48Hrs. App settings Connection Strings – To connect to database. Default Documents Handler Mapping – It is used to add custom script processors to configure specific extensions such as php, resp.
- #22 Open Web App Settings -> Application Settings General Settings - > .net, php, java, python, nodejs version Platform – 32Bit (Free, Shared) , 64Bit (Basic, Premium) Managed Pipeline – Integrated OR Classic(used for legacy app) ARR Affinity – Also known as sticky sessions. You could turn it on to ensure that the particular client is always directed to the same instance for the duration of that session. Auto Swap – When ever there is a new update to staging slot then it will automatically be swapped into the production slot. Debugging – Turn on so as to use Visual Studio to connect directly to the web app. Once on, it remained turned on for 48Hrs. App settings Connection Strings – To connect to database. Default Documents Handler Mapping – It is used to add custom script processors to configure specific extensions such as php, resp.
