Data Transmission flow using TCP protocol

Declaration
Reference: Andrew S. Tanenbaum - Computer Networks
• This Lecture Material is prepared for
Delivering Data Transmission by ML
• Notes were taken from Text Book: “Andrew
S. Tanenbaum - Computer Networks”
•
5/7/2024 1

5/7/2024 Reference: Andrew S. Tanenbaum - Computer
Networks
2
Outline
Transmission Control Protocol

Networks
3

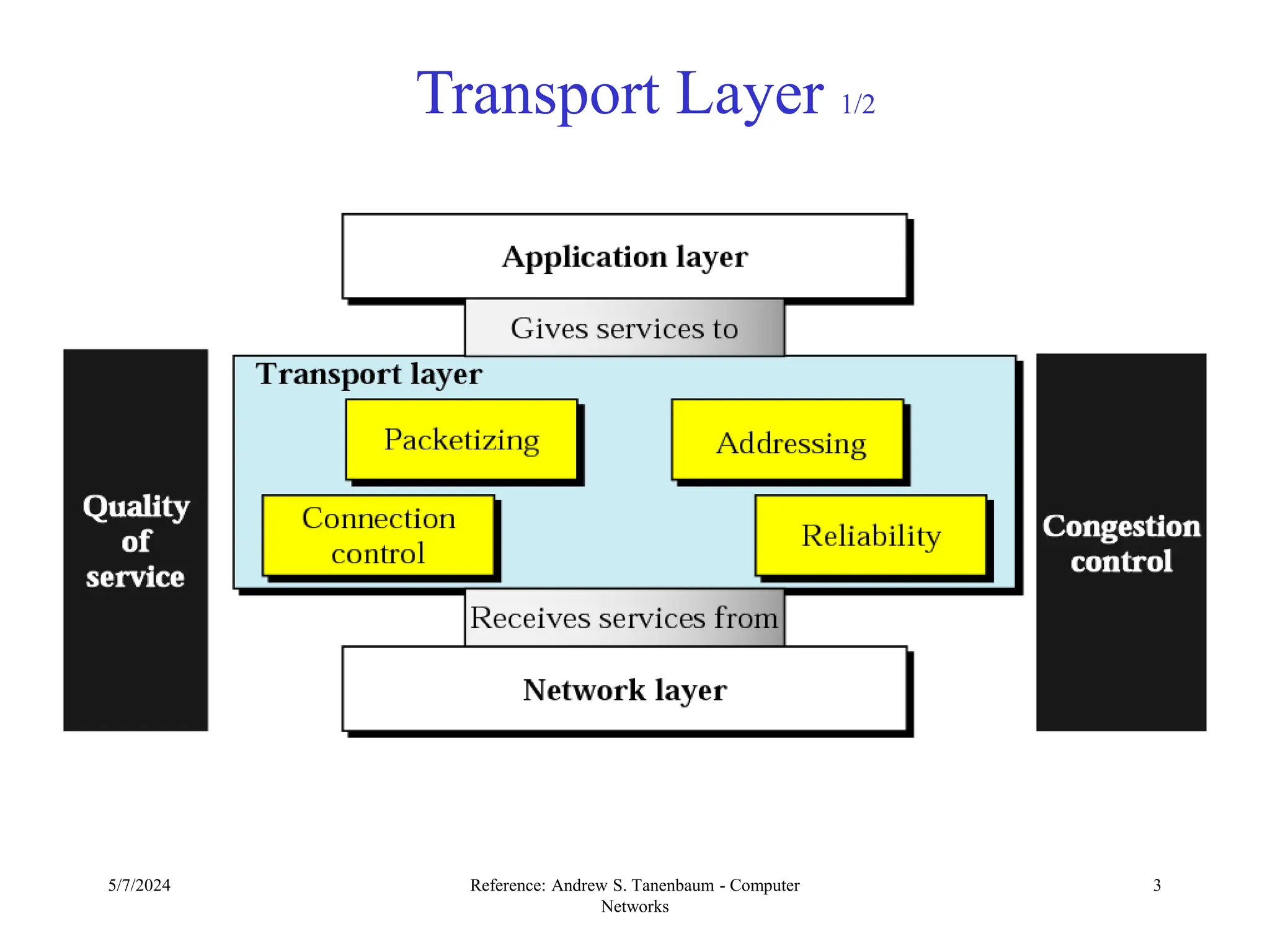

Transport Layer 1/2

Networks
4

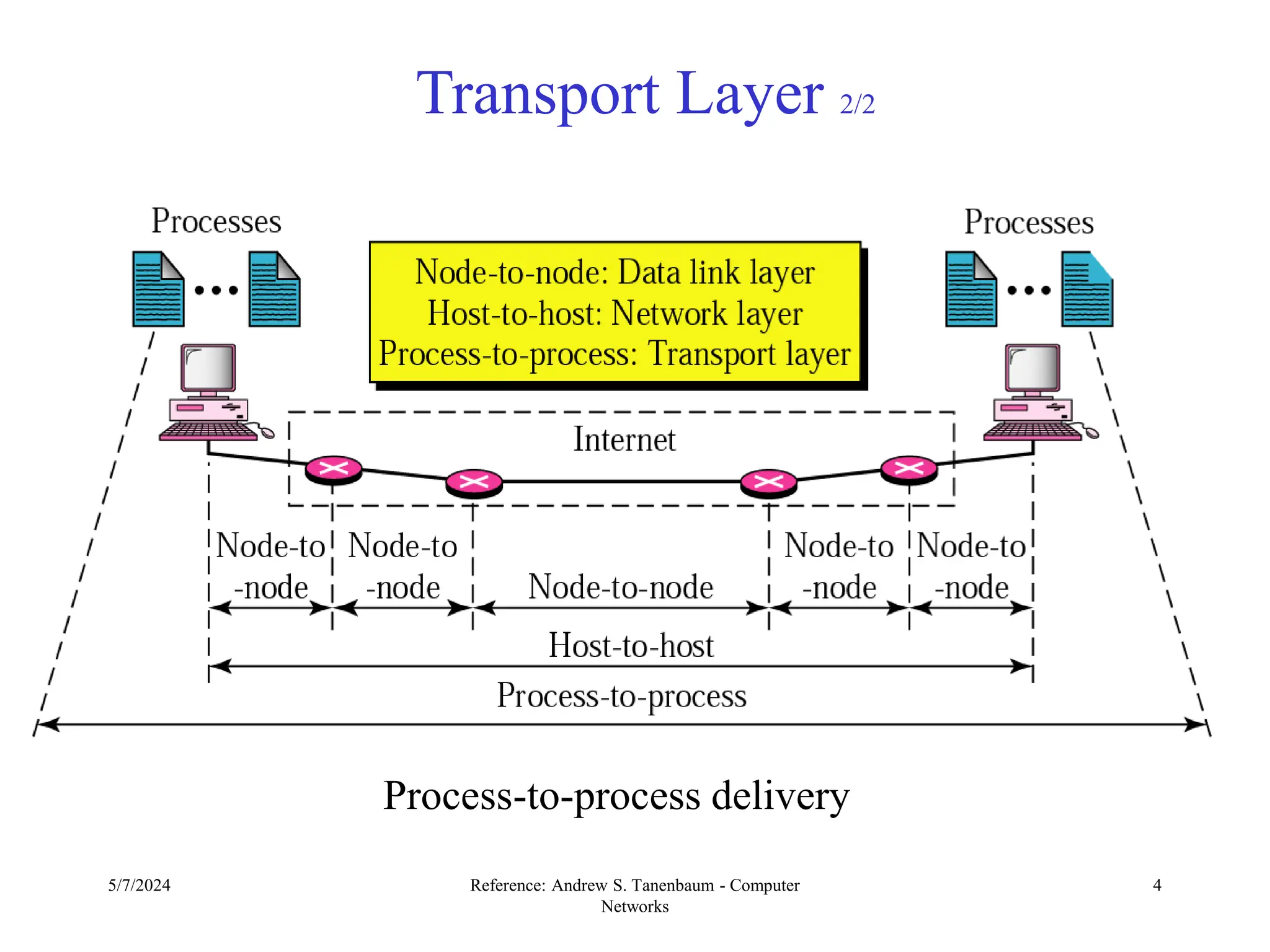

Transport Layer 2/2
Process-to-process delivery

Networks
5

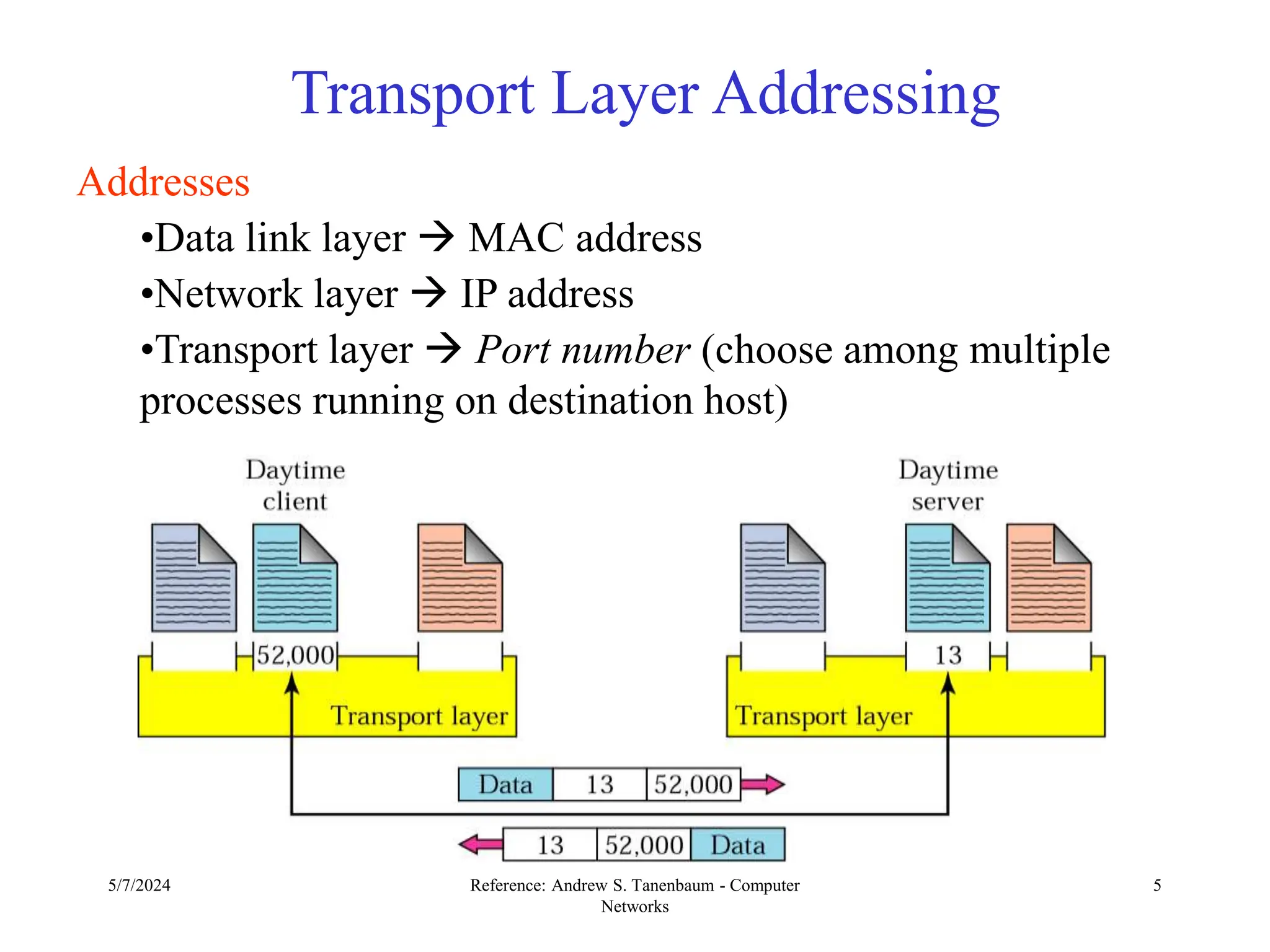

Transport Layer Addressing
Addresses
•Data link layer  MAC address
•Network layer  IP address
•Transport layer  Port number (choose among multiple
processes running on destination host)

Networks
6

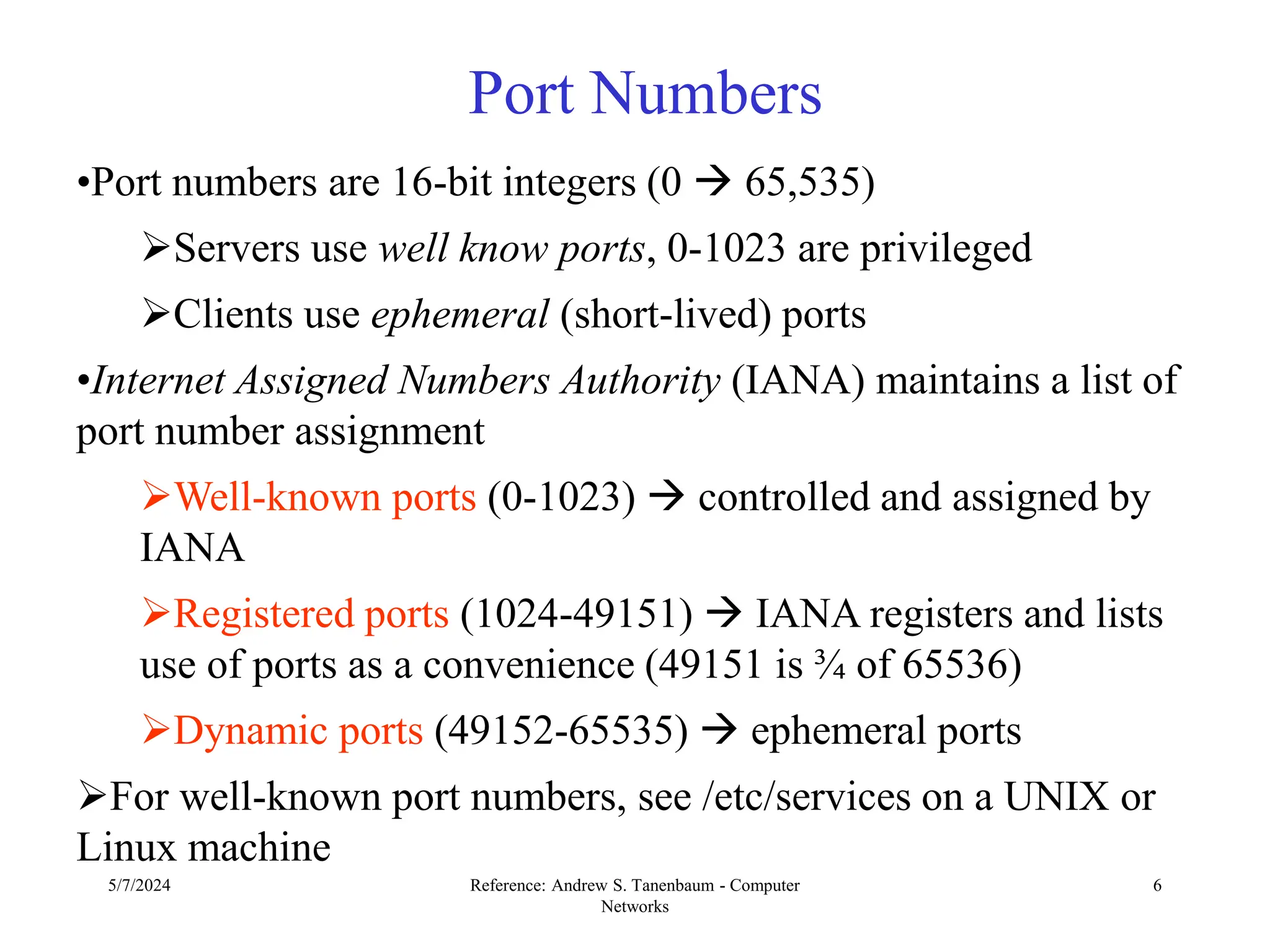

Port Numbers
•Port numbers are 16-bit integers (0  65,535)
Servers use well know ports, 0-1023 are privileged
Clients use ephemeral (short-lived) ports
•Internet Assigned Numbers Authority (IANA) maintains a list of
port number assignment
Well-known ports (0-1023)  controlled and assigned by
IANA
Registered ports (1024-49151)  IANA registers and lists
use of ports as a convenience (49151 is ¾ of 65536)
Dynamic ports (49152-65535)  ephemeral ports
For well-known port numbers, see /etc/services on a UNIX or
Linux machine

Networks
7

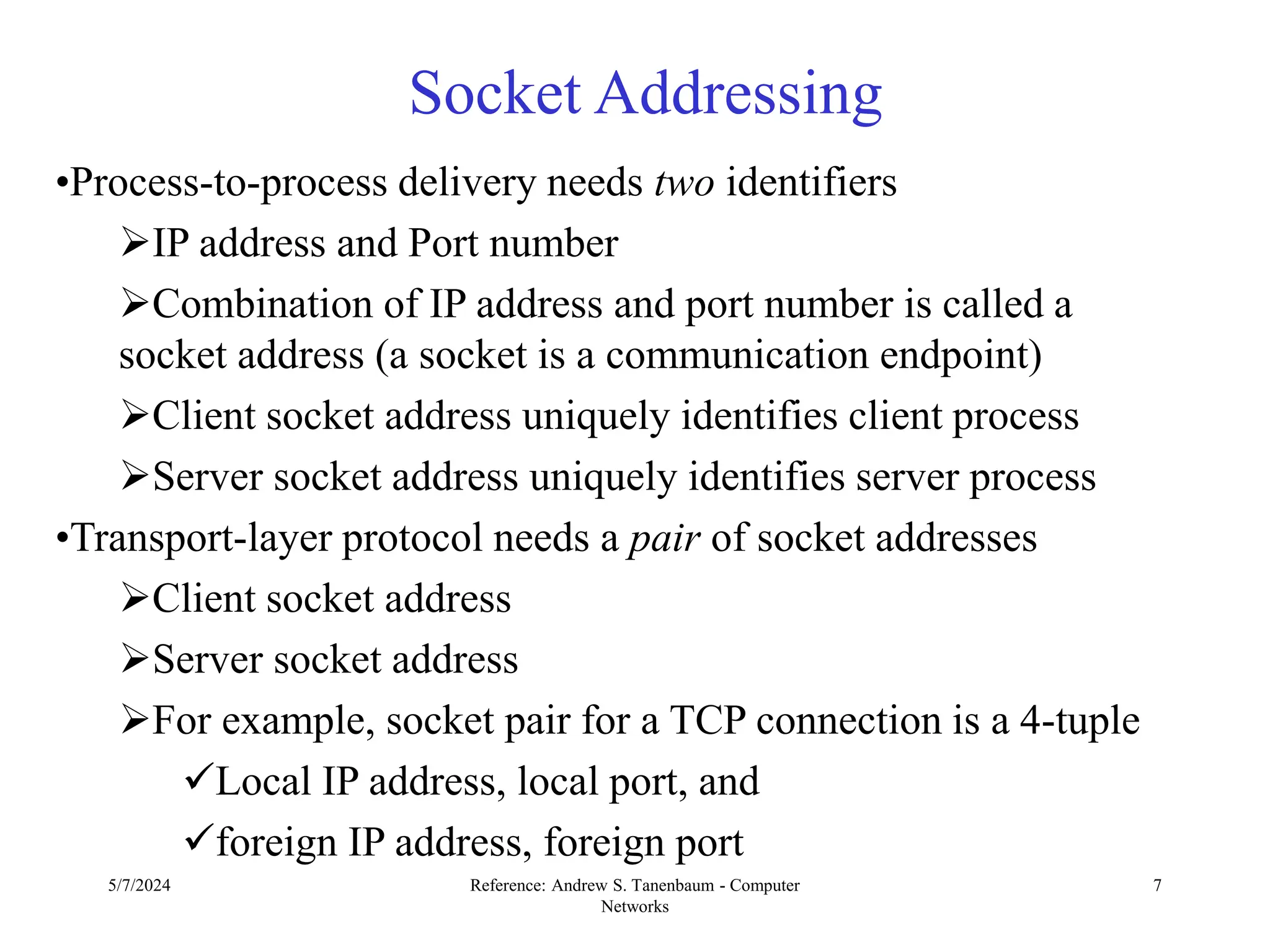

Socket Addressing
•Process-to-process delivery needs two identifiers
IP address and Port number
Combination of IP address and port number is called a
socket address (a socket is a communication endpoint)
Client socket address uniquely identifies client process
Server socket address uniquely identifies server process
•Transport-layer protocol needs a pair of socket addresses
Client socket address
Server socket address
For example, socket pair for a TCP connection is a 4-tuple
Local IP address, local port, and
foreign IP address, foreign port

Networks
8

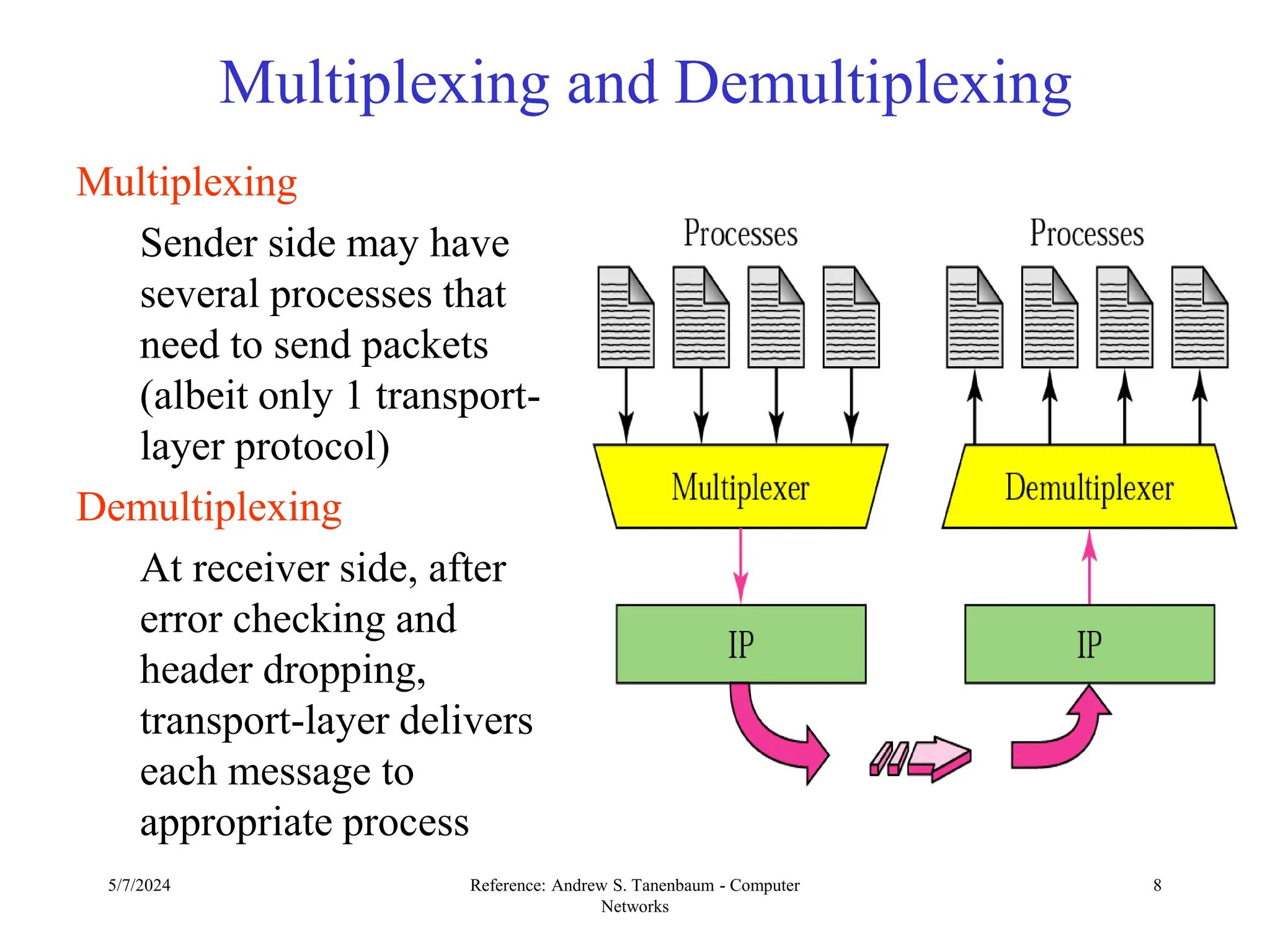

Multiplexing and Demultiplexing
Multiplexing
Sender side may have
several processes that
need to send packets
(albeit only 1 transport-
layer protocol)
Demultiplexing
At receiver side, after
error checking and
header dropping,
transport-layer delivers
each message to
appropriate process

Networks
9

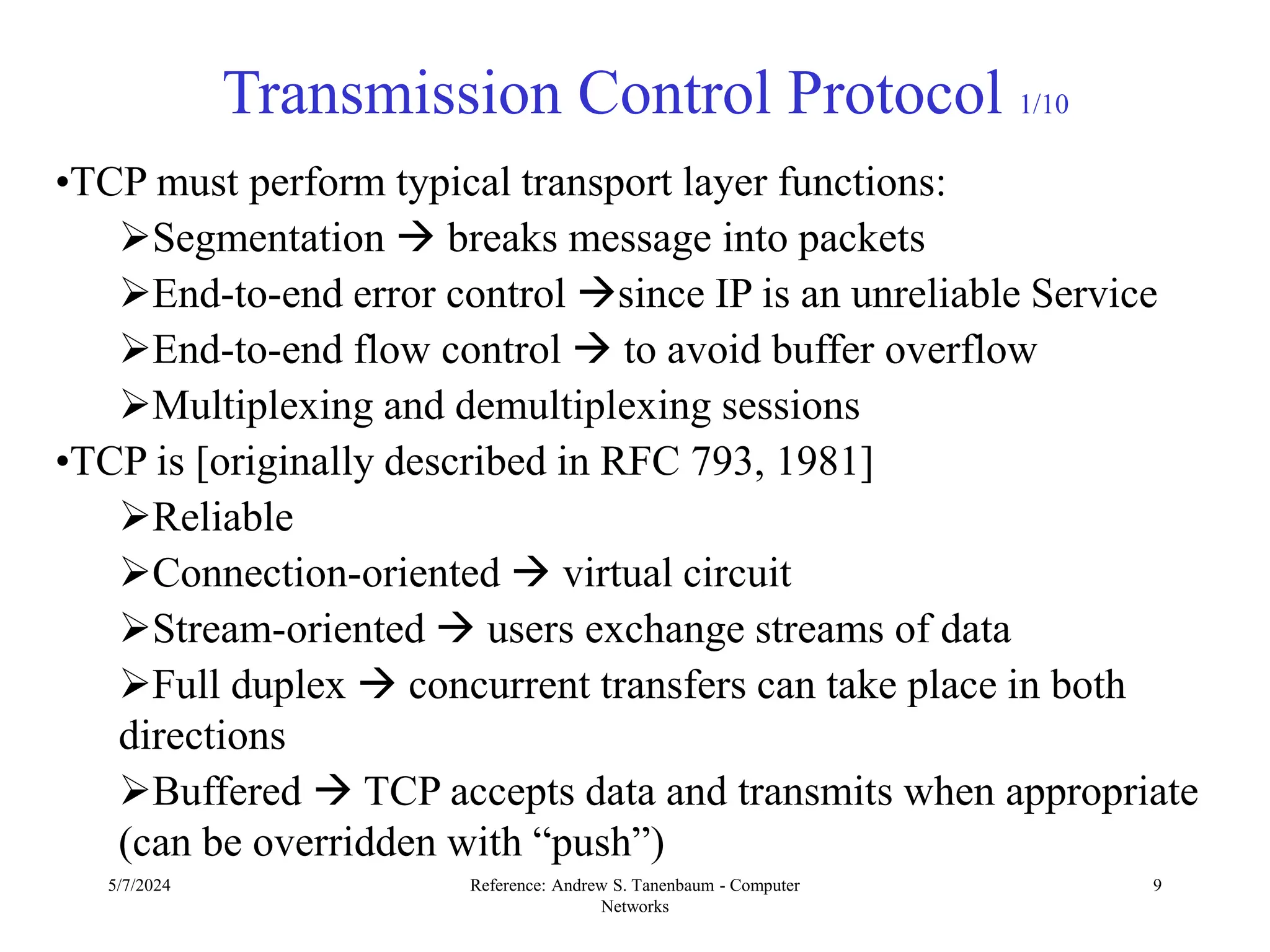

Transmission Control Protocol 1/10
•TCP must perform typical transport layer functions:
Segmentation  breaks message into packets
End-to-end error control since IP is an unreliable Service
End-to-end flow control  to avoid buffer overflow
Multiplexing and demultiplexing sessions
•TCP is [originally described in RFC 793, 1981]
Reliable
Connection-oriented  virtual circuit
Stream-oriented  users exchange streams of data
Full duplex  concurrent transfers can take place in both
directions
Buffered  TCP accepts data and transmits when appropriate
(can be overridden with “push”)

Networks
10

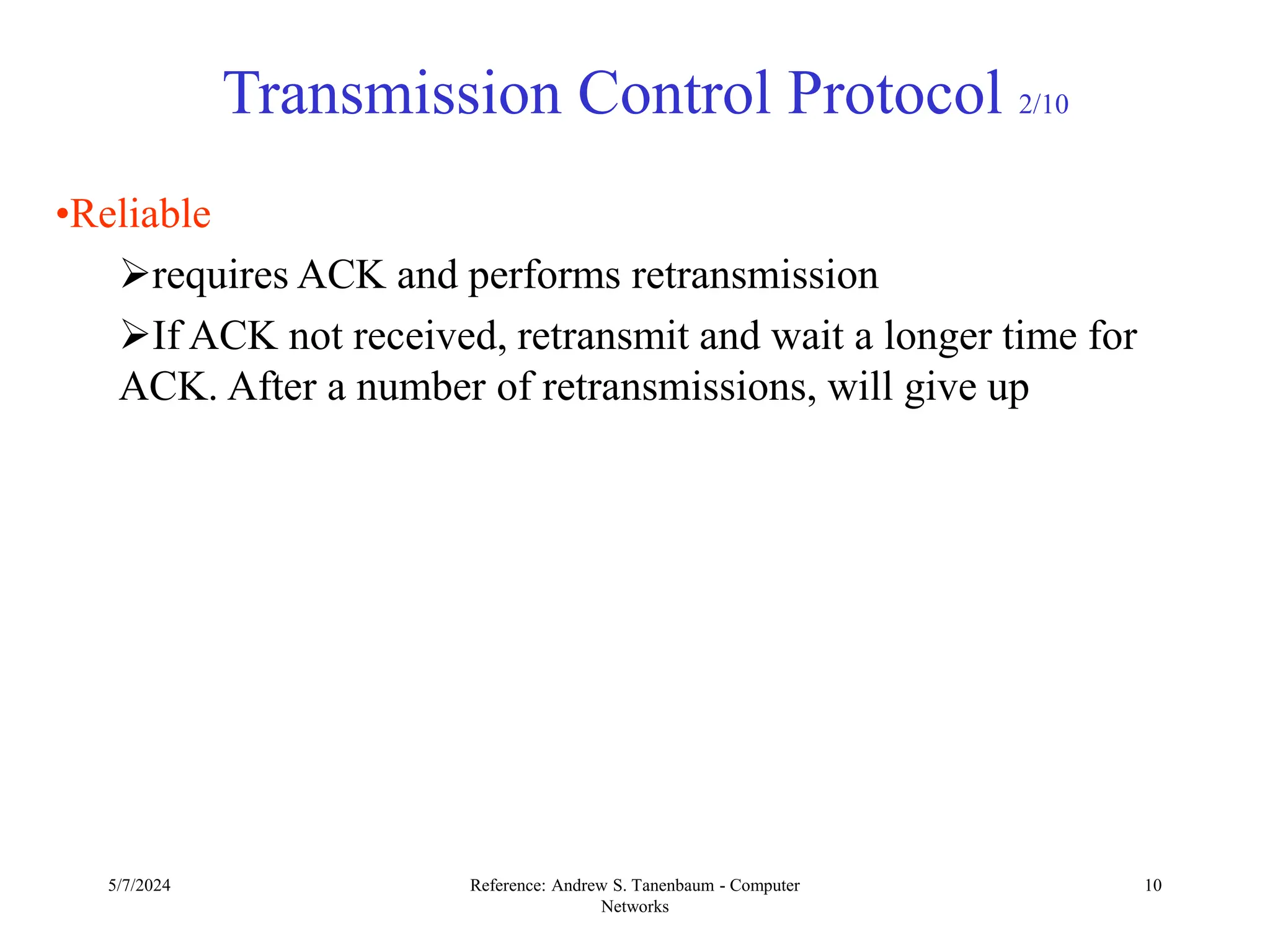

•Reliable
requires ACK and performs retransmission
If ACK not received, retransmit and wait a longer time for
ACK. After a number of retransmissions, will give up

Networks
11

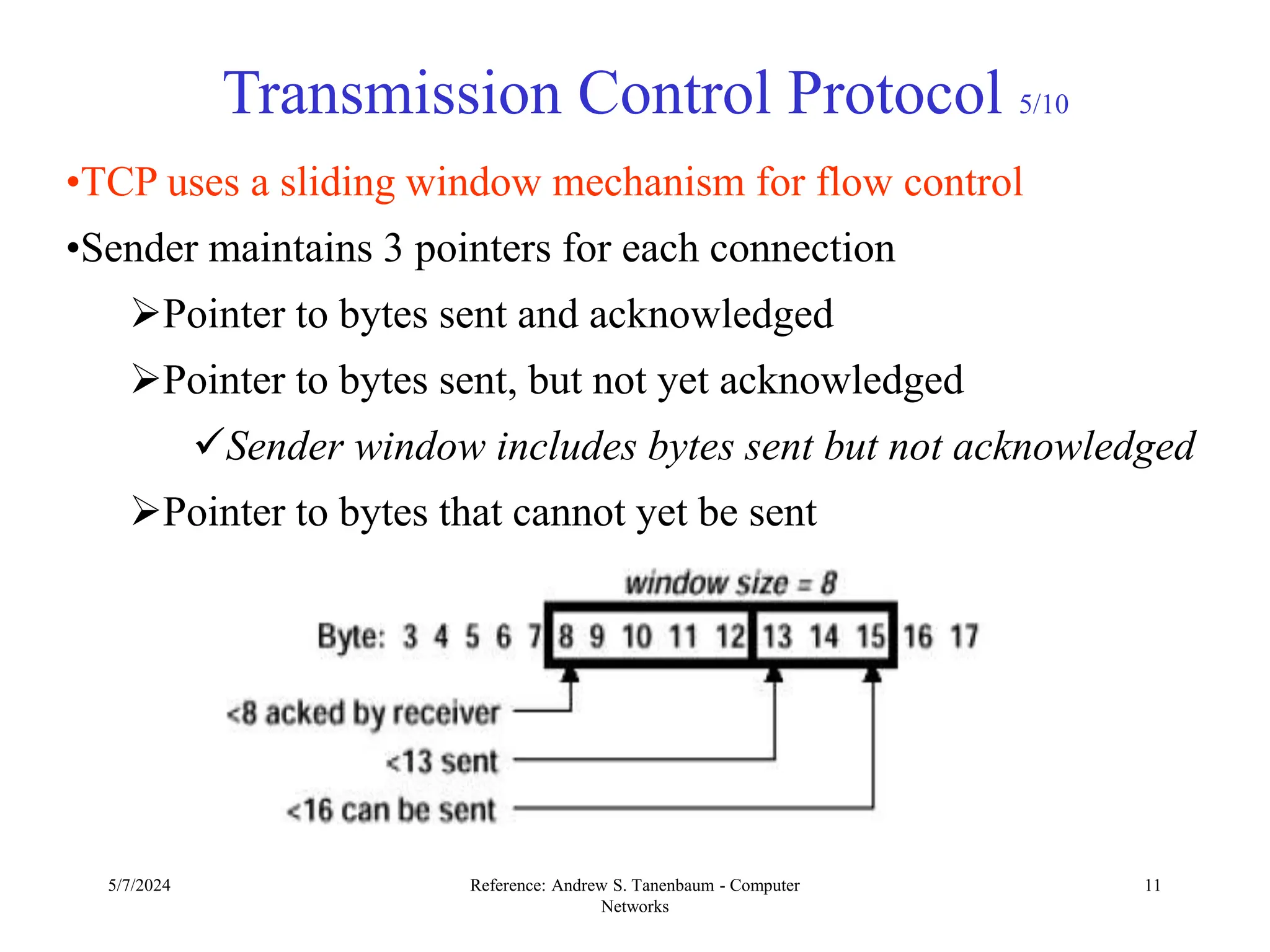

•TCP uses a sliding window mechanism for flow control
•Sender maintains 3 pointers for each connection
Pointer to bytes sent and acknowledged
Pointer to bytes sent, but not yet acknowledged
Sender window includes bytes sent but not acknowledged
Pointer to bytes that cannot yet be sent

Networks
12

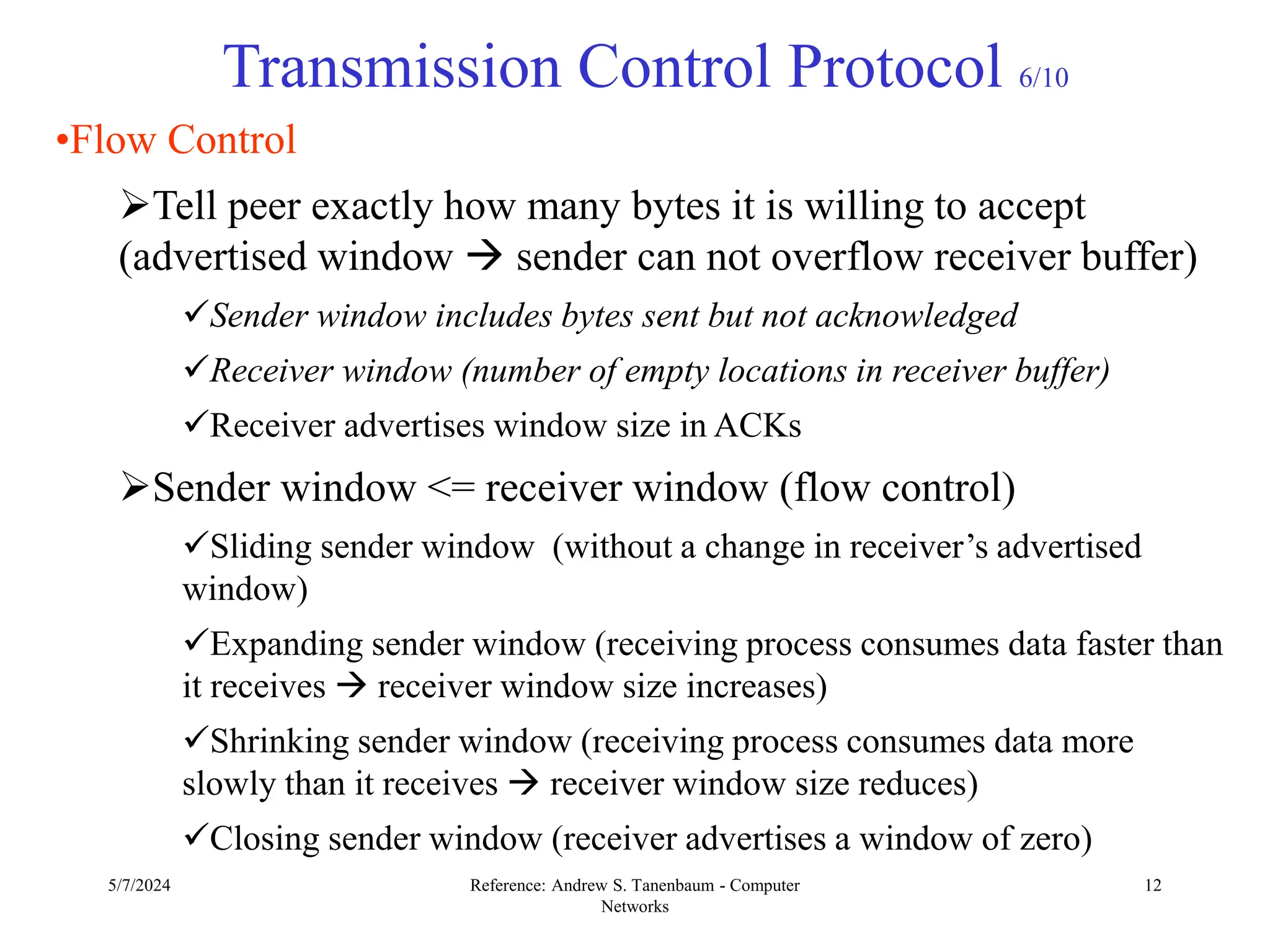

•Flow Control
Tell peer exactly how many bytes it is willing to accept
(advertised window  sender can not overflow receiver buffer)
Sender window includes bytes sent but not acknowledged
Receiver window (number of empty locations in receiver buffer)
Receiver advertises window size in ACKs
Sender window <= receiver window (flow control)
Sliding sender window (without a change in receiver’s advertised
window)
Expanding sender window (receiving process consumes data faster than
it receives  receiver window size increases)
Shrinking sender window (receiving process consumes data more
slowly than it receives  receiver window size reduces)
Closing sender window (receiver advertises a window of zero)

Networks
13

Networks
14

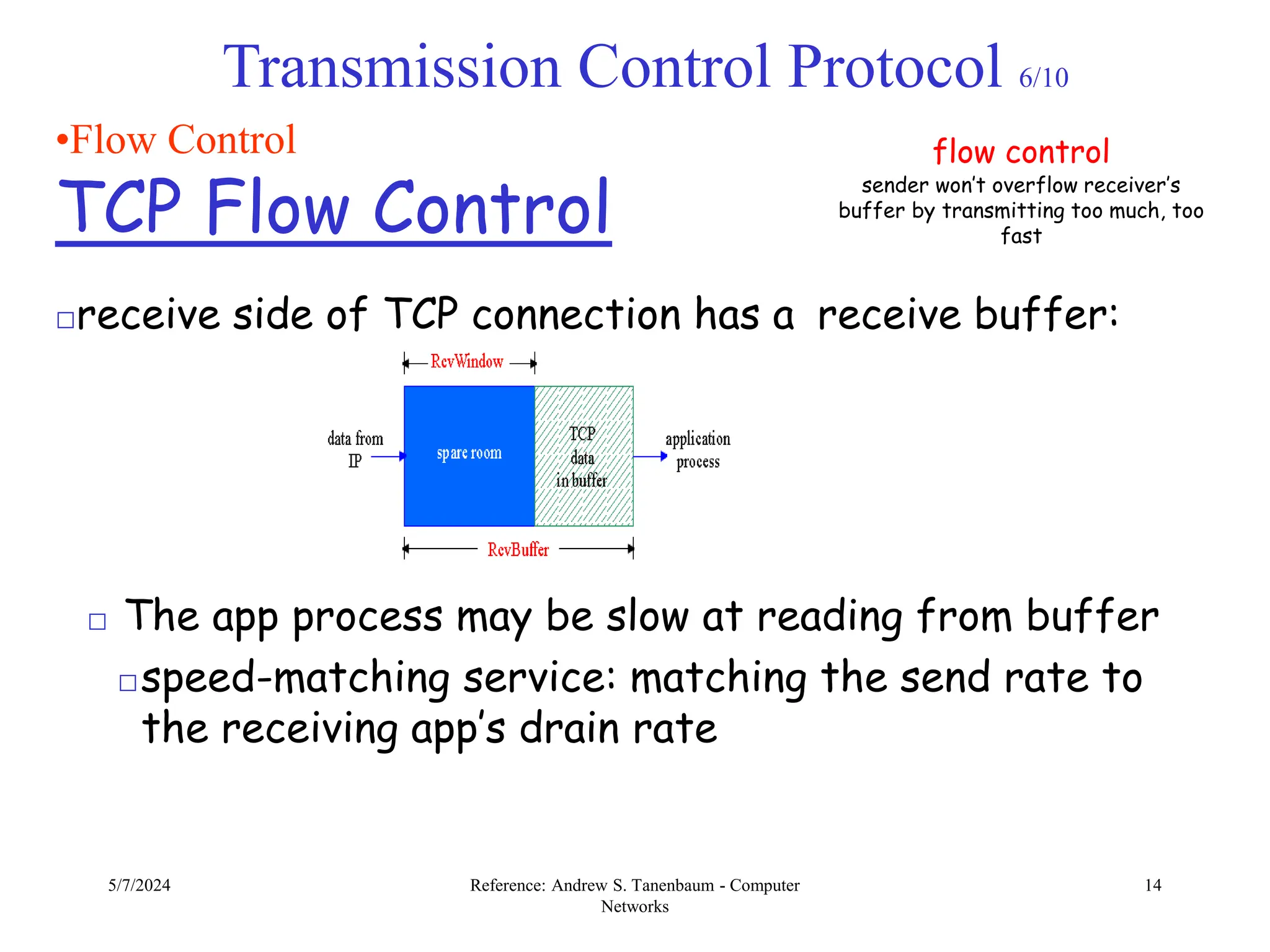

•Flow Control
TCP Flow Control
□receive side of TCP connection has a receive buffer:
□ The app process may be slow at reading from buffer
flow control
sender won’t overflow receiver’s
buffer by transmitting too much, too
fast
□speed-matching service: matching the send rate to
the receiving app’s drain rate

Networks
15
•Flow Control

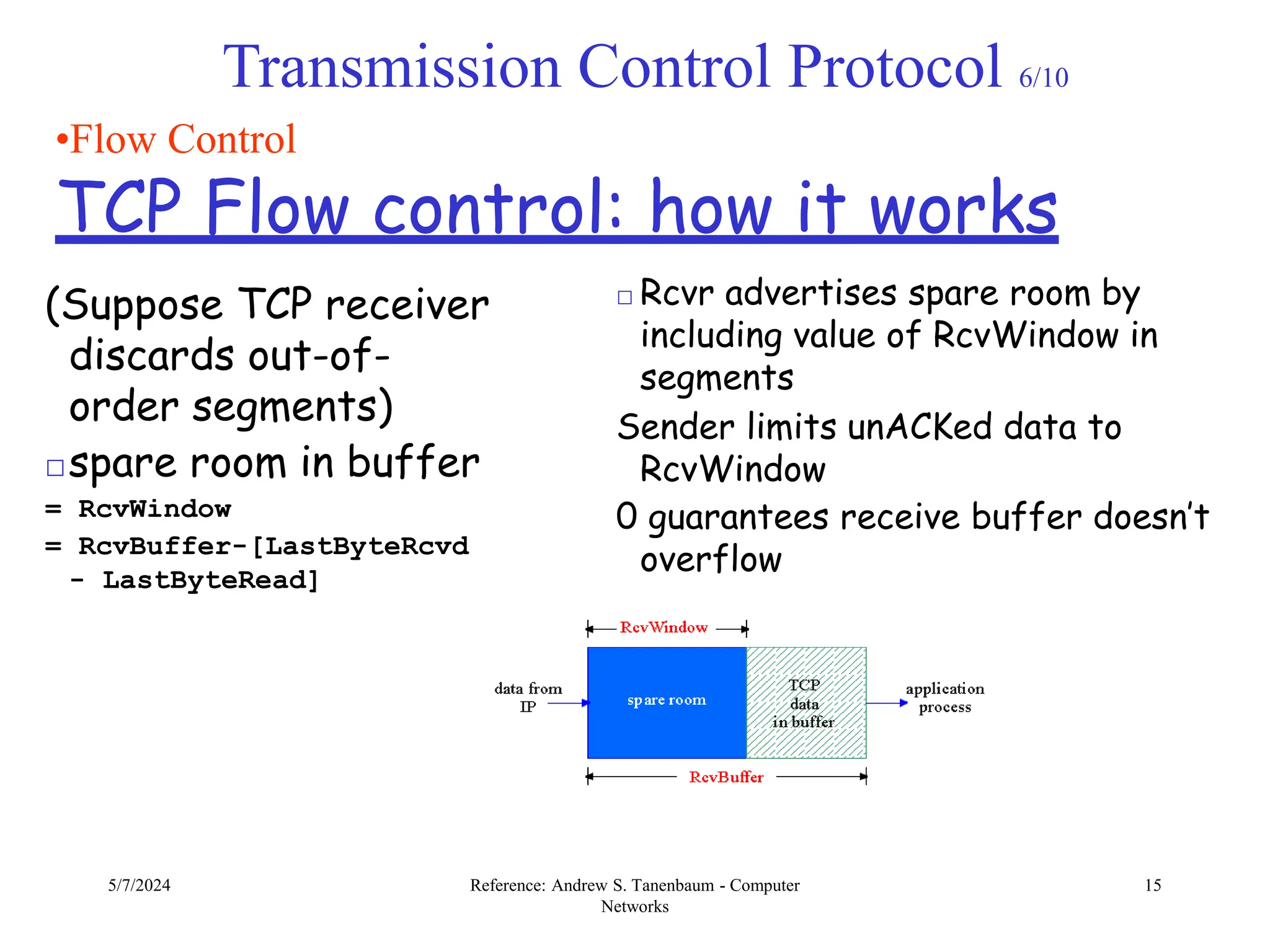

TCP Flow control: how it works
(Suppose TCP receiver
discards out-of-
order segments)
□spare room in buffer
= RcvWindow
= RcvBuffer-[LastByteRcvd
- LastByteRead]
□ Rcvr advertises spare room by
including value of RcvWindow in
segments
Sender limits unACKed data to
RcvWindow
0 guarantees receive buffer doesn’t
overflow

Networks
16

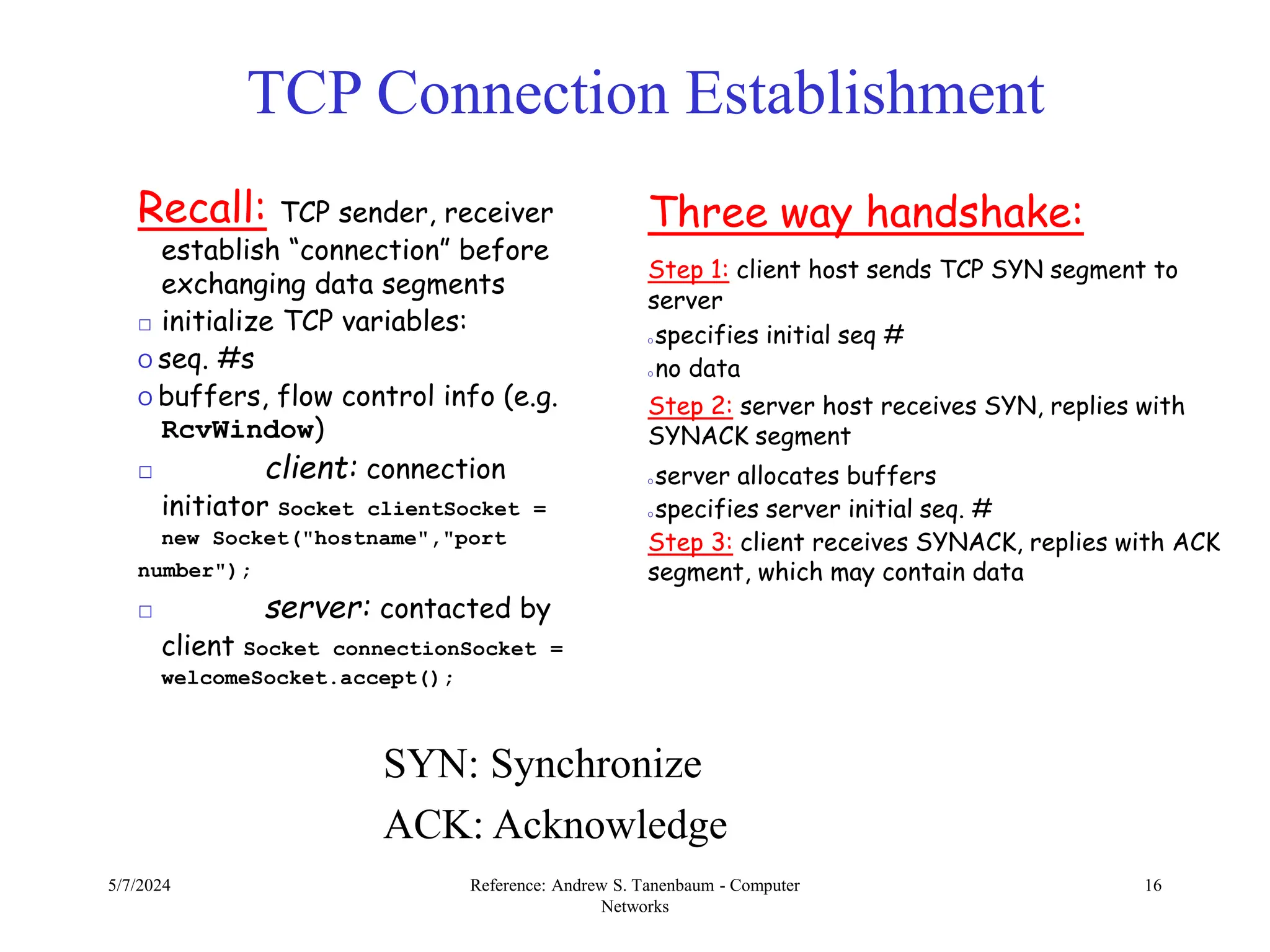

TCP Connection Establishment
SYN: Synchronize
ACK: Acknowledge
Three way handshake:
Step 1: client host sends TCP SYN segment to
server
O specifies initial seq #
O no data
Step 2: server host receives SYN, replies with
SYNACK segment
O server allocates buffers
O specifies server initial seq. #
Step 3: client receives SYNACK, replies with ACK
segment, which may contain data
Recall: TCP sender, receiver
establish “connection” before
exchanging data segments
□ initialize TCP variables:
O seq. #s
O buffers, flow control info (e.g.
RcvWindow)
□ client: connection
initiator Socket clientSocket =
new Socket("hostname","port
number");
□ server: contacted by
client Socket connectionSocket =
welcomeSocket.accept();

Networks
17

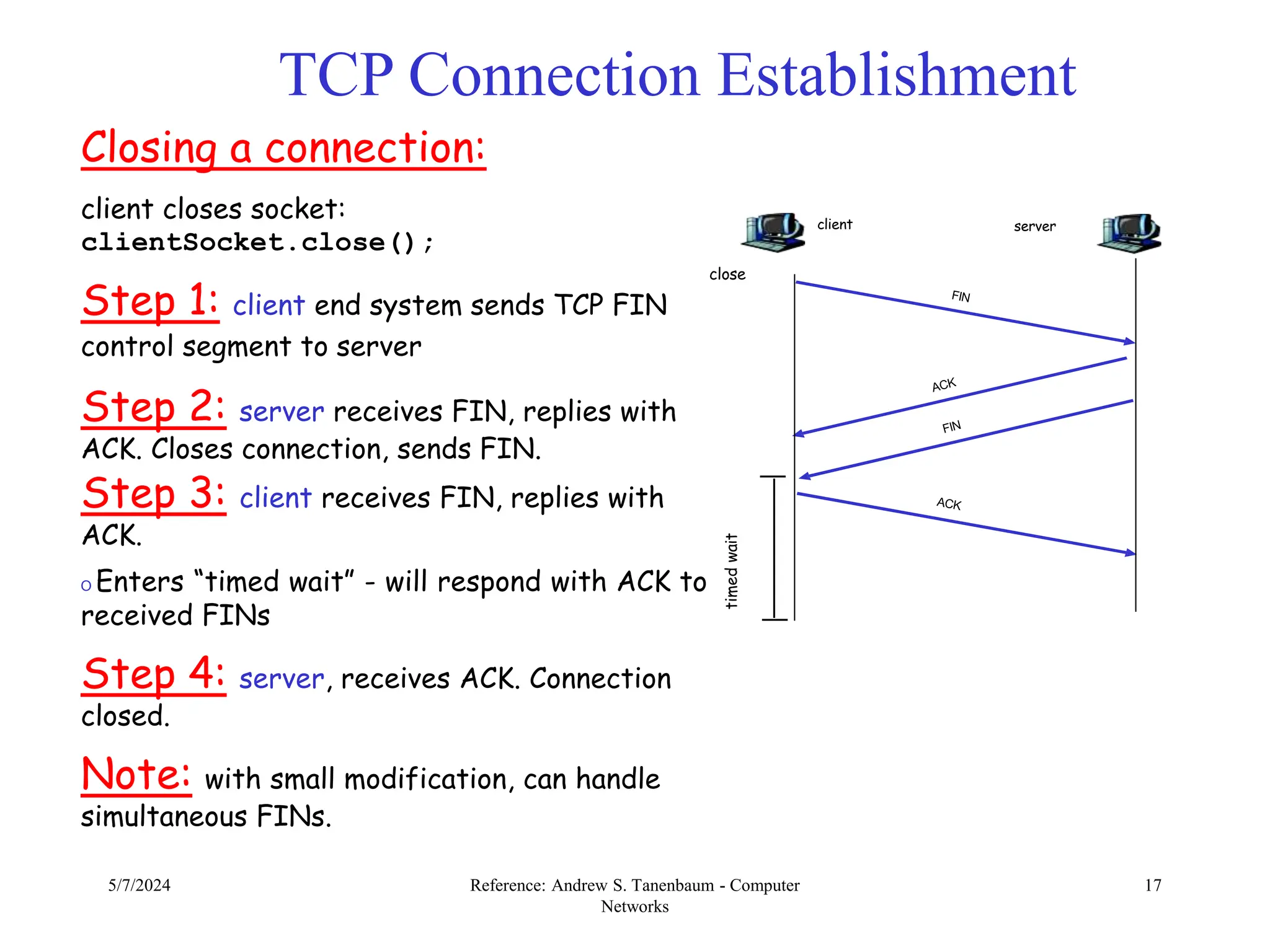

TCP Connection Establishment
Closing a connection:
client closes socket:
clientSocket.close();
Step 1: client end system sends TCP FIN
control segment to server
Step 2: server receives FIN, replies with
ACK. Closes connection, sends FIN.
Step 3: client receives FIN, replies with
ACK.
O Enters “timed wait” - will respond with ACK to
received FINs
Step 4: server, receives ACK. Connection
closed.
Note: with small modification, can handle
simultaneous FINs.
client server
close
timed
wait

Networks
18

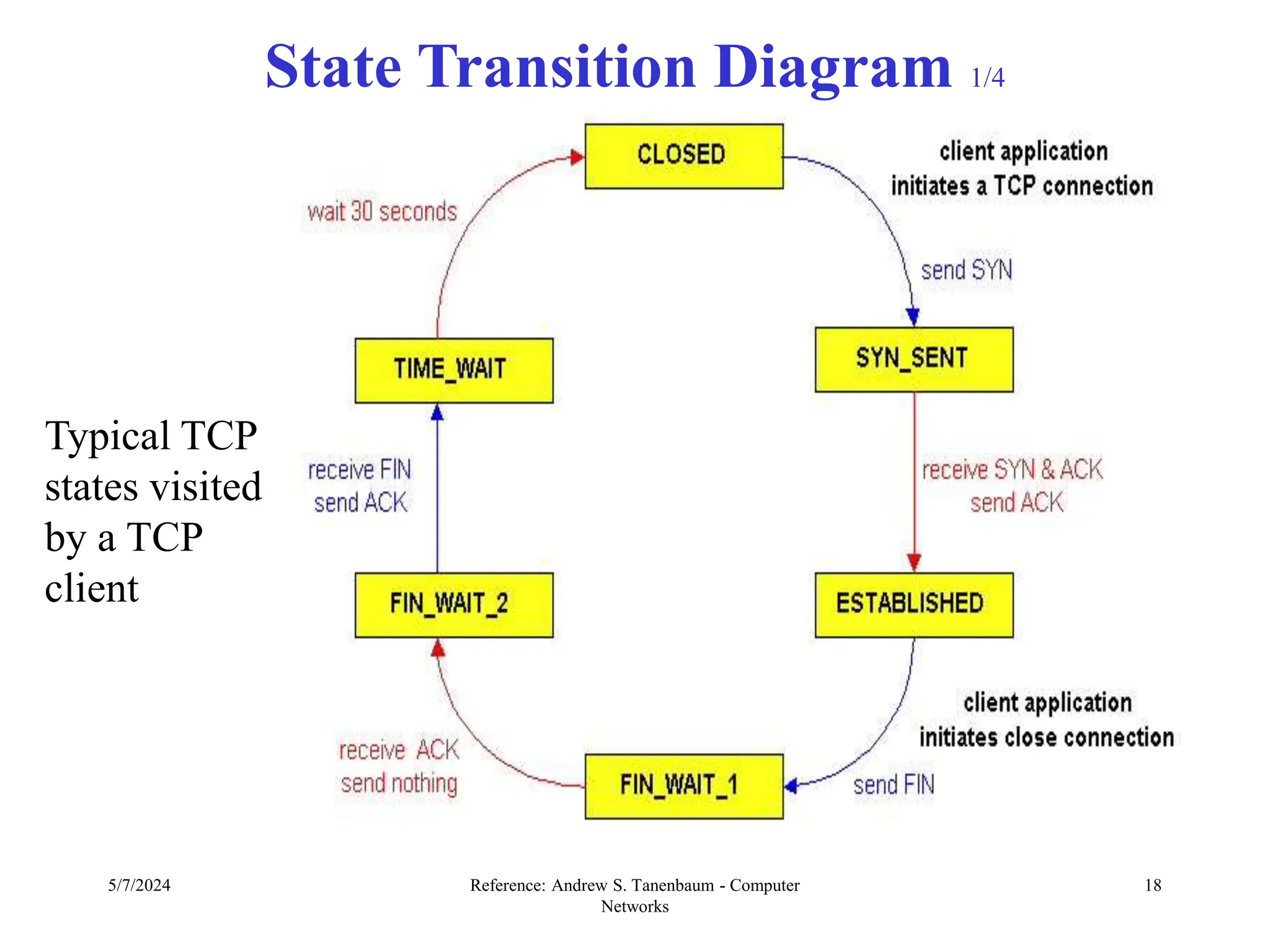

State Transition Diagram 1/4
Typical TCP
states visited
by a TCP
client

Networks
19

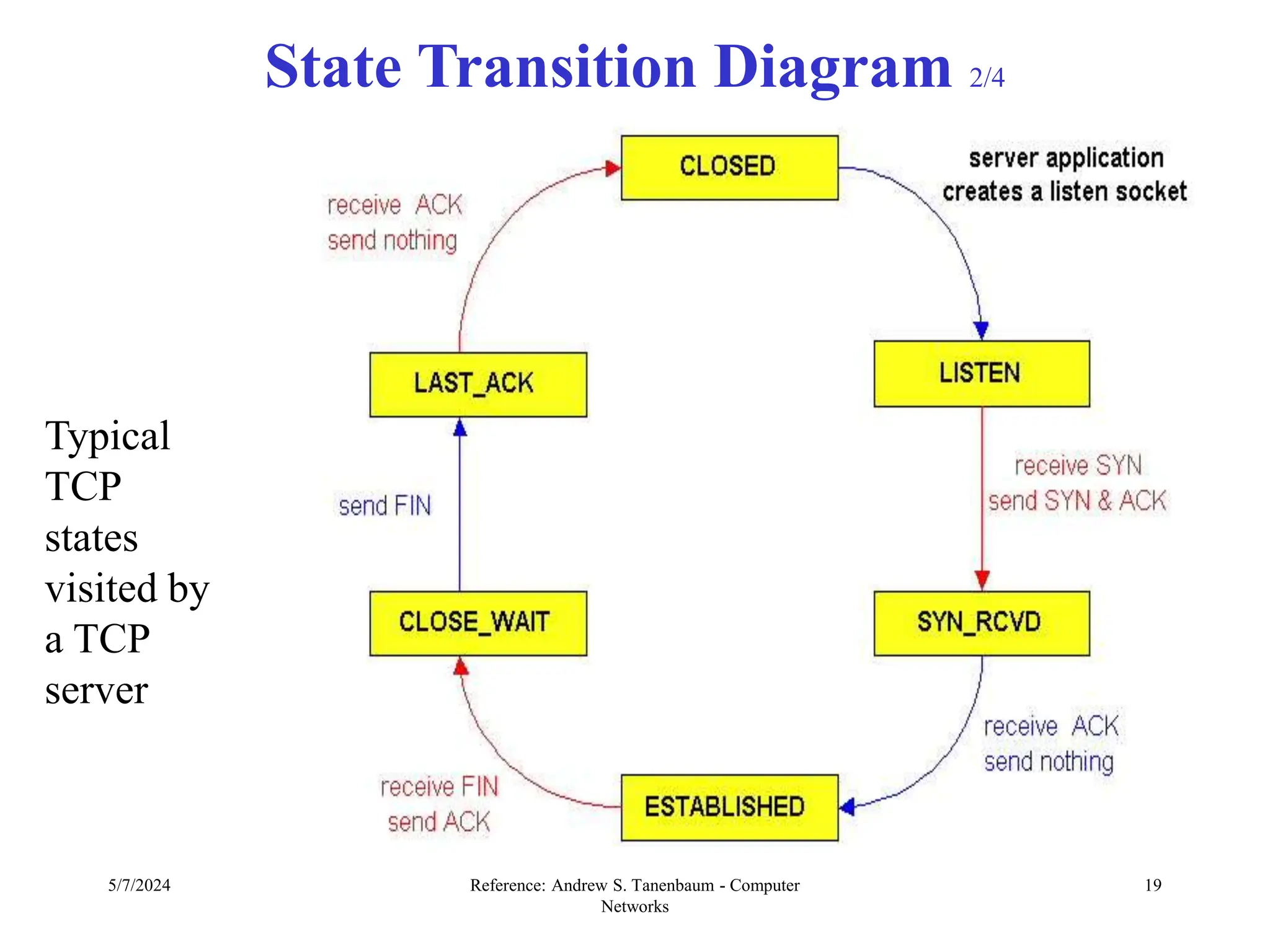

Typical
TCP
states
visited by
a TCP
server

Networks
20

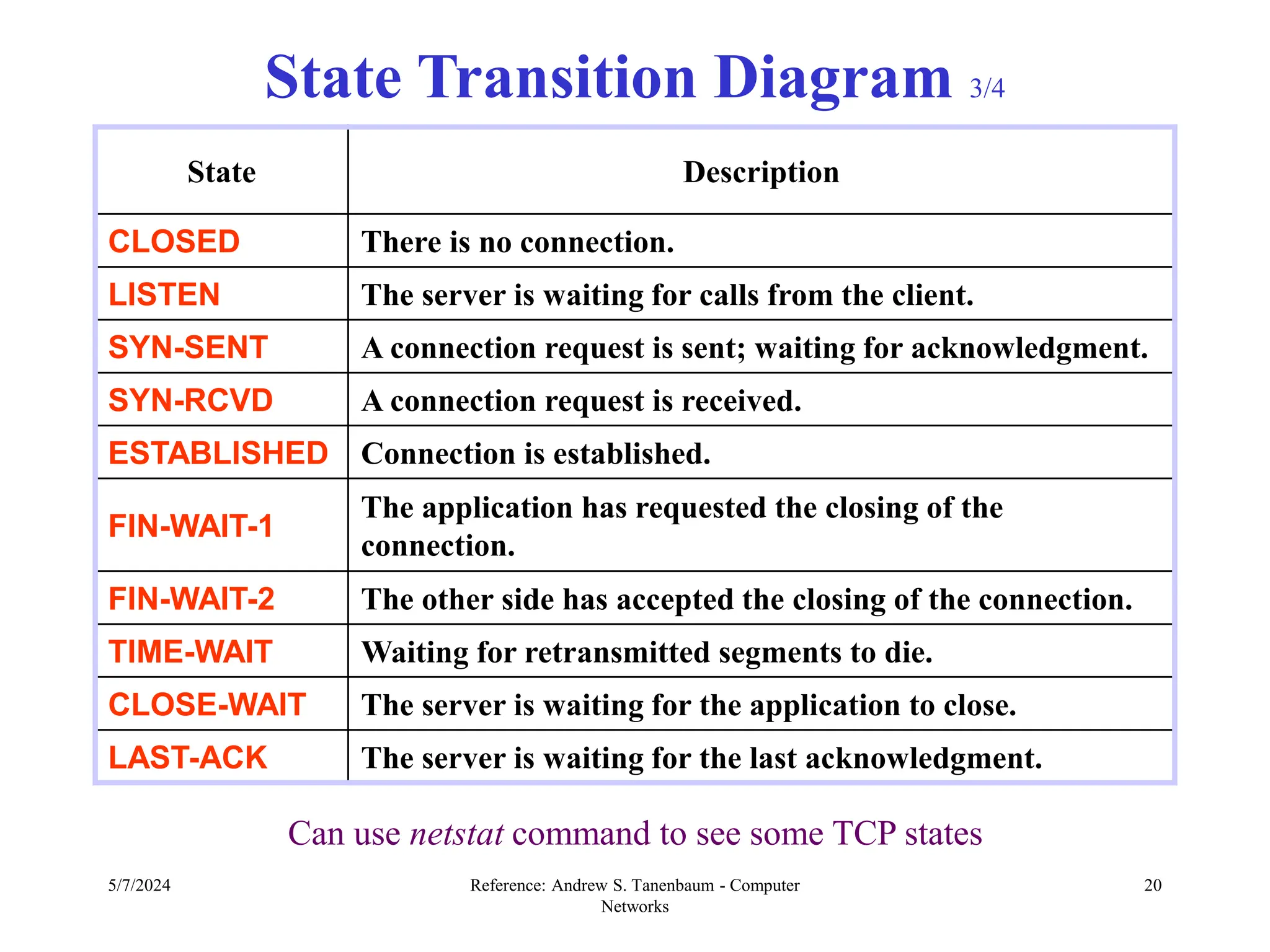

State Description
CLOSED There is no connection.
LISTEN The server is waiting for calls from the client.
SYN-SENT A connection request is sent; waiting for acknowledgment.
SYN-RCVD A connection request is received.
ESTABLISHED Connection is established.
FIN-WAIT-1
The application has requested the closing of the
connection.
FIN-WAIT-2 The other side has accepted the closing of the connection.
TIME-WAIT Waiting for retransmitted segments to die.
CLOSE-WAIT The server is waiting for the application to close.
LAST-ACK The server is waiting for the last acknowledgment.
Can use netstat command to see some TCP states
