Cypher Query Language
- 1. FOSDEM 2012 Graph Processing Room 5 Feb 2012 Cypher Query Language Andrés Taylor and Alistair Jones Wednesday, February 8, 2012
- 2. What is Cypher? • Graph Query Language for Neo4j • Aims to make querying simple Wednesday, February 8, 2012

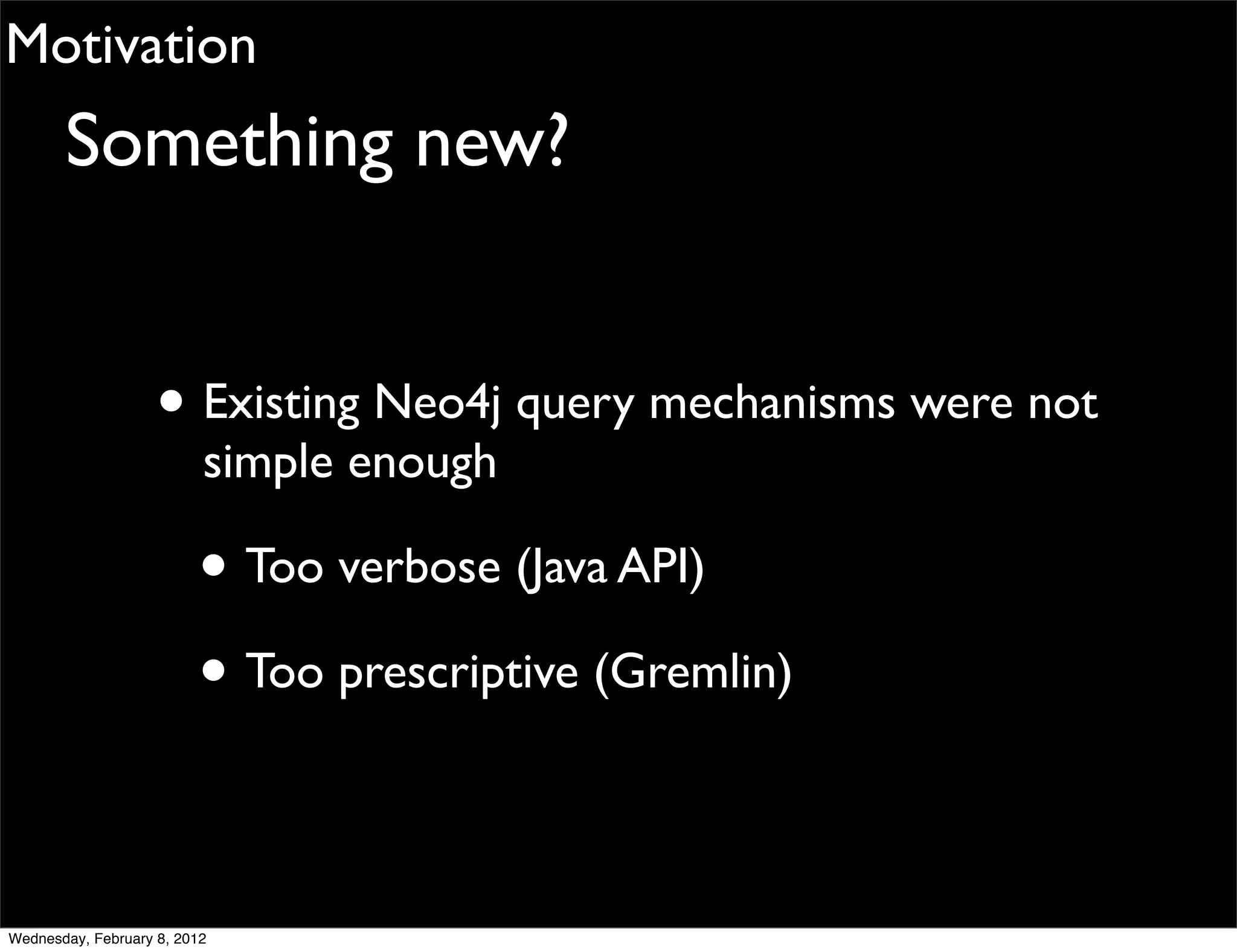

- 3. Motivation Something new? • Existing Neo4j query mechanisms were not simple enough • Too verbose (Java API) • Too prescriptive (Gremlin) Wednesday, February 8, 2012

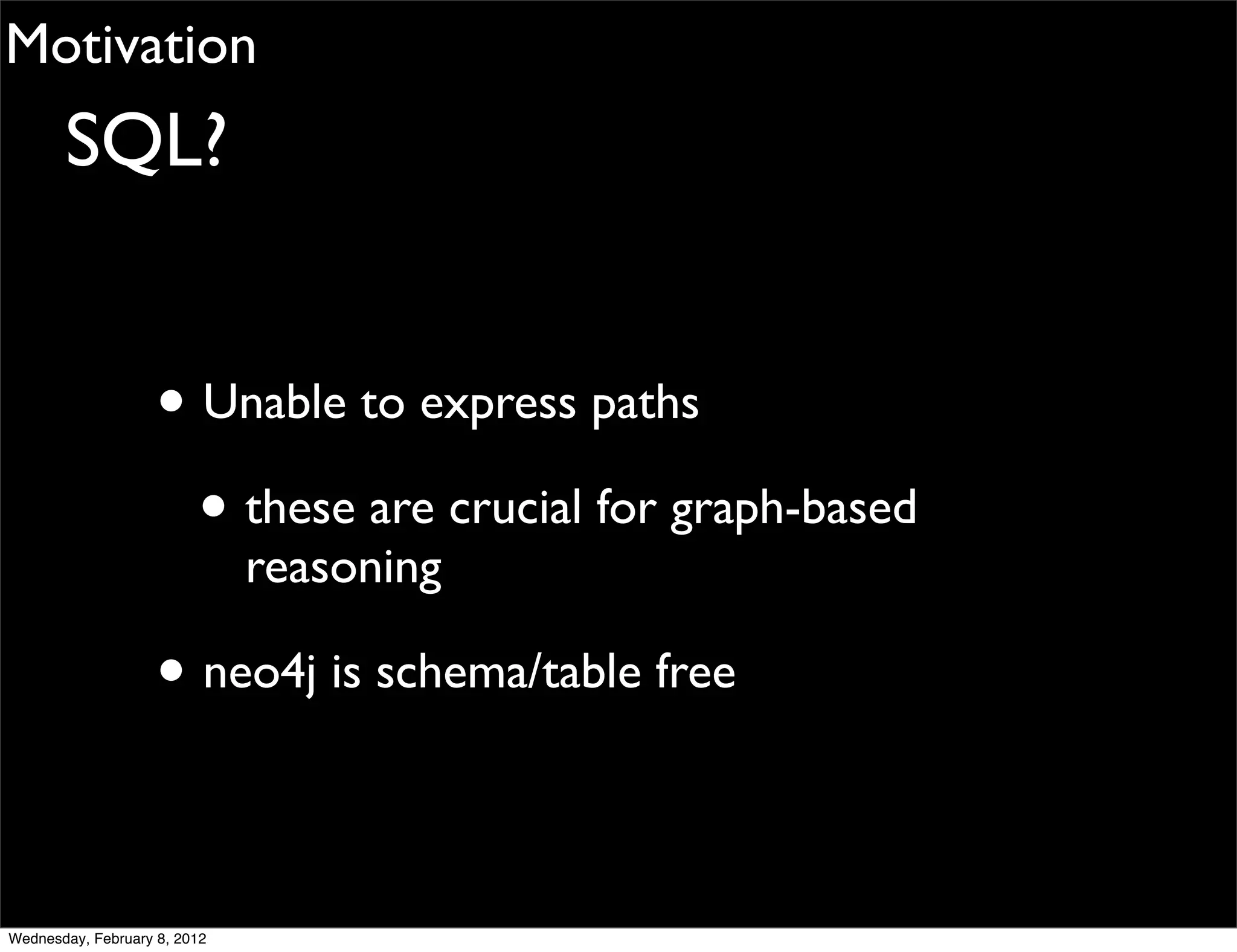

- 4. Motivation SQL? • Unable to express paths • these are crucial for graph-based reasoning • neo4j is schema/table free Wednesday, February 8, 2012

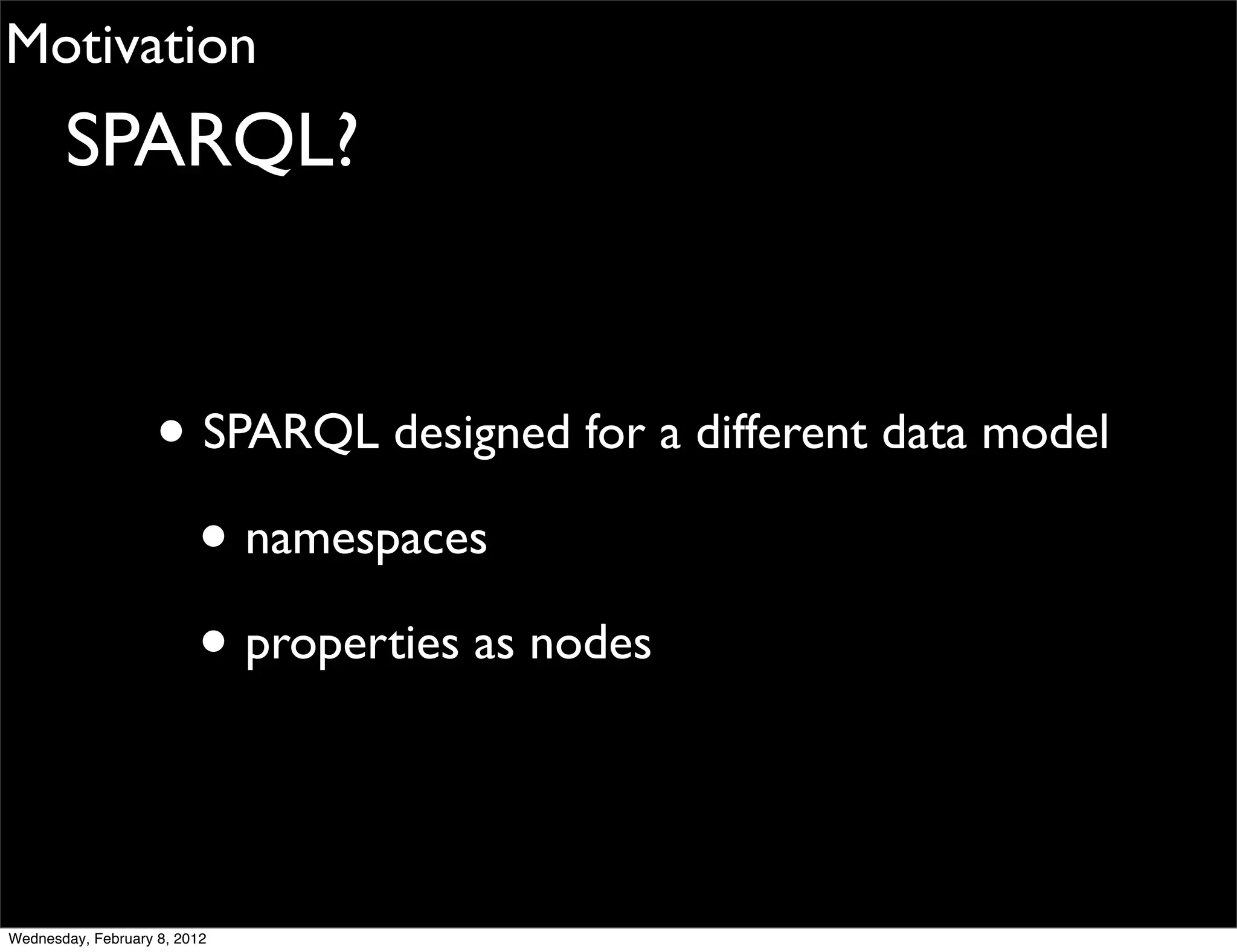

- 5. Motivation SPARQL? • SPARQL designed for a different data model • namespaces • properties as nodes Wednesday, February 8, 2012

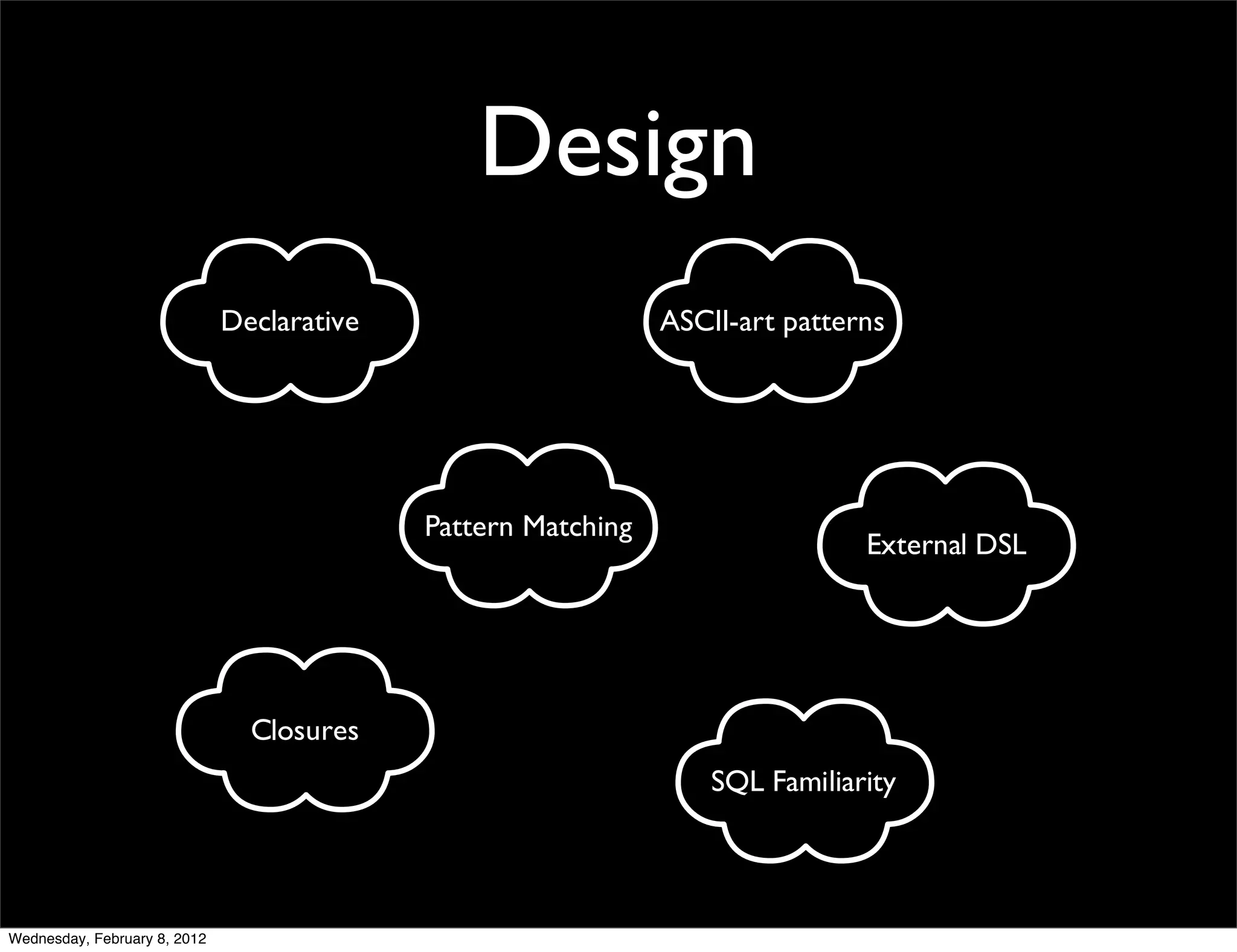

- 6.

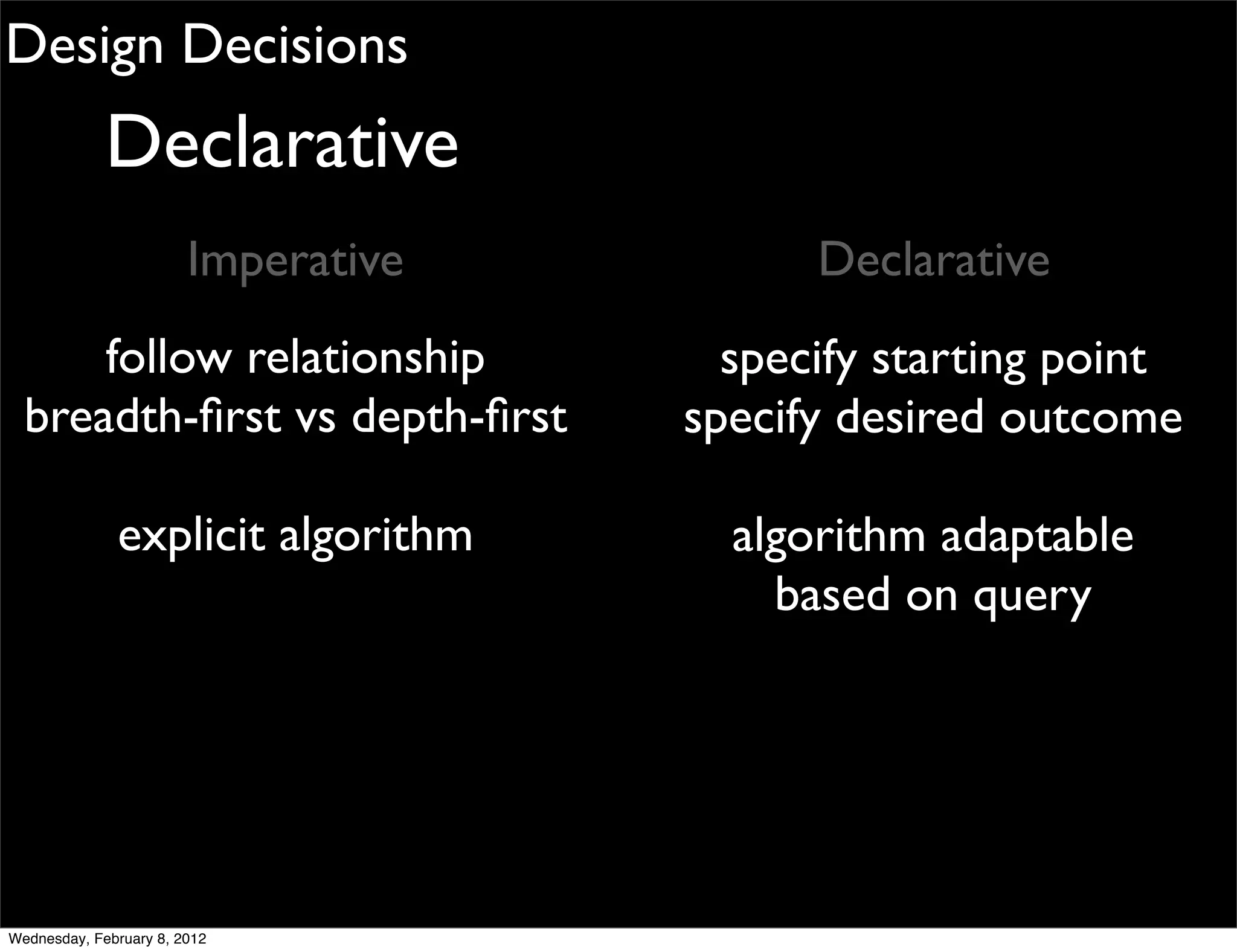

- 7. Design Decisions Declarative Imperative Declarative follow relationship specify starting point breadth-first vs depth-first specify desired outcome explicit algorithm algorithm adaptable based on query Wednesday, February 8, 2012

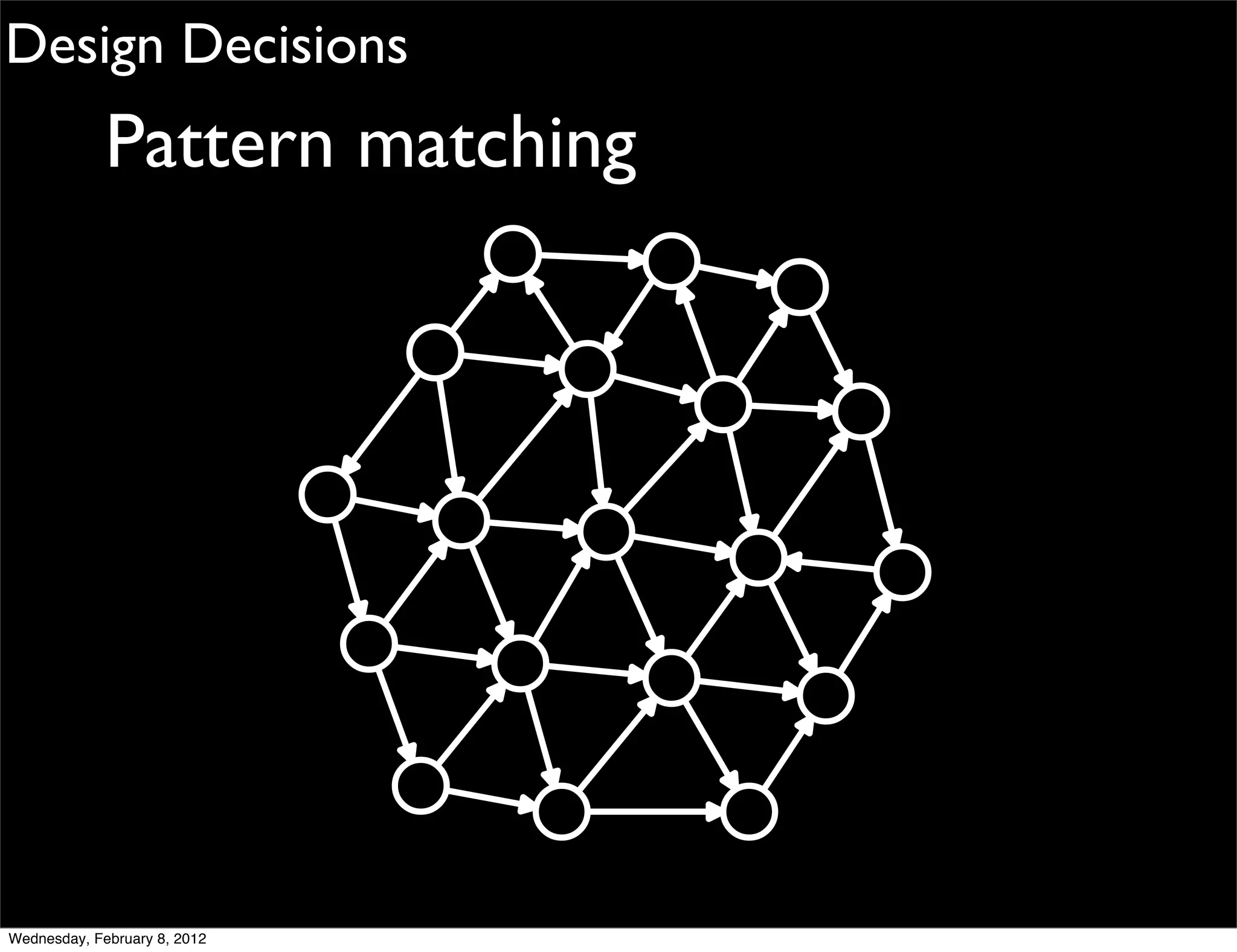

- 8. Design Decisions Pattern matching Wednesday, February 8, 2012

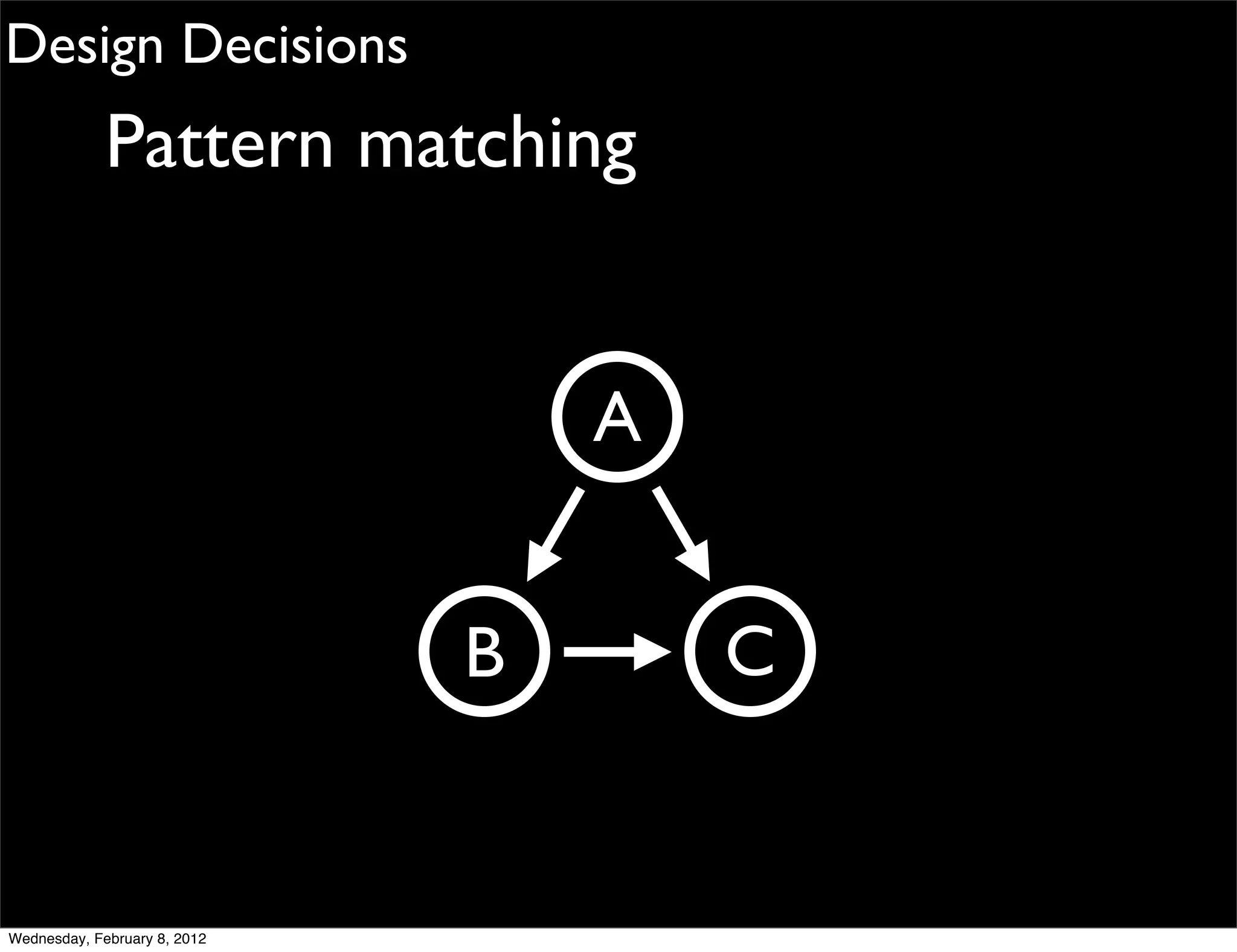

- 9. Design Decisions Pattern matching A B C Wednesday, February 8, 2012

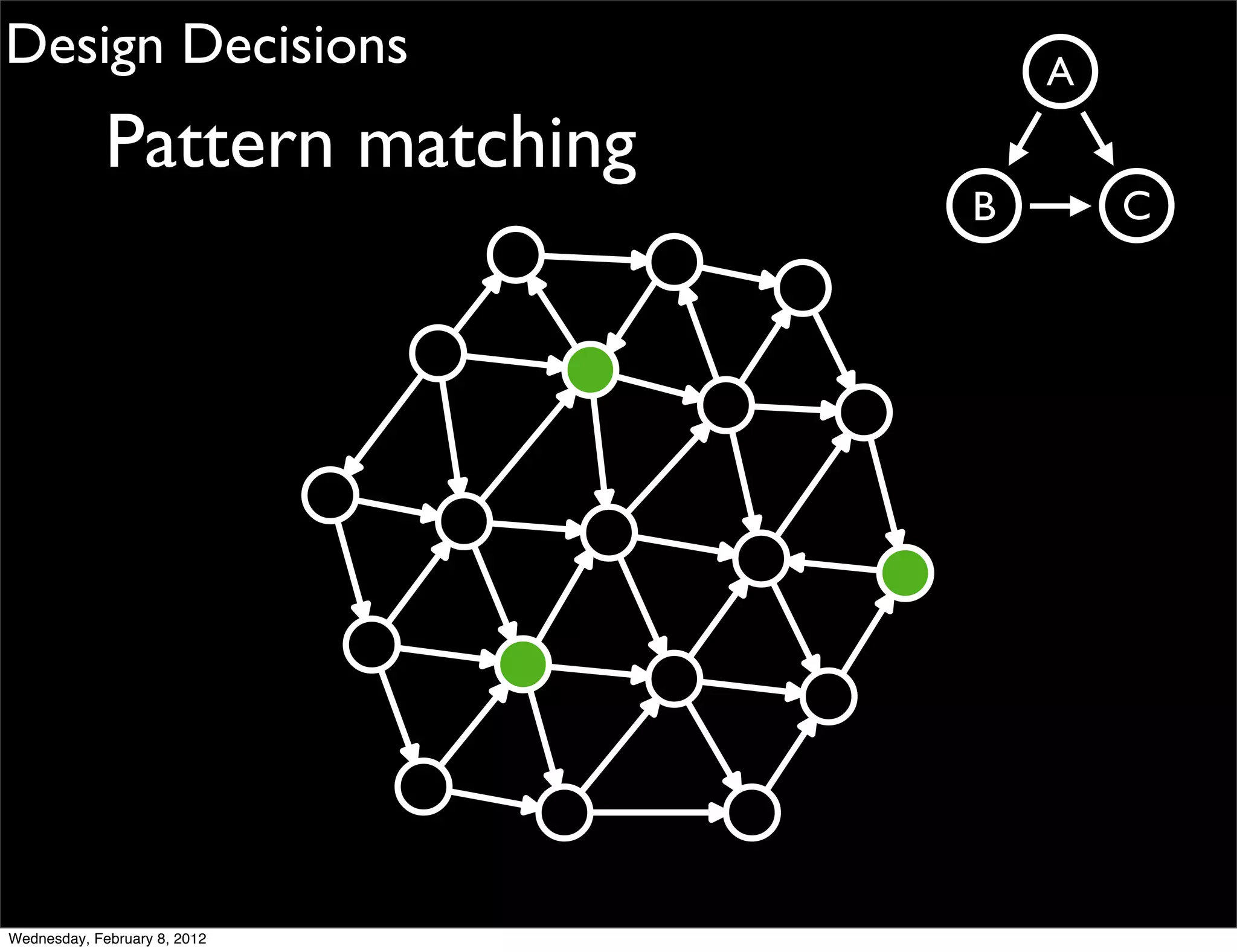

- 10. Design Decisions A Pattern matching B C Wednesday, February 8, 2012

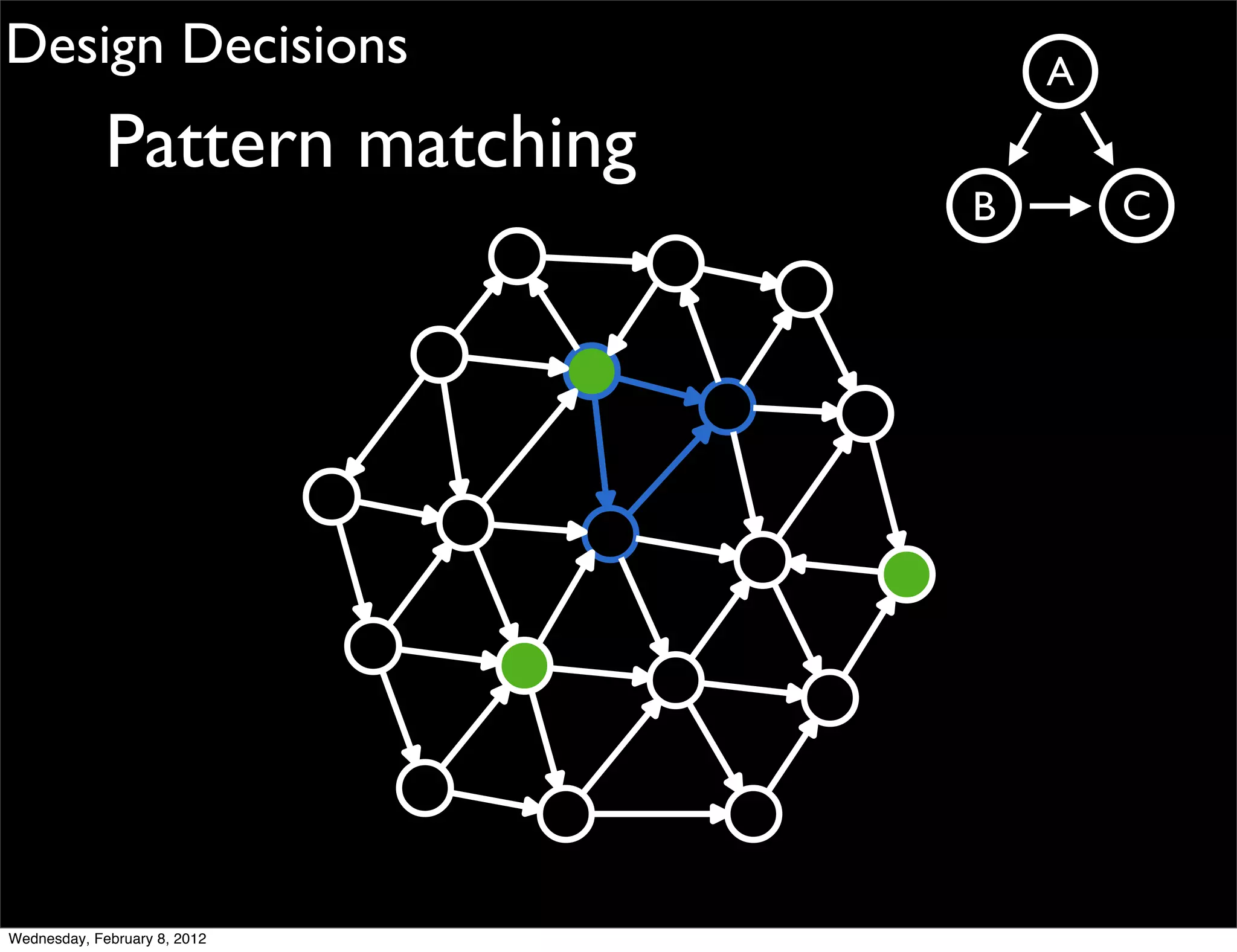

- 11. Design Decisions A Pattern matching B C Wednesday, February 8, 2012

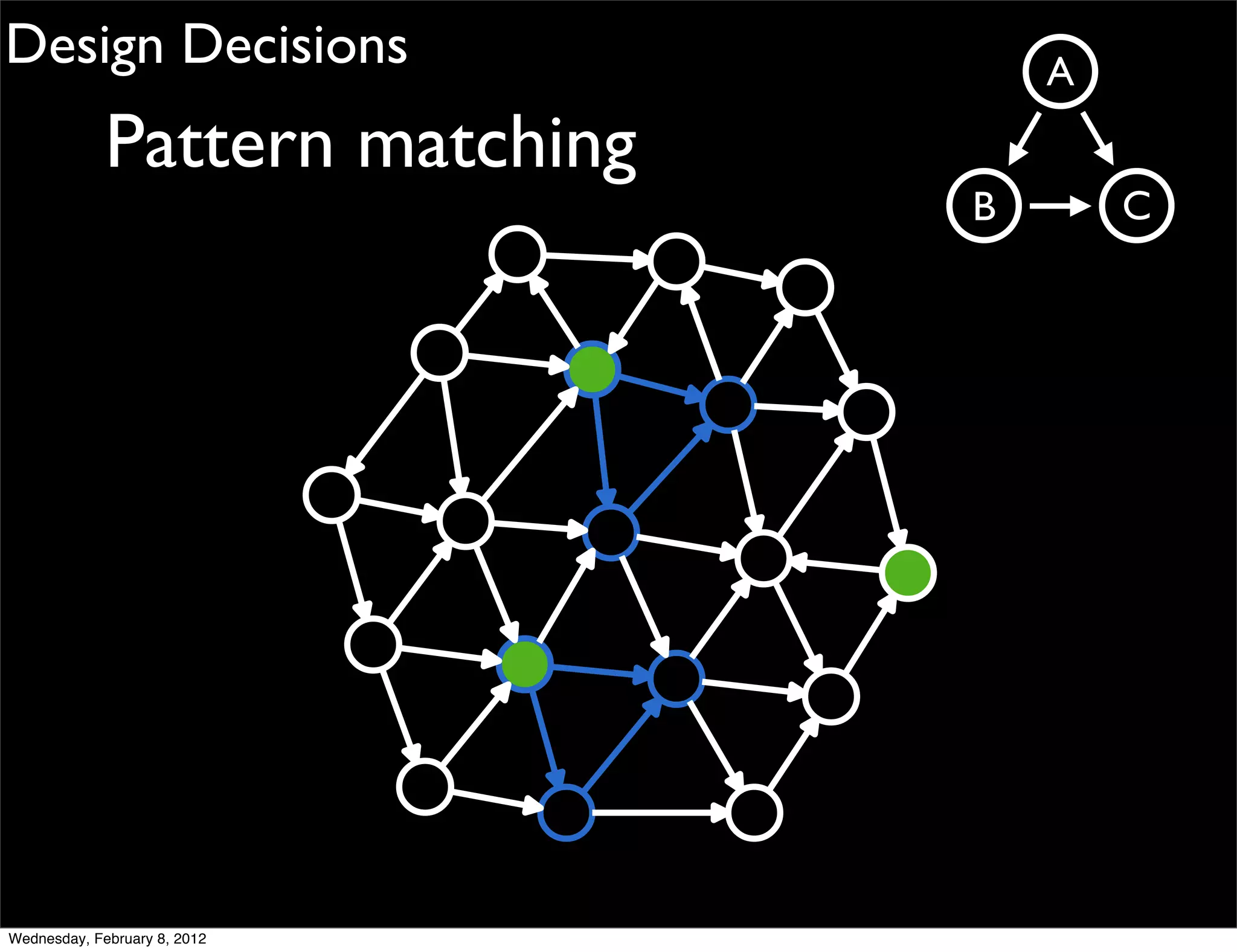

- 12. Design Decisions A Pattern matching B C Wednesday, February 8, 2012

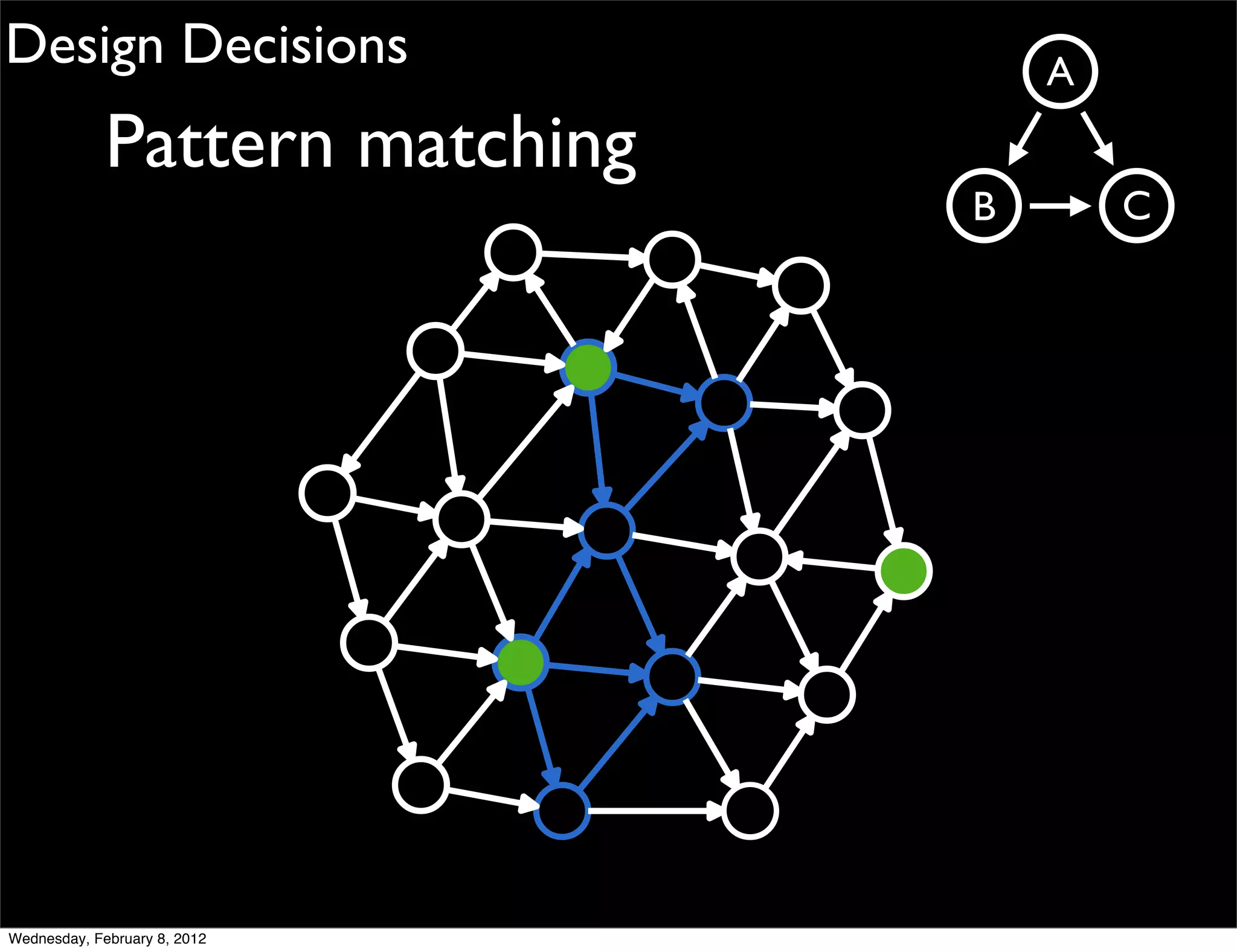

- 13. Design Decisions A Pattern matching B C Wednesday, February 8, 2012
- 14. Design Decisions ASCII-art patterns Wednesday, February 8, 2012

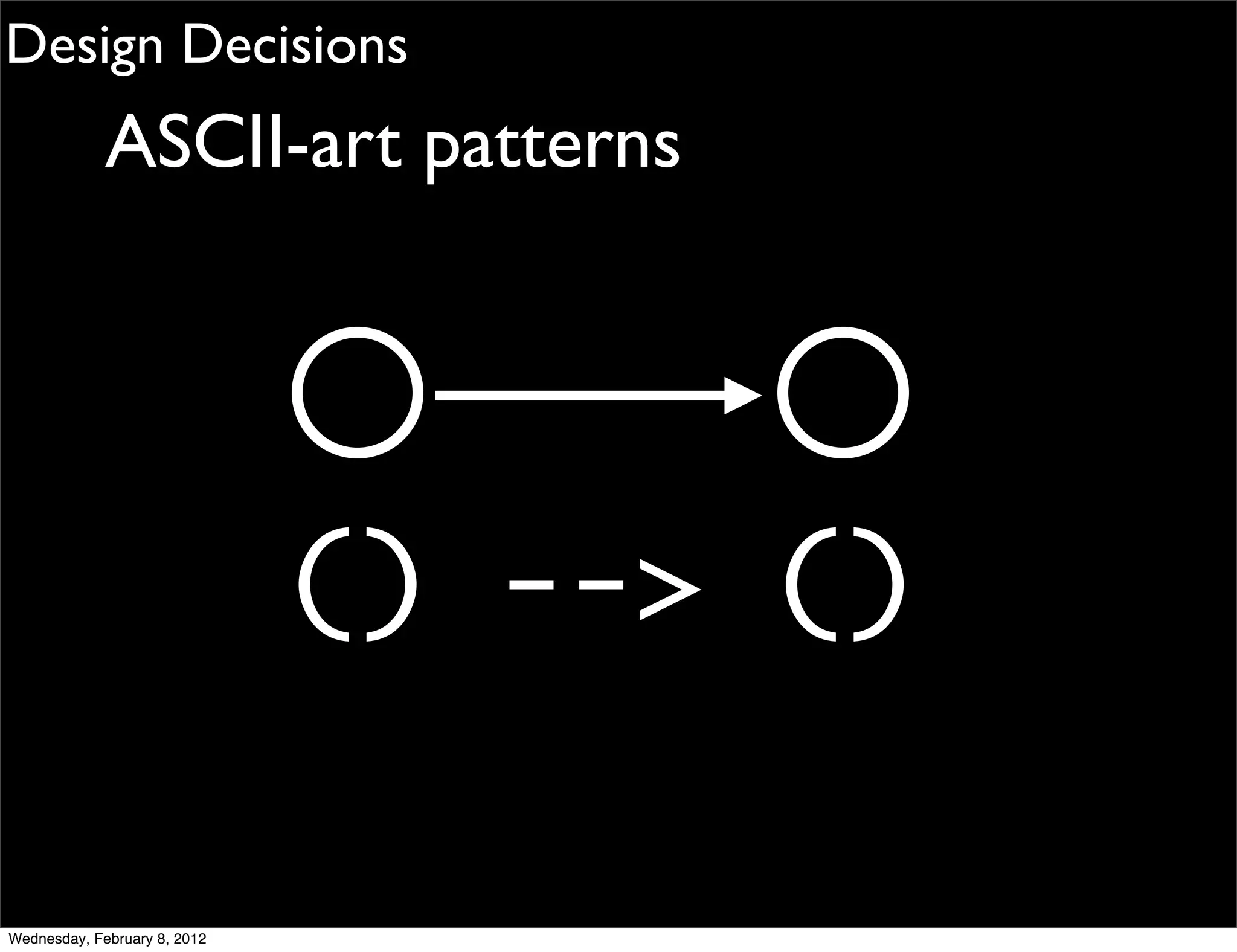

- 15. Design Decisions ASCII-art patterns () --> () Wednesday, February 8, 2012

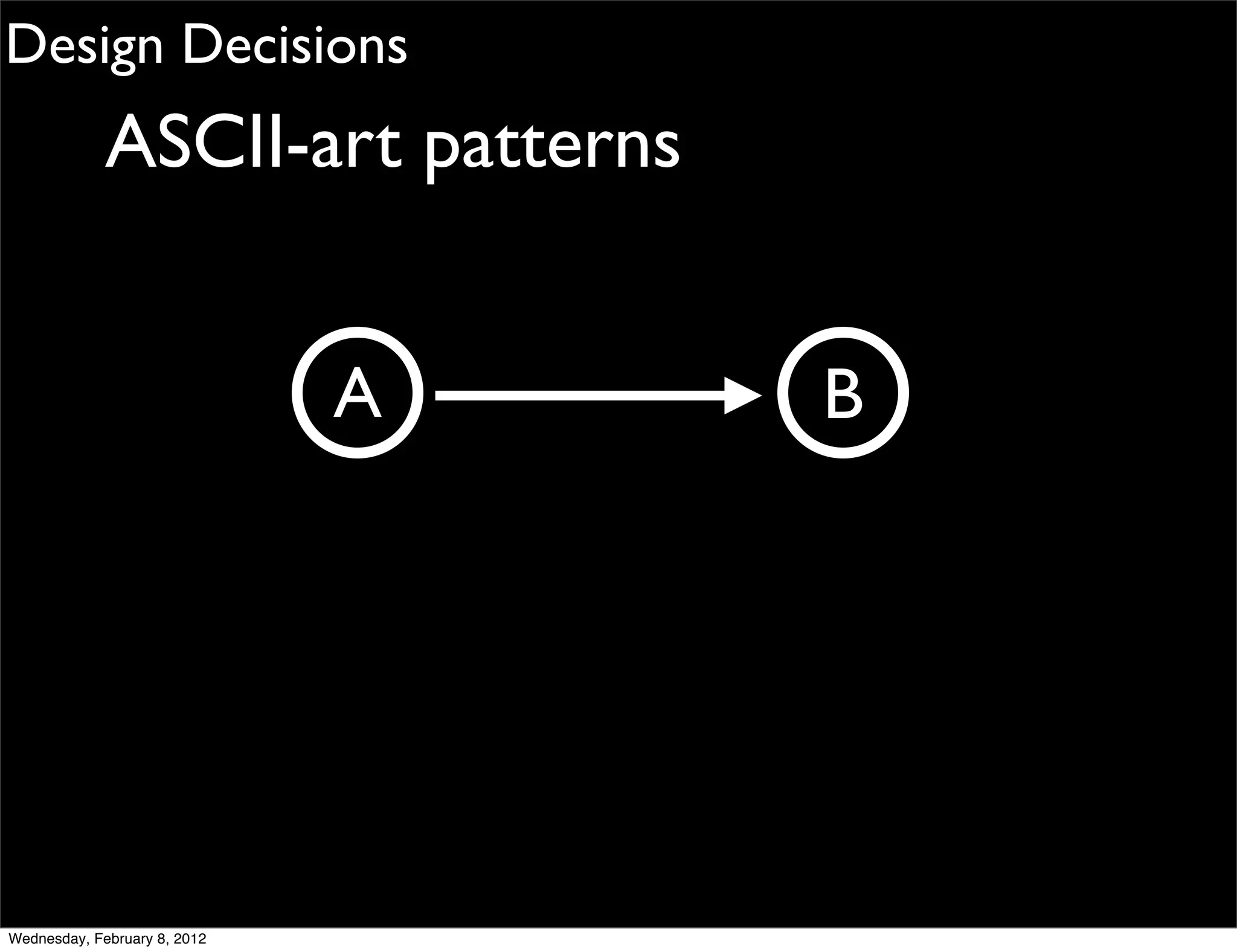

- 16. Design Decisions ASCII-art patterns A B Wednesday, February 8, 2012

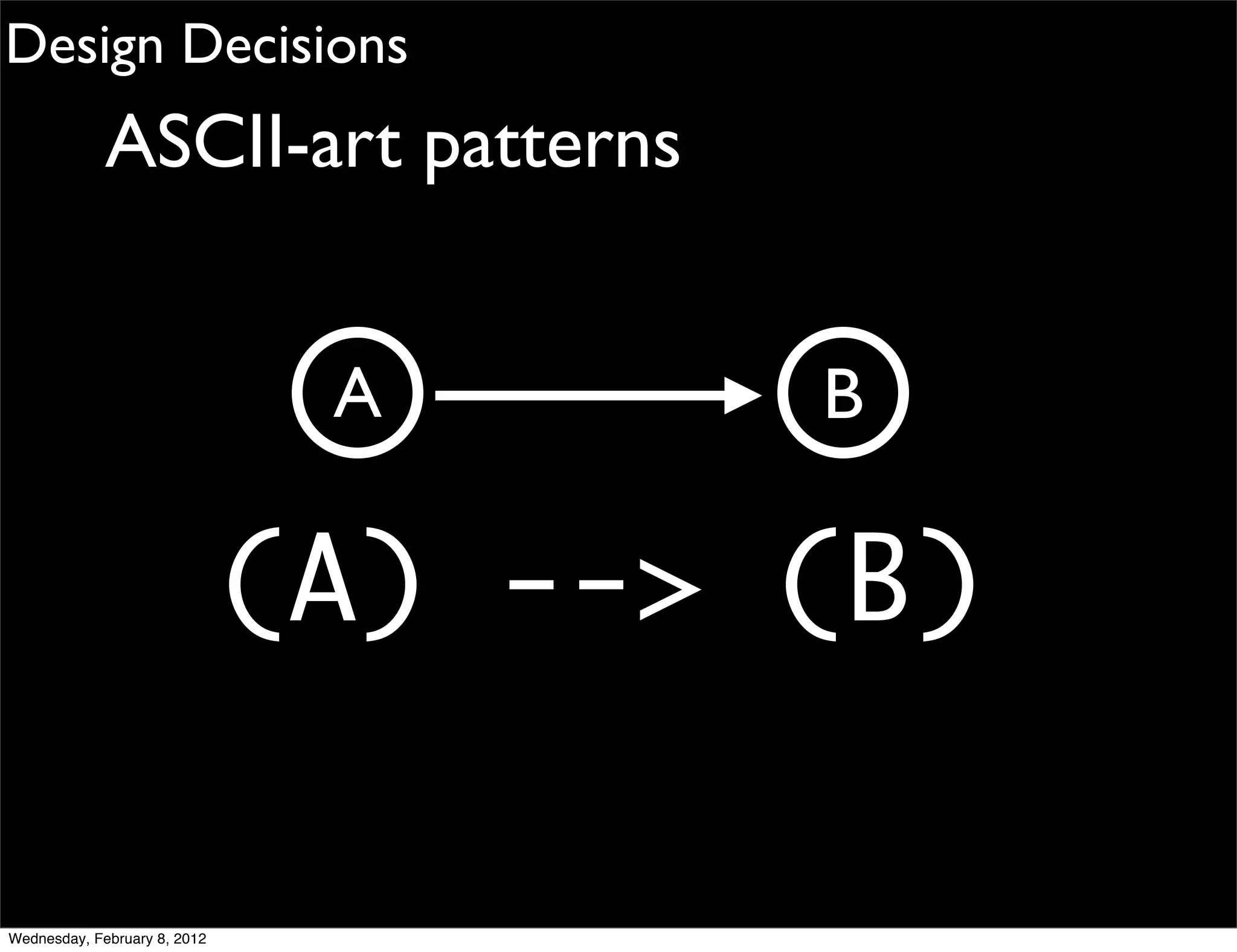

- 17. Design Decisions ASCII-art patterns A B (A) --> (B) Wednesday, February 8, 2012
- 18. Design Decisions ASCII-art patterns LOVES A B Wednesday, February 8, 2012

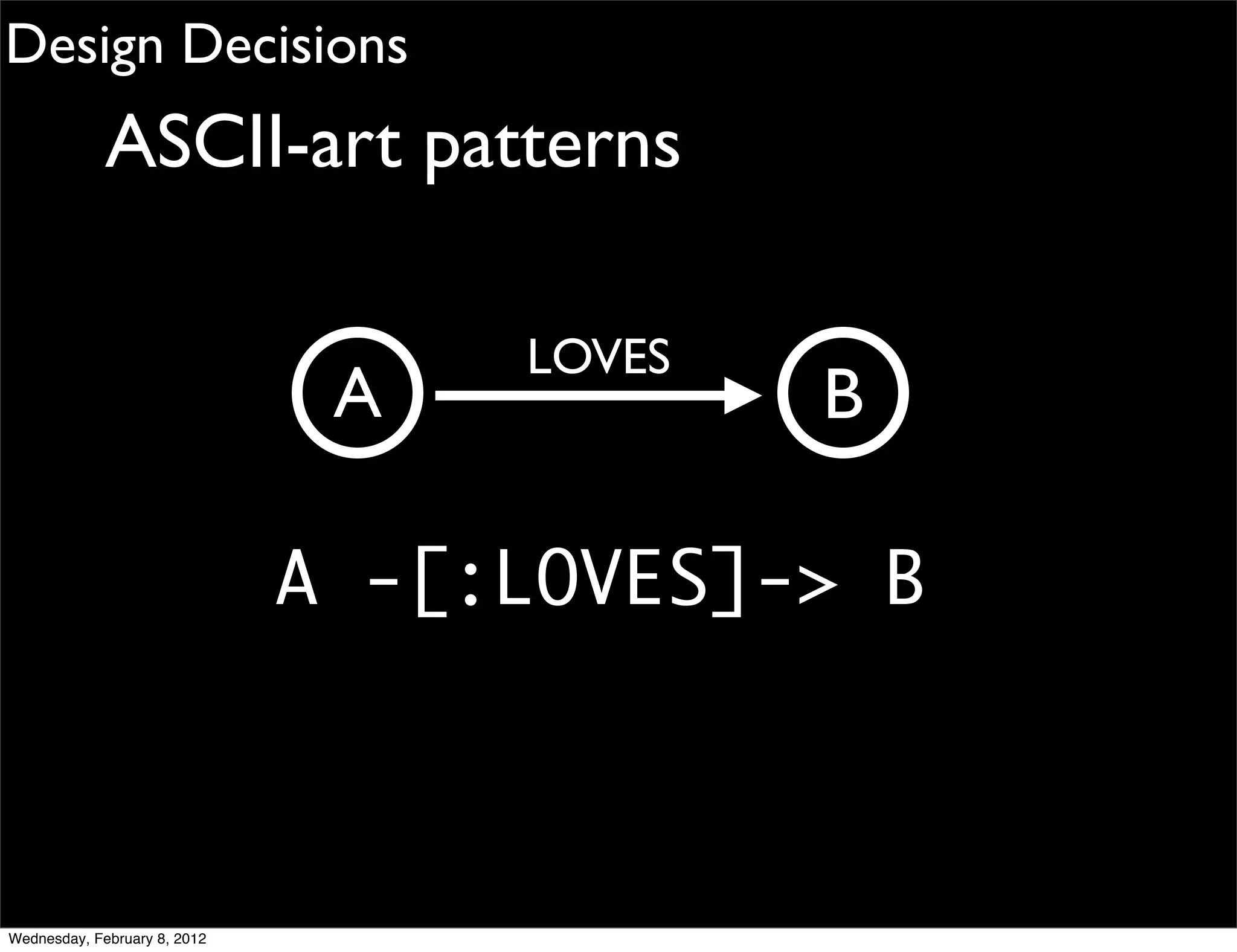

- 19. Design Decisions ASCII-art patterns LOVES A B A -[:LOVES]-> B Wednesday, February 8, 2012

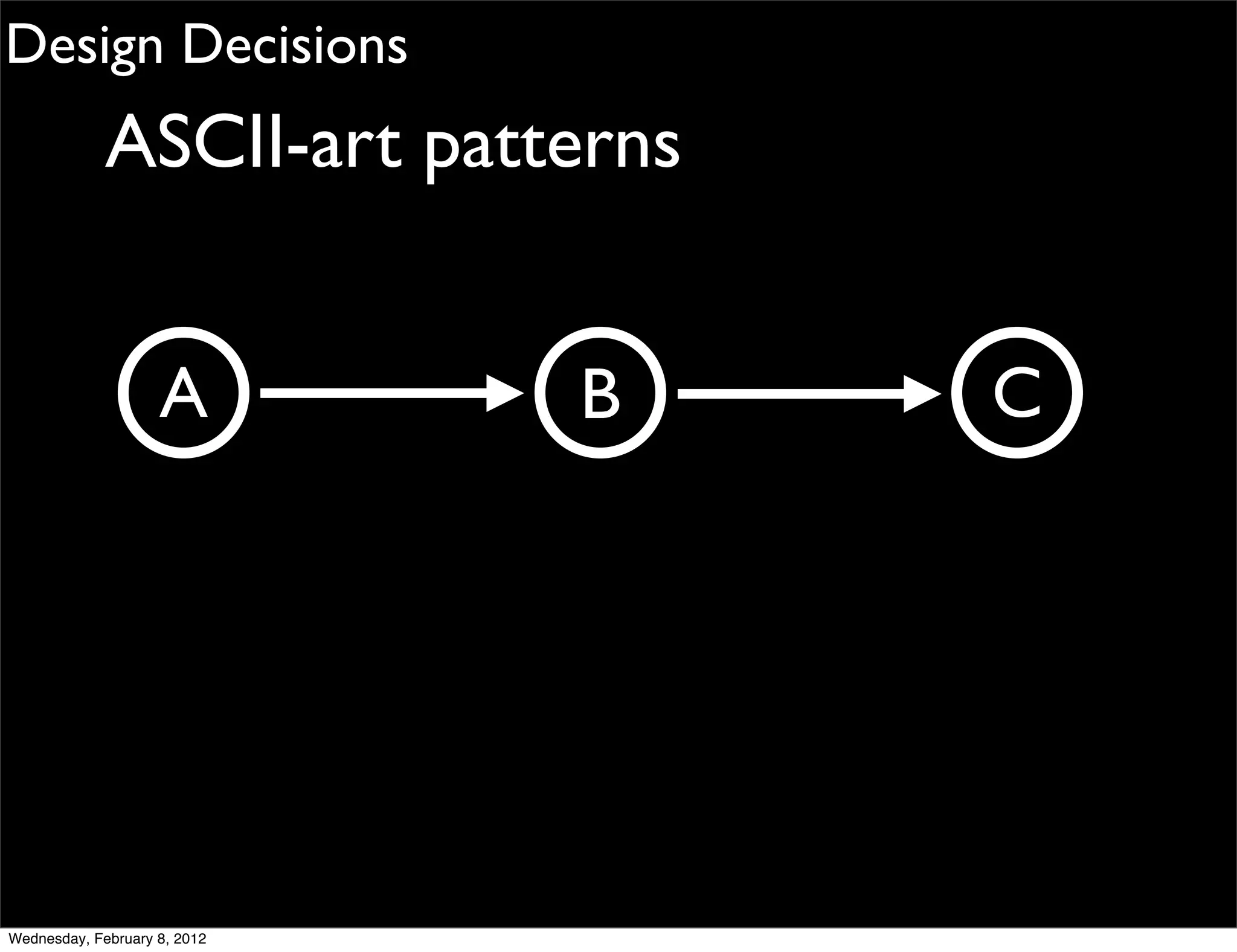

- 20. Design Decisions ASCII-art patterns A B C Wednesday, February 8, 2012

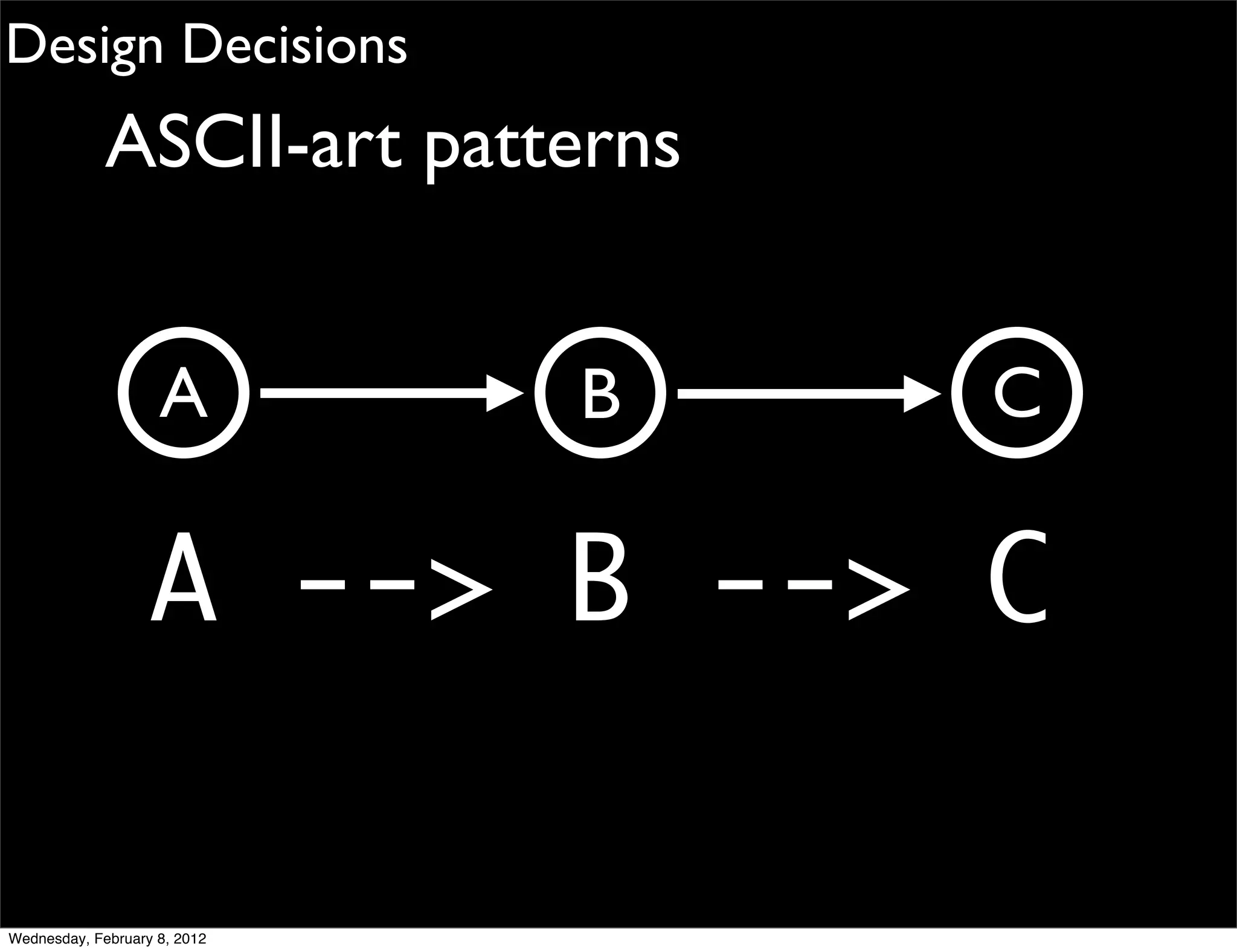

- 21. Design Decisions ASCII-art patterns A B C A --> B --> C Wednesday, February 8, 2012

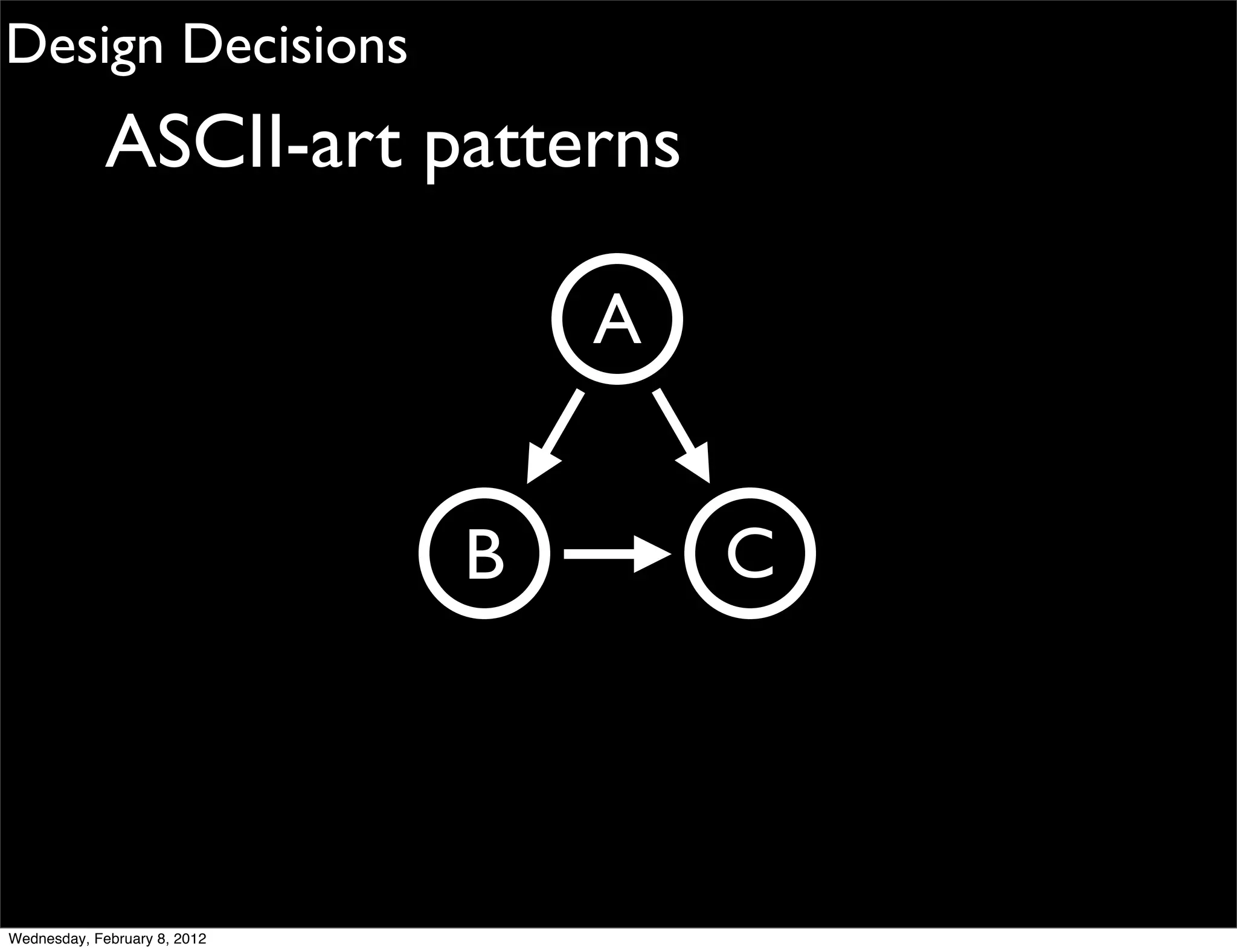

- 22. Design Decisions ASCII-art patterns A B C Wednesday, February 8, 2012

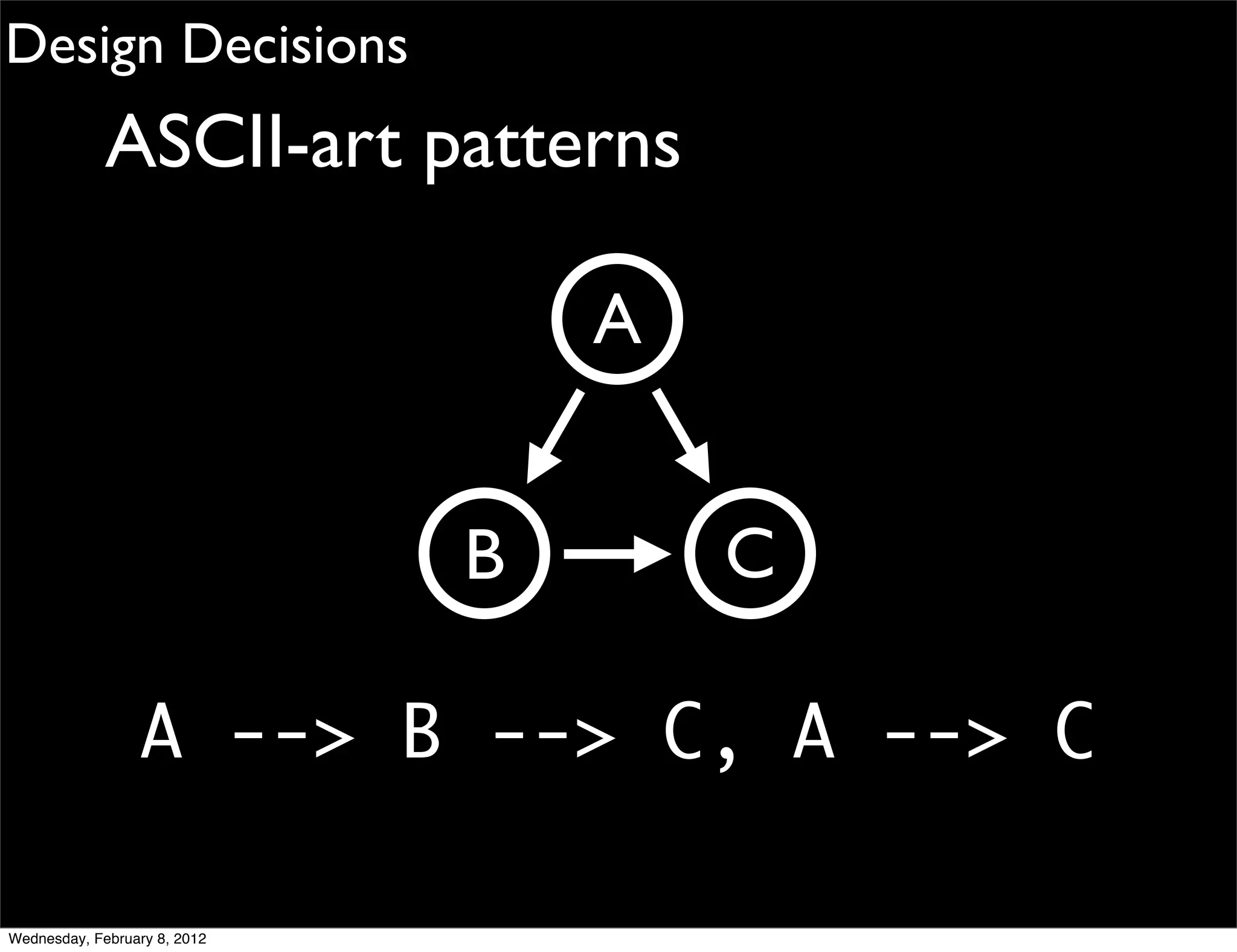

- 23. Design Decisions ASCII-art patterns A B C A --> B --> C, A --> C Wednesday, February 8, 2012

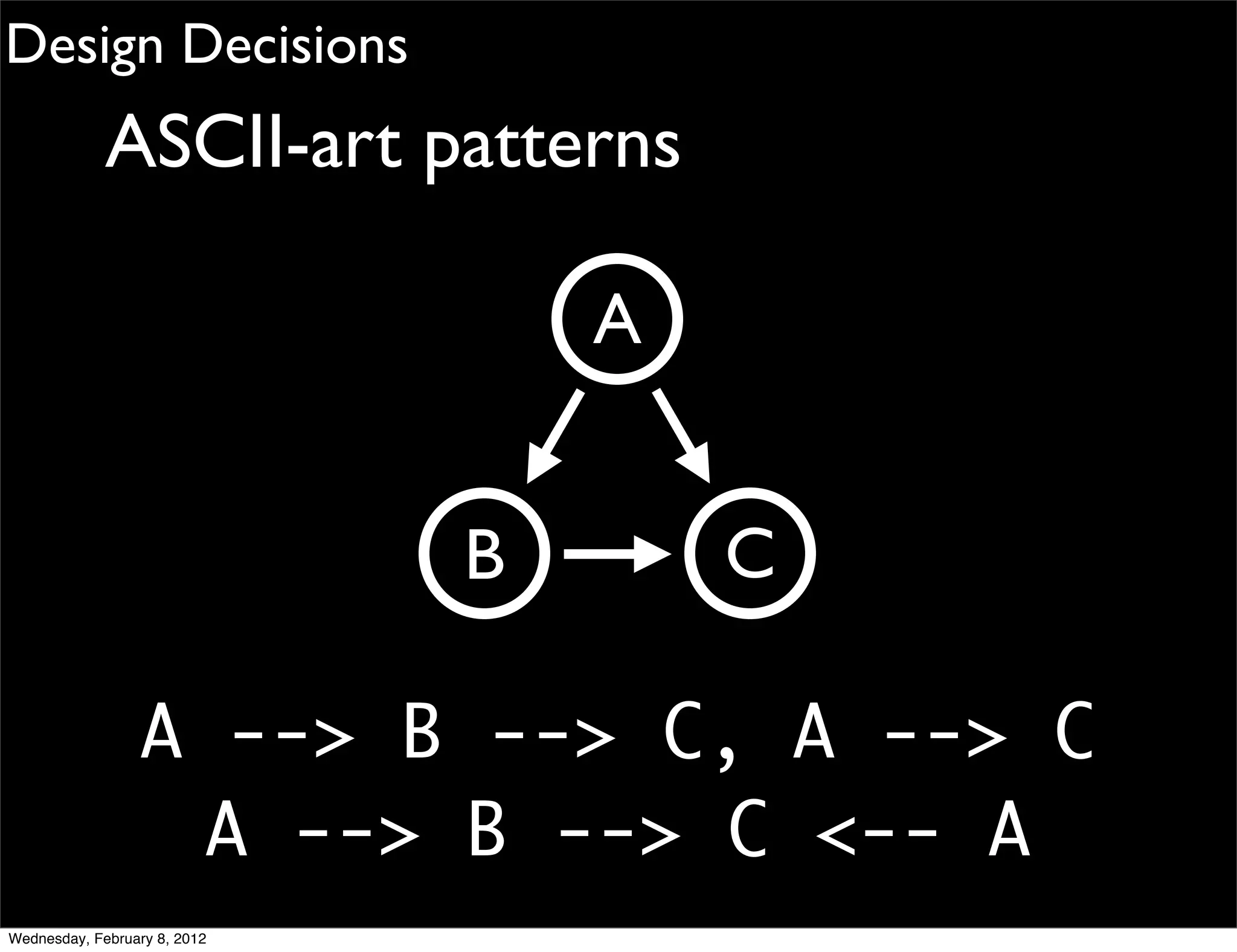

- 24. Design Decisions ASCII-art patterns A B C A --> B --> C, A --> C A --> B --> C <-- A Wednesday, February 8, 2012

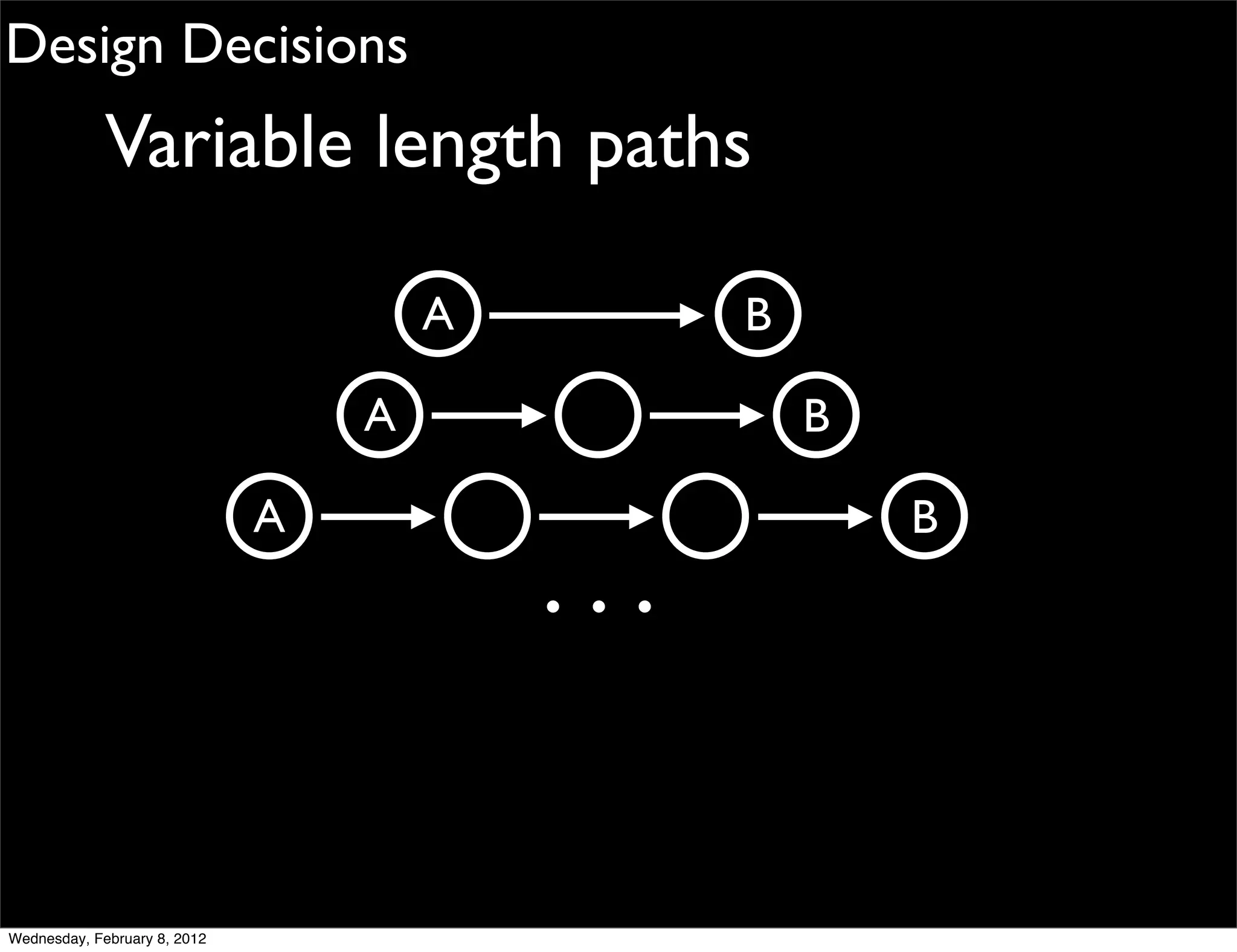

- 25. Design Decisions Variable length paths A B A B A B ... Wednesday, February 8, 2012

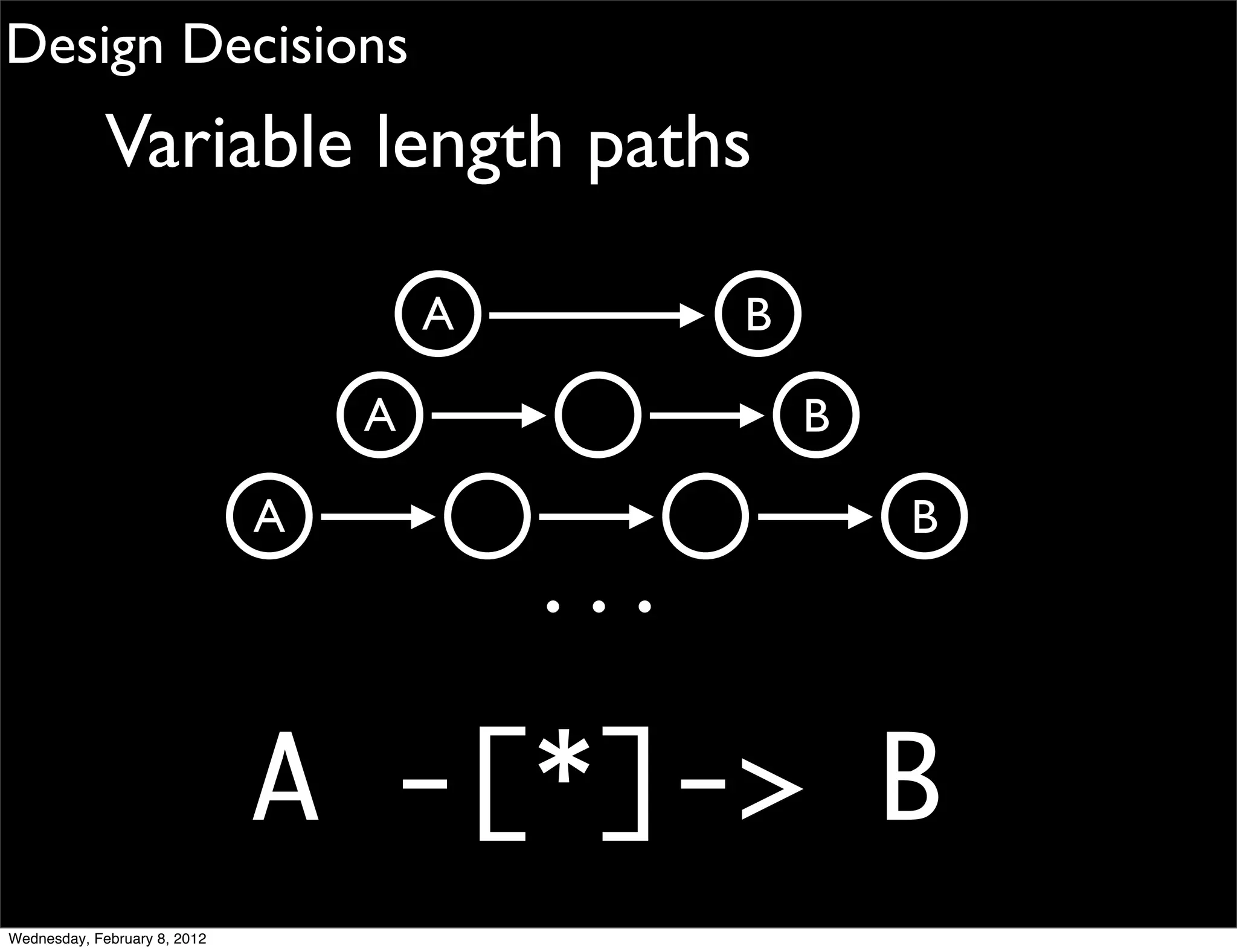

- 26. Design Decisions Variable length paths A B A B A B ... A -[*]-> B Wednesday, February 8, 2012

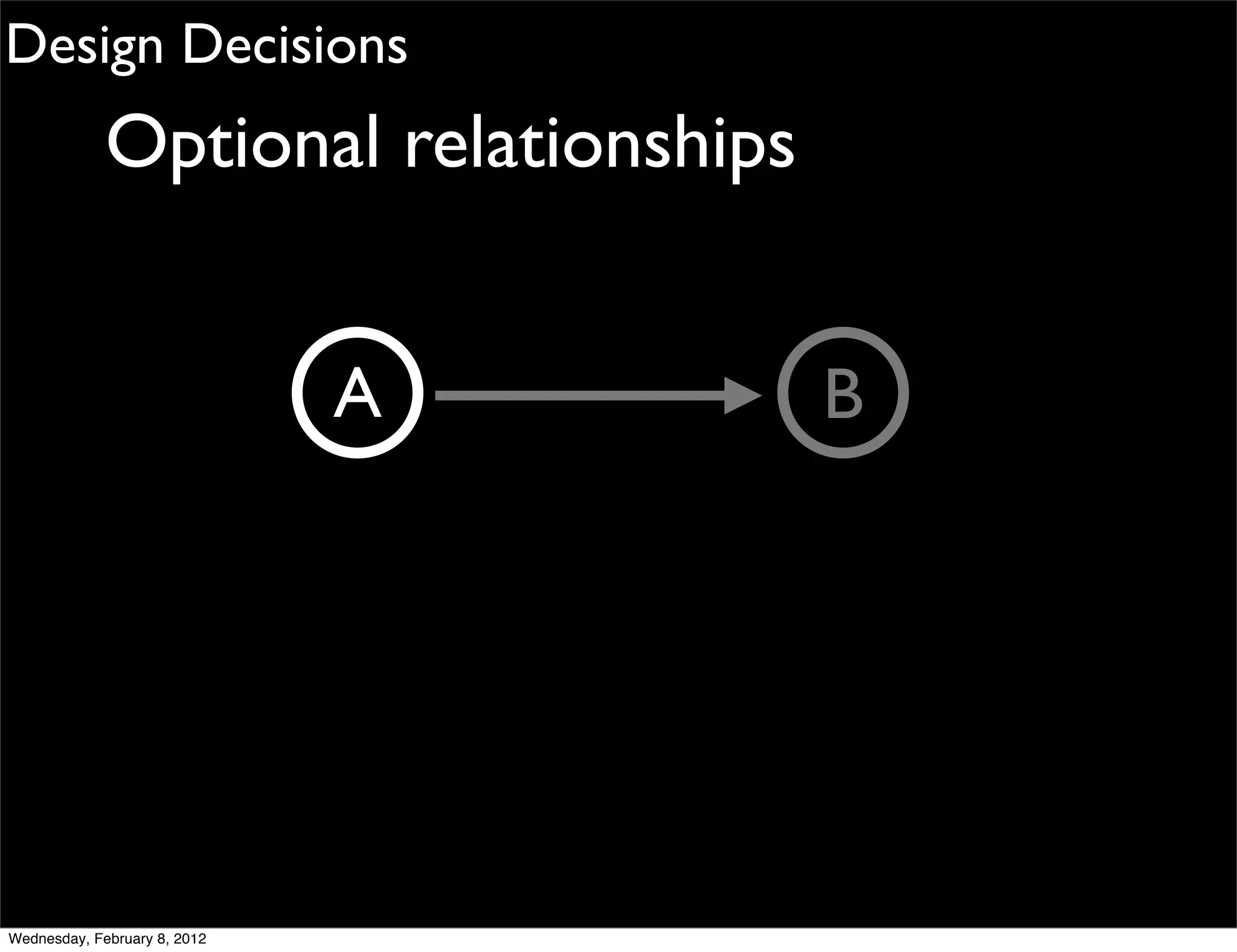

- 27. Design Decisions Optional relationships A B Wednesday, February 8, 2012

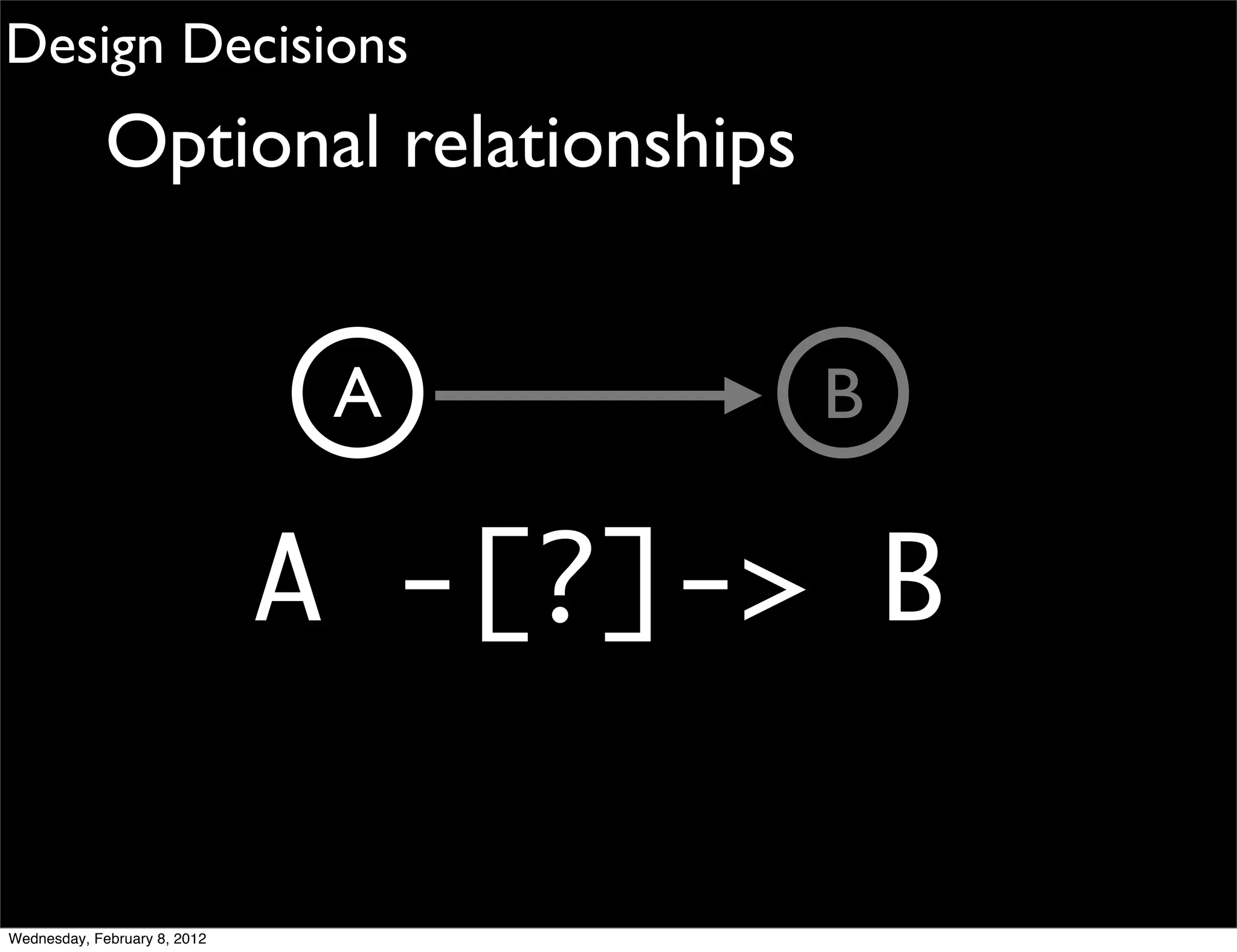

- 28. Design Decisions Optional relationships A B A -[?]-> B Wednesday, February 8, 2012

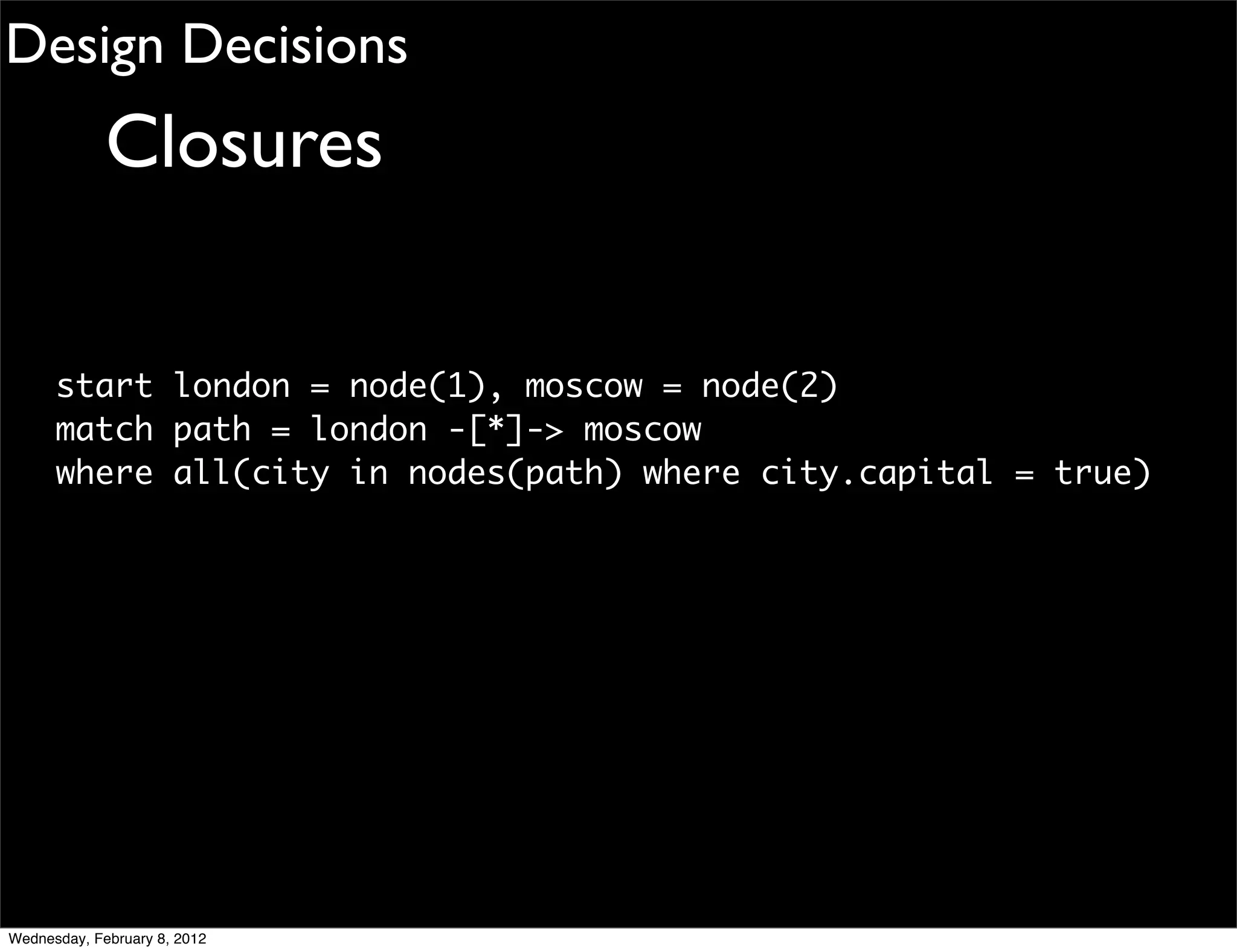

- 29. Design Decisions Closures start london = node(1), moscow = node(2) match path = london -[*]-> moscow where all(city in nodes(path) where city.capital = true) Wednesday, February 8, 2012

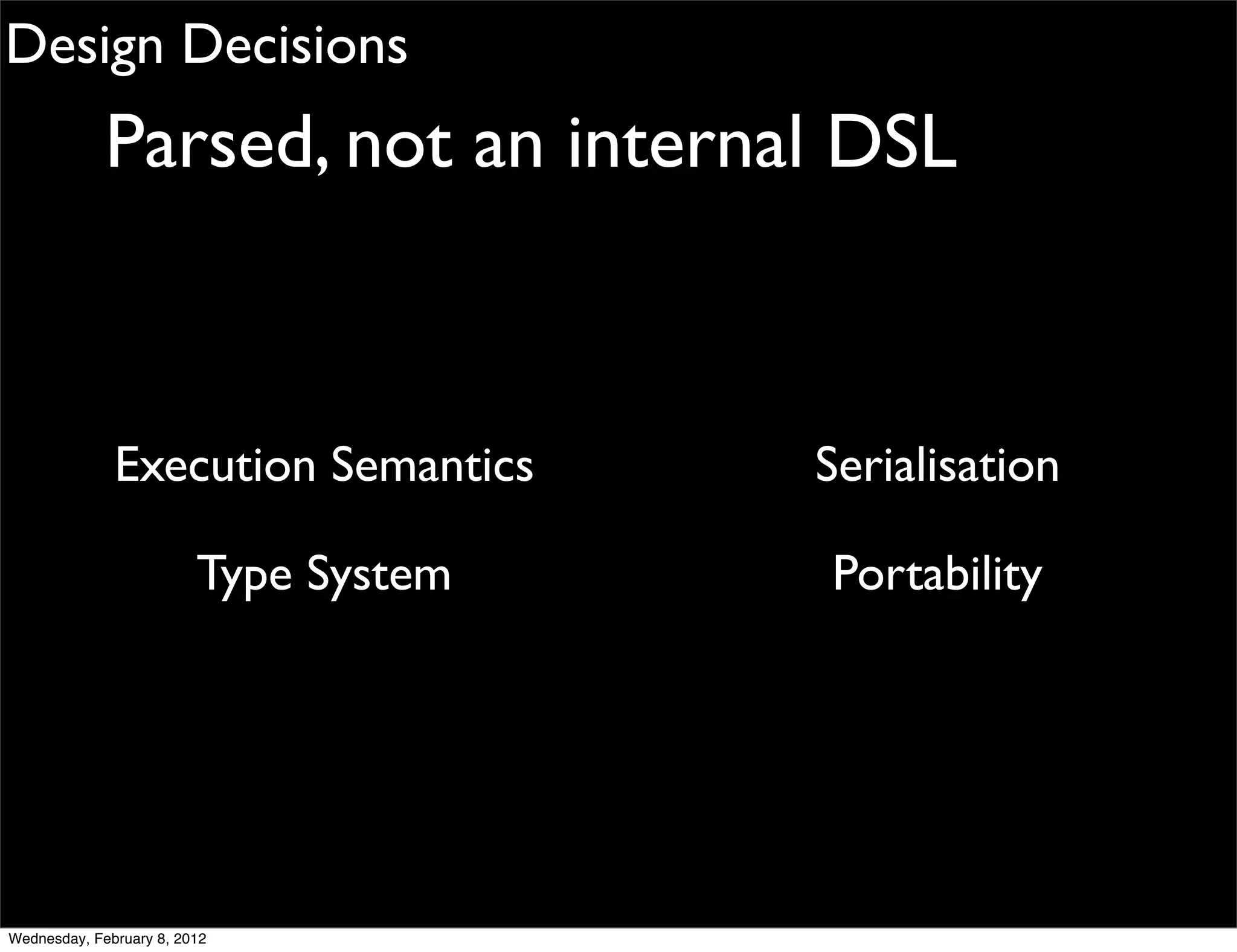

- 30. Design Decisions Parsed, not an internal DSL Execution Semantics Serialisation Type System Portability Wednesday, February 8, 2012

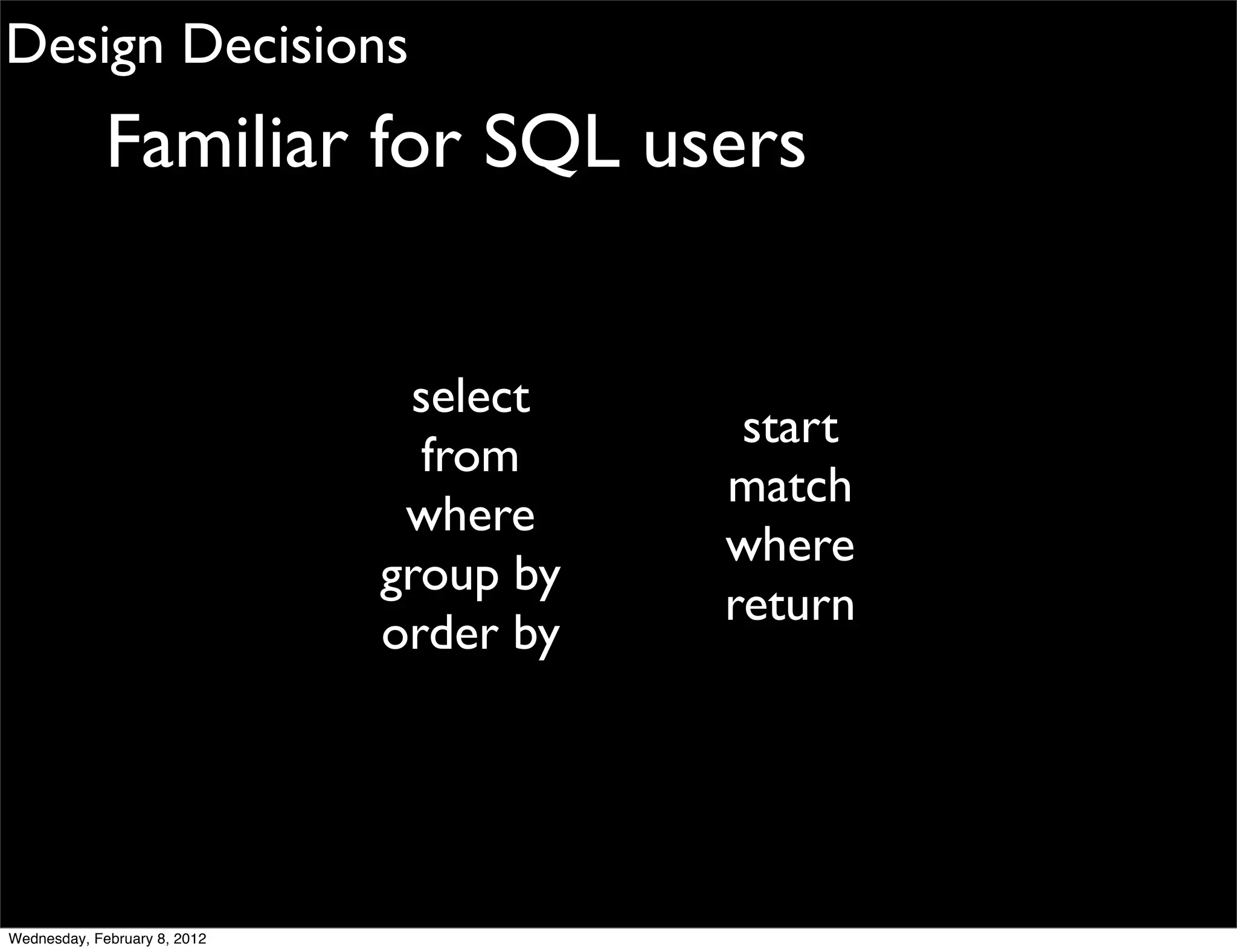

- 31. Design Decisions Familiar for SQL users select start from match where where group by return order by Wednesday, February 8, 2012

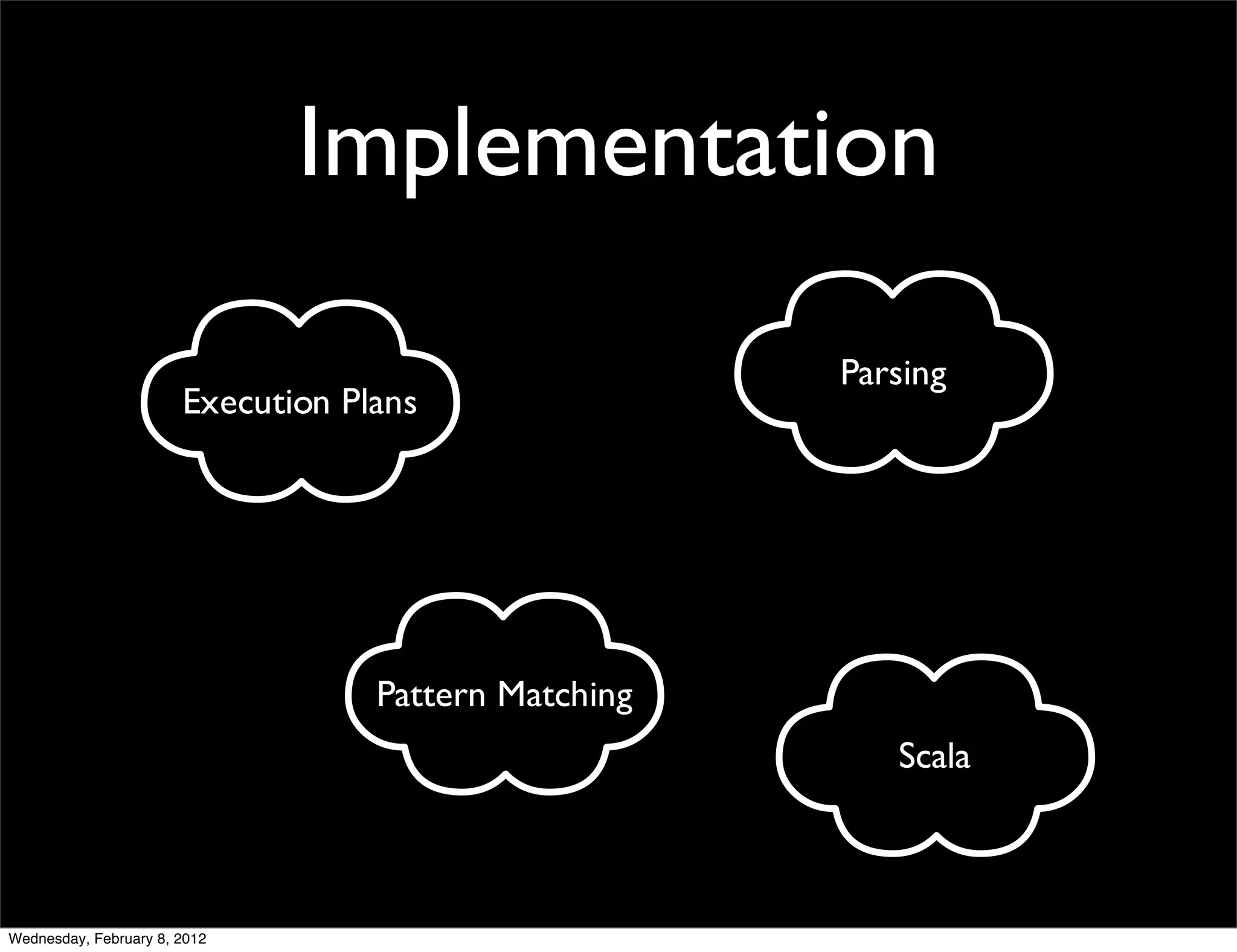

- 32.

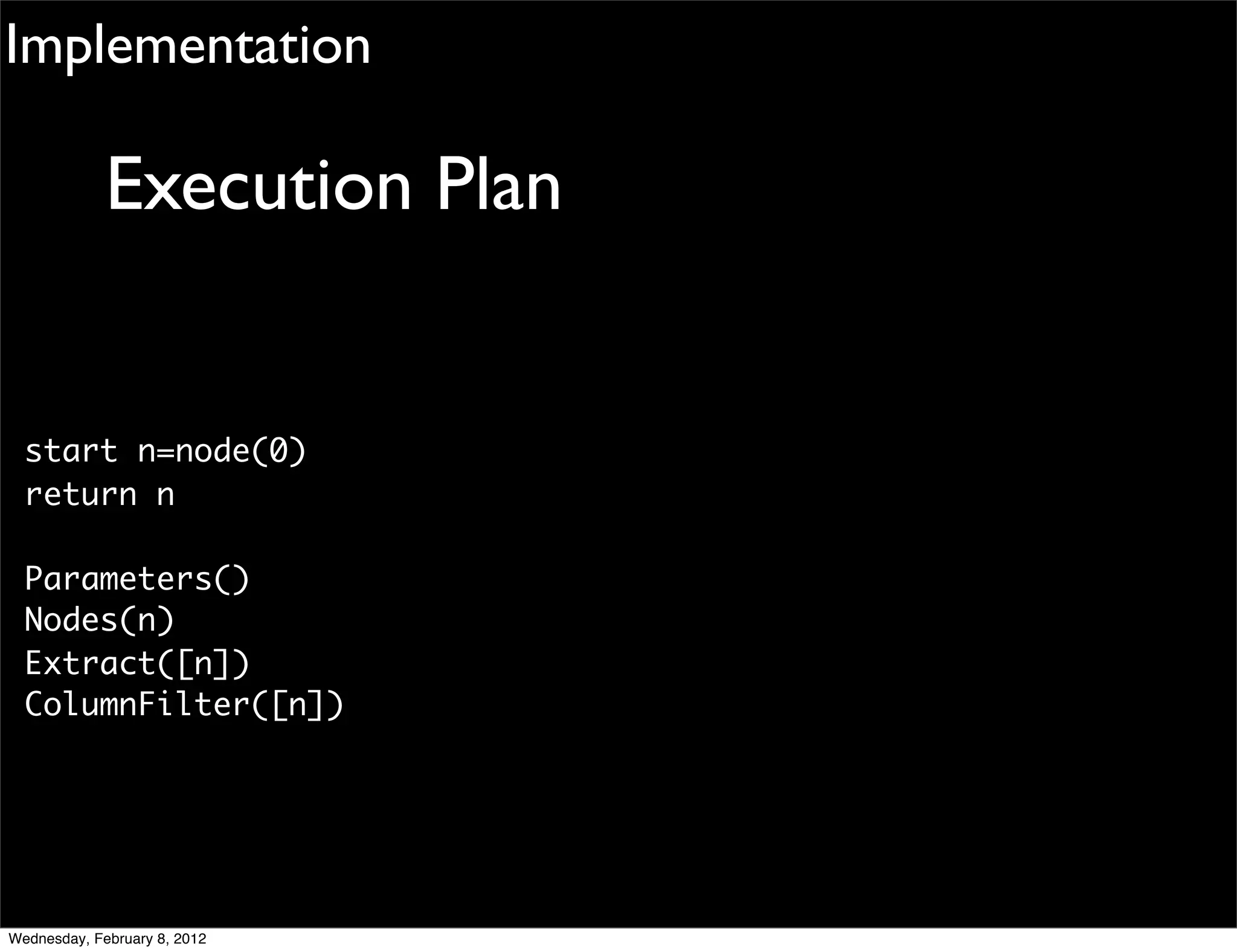

- 33. Implementation Execution Plan start n=node(0) return n Parameters() Nodes(n) Extract([n]) ColumnFilter([n]) Wednesday, February 8, 2012

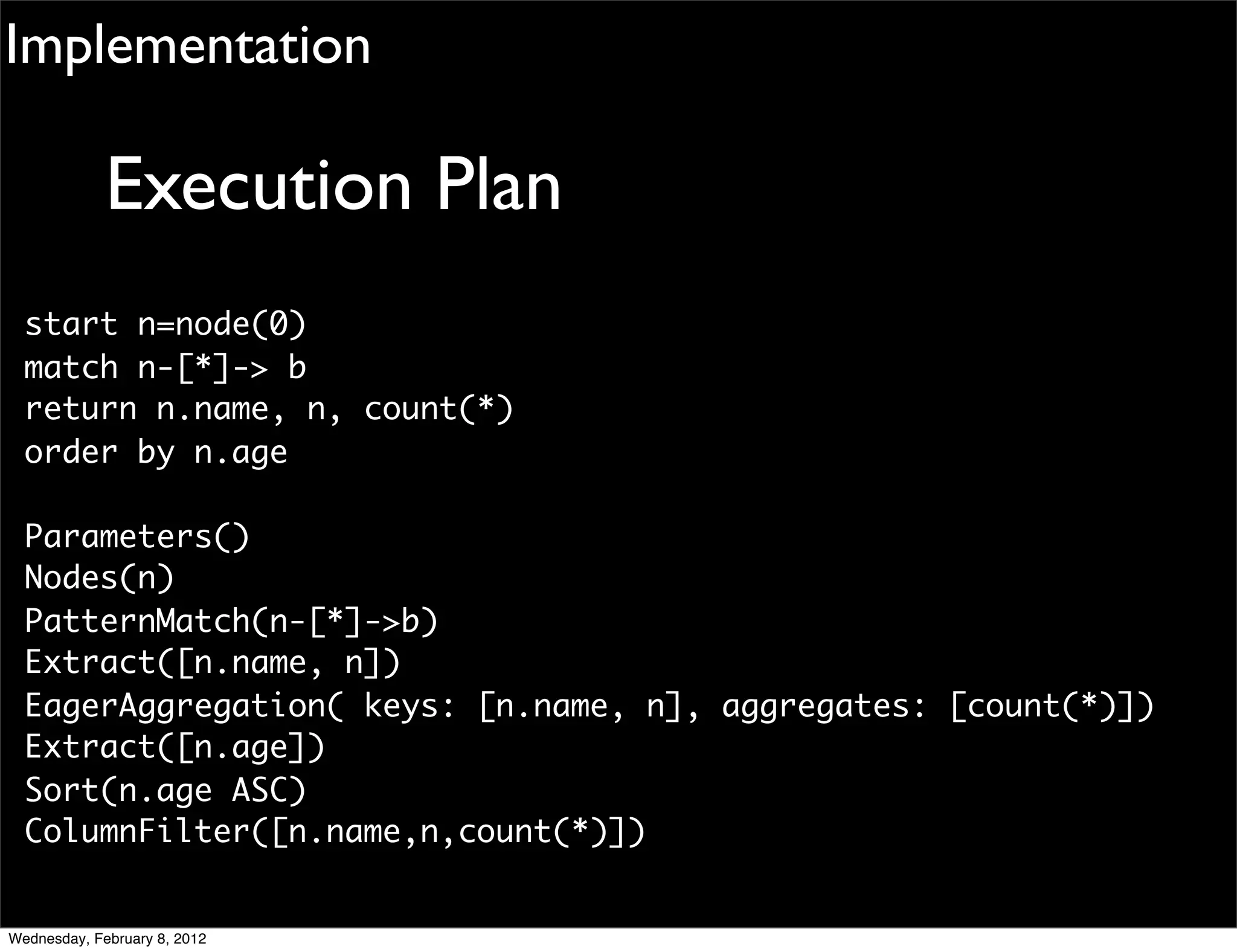

- 34. Implementation Execution Plan start n=node(0) match n-[*]-> b return n.name, n, count(*) order by n.age Parameters() Nodes(n) PatternMatch(n-[*]->b) Extract([n.name, n]) EagerAggregation( keys: [n.name, n], aggregates: [count(*)]) Extract([n.age]) Sort(n.age ASC) ColumnFilter([n.name,n,count(*)]) Wednesday, February 8, 2012

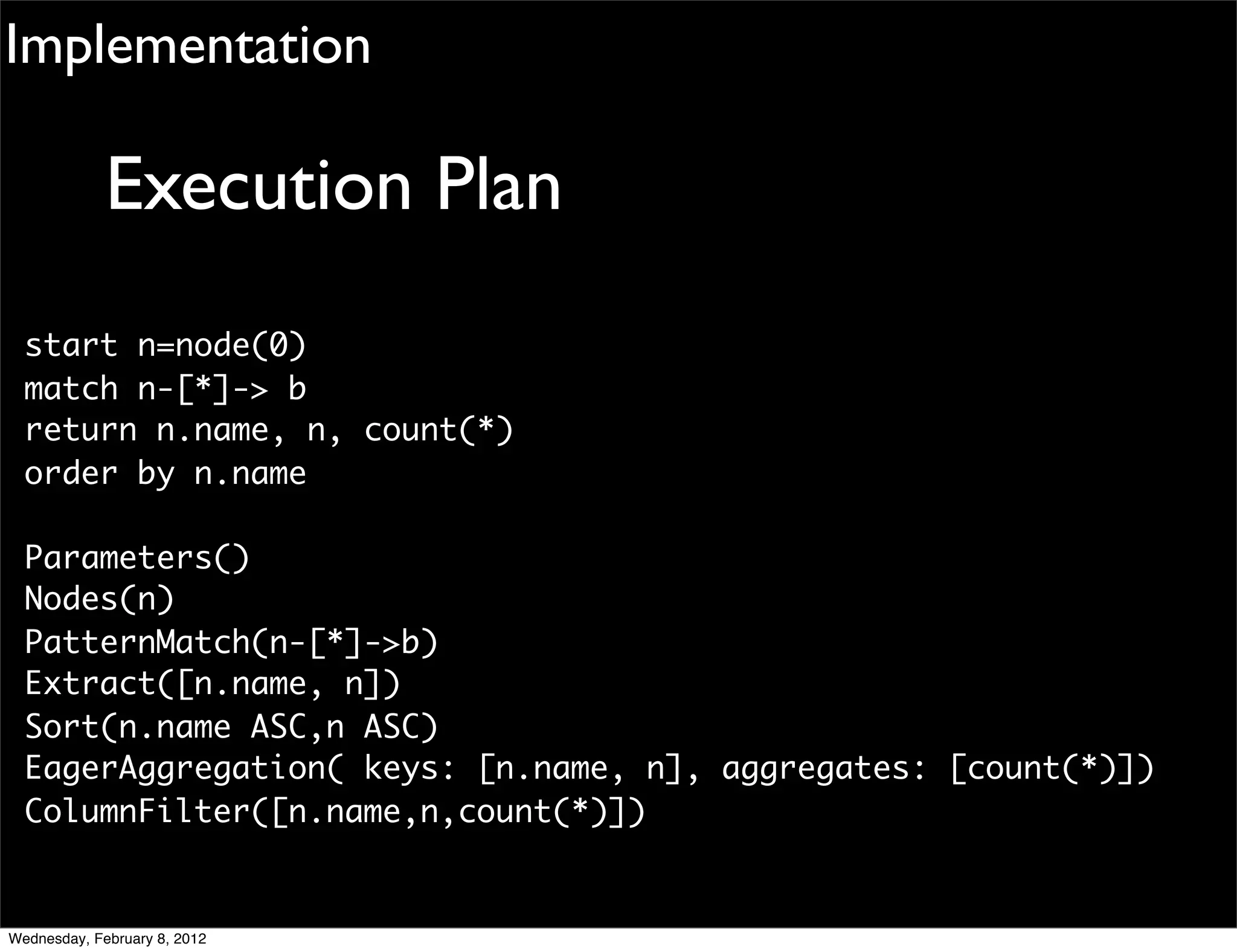

- 35. Implementation Execution Plan start n=node(0) match n-[*]-> b return n.name, n, count(*) order by n.name Parameters() Nodes(n) PatternMatch(n-[*]->b) Extract([n.name, n]) Sort(n.name ASC,n ASC) EagerAggregation( keys: [n.name, n], aggregates: [count(*)]) ColumnFilter([n.name,n,count(*)]) Wednesday, February 8, 2012
- 36. Thanks for Listening! Questions? Andrés Taylor andres.taylor@neotechnology.com @andres_taylor Alistair Jones alistair.jones@neotechnology.com @apcj Wednesday, February 8, 2012
