- 1. Let’s make IoTreal Creatordev.io Platforms for building, scaling and powering the Internet of Things Creator IoT Framework

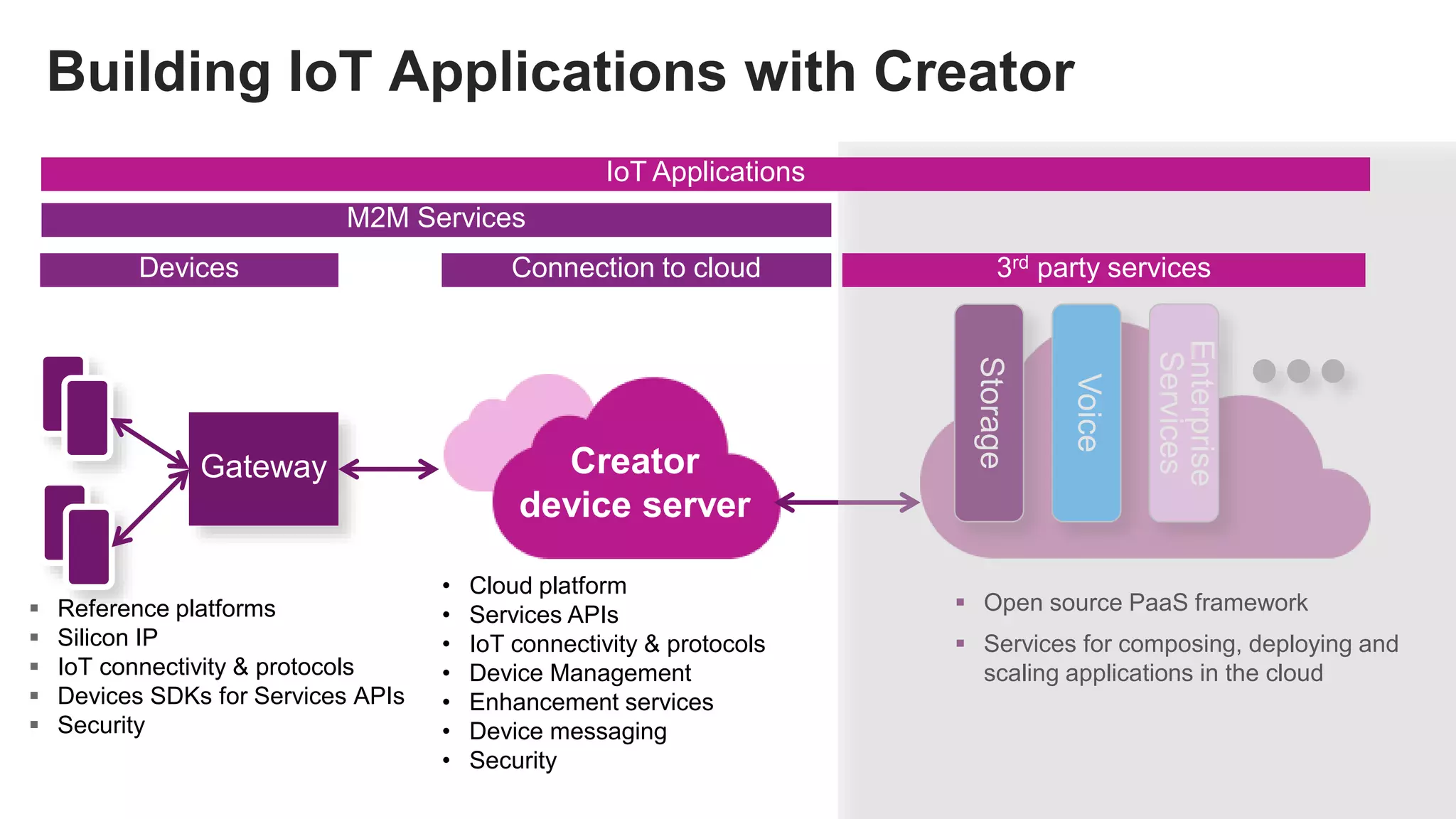

- 2. Building IoT Applicationswith Creator Gateway Storage Voice Enterprise Services M2M Services • Cloud platform • Services APIs • IoT connectivity & protocols • Device Management • Enhancement services • Device messaging • Security Open source PaaS framework Services for composing, deploying and scaling applications in the cloud Devices Reference platforms Silicon IP IoT connectivity & protocols Devices SDKs for Services APIs Security Connection to cloud Creator device server 3rd party services IoT Applications

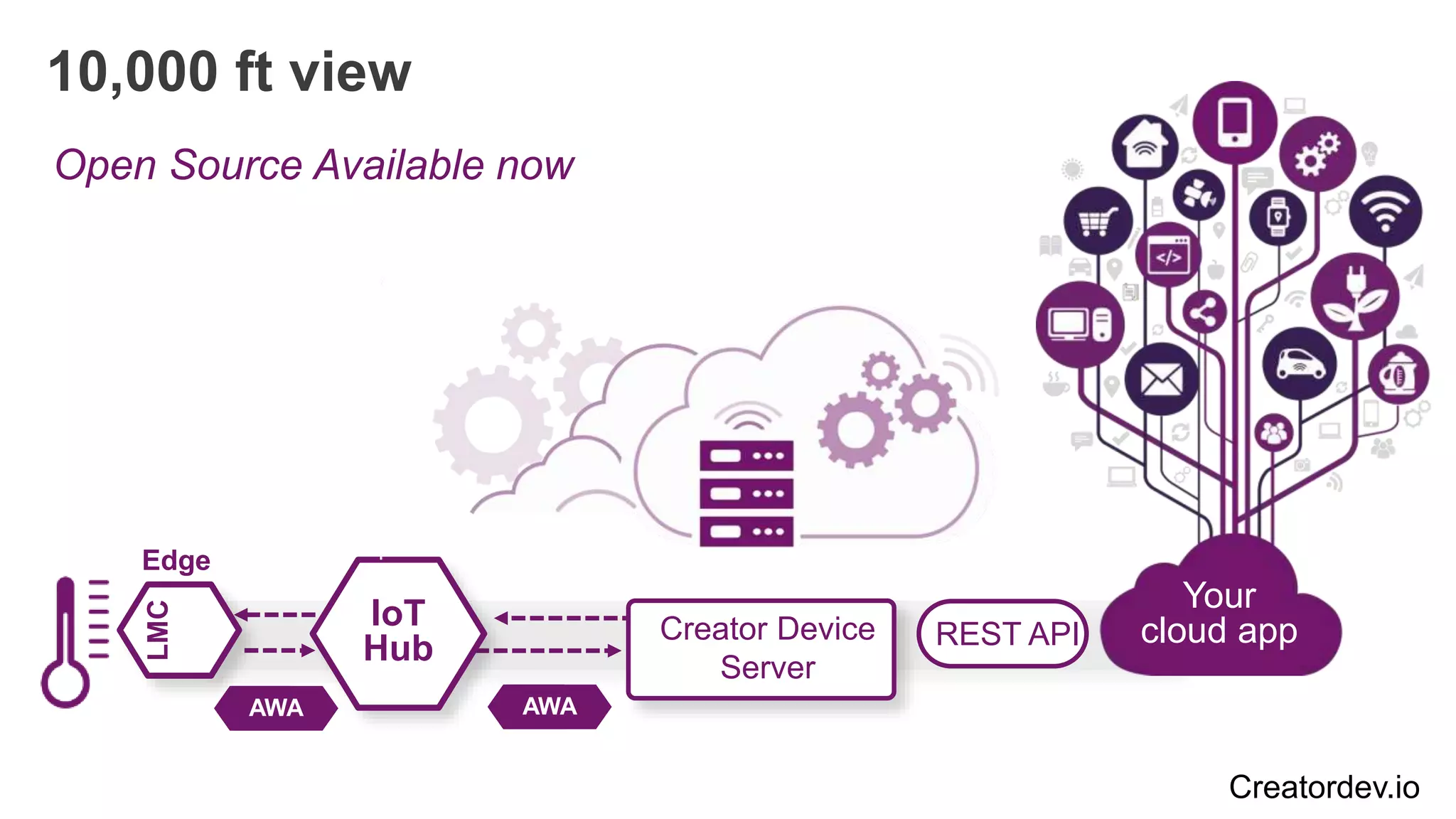

- 3. Your cloud appCreator Device Server IoT HubREST API 10,000 ft view Open Source Available now AWAAWA LMC Edge Creatordev.io

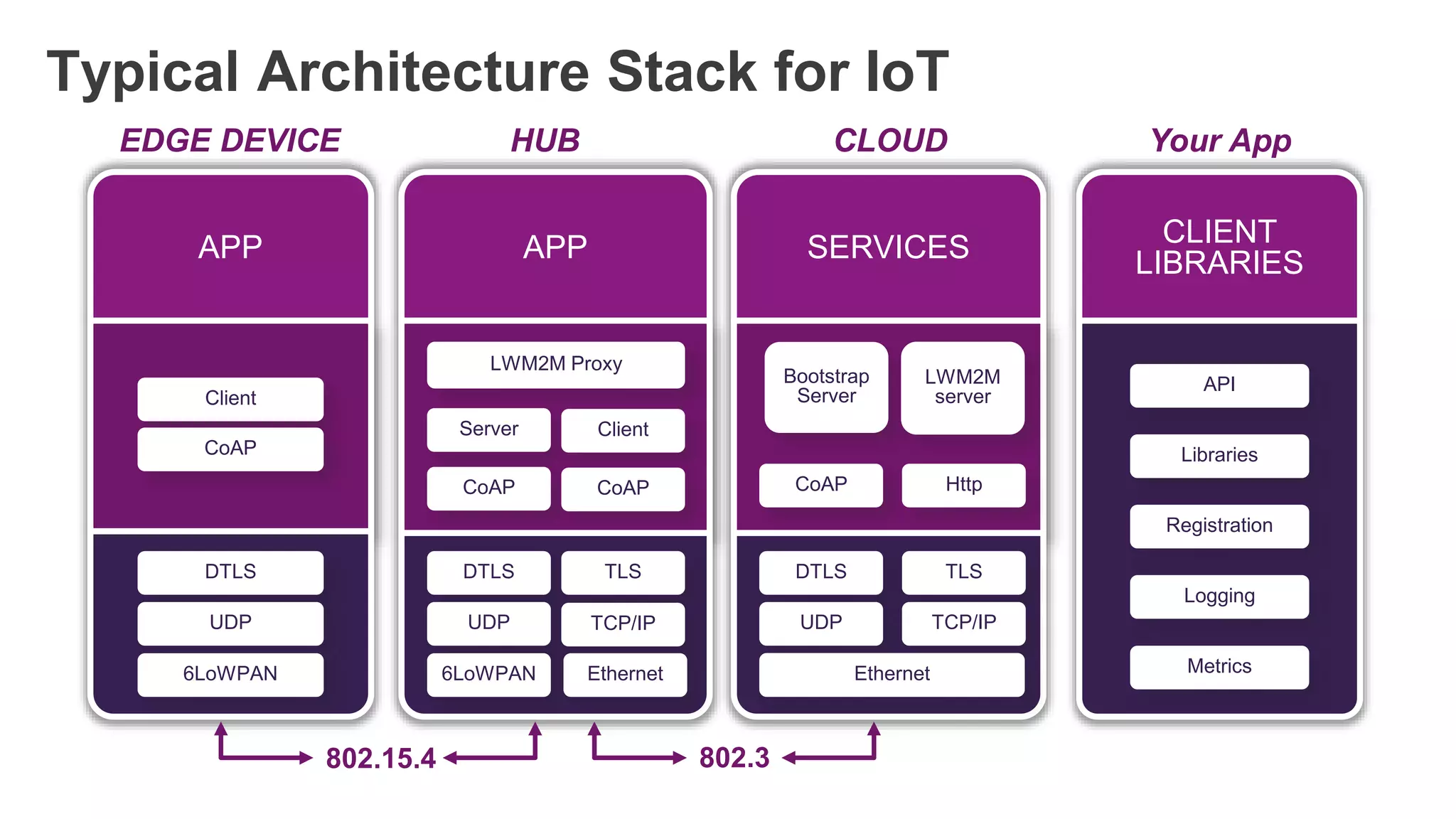

- 4. Typical Architecture Stackfor IoT APP RTOS APP SERVICES CLIENT LIBRARIES EDGE DEVICE HUB CLOUD Your App Client CoAP DTLS UDP 6LoWPAN DTLS UDP 6LoWPAN TLS TCP/IP Ethernet LWM2M Proxy Server CoAP Client CoAP Bootstrap Server CoAP LWM2M server Http DTLS UDP TLS TCP/IP Ethernet API Libraries Logging Metrics Registration 802.15.4 802.3
- 5. Building your IoTsolution with Creator IoT Framework Creatordev.io

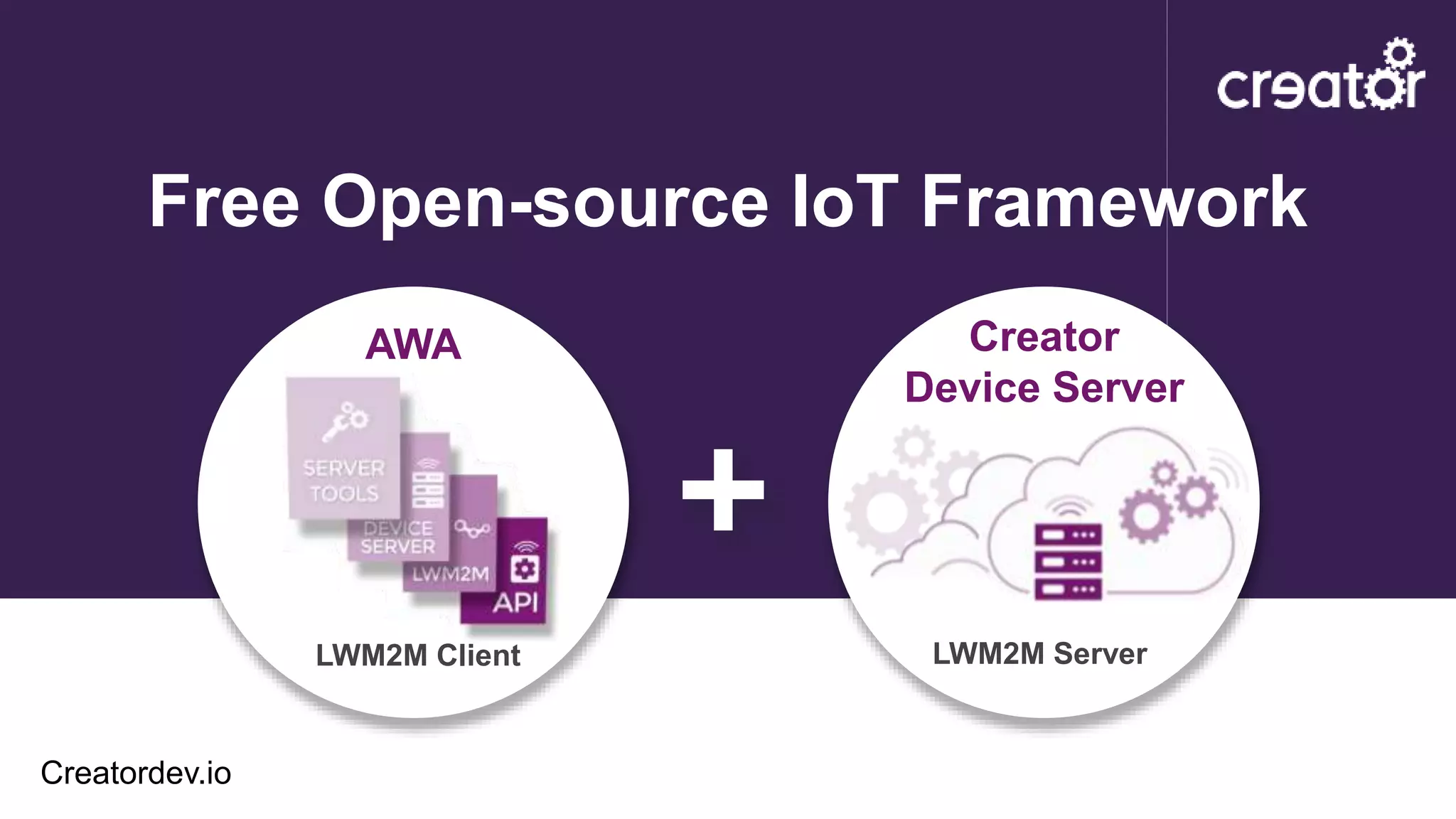

- 6. AWA LWM2M Client Creator Device Server LWM2MServer Free Open-source IoT Framework Creatordev.io

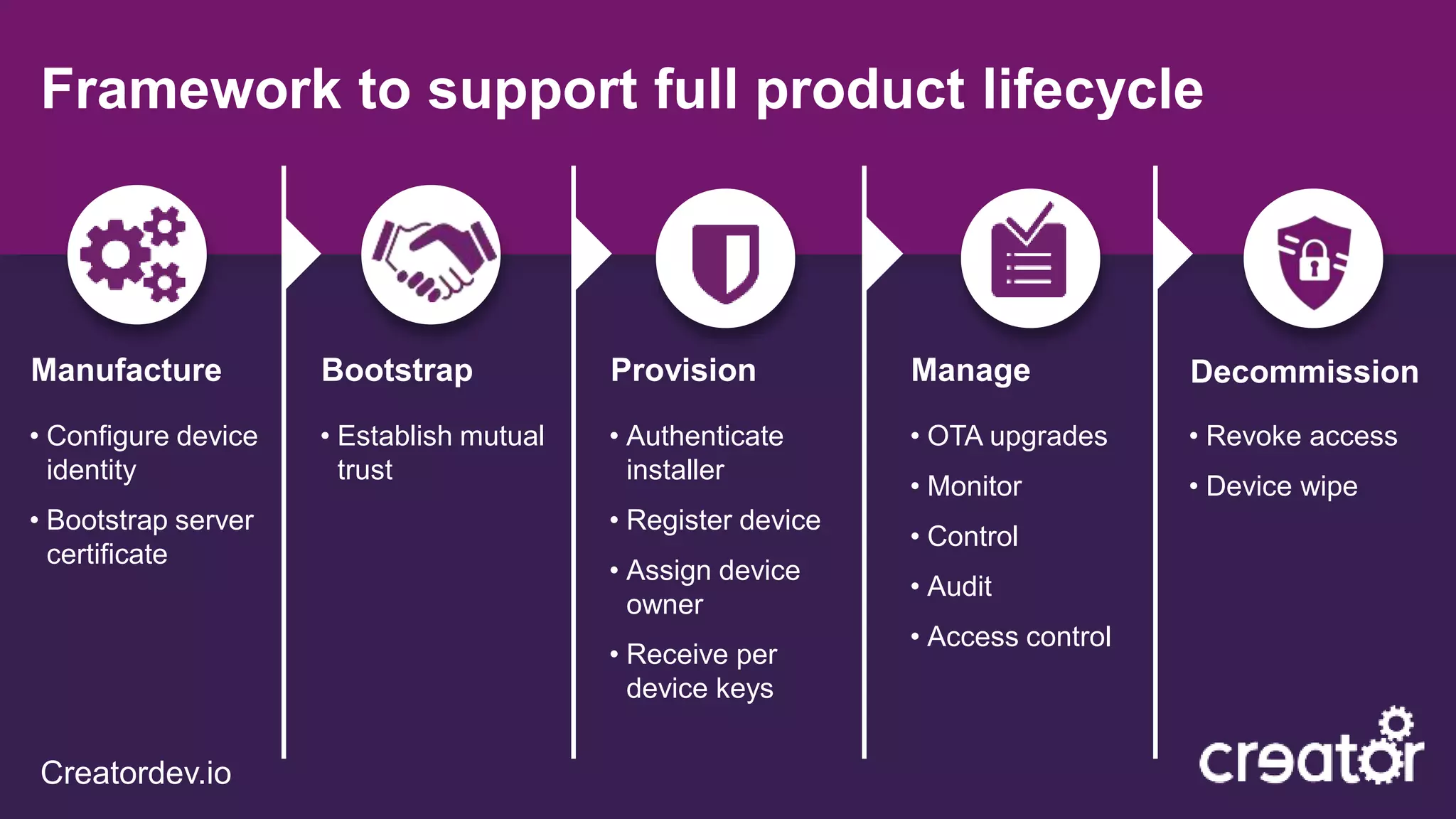

- 7. Manufacture Bootstrap ProvisionManage Decommission • Configure device identity • Bootstrap server certificate • Establish mutual trust • Authenticate installer • Register device • Assign device owner • Receive per device keys • OTA upgrades • Monitor • Control • Audit • Access control • Revoke access • Device wipe Framework to support full product lifecycle Creatordev.io

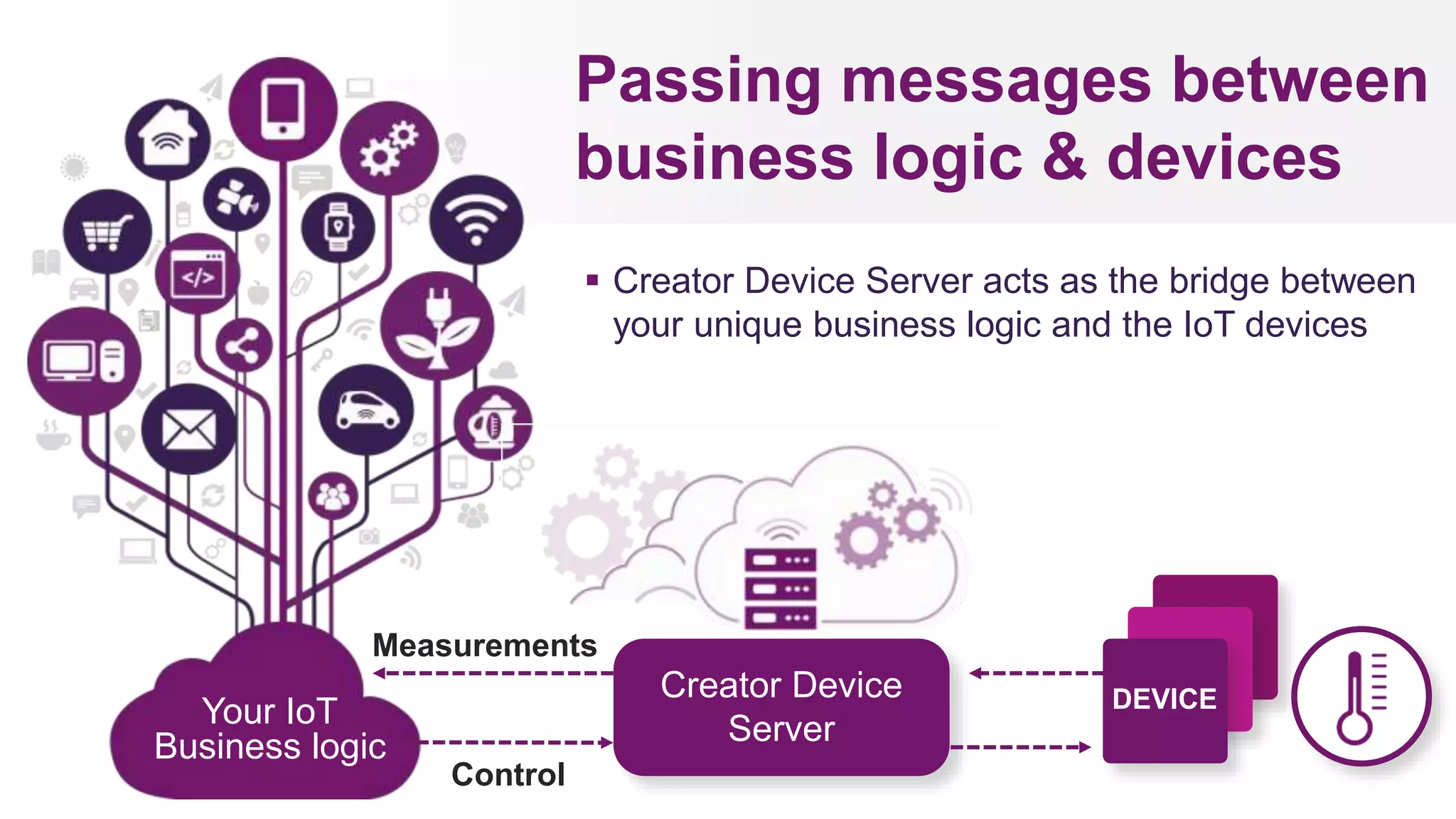

- 8. Creator Device ServerYour IoT Businesslogic Passing messages between business logic & devices Measurements Control Creator Device Server acts as the bridge between your unique business logic and the IoT devices DEVICE

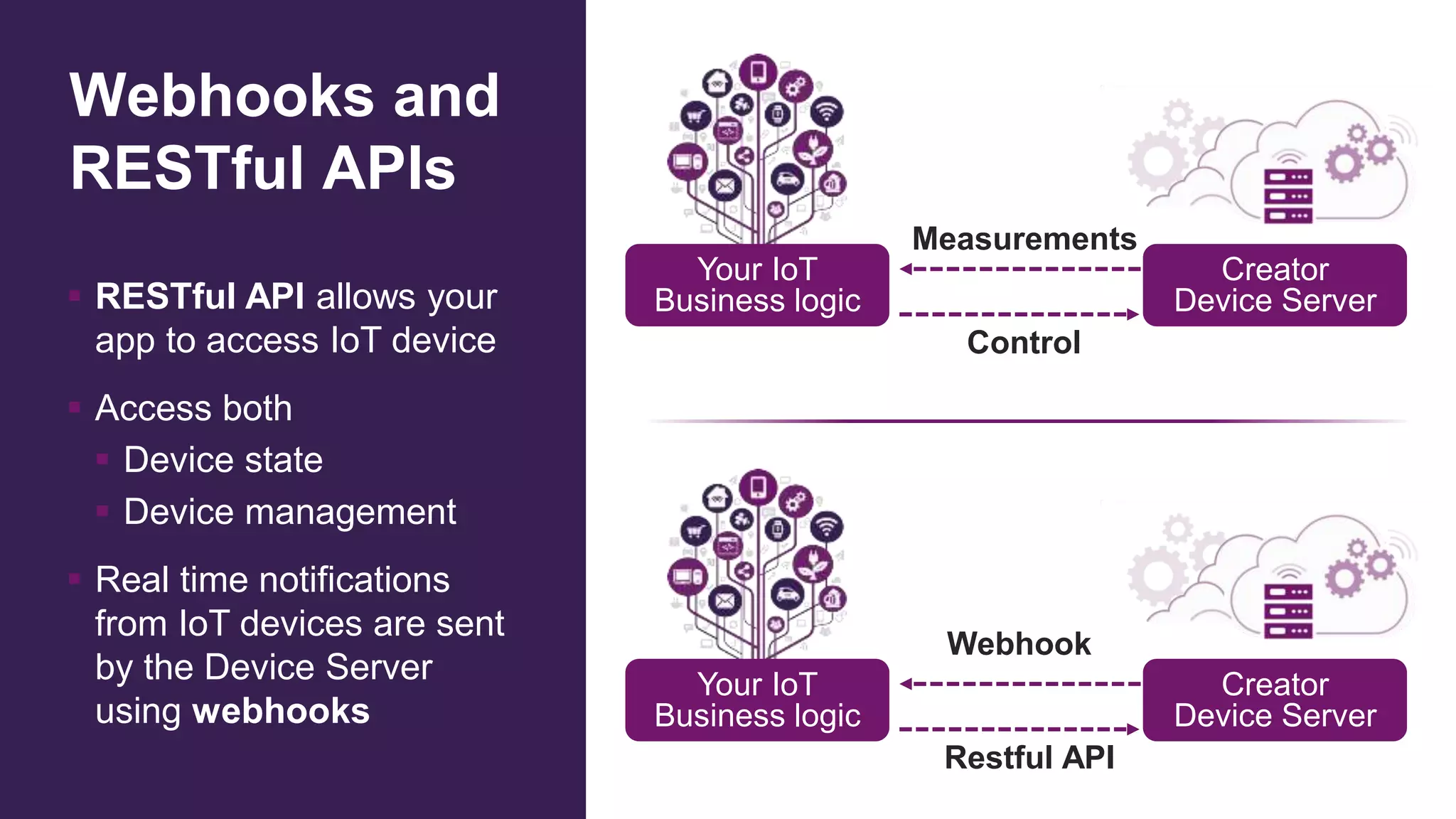

- 9. Webhooks and RESTful APIs RESTful API allows your app to access IoT device Access both Device state Device management Real time notifications from IoT devices are sent by the Device Server using webhooks Your IoT Business logic Creator Device Server Measurements Control Your IoT Business logic Creator Device Server Webhook Restful API

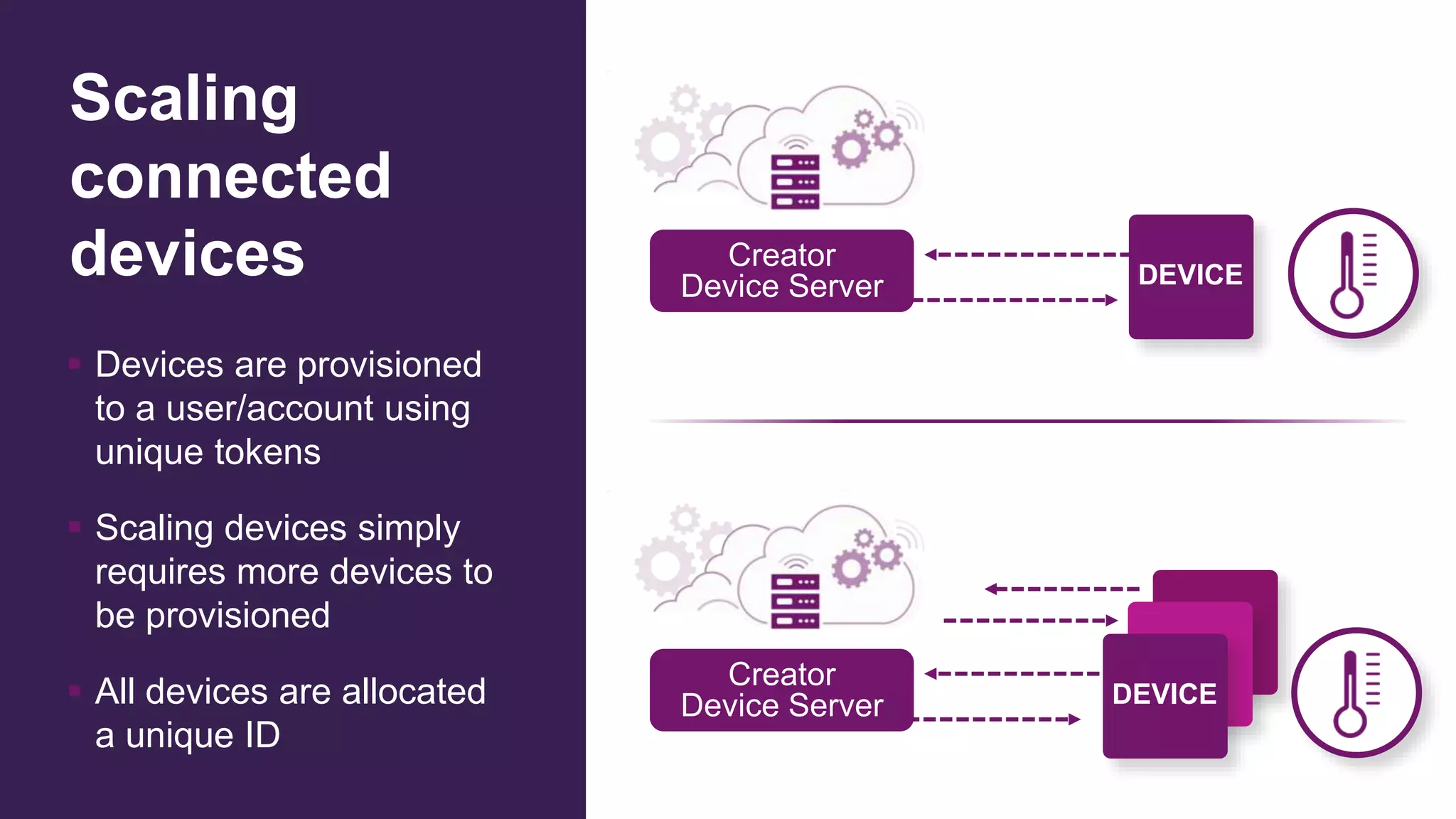

- 10. Scaling connected devices Devices areprovisioned to a user/account using unique tokens Scaling devices simply requires more devices to be provisioned All devices are allocated a unique ID Creator Device Server DEVICE Creator Device Server DEVICE

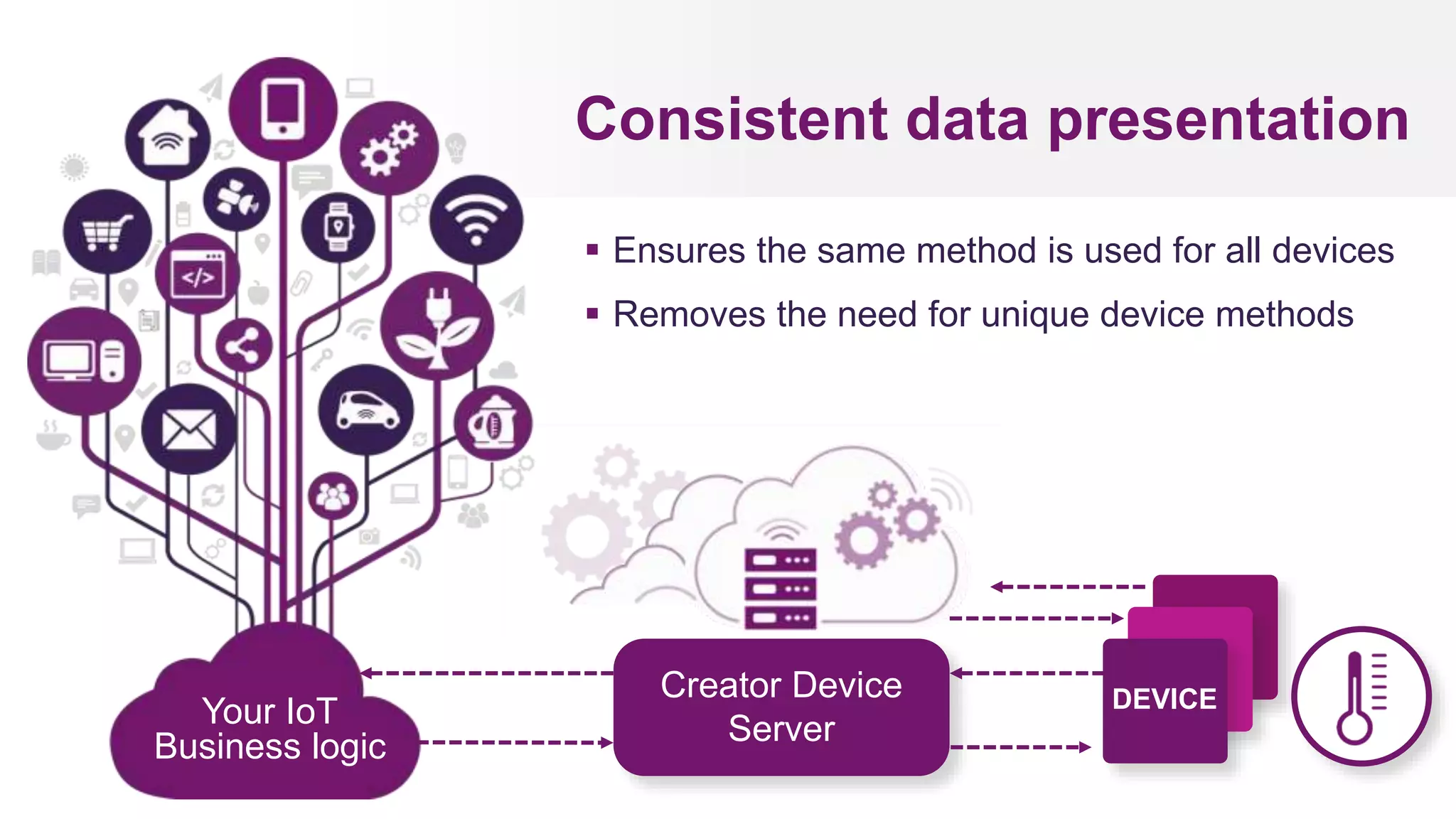

- 11. Creator Device ServerYour IoT Businesslogic Consistent data presentation Ensures the same method is used for all devices Removes the need for unique device methods DEVICE

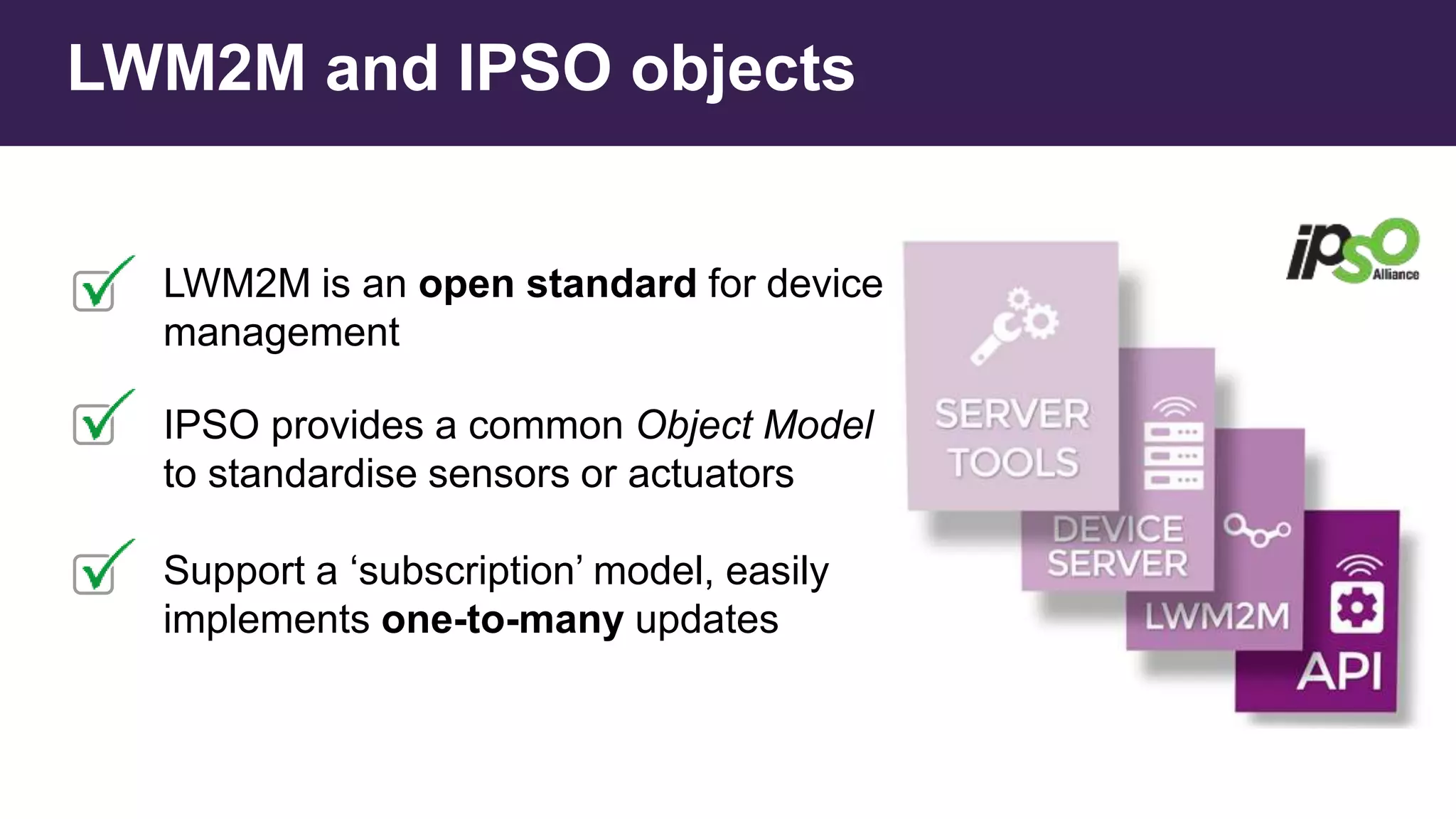

- 12. LWM2M is anopen standard for device management IPSO provides a common Object Model to standardise sensors or actuators Support a ‘subscription’ model, easily implements one-to-many updates LWM2M and IPSO objects
- 13. IPSO specification IPSOprovides a common Object Model to standardise sensors or actuators IoT devices read values directly from their sensors and update their IPSO objects Actuators observe their IPSO objects too IoT devices have a status to read or control Temperature value Battery level Relay position Firmware version Internet Protocol for Smart Objects /3303/0/5700 /3/0/9 Type / Instance / Resource 3 - Device info 0 - First device 9 - Battery level 3303 - Temperature 0 - First sensor 5700 - Sensor value

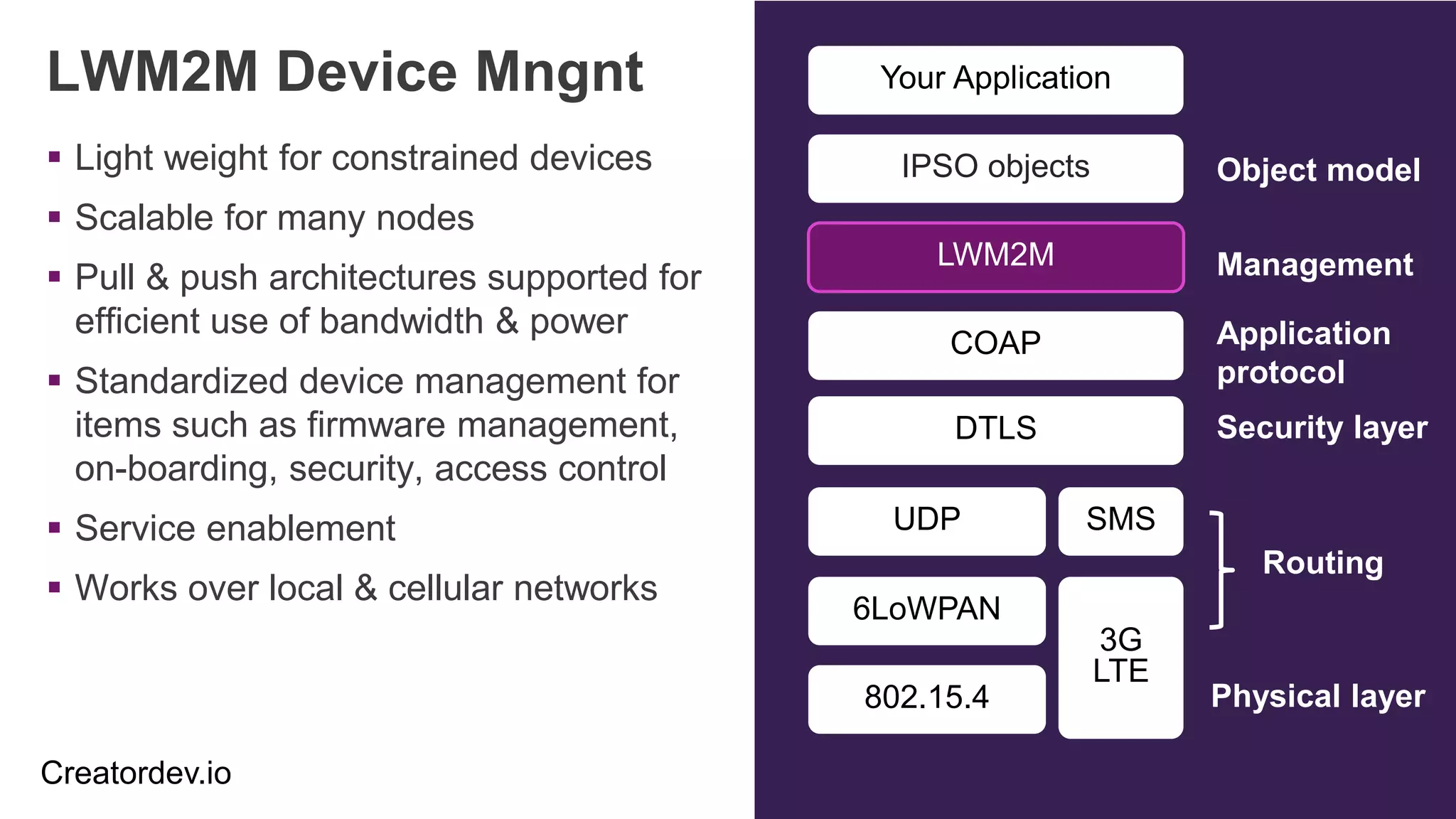

- 14. LWM2M Device Mngnt Light weight for constrained devices Scalable for many nodes Pull & push architectures supported for efficient use of bandwidth & power Standardized device management for items such as firmware management, on-boarding, security, access control Service enablement Works over local & cellular networks Your Application IPSO objects LWM2M COAP UDP 6LoWPAN 802.15.4 3G LTE Object model Physical layer Security layerDTLS SMS Management Application protocol Routing Creatordev.io

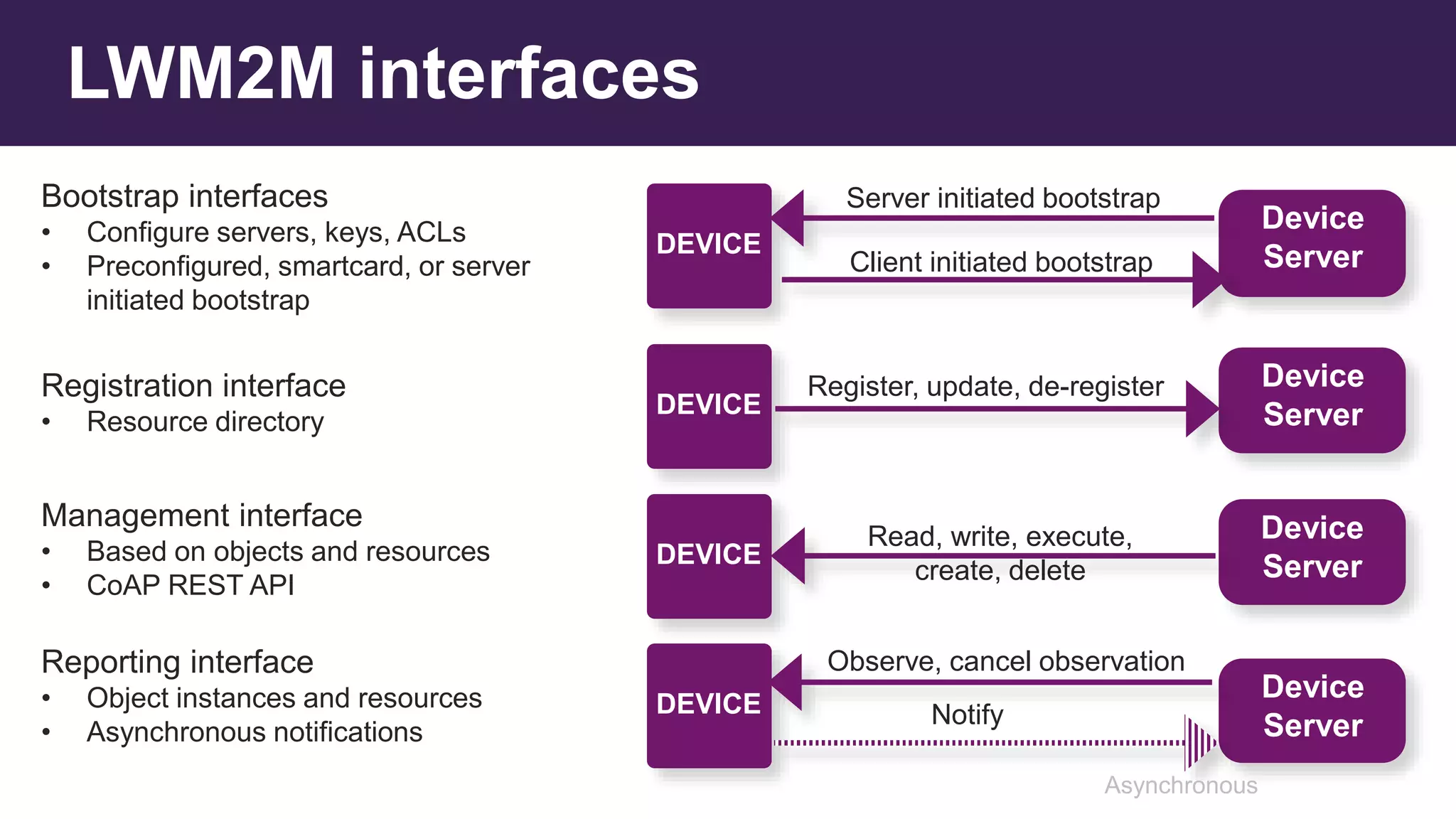

- 15. Device ServerClient initiated bootstrap DEVICE Serverinitiated bootstrap LWM2M interfaces Device ServerNotifyDEVICE Observe, cancel observation Device Server Register, update, de-register DEVICE Device ServerDEVICE Read, write, execute, create, delete Bootstrap interfaces • Configure servers, keys, ACLs • Preconfigured, smartcard, or server initiated bootstrap Registration interface • Resource directory Management interface • Based on objects and resources • CoAP REST API Reporting interface • Object instances and resources • Asynchronous notifications Asynchronous

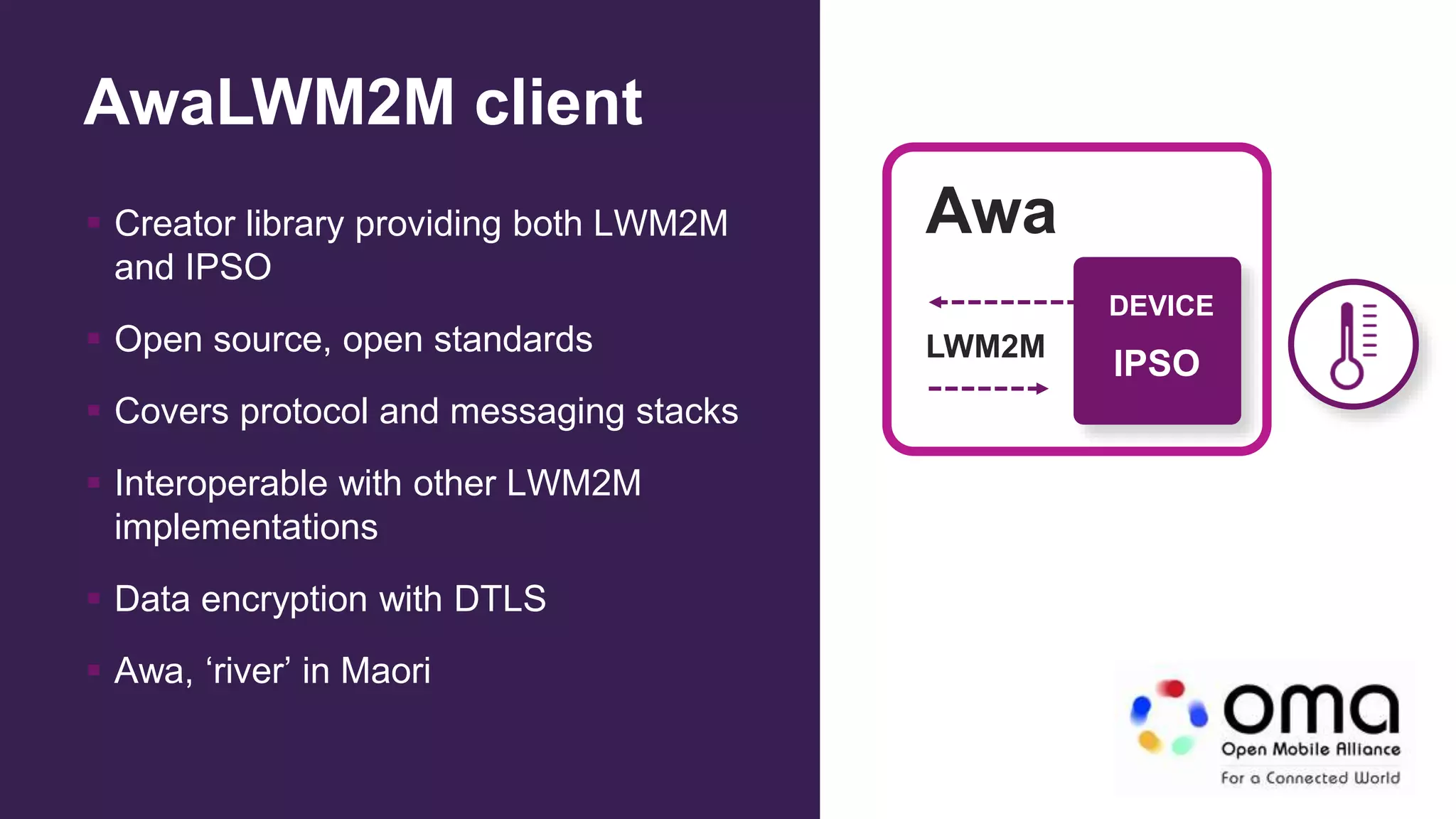

- 16. AwaLWM2M client Creatorlibrary providing both LWM2M and IPSO Open source, open standards Covers protocol and messaging stacks Interoperable with other LWM2M implementations Data encryption with DTLS Awa, ‘river’ in Maori DEVICE IPSO LWM2M Awa

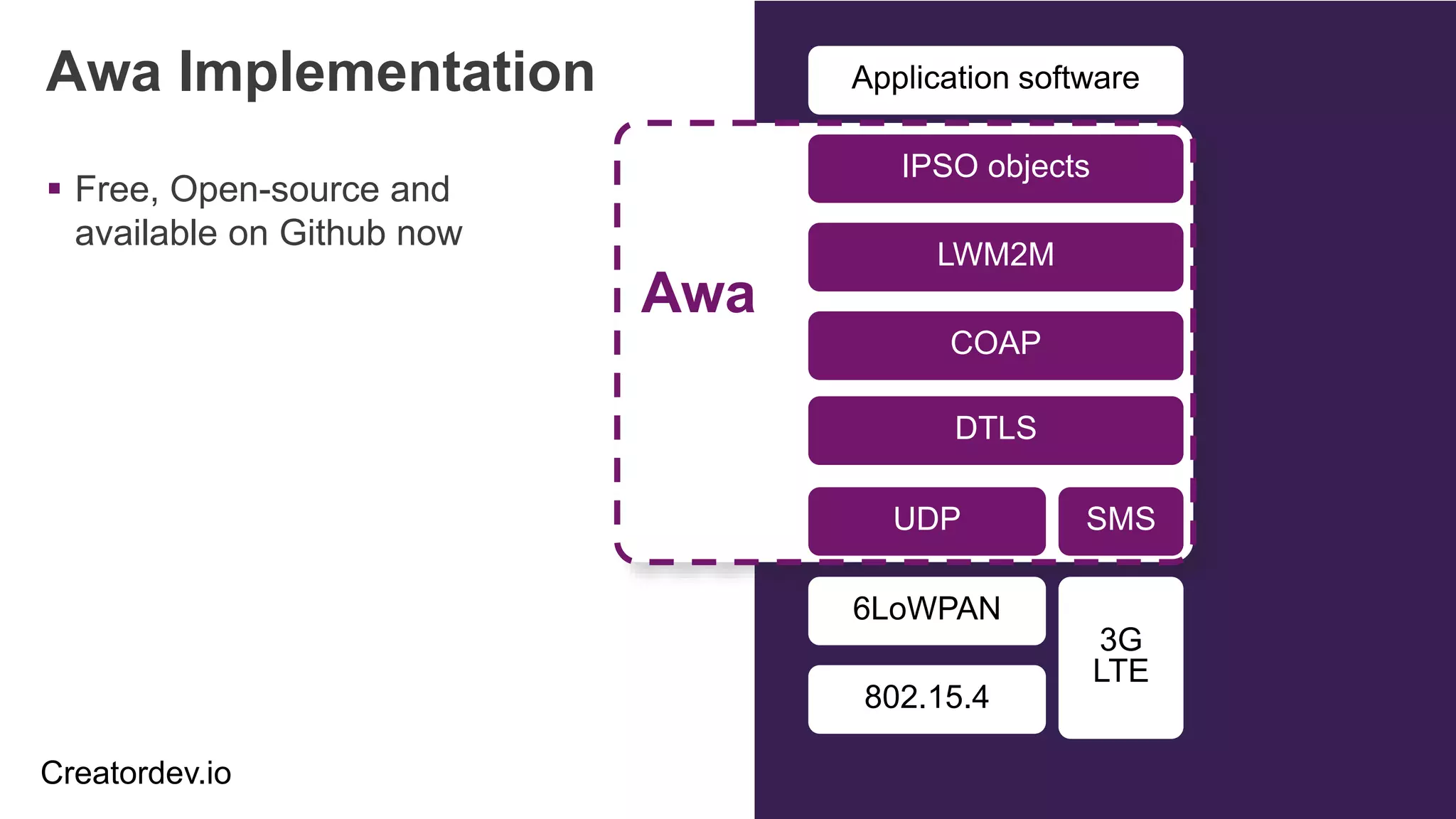

- 17. Awa Implementation Free,Open-source and available on Github now Awa Application software IPSO objects LWM2M COAP UDP 6LoWPAN 802.15.4 3G LTE DTLS SMS Creatordev.io

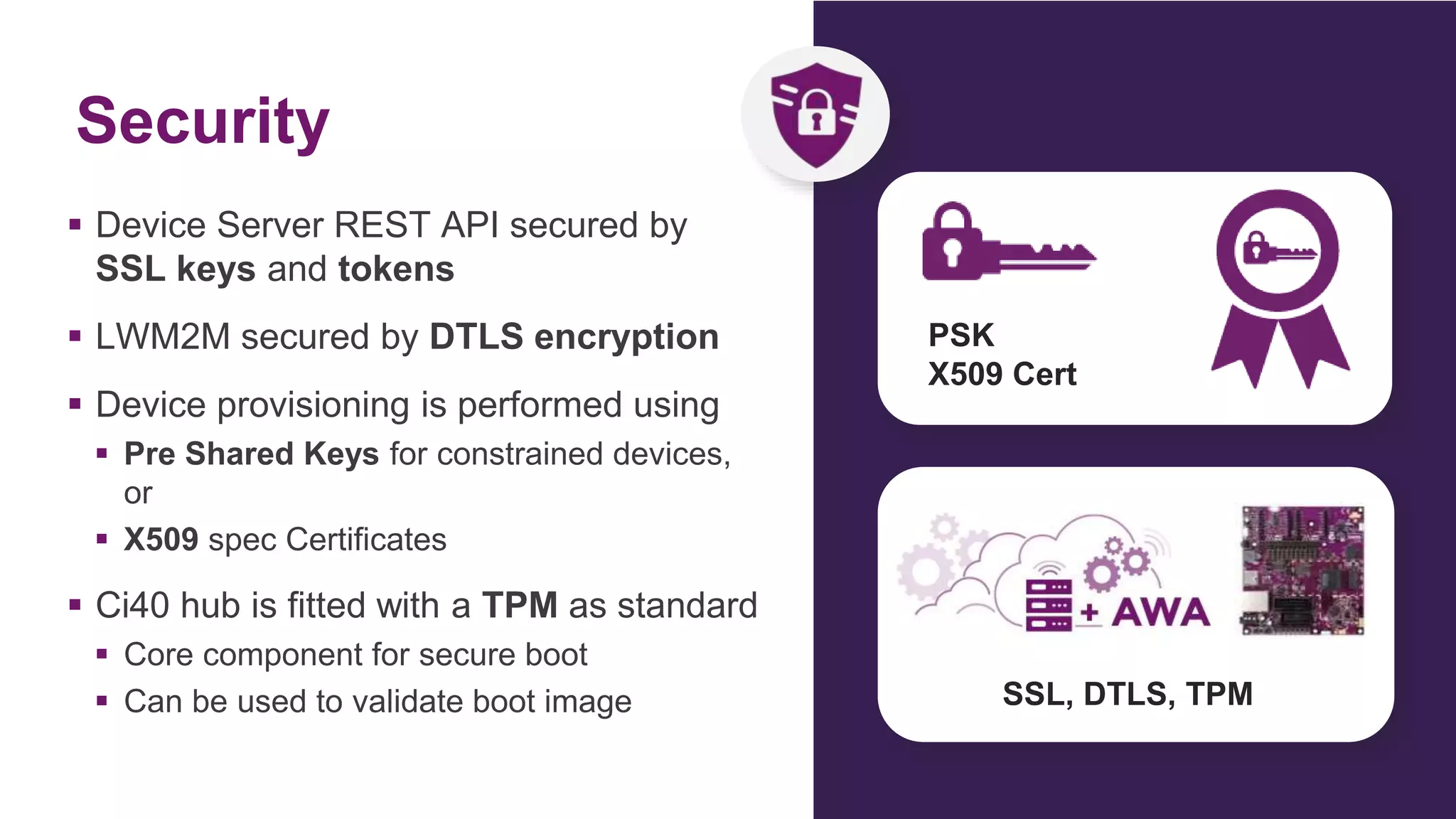

- 18. Security Device ServerREST API secured by SSL keys and tokens LWM2M secured by DTLS encryption Device provisioning is performed using Pre Shared Keys for constrained devices, or X509 spec Certificates Ci40 hub is fitted with a TPM as standard Core component for secure boot Can be used to validate boot image PSK X509 Cert SSL, DTLS, TPM

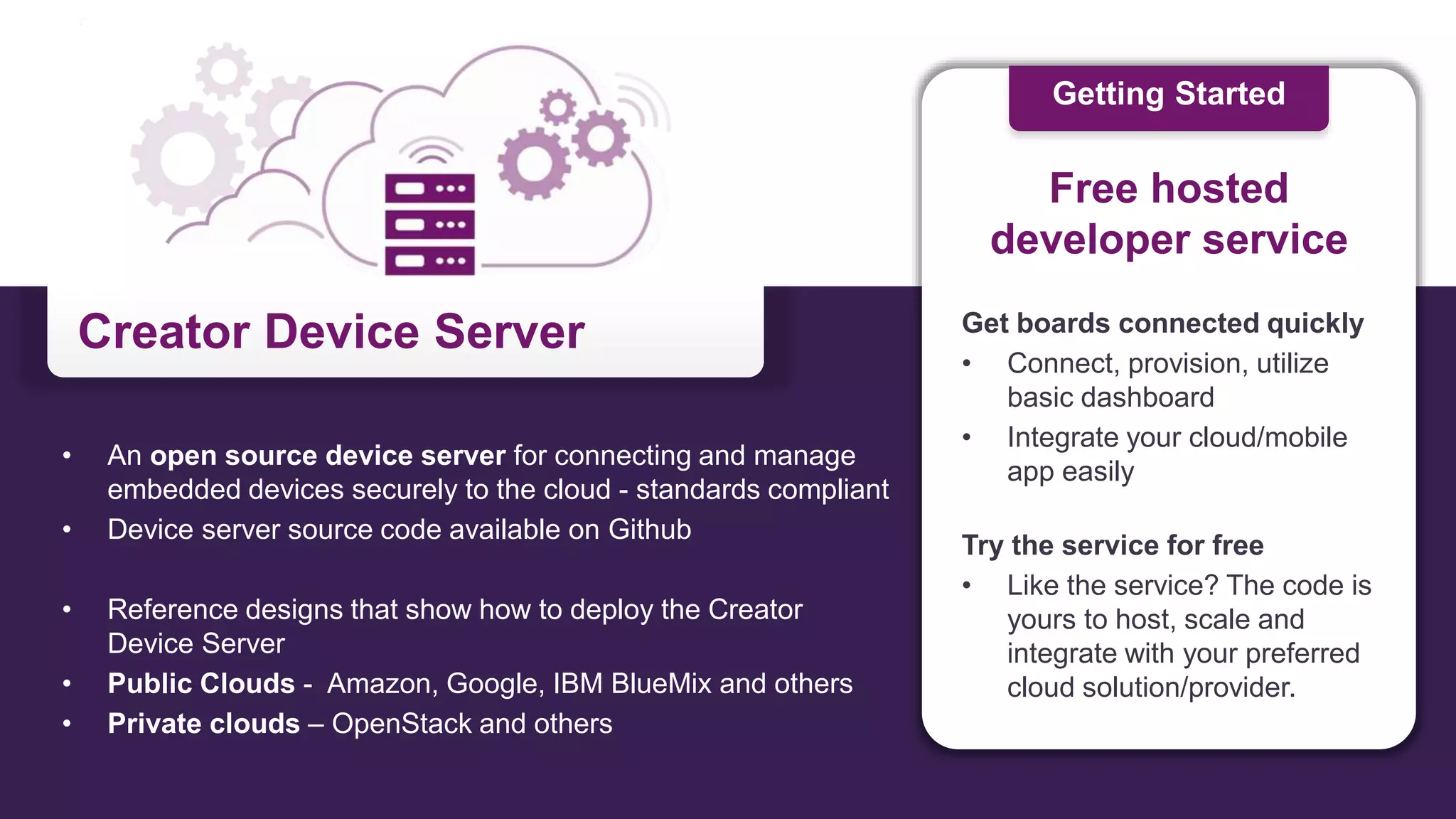

- 19. Creator Device Server •An open source device server for connecting and manage embedded devices securely to the cloud - standards compliant • Device server source code available on Github • Reference designs that show how to deploy the Creator Device Server • Public Clouds - Amazon, Google, IBM BlueMix and others • Private clouds – OpenStack and others Get boards connected quickly • Connect, provision, utilize basic dashboard • Integrate your cloud/mobile app easily Try the service for free • Like the service? The code is yours to host, scale and integrate with your preferred cloud solution/provider. Free hosted developer service Getting Started

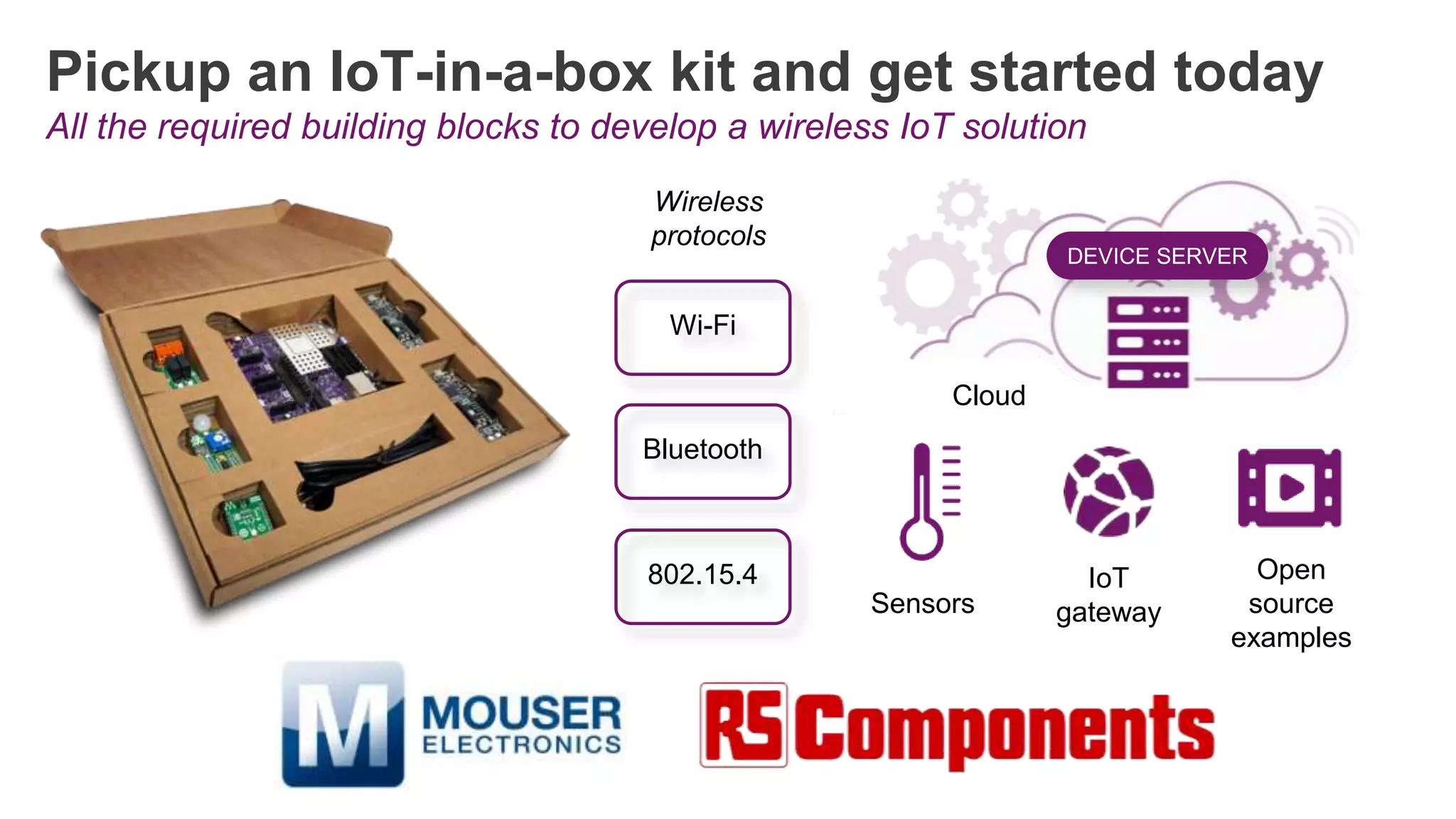

- 20. Pickup an IoT-in-a-boxkit and get started today All the required building blocks to develop a wireless IoT solution DEVICE SERVER Open source examples IoT gateway Cloud Sensors Wi-Fi Bluetooth 802.15.4 Wireless protocols

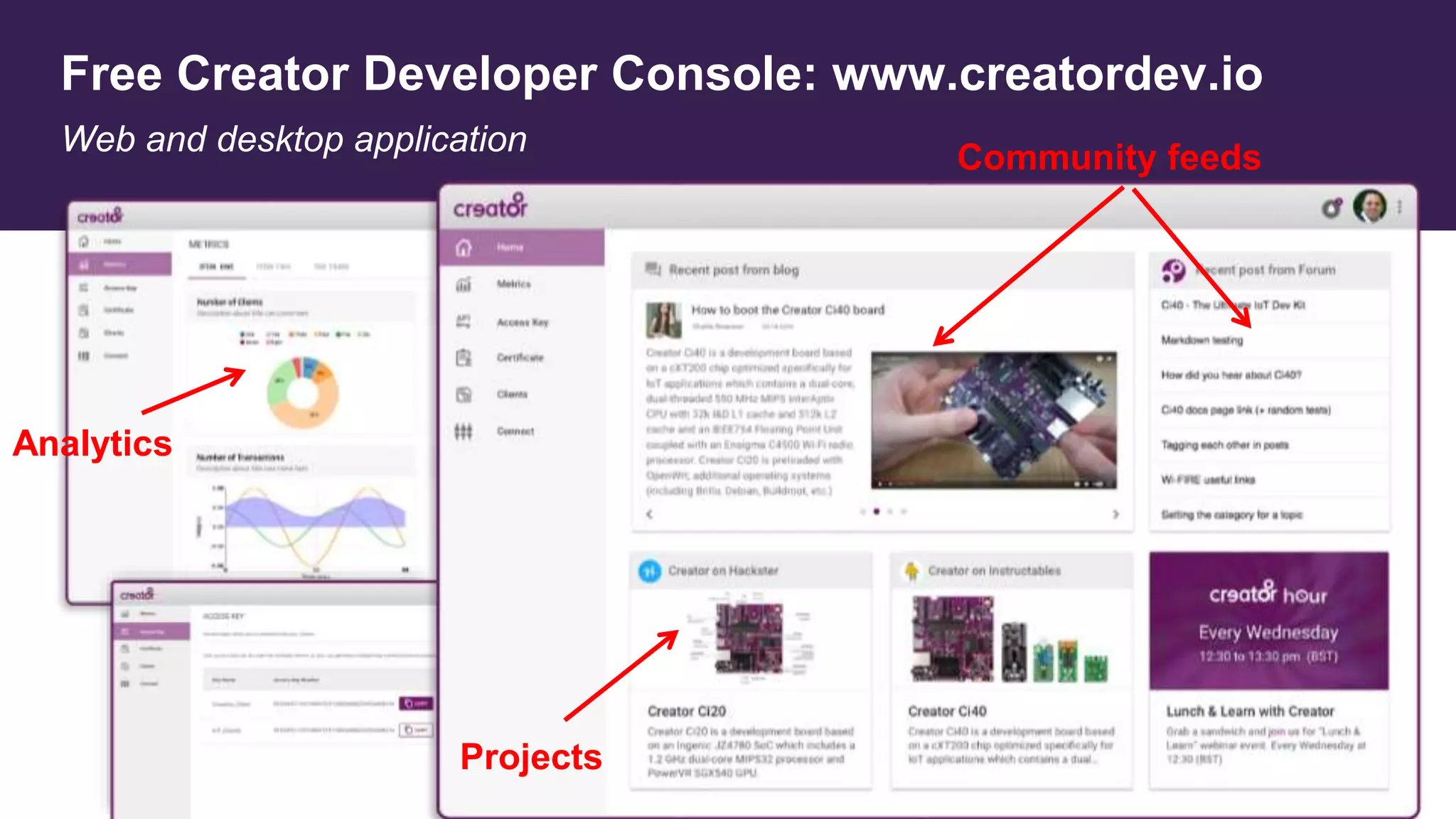

- 21. Free Creator DeveloperConsole: www.creatordev.io Web and desktop application Community feeds Analytics Projects

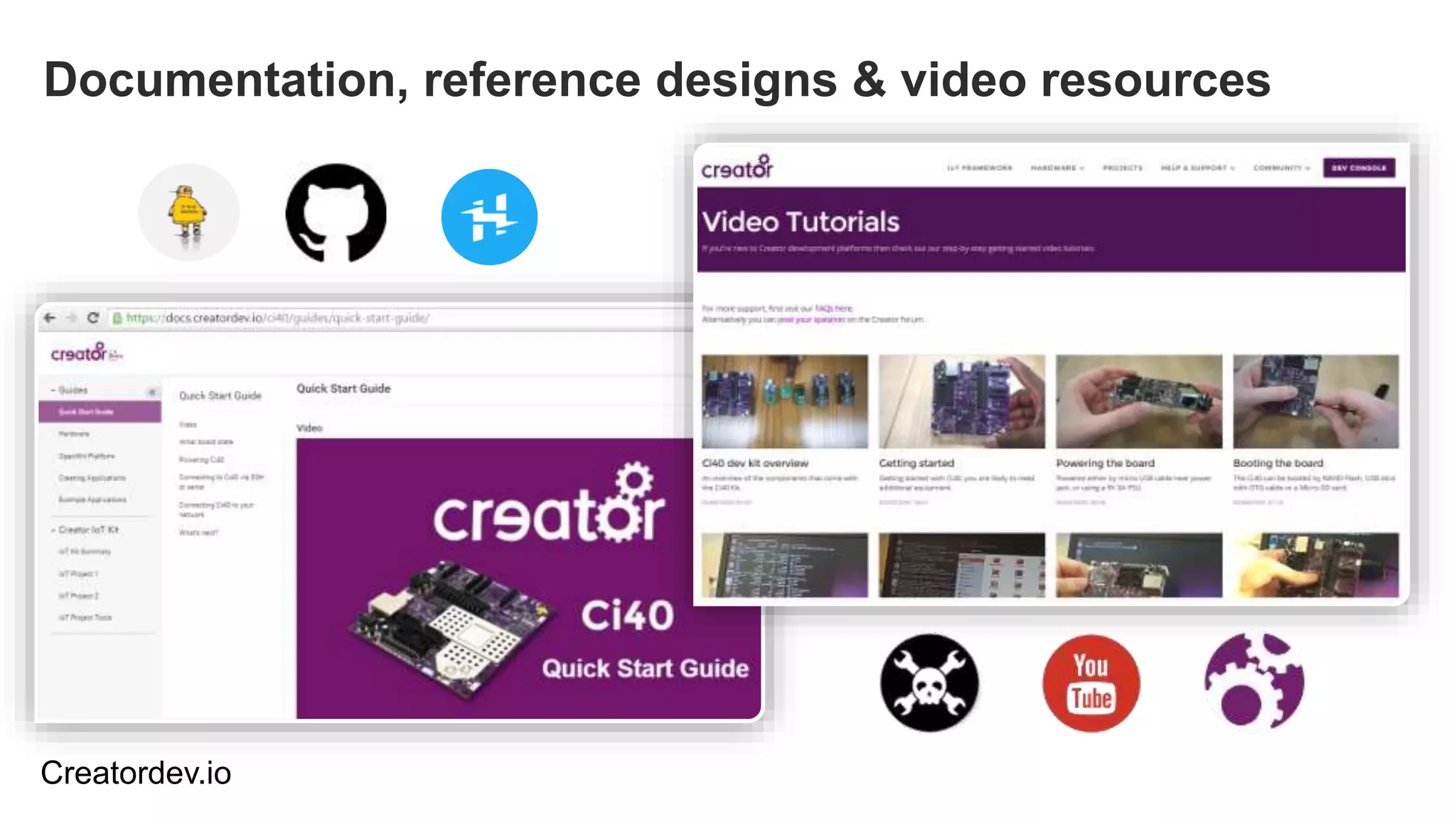

- 22. Documentation, reference designs& video resources Creatordev.io
- 23. LetMeCreate AWA You can usethe largest ecosystem of open source libraries in the world from Node.js We compile using the GNU Compiler Collection (GCC) from the Free Software Foundation Creator Ci40 uses a Linux environment An implementation of the OMA Lightweight M2M protocol that provides a secure and standards compliant device management Library of small wrappers for Ci40 interfaces that make it quicker & easier to develop Python a widely used high-level, general- purpose programming language is supported Tools, OSs & Libraries

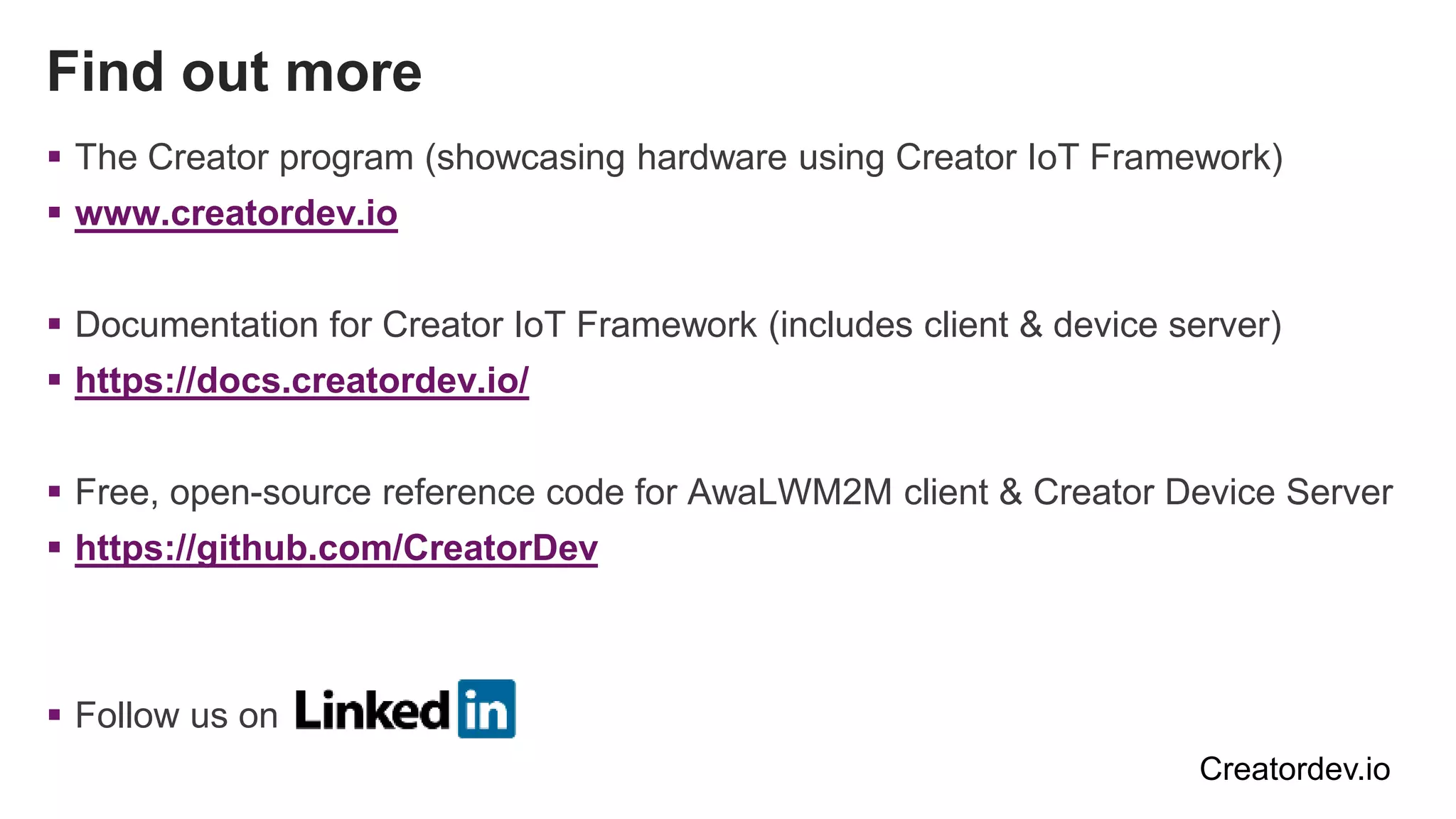

- 24. Find out more The Creator program (showcasing hardware using Creator IoT Framework) www.creatordev.io Documentation for Creator IoT Framework (includes client & device server) https://docs.creatordev.io/ Free, open-source reference code for AwaLWM2M client & Creator Device Server https://github.com/CreatorDev Follow us on Creatordev.io
Editor's Notes
- #9 The Creator IoT framework wraps up the link (bridge) between internet connected business logic and end devices. The framework is made up of 2 key components: The Creator Device Server, and AwaLWM2M.
- #12 The Creator IoT framework wraps up the link (bridge) between internet connected business logic and end devices. The framework is made up of 2 key components: The Creator Device Server, and AwaLWM2M.
- #14 Object model common to actuators and sensors Predefined definition means interoperable Well adopted Open standard Customisable for new unique IO
- #15 Verbally compare to ‘IP’
- #16 LWM2M has 4 interface types that cover device-server communications Bootstrap implements device-server initial connection. ACL is Access Control List Registrations allows provision/update/removal from the server’s list of acceptable devices Management implement server initiated regular communication with device Reporting allows the server to setup observation of specific objects, device then notifies asynchronously as object’s value changes
- #17 Device server is the cloud side link to the devices REST API & Webhooks Scale easily with more provisioning, limited only by IPv6 addressing (x billion)
