Convolution Neural Network Tutorial
How image recognition works? Do you know how Deep Learning recognizes the objects in an image? It does it using a Convolution Neural Network Pixels of image fed as input Dog Bird Cat Hidden Layers Input Layer Output Layer
How image recognition works? Let’s see how CNN identifies the image of a bird Pixels of image fed as input Dog Bird Cat Hidden Layers Input Layer Output Layer Input layer accepts the pixels of the image as input in the form of arrays 1 2 1 9 2 1 7 40 2 30 11 35 70 11 1 4 3307552613 60 45 50 10 89 23
How image recognition works? Let’s see how CNN identifies the image of a bird Pixels of image fed as input Dog Bird Cat Hidden Layers Input Layer Output Layer Hidden layers carry out feature extraction by performing certain calculation and manipulation 1 2 1 9 2 1 7 40 2 30 11 35 70 11 1 4 3307552613 60 45 50 10 89 23
How image recognition works? Let’s see how CNN identifies the image of a bird Pixels of image fed as input Dog Bird Cat Hidden Layers Input Layer Output Layer There are multiple hidden layers like Convolution layer, ReLU layer, Pooling layer, etc that perform feature extraction from the image Convolution Layer This layer uses a matrix filter and performs convolution operation to detect patterns in the image 1 0 1 10 0 1 0 1 Matrix Filter
How image recognition works? Let’s see how CNN identifies the image of a bird Pixels of image fed as input Dog Bird Cat Hidden Layers Input Layer Output Layer There are multiple hidden layers like Convolution layer, ReLU layer, Pooling layer, etc that perform feature extraction from the image ReLU ReLU activation function is applied to the convolution layer to get a rectified feature map of the image
How image recognition works? Let’s see how CNN identifies the image of a bird Pixels of image fed as input Dog Bird Cat Hidden Layers Input Layer Output Layer There are multiple hidden layers like Convolution layer, ReLU layer, Pooling layer, etc that perform feature extraction from the image Pooling Pooling layer also uses multiple filters to detect edges, corners, eyes, feathers, beak, etc
How image recognition works? Let’s see how CNN identifies the image of a bird Pixels of image fed as input Dog Bird Cat Hidden Layers Input Layer 1 2 1 9 2 1 7 40 2 30 11 35 70 11 1 4 3307552613 60 45 50 10 89 23 Finally there is a fully connected layer that identifies the object in the image Output Layer
What’s in it for you? How CNN recognizes images? What is Convolution neural network? Use case implementation using CNN Introduction to CNN Layers in convolution neural network
Introduction to CNN Yann LeCun Pioneer of Convolution Neural Network Director of Facbook’s AI Research Group Built the first Convolution Neural Network called LeNet in 1988 It was used for character recognition tasks like reading zip codes, digits
Introduction to CNN Yann LeCun Pioneer of Convolution Neural Network Director of Facbook’s AI Research Group Built the first Convolution Neural Network called LeNet in 1988 It was used for character recognition tasks like reading zip codes, digits
Introduction to CNN Yann LeCun Pioneer of Convolution Neural Network Director of Facbook’s AI Research Group Built the first Convolution Neural Network called LeNet in 1988 It was used for character recognition tasks like reading zip codes, digits
Introduction to CNN Yann LeCun Pioneer of Convolution Neural Network Director of Facbook’s AI Research Group Built the first Convolution Neural Network called LeNet in 1988 It was used for character recognition tasks like reading zip codes, digits
What is a Convolution Neural Network? CNN is a feed forward neural network that is generally used to analyze visual images by processing data with grid like topology. A CNN is also known as a “ConvNet” Orchid Rose Flowers of 2 varieties (Orchid/Rose) Identifies the flowers Hidden Layers Input Layer Output Layer
What is a Convolution Neural Network? CNN is a feed forward neural network that is generally used to analyze visual images by processing data with grid like topology. A CNN is also known as a “ConvNet” Convolution operation forms the basis of any Convolution Neural Network In CNN, every image is represented in the form of arrays of pixel values Real Image of the digit 8 Represented in the form of an array 0 0 1 1 0 0 0 0 0 01 1 1 1 1 10 0 0 0 0 1 0 1 0 0 0 0 0 0 Digit 8 represented in the form of pixels of 0’s and 1’s
What is a Convolution Neural Network? Let’s understand the convolution operation using 2 matrices a and b of 1 dimension a b* Sum the product b = [1, 2, 3] a = [5, 3, 2, 5, 9, 7] b = [1, 2, 3] a = [5, 3, 7, 5, 9, 7] Matrix a and b Convolution
What is a Convolution Neural Network? Let’s understand the convolution operation using 2 matrices a and b of 1 dimension a b* Sum the product b = [1, 2, 3] a = [5, 3, 2, 5, 9, 7] [5, 6, 6] a b* = [17, ] Multiply the arrays element wise 17 b = [1, 2, 3] a = [5, 3, 7, 5, 9, 7] Matrix a and b Convolution
What is a Convolution Neural Network? Let’s understand the convolution operation using 2 matrices a and b of 1 dimension a b* Sum the product b = [1, 2, 3] a = [5, 3, 2, 5, 9, 7] a b* = [17, 22 ] Multiply the arrays element wise 17 b = [1, 2, 3] a = [5, 3, 7, 5, 9, 7] Matrix a and b Convolution [5, 6, 6] [3, 4, 15] 22
What is a Convolution Neural Network? Let’s understand the convolution operation using 2 matrices a and b of 1 dimension a b* Sum the product b = [1, 2, 3] a = [5, 3, 2, 5, 9, 7] a b* = [17, 22, 39,…….. ] Multiply the arrays element wise 17 b = [1, 2, 3] a = [5, 3, 7, 5, 9, 7] Matrix a and b Convolution [5, 6, 6] [3, 4, 15] 22 [2, 10, 27] 39 ……… ………
How CNN recognizes images? image for the symbol image for the symbol / Consider the following 2 images: When you press , the above image is processed
How CNN recognizes images? image for the symbol image for the symbol / Consider the following 2 images: When you press /, the above image is processed
How CNN recognizes images? Image represented in the form of a matrix of numbers 000000 11 0000000 1 1 1 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000000 0 0 1 0 Real Image Represented in the form of black and white pixels
Layers in Convolution Neural Network Pooling Layer ReLU LayerConvolution Layer CNN Fully Connected Layer 1 2 34
Convolution Layer A Convolution Layer has a number of filters that perform convolution operation Every image is considered as a matrix of pixel values. Consider the following 5 5 image whose pixel values are only 0 and 1* 1 0 1 10 0 1 0 1 Filter 1 1 1 0 0 0 0 0 0 1 0 0 1 1 1 0 1 1 1 1 1 0 1 0 0 Image pixels 4 3 4 2 4 3 2 3 4 Convolved Feature Sliding the filter matrix over the image and computing the dot product to detect patterns
Convolution Layer A Convolution Layer has a number of filters that perform convolution operation Every image is considered as a matrix of pixel values. Consider the following 5 5 image whose pixel values are only 0 and 1* 1 0 1 10 0 1 0 1 Filter 1 1 1 0 0 0 0 0 0 1 0 0 1 1 1 0 1 1 1 1 1 0 1 0 0 Image pixels 4 x 1 x0 x 1 x0 x 1 x0 x 1 x0 x 1 1 1 1 0 1 1 0 0 1 Convolved Feature Sliding the filter matrix over the image and computing the dot product to detect patterns
Convolution Layer A Convolution Layer has a number of filters that perform convolution operation Every image is considered as a matrix of pixel values. Consider the following 5 5 image whose pixel values are only 0 and 1* 1 0 1 10 0 1 0 1 Filter 1 1 1 0 0 0 0 0 0 1 0 0 1 1 1 0 1 1 1 1 1 0 1 0 0 Image pixels 4 3 x 1 x0 x 1 x0 x 1 x0 x 1 x0 x 1 1 1 0 1 1 1 0 1 1 Convolved Feature Sliding the filter matrix over the image and computing the dot product to detect patterns
Convolution Layer A Convolution Layer has a number of filters that perform convolution operation Every image is considered as a matrix of pixel values. Consider the following 5 5 image whose pixel values are only 0 and 1* 1 0 1 10 0 1 0 1 Filter 1 1 1 0 0 0 0 0 0 1 0 0 1 1 1 0 1 1 1 1 1 0 1 0 0 Image pixels 4 3 4 x 1 x0 x 1 x0 x 1 x0 x 1 x0 x 1 1 0 0 1 1 0 1 1 1 Convolved Feature Sliding the filter matrix over the image and computing the dot product to detect patterns
Convolution Layer A Convolution Layer has a number of filters that perform convolution operation Every image is considered as a matrix of pixel values. Consider the following 5 5 image whose pixel values are only 0 and 1* 1 0 1 10 0 1 0 1 Filter 1 1 1 0 0 0 0 0 0 1 0 0 1 1 1 0 1 1 1 1 1 0 1 0 0 Image pixels 4 3 4 2 x 1 x0 x 1 x0 x 1 x0 x 1 x0 x 1 0 1 1 0 0 1 0 0 1 Convolved Feature Sliding the filter matrix over the image and computing the dot product to detect patterns
Convolution Layer A Convolution Layer has a number of filters that perform convolution operation Every image is considered as a matrix of pixel values. Consider the following 5 5 image whose pixel values are only 0 and 1* 1 0 1 10 0 1 0 1 Filter 1 1 1 0 0 0 0 0 0 1 0 0 1 1 1 0 1 1 1 1 1 0 1 0 0 Image pixels 4 3 4 2 4 x 1 x0 x 1 x0 x 1 x0 x 1 x0 x 1 1 1 1 0 1 1 0 1 1 Convolved Feature Sliding the filter matrix over the image and computing the dot product to detect patterns
Convolution Layer A Convolution Layer has a number of filters that perform convolution operation Every image is considered as a matrix of pixel values. Consider the following 5 5 image whose pixel values are only 0 and 1* 1 0 1 10 0 1 0 1 Filter 1 1 1 0 0 0 0 0 0 1 0 0 1 1 1 0 1 1 1 1 1 0 1 0 0 Image pixels 4 3 4 2 4 3 x 1 x0 x 1 x0 x 1 x0 x 1 x0 x 1 1 1 0 1 1 1 1 1 0 Convolved Feature Sliding the filter matrix over the image and computing the dot product to detect patterns
Convolution Layer A Convolution Layer has a number of filters that perform convolution operation Every image is considered as a matrix of pixel values. Consider the following 5 5 image whose pixel values are only 0 and 1* 1 0 1 10 0 1 0 1 Filter 1 1 1 0 0 0 0 0 0 1 0 0 1 1 1 0 1 1 1 1 1 0 1 0 0 Image pixels 4 3 4 2 4 3 2 x 1 x0 x 1 x0 x 1 x0 x 1 x0 x 1 0 0 1 0 0 1 0 1 1 Convolved Feature Sliding the filter matrix over the image and computing the dot product to detect patterns
Convolution Layer A Convolution Layer has a number of filters that perform convolution operation Every image is considered as a matrix of pixel values. Consider the following 5 5 image whose pixel values are only 0 and 1* 1 0 1 10 0 1 0 1 Filter 1 1 1 0 0 0 0 0 0 1 0 0 1 1 1 0 1 1 1 1 1 0 1 0 0 Image pixels 4 3 4 2 4 3 2 3 x 1 x0 x 1 x0 x 1 x0 x 1 x0 x 1 0 1 1 0 1 1 1 1 0 Convolved Feature Sliding the filter matrix over the image and computing the dot product to detect patterns
Convolution Layer A Convolution Layer has a number of filters that perform convolution operation Every image is considered as a matrix of pixel values. Consider the following 5 5 image whose pixel values are only 0 and 1* 1 0 1 10 0 1 0 1 Filter 1 1 1 0 0 0 0 0 0 1 0 0 1 1 1 0 1 1 1 1 1 0 1 0 0 Image pixels x 1 x0 x 1 x0 x 1 x0 x 1 x0 x 1 1 1 1 1 1 0 1 0 0 4 3 4 2 4 3 2 3 4 Convolved Feature Sliding the filter matrix over the image and computing the dot product to detect patterns
ReLU Layer Once the feature maps are extracted, the next step is to move them to a ReLU layer 1050-5-10 0 2 4 6 8 10 R(z) = max(0, z) ReLU Performs element wise operation Sets all negative pixels to 0 Introduces non-linearity to the network The output is a rectified feature map
ReLU Layer Real image is scanned in multiple convolution and ReLU layers for locating features
ReLU Layer Real image is scanned in multiple convolution and ReLU layers for locating features
Note for the instructor While explaining, please mention there are multiple Convolution, ReLU and Pooling layers connected one after another that carry out feature extraction in every layer. The input image is scanned multiple times to generate the input feature map.
Pooling Layer The rectified feature map now goes through a pooling layer. Pooling is a down-sampling operation that reduces the dimensionality of the feature map. 1 2 4 6 2 7 58 3 04 1 2 3 1 7 6 8 4 7 max pooling with 2x2 filters and stride 2 Max(3, 4, 1, 2) = 4 Pooled feature map Rectified feature map
Pooling Layer Identifies the edges, corners and other features of the bird Pooling layer uses different filters to identify different parts of the image like edges, corners, body, feathers, eyes, beak, etc.
Pooling Layer Structure of the Convolution Neural Network so far 1 1 1 0 0 0 0 0 0 1 0 0 1 1 1 0 1 1 1 1 1 0 1 0 0 Convolution Pooling Input Image Convolution Layer Pooling Layer ReLU
Flattening 6 8 4 7 Pooled feature map 6 8 4 7 Flattening Flattening is the process of converting all the resultant 2 dimensional arrays from pooled feature map into a single long continuous linear vector.
Flattening Pooling Layer Input Layer Flattening is the process of converting all the resultant 2 dimensional arrays from pooled feature map into a single long continuous linear vector. Flattening
Flattening 1 1 1 0 0 0 0 0 0 1 0 0 1 1 1 0 1 1 1 1 1 0 1 0 0 Convolution Pooling Input Image Convolution Layer Pooling Layer Flattening Input to the to final layer Structure of the network so far ReLU
Fully Connected Layer ………… Flattened Matrix The Flattened matrix from the pooling layer is fed as input to the Fully Connected Layer to classify the image
Fully Connected Layer ………… Flattened Matrix Dog Bird Cat The Flattened matrix from the pooling layer is fed as input to the Fully Connected Layer to classify the image Pixels from the flattened matrix fed as input
Fully Connected Layer Dog Bird Cat Identifies the image The Flattened matrix from the pooling layer is fed as input to the Fully Connected Layer to classify the image Pixels from the flattened matrix fed as input
Fully Connected Layer 1 1 1 0 0 0 0 0 0 1 0 0 1 1 1 0 1 1 1 1 1 0 1 0 0 Convolution Pooling Input Image Convolution Layer Pooling Layer Flattening ReLU Fully Connected Layer
Fully Connected Layer Lets see the entire process how CNN recognizes a bird Dog Bird Cat Feature Extraction in multiple hidden layers Classification in the output layer Convolution + ReLU + Max Pooling Fully Connected Layer
Use case implementation using CNN We will be using CIFAR-10 data set (from Canadian Institute For Advanced Research) for classifying images across 10 categories 01 03 05 07 09 02 04 06 08 10 airplane automobile bird cat deer dog frog horse ship truck
Use case implementation using CNN 1. Download data set 2. Import the CIFAR data set
Use case implementation using CNN 3. Reading the label names
Use case implementation using CNN 4. Display images using matplotlib
Use case implementation using CNN 4. Display images using matplotlib
Use case implementation using CNN 4. Display images using matplotlib
Use case implementation using CNN 5. Helper function to handle data
Use case implementation using CNN 5. Helper function to handle data

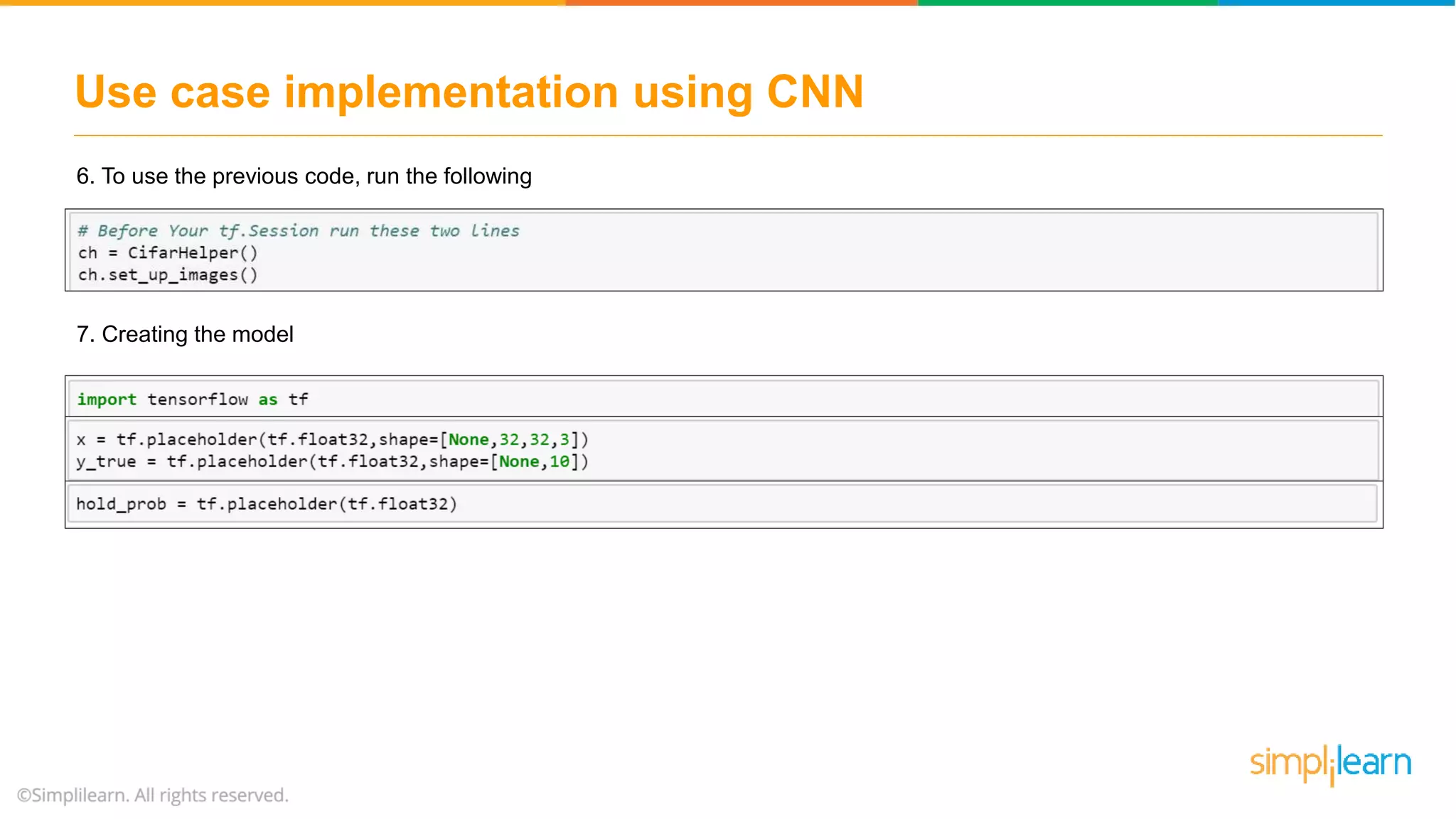

Use case implementation using CNN 6. To use the previous code, run the following 7. Creating the model
Use case implementation using CNN 8. Applying the helper functions
Use case implementation using CNN 8. Create the layers 9. Create the flattened layer by reshaping the pooling layer 10. Create the fully connected layer
Use case implementation using CNN 12. Apply the Loss function 11. Set output to y_pred 13. Create the optimizer 14. Create a variable to initialize all the global tf variables
Use case implementation using CNN 15. Run the model by creating a Graph Session
Key Takeaways
