Comp hout(mso power_point)

Edited by N - 2017
KOKOPO SECONDARY SCHOOL
GRADE 11&12
Computer Class

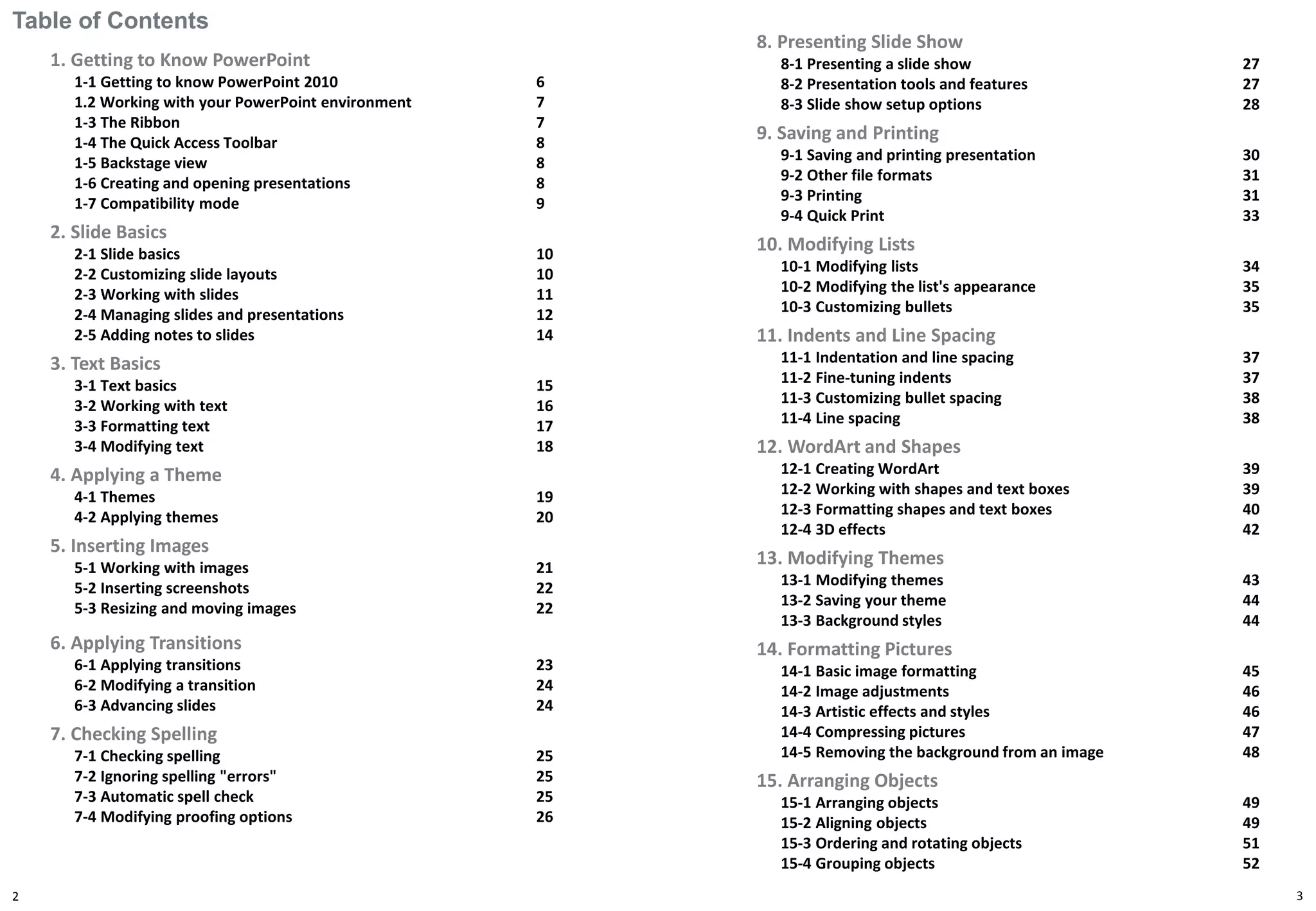

Table of Contents
1. Getting to Know PowerPoint
1-1 Getting to know PowerPoint 2010 6
1.2 Working with your PowerPoint environment 7
1-3 The Ribbon 7
1-4 The Quick Access Toolbar 8
1-5 Backstage view 8
1-6 Creating and opening presentations 8
1-7 Compatibility mode 9
2. Slide Basics

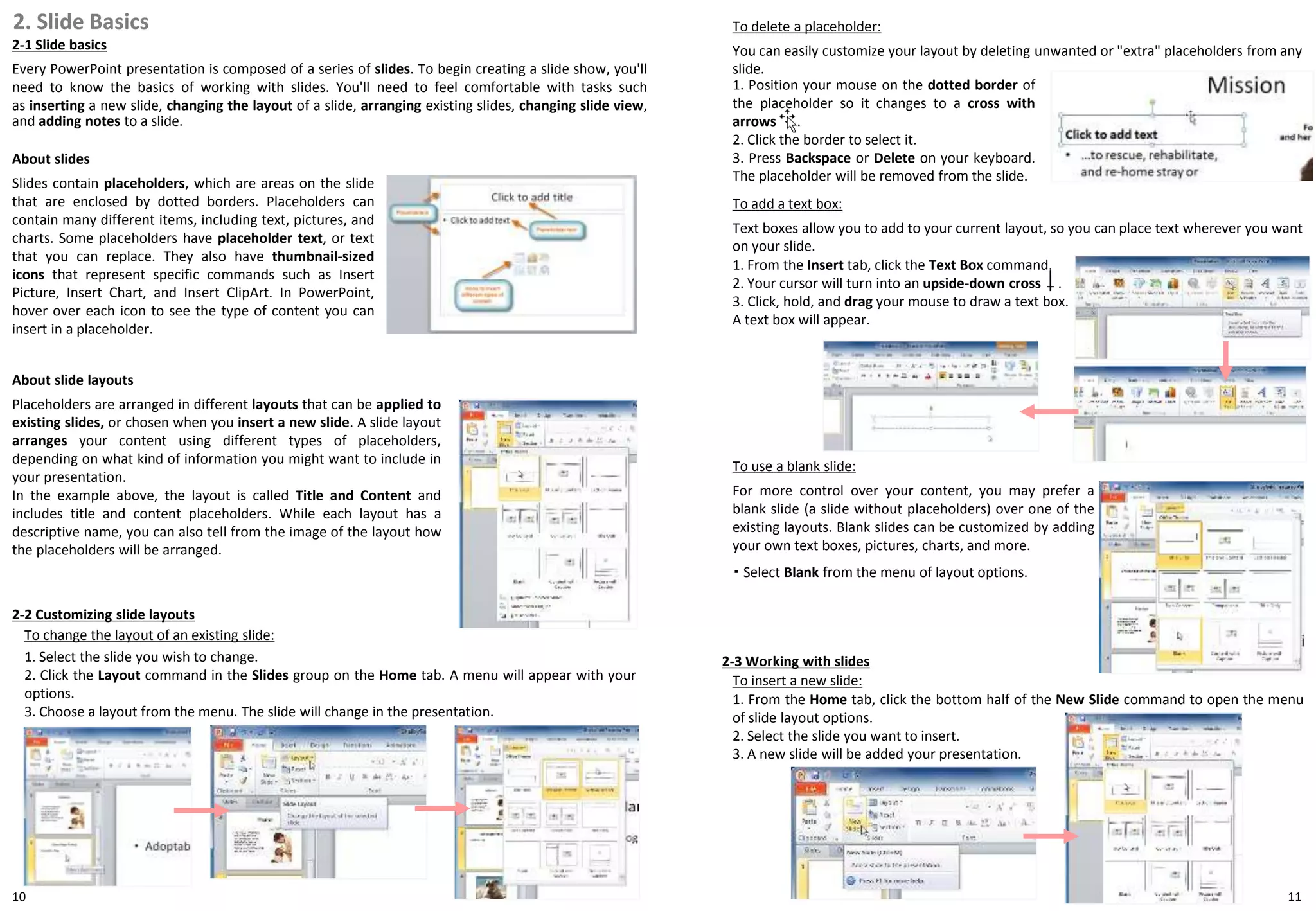

2-1 Slide basics 10
2-2 Customizing slide layouts 10
2-3 Working with slides 11

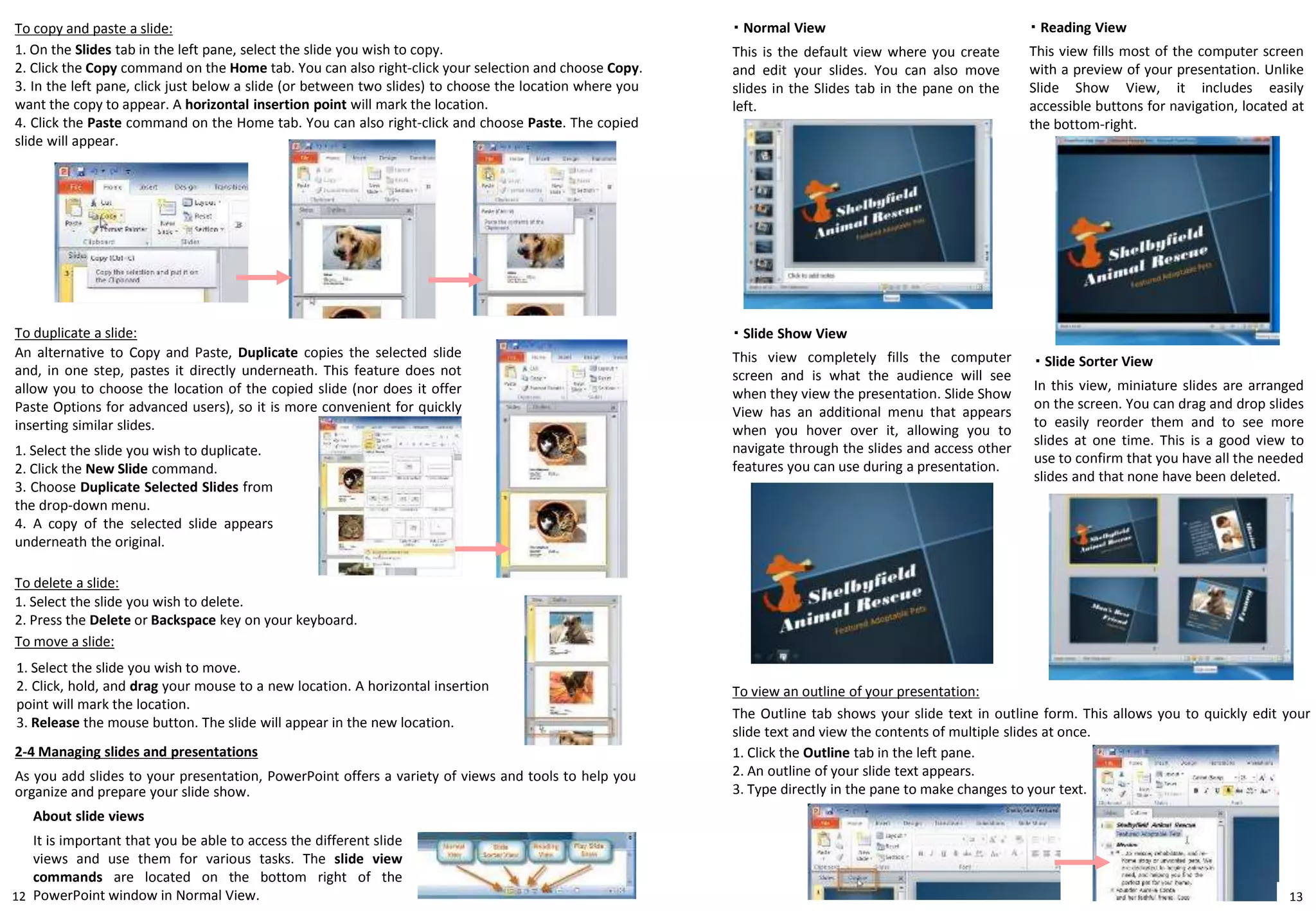

2-4 Managing slides and presentations 12
2-5 Adding notes to slides 14
3. Text Basics
3-1 Text basics 15
3-2 Working with text 16
3-3 Formatting text 17
3-4 Modifying text 18
4. Applying a Theme
4-1 Themes 19

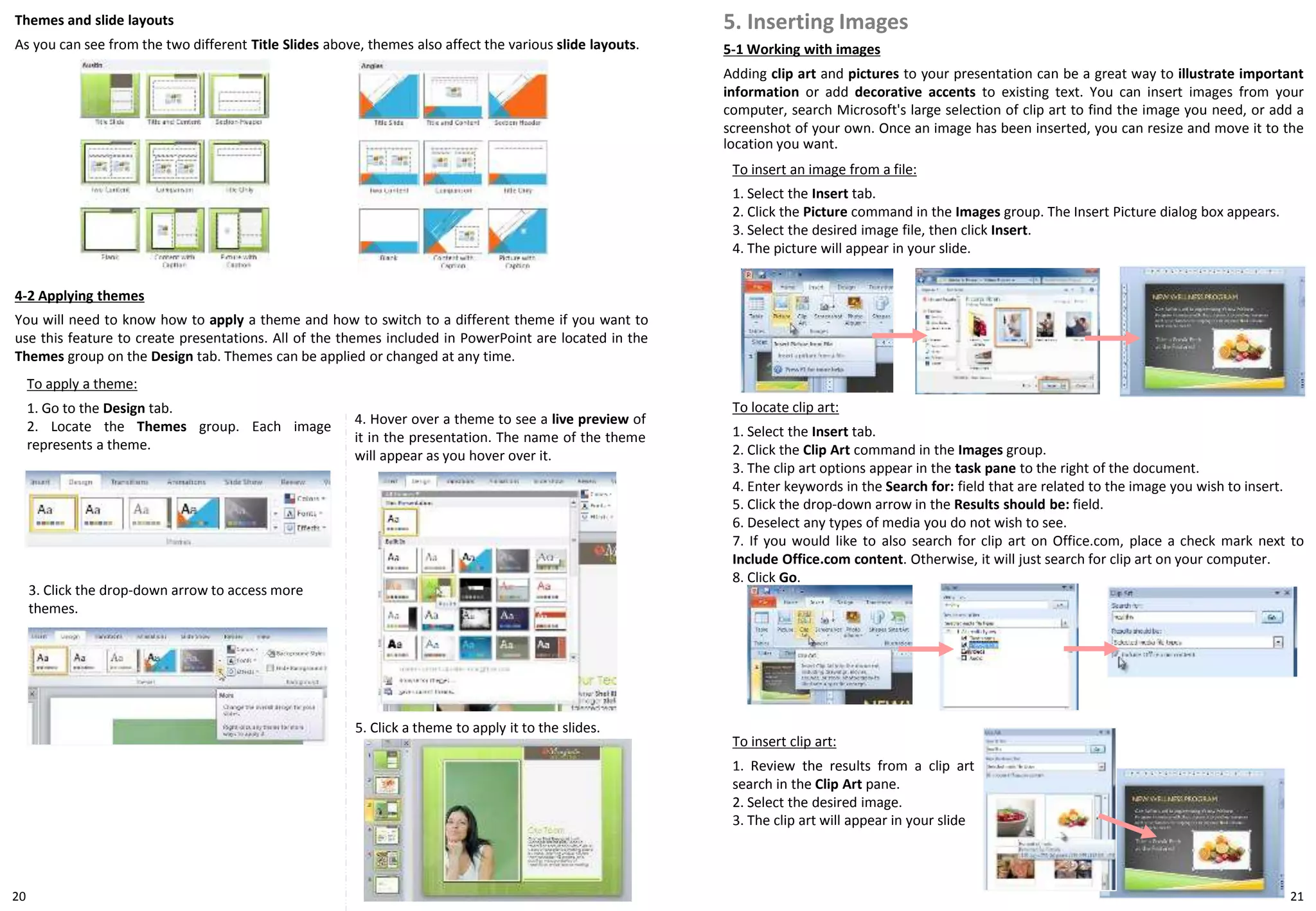

4-2 Applying themes 20
5. Inserting Images
5-1 Working with images 21
5-2 Inserting screenshots 22
5-3 Resizing and moving images 22
6. Applying Transitions
6-1 Applying transitions 23

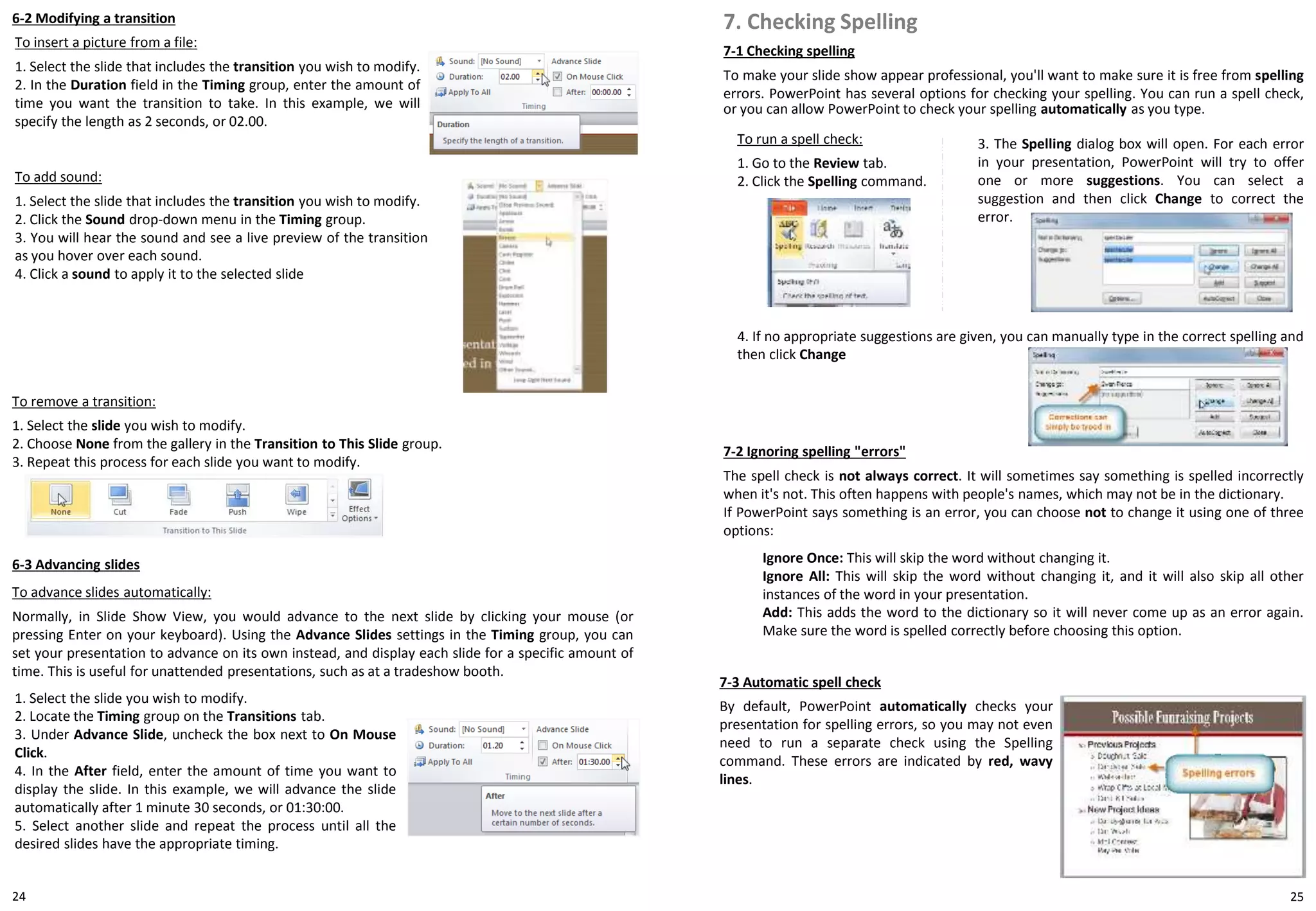

6-2 Modifying a transition 24
6-3 Advancing slides 24
7. Checking Spelling
7-1 Checking spelling 25
7-2 Ignoring spelling "errors" 25
7-3 Automatic spell check 25

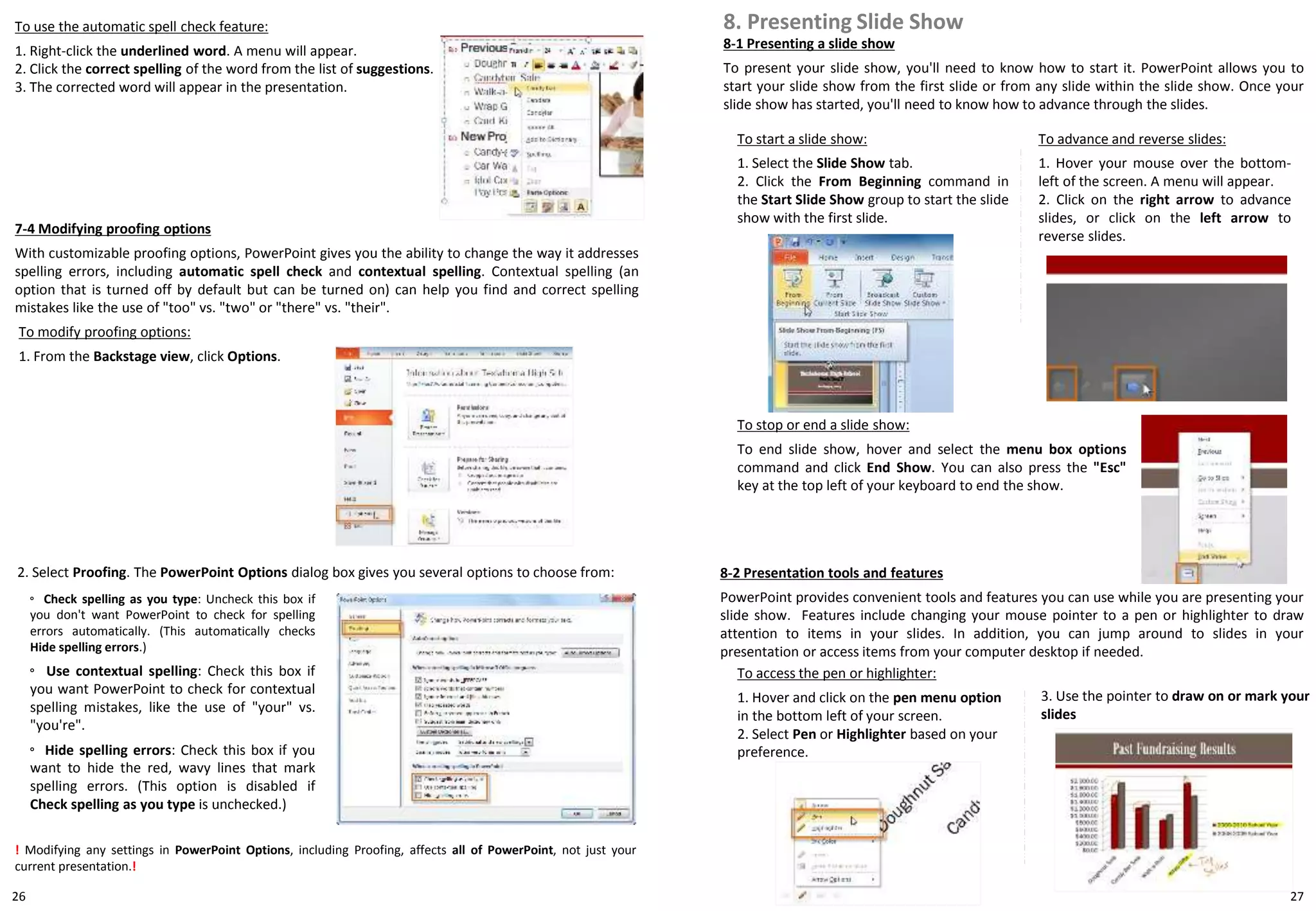

7-4 Modifying proofing options 26
2
8. Presenting Slide Show
8-1 Presenting a slide show 27
8-2 Presentation tools and features 27

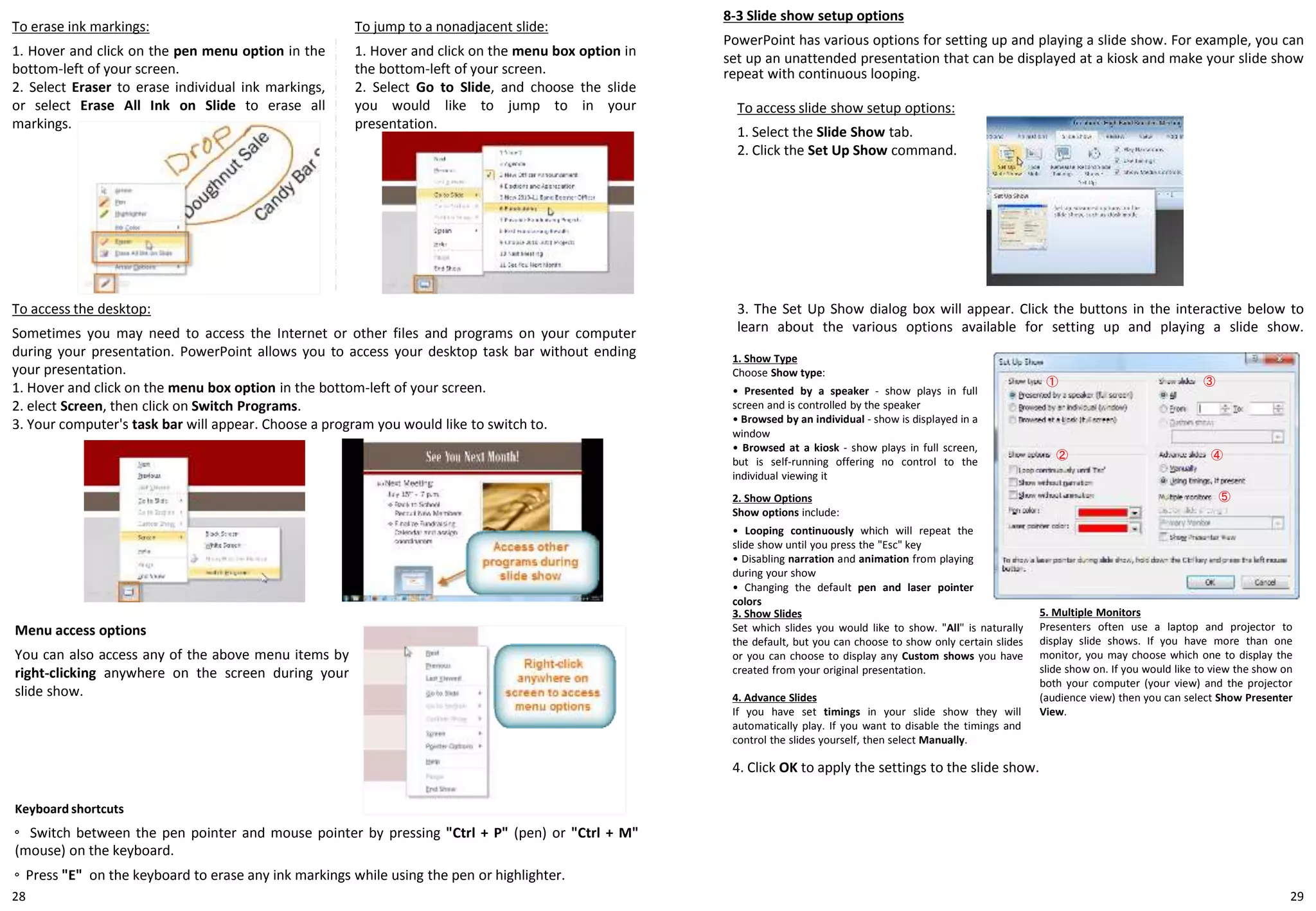

8-3 Slide show setup options 28
9. Saving and Printing

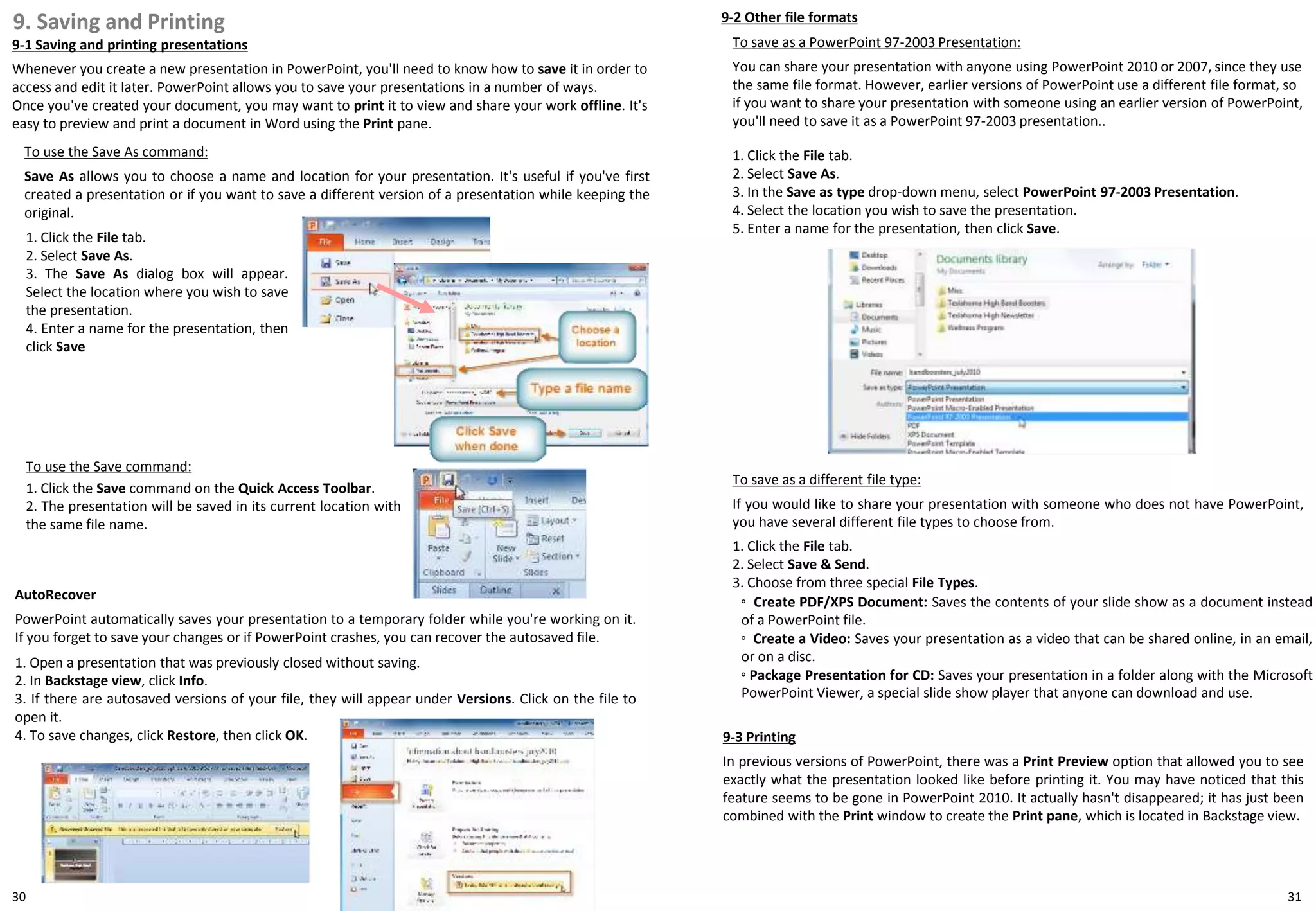

9-1 Saving and printing presentation 30
9-2 Other file formats 31

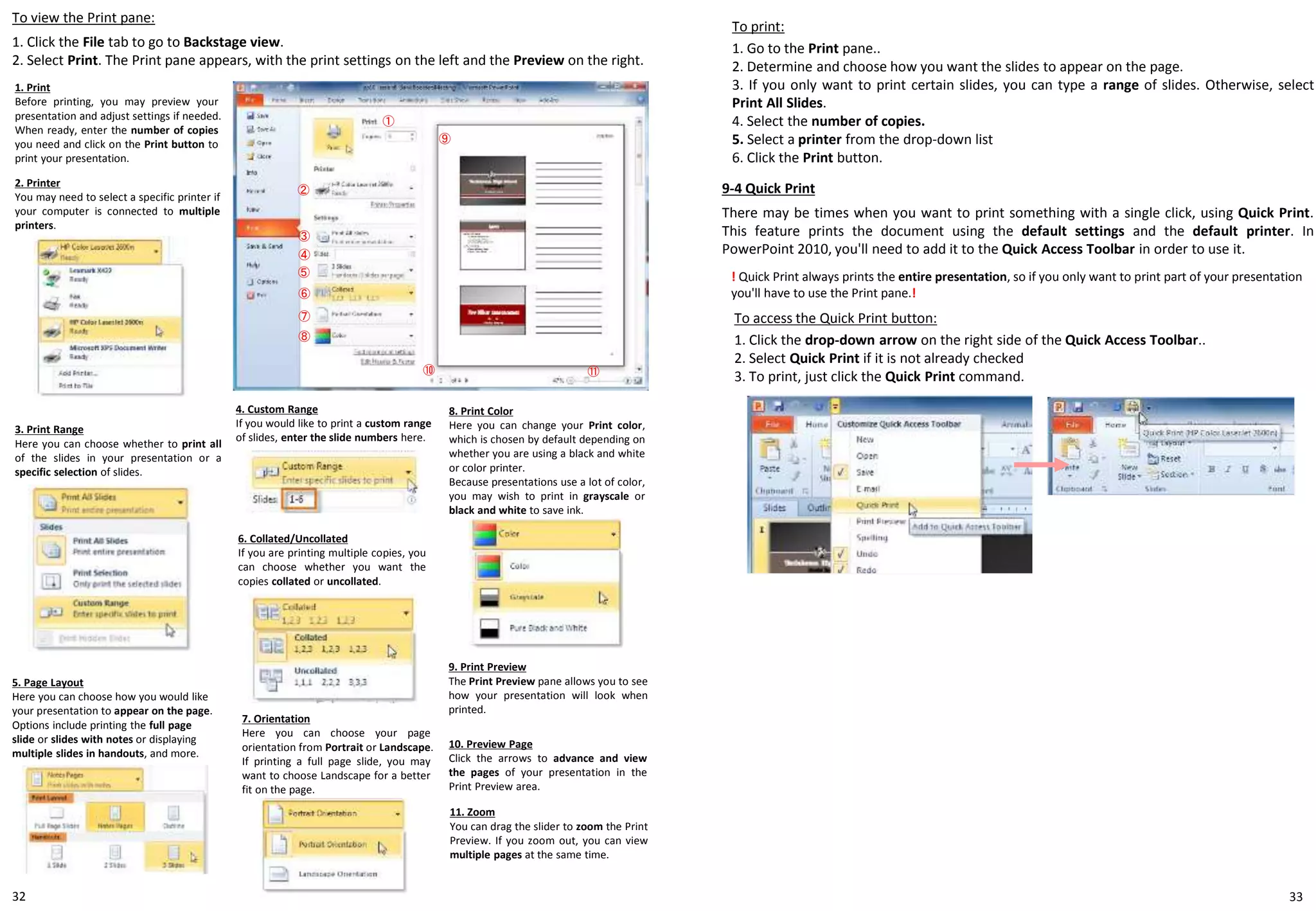

9-3 Printing 31
9-4 Quick Print 33
10. Modifying Lists

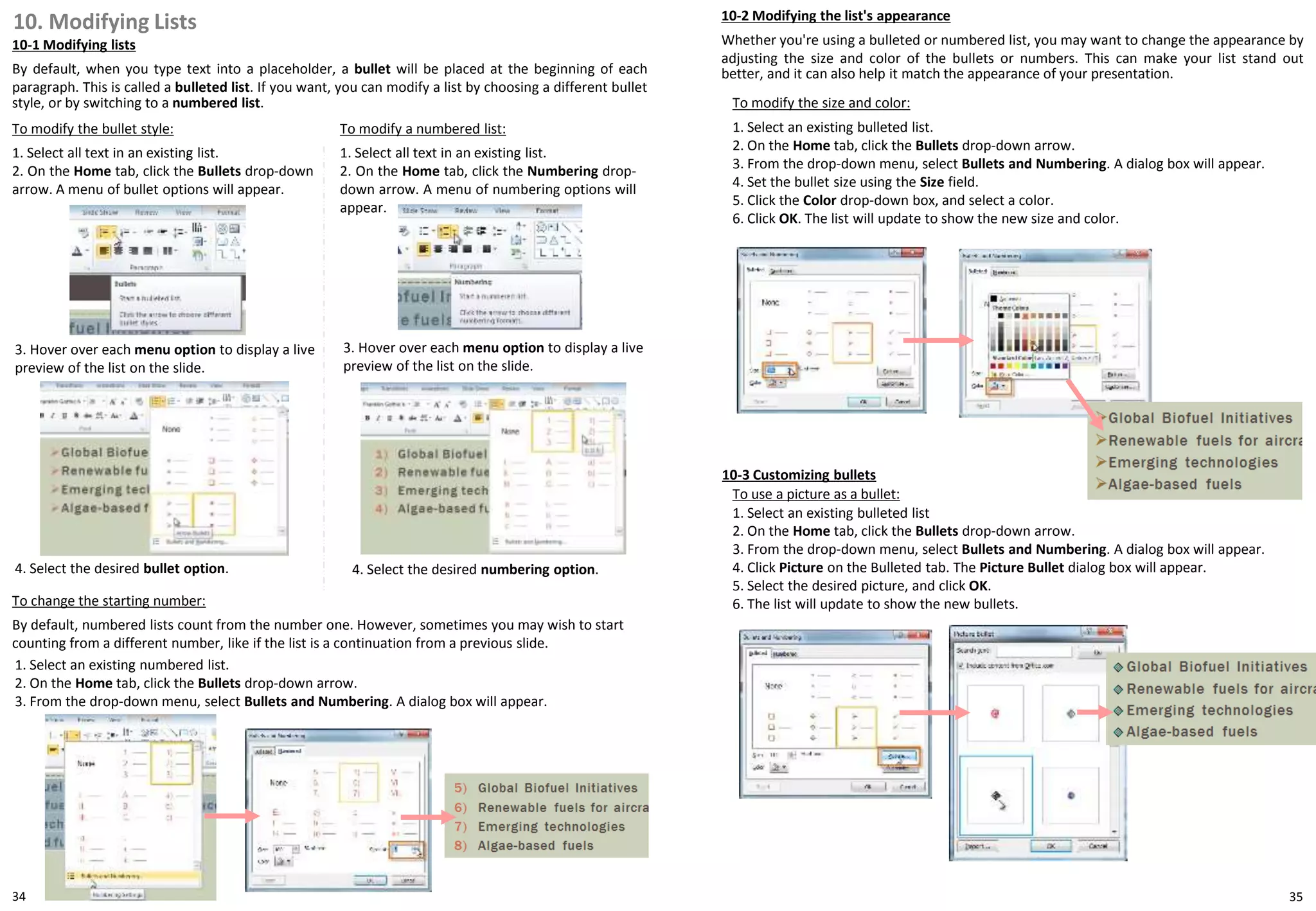

10-1 Modifying lists 34
10-2 Modifying the list's appearance 35
10-3 Customizing bullets 35
11. Indents and Line Spacing

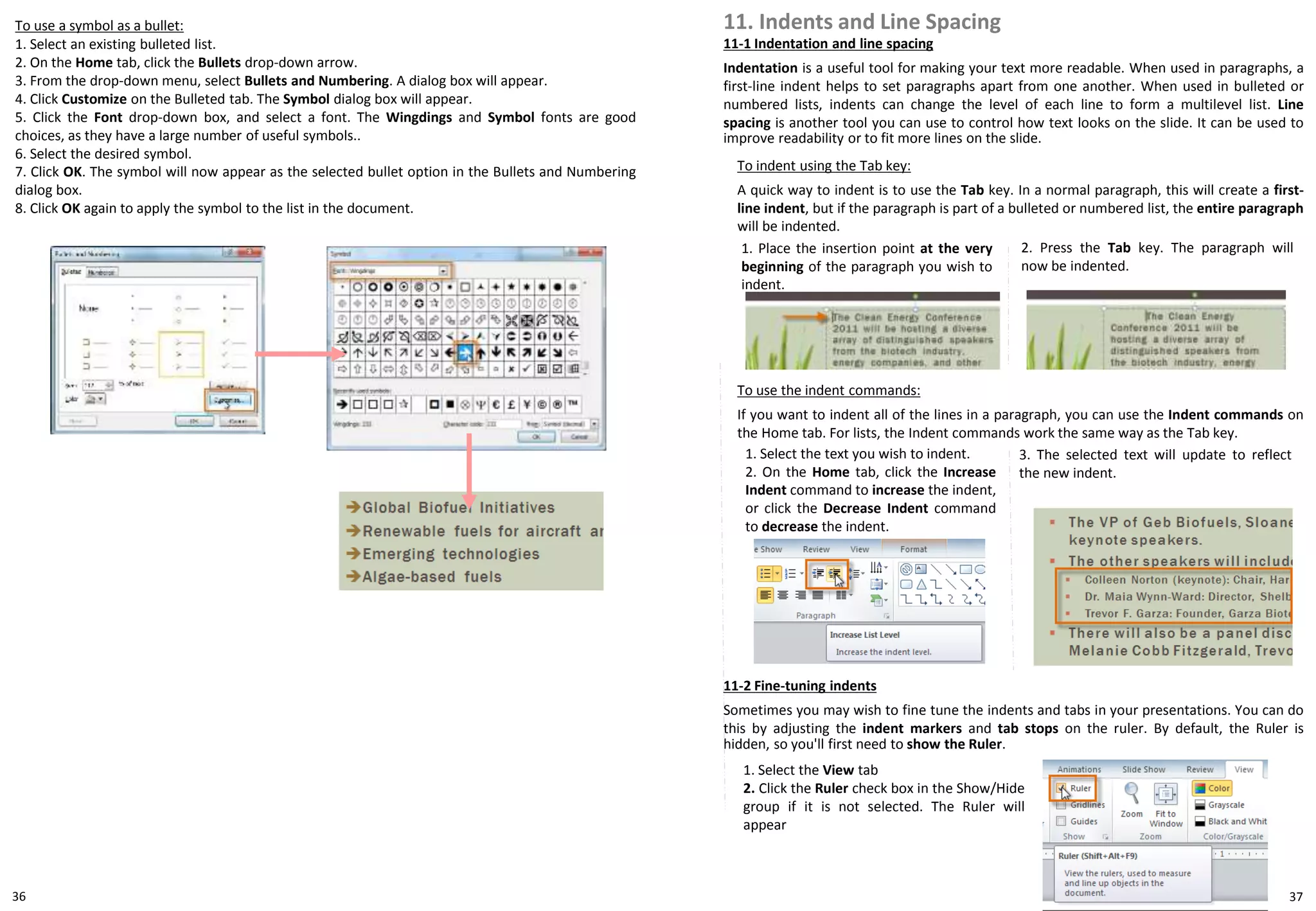

11-1 Indentation and line spacing 37
11-2 Fine-tuning indents 37

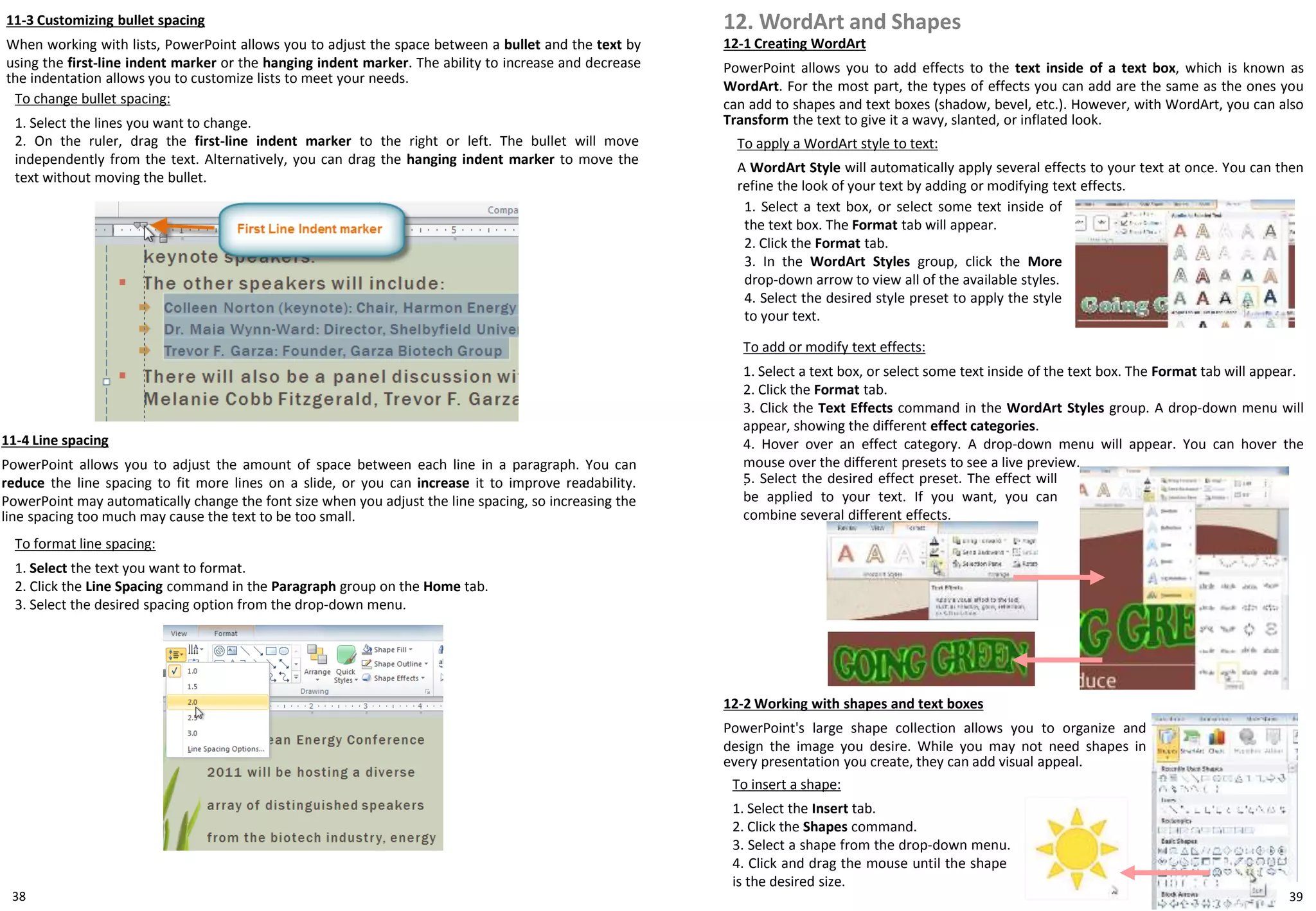

11-3 Customizing bullet spacing 38
11-4 Line spacing 38
12. WordArt and Shapes
12-1 Creating WordArt 39
12-2 Working with shapes and text boxes 39

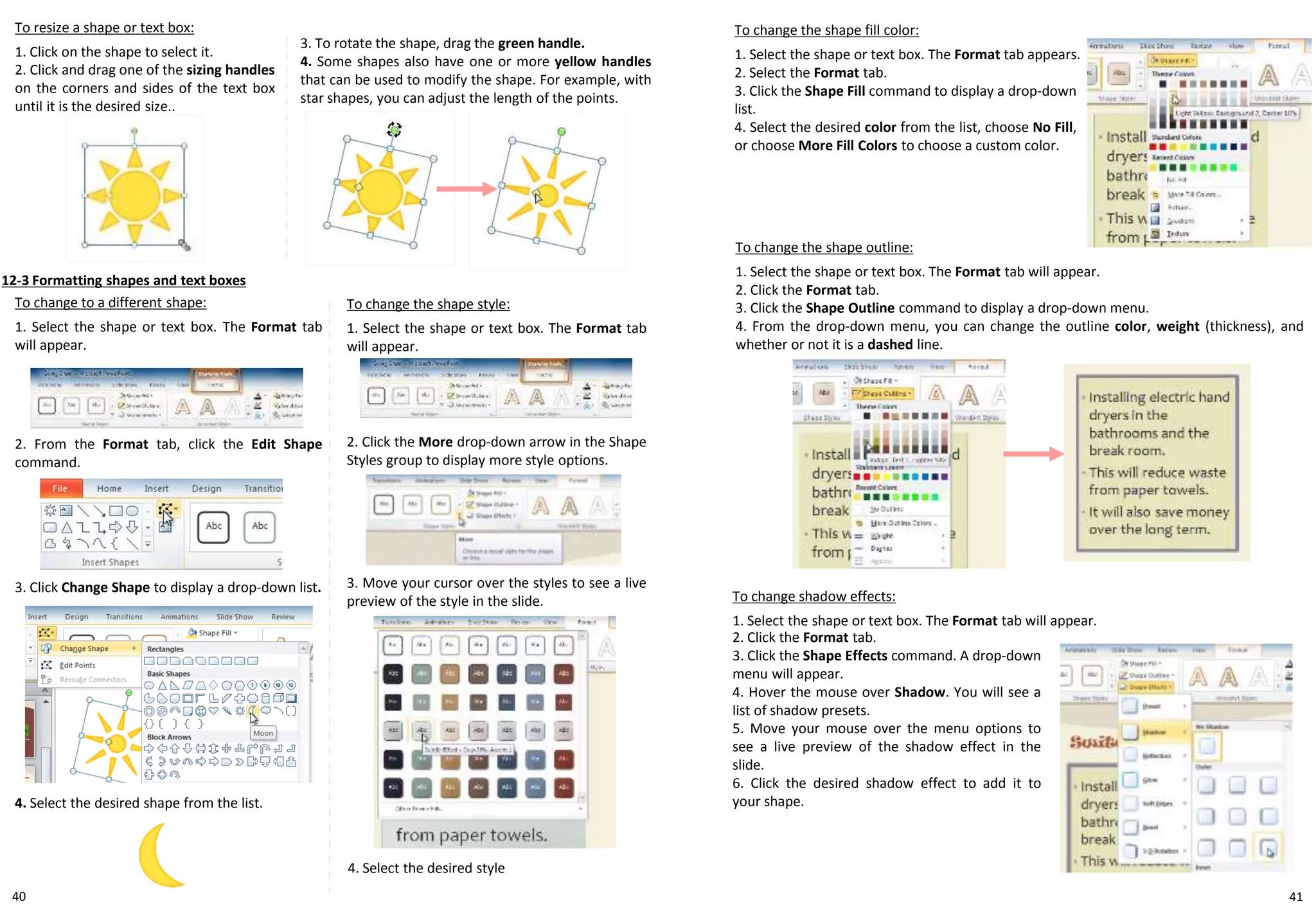

12-3 Formatting shapes and text boxes 40

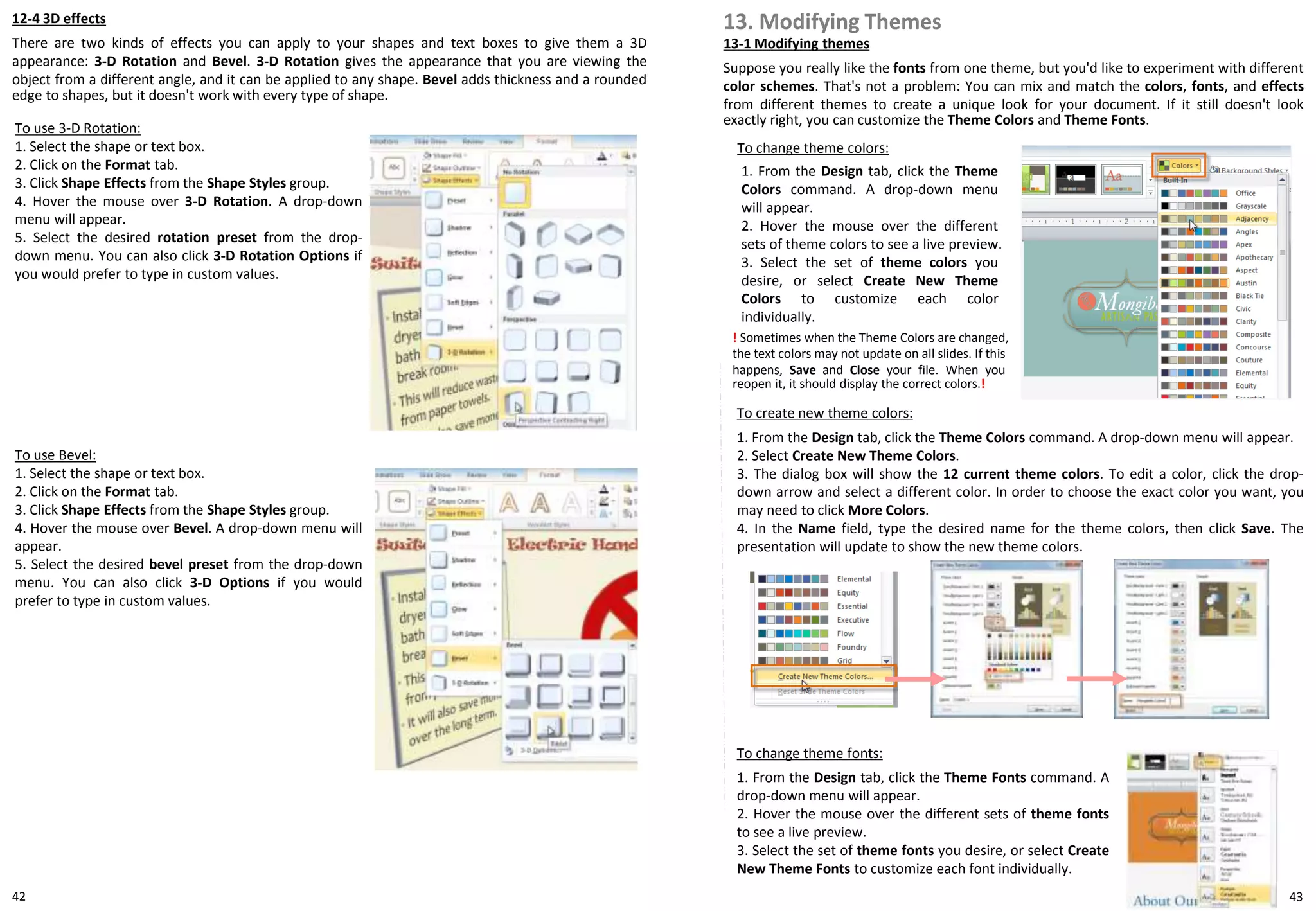

12-4 3D effects 42
13. Modifying Themes
13-1 Modifying themes 43
13-2 Saving your theme 44
13-3 Background styles 44
14. Formatting Pictures
14-1 Basic image formatting 45

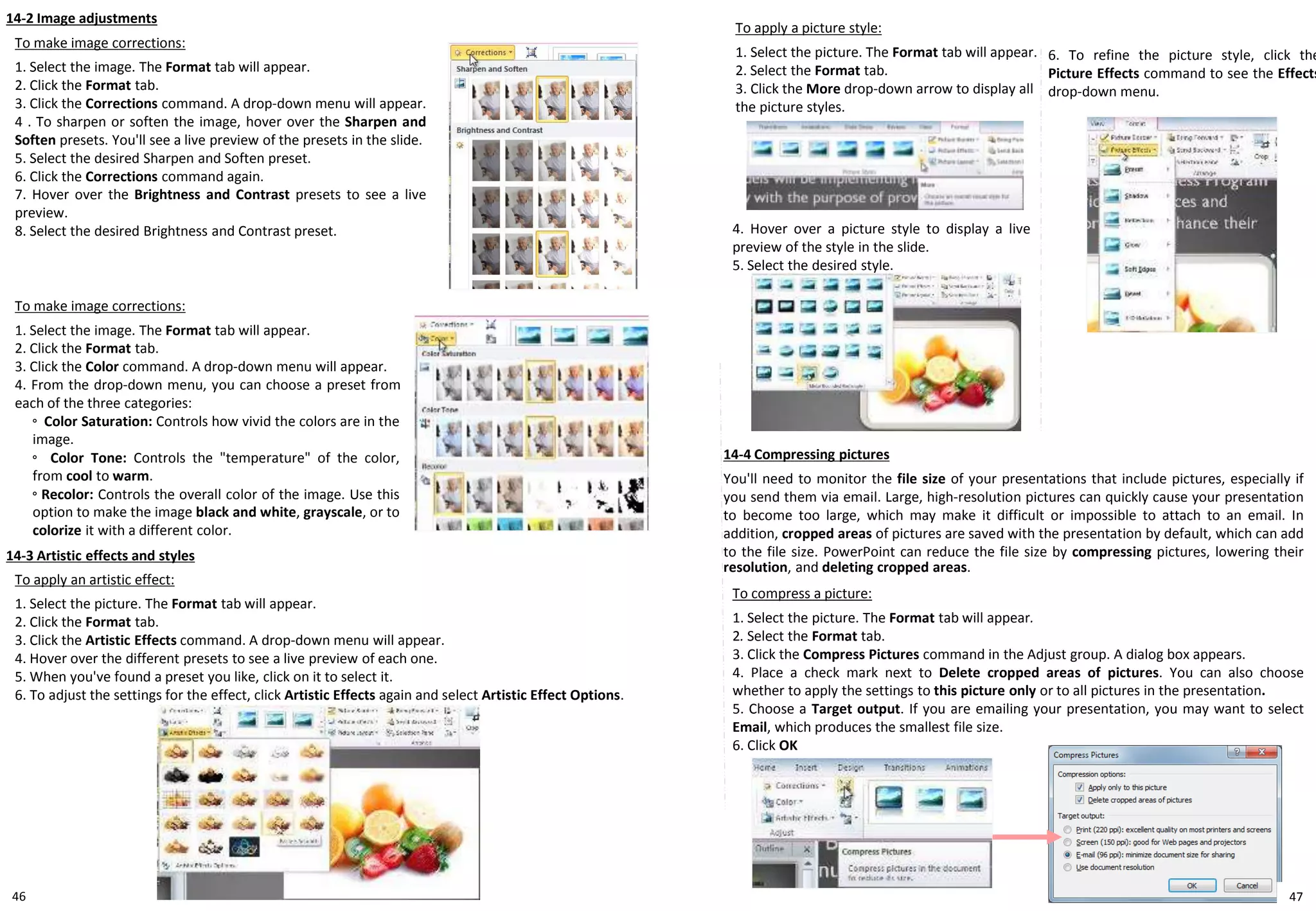

14-2 Image adjustments 46
14-3 Artistic effects and styles 46
14-4 Compressing pictures 47

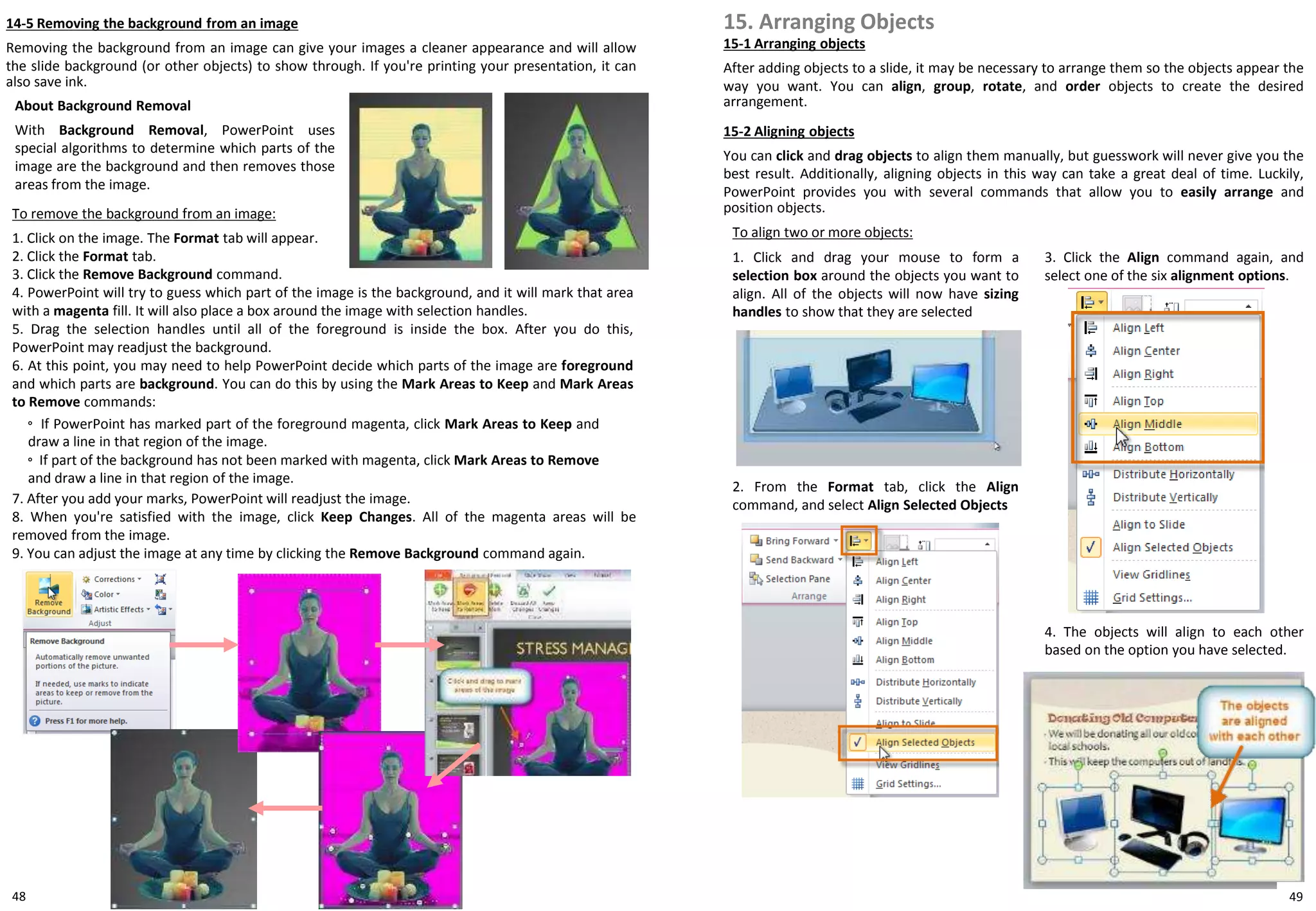

14-5 Removing the background from an image 48
15. Arranging Objects
15-1 Arranging objects 49

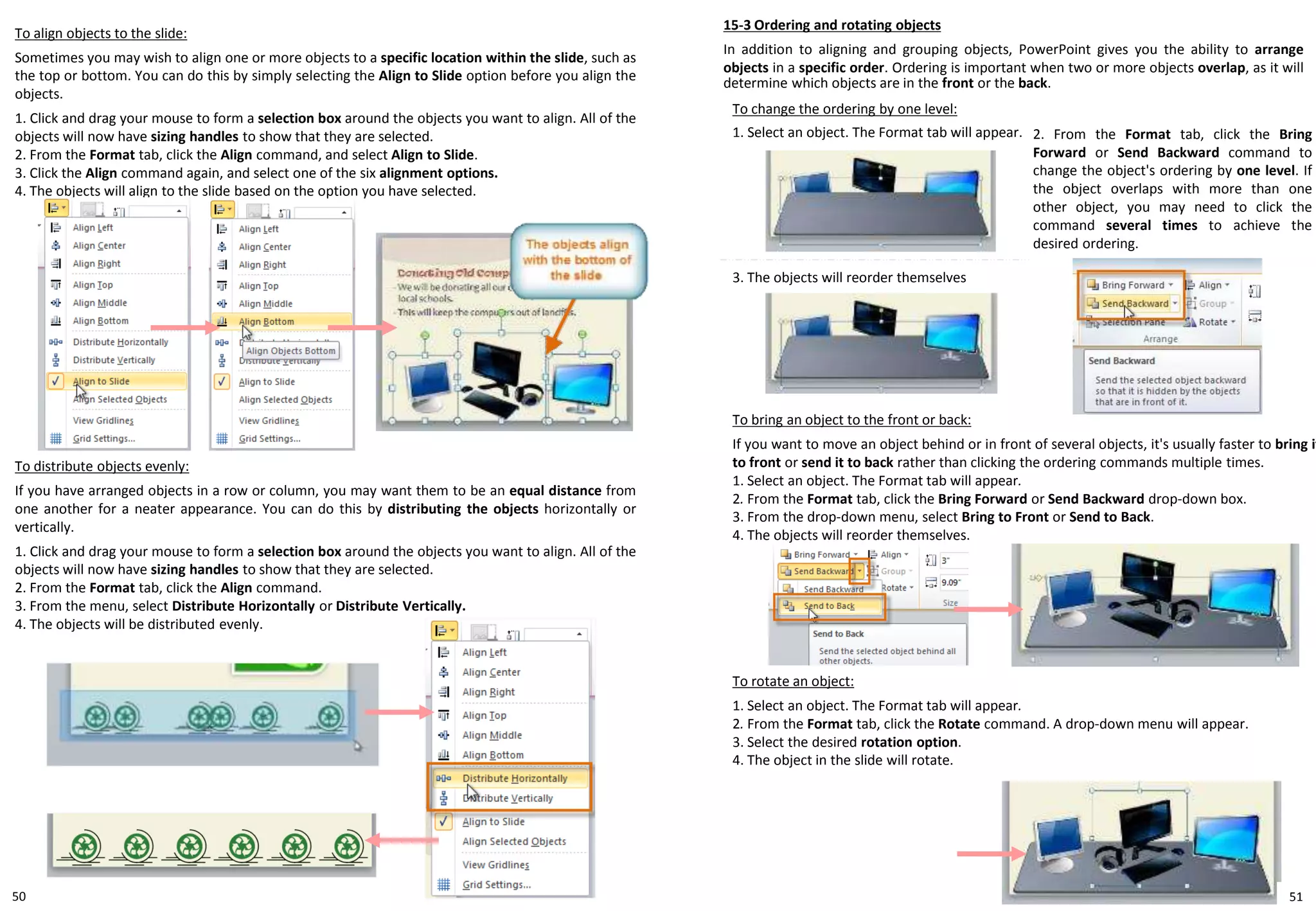

15-2 Aligning objects 49
15-3 Ordering and rotating objects 51
15-4 Grouping objects 52
3

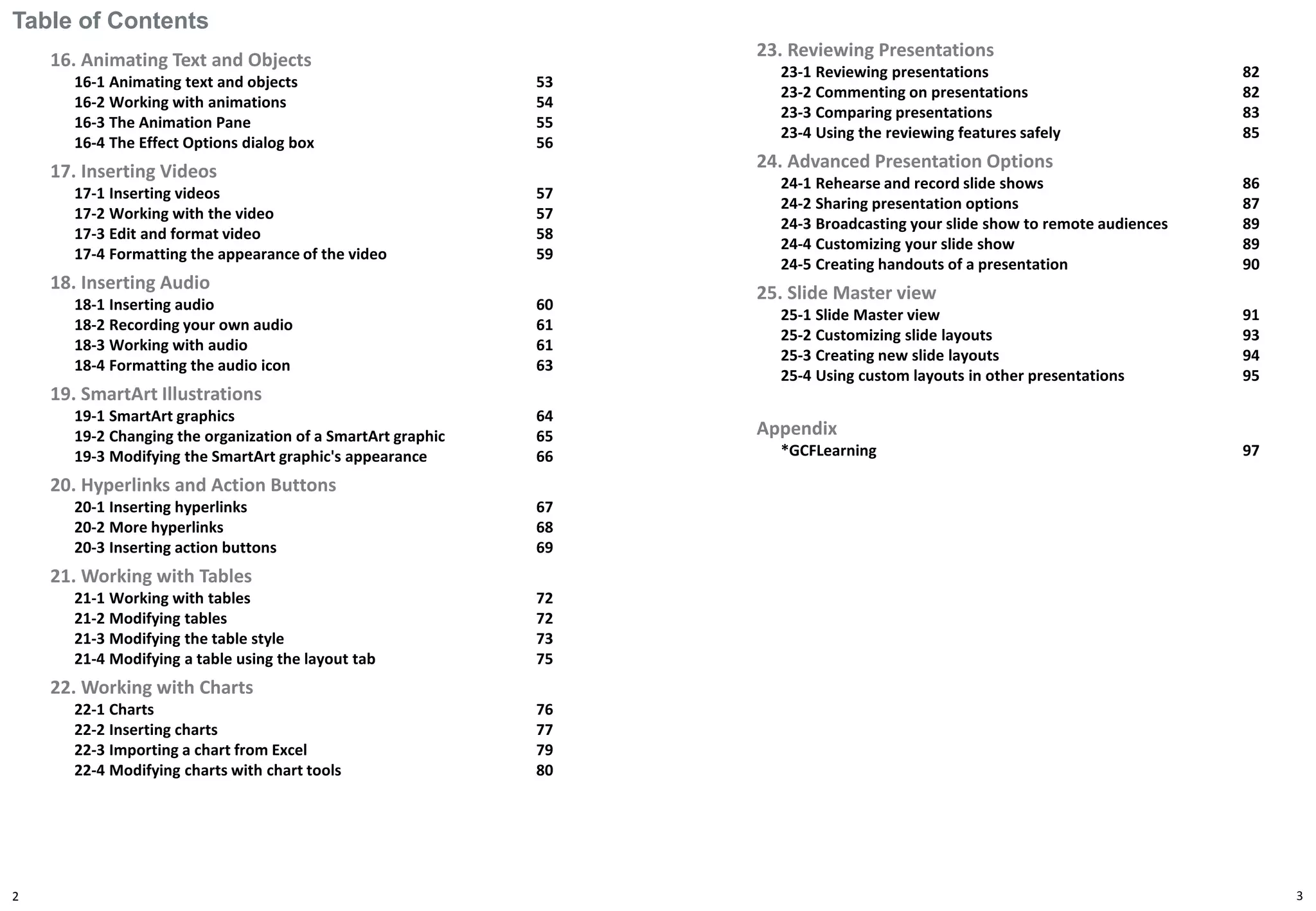

Table of Contents
16. Animating Text and Objects
16-1 Animating text and objects 53

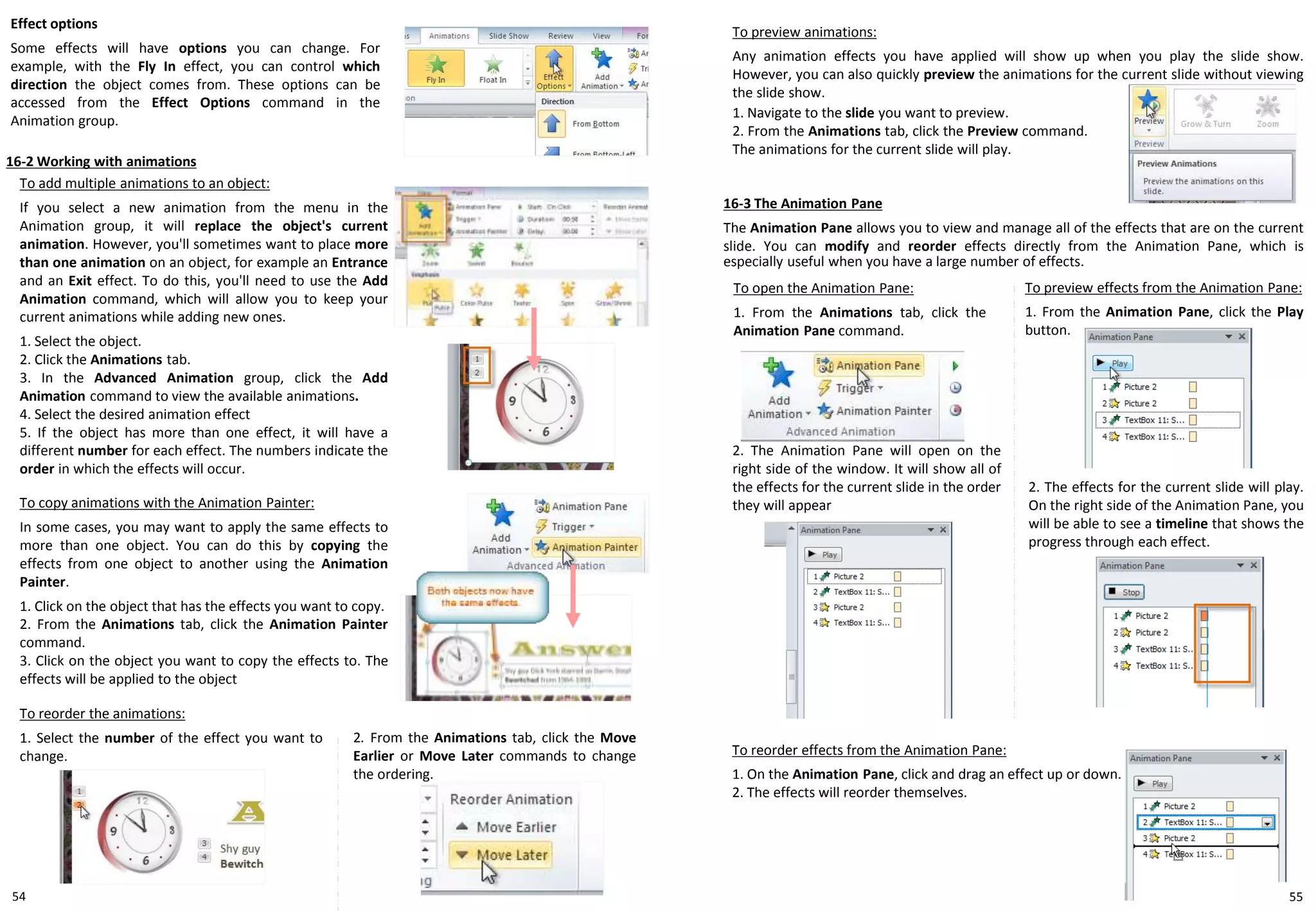

16-2 Working with animations 54
16-3 The Animation Pane 55
16-4 The Effect Options dialog box 56
17. Inserting Videos
17-1 Inserting videos 57
17-2 Working with the video 57
17-3 Edit and format video 58
17-4 Formatting the appearance of the video 59
18. Inserting Audio

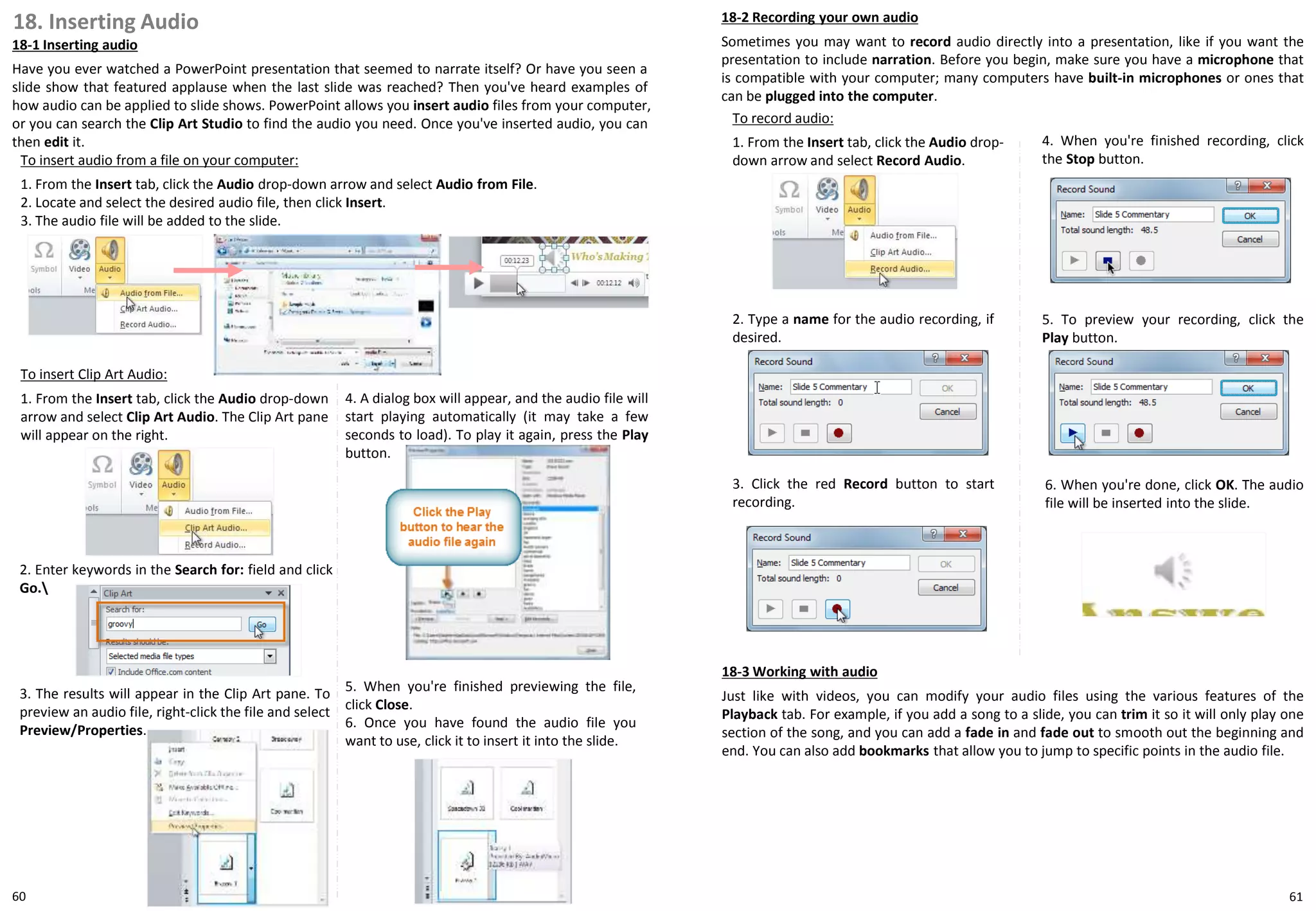

18-1 Inserting audio 60
18-2 Recording your own audio 61
18-3 Working with audio 61
18-4 Formatting the audio icon 63
19. SmartArt Illustrations

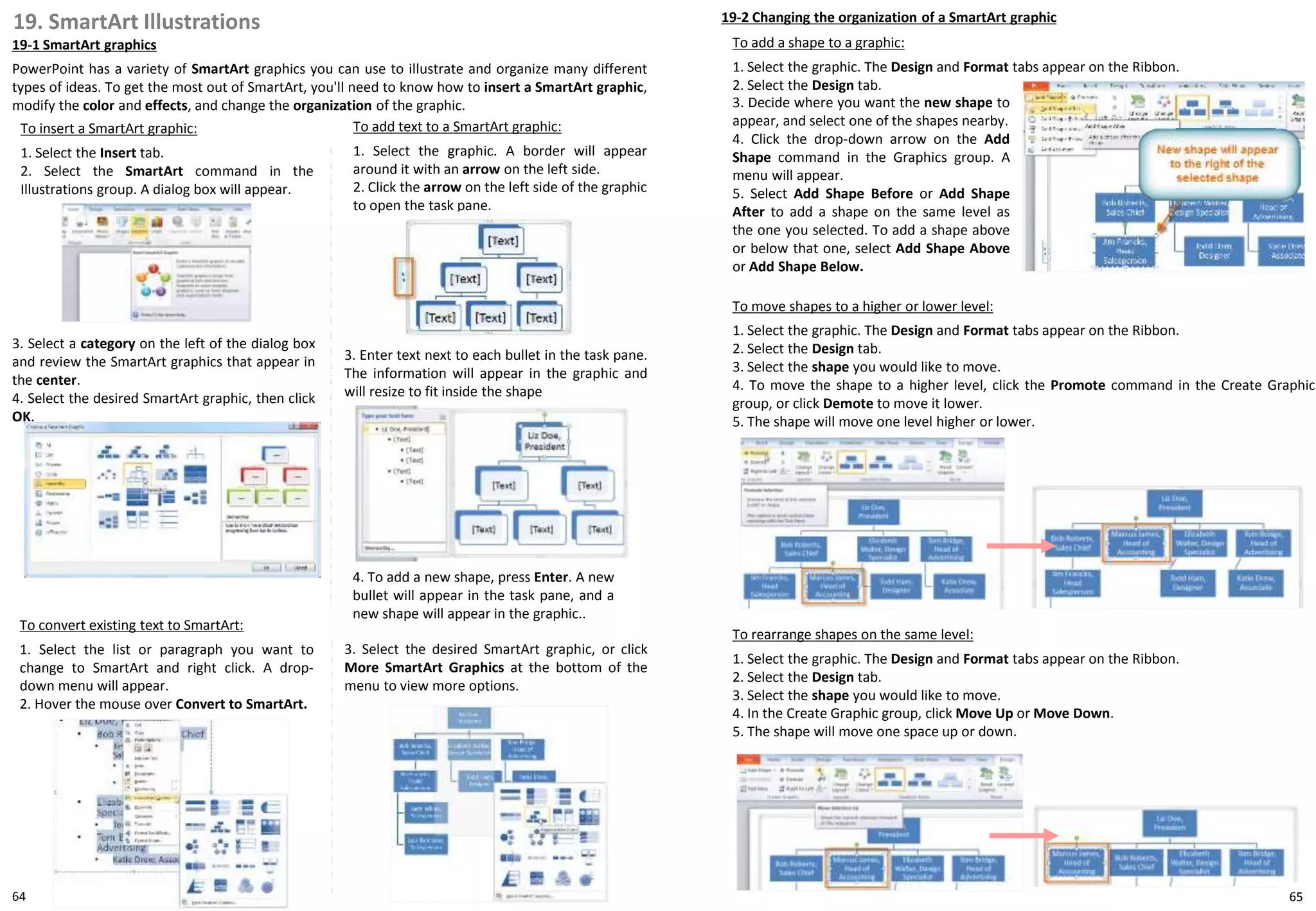

19-1 SmartArt graphics 64
19-2 Changing the organization of a SmartArt graphic 65

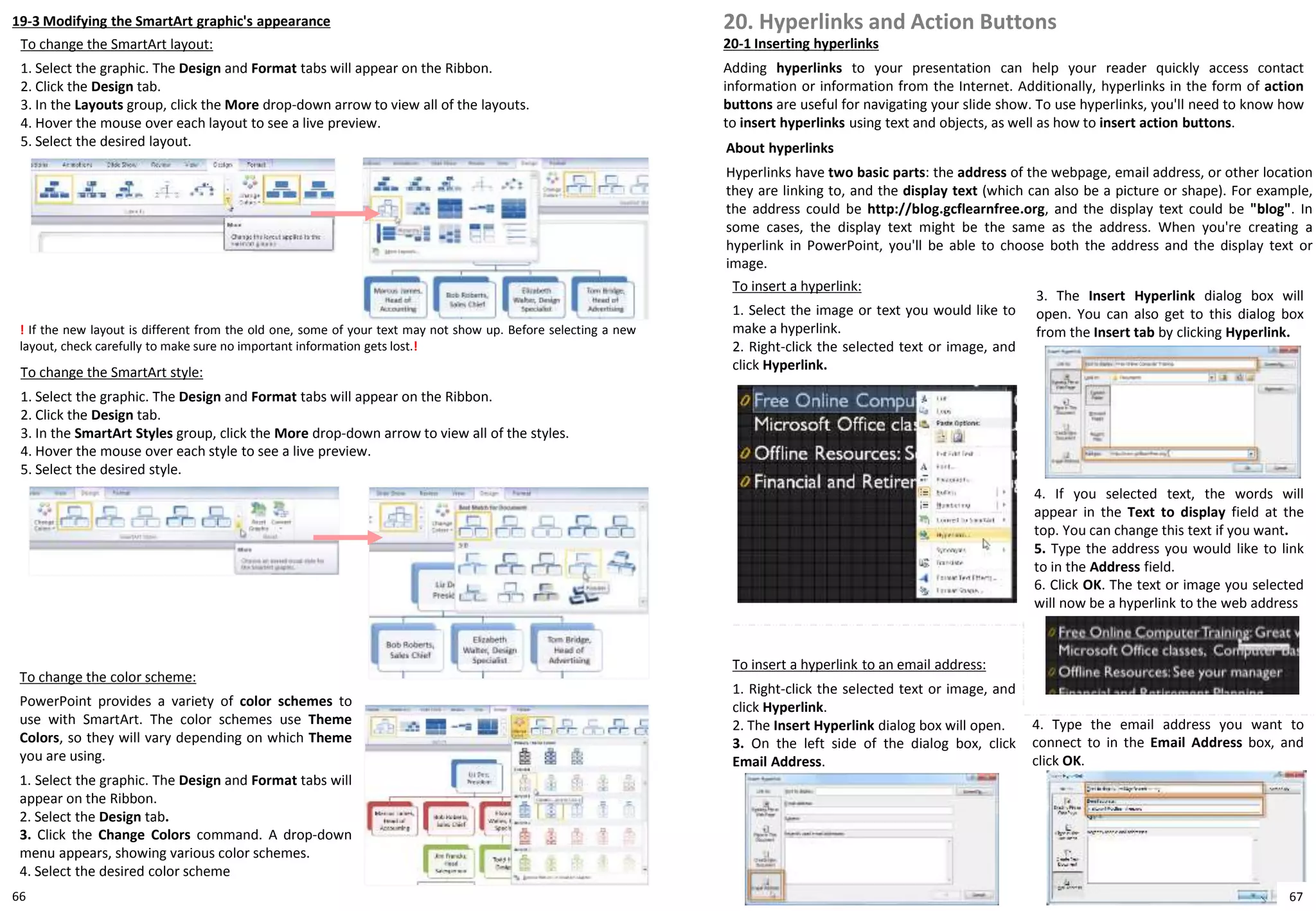

19-3 Modifying the SmartArt graphic's appearance 66
20. Hyperlinks and Action Buttons
20-1 Inserting hyperlinks 67

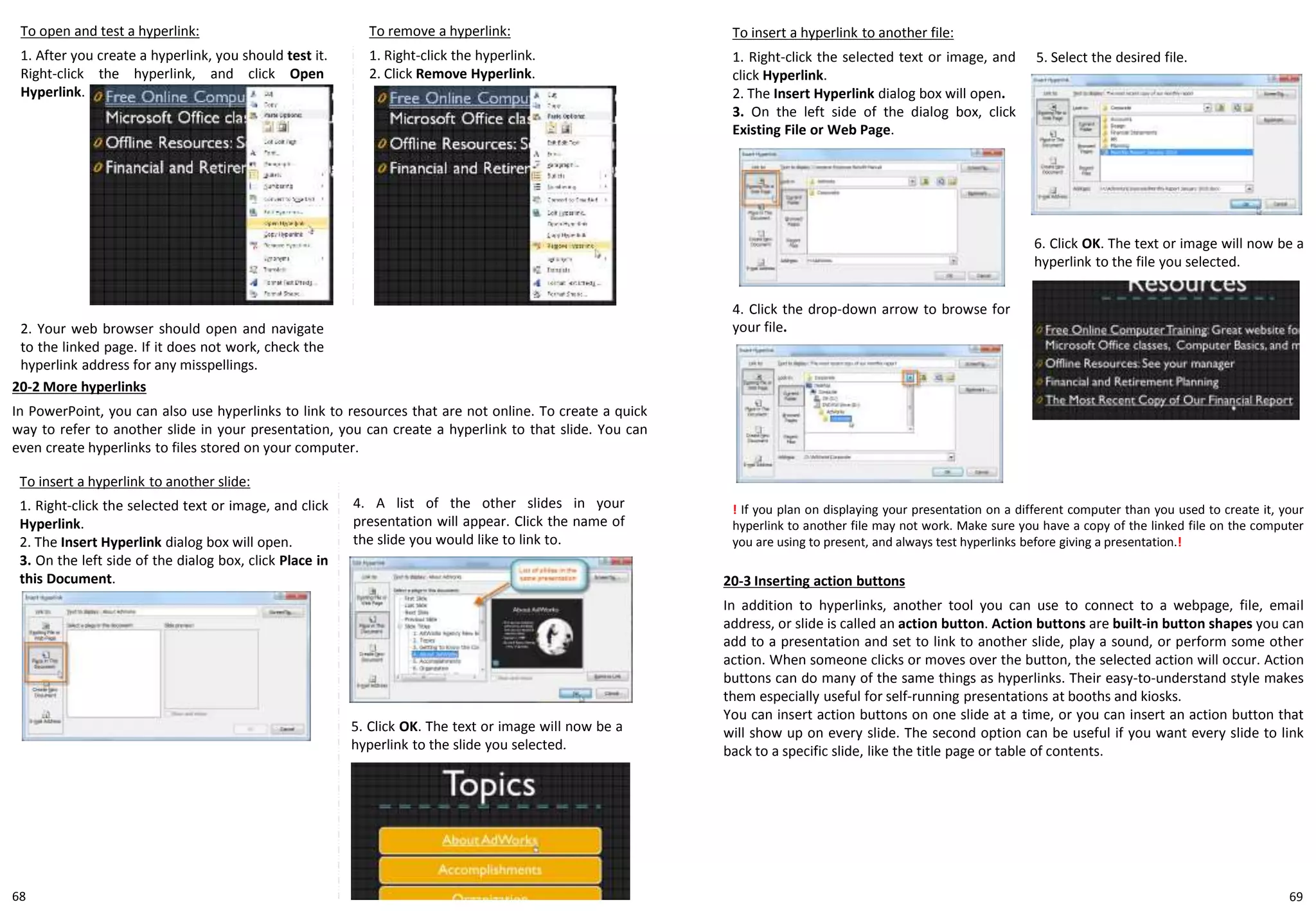

20-2 More hyperlinks 68
20-3 Inserting action buttons 69
21. Working with Tables

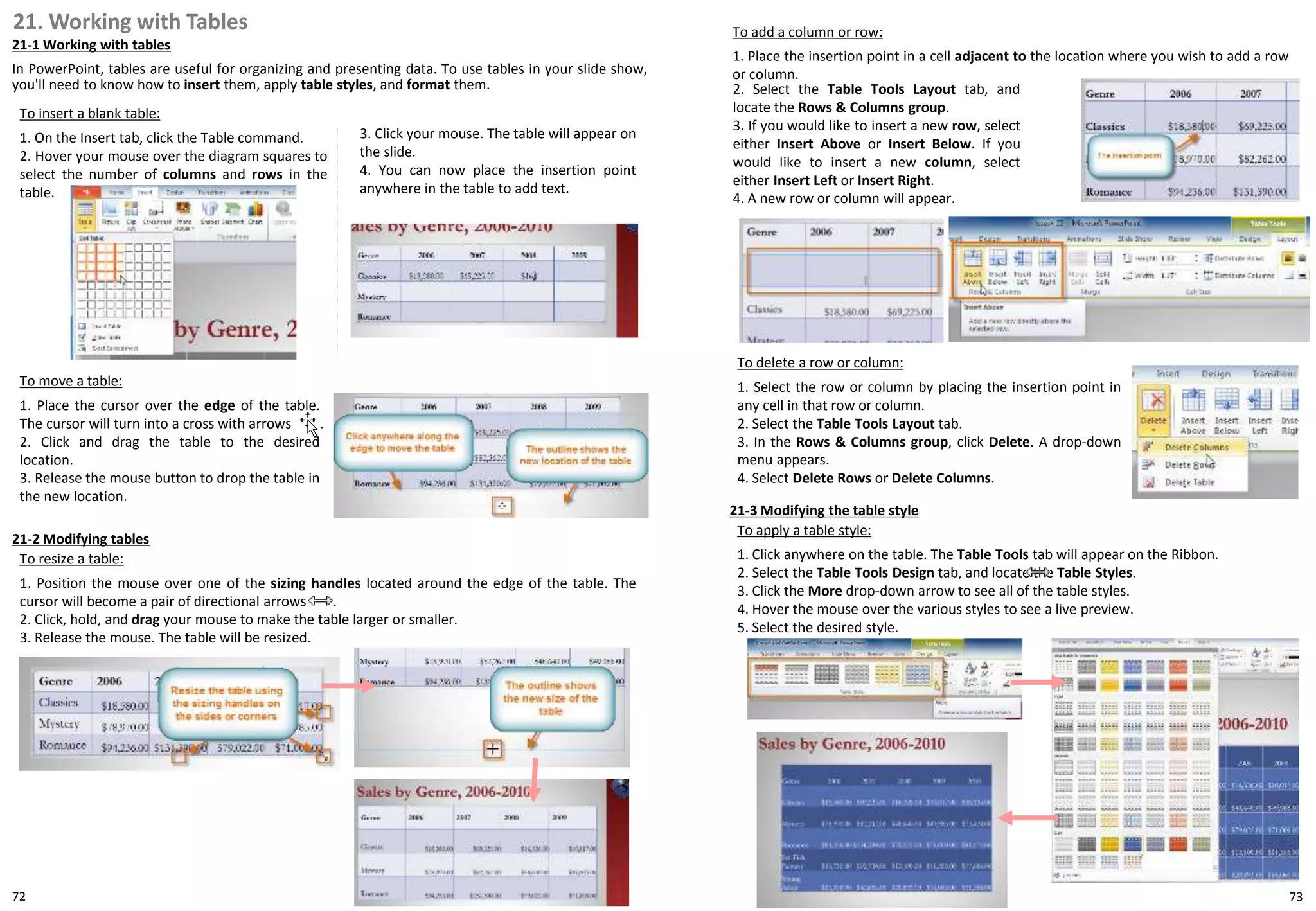

21-1 Working with tables 72
21-2 Modifying tables 72
21-3 Modifying the table style 73
21-4 Modifying a table using the layout tab 75
22. Working with Charts
22-1 Charts 76
22-2 Inserting charts 77

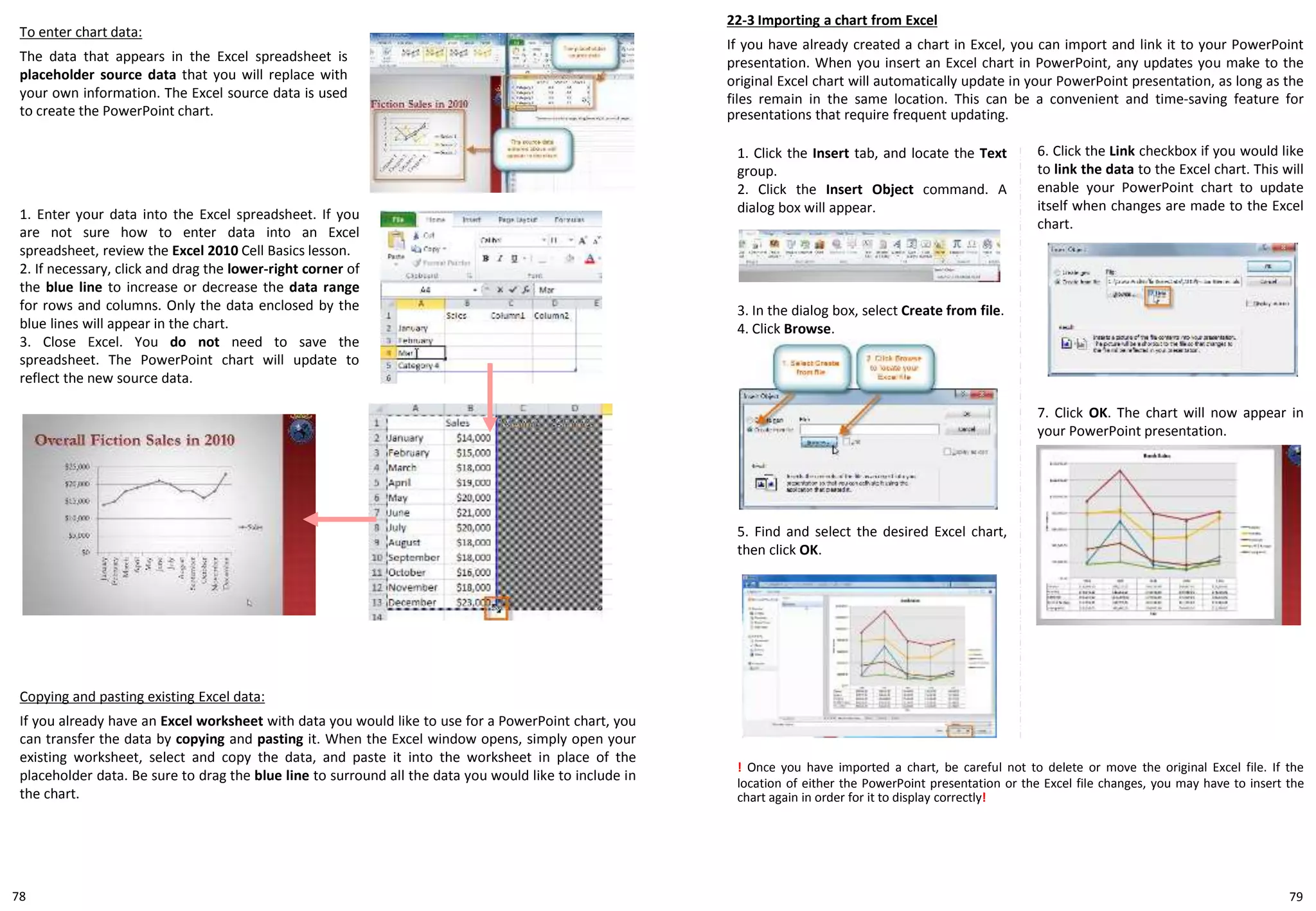

22-3 Importing a chart from Excel 79

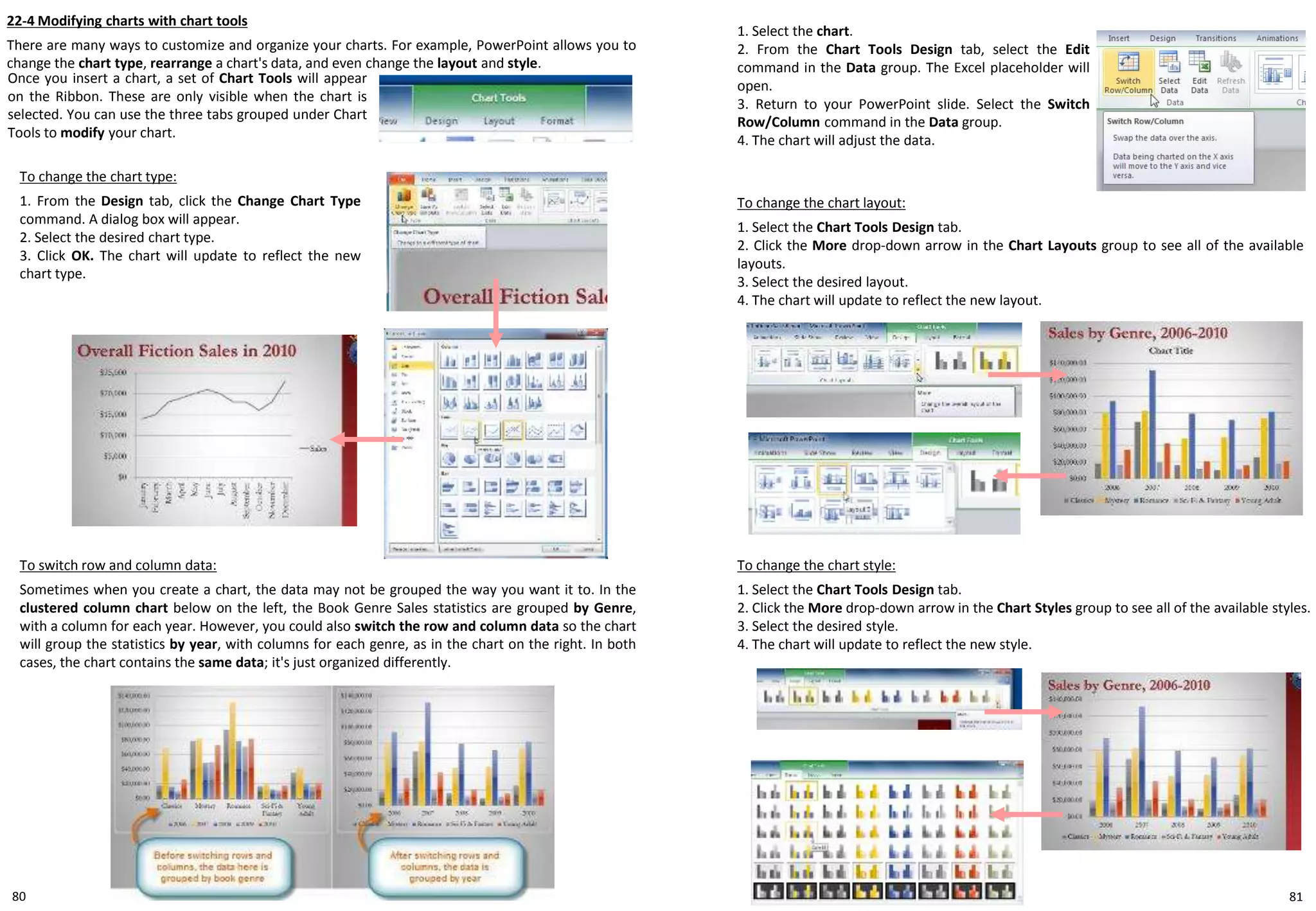

22-4 Modifying charts with chart tools 80
2
23. Reviewing Presentations

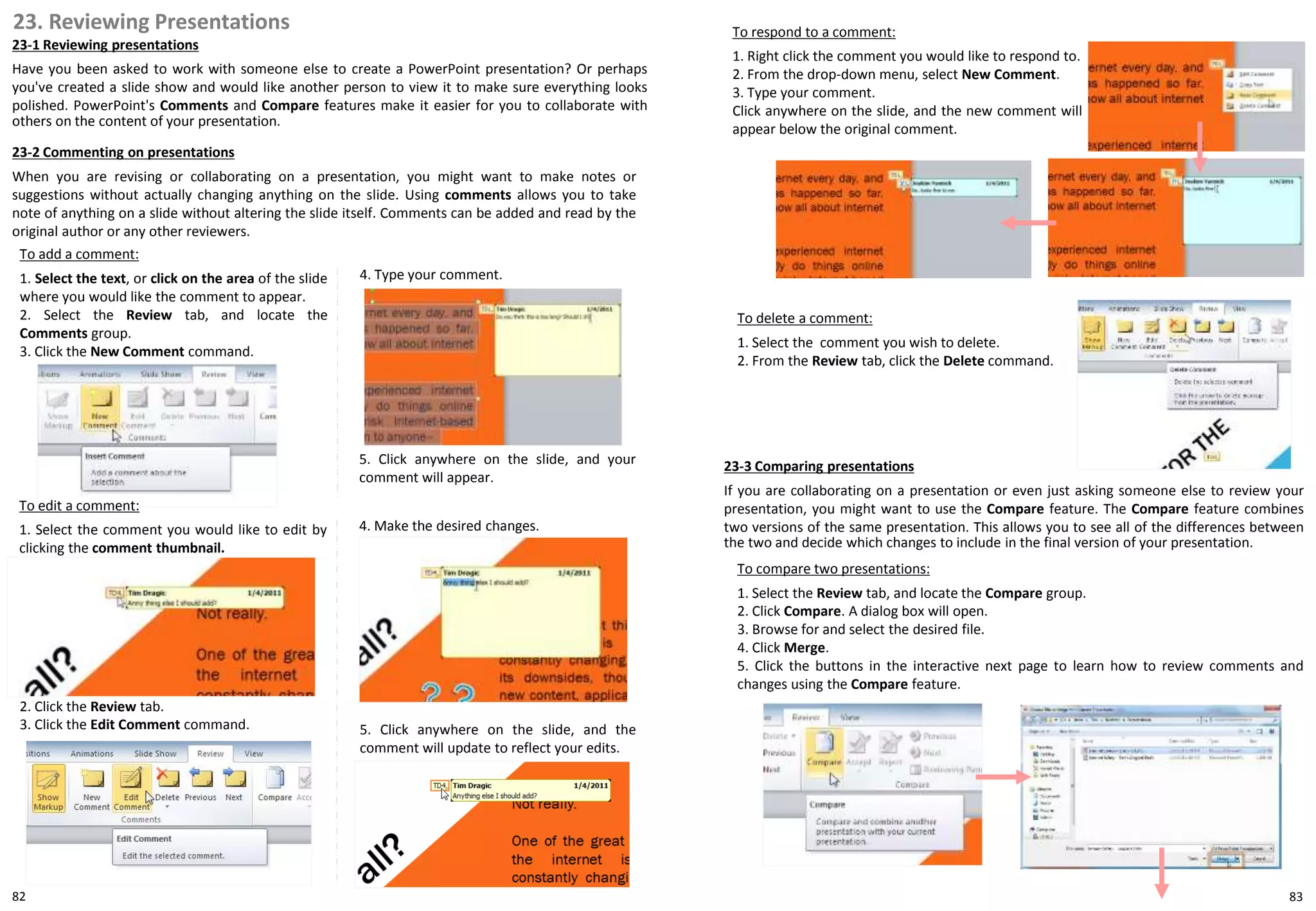

23-1 Reviewing presentations 82
23-2 Commenting on presentations 82
23-3 Comparing presentations 83

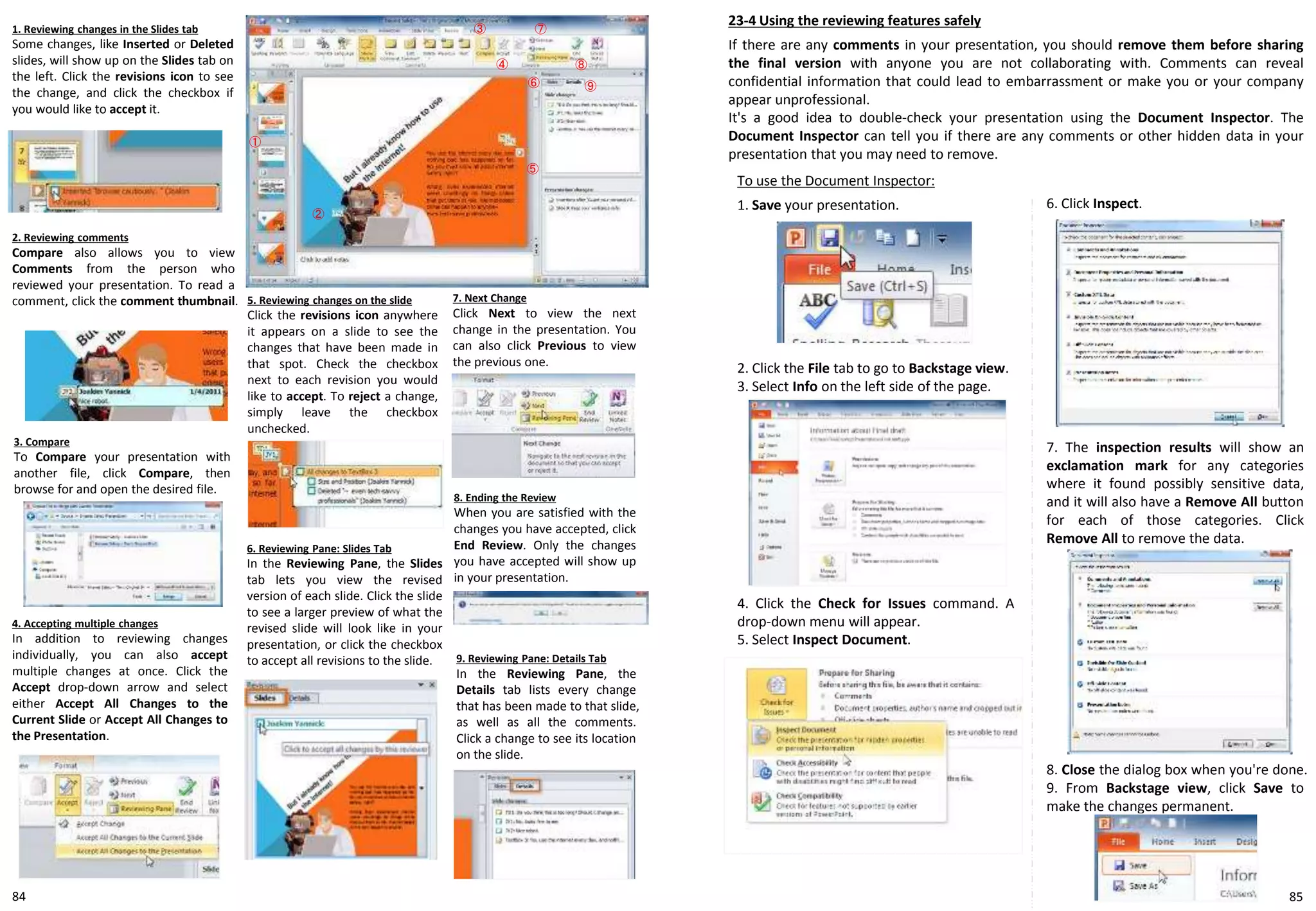

23-4 Using the reviewing features safely 85
24. Advanced Presentation Options

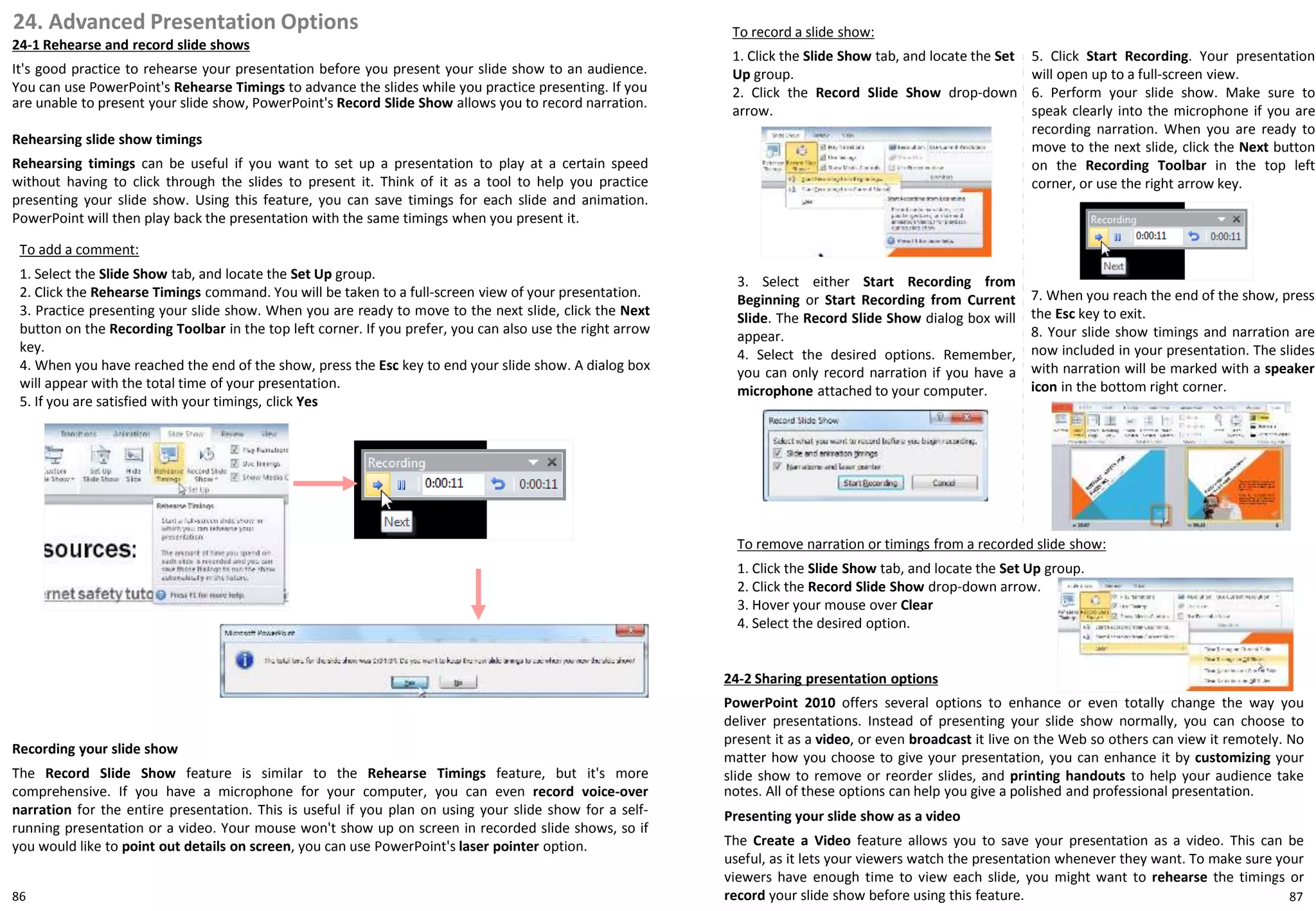

24-1 Rehearse and record slide shows 86
24-2 Sharing presentation options 87

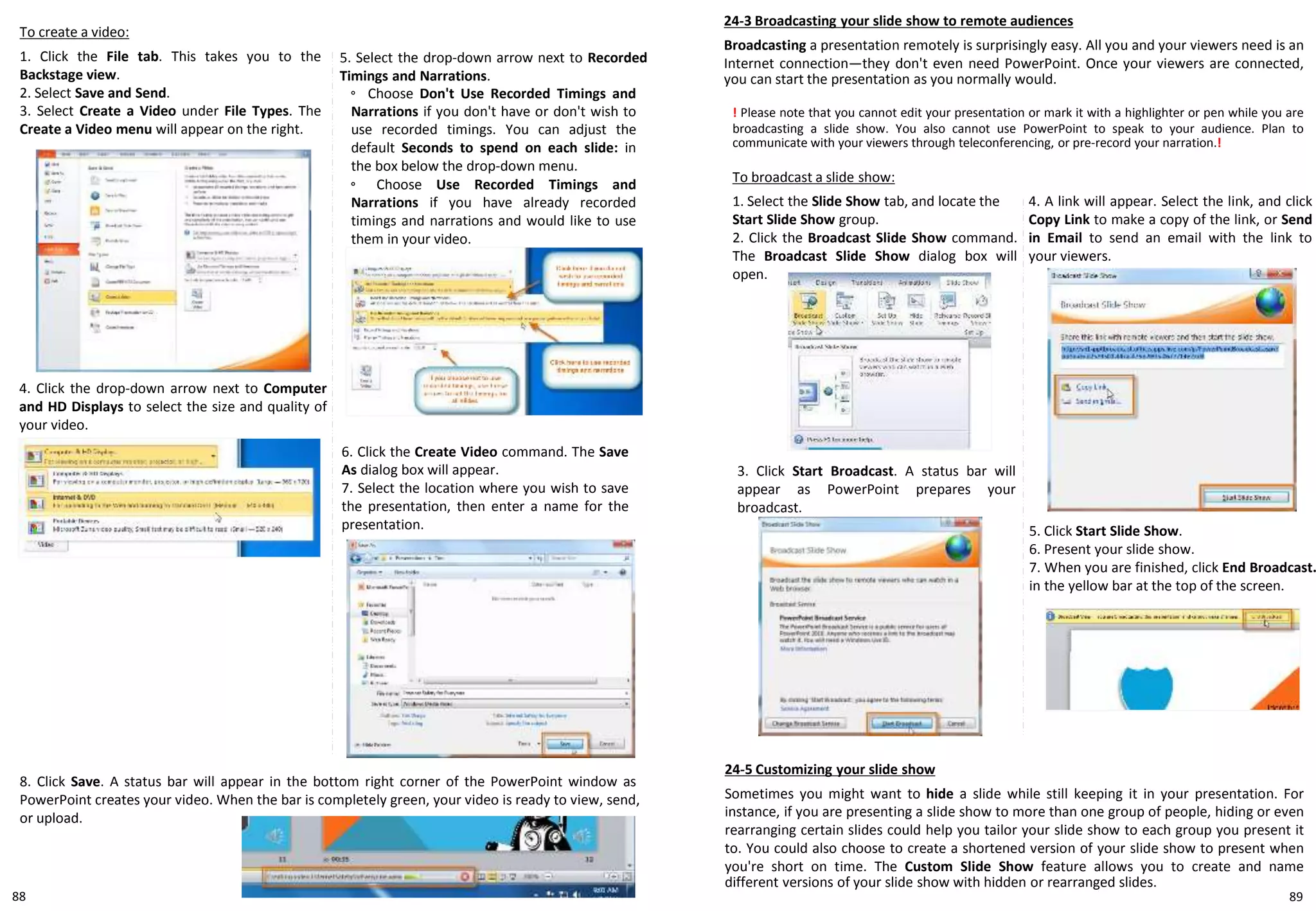

24-3 Broadcasting your slide show to remote audiences 89
24-4 Customizing your slide show 89
24-5 Creating handouts of a presentation 90
25. Slide Master view

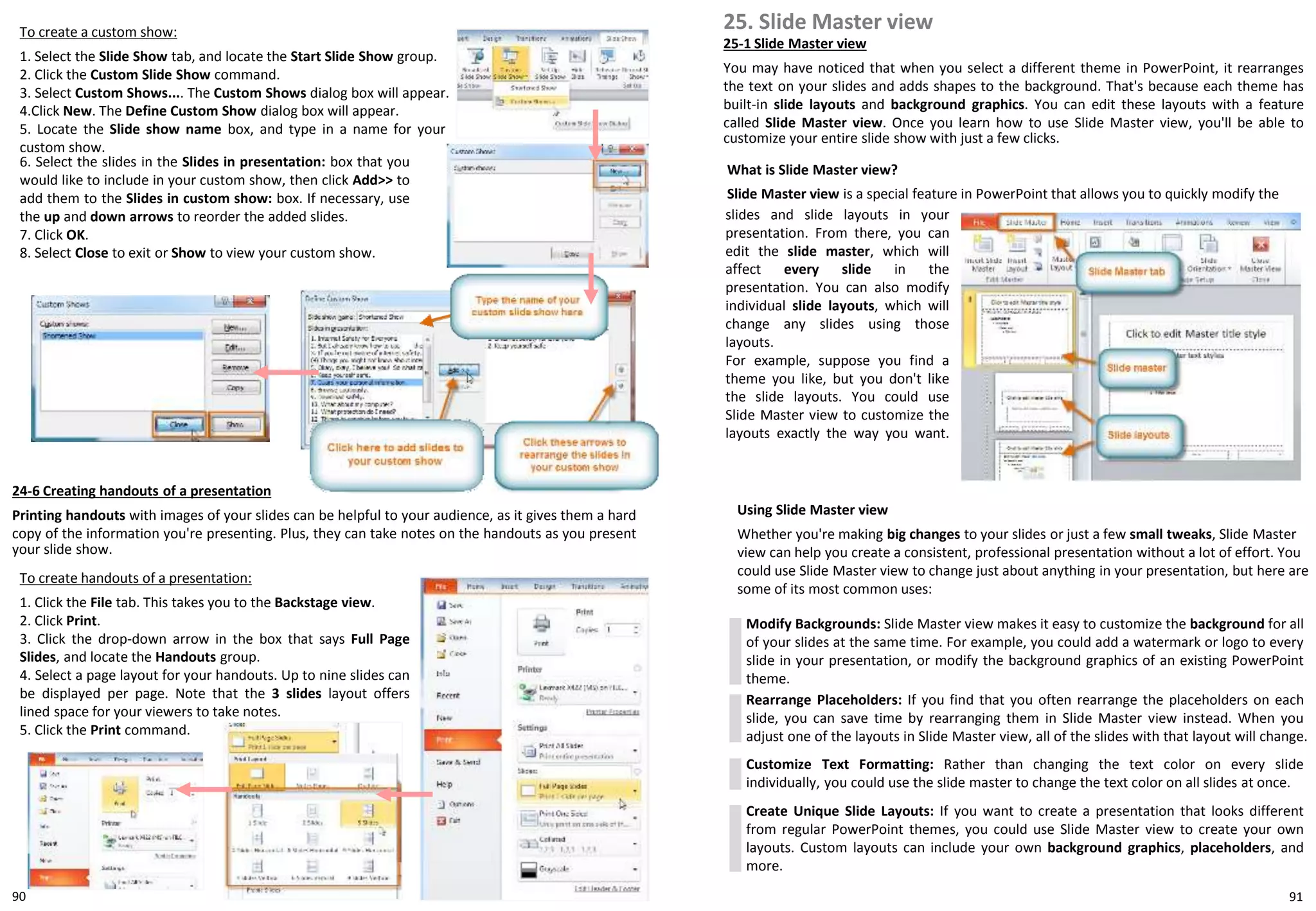

25-1 Slide Master view 91

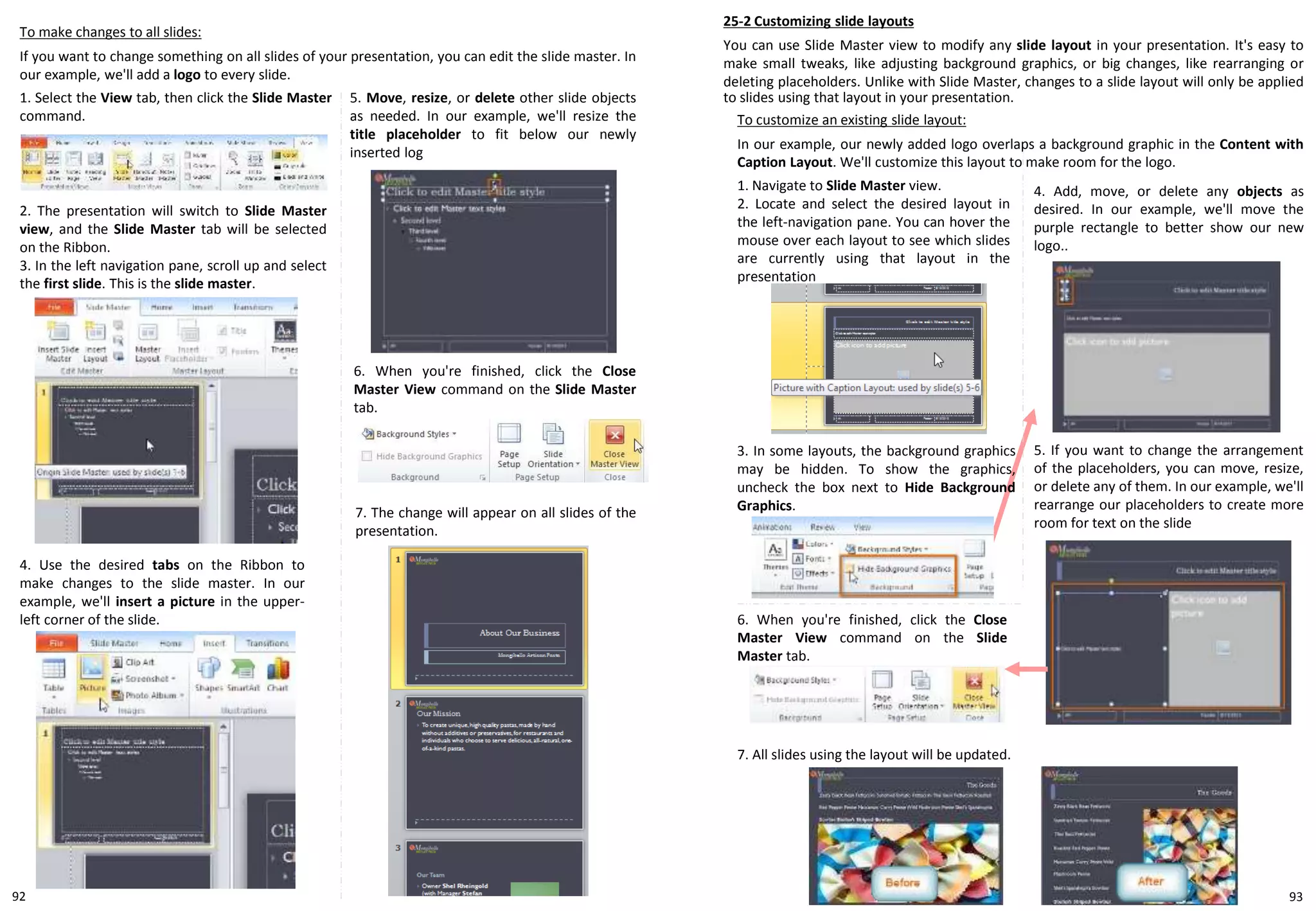

25-2 Customizing slide layouts 93

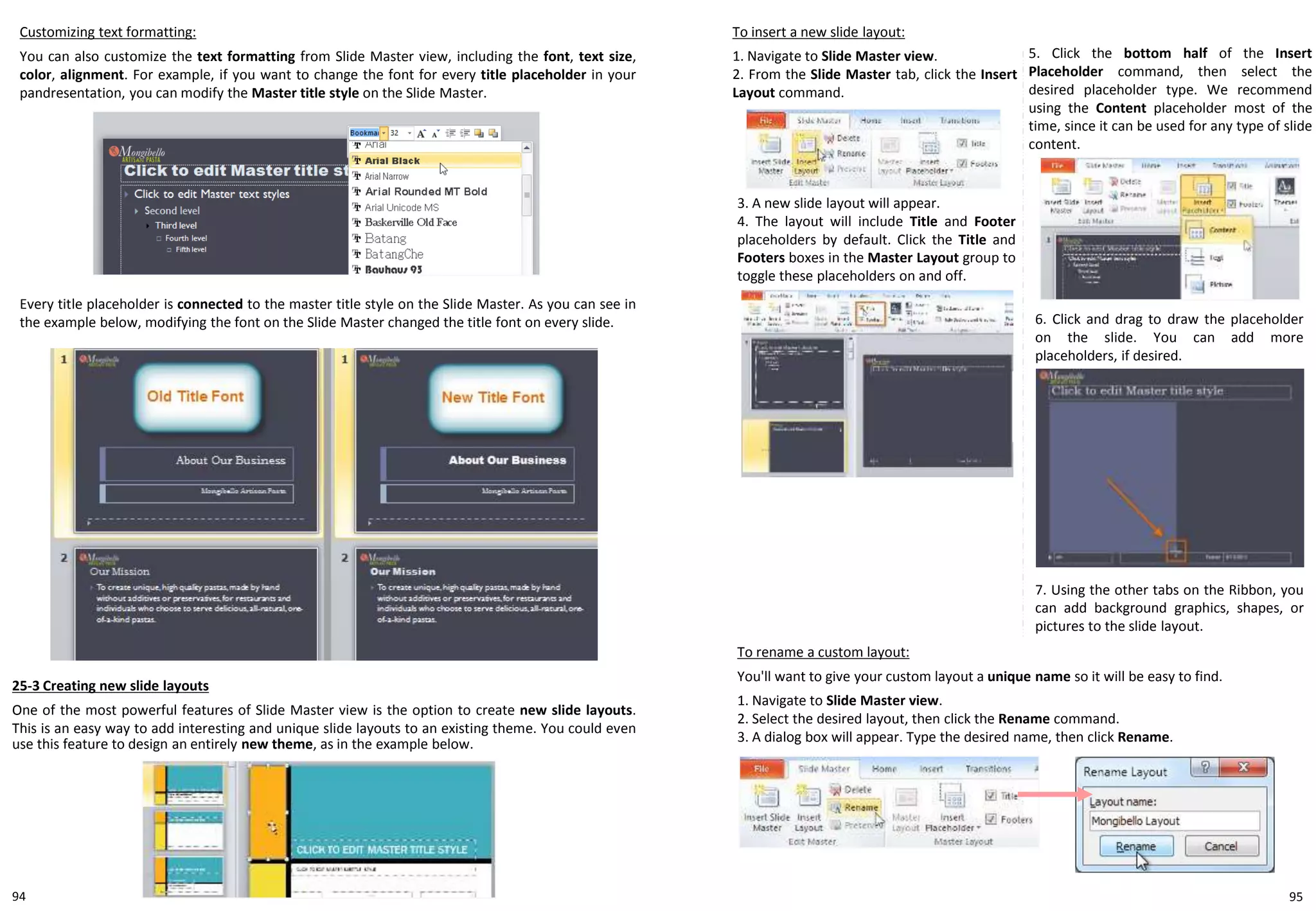

25-3 Creating new slide layouts 94
25-4 Using custom layouts in other presentations 95
Appendix
*GCFLearning 97
3

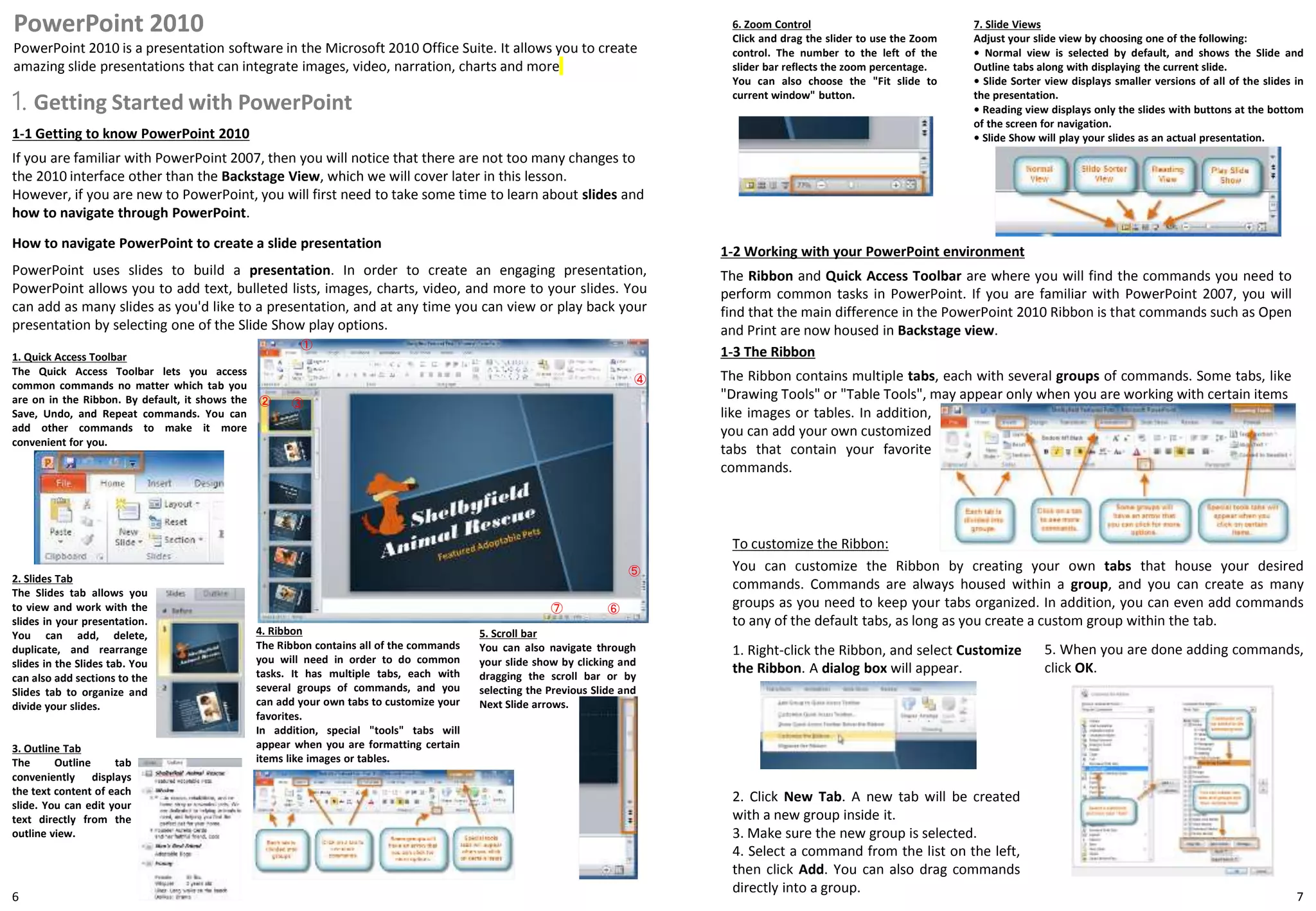

1. Getting Started with PowerPoint
7
PowerPoint 2010
PowerPoint 2010 is a presentation software in the Microsoft 2010 Office Suite. It allows you to create
amazing slide presentations that can integrate images, video, narration, charts and more
6
1-1 Getting to know PowerPoint 2010
If you are familiar with PowerPoint 2007, then you will notice that there are not too many changes to
the 2010 interface other than the Backstage View, which we will cover later in this lesson.
However, if you are new to PowerPoint, you will first need to take some time to learn about slides and
how to navigate through PowerPoint.
How to navigate PowerPoint to create a slide presentation
1-2 Working with your PowerPoint environment
The Ribbon and Quick Access Toolbar are where you will find the commands you need to
perform common tasks in PowerPoint. If you are familiar with PowerPoint 2007, you will
find that the main difference in the PowerPoint 2010 Ribbon is that commands such as Open
and Print are now housed in Backstage view.
①
② ③
④
PowerPoint uses slides to build a presentation. In order to create an engaging presentation,
PowerPoint allows you to add text, bulleted lists, images, charts, video, and more to your slides. You
can add as many slides as you'd like to a presentation, and at any time you can view or play back your
presentation by selecting one of the Slide Show play options.
⑤
⑥
1. Quick Access Toolbar
The Quick Access Toolbar lets you access
common commands no matter which tab you
are on in the Ribbon. By default, it shows the
Save, Undo, and Repeat commands. You can
add other commands to make it more
convenient for you.
2. Slides Tab
The Slides tab allows you
to view and work with the
slides in your presentation.
You can add, delete,
duplicate, and rearrange
slides in the Slides tab. You
can also add sections to the
Slides tab to organize and
divide your slides.
3. Outline Tab
The Outline tab
conveniently displays
the text content of each
slide. You can edit your
text directly from the
outline view.
4. Ribbon
The Ribbon contains all of the commands
you will need in order to do common
tasks. It has multiple tabs, each with
several groups of commands, and you
can add your own tabs to customize your
favorites.
In addition, special "tools" tabs will
appear when you are formatting certain
items like images or tables.
5. Scroll bar
You can also navigate through
your slide show by clicking and
dragging the scroll bar or by
selecting the Previous Slide and
Next Slide arrows.
6. Zoom Control
Click and drag the slider to use the Zoom
control. The number to the left of the
slider bar reflects the zoom percentage.
You can also choose the "Fit slide to
current window" button.
7. Slide Views
Adjust your slide view by choosing one of the following:
• Normal view is selected by default, and shows the Slide and
Outline tabs along with displaying the current slide.
• Slide Sorter view displays smaller versions of all of the slides in
the presentation.
• Reading view displays only the slides with buttons at the bottom
of the screen for navigation.
• Slide Show will play your slides as an actual presentation.
⑦
1-3 The Ribbon
The Ribbon contains multiple tabs, each with several groups of commands. Some tabs, like
"Drawing Tools" or "Table Tools", may appear only when you are working with certain items
To customize the Ribbon:
You can customize the Ribbon by creating your own tabs that house your desired
commands. Commands are always housed within a group, and you can create as many
groups as you need to keep your tabs organized. In addition, you can even add commands
to any of the default tabs, as long as you create a custom group within the tab.
like images or tables. In addition,
you can add your own customized
tabs that contain your favorite
commands.
1. Right-click the Ribbon, and select Customize
the Ribbon. A dialog box will appear.
2. Click New Tab. A new tab will be created
with a new group inside it.
3. Make sure the new group is selected.
4. Select a command from the list on the left,
then click Add. You can also drag commands
directly into a group.
5. When you are done adding commands,
click OK.

9

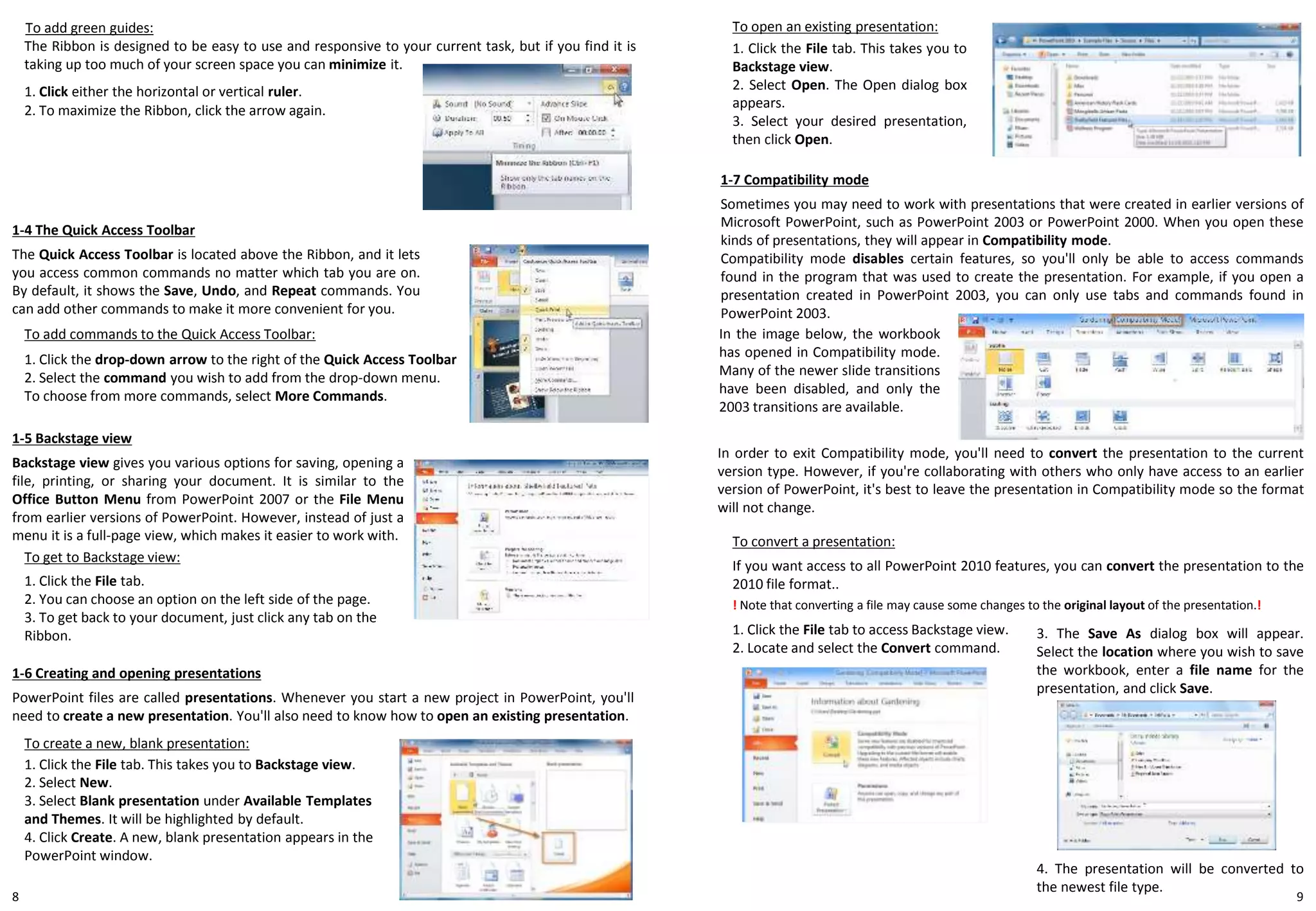

To add green guides:
1. Click either the horizontal or vertical ruler.
1-6 Creating and opening presentations
PowerPoint files are called presentations. Whenever you start a new project in PowerPoint, you'll
need to create a new presentation. You'll also need to know how to open an existing presentation.
8
To convert a presentation:
If you want access to all PowerPoint 2010 features, you can convert the presentation to the
2010 file format..
In order to exit Compatibility mode, you'll need to convert the presentation to the current
version type. However, if you're collaborating with others who only have access to an earlier
version of PowerPoint, it's best to leave the presentation in Compatibility mode so the format
will not change.
The Ribbon is designed to be easy to use and responsive to your current task, but if you find it is
taking up too much of your screen space you can minimize it.
2. To maximize the Ribbon, click the arrow again.
1-4 The Quick Access Toolbar
The Quick Access Toolbar is located above the Ribbon, and it lets
you access common commands no matter which tab you are on.
By default, it shows the Save, Undo, and Repeat commands. You
can add other commands to make it more convenient for you.
To add commands to the Quick Access Toolbar:
1. Click the drop-down arrow to the right of the Quick Access Toolbar
2. Select the command you wish to add from the drop-down menu.
To choose from more commands, select More Commands.
1-5 Backstage view
Backstage view gives you various options for saving, opening a
file, printing, or sharing your document. It is similar to the
Office Button Menu from PowerPoint 2007 or the File Menu
from earlier versions of PowerPoint. However, instead of just a
menu it is a full-page view, which makes it easier to work with.
To get to Backstage view:
1. Click the File tab.
2. You can choose an option on the left side of the page.
3. To get back to your document, just click any tab on the
Ribbon.
To create a new, blank presentation:
1. Click the File tab. This takes you to Backstage view.
2. Select New.
3. Select Blank presentation under Available Templates
and Themes. It will be highlighted by default.
4. Click Create. A new, blank presentation appears in the
PowerPoint window.
To open an existing presentation:
1. Click the File tab. This takes you to
Backstage view.
2. Select Open. The Open dialog box
appears.
3. Select your desired presentation,
then click Open.
1-7 Compatibility mode
Sometimes you may need to work with presentations that were created in earlier versions of
Microsoft PowerPoint, such as PowerPoint 2003 or PowerPoint 2000. When you open these
kinds of presentations, they will appear in Compatibility mode.
Compatibility mode disables certain features, so you'll only be able to access commands
found in the program that was used to create the presentation. For example, if you open a
presentation created in PowerPoint 2003, you can only use tabs and commands found in
PowerPoint 2003.
! Note that converting a file may cause some changes to the original layout of the presentation.!
1. Click the File tab to access Backstage view.
2. Locate and select the Convert command.
3. The Save As dialog box will appear.
Select the location where you wish to save
the workbook, enter a file name for the
presentation, and click Save.
4. The presentation will be converted to
the newest file type.
In the image below, the workbook
has opened in Compatibility mode.
Many of the newer slide transitions
have been disabled, and only the
2003 transitions are available.

10
2. Slide Basics
2-1 Slide basics
Every PowerPoint presentation is composed of a series of slides. To begin creating a slide show, you'll
need to know the basics of working with slides. You'll need to feel comfortable with tasks such
as inserting a new slide, changing the layout of a slide, arranging existing slides, changing slide view,
and adding notes to a slide.
About slides
Slides contain placeholders, which are areas on the slide
that are enclosed by dotted borders. Placeholders can
contain many different items, including text, pictures, and
charts. Some placeholders have placeholder text, or text
that you can replace. They also have thumbnail-sized
icons that represent specific commands such as Insert
Picture, Insert Chart, and Insert ClipArt. In PowerPoint,
hover over each icon to see the type of content you can
insert in a placeholder.
・ Select Blank from the menu of layout options.
11
About slide layouts
Placeholders are arranged in different layouts that can be applied to
existing slides, or chosen when you insert a new slide. A slide layout
arranges your content using different types of placeholders,
depending on what kind of information you might want to include in
your presentation.
In the example above, the layout is called Title and Content and
includes title and content placeholders. While each layout has a
descriptive name, you can also tell from the image of the layout how
the placeholders will be arranged.
2-2 Customizing slide layouts
To change the layout of an existing slide:
1. Select the slide you wish to change.
2. Click the Layout command in the Slides group on the Home tab. A menu will appear with your
options.
3. Choose a layout from the menu. The slide will change in the presentation.
To delete a placeholder:
You can easily customize your layout by deleting unwanted or "extra" placeholders from any
slide.
1. Position your mouse on the dotted border of
the placeholder so it changes to a cross with
arrows .
2. Click the border to select it.
3. Press Backspace or Delete on your keyboard.
The placeholder will be removed from the slide.
To add a text box:
Text boxes allow you to add to your current layout, so you can place text wherever you want
on your slide.
1. From the Insert tab, click the Text Box command.
2. Your cursor will turn into an upside-down cross .
3. Click, hold, and drag your mouse to draw a text box.
A text box will appear.
To use a blank slide:
For more control over your content, you may prefer a
blank slide (a slide without placeholders) over one of the
existing layouts. Blank slides can be customized by adding
your own text boxes, pictures, charts, and more.
2-3 Working with slides
To insert a new slide:
1. From the Home tab, click the bottom half of the New Slide command to open the menu
of slide layout options.
2. Select the slide you want to insert.
3. A new slide will be added your presentation.

2-4 Managing slides and presentations
As you add slides to your presentation, PowerPoint offers a variety of views and tools to help you
organize and prepare your slide show.
About slide views
It is important that you be able to access the different slide
views and use them for various tasks. The slide view
commands are located on the bottom right of the
PowerPoint window in Normal View.
・ Normal View
This is the default view where you create
and edit your slides. You can also move
slides in the Slides tab in the pane on the
left.
1312
To copy and paste a slide:
1. On the Slides tab in the left pane, select the slide you wish to copy.
2. Click the Copy command on the Home tab. You can also right-click your selection and choose Copy.
3. In the left pane, click just below a slide (or between two slides) to choose the location where you
want the copy to appear. A horizontal insertion point will mark the location.
4. Click the Paste command on the Home tab. You can also right-click and choose Paste. The copied
slide will appear.
To duplicate a slide:
An alternative to Copy and Paste, Duplicate copies the selected slide
and, in one step, pastes it directly underneath. This feature does not
allow you to choose the location of the copied slide (nor does it offer
Paste Options for advanced users), so it is more convenient for quickly
inserting similar slides.
1. Select the slide you wish to duplicate.
2. Click the New Slide command.
3. Choose Duplicate Selected Slides from
the drop-down menu.
4. A copy of the selected slide appears
underneath the original.
To delete a slide:
1. Select the slide you wish to delete.
2. Press the Delete or Backspace key on your keyboard.
To move a slide:
1. Select the slide you wish to move.
2. Click, hold, and drag your mouse to a new location. A horizontal insertion
point will mark the location.
3. Release the mouse button. The slide will appear in the new location.
・ Slide Sorter View
In this view, miniature slides are arranged
on the screen. You can drag and drop slides
to easily reorder them and to see more
slides at one time. This is a good view to
use to confirm that you have all the needed
slides and that none have been deleted.
・ Reading View
This view fills most of the computer screen
with a preview of your presentation. Unlike
Slide Show View, it includes easily
accessible buttons for navigation, located at
the bottom-right.
・ Slide Show View
This view completely fills the computer
screen and is what the audience will see
when they view the presentation. Slide Show
View has an additional menu that appears
when you hover over it, allowing you to
navigate through the slides and access other
features you can use during a presentation.
To view an outline of your presentation:
The Outline tab shows your slide text in outline form. This allows you to quickly edit your
slide text and view the contents of multiple slides at once.
1. Click the Outline tab in the left pane.
2. An outline of your slide text appears.
3. Type directly in the pane to make changes to your text.

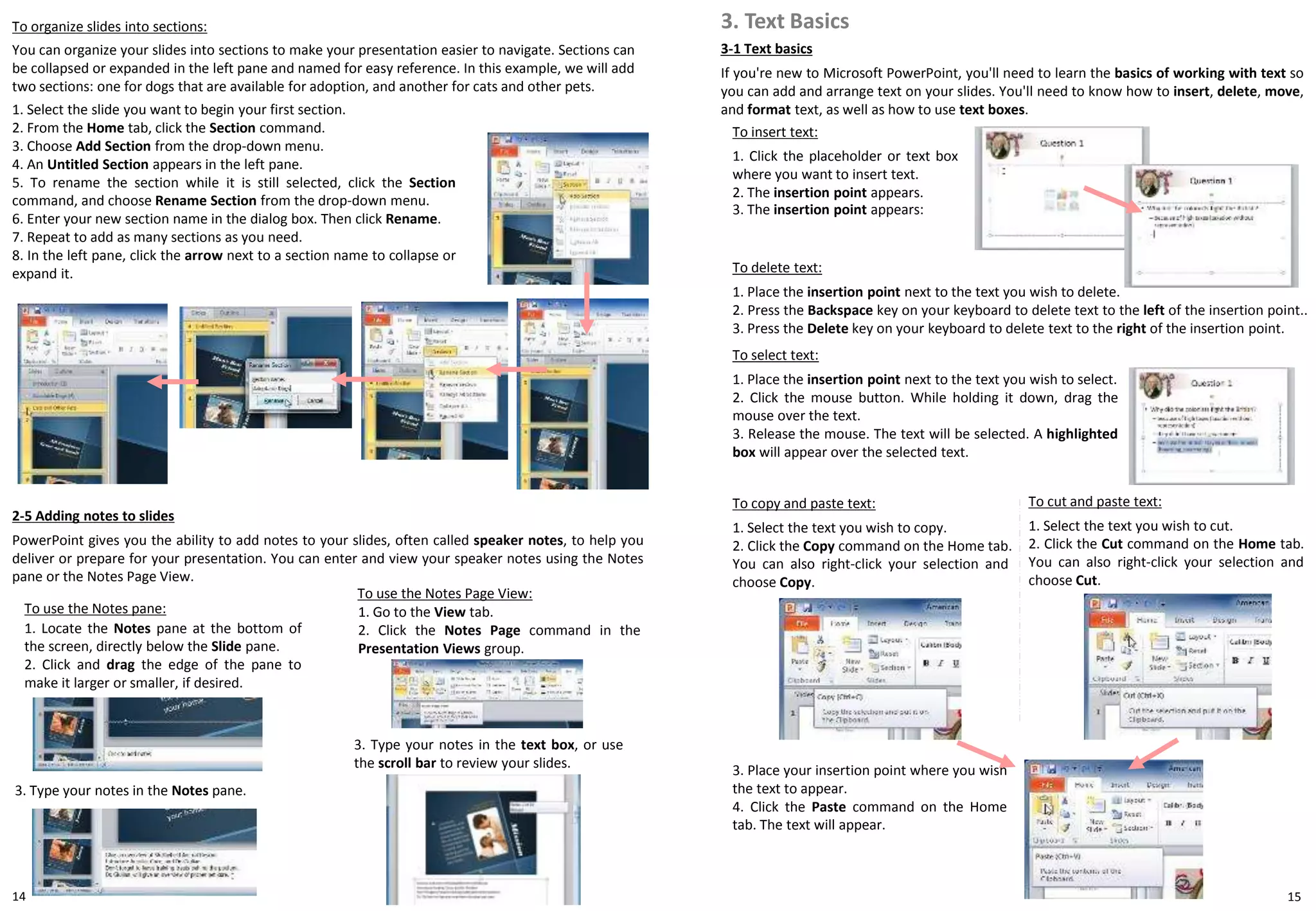

3-1 Text basics
If you're new to Microsoft PowerPoint, you'll need to learn the basics of working with text so
you can add and arrange text on your slides. You'll need to know how to insert, delete, move,
and format text, as well as how to use text boxes.
3. Text Basics
To insert text:
1. Click the placeholder or text box
where you want to insert text.
2. The insertion point appears.
3. The insertion point appears:
14 15
To organize slides into sections:
You can organize your slides into sections to make your presentation easier to navigate. Sections can
be collapsed or expanded in the left pane and named for easy reference. In this example, we will add
two sections: one for dogs that are available for adoption, and another for cats and other pets.
1. Select the slide you want to begin your first section.
2. From the Home tab, click the Section command.
3. Choose Add Section from the drop-down menu.
4. An Untitled Section appears in the left pane.
5. To rename the section while it is still selected, click the Section
command, and choose Rename Section from the drop-down menu.
6. Enter your new section name in the dialog box. Then click Rename.
7. Repeat to add as many sections as you need.
8. In the left pane, click the arrow next to a section name to collapse or
expand it.
2-5 Adding notes to slides
PowerPoint gives you the ability to add notes to your slides, often called speaker notes, to help you
deliver or prepare for your presentation. You can enter and view your speaker notes using the Notes
pane or the Notes Page View.
To use the Notes pane:
1. Locate the Notes pane at the bottom of
the screen, directly below the Slide pane.
2. Click and drag the edge of the pane to
make it larger or smaller, if desired.
To use the Notes Page View:
1. Go to the View tab.
2. Click the Notes Page command in the
Presentation Views group.
3. Type your notes in the Notes pane.
3. Type your notes in the text box, or use
the scroll bar to review your slides.
To delete text:
1. Place the insertion point next to the text you wish to delete.
2. Press the Backspace key on your keyboard to delete text to the left of the insertion point..
3. Press the Delete key on your keyboard to delete text to the right of the insertion point.
To select text:
1. Place the insertion point next to the text you wish to select.
2. Click the mouse button. While holding it down, drag the
mouse over the text.
3. Release the mouse. The text will be selected. A highlighted
box will appear over the selected text.
To copy and paste text:
1. Select the text you wish to copy.
2. Click the Copy command on the Home tab.
You can also right-click your selection and
choose Copy.
3. Place your insertion point where you wish
the text to appear.
4. Click the Paste command on the Home
tab. The text will appear.
To cut and paste text:
1. Select the text you wish to cut.
2. Click the Cut command on the Home tab.
You can also right-click your selection and
choose Cut.

3-2 Working with text
As you create your presentation, you can add text boxes to help organize your slides. You'll also need to know how
to format text to create the look you need.
To drag and drop text:
1. Select the text you wish to copy.
2. Click, hold, and drag your mouse to the location where you
want the text to appear. The cursor will have a rectangle
underneath it to indicate that you are moving text.
3. Release the mouse button, and the text will appear.
To add a text box:
Text can be inserted into both placeholders and
text boxes. A placeholder is a kind of text box, but
is unique because it is part of the slide layout and
often contains formatting specific to the slide (for
example, a larger font size for the title of your
presentation). Inserting an extra text box allows
you to add to the slide layout, so you can include
as much text as you want.
1. From the Insert tab, click the Text Box command.
To resize a placeholder or text box:
1. Click the box you wish to resize.
2. Position your mouse over any one of the
sizing handles that appear on the corners
and sides of the box. The cursor will become
a pair of arrows.
3-3 Formatting text
You can help your text stand out on the slide by changing its formatting, including font size,
color, style, and more.
16 17
Find and Replace
Find and Replace is another technique that can be used to edit text. Find and Replace allows you to
search all of your slides for a specific word or phrase (for example, "English"), then replace it with
another word or phrase (for example, "British"). To learn more, visit the lesson in our Word 2010
tutorial that demonstrates Find and Replace.
To move a placeholder or text box:
1. Click the box you would like to move.
2. Position your mouse on the border of the
box so it changes to a cross with arrows .
2. Your cursor will turn into an upside-down
cross .
3. Click the area on your slide where you want
to add a text box. A text box will appear with
an insertion point inside.
3. Click and hold the mouse button as you
drag the box to the desired location.
4. Release the mouse button. The box will be
moved.
① ② ③ ④
⑤ ⑥
1. Font Face
Click the drop-down menu to
change the face of the selected
text.
2. Font Size
Choose the size of the
selected text using the
drop-down menu here.
3. Increase or Decrease Font Size
Use these commands to increase or decrease the size of the
selected text to the next standard font size.
4. Clear All Formatting
Click to remove all formatting from the selected text, leaving
only plain text.
5. Font Styles
Use the font style commands
to apply bold, italic, underline,
shadow, or strikethrough to
the selected text.
⑦
6. Character Spacing
Adjust the spacing
between characters
using the drop-down
menu.
7. Change Case
Quickly change the case of
the selected text.
8. Font Color
Open the drop-down menu
to change the text color.
9. Show the Font Dialog Box
Click the arrow in the bottom right corner to
access many of these formatting options and more.
⑧
⑨
3. Click, hold, and drag your mouse until the
text box is the desired size.
4. Release the mouse button. The box will
be resized..

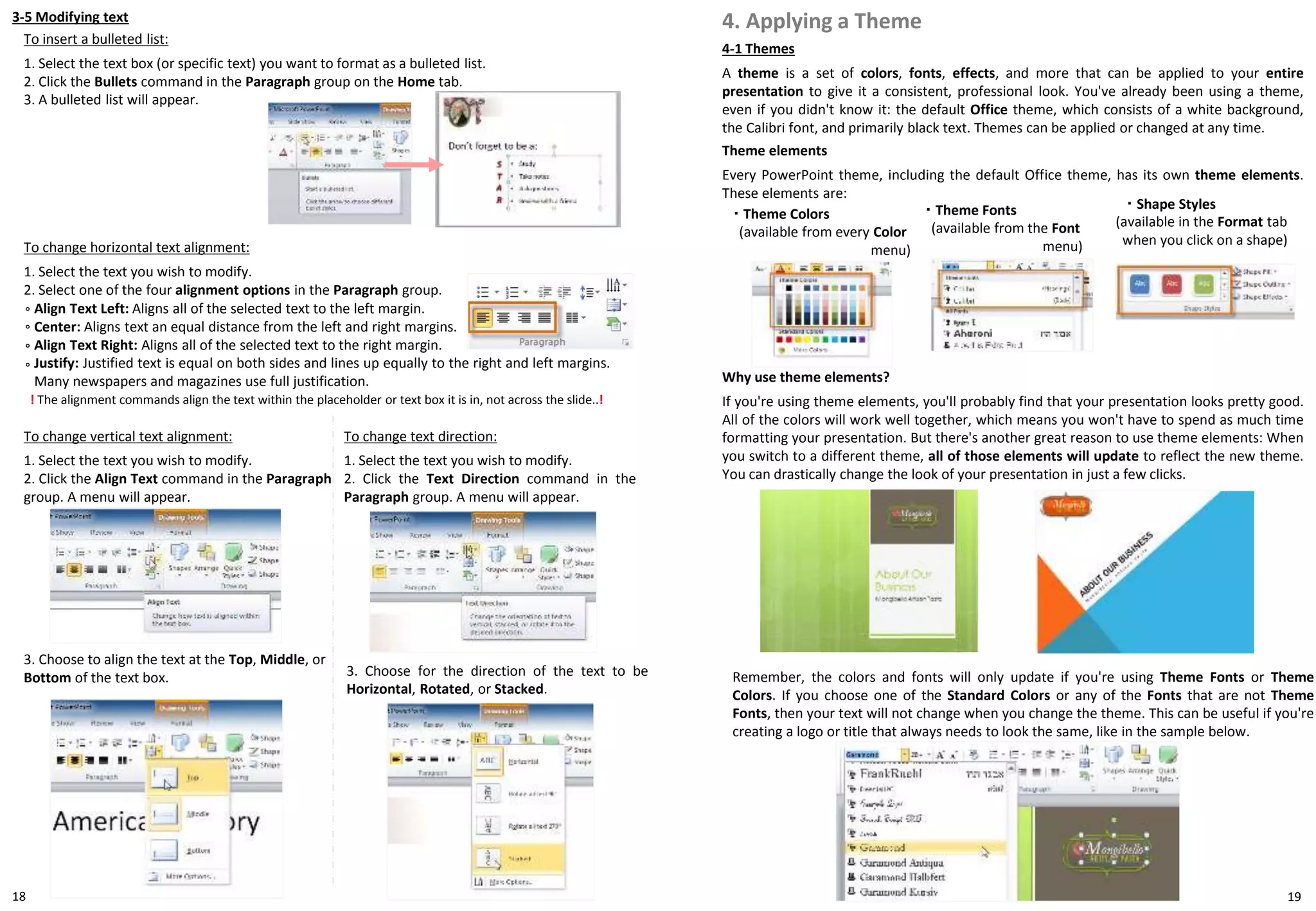

3-5 Modifying text
To insert a bulleted list:
1. Select the text box (or specific text) you want to format as a bulleted list.
2. Click the Bullets command in the Paragraph group on the Home tab.
3. A bulleted list will appear.
18 19
To change horizontal text alignment:
1. Select the text you wish to modify.
2. Select one of the four alignment options in the Paragraph group.
Align Text Left: Aligns all of the selected text to the left margin.
Center: Aligns text an equal distance from the left and right margins.
Align Text Right: Aligns all of the selected text to the right margin.
Justify: Justified text is equal on both sides and lines up equally to the right and left margins.
Many newspapers and magazines use full justification.
◦
! The alignment commands align the text within the placeholder or text box it is in, not across the slide..!
◦
◦
◦
To change vertical text alignment:
2. Click the Align Text command in the Paragraph
group. A menu will appear.
3. Choose to align the text at the Top, Middle, or
Bottom of the text box.
To change text direction:
2. Click the Text Direction command in the
Paragraph group. A menu will appear.
3. Choose for the direction of the text to be
Horizontal, Rotated, or Stacked.
4-1 Themes
A theme is a set of colors, fonts, effects, and more that can be applied to your entire
presentation to give it a consistent, professional look. You've already been using a theme,
even if you didn't know it: the default Office theme, which consists of a white background,
the Calibri font, and primarily black text. Themes can be applied or changed at any time.
4. Applying a Theme
Theme elements
Every PowerPoint theme, including the default Office theme, has its own theme elements.
These elements are:
・ Theme Colors
(available from every Color
menu)
・ Theme Fonts
(available from the Font
menu)
・ Shape Styles
(available in the Format tab
when you click on a shape)
Why use theme elements?
If you're using theme elements, you'll probably find that your presentation looks pretty good.
All of the colors will work well together, which means you won't have to spend as much time
formatting your presentation. But there's another great reason to use theme elements: When
you switch to a different theme, all of those elements will update to reflect the new theme.
You can drastically change the look of your presentation in just a few clicks.
Remember, the colors and fonts will only update if you're using Theme Fonts or Theme
Colors. If you choose one of the Standard Colors or any of the Fonts that are not Theme
Fonts, then your text will not change when you change the theme. This can be useful if you're
creating a logo or title that always needs to look the same, like in the sample below.

3. Click the drop-down arrow to access more
themes.
To apply a theme:
1. Go to the Design tab.
2. Locate the Themes group. Each image
represents a theme.
4-2 Applying themes
You will need to know how to apply a theme and how to switch to a different theme if you want to
use this feature to create presentations. All of the themes included in PowerPoint are located in the
Themes group on the Design tab. Themes can be applied or changed at any time.
4. Hover over a theme to see a live preview of
it in the presentation. The name of the theme
will appear as you hover over it.
2120
Themes and slide layouts
As you can see from the two different Title Slides above, themes also affect the various slide layouts.
5. Click a theme to apply it to the slides.
To insert an image from a file:
1. Select the Insert tab.
2. Click the Picture command in the Images group. The Insert Picture dialog box appears.
3. Select the desired image file, then click Insert.
4. The picture will appear in your slide.
5-1 Working with images
Adding clip art and pictures to your presentation can be a great way to illustrate important
information or add decorative accents to existing text. You can insert images from your
computer, search Microsoft's large selection of clip art to find the image you need, or add a
screenshot of your own. Once an image has been inserted, you can resize and move it to the
location you want.
5. Inserting Images
To locate clip art:
2. Click the Clip Art command in the Images group.
3. The clip art options appear in the task pane to the right of the document.
4. Enter keywords in the Search for: field that are related to the image you wish to insert.
5. Click the drop-down arrow in the Results should be: field.
6. Deselect any types of media you do not wish to see.
7. If you would like to also search for clip art on Office.com, place a check mark next to
Include Office.com content. Otherwise, it will just search for clip art on your computer.
8. Click Go.
To insert clip art:
1. Review the results from a clip art
search in the Clip Art pane.
2. Select the desired image.
3. The clip art will appear in your slide

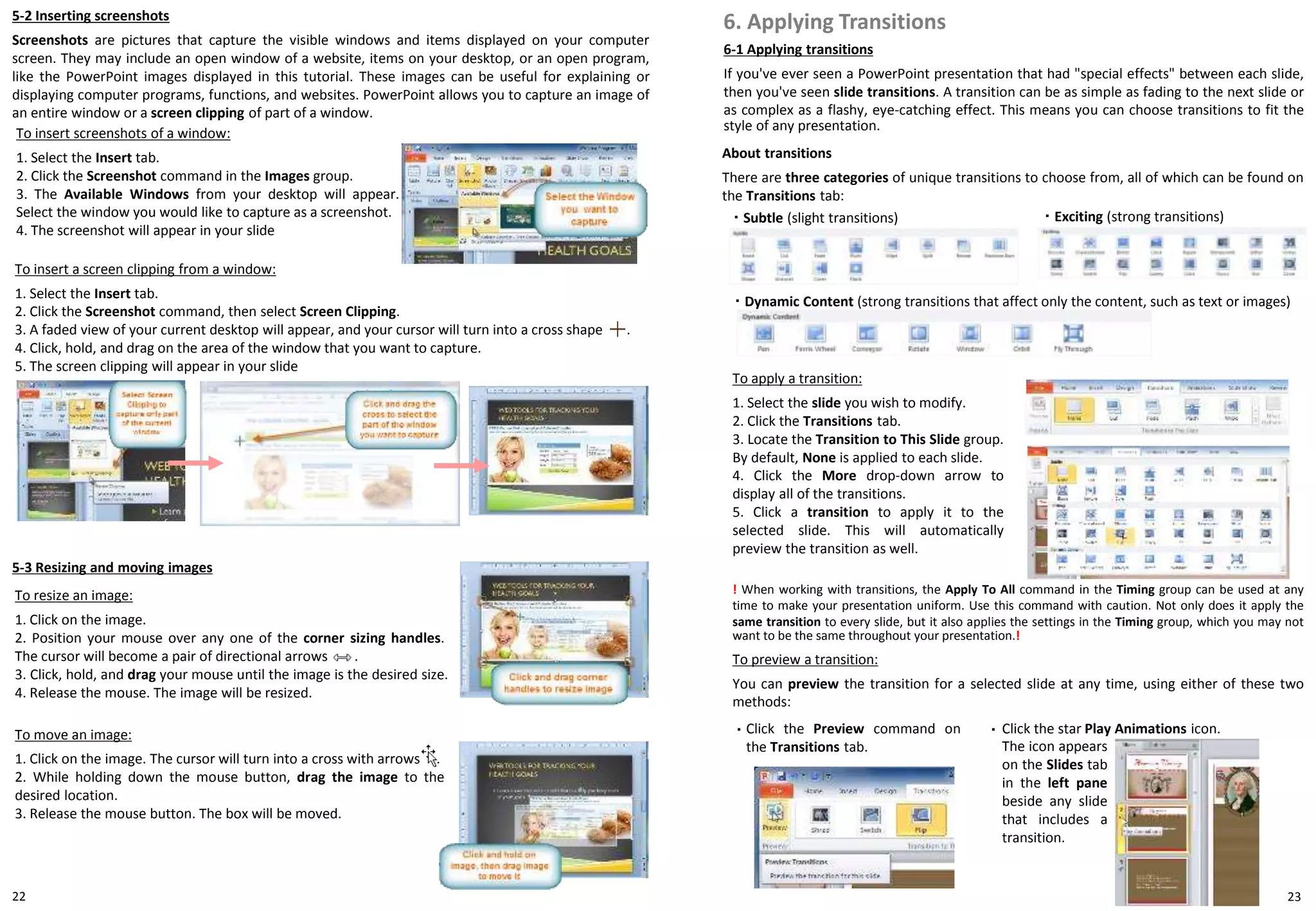

5-2 Inserting screenshots
Screenshots are pictures that capture the visible windows and items displayed on your computer
screen. They may include an open window of a website, items on your desktop, or an open program,
like the PowerPoint images displayed in this tutorial. These images can be useful for explaining or
displaying computer programs, functions, and websites. PowerPoint allows you to capture an image of
an entire window or a screen clipping of part of a window.
6-1 Applying transitions
If you've ever seen a PowerPoint presentation that had "special effects" between each slide,
then you've seen slide transitions. A transition can be as simple as fading to the next slide or
as complex as a flashy, eye-catching effect. This means you can choose transitions to fit the
style of any presentation.
6. Applying Transitions
2322
To apply a transition:
1. Select the slide you wish to modify.
2. Click the Transitions tab.
3. Locate the Transition to This Slide group.
By default, None is applied to each slide.
4. Click the More drop-down arrow to
display all of the transitions.
5. Click a transition to apply it to the
selected slide. This will automatically
preview the transition as well.
To insert screenshots of a window:
2. Click the Screenshot command in the Images group.
3. The Available Windows from your desktop will appear.
Select the window you would like to capture as a screenshot.
4. The screenshot will appear in your slide
To insert a screen clipping from a window:
2. Click the Screenshot command, then select Screen Clipping.
3. A faded view of your current desktop will appear, and your cursor will turn into a cross shape .
4. Click, hold, and drag on the area of the window that you want to capture.
5. The screen clipping will appear in your slide
5-3 Resizing and moving images
To resize an image:
1. Click on the image.
2. Position your mouse over any one of the corner sizing handles.
The cursor will become a pair of directional arrows .
3. Click, hold, and drag your mouse until the image is the desired size.
4. Release the mouse. The image will be resized.
To move an image:
1. Click on the image. The cursor will turn into a cross with arrows .
2. While holding down the mouse button, drag the image to the
desired location.
3. Release the mouse button. The box will be moved.
About transitions
There are three categories of unique transitions to choose from, all of which can be found on
the Transitions tab:
・ Subtle (slight transitions) ・ Exciting (strong transitions)
・ Dynamic Content (strong transitions that affect only the content, such as text or images)
! When working with transitions, the Apply To All command in the Timing group can be used at any
time to make your presentation uniform. Use this command with caution. Not only does it apply the
same transition to every slide, but it also applies the settings in the Timing group, which you may not
want to be the same throughout your presentation.!
To preview a transition:
You can preview the transition for a selected slide at any time, using either of these two
methods:
Click the Preview command on
the Transitions tab.
Click the star Play Animations icon.・
The icon appears
on the Slides tab
in the left pane
beside any slide
that includes a
transition.
・

24
6-2 Modifying a transition
To insert a picture from a file:
1. Select the slide that includes the transition you wish to modify.
2. In the Duration field in the Timing group, enter the amount of
time you want the transition to take. In this example, we will
specify the length as 2 seconds, or 02.00.
25
To add sound:
1. Select the slide that includes the transition you wish to modify.
2. Click the Sound drop-down menu in the Timing group.
3. You will hear the sound and see a live preview of the transition
as you hover over each sound.
4. Click a sound to apply it to the selected slide
6-3 Advancing slides
To advance slides automatically:
Normally, in Slide Show View, you would advance to the next slide by clicking your mouse (or
pressing Enter on your keyboard). Using the Advance Slides settings in the Timing group, you can
set your presentation to advance on its own instead, and display each slide for a specific amount of
time. This is useful for unattended presentations, such as at a tradeshow booth.
2. Locate the Timing group on the Transitions tab.
3. Under Advance Slide, uncheck the box next to On Mouse
Click.
4. In the After field, enter the amount of time you want to
display the slide. In this example, we will advance the slide
automatically after 1 minute 30 seconds, or 01:30:00.
5. Select another slide and repeat the process until all the
desired slides have the appropriate timing.
To remove a transition:
2. Choose None from the gallery in the Transition to This Slide group.
3. Repeat this process for each slide you want to modify.
7-1 Checking spelling
To make your slide show appear professional, you'll want to make sure it is free from spelling
errors. PowerPoint has several options for checking your spelling. You can run a spell check,
or you can allow PowerPoint to check your spelling automatically as you type.
7. Checking Spelling
To run a spell check:
1. Go to the Review tab.
2. Click the Spelling command.
7-2 Ignoring spelling "errors"
The spell check is not always correct. It will sometimes say something is spelled incorrectly
when it's not. This often happens with people's names, which may not be in the dictionary.
If PowerPoint says something is an error, you can choose not to change it using one of three
options:
Ignore Once: This will skip the word without changing it.
Ignore All: This will skip the word without changing it, and it will also skip all other
instances of the word in your presentation.
Add: This adds the word to the dictionary so it will never come up as an error again.
Make sure the word is spelled correctly before choosing this option.
7-3 Automatic spell check
By default, PowerPoint automatically checks your
presentation for spelling errors, so you may not even
need to run a separate check using the Spelling
command. These errors are indicated by red, wavy
lines.
3. The Spelling dialog box will open. For each error
in your presentation, PowerPoint will try to offer
one or more suggestions. You can select a
suggestion and then click Change to correct the
error.
4. If no appropriate suggestions are given, you can manually type in the correct spelling and
then click Change

26
7-4 Modifying proofing options
With customizable proofing options, PowerPoint gives you the ability to change the way it addresses
spelling errors, including automatic spell check and contextual spelling. Contextual spelling (an
option that is turned off by default but can be turned on) can help you find and correct spelling
mistakes like the use of "too" vs. "two" or "there" vs. "their".
To modify proofing options:
1. From the Backstage view, click Options.
8-2 Presentation tools and features
PowerPoint provides convenient tools and features you can use while you are presenting your
slide show. Features include changing your mouse pointer to a pen or highlighter to draw
attention to items in your slides. In addition, you can jump around to slides in your
presentation or access items from your computer desktop if needed.
To access the pen or highlighter:
1. Hover and click on the pen menu option
in the bottom left of your screen.
2. Select Pen or Highlighter based on your
preference.
! Modifying any settings in PowerPoint Options, including Proofing, affects all of PowerPoint, not just your
current presentation.!
2. Select Proofing. The PowerPoint Options dialog box gives you several options to choose from:
◦ Check spelling as you type: Uncheck this box if
you don't want PowerPoint to check for spelling
errors automatically. (This automatically checks
Hide spelling errors.)
◦ Use contextual spelling: Check this box if
you want PowerPoint to check for contextual
spelling mistakes, like the use of "your" vs.
"you're".
◦ Hide spelling errors: Check this box if you
want to hide the red, wavy lines that mark
spelling errors. (This option is disabled if
Check spelling as you type is unchecked.)
To use the automatic spell check feature:
1. Right-click the underlined word. A menu will appear.
2. Click the correct spelling of the word from the list of suggestions.
3. The corrected word will appear in the presentation.
8-1 Presenting a slide show
To present your slide show, you'll need to know how to start it. PowerPoint allows you to
start your slide show from the first slide or from any slide within the slide show. Once your
slide show has started, you'll need to know how to advance through the slides.
8. Presenting Slide Show
To start a slide show:
1. Select the Slide Show tab.
2. Click the From Beginning command in
the Start Slide Show group to start the slide
show with the first slide.
To advance and reverse slides:
1. Hover your mouse over the bottom-
left of the screen. A menu will appear.
2. Click on the right arrow to advance
slides, or click on the left arrow to
reverse slides.
To stop or end a slide show:
To end slide show, hover and select the menu box options
command and click End Show. You can also press the "Esc"
key at the top left of your keyboard to end the show.
3. Use the pointer to draw on or mark your
slides
27

2928
8-3 Slide show setup options
PowerPoint has various options for setting up and playing a slide show. For example, you can
set up an unattended presentation that can be displayed at a kiosk and make your slide show
repeat with continuous looping.
To access slide show setup options:
1. Select the Slide Show tab.
2. Click the Set Up Show command.
To erase ink markings:
1. Hover and click on the pen menu option in the
bottom-left of your screen.
2. Select Eraser to erase individual ink markings,
or select Erase All Ink on Slide to erase all
markings.
To jump to a nonadjacent slide:
1. Hover and click on the menu box option in
the bottom-left of your screen.
2. Select Go to Slide, and choose the slide
you would like to jump to in your
presentation.
To access the desktop:
Sometimes you may need to access the Internet or other files and programs on your computer
during your presentation. PowerPoint allows you to access your desktop task bar without ending
your presentation.
1. Hover and click on the menu box option in the bottom-left of your screen.
2. elect Screen, then click on Switch Programs.
3. Your computer's task bar will appear. Choose a program you would like to switch to.
Menu access options
You can also access any of the above menu items by
right-clicking anywhere on the screen during your
slide show.
Keyboard shortcuts
◦ Switch between the pen pointer and mouse pointer by pressing "Ctrl + P" (pen) or "Ctrl + M"
(mouse) on the keyboard.
◦ Press "E" on the keyboard to erase any ink markings while using the pen or highlighter.
3. The Set Up Show dialog box will appear. Click the buttons in the interactive below to
learn about the various options available for setting up and playing a slide show.
①
②
③
④
⑤
1. Show Type
Choose Show type:
• Presented by a speaker - show plays in full
screen and is controlled by the speaker
• Browsed by an individual - show is displayed in a
window
• Browsed at a kiosk - show plays in full screen,
but is self-running offering no control to the
individual viewing it
2. Show Options
Show options include:
• Looping continuously which will repeat the
slide show until you press the "Esc" key
• Disabling narration and animation from playing
during your show
• Changing the default pen and laser pointer
colors
5. Multiple Monitors
Presenters often use a laptop and projector to
display slide shows. If you have more than one
monitor, you may choose which one to display the
slide show on. If you would like to view the show on
both your computer (your view) and the projector
(audience view) then you can select Show Presenter
View.
3. Show Slides
Set which slides you would like to show. "All" is naturally
the default, but you can choose to show only certain slides
or you can choose to display any Custom shows you have
created from your original presentation.
4. Advance Slides
If you have set timings in your slide show they will
automatically play. If you want to disable the timings and
control the slides yourself, then select Manually.
4. Click OK to apply the settings to the slide show.

2. Select Save As.
3. The Save As dialog box will appear.
Select the location where you wish to save
the presentation.
4. Enter a name for the presentation, then
click Save
30
9. Saving and Printing
9-1 Saving and printing presentations
Whenever you create a new presentation in PowerPoint, you'll need to know how to save it in order to
access and edit it later. PowerPoint allows you to save your presentations in a number of ways.
Once you've created your document, you may want to print it to view and share your work offline. It's
easy to preview and print a document in Word using the Print pane.
31
To use the Save command:
1. Click the Save command on the Quick Access Toolbar.
2. The presentation will be saved in its current location with
the same file name.
To save as a PowerPoint 97-2003 Presentation:
You can share your presentation with anyone using PowerPoint 2010 or 2007, since they use
the same file format. However, earlier versions of PowerPoint use a different file format, so
if you want to share your presentation with someone using an earlier version of PowerPoint,
you'll need to save it as a PowerPoint 97-2003 presentation..
2. Select Save As.
3. In the Save as type drop-down menu, select PowerPoint 97-2003 Presentation.
4. Select the location you wish to save the presentation.
5. Enter a name for the presentation, then click Save.
To save as a different file type:
If you would like to share your presentation with someone who does not have PowerPoint,
you have several different file types to choose from.
To use the Save As command:
Save As allows you to choose a name and location for your presentation. It's useful if you've first
created a presentation or if you want to save a different version of a presentation while keeping the
original.
AutoRecover
PowerPoint automatically saves your presentation to a temporary folder while you're working on it.
If you forget to save your changes or if PowerPoint crashes, you can recover the autosaved file.
1. Open a presentation that was previously closed without saving.
2. In Backstage view, click Info.
3. If there are autosaved versions of your file, they will appear under Versions. Click on the file to
open it.
4. To save changes, click Restore, then click OK.
9-2 Other file formats
2. Select Save & Send.
3. Choose from three special File Types.
◦ Create PDF/XPS Document: Saves the contents of your slide show as a document instead
of a PowerPoint file.
◦ Create a Video: Saves your presentation as a video that can be shared online, in an email,
or on a disc.
◦ Package Presentation for CD: Saves your presentation in a folder along with the Microsoft
PowerPoint Viewer, a special slide show player that anyone can download and use.
9-3 Printing
In previous versions of PowerPoint, there was a Print Preview option that allowed you to see
exactly what the presentation looked like before printing it. You may have noticed that this
feature seems to be gone in PowerPoint 2010. It actually hasn't disappeared; it has just been
combined with the Print window to create the Print pane, which is located in Backstage view.

3332
To print:
1. Go to the Print pane..
2. Determine and choose how you want the slides to appear on the page.
3. If you only want to print certain slides, you can type a range of slides. Otherwise, select
Print All Slides.
4. Select the number of copies.
5. Select a printer from the drop-down list
6. Click the Print button.
To view the Print pane:
1. Click the File tab to go to Backstage view.
2. Select Print. The Print pane appears, with the print settings on the left and the Preview on the right.
1. Print
Before printing, you may preview your
presentation and adjust settings if needed.
When ready, enter the number of copies
you need and click on the Print button to
print your presentation.
2. Printer
You may need to select a specific printer if
your computer is connected to multiple
printers.
3. Print Range
Here you can choose whether to print all
of the slides in your presentation or a
specific selection of slides.
4. Custom Range
If you would like to print a custom range
of slides, enter the slide numbers here.
①
②
③
④
⑥
⑦
⑧
⑨
⑩ ⑪
5. Page Layout
Here you can choose how you would like
your presentation to appear on the page.
Options include printing the full page
slide or slides with notes or displaying
multiple slides in handouts, and more.
6. Collated/Uncollated
If you are printing multiple copies, you
can choose whether you want the
copies collated or uncollated.
7. Orientation
Here you can choose your page
orientation from Portrait or Landscape.
If printing a full page slide, you may
want to choose Landscape for a better
fit on the page.
8. Print Color
Here you can change your Print color,
which is chosen by default depending on
whether you are using a black and white
or color printer.
Because presentations use a lot of color,
you may wish to print in grayscale or
black and white to save ink.
9. Print Preview
The Print Preview pane allows you to see
how your presentation will look when
printed.
⑤
10. Preview Page
Click the arrows to advance and view
the pages of your presentation in the
Print Preview area.
11. Zoom
You can drag the slider to zoom the Print
Preview. If you zoom out, you can view
multiple pages at the same time.
9-4 Quick Print
There may be times when you want to print something with a single click, using Quick Print.
This feature prints the document using the default settings and the default printer. In
PowerPoint 2010, you'll need to add it to the Quick Access Toolbar in order to use it.
To access the Quick Print button:
1. Click the drop-down arrow on the right side of the Quick Access Toolbar..
2. Select Quick Print if it is not already checked
3. To print, just click the Quick Print command.
! Quick Print always prints the entire presentation, so if you only want to print part of your presentation
you'll have to use the Print pane.!

10. Modifying Lists
10-1 Modifying lists
By default, when you type text into a placeholder, a bullet will be placed at the beginning of each
paragraph. This is called a bulleted list. If you want, you can modify a list by choosing a different bullet
style, or by switching to a numbered list.
10-3 Customizing bullets
To use a picture as a bullet:
1. Select an existing bulleted list
2. On the Home tab, click the Bullets drop-down arrow.
3. From the drop-down menu, select Bullets and Numbering. A dialog box will appear.
4. Click Picture on the Bulleted tab. The Picture Bullet dialog box will appear.
5. Select the desired picture, and click OK.
6. The list will update to show the new bullets.
To modify the bullet style:
1. Select all text in an existing list.
2. On the Home tab, click the Bullets drop-down
arrow. A menu of bullet options will appear.
To modify a numbered list:
1. Select all text in an existing list.
2. On the Home tab, click the Numbering drop-
down arrow. A menu of numbering options will
appear.
To change the starting number:
By default, numbered lists count from the number one. However, sometimes you may wish to start
counting from a different number, like if the list is a continuation from a previous slide.
1. Select an existing numbered list.
3. Hover over each menu option to display a live
preview of the list on the slide.
3. Hover over each menu option to display a live
preview of the list on the slide.
4. Select the desired bullet option. 4. Select the desired numbering option.
10-2 Modifying the list's appearance
Whether you're using a bulleted or numbered list, you may want to change the appearance by
adjusting the size and color of the bullets or numbers. This can make your list stand out
better, and it can also help it match the appearance of your presentation.
To modify the size and color:
1. Select an existing bulleted list.
4. Set the bullet size using the Size field.
5. Click the Color drop-down box, and select a color.
6. Click OK. The list will update to show the new size and color.
34 35

To use a symbol as a bullet:
1. Select an existing bulleted list.
4. Click Customize on the Bulleted tab. The Symbol dialog box will appear.
5. Click the Font drop-down box, and select a font. The Wingdings and Symbol fonts are good
choices, as they have a large number of useful symbols..
6. Select the desired symbol.
7. Click OK. The symbol will now appear as the selected bullet option in the Bullets and Numbering
dialog box.
8. Click OK again to apply the symbol to the list in the document.
11-1 Indentation and line spacing
Indentation is a useful tool for making your text more readable. When used in paragraphs, a
first-line indent helps to set paragraphs apart from one another. When used in bulleted or
numbered lists, indents can change the level of each line to form a multilevel list. Line
spacing is another tool you can use to control how text looks on the slide. It can be used to
improve readability or to fit more lines on the slide.
11. Indents and Line Spacing
To indent using the Tab key:
A quick way to indent is to use the Tab key. In a normal paragraph, this will create a first-
line indent, but if the paragraph is part of a bulleted or numbered list, the entire paragraph
will be indented.
1. Place the insertion point at the very
beginning of the paragraph you wish to
indent.
2. Press the Tab key. The paragraph will
now be indented.
To use the indent commands:
If you want to indent all of the lines in a paragraph, you can use the Indent commands on
the Home tab. For lists, the Indent commands work the same way as the Tab key.
1. Select the text you wish to indent.
2. On the Home tab, click the Increase
Indent command to increase the indent,
or click the Decrease Indent command
to decrease the indent.
3. The selected text will update to reflect
the new indent.
11-2 Fine-tuning indents
Sometimes you may wish to fine tune the indents and tabs in your presentations. You can do
this by adjusting the indent markers and tab stops on the ruler. By default, the Ruler is
hidden, so you'll first need to show the Ruler.
1. Select the View tab
2. Click the Ruler check box in the Show/Hide
group if it is not selected. The Ruler will
appear
36 37

11-3 Customizing bullet spacing
When working with lists, PowerPoint allows you to adjust the space between a bullet and the text by
using the first-line indent marker or the hanging indent marker. The ability to increase and decrease
the indentation allows you to customize lists to meet your needs.
38
To change bullet spacing:
1. Select the lines you want to change.
2. On the ruler, drag the first-line indent marker to the right or left. The bullet will move
independently from the text. Alternatively, you can drag the hanging indent marker to move the
text without moving the bullet.
11-4 Line spacing
PowerPoint allows you to adjust the amount of space between each line in a paragraph. You can
reduce the line spacing to fit more lines on a slide, or you can increase it to improve readability.
PowerPoint may automatically change the font size when you adjust the line spacing, so increasing the
line spacing too much may cause the text to be too small.
To format line spacing:
1. Select the text you want to format.
2. Click the Line Spacing command in the Paragraph group on the Home tab.
3. Select the desired spacing option from the drop-down menu.
12-1 Creating WordArt
PowerPoint allows you to add effects to the text inside of a text box, which is known as
WordArt. For the most part, the types of effects you can add are the same as the ones you
can add to shapes and text boxes (shadow, bevel, etc.). However, with WordArt, you can also
Transform the text to give it a wavy, slanted, or inflated look.
12. WordArt and Shapes
To apply a WordArt style to text:
A WordArt Style will automatically apply several effects to your text at once. You can then
refine the look of your text by adding or modifying text effects.
1. Select a text box, or select some text inside of
the text box. The Format tab will appear.
2. Click the Format tab.
3. In the WordArt Styles group, click the More
drop-down arrow to view all of the available styles.
4. Select the desired style preset to apply the style
to your text.
To add or modify text effects:
1. Select a text box, or select some text inside of the text box. The Format tab will appear.
3. Click the Text Effects command in the WordArt Styles group. A drop-down menu will
appear, showing the different effect categories.
4. Hover over an effect category. A drop-down menu will appear. You can hover the
mouse over the different presets to see a live preview.
.
12-2 Working with shapes and text boxes
PowerPoint's large shape collection allows you to organize and
design the image you desire. While you may not need shapes in
every presentation you create, they can add visual appeal.
To insert a shape:
2. Click the Shapes command.
3. Select a shape from the drop-down menu.
4. Click and drag the mouse until the shape
is the desired size.
5. Select the desired effect preset. The effect will
be applied to your text. If you want, you can
combine several different effects.
39

40
To resize a shape or text box:
1. Click on the shape to select it.
2. Click and drag one of the sizing handles
on the corners and sides of the text box
until it is the desired size..
12-3 Formatting shapes and text boxes
To change the shape style:
1. Select the shape or text box. The Format tab
will appear.
To change the shape fill color:
1. Select the shape or text box. The Format tab appears.
2. Select the Format tab.
3. Click the Shape Fill command to display a drop-down
list.
4. Select the desired color from the list, choose No Fill,
or choose More Fill Colors to choose a custom color.
To change to a different shape:
1. Select the shape or text box. The Format tab
will appear.
3. To rotate the shape, drag the green handle.
4. Some shapes also have one or more yellow handles
that can be used to modify the shape. For example, with
star shapes, you can adjust the length of the points.
2. Click the More drop-down arrow in the Shape
Styles group to display more style options.
3. Move your cursor over the styles to see a live
preview of the style in the slide.
4. Select the desired style
2. From the Format tab, click the Edit Shape
command.
3. Click Change Shape to display a drop-down list.
4. Select the desired shape from the list.
To change the shape outline:
1. Select the shape or text box. The Format tab will appear.
3. Click the Shape Outline command to display a drop-down menu.
4. From the drop-down menu, you can change the outline color, weight (thickness), and
whether or not it is a dashed line.
To change shadow effects:
1. Select the shape or text box. The Format tab will appear.
3. Click the Shape Effects command. A drop-down
menu will appear.
4. Hover the mouse over Shadow. You will see a
list of shadow presets.
5. Move your mouse over the menu options to
see a live preview of the shadow effect in the
slide.
6. Click the desired shadow effect to add it to
your shape.
41

42
12-4 3D effects
There are two kinds of effects you can apply to your shapes and text boxes to give them a 3D
appearance: 3-D Rotation and Bevel. 3-D Rotation gives the appearance that you are viewing the
object from a different angle, and it can be applied to any shape. Bevel adds thickness and a rounded
edge to shapes, but it doesn't work with every type of shape.
To use 3-D Rotation:
1. Select the shape or text box.
2. Click on the Format tab.
3. Click Shape Effects from the Shape Styles group.
4. Hover the mouse over 3-D Rotation. A drop-down
menu will appear.
5. Select the desired rotation preset from the drop-
down menu. You can also click 3-D Rotation Options if
you would prefer to type in custom values.
To use Bevel:
1. Select the shape or text box.
2. Click on the Format tab.
3. Click Shape Effects from the Shape Styles group.
4. Hover the mouse over Bevel. A drop-down menu will
appear.
5. Select the desired bevel preset from the drop-down
menu. You can also click 3-D Options if you would
prefer to type in custom values.
13-1 Modifying themes
Suppose you really like the fonts from one theme, but you'd like to experiment with different
color schemes. That's not a problem: You can mix and match the colors, fonts, and effects
from different themes to create a unique look for your document. If it still doesn't look
exactly right, you can customize the Theme Colors and Theme Fonts.
13. Modifying Themes
To change theme colors:
1. From the Design tab, click the Theme
Colors command. A drop-down menu
will appear.
2. Hover the mouse over the different
sets of theme colors to see a live preview.
3. Select the set of theme colors you
desire, or select Create New Theme
Colors to customize each color
individually.
! Sometimes when the Theme Colors are changed,
the text colors may not update on all slides. If this
happens, Save and Close your file. When you
reopen it, it should display the correct colors.!
To create new theme colors:
1. From the Design tab, click the Theme Colors command. A drop-down menu will appear.
2. Select Create New Theme Colors.
3. The dialog box will show the 12 current theme colors. To edit a color, click the drop-
down arrow and select a different color. In order to choose the exact color you want, you
may need to click More Colors.
4. In the Name field, type the desired name for the theme colors, then click Save. The
presentation will update to show the new theme colors.
To change theme fonts:
1. From the Design tab, click the Theme Fonts command. A
drop-down menu will appear.
2. Hover the mouse over the different sets of theme fonts
to see a live preview.
3. Select the set of theme fonts you desire, or select Create
New Theme Fonts to customize each font individually.
43

44
To create new theme fonts:
1. From the Design tab, click the Theme Fonts command. A drop-down
menu will appear.
2. Select Create New Theme Fonts.
3. The dialog box will show the two theme fonts. To change the fonts,
click the drop-down arrows and select the desired fonts.
4. In the Name field, type the desired name for the theme fonts, then click
Save. The presentation will update to show the new theme fonts.
To change theme effects:
1. From the Design tab, click the Theme Effects command.
A drop-down menu will appear.
2. Hover the mouse over the different sets of theme
effects to see a live preview.
3. Select the set of theme effects you desire.
13-2 Saving your theme
Once you've found settings you like, you may want to save the theme so you can use it in other
presentations.
14. Formatting Pictures
To crop an image:
1. Select an image. The Format tab will appear.
3. Click the Crop command. The black
cropping handles appear.
4. Click and drag a handle to crop an image.
5. Click the Crop command to deselect the
crop tool.
To crop an image to a shape:
1. Select the image. The Format tab will appear.
3. Click the Crop drop-down arrow (below the Crop command). A drop-down menu will
appear.
4. Select a shape from the drop-down menu.
5. The image will take the shape you have selected
13-3 Background styles
To further customize your slides, you can change the background's color and texture by choosing a
different background style. The available background styles will vary depending on which theme you
are using.
To apply a background style:
1. From the Design tab, click the Background
Styles command.
2. Select the desired style. The new
background will appear in the slides.
To save a theme:
1. From the Design tab, click the Themes
command. A drop-down menu will appear.
2. Select Save Current Theme.
3. Type a file name for your theme, then
click Save.
14-1 Basic image formatting
Have you inserted a picture onto a slide that you'd like to trim or make appear smaller on the
slide? Perhaps you'd like to add an artistic effect or a border to the image to make it stand out
from the slide's background. You can use PowerPoint's picture tools to help you modify the
picture style and shape, add a border, crop, add artistic effects, and even compress pictures.
To add a border to a picture:
1. Select the picture.
3. Click the Picture Border command. A drop-down menu will appear.
4. From the drop-down menu, you can select a color, weight (thickness), and whether or not
the line is dashed.
5. The image will take the shape you have selected
45

46
14-2 Image adjustments
To apply a picture style:
1. Select the picture. The Format tab will appear.
3. Click the More drop-down arrow to display all
the picture styles.
14-3 Artistic effects and styles
To apply an artistic effect:
3. Click the Artistic Effects command. A drop-down menu will appear.
4. Hover over the different presets to see a live preview of each one.
5. When you've found a preset you like, click on it to select it.
6. To adjust the settings for the effect, click Artistic Effects again and select Artistic Effect Options.
To make image corrections:
3. Click the Corrections command. A drop-down menu will appear.
4 . To sharpen or soften the image, hover over the Sharpen and
Soften presets. You'll see a live preview of the presets in the slide.
5. Select the desired Sharpen and Soften preset.
6. Click the Corrections command again.
7. Hover over the Brightness and Contrast presets to see a live
preview.
8. Select the desired Brightness and Contrast preset.
To compress a picture:
3. Click the Compress Pictures command in the Adjust group. A dialog box appears.
4. Place a check mark next to Delete cropped areas of pictures. You can also choose
whether to apply the settings to this picture only or to all pictures in the presentation.
5. Choose a Target output. If you are emailing your presentation, you may want to select
Email, which produces the smallest file size.
6. Click OK
To make image corrections:
3. Click the Color command. A drop-down menu will appear.
4. From the drop-down menu, you can choose a preset from
each of the three categories:
◦ Color Saturation: Controls how vivid the colors are in the
image.
◦ Color Tone: Controls the "temperature" of the color,
from cool to warm.
◦ Recolor: Controls the overall color of the image. Use this
option to make the image black and white, grayscale, or to
colorize it with a different color.
14-4 Compressing pictures
You'll need to monitor the file size of your presentations that include pictures, especially if
you send them via email. Large, high-resolution pictures can quickly cause your presentation
to become too large, which may make it difficult or impossible to attach to an email. In
addition, cropped areas of pictures are saved with the presentation by default, which can add
to the file size. PowerPoint can reduce the file size by compressing pictures, lowering their
resolution, and deleting cropped areas.
4. Hover over a picture style to display a live
preview of the style in the slide.
5. Select the desired style.
6. To refine the picture style, click the
Picture Effects command to see the Effects
drop-down menu.
47

48
To remove the background from an image:
1. Click on the image. The Format tab will appear.
3. Click the Remove Background command.
4. PowerPoint will try to guess which part of the image is the background, and it will mark that area
with a magenta fill. It will also place a box around the image with selection handles.
5. Drag the selection handles until all of the foreground is inside the box. After you do this,
PowerPoint may readjust the background.
6. At this point, you may need to help PowerPoint decide which parts of the image are foreground
and which parts are background. You can do this by using the Mark Areas to Keep and Mark Areas
to Remove commands:
◦ If PowerPoint has marked part of the foreground magenta, click Mark Areas to Keep and
draw a line in that region of the image.
◦ If part of the background has not been marked with magenta, click Mark Areas to Remove
and draw a line in that region of the image.
7. After you add your marks, PowerPoint will readjust the image.
8. When you're satisfied with the image, click Keep Changes. All of the magenta areas will be
removed from the image.
9. You can adjust the image at any time by clicking the Remove Background command again.
15. Arranging Objects
To align two or more objects:
1. Click and drag your mouse to form a
selection box around the objects you want to
align. All of the objects will now have sizing
handles to show that they are selected
15-1 Arranging objects
After adding objects to a slide, it may be necessary to arrange them so the objects appear the
way you want. You can align, group, rotate, and order objects to create the desired
arrangement.
15-2 Aligning objects
You can click and drag objects to align them manually, but guesswork will never give you the
best result. Additionally, aligning objects in this way can take a great deal of time. Luckily,
PowerPoint provides you with several commands that allow you to easily arrange and
position objects.
2. From the Format tab, click the Align
command, and select Align Selected Objects
3. Click the Align command again, and
select one of the six alignment options.
4. The objects will align to each other
based on the option you have selected.
14-5 Removing the background from an image
Removing the background from an image can give your images a cleaner appearance and will allow
the slide background (or other objects) to show through. If you're printing your presentation, it can
also save ink.
About Background Removal
With Background Removal, PowerPoint uses
special algorithms to determine which parts of the
image are the background and then removes those
areas from the image.
49

50
To align objects to the slide:
Sometimes you may wish to align one or more objects to a specific location within the slide, such as
the top or bottom. You can do this by simply selecting the Align to Slide option before you align the
objects.
1. Click and drag your mouse to form a selection box around the objects you want to align. All of the
objects will now have sizing handles to show that they are selected.
2. From the Format tab, click the Align command, and select Align to Slide.
3. Click the Align command again, and select one of the six alignment options.
4. The objects will align to the slide based on the option you have selected.
To change the ordering by one level:
1. Select an object. The Format tab will appear.
15-3 Ordering and rotating objects
In addition to aligning and grouping objects, PowerPoint gives you the ability to arrange
objects in a specific order. Ordering is important when two or more objects overlap, as it will
determine which objects are in the front or the back.
3. The objects will reorder themselves
2. From the Format tab, click the Bring
Forward or Send Backward command to
change the object's ordering by one level. If
the object overlaps with more than one
other object, you may need to click the
command several times to achieve the
desired ordering.
To distribute objects evenly:
If you have arranged objects in a row or column, you may want them to be an equal distance from
one another for a neater appearance. You can do this by distributing the objects horizontally or
vertically.
1. Click and drag your mouse to form a selection box around the objects you want to align. All of the
objects will now have sizing handles to show that they are selected.
2. From the Format tab, click the Align command.
3. From the menu, select Distribute Horizontally or Distribute Vertically.
4. The objects will be distributed evenly.
To bring an object to the front or back:
If you want to move an object behind or in front of several objects, it's usually faster to bring it
to front or send it to back rather than clicking the ordering commands multiple times.
2. From the Format tab, click the Bring Forward or Send Backward drop-down box.
3. From the drop-down menu, select Bring to Front or Send to Back.
4. The objects will reorder themselves.
To rotate an object:
2. From the Format tab, click the Rotate command. A drop-down menu will appear.
3. Select the desired rotation option.
4. The object in the slide will rotate.
51

52
To apply an animation to an object:
1. Select an object.
2. Click the Animations tab.
3. In the Animation group, click the More drop-down arrow to view the available animations.
4. Select the desired animation effect.
5. The object will now have a small number next to it to show that it has an animation. Also, in
the Slide pane, the slide will now have a star symbol next to it.
15-4 Grouping objects
At times, you may want to group multiple objects into one object so they will stay together if they are
moved. Often, this is easier than selecting all of the objects every time you want to move them.
Pictures, shapes, clip art, and text boxes can all be grouped together, but placeholders cannot be
grouped. Therefore, you should make sure you don't insert your pictures into placeholders if you will
be grouping the pictures.
.
To group objects:
1. Click and drag your mouse to form a
selection box around the objects you want to
align. All of the objects will now have sizing
handles to show that they are selected.
! If you select the objects and the Group command
is disabled, it may be because one of the objects is
inside a placeholder. If this happens, try reinserting
the images or cutting and pasting them into the
same slide outside of any placeholders.!
To ungroup objects:
1. Select the grouped object you wish to ungroup.
2. From the Format tab, click the Group command, and select Ungroup.
3. The objects will be ungrouped.
2. From the Format tab, click the Group
command, and select Group.
3. The selected objects will now be grouped.
There will be a single box with sizing handles
around the entire group to show that they are
one object.
16. Animating Text and Objects
16-1 Animating text and objects
PowerPoint offers a variety of animations you can use to enhance your presentation.
Animations can be used to make text or objects appear on a slide, exit a slide, or emphasize
the text or objects already on a slide. You can even use motion paths to create a customized
animation.
The four types of animations
There are many different animation effects that you can choose from, and they are organized
into four types:
・ Entrance: These control how the object enters the slide. For example, with the Bounce
animation, the object will "fall" onto
・ Emphasis: These animations occur while the object is on the slide, often triggered by a
mouse click. For example, you can
・ Exit: These control how the object exits the slide. For example, with the Fade animation, the
object will simply fade away.
・ Motion Paths: These are similar to Emphasis effects, except that the object moves within
the slide along a predetermined path,
the slide and then bounce several
times.
set an object to Spin when you
click the mouse.
like a circle.
53

54
To reorder the animations:
1. Select the number of the effect you want to
change.
16-2 Working with animations
Effect options
Some effects will have options you can change. For
example, with the Fly In effect, you can control which
direction the object comes from. These options can be
accessed from the Effect Options command in the
Animation group.
To add multiple animations to an object:
If you select a new animation from the menu in the
Animation group, it will replace the object's current
animation. However, you'll sometimes want to place more
than one animation on an object, for example an Entrance
and an Exit effect. To do this, you'll need to use the Add
Animation command, which will allow you to keep your
current animations while adding new ones.
1. Select the object.
2. Click the Animations tab.
3. In the Advanced Animation group, click the Add
Animation command to view the available animations.
4. Select the desired animation effect
5. If the object has more than one effect, it will have a
different number for each effect. The numbers indicate the
order in which the effects will occur.
To copy animations with the Animation Painter:
In some cases, you may want to apply the same effects to
more than one object. You can do this by copying the
effects from one object to another using the Animation
Painter.
1. Click on the object that has the effects you want to copy.
2. From the Animations tab, click the Animation Painter
command.
3. Click on the object you want to copy the effects to. The
effects will be applied to the object
2. From the Animations tab, click the Move
Earlier or Move Later commands to change
the ordering.
To preview animations:
Any animation effects you have applied will show up when you play the slide show.
However, you can also quickly preview the animations for the current slide without viewing
the slide show.
1. Navigate to the slide you want to preview.
2. From the Animations tab, click the Preview command.
The animations for the current slide will play.
16-3 The Animation Pane
The Animation Pane allows you to view and manage all of the effects that are on the current
slide. You can modify and reorder effects directly from the Animation Pane, which is
especially useful when you have a large number of effects.
To open the Animation Pane:
1. From the Animations tab, click the
Animation Pane command.
2. The Animation Pane will open on the
right side of the window. It will show all of
the effects for the current slide in the order
they will appear
To preview effects from the Animation Pane:
1. From the Animation Pane, click the Play
button.
2. The effects for the current slide will play.
On the right side of the Animation Pane, you
will be able to see a timeline that shows the
progress through each effect.
To reorder effects from the Animation Pane:
1. On the Animation Pane, click and drag an effect up or down.
2. The effects will reorder themselves.
55

56
To change an effect's start option:
By default, an effect begins playing when you click the mouse during a slide show. If you have
multiple effects, you will need to click multiple times to start each effect individually. However, by
changing the start option for each effect, you can have effects that automatically play at the same
time or one after the other.
1. From the Animation Pane, select an effect. A drop-down arrow will appear next to the effect.
2. Click the drop-down arrow. You will see three start options:
3. Select the desired start option.
◦ Start on Click: This will start the effect when the mouse is clicked.
◦ Start With Previous: This will start the effect at the same time as
the previous effect.
◦ Start After Previous: This will start the effect when the previous
effect ends.
16-4 The Effect Options dialog box
From the Animation Pane, you can access the Effect Options dialog box, which contains more
advanced options you can use to fine tune your animations.
To open the Effect Options dialog box:
1. From the Animation Pane, select an effect. A
drop-down arrow will appear next to the effect.
2. Click the drop-down arrow, and select Effect
Options. The Effect Options dialog box will appear.
3. From here, you can add various enhancements
to the effect:
◦ Sound: Adds a sound effect to the animation.
◦ After animation: Changes the color or hides
the object after the animation is over.
◦ Animate text: If you are animating text, you
can choose to animate it all at once, one word
at a time, or one letter at a time.
To change the effect timing:
1. From the Effect Options dialog box,
select the Timing tab.
2. From here, you can add a delay before
the effect starts, change the duration of
the effect, and control whether or not the
effect repeats.
17. Inserting Videos
17-1 Inserting videos
Adding video to your presentation can help emphasize certain points and provide an example.
Once you add a video, you can edit it and format its appearance.
To insert a video from a file on your computer:
1. From the Insert tab, click the Video drop-down arrow and
select Video from File.
Embedding a video from a website
Some websites, like YouTube, allow you to embed videos into
your slides. An embedded video will still be hosted on its
original website, meaning the video itself won't be added to
your file. Embedding can be a convenient way to reduce the
file size of your presentation, but you'll also need to be
connected to the Internet for the video to play.
! We have found that this feature no longer works in PowerPoint 2010. If you need to add an online
video, you could insert a hyperlink to the video directly on your slide. Review our lesson on Hyperlinks
and Action Buttons to learn how.!
17-2 Working with the video To preview the video:
1. Make sure the video is selected.
2. Click the Play/Pause button below the video.
The video will start playing, and the timeline next
to the Play/Pause button will begin to advance.
To resize the video:
1. Select the video. A box with resizing
handles will appear around the video.
2. Click and drag any of the handles to
resize the movie.
3. The video will be added to the slide.
2. Locate and select the desired
video file, then click Insert.
3. The video will be added to the
slide.
57

58
17-3 Edit and format video
The Playback tab has several options you can use to edit your video. For example, you can trim your
video so it will only play an excerpt, add a fade in and fade out, and add bookmarks that allow you
to jump to specific points in the video.
Most of the features on the Playback tab can only be used with videos that are inserted from a file.
They will not work with embedded videos.
To trim the video:
1. From the Playback tab, click the Trim Video command. The Trim Video dialog box will appear.
2. Use the green and red handles to
set the start time and end time.
3. To preview the video file, click the
Play button.
4. Adjust the green and red handles
again if necessary, then click OK.
To add a fade in and fade out:
1. On the Playback tab, locate the Fade In and Fade Out fields.
2. Type in the desired values, or use the up and down arrows to
adjust the times.
To add a bookmark:
1. Click the Play/Pause button to play the video, and when you have located the part you want to
bookmark, pause it. You can also click the timeline to locate the desired part of the video.
2. From the Playback tab, click Add Bookmark.
3. A small circle will appear on the timeline to indicate the bookmark.
4. You can now click the bookmark to jump to that location.
To remove a bookmark:
1. Select the bookmark.
2. From the Playback tab, click Remove Bookmark. The bookmark will
disappear..
Video options
There are other options you can set to control how
your video plays. These are found in the Video
Options group on the Playback tab.
・ Volume: Changes the audio volume in the video.
・ Start: Controls whether the video file starts automatically or when the mouse is clicked.
・ Play Full Screen: Lets the video fill the entire screen while it is playing.
・ Hide While Not Playing: Hides the video when it is not playing.
・ Loop Until Stopped: Causes the video to repeat until it is stopped.
・ Rewind After Playing: Causes the video to return to the beginning when it is finished playing.
17-4 Formatting the appearance of the video
Much like pictures, PowerPoint allows you to format the appearance of the video by
applying a video style, adding a border, changing the shape, applying effects such as 3D
rotation, making image corrections, and adjusting the color. You can also add a poster frame,
which is the placeholder image your audience will see before the video starts playing. The
poster frame is often just a frame taken from the video itself, but you can also use a different
image if you prefer.
To apply a video style:
1. Select the video. The Format tab will appear.
3. In the Video Styles group, click the More drop-
down arrow to display all of the video styles
To preview the video:
1. Select the video.
2. Start playing the video. When you see
the frame you want to use, click the
Play/Pause button to pause it.
3. From the Format tab, click the Poster
Frame command. A drop-down menu
will appear.
4. Select Current Frame
5. The current frame will become the
poster frame.
5. The new style will be applied to the video.
59

18. Inserting Audio
18-1 Inserting audio
Have you ever watched a PowerPoint presentation that seemed to narrate itself? Or have you seen a
slide show that featured applause when the last slide was reached? Then you've heard examples of
how audio can be applied to slide shows. PowerPoint allows you insert audio files from your computer,
or you can search the Clip Art Studio to find the audio you need. Once you've inserted audio, you can
then edit it.
18-2 Recording your own audio
Sometimes you may want to record audio directly into a presentation, like if you want the
presentation to include narration. Before you begin, make sure you have a microphone that
is compatible with your computer; many computers have built-in microphones or ones that
can be plugged into the computer.
To insert audio from a file on your computer:
1. From the Insert tab, click the Audio drop-down arrow and select Audio from File.
2. Locate and select the desired audio file, then click Insert.
3. The audio file will be added to the slide.
To insert Clip Art Audio:
1. From the Insert tab, click the Audio drop-down
arrow and select Clip Art Audio. The Clip Art pane
will appear on the right.
2. Enter keywords in the Search for: field and click
Go.
3. The results will appear in the Clip Art pane. To
preview an audio file, right-click the file and select
Preview/Properties.
4. A dialog box will appear, and the audio file will
start playing automatically (it may take a few
seconds to load). To play it again, press the Play
button.
5. When you're finished previewing the file,
click Close.
6. Once you have found the audio file you
want to use, click it to insert it into the slide.
To record audio:
1. From the Insert tab, click the Audio drop-
down arrow and select Record Audio.
6. When you're done, click OK. The audio
file will be inserted into the slide.
2. Type a name for the audio recording, if
desired.
4. When you're finished recording, click
the Stop button.
3. Click the red Record button to start
recording.
5. To preview your recording, click the
Play button.
18-3 Working with audio
Just like with videos, you can modify your audio files using the various features of the
Playback tab. For example, if you add a song to a slide, you can trim it so it will only play one
section of the song, and you can add a fade in and fade out to smooth out the beginning and
end. You can also add bookmarks that allow you to jump to specific points in the audio file.
6160

18-4 Formatting the audio icon
By default, an audio file will show up as a speaker icon in the slide. If you want, you can
change the icon to a different picture, and you can apply all of the different types of image
formatting that you would apply to a picture such as Artistic Effects and Picture Styles, which
are accessed in the Format tab.
To add a fade in and fade out:
1. On the Playback tab, locate the Fade In and Fade Out fields.
2. Type in the desired values, or use the up and down arrows
to adjust the times.
To remove a bookmark:
1. Select the bookmark.
2. From the Playback tab, click Remove Bookmark. The bookmark
will disappear
To change the icon to a different picture:
1. Select the audio icon in the slide.
2. From the Format tab, select the Change
Picture command. The Insert Picture dialog
box will appear.
To add a bookmark:
1. Click the Play/Pause button to play the audio file, and when you have located the part you want
to bookmark, pause it. You can also click the timeline to locate the desired part of the audio file..
2. From the Playback tab, click Add Bookmark.
3. A small circle will appear on the timeline to indicate the bookmark
4. You can now click the bookmark to jump to that location.
Audio options
There are other options you can set to control how your audio file plays. These are found in
the Audio Options group on the Playback tab.
・ Volume: Changes the audio volume.
・ Start: Controls whether the audio file starts automatically or when the mouse is clicked.
・ Hide During Show: Hides the audio icon while the slide show is playing.
・ Loop Until Stopped: Causes the audio file to repeat until it is stopped.
・ Rewind After Playing: Causes the audio file to return to the beginning when it is finished
playing.
To trim the audio:
1. From the Playback tab, click the Trim Audio
command. The Trim Audio dialog box will
appear.
3. To preview the audio file, click the Play
button.
4. Adjust the green and red handles again
if necessary, then click OK.
2. Use the green and red handles to set the
start time and end time.
3. Locate and select the desired picture,
then click Insert.
4. The icon will change to the new picture.
6362

19. SmartArt Illustrations
19-1 SmartArt graphics
PowerPoint has a variety of SmartArt graphics you can use to illustrate and organize many different
types of ideas. To get the most out of SmartArt, you'll need to know how to insert a SmartArt graphic,
modify the color and effects, and change the organization of the graphic.
19-2 Changing the organization of a SmartArt graphic
To insert a SmartArt graphic:
2. Select the SmartArt command in the
Illustrations group. A dialog box will appear.
3. Select a category on the left of the dialog box
and review the SmartArt graphics that appear in
the center.
4. Select the desired SmartArt graphic, then click
OK.
To add a shape to a graphic:
1. Select the graphic. The Design and Format tabs appear on the Ribbon.
2. Select the Design tab.
To add text to a SmartArt graphic:
1. Select the graphic. A border will appear
around it with an arrow on the left side.
2. Click the arrow on the left side of the graphic
to open the task pane.
3. Enter text next to each bullet in the task pane.
The information will appear in the graphic and
will resize to fit inside the shape
4. To add a new shape, press Enter. A new
bullet will appear in the task pane, and a
new shape will appear in the graphic..
To convert existing text to SmartArt:
1. Select the list or paragraph you want to
change to SmartArt and right click. A drop-
down menu will appear.
2. Hover the mouse over Convert to SmartArt.
3. Select the desired SmartArt graphic, or click
More SmartArt Graphics at the bottom of the
menu to view more options.
To move shapes to a higher or lower level:
3. Select the shape you would like to move.
4. To move the shape to a higher level, click the Promote command in the Create Graphic
group, or click Demote to move it lower.
5. The shape will move one level higher or lower.
To rearrange shapes on the same level:
3. Select the shape you would like to move.
4. In the Create Graphic group, click Move Up or Move Down.
5. The shape will move one space up or down.
3. Decide where you want the new shape to
appear, and select one of the shapes nearby.
4. Click the drop-down arrow on the Add
Shape command in the Graphics group. A
menu will appear.
5. Select Add Shape Before or Add Shape
After to add a shape on the same level as
the one you selected. To add a shape above
or below that one, select Add Shape Above
or Add Shape Below.
6564

19-3 Modifying the SmartArt graphic's appearance
To change the SmartArt layout:
1. Select the graphic. The Design and Format tabs will appear on the Ribbon.
2. Click the Design tab.
3. In the Layouts group, click the More drop-down arrow to view all of the layouts.
4. Hover the mouse over each layout to see a live preview.
5. Select the desired layout.
To change the color scheme:
PowerPoint provides a variety of color schemes to
use with SmartArt. The color schemes use Theme
Colors, so they will vary depending on which Theme
you are using.
1. Select the graphic. The Design and Format tabs will
appear on the Ribbon.
3. Click the Change Colors command. A drop-down
menu appears, showing various color schemes.
4. Select the desired color scheme
! If the new layout is different from the old one, some of your text may not show up. Before selecting a new
layout, check carefully to make sure no important information gets lost.!
To change the SmartArt style:
1. Select the graphic. The Design and Format tabs will appear on the Ribbon.
2. Click the Design tab.
3. In the SmartArt Styles group, click the More drop-down arrow to view all of the styles.
4. Hover the mouse over each style to see a live preview.
20. Hyperlinks and Action Buttons
20-1 Inserting hyperlinks
Adding hyperlinks to your presentation can help your reader quickly access contact
information or information from the Internet. Additionally, hyperlinks in the form of action
buttons are useful for navigating your slide show. To use hyperlinks, you'll need to know how
to insert hyperlinks using text and objects, as well as how to insert action buttons.
About hyperlinks
Hyperlinks have two basic parts: the address of the webpage, email address, or other location
they are linking to, and the display text (which can also be a picture or shape). For example,
the address could be http://blog.gcflearnfree.org, and the display text could be "blog". In
some cases, the display text might be the same as the address. When you're creating a
hyperlink in PowerPoint, you'll be able to choose both the address and the display text or
image.
To insert a hyperlink:
1. Select the image or text you would like to
make a hyperlink.
2. Right-click the selected text or image, and
click Hyperlink.
3. The Insert Hyperlink dialog box will
open. You can also get to this dialog box
from the Insert tab by clicking Hyperlink.
4. If you selected text, the words will
appear in the Text to display field at the
top. You can change this text if you want.
5. Type the address you would like to link
to in the Address field.
6. Click OK. The text or image you selected
will now be a hyperlink to the web address
To insert a hyperlink to an email address:
click Hyperlink.
2. The Insert Hyperlink dialog box will open.
3. On the left side of the dialog box, click
Email Address.
4. Type the email address you want to
connect to in the Email Address box, and
click OK.
6766

To open and test a hyperlink:
1. After you create a hyperlink, you should test it.
Right-click the hyperlink, and click Open
Hyperlink.
2. Your web browser should open and navigate
to the linked page. If it does not work, check the
hyperlink address for any misspellings.
To insert a hyperlink to another slide:
1. Right-click the selected text or image, and click
Hyperlink.
3. On the left side of the dialog box, click Place in
this Document.
To insert a hyperlink to another file:
click Hyperlink.
3. On the left side of the dialog box, click
Existing File or Web Page.
5. Select the desired file.
6. Click OK. The text or image will now be a
hyperlink to the file you selected.
To remove a hyperlink:
1. Right-click the hyperlink.
2. Click Remove Hyperlink.
20-2 More hyperlinks
In PowerPoint, you can also use hyperlinks to link to resources that are not online. To create a quick
way to refer to another slide in your presentation, you can create a hyperlink to that slide. You can
even create hyperlinks to files stored on your computer.
4. A list of the other slides in your
presentation will appear. Click the name of
the slide you would like to link to.
5. Click OK. The text or image will now be a
hyperlink to the slide you selected.
4. Click the drop-down arrow to browse for
your file.
! If you plan on displaying your presentation on a different computer than you used to create it, your
hyperlink to another file may not work. Make sure you have a copy of the linked file on the computer
you are using to present, and always test hyperlinks before giving a presentation.!
20-3 Inserting action buttons
In addition to hyperlinks, another tool you can use to connect to a webpage, file, email
address, or slide is called an action button. Action buttons are built-in button shapes you can
add to a presentation and set to link to another slide, play a sound, or perform some other
action. When someone clicks or moves over the button, the selected action will occur. Action
buttons can do many of the same things as hyperlinks. Their easy-to-understand style makes
them especially useful for self-running presentations at booths and kiosks.
You can insert action buttons on one slide at a time, or you can insert an action button that
will show up on every slide. The second option can be useful if you want every slide to link
back to a specific slide, like the title page or table of contents.
6968

To insert an action button on one slide:
1. Click the Insert tab.
2. Click the Shapes command in the Illustrations group. A drop-down menu will appear with the
action buttons located at the bottom.
3. Select the desired action button.
4. Insert the button onto the slide by clicking the desired location. The Action Settings dialog box
will appear.
5. Select the Mouse Click or Mouse Over tab. Selecting the Mouse Click tab means the action
button will perform its action only when clicked. Selecting the Mouse Over tab will make the action
button perform its action when you move the mouse over it.
6. In the Action on click section, select Hyperlink to: then click the drop-down arrow and choose an
option from the menu.
7. Check the Play Sound box if you want a sound to play when the action button is clicked. Select a
sound from the drop-down menu, or select Other sound to use a sound file on your computer.
8. Click OK.
To insert an action button on all slides:
1. Click the View tab.
2. In the Master Views group, click on the Slide
Master command. A blank slide in the style of
your presentation will appear. Don't worry about
changing anything else.
3. Go to the Insert tab, and follow the
instructions above to insert an action button.
4. Return to the Slide Master tab, and click
Close Master View. The new action button
will now be on every slide.
To test an action button:
After you create an action button, you should
test it.
1. Click the Slide Show tab.
2. In the Start Slide Show group, click From
Current Slide.
3. Click your action button.
4. After you have tested it, right-click
anywhere on the screen and select End Show.
To edit an action button:
1. Select the action button.
2. Click the Insert tab.
3. In the Links group, click the Action
command. The Actions Settings dialog box
will appear.
4. Edit the action or hyperlink.
5. Click OK.
To change the appearance of an action
button:
1. Select the action button.
2. Click the Drawing Tools Format tab.
3. To change the button style or color, use
the tools in the Shape Styles group.
4. To change the shape of the action
button, click Edit Shape in the Insert
Shapes group. Select a new shape from
the drop-down menu.
7170

21. Working with Tables
21-1 Working with tables
In PowerPoint, tables are useful for organizing and presenting data. To use tables in your slide show,
you'll need to know how to insert them, apply table styles, and format them.
To insert a blank table:
1. On the Insert tab, click the Table command.
2. Hover your mouse over the diagram squares to
select the number of columns and rows in the
table.
3. Click your mouse. The table will appear on
the slide.
4. You can now place the insertion point
anywhere in the table to add text.
To add a column or row:
1. Place the insertion point in a cell adjacent to the location where you wish to add a row
or column.
To move a table:
1. Place the cursor over the edge of the table.
The cursor will turn into a cross with arrows .
2. Click and drag the table to the desired
location.
3. Release the mouse button to drop the table in
the new location.
21-2 Modifying tables
To resize a table:
1. Position the mouse over one of the sizing handles located around the edge of the table. The
cursor will become a pair of directional arrows .
2. Click, hold, and drag your mouse to make the table larger or smaller.
3. Release the mouse. The table will be resized.
2. Select the Table Tools Layout tab, and
locate the Rows & Columns group.
3. If you would like to insert a new row, select
either Insert Above or Insert Below. If you
would like to insert a new column, select
either Insert Left or Insert Right.
4. A new row or column will appear.
To delete a row or column:
1. Select the row or column by placing the insertion point in
any cell in that row or column.
2. Select the Table Tools Layout tab.
3. In the Rows & Columns group, click Delete. A drop-down
menu appears.
4. Select Delete Rows or Delete Columns.
21-3 Modifying the table style
To apply a table style:
1. Click anywhere on the table. The Table Tools tab will appear on the Ribbon.
2. Select the Table Tools Design tab, and locate the Table Styles.
3. Click the More drop-down arrow to see all of the table styles.
4. Hover the mouse over the various styles to see a live preview.
7372

To change the table styles options:
Once you've chosen a table style, you can turn various options on or off to change the appearance
of the table. There are six options: Header Row, Total Row, Banded Rows, First Column, Last
Column, and Banded Columns.
To add borders to a table:
1. Select the cells you wish to add a border to.
1. Click anywhere on the table. The Table Tools tab will
appear.
2. Click on the Table Tools Design tab.
3. Hover the mouse over each option in the Table Style
Options group to see an explanation of what it does,
and check or uncheck the desired options.
3. Click the Borders drop-down arrow.
4. From the drop-down menu, select the
desired border type.
2. From the Table Tools Design tab, select the
desired Line Style, Line Weight, and Pen Color.
5. The border will be added to the selected
cells.
21-4 Modifying a table using the layout tab
When you select a table in PowerPoint 2010, Design and Layout tabs appear under Table
Tools on the Ribbon. Using commands on the Layout tab, you can make a variety of
modifications to the table.
① ② ③ ④ ⑤ ⑥
1. Add Rows and Columns
You can insert or delete rows and columns in
your table. This can be especially useful if you
need to add something to the middle of your
table.
2. Merge and Split Cells
Some tables require a layout that doesn't conform
to the standard grid. In those cases, you may need
to merge or split cells.
3. Change Cell Size
You can type in a desired row height or column
width for your cells. If you prefer, you can click
AutoFit, and it will automatically adjust the
column widths based on the text inside them.
4. Distribute Rows/Columns
To keep your table looking neat and organized, you
may want to distribute the rows or columns
equally, which makes them all the same size. You
can distribute the rows or columns for the entire
table, or just a portion of it.
6. Change Text Direction
Making the text vertical can add style to your table,
and it also saves space, allowing you to fit more
columns in your table.
5. Align Cell Text
By changing the alignment of a cell, you can
control exactly where the text is located. In
the example below, the cell text is aligned to
the bottom right.
7574

22. Working with Charts
22-1 Charts
In many ways, charts are an ideal way to present information in PowerPoint 2010. They give you an
illustration of your data. A chart can help you show your audience what your data means and why it's
important. Plus, they can add visual interest to slide shows that are otherwise filled with text. To use
charts effectively, you'll need to know how to insert and modify them.
To insert a chart:
2. Click the Insert Chart command in the Illustrations
Group. The Insert Chart dialog box will appear.
3. Select a category from the left pane of the dialog
box, and review the charts that appear in the center.
If you are unsure about which chart best fits your
needs, review the Types of Charts interactive on
page 2.
4. Select the desired chart.
5. Click OK. An Excel window will open with a
placeholder for your data.
Types of charts
PowerPoint has a variety of chart types, each with its own advantages. Click the arrows to see
some of the different types of charts available in PowerPoint.
Identifying the parts of a chart
Column charts use vertical bars to represent
data. They can work with many different types of
data, but they're most frequently used for
comparing information.
Line charts are ideal for showing trends. The
data points are connected with lines, making it
easy to see whether values are increasing or
decreasing over time.
Pie charts make it easy to compare proportions.
Each value is shown as a slice of the pie, so it's
easy to see which values make up the
percentage of a whole.
Bar charts work just like Column charts, but they
use horizontal bars instead of vertical bars.
Area charts are similar to line charts, except that
the areas under the lines are filled in.
Surface charts allow you to display data across a
3D landscape. They work best with large data
sets, allowing you to see a variety of information
at the same time.
1. Title
The title should clearly describe what
the chart is illustrating.
2. Data Series
The data series consists of the
related data points in a chart. If there
are multiple data series in the chart,
each one will have a different color
or style. Pie charts can only have one
data series.
In this example, the green columns
represent the Romance data series.
3. Vertical Axis
The vertical axis (also known as the
y axis) is the vertical part of the
chart.
In this example (a column chart), the
vertical axis measures the height, or
value of the columns, so it is also
called the value axis. However, in a
bar chart, the horizontal axis would
be the value axis.
4. Horizontal Axis
The horizontal axis (also
known as the x axis) is the
horizontal part of the chart.
In this example, the horizontal
axis identifies the categories in
the chart, so it is also called
the category axis. However, in
a bar chart, the vertical axis
would be the category axis.
5. Legend
The legend identifies which
data series each color on the
chart represents. For many
charts it is crucial, but for
some charts it may not be
necessary and can be deleted.
In this example, the legend
allows the viewer to identify
the different book genres in
the chart.
①
②
③
④
⑤
22-2 Inserting charts
PowerPoint uses an Excel worksheet as a placeholder for entering chart data. Therefore,
when you insert or edit a chart in PowerPoint, an Excel window will automatically open. The
process is user-friendly, but if you are totally unfamiliar with Excel, you might want to review
our Excel 2010 Cell Basics lesson.
7776

To enter chart data:
The data that appears in the Excel spreadsheet is
placeholder source data that you will replace with
your own information. The Excel source data is used
to create the PowerPoint chart.
1. Enter your data into the Excel spreadsheet. If you
are not sure how to enter data into an Excel
spreadsheet, review the Excel 2010 Cell Basics lesson.
2. If necessary, click and drag the lower-right corner of
the blue line to increase or decrease the data range
for rows and columns. Only the data enclosed by the
blue lines will appear in the chart.
3. Close Excel. You do not need to save the
spreadsheet. The PowerPoint chart will update to
reflect the new source data.
22-3 Importing a chart from Excel
If you have already created a chart in Excel, you can import and link it to your PowerPoint
presentation. When you insert an Excel chart in PowerPoint, any updates you make to the
original Excel chart will automatically update in your PowerPoint presentation, as long as the
files remain in the same location. This can be a convenient and time-saving feature for
presentations that require frequent updating.
Copying and pasting existing Excel data:
If you already have an Excel worksheet with data you would like to use for a PowerPoint chart, you
can transfer the data by copying and pasting it. When the Excel window opens, simply open your
existing worksheet, select and copy the data, and paste it into the worksheet in place of the
placeholder data. Be sure to drag the blue line to surround all the data you would like to include in
the chart.
1. Click the Insert tab, and locate the Text
group.
2. Click the Insert Object command. A
dialog box will appear.
! Once you have imported a chart, be careful not to delete or move the original Excel file. If the
location of either the PowerPoint presentation or the Excel file changes, you may have to insert the
chart again in order for it to display correctly!
6. Click the Link checkbox if you would like
to link the data to the Excel chart. This will
enable your PowerPoint chart to update
itself when changes are made to the Excel
chart.
5. Find and select the desired Excel chart,
then click OK.
3. In the dialog box, select Create from file.
4. Click Browse.
7. Click OK. The chart will now appear in
your PowerPoint presentation.
7978

To switch row and column data:
Sometimes when you create a chart, the data may not be grouped the way you want it to. In the
clustered column chart below on the left, the Book Genre Sales statistics are grouped by Genre,
with a column for each year. However, you could also switch the row and column data so the chart
will group the statistics by year, with columns for each genre, as in the chart on the right. In both
cases, the chart contains the same data; it's just organized differently.
To change the chart type:
1. From the Design tab, click the Change Chart Type
command. A dialog box will appear.
2. Select the desired chart type.
3. Click OK. The chart will update to reflect the new
chart type.
1. Select the chart.
2. From the Chart Tools Design tab, select the Edit
command in the Data group. The Excel placeholder will
open.
3. Return to your PowerPoint slide. Select the Switch
Row/Column command in the Data group.
4. The chart will adjust the data.
To change the chart layout:
1. Select the Chart Tools Design tab.
2. Click the More drop-down arrow in the Chart Layouts group to see all of the available
layouts.
3. Select the desired layout.
4. The chart will update to reflect the new layout.
To change the chart style:
1. Select the Chart Tools Design tab.
2. Click the More drop-down arrow in the Chart Styles group to see all of the available styles.
4. The chart will update to reflect the new style.
22-4 Modifying charts with chart tools
There are many ways to customize and organize your charts. For example, PowerPoint allows you to
change the chart type, rearrange a chart's data, and even change the layout and style.
Once you insert a chart, a set of Chart Tools will appear
on the Ribbon. These are only visible when the chart is
selected. You can use the three tabs grouped under Chart
Tools to modify your chart.
8180

23. Reviewing Presentations
23-1 Reviewing presentations
Have you been asked to work with someone else to create a PowerPoint presentation? Or perhaps
you've created a slide show and would like another person to view it to make sure everything looks
polished. PowerPoint's Comments and Compare features make it easier for you to collaborate with
others on the content of your presentation.
To add a comment:
1. Select the text, or click on the area of the slide
where you would like the comment to appear.
2. Select the Review tab, and locate the
Comments group.
3. Click the New Comment command.
4. Type your comment.
To respond to a comment:
1. Right click the comment you would like to respond to.
2. From the drop-down menu, select New Comment.
3. Type your comment.
Click anywhere on the slide, and the new comment will
appear below the original comment.
To delete a comment:
1. Select the comment you wish to delete.
2. From the Review tab, click the Delete command.
To compare two presentations:
1. Select the Review tab, and locate the Compare group.
2. Click Compare. A dialog box will open.
3. Browse for and select the desired file.
4. Click Merge.
5. Click the buttons in the interactive next page to learn how to review comments and
changes using the Compare feature.
23-2 Commenting on presentations
When you are revising or collaborating on a presentation, you might want to make notes or
suggestions without actually changing anything on the slide. Using comments allows you to take
note of anything on a slide without altering the slide itself. Comments can be added and read by the
original author or any other reviewers.
5. Click anywhere on the slide, and your
comment will appear.
To edit a comment:
1. Select the comment you would like to edit by
clicking the comment thumbnail.
4. Make the desired changes.
5. Click anywhere on the slide, and the
comment will update to reflect your edits.
2. Click the Review tab.
3. Click the Edit Comment command.
23-3 Comparing presentations
If you are collaborating on a presentation or even just asking someone else to review your
presentation, you might want to use the Compare feature. The Compare feature combines
two versions of the same presentation. This allows you to see all of the differences between
the two and decide which changes to include in the final version of your presentation.
8382

To use the Document Inspector:
1. Save your presentation.
23-4 Using the reviewing features safely
If there are any comments in your presentation, you should remove them before sharing
the final version with anyone you are not collaborating with. Comments can reveal
confidential information that could lead to embarrassment or make you or your company
appear unprofessional.
It's a good idea to double-check your presentation using the Document Inspector. The
Document Inspector can tell you if there are any comments or other hidden data in your
presentation that you may need to remove.
1. Reviewing changes in the Slides tab
Some changes, like Inserted or Deleted
slides, will show up on the Slides tab on
the left. Click the revisions icon to see
the change, and click the checkbox if
you would like to accept it.
3. Compare
To Compare your presentation with
another file, click Compare, then
browse for and open the desired file.
①
②
③
④
2. Reviewing comments
Compare also allows you to view
Comments from the person who
reviewed your presentation. To read a
comment, click the comment thumbnail.
4. Accepting multiple changes
In addition to reviewing changes
individually, you can also accept
multiple changes at once. Click the
Accept drop-down arrow and select
either Accept All Changes to the
Current Slide or Accept All Changes to
the Presentation.
5. Reviewing changes on the slide
Click the revisions icon anywhere
it appears on a slide to see the
changes that have been made in
that spot. Check the checkbox
next to each revision you would
like to accept. To reject a change,
simply leave the checkbox
unchecked.
6. Reviewing Pane: Slides Tab
In the Reviewing Pane, the Slides
tab lets you view the revised
version of each slide. Click the slide
to see a larger preview of what the
revised slide will look like in your
presentation, or click the checkbox
to accept all revisions to the slide.
7. Next Change
Click Next to view the next
change in the presentation. You
can also click Previous to view
the previous one.
8. Ending the Review
When you are satisfied with the
changes you have accepted, click
End Review. Only the changes
you have accepted will show up
in your presentation.
9. Reviewing Pane: Details Tab
In the Reviewing Pane, the
Details tab lists every change
that has been made to that slide,
as well as all the comments.
Click a change to see its location
on the slide.
⑤
⑥
⑦
⑨
⑧
2. Click the File tab to go to Backstage view.
3. Select Info on the left side of the page.
4. Click the Check for Issues command. A
drop-down menu will appear.
5. Select Inspect Document.
6. Click Inspect.
7. The inspection results will show an
exclamation mark for any categories
where it found possibly sensitive data,
and it will also have a Remove All button
for each of those categories. Click
Remove All to remove the data.
8. Close the dialog box when you're done.
9. From Backstage view, click Save to
make the changes permanent.
8584

24. Advanced Presentation Options
24-1 Rehearse and record slide shows
It's good practice to rehearse your presentation before you present your slide show to an audience.
You can use PowerPoint's Rehearse Timings to advance the slides while you practice presenting. If you
are unable to present your slide show, PowerPoint's Record Slide Show allows you to record narration.
To add a comment:
1. Select the Slide Show tab, and locate the Set Up group.
2. Click the Rehearse Timings command. You will be taken to a full-screen view of your presentation.
3. Practice presenting your slide show. When you are ready to move to the next slide, click the Next
button on the Recording Toolbar in the top left corner. If you prefer, you can also use the right arrow
key.
4. When you have reached the end of the show, press the Esc key to end your slide show. A dialog box
will appear with the total time of your presentation.
5. If you are satisfied with your timings, click Yes
To record a slide show:
1. Click the Slide Show tab, and locate the Set
Up group.
2. Click the Record Slide Show drop-down
arrow.
To remove narration or timings from a recorded slide show:
1. Click the Slide Show tab, and locate the Set Up group.
2. Click the Record Slide Show drop-down arrow.
3. Hover your mouse over Clear
4. Select the desired option.
24-2 Sharing presentation options
PowerPoint 2010 offers several options to enhance or even totally change the way you
deliver presentations. Instead of presenting your slide show normally, you can choose to
present it as a video, or even broadcast it live on the Web so others can view it remotely. No
matter how you choose to give your presentation, you can enhance it by customizing your
slide show to remove or reorder slides, and printing handouts to help your audience take
notes. All of these options can help you give a polished and professional presentation.
Rehearsing slide show timings
Rehearsing timings can be useful if you want to set up a presentation to play at a certain speed
without having to click through the slides to present it. Think of it as a tool to help you practice
presenting your slide show. Using this feature, you can save timings for each slide and animation.
PowerPoint will then play back the presentation with the same timings when you present it.
Recording your slide show
The Record Slide Show feature is similar to the Rehearse Timings feature, but it's more
comprehensive. If you have a microphone for your computer, you can even record voice-over
narration for the entire presentation. This is useful if you plan on using your slide show for a self-
running presentation or a video. Your mouse won't show up on screen in recorded slide shows, so if
you would like to point out details on screen, you can use PowerPoint's laser pointer option.
3. Select either Start Recording from
Beginning or Start Recording from Current
Slide. The Record Slide Show dialog box will
appear.
4. Select the desired options. Remember,
you can only record narration if you have a
microphone attached to your computer.
5. Click Start Recording. Your presentation
will open up to a full-screen view.
6. Perform your slide show. Make sure to
speak clearly into the microphone if you are
recording narration. When you are ready to
move to the next slide, click the Next button
on the Recording Toolbar in the top left
corner, or use the right arrow key.
7. When you reach the end of the show, press
the Esc key to exit.
8. Your slide show timings and narration are
now included in your presentation. The slides
with narration will be marked with a speaker
icon in the bottom right corner.
Presenting your slide show as a video
The Create a Video feature allows you to save your presentation as a video. This can be
useful, as it lets your viewers watch the presentation whenever they want. To make sure your
viewers have enough time to view each slide, you might want to rehearse the timings or
record your slide show before using this feature. 8786

24-3 Broadcasting your slide show to remote audiences
Broadcasting a presentation remotely is surprisingly easy. All you and your viewers need is an
Internet connection—they don't even need PowerPoint. Once your viewers are connected,
you can start the presentation as you normally would.
To create a video:
1. Click the File tab. This takes you to the
Backstage view.
2. Select Save and Send.
3. Select Create a Video under File Types. The
Create a Video menu will appear on the right.
6. Click the Create Video command. The Save
As dialog box will appear.
7. Select the location where you wish to save
the presentation, then enter a name for the
presentation.
4. Click the drop-down arrow next to Computer
and HD Displays to select the size and quality of
your video.
8. Click Save. A status bar will appear in the bottom right corner of the PowerPoint window as
PowerPoint creates your video. When the bar is completely green, your video is ready to view, send,
or upload.
5. Select the drop-down arrow next to Recorded
Timings and Narrations.
◦ Choose Don't Use Recorded Timings and
Narrations if you don't have or don't wish to
use recorded timings. You can adjust the
default Seconds to spend on each slide: in
the box below the drop-down menu.
◦ Choose Use Recorded Timings and
Narrations if you have already recorded
timings and narrations and would like to use
them in your video.
! Please note that you cannot edit your presentation or mark it with a highlighter or pen while you are
broadcasting a slide show. You also cannot use PowerPoint to speak to your audience. Plan to
communicate with your viewers through teleconferencing, or pre-record your narration.!
To broadcast a slide show:
1. Select the Slide Show tab, and locate the
Start Slide Show group.
2. Click the Broadcast Slide Show command.
The Broadcast Slide Show dialog box will
open.
3. Click Start Broadcast. A status bar will
appear as PowerPoint prepares your
broadcast.
4. A link will appear. Select the link, and click
Copy Link to make a copy of the link, or Send
in Email to send an email with the link to
your viewers.
5. Click Start Slide Show.
6. Present your slide show.
7. When you are finished, click End Broadcast.
in the yellow bar at the top of the screen.
24-5 Customizing your slide show
Sometimes you might want to hide a slide while still keeping it in your presentation. For
instance, if you are presenting a slide show to more than one group of people, hiding or even
rearranging certain slides could help you tailor your slide show to each group you present it
to. You could also choose to create a shortened version of your slide show to present when
you're short on time. The Custom Slide Show feature allows you to create and name
different versions of your slide show with hidden or rearranged slides.
8988

To create a custom show:
1. Select the Slide Show tab, and locate the Start Slide Show group.
2. Click the Custom Slide Show command.
3. Select Custom Shows.... The Custom Shows dialog box will appear.
4.Click New. The Define Custom Show dialog box will appear.
5. Locate the Slide show name box, and type in a name for your
custom show.
24-6 Creating handouts of a presentation
Printing handouts with images of your slides can be helpful to your audience, as it gives them a hard
copy of the information you're presenting. Plus, they can take notes on the handouts as you present
your slide show.
To create handouts of a presentation:
1. Click the File tab. This takes you to the Backstage view.
2. Click Print.
3. Click the drop-down arrow in the box that says Full Page
Slides, and locate the Handouts group.
4. Select a page layout for your handouts. Up to nine slides can
be displayed per page. Note that the 3 slides layout offers
lined space for your viewers to take notes.
5. Click the Print command.
6. Select the slides in the Slides in presentation: box that you
would like to include in your custom show, then click Add>> to
add them to the Slides in custom show: box. If necessary, use
the up and down arrows to reorder the added slides.
7. Click OK.
8. Select Close to exit or Show to view your custom show.
25. Slide Master view
25-1 Slide Master view
You may have noticed that when you select a different theme in PowerPoint, it rearranges
the text on your slides and adds shapes to the background. That's because each theme has
built-in slide layouts and background graphics. You can edit these layouts with a feature
called Slide Master view. Once you learn how to use Slide Master view, you'll be able to
customize your entire slide show with just a few clicks.
What is Slide Master view?
Slide Master view is a special feature in PowerPoint that allows you to quickly modify the
Using Slide Master view
Whether you're making big changes to your slides or just a few small tweaks, Slide Master
view can help you create a consistent, professional presentation without a lot of effort. You
could use Slide Master view to change just about anything in your presentation, but here are
some of its most common uses:
Modify Backgrounds: Slide Master view makes it easy to customize the background for all
of your slides at the same time. For example, you could add a watermark or logo to every
slide in your presentation, or modify the background graphics of an existing PowerPoint
theme.
Rearrange Placeholders: If you find that you often rearrange the placeholders on each
slide, you can save time by rearranging them in Slide Master view instead. When you
adjust one of the layouts in Slide Master view, all of the slides with that layout will change.
Customize Text Formatting: Rather than changing the text color on every slide
individually, you could use the slide master to change the text color on all slides at once.
Create Unique Slide Layouts: If you want to create a presentation that looks different
from regular PowerPoint themes, you could use Slide Master view to create your own
layouts. Custom layouts can include your own background graphics, placeholders, and
more.
slides and slide layouts in your
presentation. From there, you can
edit the slide master, which will
affect every slide in the
presentation. You can also modify
individual slide layouts, which will
change any slides using those
layouts.
For example, suppose you find a
theme you like, but you don't like
the slide layouts. You could use
Slide Master view to customize the
layouts exactly the way you want.
9190

To make changes to all slides:
If you want to change something on all slides of your presentation, you can edit the slide master. In
our example, we'll add a logo to every slide.
25-2 Customizing slide layouts
You can use Slide Master view to modify any slide layout in your presentation. It's easy to
make small tweaks, like adjusting background graphics, or big changes, like rearranging or
deleting placeholders. Unlike with Slide Master, changes to a slide layout will only be applied
to slides using that layout in your presentation.5. Move, resize, or delete other slide objects
as needed. In our example, we'll resize the
title placeholder to fit below our newly
inserted log
1. Select the View tab, then click the Slide Master
command.
2. The presentation will switch to Slide Master
view, and the Slide Master tab will be selected
on the Ribbon.
3. In the left navigation pane, scroll up and select
the first slide. This is the slide master.
4. Use the desired tabs on the Ribbon to
make changes to the slide master. In our
example, we'll insert a picture in the upper-
left corner of the slide.
6. When you're finished, click the Close
Master View command on the Slide Master
tab.
7. The change will appear on all slides of the
presentation.
1. Navigate to Slide Master view.
2. Locate and select the desired layout in
the left-navigation pane. You can hover the
mouse over each layout to see which slides
are currently using that layout in the
presentation
3. In some layouts, the background graphics
may be hidden. To show the graphics,
uncheck the box next to Hide Background
Graphics.
4. Add, move, or delete any objects as
desired. In our example, we'll move the
purple rectangle to better show our new
logo..
5. If you want to change the arrangement
of the placeholders, you can move, resize,
or delete any of them. In our example, we'll
rearrange our placeholders to create more
room for text on the slide
To customize an existing slide layout:
In our example, our newly added logo overlaps a background graphic in the Content with
Caption Layout. We'll customize this layout to make room for the logo.
7. All slides using the layout will be updated.
6. When you're finished, click the Close
Master View command on the Slide
Master tab.
9392

Customizing text formatting:
You can also customize the text formatting from Slide Master view, including the font, text size,
color, alignment. For example, if you want to change the font for every title placeholder in your
pandresentation, you can modify the Master title style on the Slide Master.
Every title placeholder is connected to the master title style on the Slide Master. As you can see in
the example below, modifying the font on the Slide Master changed the title font on every slide.
25-3 Creating new slide layouts
One of the most powerful features of Slide Master view is the option to create new slide layouts.
This is an easy way to add interesting and unique slide layouts to an existing theme. You could even
use this feature to design an entirely new theme, as in the example below.
To insert a new slide layout:
2. From the Slide Master tab, click the Insert
Layout command.
3. A new slide layout will appear.
4. The layout will include Title and Footer
placeholders by default. Click the Title and
Footers boxes in the Master Layout group to
toggle these placeholders on and off.
5. Click the bottom half of the Insert
Placeholder command, then select the
desired placeholder type. We recommend
using the Content placeholder most of the
time, since it can be used for any type of slide
content.
6. Click and drag to draw the placeholder
on the slide. You can add more
placeholders, if desired.
7. Using the other tabs on the Ribbon, you
can add background graphics, shapes, or
pictures to the slide layout.
To rename a custom layout:
You'll want to give your custom layout a unique name so it will be easy to find.
2. Select the desired layout, then click the Rename command.
3. A dialog box will appear. Type the desired name, then click Rename.
9594

96
To use a custom layout:
Once you've created a custom slide layout, it's easy to add a new slide with that layout to your
presentation.
GCFLearning
GCFLearnFree.org is a free online educational website focusing on technology, job training,
reading, and math skills. The GCFLearnFree.org program offers 128 self-paced tutorials in
technology, Microsoft Office, work and career, reading, math, and everyday life. All tutorials
can be accessed with no registration required, but users can also create a free
GCFLearnFree.org account to track their learning history and create transcripts of completed
tutorials. Tutorials use video, sound, art, storytelling, and text.
Who we are
For more than a decade, the GCFLearnFree.org program has helped millions around the world
learn the essential skills they need to live and work in the 21st century. From Microsoft Office
and email to reading, math, and more, GCFLearnFree.org offers more than 180 topics,
including more than 2,000 lessons, 800+ videos, and 55+ interactives and games, completely
free.
If you’re willing to learn, we’re ready to teach
View one tutorial. Complete an entire class. We believe there's freedom in the ability to learn
what you want, when you want, regardless of income or circumstances. We offer tutorials on
the subjects you need to continue your education—or get it started.
Learn anywhere, anytime
Our classroom is open 24 hours a day and serves people from around the world. Join the 60
million people from all walks of life who have come to the site to learn the essential skills they
need to live and work in the 21st century. All you need is an Internet connection.
Always here. Always growing
Online education isn’t new. We’ve been here for more than 10 years, and today we offer
more tutorials than ever. When you take a class with us, you know it’s up to date—and that it
will be available later when you need to review.
A program of Goodwill Community Foundation® and Goodwill Industries of Eastern NC Inc.®
(GIENC®), all GCFLearnFree.org® educational content is designed and produced in the GCF
Global Learning® building in downtown Raleigh, NC.
Appendix
1. If you're currently in Slide Master view, click the Close
Master View command on the Slide Master tab.
2. From the Home tab, click the bottom half of the New
Slide command, then select the custom layout from the
menu that appears.
25-4 Using custom layouts in other presentations
When you modify the master or layouts in Slide Master view, you're actually creating a custom
version of the current theme. If you want to apply the theme to other presentations, you'll need to
save it.
To save a theme:
・ Select the Slide Master tab, click the Themes command, then select Save Current Theme from
the drop-down menu.
97

Comp hout(mso power_point)

More Related Content

What's hot

Similar to Comp hout(mso power_point)

More from nkanazawa

Recently uploaded

Comp hout(mso power_point)
