Chep2012
This document provides a timeline of middleware evolution from 1999 to present. It begins with Purdue University Network Computing Hubs (PUNCH) in 1999 and covers early grid middleware like the Globus Toolkit. It then discusses virtualization research like InVIGO and Nimbus. Major cloud computing platforms like Amazon Web Services, Eucalyptus, OpenStack, and CloudStack are noted from 2008-2012. The author discusses deploying infrastructure as a service on the Open Science Grid and using OpenFlow for dynamic networking. In conclusion, the author argues that virtualization has matured and clouds fulfill the vision of grids by providing on-demand, elastic resources and data access.
More Related Content
![Support, Monitoring, Continuous Improvement & Scaling Agentic Automation [3/3]](https://cdn.slidesharecdn.com/ss_thumbnails/agenticcommunityseries-day3-cfd-251120170304-ddef8112-thumbnail.jpg?width=640&height=640&fit=bounds)
Chep2012
- 1. Middleware Evolution: fromGrids to Clouds, a non-HEP Perspective. Dr. Sebastien Goasguen Clemson University

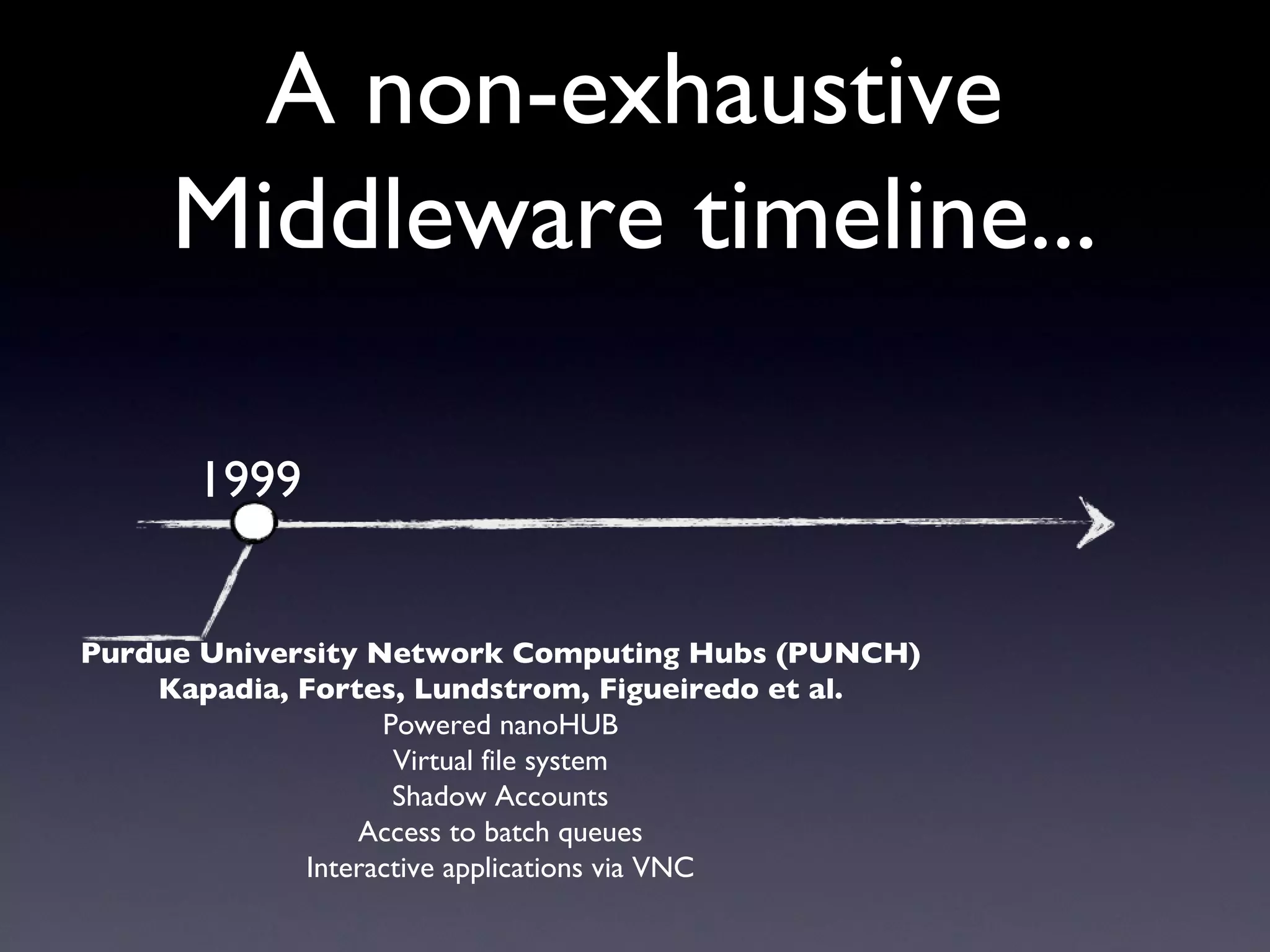

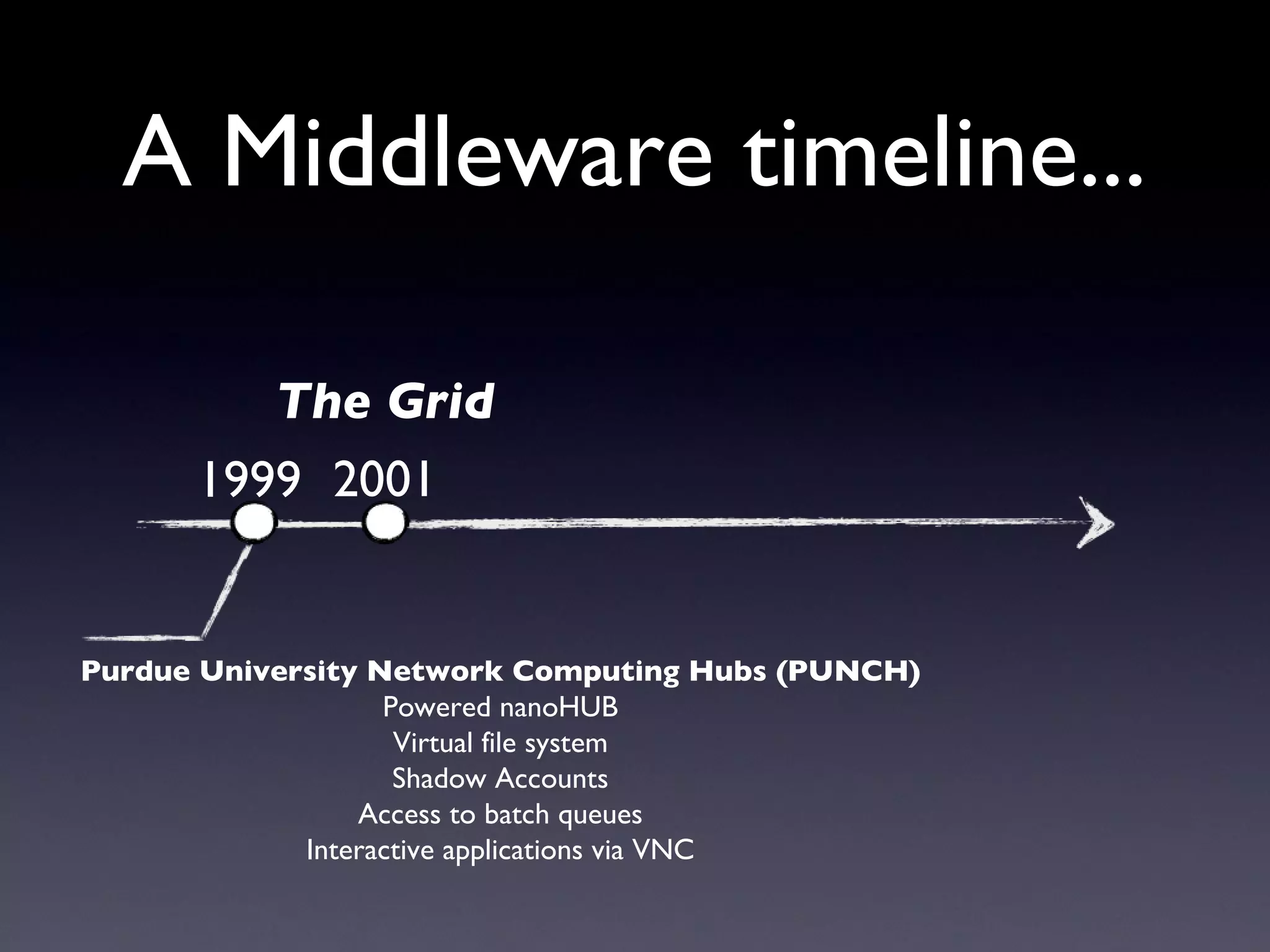

- 2. A non-exhaustive Middleware timeline... 1999 Purdue University Network Computing Hubs (PUNCH) Kapadia, Fortes, Lundstrom, Figueiredo et al. Powered nanoHUB Virtual file system Shadow Accounts Access to batch queues Interactive applications via VNC
- 3. A Middleware timeline... The Grid 1999 2001 Purdue University Network Computing Hubs (PUNCH) Powered nanoHUB Virtual file system Shadow Accounts Access to batch queues Interactive applications via VNC
- 4.

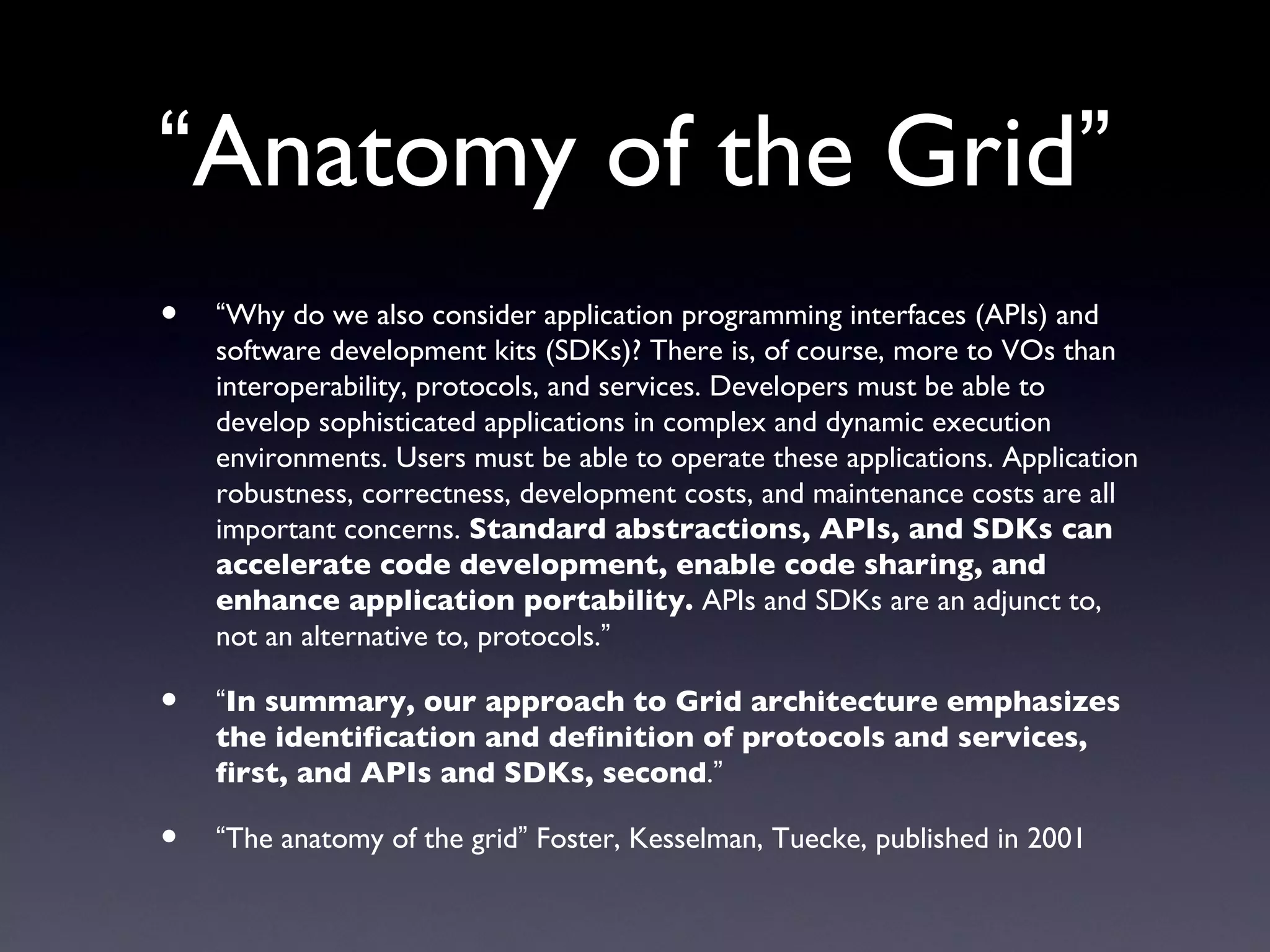

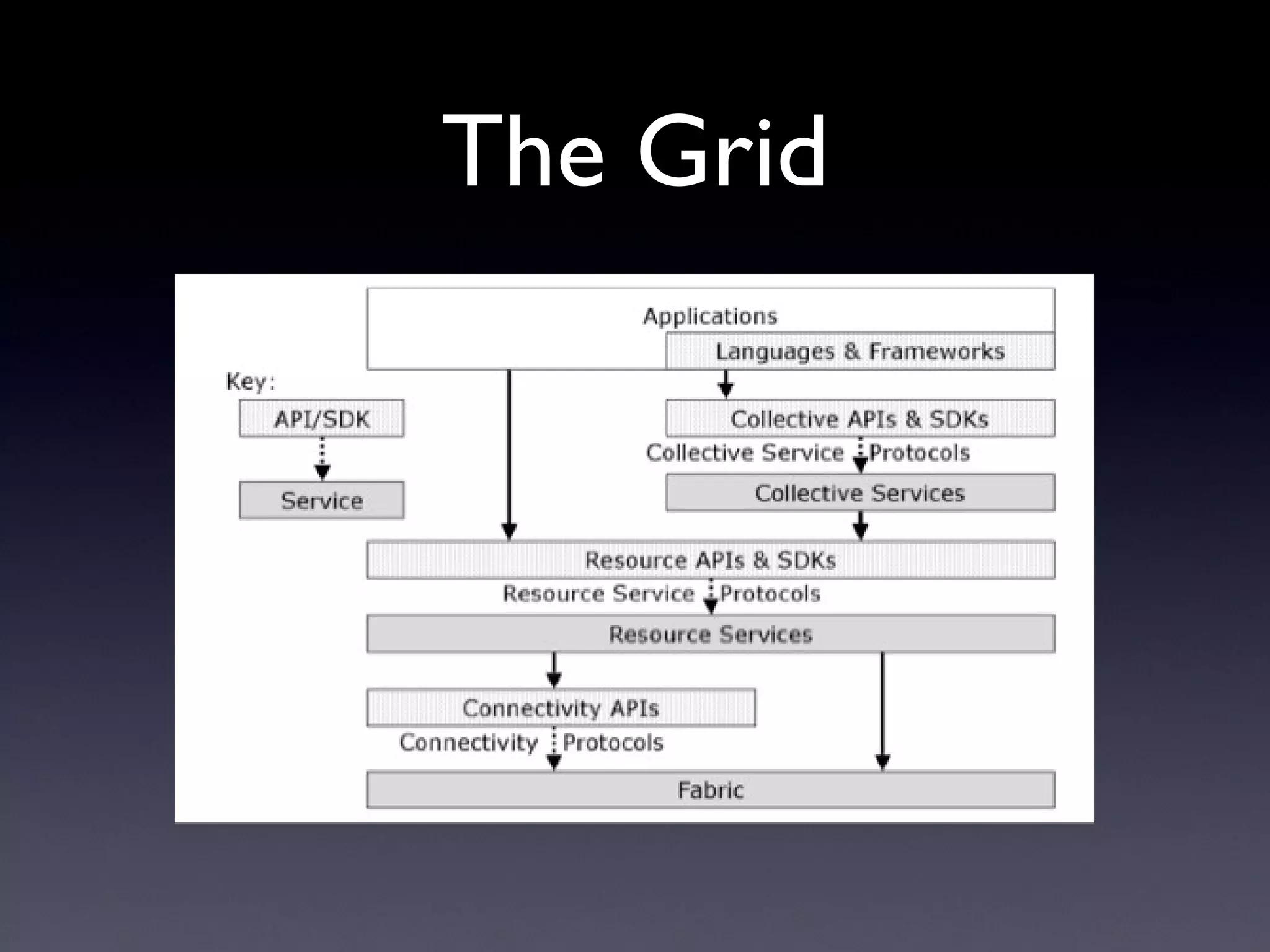

- 5. “Anatomy of theGrid” • “Why do we also consider application programming interfaces (APIs) and software development kits (SDKs)? There is, of course, more to VOs than interoperability, protocols, and services. Developers must be able to develop sophisticated applications in complex and dynamic execution environments. Users must be able to operate these applications. Application robustness, correctness, development costs, and maintenance costs are all important concerns. Standard abstractions, APIs, and SDKs can accelerate code development, enable code sharing, and enhance application portability. APIs and SDKs are an adjunct to, not an alternative to, protocols.” • “In summary, our approach to Grid architecture emphasizes the identification and definition of protocols and services, first, and APIs and SDKs, second.” • “The anatomy of the grid” Foster, Kesselman, Tuecke, published in 2001

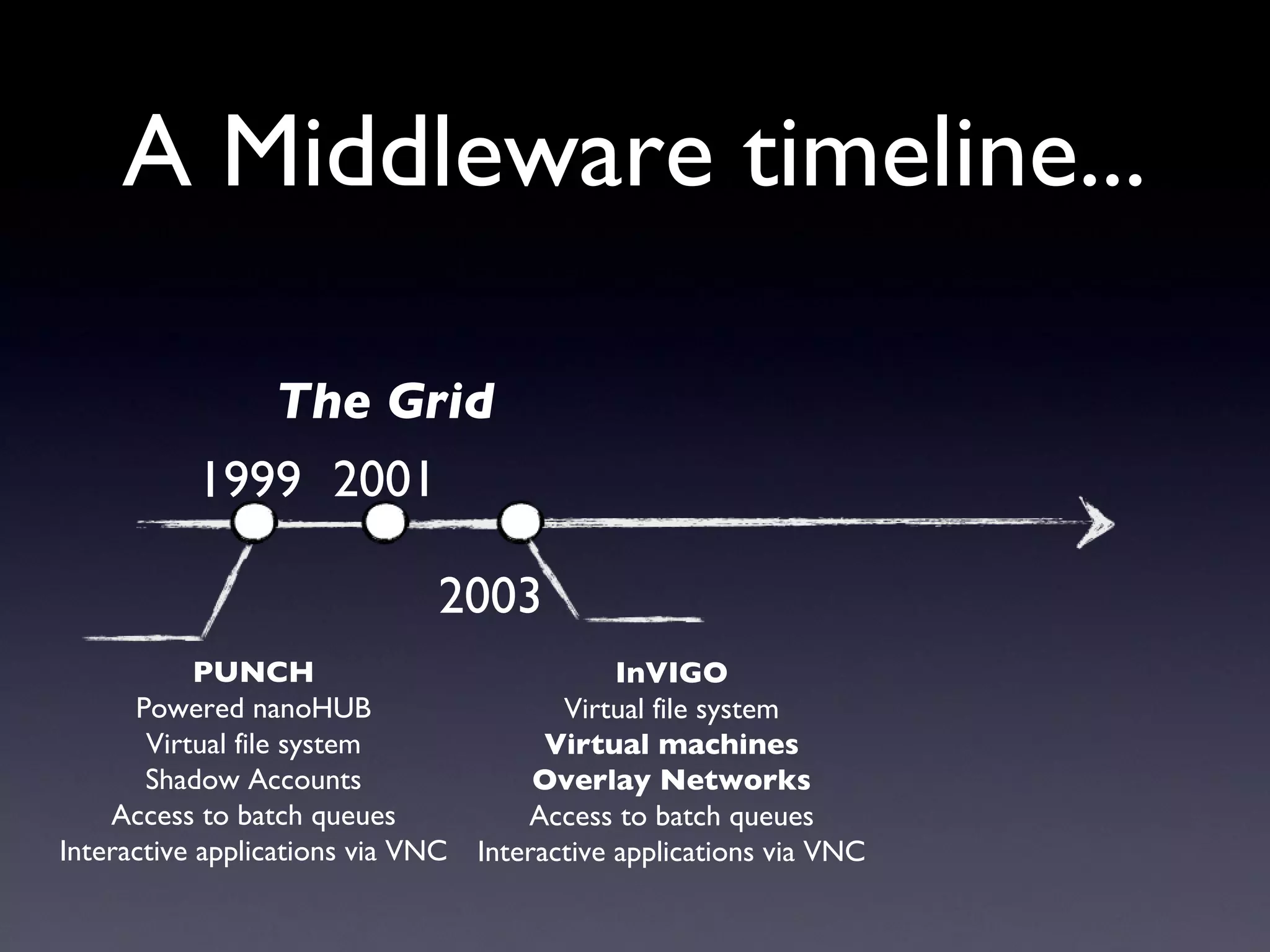

- 6. A Middleware timeline... The Grid 1999 2001 2003 PUNCH InVIGO Powered nanoHUB Virtual file system Virtual file system Virtual machines Shadow Accounts Overlay Networks Access to batch queues Access to batch queues Interactive applications via VNC Interactive applications via VNC

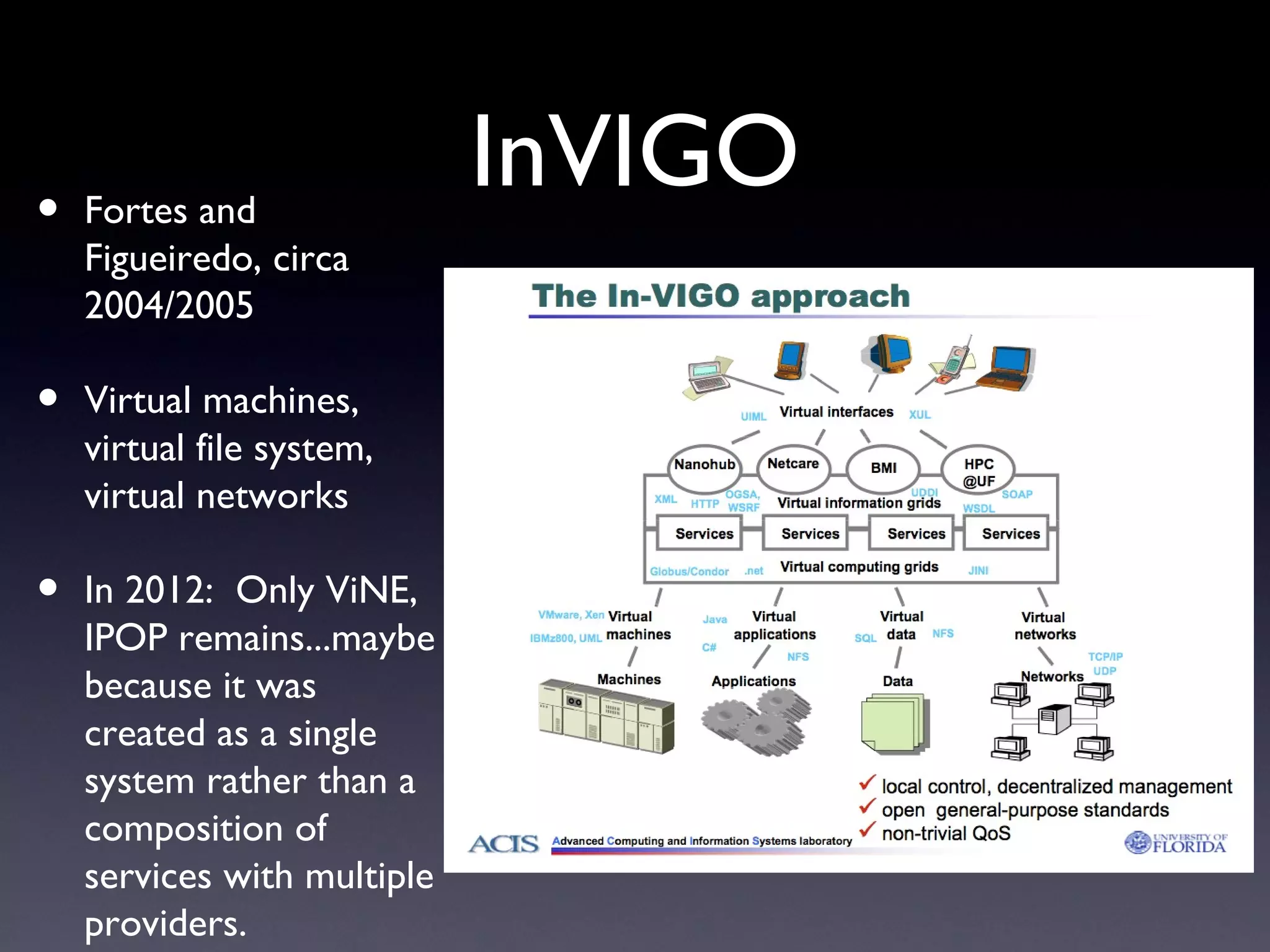

- 7. • Fortes and InVIGO Figueiredo, circa 2004/2005 • Virtual machines, virtual file system, virtual networks • In 2012: Only ViNE, IPOP remains...maybe because it was created as a single system rather than a composition of services with multiple providers.

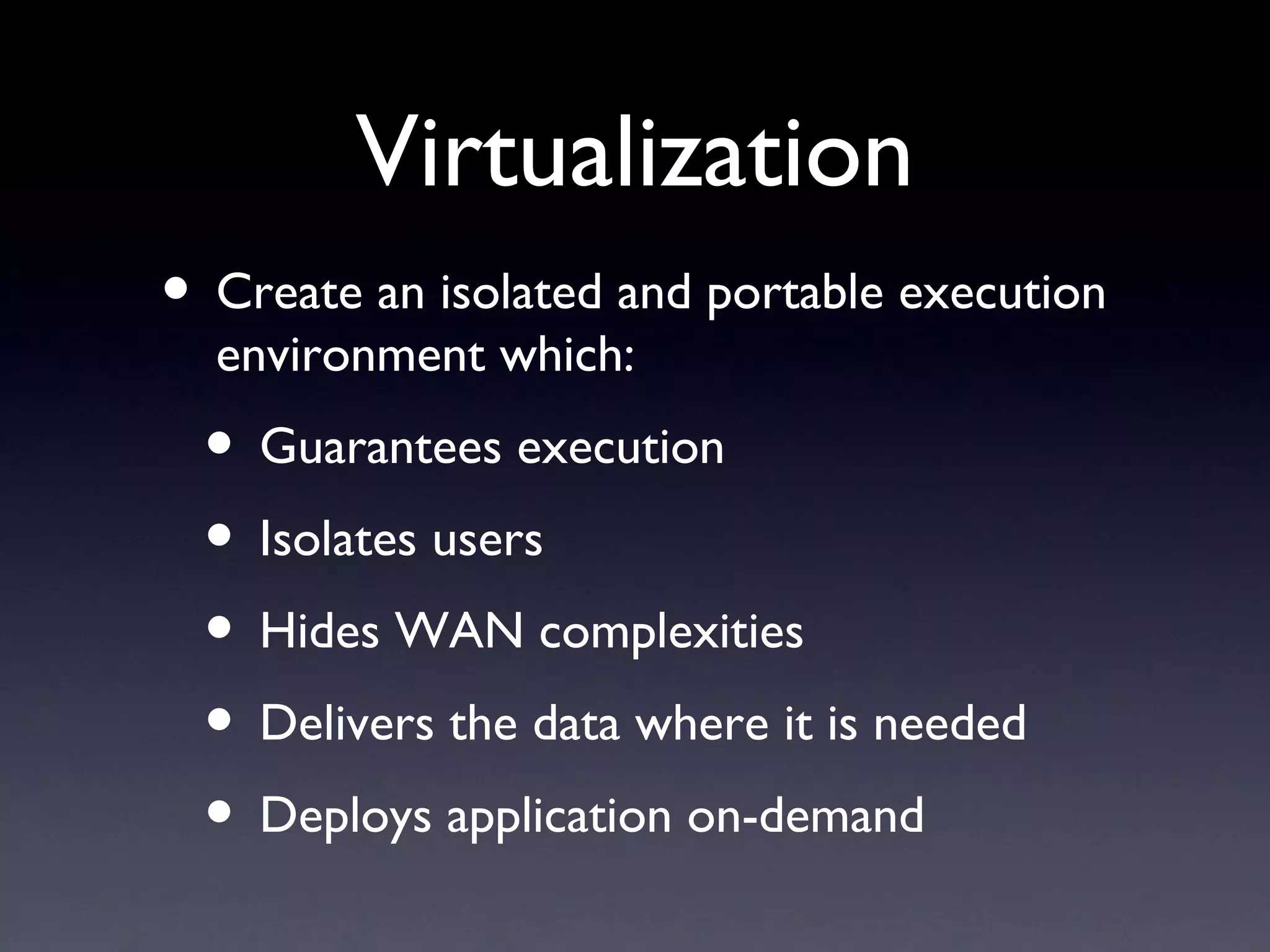

- 8. Virtualization • Create anisolated and portable execution environment which: • Guarantees execution • Isolates users • Hides WAN complexities • Delivers the data where it is needed • Deploys application on-demand

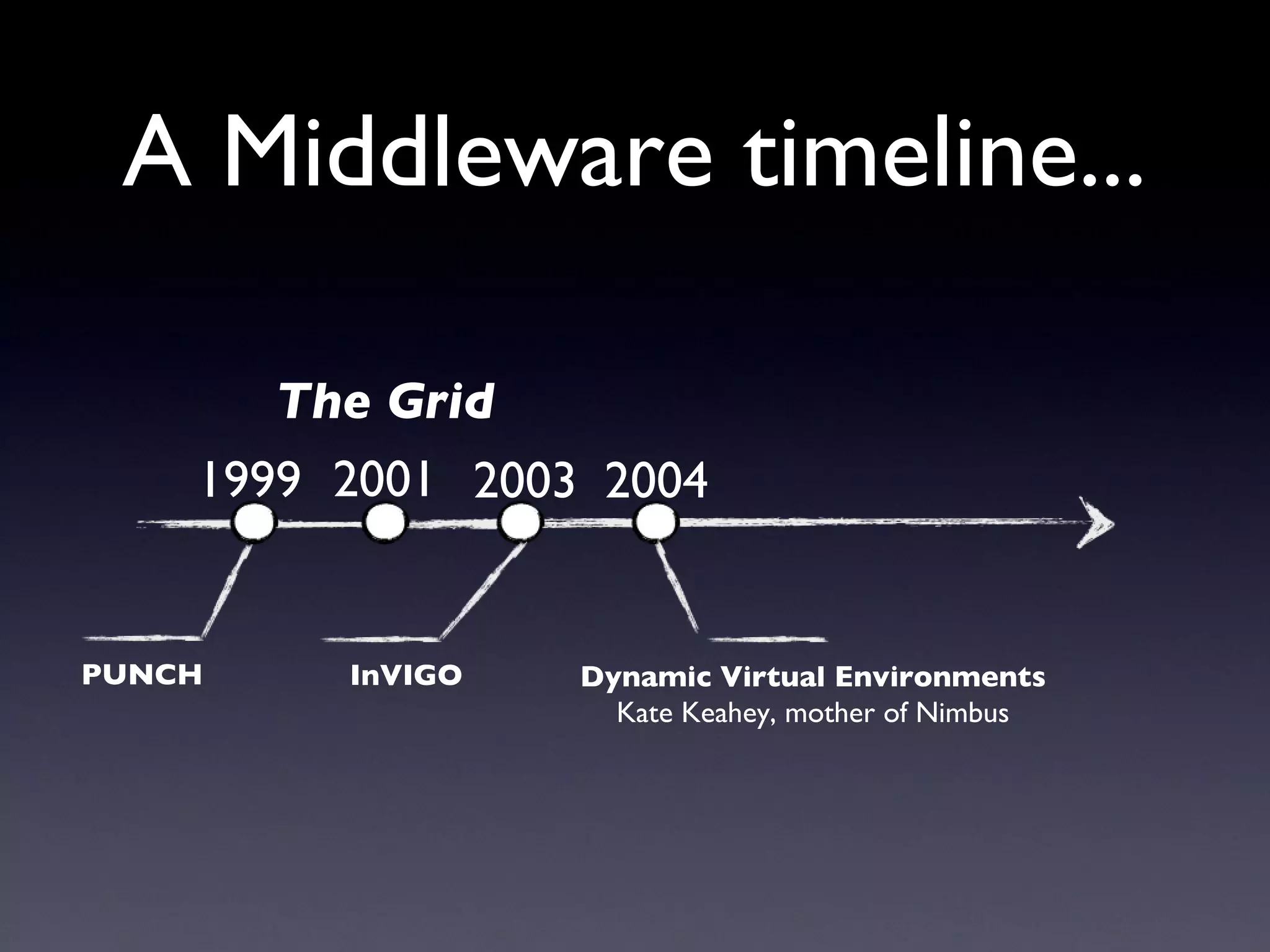

- 9. A Middleware timeline... The Grid 1999 2001 2003 2004 PUNCH InVIGO Dynamic Virtual Environments Kate Keahey, mother of Nimbus

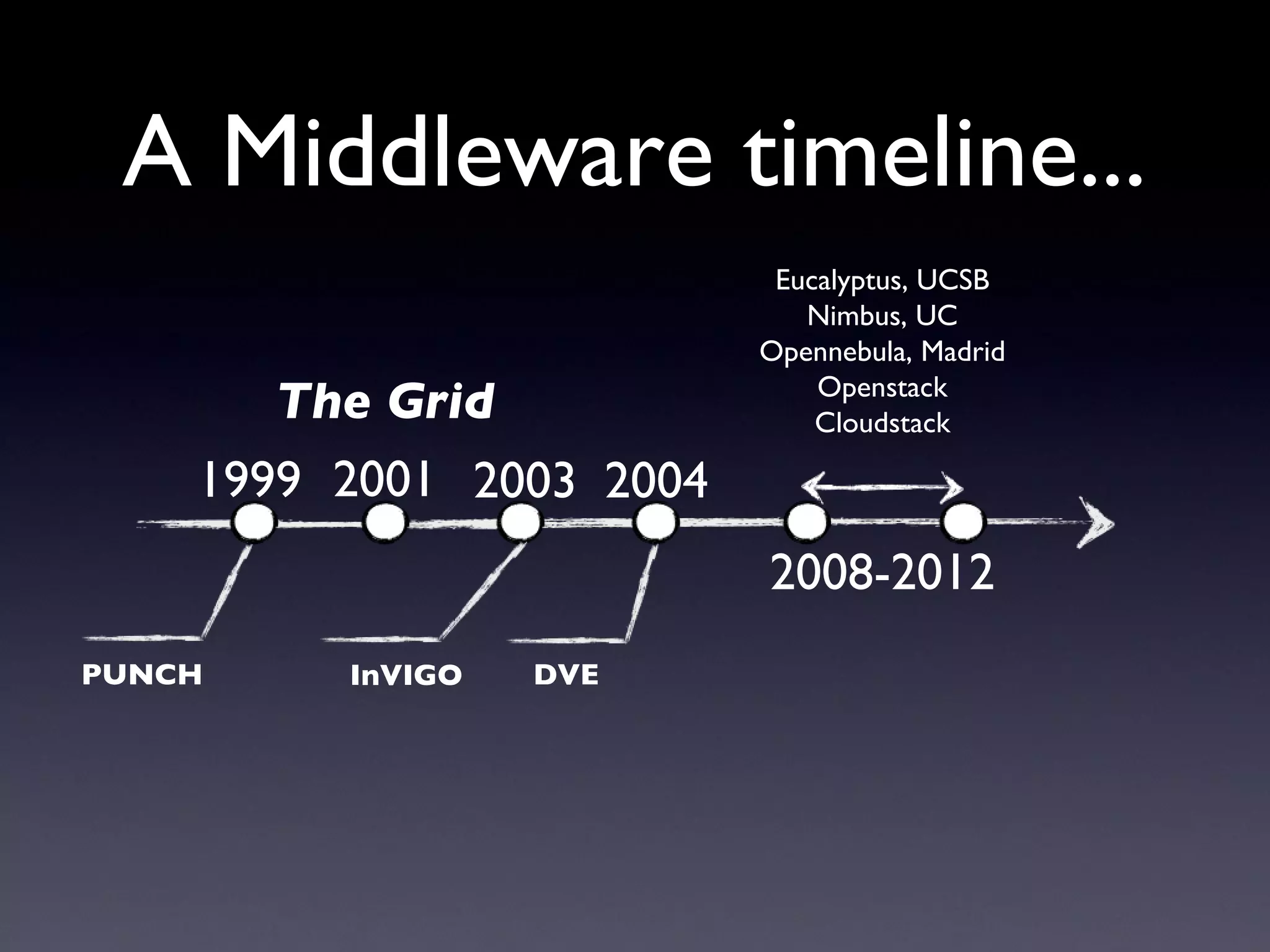

- 10. A Middleware timeline... Eucalyptus, UCSB Nimbus, UC Opennebula, Madrid Openstack The Grid Cloudstack 1999 2001 2003 2004 2008-2012 PUNCH InVIGO DVE

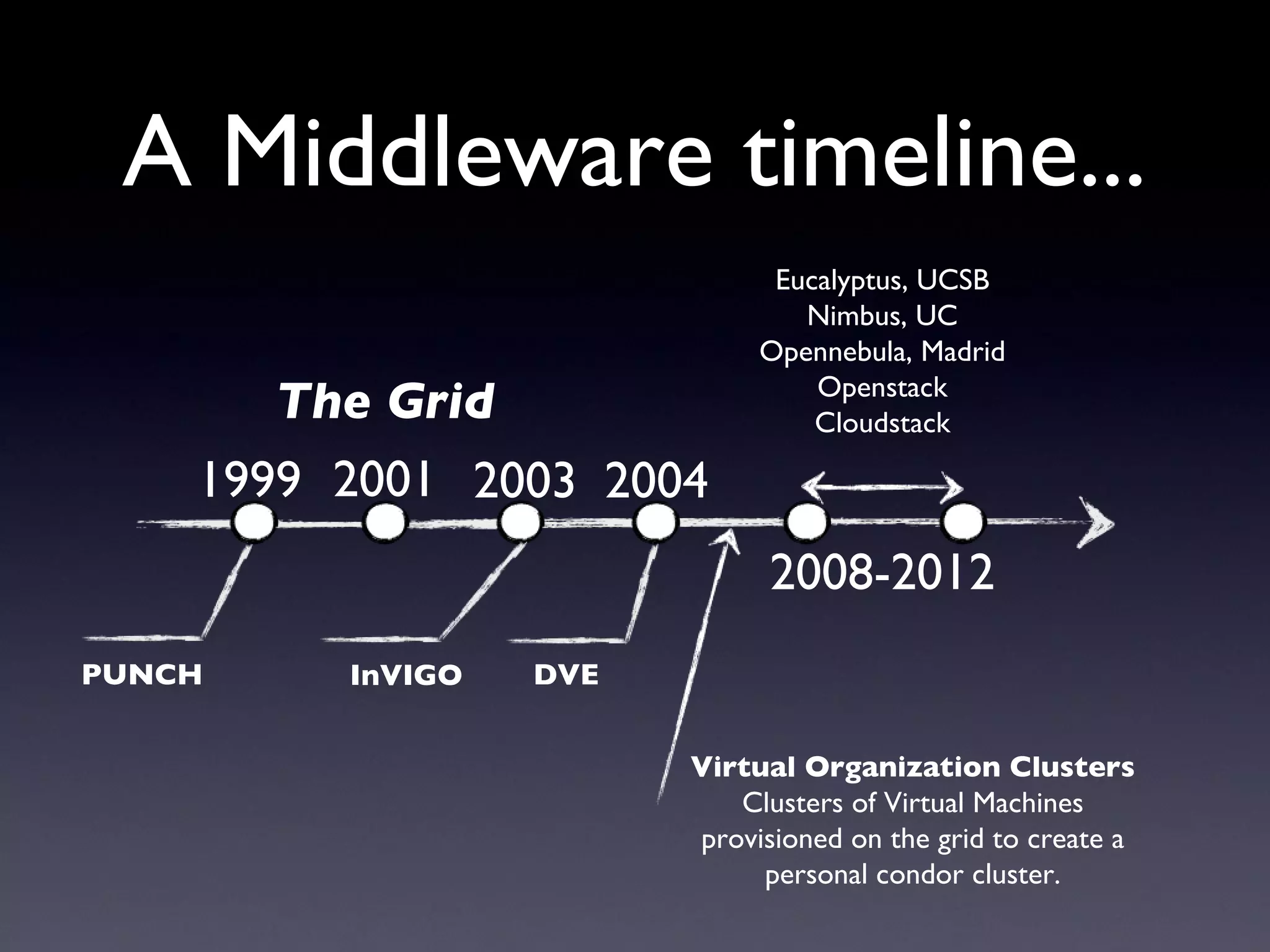

- 11. A Middleware timeline... Eucalyptus, UCSB Nimbus, UC Opennebula, Madrid Openstack The Grid Cloudstack 1999 2001 2003 2004 2008-2012 PUNCH InVIGO DVE Virtual Organization Clusters Clusters of Virtual Machines provisioned on the grid to create a personal condor cluster.

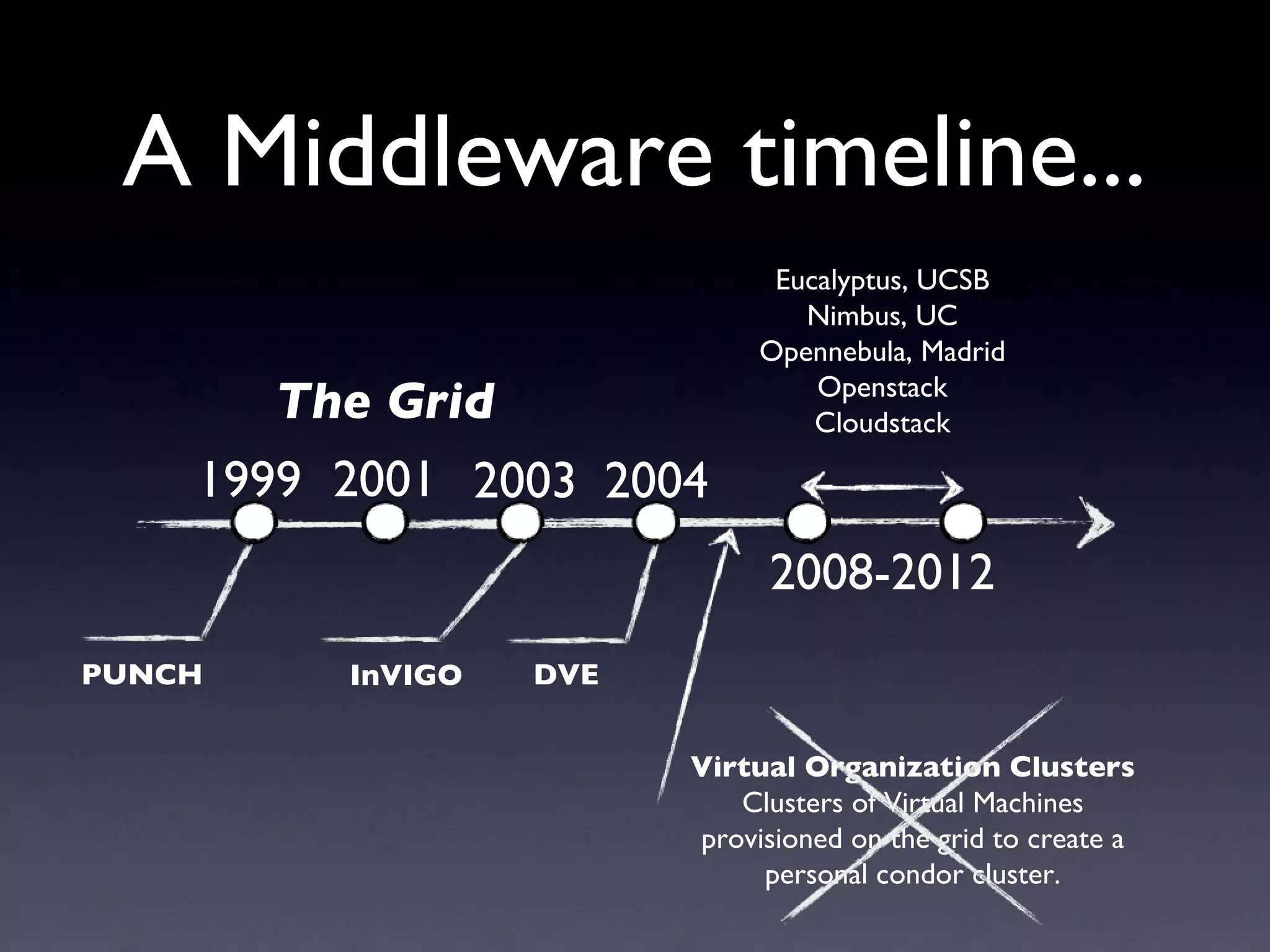

- 12. A Middleware timeline... Eucalyptus, UCSB Nimbus, UC Opennebula, Madrid Openstack The Grid Cloudstack 1999 2001 2003 2004 2008-2012 PUNCH InVIGO DVE Virtual Organization Clusters Clusters of Virtual Machines provisioned on the grid to create a personal condor cluster.

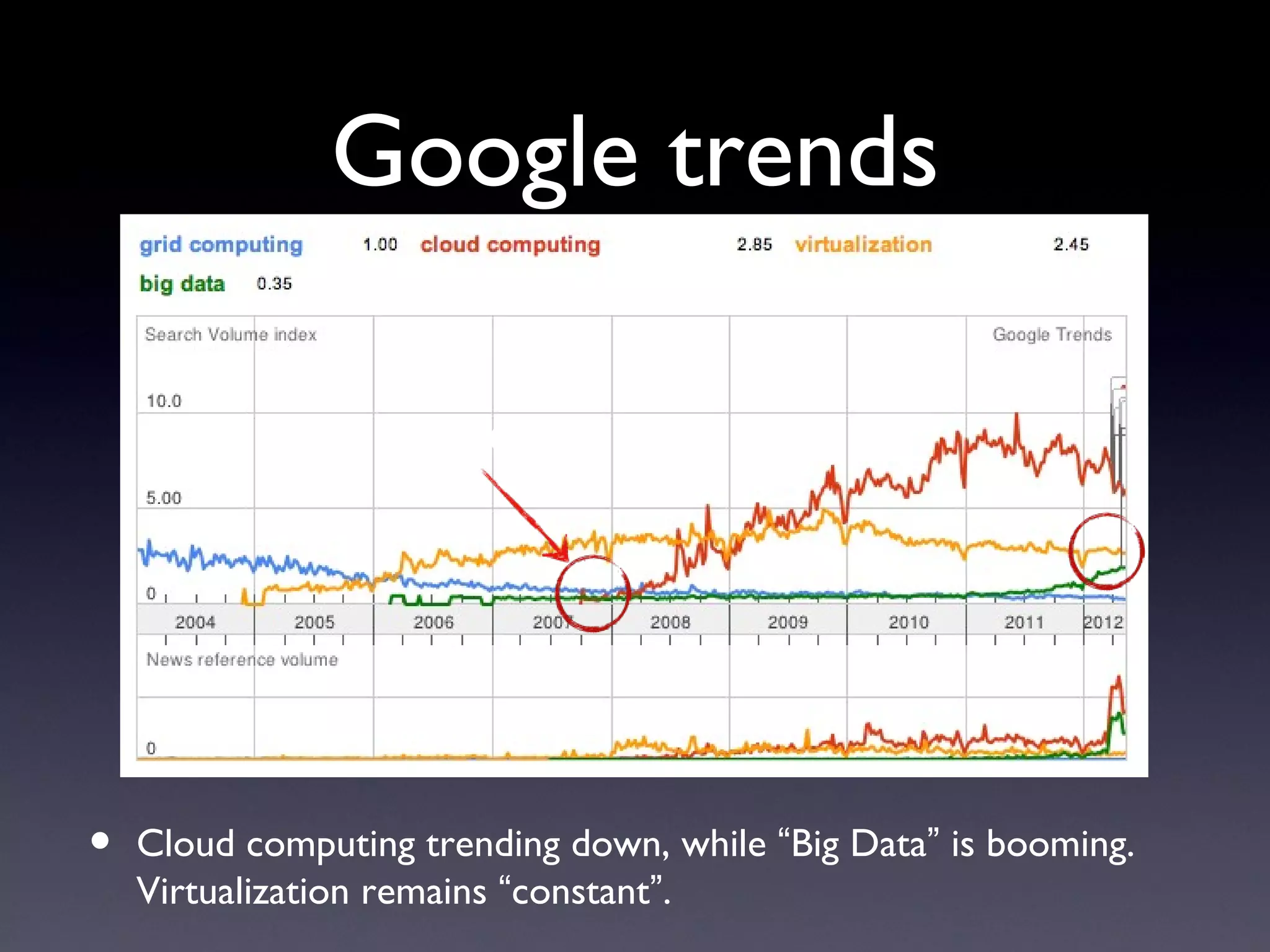

- 13. Google trends VOCs • Cloud computing trending down, while “Big Data” is booming. Virtualization remains “constant”.

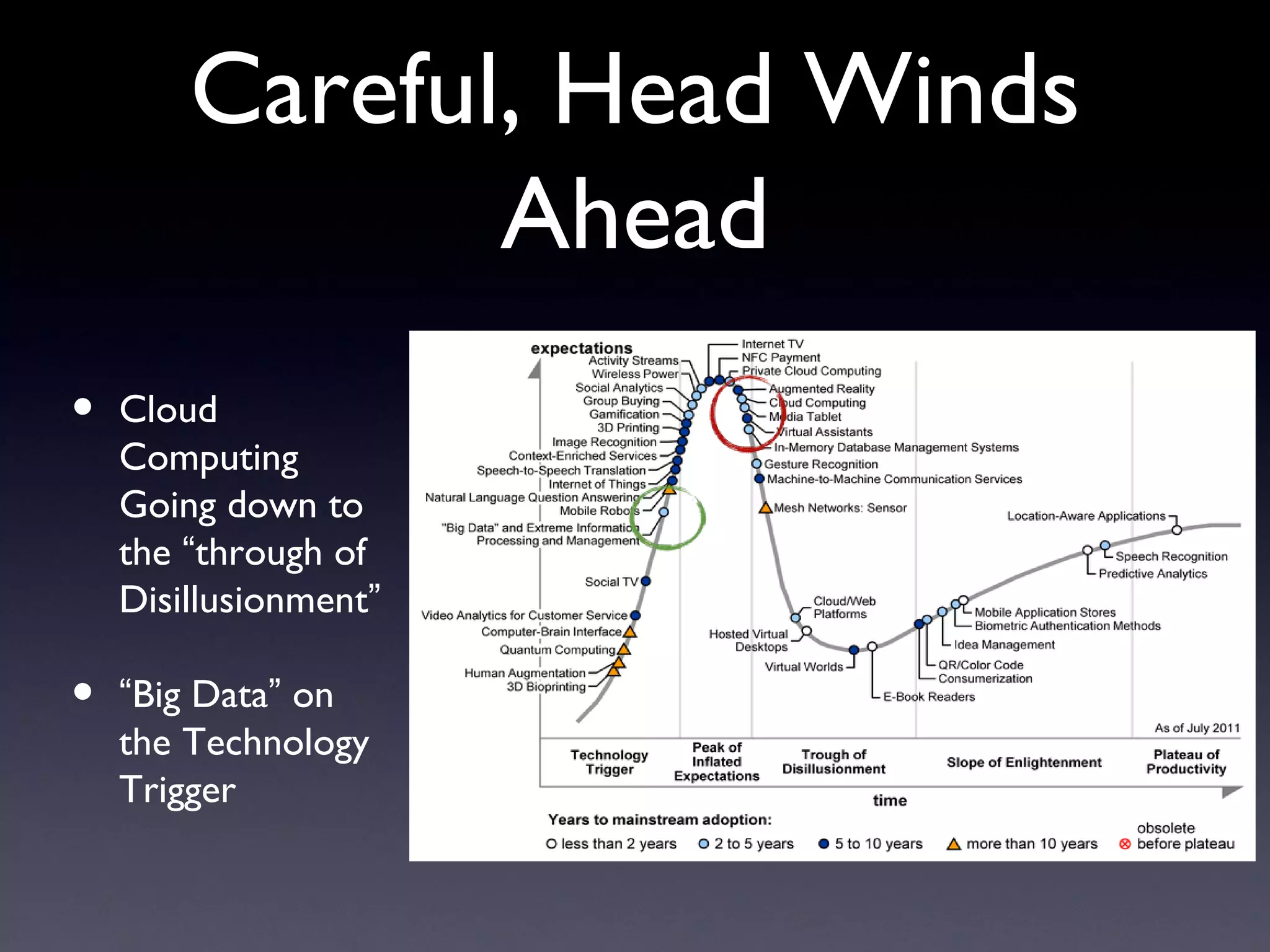

- 14. Careful, Head Winds Ahead • Cloud Computing Going down to the “through of Disillusionment” • “Big Data” on the Technology Trigger
- 15. Clouds are inProduction • Amazon Web Services (AWS), reported to reach $1B business in 2012. • http://www.geekwire.com/2011/amazon-web-services-billiondollar-business/ • Zynga, reportedly spent $100M per year on AWS. Moved to their own cloud (zcloud). Used to deploy on EC2 and do reverse cloud bursting. Now “owning the base and renting the peak”. Zynga can add as many as 1,000 new servers to accommodate a surge of users in a 24-hour period. The company’s servers can deliver a petabyte of data to users each day. • http://www.wired.com/cloudline/2012/03/zynga-zcloud/
- 16. Proven scalability • Cyclecloud provisioned a 50,000 cores on EC2 (April 2012). • LXCLOUD@CERN demonstrated management of 16,000 virtual machines using Opennebula (Summer 2010). • Cloudstack (now an Apache incubator project) planning scalability to 50,000 hypervisors by the end of 2012. • Hadoop scales to 30 PB (at Facebook, ~March 2011) • Q1 2012, Amazon S3 was 905 Billion objects, routinely accessed at 650,000 requests per second.

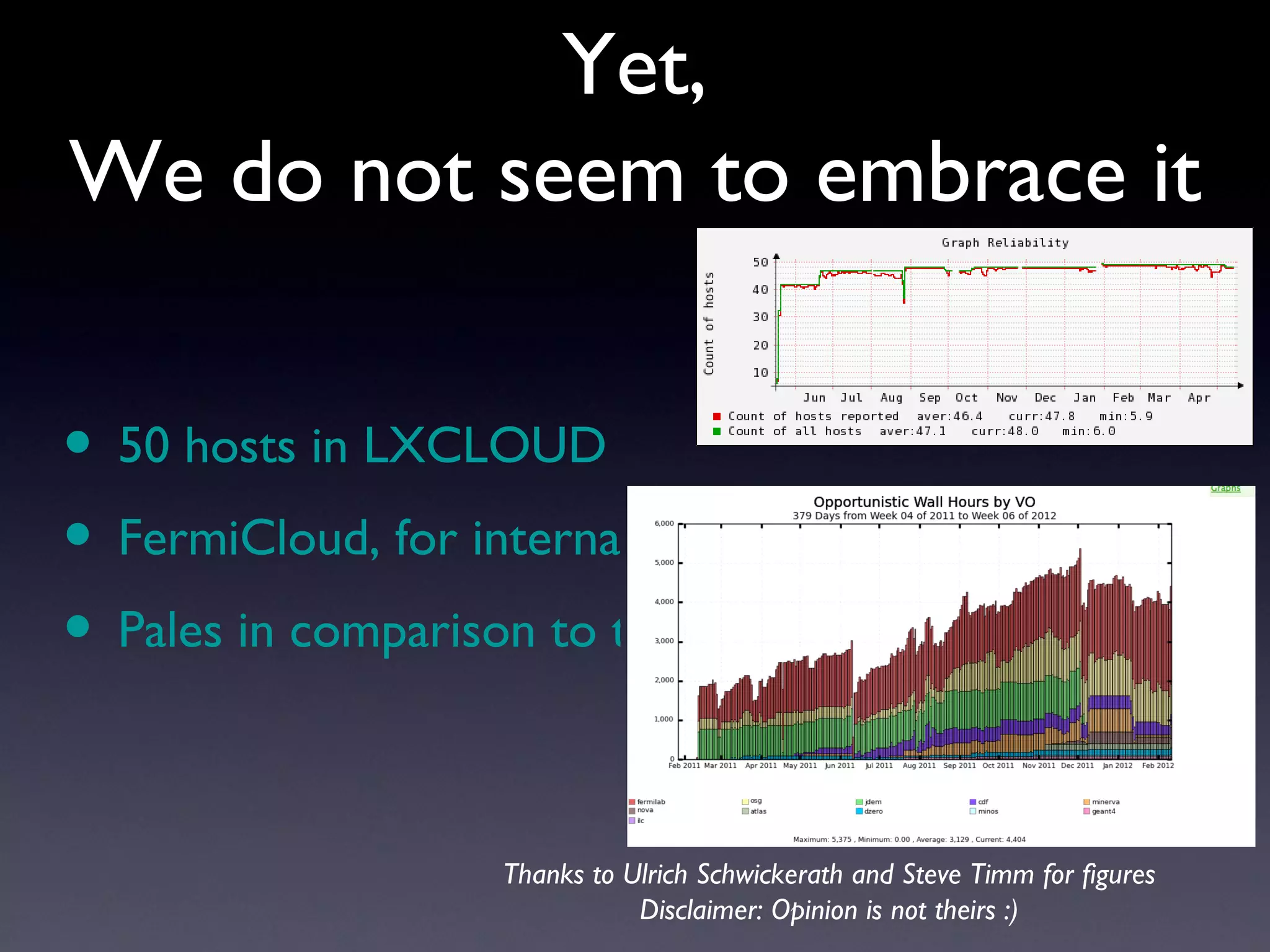

- 17. Yet, We do notseem to embrace it • 50 hosts in LXCLOUD running VMs for batch process • FermiCloud, for internal use only, ~200 VMs • Pales in comparison to the scale seen in industry Thanks to Ulrich Schwickerath and Steve Timm for figures Disclaimer: Opinion is not theirs :)
- 18. A clue fromIndustry • KPMG Survey, “Clarity in the Cloud: Business Adoption” Text “I don’t believe everyone yet fully realizes how much this stimulates innovation, how many opportunities will be presented, how many new challenges will need to be addressed, and how much change is coming”, Pat Howard, VP Global Services, IBM Partner

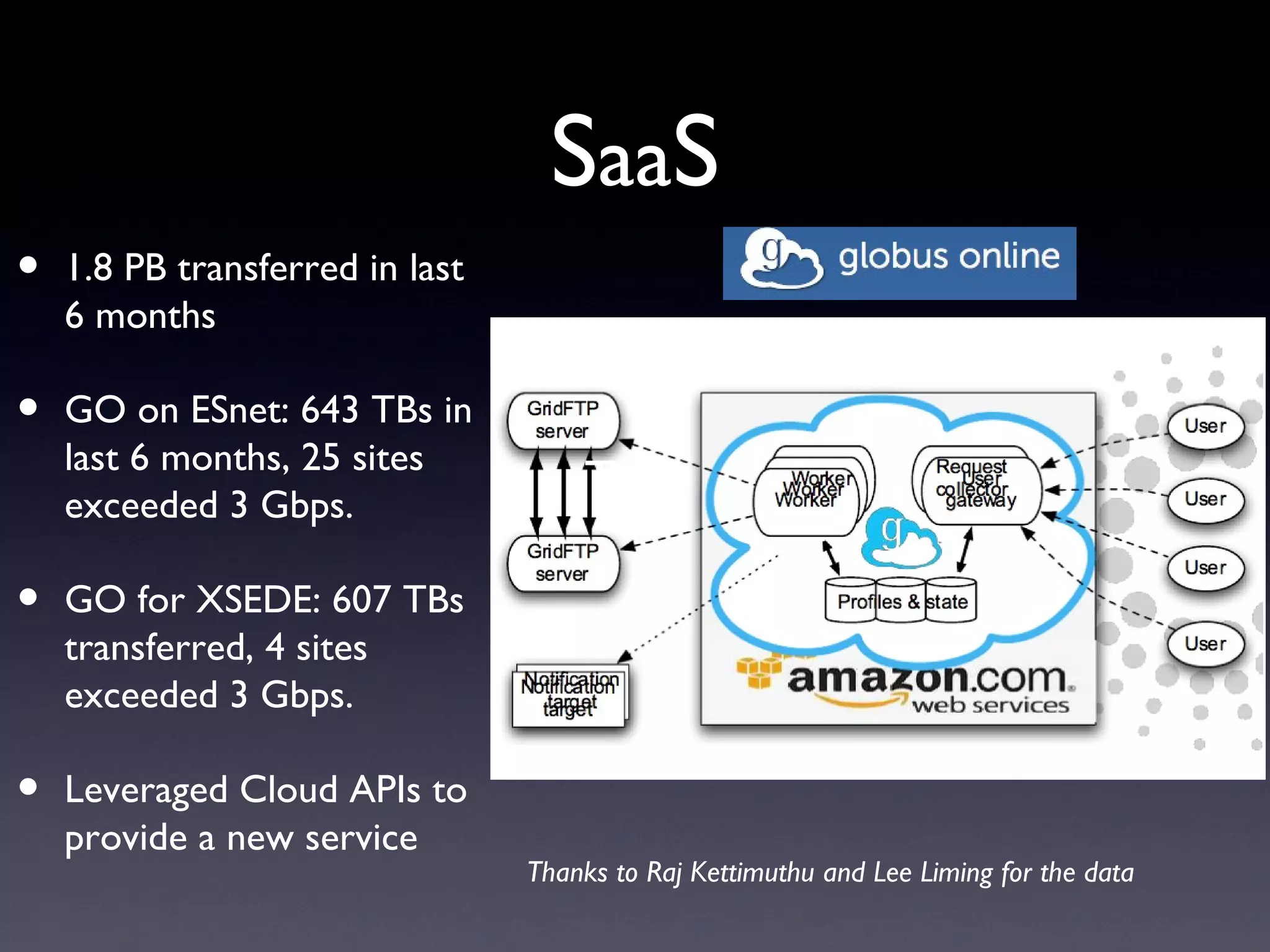

- 19. SaaS • 1.8 PB transferred in last 6 months • GO on ESnet: 643 TBs in last 6 months, 25 sites exceeded 3 Gbps. Text • GO for XSEDE: 607 TBs transferred, 4 sites exceeded 3 Gbps. • Leveraged Cloud APIs to provide a new service Thanks to Raj Kettimuthu and Lee Liming for the data
- 20. PaaS • Azure • Amazon Bean Stalk • Heroku, PaaS for facebook applications • Openshift, now open source (May 2012) PaaS have not really seen much success in the scientific community, but could be used to create new types of scalable applications

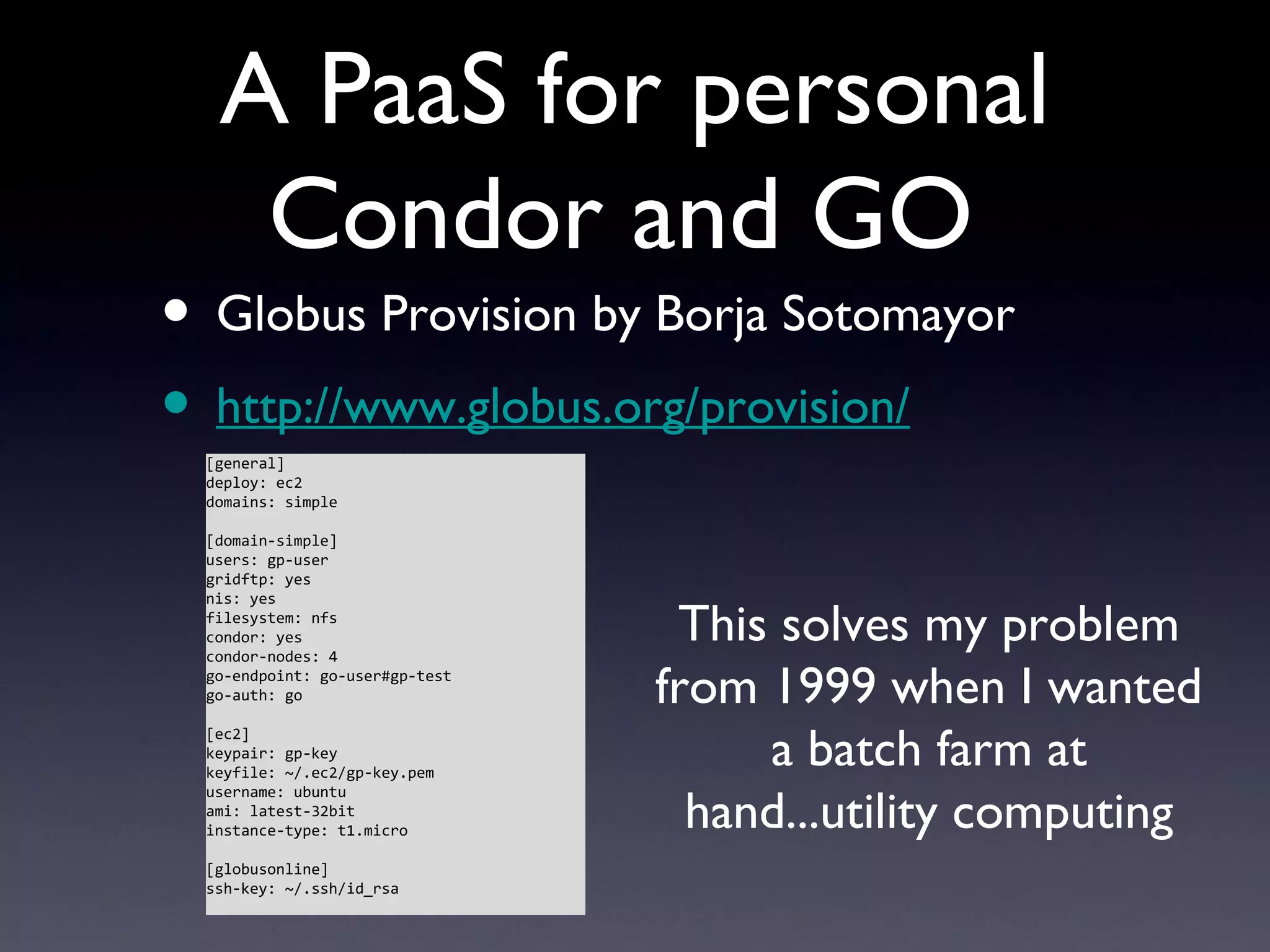

- 21. A PaaS forpersonal Condor and GO • Globus Provision by Borja Sotomayor • http://www.globus.org/provision/ [general] deploy: ec2 domains: simple [domain-simple] users: gp-user gridftp: yes nis: yes filesystem: nfs condor: yes condor-nodes: 4 This solves my problem go-endpoint: go-user#gp-test go-auth: go from 1999 when I wanted a batch farm at [ec2] keypair: gp-key keyfile: ~/.ec2/gp-key.pem hand...utility computing username: ubuntu ami: latest-32bit instance-type: t1.micro [globusonline] ssh-key: ~/.ssh/id_rsa

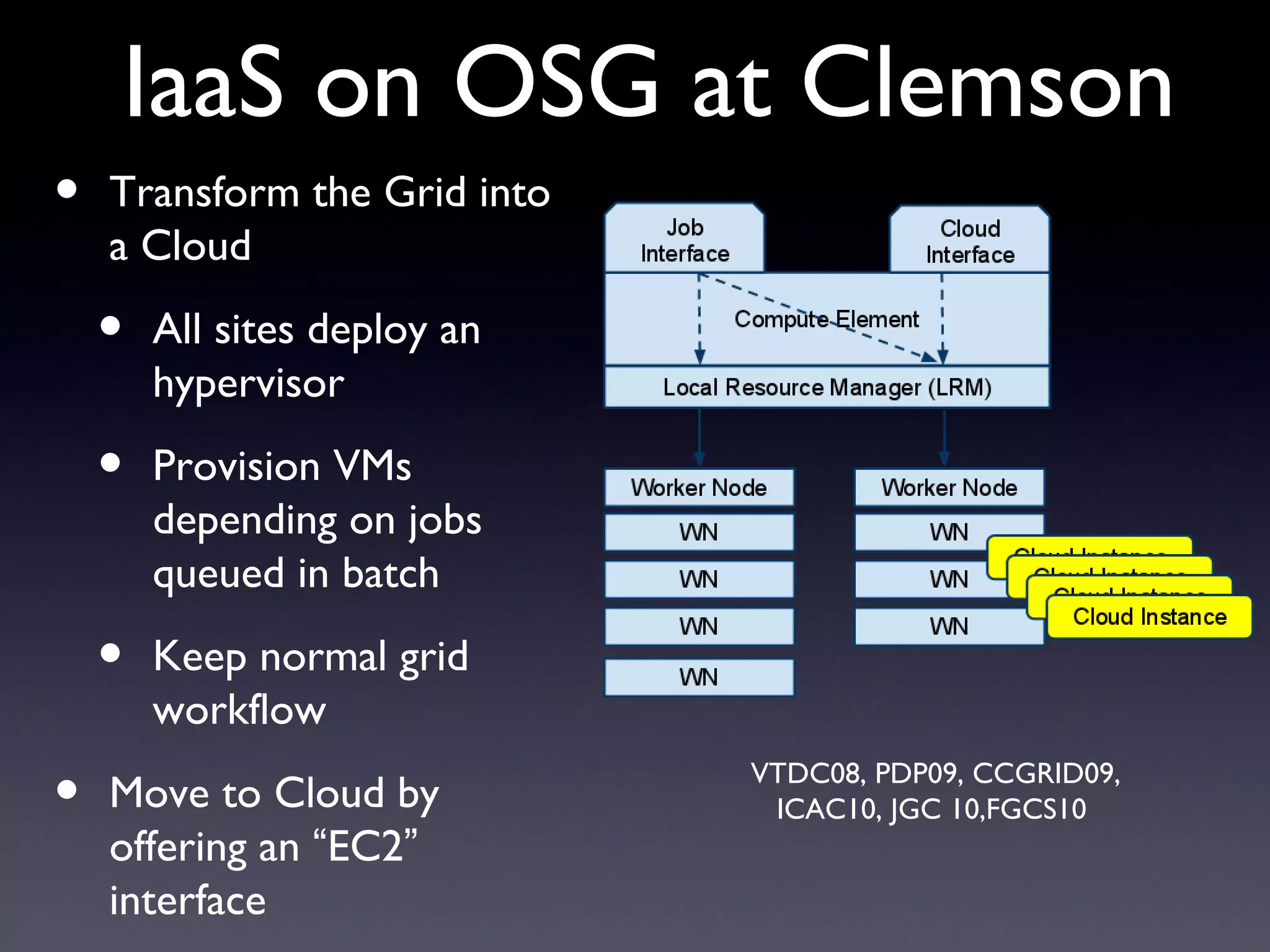

- 22. IaaS on OSGat Clemson • Transform the Grid into a Cloud • All sites deploy an hypervisor • Provision VMs depending on jobs queued in batch • Keep normal grid workflow • Move to Cloud by VTDC08, PDP09, CCGRID09, ICAC10, JGC 10,FGCS10 offering an “EC2” interface

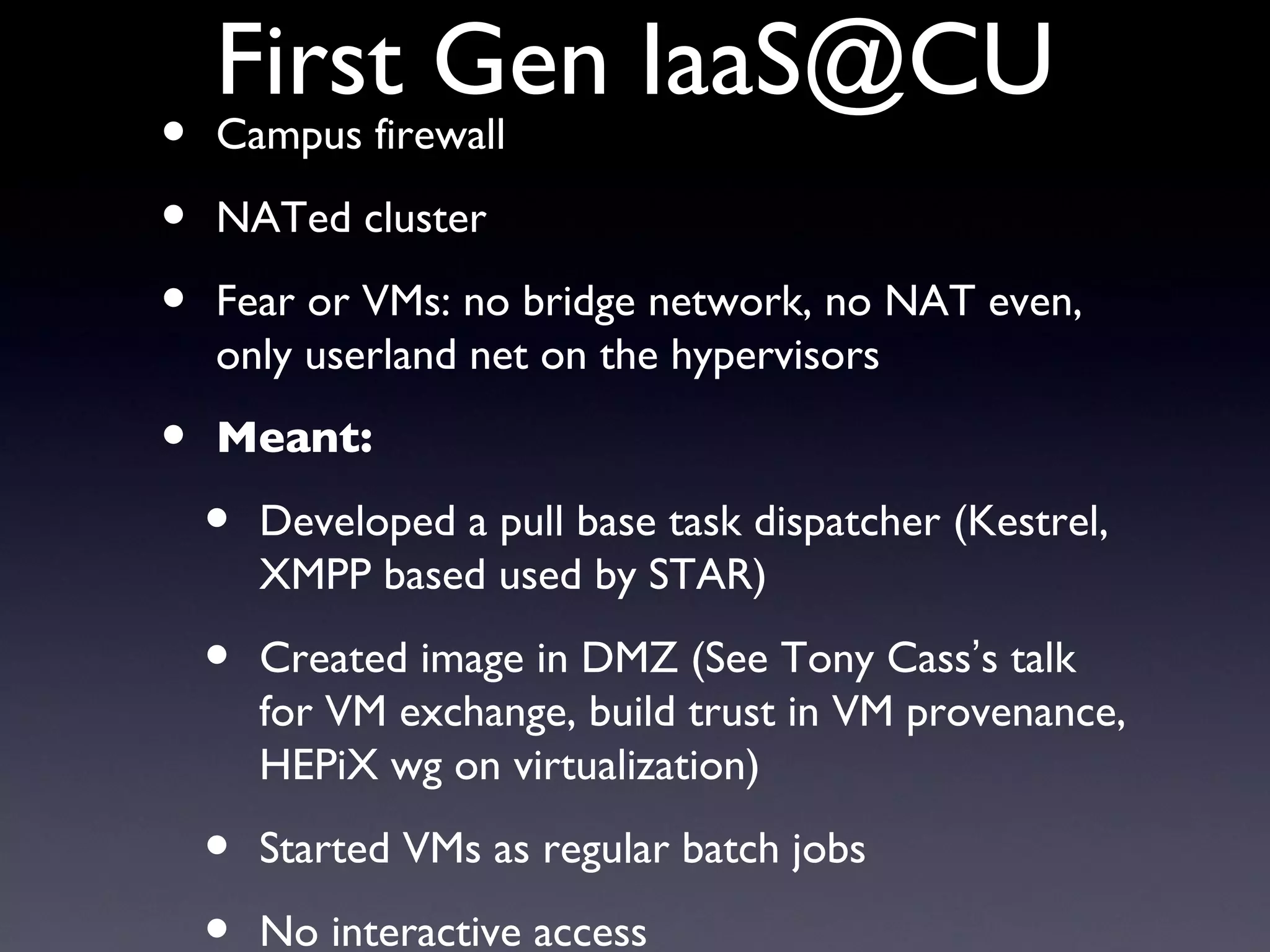

- 23. First Gen IaaS@CU • Campus firewall • NATed cluster • Fear or VMs: no bridge network, no NAT even, only userland net on the hypervisors • Meant: • Developed a pull base task dispatcher (Kestrel, XMPP based used by STAR) • Created image in DMZ (See Tony Cass’s talk for VM exchange, build trust in VM provenance, HEPiX wg on virtualization) • Started VMs as regular batch jobs No interactive access

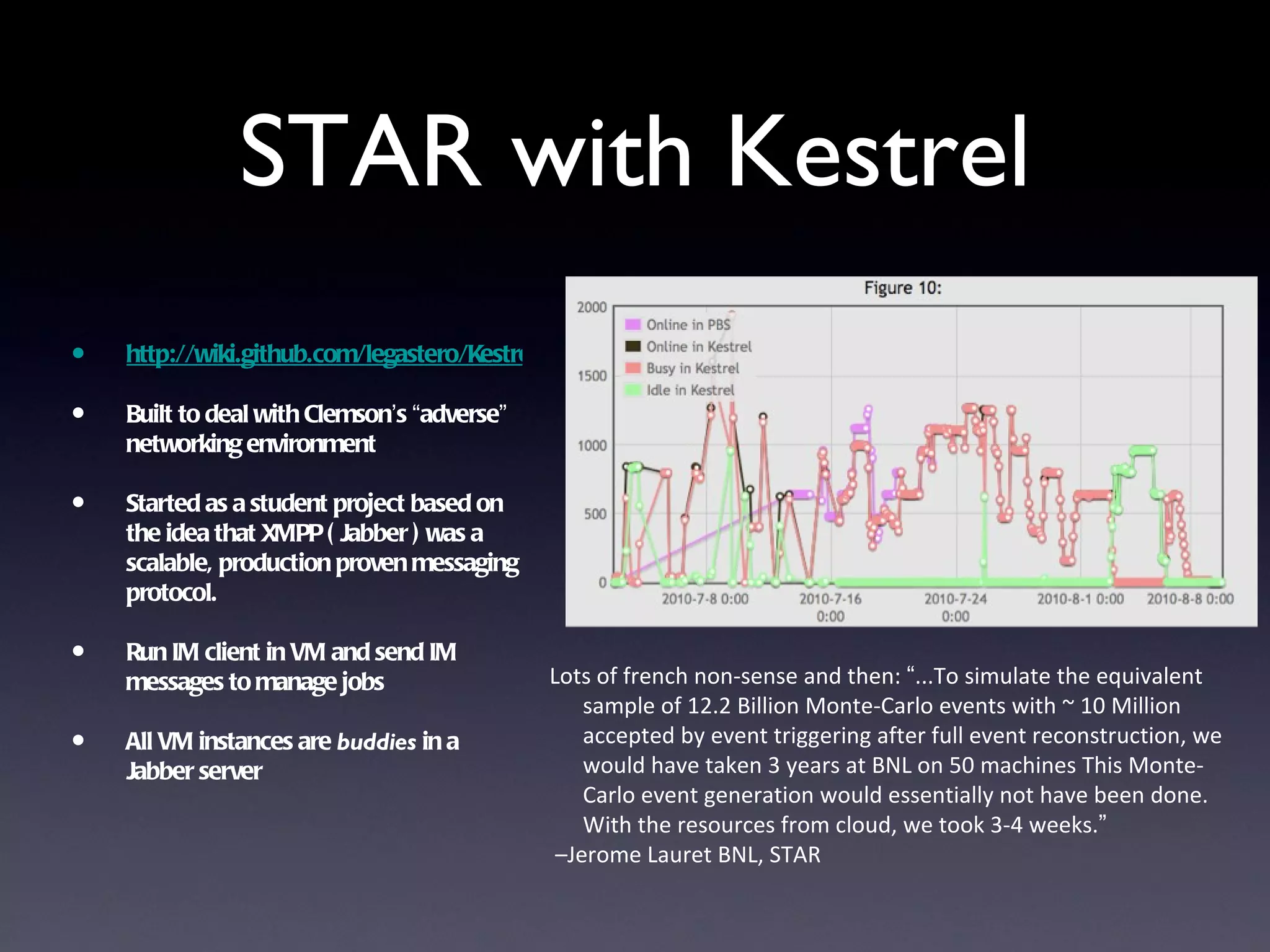

- 24. STAR with Kestrel • http://wiki.github.com/legastero/Kestrel/ • Built to deal with Clemson’s “adverse” networking environment • Started as a student project based on the idea that XMPP ( Jabber ) was a scalable, production proven messaging protocol. • Run IM client in VM and send IM Lots of french non-sense and then: “...To simulate the equivalent messages to manage jobs sample of 12.2 Billion Monte-Carlo events with ~ 10 Million • All VM instances are buddies in a accepted by event triggering after full event reconstruction, we would have taken 3 years at BNL on 50 machines This Monte- Jabber server Carlo event generation would essentially not have been done. With the resources from cloud, we took 3-4 weeks.” –Jerome Lauret BNL, STAR

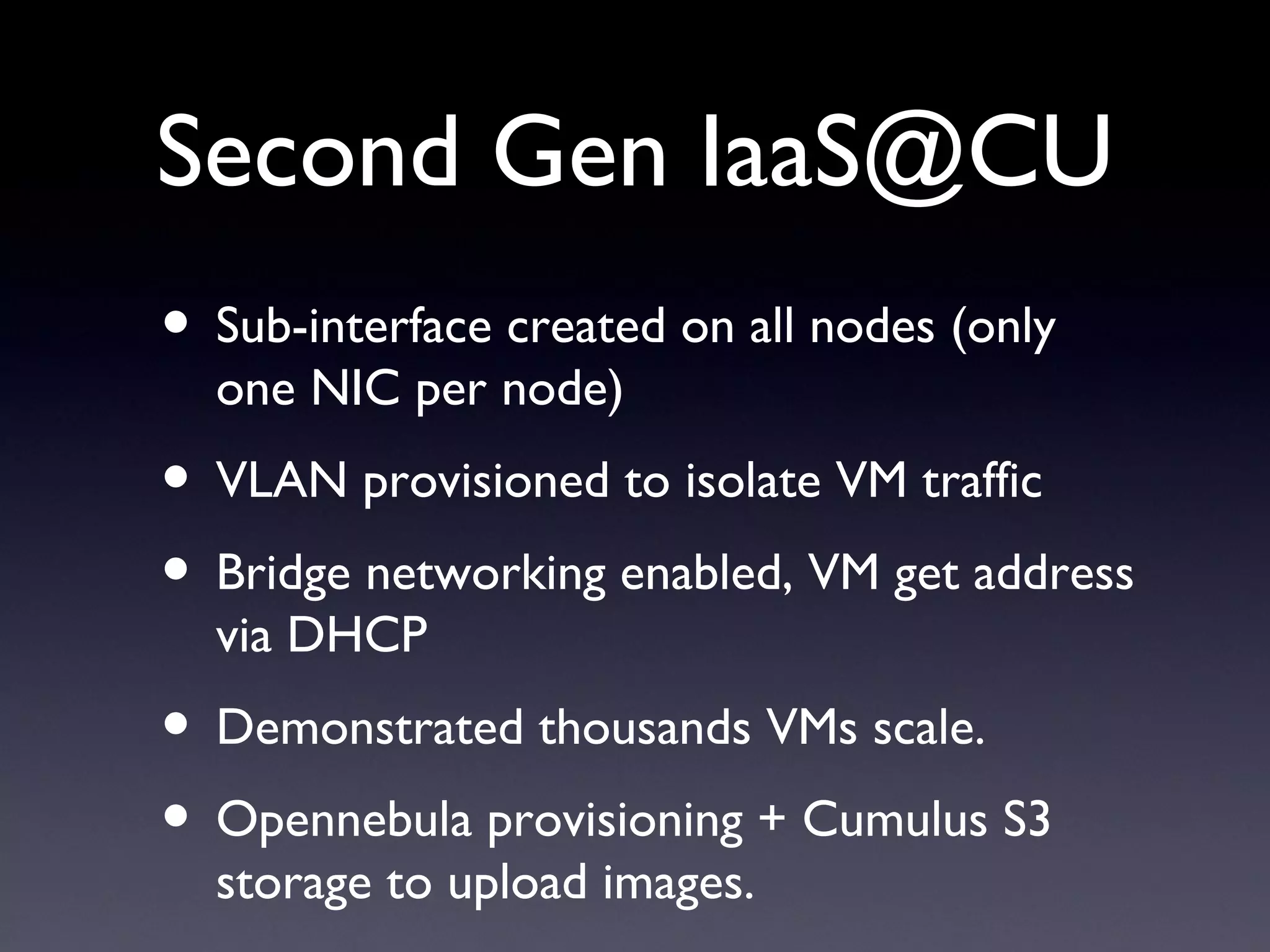

- 25. Second Gen IaaS@CU •Sub-interface created on all nodes (only one NIC per node) • VLAN provisioned to isolate VM traffic • Bridge networking enabled, VM get address via DHCP • Demonstrated thousands VMs scale. • Opennebula provisioning + Cumulus S3 storage to upload images.

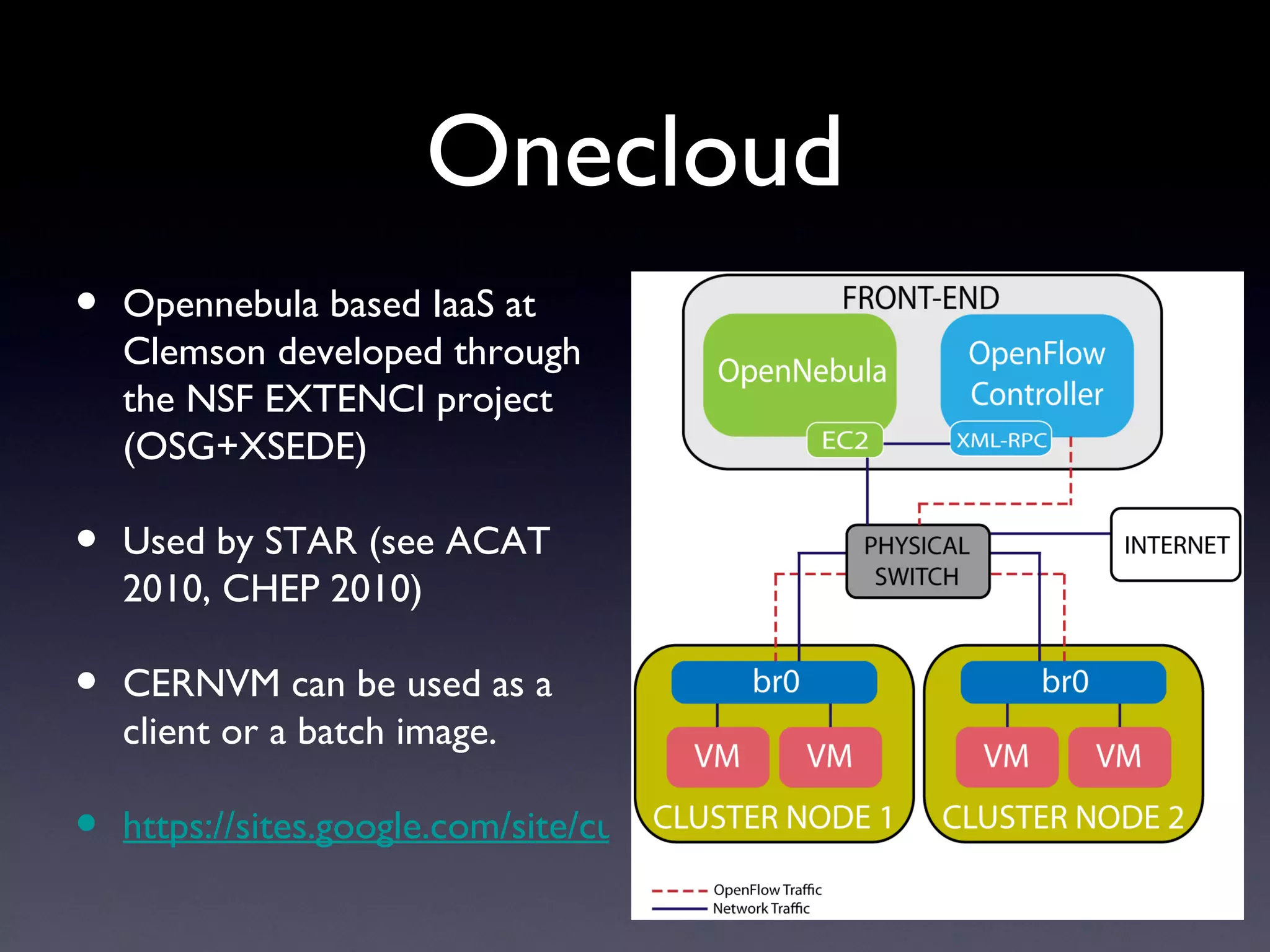

- 26. Onecloud • Opennebula based IaaS at Clemson developed through the NSF EXTENCI project (OSG+XSEDE) • Used by STAR (see ACAT 2010, CHEP 2010) • CERNVM can be used as a client or a batch image. • https://sites.google.com/site/cuonecloud/

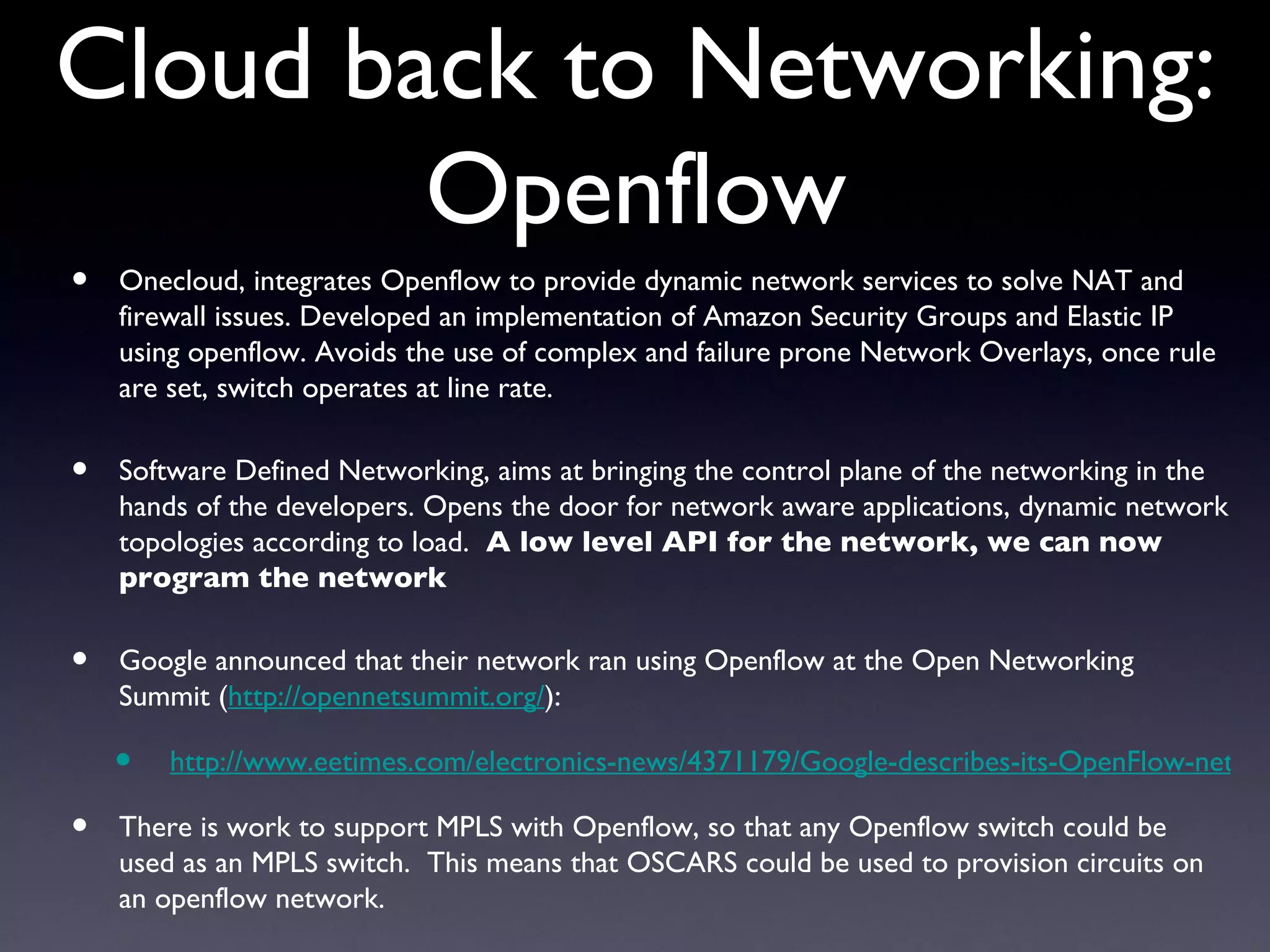

- 27. Cloud back toNetworking: Openflow • Onecloud, integrates Openflow to provide dynamic network services to solve NAT and firewall issues. Developed an implementation of Amazon Security Groups and Elastic IP using openflow. Avoids the use of complex and failure prone Network Overlays, once rule are set, switch operates at line rate. • Software Defined Networking, aims at bringing the control plane of the networking in the hands of the developers. Opens the door for network aware applications, dynamic network topologies according to load. A low level API for the network, we can now program the network • Google announced that their network ran using Openflow at the Open Networking Summit (http://opennetsummit.org/): • http://www.eetimes.com/electronics-news/4371179/Google-describes-its-OpenFlow-netwo • There is work to support MPLS with Openflow, so that any Openflow switch could be used as an MPLS switch. This means that OSCARS could be used to provision circuits on an openflow network.

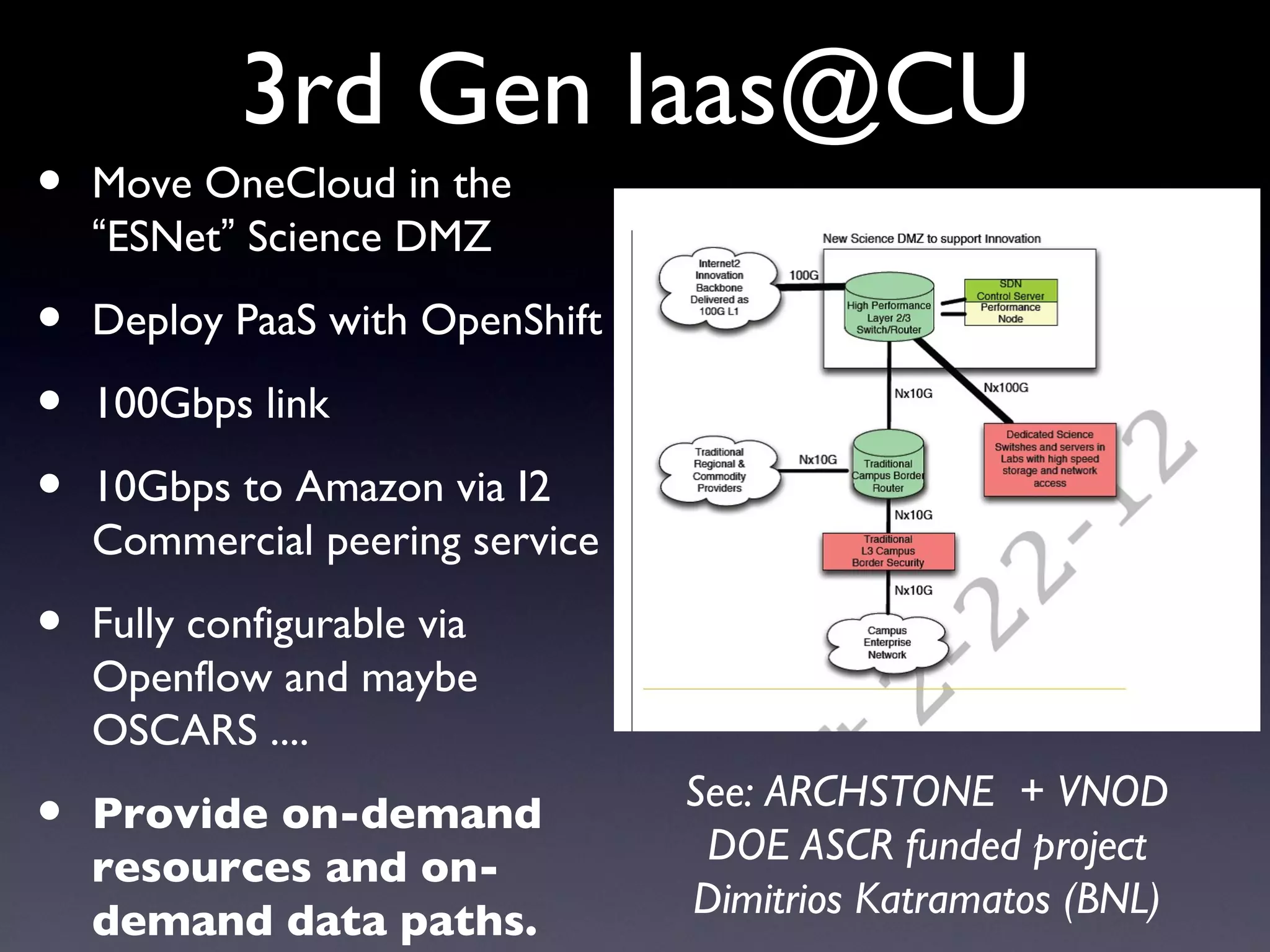

- 28. 3rd Gen Iaas@CU • Move OneCloud in the “ESNet” Science DMZ • Deploy PaaS with OpenShift • 100Gbps link • 10Gbps to Amazon via I2 Commercial peering service • Fully configurable via Openflow and maybe OSCARS .... See: ARCHSTONE + VNOD • Provide on-demand DOE ASCR funded project resources and on- demand data paths. Dimitrios Katramatos (BNL)

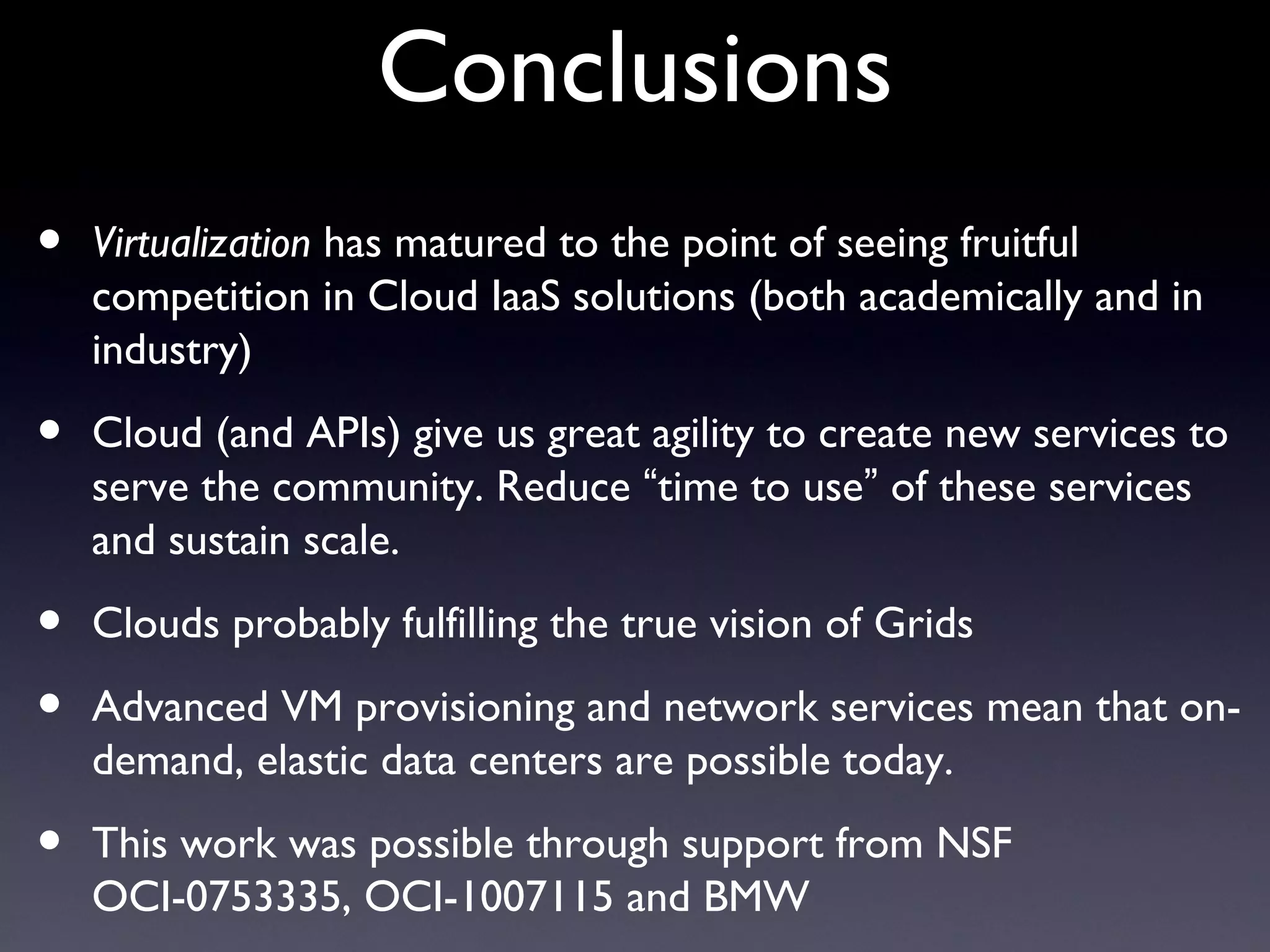

- 29. Conclusions • Virtualization has matured to the point of seeing fruitful competition in Cloud IaaS solutions (both academically and in industry) • Cloud (and APIs) give us great agility to create new services to serve the community. Reduce “time to use” of these services and sustain scale. • Clouds probably fulfilling the true vision of Grids • Advanced VM provisioning and network services mean that on- demand, elastic data centers are possible today. • This work was possible through support from NSF OCI-0753335, OCI-1007115 and BMW

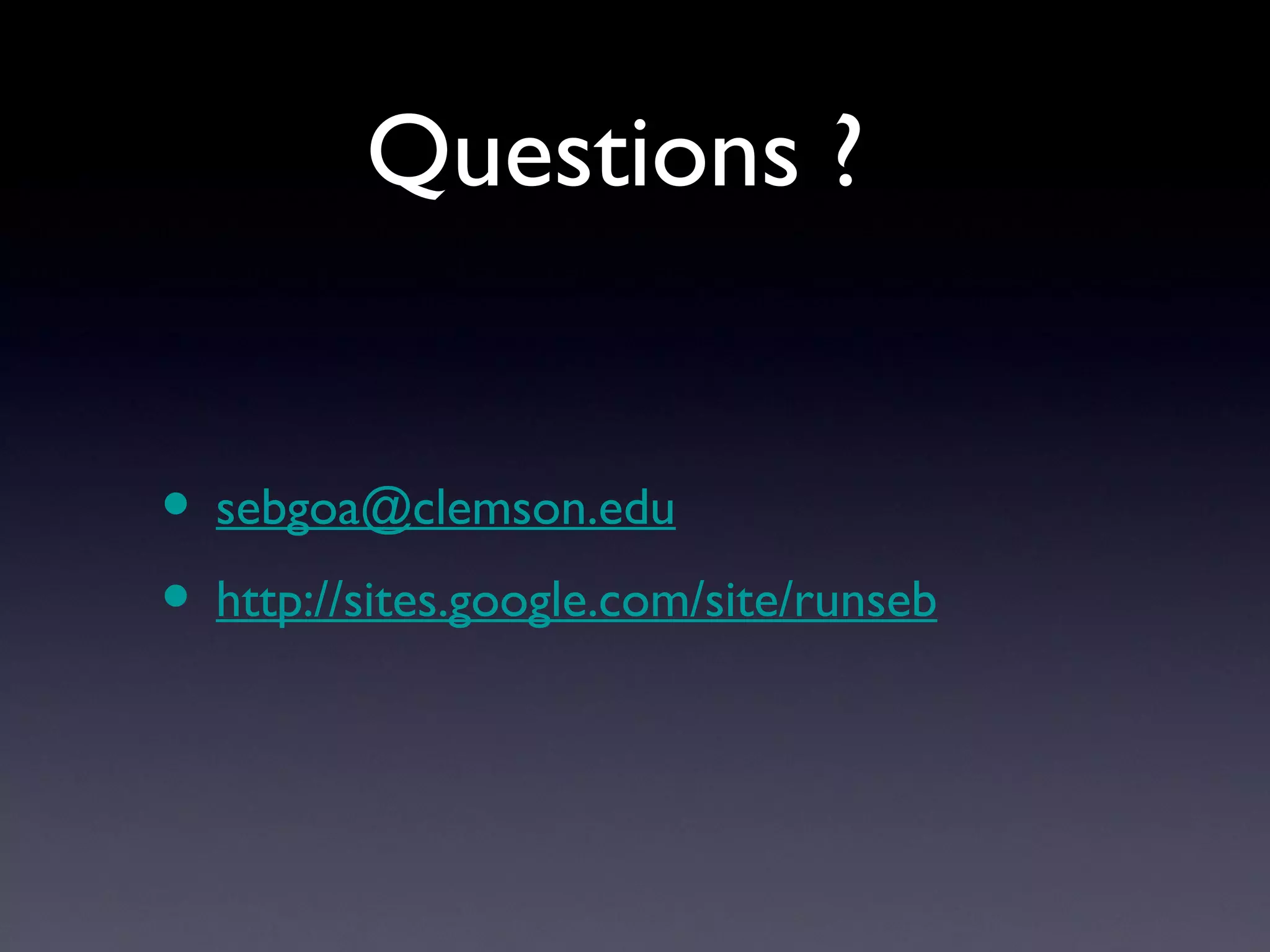

- 30. Questions ? • sebgoa@clemson.edu •http://sites.google.com/site/runseb
