Supporting and Using EC2/CIMI on top of Cloud Environments via Deltacloud
Deltacloud is an open source project that abstracts differences between cloud providers and supports EC2 and CIMI APIs. It can be used on top of oVirt to provide EC2 and CIMI functionality. The Deltacloud server is installed and configured to use the oVirt driver. Then basic EC2 and CIMI operations like launching VMs, listing images, starting/stopping VMs can be performed by sending HTTP requests to the Deltacloud server endpoints. This allows existing tools that use EC2 or CIMI to manage VMs running on oVirt. Future work includes better support for additional oVirt and cloud API features.
Supporting and Using EC2/CIMI on top of Cloud Environments via Deltacloud
- 1. Supporting and UsingEC2/CIMI on top of Cloud Environments via Deltacloud Oved Ourfali Senior Software Engineer – Red Hat FOSDEM & Puppet Camp February 2013 1
- 2. Agenda Overview andMotivation Cloud APIs Using Deltacloud on top of oVirt via EC2 and CIMI Integration Installation EC2/CIMI examples Future Work Summary 2

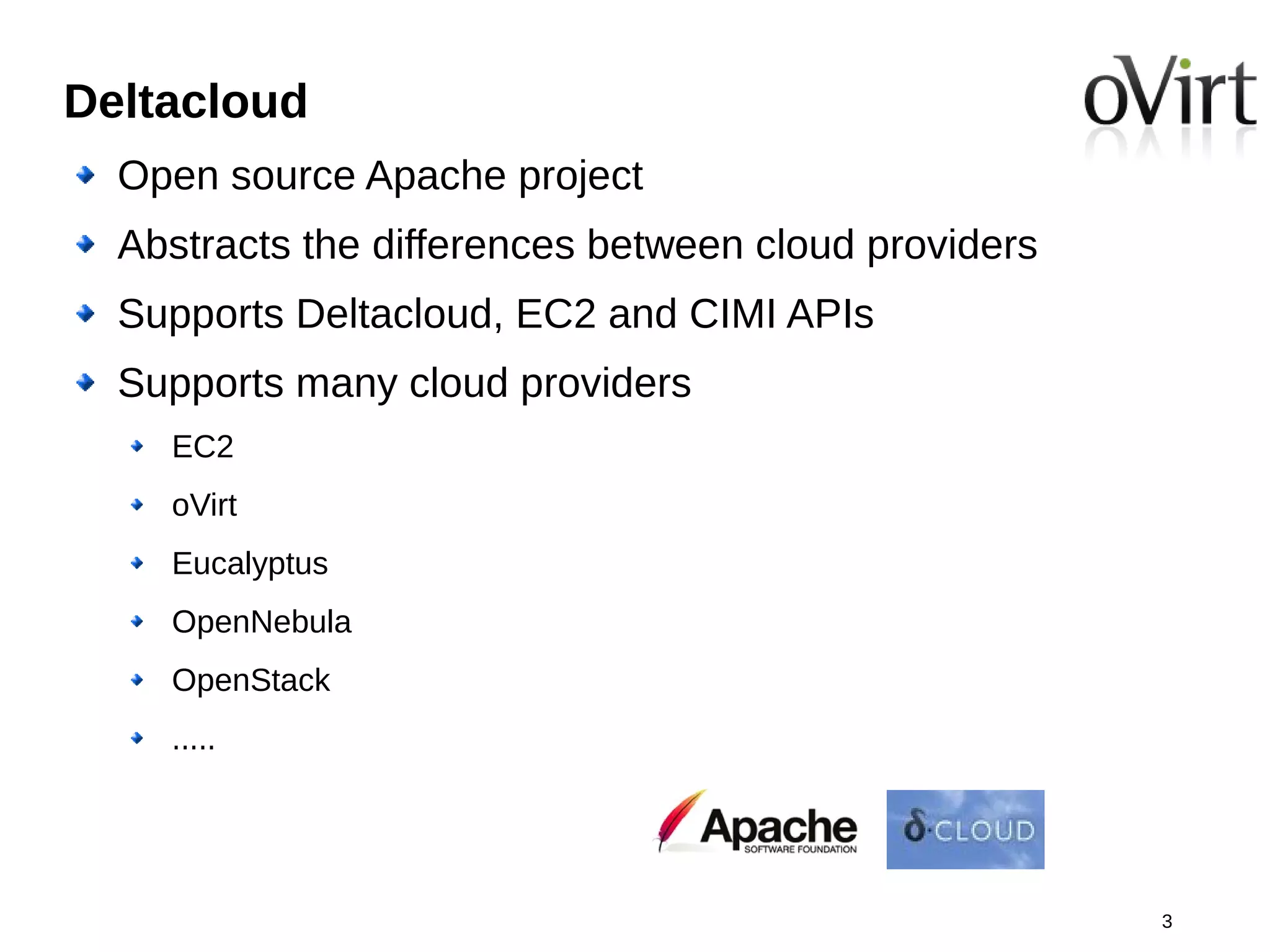

- 3. Deltacloud Opensource Apache project Abstracts the differences between cloud providers Supports Deltacloud, EC2 and CIMI APIs Supports many cloud providers EC2 oVirt Eucalyptus OpenNebula OpenStack ..... 3

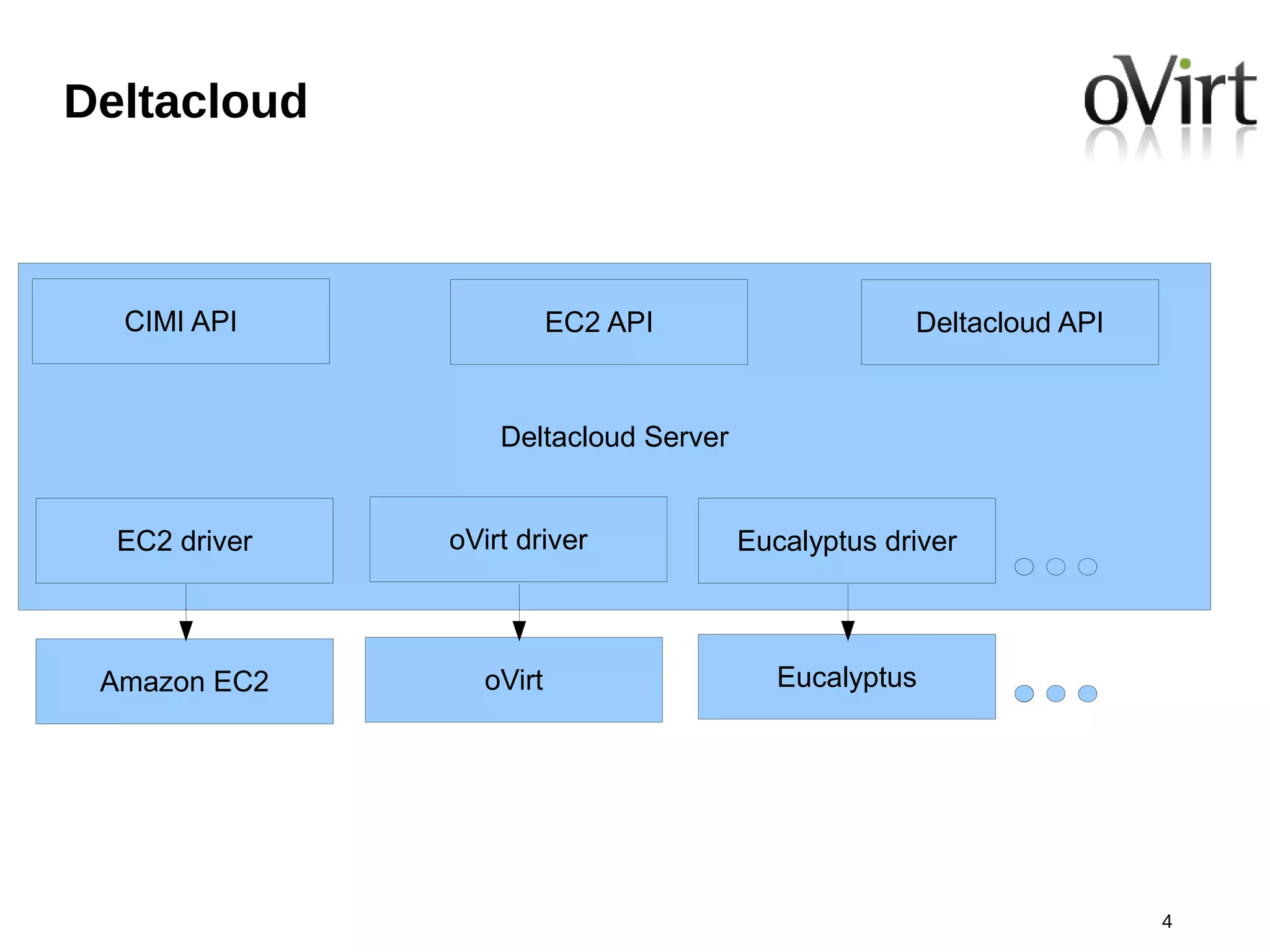

- 4. Deltacloud CIMIAPI EC2 API Deltacloud API Deltacloud Server EC2 driver oVirt driver Eucalyptus driver Amazon EC2 oVirt Eucalyptus 4

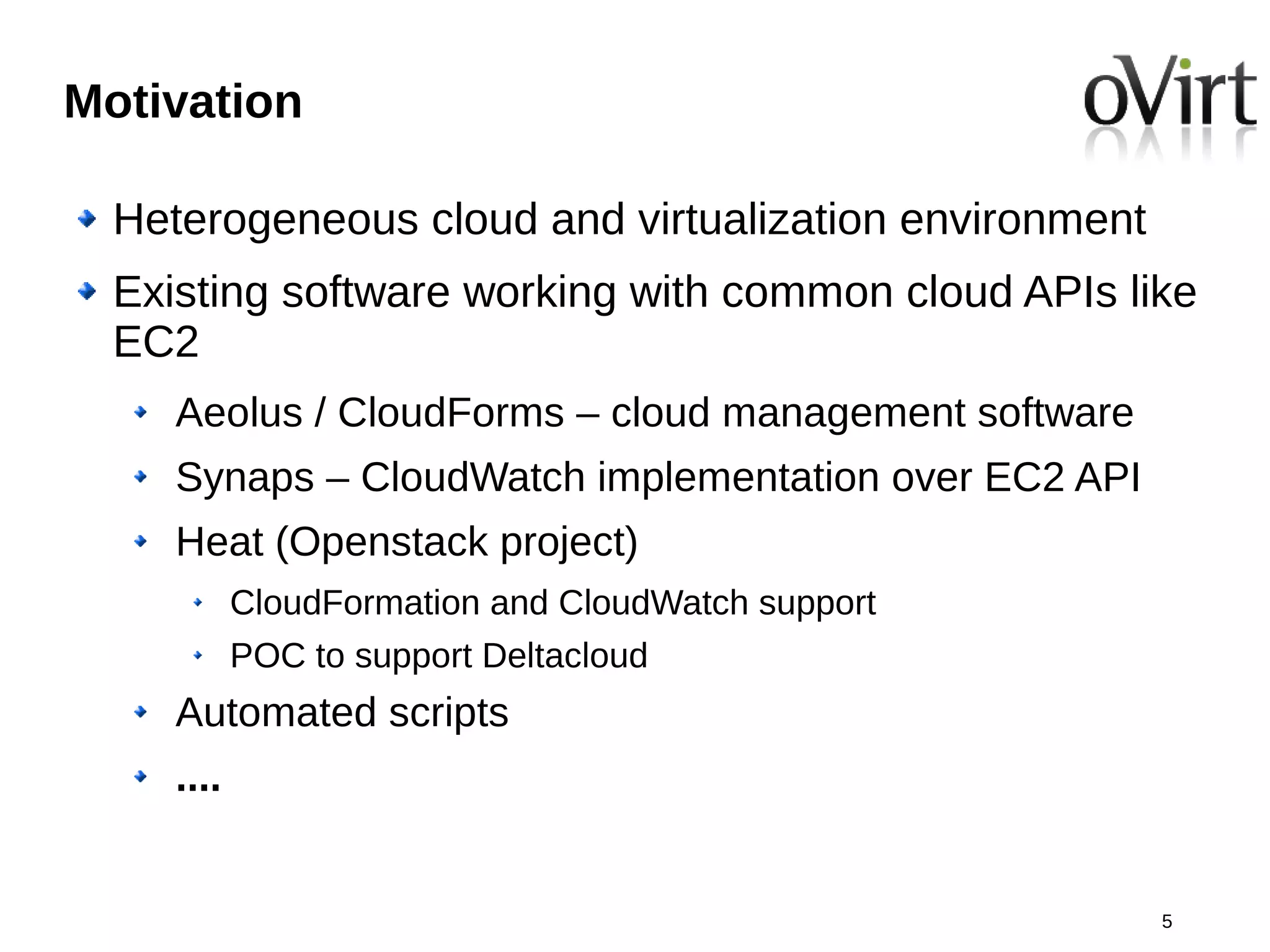

- 5. Motivation Heterogeneouscloud and virtualization environment Existing software working with common cloud APIs like EC2 Aeolus / CloudForms – cloud management software Synaps – CloudWatch implementation over EC2 API Heat (Openstack project) CloudFormation and CloudWatch support POC to support Deltacloud Automated scripts .... 5

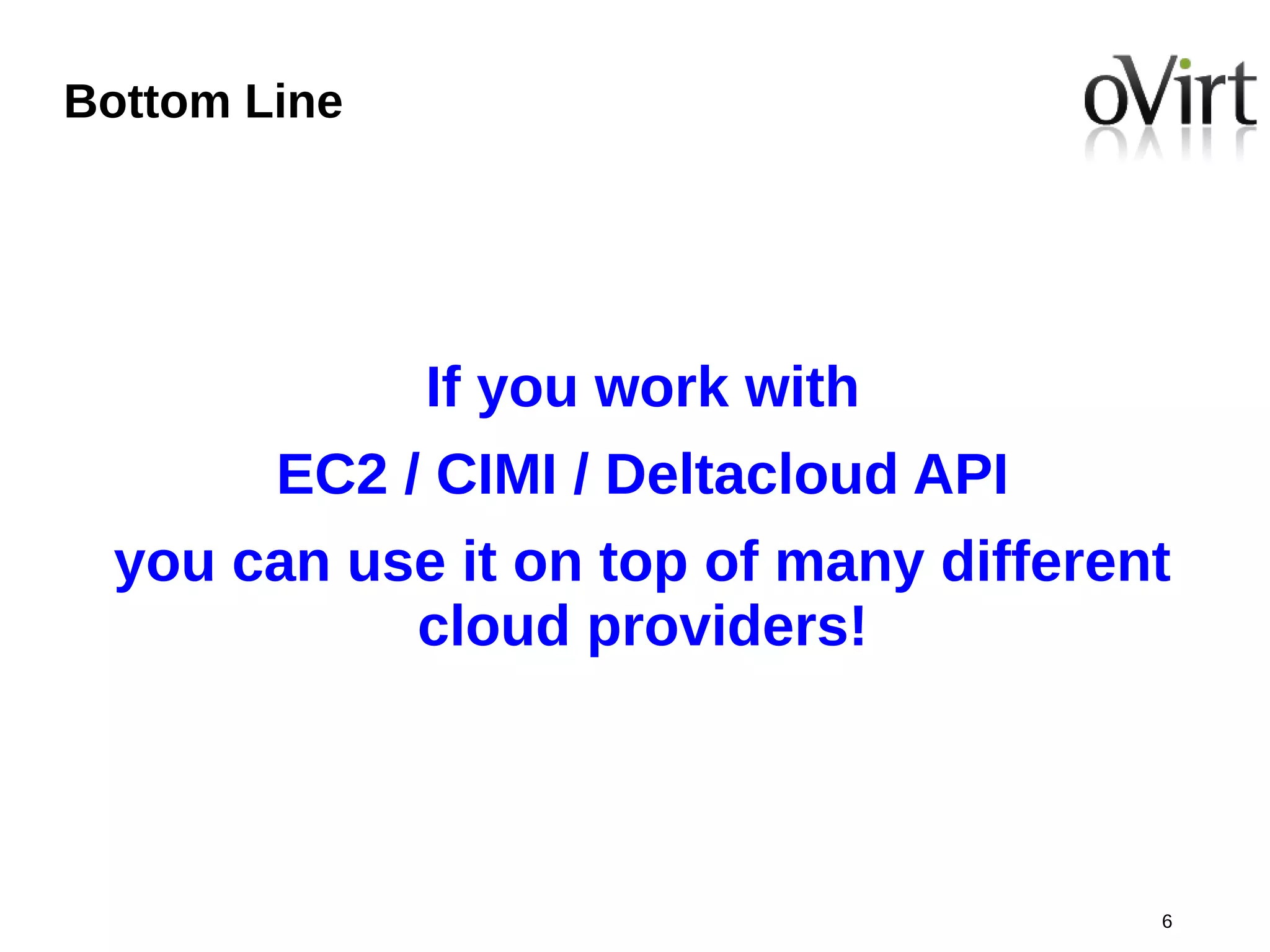

- 6. Bottom Line If you work with EC2 / CIMI / Deltacloud API you can use it on top of many different cloud providers! 6

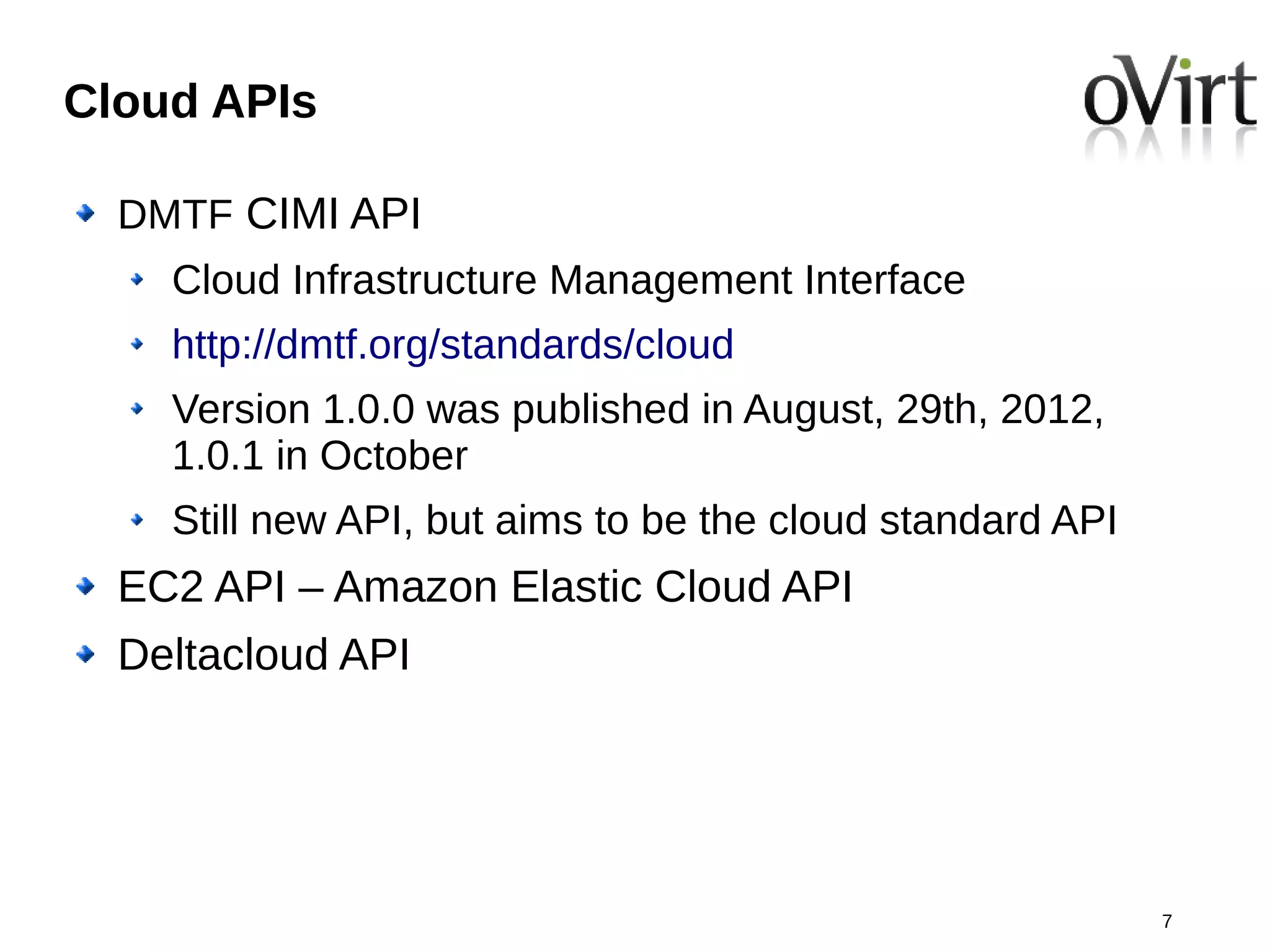

- 7. Cloud APIs DMTF CIMI API Cloud Infrastructure Management Interface http://dmtf.org/standards/cloud Version 1.0.0 was published in August, 29th, 2012, 1.0.1 in October Still new API, but aims to be the cloud standard API EC2 API – Amazon Elastic Cloud API Deltacloud API 7

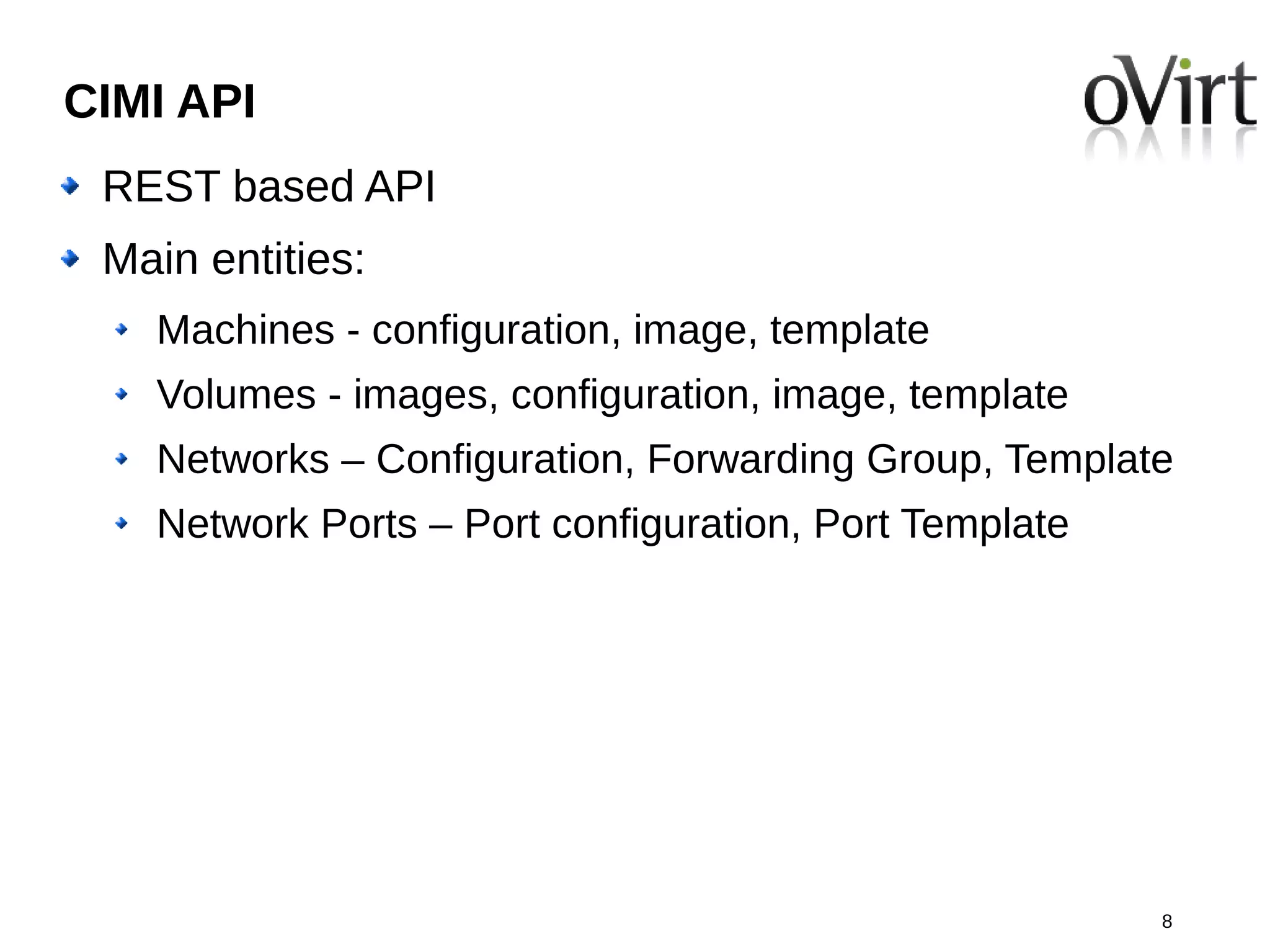

- 8. CIMI API RESTbased API Main entities: Machines - configuration, image, template Volumes - images, configuration, image, template Networks – Configuration, Forwarding Group, Template Network Ports – Port configuration, Port Template 8

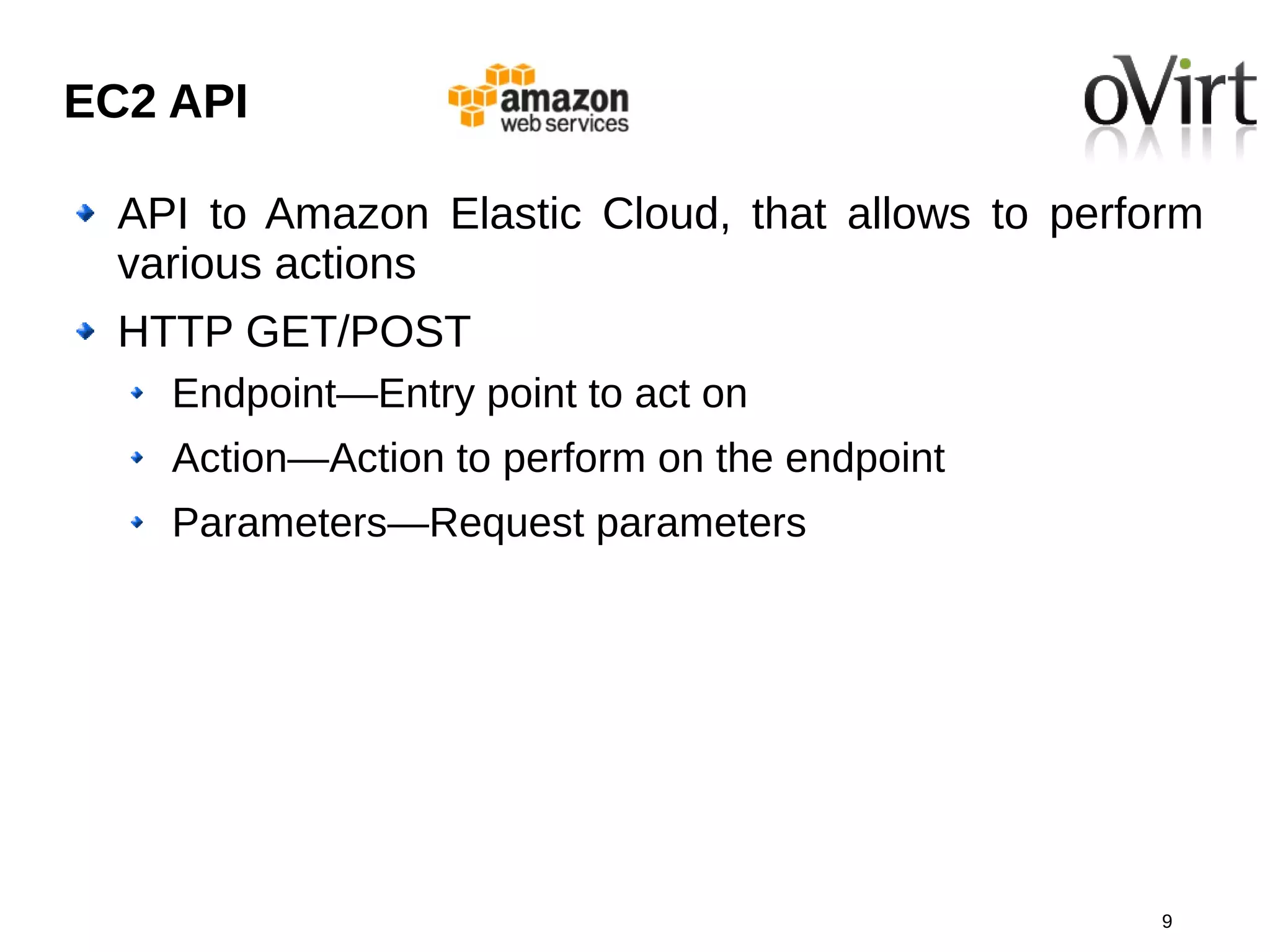

- 9. EC2 API API to Amazon Elastic Cloud, that allows to perform various actions HTTP GET/POST Endpoint—Entry point to act on Action—Action to perform on the endpoint Parameters—Request parameters 9

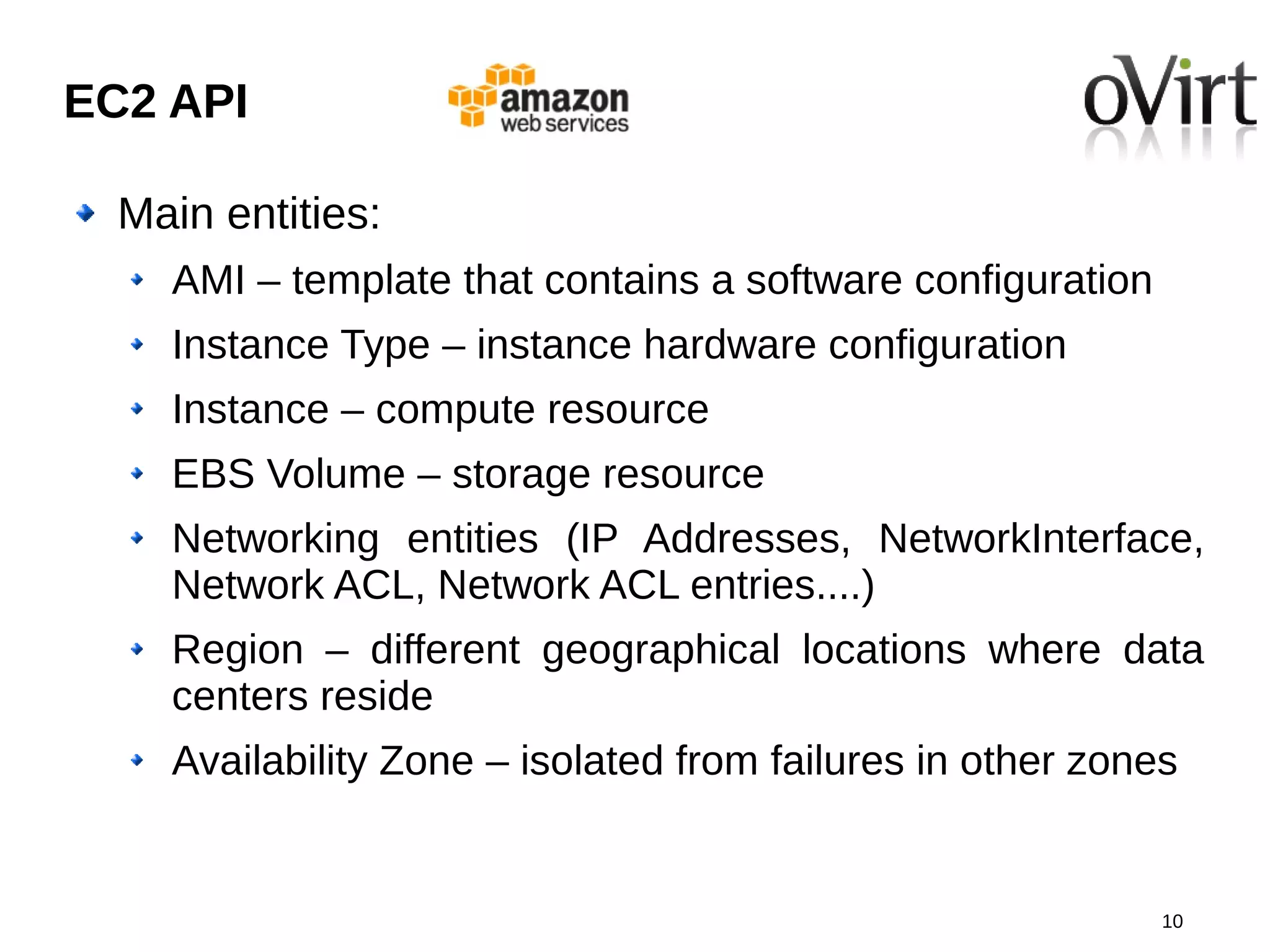

- 10. EC2 API Main entities: AMI – template that contains a software configuration Instance Type – instance hardware configuration Instance – compute resource EBS Volume – storage resource Networking entities (IP Addresses, NetworkInterface, Network ACL, Network ACL entries....) Region – different geographical locations where data centers reside Availability Zone – isolated from failures in other zones 10

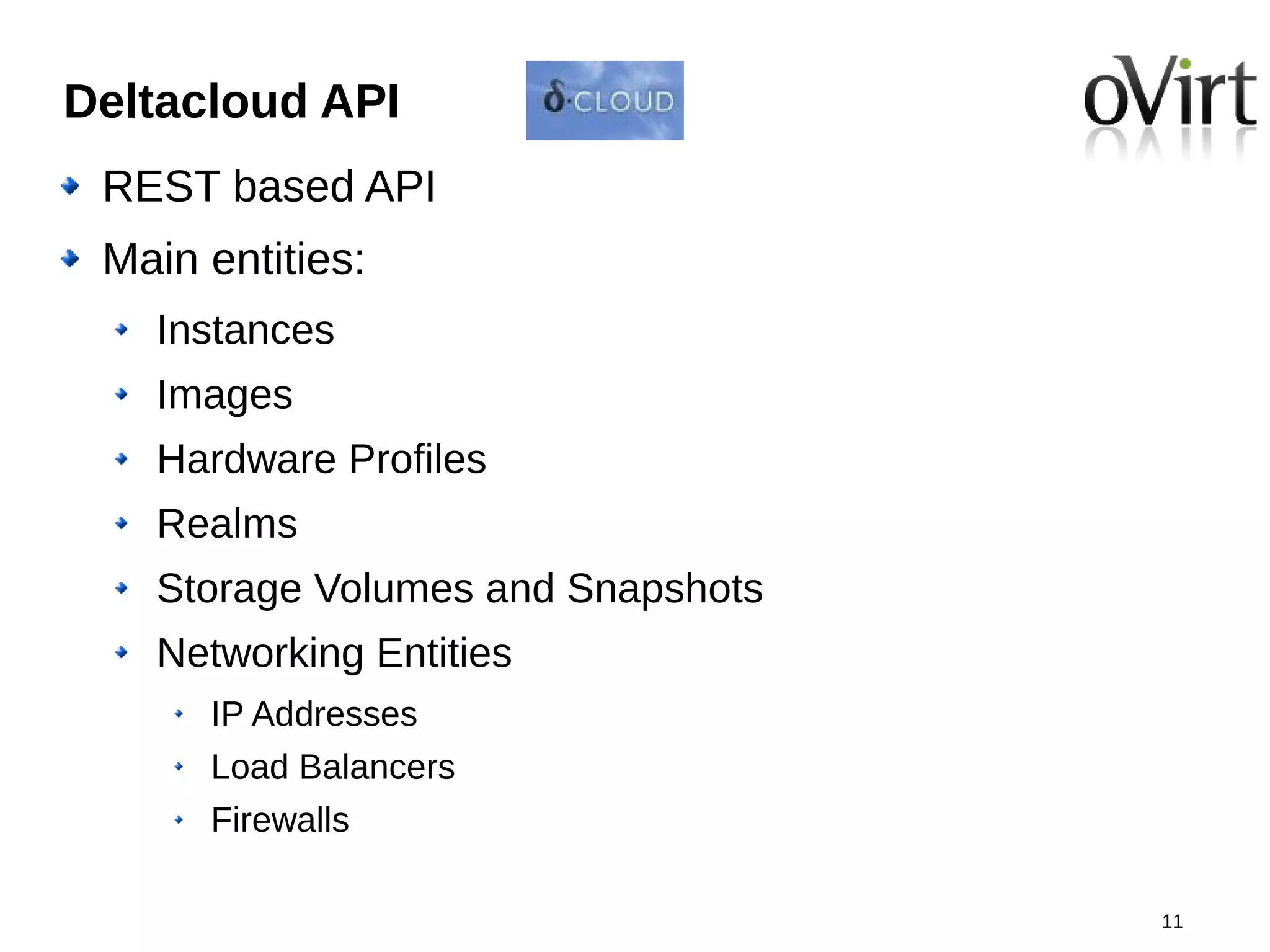

- 11. Deltacloud API RESTbased API Main entities: Instances Images Hardware Profiles Realms Storage Volumes and Snapshots Networking Entities IP Addresses Load Balancers Firewalls 11
- 12. Using Deltacloud ontop of oVirt via EC2 and CIMI 12

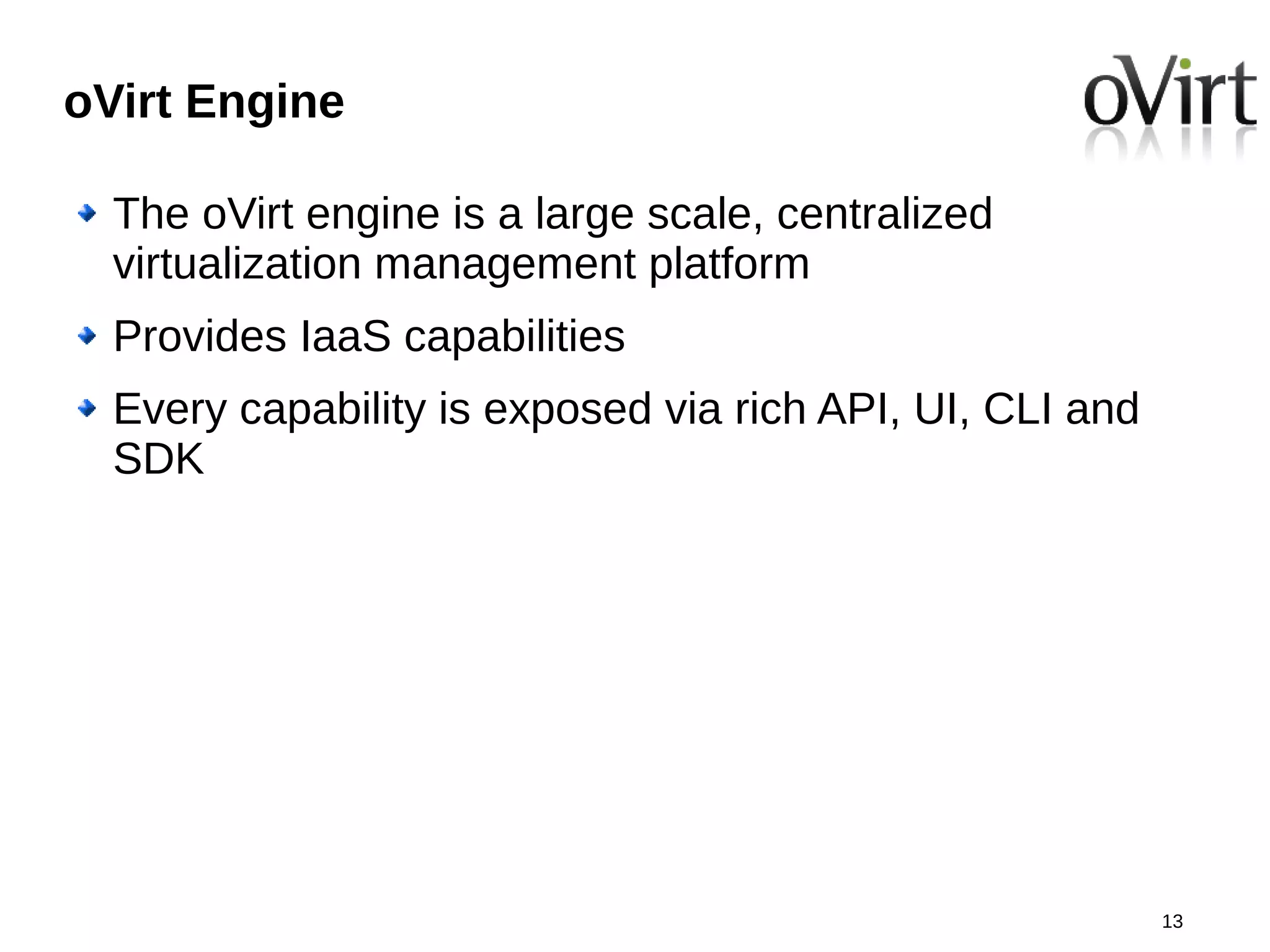

- 13. oVirt Engine The oVirt engine is a large scale, centralized virtualization management platform Provides IaaS capabilities Every capability is exposed via rich API, UI, CLI and SDK 13

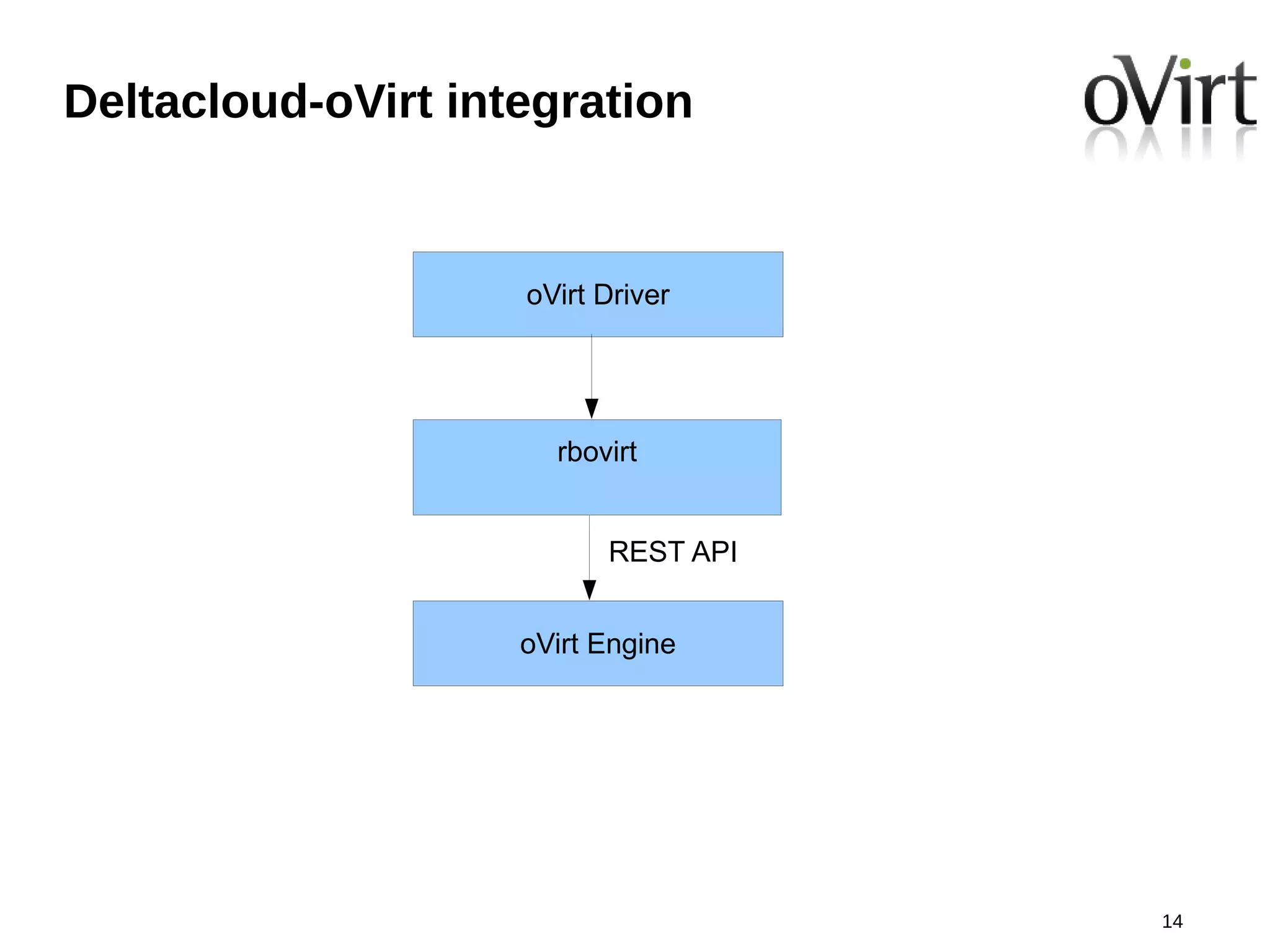

- 14. Deltacloud-oVirt integration oVirt Driver rbovirt REST API oVirt Engine 14

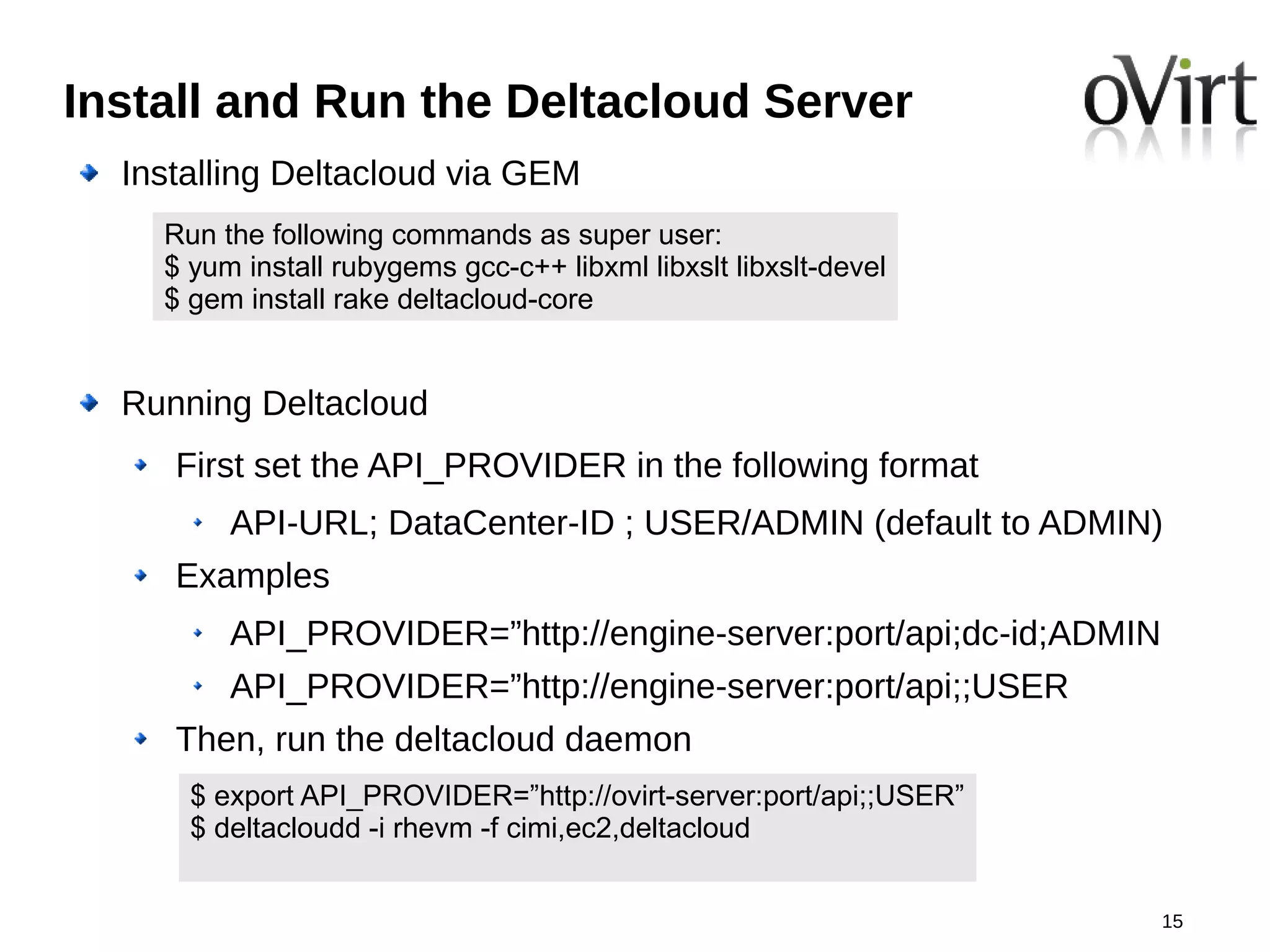

- 15. Install and Runthe Deltacloud Server Installing Deltacloud via GEM Run the following commands as super user: $ yum install rubygems gcc-c++ libxml libxslt libxslt-devel $ gem install rake deltacloud-core Running Deltacloud First set the API_PROVIDER in the following format API-URL; DataCenter-ID ; USER/ADMIN (default to ADMIN) Examples API_PROVIDER=”http://engine-server:port/api;dc-id;ADMIN API_PROVIDER=”http://engine-server:port/api;;USER Then, run the deltacloud daemon $ export API_PROVIDER=”http://ovirt-server:port/api;;USER” $ deltacloudd -i rhevm -f cimi,ec2,deltacloud 15

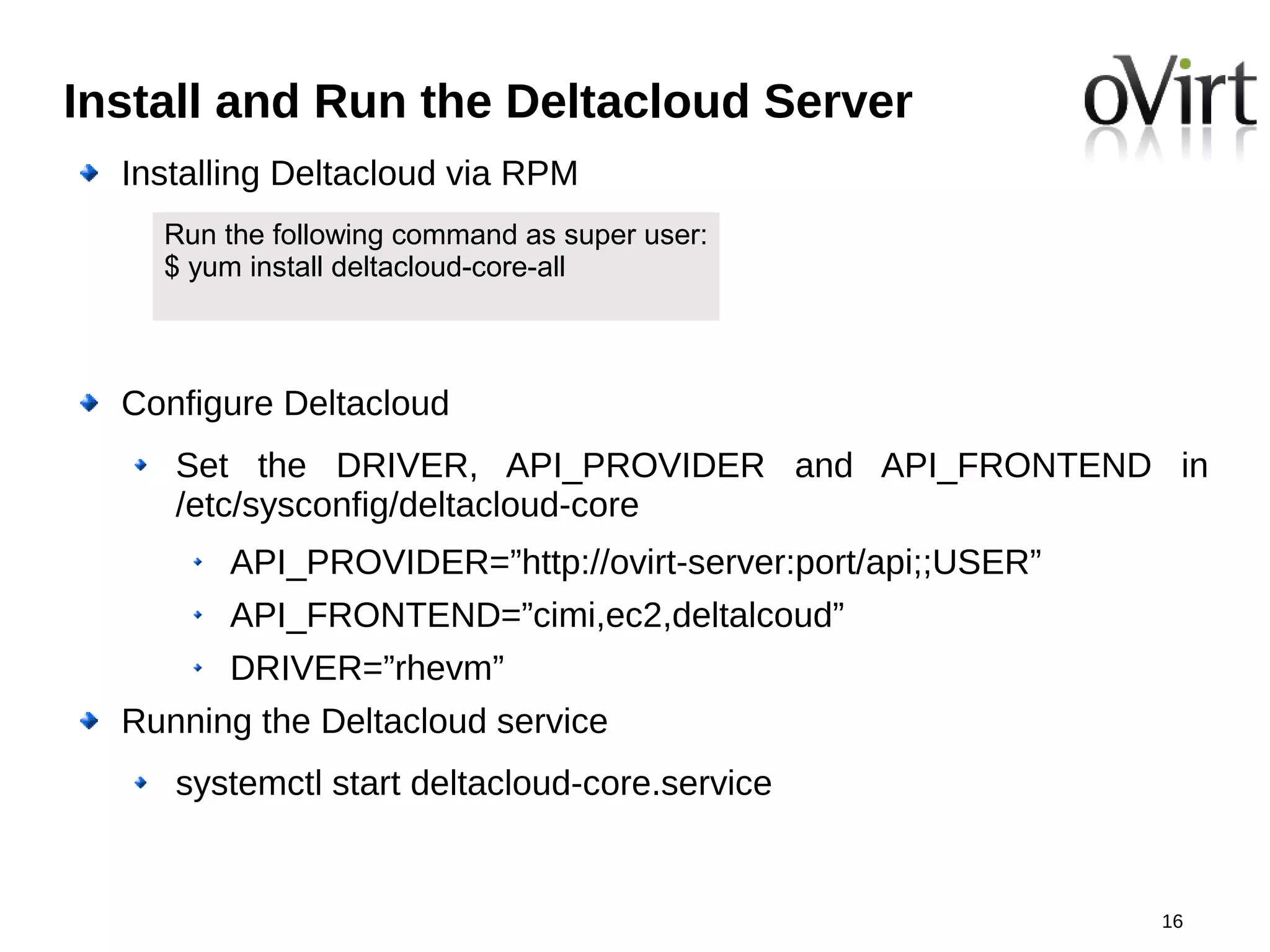

- 16. Install and Runthe Deltacloud Server Installing Deltacloud via RPM Run the following command as super user: $ yum install deltacloud-core-all Configure Deltacloud Set the DRIVER, API_PROVIDER and API_FRONTEND in /etc/sysconfig/deltacloud-core API_PROVIDER=”http://ovirt-server:port/api;;USER” API_FRONTEND=”cimi,ec2,deltalcoud” DRIVER=”rhevm” Running the Deltacloud service systemctl start deltacloud-core.service 16

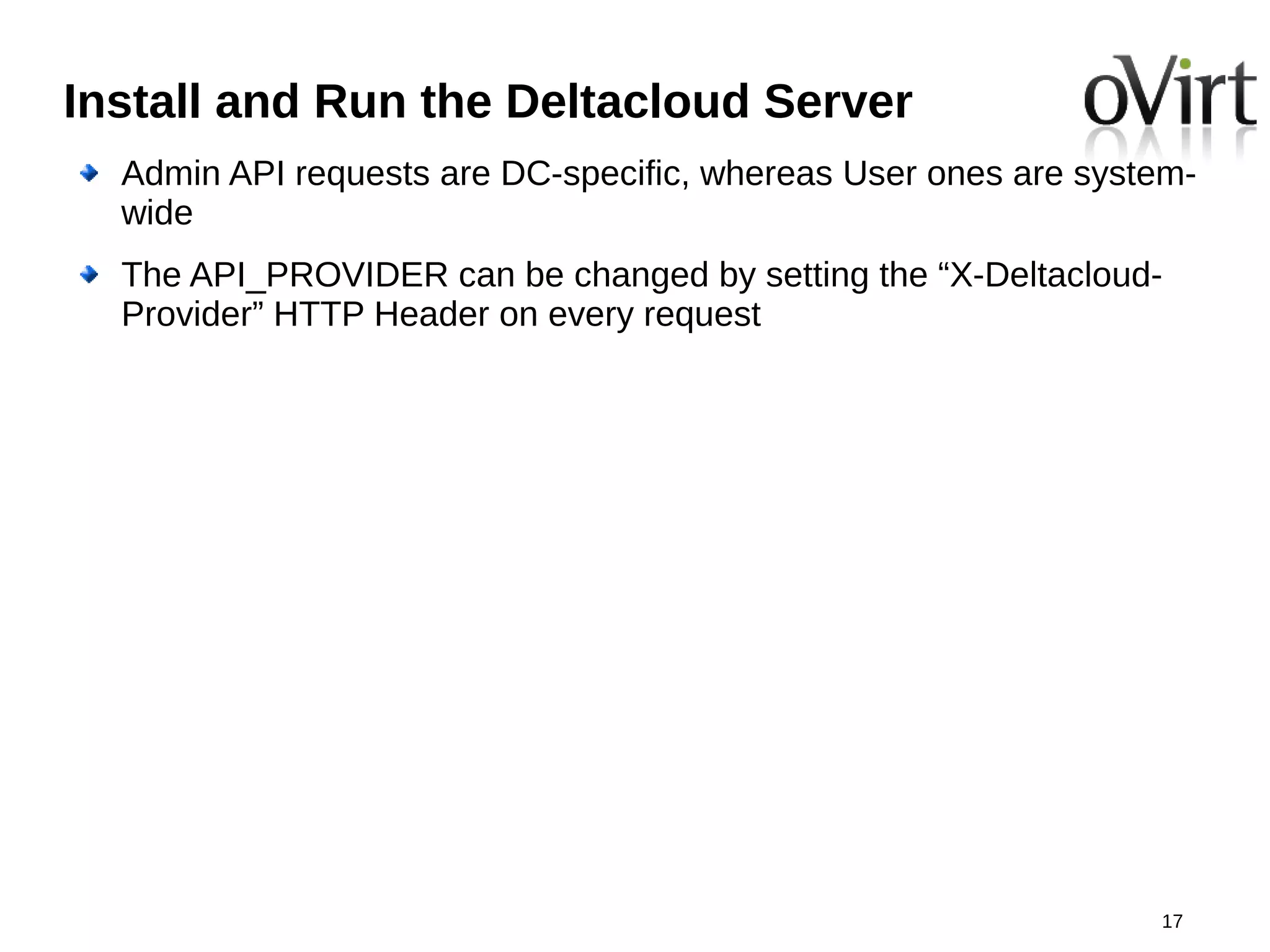

- 17. Install and Runthe Deltacloud Server Admin API requests are DC-specific, whereas User ones are system- wide The API_PROVIDER can be changed by setting the “X-Deltacloud- Provider” HTTP Header on every request 17

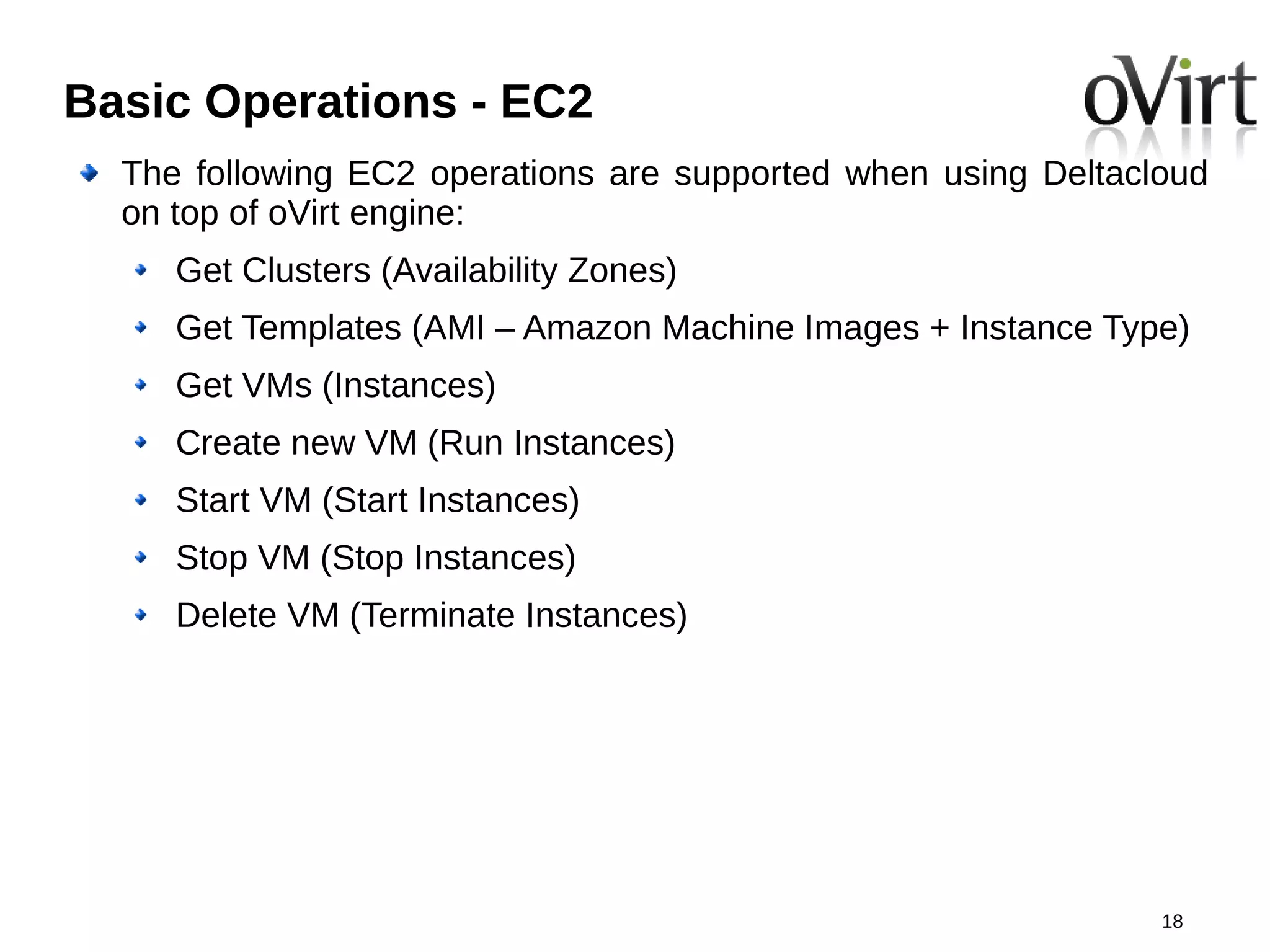

- 18. Basic Operations -EC2 The following EC2 operations are supported when using Deltacloud on top of oVirt engine: Get Clusters (Availability Zones) Get Templates (AMI – Amazon Machine Images + Instance Type) Get VMs (Instances) Create new VM (Run Instances) Start VM (Start Instances) Stop VM (Stop Instances) Delete VM (Terminate Instances) 18

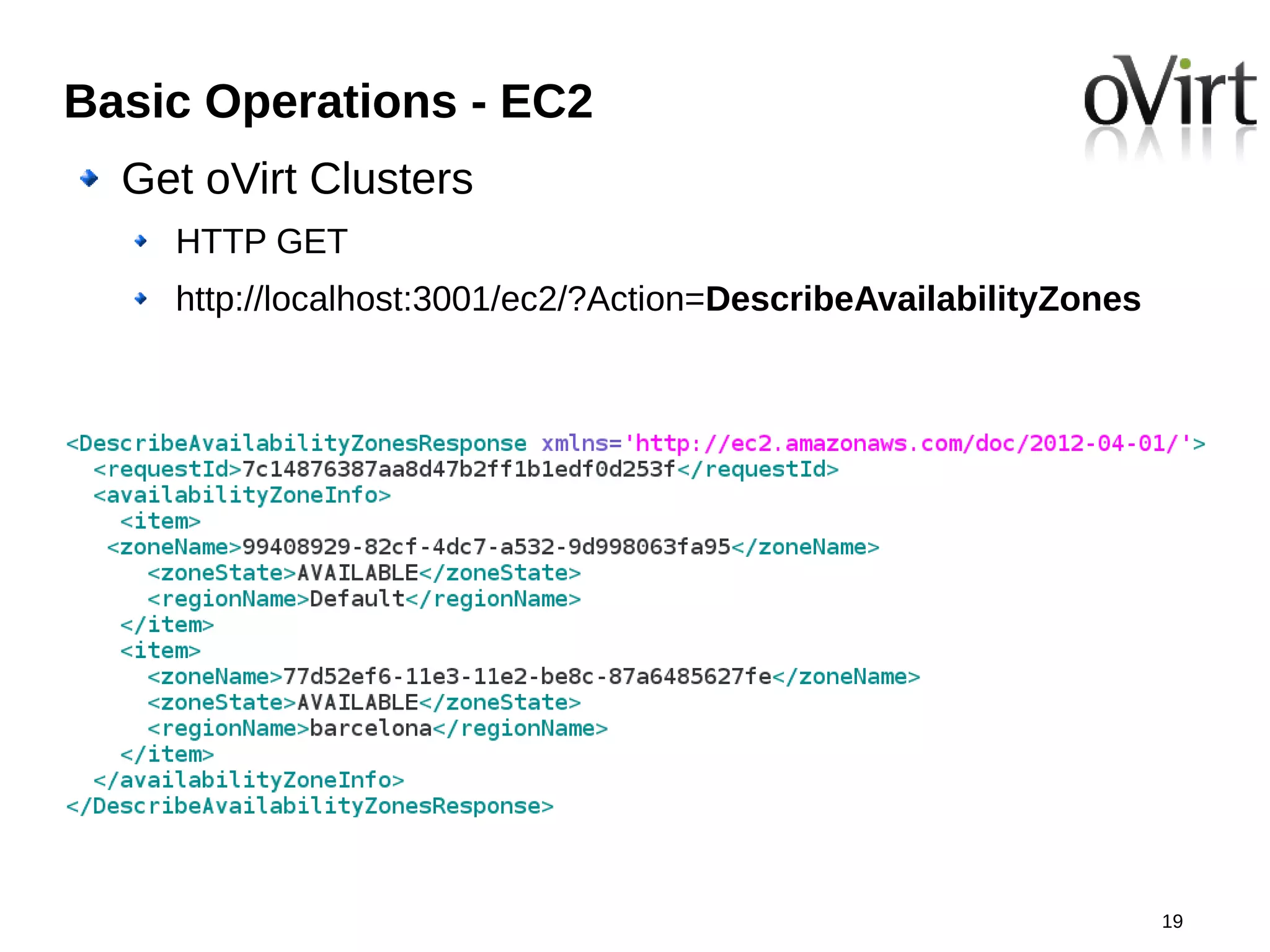

- 19. Basic Operations -EC2 Get oVirt Clusters HTTP GET http://localhost:3001/ec2/?Action=DescribeAvailabilityZones 19

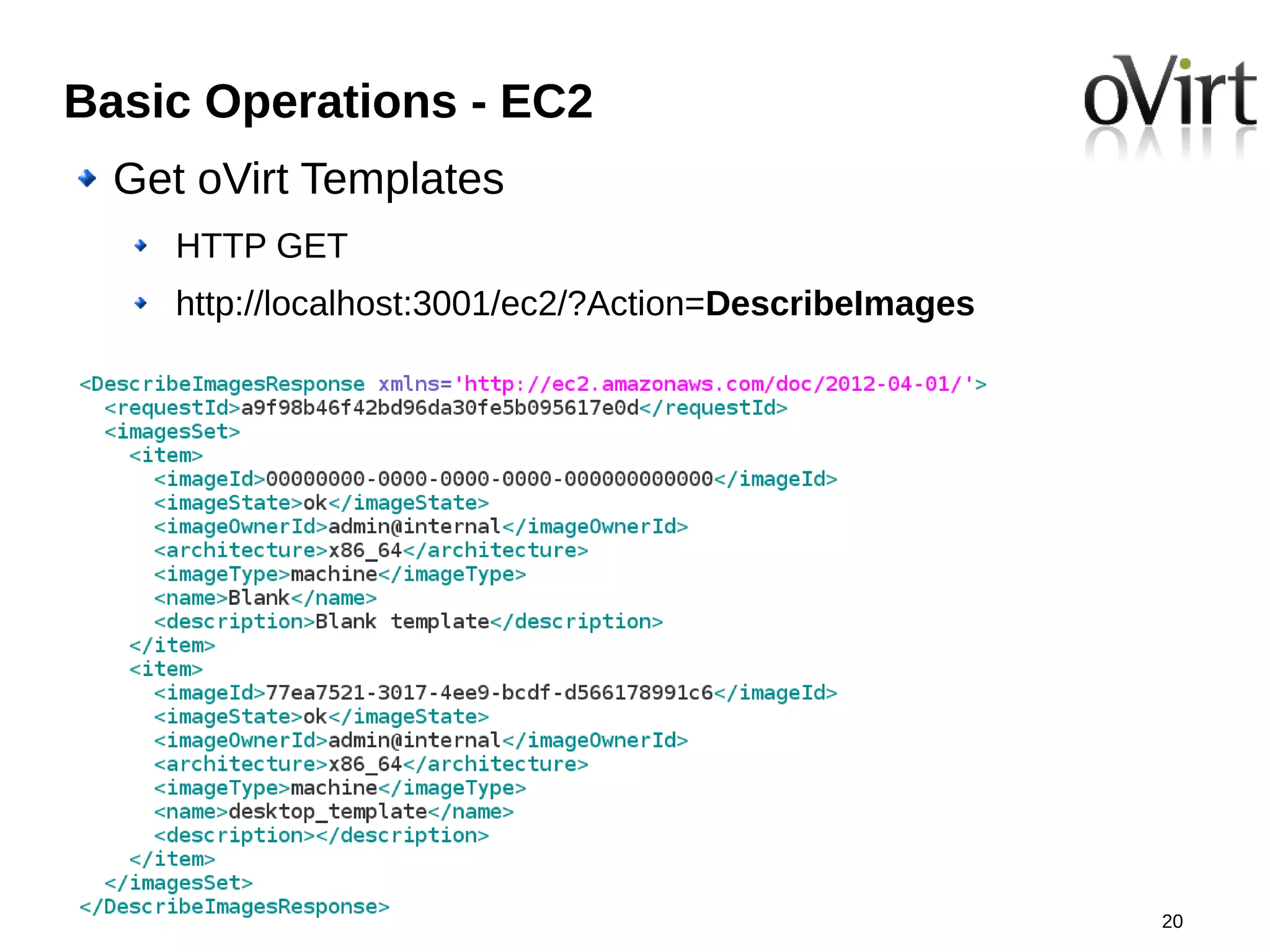

- 20. Basic Operations -EC2 Get oVirt Templates HTTP GET http://localhost:3001/ec2/?Action=DescribeImages 20

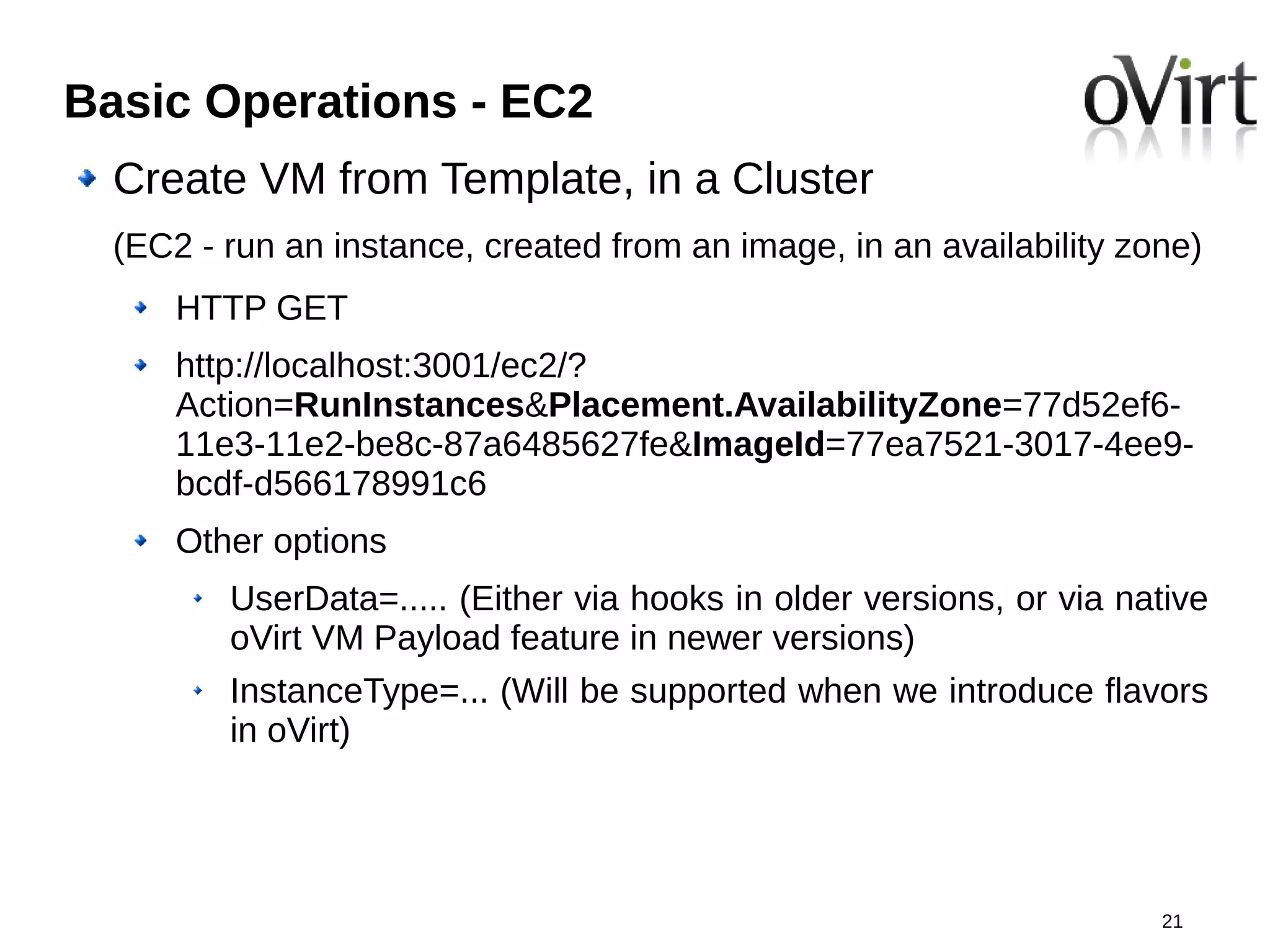

- 21. Basic Operations -EC2 Create VM from Template, in a Cluster (EC2 - run an instance, created from an image, in an availability zone) HTTP GET http://localhost:3001/ec2/? Action=RunInstances&Placement.AvailabilityZone=77d52ef6- 11e3-11e2-be8c-87a6485627fe&ImageId=77ea7521-3017-4ee9- bcdf-d566178991c6 Other options UserData=..... (Either via hooks in older versions, or via native oVirt VM Payload feature in newer versions) InstanceType=... (Will be supported when we introduce flavors in oVirt) 21

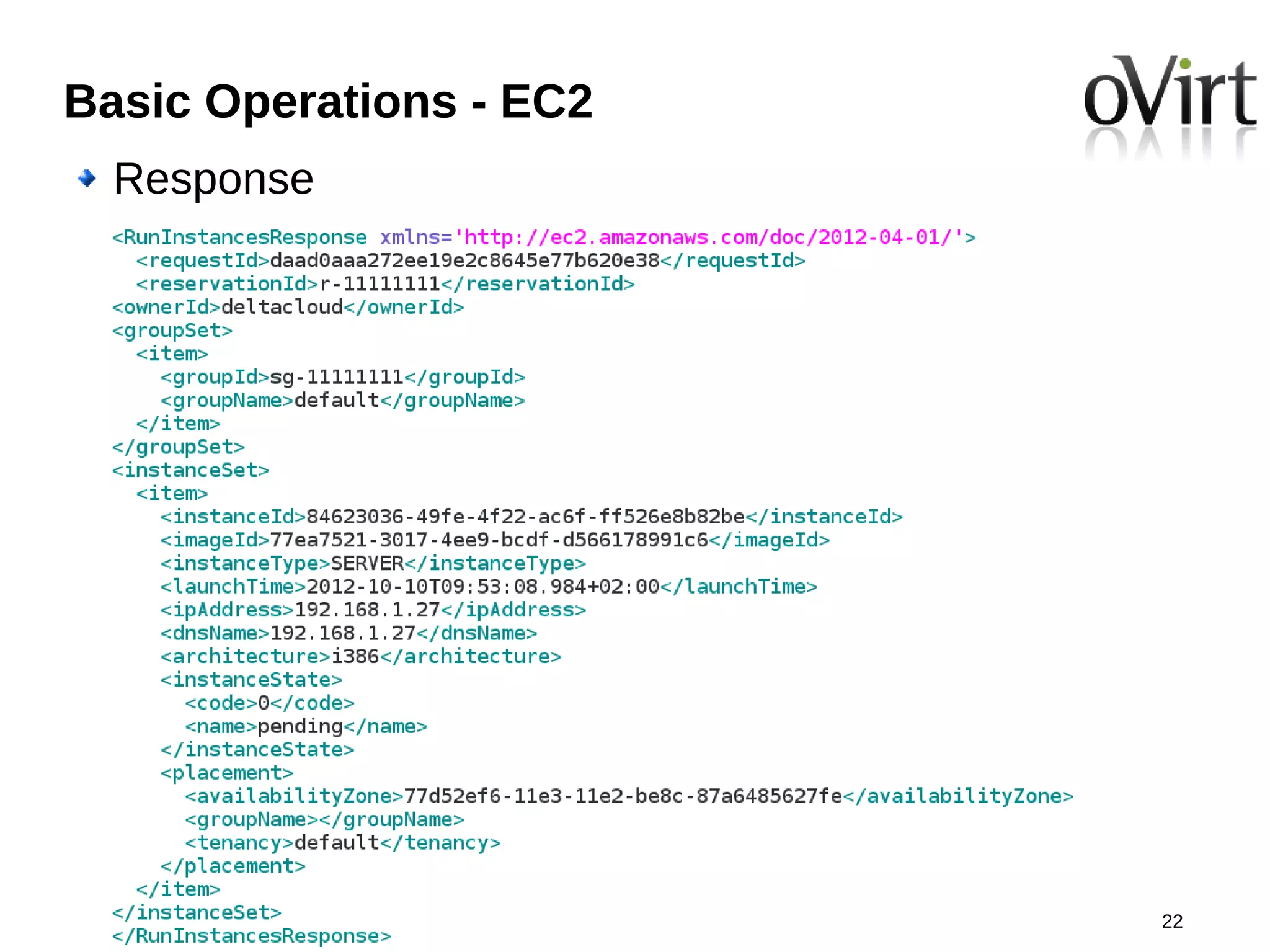

- 22. Basic Operations -EC2 Response 22

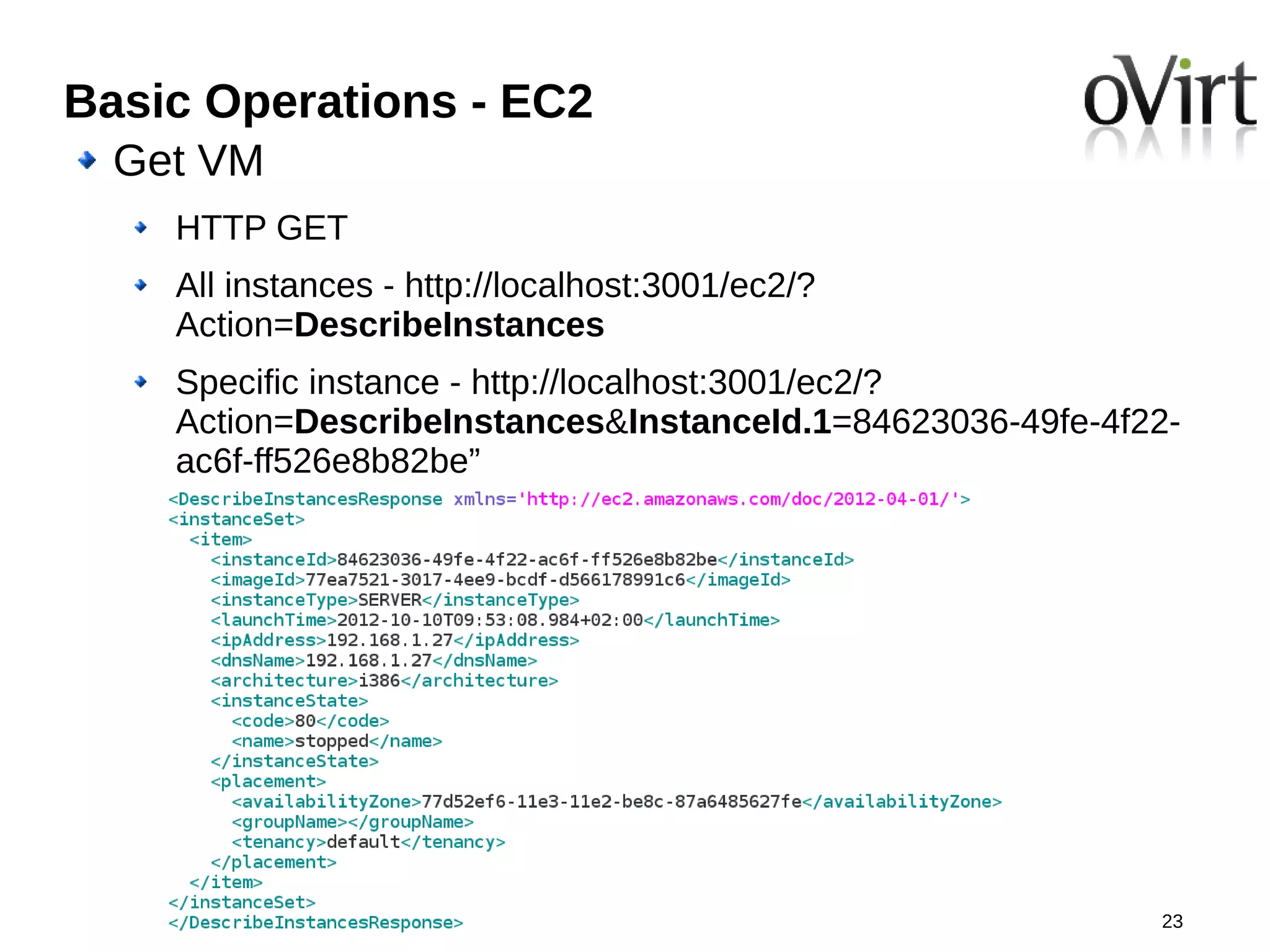

- 23. Basic Operations -EC2 Get VM HTTP GET All instances - http://localhost:3001/ec2/? Action=DescribeInstances Specific instance - http://localhost:3001/ec2/? Action=DescribeInstances&InstanceId.1=84623036-49fe-4f22- ac6f-ff526e8b82be” 23
- 24. Basic Operations -EC2 Start VM HTTP GET http://localhost:3001/ec2/? Action=StartInstances&InstanceId.1=84623036-49fe-4f22-ac6f- ff526e8b82be” 24

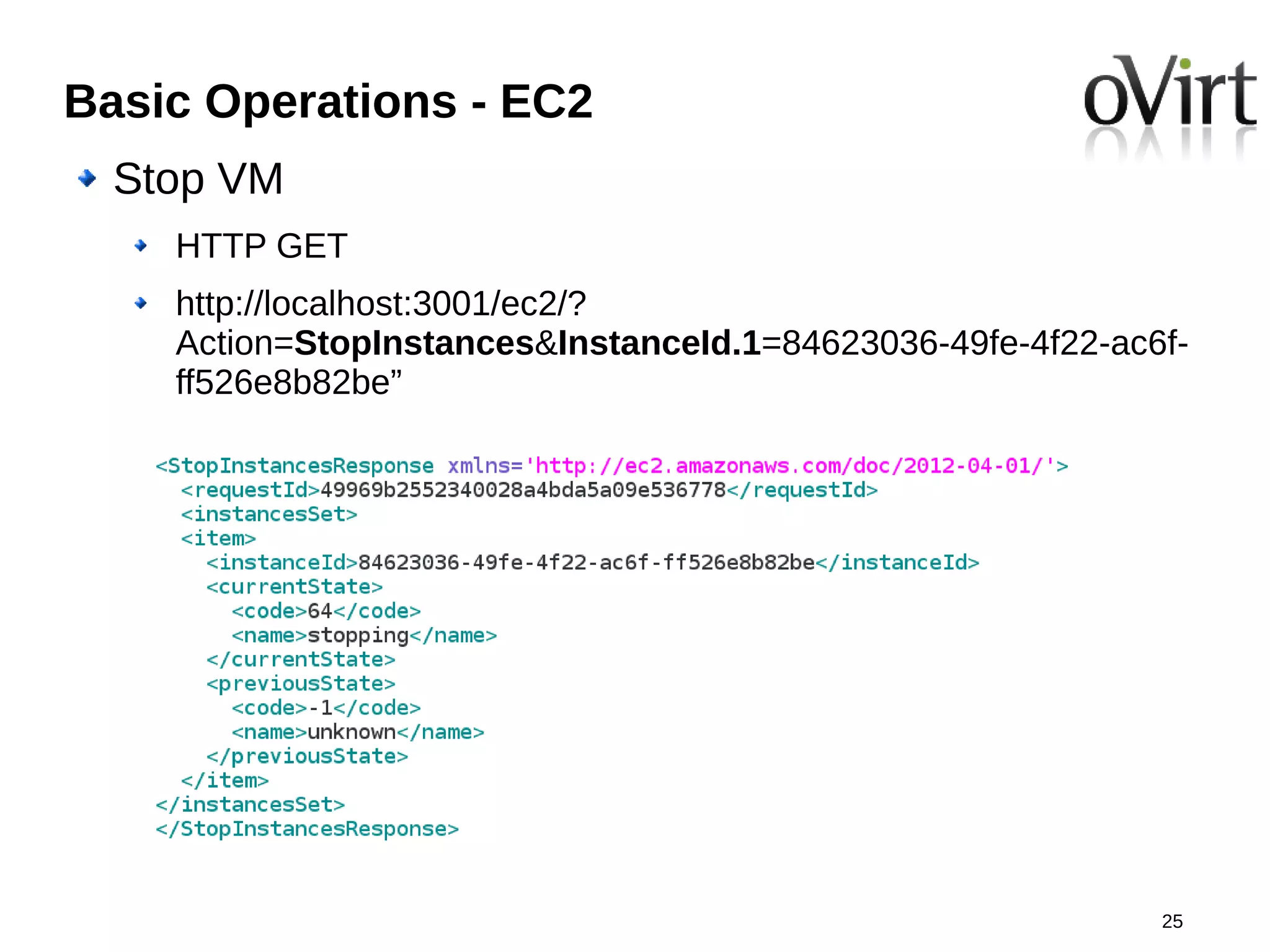

- 25. Basic Operations -EC2 Stop VM HTTP GET http://localhost:3001/ec2/? Action=StopInstances&InstanceId.1=84623036-49fe-4f22-ac6f- ff526e8b82be” 25

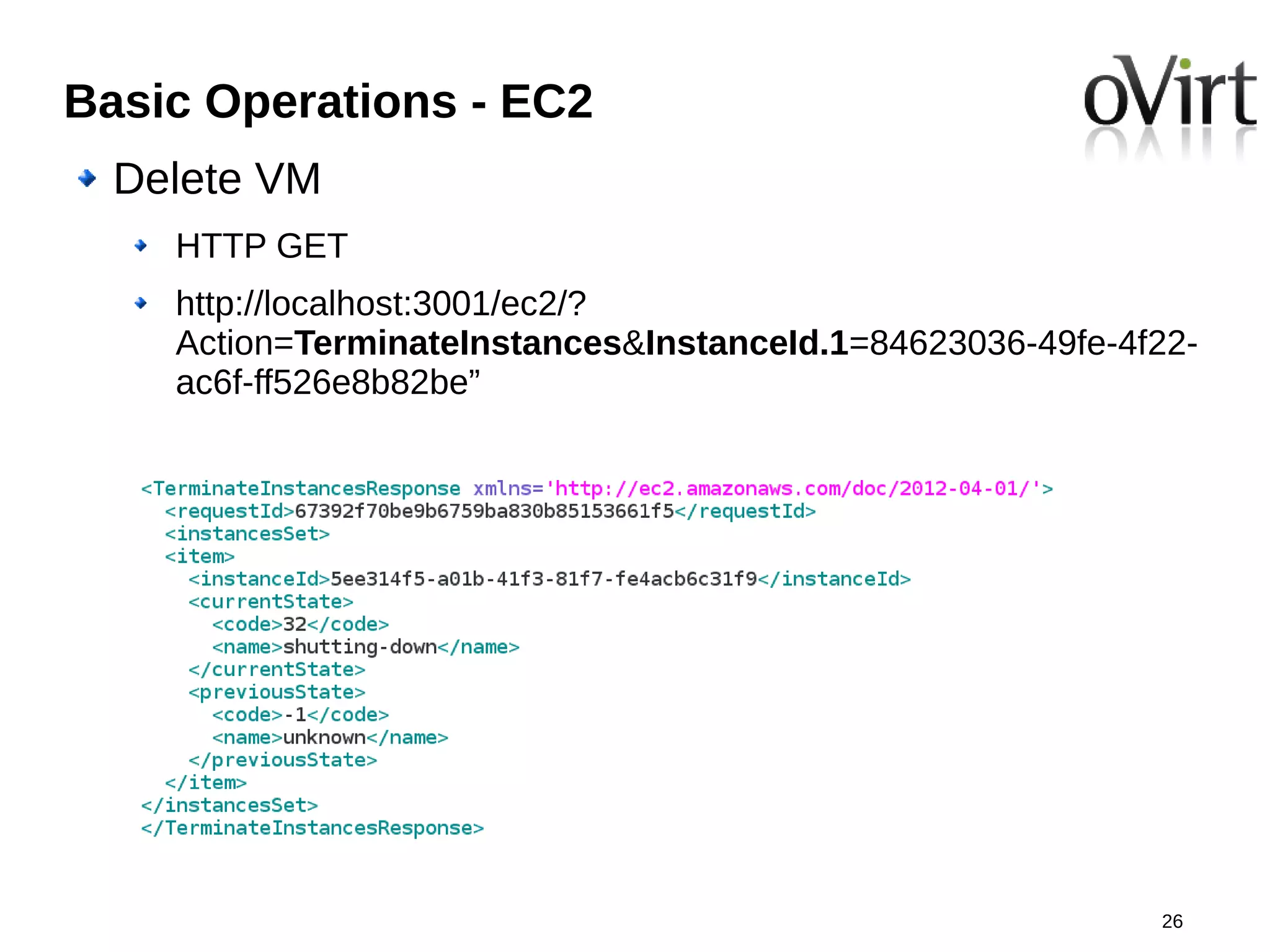

- 26. Basic Operations -EC2 Delete VM HTTP GET http://localhost:3001/ec2/? Action=TerminateInstances&InstanceId.1=84623036-49fe-4f22- ac6f-ff526e8b82be” 26

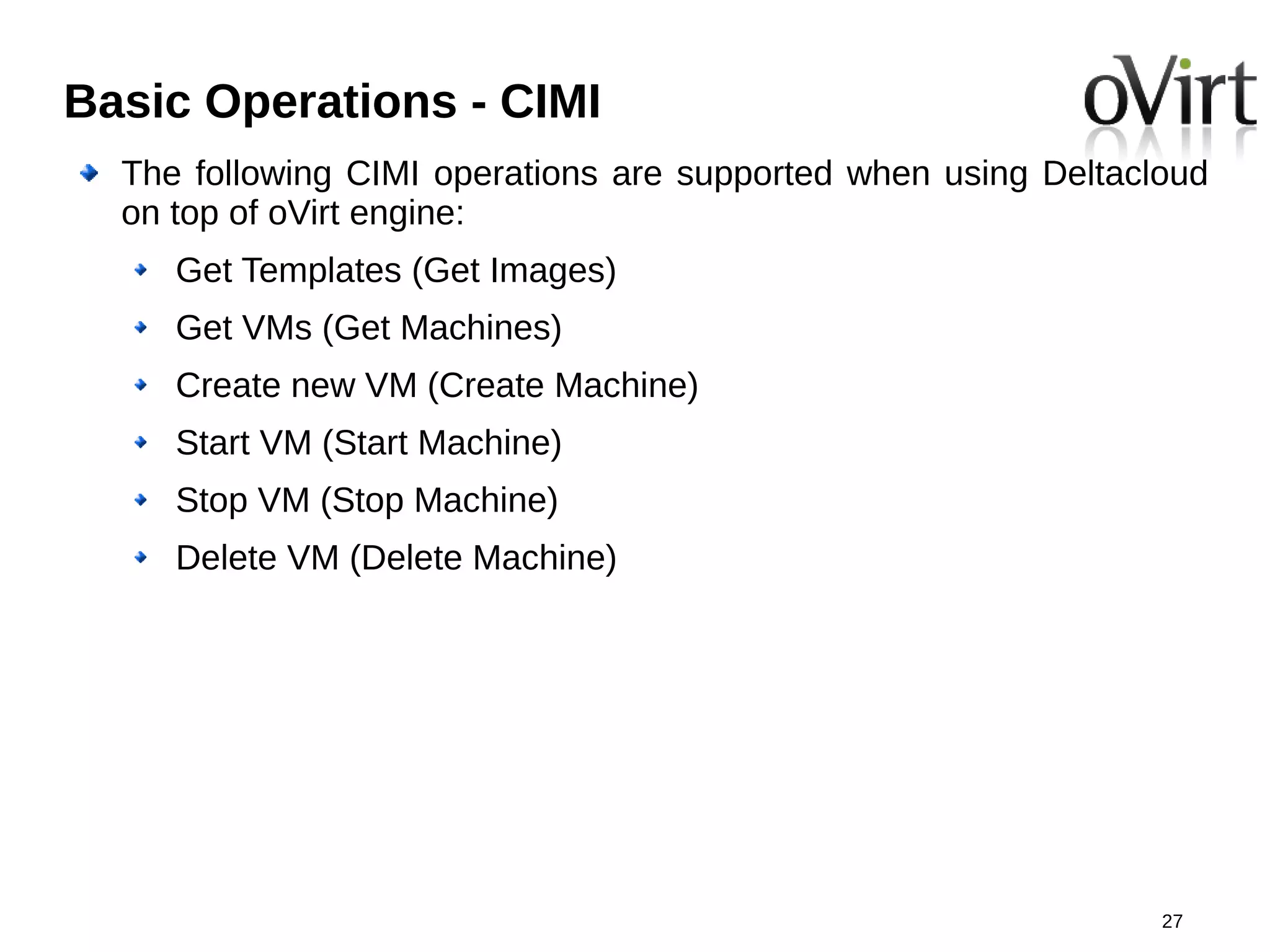

- 27. Basic Operations -CIMI The following CIMI operations are supported when using Deltacloud on top of oVirt engine: Get Templates (Get Images) Get VMs (Get Machines) Create new VM (Create Machine) Start VM (Start Machine) Stop VM (Stop Machine) Delete VM (Delete Machine) 27

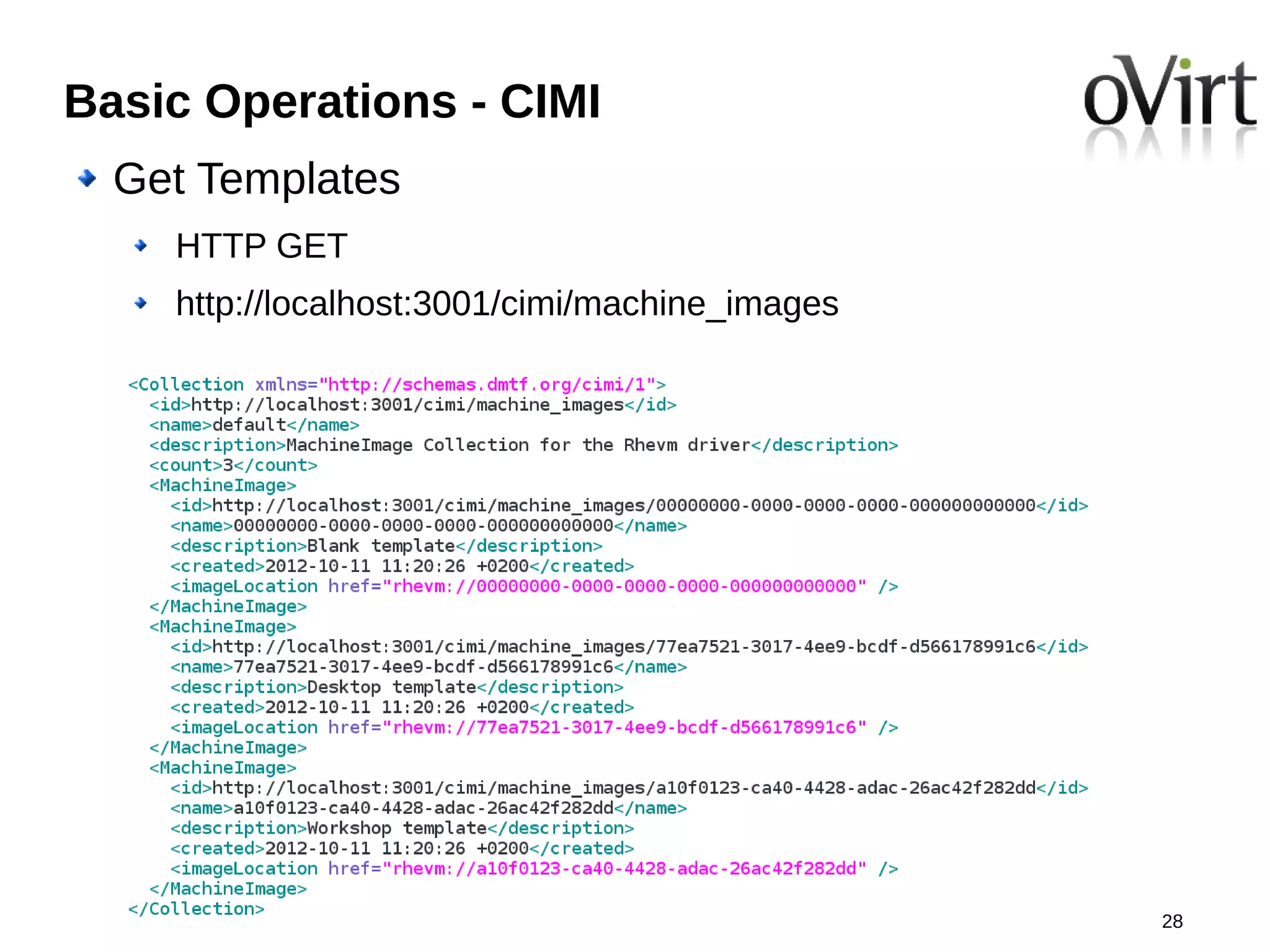

- 28. Basic Operations -CIMI Get Templates HTTP GET http://localhost:3001/cimi/machine_images 28

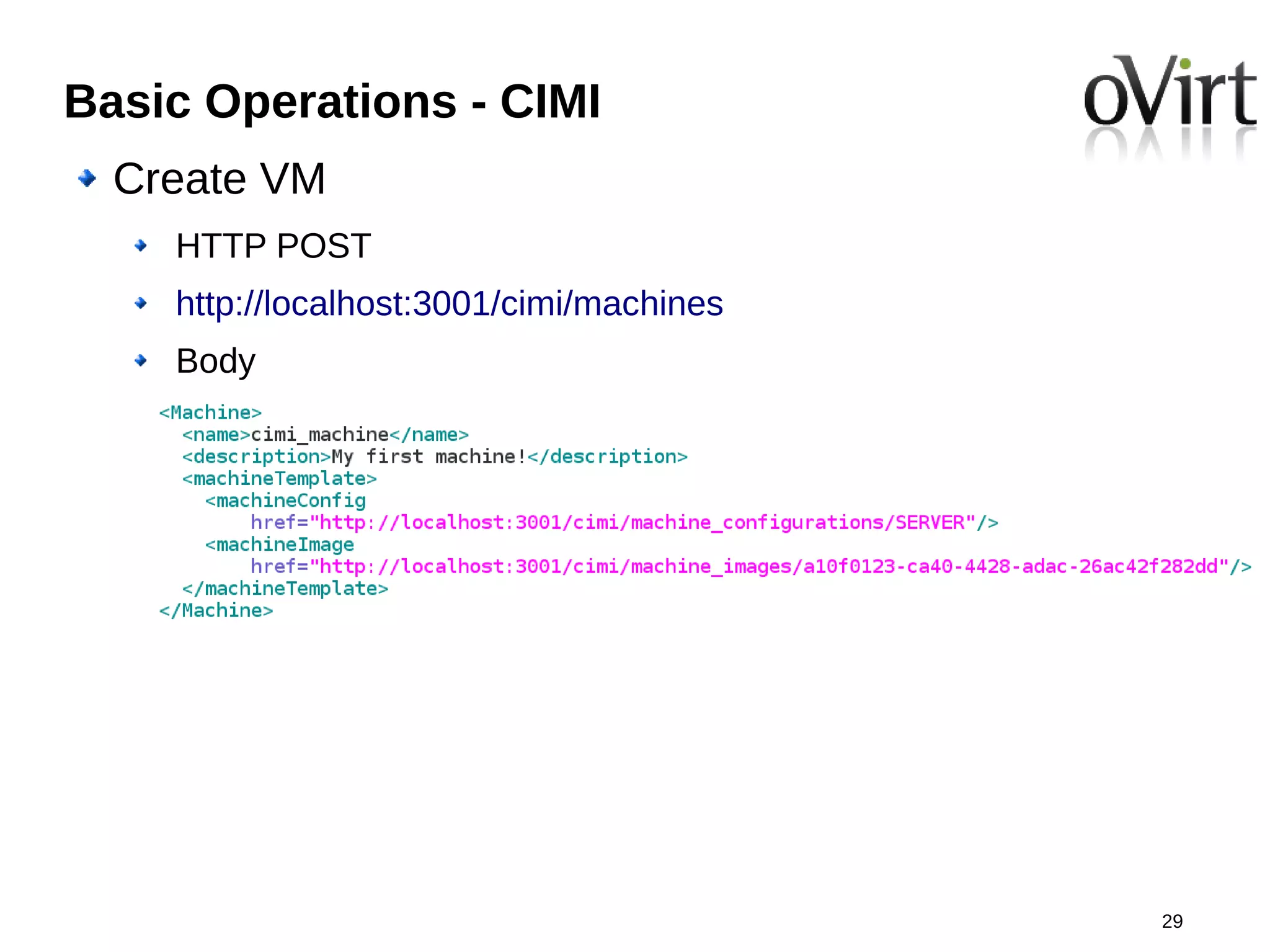

- 29. Basic Operations -CIMI Create VM HTTP POST http://localhost:3001/cimi/machines Body 29

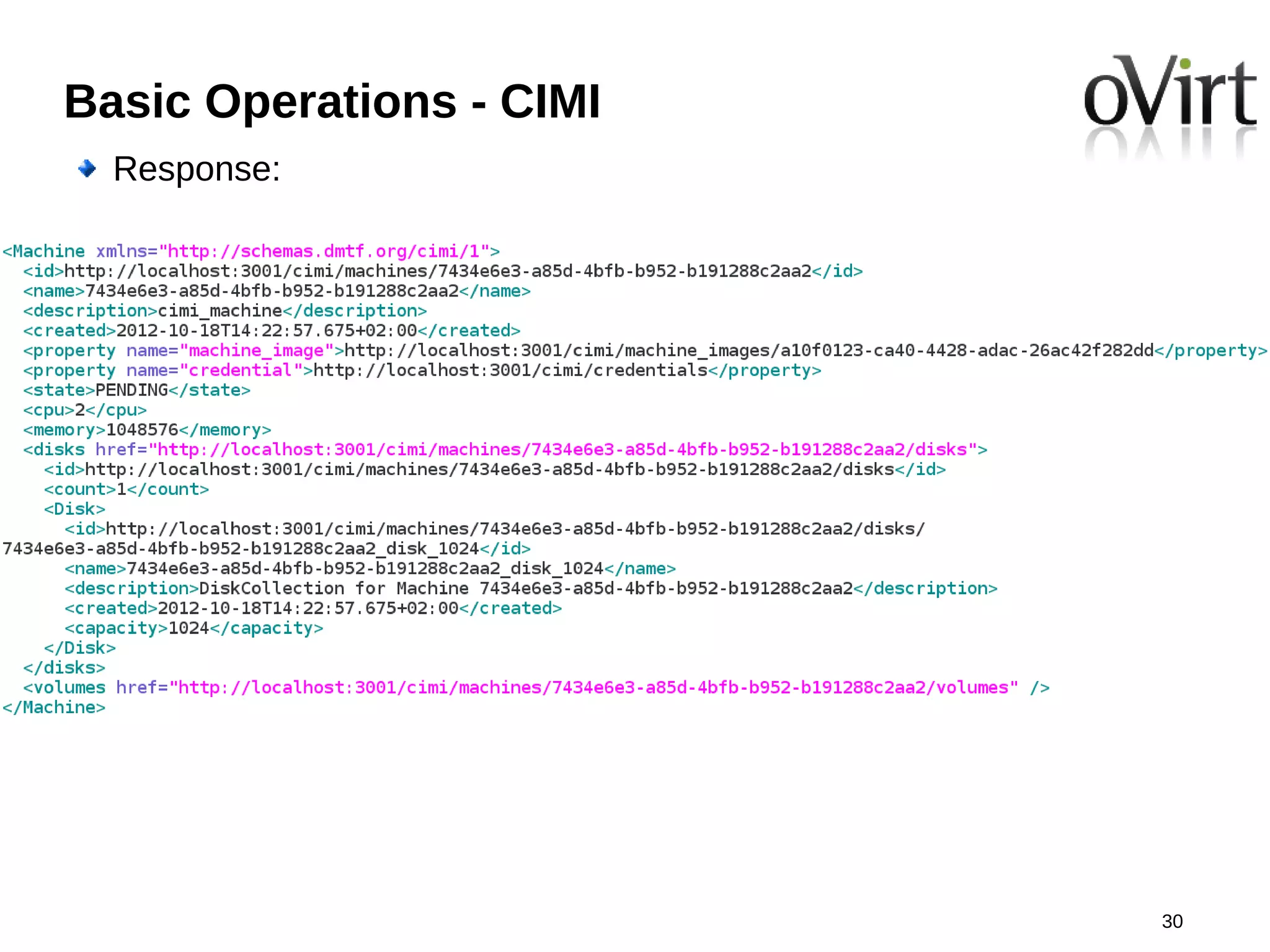

- 30. Basic Operations -CIMI Response: 30

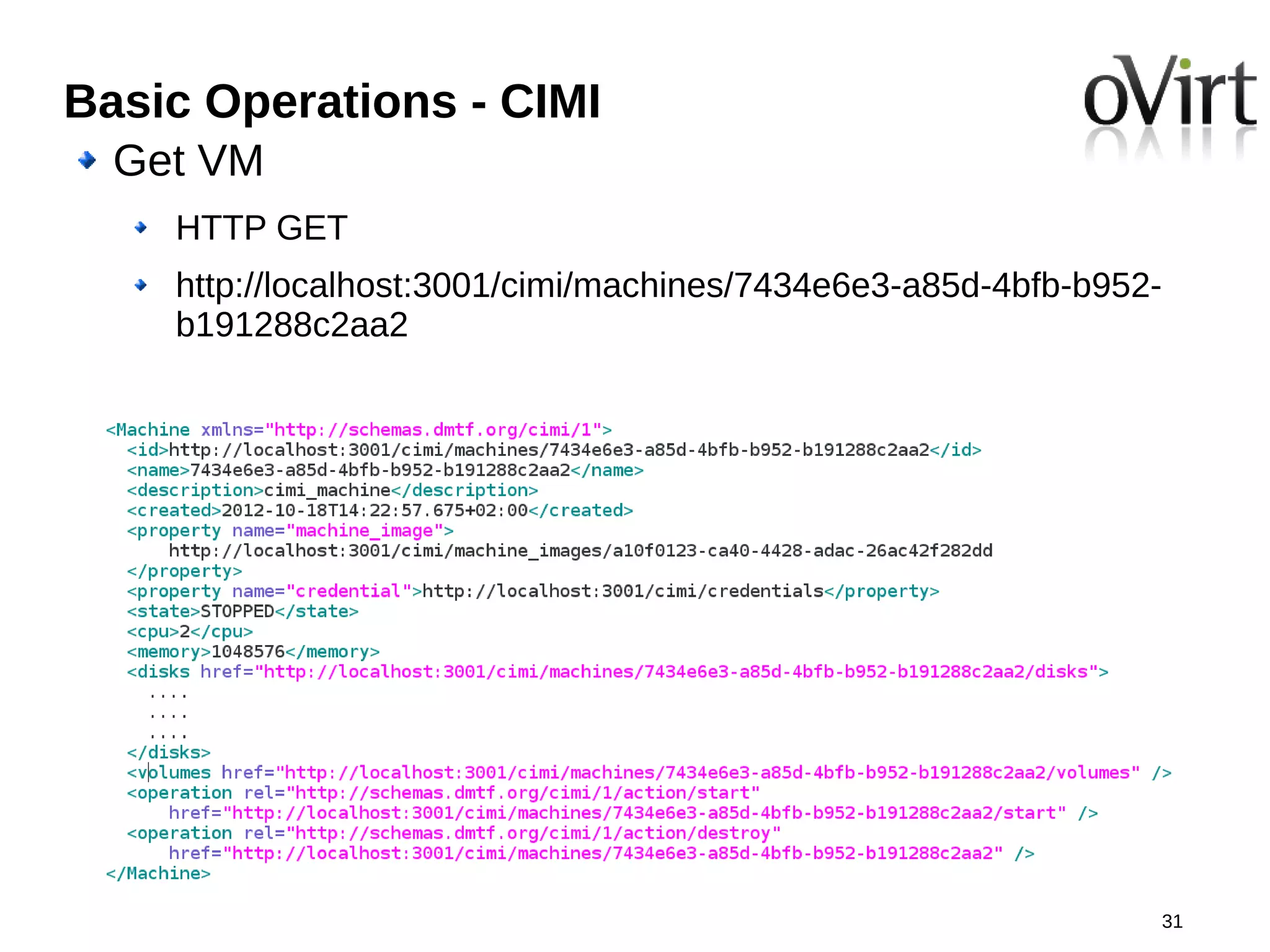

- 31. Basic Operations -CIMI Get VM HTTP GET http://localhost:3001/cimi/machines/7434e6e3-a85d-4bfb-b952- b191288c2aa2 31

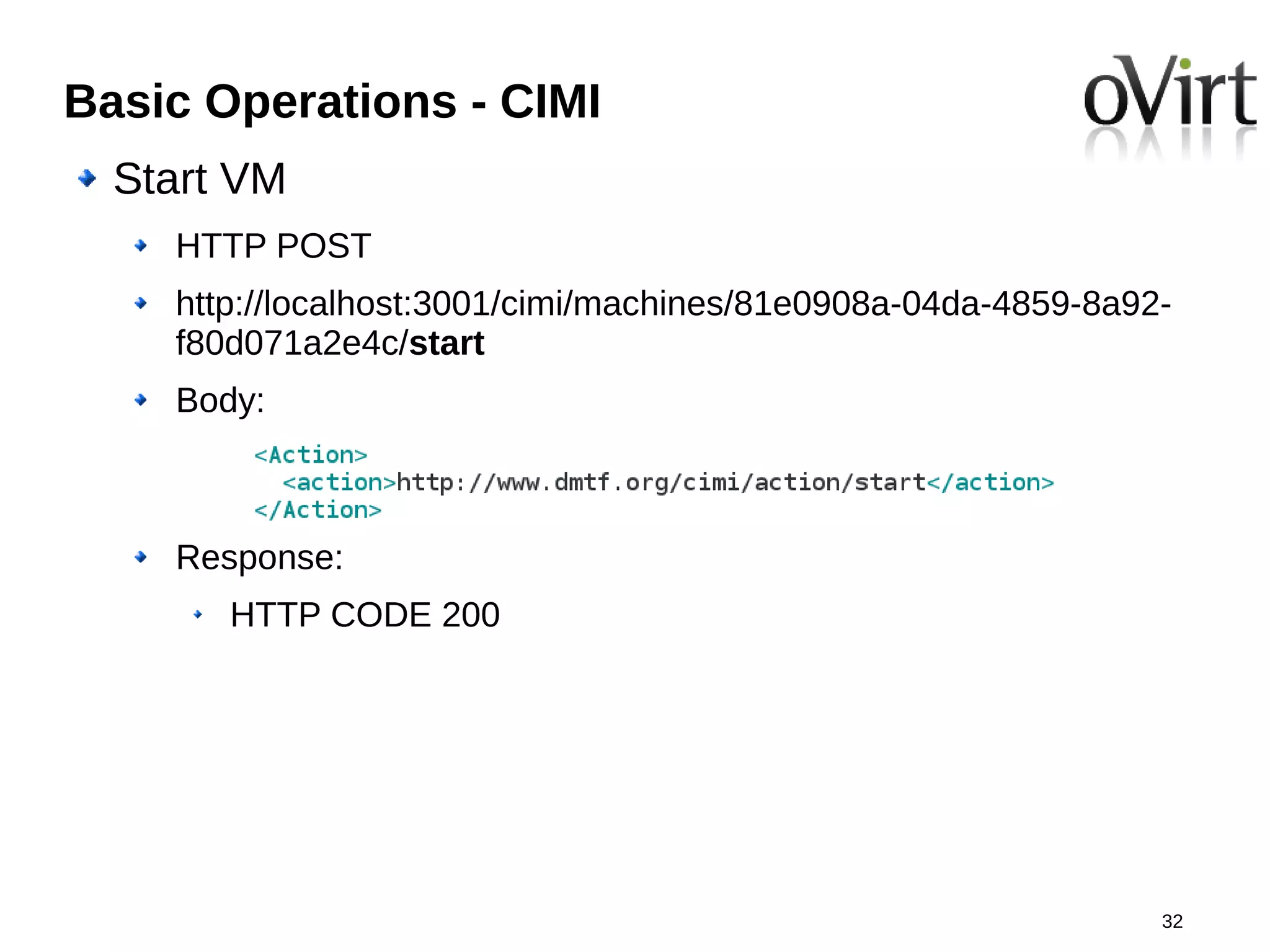

- 32. Basic Operations -CIMI Start VM HTTP POST http://localhost:3001/cimi/machines/81e0908a-04da-4859-8a92- f80d071a2e4c/start Body: Response: HTTP CODE 200 32

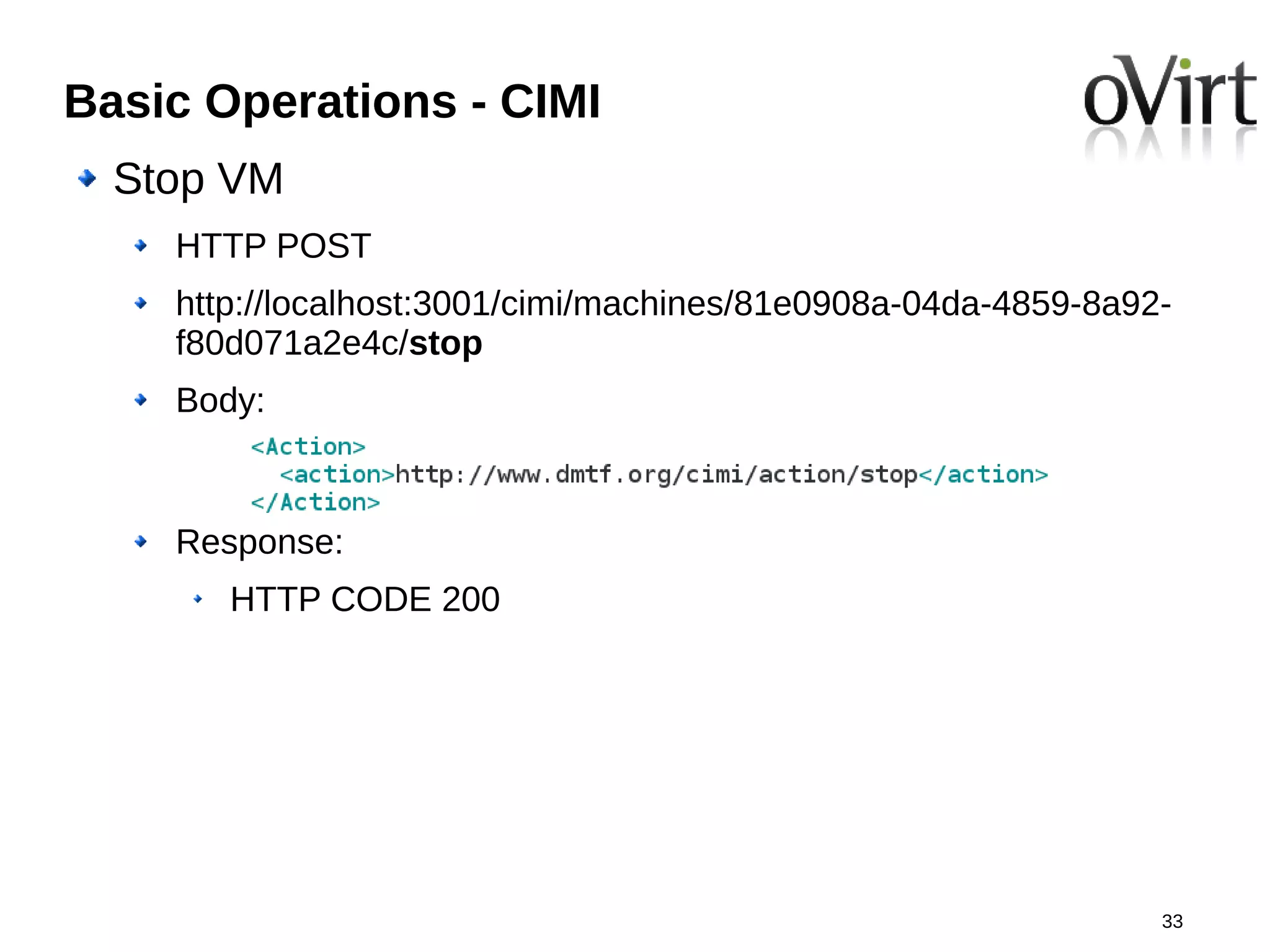

- 33. Basic Operations -CIMI Stop VM HTTP POST http://localhost:3001/cimi/machines/81e0908a-04da-4859-8a92- f80d071a2e4c/stop Body: Response: HTTP CODE 200 33

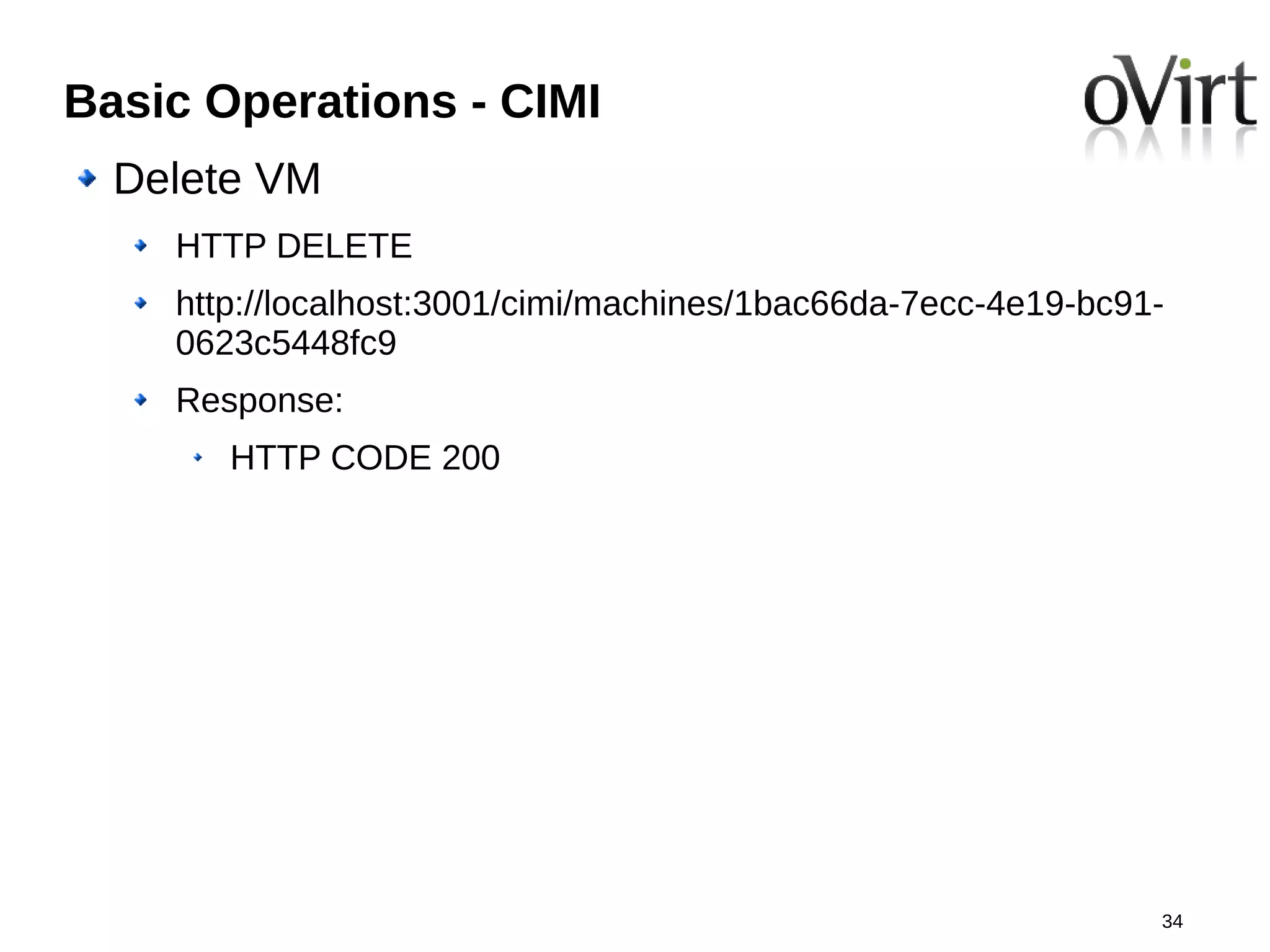

- 34. Basic Operations -CIMI Delete VM HTTP DELETE http://localhost:3001/cimi/machines/1bac66da-7ecc-4e19-bc91- 0623c5448fc9 Response: HTTP CODE 200 34

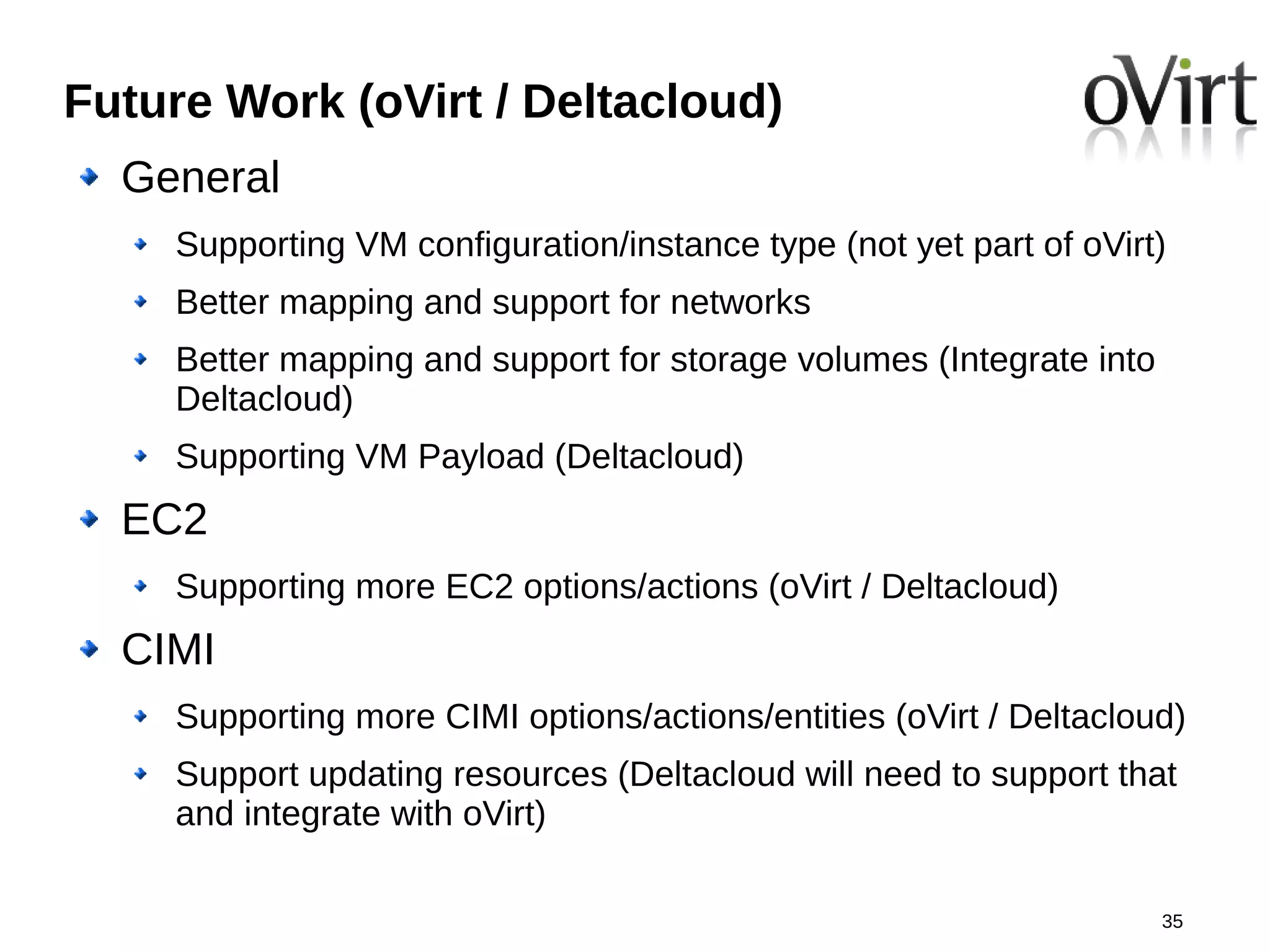

- 35. Future Work (oVirt/ Deltacloud) General Supporting VM configuration/instance type (not yet part of oVirt) Better mapping and support for networks Better mapping and support for storage volumes (Integrate into Deltacloud) Supporting VM Payload (Deltacloud) EC2 Supporting more EC2 options/actions (oVirt / Deltacloud) CIMI Supporting more CIMI options/actions/entities (oVirt / Deltacloud) Support updating resources (Deltacloud will need to support that and integrate with oVirt) 35

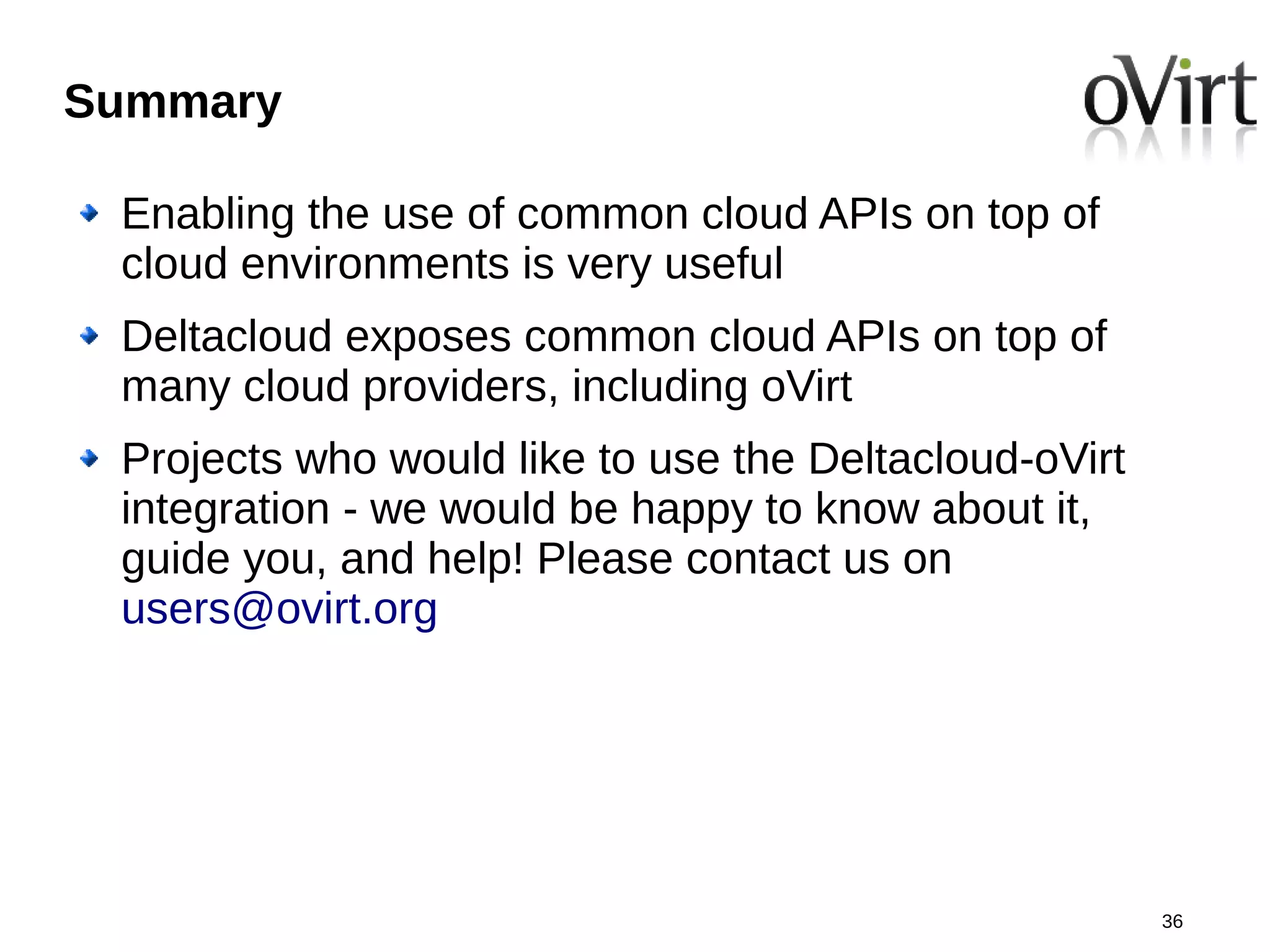

- 36. Summary Enabling theuse of common cloud APIs on top of cloud environments is very useful Deltacloud exposes common cloud APIs on top of many cloud providers, including oVirt Projects who would like to use the Deltacloud-oVirt integration - we would be happy to know about it, guide you, and help! Please contact us on users@ovirt.org 36

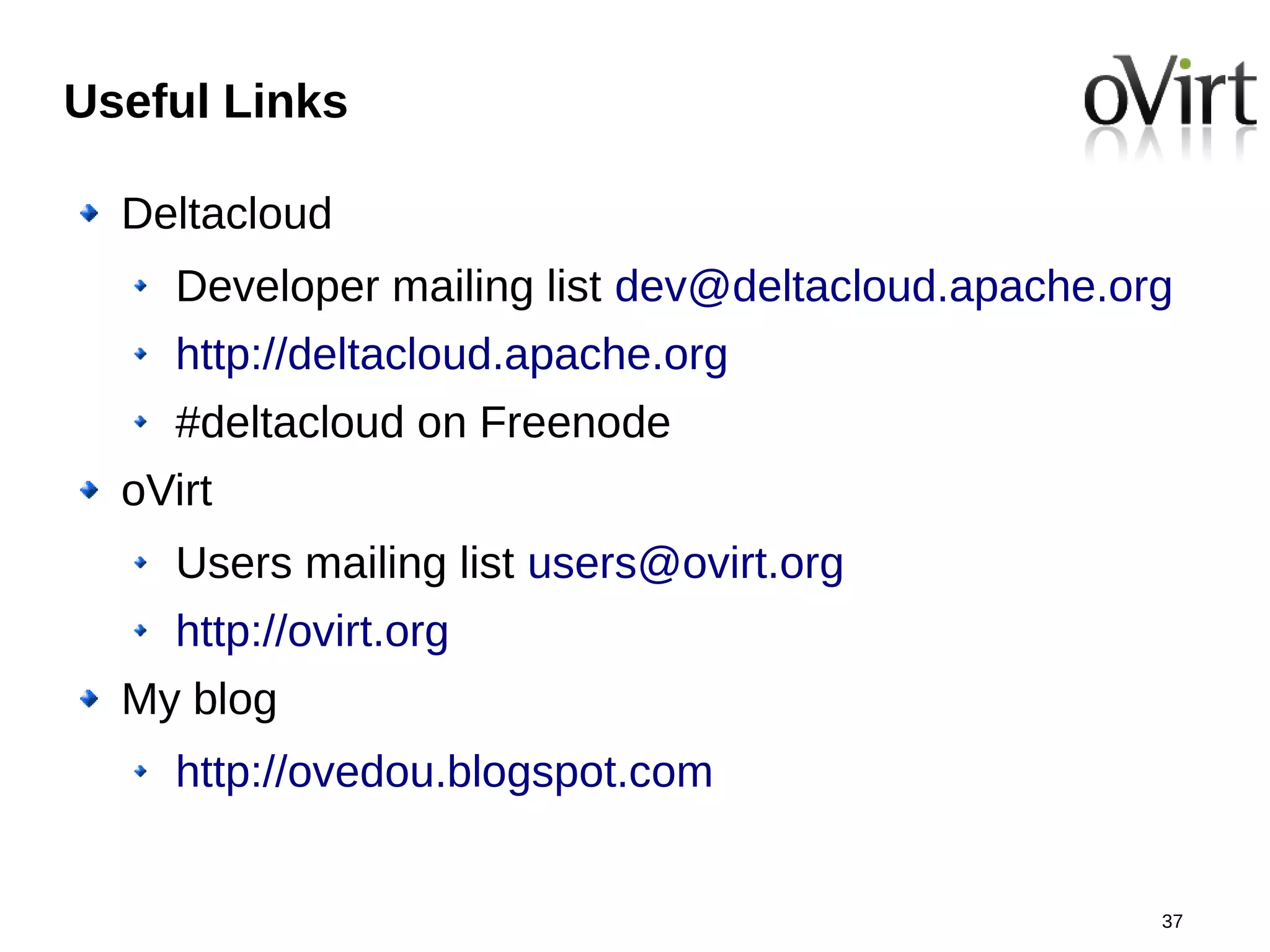

- 37. Useful Links Deltacloud Developer mailing list dev@deltacloud.apache.org http://deltacloud.apache.org #deltacloud on Freenode oVirt Users mailing list users@ovirt.org http://ovirt.org My blog http://ovedou.blogspot.com 37
- 38. Questions ? 38
- 39. THANK YOU ! http://www.ovirt.org ovedo@redhat.com ovedoat #ovirt (irc.oftc.net) 39
