Chapter 4
Network Layer:
Data Plane

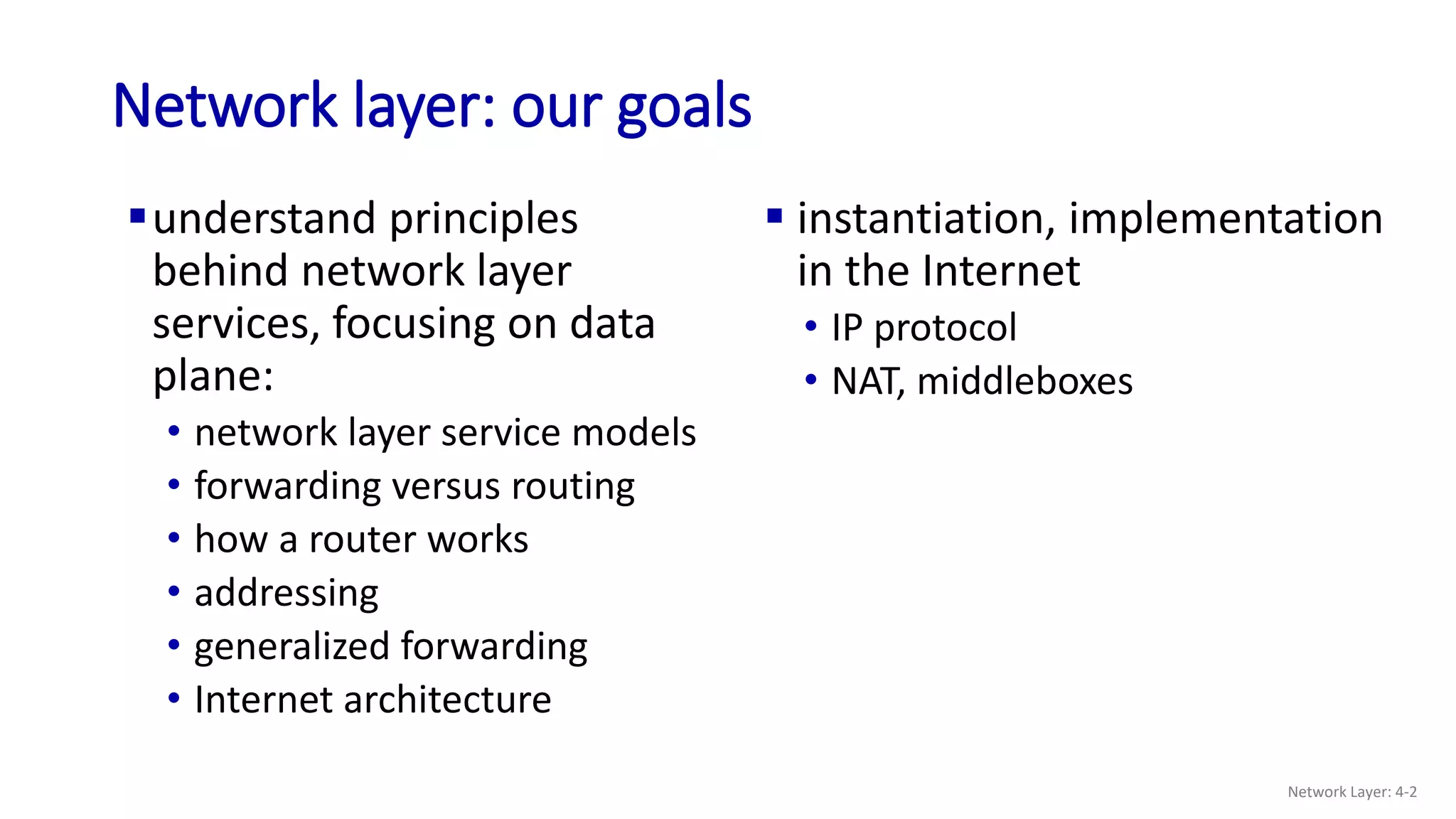

Network layer: our goals
understand principles
behind network layer
services, focusing on data
plane:
• network layer service models
• forwarding versus routing
• how a router works
• addressing
• generalized forwarding
• Internet architecture
 instantiation, implementation
in the Internet
• IP protocol
• NAT, middleboxes
Network Layer: 4-2

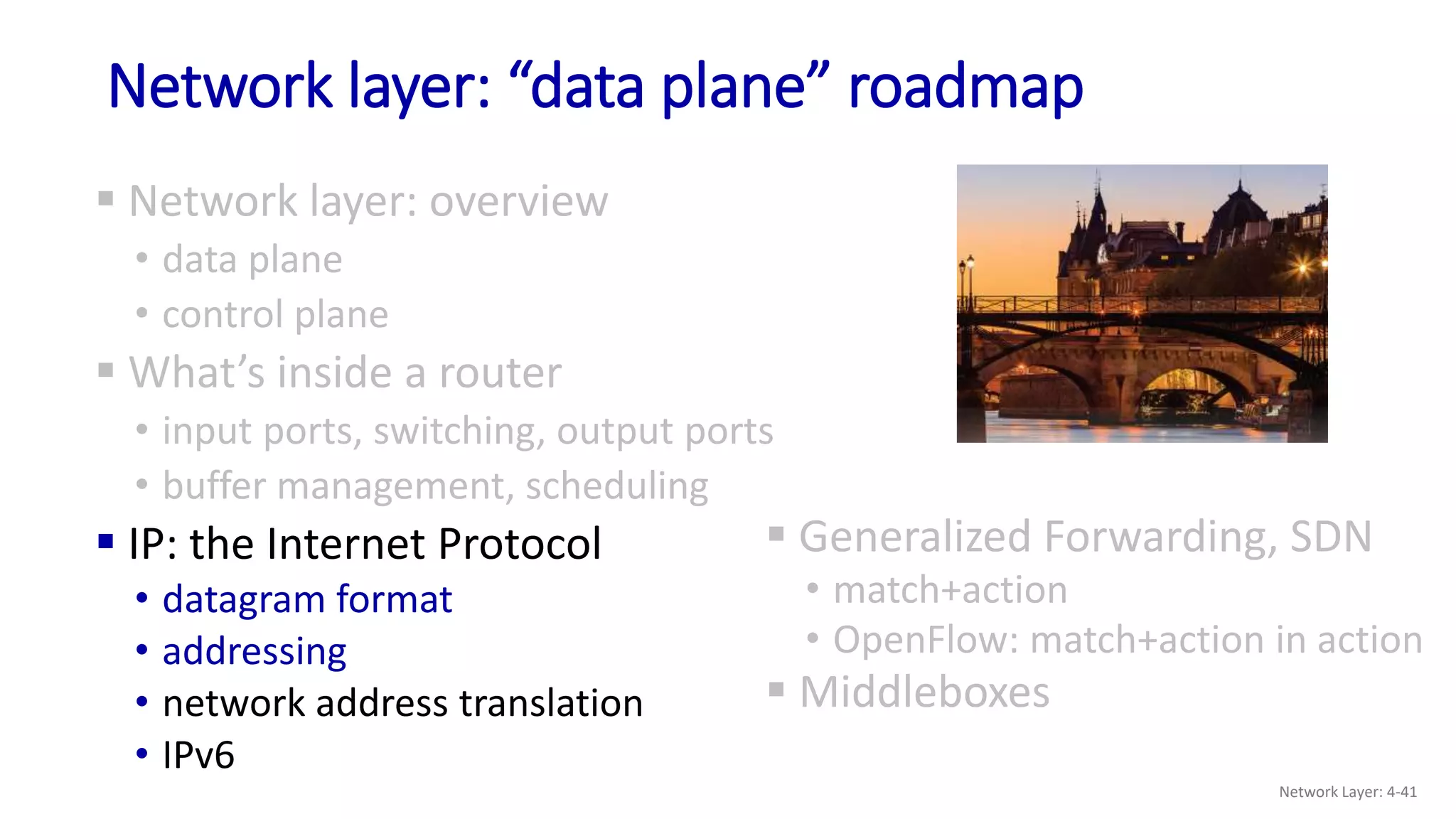

Network layer: “data plane” roadmap
 Network layer: overview
• data plane
• control plane
 Generalized Forwarding, SDN
• Match+action
• OpenFlow: match+action in action
 Middleboxes
Network Layer: 4-3
 What’s inside a router
• input ports, switching, output ports
• buffer management, scheduling
 IP: the Internet Protocol
• datagram format
• addressing
• network address translation
• IPv6

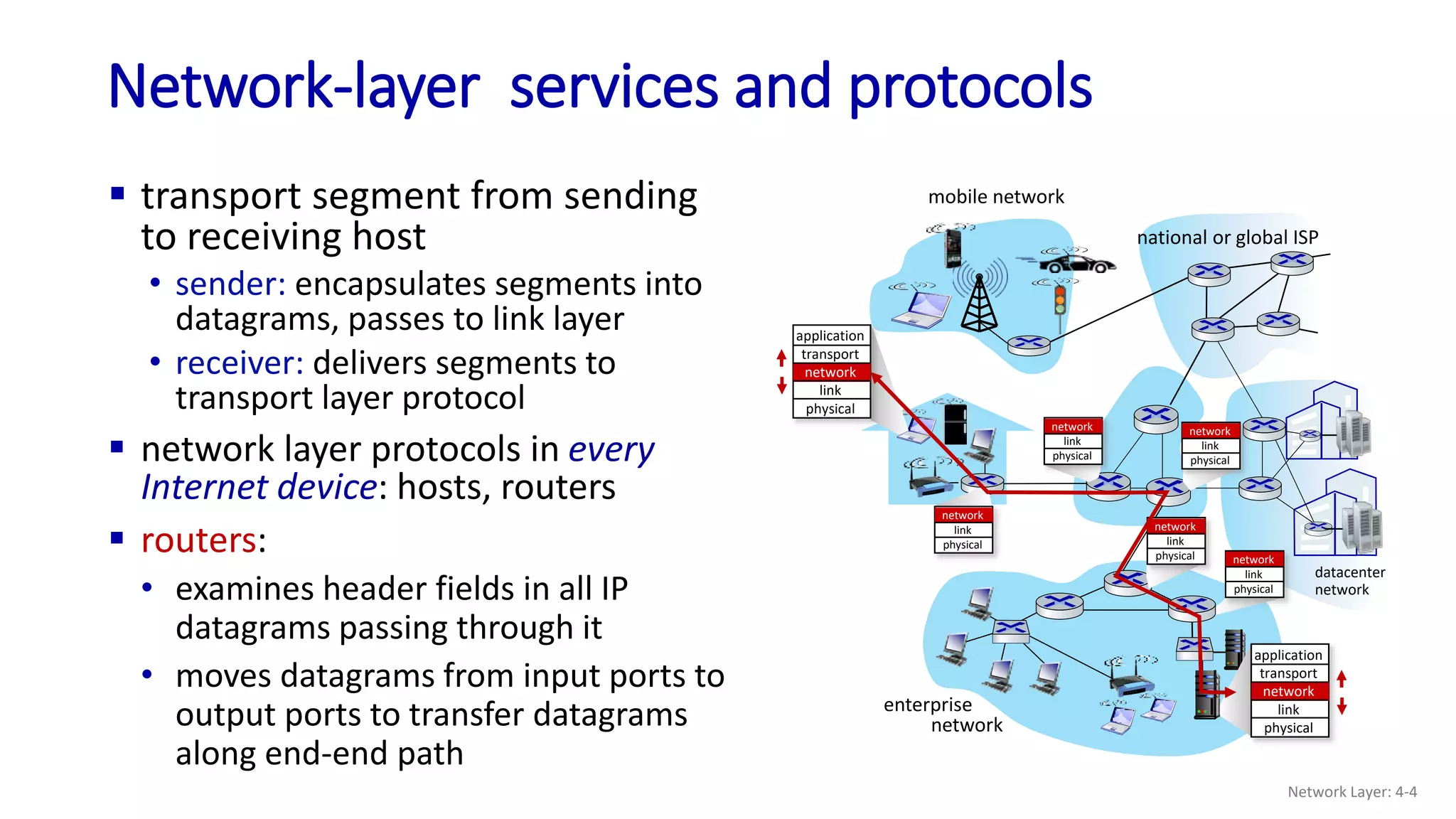

Network-layer services and protocols
 transport segment from sending
to receiving host
• sender: encapsulates segments into
datagrams, passes to link layer
• receiver: delivers segments to
transport layer protocol
 network layer protocols in every
Internet device: hosts, routers
 routers:
• examines header fields in all IP
datagrams passing through it
• moves datagrams from input ports to
output ports to transfer datagrams
along end-end path
mobile network
enterprise
network
national or global ISP
datacenter
network
application
transport
network
link
physical
application
transport
network
link
physical
network
link
physical
network
link
physical
network
link
physical
network
link
physical network
link
physical
Network Layer: 4-4

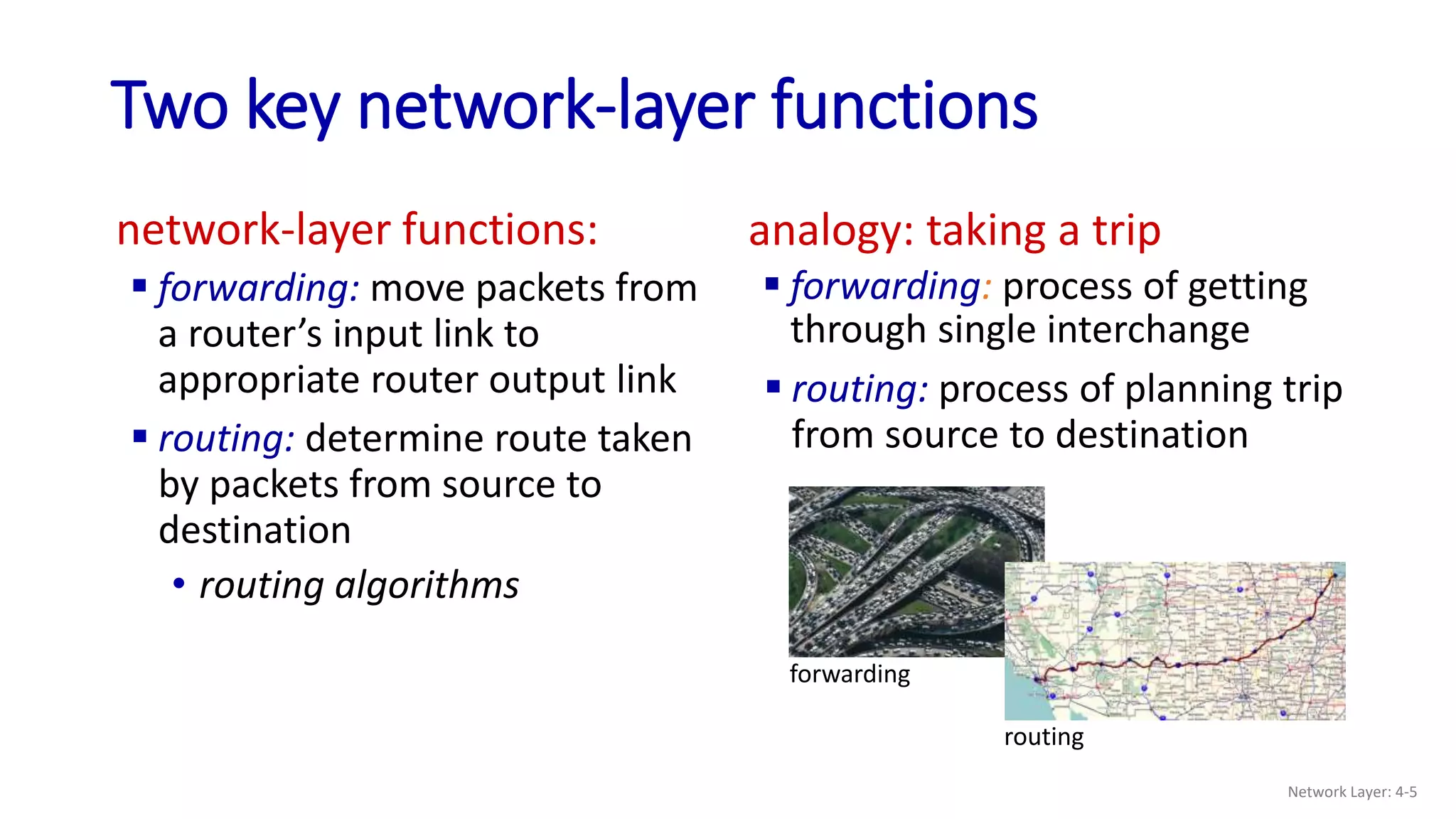

Two key network-layer functions
network-layer functions:
 forwarding: move packets from
a router’s input link to
appropriate router output link
analogy: taking a trip
 forwarding: process of getting
through single interchange
forwarding
routing
 routing: process of planning trip
from source to destination
 routing: determine route taken
by packets from source to
destination
• routing algorithms
Network Layer: 4-5

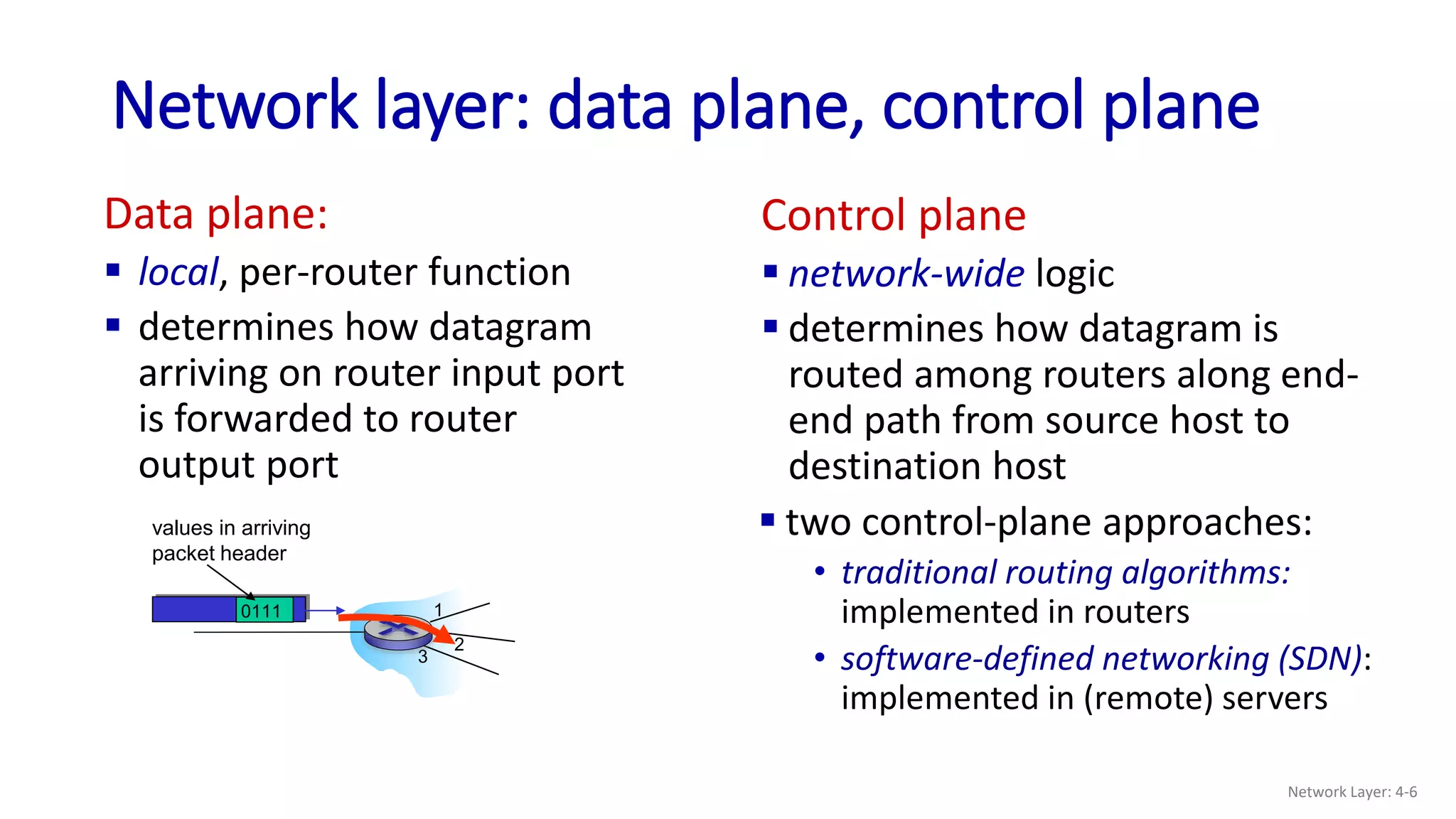

Network layer: data plane, control plane
Data plane:
 local, per-router function
 determines how datagram
arriving on router input port
is forwarded to router
output port
Control plane
 network-wide logic
 determines how datagram is
routed among routers along end-
end path from source host to
destination host
1
2
3
0111
values in arriving
packet header
 two control-plane approaches:
• traditional routing algorithms:
implemented in routers
• software-defined networking (SDN):
implemented in (remote) servers
Network Layer: 4-6

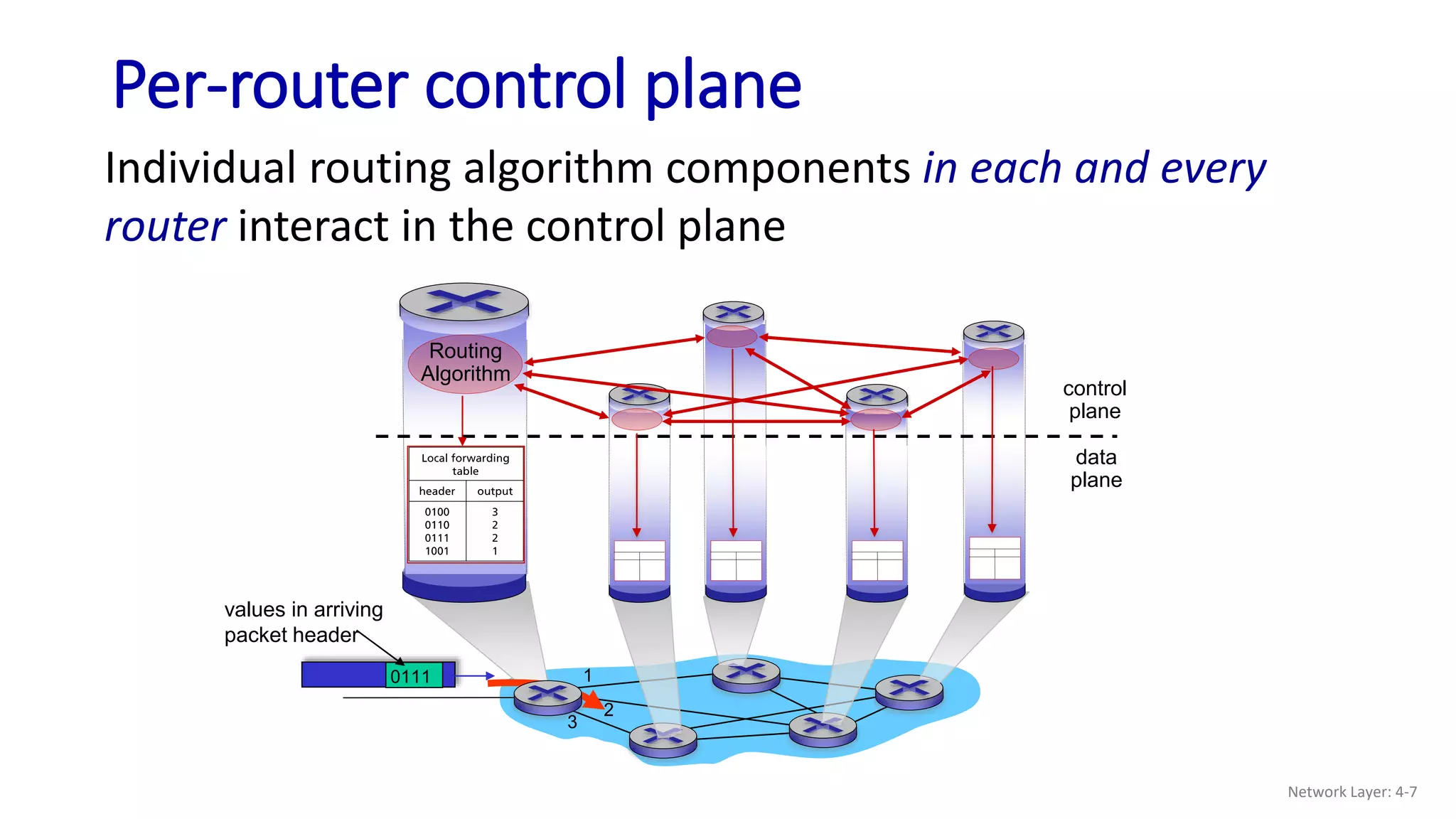

Per-router control plane
Individual routing algorithm components in each and every
router interact in the control plane
Routing
Algorithm
data
plane
control
plane
1
2
0111
values in arriving
packet header
3
Network Layer: 4-7

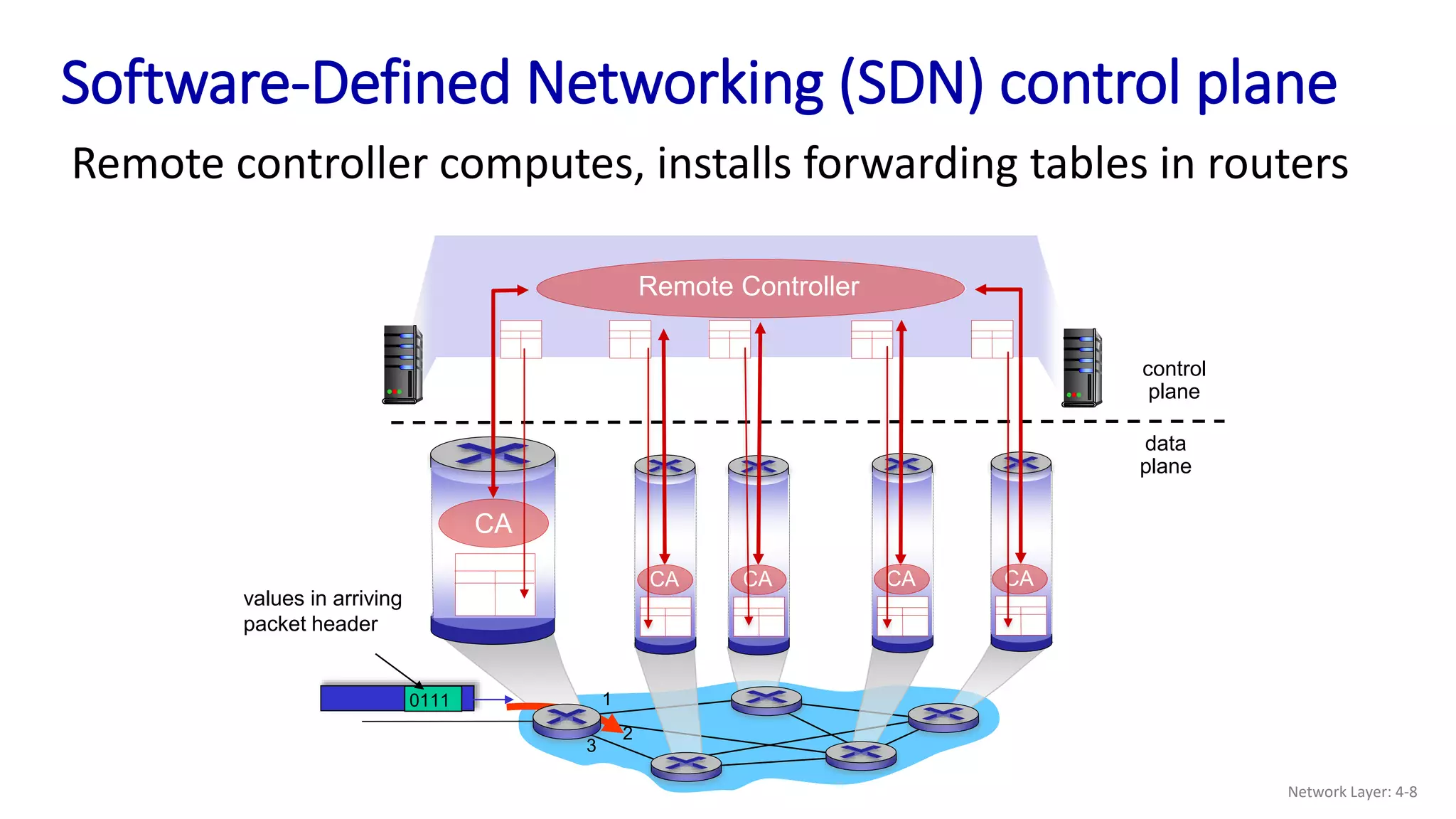

Software-Defined Networking (SDN) control plane
Remote controller computes, installs forwarding tables in routers
data
plane
control
plane
Remote Controller
CA
CA CA CA CA
1
2
0111
3
values in arriving
packet header
Network Layer: 4-8

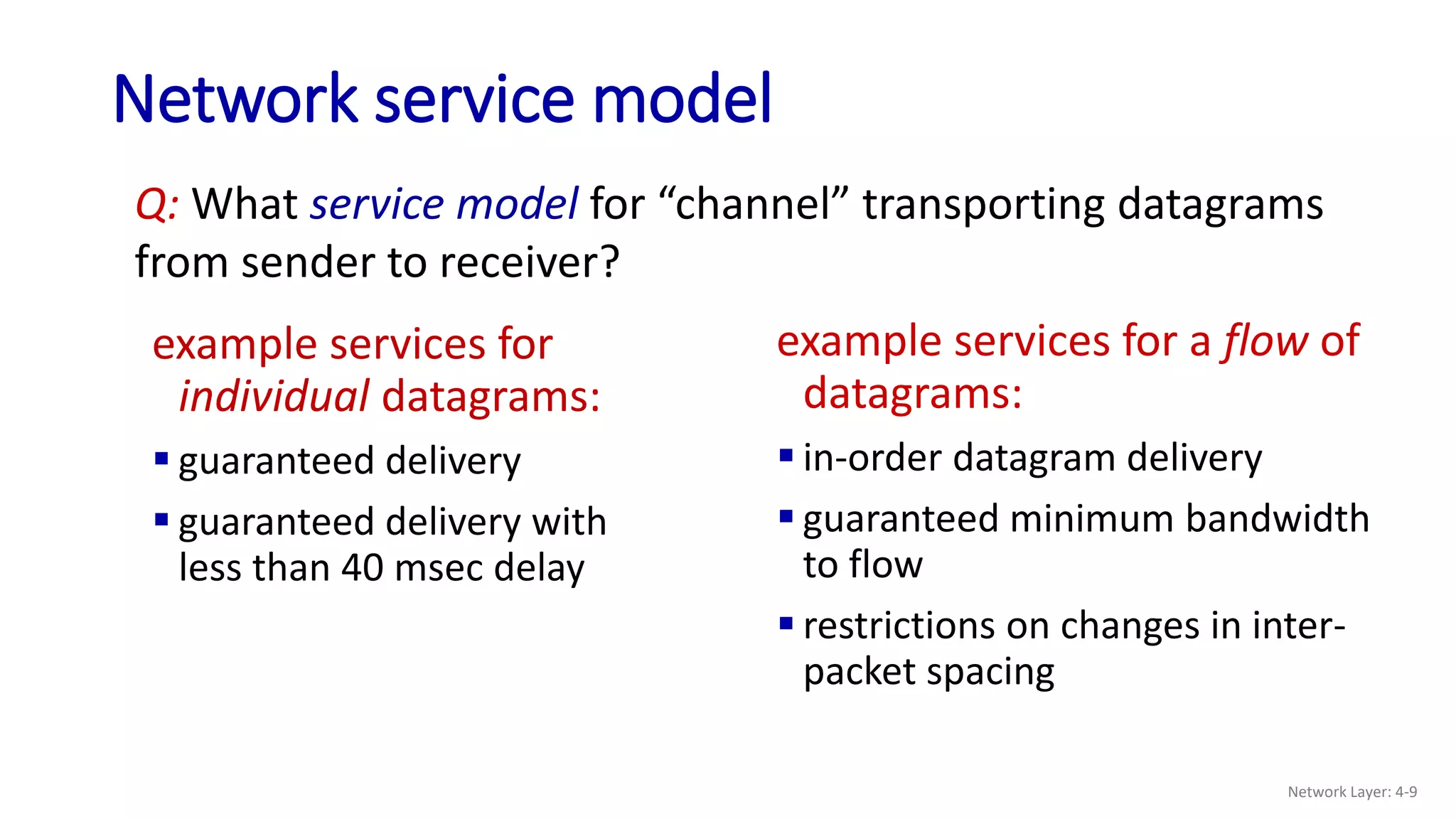

Network service model
example services for
individual datagrams:
 guaranteed delivery
 guaranteed delivery with
less than 40 msec delay
example services for a flow of
datagrams:
 in-order datagram delivery
 guaranteed minimum bandwidth
to flow
 restrictions on changes in inter-
packet spacing
Q: What service model for “channel” transporting datagrams
from sender to receiver?
Network Layer: 4-9

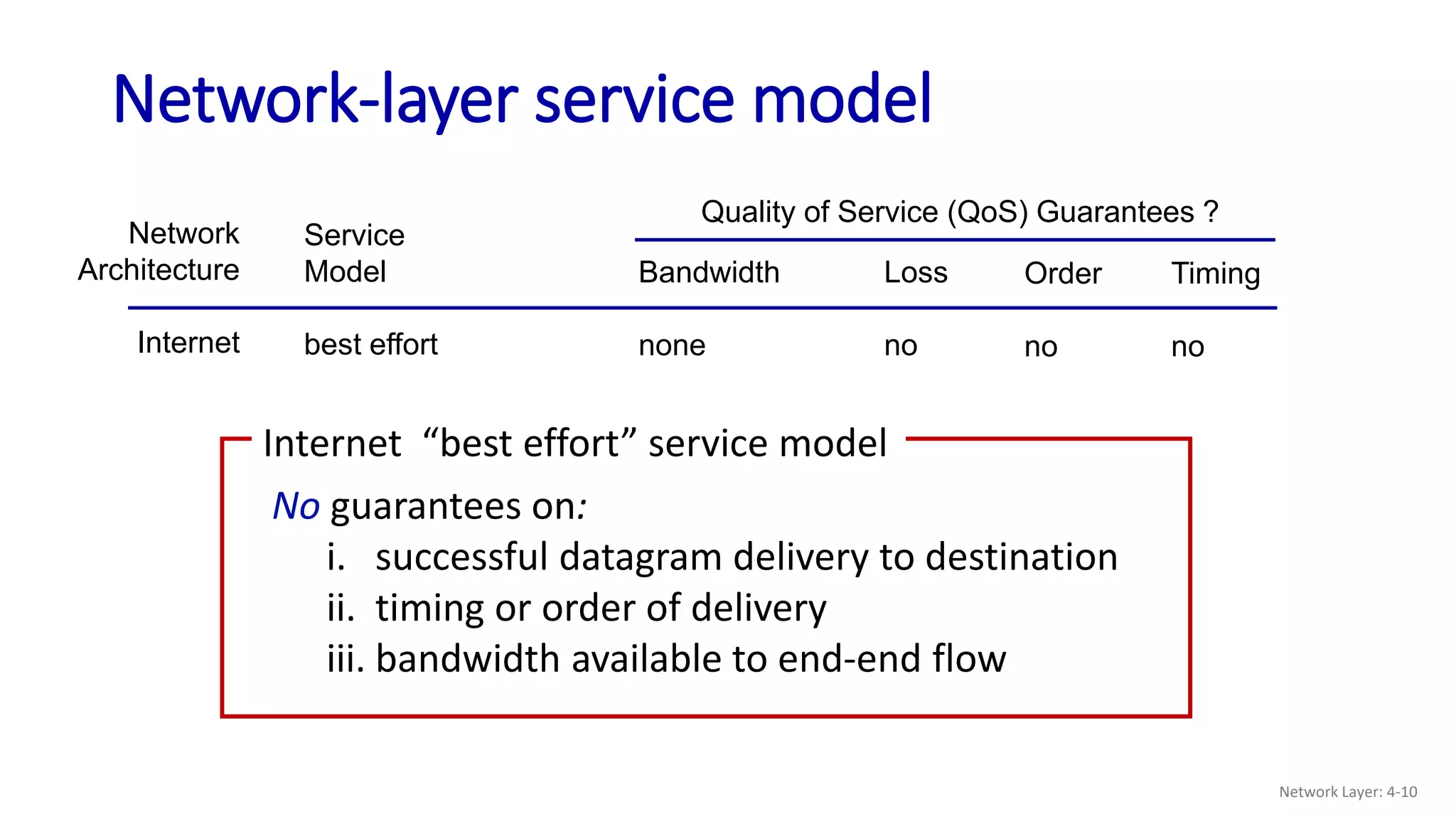

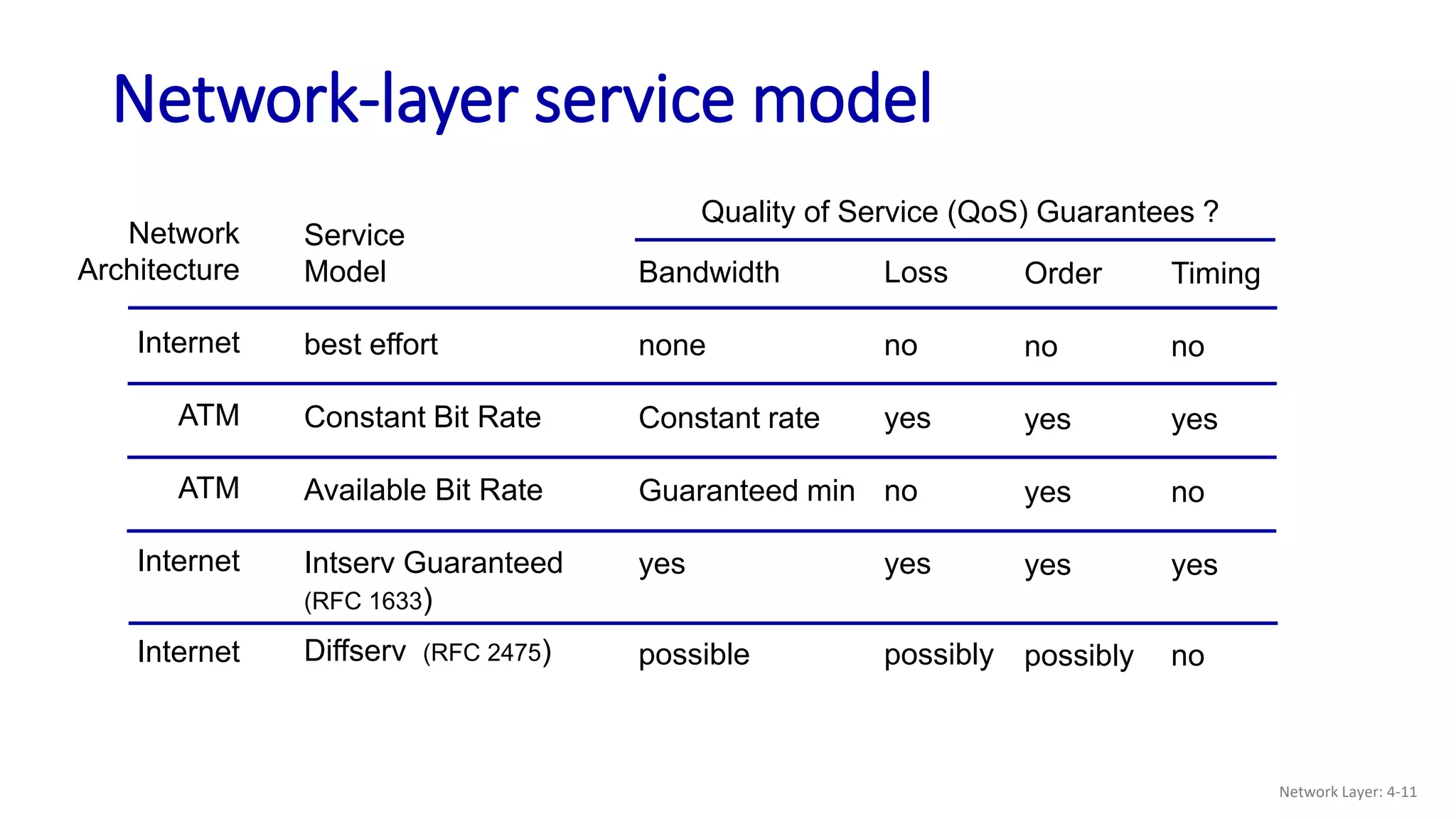

Network-layer service model
Network
Architecture
Internet
ATM
ATM
Internet
Internet
Service
Model
best effort
Constant Bit Rate
Available Bit Rate
Intserv Guaranteed
(RFC 1633)
Diffserv (RFC 2475)
Bandwidth
none
Constant rate
Guaranteed min
yes
possible
Loss
no
yes
no
yes
possibly
Order
no
yes
yes
yes
possibly
Timing
no
yes
no
yes
no
No guarantees on:
i. successful datagram delivery to destination
ii. timing or order of delivery
iii. bandwidth available to end-end flow
Internet “best effort” service model
Quality of Service (QoS) Guarantees ?
Network Layer: 4-10

Network-layer service model
Network
Architecture
Internet
ATM
ATM
Internet
Internet
Service
Model
best effort
Constant Bit Rate
Available Bit Rate
Intserv Guaranteed
(RFC 1633)
Diffserv (RFC 2475)
Bandwidth
none
Constant rate
Guaranteed min
yes
possible
Loss
no
yes
no
yes
possibly
Order
no
yes
yes
yes
possibly
Timing
no
yes
no
yes
no
Quality of Service (QoS) Guarantees ?
Network Layer: 4-11

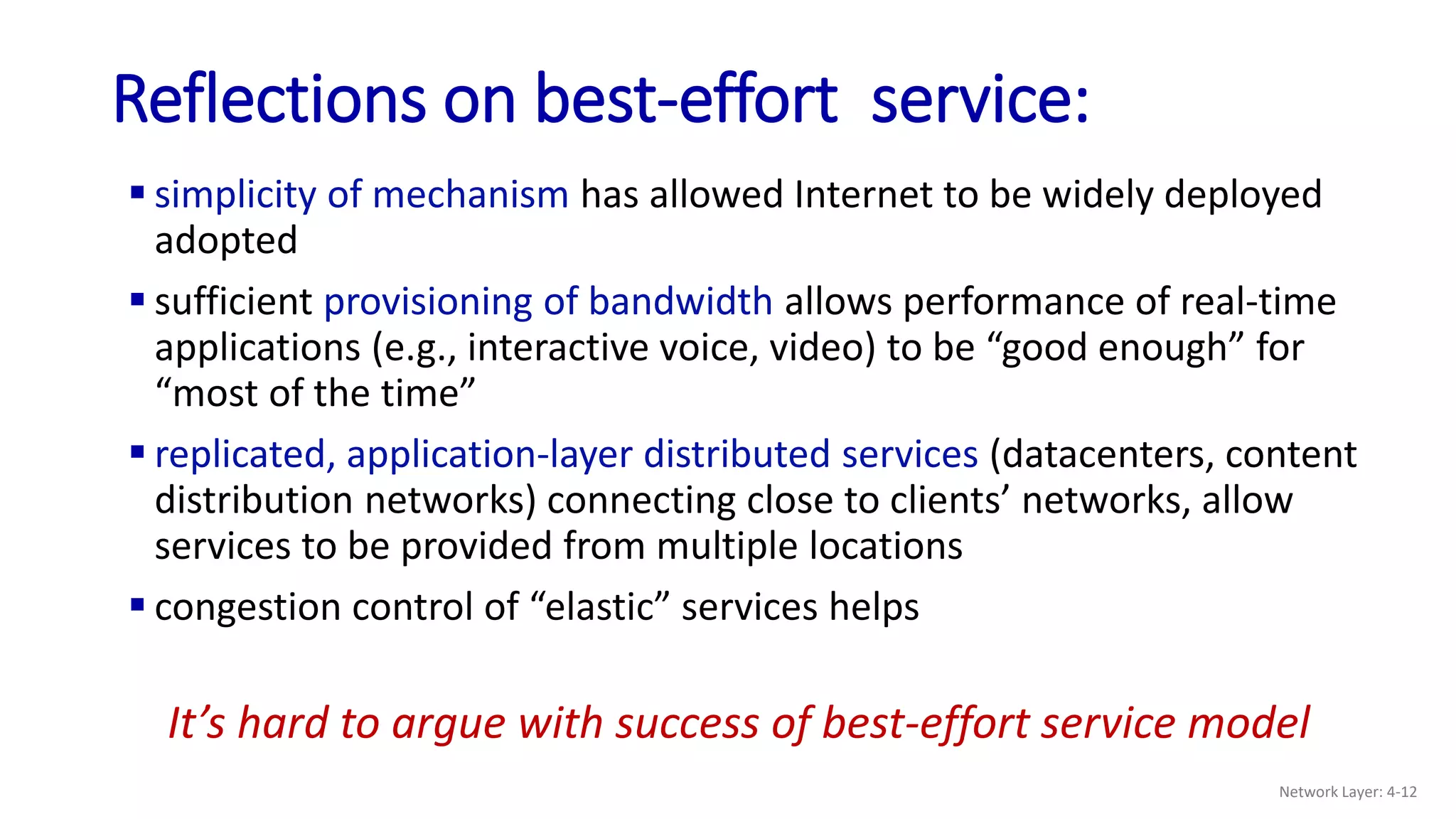

Reflections on best-effort service:
 simplicity of mechanism has allowed Internet to be widely deployed
adopted
 sufficient provisioning of bandwidth allows performance of real-time
applications (e.g., interactive voice, video) to be “good enough” for
“most of the time”
 replicated, application-layer distributed services (datacenters, content
distribution networks) connecting close to clients’ networks, allow
services to be provided from multiple locations
 congestion control of “elastic” services helps
It’s hard to argue with success of best-effort service model
Network Layer: 4-12

• data plane
• control plane
• datagram format
• addressing
• IPv6
• Match+action
 Middleboxes
Network Layer: 4-13

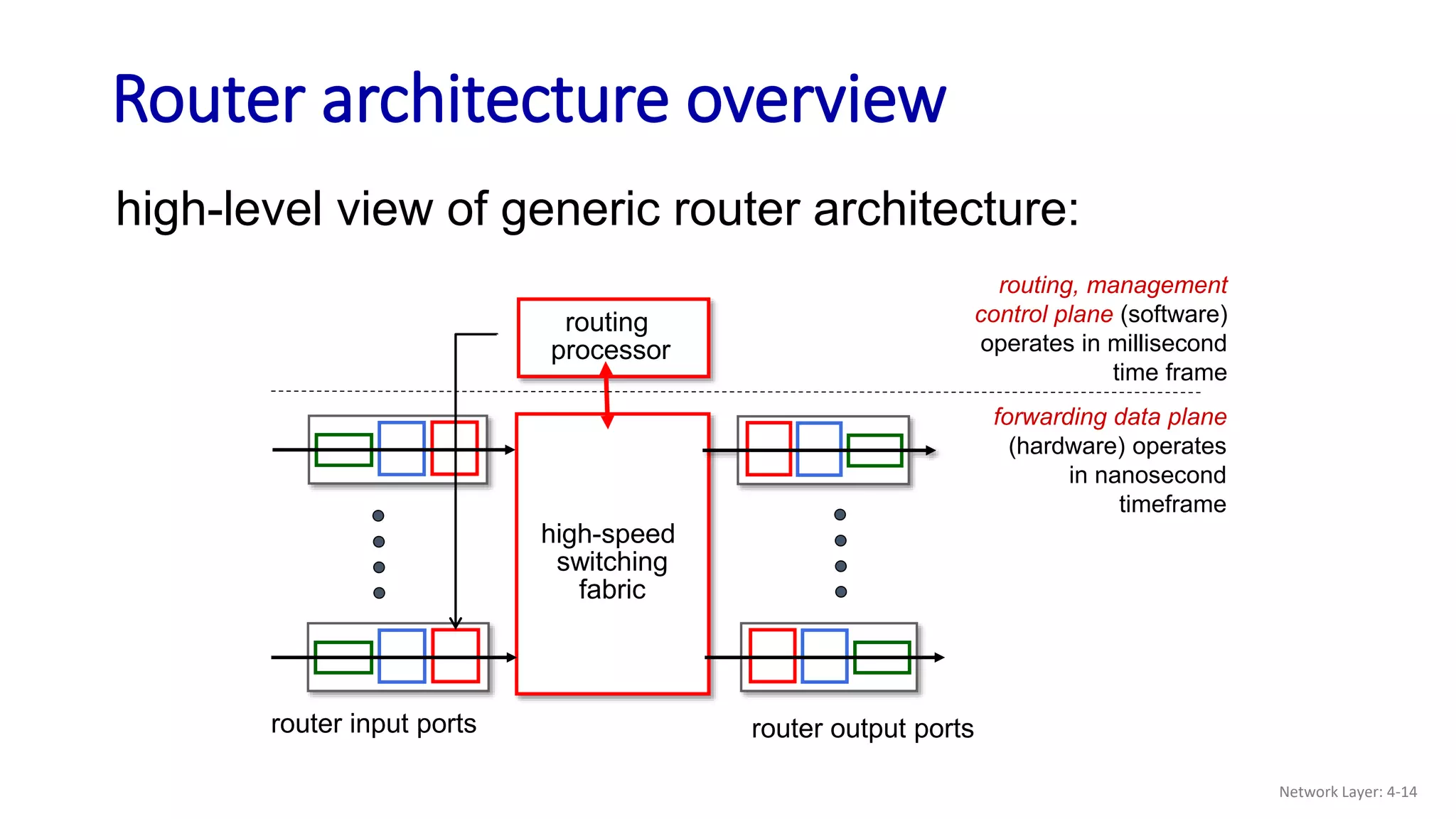

Router architecture overview
high-level view of generic router architecture:
high-speed
switching
fabric
routing
processor
router input ports router output ports
forwarding data plane
(hardware) operates
in nanosecond
timeframe
routing, management
control plane (software)
operates in millisecond
time frame
Network Layer: 4-14

Input port functions
switch
fabric
line
termination
physical layer:
bit-level reception
link
layer
protocol
(receive)
link layer:
e.g., Ethernet
(chapter 6)
lookup,
forwarding
queueing
decentralized switching:
 using header field values, lookup output port using
forwarding table in input port memory (“match plus action”)
 goal: complete input port processing at ‘line speed’
 input port queuing: if datagrams arrive faster than forwarding
rate into switch fabric
Network Layer: 4-15

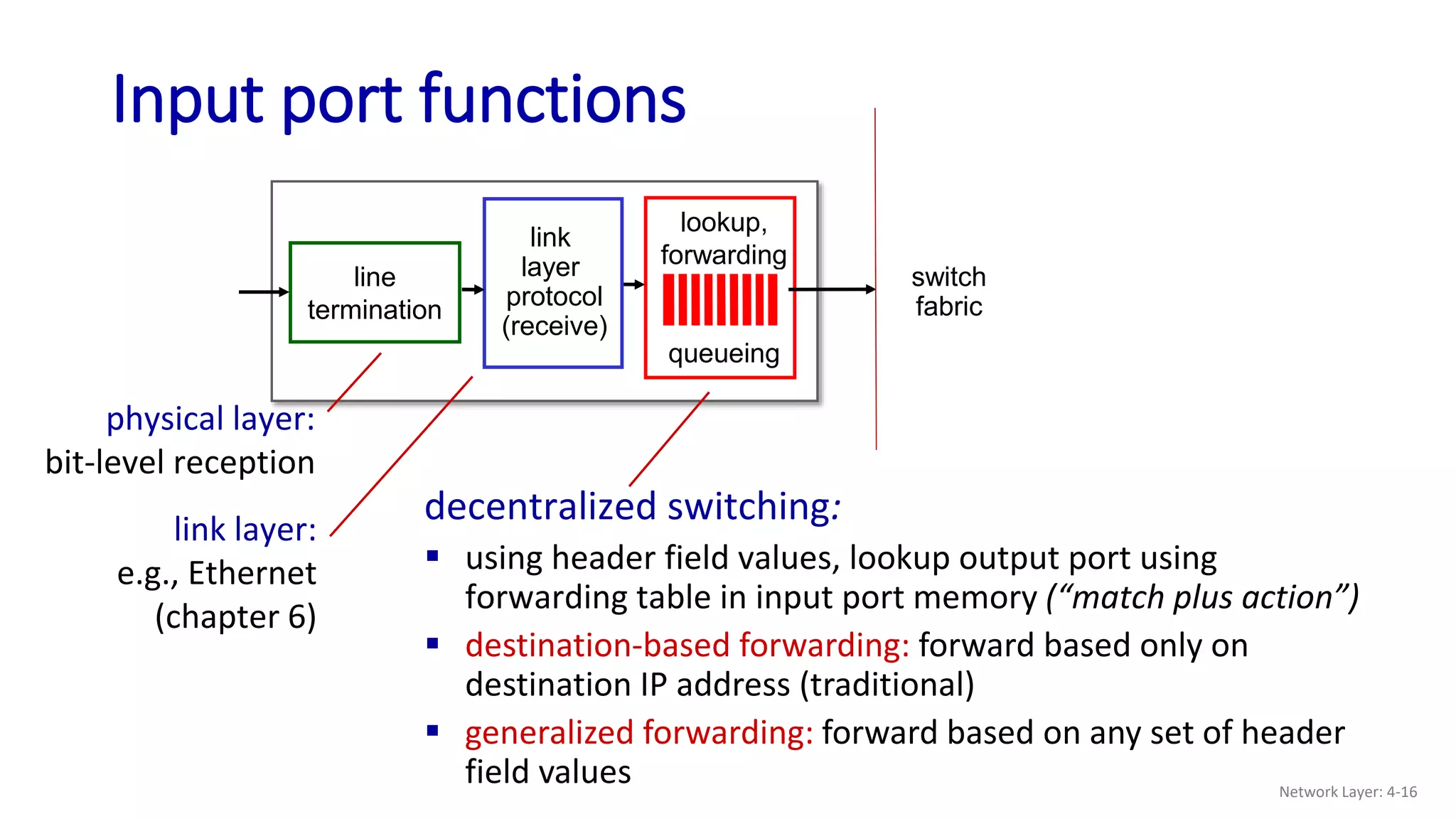

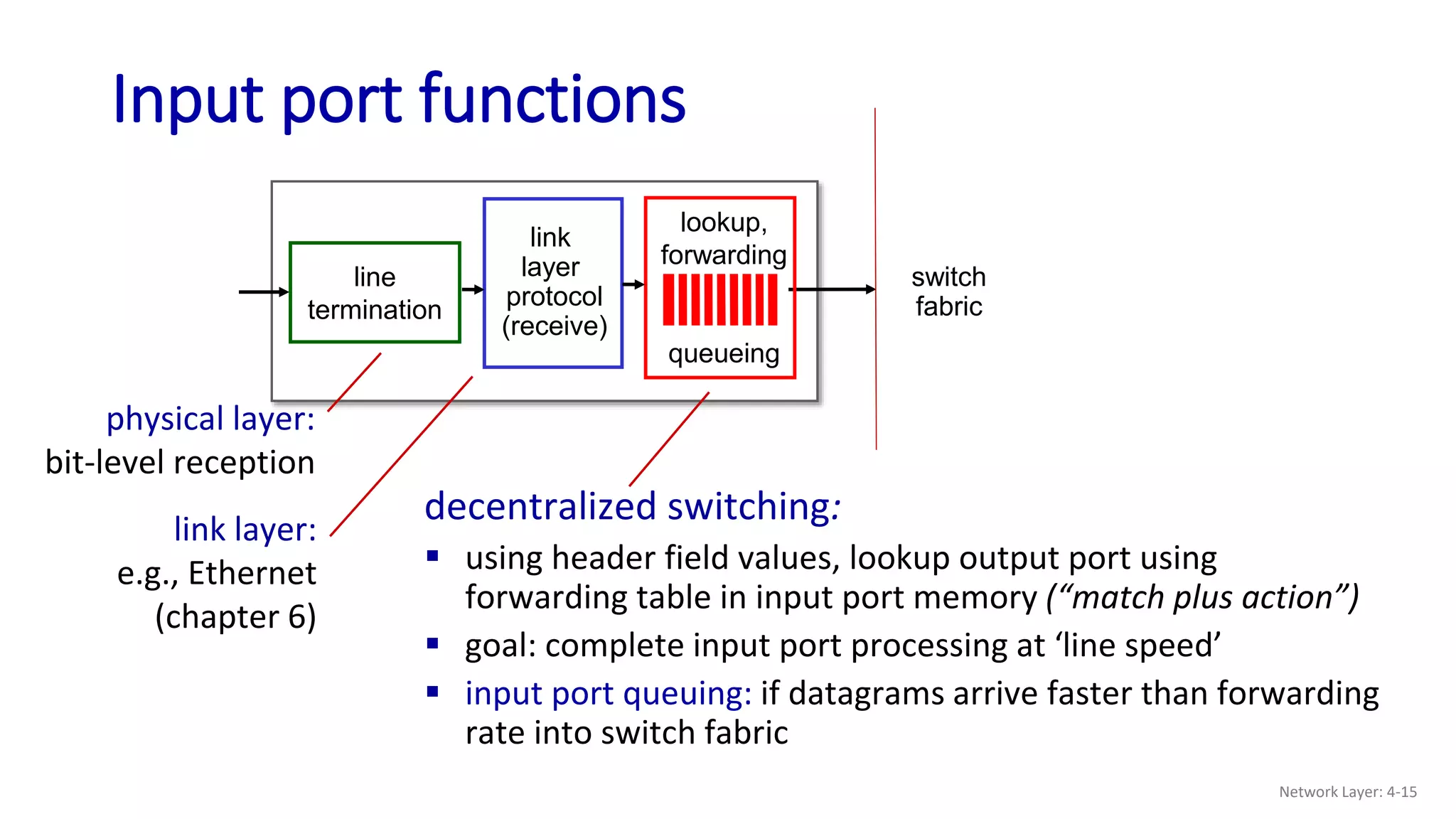

Input port functions
line
termination
lookup,
forwarding
queueing
decentralized switching:
 using header field values, lookup output port using
forwarding table in input port memory (“match plus action”)
 destination-based forwarding: forward based only on
destination IP address (traditional)
 generalized forwarding: forward based on any set of header
field values
physical layer:
bit-level reception
switch
fabric
link
layer
protocol
(receive)
link layer:
e.g., Ethernet
(chapter 6)
Network Layer: 4-16

Q: but what happens if ranges don’t divide up so nicely?
Destination-based forwarding
3
Network Layer: 4-17

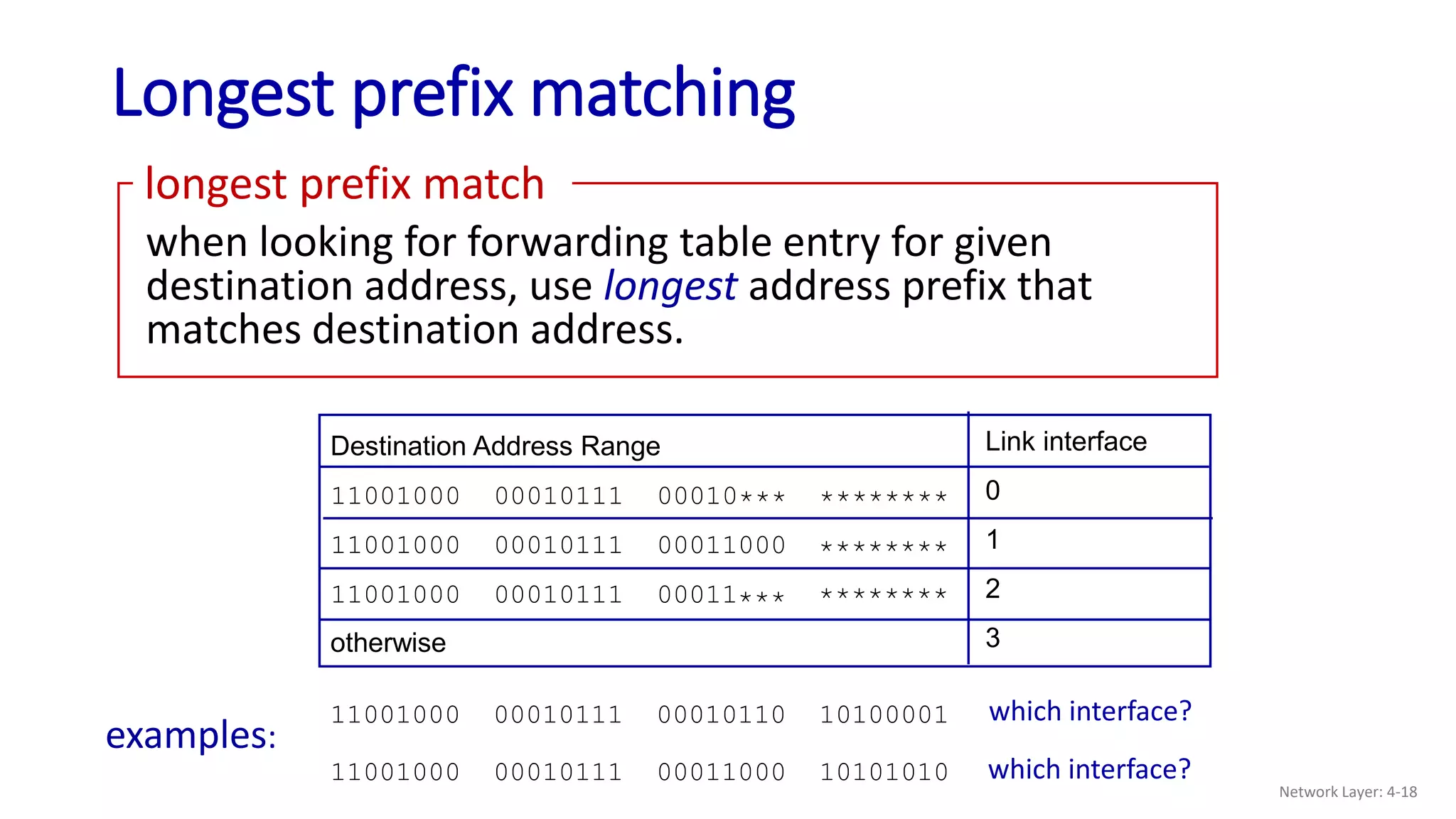

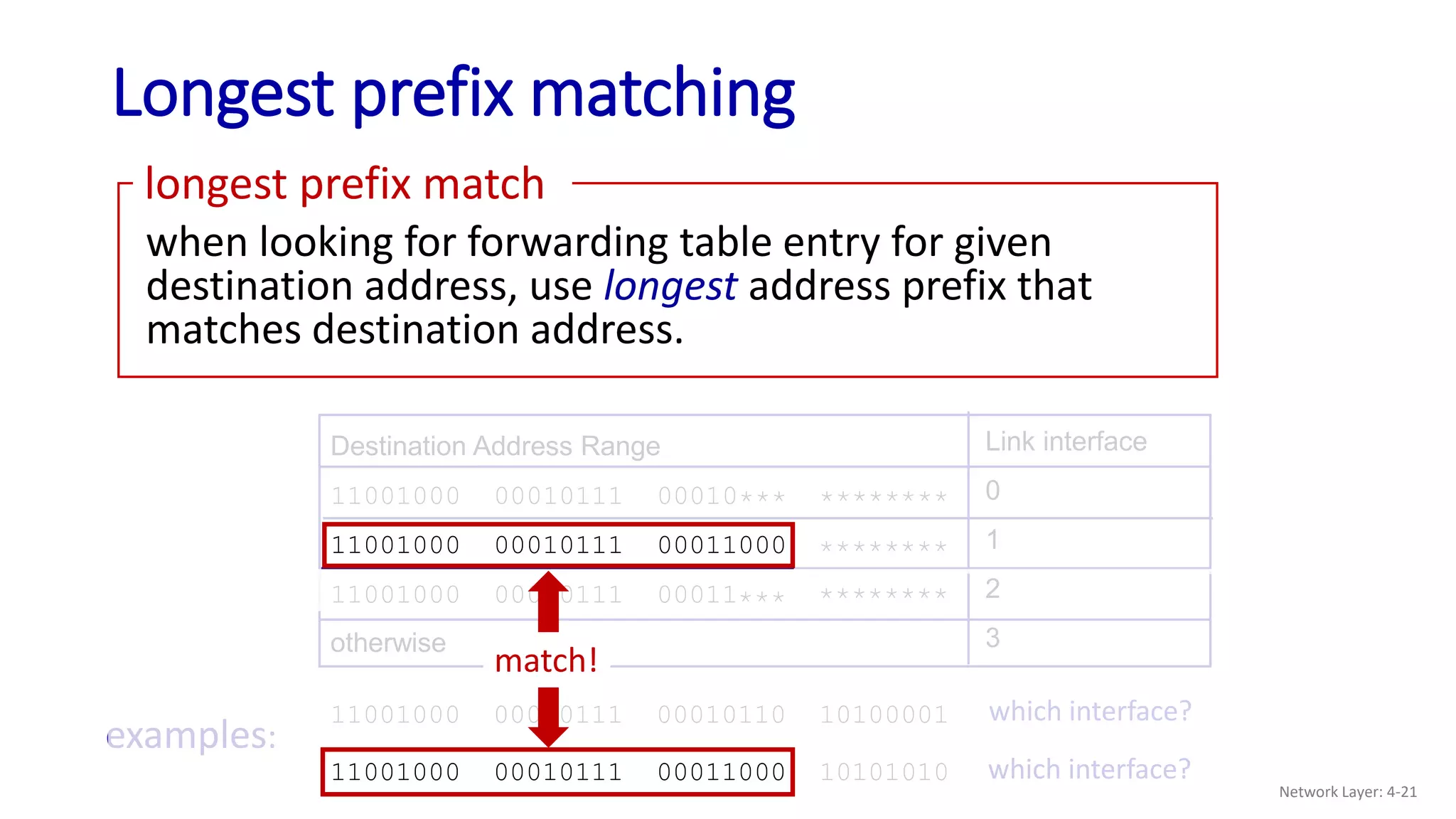

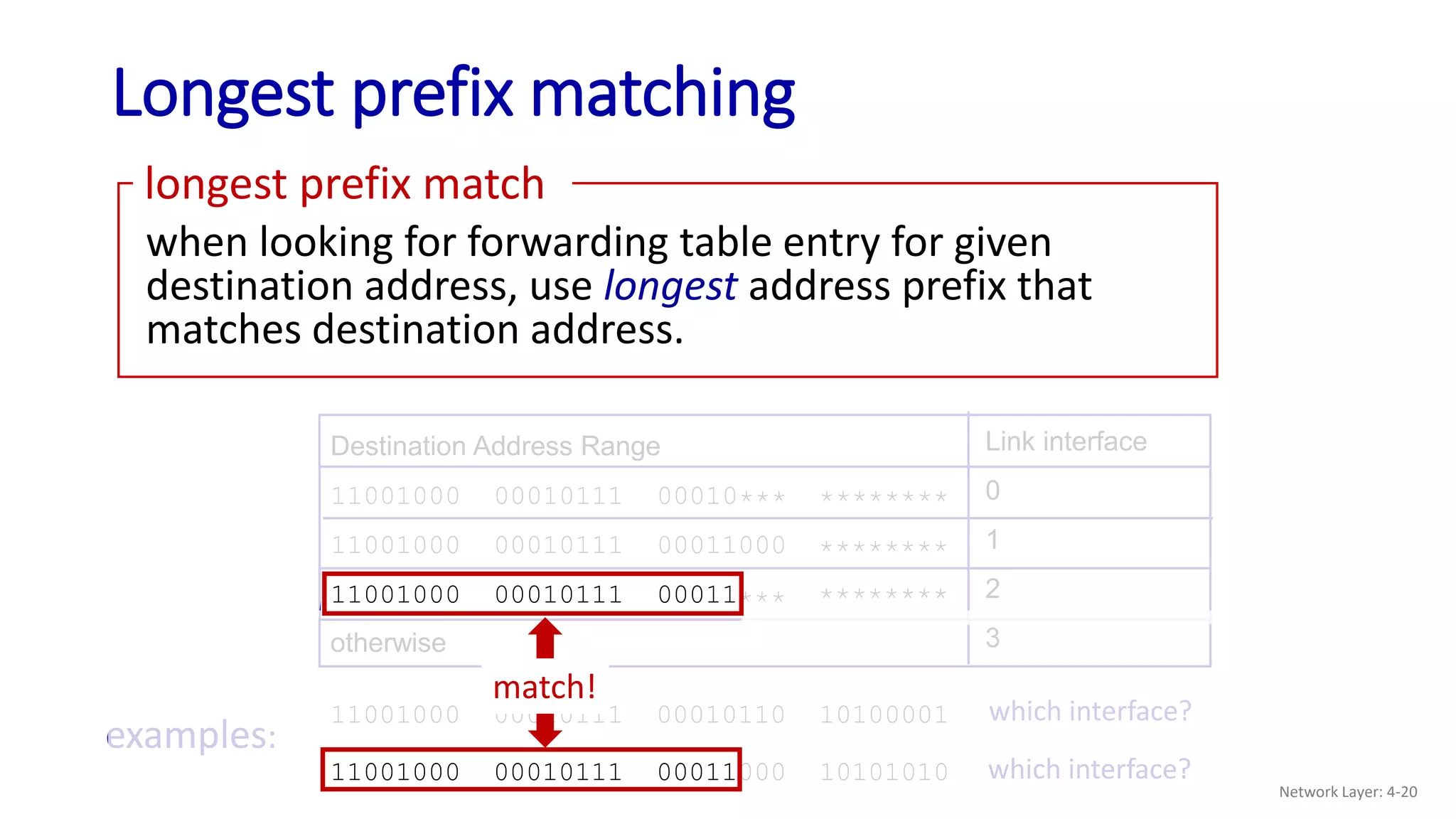

Longest prefix matching
when looking for forwarding table entry for given
destination address, use longest address prefix that
matches destination address.
longest prefix match
Destination Address Range
11001000 00010111 00010
11001000 00010111 00011000
11001000 00010111 00011
otherwise
Link interface
0
1
2
3
********
***
********
***
********
11001000 00010111 00011000 10101010
examples:
which interface?
which interface?
11001000 00010111 00010110 10100001
Network Layer: 4-18

11001000 00010111 00010
11001000 00010111 00011000
11001000 00010111 00011
otherwise
Link interface
0
1
2
3
11001000 00010111 00011000 10101010
examples:
which interface?
which interface?
********
***
********
***
********
11001000 00010111 00010110 10100001
match!

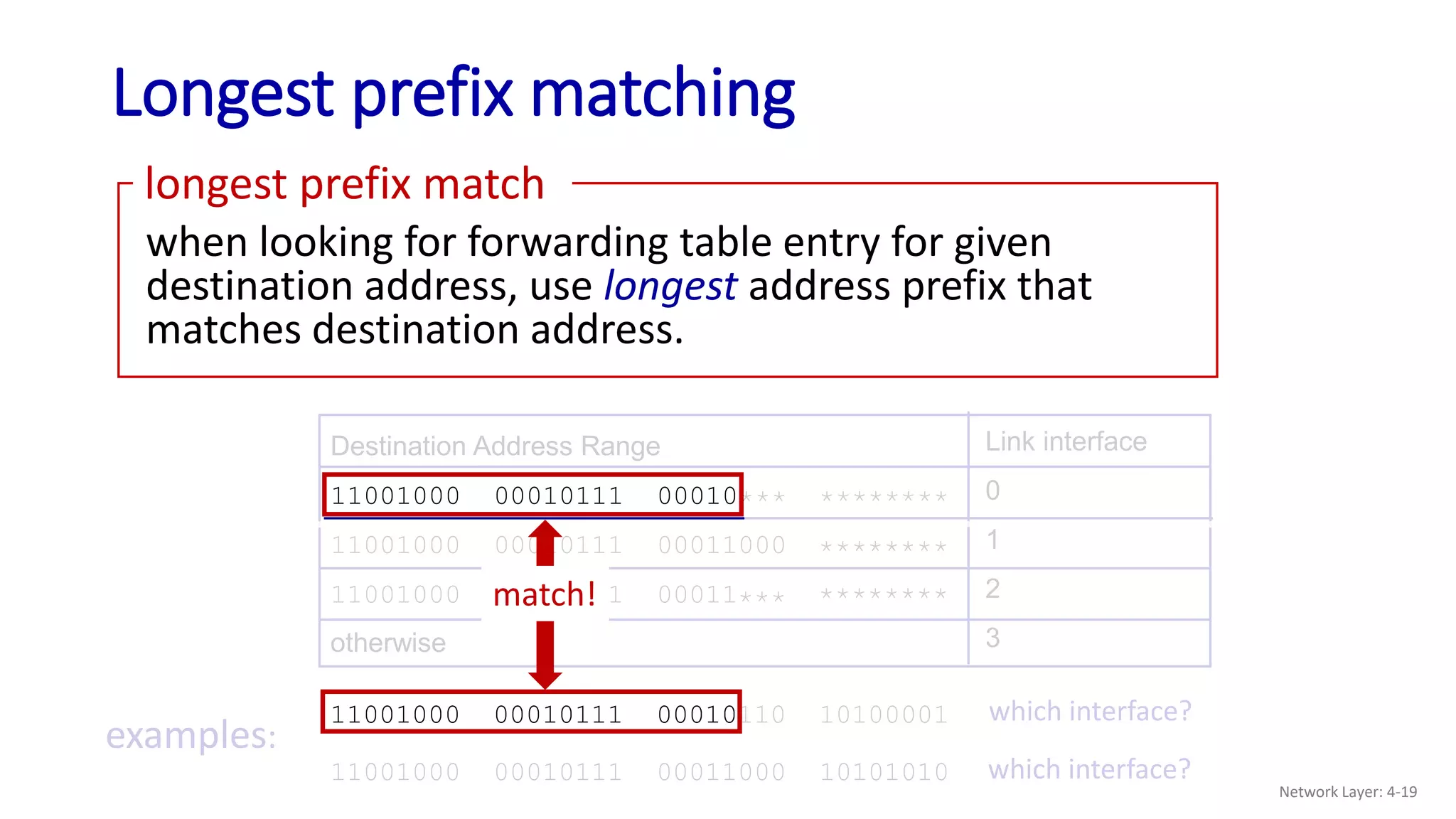

Network Layer: 4-19

11001000 00010111 00010
11001000 00010111 00011000
11001000 00010111 00011
otherwise
Link interface
0
1
2
3
11001000 00010111 00011000 10101010
examples:
which interface?
which interface?
********
***
********
***
********
11001000 00010111 00010110 10100001
match!
Network Layer: 4-20

11001000 00010111 00010
11001000 00010111 00011000
11001000 00010111 00011
otherwise
Link interface
0
1
2
3
11001000 00010111 00011000 10101010
examples:
which interface?
which interface?
********
***
********
***
********
11001000 00010111 00010110 10100001
match!
Network Layer: 4-21

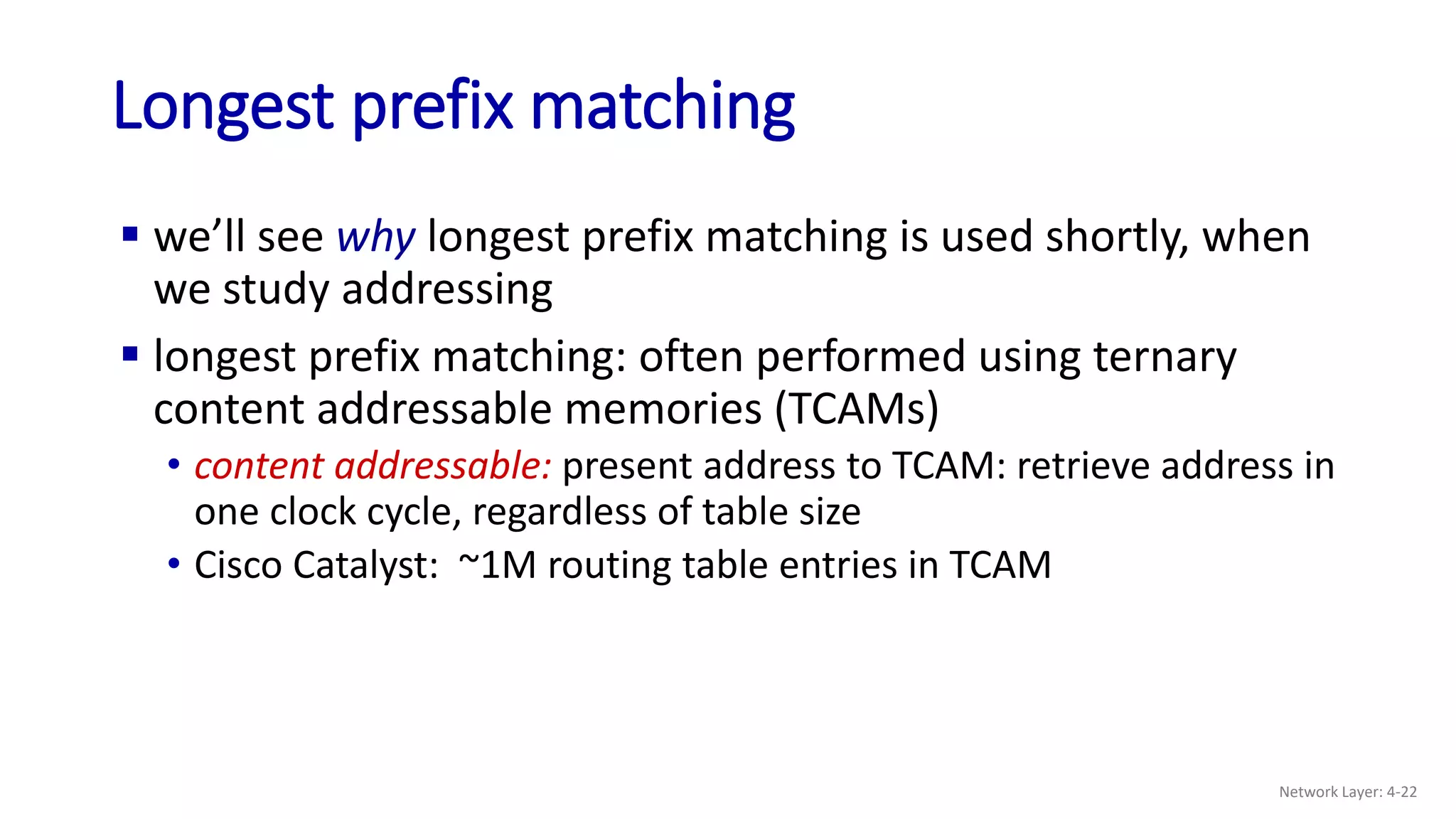

 we’ll see why longest prefix matching is used shortly, when
we study addressing
 longest prefix matching: often performed using ternary
content addressable memories (TCAMs)
• content addressable: present address to TCAM: retrieve address in
one clock cycle, regardless of table size
• Cisco Catalyst: ~1M routing table entries in TCAM
Network Layer: 4-22

 transfer packet from input link to appropriate output link

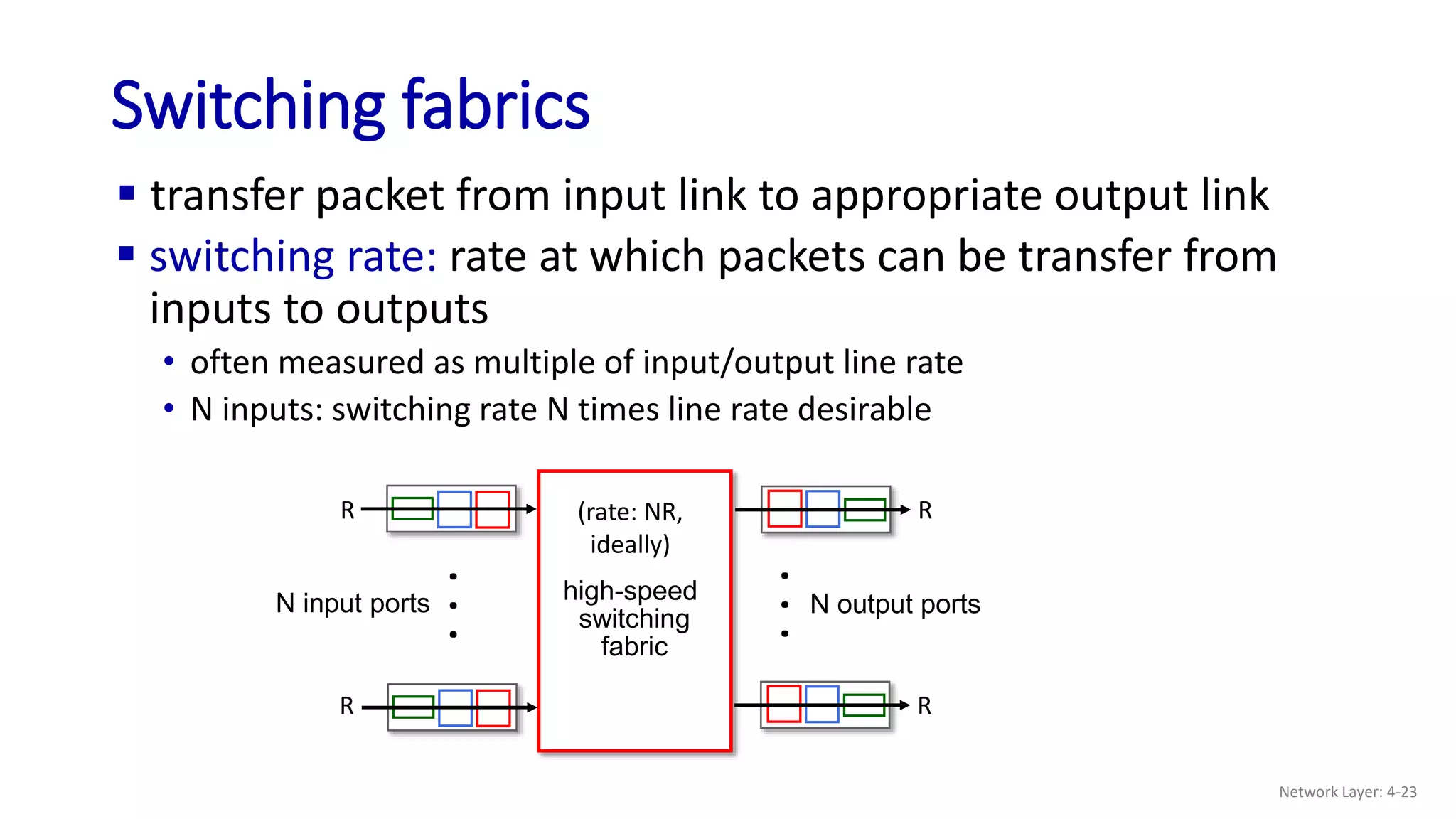

Switching fabrics
high-speed
switching
fabric
N input ports N output ports
.
.
.
.
.
.
 switching rate: rate at which packets can be transfer from
inputs to outputs
• often measured as multiple of input/output line rate
• N inputs: switching rate N times line rate desirable
R
R
R
R
(rate: NR,
ideally)
Network Layer: 4-23

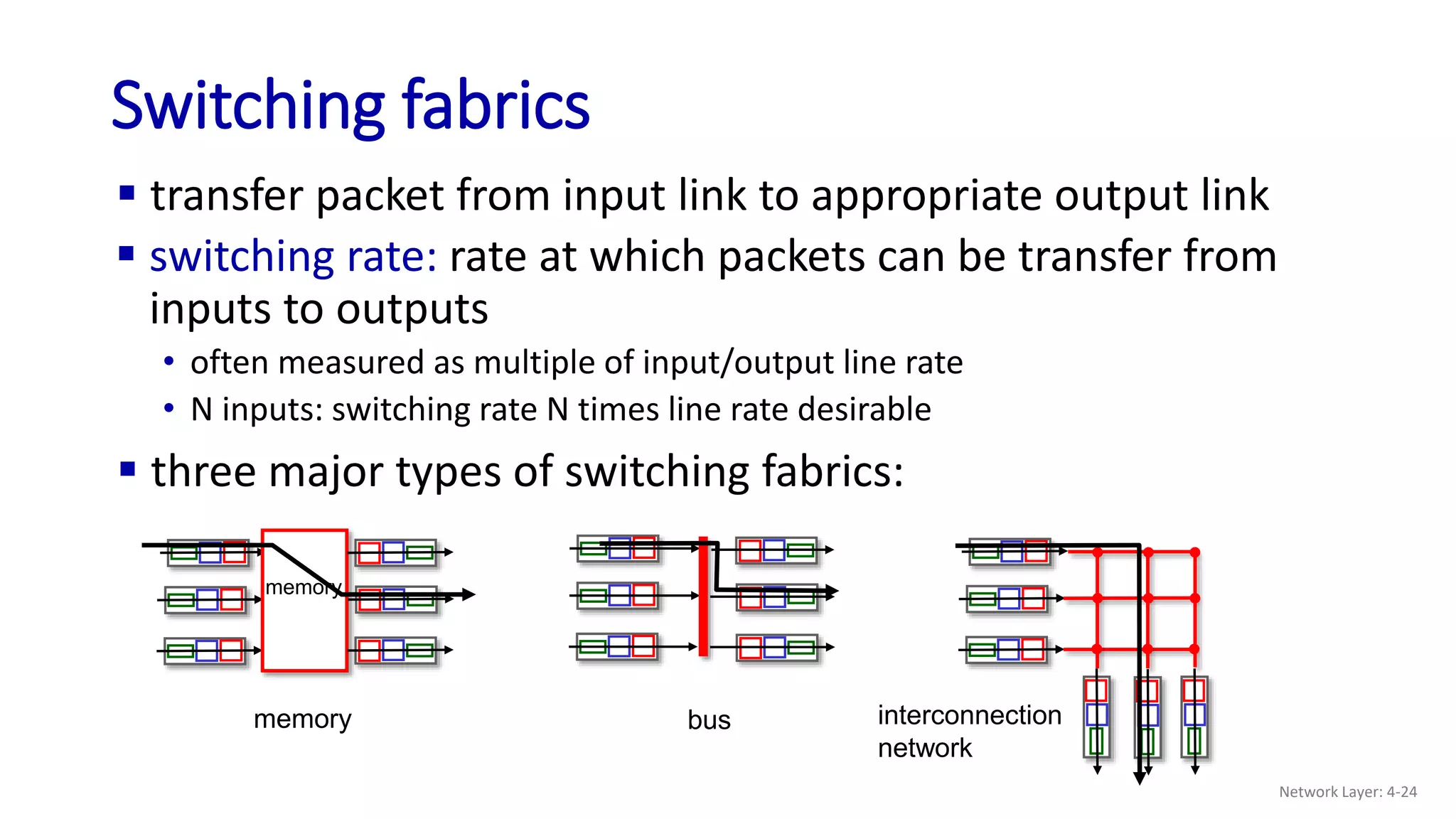

Switching fabrics
bus
memory
memory
interconnection
network
 three major types of switching fabrics:
 transfer packet from input link to appropriate output link
 switching rate: rate at which packets can be transfer from
inputs to outputs
• often measured as multiple of input/output line rate
• N inputs: switching rate N times line rate desirable
Network Layer: 4-24

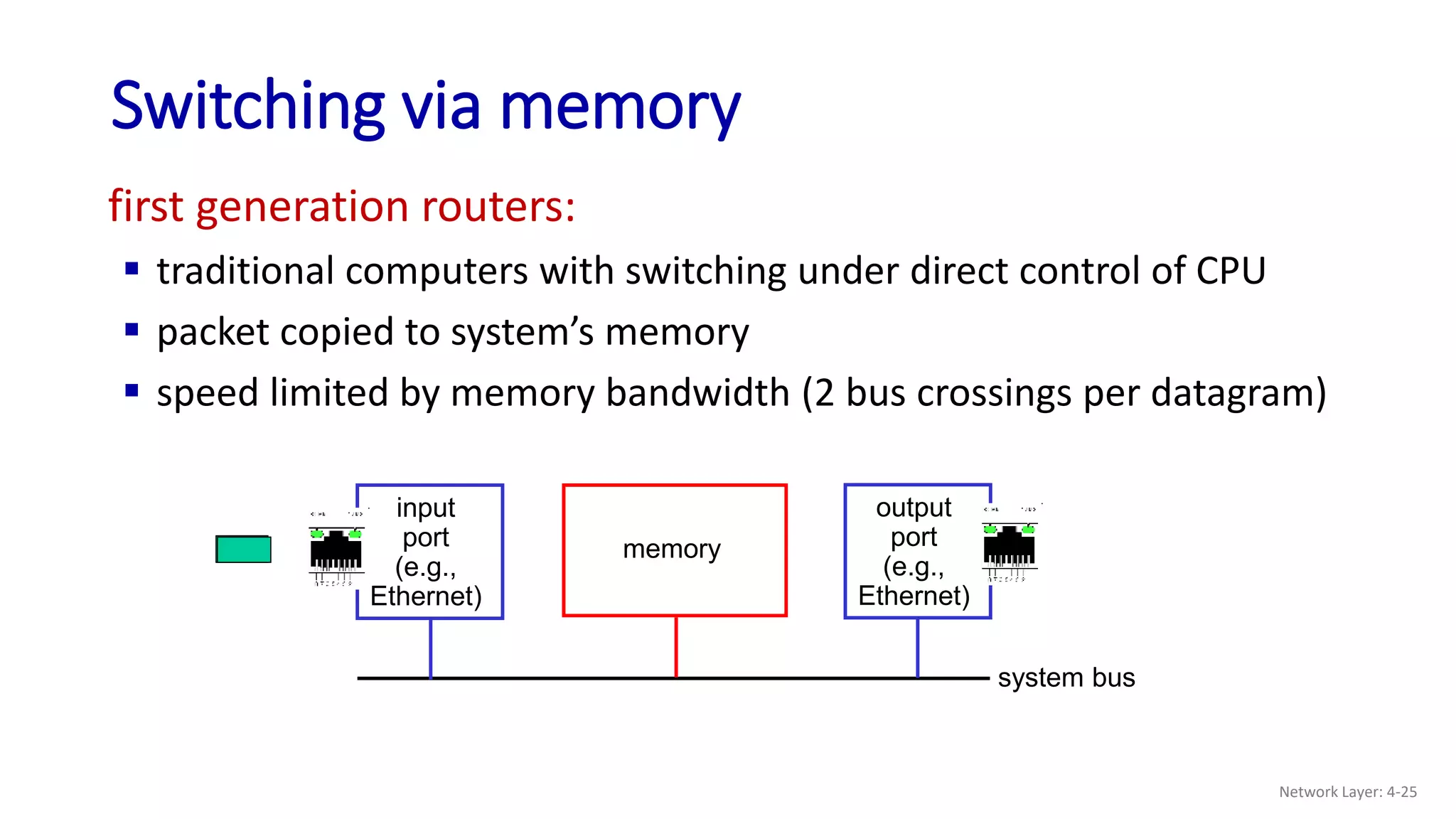

first generation routers:
 traditional computers with switching under direct control of CPU
 packet copied to system’s memory
 speed limited by memory bandwidth (2 bus crossings per datagram)
Switching via memory
input
port
(e.g.,
Ethernet)
memory
output
port
(e.g.,
Ethernet)
system bus
Network Layer: 4-25

datagram from input port memory to output port memory
via a shared bus

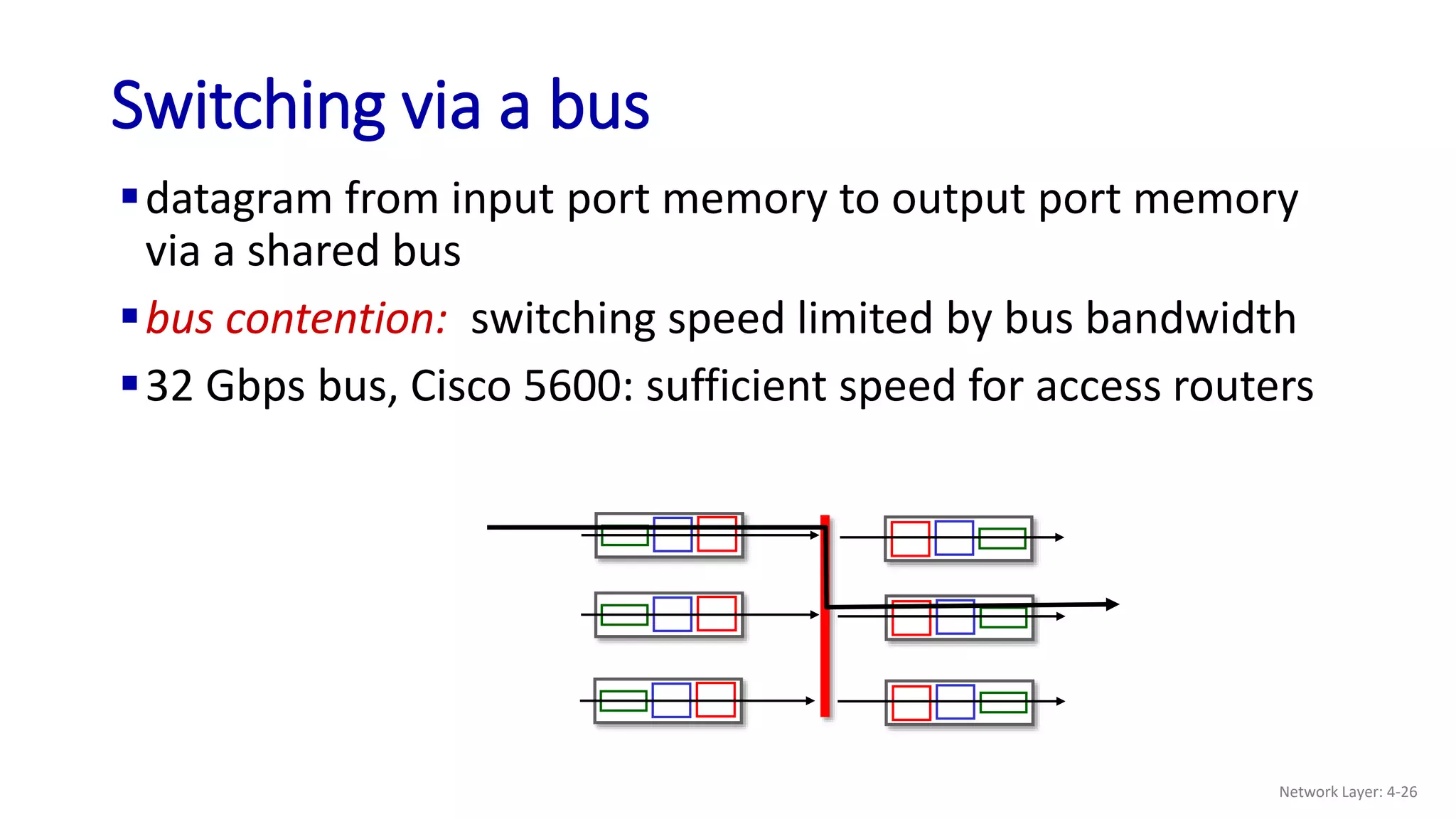

bus contention: switching speed limited by bus bandwidth
32 Gbps bus, Cisco 5600: sufficient speed for access routers
Switching via a bus
Network Layer: 4-26

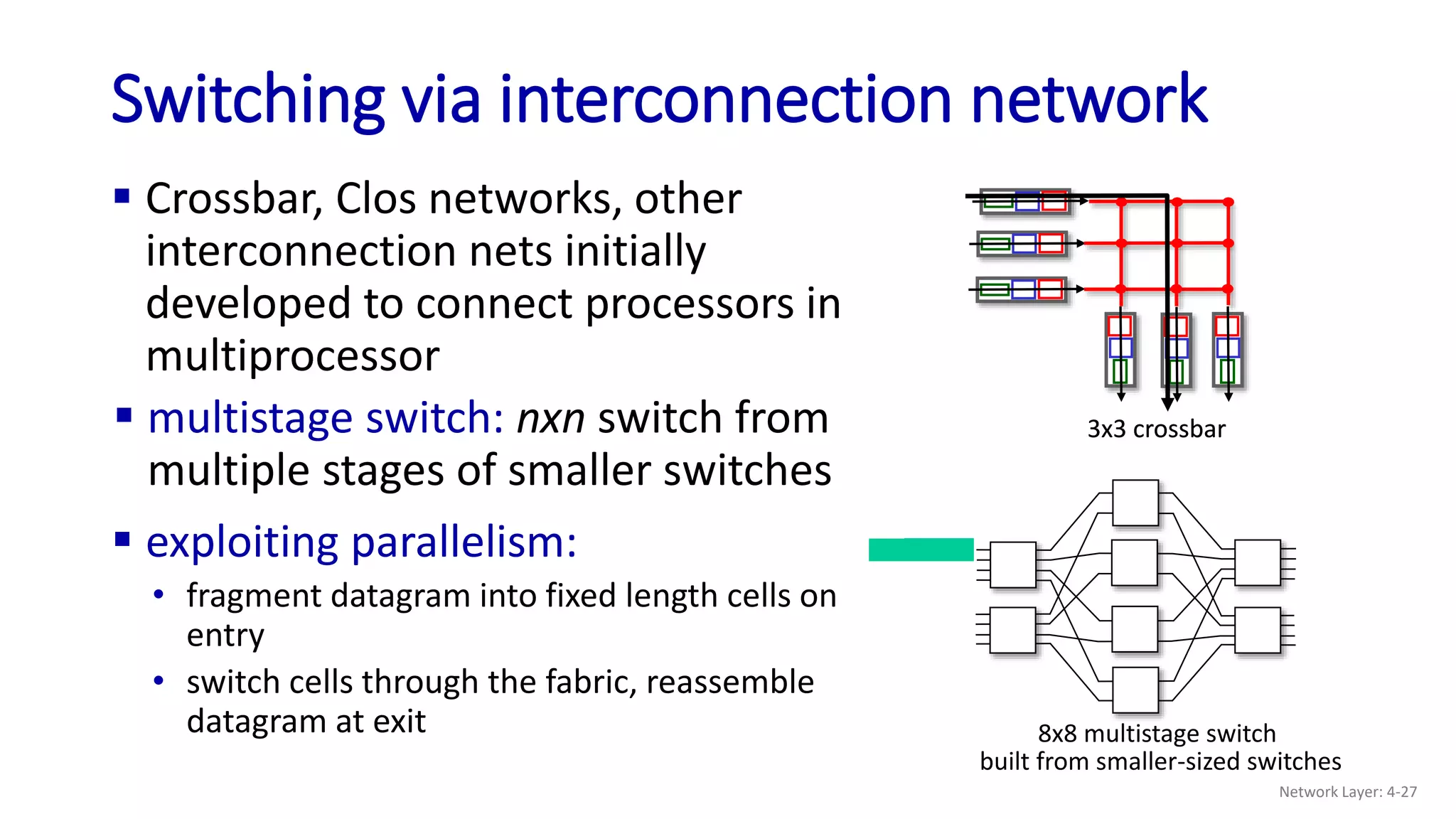

 Crossbar, Clos networks, other
interconnection nets initially
developed to connect processors in
multiprocessor
Switching via interconnection network
8x8 multistage switch
built from smaller-sized switches
3x3 crossbar
 multistage switch: nxn switch from
multiple stages of smaller switches
 exploiting parallelism:
• fragment datagram into fixed length cells on
entry
• switch cells through the fabric, reassemble
datagram at exit
3x3 crossbar
Network Layer: 4-27

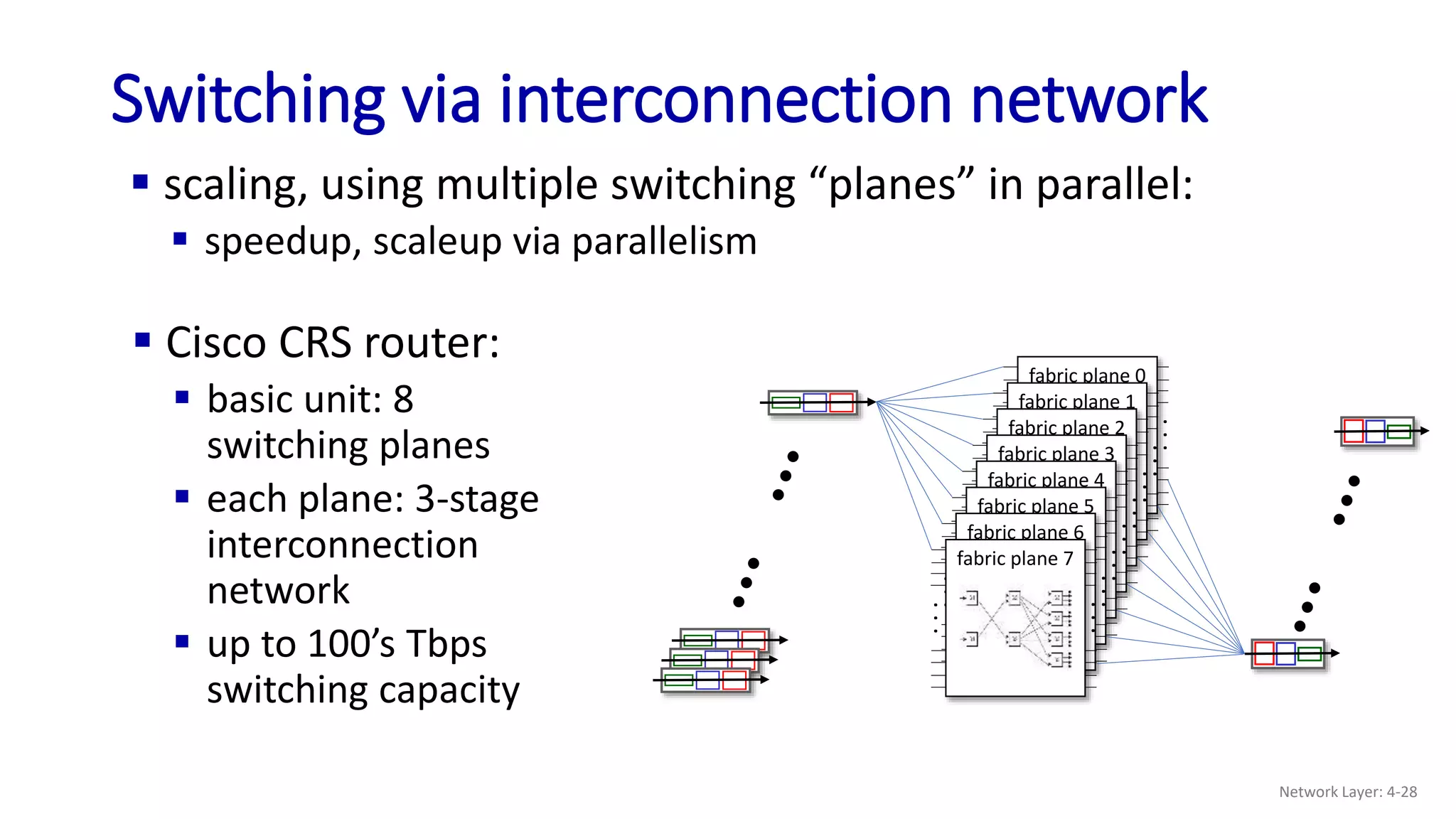

 scaling, using multiple switching “planes” in parallel:
 speedup, scaleup via parallelism
Switching via interconnection network
fabric plane 0
.
.
.
.
.
.
fabric plane 1
.
.
.
.
.
.
fabric plane 2
.
.
.
.
.
.
fabric plane 3
.
.
.
.
.
.
fabric plane 4
.
.
.
.
.
.
fabric plane 5
.
.
.
.
.
.
fabric plane 6
.
.
.
.
.
.
fabric plane 7
.
.
.
.
.
.
 Cisco CRS router:
 basic unit: 8
switching planes
 each plane: 3-stage
interconnection
network
 up to 100’s Tbps
switching capacity
Network Layer: 4-28

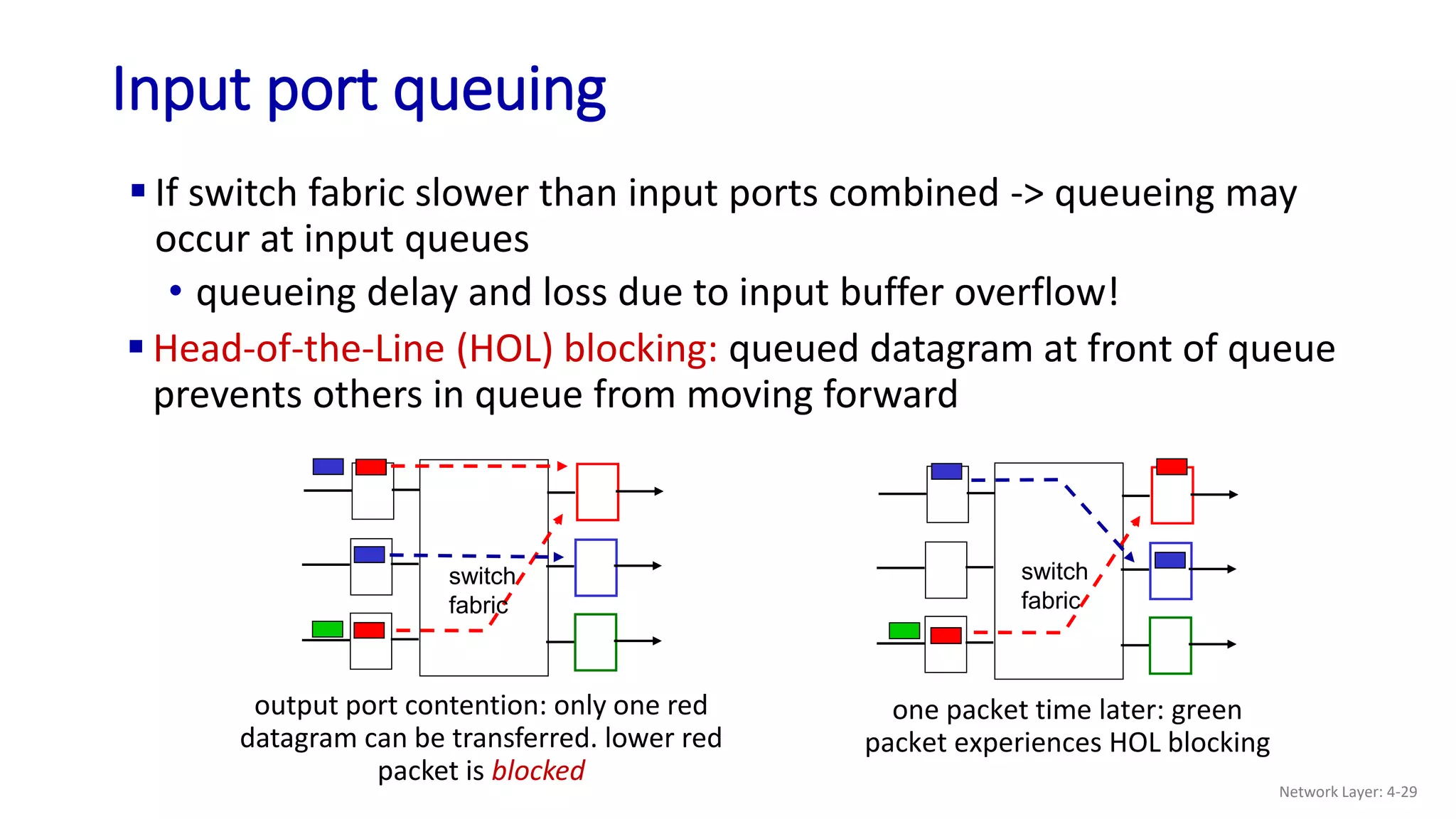

 If switch fabric slower than input ports combined -> queueing may
occur at input queues
• queueing delay and loss due to input buffer overflow!
Input port queuing
output port contention: only one red
datagram can be transferred. lower red
packet is blocked
switch
fabric
one packet time later: green
packet experiences HOL blocking
switch
fabric
 Head-of-the-Line (HOL) blocking: queued datagram at front of queue
prevents others in queue from moving forward
Network Layer: 4-29

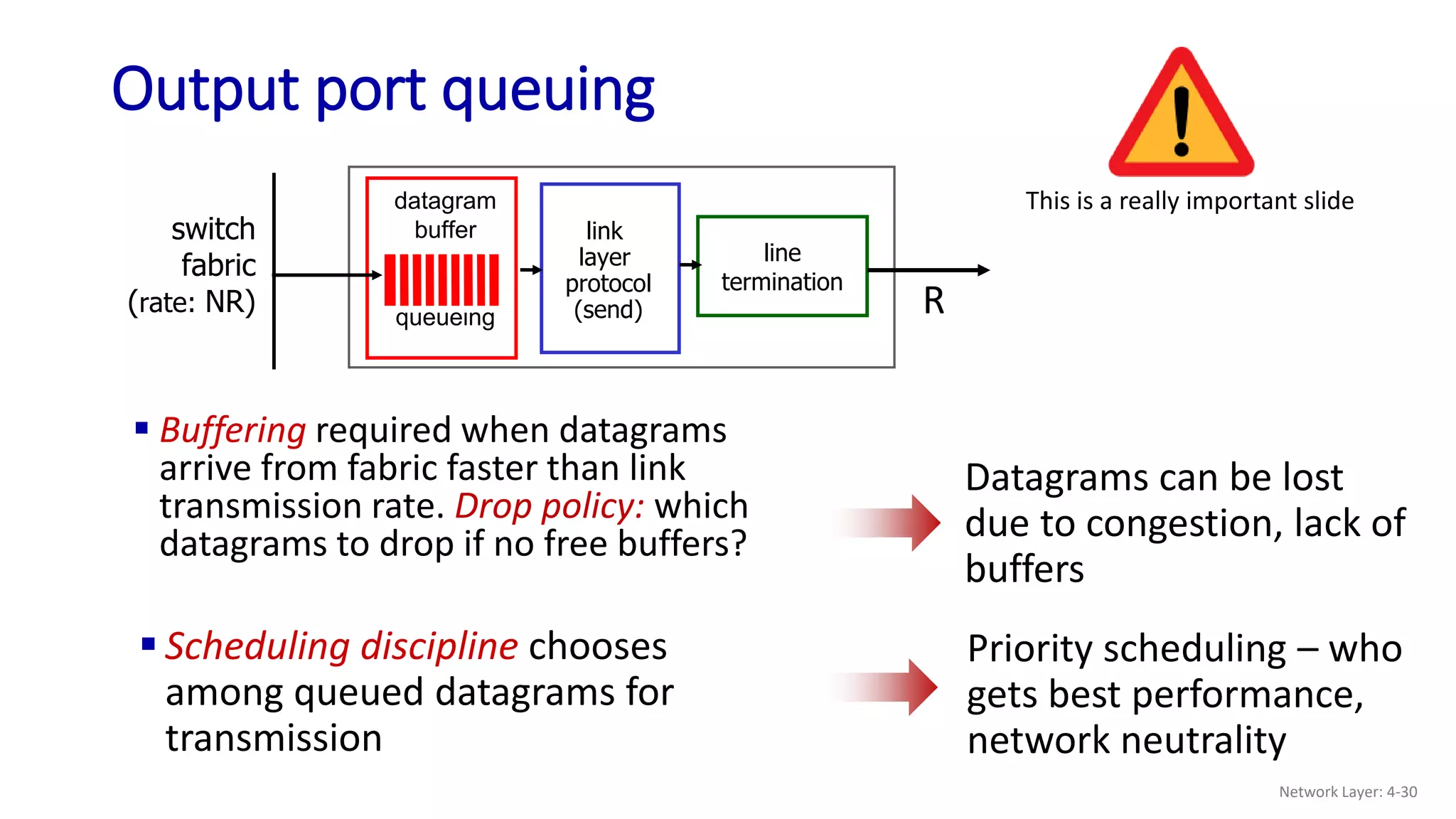

Output port queuing
 Buffering required when datagrams
arrive from fabric faster than link
transmission rate. Drop policy: which
datagrams to drop if no free buffers?
 Scheduling discipline chooses
among queued datagrams for
transmission
Datagrams can be lost
due to congestion, lack of
buffers
Priority scheduling – who
gets best performance,
network neutrality
This is a really important slide
line
termination
link
layer
protocol
(send)
switch
fabric
(rate: NR)
datagram
buffer
queueing R
Network Layer: 4-30

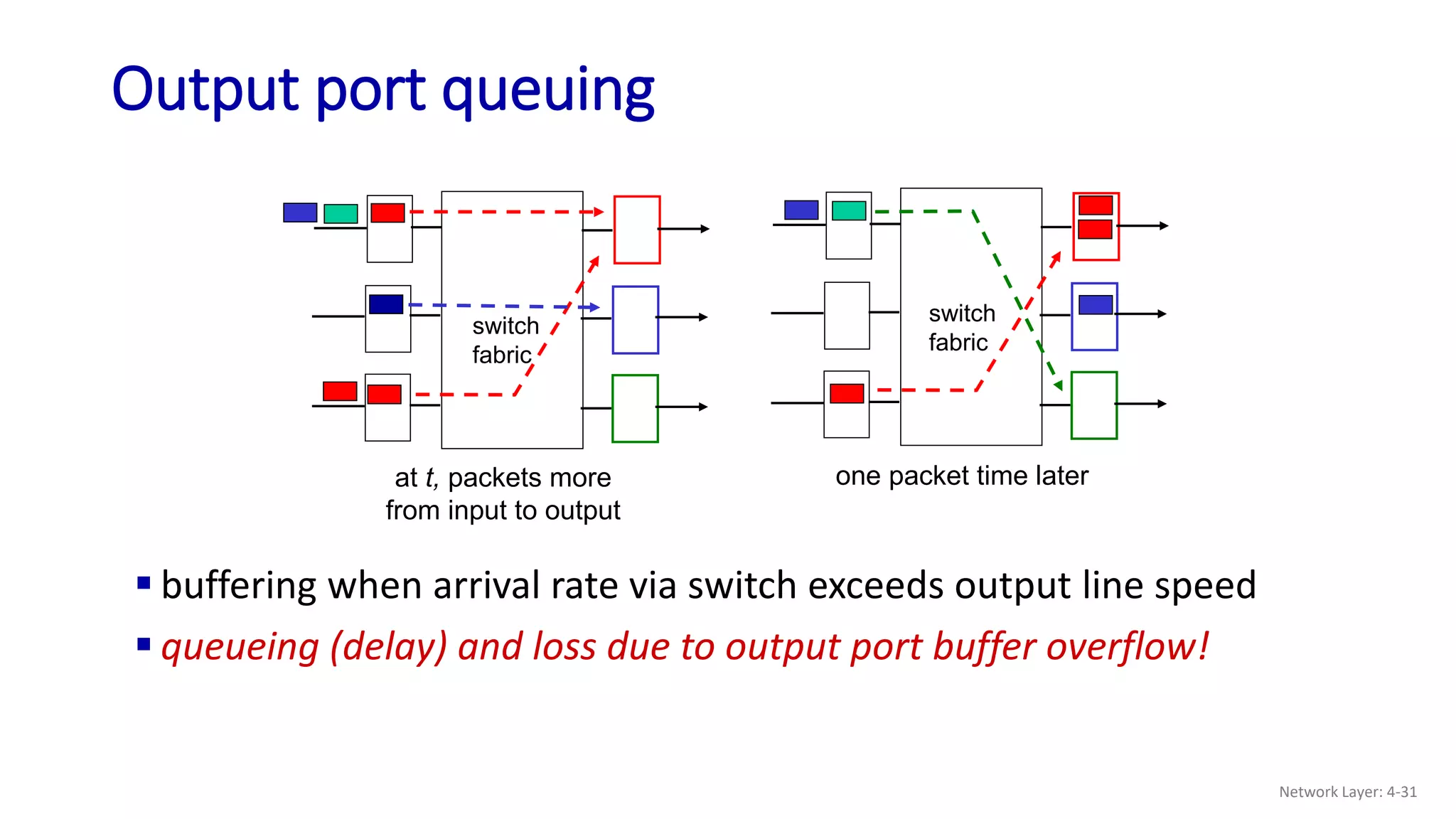

Output port queuing
at t, packets more
from input to output
one packet time later
switch
fabric
switch
fabric
 buffering when arrival rate via switch exceeds output line speed
 queueing (delay) and loss due to output port buffer overflow!
Network Layer: 4-31

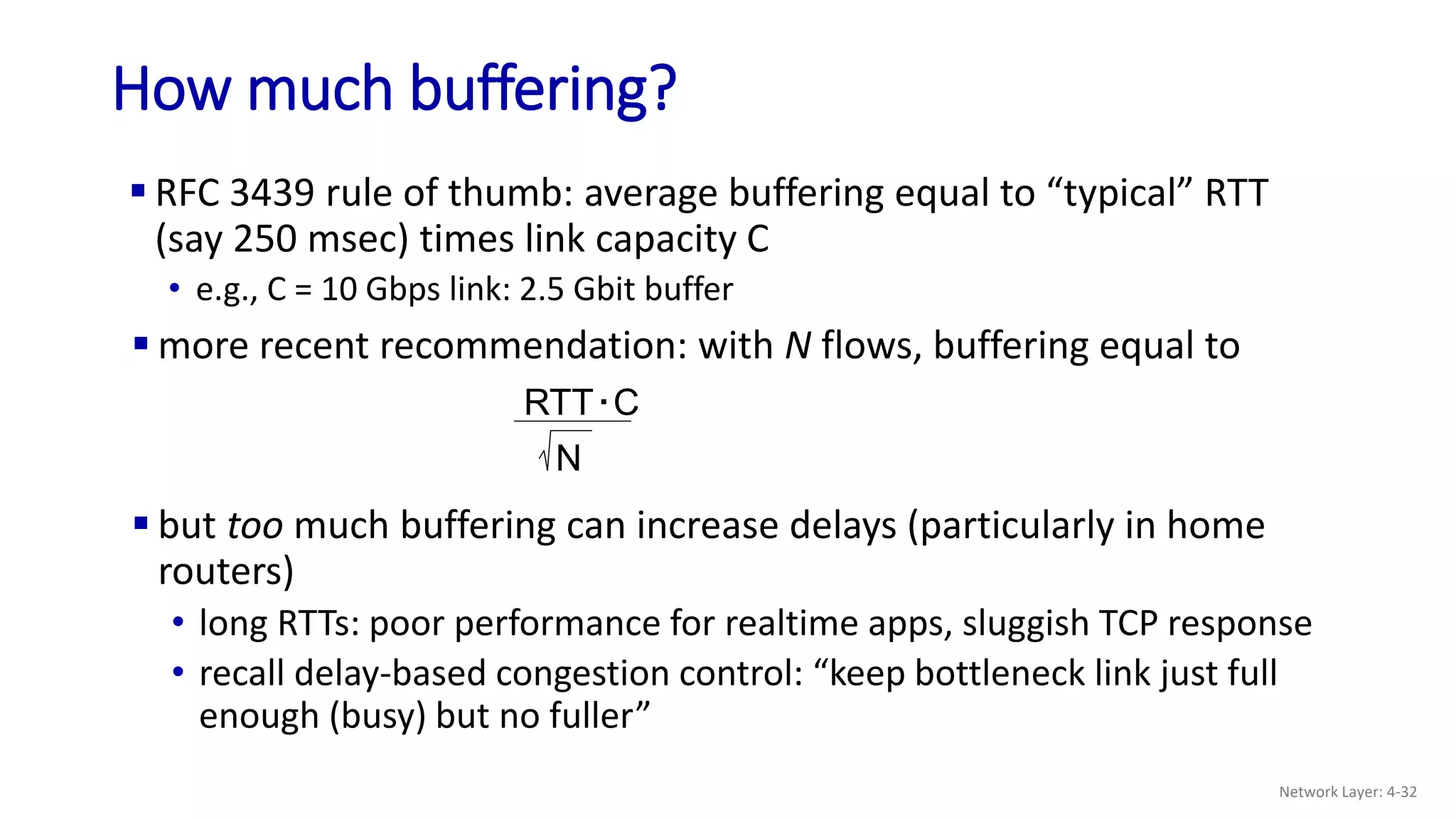

 RFC 3439 rule of thumb: average buffering equal to “typical” RTT
(say 250 msec) times link capacity C
• e.g., C = 10 Gbps link: 2.5 Gbit buffer
How much buffering?
 but too much buffering can increase delays (particularly in home
routers)
• long RTTs: poor performance for realtime apps, sluggish TCP response
• recall delay-based congestion control: “keep bottleneck link just full
enough (busy) but no fuller”
RTT C
.
N
 more recent recommendation: with N flows, buffering equal to
Network Layer: 4-32

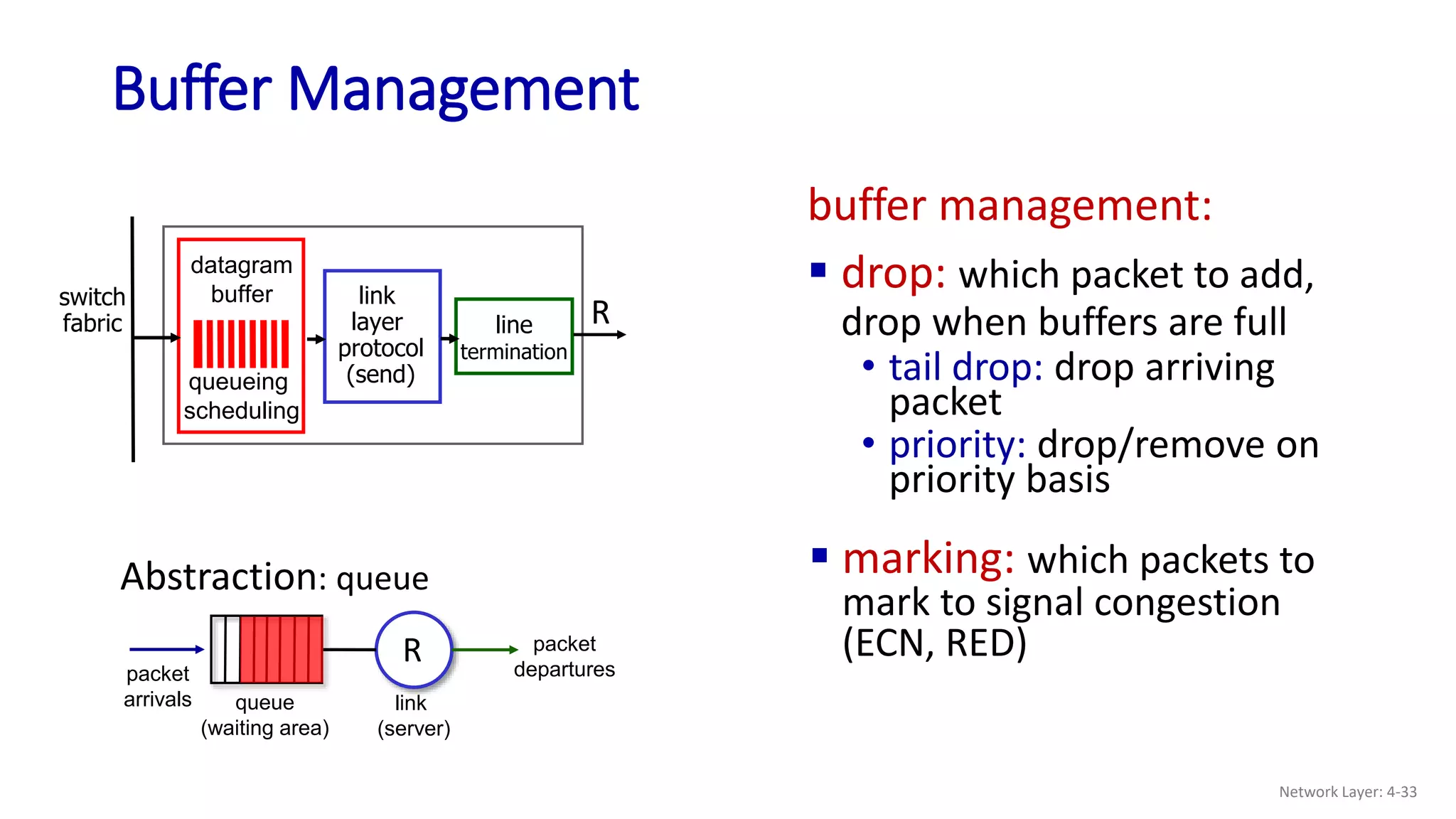

Buffer Management
buffer management:
 drop: which packet to add,
drop when buffers are full
• tail drop: drop arriving
packet
• priority: drop/remove on
priority basis
line
termination
link
layer
protocol
(send)
switch
fabric
datagram
buffer
queueing
scheduling
 marking: which packets to
mark to signal congestion
(ECN, RED)
R
queue
(waiting area)
packet
arrivals
packet
departures
link
(server)
Abstraction: queue
R
Network Layer: 4-33

packet scheduling: deciding
which packet to send next on
link
• first come, first served
• priority
• round robin
• weighted fair queueing

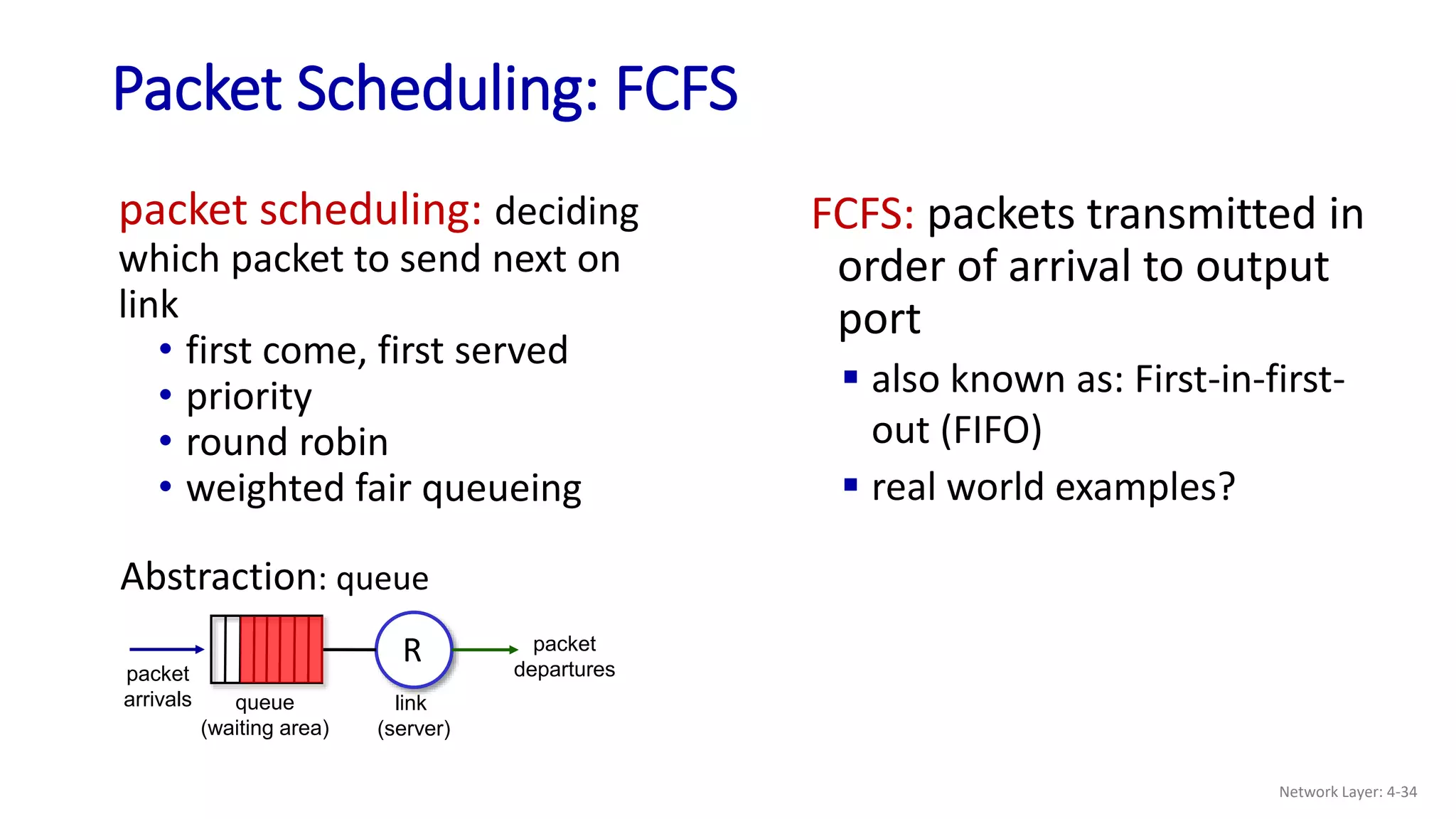

Packet Scheduling: FCFS
FCFS: packets transmitted in
order of arrival to output
port
 also known as: First-in-first-
out (FIFO)
 real world examples?
queue
(waiting area)
packet
arrivals
packet
departures
link
(server)
Abstraction: queue
R
Network Layer: 4-34

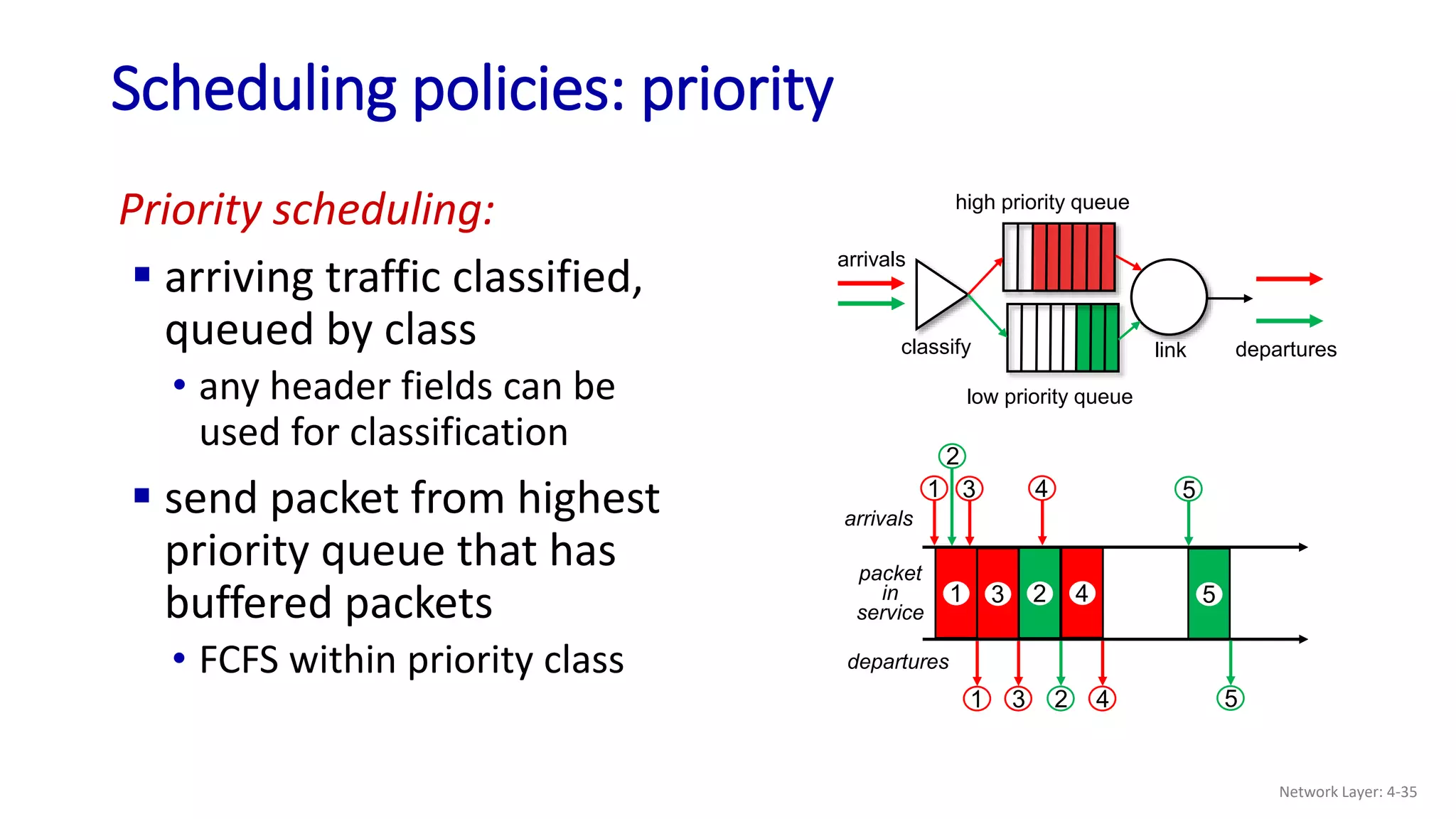

Priority scheduling:
 arriving traffic classified,
queued by class
• any header fields can be
used for classification
Scheduling policies: priority
high priority queue
low priority queue
arrivals
classify departures
link
1 3 2 4 5
arrivals
departures
packet
in
service
 send packet from highest
priority queue that has
buffered packets
• FCFS within priority class
1 3 4
2
5
1 3 2 4 5
Network Layer: 4-35

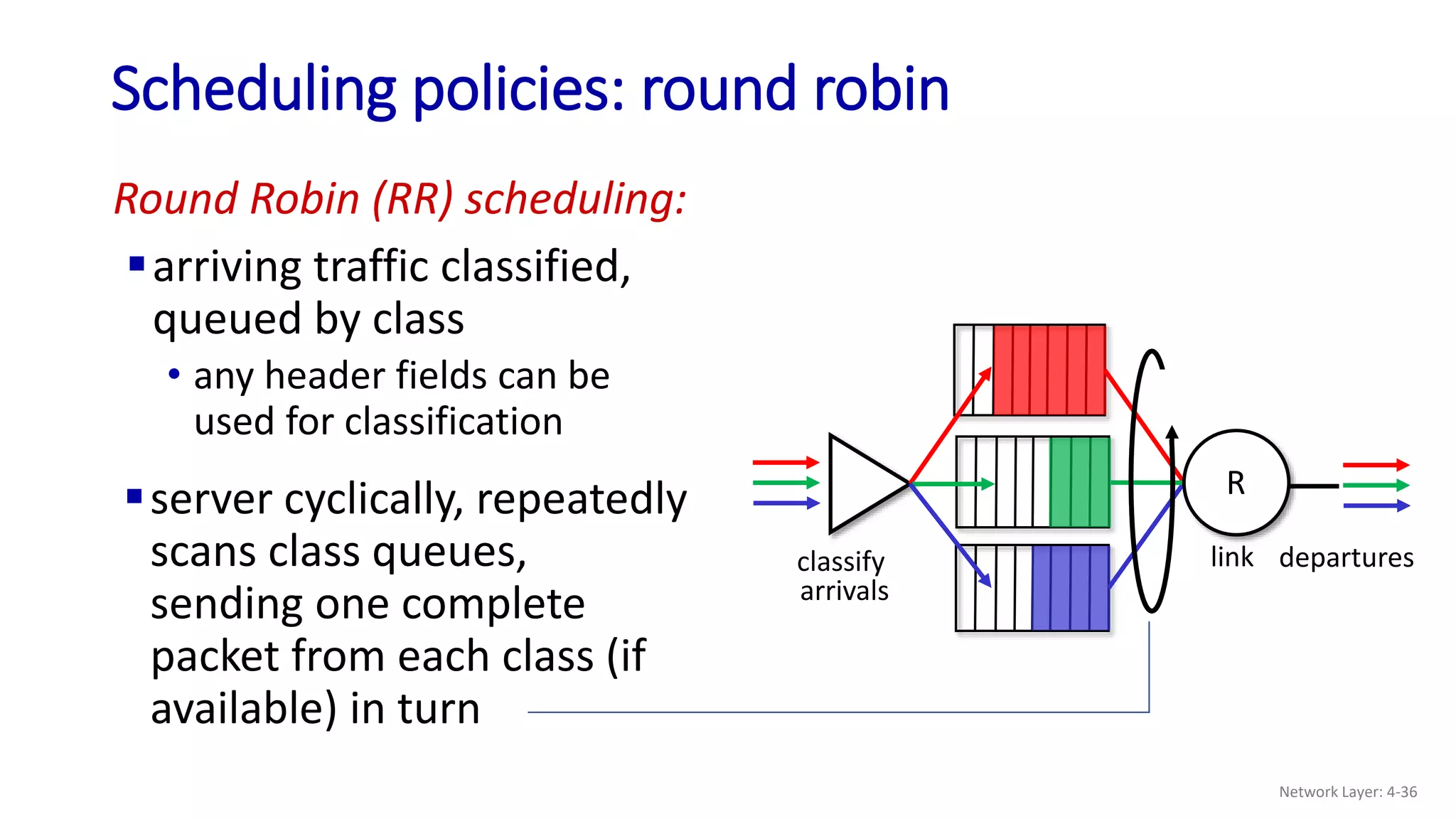

Round Robin (RR) scheduling:
arriving traffic classified,
queued by class
• any header fields can be
used for classification
Scheduling policies: round robin
classify
arrivals
departures
link
R
server cyclically, repeatedly
scans class queues,
sending one complete
packet from each class (if
available) in turn
Network Layer: 4-36

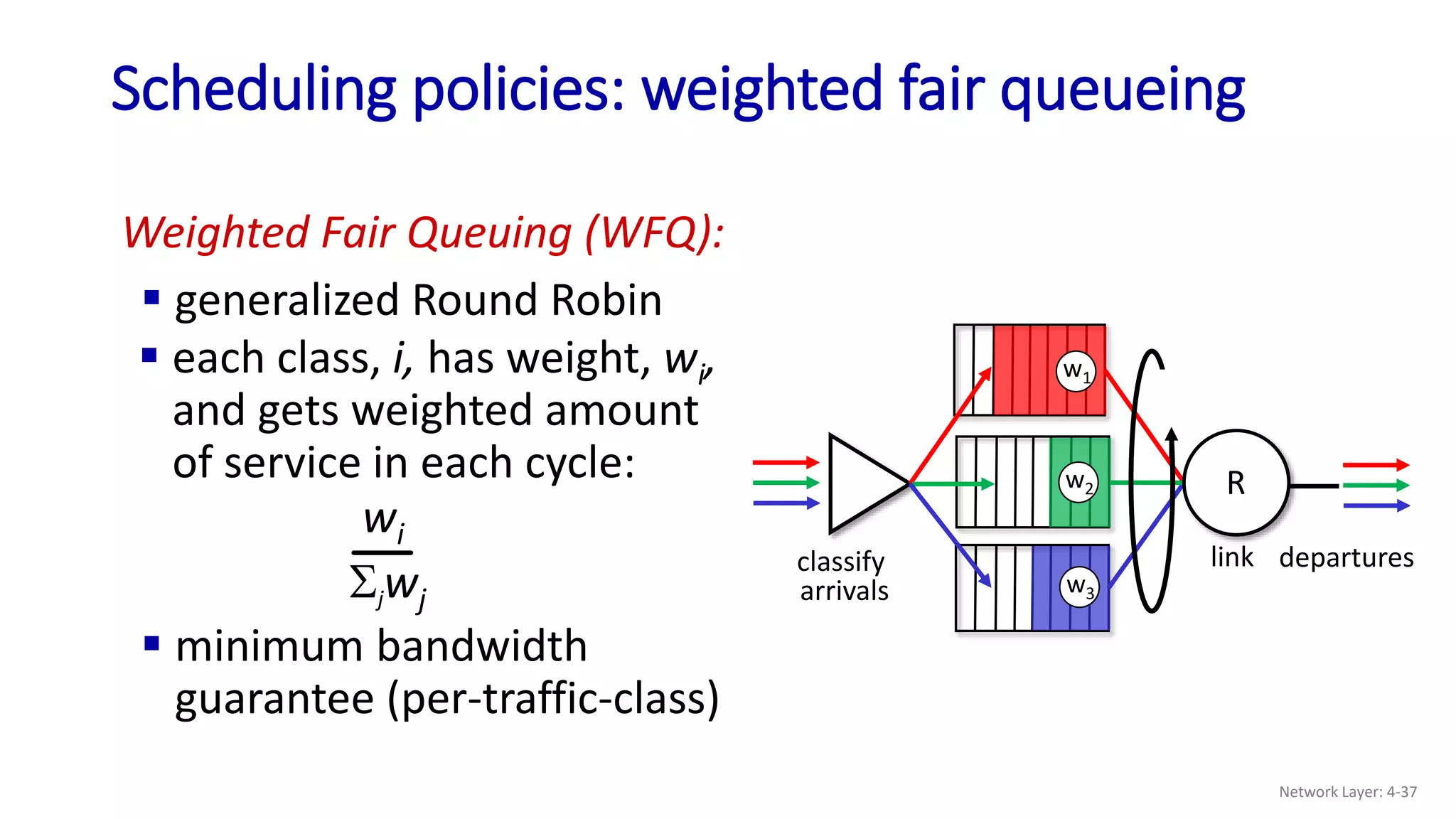

Weighted Fair Queuing (WFQ):
 generalized Round Robin
Scheduling policies: weighted fair queueing
classify
arrivals
departures
link
R
w1
w2
w3
wi
Sjwj
 minimum bandwidth
guarantee (per-traffic-class)
 each class, i, has weight, wi,
and gets weighted amount
of service in each cycle:
Network Layer: 4-37

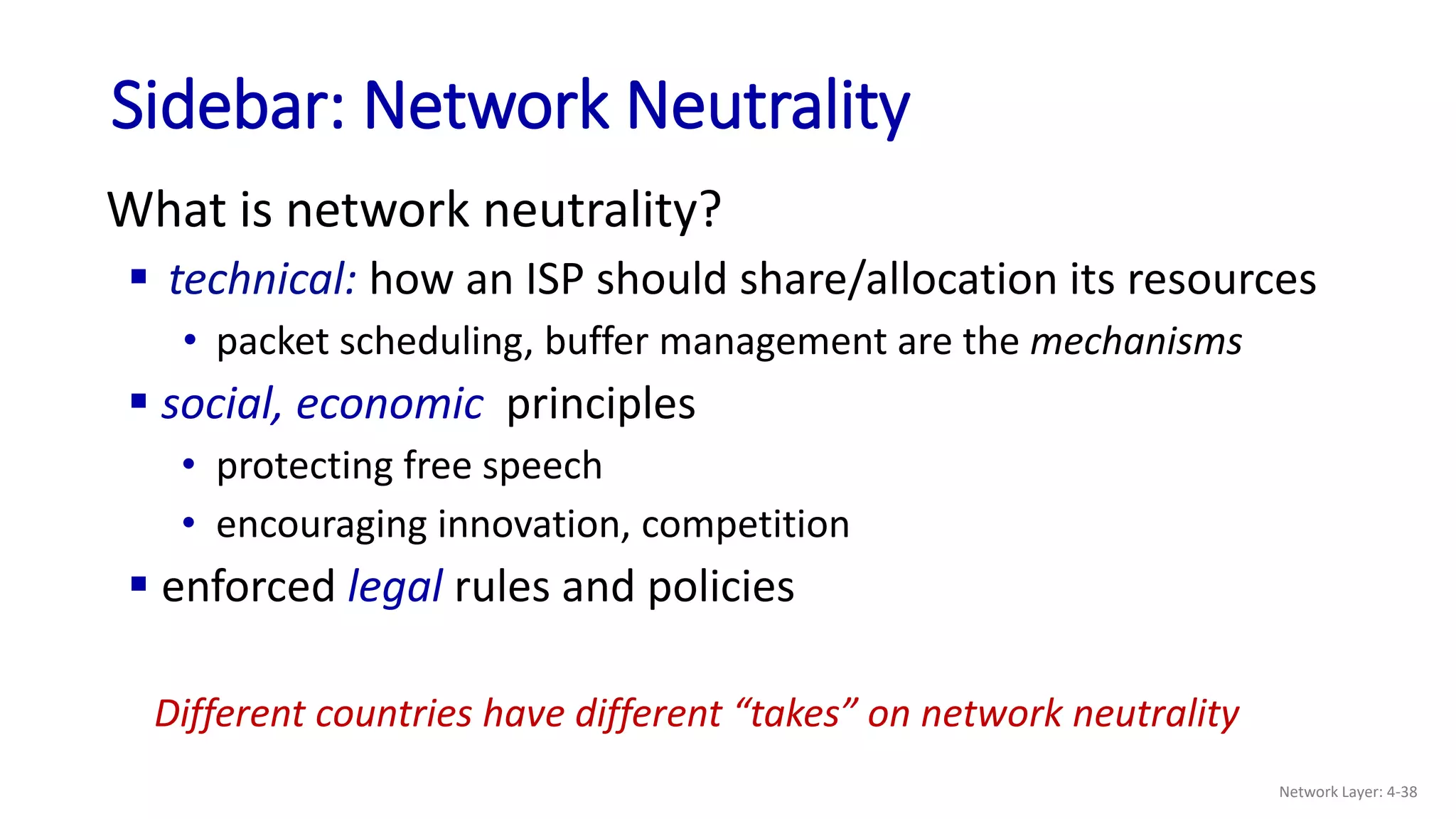

Sidebar: Network Neutrality
What is network neutrality?
 technical: how an ISP should share/allocation its resources
• packet scheduling, buffer management are the mechanisms
 social, economic principles
• protecting free speech
• encouraging innovation, competition
 enforced legal rules and policies
Different countries have different “takes” on network neutrality
Network Layer: 4-38

Sidebar: Network Neutrality

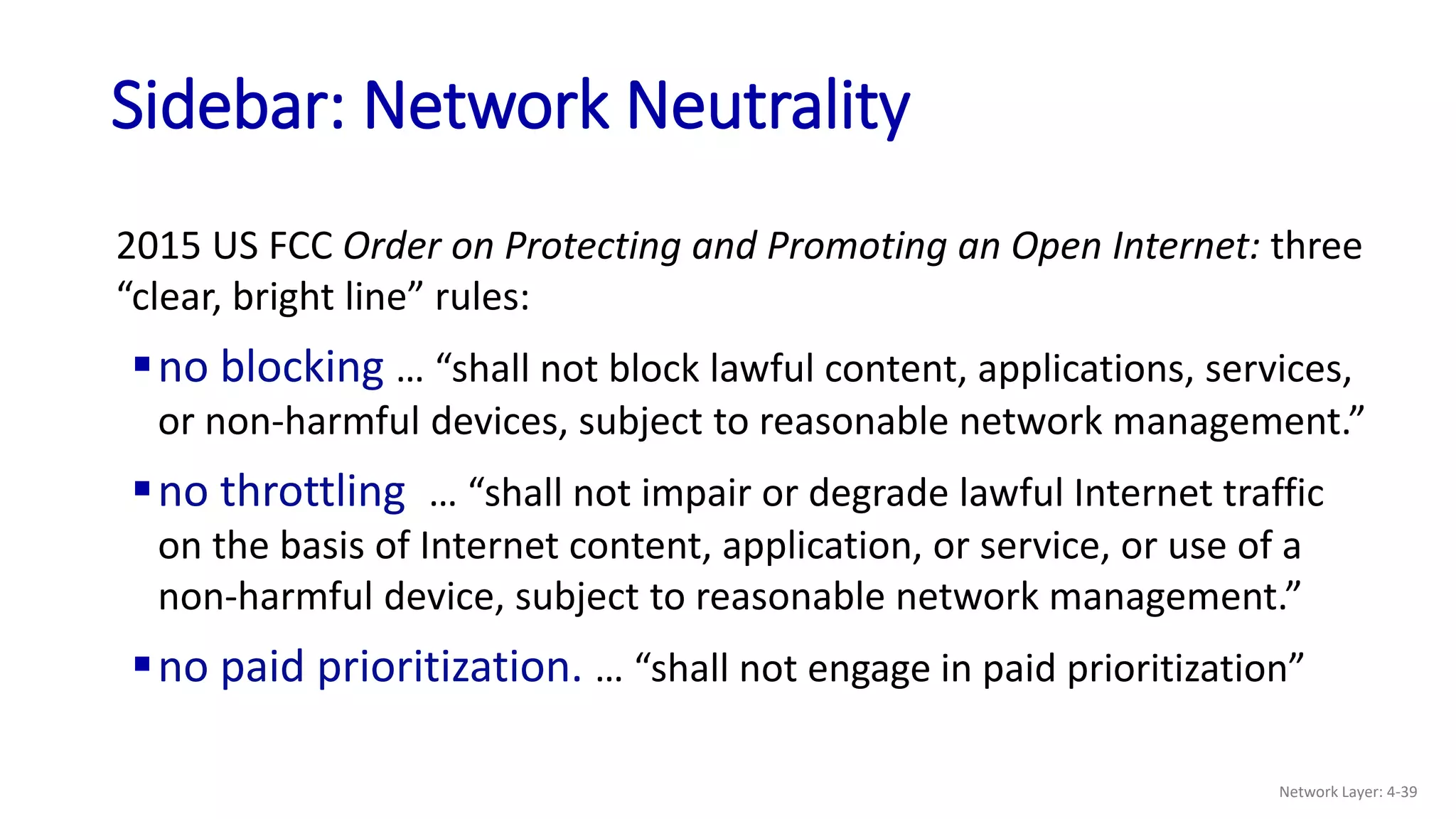

2015 US FCC Order on Protecting and Promoting an Open Internet: three
“clear, bright line” rules:
no blocking … “shall not block lawful content, applications, services,
or non-harmful devices, subject to reasonable network management.”
no throttling … “shall not impair or degrade lawful Internet traffic
on the basis of Internet content, application, or service, or use of a
non-harmful device, subject to reasonable network management.”
no paid prioritization. … “shall not engage in paid prioritization”
Network Layer: 4-39

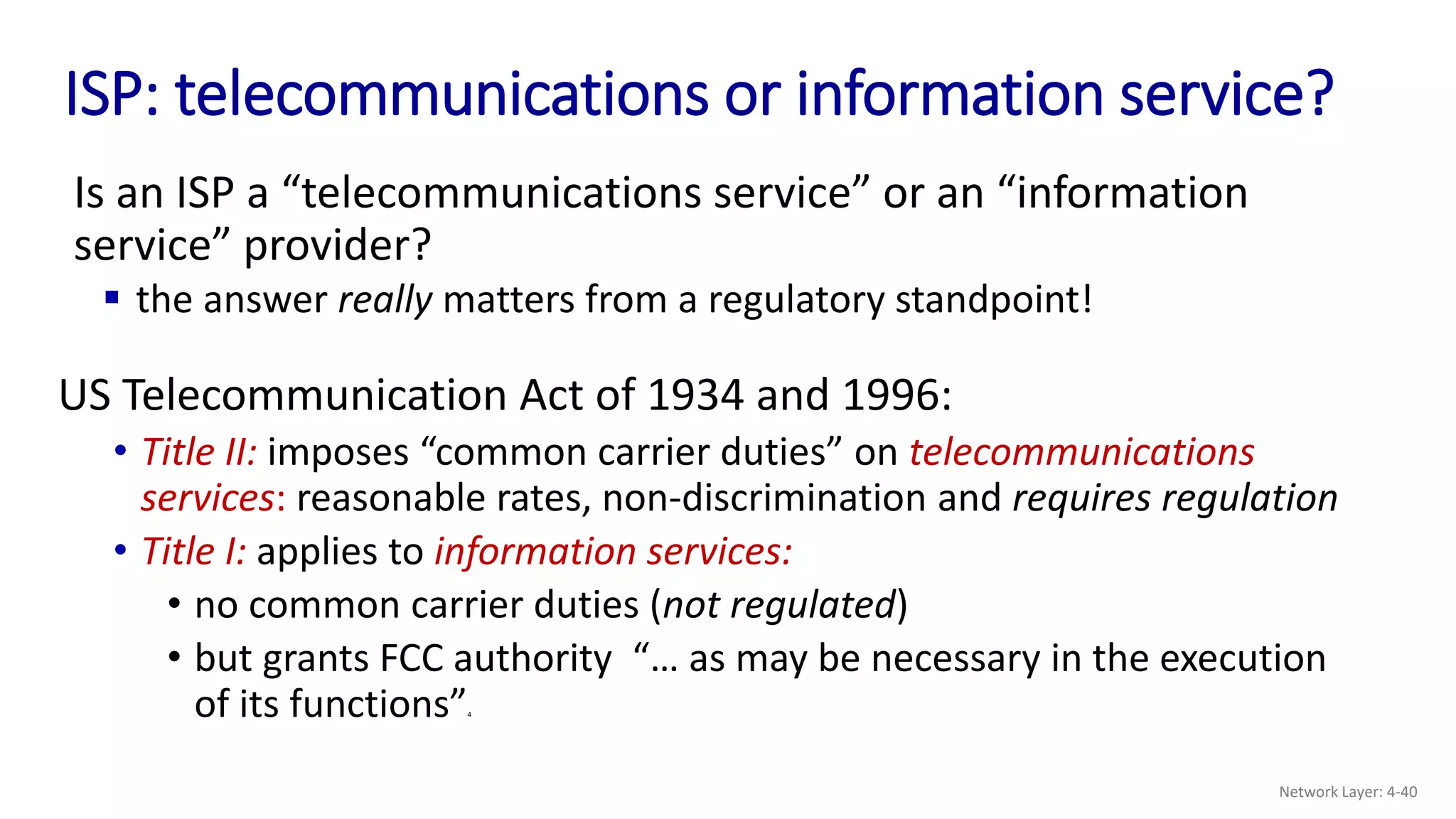

ISP: telecommunications or information service?
US Telecommunication Act of 1934 and 1996:
• Title II: imposes “common carrier duties” on telecommunications
services: reasonable rates, non-discrimination and requires regulation
• Title I: applies to information services:
• no common carrier duties (not regulated)
• but grants FCC authority “… as may be necessary in the execution
of its functions”4
Is an ISP a “telecommunications service” or an “information
service” provider?
 the answer really matters from a regulatory standpoint!
Network Layer: 4-40

• data plane
• control plane
• datagram format
• addressing
• IPv6
• match+action

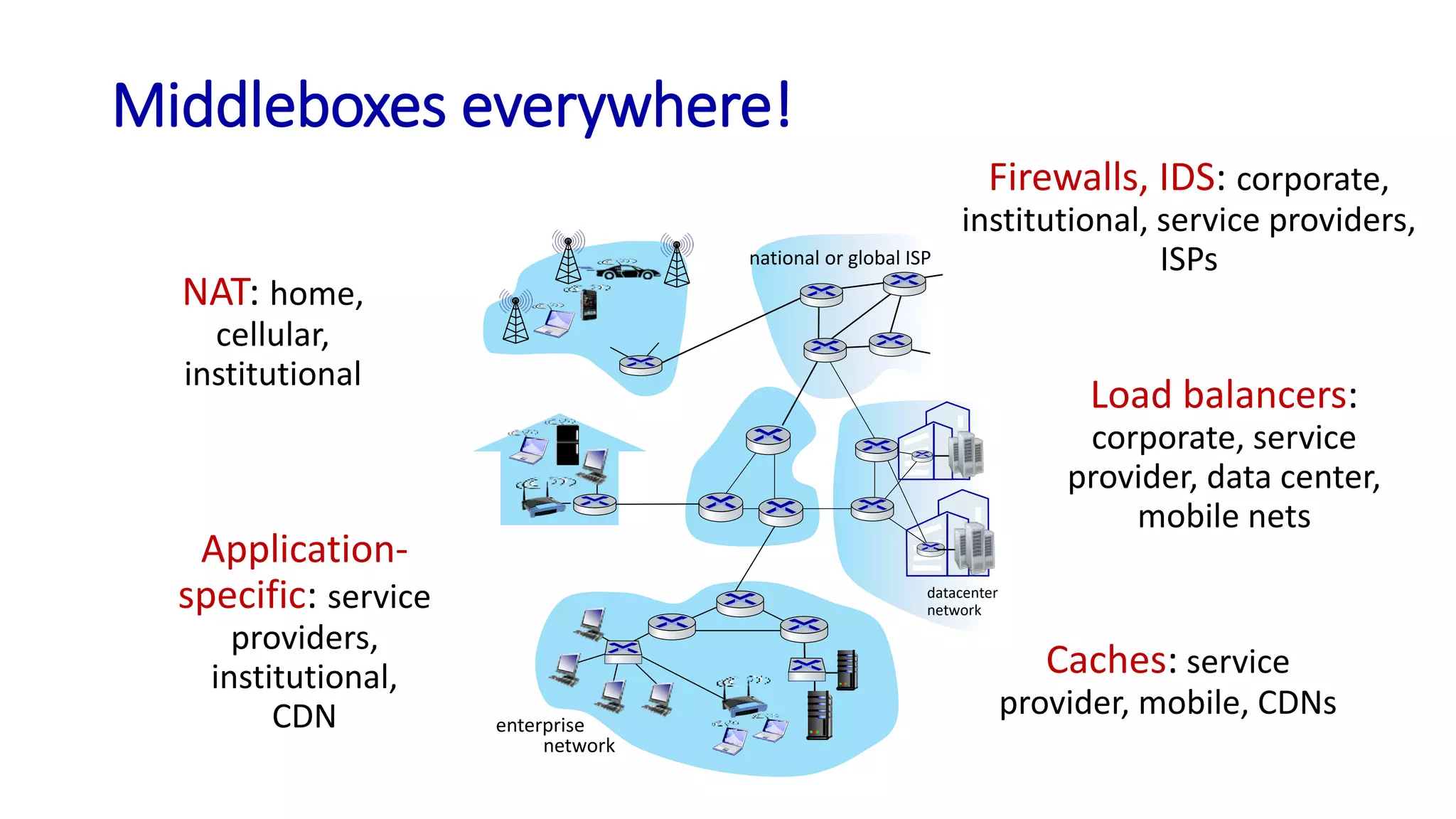

 Middleboxes
Network Layer: 4-41

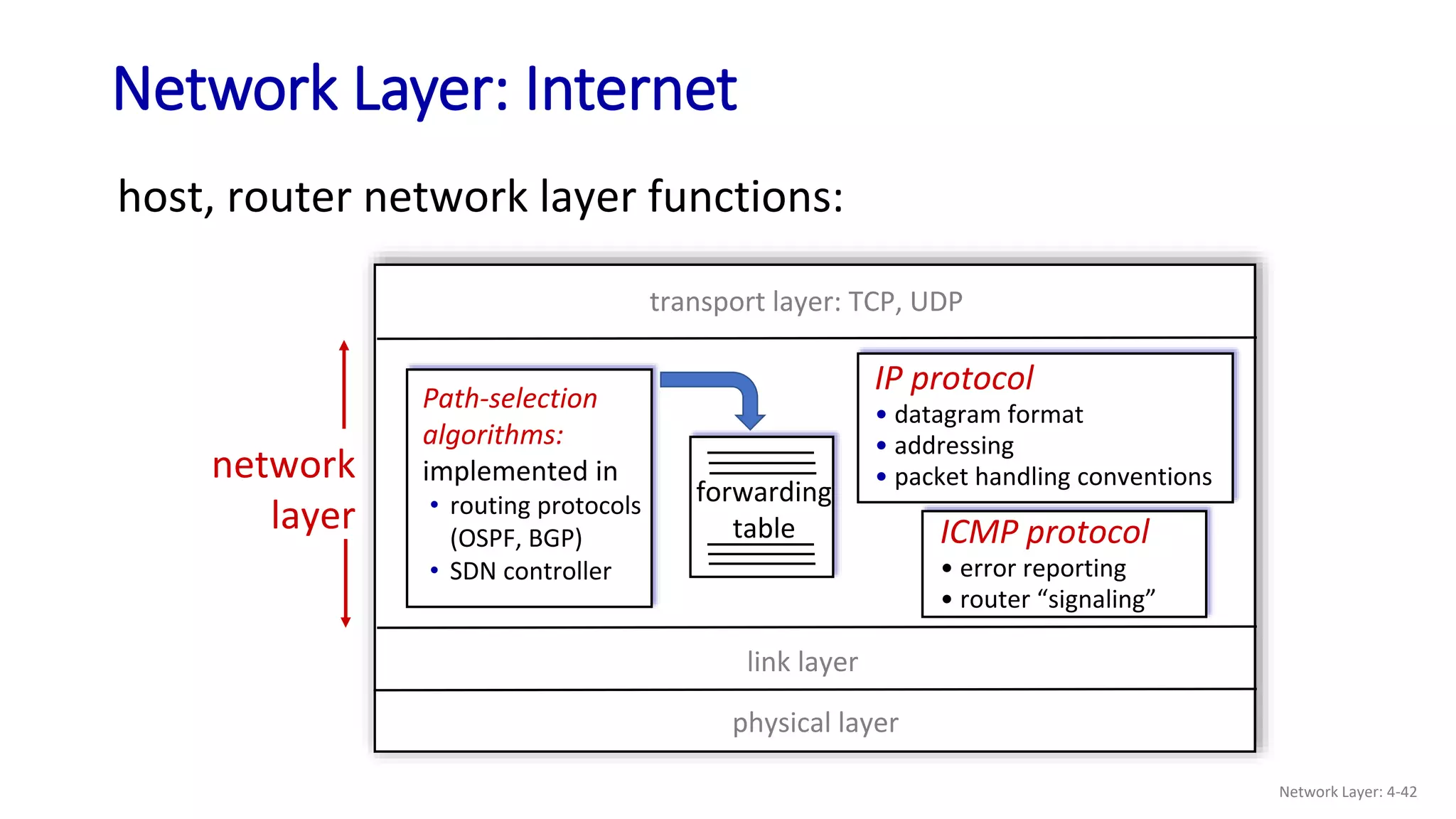

Network Layer: Internet
host, router network layer functions:
IP protocol
• datagram format
• addressing
• packet handling conventions
ICMP protocol
• error reporting
• router “signaling”
transport layer: TCP, UDP
link layer
physical layer
network
layer
forwarding
table
Path-selection
algorithms:
implemented in
• routing protocols
(OSPF, BGP)
• SDN controller
Network Layer: 4-42

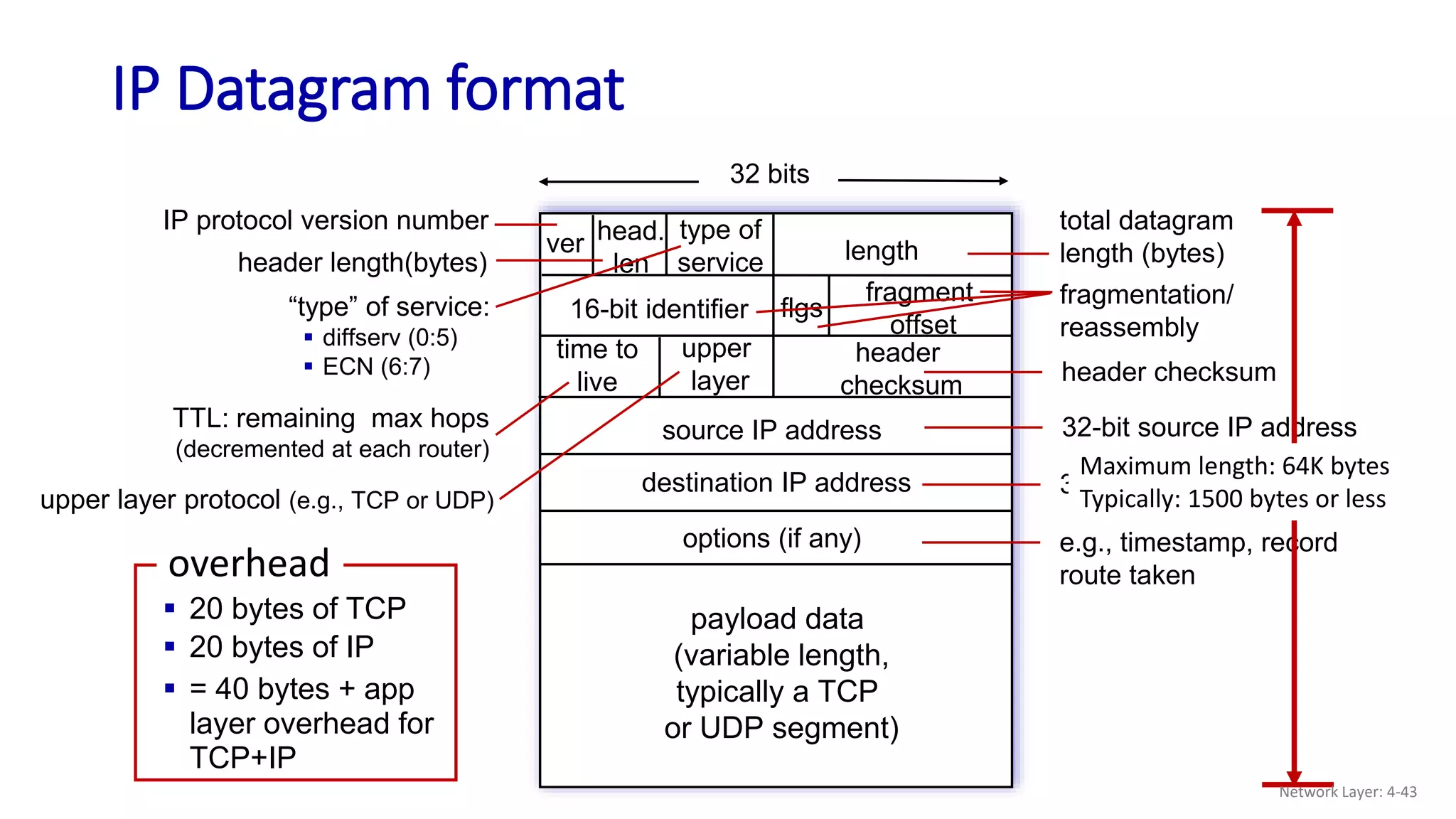

IP Datagram format
ver length
32 bits
payload data
(variable length,
typically a TCP
or UDP segment)
16-bit identifier
header
checksum
time to
live
source IP address
head.
len
type of
service
flgs
fragment
offset
upper
layer
destination IP address
options (if any)
IP protocol version number
header length(bytes)
upper layer protocol (e.g., TCP or UDP)
total datagram
length (bytes)
“type” of service:
 diffserv (0:5)
 ECN (6:7)
fragmentation/
reassembly
TTL: remaining max hops
(decremented at each router)
 20 bytes of TCP
 20 bytes of IP
 = 40 bytes + app
layer overhead for
TCP+IP
overhead
e.g., timestamp, record
route taken
32-bit source IP address
32-bit destination IP address
header checksum
Maximum length: 64K bytes
Typically: 1500 bytes or less
Network Layer: 4-43

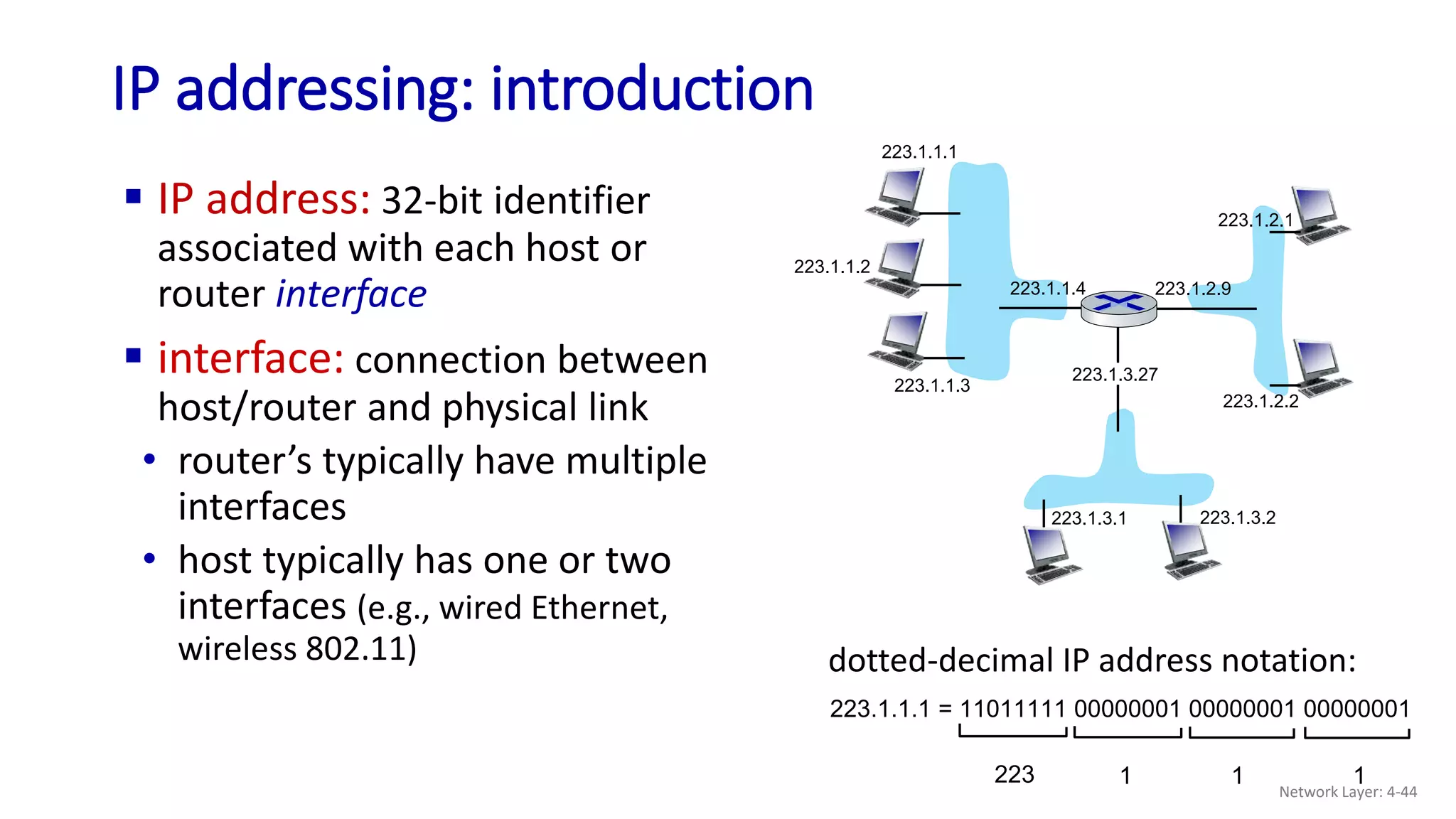

 IP address: 32-bit identifier
associated with each host or
router interface
 interface: connection between
host/router and physical link
• router’s typically have multiple
interfaces
• host typically has one or two
interfaces (e.g., wired Ethernet,
wireless 802.11)

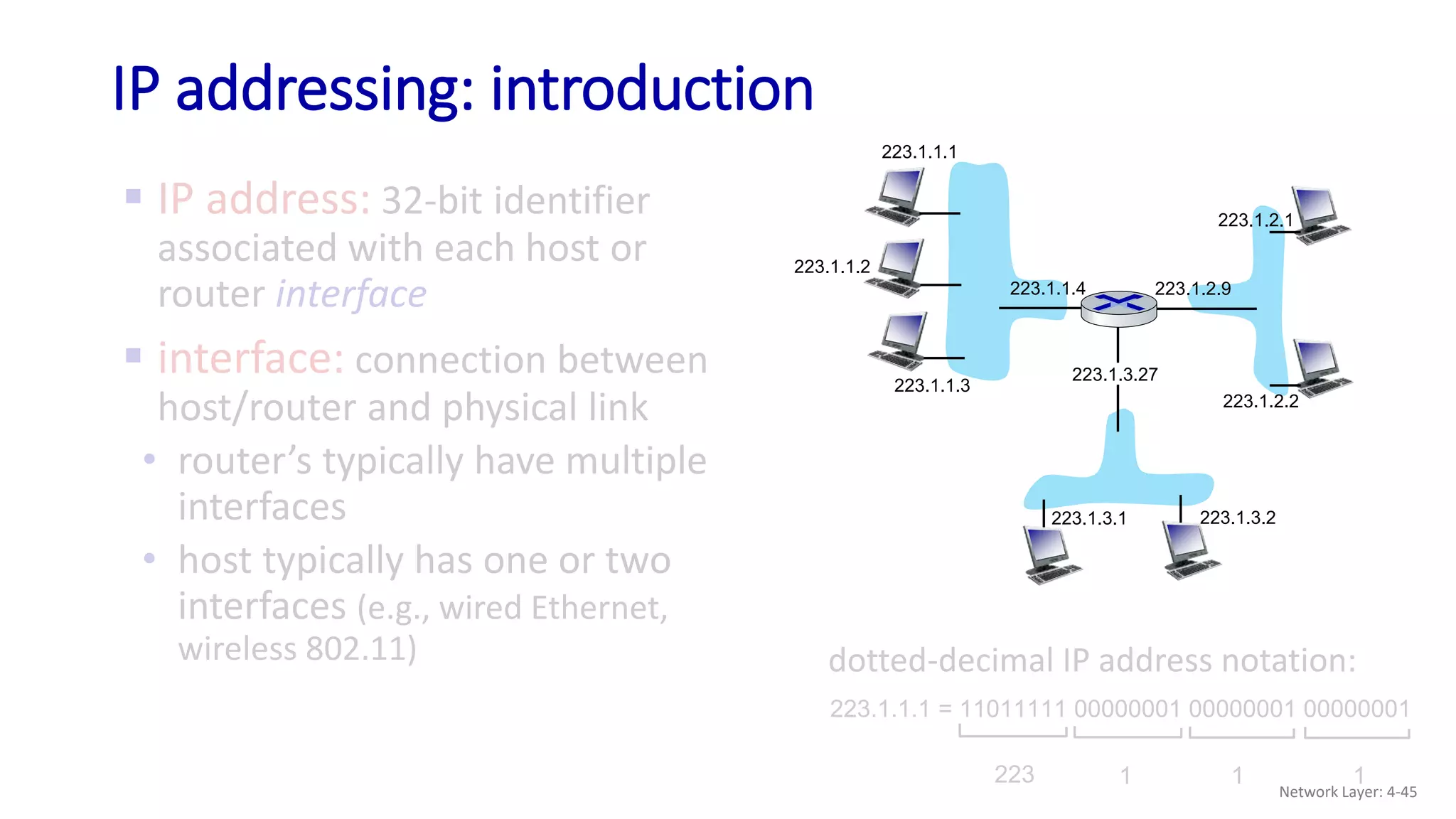

IP addressing: introduction
223.1.1.1
223.1.1.2
223.1.1.3
223.1.1.4 223.1.2.9
223.1.2.2
223.1.2.1
223.1.3.2
223.1.3.1
223.1.3.27
223.1.1.1 = 11011111 00000001 00000001 00000001
223 1 1
1
dotted-decimal IP address notation:
Network Layer: 4-44

 IP address: 32-bit identifier
associated with each host or
router interface
 interface: connection between
host/router and physical link
• router’s typically have multiple
interfaces
• host typically has one or two
interfaces (e.g., wired Ethernet,
wireless 802.11)
223.1.1.1
223.1.1.2
223.1.1.3
223.1.1.4 223.1.2.9
223.1.2.2
223.1.2.1
223.1.3.2
223.1.3.1
223.1.3.27
223.1.1.1 = 11011111 00000001 00000001 00000001
223 1 1
1
dotted-decimal IP address notation:
Network Layer: 4-45

223.1.1.1
223.1.1.2
223.1.1.3
223.1.1.4 223.1.2.9
223.1.2.2
223.1.2.1
223.1.3.2
223.1.3.1
223.1.3.27

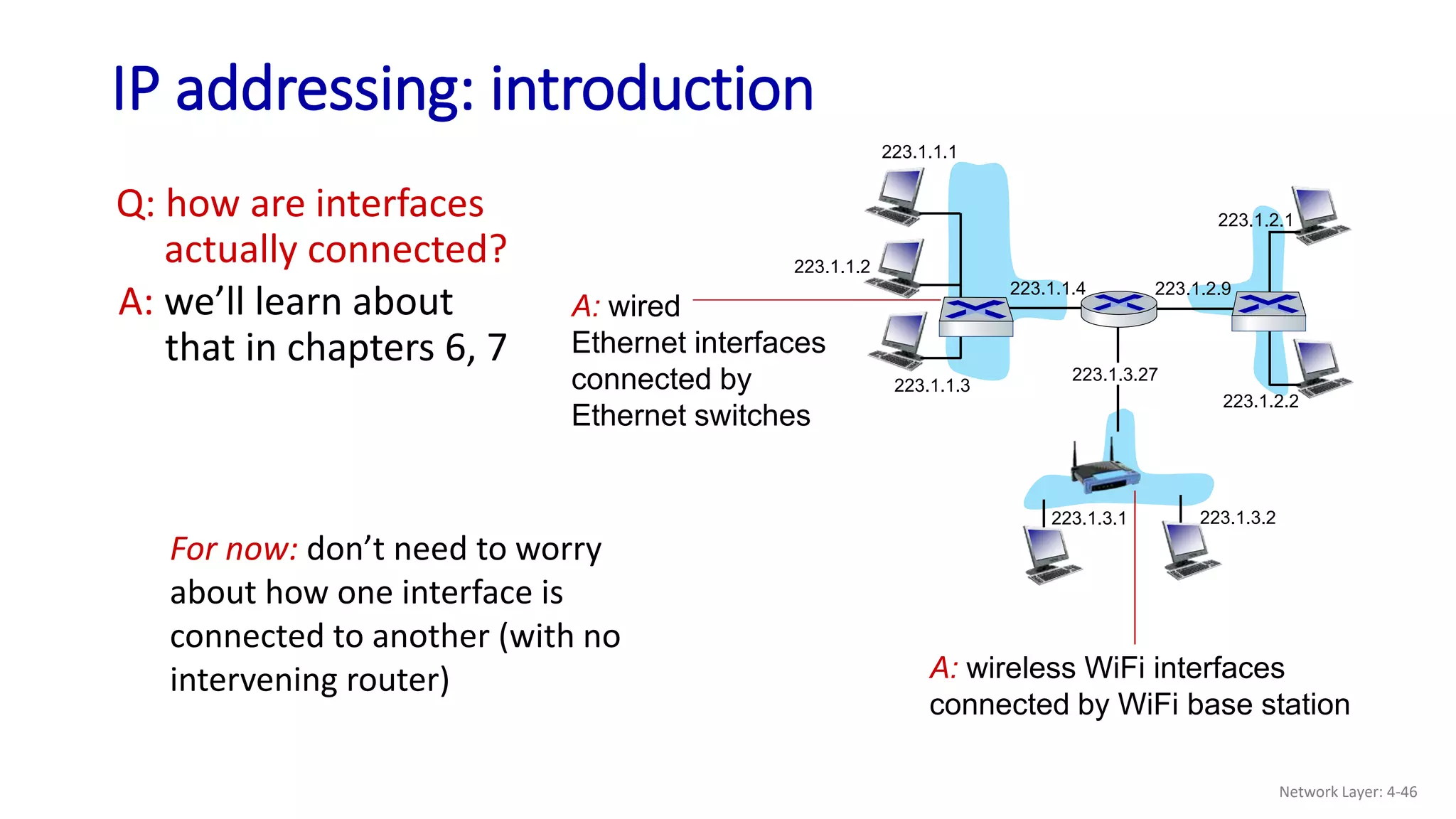

Q: how are interfaces
actually connected?
A: wired
Ethernet interfaces
connected by
Ethernet switches
A: wireless WiFi interfaces
connected by WiFi base station
For now: don’t need to worry
about how one interface is
connected to another (with no
intervening router)
A: we’ll learn about
that in chapters 6, 7
Network Layer: 4-46

Subnets
223.1.1.1
223.1.1.2
223.1.1.3
223.1.1.4 223.1.2.9
223.1.2.2
223.1.2.1
223.1.3.2
223.1.3.1
223.1.3.27

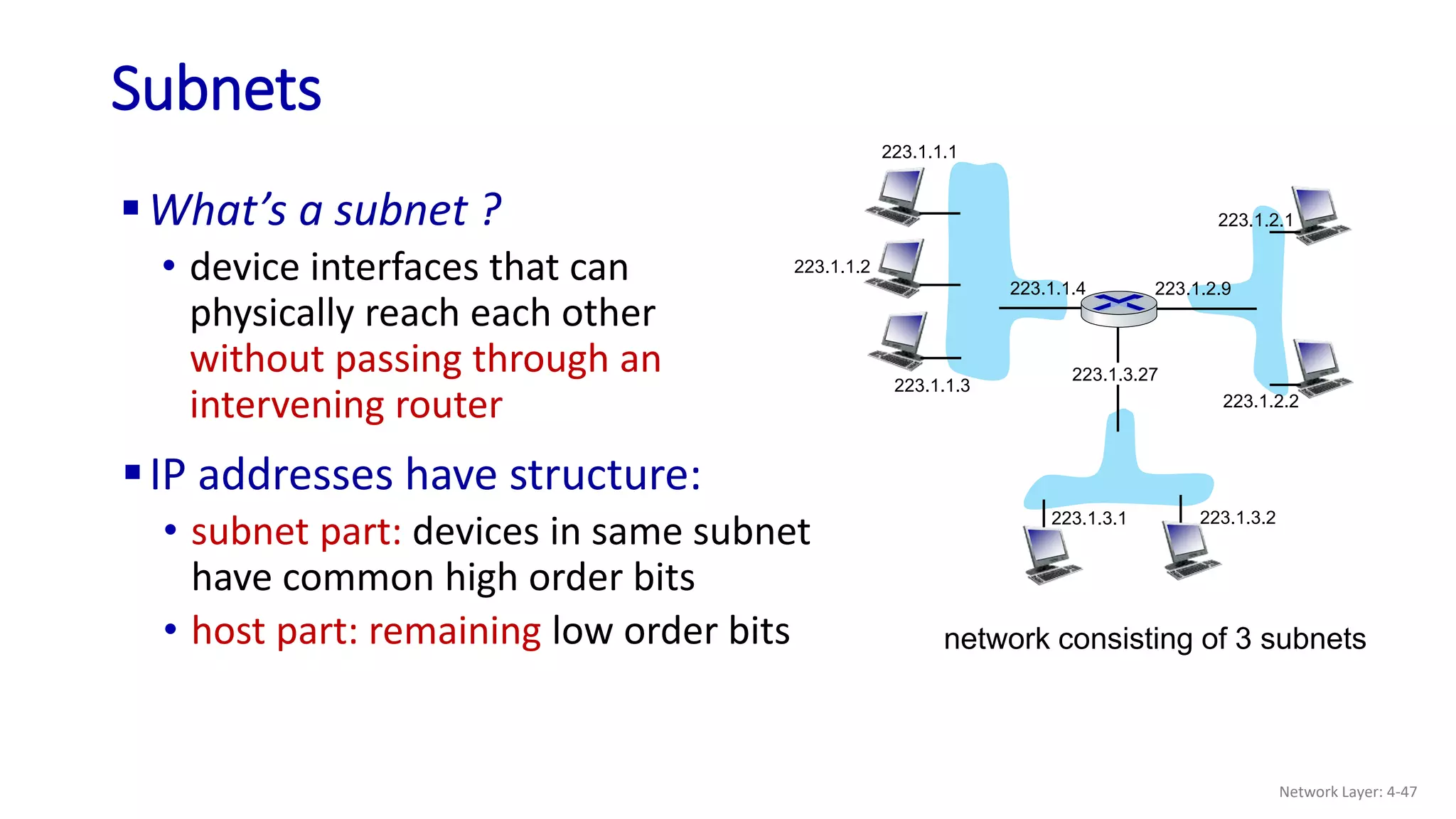

What’s a subnet ?
• device interfaces that can
physically reach each other
without passing through an
intervening router
network consisting of 3 subnets
IP addresses have structure:
• subnet part: devices in same subnet
have common high order bits
• host part: remaining low order bits
Network Layer: 4-47

Subnets
223.1.1.1
223.1.1.2
223.1.1.3
223.1.1.4 223.1.2.9
223.1.2.2
223.1.2.1
223.1.3.2
223.1.3.1
223.1.3.27

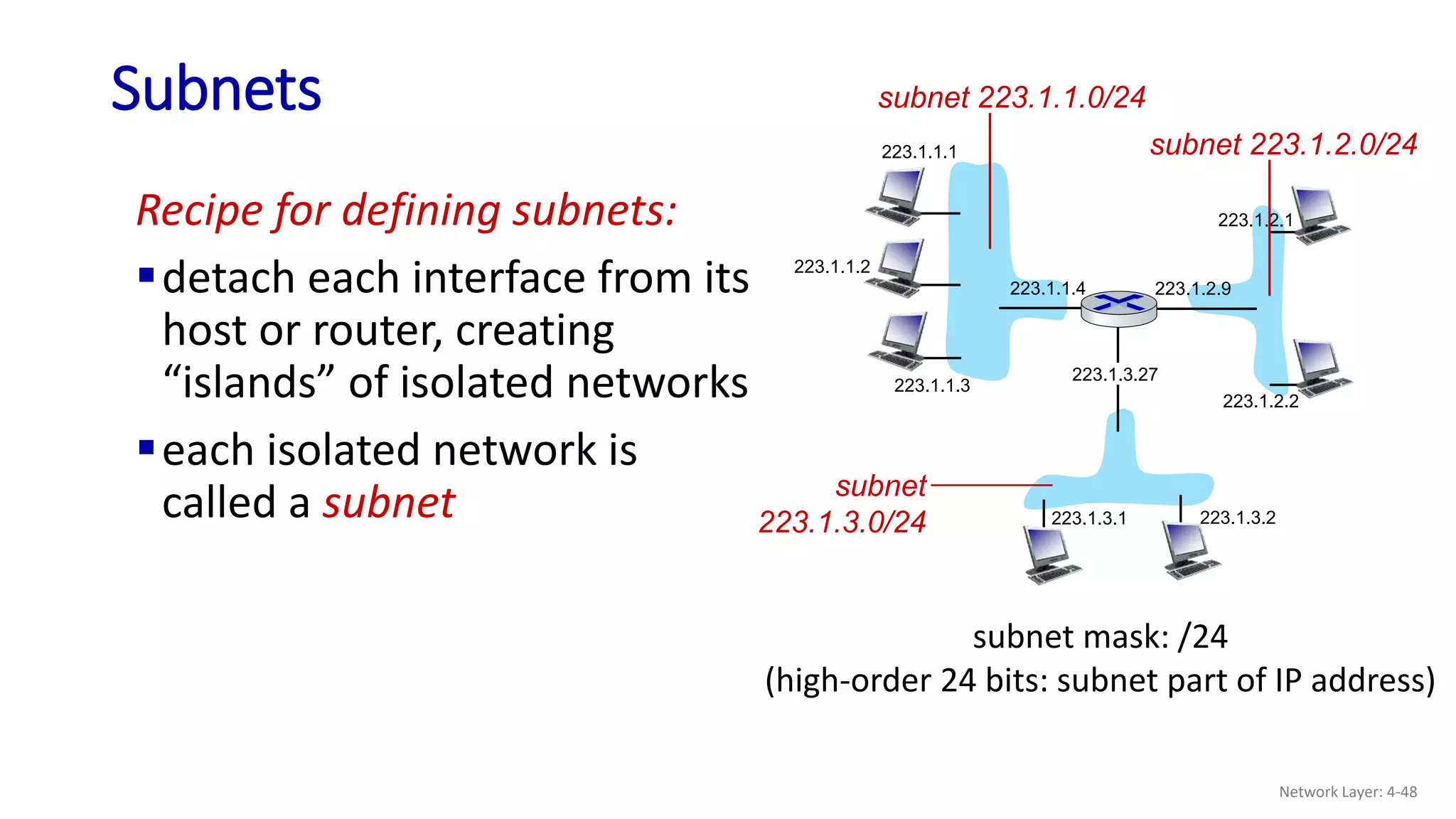

Recipe for defining subnets:
detach each interface from its
host or router, creating
“islands” of isolated networks
each isolated network is
called a subnet
subnet mask: /24
(high-order 24 bits: subnet part of IP address)
subnet
223.1.3.0/24
subnet 223.1.1.0/24
subnet 223.1.2.0/24
Network Layer: 4-48

Subnets

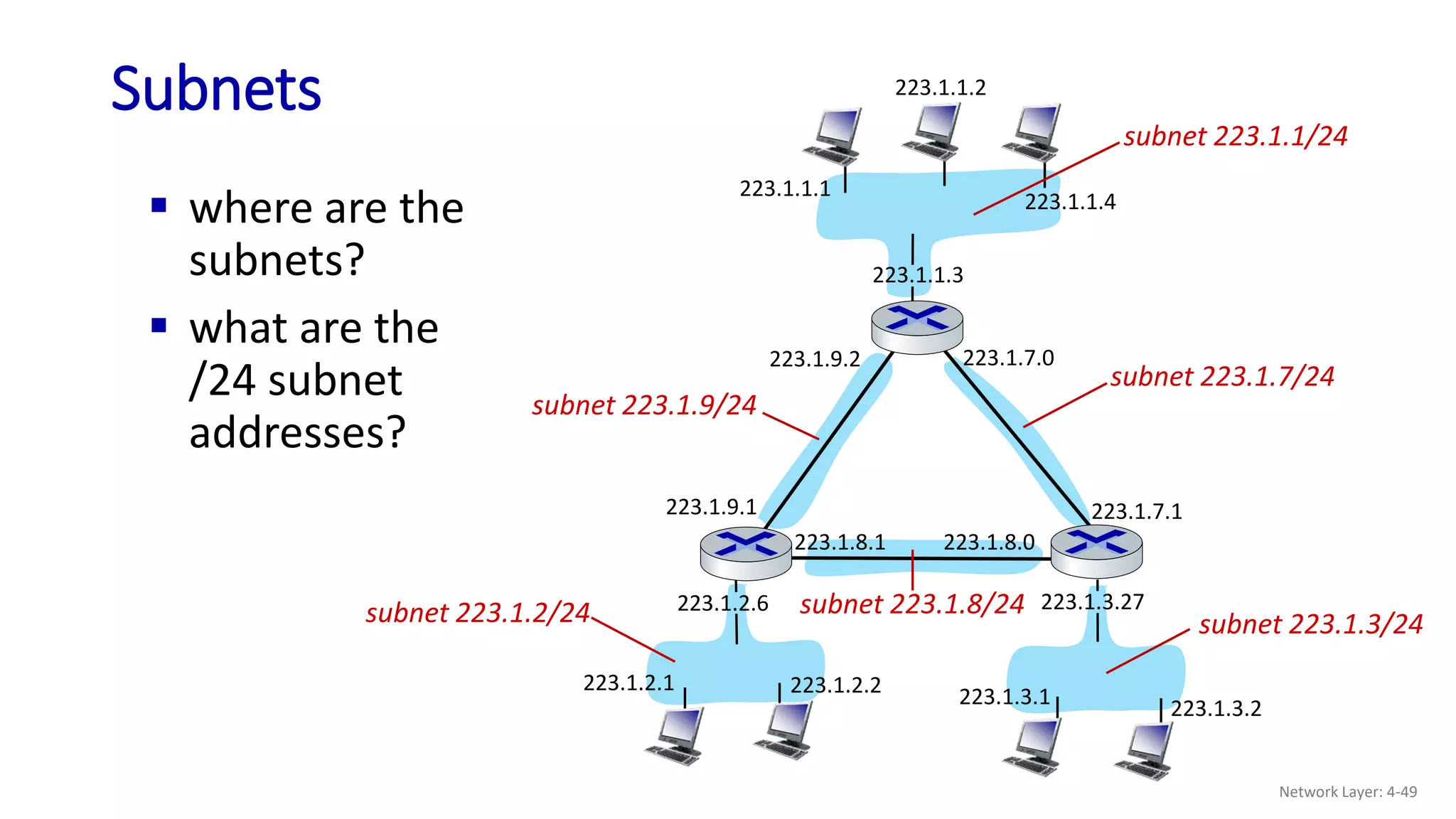

 where are the
subnets?
 what are the
/24 subnet
addresses?
223.1.1.1
223.1.1.3
223.1.1.4
223.1.2.2
223.1.2.6
223.1.3.2
223.1.3.1
223.1.3.27
223.1.1.2
223.1.7.0
223.1.7.1
223.1.8.0
223.1.8.1
223.1.9.1
223.1.9.2
223.1.2.1
subnet 223.1.1/24
subnet 223.1.7/24
subnet 223.1.3/24
subnet 223.1.2/24
subnet 223.1.9/24
subnet 223.1.8/24
Network Layer: 4-49

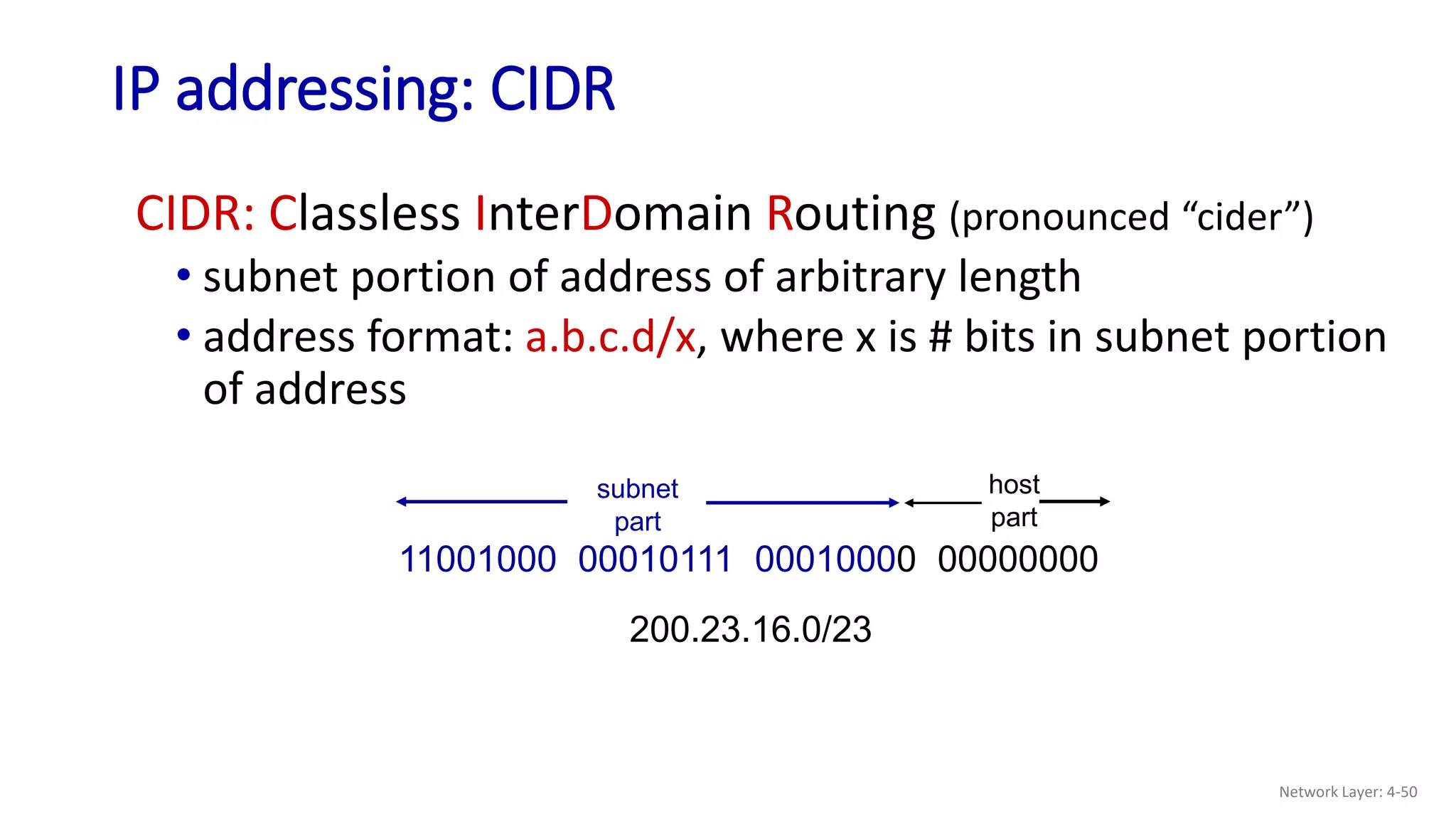

IP addressing: CIDR
CIDR: Classless InterDomain Routing (pronounced “cider”)
• subnet portion of address of arbitrary length
• address format: a.b.c.d/x, where x is # bits in subnet portion
of address
11001000 00010111 00010000 00000000
subnet
part
host
part
200.23.16.0/23
Network Layer: 4-50

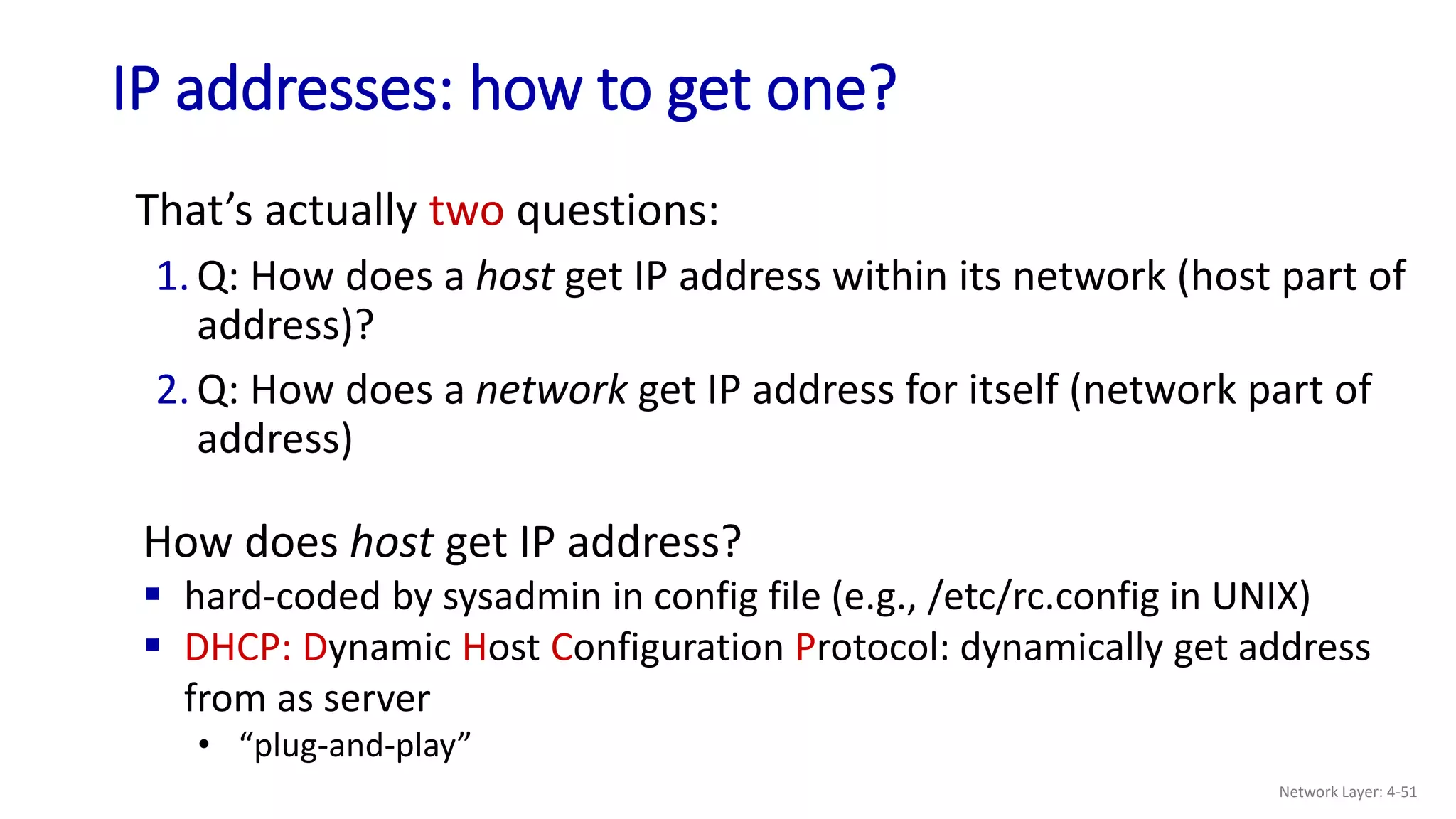

IP addresses: how to get one?
That’s actually two questions:
1.Q: How does a host get IP address within its network (host part of
address)?
2.Q: How does a network get IP address for itself (network part of
address)
How does host get IP address?
 hard-coded by sysadmin in config file (e.g., /etc/rc.config in UNIX)
 DHCP: Dynamic Host Configuration Protocol: dynamically get address
from as server
• “plug-and-play”
Network Layer: 4-51

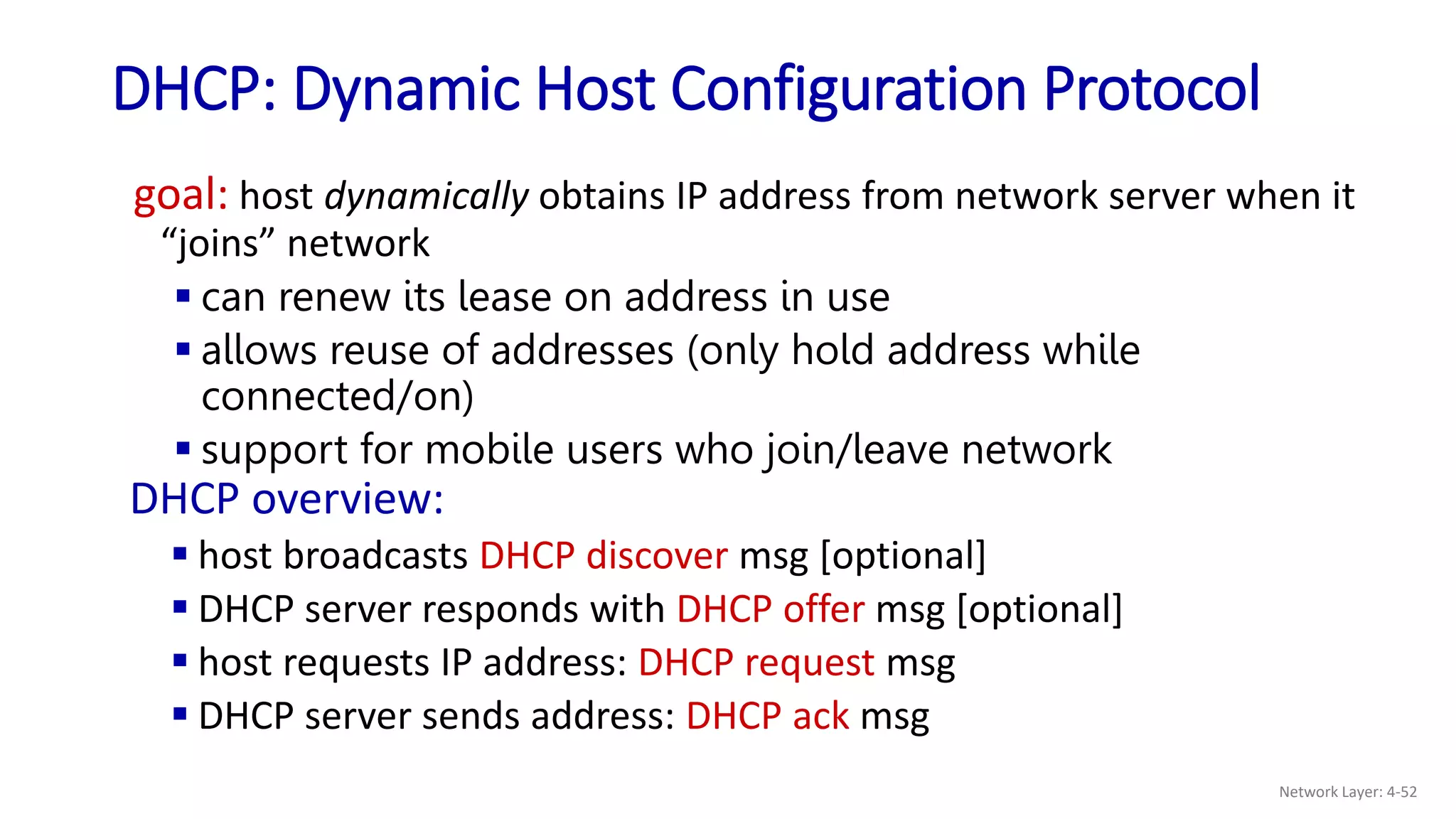

DHCP: Dynamic Host Configuration Protocol
goal: host dynamically obtains IP address from network server when it
“joins” network
 can renew its lease on address in use
 allows reuse of addresses (only hold address while
connected/on)
 support for mobile users who join/leave network
DHCP overview:
 host broadcasts DHCP discover msg [optional]
 DHCP server responds with DHCP offer msg [optional]
 host requests IP address: DHCP request msg
 DHCP server sends address: DHCP ack msg
Network Layer: 4-52

DHCP client-server scenario
223.1.1.1
223.1.1.2
223.1.1.3
223.1.1.4 223.1.2.9
223.1.2.2
223.1.2.1
223.1.3.2
223.1.3.1
223.1.3.27
DHCP server
223.1.2.5

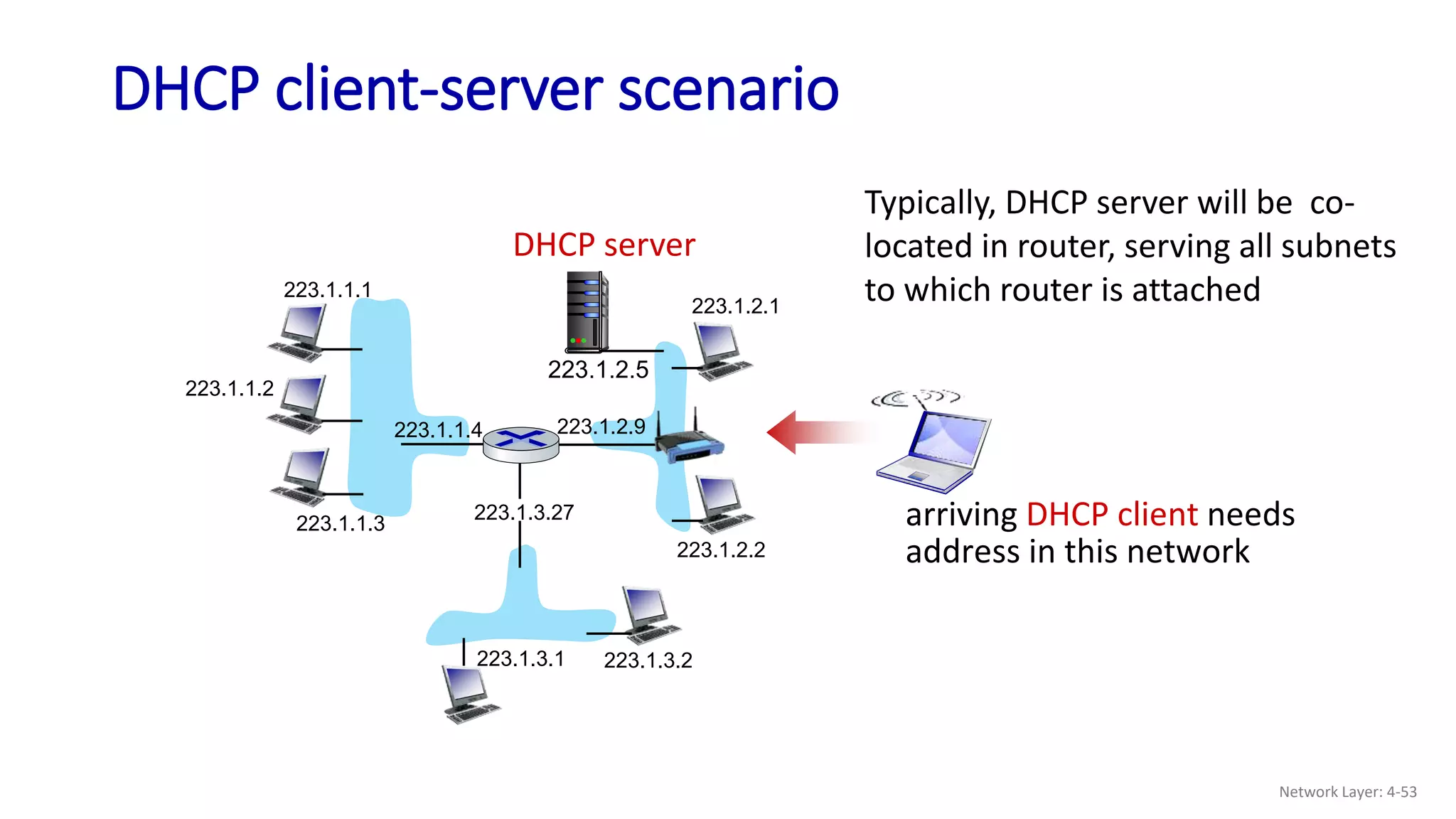

arriving DHCP client needs
address in this network
Typically, DHCP server will be co-
located in router, serving all subnets
to which router is attached
Network Layer: 4-53

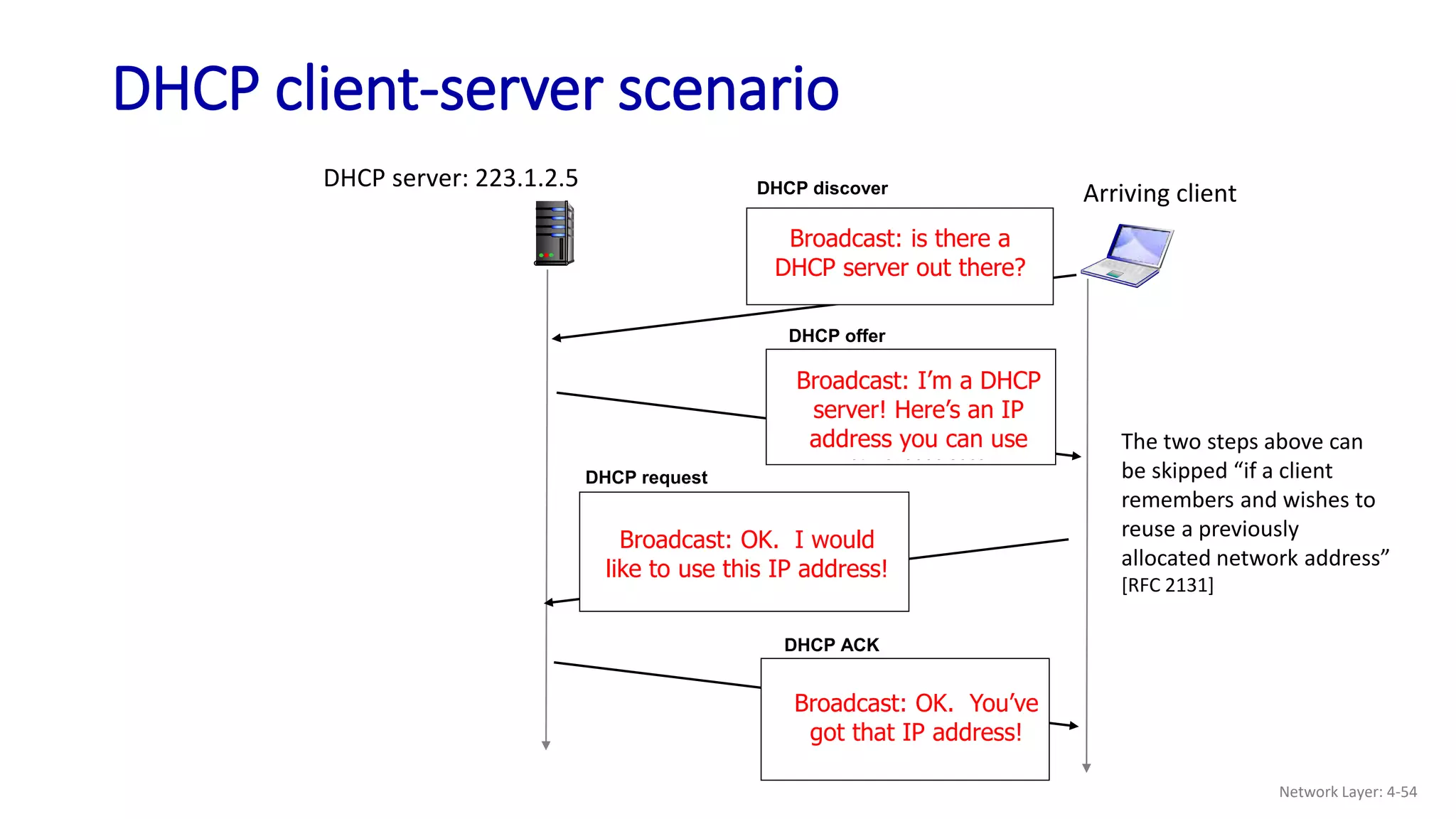

DHCP client-server scenario
DHCP server: 223.1.2.5
Arriving client
DHCP discover
src : 0.0.0.0, 68
dest.: 255.255.255.255,67
yiaddr: 0.0.0.0
transaction ID: 654
DHCP offer
src: 223.1.2.5, 67
dest: 255.255.255.255, 68
yiaddrr: 223.1.2.4
transaction ID: 654
lifetime: 3600 secs
DHCP request
src: 0.0.0.0, 68
dest:: 255.255.255.255, 67
yiaddrr: 223.1.2.4
transaction ID: 655
lifetime: 3600 secs
DHCP ACK
src: 223.1.2.5, 67
dest: 255.255.255.255, 68
yiaddrr: 223.1.2.4
transaction ID: 655
lifetime: 3600 secs
Broadcast: is there a
DHCP server out there?
Broadcast: I’m a DHCP
server! Here’s an IP
address you can use
Broadcast: OK. I would
like to use this IP address!
Broadcast: OK. You’ve
got that IP address!
The two steps above can
be skipped “if a client
remembers and wishes to
reuse a previously
allocated network address”
[RFC 2131]
Network Layer: 4-54

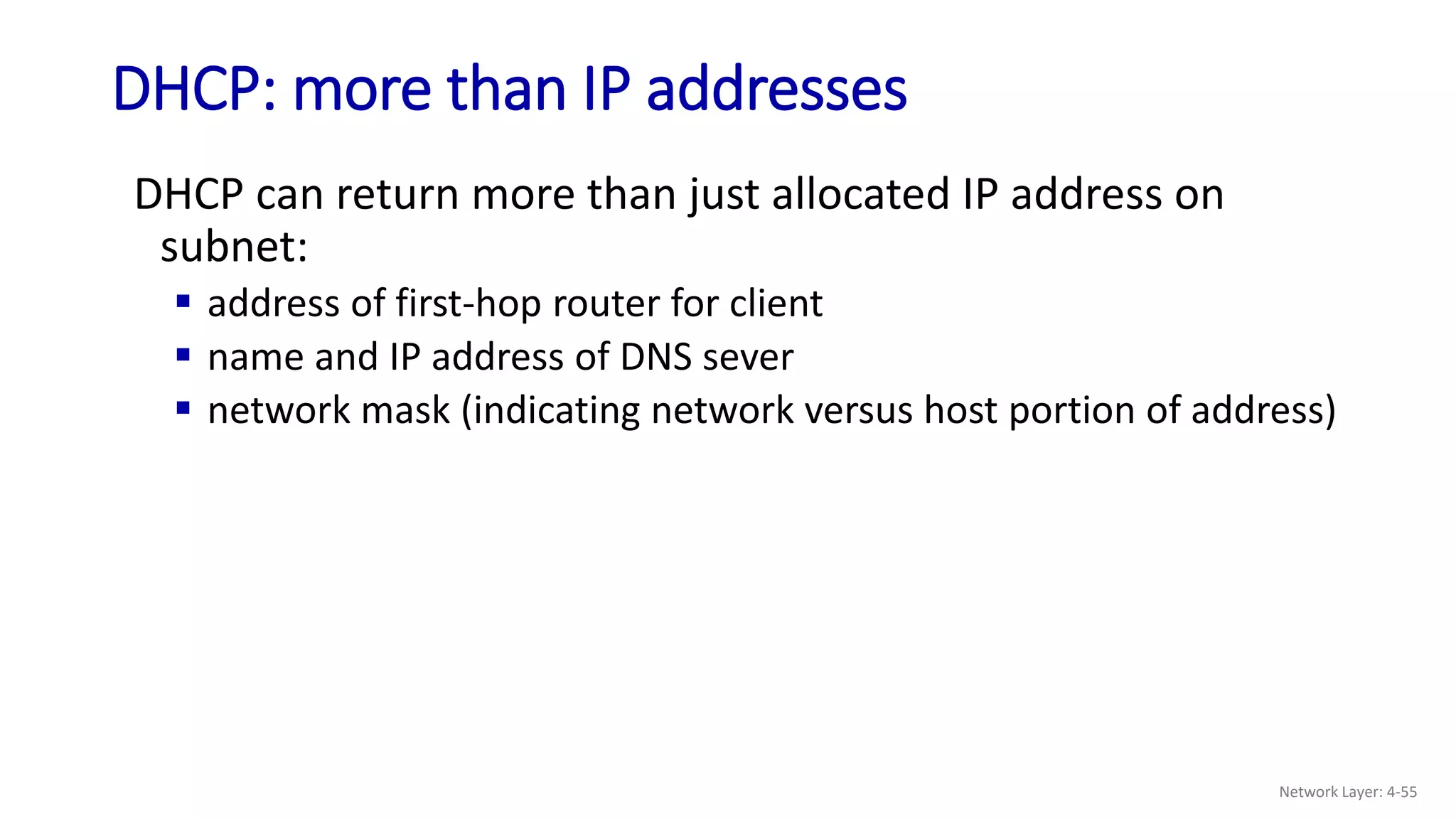

DHCP: more than IP addresses
DHCP can return more than just allocated IP address on
subnet:
 address of first-hop router for client
 name and IP address of DNS sever
 network mask (indicating network versus host portion of address)
Network Layer: 4-55

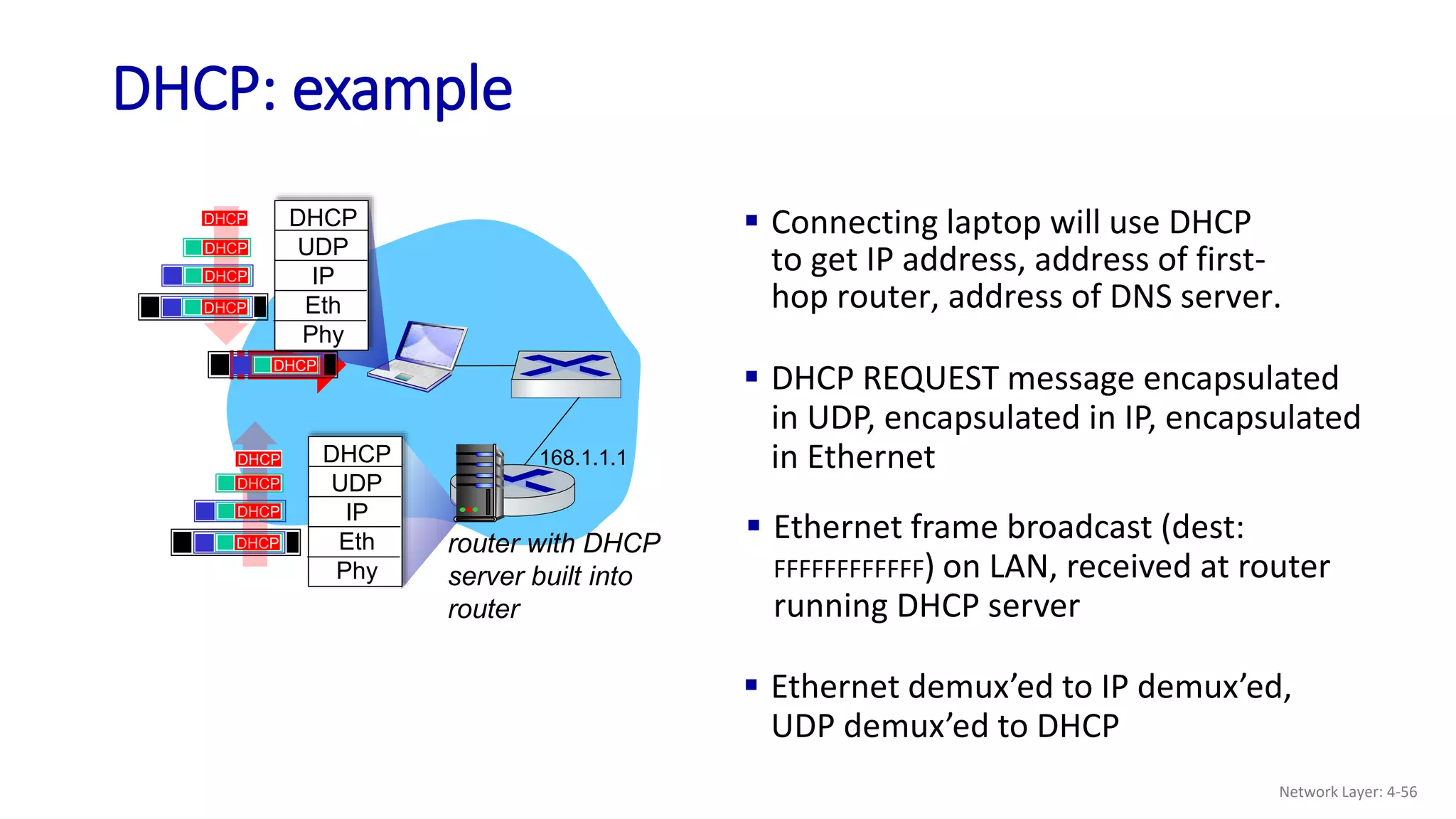

DHCP: example
 Connecting laptop will use DHCP
to get IP address, address of first-
hop router, address of DNS server.
router with DHCP
server built into
router
 DHCP REQUEST message encapsulated
in UDP, encapsulated in IP, encapsulated
in Ethernet
 Ethernet frame broadcast (dest:
FFFFFFFFFFFF) on LAN, received at router
running DHCP server
 Ethernet demux’ed to IP demux’ed,
UDP demux’ed to DHCP
168.1.1.1
DHCP
UDP
IP
Eth
Phy
DHCP
DHCP
DHCP
DHCP
DHCP
DHCP
UDP
IP
Eth
Phy
DHCP
DHCP
DHCP
DHCP
DHCP
Network Layer: 4-56

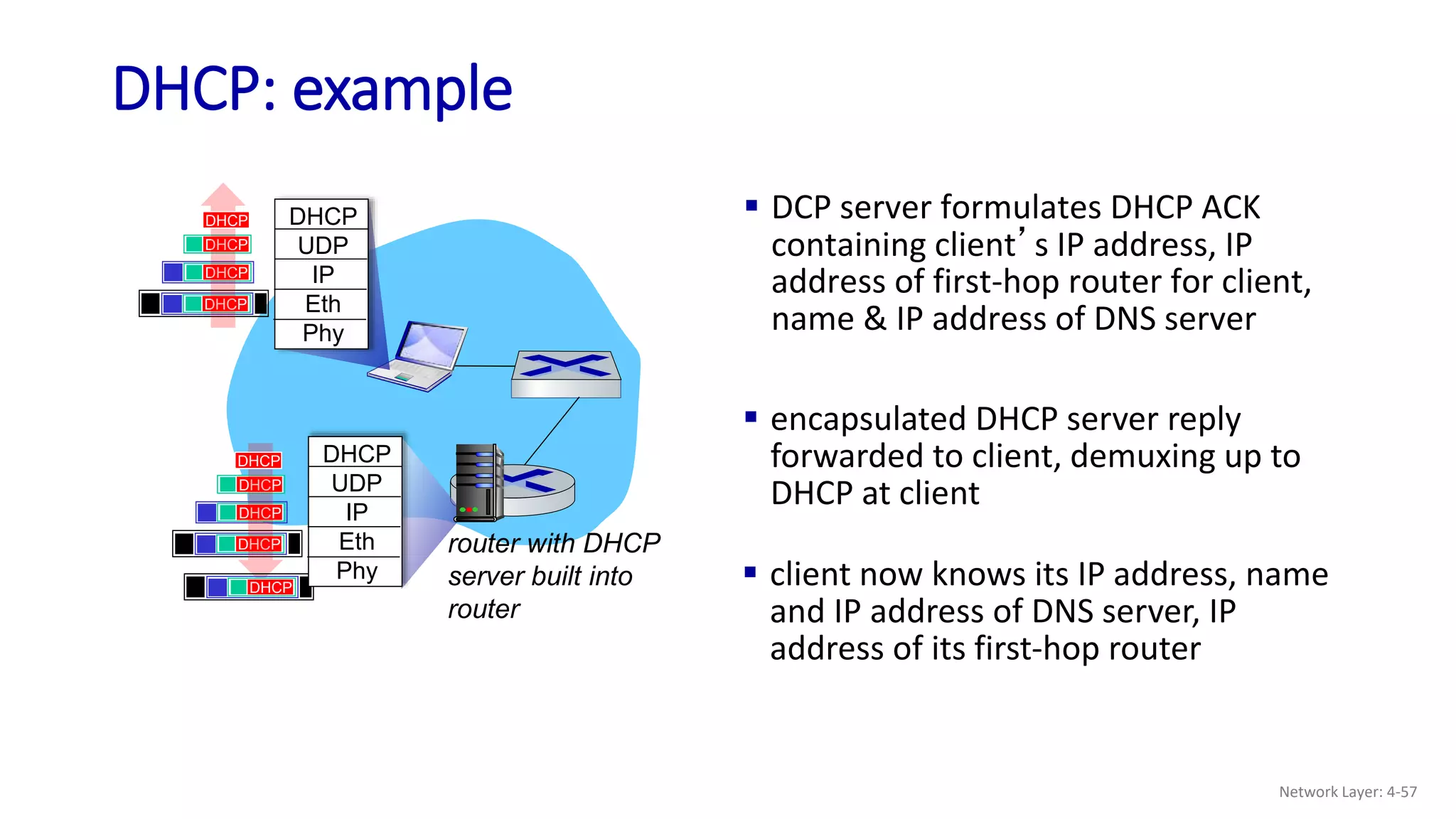

DHCP: example
 DCP server formulates DHCP ACK
containing client’s IP address, IP
address of first-hop router for client,
name & IP address of DNS server
 encapsulated DHCP server reply
forwarded to client, demuxing up to
DHCP at client
router with DHCP
server built into
router
DHCP
DHCP
DHCP
DHCP
DHCP
UDP
IP
Eth
Phy
DHCP
DHCP
UDP
IP
Eth
Phy
DHCP
DHCP
DHCP
DHCP
 client now knows its IP address, name
and IP address of DNS server, IP
address of its first-hop router
Network Layer: 4-57

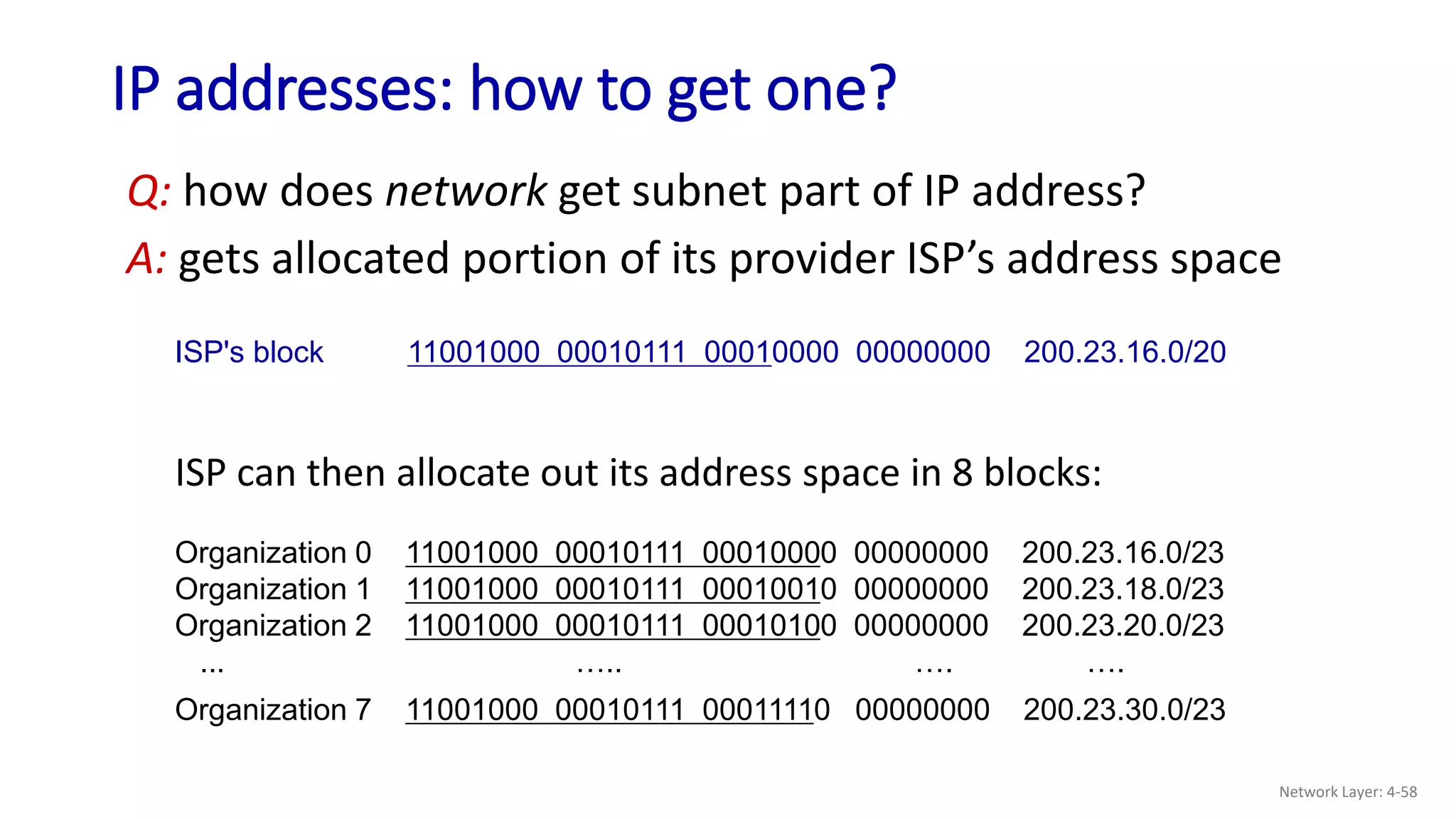

IP addresses: how to get one?
Q: how does network get subnet part of IP address?
A: gets allocated portion of its provider ISP’s address space
ISP's block 11001000 00010111 00010000 00000000 200.23.16.0/20
ISP can then allocate out its address space in 8 blocks:
Organization 0 11001000 00010111 00010000 00000000 200.23.16.0/23
Organization 1 11001000 00010111 00010010 00000000 200.23.18.0/23
Organization 2 11001000 00010111 00010100 00000000 200.23.20.0/23
... ….. …. ….
Organization 7 11001000 00010111 00011110 00000000 200.23.30.0/23
Network Layer: 4-58

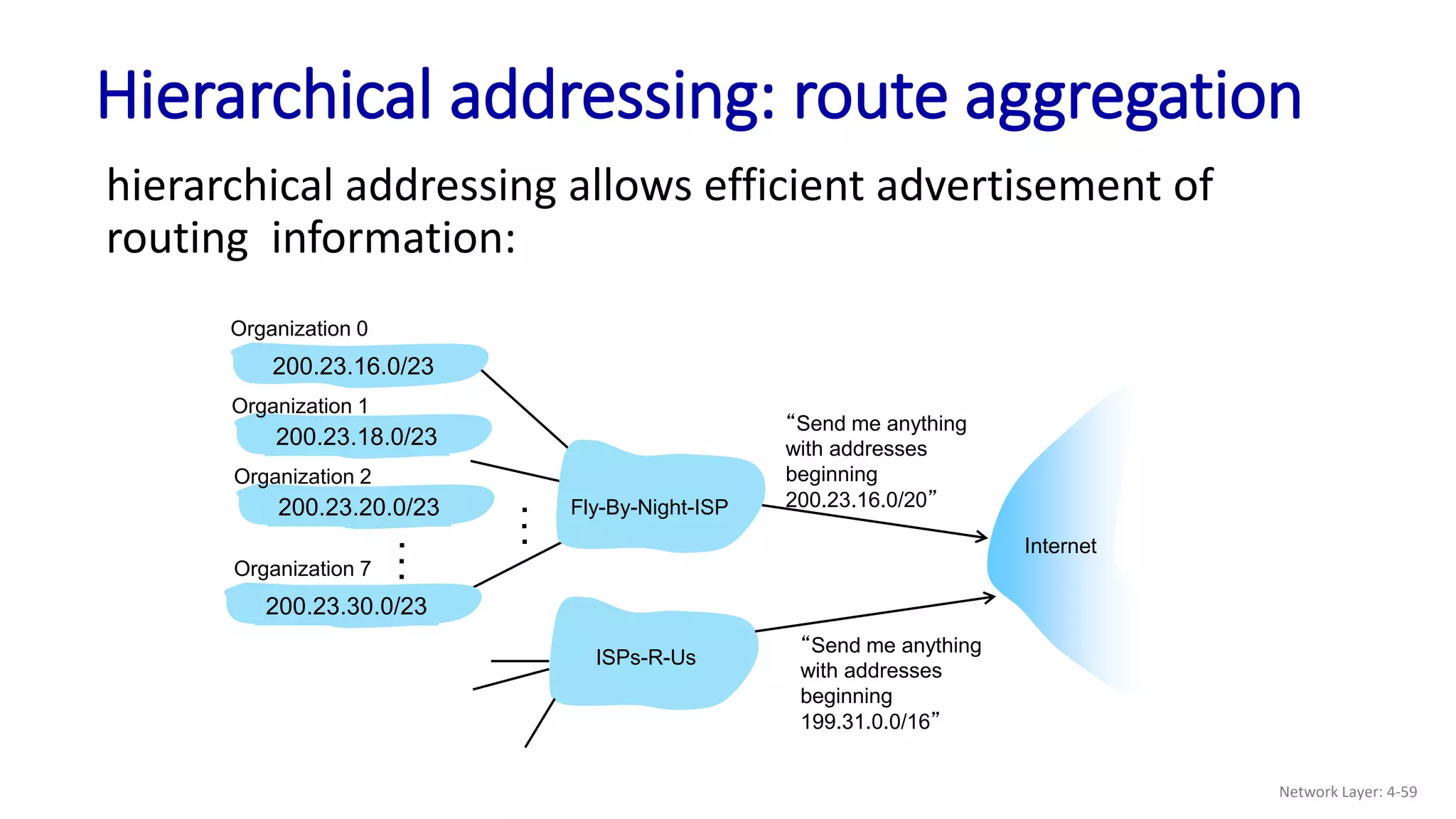

Hierarchical addressing: route aggregation
“Send me anything
with addresses
beginning
200.23.16.0/20”
200.23.16.0/23
200.23.18.0/23
200.23.30.0/23
Fly-By-Night-ISP
Organization 0
Organization 7
Internet
Organization 1
ISPs-R-Us
“Send me anything
with addresses
beginning
199.31.0.0/16”
200.23.20.0/23
Organization 2
.
.
.
.
.
.
hierarchical addressing allows efficient advertisement of
routing information:
Network Layer: 4-59

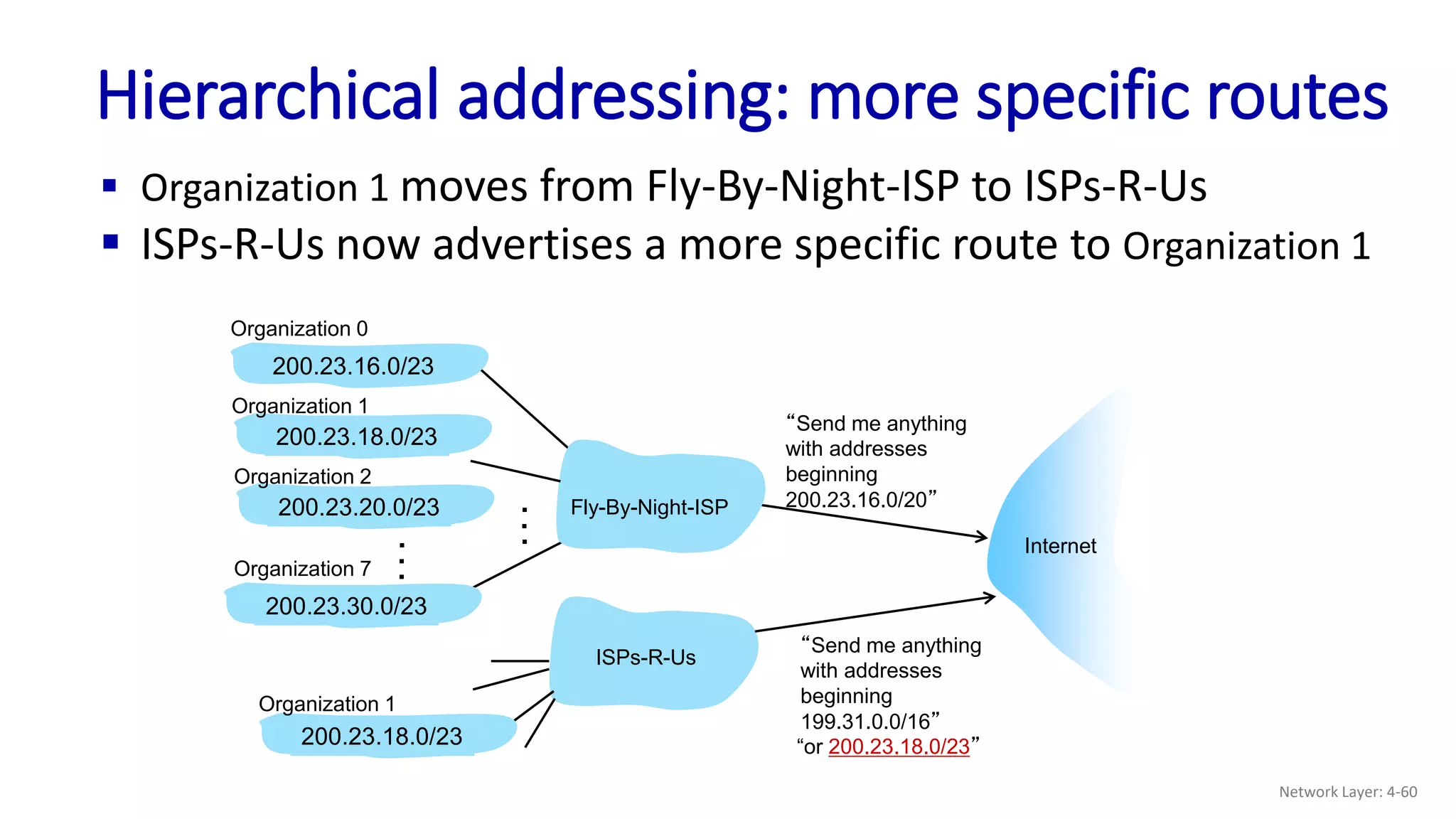

Hierarchical addressing: more specific routes
“Send me anything
with addresses
beginning
200.23.16.0/20”
200.23.16.0/23
200.23.30.0/23
Fly-By-Night-ISP
Organization 0
Organization 7
Internet
200.23.18.0/23
Organization 1
ISPs-R-Us
“Send me anything
with addresses
beginning
199.31.0.0/16”
200.23.20.0/23
Organization 2
.
.
.
.
.
.

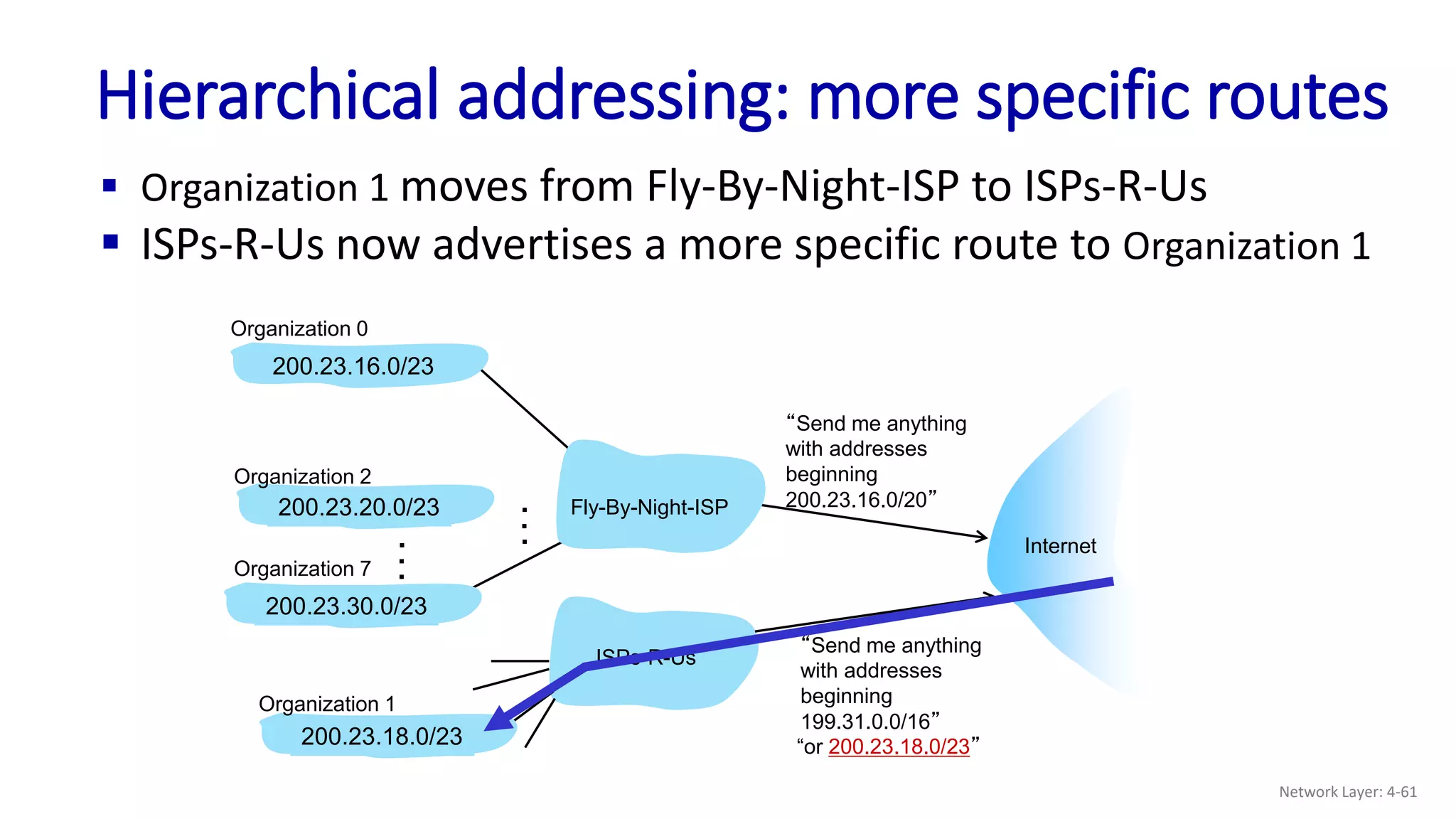

 Organization 1 moves from Fly-By-Night-ISP to ISPs-R-Us
 ISPs-R-Us now advertises a more specific route to Organization 1
200.23.18.0/23
Organization 1
“or 200.23.18.0/23”
Network Layer: 4-60

Hierarchical addressing: more specific routes
“Send me anything
with addresses
beginning
200.23.16.0/20”
200.23.16.0/23
200.23.30.0/23
Fly-By-Night-ISP
Organization 0
Organization 7
Internet
ISPs-R-Us
“Send me anything
with addresses
beginning
199.31.0.0/16”
200.23.20.0/23
Organization 2
.
.
.
.
.
.
 Organization 1 moves from Fly-By-Night-ISP to ISPs-R-Us
 ISPs-R-Us now advertises a more specific route to Organization 1
200.23.18.0/23
Organization 1
“or 200.23.18.0/23”
Network Layer: 4-61

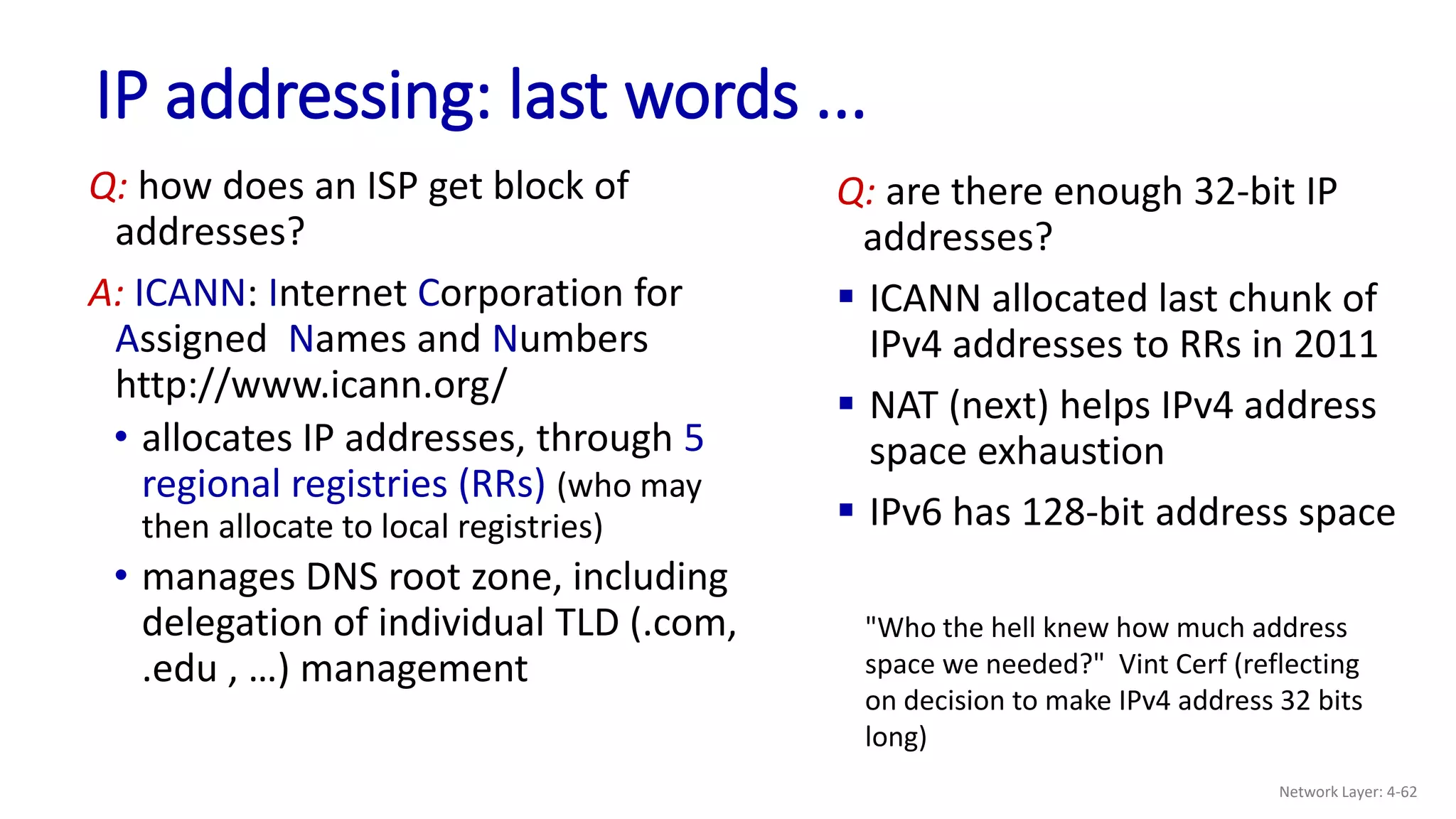

IP addressing: last words ...
Q: how does an ISP get block of
addresses?
A: ICANN: Internet Corporation for
Assigned Names and Numbers
http://www.icann.org/
• allocates IP addresses, through 5
regional registries (RRs) (who may
then allocate to local registries)
• manages DNS root zone, including
delegation of individual TLD (.com,
.edu , …) management
Q: are there enough 32-bit IP
addresses?
 ICANN allocated last chunk of
IPv4 addresses to RRs in 2011
 NAT (next) helps IPv4 address
space exhaustion
 IPv6 has 128-bit address space
"Who the hell knew how much address
space we needed?" Vint Cerf (reflecting
on decision to make IPv4 address 32 bits
long)
Network Layer: 4-62

• data plane
• control plane
• datagram format
• addressing
• IPv6
• match+action
 Middleboxes
Network Layer: 4-63

10.0.0.1
10.0.0.2
10.0.0.3
10.0.0.4
local network (e.g., home
network) 10.0.0/24
138.76.29.7
rest of
Internet

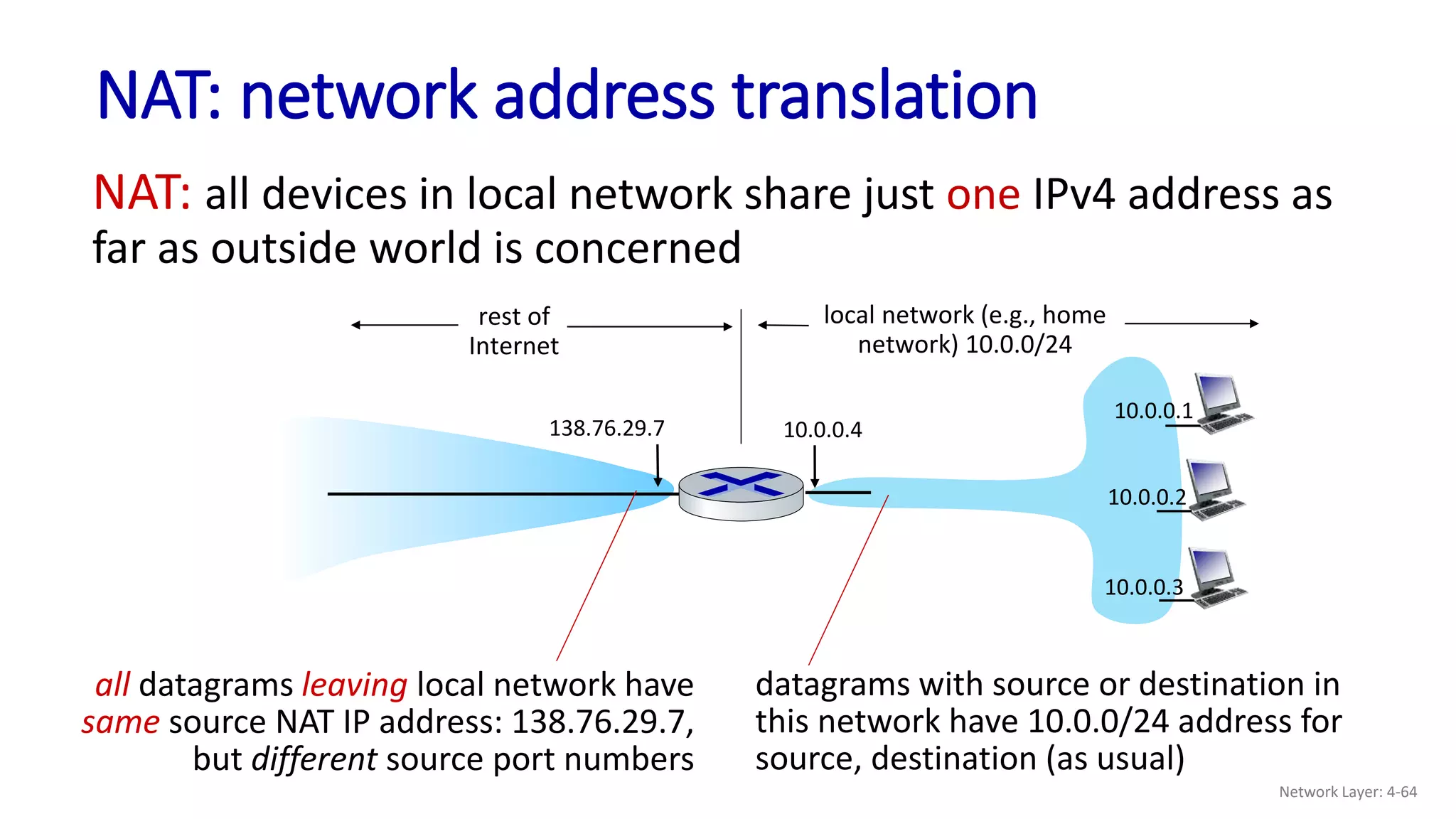

NAT: network address translation
datagrams with source or destination in
this network have 10.0.0/24 address for
source, destination (as usual)
all datagrams leaving local network have
same source NAT IP address: 138.76.29.7,
but different source port numbers
NAT: all devices in local network share just one IPv4 address as
far as outside world is concerned
Network Layer: 4-64

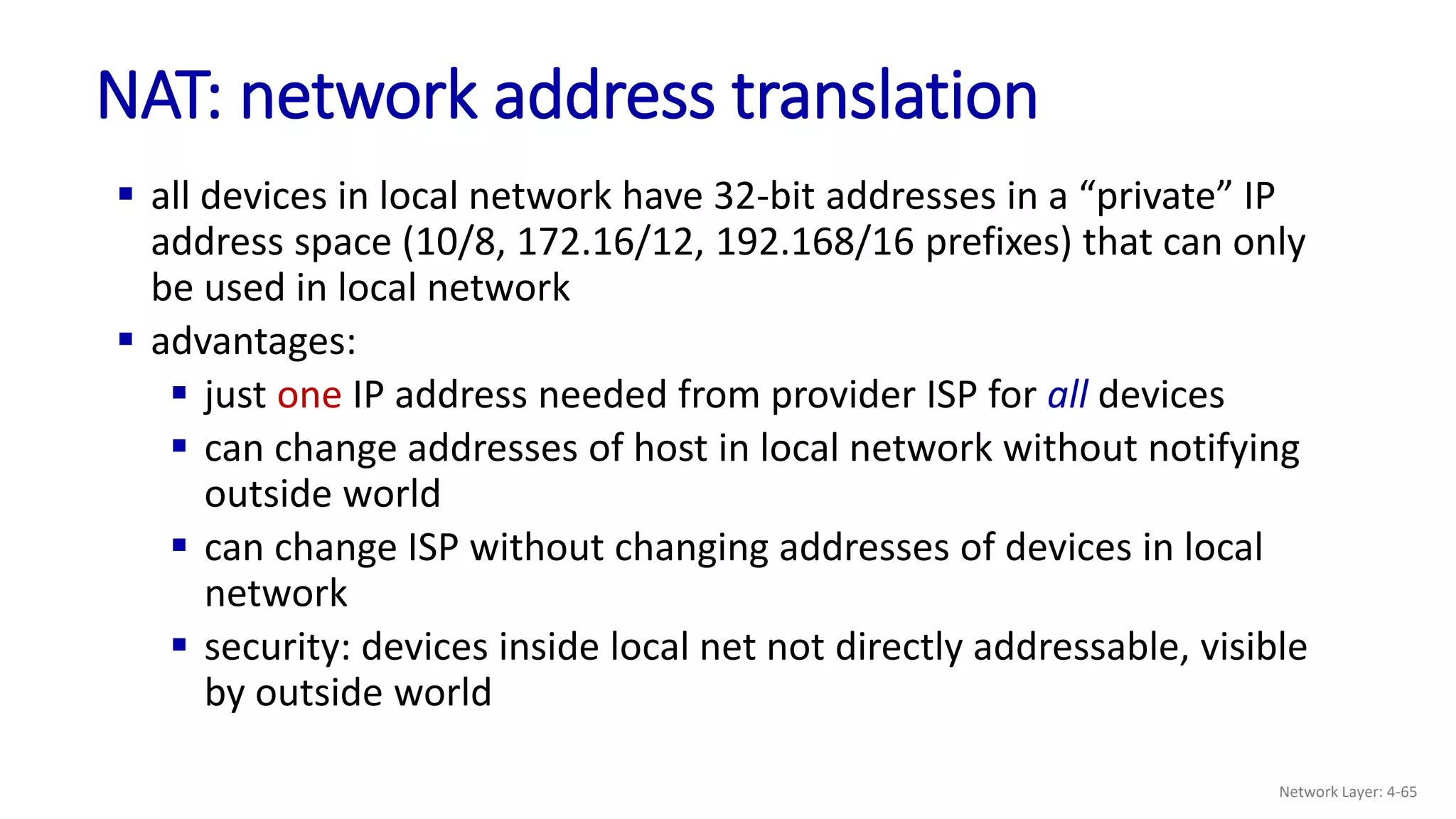

 all devices in local network have 32-bit addresses in a “private” IP
address space (10/8, 172.16/12, 192.168/16 prefixes) that can only
be used in local network
 advantages:
 just one IP address needed from provider ISP for all devices
 can change addresses of host in local network without notifying
outside world
 can change ISP without changing addresses of devices in local
network
 security: devices inside local net not directly addressable, visible
by outside world
Network Layer: 4-65

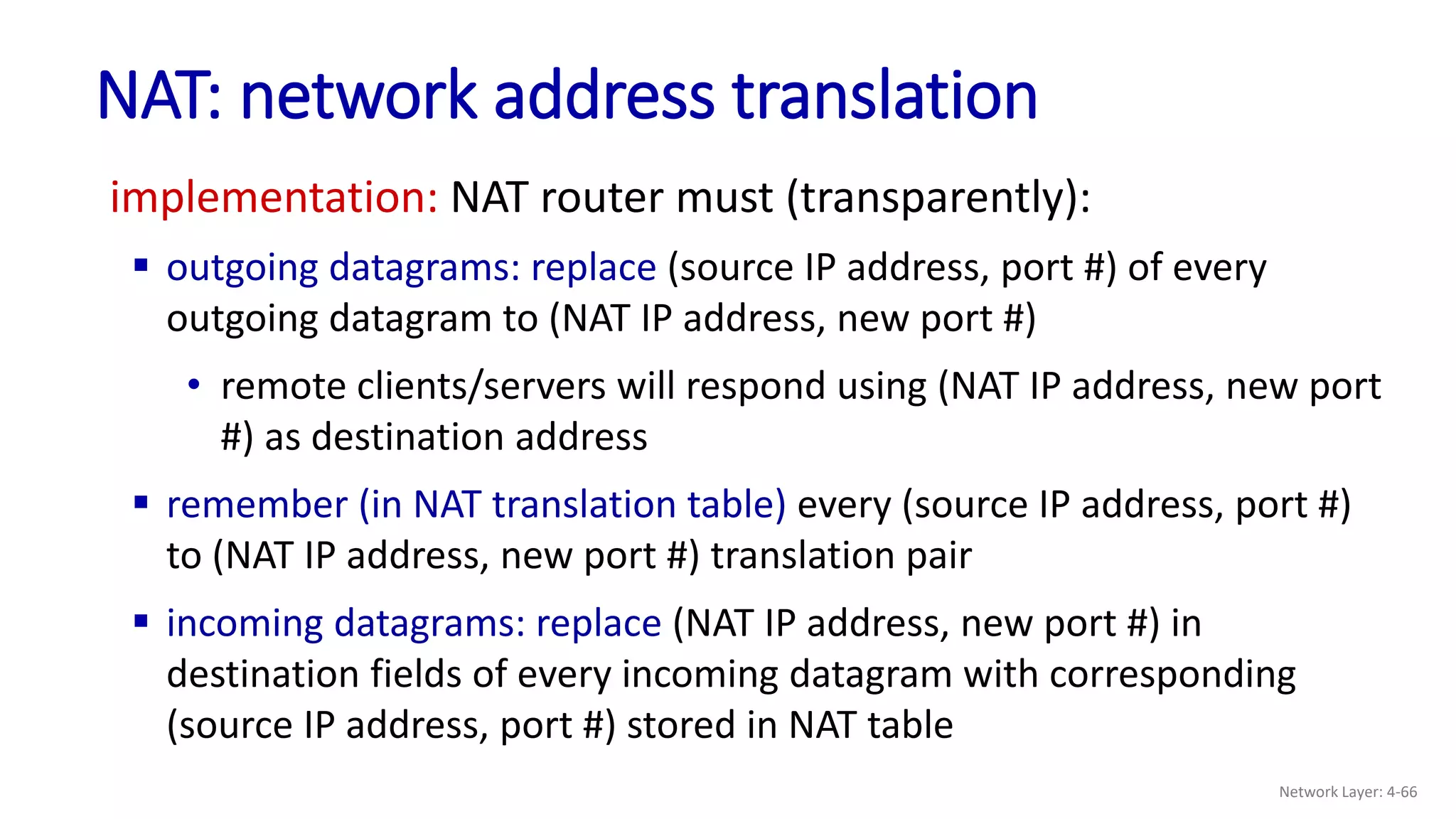

implementation: NAT router must (transparently):
 outgoing datagrams: replace (source IP address, port #) of every
outgoing datagram to (NAT IP address, new port #)
• remote clients/servers will respond using (NAT IP address, new port
#) as destination address
 remember (in NAT translation table) every (source IP address, port #)
to (NAT IP address, new port #) translation pair
 incoming datagrams: replace (NAT IP address, new port #) in
destination fields of every incoming datagram with corresponding
(source IP address, port #) stored in NAT table
Network Layer: 4-66

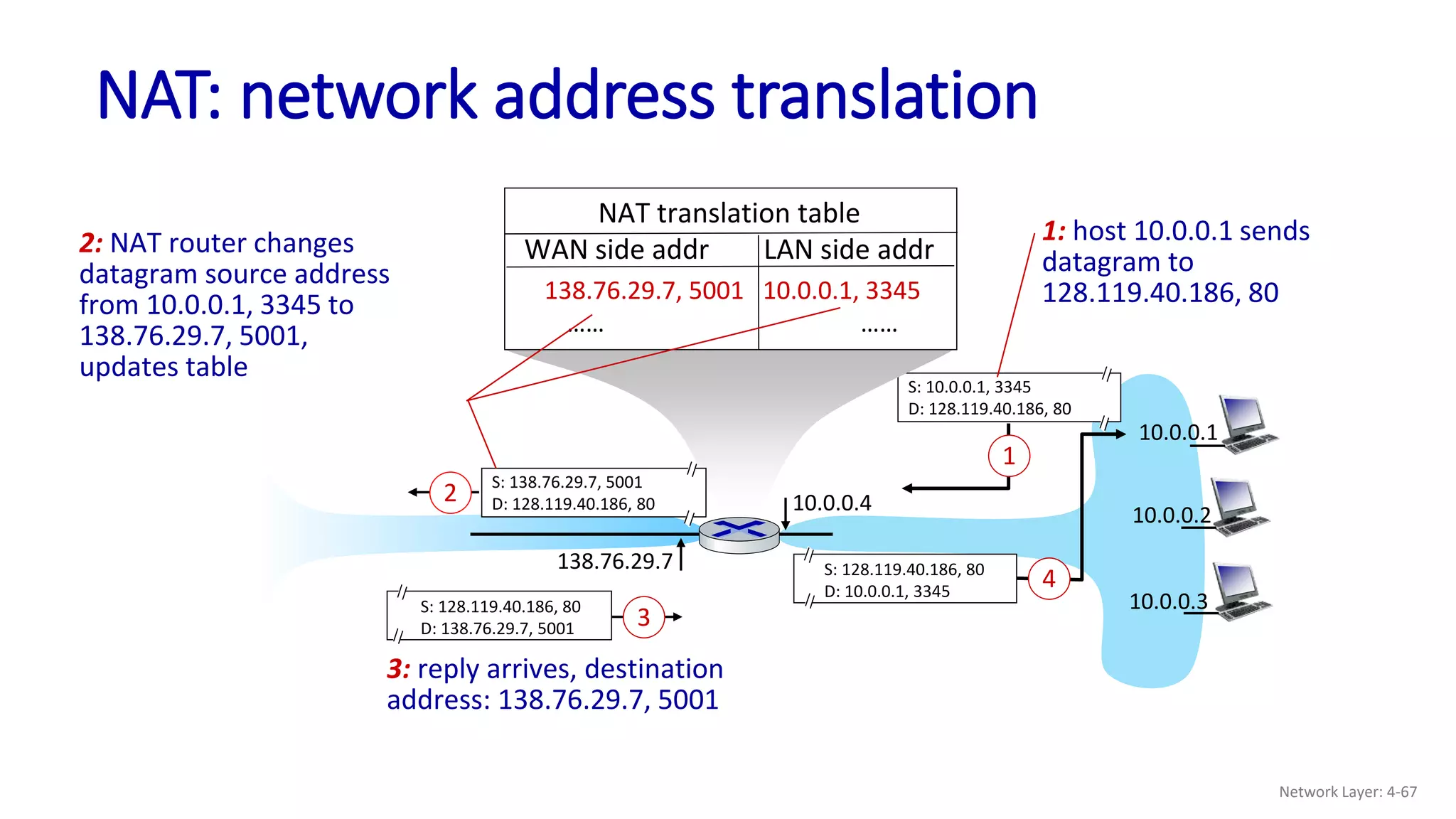

S: 10.0.0.1, 3345
D: 128.119.40.186, 80
1
10.0.0.4
138.76.29.7
1: host 10.0.0.1 sends
datagram to
128.119.40.186, 80
NAT translation table
WAN side addr LAN side addr
138.76.29.7, 5001 10.0.0.1, 3345
…… ……
S: 128.119.40.186, 80
D: 10.0.0.1, 3345
4
S: 138.76.29.7, 5001
D: 128.119.40.186, 80
2
2: NAT router changes
datagram source address
from 10.0.0.1, 3345 to
138.76.29.7, 5001,
updates table
S: 128.119.40.186, 80
D: 138.76.29.7, 5001 3
3: reply arrives, destination
address: 138.76.29.7, 5001
10.0.0.1
10.0.0.2
10.0.0.3
Network Layer: 4-67

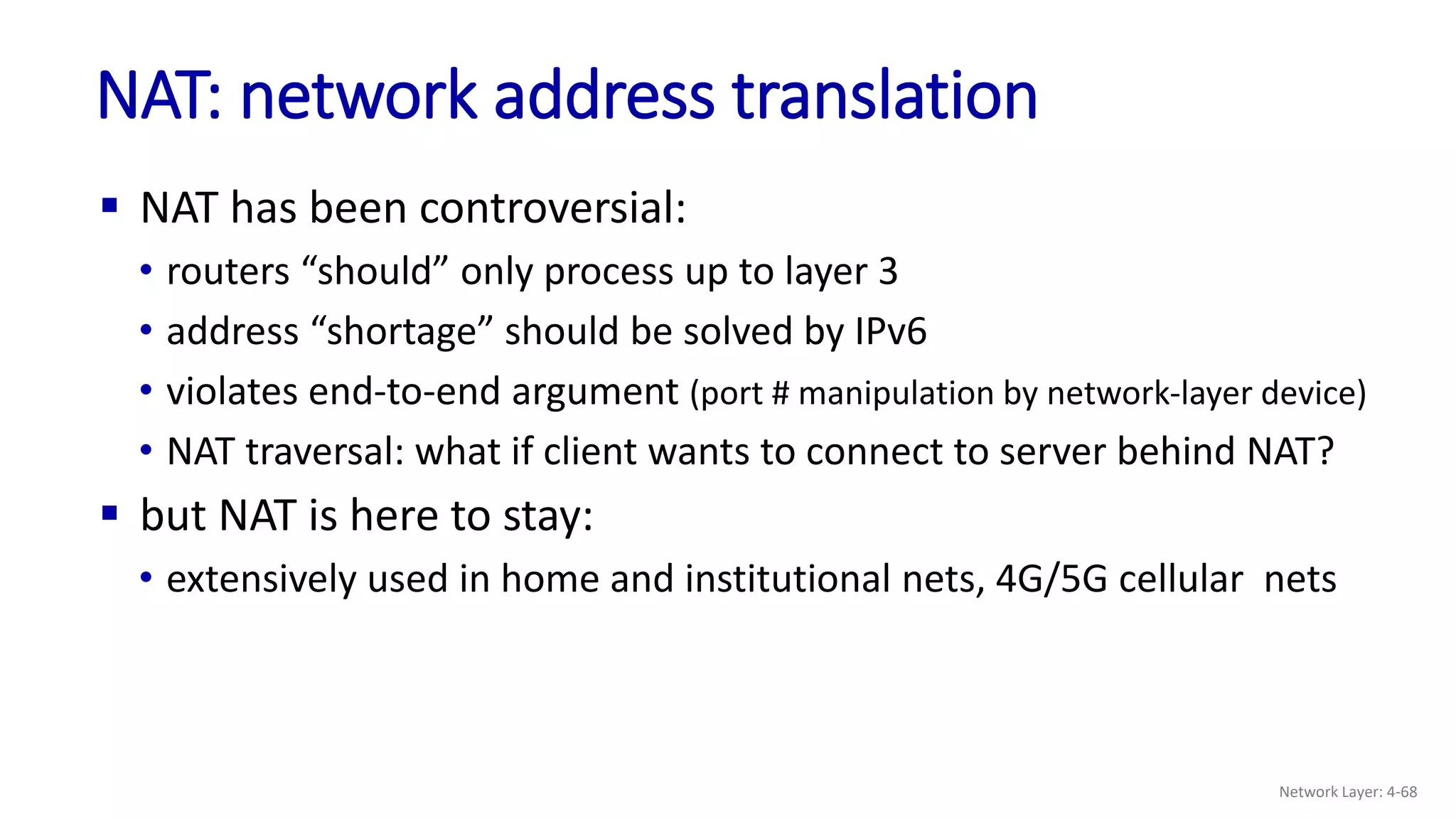

 NAT has been controversial:
• routers “should” only process up to layer 3
• address “shortage” should be solved by IPv6
• violates end-to-end argument (port # manipulation by network-layer device)
• NAT traversal: what if client wants to connect to server behind NAT?
 but NAT is here to stay:
• extensively used in home and institutional nets, 4G/5G cellular nets
Network Layer: 4-68

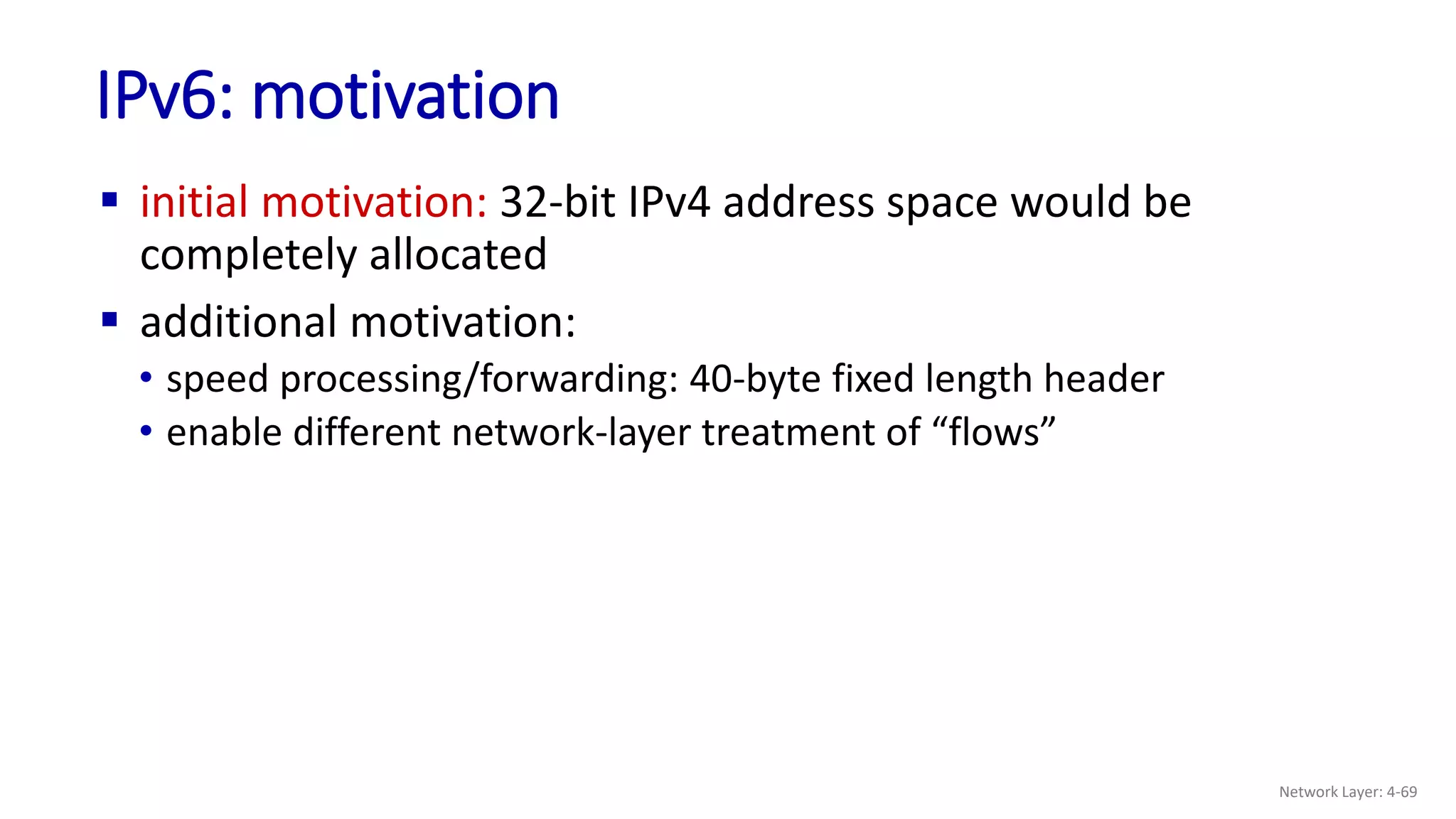

 initial motivation: 32-bit IPv4 address space would be
completely allocated
 additional motivation:
• speed processing/forwarding: 40-byte fixed length header
• enable different network-layer treatment of “flows”
IPv6: motivation
Network Layer: 4-69

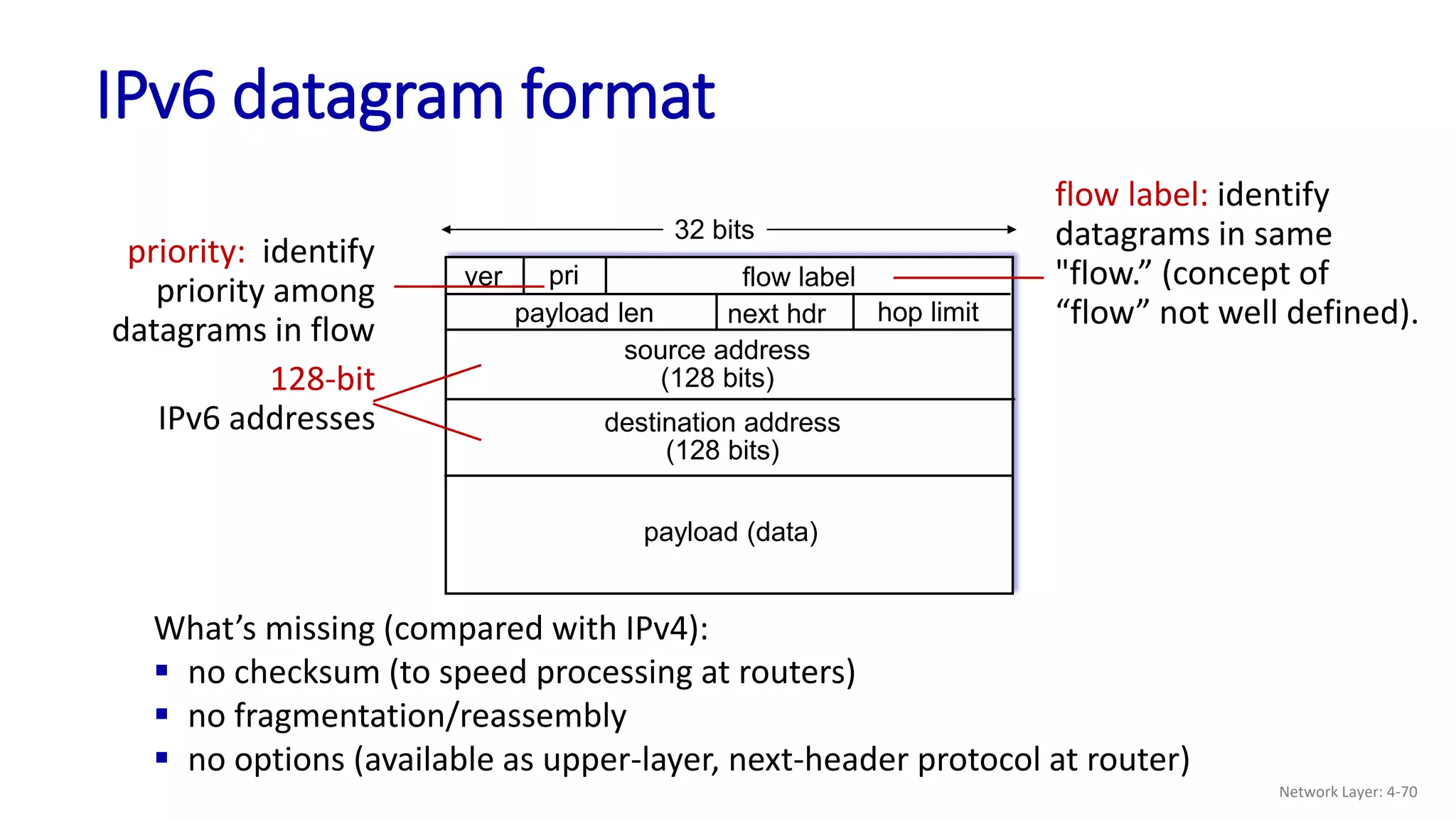

IPv6 datagram format
payload (data)
destination address
(128 bits)
source address
(128 bits)
payload len next hdr hop limit
flow label
pri
ver
32 bits
priority: identify
priority among
datagrams in flow
flow label: identify
datagrams in same
"flow.” (concept of
“flow” not well defined).
128-bit
IPv6 addresses
What’s missing (compared with IPv4):
 no checksum (to speed processing at routers)
 no fragmentation/reassembly
 no options (available as upper-layer, next-header protocol at router)
Network Layer: 4-70

 not all routers can be upgraded simultaneously
• no “flag days”
• how will network operate with mixed IPv4 and IPv6 routers?

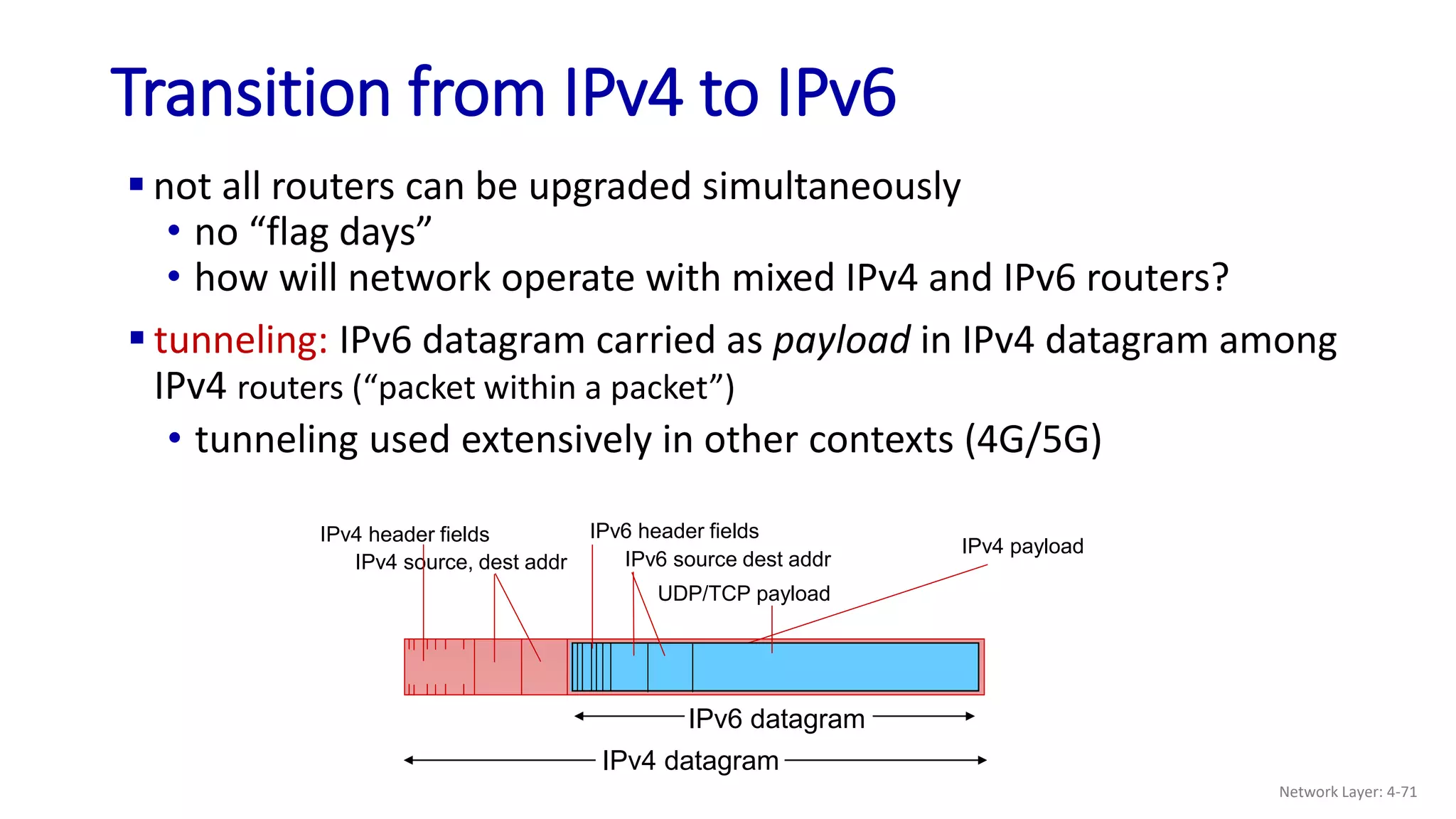

Transition from IPv4 to IPv6
IPv4 source, dest addr
IPv4 header fields
IPv4 datagram
IPv6 datagram
IPv4 payload
UDP/TCP payload
IPv6 source dest addr
IPv6 header fields
 tunneling: IPv6 datagram carried as payload in IPv4 datagram among
IPv4 routers (“packet within a packet”)
• tunneling used extensively in other contexts (4G/5G)
Network Layer: 4-71

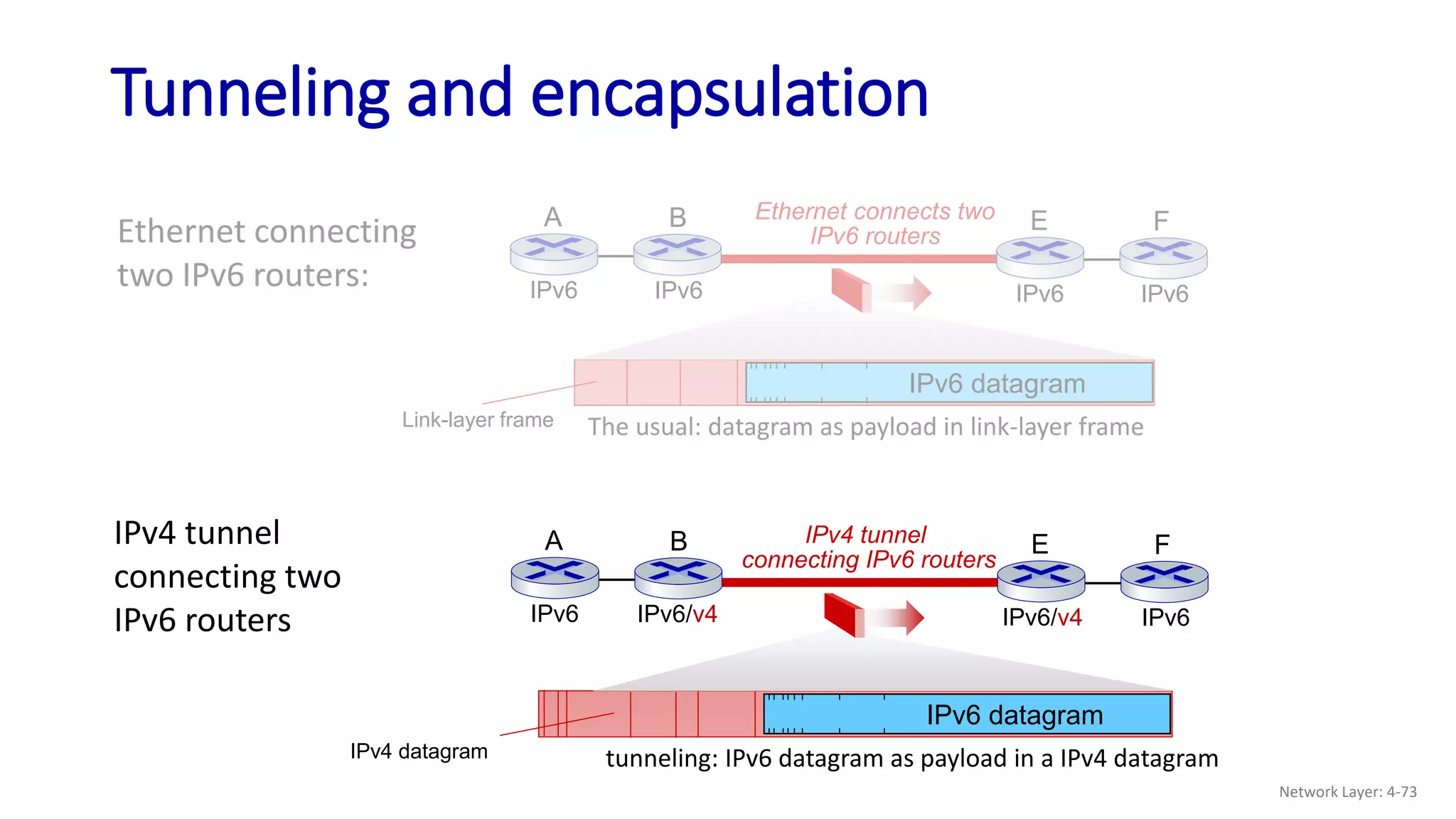

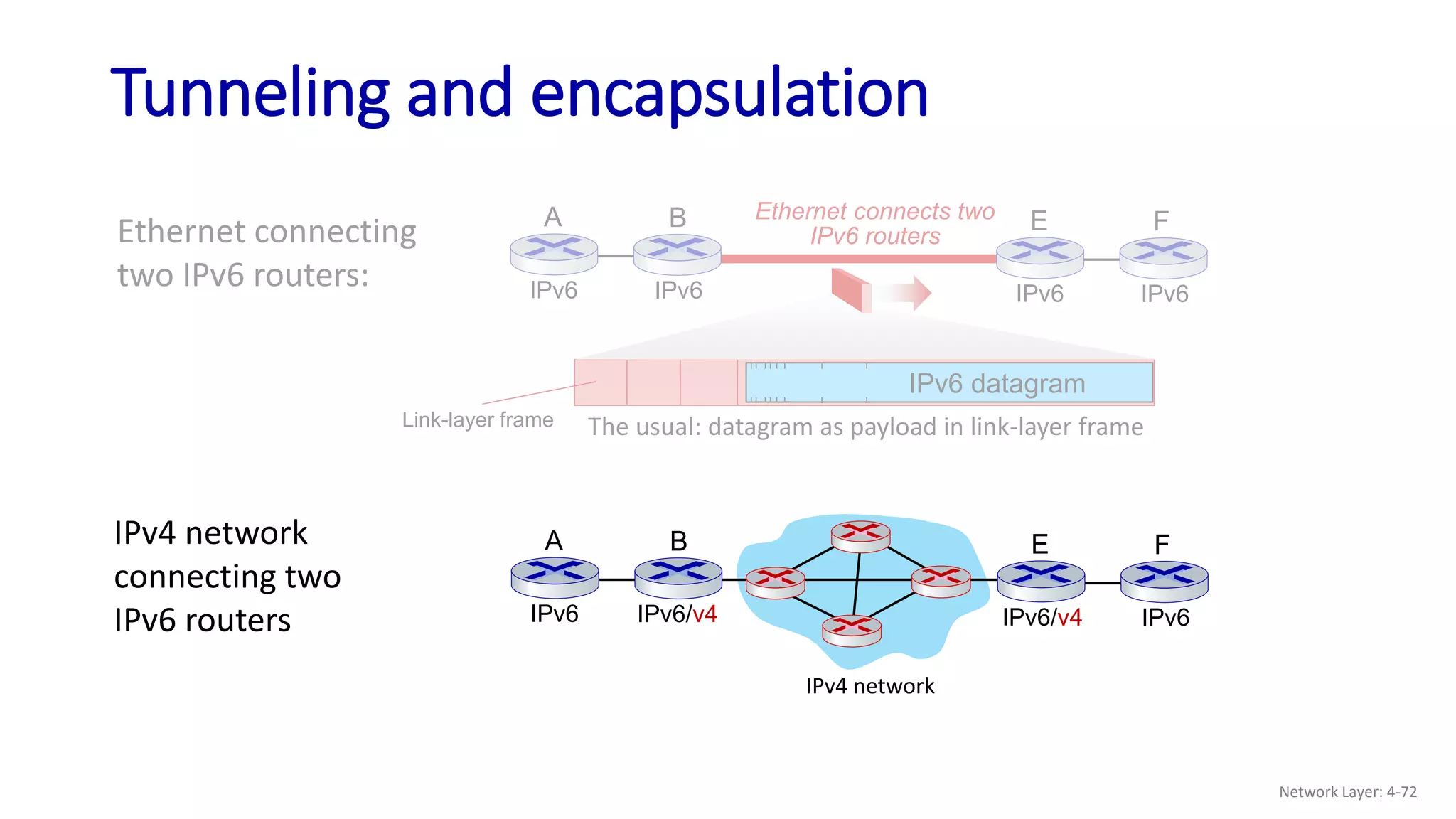

Tunneling and encapsulation
Ethernet connecting
two IPv6 routers:
Ethernet connects two
IPv6 routers
A B
IPv6 IPv6
E F
IPv6 IPv6
Link-layer frame
IPv6 datagram
The usual: datagram as payload in link-layer frame
A B
IPv6 IPv6/v4
E F
IPv6/v4 IPv6
IPv4 network
IPv4 network
connecting two
IPv6 routers
Network Layer: 4-72

Tunneling and encapsulation
Ethernet connecting
two IPv6 routers:
Ethernet connects two
IPv6 routers
A B
IPv6 IPv6
E F
IPv6 IPv6
IPv4 tunnel
connecting two
IPv6 routers
IPv4 tunnel
connecting IPv6 routers
A B
IPv6
E F
IPv6
Link-layer frame
IPv6 datagram
The usual: datagram as payload in link-layer frame
IPv4 datagram
IPv6 datagram
tunneling: IPv6 datagram as payload in a IPv4 datagram
IPv6/v4 IPv6/v4
Network Layer: 4-73

B-to-C:
IPv6 inside
IPv4
Flow: X
Src: A
Dest: F
data
src:B
dest: E

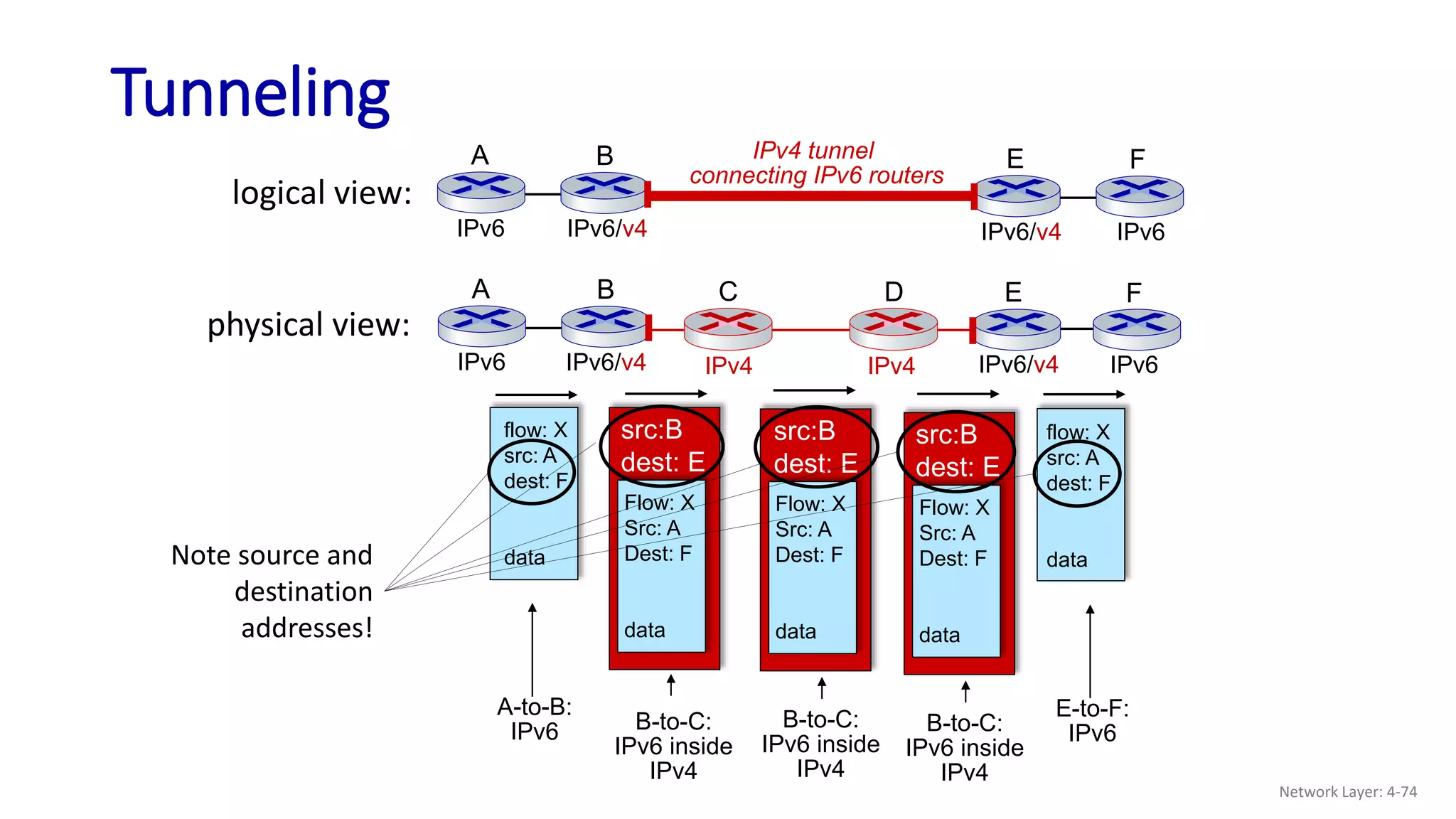

Tunneling
physical view:
IPv4 IPv4
E
IPv6/v4 IPv6
F
C D
A B
IPv6 IPv6/v4
logical view:
IPv4 tunnel
connecting IPv6 routers
A B
IPv6 IPv6/v4
E F
IPv6/v4 IPv6
flow: X
src: A
dest: F
data
A-to-B:
IPv6
Flow: X
Src: A
Dest: F
data
src:B
dest: E
B-to-C:
IPv6 inside
IPv4
E-to-F:
IPv6
flow: X
src: A
dest: F
data
B-to-C:
IPv6 inside
IPv4
Flow: X
Src: A
Dest: F
data
src:B
dest: E
Note source and
destination
addresses!
Network Layer: 4-74

 Google1: ~ 30% of clients access services via IPv6
 NIST: 1/3 of all US government domains are IPv6 capable

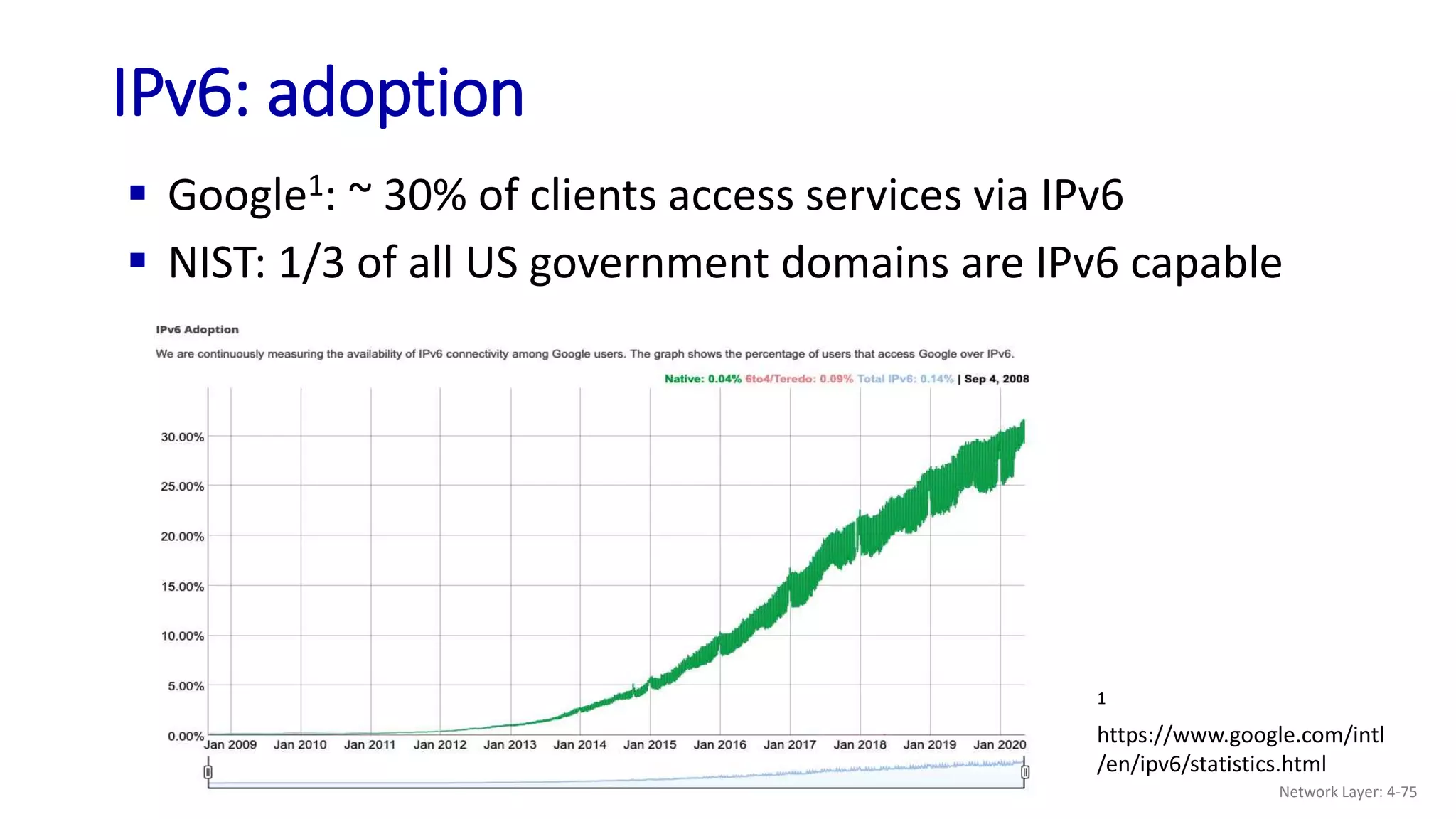

IPv6: adoption
1
https://www.google.com/intl
/en/ipv6/statistics.html
Network Layer: 4-75

 Google1: ~ 30% of clients access services via IPv6
 NIST: 1/3 of all US government domains are IPv6 capable

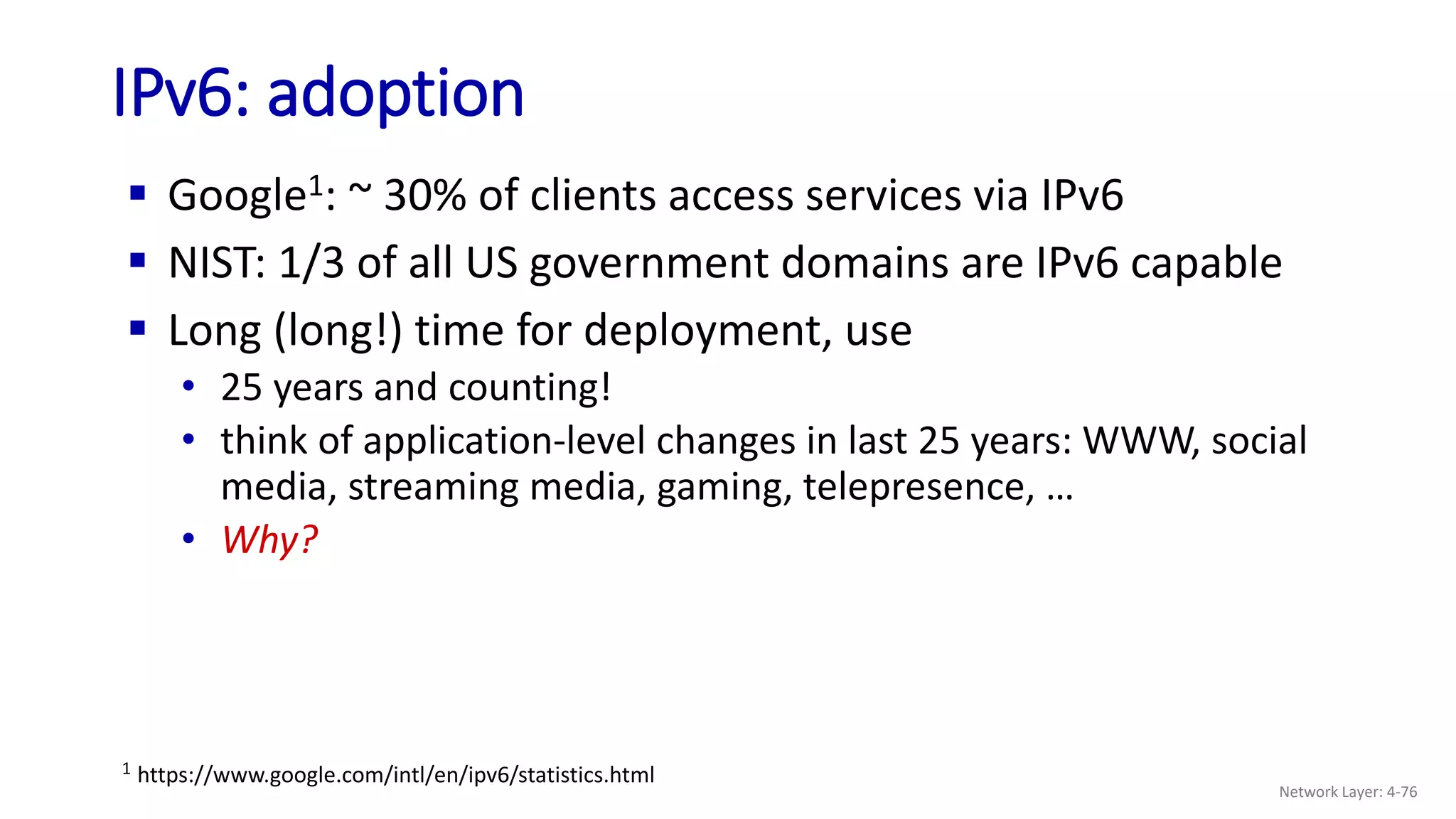

 Long (long!) time for deployment, use
• 25 years and counting!
• think of application-level changes in last 25 years: WWW, social
media, streaming media, gaming, telepresence, …
• Why?
IPv6: adoption
1 https://www.google.com/intl/en/ipv6/statistics.html
Network Layer: 4-76

• data plane
• control plane
• Match+action
 Middleboxes
Network Layer: 4-77
• datagram format
• addressing
• IPv6

1
2
0111
3
values in arriving
packet header
Generalized forwarding: match plus action
Review: each router contains a forwarding table
 “match plus action” abstraction: match bits in arriving packet, take action
• generalized forwarding:
• many header fields can determine action
• many action possible: drop/copy/modify/log packet
forwarding table
(aka: flow table)
(aka: flow table)
• destination-based forwarding: forward based on dest. IP address
Network Layer: 4-78

 flow: defined by header field values (in link-, network-, transport-layer fields)
 generalized forwarding: simple packet-handling rules
• match: pattern values in packet header fields
• actions: for matched packet: drop, forward, modify, matched packet or send
matched packet to controller
• priority: disambiguate overlapping patterns
• counters: #bytes and #packets

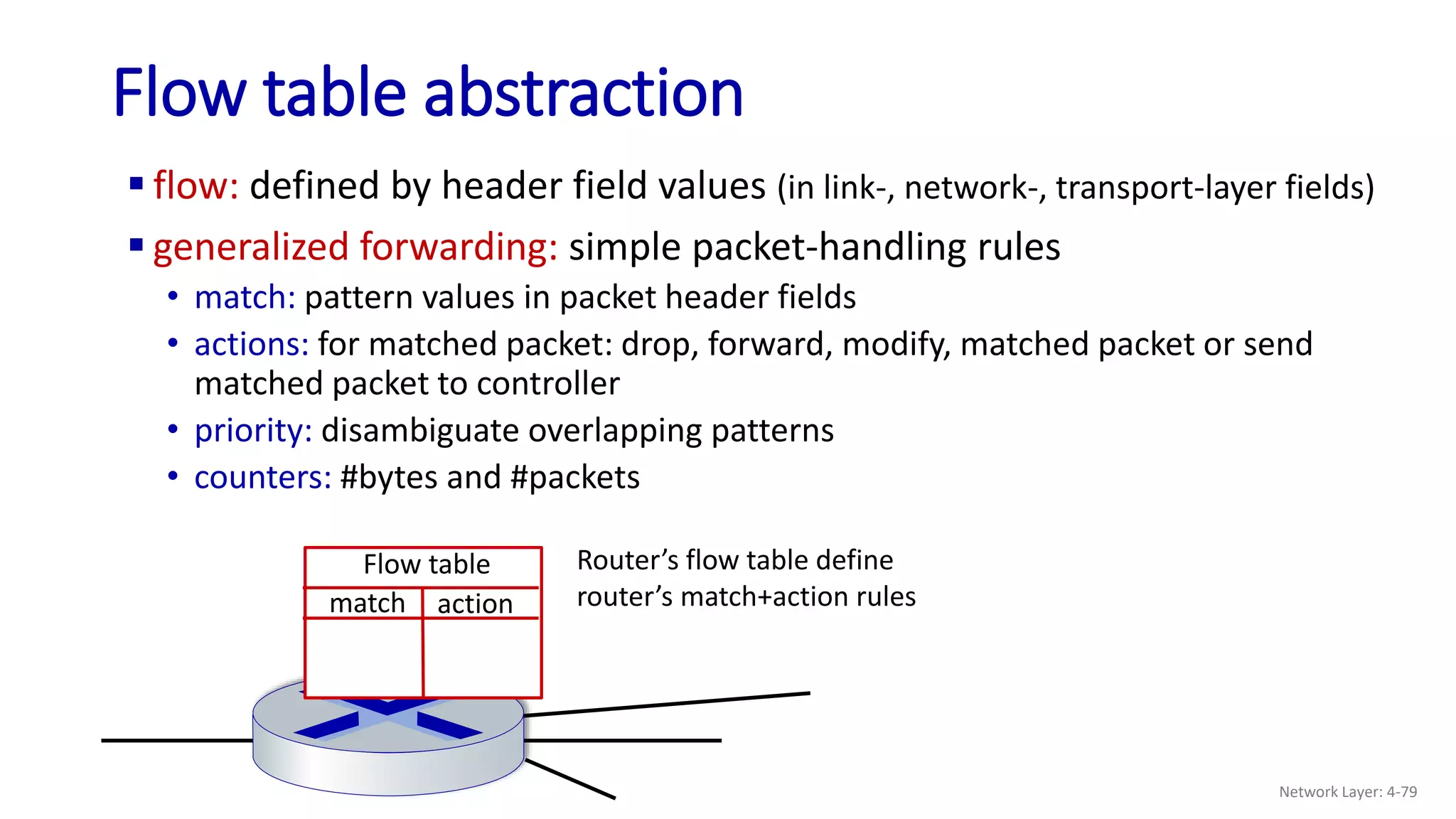

Flow table abstraction
Router’s flow table define
router’s match+action rules
Flow table
match action
Network Layer: 4-79

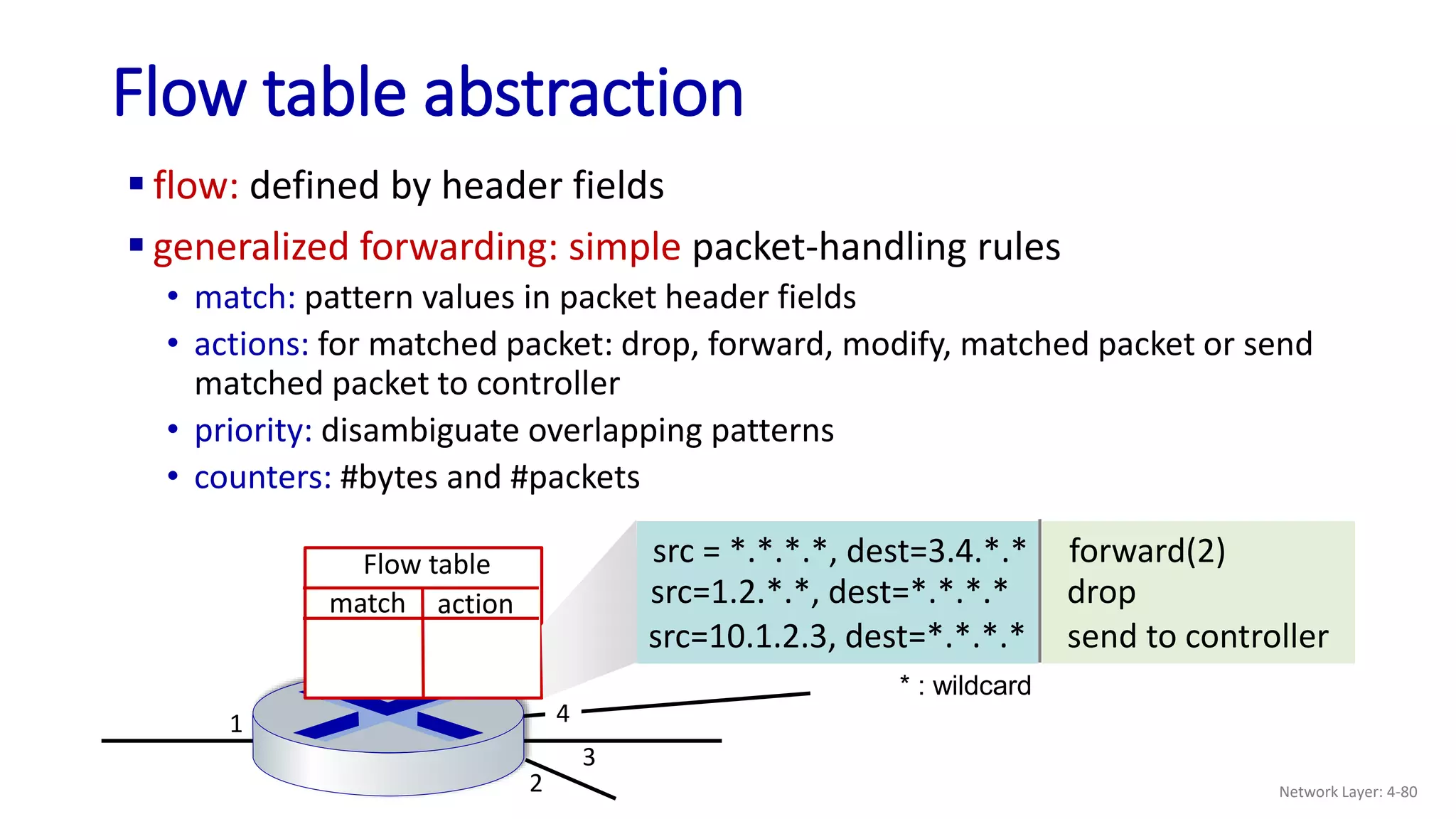

 flow: defined by header fields
 generalized forwarding: simple packet-handling rules
• match: pattern values in packet header fields
• actions: for matched packet: drop, forward, modify, matched packet or send
matched packet to controller
• priority: disambiguate overlapping patterns
• counters: #bytes and #packets
Flow table
match action
1
2
3
4
* : wildcard
src=10.1.2.3, dest=*.*.*.* send to controller
src=1.2.*.*, dest=*.*.*.* drop
src = *.*.*.*, dest=3.4.*.* forward(2)
Flow table abstraction
Network Layer: 4-80

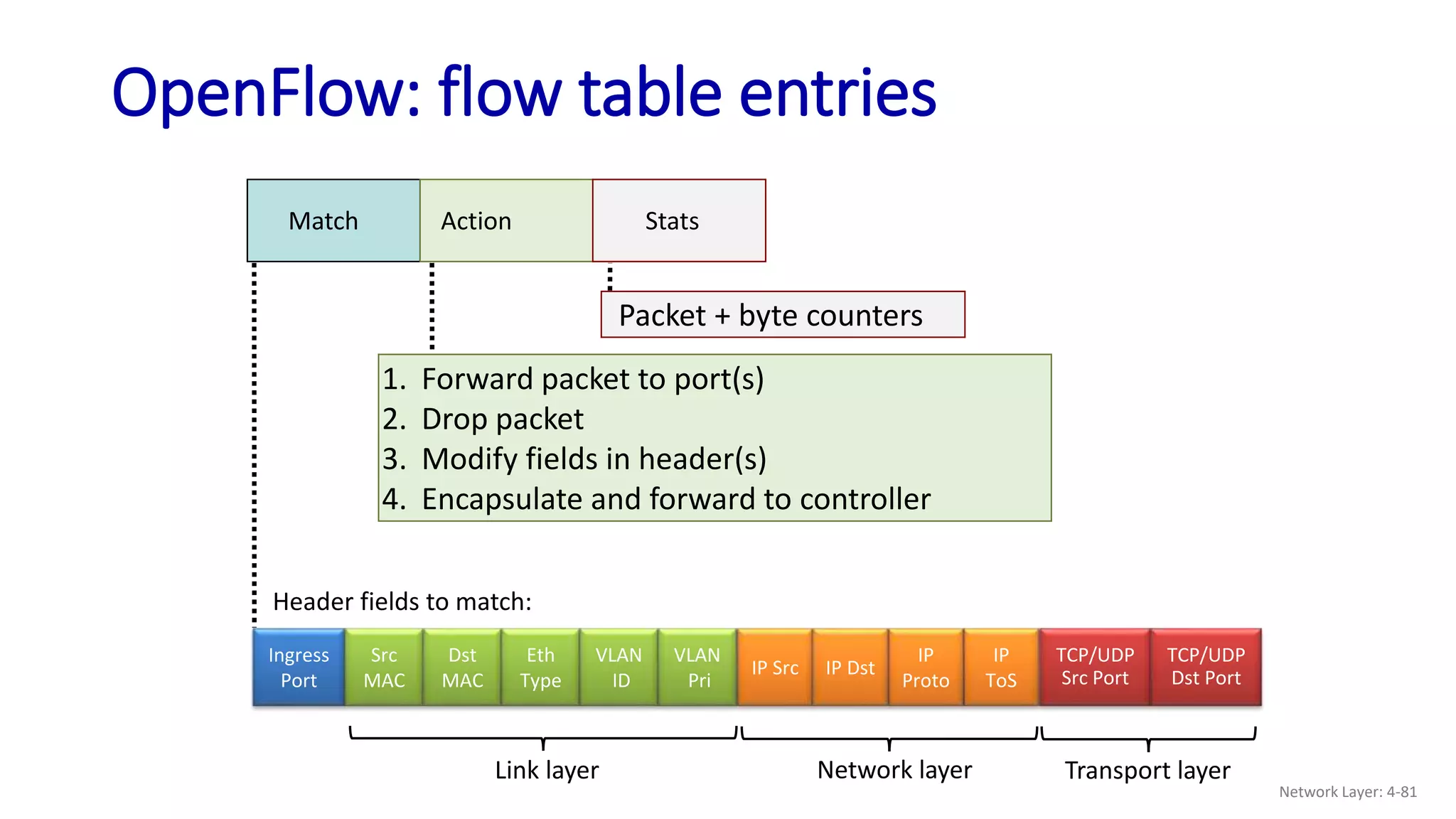

OpenFlow: flow table entries
Match Action Stats
1. Forward packet to port(s)
2. Drop packet
3. Modify fields in header(s)
4. Encapsulate and forward to controller
Packet + byte counters
Header fields to match:
Ingress
Port
Src
MAC
Dst
MAC
Eth
Type
VLAN
ID
IP
ToS
IP
Proto
IP Src IP Dst
TCP/UDP
Src Port
VLAN
Pri
TCP/UDP
Dst Port
Link layer Network layer Transport layer
Network Layer: 4-81

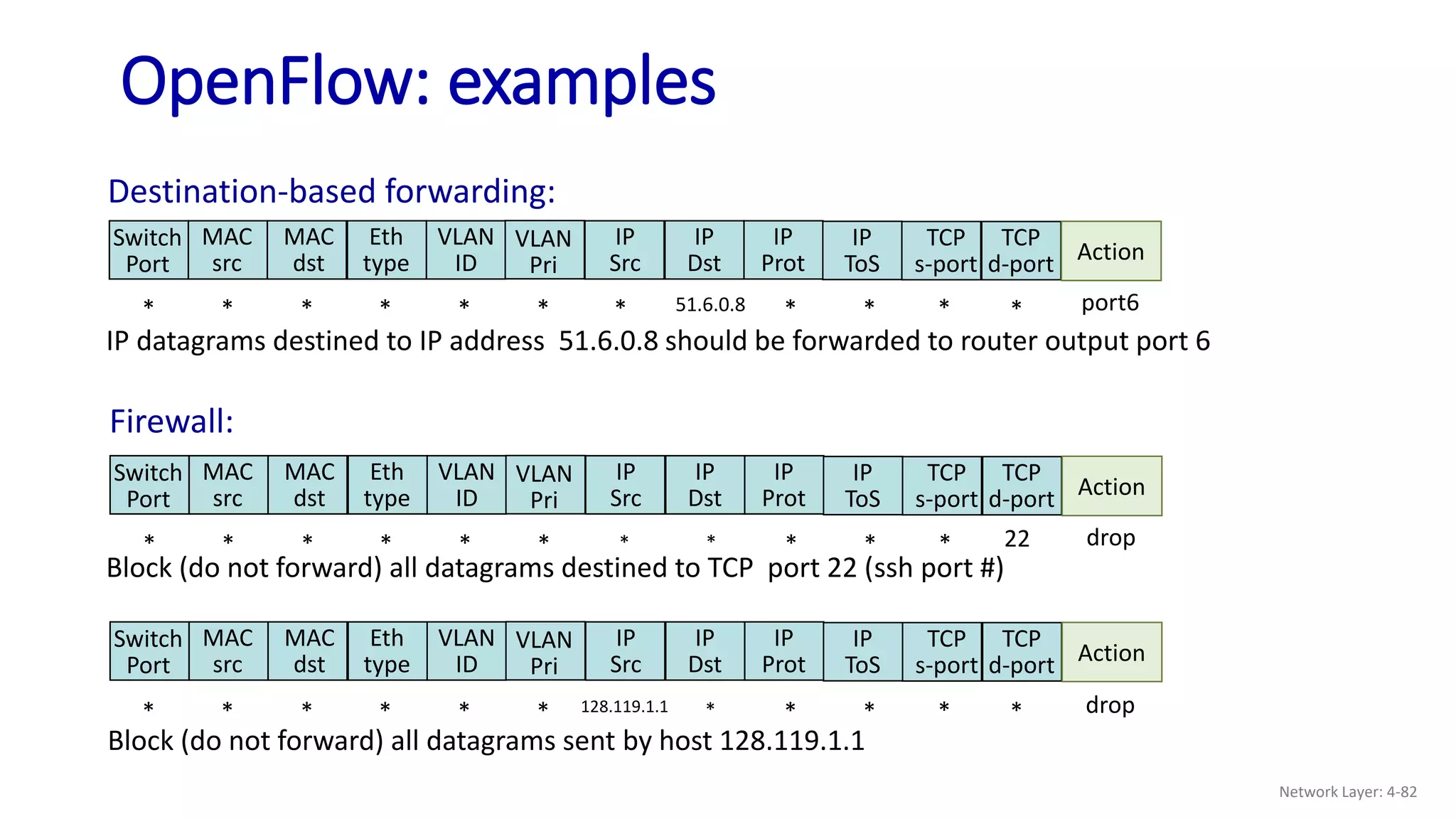

OpenFlow: examples
IP datagrams destined to IP address 51.6.0.8 should be forwarded to router output port 6
Block (do not forward) all datagrams destined to TCP port 22 (ssh port #)
Block (do not forward) all datagrams sent by host 128.119.1.1
Destination-based forwarding:
* * * * * * 51.6.0.8 * * * port6
Switch
Port
MAC
src
MAC
dst
Eth
type
VLAN
ID
IP
Src
IP
Dst
IP
Prot
TCP
s-port
TCP
d-port Action
VLAN
Pri
IP
ToS
*
*
* * * * * * * * * *
Firewall:
drop
Switch
Port
MAC
src
MAC
dst
Eth
type
VLAN
ID
IP
Src
IP
Dst
IP
Prot
TCP
s-port
TCP
d-port Action
VLAN
Pri
IP
ToS
22
*
Switch
Port
MAC
src
MAC
dst
Eth
type
VLAN
ID
IP
Src
IP
Dst
IP
Prot
TCP
s-port
TCP
d-port Action
VLAN
Pri
IP
ToS
* * * * * * * * * * drop
*
128.119.1.1
Network Layer: 4-82

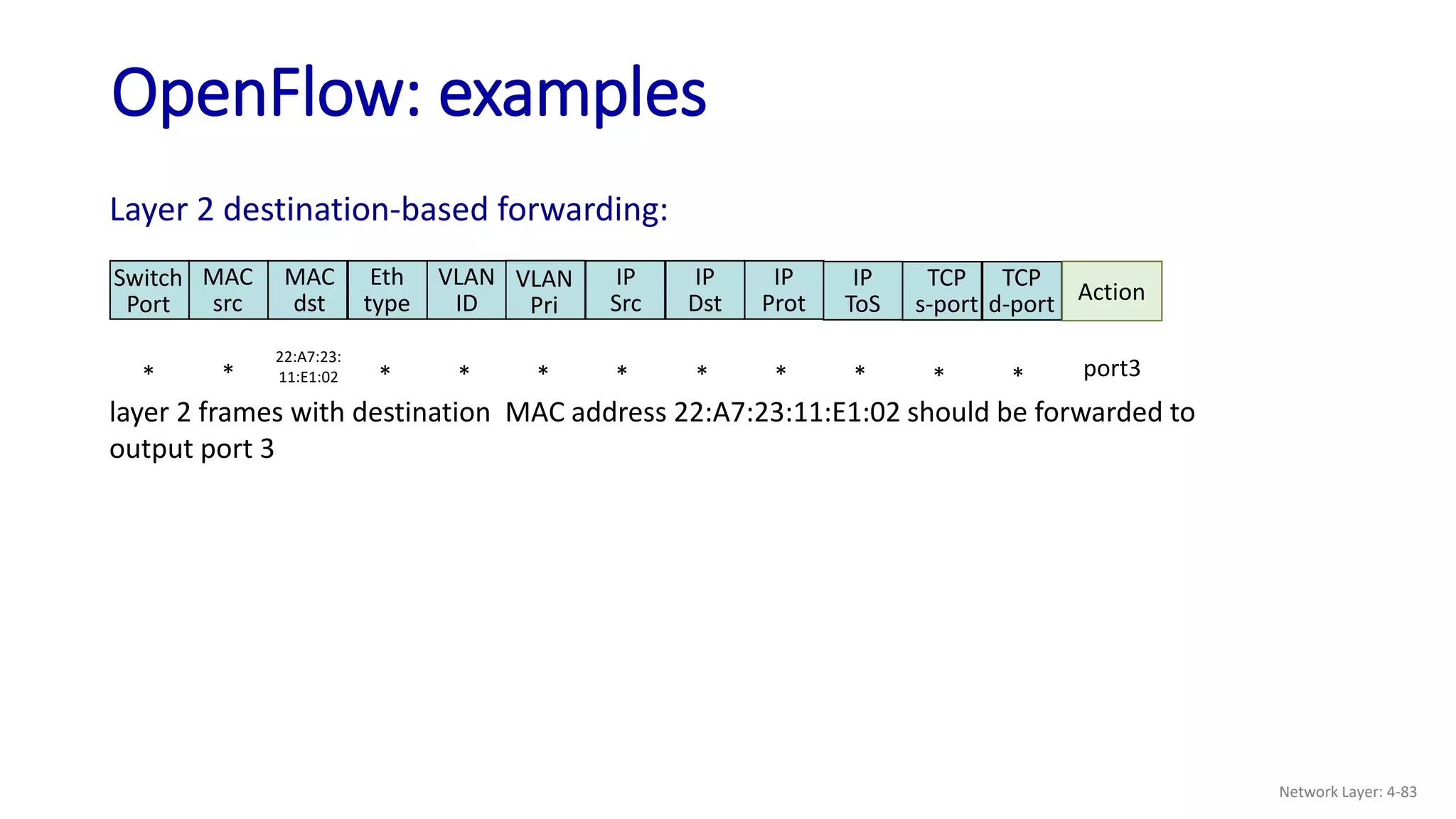

OpenFlow: examples
Layer 2 destination-based forwarding:
layer 2 frames with destination MAC address 22:A7:23:11:E1:02 should be forwarded to
output port 3
* * * * * * * * * port3
22:A7:23:
11:E1:02 * *
Switch
Port
MAC
src
MAC
dst
Eth
type
VLAN
ID
IP
Src
IP
Dst
IP
Prot
TCP
s-port
TCP
d-port Action
VLAN
Pri
IP
ToS
Network Layer: 4-83

 match+action: abstraction unifies different kinds of devices

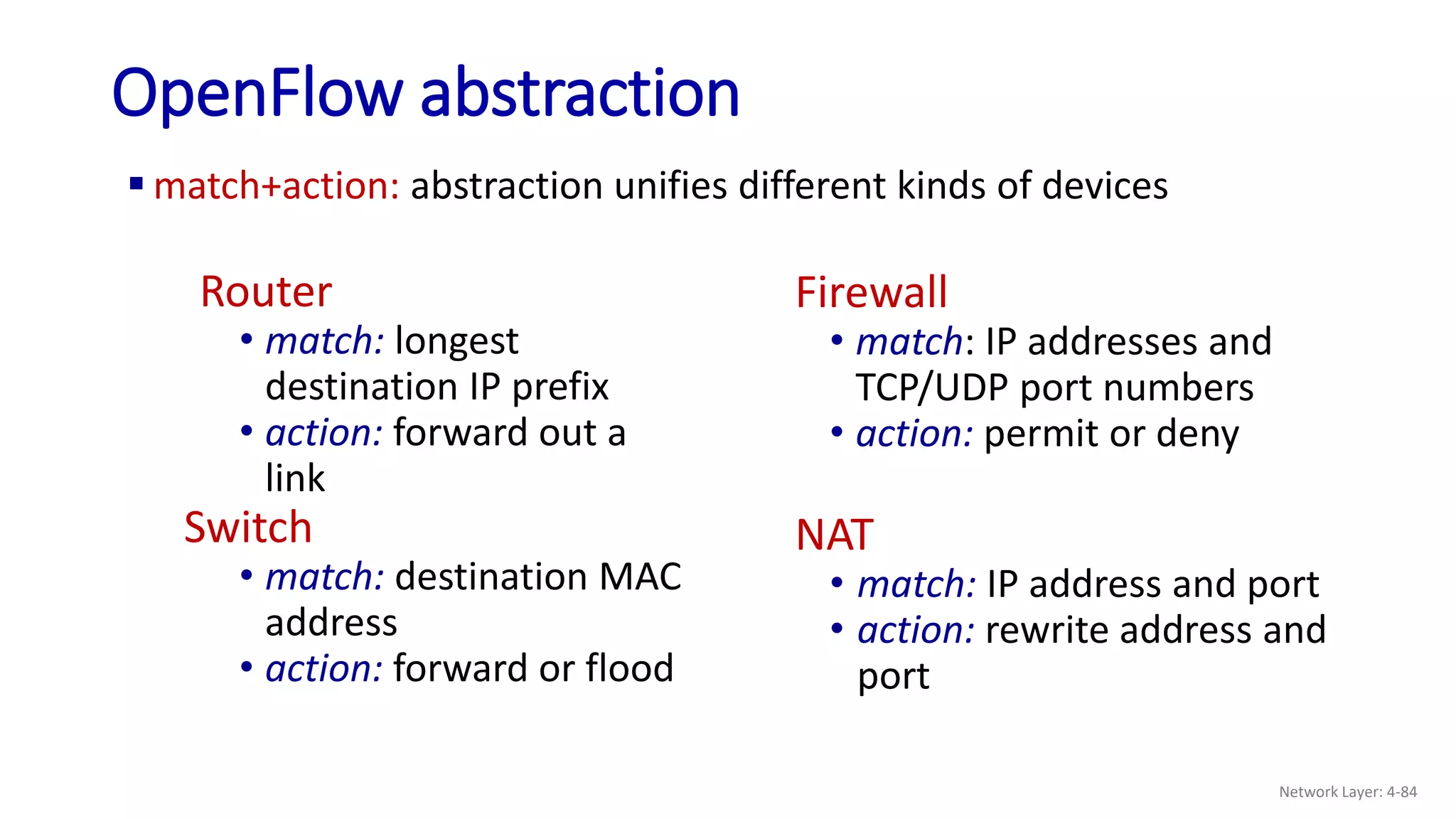

OpenFlow abstraction
Router
• match: longest
destination IP prefix
• action: forward out a
link
Switch
• match: destination MAC
address
• action: forward or flood
Firewall
• match: IP addresses and
TCP/UDP port numbers
• action: permit or deny
NAT
• match: IP address and port
• action: rewrite address and
port
Network Layer: 4-84

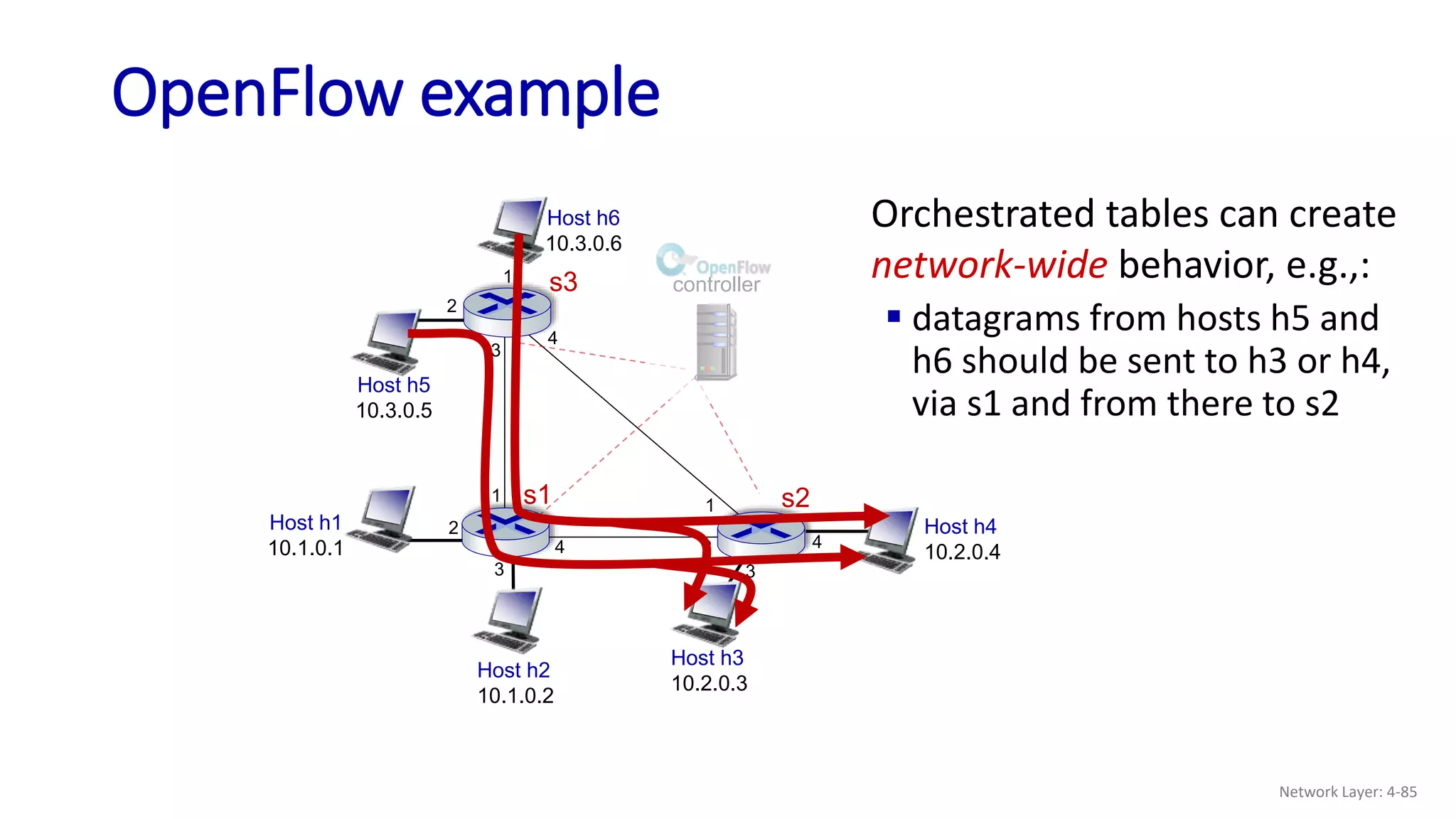

OpenFlow example
Host h1
10.1.0.1
Host h2
10.1.0.2
Host h4
10.2.0.4
Host h3
10.2.0.3
Host h5
10.3.0.5
s1 s2
s3
1
2
3
4
1
2
3
4
1
2
3
4
Host h6
10.3.0.6
controller
Orchestrated tables can create
network-wide behavior, e.g.,:
 datagrams from hosts h5 and
h6 should be sent to h3 or h4,
via s1 and from there to s2
Network Layer: 4-85

OpenFlow example
IP Src = 10.3.*.*
IP Dst = 10.2.*.*
forward(3)
match action
ingress port = 2
IP Dst = 10.2.0.3
ingress port = 2
IP Dst = 10.2.0.4
forward(3)
match action
forward(4)
ingress port = 1
IP Src = 10.3.*.*
IP Dst = 10.2.*.*
forward(4)
match action
Host h1
10.1.0.1
Host h2
10.1.0.2
Host h4
10.2.0.4
Host h3
10.2.0.3
Host h5
10.3.0.5
s1 s2
s3
1
2
3
4
1
2
3
4
1
2
3
4
Host h6
10.3.0.6
controller
Orchestrated tables can create
network-wide behavior, e.g.,:
 datagrams from hosts h5 and
h6 should be sent to h3 or h4,
via s1 and from there to s2
Network Layer: 4-86

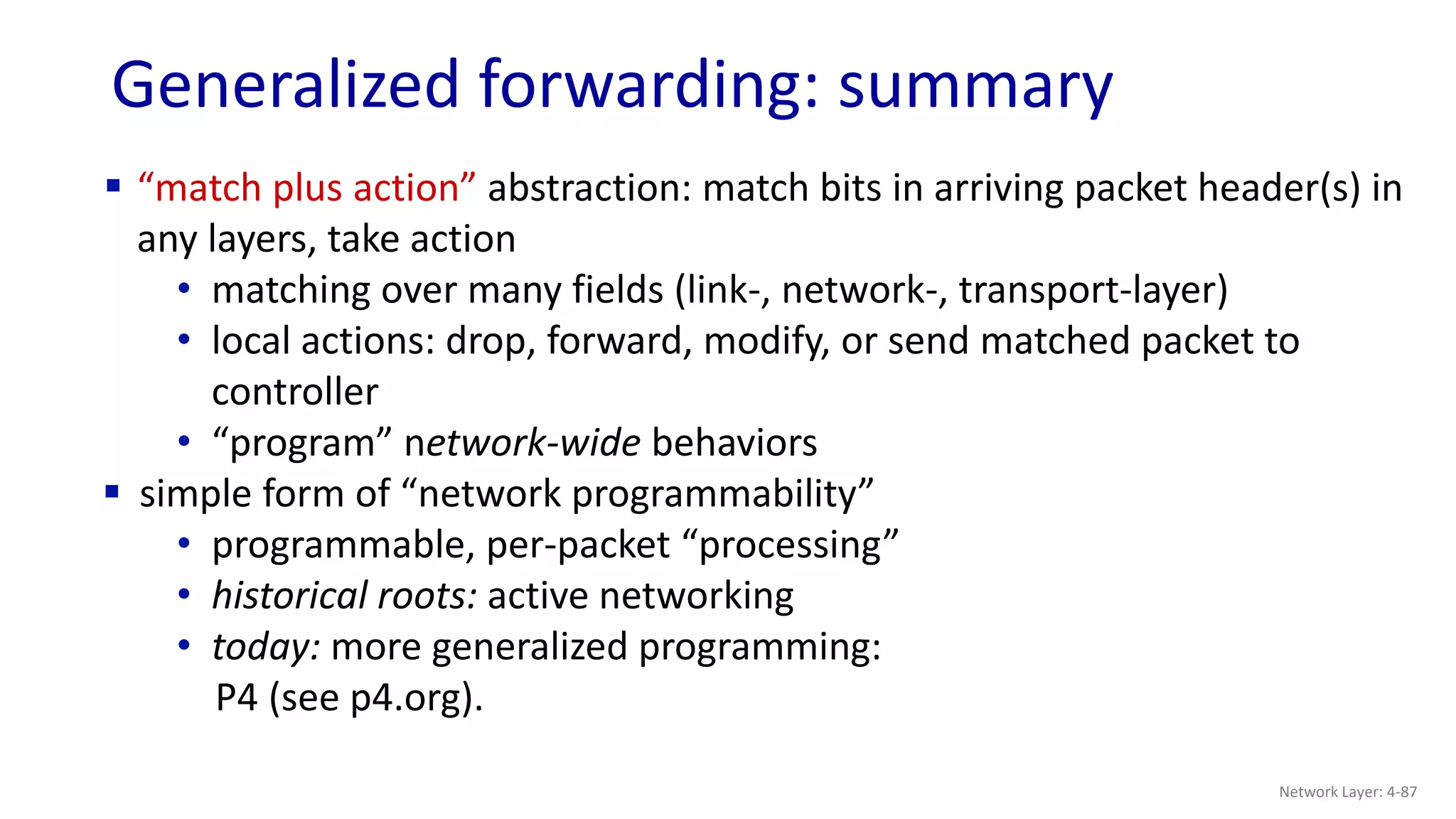

Generalized forwarding: summary
 “match plus action” abstraction: match bits in arriving packet header(s) in
any layers, take action
• matching over many fields (link-, network-, transport-layer)
• local actions: drop, forward, modify, or send matched packet to
controller
• “program” network-wide behaviors
 simple form of “network programmability”
• programmable, per-packet “processing”
• historical roots: active networking
• today: more generalized programming:
P4 (see p4.org).
Network Layer: 4-87

Network Layer: 4-88
 Generalized Forwarding
 Middleboxes
• middlebox functions
• evolution, architectural principles of
the Internet

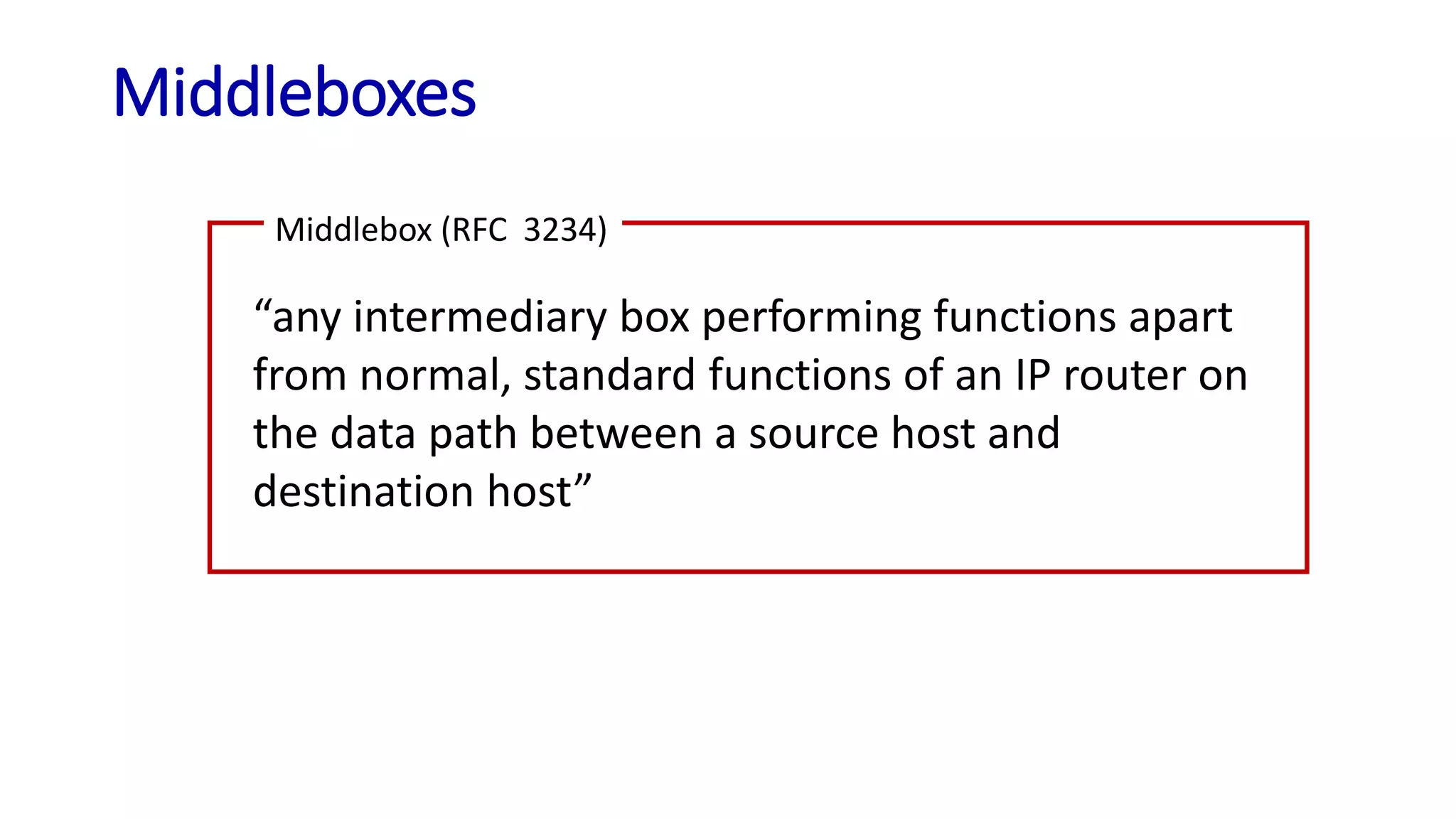

Middleboxes
“any intermediary box performing functions apart
from normal, standard functions of an IP router on
the data path between a source host and
destination host”
Middlebox (RFC 3234)

Middleboxes everywhere!
enterprise
network
national or global ISP
datacenter
network
NAT: home,
cellular,
institutional
Firewalls, IDS: corporate,
institutional, service providers,
ISPs
Load balancers:
corporate, service
provider, data center,
mobile nets
Caches: service
provider, mobile, CDNs
Application-
specific: service
providers,
institutional,
CDN

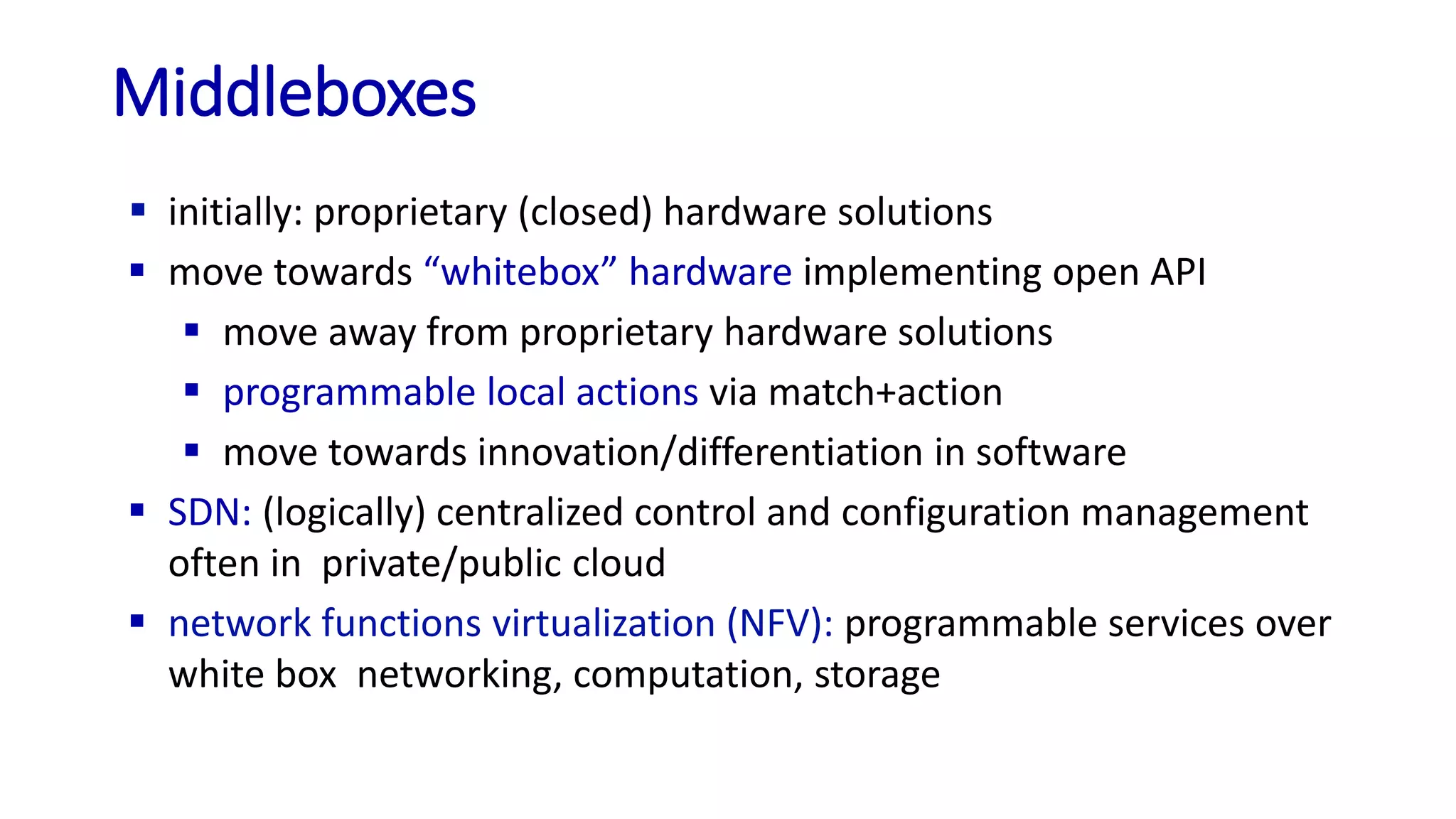

Middleboxes
 initially: proprietary (closed) hardware solutions
 move towards “whitebox” hardware implementing open API
 move away from proprietary hardware solutions
 programmable local actions via match+action
 move towards innovation/differentiation in software
 SDN: (logically) centralized control and configuration management
often in private/public cloud
 network functions virtualization (NFV): programmable services over
white box networking, computation, storage

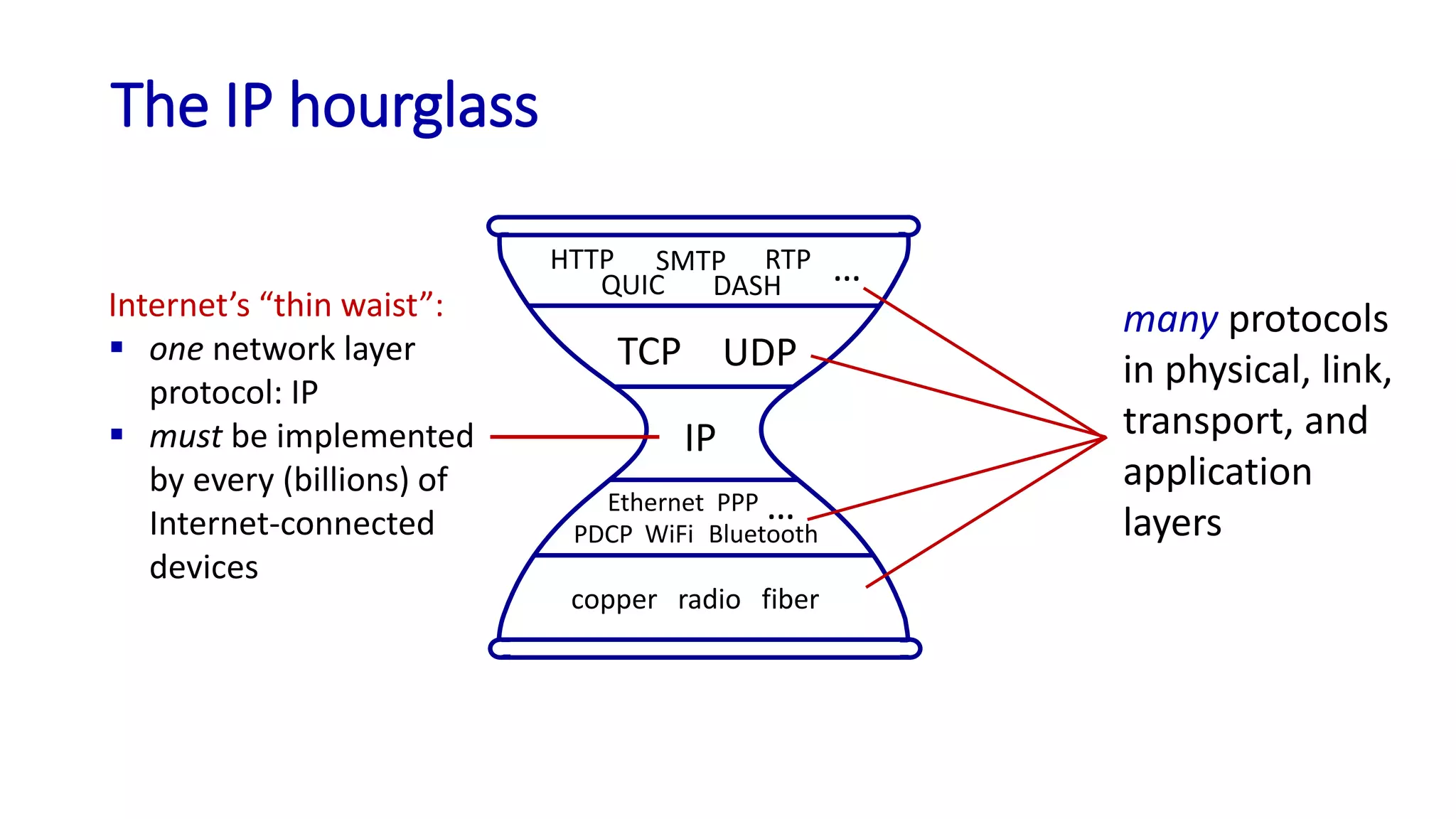

The IP hourglass
IP
TCP UDP
HTTP SMTP
QUIC DASH
RTP …
Ethernet
WiFi Bluetooth
PPP
PDCP
…
copper radio fiber
Internet’s “thin waist”:
 one network layer
protocol: IP
 must be implemented
by every (billions) of
Internet-connected
devices
many protocols
in physical, link,
transport, and
application
layers

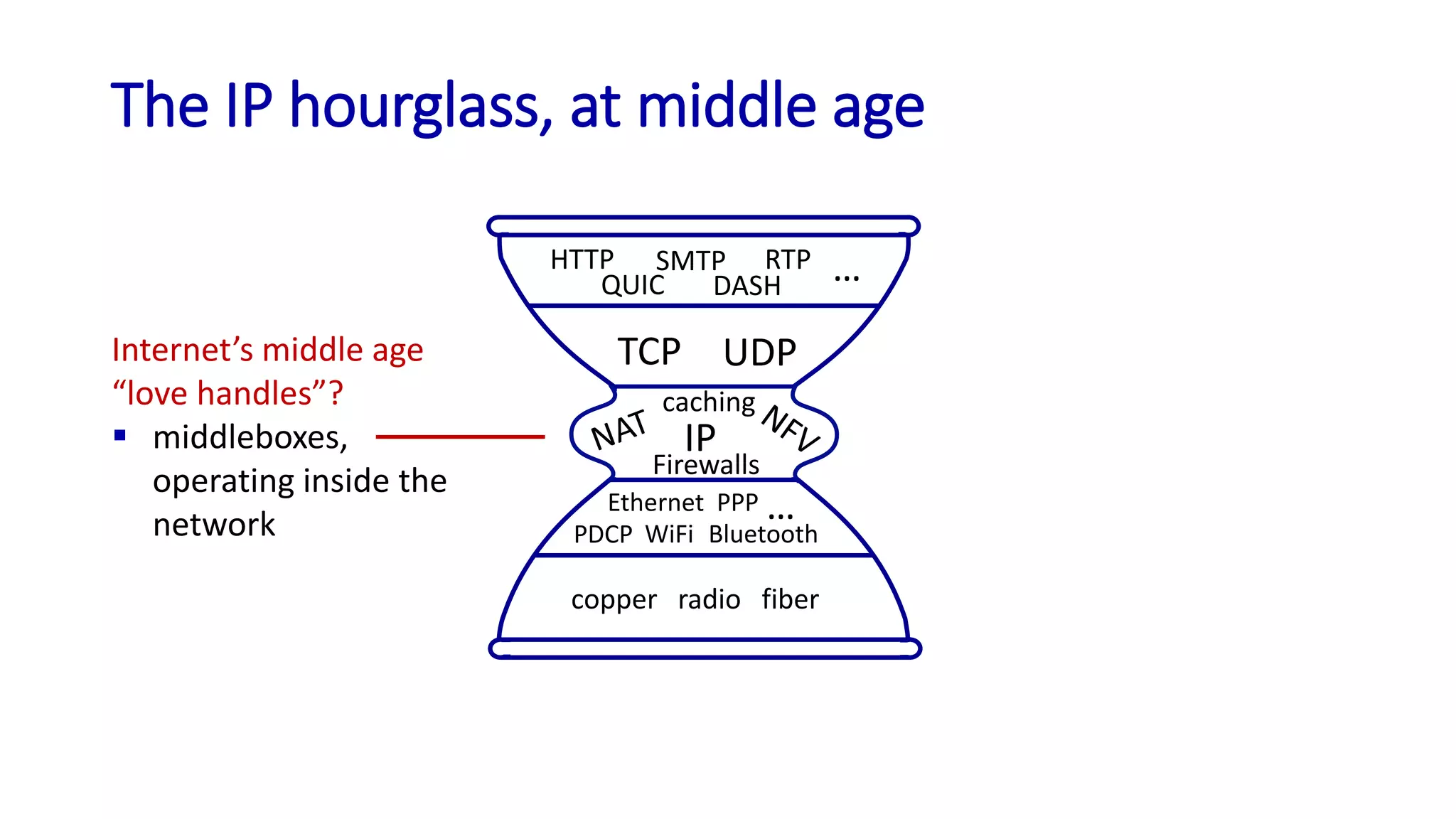

The IP hourglass, at middle age
IP
TCP UDP
HTTP SMTP
QUIC DASH
RTP …
Ethernet
WiFi Bluetooth
PPP
PDCP
…
copper radio fiber
Internet’s middle age
“love handles”?
 middleboxes,
operating inside the
network
Firewalls
caching

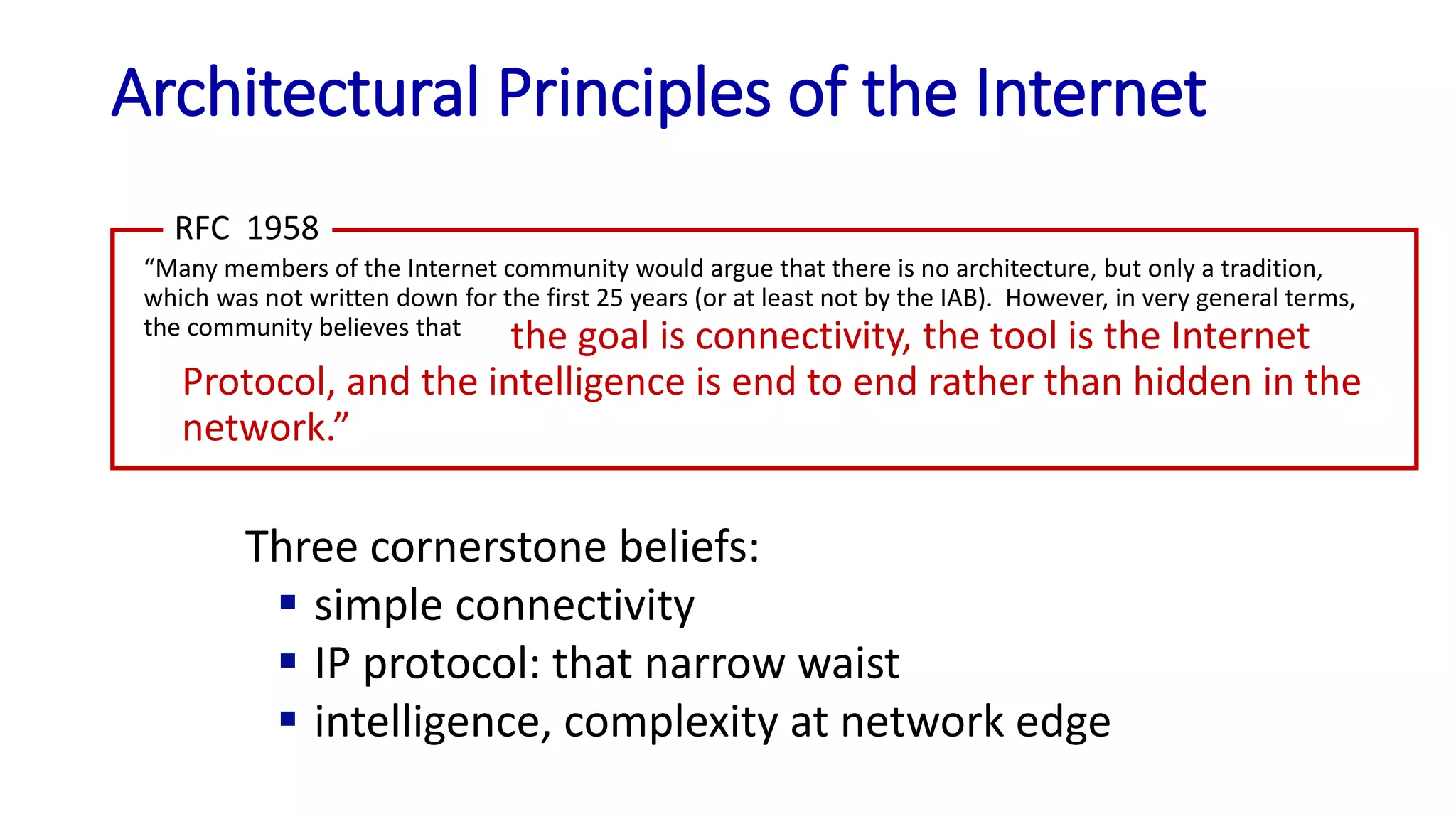

Architectural Principles of the Internet
“Many members of the Internet community would argue that there is no architecture, but only a tradition,
which was not written down for the first 25 years (or at least not by the IAB). However, in very general terms,
the community believes that
RFC 1958
the goal is connectivity, the tool is the Internet
Protocol, and the intelligence is end to end rather than hidden in the
network.”
Three cornerstone beliefs:
 simple connectivity
 IP protocol: that narrow waist
 intelligence, complexity at network edge

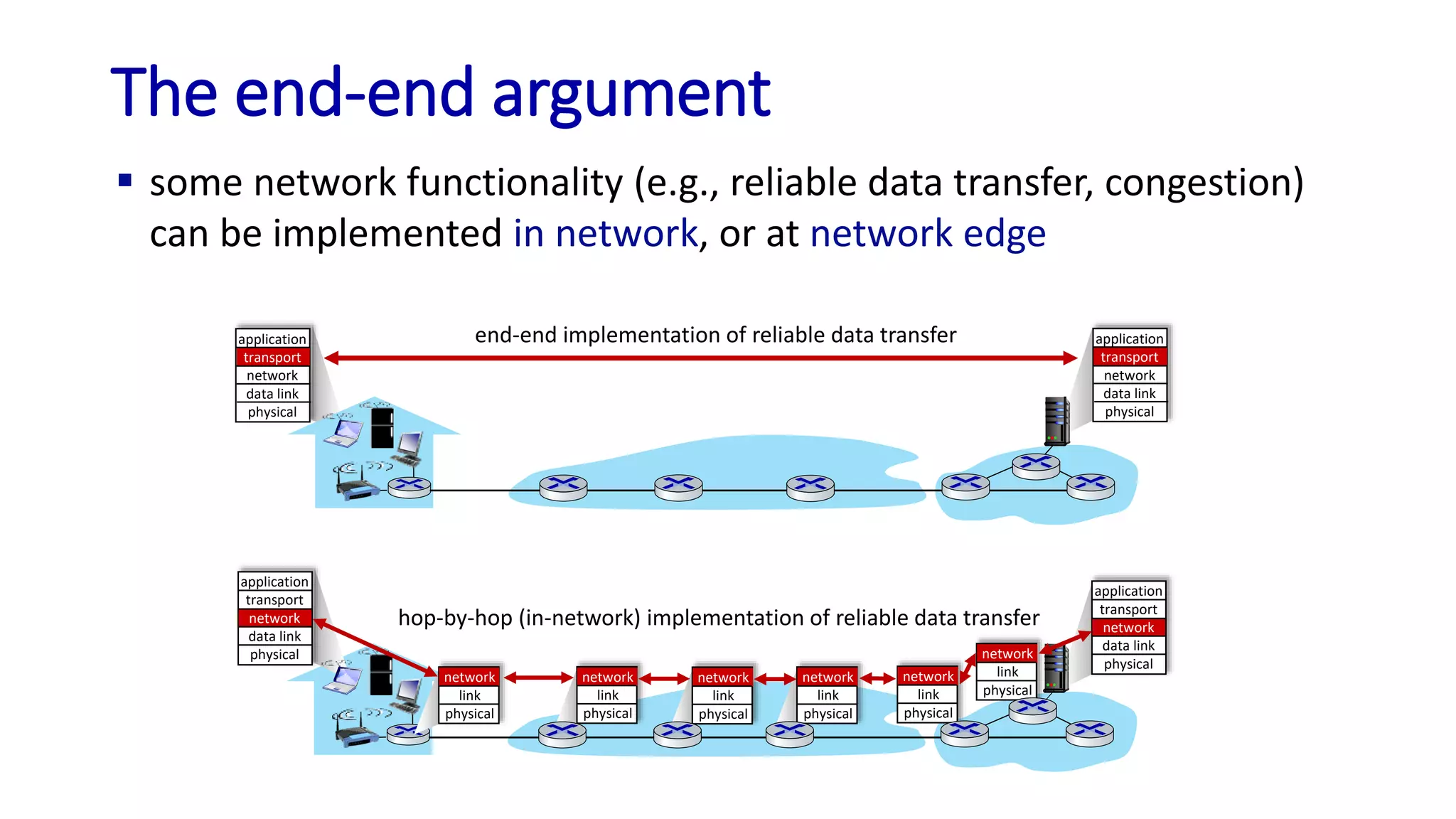

The end-end argument
 some network functionality (e.g., reliable data transfer, congestion)
can be implemented in network, or at network edge
end-end implementation of reliable data transfer
application
transport
network
data link
physical
application
transport
network
data link
physical
application
transport
network
data link
physical
application
transport
network
data link
physical
network
link
physical
network
link
physical
network
link
physical
network
link
physical
network
link
physical
network
link
physical
hop-by-hop (in-network) implementation of reliable data transfer

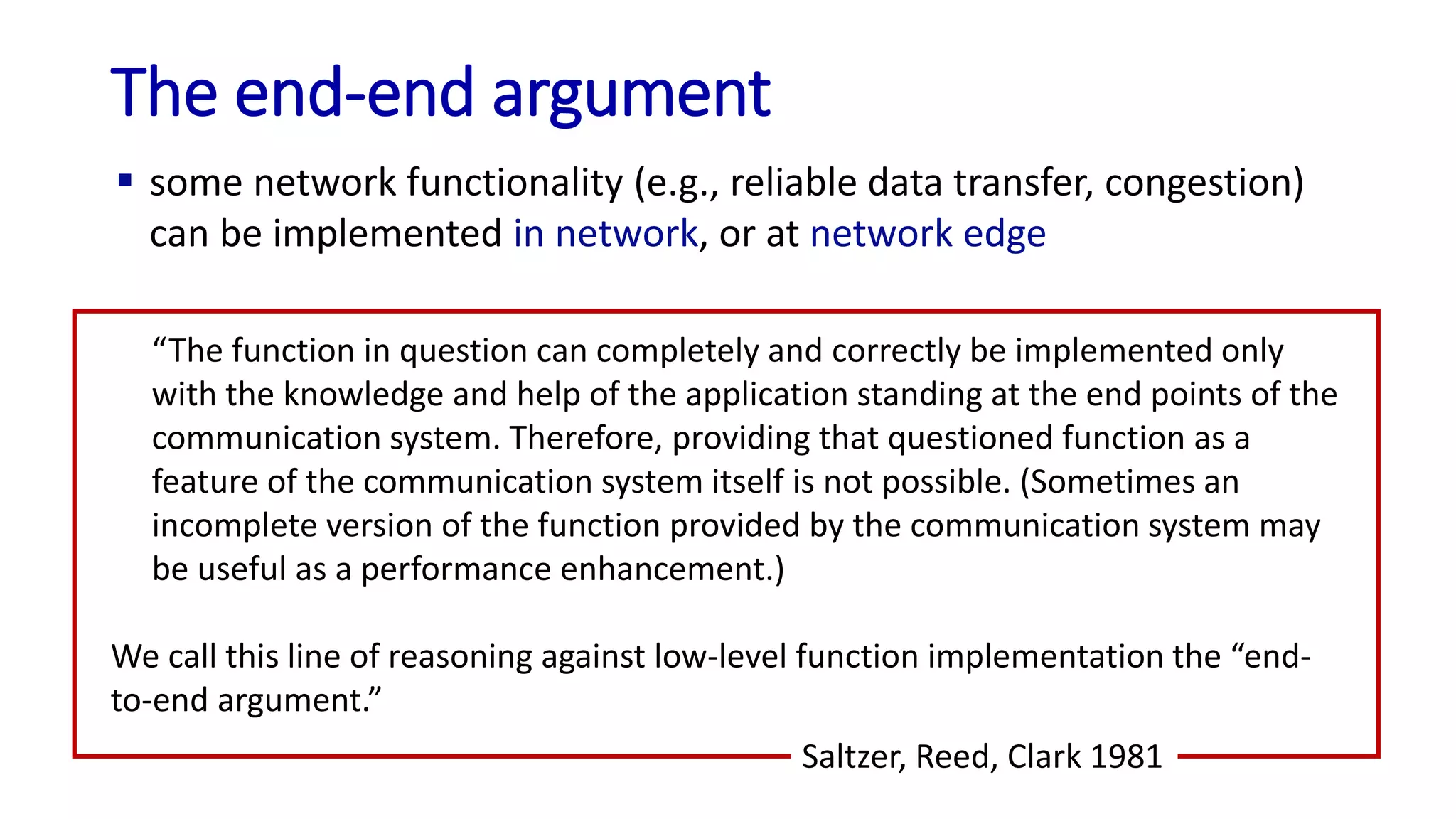

The end-end argument
“The function in question can completely and correctly be implemented only
with the knowledge and help of the application standing at the end points of the
communication system. Therefore, providing that questioned function as a
feature of the communication system itself is not possible. (Sometimes an
incomplete version of the function provided by the communication system may
be useful as a performance enhancement.)
We call this line of reasoning against low-level function implementation the “end-
to-end argument.”
Saltzer, Reed, Clark 1981
 some network functionality (e.g., reliable data transfer, congestion)
can be implemented in network, or at network edge

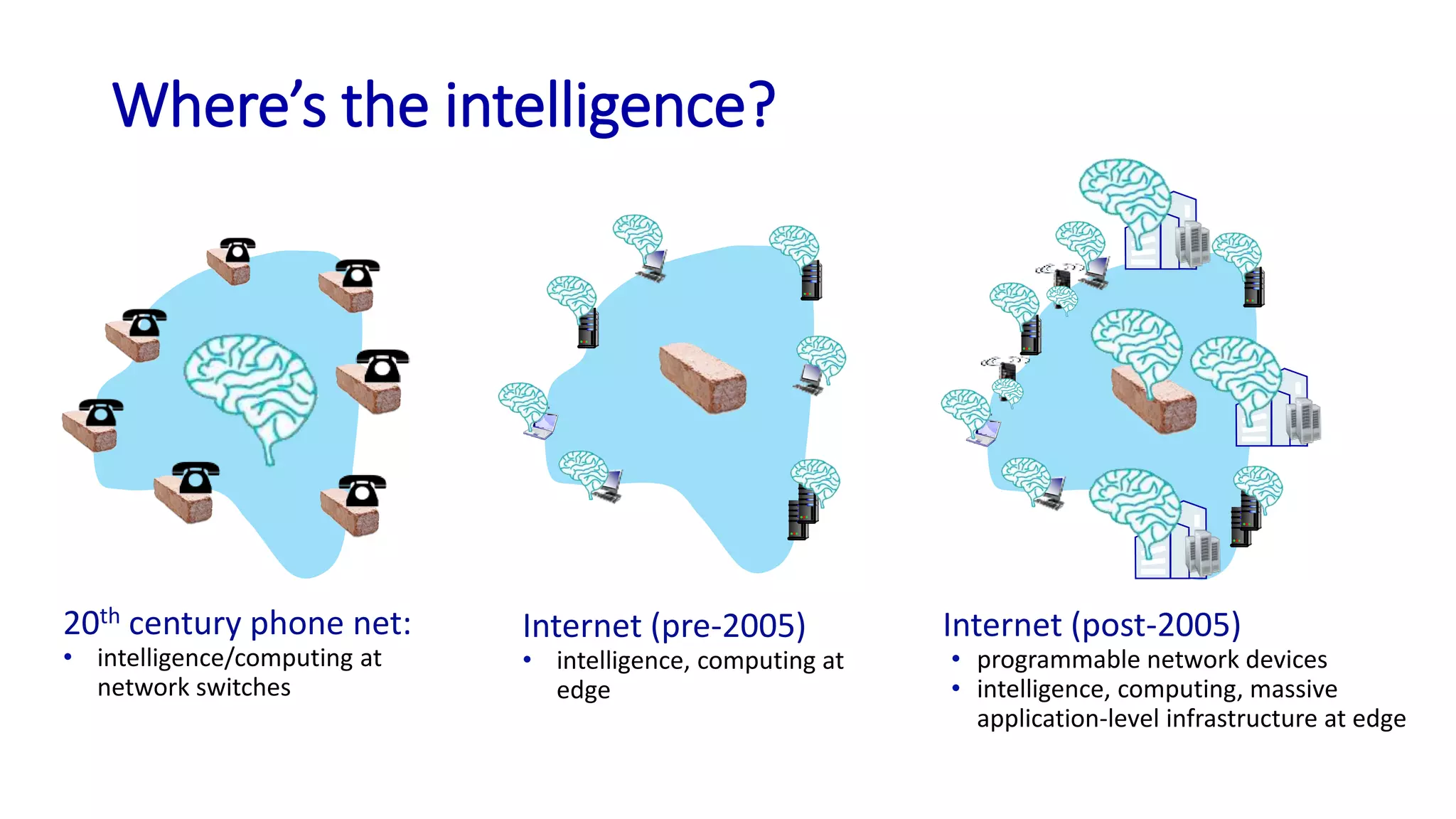

Where’s the intelligence?
20th century phone net:
• intelligence/computing at
network switches
Internet (pre-2005)
• intelligence, computing at
edge
Internet (post-2005)
• programmable network devices
• intelligence, computing, massive
application-level infrastructure at edge

Question: how are forwarding tables (destination-based forwarding)
or flow tables (generalized forwarding) computed?
Answer: by the control plane (next chapter)
Chapter 4: done!
 Middleboxes

Additional Chapter 4 slides
Network Layer: 4-99

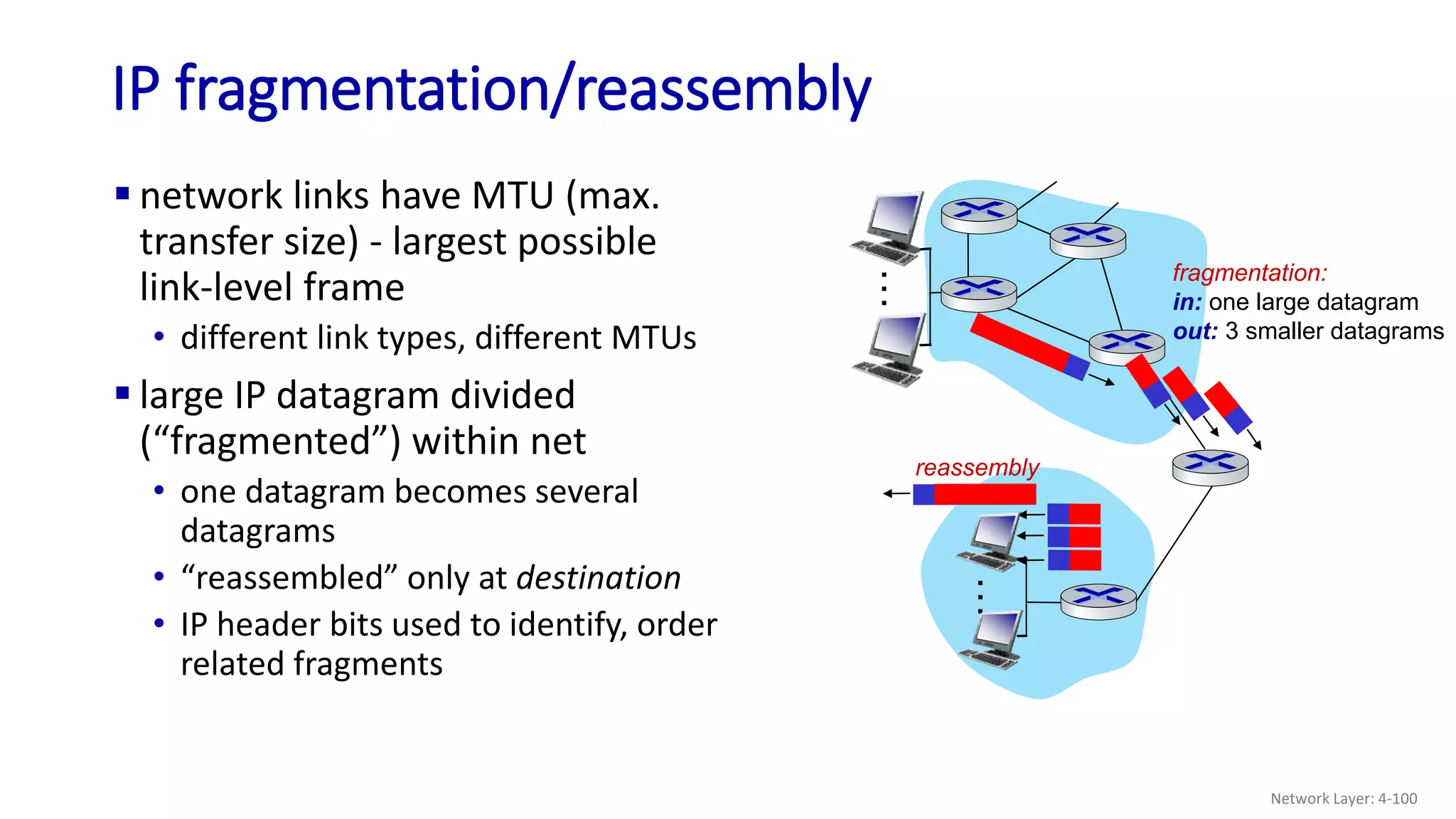

 network links have MTU (max.
transfer size) - largest possible
link-level frame
• different link types, different MTUs
 large IP datagram divided
(“fragmented”) within net
• one datagram becomes several
datagrams
• “reassembled” only at destination
• IP header bits used to identify, order
related fragments
IP fragmentation/reassembly

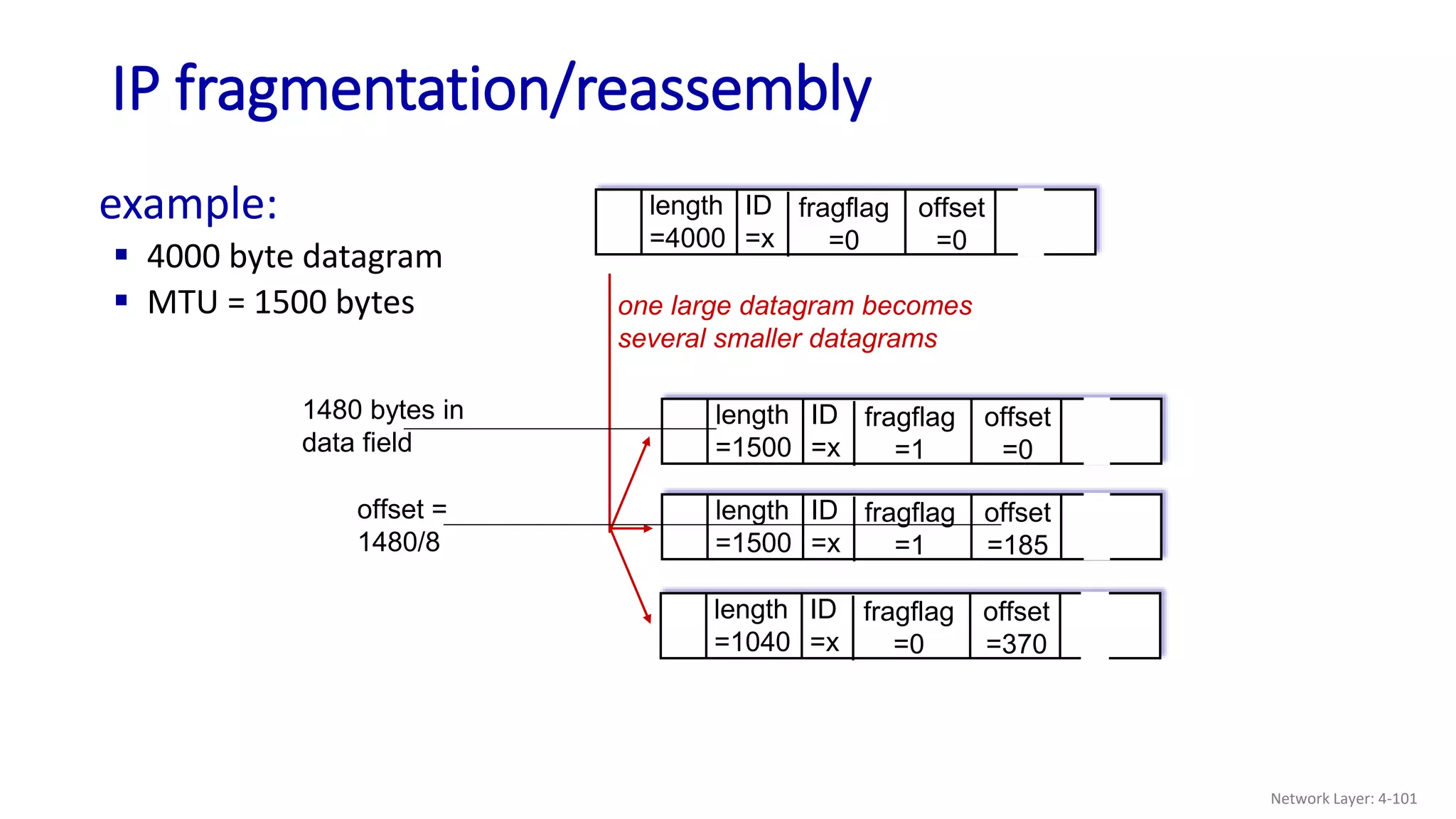

Network Layer: 4-100
fragmentation:
in: one large datagram
out: 3 smaller datagrams
reassembly
…
…

IP fragmentation/reassembly
ID
=x
offset
=0
fragflag
=0
length
=4000
ID
=x
offset
=0
fragflag
=1
length
=1500
ID
=x
offset
=185
fragflag
=1
length
=1500
ID
=x
offset
=370
fragflag
=0
length
=1040
one large datagram becomes
several smaller datagrams
example:
 4000 byte datagram
 MTU = 1500 bytes
1480 bytes in
data field
offset =
1480/8

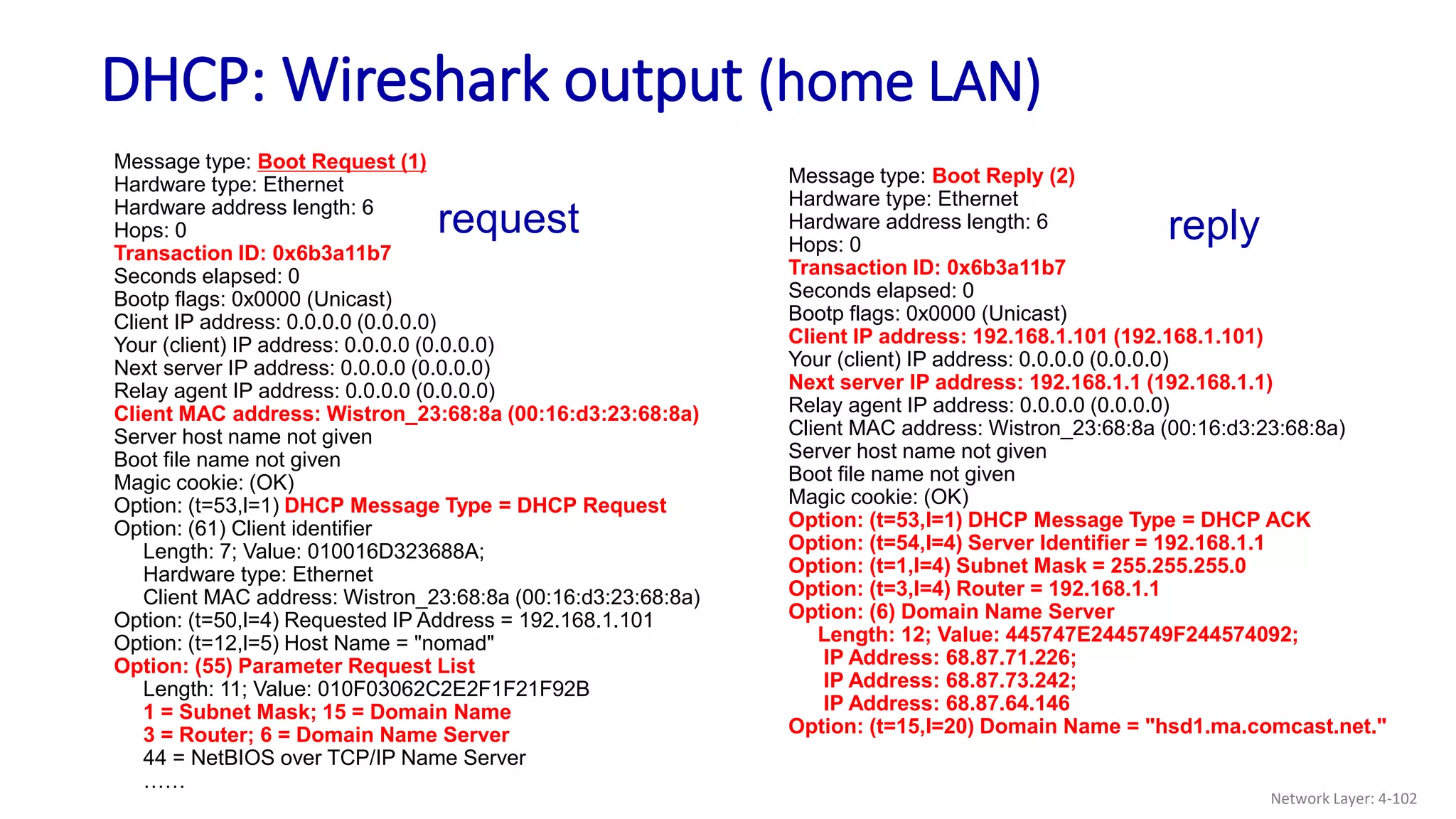

DHCP: Wireshark output (home LAN)
Message type: Boot Reply (2)
Hardware type: Ethernet
Hardware address length: 6
Hops: 0
Transaction ID: 0x6b3a11b7
Seconds elapsed: 0
Bootp flags: 0x0000 (Unicast)
Client IP address: 192.168.1.101 (192.168.1.101)
Your (client) IP address: 0.0.0.0 (0.0.0.0)
Next server IP address: 192.168.1.1 (192.168.1.1)
Relay agent IP address: 0.0.0.0 (0.0.0.0)
Client MAC address: Wistron_23:68:8a (00:16:d3:23:68:8a)
Server host name not given
Boot file name not given
Magic cookie: (OK)
Option: (t=53,l=1) DHCP Message Type = DHCP ACK
Option: (t=54,l=4) Server Identifier = 192.168.1.1
Option: (t=1,l=4) Subnet Mask = 255.255.255.0
Option: (t=3,l=4) Router = 192.168.1.1
Option: (6) Domain Name Server
Length: 12; Value: 445747E2445749F244574092;
IP Address: 68.87.71.226;
IP Address: 68.87.73.242;
IP Address: 68.87.64.146
Option: (t=15,l=20) Domain Name = "hsd1.ma.comcast.net."
Message type: Boot Request (1)
Hardware address length: 6
Hops: 0
Transaction ID: 0x6b3a11b7
Seconds elapsed: 0
Bootp flags: 0x0000 (Unicast)
Client IP address: 0.0.0.0 (0.0.0.0)
Your (client) IP address: 0.0.0.0 (0.0.0.0)
Next server IP address: 0.0.0.0 (0.0.0.0)
Relay agent IP address: 0.0.0.0 (0.0.0.0)
Server host name not given
Boot file name not given
Magic cookie: (OK)
Option: (t=53,l=1) DHCP Message Type = DHCP Request
Option: (61) Client identifier
Length: 7; Value: 010016D323688A;
Option: (t=50,l=4) Requested IP Address = 192.168.1.101
Option: (t=12,l=5) Host Name = "nomad"
Option: (55) Parameter Request List
Length: 11; Value: 010F03062C2E2F1F21F92B
1 = Subnet Mask; 15 = Domain Name
3 = Router; 6 = Domain Name Server
44 = NetBIOS over TCP/IP Name Server
……
reply
request

Chapter_4.pptx

More Related Content

Similar to Chapter_4.pptx

More from MuhammadUsman854361

Recently uploaded

Chapter_4.pptx

Editor's Notes
