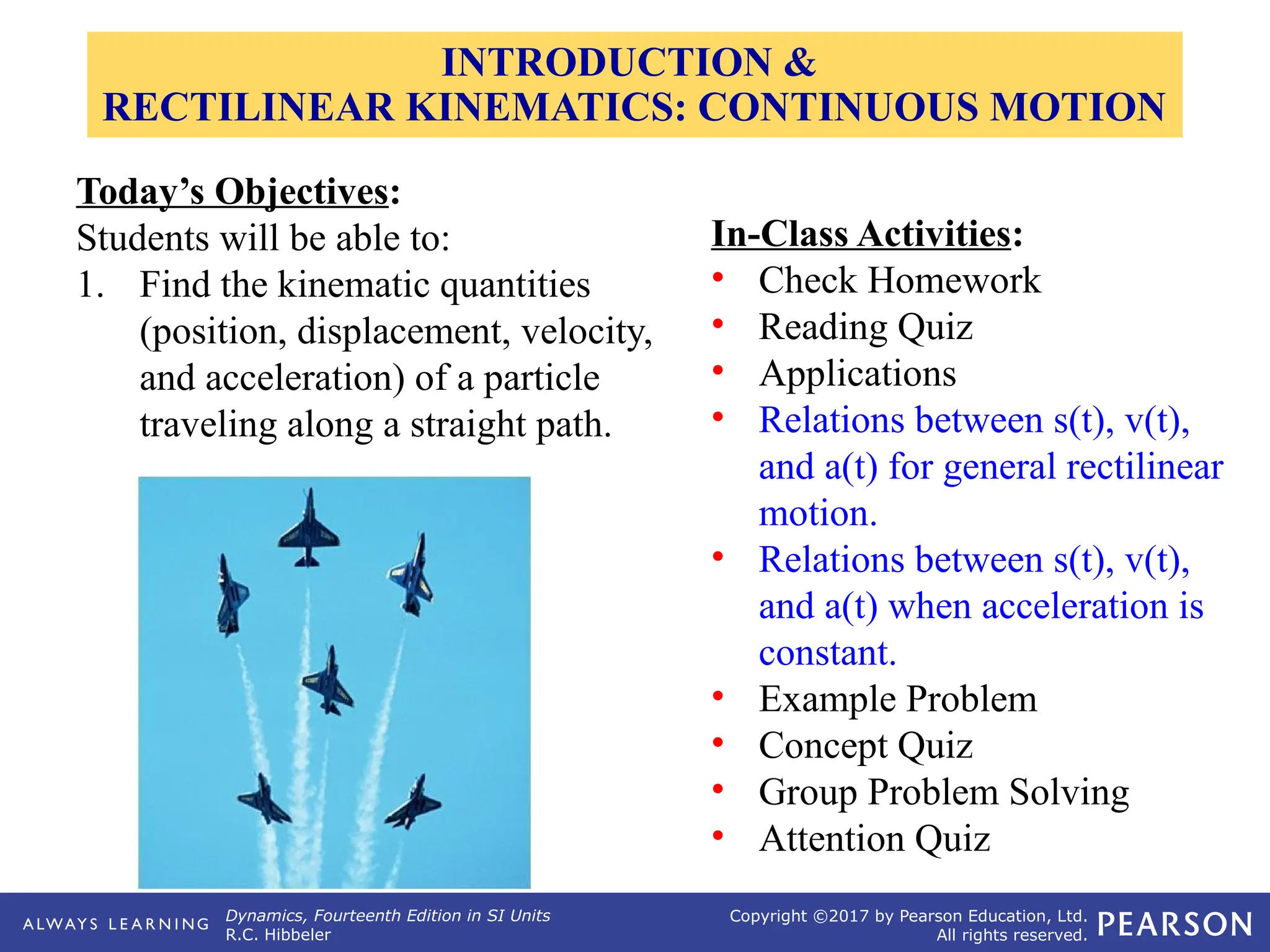

Today’s Objectives:
Students will be able to:
1. Find the kinematic quantities
(position, displacement, velocity,
and acceleration) of a particle
traveling along a straight path.
In-Class Activities:
• Check Homework
• Reading Quiz
• Applications
• Relations between s(t), v(t),
and a(t) for general rectilinear
motion.
• Relations between s(t), v(t),
and a(t) when acceleration is
constant.
• Example Problem
• Concept Quiz
• Group Problem Solving
• Attention Quiz
INTRODUCTION &
RECTILINEAR KINEMATICS: CONTINUOUS MOTION

R.C. Hibbeler

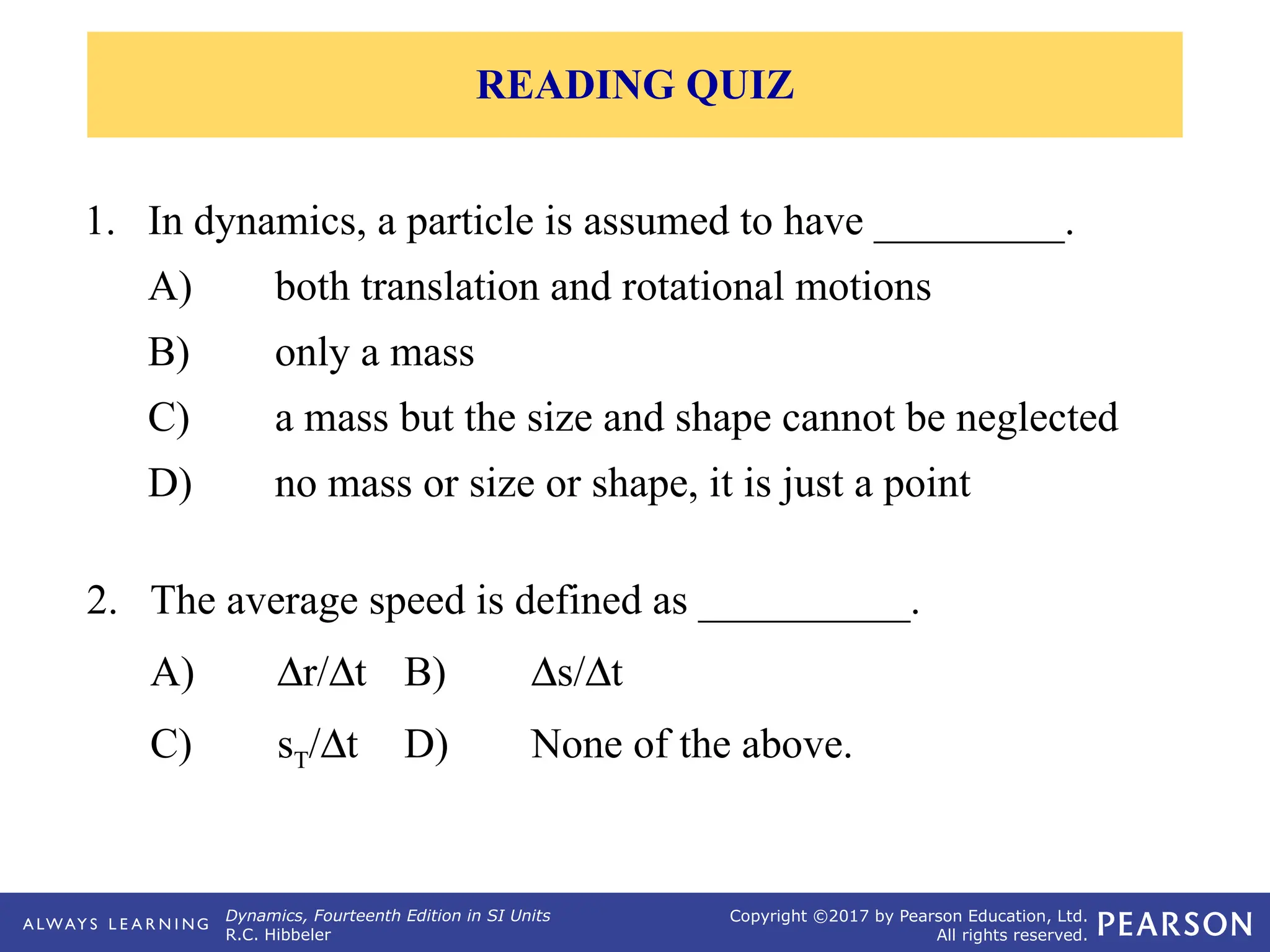

1. In dynamics, a particle is assumed to have _________.
A) both translation and rotational motions
B) only a mass
C) a mass but the size and shape cannot be neglected
D) no mass or size or shape, it is just a point
2. The average speed is defined as __________.
A) Dr/Dt B) Ds/Dt
C) sT/Dt D) None of the above.
READING QUIZ

R.C. Hibbeler

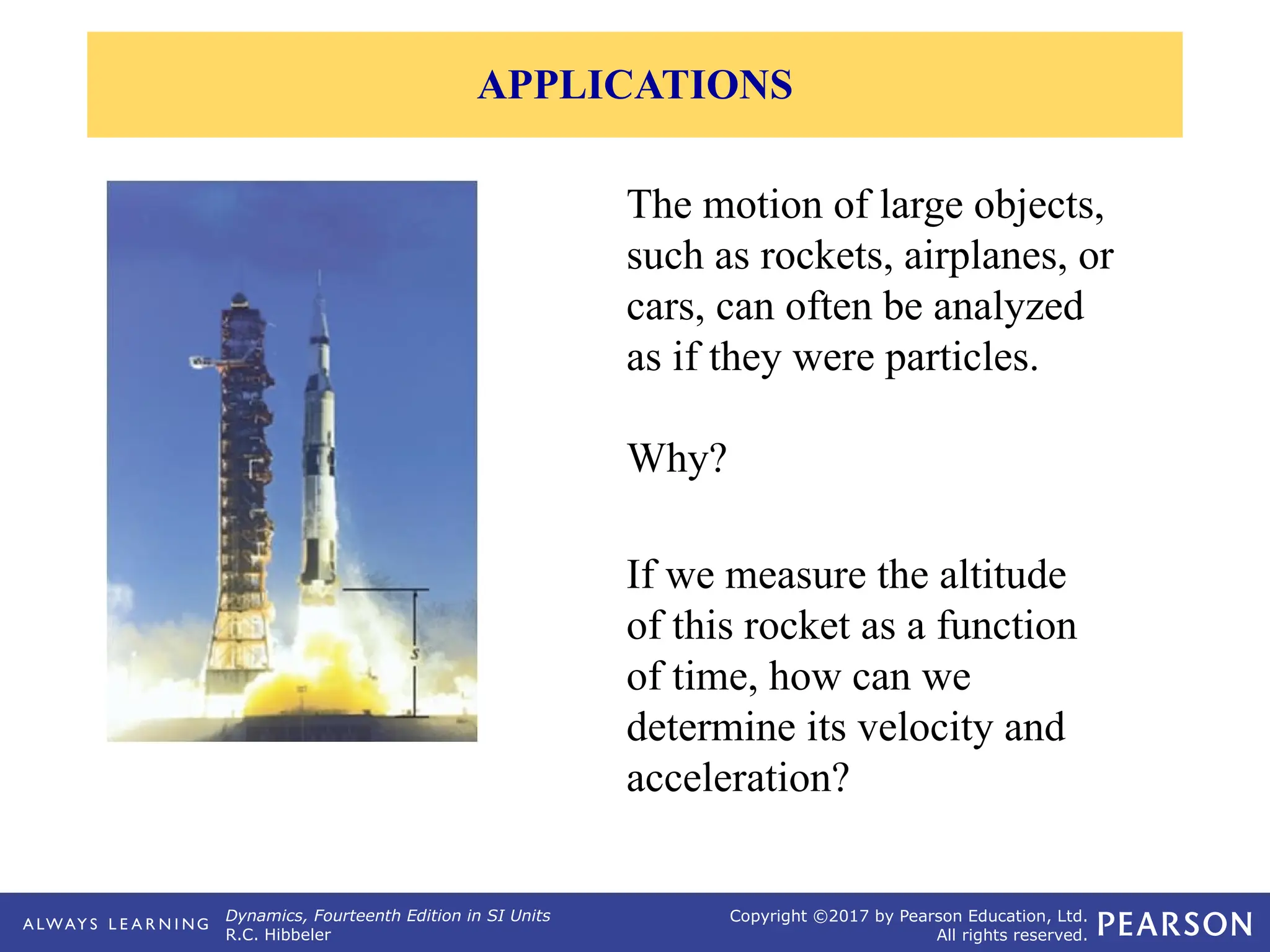

The motion of large objects,
such as rockets, airplanes, or
cars, can often be analyzed
as if they were particles.
Why?
If we measure the altitude
of this rocket as a function
of time, how can we
determine its velocity and
acceleration?
APPLICATIONS

R.C. Hibbeler

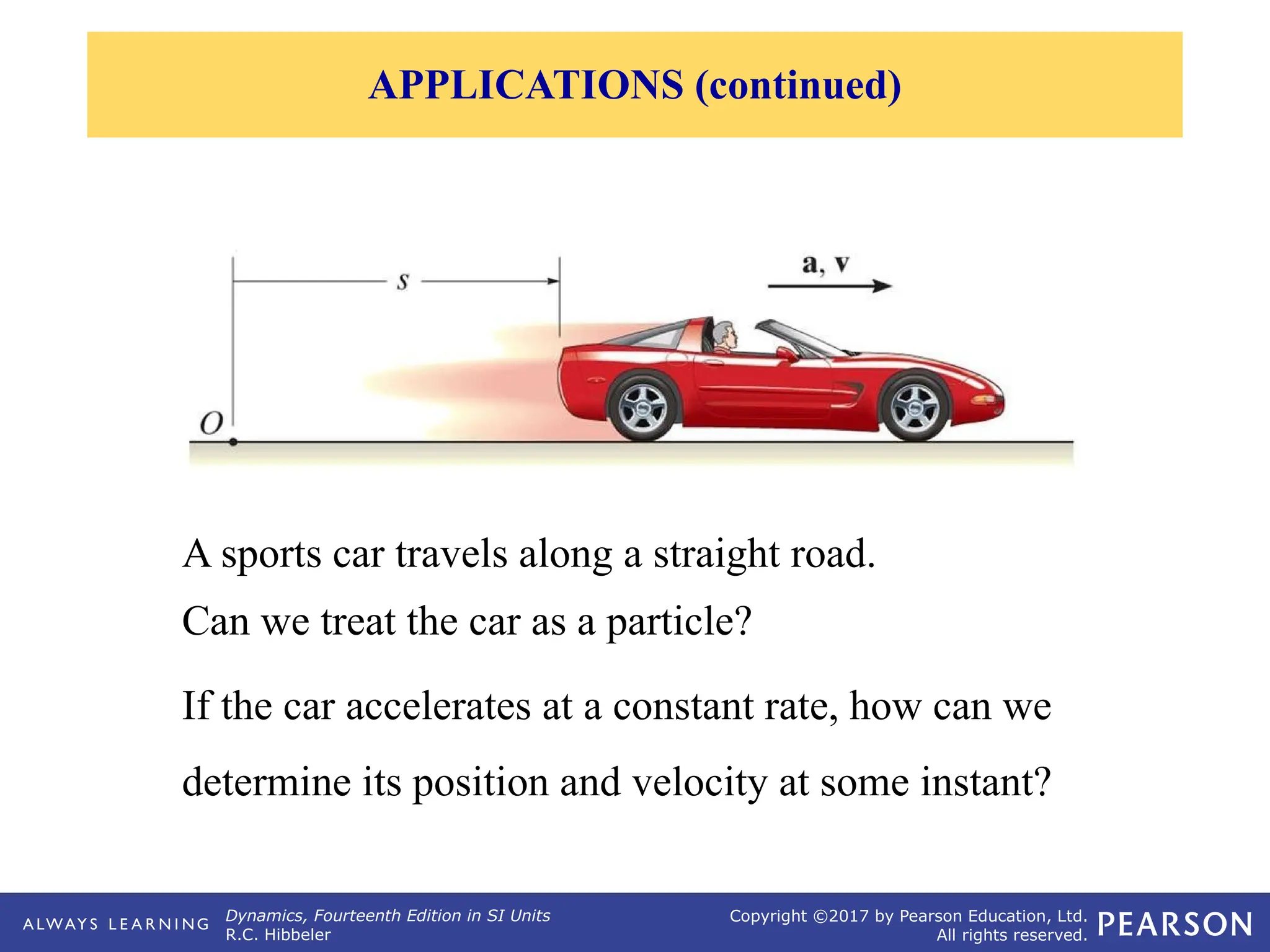

A sports car travels along a straight road.
Can we treat the car as a particle?
If the car accelerates at a constant rate, how can we
determine its position and velocity at some instant?
APPLICATIONS (continued)

R.C. Hibbeler

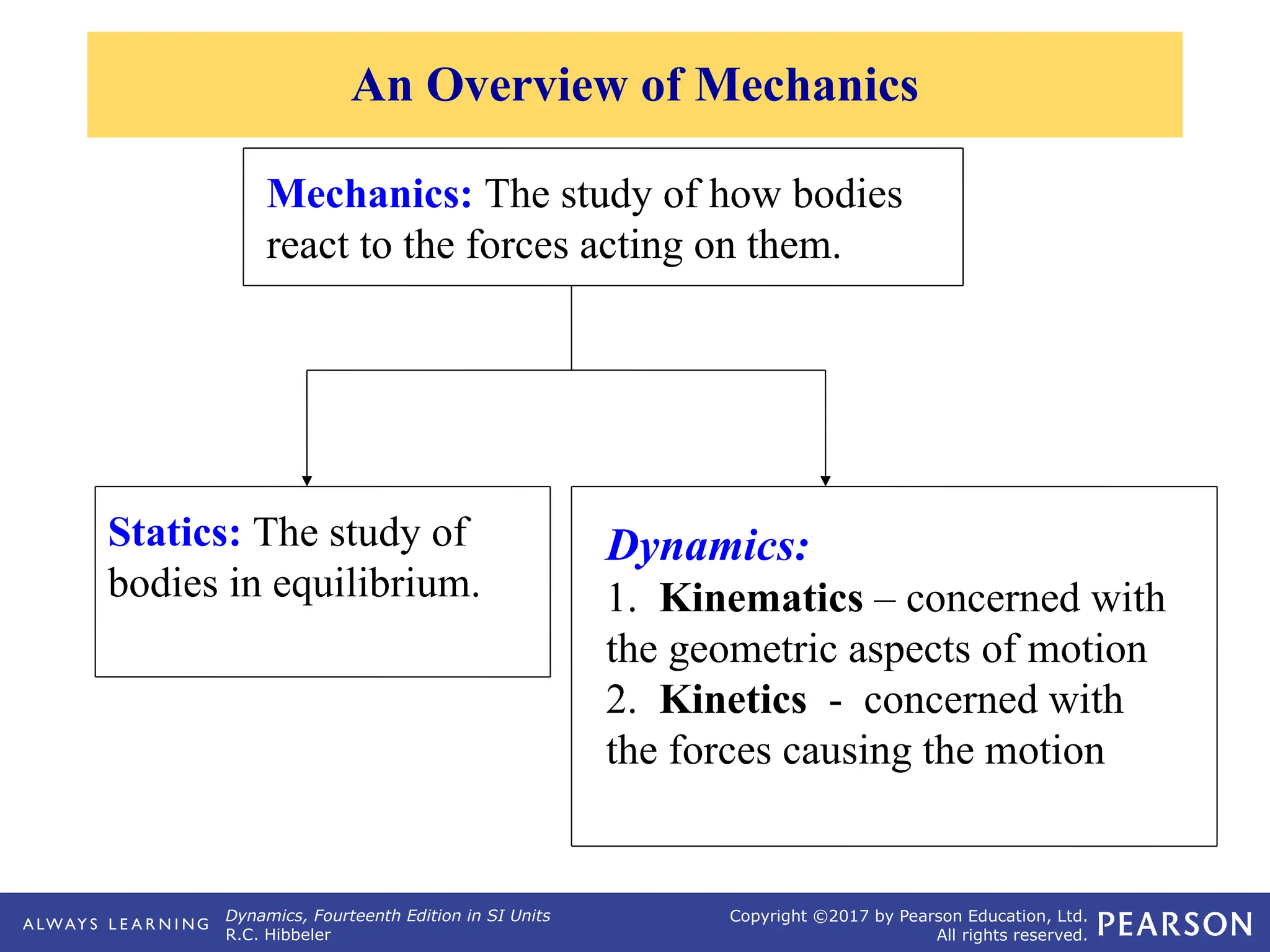

Statics: The study of
bodies in equilibrium.
Dynamics:
1. Kinematics – concerned with
the geometric aspects of motion
2. Kinetics - concerned with
the forces causing the motion
Mechanics: The study of how bodies
react to the forces acting on them.
An Overview of Mechanics

R.C. Hibbeler

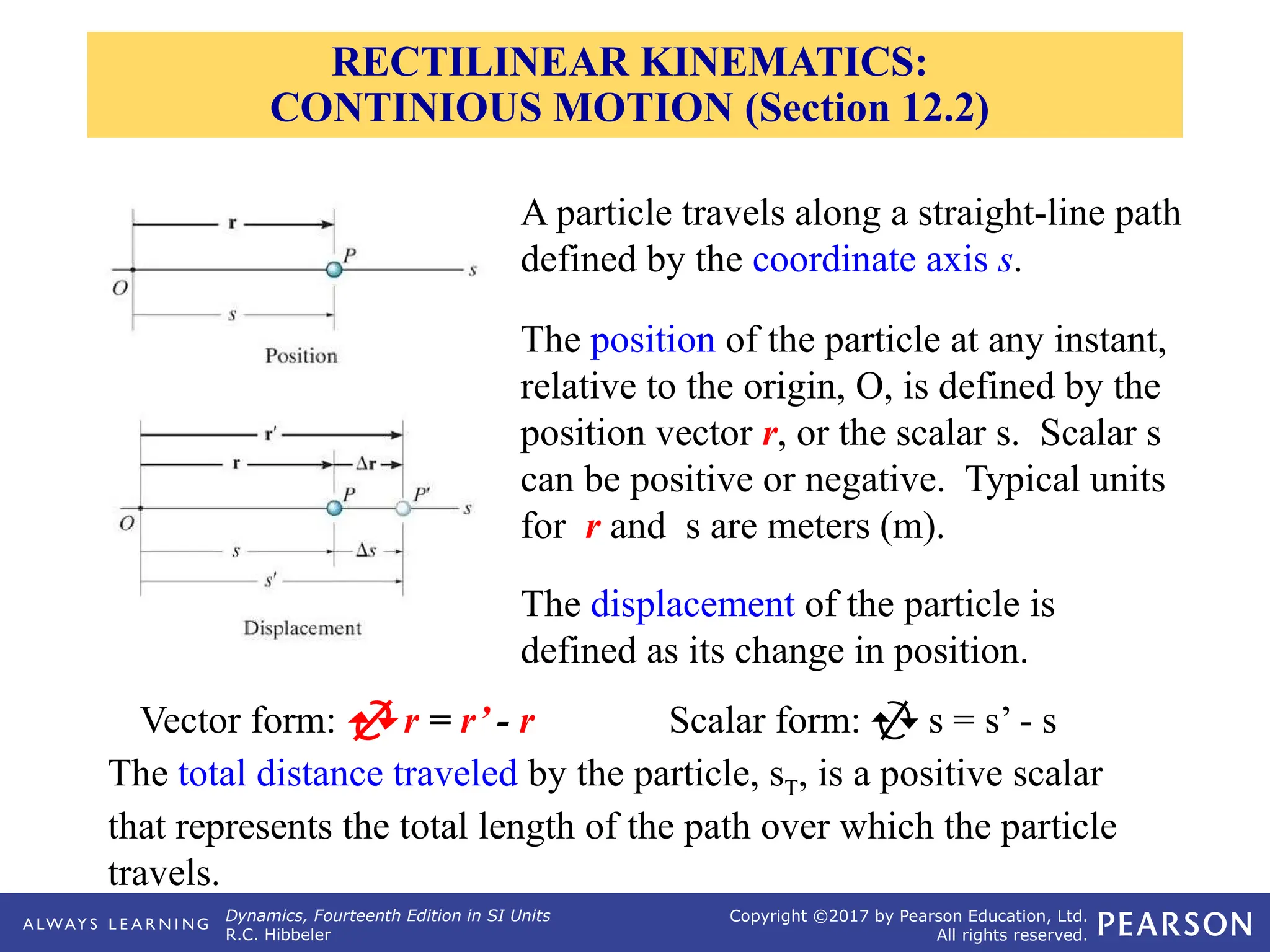

A particle travels along a straight-line path
defined by the coordinate axis s.
The total distance traveled by the particle, sT, is a positive scalar
that represents the total length of the path over which the particle
travels.
The position of the particle at any instant,
relative to the origin, O, is defined by the
position vector r, or the scalar s. Scalar s
can be positive or negative. Typical units
for r and s are meters (m).
The displacement of the particle is
defined as its change in position.
Vector form:  r = r’ - r Scalar form:  s = s’ - s
RECTILINEAR KINEMATICS:
CONTINIOUS MOTION (Section 12.2)

R.C. Hibbeler

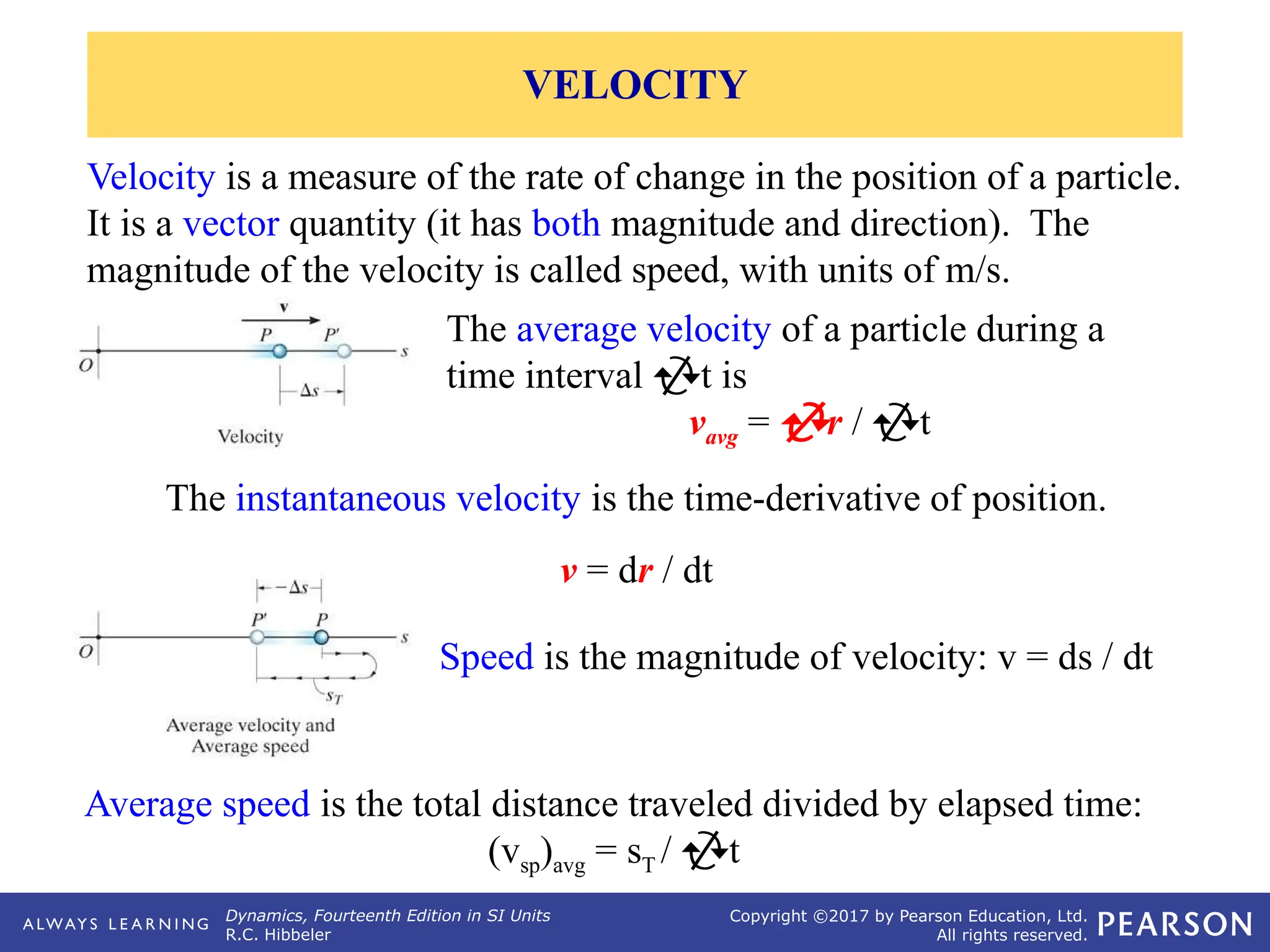

Velocity is a measure of the rate of change in the position of a particle.
It is a vector quantity (it has both magnitude and direction). The
magnitude of the velocity is called speed, with units of m/s.
The average velocity of a particle during a
time interval t is
vavg = r / t
The instantaneous velocity is the time-derivative of position.
v = dr / dt
Speed is the magnitude of velocity: v = ds / dt
Average speed is the total distance traveled divided by elapsed time:
(vsp)avg = sT / t
VELOCITY

R.C. Hibbeler

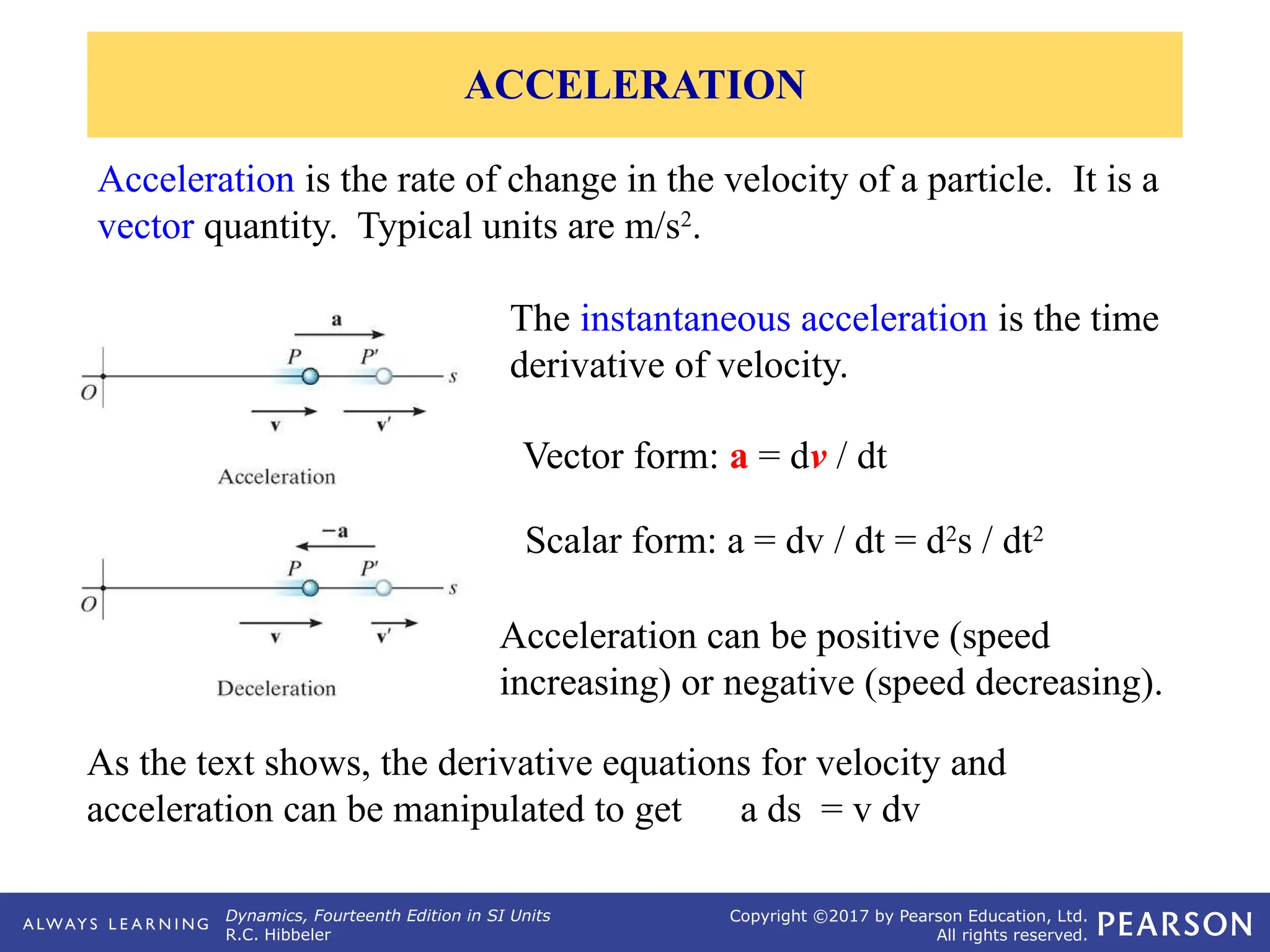

Acceleration is the rate of change in the velocity of a particle. It is a
vector quantity. Typical units are m/s2
.
As the text shows, the derivative equations for velocity and
acceleration can be manipulated to get a ds = v dv
The instantaneous acceleration is the time
derivative of velocity.
Vector form: a = dv / dt
Scalar form: a = dv / dt = d2
s / dt2
Acceleration can be positive (speed
increasing) or negative (speed decreasing).
ACCELERATION

R.C. Hibbeler

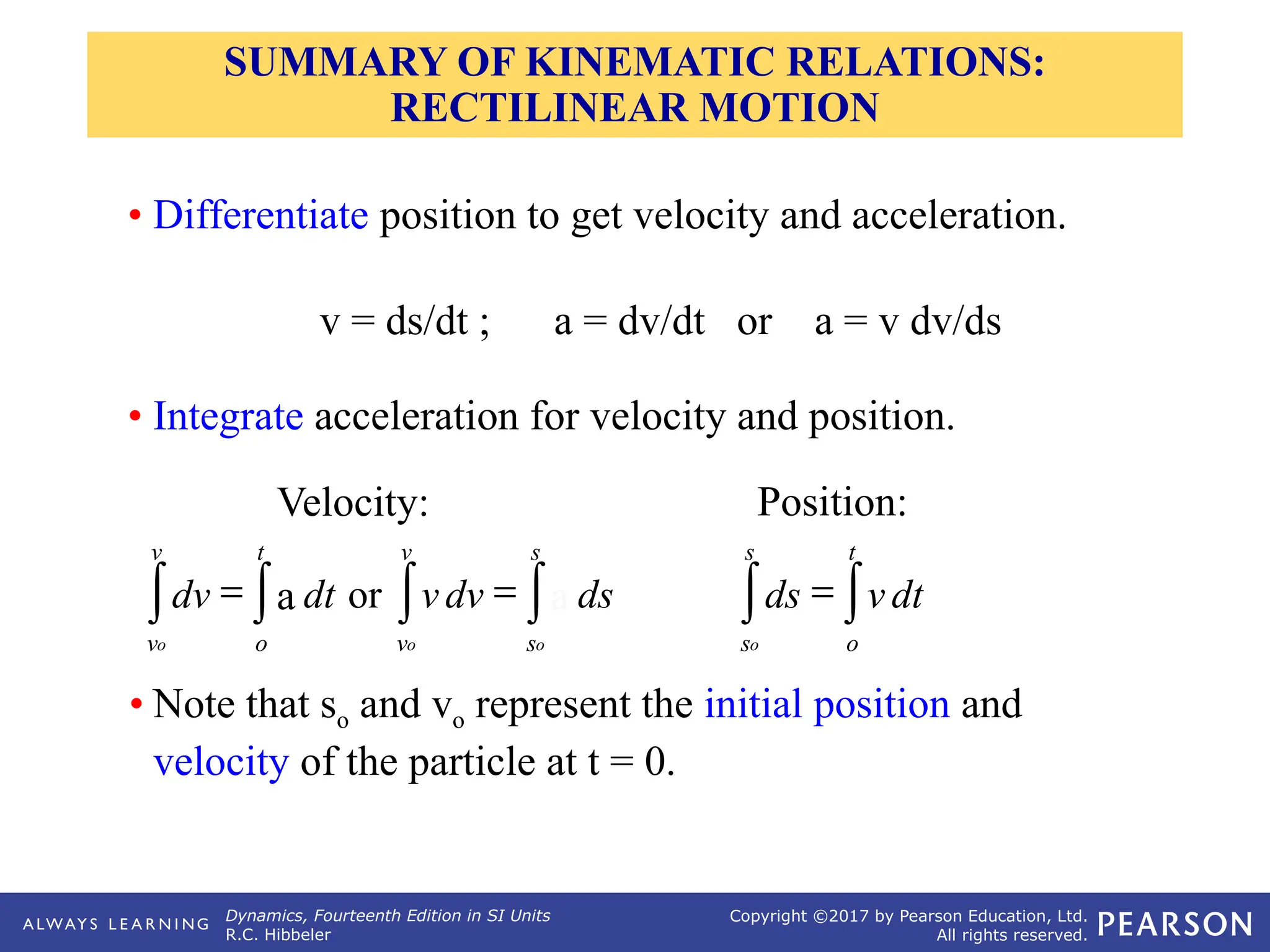

• Differentiate position to get velocity and acceleration.
v = ds/dt ; a = dv/dt or a = v dv/ds
• Integrate acceleration for velocity and position.
• Note that so and vo represent the initial position and
velocity of the particle at t = 0.
Velocity:
ò
ò =
t
o
v
vo
dt
a
dv ò
ò =
s
s
v
v o
o
ds
a
dv
v
or ò
ò =
t
o
s
so
dt
v
ds
Position:
SUMMARY OF KINEMATIC RELATIONS:
RECTILINEAR MOTION

R.C. Hibbeler

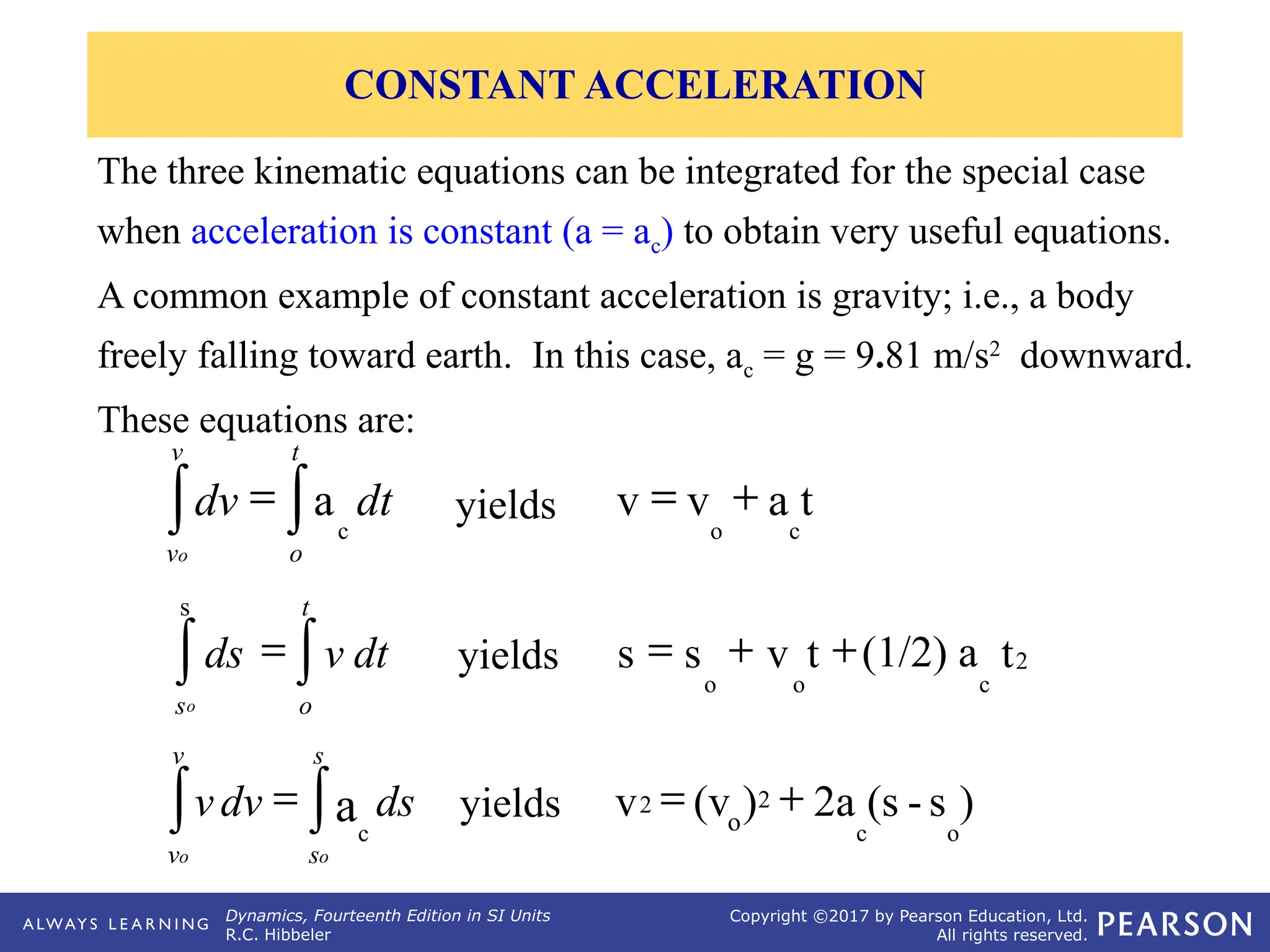

The three kinematic equations can be integrated for the special case
when acceleration is constant (a = ac) to obtain very useful equations.
A common example of constant acceleration is gravity; i.e., a body
freely falling toward earth. In this case, ac = g = 9.81 m/s2
downward.
These equations are:
t
a
v
v
c
o
+
=
yields
= ò
ò
t
o
c
v
v
dt
a
dv
o
2
c
o
o
s
t
(1/2) a
t
v
s
s +
+
=
yields
= ò
ò
t
o
s
dt
v
ds
o
)
s
-
(s
2a
)
(v
v
o
c
2
o
2 +
=
yields
= ò
ò
s
s
c
v
v o
o
ds
a
dv
v
CONSTANT ACCELERATION

R.C. Hibbeler

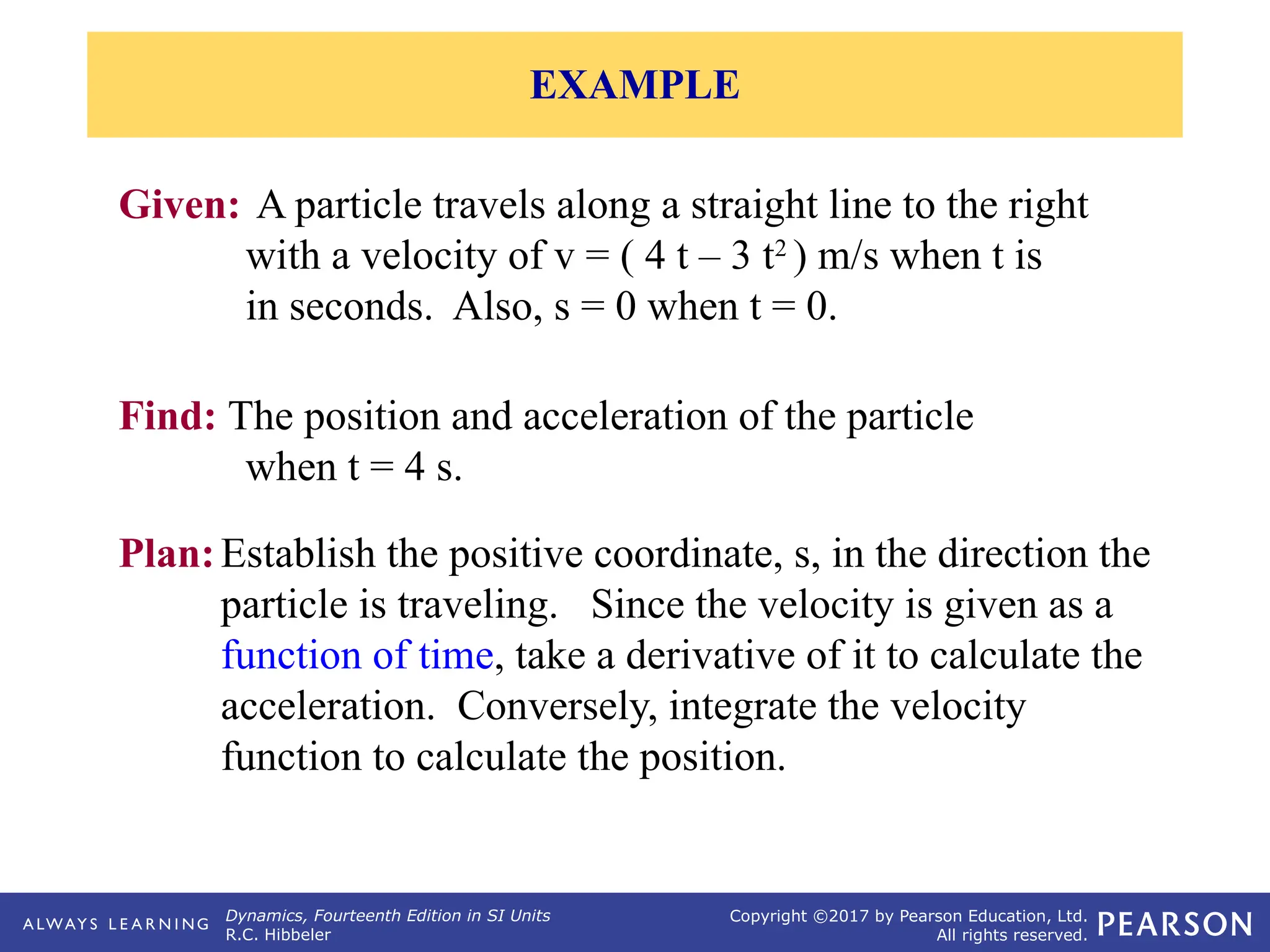

Plan:Establish the positive coordinate, s, in the direction the
particle is traveling. Since the velocity is given as a
function of time, take a derivative of it to calculate the
acceleration. Conversely, integrate the velocity
function to calculate the position.
Given: A particle travels along a straight line to the right
with a velocity of v = ( 4 t – 3 t2
) m/s when t is
in seconds. Also, s = 0 when t = 0.
Find: The position and acceleration of the particle
when t = 4 s.
EXAMPLE

R.C. Hibbeler
Solution:
1) Take a derivative of the velocity to determine the acceleration.
a = dv / dt = d(4 t – 3 t2
) / dt = 4 – 6 t
 a = – 20 m/s2
(or in the  direction) when t = 4 s
2) Calculate the distance traveled in 4s by integrating the
velocity using so = 0:
v = ds / dt  ds = v dt 
 s – so = 2 t2
– t3
 s – 0 = 2(4)2
– (4)3
 s = – 32 m (or )
ò
ò =
t
o
s
s
(4 t – 3 t2
) dt
ds
o
EXAMPLE (continued)

R.C. Hibbeler
2. A particle has an initial velocity of 30 m/s to the left. If it
then passes through the same location 5 seconds later with a
velocity of 50 m/s to the right, the average velocity of the
particle during the 5 s time interval is _______.
A) 10 m/s  B) 40 m/s 
C) 16 m/s  D) 0 m/s
1. A particle moves along a horizontal path with its velocity
varying with time as shown. The average acceleration of the
particle is _________.
A) 0.4 m/s2
 B) 0.4 m/s2

C) 1.6 m/s2
 D) 1.6 m/s2

CONCEPT QUIZ
t = 2 s t = 7 s
3 m/s 5 m/s
 

R.C. Hibbeler

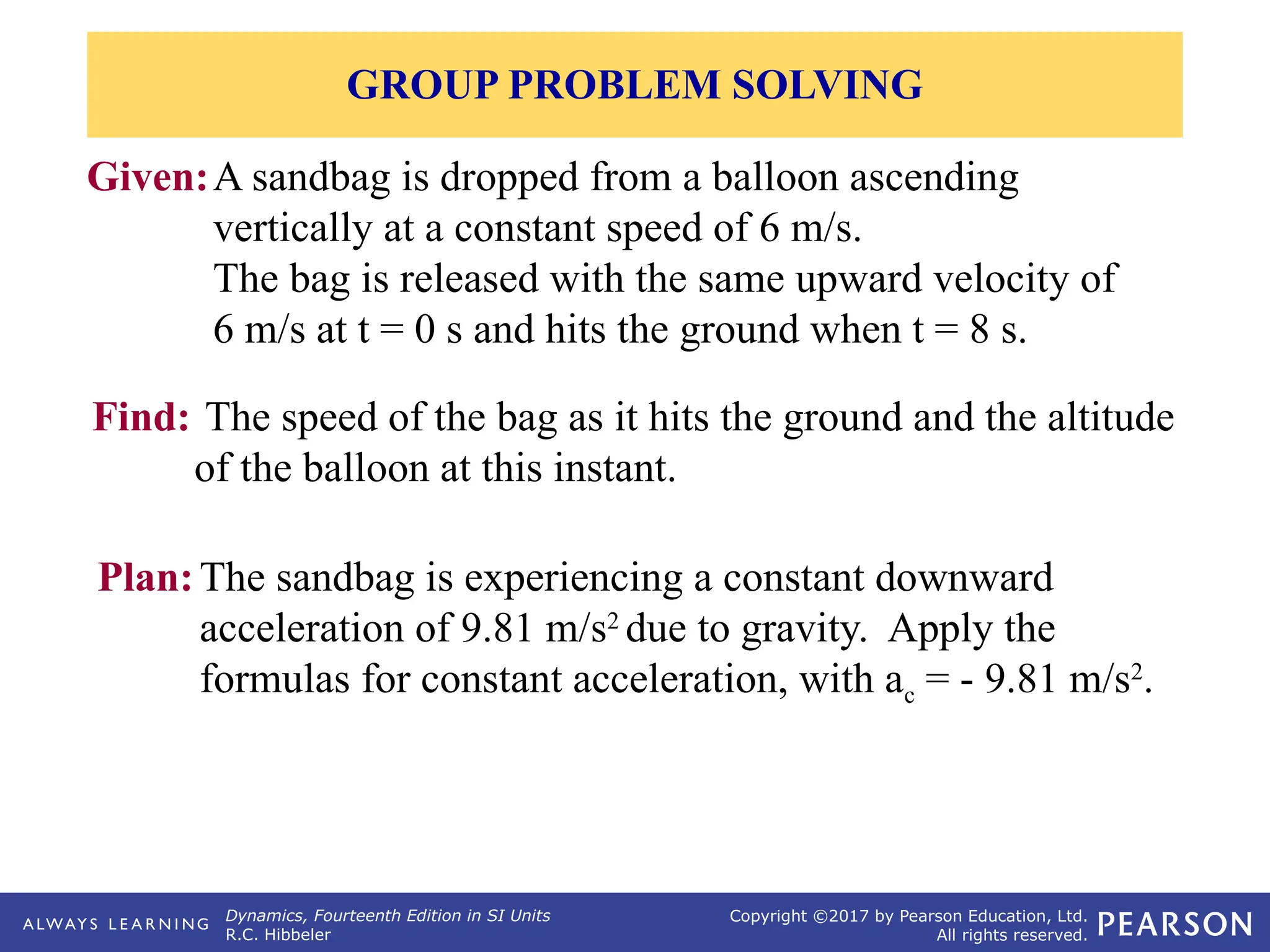

Given:A sandbag is dropped from a balloon ascending
vertically at a constant speed of 6 m/s.
The bag is released with the same upward velocity of
6 m/s at t = 0 s and hits the ground when t = 8 s.
Find: The speed of the bag as it hits the ground and the altitude
of the balloon at this instant.
Plan:The sandbag is experiencing a constant downward
acceleration of 9.81 m/s2
due to gravity. Apply the
formulas for constant acceleration, with ac = - 9.81 m/s2
.
GROUP PROBLEM SOLVING

R.C. Hibbeler
Solution:
The bag is released when t = 0 s and hits the ground when
t = 8 s.
Calculate the distance using a position equation.
GROUP PROBLEM SOLVING (continued)
Therefore, altitude is of the balloon is (sbag + sballoon).
Altitude = 265.9 + 48 = 313.9 = 314 m.
+ sbag = (sbag )o + (vbag)o t + (1/2) ac t2
sbag = 0 + (-6) (8) + 0.5 (9.81) (8)2
= 265.9 m
During t = 8 s, the balloon rises
+ sballoon = (vballoon)t = 6 (8) = 48 m

R.C. Hibbeler
Calculate the velocity when t = 8 s, by applying a velocity
equation.
GROUP PROBLEM SOLVING (continued)
+ vbag = (vbag )o + ac t
vbag = -6 + (9.81) 8 = 72.5 m/s 

R.C. Hibbeler
2. A particle is moving with an initial velocity of v = 12 m/s
and constant acceleration of 3.78 m/s2
in the same direction
as the velocity. Determine the distance the particle has
traveled when the velocity reaches 30 m/s.
A) 50 m B) 100 m
C) 150 m D) 200 m
1. A particle has an initial velocity of 3 m/s to the left at
s0 = 0 m. Determine its position when t = 3 s if the
acceleration is 2 m/s2
to the right.
A) 0.0 m B) 6.0 m 
C) 18.0 m  D) 9.0 m 
ATTENTION QUIZ

R.C. Hibbeler
