Ch 18: Source Code Auditing
This document discusses various techniques for auditing source code to discover vulnerabilities, including both automated and manual methods. It describes tools like Cscope, Ctags, and source code analysis tools. It also covers common classes of vulnerabilities that may be found through source code auditing, such as format string vulnerabilities, off-by-one errors, integer conversion issues, uninitialized variable usage, and race conditions in multithreaded code. Effective methodologies discussed include searching for specific vulnerable code patterns, understanding application logic from entry points, and focusing on attacker-controlled input handling.
More Related Content
Similar to Ch 18: Source Code Auditing
Ch 18: Source Code Auditing

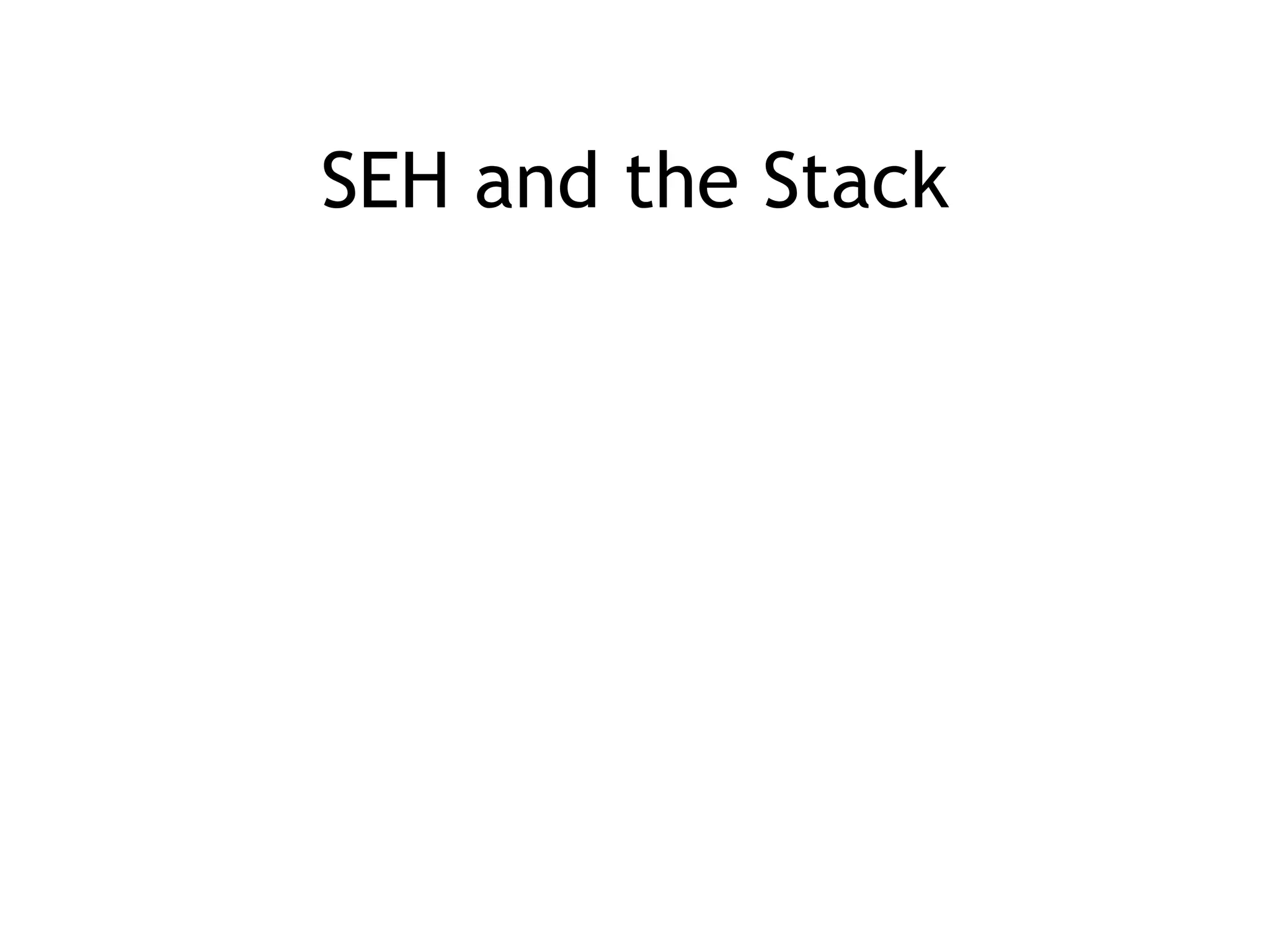

- 1. SEH and theStack
- 2. • Proj ED319: SEH-Based Stack Overflow Exploit • Send AAAAAA...AAABCDEXXXXXX...XXX

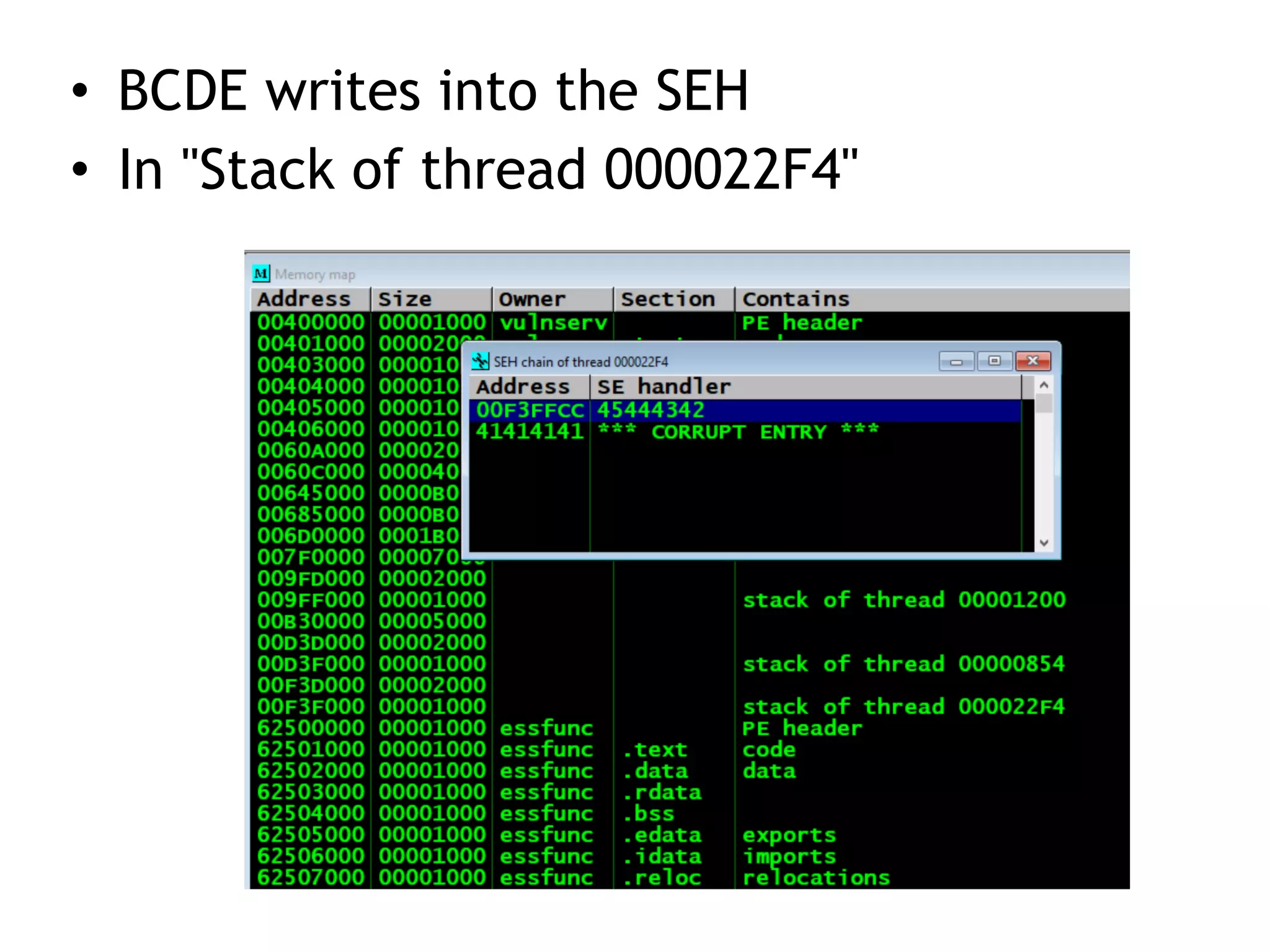

- 3. • BCDE writesinto the SEH • In "Stack of thread 000022F4"

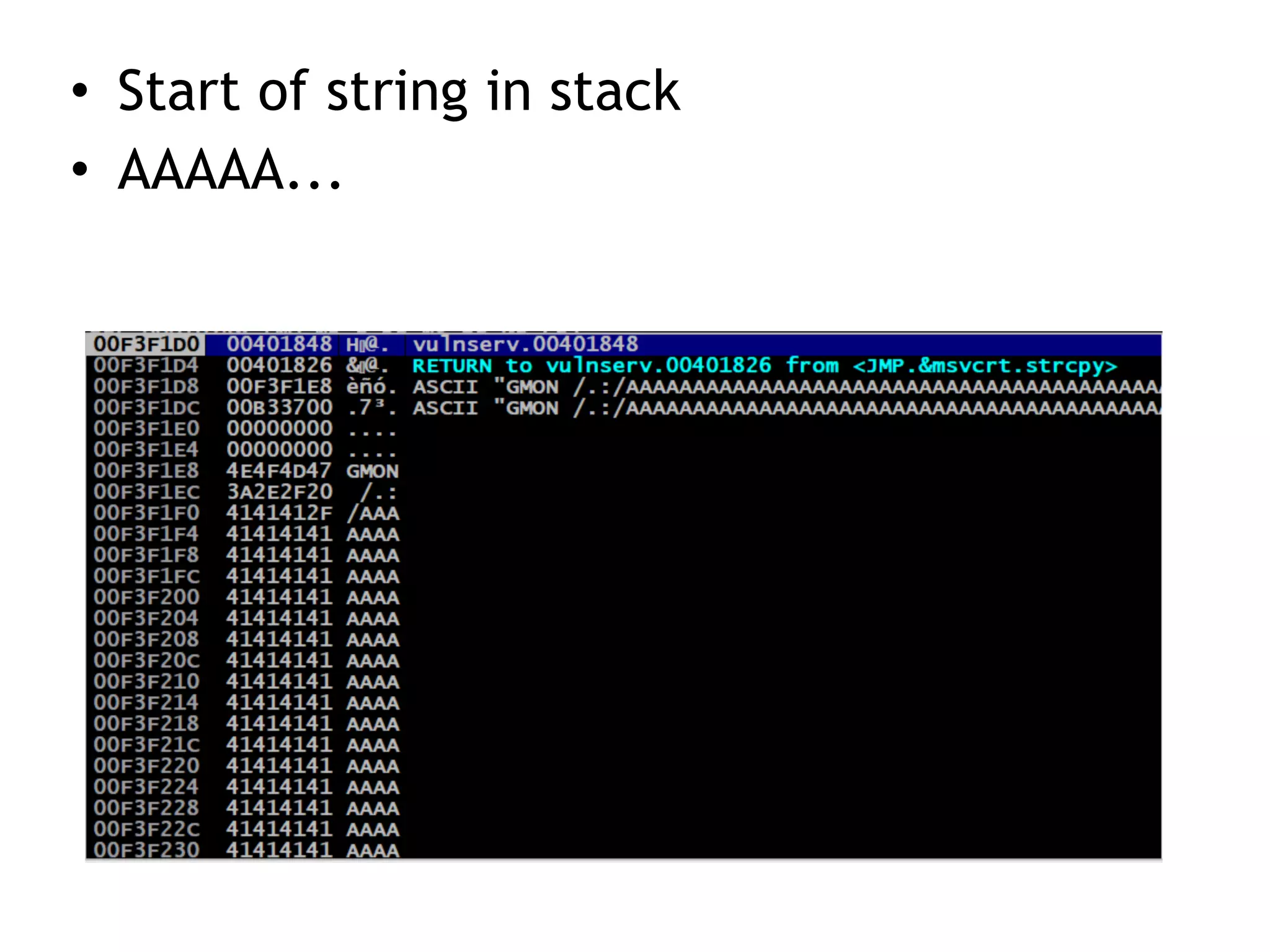

- 4. • Start ofstring in stack • AAAAA...

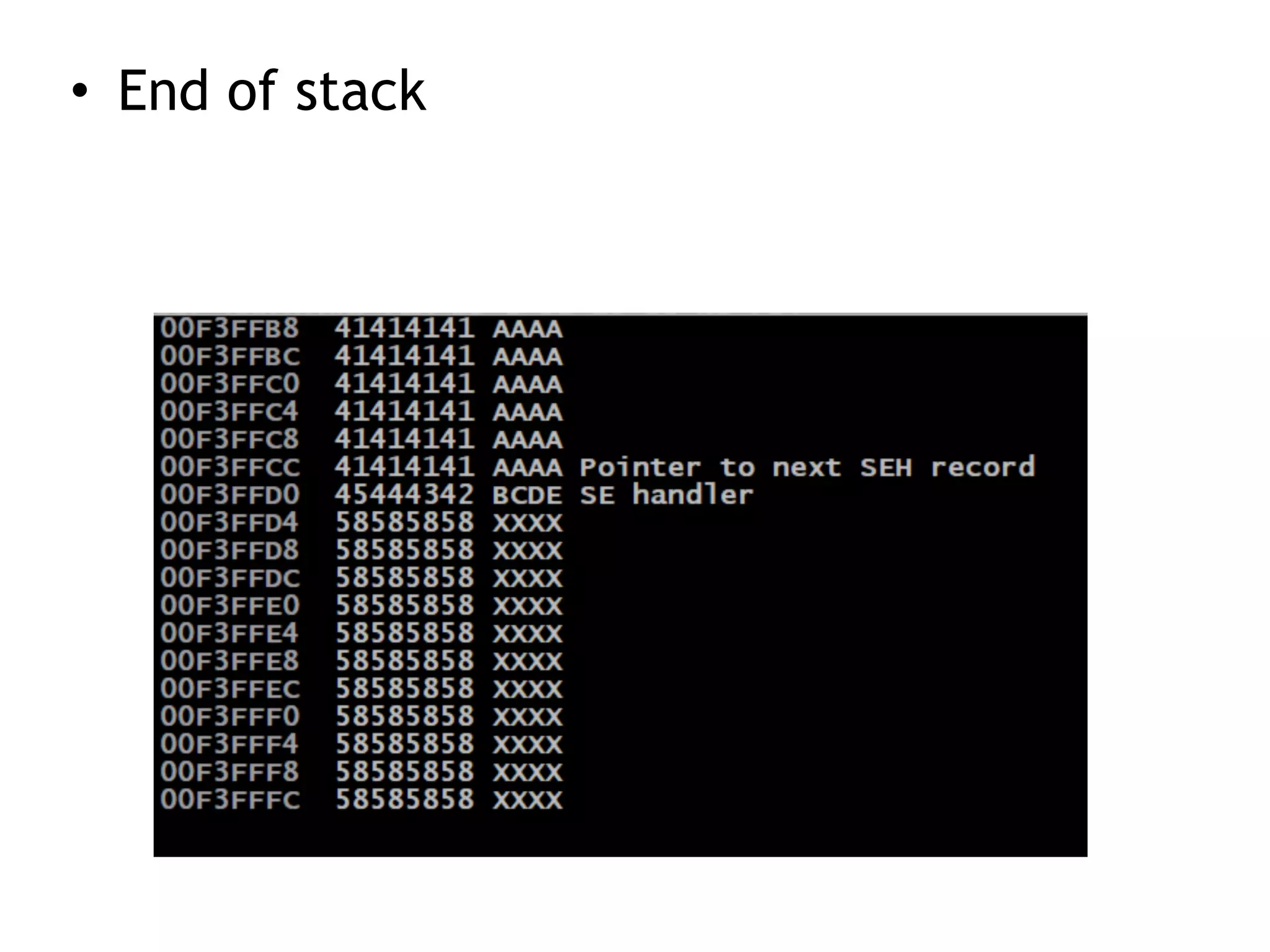

- 5. • End ofstack
- 6. CNIT 127: ExploitDevelopment Ch 18: Source Code Auditing Updated 5-17-22

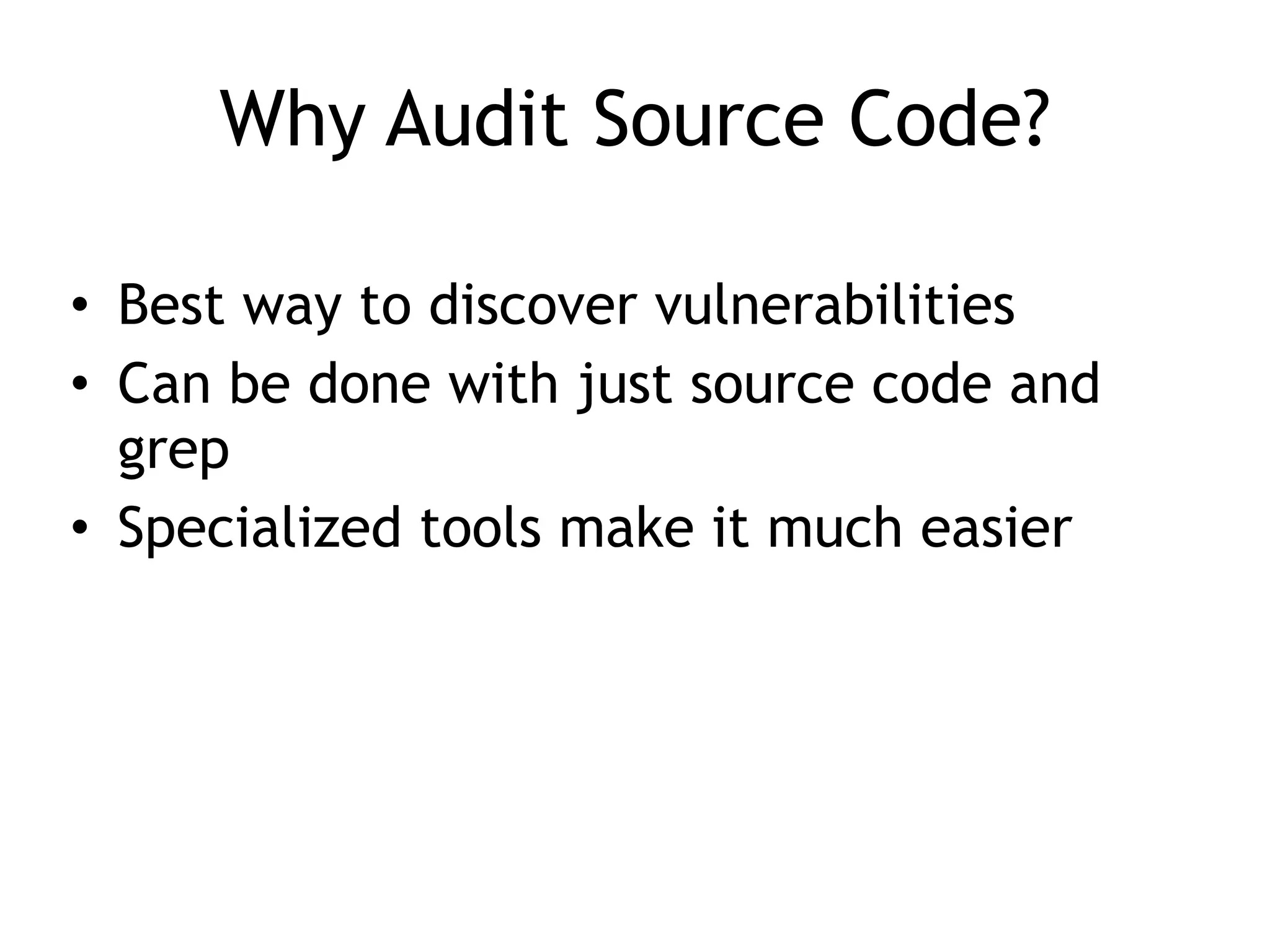

- 7. Why Audit SourceCode? • Best way to discover vulnerabilities • Can be done with just source code and grep • Specialized tools make it much easier

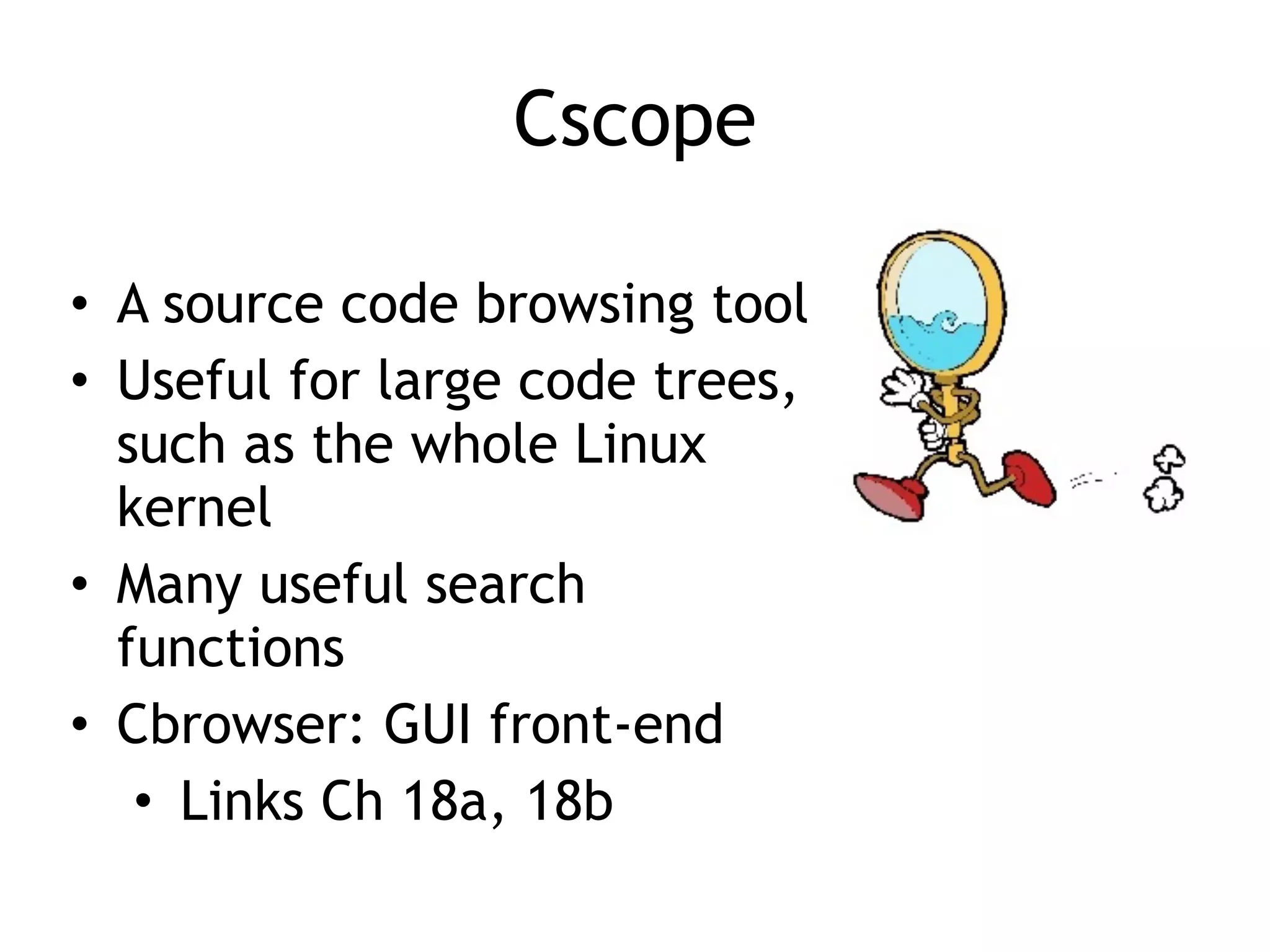

- 8. Cscope • A sourcecode browsing tool • Useful for large code trees, such as the whole Linux kernel • Many useful search functions • Cbrowser: GUI front-end • Links Ch 18a, 18b

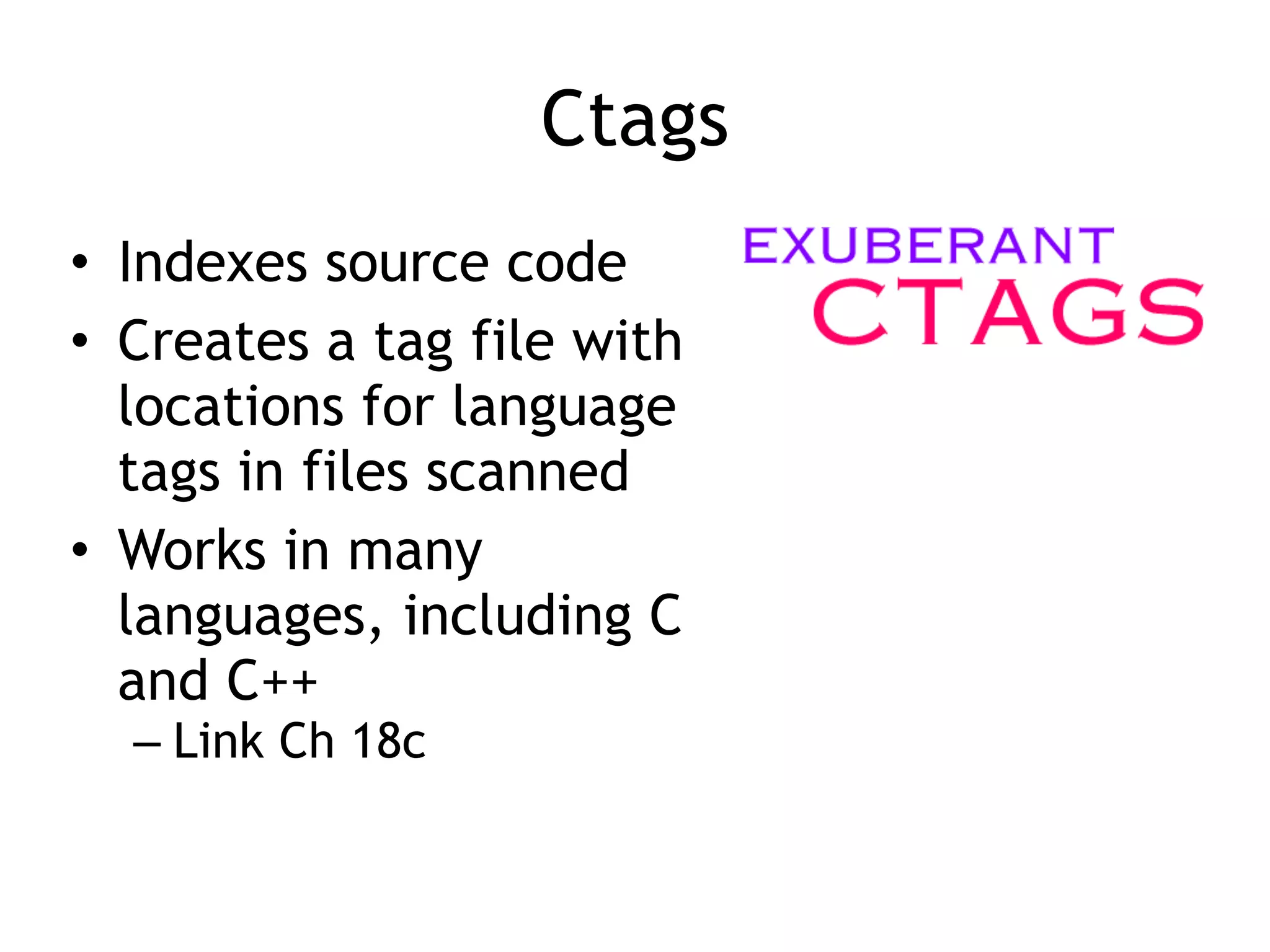

- 9. Ctags • Indexes sourcecode • Creates a tag file with locations for language tags in files scanned • Works in many languages, including C and C++ – Link Ch 18c

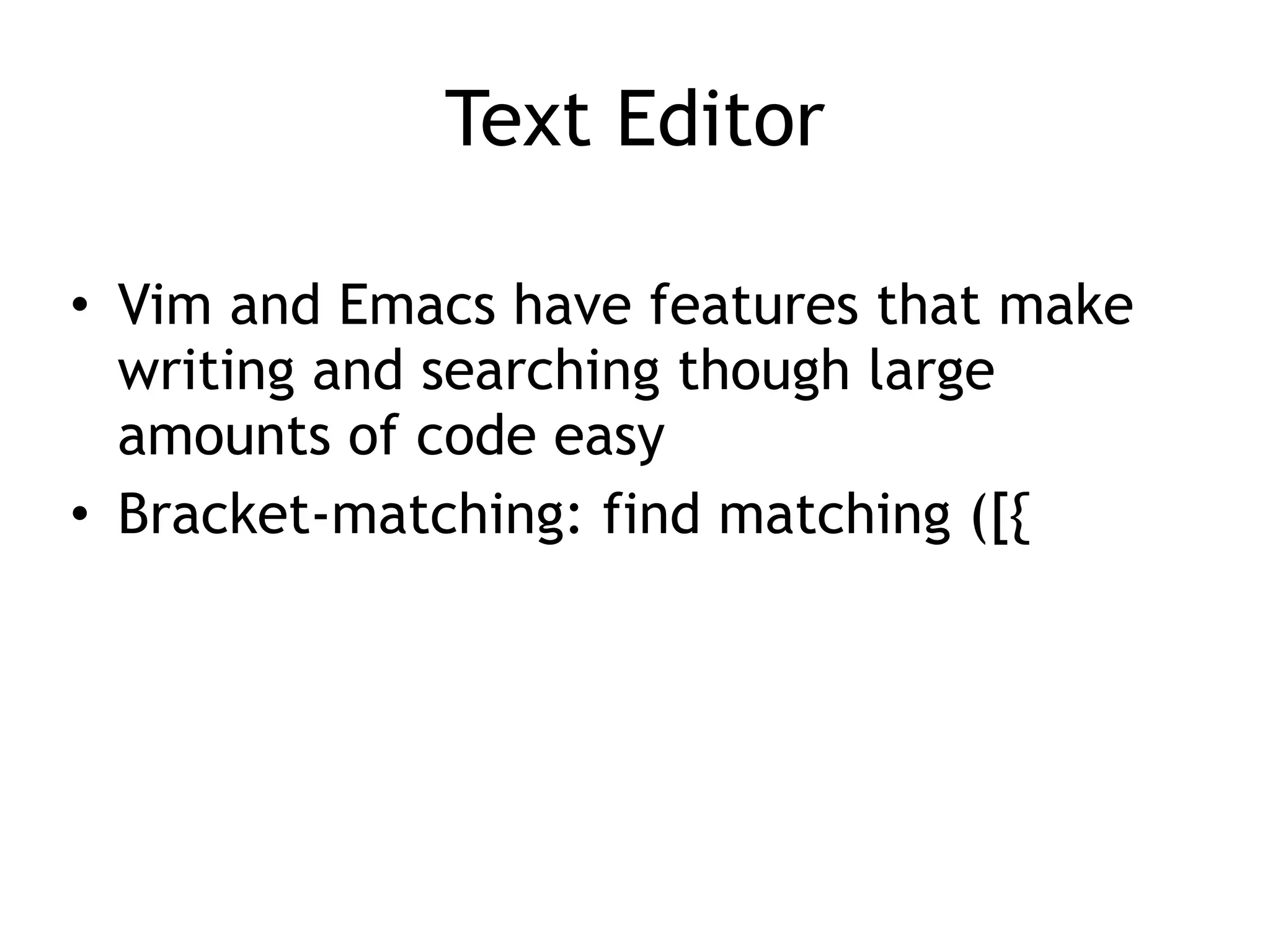

- 10. Text Editor • Vimand Emacs have features that make writing and searching though large amounts of code easy • Bracket-matching: find matching ([{

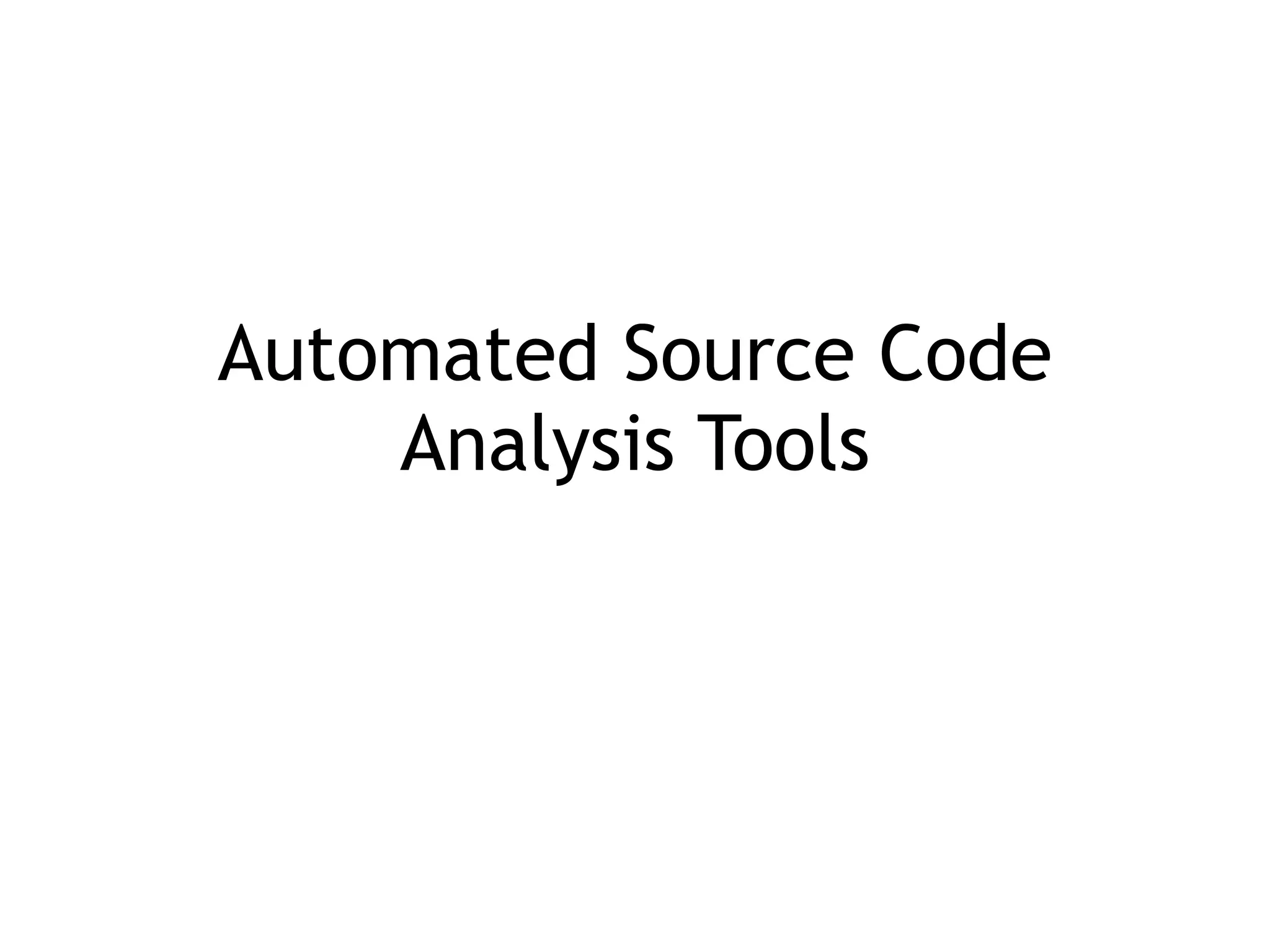

- 11.

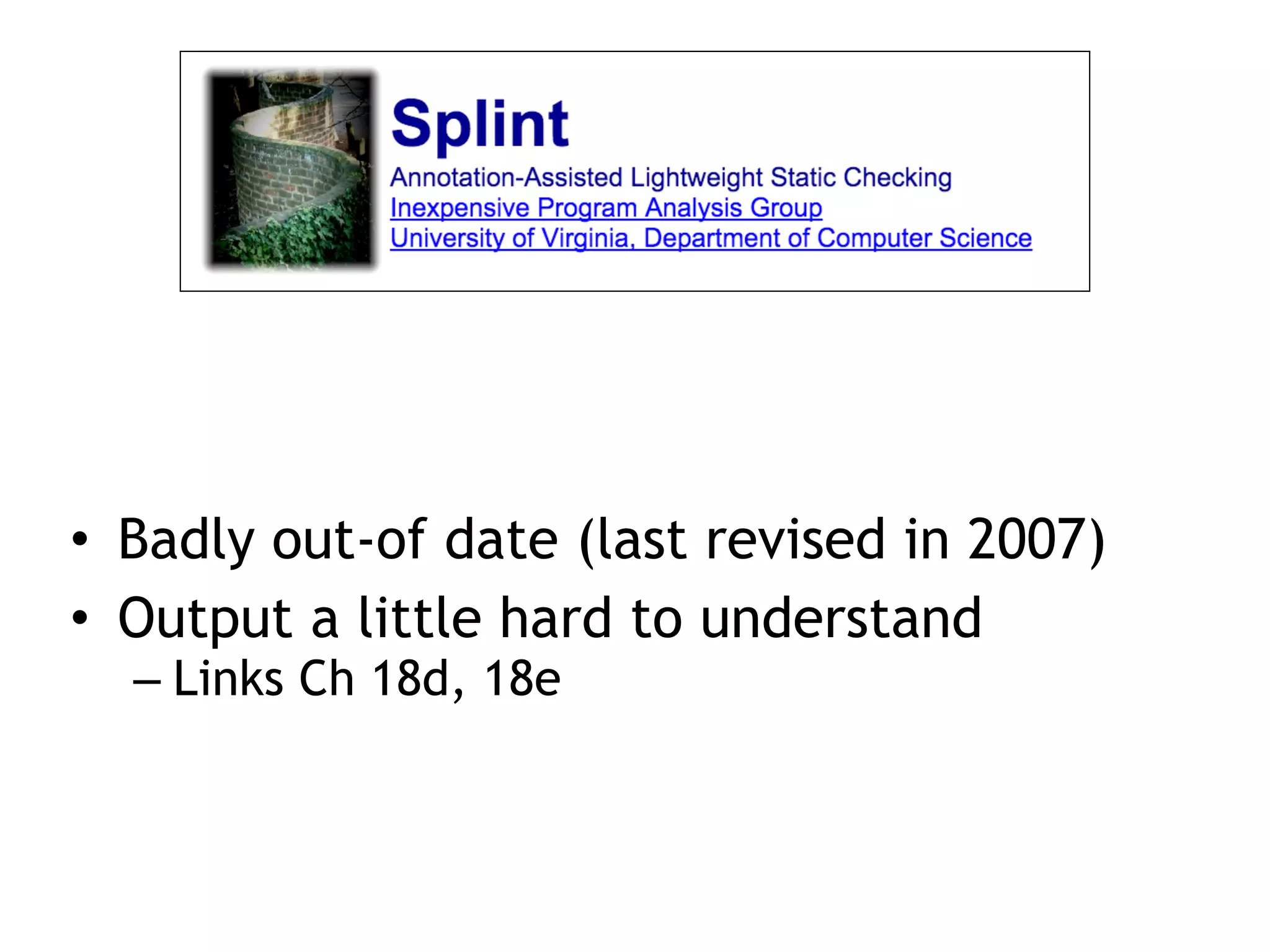

- 12. • Badly out-ofdate (last revised in 2007) • Output a little hard to understand – Links Ch 18d, 18e

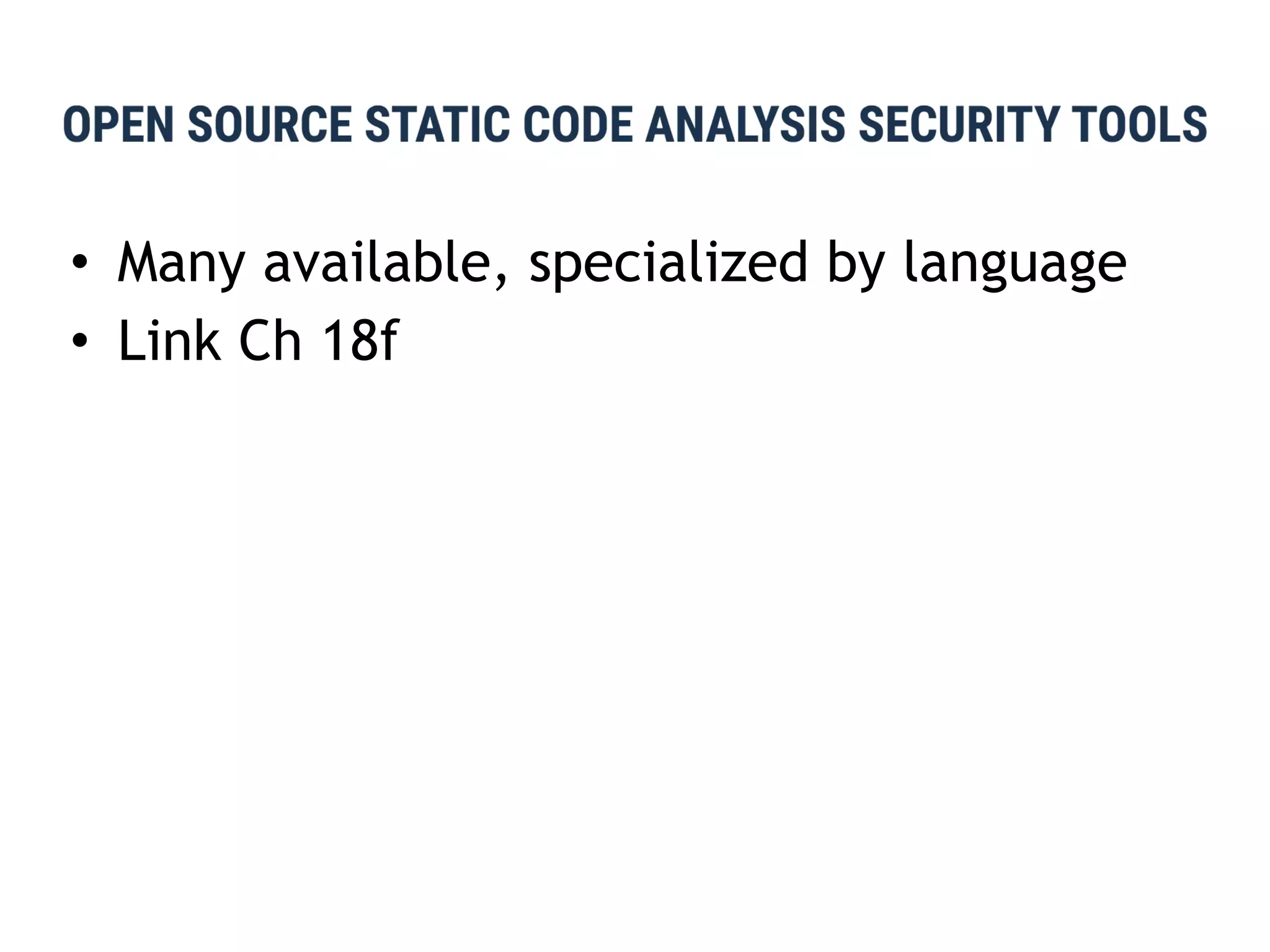

- 13. • Many available,specialized by language • Link Ch 18f

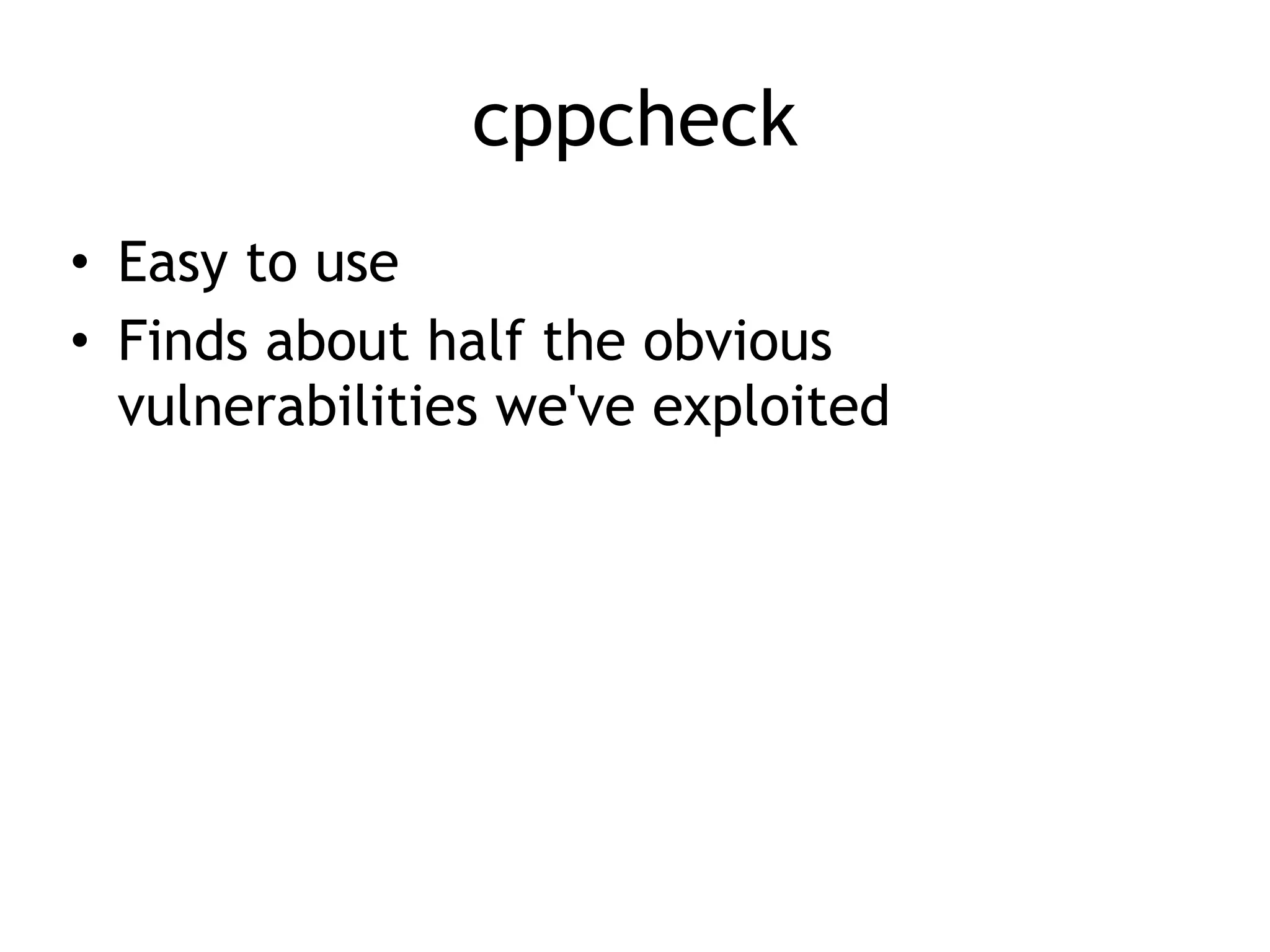

- 14. • Easy touse • Finds about half the obvious vulnerabilities we've exploited cppcheck
- 15.

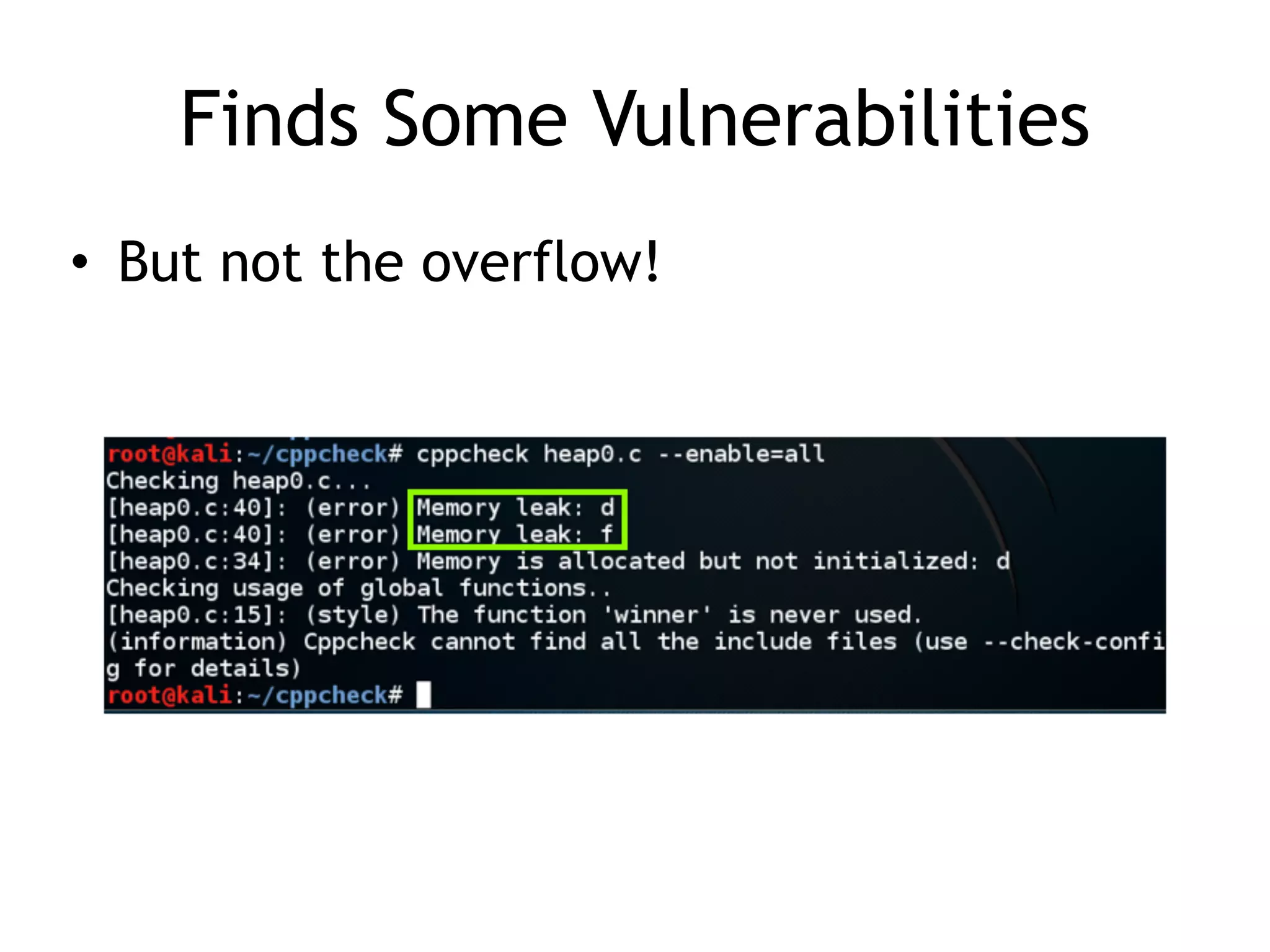

- 16. Finds Some Vulnerabilities •But not the overflow!

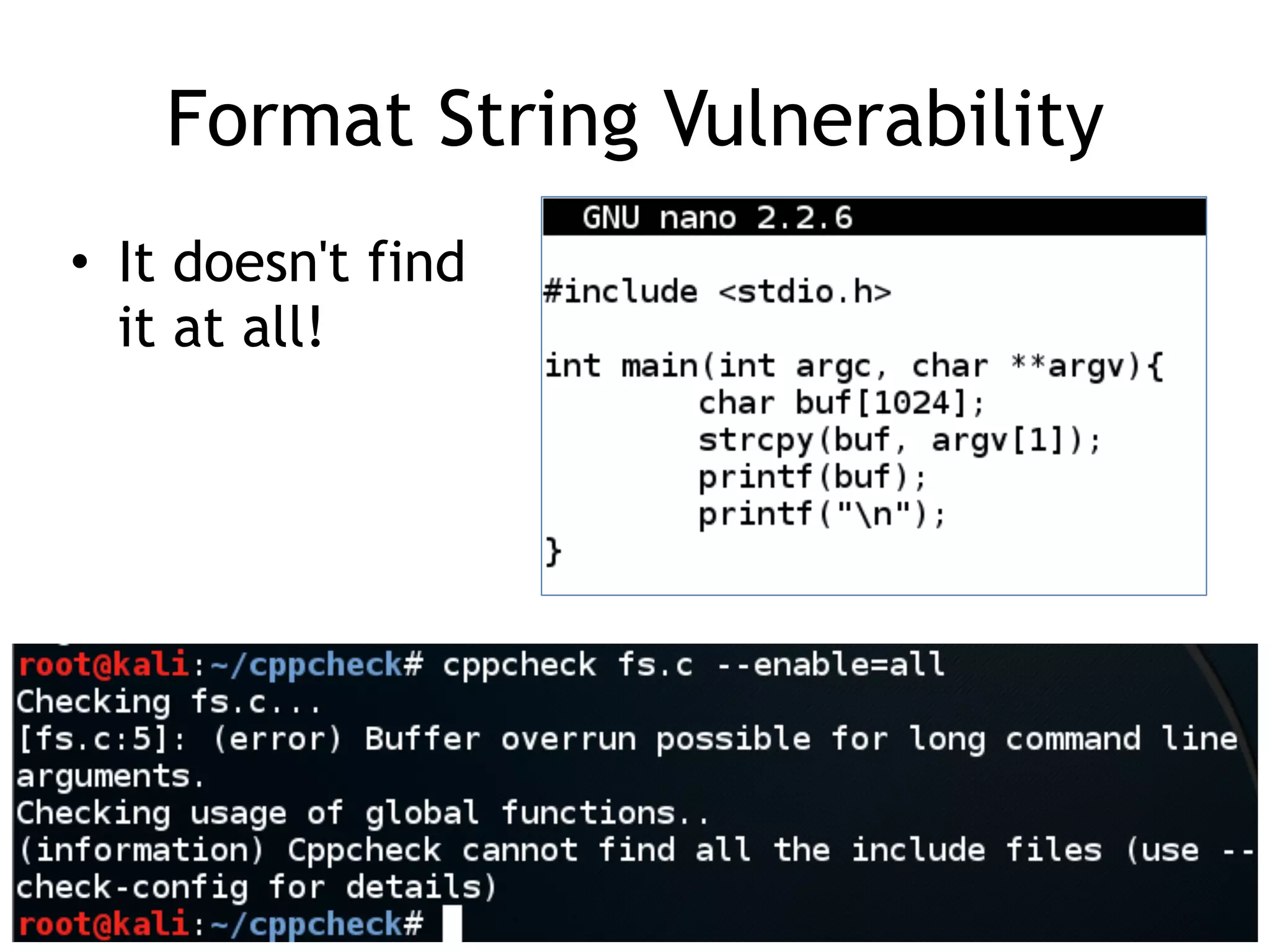

- 17. Format String Vulnerability •It doesn't find it at all!

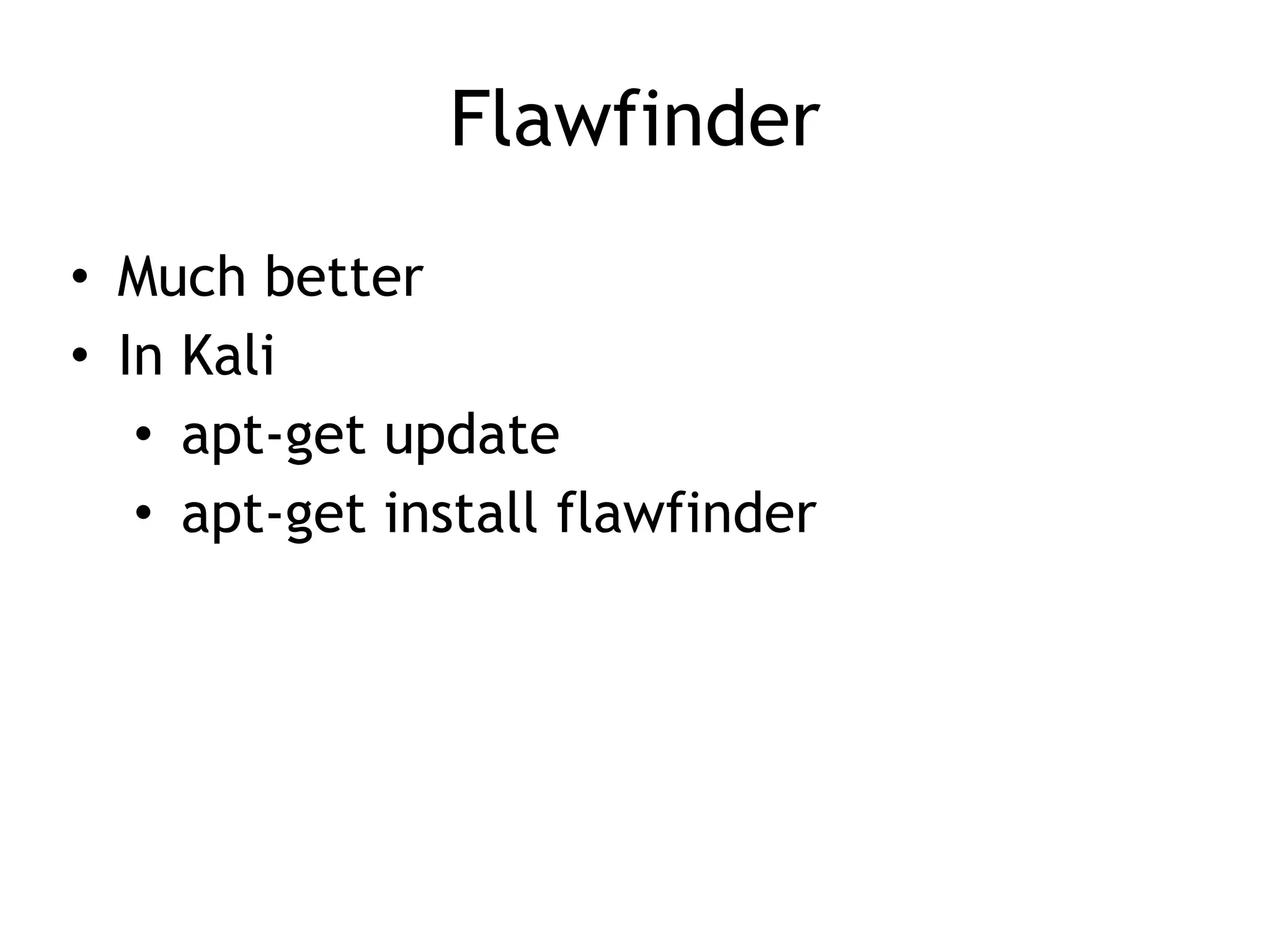

- 18. Flawfinder • Much better •In Kali • apt-get update • apt-get install flawfinder

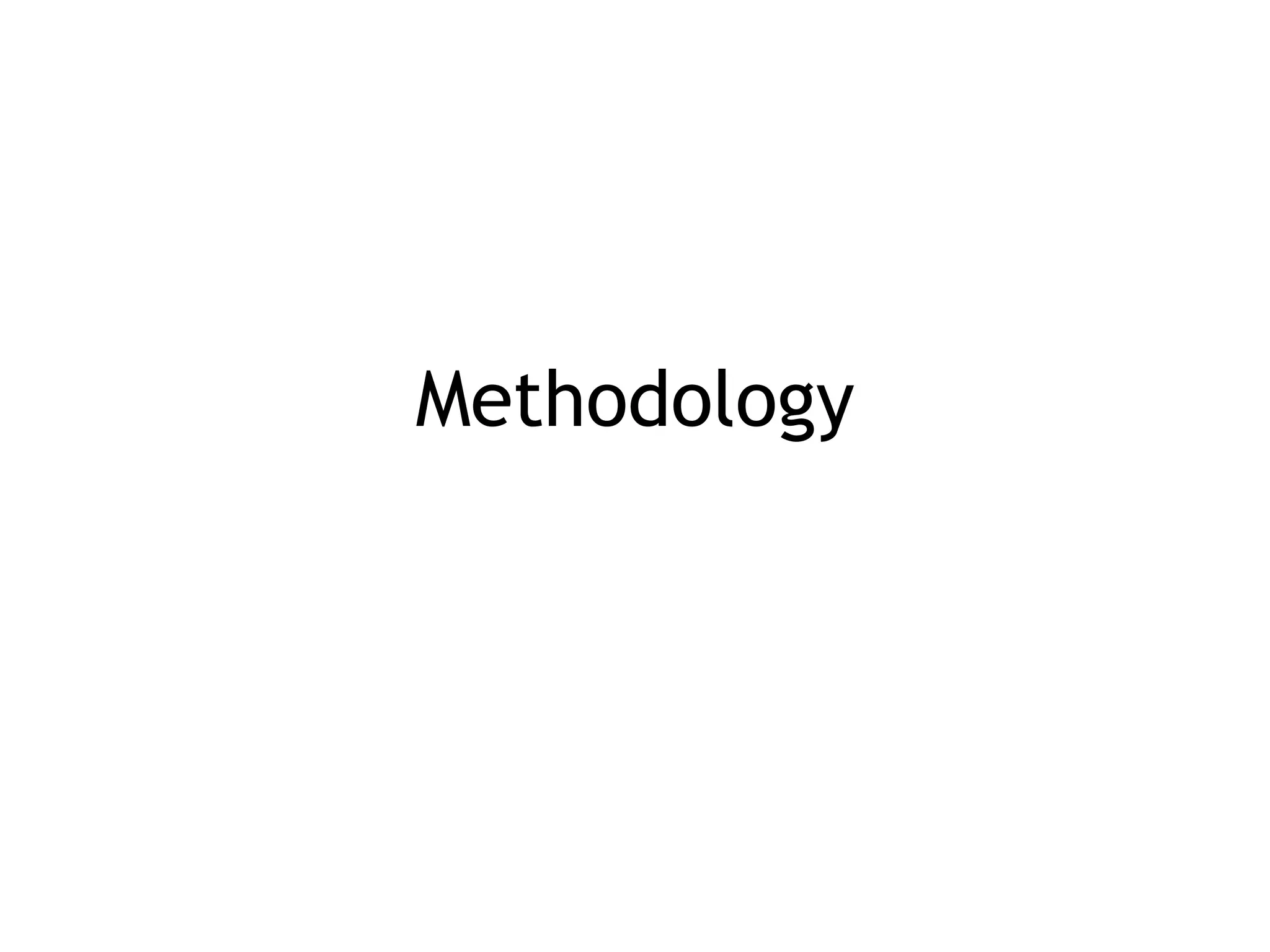

- 19.

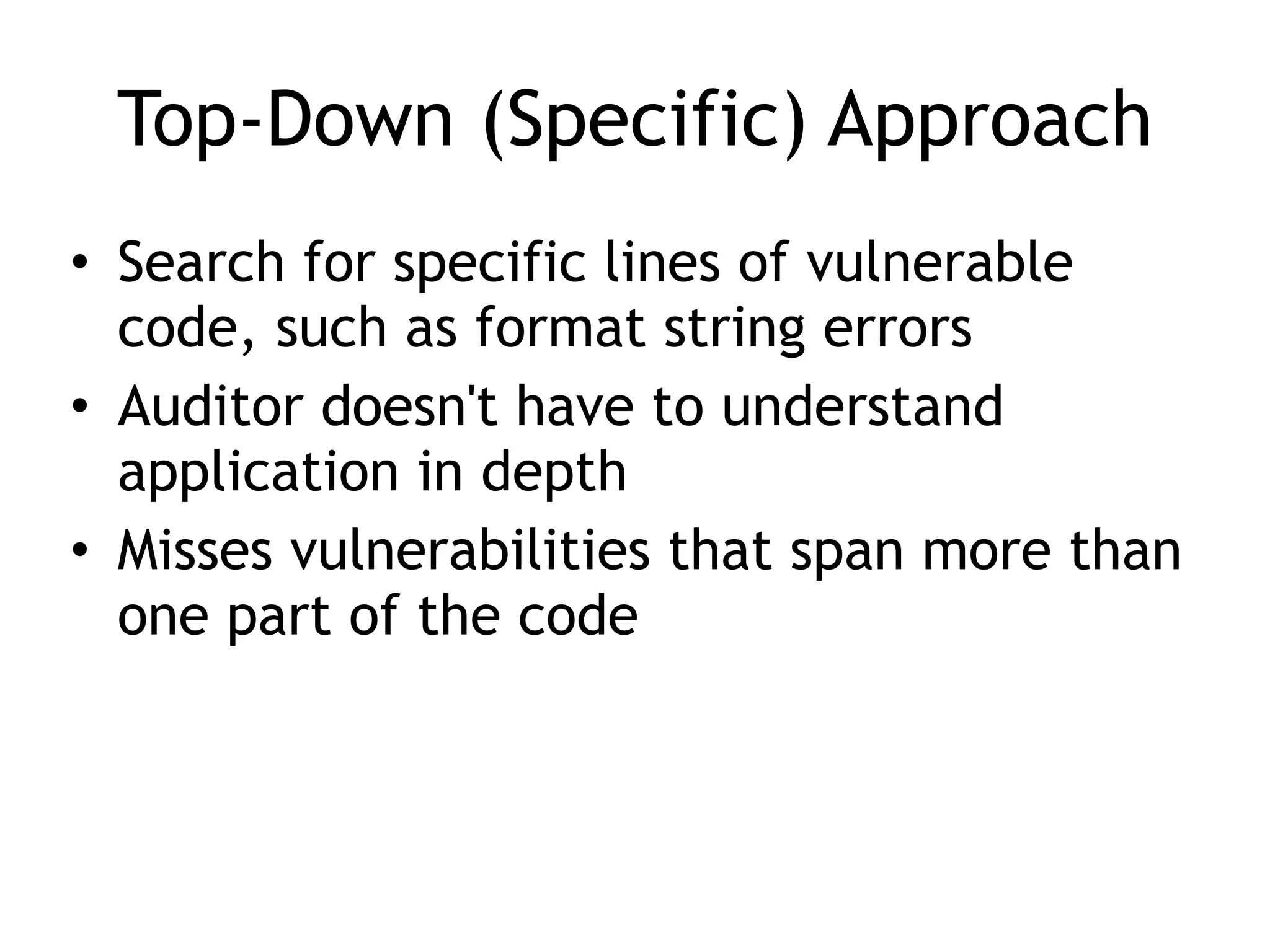

- 20. Top-Down (Specific) Approach •Search for specific lines of vulnerable code, such as format string errors • Auditor doesn't have to understand application in depth • Misses vulnerabilities that span more than one part of the code

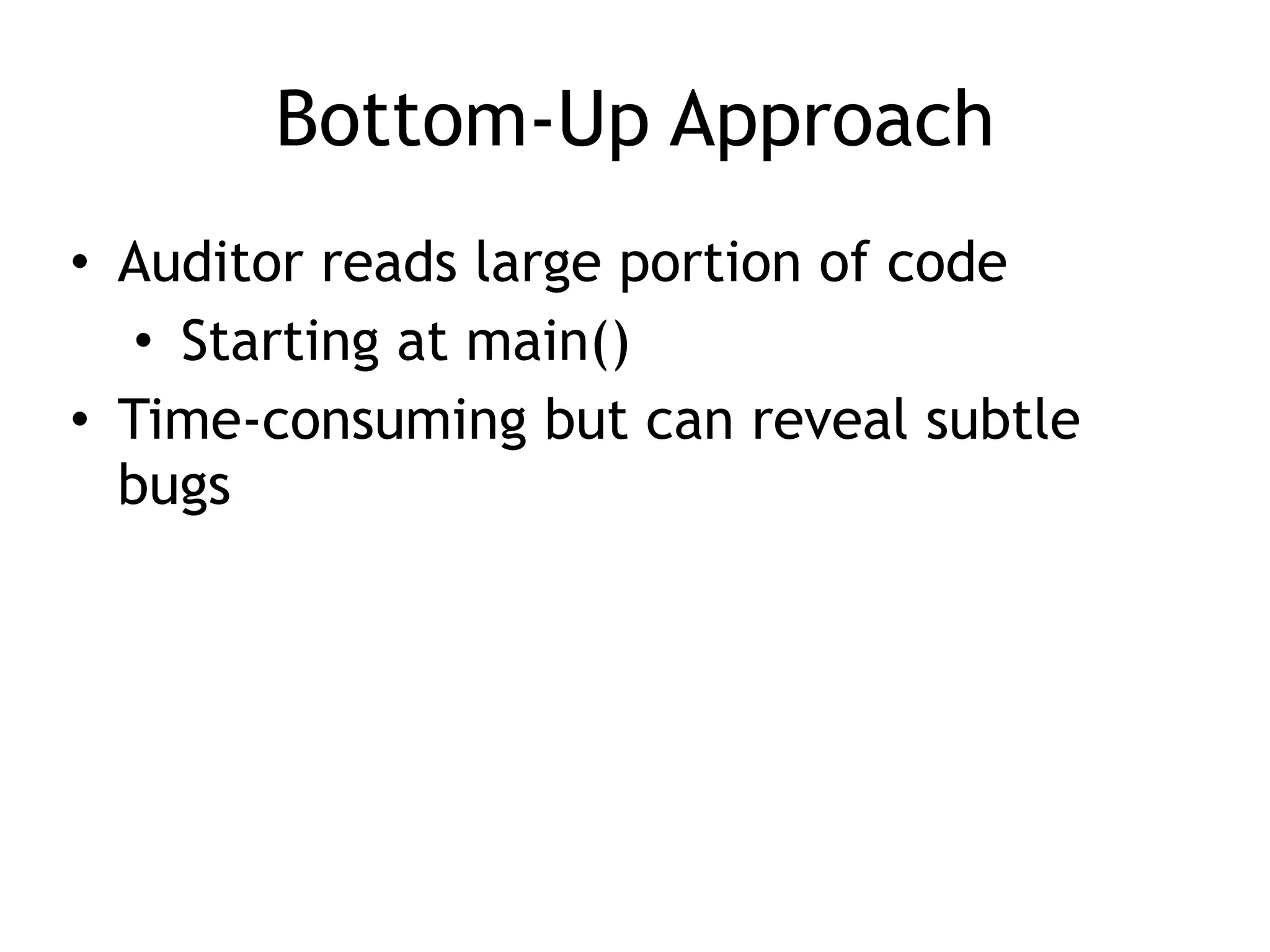

- 21. Bottom-Up Approach • Auditorreads large portion of code • Starting at main() • Time-consuming but can reveal subtle bugs

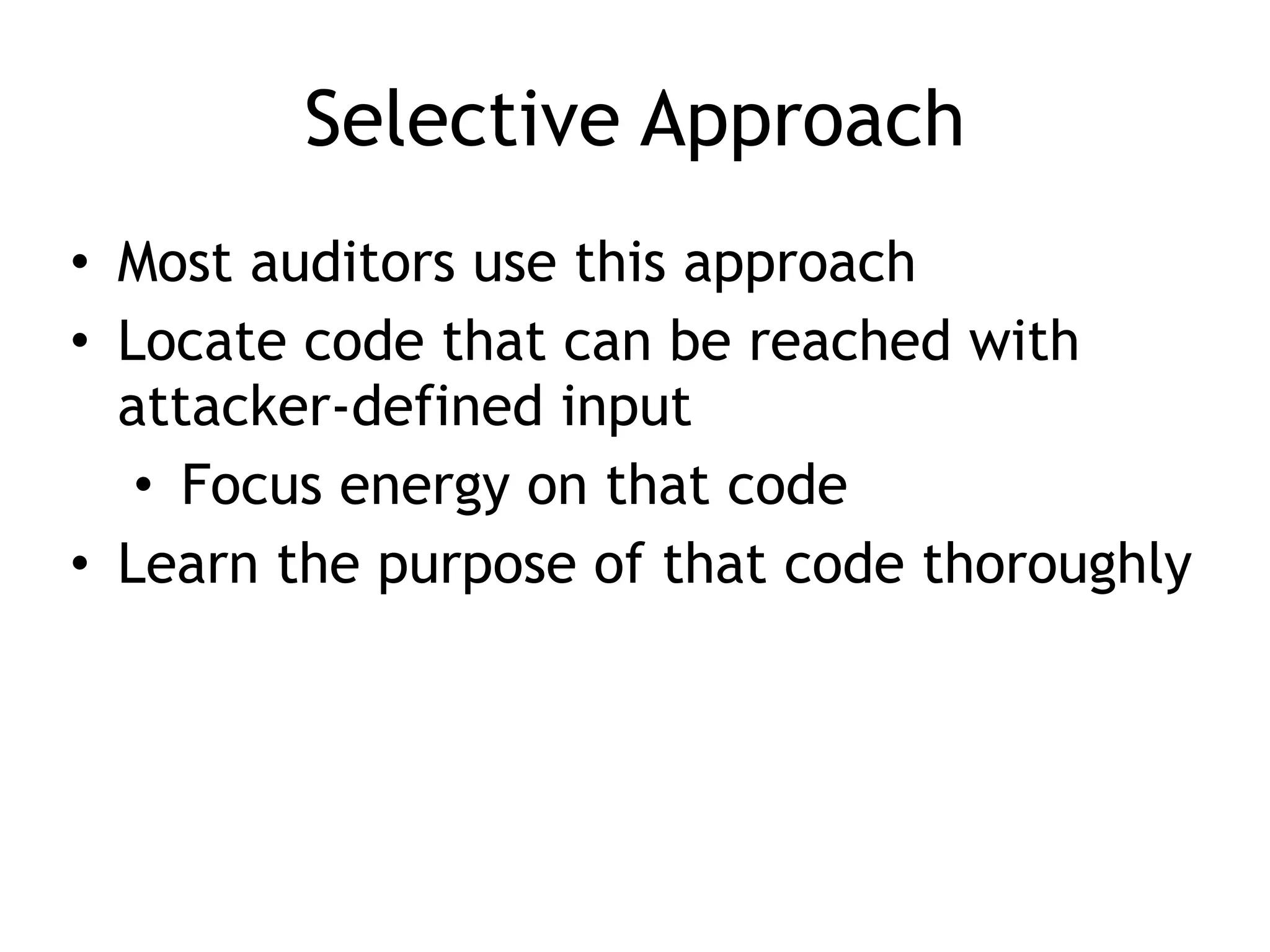

- 22. Selective Approach • Mostauditors use this approach • Locate code that can be reached with attacker-defined input • Focus energy on that code • Learn the purpose of that code thoroughly
- 23.

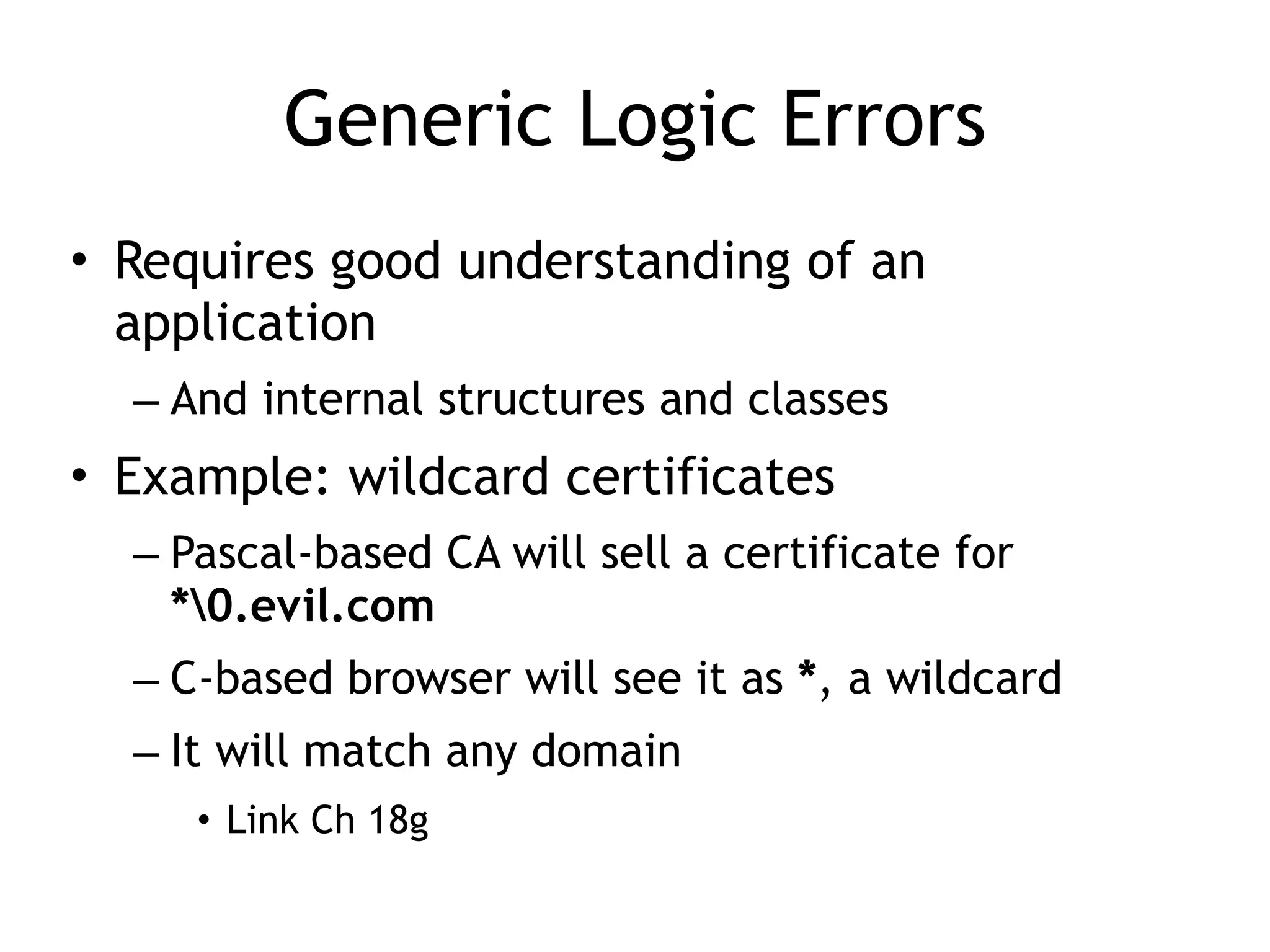

- 24. Generic Logic Errors •Requires good understanding of an application – And internal structures and classes • Example: wildcard certificates – Pascal-based CA will sell a certificate for *0.evil.com – C-based browser will see it as *, a wildcard – It will match any domain • Link Ch 18g

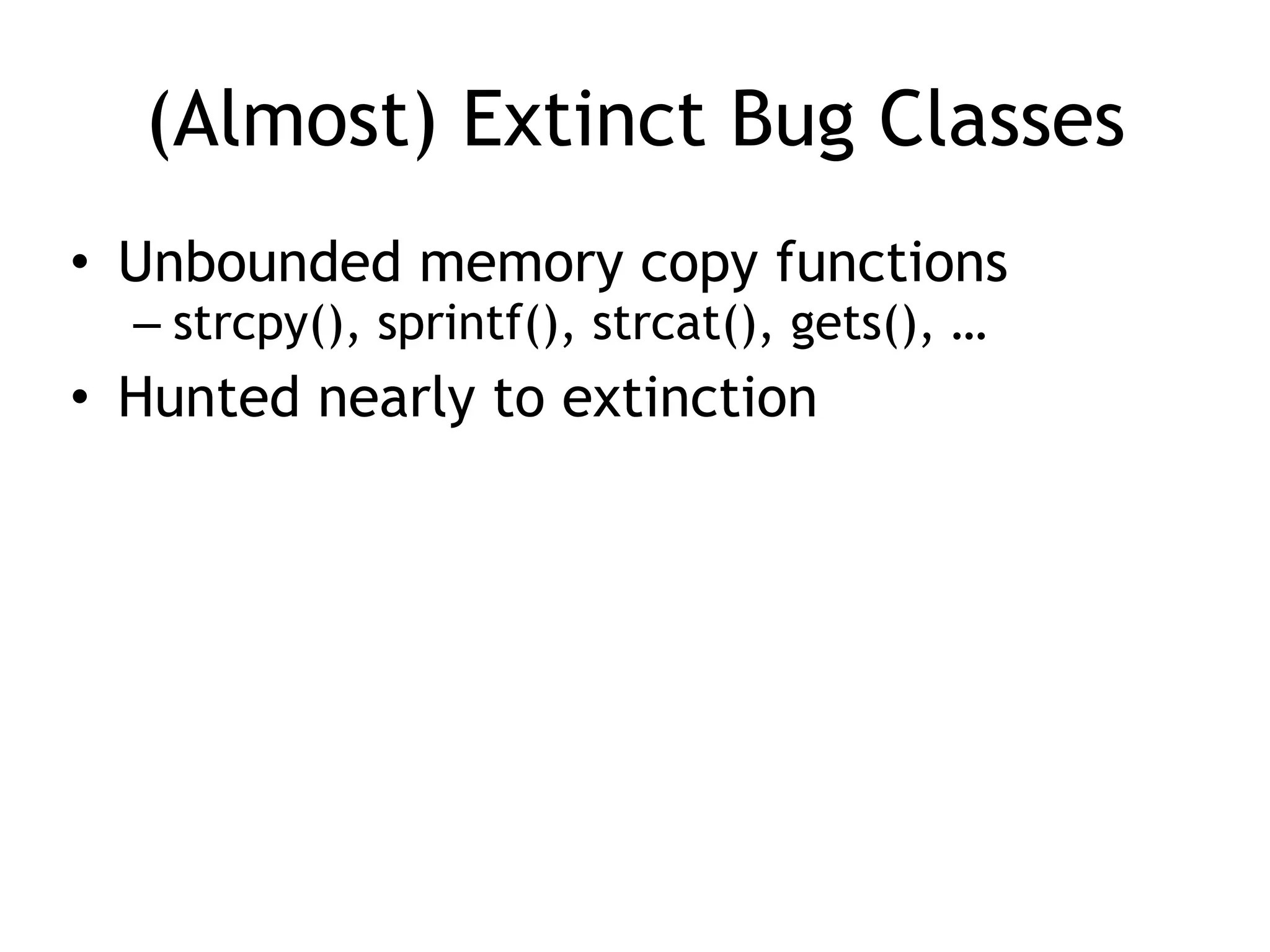

- 25. (Almost) Extinct BugClasses • Unbounded memory copy functions – strcpy(), sprintf(), strcat(), gets(), … • Hunted nearly to extinction

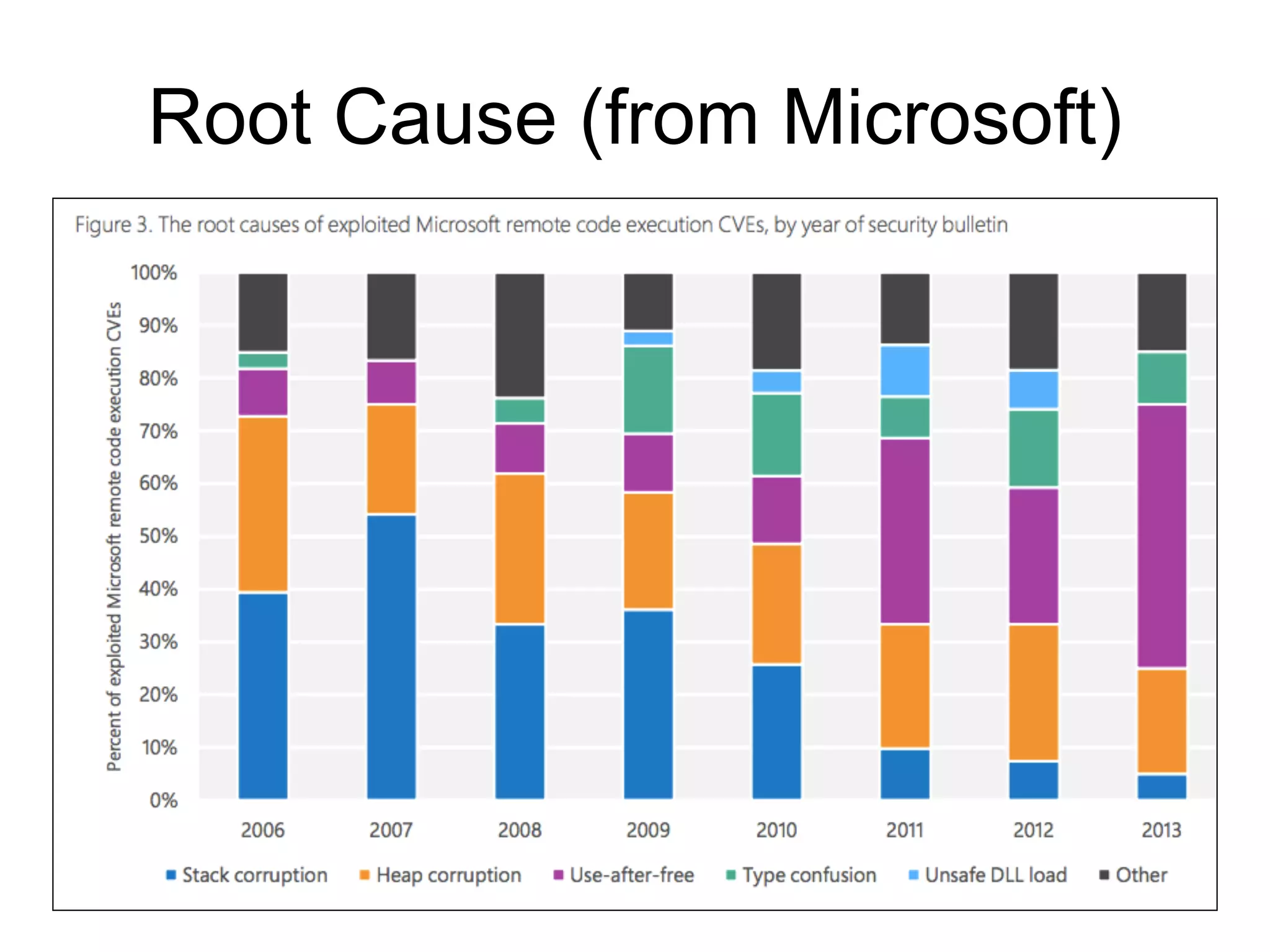

- 26. Root Cause (fromMicrosoft)
- 27.

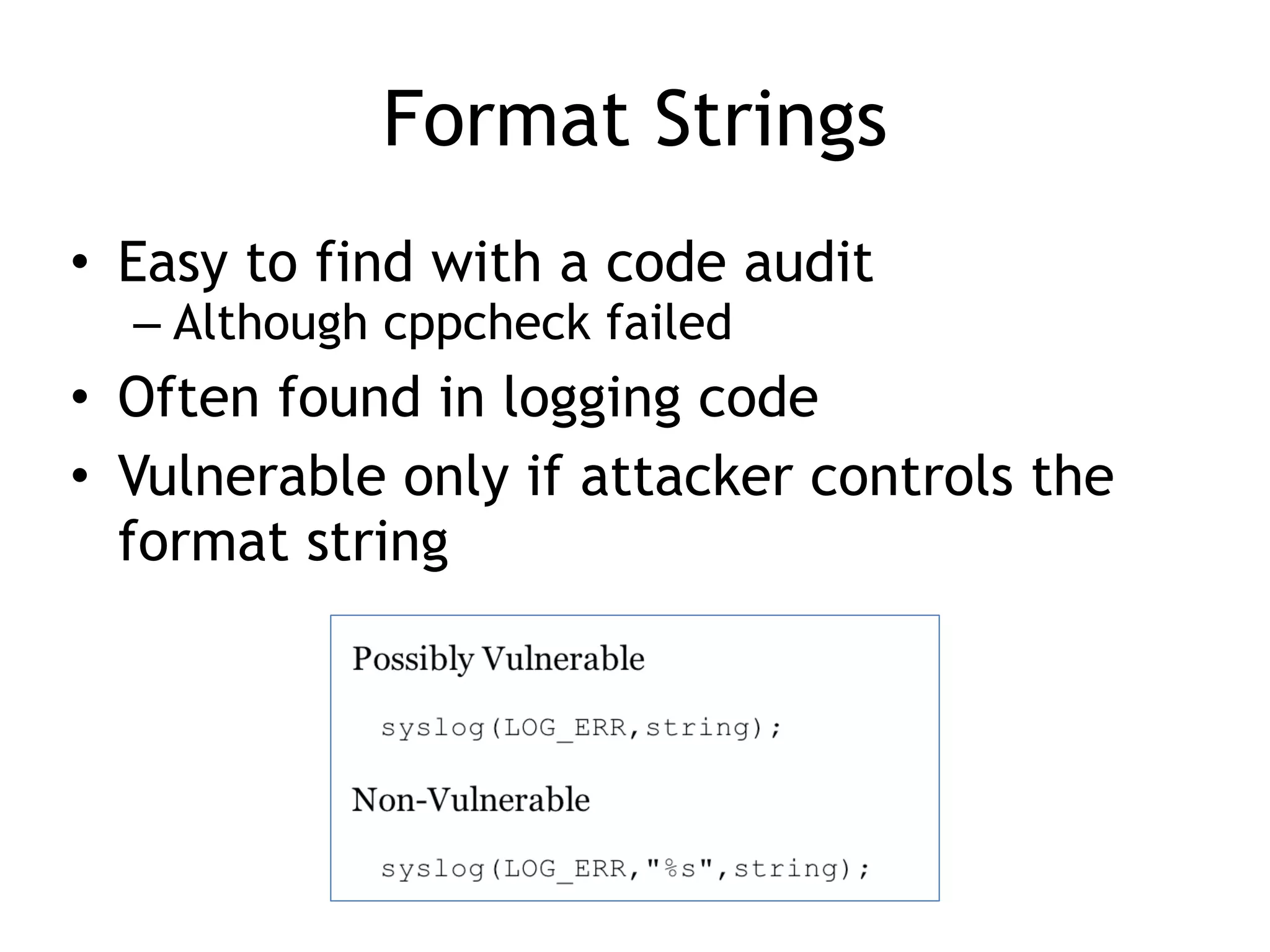

- 28. Format Strings • Easyto find with a code audit – Although cppcheck failed • Often found in logging code • Vulnerable only if attacker controls the format string

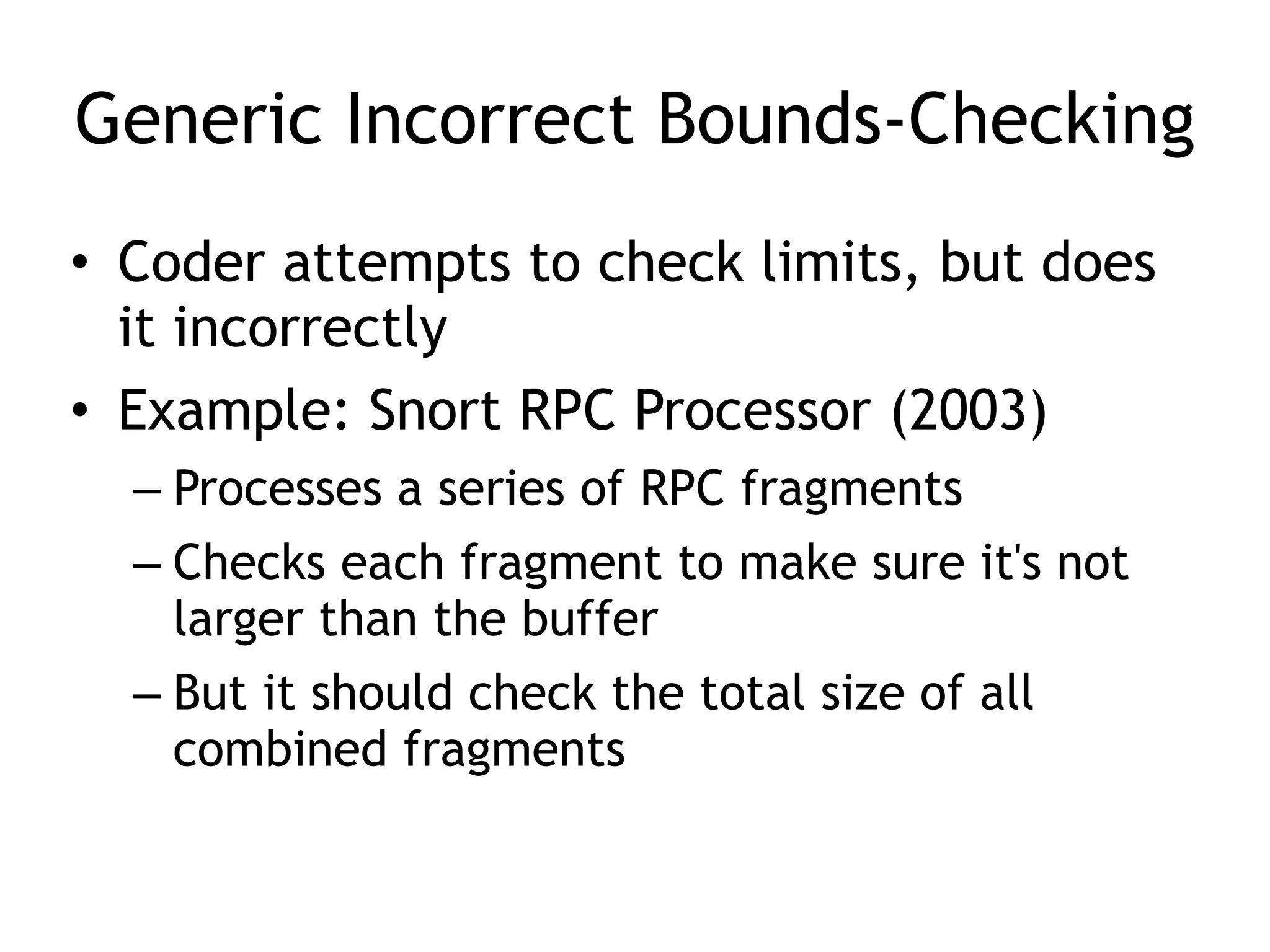

- 29. Generic Incorrect Bounds-Checking •Coder attempts to check limits, but does it incorrectly • Example: Snort RPC Processor (2003) – Processes a series of RPC fragments – Checks each fragment to make sure it's not larger than the buffer – But it should check the total size of all combined fragments

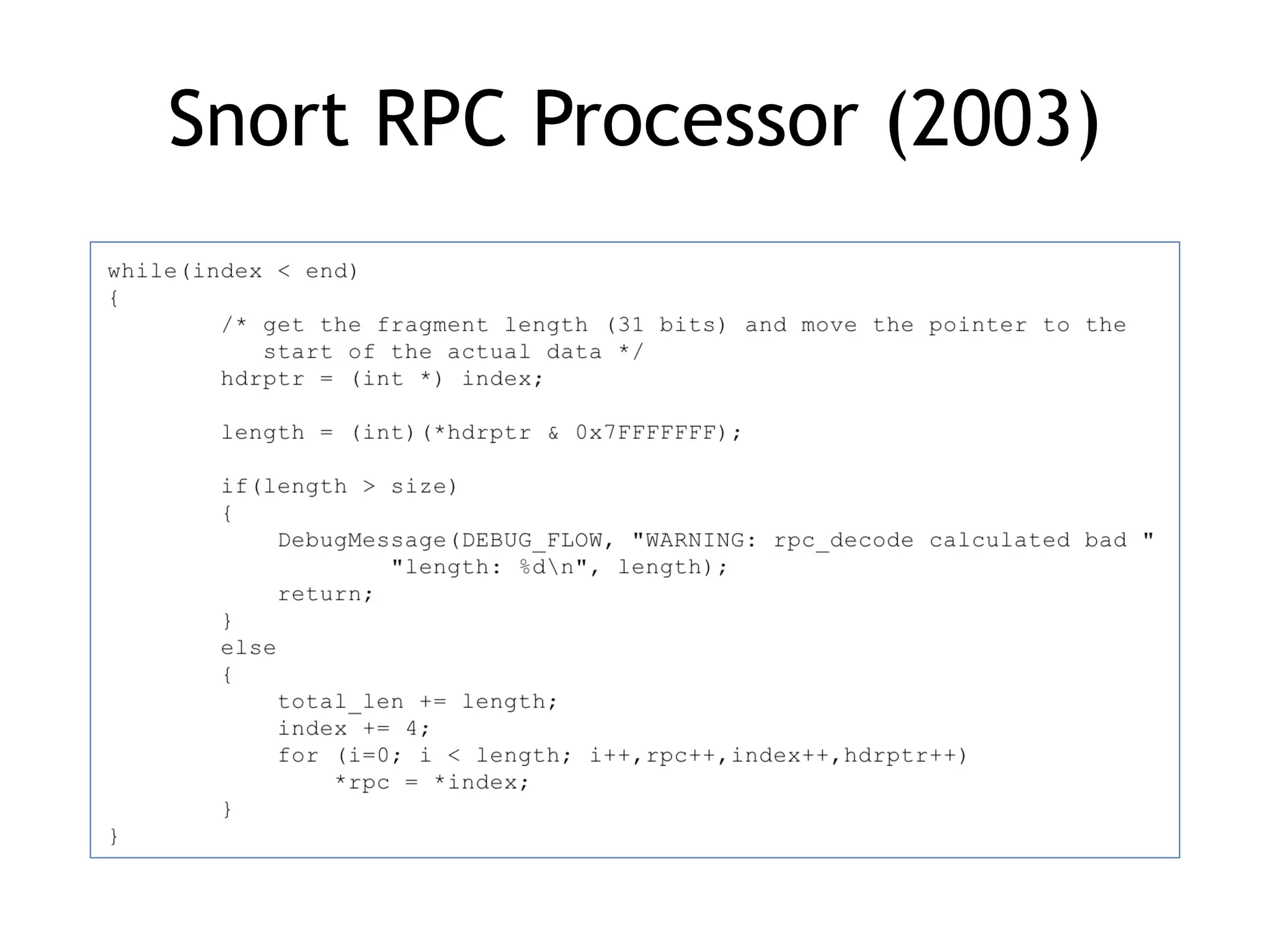

- 30. Snort RPC Processor(2003)

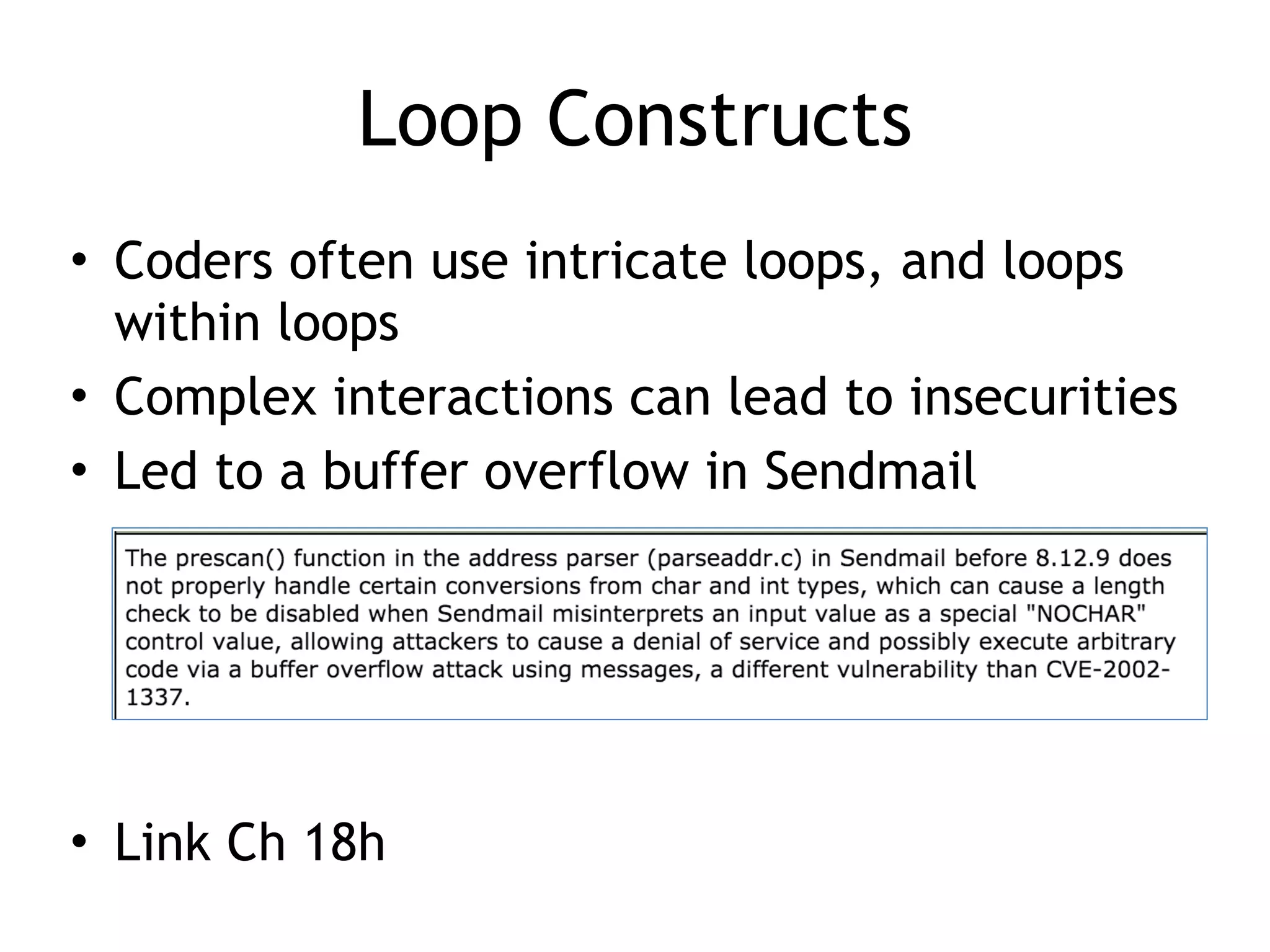

- 31. Loop Constructs • Codersoften use intricate loops, and loops within loops • Complex interactions can lead to insecurities • Led to a buffer overflow in Sendmail • Link Ch 18h
- 32.

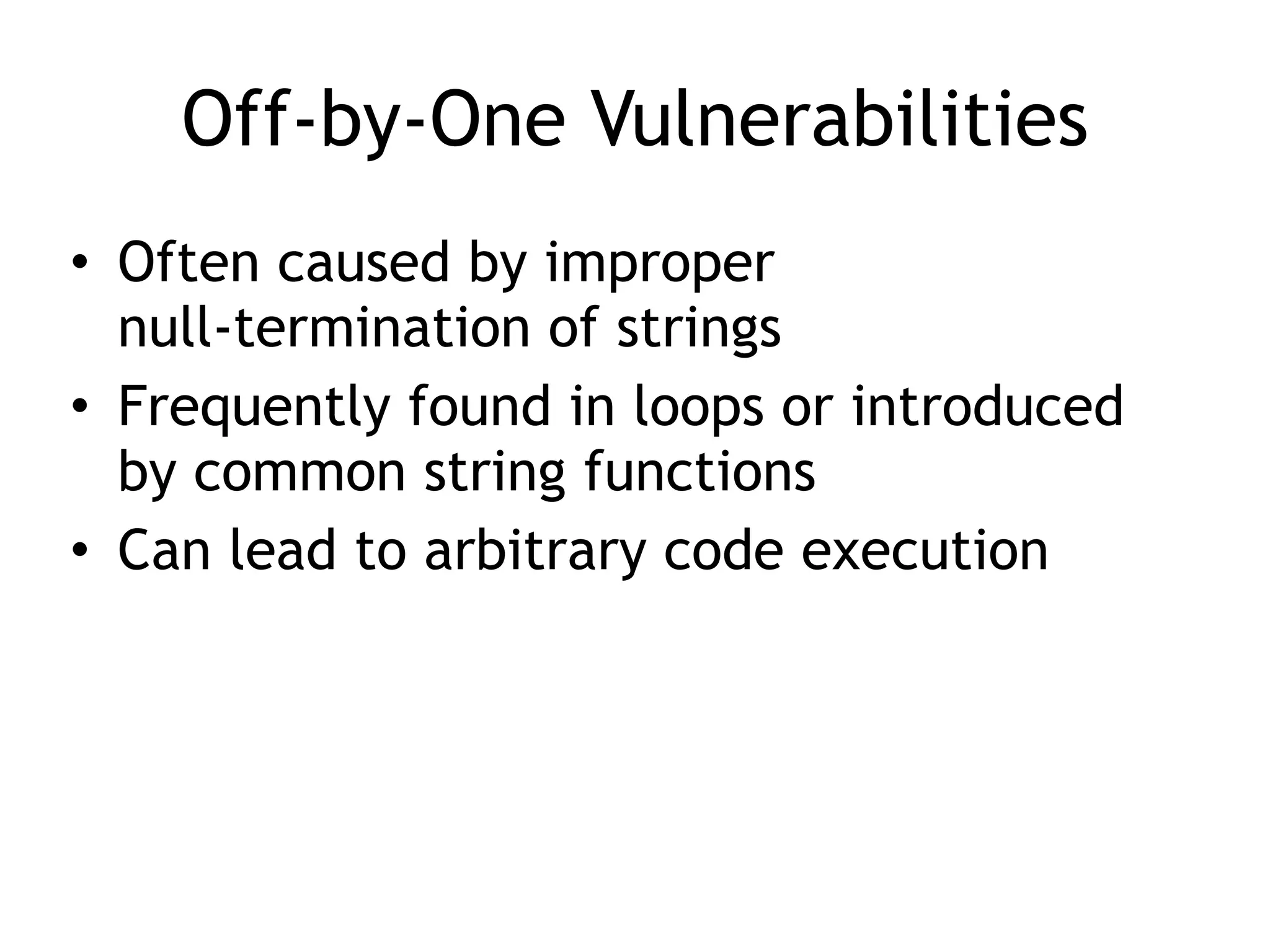

- 33. Off-by-One Vulnerabilities • Oftencaused by improper null-termination of strings • Frequently found in loops or introduced by common string functions • Can lead to arbitrary code execution

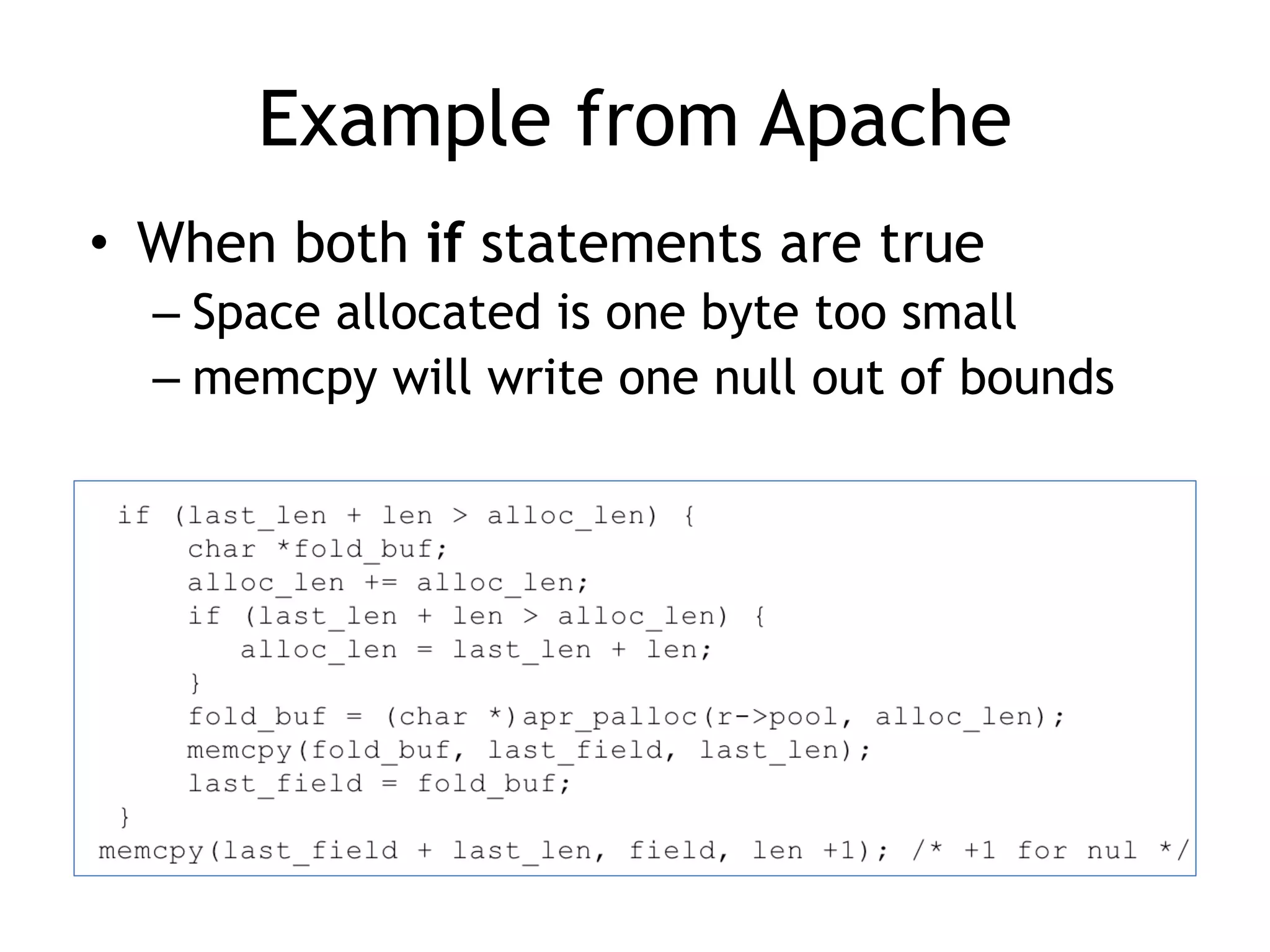

- 34. Example from Apache •When both if statements are true – Space allocated is one byte too small – memcpy will write one null out of bounds

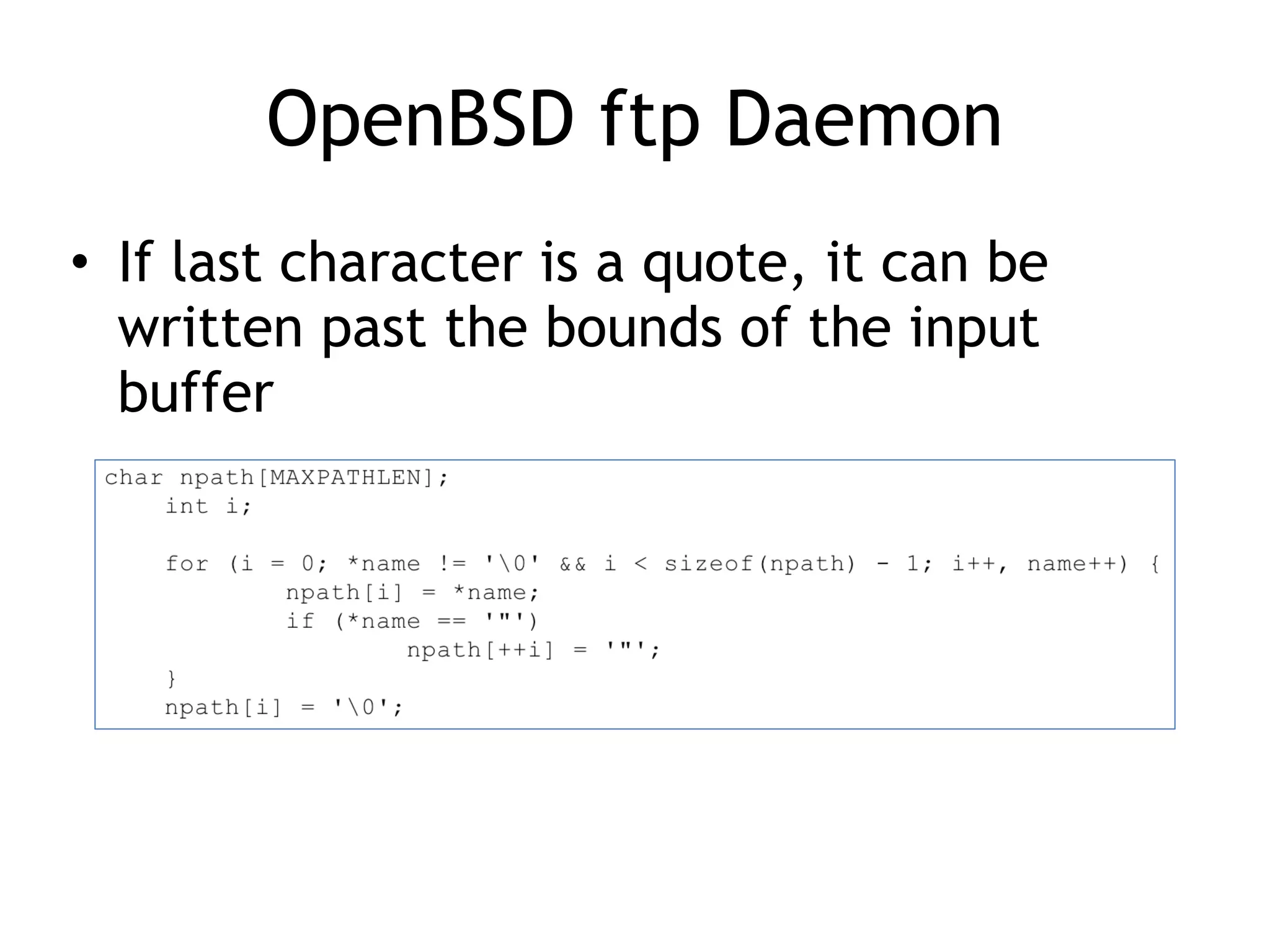

- 35. OpenBSD ftp Daemon •If last character is a quote, it can be written past the bounds of the input buffer

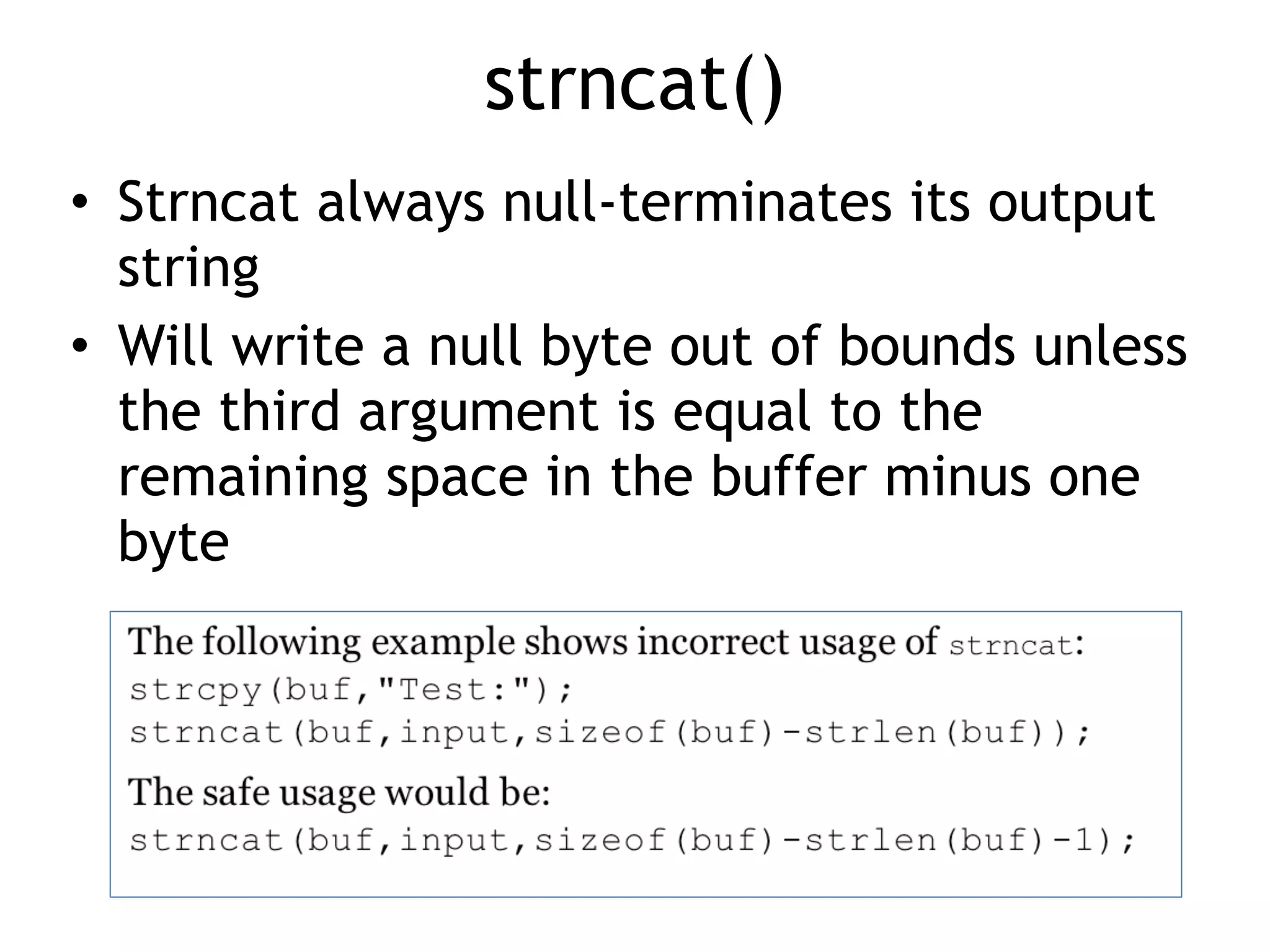

- 36. strncat() • Strncat alwaysnull-terminates its output string • Will write a null byte out of bounds unless the third argument is equal to the remaining space in the buffer minus one byte

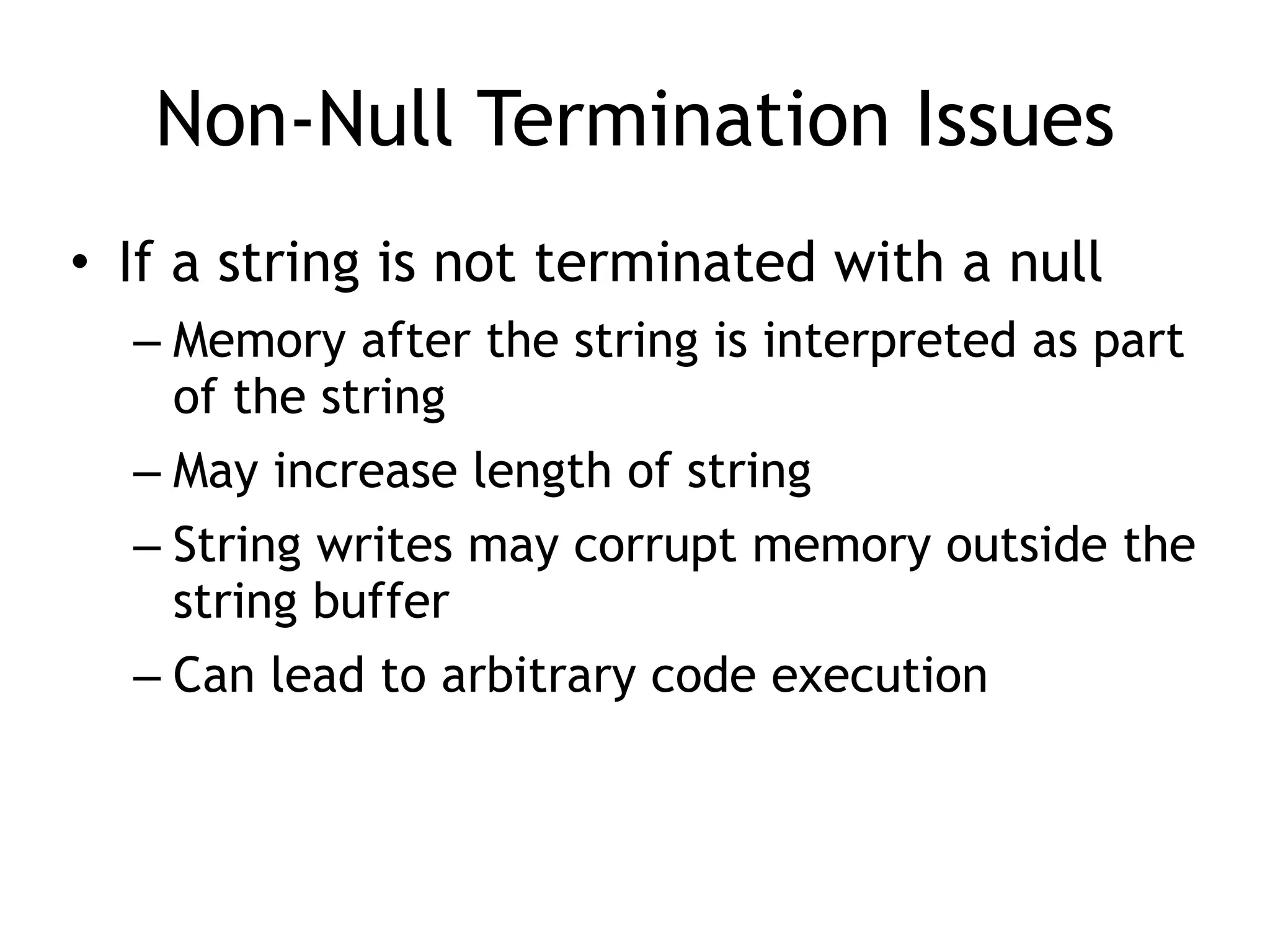

- 37. Non-Null Termination Issues •If a string is not terminated with a null – Memory after the string is interpreted as part of the string – May increase length of string – String writes may corrupt memory outside the string buffer – Can lead to arbitrary code execution

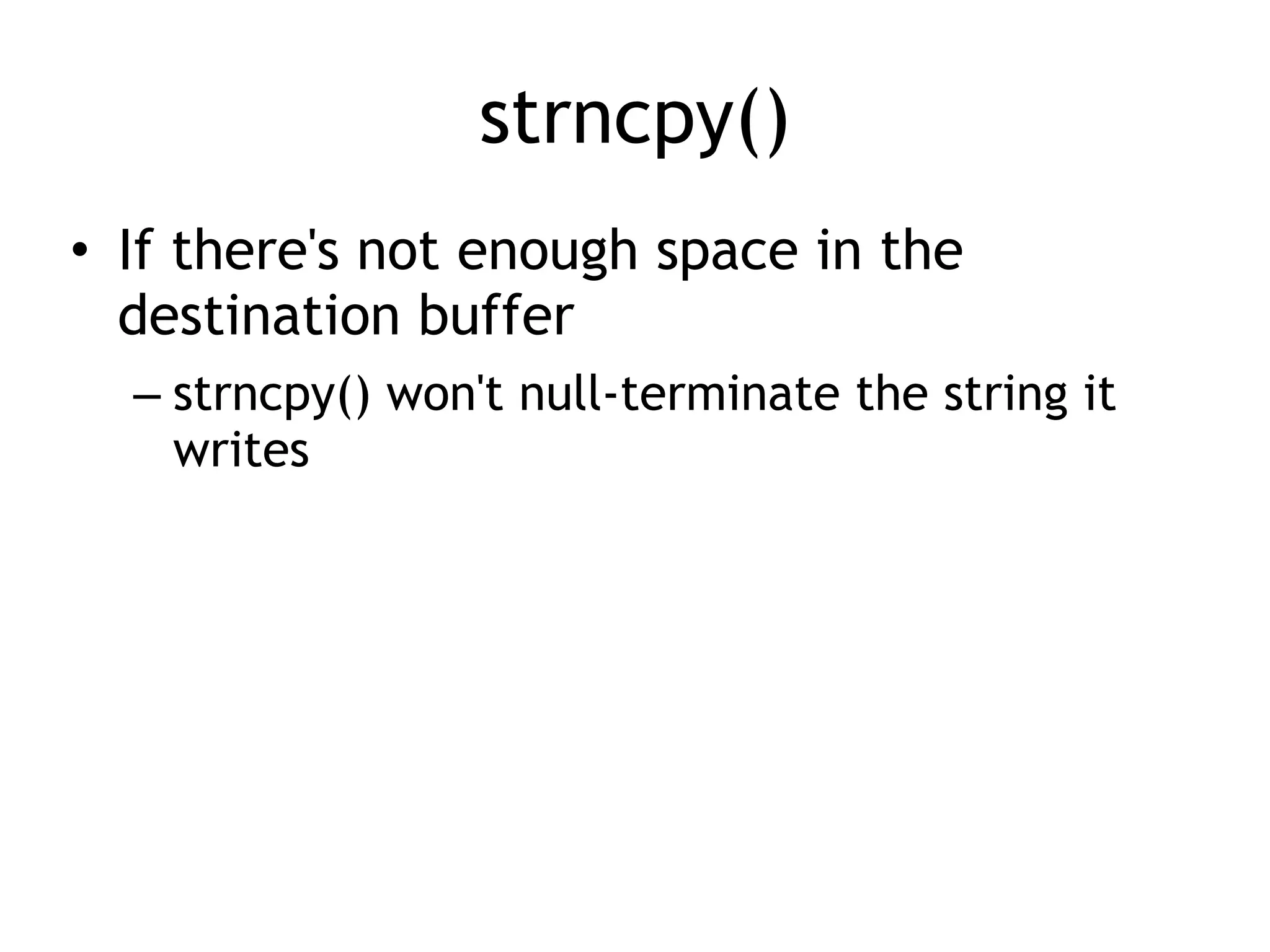

- 38. strncpy() • If there'snot enough space in the destination buffer – strncpy() won't null-terminate the string it writes

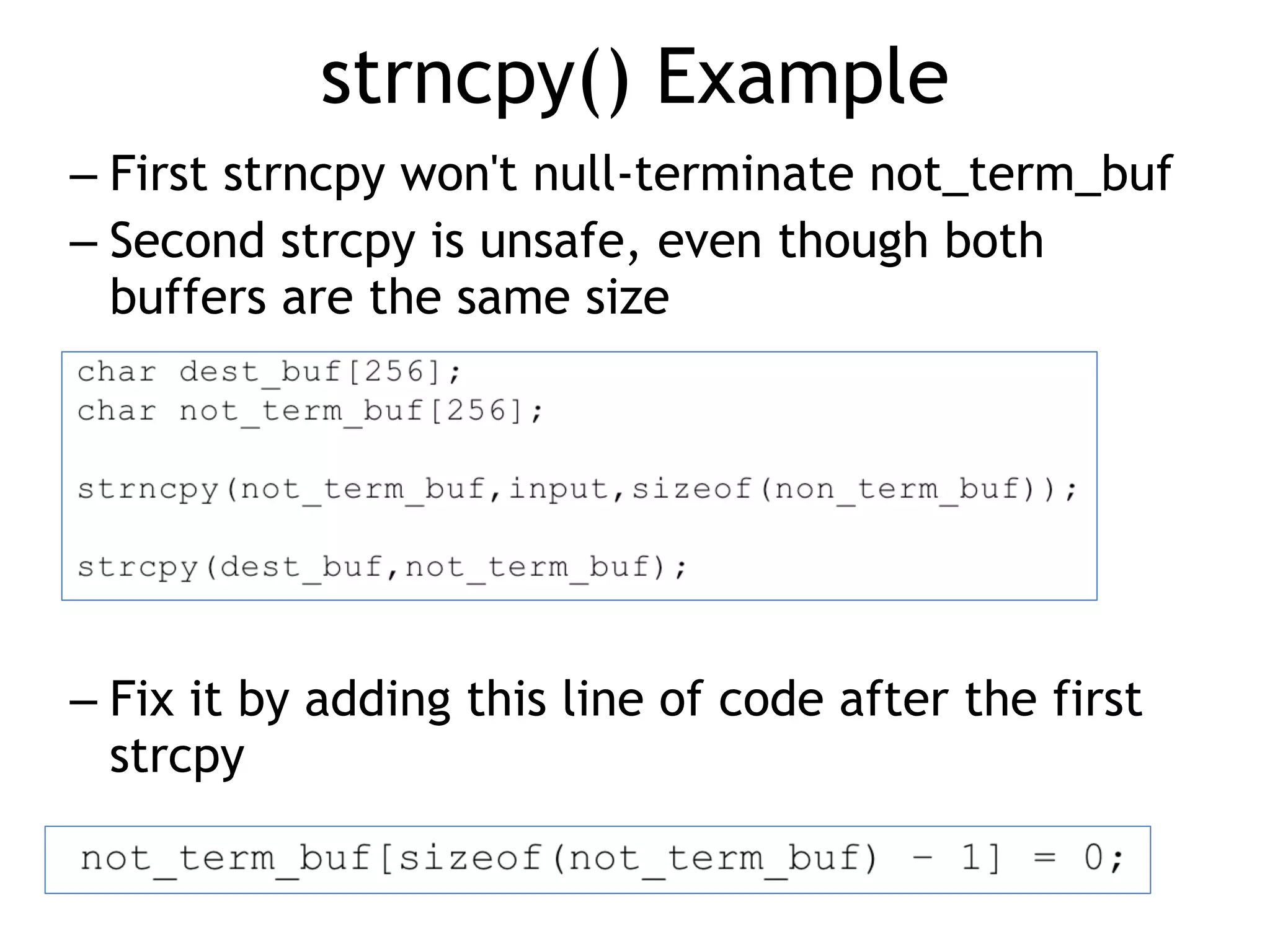

- 39. strncpy() Example – Firststrncpy won't null-terminate not_term_buf – Second strcpy is unsafe, even though both buffers are the same size – Fix it by adding this line of code after the first strcpy

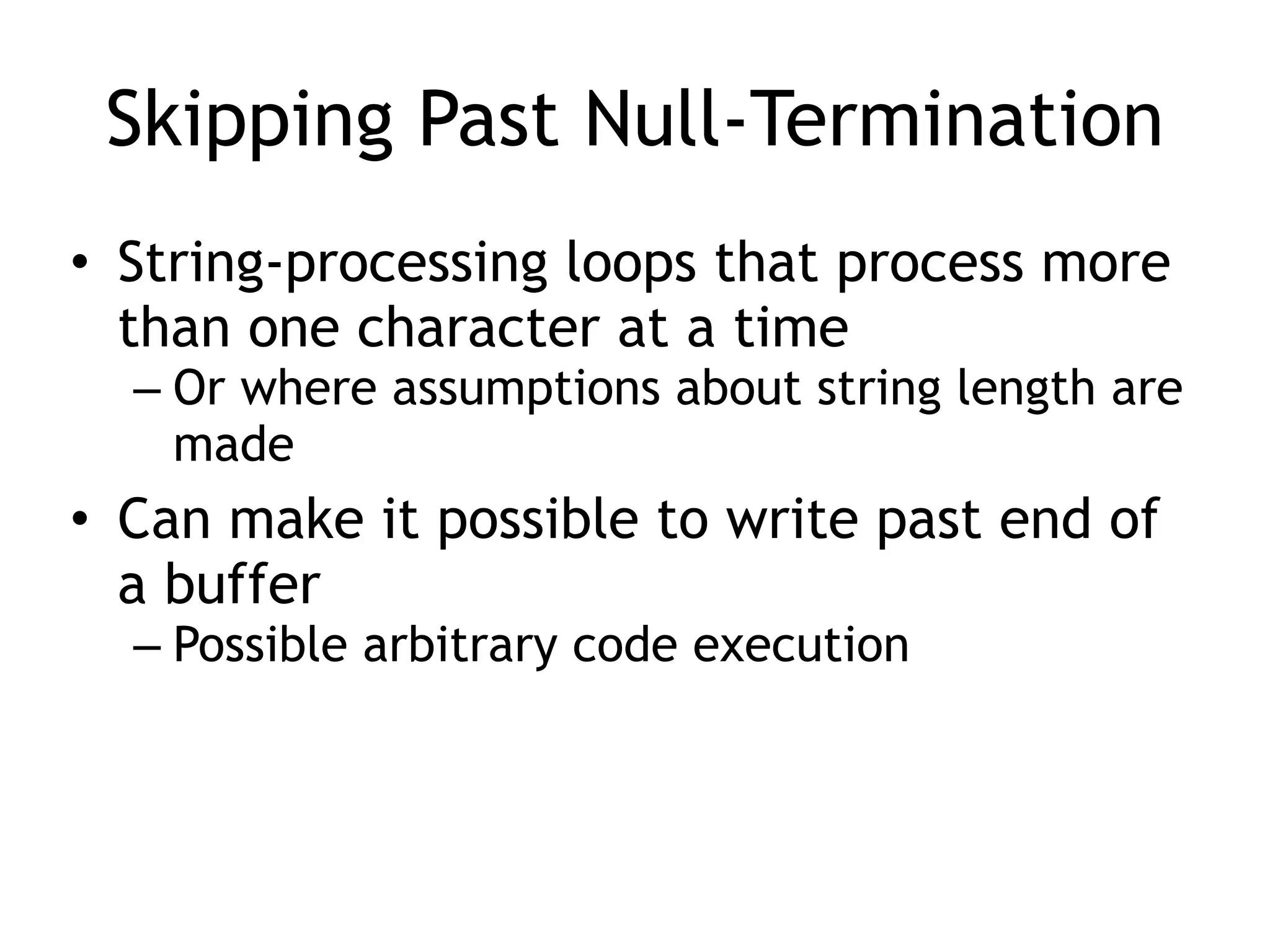

- 40. Skipping Past Null-Termination •String-processing loops that process more than one character at a time – Or where assumptions about string length are made • Can make it possible to write past end of a buffer – Possible arbitrary code execution

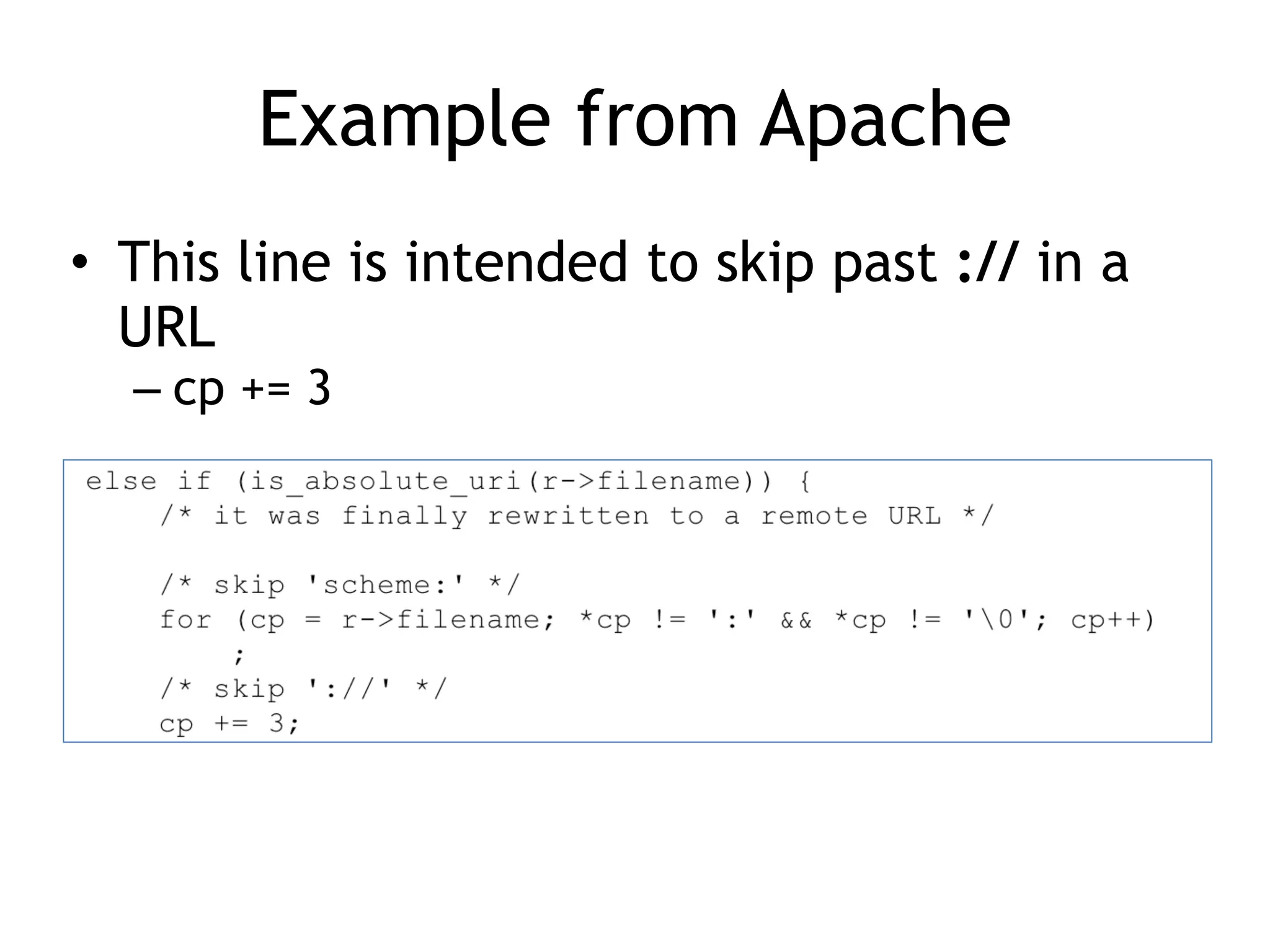

- 41. Example from Apache •This line is intended to skip past :// in a URL – cp += 3

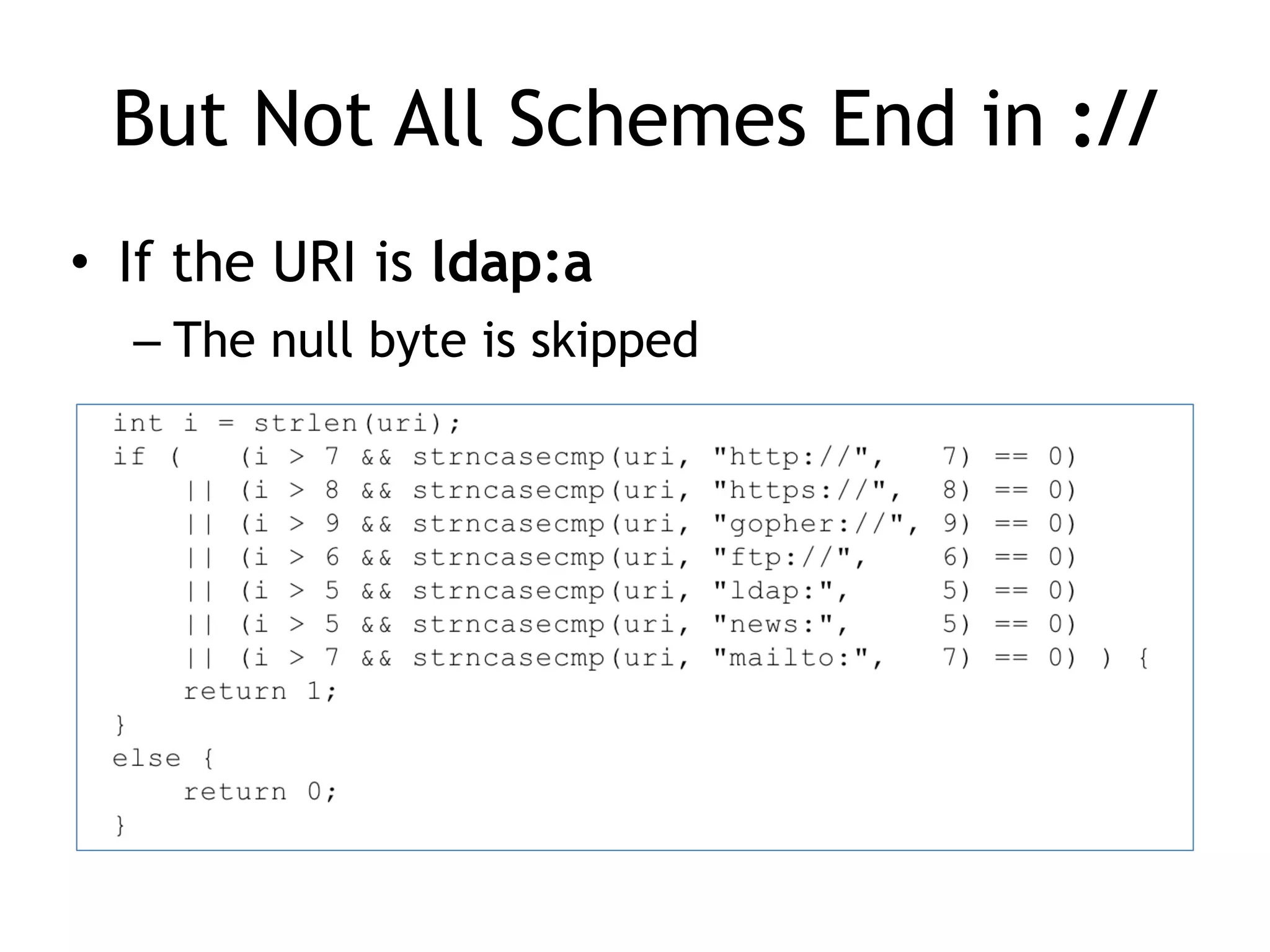

- 42. But Not AllSchemes End in :// • If the URI is ldap:a – The null byte is skipped

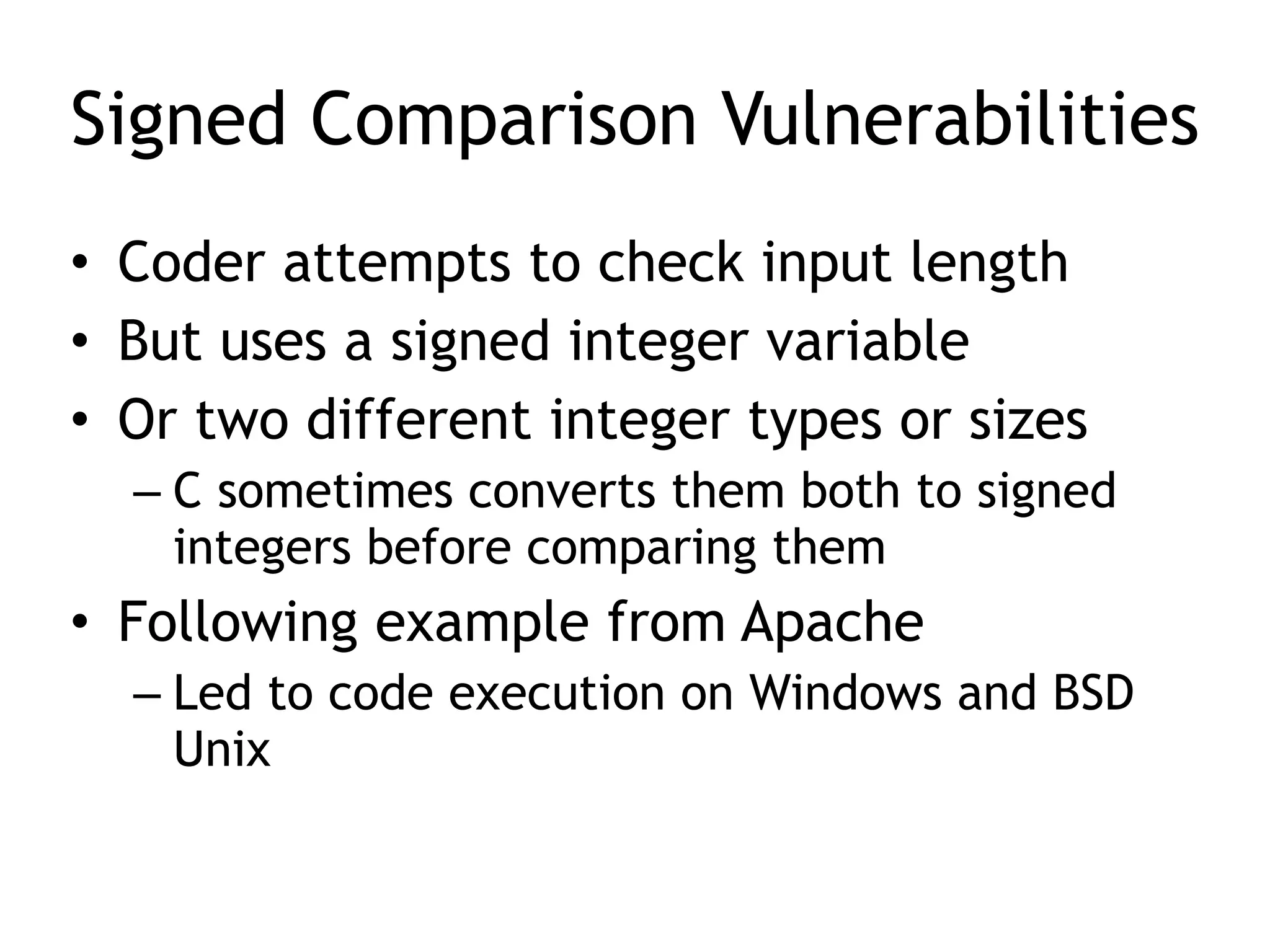

- 43. Signed Comparison Vulnerabilities •Coder attempts to check input length • But uses a signed integer variable • Or two different integer types or sizes – C sometimes converts them both to signed integers before comparing them • Following example from Apache – Led to code execution on Windows and BSD Unix

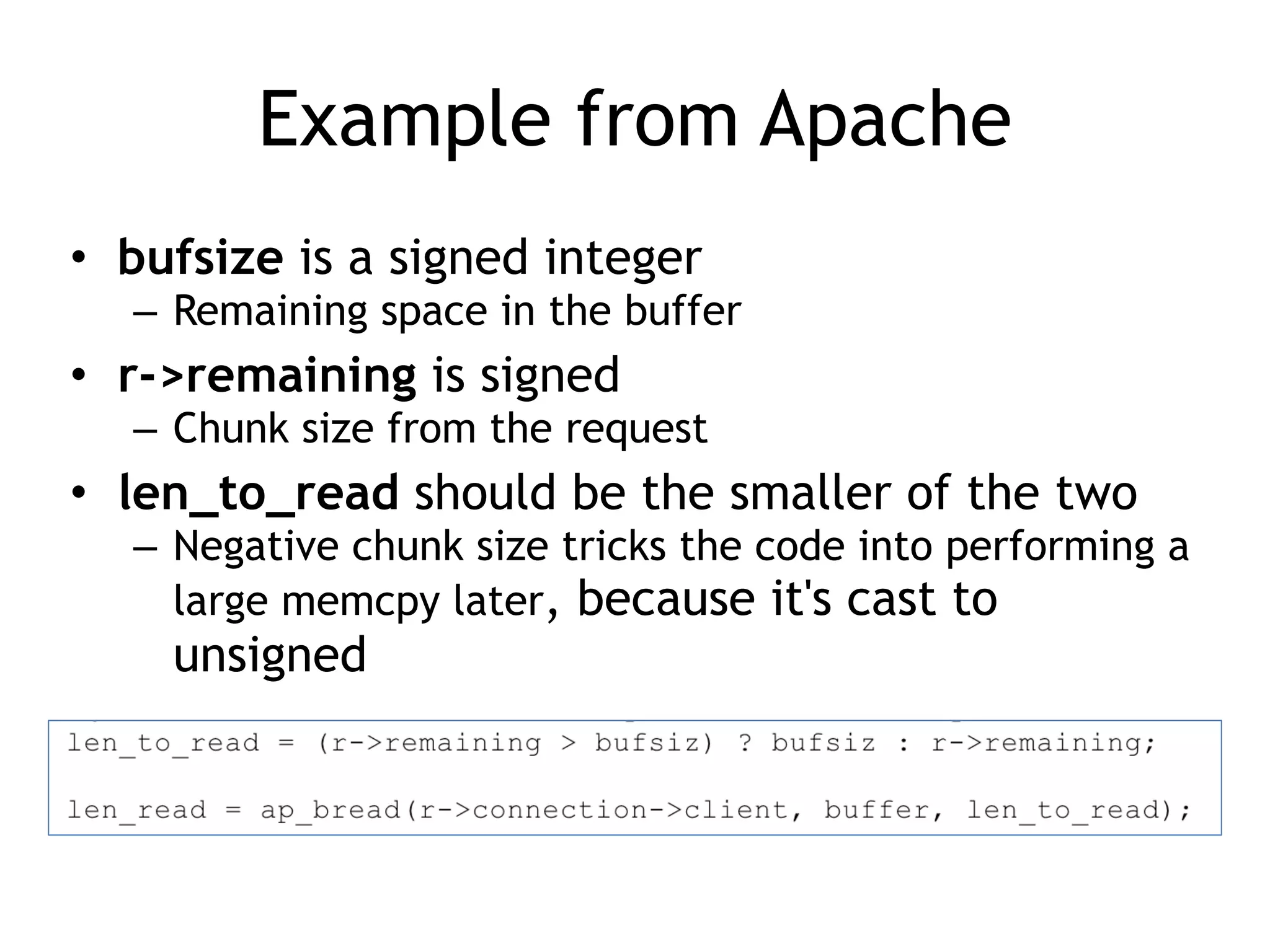

- 44. Example from Apache •bufsize is a signed integer – Remaining space in the buffer • r->remaining is signed – Chunk size from the request • len_to_read should be the smaller of the two – Negative chunk size tricks the code into performing a large memcpy later, because it's cast to unsigned
- 45.

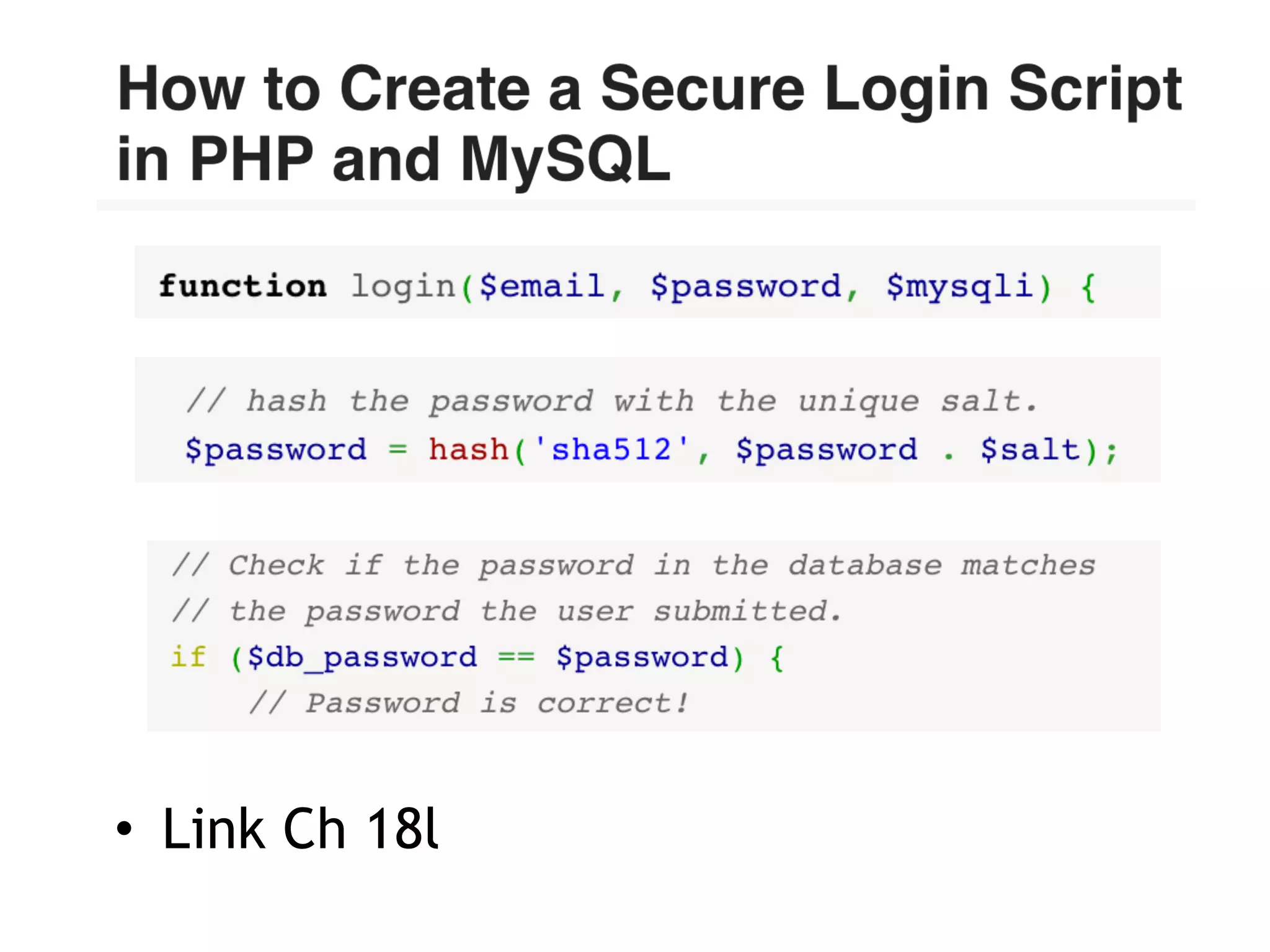

- 46. • Link Ch18l

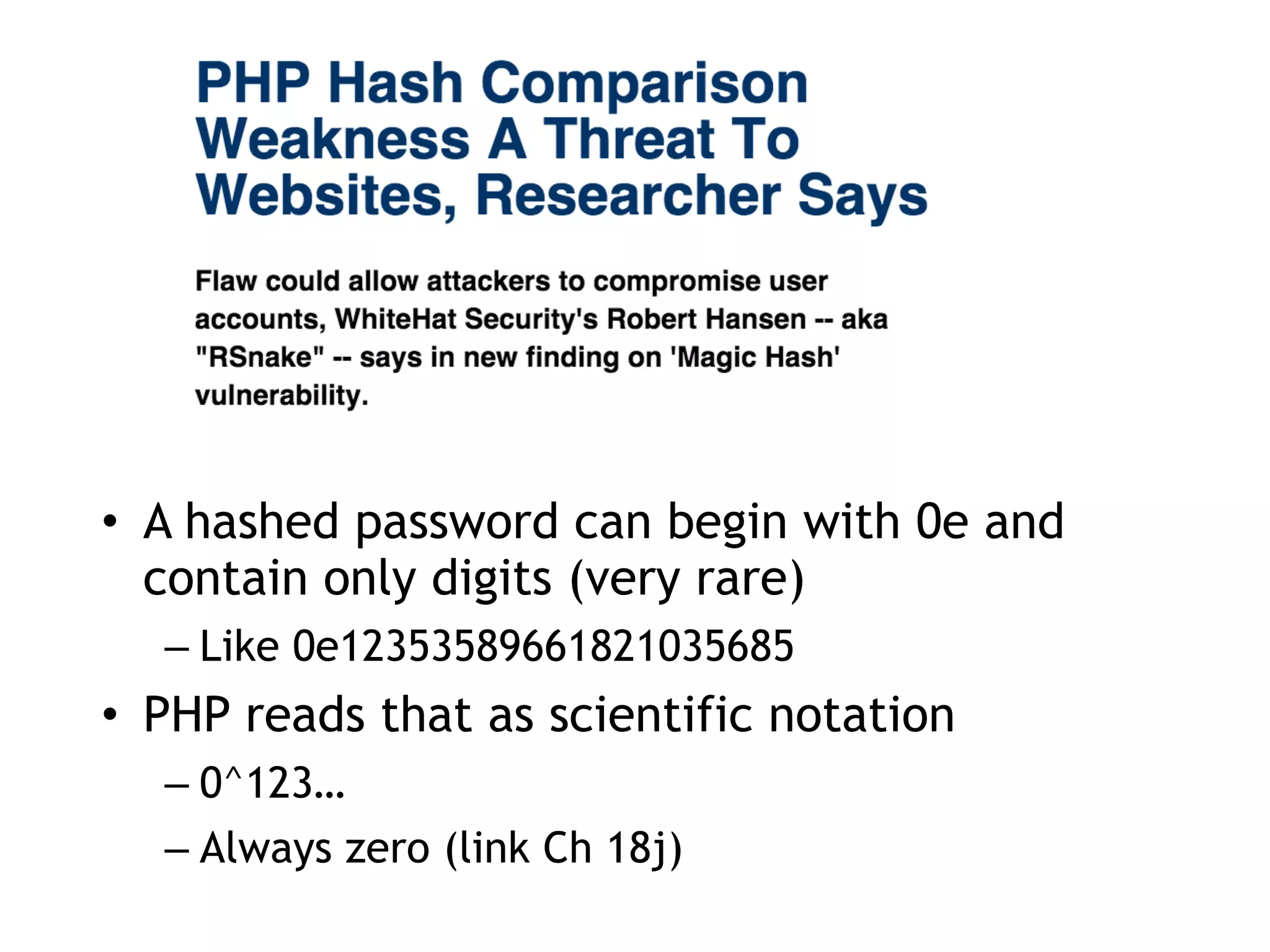

- 47. • A hashedpassword can begin with 0e and contain only digits (very rare) – Like 0e12353589661821035685 • PHP reads that as scientific notation – 0^123… – Always zero (link Ch 18j)

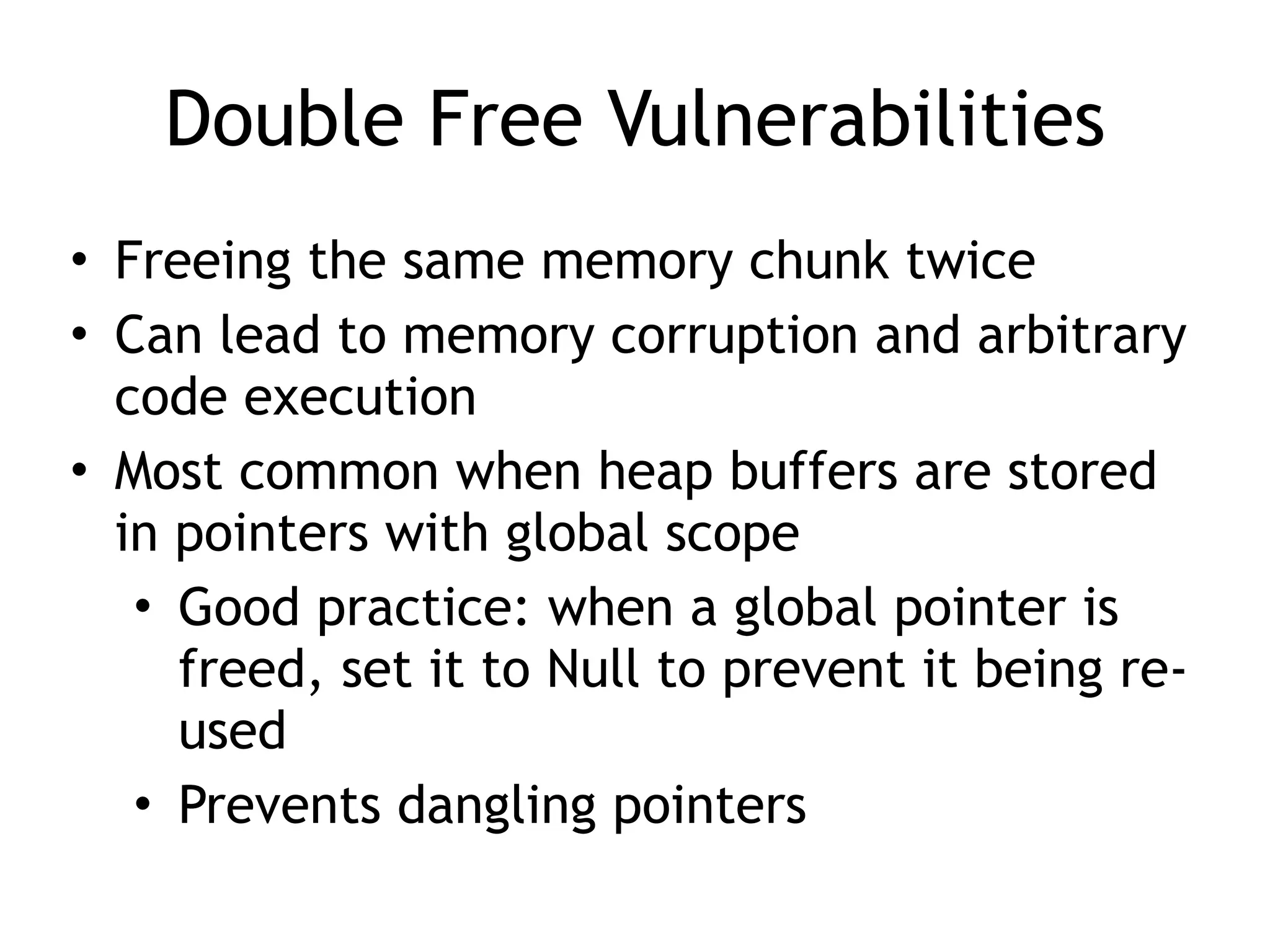

- 48. Double Free Vulnerabilities •Freeing the same memory chunk twice • Can lead to memory corruption and arbitrary code execution • Most common when heap buffers are stored in pointers with global scope • Good practice: when a global pointer is freed, set it to Null to prevent it being re- used • Prevents dangling pointers

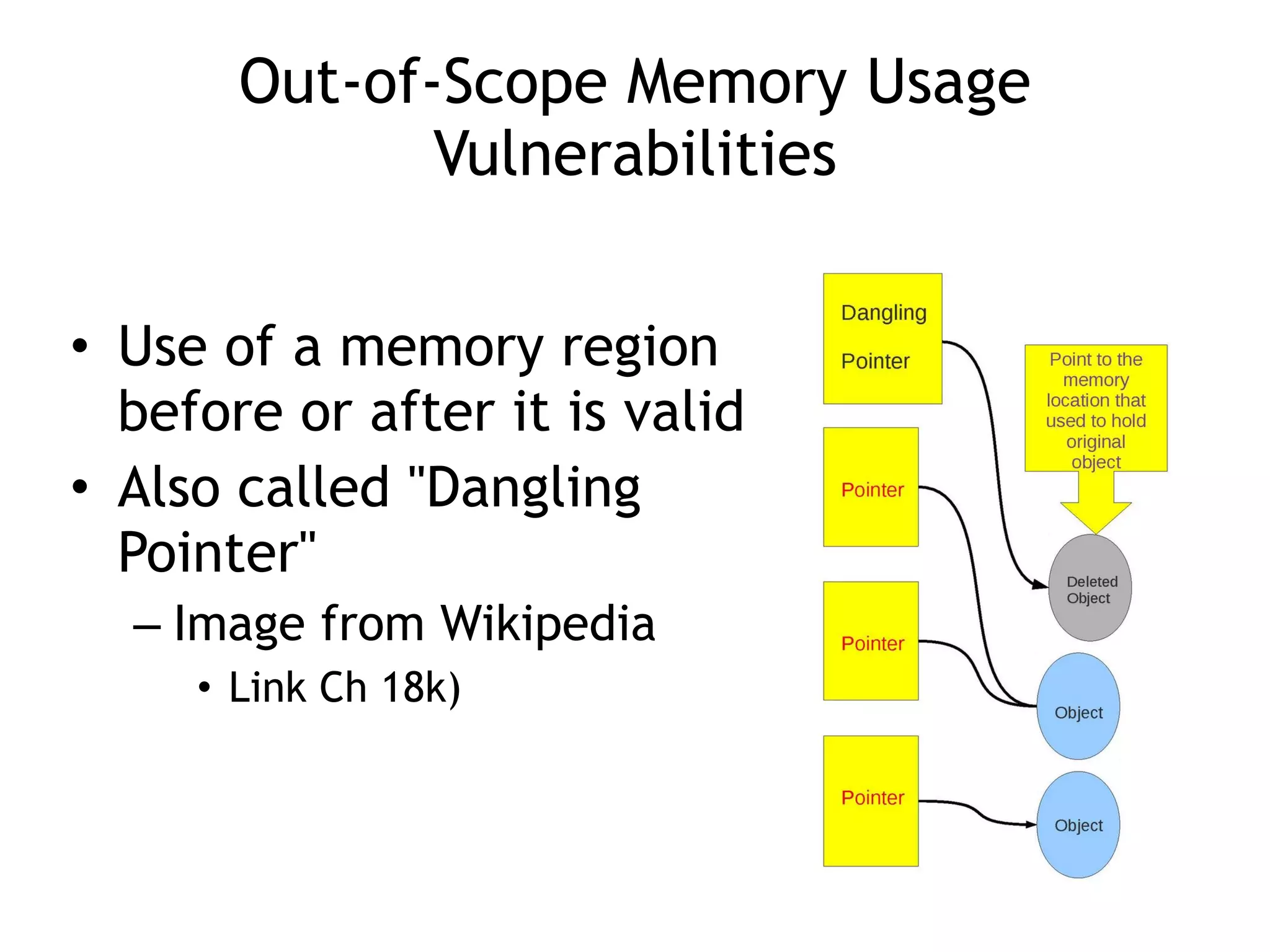

- 49. Out-of-Scope Memory Usage Vulnerabilities •Use of a memory region before or after it is valid • Also called "Dangling Pointer" – Image from Wikipedia • Link Ch 18k)

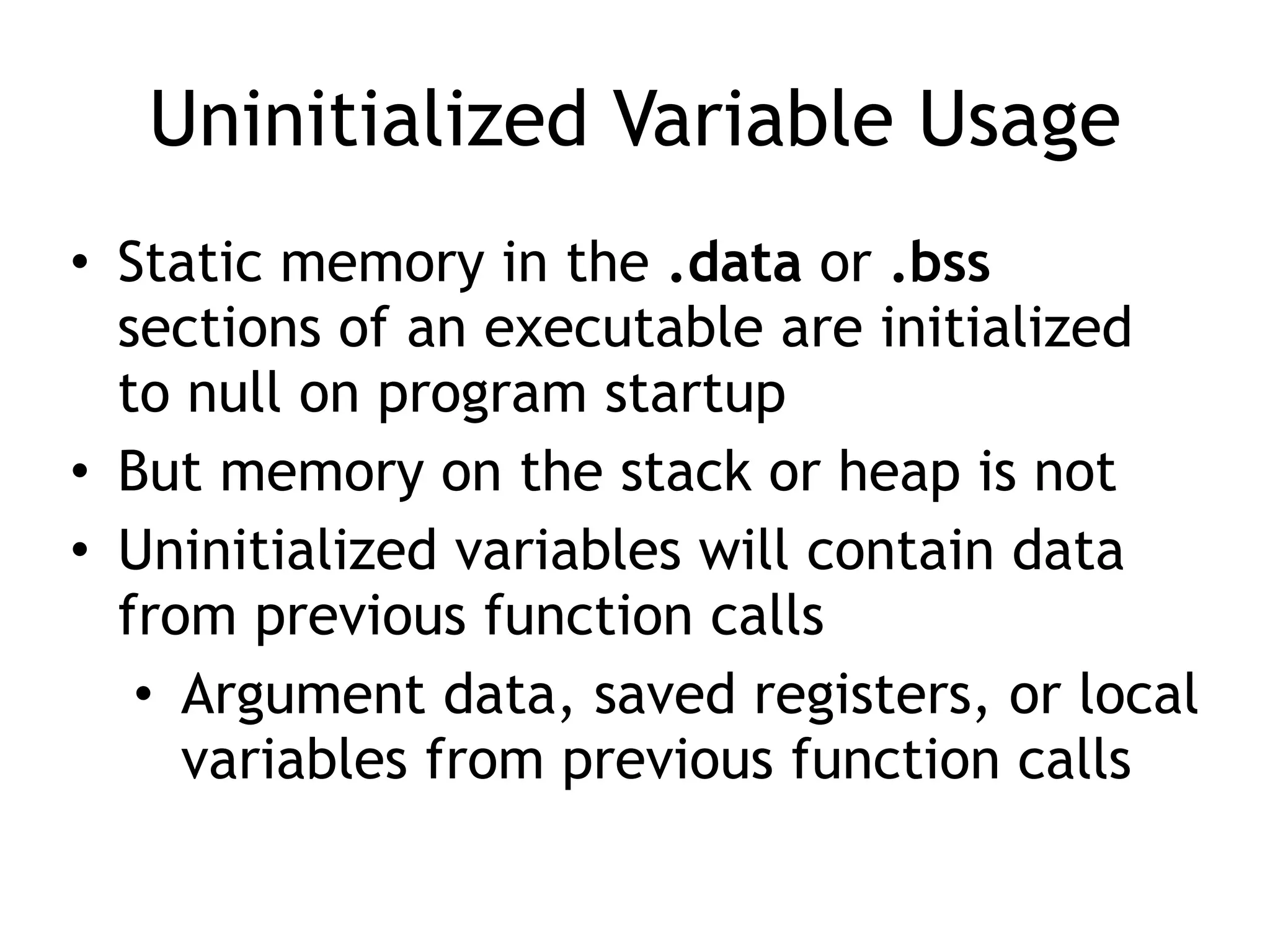

- 50. Uninitialized Variable Usage •Static memory in the .data or .bss sections of an executable are initialized to null on program startup • But memory on the stack or heap is not • Uninitialized variables will contain data from previous function calls • Argument data, saved registers, or local variables from previous function calls

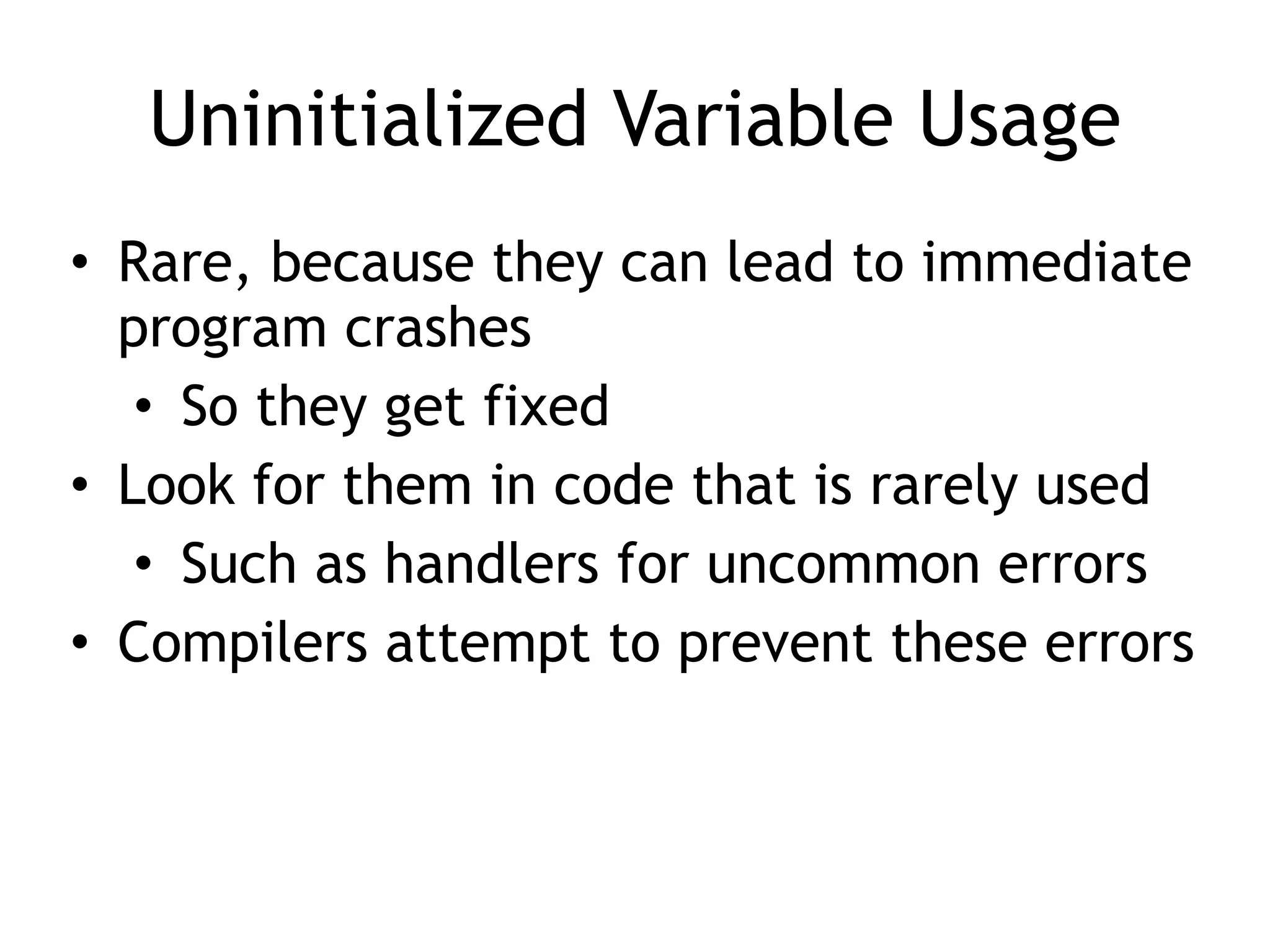

- 51. Uninitialized Variable Usage •Rare, because they can lead to immediate program crashes • So they get fixed • Look for them in code that is rarely used • Such as handlers for uncommon errors • Compilers attempt to prevent these errors

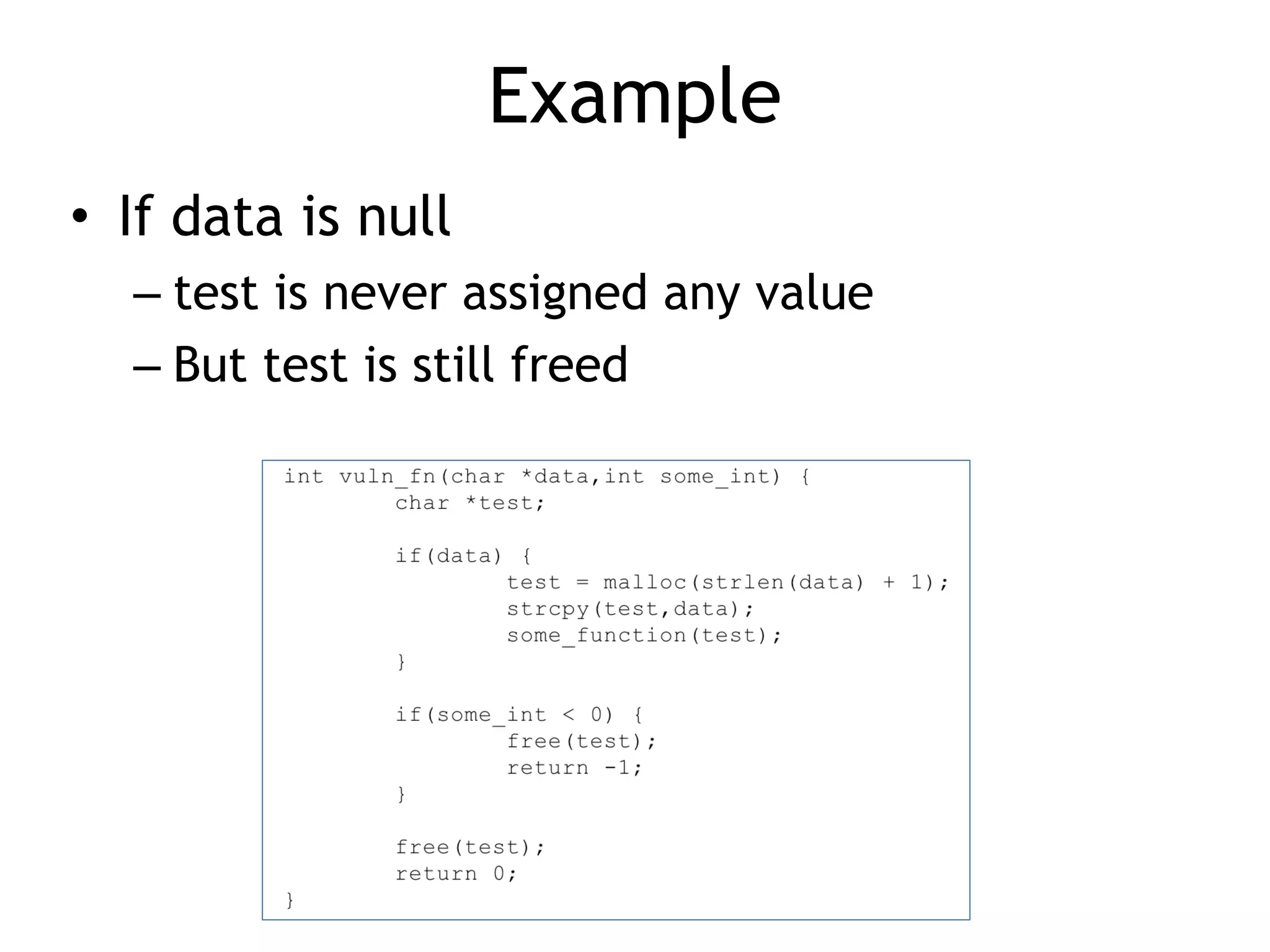

- 52. Example • If datais null – test is never assigned any value – But test is still freed

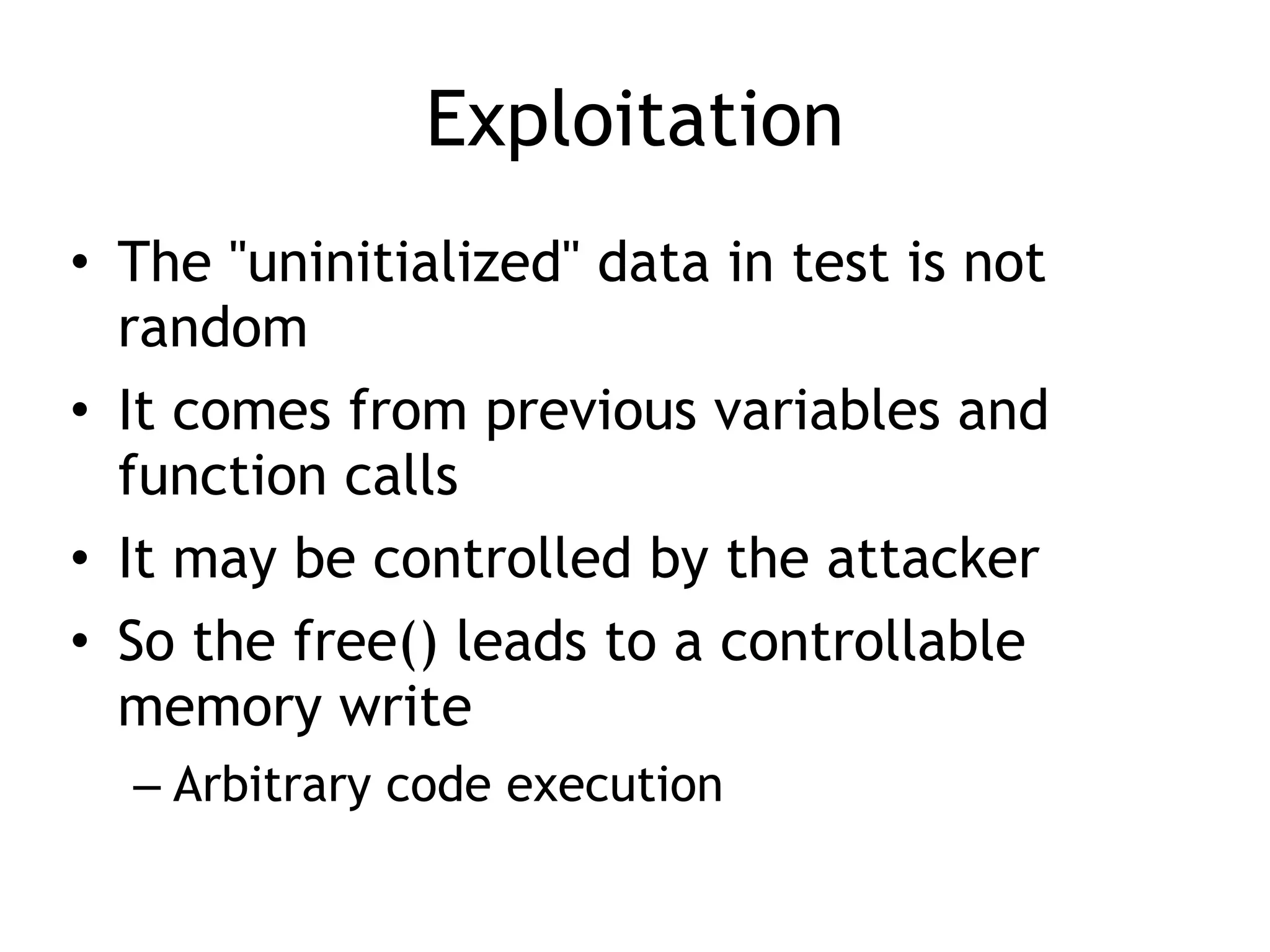

- 53. Exploitation • The "uninitialized"data in test is not random • It comes from previous variables and function calls • It may be controlled by the attacker • So the free() leads to a controllable memory write – Arbitrary code execution

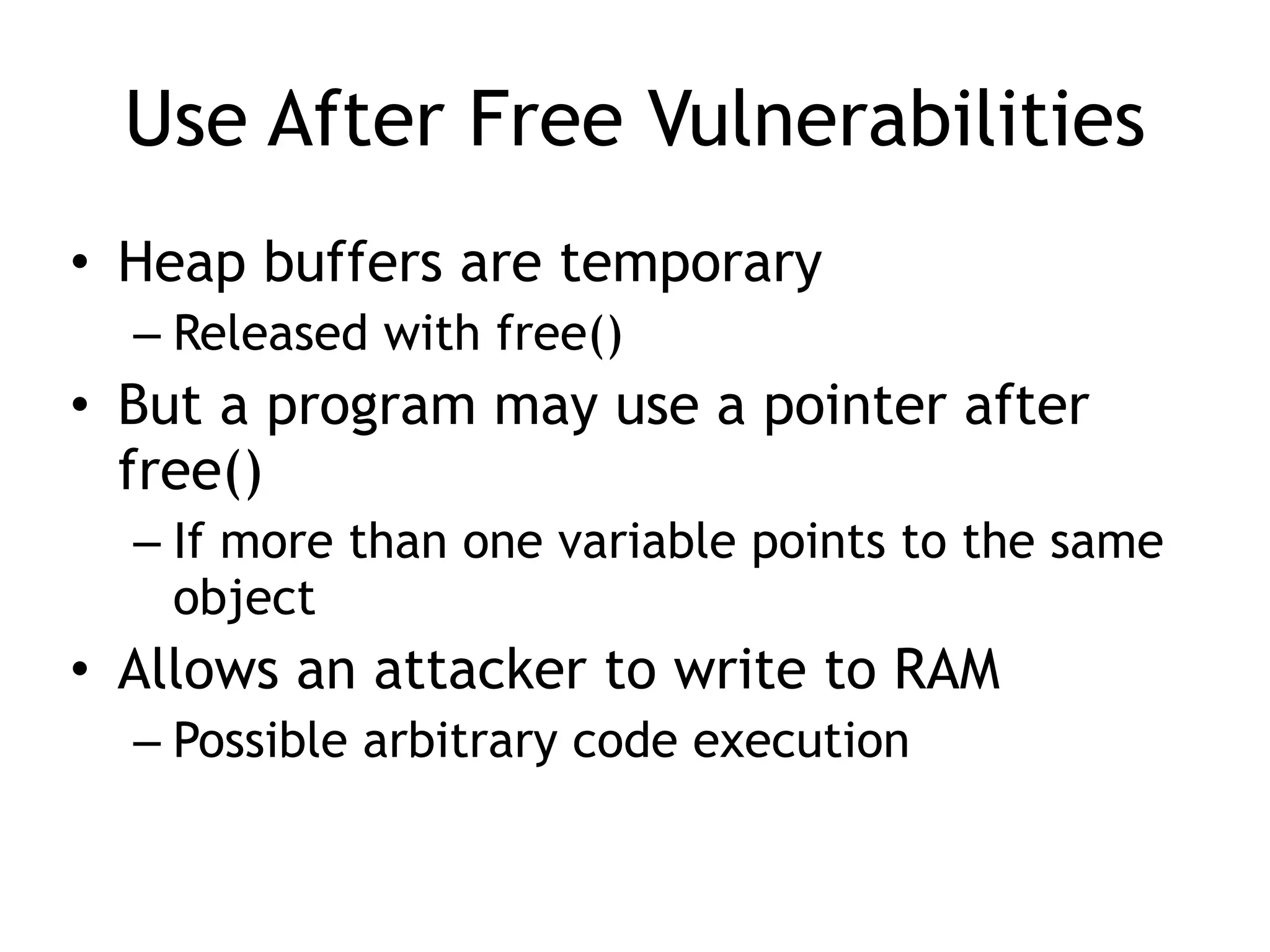

- 54. Use After FreeVulnerabilities • Heap buffers are temporary – Released with free() • But a program may use a pointer after free() – If more than one variable points to the same object • Allows an attacker to write to RAM – Possible arbitrary code execution

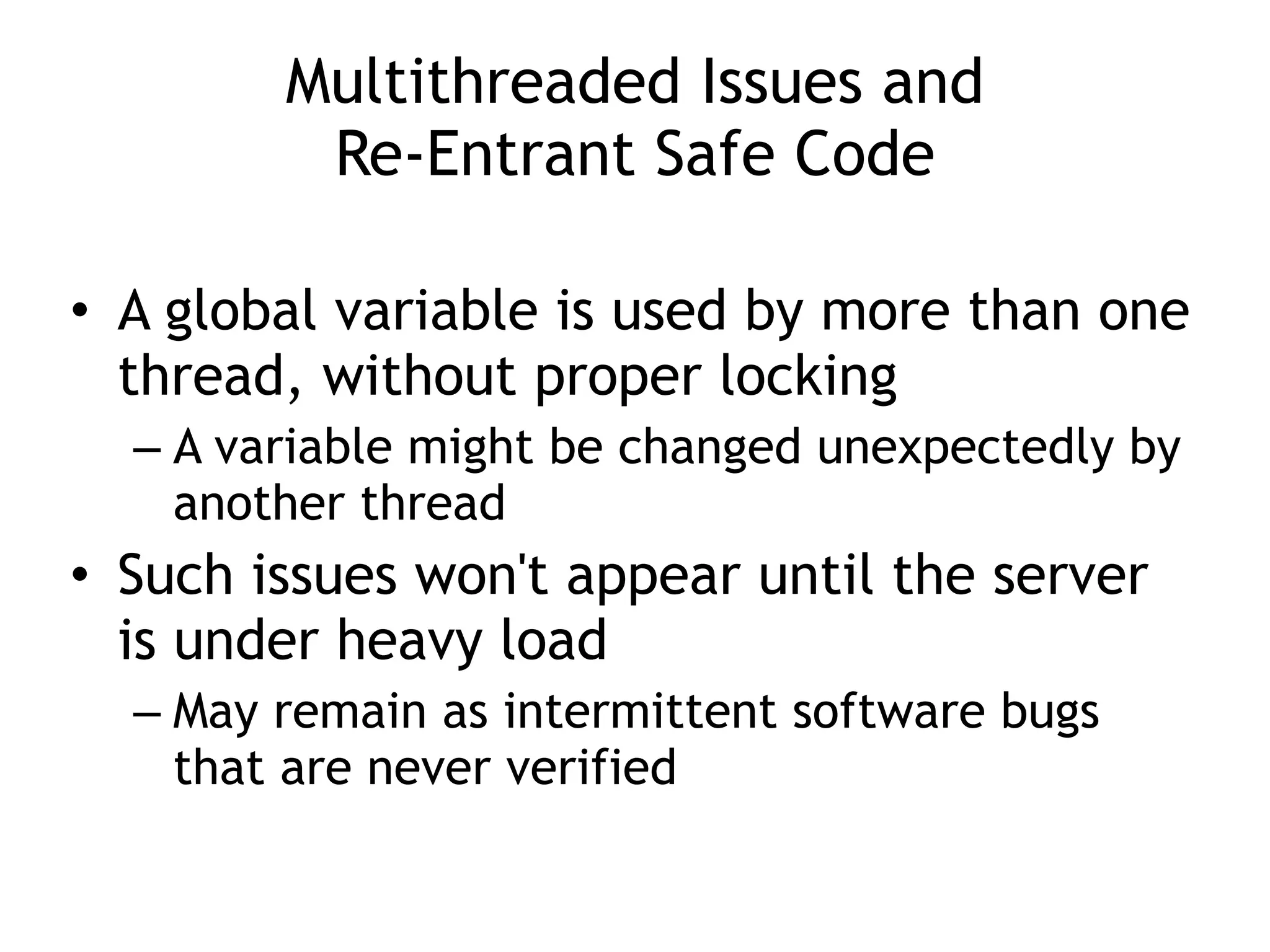

- 55. Multithreaded Issues and Re-EntrantSafe Code • A global variable is used by more than one thread, without proper locking – A variable might be changed unexpectedly by another thread • Such issues won't appear until the server is under heavy load – May remain as intermittent software bugs that are never verified
