ARRAYS IN
DATASTRUCTURES USING ‘C’

Dr. C. Saritha
Lecturer in Electronics
SSBN Degree & PG College
ANANTAPUR

Overview
 What is Array?
 Types of Arrays.
 Array operations.
 Merging of arrays.
 Arrays of pointers.
 Arrays and Polynomials.

ARRAY
 An array is a linear data structure. Which
is a finite collection of similar data items
stored in successive or consecutive
memory locations.
 For example an array may contains all
integer or character elements, but not
both.

 Each array can be accessed by using array
index and it is must be positive integer value
enclosed in square braces.
 This is starts from the numerical value 0 and
ends at 1 less than of the array index value.
 For example an array[n] containing n
number of elements are denoted by
array[0],array[1],…..array[n-1]. where ‘0’ is
called lower bound and the ‘n-1’ is called
higher bound of the array.

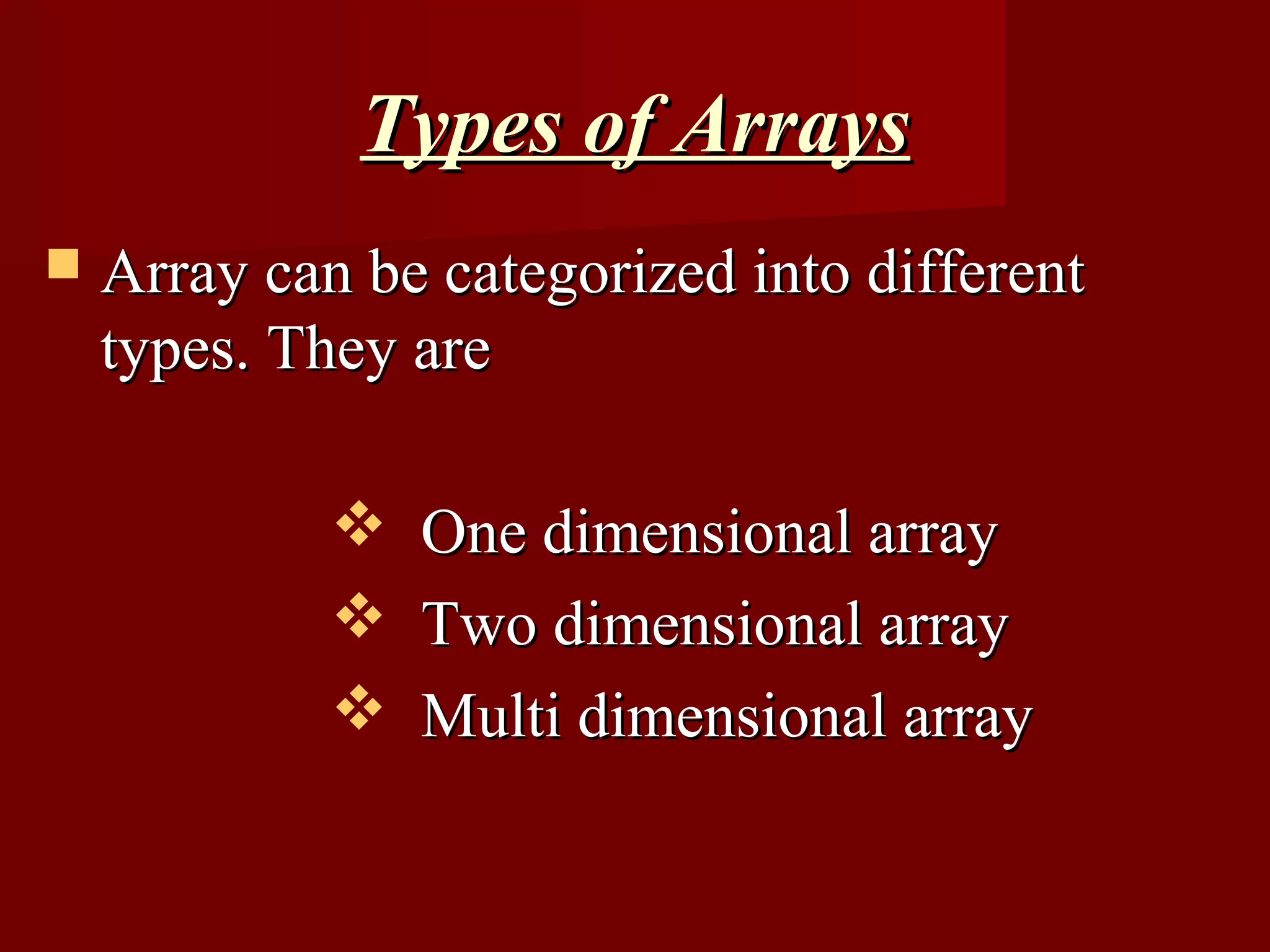

Types of Arrays
 Array can be categorized into different
types. They are

 One dimensional array
 Two dimensional array
 Multi dimensional array

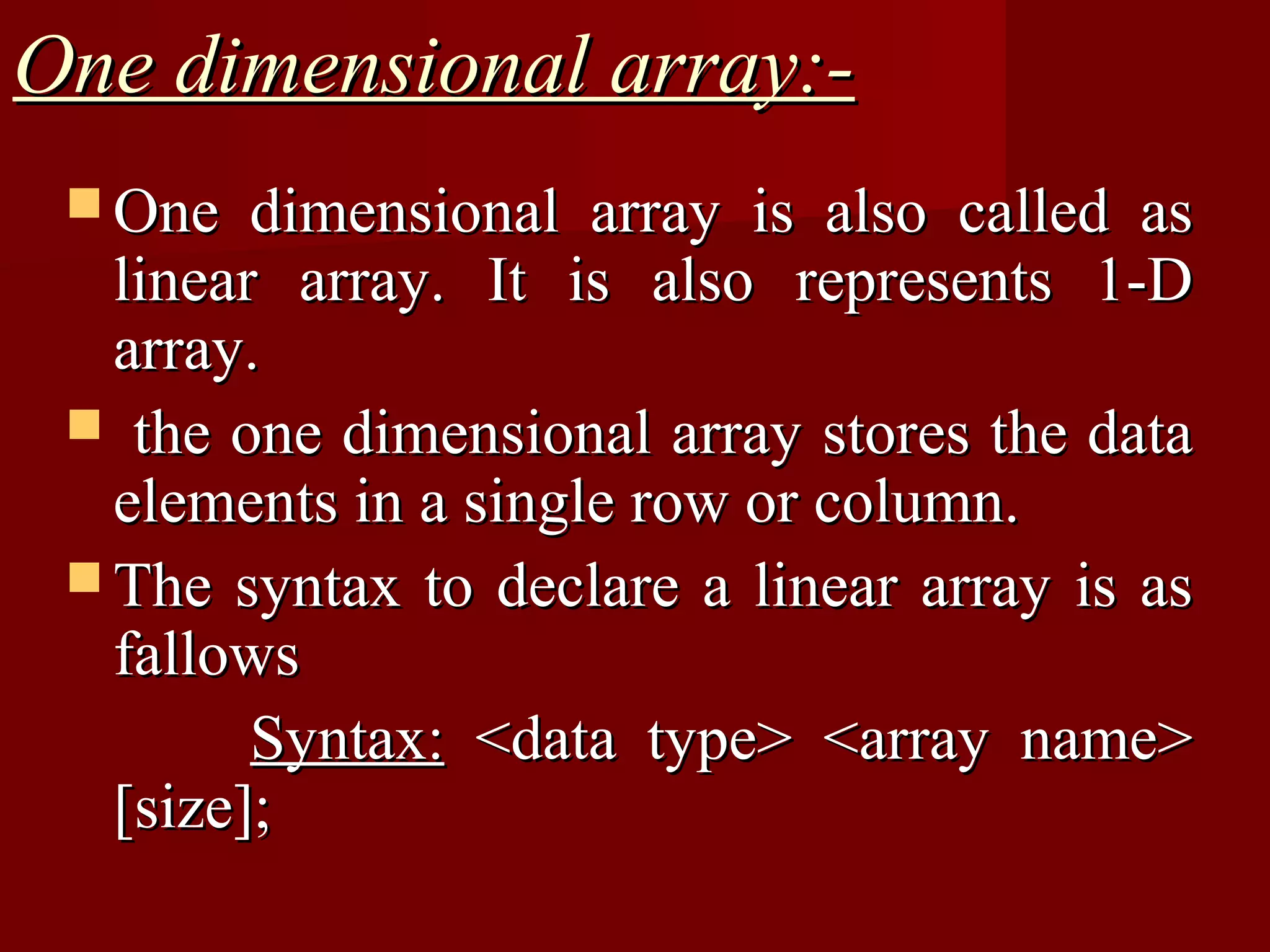

One dimensional array:-
 One dimensional array is also called as
linear array. It is also represents 1-D
array.
 the one dimensional array stores the data
elements in a single row or column.
 The syntax to declare a linear array is as
fallows
Syntax: <data type> <array name>
[size];

 Syntax for the initialization of the linear array
is as fallows
 Syntax:
<data type><array name>[size]={values};
 Example:

int arr[6]={2,4,6,7,5,8};

Values

array name

Memory representation of the one
dimensional array:-
a[0] a[1] a[2] a[3] a[4] a[5]

2 4 6 7 5 8

100 102 104 106 108 110
 The memory blocks a[0],a[1],a[2],a[3 ],a[4] ,
a[5] with base addresses 1,102,104,106,108,
110 store the values 2,4,6,7,5,8 respectively.

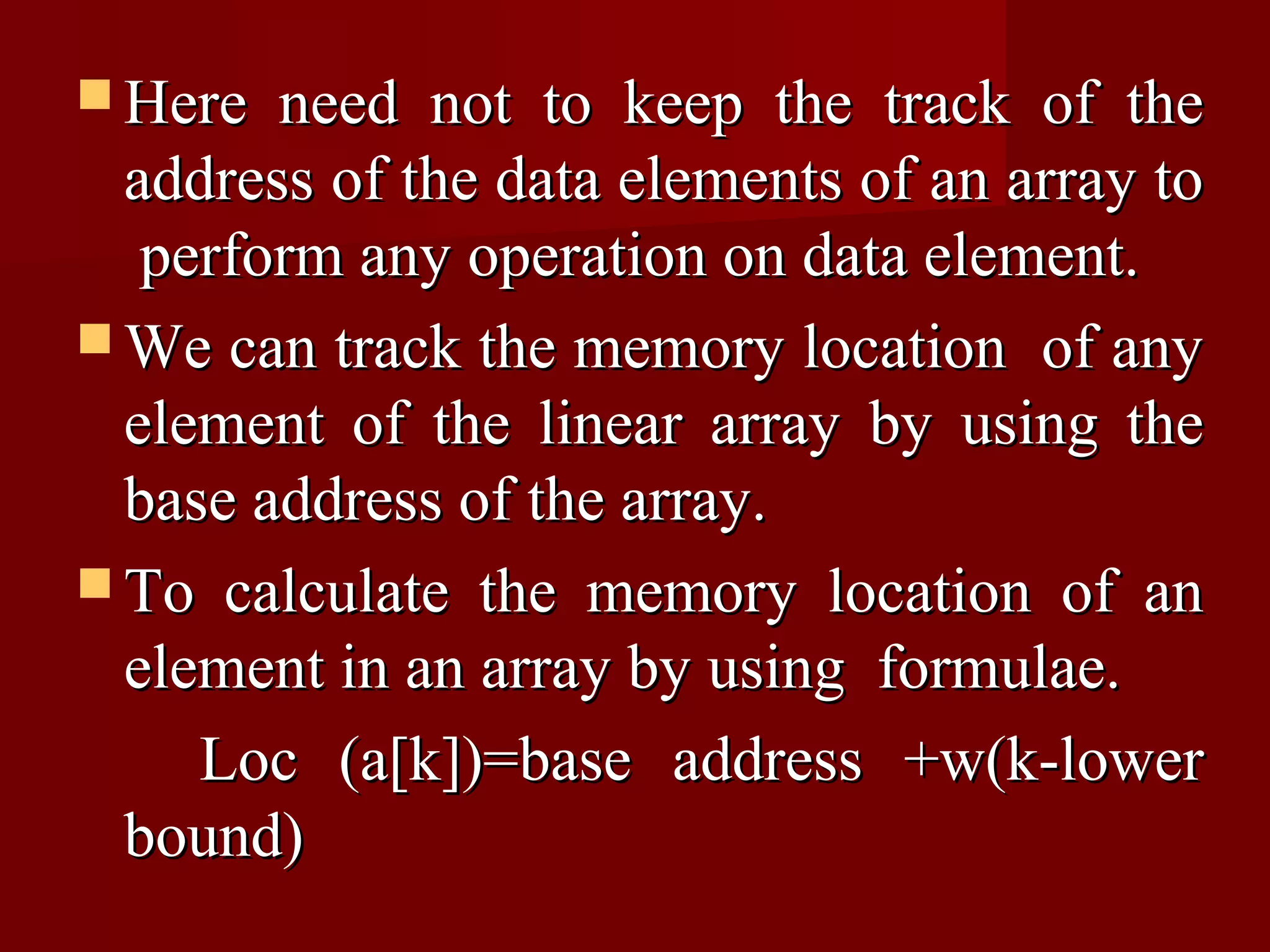

 Here need not to keep the track of the
address of the data elements of an array to
perform any operation on data element.
 We can track the memory location of any
element of the linear array by using the
base address of the array.
 To calculate the memory location of an
element in an array by using formulae.
Loc (a[k])=base address +w(k-lower
bound)

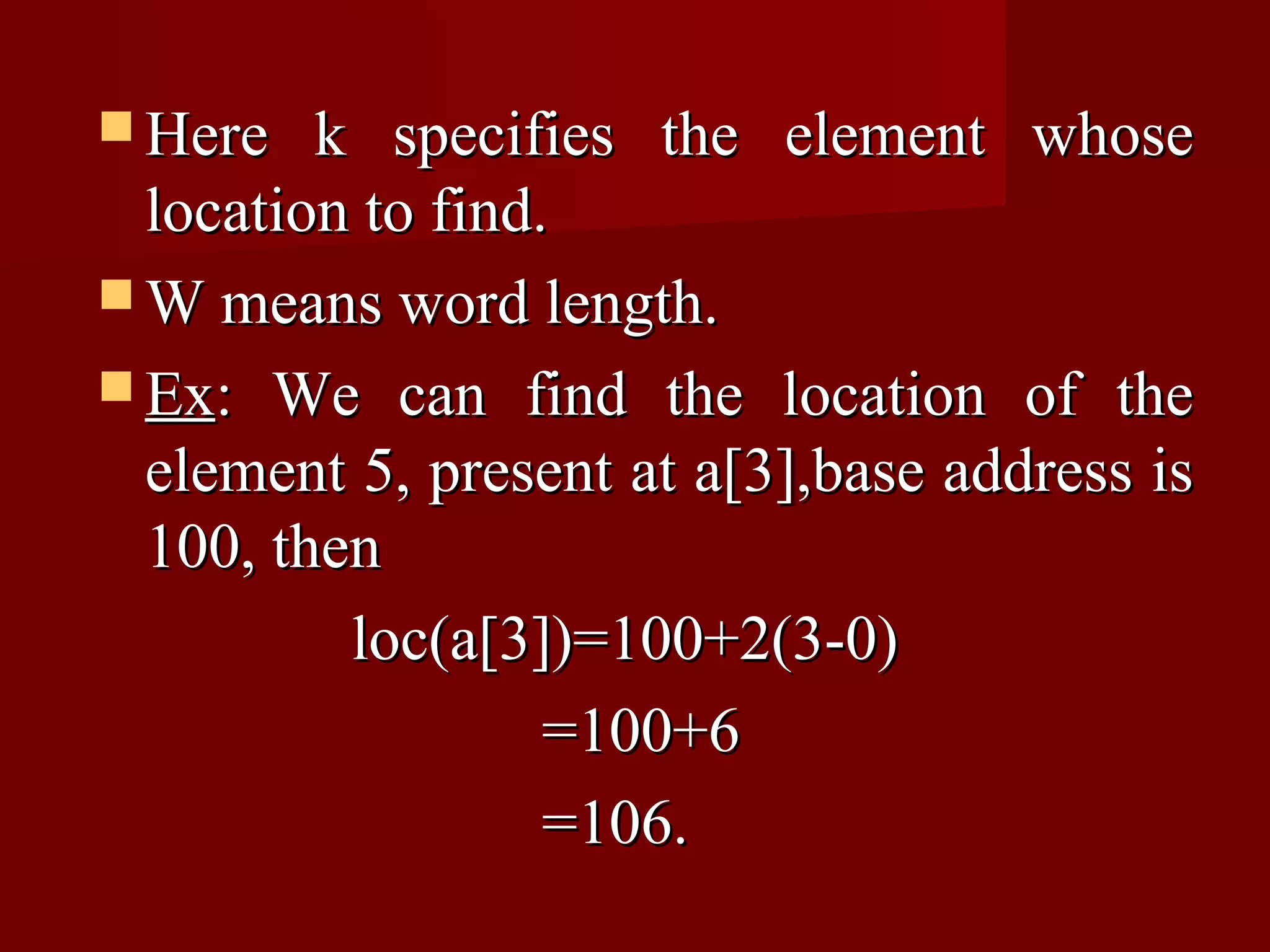

 Here k specifies the element whose
location to find.
 W means word length.
 Ex: We can find the location of the
element 5, present at a[3],base address is
100, then
loc(a[3])=100+2(3-0)
=100+6
=106.

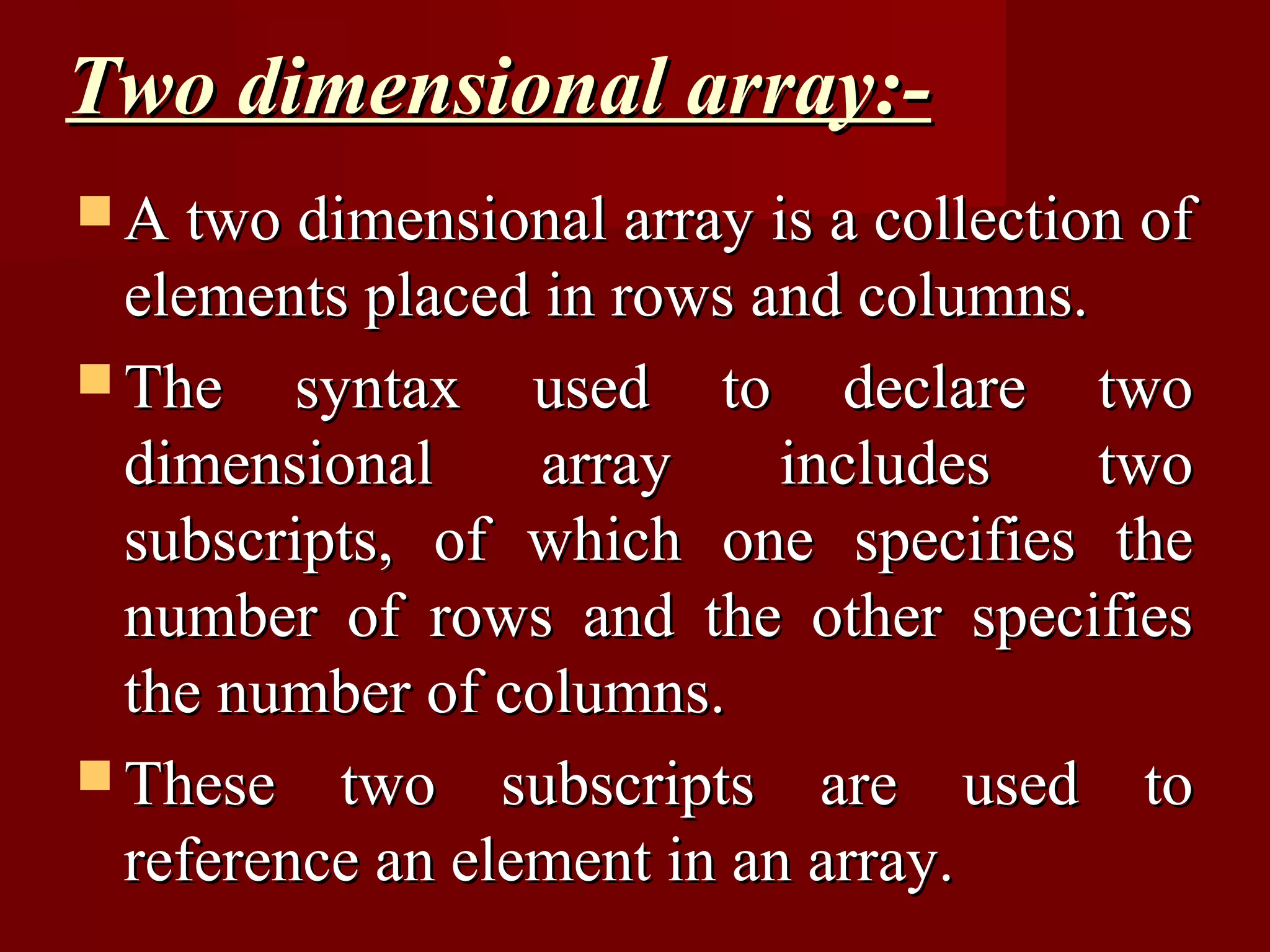

Two dimensional array:-
 A two dimensional array is a collection of
elements placed in rows and columns.
 The syntax used to declare two
dimensional array includes two
subscripts, of which one specifies the
number of rows and the other specifies
the number of columns.
 These two subscripts are used to
reference an element in an array.

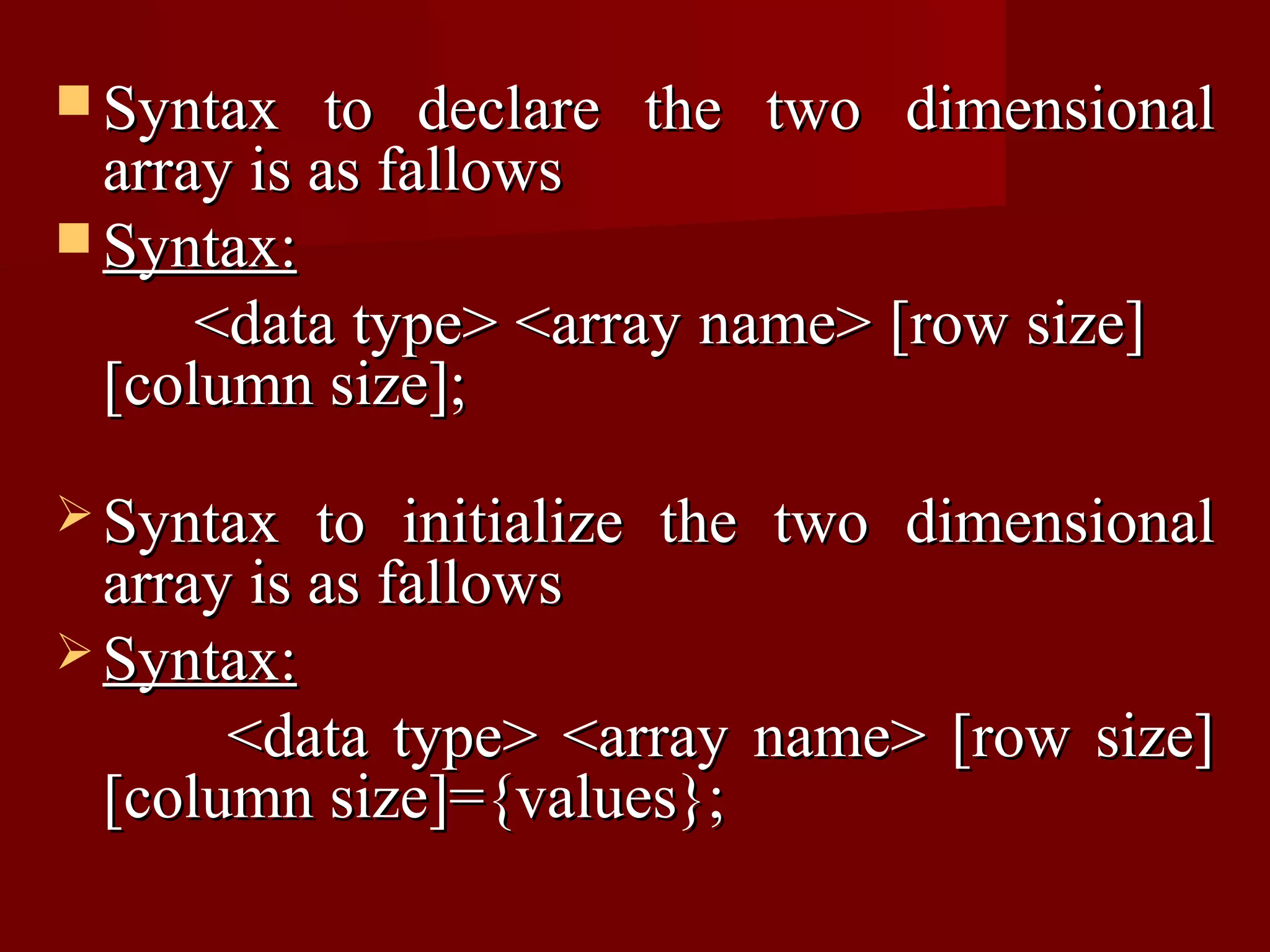

 Syntax to declare the two dimensional
array is as fallows
 Syntax:
<data type> <array name> [row size]
[column size];

 Syntax to initialize the two dimensional
array is as fallows
 Syntax:
<data type> <array name> [row size]
[column size]={values};

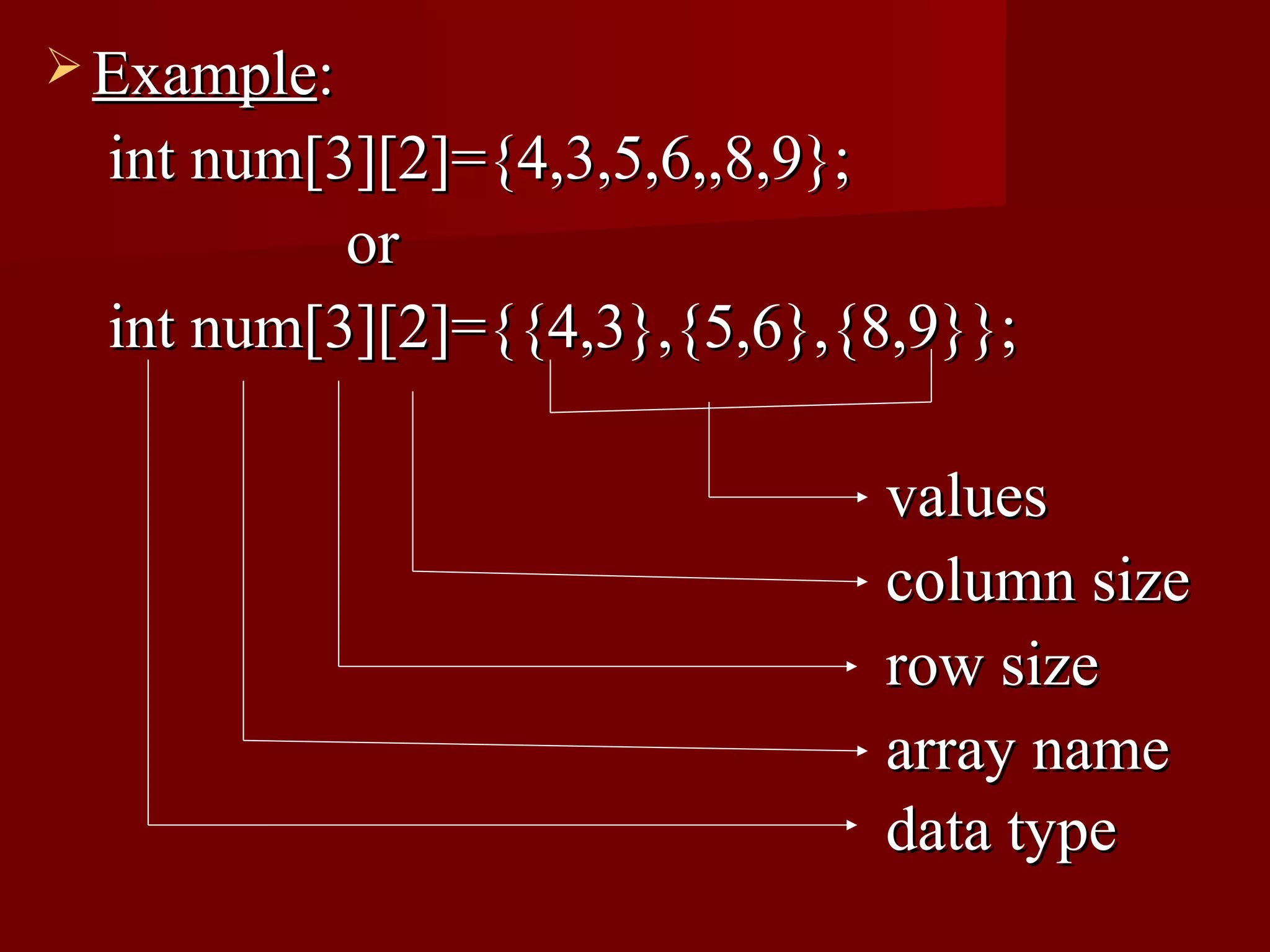

 Example:
int num[3][2]={4,3,5,6,,8,9};
or
int num[3][2]={{4,3},{5,6},{8,9}};

values
column size
row size
array name
data type

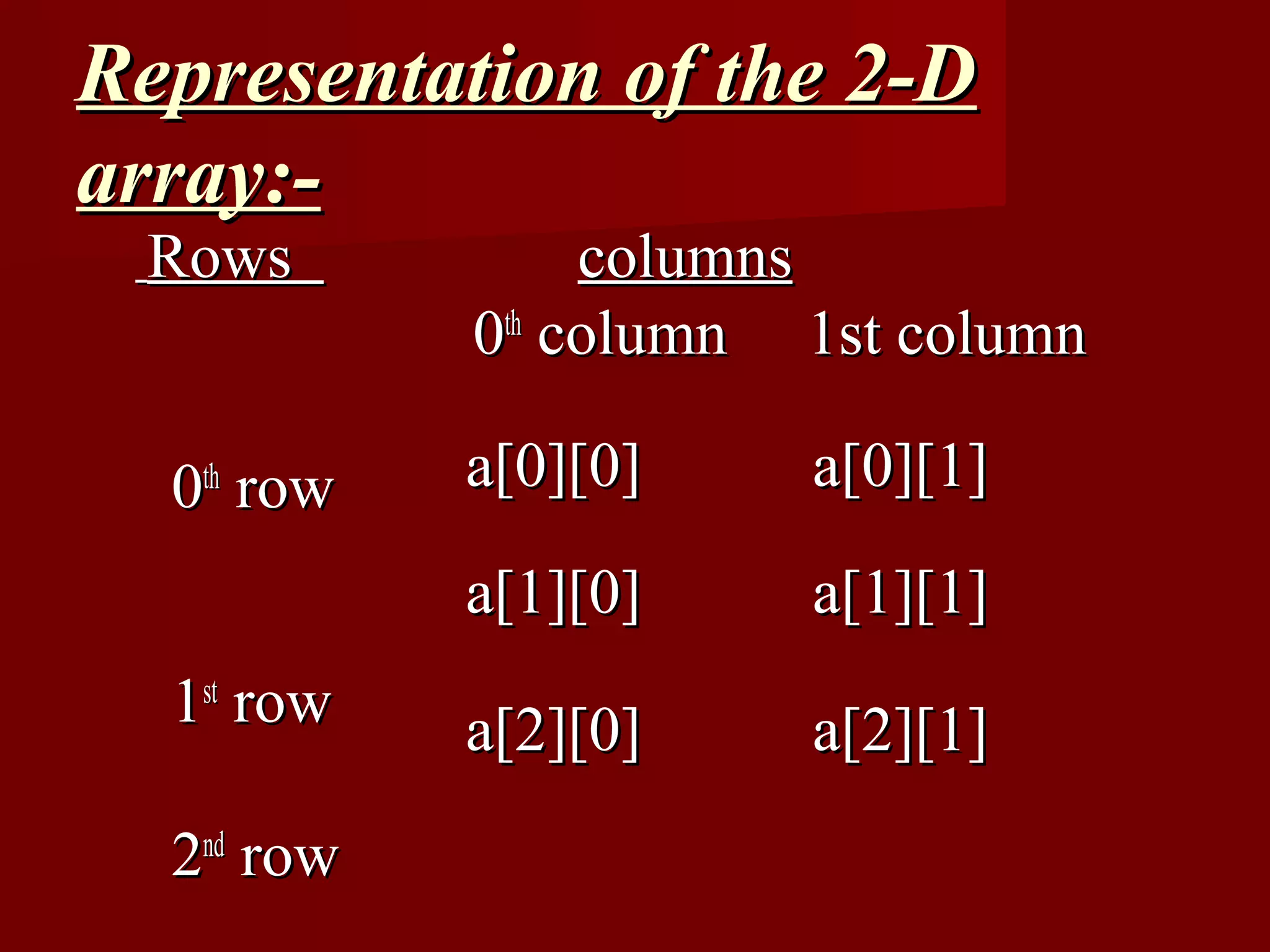

Representation of the 2-D
array:-
Rows columns
0th column 1st column

0th row a[0][0] a[0][1]
a[1][0] a[1][1]
1st row a[2][0] a[2][1]
2nd row

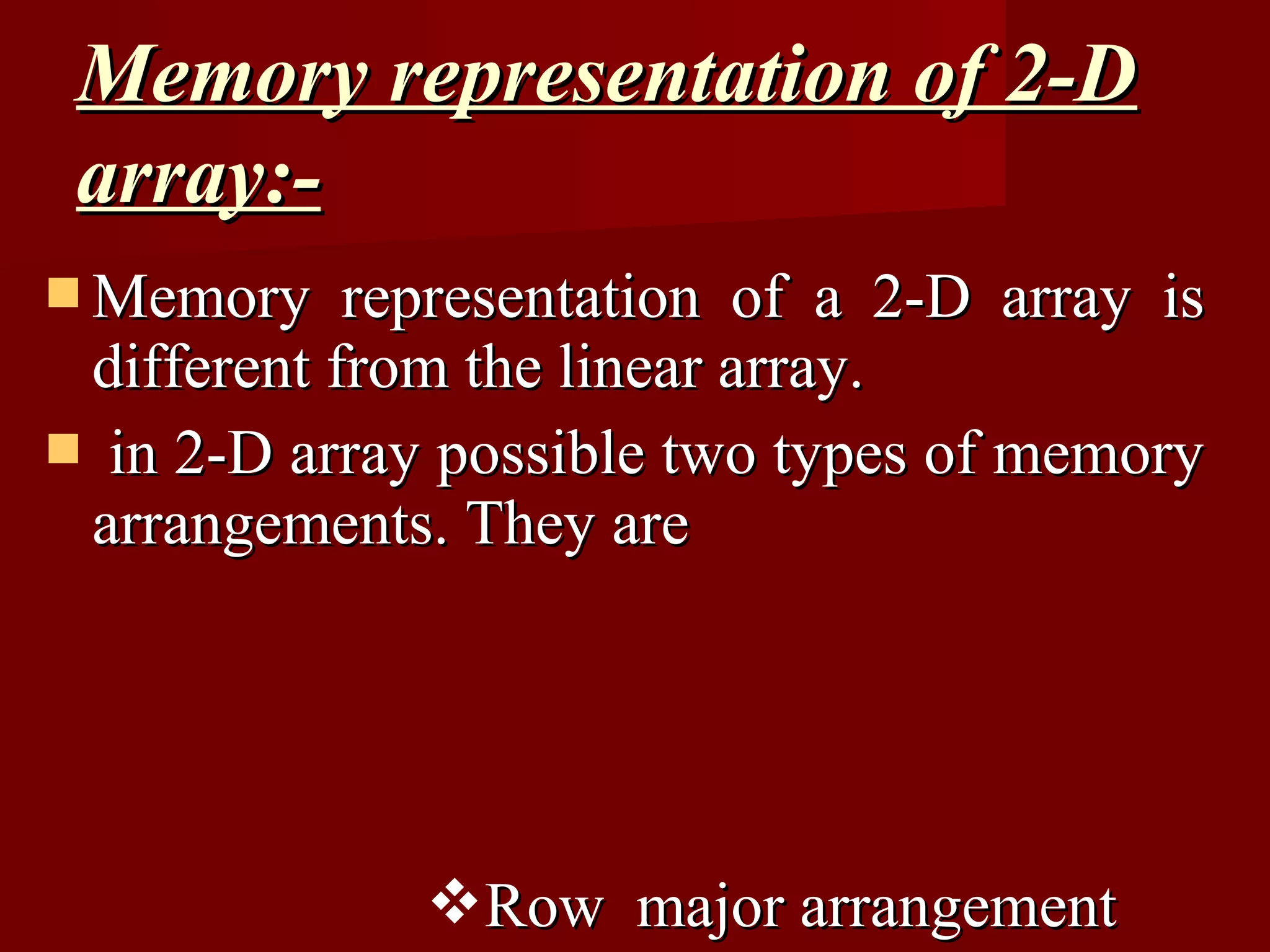

Memory representation of 2-D
array:-
 Memory representation of a 2-D array is
different from the linear array.
 in 2-D array possible two types of memory
arrangements. They are

Row major arrangement

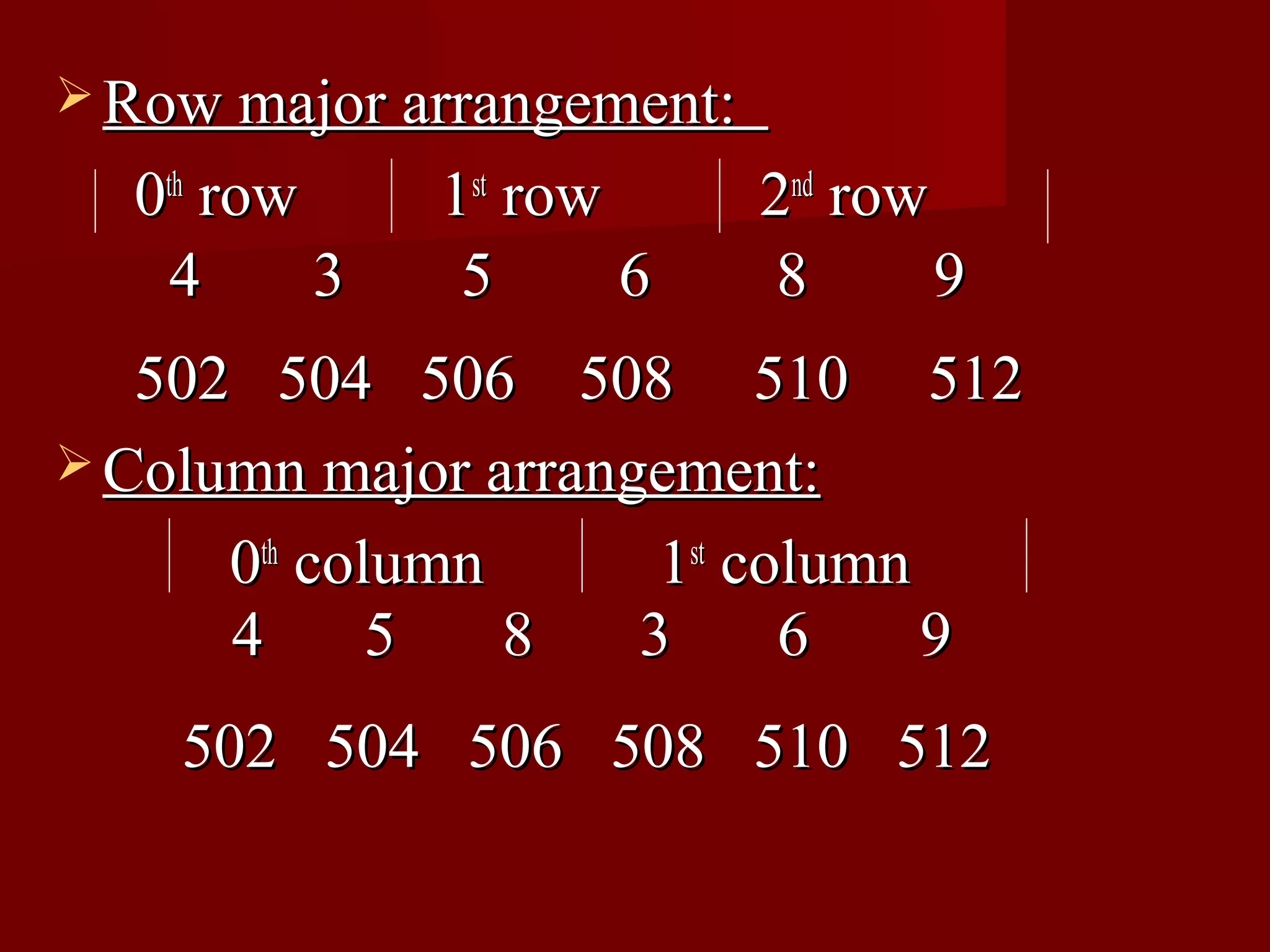

 Row major arrangement:

0th row 1st row 2nd row
4 3 5 6 8 9
502 504 506 508 510 512
 Column major arrangement:

0th column 1st column
4 5 8 3 6 9
502 504 506 508 510 512

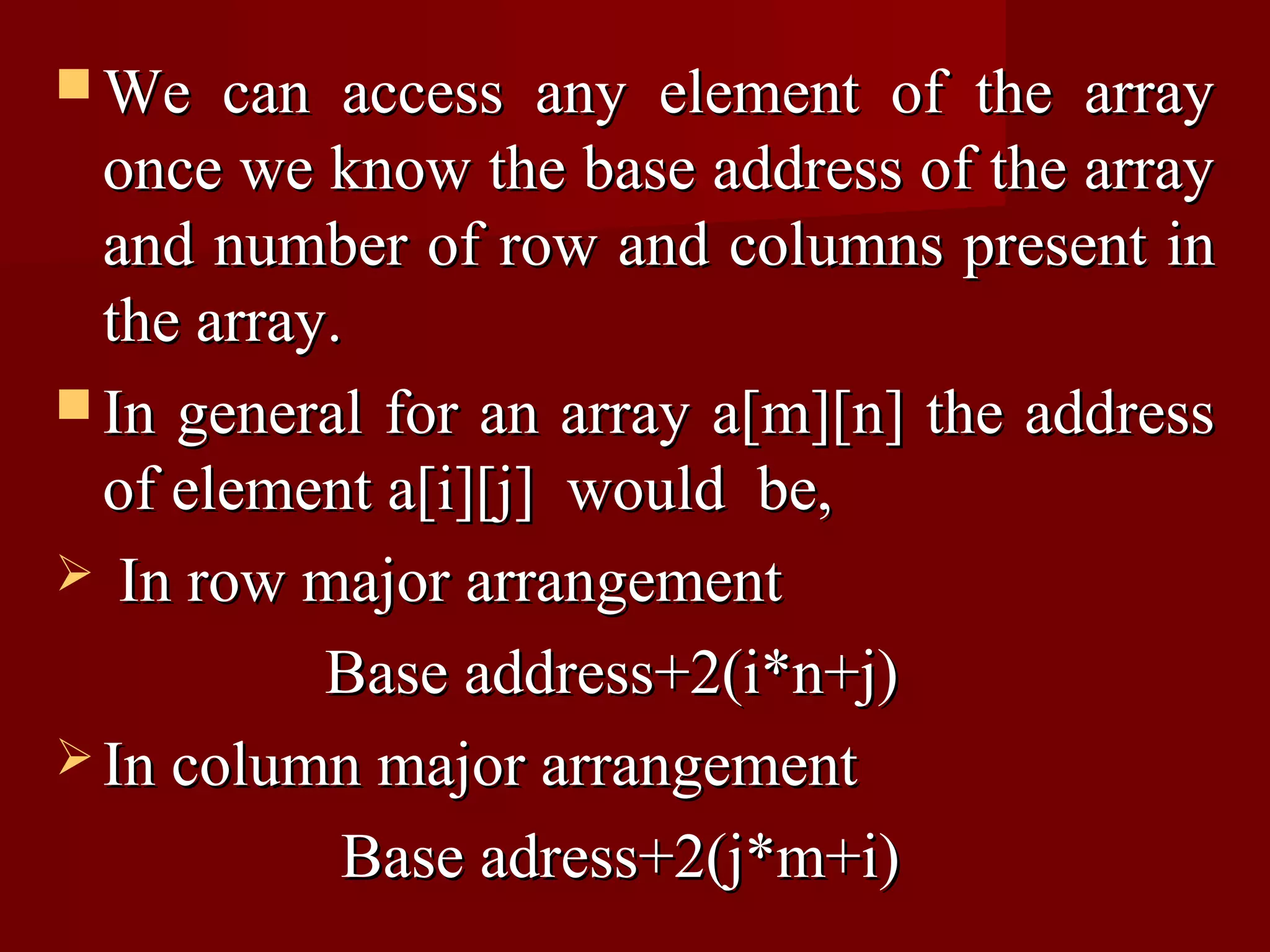

 We can access any element of the array
once we know the base address of the array
and number of row and columns present in
the array.
 In general for an array a[m][n] the address
of element a[i][j] would be,
 In row major arrangement

Base address+2(i*n+j)
 In column major arrangement

Base adress+2(j*m+i)

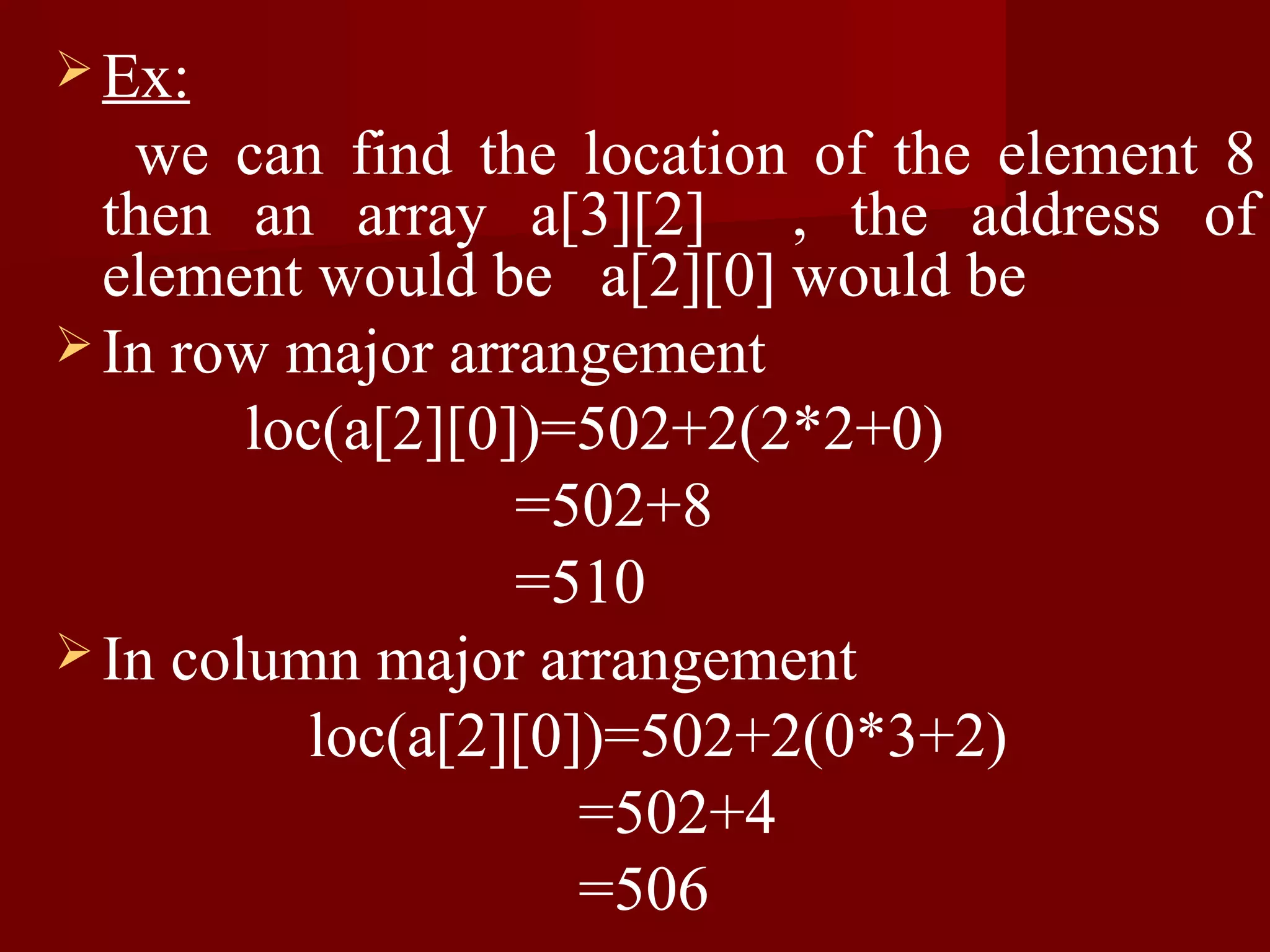

 Ex:
we can find the location of the element 8
then an array a[3][2] , the address of
element would be a[2][0] would be
 In row major arrangement
loc(a[2][0])=502+2(2*2+0)
=502+8
=510
 In column major arrangement
loc(a[2][0])=502+2(0*3+2)
=502+4
=506

Multi dimensional arrays:-
 An array haves 2 or more subscripts, that
type of array is called multi dimensional
array.
 The 3 –D array is called as
multidimensional array this can be thought
of as an array of two dimensional arrays.
 Each element of a 3-D array is accessed
using subscripts, one for each dimension.

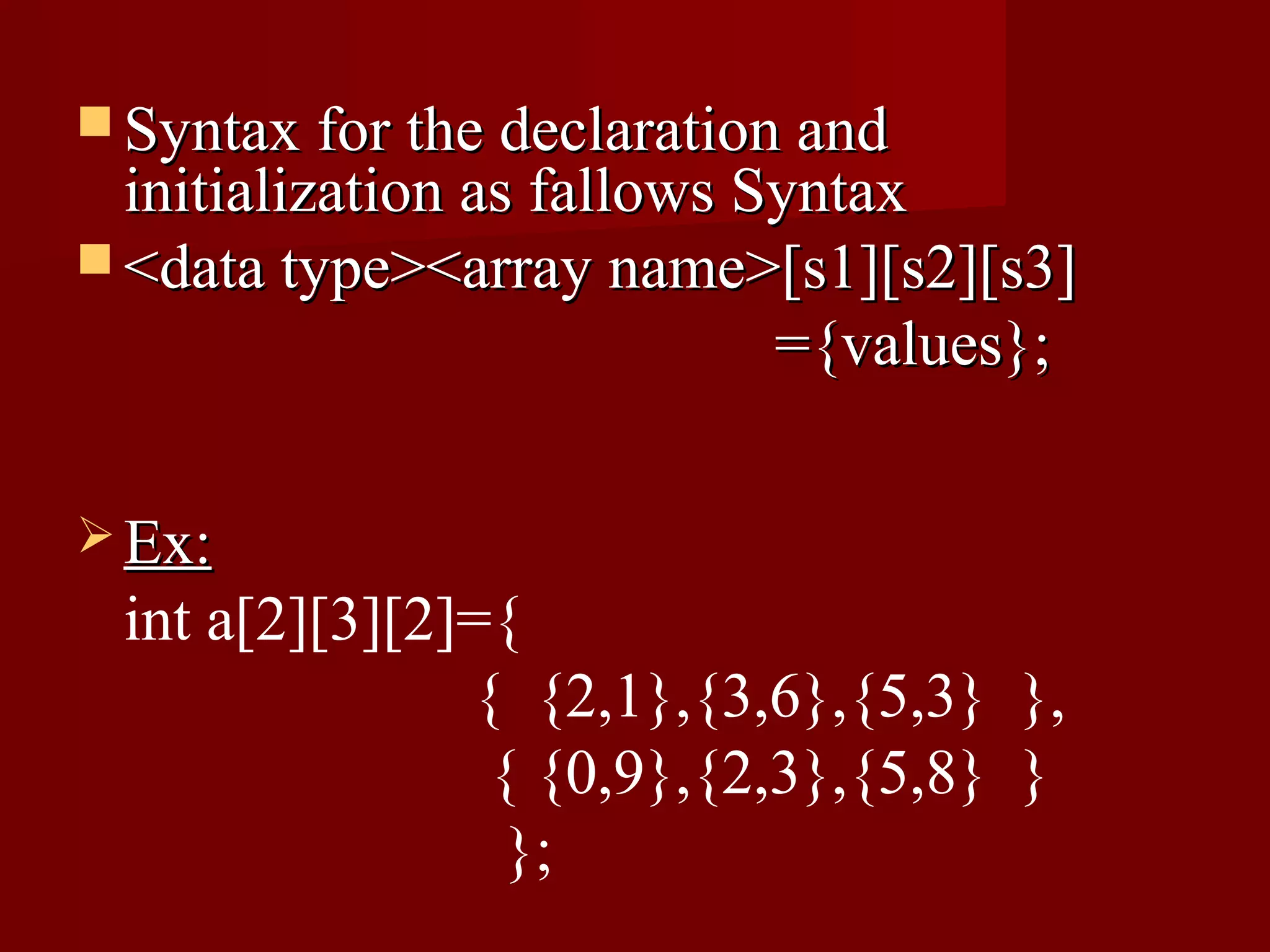

 Syntax for the declaration and
initialization as fallows Syntax
 <data type><array name>[s1][s2][s3]
={values};

 Ex:
int a[2][3][2]={
{ {2,1},{3,6},{5,3} },
{ {0,9},{2,3},{5,8} }
};

Memory representation of 3-D
array:-
 In multi dimensional arrays permits only
a row major arrangement.

0th 2-D array 1st 2-D array
2 1 3 6 5 3 0 9 2 3 5 8
10 12 14 16 18 20 22 24 26 28 30 32

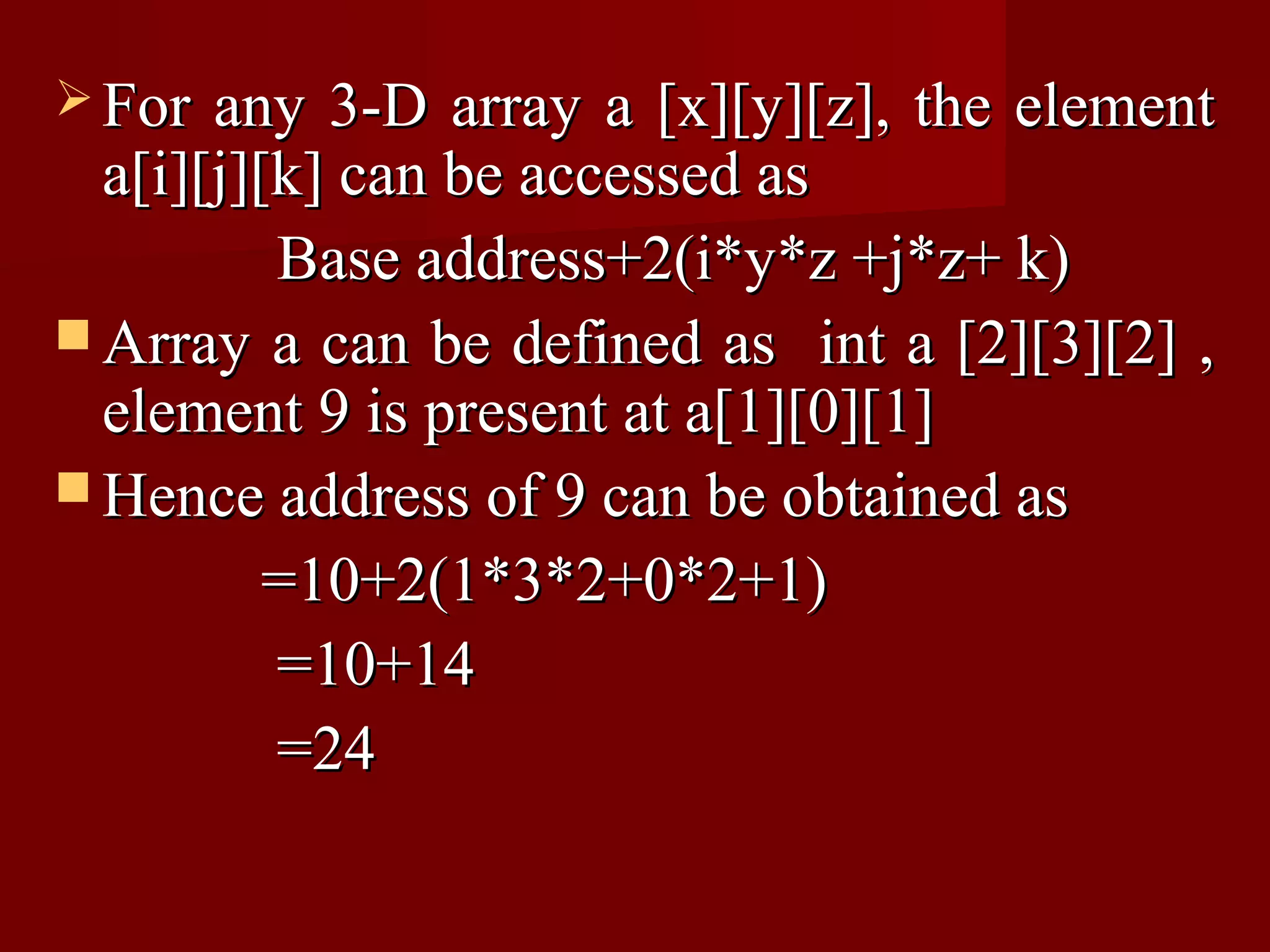

 For any 3-D array a [x][y][z], the element
a[i][j][k] can be accessed as
Base address+2(i*y*z +j*z+ k)
 Array a can be defined as int a [2][3][2] ,
element 9 is present at a[1][0][1]
 Hence address of 9 can be obtained as
=10+2(1*3*2+0*2+1)
=10+14
=24

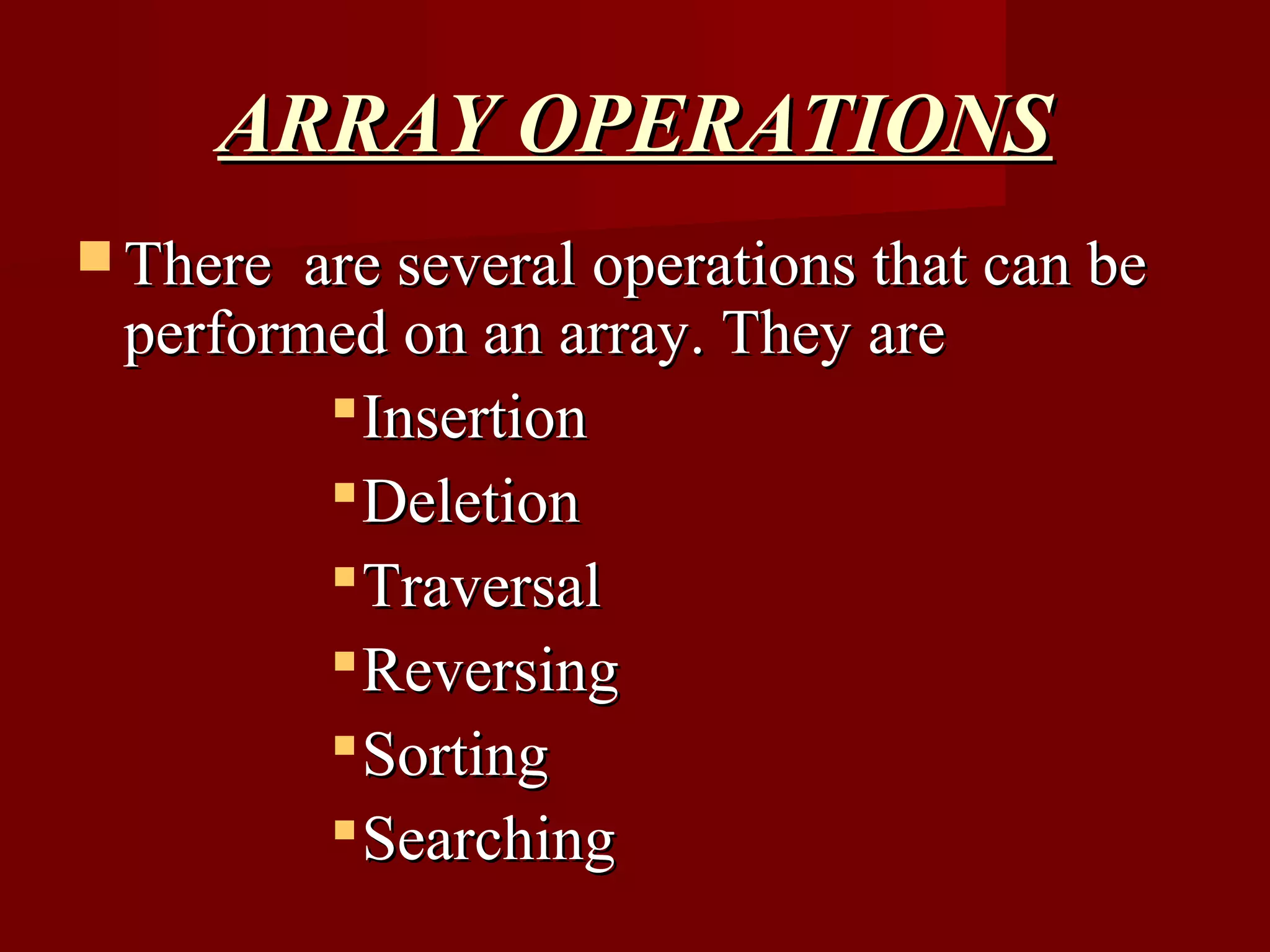

ARRAY OPERATIONS
 There are several operations that can be
performed on an array. They are
 Insertion
 Deletion
 Traversal
 Reversing
 Sorting
 Searching

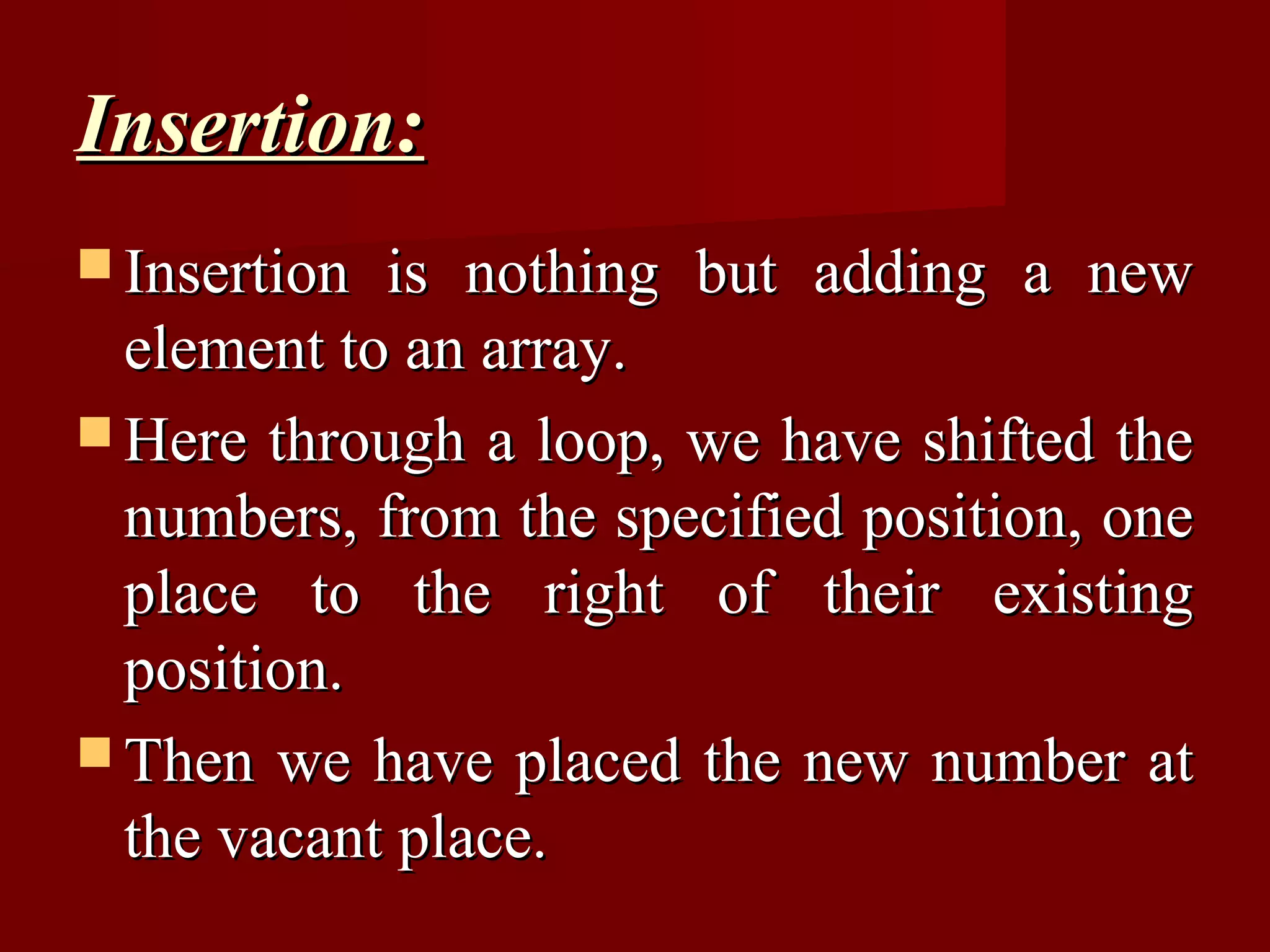

Insertion:
 Insertion is nothing but adding a new
element to an array.
 Here through a loop, we have shifted the
numbers, from the specified position, one
place to the right of their existing
position.
 Then we have placed the new number at
the vacant place.

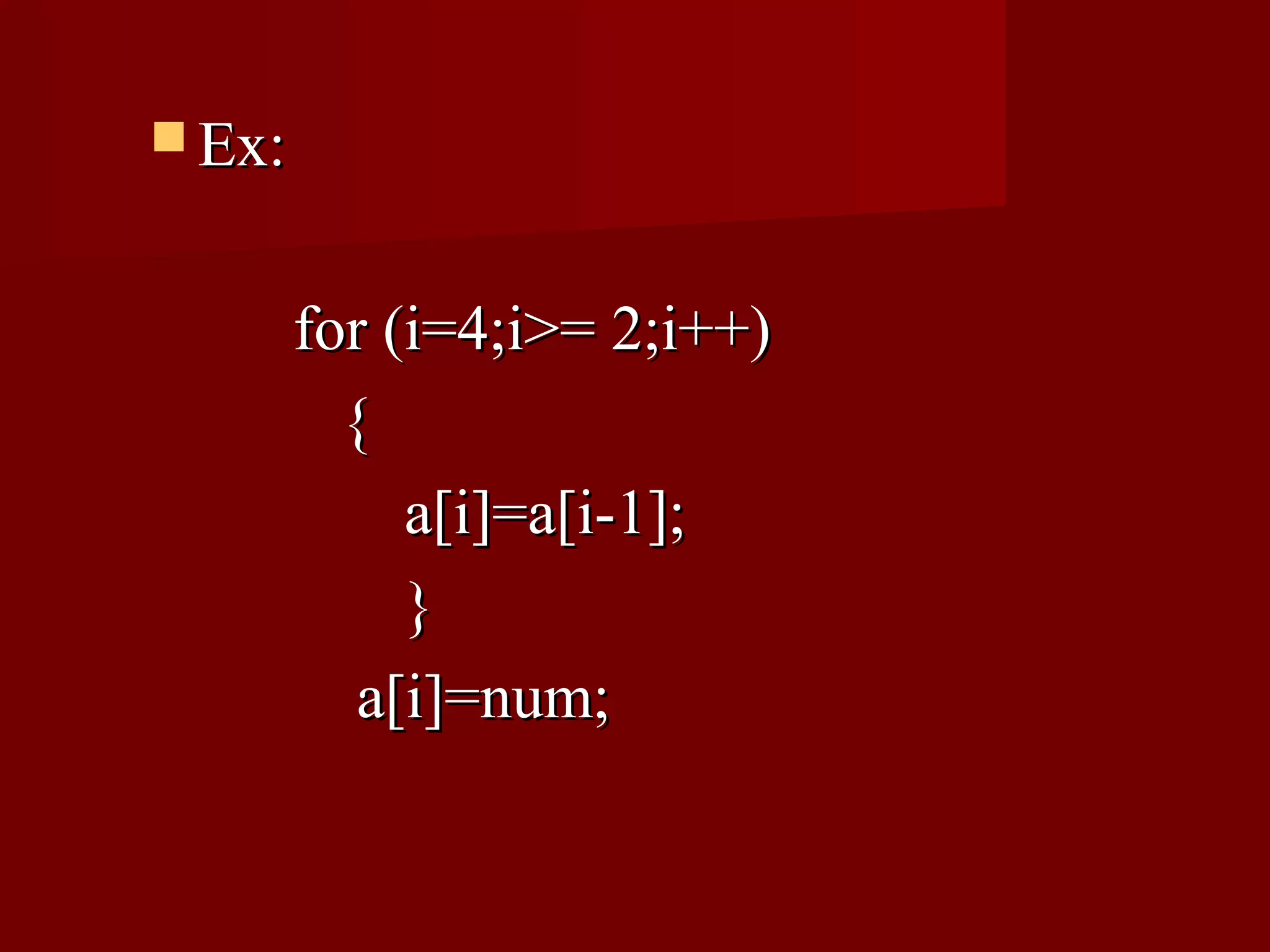

 Ex:

for (i=4;i>= 2;i++)
{
a[i]=a[i-1];
}
a[i]=num;

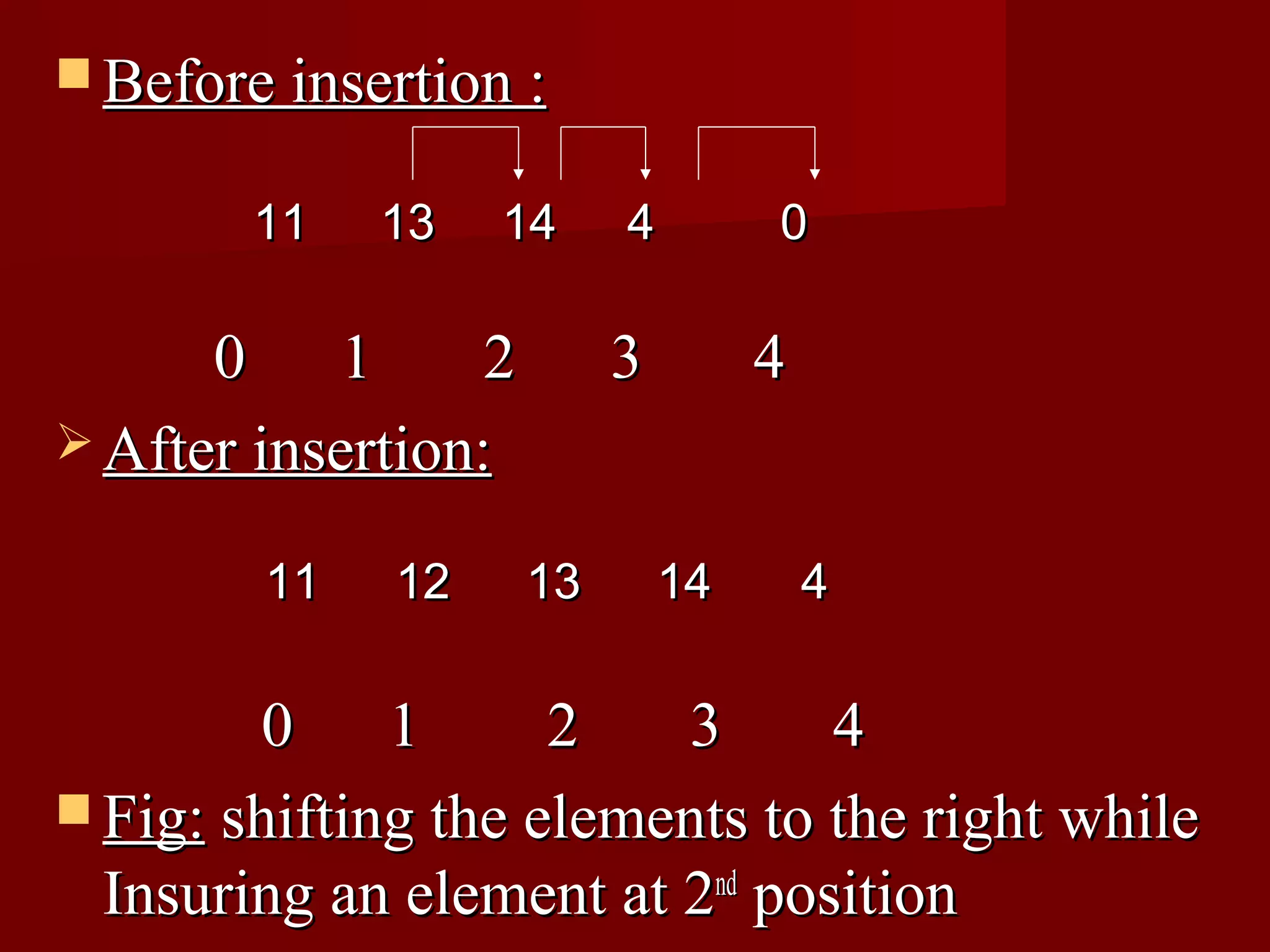

 Before insertion :

11 13 14 4 0

0 1 2 3 4
 After insertion:

11 12 13 14 4

0 1 2 3 4
 Fig: shifting the elements to the right while
Insuring an element at 2nd position

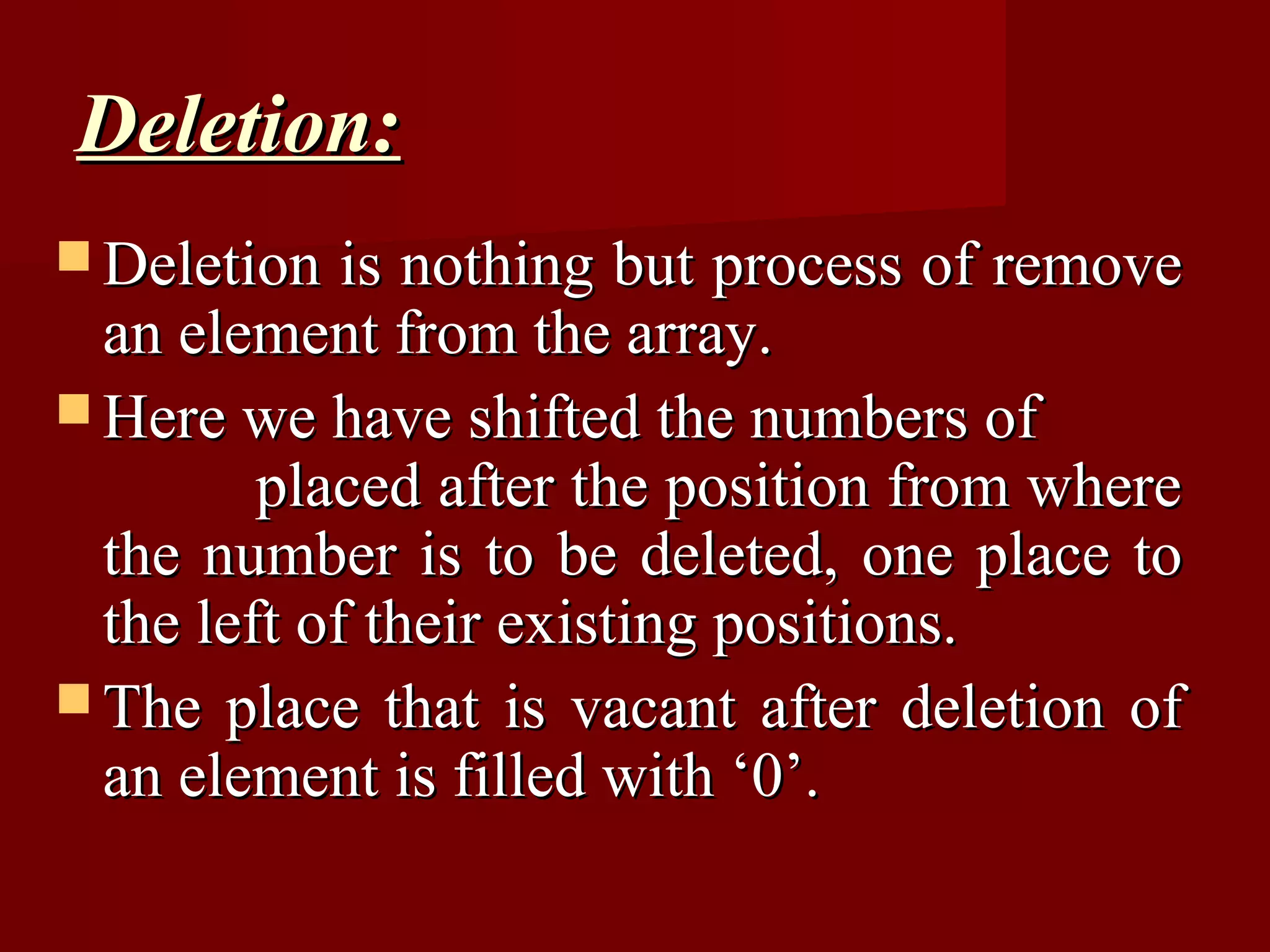

Deletion:
 Deletion is nothing but process of remove
an element from the array.
 Here we have shifted the numbers of
placed after the position from where
the number is to be deleted, one place to
the left of their existing positions.
 The place that is vacant after deletion of
an element is filled with ‘0’.

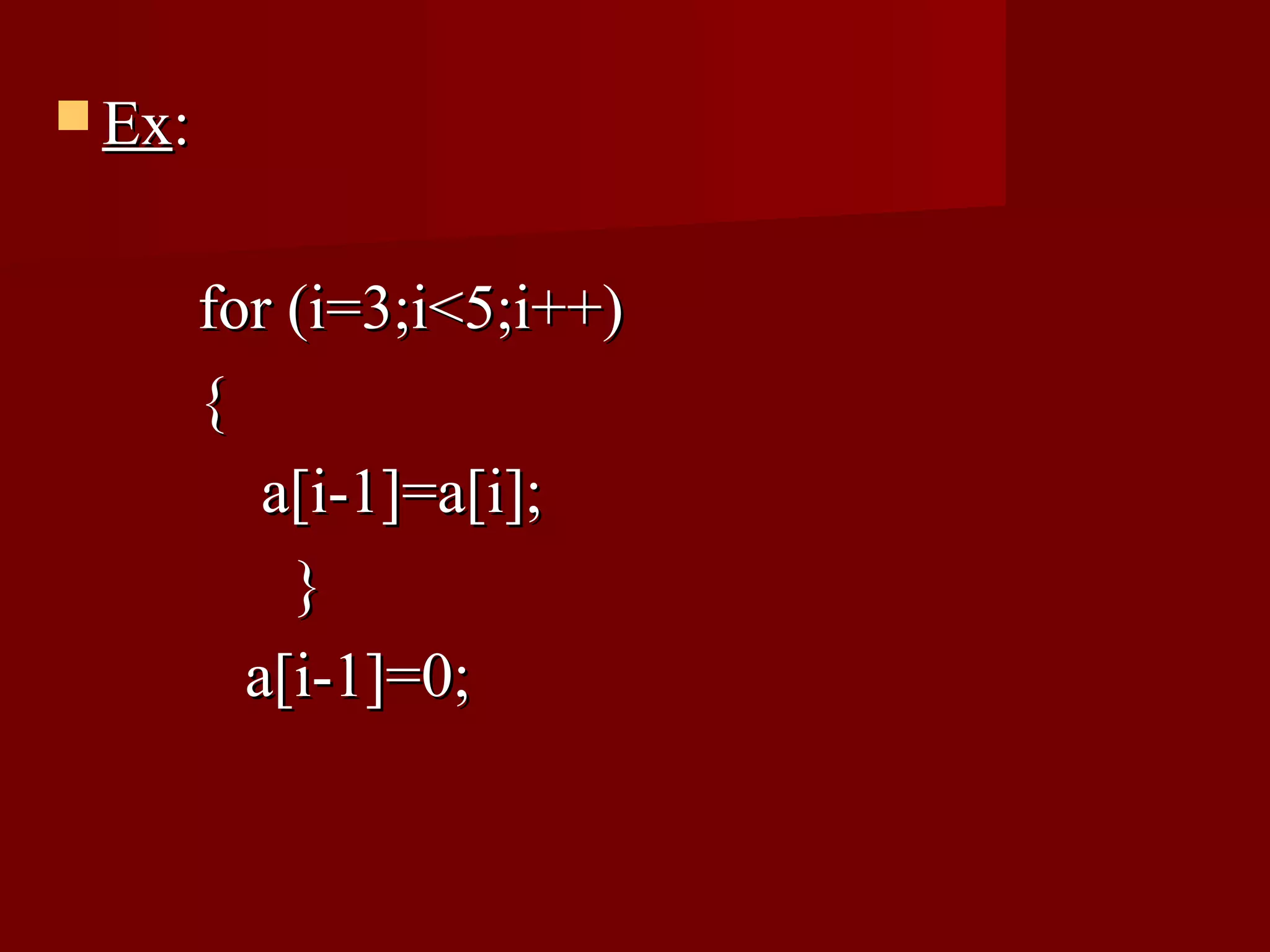

 Ex:

for (i=3;i<5;i++)
{
a[i-1]=a[i];
}
a[i-1]=0;

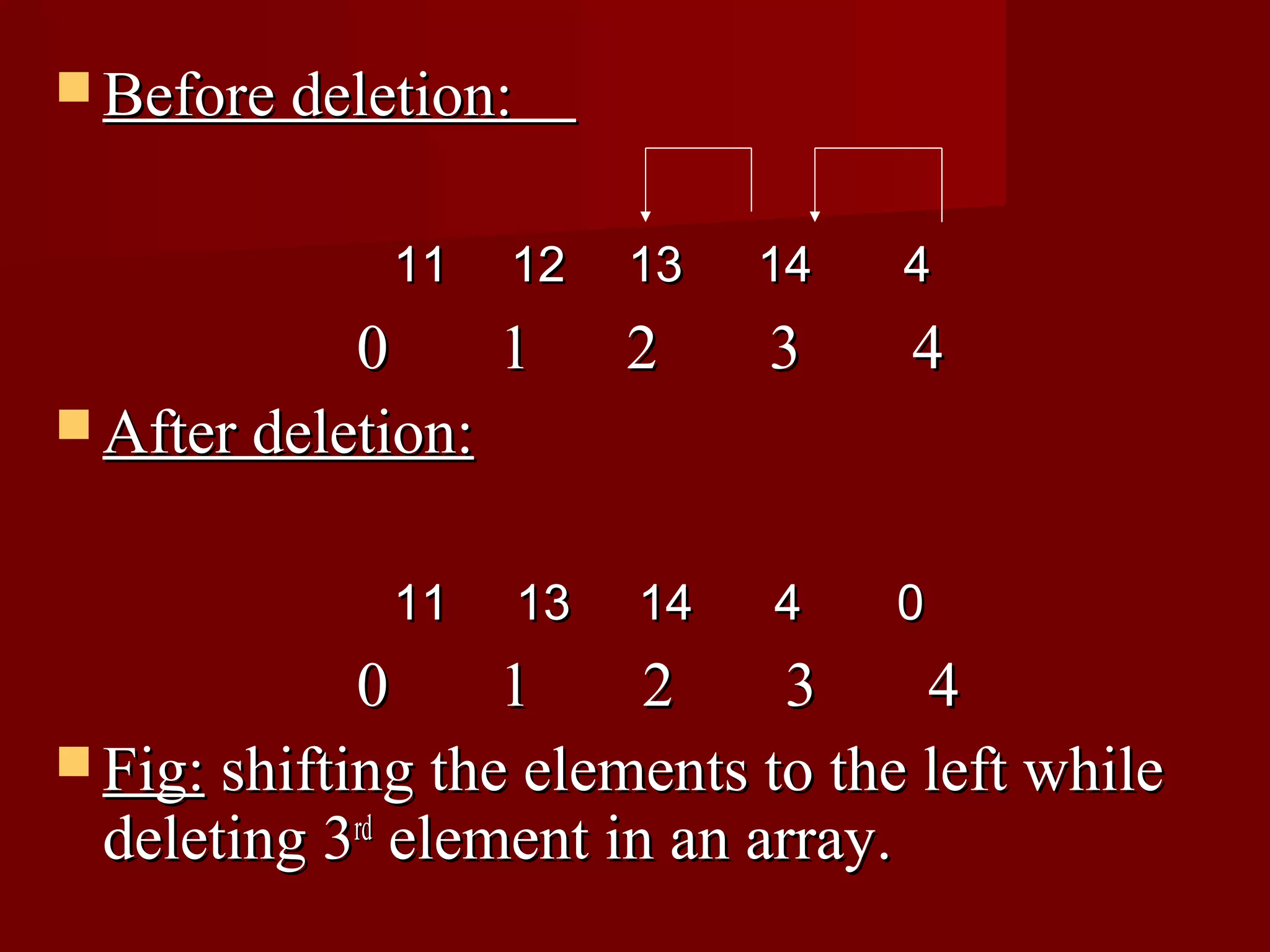

 Before deletion:

11 12 13 14 4
0 1 2 3 4
 After deletion:

11 13 14 4 0
0 1 2 3 4
 Fig: shifting the elements to the left while
deleting 3rd element in an array.

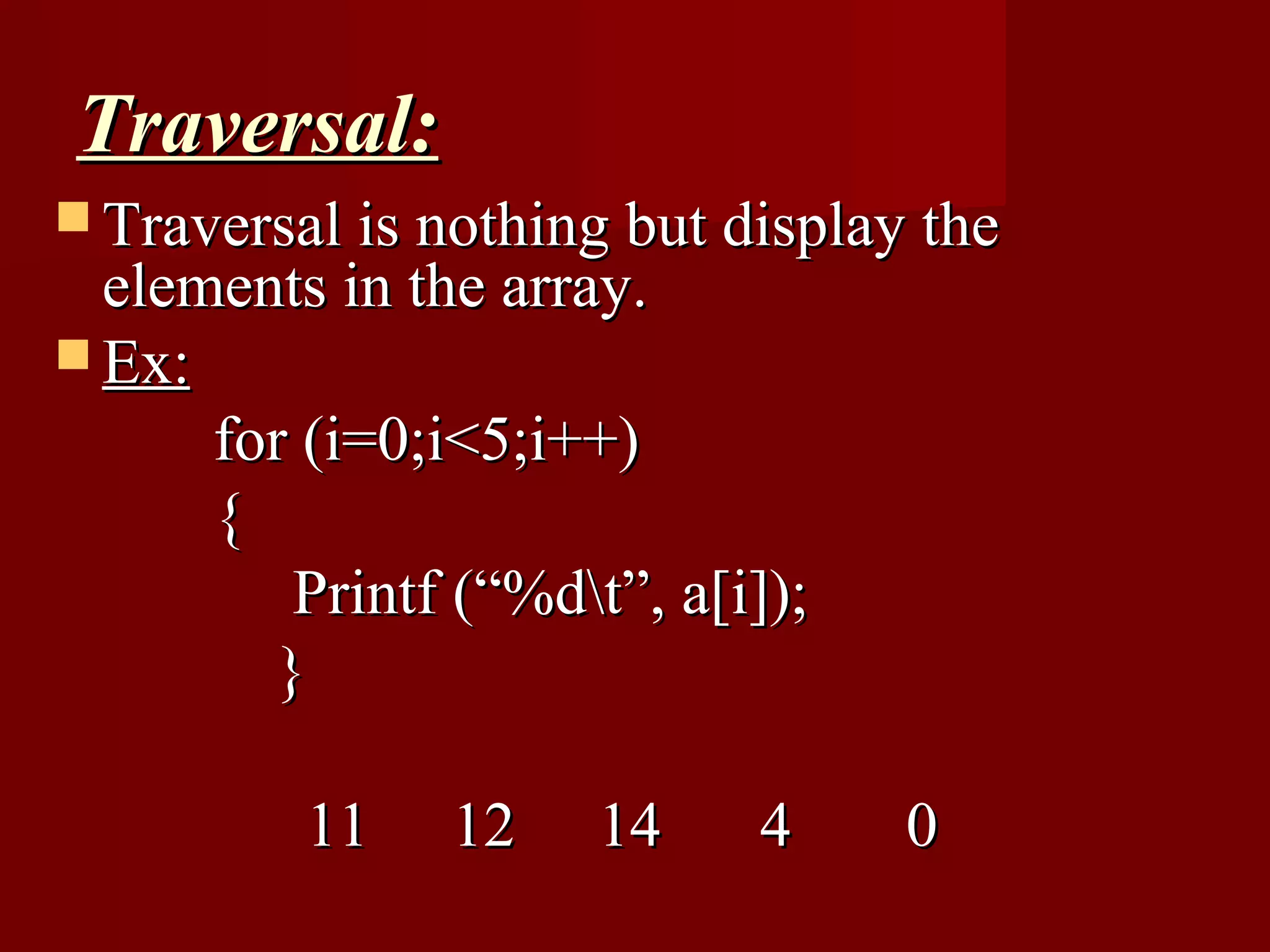

Traversal:
 Traversal is nothing but display the
elements in the array.
 Ex:
for (i=0;i<5;i++)
{
Printf (“%dt”, a[i]);
}

11 12 14 4 0

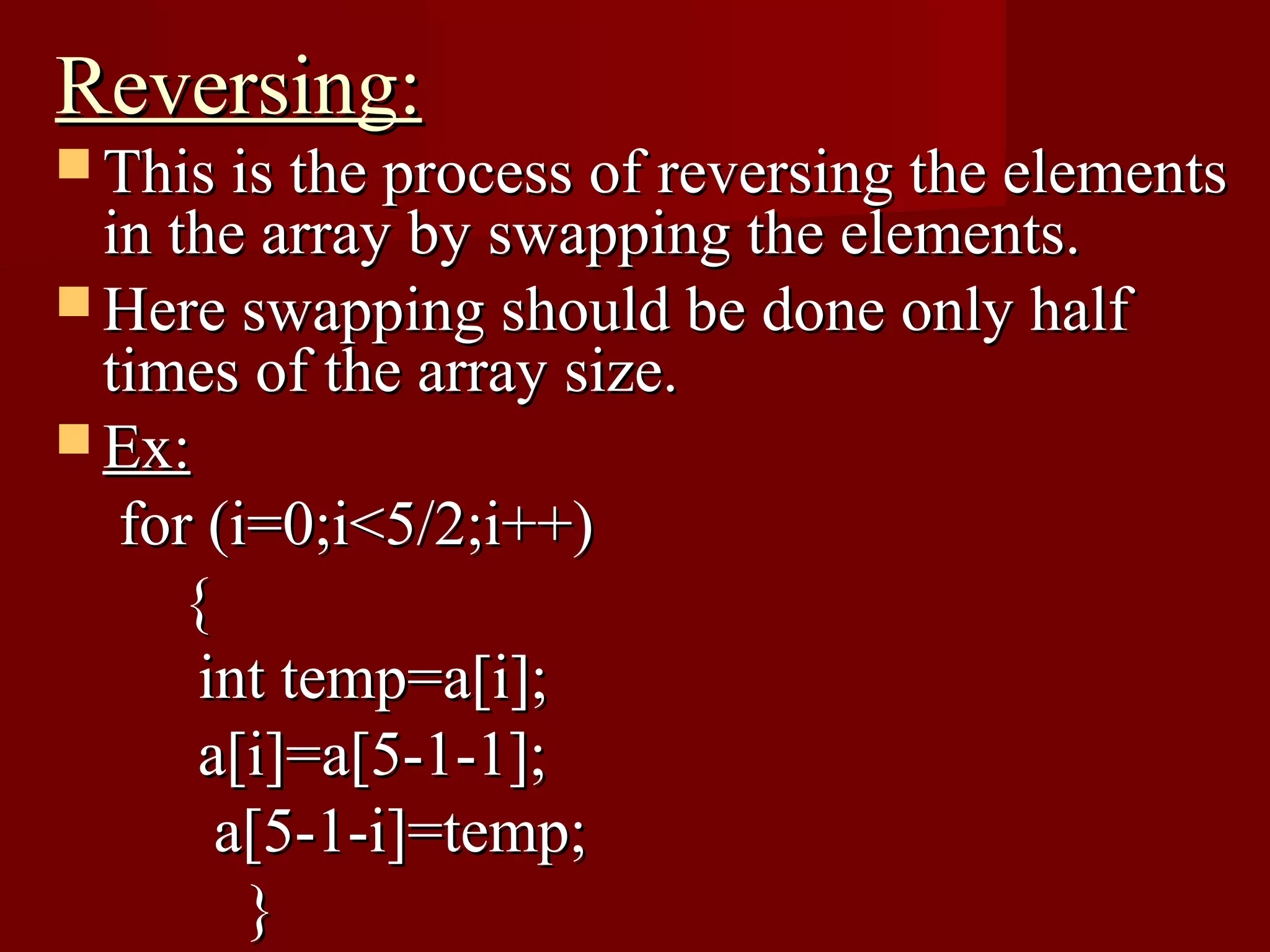

Reversing:
 This is the process of reversing the elements
in the array by swapping the elements.
 Here swapping should be done only half
times of the array size.
 Ex:
for (i=0;i<5/2;i++)
{
int temp=a[i];
a[i]=a[5-1-1];
a[5-1-i]=temp;
}

 Before swapping:

11 12 13 14 0
0 1 2 3 4
 After swapping:

0 14 13 12 11
0 1 2 3 4
Fig: swapping of elements while reversing an
array.

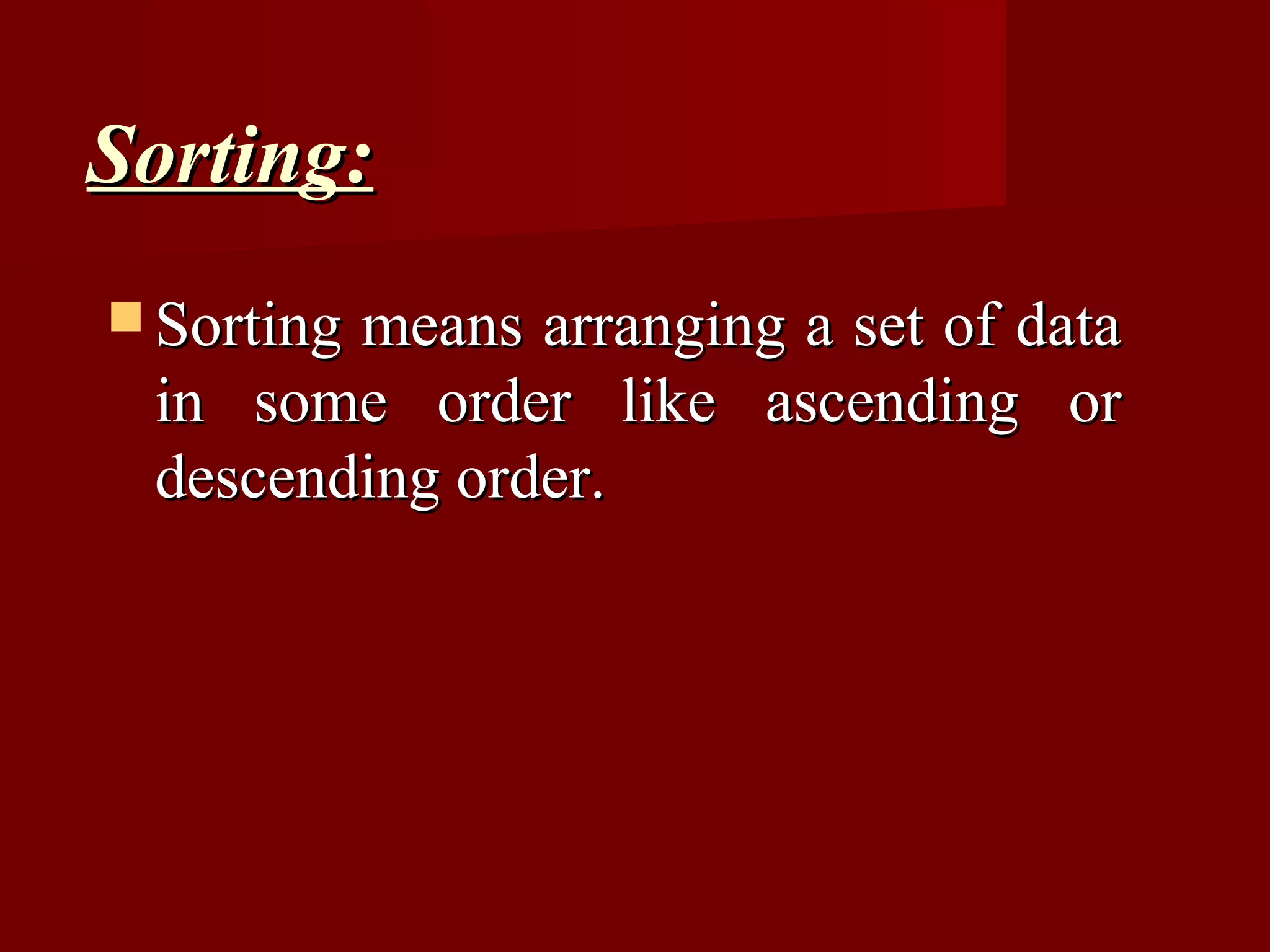

Sorting:
 Sorting
means arranging a set of data
in some order like ascending or
descending order.

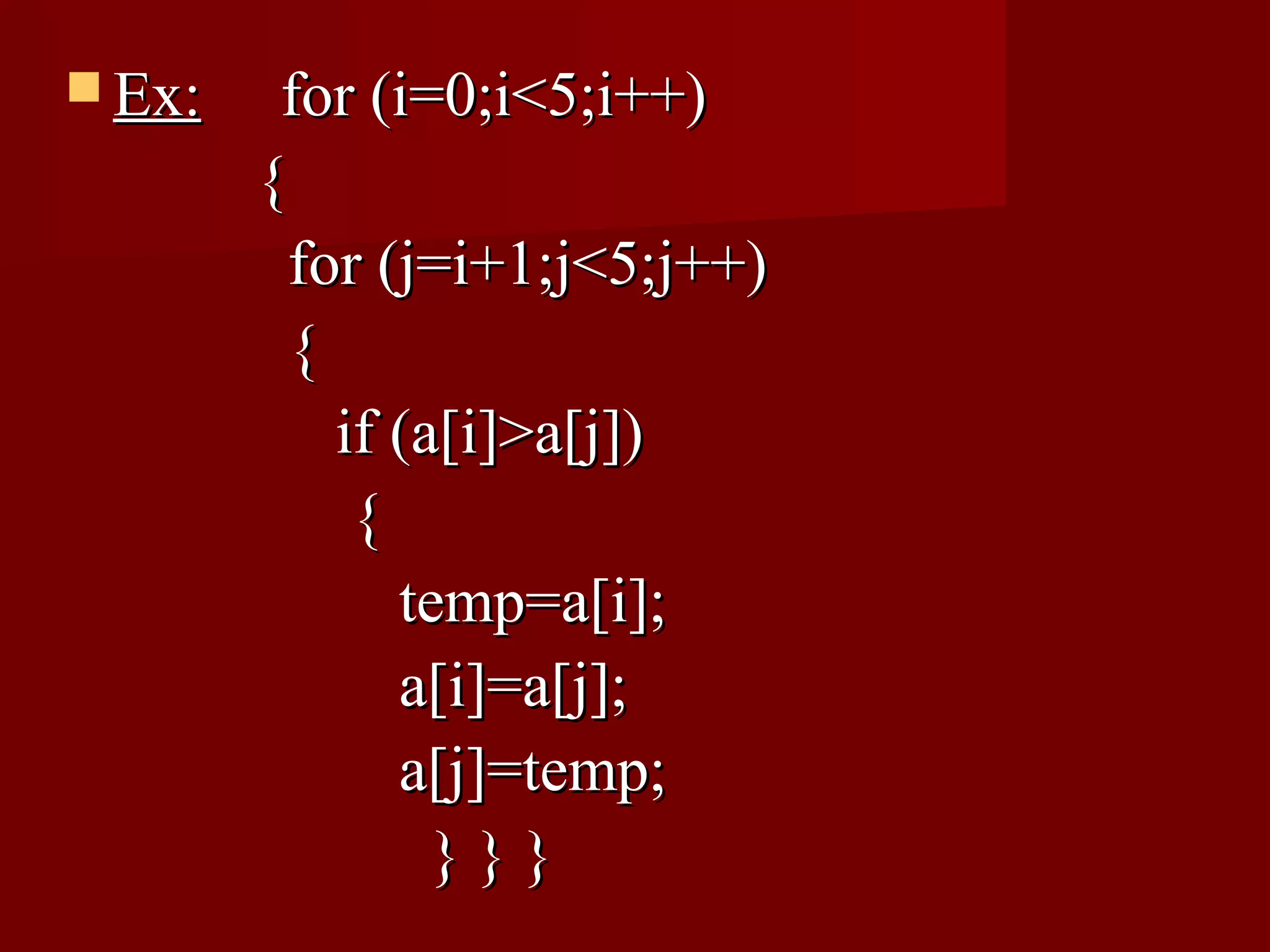

 Ex: for (i=0;i<5;i++)
{
for (j=i+1;j<5;j++)
{
if (a[i]>a[j])
{
temp=a[i];
a[i]=a[j];
a[j]=temp;
}}}

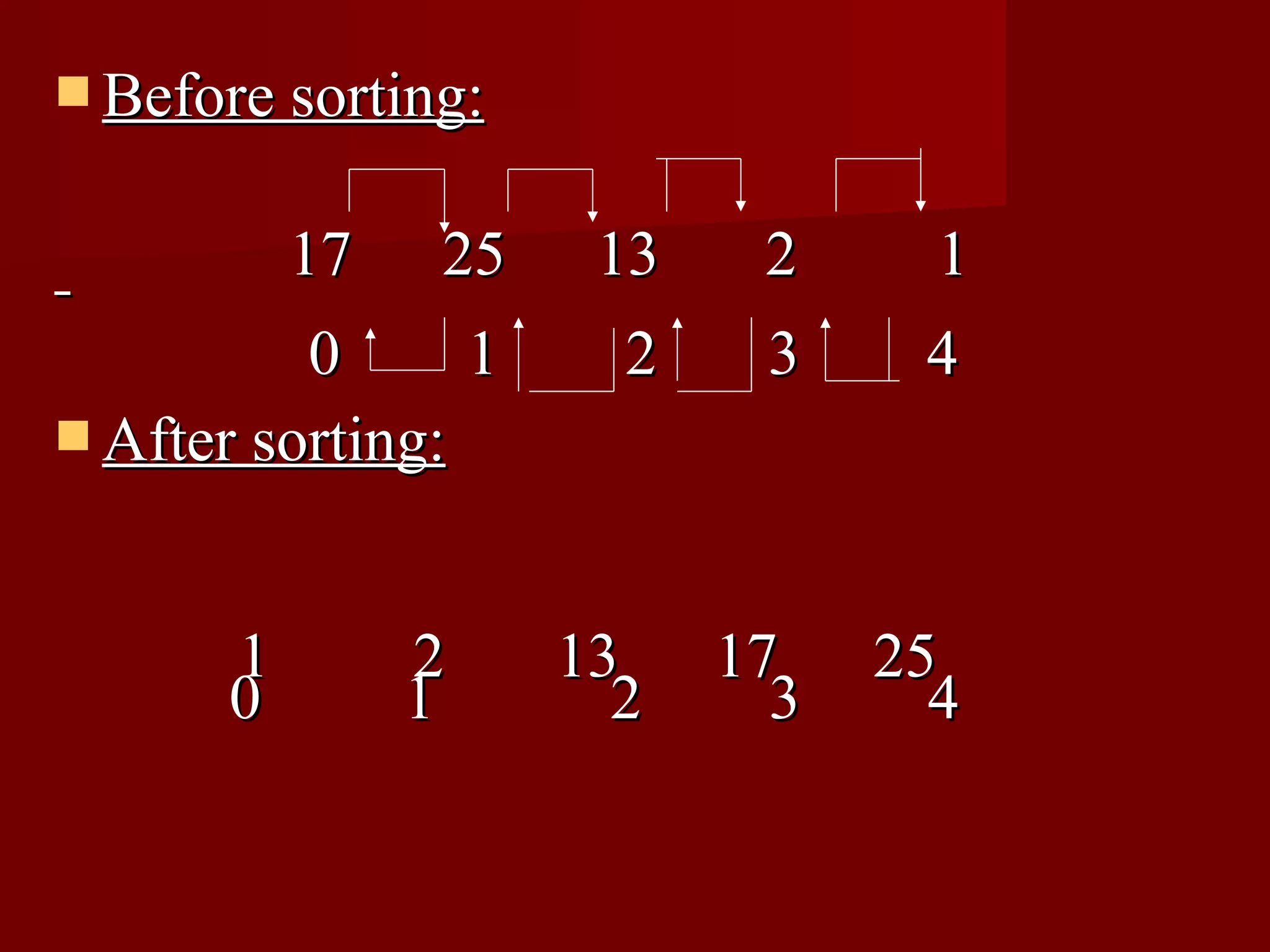

 Before sorting:

17 25 13 2 1
0 1 2 3 4
 After sorting:

1 2 13 17 25
0 1 2 3 4

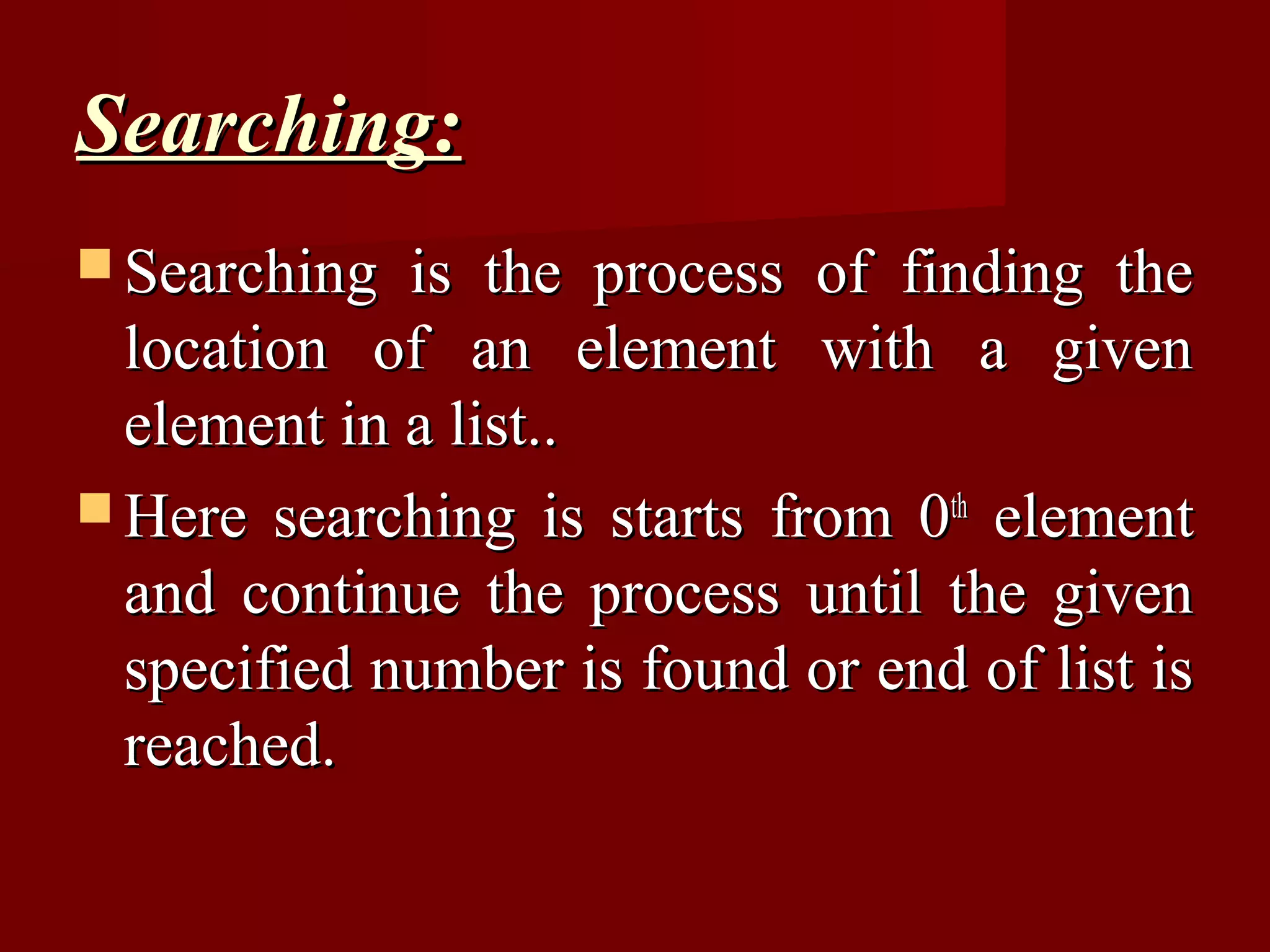

Searching:
 Searching is the process of finding the
location of an element with a given
element in a list..
 Here searching is starts from 0th element
and continue the process until the given
specified number is found or end of list is
reached.

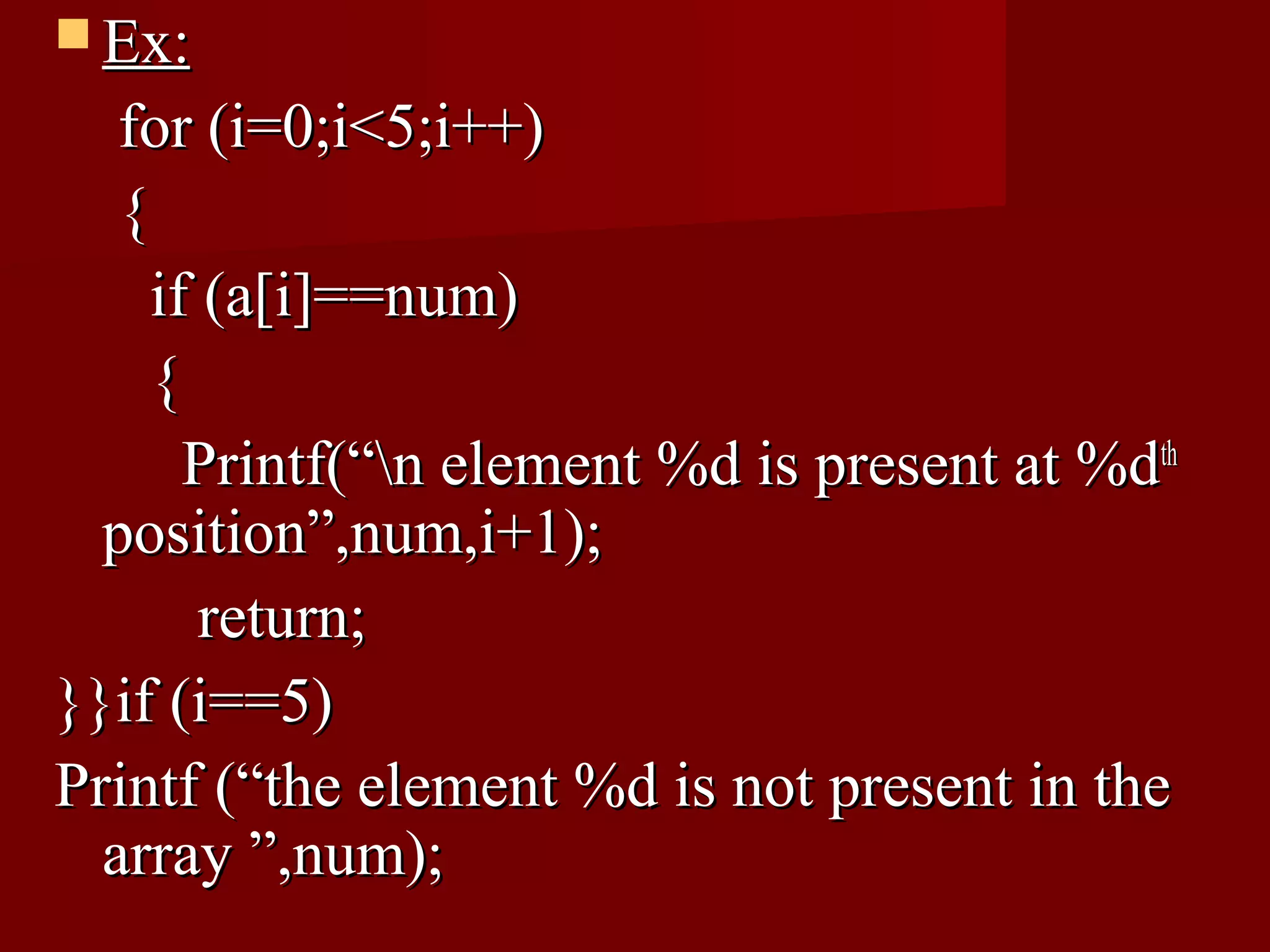

 Ex:
for (i=0;i<5;i++)
{
if (a[i]==num)
{
Printf(“n element %d is present at %dth
position”,num,i+1);
return;
}}if (i==5)
Printf (“the element %d is not present in the
array ”,num);

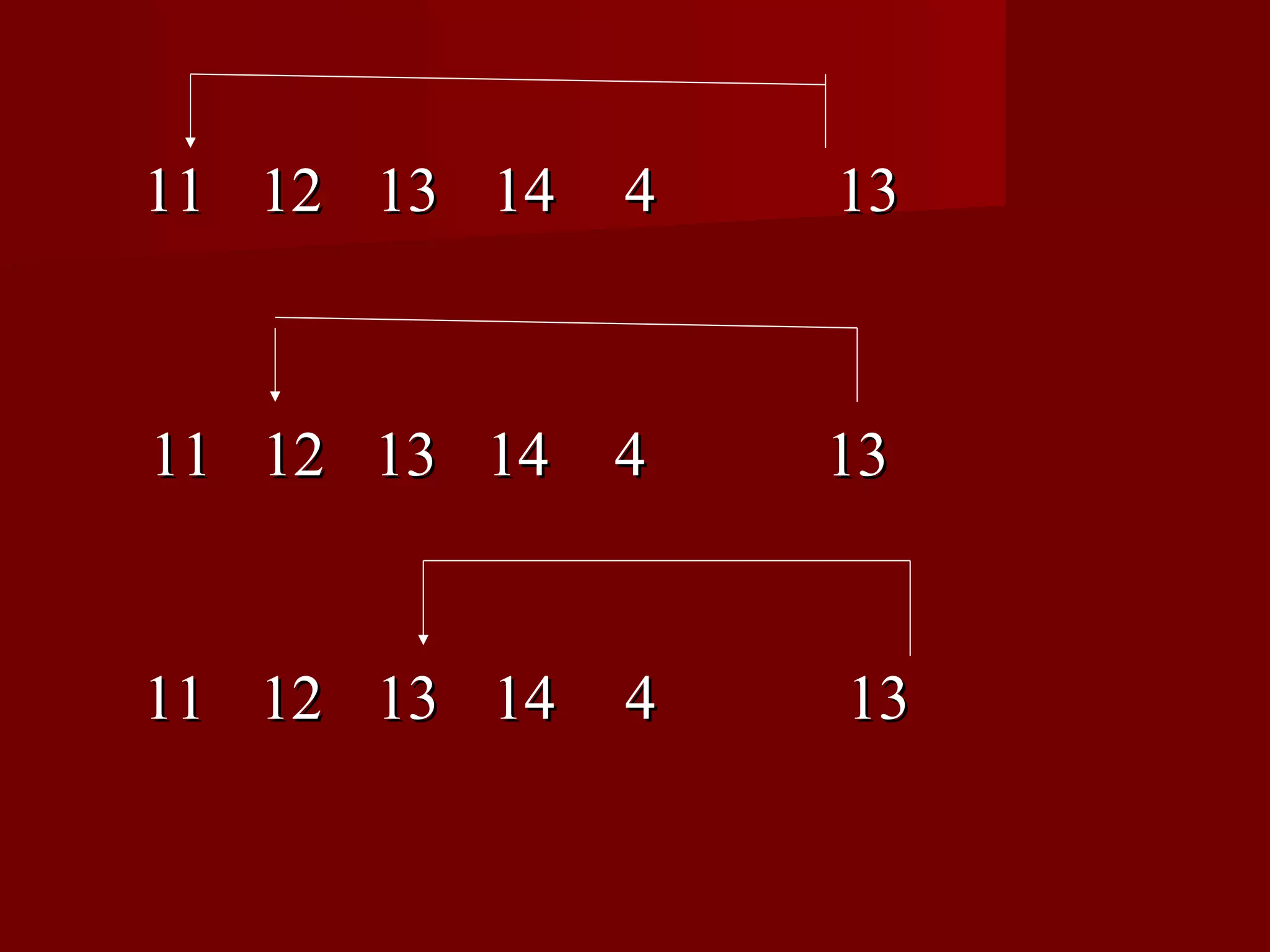

11 12 13 14 4 13

11 12 13 14 4 13

11 12 13 14 4 13

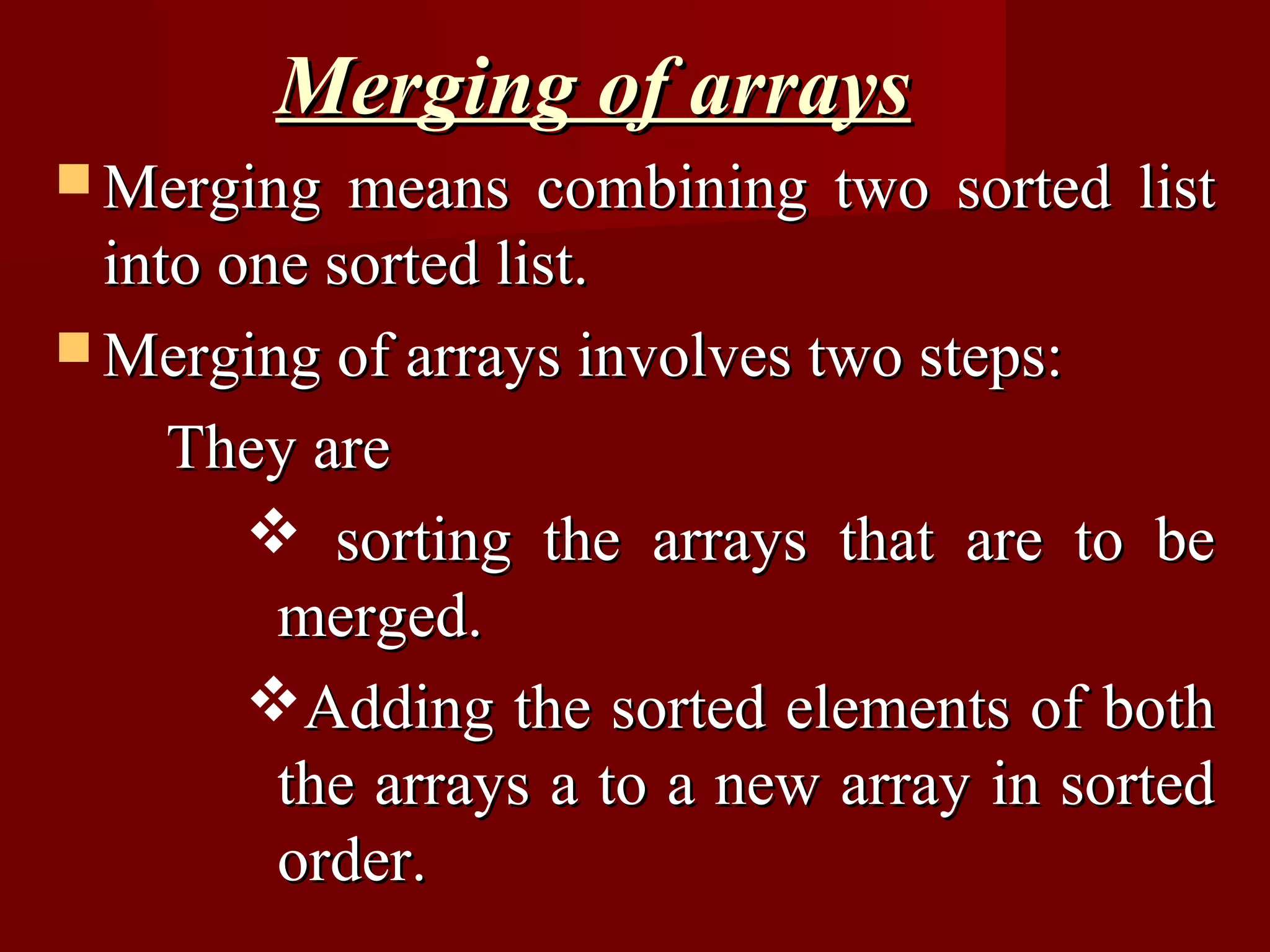

Merging of arrays
 Merging means combining two sorted list
into one sorted list.
 Merging of arrays involves two steps:

They are
 sorting the arrays that are to be
merged.
Adding the sorted elements of both
the arrays a to a new array in sorted
order.

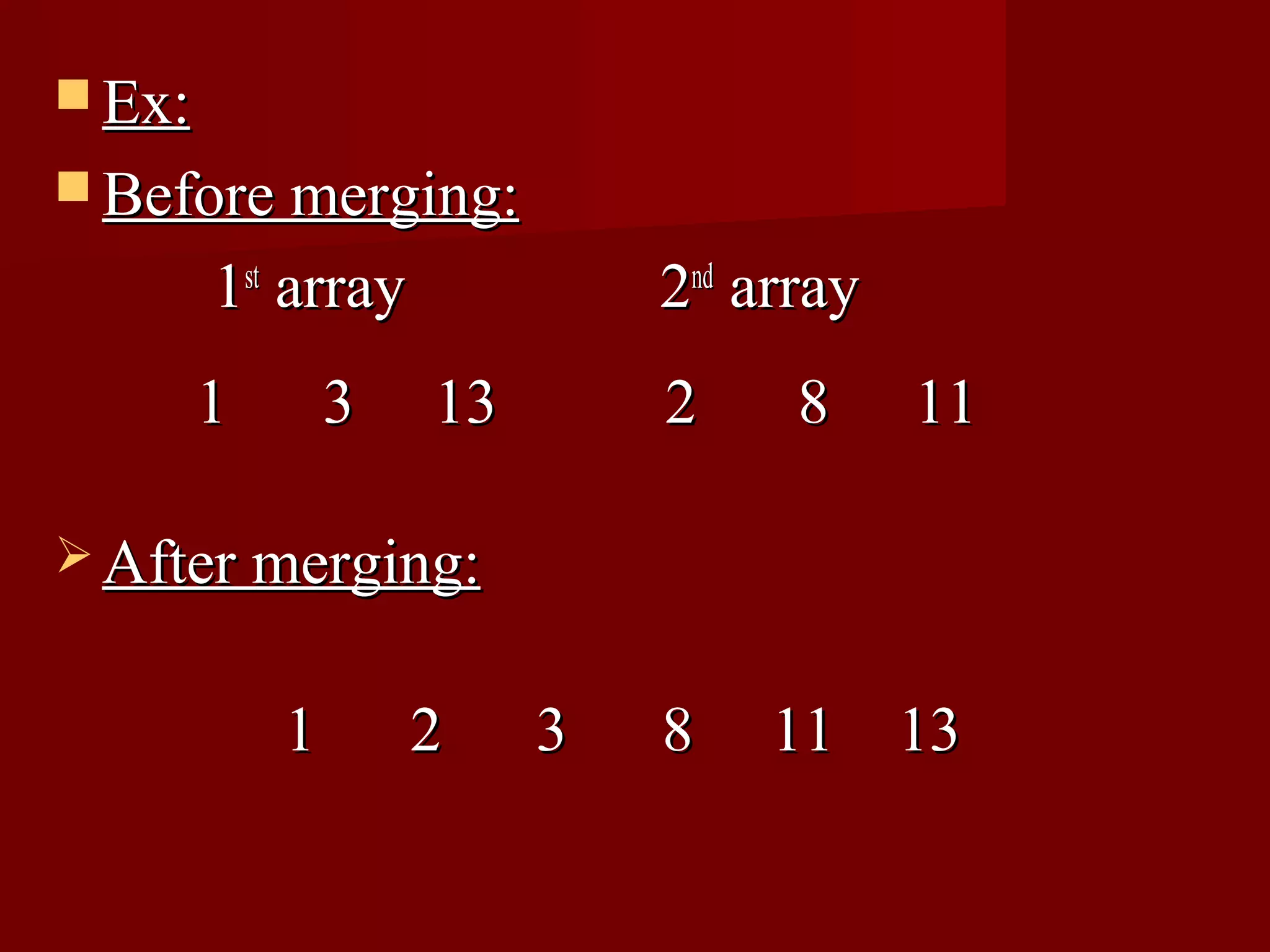

 Ex:
 Before merging:

1st array 2nd array
1 3 13 2 8 11

 After merging:

1 2 3 8 11 13

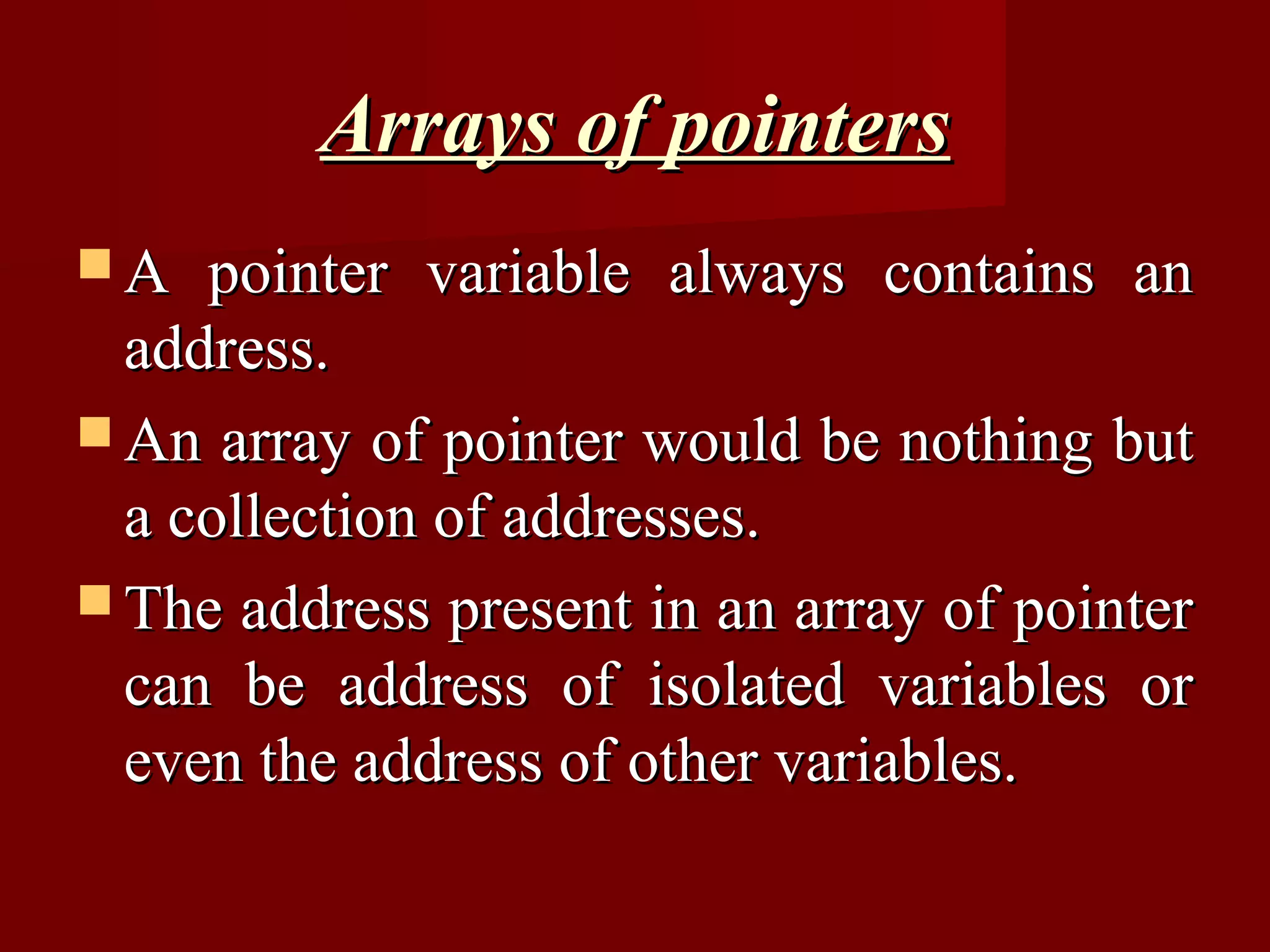

Arrays of pointers
A pointer variable always contains an
address.
 An array of pointer would be nothing but
a collection of addresses.
 The address present in an array of pointer
can be address of isolated variables or
even the address of other variables.

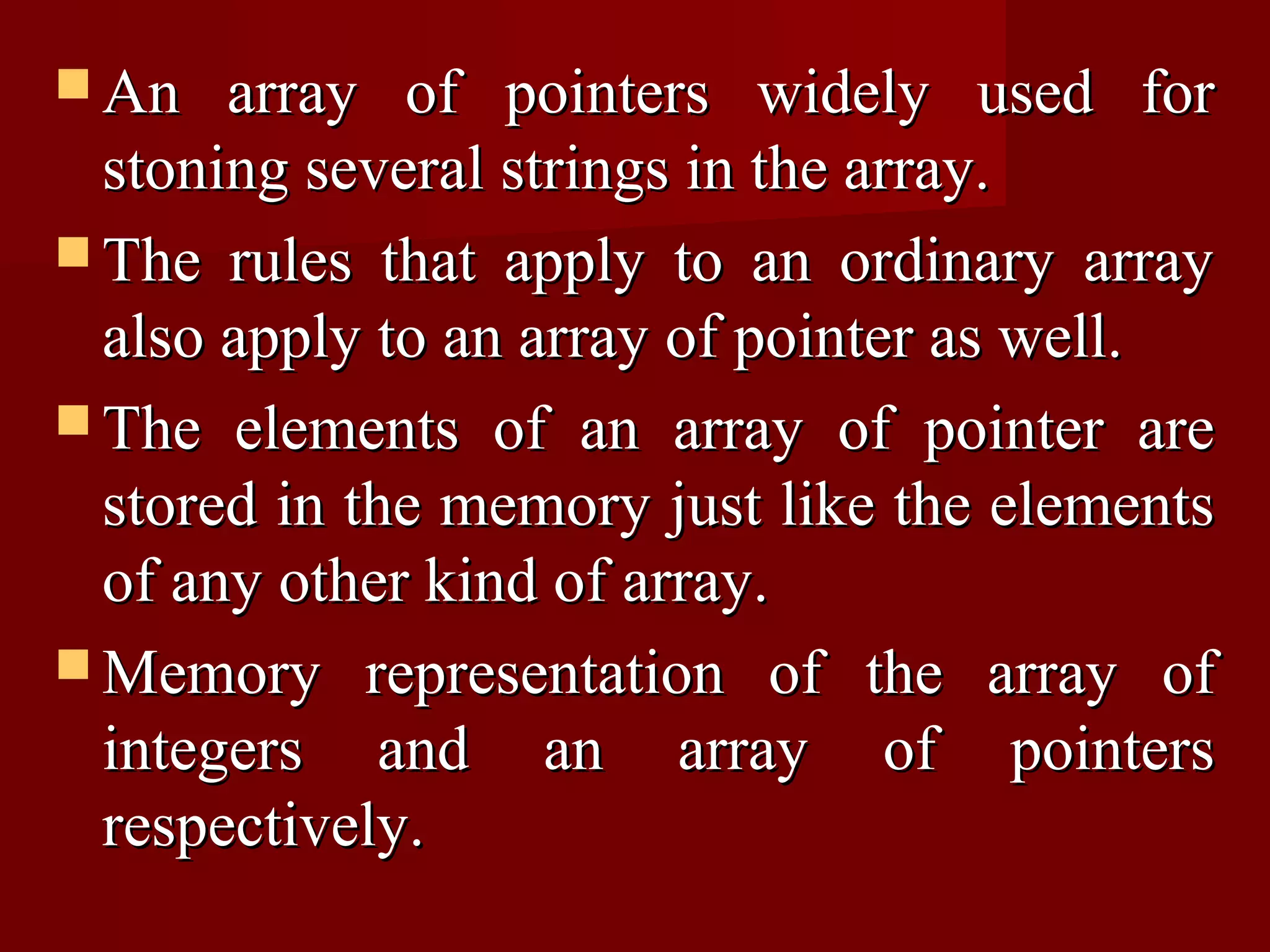

 An array of pointers widely used for
stoning several strings in the array.
 The rules that apply to an ordinary array
also apply to an array of pointer as well.
 The elements of an array of pointer are
stored in the memory just like the elements
of any other kind of array.
 Memory representation of the array of
integers and an array of pointers
respectively.

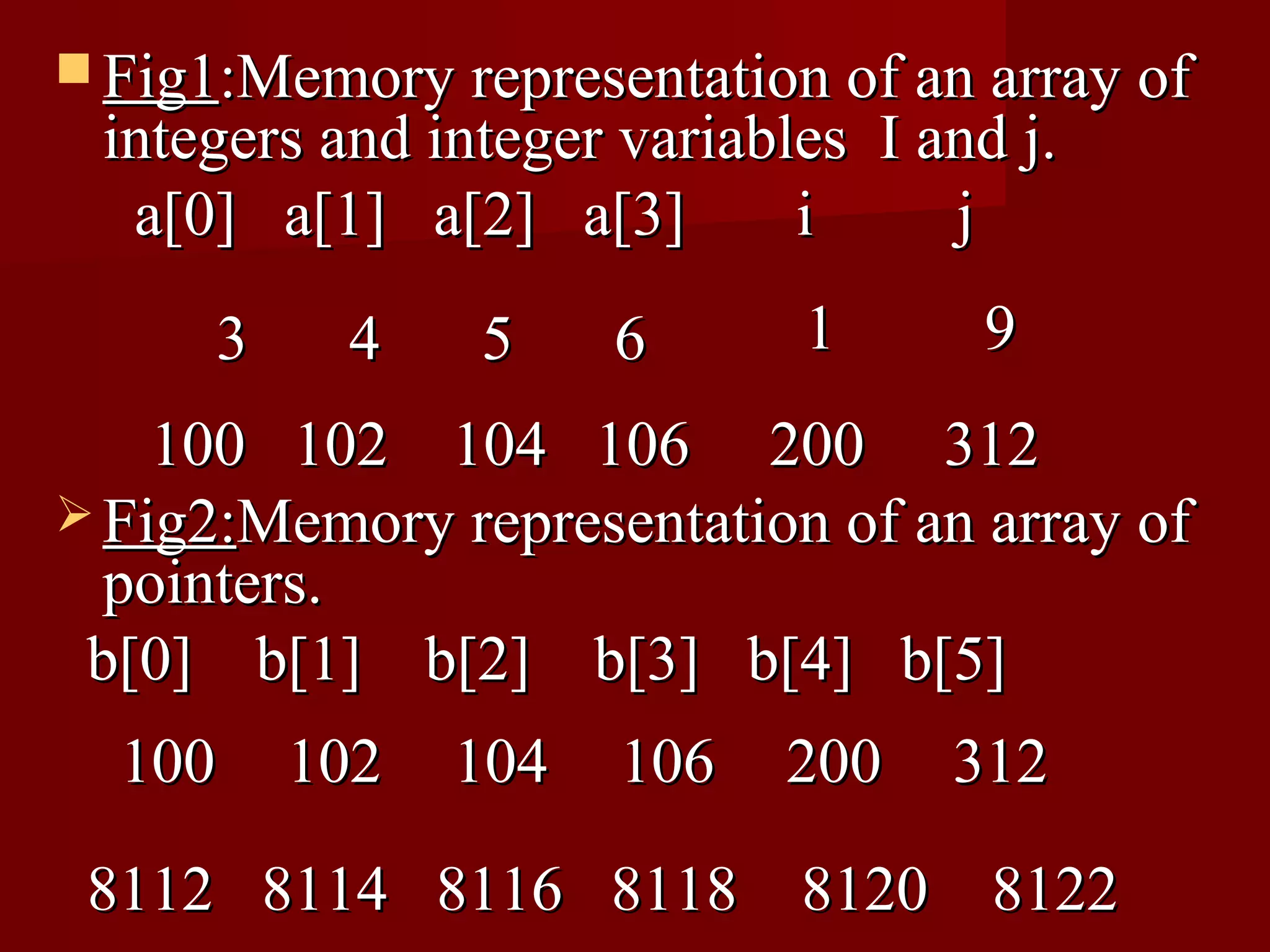

 Fig1:Memory representation of an array of
integers and integer variables I and j.
a[0] a[1] a[2] a[3] i j
3 4 5 6 1 9
100 102 104 106 200 312
 Fig2:Memory representation of an array of
pointers.
b[0] b[1] b[2] b[3] b[4] b[5]
100 102 104 106 200 312

8112 8114 8116 8118 8120 8122

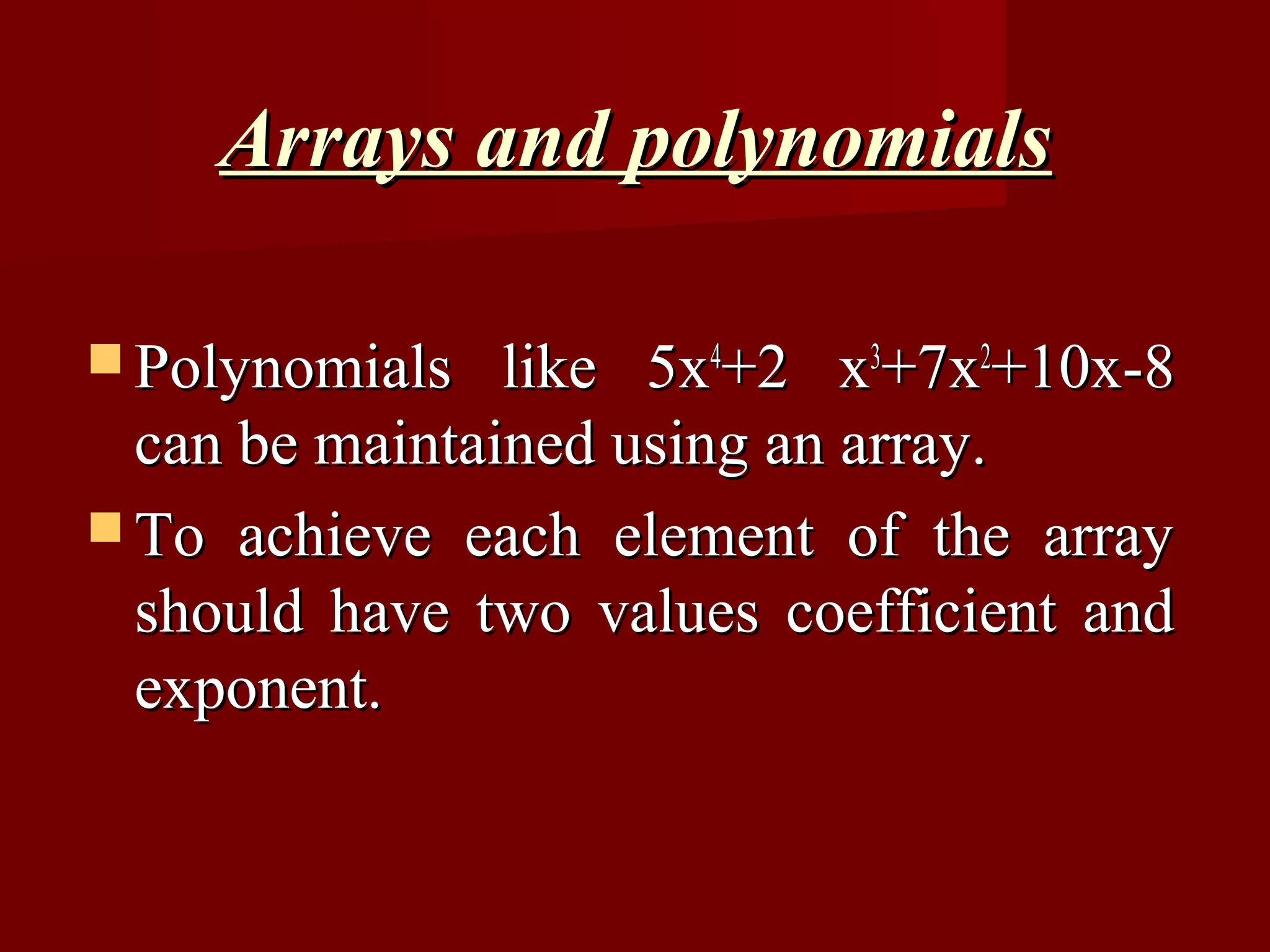

Arrays and polynomials

 Polynomials like 5x4+2 x3+7x2+10x-8
can be maintained using an array.
 To achieve each element of the array
should have two values coefficient and
exponent.

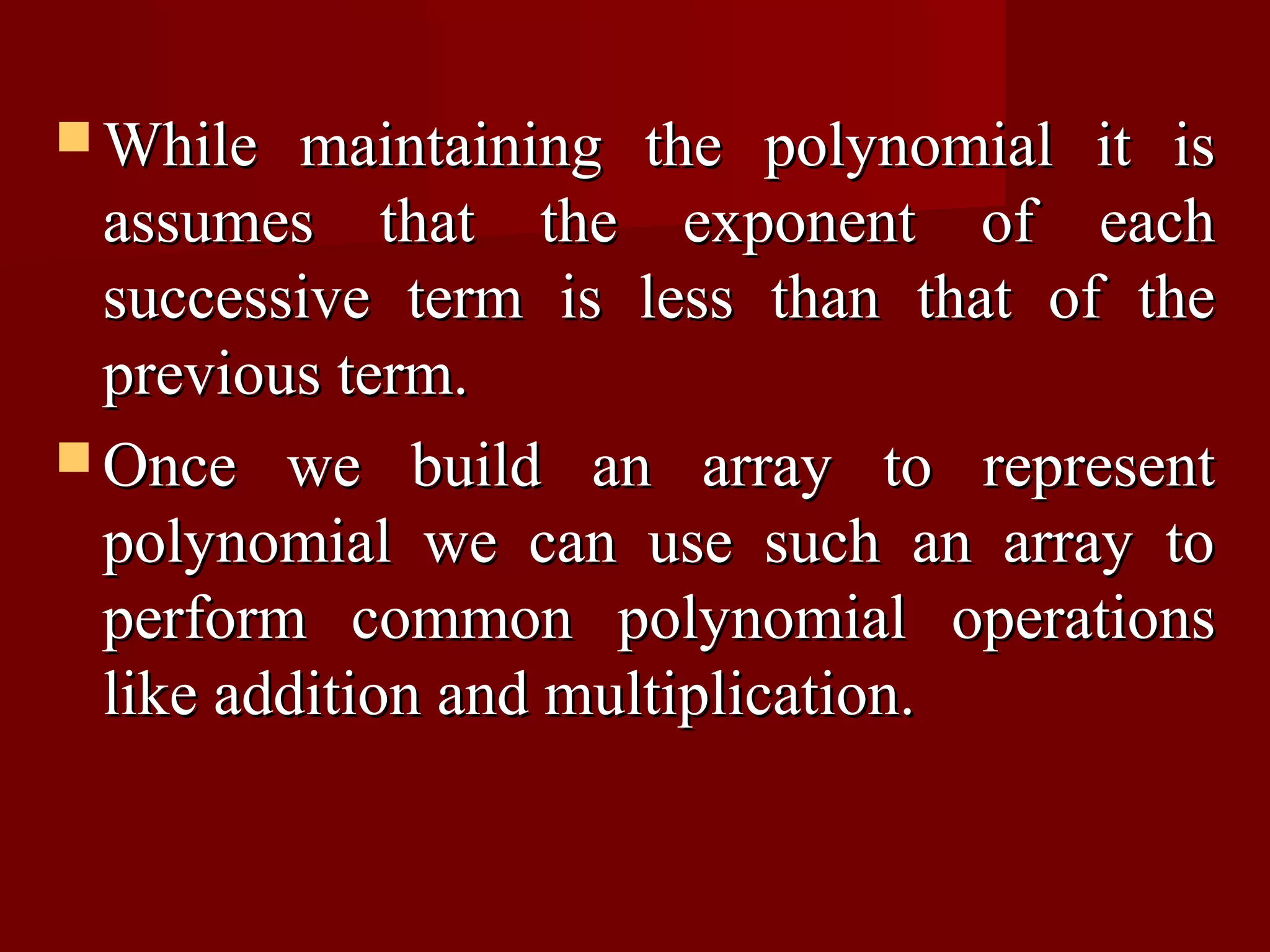

 While maintaining the polynomial it is
assumes that the exponent of each
successive term is less than that of the
previous term.
 Once we build an array to represent
polynomial we can use such an array to
perform common polynomial operations
like addition and multiplication.

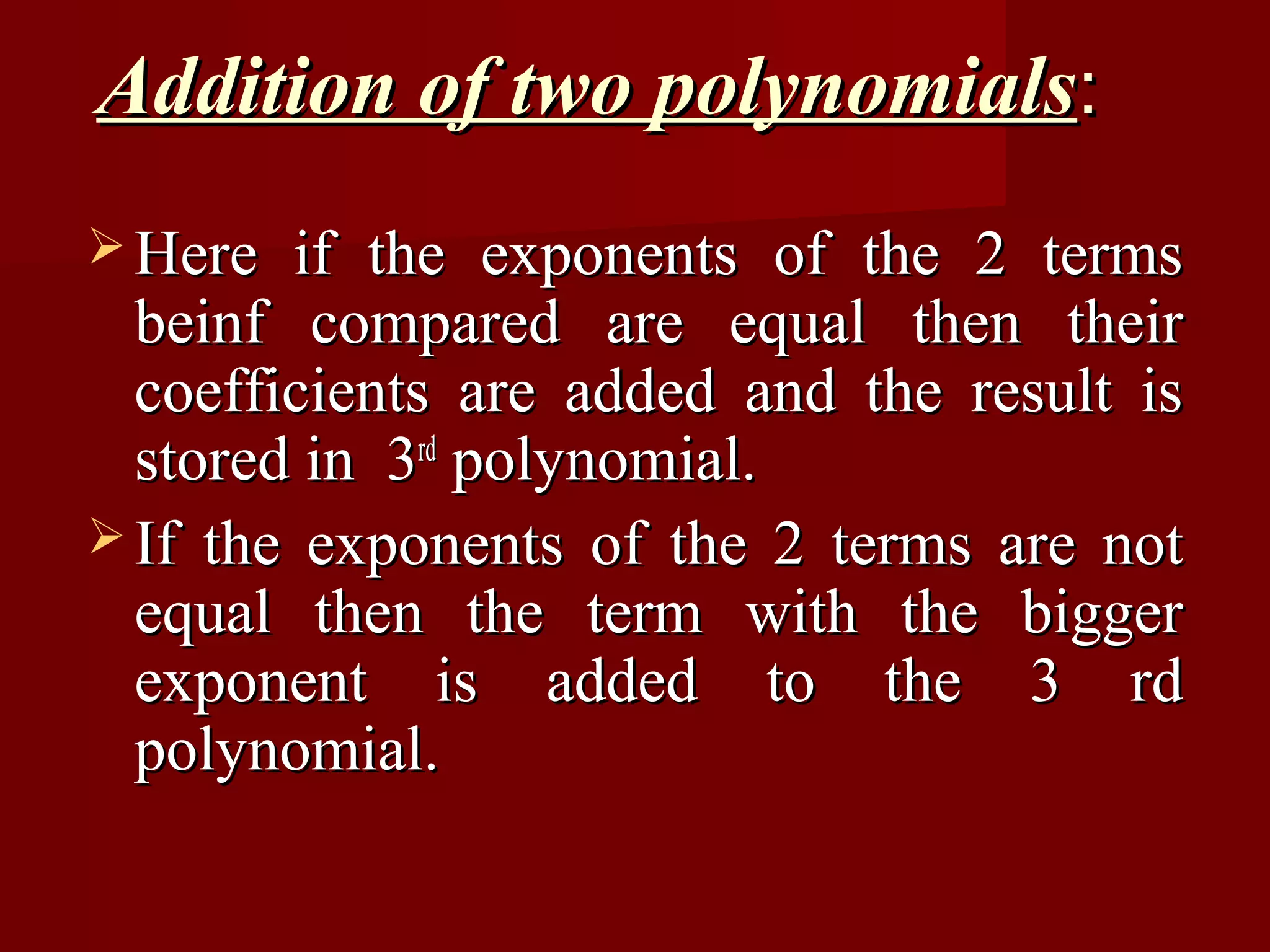

Addition of two polynomials:
 Here if the exponents of the 2 terms
beinf compared are equal then their
coefficients are added and the result is
stored in 3rd polynomial.
 If the exponents of the 2 terms are not
equal then the term with the bigger
exponent is added to the 3 rd
polynomial.

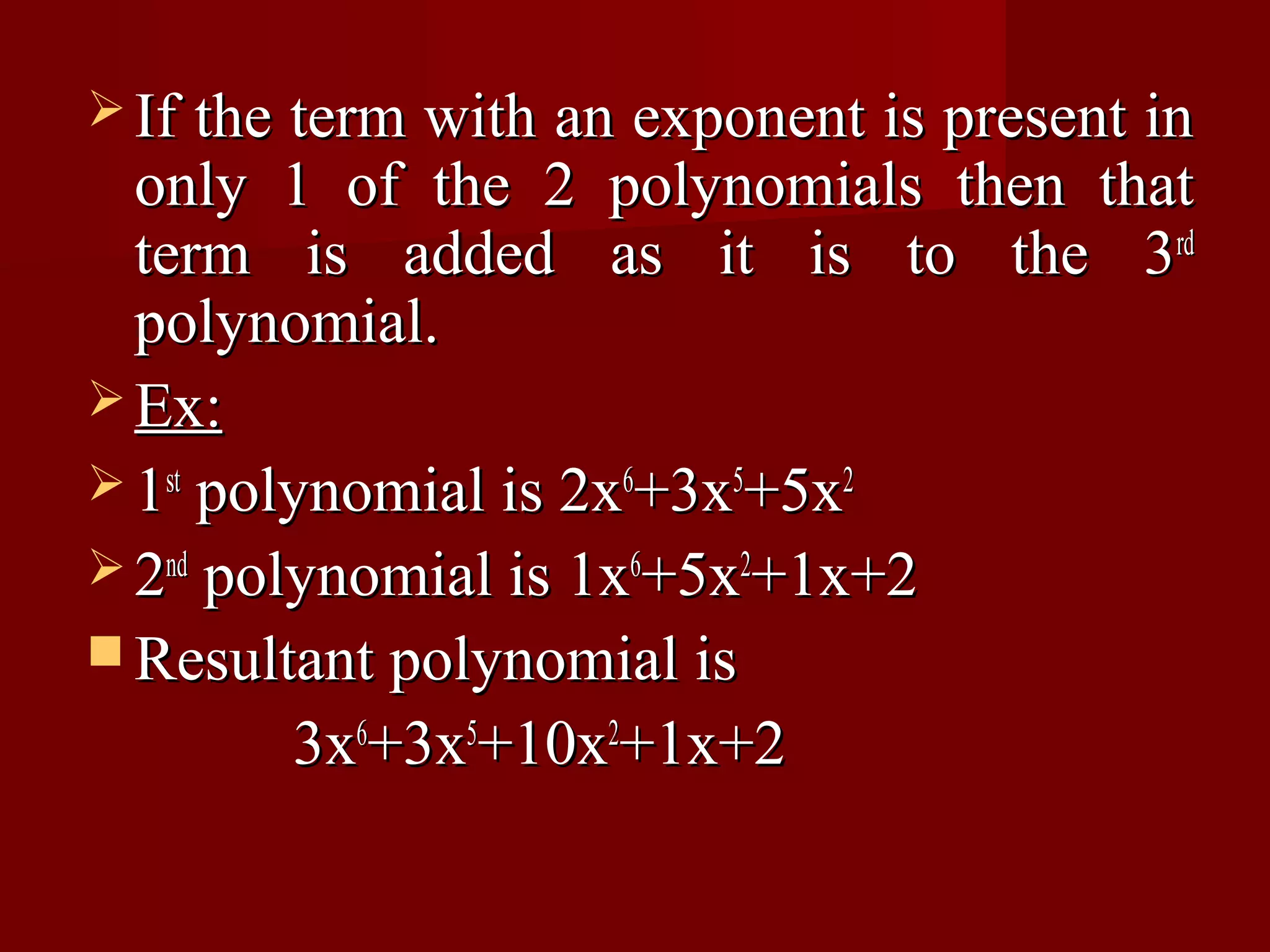

 If the term with an exponent is present in
only 1 of the 2 polynomials then that
term is added as it is to the 3rd
polynomial.
 Ex:
 1st polynomial is 2x6+3x5+5x2
 2nd polynomial is 1x6+5x2+1x+2
 Resultant polynomial is
3x6+3x5+10x2+1x+2

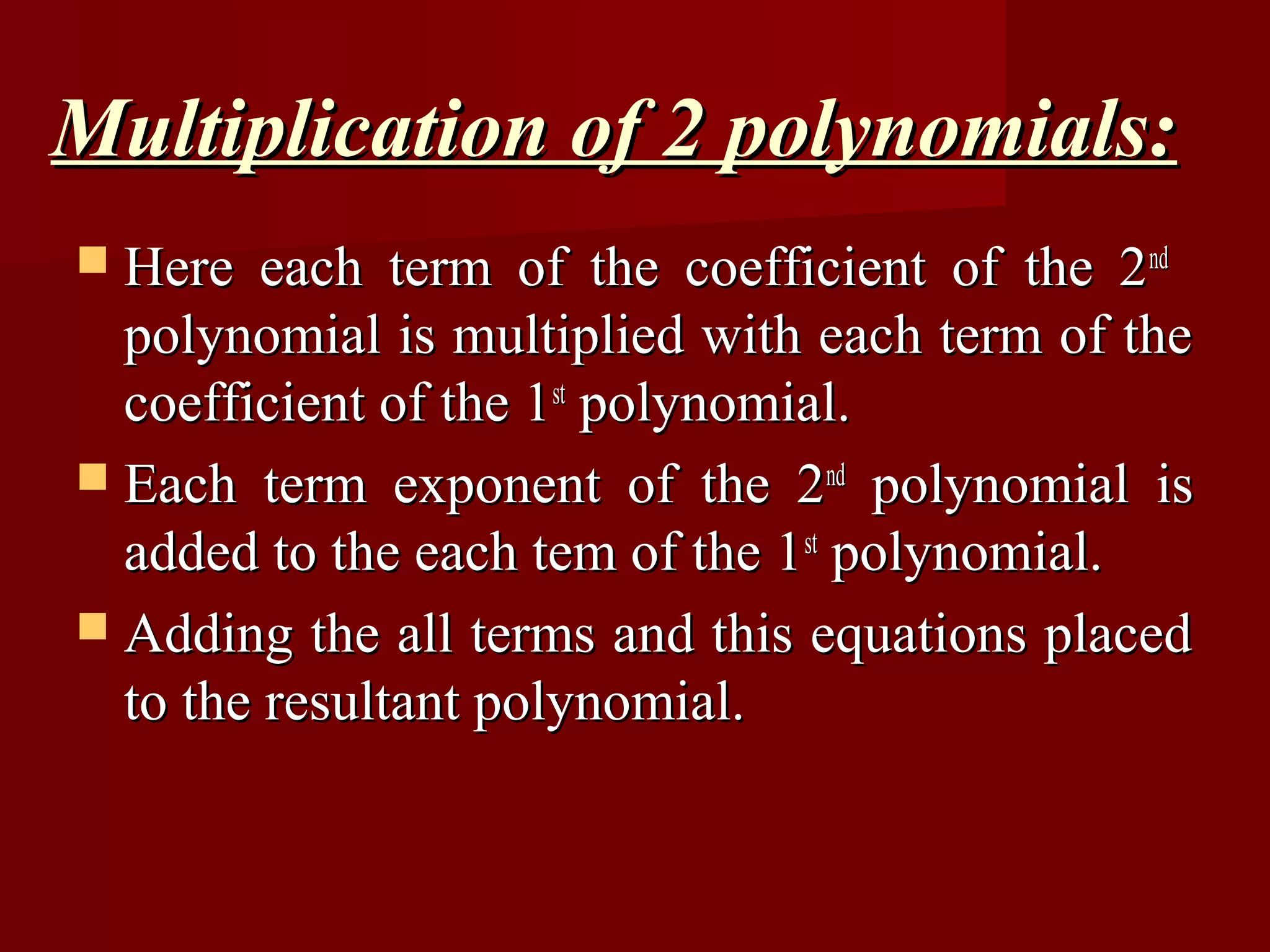

Multiplication of 2 polynomials:
 Here each term of the coefficient of the 2 nd
polynomial is multiplied with each term of the
coefficient of the 1st polynomial.
 Each term exponent of the 2 nd polynomial is
added to the each tem of the 1st polynomial.
 Adding the all terms and this equations placed
to the resultant polynomial.

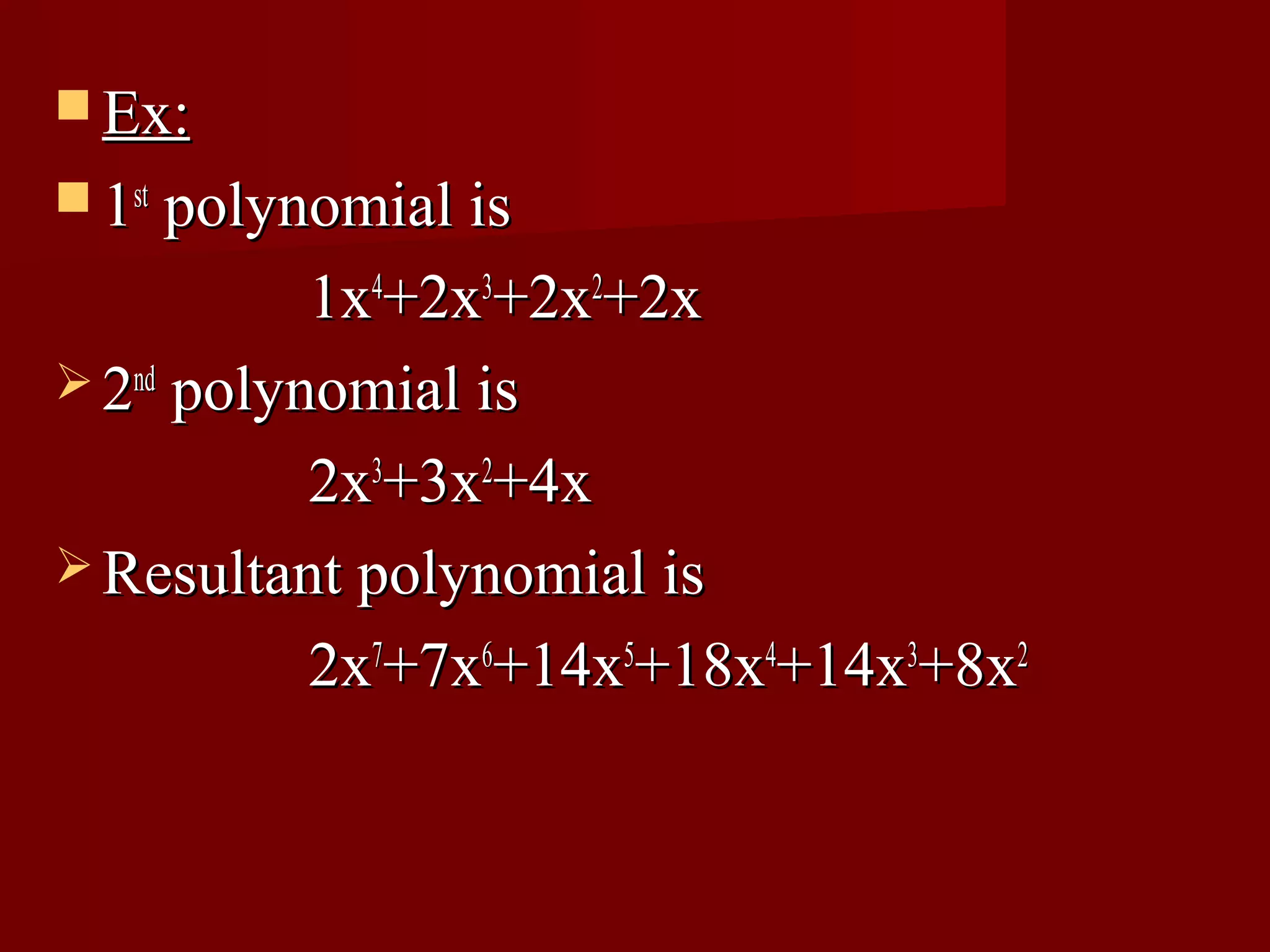

 Ex:
 1st polynomial is

1x4+2x3+2x2+2x
 2nd polynomial is

2x3+3x2+4x
 Resultant polynomial is

2x7+7x6+14x5+18x4+14x3+8x2
