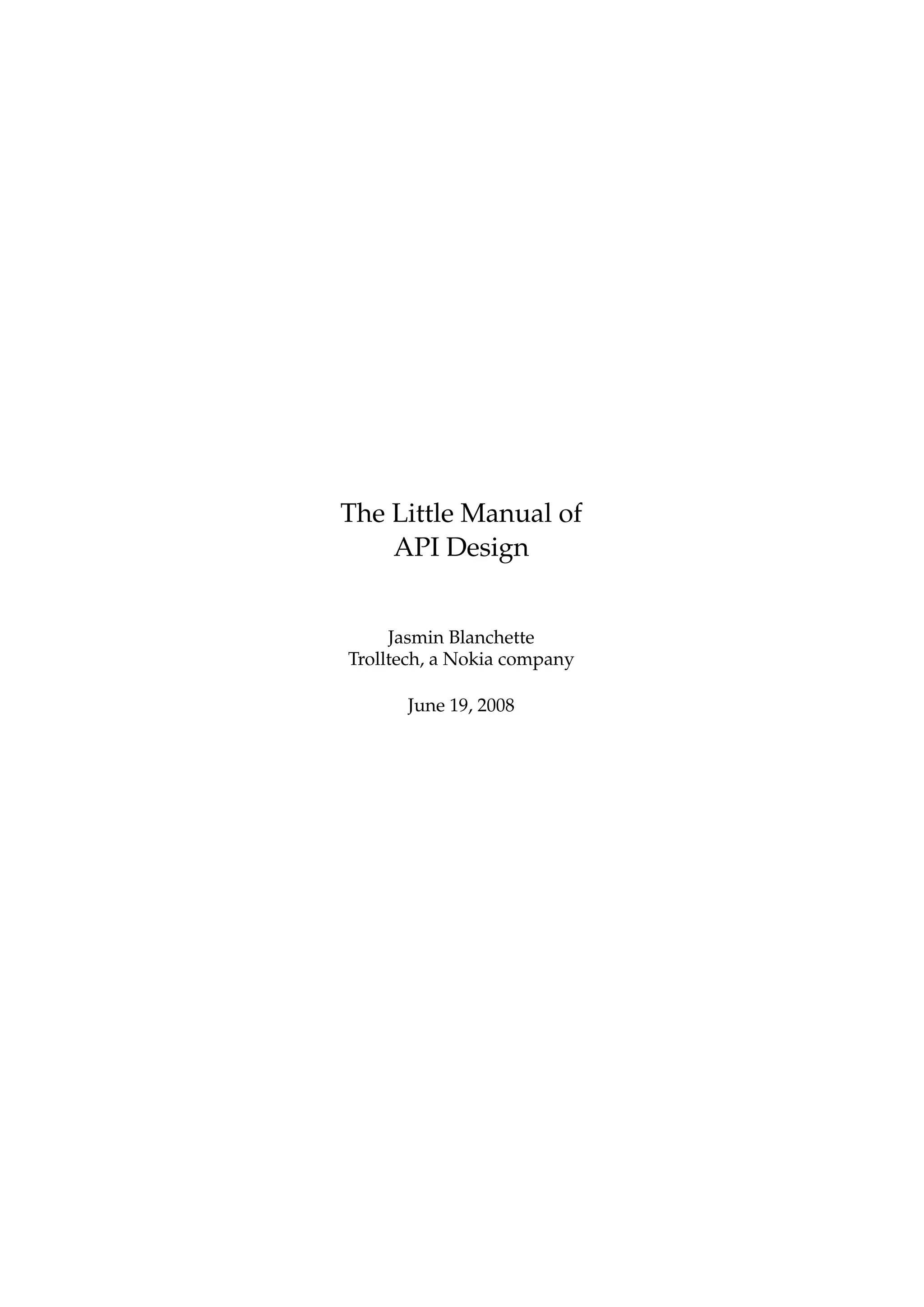

The Little Manual of
API Design

Jasmin Blanchette
Trolltech, a Nokia company

June 19, 2008

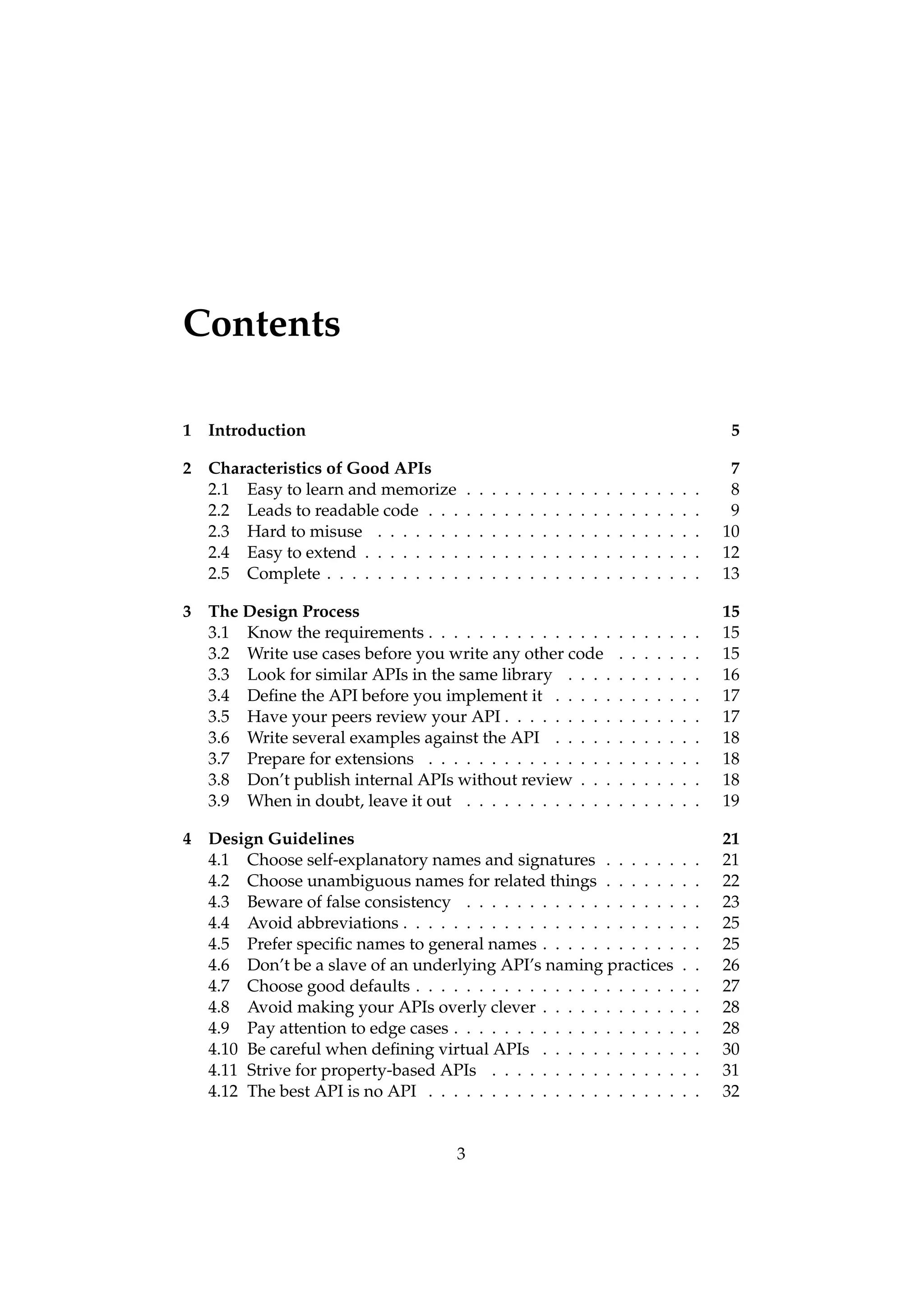

Contents

1 Introduction 5

2 Characteristics of Good APIs 7
2.1 Easy to learn and memorize . . . . . . . . . . . . . . . . . . . 8
2.2 Leads to readable code . . . . . . . . . . . . . . . . . . . . . . 9
2.3 Hard to misuse . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.4 Easy to extend . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.5 Complete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

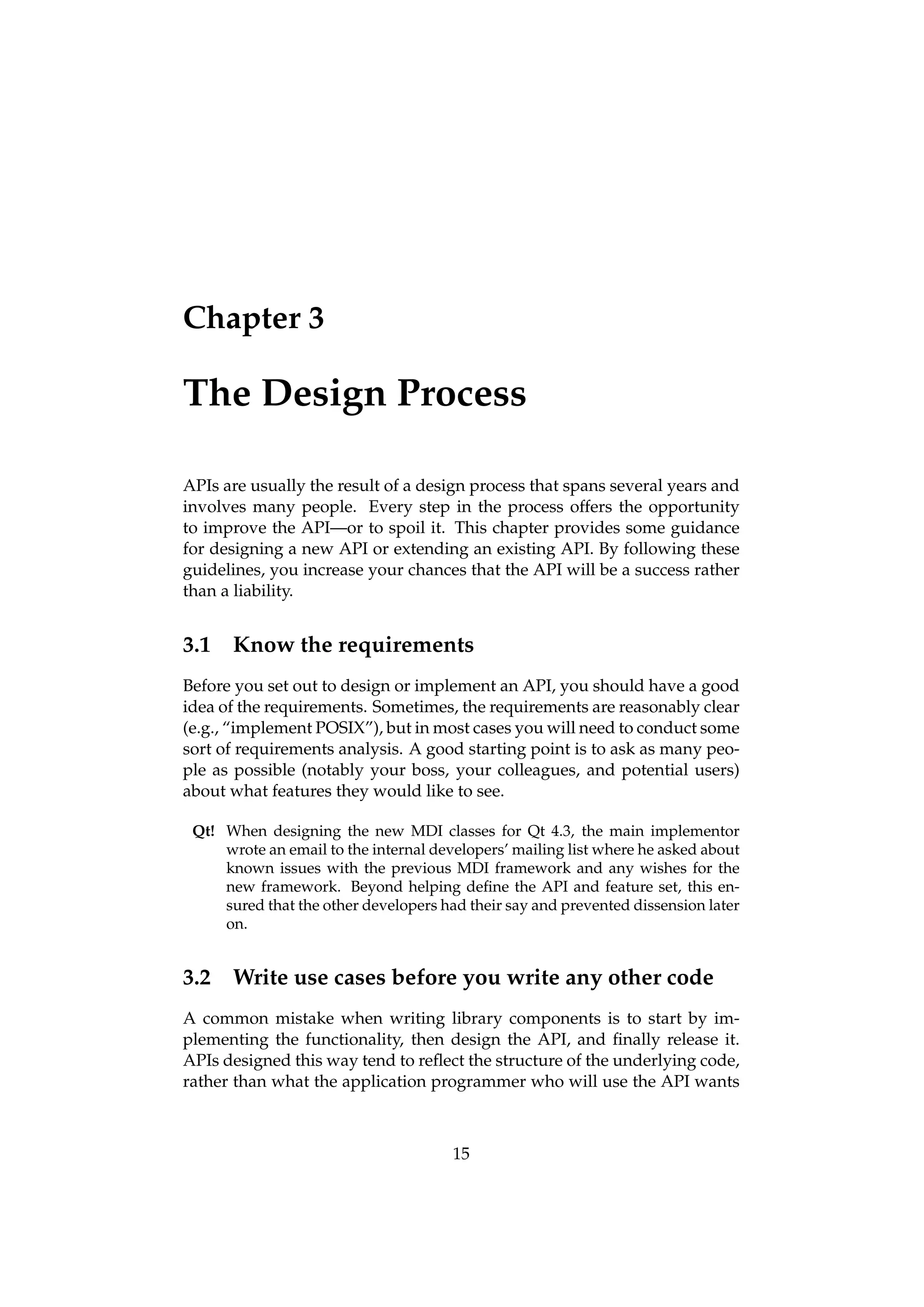

3 The Design Process 15
3.1 Know the requirements . . . . . . . . . . . . . . . . . . . . . . 15
3.2 Write use cases before you write any other code . . . . . . . 15
3.3 Look for similar APIs in the same library . . . . . . . . . . . 16
3.4 Define the API before you implement it . . . . . . . . . . . . 17
3.5 Have your peers review your API . . . . . . . . . . . . . . . . 17

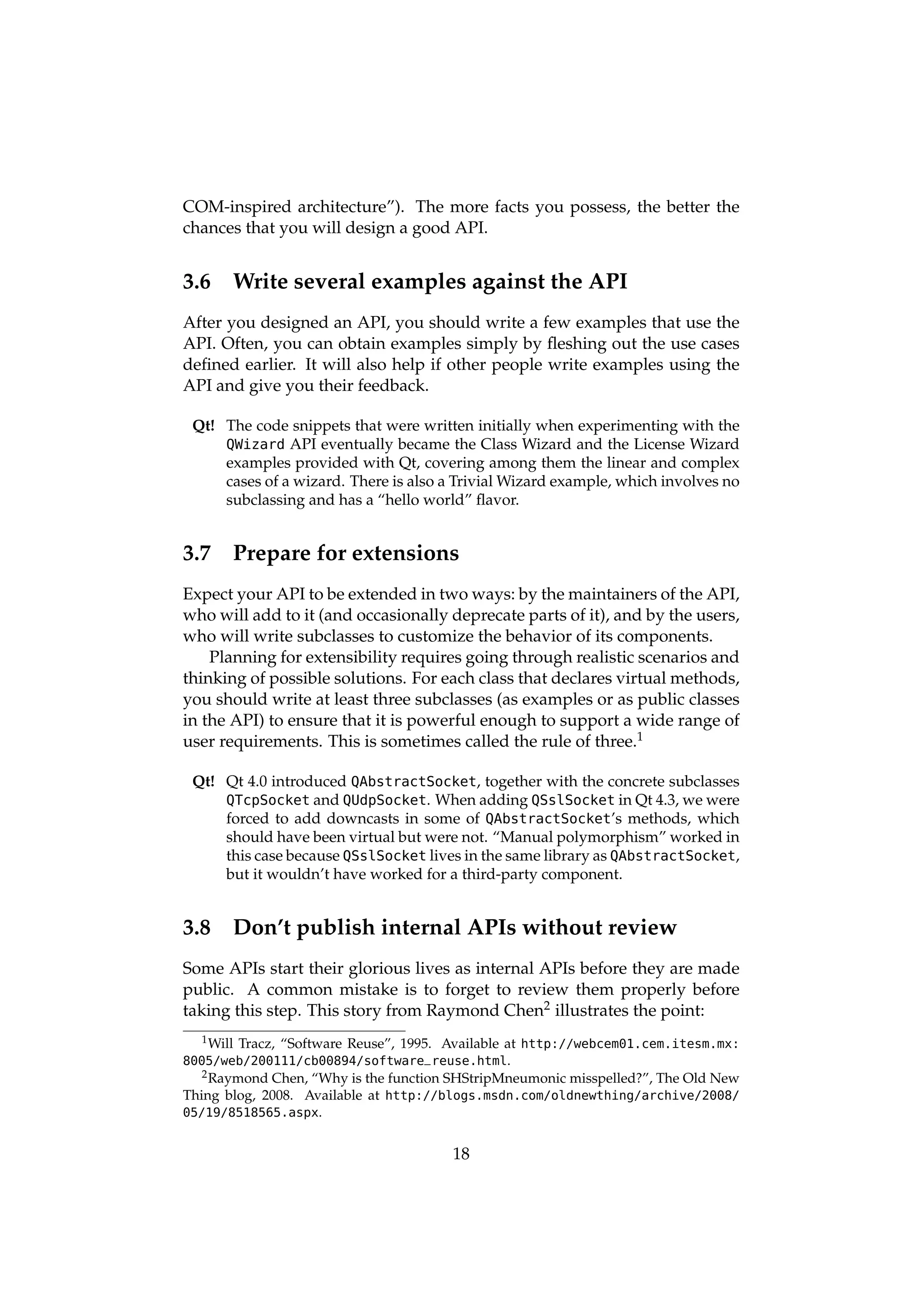

3.6 Write several examples against the API . . . . . . . . . . . . 18
3.7 Prepare for extensions . . . . . . . . . . . . . . . . . . . . . . 18
3.8 Don’t publish internal APIs without review . . . . . . . . . . 18

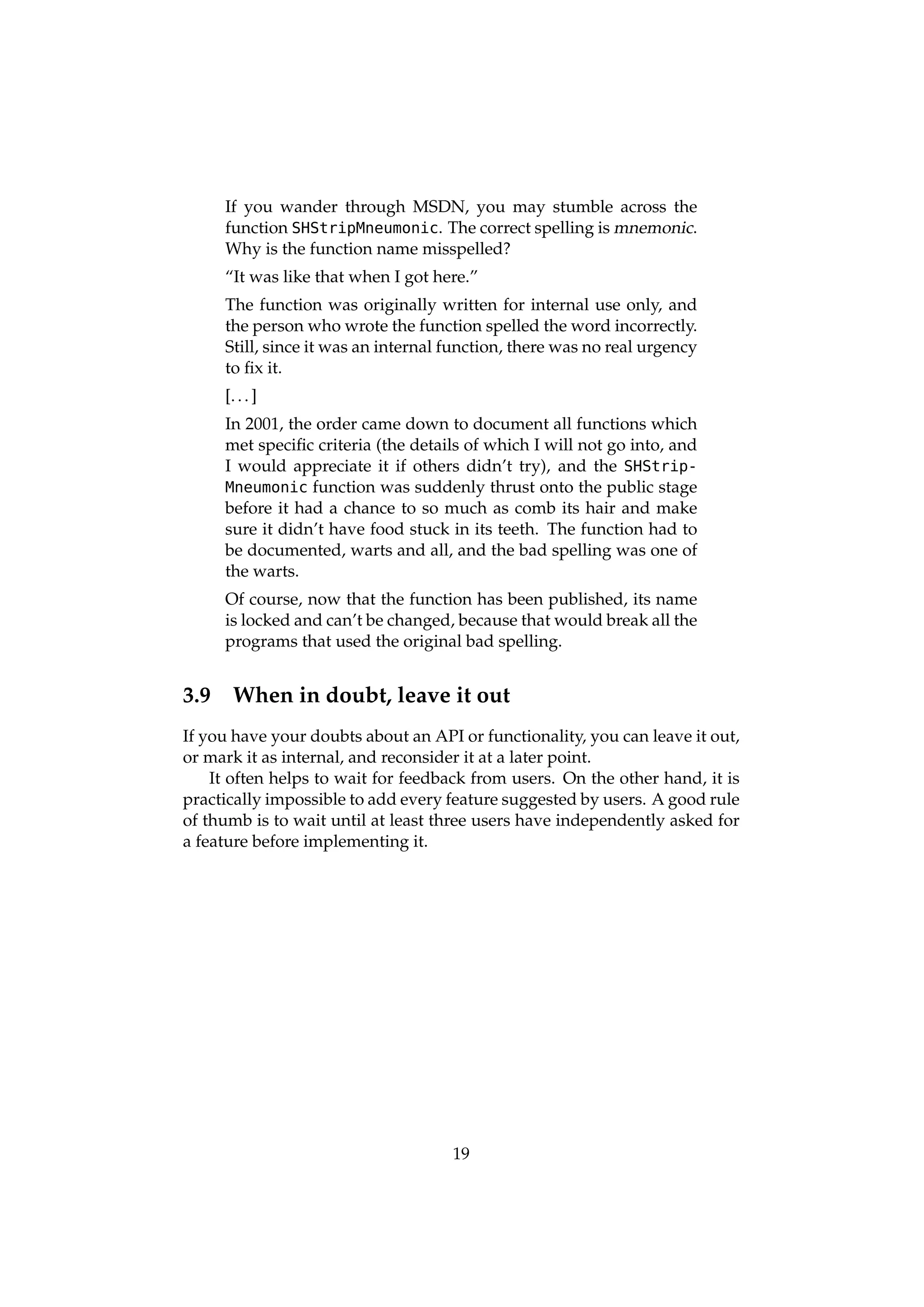

3.9 When in doubt, leave it out . . . . . . . . . . . . . . . . . . . 19

4 Design Guidelines 21
4.1 Choose self-explanatory names and signatures . . . . . . . . 21
4.2 Choose unambiguous names for related things . . . . . . . . 22
4.3 Beware of false consistency . . . . . . . . . . . . . . . . . . . 23
4.4 Avoid abbreviations . . . . . . . . . . . . . . . . . . . . . . . . 25
4.5 Prefer specific names to general names . . . . . . . . . . . . . 25
4.6 Don’t be a slave of an underlying API’s naming practices . . 26

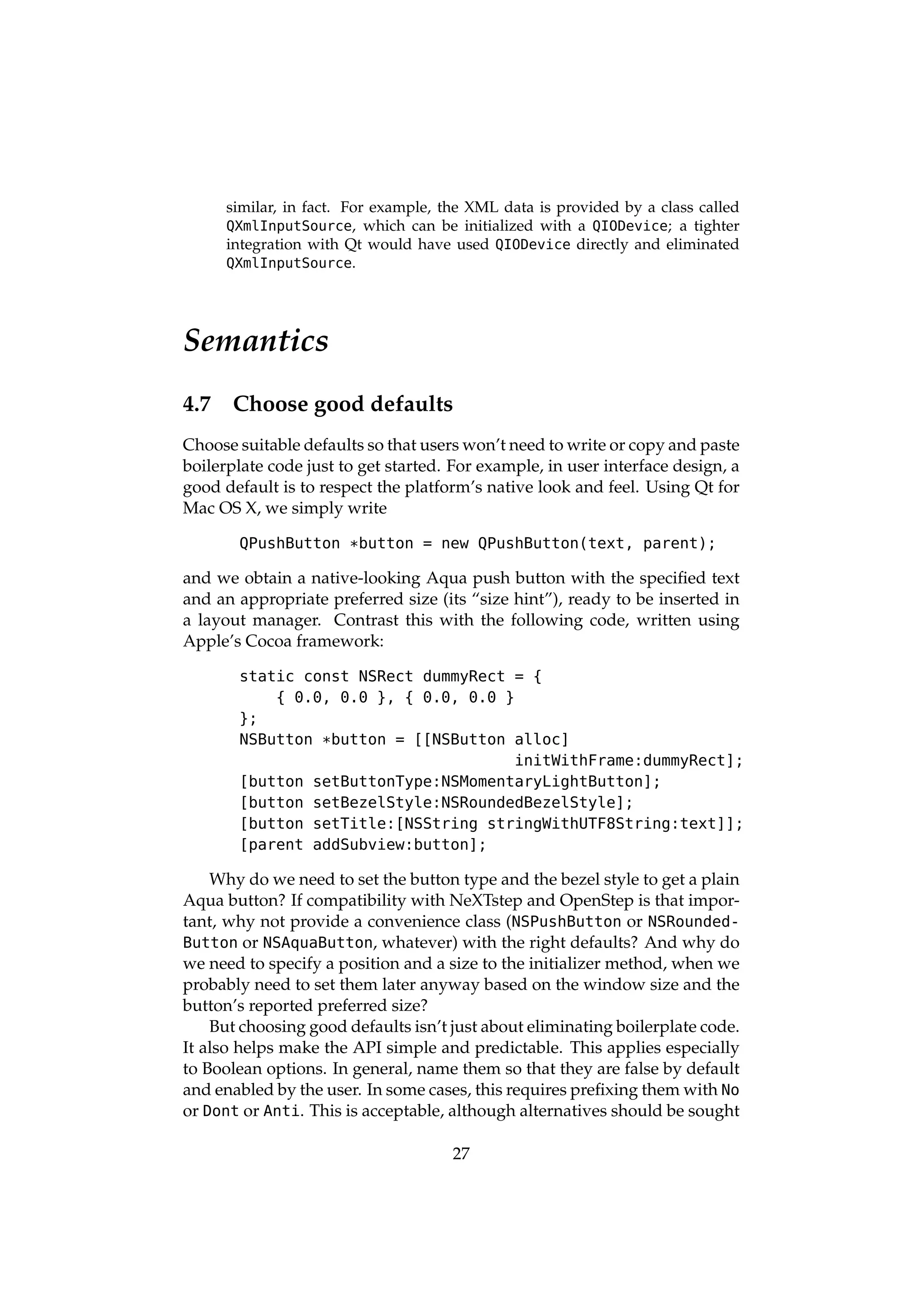

4.7 Choose good defaults . . . . . . . . . . . . . . . . . . . . . . . 27

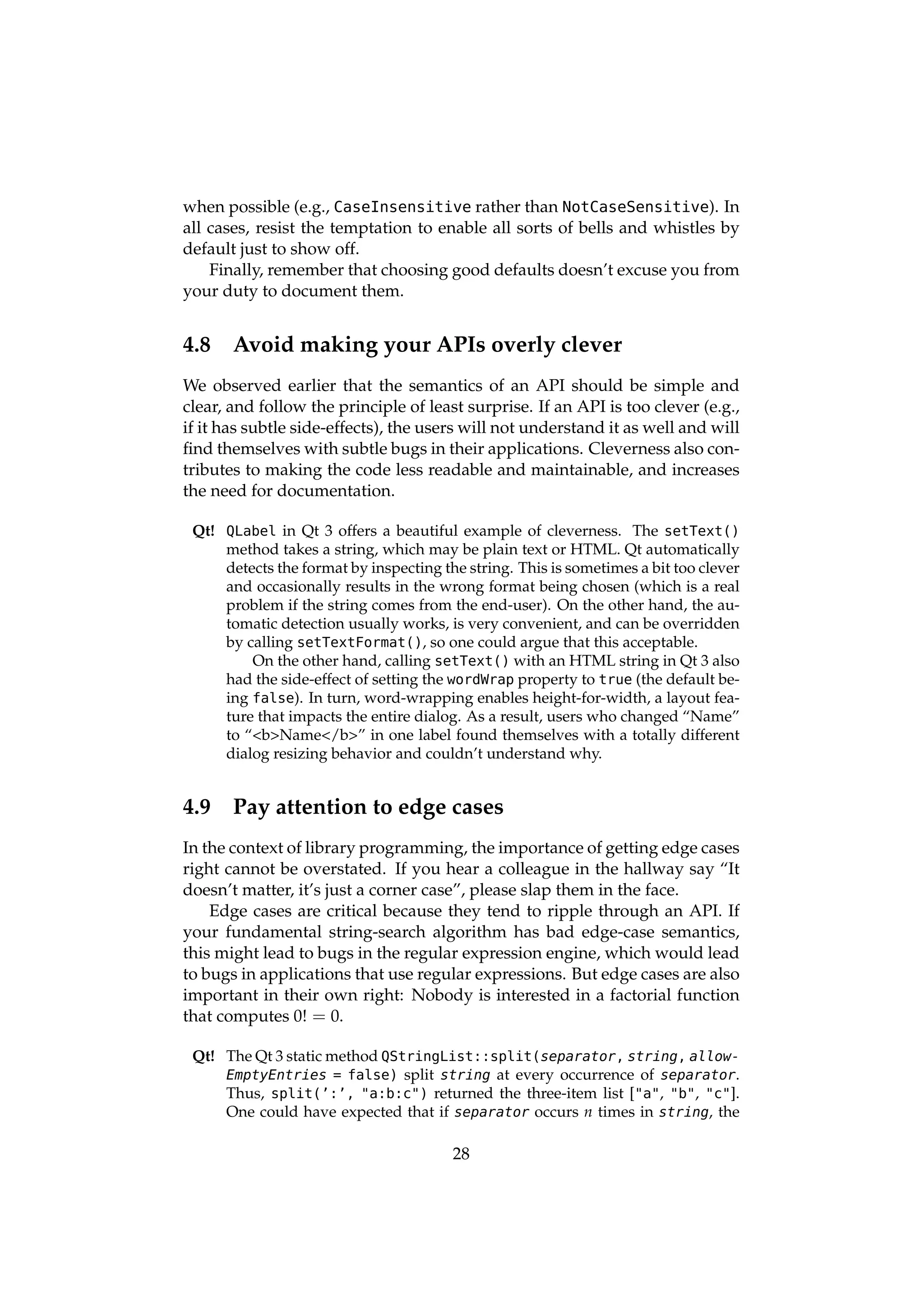

4.8 Avoid making your APIs overly clever . . . . . . . . . . . . . 28

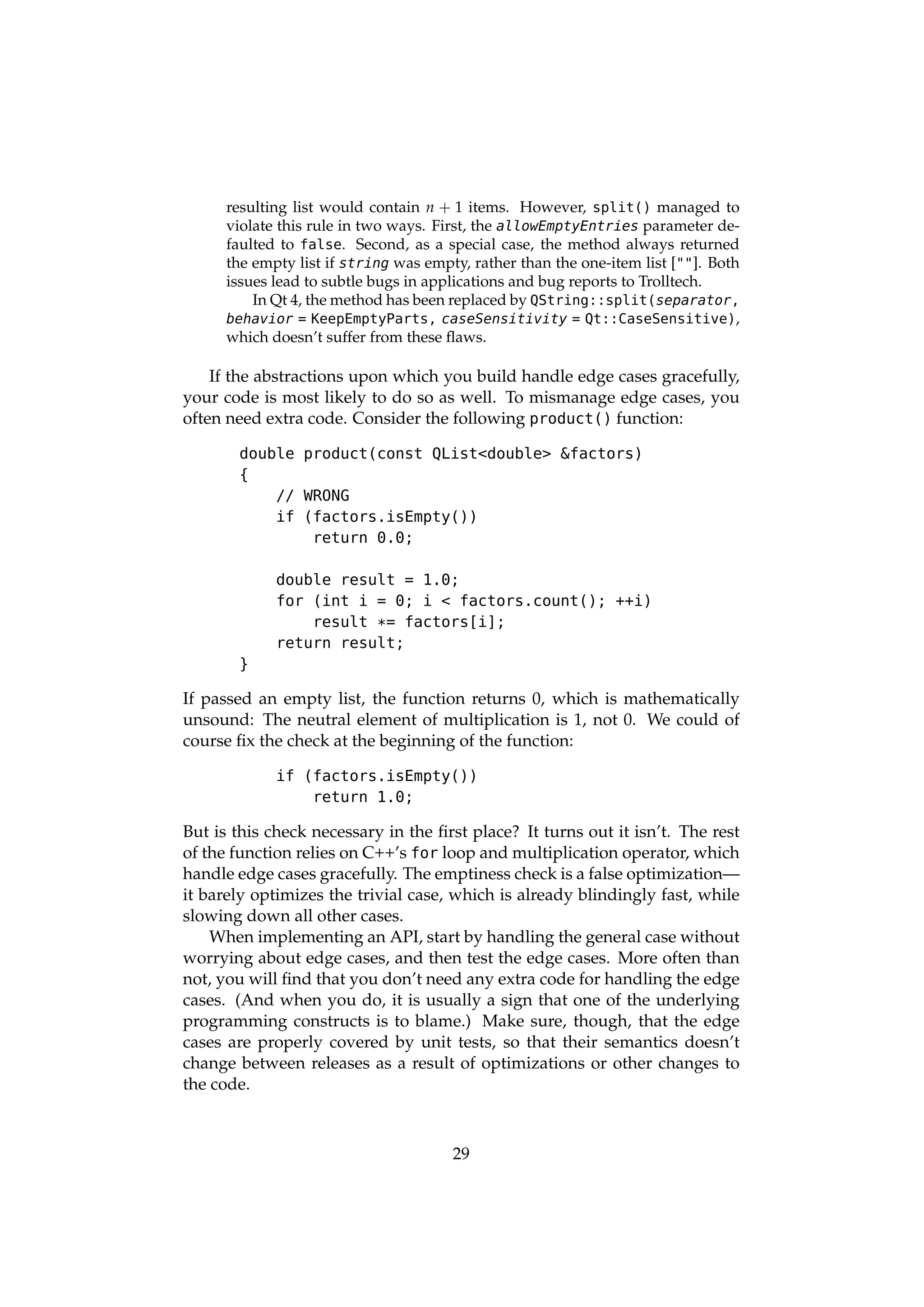

4.9 Pay attention to edge cases . . . . . . . . . . . . . . . . . . . . 28

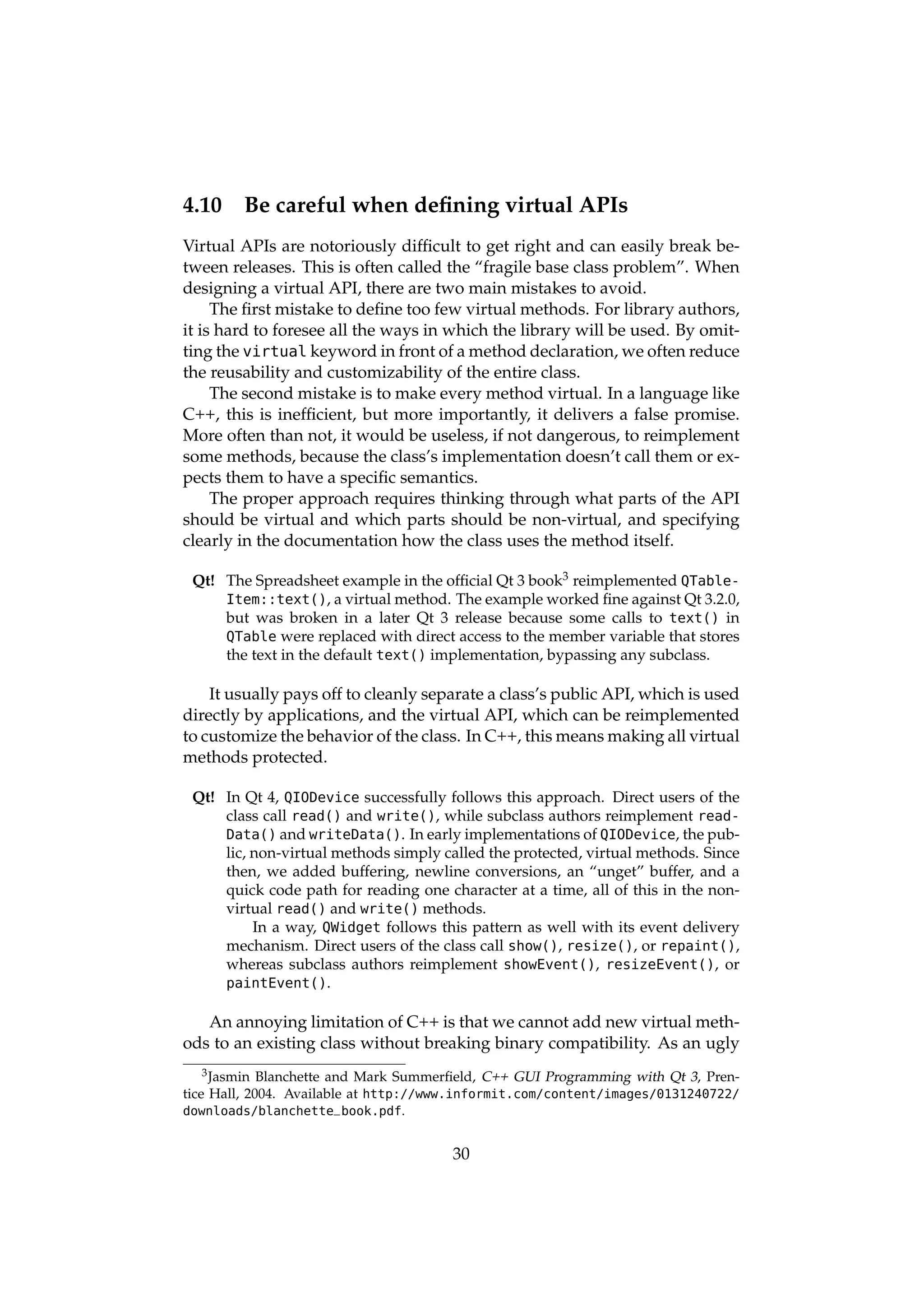

4.10 Be careful when defining virtual APIs . . . . . . . . . . . . . 30

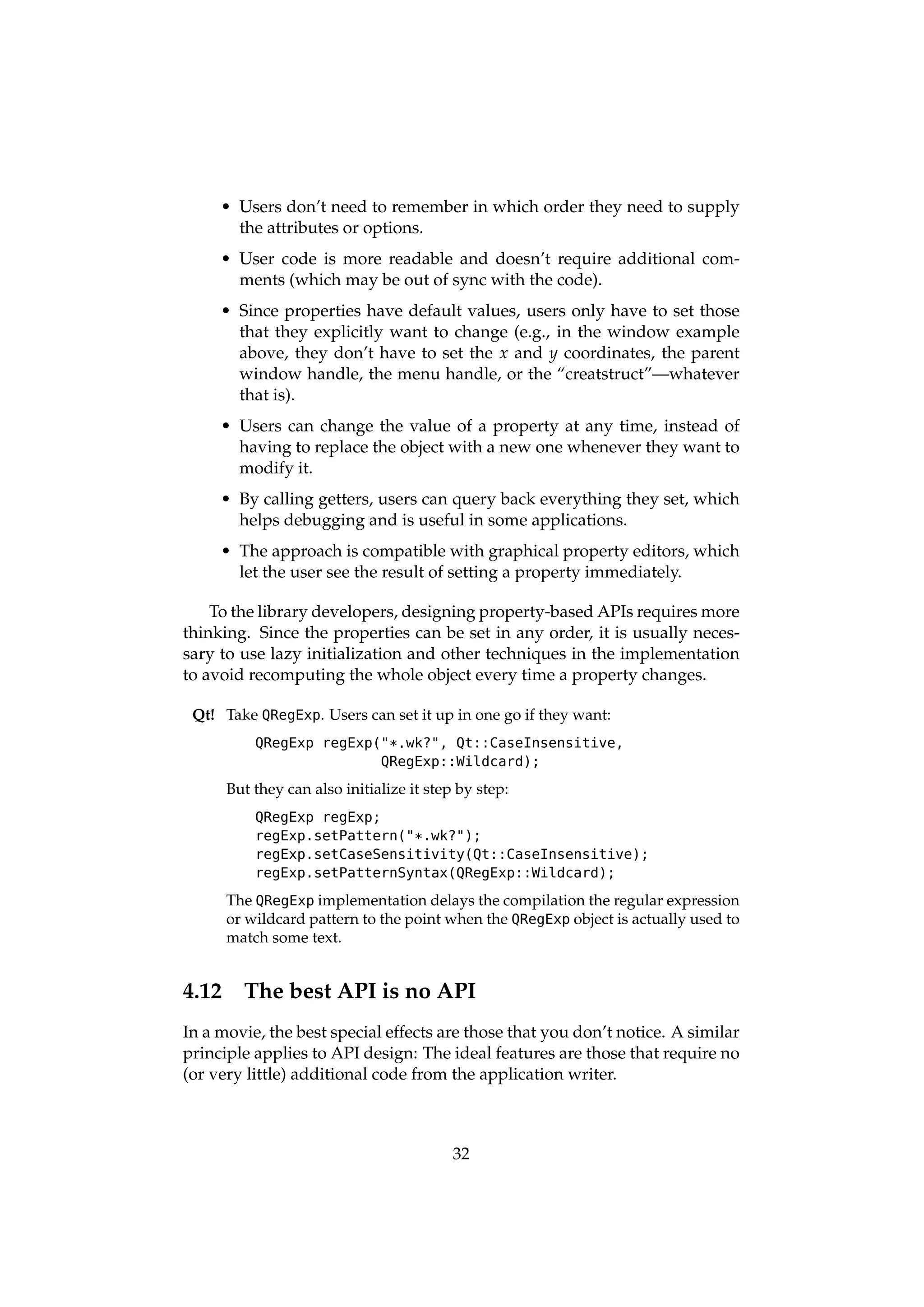

4.11 Strive for property-based APIs . . . . . . . . . . . . . . . . . 31

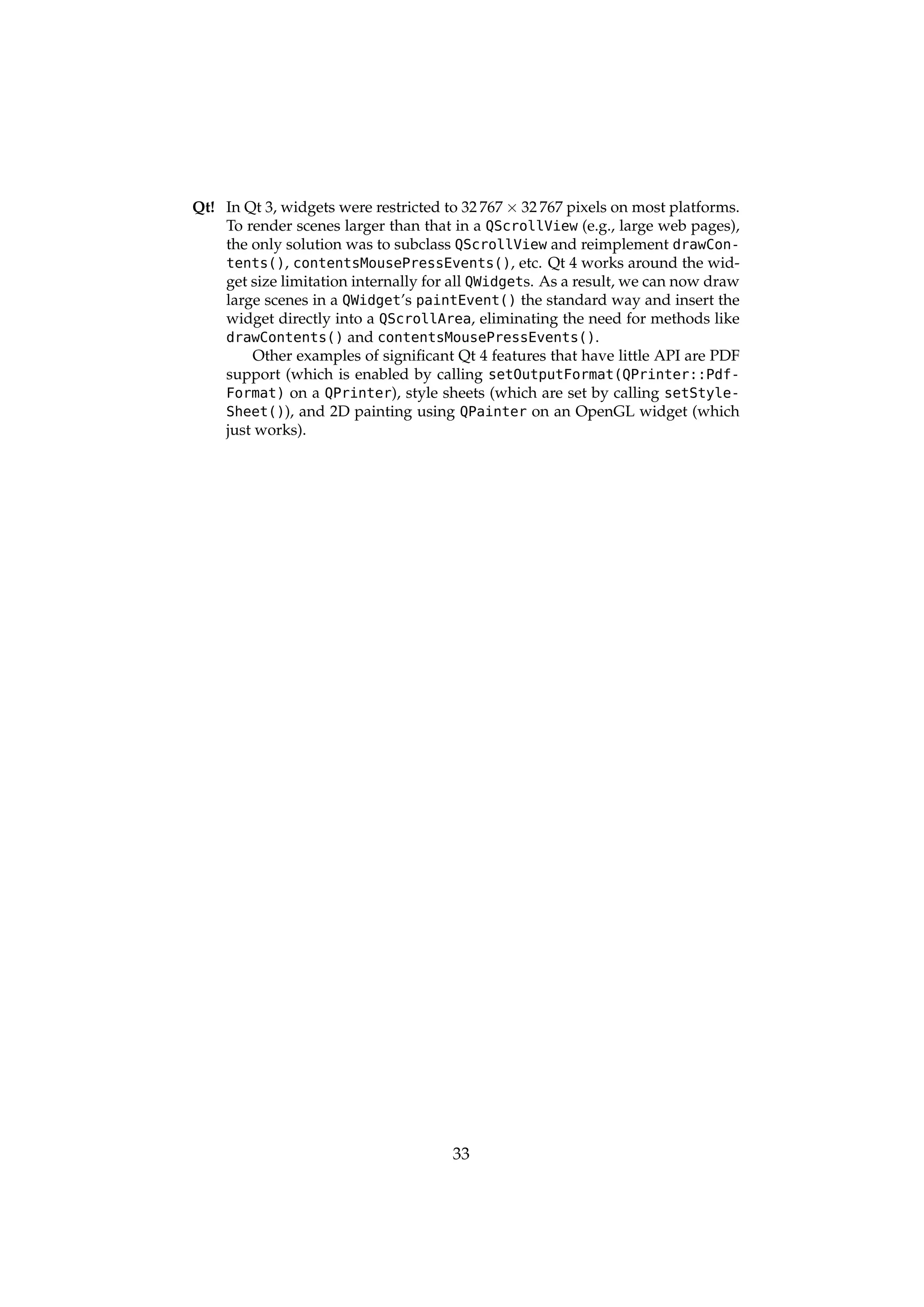

4.12 The best API is no API . . . . . . . . . . . . . . . . . . . . . . 32

3

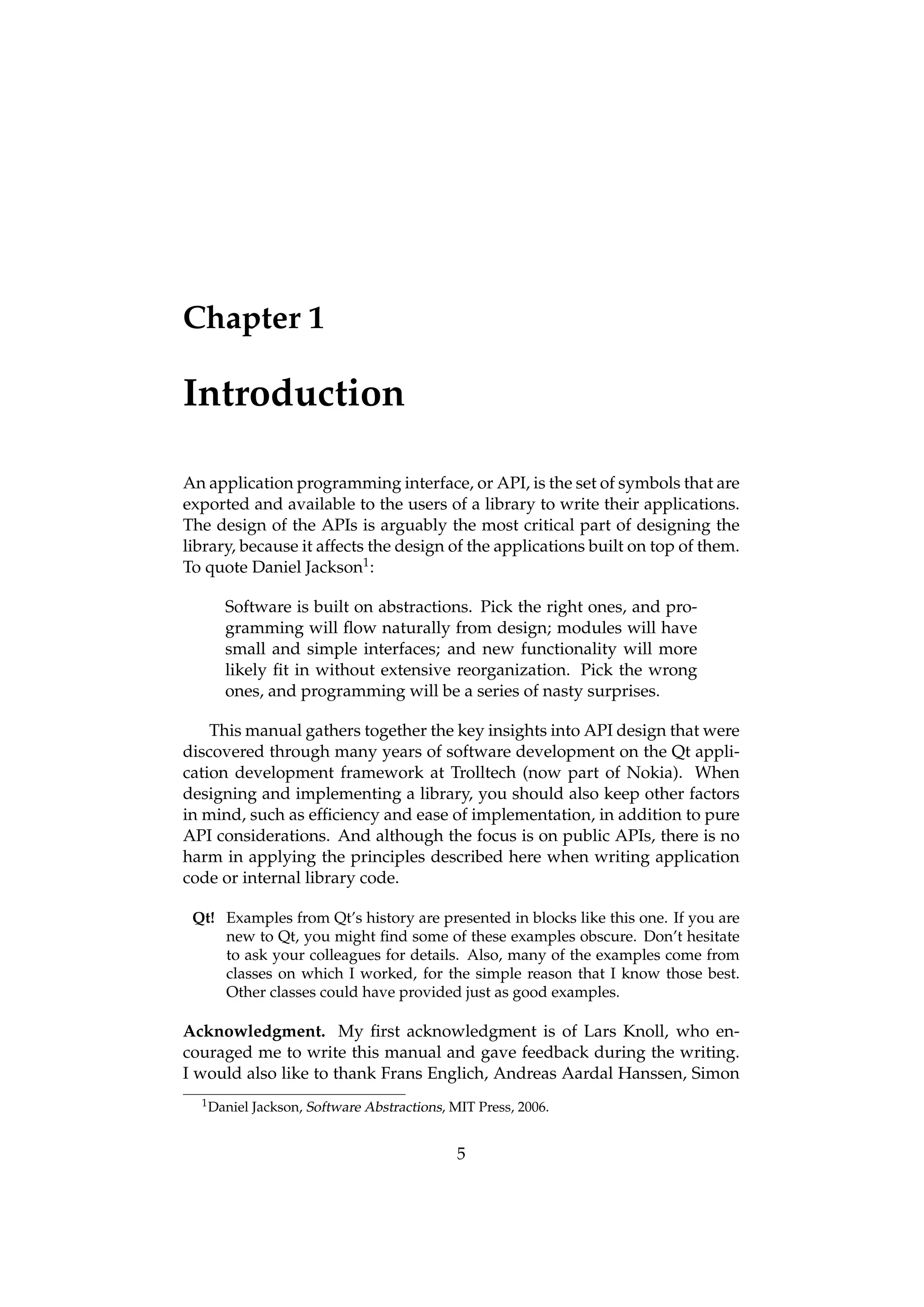

Chapter 1

Introduction

An application programming interface, or API, is the set of symbols that are
exported and available to the users of a library to write their applications.
The design of the APIs is arguably the most critical part of designing the
library, because it affects the design of the applications built on top of them.
To quote Daniel Jackson1 :

Software is built on abstractions. Pick the right ones, and pro-
gramming will flow naturally from design; modules will have
small and simple interfaces; and new functionality will more
likely fit in without extensive reorganization. Pick the wrong
ones, and programming will be a series of nasty surprises.

This manual gathers together the key insights into API design that were
discovered through many years of software development on the Qt appli-
cation development framework at Trolltech (now part of Nokia). When
designing and implementing a library, you should also keep other factors
in mind, such as efficiency and ease of implementation, in addition to pure
API considerations. And although the focus is on public APIs, there is no
harm in applying the principles described here when writing application
code or internal library code.

Qt! Examples from Qt’s history are presented in blocks like this one. If you are
new to Qt, you might find some of these examples obscure. Don’t hesitate
to ask your colleagues for details. Also, many of the examples come from
classes on which I worked, for the simple reason that I know those best.
Other classes could have provided just as good examples.

Acknowledgment. My first acknowledgment is of Lars Knoll, who en-
couraged me to write this manual and gave feedback during the writing.
I would also like to thank Frans Englich, Andreas Aardal Hanssen, Simon
1 Daniel Jackson, Software Abstractions, MIT Press, 2006.

5

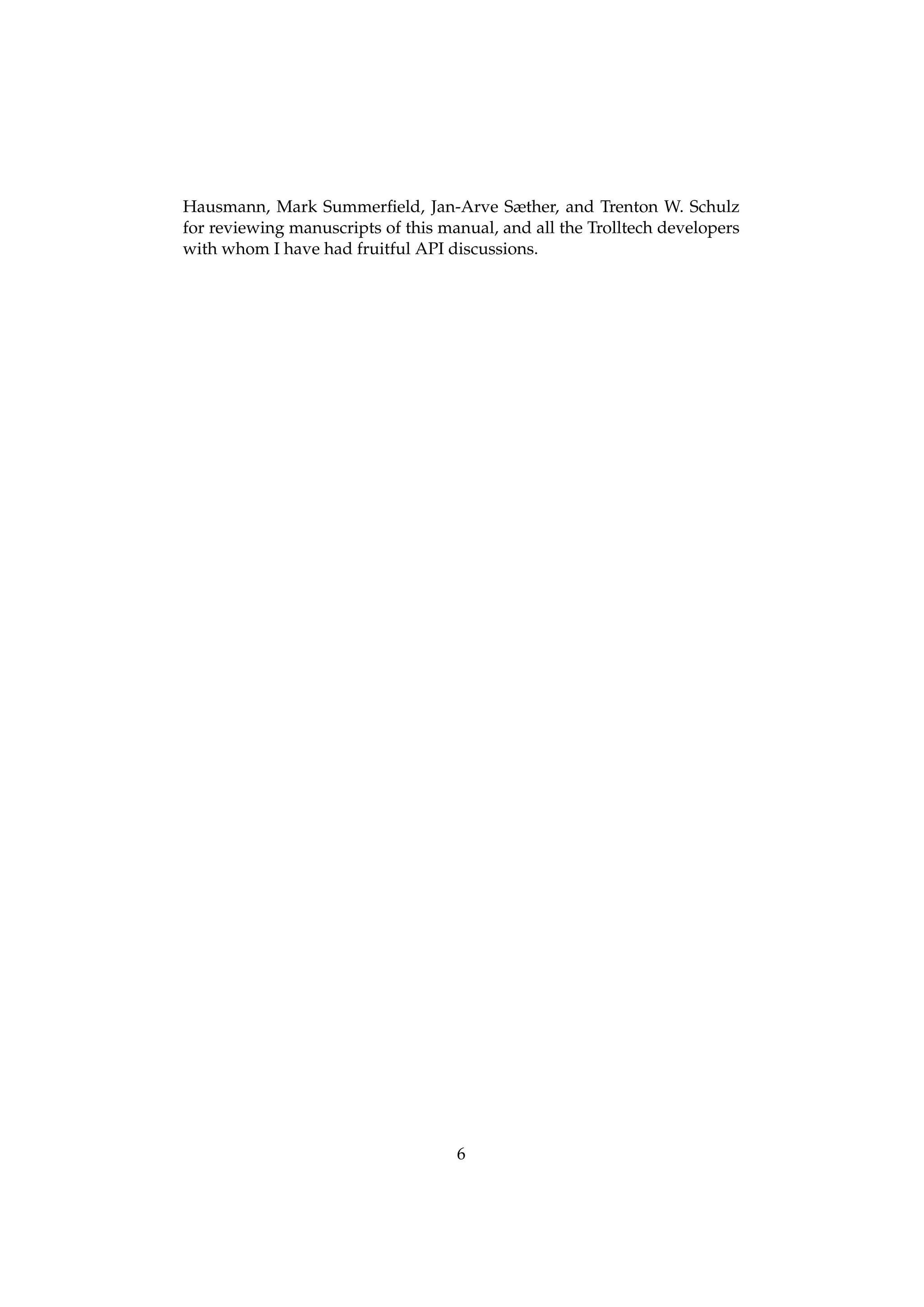

Hausmann, Mark Summerﬁeld, Jan-Arve Sæther, and Trenton W. Schulz
for reviewing manuscripts of this manual, and all the Trolltech developers
with whom I have had fruitful API discussions.

6

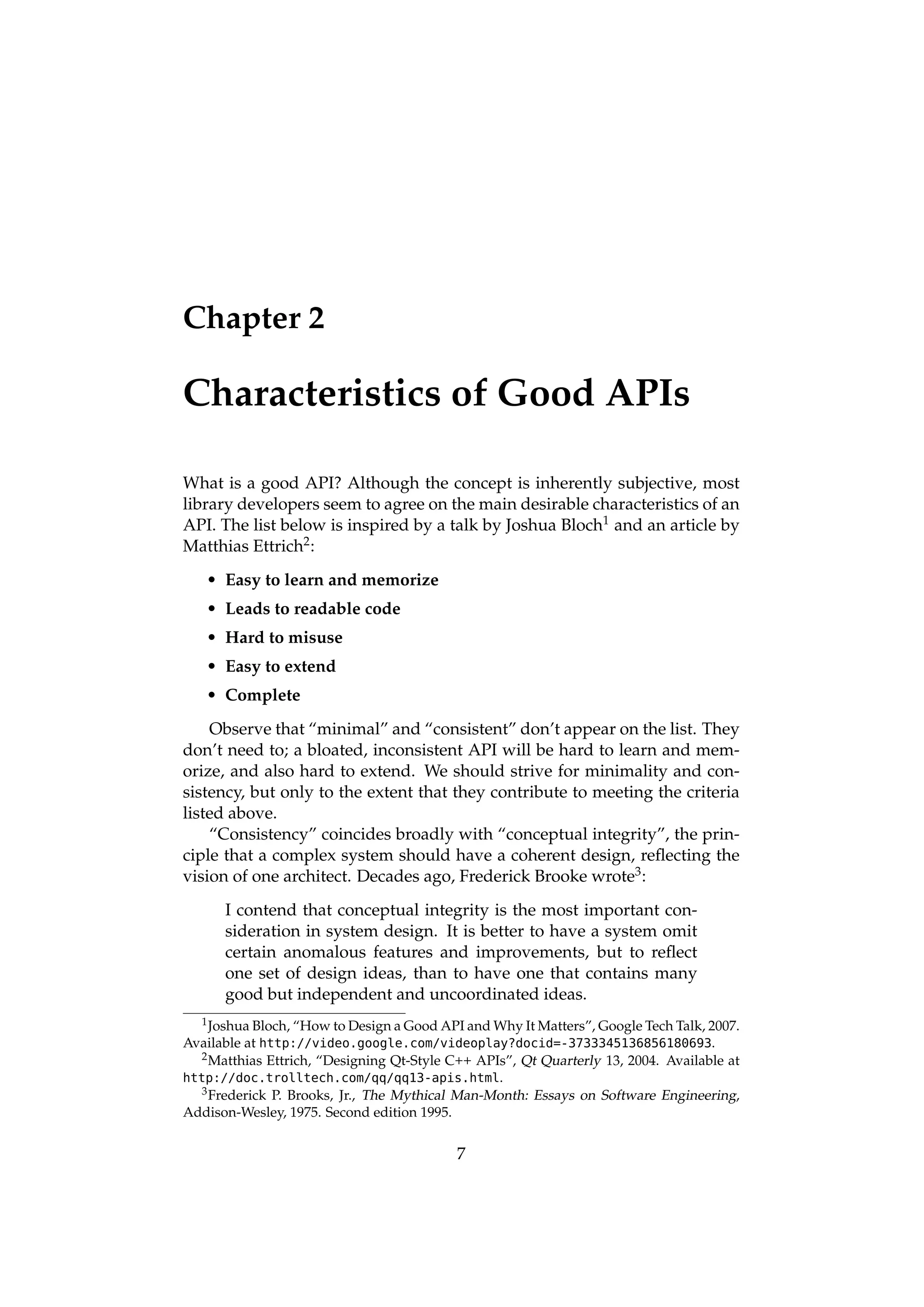

Chapter 2

Characteristics of Good APIs

What is a good API? Although the concept is inherently subjective, most
library developers seem to agree on the main desirable characteristics of an
API. The list below is inspired by a talk by Joshua Bloch1 and an article by
Matthias Ettrich2 :
• Easy to learn and memorize
• Leads to readable code
• Hard to misuse
• Easy to extend
• Complete
Observe that “minimal” and “consistent” don’t appear on the list. They
don’t need to; a bloated, inconsistent API will be hard to learn and mem-
orize, and also hard to extend. We should strive for minimality and con-
sistency, but only to the extent that they contribute to meeting the criteria
listed above.
“Consistency” coincides broadly with “conceptual integrity”, the prin-
ciple that a complex system should have a coherent design, reﬂecting the
vision of one architect. Decades ago, Frederick Brooke wrote3 :
I contend that conceptual integrity is the most important con-
sideration in system design. It is better to have a system omit
certain anomalous features and improvements, but to reﬂect
one set of design ideas, than to have one that contains many
good but independent and uncoordinated ideas.
1 Joshua Bloch, “How to Design a Good API and Why It Matters”, Google Tech Talk, 2007.

Available at http://video.google.com/videoplay?docid=-3733345136856180693.
2 Matthias Ettrich, “Designing Qt-Style C++ APIs”, Qt Quarterly 13, 2004. Available at

http://doc.trolltech.com/qq/qq13-apis.html.
3 Frederick P. Brooks, Jr., The Mythical Man-Month: Essays on Software Engineering,

Addison-Wesley, 1975. Second edition 1995.

7

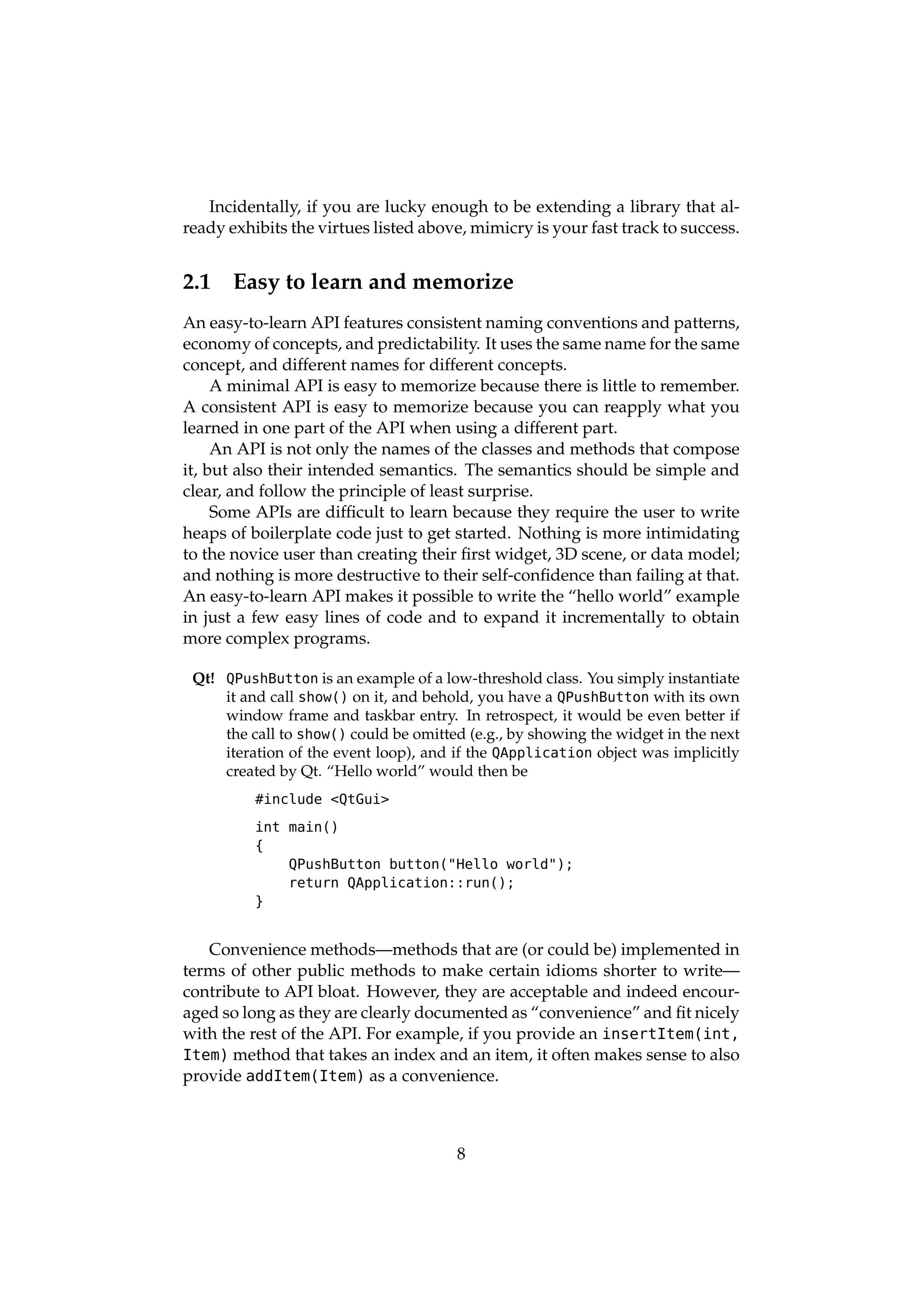

Incidentally, if you are lucky enough to be extending a library that al-
ready exhibits the virtues listed above, mimicry is your fast track to success.

2.1 Easy to learn and memorize
An easy-to-learn API features consistent naming conventions and patterns,
economy of concepts, and predictability. It uses the same name for the same
concept, and different names for different concepts.
A minimal API is easy to memorize because there is little to remember.
A consistent API is easy to memorize because you can reapply what you
learned in one part of the API when using a different part.
An API is not only the names of the classes and methods that compose
it, but also their intended semantics. The semantics should be simple and
clear, and follow the principle of least surprise.
Some APIs are difficult to learn because they require the user to write
heaps of boilerplate code just to get started. Nothing is more intimidating
to the novice user than creating their first widget, 3D scene, or data model;
and nothing is more destructive to their self-confidence than failing at that.
An easy-to-learn API makes it possible to write the “hello world” example
in just a few easy lines of code and to expand it incrementally to obtain
more complex programs.

Qt! QPushButton is an example of a low-threshold class. You simply instantiate
it and call show() on it, and behold, you have a QPushButton with its own
window frame and taskbar entry. In retrospect, it would be even better if
the call to show() could be omitted (e.g., by showing the widget in the next
iteration of the event loop), and if the QApplication object was implicitly
created by Qt. “Hello world” would then be
#include <QtGui>

int main()
{
QPushButton button("Hello world");
return QApplication::run();
}

Convenience methods—methods that are (or could be) implemented in
terms of other public methods to make certain idioms shorter to write—
contribute to API bloat. However, they are acceptable and indeed encour-
aged so long as they are clearly documented as “convenience” and fit nicely
with the rest of the API. For example, if you provide an insertItem(int,
Item) method that takes an index and an item, it often makes sense to also
provide addItem(Item) as a convenience.

8

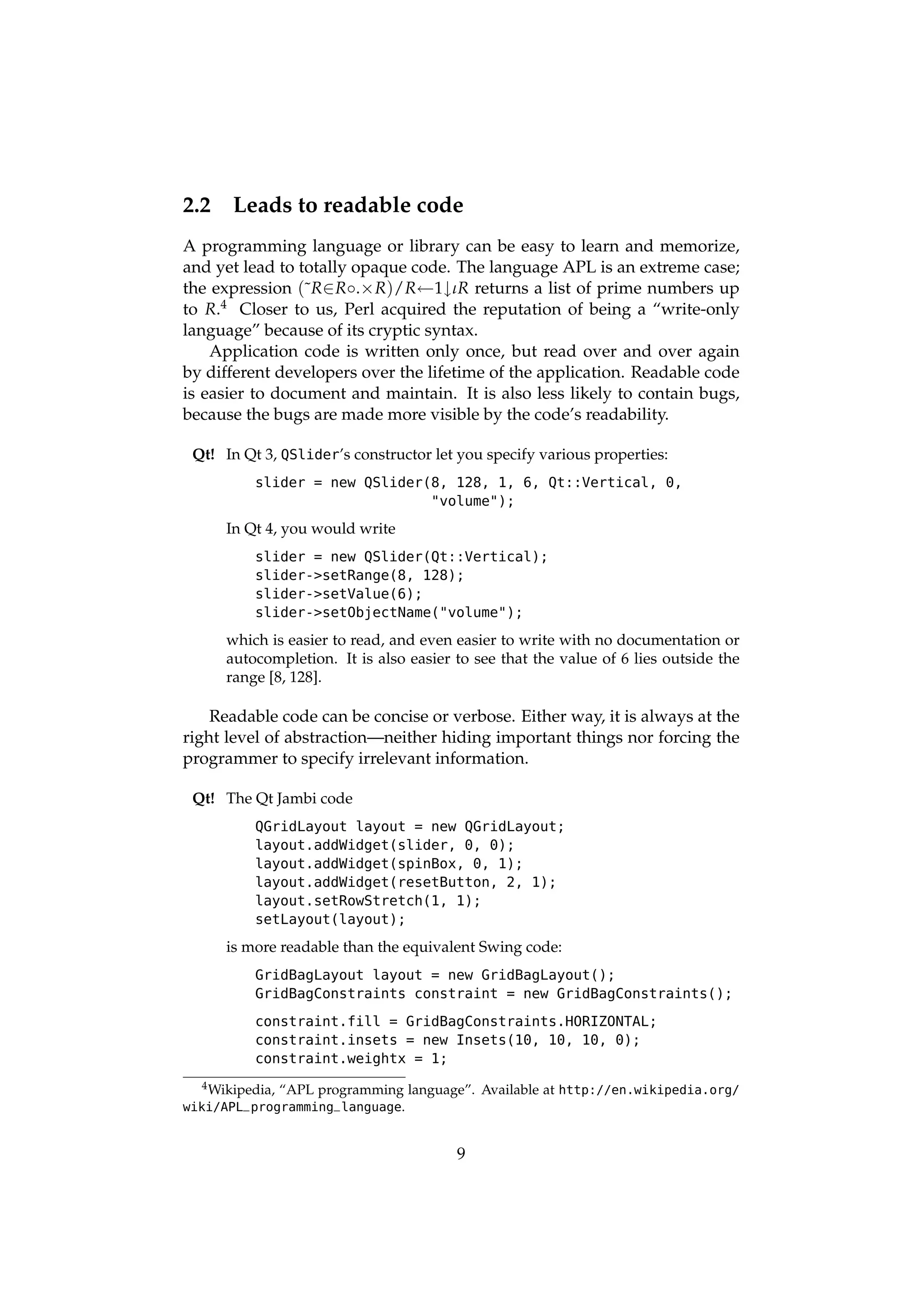

2.2 Leads to readable code
A programming language or library can be easy to learn and memorize,
and yet lead to totally opaque code. The language APL is an extreme case;
the expression (˜R∈ R◦.× R)/R←1↓ιR returns a list of prime numbers up
to R.4 Closer to us, Perl acquired the reputation of being a “write-only
language” because of its cryptic syntax.
Application code is written only once, but read over and over again
by different developers over the lifetime of the application. Readable code
is easier to document and maintain. It is also less likely to contain bugs,
because the bugs are made more visible by the code’s readability.

Qt! In Qt 3, QSlider’s constructor let you specify various properties:
slider = new QSlider(8, 128, 1, 6, Qt::Vertical, 0,
"volume");

In Qt 4, you would write
slider = new QSlider(Qt::Vertical);
slider->setRange(8, 128);
slider->setValue(6);
slider->setObjectName("volume");

which is easier to read, and even easier to write with no documentation or
autocompletion. It is also easier to see that the value of 6 lies outside the
range [8, 128].

Readable code can be concise or verbose. Either way, it is always at the
right level of abstraction—neither hiding important things nor forcing the
programmer to specify irrelevant information.

Qt! The Qt Jambi code
QGridLayout layout = new QGridLayout;
layout.addWidget(slider, 0, 0);
layout.addWidget(spinBox, 0, 1);
layout.addWidget(resetButton, 2, 1);
layout.setRowStretch(1, 1);
setLayout(layout);

is more readable than the equivalent Swing code:
GridBagLayout layout = new GridBagLayout();
GridBagConstraints constraint = new GridBagConstraints();

constraint.fill = GridBagConstraints.HORIZONTAL;
constraint.insets = new Insets(10, 10, 10, 0);
constraint.weightx = 1;
4 Wikipedia, “APL programming language”. Available at http://en.wikipedia.org/
wiki/APL_programming_language.

9

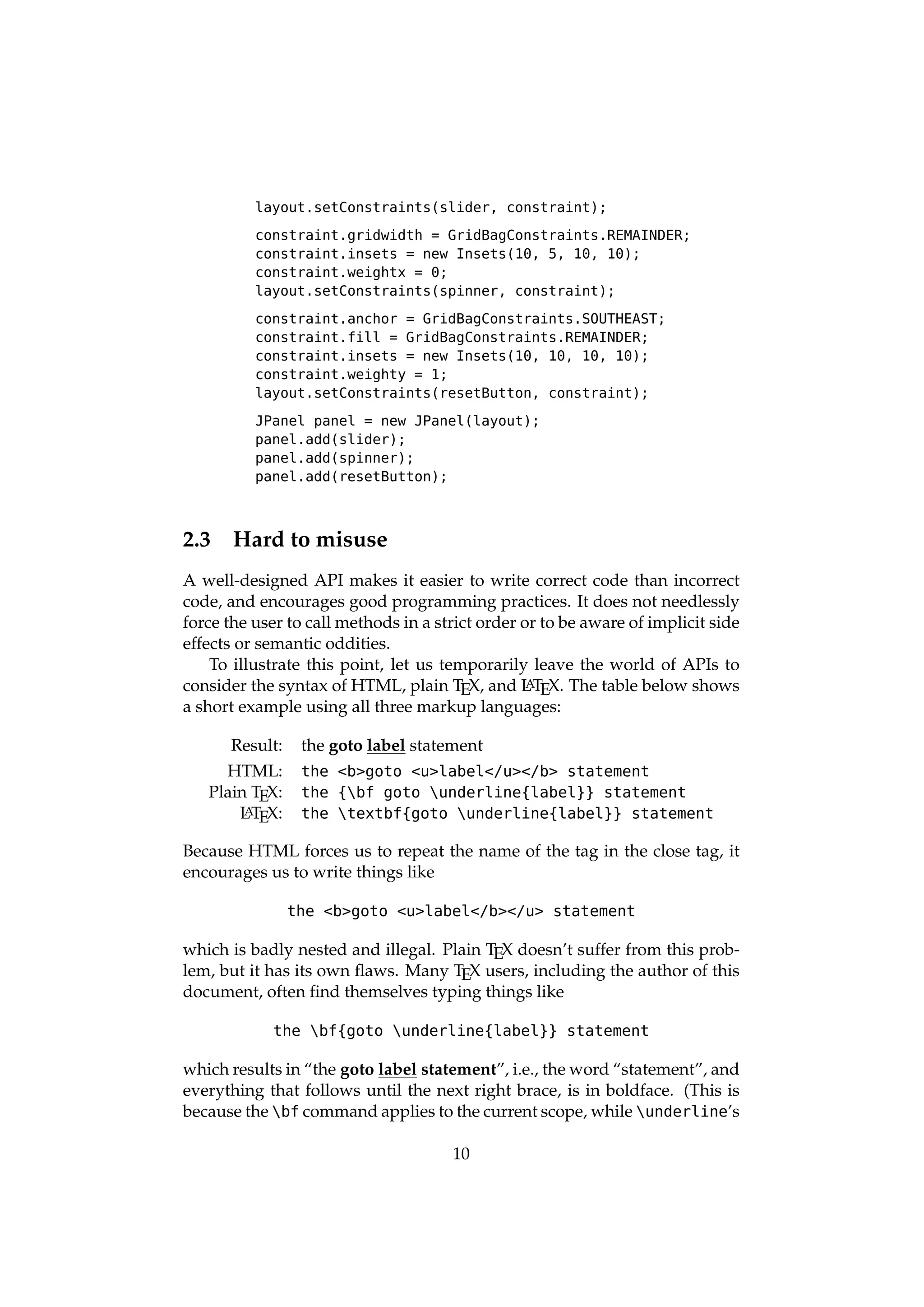

layout.setConstraints(slider, constraint);

constraint.gridwidth = GridBagConstraints.REMAINDER;
constraint.weightx = 0;
layout.setConstraints(spinner, constraint);

constraint.anchor = GridBagConstraints.SOUTHEAST;
constraint.fill = GridBagConstraints.REMAINDER;
constraint.weighty = 1;
layout.setConstraints(resetButton, constraint);

JPanel panel = new JPanel(layout);
panel.add(slider);
panel.add(spinner);
panel.add(resetButton);

2.3 Hard to misuse
A well-designed API makes it easier to write correct code than incorrect
code, and encourages good programming practices. It does not needlessly
force the user to call methods in a strict order or to be aware of implicit side
effects or semantic oddities.
To illustrate this point, let us temporarily leave the world of APIs to
consider the syntax of HTML, plain TEX, and L TEX. The table below shows
A
a short example using all three markup languages:

Result: the goto label statement
HTML: the goto label statement
Plain TEX: the {bf goto underline{label}} statement
L TEX:
A the textbf{goto underline{label}} statement

Because HTML forces us to repeat the name of the tag in the close tag, it
encourages us to write things like

the goto label statement

which is badly nested and illegal. Plain TEX doesn’t suffer from this prob-
lem, but it has its own ﬂaws. Many TEX users, including the author of this
document, often ﬁnd themselves typing things like

the bf{goto underline{label}} statement

which results in “the goto label statement”, i.e., the word “statement”, and
everything that follows until the next right brace, is in boldface. (This is
because the bf command applies to the current scope, while underline’s

10

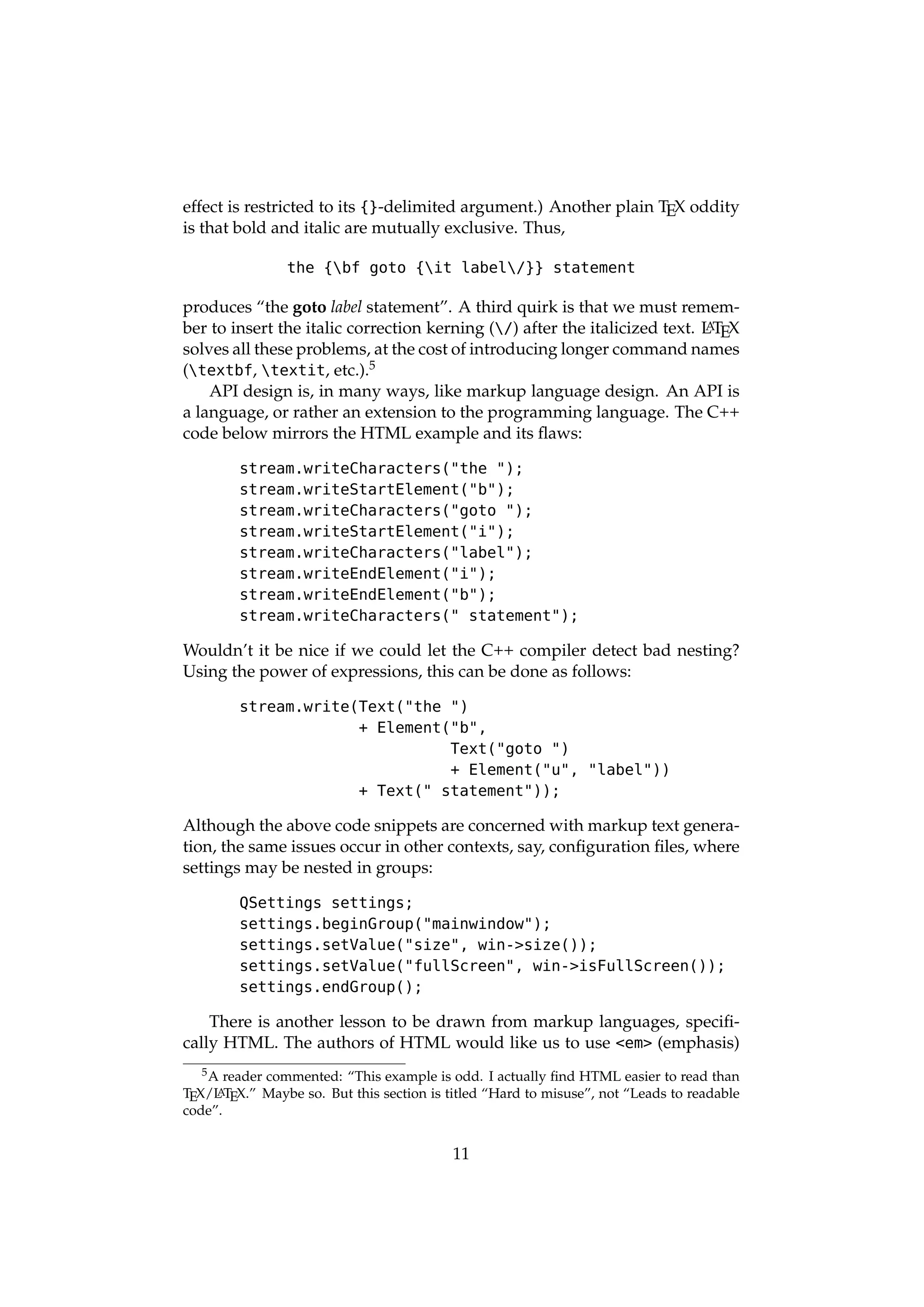

effect is restricted to its {}-delimited argument.) Another plain TEX oddity
is that bold and italic are mutually exclusive. Thus,

the {bf goto {it label/}} statement

produces “the goto label statement”. A third quirk is that we must remem-
ber to insert the italic correction kerning (/) after the italicized text. L TEX
A
solves all these problems, at the cost of introducing longer command names
(textbf, textit, etc.).5
API design is, in many ways, like markup language design. An API is
a language, or rather an extension to the programming language. The C++
code below mirrors the HTML example and its flaws:

stream.writeCharacters("the ");
stream.writeStartElement("b");
stream.writeCharacters("goto ");
stream.writeStartElement("i");
stream.writeCharacters("label");
stream.writeEndElement("i");
stream.writeEndElement("b");
stream.writeCharacters(" statement");

Wouldn’t it be nice if we could let the C++ compiler detect bad nesting?
Using the power of expressions, this can be done as follows:

stream.write(Text("the ")
+ Element("b",
Text("goto ")
+ Element("u", "label"))
+ Text(" statement"));

Although the above code snippets are concerned with markup text genera-
tion, the same issues occur in other contexts, say, configuration files, where
settings may be nested in groups:

QSettings settings;
settings.beginGroup("mainwindow");
settings.setValue("size", win->size());
settings.setValue("fullScreen", win->isFullScreen());
settings.endGroup();

There is another lesson to be drawn from markup languages, specifi-
cally HTML. The authors of HTML would like us to use (emphasis)
5 A reader commented: “This example is odd. I actually find HTML easier to read than

TEX/L TEX.” Maybe so. But this section is titled “Hard to misuse”, not “Leads to readable
A
code”.

11

instead of and instead of . However, the frowned-upon
 and tags are more convenient to type, and have a clearer seman-
tics (does emphasis mean italic or bold?). If they had been serious about it,
they would have replaced with and likewise
for bold, or omitted the tags altogether.

Qt! A common trap in Qt 3 was to swap the initial text and the parent of a
QPushButton, QLabel, or QLineEdit when creating the object. For example:

button = new QPushButton(this, "Hello world");

The code compiled, but the widget didn’t show any text, because “Hello
world” was taken to be the object’s name. In Qt 4, this is caught at compile-
time. If you want to specify an object name, you must write
button = new QPushButton(this);
button->setObjectName("Hello world");

which is very explicit about your intentions.

Finally, we can often make an API hard to misuse by eliminating redun-
dancy. For example, an addItem(Item) method that lets the user write

obj.addItem(yksi);
obj.addItem(kaksi);
obj.addItem(kolme);

is harder to misuse than the more general insertItem(int,Item) method,
which encourages off-by-one errors:

// WRONG
obj.insertItem(0, yksi);
obj.insertItem(1, kaksi);
obj.insertItem(3, kolme);

2.4 Easy to extend
Libraries grow over time. New classes appear. Existing classes get new
methods, methods get new parameters, and enums get new enum values.
APIs should be designed with this in mind. The larger the API, the more
likely the clashes between the new concepts and the existing concepts. In
addition, binary compatibility concerns must be taken into consideration
during the original design phase.

Qt! QStyle is a good example of a class that was difﬁcult to extend in a bi-
nary compatible way in Qt 2. It had a whole series of virtual functions for
painting the different widgets in Qt, which made it impossible to style new
widgets (e.g., QToolBox) without breaking binary compatibility. In Qt 3,

12

QStyle’s API was redesigned to be enum-based, so that new widgets could
be supported by adding enum values.

2.5 Complete
Ideally, an API should be complete and let users do everything they want.
It is rarely (if ever) possible to provide a complete API for anything, but at
least it should be possible for users to extend or customize the existing API
(e.g., by subclassing).
Completeness is also something that can appear over time, by incre-
mentally adding functionality to existing APIs. However, it usually helps
even in those cases to have a clear idea of the direction for future develop-
ments, so that each addition is a step in the right direction.

13

Chapter 3

The Design Process

APIs are usually the result of a design process that spans several years and
involves many people. Every step in the process offers the opportunity
to improve the API—or to spoil it. This chapter provides some guidance
for designing a new API or extending an existing API. By following these
guidelines, you increase your chances that the API will be a success rather
than a liability.

3.1 Know the requirements
Before you set out to design or implement an API, you should have a good
idea of the requirements. Sometimes, the requirements are reasonably clear
(e.g., “implement POSIX”), but in most cases you will need to conduct some
sort of requirements analysis. A good starting point is to ask as many peo-
ple as possible (notably your boss, your colleagues, and potential users)
about what features they would like to see.

Qt! When designing the new MDI classes for Qt 4.3, the main implementor
wrote an email to the internal developers’ mailing list where he asked about
known issues with the previous MDI framework and any wishes for the
new framework. Beyond helping define the API and feature set, this en-
sured that the other developers had their say and prevented dissension later
on.

3.2 Write use cases before you write any other code
A common mistake when writing library components is to start by im-
plementing the functionality, then design the API, and finally release it.
APIs designed this way tend to reflect the structure of the underlying code,
rather than what the application programmer who will use the API wants

15

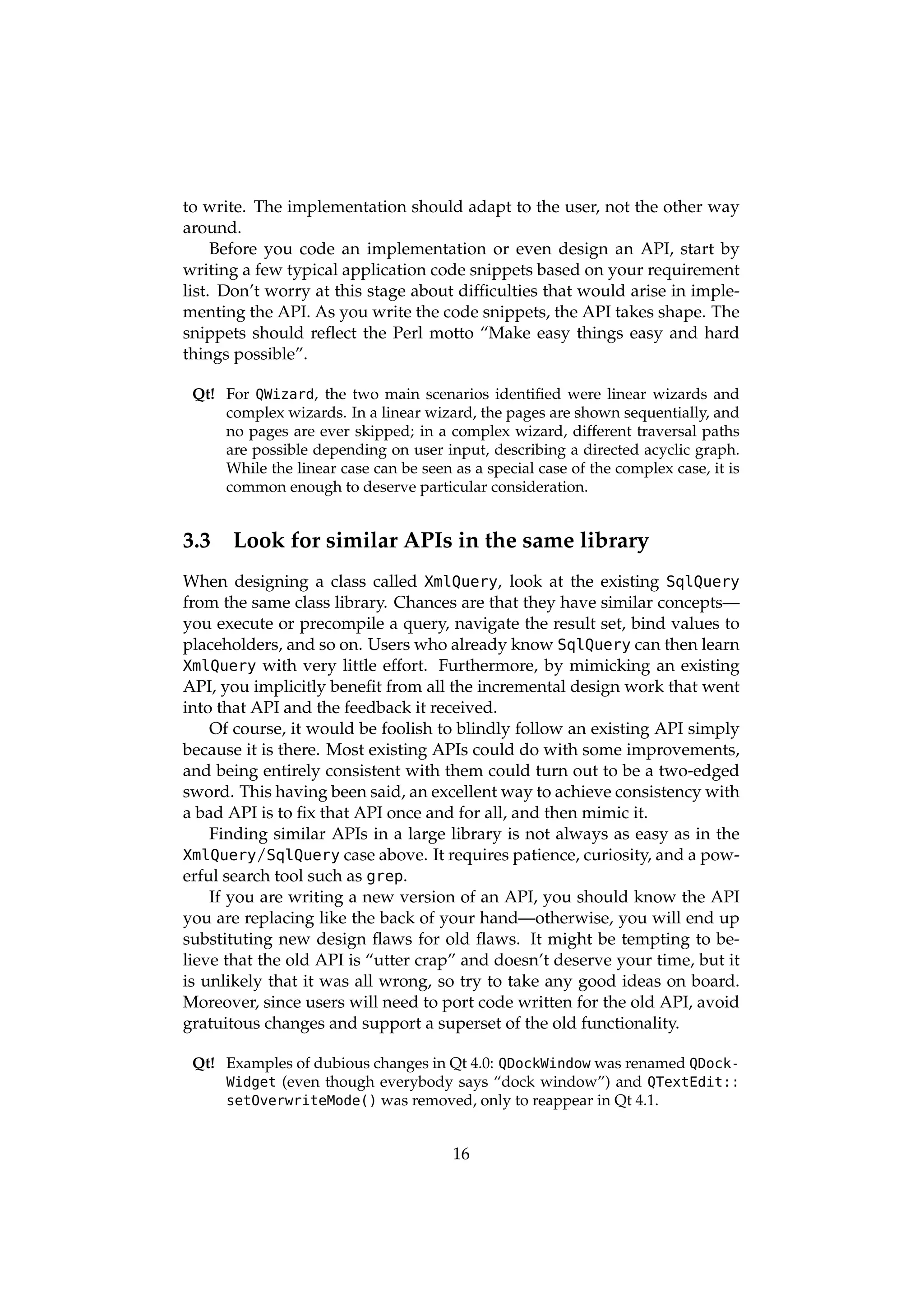

to write. The implementation should adapt to the user, not the other way
around.
Before you code an implementation or even design an API, start by
writing a few typical application code snippets based on your requirement
list. Don’t worry at this stage about difficulties that would arise in imple-
menting the API. As you write the code snippets, the API takes shape. The
snippets should reflect the Perl motto “Make easy things easy and hard
things possible”.

Qt! For QWizard, the two main scenarios identified were linear wizards and
complex wizards. In a linear wizard, the pages are shown sequentially, and
no pages are ever skipped; in a complex wizard, different traversal paths
are possible depending on user input, describing a directed acyclic graph.
While the linear case can be seen as a special case of the complex case, it is
common enough to deserve particular consideration.

3.3 Look for similar APIs in the same library
When designing a class called XmlQuery, look at the existing SqlQuery
from the same class library. Chances are that they have similar concepts—
you execute or precompile a query, navigate the result set, bind values to
placeholders, and so on. Users who already know SqlQuery can then learn
XmlQuery with very little effort. Furthermore, by mimicking an existing
API, you implicitly benefit from all the incremental design work that went
into that API and the feedback it received.
Of course, it would be foolish to blindly follow an existing API simply
because it is there. Most existing APIs could do with some improvements,
and being entirely consistent with them could turn out to be a two-edged
sword. This having been said, an excellent way to achieve consistency with
a bad API is to fix that API once and for all, and then mimic it.
Finding similar APIs in a large library is not always as easy as in the
XmlQuery/SqlQuery case above. It requires patience, curiosity, and a pow-
erful search tool such as grep.
If you are writing a new version of an API, you should know the API
you are replacing like the back of your hand—otherwise, you will end up
substituting new design flaws for old flaws. It might be tempting to be-
lieve that the old API is “utter crap” and doesn’t deserve your time, but it
is unlikely that it was all wrong, so try to take any good ideas on board.
Moreover, since users will need to port code written for the old API, avoid
gratuitous changes and support a superset of the old functionality.

Qt! Examples of dubious changes in Qt 4.0: QDockWindow was renamed QDock-
Widget (even though everybody says “dock window”) and QTextEdit::
setOverwriteMode() was removed, only to reappear in Qt 4.1.

16

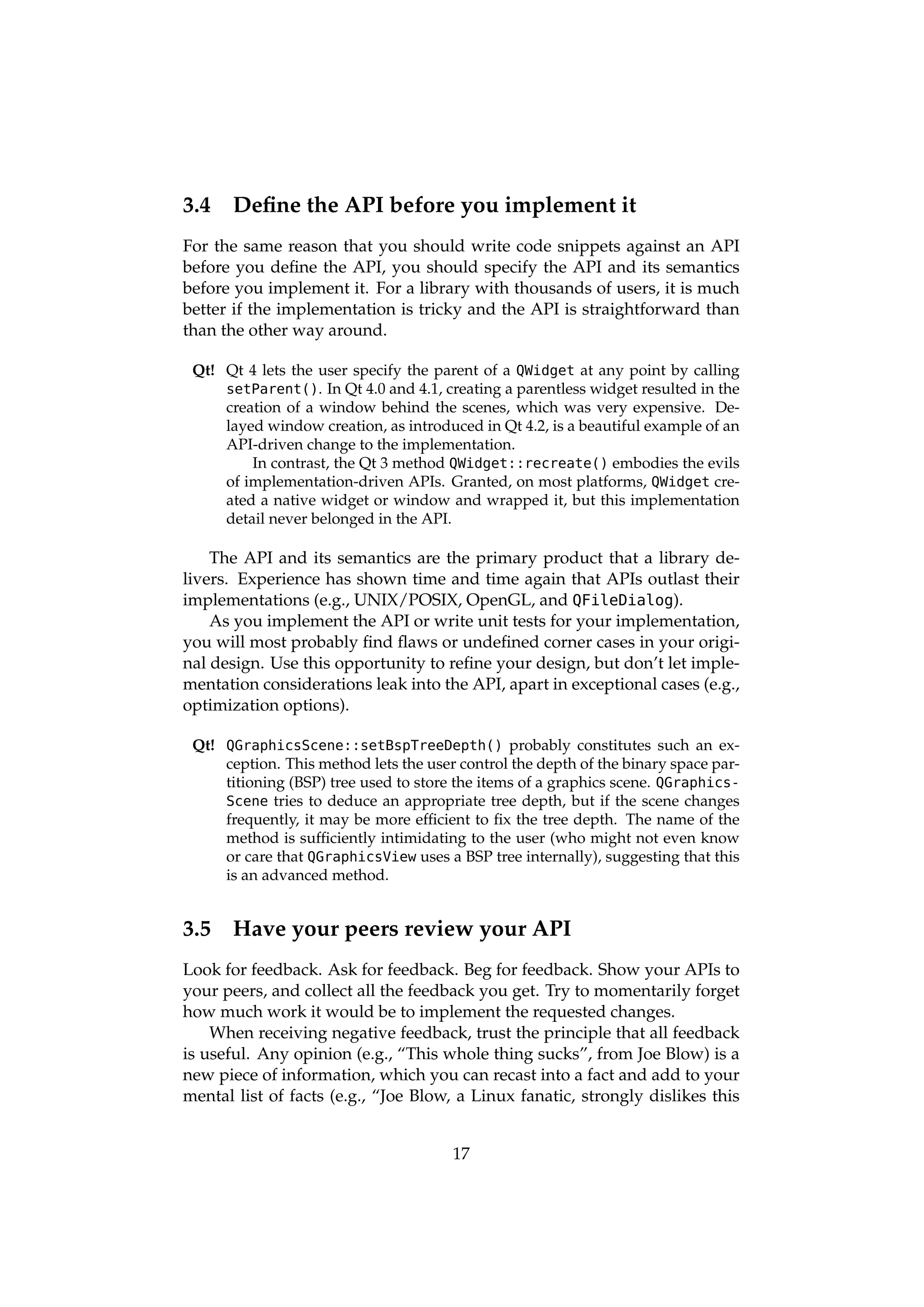

3.4 Define the API before you implement it
For the same reason that you should write code snippets against an API
before you define the API, you should specify the API and its semantics
before you implement it. For a library with thousands of users, it is much
better if the implementation is tricky and the API is straightforward than
than the other way around.

Qt! Qt 4 lets the user specify the parent of a QWidget at any point by calling
setParent(). In Qt 4.0 and 4.1, creating a parentless widget resulted in the
creation of a window behind the scenes, which was very expensive. De-
layed window creation, as introduced in Qt 4.2, is a beautiful example of an
API-driven change to the implementation.
In contrast, the Qt 3 method QWidget::recreate() embodies the evils
of implementation-driven APIs. Granted, on most platforms, QWidget cre-
ated a native widget or window and wrapped it, but this implementation
detail never belonged in the API.

The API and its semantics are the primary product that a library de-
livers. Experience has shown time and time again that APIs outlast their
implementations (e.g., UNIX/POSIX, OpenGL, and QFileDialog).
As you implement the API or write unit tests for your implementation,
you will most probably find flaws or undefined corner cases in your origi-
nal design. Use this opportunity to refine your design, but don’t let imple-
mentation considerations leak into the API, apart in exceptional cases (e.g.,
optimization options).

Qt! QGraphicsScene::setBspTreeDepth() probably constitutes such an ex-
ception. This method lets the user control the depth of the binary space par-
titioning (BSP) tree used to store the items of a graphics scene. QGraphics-
Scene tries to deduce an appropriate tree depth, but if the scene changes
frequently, it may be more efficient to fix the tree depth. The name of the
method is sufficiently intimidating to the user (who might not even know
or care that QGraphicsView uses a BSP tree internally), suggesting that this
is an advanced method.

3.5 Have your peers review your API
Look for feedback. Ask for feedback. Beg for feedback. Show your APIs to
your peers, and collect all the feedback you get. Try to momentarily forget
how much work it would be to implement the requested changes.
When receiving negative feedback, trust the principle that all feedback
is useful. Any opinion (e.g., “This whole thing sucks”, from Joe Blow) is a
new piece of information, which you can recast into a fact and add to your
mental list of facts (e.g., “Joe Blow, a Linux fanatic, strongly dislikes this

17

COM-inspired architecture”). The more facts you possess, the better the
chances that you will design a good API.

3.6 Write several examples against the API
After you designed an API, you should write a few examples that use the
API. Often, you can obtain examples simply by fleshing out the use cases
defined earlier. It will also help if other people write examples using the
API and give you their feedback.

Qt! The code snippets that were written initially when experimenting with the
QWizard API eventually became the Class Wizard and the License Wizard
examples provided with Qt, covering among them the linear and complex
cases of a wizard. There is also a Trivial Wizard example, which involves no
subclassing and has a “hello world” flavor.

3.7 Prepare for extensions
Expect your API to be extended in two ways: by the maintainers of the API,
who will add to it (and occasionally deprecate parts of it), and by the users,
who will write subclasses to customize the behavior of its components.
Planning for extensibility requires going through realistic scenarios and
thinking of possible solutions. For each class that declares virtual methods,
you should write at least three subclasses (as examples or as public classes
in the API) to ensure that it is powerful enough to support a wide range of
user requirements. This is sometimes called the rule of three.1

Qt! Qt 4.0 introduced QAbstractSocket, together with the concrete subclasses
QTcpSocket and QUdpSocket. When adding QSslSocket in Qt 4.3, we were
forced to add downcasts in some of QAbstractSocket’s methods, which
should have been virtual but were not. “Manual polymorphism” worked in
this case because QSslSocket lives in the same library as QAbstractSocket,
but it wouldn’t have worked for a third-party component.

3.8 Don’t publish internal APIs without review
Some APIs start their glorious lives as internal APIs before they are made
public. A common mistake is to forget to review them properly before
taking this step. This story from Raymond Chen2 illustrates the point:
1 Will Tracz, “Software Reuse”, 1995. Available at http://webcem01.cem.itesm.mx:
8005/web/200111/cb00894/software_reuse.html.
2 Raymond Chen, “Why is the function SHStripMneumonic misspelled?”, The Old New
Thing blog, 2008. Available at http://blogs.msdn.com/oldnewthing/archive/2008/
05/19/8518565.aspx.

18

If you wander through MSDN, you may stumble across the
function SHStripMneumonic. The correct spelling is mnemonic.
Why is the function name misspelled?
“It was like that when I got here.”
The function was originally written for internal use only, and
the person who wrote the function spelled the word incorrectly.
Still, since it was an internal function, there was no real urgency
to ﬁx it.
[. . . ]
In 2001, the order came down to document all functions which
met speciﬁc criteria (the details of which I will not go into, and
I would appreciate it if others didn’t try), and the SHStrip-
Mneumonic function was suddenly thrust onto the public stage
before it had a chance to so much as comb its hair and make
sure it didn’t have food stuck in its teeth. The function had to
be documented, warts and all, and the bad spelling was one of
the warts.
Of course, now that the function has been published, its name
is locked and can’t be changed, because that would break all the
programs that used the original bad spelling.

3.9 When in doubt, leave it out
If you have your doubts about an API or functionality, you can leave it out,
or mark it as internal, and reconsider it at a later point.
It often helps to wait for feedback from users. On the other hand, it is
practically impossible to add every feature suggested by users. A good rule
of thumb is to wait until at least three users have independently asked for
a feature before implementing it.

19

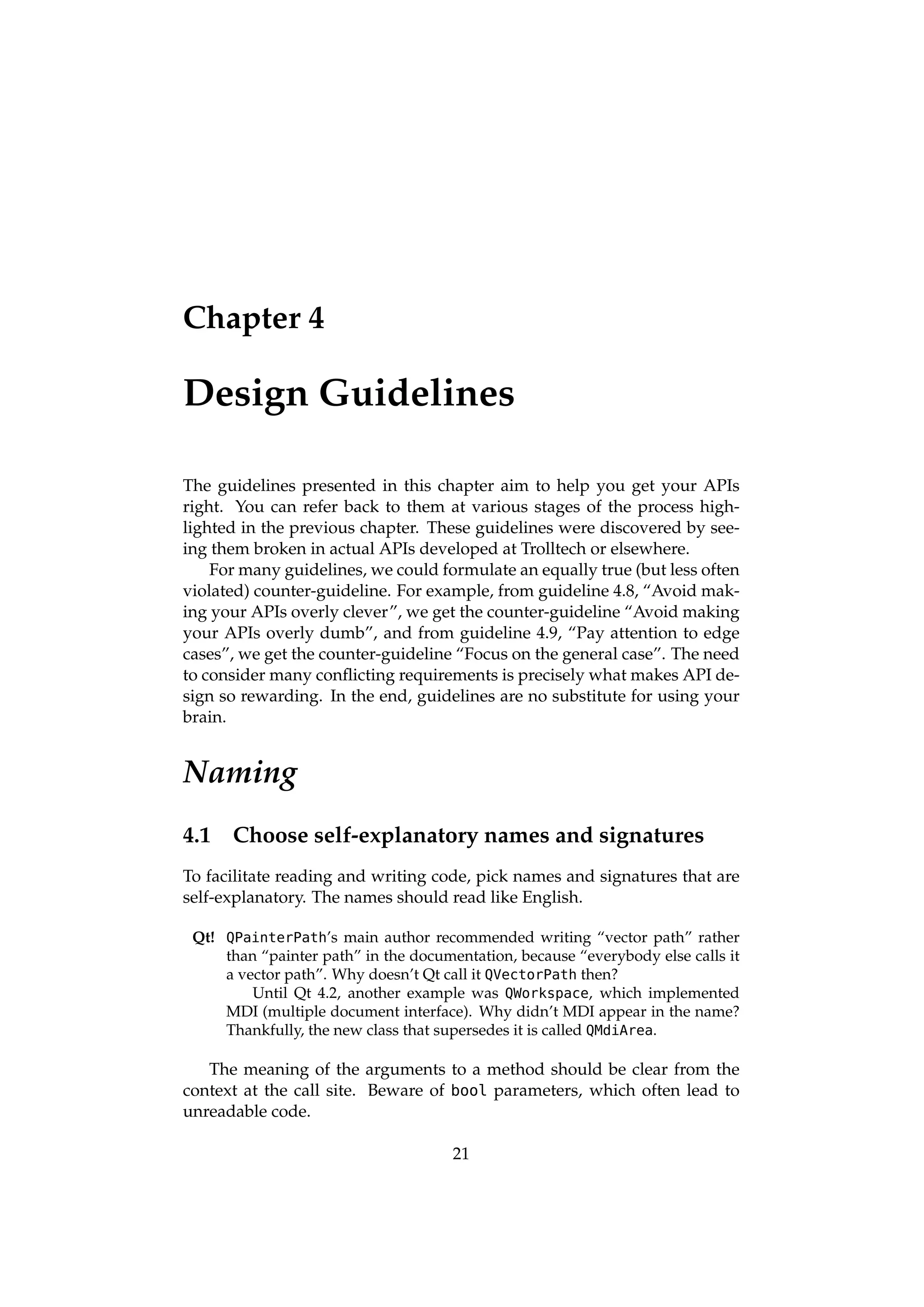

Chapter 4

Design Guidelines

The guidelines presented in this chapter aim to help you get your APIs
right. You can refer back to them at various stages of the process high-
lighted in the previous chapter. These guidelines were discovered by see-
ing them broken in actual APIs developed at Trolltech or elsewhere.
For many guidelines, we could formulate an equally true (but less often
violated) counter-guideline. For example, from guideline 4.8, “Avoid mak-
ing your APIs overly clever”, we get the counter-guideline “Avoid making
your APIs overly dumb”, and from guideline 4.9, “Pay attention to edge
cases”, we get the counter-guideline “Focus on the general case”. The need
to consider many conﬂicting requirements is precisely what makes API de-
sign so rewarding. In the end, guidelines are no substitute for using your
brain.

Naming
4.1 Choose self-explanatory names and signatures
To facilitate reading and writing code, pick names and signatures that are
self-explanatory. The names should read like English.

Qt! QPainterPath’s main author recommended writing “vector path” rather
than “painter path” in the documentation, because “everybody else calls it
a vector path”. Why doesn’t Qt call it QVectorPath then?
Until Qt 4.2, another example was QWorkspace, which implemented
MDI (multiple document interface). Why didn’t MDI appear in the name?
Thankfully, the new class that supersedes it is called QMdiArea.

The meaning of the arguments to a method should be clear from the
context at the call site. Beware of bool parameters, which often lead to
unreadable code.

21

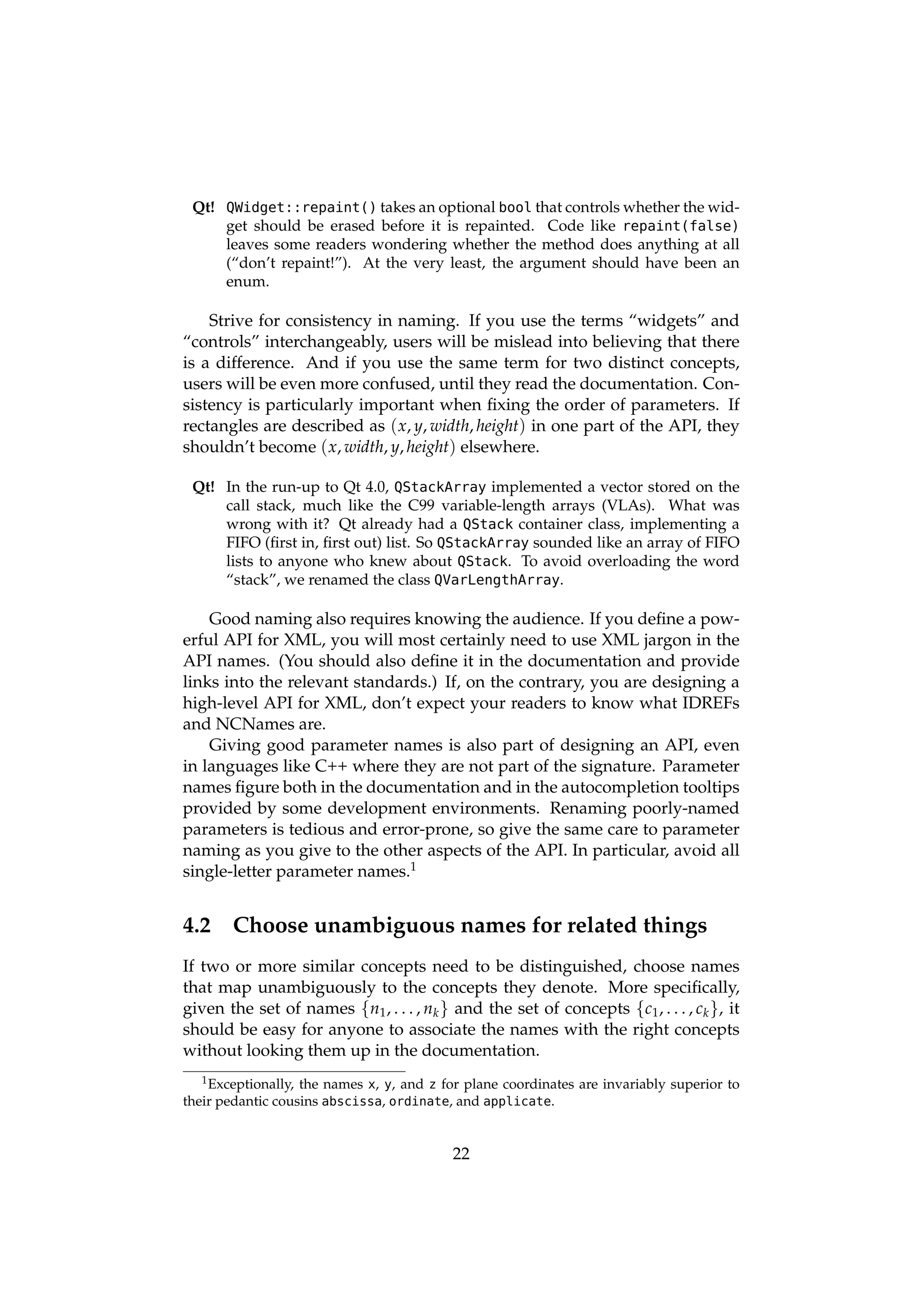

Qt! QWidget::repaint() takes an optional bool that controls whether the wid-
get should be erased before it is repainted. Code like repaint(false)
leaves some readers wondering whether the method does anything at all
(“don’t repaint!”). At the very least, the argument should have been an
enum.

Strive for consistency in naming. If you use the terms “widgets” and
“controls” interchangeably, users will be mislead into believing that there
is a difference. And if you use the same term for two distinct concepts,
users will be even more confused, until they read the documentation. Con-
sistency is particularly important when fixing the order of parameters. If
rectangles are described as ( x, y, width, height) in one part of the API, they
shouldn’t become ( x, width, y, height) elsewhere.

Qt! In the run-up to Qt 4.0, QStackArray implemented a vector stored on the
call stack, much like the C99 variable-length arrays (VLAs). What was
wrong with it? Qt already had a QStack container class, implementing a
FIFO (first in, first out) list. So QStackArray sounded like an array of FIFO
lists to anyone who knew about QStack. To avoid overloading the word
“stack”, we renamed the class QVarLengthArray.

Good naming also requires knowing the audience. If you define a pow-
erful API for XML, you will most certainly need to use XML jargon in the
API names. (You should also define it in the documentation and provide
links into the relevant standards.) If, on the contrary, you are designing a
high-level API for XML, don’t expect your readers to know what IDREFs
and NCNames are.
Giving good parameter names is also part of designing an API, even
in languages like C++ where they are not part of the signature. Parameter
names figure both in the documentation and in the autocompletion tooltips
provided by some development environments. Renaming poorly-named
parameters is tedious and error-prone, so give the same care to parameter
naming as you give to the other aspects of the API. In particular, avoid all
single-letter parameter names.1

4.2 Choose unambiguous names for related things
If two or more similar concepts need to be distinguished, choose names
that map unambiguously to the concepts they denote. More specifically,
given the set of names {n1 , . . . , nk } and the set of concepts {c1 , . . . , ck }, it
should be easy for anyone to associate the names with the right concepts
without looking them up in the documentation.
1 Exceptionally,the names x, y, and z for plane coordinates are invariably superior to
their pedantic cousins abscissa, ordinate, and applicate.

22

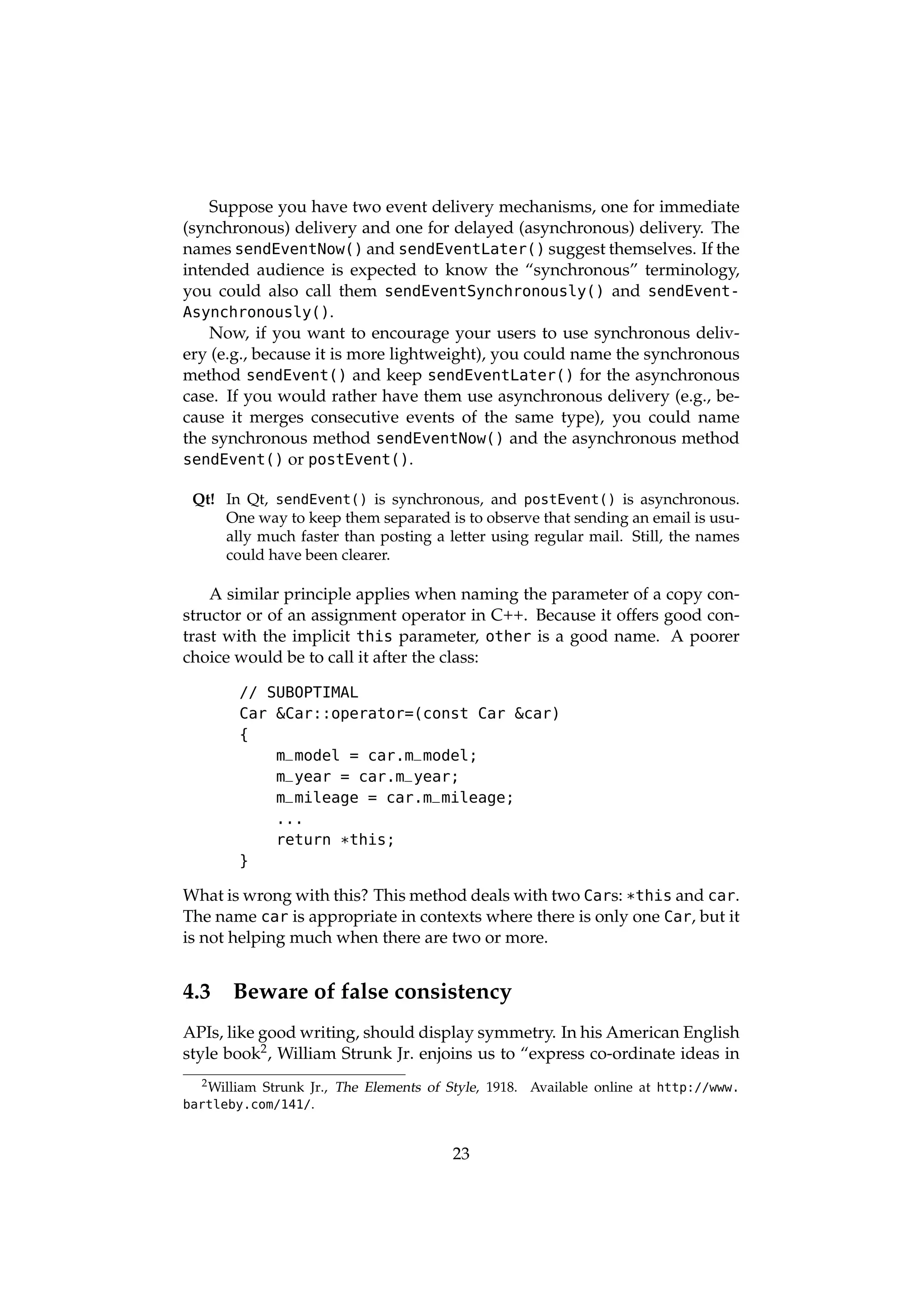

Suppose you have two event delivery mechanisms, one for immediate
(synchronous) delivery and one for delayed (asynchronous) delivery. The
names sendEventNow() and sendEventLater() suggest themselves. If the
intended audience is expected to know the “synchronous” terminology,
you could also call them sendEventSynchronously() and sendEvent-
Asynchronously().
Now, if you want to encourage your users to use synchronous deliv-
ery (e.g., because it is more lightweight), you could name the synchronous
method sendEvent() and keep sendEventLater() for the asynchronous
case. If you would rather have them use asynchronous delivery (e.g., be-
cause it merges consecutive events of the same type), you could name
the synchronous method sendEventNow() and the asynchronous method
sendEvent() or postEvent().

Qt! In Qt, sendEvent() is synchronous, and postEvent() is asynchronous.
One way to keep them separated is to observe that sending an email is usu-
ally much faster than posting a letter using regular mail. Still, the names
could have been clearer.

A similar principle applies when naming the parameter of a copy con-
structor or of an assignment operator in C++. Because it offers good con-
trast with the implicit this parameter, other is a good name. A poorer
choice would be to call it after the class:

// SUBOPTIMAL
Car &Car::operator=(const Car &car)
{
m_model = car.m_model;
m_year = car.m_year;
m_mileage = car.m_mileage;
...
return *this;
}

What is wrong with this? This method deals with two Cars: *this and car.
The name car is appropriate in contexts where there is only one Car, but it
is not helping much when there are two or more.

4.3 Beware of false consistency
APIs, like good writing, should display symmetry. In his American English
style book2 , William Strunk Jr. enjoins us to “express co-ordinate ideas in
2 William Strunk Jr., The Elements of Style, 1918. Available online at http://www.
bartleby.com/141/.

23

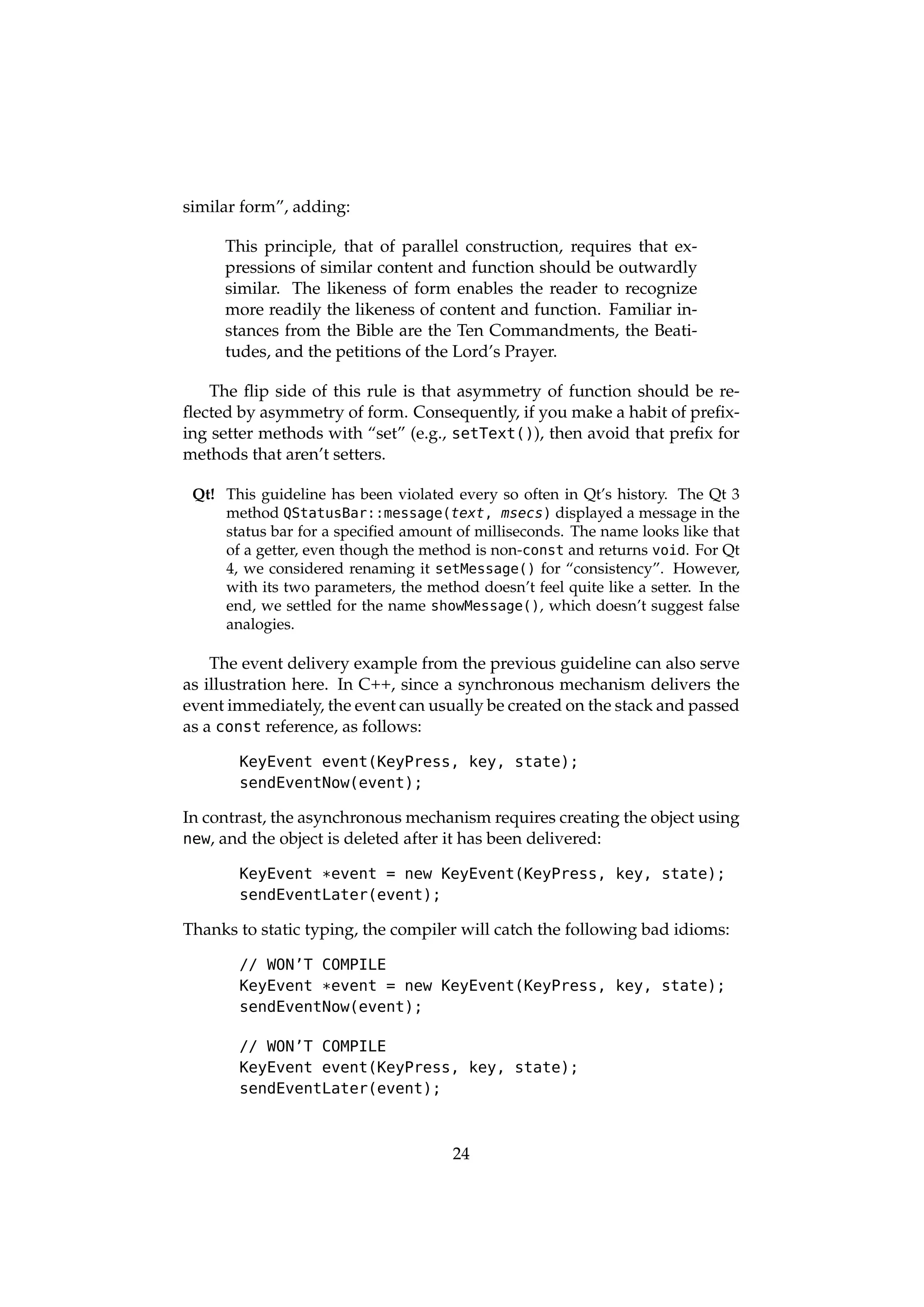

similar form”, adding:

This principle, that of parallel construction, requires that ex-
pressions of similar content and function should be outwardly
similar. The likeness of form enables the reader to recognize
more readily the likeness of content and function. Familiar in-
stances from the Bible are the Ten Commandments, the Beati-
tudes, and the petitions of the Lord’s Prayer.

The flip side of this rule is that asymmetry of function should be re-
flected by asymmetry of form. Consequently, if you make a habit of prefix-
ing setter methods with “set” (e.g., setText()), then avoid that prefix for
methods that aren’t setters.

Qt! This guideline has been violated every so often in Qt’s history. The Qt 3
method QStatusBar::message(text, msecs) displayed a message in the
status bar for a specified amount of milliseconds. The name looks like that
of a getter, even though the method is non-const and returns void. For Qt
4, we considered renaming it setMessage() for “consistency”. However,
with its two parameters, the method doesn’t feel quite like a setter. In the
end, we settled for the name showMessage(), which doesn’t suggest false
analogies.

The event delivery example from the previous guideline can also serve
as illustration here. In C++, since a synchronous mechanism delivers the
event immediately, the event can usually be created on the stack and passed
as a const reference, as follows:

KeyEvent event(KeyPress, key, state);
sendEventNow(event);

In contrast, the asynchronous mechanism requires creating the object using
new, and the object is deleted after it has been delivered:

KeyEvent *event = new KeyEvent(KeyPress, key, state);
sendEventLater(event);

Thanks to static typing, the compiler will catch the following bad idioms:

// WON’T COMPILE
KeyEvent *event = new KeyEvent(KeyPress, key, state);
sendEventNow(event);

// WON’T COMPILE
KeyEvent event(KeyPress, key, state);
sendEventLater(event);

24

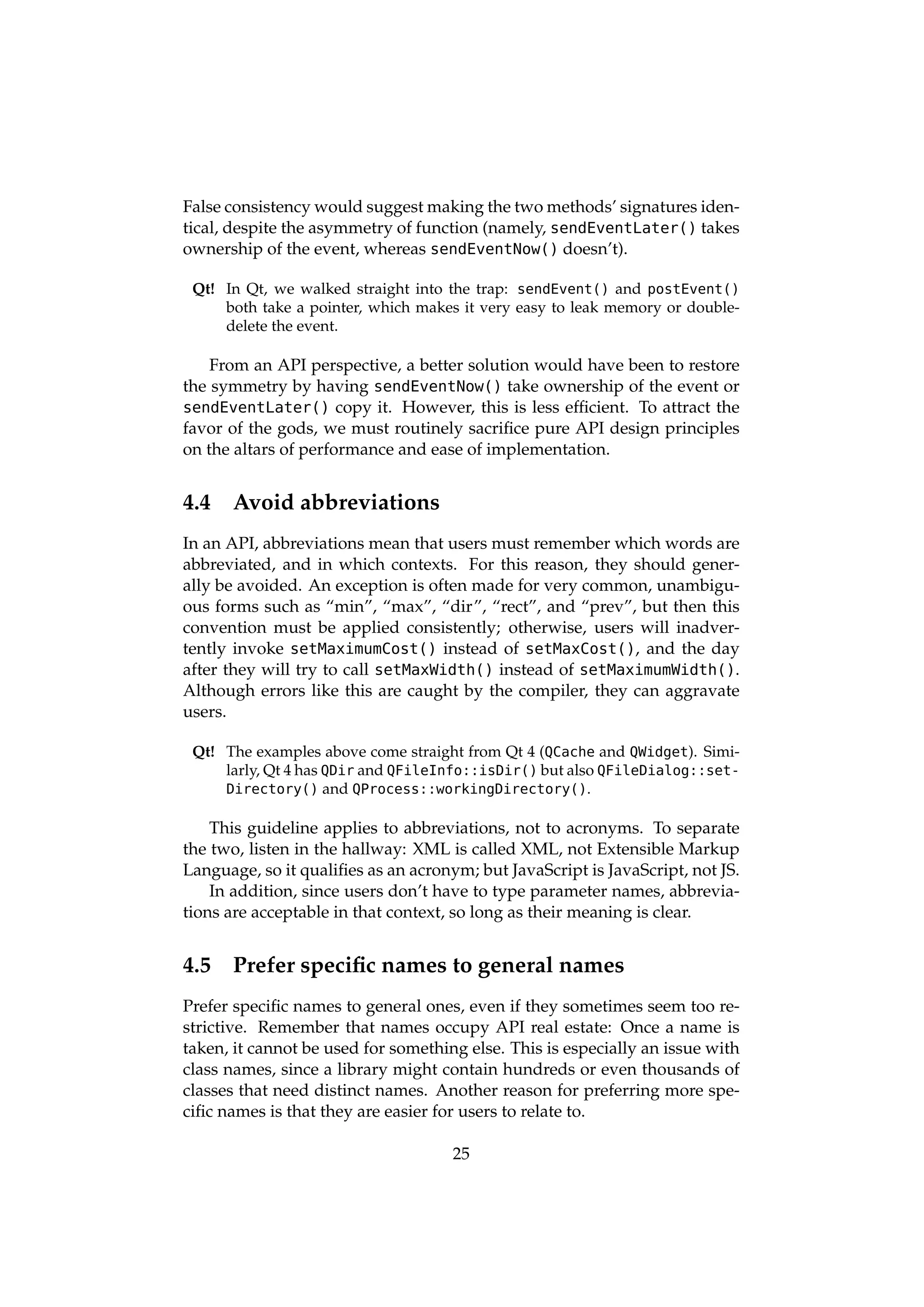

False consistency would suggest making the two methods’ signatures iden-
tical, despite the asymmetry of function (namely, sendEventLater() takes
ownership of the event, whereas sendEventNow() doesn’t).

Qt! In Qt, we walked straight into the trap: sendEvent() and postEvent()
both take a pointer, which makes it very easy to leak memory or double-
delete the event.

From an API perspective, a better solution would have been to restore
the symmetry by having sendEventNow() take ownership of the event or
sendEventLater() copy it. However, this is less efficient. To attract the
favor of the gods, we must routinely sacrifice pure API design principles
on the altars of performance and ease of implementation.

4.4 Avoid abbreviations
In an API, abbreviations mean that users must remember which words are
abbreviated, and in which contexts. For this reason, they should gener-
ally be avoided. An exception is often made for very common, unambigu-
ous forms such as “min”, “max”, “dir”, “rect”, and “prev”, but then this
convention must be applied consistently; otherwise, users will inadver-
tently invoke setMaximumCost() instead of setMaxCost(), and the day
after they will try to call setMaxWidth() instead of setMaximumWidth().
Although errors like this are caught by the compiler, they can aggravate
users.

Qt! The examples above come straight from Qt 4 (QCache and QWidget). Simi-
larly, Qt 4 has QDir and QFileInfo::isDir() but also QFileDialog::set-
Directory() and QProcess::workingDirectory().

This guideline applies to abbreviations, not to acronyms. To separate
the two, listen in the hallway: XML is called XML, not Extensible Markup
Language, so it qualifies as an acronym; but JavaScript is JavaScript, not JS.
In addition, since users don’t have to type parameter names, abbrevia-
tions are acceptable in that context, so long as their meaning is clear.

4.5 Prefer specific names to general names
Prefer specific names to general ones, even if they sometimes seem too re-
strictive. Remember that names occupy API real estate: Once a name is
taken, it cannot be used for something else. This is especially an issue with
class names, since a library might contain hundreds or even thousands of
classes that need distinct names. Another reason for preferring more spe-
cific names is that they are easier for users to relate to.

25

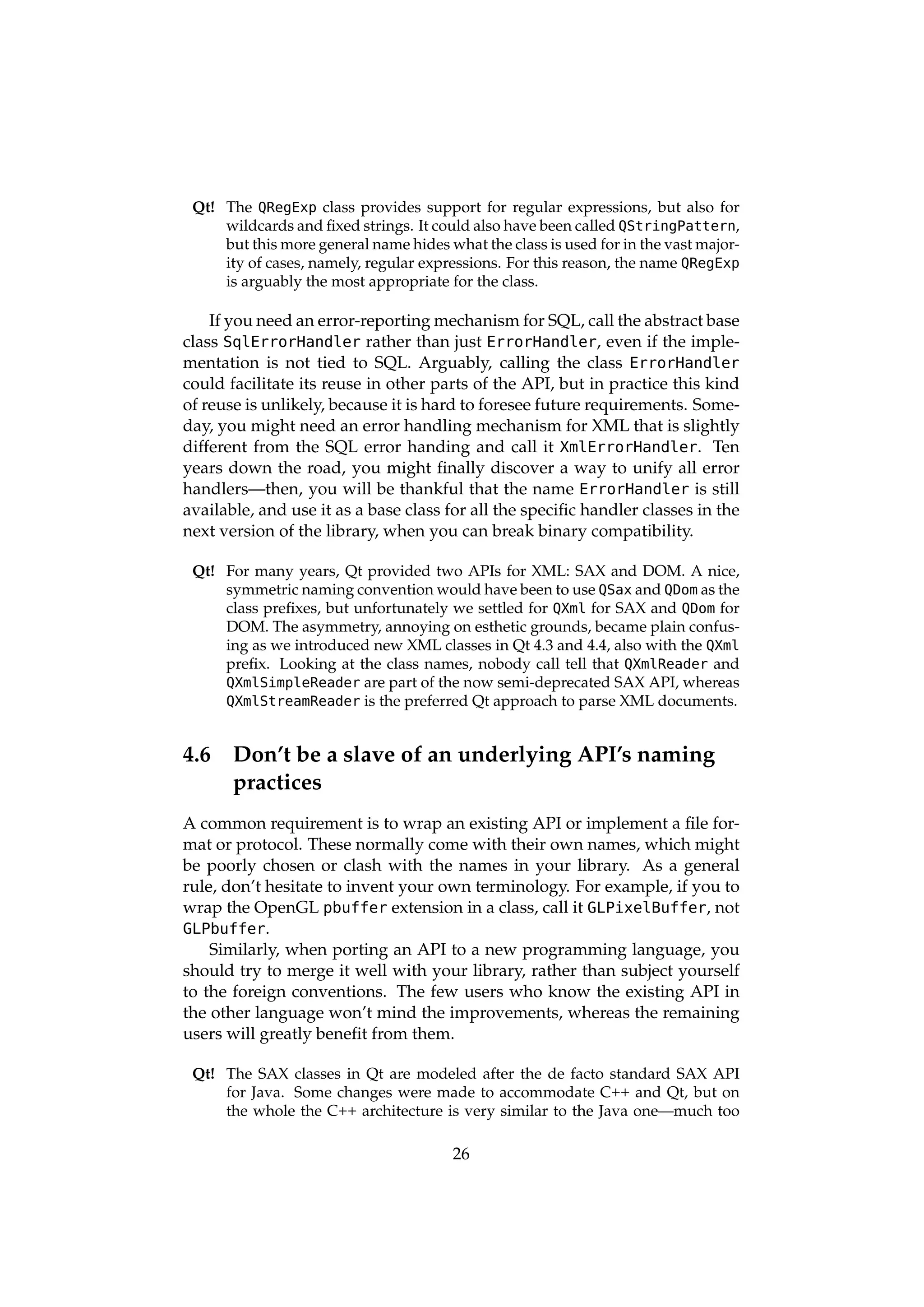

Qt! The QRegExp class provides support for regular expressions, but also for
wildcards and fixed strings. It could also have been called QStringPattern,
but this more general name hides what the class is used for in the vast major-
ity of cases, namely, regular expressions. For this reason, the name QRegExp
is arguably the most appropriate for the class.

If you need an error-reporting mechanism for SQL, call the abstract base
class SqlErrorHandler rather than just ErrorHandler, even if the imple-
mentation is not tied to SQL. Arguably, calling the class ErrorHandler
could facilitate its reuse in other parts of the API, but in practice this kind
of reuse is unlikely, because it is hard to foresee future requirements. Some-
day, you might need an error handling mechanism for XML that is slightly
different from the SQL error handing and call it XmlErrorHandler. Ten
years down the road, you might finally discover a way to unify all error
handlers—then, you will be thankful that the name ErrorHandler is still
available, and use it as a base class for all the specific handler classes in the
next version of the library, when you can break binary compatibility.

Qt! For many years, Qt provided two APIs for XML: SAX and DOM. A nice,
symmetric naming convention would have been to use QSax and QDom as the
class prefixes, but unfortunately we settled for QXml for SAX and QDom for
DOM. The asymmetry, annoying on esthetic grounds, became plain confus-
ing as we introduced new XML classes in Qt 4.3 and 4.4, also with the QXml
prefix. Looking at the class names, nobody call tell that QXmlReader and
QXmlSimpleReader are part of the now semi-deprecated SAX API, whereas
QXmlStreamReader is the preferred Qt approach to parse XML documents.

4.6 Don’t be a slave of an underlying API’s naming
practices
A common requirement is to wrap an existing API or implement a file for-
mat or protocol. These normally come with their own names, which might
be poorly chosen or clash with the names in your library. As a general
rule, don’t hesitate to invent your own terminology. For example, if you to
wrap the OpenGL pbuffer extension in a class, call it GLPixelBuffer, not
GLPbuffer.
Similarly, when porting an API to a new programming language, you
should try to merge it well with your library, rather than subject yourself
to the foreign conventions. The few users who know the existing API in
the other language won’t mind the improvements, whereas the remaining
users will greatly benefit from them.

Qt! The SAX classes in Qt are modeled after the de facto standard SAX API
for Java. Some changes were made to accommodate C++ and Qt, but on
the whole the C++ architecture is very similar to the Java one—much too

26

similar, in fact. For example, the XML data is provided by a class called
QXmlInputSource, which can be initialized with a QIODevice; a tighter
integration with Qt would have used QIODevice directly and eliminated
QXmlInputSource.

Semantics
4.7 Choose good defaults
Choose suitable defaults so that users won’t need to write or copy and paste
boilerplate code just to get started. For example, in user interface design, a
good default is to respect the platform’s native look and feel. Using Qt for
Mac OS X, we simply write

QPushButton *button = new QPushButton(text, parent);

and we obtain a native-looking Aqua push button with the speciﬁed text
and an appropriate preferred size (its “size hint”), ready to be inserted in
a layout manager. Contrast this with the following code, written using
Apple’s Cocoa framework:

static const NSRect dummyRect = {
{ 0.0, 0.0 }, { 0.0, 0.0 }
};
NSButton *button = [[NSButton alloc]
initWithFrame:dummyRect];
[button setButtonType:NSMomentaryLightButton];
[button setBezelStyle:NSRoundedBezelStyle];
[button setTitle:[NSString stringWithUTF8String:text]];
[parent addSubview:button];

Why do we need to set the button type and the bezel style to get a plain
Aqua button? If compatibility with NeXTstep and OpenStep is that impor-
tant, why not provide a convenience class (NSPushButton or NSRounded-
Button or NSAquaButton, whatever) with the right defaults? And why do
we need to specify a position and a size to the initializer method, when we
probably need to set them later anyway based on the window size and the
button’s reported preferred size?
But choosing good defaults isn’t just about eliminating boilerplate code.
It also helps make the API simple and predictable. This applies especially
to Boolean options. In general, name them so that they are false by default
and enabled by the user. In some cases, this requires preﬁxing them with No
or Dont or Anti. This is acceptable, although alternatives should be sought

27

when possible (e.g., CaseInsensitive rather than NotCaseSensitive). In
all cases, resist the temptation to enable all sorts of bells and whistles by
default just to show off.
Finally, remember that choosing good defaults doesn’t excuse you from
your duty to document them.

4.8 Avoid making your APIs overly clever
We observed earlier that the semantics of an API should be simple and
clear, and follow the principle of least surprise. If an API is too clever (e.g.,
if it has subtle side-effects), the users will not understand it as well and will
ﬁnd themselves with subtle bugs in their applications. Cleverness also con-
tributes to making the code less readable and maintainable, and increases
the need for documentation.

Qt! QLabel in Qt 3 offers a beautiful example of cleverness. The setText()
method takes a string, which may be plain text or HTML. Qt automatically
detects the format by inspecting the string. This is sometimes a bit too clever
and occasionally results in the wrong format being chosen (which is a real
problem if the string comes from the end-user). On the other hand, the au-
tomatic detection usually works, is very convenient, and can be overridden
by calling setTextFormat(), so one could argue that this acceptable.
On the other hand, calling setText() with an HTML string in Qt 3 also
had the side-effect of setting the wordWrap property to true (the default be-
ing false). In turn, word-wrapping enables height-for-width, a layout fea-
ture that impacts the entire dialog. As a result, users who changed “Name”
to “Name” in one label found themselves with a totally different
dialog resizing behavior and couldn’t understand why.

4.9 Pay attention to edge cases
In the context of library programming, the importance of getting edge cases
right cannot be overstated. If you hear a colleague in the hallway say “It
doesn’t matter, it’s just a corner case”, please slap them in the face.
Edge cases are critical because they tend to ripple through an API. If
your fundamental string-search algorithm has bad edge-case semantics,
this might lead to bugs in the regular expression engine, which would lead
to bugs in applications that use regular expressions. But edge cases are also
important in their own right: Nobody is interested in a factorial function
that computes 0! = 0.

Qt! The Qt 3 static method QStringList::split(separator, string, allow-
EmptyEntries = false) split string at every occurrence of separator.
Thus, split(’:’, "a:b:c") returned the three-item list ["a", "b", "c"].
One could have expected that if separator occurs n times in string, the

28

resulting list would contain n + 1 items. However, split() managed to
violate this rule in two ways. First, the allowEmptyEntries parameter de-
faulted to false. Second, as a special case, the method always returned
the empty list if string was empty, rather than the one-item list [""]. Both
issues lead to subtle bugs in applications and bug reports to Trolltech.
In Qt 4, the method has been replaced by QString::split(separator,
behavior = KeepEmptyParts, caseSensitivity = Qt::CaseSensitive),
which doesn’t suffer from these flaws.

If the abstractions upon which you build handle edge cases gracefully,
your code is most likely to do so as well. To mismanage edge cases, you
often need extra code. Consider the following product() function:

double product(const QList<double> &factors)
{
// WRONG
if (factors.isEmpty())
return 0.0;

double result = 1.0;
for (int i = 0; i < factors.count(); ++i)
result *= factors[i];
return result;
}

If passed an empty list, the function returns 0, which is mathematically
unsound: The neutral element of multiplication is 1, not 0. We could of
course fix the check at the beginning of the function:

if (factors.isEmpty())
return 1.0;

But is this check necessary in the first place? It turns out it isn’t. The rest
of the function relies on C++’s for loop and multiplication operator, which
handle edge cases gracefully. The emptiness check is a false optimization—
it barely optimizes the trivial case, which is already blindingly fast, while
slowing down all other cases.
When implementing an API, start by handling the general case without
worrying about edge cases, and then test the edge cases. More often than
not, you will find that you don’t need any extra code for handling the edge
cases. (And when you do, it is usually a sign that one of the underlying
programming constructs is to blame.) Make sure, though, that the edge
cases are properly covered by unit tests, so that their semantics doesn’t
change between releases as a result of optimizations or other changes to
the code.

29

4.10 Be careful when defining virtual APIs
Virtual APIs are notoriously difficult to get right and can easily break be-
tween releases. This is often called the “fragile base class problem”. When
designing a virtual API, there are two main mistakes to avoid.
The first mistake to define too few virtual methods. For library authors,
it is hard to foresee all the ways in which the library will be used. By omit-
ting the virtual keyword in front of a method declaration, we often reduce
the reusability and customizability of the entire class.
The second mistake is to make every method virtual. In a language like
C++, this is inefficient, but more importantly, it delivers a false promise.
More often than not, it would be useless, if not dangerous, to reimplement
some methods, because the class’s implementation doesn’t call them or ex-
pects them to have a specific semantics.
The proper approach requires thinking through what parts of the API
should be virtual and which parts should be non-virtual, and specifying
clearly in the documentation how the class uses the method itself.

Qt! The Spreadsheet example in the official Qt 3 book3 reimplemented QTable-
Item::text(), a virtual method. The example worked fine against Qt 3.2.0,
but was broken in a later Qt 3 release because some calls to text() in
QTable were replaced with direct access to the member variable that stores
the text in the default text() implementation, bypassing any subclass.

It usually pays off to cleanly separate a class’s public API, which is used
directly by applications, and the virtual API, which can be reimplemented
to customize the behavior of the class. In C++, this means making all virtual
methods protected.

Qt! In Qt 4, QIODevice successfully follows this approach. Direct users of the
class call read() and write(), while subclass authors reimplement read-
Data() and writeData(). In early implementations of QIODevice, the pub-
lic, non-virtual methods simply called the protected, virtual methods. Since
then, we added buffering, newline conversions, an “unget” buffer, and a
quick code path for reading one character at a time, all of this in the non-
virtual read() and write() methods.
In a way, QWidget follows this pattern as well with its event delivery
mechanism. Direct users of the class call show(), resize(), or repaint(),
whereas subclass authors reimplement showEvent(), resizeEvent(), or
paintEvent().

An annoying limitation of C++ is that we cannot add new virtual meth-
ods to an existing class without breaking binary compatibility. As an ugly
3 Jasmin Blanchette and Mark Summerfield, C++ GUI Programming with Qt 3, Pren-

tice Hall, 2004. Available at http://www.informit.com/content/images/0131240722/
downloads/blanchette_book.pdf.

30

work around, get into the habit of providing a general virtual method that
can be used later on if you need to extend the class. For example:

virtual void virtual_hook(int id, void *data);

Structural
4.11 Strive for property-based APIs
Some APIs force users to specify all the attributes of an object upfront at
creation-time. Many low-level platform-speciﬁc APIs work this way. The
following example comes straight from a Win32 application:

m_hWindow =
::CreateWindow("AppWindow", /* class name */
m_pszTitle, /* title to window */
WS _OVERLAPPEDWINDOW, /* style */
CW_USEDEFAULT, /* start pos x */
CW_USEDEFAULT, /* start pos y */
m_nWidth, /* width */
m_nHeight, /* height */
NULL, /* parent HWND */
NULL, /* menu HANDLE */
hInstance, / * */
NULL); /* creatstruct param */

The need to display each argument on its own line and to accompany it
with a comment to increase readability is usually an indication that a pro-
cedure has too many parameters.
In contrast, a property-based approach lets users create an object with-
out specifying any arguments to the constructor. Instead, users can set the
properties that deﬁne the object one by one, in any order. For example:

window = new Window;
window->setClassName("AppWindow");
window->setWindowTitle(winTitle);
window->setStyle(Window::Overlapped);
window->setSize(width, height);
window->setModuleHandle(moduleHandle);

To the users, there are many advantages to this approach:

• It offers a very intuitive model.

31

• Users don’t need to remember in which order they need to supply
the attributes or options.
• User code is more readable and doesn’t require additional com-
ments (which may be out of sync with the code).
• Since properties have default values, users only have to set those
that they explicitly want to change (e.g., in the window example
above, they don’t have to set the x and y coordinates, the parent
window handle, the menu handle, or the “creatstruct”—whatever
that is).
• Users can change the value of a property at any time, instead of
having to replace the object with a new one whenever they want to
modify it.
• By calling getters, users can query back everything they set, which
helps debugging and is useful in some applications.
• The approach is compatible with graphical property editors, which
let the user see the result of setting a property immediately.

To the library developers, designing property-based APIs requires more
thinking. Since the properties can be set in any order, it is usually neces-
sary to use lazy initialization and other techniques in the implementation
to avoid recomputing the whole object every time a property changes.

Qt! Take QRegExp. Users can set it up in one go if they want:
QRegExp regExp("*.wk?", Qt::CaseInsensitive,
QRegExp::Wildcard);

But they can also initialize it step by step:
QRegExp regExp;
regExp.setPattern("*.wk?");
regExp.setCaseSensitivity(Qt::CaseInsensitive);
regExp.setPatternSyntax(QRegExp::Wildcard);

The QRegExp implementation delays the compilation the regular expression
or wildcard pattern to the point when the QRegExp object is actually used to
match some text.

4.12 The best API is no API
In a movie, the best special effects are those that you don’t notice. A similar
principle applies to API design: The ideal features are those that require no
(or very little) additional code from the application writer.

32

Qt! In Qt 3, widgets were restricted to 32 767 × 32 767 pixels on most platforms.
To render scenes larger than that in a QScrollView (e.g., large web pages),
the only solution was to subclass QScrollView and reimplement drawCon-
tents(), contentsMousePressEvents(), etc. Qt 4 works around the wid-
get size limitation internally for all QWidgets. As a result, we can now draw
large scenes in a QWidget’s paintEvent() the standard way and insert the
widget directly into a QScrollArea, eliminating the need for methods like
drawContents() and contentsMousePressEvents().
Other examples of signiﬁcant Qt 4 features that have little API are PDF
support (which is enabled by calling setOutputFormat(QPrinter::Pdf-
Format) on a QPrinter), style sheets (which are set by calling setStyle-
Sheet()), and 2D painting using QPainter on an OpenGL widget (which
just works).

33

Api design

More Related Content

Similar to Api design

Recently uploaded

Api design
