![Create Schema
•
•
•
•
•
•
cassandra-cli -host localhost -port 9160
create keyspace TestsDataStore;
show keyspaces;
use TestsDataStore;
create column family Cars
with comparator = UTF8Type;
update column family Cars with
column_metadata =
[
{column_name: make, validation_class: UTF8Type},
{column_name: model, validation_class: UTF8Type},
];](https://image.slidesharecdn.com/apachecassandra-overview-140109094834-phpapp01/75/Apache-Cassandra-training-Overview-and-Basics-82-2048.jpg)
![Populate With Data
•
•
•
•
•
•
•
•
•
assume Cars keys as utf8;
set Cars['Cabrio']['make'] = 'bmw'
set Cars['Cabrio']['model'] = '640i';
set Cars['Corolla']['make'] = 'toyota';
set Cars['Corolla']['model'] = 'le';
set Cars['fit']['make'] = 'honda';
set Cars['fit']['model'] = 'fit sport';
set Cars['focus']['make'] = 'ford';
set Cars['focus']['model'] = 'sel';](https://image.slidesharecdn.com/apachecassandra-overview-140109094834-phpapp01/75/Apache-Cassandra-training-Overview-and-Basics-83-2048.jpg)
![Data Manipulation
•
•
•
•
•
•
•
•
get Cars['Cabrio'];
get Cars['Cabrio']['make'];
update column family Cars with comparator=UTF8Type
and column_metadata=[{column_name: make,
validation_class: UTF8Type,
index_type: KEYS}, {column_name: model,
validation_class: UTF8Type}];
del Cars['Cabrio']['bmw'];
drop column family Cars;
drop keyspace TestsDataStore;
show keyspaces;](https://image.slidesharecdn.com/apachecassandra-overview-140109094834-phpapp01/75/Apache-Cassandra-training-Overview-and-Basics-84-2048.jpg)
![Create Schema
•
•
•
•
•
•
cassandra-cli -host localhost -port 9160
create keyspace TestsDataStore;
show keyspaces;
use TestsDataStore;
create column family Cars
with comparator = UTF8Type;
update column family Cars with
column_metadata =
[
{column_name: make, validation_class: UTF8Type},
{column_name: model, validation_class: UTF8Type},
];](https://crownmelresort.com/image.slidesharecdn.com/apachecassandra-overview-140109094834-phpapp01/75/Apache-Cassandra-training-Overview-and-Basics-82-2048.jpg)
![Populate With Data
•
•
•
•
•
•
•
•
•
assume Cars keys as utf8;
set Cars['Cabrio']['make'] = 'bmw'
set Cars['Cabrio']['model'] = '640i';
set Cars['Corolla']['make'] = 'toyota';
set Cars['Corolla']['model'] = 'le';
set Cars['fit']['make'] = 'honda';
set Cars['fit']['model'] = 'fit sport';
set Cars['focus']['make'] = 'ford';
set Cars['focus']['model'] = 'sel';](https://crownmelresort.com/image.slidesharecdn.com/apachecassandra-overview-140109094834-phpapp01/75/Apache-Cassandra-training-Overview-and-Basics-83-2048.jpg)
![Data Manipulation
•
•
•
•
•
•
•
•
get Cars['Cabrio'];
get Cars['Cabrio']['make'];
update column family Cars with comparator=UTF8Type
and column_metadata=[{column_name: make,
validation_class: UTF8Type,
index_type: KEYS}, {column_name: model,
validation_class: UTF8Type}];
del Cars['Cabrio']['bmw'];
drop column family Cars;
drop keyspace TestsDataStore;
show keyspaces;](https://crownmelresort.com/image.slidesharecdn.com/apachecassandra-overview-140109094834-phpapp01/75/Apache-Cassandra-training-Overview-and-Basics-84-2048.jpg)
Uploaded byOleg Magazov
Apache Cassandra training. Overview and Basics
This document provides an overview of Apache Cassandra, including: - Its history originating from Facebook's need to solve an inbox search problem. - Its key features like high availability, linear scalability, fault tolerance and tunable consistency. - Its architecture based on consistent hashing and a ring topology for data distribution. - Its data model using keyspaces, column families, rows, and columns differently than a relational database. - Examples of using the Cassandra CLI to create a schema, insert data, and perform queries.
More Related Content
Similar to Apache Cassandra training. Overview and Basics
![Support, Monitoring, Continuous Improvement & Scaling Agentic Automation [3/3]](https://cdn.slidesharecdn.com/ss_thumbnails/agenticcommunityseries-day3-cfd-251120170304-ddef8112-thumbnail.jpg?width=640&height=640&fit=bounds)
Apache Cassandra training. Overview and Basics
- 1. Apache Cassandra Overview andBasics © Oleg Magazov omagazov@t-online.de
- 2. Learning Targets BigData introduction Understand driving forces behind NoSQL development Map known RDBMS concepts to corresponding NoSQL paradigms Get overview about Apache CassandraTM architecture Get overview about CassandraTM data model Get first experience of CassandraTM packaging and CLI

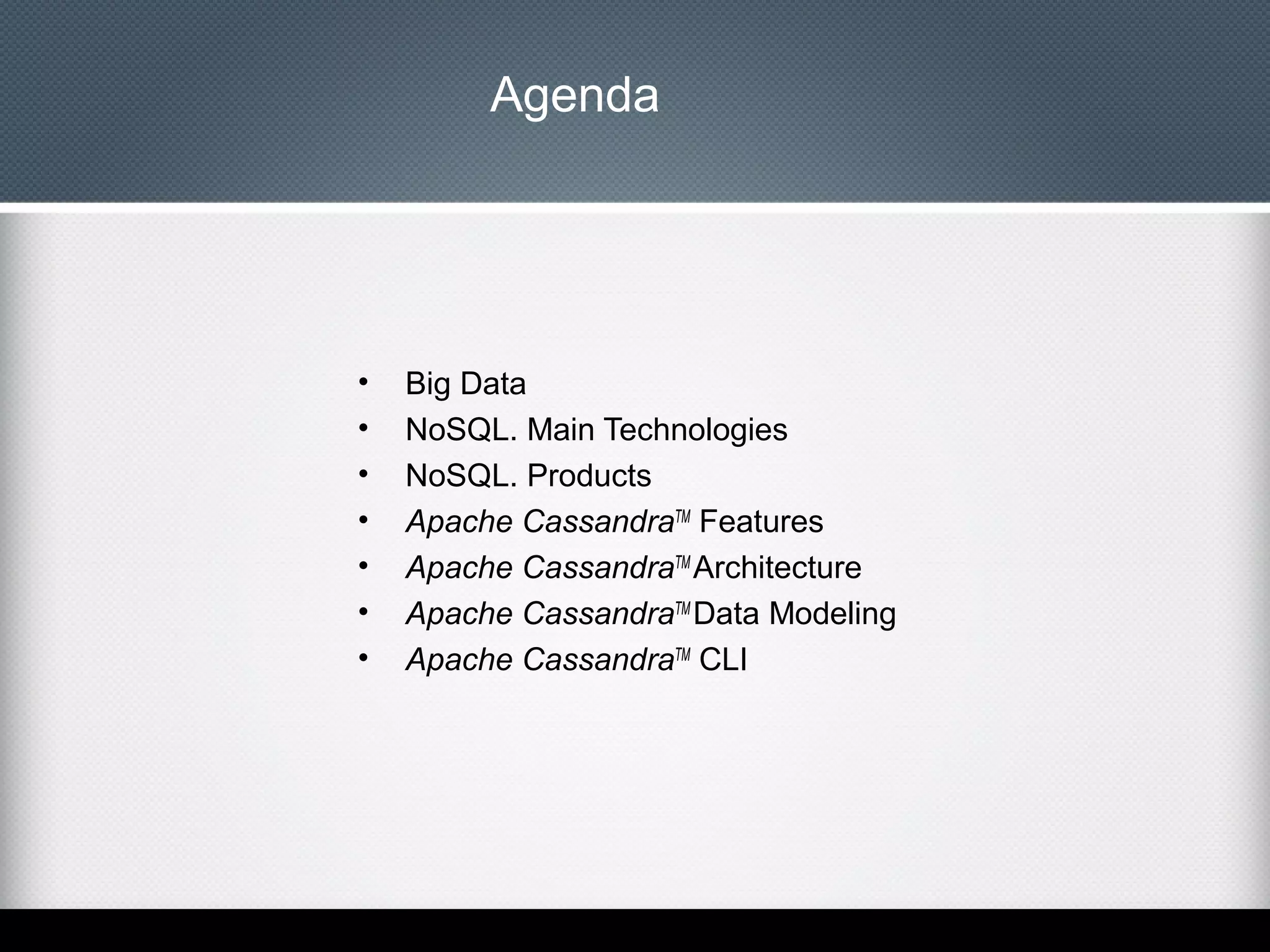

- 3. Agenda • • • • • • • Big Data NoSQL. MainTechnologies NoSQL. Products Apache CassandraTM Features Apache CassandraTM Architecture Apache CassandraTM Data Modeling Apache CassandraTM CLI

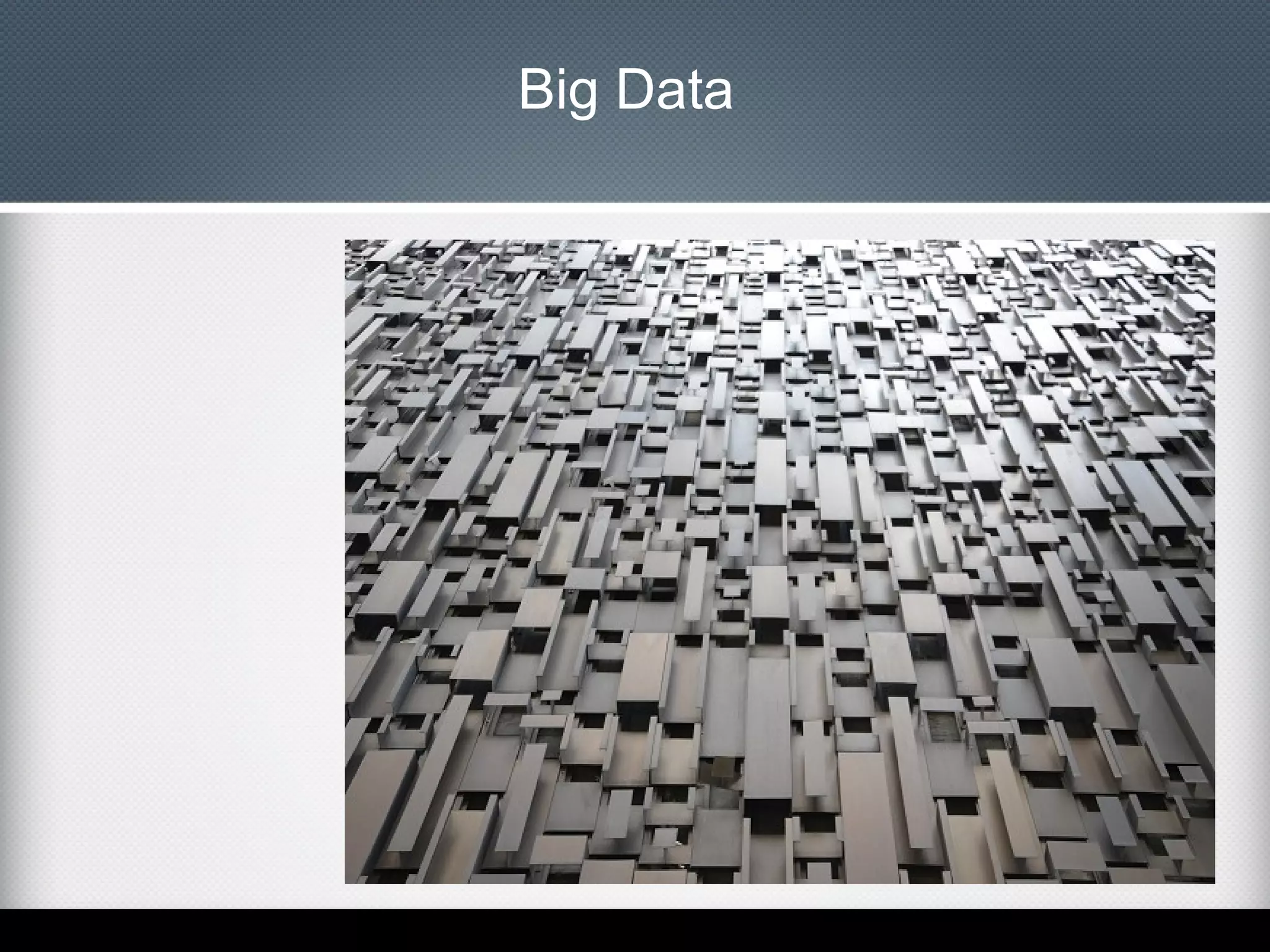

- 4.

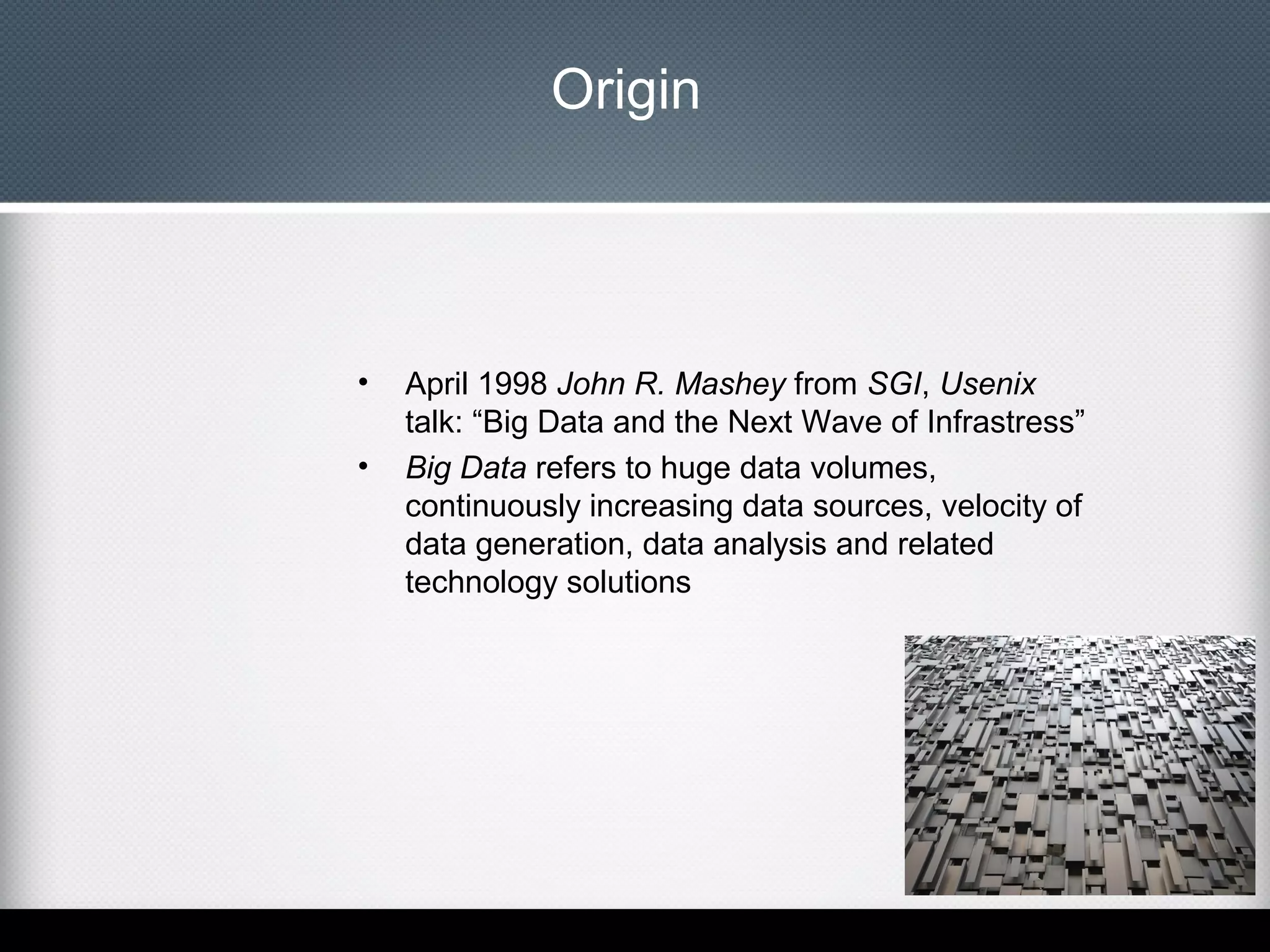

- 5. Origin • • April 1998 JohnR. Mashey from SGI, Usenix talk: “Big Data and the Next Wave of Infrastress” Big Data refers to huge data volumes, continuously increasing data sources, velocity of data generation, data analysis and related technology solutions

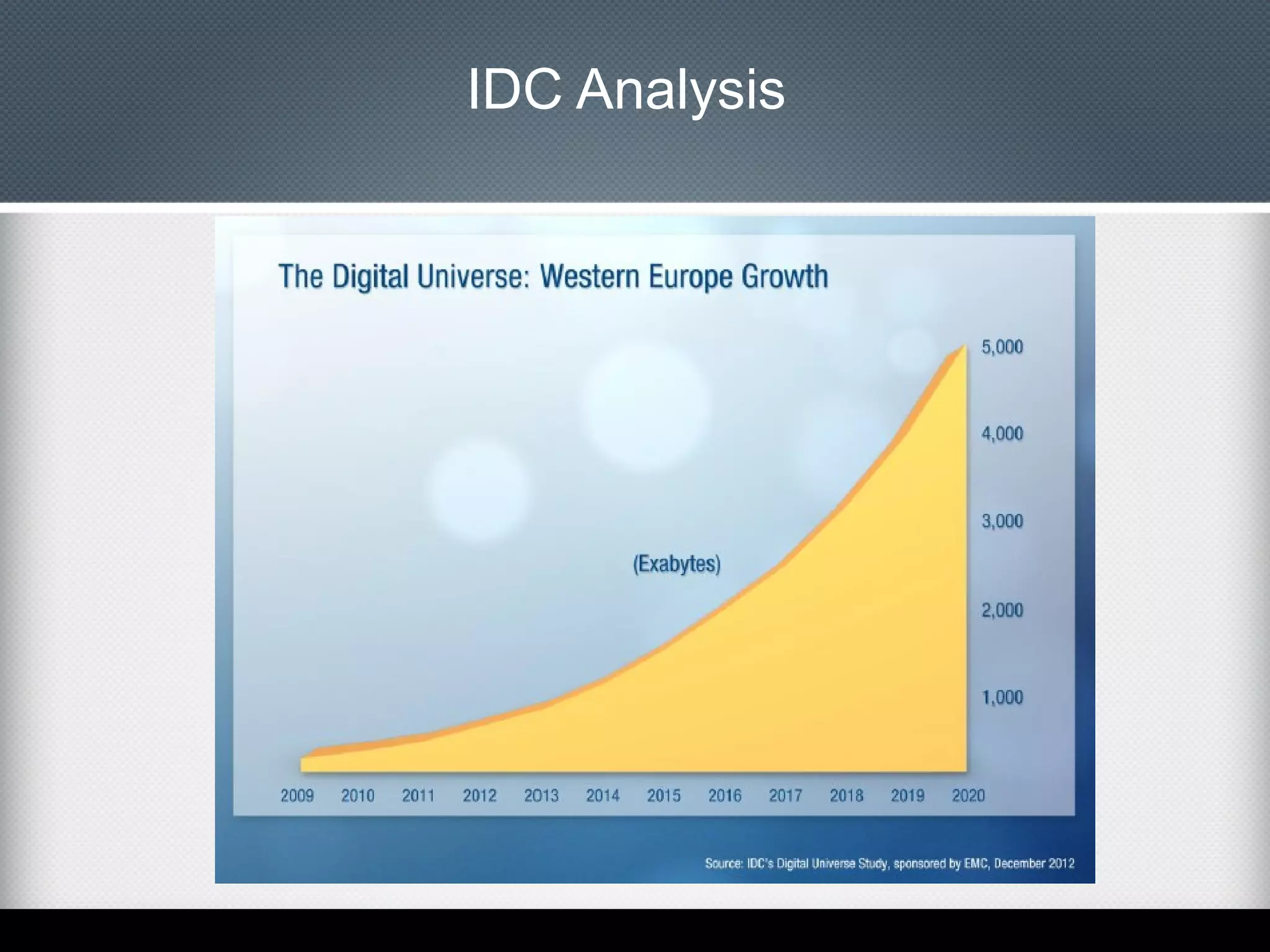

- 6.

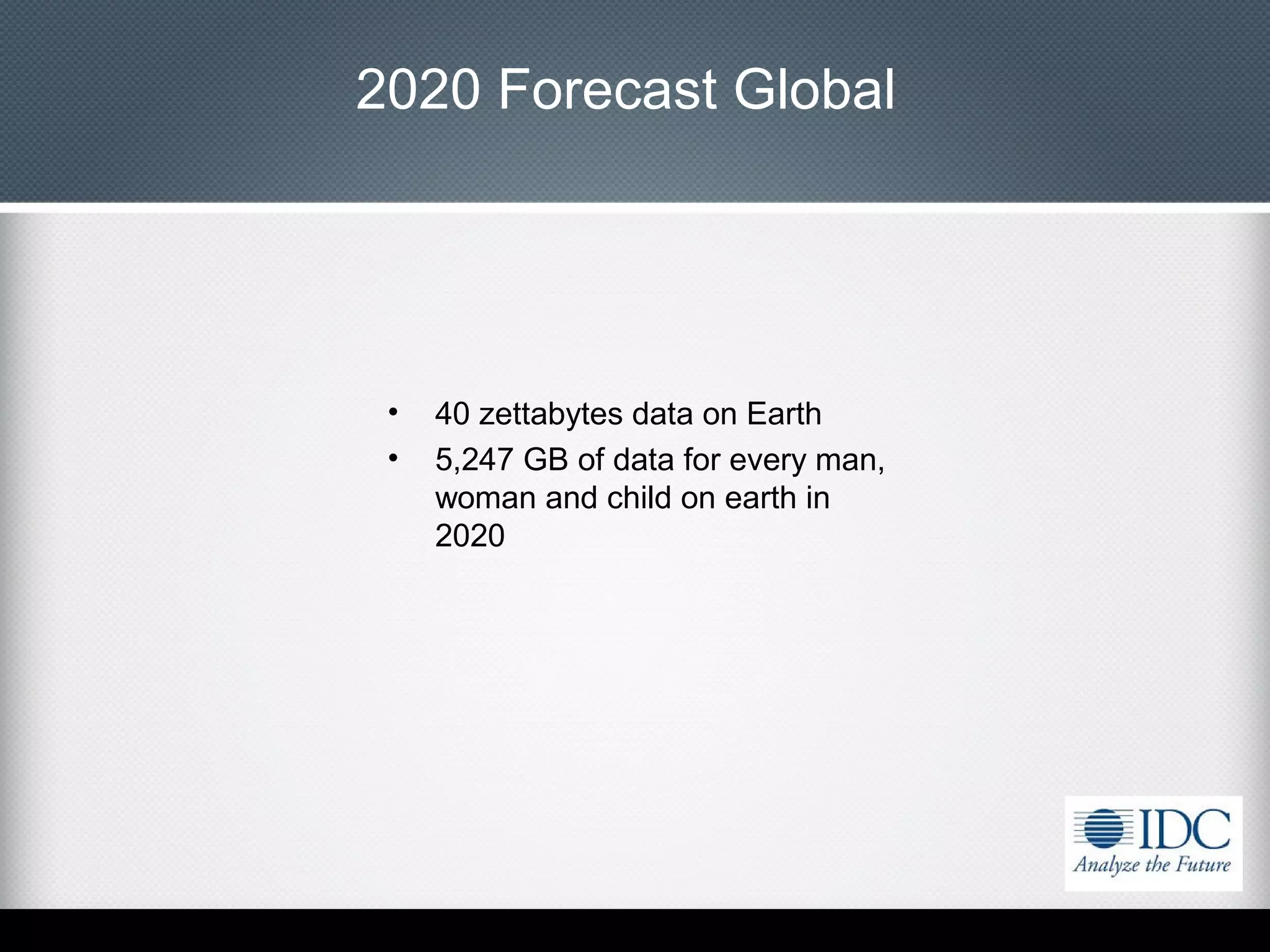

- 7. 2020 Forecast Global • • 40zettabytes data on Earth 5,247 GB of data for every man, woman and child on earth in 2020
- 8.
- 9.

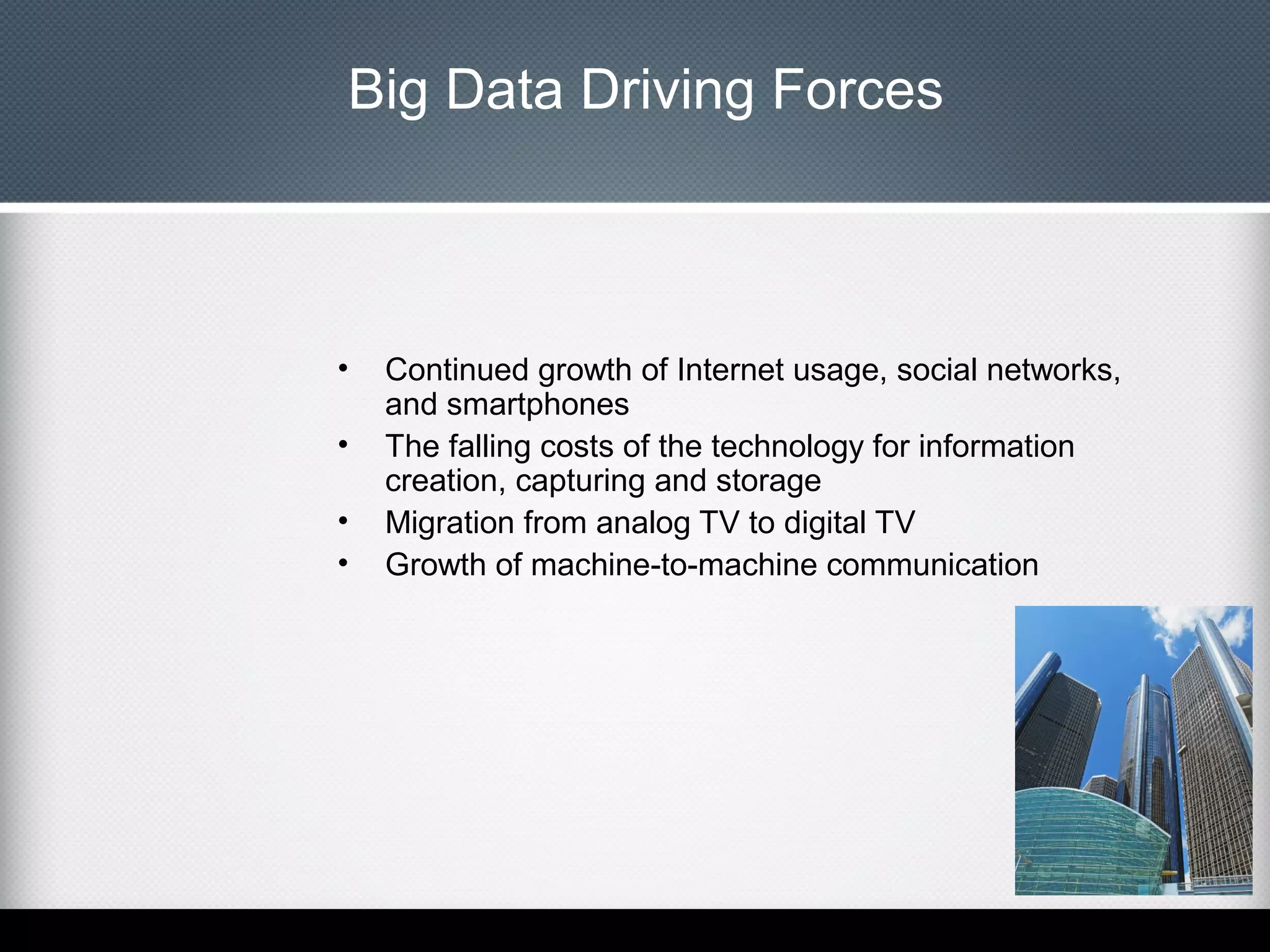

- 10. Big Data DrivingForces • • • • Continued growth of Internet usage, social networks, and smartphones The falling costs of the technology for information creation, capturing and storage Migration from analog TV to digital TV Growth of machine-to-machine communication

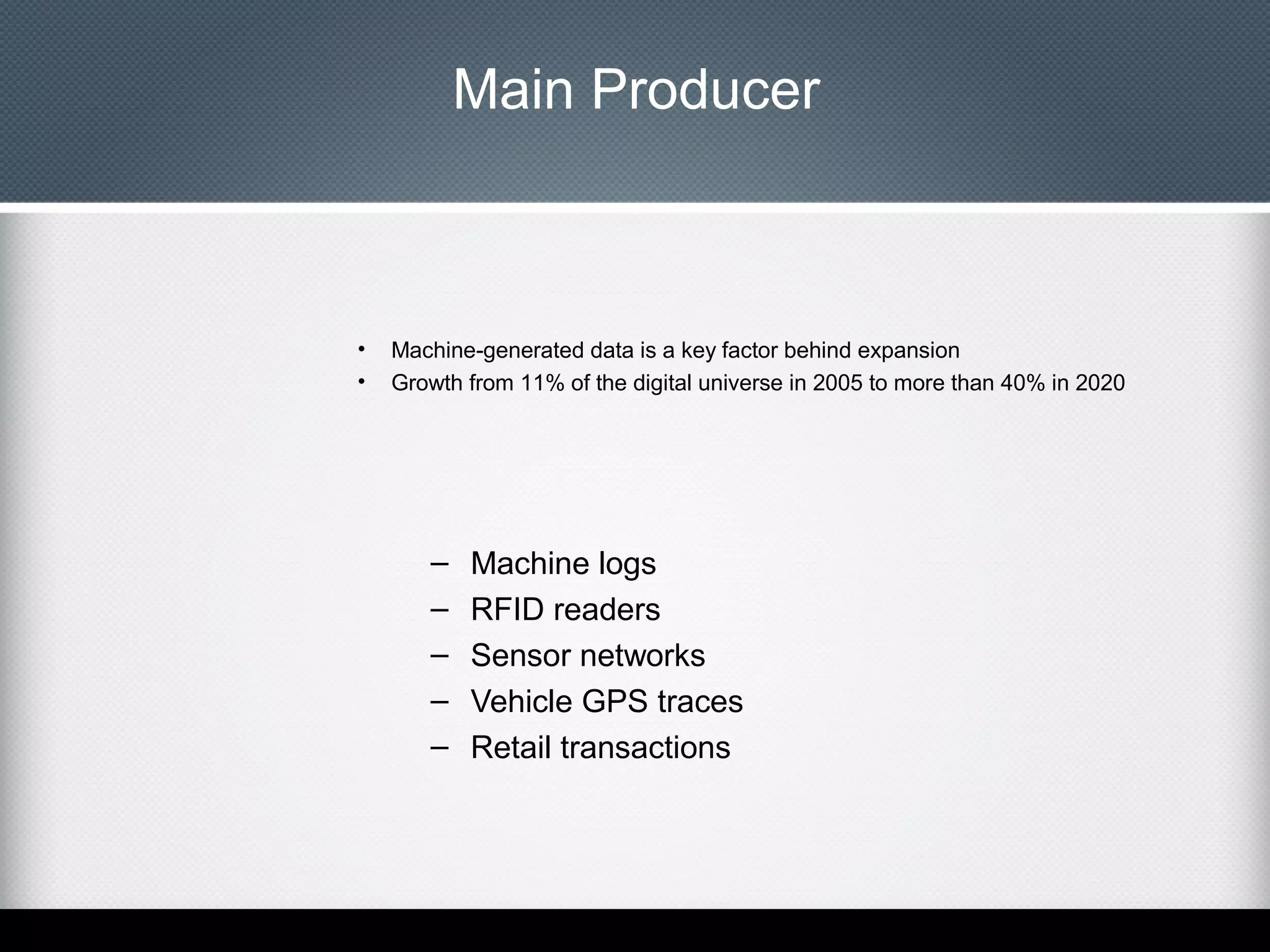

- 11. Main Producer • • Machine-generated datais a key factor behind expansion Growth from 11% of the digital universe in 2005 to more than 40% in 2020 – – – – – Machine logs RFID readers Sensor networks Vehicle GPS traces Retail transactions

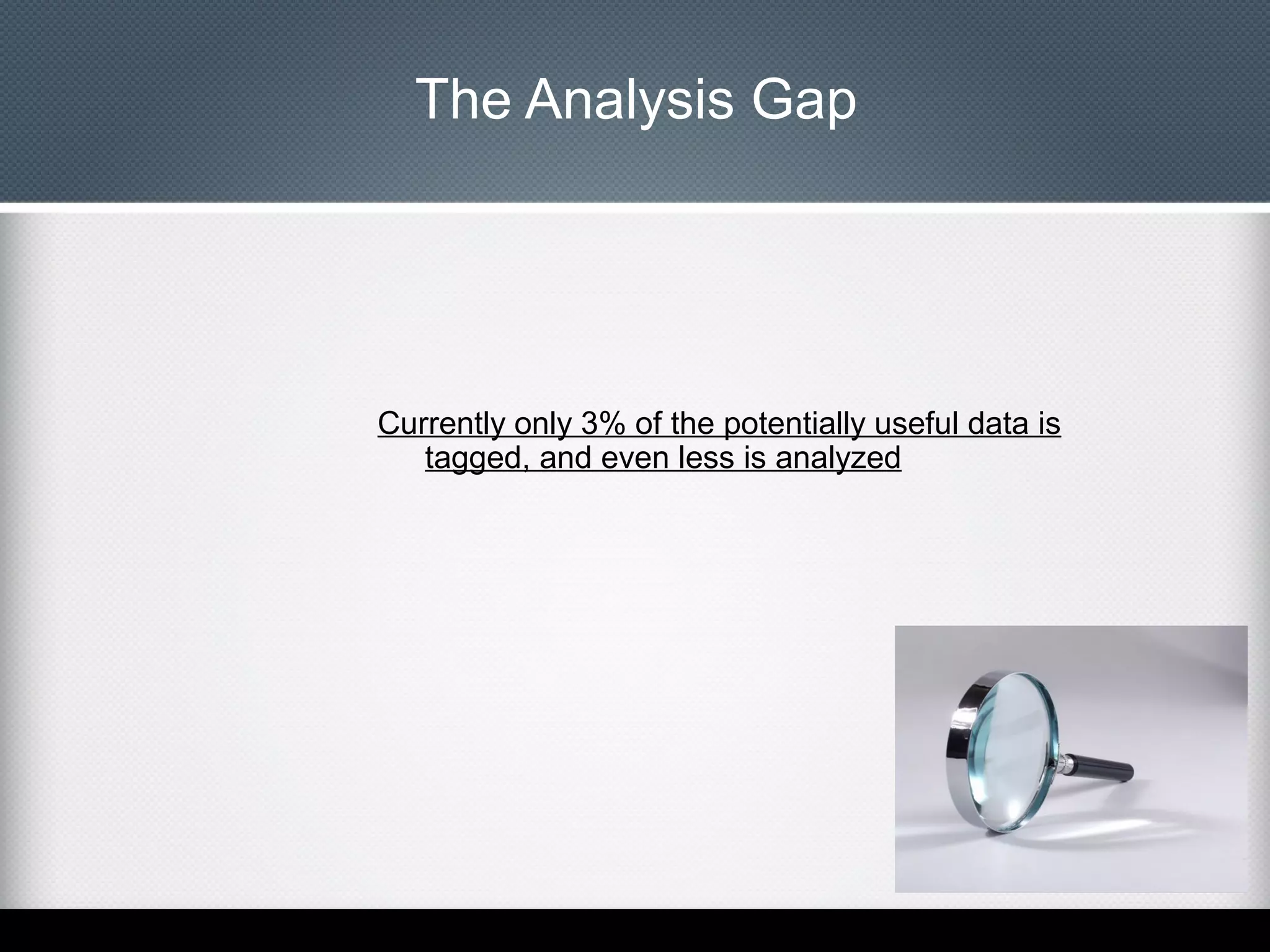

- 12. The Analysis Gap Currentlyonly 3% of the potentially useful data is tagged, and even less is analyzed

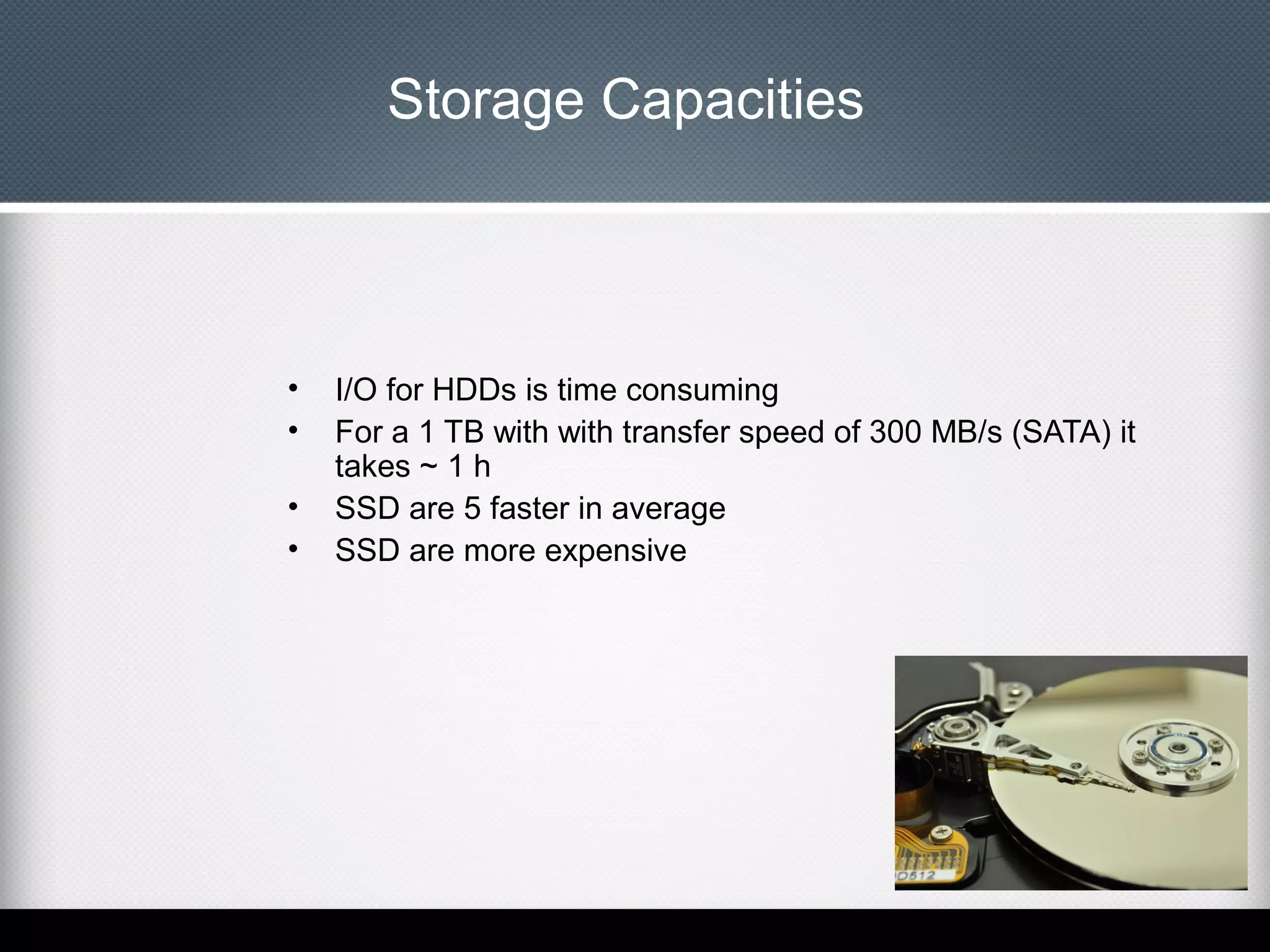

- 13. Storage Capacities • • • • I/O forHDDs is time consuming For a 1 TB with with transfer speed of 300 MB/s (SATA) it takes ~ 1 h SSD are 5 faster in average SSD are more expensive

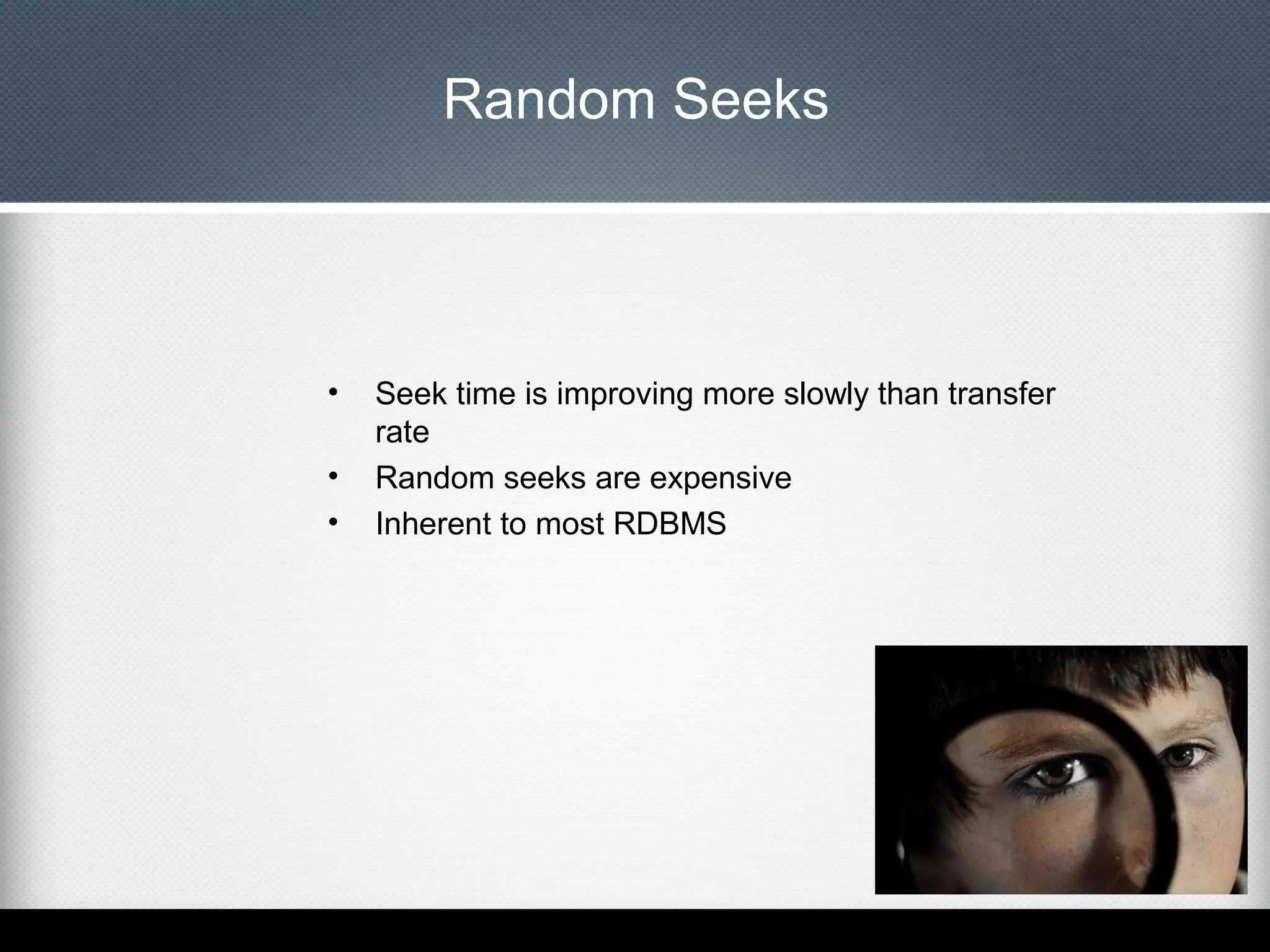

- 14. Random Seeks • • • Seek timeis improving more slowly than transfer rate Random seeks are expensive Inherent to most RDBMS

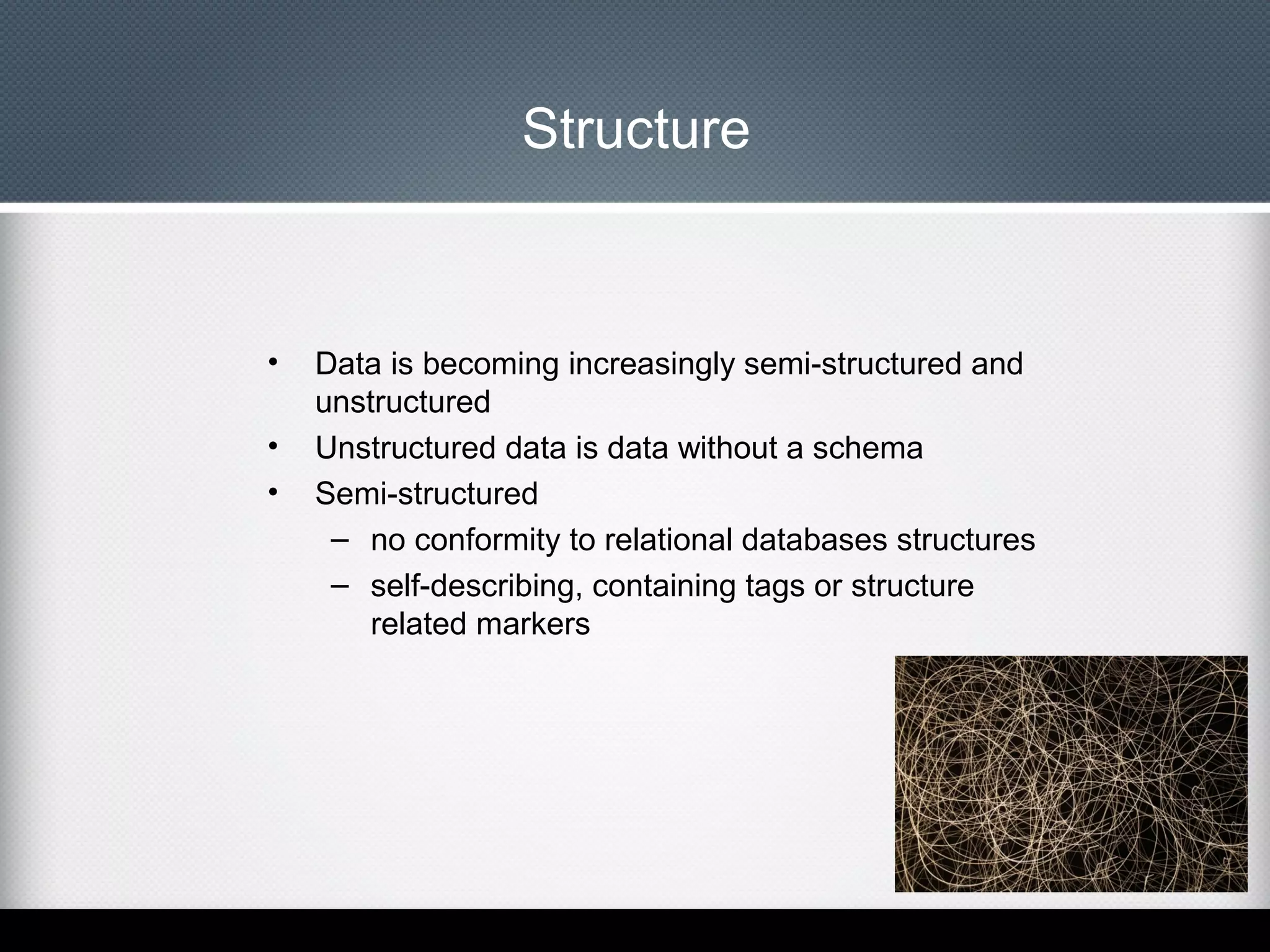

- 15. Structure • • • Data is becomingincreasingly semi-structured and unstructured Unstructured data is data without a schema Semi-structured – no conformity to relational databases structures – self-describing, containing tags or structure related markers

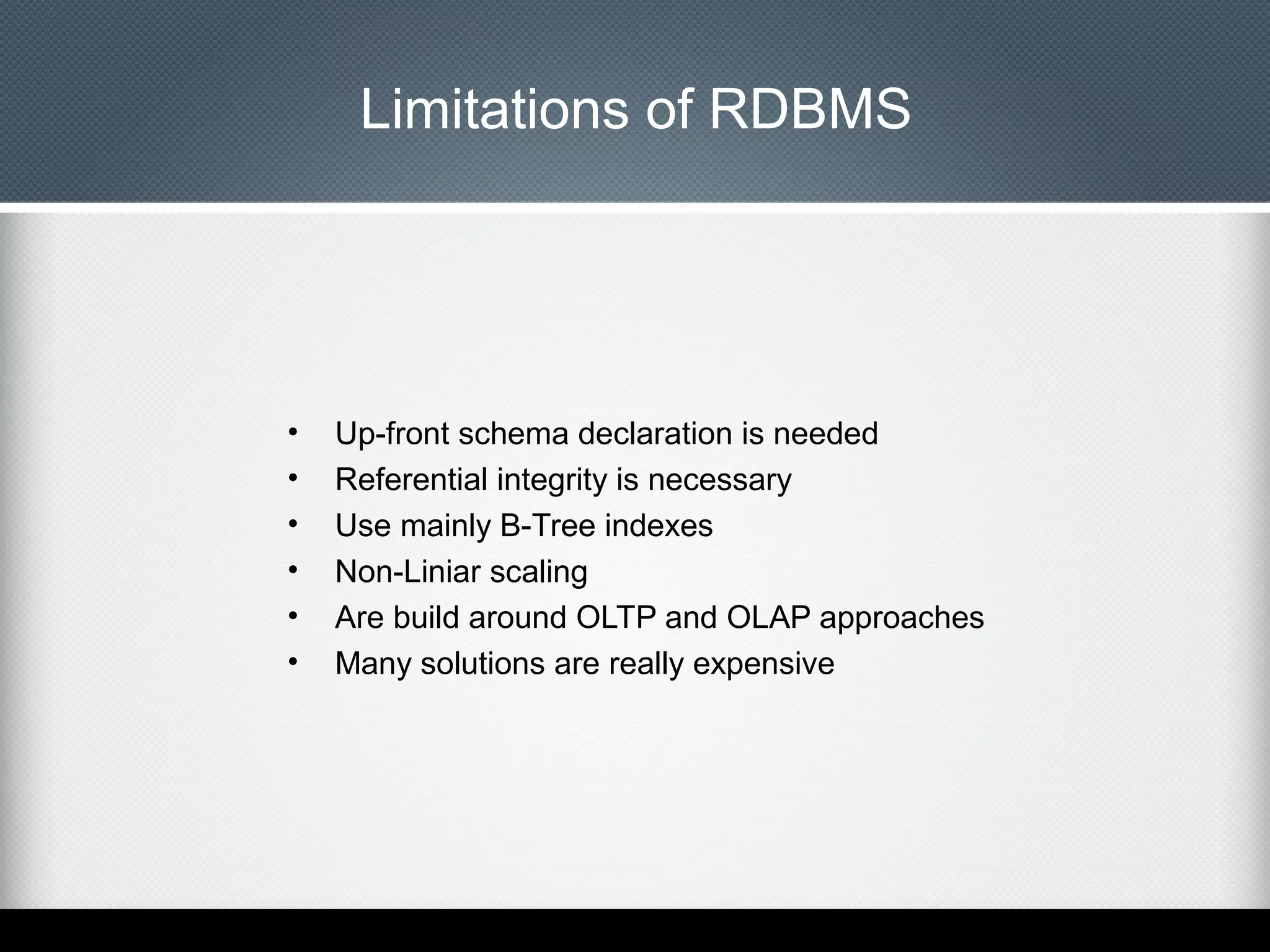

- 16. Limitations of RDBMS • • • • • • Up-frontschema declaration is needed Referential integrity is necessary Use mainly B-Tree indexes Non-Liniar scaling Are build around OLTP and OLAP approaches Many solutions are really expensive

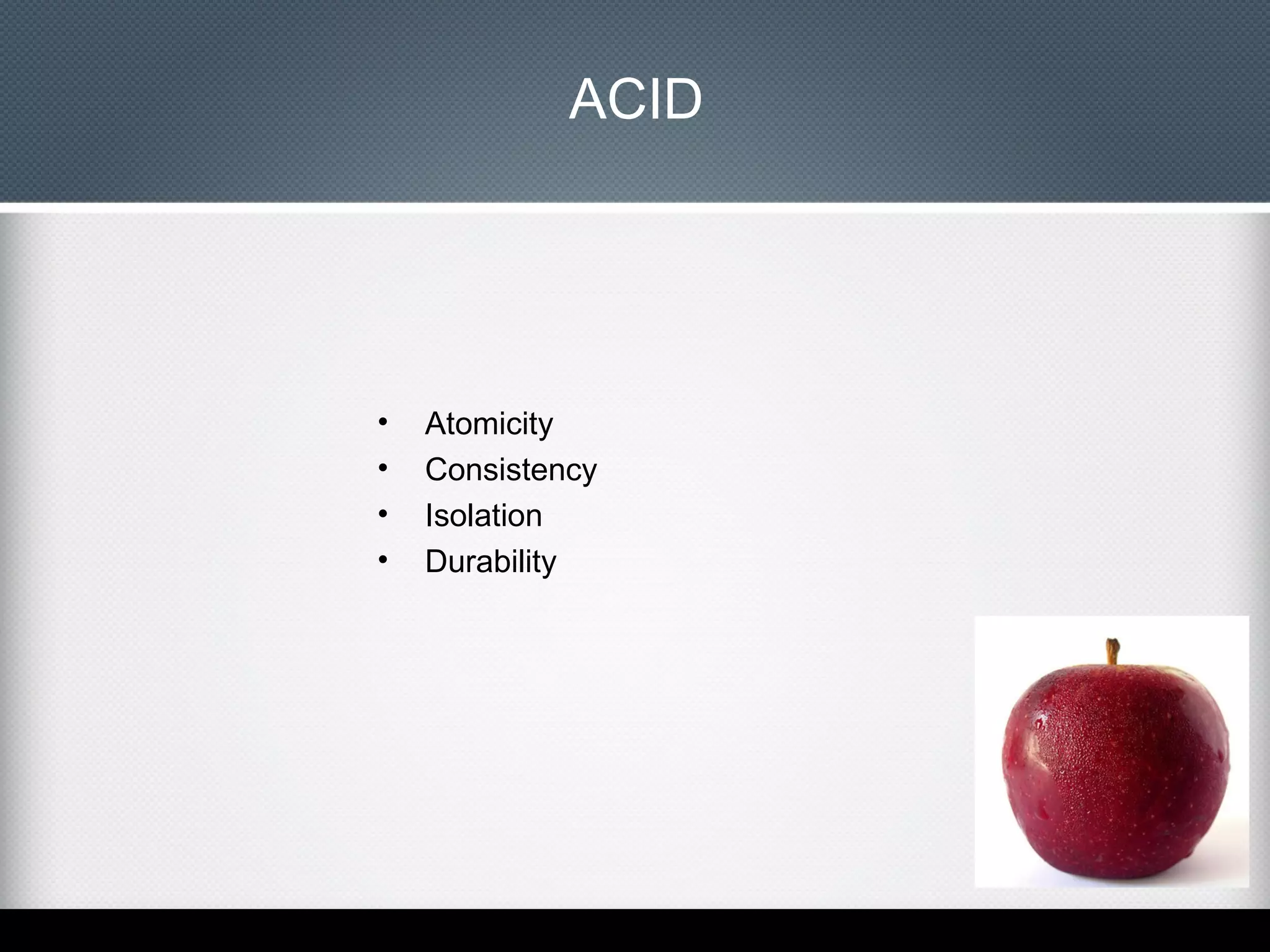

- 17.

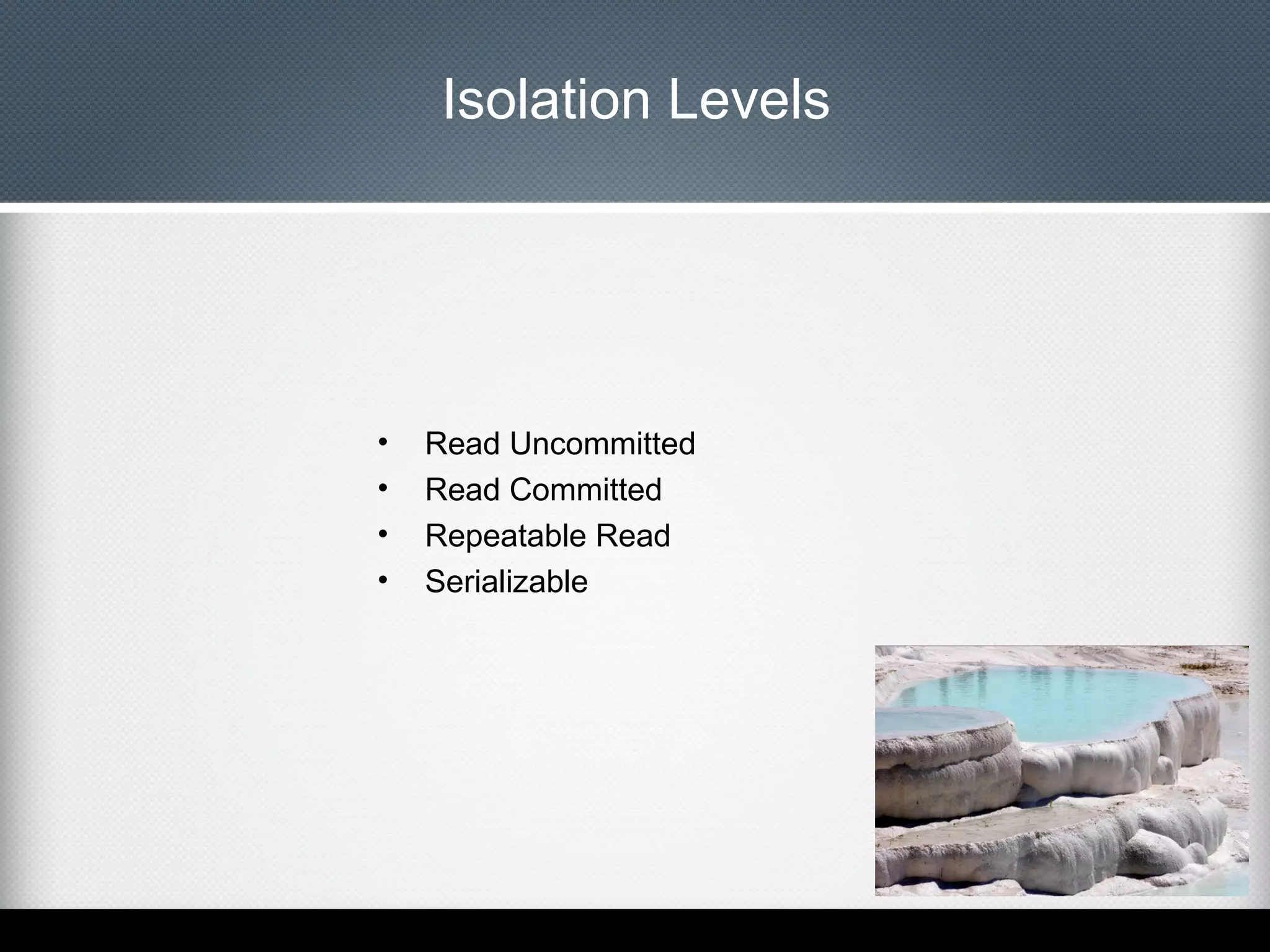

- 18. Isolation Levels • • • • Read Uncommitted ReadCommitted Repeatable Read Serializable

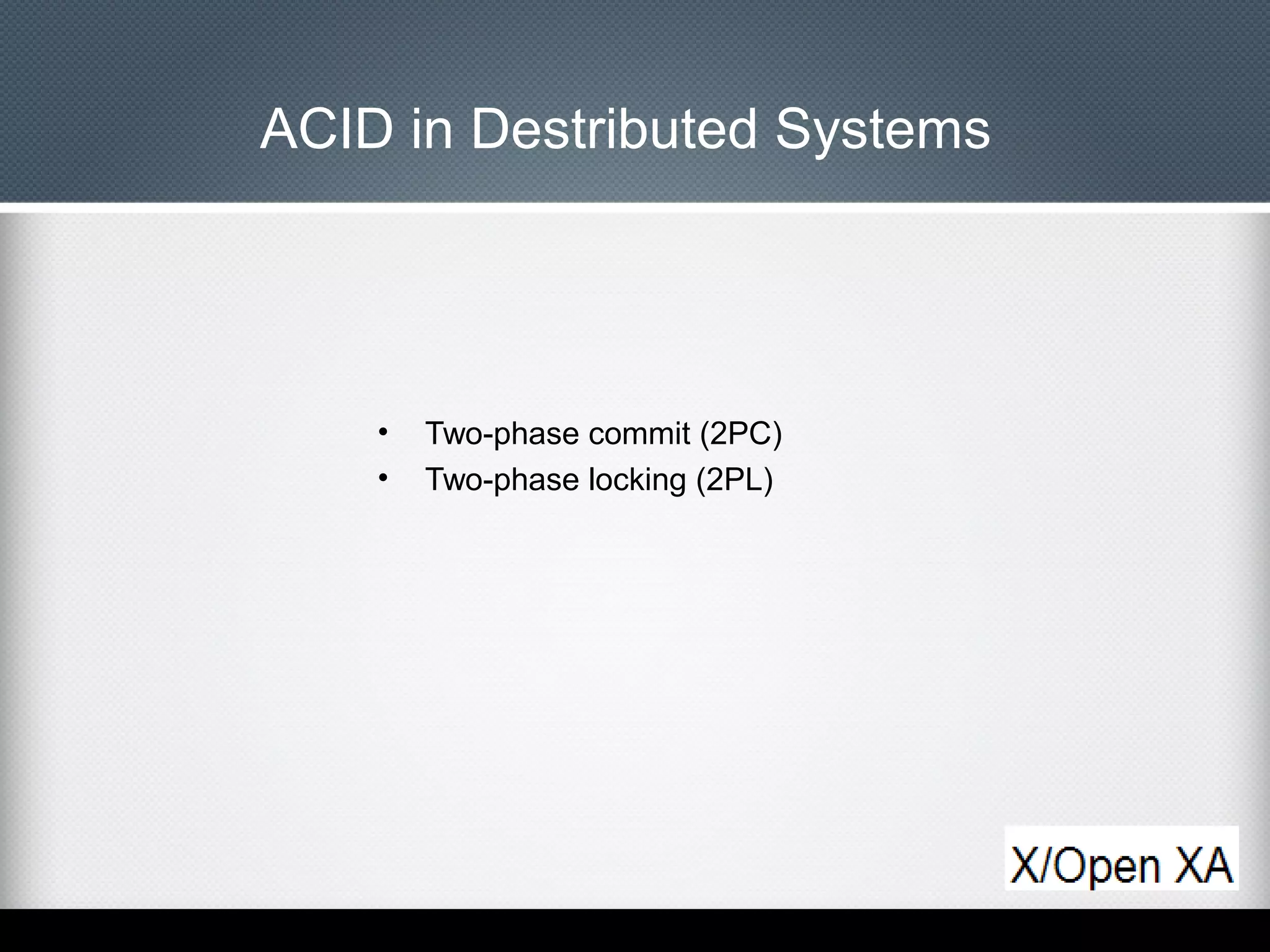

- 19. ACID in DestributedSystems • • Two-phase commit (2PC) Two-phase locking (2PL)

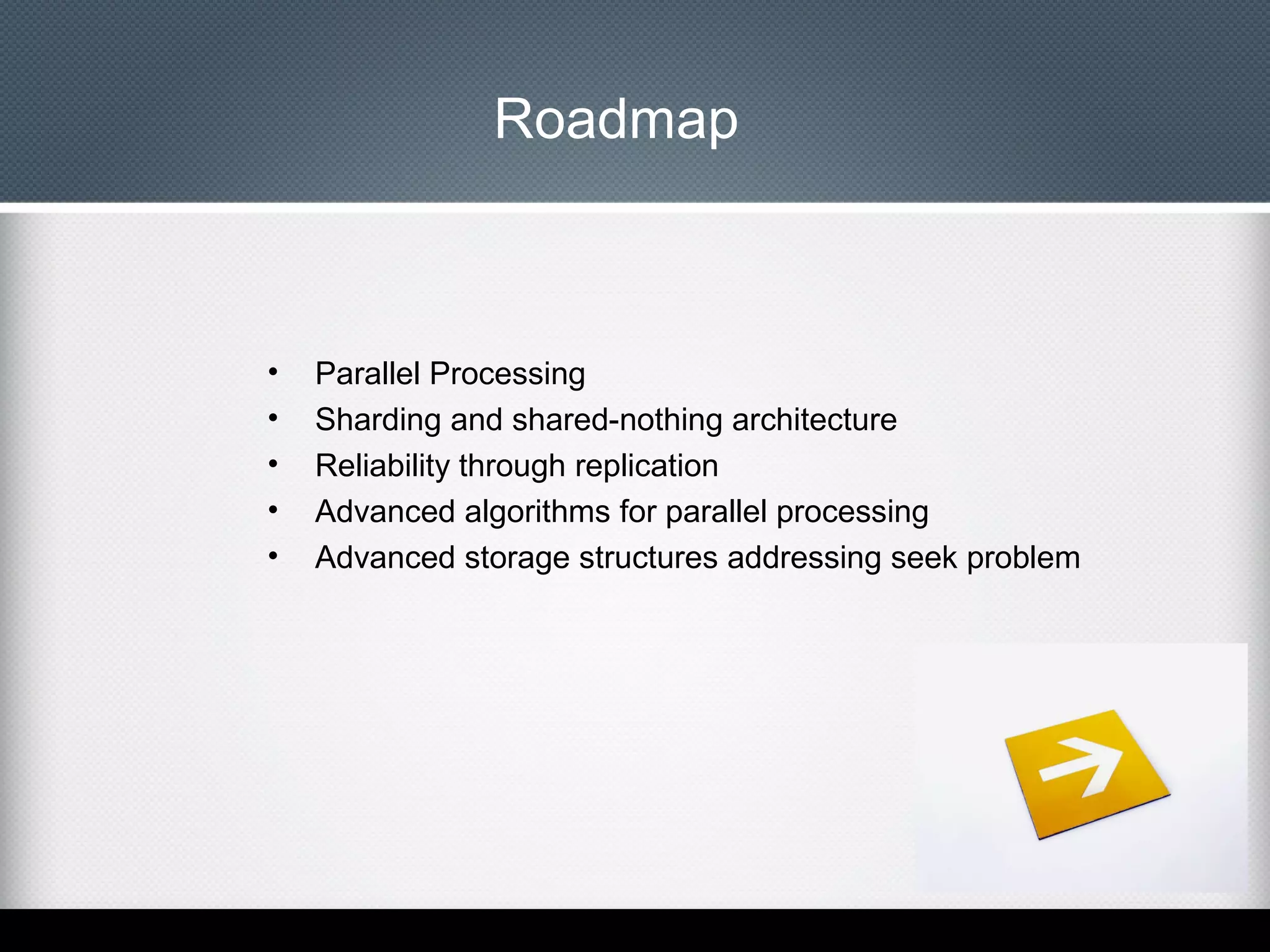

- 20. Roadmap • • • • • Parallel Processing Sharding andshared-nothing architecture Reliability through replication Advanced algorithms for parallel processing Advanced storage structures addressing seek problem
- 21.
- 22.

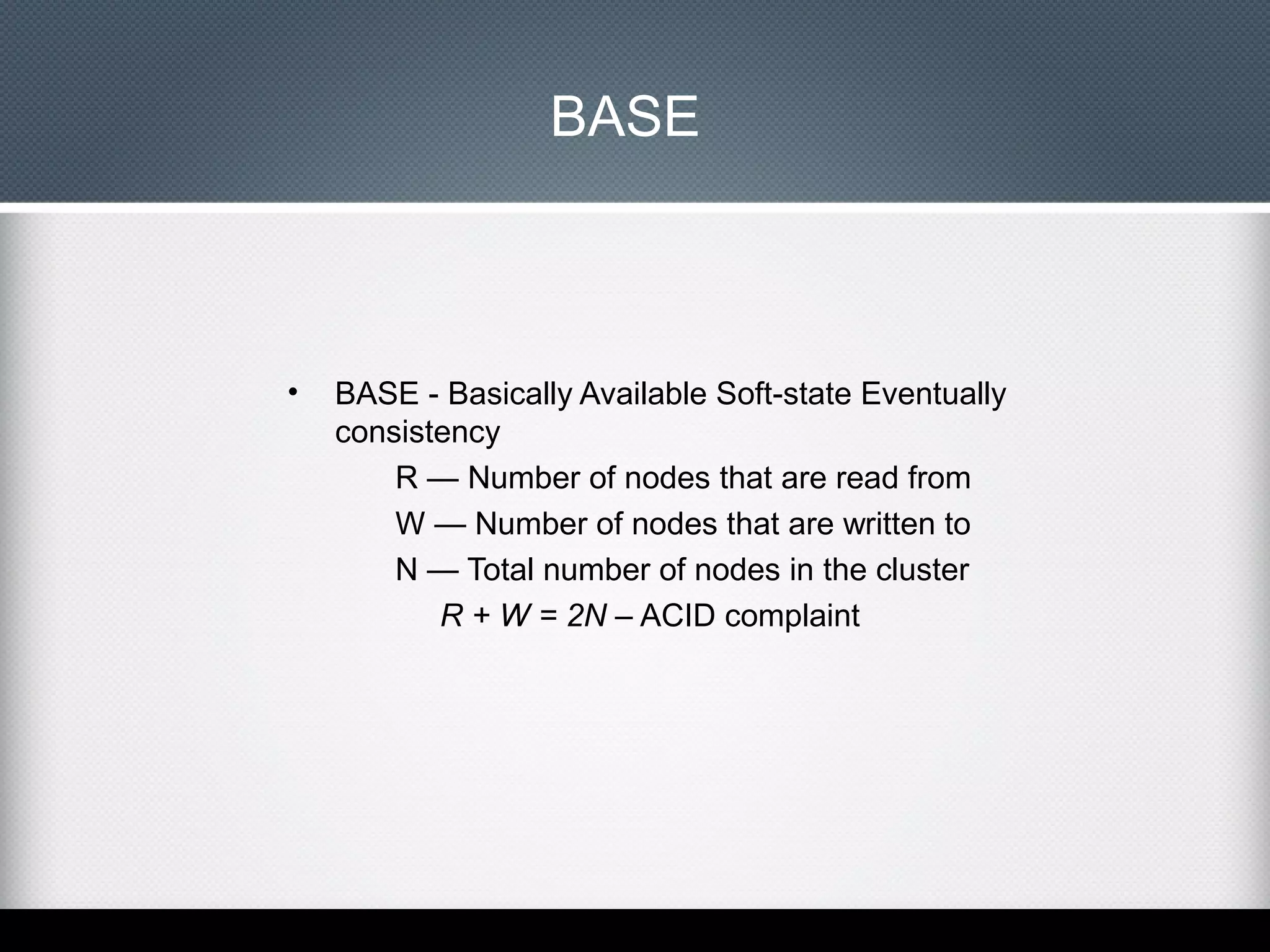

- 23. BASE • BASE - BasicallyAvailable Soft-state Eventually consistency R — Number of nodes that are read from W — Number of nodes that are written to N — Total number of nodes in the cluster R + W = 2N – ACID complaint
- 24.

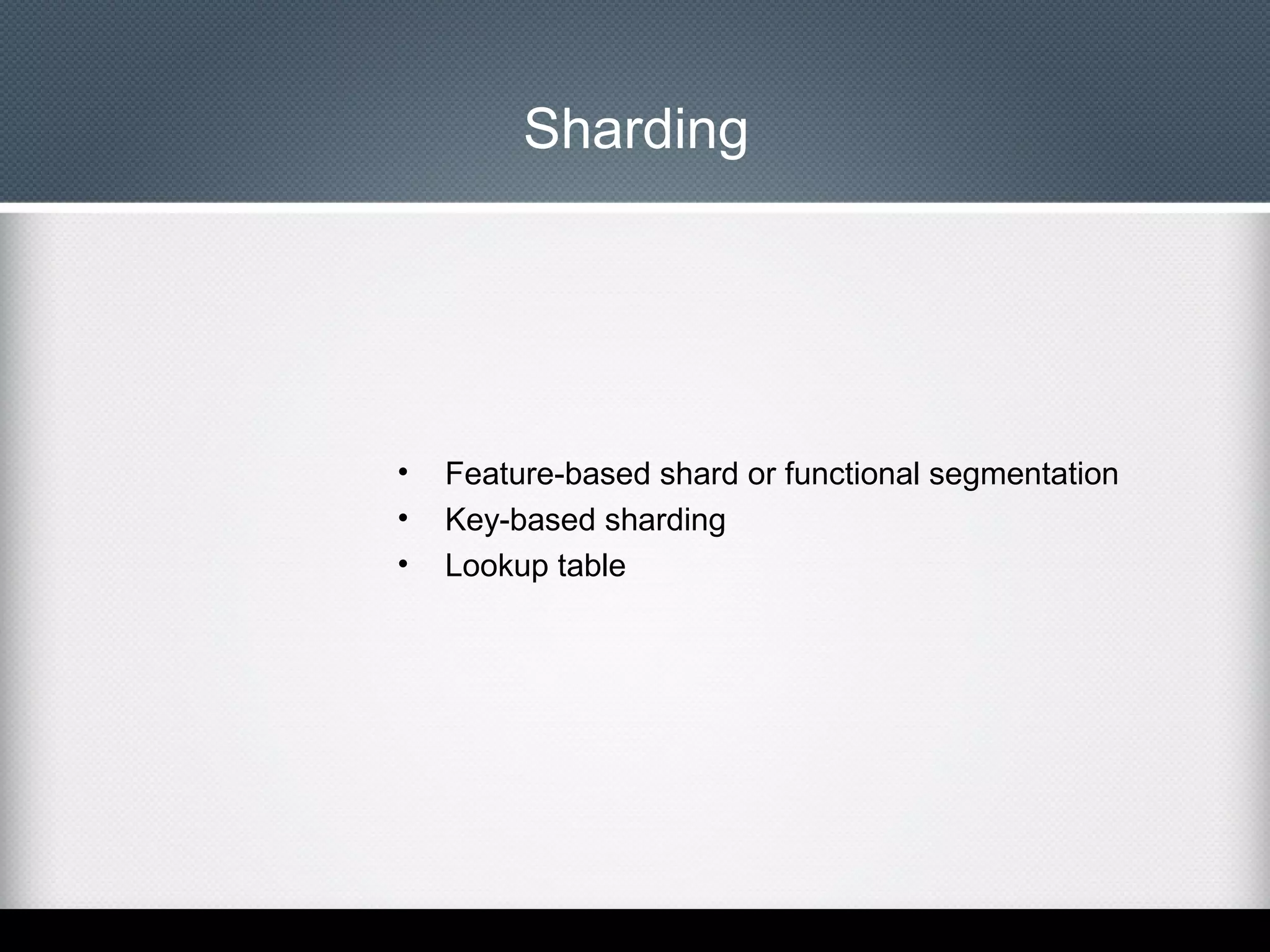

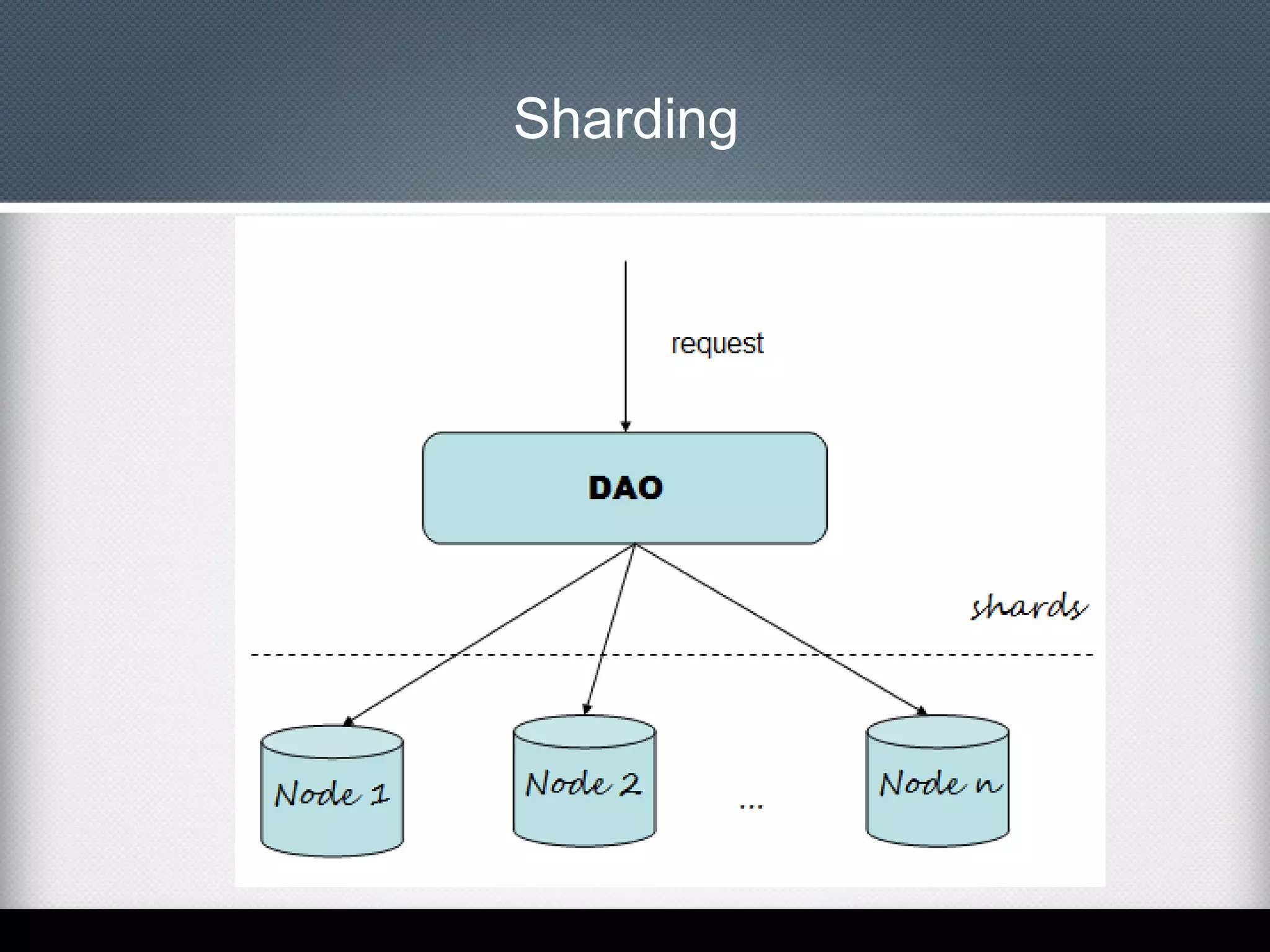

- 25. Sharding • • • Feature-based shard orfunctional segmentation Key-based sharding Lookup table

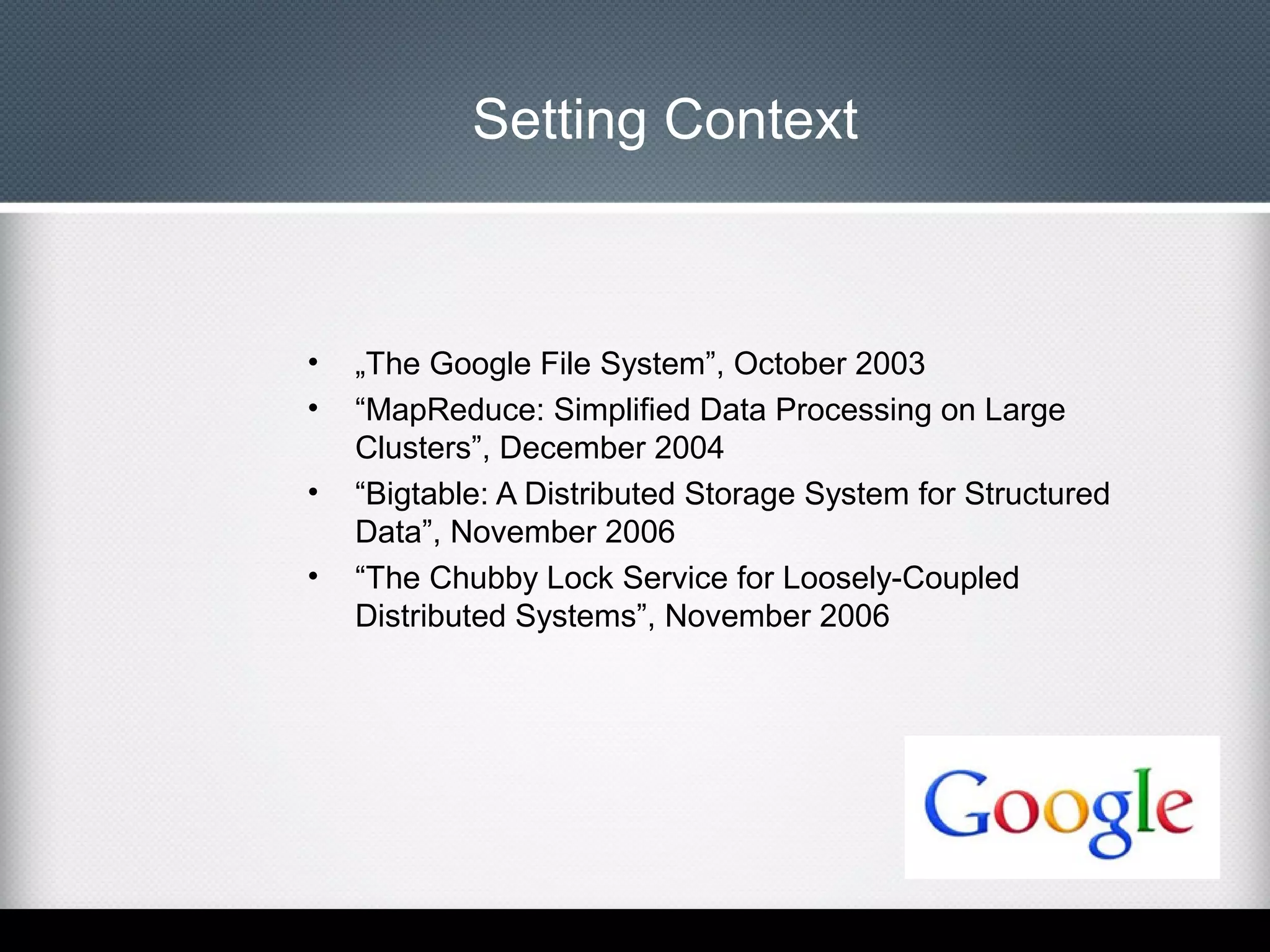

- 26. Setting Context • • • • „The GoogleFile System”, October 2003 “MapReduce: Simplified Data Processing on Large Clusters”, December 2004 “Bigtable: A Distributed Storage System for Structured Data”, November 2006 “The Chubby Lock Service for Loosely-Coupled Distributed Systems”, November 2006

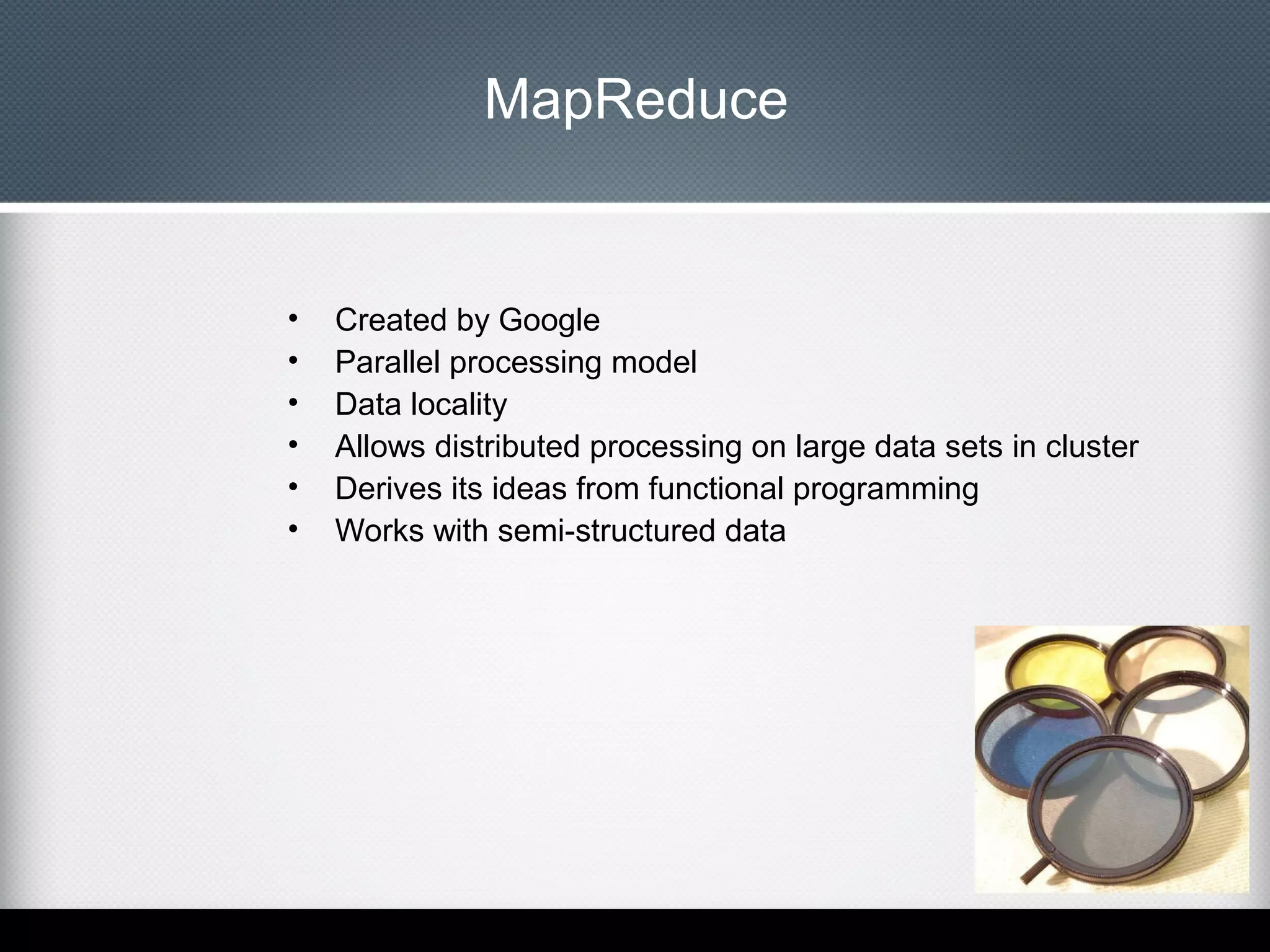

- 27. MapReduce • • • • • • Created by Google Parallelprocessing model Data locality Allows distributed processing on large data sets in cluster Derives its ideas from functional programming Works with semi-structured data

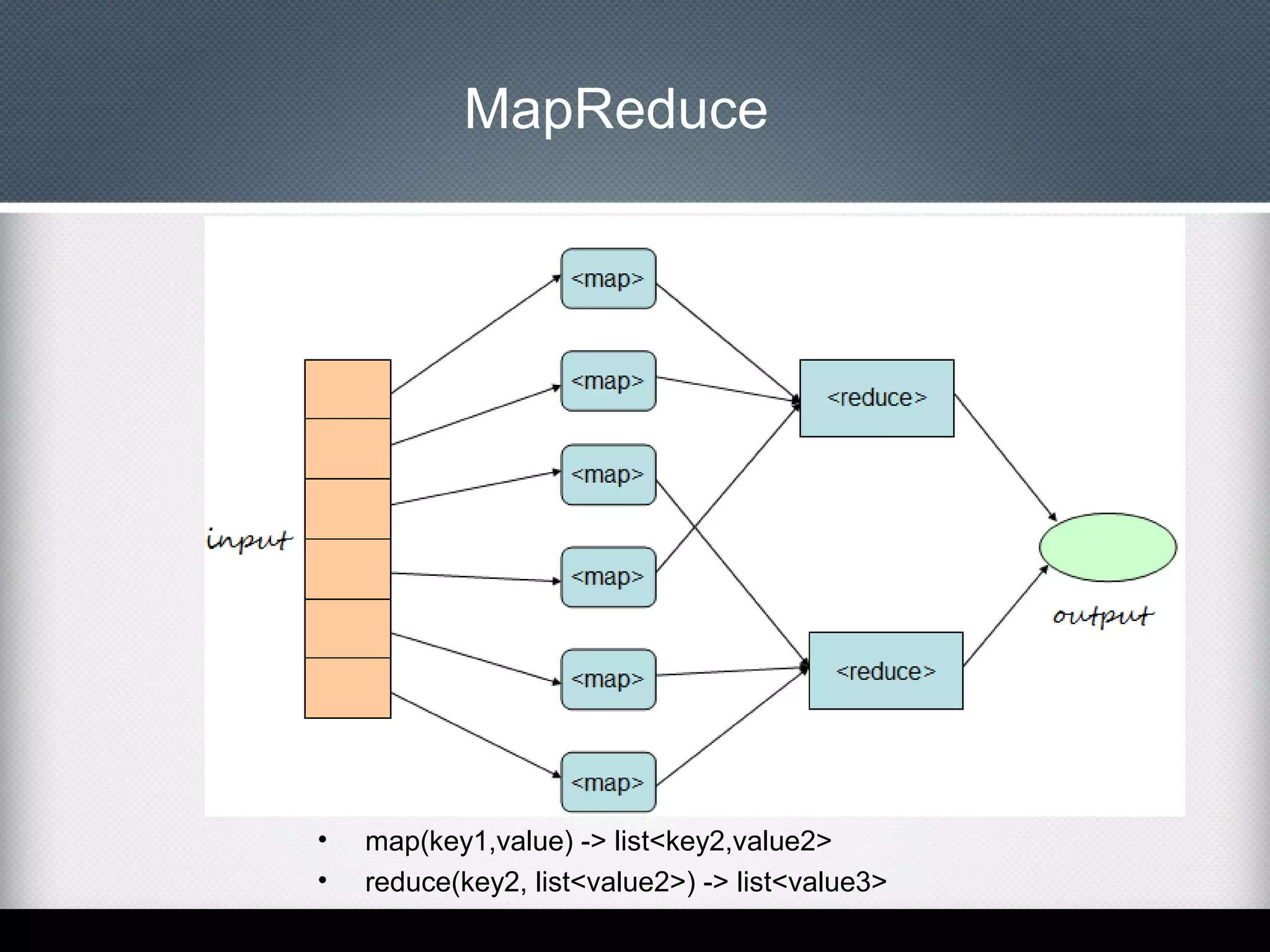

- 28. MapReduce • • map(key1,value) -> list<key2,value2> reduce(key2,list<value2>) -> list<value3>

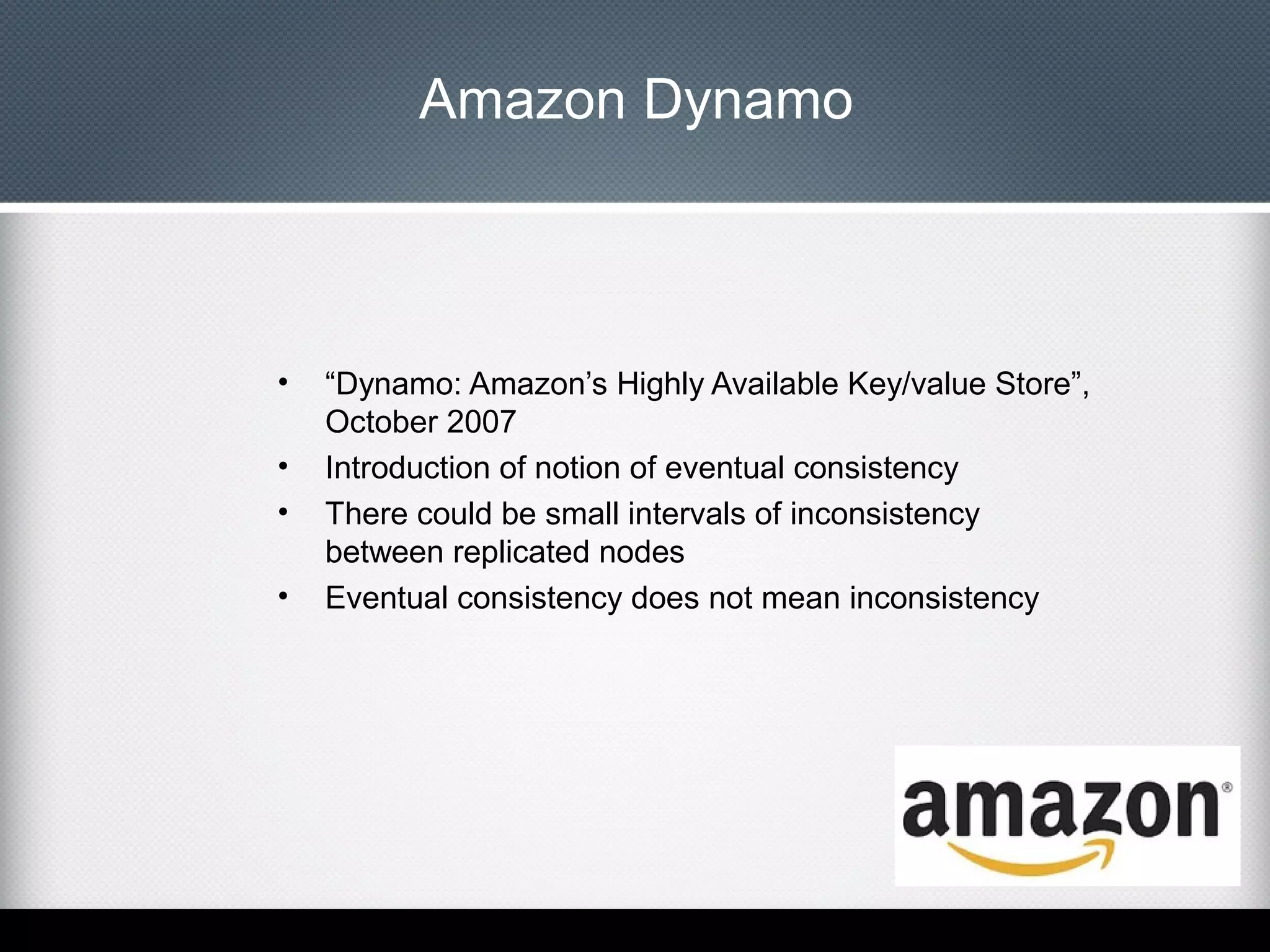

- 29. Amazon Dynamo • • • • “Dynamo: Amazon’sHighly Available Key/value Store”, October 2007 Introduction of notion of eventual consistency There could be small intervals of inconsistency between replicated nodes Eventual consistency does not mean inconsistency
- 30. Amazon Dynamo • • • • Masterless Physical nodesare peers and organized into a ring Automatically partitioning mechanism Written in Java

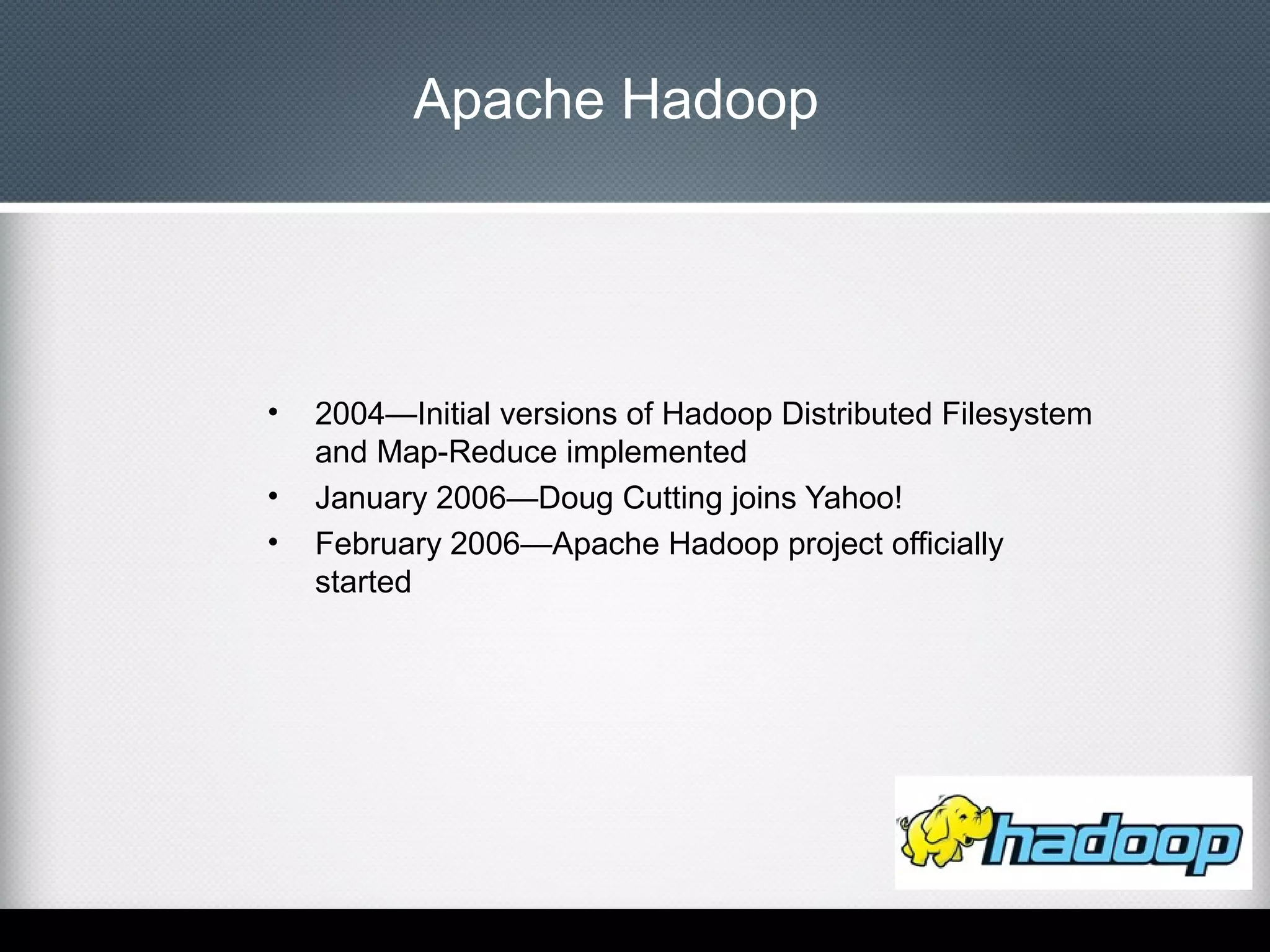

- 31. Apache Hadoop • • • 2004—Initial versionsof Hadoop Distributed Filesystem and Map-Reduce implemented January 2006—Doug Cutting joins Yahoo! February 2006—Apache Hadoop project officially started

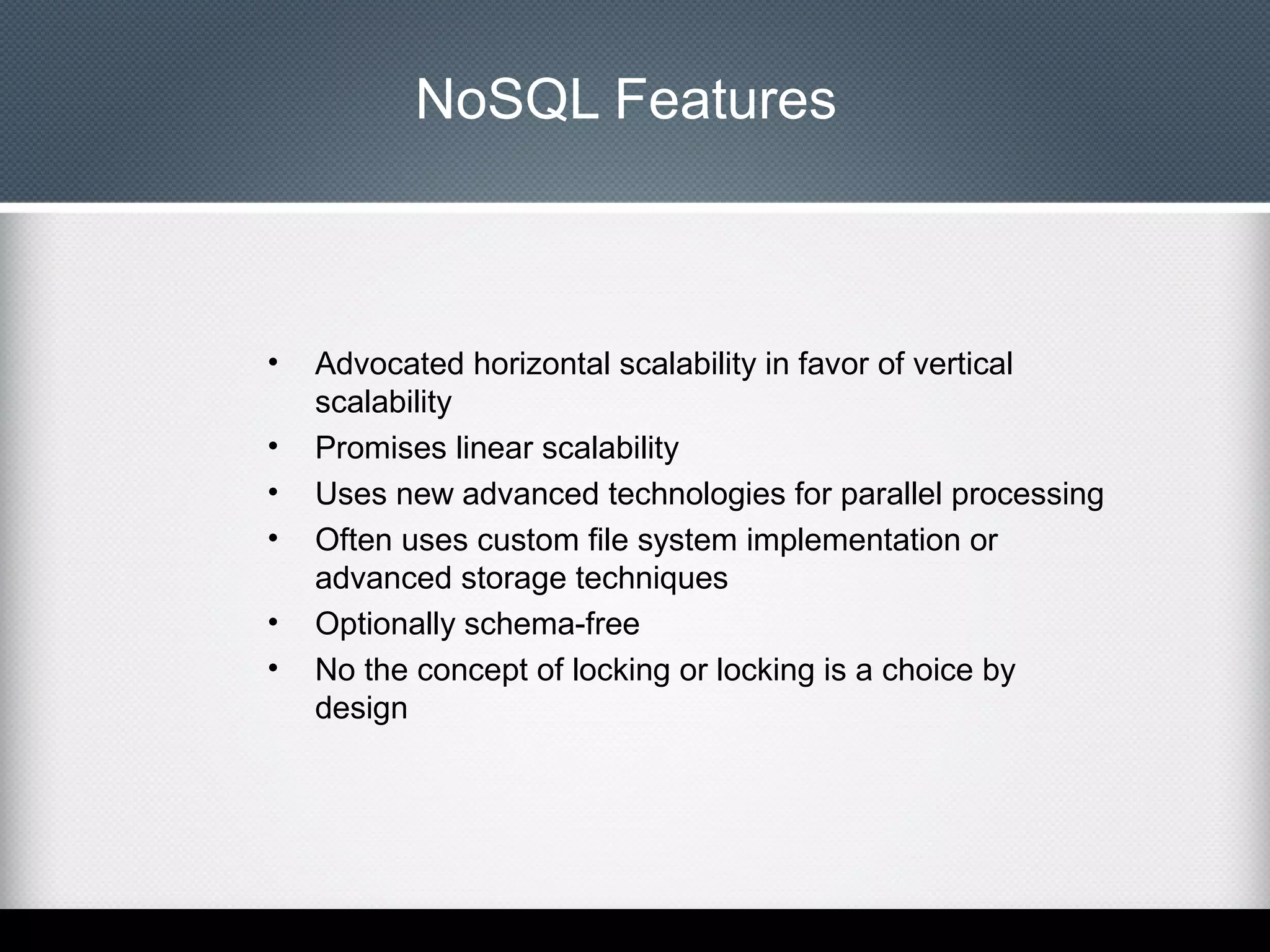

- 32. NoSQL Features • • • • • • Advocated horizontalscalability in favor of vertical scalability Promises linear scalability Uses new advanced technologies for parallel processing Often uses custom file system implementation or advanced storage techniques Optionally schema-free No the concept of locking or locking is a choice by design

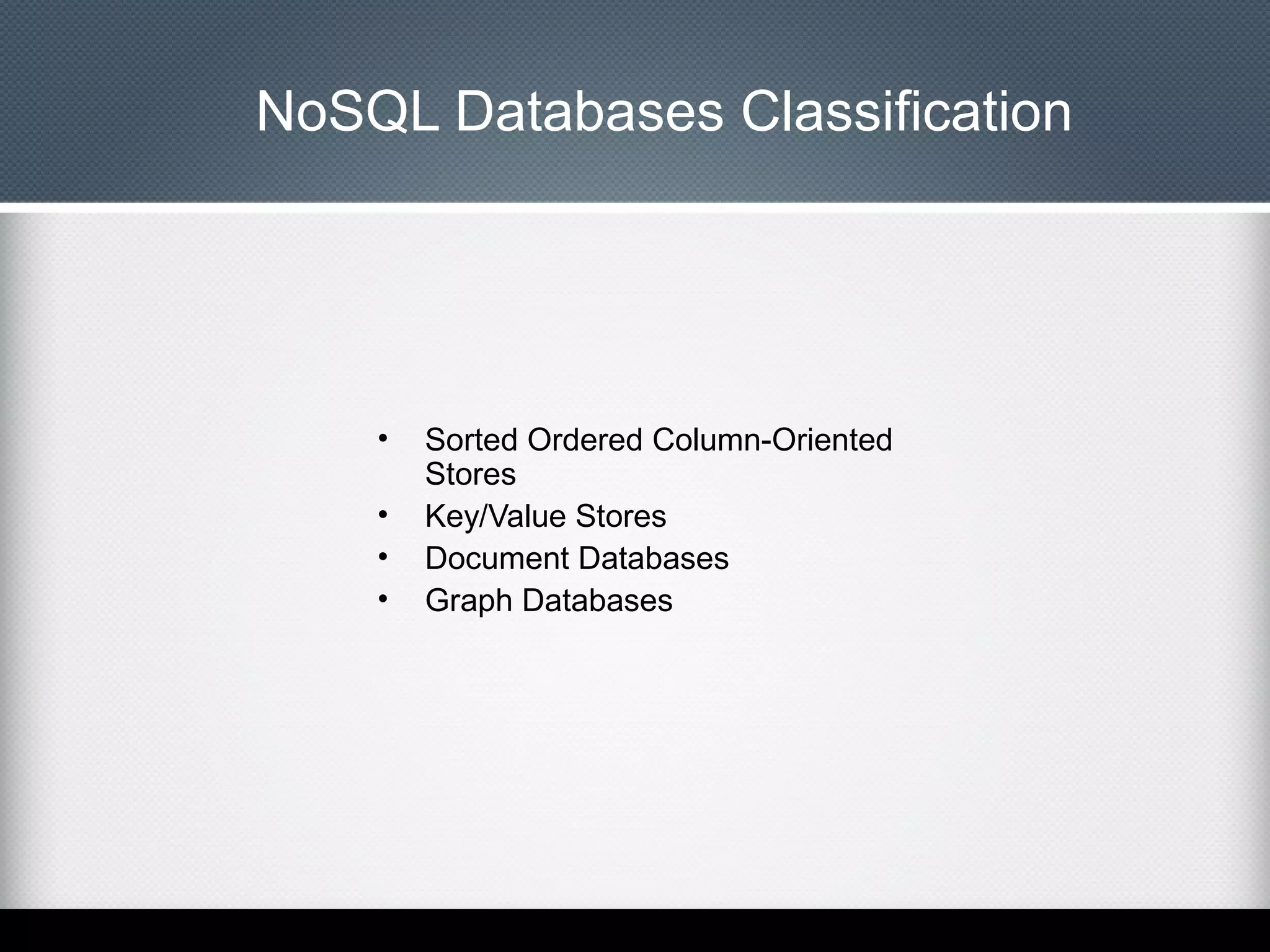

- 33. NoSQL Databases Classification • • • • SortedOrdered Column-Oriented Stores Key/Value Stores Document Databases Graph Databases

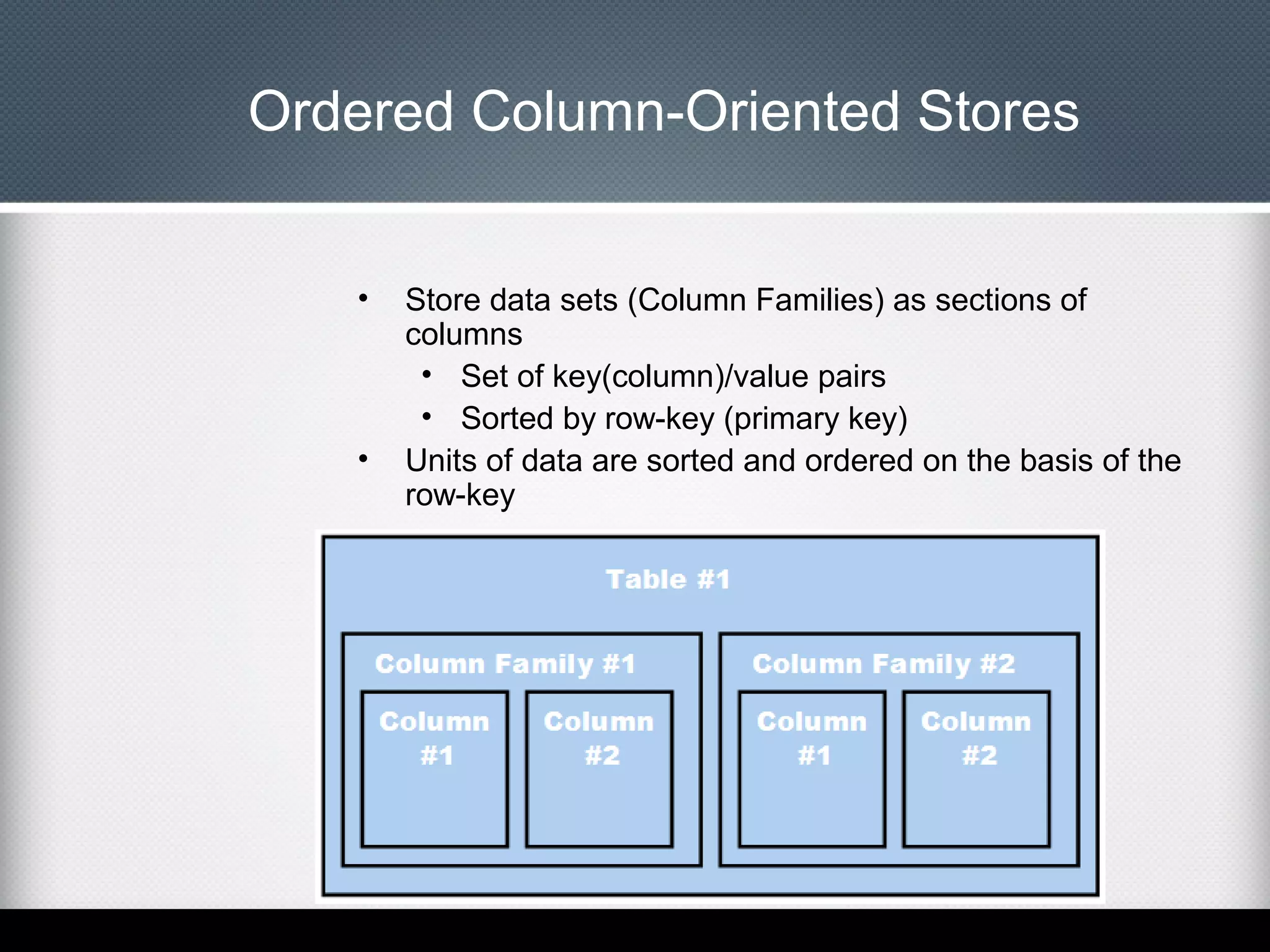

- 34. Ordered Column-Oriented Stores • • Storedata sets (Column Families) as sections of columns • Set of key(column)/value pairs • Sorted by row-key (primary key) Units of data are sorted and ordered on the basis of the row-key

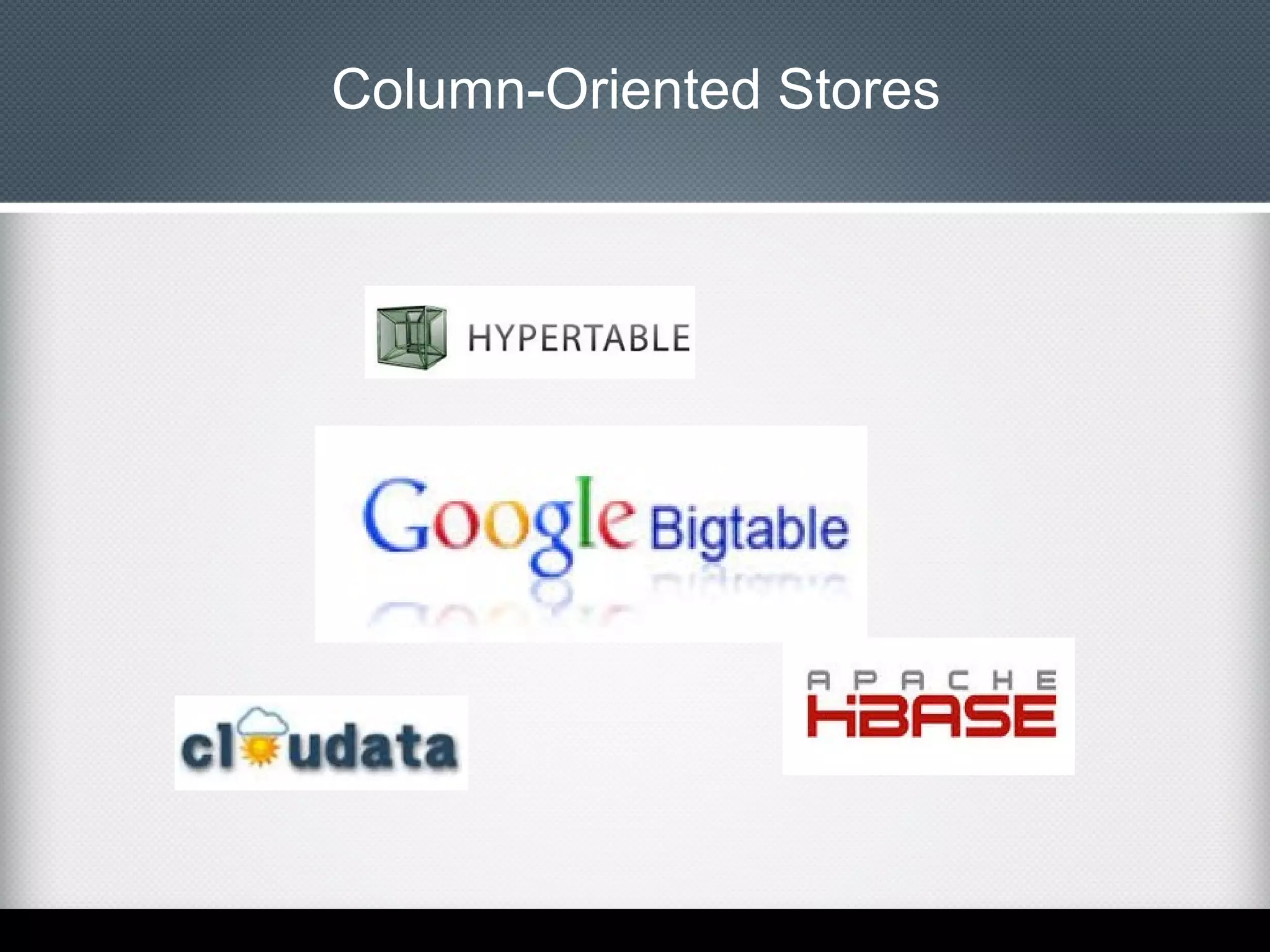

- 35.

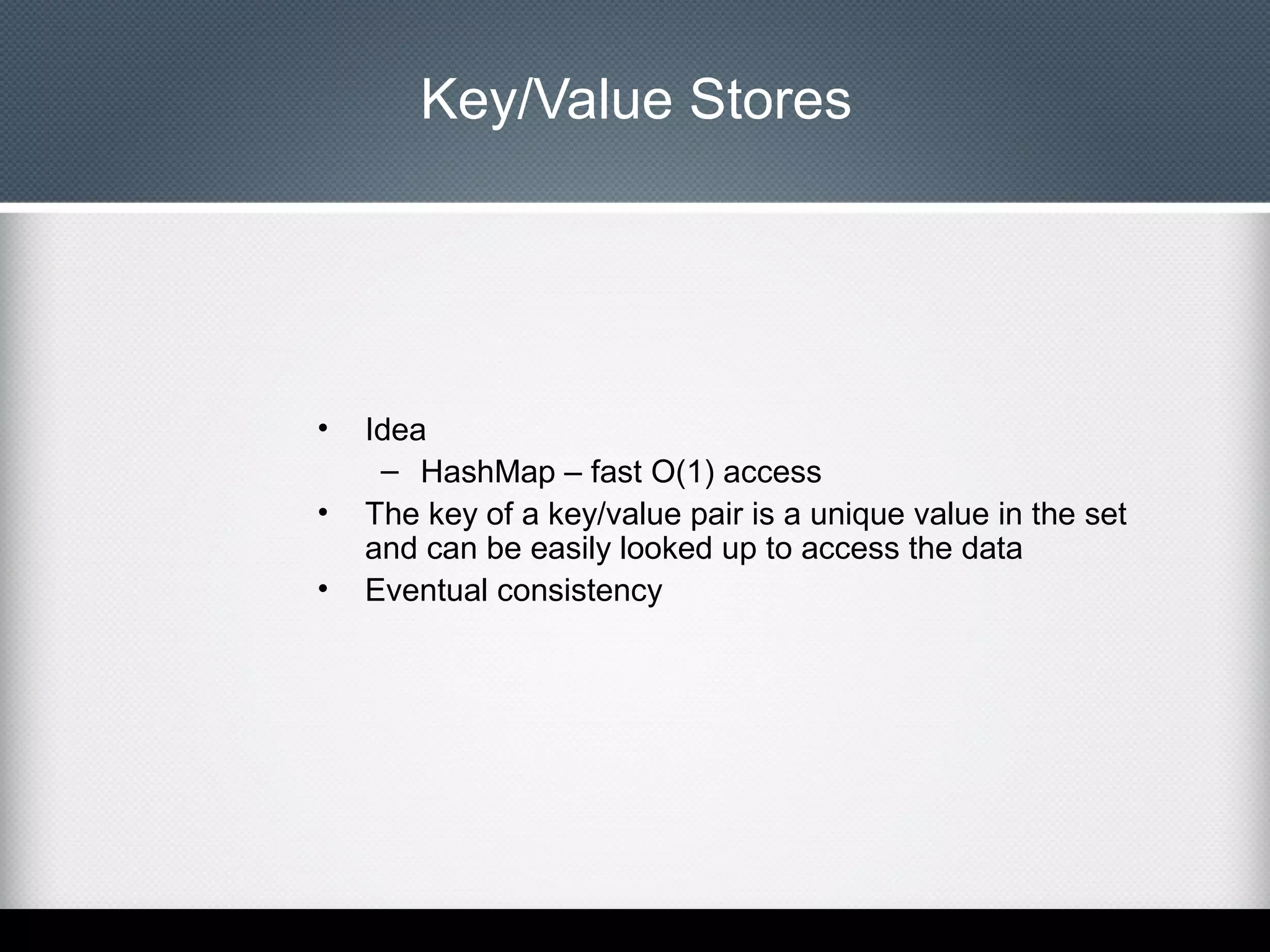

- 36. Key/Value Stores • • • Idea – HashMap– fast O(1) access The key of a key/value pair is a unique value in the set and can be easily looked up to access the data Eventual consistency
- 37.

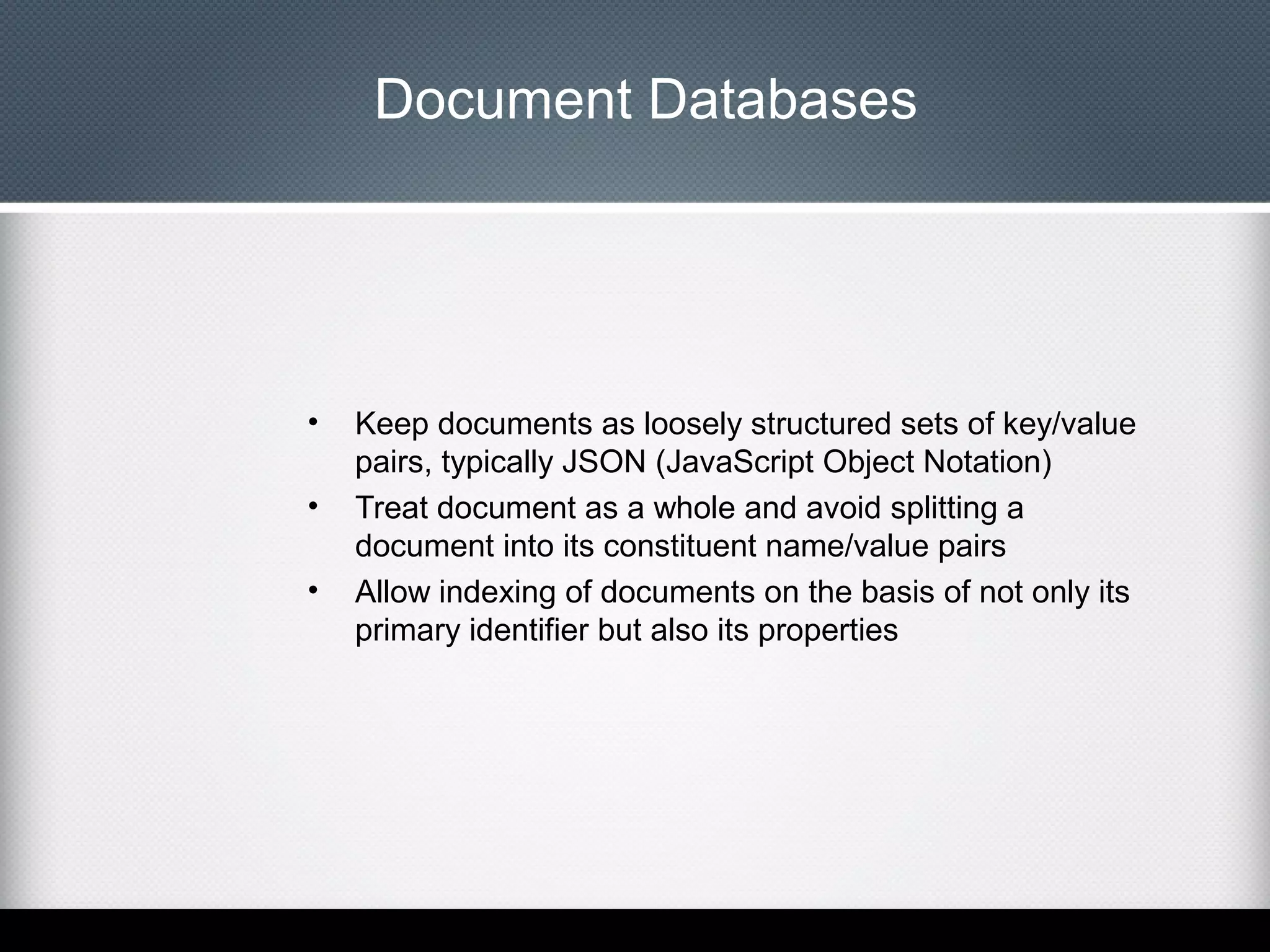

- 38. Document Databases • • • Keep documentsas loosely structured sets of key/value pairs, typically JSON (JavaScript Object Notation) Treat document as a whole and avoid splitting a document into its constituent name/value pairs Allow indexing of documents on the basis of not only its primary identifier but also its properties
- 39.
- 40.

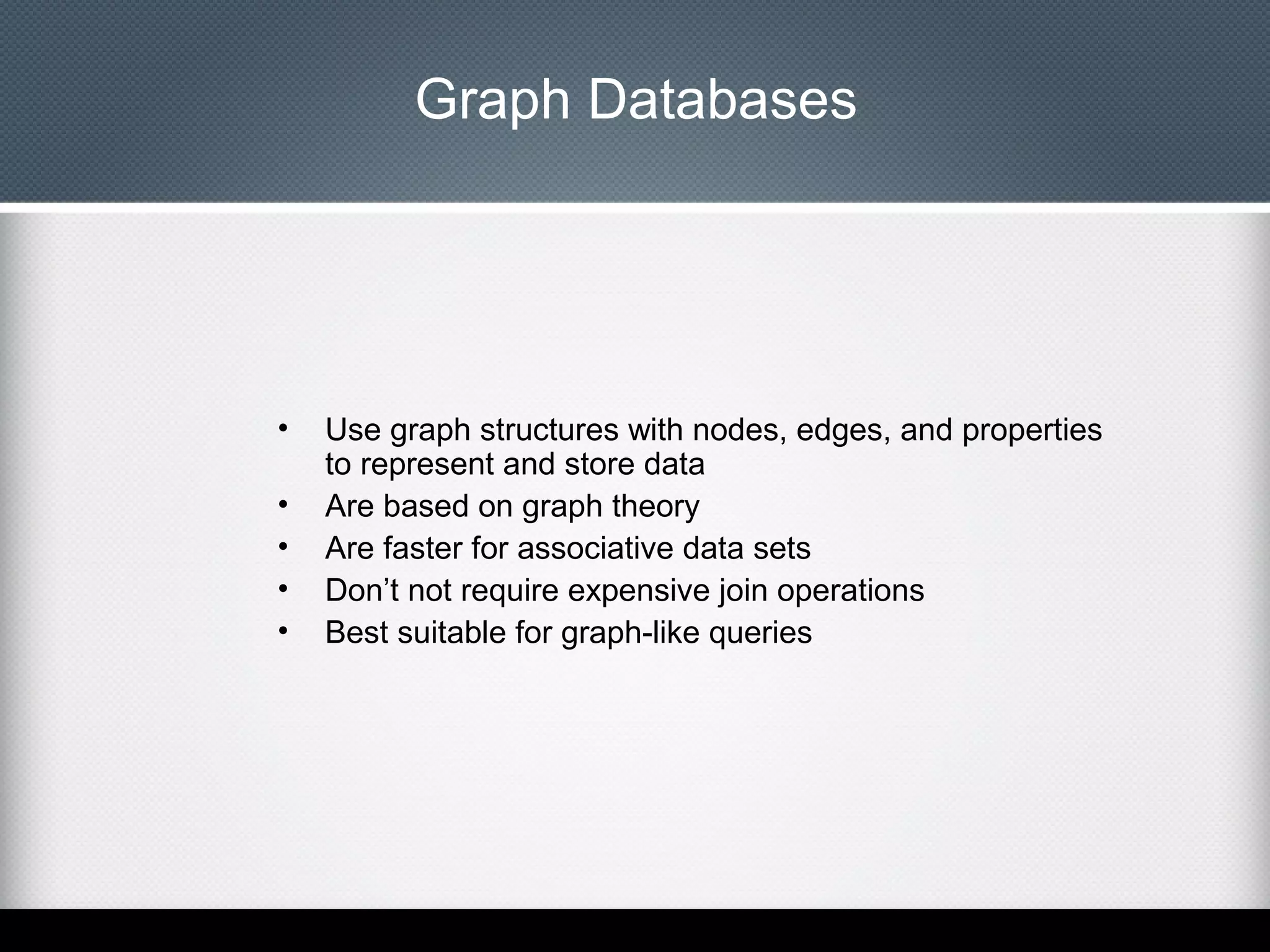

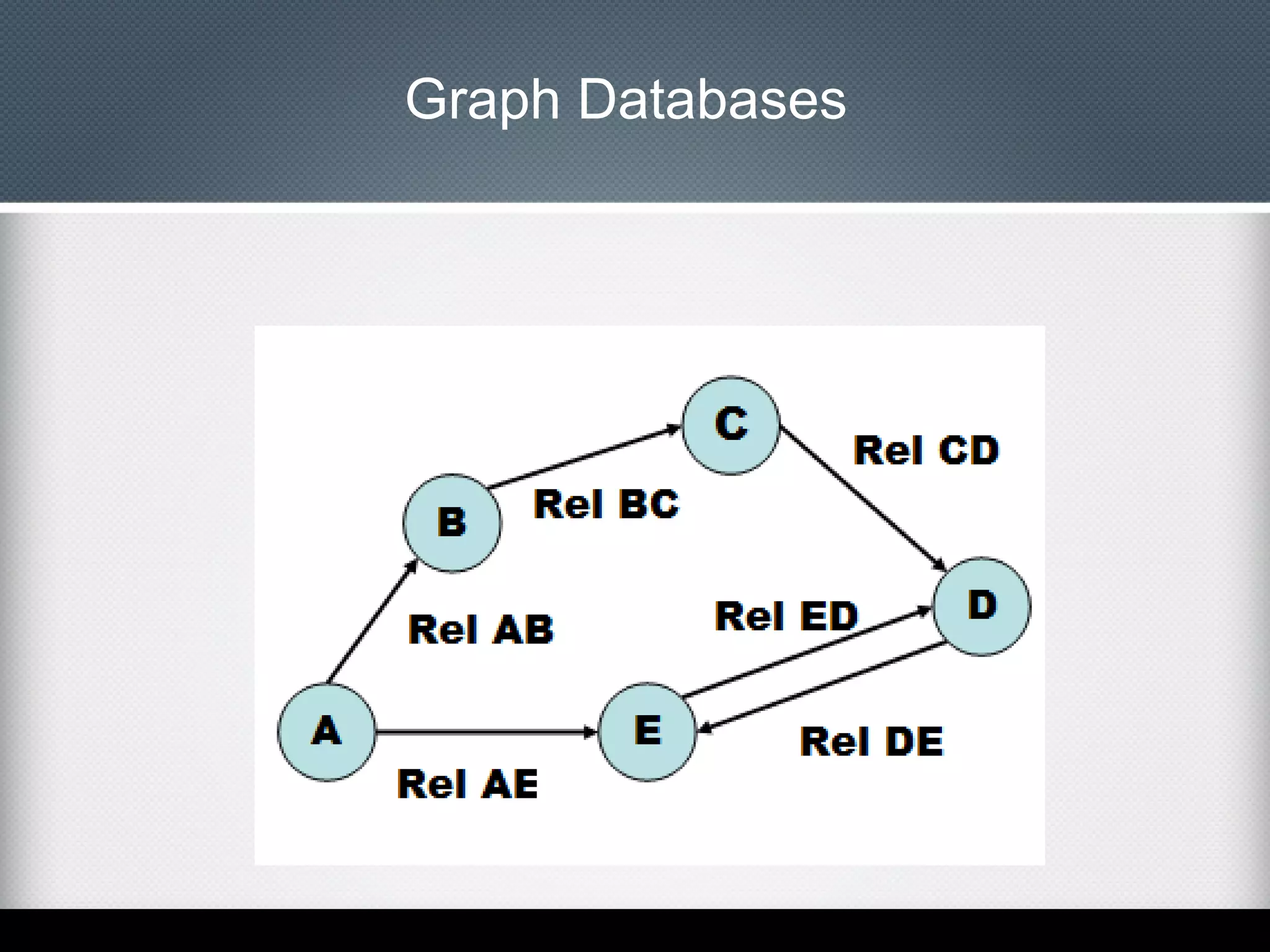

- 41. Graph Databases • • • • • Use graphstructures with nodes, edges, and properties to represent and store data Are based on graph theory Are faster for associative data sets Don’t not require expensive join operations Best suitable for graph-like queries

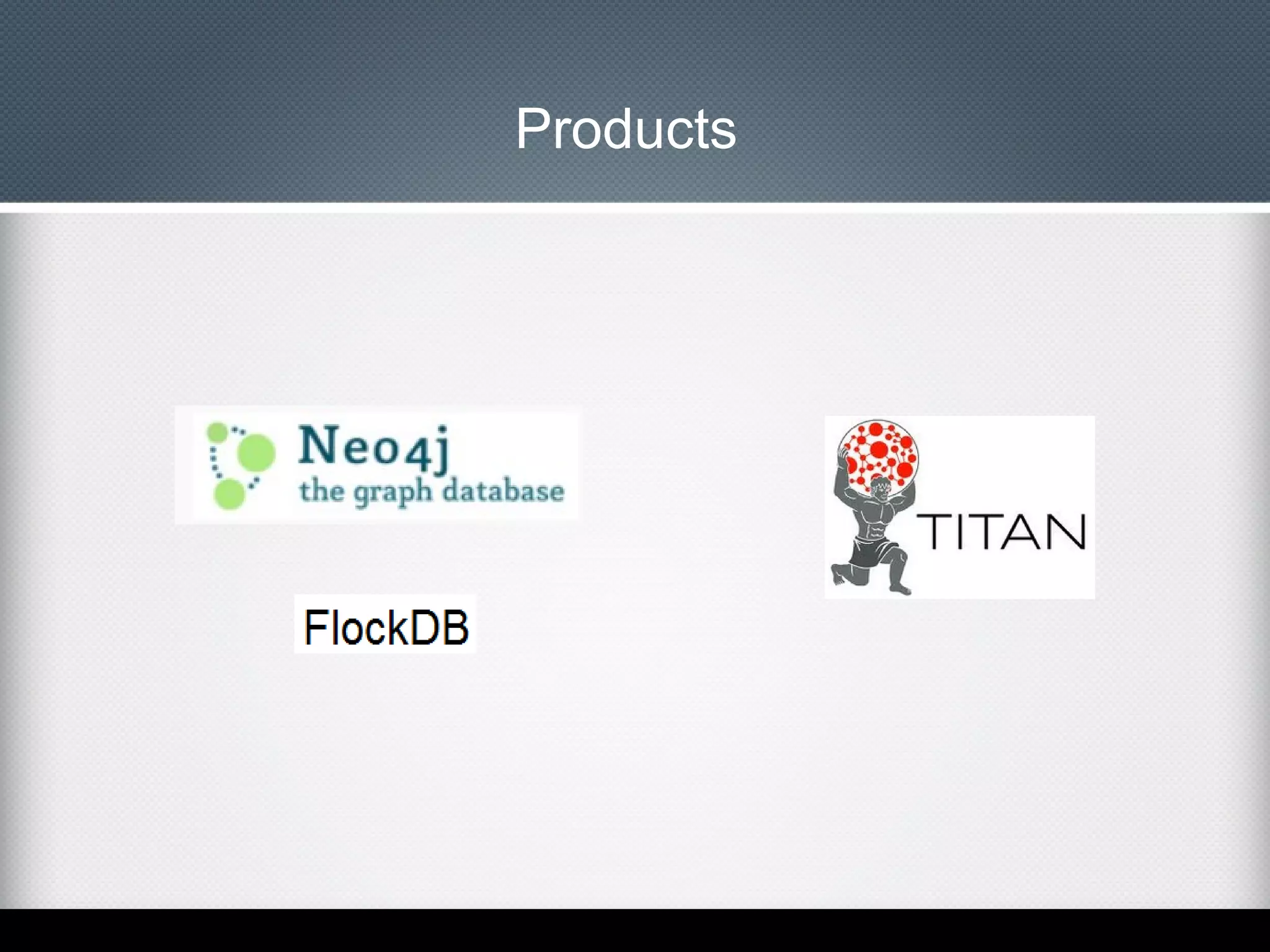

- 42.
- 43.

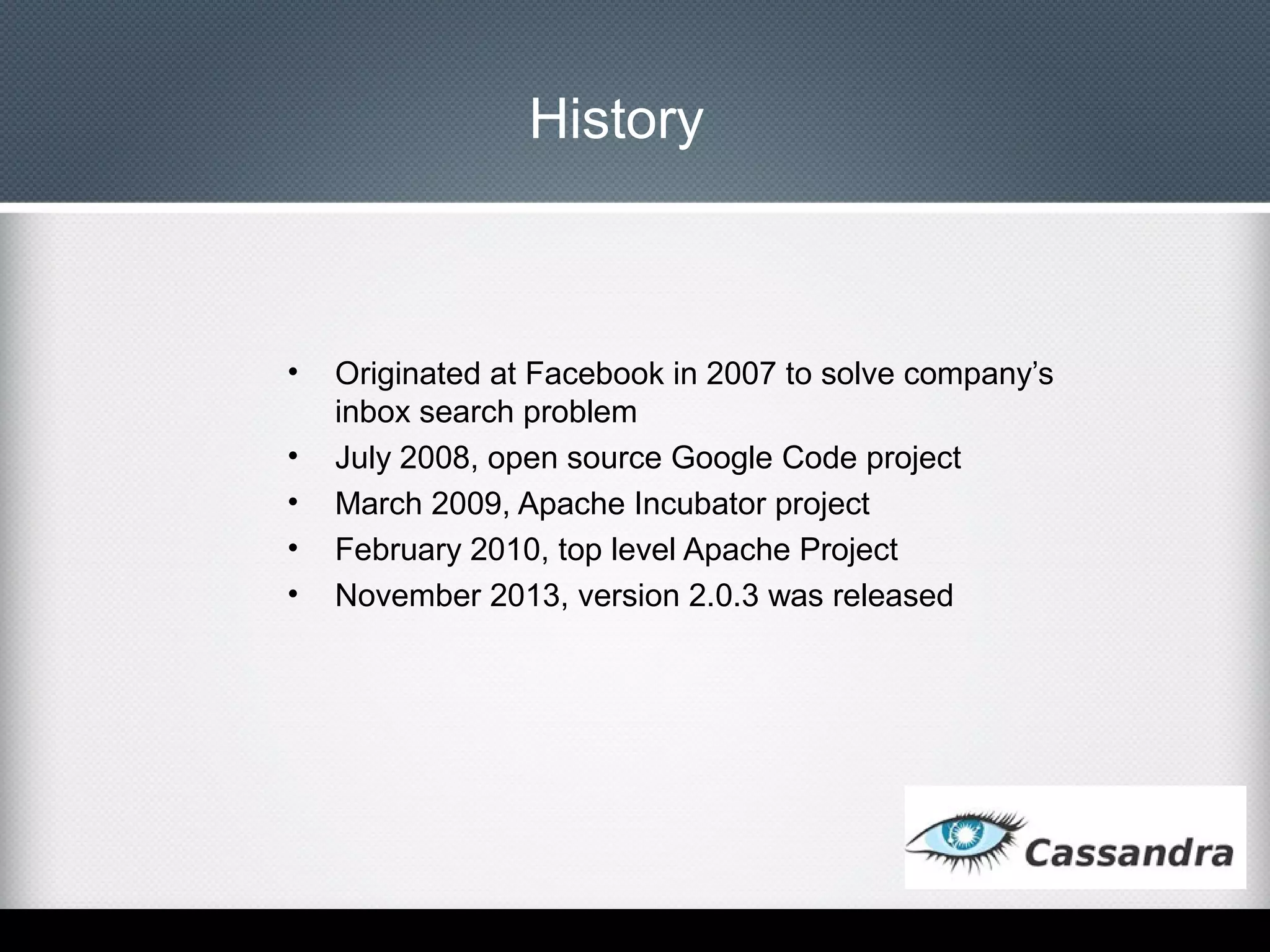

- 44. History • • • • • Originated at Facebookin 2007 to solve company’s inbox search problem July 2008, open source Google Code project March 2009, Apache Incubator project February 2010, top level Apache Project November 2013, version 2.0.3 was released

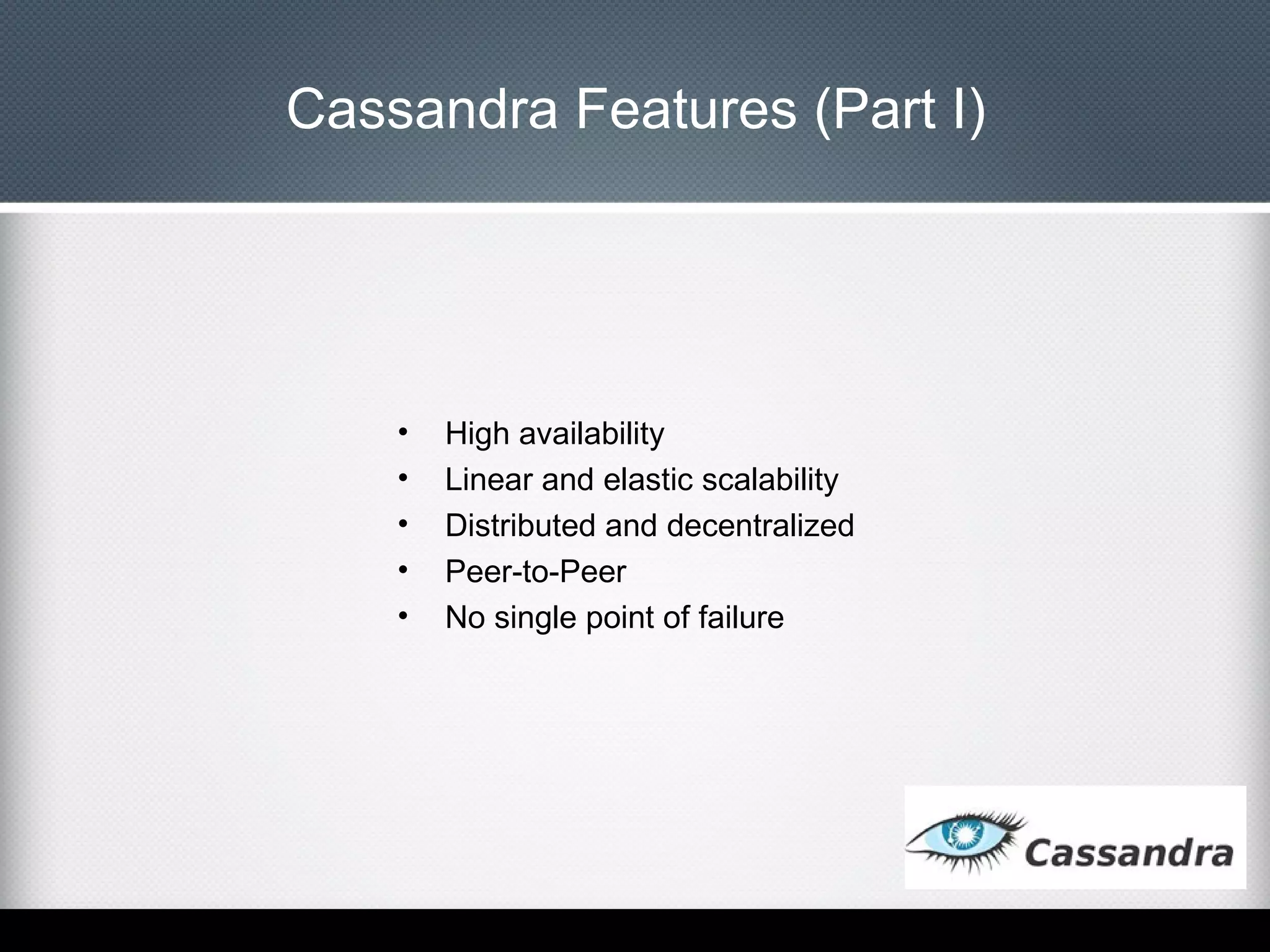

- 45. Cassandra Features (PartI) • • • • • High availability Linear and elastic scalability Distributed and decentralized Peer-to-Peer No single point of failure

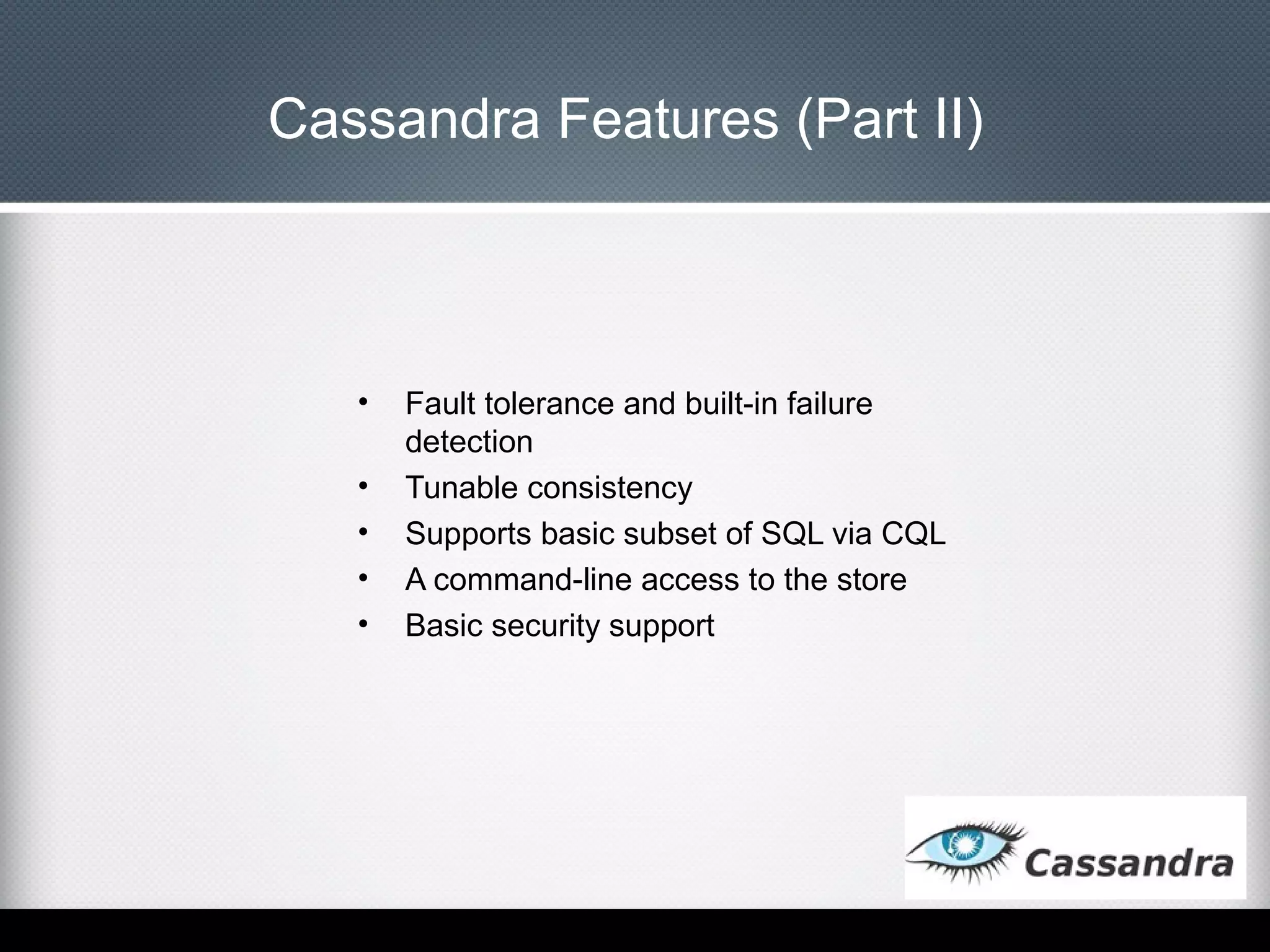

- 46. Cassandra Features (PartII) • • • • • Fault tolerance and built-in failure detection Tunable consistency Supports basic subset of SQL via CQL A command-line access to the store Basic security support

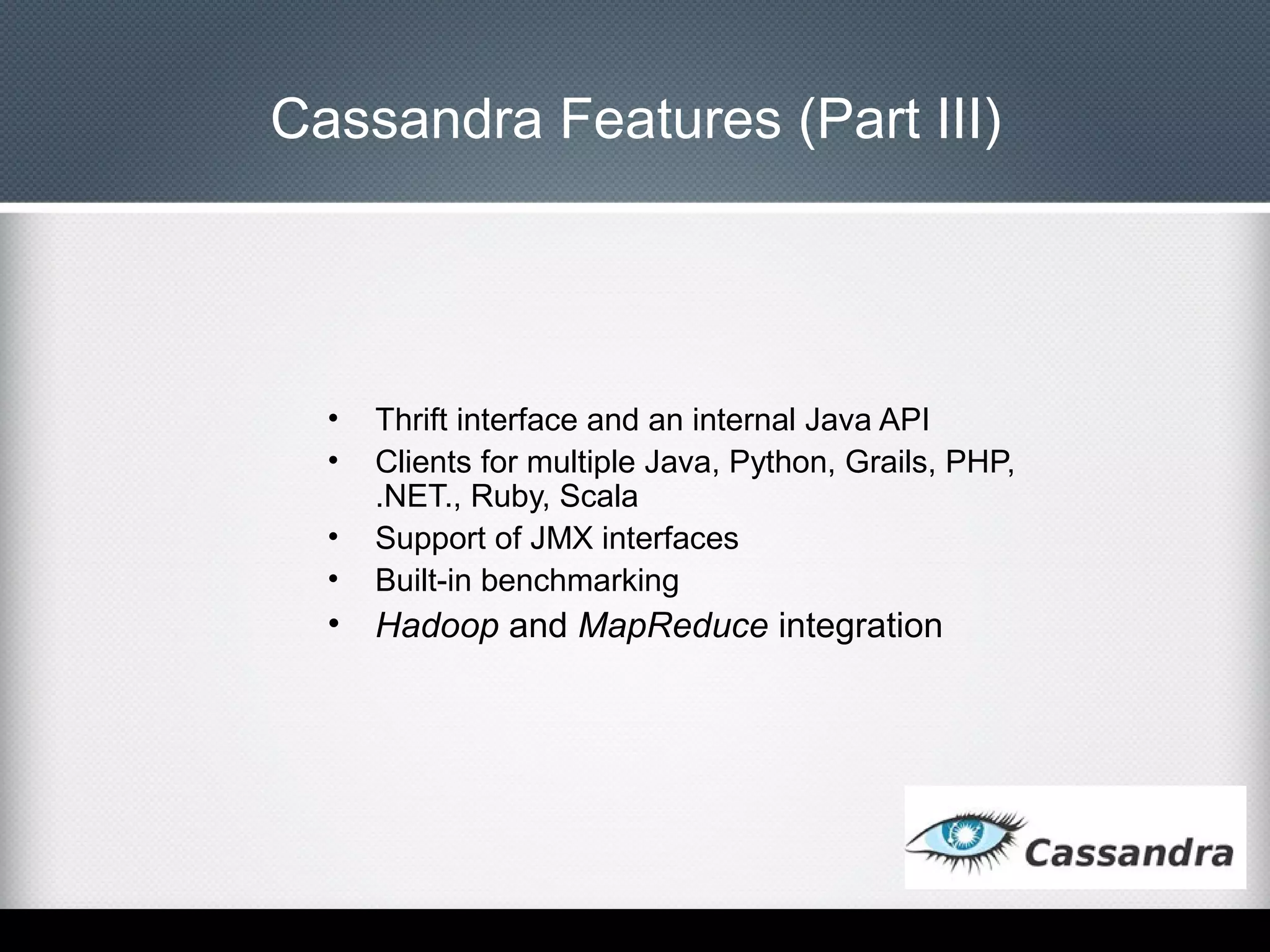

- 47. Cassandra Features (PartIII) • • • • Thrift interface and an internal Java API Clients for multiple Java, Python, Grails, PHP, .NET., Ruby, Scala Support of JMX interfaces Built-in benchmarking • Hadoop and MapReduce integration

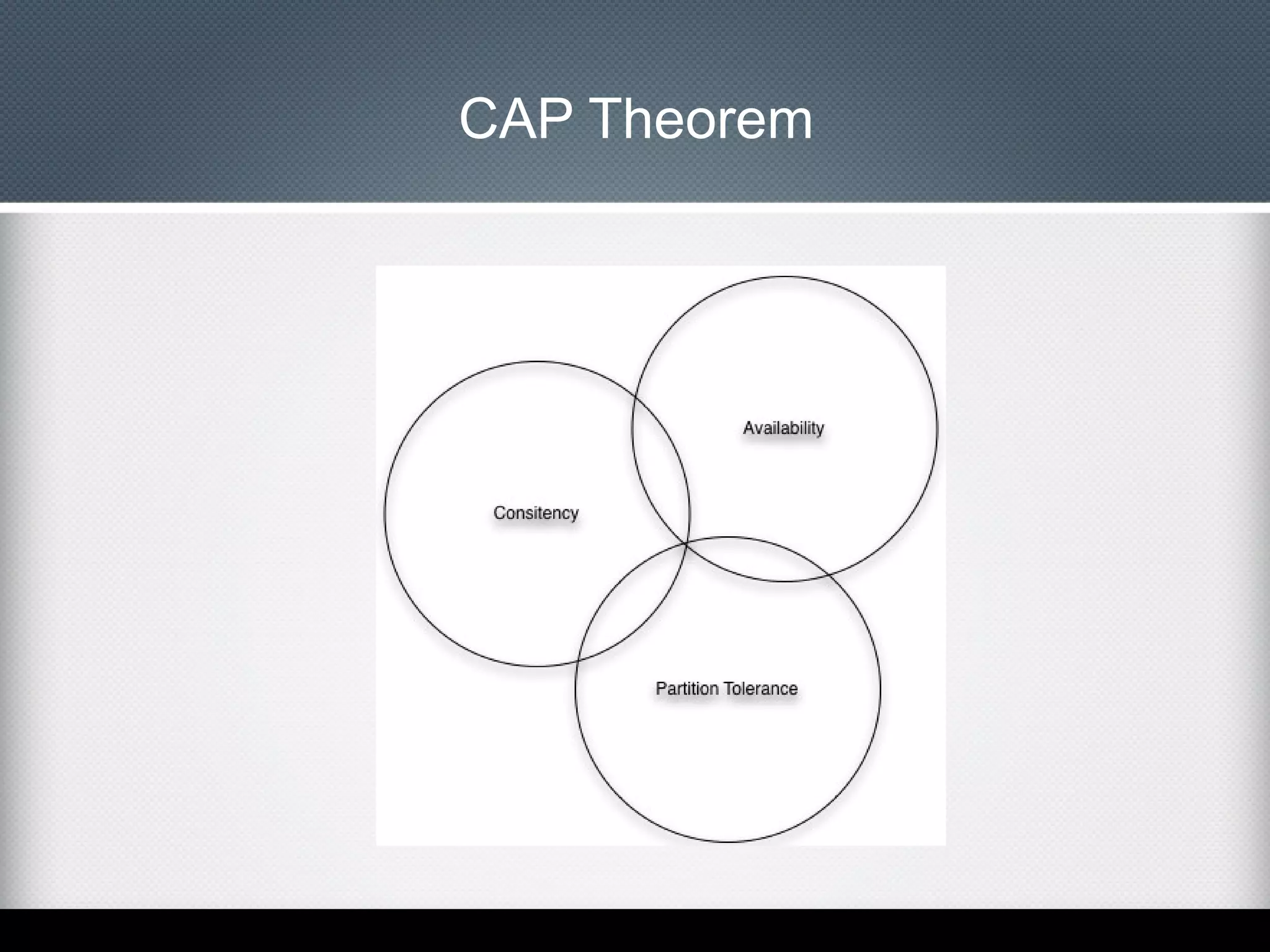

- 48. Cassandra in CAPTriangle
- 49.

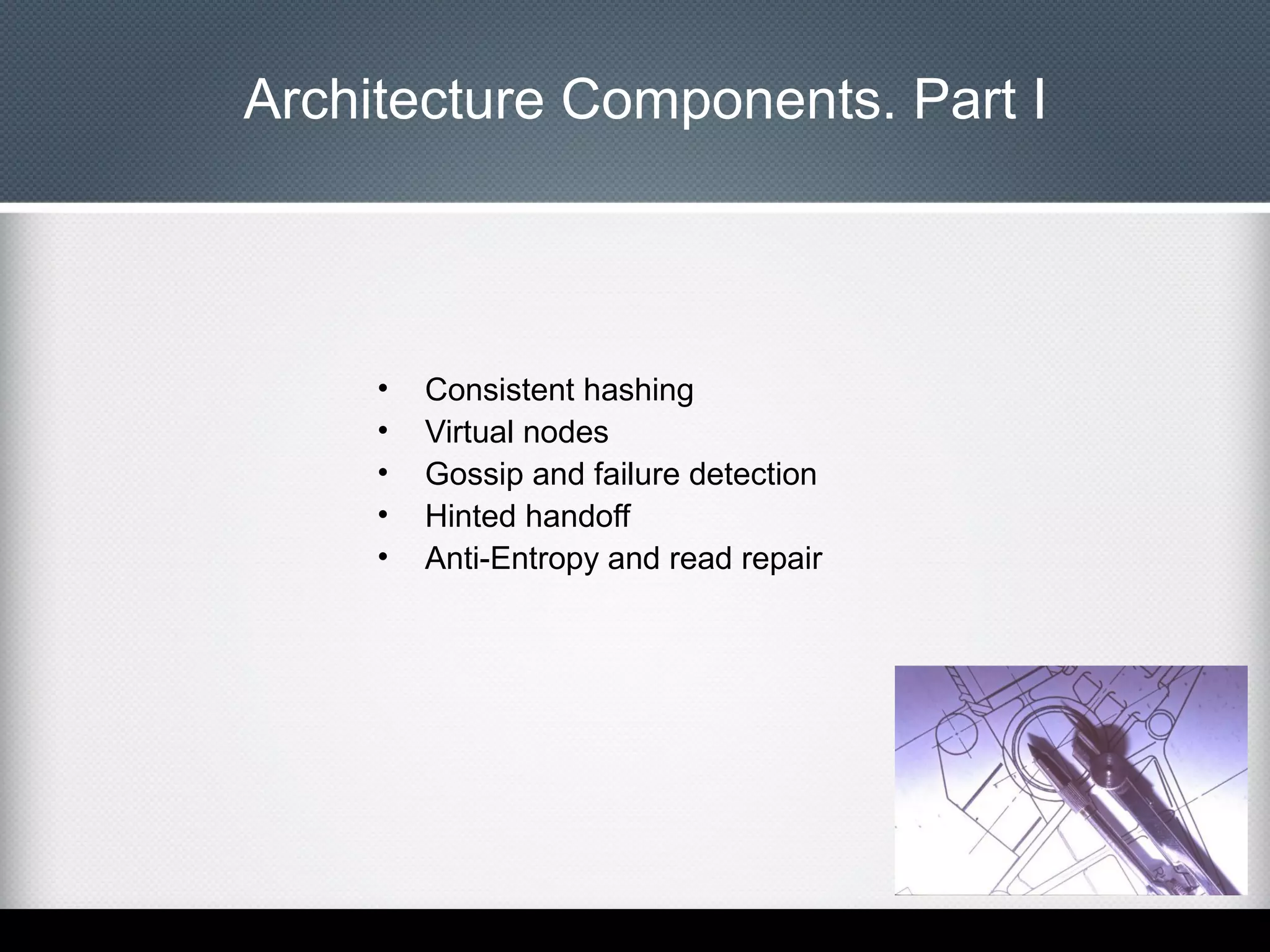

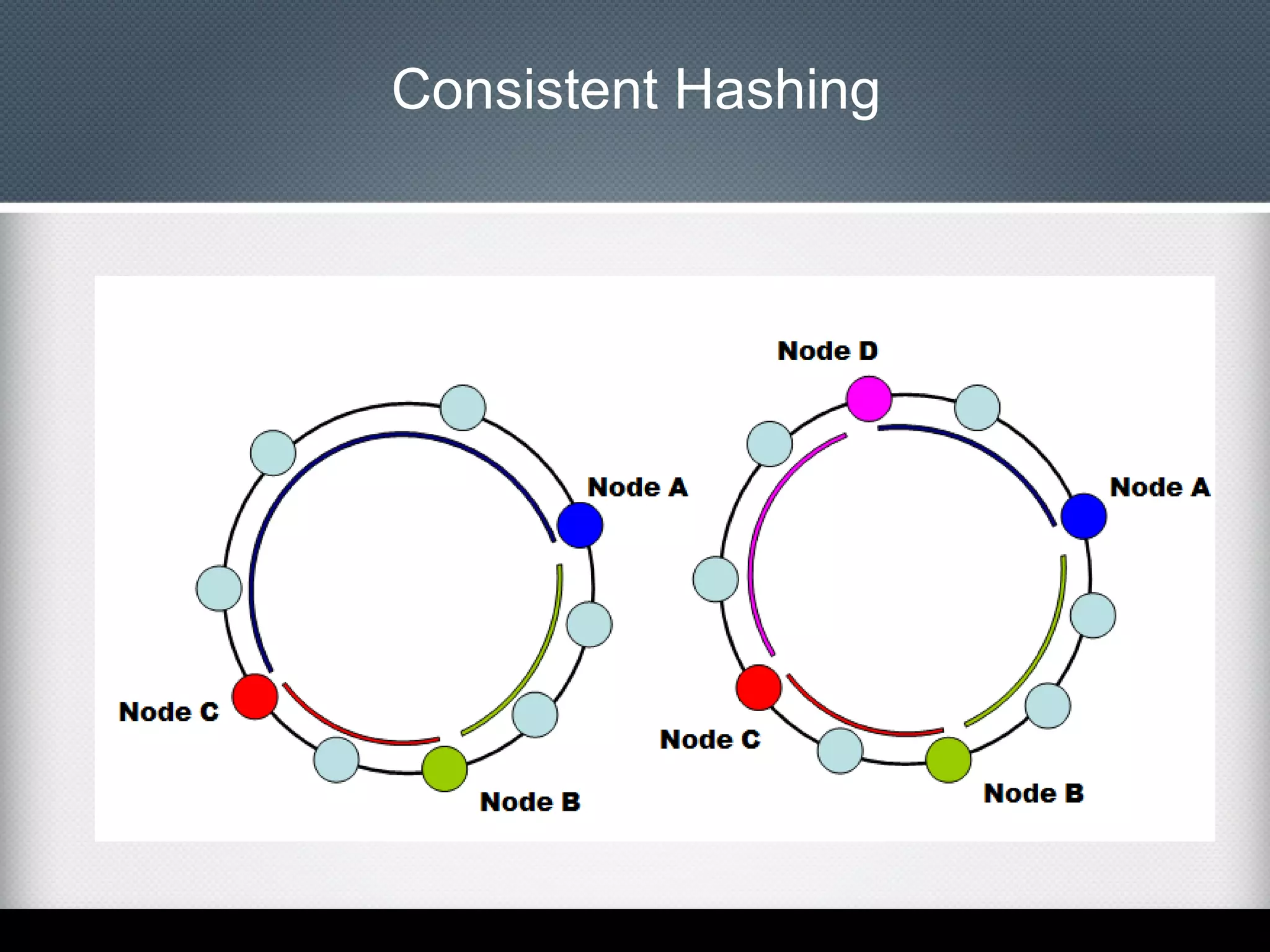

- 50. Architecture Components. PartI • • • • • Consistent hashing Virtual nodes Gossip and failure detection Hinted handoff Anti-Entropy and read repair

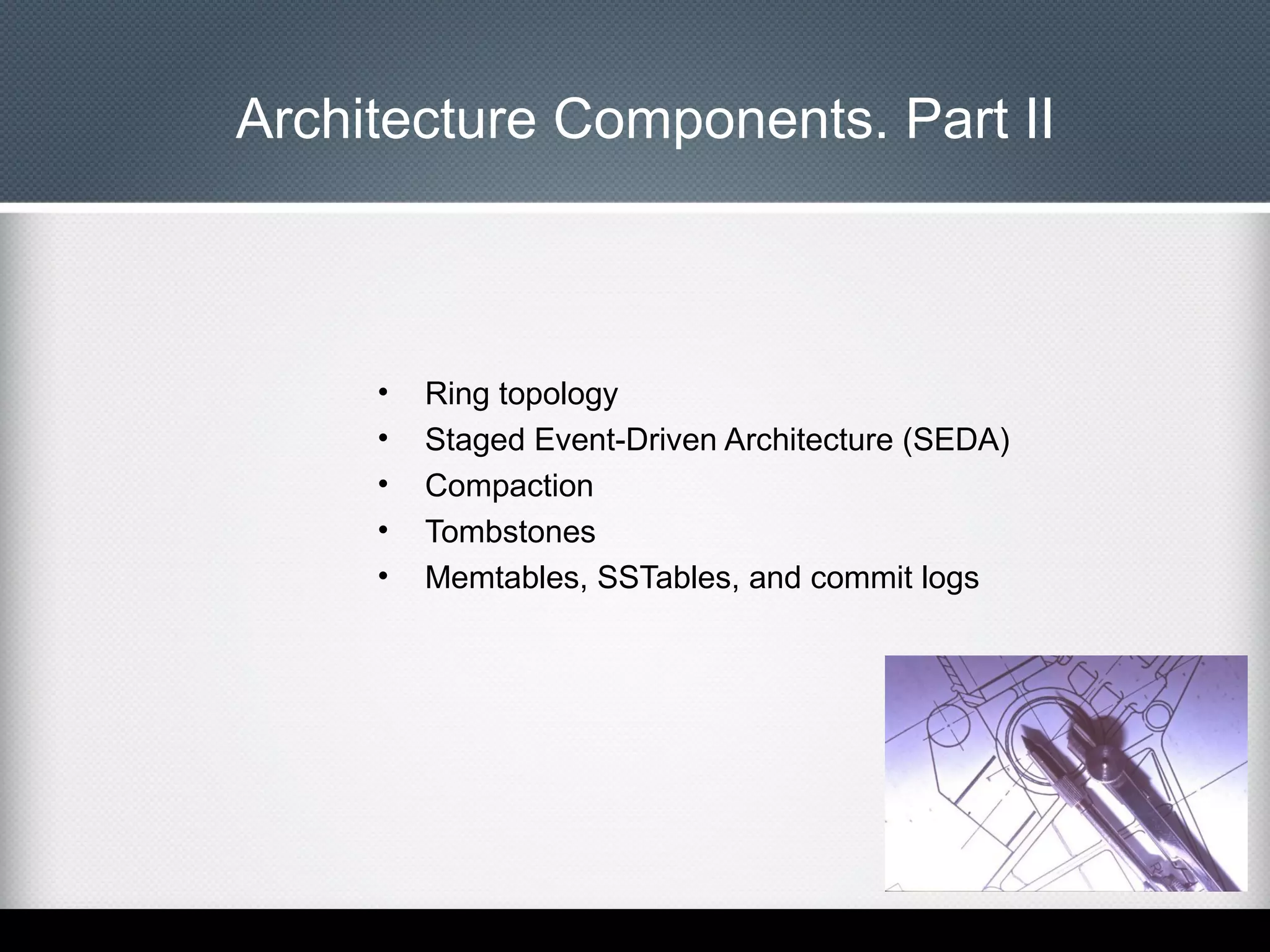

- 51. Architecture Components. PartII • • • • • Ring topology Staged Event-Driven Architecture (SEDA) Compaction Tombstones Memtables, SSTables, and commit logs

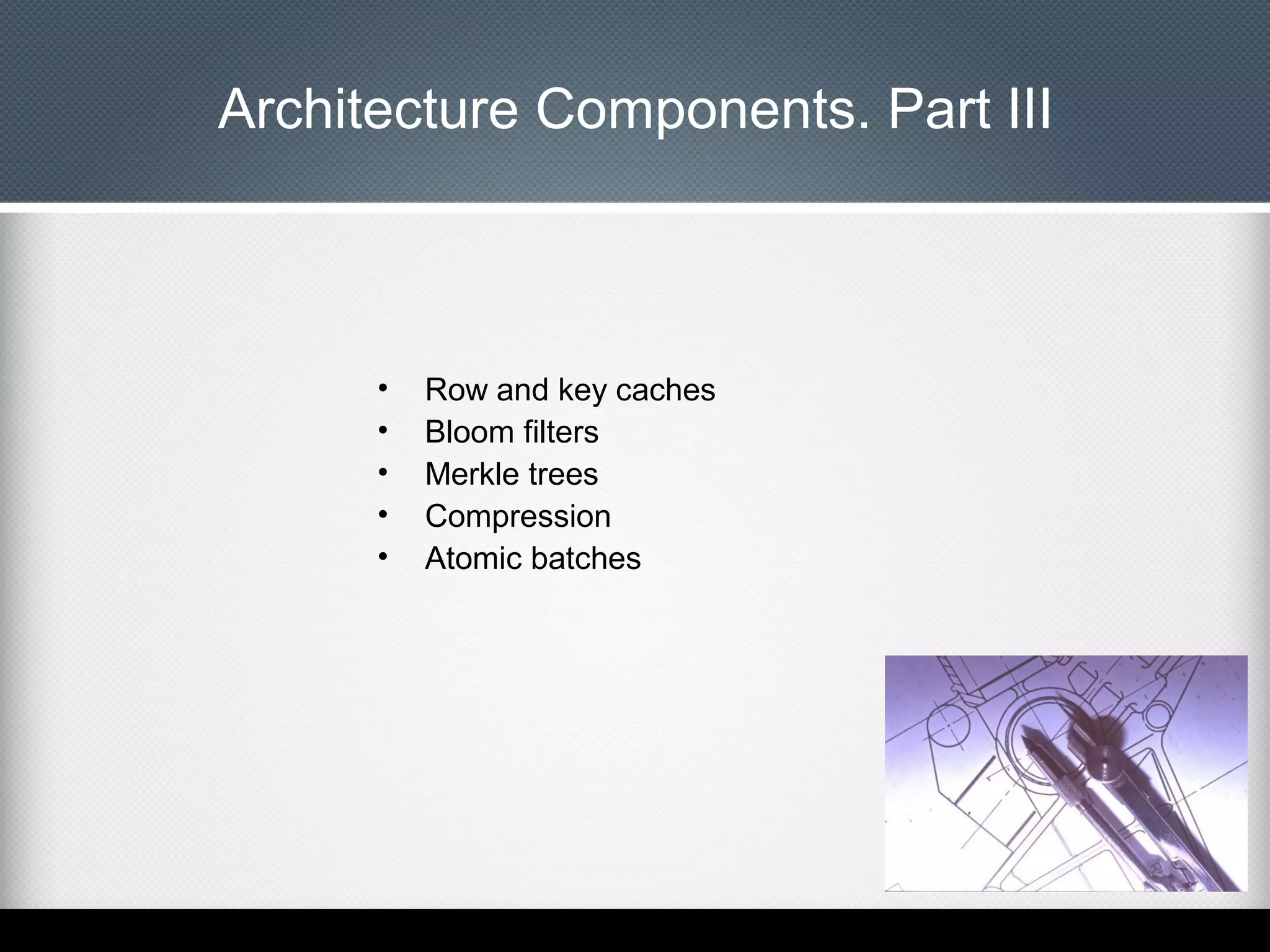

- 52. Architecture Components. PartIII • • • • • Row and key caches Bloom filters Merkle trees Compression Atomic batches

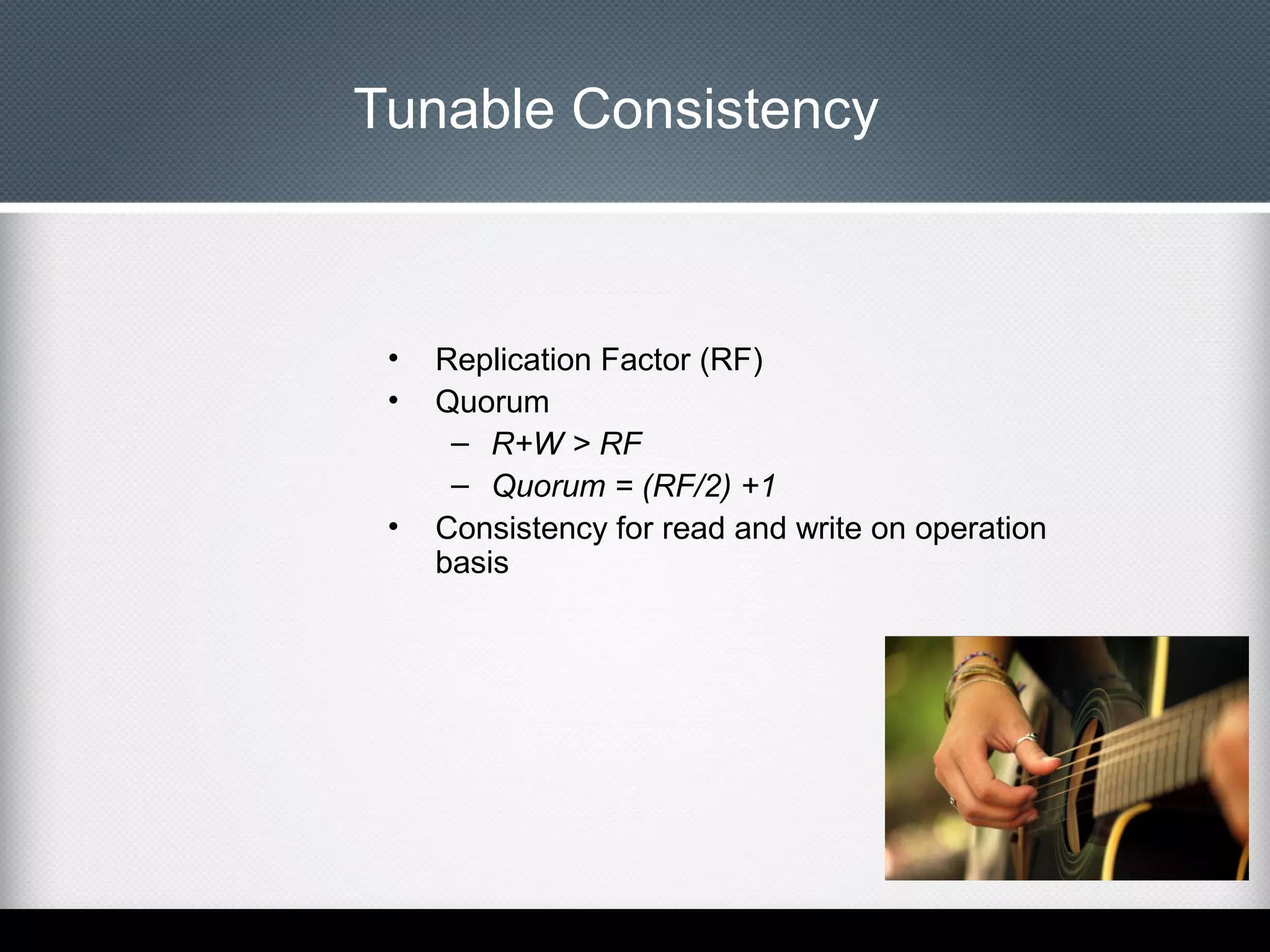

- 53. Tunable Consistency • • • Replication Factor(RF) Quorum – R+W > RF – Quorum = (RF/2) +1 Consistency for read and write on operation basis

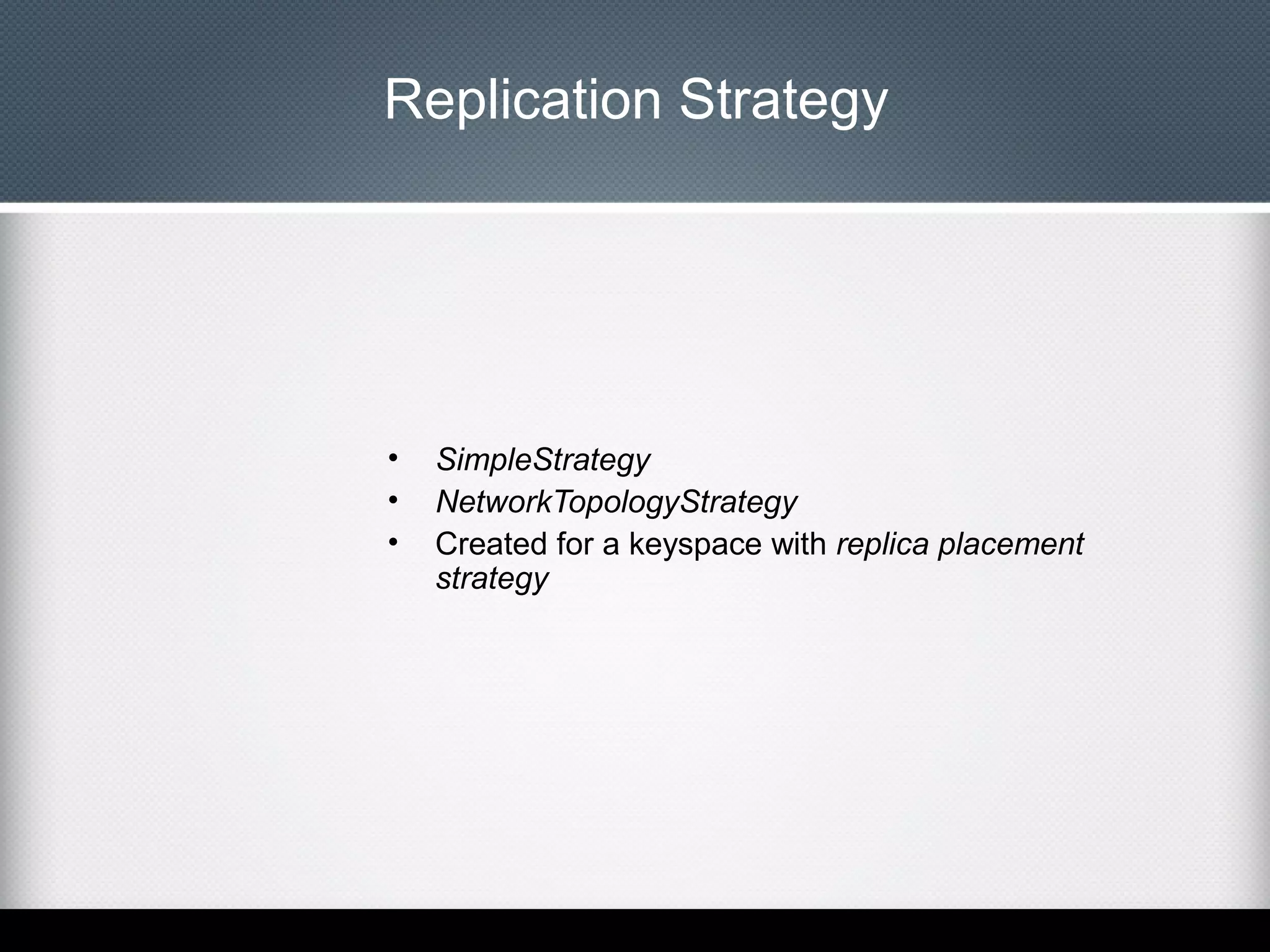

- 54. Replication Strategy • • • SimpleStrategy NetworkTopologyStrategy Created fora keyspace with replica placement strategy

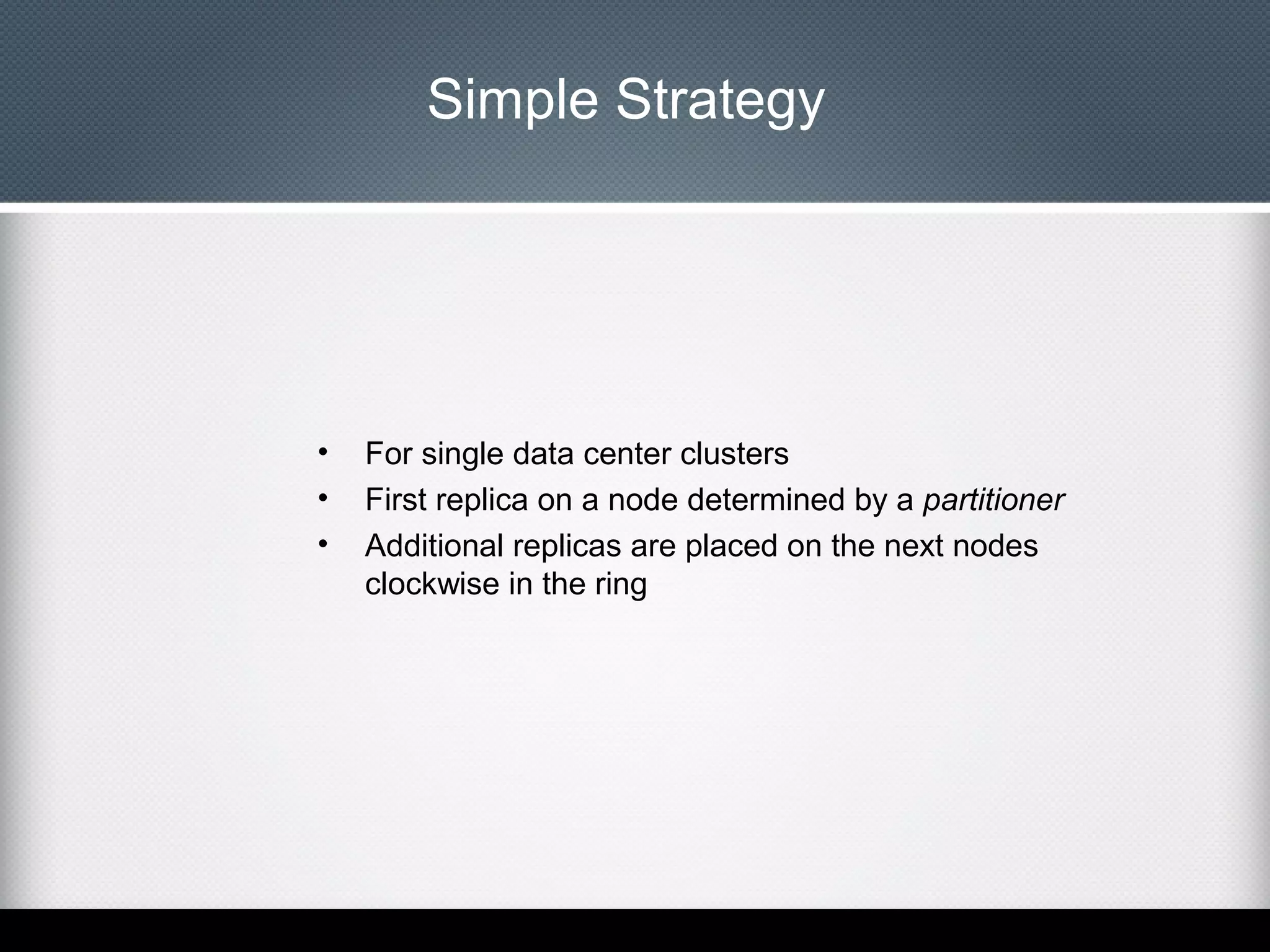

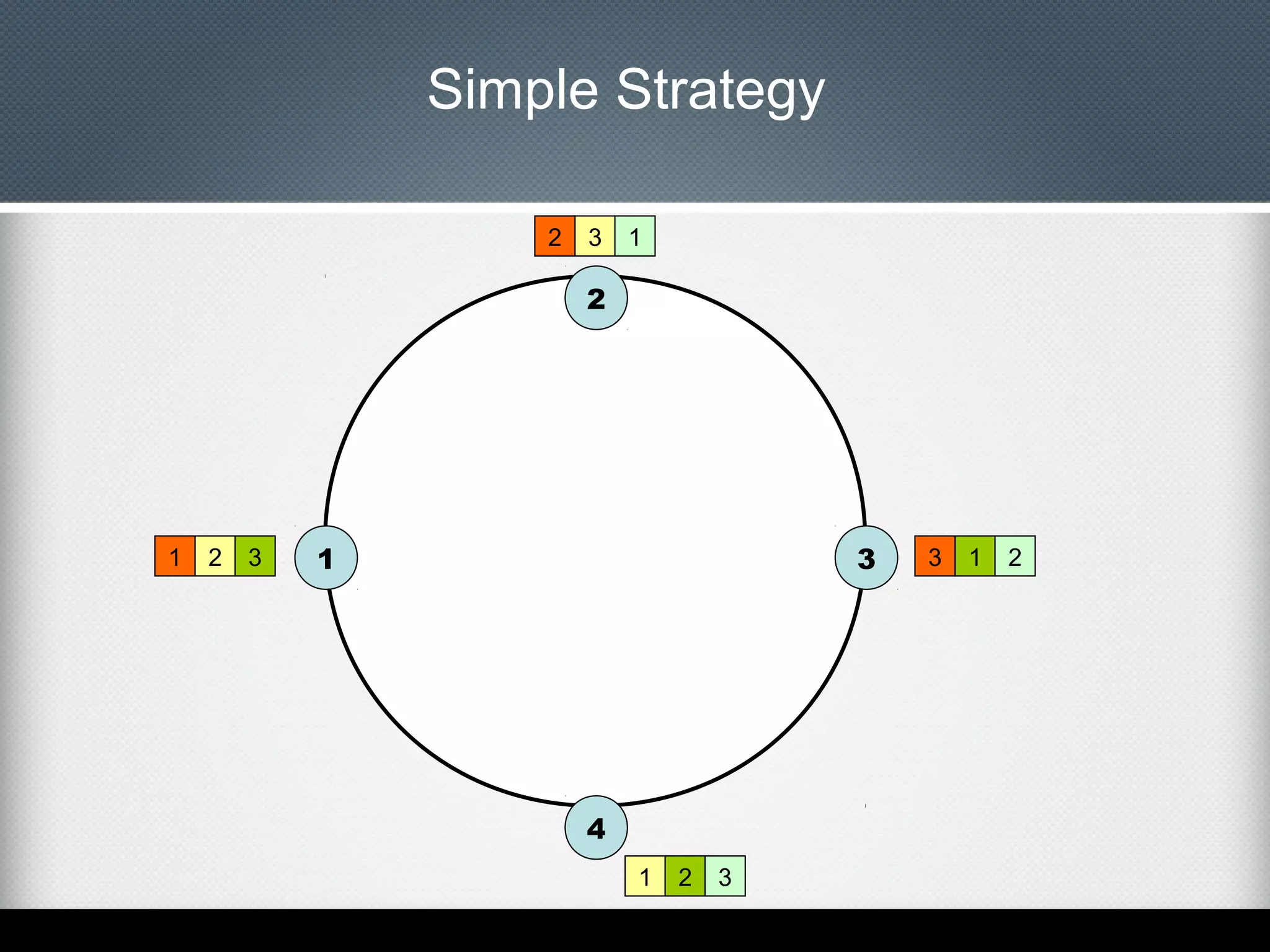

- 55. Simple Strategy • • • For singledata center clusters First replica on a node determined by a partitioner Additional replicas are placed on the next nodes clockwise in the ring
- 56.

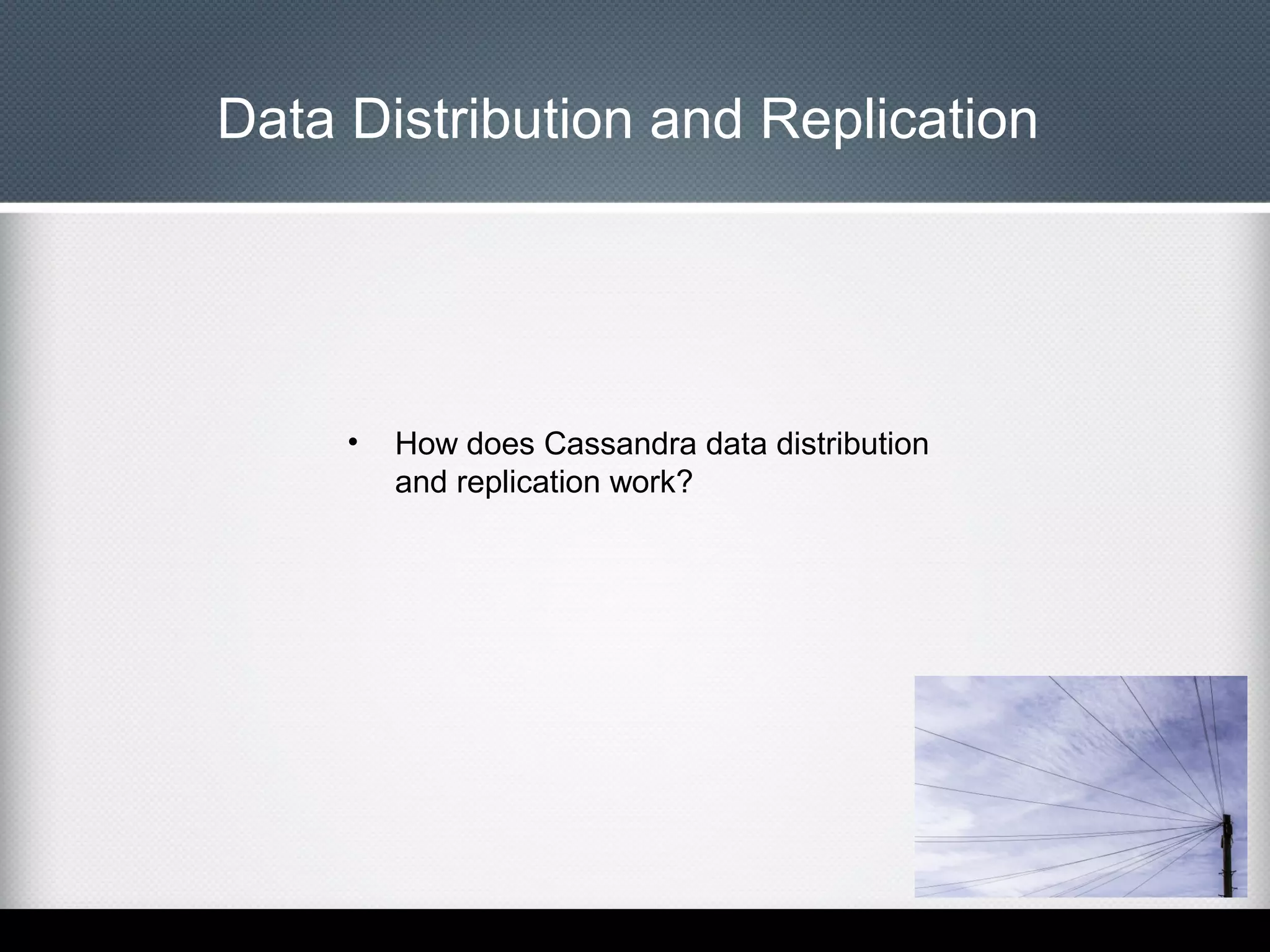

- 57. Data Distribution andReplication • How does Cassandra data distribution and replication work?
- 58.
- 59.

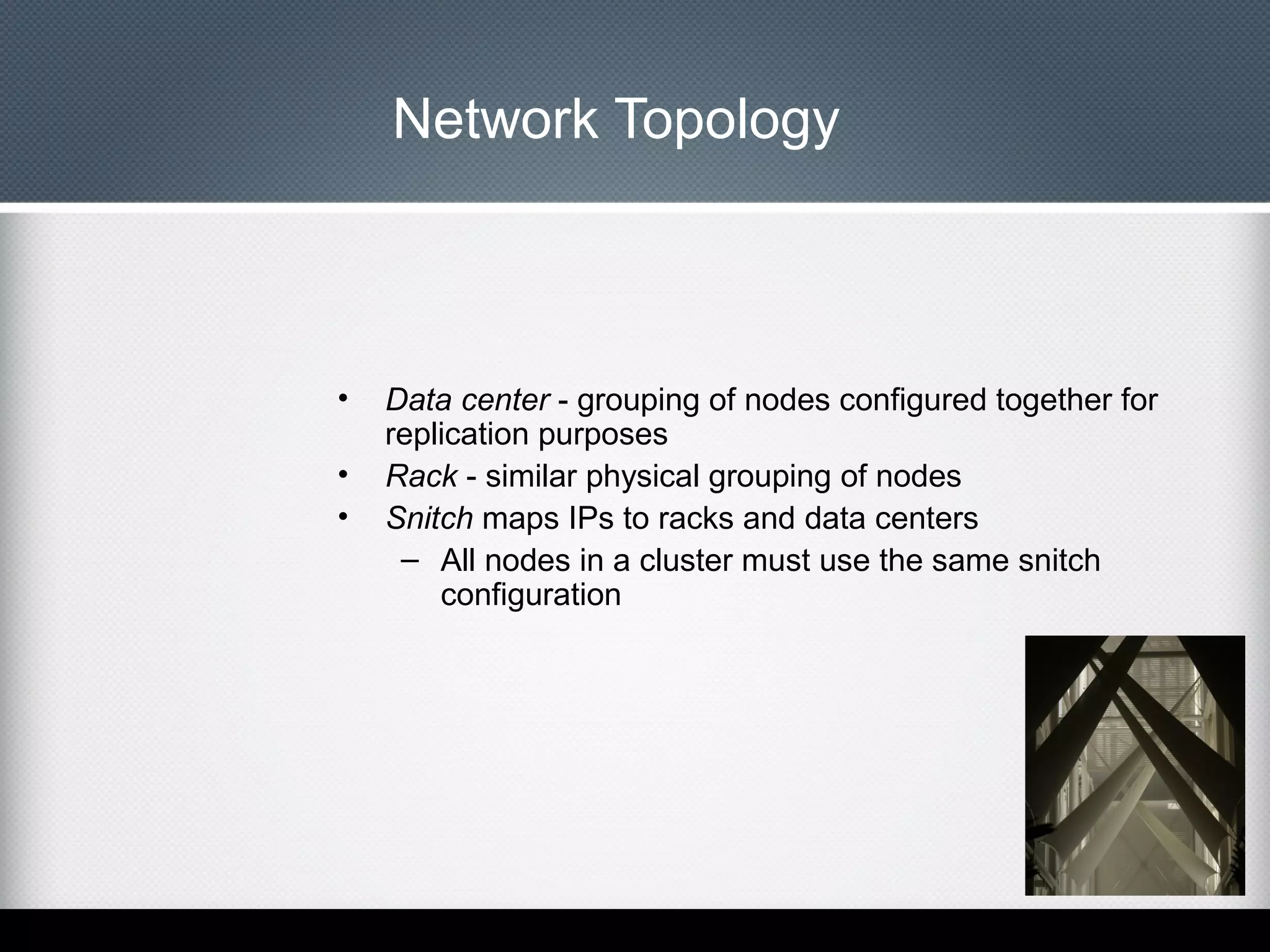

- 60. Network Topology • • • Data center- grouping of nodes configured together for replication purposes Rack - similar physical grouping of nodes Snitch maps IPs to racks and data centers – All nodes in a cluster must use the same snitch configuration

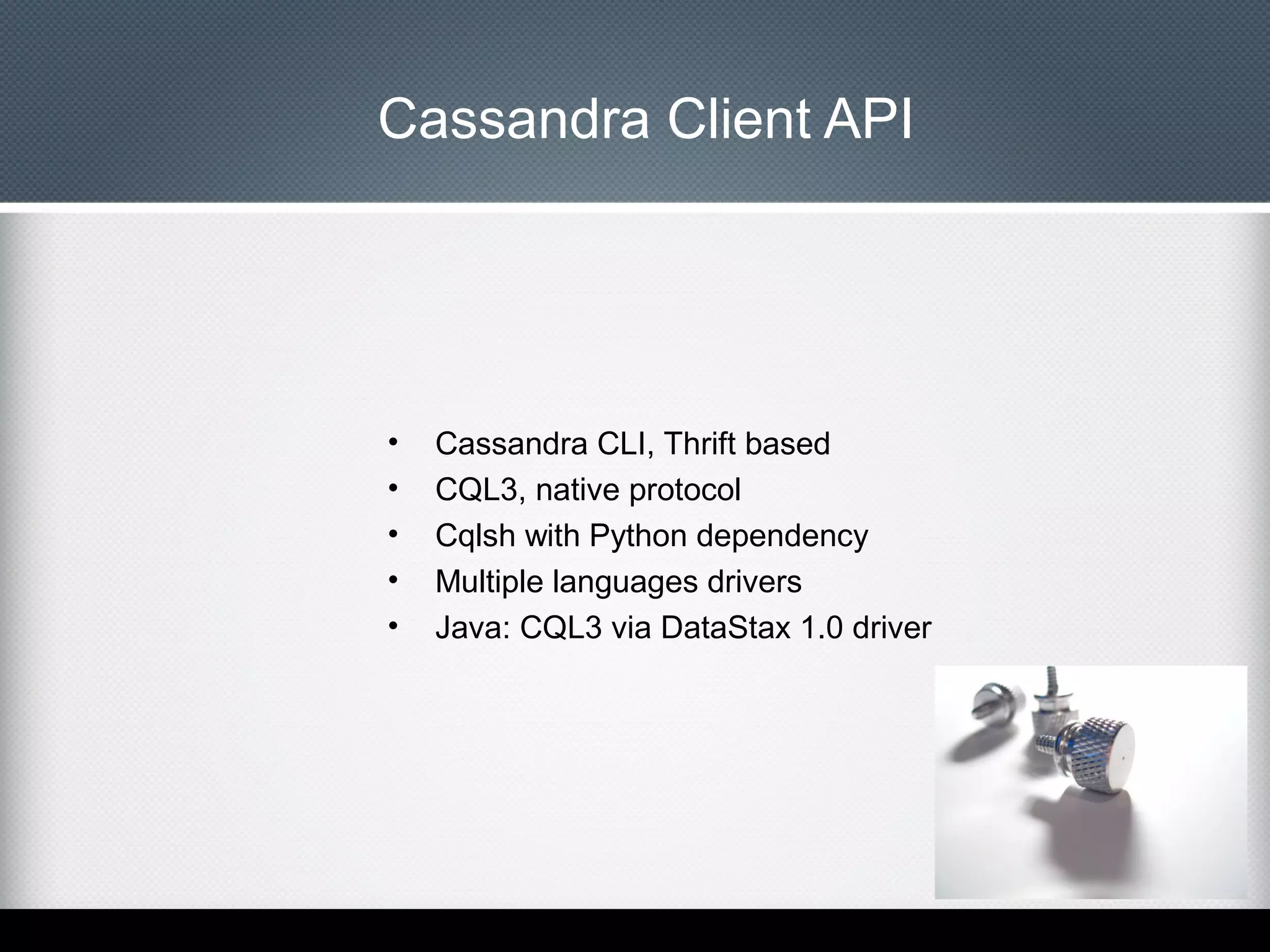

- 61. Cassandra Client API • • • • • CassandraCLI, Thrift based CQL3, native protocol Cqlsh with Python dependency Multiple languages drivers Java: CQL3 via DataStax 1.0 driver

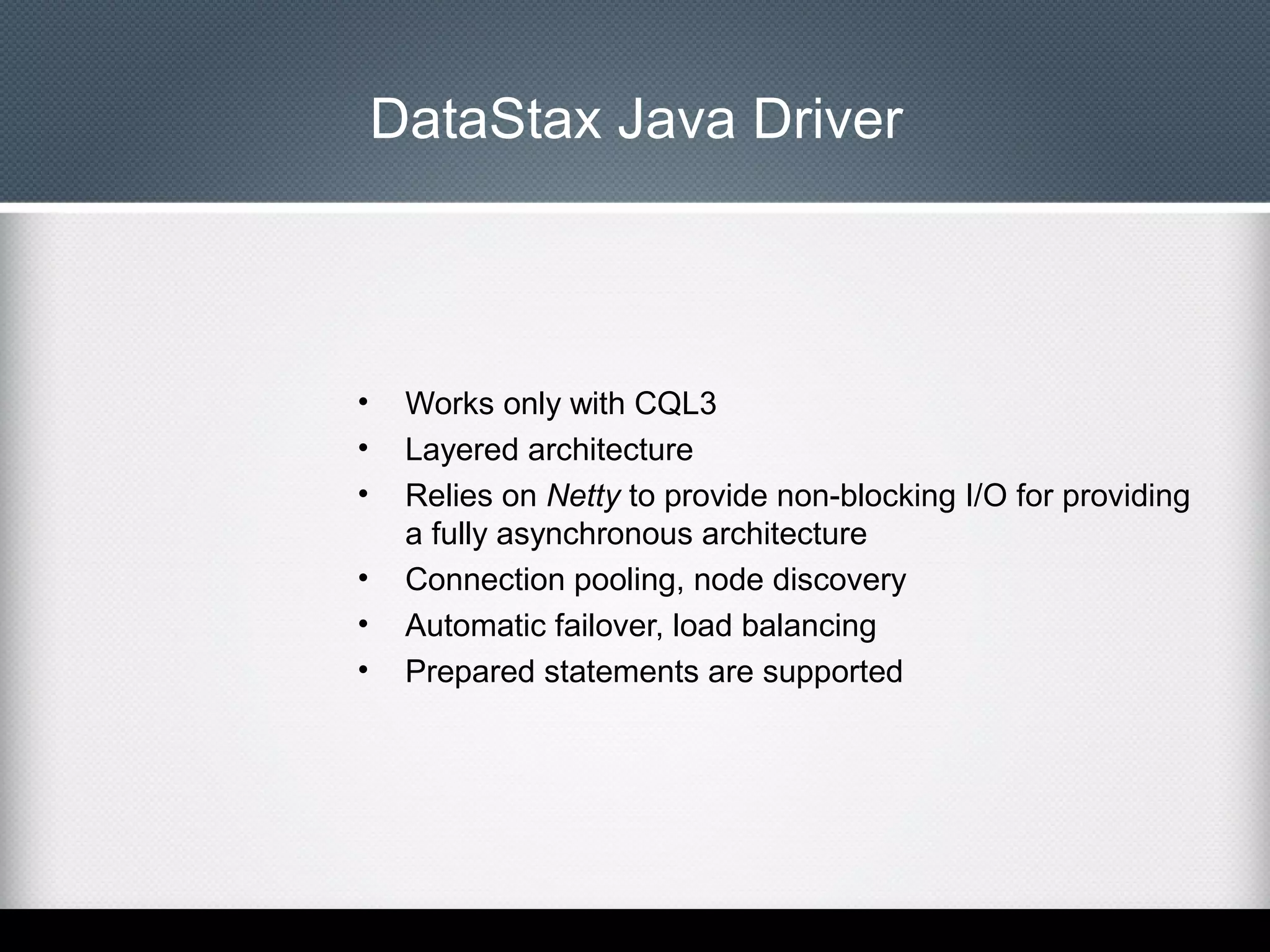

- 62. DataStax Java Driver • • • • • • Worksonly with CQL3 Layered architecture Relies on Netty to provide non-blocking I/O for providing a fully asynchronous architecture Connection pooling, node discovery Automatic failover, load balancing Prepared statements are supported
- 63.

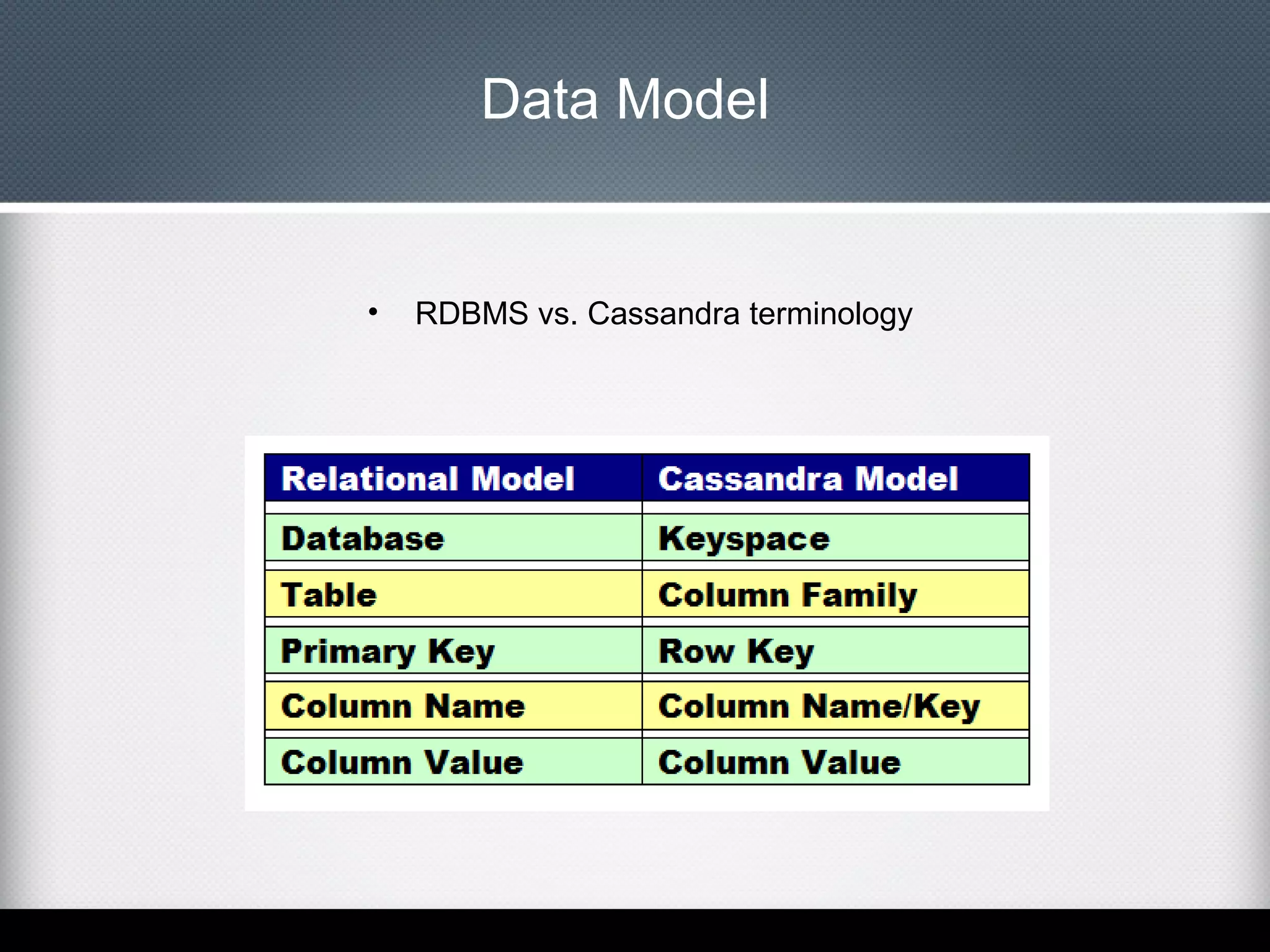

- 64. Data Model • RDBMS vs.Cassandra terminology

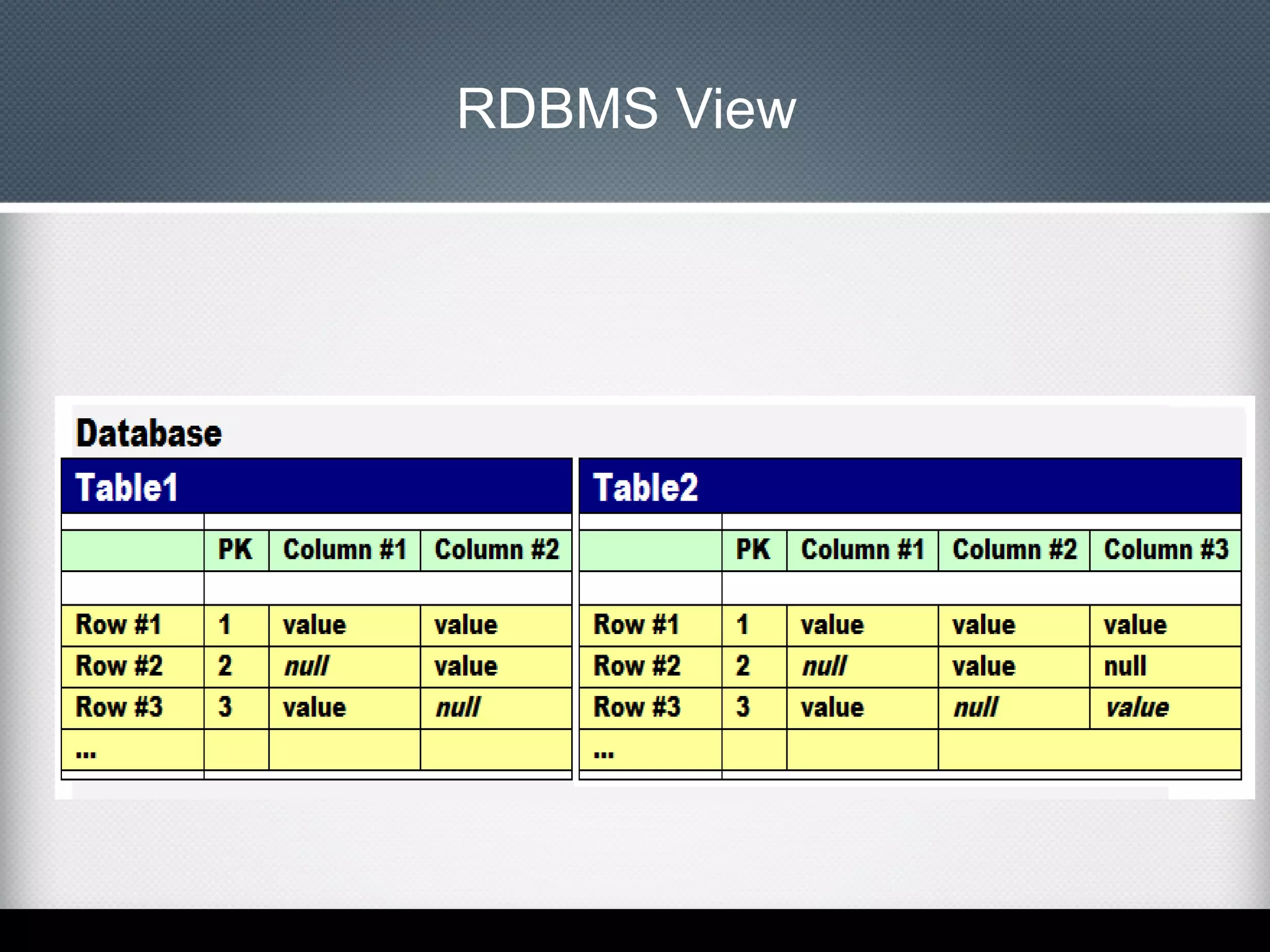

- 65.
- 66.

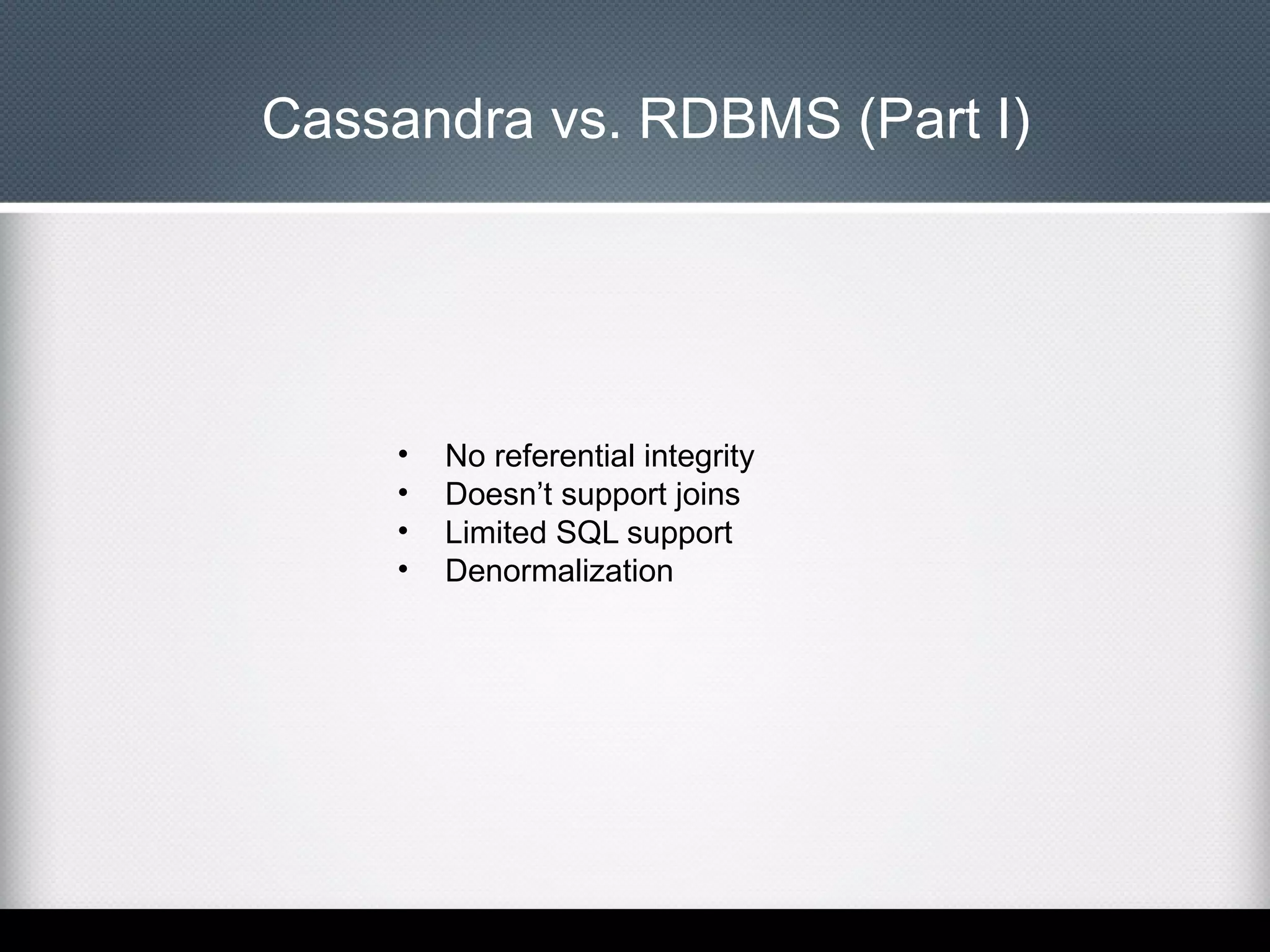

- 67. Cassandra vs. RDBMS(Part I) • • • • No referential integrity Doesn’t support joins Limited SQL support Denormalization

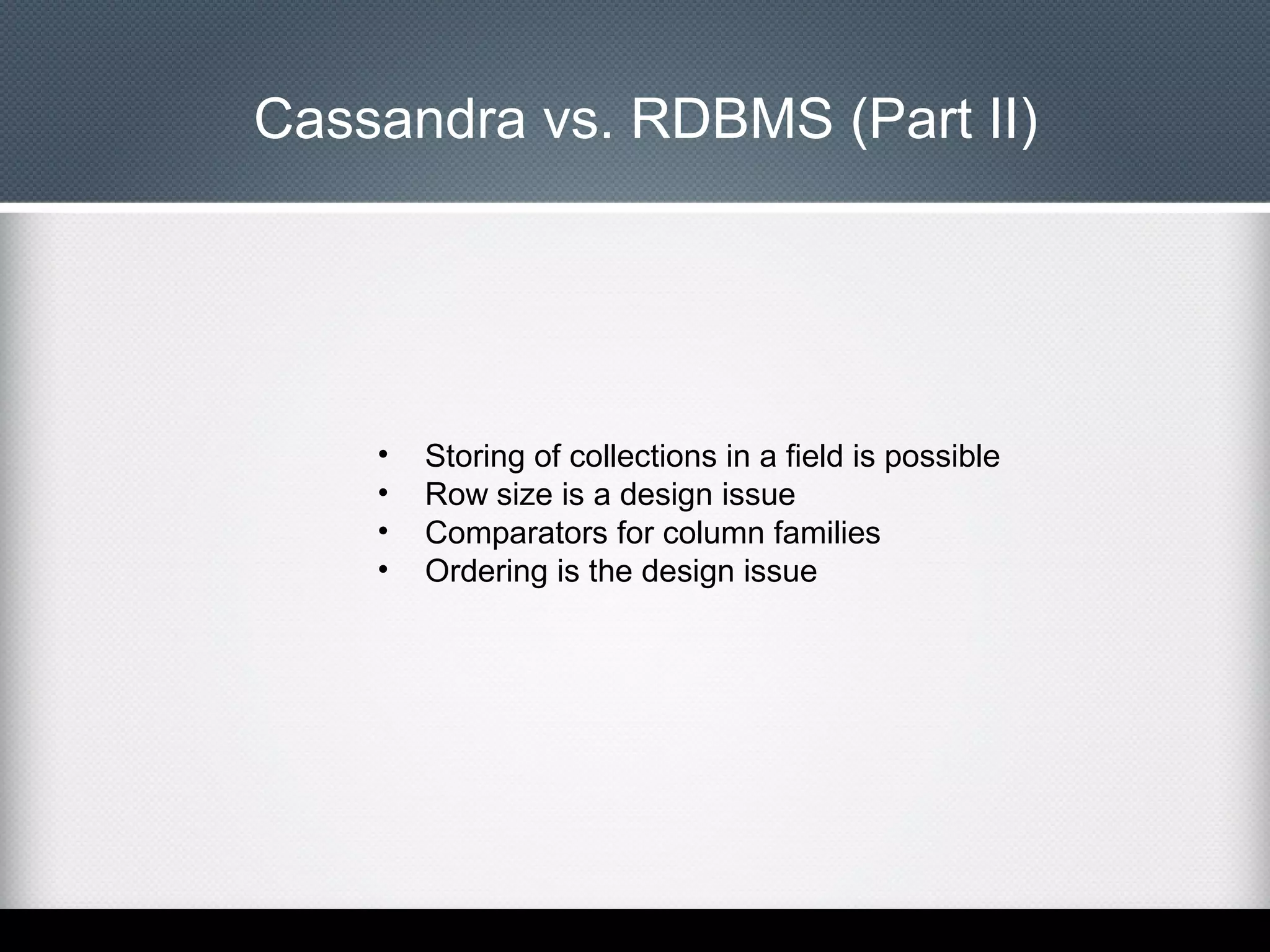

- 68. Cassandra vs. RDBMS(Part II) • • • • Storing of collections in a field is possible Row size is a design issue Comparators for column families Ordering is the design issue
- 69.

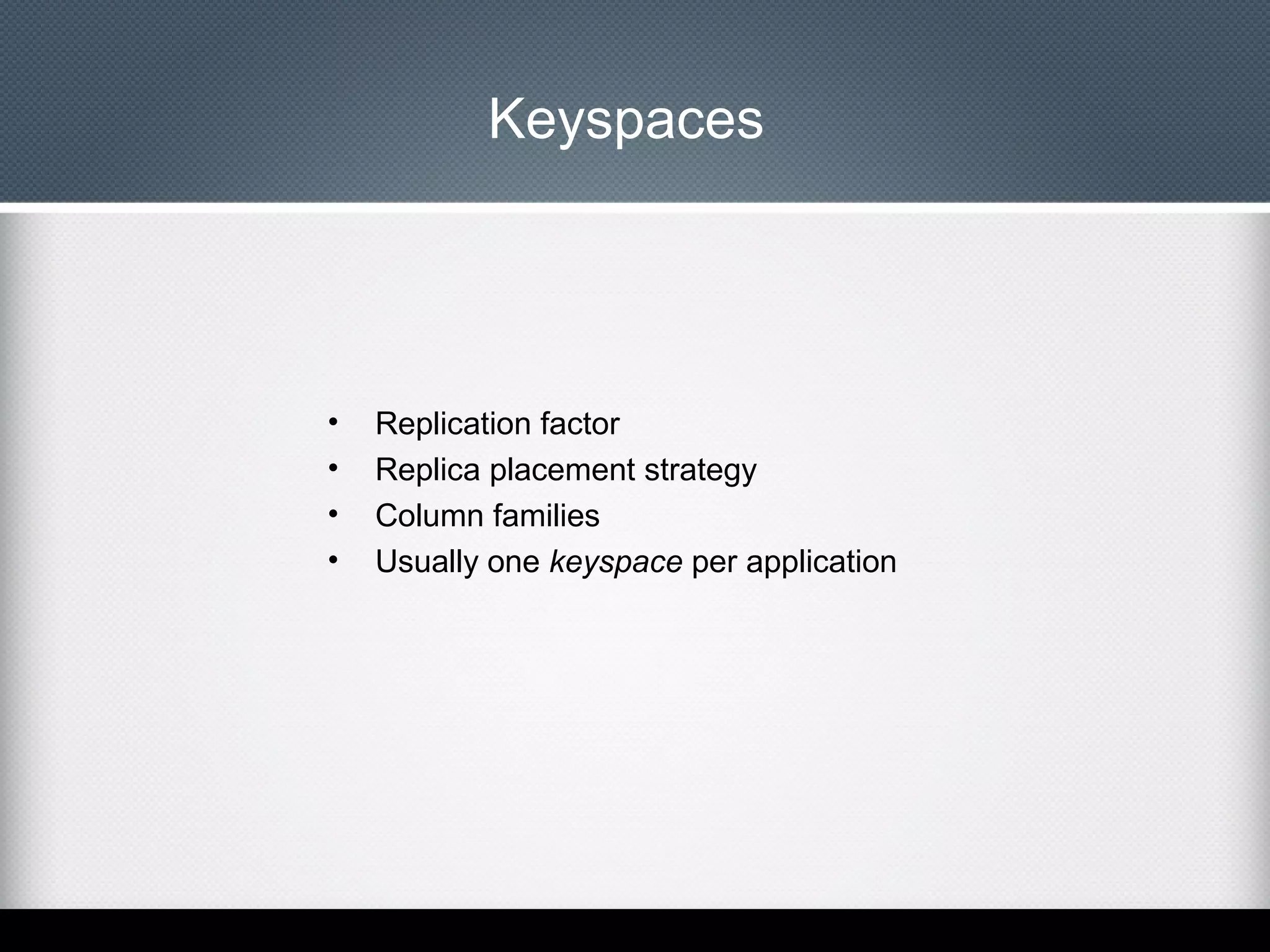

- 70. Keyspaces • • • • Replication factor Replica placementstrategy Column families Usually one keyspace per application

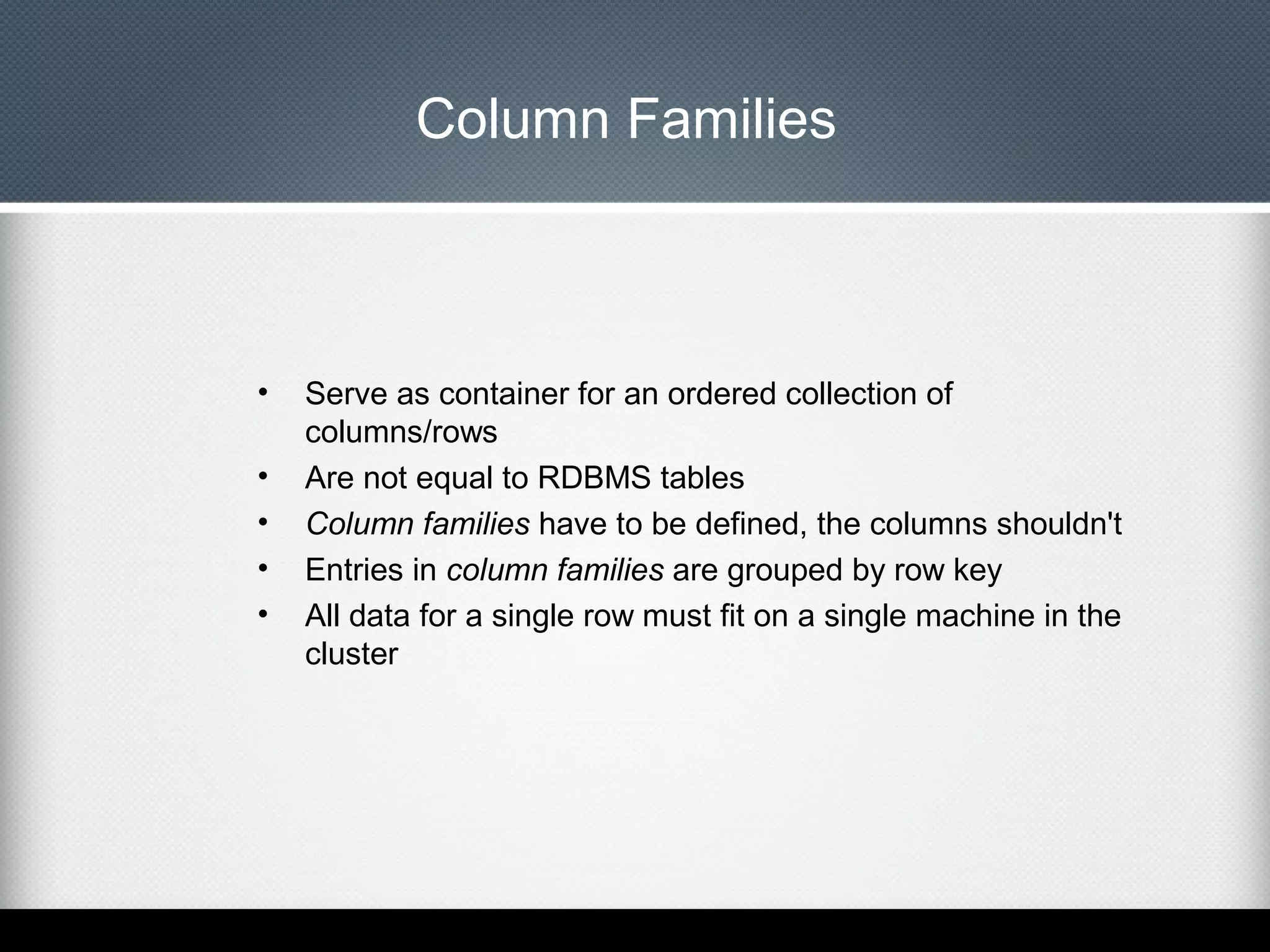

- 71. Column Families • • • • • Serve ascontainer for an ordered collection of columns/rows Are not equal to RDBMS tables Column families have to be defined, the columns shouldn't Entries in column families are grouped by row key All data for a single row must fit on a single machine in the cluster
- 72.

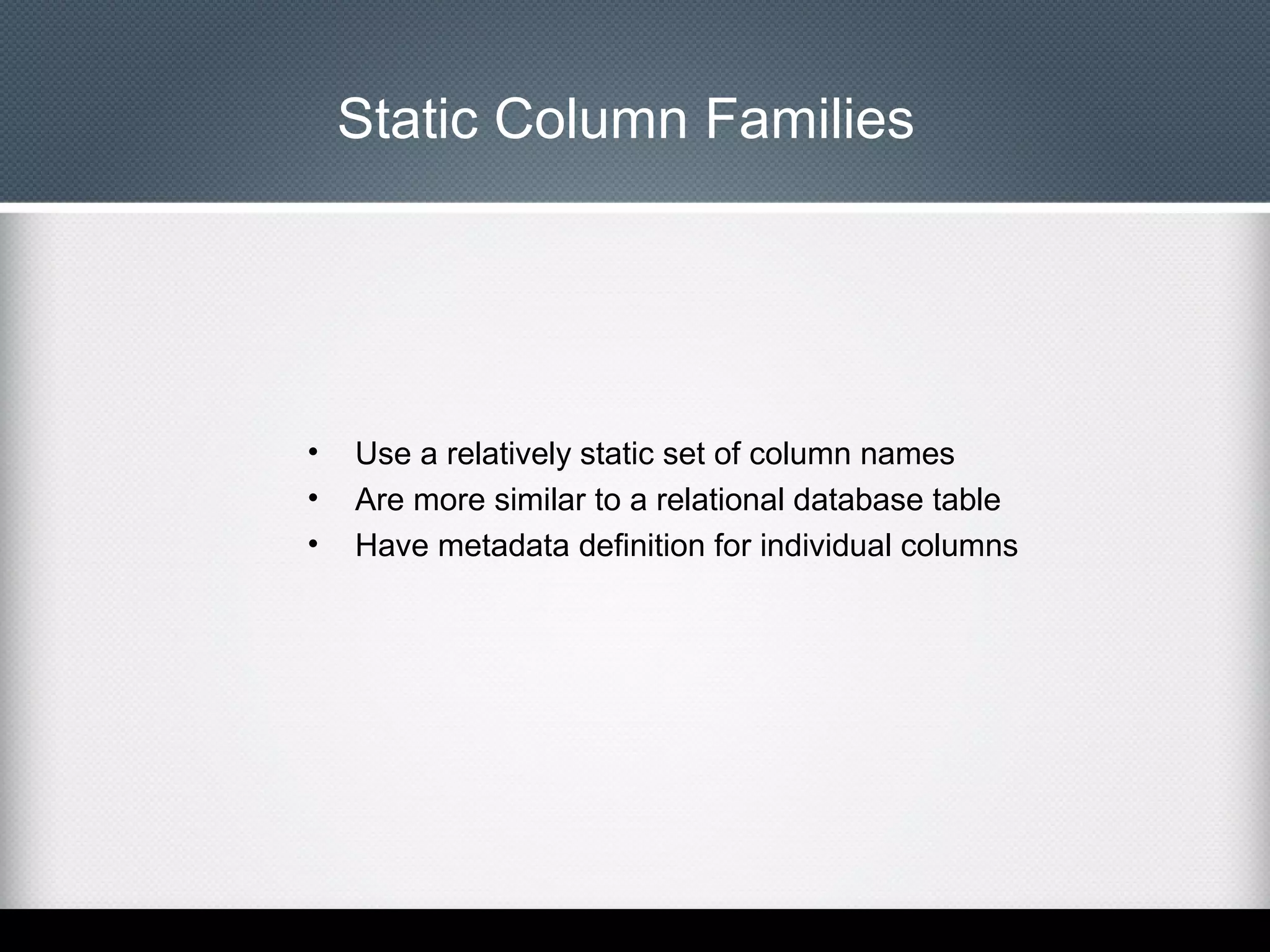

- 73. Static Column Families • • • Usea relatively static set of column names Are more similar to a relational database table Have metadata definition for individual columns

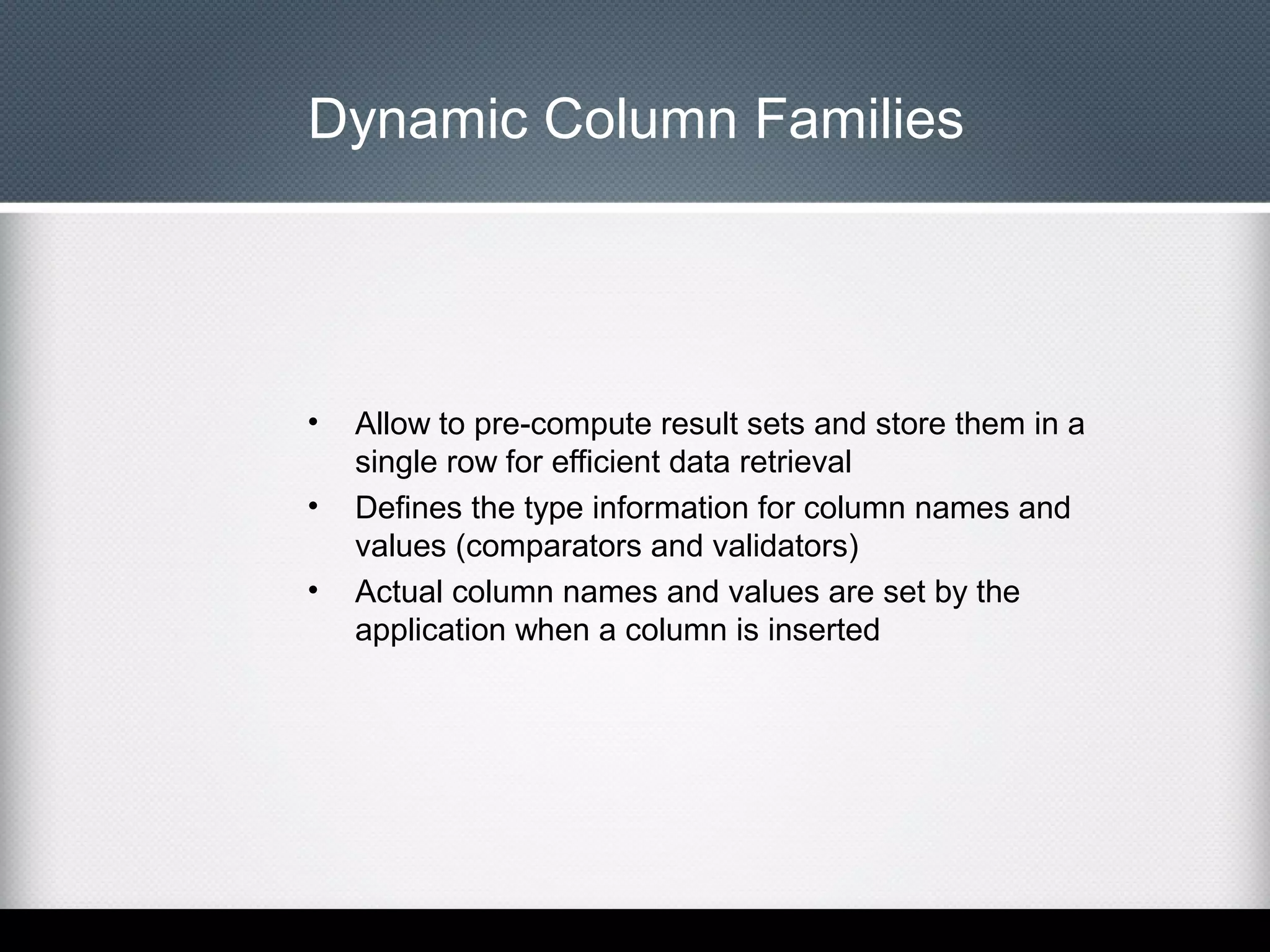

- 74. Dynamic Column Families • • • Allowto pre-compute result sets and store them in a single row for efficient data retrieval Defines the type information for column names and values (comparators and validators) Actual column names and values are set by the application when a column is inserted

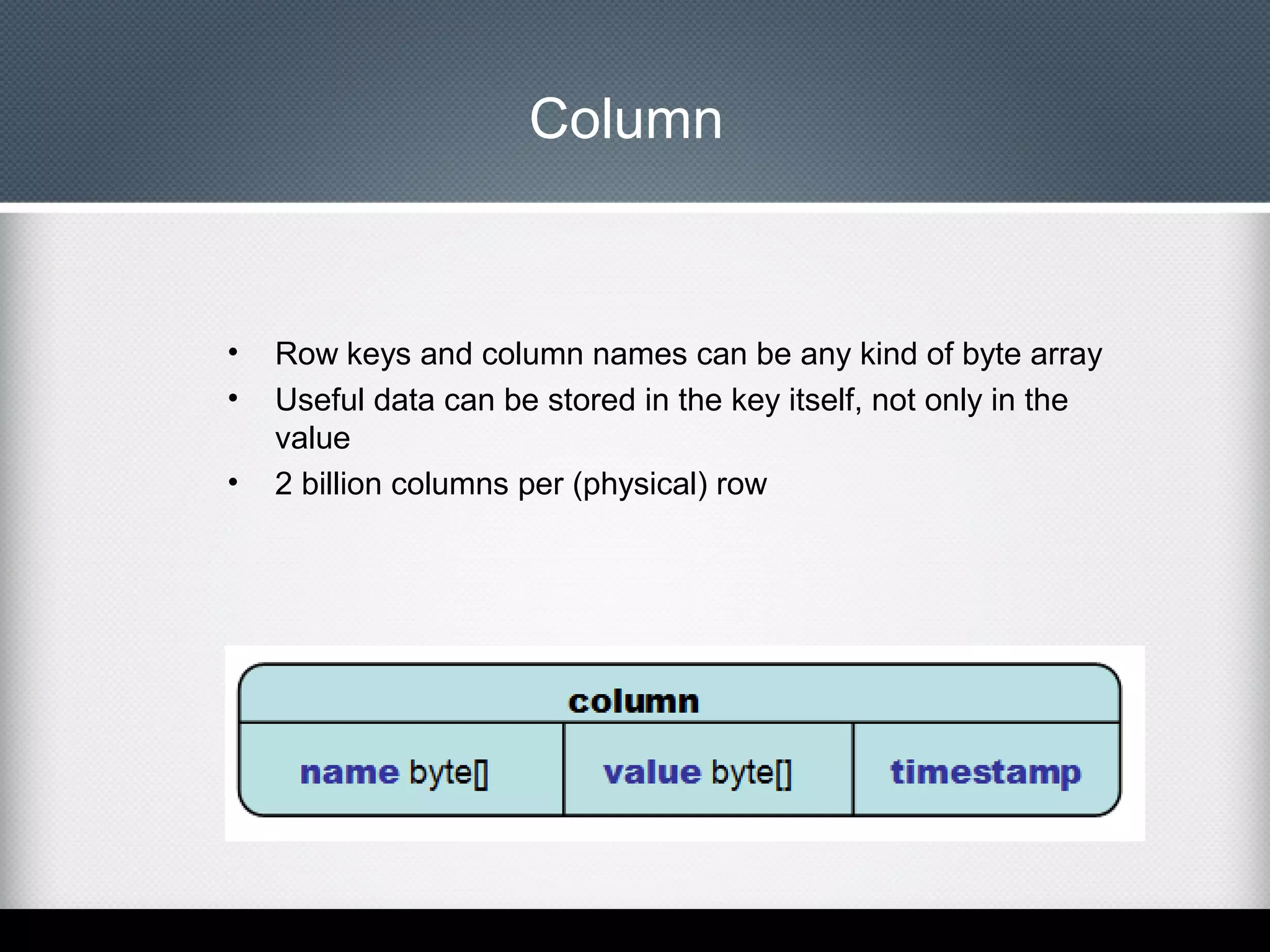

- 75. Column • • • Row keys andcolumn names can be any kind of byte array Useful data can be stored in the key itself, not only in the value 2 billion columns per (physical) row
- 76.

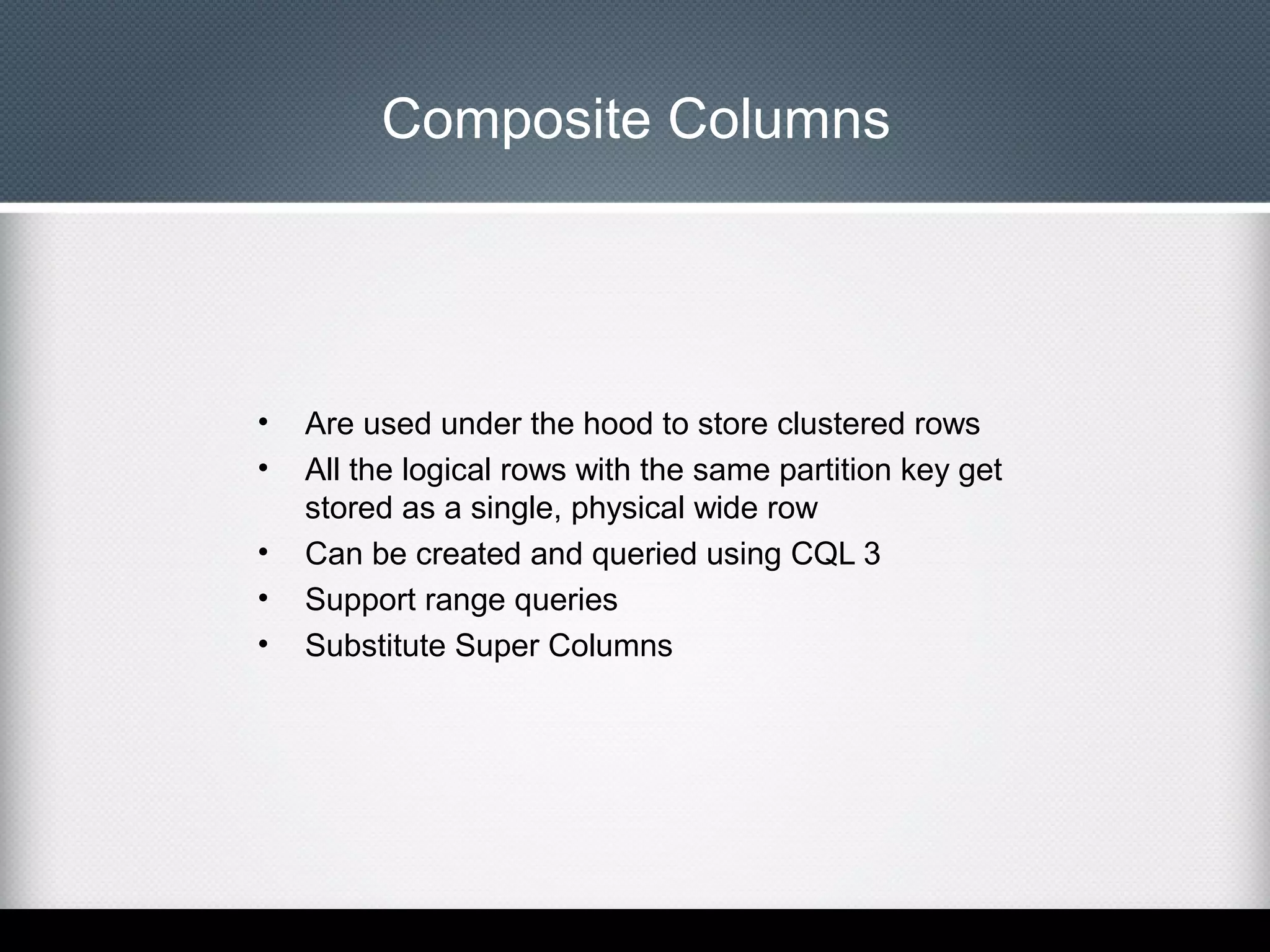

- 77. Composite Columns • • • • • Are usedunder the hood to store clustered rows All the logical rows with the same partition key get stored as a single, physical wide row Can be created and queried using CQL 3 Support range queries Substitute Super Columns

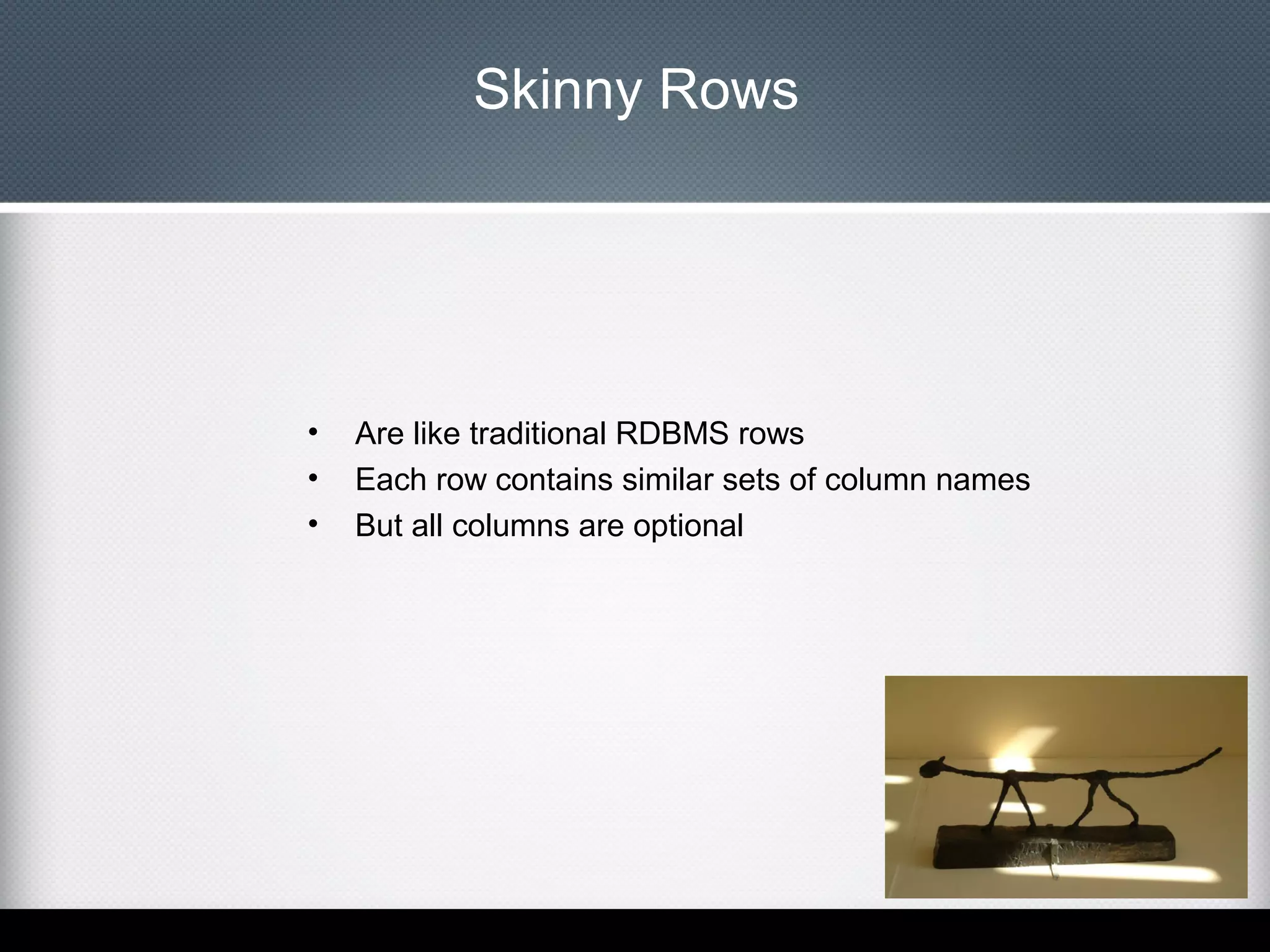

- 78. Skinny Rows • • • Are liketraditional RDBMS rows Each row contains similar sets of column names But all columns are optional

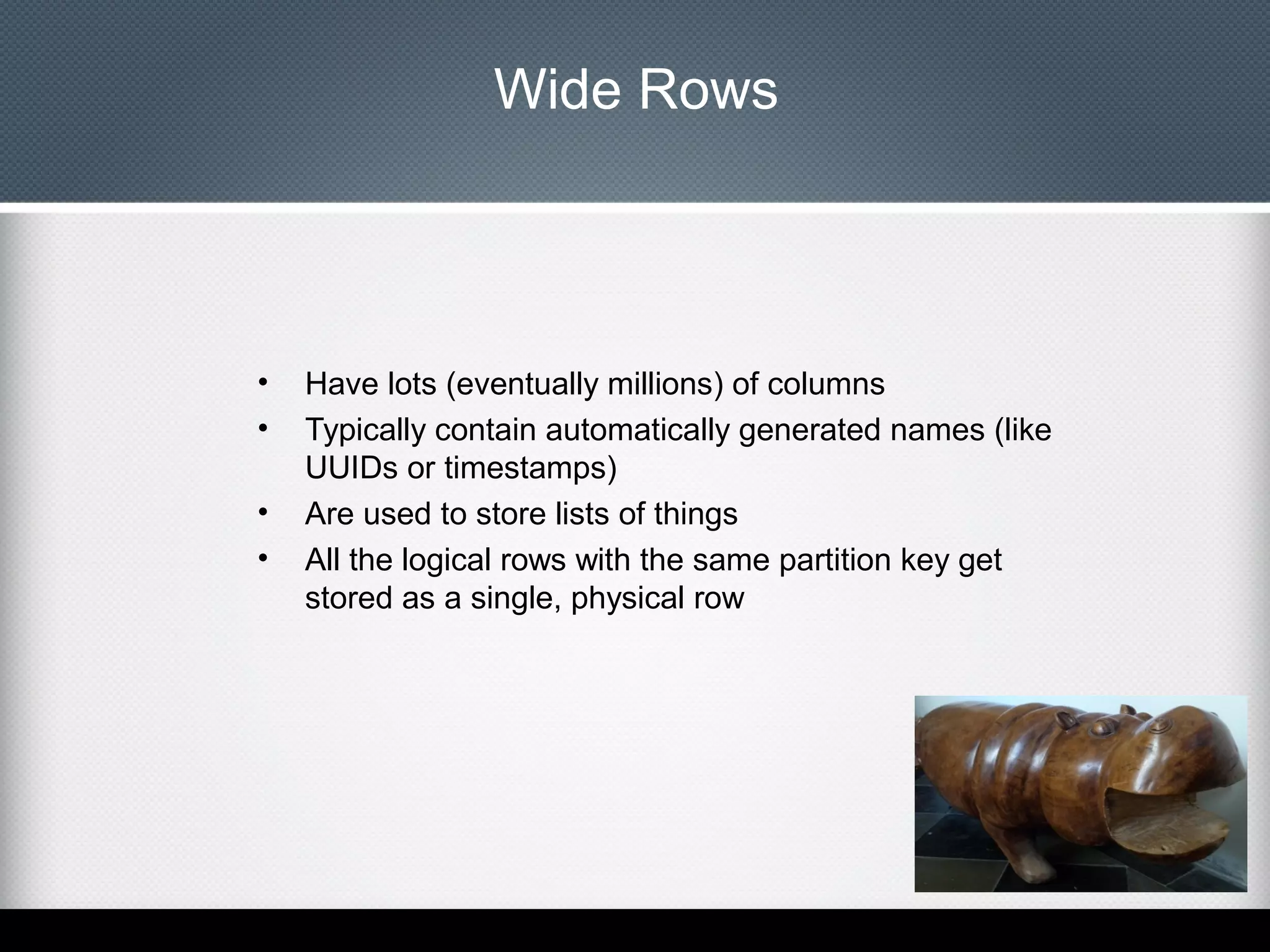

- 79. Wide Rows • • • • Have lots(eventually millions) of columns Typically contain automatically generated names (like UUIDs or timestamps) Are used to store lists of things All the logical rows with the same partition key get stored as a single, physical row
- 80.

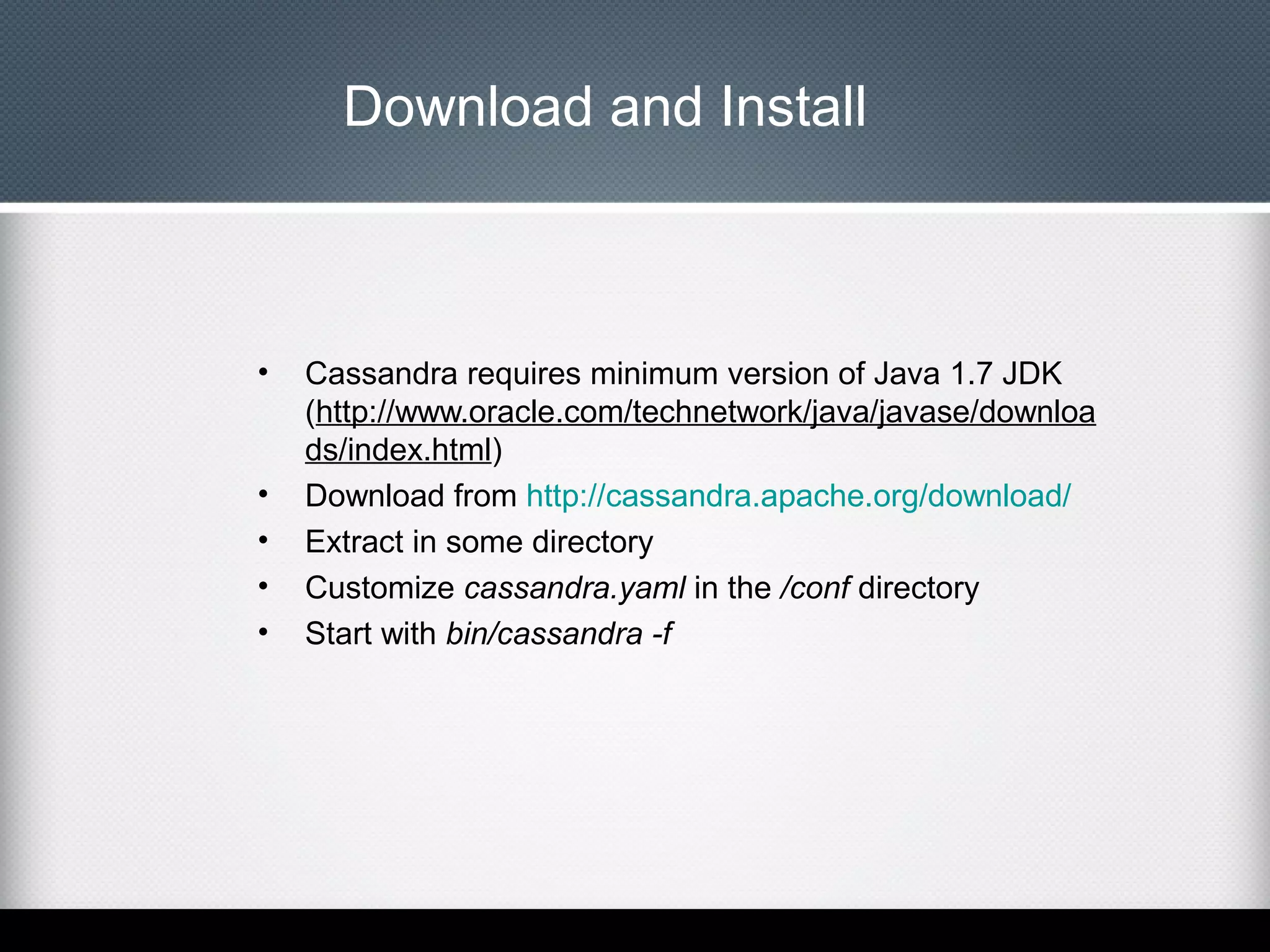

- 81. Download and Install • • • • • Cassandrarequires minimum version of Java 1.7 JDK (http://www.oracle.com/technetwork/java/javase/downloa ds/index.html) Download from http://cassandra.apache.org/download/ Extract in some directory Customize cassandra.yaml in the /conf directory Start with bin/cassandra -f

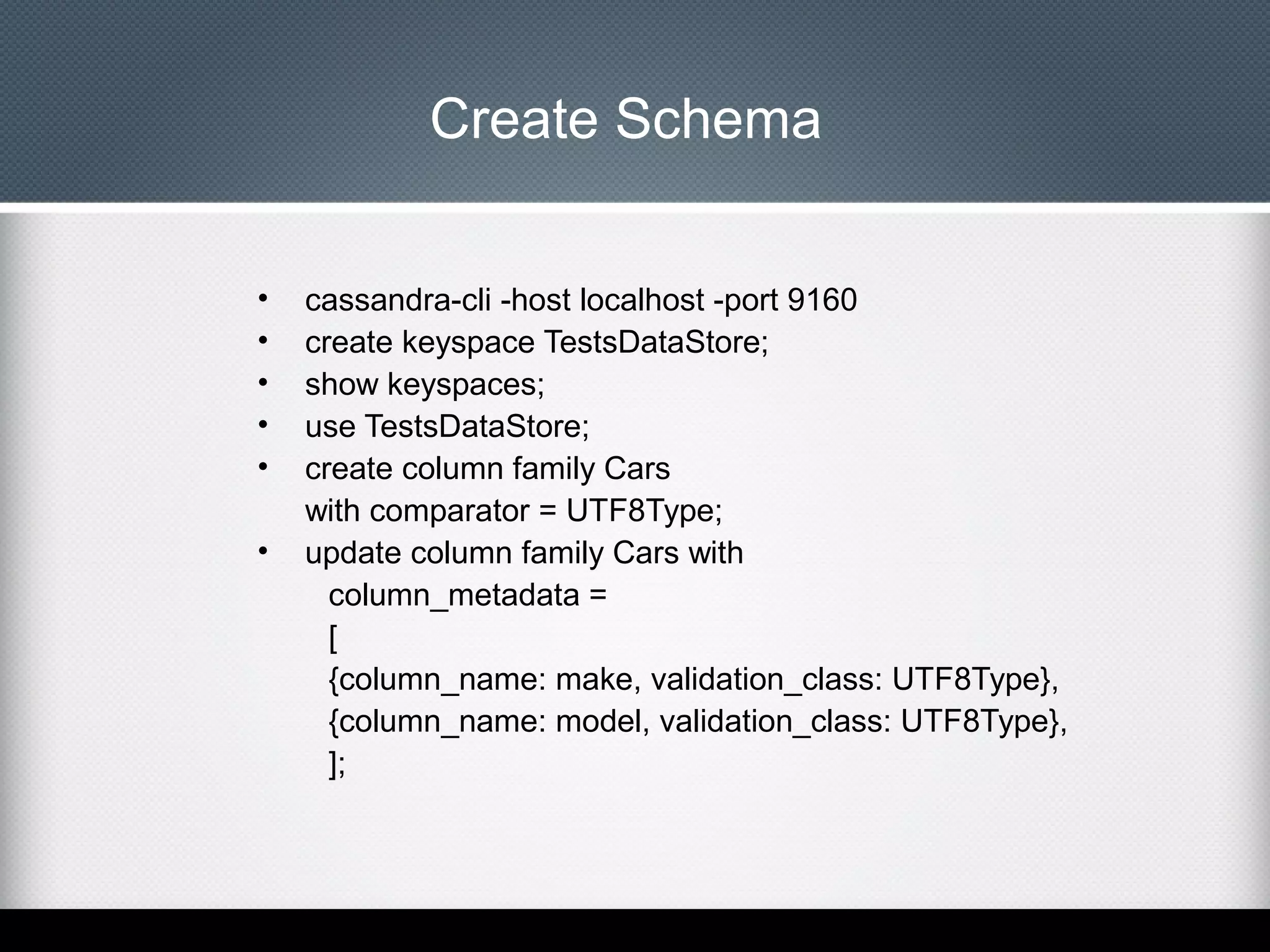

- 82. Create Schema • • • • • • cassandra-cli -hostlocalhost -port 9160 create keyspace TestsDataStore; show keyspaces; use TestsDataStore; create column family Cars with comparator = UTF8Type; update column family Cars with column_metadata = [ {column_name: make, validation_class: UTF8Type}, {column_name: model, validation_class: UTF8Type}, ];

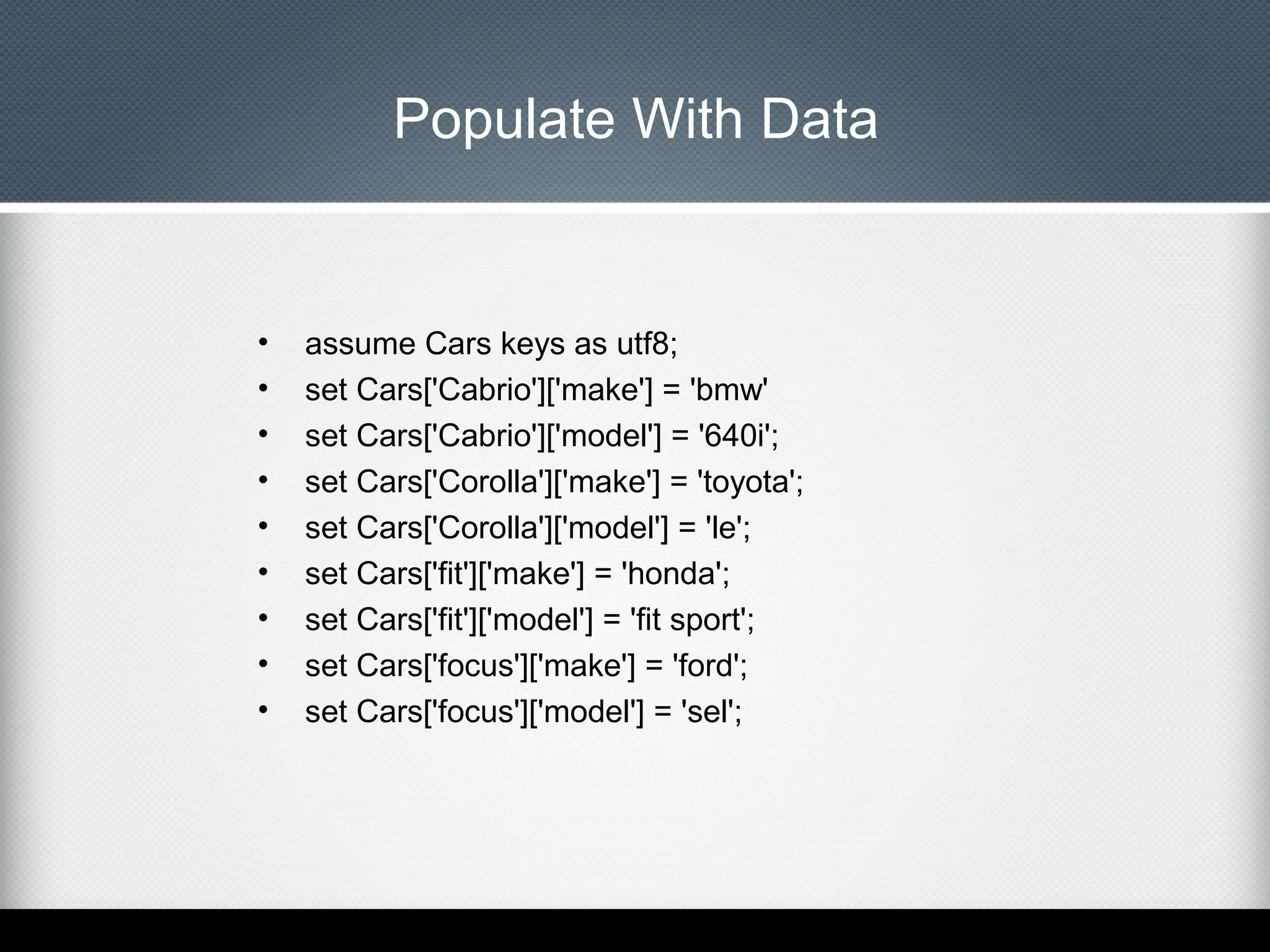

- 83. Populate With Data • • • • • • • • • assumeCars keys as utf8; set Cars['Cabrio']['make'] = 'bmw' set Cars['Cabrio']['model'] = '640i'; set Cars['Corolla']['make'] = 'toyota'; set Cars['Corolla']['model'] = 'le'; set Cars['fit']['make'] = 'honda'; set Cars['fit']['model'] = 'fit sport'; set Cars['focus']['make'] = 'ford'; set Cars['focus']['model'] = 'sel';

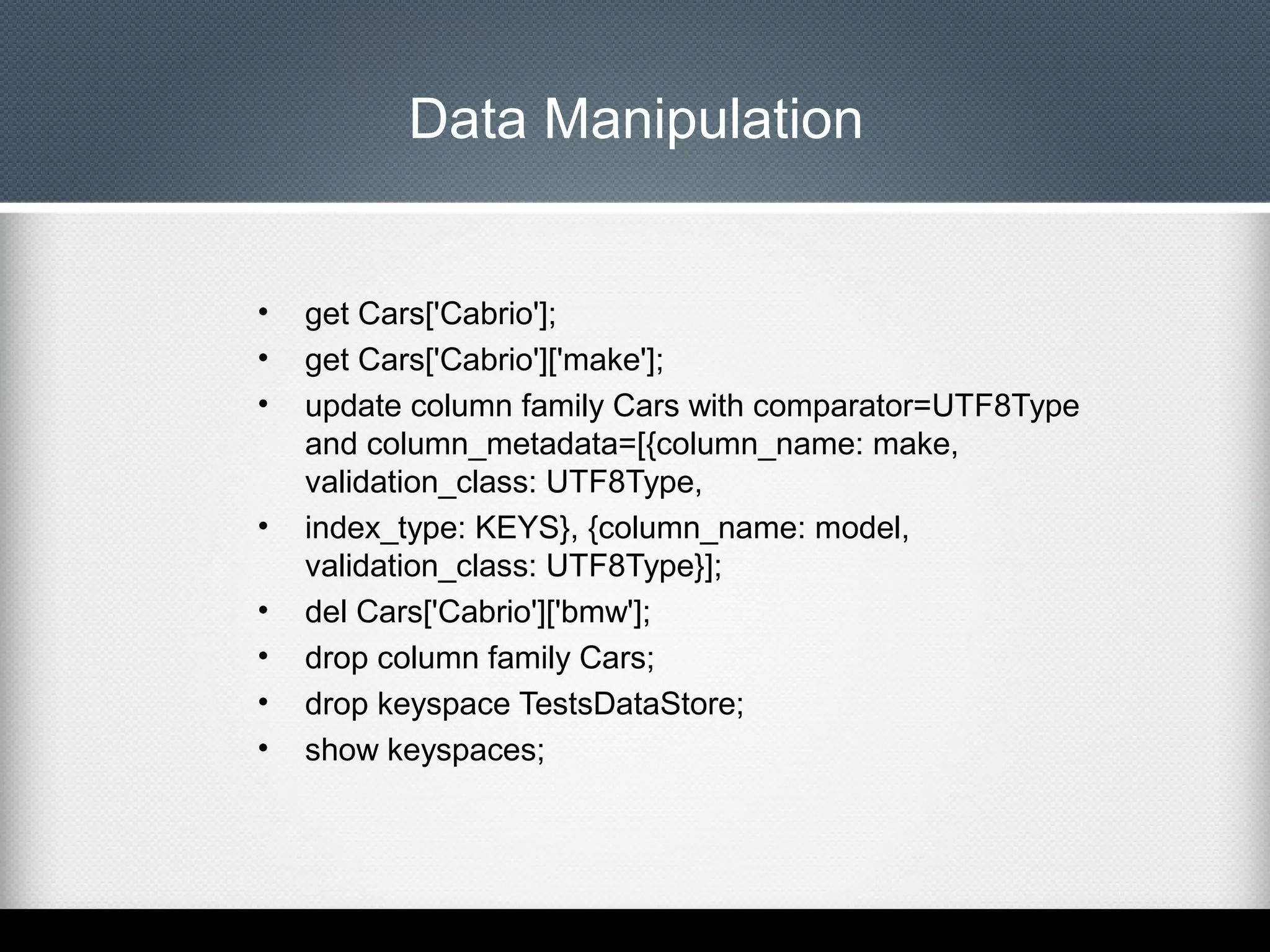

- 84. Data Manipulation • • • • • • • • get Cars['Cabrio']; getCars['Cabrio']['make']; update column family Cars with comparator=UTF8Type and column_metadata=[{column_name: make, validation_class: UTF8Type, index_type: KEYS}, {column_name: model, validation_class: UTF8Type}]; del Cars['Cabrio']['bmw']; drop column family Cars; drop keyspace TestsDataStore; show keyspaces;

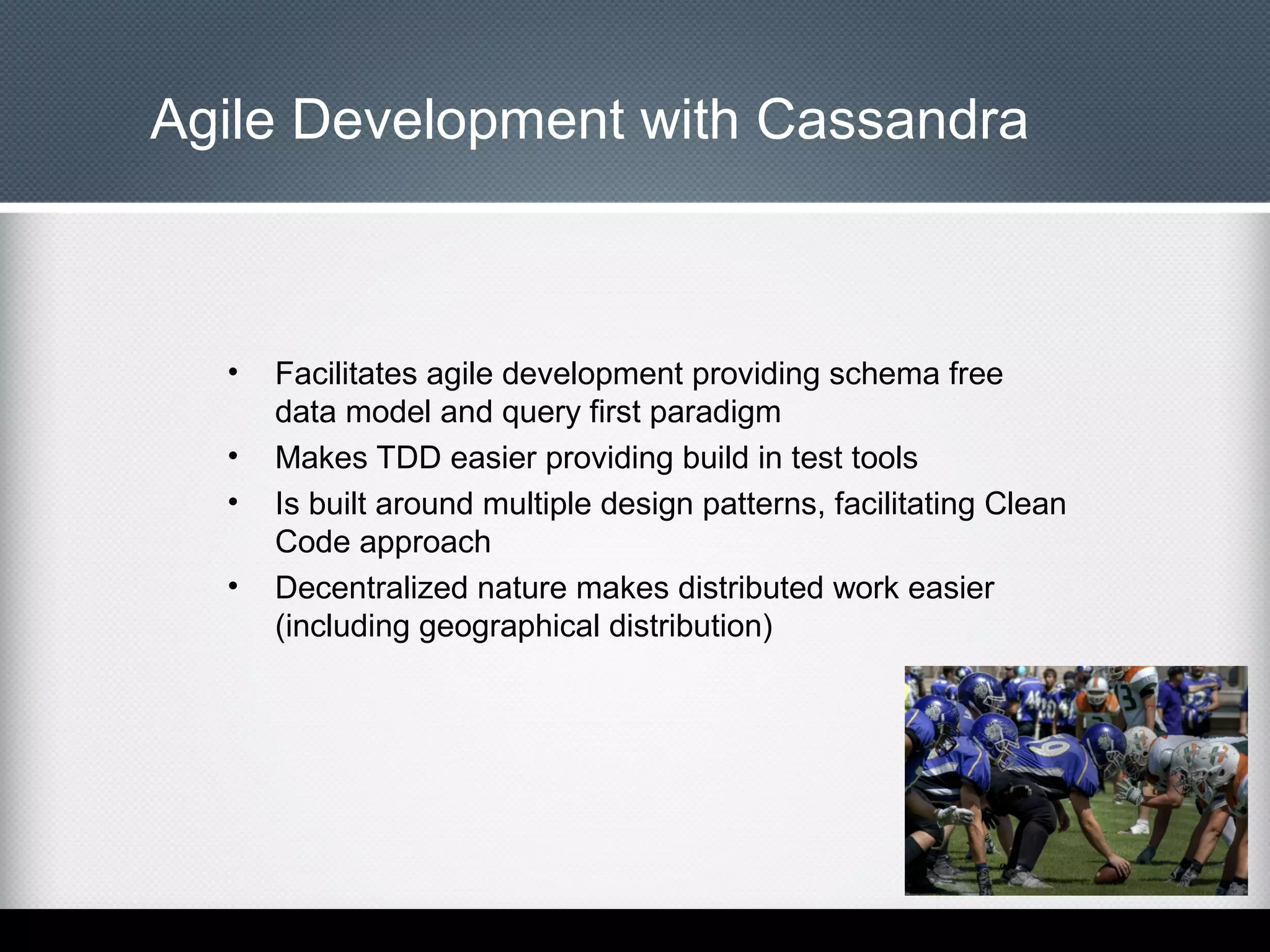

- 85. Agile Development withCassandra • • • • Facilitates agile development providing schema free data model and query first paradigm Makes TDD easier providing build in test tools Is built around multiple design patterns, facilitating Clean Code approach Decentralized nature makes distributed work easier (including geographical distribution)

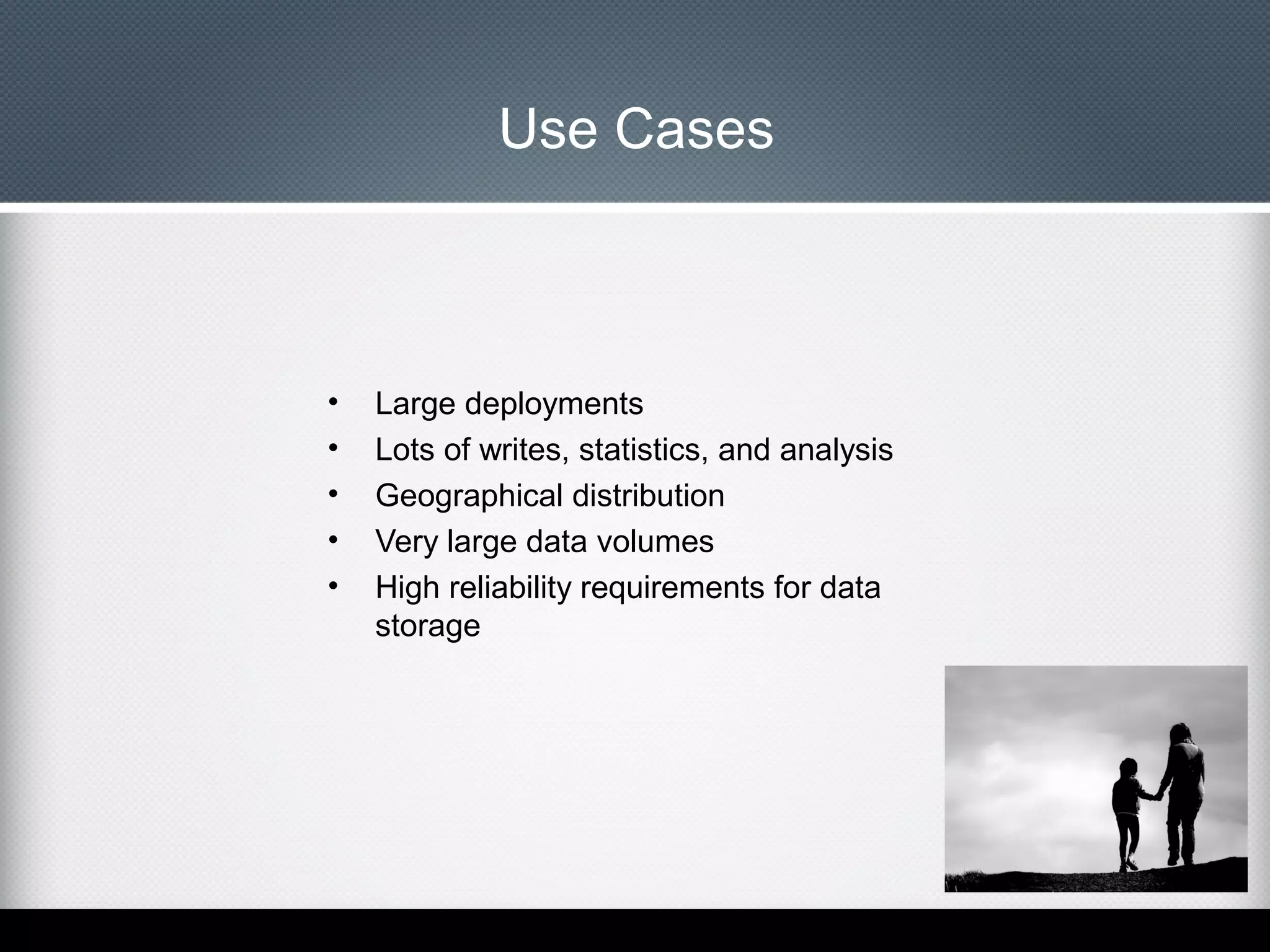

- 86. Use Cases • • • • • Large deployments Lotsof writes, statistics, and analysis Geographical distribution Very large data volumes High reliability requirements for data storage
- 87.
