Adversarial Attacks and Defenses in Malware Classification: A Survey

Ilja Moisejevs
International Journal of Artificial Intelligence and Expert Systems (IJAE), Volume (8) : Issue (3) : 2019 31
Adversarial Attacks and Defenses in Malware Classification: A
Survey
Ilja Moisejevs iljamoisejevs@gmail.com
Calypso AI
2955 Campus Drive #110 San Mateo, CA 94403
Abstract
As malware continues to grow more sophisticated and more plentiful – traditional signature and
heuristics-based defenses no longer cut it. Instead, the industry has recently turned to using
machine learning for malicious file detection. The challenge with this approach is that machine
learning itself comes with vulnerabilities – and if left unattended presents a new attack surface for
attackers to exploit.
In this paper we present a survey of research in the area of machine learning-based malware
classifiers, the attacks they encounter, and the defensive measures available. We start by
reviewing recent advances in malware classification, including the most important works using
deep learning. We then discuss in detail the field of adversarial machine learning and conduct an
exhaustive review of adversarial attacks and defenses in the field of malware classification.
Keywords: Machine Learning, Malware Classification, Adversarial Attacks, Evasion Attacks.
1. INTRODUCTION
In computer security, the detection of malware continues to be of paramount importance.
Traditional approaches have relied heavily on signatures and heuristics to spot malicious files,
however, there is increasing recognition in the community that these defenses are too easy to
evade and don’t scale very well. Instead there seems to be a tectonic shift happening towards
using machine learning [1], [2], [3].
First attempts at applying machine learning to malware made use of traditional feature
engineering [4], [5], [6], however, more recent works attemptedthe more advanced, end-to-end
deep learning techniques [1], [7], [8], [9]. For example, [7] developed MalConv, a pioneering
neural network solution able to ingest historically unprecedented byte sequences (over 2 million
steps), [8] developed an artificial neural network focused on the header of portable executable
(PE) files and [9] examined the role of spatial and temporal biases in deep learning based
approaches.
Despite all the successes in applying machine learning to malware, however, it is a well-known
fact that adaptive adversaries can evade detection through adversarial attacks. Attacks come in
different shapes, with some leveraging model’s gradients [12], [10], others using the model as an
oracle [13], [14], [15], and others still relying on nothing more than random perturbations [1], [10].
In response to such attacks, a number of defense tactics have emerged. These include
information hiding [12], [16], [17], regularization to prevent overfitting [19], feature selection [19],
[20], [21], [22], [23], [24], [25], [26], [27], adversarial training [11], [14], [19], [20], [28], [29], the use
of non-linear kernel functions (for algorithms such as Support Vector Machines) [30], distillation
[20], [31], [32], and more [20], [32], [33].

Ilja Moisejevs
The motivation for this paper is to review the various adversarial attack and defense methods as
applied to malware classification. To the best of our knowledge, this is the first work to undertake
such a survey.

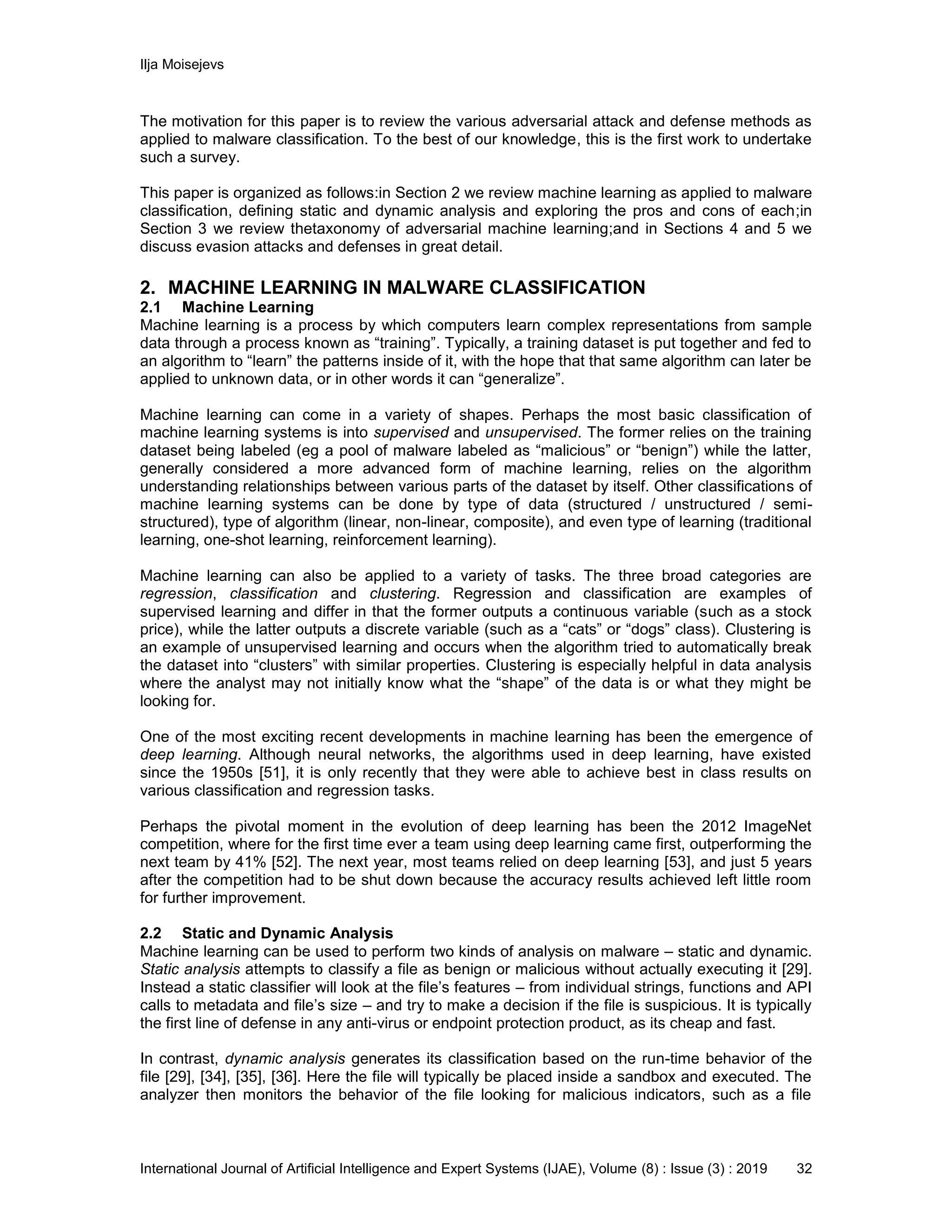

This paper is organized as follows:in Section 2 we review machine learning as applied to malware
classification, defining static and dynamic analysis and exploring the pros and cons of each;in
Section 3 we review thetaxonomy of adversarial machine learning;and in Sections 4 and 5 we
discuss evasion attacks and defenses in great detail.
2. MACHINE LEARNING IN MALWARE CLASSIFICATION
2.1 Machine Learning
Machine learning is a process by which computers learn complex representations from sample
data through a process known as “training”. Typically, a training dataset is put together and fed to
an algorithm to “learn” the patterns inside of it, with the hope that that same algorithm can later be
applied to unknown data, or in other words it can “generalize”.
Machine learning can come in a variety of shapes. Perhaps the most basic classification of
machine learning systems is into supervised and unsupervised. The former relies on the training
dataset being labeled (eg a pool of malware labeled as “malicious” or “benign”) while the latter,
generally considered a more advanced form of machine learning, relies on the algorithm
understanding relationships between various parts of the dataset by itself. Other classifications of
machine learning systems can be done by type of data (structured / unstructured / semi-
structured), type of algorithm (linear, non-linear, composite), and even type of learning (traditional
learning, one-shot learning, reinforcement learning).
Machine learning can also be applied to a variety of tasks. The three broad categories are
regression, classification and clustering. Regression and classification are examples of
supervised learning and differ in that the former outputs a continuous variable (such as a stock
price), while the latter outputs a discrete variable (such as a “cats” or “dogs” class). Clustering is
an example of unsupervised learning and occurs when the algorithm tried to automatically break
the dataset into “clusters” with similar properties. Clustering is especially helpful in data analysis
where the analyst may not initially know what the “shape” of the data is or what they might be
looking for.
One of the most exciting recent developments in machine learning has been the emergence of
deep learning. Although neural networks, the algorithms used in deep learning, have existed
since the 1950s [51], it is only recently that they were able to achieve best in class results on
various classification and regression tasks.
Perhaps the pivotal moment in the evolution of deep learning has been the 2012 ImageNet
competition, where for the first time ever a team using deep learning came first, outperforming the
next team by 41% [52]. The next year, most teams relied on deep learning [53], and just 5 years
after the competition had to be shut down because the accuracy results achieved left little room
for further improvement.
2.2 Static and Dynamic Analysis
Machine learning can be used to perform two kinds of analysis on malware – static and dynamic.
Static analysis attempts to classify a file as benign or malicious without actually executing it [29].
Instead a static classifier will look at the file’s features – from individual strings, functions and API
calls to metadata and file’s size – and try to make a decision if the file is suspicious. It is typically
the first line of defense in any anti-virus or endpoint protection product, as its cheap and fast.
In contrast, dynamic analysis generates its classification based on the run-time behavior of the
file [29], [34], [35], [36]. Here the file will typically be placed inside a sandbox and executed. The
analyzer then monitors the behavior of the file looking for malicious indicators, such as a file

Ilja Moisejevs
attempting to reach out to a remote server and start a download process. Dynamic analysis tends
to be more expensive and hence is typically reserved for files already marked as “suspicious” by
static analysis.
From an attacker’s perspective it is generally safe to assume that the malware, if it is to be
evasive, needs to evade both static and dynamic classification. Hence over the years attackers
have developed techniques to evade both [29], [34], [35], [36], [37], [38], [39], [40].
Evasion of the dynamic layer typically takes the form of recognizing the environment the malware
is placed in (that it’s a sandbox) and suppressing the file’s malicious attributes. Evasion of the
static layer, however, is much more reliant on understanding the classifier at hand and what
features it’s looking for. In this survey, because we are primarily concerned with the security of
the machine learning classifiers themselves, we will only focus on static evasion.
3. TAXONOMY OF ADVERSARIAL MACHINE LEARNING
3.1 Types of Adversarial Attacks
In order to understand the kinds of attacks an adversary might mount on a machine learning
system it is important to understand the main steps involved in machine learning, of which there
are two (Figure 1). First, the machine learning model ingests carefully prepared and labelled
training data in order to learn its representation, like we discussed in Section 2. Second, the
newly trained model can now be used to make predictions about new inputs hitting its API.
FIGURE 1: Simplified diagram depicting two steps of the machine learning process.
Each of the two steps described opens up possibilities for the adversary to interfere with model’s
normal behavior, and hence also its output. At training, the attacker can inject bad data into the
model’s training pool to make it learn an incorrect representation – an attack known as data
poisoning. During poisoning, an attacker can do one of two things:
1. They can inject few carefully selected inputs with specific labels, which the model will
learn to recognize and respond to (backdoor poisoning)
2. They can inject many random inputs to the point that the boundary that the model learns
basically becomes useless (availability poisoning)
At test time, the attacker can make use of what seems to be a common vulnerability across
virtually every type of machine learning system – susceptibility to adversarial examples [11].
Adversarial examples are carefully perturbed inputs that mislead the model into making an
incorrect prediction, while seemingly only changing a few features (Figure 2) [54].

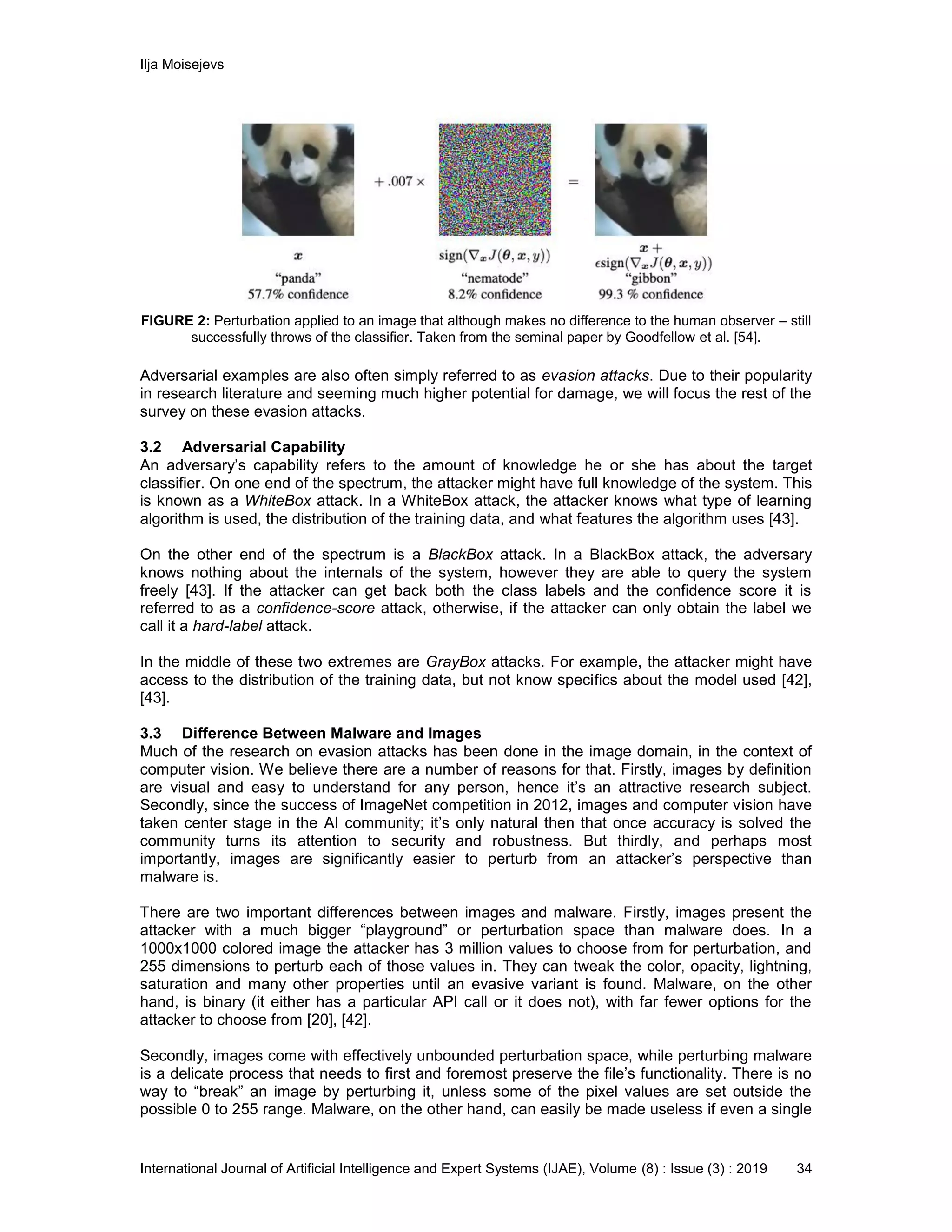

Ilja Moisejevs
FIGURE 2: Perturbation applied to an image that although makes no difference to the human observer – still
successfully throws of the classifier. Taken from the seminal paper by Goodfellow et al. [54].
Adversarial examples are also often simply referred to as evasion attacks. Due to their popularity
in research literature and seeming much higher potential for damage, we will focus the rest of the
survey on these evasion attacks.
3.2 Adversarial Capability
An adversary’s capability refers to the amount of knowledge he or she has about the target
classifier. On one end of the spectrum, the attacker might have full knowledge of the system. This
is known as a WhiteBox attack. In a WhiteBox attack, the attacker knows what type of learning
algorithm is used, the distribution of the training data, and what features the algorithm uses [43].
On the other end of the spectrum is a BlackBox attack. In a BlackBox attack, the adversary
knows nothing about the internals of the system, however they are able to query the system
freely [43]. If the attacker can get back both the class labels and the confidence score it is
referred to as a confidence-score attack, otherwise, if the attacker can only obtain the label we
call it a hard-label attack.
In the middle of these two extremes are GrayBox attacks. For example, the attacker might have
access to the distribution of the training data, but not know specifics about the model used [42],
[43].
3.3 Difference Between Malware and Images
Much of the research on evasion attacks has been done in the image domain, in the context of
computer vision. We believe there are a number of reasons for that. Firstly, images by definition
are visual and easy to understand for any person, hence it’s an attractive research subject.
Secondly, since the success of ImageNet competition in 2012, images and computer vision have
taken center stage in the AI community; it’s only natural then that once accuracy is solved the
community turns its attention to security and robustness. But thirdly, and perhaps most
importantly, images are significantly easier to perturb from an attacker’s perspective than
malware is.
There are two important differences between images and malware. Firstly, images present the
attacker with a much bigger “playground” or perturbation space than malware does. In a
1000x1000 colored image the attacker has 3 million values to choose from for perturbation, and
255 dimensions to perturb each of those values in. They can tweak the color, opacity, lightning,
saturation and many other properties until an evasive variant is found. Malware, on the other
hand, is binary (it either has a particular API call or it does not), with far fewer options for the
attacker to choose from [20], [42].
Secondly, images come with effectively unbounded perturbation space, while perturbing malware
is a delicate process that needs to first and foremost preserve the file’s functionality. There is no
way to “break” an image by perturbing it, unless some of the pixel values are set outside the
possible 0 to 255 range. Malware, on the other hand, can easily be made useless if even a single

Ilja Moisejevs
function or API call in the file ceases to function correctly. Within the image realm, research
typically relies on distance metrics to cap the possible perturbation space, however, even that has
been brought into question from a practical security standpoint [50].
In the next two sections, we will review in more detail evasion attacks and defenses in the context
of machine learning based malware classifiers.
4. EVASION ATTACKS ON MALWARE CLASSIFIERS
We will now discuss evasion attacks in more detail, split into WhiteBox and BlackBoxin-line with
taxonomy presented in Section 3.
4.1 WhiteBox Attacks
Snrdic and Laskov [12] attempted attacks on a PDF malware classifier, PDFRate. They executed
2 attacks: mimicry (malicious file is made to look benign) and gradient-based (the data sample is
manipulated in the reverse direction of the loss function) under 4 distinct knowledge scenarios
(ranging from just knowing highlights to knowing everything about the objective classifier). Their
attacks were successful and managed to get theaccuracyof the classifier down from 100% to 28-
33%.
Biggio et al. [10] conducted a simple yet effective gradient-based attack on a PDF classifier,
achieving successful evasion with as few as 5 to 10 modifications to the PDF file structure. It was
found that /Linearized, /OpenAction, /Comment, /Root and /PageLayoutcould be added to PDF
documents to mislead the classifier. The major limitations of their work is that they only perturbed
the input in feature space and never actually checked if proposed perturbations could lead to real,
functional malware in problem space.
Grosse et al. [20] mounted an evasion attack on a neural network model as described by
McDaniel et al. [44]. The authors adapted an attack algorithm initially developed in computer
vision [17] and successfully generated adversarial examples causing up to 85% misclassification
rate of the target model.
Another work that attacked a neural network model using a gradient-based attack was that by
Kolosnjaji et al. [1]. In order to prevent the malware from breaking, the authors restricted
perturbations to just adding padding bytes, generate both randomly and using the model’s
gradients. As a result the authors managed to decrease the accuracy of MalConv [7] by 50%.
4.2 BlackBox Confidence Score Attacks
Xu et al. [19] proposed an attack method that doesn’t require access to a model’s gradients –
however, does still require access to the predicted confidence scores. They implemented a
system that makes use of genetic algorithms and a sandbox to verify the malware’s functionality
and used it to successfully evade PDFrate [17] and Hidost [30]. It is worth pointing out that this
work is one of the few where the authors have put in the extra effort to ensure the perturbed
samples remain functional malware (in other words, they attacked the model in “problem space”,
not “feature space” [28]).
4.3 BlackBox Hard-Label Attacks
Maiorca et al. [13] proposed a methodthey termed “reverse mimicry” to generate evasive variants
of PDF malware. The intuition is to inject malicious code into a benign sample rather than doing
the reverse, thus preserving most of the benign features used for classification. The authors were
successful in their experiments, although their approach is overly manual.
Hu and Tan [14] proposed a generative adversarial network (GAN)-based approach, which takes
original samples as inputs and outputs adversarial examples. Authors motivate their work by
saying that intrinsic non-linear structure of neural networks enables them to generate more
complex and flexible adversarial examples to fool the target model. The detector part of the GAN

Ilja Moisejevs

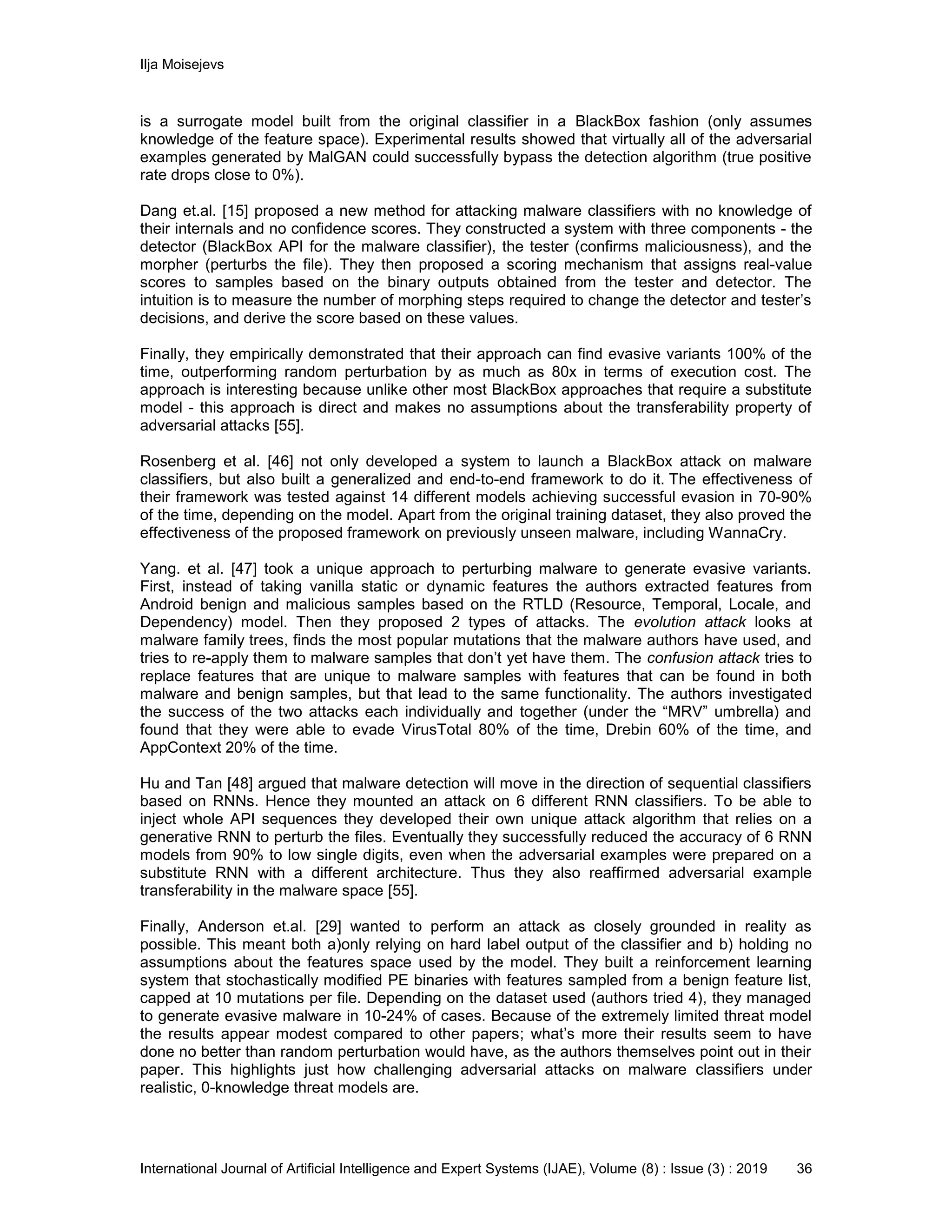

is a surrogate model built from the original classifier in a BlackBox fashion (only assumes
knowledge of the feature space). Experimental results showed that virtually all of the adversarial
examples generated by MalGAN could successfully bypass the detection algorithm (true positive
rate drops close to 0%).
Dang et.al. [15] proposed a new method for attacking malware classifiers with no knowledge of
their internals and no confidence scores. They constructed a system with three components - the
detector (BlackBox API for the malware classifier), the tester (confirms maliciousness), and the
morpher (perturbs the file). They then proposed a scoring mechanism that assigns real-value
scores to samples based on the binary outputs obtained from the tester and detector. The
intuition is to measure the number of morphing steps required to change the detector and tester’s
decisions, and derive the score based on these values.
Finally, they empirically demonstrated that their approach can find evasive variants 100% of the
time, outperforming random perturbation by as much as 80x in terms of execution cost. The
approach is interesting because unlike other most BlackBox approaches that require a substitute
model - this approach is direct and makes no assumptions about the transferability property of
adversarial attacks [55].
Rosenberg et al. [46] not only developed a system to launch a BlackBox attack on malware
classifiers, but also built a generalized and end-to-end framework to do it. The effectiveness of
their framework was tested against 14 different models achieving successful evasion in 70-90%
of the time, depending on the model. Apart from the original training dataset, they also proved the
effectiveness of the proposed framework on previously unseen malware, including WannaCry.
Yang. et al. [47] took a unique approach to perturbing malware to generate evasive variants.
First, instead of taking vanilla static or dynamic features the authors extracted features from
Android benign and malicious samples based on the RTLD (Resource, Temporal, Locale, and
Dependency) model. Then they proposed 2 types of attacks. The evolution attack looks at
malware family trees, finds the most popular mutations that the malware authors have used, and
tries to re-apply them to malware samples that don’t yet have them. The confusion attack tries to
replace features that are unique to malware samples with features that can be found in both
malware and benign samples, but that lead to the same functionality. The authors investigated
the success of the two attacks each individually and together (under the “MRV” umbrella) and
found that they were able to evade VirusTotal 80% of the time, Drebin 60% of the time, and
AppContext 20% of the time.
Hu and Tan [48] argued that malware detection will move in the direction of sequential classifiers
based on RNNs. Hence they mounted an attack on 6 different RNN classifiers. To be able to
inject whole API sequences they developed their own unique attack algorithm that relies on a
generative RNN to perturb the files. Eventually they successfully reduced the accuracy of 6 RNN
models from 90% to low single digits, even when the adversarial examples were prepared on a
substitute RNN with a different architecture. Thus they also reaffirmed adversarial example
transferability in the malware space [55].
Finally, Anderson et.al. [29] wanted to perform an attack as closely grounded in reality as
possible. This meant both a)only relying on hard label output of the classifier and b) holding no
assumptions about the features space used by the model. They built a reinforcement learning
system that stochastically modified PE binaries with features sampled from a benign feature list,
capped at 10 mutations per file. Depending on the dataset used (authors tried 4), they managed
to generate evasive malware in 10-24% of cases. Because of the extremely limited threat model
the results appear modest compared to other papers; what’s more their results seem to have
done no better than random perturbation would have, as the authors themselves point out in their
paper. This highlights just how challenging adversarial attacks on malware classifiers under
realistic, 0-knowledge threat models are.

Ilja Moisejevs

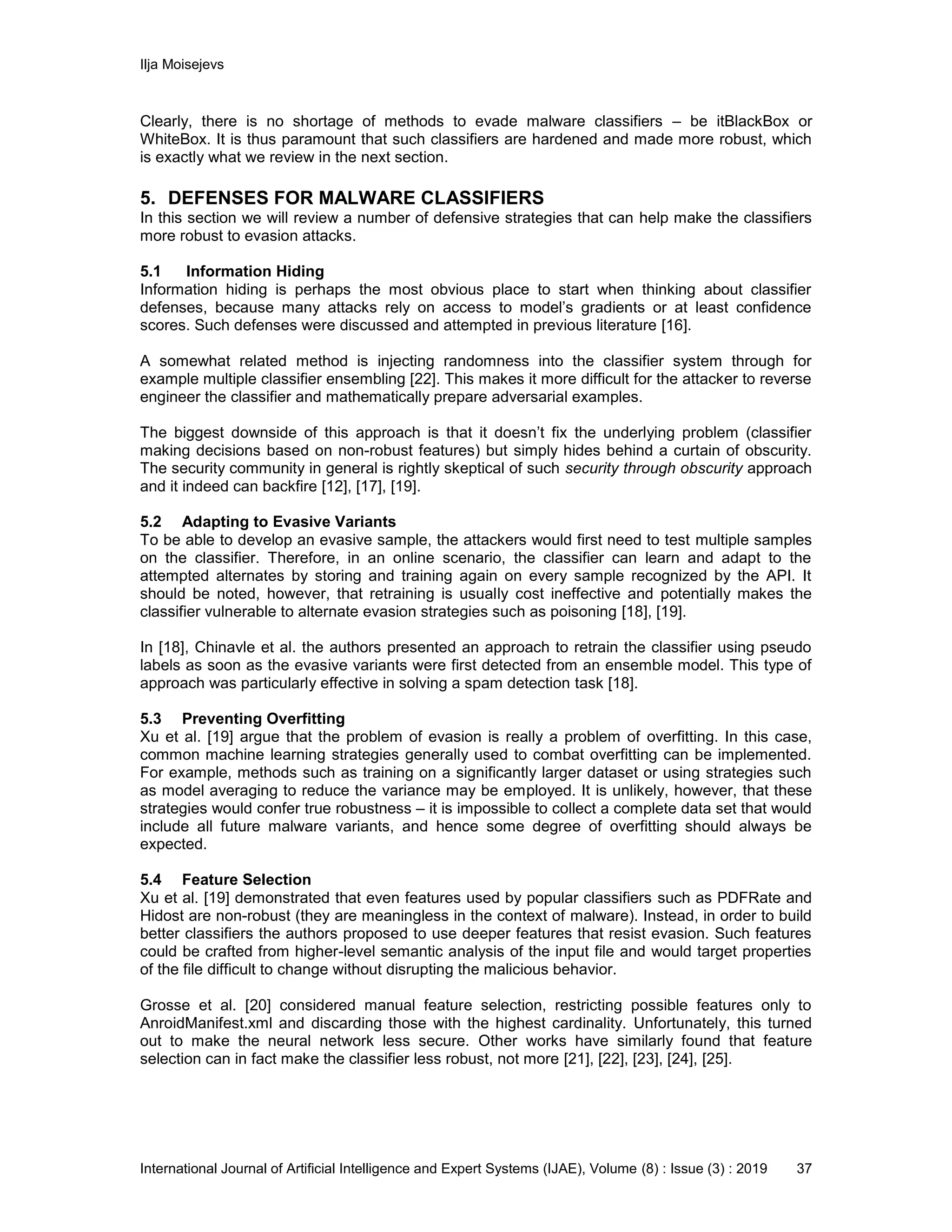

Clearly, there is no shortage of methods to evade malware classifiers – be itBlackBox or
WhiteBox. It is thus paramount that such classifiers are hardened and made more robust, which
is exactly what we review in the next section.
5. DEFENSES FOR MALWARE CLASSIFIERS
In this section we will review a number of defensive strategies that can help make the classifiers
more robust to evasion attacks.
5.1 Information Hiding
Information hiding is perhaps the most obvious place to start when thinking about classifier
defenses, because many attacks rely on access to model’s gradients or at least confidence
scores. Such defenses were discussed and attempted in previous literature [16].
A somewhat related method is injecting randomness into the classifier system through for
example multiple classifier ensembling [22]. This makes it more difficult for the attacker to reverse
engineer the classifier and mathematically prepare adversarial examples.
The biggest downside of this approach is that it doesn’t fix the underlying problem (classifier
making decisions based on non-robust features) but simply hides behind a curtain of obscurity.
The security community in general is rightly skeptical of such security through obscurity approach
and it indeed can backfire [12], [17], [19].
5.2 Adapting to Evasive Variants
To be able to develop an evasive sample, the attackers would first need to test multiple samples
on the classifier. Therefore, in an online scenario, the classifier can learn and adapt to the
attempted alternates by storing and training again on every sample recognized by the API. It
should be noted, however, that retraining is usually cost ineffective and potentially makes the
classifier vulnerable to alternate evasion strategies such as poisoning [18], [19].
In [18], Chinavle et al. the authors presented an approach to retrain the classifier using pseudo
labels as soon as the evasive variants were first detected from an ensemble model. This type of
approach was particularly effective in solving a spam detection task [18].
5.3 Preventing Overfitting
Xu et al. [19] argue that the problem of evasion is really a problem of overfitting. In this case,
common machine learning strategies generally used to combat overfitting can be implemented.
For example, methods such as training on a significantly larger dataset or using strategies such
as model averaging to reduce the variance may be employed. It is unlikely, however, that these
strategies would confer true robustness – it is impossible to collect a complete data set that would
include all future malware variants, and hence some degree of overfitting should always be
expected.
5.4 Feature Selection
Xu et al. [19] demonstrated that even features used by popular classifiers such as PDFRate and
Hidost are non-robust (they are meaningless in the context of malware). Instead, in order to build
better classifiers the authors proposed to use deeper features that resist evasion. Such features
could be crafted from higher-level semantic analysis of the input file and would target properties
of the file difficult to change without disrupting the malicious behavior.
Grosse et al. [20] considered manual feature selection, restricting possible features only to
AnroidManifest.xml and discarding those with the highest cardinality. Unfortunately, this turned
out to make the neural network less secure. Other works have similarly found that feature
selection can in fact make the classifier less robust, not more [21], [22], [23], [24], [25].

Ilja Moisejevs

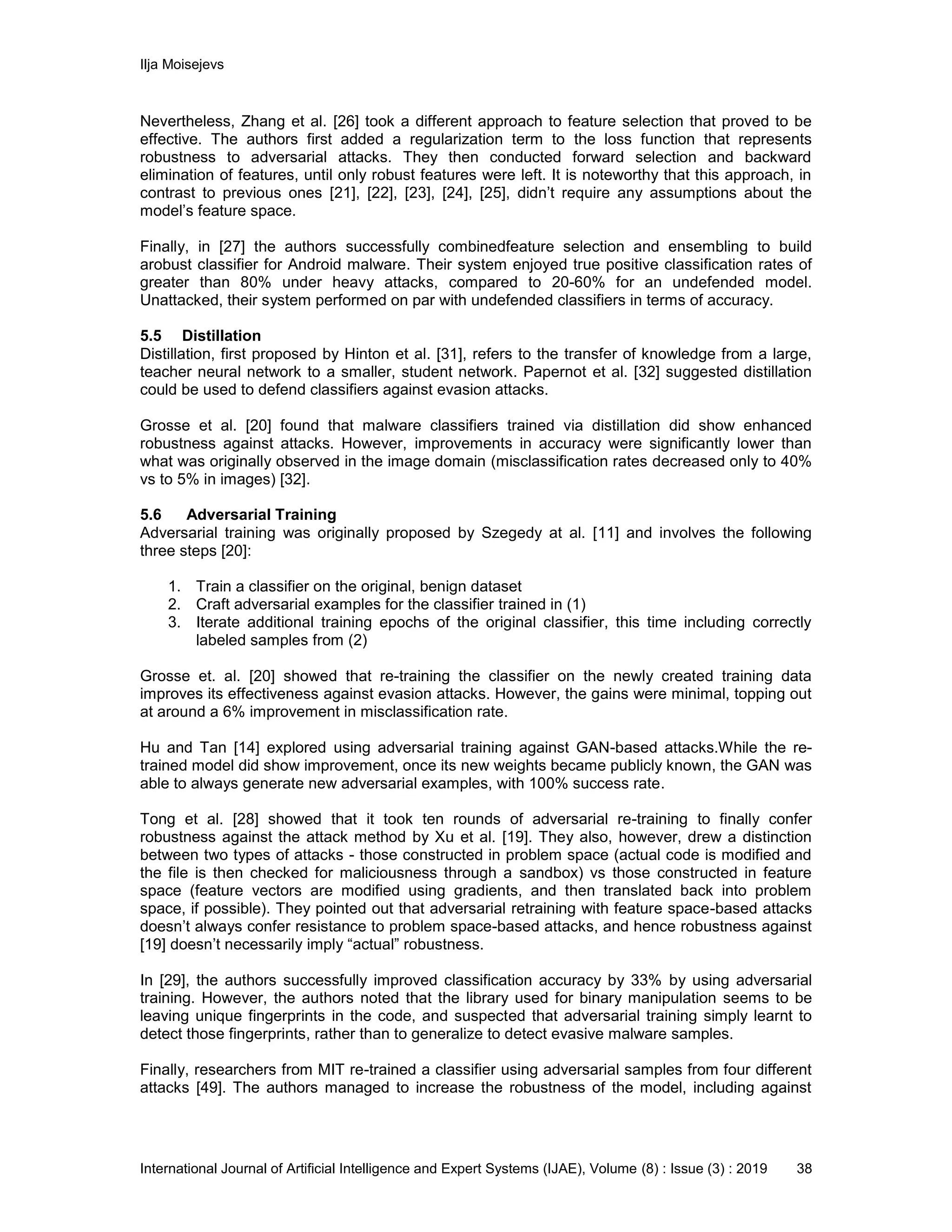

Nevertheless, Zhang et al. [26] took a different approach to feature selection that proved to be
effective. The authors first added a regularization term to the loss function that represents
robustness to adversarial attacks. They then conducted forward selection and backward
elimination of features, until only robust features were left. It is noteworthy that this approach, in
contrast to previous ones [21], [22], [23], [24], [25], didn’t require any assumptions about the
model’s feature space.
Finally, in [27] the authors successfully combinedfeature selection and ensembling to build
arobust classifier for Android malware. Their system enjoyed true positive classification rates of
greater than 80% under heavy attacks, compared to 20-60% for an undefended model.
Unattacked, their system performed on par with undefended classifiers in terms of accuracy.
5.5 Distillation
Distillation, first proposed by Hinton et al. [31], refers to the transfer of knowledge from a large,
teacher neural network to a smaller, student network. Papernot et al. [32] suggested distillation
could be used to defend classifiers against evasion attacks.
Grosse et al. [20] found that malware classifiers trained via distillation did show enhanced
robustness against attacks. However, improvements in accuracy were significantly lower than
what was originally observed in the image domain (misclassification rates decreased only to 40%
vs to 5% in images) [32].
5.6 Adversarial Training
Adversarial training was originally proposed by Szegedy at al. [11] and involves the following
three steps [20]:
1. Train a classifier on the original, benign dataset
2. Craft adversarial examples for the classifier trained in (1)
3. Iterate additional training epochs of the original classifier, this time including correctly
labeled samples from (2)
Grosse et. al. [20] showed that re-training the classifier on the newly created training data
improves its effectiveness against evasion attacks. However, the gains were minimal, topping out
at around a 6% improvement in misclassification rate.
Hu and Tan [14] explored using adversarial training against GAN-based attacks.While the re-
trained model did show improvement, once its new weights became publicly known, the GAN was
able to always generate new adversarial examples, with 100% success rate.
Tong et al. [28] showed that it took ten rounds of adversarial re-training to finally confer
robustness against the attack method by Xu et al. [19]. They also, however, drew a distinction
between two types of attacks - those constructed in problem space (actual code is modified and
the file is then checked for maliciousness through a sandbox) vs those constructed in feature
space (feature vectors are modified using gradients, and then translated back into problem
space, if possible). They pointed out that adversarial retraining with feature space-based attacks
doesn’t always confer resistance to problem space-based attacks, and hence robustness against
[19] doesn’t necessarily imply “actual” robustness.
In [29], the authors successfully improved classification accuracy by 33% by using adversarial
training. However, the authors noted that the library used for binary manipulation seems to be
leaving unique fingerprints in the code, and suspected that adversarial training simply learnt to
detect those fingerprints, rather than to generalize to detect evasive malware samples.
Finally, researchers from MIT re-trained a classifier using adversarial samples from four different
attacks [49]. The authors managed to increase the robustness of the model, including against

Ilja Moisejevs

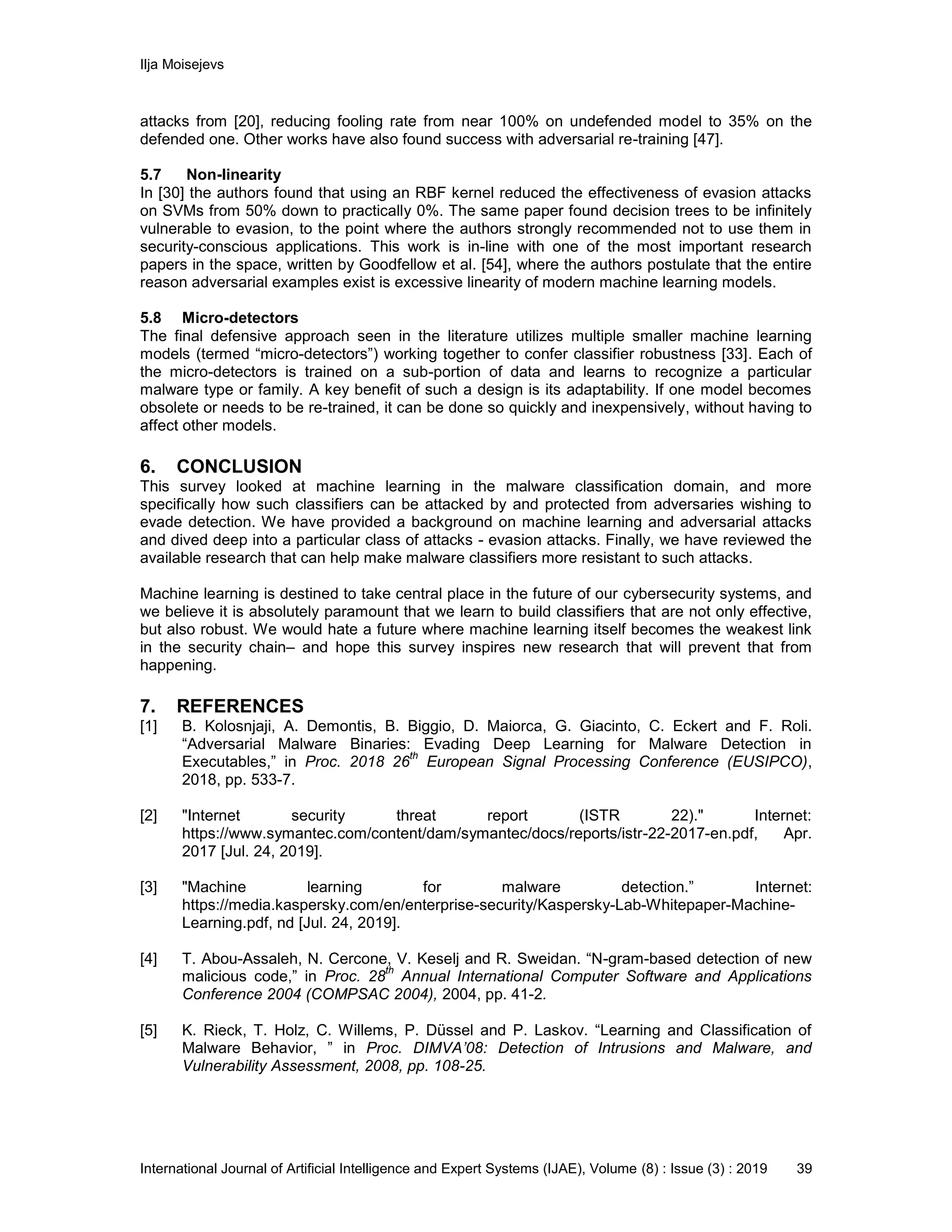

attacks from [20], reducing fooling rate from near 100% on undefended model to 35% on the
defended one. Other works have also found success with adversarial re-training [47].
5.7 Non-linearity
In [30] the authors found that using an RBF kernel reduced the effectiveness of evasion attacks
on SVMs from 50% down to practically 0%. The same paper found decision trees to be infinitely
vulnerable to evasion, to the point where the authors strongly recommended not to use them in
security-conscious applications. This work is in-line with one of the most important research
papers in the space, written by Goodfellow et al. [54], where the authors postulate that the entire
reason adversarial examples exist is excessive linearity of modern machine learning models.
5.8 Micro-detectors
The final defensive approach seen in the literature utilizes multiple smaller machine learning
models (termed “micro-detectors”) working together to confer classifier robustness [33]. Each of
the micro-detectors is trained on a sub-portion of data and learns to recognize a particular
malware type or family. A key benefit of such a design is its adaptability. If one model becomes
obsolete or needs to be re-trained, it can be done so quickly and inexpensively, without having to
affect other models.
6. CONCLUSION
This survey looked at machine learning in the malware classification domain, and more
specifically how such classifiers can be attacked by and protected from adversaries wishing to
evade detection. We have provided a background on machine learning and adversarial attacks
and dived deep into a particular class of attacks - evasion attacks. Finally, we have reviewed the
available research that can help make malware classifiers more resistant to such attacks.
Machine learning is destined to take central place in the future of our cybersecurity systems, and
we believe it is absolutely paramount that we learn to build classifiers that are not only effective,
but also robust. We would hate a future where machine learning itself becomes the weakest link
in the security chain– and hope this survey inspires new research that will prevent that from
happening.
7. REFERENCES
[1] B. Kolosnjaji, A. Demontis, B. Biggio, D. Maiorca, G. Giacinto, C. Eckert and F. Roli.
“Adversarial Malware Binaries: Evading Deep Learning for Malware Detection in
Executables,” in Proc. 2018 26
th
European Signal Processing Conference (EUSIPCO),
2018, pp. 533-7.
[2] "Internet security threat report (ISTR 22)." Internet:
https://www.symantec.com/content/dam/symantec/docs/reports/istr-22-2017-en.pdf, Apr.
2017 [Jul. 24, 2019].
[3] "Machine learning for malware detection.” Internet:
https://media.kaspersky.com/en/enterprise-security/Kaspersky-Lab-Whitepaper-Machine-
Learning.pdf, nd [Jul. 24, 2019].
[4] T. Abou-Assaleh, N. Cercone, V. Keselj and R. Sweidan. “N-gram-based detection of new
malicious code,” in Proc. 28
th
Annual International Computer Software and Applications
Conference 2004 (COMPSAC 2004), 2004, pp. 41-2.
[5] K. Rieck, T. Holz, C. Willems, P. Düssel and P. Laskov. “Learning and Classification of
Malware Behavior, ” in Proc. DIMVA’08: Detection of Intrusions and Malware, and
Vulnerability Assessment, 2008, pp. 108-25.

Ilja Moisejevs

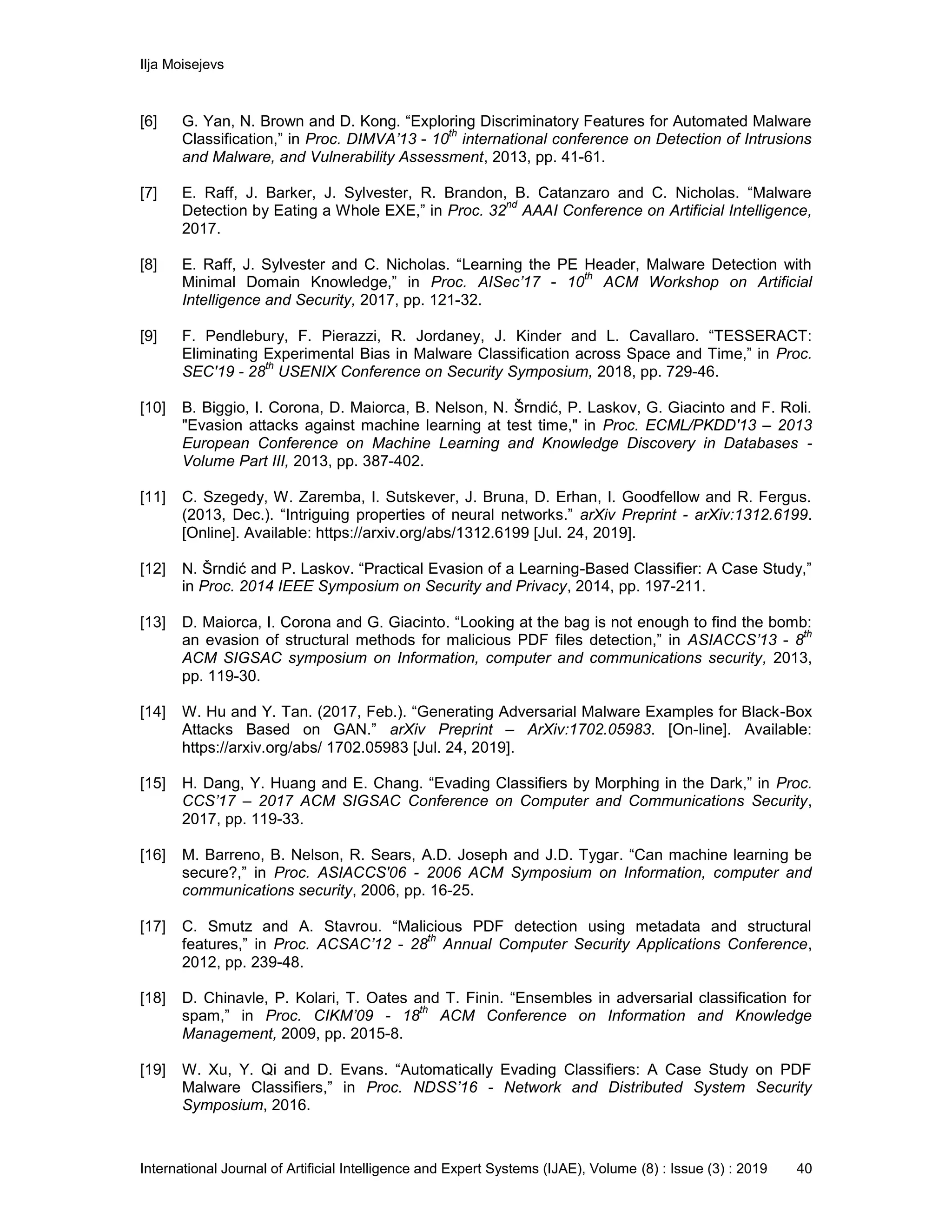

[6] G. Yan, N. Brown and D. Kong. “Exploring Discriminatory Features for Automated Malware
Classification,” in Proc. DIMVA’13 - 10
th
international conference on Detection of Intrusions
and Malware, and Vulnerability Assessment, 2013, pp. 41-61.
[7] E. Raff, J. Barker, J. Sylvester, R. Brandon, B. Catanzaro and C. Nicholas. “Malware
Detection by Eating a Whole EXE,” in Proc. 32
nd
AAAI Conference on Artificial Intelligence,
2017.
[8] E. Raff, J. Sylvester and C. Nicholas. “Learning the PE Header, Malware Detection with
Minimal Domain Knowledge,” in Proc. AISec’17 - 10
th
ACM Workshop on Artificial
Intelligence and Security, 2017, pp. 121-32.
[9] F. Pendlebury, F. Pierazzi, R. Jordaney, J. Kinder and L. Cavallaro. “TESSERACT:
Eliminating Experimental Bias in Malware Classification across Space and Time,” in Proc.
SEC'19 - 28
th
USENIX Conference on Security Symposium, 2018, pp. 729-46.
[10] B. Biggio, I. Corona, D. Maiorca, B. Nelson, N. Šrndić, P. Laskov, G. Giacinto and F. Roli.
"Evasion attacks against machine learning at test time," in Proc. ECML/PKDD'13 – 2013
European Conference on Machine Learning and Knowledge Discovery in Databases -
Volume Part III, 2013, pp. 387-402.
[11] C. Szegedy, W. Zaremba, I. Sutskever, J. Bruna, D. Erhan, I. Goodfellow and R. Fergus.
(2013, Dec.). “Intriguing properties of neural networks.” arXiv Preprint - arXiv:1312.6199.
[Online]. Available: https://arxiv.org/abs/1312.6199 [Jul. 24, 2019].
[12] N. Šrndić and P. Laskov. “Practical Evasion of a Learning-Based Classifier: A Case Study,”
in Proc. 2014 IEEE Symposium on Security and Privacy, 2014, pp. 197-211.
[13] D. Maiorca, I. Corona and G. Giacinto. “Looking at the bag is not enough to find the bomb:
an evasion of structural methods for malicious PDF files detection,” in ASIACCS’13 - 8
th
ACM SIGSAC symposium on Information, computer and communications security, 2013,
pp. 119-30.
[14] W. Hu and Y. Tan. (2017, Feb.). “Generating Adversarial Malware Examples for Black-Box
Attacks Based on GAN.” arXiv Preprint – ArXiv:1702.05983. [On-line]. Available:
https://arxiv.org/abs/ 1702.05983 [Jul. 24, 2019].
[15] H. Dang, Y. Huang and E. Chang. “Evading Classifiers by Morphing in the Dark,” in Proc.
CCS’17 – 2017 ACM SIGSAC Conference on Computer and Communications Security,
2017, pp. 119-33.
[16] M. Barreno, B. Nelson, R. Sears, A.D. Joseph and J.D. Tygar. “Can machine learning be
secure?,” in Proc. ASIACCS'06 - 2006 ACM Symposium on Information, computer and
communications security, 2006, pp. 16-25.
[17] C. Smutz and A. Stavrou. “Malicious PDF detection using metadata and structural
features,” in Proc. ACSAC’12 - 28
th
Annual Computer Security Applications Conference,
2012, pp. 239-48.
[18] D. Chinavle, P. Kolari, T. Oates and T. Finin. “Ensembles in adversarial classification for
spam,” in Proc. CIKM’09 - 18
th
ACM Conference on Information and Knowledge
Management, 2009, pp. 2015-8.
[19] W. Xu, Y. Qi and D. Evans. “Automatically Evading Classifiers: A Case Study on PDF
Malware Classifiers,” in Proc. NDSS’16 - Network and Distributed System Security
Symposium, 2016.

Ilja Moisejevs

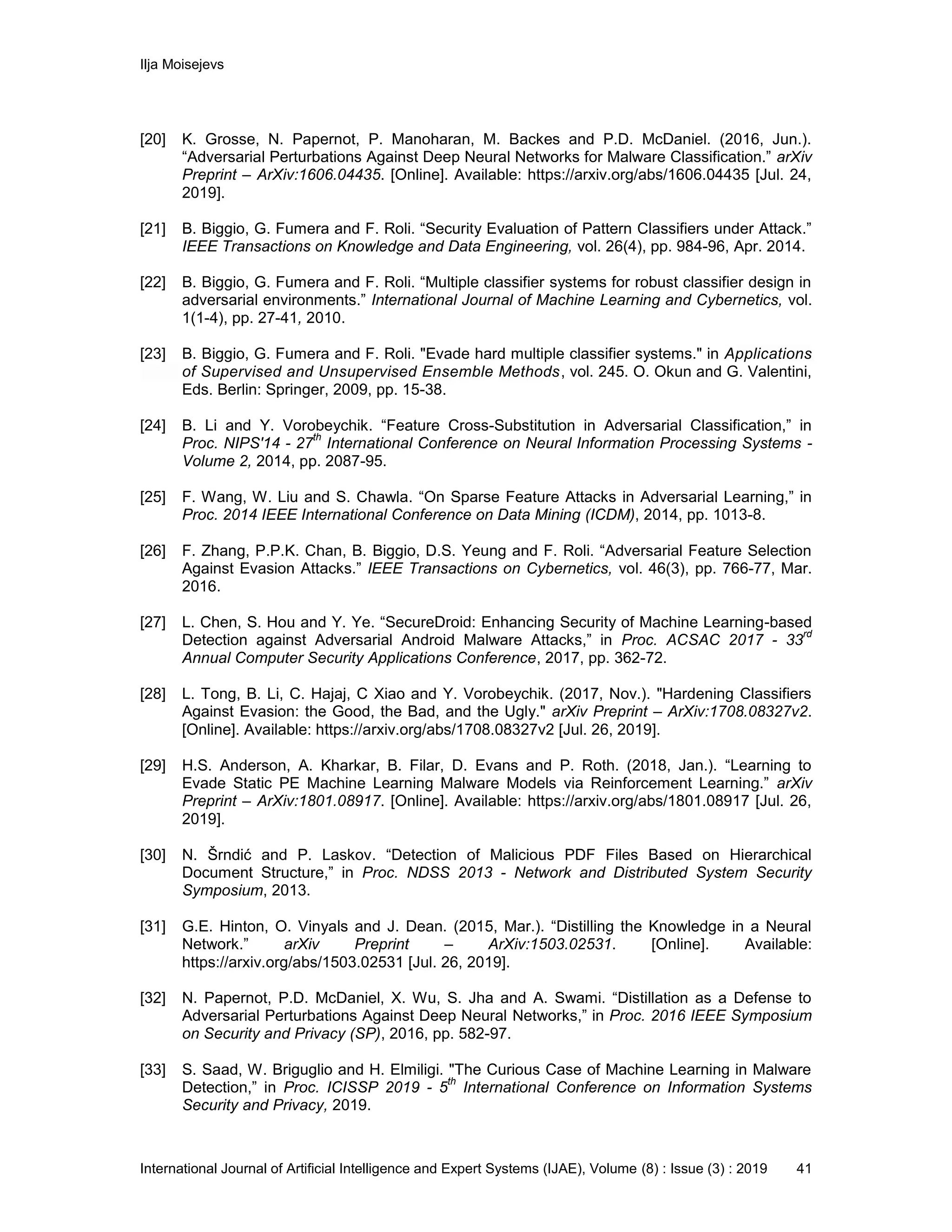

[20] K. Grosse, N. Papernot, P. Manoharan, M. Backes and P.D. McDaniel. (2016, Jun.).
“Adversarial Perturbations Against Deep Neural Networks for Malware Classification.” arXiv
Preprint – ArXiv:1606.04435. [Online]. Available: https://arxiv.org/abs/1606.04435 [Jul. 24,
2019].
[21] B. Biggio, G. Fumera and F. Roli. “Security Evaluation of Pattern Classifiers under Attack.”
IEEE Transactions on Knowledge and Data Engineering, vol. 26(4), pp. 984-96, Apr. 2014.
[22] B. Biggio, G. Fumera and F. Roli. “Multiple classifier systems for robust classifier design in
adversarial environments.” International Journal of Machine Learning and Cybernetics, vol.
1(1-4), pp. 27-41, 2010.
[23] B. Biggio, G. Fumera and F. Roli. "Evade hard multiple classifier systems." in Applications
of Supervised and Unsupervised Ensemble Methods, vol. 245. O. Okun and G. Valentini,
Eds. Berlin: Springer, 2009, pp. 15-38.
[24] B. Li and Y. Vorobeychik. “Feature Cross-Substitution in Adversarial Classification,” in
Proc. NIPS'14 - 27
th
International Conference on Neural Information Processing Systems -
Volume 2, 2014, pp. 2087-95.
[25] F. Wang, W. Liu and S. Chawla. “On Sparse Feature Attacks in Adversarial Learning,” in
Proc. 2014 IEEE International Conference on Data Mining (ICDM), 2014, pp. 1013-8.
[26] F. Zhang, P.P.K. Chan, B. Biggio, D.S. Yeung and F. Roli. “Adversarial Feature Selection
Against Evasion Attacks.” IEEE Transactions on Cybernetics, vol. 46(3), pp. 766-77, Mar.
2016.
[27] L. Chen, S. Hou and Y. Ye. “SecureDroid: Enhancing Security of Machine Learning-based
Detection against Adversarial Android Malware Attacks,” in Proc. ACSAC 2017 - 33
rd
Annual Computer Security Applications Conference, 2017, pp. 362-72.
[28] L. Tong, B. Li, C. Hajaj, C Xiao and Y. Vorobeychik. (2017, Nov.). "Hardening Classifiers
Against Evasion: the Good, the Bad, and the Ugly." arXiv Preprint – ArXiv:1708.08327v2.
[Online]. Available: https://arxiv.org/abs/1708.08327v2 [Jul. 26, 2019].
[29] H.S. Anderson, A. Kharkar, B. Filar, D. Evans and P. Roth. (2018, Jan.). “Learning to
Evade Static PE Machine Learning Malware Models via Reinforcement Learning.” arXiv
Preprint – ArXiv:1801.08917. [Online]. Available: https://arxiv.org/abs/1801.08917 [Jul. 26,
2019].
[30] N. Šrndić and P. Laskov. “Detection of Malicious PDF Files Based on Hierarchical
Document Structure,” in Proc. NDSS 2013 - Network and Distributed System Security
Symposium, 2013.
[31] G.E. Hinton, O. Vinyals and J. Dean. (2015, Mar.). “Distilling the Knowledge in a Neural
Network.” arXiv Preprint – ArXiv:1503.02531. [Online]. Available:
https://arxiv.org/abs/1503.02531 [Jul. 26, 2019].
[32] N. Papernot, P.D. McDaniel, X. Wu, S. Jha and A. Swami. “Distillation as a Defense to
Adversarial Perturbations Against Deep Neural Networks,” in Proc. 2016 IEEE Symposium
on Security and Privacy (SP), 2016, pp. 582-97.
[33] S. Saad, W. Briguglio and H. Elmiligi. "The Curious Case of Machine Learning in Malware
Detection,” in Proc. ICISSP 2019 - 5
th
International Conference on Information Systems
Security and Privacy, 2019.

Ilja Moisejevs

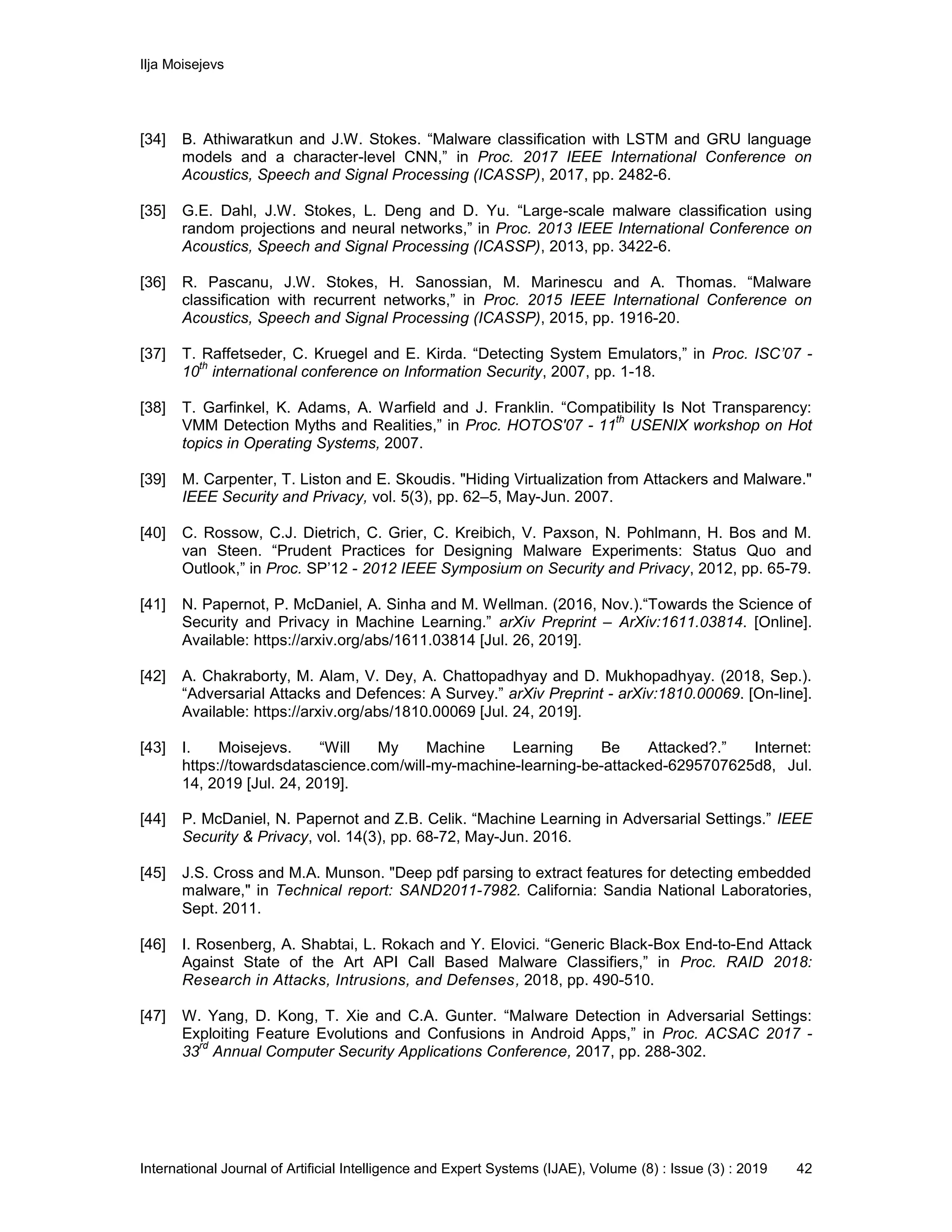

[34] B. Athiwaratkun and J.W. Stokes. “Malware classification with LSTM and GRU language
models and a character-level CNN,” in Proc. 2017 IEEE International Conference on
Acoustics, Speech and Signal Processing (ICASSP), 2017, pp. 2482-6.
[35] G.E. Dahl, J.W. Stokes, L. Deng and D. Yu. “Large-scale malware classification using
random projections and neural networks,” in Proc. 2013 IEEE International Conference on
[36] R. Pascanu, J.W. Stokes, H. Sanossian, M. Marinescu and A. Thomas. “Malware
classification with recurrent networks,” in Proc. 2015 IEEE International Conference on
[37] T. Raffetseder, C. Kruegel and E. Kirda. “Detecting System Emulators,” in Proc. ISC’07 -
10
th
international conference on Information Security, 2007, pp. 1-18.
[38] T. Garfinkel, K. Adams, A. Warfield and J. Franklin. “Compatibility Is Not Transparency:
VMM Detection Myths and Realities,” in Proc. HOTOS'07 - 11
th
USENIX workshop on Hot
topics in Operating Systems, 2007.
[39] M. Carpenter, T. Liston and E. Skoudis. "Hiding Virtualization from Attackers and Malware."
IEEE Security and Privacy, vol. 5(3), pp. 62–5, May-Jun. 2007.
[40] C. Rossow, C.J. Dietrich, C. Grier, C. Kreibich, V. Paxson, N. Pohlmann, H. Bos and M.
van Steen. “Prudent Practices for Designing Malware Experiments: Status Quo and
Outlook,” in Proc. SP’12 - 2012 IEEE Symposium on Security and Privacy, 2012, pp. 65-79.
[41] N. Papernot, P. McDaniel, A. Sinha and M. Wellman. (2016, Nov.).“Towards the Science of
Security and Privacy in Machine Learning.” arXiv Preprint – ArXiv:1611.03814. [Online].
Available: https://arxiv.org/abs/1611.03814 [Jul. 26, 2019].
[42] A. Chakraborty, M. Alam, V. Dey, A. Chattopadhyay and D. Mukhopadhyay. (2018, Sep.).
“Adversarial Attacks and Defences: A Survey.” arXiv Preprint - arXiv:1810.00069. [On-line].
Available: https://arxiv.org/abs/1810.00069 [Jul. 24, 2019].
[43] I. Moisejevs. “Will My Machine Learning Be Attacked?.” Internet:
https://towardsdatascience.com/will-my-machine-learning-be-attacked-6295707625d8, Jul.
14, 2019 [Jul. 24, 2019].
[44] P. McDaniel, N. Papernot and Z.B. Celik. “Machine Learning in Adversarial Settings.” IEEE
Security & Privacy, vol. 14(3), pp. 68-72, May-Jun. 2016.
[45] J.S. Cross and M.A. Munson. "Deep pdf parsing to extract features for detecting embedded
malware," in Technical report: SAND2011-7982. California: Sandia National Laboratories,
Sept. 2011.
[46] I. Rosenberg, A. Shabtai, L. Rokach and Y. Elovici. “Generic Black-Box End-to-End Attack
Against State of the Art API Call Based Malware Classifiers,” in Proc. RAID 2018:
Research in Attacks, Intrusions, and Defenses, 2018, pp. 490-510.
[47] W. Yang, D. Kong, T. Xie and C.A. Gunter. “Malware Detection in Adversarial Settings:
Exploiting Feature Evolutions and Confusions in Android Apps,” in Proc. ACSAC 2017 -
33
rd
Annual Computer Security Applications Conference, 2017, pp. 288-302.

Ilja Moisejevs

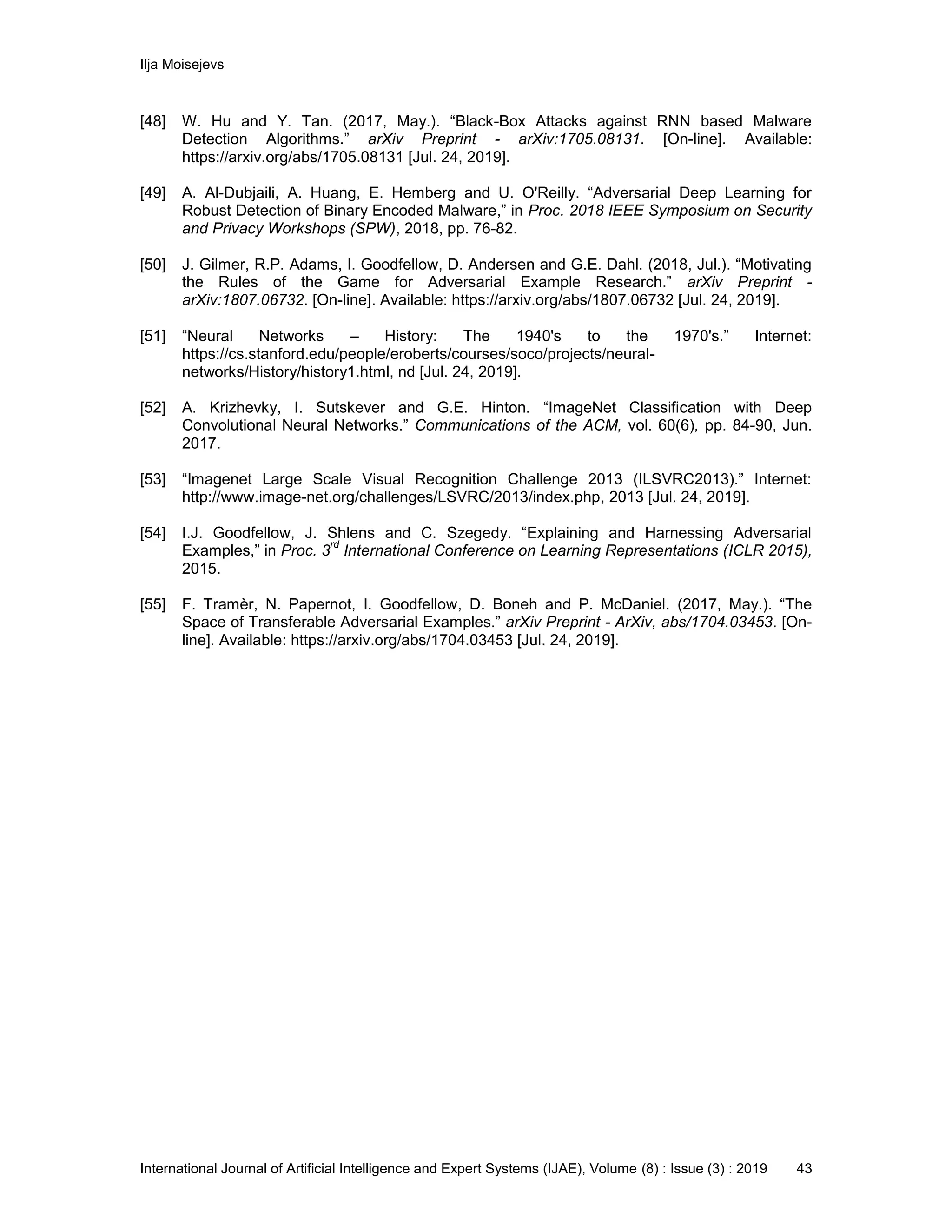

[48] W. Hu and Y. Tan. (2017, May.). “Black-Box Attacks against RNN based Malware
Detection Algorithms.” arXiv Preprint - arXiv:1705.08131. [On-line]. Available:
https://arxiv.org/abs/1705.08131 [Jul. 24, 2019].
[49] A. Al-Dubjaili, A. Huang, E. Hemberg and U. O'Reilly. “Adversarial Deep Learning for
Robust Detection of Binary Encoded Malware,” in Proc. 2018 IEEE Symposium on Security
and Privacy Workshops (SPW), 2018, pp. 76-82.
[50] J. Gilmer, R.P. Adams, I. Goodfellow, D. Andersen and G.E. Dahl. (2018, Jul.). “Motivating
the Rules of the Game for Adversarial Example Research.” arXiv Preprint -
arXiv:1807.06732. [On-line]. Available: https://arxiv.org/abs/1807.06732 [Jul. 24, 2019].
[51] “Neural Networks – History: The 1940's to the 1970's.” Internet:
https://cs.stanford.edu/people/eroberts/courses/soco/projects/neural-
networks/History/history1.html, nd [Jul. 24, 2019].
[52] A. Krizhevky, I. Sutskever and G.E. Hinton. “ImageNet Classification with Deep
Convolutional Neural Networks.” Communications of the ACM, vol. 60(6), pp. 84-90, Jun.
2017.
[53] “Imagenet Large Scale Visual Recognition Challenge 2013 (ILSVRC2013).” Internet:
http://www.image-net.org/challenges/LSVRC/2013/index.php, 2013 [Jul. 24, 2019].
[54] I.J. Goodfellow, J. Shlens and C. Szegedy. “Explaining and Harnessing Adversarial
Examples,” in Proc. 3
rd
International Conference on Learning Representations (ICLR 2015),
2015.
[55] F. Tramèr, N. Papernot, I. Goodfellow, D. Boneh and P. McDaniel. (2017, May.). “The
Space of Transferable Adversarial Examples.” arXiv Preprint - ArXiv, abs/1704.03453. [On-
line]. Available: https://arxiv.org/abs/1704.03453 [Jul. 24, 2019].

Adversarial Attacks and Defenses in Malware Classification: A Survey

More Related Content

What's hot

Similar to Adversarial Attacks and Defenses in Malware Classification: A Survey

Recently uploaded

Adversarial Attacks and Defenses in Malware Classification: A Survey
