Malware Detection Module using Machine Learning Algorithms to Assist in Centralized Security in Enterprise Networks

International Journal of Network Security & Its Applications (IJNSA), Vol.4, No.1, January 2012
DOI : 10.5121/ijnsa.2012.4106 61
Malware Detection Module using Machine
Learning Algorithms to Assist in Centralized
Security in Enterprise Networks
Priyank Singhal
Student, Computer Engineering
Sardar Patel Institute of Technology
University of Mumbai
Mumbai, India
Nataasha Raul
Research Scholar
Sardar Patel Institute of Technology
University of Mumbai
Mumbai, India
Abstract
Malicious software is abundant in a world of innumerable computer users, who are constantly faced with
these threats from various sources like the internet, local networks and portable drives. Malware is
potentially low to high risk and can cause systems to function incorrectly, steal data and even crash.
Malware may be executable or system library files in the form of viruses, worms, Trojans, all aimed at
breaching the security of the system and compromising user privacy. Typically, anti-virus software is
based on a signature definition system which keeps updating from the internet and thus keeping track of
known viruses. While this may be sufficient for home-users, a security risk from a new virus could
threaten an entire enterprise network.
This paper proposes a new and more sophisticated antivirus engine that can not only scan files, but also
build knowledge and detect files as potential viruses. This is done by extracting system API calls made by
various normal and harmful executable, and using machine learning algorithms to classify and hence,
rank files on a scale of security risk. While such a system is processor heavy, it is very effective when
used centrally to protect an enterprise network which maybe more prone to such threats.
Keywords: Malware detection, virus, data mining, Information gain, random forest, machine
learning, classification, enterprise, network, security.
1. Introduction
Malware, short for malicious software, consists of programming (code, scripts, active content,
and other software) designed to disrupt or deny operation, gather information that leads to loss
of privacy or exploitation, gain unauthorized access to system resources, and other abusive
behaviour [1]. It is a general term used to define a variety of forms of hostile, intrusive, or
annoying software or program code. Software is considered to be malware based on the
perceived intent of the creator rather than any particular features. Malware includes computer
viruses, worms, Trojan horses, spyware, dishonest adware, crime-ware, most rootkits, and other
malicious and unwanted software or program [2].
In 2008, Symantec published a report that "the release rate of malicious code and other
unwanted programs may be exceeding that of legitimate software applications.” According to
F-Secure, "As much malware produced in 2007 as in the previous 20 years altogether.” [3].
While these may mean nothing to the average home user, these statistics are alarming keeping

62
in mind the financial implications of such threats to enterprises in case such threats penetrate
and compromise the large volumes of data stored and transacted upon.
Since the rise of widespread Internet access, malicious software has been designed for a profit,
for examples forced advertising. For instance, since 2003, the majority of widespread viruses
and worms have been designed to take control of users' computers for black-market
exploitation. Another category of malware, spyware, - programs designed to monitor users' web
browsing and steal private information. Spyware programs do not spread like viruses, instead
are installed by exploiting security holes or are packaged with user-installed software, such as
peer-to-peer applications [4] [5].
Clearly, there is a very urgent need to find, not just a suitable method to detect infected files,
but too build a smart engine that can detect new viruses by studying the structure of system
calls made by malware.
2. Current Antivirus Software
Antivirus software is used to prevent, detect, and remove malware, including but not limited to
computer viruses, computer worm, Trojan horses, spyware and adware. A variety of strategies
are typically employed by the anti-virus engines. Signature-based detection involves searching
for known patterns of data within executable code. However, it is possible for a computer to be
infected with new virus for which no signatures exist [6]. To counter such “zero-day” threats,
heuristics can be used, that identify new viruses or variants of existing viruses by looking for
known malicious code. Some antivirus can also make predictions by executing files in a
sandbox and analysing results.
Often, antivirus software can impair a computer's performance. Any incorrect decision may
lead to a security breach, since it runs at the highly trusted kernel level of the operating system.
If the antivirus software employs heuristic detection, success depends on achieving the right
balance between false positives and false negatives. Today, malware may no longer be
executable files. Powerful macros in Microsoft Word could also present a security risk.
Traditionally, antivirus software heavily relied upon signatures to identify malware. However,
because of newer kinds of malware, signature-based approaches are no longer effective [7].
Although standard antivirus can effectively contain virus outbreaks, for large enterprises, any
breach could be potentially fatal. Virus makes are employing "oligomorphic", "polymorphic"
and, "metamorphic" viruses, which encrypt parts of themselves or modify themselves as a
method of disguise, so as to not match virus signatures in the dictionary [8].
Studies in 2007 showed that the effectiveness of antivirus software had decreased drastically,
particularly against unknown or zero day attacks. Detection rates have dropped from 40-50% in
2006 to 20-30% in 2007. The problem is magnified by the changing intent of virus makers.
Independent testing on all the major virus scanners consistently shows that none provide 100%
virus detection. The best ones provided as high as 99.6% detection, while the lowest provided
only 81.8% in tests conducted in February 2010 [25]. All virus scanners produce false positive
results as well, identifying benign files as malware.
3. Our Approach
As we have seen, current antivirus engine techniques are not optimum in detecting viruses in
real time. They may be useful in controlling viruses once they infect systems, which is again,
fateful for enterprises [9] [10]. This research is thus aimed at a central solution that works at the
firewall level of the enterprise network. The complete system diagram is shown in Figure 1 and
our process diagram is shown in Figure 2.

63

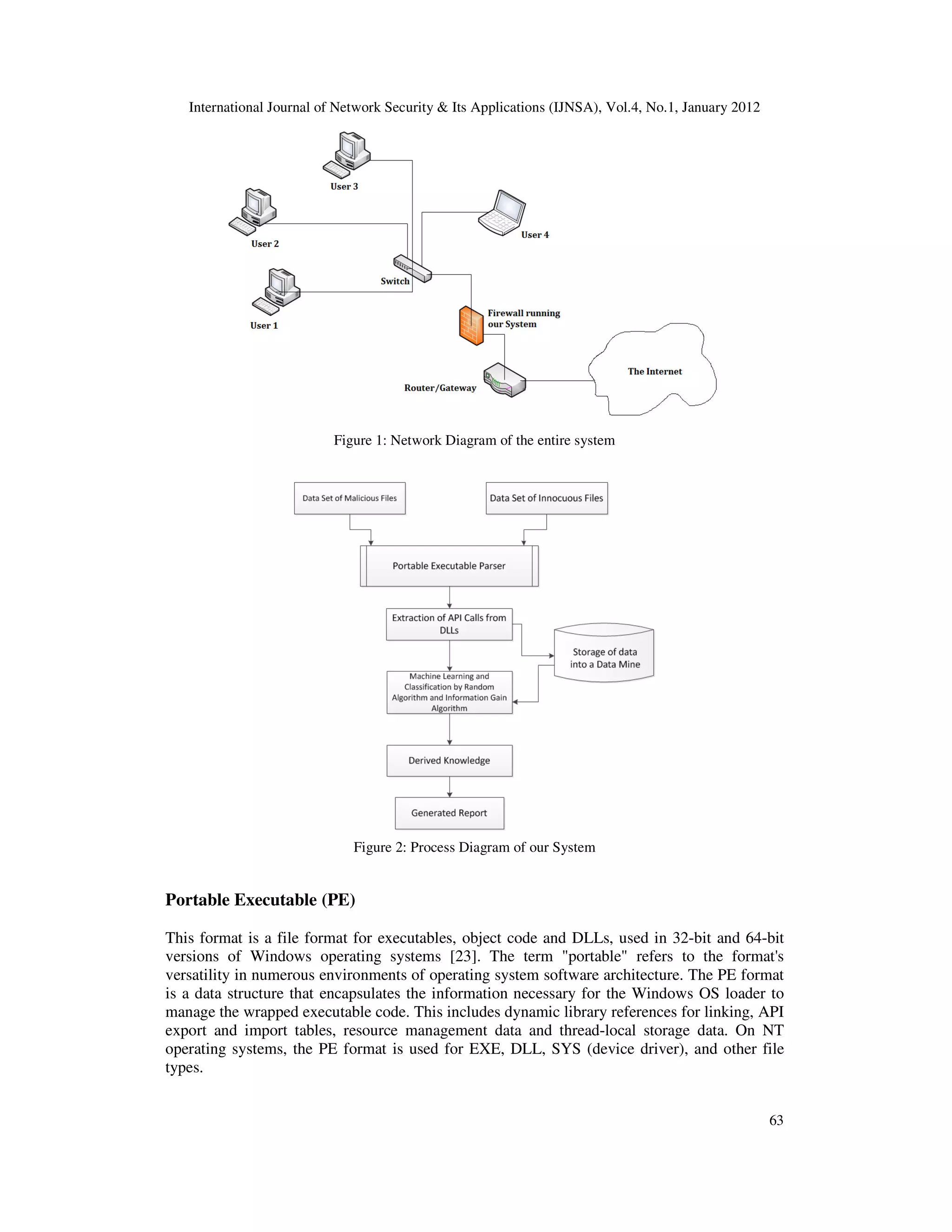

Figure 1: Network Diagram of the entire system
Figure 2: Process Diagram of our System
Portable Executable (PE)
This format is a file format for executables, object code and DLLs, used in 32-bit and 64-bit
versions of Windows operating systems [23]. The term "portable" refers to the format's
versatility in numerous environments of operating system software architecture. The PE format
is a data structure that encapsulates the information necessary for the Windows OS loader to
manage the wrapped executable code. This includes dynamic library references for linking, API
export and import tables, resource management data and thread-local storage data. On NT
operating systems, the PE format is used for EXE, DLL, SYS (device driver), and other file
types.

64

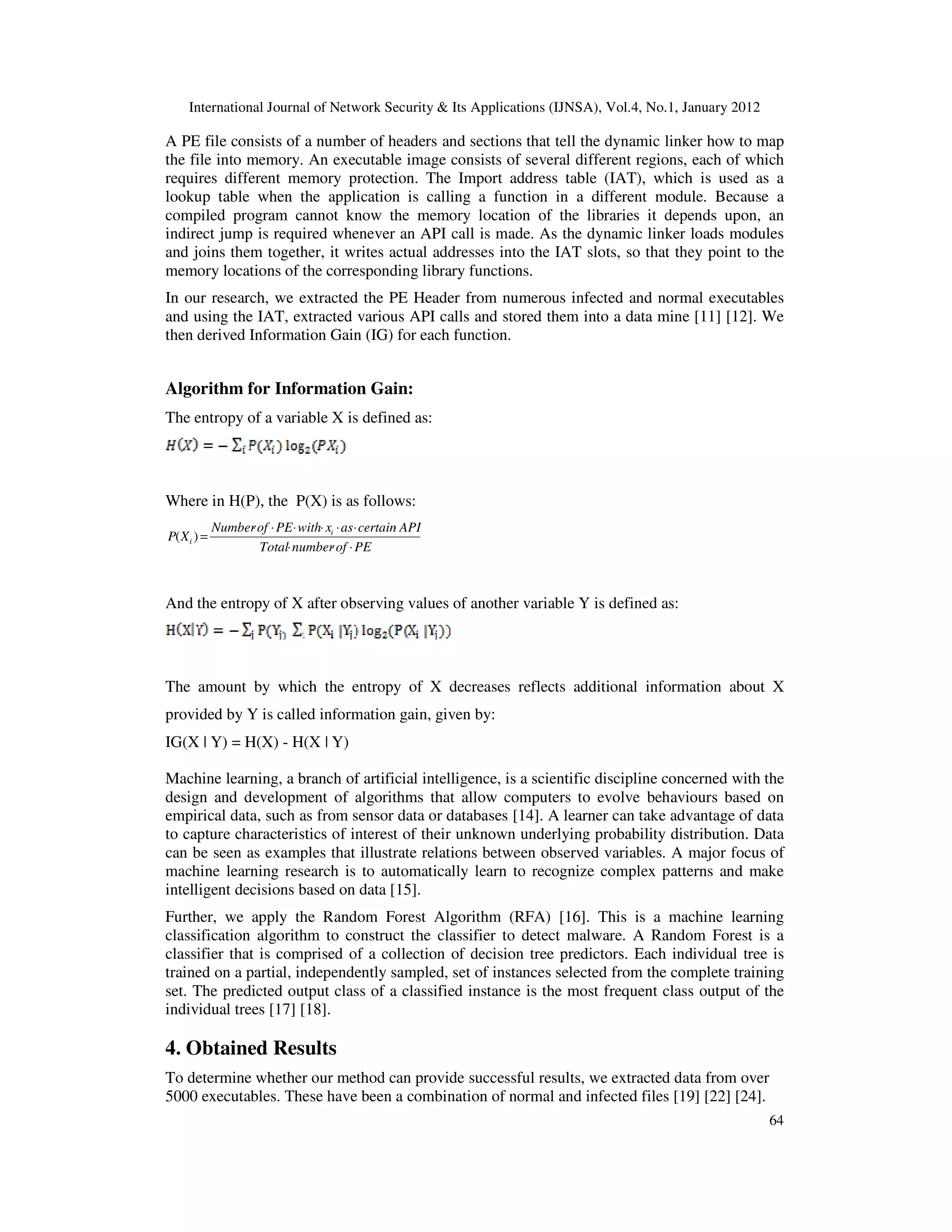

A PE file consists of a number of headers and sections that tell the dynamic linker how to map
the file into memory. An executable image consists of several different regions, each of which
requires different memory protection. The Import address table (IAT), which is used as a
lookup table when the application is calling a function in a different module. Because a
compiled program cannot know the memory location of the libraries it depends upon, an
indirect jump is required whenever an API call is made. As the dynamic linker loads modules
and joins them together, it writes actual addresses into the IAT slots, so that they point to the
memory locations of the corresponding library functions.
In our research, we extracted the PE Header from numerous infected and normal executables
and using the IAT, extracted various API calls and stored them into a data mine [11] [12]. We
then derived Information Gain (IG) for each function.
Algorithm for Information Gain:
The entropy of a variable X is defined as:
Where in H(P), the P(X) is as follows:
PEofnumberTotal
APIcertainasxwithPEofNumber
XP i
i
⋅⋅⋅
⋅⋅⋅⋅⋅⋅⋅
=)(
And the entropy of X after observing values of another variable Y is defined as:
The amount by which the entropy of X decreases reflects additional information about X
provided by Y is called information gain, given by:
IG(X | Y) = H(X) - H(X | Y)
Machine learning, a branch of artificial intelligence, is a scientific discipline concerned with the
design and development of algorithms that allow computers to evolve behaviours based on
empirical data, such as from sensor data or databases [14]. A learner can take advantage of data
to capture characteristics of interest of their unknown underlying probability distribution. Data
can be seen as examples that illustrate relations between observed variables. A major focus of
machine learning research is to automatically learn to recognize complex patterns and make
intelligent decisions based on data [15].
Further, we apply the Random Forest Algorithm (RFA) [16]. This is a machine learning
classification algorithm to construct the classifier to detect malware. A Random Forest is a
classifier that is comprised of a collection of decision tree predictors. Each individual tree is
trained on a partial, independently sampled, set of instances selected from the complete training
set. The predicted output class of a classified instance is the most frequent class output of the
individual trees [17] [18].
4. Obtained Results
To determine whether our method can provide successful results, we extracted data from over
5000 executables. These have been a combination of normal and infected files [19] [22] [24].

65

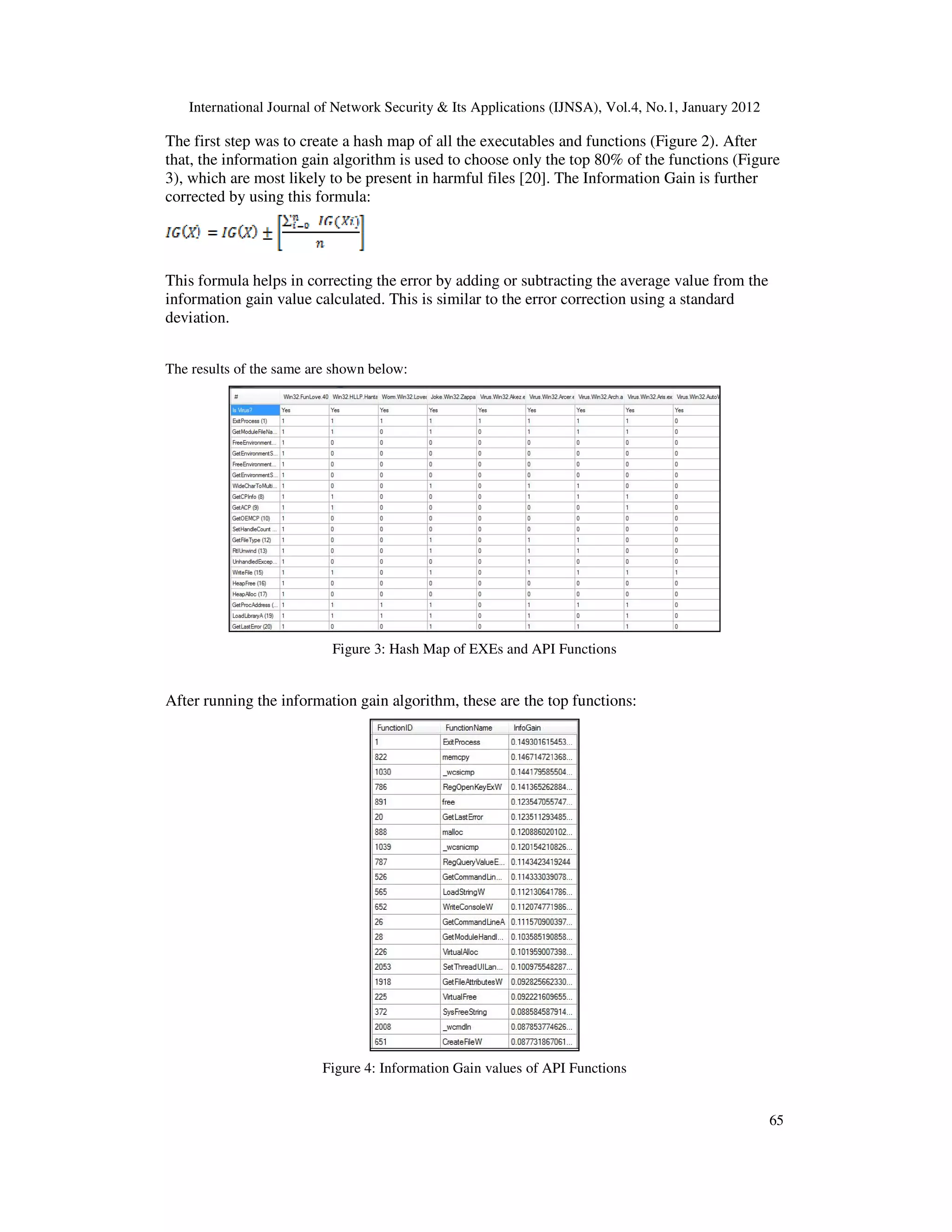

The first step was to create a hash map of all the executables and functions (Figure 2). After
that, the information gain algorithm is used to choose only the top 80% of the functions (Figure
3), which are most likely to be present in harmful files [20]. The Information Gain is further
corrected by using this formula:
This formula helps in correcting the error by adding or subtracting the average value from the
information gain value calculated. This is similar to the error correction using a standard
deviation.
The results of the same are shown below:
Figure 3: Hash Map of EXEs and API Functions
After running the information gain algorithm, these are the top functions:
Figure 4: Information Gain values of API Functions

66

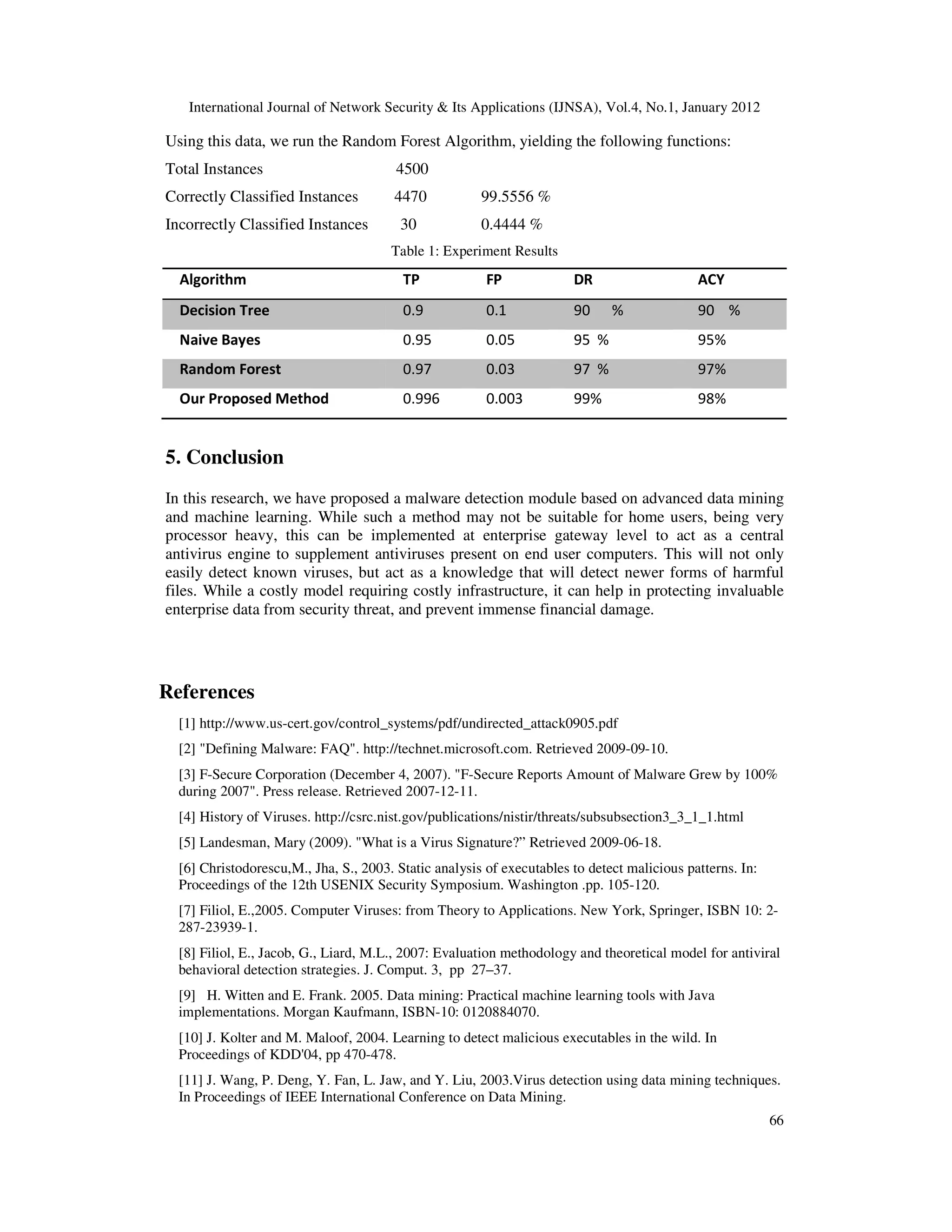

Using this data, we run the Random Forest Algorithm, yielding the following functions:
Total Instances 4500
Correctly Classified Instances 4470 99.5556 %
Incorrectly Classified Instances 30 0.4444 %
Table 1: Experiment Results
Algorithm TP FP DR ACY
Decision Tree 0.9 0.1 90 % 90 %
Naive Bayes 0.95 0.05 95 % 95%
Random Forest 0.97 0.03 97 % 97%
Our Proposed Method 0.996 0.003 99% 98%
5. Conclusion
In this research, we have proposed a malware detection module based on advanced data mining
and machine learning. While such a method may not be suitable for home users, being very
processor heavy, this can be implemented at enterprise gateway level to act as a central
antivirus engine to supplement antiviruses present on end user computers. This will not only
easily detect known viruses, but act as a knowledge that will detect newer forms of harmful
files. While a costly model requiring costly infrastructure, it can help in protecting invaluable
enterprise data from security threat, and prevent immense financial damage.
References
[1] http://www.us-cert.gov/control_systems/pdf/undirected_attack0905.pdf
[2] "Defining Malware: FAQ". http://technet.microsoft.com. Retrieved 2009-09-10.
[3] F-Secure Corporation (December 4, 2007). "F-Secure Reports Amount of Malware Grew by 100%
during 2007". Press release. Retrieved 2007-12-11.
[4] History of Viruses. http://csrc.nist.gov/publications/nistir/threats/subsubsection3_3_1_1.html
[5] Landesman, Mary (2009). "What is a Virus Signature?” Retrieved 2009-06-18.
[6] Christodorescu,M., Jha, S., 2003. Static analysis of executables to detect malicious patterns. In:
Proceedings of the 12th USENIX Security Symposium. Washington .pp. 105-120.
[7] Filiol, E.,2005. Computer Viruses: from Theory to Applications. New York, Springer, ISBN 10: 2-
287-23939-1.
[8] Filiol, E., Jacob, G., Liard, M.L., 2007: Evaluation methodology and theoretical model for antiviral
behavioral detection strategies. J. Comput. 3, pp 27–37.
[9] H. Witten and E. Frank. 2005. Data mining: Practical machine learning tools with Java
implementations. Morgan Kaufmann, ISBN-10: 0120884070.
[10] J. Kolter and M. Maloof, 2004. Learning to detect malicious executables in the wild. In
Proceedings of KDD'04, pp 470-478.
[11] J. Wang, P. Deng, Y. Fan, L. Jaw, and Y. Liu, 2003.Virus detection using data mining techniques.
In Proceedings of IEEE International Conference on Data Mining.

67

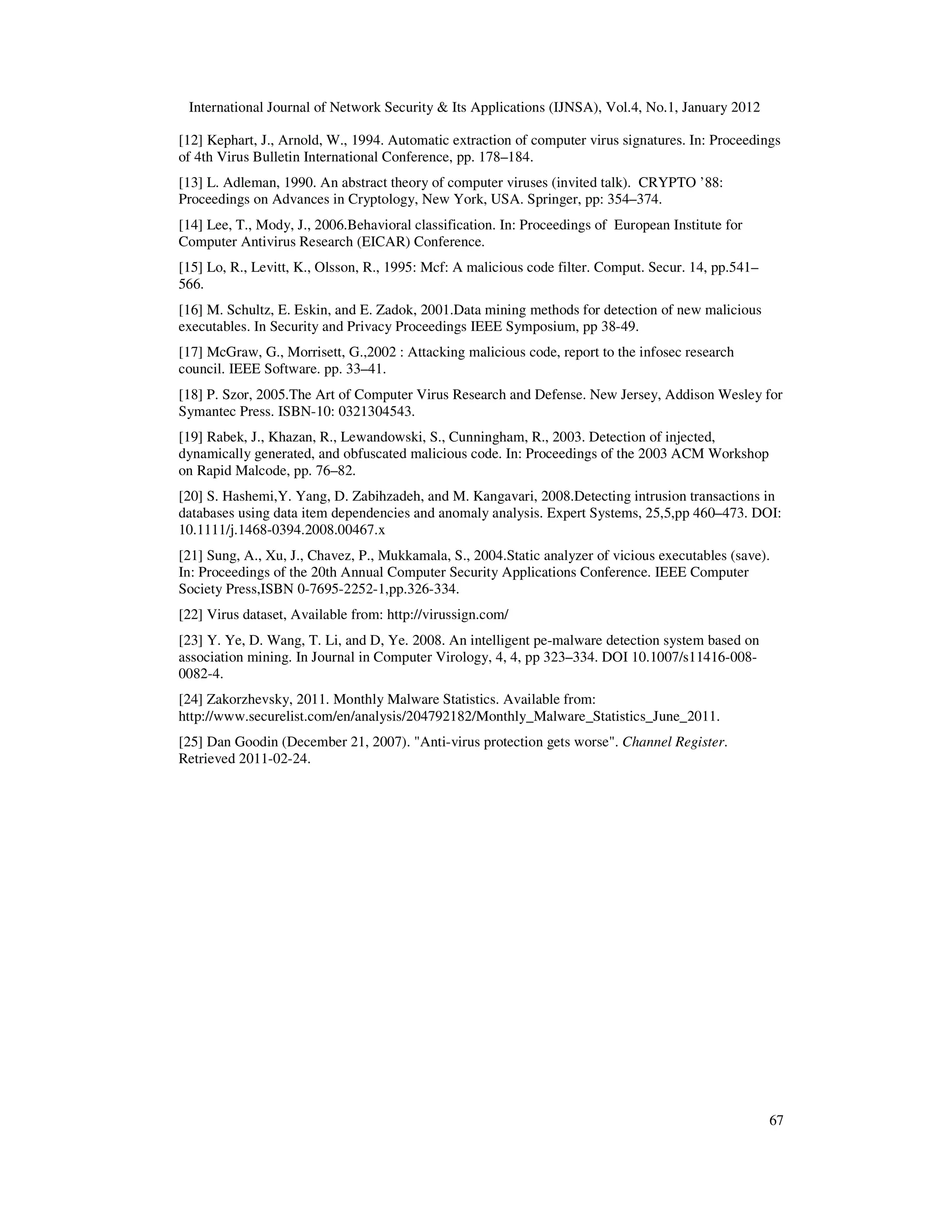

[12] Kephart, J., Arnold, W., 1994. Automatic extraction of computer virus signatures. In: Proceedings
of 4th Virus Bulletin International Conference, pp. 178–184.
[13] L. Adleman, 1990. An abstract theory of computer viruses (invited talk). CRYPTO ’88:
Proceedings on Advances in Cryptology, New York, USA. Springer, pp: 354–374.
[14] Lee, T., Mody, J., 2006.Behavioral classification. In: Proceedings of European Institute for
Computer Antivirus Research (EICAR) Conference.
[15] Lo, R., Levitt, K., Olsson, R., 1995: Mcf: A malicious code filter. Comput. Secur. 14, pp.541–
566.
[16] M. Schultz, E. Eskin, and E. Zadok, 2001.Data mining methods for detection of new malicious
executables. In Security and Privacy Proceedings IEEE Symposium, pp 38-49.
[17] McGraw, G., Morrisett, G.,2002 : Attacking malicious code, report to the infosec research
council. IEEE Software. pp. 33–41.
[18] P. Szor, 2005.The Art of Computer Virus Research and Defense. New Jersey, Addison Wesley for
Symantec Press. ISBN-10: 0321304543.
[19] Rabek, J., Khazan, R., Lewandowski, S., Cunningham, R., 2003. Detection of injected,
dynamically generated, and obfuscated malicious code. In: Proceedings of the 2003 ACM Workshop
on Rapid Malcode, pp. 76–82.
[20] S. Hashemi,Y. Yang, D. Zabihzadeh, and M. Kangavari, 2008.Detecting intrusion transactions in
databases using data item dependencies and anomaly analysis. Expert Systems, 25,5,pp 460–473. DOI:
10.1111/j.1468-0394.2008.00467.x
[21] Sung, A., Xu, J., Chavez, P., Mukkamala, S., 2004.Static analyzer of vicious executables (save).
In: Proceedings of the 20th Annual Computer Security Applications Conference. IEEE Computer
Society Press,ISBN 0-7695-2252-1,pp.326-334.
[22] Virus dataset, Available from: http://virussign.com/
[23] Y. Ye, D. Wang, T. Li, and D, Ye. 2008. An intelligent pe-malware detection system based on
association mining. In Journal in Computer Virology, 4, 4, pp 323–334. DOI 10.1007/s11416-008-
0082-4.
[24] Zakorzhevsky, 2011. Monthly Malware Statistics. Available from:
http://www.securelist.com/en/analysis/204792182/Monthly_Malware_Statistics_June_2011.
[25] Dan Goodin (December 21, 2007). "Anti-virus protection gets worse". Channel Register.
Retrieved 2011-02-24.

Malware Detection Module using Machine Learning Algorithms to Assist in Centralized Security in Enterprise Networks

More Related Content

What's hot

Similar to Malware Detection Module using Machine Learning Algorithms to Assist in Centralized Security in Enterprise Networks

Recently uploaded

Malware Detection Module using Machine Learning Algorithms to Assist in Centralized Security in Enterprise Networks
