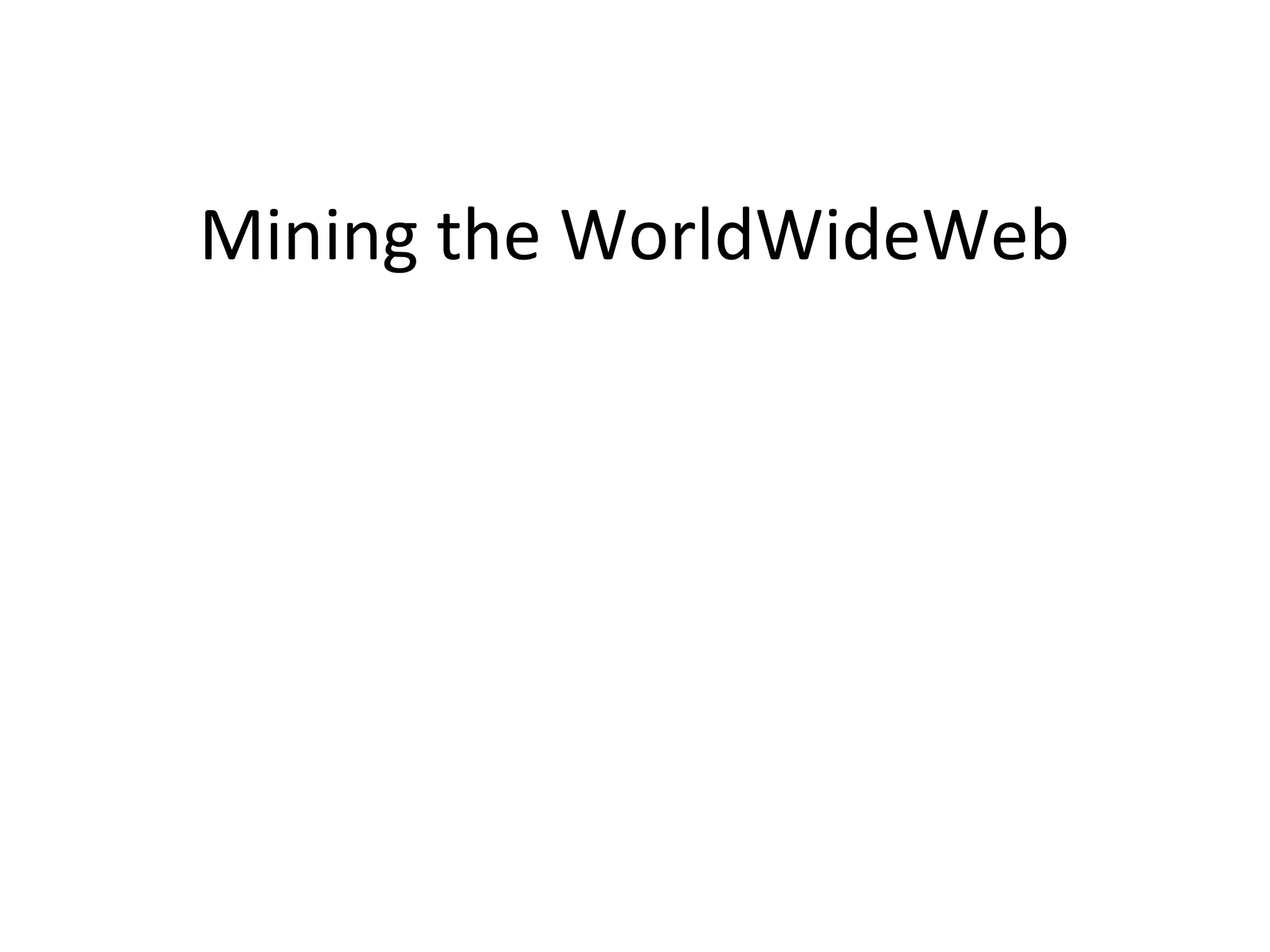

  Mining the WorldWideWeb
• 2.

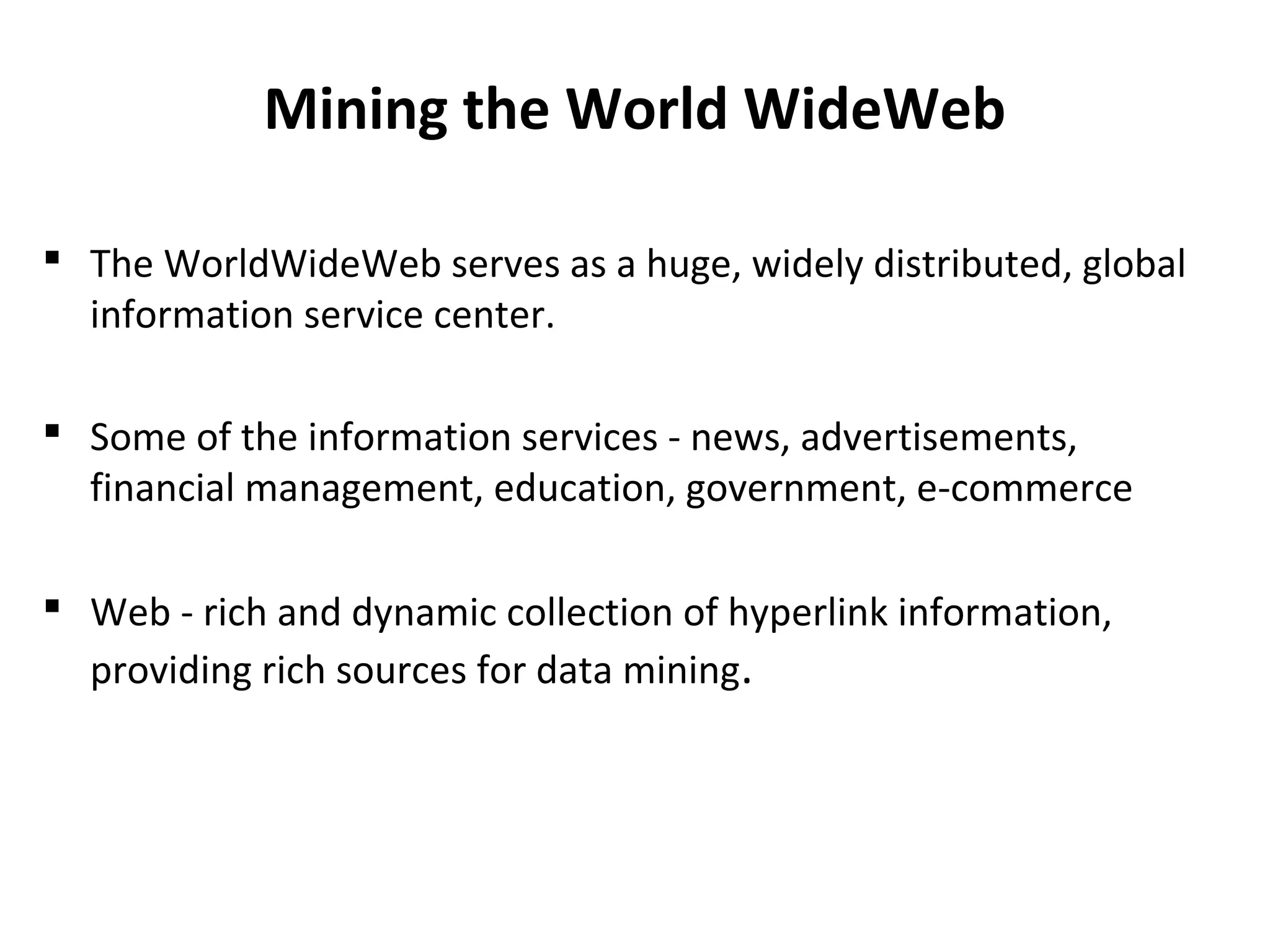

  Mining the WorldWideWeb  The WorldWideWeb serves as a huge, widely distributed, global information service center.  Some of the information services - news, advertisements, financial management, education, government, e-commerce  Web - rich and dynamic collection of hyperlink information, providing rich sources for data mining.
• 3.

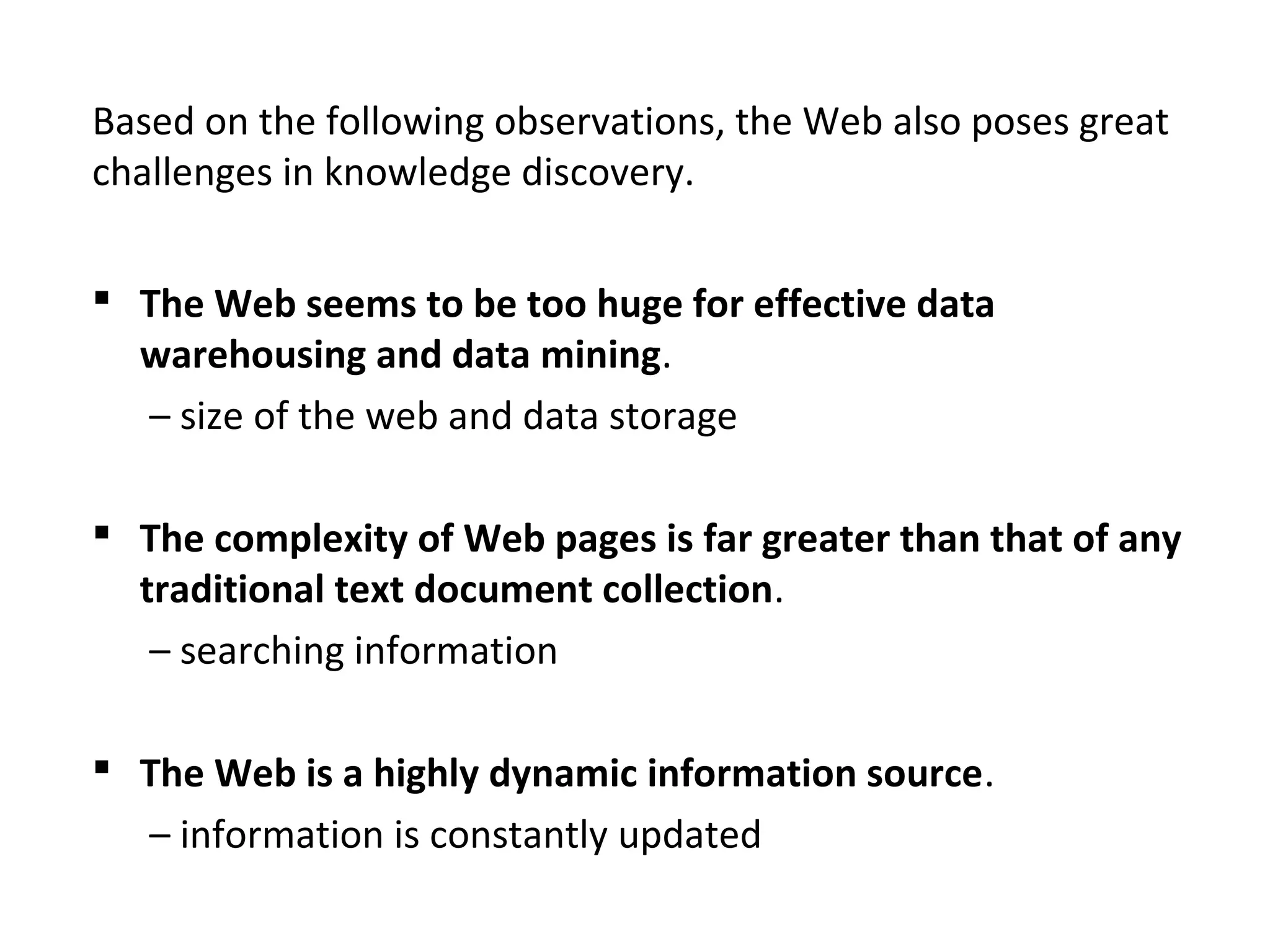

  Based on thefollowing observations, the Web also poses great challenges in knowledge discovery.  The Web seems to be too huge for effective data warehousing and data mining. – size of the web and data storage  The complexity of Web pages is far greater than that of any traditional text document collection. – searching information  The Web is a highly dynamic information source. – information is constantly updated
• 4.

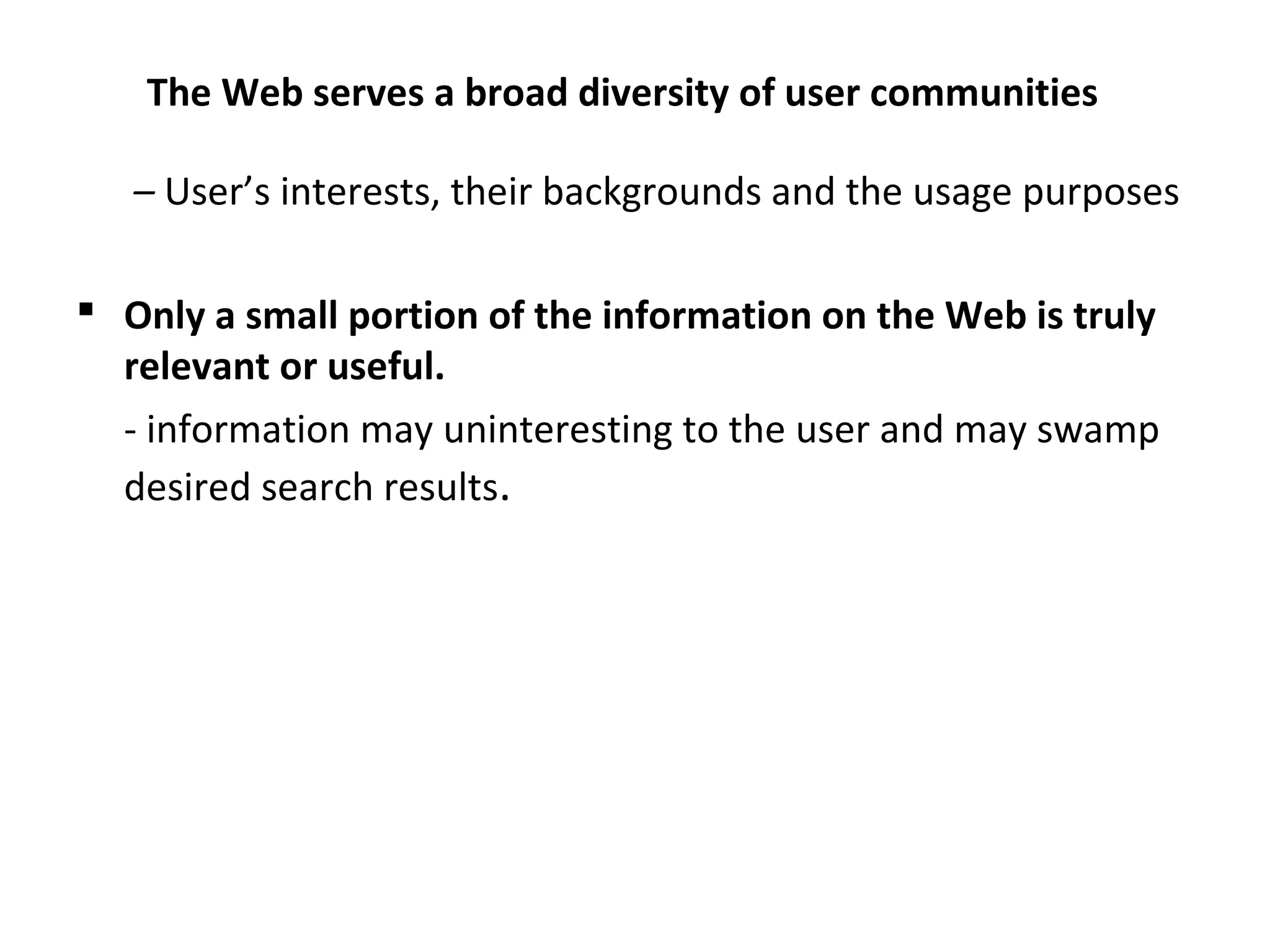

  The Web servesa broad diversity of user communities – User’s interests, their backgrounds and the usage purposes  Only a small portion of the information on the Web is truly relevant or useful. - information may uninteresting to the user and may swamp desired search results.
• 5.

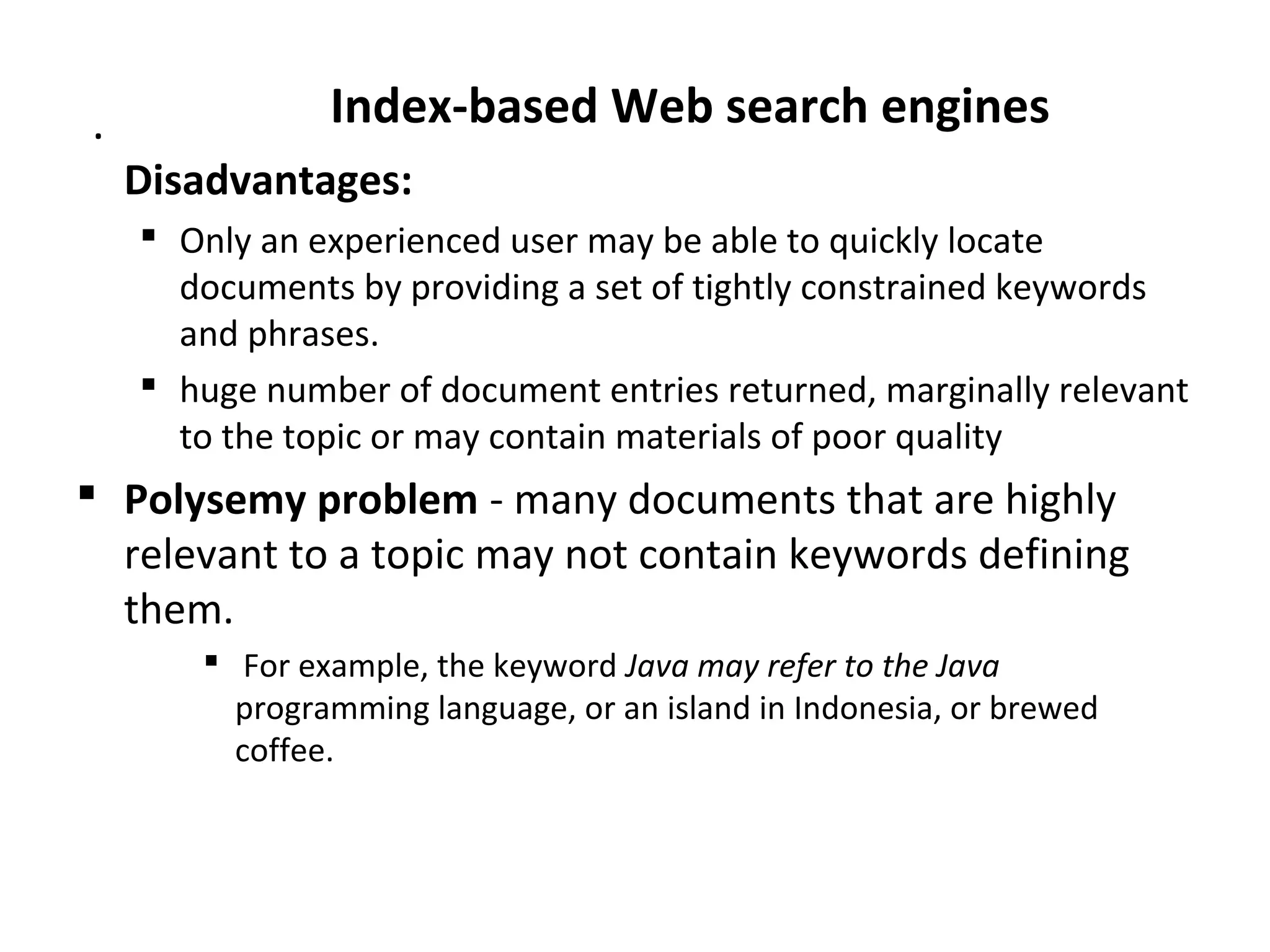

  . Index-based Websearch engines Disadvantages:  Only an experienced user may be able to quickly locate documents by providing a set of tightly constrained keywords and phrases.  huge number of document entries returned, marginally relevant to the topic or may contain materials of poor quality  Polysemy problem - many documents that are highly relevant to a topic may not contain keywords defining them.  For example, the keyword Java may refer to the Java programming language, or an island in Indonesia, or brewed coffee.
• 6.

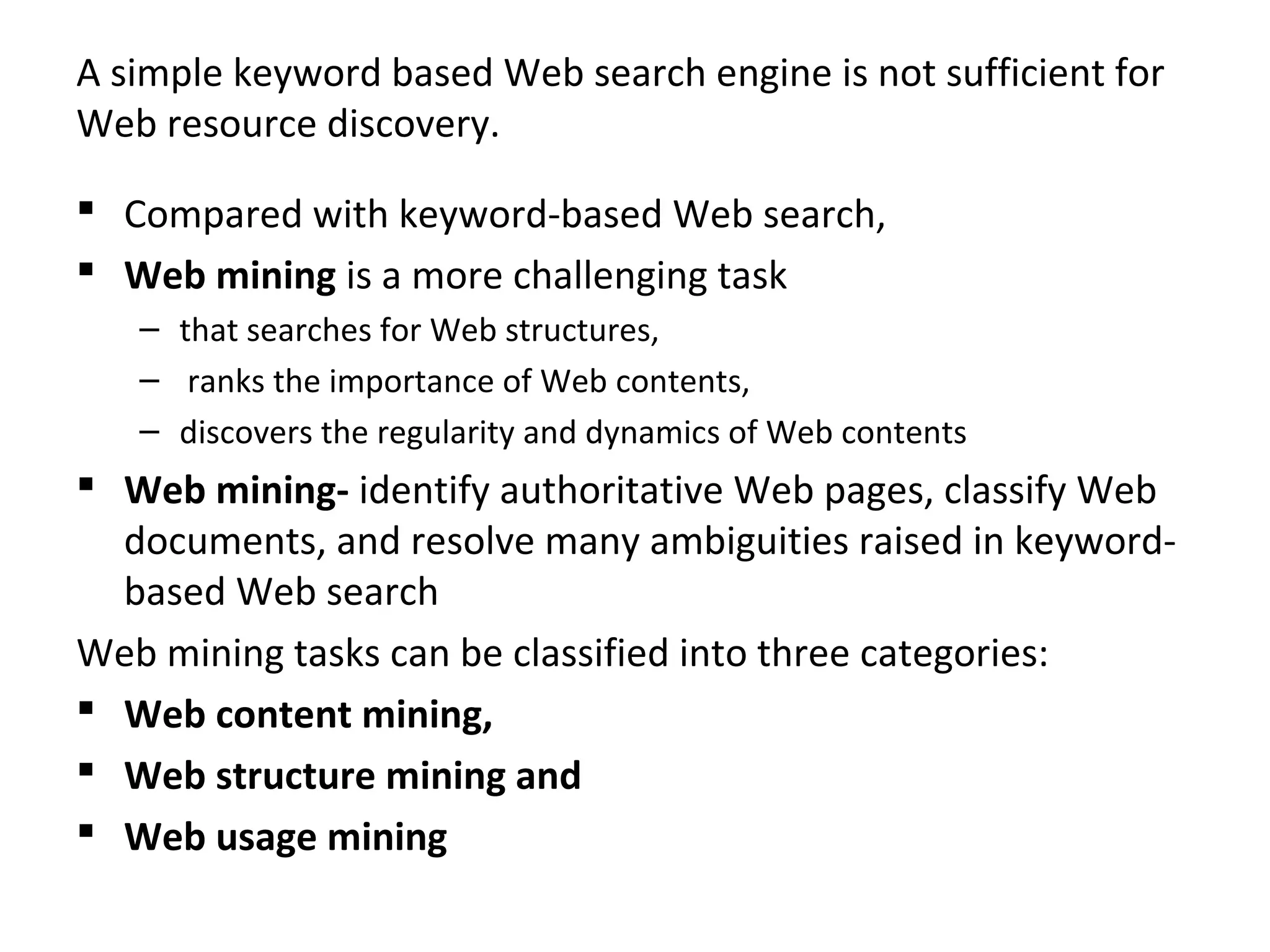

  A simple keywordbased Web search engine is not sufficient for Web resource discovery.  Compared with keyword-based Web search,  Web mining is a more challenging task – that searches for Web structures, – ranks the importance of Web contents, – discovers the regularity and dynamics of Web contents  Web mining- identify authoritative Web pages, classify Web documents, and resolve many ambiguities raised in keyword- based Web search Web mining tasks can be classified into three categories:  Web content mining,  Web structure mining and  Web usage mining
• 7.

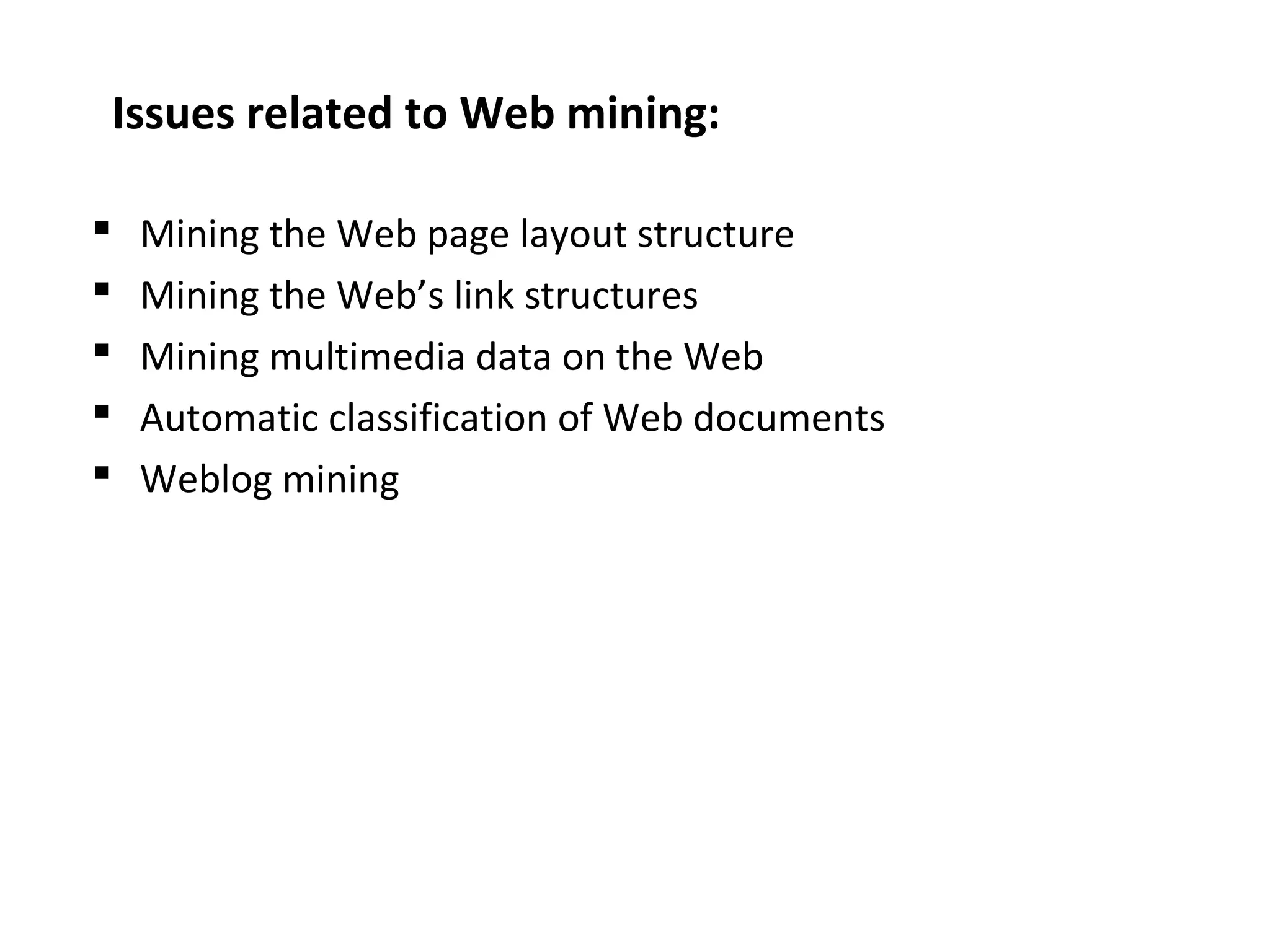

  Issues related toWeb mining:  Mining the Web page layout structure  Mining the Web’s link structures  Mining multimedia data on the Web  Automatic classification of Web documents  Weblog mining
• 8.

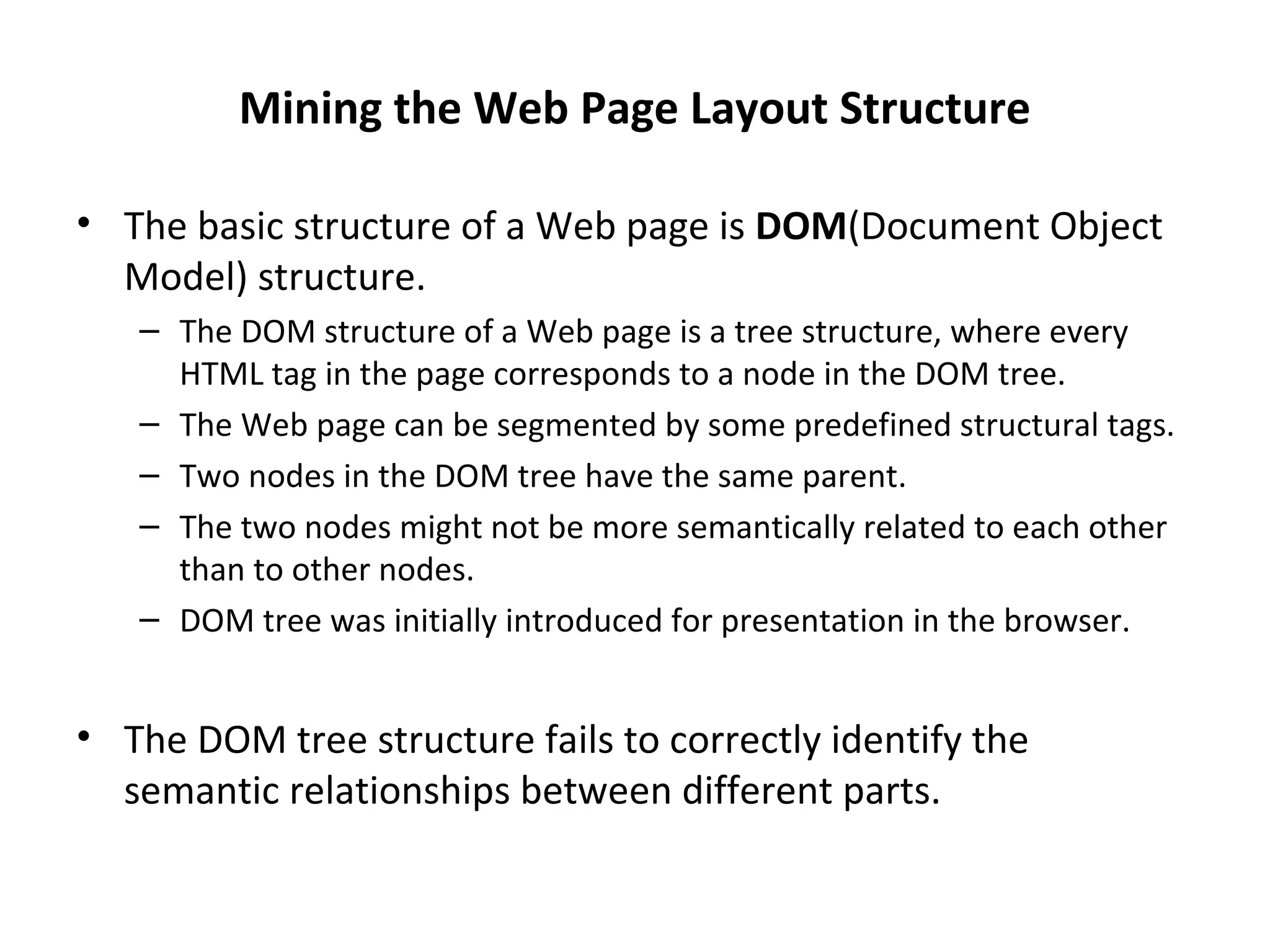

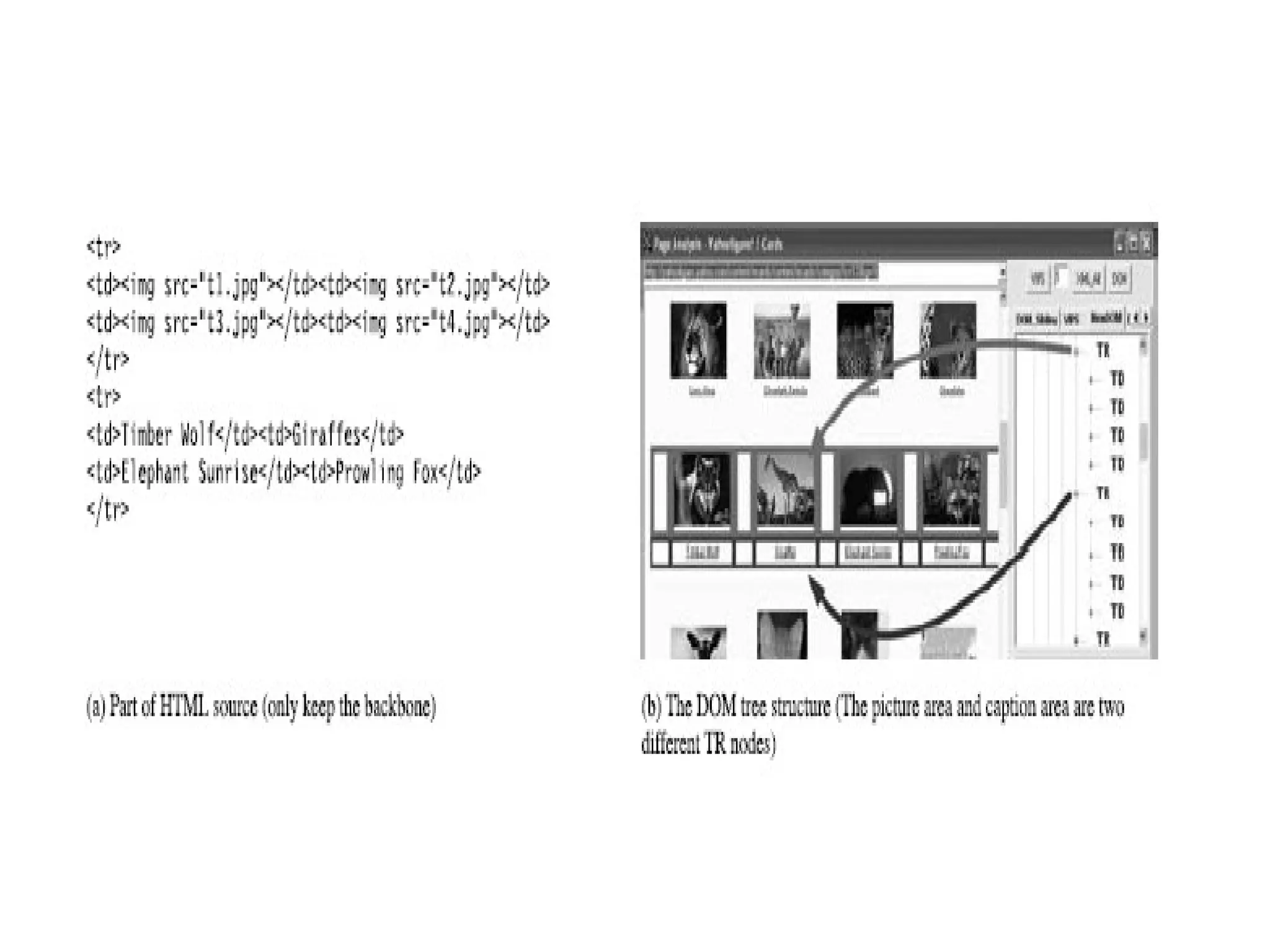

  Mining the WebPage Layout Structure • The basic structure of a Web page is DOM(Document Object Model) structure. – The DOM structure of a Web page is a tree structure, where every HTML tag in the page corresponds to a node in the DOM tree. – The Web page can be segmented by some predefined structural tags. – Two nodes in the DOM tree have the same parent. – The two nodes might not be more semantically related to each other than to other nodes. – DOM tree was initially introduced for presentation in the browser. • The DOM tree structure fails to correctly identify the semantic relationships between different parts.
• 10.

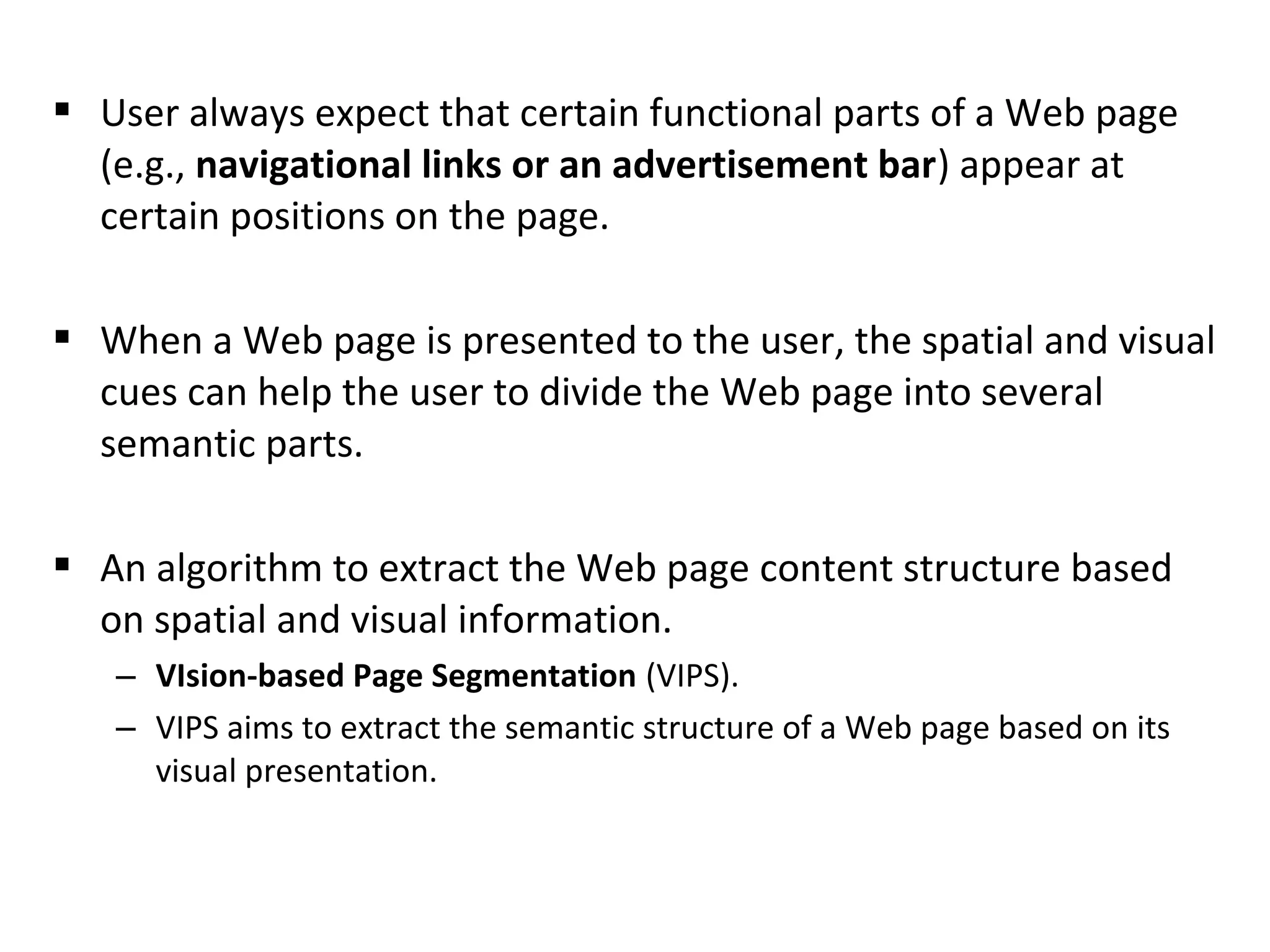

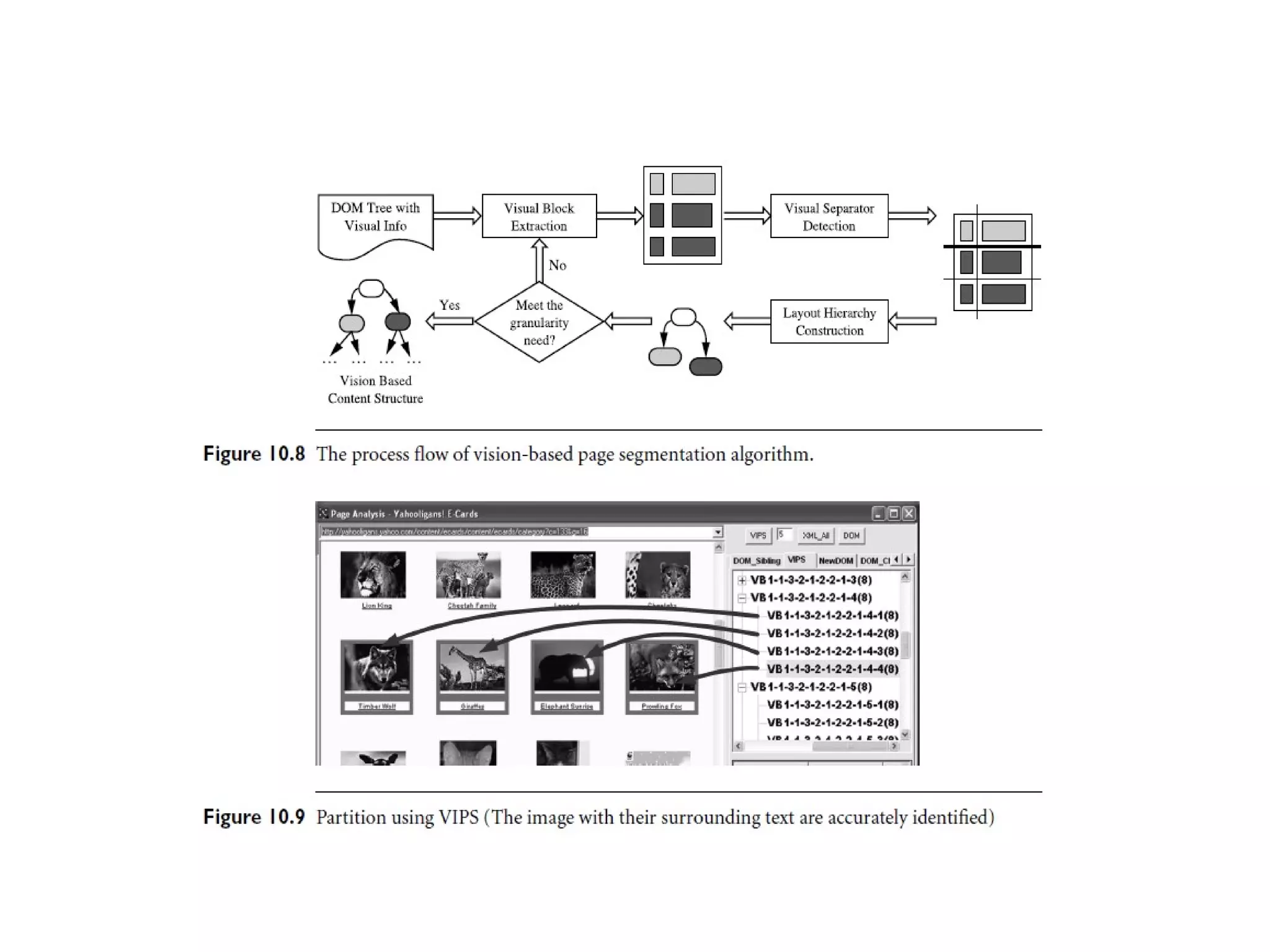

   User alwaysexpect that certain functional parts of a Web page (e.g., navigational links or an advertisement bar) appear at certain positions on the page.  When a Web page is presented to the user, the spatial and visual cues can help the user to divide the Web page into several semantic parts.  An algorithm to extract the Web page content structure based on spatial and visual information. – VIsion-based Page Segmentation (VIPS). – VIPS aims to extract the semantic structure of a Web page based on its visual presentation.
• 11.

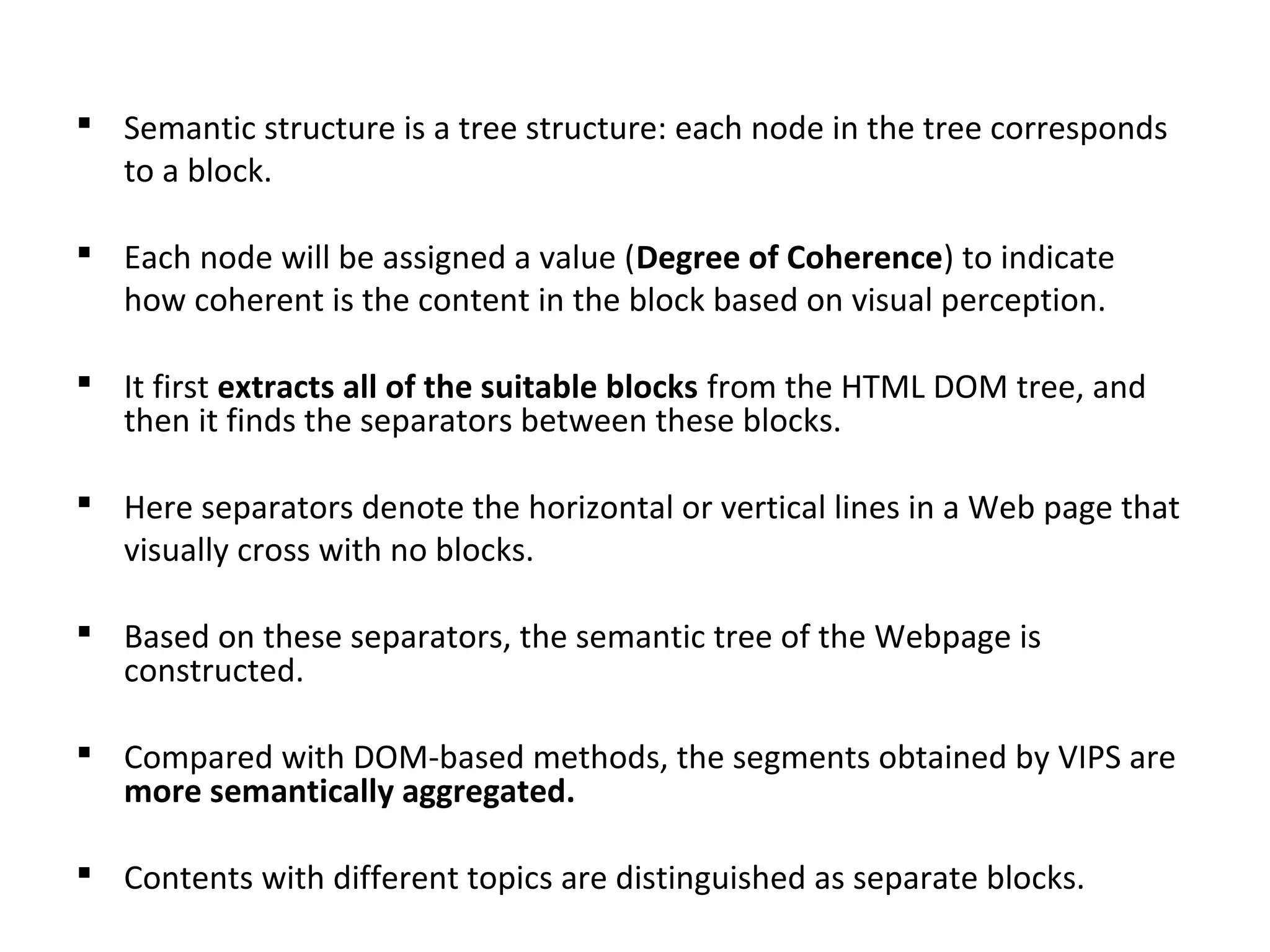

   Semantic structureis a tree structure: each node in the tree corresponds to a block.  Each node will be assigned a value (Degree of Coherence) to indicate how coherent is the content in the block based on visual perception.  It first extracts all of the suitable blocks from the HTML DOM tree, and then it finds the separators between these blocks.  Here separators denote the horizontal or vertical lines in a Web page that visually cross with no blocks.  Based on these separators, the semantic tree of the Webpage is constructed.  Compared with DOM-based methods, the segments obtained by VIPS are more semantically aggregated.  Contents with different topics are distinguished as separate blocks.
• 13.

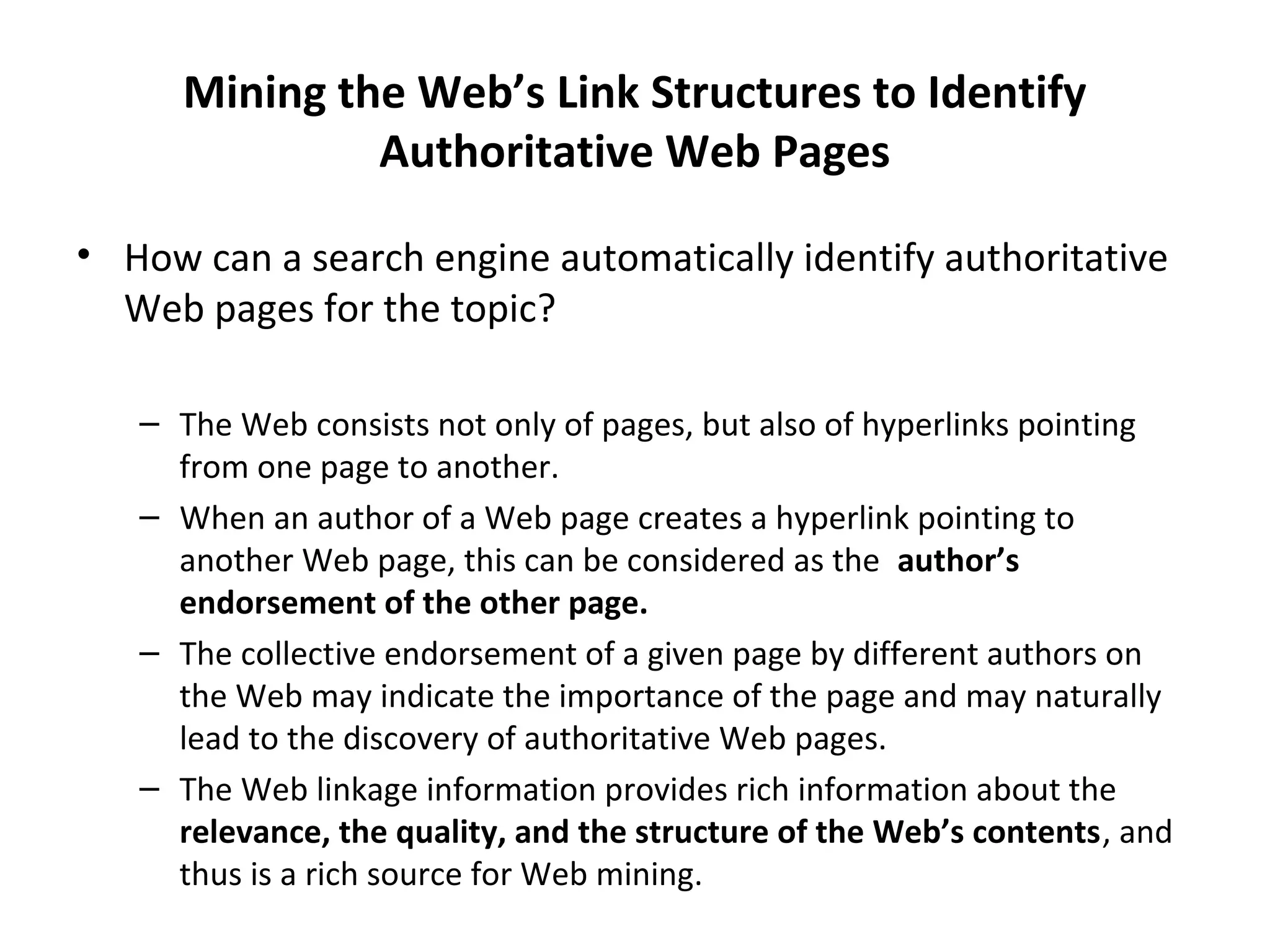

  Mining the Web’sLink Structures to Identify Authoritative Web Pages • How can a search engine automatically identify authoritative Web pages for the topic? – The Web consists not only of pages, but also of hyperlinks pointing from one page to another. – When an author of a Web page creates a hyperlink pointing to another Web page, this can be considered as the author’s endorsement of the other page. – The collective endorsement of a given page by different authors on the Web may indicate the importance of the page and may naturally lead to the discovery of authoritative Web pages. – The Web linkage information provides rich information about the relevance, the quality, and the structure of the Web’s contents, and thus is a rich source for Web mining.
• 14.

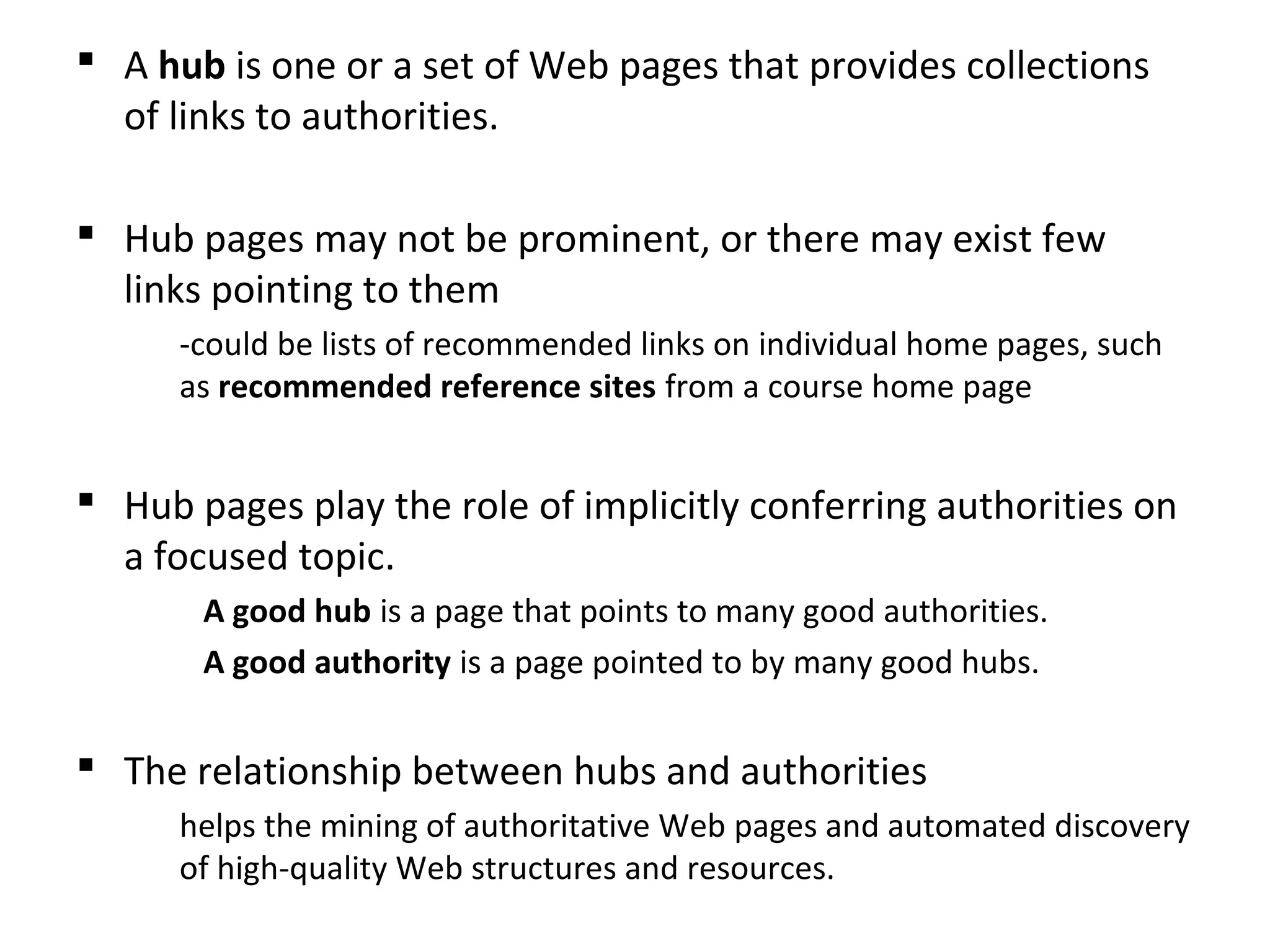

   A hubis one or a set of Web pages that provides collections of links to authorities.  Hub pages may not be prominent, or there may exist few links pointing to them -could be lists of recommended links on individual home pages, such as recommended reference sites from a course home page  Hub pages play the role of implicitly conferring authorities on a focused topic. A good hub is a page that points to many good authorities. A good authority is a page pointed to by many good hubs.  The relationship between hubs and authorities helps the mining of authoritative Web pages and automated discovery of high-quality Web structures and resources.
• 15.

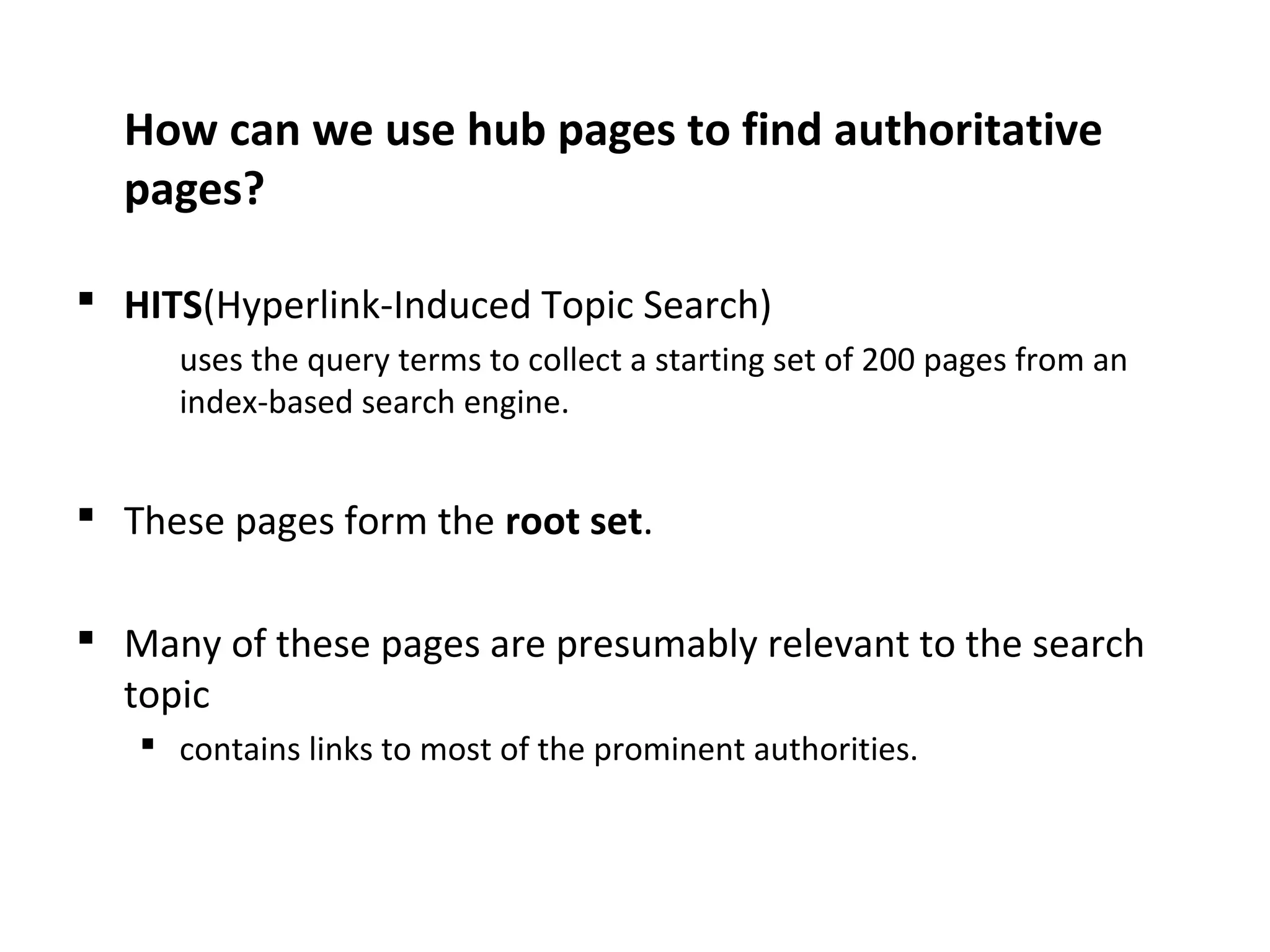

  How can weuse hub pages to find authoritative pages?  HITS(Hyperlink-Induced Topic Search) uses the query terms to collect a starting set of 200 pages from an index-based search engine.  These pages form the root set.  Many of these pages are presumably relevant to the search topic  contains links to most of the prominent authorities.
• 16.

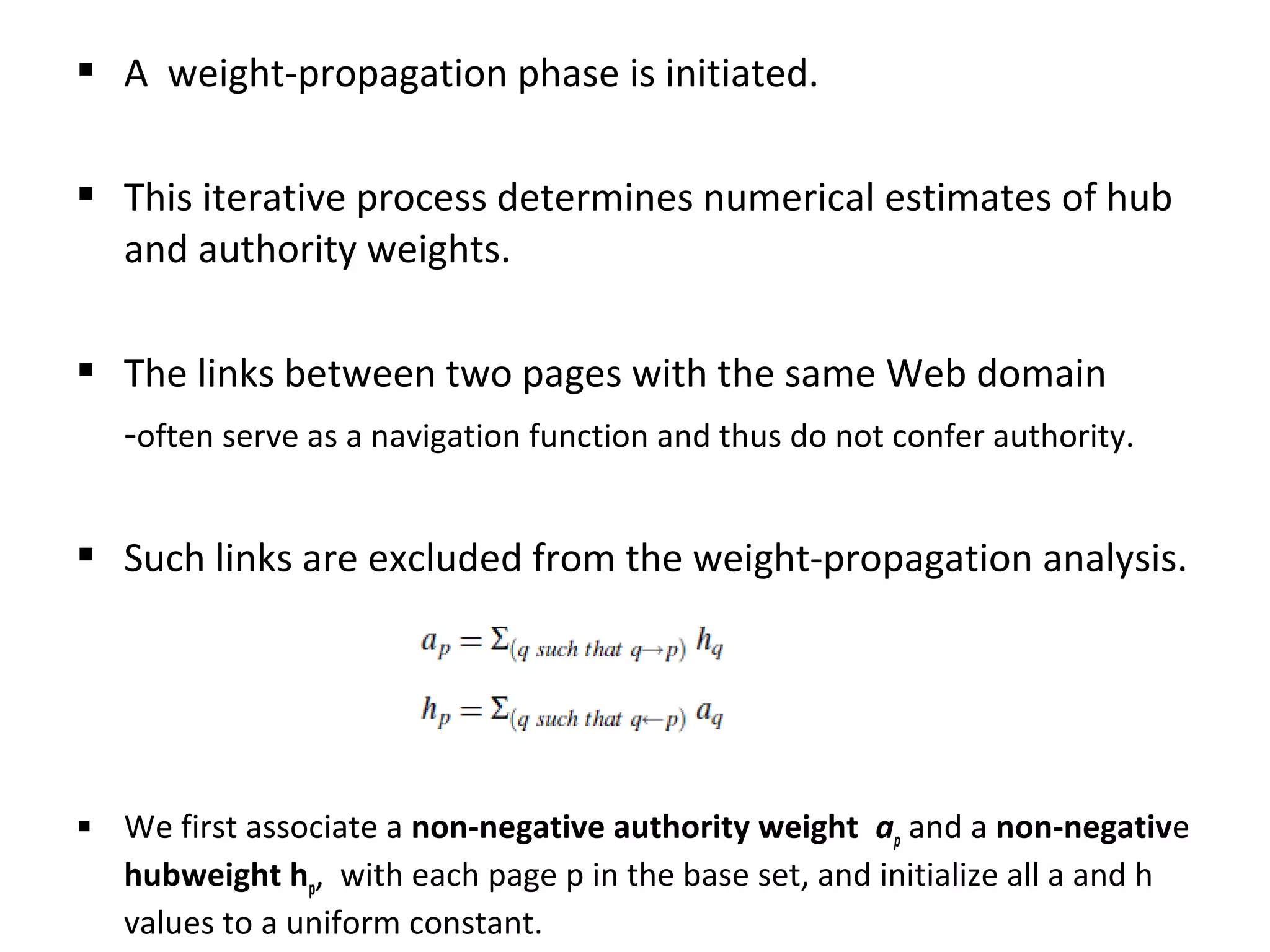

   A weight-propagationphase is initiated.  This iterative process determines numerical estimates of hub and authority weights.  The links between two pages with the same Web domain -often serve as a navigation function and thus do not confer authority.  Such links are excluded from the weight-propagation analysis.  We first associate a non-negative authority weight ap and a non-negative hubweight hp, with each page p in the base set, and initialize all a and h values to a uniform constant.
• 17.

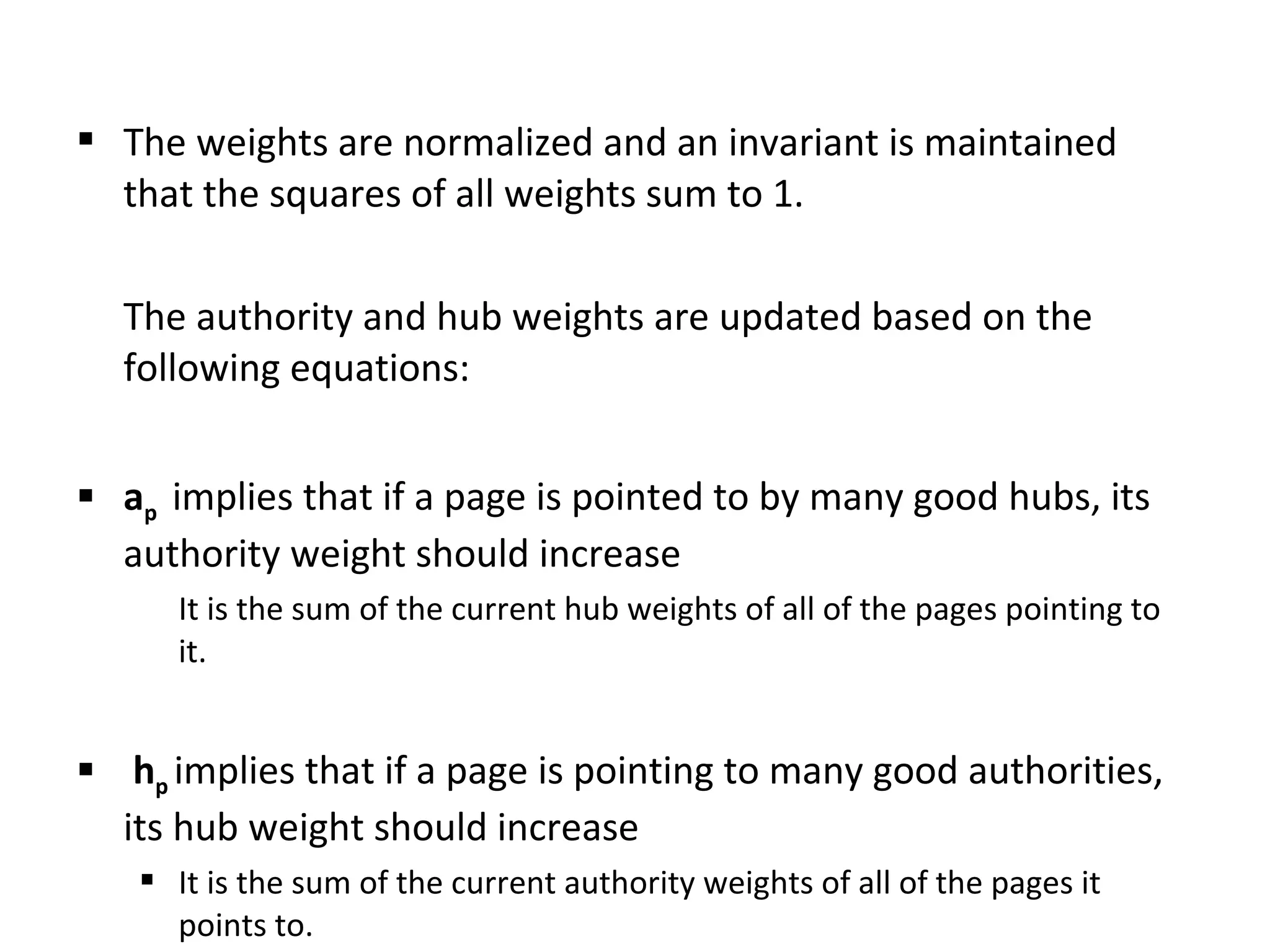

   The weightsare normalized and an invariant is maintained that the squares of all weights sum to 1. The authority and hub weights are updated based on the following equations:  ap implies that if a page is pointed to by many good hubs, its authority weight should increase It is the sum of the current hub weights of all of the pages pointing to it.  hp implies that if a page is pointing to many good authorities, its hub weight should increase  It is the sum of the current authority weights of all of the pages it points to.
