2016 Utah Cloud Summit: Big Data Architectural Patterns and Best Practices on AWS
The document outlines best practices and architectural patterns for managing big data on AWS, highlighting the importance of using the right technologies for various data types and processing needs. It emphasizes a decoupled 'data bus' approach to simplify data processing, detailing the appropriate AWS services for data collection, storage, analysis, and visualization. Additionally, it suggests leveraging AWS managed services for efficiency and cost-effectiveness in big data projects.
More Related Content
Similar to 2016 Utah Cloud Summit: Big Data Architectural Patterns and Best Practices on AWS
2016 Utah Cloud Summit: Big Data Architectural Patterns and Best Practices on AWS
- 1. Martin Schade, SolutionsArchitect, Amazon Web Services January 2016 Big Data Architectural Patterns and Best Practices on AWS

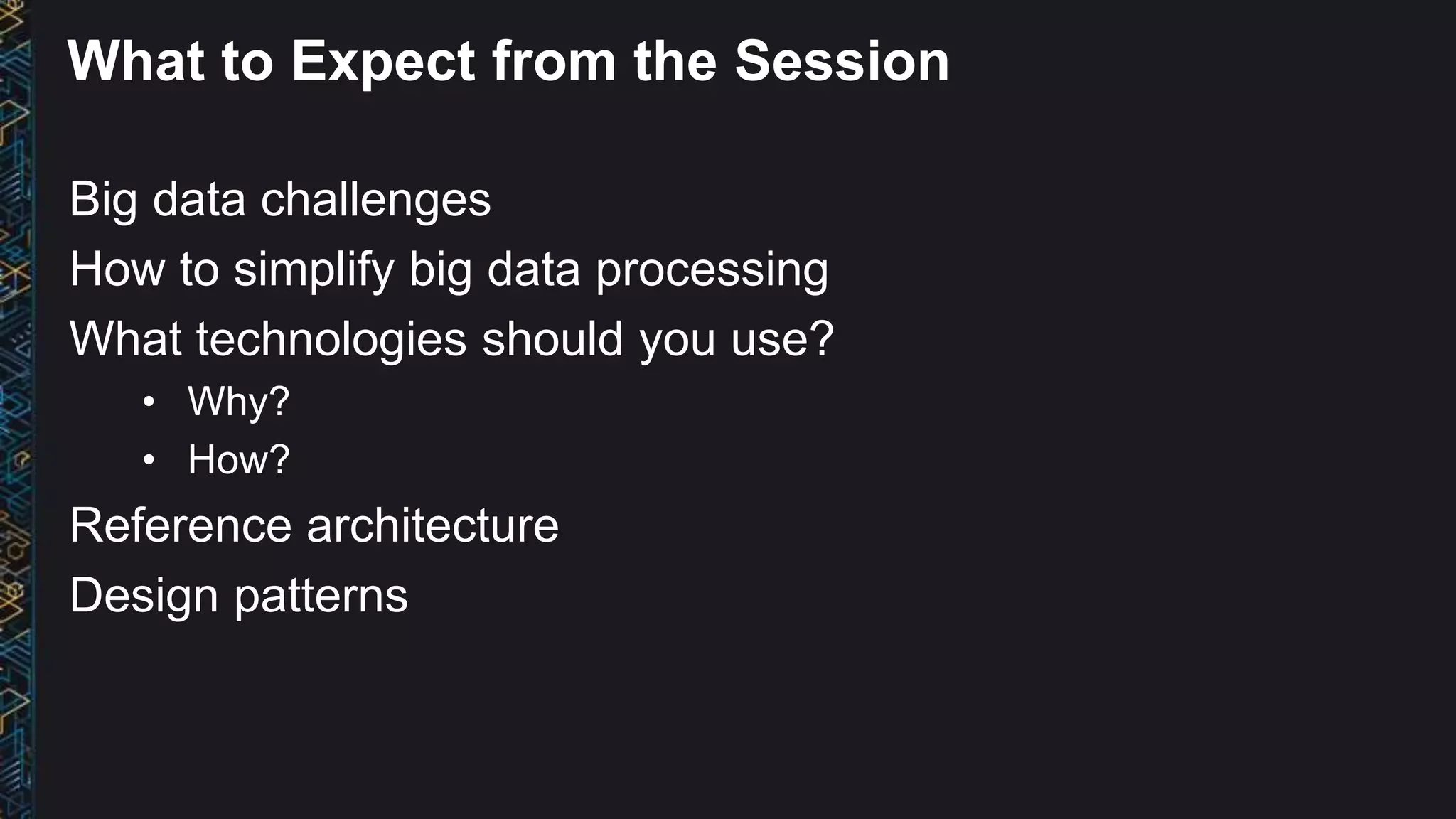

- 2. What to Expectfrom the Session Big data challenges How to simplify big data processing What technologies should you use? • Why? • How? Reference architecture Design patterns

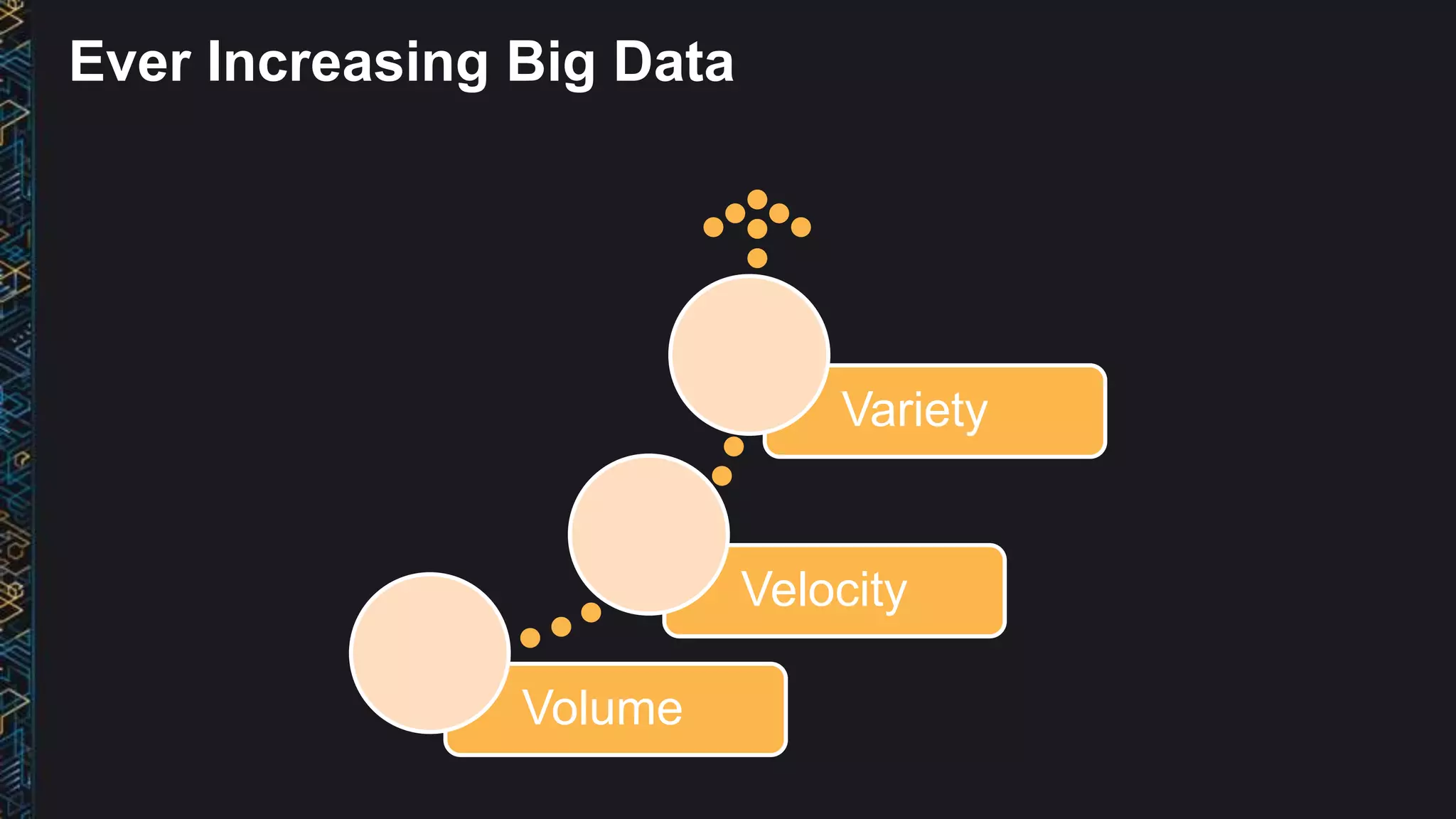

- 3. Ever Increasing BigData Volume Velocity Variety

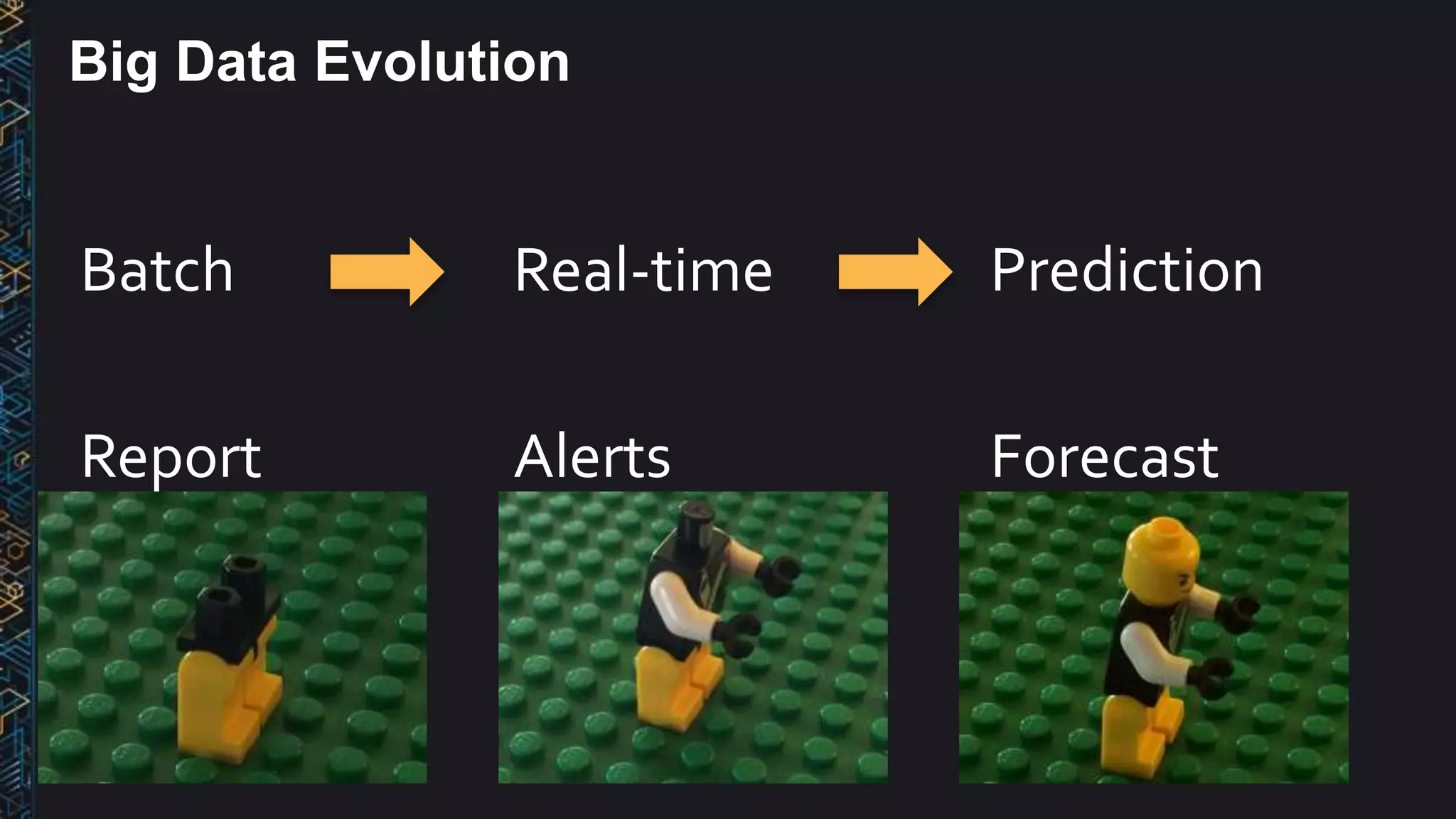

- 4.

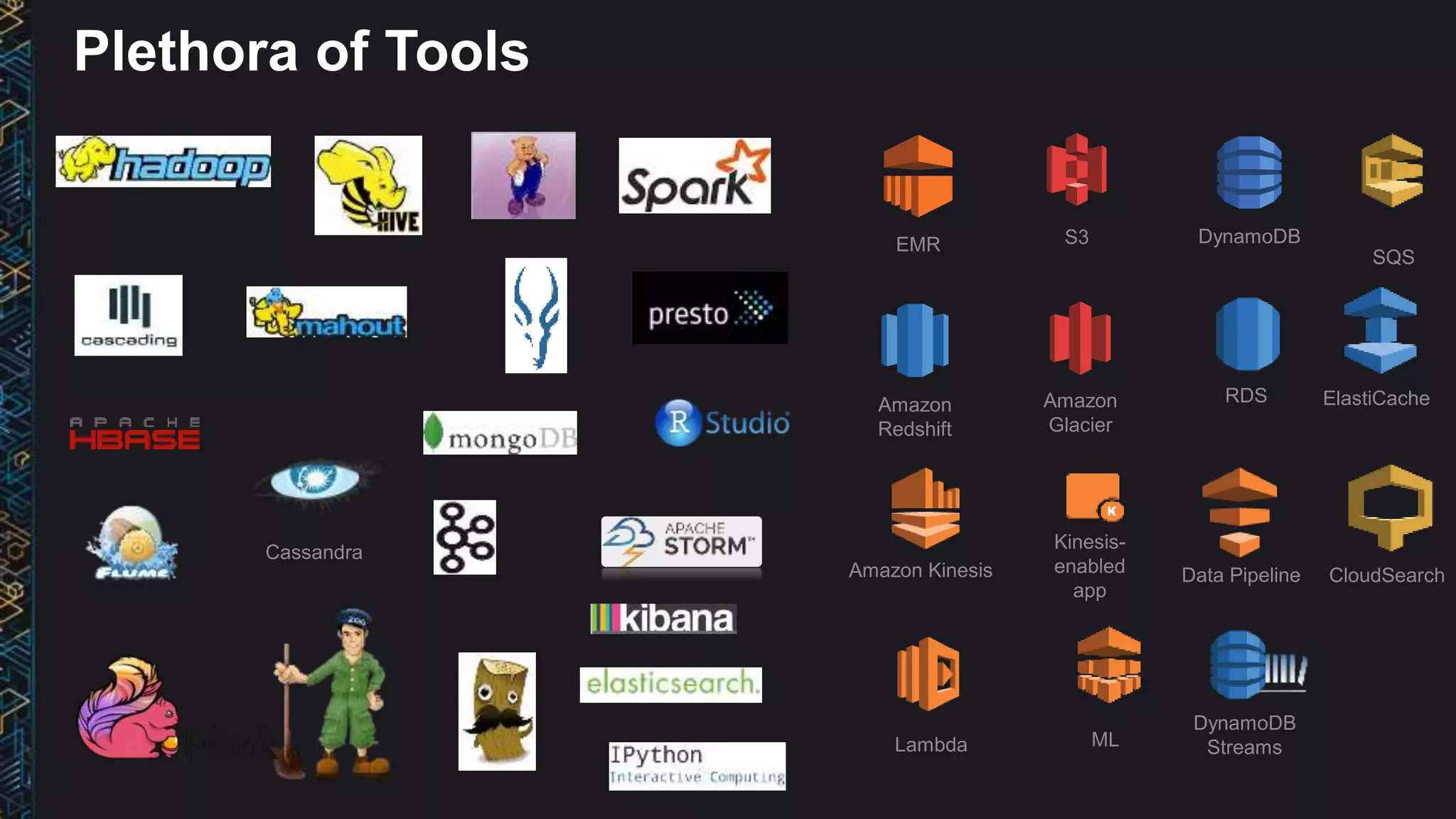

- 5. Plethora of Tools Amazon Glacier S3DynamoDB RDS EMR Amazon Redshift Data PipelineAmazon Kinesis Cassandra CloudSearch Kinesis- enabled app Lambda ML SQS ElastiCache DynamoDB Streams
- 6. Is there areference architecture ? What tools should I use ? How ? Why ?

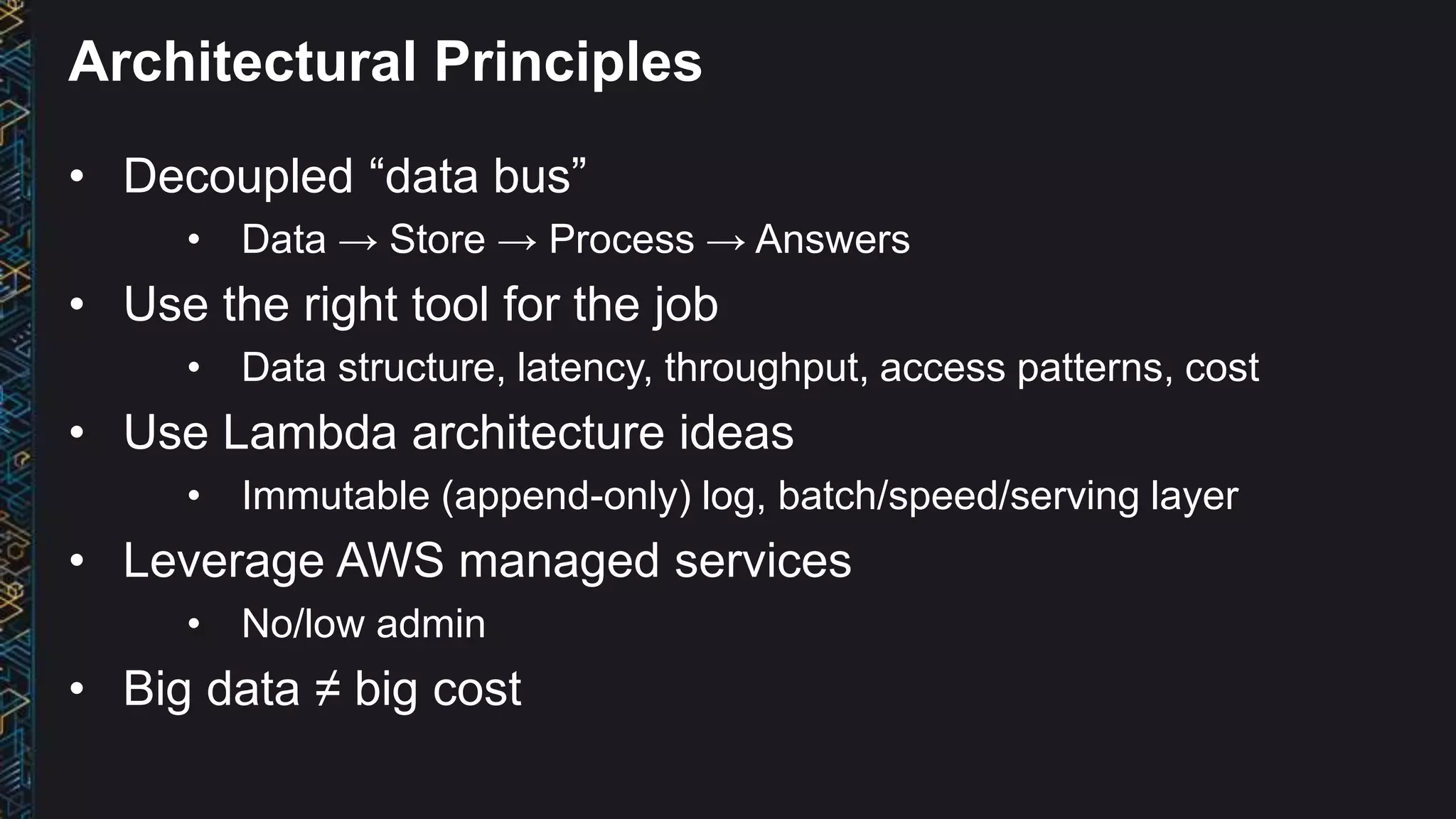

- 7. Architectural Principles • Decoupled“data bus” • Data → Store → Process → Answers • Use the right tool for the job • Data structure, latency, throughput, access patterns, cost • Use Lambda architecture ideas • Immutable (append-only) log, batch/speed/serving layer • Leverage AWS managed services • No/low admin • Big data ≠ big cost

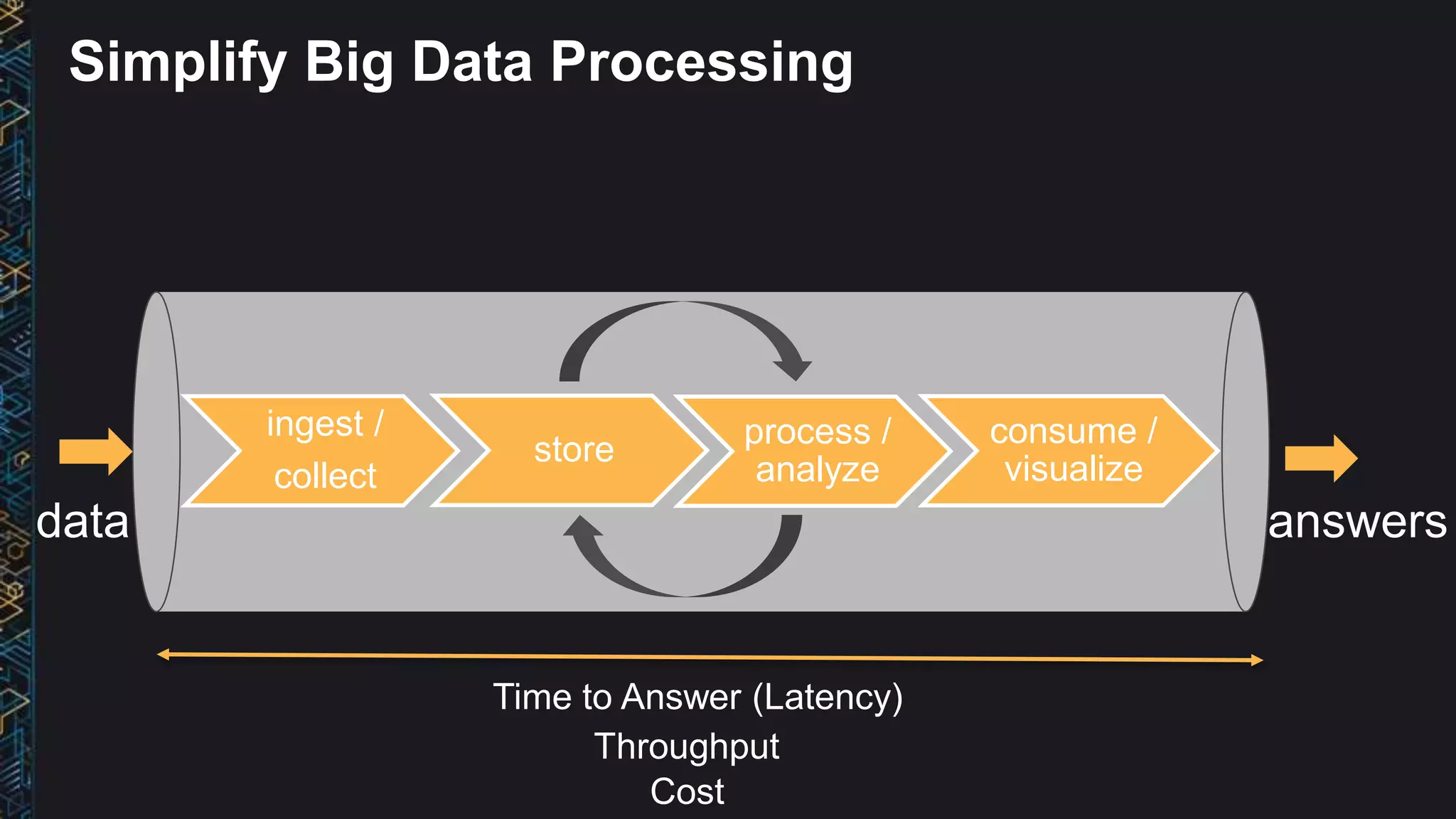

- 8. Simplify Big DataProcessing ingest / collect store process / analyze consume / visualize Time to Answer (Latency) Throughput Cost
- 9.

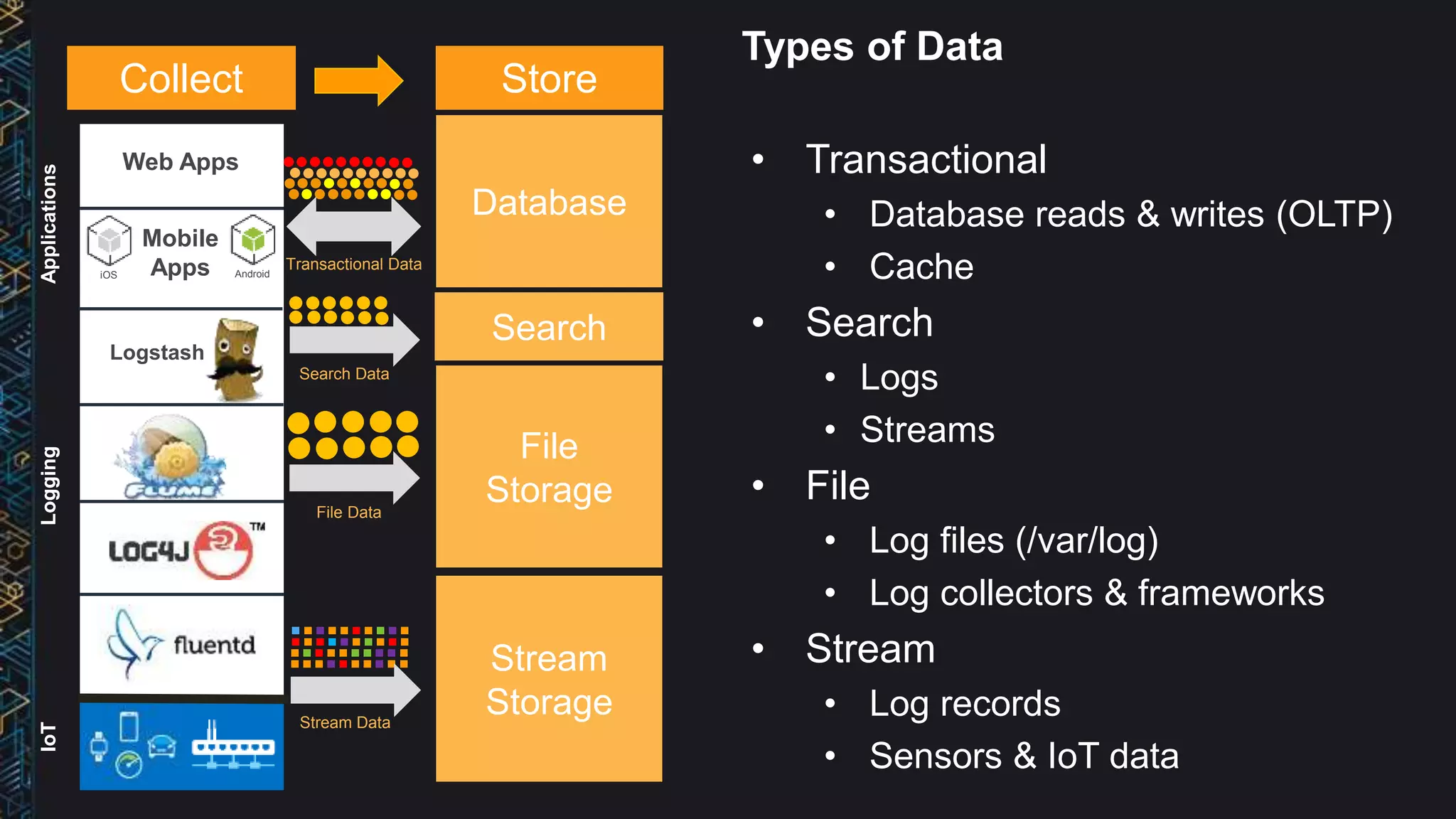

- 10. Types of Data •Transactional • Database reads & writes (OLTP) • Cache • Search • Logs • Streams • File • Log files (/var/log) • Log collectors & frameworks • Stream • Log records • Sensors & IoT data Database File Storage Stream Storage A iOS Android Web Apps Logstash LoggingIoTApplications Transactional Data File Data Stream Data Mobile Apps Search Data Search Collect Store LoggingIoT
- 11.

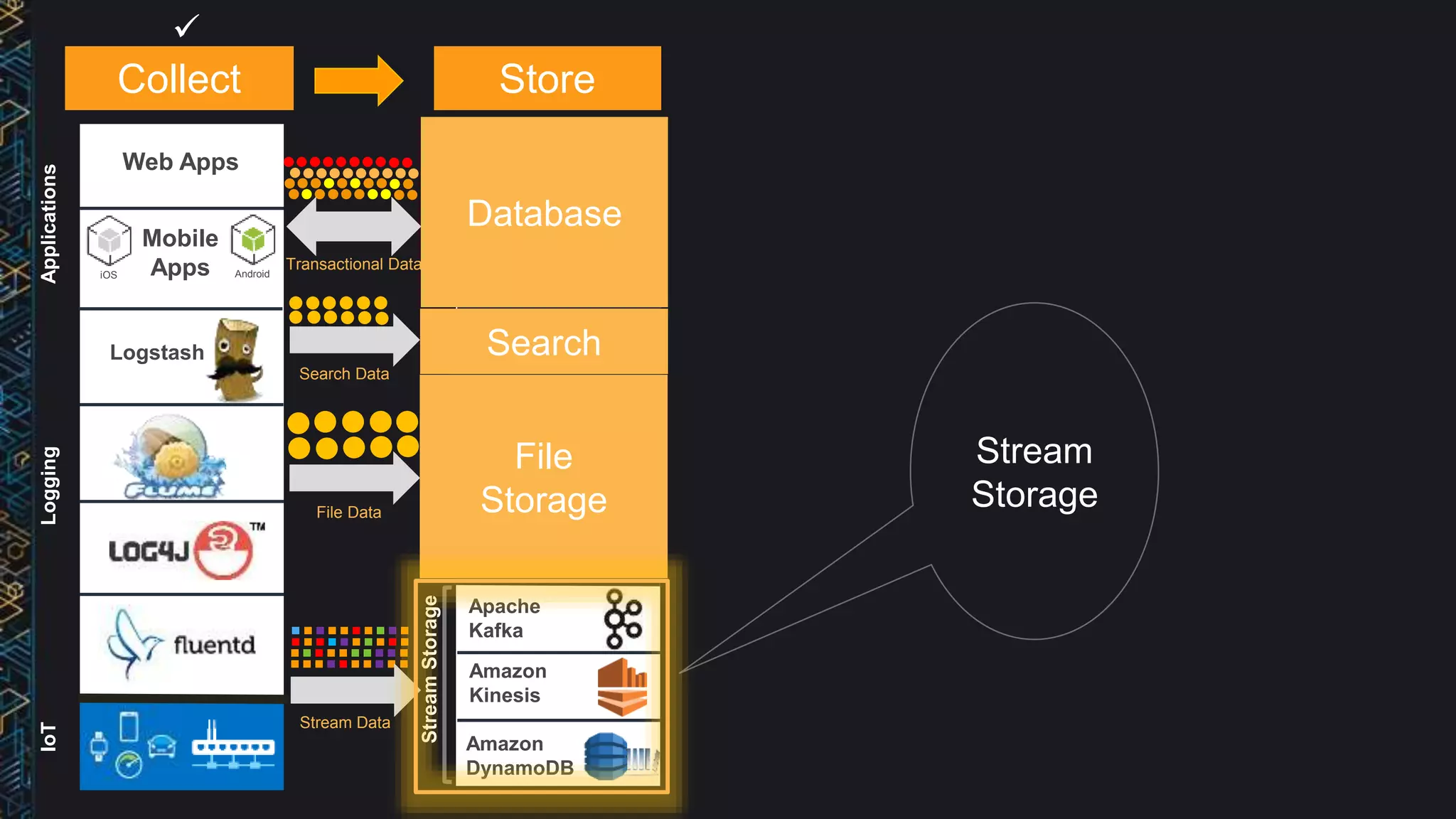

- 12. Stream Storage A iOS Android Web Apps Logstash Amazon RDS Amazon DynamoDB Amazon ES Amazon S3 Apache Kafka Amazon Glacier Amazon Kinesis Amazon DynamoDB Amazon ElastiCache SearchSQLNoSQLCacheStreamStorageFileStorage TransactionalData File Data Stream Data Mobile Apps Search Data Database File Storage Search Collect Store LoggingIoTApplications

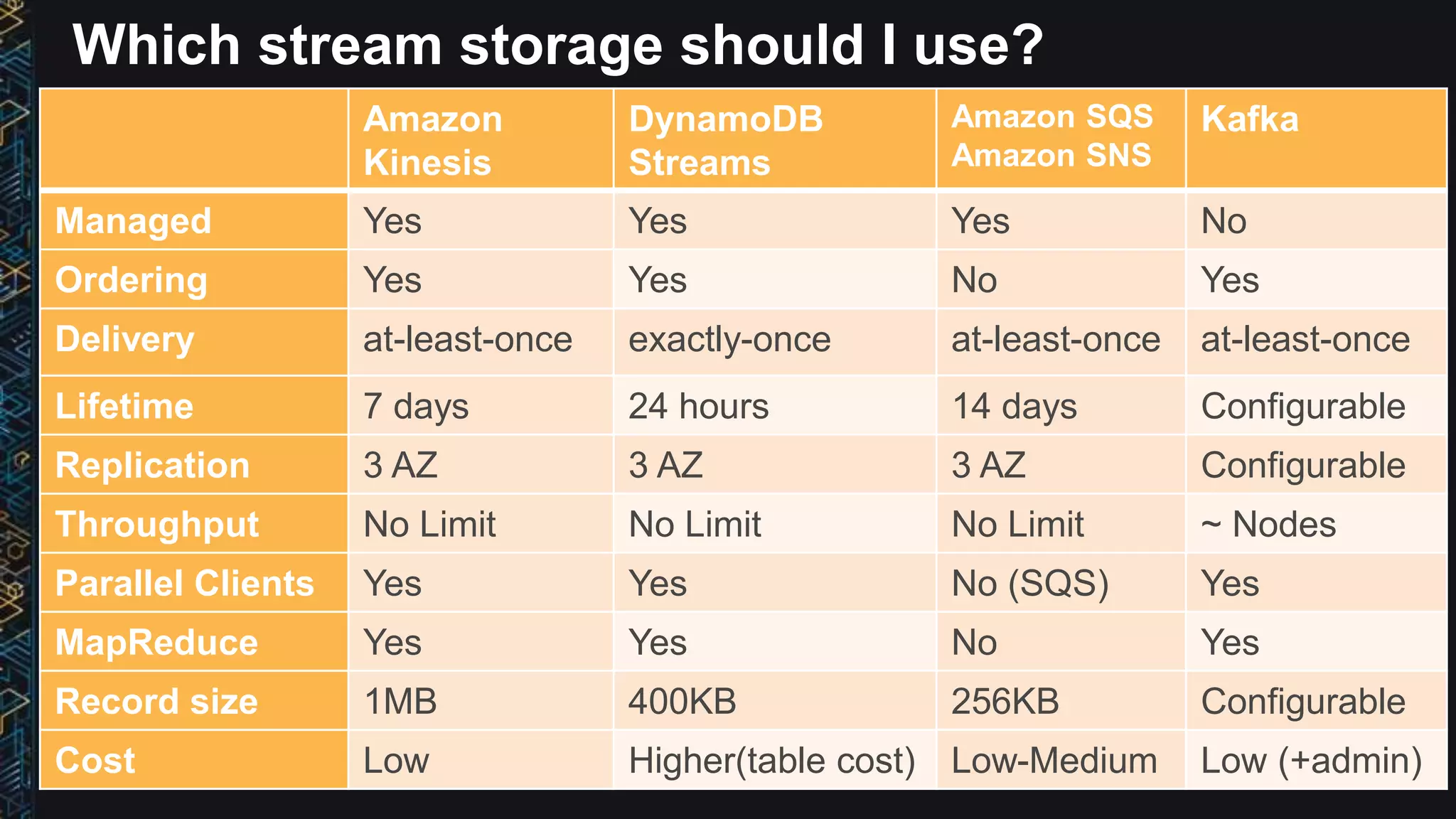

- 13. Which stream storageshould I use? Amazon Kinesis DynamoDB Streams Amazon SQS Amazon SNS Kafka Managed Yes Yes Yes No Ordering Yes Yes No Yes Delivery at-least-once exactly-once at-least-once at-least-once Lifetime 7 days 24 hours 14 days Configurable Replication 3 AZ 3 AZ 3 AZ Configurable Throughput No Limit No Limit No Limit ~ Nodes Parallel Clients Yes Yes No (SQS) Yes MapReduce Yes Yes No Yes Record size 1MB 400KB 256KB Configurable Cost Low Higher(table cost) Low-Medium Low (+admin)

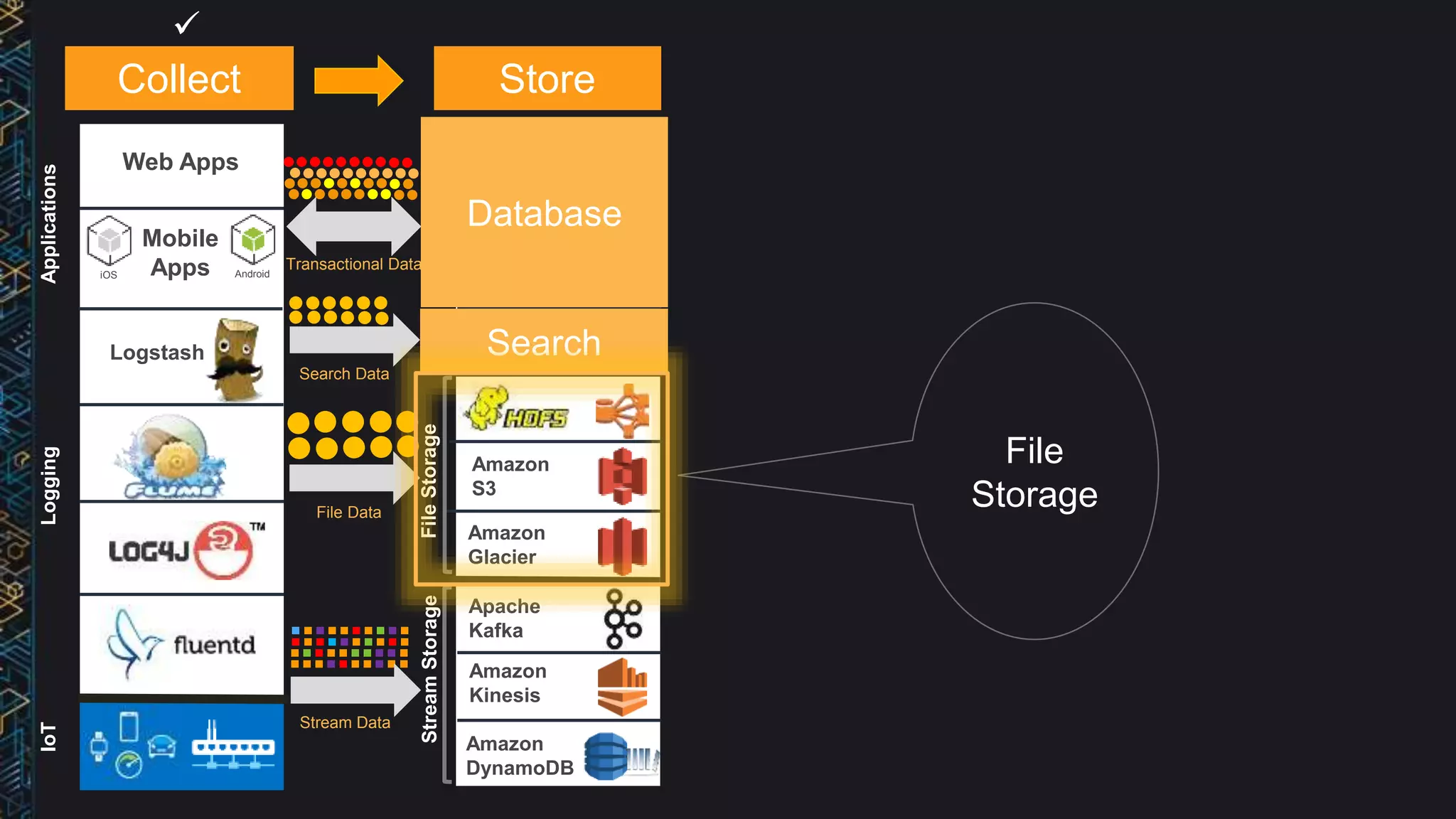

- 14. File Storage A iOS Android Web Apps Logstash Amazon RDS Amazon DynamoDB Amazon ES Amazon S3 Apache Kafka Amazon Glacier Amazon Kinesis Amazon DynamoDB Amazon ElastiCache SearchSQLNoSQLCacheStreamStorageFileStorage TransactionalData File Data Stream Data Mobile Apps Search Data Database Search Collect Store LoggingIoTApplications

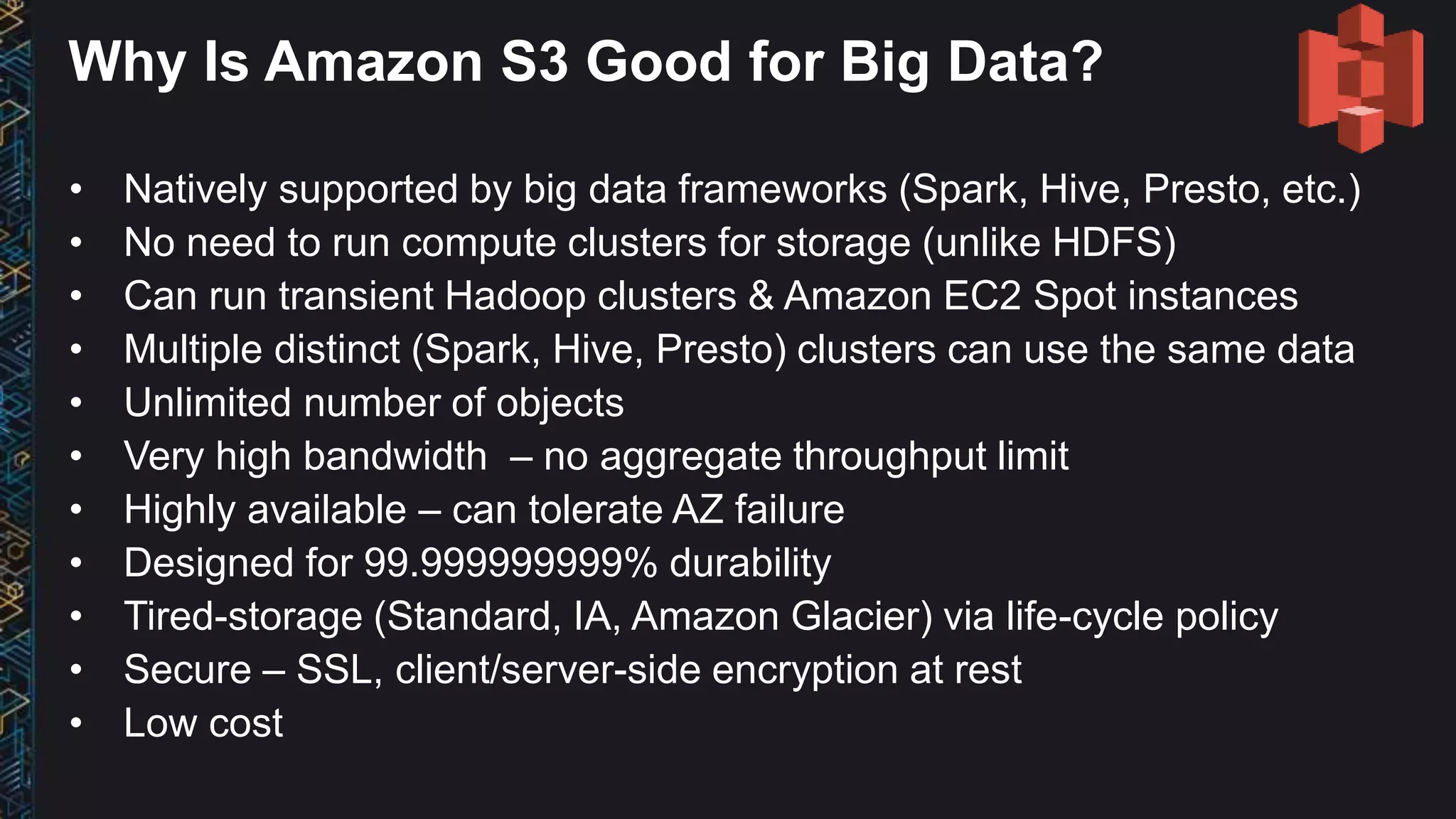

- 15. Why Is AmazonS3 Good for Big Data? • Natively supported by big data frameworks (Spark, Hive, Presto, etc.) • No need to run compute clusters for storage (unlike HDFS) • Can run transient Hadoop clusters & Amazon EC2 Spot instances • Multiple distinct (Spark, Hive, Presto) clusters can use the same data • Unlimited number of objects • Very high bandwidth – no aggregate throughput limit • Highly available – can tolerate AZ failure • Designed for 99.999999999% durability • Tired-storage (Standard, IA, Amazon Glacier) via life-cycle policy • Secure – SSL, client/server-side encryption at rest • Low cost

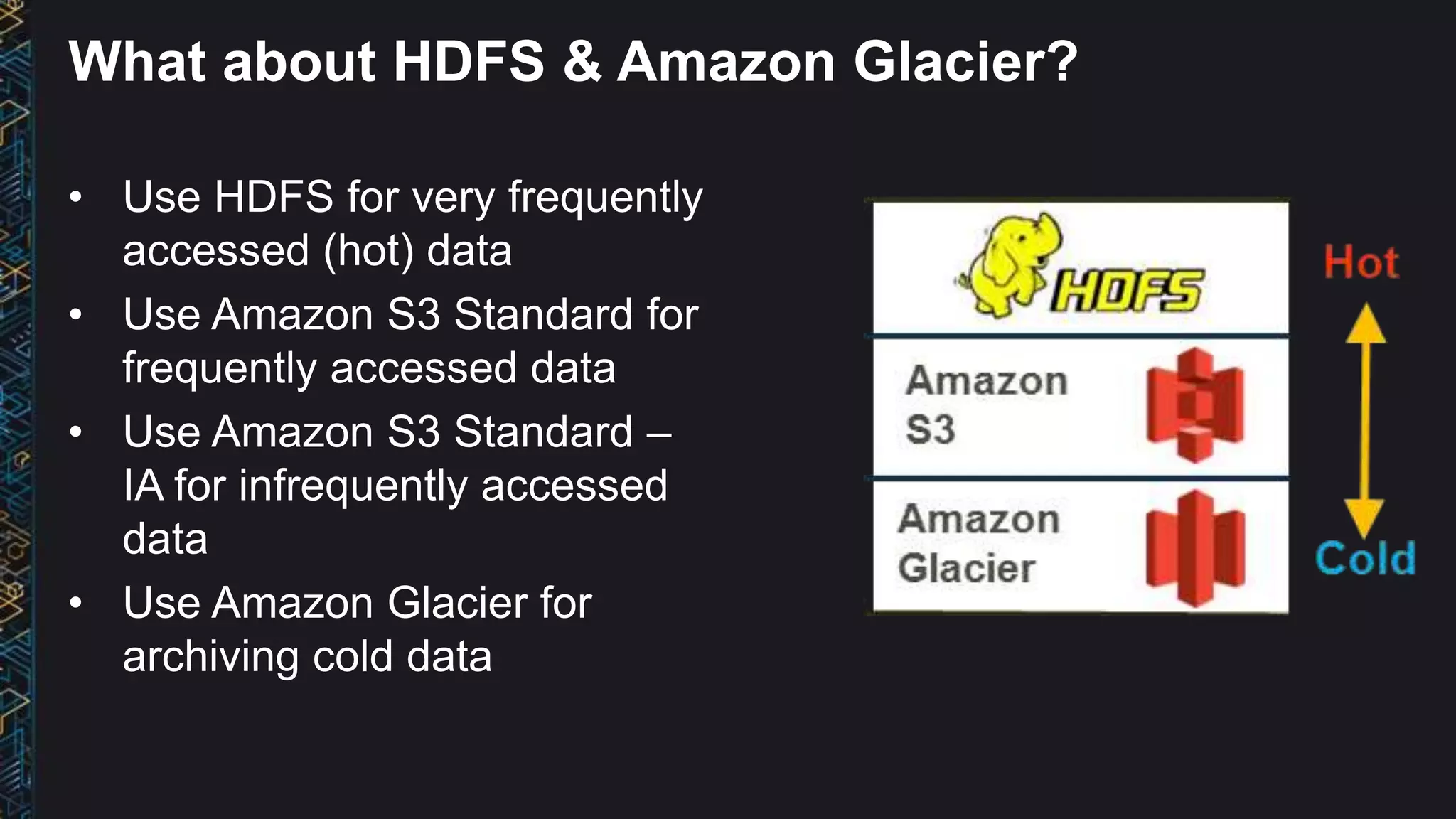

- 16. What about HDFS& Amazon Glacier? • Use HDFS for very frequently accessed (hot) data • Use Amazon S3 Standard for frequently accessed data • Use Amazon S3 Standard – IA for infrequently accessed data • Use Amazon Glacier for archiving cold data

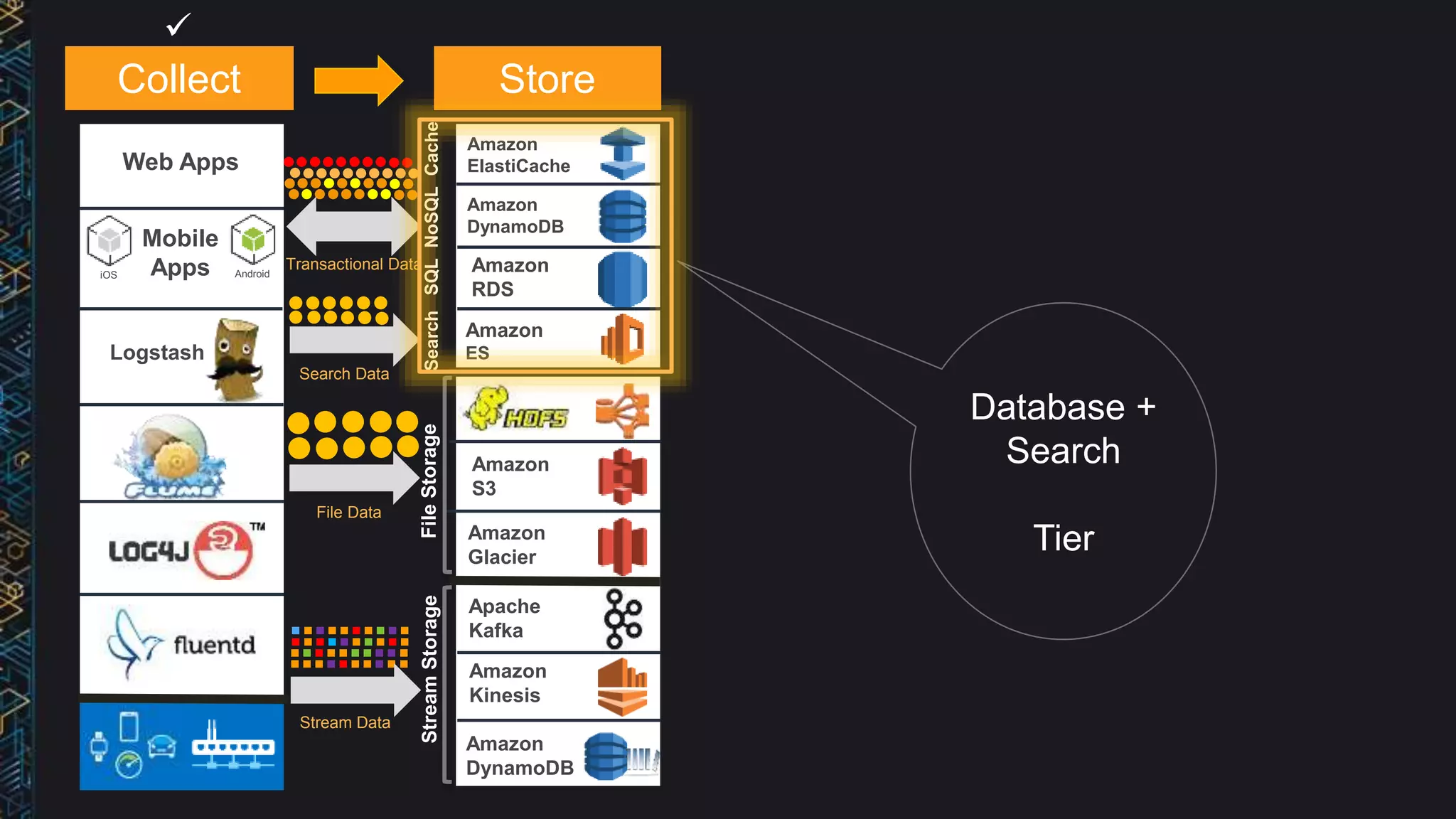

- 17. Database + Search Tier A iOS Android WebApps Logstash Amazon RDS Amazon DynamoDB Amazon ES Amazon S3 Apache Kafka Amazon Glacier Amazon Kinesis Amazon DynamoDB Amazon ElastiCache SearchSQLNoSQLCacheStreamStorageFileStorage Transactional Data File Data Stream Data Mobile Apps Search Data Collect Store

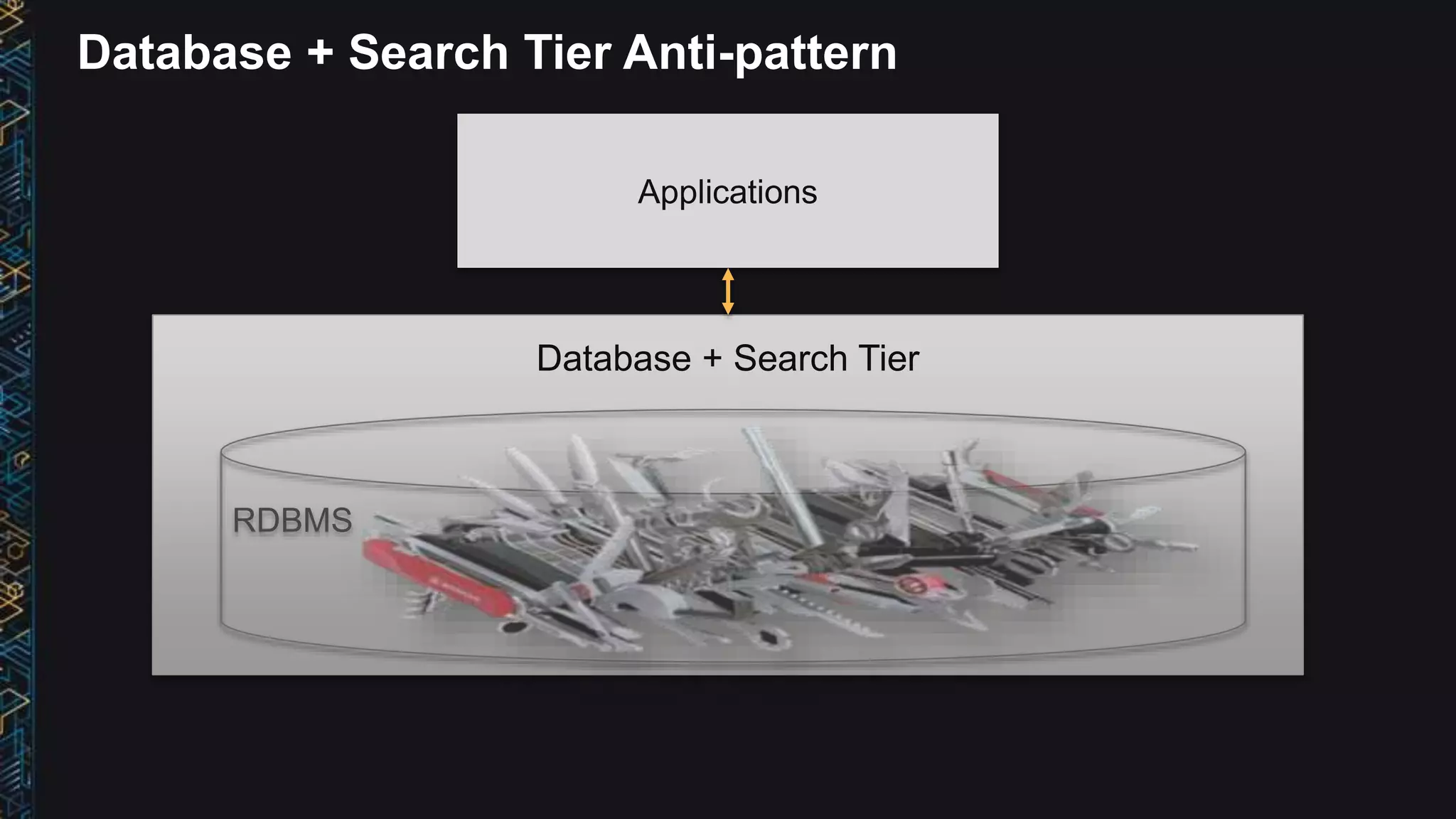

- 18. Database + SearchTier Anti-pattern Database + Search Tier

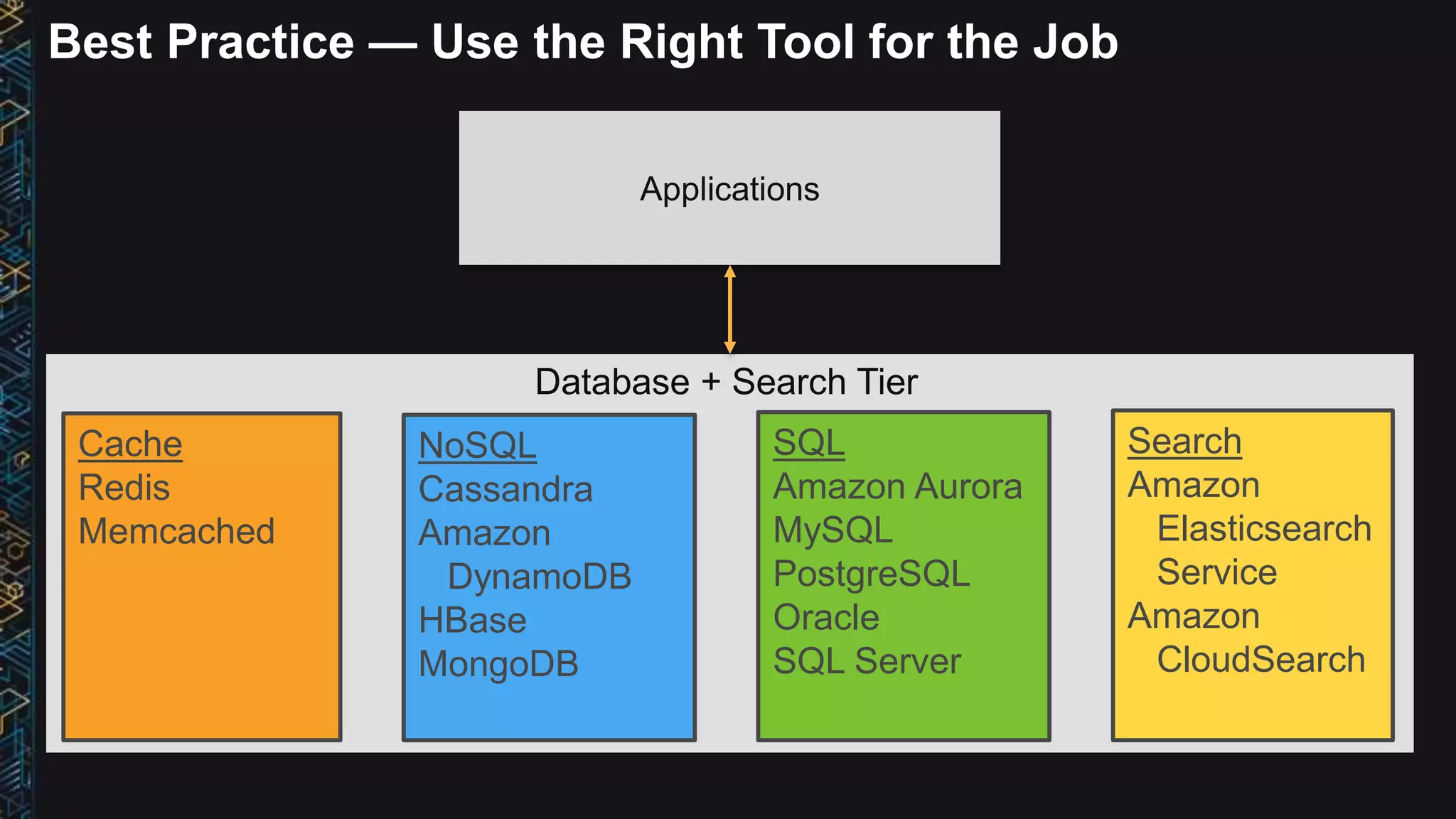

- 19. Best Practice —Use the Right Tool for the Job Data Tier Search Amazon Elasticsearch Service Amazon CloudSearch Cache Redis Memcached SQL Amazon Aurora MySQL PostgreSQL Oracle SQL Server NoSQL Cassandra Amazon DynamoDB HBase MongoDB Database + Search Tier

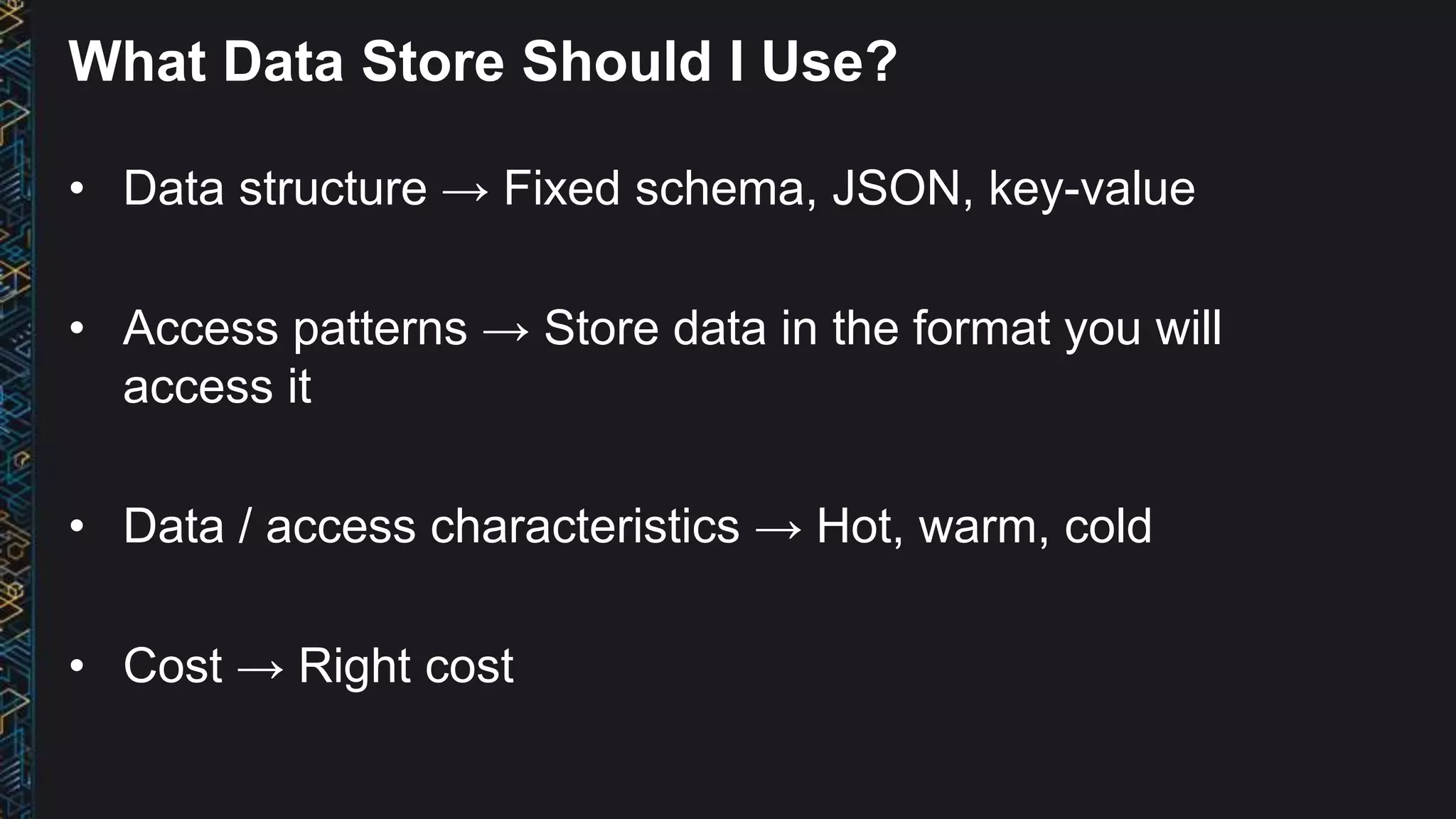

- 20. What Data StoreShould I Use? • Data structure → Fixed schema, JSON, key-value • Access patterns → Store data in the format you will access it • Data / access characteristics → Hot, warm, cold • Cost → Right cost

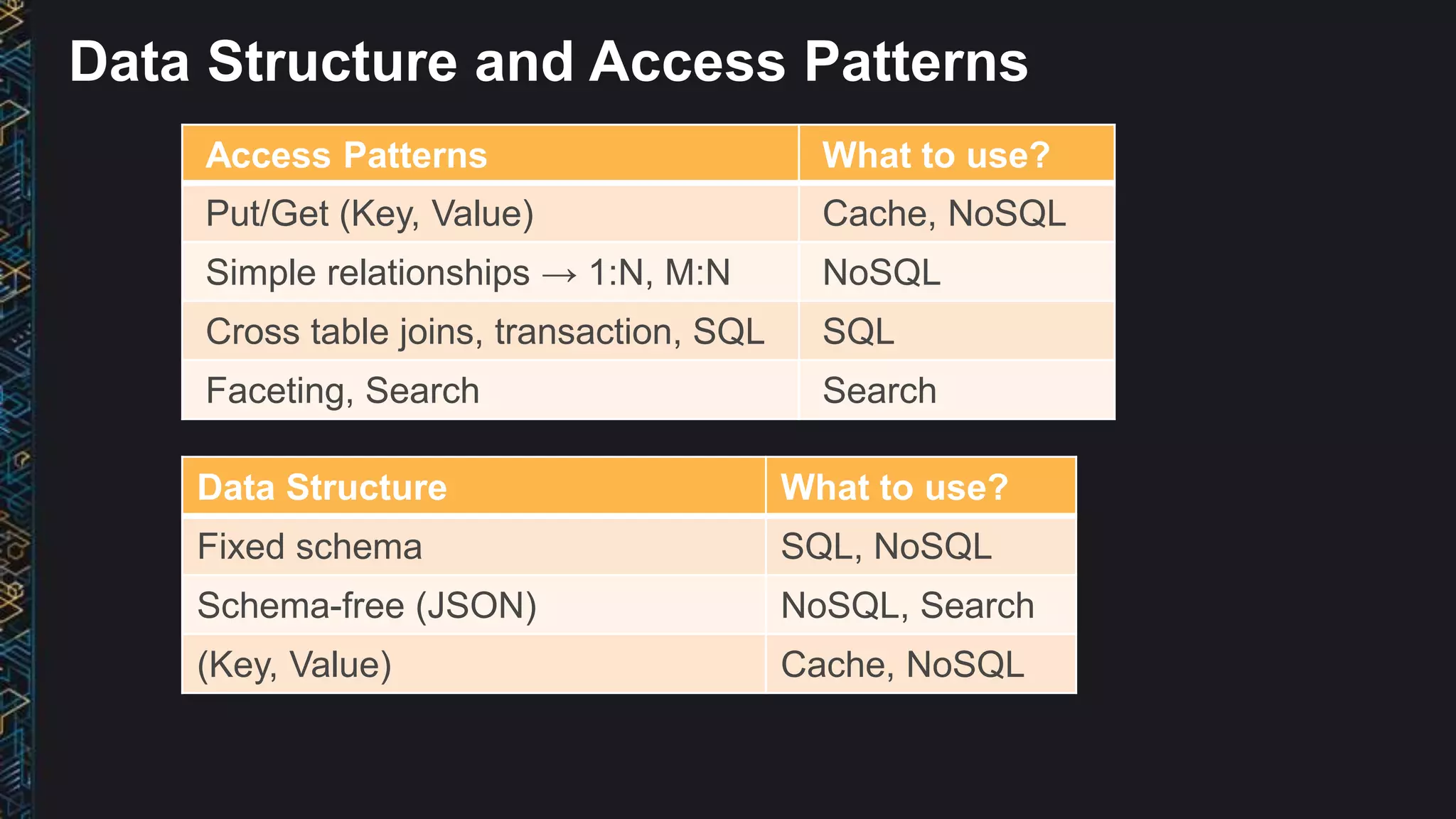

- 21. Data Structure andAccess Patterns Access Patterns What to use? Put/Get (Key, Value) Cache, NoSQL Simple relationships → 1:N, M:N NoSQL Cross table joins, transaction, SQL SQL Faceting, Search Search Data Structure What to use? Fixed schema SQL, NoSQL Schema-free (JSON) NoSQL, Search (Key, Value) Cache, NoSQL
- 22.

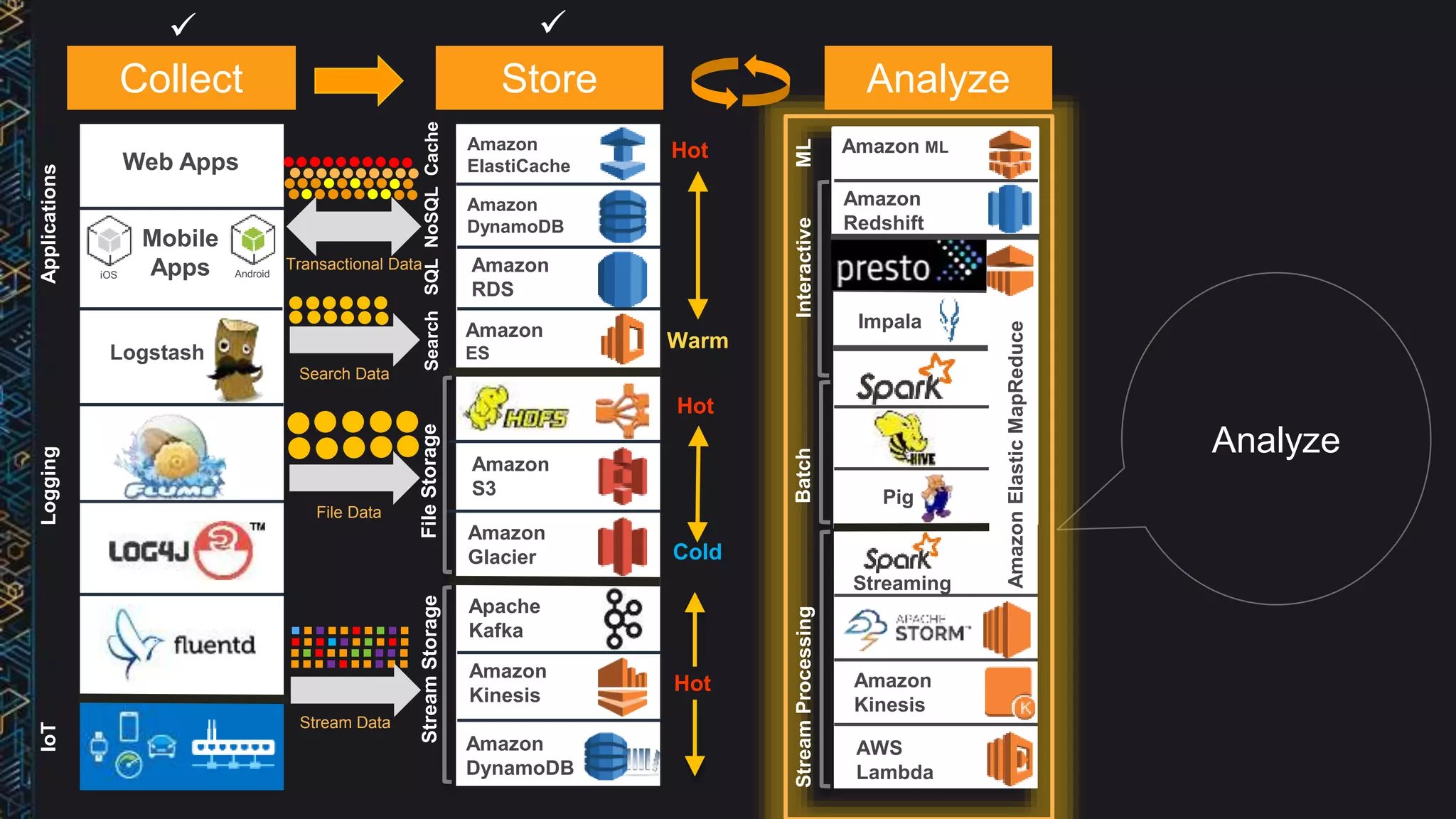

- 23. AnalyzeA iOS Android Web Apps Logstash Amazon RDS Amazon DynamoDB Amazon ES Amazon S3 Apache Kafka Amazon Glacier Amazon Kinesis Amazon DynamoDB Amazon Redshift Impala Pig AmazonML Streaming Amazon Kinesis AWS Lambda AmazonElasticMapReduce Amazon ElastiCache SearchSQLNoSQLCache StreamProcessingBatchInteractive Logging StreamStorage IoTApplications FileStorage Hot Cold Warm Hot Hot ML Transactional Data File Data Stream Data Mobile Apps Search Data Collect Store Analyze

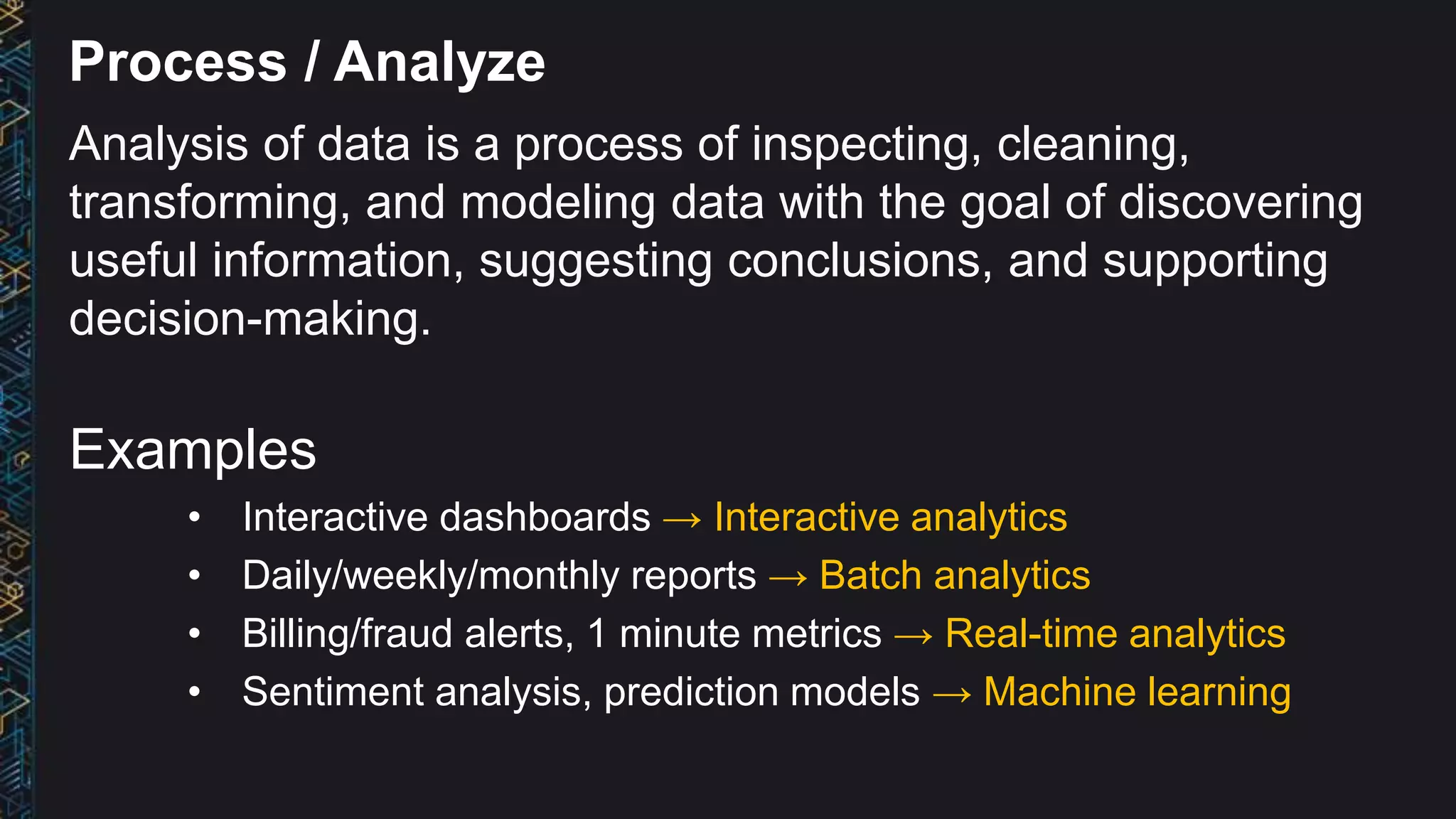

- 24. Process / Analyze Analysisof data is a process of inspecting, cleaning, transforming, and modeling data with the goal of discovering useful information, suggesting conclusions, and supporting decision-making. Examples • Interactive dashboards → Interactive analytics • Daily/weekly/monthly reports → Batch analytics • Billing/fraud alerts, 1 minute metrics → Real-time analytics • Sentiment analysis, prediction models → Machine learning

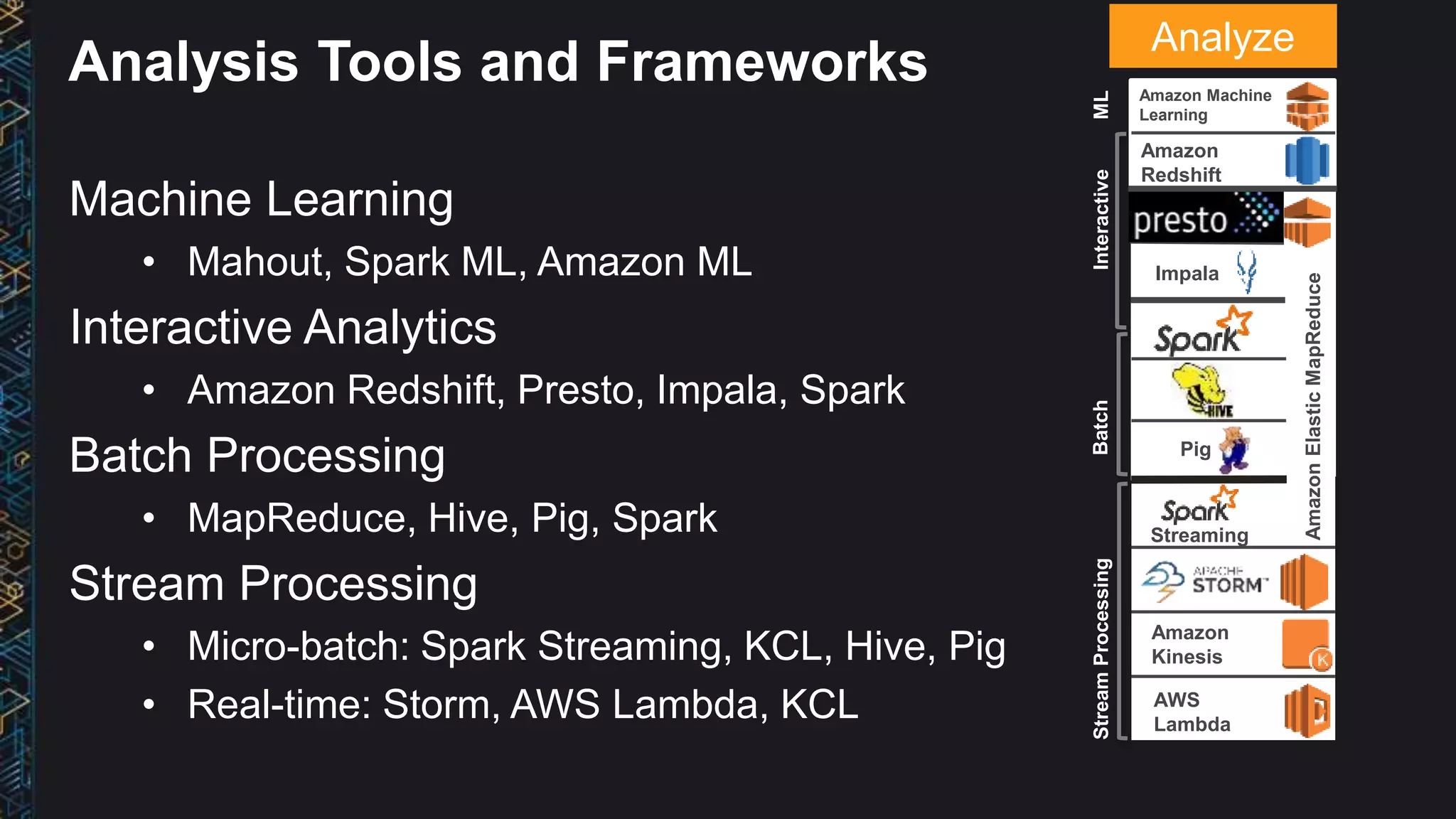

- 25. Analysis Tools andFrameworks Machine Learning • Mahout, Spark ML, Amazon ML Interactive Analytics • Amazon Redshift, Presto, Impala, Spark Batch Processing • MapReduce, Hive, Pig, Spark Stream Processing • Micro-batch: Spark Streaming, KCL, Hive, Pig • Real-time: Storm, AWS Lambda, KCL Amazon Redshift Impala Pig Amazon Machine Learning Streaming Amazon Kinesis AWS Lambda AmazonElasticMapReduce StreamProcessingBatchInteractiveML Analyze

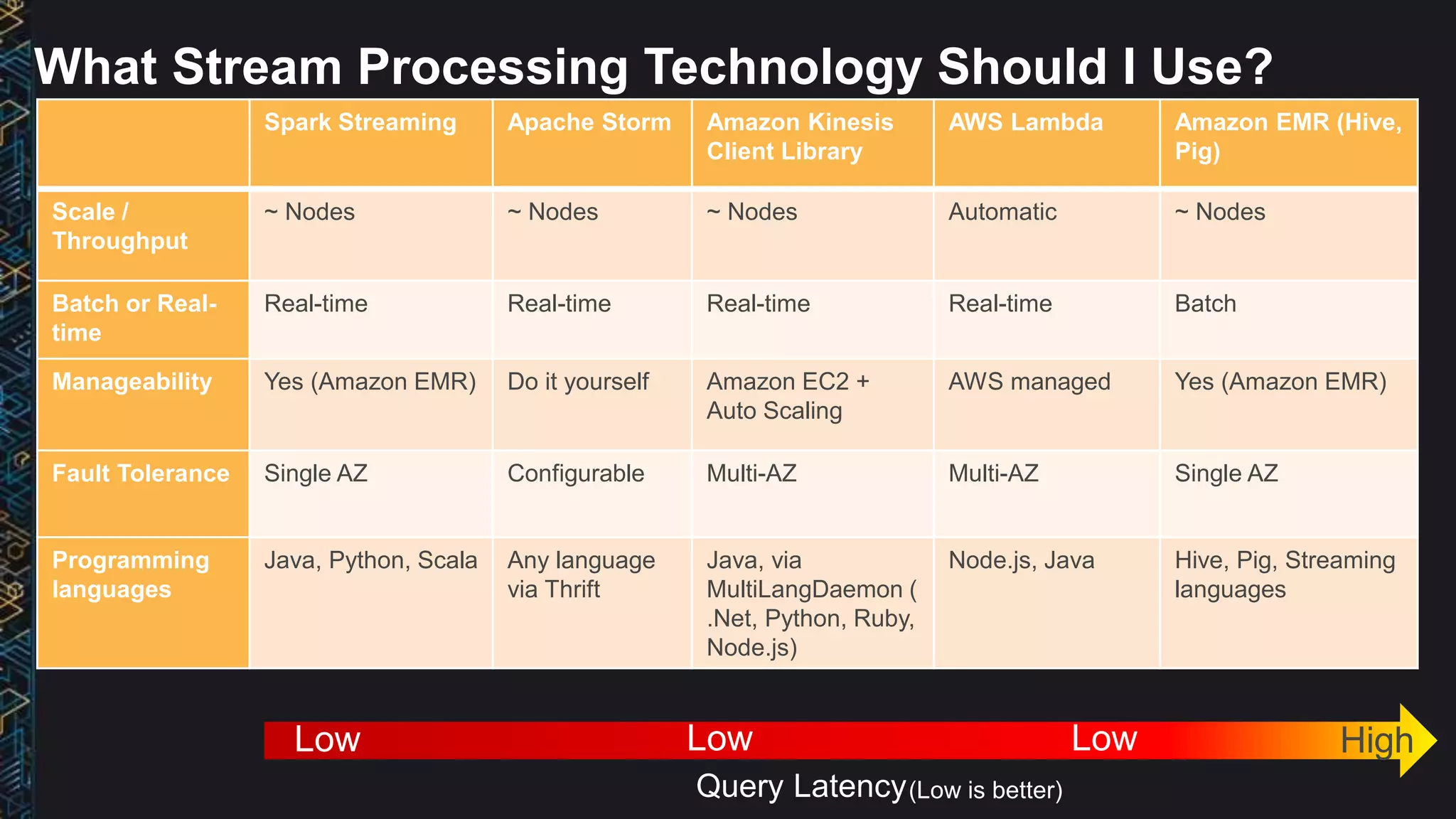

- 26. What Stream ProcessingTechnology Should I Use? Spark Streaming Apache Storm Amazon Kinesis Client Library AWS Lambda Amazon EMR (Hive, Pig) Scale / Throughput ~ Nodes ~ Nodes ~ Nodes Automatic ~ Nodes Batch or Real- time Real-time Real-time Real-time Real-time Batch Manageability Yes (Amazon EMR) Do it yourself Amazon EC2 + Auto Scaling AWS managed Yes (Amazon EMR) Fault Tolerance Single AZ Configurable Multi-AZ Multi-AZ Single AZ Programming languages Java, Python, Scala Any language via Thrift Java, via MultiLangDaemon ( .Net, Python, Ruby, Node.js) Node.js, Java Hive, Pig, Streaming languages High

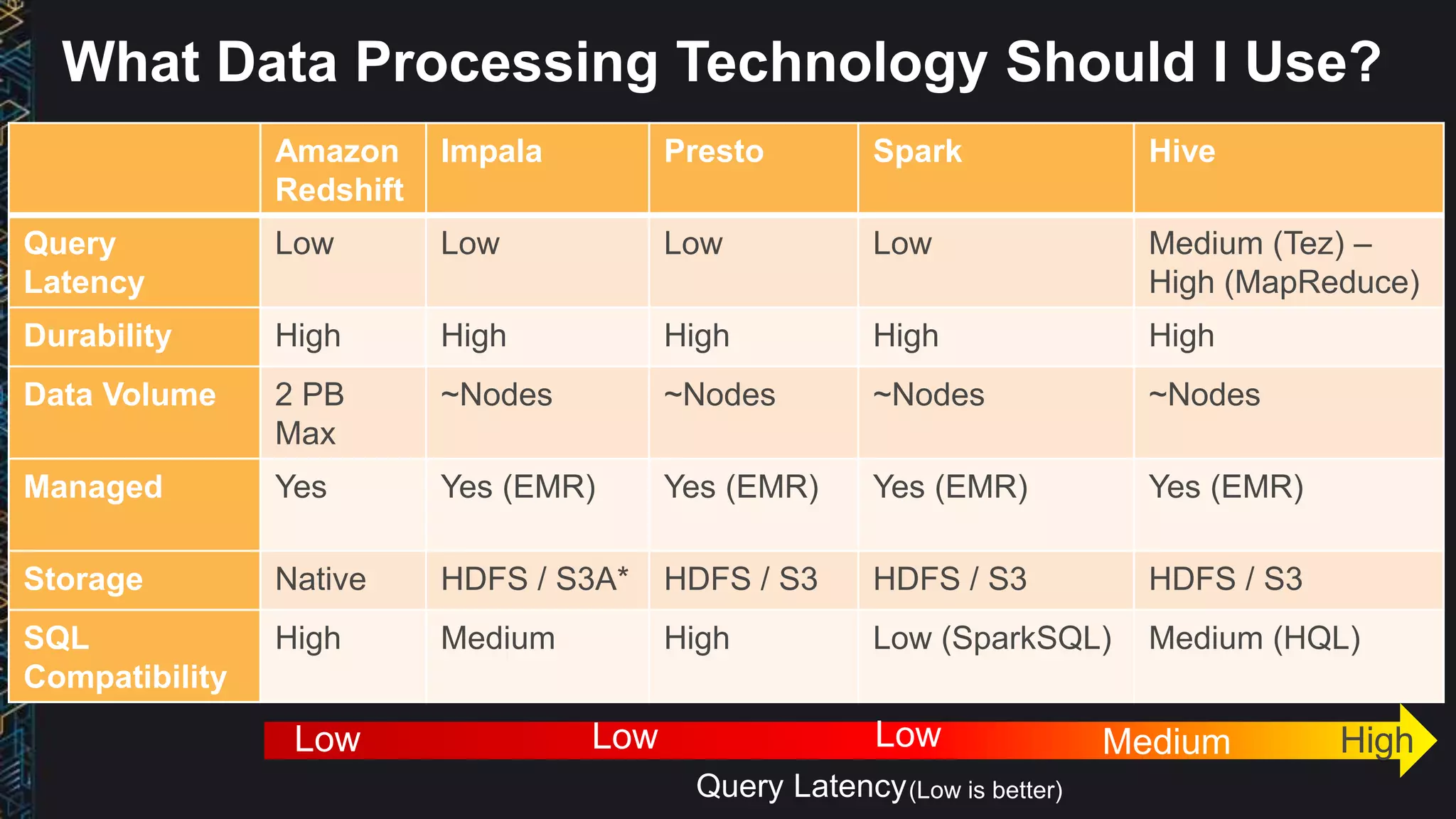

- 27. What Data ProcessingTechnology Should I Use? Amazon Redshift Impala Presto Spark Hive Query Latency Low Low Low Low Medium (Tez) – High (MapReduce) Durability High High High High High Data Volume 2 PB Max ~Nodes ~Nodes ~Nodes ~Nodes Managed Yes Yes (EMR) Yes (EMR) Yes (EMR) Yes (EMR) Storage Native HDFS / S3A* HDFS / S3 HDFS / S3 HDFS / S3 SQL Compatibility High Medium High Low (SparkSQL) Medium (HQL) HighMedium

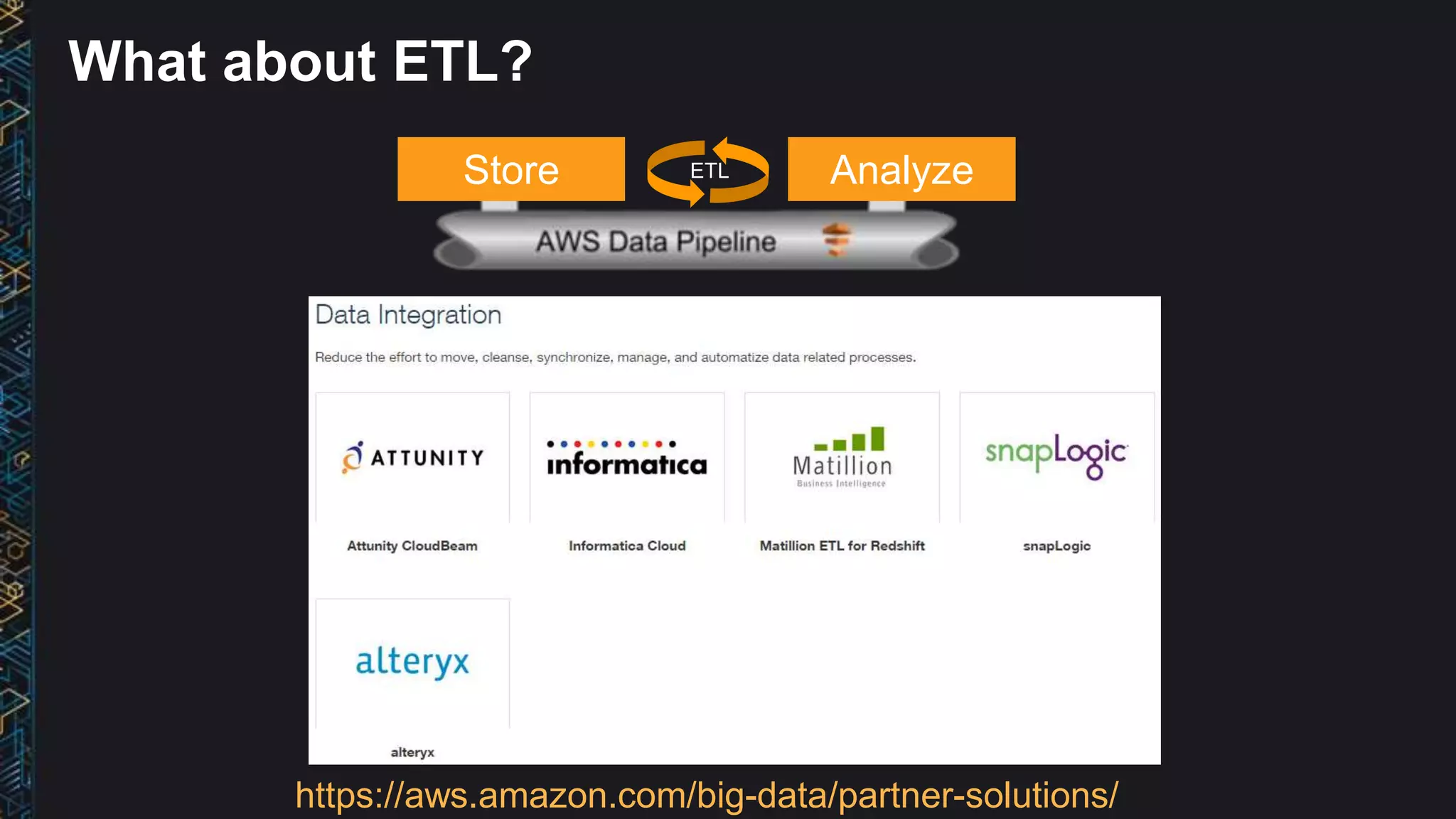

- 28. What about ETL? StoreAnalyze https://aws.amazon.com/big-data/partner-solutions/ ETL
- 29.

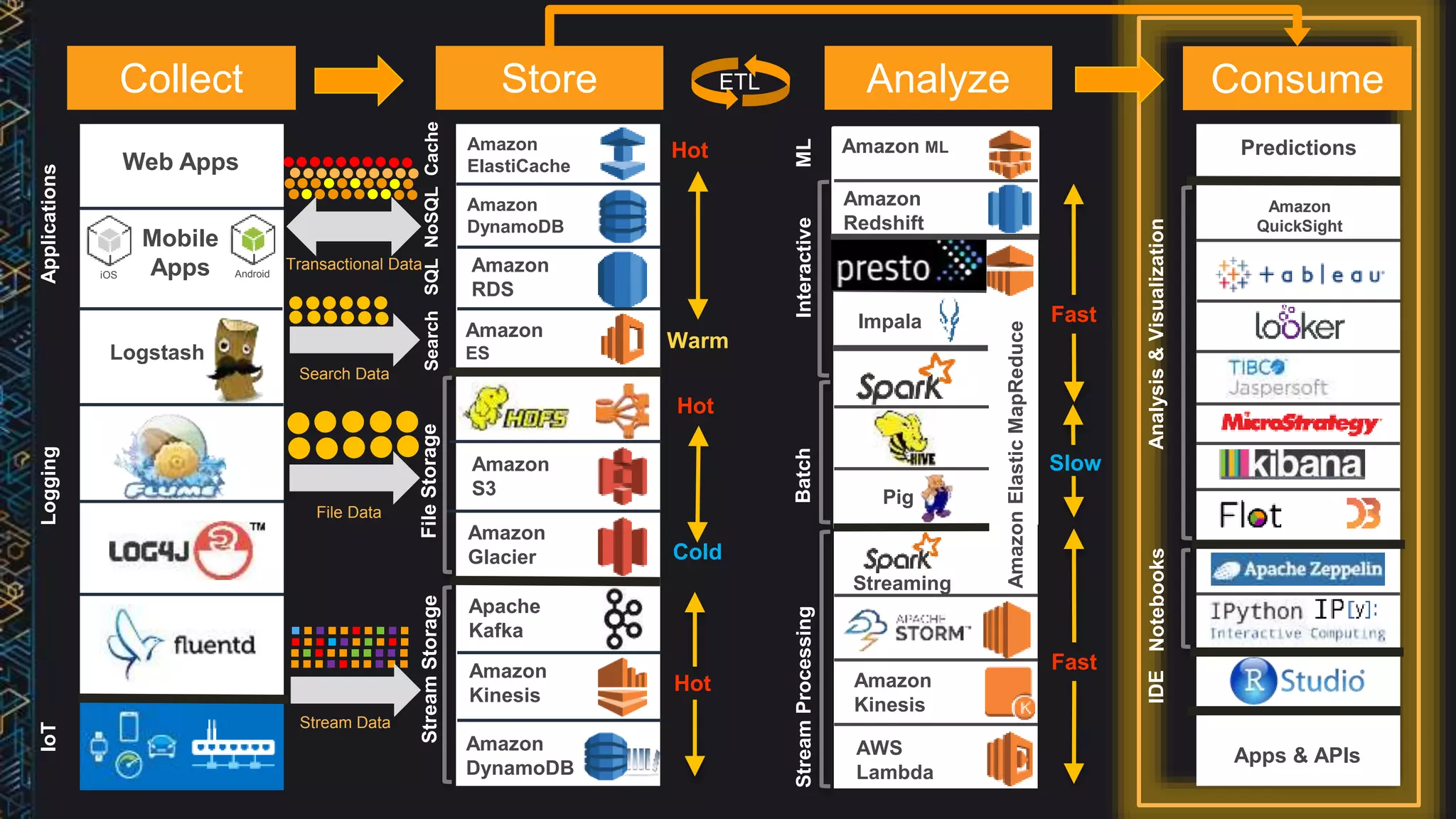

- 30. Collect Store AnalyzeConsume A iOS Android Web Apps Logstash Amazon RDS Amazon DynamoDB Amazon ES Amazon S3 Apache Kafka Amazon Glacier Amazon Kinesis Amazon DynamoDB Amazon Redshift Impala Pig Amazon ML Streaming Amazon Kinesis AWS Lambda AmazonElasticMapReduce Amazon ElastiCache SearchSQLNoSQLCache StreamProcessingBatchInteractive Logging StreamStorage IoTApplications FileStorage Analysis&Visualization Hot Cold Warm Hot Slow Hot ML Fast Fast Transactional Data File Data Stream Data Notebooks Predictions Apps & APIs Mobile Apps IDE Search Data ETL Amazon QuickSight

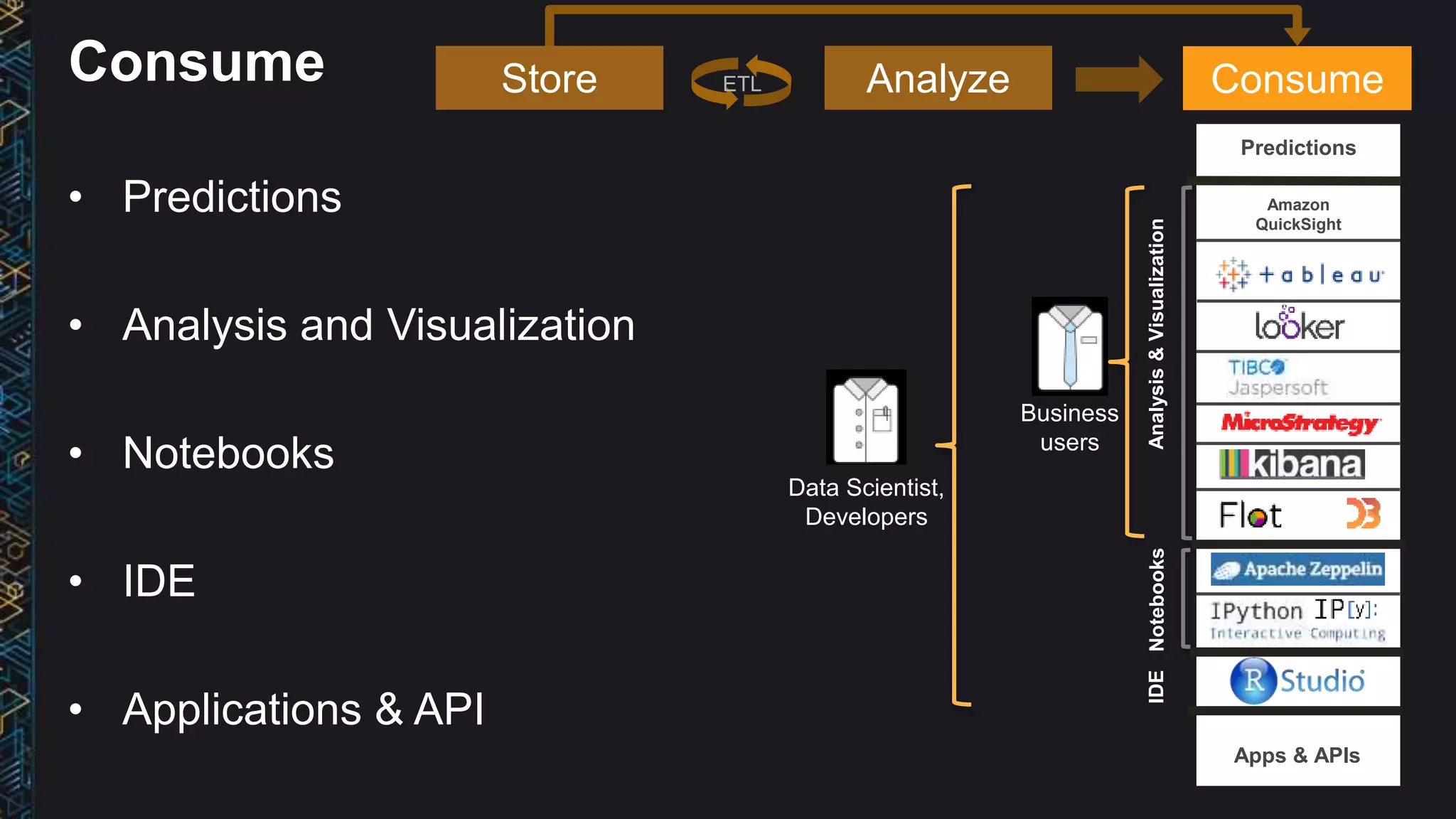

- 31. Consume • Predictions • Analysisand Visualization • Notebooks • IDE • Applications & API Consume Analysis&Visualization Amazon QuickSight Notebooks Predictions Apps & APIs IDE Store Analyze ConsumeETL Business users Data Scientist, Developers
- 32. Putting It AllTogether

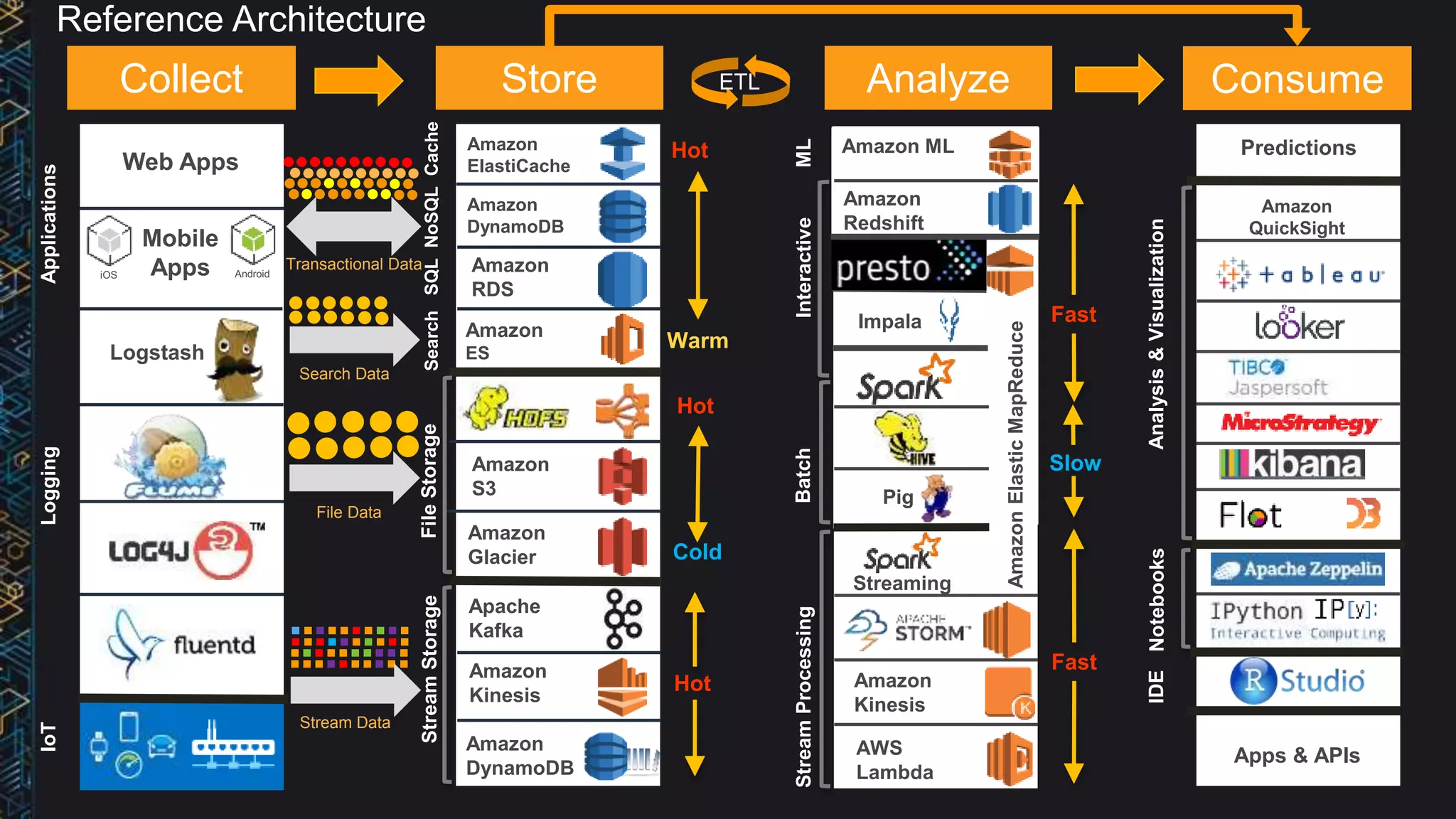

- 33. Collect Store AnalyzeConsume A iOS Android Web Apps Logstash Amazon RDS Amazon DynamoDB Amazon ES Amazon S3 Apache Kafka Amazon Glacier Amazon Kinesis Amazon DynamoDB Amazon Redshift Impala Pig Amazon ML Streaming Amazon Kinesis AWS Lambda AmazonElasticMapReduce Amazon ElastiCache SearchSQLNoSQLCache StreamProcessingBatchInteractive Logging StreamStorage IoTApplications FileStorage Analysis&Visualization Hot Cold Warm Hot Slow Hot ML Fast Fast Amazon QuickSight Transactional Data File Data Stream Data Notebooks Predictions Apps & APIs Mobile Apps IDE Search Data ETL Reference Architecture
- 34.
- 35.

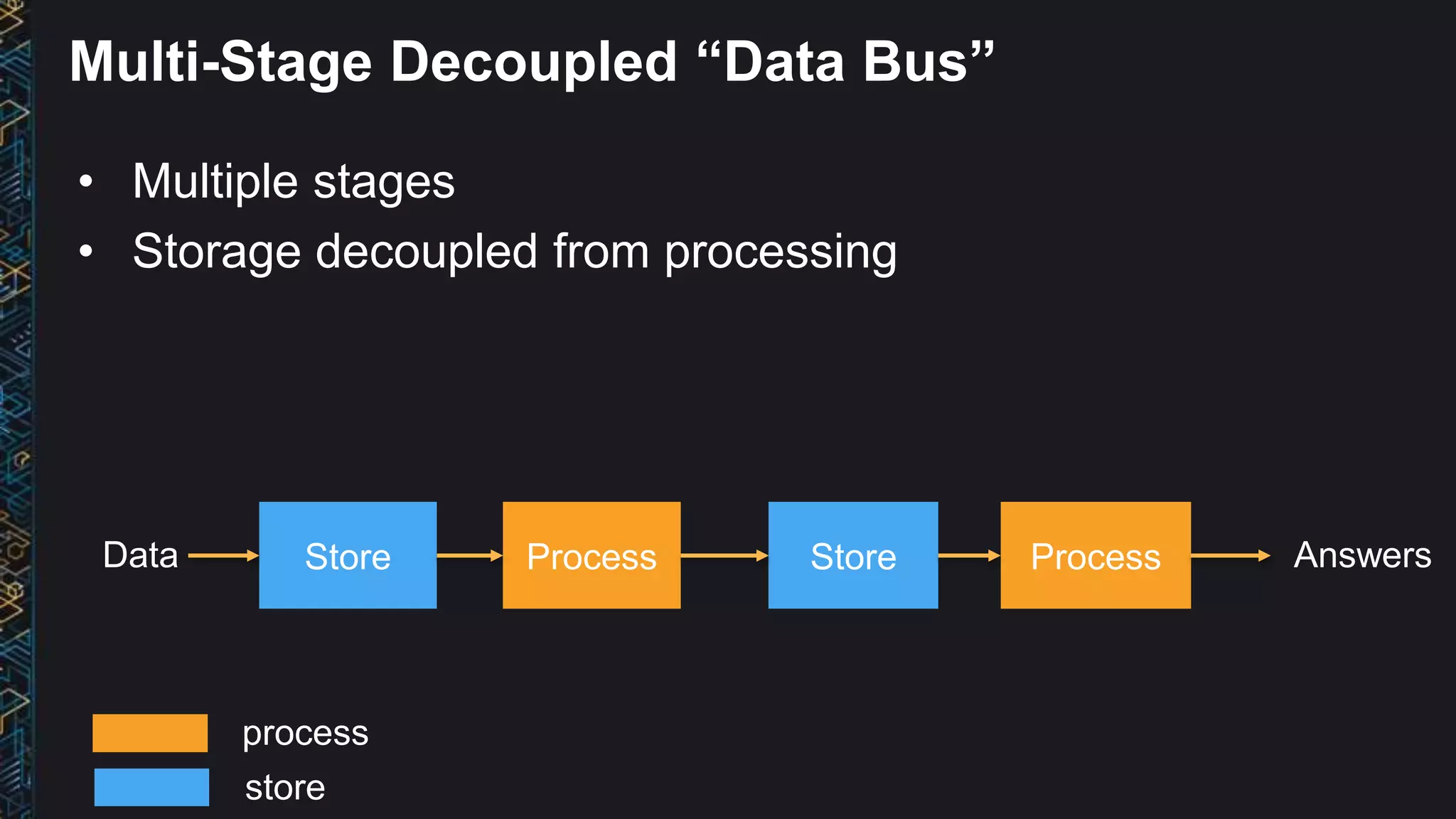

- 36. Multi-Stage Decoupled “DataBus” • Multiple stages • Storage decoupled from processing Store Process Store Process process store

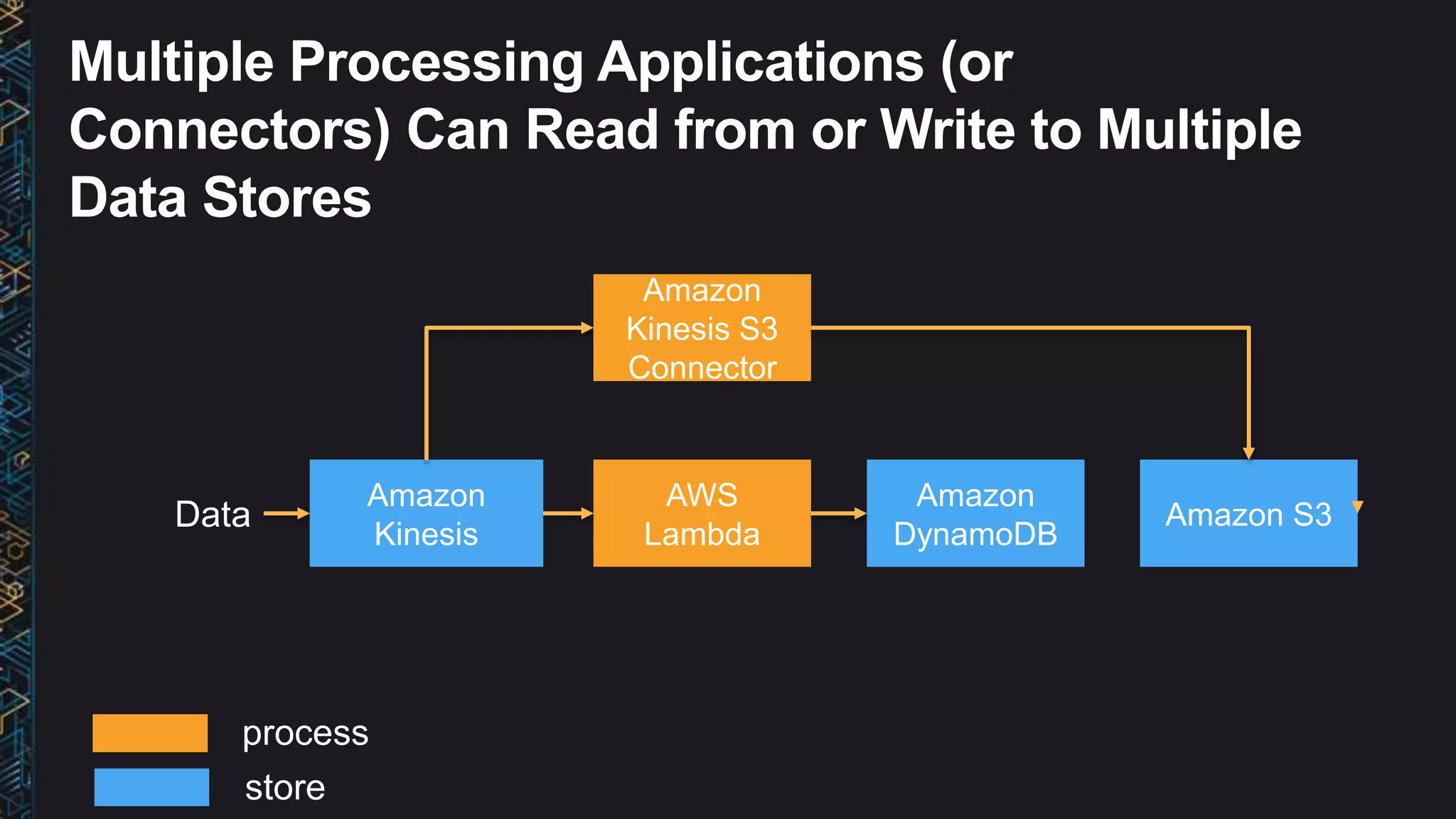

- 37. Multiple Processing Applications(or Connectors) Can Read from or Write to Multiple Data Stores Amazon Kinesis AWS Lambda Amazon DynamoDB Amazon Kinesis S3 Connector Amazon S3 process store

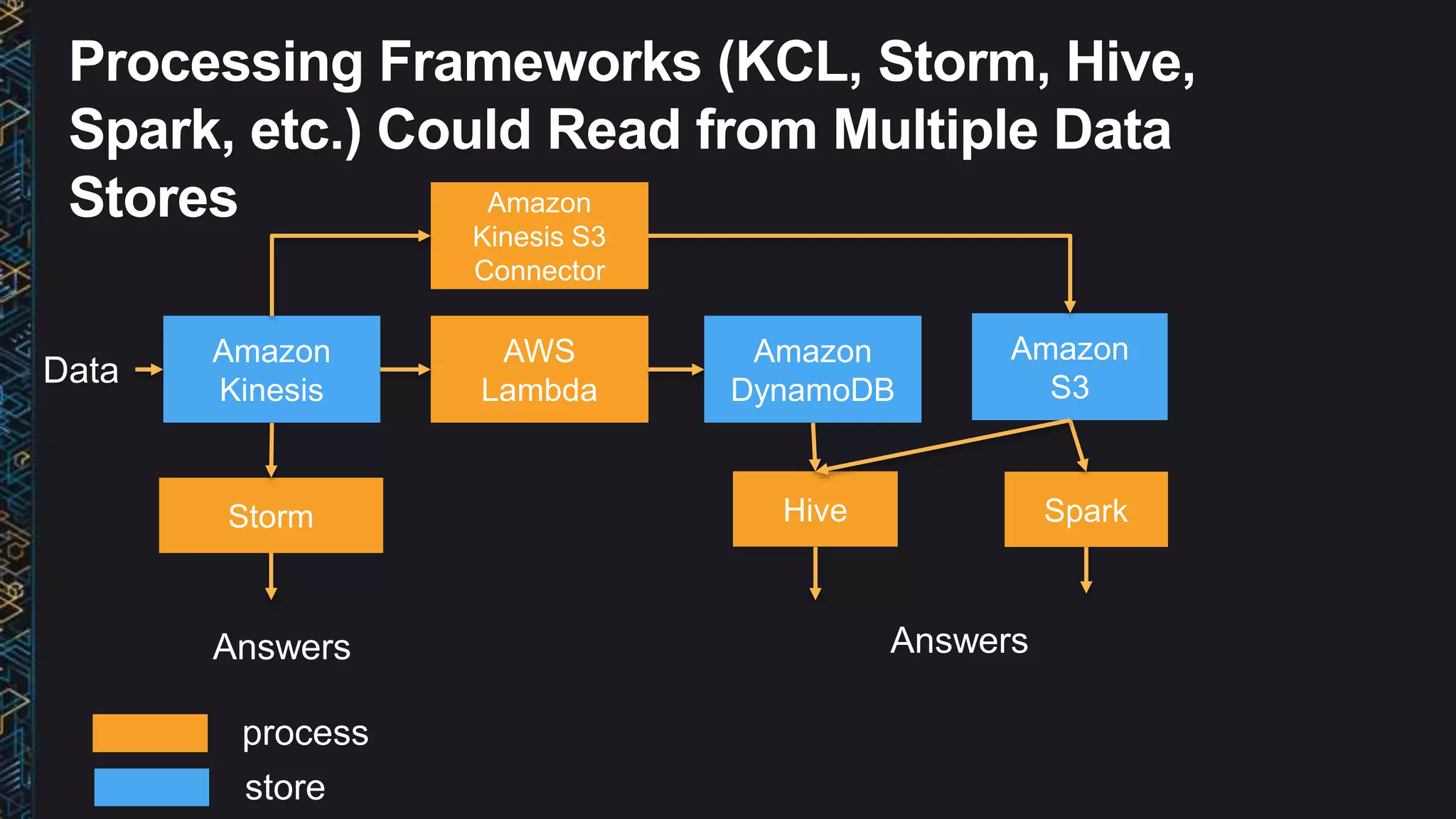

- 38. Processing Frameworks (KCL,Storm, Hive, Spark, etc.) Could Read from Multiple Data Stores Amazon Kinesis AWS Lambda Amazon S3 Amazon DynamoDB Hive SparkStorm Amazon Kinesis S3 Connector process store

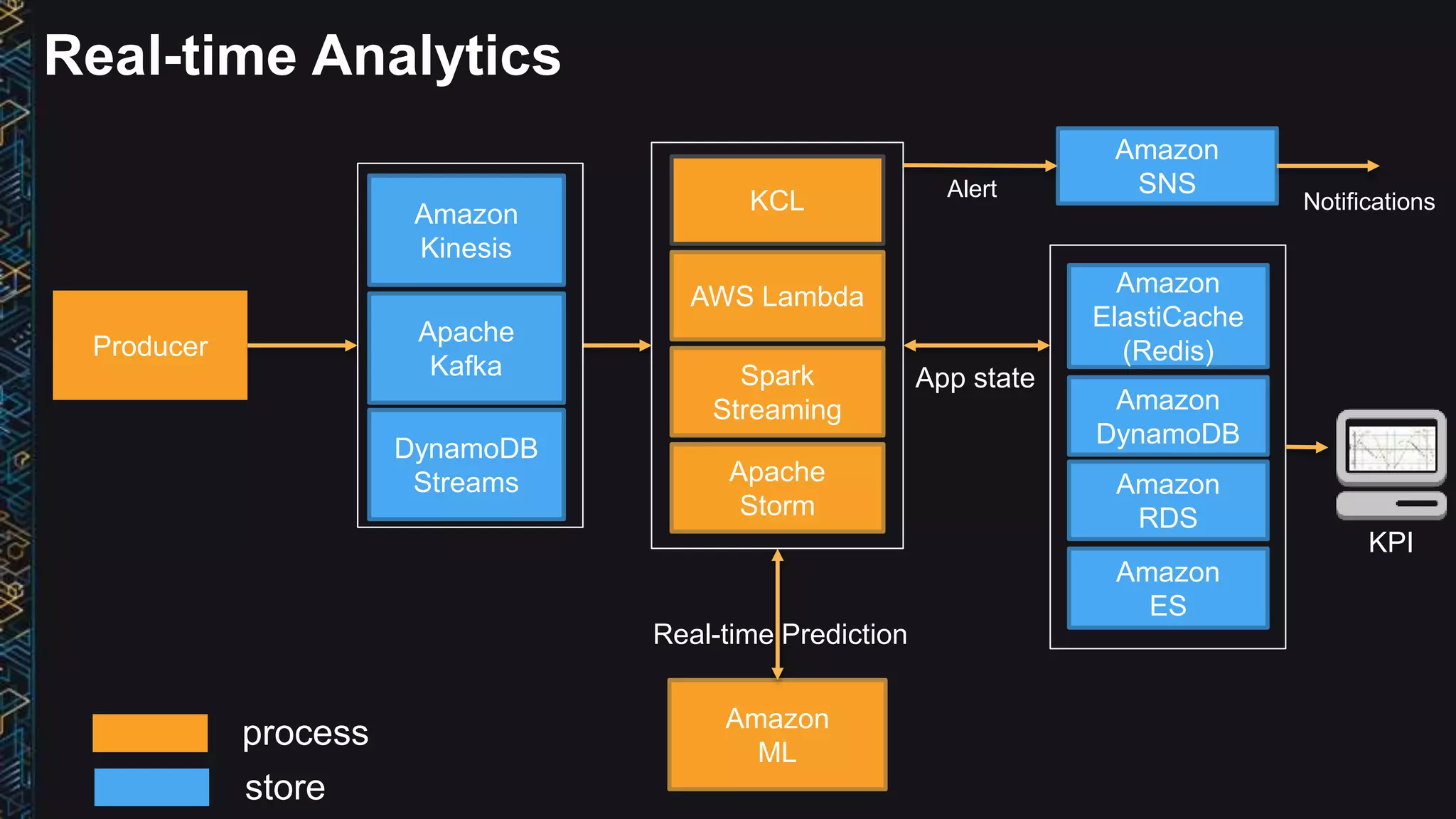

- 39. Real-time Analytics Producer Apache Kafka KCL AWS Lambda Spark Streaming Apache Storm Amazon SNS Amazon ML Notifications Amazon ElastiCache (Redis) Amazon DynamoDB Amazon RDS Amazon ES Alert Appstate Real-time Prediction KPI process store DynamoDB Streams Amazon Kinesis

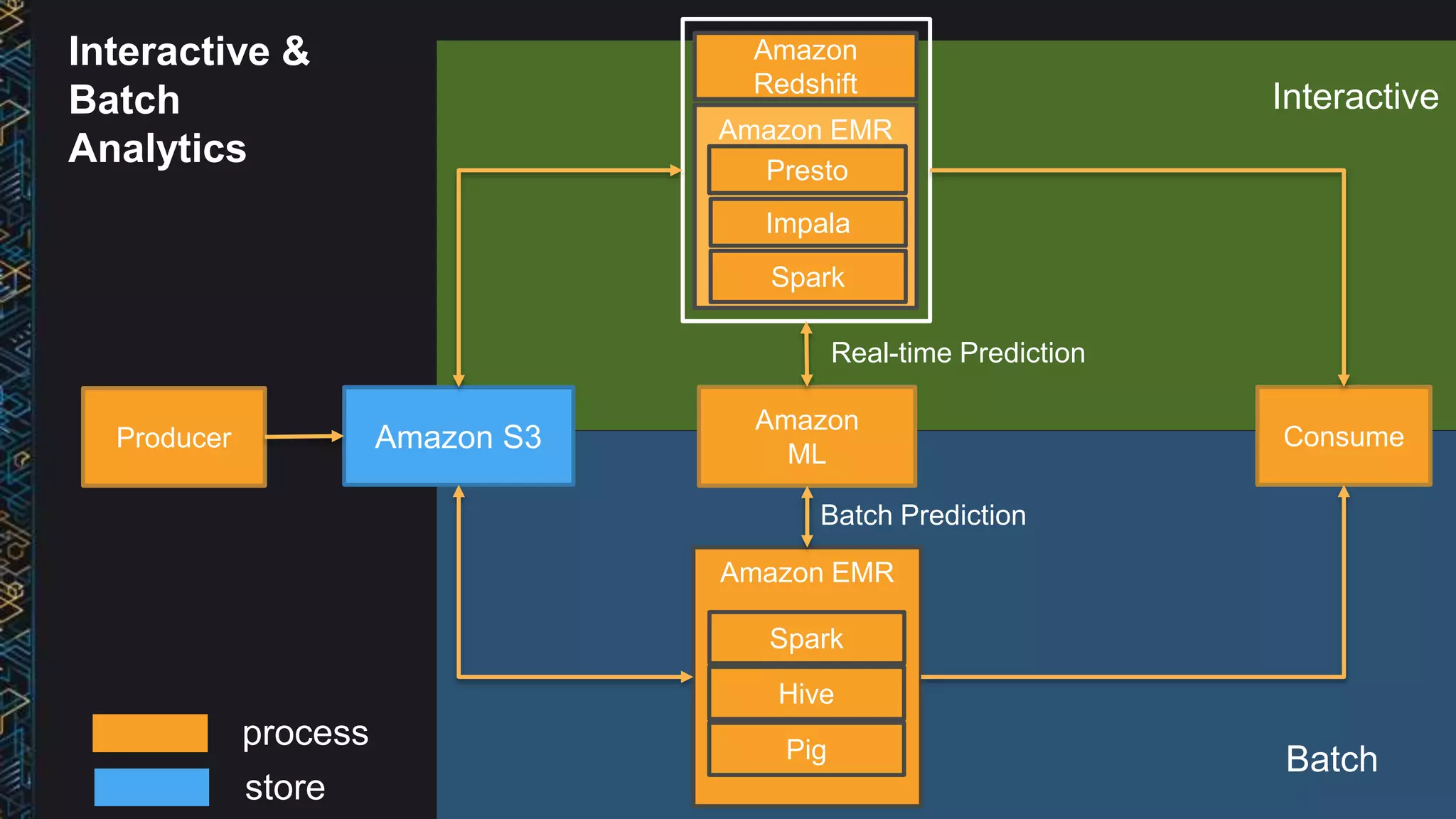

- 40. Interactive & Batch Analytics Producer AmazonS3 Amazon EMR Hive Pig Spark Amazon ML process store Consume Amazon Redshift Amazon EMR Presto Impala Spark Batch Interactive Batch Prediction Real-time Prediction

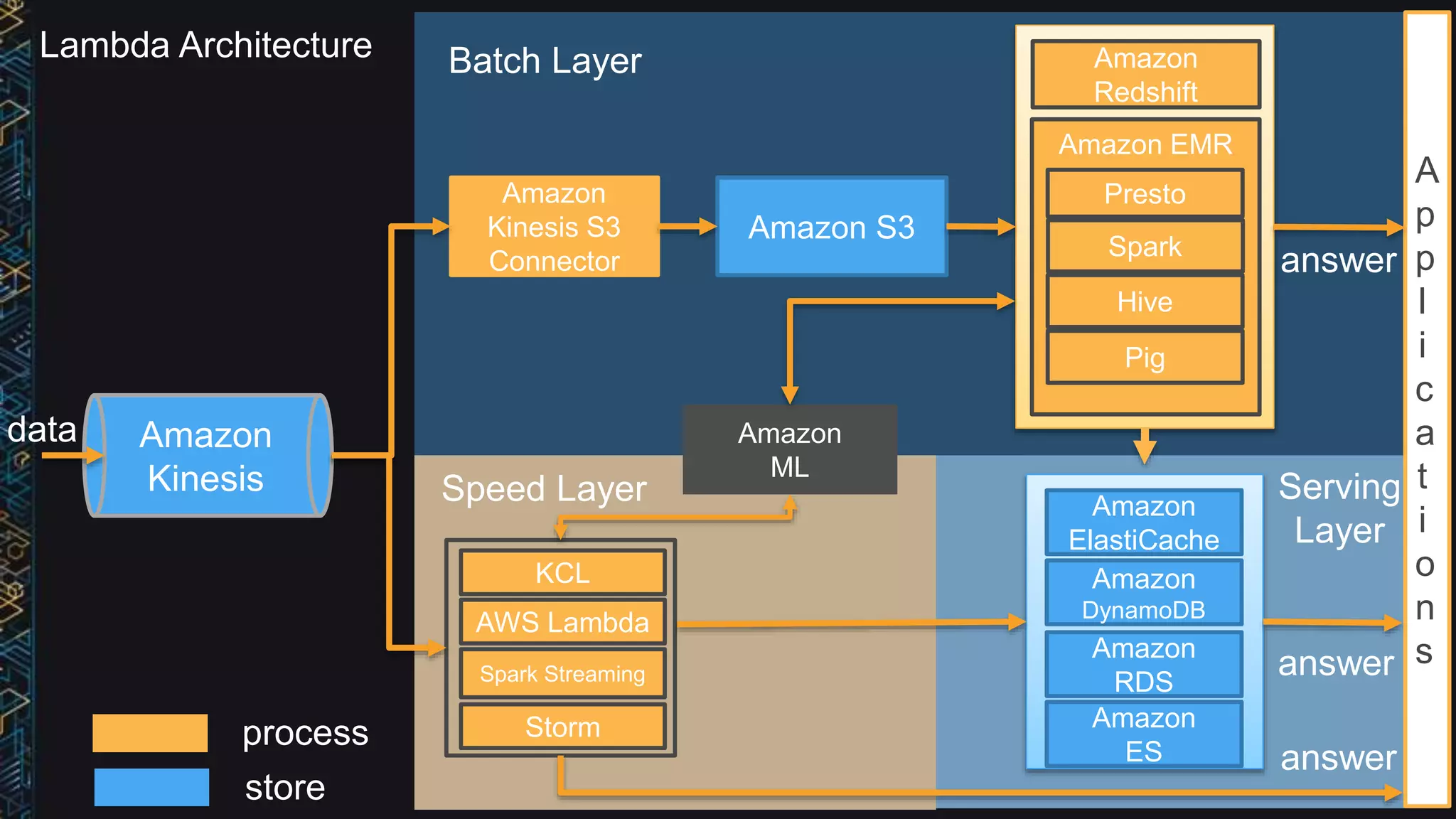

- 41. Batch Layer Amazon Kinesis data process store Lambda Architecture Amazon KinesisS3 Connector Amazon S3 A p p l i c a t i o n s Amazon Redshift Amazon EMR Presto Hive Pig Spark answer Speed Layer answer Serving Layer Amazon ElastiCache Amazon DynamoDB Amazon RDS Amazon ES answer Amazon ML KCL AWS Lambda Spark Streaming Storm

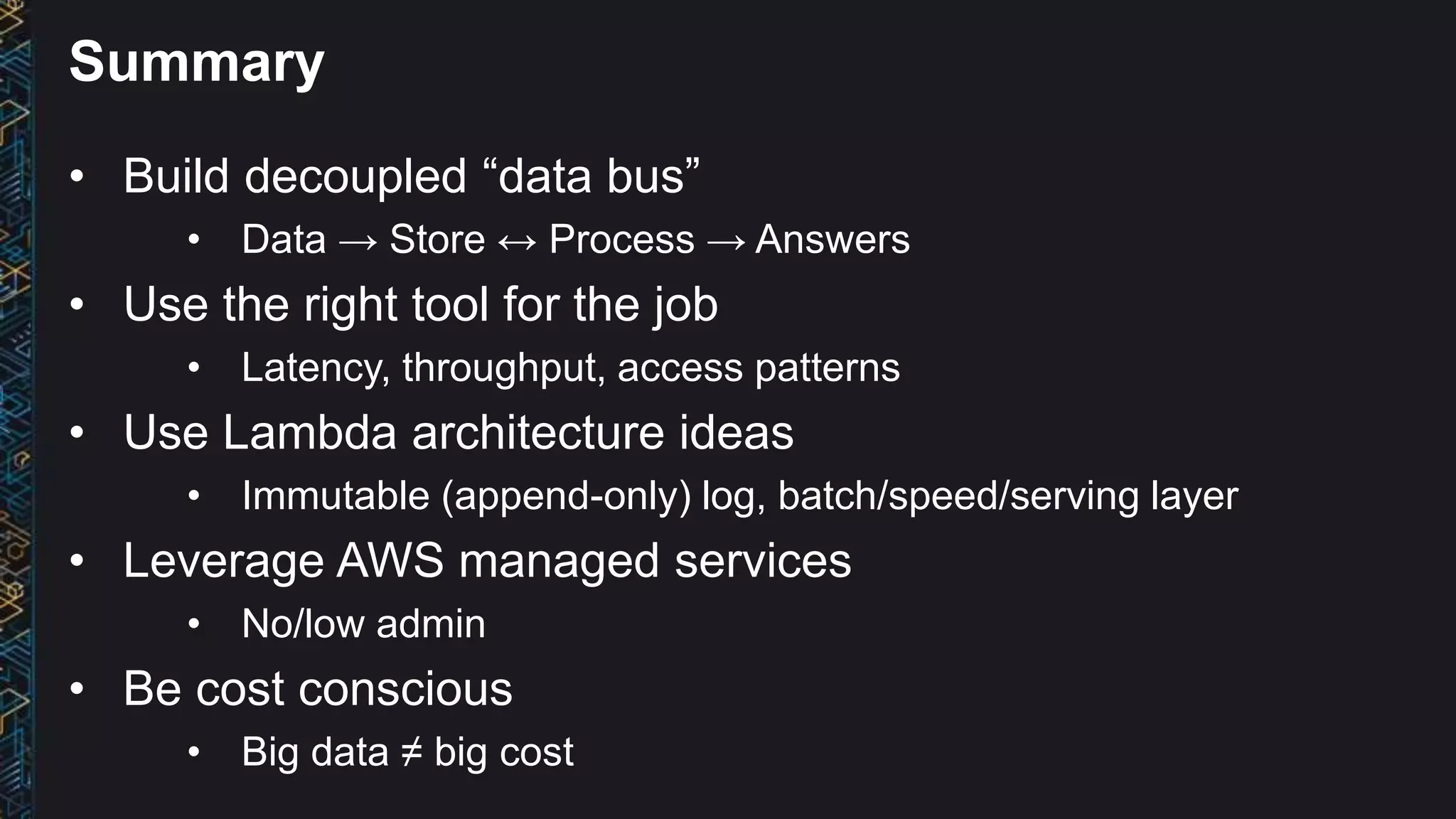

- 42. Summary • Build decoupled“data bus” • Data → Store ↔ Process → Answers • Use the right tool for the job • Latency, throughput, access patterns • Use Lambda architecture ideas • Immutable (append-only) log, batch/speed/serving layer • Leverage AWS managed services • No/low admin • Be cost conscious • Big data ≠ big cost
- 43. Remember to complete yourevaluations!
- 44.
Editor's Notes
- #2 Wednesday, Oct 7 2:45 PM - 3:45 PM Marcello 4501B Siva Raghupathy leads the Americas Big Data Solutions Architecture team at AWS. He guides developers and architects to build successful big data solutions on AWS. Previously, as a principal technical program manager for AWS database service, he gathered emerging NoSQL requirements and wrote the first version of DynamoDB product specification. Later, as a development manager for Amazon Relational Database Services (RDS) he drove several enhancements. Prior to AWS, he spent several years at Microsoft. Abstract: The world is producing an ever increasing volume, velocity, and variety of big data. Consumers and businesses are demanding up-to-the-second (or even millisecond) analytics on their fast-moving data, in addition to classic batch processing. AWS delivers many services for solving big data problems. But what service should you use, why, when, and how? In this session, we simplify big data processing as a data bus comprising various stages: ingest, store, process, and visualize. Next, we discuss how to choose the right technology in each stage based on criteria such as data structure, query latency, cost, request rate, item size, data volume, durability, and so on. Finally, we provide reference architecture, design patterns, and best practices for assembling these technologies to solve your big data problems at the right cost.
- #3 Abstract: The world is producing an ever increasing volume, velocity, and variety of big data. Consumers and businesses are demanding up-to-the-second (or even millisecond) analytics on their fast-moving data, in addition to classic batch processing. AWS delivers many services for solving big data problems. But what service should you use, why, when, and how? In this session, we simplify big data processing as a data bus comprising various stages: ingest, store, process, and visualize. Next, we discuss how to choose the right technology in each stage based on criteria such as data structure, query latency, cost, request rate, item size, data volume, durability, and so on. Finally, we provide reference architecture, design patterns, and best practices for assembling these technologies to solve your big data problems at the right cost.
- #4 Volume – 100 to 150TB a day Velocity – 1million reads and writes per second is becoming a norm Variety -> IOT/log data/ streaming data Transactional data File data Fixed Schema CSV Parquet Avero Schema-free JSON Key-value Small files, large files,
- #5 Hourly server logs: were your systems misbehaving 1hr ago Weekly / Monthly Bill: what you spent this billing cycle Daily customer-preferences report from your web site’s click stream: what deal or ad to try next time Daily fraud reports: was there fraud yesterday Real-time alerts: what went wrong now Real-time spending caps: prevent overspending now Real-time analysis: what to offer the current customer now Real-time detection: block fraudulent use now I need to harness big data, fast I want more happy customers I want to save/make more money
- #6 Hive Spark Storm Kafka HBase Flume Impala Cascading EMR DynamoDB S3 Redshift Kinesis RDS Glacier
- #8 Before we go into solving the Big architecture, I want to introduce some “tried and test” architecture principles. Here at AWS we believe you should be using the right tool for the job – “instead of using a big swiss army knife for using a screw dreive, it will be best to use a screw drive - this is especially important for big data architectures. We’ll talk about this more. Decoupled architecture http://whatis.techtarget.com/definition/decoupled-architecture - In general, a decoupled architecture is a framework for complex work that allows components to remain completely autonomous and unaware of each other…this has been tried and battle test. Managed services – this is relatively now - Should I install Cassandra or MongoDB or CouchDB on AWS. You obviously can. Sometimes there are good reasons for doing this. Many customers still do this. Netflix is a great example. They run a multi-region Cassandra and are a poster child for how to do this. But for most customers, delegating this task to AWS makes more sense….you are better of spending your time on building features for your customers rather than building highly scalable distributed systems. Lambda Architecture - Nathan Marz designed this generic architecture addressing common requirements Twitter
- #9 throughput = f (volume, request rate) latency Cost Event to action/answer latency?
- #14 http://calculator.s3.amazonaws.com/index.html#r=IAD&key=calc-BE3BA3E4-1AC5-4E7A-B542-015056D8EDAF Kinesis -> $52.14 per month SQS -> $133.42 per month for puts or $400/month (put, get, delete) DynamoDB -> $3809.88 per month (10TB of storage cost itself is $2500/month) Cost (100rpsx 35KB) $52/month $133/month * 2 = $266/month ? Amazon DynamoDB Service (US-East) $ Provisioned Throughput Capacity: $120 Indexed Data Storage: $2560.90 DynamoDB Streams: $1.3 Amazon SQS Service (US-East) Pricing Example Let’s assume that our data producers put 100 records per second in aggregate, and each record is 35KB. In this case, the total data input rate is 3.4MB/sec (100 records/sec*35KB/record). For simplicity, we assume that the throughput and data size of each record are stable and constant throughout the day. Please note that we can dynamically adjust the throughput of our Amazon Kinesis stream at any time. We first calculate the number of shards needed for our stream to achieve the required throughput. As one shard provides a capacity of 1MB/sec data input and supports 1000 records/sec, four shards provide a capacity of 4MB/sec data input and support 4000 records/sec. So a stream with four shards satisfies our required throughput of 3.4MB/sec at 100 records/sec. We then calculate our monthly Amazon Kinesis costs using Amazon Kinesis pricing in the US-East Region: Shard Hour: One shard costs $0.015 per hour, or $0.36 per day ($0.015*24). Our stream has four shards so that it costs $1.44 per day ($0.36*4). For a month with 31 days, our monthly Shard Hour cost is $44.64 ($1.44*31). PUT Payload Unit (25KB): As our record is 35KB, each record contains two PUT Payload Units. Our data producers put 100 records or 200 PUT Payload Units per second in aggregate. That is 267,840,000 records or 535,680,000 PUT Payload Units per month. As one million PUT Payload Units cost $0.014, our monthly PUT Payload Units cost is $7.499 ($0.014*535.68). Adding the Shard Hour and PUT Payload Unit costs together, our total Amazon Kinesis costs are $1.68 per day, or $52.14 per month. For $1.68 per day, we have a fully-managed streaming data infrastructure that enables us to continuously ingest 4MB of data per second, or 337GB of data per day in a reliable and elastic manner.
- #16 No need to run compute clusters for storage (unlike HDFS) Can run transient Hadoop clusters & Amazon EC2 spot Instances Multiple distinct (Spark, Hive, Presto) clusters can use the same data Highly durable, highly available, highly scalable Secure Designed for 99.999999999% durability https://aws.amazon.com/s3/storage-classes/ Lifecycle Policies - migrated to S3-Standard - IA, archive to Amazon Glacier, or deleted after a specific period of time! No need to run a Hadoop cluster for storage (unlike HDFS) Unlimited number of objects Object size up to 5TB Very high bandwidth Versioning Lifecycle Policies to Achieve to Glacier Designed for 99.999999999% durability Server size encryption Highly available – SLA 99.99 (Standard) Highly scalable Low cost Event notification Cross-region replication Natively supported by almost all big data frameworks & tools
- #22 2 x 2 Matrix Structured Level of query (from none to complex) Draw down the slide
- #25 Analysis of data is a process of inspecting, cleaning, transforming, and modeling data with the goal of discovering useful information, suggesting conclusions, and supporting decision-making. Examples: Data Warehousing: Monthly bill, Interactive dashboards Machine Learning: Sentiment Analysis, Prediction Stream processing: Alerts, 1 minute metrics, etc. http://www.jmlr.org/papers/volume9/li08a/li08a.pdf Forecasting Web Page Views: http://nlp.stanford.edu/sentiment/ http://nlp.stanford.edu/sentiment/Methods and Observations https://en.wikipedia.org/wiki/Data_analysis
- #27 Add connector Direct Acyclic Graphs? Exactly once processing & DAG? – how do you do this?? https://storm.apache.org/documentation/Rationale.html http://www.slideshare.net/ptgoetz/apache-storm-vs-spark-streaming
- #28 Cost: Redshift – Moderate Impala - Presto – Low S3A* is an open source connector. It is not in EMR 1.2.1 – using bootstrap you can install 2.2 ( we have a bootstrap action) Query Speed Redshift – Extremely fast SQL queries Spark, Impala – Extremely Fast to Fast Hive QL Hive, Tez – Moderately Fast to Slow Hive QL Data Volume? UDFs? Manageability? http://yahoodevelopers.tumblr.com/post/85930551108/yahoo-betting-on-apache-hive-tez-and-yarn https://amplab.cs.berkeley.edu/benchmark/ http://nerds.airbnb.com/redshift-performance-cost/
- #37 Similar to multi-tier web-app-data architectures Concept of a “data bus” or “data pipeline”
- #40 Best practices BDT318 - Netflix Keystone: How Netflix Handles Data Streams Up to 8 Million Events Per Second Use Kinesis or Kafka for stream storage Use appropriate stream processing tool KCL – Simple, only for Kinesis Apache Storm – general purpose Spark Streaming – Windowing, MLlib, Statefull AWS Lambda – fully managed, no servers, stateless Use Amazon SNS for Alerts Use Amazon ML for predictions Use a managed database/cache for state management Use a visualization tool for KPI visualization
- #42 Lambda Architecture best practices Use Kinesis or Kafka for stream storage Maintain an immutable (append only) raw master data in Amazon S3 - use Amazon Kinesis S3 connector or Firehose Use appropriate batch processing technologies for creating batch views Use appropriate stream processing technology for real-time views Use a serving layer with an appropriate database to serve downstream applications
- #43 Before we go into solving the Big architecture, I want to introduce some “tried and test” architecture principles. Here at AWS we believe you should be using the right tool for the job – “instead of using a big swiss army knife for using a screw dreive, it will be best to use a screw drive - this is especially important for big data architectures. We’ll talk about this more. Decoupled architecture http://whatis.techtarget.com/definition/decoupled-architecture - In general, a decoupled architecture is a framework for complex work that allows components to remain completely autonomous and unaware of each other…this has been tried and battle test. Managed services – this is relatively now - Should I install Cassandra or MongoDB or CouchDB on AWS. You obviously can. Sometimes there are good reasons for doing this. Many customers still do this. Netflix is a great example. They run a multi-region Cassandra and are a poster child for how to do this. But for most customers, delegating this task to AWS makes more sense….you are better of spending your time on building features for your customers rather than building highly scalable distributed systems. Lambda Architecture -
