20150716 introduction to apache spark v3
Apache Spark is a fast, general-purpose, and easy-to-use cluster computing system for large-scale data processing. It provides APIs in Scala, Java, Python, and R. Spark is versatile and can run on YARN/HDFS, standalone, or Mesos. It leverages in-memory computing to be faster than Hadoop MapReduce. Resilient Distributed Datasets (RDDs) are Spark's abstraction for distributed data. RDDs support transformations like map and filter, which are lazily evaluated, and actions like count and collect, which trigger computation. Caching RDDs in memory improves performance of subsequent jobs on the same data.
More Related Content
Similar to 20150716 introduction to apache spark v3
20150716 introduction to apache spark v3
- 1. Presenter : AndreyVykhodtsev Andrey.vykhodtsev@si.ibm.com *collective work, see slide credits
- 2. Two meetupgroups Close, but different topics Ran by me I don’t have to be a presenter all the time Propose your agenda

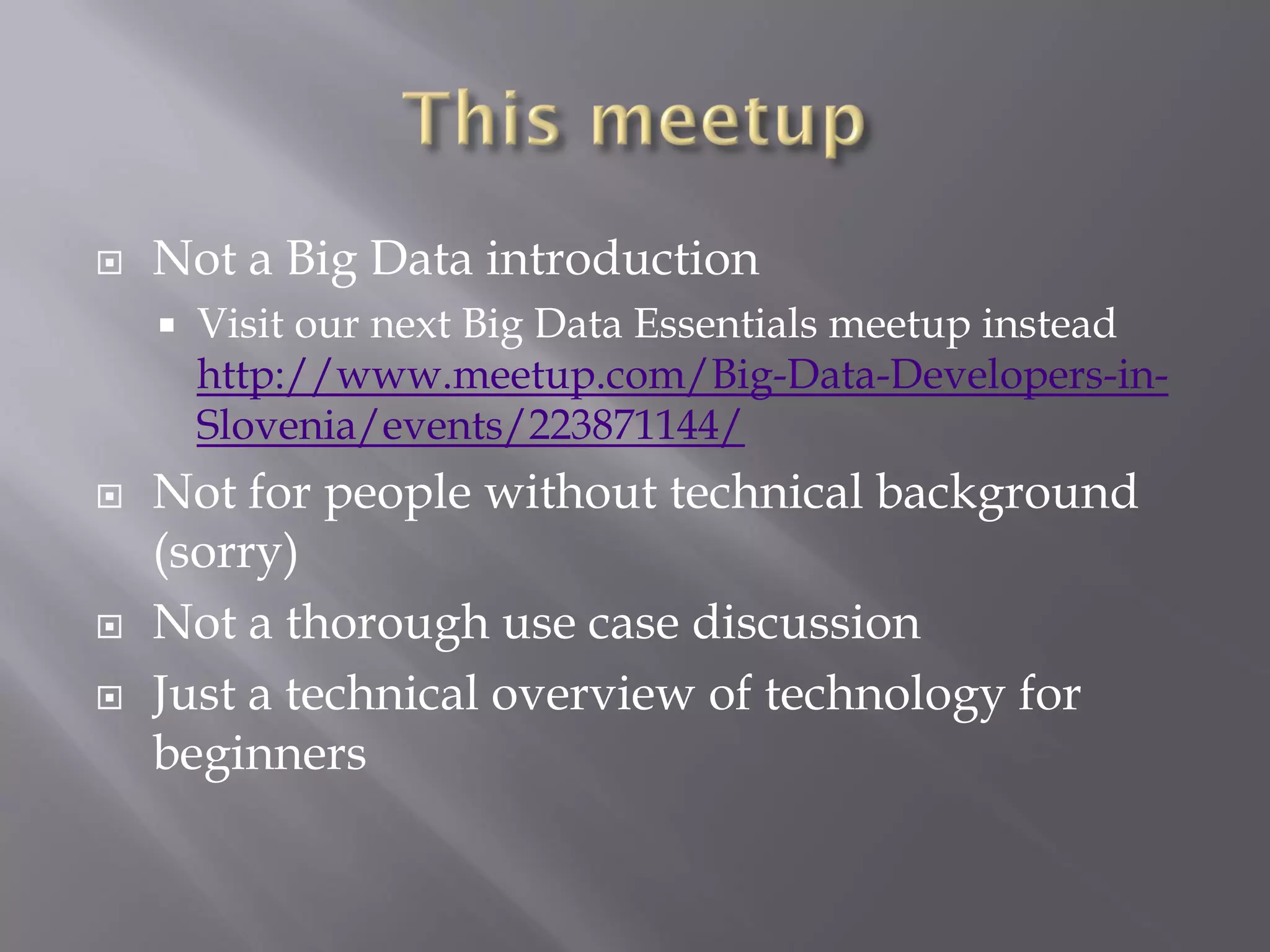

- 3. Not aBig Data introduction Visit our next Big Data Essentials meetup instead http://www.meetup.com/Big-Data-Developers-in- Slovenia/events/223871144/ Not for people without technical background (sorry) Not a thorough use case discussion Just a technical overview of technology for beginners

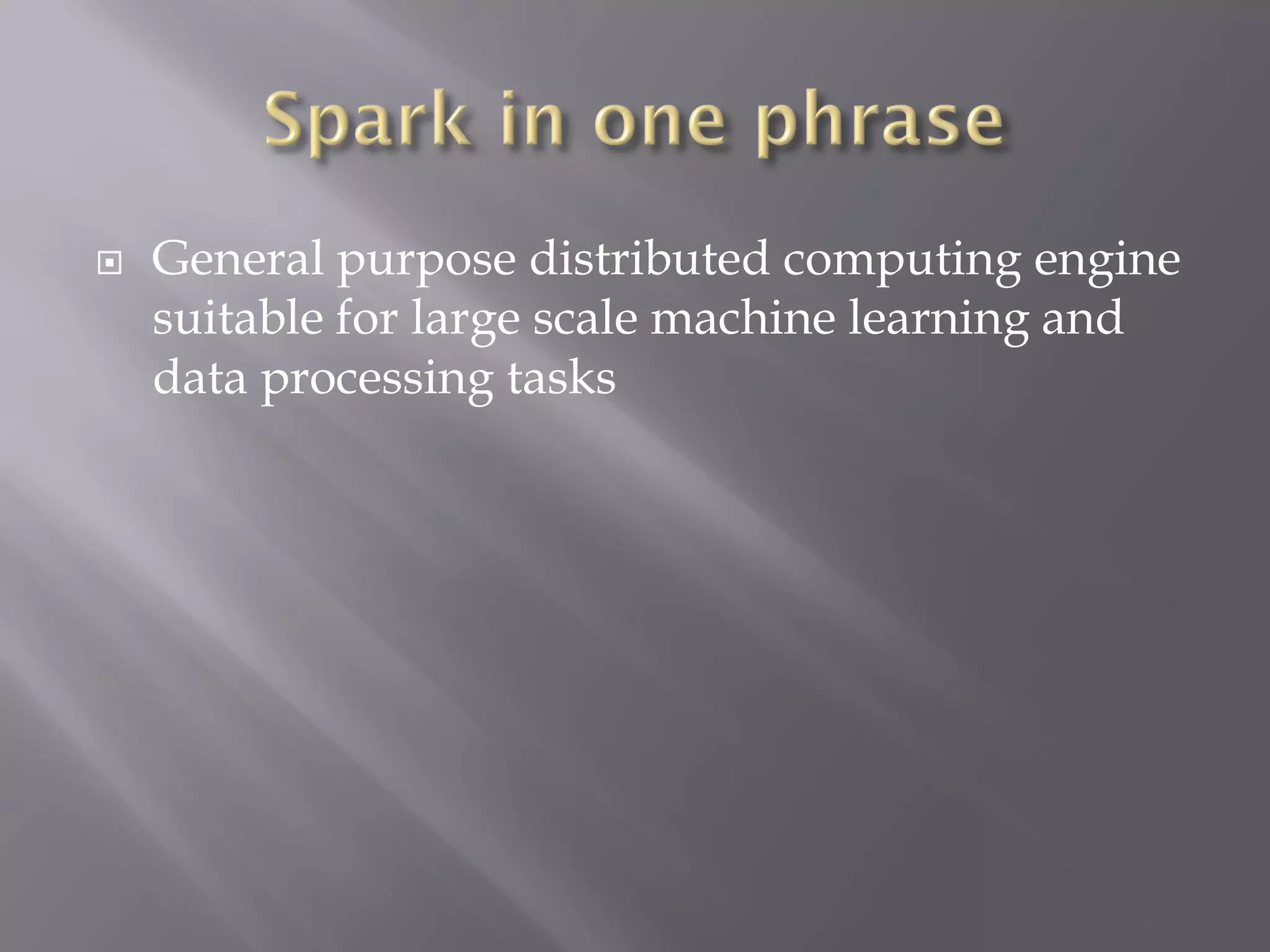

- 4. General purposedistributed computing engine suitable for large scale machine learning and data processing tasks

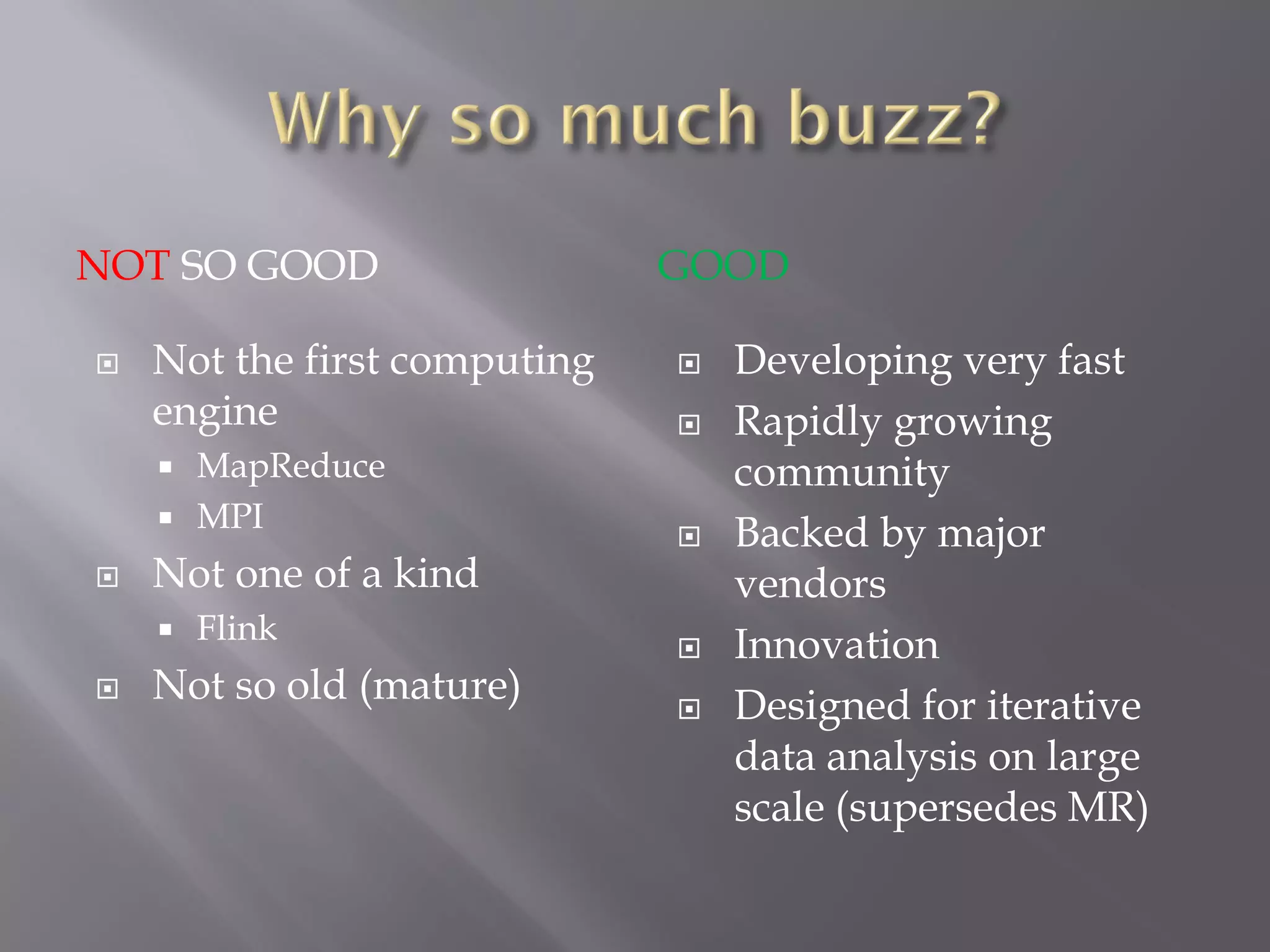

- 5. NOT SO GOODGOOD Not the first computing engine MapReduce MPI Not one of a kind Flink Not so old (mature) Developing very fast Rapidly growing community Backed by major vendors Innovation Designed for iterative data analysis on large scale (supersedes MR)

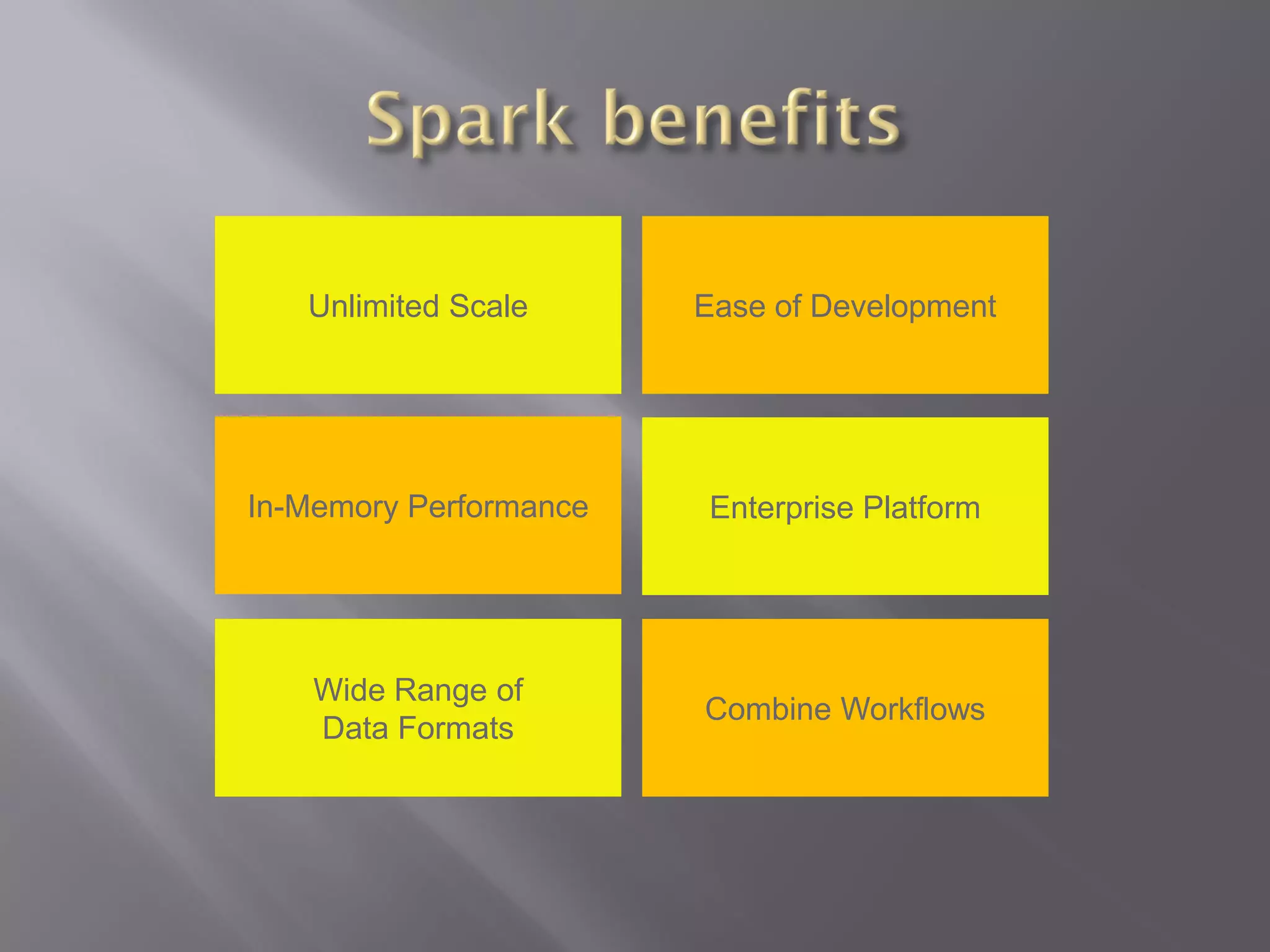

- 6. In-Memory Performance Ease ofDevelopment Combine Workflows Unlimited Scale Enterprise Platform Wide Range of Data Formats

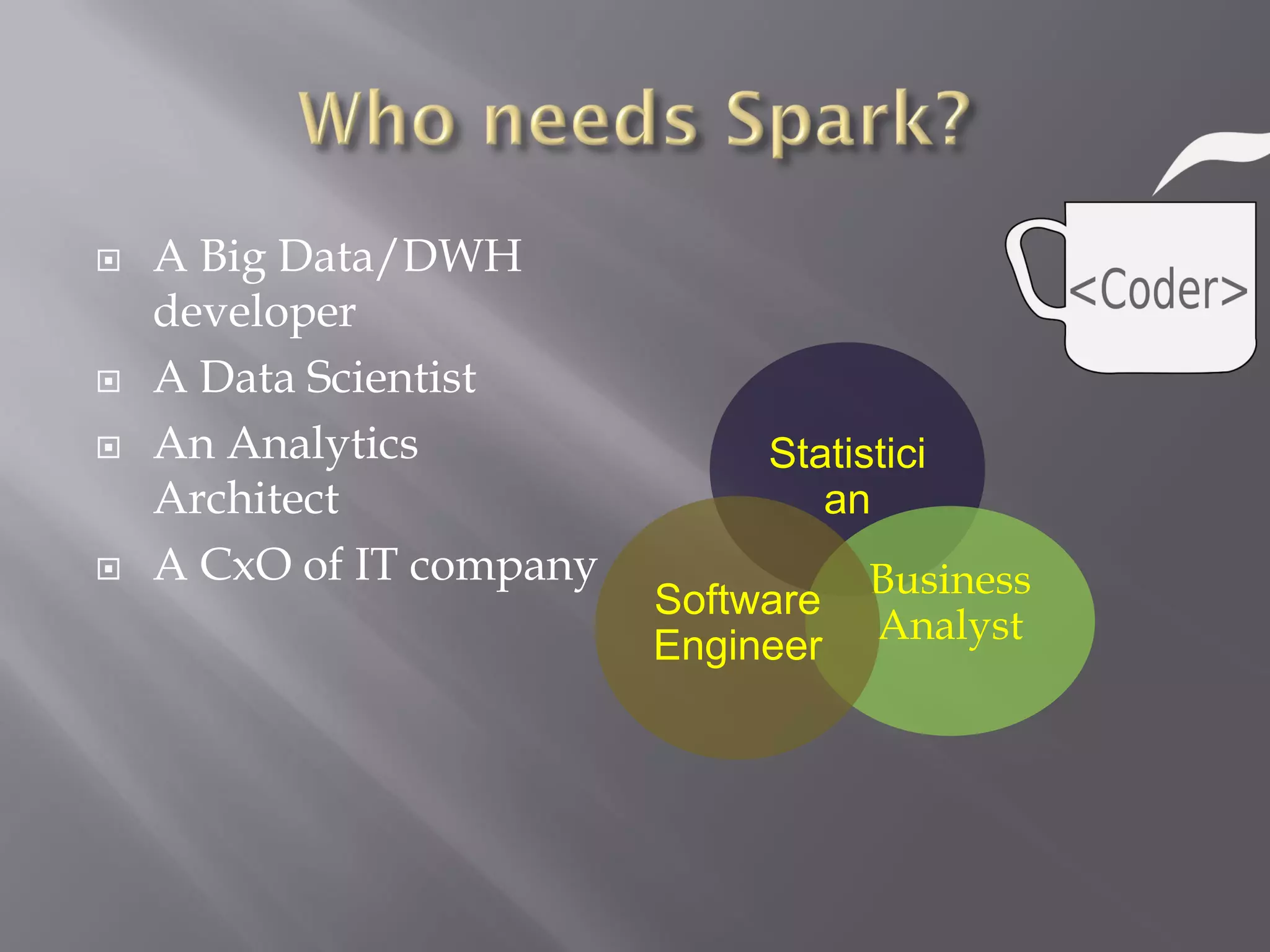

- 7. A BigData/DWH developer A Data Scientist An Analytics Architect A CxO of IT company Statistici an Business Analyst Software Engineer

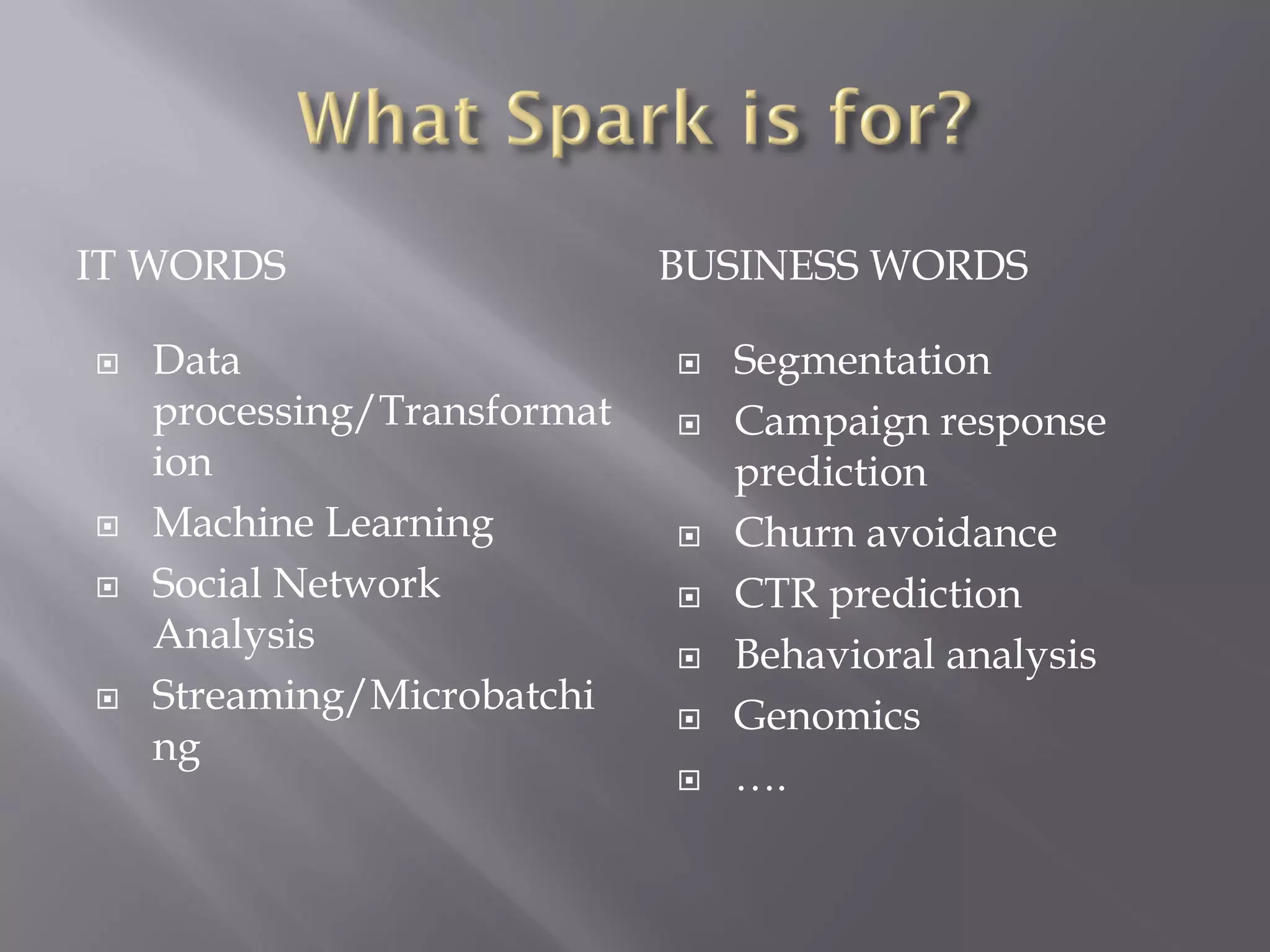

- 8. IT WORDS BUSINESSWORDS Data processing/Transformat ion Machine Learning Social Network Analysis Streaming/Microbatchi ng Segmentation Campaign response prediction Churn avoidance CTR prediction Behavioral analysis Genomics ….

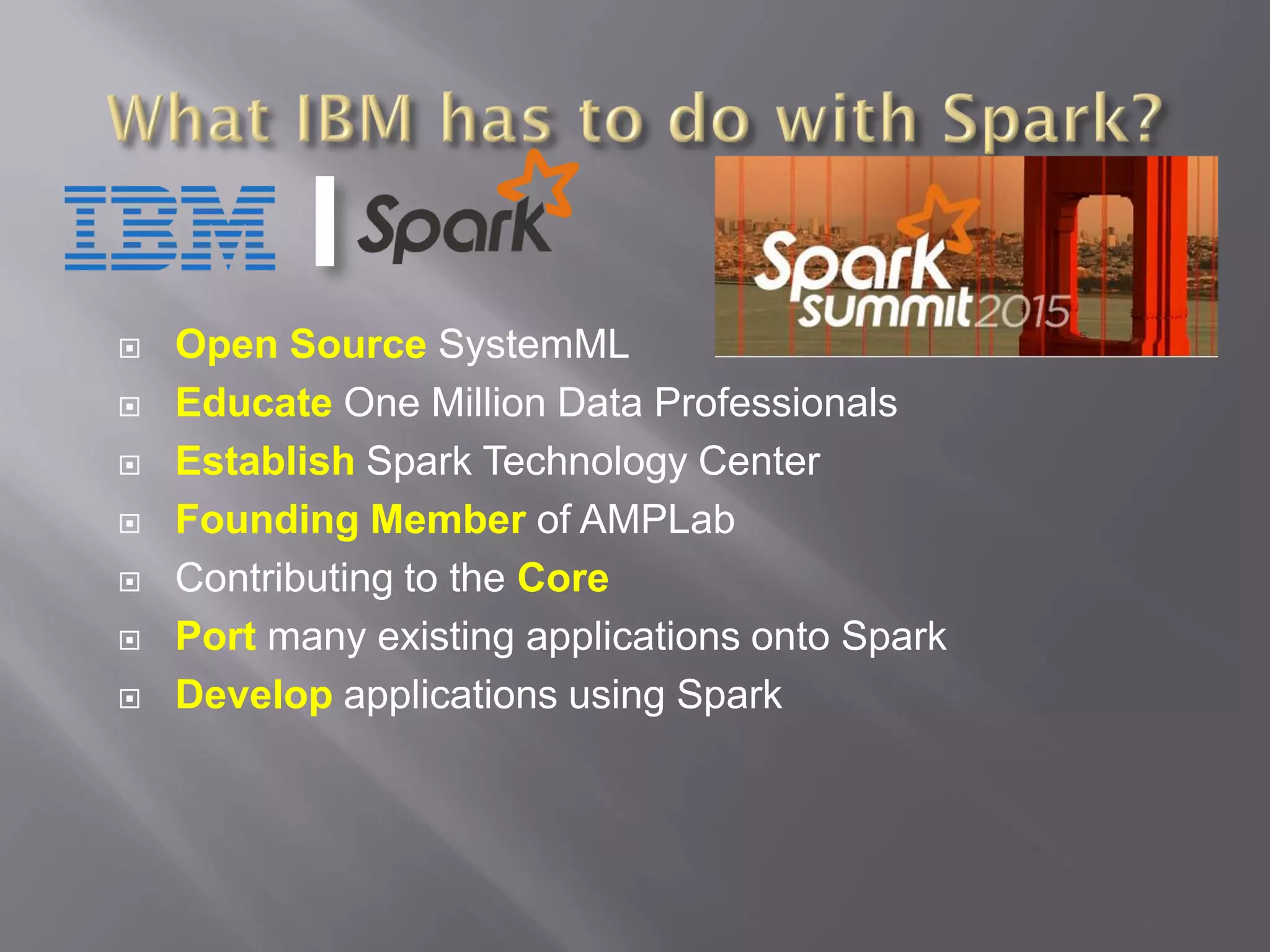

- 11. Open SourceSystemML Educate One Million Data Professionals Establish Spark Technology Center Founding Member of AMPLab Contributing to the Core Port many existing applications onto Spark Develop applications using Spark
- 13. Distributed platformfor thousands of nodes Data storage and computation framework Open source Runs on commodity hardware Flexible – everything is loosely coupled

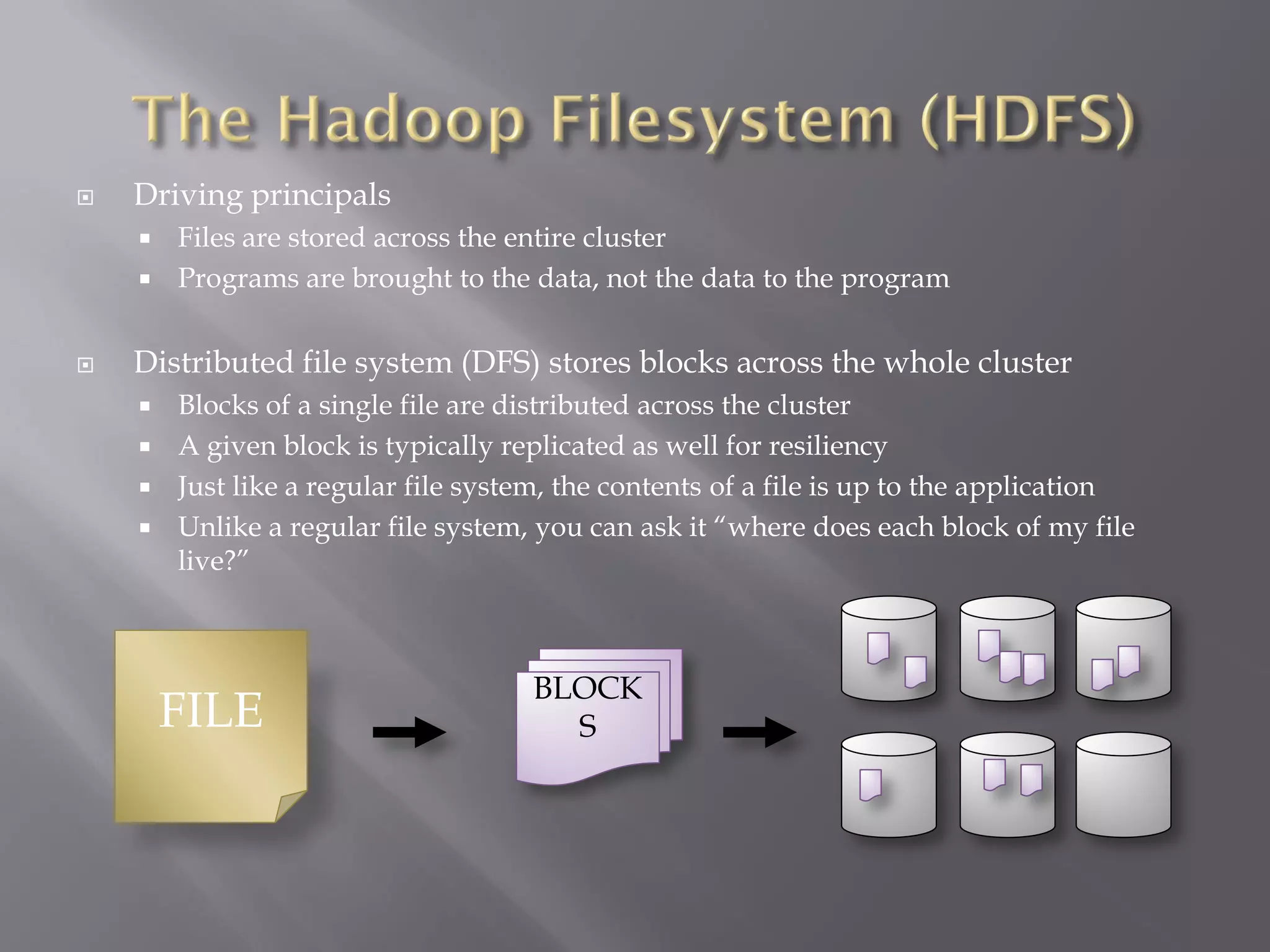

- 14. Driving principals Files are stored across the entire cluster Programs are brought to the data, not the data to the program Distributed file system (DFS) stores blocks across the whole cluster Blocks of a single file are distributed across the cluster A given block is typically replicated as well for resiliency Just like a regular file system, the contents of a file is up to the application Unlike a regular file system, you can ask it “where does each block of my file live?” FILE BLOCK S

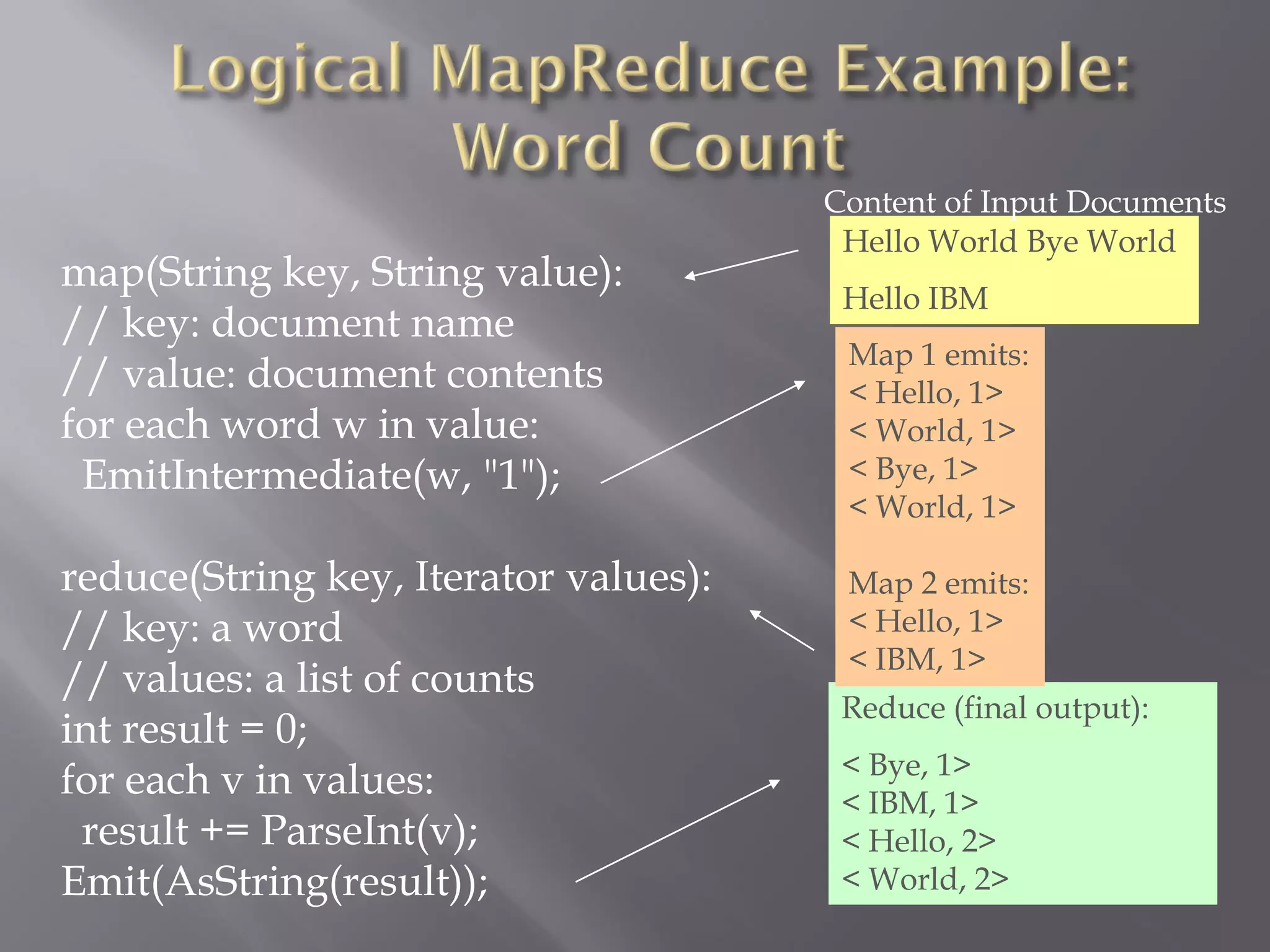

- 15. map(String key, Stringvalue): // key: document name // value: document contents for each word w in value: EmitIntermediate(w, "1"); reduce(String key, Iterator values): // key: a word // values: a list of counts int result = 0; for each v in values: result += ParseInt(v); Emit(AsString(result)); Hello World Bye World Hello IBM Content of Input Documents Reduce (final output): < Bye, 1> < IBM, 1> < Hello, 2> < World, 2> Map 1 emits: < Hello, 1> < World, 1> < Bye, 1> < World, 1> Map 2 emits: < Hello, 1> < IBM, 1>

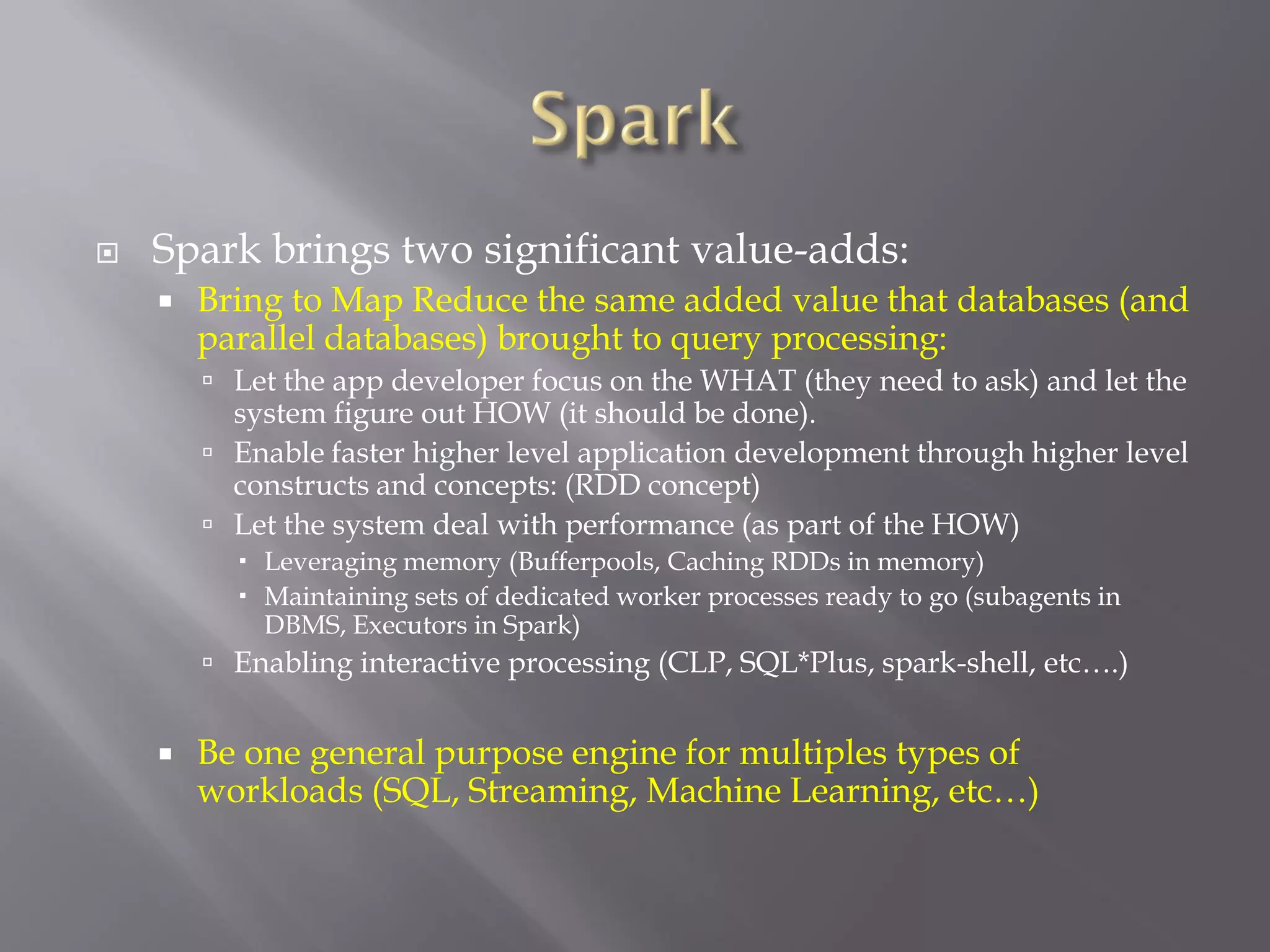

- 16. Spark bringstwo significant value-adds: Bring to Map Reduce the same added value that databases (and parallel databases) brought to query processing: Let the app developer focus on the WHAT (they need to ask) and let the system figure out HOW (it should be done). Enable faster higher level application development through higher level constructs and concepts: (RDD concept) Let the system deal with performance (as part of the HOW) Leveraging memory (Bufferpools, Caching RDDs in memory) Maintaining sets of dedicated worker processes ready to go (subagents in DBMS, Executors in Spark) Enabling interactive processing (CLP, SQL*Plus, spark-shell, etc….) Be one general purpose engine for multiples types of workloads (SQL, Streaming, Machine Learning, etc…)

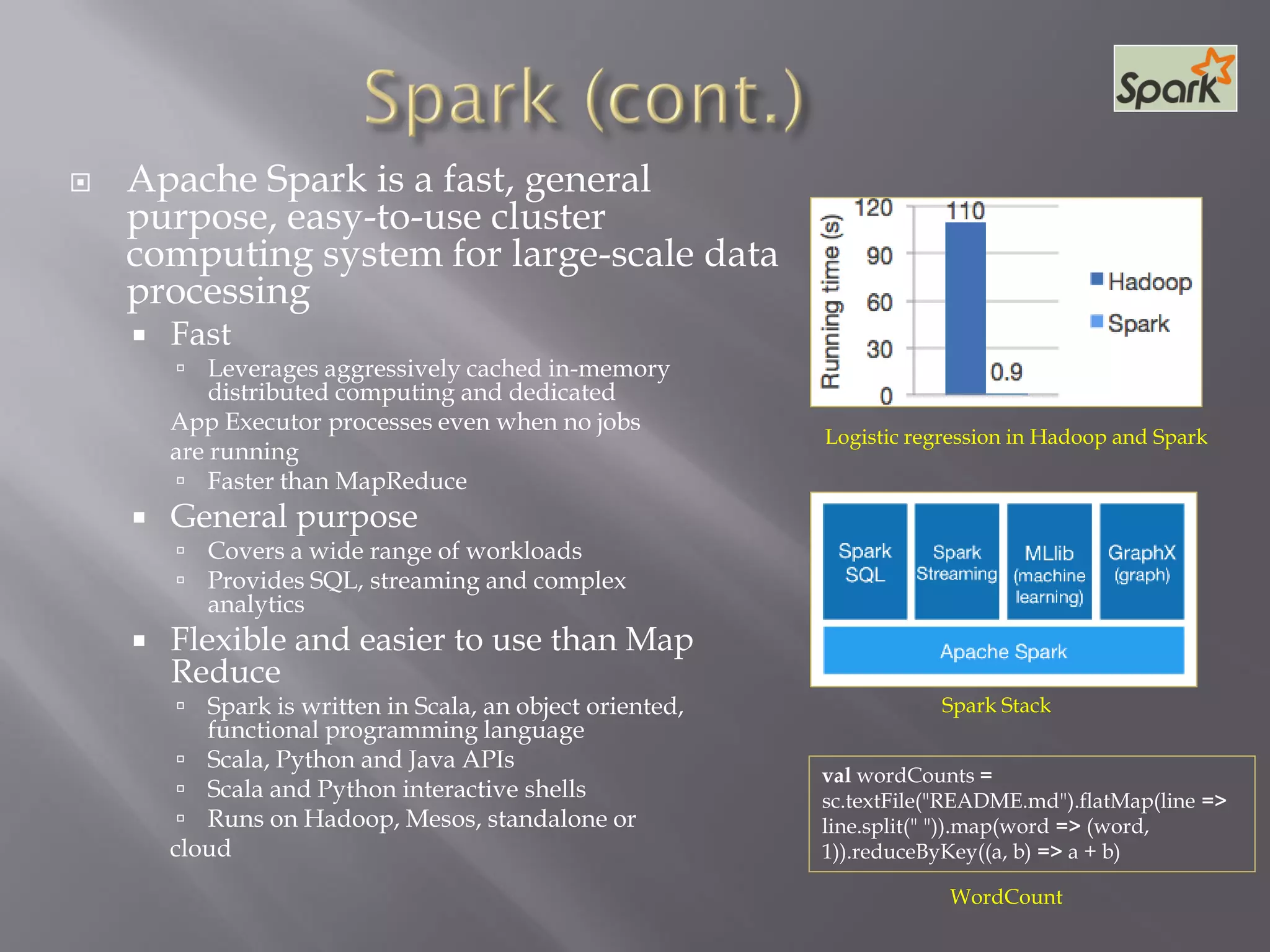

- 17. Apache Sparkis a fast, general purpose, easy-to-use cluster computing system for large-scale data processing Fast Leverages aggressively cached in-memory distributed computing and dedicated App Executor processes even when no jobs are running Faster than MapReduce General purpose Covers a wide range of workloads Provides SQL, streaming and complex analytics Flexible and easier to use than Map Reduce Spark is written in Scala, an object oriented, functional programming language Scala, Python and Java APIs Scala and Python interactive shells Runs on Hadoop, Mesos, standalone or cloud Logistic regression in Hadoop and Spark Spark Stack val wordCounts = sc.textFile("README.md").flatMap(line => line.split(" ")).map(word => (word, 1)).reduceByKey((a, b) => a + b) WordCount

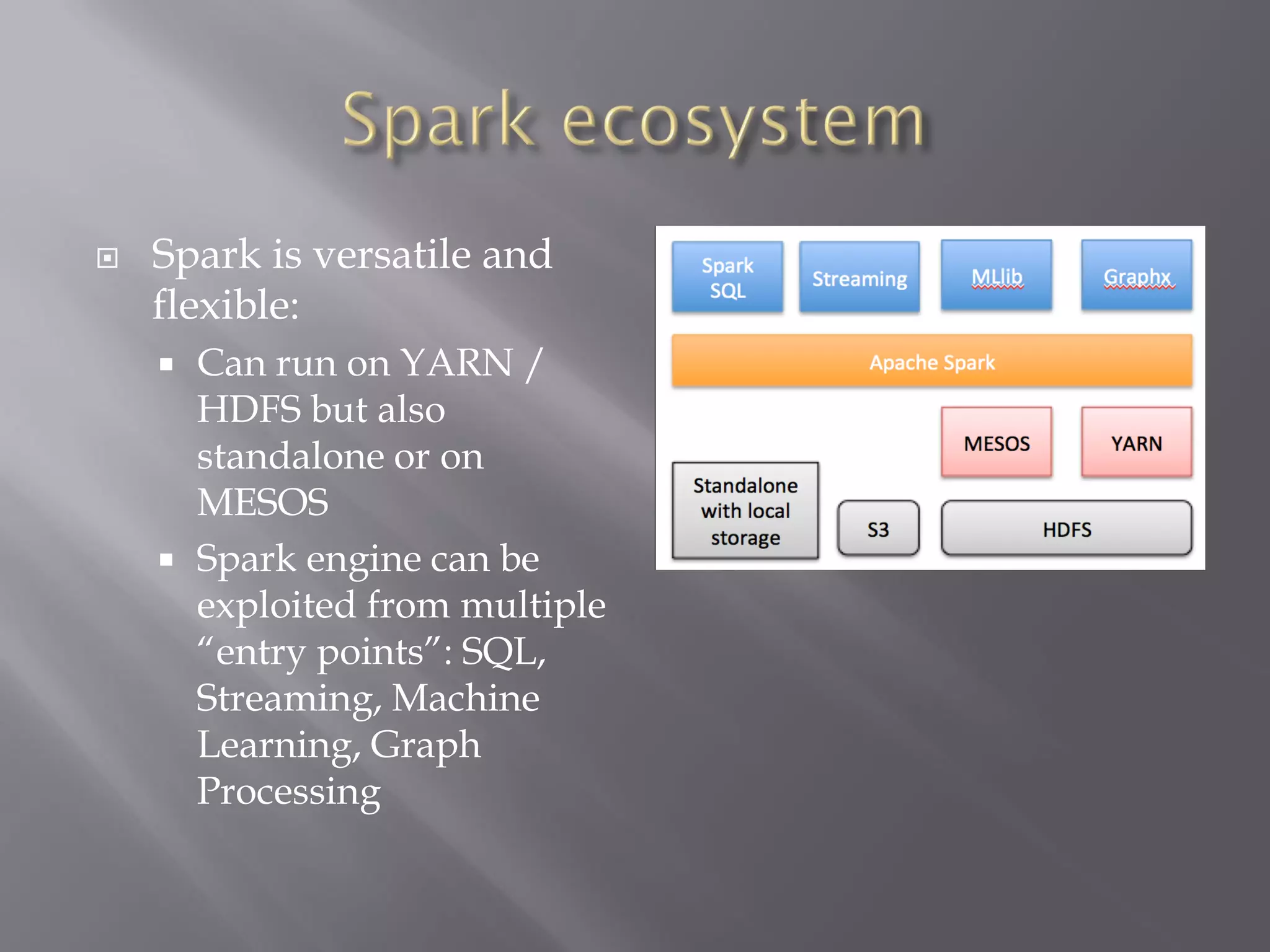

- 18. Spark isversatile and flexible: Can run on YARN / HDFS but also standalone or on MESOS Spark engine can be exploited from multiple “entry points”: SQL, Streaming, Machine Learning, Graph Processing

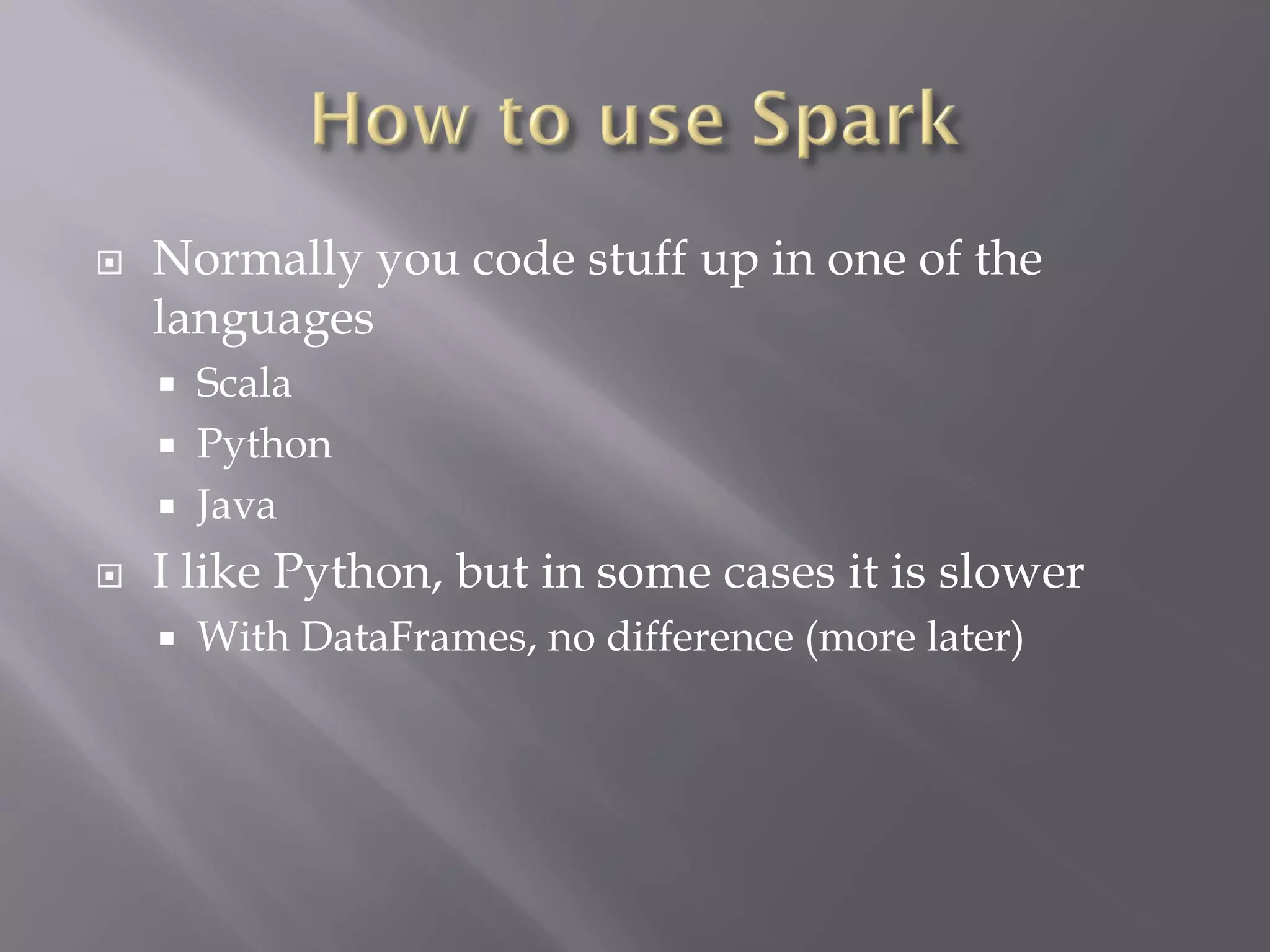

- 19. Normally youcode stuff up in one of the languages Scala Python Java I like Python, but in some cases it is slower With DataFrames, no difference (more later)

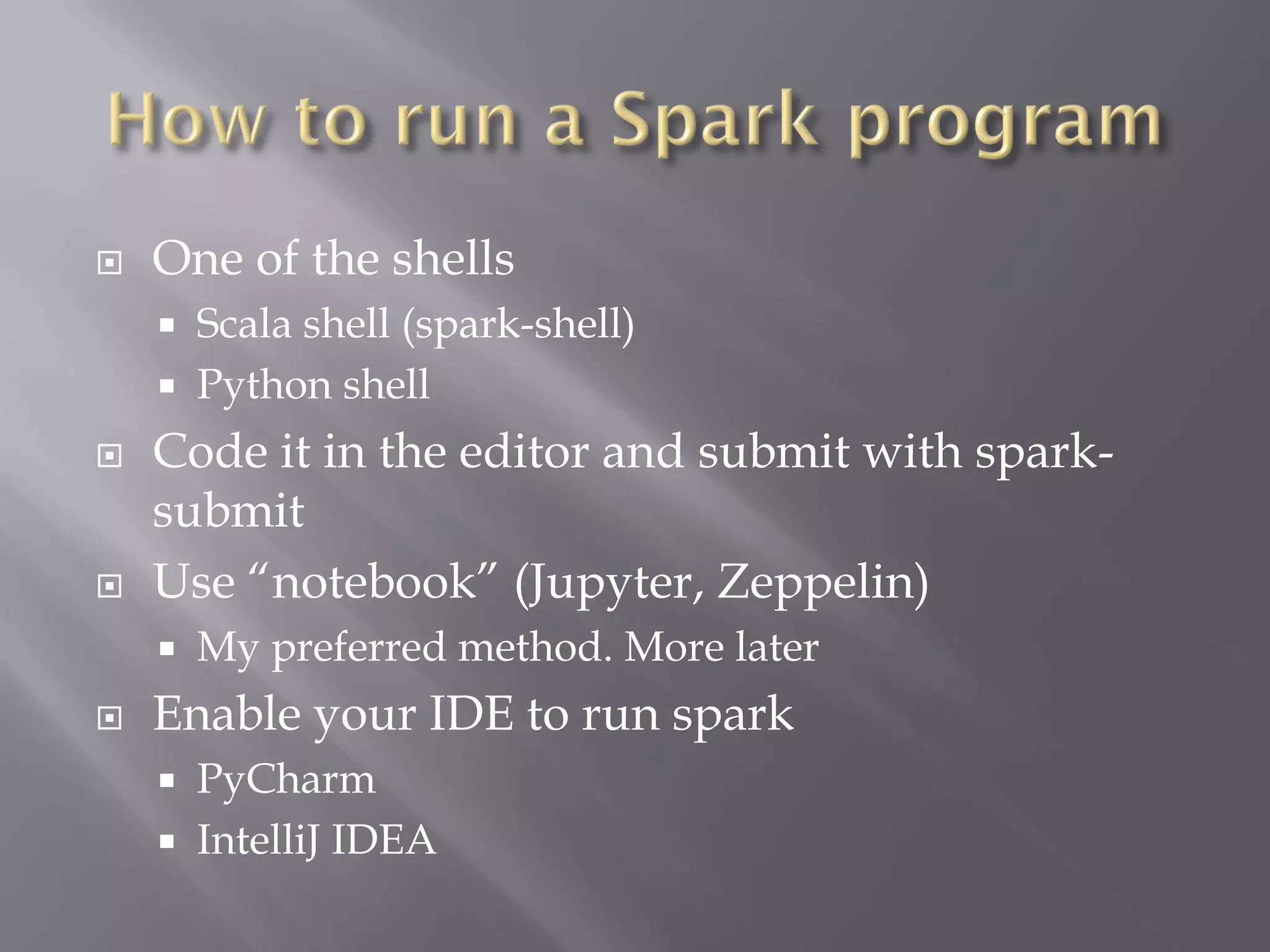

- 20. One ofthe shells Scala shell (spark-shell) Python shell Code it in the editor and submit with spark- submit Use “notebook” (Jupyter, Zeppelin) My preferred method. More later Enable your IDE to run spark PyCharm IntelliJ IDEA

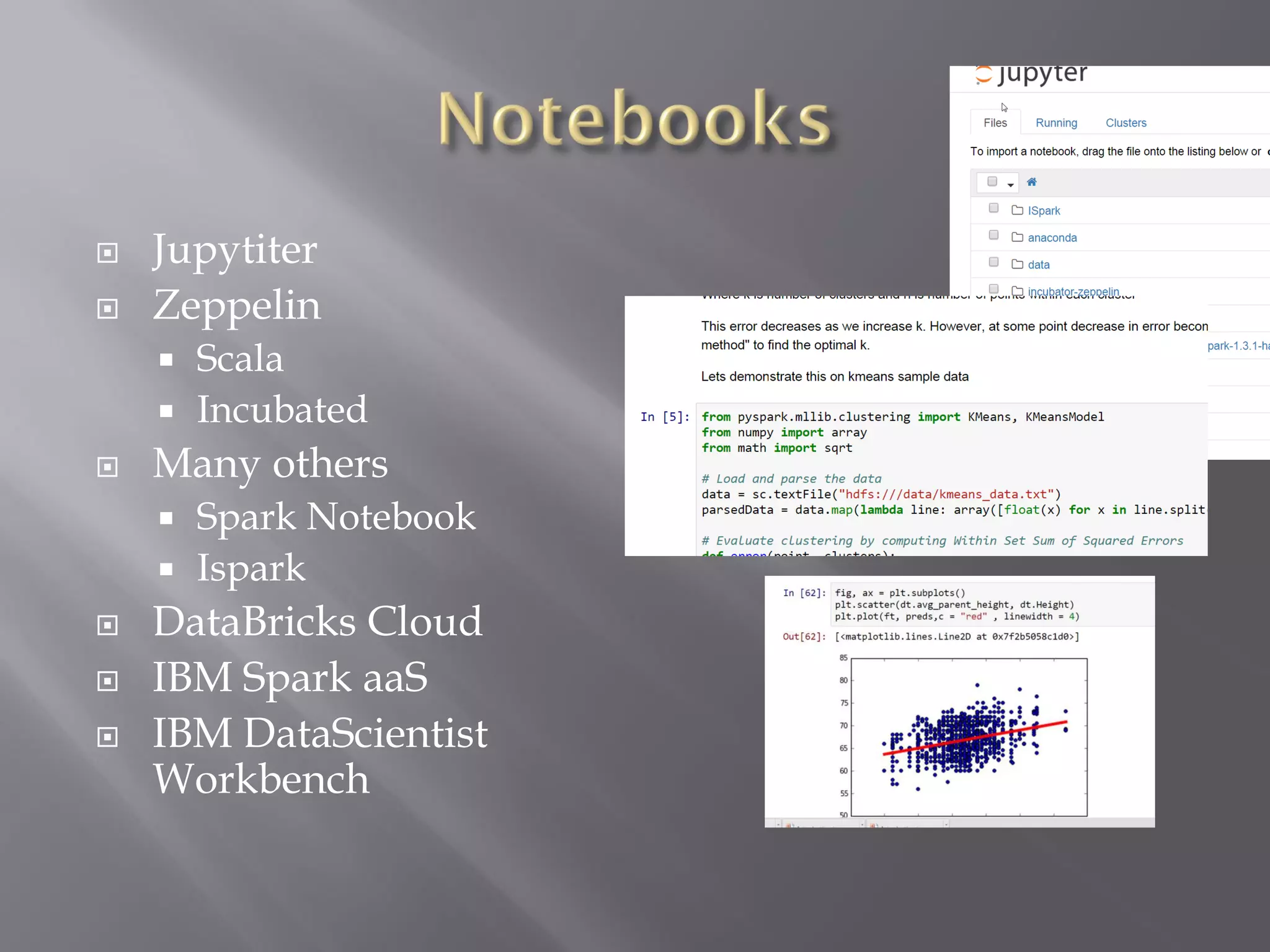

- 22. Jupytiter Zeppelin Scala Incubated Many others Spark Notebook Ispark DataBricks Cloud IBM Spark aaS IBM DataScientist Workbench

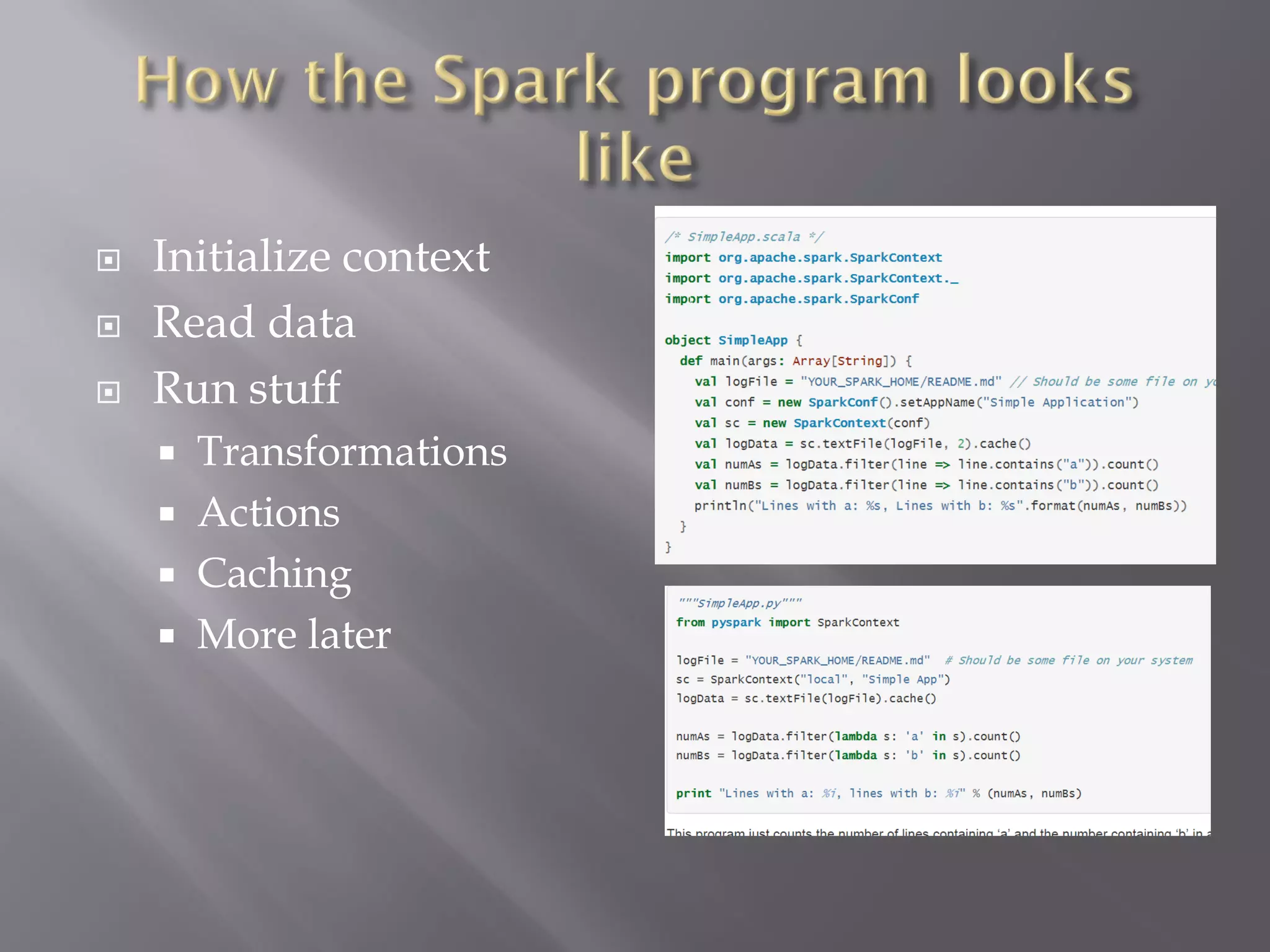

- 23. Initialize context Read data Run stuff Transformations Actions Caching More later

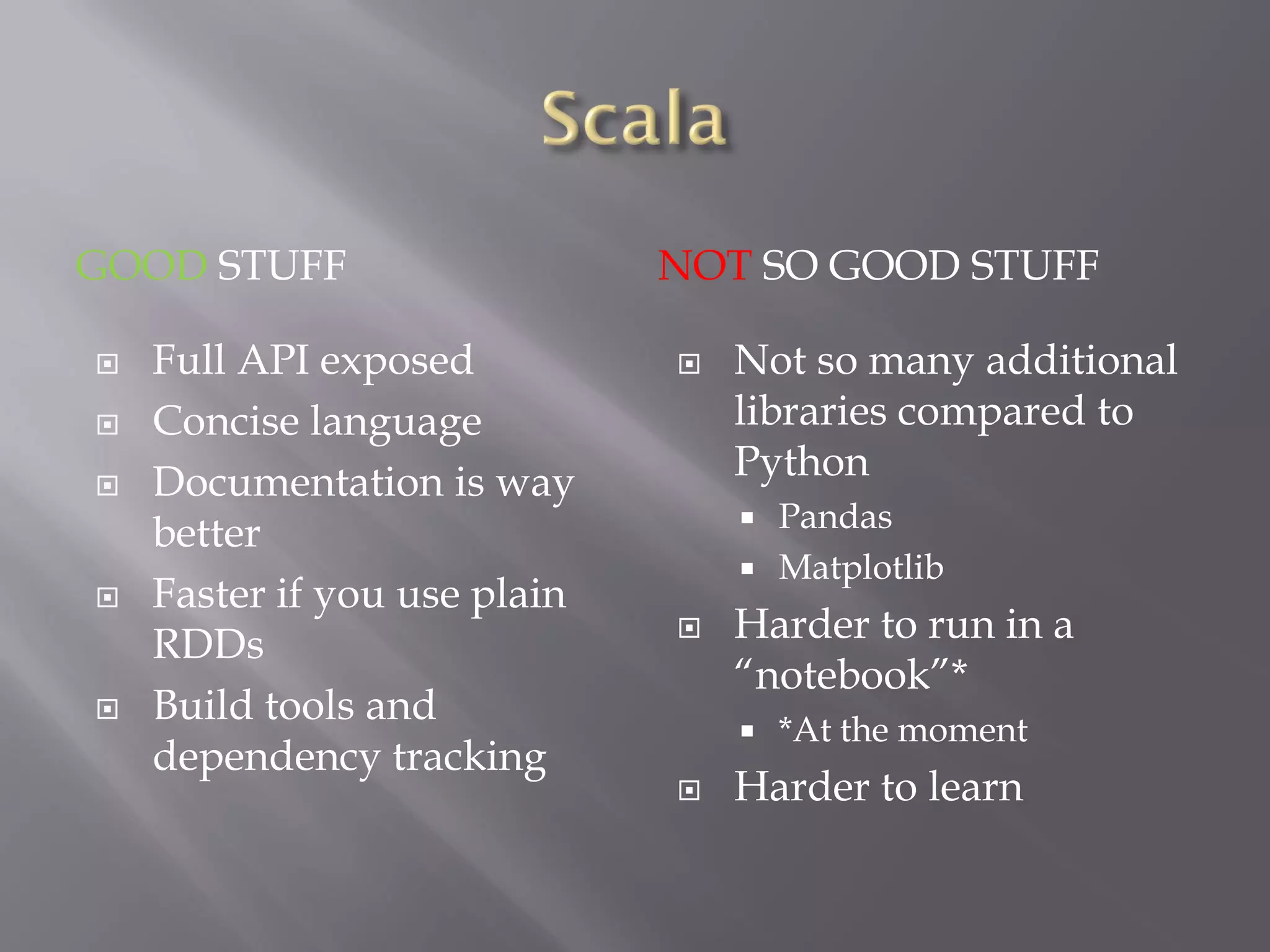

- 24. GOOD STUFF NOTSO GOOD STUFF Full API exposed Concise language Documentation is way better Faster if you use plain RDDs Build tools and dependency tracking Not so many additional libraries compared to Python Pandas Matplotlib Harder to run in a “notebook”* *At the moment Harder to learn

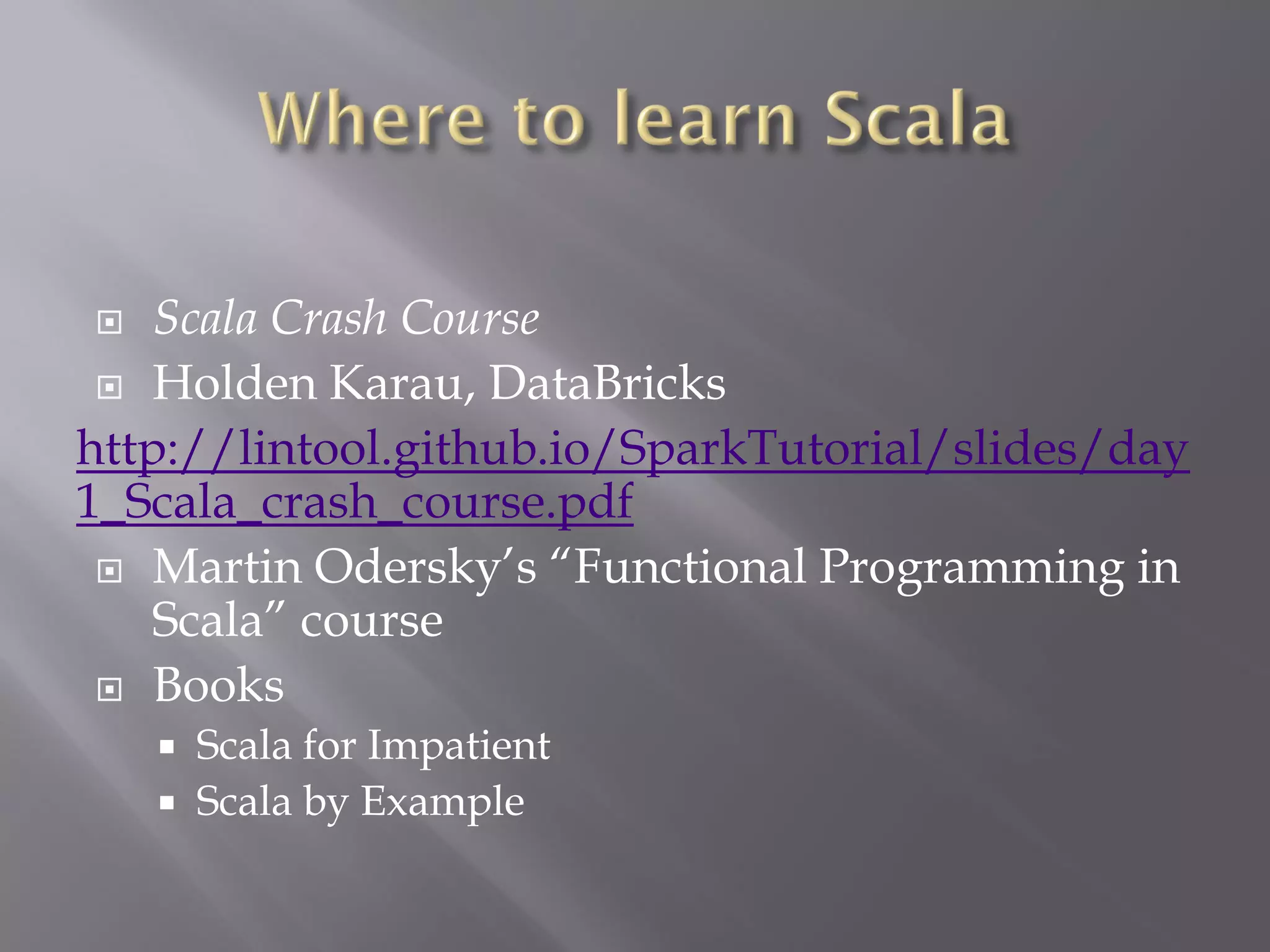

- 25. Scala CrashCourse Holden Karau, DataBricks http://lintool.github.io/SparkTutorial/slides/day 1_Scala_crash_course.pdf Martin Odersky’s “Functional Programming in Scala” course Books Scala for Impatient Scala by Example

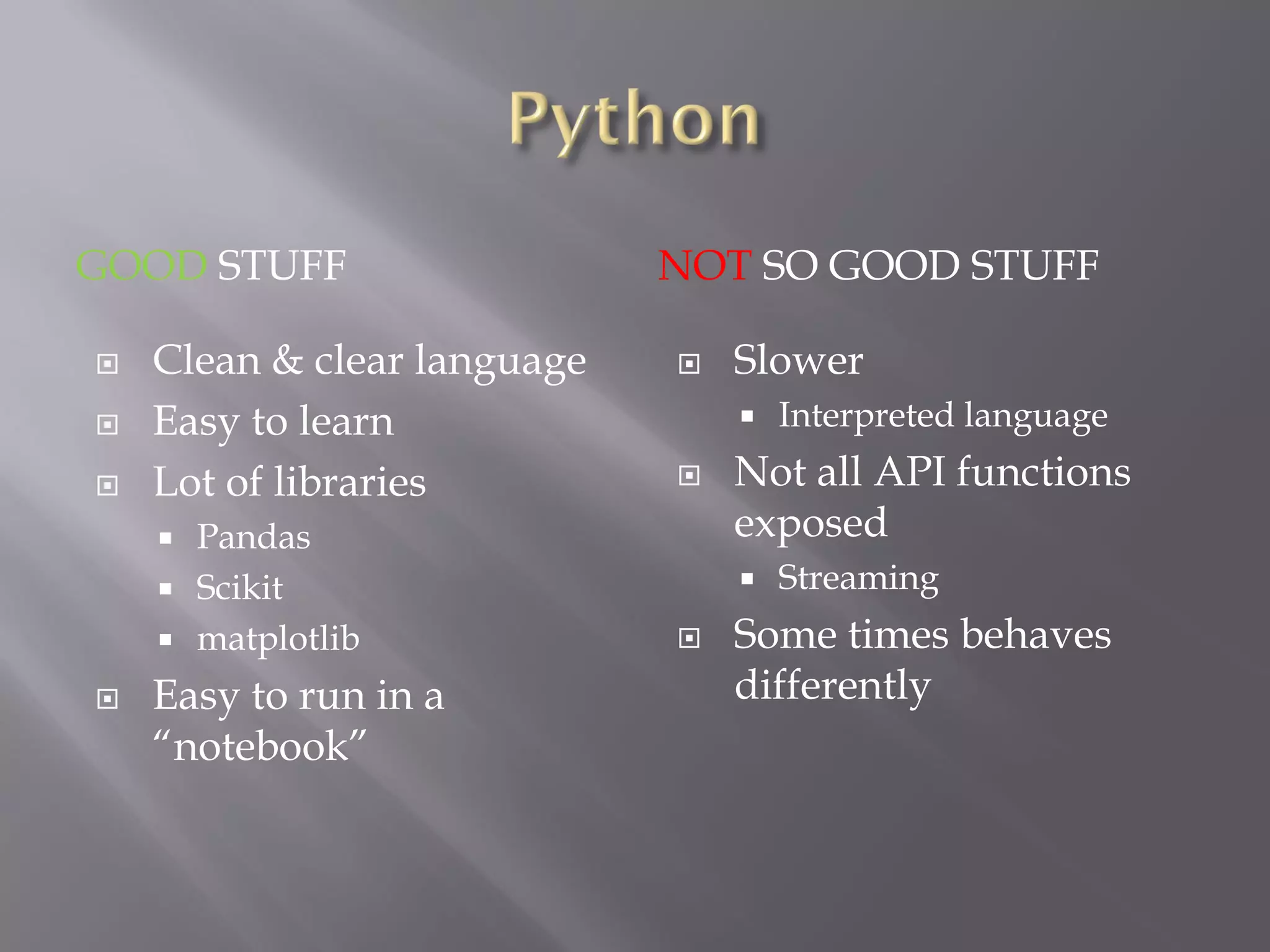

- 26. GOOD STUFF NOTSO GOOD STUFF Clean & clear language Easy to learn Lot of libraries Pandas Scikit matplotlib Easy to run in a “notebook” Slower Interpreted language Not all API functions exposed Streaming Some times behaves differently
- 27. I thinkcoding in Java for Spark is terrible But if you like it messy, there is nobody to stop you

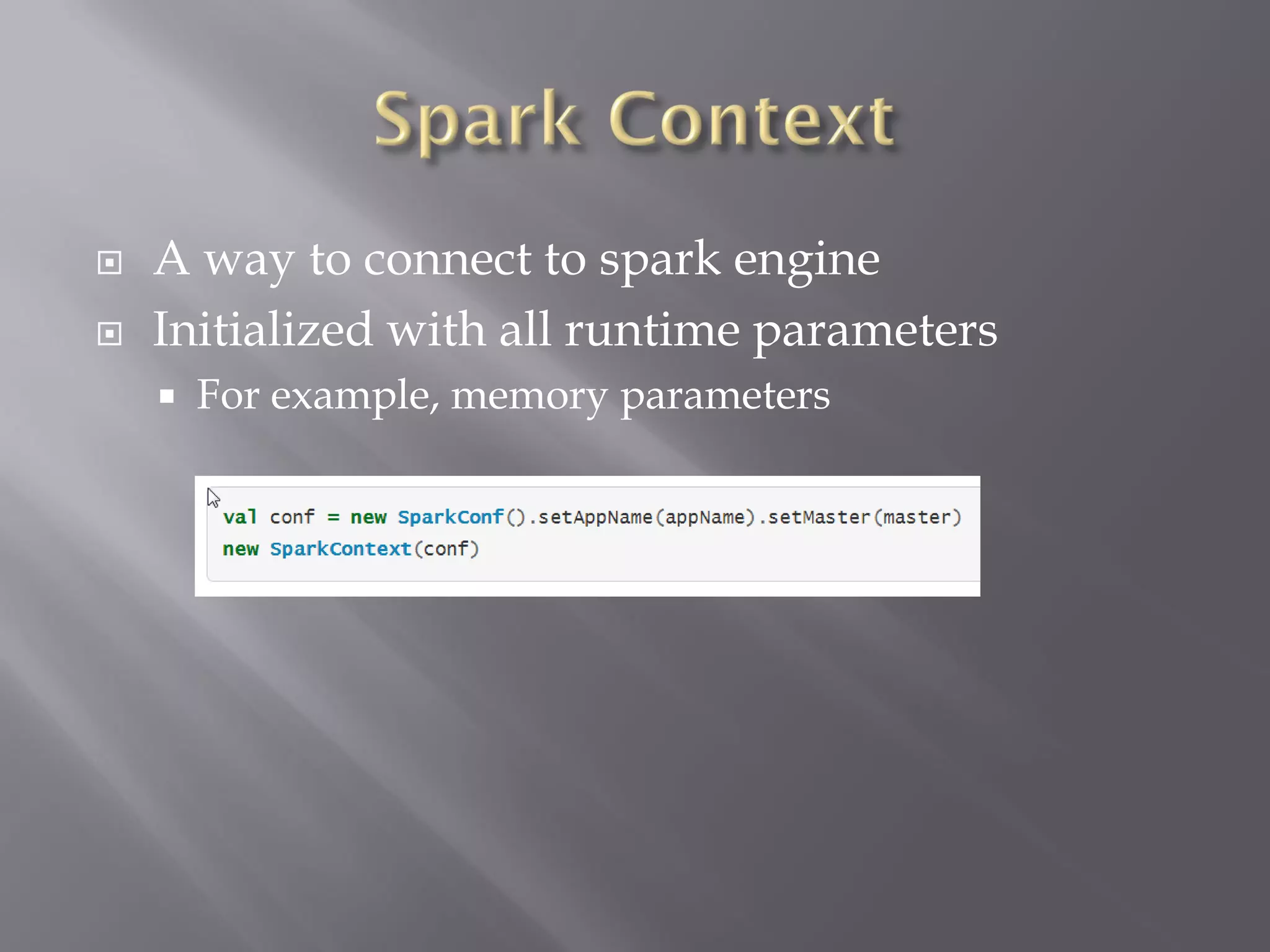

- 29. A wayto connect to spark engine Initialized with all runtime parameters For example, memory parameters

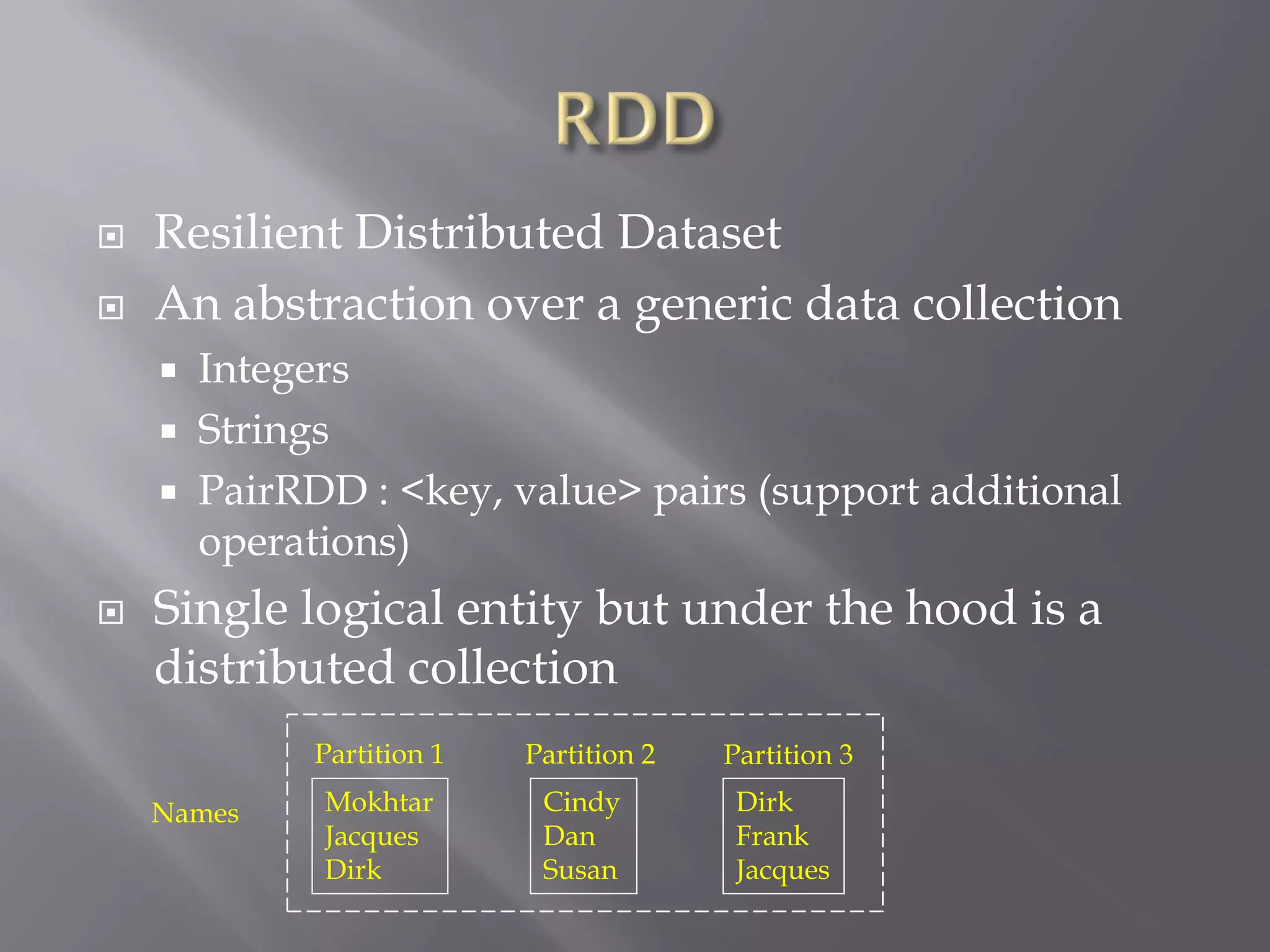

- 30. Resilient DistributedDataset An abstraction over a generic data collection Integers Strings PairRDD : <key, value> pairs (support additional operations) Single logical entity but under the hood is a distributed collection Mokhtar Jacques Dirk Cindy Dan Susan Dirk Frank Jacques Partition 1 Partition 2 Partition 3 Names

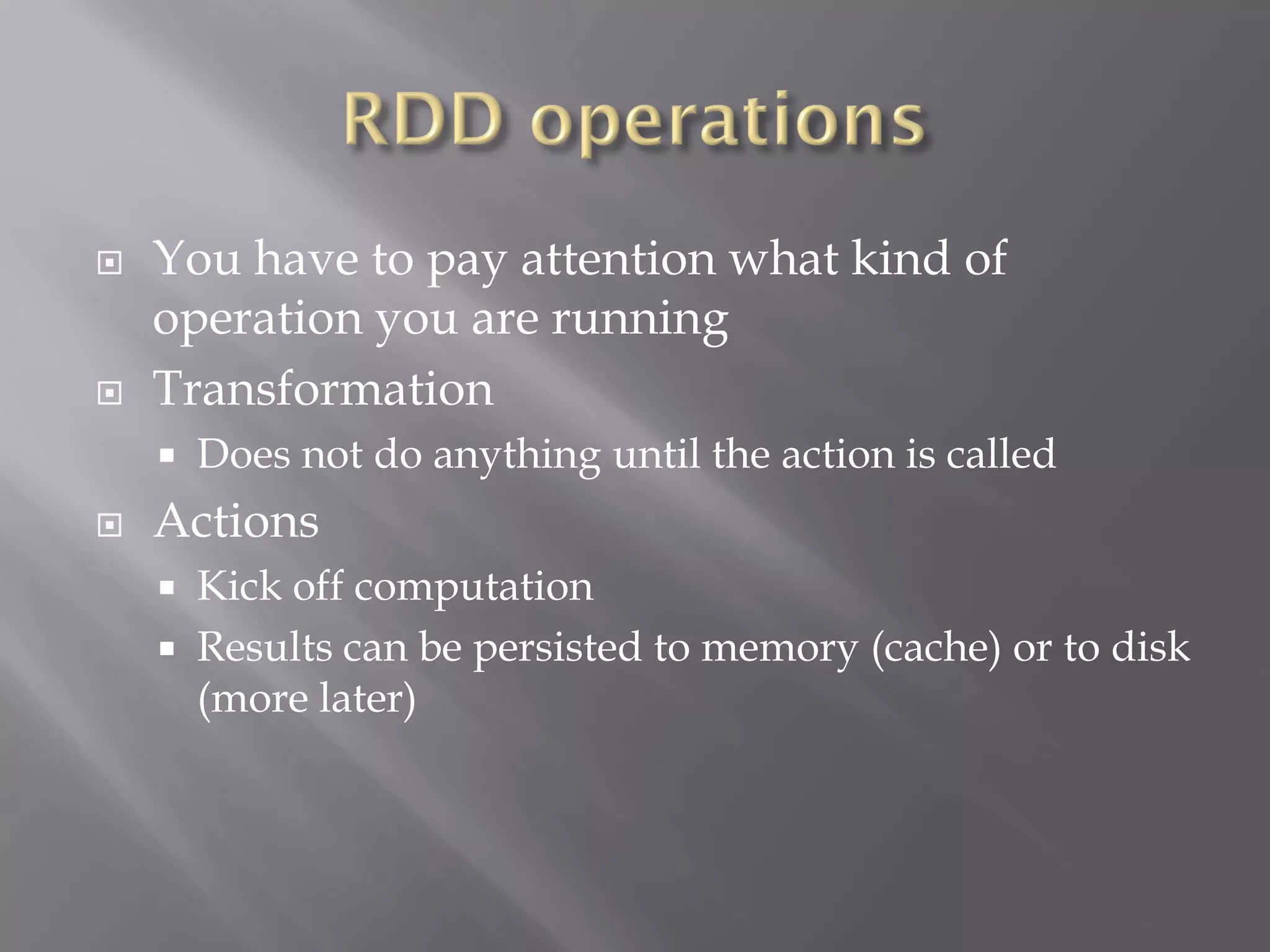

- 31. You haveto pay attention what kind of operation you are running Transformation Does not do anything until the action is called Actions Kick off computation Results can be persisted to memory (cache) or to disk (more later)

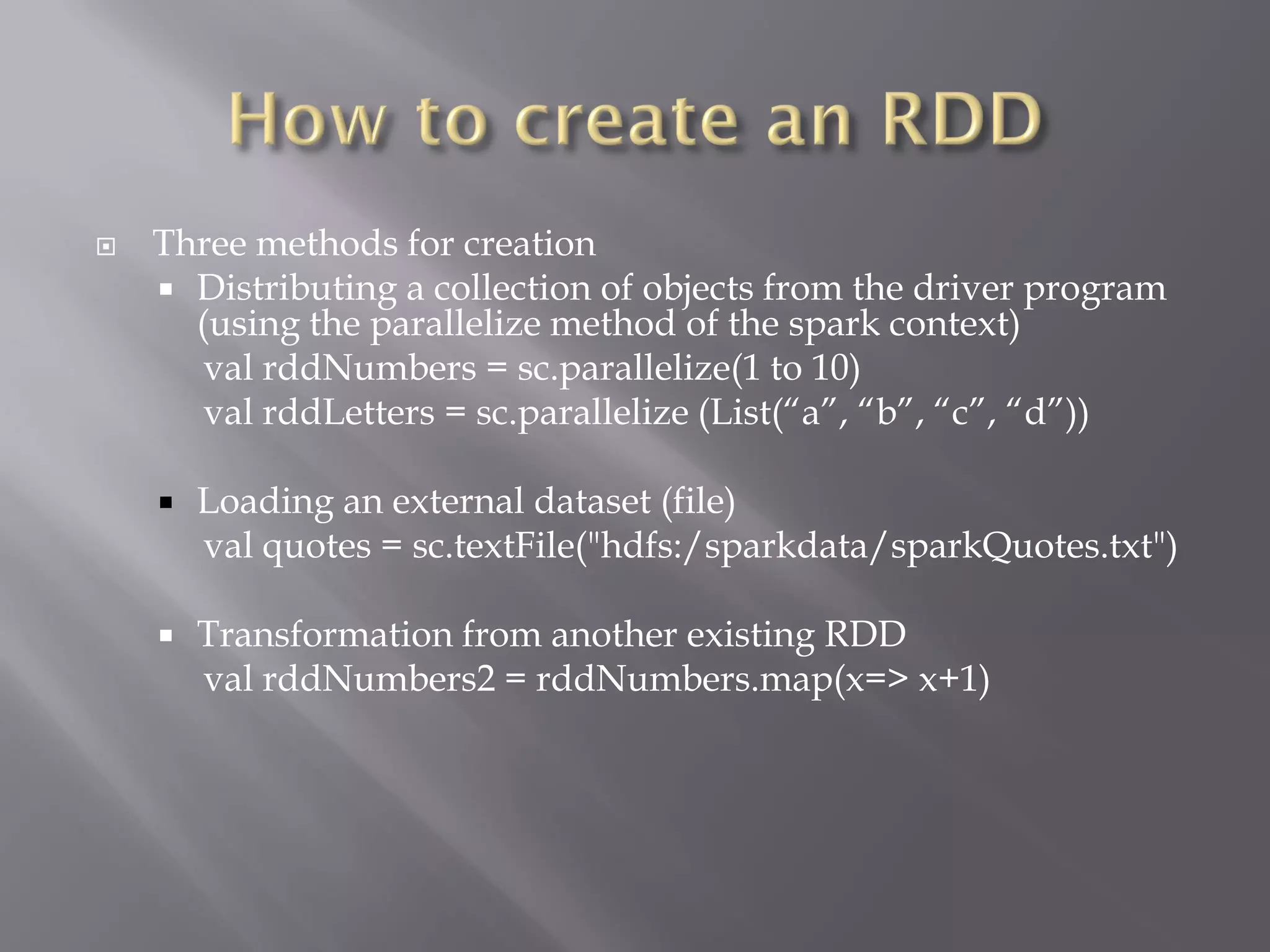

- 32. Three methodsfor creation Distributing a collection of objects from the driver program (using the parallelize method of the spark context) val rddNumbers = sc.parallelize(1 to 10) val rddLetters = sc.parallelize (List(“a”, “b”, “c”, “d”)) Loading an external dataset (file) val quotes = sc.textFile("hdfs:/sparkdata/sparkQuotes.txt") Transformation from another existing RDD val rddNumbers2 = rddNumbers.map(x=> x+1)

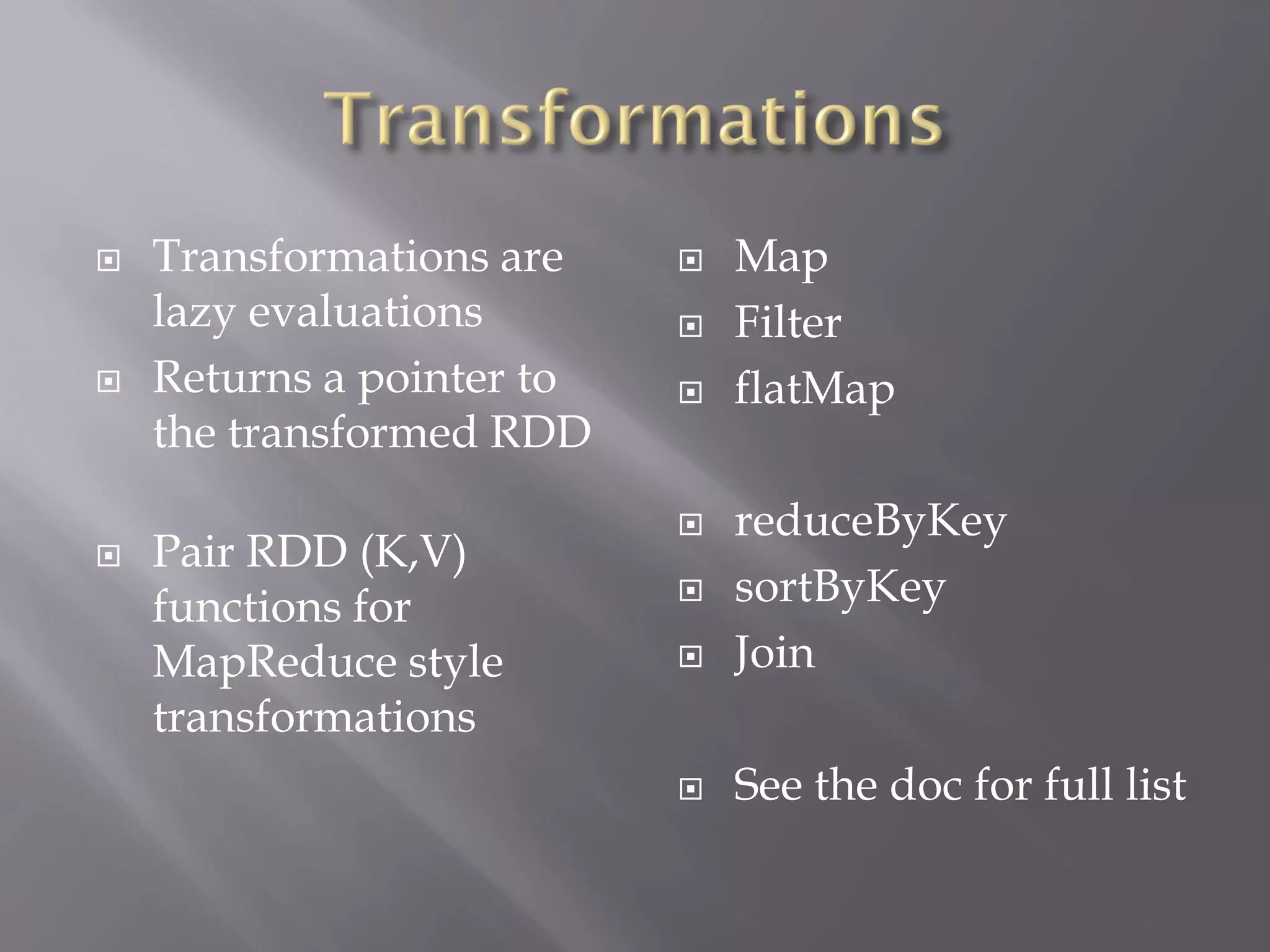

- 33. Transformations are lazyevaluations Returns a pointer to the transformed RDD Pair RDD (K,V) functions for MapReduce style transformations Map Filter flatMap reduceByKey sortByKey Join See the doc for full list

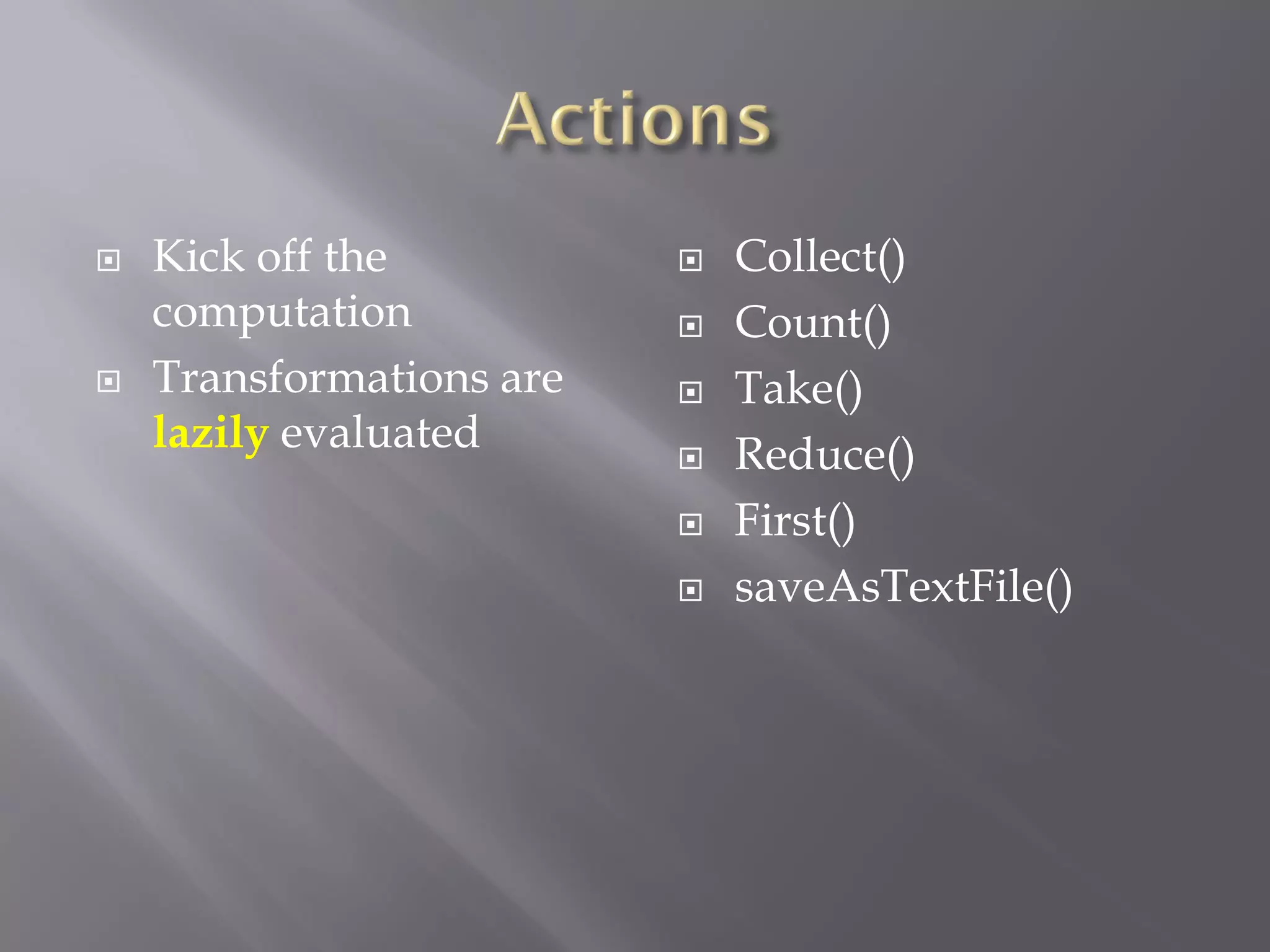

- 34. Kick offthe computation Transformations are lazily evaluated Collect() Count() Take() Reduce() First() saveAsTextFile()

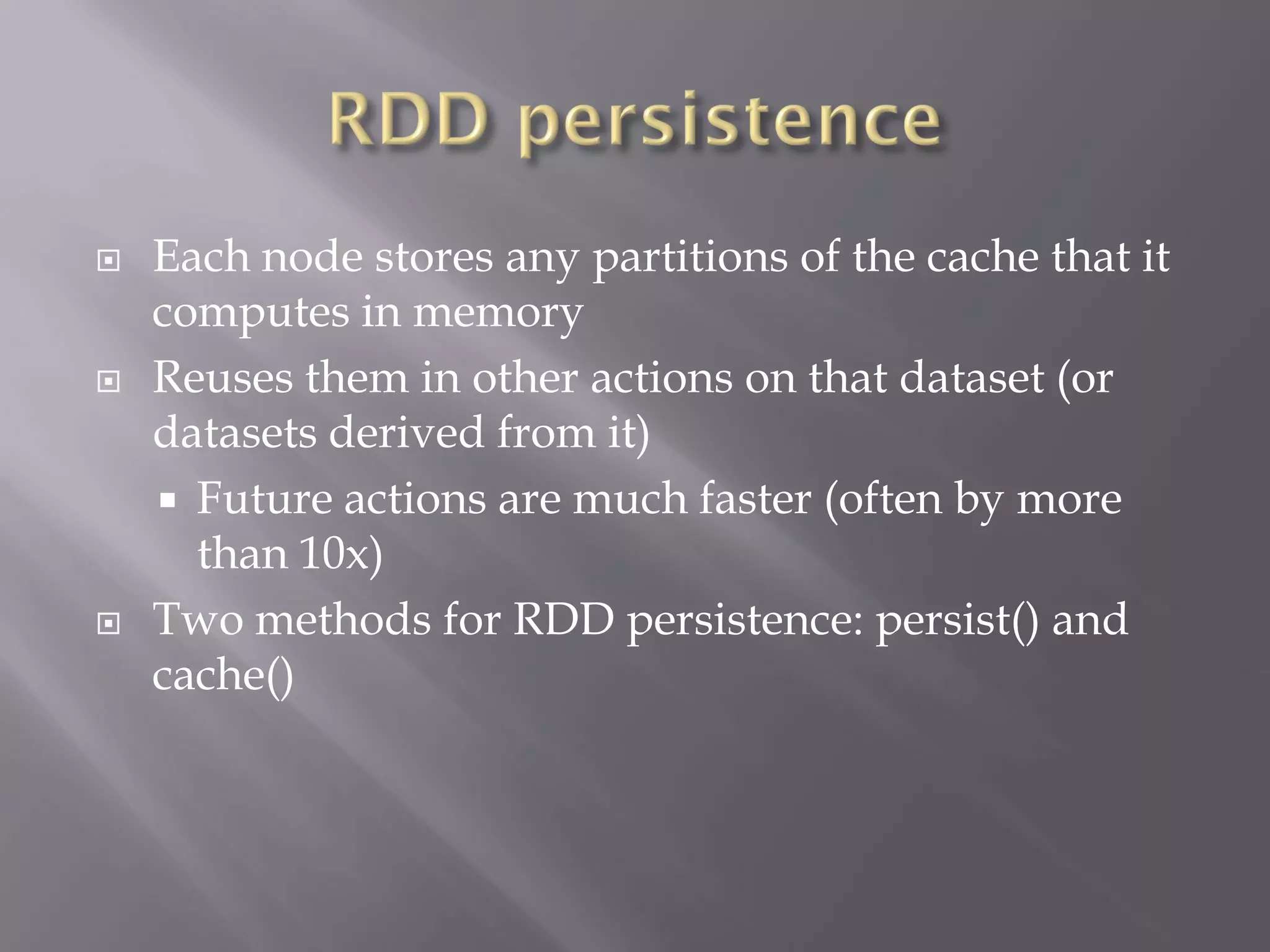

- 35. Each nodestores any partitions of the cache that it computes in memory Reuses them in other actions on that dataset (or datasets derived from it) Future actions are much faster (often by more than 10x) Two methods for RDD persistence: persist() and cache()

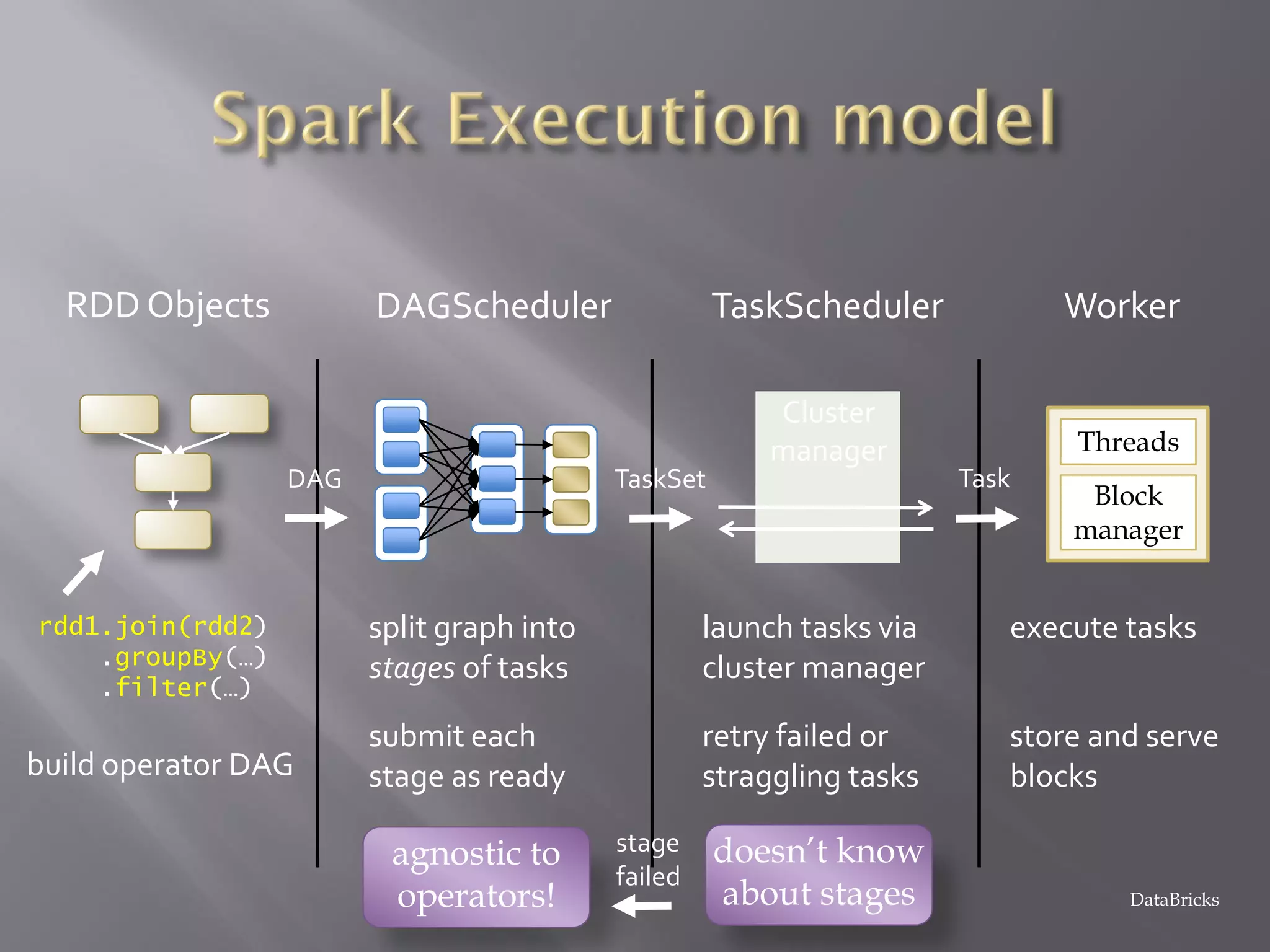

- 36. rdd1.join(rdd2) .groupBy(…) .filter(…) RDD Objects build operatorDAG agnostic to operators! doesn’t know about stages DAGScheduler split graph into stages of tasks submit each stage as ready DAG TaskScheduler TaskSet launch tasks via cluster manager retry failed or straggling tasks Cluster manager Worker execute tasks store and serve blocks Block manager Threads Task stage failed DataBricks

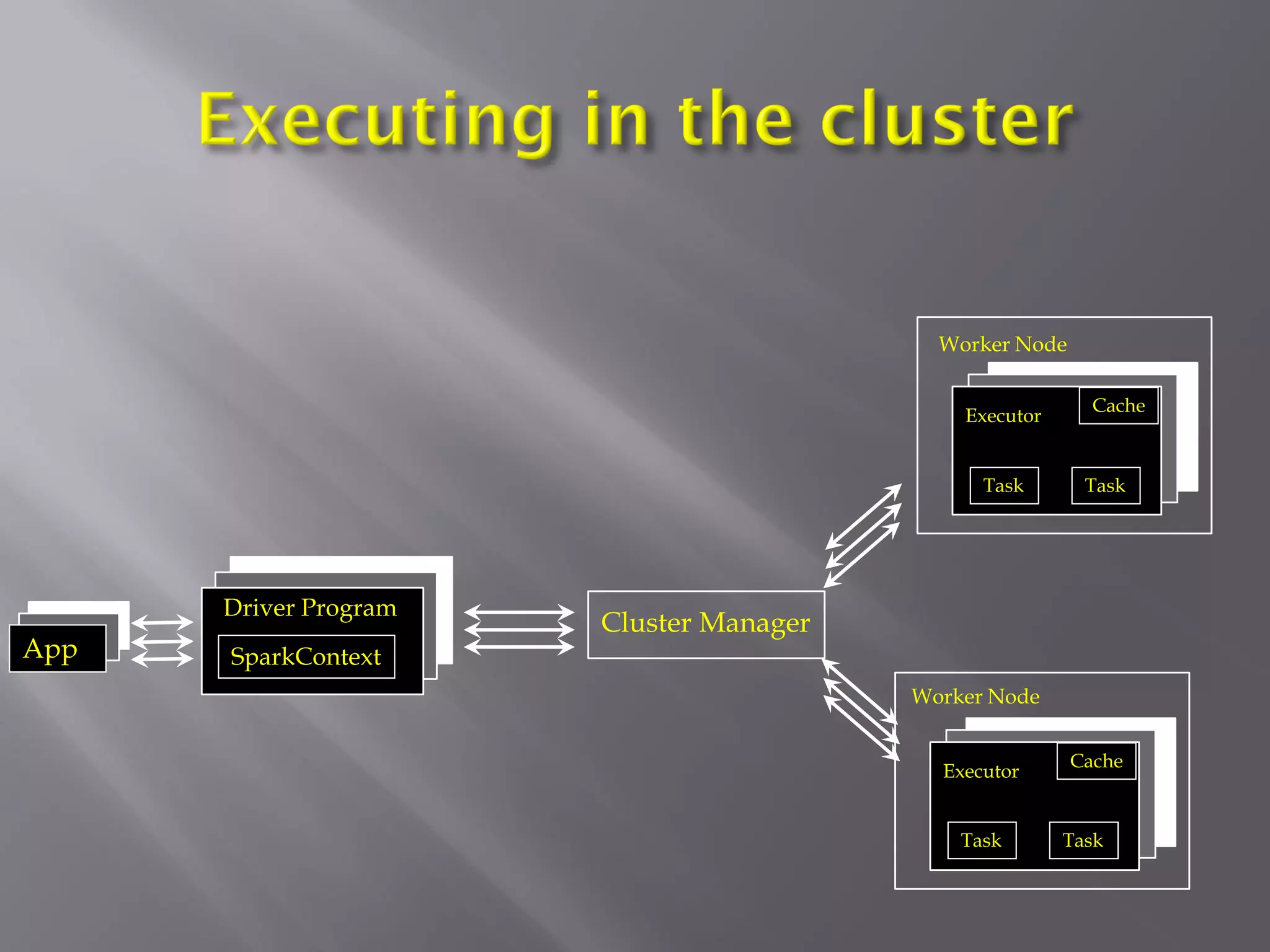

- 38. SparkContext Driver Program Cluster Manager WorkerNode Executor Task Task Cache Worker Node Executor Task Task Cache App

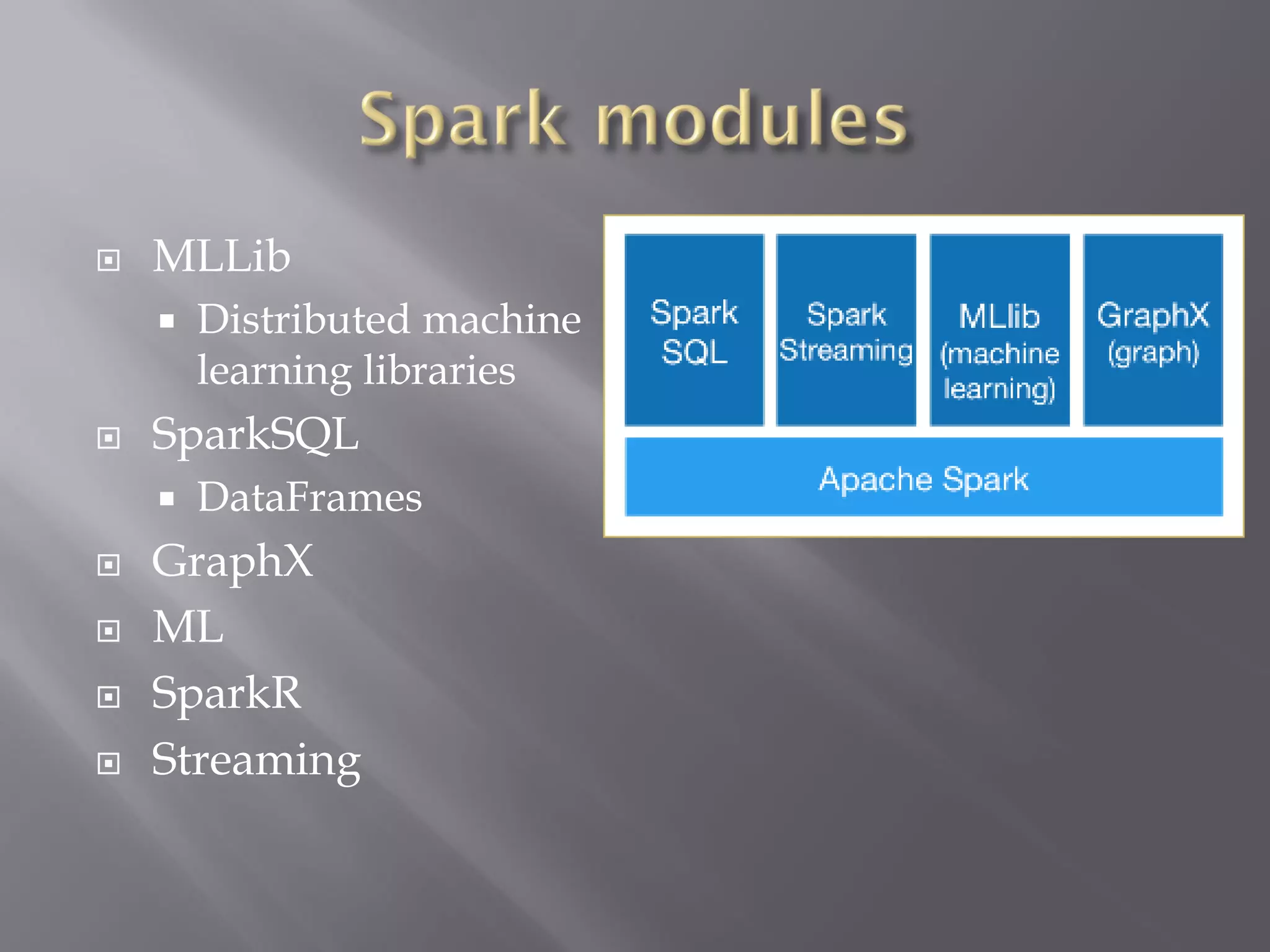

- 40. MLLib Distributedmachine learning libraries SparkSQL DataFrames GraphX ML SparkR Streaming

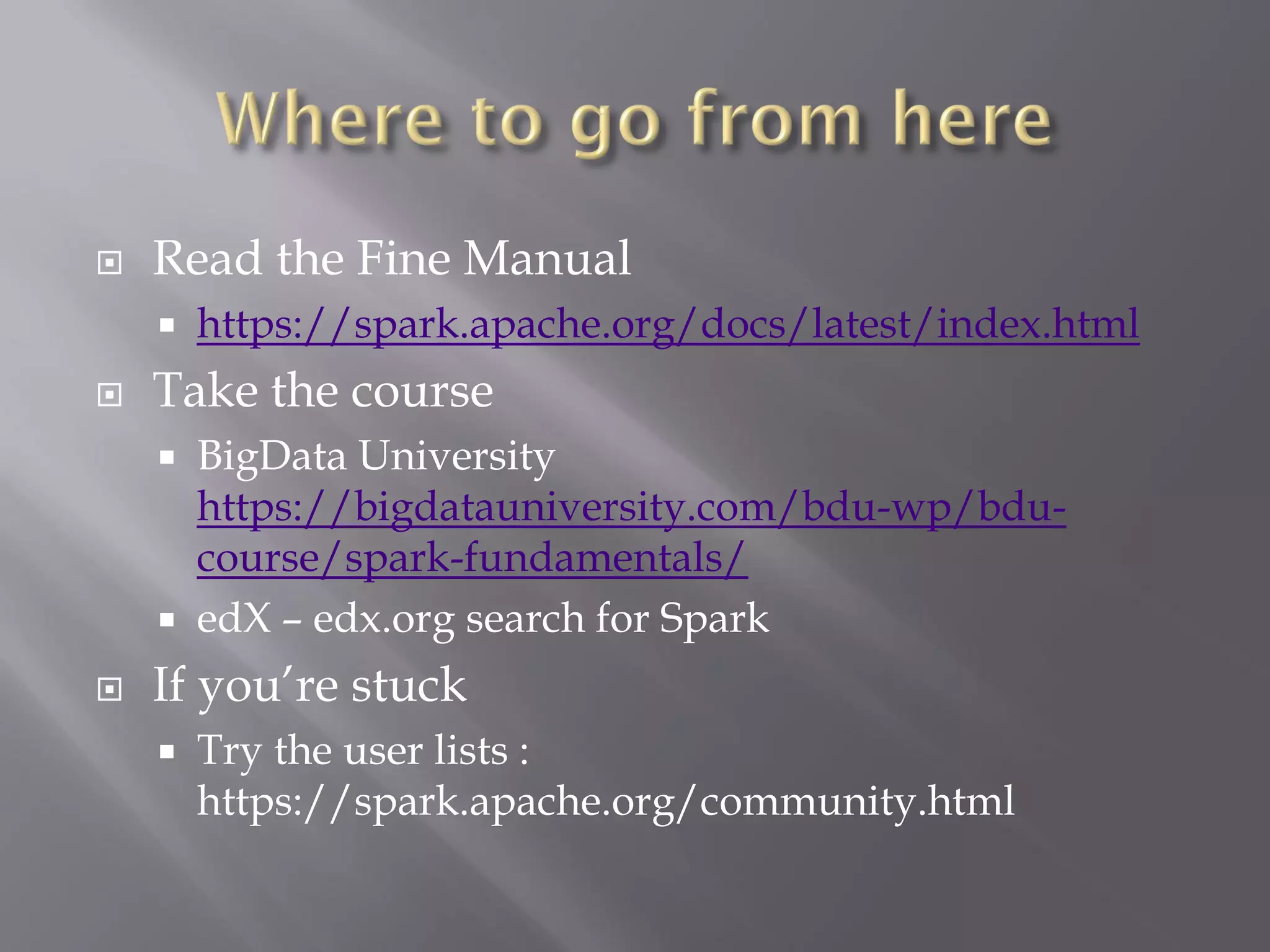

- 41. Read theFine Manual https://spark.apache.org/docs/latest/index.html Take the course BigData University https://bigdatauniversity.com/bdu-wp/bdu- course/spark-fundamentals/ edX – edx.org search for Spark If you’re stuck Try the user lists : https://spark.apache.org/community.html

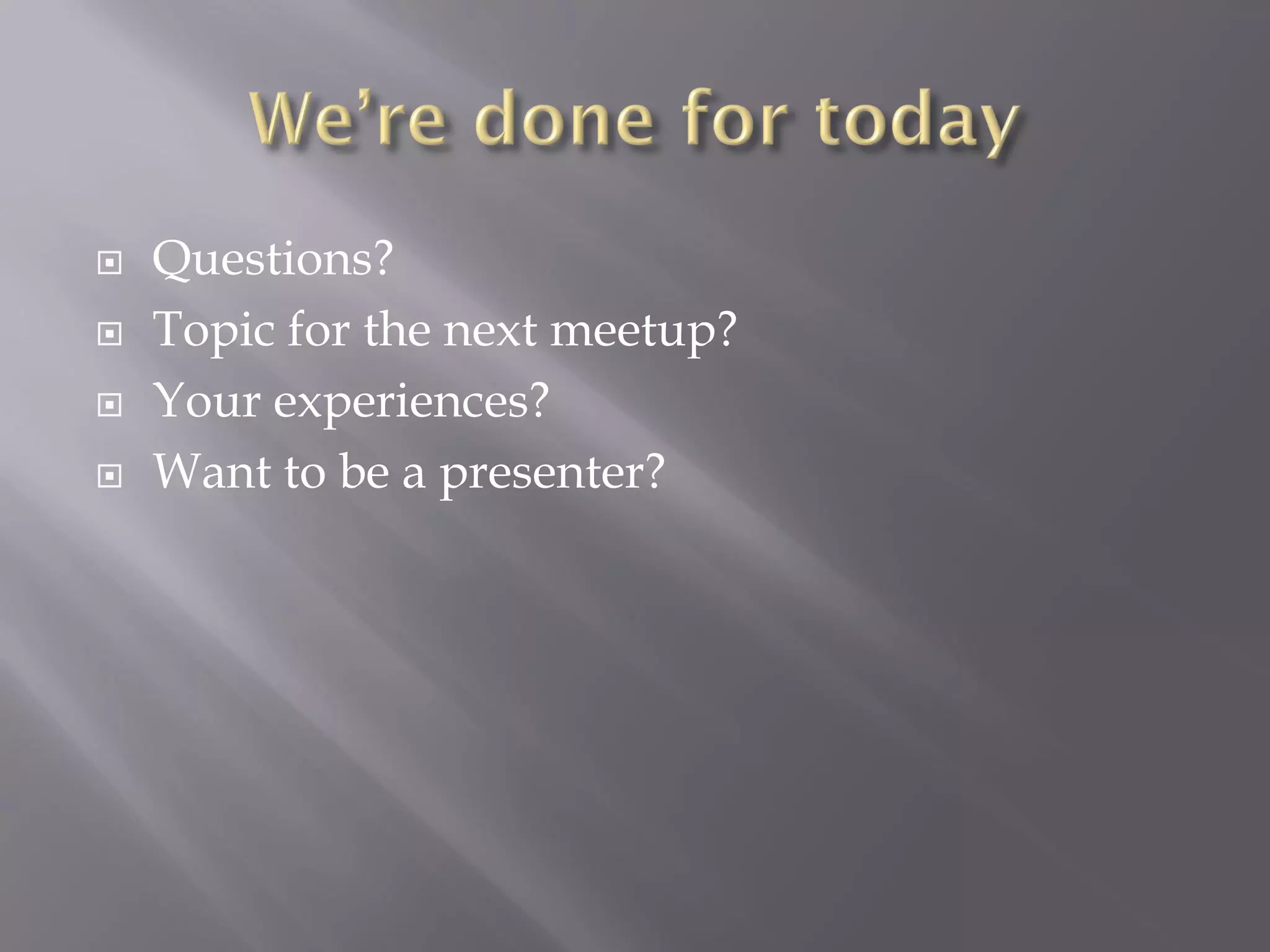

- 42. Questions? Topicfor the next meetup? Your experiences? Want to be a presenter?

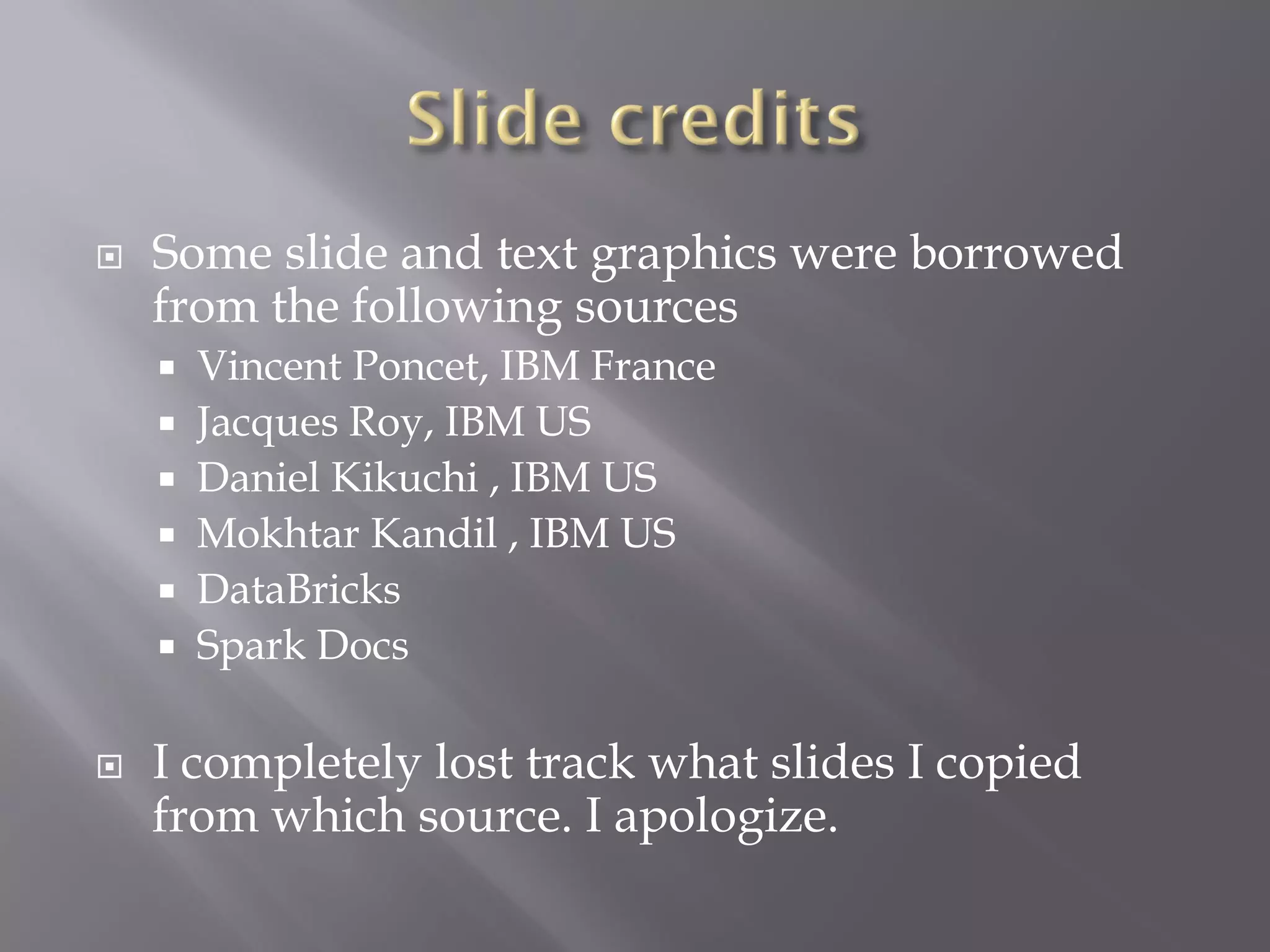

- 43. Some slideand text graphics were borrowed from the following sources Vincent Poncet, IBM France Jacques Roy, IBM US Daniel Kikuchi , IBM US Mokhtar Kandil , IBM US DataBricks Spark Docs I completely lost track what slides I copied from which source. I apologize.
